Phorus CAPRICA2XL Phorus Play-Fi Module User Manual

Phorus, Inc. Phorus Play-Fi Module

User Manual

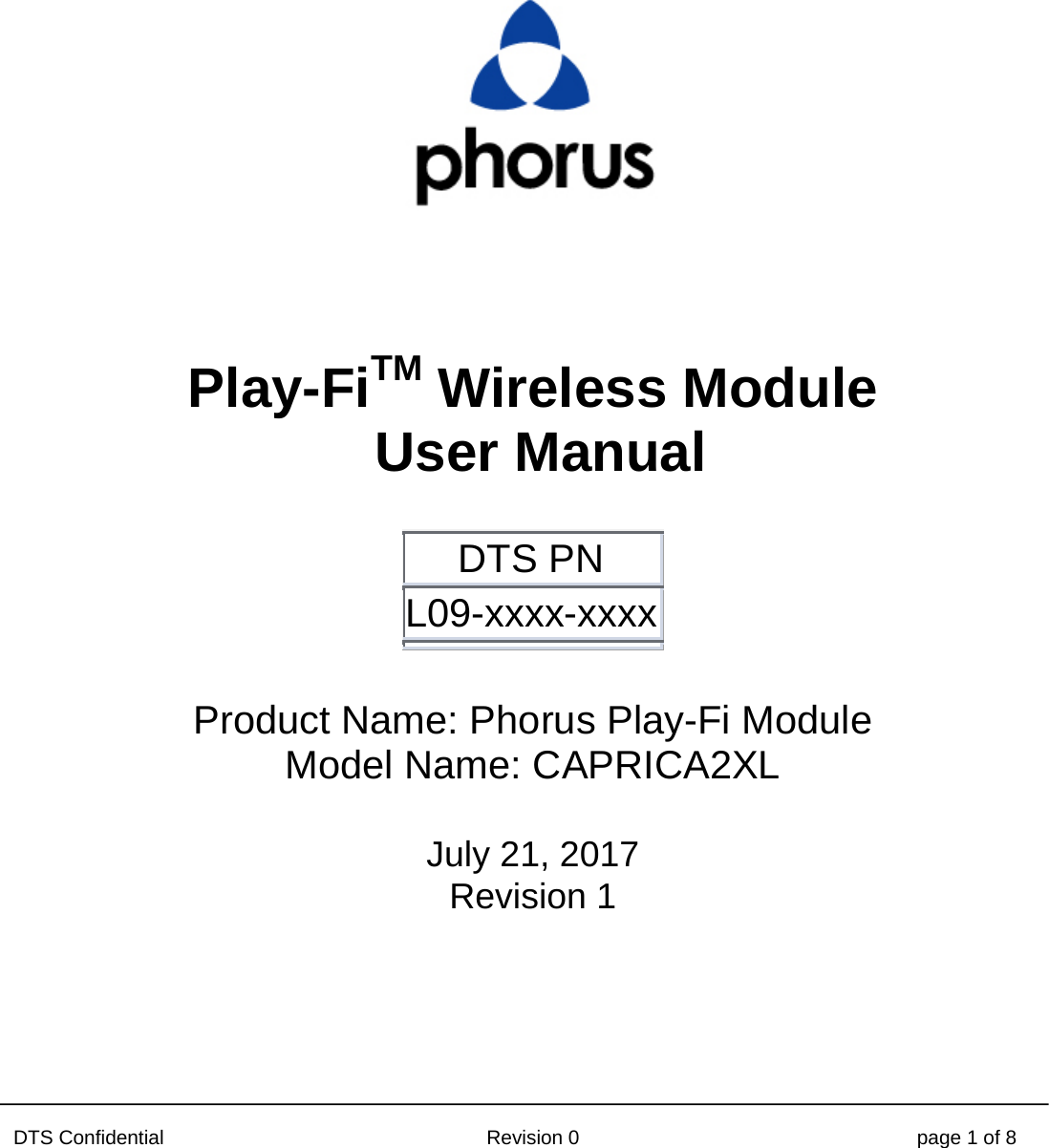

DTS Confidential Revision 0 page 1 of 8 Play-FiTM Wireless Module User Manual DTS PN L09-xxxx-xxxx Product Name: Phorus Play-Fi Module Model Name: CAPRICA2XL July 21, 2017 Revision 1

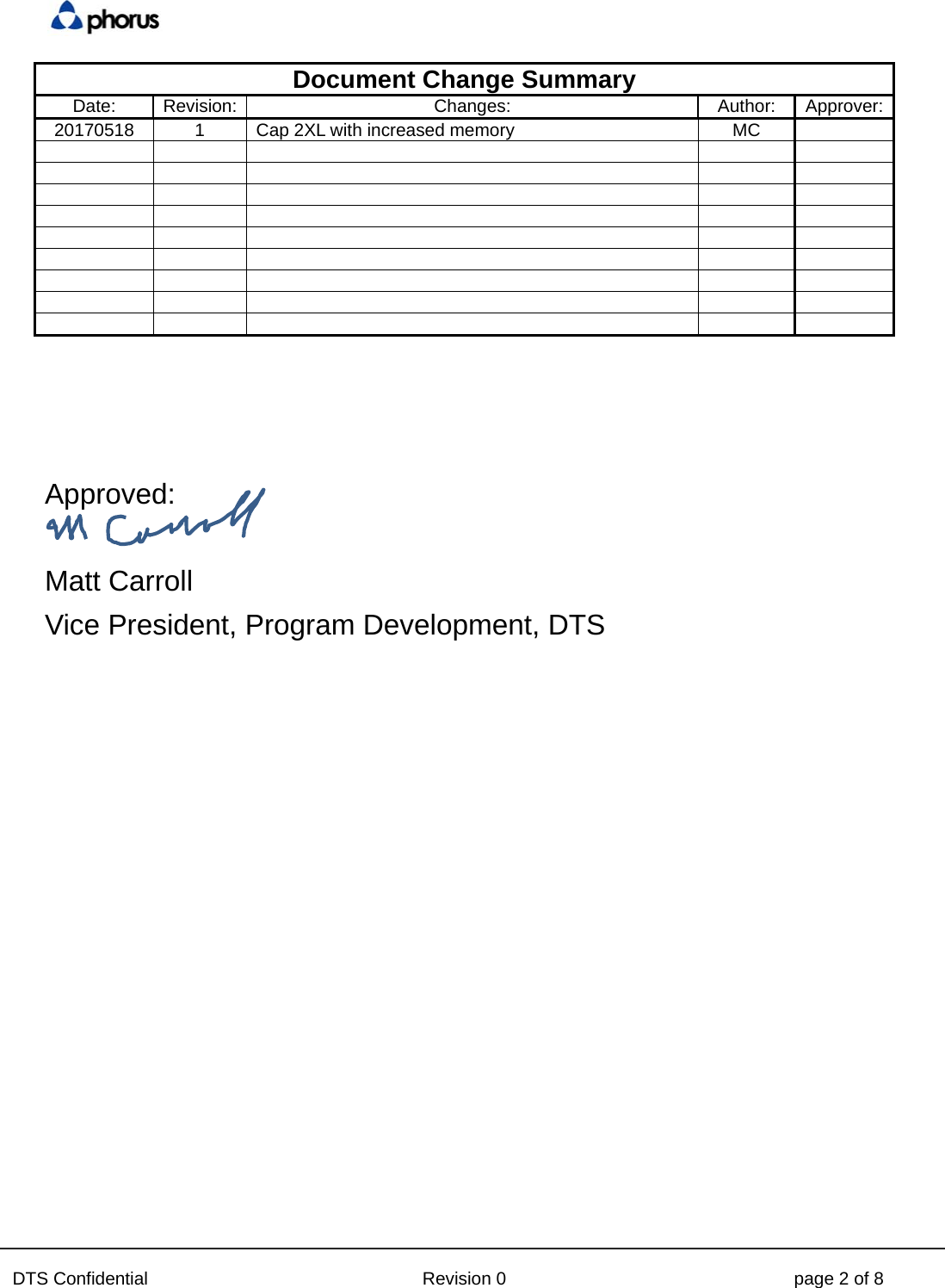

DTS Confidential Revision 0 page 2 of 8 Document Change Summary Date: Revision: Changes: Author: Approver:20170518 1 Cap 2XL with increased memory MC Approved: Matt Carroll Vice President, Program Development, DTS
DTS Confidential Revision 0 page 3 of 8 Table of Contents Table of Contents .......................................................................................................................................... 31 Play-Fi Wireless Module ............................................................................................................................ 42 Features ..................................................................................................................................................... 42.1 800MHz ARM-based Processor .......................................................................................................... 42.2 wMMX2 DSP Support.......................................................................................................................... 42.3 802.11a/b/g/n 1x1 Wi-Fi with Dual Diversity Antenna Support ........................................................... 42.4 I2C control channel .............................................................................................................................. 42.5 I2S Data Input/Output .......................................................................................................................... 42.6 USB 2.0HS OTG ................................................................................................................................. 43 Caprica Module Electrical Interface Definition ........................................................................................... 43.1 Interface Connector Information, Mechanical ..................................................................................... 44 Electrical Characteristics ............................................................................................................................ 54.1 Operating Voltages .............................................................................................................................. 54.2 Power Consumption ............................................................................................................................ 55 Mechanical Outline ..................................................................................................................................... 56 Configuration Details .................................................................................................................................. 6
DTS Confidential Revision 0 page 4 of 8 1 Play-Fi Wireless Module The second-generation Play-Fi Wireless Module, also known as Caprica2XL is a WiFi audio module designed for wireless, multi-room audio distribution. The module may be utilized in speakers, stand-alone receivers or incorporated into other products like AVRs. 2 Features The Caprica2XL Play-Fi Wireless module is a programmable, high-performance, encapsulated design that enables manufacturers to wirelessly distribute audio to multiple devices. Sources can include Play-Fi Applications, Play-Fi Drivers, or other sources of a manufacturer's choice, such as Bluetooth, via a I2S input. The design supports a number of interfaces that enable easy integration of the module to traditional consumer electronic designs. Caprica2XL features include: 2.1 800MHz ARM-based Processor Marvell PXA166 ARM v6/v7-compatible core: 2.2 wMMX2 DSP Support 2.3 802.11a/b/g/n 1x1 Wi-Fi with Dual Diversity Antenna Support 2.4 I2C control channel 2.5 I2S Data Input/Output 2.6 USB 2.0HS OTG 3 Caprica Module Electrical Interface Definition 3.1 Interface Connector Information, Mechanical 3.1.1 80-pin Board-to-Board Connector The Caprica2XL utilizes a 0.5mm BTB SMT Female type, P/N: 88079-0800A1 (See 88079-0800A1_88079-xxxxAx-aces_rev-U.pdf) for Board to Board (BTB) connection.

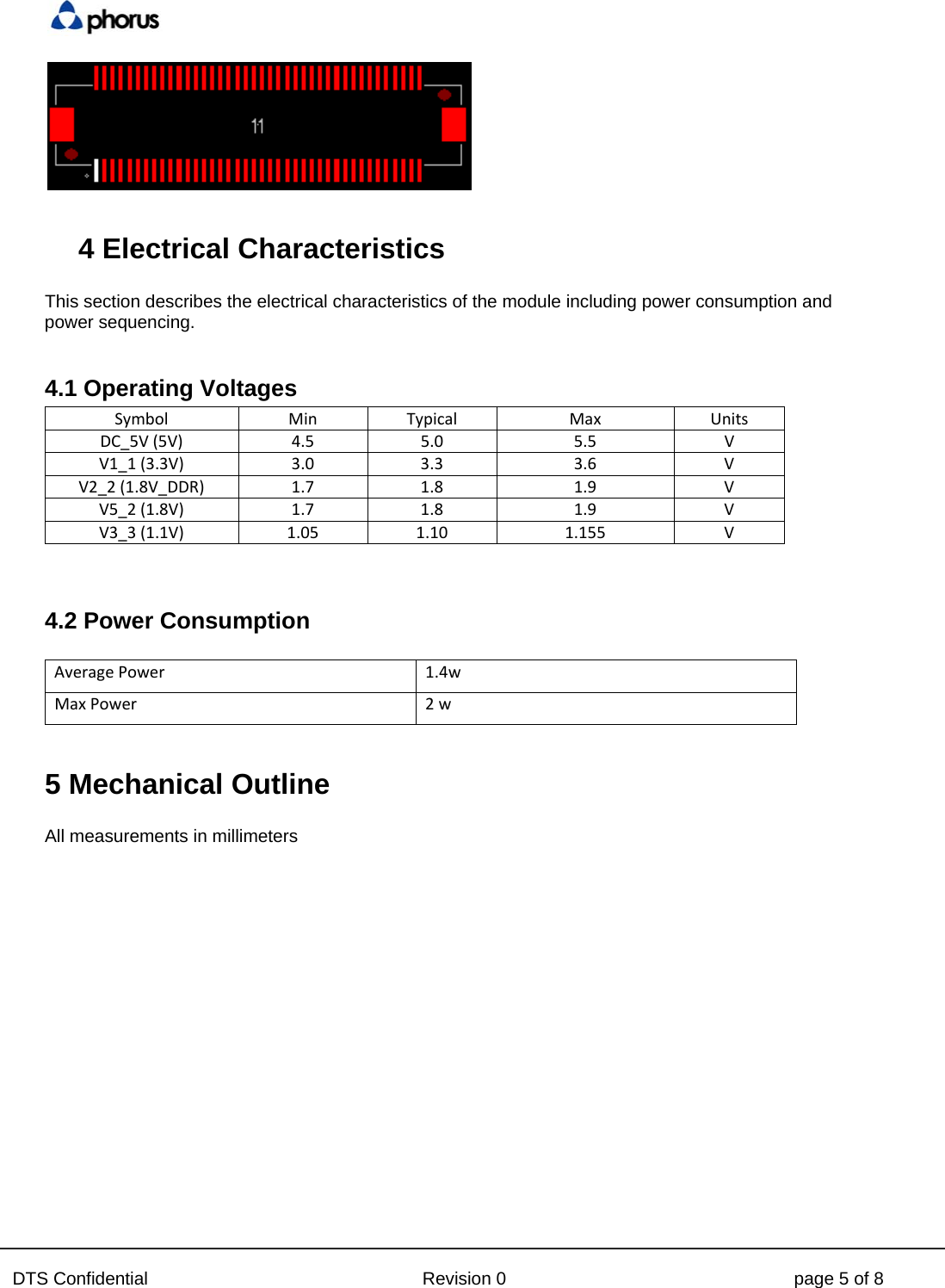

DTS Confidential Revision 0 page 5 of 8 4 Electrical Characteristics This section describes the electrical characteristics of the module including power consumption and power sequencing. 4.1 Operating Voltages SymbolMinTypical Max UnitsDC_5V(5V)4.55.0 5.5 VV1_1(3.3V)3.03.3 3.6 VV2_2(1.8V_DDR)1.71.8 1.9 VV5_2(1.8V)1.71.8 1.9 VV3_3(1.1V)1.051.10 1.155 V 4.2 Power Consumption AveragePower 1.4w MaxPower 2 w 5 Mechanical Outline All measurements in millimeters
DTS Confidential Revision 0 page 6 of 8 80 Pin Connector 6 Configuration Details TherearethreeconfigurationsofFlash+DDR3onthemodule.WINBOND Flash (2Gb) + Etron DDR3 (1Gb) ESMT Flash (2Gb) + Etron DDR3 (1Gb) TOSHIBA Flash (2Gb) + Etron DDR3 (1Gb)

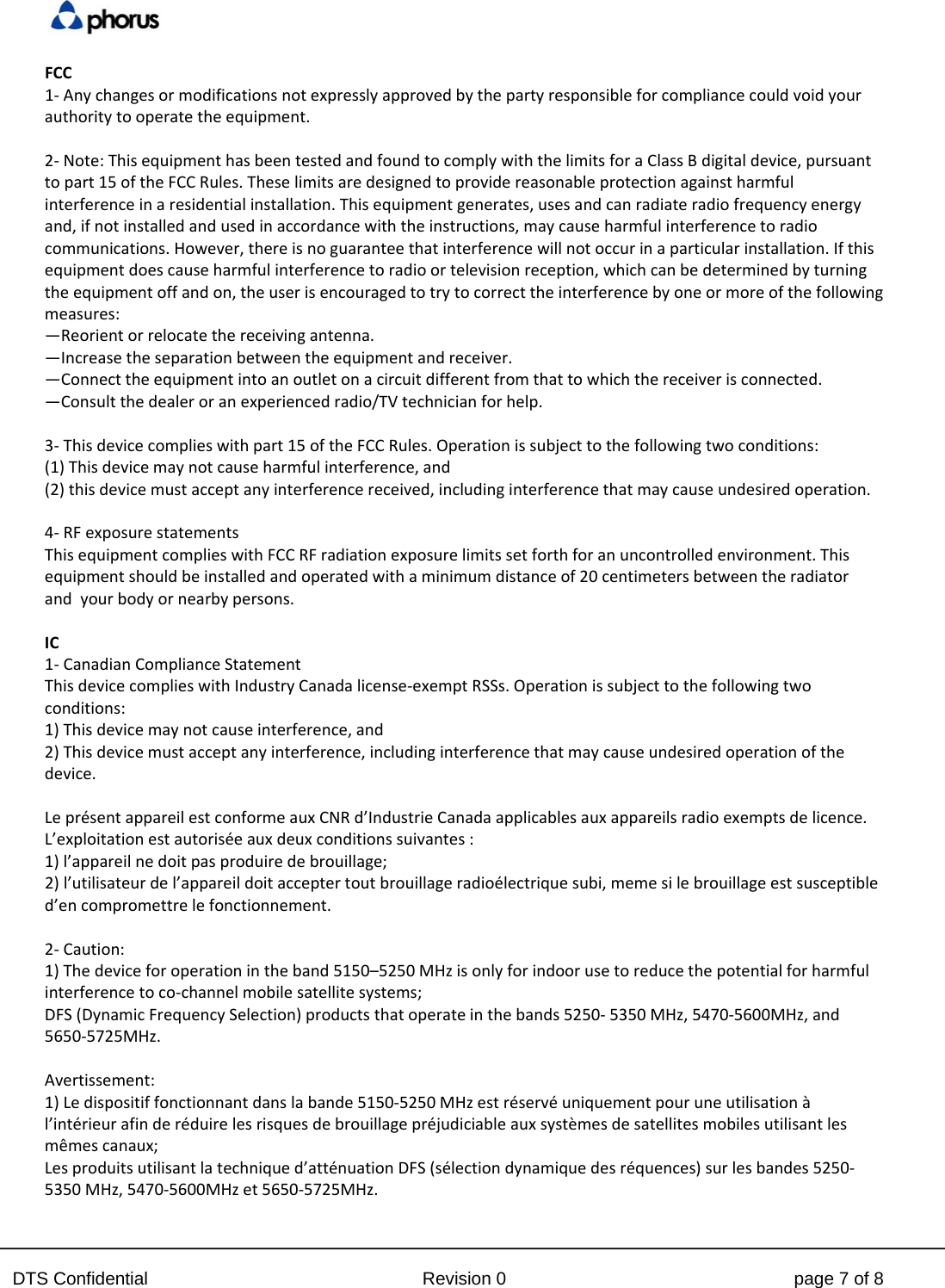

DTS Confidential Revision 0 page 7 of 8 FCC1‐Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidyourauthoritytooperatetheequipment.2‐Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:—Reorientorrelocatethereceivingantenna.—Increasetheseparationbetweentheequipmentandreceiver.—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.3‐Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.4‐RFexposurestatementsThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceof20centimetersbetweentheradiatorandyourbodyornearbypersons.IC1‐CanadianComplianceStatementThisdevicecomplieswithIndustryCanadalicense‐exemptRSSs.Operationissubjecttothefollowingtwoconditions:1)Thisdevicemaynotcauseinterference,and2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.LeprésentappareilestconformeauxCNRd’IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L’exploitationestautoriséeauxdeuxconditionssuivantes:1)l’appareilnedoitpasproduiredebrouillage;2)l’utilisateurdel’appareildoitacceptertoutbrouillageradioélectriquesubi,memesilebrouillageestsusceptibled’encompromettrelefonctionnement.2‐Caution:1)Thedeviceforoperationintheband5150–5250MHzisonlyforindoorusetoreducethepotentialforharmfulinterferencetoco‐channelmobilesatellitesystems;DFS(DynamicFrequencySelection)productsthatoperateinthebands5250‐5350MHz,5470‐5600MHz,and5650‐5725MHz.Avertissement:1)Ledispositiffonctionnantdanslabande5150‐5250MHzestréservéuniquementpouruneutilisationàl’intérieurafinderéduirelesrisquesdebrouillagepréjudiciableauxsystèmesdesatellitesmobilesutilisantlesmêmescanaux;Lesproduitsutilisantlatechniqued’atténuationDFS(sélectiondynamiquedesréquences)surlesbandes5250‐5350MHz,5470‐5600MHzet5650‐5725MHz.

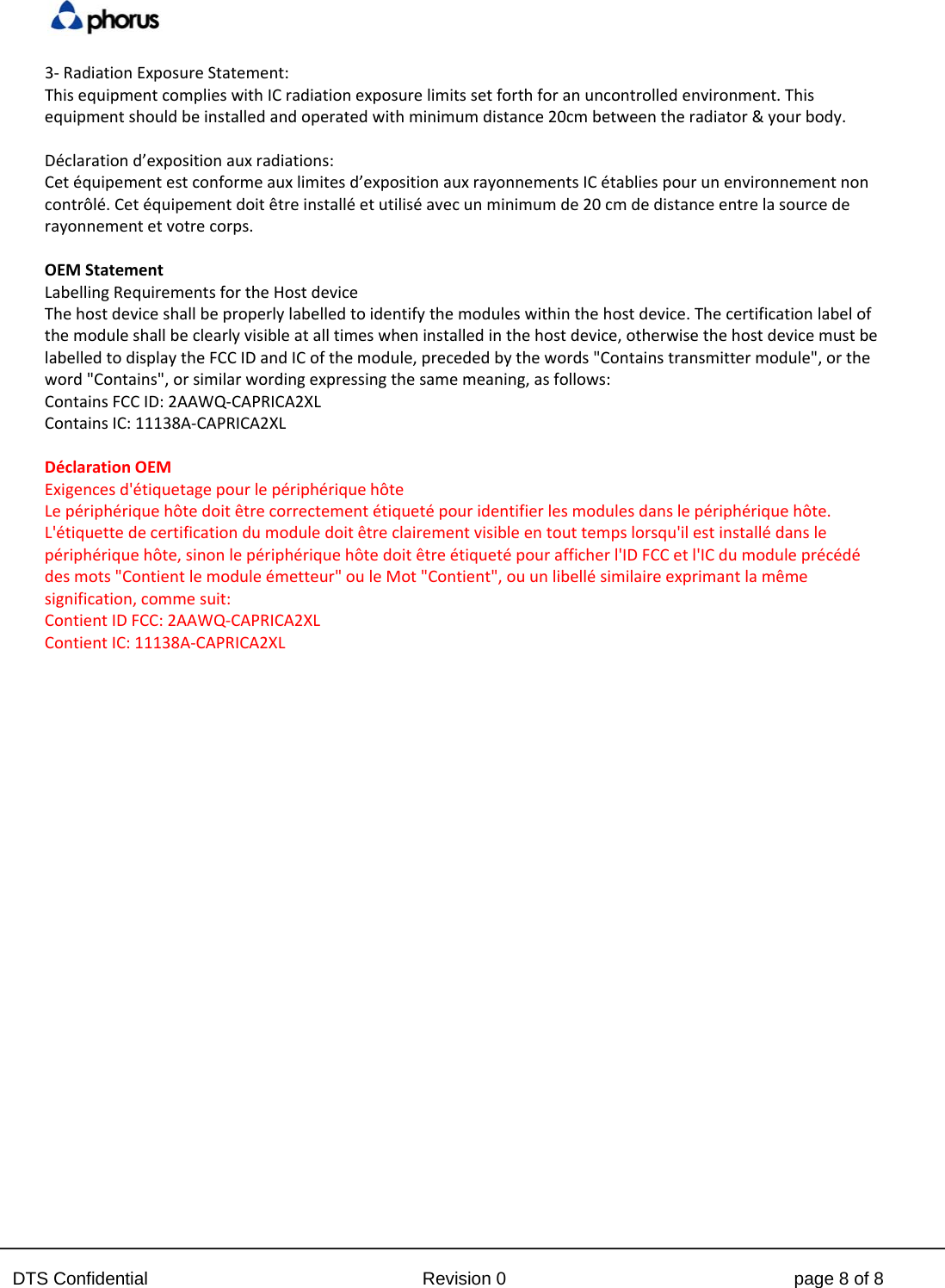

DTS Confidential Revision 0 page 8 of 8 3‐RadiationExposureStatement:ThisequipmentcomplieswithICradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody.Déclarationd’expositionauxradiations:Cetéquipementestconformeauxlimitesd’expositionauxrayonnementsICétabliespourunenvironnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavecunminimumde20cmdedistanceentrelasourcederayonnementetvotrecorps.OEMStatement LabellingRequirementsfortheHostdevice Thehostdeviceshallbeproperlylabelledtoidentifythemoduleswithinthehostdevice.Thecertificationlabelofthemoduleshallbeclearlyvisibleatalltimeswheninstalledinthehostdevice,otherwisethehostdevicemustbelabelledtodisplaytheFCCIDandICofthemodule,precededbythewords"Containstransmittermodule",ortheword"Contains",orsimilarwordingexpressingthesamemeaning,asfollows: ContainsFCCID:2AAWQ‐CAPRICA2XL ContainsIC:11138A‐CAPRICA2XLDéclarationOEM Exigencesd'étiquetagepourlepériphériquehôte Lepériphériquehôtedoitêtrecorrectementétiquetépouridentifierlesmodulesdanslepériphériquehôte.L'étiquettedecertificationdumoduledoitêtreclairementvisibleentouttempslorsqu'ilestinstallédanslepériphériquehôte,sinonlepériphériquehôtedoitêtreétiquetépourafficherl'IDFCCetl'ICdumoduleprécédédesmots"Contientlemoduleémetteur"ouleMot"Contient",ouunlibellésimilaireexprimantlamêmesignification,commesuit: ContientIDFCC:2AAWQ‐CAPRICA2XL ContientIC:11138A‐CAPRICA2XL
