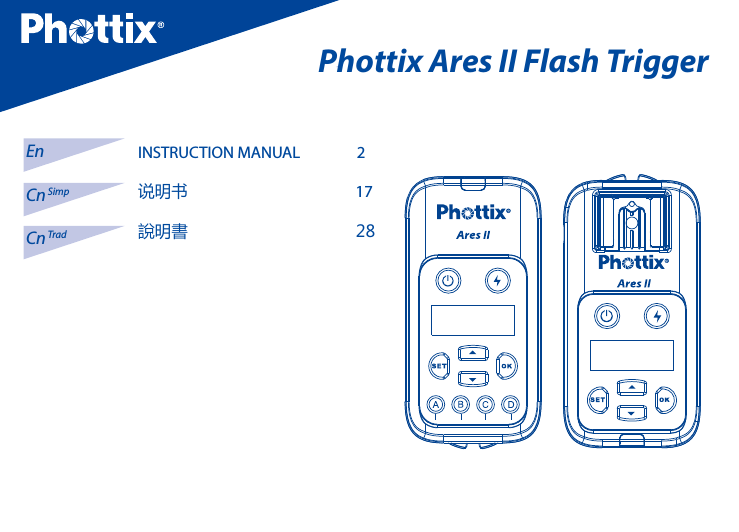

En1INSTRUCTION MANUAL Phottix Ares II Flash Trigger INSTRUCTION MANUAL 2说明书 17說明書 28EnCn SimpCn Trad

2Thank you for purchasing a Phottix productCaution: Before using the Ares II Flash Trigger please read these instruction carefully. Consult the manual of your camera and ash for setting specic functions.The Ares II system consists of transmitter and receiver and is designed to work in Manual Exposure mode with the ash and camera and has no TTL functions.Compatibility with existing Phottix Products1. Ares II is compatible with Strato II system when using Channels 1-4 channels，as long as the transmitter and receiver are set to the same channel and group：• The Ares II Transmitter can trigger Strato II receiver, Mitros+ in Strato II RX mode, and Indra500/Indra360 studio light in Strato II RX mode under the above conditions. • The Ares II Receiver can be triggered by Strato II transmitter，Odin, Odin II transmitter(Channels 1-4 only) and Mitros+ in Odin TX mode(Canon or Sony only)2. The Ares II is not compatible with other Phottix product when using channels 5-16. Only Ares II Transmitters and Receivers can be used when using channels 5-16

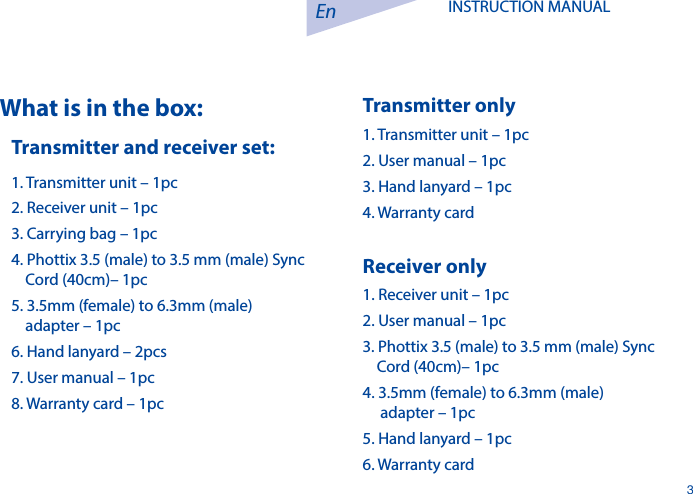

En3INSTRUCTION MANUAL What is in the box:Transmitter and receiver set:1. Transmitter unit – 1pc2. Receiver unit – 1pc3. Carrying bag – 1pc4. Phottix 3.5 (male) to 3.5 mm (male) Sync Cord (40cm)– 1pc 5. 3.5mm (female) to 6.3mm (male) adapter – 1pc6. Hand lanyard – 2pcs7. User manual – 1pc8. Warranty card – 1pcTransmitter only1. Transmitter unit – 1pc2. User manual – 1pc3. Hand lanyard – 1pc4. Warranty cardReceiver only1. Receiver unit – 1pc2. User manual – 1pc3. Phottix 3.5 (male) to 3.5 mm (male) Sync Cord (40cm)– 1pc 4. 3.5mm (female) to 6.3mm (male) adapter – 1pc5. Hand lanyard – 1pc6. Warranty card

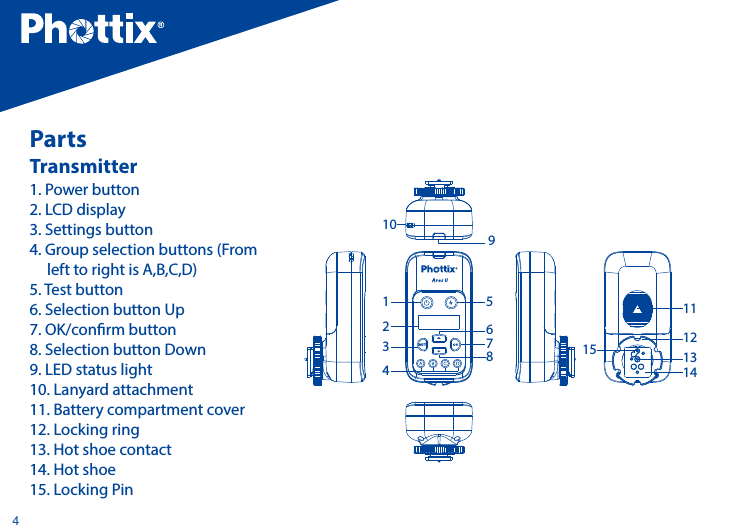

4PartsTransmitter1. Power button2. LCD display3. Settings button4. Group selection buttons (From left to right is A,B,C,D)5. Test button6. Selection button Up7. OK/conrm button8. Selection button Down9. LED status light10. Lanyard attachment11. Battery compartment cover12. Locking ring13. Hot shoe contact14. Hot shoe15. Locking Pin1 52637489101112131514

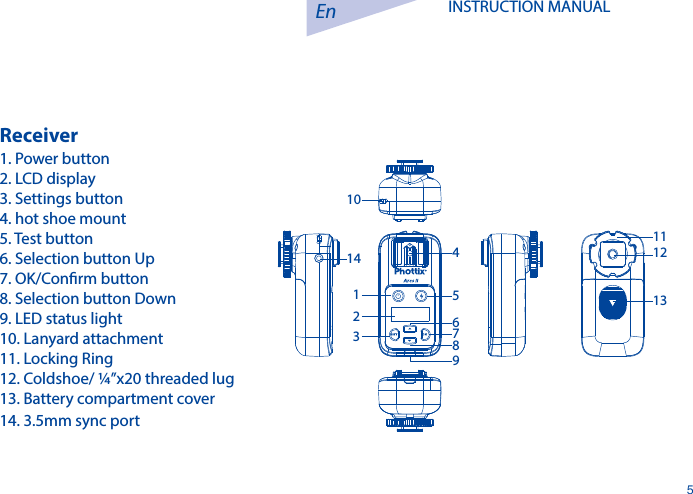

En5INSTRUCTION MANUAL Receiver1. Power button2. LCD display3. Settings button4. hot shoe mount5. Test button6. Selection button Up 7. OK/Conrm button8. Selection button Down9. LED status light10. Lanyard attachment 11. Locking Ring12. Coldshoe/ ¼”x20 threaded lug13. Battery compartment cover14. 3.5mm sync port1231014 4 12131156789

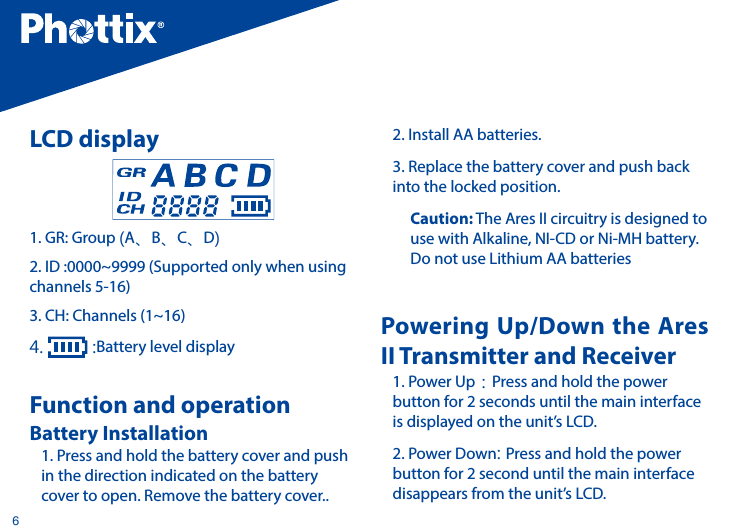

6LCD display1. GR: Group (A、B、C、D)2. ID :0000~9999 (Supported only when using channels 5-16)3. CH: Channels (1~16)4. :Battery level displayFunction and operationBattery Installation1. Press and hold the battery cover and push in the direction indicated on the battery cover to open. Remove the battery cover..2. Install AA batteries.3. Replace the battery cover and push back into the locked position.Caution: The Ares II circuitry is designed to use with Alkaline, NI-CD or Ni-MH battery. Do not use Lithium AA batteriesPowering Up/Down the Ares II Transmitter and Receiver1. Power Up：Press and hold the power button for 2 seconds until the main interface is displayed on the unit’s LCD.2. Power Down: Press and hold the power button for 2 second until the main interface disappears from the unit’s LCD.

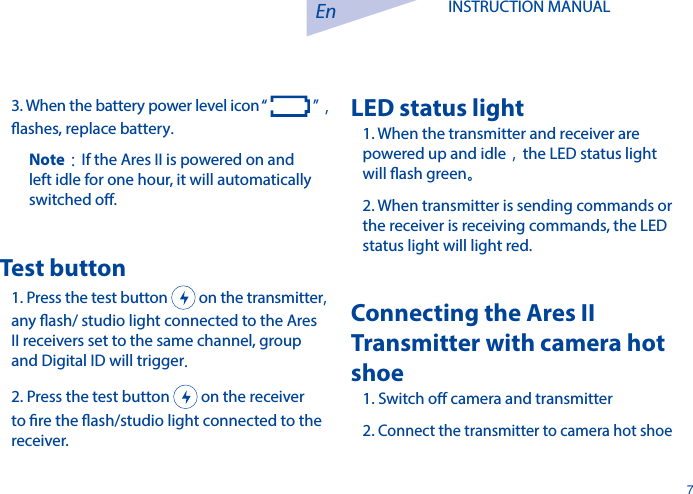

En7INSTRUCTION MANUAL 3. When the battery power level icon “ ”，ashes, replace battery.Note：If the Ares II is powered on and left idle for one hour, it will automatically switched o.Test button1. Press the test button on the transmitter, any ash/ studio light connected to the Ares II receivers set to the same channel, group and Digital ID will trigger.2. Press the test button on the receiver to re the ash/studio light connected to the receiver. LED status light 1. When the transmitter and receiver are powered up and idle，the LED status light will ash green。2. When transmitter is sending commands or the receiver is receiving commands, the LED status light will light red.Connecting the Ares II Transmitter with camera hot shoe1. Switch o camera and transmitter2. Connect the transmitter to camera hot shoe

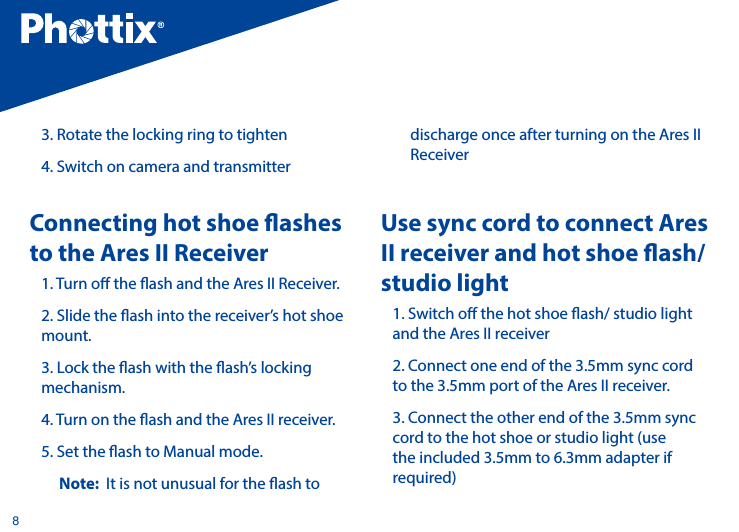

83. Rotate the locking ring to tighten4. Switch on camera and transmitterConnecting hot shoe ashes to the Ares II Receiver1. Turn o the ash and the Ares II Receiver. 2. Slide the ash into the receiver’s hot shoe mount. 3. Lock the ash with the ash’s locking mechanism. 4. Turn on the ash and the Ares II receiver. 5. Set the ash to Manual mode.Note: It is not unusual for the ash to discharge once after turning on the Ares II ReceiverUse sync cord to connect Ares II receiver and hot shoe ash/ studio light1. Switch o the hot shoe ash/ studio light and the Ares II receiver2. Connect one end of the 3.5mm sync cord to the 3.5mm port of the Ares II receiver.3. Connect the other end of the 3.5mm sync cord to the hot shoe or studio light (use the included 3.5mm to 6.3mm adapter if required)

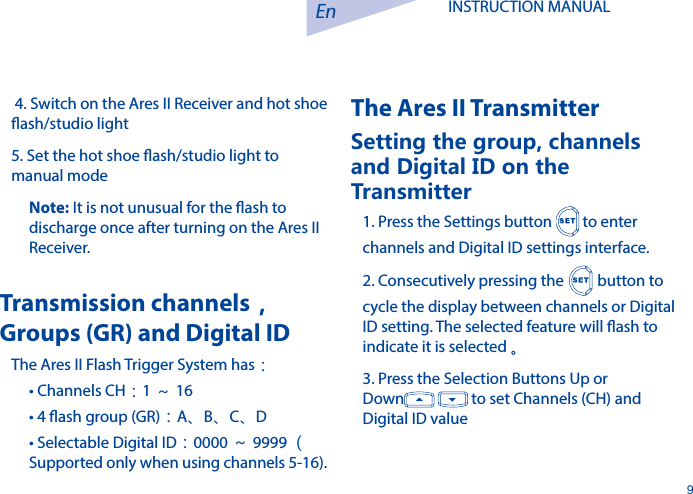

En9INSTRUCTION MANUAL 4. Switch on the Ares II Receiver and hot shoe ash/studio light5. Set the hot shoe ash/studio light to manual modeNote: It is not unusual for the ash to discharge once after turning on the Ares II Receiver.Transmission channels，Groups (GR) and Digital IDThe Ares II Flash Trigger System has：• Channels CH：1～16• 4 ash group (GR)：A、B、C、D• Selectable Digital ID：0000 ～9999 （ Supported only when using channels 5-16).The Ares II TransmitterSetting the group, channels and Digital ID on the Transmitter 1. Press the Settings button to enter channels and Digital ID settings interface. 2. Consecutively pressing the button to cycle the display between channels or Digital ID setting. The selected feature will ash to indicate it is selected 。3. Press the Selection Buttons Up or Down to set Channels (CH) and Digital ID value

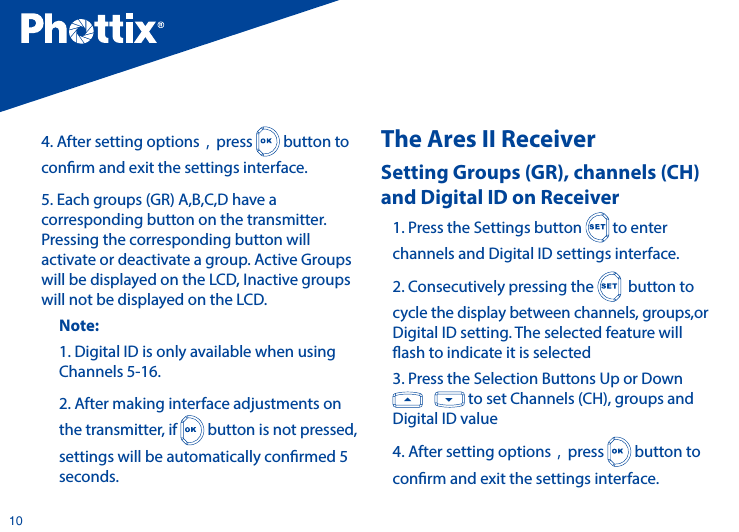

104. After setting options，press button to conrm and exit the settings interface.5. Each groups (GR) A,B,C,D have a corresponding button on the transmitter. Pressing the corresponding button will activate or deactivate a group. Active Groups will be displayed on the LCD, Inactive groups will not be displayed on the LCD.Note: 1. Digital ID is only available when using Channels 5-16. 2. After making interface adjustments on the transmitter, if button is not pressed, settings will be automatically conrmed 5 seconds.The Ares II ReceiverSetting Groups (GR), channels (CH) and Digital ID on Receiver 1. Press the Settings button to enter channels and Digital ID settings interface.2. Consecutively pressing the button to cycle the display between channels, groups,or Digital ID setting. The selected feature will ash to indicate it is selected 3. Press the Selection Buttons Up or Down to set Channels (CH), groups and Digital ID value4. After setting options，press button to conrm and exit the settings interface.

En11INSTRUCTION MANUAL Note: 1.Digital ID is only available when using Channels 5-16. 2. After making interface adjustments on the receiver, if button is not pressed, settings will be automatically conrmed 5 seconds.LCD Backlight Brightness Setting1. On the Ares II Transmitter or Receiver, simultaneously press and hold the and the button until the LCD displays“ ”.2. Press and to set the brightness of the backlight value（1-8)After setting the brightness level, press to exit the adjustment screen.Note: When transmitter or receiver is left idle for more than 8 seconds, the backlight will automatically turned off.

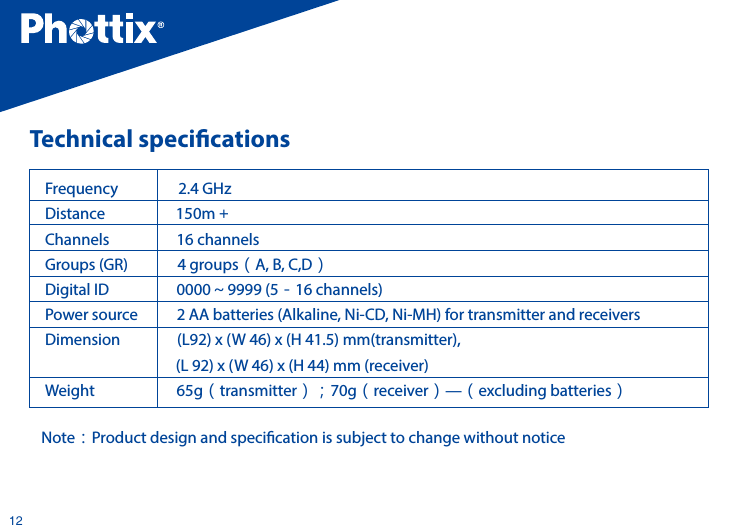

12Technical specications Frequency 2.4 GHzDistance 150m＋Channels 16 channelsGroups (GR) 4 groups（A, B, C,D）Digital ID 0000～9999 (5－16 channels)Power source 2 AA batteries (Alkaline, Ni-CD, Ni-MH) for transmitter and receiversDimension (L92) x (W 46) x (H 41.5) mm(transmitter), (L 92) x (W 46) x (H 44) mm (receiver)Weight 65g（transmitter）；70g（receiver）—（excluding batteries）Note：Product design and specication is subject to change without notice

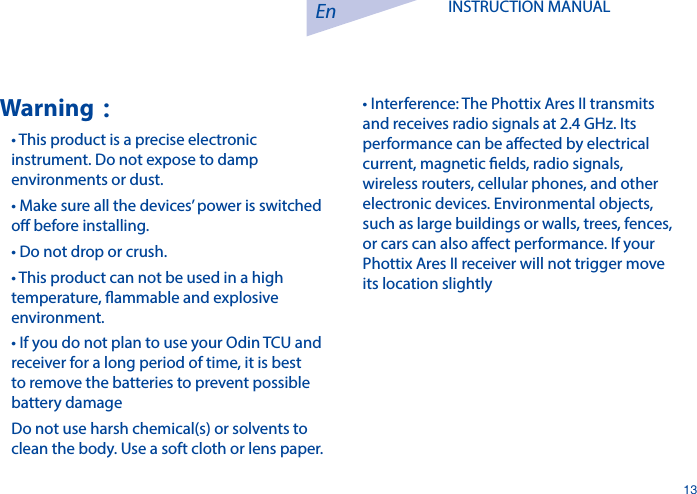

En13INSTRUCTION MANUAL Warning：• This product is a precise electronic instrument. Do not expose to damp environments or dust.• Make sure all the devices’ power is switched o before installing.• Do not drop or crush.• This product can not be used in a high temperature, ammable and explosive environment.• If you do not plan to use your Odin TCU and receiver for a long period of time, it is best to remove the batteries to prevent possible battery damageDo not use harsh chemical(s) or solvents to clean the body. Use a soft cloth or lens paper.• Interference: The Phottix Ares II transmits and receives radio signals at 2.4 GHz. Its performance can be aected by electrical current, magnetic elds, radio signals, wireless routers, cellular phones, and other electronic devices. Environmental objects, such as large buildings or walls, trees, fences, or cars can also aect performance. If your Phottix Ares II receiver will not trigger move its location slightly

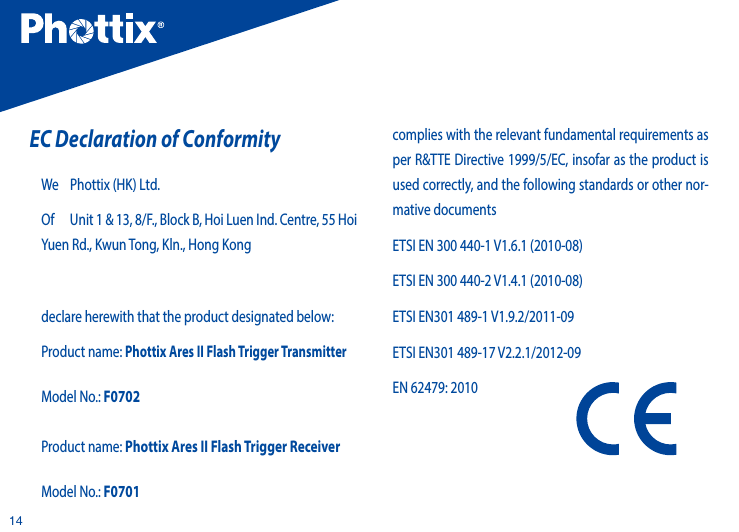

14EC Declaration of Conformity We Phottix (HK) Ltd.Of Unit 1 & 13, 8/F., Block B, Hoi Luen Ind. Centre, 55 Hoi Yuen Rd., Kwun Tong, Kln., Hong Kong declare herewith that the product designated below: Product name: Phottix Ares II Flash Trigger Transmitter Model No.: F0702Product name: Phottix Ares II Flash Trigger Receiver Model No.: F0701complies with the relevant fundamental requirements as per R&TTE Directive 1999/5/EC, insofar as the product is used correctly, and the following standards or other nor-mative documentsETSI EN 300 440-1 V1.6.1 (2010-08)ETSI EN 300 440-2 V1.4.1 (2010-08)ETSI EN301 489-1 V1.9.2/2011-09ETSI EN301 489-17 V2.2.1/2012-09EN 62479: 2010

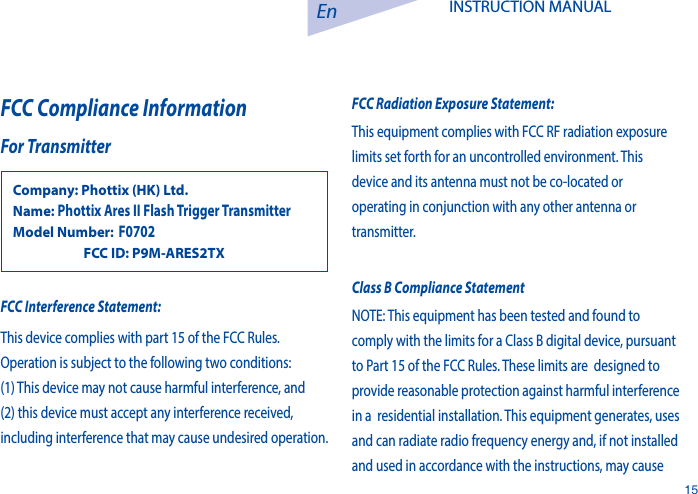

En15INSTRUCTION MANUAL FCC Compliance InformationFor TransmitterCompany: Phottix (HK) Ltd.Name: Phottix Ares II Flash Trigger Transmitter Model Number: F0702 FCC ID: P9M-ARES2TXFCC Interference Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC Radiation Exposure Statement:This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Class B Compliance StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

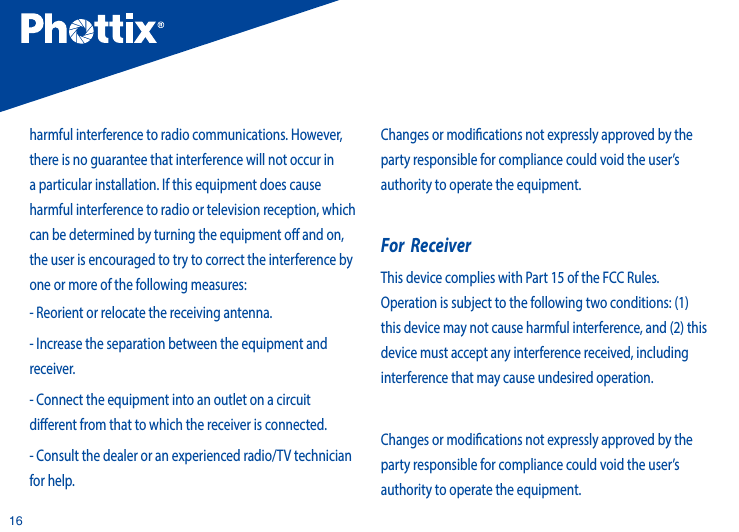

16harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.For ReceiverThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

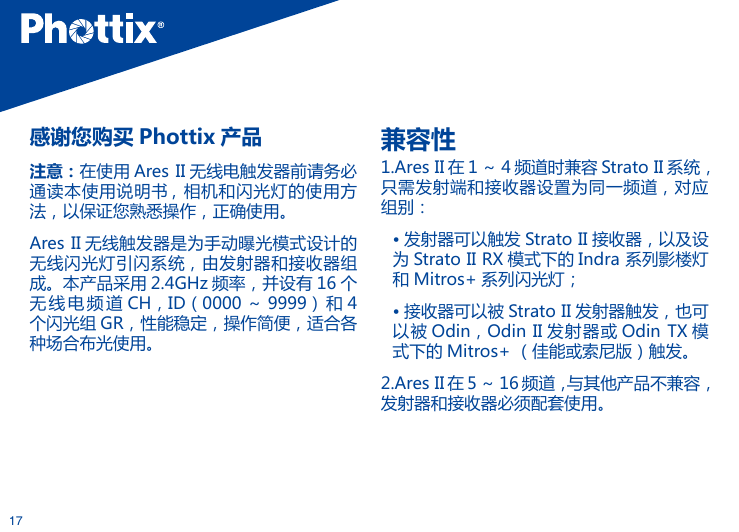

17感谢您购买 Phottix 产品注意：在使用 Ares II 无线电触发器前请务必通读本使用说明书 , 相机和闪光灯的使用方法，以保证您熟悉操作，正确使用。Ares II 无线触发器是为手动曝光模式设计的无线闪光灯引闪系统，由发射器和接收器组成。本产品采用 2.4GHz 频率，并设有 16 个无线电频道 CH，ID（0000 ～ 9999）和 4个闪光组 GR，性能稳定，操作简便，适合各种场合布光使用。兼容性1.Ares II 在 1 ～ 4 频道时兼容 Strato II 系统，只需发射端和接收器设置为同一频道，对应组别：• 发射器可以触发 Strato II 接收器，以及设为 Strato II RX 模式下的 Indra 系列影楼灯和 Mitros+ 系列闪光灯；• 接收器可以被 Strato II 发射器触发，也可以被 Odin，Odin II 发射器或 Odin TX 模式下的 Mitros+ （佳能或索尼版）触发。2.Ares II 在 5 ～ 16 频道，与其他产品不兼容，发射器和接收器必须配套使用。

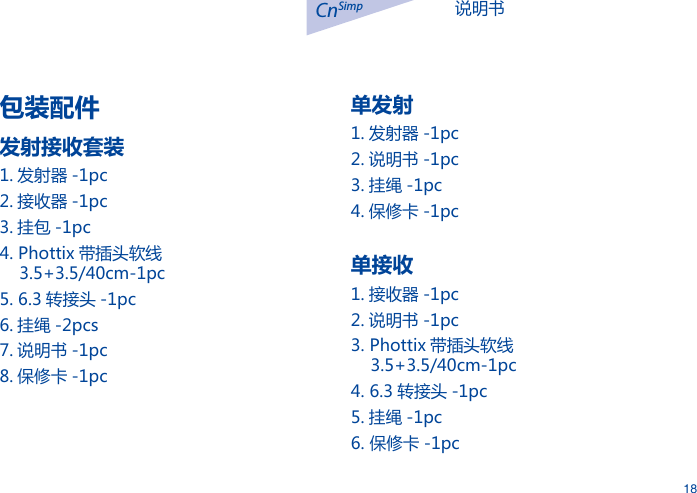

说明书CnSimp18包装配件发射接收套装1. 发射器 -1pc2. 接收器 -1pc3. 挂包 -1pc4. Phottix 带插头软线 3.5+3.5/40cm-1pc5. 6.3 转接头 -1pc6. 挂绳 -2pcs7. 说明书 -1pc8. 保修卡 -1pc单发射1. 发射器 -1pc2. 说明书 -1pc3. 挂绳 -1pc4. 保修卡 -1pc单接收1. 接收器 -1pc2. 说明书 -1pc3. Phottix 带插头软线 3.5+3.5/40cm-1pc4. 6.3 转接头 -1pc5. 挂绳 -1pc6. 保修卡 -1pc

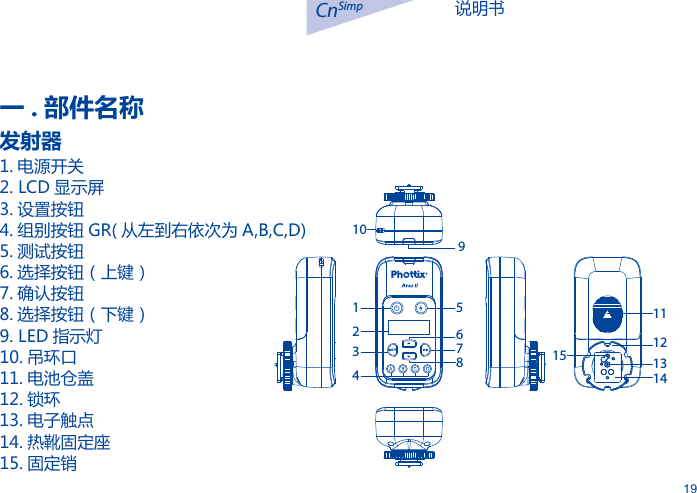

说明书CnSimp19一 . 部件名称发射器1. 电源开关2. LCD 显示屏3. 设置按钮4. 组别按钮 GR( 从左到右依次为 A,B,C,D)5. 测试按钮6. 选择按钮（上键）7. 确认按钮8. 选择按钮（下键）9. LED 指示灯10. 吊环口11. 电池仓盖12. 锁环13. 电子触点14. 热靴固定座15. 固定销1 52637489101112131514

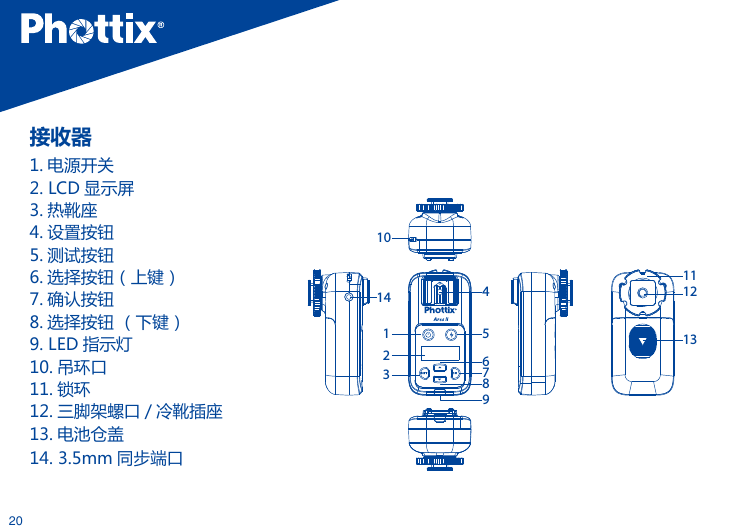

201231014 4 12131156789接收器1. 电源开关2. LCD 显示屏 3. 热靴座4. 设置按钮5. 测试按钮6. 选择按钮（上键） 7. 确认按钮8. 选择按钮（下键） 9. LED 指示灯10. 吊环口11. 锁环12. 三脚架螺口 / 冷靴插座13. 电池仓盖14. 3.5mm 同步端口

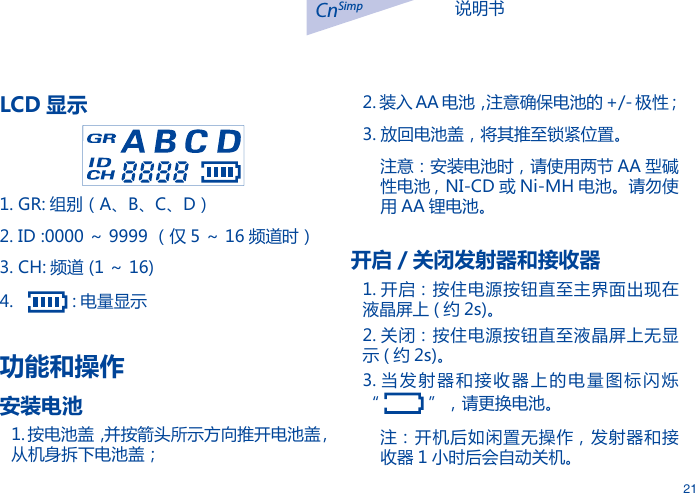

说明书CnSimp21LCD 显示1. GR: 组别（A、B、C、D）2. ID :0000 ～ 9999 （仅 5 ～ 16 频道时）3. CH: 频道 (1 ～ 16)4. : 电量显示功能和操作安装电池1. 按电池盖，并按箭头所示方向推开电池盖 , 从机身拆下电池盖；2. 装入 AA 电池，注意确保电池的 +/- 极性；3. 放回电池盖，将其推至锁紧位置。注意：安装电池时，请使用两节 AA 型碱性电池 , NI-CD 或 Ni-MH 电池。请勿使用 AA 锂电池。开启 / 关闭发射器和接收器1. 开启：按住电源按钮直至主界面出现在液晶屏上 ( 约 2s)。2. 关闭：按住电源按钮直至液晶屏上无显示 ( 约 2s)。3. 当发射器和接收器上的电量图标闪烁 “ ”，请更换电池。注：开机后如闲置无操作，发射器和接收器 1 小时后会自动关机。

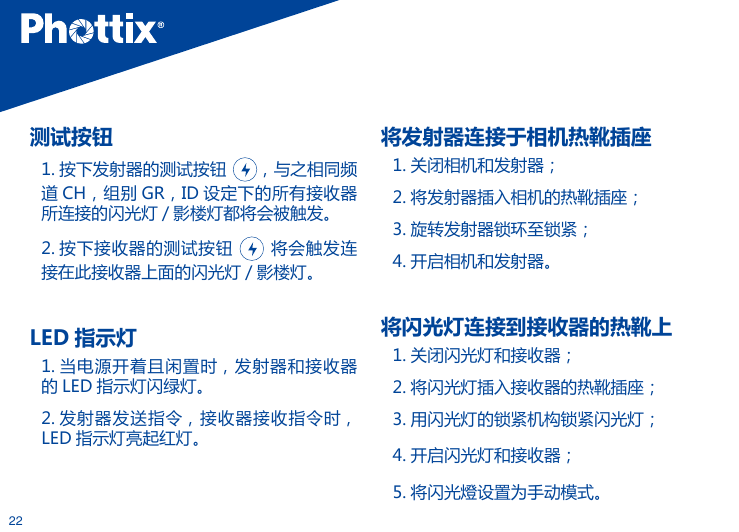

22测试按钮1. 按下发射器的测试按钮，与之相同频道 CH，组别 GR，ID 设定下的所有接收器所连接的闪光灯 / 影楼灯都将会被触发。2. 按下接收器的测试按钮将会触发连接在此接收器上面的闪光灯 / 影楼灯。 LED 指示灯 1. 当电源开着且闲置时，发射器和接收器的 LED 指示灯闪绿灯。2. 发射器发送指令，接收器接收指令时，LED 指示灯亮起红灯。将发射器连接于相机热靴插座1. 关闭相机和发射器；2. 将发射器插入相机的热靴插座；3. 旋转发射器锁环至锁紧；4. 开启相机和发射器。将闪光灯连接到接收器的热靴上1. 关闭闪光灯和接收器；2. 将闪光灯插入接收器的热靴插座；3. 用闪光灯的锁紧机构锁紧闪光灯；4. 开启闪光灯和接收器；5. 将闪光燈设置为手动模式。

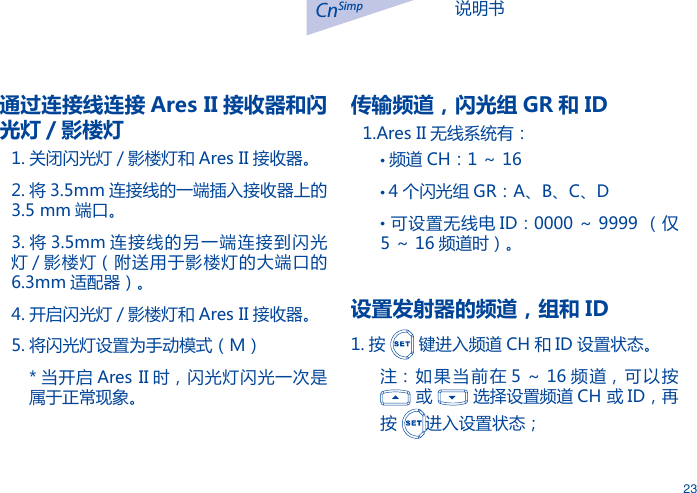

说明书CnSimp23通过连接线连接 Ares II 接收器和闪光灯 / 影楼灯1. 关闭闪光灯 / 影楼灯和 Ares II 接收器。2. 将 3.5mm 连接线的一端插入接收器上的3.5 mm 端口。3. 将 3.5mm 连接线的另一端连接到闪光灯 / 影楼灯（附送用于影楼灯的大端口的6.3mm 适配器）。4. 开启闪光灯 / 影楼灯和 Ares II 接收器。5. 将闪光灯设置为手动模式（M）* 当开启 Ares II 时，闪光灯闪光一次是属于正常现象。传输频道，闪光组 GR 和 ID1.Ares II 无线系统有：•频道 CH：1 ～ 16• 4 个闪光组 GR：A、B、C、D• 可设置无线电 ID：0000 ～ 9999 （仅5 ～ 16 频道时）。设置发射器的频道，组和 ID1. 按键进入频道 CH 和 ID 设置状态。注：如果当前在 5 ～ 16 频道，可以按或选择设置频道 CH 或 ID，再按进入设置状态；

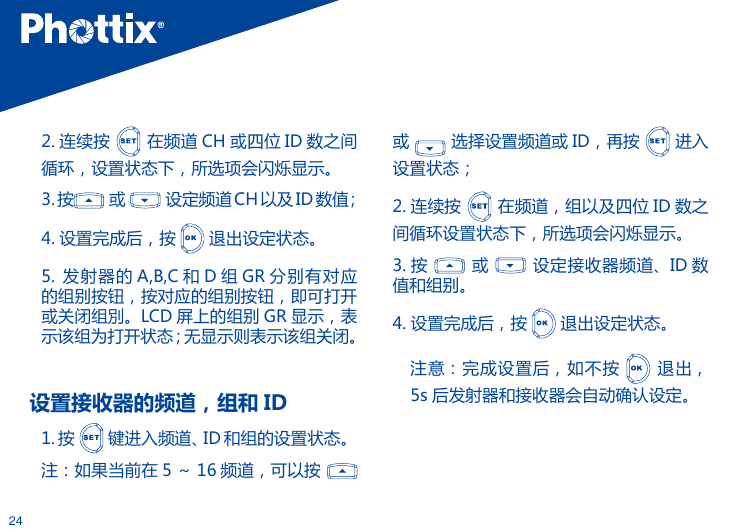

242. 连续按在频道 CH 或四位 ID 数之间循环，设置状态下，所选项会闪烁显示。3.按或设定频道 CH 以及ID数值；4. 设置完成后，按退出设定状态。5. 发射器的 A,B,C 和 D 组 GR 分别有对应的组别按钮，按对应的组别按钮，即可打开或关闭组別。LCD 屏上的组别 GR 显示，表示该组为打开状态；无显示则表示该组关闭。设置接收器的频道，组和 ID1. 按键进入频道、ID 和组的设置状态。注：如果当前在 5 ～ 16 频道，可以按或选择设置频道或 ID，再按进入设置状态；2. 连续按在频道，组以及四位 ID 数之间循环设置状态下，所选项会闪烁显示。3. 按或设定接收器频道、ID 数值和组别。4. 设置完成后，按退出设定状态。注意：完成设置后，如不按退出，5s 后发射器和接收器会自动确认设定。

说明书CnSimp25背光灯亮度调节发射器和接收器的背光灯亮度可以进行调节：1. 在关机状态，同时按住和直到显示屏显示“ ”字样。2. 按或设定背光灯的亮度值（1 ～ 8）。3. 设置完成后，按退出设定状态。注：发射器和接收器闲置状态下，8s 后背光灯会自动熄灭。

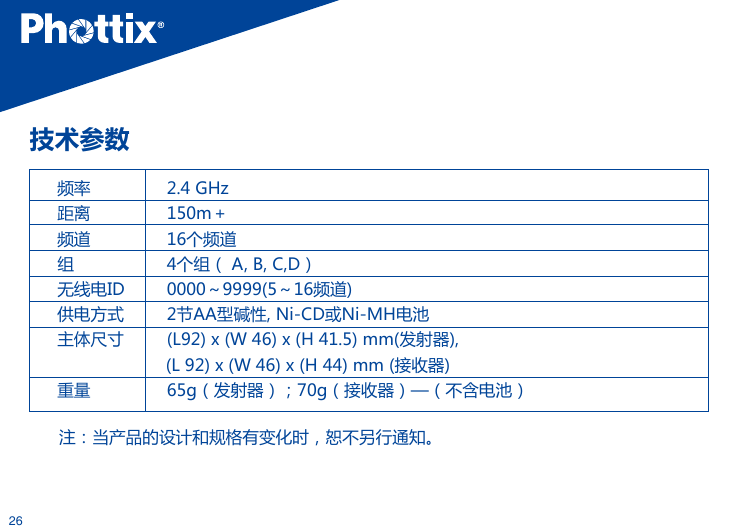

26技术参数频率 2.4 GHz距离 150m＋频道 16个频道组 4个组（ A, B, C,D）无线电ID 0000～9999(5～16频道)供电方式 2节AA型碱性, Ni-CD或Ni-MH电池主体尺寸 (L92) x (W 46) x (H 41.5) mm(发射器), (L 92) x (W 46) x (H 44) mm (接收器)重量 65g（发射器）；70g（接收器）—（不含电池）注：当产品的设计和规格有变化时，恕不另行通知。

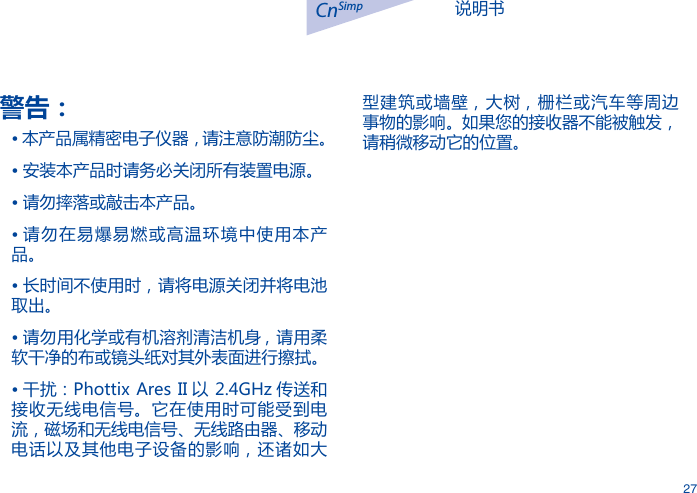

说明书CnSimp27警告：• 本产品属精密电子仪器，请注意防潮防尘。• 安装本产品时请务必关闭所有装置电源。• 请勿摔落或敲击本产品。• 请勿在易爆易燃或高温环境中使用本产品。• 长时间不使用时，请将电源关闭并将电池取出。• 请勿用化学或有机溶剂清洁机身 , 请用柔软干净的布或镜头纸对其外表面进行擦拭。• 干扰：Phottix Ares II 以 2.4GHz 传送和接收无线电信号。它在使用时可能受到电流，磁场和无线电信号、无线路由器、移动电话以及其他电子设备的影响，还诸如大型建筑或墙壁，大树，栅栏或汽车等周边事物的影响。如果您的接收器不能被触发，请稍微移动它的位置。

說明書CnTrad28感謝您購買 Phottix 產品注意：在使用 Ares II 無線電觸發器前請務必通讀本使用說明書 , 相機和閃光燈的使用方法，以保證您熟悉操作，正確使用。Ares II 無線觸發器是為手動曝光模式設計的無線閃光燈引閃系統，由發射器和接收器組成。本產品採用 2.4GHz 頻率，並設有 16 個無線電頻道，ID（0000 ～ 9999）和 4 個閃光組，性能穩定，操作簡便，適合各種場合布光使用。相容性1.Ares II 在 1 ～ 4 頻道時相容 Strato II 系統，只需發射端和接收器設置為同一頻道，對應組別：• 發射器可以觸發 Strato II 接收器，以及設為 Strato II RX 模式下的 Indra 系列影樓燈和 Mitros+ 系列閃光燈；• 接收器可以被 Strato II 發射器觸發，也可以被 Odin，Odin II 發射器或 Odin TX 模式下的 Mitros+ （佳能或索尼版）觸發。2.Ares II 在 5 ～ 16 頻道，與其他產品不相容，發射器和接收器必須配套使用。

29包裝配件發射接收套裝1. 發射器 -1pc2. 接收器 -1pc3. 掛包 -1pc4. Phottix 帶插頭軟線 3.5+3.5/40cm-1pc5. 6.3 轉接頭 -1pc6. 掛繩 -2pcs7. 說明書 -1pc8. 保修卡 -1pc單發射1. 發射器 -1pc2. 說明書 -1pc3. 掛繩 -1pc4. 保修卡 -1pc單接收1. 接收器 -1pc2. 說明書 -1pc3. Phottix 帶插頭軟線 3.5+3.5/40cm-1pc4. 6.3 轉接頭 -1pc5. 掛繩 -1pc6. 保修卡 -1pc

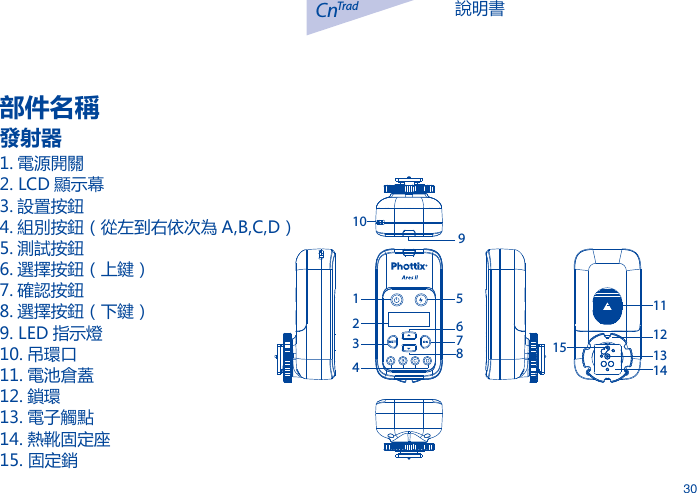

說明書CnTrad30部件名稱發射器1. 電源開關2. LCD 顯示幕3. 設置按鈕4. 組別按鈕（從左到右依次為 A,B,C,D）5. 測試按鈕6. 選擇按鈕（上鍵）7. 確認按鈕8. 選擇按鈕（下鍵）9. LED 指示燈10. 吊環口11. 電池倉蓋12. 鎖環13. 電子觸點14. 熱靴固定座15. 固定銷1 52637489101112131514

311231014 4 12131156789接收器1. 電源開關2.LCD 顯示幕 3. 設置按鈕4. 熱靴座5. 測試按鈕6. 選擇按鈕（上鍵） 7. 確認按鈕8. 選擇按鈕（下鍵） 9. LED 指示燈10. 吊環口11. 鎖環12. 三腳架螺口 / 冷靴插座13. 電池倉蓋14. 3.5mm 同步端口

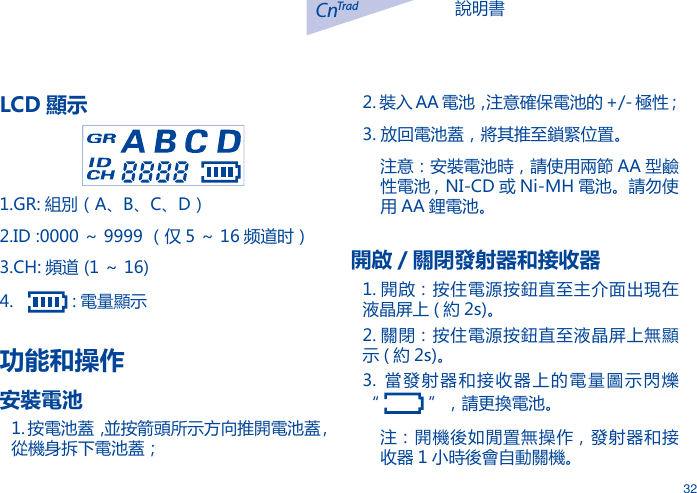

說明書CnTrad32LCD 顯示1.GR: 組別（A、B、C、D）2.ID :0000 ～ 9999 （仅 5 ～ 16 频道时）3.CH: 頻道 (1 ～ 16)4. : 電量顯示功能和操作安裝電池1. 按電池蓋，並按箭頭所示方向推開電池蓋 , 從機身拆下電池蓋；2. 裝入 AA 電池，注意確保電池的 +/- 極性；3. 放回電池蓋，將其推至鎖緊位置。注意：安裝電池時，請使用兩節 AA 型鹼性電池 , NI-CD 或 Ni-MH 電池。請勿使用 AA 鋰電池。開啟 / 關閉發射器和接收器1. 開啟：按住電源按鈕直至主介面出現在液晶屏上 ( 約 2s)。2. 關閉：按住電源按鈕直至液晶屏上無顯示 ( 約 2s)。3. 當發射器和接收器上的電量圖示閃爍 “ ”，請更換電池。注：開機後如閒置無操作，發射器和接收器 1 小時後會自動關機。

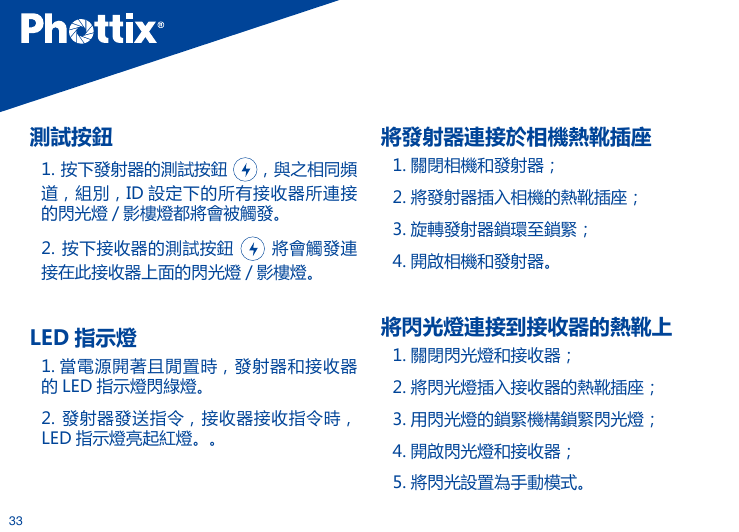

33測試按鈕1. 按下發射器的測試按鈕，與之相同頻道，組別，ID 設定下的所有接收器所連接的閃光燈 / 影樓燈都將會被觸發。2. 按下接收器的測試按鈕將會觸發連接在此接收器上面的閃光燈 / 影樓燈。 LED 指示燈 1. 當電源開著且閒置時，發射器和接收器的 LED 指示燈閃綠燈。2. 發射器發送指令，接收器接收指令時，LED 指示燈亮起紅燈。。將發射器連接於相機熱靴插座1. 關閉相機和發射器；2. 將發射器插入相機的熱靴插座；3. 旋轉發射器鎖環至鎖緊；4. 開啟相機和發射器。將閃光燈連接到接收器的熱靴上1. 關閉閃光燈和接收器；2. 將閃光燈插入接收器的熱靴插座；3. 用閃光燈的鎖緊機構鎖緊閃光燈；4. 開啟閃光燈和接收器；5. 將閃光設置為手動模式。

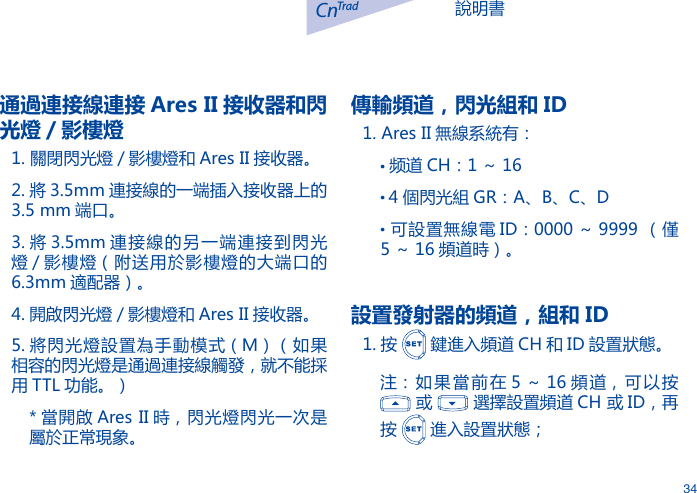

說明書CnTrad34通過連接線連接 Ares II 接收器和閃光燈 / 影樓燈1. 關閉閃光燈 / 影樓燈和 Ares II 接收器。2. 將 3.5mm 連接線的一端插入接收器上的3.5 mm 端口。3. 將 3.5mm 連接線的另一端連接到閃光燈 / 影樓燈（附送用於影樓燈的大端口的6.3mm 適配器）。4. 開啟閃光燈 / 影樓燈和 Ares II 接收器。5. 將閃光燈設置為手動模式（M）（如果相容的閃光燈是通過連接線觸發，就不能採用 TTL 功能。）* 當開啟 Ares II 時，閃光燈閃光一次是屬於正常現象。傳輸頻道，閃光組和 ID1. Ares II 無線系統有：•频道 CH：1 ～ 16• 4 個閃光組 GR：A、B、C、D• 可設置無線電 ID：0000 ～ 9999 （僅5 ～ 16 頻道時）。設置發射器的頻道，組和 ID1. 按鍵進入頻道 CH 和 ID 設置狀態。注：如果當前在 5 ～ 16 頻道，可以按或選擇設置頻道 CH 或 ID，再按進入設置狀態；

352. 連續按在頻道 CH 或四位 ID 數之間迴圈，設置狀態下，所選項會閃爍顯示。3.按或設定頻道 CH 以及ID數值；4. 設置完成後，按退出設定狀態。5. 發射器的 A,B,C 和 D 組 GR 分別有對應的組別按鈕，按對應的組別按鈕，即可打開或關閉組別。LCD 屏上的組別 GR 顯示，表示該組為打開狀態；無顯示則表示該組關閉。設置接收器的頻道，組和 ID1. 按鍵進入頻道、ID 和組的設置狀態。注：如果當前在 5 ～ 16 頻道，可以按或選擇設置頻道 CH 或 ID，再按進入設置狀態；2. 連續按在頻道 CH，組 GR 以及四位ID 數之間迴圈設置狀態下，所選項會閃爍顯示。3. 按或設定接收器組別 GR、頻道 CH 和 ID 數值。4. 設置完成後，按退出設定狀態。注意：完成設置後，如不按退出，5s 後發射器和接收器會自動確認設定。

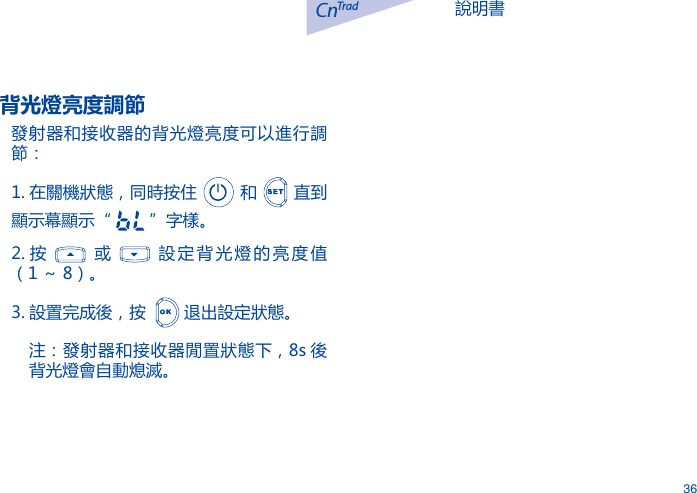

說明書CnTrad36背光燈亮度調節發射器和接收器的背光燈亮度可以進行調節：1. 在關機狀態，同時按住和直到顯示幕顯示“ ”字樣。2. 按或設定背光燈的亮度值（1 ～ 8）。3. 設置完成後，按退出設定狀態。注：發射器和接收器閒置狀態下，8s 後背光燈會自動熄滅。

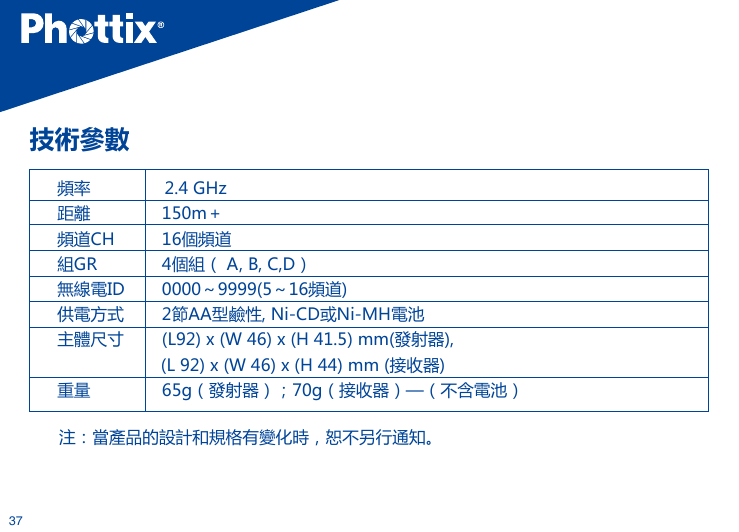

37技術參數頻率 2.4 GHz距離 150m＋頻道CH 16個頻道組GR 4個組（ A, B, C,D）無線電ID 0000～9999(5～16頻道)供電方式 2節AA型鹼性, Ni-CD或Ni-MH電池主體尺寸 (L92) x (W 46) x (H 41.5) mm(發射器), (L 92) x (W 46) x (H 44) mm (接收器)重量 65g（發射器）；70g（接收器）—（不含電池）注：當產品的設計和規格有變化時，恕不另行通知。

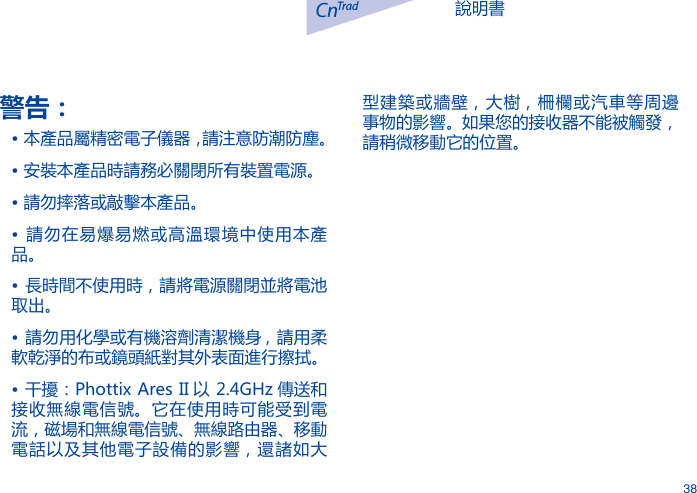

說明書CnTrad38警告：• 本產品屬精密電子儀器，請注意防潮防塵。• 安裝本產品時請務必關閉所有裝置電源。• 請勿摔落或敲擊本產品。• 請勿在易爆易燃或高溫環境中使用本產品。• 長時間不使用時，請將電源關閉並將電池取出。• 請勿用化學或有機溶劑清潔機身 , 請用柔軟乾淨的布或鏡頭紙對其外表面進行擦拭。• 干擾：Phottix Ares II 以 2.4GHz 傳送和接收無線電信號。它在使用時可能受到電流，磁場和無線電信號、無線路由器、移動電話以及其他電子設備的影響，還諸如大型建築或牆壁，大樹，柵欄或汽車等周邊事物的影響。如果您的接收器不能被觸發，請稍微移動它的位置。
