4 Channels, Demultiplexing, Benchtop Device
Driver electronics for 1 to 4 channels, expansion up to 64 channels
4-channel multiplexed driver for stick-slip-based systems (Q-Motion® and PiezoMike) without position sensor. 1 to 4
channels, serial control via demultiplexing. Potential for operating up to 64 channels via external module.
Features
Full-step and linear mode. Interfaces: TCP/IP, USB, USB for joystick, digital I/O.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data
recorder. ID chip detection for fast startup. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, python.
PIMikroMove user software.

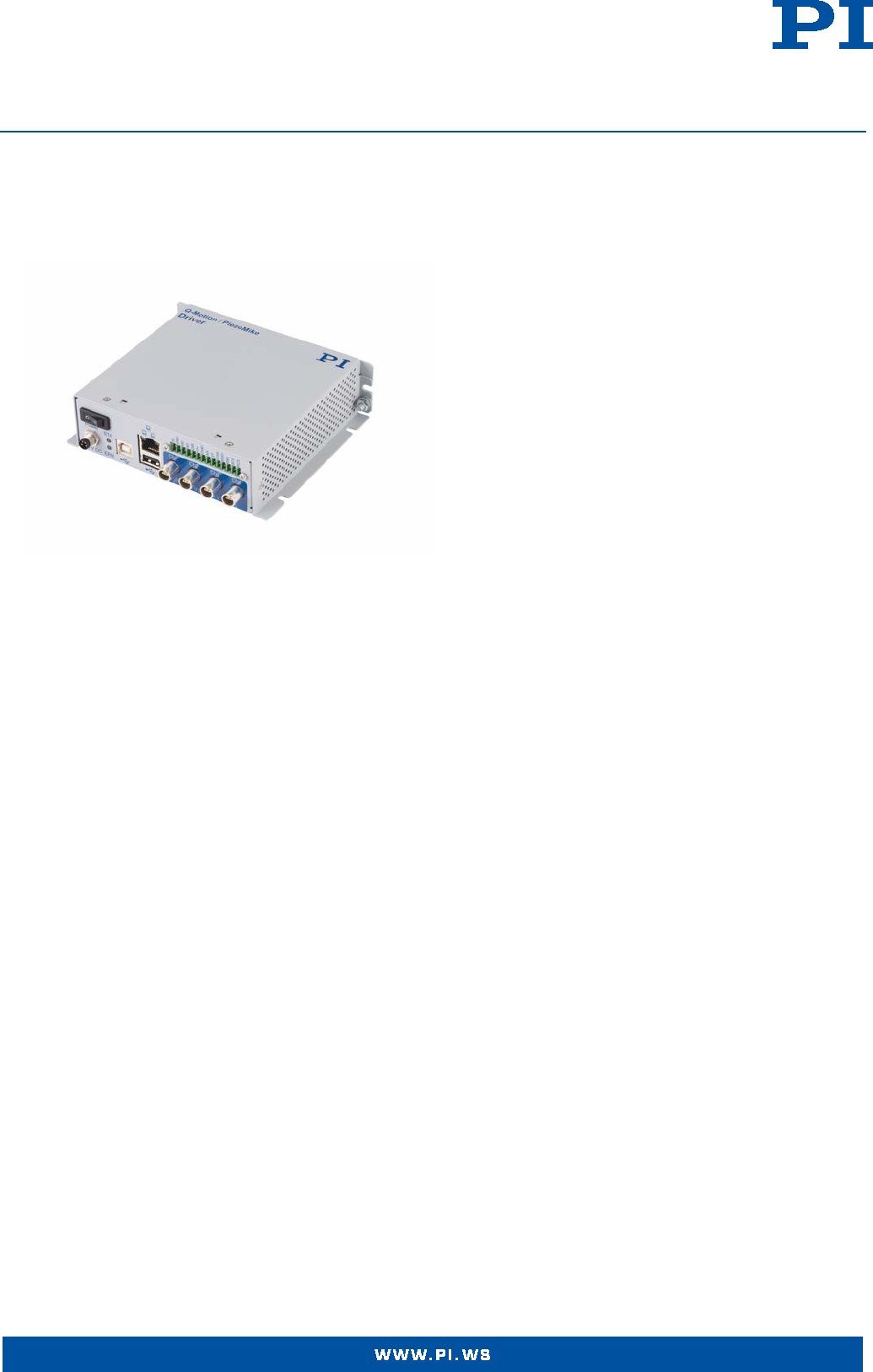

E-872.401
Q-Motion® piezomotor / PiezoMike drive electronics
For positioners with Q-Motion® piezo
inertia drives and PiezoMike linear
actuators
Inexpensive multi-channel concept:
Demultiplexing for up to 64 channels as
19'' housing variant possible
Integrated interfaces: TCP/IP, USB, USB
for joystick, digital I/O
Extensive software support
07.12.2017
Specifications
E-872.401
Function Driver electronics for Q-Motion® positioners and PiezoMike linear actuators; benchtop device
Drive type Piezo inertia drive
Channels 4, serial control via demultiplexing
up to 60 more can be controlled by an external module via demultiplexing
Supported functions Full-step mode, linear mode (analog control)
Amplifier E-872.401
Amplifier channels 1, serial control of 4 axes via demultiplexing
Output voltage 0 to 100 V
Peak output power 30 W
Output current / channel (<5 ms) ±650 mA
Interfaces and operation E-872.401
Communication interfaces USB, Ethernet
Actuator connection 4 x LEMO connector, 3-pin
Digital inputs TTL inputs for commanding and configuration
Digital output Error status
Command set PI General Command Set (GCS)
User software PIMikroMove
Application programming interfaces API for C / C++ / C# / VB.NET / MATLAB / python, drivers for LabVIEW
Display and indicators LED indicator for status and operation
Manual control Joystick via USB
Miscellaneous E-872.401
Operating temperature range 0 to 50 °C
Overtemperature protection Deactivation at 75 °C
Dimensions 147 mm × 125 mm × 40 mm
Mass 0.46 kg
Operating voltage 24 V (power supply in scope of delivery)
Max. power consumption 35 W
Ordering Information
E-872.401
Q-Motion® piezomotor / PiezoMike driver electronics, 4 channels, demultiplexing, benchtop device, TCP/IP, USB, USB for
joystick, digital I/O
