08.01.2018
High Travel Accuracy and Inexpensive
Precision-class linear stage
High travel accuracy and load capacity due to crossed roller guides. Precision leadscrew with 0.5 mm pitch, backlash-
compensated, 50 N self-locking. Stress-relieved aluminum base for highest stability.
PD variant: DC motor with integrated ActiveDrive amplifier for high velocity.
DG variant: DC servo motor with gearhead in conjunction with precision rotary encoder for high resolution and
repeatability
Noncontact limit switches. Noncontact reference point switch with direction sensing in the middle of the travel range.
Crossed roller guide
With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers.
Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running.
Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages
prevent linear guide creeping.
Fields of application
Precision positioning in laboratory environments, test equipment.

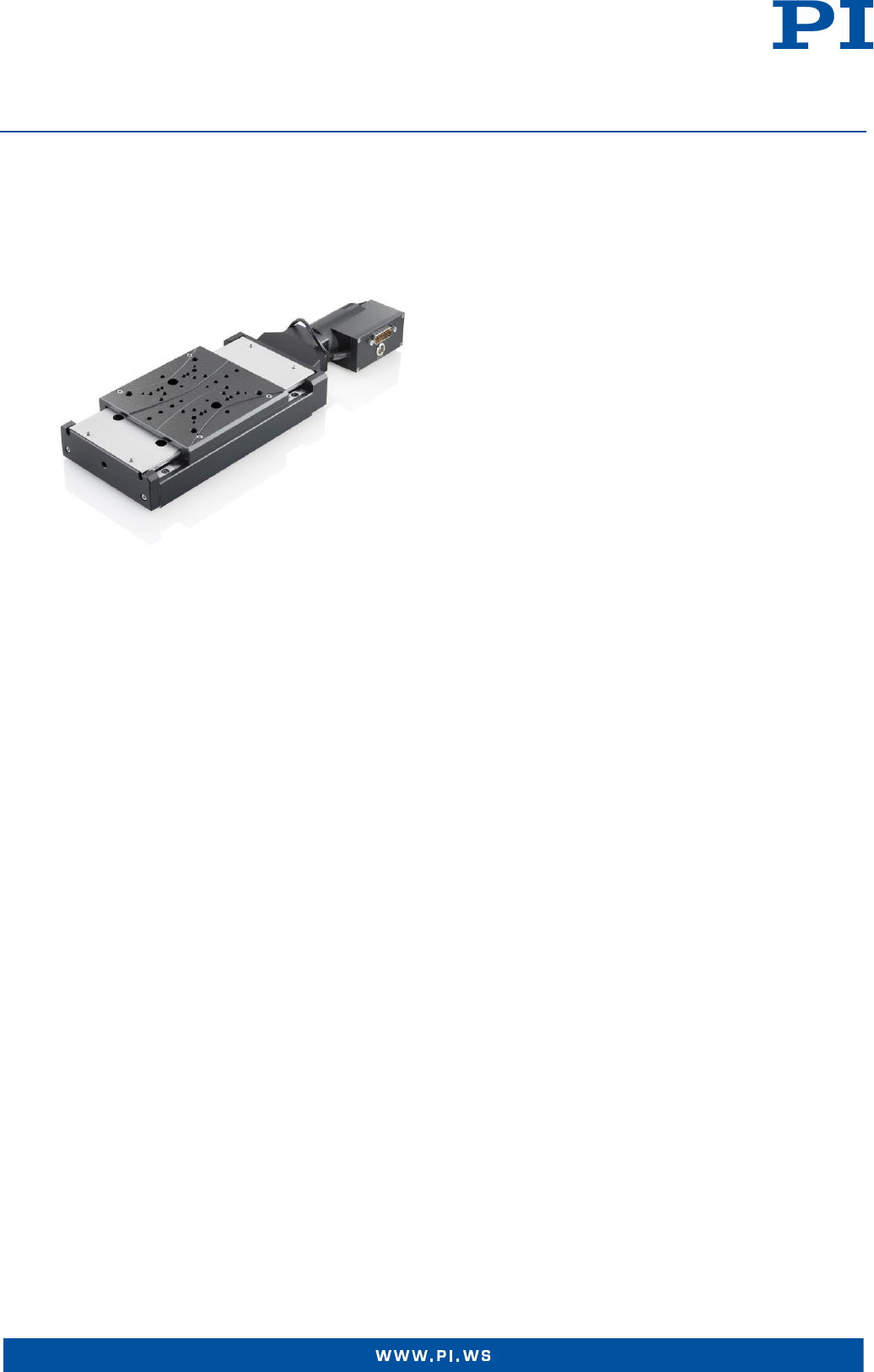

M-406
Precision Linear Stage
Travel ranges to 150 mm
Crossed roller bearings
DC servo motor drive
Direction-sensing reference point switch
08.01.2018
Specifications
M-406.2DG
M-406.4DG
M-406.6DG
M-406.2PD
M-406.4PD
M-406.6PD
Unit
Motion and positioning
Travel range
50 / 100 / 150
50 / 100 / 150
mm
Integrated sensor
Rotary encoder
Rotary encoder
Sensor resolution
2000
4000
Cts./rev.
Design resolution
0.0085
0.125
µm
Minimum incremental motion
0.1
0.25
µm
Unidirectional repeatability
0.2
0.2
µm
Backlash
2
2
µm
Crosstalk, angular error
±25 / ±50 / ±75
±25 / ±50 / ±75
µrad
Velocity
1
15
mm/s
Mechanical properties
Drive screw pitch
0.5
0.5
mm
Gear ratio
29.6:1
–
Load capacity
200
200
N
Push/pull force
50 / 50
50 / 50
N
Lateral force
150
150
N
Drive properties
Motor type
DC gear motor
DC motor with PWM control
Operating voltage
0 to ±12
24
V
Motor power
3
30
W
Reference and limit switches
Hall effect
Hall effect
Miscellaneous
Operating temperature range
-20 to 65
-20 to 65
°C
Material
Aluminum, steel
Aluminum, steel
Mass
2.1 / 2.4 / 2.8
2.1 / 2.4 / 2.8
kg
Connector
Sub-D 15, incl. 3 m
cable
Sub-D 15, incl. 3 m
cable
Recommended controllers
C-863
C-884
C-863
C-884
Ask about custom designs!
08.01.2018
Drawings and Images

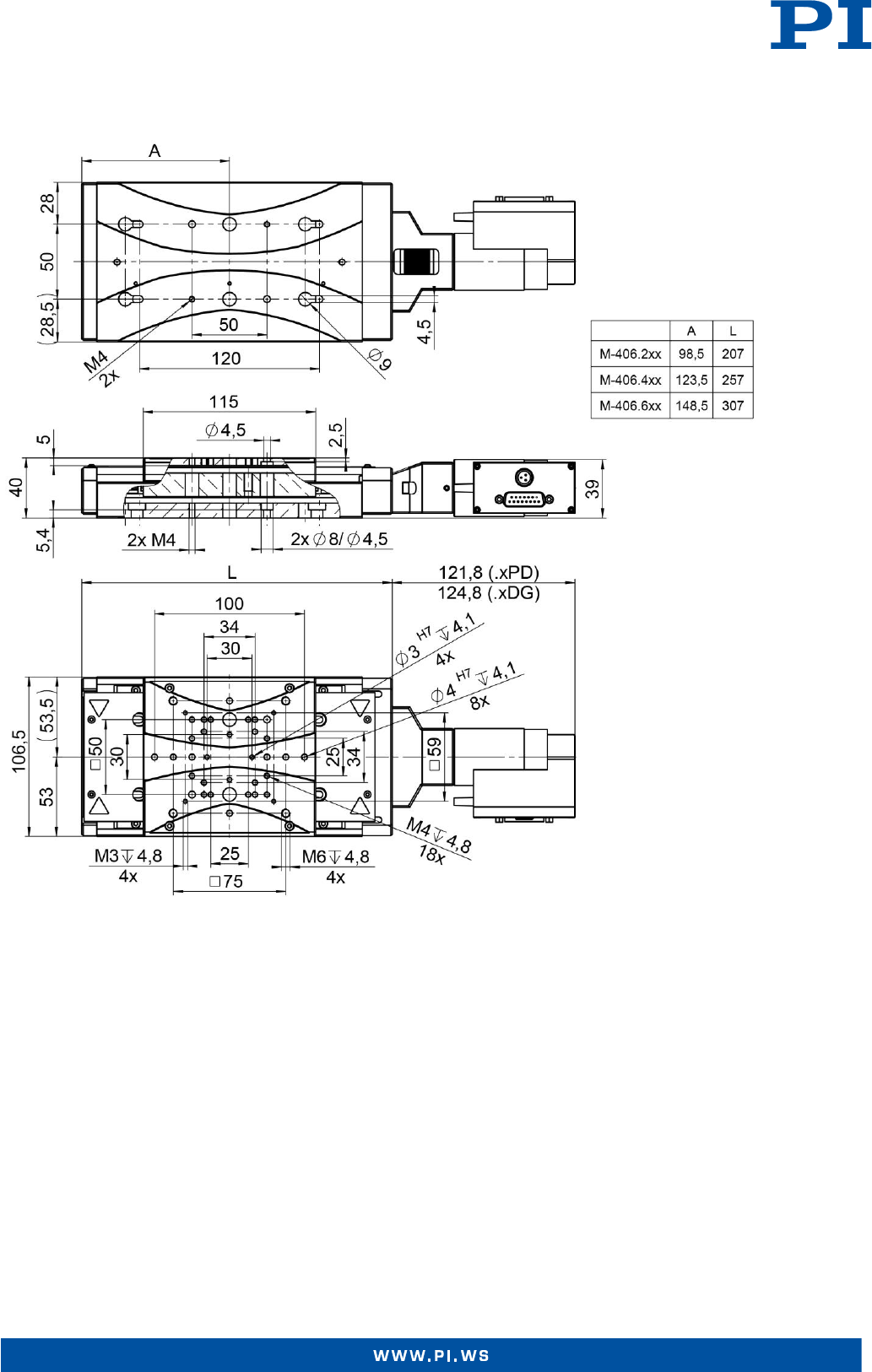

M-406, dimensions in mm
08.01.2018
Ordering Information
M-406.2DG
Precision microtranslation stage, 50 mm, DC gear motor
M-406.4DG
Precision microtranslation stage, 100 mm, DC gear motor
M-406.6DG
Precision microtranslation stage, 150 mm, DC gear motor
M-406.2PD
Precision microtranslation stage, 50 mm, ActiveDrive DC motor, incl. 24 V Power Supply
M-406.4PD
Precision microtranslation stage, 100 mm, ActiveDrive DC motor, incl. 24 V Power Supply
M-406.6PD
Precision microtranslation stage, 150 mm, ActiveDrive DC motor, incl. 24 V Power Supply
