29.08.2017

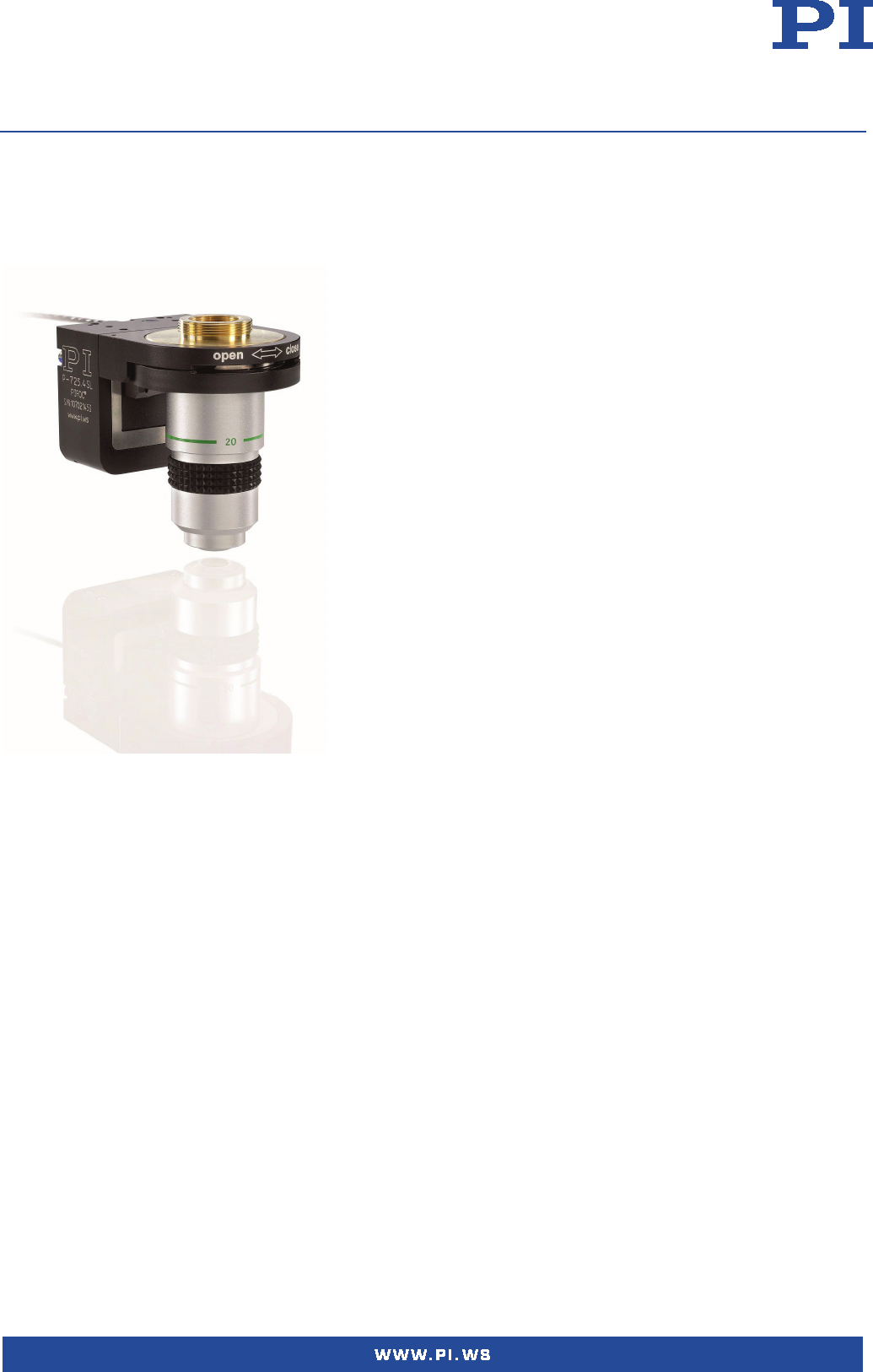

High-precision Positioner / Scanner for Microscope Objectives

P-725

PIFOC Objective Scanner with Long Travel Range

 Travel ranges to 460 µm

 Significantly faster response and higher

lifetime than motorized drives

 Fine positioning of objectives with sub-

nm

resolution

 Direct metrology with capacitive sensors:

Highest linearity

 Zero-play, high-precision flexure guide

system for better focus stability

 Compatible with MetaMorph imaging

software

 Out

standing lifetime due to PICMA® piezo

actuators

 QuickLock thread adapter for easy

attachment

 Clear aperture up to Ø 29 mm

29.08.2017

Specifications

P-725.1CL

P-725.1CD

P-725.1CA

P-725.2CL

P-725.2CD

P-725.2CA

P-725.4CL

P-725.4CD

P-725.4CA

P-725.x0L

open-loop

version

Unit

Tolerance

Active axes Z Z Z Z

Motion and positioning

Integrated sensor Capacitive Capacitive Capacitive -

Travel range at -20 to +120 V, open loop

150

330

460

as P-725.xCL

µm

min. (+20 %/-0 %)

Closed-loop travel range

100

250

400

-

µm

Open-loop resolution

0.3

0.4

0.5

as P-725.xCL

nm

typ.

Closed-loop resolution

0.65

0.75

1.25

-

nm

typ.

Linearity, closed-loop

0.03

0.03

0.03

-

%

typ.

Repeatability

±5

±5

±5

-

nm

typ.

Tilt θX

1

6

10

as P-725.xCL

µrad

typ.

Tilt θY

20

45

45

as P-725.xCL

µrad

typ.

Crosstalk in X

20

20

60

as P-725.xCL

nm

typ.

Crosstalk in Y

20

40

60

as P-725.xCL

nm

typ.

Mechanical properties

Stiffness in motion direction

0.23

0.17

0.12

as P-725.xCL

N/µm

±20 %

Resonant frequency, no load

470

330

230

as P-725.xCL

Hz

±20 %

Resonant frequency under load, 150 g

185

140

120

as P-725.xCL

Hz

±20 %

Compressive/tensile stress capacity in motion

direction

100 / 20 100 / 20 100 / 20 as P-725.xCL N max.

Drive properties

Ceramic type

PICMA® P-885

PICMA® P-885

PICMA® P-885

as P-725.xCL

Electrical capacitance

4.2

6.2

6.2

as P-725.xCL

µF

±20 %

Dynamic operating current coefficient 5.2 3.1 1.9 as P-725.xCL

µA / (Hz ×

µm)

±20 %

Miscellaneous

Operating temperature range

-20 to 80

-20 to 80

-20 to 80

-20 to 80

°C

Material Aluminum Aluminum Aluminum Aluminum

Objective diameter

39

39

39

39

mm

max.

Mass

0.215

0.23

0.23

as P-725.xCL

kg

±5 %

Sensor/voltage connection

CL version:

LEMO

Other: Sub-D

7W2 (m)

CL version:

LEMO

Other: Sub-D

7W2 (m)

CL version:

LEMO

Other: Sub-D

7W2 (m)

LEMO

(no sensor)

29.08.2017

Drawings and Images

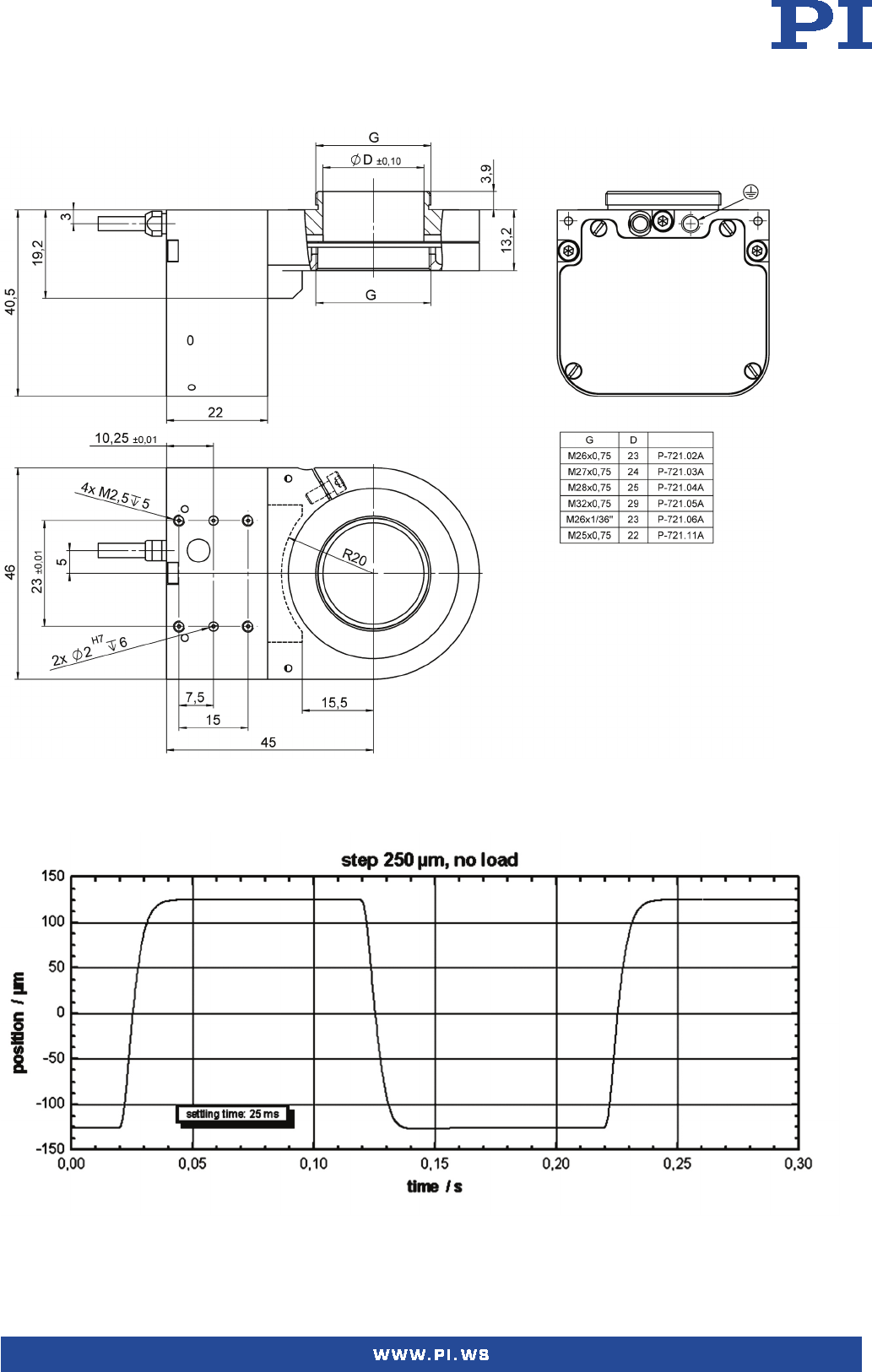

P-725.xCD/.xCL, dimensions in mm (please order adapter separately)

29.08.2017

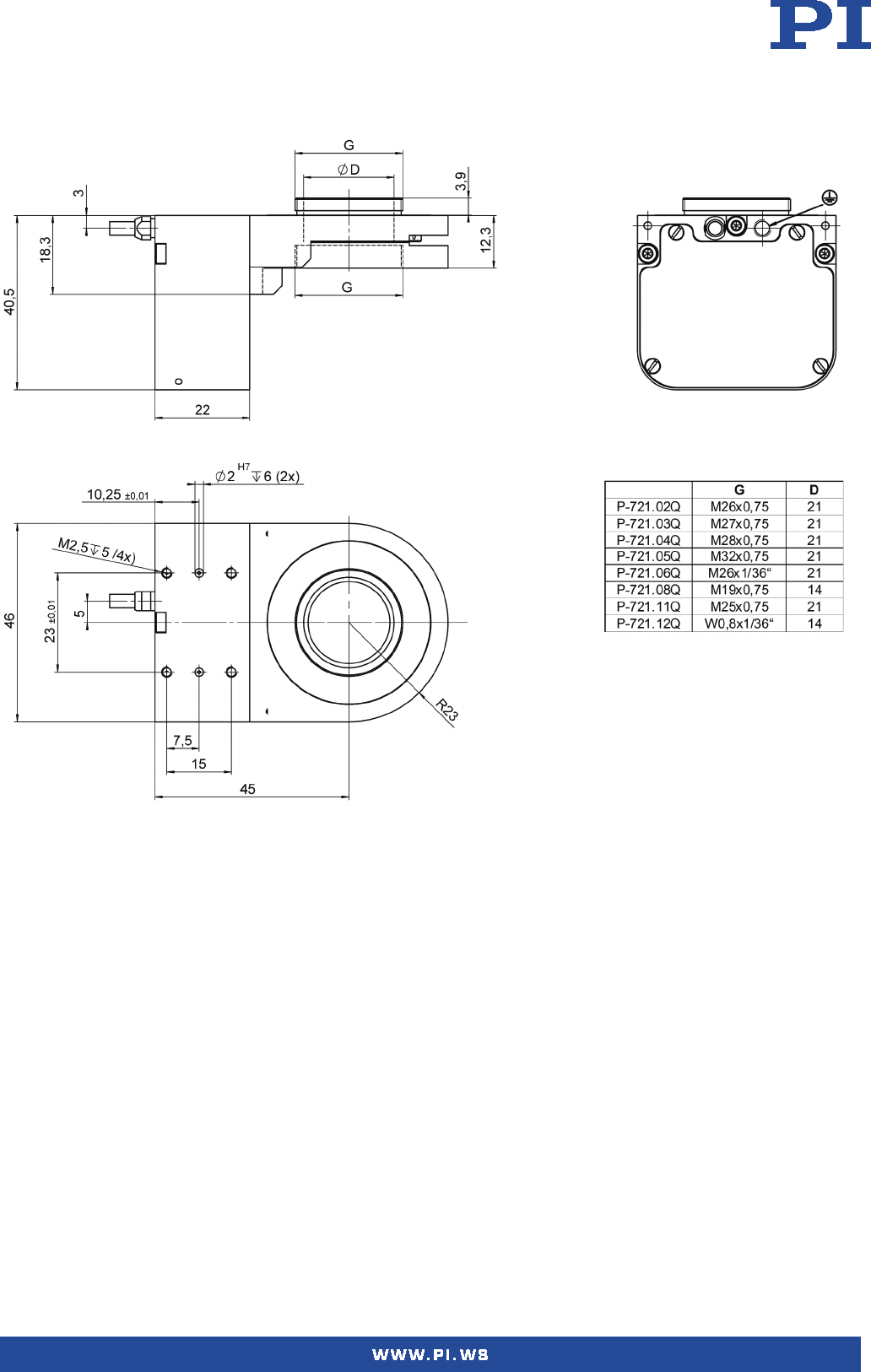

P-725.xCA, dimensions in mm (please order adapter separately)

Fast step-and-settle: Due to its stiff design, the P-725.2CL PIFOC can perform a 250 µm step to 1 % accuracy in only 25 ms (no load; 50 ms with a load of

150 g; with E-665.CR controller).

29.08.2017

Ordering Information

P-725.1CD

PIFOC piezo nanofocusing system for long travel ranges, 100 µm, capacitive sensors, Sub-D connector, for QuickLock adapter

P-725.2CD

PIFOC piezo nanofocusing system for long travel ranges, 250 µm, capacitive sensors, Sub-D connector, for QuickLock adapter

P-725.4CD

PIFOC piezo nanofocusing system for long travel ranges, 400 µm, capacitive sensors, Sub-D connector, for QuickLock adapter

P-725.1CL

PIFOC piezo nanofocusing system for long travel ranges, 100 µm, capacitive sensors, LEMO connector, for QuickLock adapter

P-725.2CL

PIFOC piezo nanofocusing system for long travel ranges, 250 µm, capacitive sensors, LEMO connector, for QuickLock adapter

P-725.4CL

PIFOC piezo nanofocusing system for long travel ranges, 400 µm, capacitive sensors, LEMO connector, for QuickLock adapter

P-725.1CA

PIFOC piezo nanofocusing system for long travel ranges, 100 µm, capacitive sensors, Sub-D connector, for QuickLock adapter

with large aperture

P-725.2CA

PIFOC piezo nanofocusing system for long travel ranges, 250 µm, capacitive sensors, Sub-D connector, for QuickLock adapter

with large aperture

P-725.4CA

PIFOC piezo nanofocusing system for long travel ranges, 400 µm, capacitive sensors, Sub-D connector, for QuickLock adapter

with large aperture

P-725.10L

PIFOC piezo nanofocusing system for long travel ranges, 150 µm, open loop, LEMO connector, for QuickLock adapter

P-725.20L

PIFOC piezo nanofocusing system for long travel ranges, 330 µm, open loop, LEMO connector, for QuickLock adapter

P-725.40L

PIFOC piezo nanofocusing system for long travel ranges, 460 µm, open loop, LEMO connector, for QuickLock adapter
