Phytech 200 Logger of wireless logger system User Manual
Phytech Ltd. Logger of wireless logger system Users Manual
Phytech >
Users Manual
Phytech wireless system
USER MANUAL
V1.3
General description
Phytech logger is part of an advanced AG IoT platform for optimized irrigation
management. The device receives Plant sensor measurements and sends them
to the Phytech cloud for analysis and processing. The outcome is a simple color
lofarmer in order to help him decide when and how much to irrigate
Installation and operation
Installation is very simple based on mobile app installation wizard. The logger
shall be installed near the plot, sensors shall be installed on trees or plants
within 150m radios from logger.
o Logger installation.

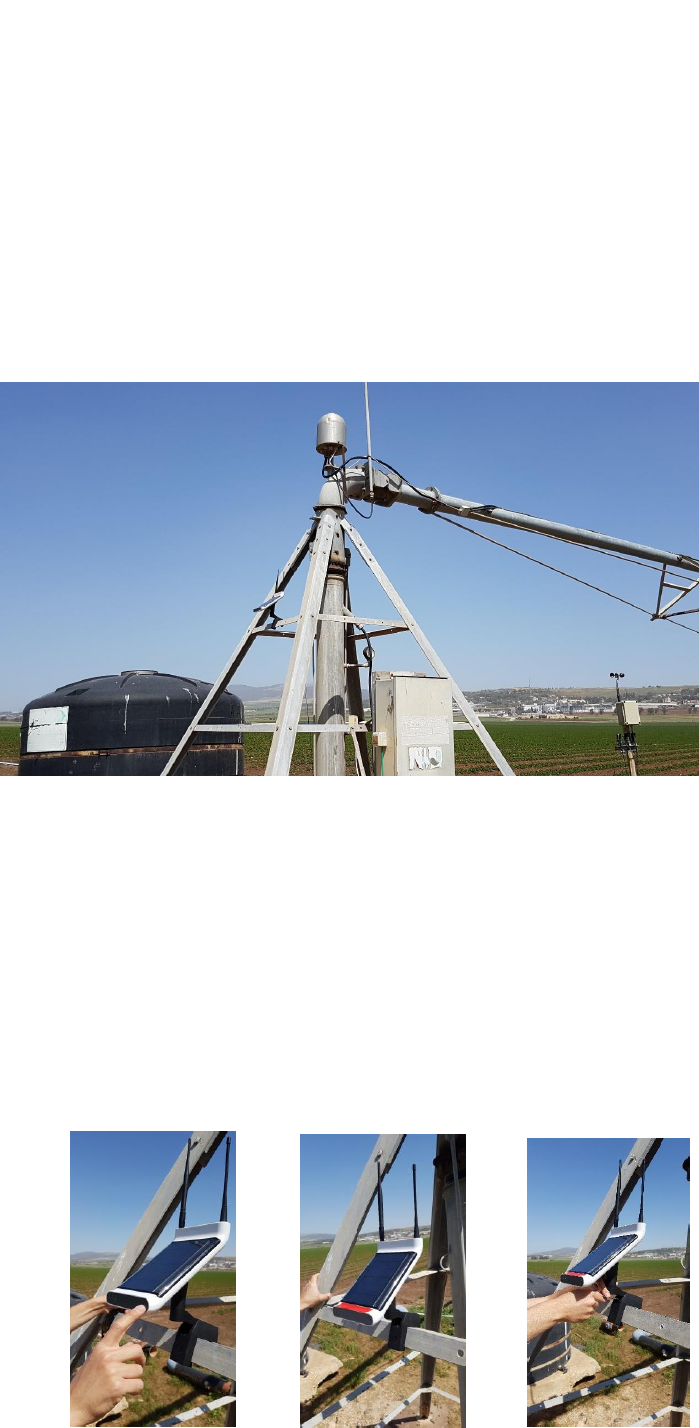

o Attach logger to Pivot center building using destined screws and means
(see below pictures). Then once the logger is stable press the reset
button. Following LED's shall be light:
First LED – power on, blinking while searching GPS
Second LED – GPS found, blinking while searching cellular
network
Third LED – Cellular network connected, blinking while
connecting to server
All LEDS are on – successful connection!

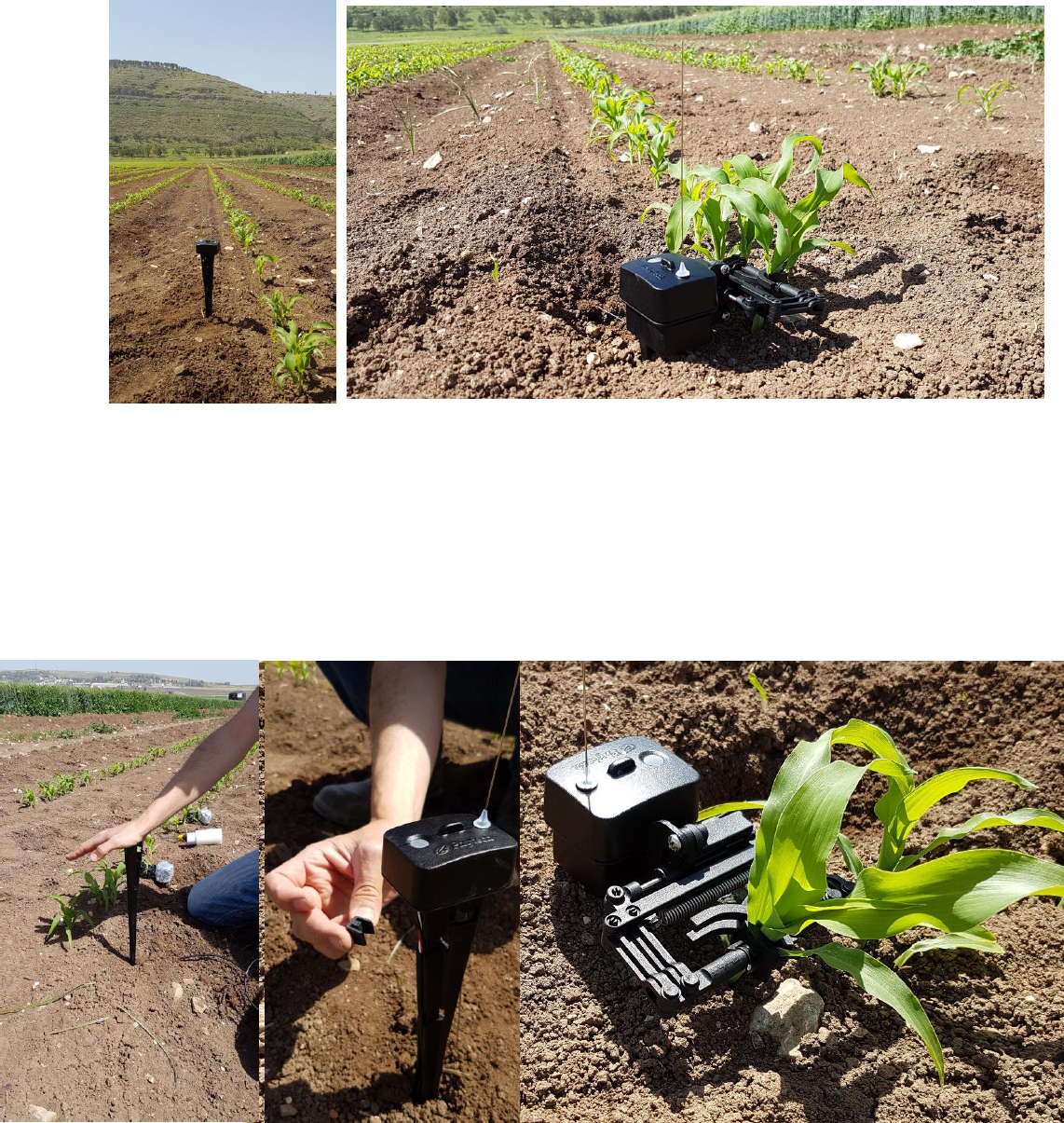

o Sensor installation :
Sensor must been installed after logger is functioning in field. Press
reset button. Following LED's shall be light:
Red blinking LED – searching connection to logger
Green blinking LED – found logger, searching GPS
Green stable – successful installation
The data received from sensors is analyzed in server and provided to users as
irrigation recommendations via web and mobile apps.

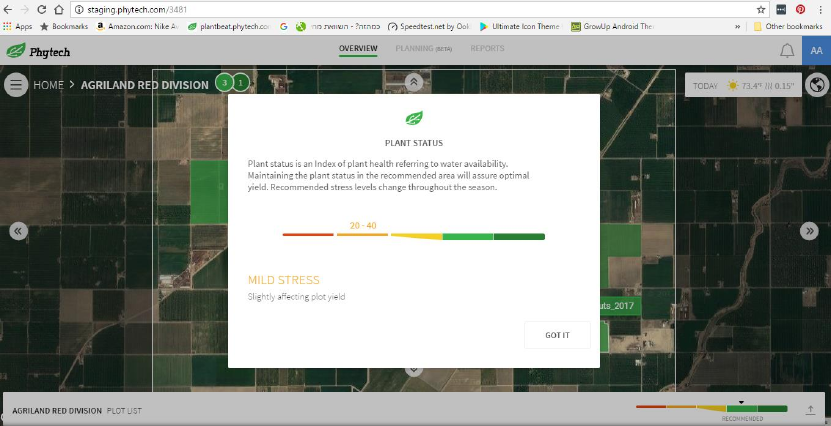

Web application
Product features
Sensor
Easy mount
GPS based Self-location
High resolution stem/trunk diameter measure
Event triggered radio transmission
Logger
> 100 sensors per logger
14 days data logging
Solar power system
Cellular communication with cloud servers. Cellular LE910 Telit module
approved by FCC under FCC ID:RI7HE910GL. Operating frequencies in
GSM850, EGSM900, DCS1800, PCS1900, WCDMA modes, compliant to the
3GPP and WCDMA specifications. The Cellular module communication is used
to upload sensors data to cloud servers.
Interfaces
Sensor
Reset button and indication LED
Analog sensor
Logger
Reset button
3 indication LED's
Radio
UHF 433.9 MHz
FSK modulation
4.8 kbps
Custom antenna (both sensor and logger)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
This device complies with FCC Rules Part 15 and with Industry Canada licence-
exempt RSS standard(s). Operation is subject to two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference
that may be received or that may cause undesired operation.
Changes or modifications to this equipment not expressly approved by the party
responsible for compliance (Phytech Ltd.) could void the user’s authority to operate
the equipment.
Cellular LE910 Telit module approved by FCC under FCC ID:RI7HE910GL.
WARNING! To comply with FCC RF exposure compliance requirements, the device
should be located at a distance of at least 20 cm from all persons during normal
operation. The antennas used for this product must not be co-located or operated
in conjunction with any other antenna or transmitter.
Professional installation is required due to the intended application of the system is
exclusively for the commercial/industry use.
WARNING: It is the responsibility of the installer to ensure that when using the
outdoor antenna kits in the United States (or where FCC rules apply),
only those antennas certified with the product are used. The use of any
antenna other than those certified with the product is expressly
forbidden in accordance with FCC rules CFR47 part 15.204."
Electrical
Sensor
Input voltage 3.2 – 2.7v (2 X AAA alkaline battery)
Logger
Input voltage 4.3 – 3.7v (18650 Li-ion battery)
