Pineapple Technology UTX3KW 3 kW Television Transmitter User Manual UTX3KW Op Serv Man092604 indd

Pineapple Technology, Inc. 3 kW Television Transmitter UTX3KW Op Serv Man092604 indd

Technical manual containing parts lists and tune up info and schematics

U T X 3 K W - A
INSTRUCTION MANUAL
SN:
PINEAPPLE TECHNOLOGY, INC.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual TABLE OF CONTENTS
Section I — SAFETY NOTICES .................................................................................................2
**READ THIS SECTION BEFORE INSTALLATION**
Section II — TRANSMITTER SPECIFICATIONS ...............................................................3
Section III — TRANSMITTER INSTALLATION...................................................................5
Section IV — TRANSMITTER TURN-ON...............................................................................6
Section V — THEORY OF OPERATION
A. Introduction ............................................................................................................................8
B. ACDIS3 ..................................................................................................................................8
C. RR6000 Power Supply ...........................................................................................................8
D. PAS10 and ADP500 Performance Monitor..........................................................................11
E. Remote Monitor and Control W/ABS..................................................................................12
F. Modulator/Driver..................................................................................................................13
G. DRV100DC-2 Driver............................................................................................................13
H. S10-6 ....................................................................................................................................13
I. MFA1KW Power Combiner.................................................................................................13
J. U600LDV-2 Power Amplier...............................................................................................13
K. UC3KW-DC40 Power Combiner.........................................................................................14
L. BPU3KW UHF.....................................................................................................................14
M. AUX5 Monitor Panel............................................................................................................14
N. FP6 Fuse and DC Distribution Panel....................................................................................14
Section VI — SCHEMATIC AND PARTS LISTS
A. UTX3KW-A .........................................................................................................................15
B. ACDIS3 ................................................................................................................................17
C. DRV100DC-2.......................................................................................................................19

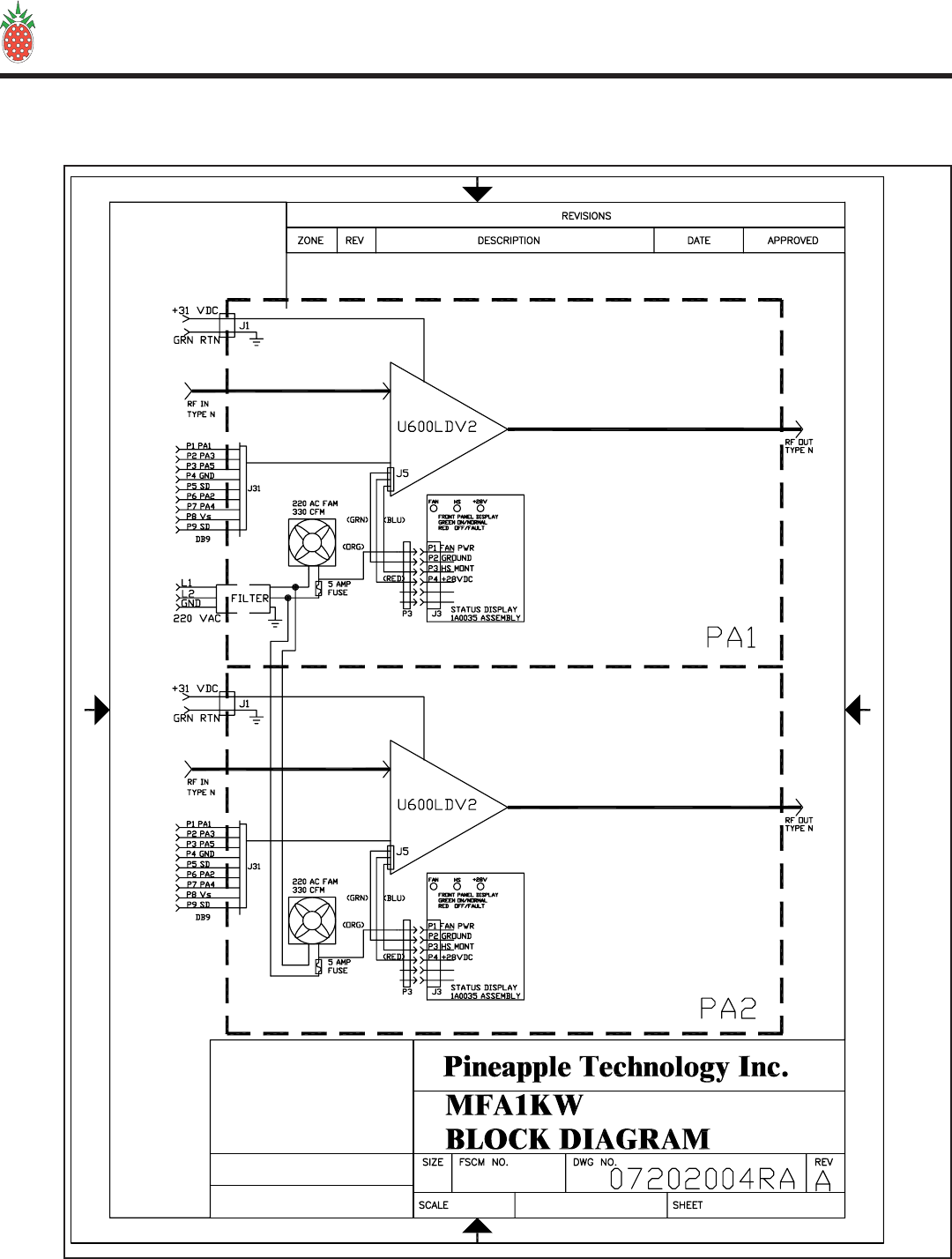

D. MFA1KW.............................................................................................................................21

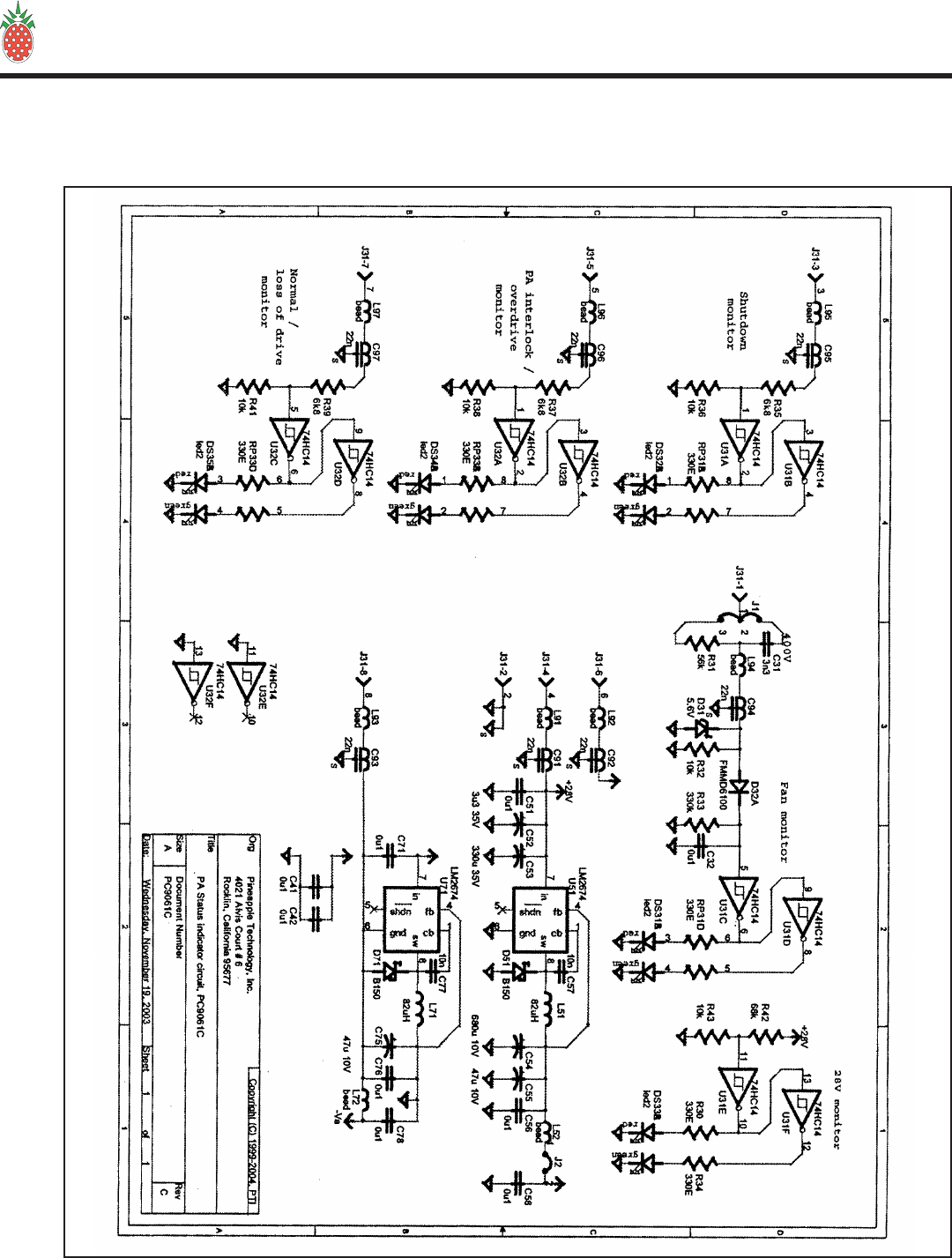

1. 1A0035 Status Board.......................................................................................................23
E. U600LDV-2 ..........................................................................................................................25
1. U250LD...........................................................................................................................28
2. 1A0025 Power Distribution Monitor...............................................................................32
3. 1A0018 Gain and Phase Matching Network...................................................................35
F. SPLITTER S10-6 .................................................................................................................37
G. COMBINER UC3KW..........................................................................................................38
H. PAS10 and ADP500 PA Monitor..........................................................................................39
1. 1A0027 ............................................................................................................................46
2. 1A0029 ............................................................................................................................48
3. 1A0030 ............................................................................................................................51
I. AUX5 Monitor Panel............................................................................................................52
J. FP6 Fuse and Shunt Panel....................................................................................................54
Section VII — RECOMMENDED ROUTINE MAINTENANCE......................................55
Section VIII — ADJUSTMENTS AND TUNING ................................................................56
Section IX — PROBLEM SOLVING / TROUBLE SHOOTING......................................58
Section X — WARRANTY...........................................................................................................60
Section XI — EXTENDED WARRANTY................................................................................61
Page 1 REV. 092704
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual I — SAFETY NOTICES
I — SAFETY NOTICES
**READ THIS SECTION BEFORE INSTALLATION**
SEVERE ELECTRICAL SHOCK OR BURNS MAY OCCUR IF
THIS EQUIPMENT IS USED IMPROPERLY.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~`
NEVER WORK ON THIS EQUIPMENT ALONE. ALWAYS HAVE ANOTHER PERSON PRESENT
WHILE WORKING ON ELECTRICAL CIRCUITS OR MOVING EQUIPMENT. COMMUNICATIONS
TO EMERGENCY SERVICES SHOULD BE AVAILABLE AT ALL TIMES.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~`
BEFORE CONNECTING THIS EQUIPMENT TO ANY AC ELECTRICAL SOURCE READ THE
SECTION ON INSTALLATION. ALL ELECTRICAL WIRING FOR THIS EQUIPMENT MUST BE
PERFORMED BY QUALIFIED ELECTRICIANS. ALL WIRING MUST BE COMPLIANT WITH
LOCAL ELECTRICAL CODES.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~`
POWER AMPLIFIERS AND SUPPLIES ARE HEAVY. TO INSTALL THIS EQUIPMENT IN RACKS,
USE TWO (2) PERSONS TO AVOID POSSIBLE INJURIES.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~`
NEVER OPEN THE CABINET ENCLOSURE OR UNPLUG CABLES OR WIRES WHILE THIS
EQUIPMENT IS OPERATING.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~`
ALL SERVICE WORK MUST BE PERFORMED BY QUALIFIED TECHNICIANS ONLY.
IF ONE IS NOT AVAILABLE LOCALLY, CONTACT PINEAPPLE TECHNOLOGY, INC. FOR
A LIST IN YOUR AREA.
Page 2
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual II — TRANSMITTER SPECIFICATIONS
II — UTX3KW-A SPECIFICATIONS
OPERATING
Power Output ...................................................... 3 KW Peak Sync
Aural Power......................................................... 300 Watts
RF Output Impedance.......................................... 50 Ohms
Frequency Range ................................................. 470-806 MHz
Frequency Stability.............................................. 1 PPM or better
Harmonic and Spurious ....................................... -60 dB or better ref to P-sync
Power Consumption ............................................ 17 KW maximum
AC Line Voltage .................................................. 208-230 V AC 3-Phase
VIDEO PERFORMANCE
Visual Frequency Response................................. +/- 1 dB across the TV channel -1.25 MHz to 4.75 MHz
relative to visual carrier.
Differential Gain.................................................. <7 %
Differential Phase ................................................ <10 degrees
ICPM ................................................................... <5 degrees
Low Frequency Linearity .................................... <15 %
2T K Factor.......................................................... 3 %
Group Delay ........................................................ Meets FCC Part 73 Rule
Video Input Impedance........................................ 75 ohms
Video Input Level ................................................ 1 volt p-p
Variation of output power .................................... <5 %
Regulation of output power ................................. <5 % Typical
Video Signal to Noise Ratio ................................ < 45 dB un-weighted
Page 3
THESE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual II — TRANSMITTER SPECIFICATIONS
Page 4
AUDIO PERFORMANCE
Audio Response................................................... Meets FCC pre emphasis curve
Distortion............................................................. <1 % THD
FM Noise ............................................................. 50 dB or better
AM Noise ............................................................ 40 dB or better
AM Synchronous Noise ...................................... 40 dB typical
Operating Temperature ........................................ -10 to +35 Celsius Ambient
Altitude ................................................................ 5000 feet without additional cooling
Cooling requirements .......................................... Unobstructed air ow 2500 CFM minimum
RF Output connectors.......................................... 1 5/8 EIA Flange
Weight.................................................................. 525 pounds
Dimensions .......................................................... 80 inches x 22 inches x 24 inches (H x W x L)
THESE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 5
III — TRANSMITTER INSTALLATION
To ensure long and reliable trouble-free service from the UTX3KW-A transmitter the following steps for
installation are recommended.
1. MECHANICAL INSTALLATION: The UTX3KW-A was designed to be installed in a building
protected from the weather. The building should have a hard-surface oor such as concrete with a
moisture barrier. This barrier could be pressure-treated wood sub ooring which could be anchored
to the concrete and to the transmitter to make the installation earth quake resistant.
Allow a minimum of three feet around the transmitter cabinet for service access. The top of the
transmitter should be clear, for three feet above to allow the air to exhaust from the transmitter.
Air ow thru the transmitter is approximately 2500 CFM. Provisions for air inlet and exhaust from
the room must allow air ow with minimal obstruction. In the event that the room temperature
exceeds 35 degrees Celsius, cooling air must be provided so that the room temperature will not
exceed 35 degrees Celsius under worse case conditions.
Notice: This equipment is HEAVY and must be handled by professional movers with proper
equipment. Any damage caused by the installers is not covered under warranty. Check to ensure that
installing crews have proper insurance coverage.
2. GROUNDING: Transmitter grounding is VERY IMPORTANT and must be done correctly for
safety and operational reasons. A typical installation may be done as follows:
Use a heavy gauge wire such as #2 AWG strained copper or solid copper buss one (1) inch wide
by 1/8 inch thick for connections. The bonding between the transmitter and the ground rods must
be good quality and protected from corrosion. The ground wires should run over the oor and
connected to the ground rods located outside the building. The wire should not go thru the concrete
oor but over and around it.
3. AC WIRING: A ten (10) foot cable has been provided with the transmitter to facilitate the
connection to the AC Main power source.
Connections to the AC Main should be made as follows:
— RED, BLACK, AND ORANGE are connected to the 208 VAC 3-PHASE terminals
— WHITE WIRE is connected to the NEUTRAL terminal
— GREEN WIRE is connected to the SAFETY GROUND
NOTICE: All wiring of this type must be done by A QUALIFIED ELECTRICIAN and must
conform to LOCAL and NATIONAL wiring CODES.
Consult with your electrician to ensure that the proper breaker size is selected for the main circuit.
4. ANTENNA CONNECTION: The transmitter is equipped with 1 5/8 EIA Flange connector located
at the top of the rack. Conditions vary from site to site so some engineering may be required to
ensure that the antenna is receiving the correct amount of power to comply with FCC licenses and
to ensure safety from lighting etc.
III — TRANSMITTER INSTALLATION
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual IV — TRANSMITTER TURN ON PROCEDURE
Page 6
IV— TRANSMITTER TURN ON PROCEDURE
Before applying AC Power to the transmitter for initial turn on and check out, the installation should
be approved by a qualied broadcast engineer. The turn on procedure that follows is recommended by
Pineapple Technology, Inc. engineering staff:
1. Check transmitter load or antenna for proper installation and connection to the transmitter.
2. Open the transmitter and inspect all cables and wires for loose connections or broken wires in the
rack assembly.
3. Check for damage to the equipment mounted in the rack.
4. Check all AC breakers and on/off switches to ensure that all are OFF.
5. TURN ON THE MAIN AC BREAKER LOCATED IN THE SUB-PANEL WHERE THE AC
POWER CORD WAS CONNECTED.
6. TURN ON THE MAIN AC BREAKER LOCATED ON THE ACDIS3 POWER DISTRIBUTION
PANEL LOCATED ON THE FRONT OF THE TRANSMITTER. A GREEN LIGHT SHOULD
COME ONE INDICATING POWER IS ON.
7. TURN ON THE AC SWITCH LOCATED ON THE FRONT OF THE ADP500. THE INDICATING
LIGHTS SHOULD BE ON AND READY FOR OPERATION
8. TURN ON THE AUX BREAKER LOCATED ON THE ACDIS3 FRONT PANEL. THE PA FANS
AND THE RACK EXHAUST FANS SHOULD COME ON.
9. TURN ON THE POWER SUPPLY BREAKERS LOCATED ON THE FRONT OF THE ACDIS3.
CHECK THE RR6000 POWER MODULES — six (6) EACH — TO SEE IF THE GREEN LIGHTS
ARE INDICATING NORMAL OPERATION.
10. USING THE ADP500 & PAS10 CHECK THE IDLING CURRENTS ON EACH PA TO ENSURE
THAT THE CURRENTS ARE IN THE CORRECT RANGE. TYPICAL RANGE IS 1.5 TO 2.5
AMPS. SEE ADP500 OPERATING SECTION FOR DETAILS.
11. TURN ON THE DRV100 DRIVER AMPLIFIER — THE GREEN LIGHT SHOULD COME ON.
NOTICE: The Modulator/Upconverter has been set at the factory so that the output power indication
on the ADP500 will show 100% or 3 KW p-sync power level. It is important to read the instruction
manual supplied with the modulator to locate key adjustment devices on the front panel. The output
level adjustment will be necessary for the next step in the turn on procedure.
12. Locate the level adjustment on the modulator/upconverter and turn the level down to minimum
or CCW.
13. Turn on the power switch located on the modulator rear panel.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
14. Apply a video signal (1 volt P-P) to the video input terminal.
15. Slowly increase the output level adjustment while watching the RF Output level on the ADP500.
When the output gets up to 50% indicated power stop the adjustments.
16. Using the ADP500 reected power indication check the LOAD reected power. This should be
less that 5% reected.
17. Return to the PA current readings on the ADP500 to verify that all the currents are approximately
the same.
18. With successful performance thru step 17, the transmitter output power can be increased using the
output level adjustment on the modulator to achieve 100%. The aural power can be added at this time
not exceeding 10% of output p-sync power as indicated on the ADP500.
IV — TRANSMITTER TURN ON PROCEDURE
Page 7
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
V— THEORY OF OPERATION
A. INTRODUCTION
The UTX3KW-A transmitter was designed to meet or exceed all FCC applicable specications for TV
Broadcast Equipment. Special attention was given to the selection of sub-assemblies and components to
achieve maximum reliability and minimum down time. The construction of the UTX3KW-A is BASIC
and MODULAR with most components eld replaceable. Special emphasis was placed on “KEEPING
IT SIMPLE” and returning to more traditional transmitter layouts and instrumentation.
This transmitter was designed for Analog (NTSC) transmission with provisions and options available to
convert to Digital Service when necessary.
Refer to the UTX3KW-A block diagram (page 15) for an overview of the transmitter architecture. This
will give the technician basic information needed to understand the operations of the transmitter and the
function of each subassembly.
SEE SECTION VI.A (Page 16) FOR PARTS LIST.
B. ACDIS3 AC DISTRIBUTION
The ACDIS3 is the primary AC power inlet module. The UTX3KW-A transmitter was designed to except
208 to 230 V AC 3-PHASE using a FIVE (5) wire connection. The ve wires are:
— 3 wires for 208-230V AC 3-Phase
— 1 wire for neutral connection
— 1 wire for safety ground connection
CAUTION: Connection to the AC Primary Source must be made using all ve wires listed above. Follow
the wiring instruction given in the AC WIRING (page 5; section III. 3.) If not followed, severe damage to
the transmitter and or electrical shock is possible.
The ACDIS3 performs the following functions:
1. Provides a primary AC power breaker point to shutdown the transmitter.
2. Provides 208 VAC power to each of the 2 KW DC power supplies with individual breaker points
for added safety.
3. Provides 110 VAC circuits for Modulator, ADP500, ABS (auxiliary power source), and AUX Power
where needed.

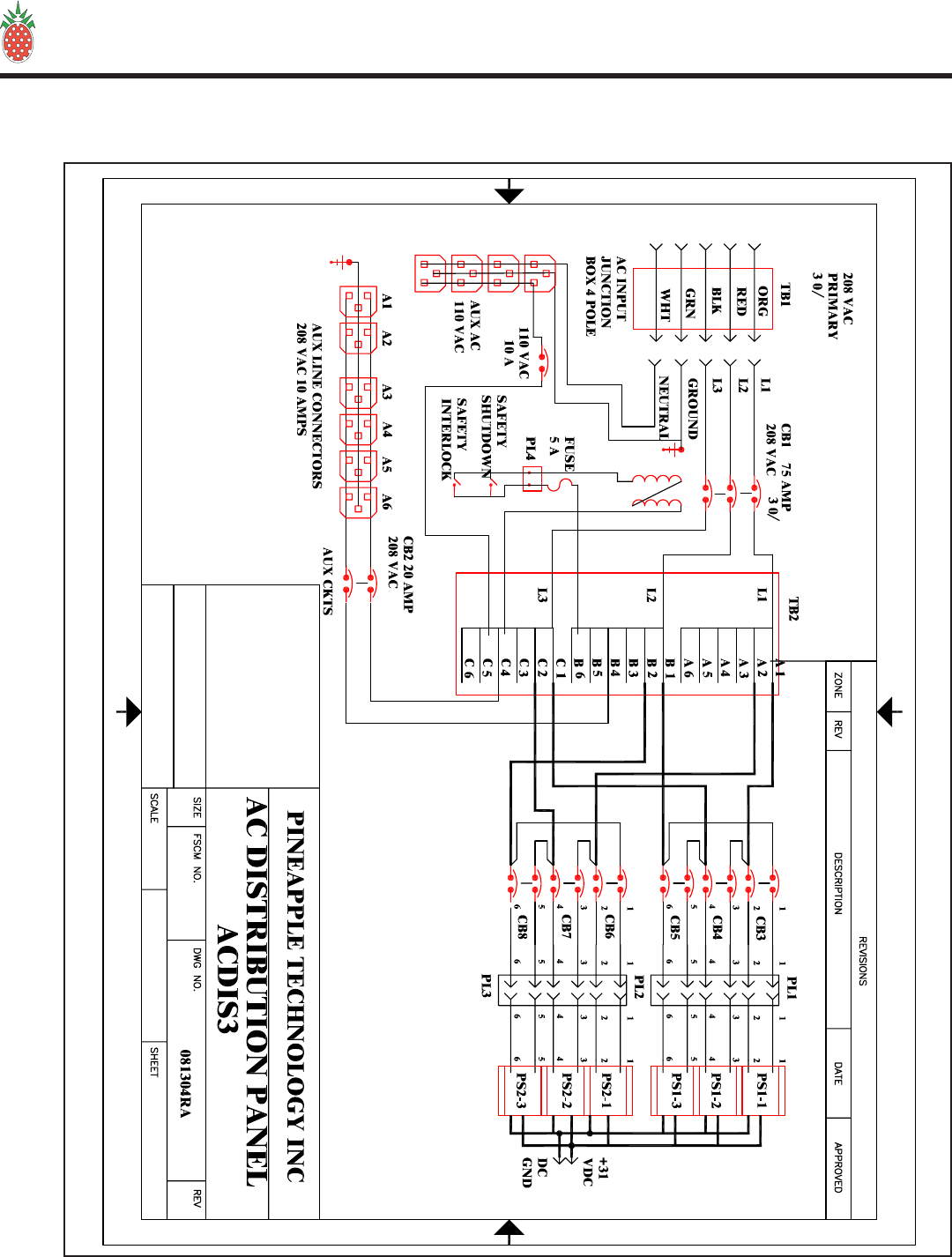

SEE SECTION VI.B (Page 17) FOR SCHEMATIC AND PARTS LIST
C. RR6000 POWER SUPPLY
The UTX3KW-A transmitter is designed with over 12 KW of DC power available to the transmitter. To
achieve this level, the power supply is made up of six (6) RR6000 power modules mounted into two (2)
main frame assemblies which are capable of managing three (3) 2 KW modules each.
The power modules are “HOT PLUGGABLE” and can be removed or installed without turning off the
transmitter.
Each power supply module has OVER VOLTAGE, OVER CURRENT, AND OVER TEMPERATURE
protection as well as a fault signal in the event of a failure.
REFER TO MANUFACTURER’S MANUAL PROVIDED WITH THE UTX3KW-A.
V — THEORY OF OPERATION
Page 8
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
D. ADP500 & PAS10 PERFORMANCE MONITOR
The ADP500 & PAS10 (PERFORMANCE MONITOR) provides the following functions:
1. Monitors FORWARD AND REFLECTED POWER to the antenna and presents it as a percentage
of power rating. The transmitter comes set to 100% P-Sync power based on the ratings of the
transmitter.
2. Monitors Aural Power as a percentage of P-Sync rating (5-10 % typical)
3. Provides a HIGH ANTENNA VSWR MONITOR in the event of an antenna or coax failure where
the reected power exceeds 25% the transmitter will shutdown. Front panel LED will change from
green to red in case of a fault.
4. Provides current monitoring of all the pallets used in the six (6) U600LDV-2 power amplier
assemblies. The current levels can be read directly from the multi-meter on the front panel.
Individual pallets are selectable on the ADP500 and the PA assemblies are selected using the PAS10.
In normal operations, a PA FAULT is indicated by going from green to red. RED indicates that the
current level is below 500 ma and a transistor could have failed. To read the actual current, select the
appropriate PA Bank using the PAS10. The ADP500 will now display status of each pallet in that
PA. The multi-meter will read the actual current.
5. A PA INHIBIT switch is provided for failure diagnostic purposes. When activated, this switch allows
the technician to monitor the bias currents for each pallet. These readings should be recorded when
the transmitter is rst installed and used as a reference. This is the best way to trouble shoot possible
transistor problems. When in the PA INHIBIT mode, the RF PWR OFF LED will change from
green to red indicating that the “SHUTDOWN LINE” is at a TTL 0 state and the output power
has been reduced to near zero.
6. An RF MONITOR port (BNC) is available to connect a spectrum analyzer for monitoring the
output signal.
METER SELECTOR SWITCHES
The PAS10 is used to select the appropriate PA Module (U600LDV-2) for performance display on the
ADP500. PA designations are PA1 starting from the top row going left to right with PA6 being on the right
side in the third row down when viewed from the front of the transmitter.
The Rotor Switch on the ADP500 is the detail selector for the multi-meter. The various positions are
dened as follows:
PA1 THRU PA5 ................................................... Reads PA pallet currents as selected
Typical reading in INHIBIT MODE 1.5 TO 2.2 A
Typical reading SMPTE BARS 5-7 A for PA1 thru PA4
Typical reading SMPTE BARS 2-3 A for PA5
PA6 .....................................................................NO CONNECTION
PS VOLTS............................................................ Reads DC voltage applied to PA stages
Typical reading would be +29 to 32 VDC
P FWRD .............................................................. Reads PA output power in P-Sync percentage of rating
Full power reading would be 100%
V — THEORY OF OPERATION
Page 11
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
P RFLD................................................................ Reads PA output power being returned from the load and
displayed as a percentage of forward power. Typical
reading would be < 5% indicated
P AURAL............................................................. Reads the AURAL POWER component as a percentage
of forward power. Typical reading would be 10%
AUX 1 & AUX 2 ................................................. not used in this conguration

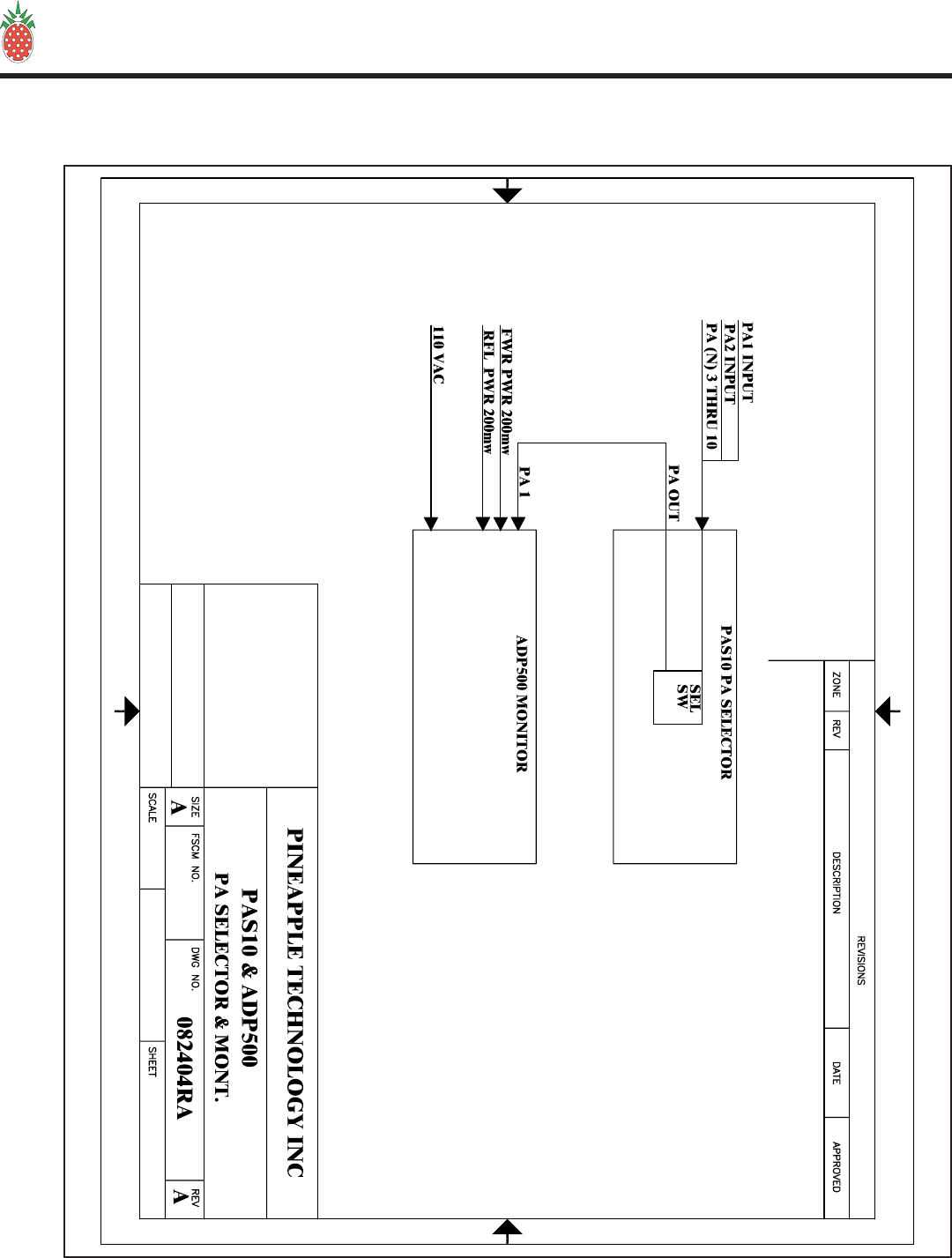

REFER TO SECTION VI.H (Page 39) FOR SCHEMATICS AND PARTS LIST
E. REMOTE MONITOR AND CONTROL WITH ABS
This equipment is OPTIONAL and can be used to satisfy FCC remote control requirements.
The Remote Monitor is used to monitor the operational status of the transmitter and will allow the
operator to turn RF on or off and adjust power levels. The following items are monitored or controlled:
1. Transmitter on/off function
2. Power output level monitor and adjust
3. AC Line voltage status — With ABS you can be notied if there is a power failure at the side.
4. Various other custom options are available. Specify these at the time the transmitter is purchased
and they will be included if possible.
Remote monitoring requires a phone line connection. Information can be accessed via a PC Terminal or
via a “VOICE COMMAND LINE.” Either option is standard with this system.
The Auxiliary power unit requires a battery connection. A common car battery (12 VDC) can be used
with a charger as an ABS. This will run the Monitor and provide access to transmitter status for several
hours.
A manual for this equipment is provided by the Manufacturer and is included in the UTX3KW-A package
shipped with the transmitter. This manual is only included if this option was purchased for delivery
with the transmitter.
REFER TO INSTRUCTION MANUAL PROVIDED WITH THIS PACKAGE.
F. MODULATOR
The heart of any TV Transmitter is the MODULATOR. This equipment receives the video and audio
signals as well as any control signals needed. The base band signals are converted to RF with an output
on the desired operating channel.
Detail operation of the Modulator with schematics and parts list is provided by the equipment manufac-
turer.
REFER TO INSTRUCTION MANUAL PROVIDED WITH THIS PACKAGE.
V — THEORY OF OPERATION
Page 12
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
G. DRV100DC-2 DRIVER
The output power of the modulator is applied to the input of the DRV100DC-2 driver. This amplier
increases the drive level to that required for the MFA1KW to make rated power. The driver amplier
requires 31 VDC to operate and does not require any tuning or adjustments to change channels.

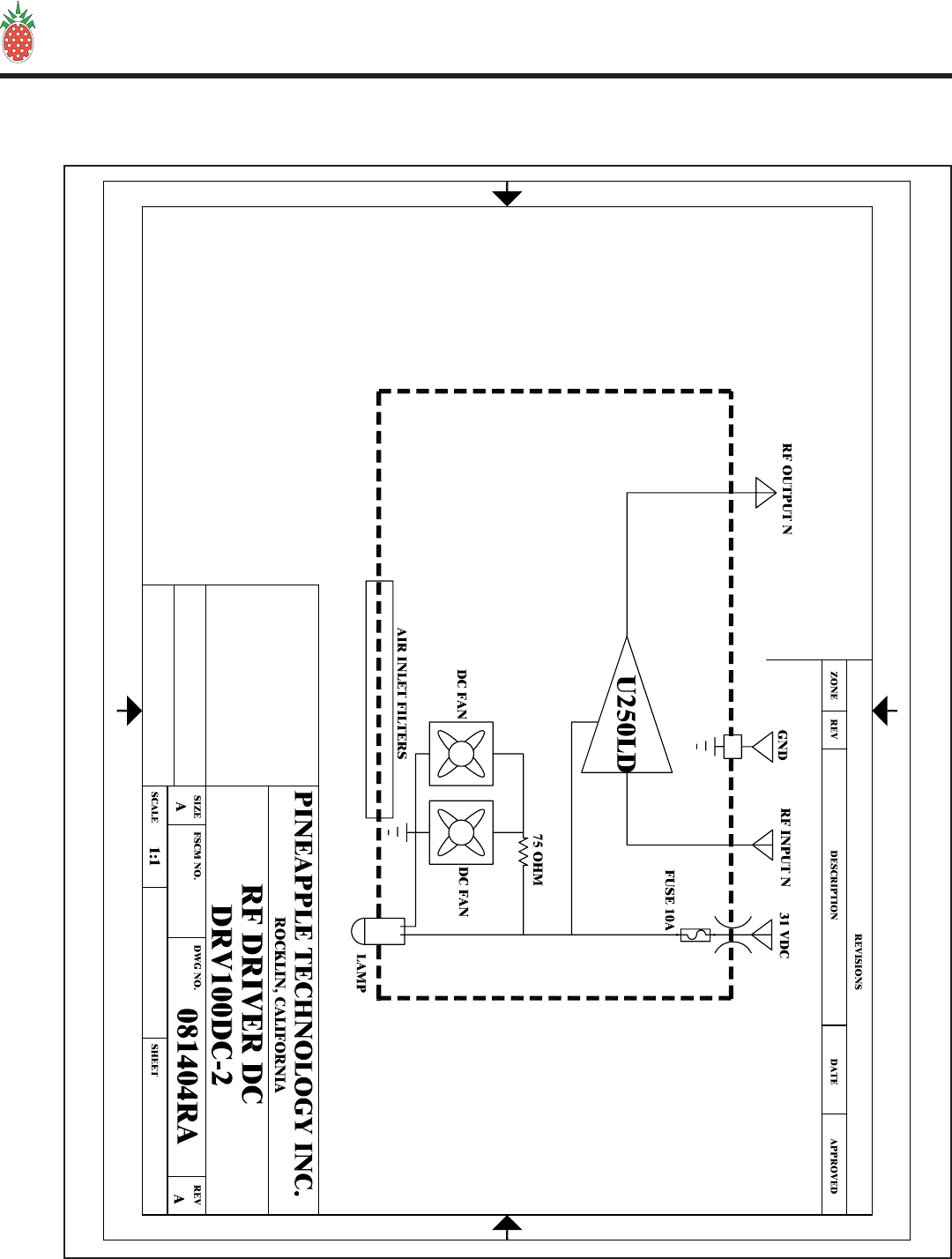

REFER TO SECTION VI.C. (Page 19) FOR SCHEMATIC AND PARTS LIST.
H. S10-6 SPLITTER
The S10-6 SPLITTER is a 6-way in-phase broadband splitter. This splitter provides an equal split of drive
power to each U600LDV-2 power amplier.
SEE SECTION VI.F. (Page 37) FOR PARTS LIST
I. MFA1KW PA HOUSING
The MFA1KW is the main RF Power Amplier housing which accommodates two (2) U600LDV-2
Ampliers. The housing includes the following:
2 ea. 330 CFM cooling fans
2 ea. Air lter assemblies
2 ea. Front panel status PC boards
1 ea. Main chassis
2 ea. Mechanical slide assemblies
1 ea. AC Filtered inlet for cooling fans
SEE SECTION VI.D. (Page 21) FOR SCHEMATICS AND PARTS LIST
J. U600LDV-2 POWER AMPLIFIER
The U600LDV-2 is the main RF Power Amplier Assembly used in the UTX3KW-A. Each Amplier
assembly is made up of ve (5) U250LD power pallets. Each power pallet uses two (2) Philips BLF861A
power LDMOS FETs. These ampliers are operated in Class A/AB or sometimes referred to as “HARD
AB”. This refers to the bias levels to achieve best linearity.
Each U600LDV-2 amplier assembly includes the following:
5 ea. U250LD power pallets
1 ea. 4-way splitter
1 ea. 4-way combiner

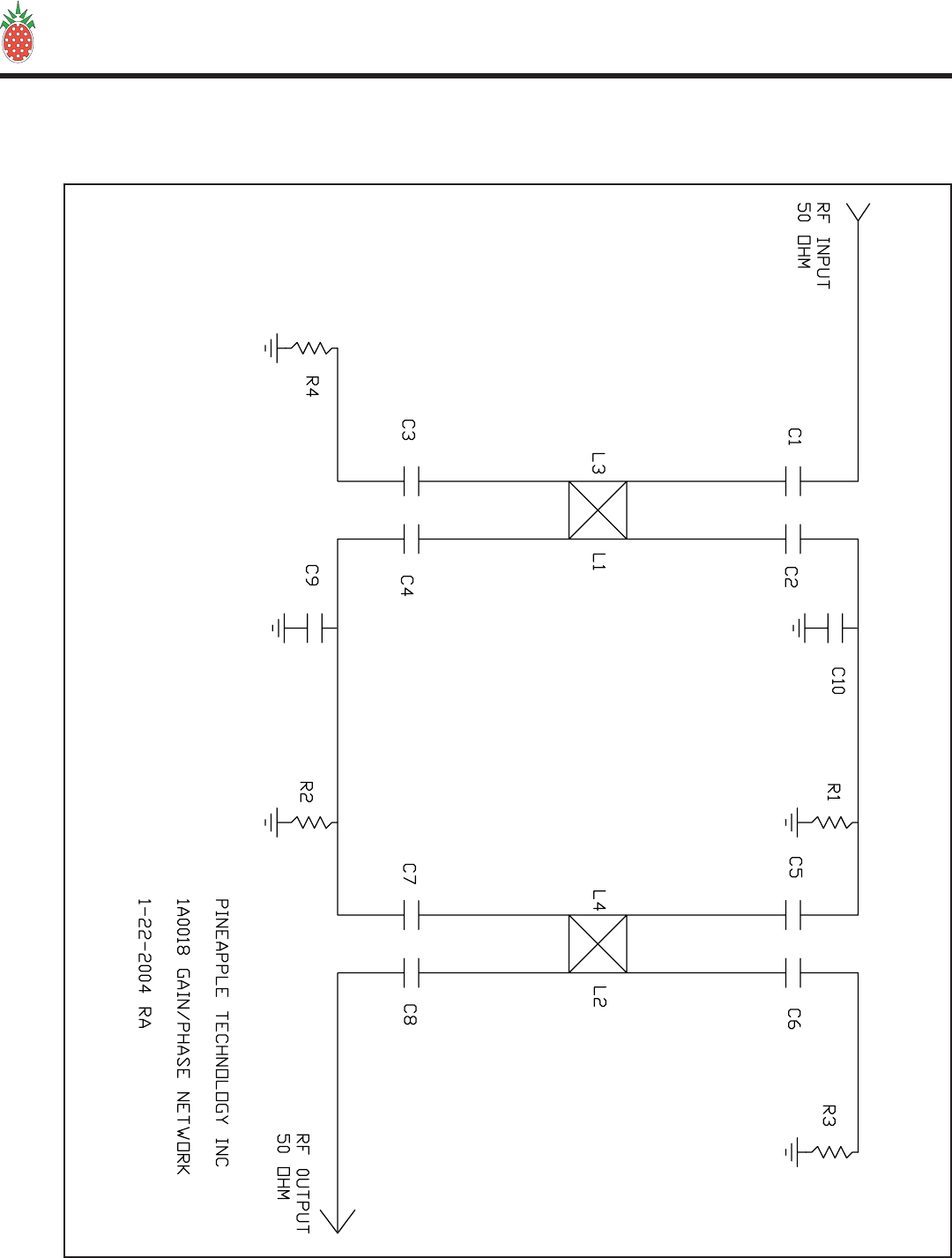

1 ea. phase & gain matching circuit (1A0018)
1 ea. Power distribution module (1A0025)
1 ea. high power isolator
3 ea. thermal sensors
1 ea. remote monitor port (DB9)
1 ea. front panel status port (Molex)
1 ea. ltered DC input port
1 ea. Type N panel mounted RF Input port
1 ea. Type N Panel mounted RF Output port

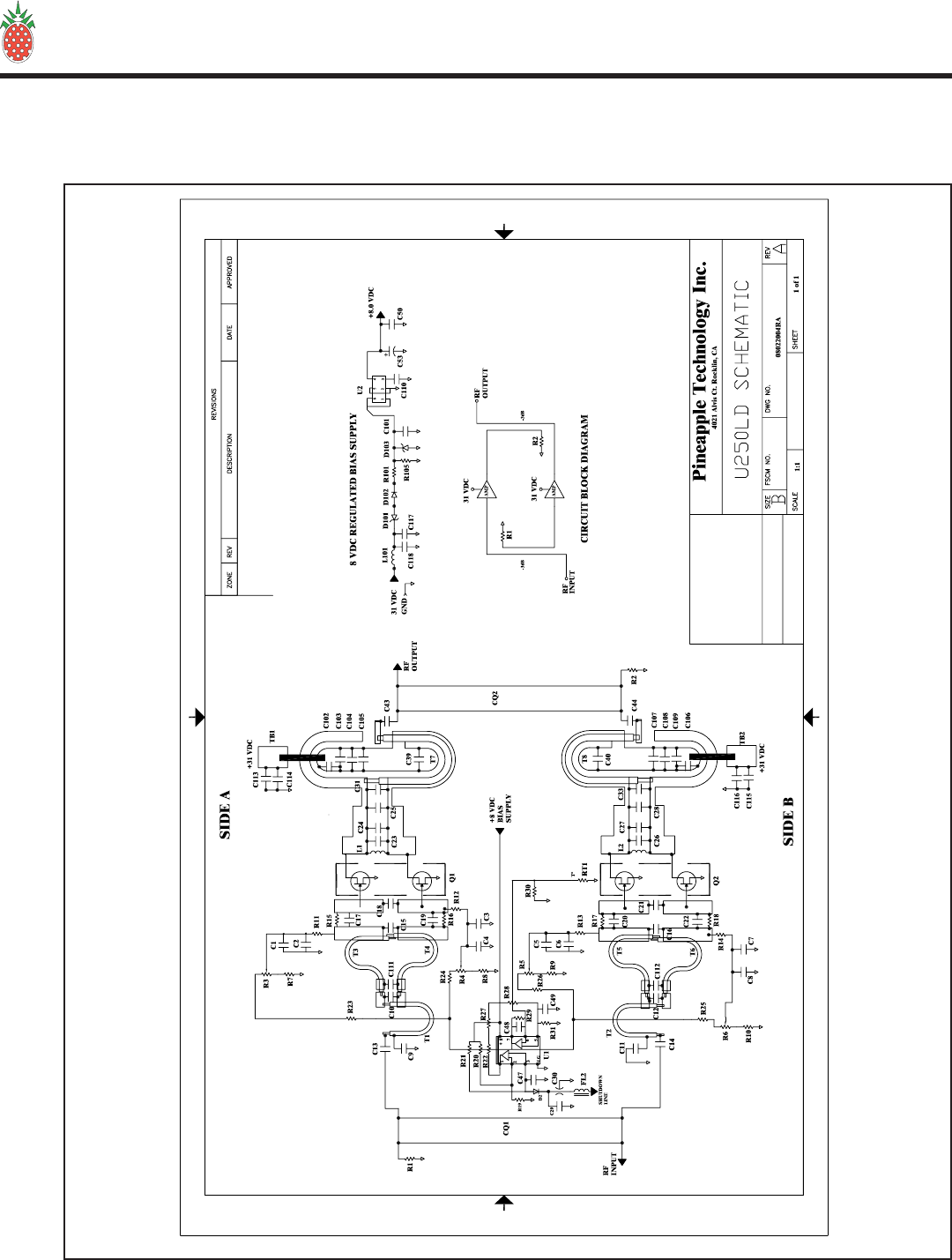

SEE SECTION VI.E. (Page 25) FOR SCHEMATICS AND PARTS LIST.
V — THEORY OF OPERATION
Page 13
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
K. UC3KW-DC40 COMBINER/DD COUPLER
The UC3KW is a 6-way in phase combiner with built in 40 dB dual directional coupler. The combiners
are designed for the channel designated for the transmitter. This is a closed unit and cannot be serviced.
SEE SECTION VI.G. (Page 38) FOR PARTS LIST
L. BPU3KW UHF BAND PASS FILTER
This Band Pass lter was designed to meet FCC Certication requirements with minimum loss of RF
Power. The BPU3KW comes tuned and tested to the operating frequency of the transmitter and should
not be adjusted without proper equipment. Replacement lters are available as P/N BPU3KW UHF
(+CHANNEL NUMBER).
M. AUX5 MONITOR PANEL
The auxiliary monitor panel provides analog meter measurements for the primary DC supply. The total
power supply current and voltage are displayed on these meters. These measurements serve as a good
indication of the operations of the transmitter nal power ampliers.
Each power supply has a current monitor output. These outputs are accessible on the AUX5 Front panel.
Each ( PS I SHARE ) test point will indicate a relative amount of current being supplied from the power
supply. This is not a calibrated or accurate measurement that is scaled from the current capability of the
power supply. This is also a second-level diagnostic tool for use by qualied technicians.
In the event of an EMERGENCY, a SHUTDOWN SWITCH located on the AUX5 will shut down the
transmitter and remove all power starting from the MAIN 3-P BREAKER. To turn the transmitter on,
it is necessary to RECYCLE the SHUTDOWN SWITCH before the transmitter MAIN BREAKER can
be turned on.
N. FP6 FUSE AND SHUNT PANEL
The FP6 serves as a DC SUMMING POINT for all current coming from the power supplies. After being
summed the current passes through a 500 AMP precision shunt which is used for measuring the total
supply current and voltage being applied to the transmitter power ampliers. At this point, the DC Power
is distributed to each U600LDV-2 amplier assembly thru a series 80 amp fuse.
NOTICE: BEFORE ANY SERVICE WORK IS PERFORMED ON THE FP6 ALL POWER TO
THE TRANSMITTER MUST BE TURNED OFF FOR SAFETY.
V — THEORY OF OPERATION
Page 14
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST

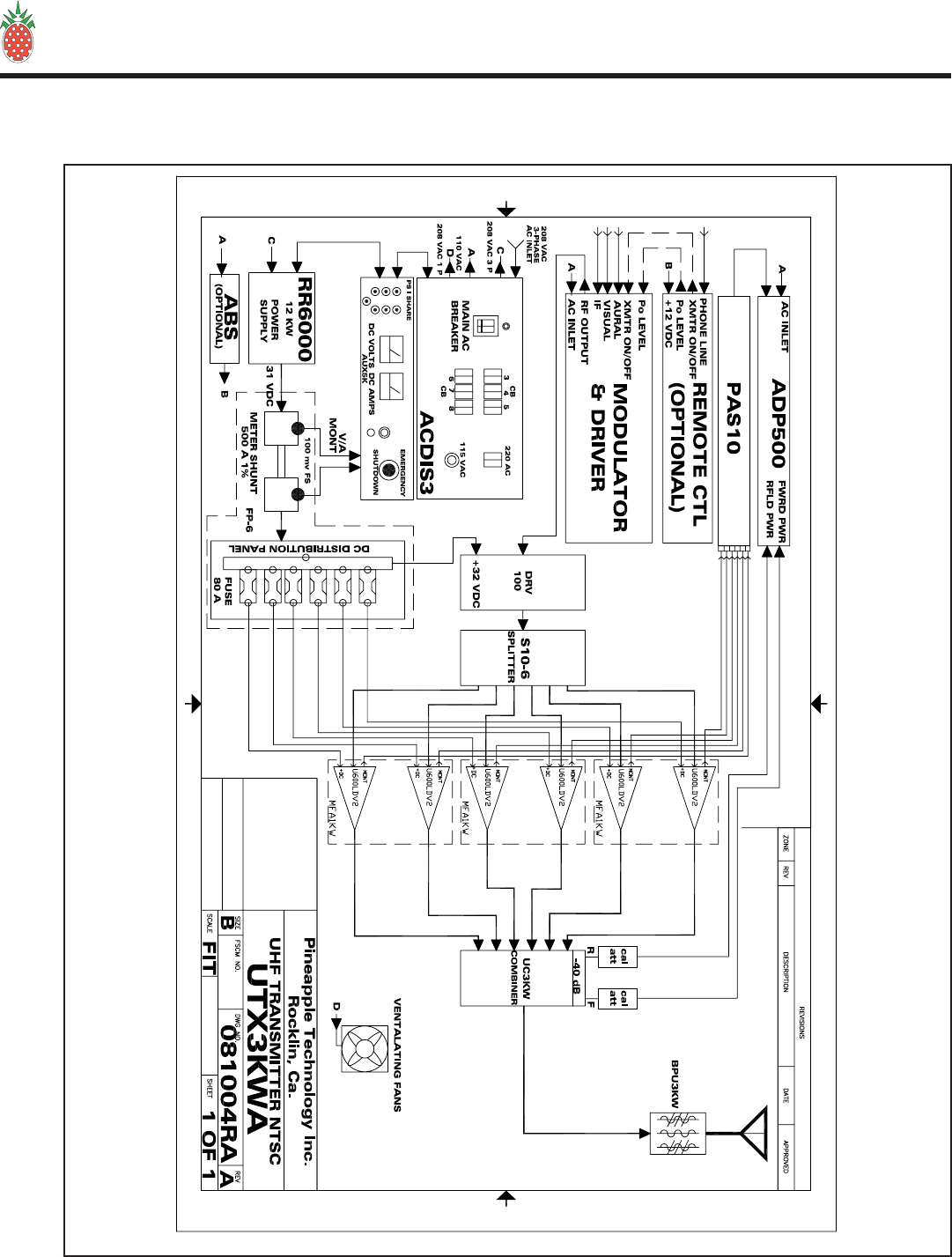

A. UTX3KW-A — Block Diagram
VI — SCHEMATICS AND PARTS LIST
Page 15
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 16
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
A. UTX3KW-A — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 9/3/2004
UHF TV XMTR ANALOG
470 MHz TO 810 MHz
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
5/21/2004
RA
UTX3KWATop CAT UHF TV XMTR
ANALOG 470 MHz TO 810 MHz
BPU3KW11PS BP FITER 3 KW BAND
IV COM-TECH
FC4E110C
85102621PS FAN AC 208 2000 CFM
EXHAUSE MULTIFAN
VOSTERMANS
4VF1042A
AC810031PS AC WIREMOLD 19
RACK MTG 1 X 4 OUTLETS 6 FT
CORD
MODULATOR
CAV5
41CAT MODULATOR/DRIVER
5 W UHF ELECTRONICA
ITALY
ADP50051CAT DISPLAY PANEL,
ANALOG SEL SW AND METER
DRV100DC-26 1 CAT DRIVER ASSEMBLY 31 VDC WITH 1
U250LD
MFA1KW7 3 PL 1 KW MAIN FRAME UHF/VHF
ASSEMBLIES
AC200886PS 2 KW 31 VDC PWR
SUPPLY UNI-PWR
TRS6000-406
AC200992PL 6KW 3EA PWR
SUPPLY MAIN FRAME UNIPOWER RRS2U
S1010 1 CAT SPLITTER HOUSING
UPTO 10 -WAY MULTI-USE 10-WAY
BNC I/O
R40RU-HAM11 1 PL XMTR RACK 40 RU HAMMOND MFG
AC430212 1 PS AC CORD GRIP 0.98 OD CABLE 1.3
HOLE MTG
AC630313 12 PS AC INLET CORD 5/6
AWG SO CABLE
PAS1014 1 CAT PA SEL SW FOR
ADP500 10 POLE INPUT 1
OUTPUT
FP-615 1 CAT FUSE PANEL
UTX3KWA INC FUSE, SHUNT,
SHIELD
AUX5K16 1 CAT AUX PANEL 5KW USED ON 3, 4, 5 KW
XMTRS
UC3KW-40DD17 1 CAT UHF COMBINER 3 KW
W/SAMPLE PORT 6-WAY STAR N TO 1
5-8 EIT FLANGE
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
UTX3KWA
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 17
VI — SCHEMATICS AND PARTS LIST
B. ACDIS3 — Block Diagram
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 18
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
B. ACDIS3 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
AC DISTRIBUTION
3-PHASE BREAKER PANEL
Type
Status
Revision
PL
U
A
User1
User2
User3
User4
User5
Date
By
6/28/2004
RA
ACDIS3Top PL AC DISTRIBUTION 3-PHASE BREAKER
PANEL
AC43022 1 PS AC CORD GRIP 0.98 OD CABLE 1.3
HOLE MTG
AC3207531PS AC BKR 3-PHASE 208
V 75 AMP W/TRIP COLI
AC32205 7 PS AC CKT BRKR 20 AMP 2-POLE 22O V
MF93186 1 PS FRONT PANEL ACDIS3 AC DISTRIBUTION
MF928771PS ACDIS3, 4, AND 5
CHASSIS
AC412082PS AC POWER SOCKET 7
PIN BULGIN PX093/07/S
AC411092PS AC POWER PLUG 7
PIN BULGIN PXA911/07/P
MF928810 1 PS TOP, COVER
BREAKER PANEL
63000111 1 PS INDICATOR LITE RED 220 VAC 1/2W
AC411312 3 PS AC PWR INLET HEAVY
DUTY 16A 220 VAC 3 WIRE
AC411113 3 PS AC POWER PLUG
220AC 16A POWER INLET
SCHURTER 4300.0922
AC510614 1 PS AC PANEL MTG
OUTLET 2 POS "GANGED"
MF9329A15 1 PS PLATE 220 AC LINE CONN
AC800016 1 PS AC POWER
DISTRIBUTION BLOCK 3 POLE 840 A 60O
VAC
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
ACDIS3
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 19
VI — SCHEMATICS AND PARTS LIST
C. DRV100DC-2 — Schematic
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 20
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
C. DRV100DC-2 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
DRIVER ASSEMBLY
31 VDC WITH 1 U250LD
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
6/7/2004
RA
DRV100DC-2Top CAT DRIVER ASSEMBLY 31 VDC WITH 1
U250LD
6310011 1 PS INDICATOR LAMP LED GREEN 24 VDC 1/2 IN
MTG HOLE
MF93372 1 PS PANEL, FRONT DRV100DC
MF9338A3 1 PS CHASSIS DRV100DC
MF9339A4 1 PS DIVIDER AIR FLOW DRV100DC
MF9340A51PS TOP COVER
DRV100DC
99020162PS FILTER & FINGER
GUARD 80X25mm FAN 30 PPI
8510057 2 PS FAN DC 24 V 80X25mm COMAIR-ROTRON
27047N8 1 PS FT CAP 47NF DC 1/4-20 HW MTG
THRU PANEL
U250LD9 1 CAT UHF TV 300 W P 470-810 MHz
14001210 1 PS RES AXIAL TH 2 WATT 75 OHM METAL
OXIDE
14001011 1 PS RES AXIAL 2 W 10 OHM
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
DRV100DC-2
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 21
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
D. MFA1KW
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST
D. MFA1KW — Parts List
Page 22
VI — SCHEMATICS AND PARTS LIST
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
1 KW MAIN FRAME
UHF/VHF ASSEMBLIES
Type
Status
Revision
PL
U
A
User1
User2
User3
User4
User5
Date
By
1/24/2000
RA
MFA1KWTop PL 1 KW MAIN FRAME UHF/VHF
ASSEMBLIES
MF9100E1 1 PS MAIN CHASSIS MFA1KW
MF91012 1 PS DIVIDER, PLENUM MFA1KW
MF9102C3 1 PS DIVIDER, FAN MFA1KW
MF91045 1 PS COVER, TOP MFA1KW
MF913910 4 PS SLED GUIDE U600LP & MFA1KW
MF9123D11 1 PS FRONT PANEL,
PAINTED MFA1KW
99019914 2 PS FILTER, AIR DRY FF-5 MFA/PS FP
MF912716 2 PS MTG BRACKET,
MOLEX FMALE MFA1KW
48047217 6 PS MOLEX CRIMP TERM
MFA1KW MOLEX MFG
39-00-0041
48040018 2 PS MOLEX PLUG 6 TERM
MFA1KW MOLEX 15-06-0065
MINI-FIT BMI
46015019 2 PS FUSE HOLDER PANEL
MTG 3AG TYPE QC CON
1A003520 2 PL PA STATUS BOARD PC9061A
INHOUSE_LABOR22 4 PS PTI LABOR
U600LDV223 2 PL 600W UHF AMPLIFIER
MODULE USED WITH MFA1KW
ASSEMBLY
MF930824 2 PS FAN FINGER GUARD MFA1KW & U600LPA
MF931025 2 PS AC FAN INLET
HOLDER MFA1KW
MF925827 2 PS BRACKET FILTER MTG
PAINTED U600LPA & MFA1KW
MF9197B28 1 PS DIVIDER PA MFA1KW
85102529 2 PS FAN, AC 220 V COMAIR ROTRON
TN3A2
AC511030 2 PS AC FAN PLUG & CORD FMALE PLUG 24 IN
CORD
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
MFA1KW
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 23
VI — SCHEMATICS AND PARTS LIST
D. MFA1KW
1. 1A0035 STATUS BOARD
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 24
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
D. MFA1KW
1. 1A0035 PARTS LIST
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
PA STATUS BOARD
PC9061A
Type
Status
Revision
PL
U
B
User1
User2
User3
User4
User5
Date
By
8/1/2002
RA
1A0035Top PL PA STATUS BOARD PC9061A
1143301 2 CAT RES ARRAY, SMT 330 OHMS RP31, RP32
1151032 5 PS RES CHIP 0805 10K OHM SMT 0805 R32,36,38,4
1,43
1153343 1 PS RES CHIP 0805 330 K OHM SMT R33
1155634 1 PS RES CHIP 0805 56K OHM 0805 SM R31
1156825 3 PS RES CHIP 0805 6.8 K OHM SMT R35,37,39
21X0056 6 PS CAP CHIP 0805 100NF 10% XTR 0805
CASE C32,41,42,5
1,56,58,71,
21X0087 1 PS CHIP CAP 0805 10NF 50 V 0805 SM C57,
24010981PS CAP TH
POLYPROPYLENE 3N3 600 WVDC
.033UF C31
2401109 1 PS CAP TAN SMD 3.3 UFD 35 V C52
24011110 1 PS CAP TAN SMD 47 UF 10 V TAN C55,
24130011 1 PS CAP RADIAL TH 330 UF 35 VDC C53
24130112 1 PS CAP RADIAL TH 680 UF 10 V
ELECTROLYTIC C54
27022N13 6 PS FT CAP 22N SM AVX OR MURRATA
PART C91, 92, 94,
95, 96,
97,93
48050014 1 PS CON MICRO-FIT
HEADER 3.0 8 PIN PC MTG J31
52023015 1 PS SEMI DIODE
SHOTTKEY 1.5 A 60 VDC D-64 D51
52027516 1 PS SEMI, DIODE DUAL FMMD6100 D32
53035017 2 PS HEX SCHMITH TRIG 74HD14 U31, U32
53815018 1 PS IC SWITCHER SIMPLE SO8 PAK U51,
63020019 5 PS IND LED DUAL COLOR RED/GREEN T1-3/4
CLR DS31,32,33,
34.35
75000120 8 PS FERRITE BEAD SMT 0805 EMI FERRITE
BEAD L52
,91,92,94,95
,96,97,72
83051021 1 PS IND, W/W 82 UH .58A PWR SMD L51,
PC906122 2 PS PA STAUS BRD FR4 060 1/1 CBR
11533123 2 PS RES CHIP 0805 33O OHM SMT R30,34
52012024 1 PS SEMI ZENER 5.6 V MELF D31
11568325 1 PS RES CHIP 0805 68K SM R42
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
1A0035
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 25
VI — SCHEMATICS AND PARTS LIST

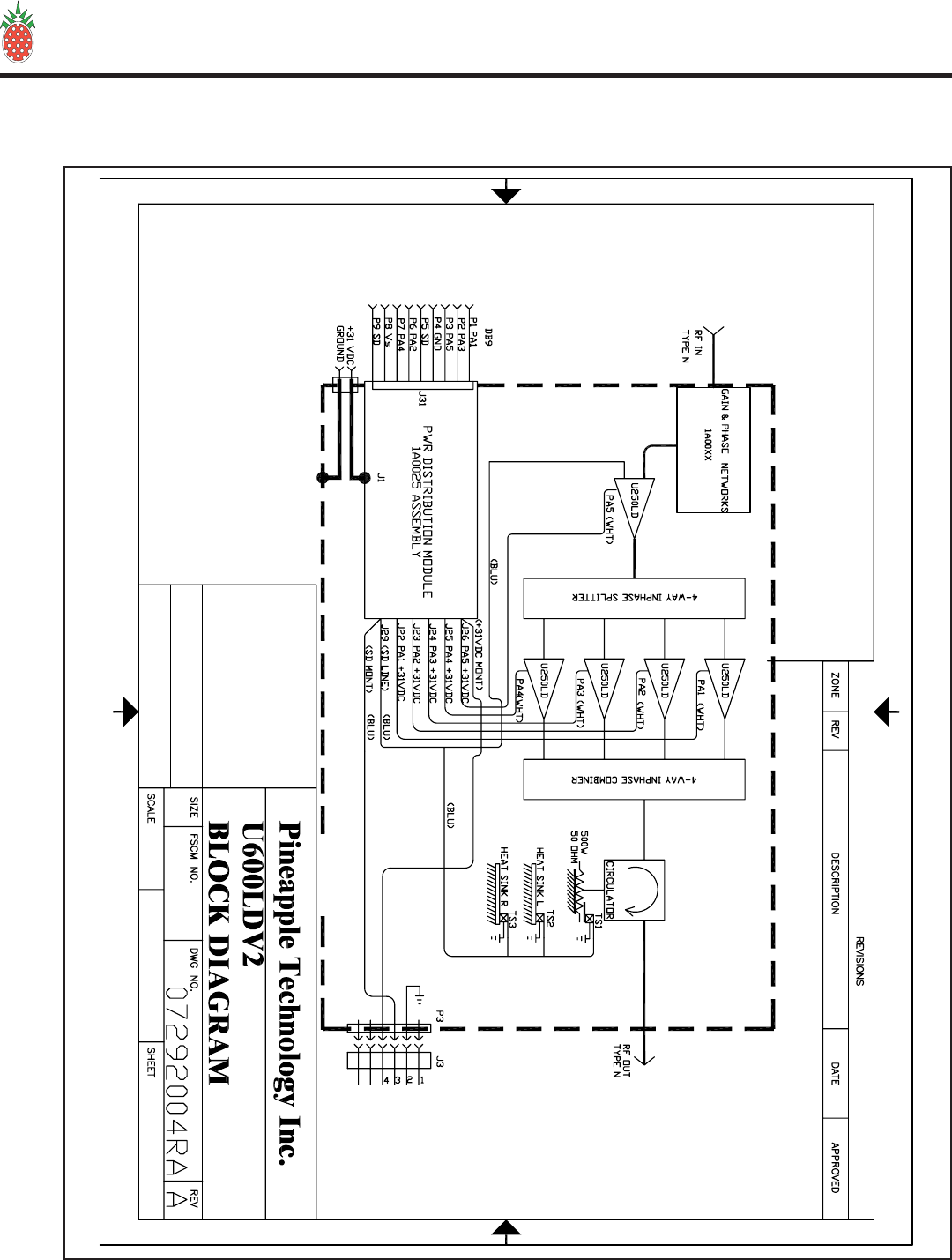

E. U600LDV-2 — Block Diagram
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 26
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2 — Parts List
Item Qty Type P/N Title Detail Ref(m
Printed 8/16/2004
600W UHF AMPLIFIER MODULE
USED WITH MFA1KW ASSEMBLY
Type
Status
Revision
PL
U
A
User1
User2
User3
User4
User5
Date
By
1/21/2004
RA
U600LDV2Top PL 600W UHF AMPLIFIER
MODULE USED WITH MFA1KW
ASSEMBLY
U4002-1T1 1 PS UHF CIR 3T DITOM DF4002 470-540 MHz
MF9126C21PS MOLEX BRACKET
MTG PLATE U600LD ALL
3100103 3 PS SW THERMAL 140 DEG F N/C
MF9160C4 1 PS HEAR SINK U600LD RIGHT SIDE
MF9159G5 1 PS HEAT SINK U600LD LEFT SIDE
1A001861PL PHASE & GAIN
MATCHING UHF U500/U600LD ASS'Y
MF9118A7 1 PS BASE PLATE, US200 Al 1/2 IN
MF91378 1 PS SLED U500L AL
4540019 1 PS HANDLE, REAR BLK NYLON
PC9033_3410 1 PS PC BRD JUMPER U600LD RGR 4003
060
PC9023B11 2 PS PCB COMB/SPLTR R-4003 060 1/1
180040-100R12 4 PS RES PWR 40 W 100 OHM RES
180150-100R13 2 PS RES PWR 150 W 100 OHM RES
180250-50T14 1 PS RES PWR 250 W 50 OHM TERM
44010115 2 PS HW CS STANDOFF 1.0 x .375;
Male/Female; 1032
MF9203 B116 1 PS PLATE, ISO/MONT
BRD SM 09 AL W/MTG
MF9202B117 1 PS COVER, REAR U600LD SM 09 AL
MF9206AMU18 1 PS Shield, PC9050A PCB SHIELD
MONITOR/ISO BRD
1A002519 1 PL DC ISO/MONITOR CKT REPLACED CB99
MF9075A20 3 PS CIR MOUNTING PLT O.O9 ALUM
45200121 1 PS HWRD TERM FEED
THRU BLK 5 PIN; #10 STUD;
10-16 AWG
45205022 1 PS HWR TERM BLK
COVER 5 PIN COVER W/MTG
HWRD
48040123 1 PS MOLEX RECEPTACLE
U600LD MOLEX 15-06-0061
48047324 3 PS MOLEX CRIMP
TERMINAL U600LD MOLEX 39-00-0039
FEMALE
CA500125 1 PL COAX CABLE
ASSEMBLY RG142 TO N PM FM 4
HOLE FLG
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
U600LDV2
2Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 27
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2 — Parts List (Cont.)
CA503026 1 PL COAX CABLE
ASSEMBLY ANDREWS ETS1 TO N
PANEL FLG MT
49160027 1 PS N FEMALE BULK
CRIMP REAR MNT W/ "O"
RING
U250LD28 5 CAT UHF TV 300 W P 470-810 MHz
INHOUSE_LABOR29 6 PS PTI LABOR
MF930930 1 PS REAR PANEL WITH
SILK 090 AL ALODYNE
Item Qty Type P/N Title Detail Ref(m
U600LDV2
Printed 8/16/2004
Rev A
600W UHF AMPLIFIER MODULE
USED WITH MFA1KW ASSEMBLY
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
U600LDV2
2Page 2 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 28
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
1. U250LD — Schematic
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 29
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2

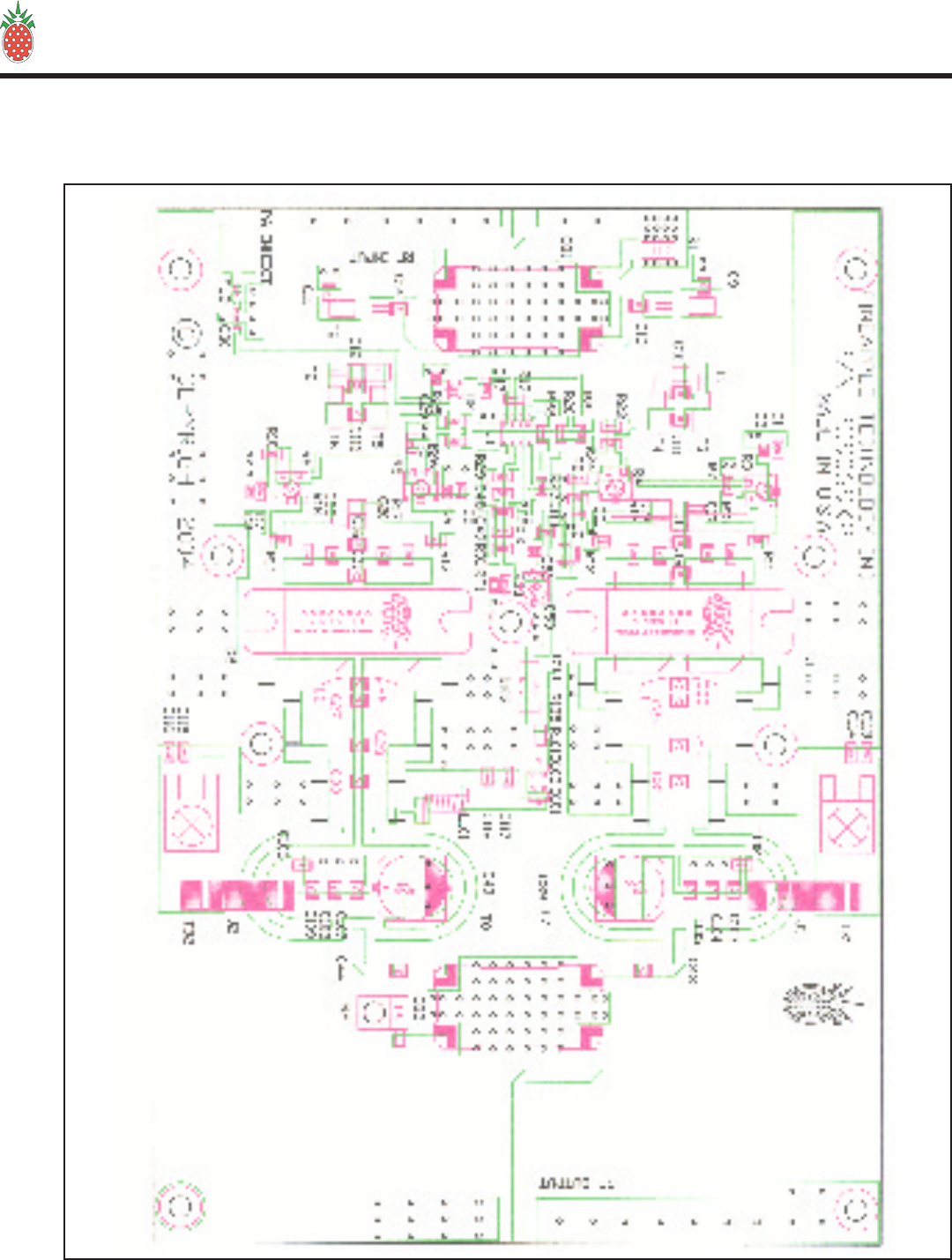

1. U250LD — Layout Drawing
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 30
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
1. U250LD — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
UHF TV 300 W P
470-810 MHz
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
11/5/2003
RA
U250LDTop CAT UHF TV 300 W P 470-810 MHz
PC9069C11PS U300LD 470-860 MHz
TV FR4 060 1/1
53073722PS LDMOS PWR FET UHF
TV BLF861A PHILIPS Q1,2
5601074 1 PS DUAL OP AMP 8-SOIC TLV272IDR U1
1174446 1 PS THERMISTOR 33K OHM RT1
180030-50T7 1 PS RES PWR 30 W SMT RFP-30-50T RFPC R1
180010-50T8 1 PS RES PWR 10 W 50 OHM TERM R2 ((NO
LOAD))
17L2029 4 PS RES VAR SMT 2K OHM POT R3,4,5,6
11620210 4 PS RES CHIP 1206 2K OHM SMT R7,8,9,10
11610311 10 PS RES CHIP 1/8 W 10 K OHM SM 1206 R11,12,13,
14,19,20,22
,30,31,105
11601012 4 PS RES CHIP 1206 10 OHM SM R15,16,17,
18
11610213 1 PS RES CHIP 1/8 1 K OHM SM 1206 R21,
11600014 2 PS RES CHIP 1206 0.0 OHMS SM R27,28,
11682215 1 PS RES CHIP 1206 8.2K OHM 1/8 W SMT R29
21Y04219 14 PS CAP CHIP 0.1 UF 50 V 1206 C1,3,5,7,47
,48,49,101,
105,109,11
0,113,115,1
17
21X00120 11 PS CAP CHIP 0805 100 PF 50V SMD C2,4,6,8,29
,50,102,106
,114,116,11
8
26330121 6 PS CAP CHIP ATC 300 PF B CASE C9,11,103,
107,111,11
2
2631R822 2 PS CHIP CAP ATC 1.8PFBCASE C10,12
26318023 4 PS CAP CHIP ATC 18 PF B CASE C15,16,
26320024 2 PS CAP CHIP ATC 18-20 PF B CASE C18,21
((NO
LOAD))
27022N26 1 PS FT CAP 22N SM AVX OR MURRATA
PART C30
24122029 2 PS CAP RADIAL SM 220 UF 50 V HA C39,40
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
U250LD
2Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 31
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
1. U250LD — Parts List (Cont.)
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 32
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2

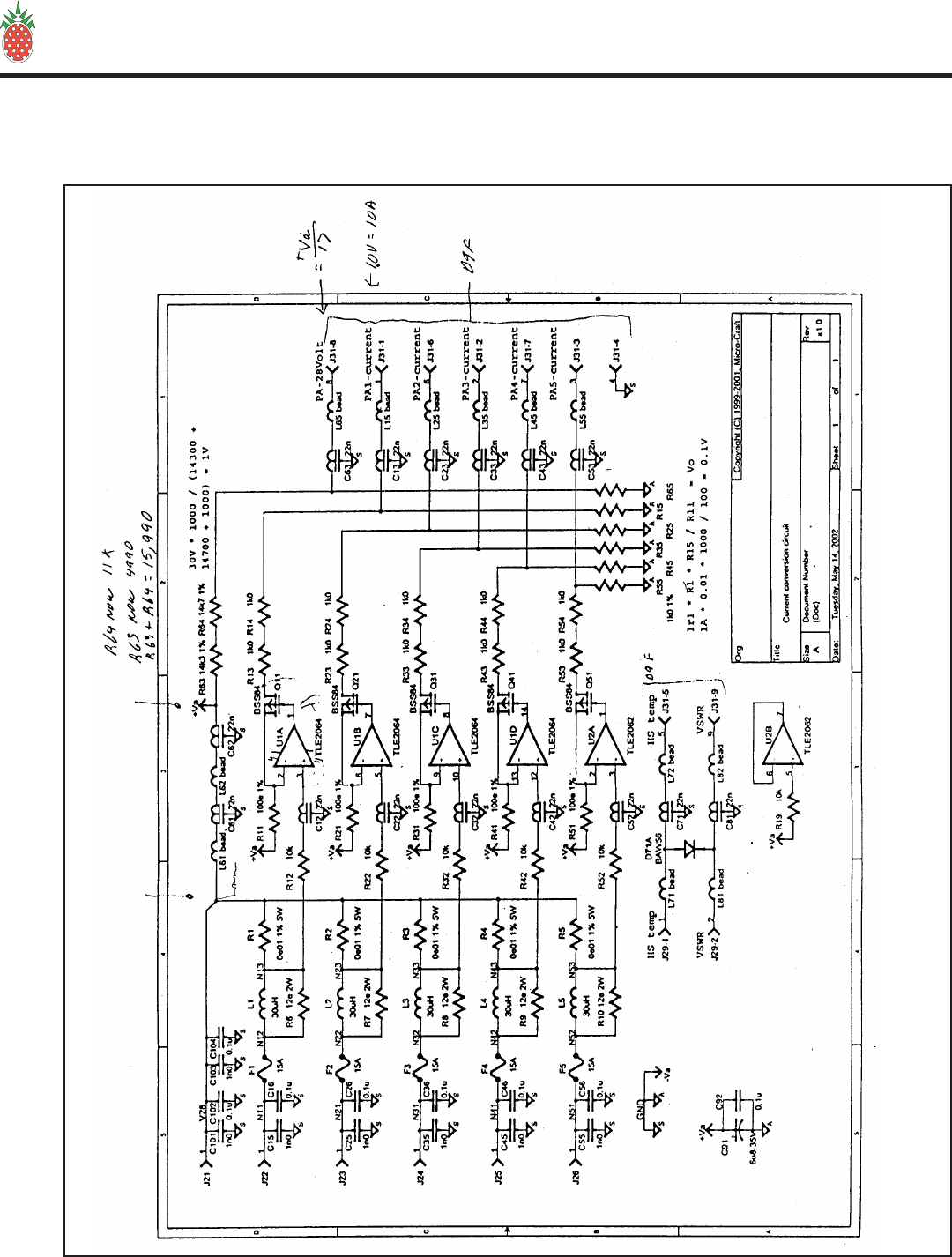

2. 1A0025 Power Distribution Monitor
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 33
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
2. 1A0025 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
DC ISO/MONITOR CKT
REPLACED CB99
Type
Status
Revision
PL
U
B
User1
User2
User3
User4
User5
Date
By
11/29/2001
RA
1A0025Top PL DC ISO/MONITOR CKT REPLACED CB99
PC9050C11PS PCB DC ISO/MONT
BRD FR4 060
5601012 1 PS OP-AMP QUAD PAK TLE2064AID TI U1
5601023 1 PS OP-AMP DUAL PAK 8-SOIC U2
27022N4 21 PS FT CAP 22N SM AVX OR MURRATA
PART C11, 12,
13, 21, 22,
23, 31, 32,
33, 41, 42,
43, 51, 52,
53, 61, 63,
71, 73, 81,
83
2401025 1 PS CAP SM TAN 6.8 UF 35 V C CASE C91
21Y0226 1 PS CAP SM 1206 47 NF 50 V C92
4720157 5 PS FUSE PICO II EPOXY 15 A 32 VDC F1, 2, 3, 4,
5
48125081PS CON DB9 SUB RT
ANGLE FM METAL CASE
AMP7457814 J31
1A00119 5 PL TOROID IND 10 T #14 ON N40 L1, 2, 3, 4,
5
59001010 5 PS XISTOR FET BSS84 BSS84ZXCT Q11, 21,
31, 41, 51
150R0111 5 PS RES 5 WATT AXIAL 0.01 OHM 1.0 % R1, 2, 3, 4,
5
14001012 5 PS RES AXIAL 2 W 10 OHM R6, 7, 8, 9,
10
115100013 5 PS RES CHIP 0805 100 OHM 1% 0805 R11, 21,
31, 41,51
115100214 6 PS RES CHIP 0805 10 K OHM 1% 0805
CASE R12, 19,
22, 32, 42,
52
115100115 10 PS RES CHIP 0805 1 K OHM 1 % R13, 14,
15, 23, 24,
25, 33, 34,
35, 43, 44,
45, 53, 54,
55, 65
45107017 5 PS HW PWR TAP 6-32 STL KEYSTONE
8191 J22, 23, 24,
25, 26
48030018 1 PS CON 2 PIN HEADER AMP A23837-ND P29
48031019 1 PS CON 2 PIN PC POST AMP 640456-2 J29
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
1A0025
2Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 34
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
2. 1A0025 — Parts List (Cont.)
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
Page 35
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
3. 1A0018 Gain and Phase Matching
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 36
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
E. U600LDV-2
3. 1A0018 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
PHASE & GAIN MATCHING UHF
U500/U600LD ASS'Y
Type
Status
Revision
PL
U
A
User1
User2
User3
User4
User5
Date
By
1/14/2001
RA
1A0018Top PL PHASE & GAIN
MATCHING UHF U500/U600LD ASS'Y
PC9031A1 2 PS PCB BB QUAD 4 LAYER RGR 4003
008/060
8225602 4 PS IND CHIP 56 NH 0805 SM L1,2,3,4
2633903 8 PS CAP CHIP 39 PF B CASE ATC C1,2,3,4,5,
6,7,8
2631004 2 PS CAP CHIP ATC 10 PF B CASE C9,10
DIRECT_LABOR5.1PS LABOR INHOUSE
LABOR/TEST
180010-50T6 2 PS RES PWR 10 W 50 OHM TERM R3,4
11Y6817 2 PS RES CHIP 1 W 680 OHM 2512 CASE
SMT R1,2
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
1A0018
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 37
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
F. S10-6 IN PHASE SPLITTER — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
SPLITTER HOUSING UPTO 10 -WAY
MULTI-USE 10-WAY BNC I/O
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
6/7/2004
RA
S10Top CAT SPLITTER HOUSING
UPTO 10 -WAY MULTI-USE 10-WAY
BNC I/O
MF9333A11PS FRONT PANEL S10
SPLITTER PAINTED
MF9334A3 1 PS S10 TOP COVER AL 0.063 THK GOLD
ALODYNE
MF9335A4 1 PS CHASSIS S10
MF9336A5 1 PS REAR CONN PANEL S10
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
S10
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST
G. COMBINER UC3KW-DC40
VI — SCHEMATICS AND PARTS LIST
Page 38
No servicable parts.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST
H. PAS10 — Schematic
Page 39
VI — SCHEMATICS AND PARTS LIST
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST
H. PAS10 MONITOR — Parts List
Page 40
VI — SCHEMATICS AND PARTS LIST
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
PA SEL SW FOR ADP500
10 POLE INPUT 1 OUTPUT
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
6/22/2004
RA
PAS10Top CAT PA SEL SW FOR
ADP500 10 POLE INPUT 1
OUTPUT
PC950111PS PA SELECTER
SWITCH 10 POLE ADP500
4830102 1 PS SW 10 POLE ADP500 PA
SELECTOR PAS10
48125031PS CON DB9 SUB RT
ANGLE FM METAL CASE
AMP7457814
48126045PS CON DB9 2 SECTION
RT ANG PCB MTG 0.9
SPACING
MF9342X15 1 PS PLATE, FRONT PAS10 W/ PAINT &
SILKSCREEN
MF9343X16 1 PS CHASSIS, PAS10 W/ ALODINE &
SILKSCREEN
MF9344X17 1 PS COVER, TOP PAS10 W/ ALODINE &
SILKSCREEN
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
PAS10
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST

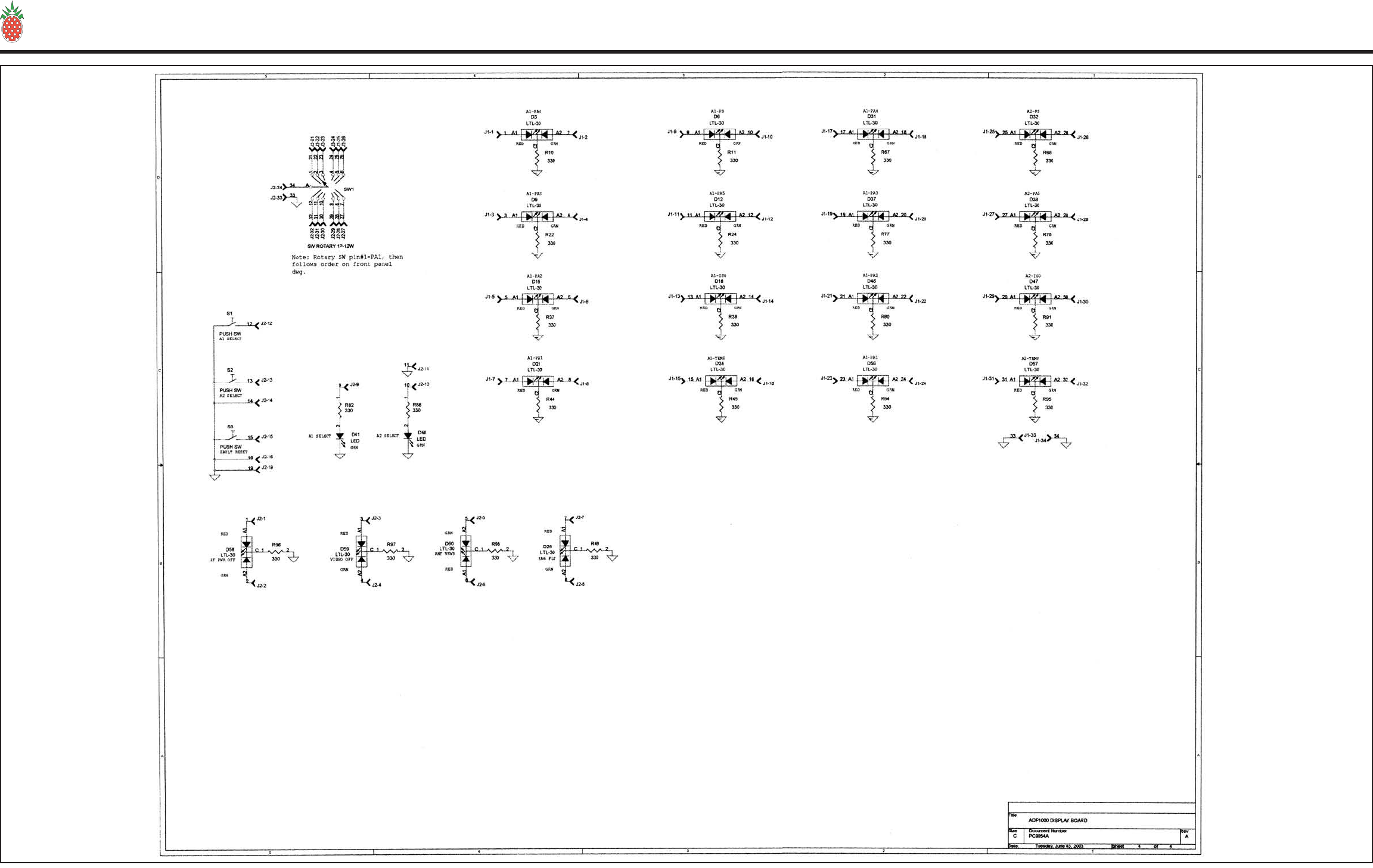

H. ADP500 MONITOR
Page 41
VI — SCHEMATICS AND PARTS LIST
PINEAPPLE TECHNOLOGY, INC.

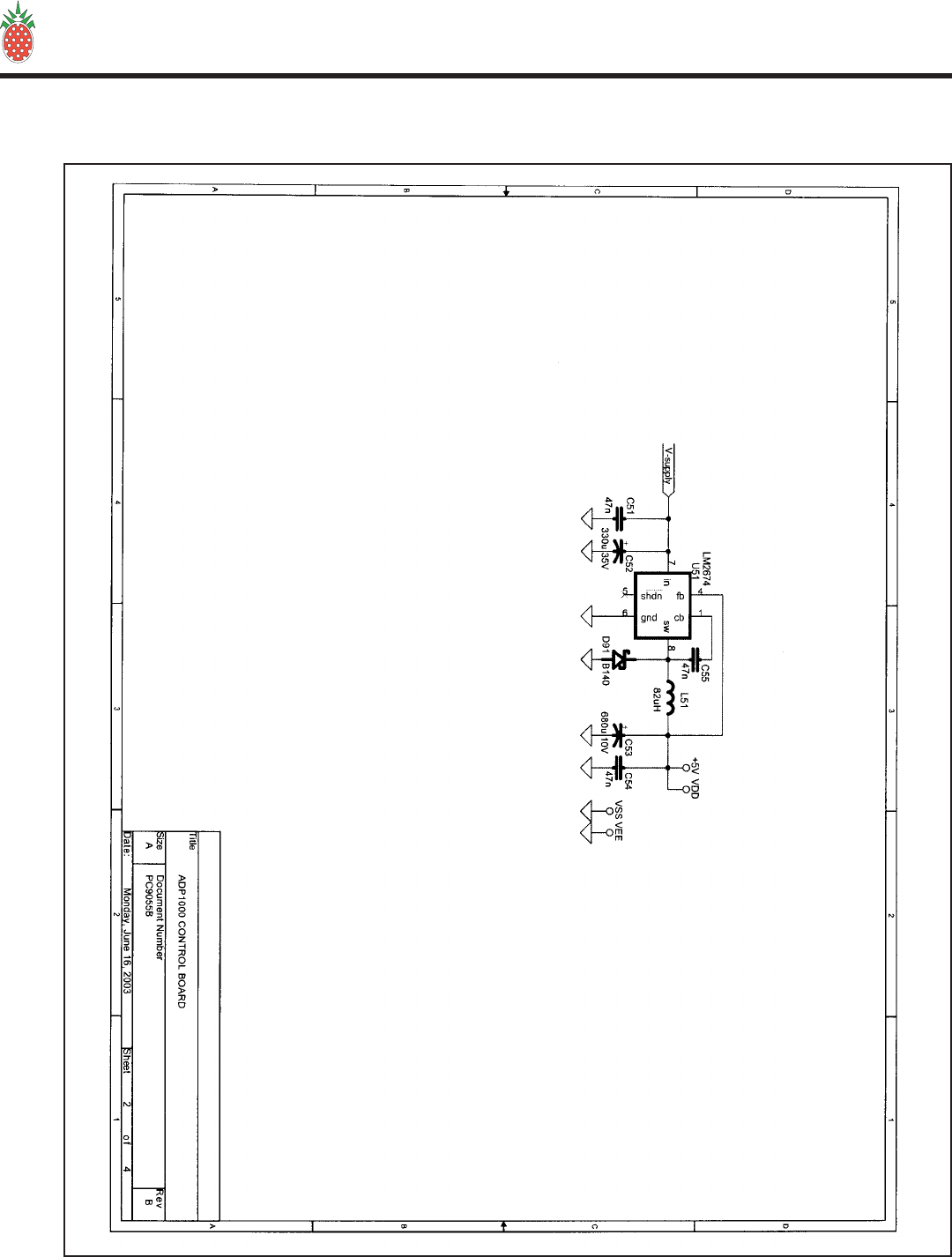

UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LISTS
Page 42
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LISTS
Page 43
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 44
VI — SCHEMATICS AND PARTS LISTS
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
DISPLAY PANEL, ANALOG
SEL SW AND METER
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
9/15/2002
RA
ADP500Top CAT DISPLAY PANEL,
ANALOG SEL SW AND METER
1A00291 1 PL ADP1000 LOGIC PCB LOGIC BRD PARTS
1A00302 1 PL ADP1000 FP PCB FP PCB AND PARTS
4713063 1 PS FUSE 3AG 6 AMP
46015041PS FUSE HOLDER PANEL
MTG 3AG TYPE QC CON
48400151PS SW, ON/OFF ROCKER
AC CW IND.
NAA-211-B121-00
6601036 1 PS METER, 2 VOLTS FS SELCO 39M-0-2VDC
1A00277 1 PL PWR MONITOR CK PC9052B CBR
PS252781PS POWER SUPPLY
OPEN/FRAME 110/220 VAC 27 V 25
W
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
ADP500
1Page 1 o
f
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR — Parts List
VI — SCHEMATICS AND PARTS LIST
Page 45
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 46
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR
1. 1A0027 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
PWR MONITOR CK
PC9052B CBR
Type
Status
Revision
PL
U
B
User1
User2
User3
User4
User5
Date
By
12/15/2001
RA
1A0027Top PL PWR MONITOR CK PC9052B CBR
PC9052B1 1 PS PWR MONITOR BRD FR4 060 1/1 2 SIDES
CBR CKTS PC BOARD
1151032 3 PS RES CHIP 0805 10K OHM SMT 0805 R9, 33
5601083 2 PS SEMI OP-AMP DUAL OP AMP U1, 2
1152716 1 PS RES CHIP 0805 270 OHM 0805 R28
1152727 1 PS RES CHIP 0805 2.7K OHM 0805 CASE R23, 24,
26, 27
1152738 1 PS RES CHIP 0805 27K OHM 0805 CASE R8
11510210 6 PS RES CHIP 0805 1K OHM 0805 CASE R5, 7, 31,
45
11510411 5 PS RES CHIP 0805 100K OHM 0805 SMT R4, 6, 29,
30, 44
11510512 3 PS RES CHIP 0805 1M OHM 0805 CASE
SMT R3, 22, 43
11500013 3 PS RES CHIP 0805 0 OHM 0805 CASE
SMT R2, 42, 21
11Y51014 2 PS RES CHIP 1W 51 OHM 5% 2512
CASE R1, 41
52030015 1 PS SEMI GP XSTR MMBT2222ALT1 Q1, Q2
52020116 3 PS SEMI DIODE SHOTKEY 70V Surf Mnt D1, 2, 3
822560-WW17 2 PS IND CHIP W/W 56 NH WW HI-Q OSC
CKT L1, 2
48500119 1 PS HEADER 10 PIN TH AMP 0.1 CTR
103308-1 J3
21Y00120 2 PS CHIP CAP 1206 39 PF 50 V NPO C1, 41
21X00721 14 PS CHIP CAP 0805 47NF 50WVDC X7R C3, 21, 23,
24, 26, 27,
29, 43, 51,
52, 53, 55,
56
21Y00423 2 PS CHIP CAP 1206 2.2 NF 50V NPO C22, 25
24010524 2 PS CAP SM CASE C 10 UF 10 V TAN C54, 57
17M10225 3 PS RES VARI 12 TURN 1K OHMS SM R10, 34, 47
17M10326 1 PS RES VARI 12 TURN 10K OHMS SM R32
11515127 1 PS RES CHIP 0805 150 OHM 1% 0805
SMT R25
11593128 1 PS RES CHIP 0805 930 OHM 1% 0805
SMT R46
24010629 2 PS CAP SM CASE 1206 2.2 UF 16V TAN C2, 42
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
1A0027
2Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 47
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR
1. 1A0027 — Parts List (Cont.)
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 48
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR
2. 1A0029 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
ADP1000 LOGIC PCB
LOGIC BRD PARTS
Type
Status
Revision
PL
U
A
User1
User2
User3
User4
User5
Date
By
1/5/2002
RA
1A0029Top PL ADP1000 LOGIC PCB LOGIC BRD PARTS
PC905511PS ADP1000 LOGIC
BOARD FR4 060 1/1 CBR
5603202 2 PS LOGIC IC MC14013 DUAL D F/F SOT 14 U20, 24
5603153 3 PS LOGIC IC MC14011BD LOG CMOS GATE
NAND QUAD U8, 10, 18
56032545PS LOGIC IC MC14042BD
16 PIN LOG CMOS LATCH
QUAD TRAN U5, 7, 11, 13,
15
5603105 2 PS LOGIC IC MC14060BD CTR/DRIVER IC SOT
16 U19, 23
5391006 2 PS IC HEX INV BUFFER CD4049UBCM U9, 17
5603307 2 PS LOGIC IC MC14071BD LOG CMOS GATE OR
QUAD SO14 U16, 22
5390008 4 PS IC DIF AMP QUAD LM339DR SO14 U4, 6, 12, 14
5601089 1 PS SEMI OP-AMP DUAL OP AMP U3
56250010 2 PS ANALOG MC14551BD MUX/DE-MUX 2
CHANNEL U1, U2
53810011 1 PS IC SWITCHER/REG
LM2674M-5.0 28 V IN 5 VOLTS OUT
500MA U51
53911012 1 PS LOGIC IC CD4024BM 7 STAGE COUNTER
SO14 U21
11622R1313 2 PS RES CHIP 1206 22.1K OHM SMT R7, 64
115511214 4 PS RES 0805 CASE 51.1 K OHM 1% R36, 41, 89,
93
115324215 1 PS RES 0805 CASE 32.4 K OHM 1% R52
52030016 2 PS SEMI GP XSTR MMBT2222ALT1 Q1, Q2
52027217 42 PS DIODE HEX FET P HEX FET SOT-3 D1, 2, 4, 5, 7,
8, 10, 11, 13,
14, 16, 17, 19,
20, 22, 23, 25,
27, 28, 29, 30,
33, 34, 35, 36,
39, 40, 42, 43,
44, 45, 49, 50,
51, 52, 53, 54,
55, 61, 62, 63,
64
83051018 1 PS IND, W/W 82 UH .58A PWR SMD L51
52012919 4 PS SEMI DIODE GP 1N914 SM SOT-23 D65, 66, 67,
68, 92
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
1A0029
3Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 49
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR
2. 1A0029 — Parts List (Cont.)
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 50
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR
2. 1A0029 — Parts List (Cont.)
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 51
VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
H. ADP500 MONITOR
3. 1A0030 — Parts List
Item Qty Type P/N Title Detail Ref(m)
Printed 8/16/2004
ADP1000 FP PCB
FP PCB AND PARTS
Type
Status
Revision
PL
U
A
User1
User2
User3
User4
User5
Date
By
1/5/2002
RA
1A0030Top PL ADP1000 FP PCB FP PCB AND PARTS
PC9054A11PS ADP1000 DISPLAY
BRD FR4 060 1/1 CRB
4830012 1 PS SW, 12 POS ROTOR SIG SEL SW ADP1000 SW1
4840503 3 PS SW, MOMENTARY PB OMRON B3WN-6002 S1, 2, 3
1503304 22 PS RES 1/4W AXIAL TH 1.4 W 330 OHM TH
AXIAL R10, 11, 22,
24, 37, 38, 44,
45, 49, 67, 68,
77, 78, 82, 86,
90, 91, 94, 95,
96, 97, 98
6302005 22 PS IND LED DUAL COLOR RED/GREEN T1-3/4
CLR D3, 6, 9, 12,
15, 18, 21, 24,
26, 31, 32, 37,
38, 46, 47, 56,
57, 58, 59, 60,
48, 41
48060062PS CON HEADER 0.1
CTRS PROTECTED
HEADER 34 PIN J1, 2
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
1A0030
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
I. AUX5 MONITOR PANEL — Parts List
Page 52
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
AUX PANEL 5KW
USED ON 3, 4, 5 KW XMTRS
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
6/7/2004
RA
AUX5KTop CAT AUX PANEL 5KW USED ON 3, 4, 5 KW
XMTRS
48401021PS SW, EMERGENCY
SHUTDOWN NO/NC RESETABLE
AC42003 1 PS AC DUPLEX OUTLET 110 VAC 15 A BLACK
66011041PS DC PANEL METER 50
V FS HOYT MODEL 3115
1-1/2 ANA PANEL
66011451PS DC AMP METER 500 A
FS HOYT 3115 100mv FS
AC51016 1 PS AC PANEL MT 15 AMP 3 PIN SCW MTG
4530007 3 PS HW, TIP JACK RED, Insulated
standard TIP JACK
4530018 3 PS HW TIP JACK WHITE, Insulated
standard TIP JACK
4530029 1 PS HW, TIP JACK BLACK, Insulated
standard TIP JACK
45300310 3 PS HW, TIP JACK BLUE, Insulated
Standard TIP JACK
48110011 3 PS CON 9 P D-SUB MALE MALE 9P SOLDER
CUP
48120012 3 PS CON 9P D-SUB FEMAL DB9P SOLDER CUP
63000213 1 PS INDICATOR LITE GREEN 120 VAC
MF9330A14 1 PS CURRENT MONITOR,
REAR PANEL SHUNT AND FUSE
MTG PLATE
MF9332B15 1 PS CHASSIS AUX5 REAR SILK AND
ALODYNE
48046516 1 PS MOLEX PLUG
HOUSING 9 POLE MATE-LOC
48046617 1 PS MOLEX CAP HOUSING 9 POLE
48046718 1 PS MOLEX STRAIN
RELIEFS 9 POLE
48046819 3 PS MOLEX SOCKET
CONTACTS CONN SOCKET 18-24
AWG TIN CRIMP
48046920 3 PS MOLEX PIN
CONTACTS CONN PIN 18-24 AWG
TIN CRIMP
48047021 1 PS MOLEX PLUG STR 3
PIN MOLEX 39-01-4032-P
48047122 1 PS MOLEX RECEPTACLE
HSN 3 PIN MOLEX 39-01-4030
46015025 1 PS FUSE HOLDER PANEL
MTG 3AG TYPE QC CON
48047226 1 PS MOLEX CRIMP TERM
MFA1KW MOLEX MFG
39-00-0041
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
AUX5
K
2Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
VI — SCHEMATICS AND PARTS LIST
I. AUX5 MONITOR PANEL — Parts List (cont.)
Page 53
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
AUX PANEL 5KW
USED ON 3, 4, 5 KW XMTRS
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
6/7/2004
RA
AUX5KTop CAT AUX PANEL 5KW USED ON 3, 4, 5 KW
XMTRS
48401021PS SW, EMERGENCY
SHUTDOWN NO/NC RESETABLE
AC42003 1 PS AC DUPLEX OUTLET 110 VAC 15 A BLACK
66011041PS DC PANEL METER 50
V FS HOYT MODEL 3115
1-1/2 ANA PANEL
66011451PS DC AMP METER 500 A
FS HOYT 3115 100mv FS
AC51016 1 PS AC PANEL MT 15 AMP 3 PIN SCW MTG
4530007 3 PS HW, TIP JACK RED, Insulated
standard TIP JACK
4530018 3 PS HW TIP JACK WHITE, Insulated
standard TIP JACK
4530029 1 PS HW, TIP JACK BLACK, Insulated
standard TIP JACK
45300310 3 PS HW, TIP JACK BLUE, Insulated
Standard TIP JACK
48110011 3 PS CON 9 P D-SUB MALE MALE 9P SOLDER
CUP
48120012 3 PS CON 9P D-SUB FEMAL DB9P SOLDER CUP
63000213 1 PS INDICATOR LITE GREEN 120 VAC
MF9330A14 1 PS CURRENT MONITOR,
REAR PANEL SHUNT AND FUSE
MTG PLATE
MF9332B15 1 PS CHASSIS AUX5 REAR SILK AND
ALODYNE
48046516 1 PS MOLEX PLUG
HOUSING 9 POLE MATE-LOC
48046617 1 PS MOLEX CAP HOUSING 9 POLE
48046718 1 PS MOLEX STRAIN
RELIEFS 9 POLE
48046819 3 PS MOLEX SOCKET
CONTACTS CONN SOCKET 18-24
AWG TIN CRIMP
48046920 3 PS MOLEX PIN
CONTACTS CONN PIN 18-24 AWG
TIN CRIMP
48047021 1 PS MOLEX PLUG STR 3
PIN MOLEX 39-01-4032-P
48047122 1 PS MOLEX RECEPTACLE
HSN 3 PIN MOLEX 39-01-4030
46015025 1 PS FUSE HOLDER PANEL
MTG 3AG TYPE QC CON
48047226 1 PS MOLEX CRIMP TERM
MFA1KW MOLEX MFG
39-00-0041
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
AUX5
K
2Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual VI — SCHEMATICS AND PARTS LIST
VI — SCHEMATICS AND PARTS LIST
J. FP6 FUSE & SHUNT PANEL — Parts List
Page 54
Item Qty Type P/N Title Detail Ref(m)
Printed 9/7/2004
FUSE PANEL UTX3KWA
INC FUSE, SHUNT, SHIELD
Type
Status
Revision
CAT
U
A
User1
User2
User3
User4
User5
Date
By
8/24/2004
RA
FP-6Top CAT FUSE PANEL
UTX3KWA INC FUSE, SHUNT,
SHIELD
47138026PS FUSE FAST ACTING 80
AMP USE WITH LFFB0001
HOLDER
4601903 6 PS FUSE HOLDER 400A LITTELFUSE
LFFB0001
6705004 1 PS SHUNT, METER Lightweight shunt, 100
Millivolt, 500 amp.
PINEAPPLE TECHNOLOGY, INC.
4021 ALVIS COURT, #6, ROCKLIN, CA 95677
916-315-8338 Fax 916-315-8118
FP-6
1Page 1 o
f
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 55
VII — ROUTINE MAINTENANCE
VII — ROUTINE MAINTENANCE
The following KEY MAINTENANCE AND PERFORMANCE CHECKS should be made monthly or more
frequently in some environments where dust is a problem:
TRANSMITTER
• Remove and clean the air lters with a light detergent and DRY COMPLETELY before re-installing. Dirty
lters will cause PA amps to shutdown resulting in a loss of RF Power. Spare lter P/N 990199 is
available from Pineapple Technology, Inc.
• Check and record the voltage and current meter readings on the ACDIS3 (AC AND DC DISTRIBUTION
UNIT LOCATED NEAR THE POWER SUPPLIES). NOTE: current readings will vary with picture content,
Therefore a standard video waveform such as SMPTE BARS should be used.
• Using the ADP500 & PAS10 — record the bias level settings on each PA Pallet by selecting the appropriate
PA with the selector switch. To make this measurement of BIAS ONLY it is necessary to activate the PA
INHIBIT switch momentarily for each reading.
• Using the ADP500 — check and record the RF Output power level to ensure that it is still reading 100%
+/- 10% from the previous settings.
• Using the ADP500 — check and record the VSWR (Reected power) to ensure that it is still reading only a
few percent indicating normal load operations.
• Using the ADP500 — check and record Aural power readings. This is normally set at 10% of P-sync. Expect
this to vary only a few percent from reading to reading.
• Carefully inspect RF Output coax and coaxial ttings for excessive heating or discoloration.
• Check DC power connections on shunt panel and power supplies for over heating and tighten as needed.
• Check DC connections on PA rear panel.
FACILITIES
• Clean all air inlet lters and exhaust outlets to ensure that the transmitter is getting clean unobstructed
air ow.
• Perform recommended service on air condition systems.
• Rodent traps or baits should be renewed to keep the facilities clear of these pests which can cause damage
to the transmitter.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 56
VIII — ADJUSTMENTS AND TUNING
VIII — ADJUSTMENTS AND TUNING
The UTX3KW-A is basically an FCC Type Certied broadband transmitter with a few frequency selective
sub-assemblies. A list of these sub-assemblies are listed below and followed by general instructions where
applicable:
A. MODULATOR — Instructions for making adjustments to the modulator are included in the
Manufacturer’s Instruction Manual.
B. BPU3KW Band Pass Filter comes adjusted to the channel as purchased. To change frequency
would require a tuning adjustment to the lter. To perform this adjustment it is necessary to use a
NETWORK ANALYZER and a signal generator with necessary I/O Adaptors to connect to the lter.
The Technician performing this adjustment should be skilled in tuning Band Pass Filters. If the target
frequency is outside of the tuning range of the lter, it becomes necessary to purchase a new lter.
Replacement lters and service is available from Pineapple Technology, Inc.
C. U600LDV-2 POWER AMPLIFIER MODULE — The U600LDV-2 has three areas where adjust-
ments may be necessary over time or in the event of a frequency change. These areas are:
1. Bias adjustments: The LDMOS FET devices used in these pallet ampliers are set to 500ma/device
side or a total of 1 amp/device. This adjustment can be made on the bench by rst terminating the
input and output with 50 ohm terminations. Apply 31 volts DC to the PA using a power supply that
can provide a minimum of 15 amps. Note: a cooling fan will be necessary to cool the amplier
during this adjustment.
To adjust the bias’ it is best to turn all the bias adjust resistors CCW or to minimum on the pallet
being adjusted. Using a clamp on the AMP Meter connected to the DC Feed terminal — located
on the DC ISOLATION AND CURRENT MONITOR BOARD — measure the current levels. The
rst resistor is increased to 500ma indicated on the Amp meter. Repeat this adjustment for each
additional resistor for reading of 1.0 A, 1.5 A, and 2.0 A. This will indicate that each device half
is set to 500 ma.
This concludes the bias adjustment procedure. This adjustment should be made at any time when a
device has to be replaced. Normal bias ranges from 1.5 amps to 2.3 amps per pallet as indicated on
the ADP500/1000. DO NOT USE THE ADP500/1000 CURRENT READINGS FOR MAKING
BIAS ADJUSTMENTS.
2. PA PALLET RF circuit tuning: These circuits are broadband and xed tuned providing no adjust-
ments. Any tuning at this level is performed by the factory.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 57
VIII — ADJUSTMENTS AND TUNING
3. GAIN & PHASE MATCHING: Each U600LDV-2 comes with a circuit for making Gain and Phase
adjustments. This adjustment is xed tuned for the channel of this transmitter. Adjustment to these
circuits require the following equipment:
• HP 8508A VECTOR VOLTMETER
• BIRD THRU LINE WATT METER
• SPLITTER
• 2ea DIRECTIONAL COUPLERS
• 2 ea. 500 watt terminations
• Component selection charts for resistors
• Component selection chart for capacitors
Component selection charts and setup block diagram provided as needed. Recommended tuning
should be within +/- 0.15 dB and +/- 3 degrees as measured on the HP 8508A.
D. PHASE MATCHED CABLES: The cables used to connect the splitter to the PA Amplier inputs
and those provided to connect the PA Ampliers to the combiner are phase matched. If a cable
is damaged and needs to be replaced, additional cables are available from Pineapple Technology,
Inc. The customer may manufacture additional cables, however the same coax type with the same
connector types should be used. The phase matching procedure listed above may be used for
adjusting the lengths. Matching should be within +/- 2 degrees.
E. ADP500/1000 WATT METER: This unit comes calibrated from the factory for the rated power
level of the transmitter. Adjustments are not recommended in the eld.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 58
IX — PROBLEM SOLVING/TROUBLE SHOOTING
IX — PROBLEM SOLVING/TROUBLE SHOOTING
The UTX3KW-A is a complex assembly of Digital and Analog circuits and in many cases it is advisable
to contact Pineapple Technology, Inc. for assistance. If it is necessary to perform eld service on the
transmitter, most parts are available from Pineapple Technology, Inc. for next day shipment.
The failure analysis of the transmitter starts off with the following assumptions:
A. The transmitter is connected to an AC source which is within the specied voltage range and has
ample power to run the transmitter. This would normally be 208-230 V AC 3-phase with a minimum
of 75 Amps available.
B. The antenna has been checked out and veried to have a VSWR of 1.2:1 or better.
C. The room temperature is < 35 degrees Celsius.
D. There are no restrictions on the air ow in or out of the building.
E. The video and aural signals, to the Modulator, comply with stated specications.
CHECKING THE WARNING LIGHTS
MFA1KW: This unit has dual performance indicator lights located above the air inlets. One set of lights
for each PA assembly located inside the unit.
HS OVER TEMP GREEN NORMAL
RED FAULT
+28 VDC GREEN NORMAL
RED FAULT
FAN SUPPLY GREEN NORMAL
RED FAULT
HS OVER TEMP FAULT could indicate one of the following problems:
a. Room temperature is too high and the heat sinks are over heating
b. High VSWR on PA output port will cause the Dump-load sensor to fault.
c. Air lters are dirty and need to be cleaned.
d. Exhaust fan failure (located in the top of the rack).
+28 VDC FAULT could indicate a power supply failure. Check the ADP500 & PAS10 for PA voltage and
current readings. The power supply modules will also indicate a loss of power.
FAN FAULT indications could mean that the PA blower has failed or there has been a loss of AC power
to the fan. There is also a fuse located just inside of the front panel in case there is a locked rotor failure
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 59
IX — PROBLEM SOLVING/TROUBLE SHOOTING
condition. To access the fuse, the MFA1KW must be removed from the rack and the top cover removed.
This is a 5 AMP 3 AG type fuse.
ADP500: There are a number of fault indicator lights on this unit that can be used for trouble shooting
possible problems with the transmitter.
With normal operating conditions, all the LEDs located on the front panel should be green. Red lights
could indicate a fault in normal operations of the transmitter. Fault indicators are listed below:
a. ANT VSWR HIGH light is RED. This indicated that the antenna reected power exceeds the set
point in the equipment which is normally set to 10 %. When this LED is on, the transmitter shutdown
line is pulled down to ZERO and the transmitter RF PWR OFF LED will also light RED indicating
that the transmitter has been shutdown at the driver level. This condition will automatically reset
when the problem is corrected. CHECK THE ANTENNA FOR POSSIBLE FAULTS.
b. RF PWR OFF light is RED. This will occur anytime the “SHUTDOWN LINE” is pulled to ZERO.
This control line is pulled to ZERO with any of the following faults:
1. ANT VSWR HIGH
2. PA INHIBIT SWITCH IN THE INHIBIT MODE
NOTICE: ONLY THE PA INHIBIT SWITCH OR THE ANT VSWR HIGH WILL SHUTDOWN
THE TRANSMITTER DRIVE CAUSING THE RF OUTPUT TO FALL TO NEAR ZERO.
c. PA1 THRU PA5 LEDs RED would indicate that the PA Pallet current level has fallen below
the set point and could indicate a transistor failure. The normal current with the “inhibit” switch
activated is 500 ma.
RR6000 POWER SUPPLY MODULES
The Power Supply module has two warning lights located on the front panel. Normally these lights are
GREEN indicating that the AC Line voltage and the Over voltage circuits are within their normal range.
Should either go out of range, the lights will turn RED and the power supply module will shutdown. This
will reduce the available power to the RF Stages and could result in lower RF Output Power from the
transmitter. If this happens, turn off the transmitter for about one (1) minute and then turn it back on. If
this warning continues, the modules should be removed from the rack and returned for service — a spare
module should be installed to maintain normal operations.
NOTICE: The UTX3KW-A transmitter has six (6) each 2 KW power modules. Under normal conditions,
this is enough head room to allow the removal of one power supply module with little or no reduction in
output power. In the event it becomes necessary to remove a module and the RF Output power drops,
the RF Drive level from the Modulator can be reduced to a point where the DC Volt meter on the
ACDIS3 reads 31 volts. This is the maximum output level obtainable with one power supply module
removed. On this transmitter that could be a reduction of less than 500 watts in operational output power.
This will keep the station on the air until the new power supply module arrives. DON’T FORGET TO
TURN THE DRIVE LEVEL UP AFTER INSTALLING THE NEW SUPPLY TO RETURN TO
100% OPERATION.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
Page 60
X — WARRANTY
X — WARRANTY
The WARRANTY provided by Pineapple Technology, Inc. (PTI) on this transmitter is detailed below.
It should be noted that some of the equipment sub-systems have warranty coverage by the original
manufacture that differs from the standard warranty provided by PTI Warranty details on equipment fall-
ing into this category may be found in the Manufactures instruction manual provided with the transmitter.
In all cases, replacement units of this equipment are normally in stock at PTI for quick turn service
support to our customers during the PTI Standard Warranty period.
STANDARD WARRANTY
Seller warrants that each Product sold by it is free of defects in materials and workmanship. Seller’s
obligation under said warranty continues for a period of one (1) year from date of shipment. Repairs or
replacement of defective parts shall be the sole and exclusive remedy under warranty, at Seller option,
provided that Seller may, as an alternative, elect to refund an equitable portion of the purchase price
of the product. THIS WARRANTY IS EXPRESSLY IN LIEU OF AND EXCLUDES ALL OTHER
EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE, USE, OR APPLICATION, AND ALL OTHER OBLIGA-
TIONS OR LIABILITIES ON THE PART OF THE SELLER, UNLESS SUCH OTHER WARRANTIES,
OBLIGATIONS OR LIABILITIES ARE EXPRESSLY AGREED TO IN WRITING BY SELLER.
WARRANTY REPLACEMENT AND REPAIRS
All claims under warranty must be made promptly after occurrence of circumstances giving rise to thereto
and must be received with in the applicable warranty period by seller or its authorized representative. Such
claims must be documented on a PTI *Field Failure Report with a full description of the circumstances
giving rise to the claim. Before any products are returned for repair and/or adjustment, written authoriza-
tion form seller or its authorized representative for the return and instructions as to how and where these
products should be shipped must be obtained — This is to include a Return Authorization (RA) number
provided by the seller or authorized representative, this must accompany ALL returns. Any product
returned to seller for the examination shall be sent prepaid via the means of transportation indicated as
acceptable by seller. Seller reserves the right to reject any warranty claim not promptly reported and
any claim on any item that has been altered, i.e. circuit modications, components removed, or has been
shipped by non acceptable means of transportation. When a product has been returned for examination and
inspection, or for any other reason, customer shall be responsible for all damage resulting from improper
packaging or handling, and for loss in transit, notwithstanding any defect or nonconformity in the product.
In all cases the seller has sole responsibility for determining the cause and nature of the failure, and
the Seller’s determination with regard thereto shall be nal. If it is found that Seller’s Product has been
returned without cause and is still serviceable, customer will be notied and the Product returned at its
expense, in addition, a charge for testing and examination may, in Sellers sole discretion be made on
Products so returned.
*A Field Failure Report is included at the end of this manual — Additional Field Failure Reports can be obtained by calling
Pineapple Technology, Inc. at (916) 315-8338 or you may download one from our web site at www.ptibroadcast.com in the
Warranty section.
PINEAPPLE TECHNOLOGY, INC.
UTX3KW-A Operating and Service Manual
XI — EXTENDED WARRANTY (OPTIONAL)
Pineapple Technology, Inc. transmitters come with the option of extending the standard warranty for
up to 5 years. To exercise this option, the purchaser must buy and pay for the option at the time the
transmitter is purchased. The cost of the EXTENDED WARRANTY OPTION is in accordance with the
following schedule:
1st year NO CHARGE
2nd year 5% of transmitter purchase price
3rd year 5% of transmitter purchase price
4th year 5% of transmitter purchase price
5th year 5% of transmitter purchase price
A ve year EXTENDED WARRANTY would cost 20% of the original selling price of the transmitter.
The purchaser may exercise all or part of the EXTENDED WARRANTY as needed.
XI — EXTENDED WARRANTY
Page 61

Navigation menu
