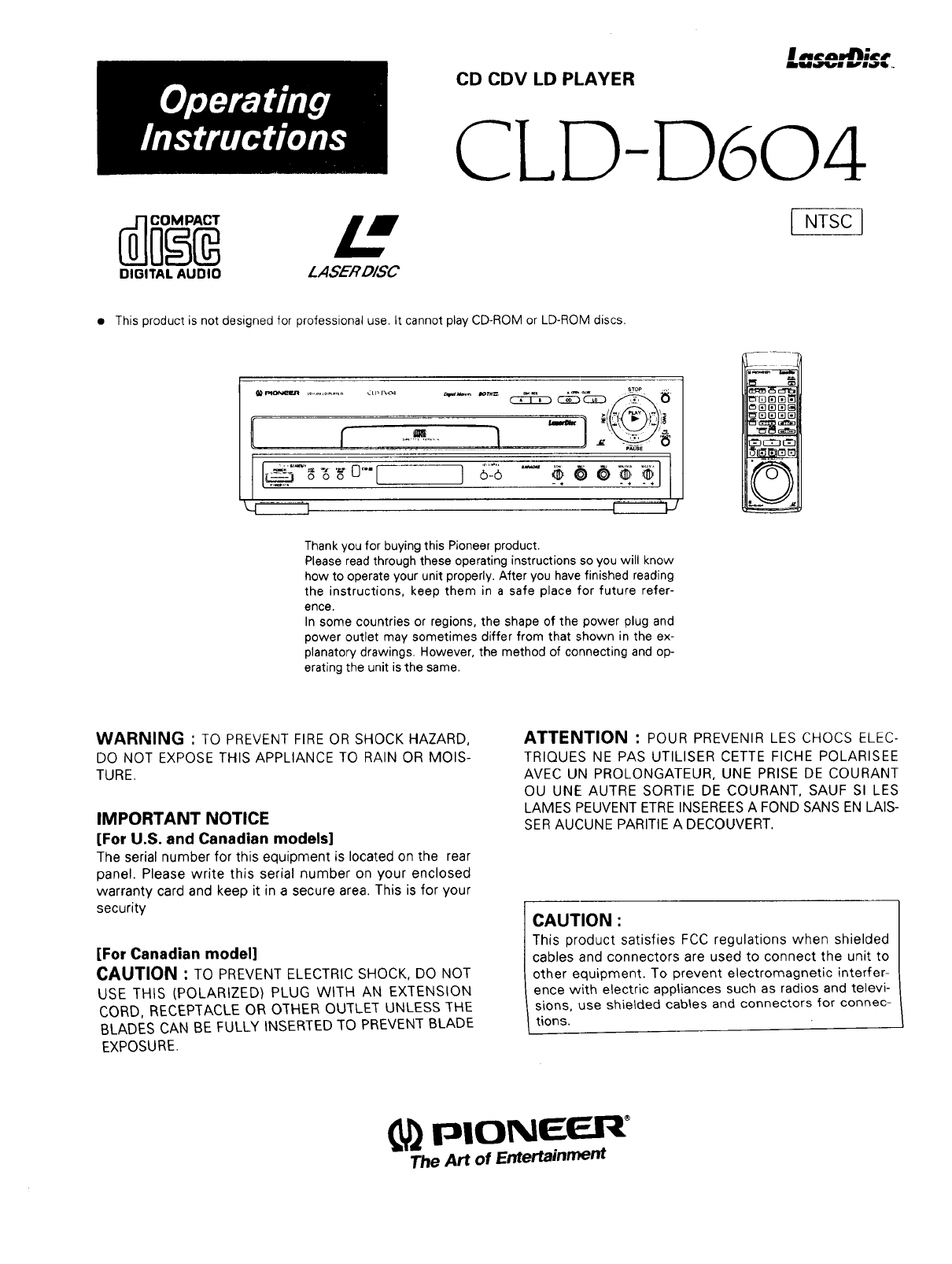

CD CDV LD PLAYER

CLD D604

DIGITAL AUDIO LASER DISC

INTSC

• This product is not designed for professional use It cannot play CDROM or LDROM discs

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know

how to operate your unit properly. After you have finished reading

the instructions, keep them in a safe place for future refer-

ence.

In some countries or regions, the shape of the power plug and

power outlet may sometimes differ from that shown in the ex-

planatory drawings. However, the method of connecting and op-

erating the unit is the same.

WARNING "TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-

TURE.

IMPORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear

panel. Please write this serial number on your enclosed

warranty card and keep it in a secure area. This is for your

security

[For Canadian model]

CAUTION : TO PREVENT ELECTRIC SHOCK, DO NOT

USE THiS (POLARIZED) PLUG WITH AN EXTENSION

CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADES CAN BE FULLY INSERTED TO PREVENT BLADE

EXPOSURE.

ATTENTION :POUR PREVENIR LES CHOCS ELEC-

TRIQUES NE PAS UTILISER CETTE FICHE POLARISEE

AVEC UN PROLONGATEUR, UNE PRISE DE COURANT

OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES

LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAIS-

SER AUCUNE PARITIE A DECOUVERT.

CAUTION :

This product satisfies FCC regulations when shielded

cables and connectors are used to connect the unit to

other equipment. To prevent electromagnetic interfer-

ence with electric appliances such as radios and televi-

sions, use shielded cables and connectors for connec-

tions.

PIONE ER+

The Art of Entertainment

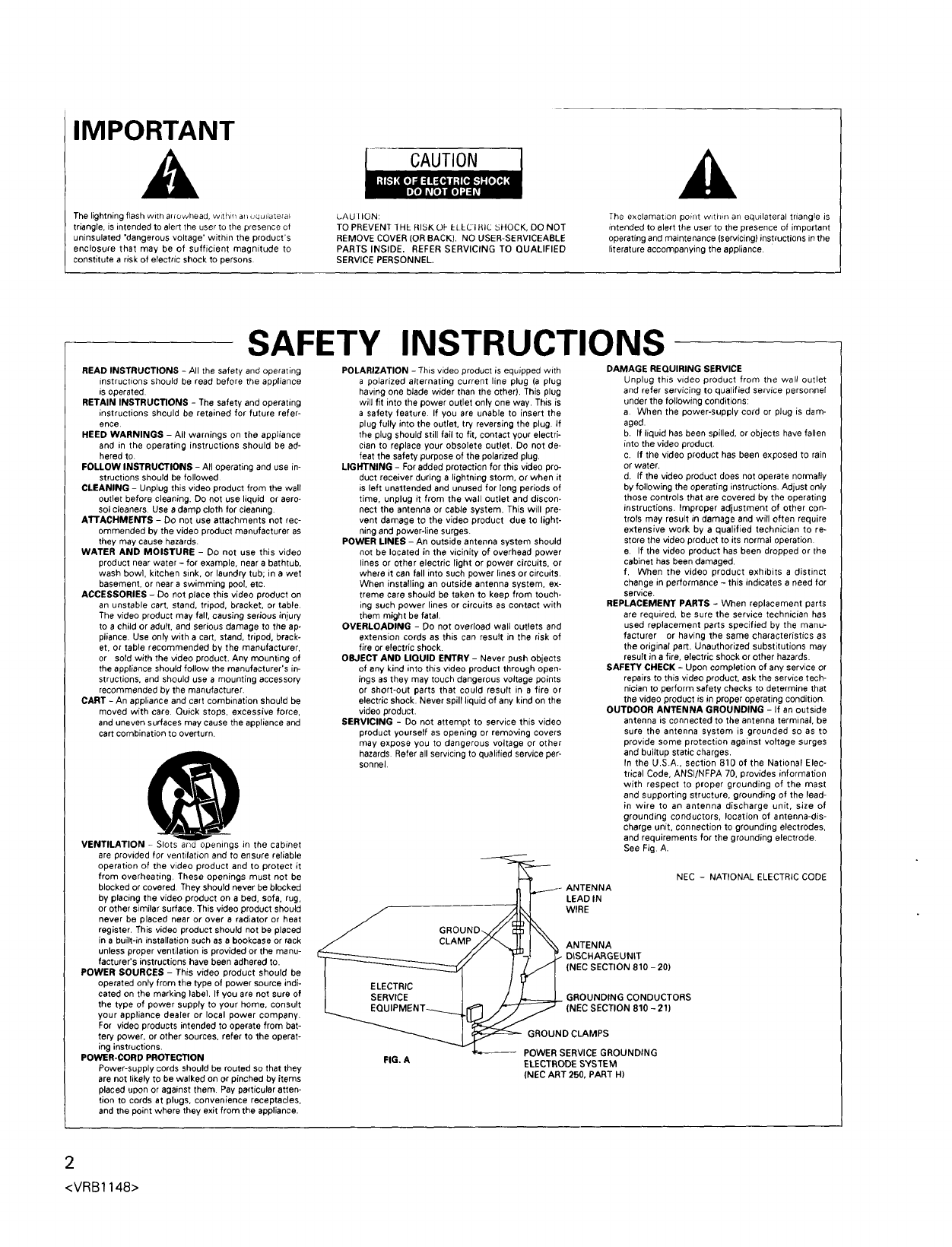

IMPORTANT

The lightning flash with a[_uwhead, withi_ ar__:qulLa[e_al

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage' within the product's

enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

CAUTION

LAU 1ION:

TO PREVENT 1HE RISK OF ELEC I RIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance,

SAFETY INSTRUCTIONS

READ INSTRUCTIONS - All the safety and operating

instructions should be read before the appliance

is operated.

RETAIN INSTRUCTIONS -The safety and operating

instructions should be retained for future refer-

ence.

HEED WARNINGS - All warnings on the appliance

and in the operating instructions should be ad-

hered to.

FOLLOW INSTRUCTIONS - All operating and use in-

structions should be followed

CLEANING - Unplug this video product from the wall

outlet before cleaning. Do not use liquid or aero-

sol cleaners. Use aclamp cloth for cleaning,

ATTACHMENTS - Do not use attachments not rec-

ommended by the video product manufacturer as

they may cause hazards.

WATER AND MOISTURE - Do not use this video

product near water- for example, near abathtub,

wash bowl, kitchen sink, or laundry tub; in awet

basement, or near a swimming pool, etc.

ACCESSORIES - Do not place this video product on

an unstable cart, stand, tripod, bracket, or table.

The video product may fall, causing serious injury

to achild or adult, and serious damage to the ap-

pliance. Use only with a cart, stand, tripod, brack-

et, or table recommended by the manufacturer,

or sold with the video product. Any mounting of

the appliance should follow the manufacturer's in-

structions, and should use a mounting accessory

recommended by the manufacturer,

CART - An appliance and cart combination should be

moved with care, Quick stops, excessive force,

and uneven surfaces may cause the appliance and

cart combination to overturn.

VENTILATION - Slots and openings in the cabinet

are provided for ventilation and to ensure reliable

operation of the video product and to protect it

from overheating, These openings must not be

blocked or covered. They should never be blocked

by placing the video product on abed, sofa, rug,

or other similar surface. This video product should

never be placed near or over a radiator or heat

in abuilt-in installation such as a bookcase or rack

unless proper ventilation is provided or the manu-

facturer's instructions have been adhered to.

POWER SOURCES - This video product should be

operated only from the type of power source indi-

cated on the marking label. If you are not sure of

the type of power supply to your home, consult

your appliance dealer or local power company.

For video products intended to operate from bat-

tery power, or other sources, refer to the operat-

ing instructions,

POWER-CORD PROTECTION

Power-supply cords should be routed so that they

are not likely to be walked on or pinched by items

placed upon or against them. Pay particular atten-

tion to cords at plugs, convenience receptacles,

and the point where they exit from the appliance.

POLARIZATION -This video product is equipped with

apolarized alternating current line plug (a plug

having one blade wider than the other), This plug

will fit into the power outlet only one way. This is

a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. If

the plug should still fail to fit, contact your electri-

cian to replace your obsolete outlet. Do not de-

feat the safety purpose of the polarized plug.

LIGHTNING - For added protection for this video pro-

duct receiver during a lightning storm, or when it

is left unattended and unused for long periods of

time, unplug it from the wall outlet and discon-

nect the antenna or cable system. This will pre-

vent damage to the video product due to light-

ning and power-line surges.

POWER LINES - An outside antenna system should

not be located in the vicinity of overhead power

lines or other electric light or power circuits, or

where it can fall into such power lines or circuits.

When installing an outside antenna system, ex-

treme care should be taken to keep from touch-

ing such power lines or circuits as contact with

them might be fatal.

OVERLOADING - Do not overload wall outlets and

extension cords as this can result in the risk of

fire or electric shock.

OBJECT AND LIQUID ENTRY - Never push objects

of any kind into this video product through open-

ings as they may touch dangerous voltage points

or short-out parts that could result in afire or

electric shock. Never spill liquid of any kind on the

video product.

SERVICING - Do not attempt to service this video

product yourself as opening or removing covers

may expose you to dangerous voltage or other

hazards Refer all servicing to qualified service per-

sonnel.

DAMAGE REQUIRING SERVICE

Unplug this video product from the wall outlet

and refer servicing to qualified service personnel

under the following conditions:

a. When the power-supply cord or plug is dam-

aged.

b. If liquid has been spilled, or objects have fallen

into the video product.

c. If the video product has been exposed to rain

or water.

d. If the video product does not operate normally

by following the operating instructions, Adjust only

those controls that are covered by the operating

instructions. Improper adjustment of other con-

trois may result in damage and will often require

extensive work by aqualified technician to re-

store the video product to its normal operation.

e. If the video product has been dropped or the

cabinet has been damaged.

f. When the video product exhibits a distinct

change in performance - this indicates a need for

service.

REPLACEMENT PARTS - When replacement parts

are required, be sure the service technician has

used replacement parts specified by the manu-

facturer or having the same characteristics as

the original part. Unauthorized substitutions may

result in afire, electric shock or other hazards.

SAFETY CHECK -Upon completion of any service or

repairs to this video product, ask the service tech-

nician to perform safety checks to determine that

the video product is in proper operating condition.

OUTDOOR ANTENNA GROUNDING - If an outside

antenna is connected to the antenna terminal, be

sure the antenna system is grounded so as to

provide some protection against voltage surges

and builtup static charges.

In the U.S.A., section 810 of the National Elec-

trical Code, ANSI/NFPA 70, provides information

with respect to proper grounding of the mast

and supporting structure, grounding of the lead-

in wire to an antenna discharge unit, size of

grounding conductors, location of antenna-dis-

charge unit, connection to grounding electrodes,

and requirements for the grounding electrode

See Fig, A.

_- ANTENNA

_---Jl iLEAD IN

GROUND >__ WIRE

_ y ANTENNA

"o_20,

GROUND CLAMPS

FIG. A

NEC -NATIONAL ELECTRIC CODE

_GROUNDING CONDUCTORS

(NEC SECTION 810 - 21)

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

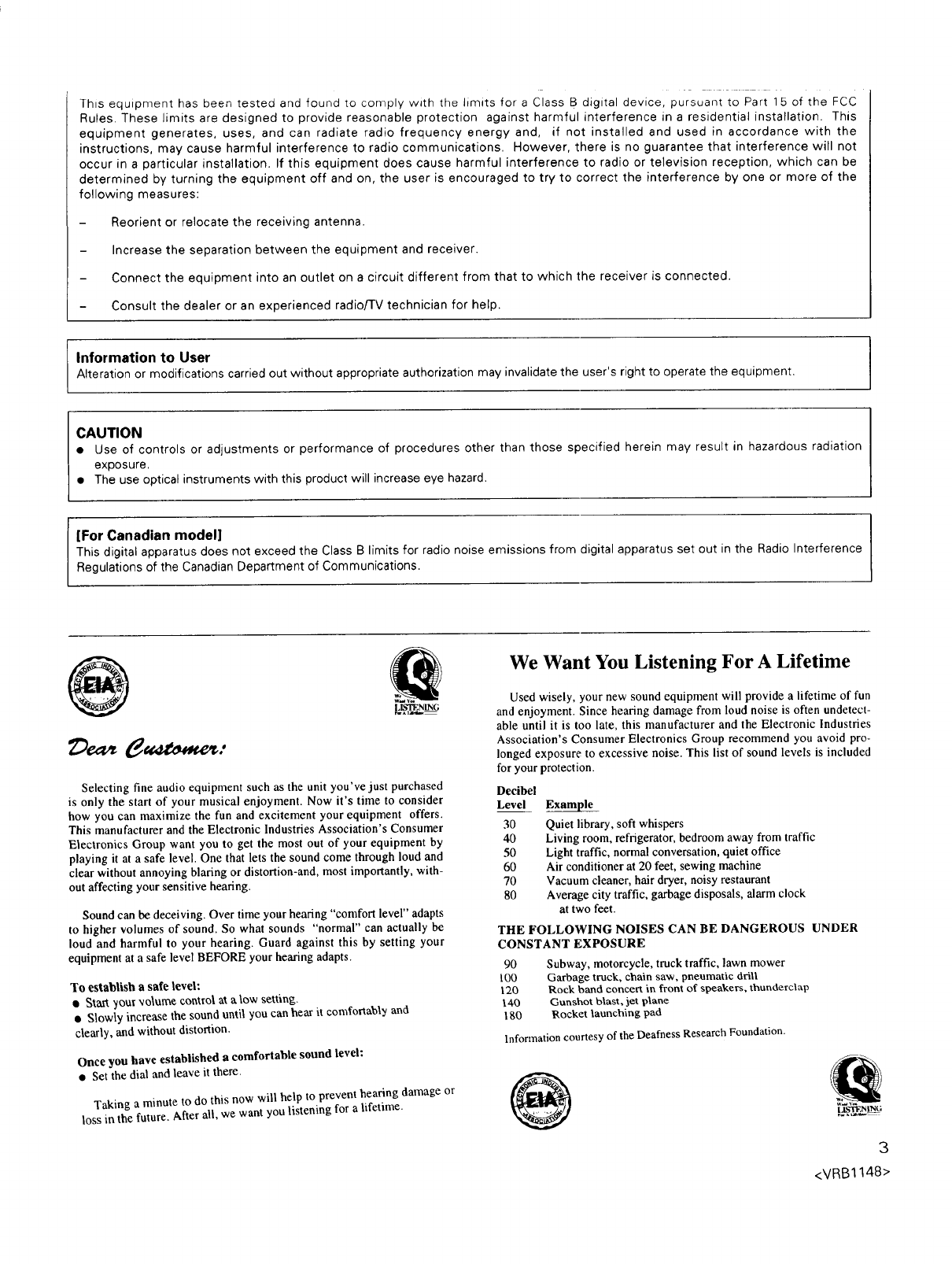

_[his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference ina residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

CAUTION

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation

exposure.

• The use optical instruments with this product will increase eye hazard.

[For Canadian model]

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

IJSTENING

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun

and enjoyment. Since hearing damage from loud noise is often undetect-

able until it is too late, this manufacturer and the Electronic Industries

Association's Consumer Electronics Group recommend you avoid pro-

longed exposure to excessive noise. This list of sound levels is included

for your protection.

Selecting fine audio equipment such as the unit you've just purchased Decibel

is only the start of your musical enjoyment. Now it's time to consider Level

how you can maximize the fun and excitement your equipment offers.

This manufacturer and the Electronic Industries Association's Consumer 30

Electronics Group want you to get the most out of your equipment by 40

playing it at a safe level. One that lets the sound come through loud and 50

clear without annoying blaring or distortion-and, most importantly, with- 60

out affecting your sensitive heating. 70

Sound can be deceiving. Over time your hearing "comfort level" adapts

to higher volumes of sound. So what sounds "normal" can actually be

loud and harmful to your hearing. Guard against this by setting your

equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your ,_o\ume control at alow setting.

• Slowly increase the sound until you can hear it comfortably and

clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or

loss in the future. After all, we want you listening for a lifetime.

Example

Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

Light traffic, normal conversation, quiet office

Air conditioner at 20 feet, sewing machine

Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock

at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER

CONSTANT EXPOSURE

90 Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers, thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

LIS'I_,N IN G

j PRECAUTIONS

If it becomes necessary to transport Or ship this unit in the

future, be sure to first remove the disc (if loaded), and retract

the disc table to its closed position. Then turn the power off,

and, after the 'OFF" display stops blinking on the display, dis-

connect the power cord.

When FM or AM stations are being received, signal noise may be

generated if the player is turned on. Turn off the player when not

in use. Also, if there is signal noise when receiving radio stations

with an indoor antenna, adjust the position or direction of the

antenna.

INSTALLING THE PLAYER

•Place the player on a stable platform next to the television and

stereo system to be used with the player.

• Do not place heavy objects such as a television or TV monitor

on top of the player.

• Do not place the player on top of your TV set or TV monitor.

Also, keep the player away from devices such as cassette decks

which are sensitive to magnetic fields.

DO NOT INSTALL THE PLAYER IN THE FOLLOWING

LOCATIONS

• In a place subject to direct sunlight.

• In humid or poorly ventilated places.

• In extremely hot or cold places.

• In a place subject to vibrations.

• In a dusty place.

• In a place subject to soot, steam or heat (in a kitchen, etc.)

AVOID SOURCES OF HEAT

Do not put the player on sources of heat, such as an amplifier.

When installing with audio components that generate heat, by

placing the player below such components where there is ade-

quate ventilation and not much dust. Avoid placing the player on

surfaces such as shaggy carpets, beds, and sofas which may block

ventilation under the player and cause damage.

CAUTION

Even when the player is in the pause mode, the disc-drive motor is

still revolving. Since leaving the player in this condition can shorten

the lifetime of the motor, do not leave the player in the pause

mode for long periods of time. Also, to prevent damage to the

screen, do not use the unit for long periods of time under condi-

tions in which the screen display (monitor) is displaying characters

(for example, power-ON mode, CD PLAYER, PAUSE) With an LD

disc, if playback is paused for about 20 minutes, the player will

automatically enter stop mode.

STRIPE PATTERNS APPEARING ON A TV PROGRAM

Stripe patterns may appear during a TV program if the player unit is

turned on, depending on the quality of reception of the TV station.

This is neither a malfunction of the television nor the player. If

stripes appear while watching the TV, or whin watching the -IV for

long periods of time, turn the player off.

CONDENSATION

Moisture will form in the operating section of the player if the

player is brought from cool surroundings into a warm room or

if the temperature of the room rises suddenly. When this hap-

pens, player's performance will be impaired.

To prevent this, let the player stand in its new surroundings

for about an hour before switching it on, or make sure that

the room temperature rises gradually.

Condensation may also form during the summer if the player is

exposed to the breeze from an air conditioner. In such cases,

change the location of the player.

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by

tugging the cord and never touch the power cord when your hands

are wet as this could cause a short circuit or electric shock. Do not

place the unit, a piece of furniture, etc., on the power cord, or

pinch the cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed in such a way that they

are not likely to be stepped on. A damaged power cord can cause

a fire or give you an electrical shock. Check the power cord once in

a while. When you find it damaged, ask your nearest PIONEER

authorized service center or your dealer for a replacement.

ICLEANING CARE I

Use a soft, dry cloth for cleaning. For stubborn dirt, soak the cloth

in a weak detergent solution; wring well first and wipe. Use a dry

cloth to wipe it dry. Do not use any volatile agents such as benzine

or paint thinner, as they may damage the surface of the player.

Abnormal functioning of this unit may be caused by static

electricity or other external interference. To restore normal

operation, unplug the AC power cord and then plug it in

again.

Only one disc can be loaded at any one time. Loading a Laser-

Disc, a Compact Disc, a 3-inch (8-cm) Compact Disc or a Com-

pact Disc with Video on top of one another may result in a

breakdown, or in scratching of the discs. Please only load one

disc at a time.

This player is to be used exclusively with the NTSC color

system. Please use an NTSC LaserDisc only. PAL and SECAM

system discs cannot be used with this player.

-CUNTENTS

PRECAUIION5 ................................................. 4

ACCESSORIES .......................................................................... 5

TYPES OF DISCS WHICH CAN BE PLAYED

WITH THIS UNIT ....................................................................... 6

GLOSSARY ............................................................................... 7

CONNECTIONS ......................................................................... 8

NAMES OF PARTS

Front panel ......................................................................... 10

Display window .................................................................. 10

Remote control unit ........................................................... 11

BASIC OPERATION (PLAYBACK OF A DISC) ........................ 12

MOVIE DISC ENTERTAINMENT ............................................. 14

SINGING ALONG WITH KARAOKE ENTERTAIN M ENT .......... 15

APPLIED OPERATIONS .......................................................... 16

QUICK SCANNING OF DISC CONTENTS ............................... 20

RANDOM PLAYBACK (PLAYBACK IN ORDER

SELECTED BY THE PLAYER) ................................................. 20

TO SEARCH FOR A DESIRED FRAME ................................... 21

PROGRAMMED PLAYBACK (PLAYING CHAPTER /

TRACKS BY CHANGING THEIR ORDER AS REQUIRED) ....... 22

REPEAT PLAYBACK ................................................................ 23

ON-SCREEN DISPLAY ............................................................ 24

TROUBLESHOOTING ............................................................. 25

SPECIFICATIONS .................................................................... 27

ACCESSORIES

-- When unpacking the player, first check to make sure that all of the accessories listed below are supplied. --

• Remote control unit

• Size 'AAA" (IEC R03)

dry cell batteries x 2

-c%1_

• Video cord (RCA plug _ RCA plug)

Use to connect the player to a TV

etc.

Audio cord

(RCA plug x 2 _ RCA plug x 2)

Use to connect the player to a -rv etc.

Microphone • Operating instructions

• Warranty card

INSERTING BATTERIES INTO THE REMOTE

CONTROL UNIT

[] Open the battery compartment cover on the back of the re-

mote control unit. Press the knob and open the cover in the

direction of the arrow.

[] Take out the two accessory size "AAA" (IEC R03) dry cell batter-

ies, and insert them into the battery compartment in accor-

dance with the display ((_, _)) inside the compartment.

[] Close the cover of the battery compartment.

In correct use of batteries may cause leakage or rupture.

Always be sure to follow these guidelines:

A. Always insert batteries into the battery compartment cor-

rectly matching the positive (_) an negative (_ polarities, as

shown by the disp(ay inside the compartment.

B. Never mix new and used batteries.

C. Batteries of the same size may have different voltages, de-

pending on brand. Do not mix different brands of batteries.

TYPES OF DISCS WHICH CAN BE PLAYED WITH THIS UNIT

This unit is a CD/CDV/LD compatible laserdisc player.

• The marks shown in the following table are found on the label

or jacket of each disc.

This player is capable of playing the 7 types of discs listed

below without using an adapter.

• To prevent a malfunction, do not use an 8-cm (3 in.) adapter (for

CD) or a 20-cm (8 in.) adapter (for LD).

Types of playable

discs and their marks

DIGITAL AUDIO

CDV ..

OD VIDEO

VSD

LASER DISC

I ASER DISC

LaserVIslon

CD VIDEO

Diameter/Playable sides

12 cm (5 in.)/ {k_

single-side

CD single

8 cm (3 in,)/

single-side

CDV

12cm (5 in.)/ ___

single-side

VSD

12 cm (5 in.) /

single-side

30 cm

(12 in.)/ \ J

double-side_

20cm(8in.)/( @ /

double-side

LD single

20 cm (8 in,)/ ( @ )

single-side

Max. playback time

74 minutes

20 minutes

Digital audio 20 rain.

Digital audio

+ Video 5 rain.

Digital audio

+Video 5 rain,

CAV 1 hour

CLV 2 hours

CAV 28 rain.

CLV 40 rain.

CAV 14 min,

CLV 20 min.

• There are some discs marked with the _L_ mark instead of the

mark.

• There are some discs without the _,_o _° mark.

This is the unified symbol mark of LASERDISC (LaserVision

videodisc).

LaserDisc players and discs which bear this symbol and use the

same television system, are mutually compatible.

** A Digital Audio with Multi Audio Disc (CD VIDEO LD) and a CDV

(CD Video CDV) are referred to as CD Video discs. CD Video-

discs are recorded with subcodes, which are the non-audio re-

cordings of TOC (Table of Contents) data such as track num-

bers, index numbers, etc. However, there are some discs with-

out these marks.

How to hold a disc

CD, CDV

Holding with two

hands

Hold by two opposite

edges of the disc.

Holding with one

hand

Hold by hooking two

fingers across the

center hole and edge,

Do not attach paper.

Do not touch the disc surfaces.

Never use a cracked or warped disc.

To avoid danger, never attempt to play a cracked or deformed disc,

or a disc which has been mended using an adhesive agent, etc.

Also do not use an analog record spray or static prevention agent

for these will crack the laserdisc surface.

Care of disc

To maintain high video and audio quality, clean the disc if it gets

dirty clean by wiping the disc surface with a soft cloth. When

wiping, be sure to move the cloth in straight directions from the

center of the disc toward the outer edge. Do not wipe in a circular

direction like you do with analog records.

Wipe along the radii.

• Do not use an analog record cleaner, benzine, thinner or static

prevention agent.

Storage

After playback, be sure to take out the disc from the player, put

the disc in the jacket or case and store it vertically. To prevent the

discs from warping, do not store jackets or cases at an angle or

stack them horizontally. Also do not store them in a place subject

to direct sunlight or under high temperature and humidity.

• If a LaserDisc is deformed, place it in the inner bag, put the bag

between two flat boards, place a weight of 4 to 5 kg (10 Ibs) on

the boards and leave them for about a day. This maysome-

times reduce the warp or other deformation.

Heavy books (4to 5 kg (10 Ibs))

_Flat board

LaserDisc "_[_lnner bag

Flat board

IGLOSSARY

LD terms

Chapter number

Just like the numbers assigned to chapters of a book, the

LD disc is divided into several chapters and each of them is

assigned a chapter number. If the chapter numbers are

recorded on the disc, it is possible to perform operations

such as the chapter search which quickly searches the de-

sired chapter.

•Some LD discs do not contain recorded chapter num-

bers.

Frame number

A frame number is assigned to every frame on a CAV disc.

This makes possible operations such as the frame search

which searches desired images based on their frame num-

bers.

Time number

This refers to the elapsed playing time from the beginning

of the disc that is recorded on CLV discs as well as on CAV

discs with a TOC*I. This allows operations such as the

time number search which searches desired images based

on their time numbers.

CDVICD terms

Track number

The CDV or CD disc is divided into several tracks and each

of them is assigned a track number. With the CDV disc, the

track numbers are recorded across the audio and video

parts. This allows operations such as the track search which

quickly searches the desired track.

TOC ('1)

CD and CDV discs contain non-audio information called TOC

the (Table Of Contents) at the beginning of the disc. As this

name implies, the TOC contains information on the number

of tracks and their playing time just like the table of con-

tents of a book.

•Some LD discs are not provided with a TOC section.

• The LD with TOC and the CDV belong to the same

category of "optical video disc systems with digital au-

dio".

CD video system

The CD video system is the unified name given to "optical

video disc systems with digital audio".

The systems belonging to this category include;

•CDV disc (CD VIDEO, CDV)

•LD with subcode and digital audio

•CD/CDV compatible player

•CD/CDV/LD compatible player

OD Vl DEO

LD (LaserDisc)

LaserDiscs include a standard play disc (CAV) and an ex-

tended play disc (CLV) depending on the signal recording

formats.

CAV

[Standard PlaylCAV] or simply ]Standard Play] is indicated

on the jacket or label of the disc.

CLV

[Extended Play/CLV] or simply [Extended Play] is indicated

on the jacket or label of the disc.

LaserDisc with digital audio

This type of disc contains the recording of a digital audio

signal in addition to an analog audio signal, It allows you to

enjoy the high-quality video of an LD and digital sound at

the same time,

rJir,iLaLor dieital

i=lu,-,la BOUND

Multi-audio disc with digital audio

This type of disc contains different audio information in

digital audio and analog audio.

dioital

di6itut and MULTI AUDIO or 80uxDMULTIAUDIO

I=:lLlC;_lr_

The digital and analog audio can be switched over to enjoy

different audio information.

CDV (Compact Disc with Video)

•This CD contains the video part. Among the 25-minute

playing time of the CDV, 20 minutes contain a similar

digita_ audio to an ordinary CO (audio part) and the re-

maining 5 minutes contain a video plus digital audio (vid-

eo part).

CONNECTIONS

Connection with TV set with Video/Audio

aequipped inputs

Connection method (Be sure to plug the cords securely deep into the connectors.)

Connect the VIDEO OUTjack of the player to the video input jack of an A/V TV (or a TV monitor).

•If the TVset has an S VIDEO input jack, connect it using an S VIDEO cable which is available in audio/video stores.

For use of the S VIDEO cable, also read the operating instructions of the T_,

Connect the AUDIO OUT jacks of the player to the audio input jacks of the A/V TV.

Finafly plug the power cord into a household power outlet (which should permanently be supplied with power).

• Also read the instruction manual of the TV.

•ATTENUATOR switch

Usually, set this switch to the OFF position.

Set to ON when the audio is distorted during karaoke

singing.

LO,F o.j

Usually OFF

@ml=

iO_ Check the

positions

•_ the holes of

i _ the S VIDEO

r_ _ !ack before

I I _insertion.

I _ S VIDEO plug

• m= i IwmB=lRmn llm= =mmml_ml =mml==

Commercially-available _

S VIDEO cable S VIDEO input jack

Provided Video cord

_, , VIDEO input jack

Plug into a wall

outlet after

completing all

connections.

Provided Audio cord

AUDIO inputjack (mono TV)

AUDIO input jacks (AN TV)

AC-3 RF OUT terminal:

This terminal is intended for use with Dolby AC-3 compo-

nents (.1) planned for future release. With this terminal,

you will be able to connect an AC-3 RF input of amplifiers

and surround processors, and playback laser discs for-

matted with Dolby AC-3 (*2),

(.1) Indicated with .1_,_ (For hardware)

(*2) Indicated with .1_,_ (For software)

•You cannot playback currently available laser discs,

laser disc players, AV amplifiers, etc., with this termi-

nal.

• Do not connect this terminals to the audio input terml-

nal of a normal stereo or AV amplifiers.

CONNECTIONS

Connection of additional stereo amplifier

This connection scheme shows how to connect the audio output to a stereo amplifier while the video output is connected to a TV using the

scheme shown on page 8.To reproduce the audio of a Compact Disc or an LaserDisc with improved quafity, it is recommended to connect the

player to a stereo amplifier.

Connect the AUDIO OUT jacks to the input jacks labeled LD, CD or AUX, etc. (Never connect to the PHONO input

jacks.)

•Also read the operating instructions of your stereo amplifier.

Plug into a

outlet after

completing all

connections.

Commercially- __

available

audio cord

Commercially-available mini-plug cord (without load)

.immmi i lmm ml=_

Commercially-available '_

•,. optical cable

Stereo amplifier

CONTROL OUT jack

(PIONEER stereo amp)

•Combination with a PIONEER component with the _mark

When the player is combined with a component capable of centralized control of PIONEER products carrying the _ mark (optional AV

surround amplifier, etc.), it is possible to control the entire system.

Using a resistorless cord with mini-plugs (without load) on both ends that is available in audio stores, connect the CONTROL IN jack of the

player to the CONTROL OUT jack of the component.

• For the connection and operation methods, read the operating instructions of the component to be connected.

• Once the system remote control connection is made, the remote control sensor of the player will not accept the remote control.

The remote control unit should be pointed at the remote control sensor of the connected component.

NAMES OF PARTS

Front Panel P._ indicates the page where the control is

explained. OPEN/CLOSE button

LD disc table CD disc table DISC SIDE A/B

u.on

_lO_ C[)CDVLDPLAYER CLL_ LX_04 _ik_/Mc_J_,_ BOTH_

't_[" "

POWER button/STANDBY

indicator

I Display window /

(A CD) @

....,@E...... ]

KEY CONTROL buttons

OPEN/CLOSE button -n: STOP button

(! LD) @ t<l<lmm: Skip buttons [_

<1411H_:Fast forward/reverse

ECHO controls

--Remote control sensor @

-- THEATER BASS button

DISPLAY OFF button

QUICK TURN button

MIC jacks

buttons @

|1: PAUSE button @

-=,-: PLAY button

STOP ,,sr

_'Au_t

Displays the total playing time of one side.

Displays the chapter number or--

track number.

ONE-TOUCH

KARAOKE button

LAST MEMORY

button _

MIC VOL controls @

-- Displays the remaining play

time.

_T Displays the channells) with

audio output(s).

Lights when ONE-TOUCH KARAOKE

is activated. J

Illl I eRR /IIT_IIK I TOTAL REMAIN 1/L 2/a ONE'TOUCH Light

•nil

.... KARAOKE--}ph S_lhen a micro-

IIIIIIII I I IIIImmll ••

........................i'" " HI: + +c,°i

• .. • • • •• • ......................... one u sinserted

• lion •

......... • u •=ram• "" •n•uu,w • into the ack

........•"ii it I

•mm•mlm•n • • •

• ml•|•lll • mm

IIIIIIIII •II

iiiiiiiii IIIIIII iiiiii

Displays the frame number or elapsed time.

..!!..

•.iillli... Disc table open/close

..,,.,..,.

!!!!!!"Play

!!"

.,:,.., .,=::

..... ,,,

iiiiiiii +ose

•Displays the functions being operated, etc.

•-, r, , ,,, Disc table being opened i-'li

...,r C nu ¢"' ri "i

I!1_-" i'?r' ,

.+.... ...,.+ :-- =....

L, i ; '", i-': Disc table being closed

,-'"'L. ,-',"''T' ' Start of playback

".... i-!

;-.._.,_ ' End of LD

P.,',T r, r',

_"_,..._ ' Intro Scan

ii• . -z,

r", , ', ; i: Highlight Scan

F"+ T"l {"_"=

r" j_, _, " Random playback

,-) r: rn • Programmed playback

i,.i Ill

....,r", ." • 1-chapter (1-track) repeal

•--,""-..i:;'.,.i:::'T

+..,_.. ....... _.

h' 1-" ;

+--+ r ,", T

_"+'.; " l_ l- i

i"l I" I""

-' +.j!-r "-

"F'I

ii. ,LI

l"' "_'i

ij..i

f" T'iit

L_ +'.._'-'

I_lrl T', ,i- _--

I_III._ I_-,_

playback

Double-side repeat playback

Single-side repeat playback

Program repeat playback

Random repeat playback

Switching power OFF

LaserDisc

Compact Disc

Compact Disc with Video

Disc not present

IRemote Control Unit /

NAMES OF PARTS J

AUDIO D/A

(Digital/Analog) button-

POWER button

KEY CONTROL buttons

D_';PLAY button

PGM(Program} button

CHP/TM(Chapter/Time)

button

LAST MEMORY button

HILITE/INTRO button

RANDOM button

<1<: SCAN(Fast reverse}

button

JoGMODEbu.on --U

JOG MODE indicator _ --

DISC SIDE A/B buttons

i°PENc°sbu °n

REPEAT A-B buttons

REPEAT button

[-- CLEAR button

__ •Press to cancel repeat mode, program

mode or random playback or to correct a

mistake made with the numeric buttons.

Numeric buttons s _P,P,_

STEP buttons

MULTI-SPEED buttons

SKIP buttons

-----I_1_: PLAY button

q__ IH_: SCAN(Fast forward)

button--I1: PAUSE button

I1: STOP button

JOG dial

•With some of the PIQNEER preset remote con-

trol units, the Ill/--&button in the LD control sec-

tion cannot be used to open/close the disc table.

Operation of the remote control unit

Point the remote control unit toward the remote control sensor

on the front panel. The distance between the player and re-

mote control unit should be less than 7 meters (23feet) and the

operating angle should be within 30 degrees to the _eft and

right with respect to the remote control sensor.

-to p_event a malfunction, avoid the entry of strong light,

such as direct sunlight and fluorescent light, into the remote

control sensor.

tf the CONTROL [N jack on the rear panel is connected to

another component, point the remote control unit at the

remote contro_ sensor of that component, it is not possible

to operate the player if the remote control unit is pointed at

the plaver. (Refer to page 9.)

IBASIC OPERATION ..................... l

(PLAYBACK OF A DISC)

aFor the connections, refer to pages 8 and 9.

3 2 4

The buttons with the same name on the front panel and

remote control unit have the same functions.

•The STANDBY indicator is lit while the power is OFF.

1. Press POWER.

Set the TV to the function (input) to which the player is

connected.

Front Panel

POWE R

POWER

2. Press appropriate OPEN/CLOSE to open the

disc table.

To play an LD

FrontPanel

_" OPEN

_/CLOSE

To play a CD

Front Panel

After using a CD, the CD tray opens when you press OPEN/

CLOSE on the remote control unit. To playback an LD, use

OPEN/CLOSE on the front panel.

3. Place a disc on the disc table.

To place an LD To place a CD

• Place only one disc, LD or CD, at a time.

4. Press ..

• Playback of the CDV starts with the video part.

STOP

Front Panel _ PLAY

PAUSE

Operations marked with [ _ ] are made from the remote

control unit.

Disc placing position

The CD/CDV or single-sided LD should be placed with the label

side facing up and the double-sided LD should be placed so that

the label of the side to be played faces up. Place any disc correctly

along the guide groove provided for each size.

LD disc table :

CD single:8 cm (3 in.)

CD, CDV, video single:12 cm (5 in.)

LD, LD single:20 cm (8 in.)

LD:30 cm (12 in.)

CO disc table :

CD single:8 cm (3 in.)

CD, CDV, video single:12 cm (5 in.)

--Caution in placing a disc

Be careful not to deviate a disc from the guide groove on the

disc table, for this will make proper playback impossible and

could cause a malfunction such as disc damage.

For safety,

•Be careful not to catch your finger in the disc table when it

draws in. Also take care to prevent a small child from opening

the disc table cover and inserting their hand inside the player to

pre vent injury.

•Do not place an object other than a disc on the disc table.

Convenient feature (Auto power-ON function)

• When the power is OFF, pressing OPEN/CLOSE turns on the

power automatically and opens the disc table.

•When you have turned the power OFF with a disc left inside

the player, simply press • on the front panel; the power turns

ON automatically and playback of the disc starts.

•The above features cannot be operated with the remote control

unit.

Playback by specifying side A or B

In this description, side A refers to the surface facing up when the

disc is placed on the disc table, and side B refers to the other side.

Note that they are not always the same as disc sides A and B as

recorded on the disc.

It is recommended to place adisc so that the side labeled

"SIDE A" faces upward.

To play side A only: When the disc with the side labeled "SIDE

A" is facing up, press DISC SIDE A without pressing •. The

player will stop after having played side A.

To play side B only; Press DISC SIDE Bwithout pressing •. The

player will stop after having played side B.

If the disc has been placed with the recorded "SIDE B" facing up,

DISC SIDE A plays side B and DISC SIDE B plays side A.

Display when the disc side is switched

•Turning from side A • Turning from side B to

to side B side A

B I, A

BASIC OPERATION ,PLAYBACK OF A DISc)1

To stop playback and take out the disc

1. Press OPEN/CLOSE.

With LD With CD

Front Panel OPEN

/CLOSE

Front Panel

2. Take out the disc.

With LD With CD

3. Press OPEN/CLOSE to close the disc table.

With LD With CD

Front Panel i_ OPEN

/CLOSE

Front Panel

STOP

_ _ . -,

'Y"i

-.jJ

PAUSE

STOP PAUSE

To stop playback (I)

Press m.

To pause playback temporarily (11)

Press II. The audio and video disappear and the II indica-

tor lights on the display. Pressing II again resumes play-

back from the position where it was paused.

• A still image is displayed during pause with a LD.

• Leaving the player in pause mode for a long period of

time may shorten the life of the motor. Therefore,

the player automatically enters stop mode when pause

mode has lasted for about 20 minutes. (Pause timer)

....................

MOVIE DISC ENTERTAINMENT

The on-screen display can be defeated to enhance the ambience

of movie entertainment. In addition, the Quick-Turn function which

allows to reduce the time required before starting playback or

changing disc side and the Theater Bass function which allows to

select the audio matching the ambience of each movie are also

provided.

To turn off the display

Press DISPLAY OFF.

DISPLAY

OFF

O The indicator lights.

aThe display window as well as the on-screen display turns off.

However, when a button on the player or remote control unit is

pressed, the operation mode is displayed for about ! .5 seconds.

• The TV screen color while the disc is turned or stopped chang-

es from a blue background to a black background.

NO TE:

When DISPLAY OFF is pressed, the display window turns off

even while the power is ON. The display OFF state is held in

memory even after the power is switched off so the display

window is off when the power is switched on later. To turn on

the display window, press DISPLAY OFF again.

To reduce the playback start time and turn

time (QUICK-TURN)

The indicator lights when the quick-turn function is on.

QUICK

TURN

Press QUICK TURN to turn this function off.

When the quick-turn is on, the TOC recorded on the disc is not

read so the time required before starting playback or turning

the disc can be reduced.

As a result, even when the LD being played contains TOC

information, the random playback, total time display, remain-

ing time display and the elapsed time display of CAV (stan-

dard play) disc will not function.

NOTES :

•When the AC cord is plu_l_led into apower outlet and the

power of the player is switched on, the quick-turn is auto-

matically turned on and the indicator lights.

•The quick-turn is turned off automatically when aCD is in-

side the player. If an LD is placed in it, the previous state is

recalled from the memory and the quick-turn is turned on

again.

•The quick-turn on or off state is held in memory even after

the power is switched off so the same state is recalled

when the power is switched on later.

To select the audio that matches the ambi-

ence of the movie (THEATER BASS)

The indicator lights when the theater bass function is on.

THEATER

BASS

Press repeatedly

The bass sound can be enhanced every time THEATER BASS is

pressed. Set the button to the desired position according to the

atmosphere of the movie you watch.

Off : Original audio

Once LEVEL-l: Bass is enhanced

Twice LEVEL-2: Bass is enhanced more

_[ than LEVEL-1

Three times LEVEL-3: Bass is enhanced more

than LEVEL-2

The level is displayed on the top right of the screen.

BASS __J

LEVEL-1

_NoTES:

a Turning on Theater Bass may distort the dialog portion of a

sound track when used with certain discs or system config-

urations. If this occurs, either turn down the Theater Bass

level or turn Theater Bass off.

•The theater bass is turned off automatically when a CD

inside the player. If an LD placed in it, the previous state is

recalled prom the memory and the theater bass is turned on

again.

•The theater bass on or off state is held in memory even after

the power is switched off so the same state is recalled

when the power is switched on later.

•The Theater Bass function is switched off automatically when

the microphone is plugged in. The Theater Bass is switched

back to on as soon as the microphone is unplugged.

•The Theater Bass function is switched off automatically when

One-Touch Karaoke is switched on. In this case, return

to the Theater Bass does not occur.

SINGING ALONG WITH KARAOKE ENTERTAINMENT

-®

3®-

-2

1. Insert the microphone plug(s) into the MIC

jack(s).

•The KARAOKE indicator lights on the display.

__I_I_Z3=- MlCl MIC2

@ @

2, Select music with the numeric buttons on the

remote control unit.

_,_Ji_ ,_ _

To select No. 10 or beyond:

Use the +10 and [] buttons.

(Examples) 17:1+T0], []

20: I¥_-i,1¥_}, []

3. Adjust the microphone volume with the MIC

VOL control(s). Also adjust the listening level

of the TV set.

MIC 1 VOL MIC 2VOL

@ @

4, Adjust the echo with the ECHO control.

ECHO

®+

Now start singingt

When the selected music has been played, the player enters

pause mode. To continue karaoke singing, select another

song with the numeric buttons.

_:To mute the voice(s) of the singer(s) from a disc :

Press ONE TOUCH KARAOKE. ONE

•3"he ONE TOUCH KARAOKE indicator will light TOUCH

on the display. KARAOKE

Stereo audio disc : (( _

•The voice(s) of the singer(s) is late reduced so

that you can practice karaoke singing.

Multiplexed audio disc :

• Karaoke play starts.

®:To set a desired pitch (Key control function) I

KEYCONTROL _ KEYCONTROL

# : Pitch is heightened each time this button is pressed (up to 5

steps from normal).

b : Pitch is lowered each time this button is pressed (down to 5

steps from normal).

• The current pitch position is shown by the lit indicator.

• The key control is possible only while a microphone is

plugged in.

The karaoke audio varies

disc.

CD, CDV

Multiplexed

audio disc

Stereo audio disc

LD Digital multi.

plexed audio disc

"Digital audio :

Stereo

Analog audio :

Multiplexed

as shown below according to the type of

The volume of the singer's voice (vocal)

is reduced.

The karaoke music recorded in the L

(Left) channel is played. (This is mon-

aural audio.)

When an ordinary stereo disc is played,

the singer's voice (vocal) is reduced.

The karaoke music is played in stereo.

(However, if the analog audio is

selected with AUDIO D/A, the effect

becomes the same as the multiplexed

audio disc described above.)

NOTES :

•In case the audio is distorted, set the ATTENUATOR switch

on the rear panel to ON. _]

•In case playback is started with _, the player does not

pause after having played the music.

• If you do not want the player to pause, press and hold •on

the front panel for more than 2 seconds until the KARAOKE

indicator turns off.

•The pause after playback also occurs after programmed play-

back _] and random playback _]. If you do not want

the player to pause after programmed or random playback,

press and hold t_ for more than 2 seconds during pro-

grammed or random playback.

•During the operation of the ONE TOUCH KARAOKE func-

tion, it is not possible to switch the L (Left) and R (Right)

channels with AUDIO D/A.

• The voice(s) of the singer(s) may not be reduced with cer-

tain discs, even if you press ONE TOUCH KARAOKE.

APPLIED OPERATIONS ................

rqrara¢4

_ED raOOra

Io play an LD from the position where

playback was last stopped

If • or POWER is pressed during playback, and playback has not

reached the middle of the disc, it is possible to restart playback

from the position where it was stopped.

When playback of an LD is stopped by pressing • or POWER, the

address where the playback is stopped is stored in memory and,

provided that the disc is left in the LD disc table, the stored ad-

dress is held in memory even after the power is switched off.

When you switch the power on and press LAST MEMORY, play-

back starts from the position where it was last stopped,

LAST _ LAST

MEMORY MEMORY

To start playback directly from the position where it was

stopped:

Position slightly before Position where playback

was stopped

Press LAST MEMORY once, Playback starts from the position

slightly before the position where it was last stopped.

To start playback after reviewing the plot from the beginning

to the position where it was last stopped:

[f --%

Press LAST MEMORY consecutively twice. A short period of play-

back and fast forward operations are repeated from the beginning

of the disc until slightly before the position where playback was

last stopped, and normal playback starts from there. By pressing

LAST MEMORY again during the fast forward operation, playback

can be started directly from slightly before the position where it

was last stopped.

NOTES :

•The last memory playback function is available only with

LDs. It is not available with CD and CDV discs.

• If playback was last stopped in the middle of side B of a

double-sided disc, the last-memory playback starts from side

•When m, is pressed to start playback after it has been

stopped with •, playback starts from the beginning of the

disc.

• Be sure to leave the disc inside the player. The last-memo-

ry playback is not possible once the disc has been taken

out of the player.

•Be sure to plug the AC power cord into a power outlet to

which power is supplied permanently,

Audio switching

Every time AUDIO D/A is pressed during playback, the played

audio is switched. This makes it possible to;

• listen to the analog audio of a disc with digital audio;

• listen to only one of the two channels of a stereo disc;

• select the audio to be played from multiplexed audio disc.

LD with digital audio

It is possible to switch between the digital and analog audio and

between the L (Left) and R (Right) channels of stereo audio.

AUDIO

D/A

2---/

Digital audio _Analog audio__ Analog audio

rstereo) _(stereo) LCH q

LDigital audio _Digital audio <_ Analog audio_.J

R CH 4,- LCH R CH

•In a case of a disc recorded with Dolby AC-3 signal, only

the left channel signal is heard in monaural mode when an

analog audio is selected.

LD with analog audio

• Disc containing CX auto ON (OFF) switching codes

AUDIO

D/A FStere°audi° _ LCH _RCH -_

• Disc without CX auto ON (OFF) switching codes

CX OFF CX ON CX ON

AUDIO I-_ (stereo) _ (stereo) _" (L OH) -'---I

D/A L_J

_ CX OFF CX OFF CX ON

(R OH) (L OH) (R CH)

and

AUDIO

_ _ r stereO audiO -LcH

--_,- RCH q

LD with E_I_ mark

D_4 functions on the analog audio of LD.

With an LD carrying the D_ mark, audio can be played with re-

duced noise using the CX noise reduction system.

Some of the discs carrying the []p'I',4mark do not contain the codes

for automatic ON/OFF switching of the CX system. With such

discs, turn CX ON by pressing AUDIO D/A on the remote control

unit.

• E>_ is a trademark of CBS, This player conforms to the extended

specifications of CX,

APPLIED OPERATIONS I

ISearching the beginning of a chapter/track

Front Panel

STOP

SKIP

To skip to the beginning of a chapter/track,

_1 : Press to advance to the next chapter or track.

: Press to return to the beginning of the chapter or track being

played.

• Press repeatedly to move further to other chapters/tracks.

Ithe desired scene directly

Searching

Specify the chapter number or track number.

Example: Playing an LD from the beginning of chapter No. 3

Press numeric button "3". _ (_

To select chapter No. 10 or beyond:

Use the +10 and 0 buttons.

(Examples) 17 : _ ,[]

30: IZ , []

Scan (Manual Search)--Search using fast

forward or fast reverse

Front Panel

STOP

PAUSE

SCAN SCAN

Press and hold _ or _ during playback to start a slow scan of

the image. The scan speed increases to high speed if the button is

held depressed for more than 4 seconds after starting the scan.

However, the high speed scan does not function during playback

of a CDV (video part).

Rotate the SHUTTLE ring on the remote control unit clockwise

during playback fast forward the video. Rotating the ring counter-

clockwise to fast reverses the video. Normal-speed playback re-

sumes when the ring is released.

•The speed varies depending on the angle the SHUTTLE ring is

rotated. From stow speed in the beginning to higher speeds

when the ring is rotated further, the speed varies in 4 steps.[_]

When adisc is scanned until the beginning:

Normal playback will start.

When a disc is scanned until the end:

With an LD, the player will pause at the end of the disc.

With the video part of a CDV, the audio part will be searched.

During fast forward or fast reverse, the audio is:

Not heard.

NOTES:

Note on CA V (standard play disc):

During scanning, noise may appear on the screen. This is not a

malfunction.

Note on CL V (extended play disc):

•The scan speed is different between inner chapters and

outer chapters depending on the positions they are recorded

on the disc.

It is also possible to specify a chapter or track number with CHP/

TM as shown below.

PLAY

(Examples) CHP/'r M CHPffM

PLAY

CHP/TM CHP/TM

To stop search in the middle:

Press CLEAR during search.

NOTE :

Some discs do not contain the chapter numbers. Direct search and

normal search are not available with these discs. 17

IAPPLIED OPERATIONS ........... 1

Still image/frame advance

(LD and CDV video parts only)

Freezing an image - Still image

Press either 411 or II1_ to display a still image,

STEP

[.,i, I I ,i,. )

• A still image can also be displayed with II.

Displaying image frame by frame - Frame advance

While a still image is displayed, press either <11 or II1_.

Each press reverses

one frame. ISTEP

[-.. I I ',.-}

Each press forwards

one frame. I

Press and hold for continuous frame advance.

Multi-speed playback by varying the play-

back speed and direction (LD and CDV video

parts only)

MULTI-SPEED

Forreverse_'{ "I I " _I Forforward

playback _ playback

The first press of either MULTI SPEED 4 or _ changes the play-

back speed to 1/8 the normal speed, Further pressing of the same

button changes the playback speed as shown below.

Display

1/8

1/2

1/8

1/30

Speed

1/8 the normal speed

Half the normal speed

Twice the normal speed

Half the normal speed

1/8 the normal speed

1/30 the normal speed

NOTES :

Press _to return to normal playback,

The audio is not heard during still image, frame advance and

multi-speed playback.

In case a still image appears automatically during playback:

Some discs contain special recorded signals called picture stop

codes. When playing such a disc, you can continue playback with-

out displaying still images on the positions where picture stop

codes are recorded by pressing and holding _ on the front panel

for more than 2 seconds to activate the picture stop cancel func-

tion. On-screen display "PSC ON" is displayed for a few seconds

when this function is activated. To cancel this function, press and

hold I_ for more than 2 seconds until "PSC OFF" is displayed on

the screen for a few seconds.

APPLIED OPERATIONS

Searching a scene using special play-

back which can vary the playback speed

and direction with one-touch operation

(LD and CDV video parts only)

Use the SHUTILE ring and JOG dial.

JOG MODE

button

JOG MODE

indicator

_6b_

r_r-_r_

-- JOG dial

-- SHUTTLE ring

Press JOG MODE. The JOG MODE indicator JOG

lights. Frameadvance, 1/2-speed, normal- _ MO_E

speed and x2-speed playback in both forward

and reverse directions are possible according

to the direction and angle in which the JOG

dial is rotated.

"Faster _ Fast

SHU'FtLE ring:

x2-speed, x5-speed, xl0-speed and fast forward/reverse (scan)

in both forward and reverse directions are possible according

to the direction and angle in which the SHUFILE ring is rotated.

SHUTTLEring

Audio is not output during special playback using the JOG dial or

SHUTTLE ring. (Audio is not output even at normal speed.)

W|th specie| p|ayback of the video part of sCDV using the

SHUTTLE ring:

Up to xl0-speed playback is possible, Fast forwarding or fast re-

versing at a with higher speed are not possible.

To return to normal playback after JOG dial operation:

Press I_.

Set JOG MODE on the remote control unit to off when the

JOG dial is not used:

JOG MODE turns off automatical1y in about 5 minutes after the

JOG dial is last operated (JOG MODE indicator also goes off).

However, to save the batteries in the remote control unit, it is

recommended to press JOG MODE to off after completing JOG

dial operation.

When a disc has been scanned until the end:

A still image is displayed.

When the video part of a CDV has been scanned until the end, its

audio part starts to be searched.

QUICK SCANNING OF DISC

CONTENTS

RANDOM PLAYBACK "

(PLAYBACK IN ORDER

SELECTED BY THE PLAYER)

Intro Scan (Available on LD and CDV video I

parts) I

--- HILITE

/INTRO

When the button is pressed during playback or in stop mode:

The first 8 seconds of every chapter will be played in order. When

=,- is pressed, normal playback starts from that position.

When the disc has been scanned until the last chapter, normal

playback starts from chapter No. 1.

Highlight Scan (Available on CD and CDV I

audio parts) I

HILITE

/INTRO

When the button is pressed in stop mode:

Highlight Scan starts, with which on 8-second section starting 1

minute after the beginning of every track, will be played in order.

When the button is pressed during playback:

Assuming that the time elapsed from the beginning of the track

being played until the position where the button is pressed is

called the Highlight Scan starting period, the 8-second section will

be played after this starting period, on every track beginning with

track No.l.

NOTES :

•With a CDV, the operation begins with Intro Scan of the

video part and continues to Highlight Scan of the audio part.

•Intro Scan is not available with discs which do not contain

recorded chapter numbers.

•When a track is shorter than 1 minute or than the set start-

ing period, Highlight Scan of that track starts at the begin-

ning and lasts for 8 seconds. In case a track is shorter than 8

seconds, it will be played entirely from the beginning.

Iandom playback (CD, CDV and LD with

TOC only)

RANDOM

Press RANDOM.

With an LD, first press QUICK TURN to turn the quick-turn off,

then press I_ and finally press RANDOM.

All chapters/tracks in the disc are played in a random order select-

ed by the player. Random playback stops after all of the chapters/

tracks on the disc have been played.

During random playback:

•Pressing _ plays the next selected track.

•Pressing 14< replays the track being played from the beginning.

• Pressing CLEAR cancels random playback and starts normal

playback.

• Pressing RANDOM again restarts random playback with a new-

ly selected order of tracks.

To stop random playback:

Press i.

NOTES :

•Chapter 0 is not included in random playback.

•Random playback of programmed chapters/tracks is not pos-

sible.

•Random playback is not possible with an LD without a

TOC. ._ ""os

•While the quick-turn is on, random playback is not p -

sible even with an LD containing a TOC.

In this case, stop playback and turn off the quick-turn

function before starting random playback.

i................................

TO SEARCH FOR A DESIRED FRAME

This function is available on LDs only. This function is available on LDs only.

With a CAV (standard play) disc, the desired image can be searched

by specifying the frame number (refer to page 7 for definitions).

With a CLV (extended play) disc, a desired image can be searched

by specifying the time number (refer to page 7 for definitions).

(Example) To search the image at frame No.

1234:

1. Press CHP/TM during playback.

CHP/TM

2. Press numeric buttons 1, 2, 3 and 4.

3. Press _.

PLAY

The specified frame is searched and a still image is

displayed.

• Press • again to restart normal playback.

(Example) To search the image at 12 min, 34

sec.:

1. Press CHP/TM during playback.

CHP/TM

2. Press numeric buttons 1, 2, 3 and 4.

3. Press =.-.

PLAY

Still image of the specified time is displayed.

• Press I_ again to restart normal p_ayback.

NOTES : 1

•With a disc which does not contain time information in sec-

onds, specify the time in minutes (2 digits),

• If the time number or frame number specified is greater

than the last number on the disc, the player pauses at the

end of the disc,

PROGRAMMED PLAYBACK (PLAYING CHAPTER/TRACKS BY

CHANGING THEIR ORDER AS REQUIRED)

Desired chapters (LD) or tracks (CDV/CD) can be programmed to

be played in a desired order. Up to 24 chapters/tracks can be

programmed at a time.

• Programming operation can be made easier by observing the

on-screen display or display window during operation.

1. Press PGM.

PGM

2. Select the chapters or tracks to be pro-

grammed.

Example ' Programming chapter 9 on side B, chapter 7

on side A and then chapter 18 on side B

(_) Select side A or B.

@ Specify the chapter number.

• Program the next chapter by repeating steps (_) and

@ above.

Example ' Programming CD tracks 9, 7, and then 18

•Press numeric buttons 9, 7, +10, and then 8.

If you press a wrong numeric button :

Press CLEAR, then press the correct numeric button{s).

3. Press )-.

PLAY

Programmed playback starts after searching the first pro-

grammed track/chapter. In the examples above, the pro-

grammed playback starts from chapter/track No. 9. When

chapter/track Nos. 9, 7, and then 18 have been played,

the player enters stop mode.

J Programming of pause J

Programming pauses together with chapter/track numbers is very

convenient for recording the programmed playback.

• In case of recording the programmed playback on two sides of

an audio tape, it is recommended to program a pause after the

last chapter/track to be recorded on the first side of the tape.

This makes it possible to flip the tape while playback is paused

and avoid making a recording mistake.

• While programmed playback is paused, it is possible to record a

narration or create a non-recorded blank. Pressing II in pause

mode resumes programmed playback so that recording can be

restarted.

• It is not possible to record a pause as the final step of the

program.

IIndication of programmed pause J

"11" appears on the TV screen and "PA" appears on the display

window,

[To check the programmed contents I

When PGM is pressed during or after programmed playback, the

programmed contents can be displayed on the TV screen. Press-

ing PGM again turns off the display of the programmed contents.

[To modify programmed content ]

To delete a programmed chapter number, track number or pause :

1. Press PGM.

Press either _or _to move _(the cursor) to the chap-

ter number, track number or pause to be modified.

If you want to replace that content, press the numeric button. If

you want to program a pause, press II.

If you want to clear content, press CLEAR.

Press PGM to complete.

If you press I_ in place of PGM, programmed playback starts

from the first programmed chapter or track.

It is not possible to replace or clear the chapter or track being

played.

ITo clear the entire program I

• Open the disc table.

• Press CLEAR in stop mode.

• When CLEAR is pressed during playback, the programmed play-

back is canceled and normal playback starts. Pressing CLEAR

again also clears the programmed contents.

REPEAT PLAYBACK 1

To repeat a chapter/track being played

Press REPEAT once during playback of the chapter or

track to be repeated.

REPEAT ,..+onc.,

To repeat programmed playback I

It is possible to play programmed chapters or tracks repeat-

edly in the order they were programmed.

Press REPEAT once during programmed playback.

• For programming, refer to [_.

To return to the specified position

PLAY

During playback, press

REPEAT A-B at the de-

sired position.

PLAY

To return to the speci-

fied position, press _,-.

Press CLEAR if you want to cancel the command.

To repeat the desired section repeatedly

REPEAT _ REPEAT

T T

PLAY

Press REPEAT A-B at the Press REPEAT A-B at

beginning of the section to the end of the section

be repeated, to be repeated.

• The repeat playback above is not possible if the section

extends over both the audio and video parts of a CDV.

Repeat playback extending over sides A and B of a dou-

ble-sided LD is also impossible.

]

To repeat random playback /

It is possible to play tracks in a randomly selected order

repeatedly.

Press REPEAT once during random playback.

• For random playback, refer to [J_.

mTo the entire side of a disc

repeat

Press REPEAT twice.

• When one side of the disc has played back, the same

side is repeated from the beginning.

I_ _-_ REPEAT [ Press twice ]

Io repeat both sides of a disc (double-sided

LD only)

Press REPEAT 3 times.

•Playback starts with side A and continues on side B.

When both sides of the disc have played back, both

sides are repeated alternately.

(_ REPEAT [Press 3 times I

To stop repeat playback :

Press CLEAR, or press REPEAT so that the REPEAT indica

tot turns off. The repeat mode is canceled but playback

continues as normal playback.

With an LD which does not contain chapter numbers :

It is not possible to repeat a chapter. With such a disc,

press REPEAT once for one-side repeat playback.

ON-SCREEN DISPLAY 1

Selected sound

The actual on-screen display is a shown below.

REMAIN TIME

ALL 28.12

I- DIGITAL

LSTEREOu

Chapter/track number

ime or frame number

-- PLAY indication

TOTAL TIME :

Total playing time

REMAIN TIME :

Remaining time

DISC TIME :

Elapsed time from

the beginning of

disc

ALL ' Indicates total

(remaining time).

TRK " Indicates track.

If the on-screen display is left for a long period (about 80

minutes), it turns off automatically. The on-screen dis-

play re-appears when any button is pressed.

Use DISPLAY on the remote control unit to display informa-

tion such as the current playback mode, track/chapter num-

ber and playing time on the TV screen.

Each press of DISPLAY changes the displayed information

as follows:

CDV or CD

(_ IElapsedtime of track being played. I

REMAIN TIME TRKr

_2_ /Remaining time of the track

[played.

-- REMAIN TIME ALL --

(_) Remainingtime from the position

being played until the endof the disc.

@ Total playing time from the begin-

ning to the end of the disc.

On-screen display disappears.

LD with TOC

(CAV standard play disc)

Framenumber being played.

*DISC TIME

Elapsedtime from the beginning of J

the disc.

* r-- REMAIN TIME ALL --

/Remainingtime from the position

bein£ played untilthe end of the disc.

* -- TOTAL TIME I

ITotal playing time from the begin- I

ning to the end of the disc.

On-screen display disappears.

LD with TOC

(CLV extended play disc)

I Elapsedtime from the beginning of I

the disc

* [ REMAIN TIME ALL --1

Remainingtime from the position

being played until theend of the disc.

* -- TOTAL TIME --I

ITotal playing time from the begin- I

ning to the end of the disc.

On-screen display disappears.

LD without TOC :

Only the frame number (CAV standard play disc) or the

elapsed time from the beginning of the disc (CLV extended

play disc) is displayed on the IV screen.

NOTE : 1

The DISC TIME, REMAIN TIME ALL, TOTAL TIME, and elapsed

time displays, cannot be displayed when using quick turn on,

even if the LD has TOC. _] To display the information, stop

playback,turn off thequick-turn function and restart playback.

IT.OOBLES"OOT'"G

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check

the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If

the trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your

dealer to carry out repair work,

Common for LD and CD

Symptom Possible Causes Ref. Page

Operation 1. The disc table closes and then • The disc is extremely dirty, p. 6

re-opens. • The disc is not placed properly on the disc table, p. 12

• Dew is condensed inside the player, p. 4

2. Remote control is not possi- • p. 9

ble. • p. 11

Remote con-

trol

Audio

3. The TV, etc., functions improp-

erly.

4. Audio is not output or audio is

distorted.

The CONTROL IN jack on the rear panel is in use.

The remote control unit is too far from the player or it is operat-

ed at too great an angle with respect to the remote control

sensor.

The batteries are run out.

Some TV sets incorporating the wireless remote control func-

tion may function improperly due to the remote control unit of

the player.

• Connection plugs are inserted insufficiently or disconnected.

• Connection plugs or jacks are dirty.

• The player is in pause mode.

• The connection with the stereo amplifier is erroneous.

• The stereo amplifier is operated improperly. (Refer to the ampli-

fier's instruction manual.)

•The player is connected to the PHONO input jacks of the stereo

amplifier.

ONE TOUCH KARAOKE is turned on.

p. 5

p. 9

• p. 15

Symptom Possible Causes Ref. Page

Video is not displayed. • The TV power is off.Video, picture

quality

Audio (LD)

Skip, search

6. Video is not displayed or the

displayed video is of a low-

quality or is noisy.

A part of the still image is

shaking.

8. Audio is vibrating.

9. Audio is not heard.

10.Skip, programming and search

are not possible.

11.Search takes a long time

(more than 40 seconds).

12.The time taken to start play-

back _ssometimes _ong.

13.Other image than specified is

p_ayed back.

• The disc is extremely deformed (warped, etc.).

• The connection plug is not fully inserted or is disconnected.

• Even with the standard disc, a part of the still image may shake

in the case it is a scene containing quick action.

• A disc without the D,,_4mark is being played with the CX system

turned on.

• Audio is not output during multi-speed playback, still image and

frame advance playback.

• The disc being played does not contain recorded chapter num-

bers. (The functions utilizing the chapter numbers do not work

on discs which do not contain chapter numbers.)

• Some discs need a longer time to read data.

• Error in data readout does occur sometimes. (This is not a

ma_unction ._

•Error {n data readout does occur sometimes. (This is not a

malfunction.)

_.6

p. 16

p. 18

p. 17

p. 22

TROUBLESHOOTING

Operation (CD)

Symptom

14. Playback stops immediately

after it has been started.

Possible Causes

•The disc is extremely dirty.

• The disc is placed upside down.

•The disc is not placed properly on the disc table,

ONE TOUCH KARAOKE

Symptom

15.The voice of the singer is not

muted even when ONE

TOUCH KARAOKE is pressed.

16.Playback will not stop when

one chapter or track is fin-

ished.

Possible Causes

• The voice of the singer is not muted unless it is located on the

center of the acoustic image.

• Chapters or tracks are not selected with the numeric buttons.

Ref. Page

p. 6

p. 12

Ref. Page

p, 15

IAUTION :

Abnormal functioning of this unit may be caused by static electricity, or other external interference. To restore normal operation, unplug the

AC power cord and then plug it in again.

When troubles occur :

When some trouble occurs during use of the player, the following display (service number) appears on the display window of the player and the

TV screen. If you experience this kind of trouble, follow the "Remedy" below.

Display window of the player

Service

number -- i i

I.I

TV screen

Service

number

U ]

Service number

Condition of the player

The disc is not loaded properly on the

disc table. Or, the disc is dirty.

•Two discs are loaded on the disc table.

Or, the disc is dirty.

(The displayed number after P, F, L and E

differs depending on the condition of the

player.)

• The player is in abnormal condition.

Remedy

•Reload the disc along the disc guide groove on the

disc table.

• Wipe the disc with a soft cloth.

Open the disc table and press I_ again.

• Load only one disc on the disc table.

•Wipe the disc with a soft cloth.

•Open the disc table and press t,- again.

•If the same service number is displayed, the player is

in abnormal condition.

• When requesting servicing, please mention the dis-

p_aved number on the display window of the player

or on the TV screen (for exampte. 'service number

E4').

• When requesting servicing, please mention the dis-

played number on the display window of the player

or on the-IV screen (for example, 'sewice number H1 ').

ISPECIFICATIONS

General

System ............................................... LaserVision Disc system and

Compact Disc digital audio system

Laser ............................... Semiconductor laser wavelength 780 nm

Power requirement ................................................ AC 120 V, 60 Hz

Power consumption ................................................................. 37 W

Weight ....................................................................... 6.8 kg (15 Ibs)

Dimensions .................................... 420 (W) x 404 (D) x 132 (H) mm

16-9/16 (W) x !5-15/16 (D) x 5-3/16 (H)in

Operating temperature .............................................. +5°C - +35 °C

(41OF~ 95°F)

Operating humidity ......................................................... 5% ~ 85%

(There should be no condensation of moisture.)

Video characteristics (2 pairs)

Format .............................................................. NTSC specifications

Video output

Level .......................... 1 Vp-p nominal,sync.negative,terminated

Impedance ....................................................... 75 £ unbalanced

Jacks ........................................................................... RCA jacks

Other terminals

Control input/output ......................................... Both miniature .lacks

Optical digital output ............................................ Optical digital jack

AC-3 RF OUT .................................................................... RCA jack

Accessories

Remote control unit ........................................................................ 1

Size "AAA" (IEC R03) dry cell batteries ........................................... 2

Microphone .................................................................................... 1

Video cord ...................................................................................... 1

Audio cord ...................................................................................... 1

Operating instructions .................................................................... 1

Warranty card ................................................................................ 1

NOTE :

The specifications and design of this product are subject to change

without notice, due to improvement.

S VIDEO output (2 pairs)

Y output level ............................................................... 1 Vp-p (75_)

C output level ........................................................ 286 mVp-p (75_)

Jacks ......................................................................... S VIDEO jacks

Audio characteristics (2 pairs)

Output level

During analog audio output ...................................... 200 mVrms

(1 kHz, 40%)

During digital audio output ....................................... 200 mVrms

(1 khz, -20 dB)

Jacks ....................................................................... Both RCA jacks

Number of channels ......................................................... 2 (Stereo)

Digital Audio Characteristics

Frequency response

SN ratio

Dynamic range

Total harmonic distortion

Wow and flutter

4 Hz - 20 kHz

115 dB (EIAJ)

96 dB (EIAJ)

Below 0.0035%

Below measurable limit (+ 0.001%

W.PEAK) (EIAJ)

LD is in compliance with EIAJ.

CORRECTION

INCORRECT

fAt-3 RF OUT terminal -"

This terminal is intended for use with Dolby AC-3

components (.1) planned for future release. With this

terminal, you will be able to connect an AC-3 RF input of

amplifiers and surround processors, and playback laser

discs formatted with Dotby AC-3 (.2).

(.1) Indicated with _ (For hardware)

(*2) Indicated with _,._,, (For software)

• You cannot playback currently available laser

discs, laser disc players, AV amplifiers, etc.,

with this terminal.

• Do not connect this terminals to the audio

input terminal of a normal stereo or AV

amplifiers. AC-3_FOUT

Terminal j

CORRECT

_AC-3 RF OUT terminal

This terminal is intended for use with Dolby AC-3

components (.1) planned for future release. With this

terminal, you will be able to connect an AC-3 RF input of

amplifiers and surround processors, and playback laser

discs formatted with Dolby AC-3 (.2).

(*1)Indicated with .._,,_._ (For hardware)

(*2) Indicated with _,, (For software)

• You cannot playback currently available laser

discs, laser disc players, AV amplifiers, etc.,

with this terminal.

• Do not connect this terminals to the audio

input terminal of a normal stereo or AV

amplifiers. Ac-3R_out

/ermlnaf .j

"Dolby', "AC-3" and the double-D symbol are trademarks

of Dolby Laboratories Licensing Corporation.

<VRX1008-A>

-11_,_91_.,_,. Is a trademark of Pioneer Electronic Corporation.

Published by Pioneer Electronic Corporation

PIONEER ELECTRONIC CORPORATION 4-_,Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS [USA] INC, P.O. BOX 1540, Long Beach, California 90801-1540

PIONEER ELECTRONICS OF CANADA, INC. 300 A_lstate Parkway Markham, Ontario L3R 0P2, Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1,9120 Me,sere, P,etgium, TEL: 031570.05.11

PIONEER ELECTRONICS AUSTRALIA PTY, LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [03] 580-991 !

PIONEER ELECTRONICS DE MEXICO S.A.DE C.V. Augusto Rodin N0.128 PB Col. San Juan Mixcoac Mexico D.P. CP.03730, TEL: 52-5-598-3950

<95AO4ZF4Z02;, Printed in Japan <VRB1148-A>

Pioneer CLD D604 User Manual CD CDV LD PLAYER Manuals And Guides 97100162

PIONEER Compact Disc Manual 97100162 PIONEER Compact Disc Owner's Manual, PIONEER Compact Disc installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
