Operating Instructions

www.pioneerelectronics.com (US)

www.pioneerelectronics.ca (Canada)

• Protect your new investment

The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft.

• Improve product development

Your input helps us continue to design products that meet your needs.

• Receive a free Pioneer newsletter

Registered customers can opt in to receive a monthly newsletter.

• Receive free tips, updates and service bulletins on your new product

SX-A9-J Stereo Receiver

A9_KU.book 1 ページ２００６年１１月６日　月曜日　午後３時３４分

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead, within

an equilateral triangle, is intended to alert

the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

D1-4-2-3_En

IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR.

PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND

KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY.

D1-4-2-6-1_En

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_En

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

D8-10-1-3_EF

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate

the equipment.

D8-10-2_En

Location: rear of the unit

CAUTION – PREVENT ELECTRIC SHOCK DO

NOT USE THIS (POLARIZED) PLUG

WITH AN EXTENSION CORD.

RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE

FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

ATTENTION –

POUR PREVENIR LES CHOCS

ELECTRIQUES NE PAS UTILISER

CETTE FICHE POLARISEE AVEC UN

PROLONGATEUR UNE PRISE DE

COURANT OU UNE AUTRE SORTIE

DE COURANT, SAUF SI LES LAMES

PEUVENT ETRE INSEREES A FOND

SANS EN LAISSER AUCUNE PARTIE

A DECOUVVERT.

D2-4-4-1_EF

WARNING – TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

D1-4-2-1_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the

product will expose you to chemicals listed on

proposition 65 known to the State of California and

other governmental entities to cause cancer and

birth defect or other reproductive harm.

D36-P4_A_En

Wash hands after handling

his product contains mercury. Disposal of this

material may be regulated due to environmental

considerations. For disposal or recycling information,

please contact your local authorities or the Electronics

Industries Alliance : www.eiae.org.

K057_En

A9_KU.book 2 ページ２００６年１１月６日　月曜日　午後３時３４分

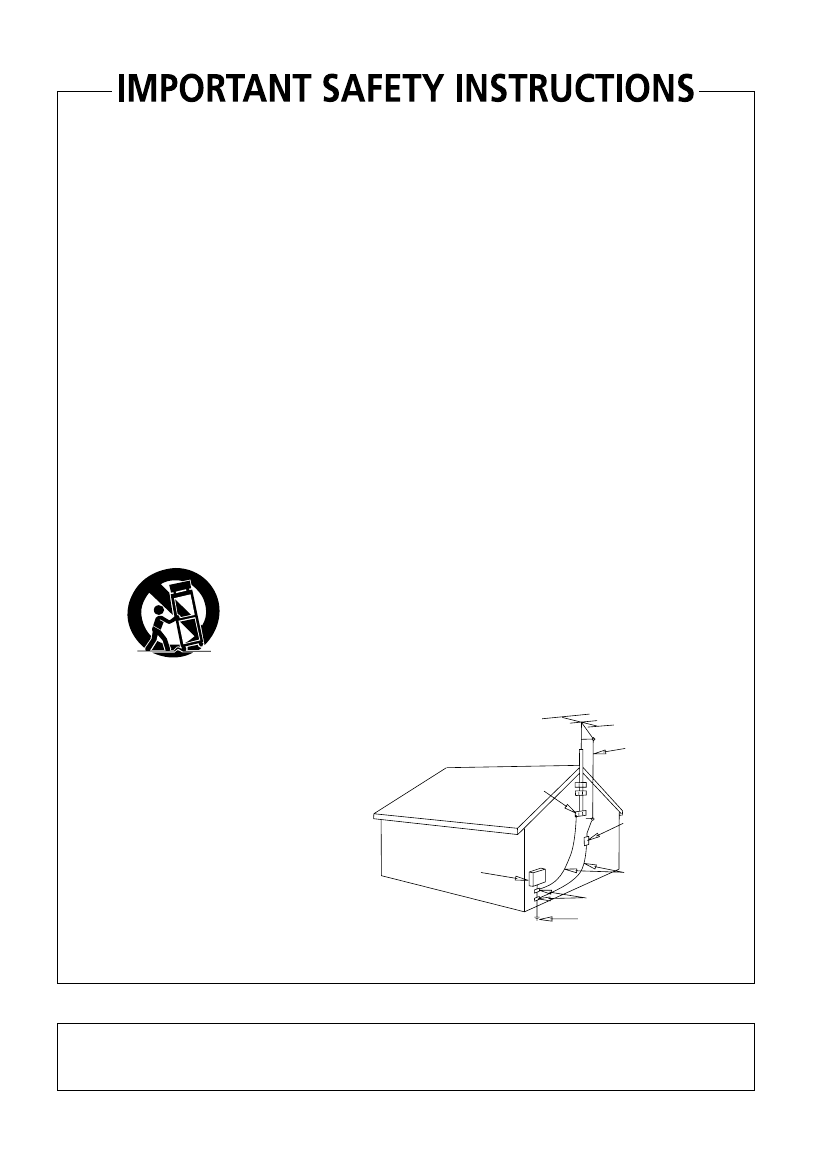

READ INSTRUCTIONS — All the safety and

operating instructions should be read before the

product is operated.

RETAIN INSTRUCTIONS — The safety and

operating instructions should be retained for

future reference.

HEED WARNINGS — All warnings on the product

and in the operating instructions should be

adhered to.

FOLLOW INSTRUCTIONS — All operating and use

instructions should be followed.

CLEANING — The product should be cleaned only

with a polishing cloth or a soft dry cloth. Never

clean with furniture wax, benzine, insecticides

or other volatile liquids since they may corrode

the cabinet.

ATTACHMENTS — Do not use attachments not

recommended by the product manufacturer as

they may cause hazards.

WATER AND MOISTURE — Do not use this

product near water — for example, near a

bathtub, wash bowl, kitchen sink, or laundry

tub; in a wet basement; or near a swimming

pool; and the like.

ACCESSORIES — Do not place this product on an

unstable cart, stand, tripod, bracket, or table.

The product may fall, causing serious injury to a

child or adult, and serious damage to the

product. Use only with a cart, stand, tripod,

bracket, or table recommended by the

manufacturer, or sold with the product. Any

mounting of the product should follow the

manufacturer’s instructions, and should use a

mounting accessory recommended by the

manufacturer.

CART — A product and cart combination should be

moved with care. Quick stops, excessive force,

and uneven surfaces may cause the product

and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet

are provided for ventilation and to ensure

reliable operation of the product and to protect

it from overheating, and these openings must

not be blocked or covered. The openings should

never be blocked by placing the product on a

bed, sofa, rug, or other similar surface. This

product should not be placed in a built-in

installation such as a bookcase or rack unless

proper ventilation is provided or the

manufacturer’s instructions have been adhered

to.

POWER SOURCES — This product should be

operated only from the type of power source

indicated on the marking label. If you are not

sure of the type of power supply to your home,

consult your product dealer or local power

company.

LOCATION – The appliance should be installed in a

stable location.

NONUSE PERIODS – The power cord of the

appliance should be unplugged from the outlet

when left un-used for a long period of time.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized

alternating current line plug (a plug having one

blade wider than the other), it will fit into the

outlet only one way. This is a safety feature. If

you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should

still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

• If this product is equipped with a three-wire

grounding type plug, a plug having a third

(grounding) pin, it will only fit into a grounding

type power outlet. This is a safety feature. If you

are unable to insert the plug into the outlet,

contact your electrician to replace your obsolete

outlet. Do not defeat the safety purpose of the

grounding type plug.

POWER-CORD PROTECTION — Power-supply

cords should be routed so that they are not likely

to be walked on or pinched by items placed

upon or against them, paying particular

attention to cords at plugs, convenience

receptacles, and the point where they exit from

the product.

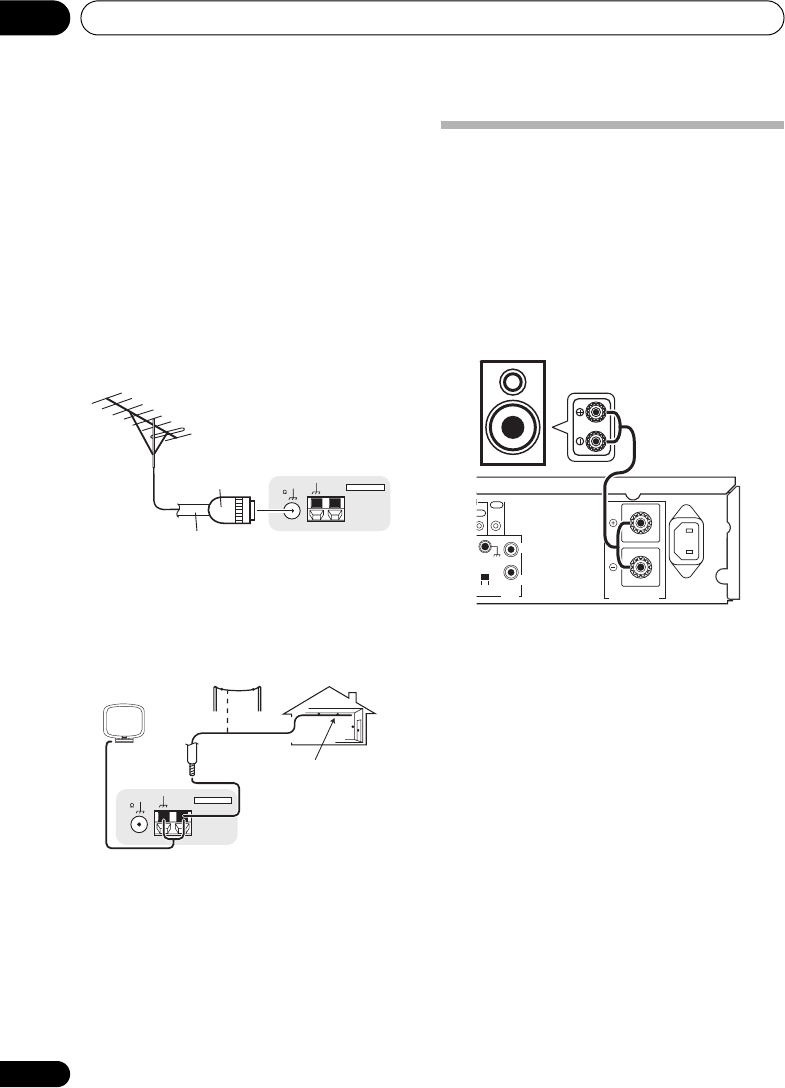

OUTDOOR ANTENNA GROUNDING — If an

outside antenna or cable system is connected to

the product, be sure the antenna or cable

system is grounded so as to provide some

protection against voltage surges and built-up

static charges. Article 810 of the National

Electrical Code, ANSI/NFPA 70, provides

information with regard to proper grounding of

the mast and supporting structure, grounding of

the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of

antenna-discharge unit, connection to

grounding electrodes, and requirements for the

grounding electrode. See Figure A.

LIGHTNING — For added protection for this

product during a lightning storm, or when it is

left unattended and unused for long periods of

time, unplug it from the wall outlet and

disconnect the antenna or cable system. This

will prevent damage to the product due to

lightning and power-line surges.

POWER LINES — An outside antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power

circuits, or where it can fall into such power

lines or circuits. When installing an outside

antenna system, extreme care should be taken

to keep from touching such power lines or

circuits as contact with them might be fatal.

OVERLOADING — Do not overload wall outlets,

extension cords, or integral convenience

receptacles as this can result in a risk of fire or

electric shock.

OBJECT AND LIQUID ENTRY — Never push

objects of any kind into this product through

openings as they may touch dangerous voltage

points or short-out parts that could result in a

fire or electric shock. Never spill liquid of any

kind on the product.

SERVICING — Do not attempt to service this

product yourself as opening or removing covers

may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service

personnel.

DAMAGE REQUIRING SERVICE — Unplug this

product from the wall outlet and refer servicing

to qualified service personnel under the

following conditions:

• When the power-supply cord or plug is

damaged.

• If liquid has been spilled, or objects have fallen

into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation.

• If the product has been dropped or damaged in

any way.

• When the product exhibits a distinct change in

performance — this indicates a need for service.

REPLACEMENT PARTS — When replacement parts

are required, be sure the service technician has

used replacement parts specified by the

manufacturer or have the same characteristics

as the original part. Unauthorized substitutions

may result in fire, electric shock, or other

hazards.

SAFETY CHECK — Upon completion of any service

or repairs to this product, ask the service

technician to perform safety checks to

determine that the product is in proper

operating condition.

WALL OR CEILING MOUNTING — The product

should not be mounted to a wall or ceiling.

HEAT — The product should be situated away from

heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers)

that produce heat.

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

LEAD IN

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

Fig. A

D1-4-2-2_En

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the

unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and

televisions, use shielded cables and connectors for connections.

D8-10-3a_En

A9_KU.book 3 ページ２００６年１１月６日　月曜日　午後３時３４分

S001_En

Selecting fine audio equipment such as the unit

you’ve just purchased is only the start of your

musical enjoyment. Now it’s time to consider how

you can maximize the fun and excitement your

equipment offers. This manufacturer and the

Electronic Industries Association’s Consumer

Electronics Group want you to get the most out of

your equipment by playing it at a safe level. One that

lets the sound come through loud and clear without

annoying blaring or distortion-and, most importantly,

without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing

“comfort level” adapts to higher volumes of sound.

So what sounds “normal” can actually be loud and

harmful to your hearing. Guard against this by

setting your equipment at a safe level BEFORE your

hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it

comfortably and clearly, and without distortion.

Once you have established a comfortable sound

level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent

hearing damage or loss in the future. After all, we

want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will

provide a lifetime of fun and enjoyment. Since

hearing damage from loud noise is often

undetectable until it is too late, this manufacturer

and the Electronic Industries Association’s

Consumer Electronics Group recommend you avoid

prolonged exposure to excessive noise. This list of

sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

50 Light traffic, normal conversation, quiet office

60 Air conditioner at 20 feet, sewing machine

70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock

at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS

UNDER CONSTANT EXPOSURE

Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers,

thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

For U.S. and Australia Model

C67-7-3_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the

plug by tugging the cord and never touch the power

cord when your hands are wet as this could cause a

short circuit or electric shock. Do not place the unit, a

piece of furniture, etc., on the power cord, or pinch the

cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed such that they

are not likely to be stepped on. A damaged power cord

can cause a fire or give you an electrical shock. Check

the power cord once in a while. When you find it

damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement.

S002_En

This product is for general household purposes. Any

failure due to use for other than household purposes

(such as long-term use for business purposes in a

restaurant or use in a car or ship) and which

requires repair will be charged for even during the

warranty period. K041_En

" Perchlorate Material – special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

(Applicable to California, U.S.A.) "

A9_KU.book 4 ページ２００６年１１月６日　月曜日　午後３時３４分

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your

model properly. After you have finished reading the instructions, put them in a safe place for

future reference.

Contents

01 Before you start

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

What’s in the box . . . . . . . . . . . . . . . . . . . . . . 6

Inserting the battery . . . . . . . . . . . . . . . . . . . 7

Installing the receiver . . . . . . . . . . . . . . . . . . . 7

02 Connecting up

Making cable connections . . . . . . . . . . . . . . . 8

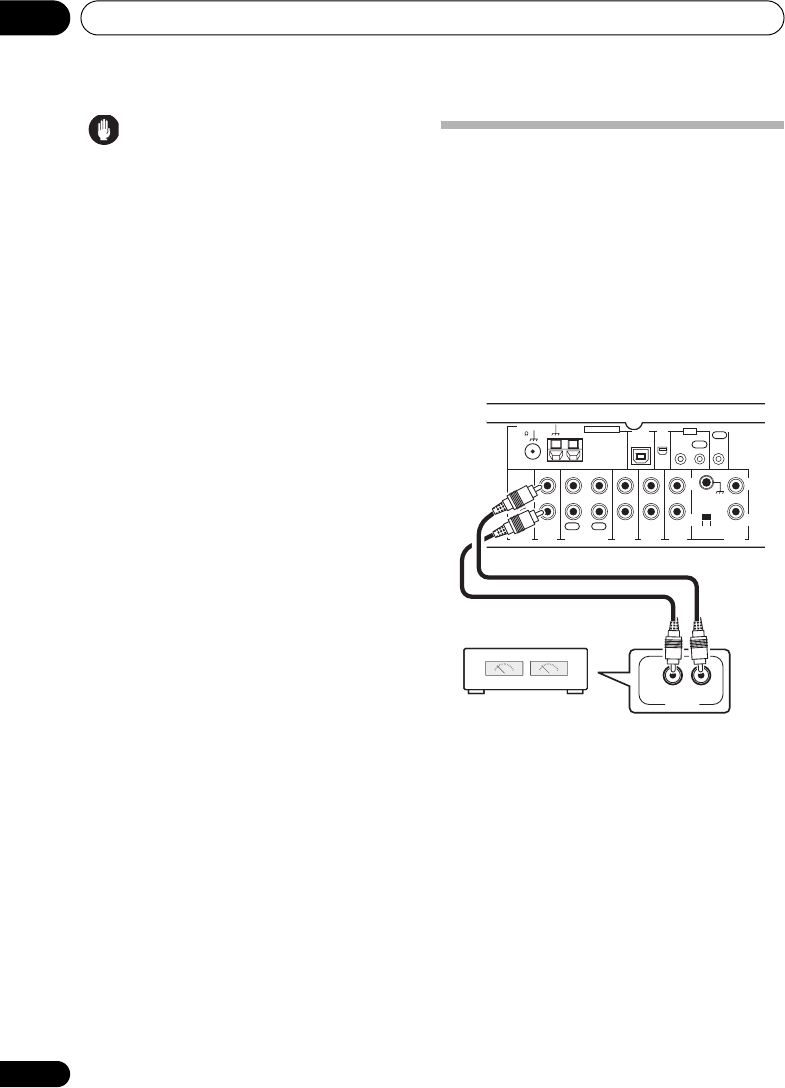

Connecting audio components . . . . . . . . . . . . 8

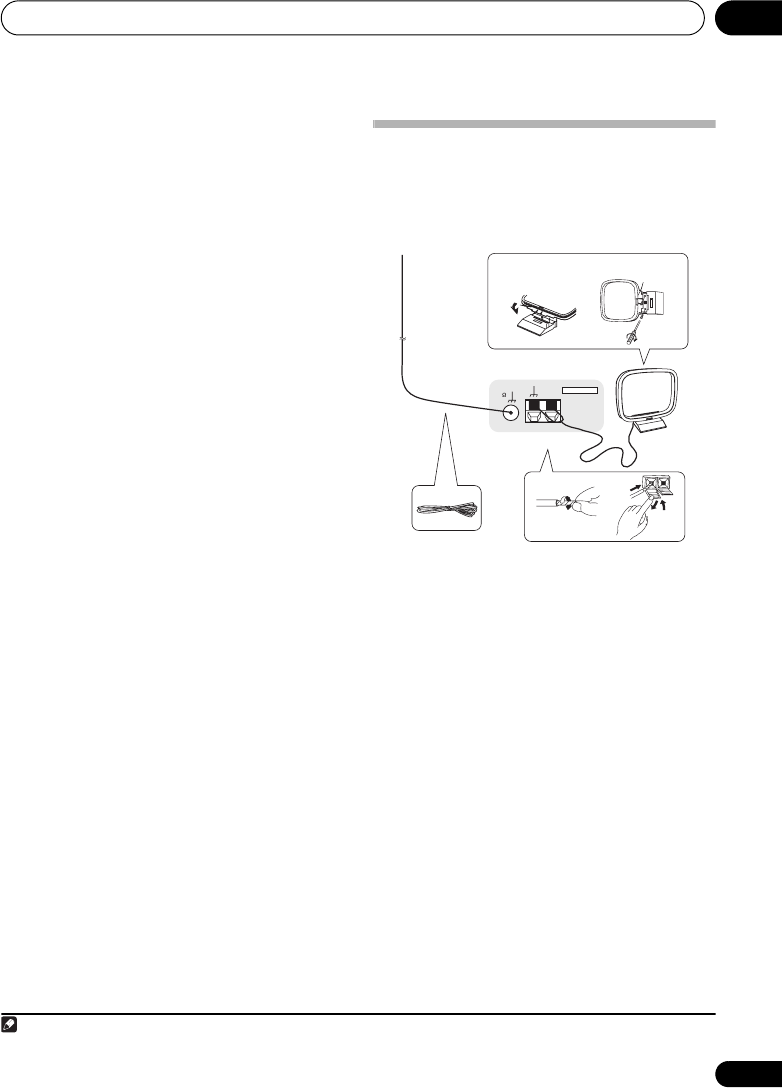

Connecting antennas . . . . . . . . . . . . . . . . . . . 9

Using external antennas. . . . . . . . . . . . . . . 10

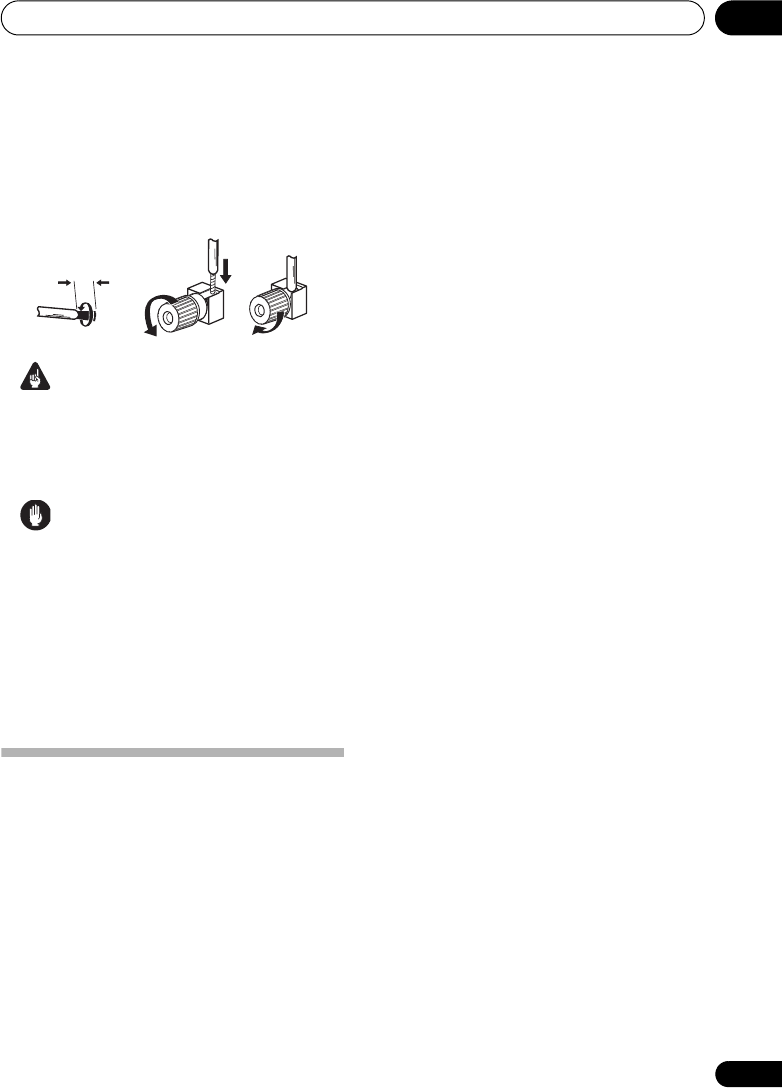

Connecting the speakers. . . . . . . . . . . . . . . . 10

Plugging in . . . . . . . . . . . . . . . . . . . . . . . . . . 11

03 Controls and displays

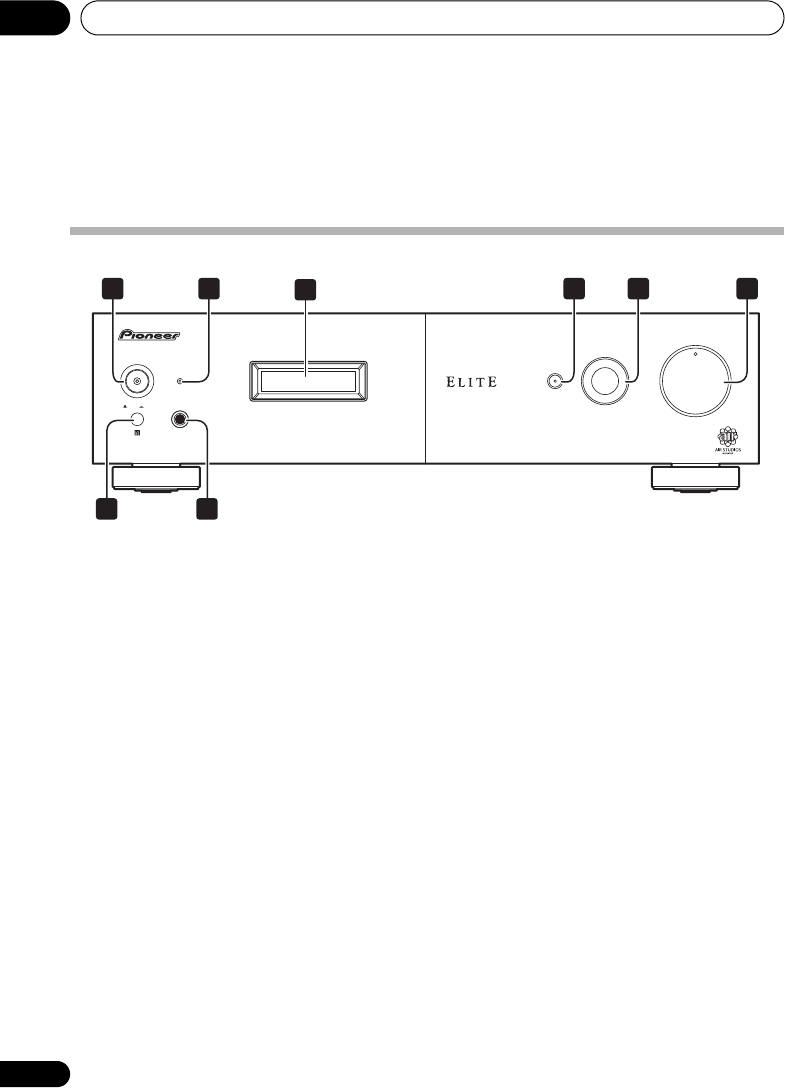

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . 12

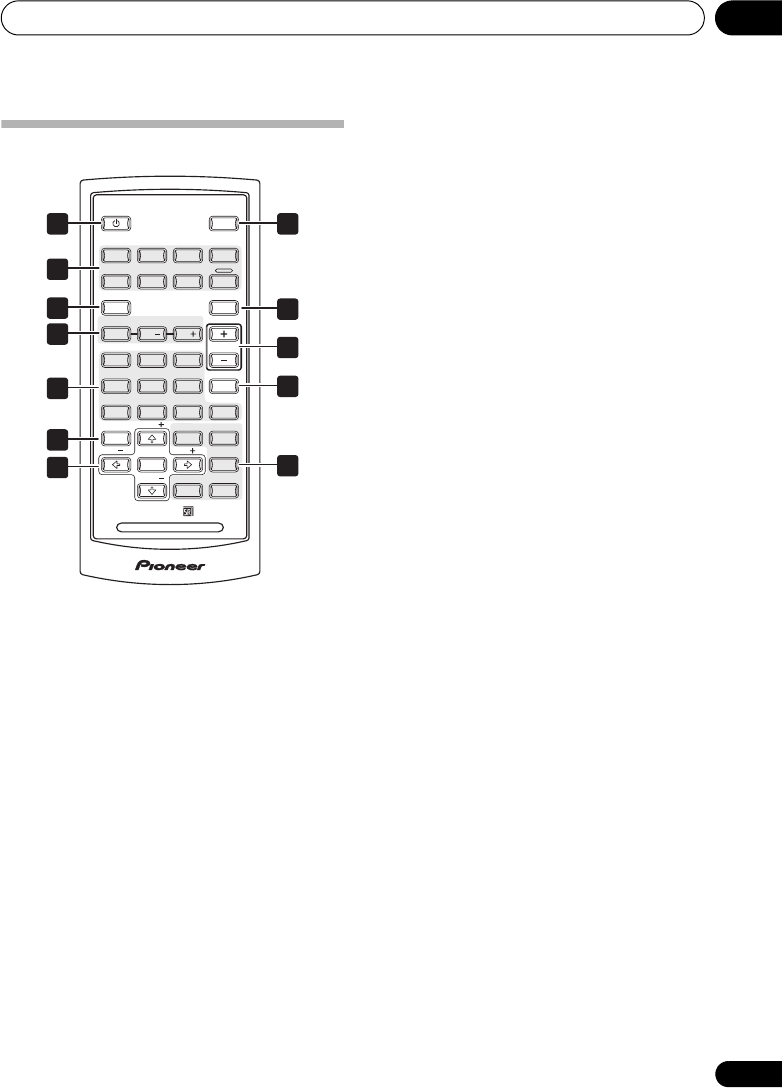

Remote control . . . . . . . . . . . . . . . . . . . . . . . 13

Using the remote control . . . . . . . . . . . . . . 13

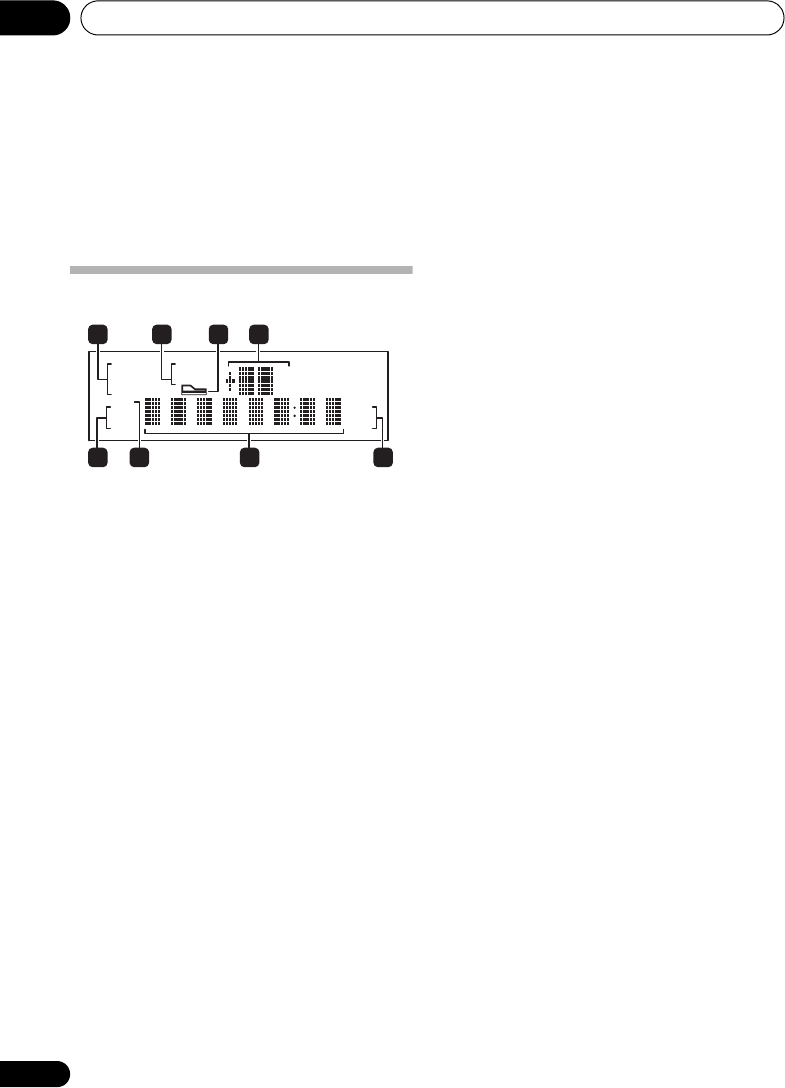

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

04 Listening to your system

Using Direct listening . . . . . . . . . . . . . . . . . . 15

Using the Sound Retriever. . . . . . . . . . . . . . . 15

Using the balance and tone controls. . . . . . . 15

Playing other sources . . . . . . . . . . . . . . . . . . 15

Making an audio recording . . . . . . . . . . . . . . 16

05 Using the tuner

Listening to the radio. . . . . . . . . . . . . . . . . . . 17

Saving station presets . . . . . . . . . . . . . . . . . . 17

Naming station presets. . . . . . . . . . . . . . . . 17

Listening to station presets . . . . . . . . . . . . . 17

06 Other connections

Using XM Radio. . . . . . . . . . . . . . . . . . . . . . . 19

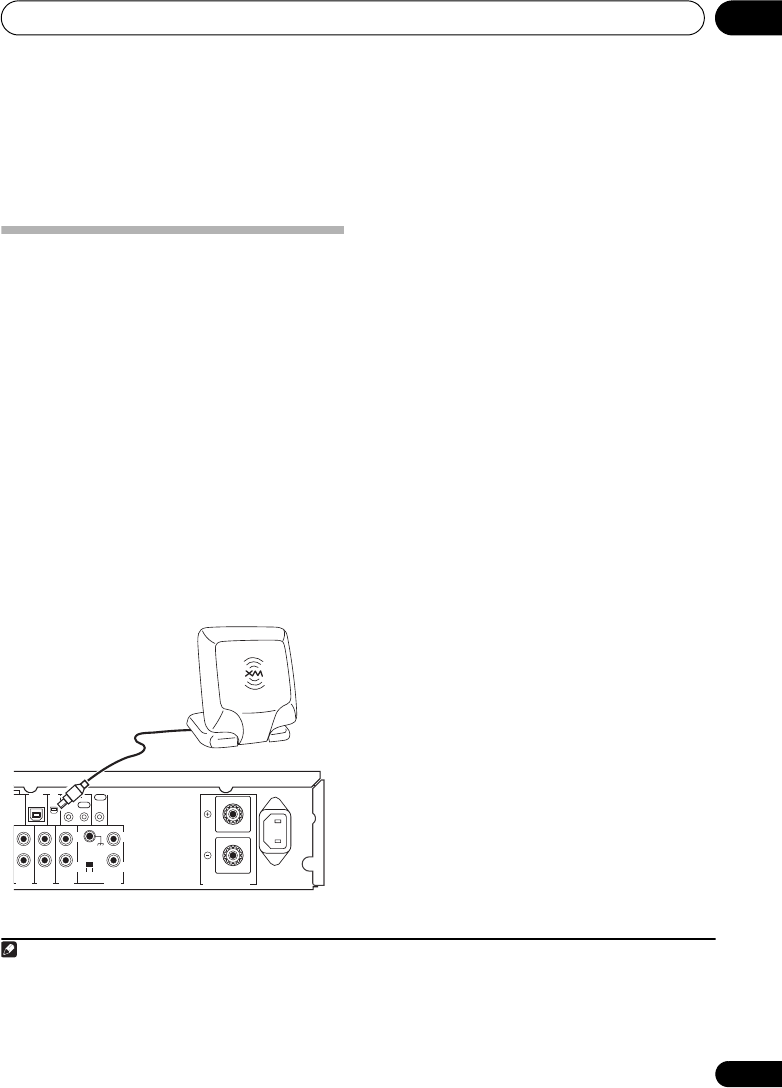

Connecting your XM Radio receiver . . . . . . 19

Listening to XM Radio . . . . . . . . . . . . . . . . . 19

Saving channel presets. . . . . . . . . . . . . . . . 20

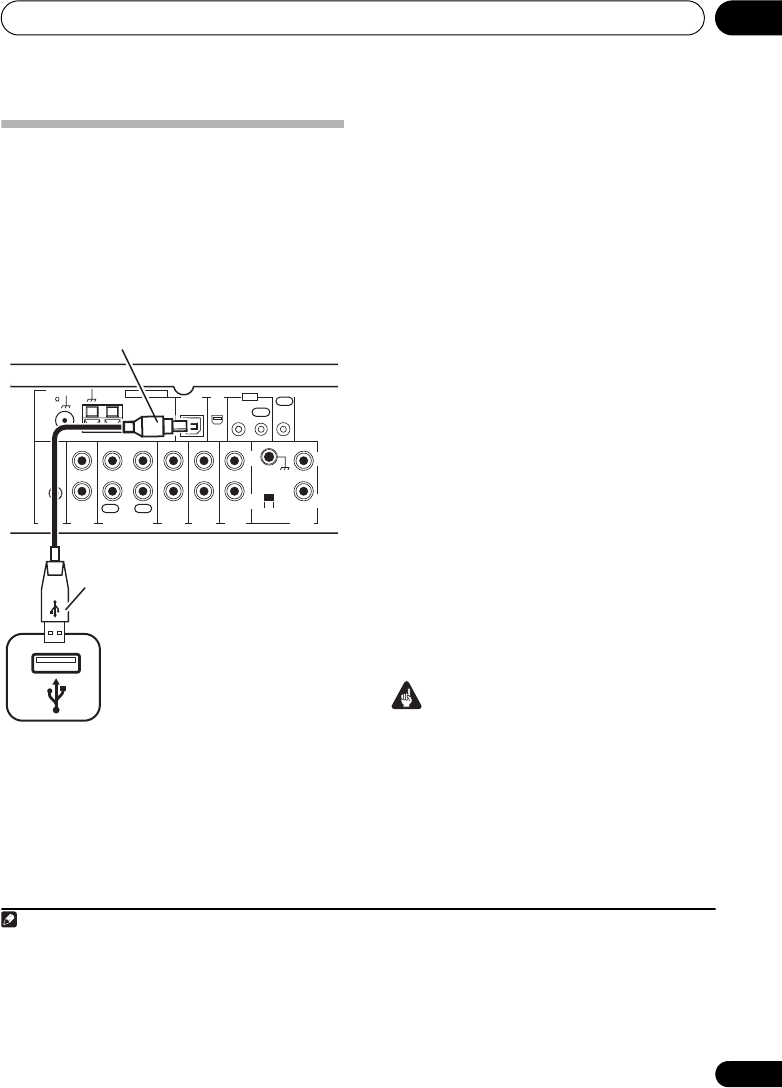

Using the USB interface . . . . . . . . . . . . . . . . 21

Connecting an additional amplifier . . . . . . . . 22

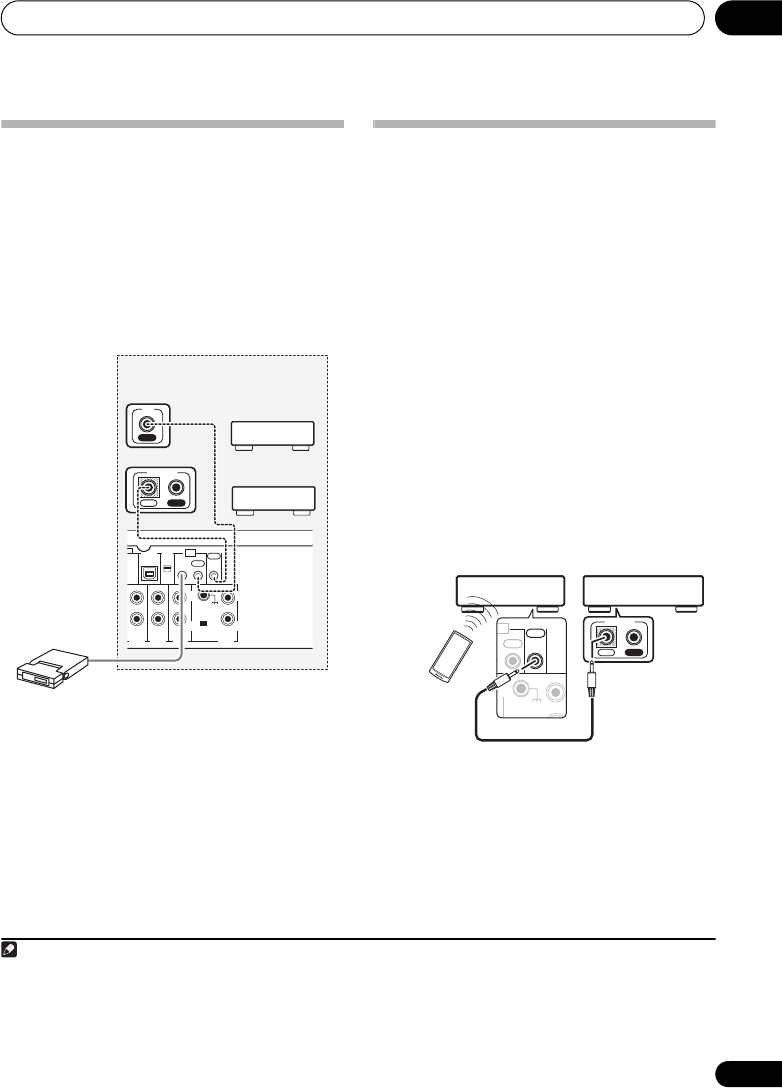

Connecting an IR receiver . . . . . . . . . . . . . . . 23

Operating other Pioneer components with this

unit’s sensor . . . . . . . . . . . . . . . . . . . . . . . . . 23

Switching components on and off using the

12 volt trigger. . . . . . . . . . . . . . . . . . . . . . . . . 24

07 Additional information

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 25

XM radio messages. . . . . . . . . . . . . . . . . . . 26

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning the unit. . . . . . . . . . . . . . . . . . . . . 27

A9_KU.book 5 ページ２００６年１１月６日　月曜日　午後３時３４分

Before you start01

Chapter 1:

Before you start

Features

• Quick response power supply circuit

The superior power supply circuit adopted by

this unit achieves vastly improved response by

employing ‘no feedback’ circuitry, toriodal

transformers and low impedence parallel main

capacitors characteristicly used in profes-

sional audio monitoring.

• Twin-mono symmetrical construction

This receiver offers a new advancement in

stereo imaging with the completely

independent construction of left/right power

amplification units and twin transformers.

• Direct construction

In addition to the improved symmetrical

design, the signal path of each block is

designed for shortest signal path for minimum

deterioration of signal clarity.

• Wide-Range Linear Circuit

Through this proprietary feedback circuit, an

output signal of low impedance offering a flat,

even response over the widest possible

frequency range is delivered to your speakers.

• Sound Retriever

The analog Sound Retriever feature employs

new technology that helps remove the adverse

effects of compression on audio files by

restoring bandwidth and smoothing jagged

artifacts left over after they have been

compressed, resulting in a wider sound stage.

• USB interface

The USB interface allows you to listen to two-

channel audio from a PC connected to this

receiver.

• XM Radio ready

The XM Radio terminal on this receiver

provides a quick and easy connection to XM

Radio, the leading provier of satellite radio

service in the United States. Visit

www.xmradio.com for more details on this

service.

• Fine-tuned to world-class standards

With the cooperation of the world-class studio

engineers at AIR Studios, this receiver has

been AIR Studios certified:

What’s in the box

Please confirm that the following accessories

are in the box when you open it.

• Remote control

•Lithium battery (CR2025)

• AM loop antenna

• FM wire antenna

•Power cable

• Operating instructions

•Warranty card

A9_KU.book 6 ページ２００６年１１月６日　月曜日　午後３時３４分

Before you start 01

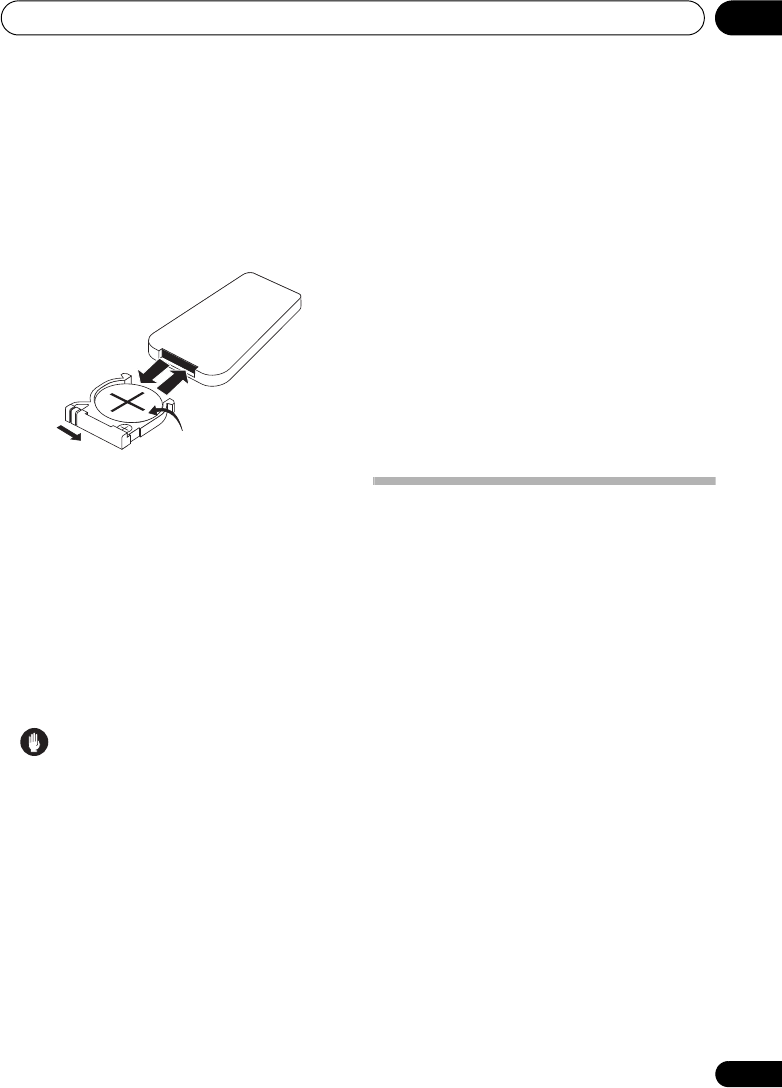

Inserting the battery

Insert the lithium battery (CR2025) into the

remote control as shown below. The battery

supplied with this unit is stored in the battery

casing (see step 3 below). When you notice a

decrease in the operating range, replace the

battery in the same manner.

1 Push the release tab to the right to

open the battery casing.

2 Pull out the battery casing.

3 Remove the battery from the casing.

If you're doing this for the first time, remove the

protective seal from the battery supplied with

the system before re-inserting it.

4 Place a new battery in the casing.

Make sure the  side of the battery is facing up

when you place it in the space provided.

Caution

When using lithium batteries, please observe

the following:

• There is danger of explosion if the battery is

incorrectly replaced. Make sure to replace

only with the same or equivalent type

recommended by the manufacturer.

• Dispose of used battery cells immediately

after replacement. Keep away from

children.

• If swallowed, please contact a doctor

immediately.

• Lithium batteries may present a fire or

chemical burn hazard if misused. Do not

disassemble, heat above 100°C (212°F), or

incinerate.

• Remove the battery if the unit isn’t going to

be used for a month or more.

• When disposing of used batteries, please

comply with governmental regulations or

environmental public instruction’s rules

that apply in your country or area.

• Do not use or store batteries in direct

sunlight or other excessively hot place,

such as inside a car or near a heater. This

can cause batteries to leak, overheat,

explode or catch fire. It can also reduce the

life or performance of batteries.

Installing the receiver

• When installing this unit, make sure to put

it on a level and stable surface.

Don’t install it on the following places:

– on a color TV (the screen may distort)

– near a cassette deck (or close to a device that

gives off a magnetic field). This may interfere

with the sound.

– in direct sunlight

– in damp or wet areas

– in extremely hot or cold areas

– in places where there is vibration or other

movement

– in places that are very dusty

– in places that have hot fumes or oils (such as

a kitchen)

A9_KU.book 7 ページ２００６年１１月６日　月曜日　午後３時３４分

Connecting up02

Chapter 2:

Connecting up

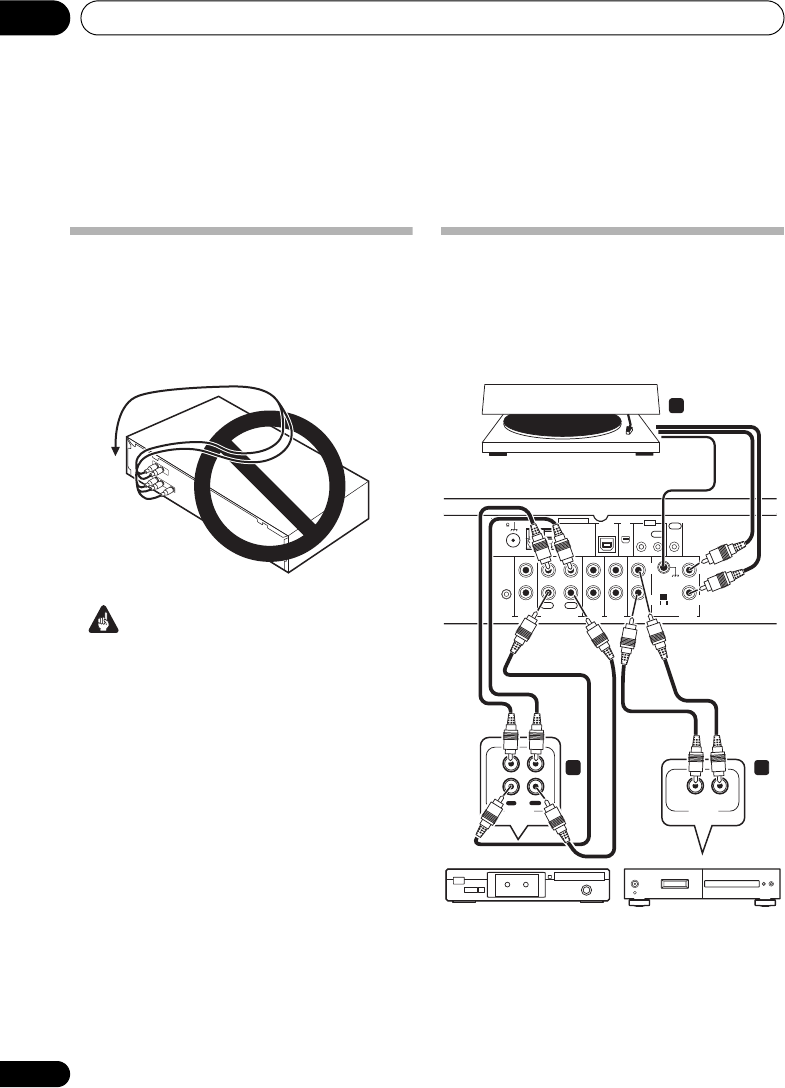

Making cable connections

Make sure not to bend the cables over the top

of this unit (as shown in the illustration). If this

happens, the magnetic field produced by the

transformers in this unit may cause a

humming noise from the speakers.

Important

• Before making or changing any

connections, switch off the power and

disconnect the power cord from the AC

outlet.

Connecting audio components

The number and kind of connections depends

on the kind of component you’re connecting.

Follow the steps below to connect a CD player,

tape recorder, turntable or other audio

component.

1 Connect the analog audio outputs of your

CD player (or other component) to the CD

inputs on this receiver.

Use a stereo RCA phono cable as shown.

MM/MC

PRE

OUT

AUX1 AUX2 CD PHONO

GND

FM UNBAL

AM LOOP

12V

TRIGGER

ANTENNA

USB

AUDIO IN

SIGNAL

CONTROL

OUT

TAPE

PLAY

OUT

REC

AUDIO IN/OUT

OUT

AUDIO OUT

PLAY

OUT

REC

Turntable

Tape deck, etc.

This receiver

CD player, etc.

A9_KU.book 8 ページ２００６年１１月６日　月曜日　午後３時３４分

Connecting up 02

• Connect any other components (such as

an iPod1 dock or a portable audio player) to

the AUX inputs in the same way.

2 Connect the analog outputs of your tape

deck (or other recorder) to the TAPE inputs

(IN) on this receiver. Then connect the audio

inputs on the tape deck to the TAPE outputs

(OUT) on this receiver.

This will allow you to make recordings from the

components connected to this receiver. Use

stereo RCA phono cables as shown.

Turntables only:

Connect the audio

outputs of your turntable to the PHONO

inputs on this receiver.

• If your turntable has a grounding wire,

secure it to the ground terminal on this

receiver.

• If your turntable has line-level outputs (i.e.,

it has a built-in phono pre-amp), connect it

to the AUX inputs instead.

•Make sure the MM/MC switch is in the

proper position. If the sound of the

turntable seems loud and distorted, or

overly soft, try switching the setting.

Connecting antennas

Connect the AM loop antenna and the FM wire

antenna as shown below. To improve reception

and sound quality, connect external antennas

(see Using external antennas below).

1 Pull off the protective shields of both AM

antenna wires.

2 Push open the tabs, then insert one wire

fully into each terminal, then release the tabs

to secure the AM antenna wires.

3 Fix the AM loop antenna to the attached

stand.

To fix the stand to the antenna, bend in the

direction indicated by the arrow then clip the

loop onto the stand (fig. a).

• If you plan to mount the AM antenna to a

wall or other surface, secure the stand with

screws (fig. b) before clipping the loop to

the stand. Make sure the reception is clear.

Note

1iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

ANTENNA

FM UNBAL

AM LOOP

fig. a fig. b

A9_KU.book 9 ページ２００６年１１月６日　月曜日　午後３時３４分

Connecting up02

4 Place the AM antenna on a flat surface

and in a direction giving the best reception.

5 Connect the FM wire antenna in the same

way as the AM loop antenna.

For best results, extend the FM antenna fully

and fix to a wall or door frame. Don’t drape

loosely or leave coiled up.

Using external antennas

To improve FM reception

Use a 75 Ω coaxial cable to connect an external

FM antenna.

To improve AM reception

Connect a 5 m to 6 m (15 ft. to 18 ft.) length of

vinyl-coated wire to the AM antenna terminal

without disconnecting the supplied AM loop

antenna.

For the best possible reception, suspend

horizontally outdoors.

Connecting the speakers

Make sure you connect the speaker on the

right to the right terminal and the speaker on

the left to the left terminal. Also make sure the

positive and negative (+/–) terminals on the

receiver match those on the speakers. You can

use speakers with a nominal impedance

between 4 Ω–16 Ω.

Be sure to complete all connections before

connecting this unit to the AC power source.

• Connect the speakers to the speaker

terminals as shown above.

Connections for the left speaker are shown.

Connect the right speaker in the same way. You

can use either bare wire connections or

banana plugs to do this (see below).

Bare wire connections

Make sure that the speaker cable you’re going

to use is properly prepared with about 3/8 inch

of insulator stripped from each wire, and the

exposed wire strands twisted together (fig. A).

ANTENNA

FM UNBAL

AM LOOP

One-touch

PAL connector

75 Ω coaxial cable

ANTENNA

FM UNBAL

AM LOOP

Outdoor

antenna

Indoor antenna

(vinyl-coated wire)

5 m to 6 m

(15 ft. to 18 ft.)

MM/MC

PHONO

GND

AC IN

SIGNAL

SPEAKER L

CONTROL

OUT

Left speaker

A9_KU.book 10 ページ２００６年１１月６日　月曜日　午後３時３４分

Connecting up 02

To connect a terminal, unscrew the terminal a

few turns until there is enough space to insert

the exposed wire (fig. B). Once the wire is in

position, tighten the terminal until the wire is

firmly clamped (fig. C).

Important

• Please refer to the manual that came with

your speakers for details on how to connect

the other end of the speaker cables to your

speakers.

Caution

• These speaker terminals carry

HAZARDOUS live voltage. To prevent the

risk of electric shock when connecting or

disconnecting the speaker cables,

disconnect the power cord before touching

any uninsulated parts.

• Make sure no exposed speaker wire is

touching the rear panel, this may cause the

receiver to turn off automatically.

Plugging in

Make sure to complete all connections before

connecting to an AC outlet.

• Connect the AC power cord to the AC IN

inlet on the rear panel of the receiver, then

plug into a power outlet.

3/8 in.

fig. A fig. B fig. C

A9_KU.book 11 ページ２００６年１１月６日　月曜日　午後３時３４分

Controls and displays03

Chapter 3:

Controls and displays

Front panel

POWER 

OFF



2 STANDBY indicator

3 Character display

(page 14)

DIRECT

Press to switch the Direct listening feature on

or off (page 15).

INPUT SELECTOR

dial

Selects an input source.

MASTER VOLUME

7 Remote sensor

PHONES

jack

Use to connect headphones (when connected,

there is no sound output from the speakers).

ONOFF

VOLUME

INPUT SELECTOR

DIRECT

POWER

STANDBY

PHONES

MIN MAX

STEREO RECEIVER A

2 5 64

A9_KU.book 12 ページ２００６年１１月６日　月曜日　午後３時３４分

Controls and displays 03

Remote control



Switches the receiver between standby and on.

2 Input selector buttons

Press to select an input source.

S. RETRIEVER

Press to switch the Sound Retriever on/off

(page 15).

TONE/BAL

controls

Use to adjust the tone and balance (page 15).

5 Number buttons

Use the number buttons to directly select a

radio frequency (page 17).

-

(TUNE/ST) /

ENTER

Use the TUNE +/– buttons to find radio

frequencies and use ST +/– to find preset

stations (page 17).

DIMMER

Dims or brightens the display (or switches the

backlight off).

DIRECT

Press to access Direct listening (page 15).

VOLUME +/–

Use to set the listening volume.

MUTE

Mutes/unmutes the sound.

11 Tuner and XM Radio controls

DISPLAY (XM Radio only) – Switches

between named station presets and radio

frequencies (page 17).

BAND (Tuner only) – Switches between the

AM and FM bands (page 17).

CATEGORY (XM Radio only) – Press to

browse digital radio broadcasts (page 19).

MPX (Tuner only) – Switches between

stereo and mono reception of FM

broadcasts (page 17).

D.ACCESS – Press to access a radio

station directly using the number buttons

(page 17).

T.EDIT – Memorizes/names stations for

recall (page 17).

CLASS – Switches between the three

banks of radio station presets (page 17).

RETURN (XM Radio only) – Press to confirm

and exit the current menu.

Using the remote control

Keep in mind the following when using the

remote control:

• Make sure that there are no obstacles

between the remote and the remote sensor

on the unit.

• The remote has a range of about 7 m (23 ft.)

at an angle of about 30º from the remote

sensor.

• Remote operation may become unreliable

if strong sunlight or fluorescent light is

shining on the unit’s remote sensor.

STEREO RECEIVER

DIMMER

TAPE

TUNER

AUX1

USB

MUTE

PHONO

TONE/BAL

S.RETRIEVER

DIRECT

VOL

AUX2 XM

123

456

7890

BAND

MPX

ENTER

CLASS

T.EDIT

DISPLAY TUNE

TUNE

CATEGORY D.ACCESS

RETURN

A9_KU.book 13 ページ２００６年１１月６日　月曜日　午後３時３４分

Controls and displays03

• Remote controllers for different devices

can interfere with each other. Avoid using

remotes for other equipment located close

to this unit.

• Replace the batteries when you notice a

fall off in the operating range of the remote.

Display

1 Tuner Indicators

TUNED – Lights when a broadcast is being

received.

STEREO – Lights when a stereo FM

broadcast is being received in auto stereo

mode.

MONO – Lights when the MPX button is

used to select mono mode.

2 Tone control indicators

TREBLE – Lights when high-range tone

adjustment is applied.

BASS – Lights when low-range tone

adjustment is applied.

3 Sound Retriever indicator

Lights when the Sound Retriever function is

enabled.

4 Master volume level

– Lights when FM broadcasts are

received.

AM – Lights when AM broadcasts are

received.

– Lights when XM radio broadcasts are

received.

7 Character display

Displays various system information.

MHz

– Lights when an FM frequency is

displayed.

KHz – Lights when an AM frequency is

displayed.

TUNEDTUNED

TREBLETREBLE

STEREOSTEREO

MONOMONO

BASSBASS

XMXM

FMFM

AMAM

dBdB

MHzMHz

KHzKHz

21 3

5 6 8

A9_KU.book 14 ページ２００６年１１月６日　月曜日　午後３時３４分

Listening to your system 04

Chapter 4:

Listening to your system

Using Direct listening

Use the Direct listening feature when you want

to hear the truest possible reproduction of a

source. All unnecessary signal processing1 is

bypassed, and you’re left with the pure sound

source.

• While listening to a source, press

DIRECT

to switch Direct listening on or off.

Using the Sound Retriever

When audio data is removed during the

compression process, sound quality often

suffers from an uneven sound image. The

analog Sound Retriever feature employs new

technology that helps remove the adverse

effects of compressing 2-channel audio files by

restoring bandwidth and smoothing jagged

artifacts left over after they have been

compressed, resulting in a wider sound stage.

• Press

S. RETRIEVER to switch the sound

retriever on or off.

The indicator in the front display lights to

indicate the Sound Retriever is on.

Using the balance and tone

controls

Depending on what you are listening to, you

may want to adjust the bass, treble or left/right

balance using the remote control.

1Press

TONE/BAL

to select the option you

want, then use the L/– and R/+ buttons to

adjust as necessary.

•BASS – Adjust the amount of bass from

–10 to +10.

•TRE – Adjust the amount of treble from

–10 to +10.

•BAL – Adjust the amount of left/right

balance as you like. FLAT indicates a

centered balance.

Wait about five seconds for your changes to be

input automatically. The BASS and TREBLE

indicators light in the front panel when the

corresponding tone control is active.

• To return to the flat setting (tone control

off), press

L/–

and

R/+

at the same time.

Playing other sources

1 Turn on the power of the playback

component.

2 Turn on the power of the receiver.

3 Select the source you want to playback.

Use the input select buttons (or INPUT

SELECTOR dial).

4 Start playback of the component you

selected in step 1.

Note

1 The Sound Retriever, balance and tone controls are disabled, and the front panel display switches off.

A9_KU.book 15 ページ２００６年１１月６日　月曜日　午後３時３４分

Listening to your system04

Making an audio recording

You can make an audio recording from any

audio source connected to the receiver.

1 Select the source you want to record.

Use the input select buttons (INPUT

SELECTOR).

2 Prepare the source you want to record.

Tune to the radio station, load the CD, set up

the turntable, etc.

3 Prepare the recorder.

Insert a blank tape, MD, etc. into the recording

device and set the recording levels.1

Refer to the instructions that came with the

recorder if you are unsure how to do this.

4 Start recording, then start playback of the

source component.

Note

1 The receiver's volume, balance and tone controls have no effect on the recorded signal.

A9_KU.book 16 ページ２００６年１１月６日　月曜日　午後３時３４分

Using the tuner 05

Chapter 5:

Using the tuner

Listening to the radio

The following steps show you how to tune in to

FM and AM radio broadcasts.

1 Press

TUNER

then press

BAND

to select

the tuner band.

2 Tune to a station.

There are four ways to do this:

Automatic tuning – Press and hold TUNE

+/– for about a second. Searching

automatically stops at the next station.

Manual tuning – To change the frequency

one step at a time, press TUNE +/–.

High speed tuning – Press and hold

TUNE +/– continuously.

Direct access – Use the number buttons to

enter the frequency (For example, to tune

to 106.00 (FM), press 1, 0, 6, 0, 0).1

If the TUNED or STEREO indicators don't light

when tuning to an FM station because the

signal is weak, press the MPX button to switch

the receiver into mono reception mode. This

should improve the sound quality and allow

you to enjoy the broadcast.

Saving station presets

This receiver can memorize up to 30 stations,

stored in three banks of 10 stations each.2

1 Tune to a station you want to memorize

then press

T.EDIT

The display shows ST. MEMORY, then a

blinking memory class.

2 Press CLASS to select one of the three

classes then press

ST +/–

to select the station

preset you want.

3 Press ENTER to store the station.

Naming station presets

You can your station presets for easy recall.

1 Choose the preset you want to name.

See Listening to station presets below.

2Press

T.EDIT

A cursor appears at the first character position.

3 Input the name you want then press

ENTER

Names can be up to four characters long.

•Use the ST +/– buttons to select

characters, and ENTER to confirm. If no

character is input, a space is input.

Tip

• Once you have named a station preset, you

can press DISPLAY when listening to a

station to switch the display between the

name and the frequency.

Listening to station presets

You will need to have some presets stored to do

this. See Saving station presets above if you

haven’t done this already.3

1Press

TUNER

to select the tuner.

Note

1 If you make a mistake halfway through, press D.ACCESS twice to cancel the frequency and start over.

2 When saving an FM frequency, the MPX setting is also stored.

3 Station memories will be lost if the receiver is left disconnected from the AC power outlet for an extended period.

A9_KU.book 17 ページ２００６年１１月６日　月曜日　午後３時３４分

Using the tuner05

2 Press CLASS to select the class in which

the station is stored.

Press repeatedly to cycle through classes A, B

and C.

3Press

ST +/–

to select the station preset

you want.

A9_KU.book 18 ページ２００６年１１月６日　月曜日　午後３時３４分

Other connections 06

Chapter 6:

Other connections

Using XM Radio

XM is the leading provider of satellite radio in

the United States. Through two high-power

satellites, Rock and Roll, XM Radio service

offers over 150 channels of music, news, talk,

sports and children's programming on a

monthly subscription basis. XM Radio offers

consumers clear sound quality from digital

signal radio, an extensive variety of

programming and nationwide coverage. Visit

www.xmradio.com for more details on this

service.

Connecting your XM Radio receiver

After purchasing a Connect-and Play™

antenna (sold separately), you will also need to

activate the XM Radio digital radio service to

receive broadcasts.1

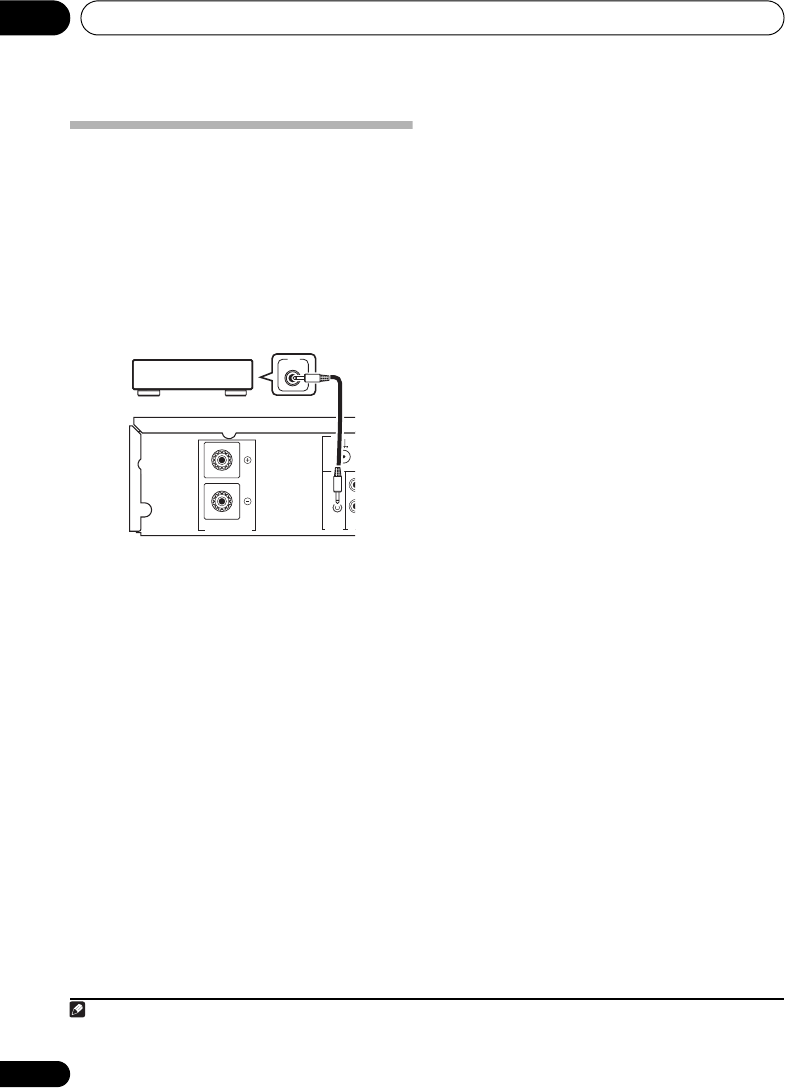

1 Connect an XM Radio Connect-and-Play™

antenna to the XM Radio jack on the rear of

this receiver.

You will also need to activate the XM Radio

service.

When activating the XM Radio ‘Connect-and-

Play’ ™ digital antenna, make sure to wait until

the activation process is complete before

changing the XM-RADIO function. Changing

to another input source will stop the activation

process.

2Use the

XM input selector

button to

switch to the XM Radio input.

For best reception, you may need to move the

Connect-and-Play™ antenna near a window

(the southernmost window should produce the

best results).

• If after pressing XM the display shows

ANTENNA, try disconnecting the antenna

and reconnecting.2

Listening to XM Radio

After connecting, you will be able to use this

receiver to select channels and navigate

categories using the front panel display.

Selecting channels and browsing by

genre

You can browse XM Radio channels in the

order that they appear, or you can narrow your

channel search by genre.

Note

1 Hardware and required basic monthly subscription sold separately. Premium Channel available at additional monthly cost. In-

stallation costs and other fees and taxes, including a one-time activation fee may apply. Subscription fee is consumer only. All

fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking

is available for XM radio receivers by calling 1-800-XMRADIO. Subscriptions subject to Customer Agreement available at xmra-

dio.com. Only available in the 48 contiguous United States.

MM/MC

AUX1 AUX2 CD PHONO

GND

AC IN

USB

AUDIO IN

SIGNAL

SPEAKER L

CONTROL

OUT

This receiver

Connect-and-Play antenna

2 After unplugging the receiver, LOADING shows in the display for about 1 minute when switched back on.

A9_KU.book 19 ページ２００６年１１月６日　月曜日　午後３時３４分

Other connections06

•Use the

/

buttons to select a channel

then press

ENTER

to listen to the XM radio

broadcast.

• To browse by genre, first press

CATEGORY, use / to select a genre

then press ENTER.1

• To cancel and exit any time, press

RETURN.

Tip

• You can select channels directly by

pressing D.ACCESS then the three-digit

channel number.

•You can press DISPLAY to change XM

Radio information in the front panel

display.

Saving channel presets

This receiver can memorize up to 30 channels,

stored in three banks, or classes, (A, B and C)

of 10 stations each.

1 Select the channel you want to memorize.

See Selecting channels and browsing by genre

above.

2Press

T.EDIT

The display shows a blinking memory class.

3 Press CLASS to select one of the three

classes then press

/-

to select the channel

preset you want.

You can also use the number buttons to select

a preset.

• The default for all presets is CH001.

4Press

ENTER

After pressing ENTER, the preset class and

number stop blinking and the receiver stores

the XM channel.

Listening to channel presets

You will need to have some presets stored to do

this.

1 Press CLASS to select the class in which

the channel is stored.

Press repeatedly to cycle through classes A, B

and C.

2 Press

/-

to select the channel preset

you want.

• You can also use the number buttons on

the remote control to recall the channel

preset.

Connect & Play™, XM-Ready® and The Ultimate

Playlist are trademarks of XM Satellite Radio Inc.

All other trademarks are the property of their

respective owners.

Note

1 Select CH000 (RADIO ID) from the front panel display to check the Radio ID of the Connect-and-Play antenna.

A9_KU.book 20 ページ２００６年１１月６日　月曜日　午後３時３４分

Other connections 06

Using the USB interface

It is possible to listen to two channels of audio

from your computer by connecting to the USB

interface on the rear of this receiver.

Depending on your model of computer and the

software installed, you can listen to the stereo

audio source through the speaker setup you’ve

connected to this receiver.1

1 Connect your computer's USB terminal to

the USB terminal on the rear panel of this

receiver.

2 Switch on your computer and this

receiver.

3 If you’re connecting for the first time,

wait for the USB driver installation to finish.

The installation may take a minute or two to

complete. Make sure you leave the USB cable

connected until the dialog box indicates that

the USB setup is finished. Note that some

older operating systems may require a disc for

installation.2

4 Press USB to select the USB input.

You can also use the INPUT SELECTOR dial on

the front panel.

5 Make any necessary settings required to

select the USB interface as your computer

audio output.

You will need to make sure the correct speaker

setting is selected with the audio software

you’re using. Please refer to the manual that

came with the software to make these settings.

6 Turn up the volume control on your

computer and this receiver.

You may want to start with a fairly low volume

on this receiver and turn it up as necessary

after you’ve checked your levels.

7 Start playback of a source on your

computer.

Important

If you have followed the steps above, and still

can’t hear any audio output, try the following:

• Switch the receiver off, then on again.

• Selecting another input source (like CD or

TAPE), then back to USB.

Note

1• Windows

® XP, Windows® 2000, Windows® Millennium Edition and Windows® 98 Second Edition operating systems have

been tested for compatibility, but depending on your computer setup, you may find that your system is not compatible.

• Make sure your USB cable connects from an A-type connector (from your PC) to a 4-pin B-type connector (to this unit).

• The USB specification is version 1.1 compatible, and the USB Audio Class specification is 1.0 compatible.

• Computer alert sounds will also be heard through the speakers unless you disable them from the computer’s control panel.

• You won’t be able to hear the audio from the USB connection through the digital outputs of this unit.

• Note that using hubs or extensions may cause connection problems.

MM/MC

PRE

OUT

AUX1 AUX2 CD PHONO

GND

FM UNBAL

AM LOOP

12V

TRIGGER

ANTENNA

USB

AUDIO IN

SIGNAL

CONTROL

OUT

TAPE

PLAY

OUT

REC

This receiver

A-type USB

connector

B-type USB

connector

2 If your PC doesn’t recognize this unit, try reconnecting the USB cable. If it is still unrecognized, restart the computer.

A9_KU.book 21 ページ２００６年１１月１４日　火曜日　午前１０時３分

Other connections06

Caution

• Make sure you don’t switch off the

computer or unplug the USB cable during

playback.

• To prevent noise being output, don’t use

other software on your computer during

playback.

• Pioneer is not responsible for computer

system damage, software crashes or

failures, or any other possible computer

problems due to this configuration.

Microsoft®, Windows® XP, Windows® 2000, Windows®

Millennium Edition, Windows® 98, and Windows NT® are

either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

Connecting an additional

amplifier

This receiver has more than enough power for

any home use, but it’s possible to add an

additional amplifier using the pre-outs. Make

the connections shown below to add an

amplifier to power your speakers.

• Before making or changing the

connections, switch off the power and

disconnect the power cord from the AC

outlet.

MM/MC

PRE

OUT

AUX1 AUX2 CD PHONO

GND

FM UNBAL

AM LOOP

12V

TRIGGER

ANTENNA

USB

AUDIO IN

SIGNAL

CONTROL

OUT

TAPE

PLAY

OUT

REC

INPUT

ANALOG

This receiver

Stereo amplifier

A9_KU.book 22 ページ２００６年１１月６日　月曜日　午後３時３４分

Other connections 06

Connecting an IR receiver

If you keep your stereo components in a closed

cabinet or shelving unit, you can use an

optional IR receiver (such as a Niles or Xantech

unit) to control your system instead of the

remote sensor on the front panel of this

receiver.1

1 Connect the IR receiver sensor to the IR IN

jack on the rear of this receiver.

2 Connect the IR IN jack of another

component to the IR OUT jack on the rear of

this receiver to link it to the IR receiver.

Please see the manual supplied with your IR

receiver for the type of cable necessary for the

connection.

• If you want to link a Pioneer component to

the IR receiver, see Operating other Pioneer

components with this unit’s sensor below

to connect to the CONTROL jacks instead

of the IR OUT jack.

Operating other Pioneer

components with this unit’s

sensor

Many Pioneer components have SR CONTROL

jacks which can be used to link components

together so that you can use just the remote

sensor of one component. When you use a

remote control, the control signal is passed

along the chain to the appropriate component.

• Note that if you use this feature, make sure

that you also have at least one set of analog

audio jacks connected to another

component for grounding purposes.

1 Connect the

CONTROL OUT

of this

receiver to the

CONTROL IN

jack of another

Pioneer component.

Use a cable with a mono mini-plug on each

end for the connection.

2 If the Pioneer component also has a

CONTROL OUT

jack, you can continue the

chain in the same way for as many

components as you have.

Note

1 • Remote operation may not be possible if direct light from a strong fluorescent lamp is shining on the IR receiver remote sen-

sor window.

• Note that other manufacturers may not use the IR terminology. Refer to the manual that came with your component to check

for IR compatibility.

• If using two remote controls (at the same time), the IR receiver’s remote sensor takes priority over the remote sensor on the

front panel.

Closet or shelving unit

AUX1 AUX2 CD PHONO

MM/MC

GND

CONTROL

USB

AUDIO IN

SIGNAL

OUT

Non-Pioneer

component

Pioneer

component

This receiver

IR receiver

IN OUT

CONTROL

GND

CONTROL

SIGNAL

OUT

CONTROL

OUT

Pioneer component

Pioneer

component

remote

control

This receiver

A9_KU.book 23 ページ２００６年１１月６日　月曜日　午後３時３４分

Other connections06

Switching components on and

off using the 12 volt trigger

You can connect components in your system to

this receiver through a 12 volt trigger. If you

turn the power to a connected component on,

the power to this receiver is also turned on.

This receiver will not turn on if you turn a

connected component off while this receiver is

currently off.1

• Connect the 12V TRIGGER jack of this

receiver to the 12V trigger of another

component.

Use a cable with a mono mini-plug on each

end for the connection.

Note

1 When this system is already on, switching the connected component on will have no effect (switching the connected compo-

nent off will have no effect in any case).

FM UNBAL

12V

TRIGGER

SPEAKER R

12V

TRIGGER

A9_KU.book 24 ページ２００６年１１月６日　月曜日　午後３時３４分

Additional information 07

Chapter 7:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is

something wrong with this component, check the points below. Sometimes the trouble may lie in

another component. Investigate the other components and electrical appliances being used. If the

trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer

authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity

disconnect the power plug from the outlet and insert again to return to normal operating

conditions.

Problem Remedy

The power does not turn on. • Disconnect the power plug from the outlet, and insert again.

• Make sure there are no loose strands of speaker wire touching the rear

panel. This could cause the receiver to shut off automatically.

• If you’re trying to switch on using the remote control, make sure the

front panel POWER button is switched on first.

• If the power shuts off automatically, take the unit to your nearest

Pioneer authorized service center or your dealer for servicing.

No sound is output when a

function is selected.

• Make sure the component is connected correctly (refer to Connecting

up on page 8).

• Press MUTE on the remote control to turn muting off.

Considerable noise in radio

broadcasts.

• Connect the antenna (page 9) and adjust the position for best reception.

• Route any loose cables away from the antenna terminals and wires.

• Fully extend the FM wire antenna, position for best reception, and

secure to a wall (or connect an outdoor FM antenna).

• Connect an additional internal or external AM antenna (page 9).

• Turn off equipment causing interference or move it away from the

receiver (or move antennas farther away from equipment causing noise).

Broadcast stations cannot be

selected automatically.

• Connect an outdoor antenna (refer to page 9).

Noise during playback of a

cassette deck.

• Move the cassette deck further from your receiver, until the noise

disappears.

Turntable seems noisy and

distorted, or low in volume.

• Make sure the MM/MC switch on the rear of the receiver (near the

PHONO input) is in the proper position for your turntable.

A9_KU.book 25 ページ２００６年１１月６日　月曜日　午後３時３４分

Additional information07

XM radio messages

Specifications

Amplifier section

Power output specification is for when power

supply is 120 V.

• Continuous power output (both channels

driven at 20 Hz to 20 kHz)**

THD 0.2 %, 4 Ω . . . . . . . . . . . . . . . . .70 W + 70 W

THD 0.2 %, 8 Ω . . . . . . . . . . . . . . . . .55 W + 55 W

• FTC Continuous power output (both

channels driven at 1 kHz)

THD 1.0 %, 4 Ω. . . . . . . . . . . . . . . . . 65 W + 65 W

THD 1.0 %, 8 Ω. . . . . . . . . . . . . . . . . 55 W + 55 W

• Total harmonic distortion**

20 Hz to 20 kHz, 25 W, 8 Ω . . . . . . . . . . . . 0.05 %*

* Measured with DIRECT button switched on.

** Measured by Audio Spectrum Analyzer

Can’t operate the remote

control.

• Replace the battery (refer to page 7).

• Operate within 7 m (23 ft.), 30° of the remote sensor on the front panel

(refer to page 13).

• Remove the obstacle or operate from another position.

• Avoid exposing the remote sensor on the front panel to direct light.

The display is dark or off. • Press DIMMER on the remote repeatedly to return to the default.

Problem Remedy

Message Cause Action

ANTENNA The XM antenna is not connected. Check that the XM antenna cable is attached

securely.

ANT ERR A short-circuit occurring in the antenna or

surrounding antenna cable. Make sure that there is nothing unusual with

the antenna or antenna cable. Switch the

power off then back on again.

UPDATING The radio is being updated with the latest

encryption code. Wait until the encryption code has been

updated. Channels 00 and 01 should function

normally.

NO SIGNAL The XM signal is too weak at the current

location. n/a

LOADING The receiver is acquiring audio or program

information. Wait until the information has been received.

OFF AIR The channel currently selected has stopped

broadcasting. Select another channel.

CH– – – You have selected a channel that does not

exist, or that you have not subscribed to. The receiver will automatically switch to

channel 001 (or the last selected channel).

There is no artist name/feature, song/

program title, or channel category associated

with the channel at this time.

No action needed.

A9_KU.book 26 ページ２００６年１１月６日　月曜日　午後３時３４分

Additional information 07

Audio section

• Input (Sensitivity/Impedance)

CD, TAPE, AUX . . . . . . . . . . . . . . . .200 mV/47 kΩ

PHONO (MM). . . . . . . . . . . . . . . . . . 2.8 mV/47 kΩ

PHONO (MC) . . . . . . . . . . . . . . . . . . 0.3 mV/100 Ω

• Frequency response

CD, TAPE, AUX, USB

. . . . . . 5 Hz to 100 kHz dB

PHONO (MM). . . . . . . . . 20 Hz to 20 kHz ±0.2 dB

PHONO (MC) . . . . . . . . . 20 Hz to 20 kHz ±0.3 dB

• PHONO (MM) overload level

1 kHz, THD 0.2 % . . . . . . . . . . . . . . . . . . . . . 60 mV

• PHONO (MC) overload level

1 kHz, THD 0.2 % . . . . . . . . . . . . . . . . . . . . . . 6 mV

• Output (Level/Impedance)

TAPE REC. . . . . . . . . . . . . . . . . . . . . .200 mV/1 kΩ

• Tone control

Bass . . . . . . . . . . . . . . . . . . . . . . ± 10 dB (100 Hz)

Treble . . . . . . . . . . . . . . . . . . . . . ± 10 dB (10 kHz)

• Signal-to-Noise Ratio

CD, TAPE, AUX (200 mV input). . . . . . . . . .103 dB

PHONO (MM, 2.8 mV input) . . . . . . . . . . . . .80 dB

PHONO (MC, 0.2 mV input) . . . . . . . . . . . . .70 dB

• FM Tuner Section

Frequency Range. . . . . . . . .87.5 MHz to 108 MHz

Usable Sensitivity . . . . . . . . . Mono:13.2 dBf, IHF

(1.3 µV/ 75 Ω)

50 dB Quieting Sensitivity. . . . . . . Mono: 20.2 dB

Stereo: 38.6 dBf

Signal-to-Noise Ratio. . . .Mono: 73 dB (at 85 dBf)

Stereo: 70 dB (at 85 dBf)

Distortion . . . . . . . . . . . . . . . Stereo: 0.5 % (1 kHz)

Alternate Channel Selectivity . . . 60 dB (400 kHz)

Stereo Separation . . . . . . . . . . . . . . 40 dB (1 kHz)

Frequency Response. . . . . . . . . . .30 Hz to 15 kHz

(±1 dB)

Antenna Input (FTC) . . . . . . . . . 75 Ω unbalanced

• AM Tuner Section

Frequency Range . . . . . . . . . 530 kHz to 1700 kHz

Sensitivity (IHF, Loop antenna) . . . . . . . 350 µV/m

Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . 50 dB

Antenna. . . . . . . . . . . . . . . . . . . . . . .Loop antenna

Miscellaneous

Power requirements. . . . . . . . . . .AC 120 V, 60 Hz

Power consumption . . . . . . . . . . . . . . . . . . . 200 W

In standby . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 W

Dimensions

. . . 420 mm (W) x 113 mm (H) x 369 mm (D)

(16 9/16 in. (W) x 47/16 in. (H) x 14 17/32 in. (D))

Weight (without package)

. . . . . . . . . . . . . . . . . . . . . . . .10.8 kg (23 lb. 13 oz.)

Accessories

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Lithium battery (CR2025) . . . . . . . . . . . . . . . . . . . 1

AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . 1

FM wire antenna. . . . . . . . . . . . . . . . . . . . . . . . . . 1

Power cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Operating instructions

Note

• Specifications and the design are subject

to possible modifications without notice,

due to improvements.

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe

off dust and dirt.

• When the surface is dirty, wipe with a soft

cloth dipped in some neutral cleanser

diluted five or six times with water, and

wrung out well, and then wipe again with a

dry cloth. Do not use furniture wax or

cleansers.

• Never use thinners, benzine, insecticide

sprays or other chemicals on or near this

unit, since these will corrode the surface.

A9_KU.book 27 ページ２００６年１１月１３日　月曜日　午後７時４５分

PIONEER CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: (800) 421-1404

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: 1-877-283-5901

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: (03) 9586-6300

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270

K002_A_En

<5707-00000-018-0>Printed in China

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer

Authorized Independent Service Company, or if you wish to purchase replacement parts,

operating instructions, service manuals, or accessories, please call the number shown

below.

8 0 0 – 4 2 1 – 1 4 0 4

Please do not ship your product to Pioneer without first calling the Customer Support

Division at the above listed number for assistance.

Pioneer Electronics (USA) Inc.

Customer Support Division

P.O. BOX 1760, Long Beach,

CA 90801-1760, U.S.A.

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian

Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada.

Alternatively, please contact the Customer Satisfaction Department at the following address:

Pioneer Electronics of Canada, Inc.

Customer Satisfaction Department

300 Allstate Parkway, Markham, Ontario L3R OP2

1(877)283-5901

For warranty information please see the Limited Warranty sheet included with your product.

Si ce produit doit être réparé au Canada, veuillez vous adresser à un distributeur autorisé

Pioneer du Canada pour obtenir le nom du Centre de Service Autorisé Pioneer le plus près

de chez-vous. Vous pouvez aussi contacter le Service à la clientèle de Pioneer:

Pioneer Électroniques du Canada, Inc.

Service à la clientèle

300, Allstate Parkway, Markham, Ontario L3R OP2

1(877)283-5901

Pour obtenir des renseignements sur la garantie, veuillez vous reporter au feuillet sur la

garantie restreinte qui accompagne le produit.

S018_A_EF

Published by Pioneer Corporation.

A9_KU_back_cover.fm 28 ページ２００６年１１月１５日　水曜日　午後１時３６分

Pioneer A9 Users Manual 5707000000180

A9 to the manual 2766b7bf-9b61-464d-9853-ab84744f34e5
