Blu-ray Disc PLAYER

BDP-V6000

Operating Instructions

V6000_CUXJ_EN.book 1 ページ２００９年６月５日　金曜日　午前１１時５７分

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1_A1_En

IMPORTANT NOTICE

THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR.

PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SECURE AREA.

THIS IS FOR YOUR SECURITY.

D1-4-2-6-1*_A1_En

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly.

After you have finished reading the instructions, put them away in a safe place for future reference.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate

the equipment.

D8-10-2_A1_En

This Class B digital apparatus complies with

Canadian ICES-003.

D8-10-1-3_A1_En

CAUTION

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other

equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use

shielded cables and connectors for connections.

D8-10-3a_A1_En

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

D6-8-2-1_En



"#%)!'%+%"!"'#!*!

 &"(%&&(&'!"!'

$(# !'   !

V6000_CUXJ_EN.book 2 ページ２００９年６月５日　金曜日　午前１１時５７分

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

10)

Only use attachments/accessories specified by the

manufacturer.

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid

injury from tip-over.

Unplug this apparatus during lightning storms or

when unused for long periods of time.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

P1-4-2-2_En

11)

12)

13)

14)

CAUTION

This product is a class 1 laser product, but this

product contains a laser diode higher than Class 1.

To ensure continued safety, do not remove any covers

or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: inside of the unit

CLASS 1

LASER PRODUCT

D3-4-2-1-8*_C_En

Operating Environment

Operating environment temperature and humidity:

+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH

(cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in

locations exposed to high humidity or direct sunlight (or

strong artificial light)

D3-4-2-1-7c*_A1_En



&$(# !'&!"'*'%#%"""#%)!'%

"%&"-%"!"'#!,"!'!%

*'$(!%'&$(# !'&(&)&"%

"*%#"'"%+#"&''"%##!&#&!%!

"% "&'(%  !

WARNING

The voltage of the available power supply differs

according to country or region. Be sure that the

power supply voltage of the area where this unit

will be used meets the required voltage (e.g., 230 V

or 120 V) written on the rear panel. D3-4-2-1-4_A_En

Before plugging in for the first time, read the following

section carefully.

V6000_CUXJ_EN.book 3 ページ２００９年６月５日　金曜日　午前１１時５７分

If the AC plug of this unit does not match the AC

outlet you want to use, the plug must be removed

and appropriate one fitted. Replacement and

mounting of an AC plug on the power supply cord of

this unit should be performed only by qualified

service personnel. If connected to an AC outlet, the

cut-off plug can cause severe electrical shock. Make

sure it is properly disposed of after removal.

The equipment should be disconnected by removing

the mains plug from the wall socket when left unused

for a long period of time (for example, when on

vacation).

D3-4-2-2-1a_A1_En

CAUTION

The STANDBY/ON switch on this unit will not

completely shut off all power from the AC outlet.

Since the power cord serves as the main disconnect

device for the unit, you will need to unplug it from

the AC outlet to shut down all power. Therefore,

make sure the unit has been installed so that the

power cord can be easily unplugged from the AC

outlet in case of an accident. To avoid fire hazard,

the power cord should also be unplugged from the

AC outlet when left unused for a long period of time

(for example, when on vacation). D3-4-2-2-2a_A_En

Wash hands after handling















POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the

plug by tugging the cord and never touch the power

cord when your hands are wet as this could cause a

short circuit or electric shock. Do not place the unit, a

piece of furniture, etc., on the power cord, or pinch the

cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed such that they

are not likely to be stepped on. A damaged power cord

can cause a fire or give you an electrical shock. Check

the power cord once in a while. If you find it damaged,

contact the Pioneer service center on the back cover, or

your dealer for a replacement.

This product incorporates copyright protection

technology that is protected by method claims of

certain U.S. patents and other intellectual property

rights owned by Macrovision Corporation and other

rights owners. Use of this copyright protection

technology must be authorized by Macrovision

Corporation, and is intended for home and other

limited viewing uses only unless otherwise authorized

by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Product Name: Blu-ray Disc PLAYER

Model Number: BDP-V6000

Responsible Party Name: PIONEER ELECTRONICS (USA), INC.

SERVICE SUPPORT DIVISION

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A.

Phone:1-800-421-1404

URL: http://www.pioneerelectronics.com

D8-10-4*_B1_En

V6000_CUXJ_EN.book 4 ページ２００９年６月５日　金曜日　午前１１時５７分

S001_En

Selecting fine audio equipment such as the unit

you’ve just purchased is only the start of your

musical enjoyment. Now it’s time to consider how

you can maximize the fun and excitement your

equipment offers. This manufacturer and the

Electronic Industries Association’s Consumer

Electronics Group want you to get the most out of

your equipment by playing it at a safe level. One that

lets the sound come through loud and clear without

annoying blaring or distortion-and, most importantly,

without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing

“comfort level” adapts to higher volumes of sound.

So what sounds “normal” can actually be loud and

harmful to your hearing. Guard against this by

setting your equipment at a safe level BEFORE your

hearing adapts.

To establish a safe level:

@Start your volume control at a low setting.

@Slowly increase the sound until you can hear it

comfortably and clearly, and without distortion.

Once you have established a comfortable sound

level:

@Set the dial and leave it there.

Taking a minute to do this now will help to prevent

hearing damage or loss in the future. After all, we

want you listening for a lifetime.

We Want You Listening For A Lifetime

Since hearing damage from loud noise is often

undetectable until it is too late, this manufacturer

and the Electronic Industries Association’s

Consumer Electronics Group recommend you avoid

prolonged exposure to excessive noise. This list of

sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

50 Light traffic, normal conversation, quiet office

60 Air conditioner at 20 feet, sewing machine

70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock

at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS

UNDER CONSTANT EXPOSURE

Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers,

thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

V6000_CUXJ_EN.book 5 ページ２００９年６月５日　金曜日　午前１１時５７分

Contents

01 Before you start

What’s in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Putting the batteries in the remote control. . . . . . . . . . 7

Software updating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Types of discs/files that can be played. . . . . . . . . . . . . . . 8

Playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Playable files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . 11

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Front Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

02 Installation

Cautions on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cautions on Installation . . . . . . . . . . . . . . . . . . . . . . . . 14

Place of installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Moving the player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Turn the power off when not using the player . . . . . . 15

Condensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning the player. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Caution for when the unit is installed in a rack with

a glass door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning the pickup lens . . . . . . . . . . . . . . . . . . . . . . . 15

Handling discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

03 Connecting up

Connecting using an HDMI cable . . . . . . . . . . . . . . . . . 18

About HDMI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

About KURO LINK function . . . . . . . . . . . . . . . . . . . . . 19

Connecting a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting an AV receiver or amplifier . . . . . . . . . . . 20

Connecting video and audio cables. . . . . . . . . . . . . . . . 21

Connecting a TV using a video/audio cable . . . . . . . . 21

Connecting an AV receiver or amplifier using audio

cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Connecting components to the USB port . . . . . . . . . . . 21

About USB (external storage) devices. . . . . . . . . . . . . 21

Connecting the USB (external storage) device. . . . . . 22

Network connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting via an Ethernet hub . . . . . . . . . . . . . . . . . 22

Connecting the power cord. . . . . . . . . . . . . . . . . . . . . . . 22

04 Getting Started

Making settings using the Setup Navigator menu . . . . 23

Operating the TV with the player’s remote control . . . . 24

TV Preset code list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using the TOOLS menu. . . . . . . . . . . . . . . . . . . . . . . . . . 26

Switching the video output terminal to be viewed . . . . 26

Switching the output video resolution . . . . . . . . . . . . . . 27

05 Playback

Playing discs or files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Forward and reverse scanning. . . . . . . . . . . . . . . . . . . 30

Playing specific titles, chapters or tracks . . . . . . . . . . 30

Skipping content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Playing in slow motion . . . . . . . . . . . . . . . . . . . . . . . . . 30

Step forward and step reverse . . . . . . . . . . . . . . . . . . . 30

Switching the camera angles . . . . . . . . . . . . . . . . . . . 30

Switching the subtitles . . . . . . . . . . . . . . . . . . . . . . . . . 30

Switching the audio and secondary audio . . . . . . . . . 31

Switching the secondary video . . . . . . . . . . . . . . . . . . 31

Displaying the disc information. . . . . . . . . . . . . . . . . . 31

Playback functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the Play Mode functions . . . . . . . . . . . . . . . . . . . 33

Playing from a specific time (Time Search) . . . . . . . . 33

Playing a specific title, chapter or track (Search) . . . 33

Playing a specific section within a title or track

repeatedly (A-B Repeat) . . . . . . . . . . . . . . . . . . . . . . . . 33

Playing repeatedly (Repeat Play) . . . . . . . . . . . . . . . . . 34

Playing in random order (Random Play). . . . . . . . . . . 34

About Play Mode types . . . . . . . . . . . . . . . . . . . . . . . . . 35

Playing from the Home Media Gallery . . . . . . . . . . . . . . 36

Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Playing image files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Playing audio files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Playing in the desired order (HMG Playlist) . . . . . . . . 37

06 Adjusting audio and video

Adjusting the video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Adjusting the audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Adjusting the Audio DRC . . . . . . . . . . . . . . . . . . . . . . . 40

Adjusting the output level of the different speakers

during BD/DVD playback (Channel Level) . . . . . . . . . 40

Adjusting the audio delay (Lip Sync). . . . . . . . . . . . . . 41

07 Detailed settings

Changing the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Operating the Initial Setup screen. . . . . . . . . . . . . . . . 42

Software updating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Restoring all the settings to the factory default

settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

About the audio output settings . . . . . . . . . . . . . . . . . 52

Language Code Table and Country/Area Code Table 54

08 Advanced setup

Changing the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Operating the Advanced Setup screen . . . . . . . . . . . . 55

Playing titles/chapters in the registered order

(Playlist) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Creating playlist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Playing the playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

09 Additional information

Serial interface specifications . . . . . . . . . . . . . . . . . . . . 58

Serial control specifications. . . . . . . . . . . . . . . . . . . . . 58

Connection to a computer . . . . . . . . . . . . . . . . . . . . . . 58

Commands and statuses . . . . . . . . . . . . . . . . . . . . . . . . 59

List of usable commands . . . . . . . . . . . . . . . . . . . . . . . 59

Command mnemonics. . . . . . . . . . . . . . . . . . . . . . . . . 60

Arguments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Communications interface manual. . . . . . . . . . . . . . . 60

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

KURO LINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Others. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

V6000_CUXJ_EN.book 6 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 1

Before you start

What’s in the box

•Remote control x 1

• Video/audio cable (yellow/white/red plugs) x 1

• AA/R6 dry cell batteries x 2

•Power cord x 1

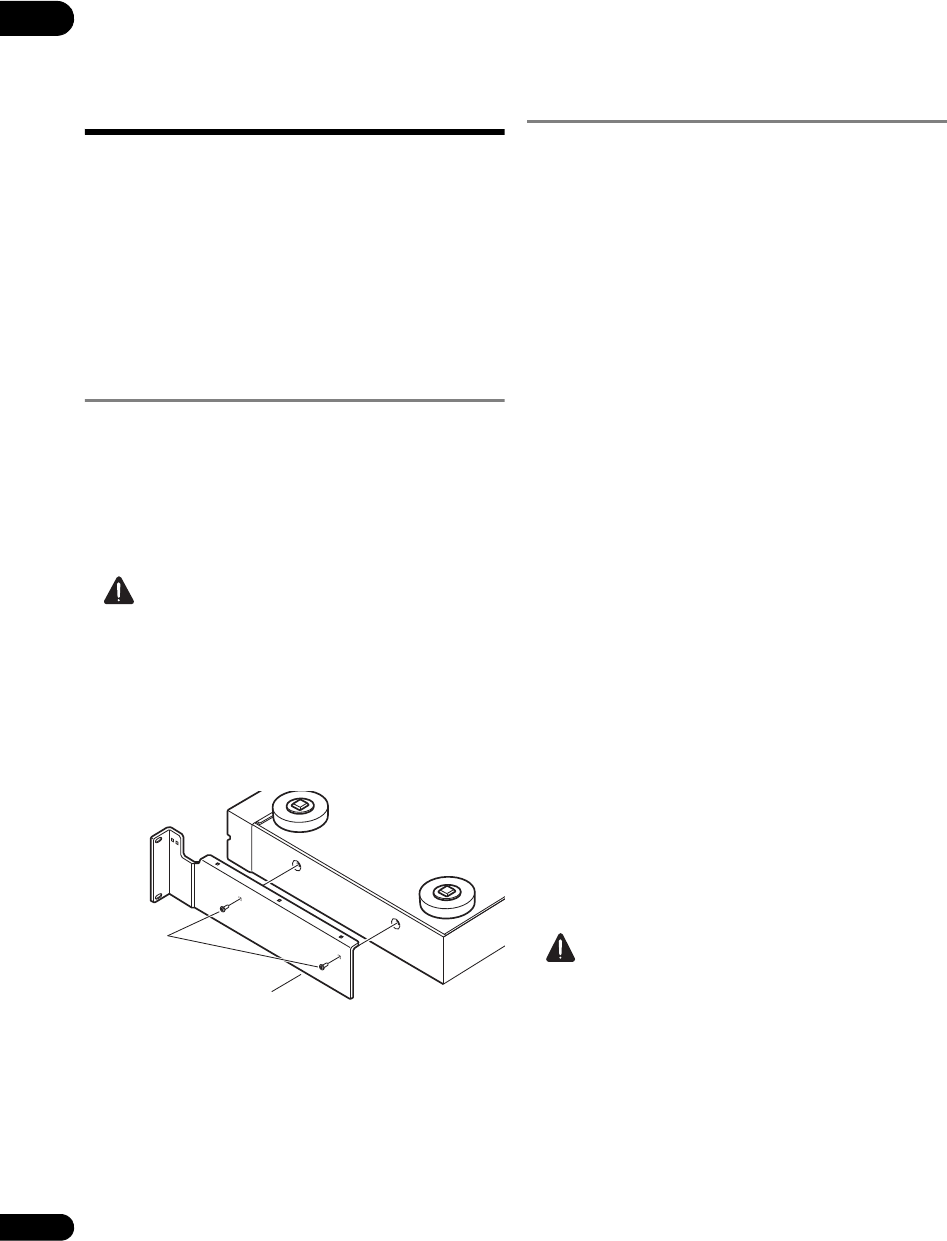

•Rack mount bracket x 2

•Underplate x 1

• Included gray screw x 2

•Warranty card

•Operating instructions (this document)

A large Phillips screwdriver ( No. 2) is required to

mount the rack mount bracket. Please procure one.

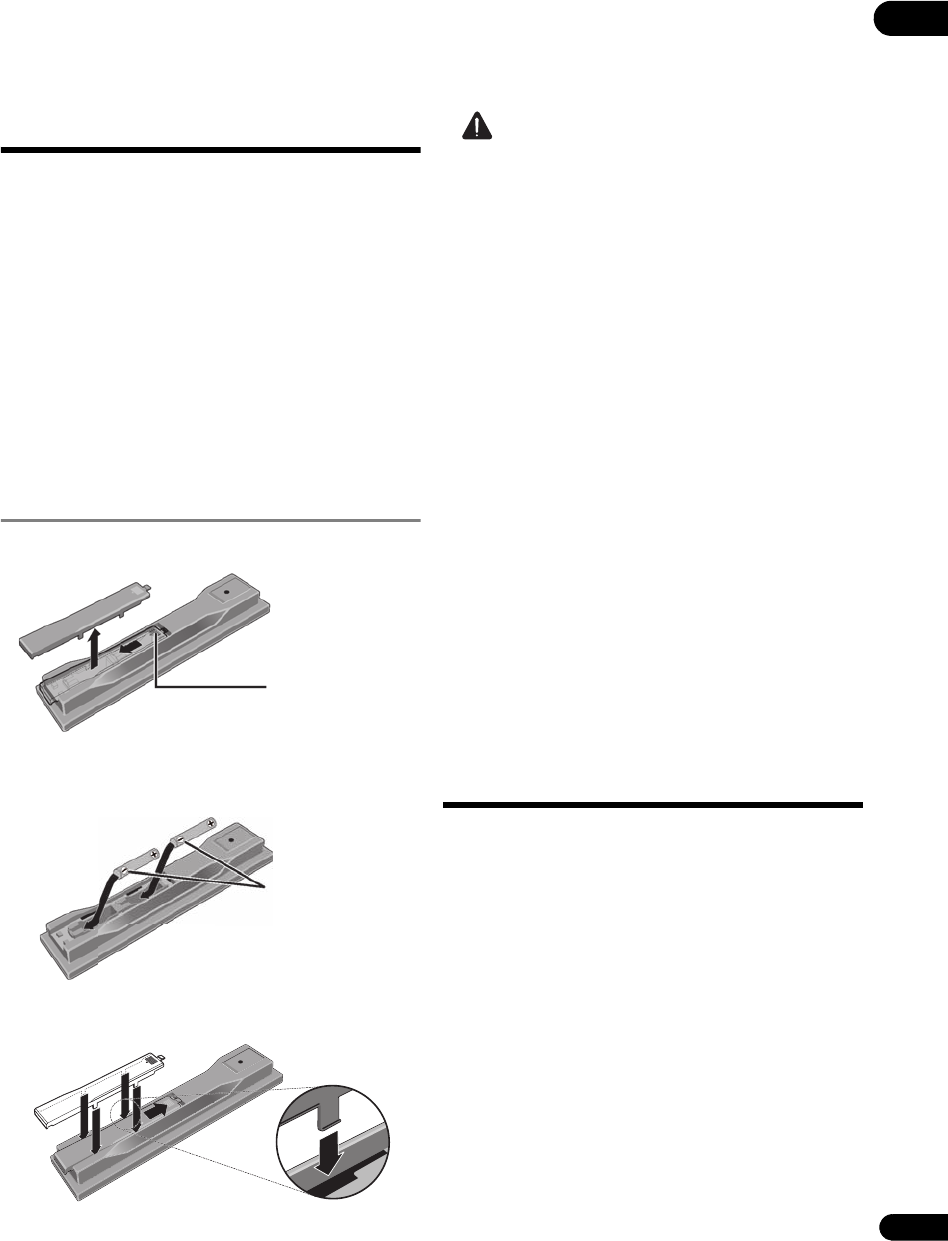

Putting the batteries in the

remote control

1 Open the rear cover.

2 Insert the batteries (AA/R6 x 2).

Insert as indicated by the / marks into the battery

compartment.

3 Close the rear cover.

Close securely (a click should be heard).

Caution

• Do not use any batteries other than the ones

specified. Also, do not use a new battery together with

an old one.

• When loading the batteries into the remote control,

set them in the proper direction, as indicated by the

polarity marks ( and ).

• Do not heat batteries, disassemble them, or throw

them into flames or water.

• Batteries may have different voltages, even if they look

similar. Do not use different kinds of batteries

together.

•To prevent leakage of battery fluid, remove the

batteries if you do not plan to use the remote control

for a long period of time (1 month or more). If the fluid

should leak, wipe it carefully off the inside of the case,

then insert new batteries. If a battery should leak and

the fluid should get on your skin, flush it off with large

quantities of water.

• When disposing of used batteries, please comply with

governmental regulations or environmental public

institution’s rules that apply in your country/area.

•WARNING

Do not use or store batteries in direct sunlight or

other excessively hot place, such as inside a car or

near a heater. This can cause batteries to leak,

overheat, explode or catch fire. It can also reduce the

life or performance of batteries.

D3-4-2-3-3_En

Software updating

When the software is updated, product information

concerning this product may be made public on the

Pioneer website. Check the update or service information

concerning this product.

Press lightly on this

part and slide into

the direction of the

arrow.

Insert the negative

() side first.

V6000_CUXJ_EN.book 7 ページ２００９年６月５日　金曜日　午前１１時５７分

Types of discs/files that can be played

Playable discs

Discs with the logo marks below indicated on the disc label, package or jacket can be played.

“Blu-ray Disc” and are trademarks.

is a trademark of DVD Format/Logo Licensing Corporation.

Disc type Logo

Application format

BDMV1

1. Including the AVCHD format.

BDAV DVD-Video DVD VR CD-DA

DTS-CD DATA-DISC2

2. Discs on which image or audio files are recorded.

BD3

3. Including dual-layered discs.

BD-ROM 

BD-R 4

4. Finalize (close) them before playing them on this player.



BD-RE 

DVD

DVD-ROM 

DVD-R3,4,5

5. DVD-R for Authoring discs (3.95 and 4.7 GB) cannot be played.



DVD-RW4,6

6. Version 1.0 DVD-RW discs cannot be played.



DVD+R3,4 

DVD+RW4

CD-DA

(Audio CD) 

CD-R4

CD-RW4

CD-ROM 

V6000_CUXJ_EN.book 8 ページ２００９年６月５日　金曜日　午前１１時５７分

Discs that cannot be played

• HD DVDs

•DVD Audio discs

•DVD-RAM discs

•SACDs

•Video CDs

•SVCDs

It is possible that some discs other than the ones listed

above may not be playable either.

Note

• Some discs cannot be played, even if one of the logo

marks on the previous page is indicated.

•To play 8 cm discs, set the disc in the 8 cm disc

depression in the center of the disc tray. No adapter

is necessary. 8 cm BD-ROMs cannot be played.

About playback of unauthorized

copies

Cinavia Notice

This product uses Cinavia technology to limit the use of

unauthorized copies of some commercially-produced

film and videos and their soundtracks. When a prohibited

use of an unauthorized copy is detected, a message will

be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at

the Cinavia Online Consumer Information Center at http:/

/www.cinavia.com. To request additional information

about Cinavia by mail, send a postcard with your mailing

address to: Cinavia Consumer Information Center, P.O.

Box 86851, San Diego, CA, 92138, USA.

Verance Corporation trademark. Protected by U.S. Patent

7,369,677 and worldwide patents issued and pending

About audio formats

The following audio formats are supported on this player:

•Dolby TrueHD

•Dolby Digital Plus

•Dolby Digital

•DTS-HD Master Audio

•DTS-HD High Resolution Audio

• DTS Digital Surround

•MPEG

• MPEG-2 AAC

•Linear PCM

To enjoy the surround sound of Dolby TrueHD, Dolby

Digital Plus, DTS-HD Master Audio and DTS-HD High

Resolution Audio, it is recommended to connect the

player to an AV receiver or amplifier compatible with

these audio formats using an HDMI cable. After loading

a BD containing sound in one of these audio formats,

select the audio format on the menu screen.

See About the audio output settings on page 52 for the

output conditions of the different formats.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under license under U.S. Patent #’s:

5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616;

6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 &

other U.S. and worldwide patents issued & pending. DTS is

a registered trademark and the DTS logos, Symbol, DTS-HD

and DTS-HD Master Audio | Essential are trademarks of

Playing BDs

• BDs (BDMV) compatible with the formats below can

be played.

–Blu-ray Disc Read-Only (ROM) Format Version 2

–Blu-ray Disc Recordable (R) Format Version 2

–Blu-ray Disc Rewritable (RE) Format Version 3

This player supports BD-ROM Profile 2.

BONUSVIEW functions such as playback of

secondary video (Picture-in-Picture) and secondary

audio can be used. The data used with the

BONUSVIEW functions (the secondary video

(Picture-in-Picture) and secondary audio data) may

be stored in the storage. For details on secondary

video and secondary audio playback, refer to the

disc’s instructions.

“BONUSVIEW” is trademark of Blu-ray Disc

Association.

BD-LIVE functions such as downloading movie

trailers or additional audio and subtitle languages

and playing on-line games can be enjoyed over the

Internet. The data downloaded with the BD-LIVE

function (trailers, etc.) is stored in the storage. Refer

to the disc’s instructions for details about BD-LIVE

functions.

“BD-LIVE” logo is trademark of Blu-ray Disc

Association.

V6000_CUXJ_EN.book 9 ページ２００９年６月５日　金曜日　午前１１時５７分

With BD-ROMs, it is possible to use BD-J (Java)

applications to create highly interactive titles, for

example including games.

Java and all Java-based trademarks and logos are

trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries.

The player’s internal storage has a maximum capacity

of roughly 1 GB. Use an external storage connected to

the USB port if you want to store large quantities of

data (page 21). If a message saying there is not

enough storage space appears, erase any

unnecessary data (page 49).

• BDs (BDAV) compatible with the formats below can

be played.

–Blu-ray Disc Recordable (R) Format Version 1

–Blu-ray Disc Rewritable (RE) Format Version 2

Playing DVDs

This label indicates playback compatibility with DVD-RW

discs recorded in VR format (Video Recording format).

However, for discs recorded with a record-only-once

encrypted program, playback can only be achieved using a

CPRM compatible device.

The AVCHD is a high definition (HD) digital video camera

recorder format recording high-definition onto certain

media by using highly efficient codec technologies.

“AVCHD” and the “AVCHD” logo are trademarks of

Panasonic Corporation and Sony Corporation.

About region numbers

Blu-ray Disc Player and BD-ROM or DVD-Video discs are

assigned region numbers according to the region in

which they are sold.

This player’s region numbers are:

•BD-ROM: A

•DVD-Video: 1

Discs not including these numbers cannot be played.

Discs playable on this player are as shown below.

• BDs: A (including A) and ALL

• DVDs: 1 (including 1) and ALL

Playing CDs

Regarding copy protected CDs: This player is designed to

conform to the specifications of the Audio CD format.

This player does not support the playback or function of

discs that do not conform to these specifications.

DualDisc playback

A DualDisc is a new two-sided disc, one side of which

contains DVD content — video, audio, etc. — while the

other side contains non-DVD content such as digital

audio material.

The DVD side of a DualDisc can be played on this player

(excluding any DVD-Audio content).

The non-DVD, audio side of the disc is not compatible

with this player.

It is possible that when loading or ejecting a DualDisc,

the opposite side to that being played will be scratched.

Scratched discs may not be playable.

For more detailed information on the DualDisc

specification, please refer to the disc manufacturer or

disc retailer.

Playing discs created on computers

or BD/DVD recorders

•It may not be possible to play discs recorded using a

computer due to the application settings or

computer’s environment settings. Record discs in a

format playable on this player. For details, contact the

dealer.

•It may not be possible to play discs recorded using a

computer or a BD/DVD recorder, if burn quality is not

good due to characteristics of the disc, scratches, dirt

on the disc, dirt on the recorder’s lens, etc.

Playable files

Image and audio files recorded on DVDs and CDs can be

played.

Caution

• In DVD, only the one recorded by the ISO 9660 file

system can be played.

• Some files may not be playable.

•For some files, it may not be possible to use certain

functions during playback.

• It may not be possible to play some files, even if they

have the extension of a file playable on this player.

•Files protected by DRM (Digital Rights Management)

cannot be played.

Supported image file formats

•JPEG

File format: JFIF Ver. 1.02/Exif Ver. 2.2

Resolution: Up to 4096 x 4096 pixels

Only baseline JPEG files are supported.

V6000_CUXJ_EN.book 10 ページ２００９年６月５日　金曜日　午前１１時５７分

Supported audio file formats

•Windows Media™ Audio 9 (WMA9)

Bit rate: Up to 192 kbps

Sampling frequencies: 22.05 kHz, 32 kHz, 44.1 kHz

and 48 kHz

Windows Media is either a registered trademark or

trademark of Microsoft Corporation in the United States

and/or other countries.

This product includes technology owned by Microsoft

Corporation and cannot be used or distributed without

a license from Microsoft Licensing, Inc.

•MPEG-1 Audio Layer 3 (MP3)

Bit rate: Up to 320 kbps

Sampling frequencies: 8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz and 48 kHz

Playable file extensions

•Image files

.jpg and .jpeg

•Audio files

.wma and .mp3

Part Names and

Functions

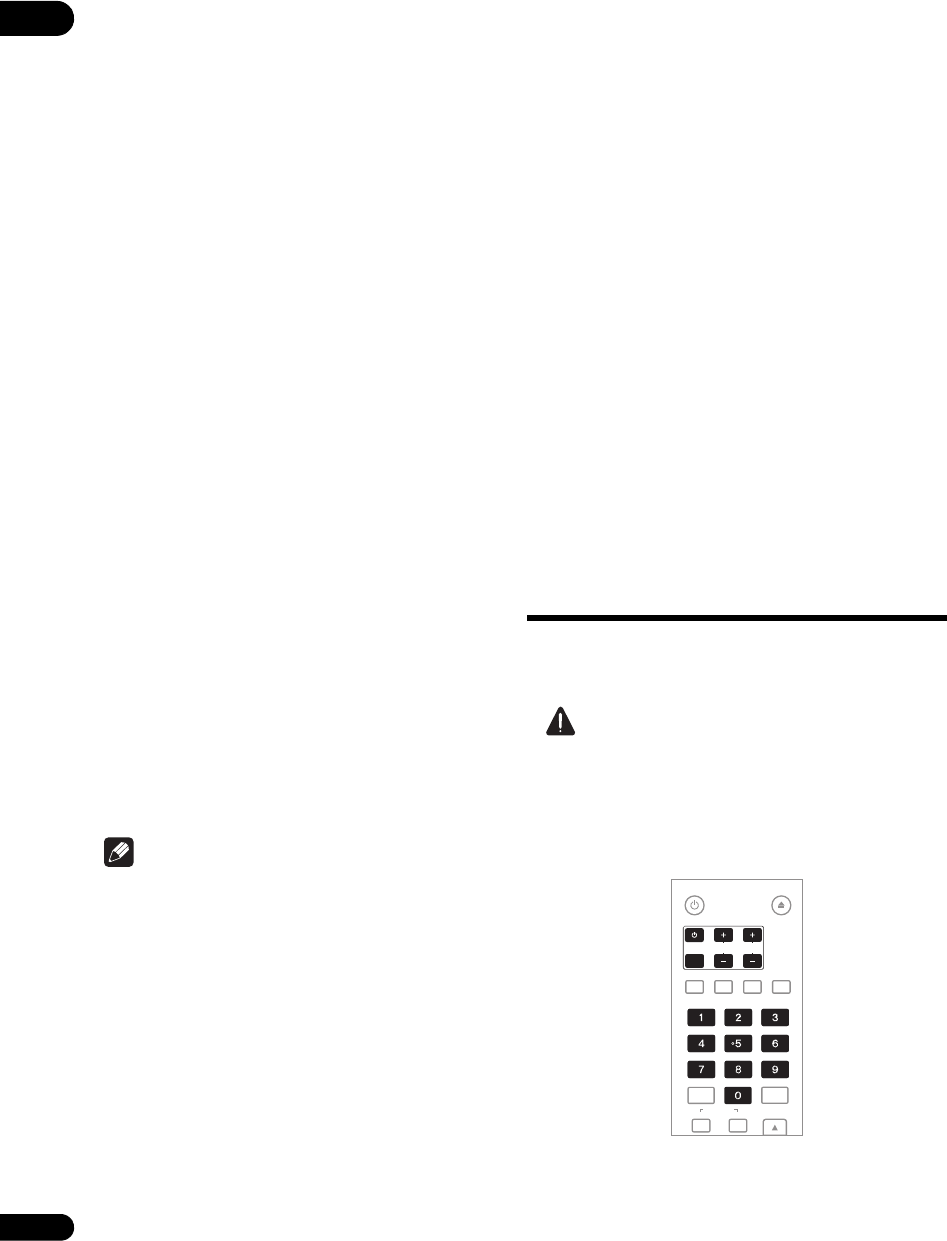

Remote Control

1STANDBY/ON – Press to turn the power on and

off.

2 TV CONTROL – (page 24)

3 AUDIO – (page 31)

4SUBTITLE – (page 30)

5 Number buttons – Use these to select and play the

title/chapter/track you want to view or listen to and to

select items from menus.

CLEAR – Press to clear the numeric number, etc.

ENTER – Press to execute the selected item or enter a

setting that has been changed, etc.

6 SECONDARY AUDIO – (page 31)

SECONDARY VIDEO – (page 31)

STANDBY/ON OPEN/CLOSE

AUDIO SUBTITLE ANGLE FL DIMMER

CLEAR ENTER

VIDEO SELECT PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

HOME

MENU RETURN

BD PLAYER

PLAY

PREV PAUSE STOP NEXT

RED GREEN BLUE YELLOW

VIDEO ADJUST

INPUT

SELECT

TV CONTROL

CH VOL

AUDIO VIDEO

SECONDARY OUTPUT

RESOLUTION

ENTER

V6000_CUXJ_EN.book 11 ページ２００９年６月５日　金曜日　午前１１時５７分

7 VIDEO SELECT – (page 26)

8 HOME MEDIA GALLERY – (page 36)

9TOP MENU – Press to display the top menu of the BD-

ROM or DVD-Video.

10 ///- – Use to select items, change settings

and move the cursor.

ENTER – Press to execute the selected item or enter a

setting that has been changed, etc.

11 HOME MENU – (page 42)

12 PLAY – (page 29)

PAUSE – (page 29)

STOP – (page 29)

PREV/NEXT – (page 30)

// – (page 30)

// – (page 30)

13 RED/GREEN/BLUE/YELLOW – Use these to navigate

BD-ROM menus.

14 VIDEO ADJUST – (page 39)

15  OPEN/CLOSE – Press to open and close the disc

tray.

16 FL DIMMER – When pressed, the brightness of the

player’s front panel display and the status of the

indicators on the player’s front panel changes.

17 ANGLE – (page 30)

18 OUTPUT RESOLUTION – (page 27)

19 PLAY MODE – (page 33)

20 POP UP MENU/MENU – Press to display the BD-

ROM or DVD-Video menus.

21 DISPLAY – (page 31)

22 TOOLS – (page 26)

23 RETURN – Press to return to the previous

screen.

Front Panel

1STANDBY/ON – Press to turn the power on and

off.

2 FL OFF indicator – Lights when the player’s front

panel display is turned off pressing FL DIMMER.

3/ – Press to skip to the beginning of the

previous title/chapter/track/file. Press and hold to

start reverse scanning (page 30).

/ – Press to skip to the beginning of the next

title/chapter/track/file. Press and hold to start forward

scanning (page 30).

 – Press during playback to pause. Press again to

restart playback.

 – Press to stop playback.

4 Remote control sensor – Point the remote control to

this, then operate it within approximately 23 feet

(7 m).

The player may have trouble capturing remote control

signals if there is a fluorescent light nearby. If this

happens, move the player away from the fluorescent

light.

5 Disc tray

6 Blu-ray indicator – Lights when the power is turned

on.

7 OPEN/CLOSE – Press to open and close the disc

tray.

8 Front panel display

9 HDMI indicator – (page 18)

10  – Press to start playback.

Front panel

display

Indicators

Blu-ray FL OFF HDMI1

1. This lights when an HDMI-compatible device is connected to an

HDMI OUT terminal (page 18).

Bright Bright Off Lit

Medium Bright Off Lit

DarkDarkOff Lit

Off Off Lit Off

542 7 86 93

V6000_CUXJ_EN.book 12 ページ２００９年６月５日　金曜日　午前１１時５７分

Front Panel Display

1 – (page 29)

2 – (page 29)

3HD – This lights when an HDMI cable is connected

and video signals are being output with a resolution of

1080/60i, 1080/60p, 720/60p, 1080/50i, 1080/50p, 720/

50p or 1080/24p. It also lights when a component

video cable is connected and video signals are being

output with a resolution of 1080/60i or 720/60p.

4LAN – (page 22)

5PQLS – (page 19)

6 Character display – Displays the title/chapter/track

number, elapsed time, etc.

7 24HZ/50HZ/60HZ – The frequency of the video frame

or field being output lights.

8EXT – (page 21)

9CONTROL – (page 19)

Rear Panel

1 AUDIO OUT (7.1 ch) terminals – (page 21)

2 VIDEO OUT terminals

VIDEO – (page 21)

COMPONENT VIDEO – (page 21)

3AC IN – (page 22)

4 CONTROL IN terminal – Use to control this player

from the remote sensor of another Pioneer

component with a CONTROL OUT terminal and

bearing the  mark. Connect the CONTROL OUT

terminal of the other component to CONTROL IN on

this player using a mini-plug cord (commercially

available).

Caution

•Be sure to connect cables for outputting the audio

and video signals.

• When connected via System Control, point the

remote control toward the connected component

(such as an AV receiver or amplifier). The remote will

not work correctly when pointed at this player.

• You cannot use System Control with components that

do not have a System Control terminal or with

components manufactured by companies other than

Pioneer.

5 DIGITAL OUT (OPTICAL) terminal – (page 21)

6 HDMI OUT terminal – (page 20)

7USB (BD STORAGE) port – (page 21)

8 LAN (100) terminal – (page 22)

9 RS-232C terminal – Serial control of the player is

possible when connected to a computer (page 58).

PQLS

LANHD

24HZ

50HZ

60HZ

CONTROL

EXT

6789

243

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

LAN (100)

HDMI OUT

DIGITAL

OUT

OPTICAL

AC IN

USB

(BD STORAGE)

RS-232C

LAN (100)

USB

(BD STORAGE)

HDMI OUT

RS-232C

DIGITAL

OUT

OPTICAL

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

AC IN

8 7 6 5

V6000_CUXJ_EN.book 13 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 2

Installation

Cautions on use

• Please note that Pioneer will accept no responsibility

whatsoever for loss of business opportunities or other

damages due to breakdown of the set.

• Please note that Pioneer will accept no responsibility

whatsoever for problems resulting from the use of the

set, regardless of the method of installation.

• Please note that Pioneer will accept no responsibility

whatsoever for loss of data resulting from use or

breakdown of the set, or for any direct or indirect

damages incurred thereby.

Cautions on Installation

Install and use the set in a level, stable place. Do not use

it on shaky, unstable surfaces or places subject to strong

vibrations.

The current will surge if the power to several units of the

set is turned on or off simultaneously from an external

device. For the value per unit, see Specifications on

page 75.

Caution

• When installing the set in an EIA rack, be sure to use

the included rack mount brackets. Using anything

else could cause damage to the set or injury. For

details on mounting, etc., see Installation Procedure

on page 16.

• When the included rack mount brackets are used, the

player can be mounted to universal pitch or wide

pitch racks conforming to EIA 19" standards.

Place of installation

Select a stable place near the TV and AV system to which

the unit is connected.

Do not place the player on top of a TV or color monitor.

Keep it away from cassette decks or other components

easily affected by magnetism.

Avoid the following types of places:

•Places exposed to direct sunlight or strong artificial light

• Places subject to vibration

•Places exposed to strong electromagnetic or

magnetic forces

• Places in which there is much electrical noise

• Places in which electrostatic noise tends to be

generated

•Humid or poorly ventilated places

•Closed racks

•Extremely hot or cold places

• Places in which there is much dust or cigarette

smoke

•Places exposed to soot, steam or heat (in kitchens, etc.)

Do not place objects on top

Do not place objects on top of the player.

Do not obstruct the ventilation

holes

Do not use the player on a shaggy rug, bed, or sofa, and

do not cover the player with a cloth, etc. Doing so will

prevent heat dissipation and could lead to damage.

Keep away from heat

Do not place the player on top of an amplifier or other

device generating heat. When installing in a rack, to avoid

the heat generated by the amplifier and other devices,

place it on a shelf below the amplifier whenever possible.

Caution

• When installing the player, leave a space of at least

10 cm between the player and the wall. Also, to

facilitate heat radiation, leave some space between

the player and other equipment. Failure to do so will

cause heat to build up inside the player, leading to

fire.

The player should be used within a surrounding

environmental temperature of +5 to +35 °C and humidity

of 85% or less (without obstructing the ventilation holes).

Do not install in poorly ventilated places, places where

the humidity is too high or in places exposed to direct

sunlight (or strong artificial light).

Rack mount bracket

Screws removed

from player

V6000_CUXJ_EN.book 14 ページ２００９年６月５日　金曜日　午前１１時５７分

Moving the player

If you need to move this unit, first remove the disc if

there’s one loaded, and close the disc tray. Next, press

STANDBY/ON to switch the power to standby,

checking that the POWER OFF indication on the front

panel display goes off. Wait at least 10 seconds. Lastly,

disconnect the power cord.

Never lift or move the unit during playback — discs rotate

at a high speed and may be damaged.

Transporting the set

When transporting the set, always use the box in which it

was originally packed, being sure not to drop it or subject

it to vibrations or shocks.

Do not let the set be exposed to heat or water during

transportation.

Be sure to remove any disc before transporting.

Transporting the set with a disc in it could scratch the

disk or damage the inside of the set. Also, disconnect

cables. Transporting with cables connected could

damage the terminals.

Turn the power off when not

using the player

Depending on the conditions of the TV broadcast signals,

striped patterns may appear on the screen when the TV is

turned on while the player’s power is turned on. This is not

a malfunction with the player or TV. If this happens, turn

the player’s power off. In the same way, noise may be

heard in the sound of a radio.

Condensation

If the player is moved suddenly from a cold place into a

warm room (in winter, for example) or if the temperature

in the room in which the player is installed rises suddenly

due to a heater, etc., water droplets (condensation) may

form inside (on operating parts and the lens). When

condensation is present, the player will not operate

properly and playback is not possible. Let the player stand

at room temperature for 1 or 2 hours with the power

turned on (the time depends on the extent of

condensation). The water droplets will dissipate and

playback will become possible.

Condensation can also occur in the summer if the player

is exposed to the direct wind from an air-conditioner. If

this happens, move the player to a different place.

Cleaning the player

Normally, wipe the player with a soft cloth. For tough dirt,

apply some neutral detergent diluted in 5 to 6 parts water

to a soft cloth, wring out thoroughly, wipe off the dirt, then

wipe again with a dry cloth.

Note that getting alcohol, thinner, benzene or insecticide

on the player could cause the print and coating to peel off.

Also, avoid leaving rubber or vinyl products in contact

with the player for long periods of time, as this could

damage the cabinet.

When using chemical-impregnated wipes, etc., read the

wipe’s cautions carefully.

Unplug the power cord from the power outlet when

cleaning the player.

Caution for when the unit is

installed in a rack with a glass

door

Do not press the OPEN/CLOSE on the remote control

to open the disc tray while the glass door is closed. The

door will hamper the movement of the disc tray, and the

unit could be damaged.

Cleaning the pickup lens

The player’s lens should not become dirty in normal use,

but if for some reason it should malfunction due to dust

or dirt, consult your nearest Pioneer authorized service

center. Although lens cleaners for players are

commercially available, we advise against using them

since some may damage the lens.

Handling discs

Do not use damaged (cracked or warped) discs.

Do not scratch the disc’s signal surface or let it get dirty.

Do not load more than one disc into the player at a time.

Do not glue paper or put stickers onto the disc, or use a

pencil, ball-point pen or other sharp-tipped writing

instrument. These could all damage the disc.

Storing discs

Always store discs in their cases, and place the cases

vertically, avoiding places exposed to high temperature or

humidity, direct sunlight or extremely low temperatures.

Be sure to read the cautions included with the disc.

Cleaning discs

It may not be possible to play the disc if there are

fingerprints or dust on it. In this case, using a cleaning

cloth, etc., to wipe the disc gently from the center toward

the outer edge. Do not use a dirty cleaning cloth.

Do not use benzene, thinner or other volatile chemicals.

Also do not use record spray or antistatic agents.

For tough dirt, apply some water to a soft cloth, wring out

thoroughly, wipe off the dirt, then wipe off the moisture

with a dry cloth.

V6000_CUXJ_EN.book 15 ページ２００９年６月５日　金曜日　午前１１時５７分

Specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.)

cannot be used on this player. Never use such discs, as

they will damage the player.

Condensation on discs

If the disc is moved suddenly from a cold place into a

warm room (in winter, for example), water droplets

(condensation) may form on the disc surface. Discs will

not play properly if there is condensation on them.

Carefully wipe off the water droplets from the disc surface

before using the disc.

Extended use of recording discs

Playing a specific section of a recording disc (BD-R/RE,

DVD-R/RW, etc.) continuously for extended periods of

time may reduce performance of the recorded surface

and make the disc unplayable. To avoid this, take

measures so that no single specific section is played for

extended periods of time, and replace the disc

periodically.

Installation Procedure

1 Disconnect all cords connected to the set

(including the power cord).

Before starting, check that there is no disc in the set.

2 Turn the set upside-down, and remove the

screws on the sides of the set.

Remove the 2 screws from each side.

Caution

• When mounting, be sure to place the set on a stable

surface, such as on a flat table, and raise the side of

the set on which you are mounting the rack mount

bracket by at least 10 mm.

Mounting the rack mount bracket without raising the

set at least 10 mm could damage the set.

• When mounting the rack mount bracket, be sure to

use the screws removed from the player. Using other

screws could damage the set or result in the set

falling.

3 Mount the rack mount brackets.

Mount the rack mount brackets to the screw holes in the

sides of the player using the screws removed from the

player in step 2 (two screws on each side).

•The rack mount brackets are different for the left (L)

and right (R) sides. Check the L and R marks on the

rack mount brackets and be sure to mount them on

the correct side.

• When mounting, first tighten the two screws removed

from the player to the extent that the rack mount

bracket moves when a gentle force is applied, check

that the rack mount bracket is properly attached, then

tighten the screws securely.

Screw holes

Rack mount bracket

Screws removed

from player

V6000_CUXJ_EN.book 16 ページ２００９年６月５日　金曜日　午前１１時５７分

4 Mount the underplate.

Insert the underplate between the left and right rack

mount brackets, then mount with the included gray

screw.

5 Mount the set on the rack.

Check that the screws fastened in step 3 are securely

tightened.

Caution

•The rack mount brackets included with the set allow

the set to be mounted on universal pitch or wide pitch

racks conforming to EIA 19” standards.

• Check that the rack has the appropriate strength for

the set’s weight and usage environment before

mounting.

•The * screws for fixing the rack mount brackets to the

rack are not included. Choose screws with the

appropriate strength and length for the set’s weight

and usage environment to mount the set on the rack.

To ensure that the set is fixed securely on the rack, be

sure to fasten it with screws in all 4 rack mount screw

holes.

• The mounting procedure should be performed by at

least two people.

• Be very careful not to get your fingers, etc., caught

between the rack mount brackets and the rack.

6 Check that the screws fastened in step 5 are

securely tightened.

Once this is checked, the procedure is finished.

•If there is any looseness in the screws * or the screws

removed from the player, vibrations generated by the

rotation of discs in the player or by other products

could cause noise or to lead the player falling off the

rack, resulting in injury or damage to the equipment.

Be sure to check that the screws are securely

fastened.

Caution

• Pay attention to the following when removing the set

from the rack and moving it:

–Be sure to remove any disc from the set.

–Turn the set’s power off, then disconnect

connected cables, etc.

–Be careful that the set does not fall when loosening

the screws fastening it to the rack (the procedure

should be performed by at least two people).

–After removing the set from the rack, be sure to

place it on a stable surface, such as on a flat table.

Underplate

Included gray screw

Set

Rack

(conforming to

EIA standards)

Rack mount

screw holes

* screws

Rack mount

bracket

V6000_CUXJ_EN.book 17 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 3

Connecting up

Be sure to turn off the power and unplug the power cord

from the power outlet whenever making or changing

connections.

After connecting, make the settings at the Setup

Navigator menu according to the type of cable

connected (page 23).

Also refer to the operating instructions of the device

being connected.

Connecting using an

HDMI cable

The audio and video signals can be transferred to HDMI-

compatible devices as digital signals with no loss of

sound or video quality.

Note

• Make the settings at the Setup Navigator menu

according to connected HDMI-compatible device

(page 23).

•The HDMI indicator on the player’s front panel lights

when an HDMI-compatible device is connected to an

HDMI OUT terminal (page 12).

• 1080p video signals may not be output, depending on

the HDMI cable being used.

About HDMI

This player incorporates High-Definition Multimedia

Interface (HDMI™) technology.

HDMI, the HDMI Logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing, LLC.

The player supports Deep Color.

The conventional players can transmit a video signal with

8 bit color depth in the YCbCr 4:4:4 or RGB formats, the

players supporting Deep Color can transmit a video

signal with a color bit depth of greater than 8 bits per

color component. Subtle color gradations can be

reproduced when connected to a TV that supports Deep

Color.

This product is compatible with “x.v.Color” that have the

capability to realize a wide-gamut color space based on

the xvYCC specifications.

Playing video signals conforming to “xvYCC” standards

on this player when connected to an “x.v.Color”-

compatible TV, etc., expands color reproduction

capabilities, allowing natural colors to be reproduced

more faithfully than ever.

“x.v.Color” is a promotion name given to the products that

have the capability to realize a wide-gamut color space

based on the international standard specifications

defined as xvYCC.

“x.v.Color” and

are trademarks of Sony

Corporation.

Audio signals that can be

transferred with the player’s HDMI

OUT terminal

•Dolby TrueHD

•Dolby Digital Plus

•Dolby Digital

•DTS-HD Master Audio

• DTS-HD High Resolution Audio

• DTS Digital Surround

• MPEG-2 AAC

•Linear PCM

Linear PCM audio signals meeting the following

conditions can be output:

–Sampling frequency: 32 kHz to 192 kHz

–Number of channels: Up to 8 (up to 6 for a 192 kHz

sampling frequency)

For details, see About the audio output settings on

page 52.

About the HDMI High Speed

Transmission

This player outputs 1080/60p, 1080/50p and Deep Color

video signals. If your TV supports 1080/60p, 1080/50p or

Deep Color signals, use a High Speed HDMI™ cable in

order to take advantage of the maximum performance the

player and TV can offer. Also set HDMI High Speed

Transmission to On (page 44).

High Speed HDMI™ cables are tested to carry signals up

to 1080p. 1080/60i, 1080/60p, 720/60p, 1080/24p, 1080/50i,

1080/50p and 720/50p video signals that are capable of

Deep Color can also be carried.

Note

•Set HDMI High Speed Transmission to Off when

using an HDMI cable other than a High Speed

HDMI™ cable (a Standard HDMI™ cable).

V6000_CUXJ_EN.book 18 ページ２００９年６月５日　金曜日　午前１１時５７分

• The following restrictions apply when HDMI High

Speed Transmission is set to Off:

–Deep Color signals are not output.

–If the output video resolution is set to Auto, the

signals are output with a resolution of 1080/60i or

1080/50i when TV’s preferred resolution is 1080/60p

or 1080/50p.

– When the output video resolution is set to 480i/576i

or 480p/576p, Dolby TrueHD and DTS-HD Master

Audio audio signals are output as Dolby Digital,

DTS Digital Surround or linear PCM signals. 96 kHz

or 192 kHz multi-channel audio signals are output

as linear PCM 2-channel audio signals (page 52).

• When an HDMI cable with a built-in equalizer is

connected, it may not operate properly.

When connected to a DVI device

• It is not possible to connect DVI devices

(computer displays, for example) that are not

compatible with HDCP. HDCP is a specification to

protect audiovisual content across the DVI/HDMI

interface.

• No audio signals are output. Connect using an audio

cable, etc.

•This player is designed for connection with HDMI-

compatible devices. When connected to a DVI device,

it may not operate properly depending on the DVI

device.

About KURO LINK function

The functions listed below work when a Pioneer KURO

LINK-compatible Flat Panel TV or AV system (AV receiver

or amplifier, etc.) is connected to the player using an

HDMI cable.

Functions operated from the TV

Such player operations as starting and stopping playback

and displaying the menus can be performed from the Flat

Panel TV.

Auto-select function

The input switches automatically on the Flat Panel TV and

AV system (AV receiver or amplifier, etc.) when playback

is started on the player or the Home Menu or Home Media

Gallery is displayed. When the input is switched, the

playback picture, the Home Menu or Home Media Gallery

appears on the Flat Panel TV.

Simultaneous power function

When playback on the player is started or the Home Menu

or Home Media Gallery is displayed, if the Flat Panel TV’s

power was off, its power turns on automatically. When the

Flat Panel TV’s power is turned off, the player’s power

automatically turns off.

Unified language function

When the language information from a connected Flat

Panel TV is received, you can have the player’s on-screen

display language change automatically to that of the Flat

Panel TV. This function is available only when playback is

stopped and the menu screen is not displayed.

Caution

•Also refer to the operating instructions of the Flat

Panel TV and AV system (AV receiver or amplifier,

etc.).

Note

•CONTROL on the player’s front panel display lights

when the KURO LINK function is activated (page 13).

To use the KURO LINK function

• The KURO LINK function only works when outputting

video signals from the HDMI OUT terminal.

• The KURO LINK function works when KURO LINK is

set to On on the player (page 44).

• The KURO LINK function operates when KURO LINK

is set to On for all devices connected with HDMI

cables. Once connections and the settings of all the

devices are finished, be sure to check that the player’s

picture is output to the Flat Panel TV. (Also check after

changing the connected devices and reconnecting

HDMI cables.) The KURO LINK function may not

operate properly if the player’s picture is not properly

output to the Flat Panel TV.

•Use High Speed HDMI™ cables when using the

KURO LINK function. The KURO LINK function may

not operate properly if other HDMI cables are used.

•F

or some models, the KURO LINK function may be

referred to as “HDMI Control”.

•The Simultaneous power function is activated when

the player is set as follows (page 44):

Display Power On: On

Display Power Off: On

About PQLS function

The PQLS (Precision Quartz Lock System) is a transfer

control technology using the KURO LINK function. The

player’s output signals are controlled from the AV

receiver or amplifier to achieve high quality sound

playback using the quartz oscillator of AV receiver or

amplifier. This eliminates the influence of the jitter

generated upon transfer which can adversely affect the

sound quality.

•The player supports the “PQLS 2ch Audio” function

that is only activated when playing audio CDs (CD-

DAs), and the “PQLS Multi Surround” function that is

activated when playing all discs (BDs, DVDs, etc.)

with audio output in linear PCM.

• The “PQLS 2ch Audio” function is only activated when

a Pioneer AV receiver or amplifier compatible with the

“PQLS 2ch Audio” function is connected directly to

the player’s HDMI OUT terminal using an HDMI

cable, and when the player is set as follows (page 44):

KURO LINK: On

PQLS: Auto

• The “PQLS Multi Surround” function is only activated

when a Pioneer AV receiver or amplifier compatible

with the “PQLS Multi Surround” function is

connected directly to the player’s HDMI OUT

V6000_CUXJ_EN.book 19 ページ２００９年６月５日　金曜日　午前１１時５７分

terminal using an HDMI cable, and when the player is

set as follows (page 44):

HDMI Audio Out: PCM

KURO LINK: On

PQLS: Auto

•Also refer to the operating instructions of AV receiver

or amplifier.

• Please see the Pioneer website for AV receivers or

amplifiers that support the PQLS function.

Caution

•If the output video resolution is switched, the PQLS

function may not work. The function will work again

once playback has been stopped then restarted.

Note

•PQLS on the player’s front panel display lights when

the PQLS function is activated (page 13).

About connections to components

of other makes supporting the KURO

LINK function

The functions listed below work when a TV or AV system

(AV receiver or amplifier, etc.) supporting the player’s

KURO LINK function is connected to the player using an

HDMI cable. (Depending on your TV or AV system (AV

receiver or amplifier, etc.), it could happen that not all of

the functions will work.)

• Functions operated from the TV

• Auto-select function

• Simultaneous power function

• Unified language function

Please see the Pioneer website for the latest information

on brands and model numbers of other brands that

support the KURO LINK function.

Connecting a TV

See Connecting an AV receiver or amplifier below to

connect an AV receiver or amplifier using an HDMI cable.

Caution

•Hold the plug when connecting and disconnecting

the cable.

•Placing a load on the plug could result in faulty

contact and no video signals being output.

Connecting an AV receiver or

amplifier

Connect to an AV receiver or amplifier in order to enjoy

the surround sound of Dolby TrueHD, Dolby Digital Plus,

Dolby Digital, DTS-HD Master Audio, DTS-HD High

Resolution Audio or DTS Digital Surround. For

instructions on connecting the TV and speakers to the AV

receiver or amplifier, refer to the operating instructions of

AV receiver or amplifier.

Caution

•Hold the plug when connecting and disconnecting

the cable.

•Placing a load on the plug could result in faulty

contact and no video signals being output.

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

LAN (100)

HDMI OUT

DIGITAL

OUT

OPTICAL

USB

(BD STORAGE)

RS-232C

LAN (100)

USB

(BD STORAGE)

HDMI OUT

RS-232C

DIGITAL

OUT

OPTICAL

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

Player’s rear panel

Match the direction of

the plug to the terminal

and insert straight.

To HDMI

input terminal

HDMI cable

(commercially

available)

It is also possible to connect to an

AV receiver or amplifier using an

HDMI cable (below).

Direction of signal flow

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

LAN (100)

HDMI OUT

DIGITAL

OUT

OPTICAL

USB

(BD STORAGE)

RS-232C

LAN (100)

USB

(BD STORAGE)

HDMI OUT

RS-232C

DIGITAL

OUT

OPTICAL

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

Player’s rear panel

To HDMI

input terminal

From HDMI

output

terminal

AV receiver

or amplifier

To HDMI input

terminal TV

HDMI cable

(commercially

available)

Match the direction

of the plug to the

terminal and insert

straight.

Direction of signal flow

HDMI cable

(commercially

available)

V6000_CUXJ_EN.book 20 ページ２００９年６月５日　金曜日　午前１１時５７分

Connecting video and

audio cables

Note

• Make the settings in the Setup Navigator menu

according to the type of cable connected (page 23).

•To output video signals from this player, connect

using one of the following (not including when

connected using an HDMI cable): a component video

cable or a video cable.

Connecting a TV using a

video/audio cable

Caution

•Connect the player’s video output directly to

your TV.

This player supports analog copy protection

technology. Therefore the picture may not be

displayed properly if connected to a TV via a DVD

recorder/video deck or when playing the player’s

output material that is recorded by a DVD recorder/

video deck. Furthermore, the picture may not be

displayed properly due to the copy protection when

the player is connected to a TV with a built-in video

deck. For details, contact the manufacturer of your

TV.

Note

•V

eo signals are output with a resolution of 480/60i

or 576/50i when connected using a video cable.

• When connected to the TV using a component video

cable, video signals are not output with a resolution of

1080/60p, 1080/24p 1080/50i, 1080/50p or 720/50p.

•Depending on the output video resolution setting, the

picture may not be output (page 27).

Connecting an AV receiver or

amplifier using audio cables

When connecting to a 7.1-channel compatible AV

receiver or amplifier – Connect using 4 audio cables

(diagram below).

When connecting to a 5.1-channel compatible AV

receiver or amplifier – Connect using 3 audio cables (do

not connect to the surround back left and right

terminals).

• To switch the video from the AV receiver or amplifier,

also connect the video output terminals.

•After connecting, set Audio Output Mode to Multi-

channel (page 43).

Note

• To connect to the 2-channel audio input terminals on

a TV, etc., connect to FRONT (L/R).

Connecting components

to the USB port

The data downloaded with the BD-LIVE function and the

data used with the BONUSVIEW function when playing

BD-ROMs can be stored on a device connected to the

USB port (external storage).

About USB (external storage)

devices

The USB (external storage) devices that can be

connected to the player are as shown below.

•USB 2.0-compatible memory devices or hard disks

• FAT16 or FAT32 file system, minimum 1 GB capacity

(2 GB or more recommended)

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

Player’s rear panel

To component

video input terminals

A component

cable or three

commercially

available video

cables can be

used instead of

the video cable

(yellow plug) of

the included

video/audio cable

for connection.

Direction of signal flow

Red

White

It is also possible to connect to

an AV receiver or amplifier.

Connect the audio signals

using audio cables (7.1

channels) or an optical digital

audio cable (below).

To video/audio

input terminals

Video/audio cable (included)

Yellow

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

DIGITAL

OUT

OPTICAL

DIGITAL

OUT

OPTICAL

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

Player’s rear panel

To multi-channel audio

input terminals

AV receiver or

amplifier

Video/audio

cable (included)

Red

White

Audio cable

(commercially

available)

Direction of signal flow

An optical digital audio

cable (commercially

available) can also be

used for connection.

To optical digital

audio input

terminal

Audio cable

(commercially

available)

Audio cable

(commercially

available)

V6000_CUXJ_EN.book 21 ページ２００９年６月５日　金曜日　午前１１時５７分

Note

• Devices formatted with a file system other than the

above cannot be used. Such devices may however be

usable if they are formatted from the player.

•External storage devices may not be recognized if

they contain multiple partitions.

• Some external storage devices may not operate with

this player.

•Operation of external storage devices (USB memory

devices, external hard disks, etc.) is not guaranteed.

Connecting the USB

(external storage) device

Caution

•Be sure to turn the player’s power off before

connecting or disconnecting external storage

devices.

•Use empty external storage devices (on which

nothing is stored).

• When using an external hard disk as the external

storage device, be sure to turn on the hard disk’s

power before turning on the player’s power.

•If the external storage device is write-protected, be

sure to disable the write-protection.

• When connecting the USB cable, hold onto the plug,

set the plug in the proper direction for the port and

insert it horizontally.

• Placing excessive loads on the plug may result in

poor contact, making it impossible to write data on

the external storage device.

•The player is equipped with an internal storage. This

internal storage cannot be used when an external

storage device is connected.

•When a USB memory device or external hard disk is

connected and the player’s power is turned on, do not

unplug the power cord.

Note

•The EXT indicator on the player’s front panel display

lights when data can be stored on the external

storage (page 13).

• Devices may not work if connected to the USB port via

a memory card reader or USB hub.

• Use a USB cable with a length of 2 meters or less.

Network connection

BD-LIVE functions such as downloading movie trailers or

additional audio and subtitle languages and playing

on-line games can be enjoyed over the Internet. The

player’s software can also be updated over the Internet

(page 51). Connect an Ethernet hub (or a router with hub

functionality) that is connected to the Internet to the player.

Be sure to use a 100BASE-TX compatible Ethernet hub or

router.

Connecting via an Ethernet hub

The player can be connected to an Ethernet hub using a

LAN cable.

Note

•LAN on the player’s front panel display lights when

there is an active local area network (LAN) connection

(page 13).

•If there is an available DHCP server in your local area

network, the IP address is obtained automatically.

Otherwise, set IP address manually (page 48).

•For some Internet service providers, you may have to

set the individual network configuration manually. In

this case, see page 48.

•Pioneer is not responsible for any malfunction of the

player due to communication error/malfunctions

associated with your network connection and/or your

connected equipment. Please contact your Internet

service provider or network device manufacturer.

Connecting the power

cord

Connect the power cord after all the connections between

devices have been completed.

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

LAN (100)

HDMI OUT

DIGITAL

OUT

OPTICAL

USB

(BD STORAGE)

RS-232C

LAN (100)

USB

(BD STORAGE)

HDMI OUT

RS-232C

DIGITAL

OUT

OPTICAL

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURROUND

BACK

COMPONENT VIDEO

CENTER

SUB WOOFER

USB memory

device, etc.

USB cable

(commercially

available) Hard disk, etc.

Player’s rear panel

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURR

COMPONENT VIDEO

CENTER

SUB W

LAN (100)

HDMI OUT

DIGITAL

OUT

OPTICAL

USB

(BD STORAGE)

RS-232C

LAN (100)

USB

(BD STORAGE)

HDMI OUT

RS-232C

DIGITAL

OUT

OPTICAL

AUDIO OUT(7.1 ch)

CONTROL

VIDEO

OUT

VIDEO

FRONT SURROUND SURR

COMPONENT VIDEO

CENTER

SUB W

LAN

23 WAN

LAN cable

(commercially

available)

Ethernet hub

(router with hub

functionality)

Modem Internet

Player’s rear panel

OUT(7.1 ch)

SURROUND SURROUND

BACK

CENTER

SUB WOOFER

AC IN

OUT(7.1 ch)

SURROUND SURROUND

BACK

CENTER

SUB WOOFER

AC IN

Player’s rear panel

Power cord (included) To wall outlet

V6000_CUXJ_EN.book 22 ページ２００９年６月５日　金曜日　午前１１時５７分

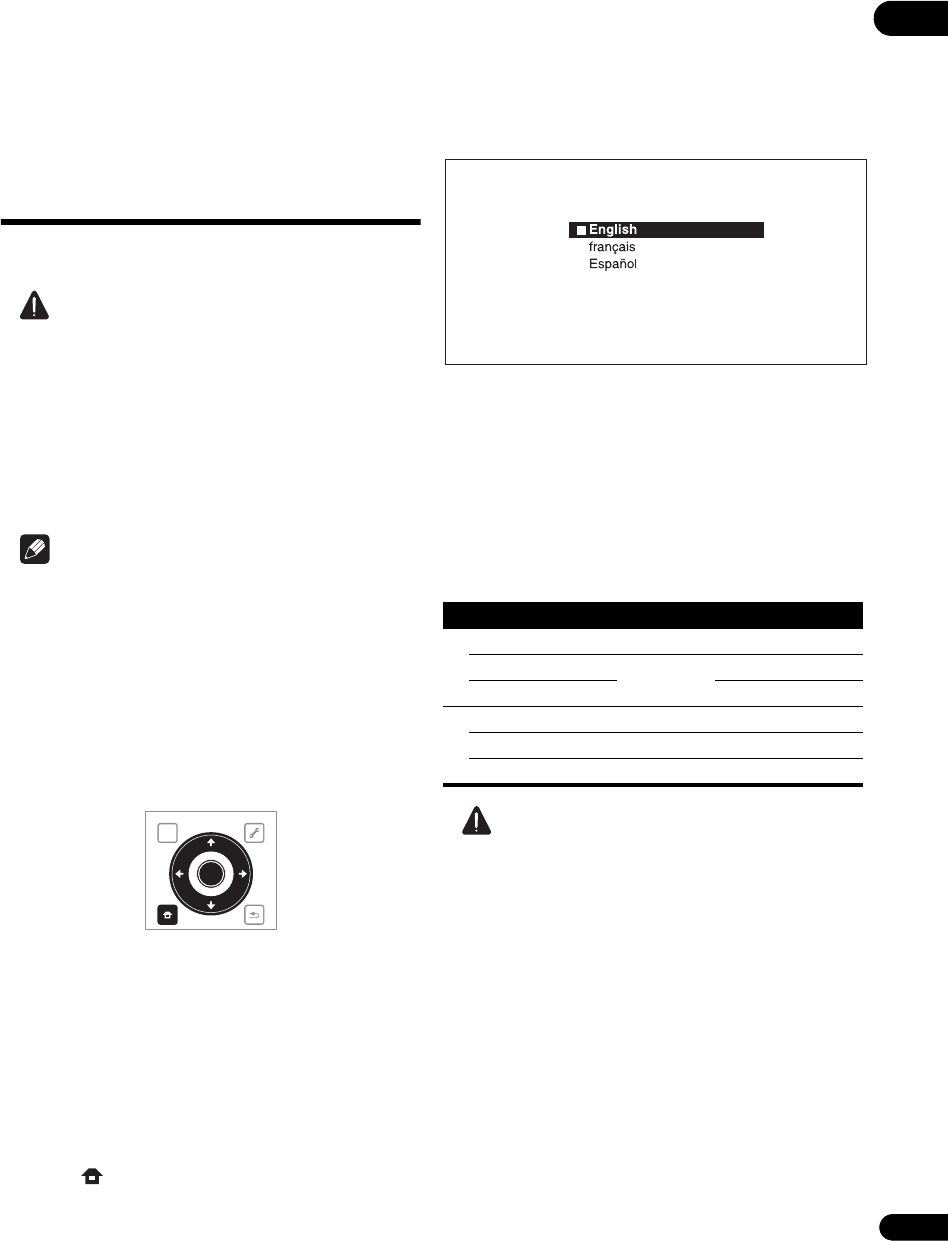

Chapter 4

Getting Started

Making settings using

the Setup Navigator

Be sure to perform these settings when using the player

for the first time.

Caution

•Before turning on the power, check that the

connections between the player and other devices are

correct. Also, turn on the power of the devices

connected to the player before turning on the player’s

power.

•The screen in step 11 and test tones are output

simultaneously according to the settings in steps 4 to

7. Lower the volume of the devices connected with the

player.

Note

•By factory default, the KURO LINK function is not

activated. To activate the KURO LINK function using

Setup Navigator, KURO LINK is set to On on the

player (page 44), and if a Pioneer KURO LINK-

compatible Flat Panel TV is connected, turn on the

TV's KURO LINK function.

•When a Pioneer Flat Panel TV or front projector

compatible with the KURO LINK function is

connected to the player using an HDMI cable, the

player is automatically set to the optimum picture

quality for the connected device.

1 Turn on the TV’s power and switch the input.

See the TV’s operating instructions for instructions on

operating the TV.

2 Turn on the player’s power.

Press STANDBY/ON.

Check that the Setup Navigator menu is displayed.

If the Setup Navigator menu is not

displayed

Press HOME MENU to display the Home

Menu, select Initial Setup  Setup Navigator 

Start, then press ENTER.

3 Select the OSD language.

Use / to select, then press ENTER.

When a Pioneer Flat Panel TV that is compatible with

KURO LINK is connected to this player’s HDMI OUT

terminal, language settings are imported from the

Pioneer Flat Panel TV’s language settings before Setup

Navigator begins.

4 Select and set the video and audio output

terminals.

Select the actually connected video and audio output

terminals.

Use ///- to select, then press ENTER.

Caution

• When HDMI is selected for Video, no video signals

are output from the COMPONENT VIDEO or VIDEO

output terminals.

• When COMPONENT VIDEO or VIDEO is selected at

Video, no video signals are output from the HDMI

OUT terminal.

• The video and audio signals output from the set

output terminals are output synchronously (lip

synchronization).

• When COMPONENT VIDEO or VIDEO is selected at

Video, no sound is output if HDMI is selected at

Audio.

Follow the procedure below to redo the connections,

then select the proper connection at the setup

screen.

TOP MENU TOOLS

HOME

MENU RETURN

ENTER

Setting item Output terminal name

Video

HDMI HDMI OUT

COMPONENT VIDEO VIDEO OUT COMPONENT VIDEO

VIDEO VIDEO

Audio

HDMI HDMI OUT

DIGITAL AUDIO DIGITAL OUT

ANALOG AUDIO AUDIO OUT

Setup Navigator

BD PLAYER

Please select the on-screen display language.

Audio, subtitle and BDMV/DVD-Video menu

language will also be set.

V6000_CUXJ_EN.book 23 ページ２００９年６月５日　金曜日　午前１１時５７分

– When connecting using component video cables

or a video cable to watch the picture, connect to an

AV receiver or amplifier, or a TV using either analog

audio cables (7.1 channels or 2 channels), an

optical digital audio cable (page 21).

– To listen to audio with the player connected to an

AV receiver or amplifier with an HDMI cable,

connect the TV to the AV receiver or amplifier using

an HDMI cable (page 20).

•When HDMI or DIGITAL AUDIO is selected at Audio,

linear PCM audio signals (2 channels) are output

from all terminals other than the ones selected at

Audio.

•When ANALOG AUDIO is selected at Audio, no

audio signals are output from the HDMI OUT or

DIGITAL OUT terminals.

For steps 5 to 8, the step to which you should

proceed depends on the combination of the Video

and Audio settings.

5 Select and set the HDMI High Speed Transmission

setting for the HDMI OUT terminal.

Use /- to select, then press ENTER.

When HDMI High Speed Transmission for the HDMI

OUT terminal is set to On, use a High Speed HDMI™

cable. The picture and sound may not be output properly

if any other HDMI cable (for example a standard HDMI™

cable) or an HDMI cable with built-in equalizer is used.

6 Select the output video resolution from the

COMPONENT VIDEO output terminals.

Use / to select, then press ENTER.

For details on the resolution settings, see Switching the

output video resolution on page 27.

7 Select the aspect ratio of your TV.

Use / to select, then press ENTER.

8 Select the PQLS.

Use / to select, then press ENTER.

Note

• Only when a Pioneer AV receiver or amplifier is

connected , PQLS Screen appears.

• The PQLS function works when linear PCM audio

signals are output. Therefore the linear PCM audio

signals obtained by decoding all audio signals are

output from HDMI OUT terminal. For details, see

About the audio output settings on page 52.

•When Use is select, the player is set to the settings

below.

HDMI Audio Out: PCM

KURO LINK: On

PQLS: Auto

•For details on the PQLS function, About PQLS function

on page 19.

9 Check the settings.

Select Proceed, then press ENTER.

10 Output test tones.

Use /- to select Yes, then press ENTER.

11 Finish the Setup Navigator menu.

Use /- to select Finish, then press ENTER.

To redo the settings from the start, select Go Back.

Depending on the output terminal setting of step 4 or the

HDMI cable being used, it may happen that no picture

and/or sound is output. If this happens, the setup returns

to step 4 if there is no operation for over 30 seconds. Once

the setup returns to step 4, redo the settings according to

the connected devices and the HDMI cable being used.

12 Checking the picture quality settings or setting

the picture quality.

If a Pioneer Flat Panel TV or projector is connected to the

player and HDMI is selected for Video in step 4, the

player sets the picture quality automatically. The

automatic picture quality setting screen appears. Press

ENTER.

When the automatic picture quality setting screen does

not appear, the manual picture quality setting screen

appears. Use / to select the connected component,

then press ENTER.

Operating the TV with

the player’s remote

control

When the manufacturer code for your brand of TV is set

on the player’s remote control, the TV can be operated

using the player’s remote control.

Caution

•For some models it may not be possible to operate the

TV with the player’s remote control, even for TVs of

brands listed on the manufacturer code list.

• The settings may be restored to the factory defaults

when batteries are replaced. If this happens, set up

the settings again.

1 Input the 2-digit manufacturer code.

Press the number buttons (0 to 9) to input the code while

pressing TV CONTROL .

TV CONTROL

STANDBY/ON OPEN/CLOSE

AUDIO SUBTITLE ANGLE FL DIMMER

ENTER

INPUT

SELECT

CH VOL

AUDIO VIDEO

OUTPUT

RESOLUTION

CLEAR

V6000_CUXJ_EN.book 24 ページ２００９年６月５日　金曜日　午前１１時５７分

Note

•The factory setting is 00 (PIONEER).

• If you make a mistake when inputting the code,

release TV CONTROL  then start over from the

beginning.

•When there are multiple codes for a manufacturer, try

inputting them in the indicated order until the TV can

be operated.

2 Check that the TV can be operated.

Operate the TV using TV CONTROL.

 – Press to turn the TV’s power on and off.

INPUT SELECT – Press to switch the TV’s input.

CH +/– – Press to select the TV channel.

VOL +/– – Press to adjust the volume.

TV Preset code list

Manufacturer Code(s)

PIONEER 00, 31, 32, 07, 36, 42, 51,

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07, 39, 41, 44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07, 36

BASIC LINE 41, 44

BAUR 31, 07, 42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH 07, 41, 42, 44, 47, 56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38, 44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07, 44, 56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07, 48

DIXI 07, 44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

EMERSON 42

ERRES 07

FERGUSON 07, 36, 51

FINLANDIA 35, 43, 54

FINLUX 32, 07, 45, 48, 53, 54

FIRSTLINE 40, 44

FISHER 32, 35, 38, 45

FORMENTI 32, 07, 42

FRONTECH 31, 42, 46

FRONTECH/PROTECH 32

FUJITSU 48

FUNAI 40, 46, 58

GBC 32, 42

GE 00, 01, 08, 07, 10, 11, 17, 02,

28, 18

GEC 07, 34, 48

GELOSO 32, 44

GENERAL 29

GENEXXA 31, 41

GOLDSTAR 10, 23, 21, 02, 07, 50

GOODMANS 07, 39, 47, 48, 56

GORENJE 38

GPM 41

GRAETZ 31, 42

GRANADA 07, 35, 42, 43, 48

GRADIENTE 30, 57

GRANDIN 18

GRUNDIG 31, 53

HANSEATIC 07, 42

HCM 18, 44

HINARI 07, 41, 44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54,

06, 10, 24, 25, 18

HUANYU 56

HYPSON 07, 18, 46

ICE 46, 47

IMPERIAL 38, 42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13, 23

KAISUI 18, 41, 44

KAPSCH 31

KENDO 42

KENNEDY 32, 42

KORPEL 07

KOYODA 44

LEYCO 07, 40, 46, 48

LIESENK&TTER 07

LOEWE 07

LUXOR 32, 42, 43

M-ELECTRONIC 31, 44, 45, 54, 56,

07, 36, 51

MAGNADYNE 32, 49

MAGNAFON 49

MAGNAVOX 07, 10, 03, 12, 29

MANESTH 39, 46

MARANTZ 07

MARK 07

MATSUI 07, 39, 40, 42, 44, 47, 48

MCMICHAEL 34

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31, 53

MITSUBISHI 09, 10, 02, 21, 31

MULTITECH 44, 49

NEC 59

NECKERMANN 31, 07

NEI 07, 42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32, 42, 52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32, 07, 39, 40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31, 07, 08, 42, 22

PATHO CINEMA 42

PAUSA 44

PHILCO 32, 42

PHILIPS 31, 07, 34, 56, 68

PHOENIX 32

PHONOLA 07

PROFEX 42, 44

PROTECH 07, 42, 44, 46, 49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10, 23, 21, 02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62,

REDIFFUSION 32, 42

REX 31, 46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39, 44, 46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07, 38, 44, 46, 69, 70

SANYO 35, 45, 48, 21, 14, 91

SBR 07, 34

SCHAUB LORENZ 42

SCHNEIDER 07, 41, 47

SEG 42, 46

SEI 32, 40, 49

SELECO 31, 42

SHARP 02, 19, 27, 67, 90

SIAREM 32, 49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07, 44

SONOLOR 31, 35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31, 41, 48

TASHIKO 34

TATUNG 07, 48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36, 51, 52, 63

THORN 31, 07, 42, 45, 48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32, 42, 49

UNIDEN 92

UNIVERSUM 31, 07, 38, 42, 45,

46, 54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32, 42, 49

WHITE WESTINGHOUSE 07

YOKO 07, 42, 46

ZENITH 03, 20

V6000_CUXJ_EN.book 25 ページ２００９年６月５日　金曜日　午前１１時５７分

Using the TOOLS menu

Various functions can be called out according to the

player’s operating status.

1 Display the TOOLS menu.

Press TOOLS.

2 Select and set the item.

Use / to select, then press ENTER.

Note

• Items that cannot be changed are displayed in gray.

The items that can be selected depend on the player’s

status.

To change the setting of the

selected item

Use /- to change.

To close the TOOLS menu

Press TOOLS or RETURN.

TOOLS menu item list

Switching the video

output terminal to be

viewed

Use the procedure below to switch the video output signal

to be viewed between the

HDMI OUT

terminal and an

analog output terminal (

COMPONENT VIDEO

VIDEO

output terminals).

Caution

•The picture may not be displayed for a while when the

video output terminal is switched.

• When the HDMI OUT terminal is selected, no video

signals are output from the other video output

terminals.

• When a video output terminal other than the HDMI

OUT terminal is selected, no audio and video signals

are output from the HDMI OUT terminal.

Press VIDEO SELECT.

•The current video output terminal is displayed on the

TV screen and on the player’s front panel display.

To switch the video output terminals, press VIDEO

SELECT again or press /.

•The video output terminal setting can also be

switched by pressing  / on the

player’s front panel.

Item Description

Play from Beginning Play the selected title, track or file from

the start.

Slideshow Play a slideshow of the image files on the

selected disc or folder.

Play Mode Display the Play Mode screen (page 33).

Video Adjust Display the picture quality adjustment

screen (page 39).

Secondary Video Switch the BD-ROM’s secondary video

(Picture-in-Picture) (page 31).

Subtitle Switch the subtitles (page 30).

Angle Switch the BD-ROM/DVD-Video disc’s

camera angles (page 30).

Rotate Rotate the image while playing a

slideshow (page 37).

Audio Adjust Display the audio adjustment menu

(page 40).

Audio Switch the audio (page 31).

Secondary Audio Switch the BD-ROM’s secondary audio

(page 31).

TOP MENU TOOLS

HOME

MENU RETURN

ENTER

Angle

Audio

Subtitle

Audio Adjust

Video Adjust

BD PLAYER

TOOLS

Now Playing Display the playback screen of the

currently playing track or file.

Original/Play List Switch the DVD-R/-RW’s (VR format) list

screen between the original list and the

playlist.

Add to HMG Playlist Add the selected track or file to the HMG

Playlist (page 37).

Delete from HMG

Playlist

Delete the selected track or file from the

HMG Playlist (page 38).

Output Video

Resolution

Switch the output video resolution from

the various output terminals (page 27).

Delete all playlists Clears all the titles/chapters from the

playlist.

Item Description

VIDEO SELECT PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

AUDIO VIDEO

SECONDARY

UTPUT

RESOLUTION

HDMI (Source Direct)





Video Output Terminal

Output video resolution setting of

selected video output terminal

Example:

V6000_CUXJ_EN.book 26 ページ２００９年６月５日　金曜日　午前１１時５７分

Switching the output

video resolution

Use the procedure below to switch the output video

resolution from the various video output terminals.

Caution

• On some devices (TV, AV receiver or amplifier, etc.),

the video or audio may not be output properly when

the resolution is switched. If this happens, use

OUTPUT RESOLUTION to set a resolution at which

the video and audio are properly output.

•When video signals are being output with a resolution

of 1080/60i, 1080/60p, 720/60p, 1080/24p, 1080/50i,

1080/50p or 720/50p from the HDMI OUT terminal or

COMPONENT VIDEO output terminals, the picture

may be output with an aspect ratio of 16:9, even if the

TV Aspect Ratio is set to 4:3 (Standard).

•The picture may not be displayed for a while when the

resolution is switched.

Press OUTPUT RESOLUTION.

•The current output video resolution setting is

displayed on the TV screen and on the player’s front

panel display.

To switch the output video resolution, press OUTPUT

RESOLUTION again or press /.

•The output video resolution depends on the video

output terminal (page 28).

•The output video resolution setting can also be

switched by selecting Output Video Resolution

from the TOOLS menu.

About the frame/field frequency

and NTSC/PAL TV systems

By factory default setting, the frame/field frequency is set

for an output of 60 Hz, and the TV system format for the

video signal output from the VIDEO output terminals

depends on the NTSC on PAL TV setting. When sources

with a frame/field frequency of 50 Hz are played, the

output frame/field frequency automatically switches to

50 Hz, and the video signal output from the VIDEO output

terminals is set to be output in the PAL TV system format.

When playback is stopped, the frame/field frequency and

TV system settings remain at the settings last used. The

frame/field frequency and TV system settings do not

change even when the power is turned off. They only

switch when a video material with a different frame/field

frequency is played.

If the picture is not displayed on the TV when a source

with a different frame/field frequency is played, use the

procedure below to switch the frame/field frequency and

TV system settings for the signal output from the player.

Eject the disc, then press the  OPEN/CLOSE button on

the front panel while pressing the  button to switch to a

different frame/field frequency. The frame/field frequency

switches between 50 Hz and 60 Hz each time this

operation is performed. The indicator for the frame

frequency’s current setting lights on the front panel

display (page 13).

About Film material

The film material is a video signal with a frame rate of 24

frames/second. For example, these materials include

1080/24p, 720/24p, etc.

To output film material

To output 1080/24p film material from HDMI OUT

terminal, set the output video resolution to either Auto or

Source Direct.

Caution

• 1080/24p signals can only be output from the HDMI

OUT terminal. They cannot be output from other

video terminals.

• When Auto is selected, the picture is output at 60

frames/second if your TV is not compatible with 1080/

24p signals.

• When Source Direct is selected, the signals are

output as such, even if your TV is not compatible with

1080/24p signals. If the picture is not displayed

properly, use OUTPUT RESOLUTION to set an output

video resolution at which the video and audio signals

are properly output.

•Even if Auto or Source Direct is selected, 720/24p

video signals are output at 60 frames/second.

CLEAR ENTER

VIDEO SELECT PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

AUDIO VIDEO

SECONDARY OUTPUT

RESOLUTION

Auto





Output Video Resolution Source : 1080/60i

Current Output : 1080/60i

Video resolution of the

currently playing disc

Output video resolution

from the player

Example:

V6000_CUXJ_EN.book 27 ページ２００９年６月５日　金曜日　午前１１時５７分

About the output video resolution

The output video resolution setting and the resolution of the picture that is actually output differ for the different

terminals. See the table below.The table below shows the output video resolution for the different terminals when the

frame/field frequency of the playback source is 50 Hz on the upper line, the resolutions when the source’s frame/field

frequency is 60 Hz and 24 Hz on the lower line.

Output

video

resolution

setting

HDMI1

1. The video output terminal set at Video in the Setup Navigator (page 23) or the video output terminal selected with VIDEO SELECT (page 26).

COMPONENT VIDEO/VIDEO1

HDMI OUT terminal COMPONENT

VIDEO/VIDEO

output terminals

HDMI OUT terminal COMPONENT

VIDEO output

terminals2

2. Depending on the BD, the pictures may not be output.

VIDEO

output

terminal2

(TV

system)

Auto3

3. This cannot be selected when the video output terminal is set to COMPONENT VIDEO/VIDEO.

Resolution preferred

by TV4,5,6

4. The pictures are output with the preferred output resolution of the device (TV, AV receiver or amplifier, etc.) connected to HDMI OUT

terminal.

5. For details on the output of film material (1080/24p or 720/24p video signals), see To output film material on page 27.

6. Sources with a resolution of 720/60p, 720/50p and 720/24p are output at 1080/60i or 1080/50i even if the TV’s recommended resolution is

1080/60p or 1080/50p.

No video signals are

output

No video signals are

output

———

576i or 480i 576/50i 576/50i 576/50i PAL

480/60i 480/60i 480/60i 7

7. Depends on the NTSC on PAL TV setting (page 43).

576p or 480p576/50p576/50p576/50i PAL

480/60p480/60p480/60i 7

1080i 1080/50i 576/50p576/50i PAL

1080/60i 1080/60i8,9

8. DVD-Video or DVD-R/-RW (VR format) may be output at 480/60p.

9. BD-ROM or BD-R/-RE may be output at 480/60p.

480/60i 7

1080p31080/50p10,11

10. Depending on the connected HDMI cable, the video signals may not be output.

11. Sources with a resolution of 720/60p, 720/50p and 720/24p are output at 1080/60i or 1080/50i.

———

1080/60p10,11

Source Direct Resolution recorded

on disc5,12,13

12. Depending on the connected TV, the video signals may not be output.

13. 720/24p film material is output at 720/60p.

Resolution recorded

on disc9,12,13,14

14. 1080/24p film material is output at 1080/60i.

576/50i PAL

480/60i 7

V6000_CUXJ_EN.book 28 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 5

Playback

Playing discs or files

This section describes the player’s main operations.

For the types of discs that can be played, see Playable

discs on page 8. For the types of files that can be played,

see Playable files on page 10. Image and audio files

recorded on discs are played with the Home Media

Gallery (page 36).

1 Press STANDBY/ON to turn on the power.

Turn the TV’s power on and switch its input beforehand.

2 Press  OPEN/CLOSE to open the disc tray and

load the disc.

Note

• Load the disc with the printed side facing

up.

• Several dozen seconds are required to read

the disc. Once reading is completed, the

type of disc is displayed on the player’s front

panel display.

3 Press PLAY to play the disc.

 on the player’s front panel display lights during

playback.

•To pause, press PAUSE during playback.  on the

player’s front panel display lights when playback is

paused.

•To stop, press STOP during playback.

Note

• Some discs start playing automatically when the disc

tray is closed.

• DVD-Video discs have parental lock features. Input

the password registered in the player’s settings to

unlock the parental lock. For details, see page 50.

•F

or some BD-R/-RE, playback protection is set for the

disc or titles. Input the code number set for the disc

to unlock the protection.

•Check Troubleshooting on page 67 if video or audio

signals are not being output properly.

If the disc menu is displayed

For some discs, the disc menu is displayed automatically

when playback starts. The contents of the disc menu and

the way to operate differ from disc to disc.

Resuming playback from where it

was stopped (resume playback

function)

• When STOP is pressed during playback, the point

at which the disc stopped is stored in the memory.

When PLAY is pressed, playback resumes from

that point.

•For audio CDs and audio files, playback starts from

the beginning of the track/file that was playing.

•If the stop mode was set while playing a slideshow of

image files, playback starts from the image file last

displayed.

• To cancel the resume playback function, press

STOP while playback is stopped.

Note

•The resume playback function is canceled

automatically in the following cases:

–When the disc tray is opened.

– When the file list window is switched.

–When the power is turned off. (For BDs and DVDs

this does not cancel the resume playback

function.)

•The resume playback function cannot be used for

some discs.

TV CONTROL

STANDBY/ON OPEN/CLOSE

AUDIO SUBTITLE ANGLE FL DIMMER

ENTER

VIDEO SELECT

SECONDARY

PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

HOME

MENU RETURN

PLAY

PREV PAUSE STOP NEXT

RED GREEN YELLOWBLUE

INPUT

SELECT

CH VOL

AUDIO VIDEO

OUTPUT

RESOLUTION

ENTER

CLEAR

V6000_CUXJ_EN.book 29 ページ２００９年６月５日　金曜日　午前１１時５７分

Forward and reverse

scanning

During playback, press  or .

• The scanning speed switches each time the button is

pressed. The speed steps depend on the disc or file

(the speed is displayed on the TV screen).

•Forward or reverse scanning is also possible by

holding the button down. Normal playback resumes

when the button is released.

To resume normal playback

Press PLAY.

Playing specific titles,

chapters or tracks

Input the number of the title, chapter or track you

want to play.

• Use the number buttons (0 to 9) to input the number,

then press ENTER.

•Press CLEAR to clear the values you have input.

Skipping content

Press PREV or NEXT.

•When NEXT is pressed, the playback skips

ahead to the beginning of the next title/chapter/track/

file.

•When PREV is pressed, the playback skips back

to the beginning of the currently playing title/chapter/

track/file. Press twice to skip back to the beginning of

the previous title/chapter/track/file.

Playing in slow motion

While playback is paused, press and hold /

or /.

•The speed switches each time the button is pressed

(the speed is displayed on the TV screen). The speed

steps depend on the disc or file.

To resume normal playback

Press PLAY.

Step forward and step

reverse

While playback is paused, press / or /.

•The picture moves a step forward or reverse each time

the button is pressed.

To resume normal playback

Press PLAY.

Switching the camera angles

For BD-ROM and DVD-Video discs on which multiple

angles are recorded, the angles can be switched during

playback.

During playback, press ANGLE.

•The current angle and total number of recorded

angles are displayed on the TV screen and on the

player’s front panel display.

To switch the angles, press

ANGLE

again or press

/



• The angles can also be switched by selecting Angle

from the TOOLS menu.

•If the angles are not switched when ANGLE is

pressed, switch them from the menu screen.

Switching the subtitles

For discs on which multiple subtitles are recorded, the

subtitles can be switched during playback.

Caution

• The subtitles cannot be switched for discs recorded

on a DVD or BD recorder. Also refer to the operating

instructions of the device used for recording.

During playback, press SUBTITLE.

•The current subtitle and total number of recorded

subtitles are displayed on the TV screen and on the

player’s front panel display.

To switch the subtitle, press SUBTITLE again or press

/.

• The subtitles can also be switched by selecting

Subtitle from the TOOLS menu.

• If the subtitles are not switched when SUBTITLE is

pressed, switch them from the menu screen.

Turning the subtitles off

Press SUBTITLE, then press CLEAR.

1/4





Angle

Example: Current angle/Total number of

recorded angles

1/2 English

Subtitle 



Example: Current subtitle/Total number of

recorded subtitles

V6000_CUXJ_EN.book 30 ページ２００９年６月５日　金曜日　午前１１時５７分

Switching the audio and

secondary audio

For discs or files on which multiple audio streams/

channels are recorded, audio streams/channels can be

switched during playback. Also use this procedure to

switch the secondary audio for BD-ROMs on which

secondary audio is recorded.

During playback, press AUDIO.

•The current audio and total number of recorded audio

streams are displayed on the TV screen and on the

player’s front panel display.

To switch the audio, press AUDIO again or press /

.

• To switch the secondary audio, press SECONDARY

AUDIO.

•The audio/secondary audio can also be switched by

selecting Audio or Secondary Audio from the

TOOLS menu.

•If the audio/secondary audio is not switched when

AUDIO/SECONDARY AUDIO is pressed, switch it

from the menu screen.

Turning the Secondary Audio off

 Press SECONDARY AUDIO, then press CLEAR.

Switching the secondary

video

Use the procedure below to switch the secondary video

(Picture-in-Picture) recorded on the BD-ROM.

During playback, press SECONDARY VIDEO.

•The current secondary video and total number of

recorded secondary video streams are displayed on

the TV screen and on the player’s front panel display.

To switch the secondary video, press SECONDARY

VIDEO again or press /.

•The secondary video can also be switched by

selecting Secondary Video from the TOOLS menu.

•If the secondary video is not switched when

SECONDARY VIDEO is pressed, switch it from the

menu screen.

Turning the Secondary Video off

Press SECONDARY VIDEO, then press CLEAR.

Displaying the disc

information

Press DISPLAY.

The disc information appears on the TV screen. The

information switches each time the button is pressed.

The information display differs during playback and when

playback is stopped.

2/2 English

Dolby True HD 96kHz 7.1ch L C R Ls Rs Lb Rb LFE

Audio 



Current audio/Total number of

recorded audio streams

Example:

Audio typeNumber of

channels Channels recorded

on disc

1/4

Secondary Video 



Example: Current secondary video/Total number of

recorded secondary video streams

V6000_CUXJ_EN.book 31 ページ２００９年６月５日　金曜日　午前１１時５７分

Playback functions

The functions that can be used differ according to the type of disc and file. In some cases, some of the functions cannot

be used. Check the usable functions on the table below.

Function1

1. Some functions may not work for some discs or files, even if indicated [] on the table.

Disc/file type

BD-

ROM

BD-R

/-RE

DVD-

Video

DVD-R

/-RW

(VR

format)

AVCHD Image

file

Audio

file

Audio

Forward and reverse scanning2

2. For some discs, normal playback resumes automatically when the chapter switches.

3

3. No sound is produced during forward and reverse scanning.

33334

4. Sound is produced during forward and reverse scanning.

4

Playing specific titles, chapters or tracks  

Skipping content 

Playing in slow motion2,5

5. • No sound is output during slow motion playback.

• It is not possible to switch the speed during reverse slow motion playback.

  

Step forward and step reverse2  

Switching the camera angles6

6. Angle mark is displayed for scenes at which multiple angles are recorded if Angle/Secondary Indicator is set to On (page 45).



Switching the subtitles7

7. • The types of recorded subtitles depend on the disc and file.

• In some cases the subtitle may switch or the switching screen provided on the disc may be displayed immediately, without the current

subtitle or the total number of subtitles recorded on the disc being displayed.

  

Switching the audio8

8. The types of recorded audio streams depend on the disc and file.

 

Switching the secondary audio9

9. • The types of recorded secondary audio streams depend on the disc and file.

• In some cases the secondary audio may switch or the switching screen provided on the disc may be displayed immediately, without the

current secondary audio or the total number of secondary audio streams recorded on the disc being displayed.

• Secondary audio mark is displayed for scenes at which secondary audio is recorded if Angle/Secondary Indicator is set to On

(page 45).

10

10. Some discs do not include secondary audio.



Switching the secondary video11

11. • In some cases the secondary video may switch or the switching screen provided on the disc may be displayed immediately, without the

current secondary video or the total number of secondary video streams recorded on the disc being displayed.

• Secondary video mark is displayed for scenes at which secondary video is recorded if Angle/Secondary Indicator is set to On

(page 45).

12

12. Some discs do not include secondary video.



Displaying the disc information  

V6000_CUXJ_EN.book 32 ページ２００９年６月５日　金曜日　午前１１時５７分

Using the Play Mode

functions

Playing from a specific time

(Time Search)

1 During playback, press PLAY MODE to display the

Play Mode screen.

The Play Mode screen can also be displayed by selecting

Play Mode from the TOOLS menu.

2 Select Time Search.

Use / to select, then press ENTER.

3 Input the time.

Use the number buttons (0 to 9) or / to input the time.

Use /- to move the cursor.

•To play from 45 minutes, input 0, 0, 4, 5, 0 and 0, then

press ENTER.

•To play from 1 hour 20 minutes, input 0, 1, 2, 0, 0 and

0, then press ENTER.

•Press CLEAR to clear the values you have input.

4 Starting playback from the specified time.

Use /- to select Search, then press ENTER.

Closing the Play Mode screen

Press PLAY MODE or HOME MENU.

Playing a specific title,

chapter or track (Search)

1 Press PLAY MODE to display the Play Mode

screen.

The Play Mode screen can also be displayed by selecting

Play Mode from the TOOLS menu.

2 Select the type of search.

Use / to select, then press ENTER.

See the table on page 35 for the search types.

3 Input the number.

Use the number buttons (0 to 9) or / to input the

number.

Use /- to move the cursor.

•To search for title 32, input 0, 3 and 2, then press

ENTER.

•Press CLEAR to clear the values you have input.

4 Starting playback from the specified title, chapter

or track.

Use /- to select Search, then press ENTER.

Playing a specific section

within a title or track

repeatedly (A-B Repeat)

Use this procedure to play a specific section within a title

or track repeatedly.

1 During playback, press PLAY MODE to display the

Play Mode screen.

The Play Mode screen can also be displayed by selecting

Play Mode from the TOOLS menu.

2 Select A-B Repeat.

Use / to select, then press ENTER.

3 Select the starting point for A-B Repeat.

Use /- to select A (Start), then press ENTER.

4 Select the end point for A-B Repeat.

Use /- to select B (End), then press ENTER.

A-B Repeat playback starts.

To cancel A-B Repeat play

•Select Off from the Repeat/Random screen, then

press ENTER.

•During playback, press STOP or CLEAR.

VIDEO SELECT PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

HOME

MENU RETURN

AUDIO VIDEO

SECONDARY OUTPUT

RESOLUTION

CLEAR ENTER

ENTER

PLAY

PREV PAUSE STOP NEXT

Time Search 12:45:00 Search

Title Search 032 Title Search

A-B Repeat A (Start) B (End) Off

V6000_CUXJ_EN.book 33 ページ２００９年６月５日　金曜日　午前１１時５７分

Note

•A-B Repeat play is canceled in the following cases:

– When the angle is switched (for BD-ROM and DVD-

Video discs only).

– When you search outside the repeat range.

– When you start other Repeat Play or Random Play.

Playing repeatedly

(Repeat Play)

Use this procedure to play the currently playing disc, title,

chapter, track or file repeatedly.

1 During playback, press PLAY MODE to display the

Play Mode screen.

The Play Mode screen can also be displayed by selecting

Play Mode from the TOOLS menu.

2 Select Repeat/Random.

Use / to select, then press ENTER.

3 Select the type of Repeat Play.

Use / to select, then press ENTER.

See the table on page 35 for the types of Repeat Play.

To cancel Repeat Play

• Select Off from the Repeat/Random screen, then

press ENTER.

•During playback, press STOP or CLEAR.

Note

•The type of repeat modes depends on the disc and file

being played. See the table on page 35.

•Repeat Play is canceled in the following cases:

– When the angle is switched (for BD-ROM and DVD-

Video discs only).

– When you search outside the repeat range.

– When you start other Repeat Play or Random Play.

Playing in random order

(Random Play)

Use this procedure to play the tracks or files in random

order.

1 During playback, press PLAY MODE to display the

Play Mode screen.

The Play Mode screen can also be displayed by selecting

Play Mode from the TOOLS menu.

2 Select Repeat/Random.

Use / to select, then press ENTER.

3 Select the Random Play.

Use / to select, then press ENTER.

To cancel Random Play

• Select Off from the Repeat/Random screen, then

press ENTER.

•During playback, press STOP or CLEAR.

Note

• Random Play is canceled in the following cases:

– When you use the search function.

– When you start Repeat Play.

V6000_CUXJ_EN.book 34 ページ２００９年６月５日　金曜日　午前１１時５７分

About Play Mode types

The functions that can be used differ according to the type of disc and file. In some cases, some of the functions cannot

be used. Check the usable functions on the table below.

Play Mode type Mark1

1. The type of Play Mode is indicated by the mark.

Disc/file type

BD-

ROM2

2. For BD-ROM and DVD-Video discs, some of the functions cannot be used with some titles.

BD-R

/-RE

DVD-

Video2

DVD-R

/-RW

(VR

format)

AVCHD Image

file

Audio

file

Audio

Repeat Play

Playing a specific section within a title

or track repeatedly (A-B Repeat)  

Playing a title repeatedly (Title Repeat)   

Playing a chapter repeatedly (Chapter

Repeat)   

Playing a track or file repeatedly (Track

Repeat) 

Playing all the titles, tracks or files on

the disc repeatedly (All Repeat) 

3

3. The original titles are played repeatedly. However, the playlist titles cannot be played repeatedly.

4

4. The files in the folder are played repeatedly.

5

5. The files in the folder or HMG Playlist are played repeatedly.

6

6. The tracks in the disc or HMG Playlist are played repeatedly.

Random Play

Playing the tracks or files in random

order (Random Track/File)



Playing from a specific time (Time

Search) — 

Playing a specific title

(Title Search) —  

Playing a specific chapter

(Chapter Search) —  

Playing a specific track

(Track Search) —

V6000_CUXJ_EN.book 35 ページ２００９年６月５日　金曜日　午前１１時５７分

Playing from the

Home Media Gallery

The Home Media Gallery lets you display a list of the titles,

tracks or files recorded on the disc. The discs that can be

played from the Home Media Gallery are as shown below

(see also page 8).

•BD-R/-RE discs

• DVD-R/-RW (VR format) discs

• Audio CDs (CD-DAs and DTS-CDs)

• DVDs/CDs on which only data files of image or audio

files, etc. are recorded

Playing discs

1 Press HOME MEDIA GALLERY to display the

Home Media Gallery.

The Home Media Gallery can also be displayed by

selecting Home Media Gallery from the Home Menu

then pressing ENTER.

2 Select the disc.

Use / to select, then press ENTER.

3 Select the title or track to be played.

Use / to select, then press ENTER.

Playback starts.

Closing the Home Media Gallery

Press HOME MEDIA GALLERY or HOME MENU.

Note

• When playing an audio CD (CD-DA or DTS-CD), the

Now Playing screen is displayed.

• Some BD-R/-RE discs have playback protection. To

cancel the protection, input the password set for the

disc.

•To play DVD-R/-RW (VR format) playlists, switch to the

playlist using the Original/Play List command on the

TOOLS menu (page 26).

Playing image files

1 Press HOME MEDIA GALLERY to display the

Home Media Gallery.

The Home Media Gallery can also be displayed by

selecting Home Media Gallery from the Home Menu

then pressing ENTER.

2 Select the disc.

Use / to select, then press ENTER.

3 Select Photos.

Use / to select Photos, then press ENTER.

4 Select Folders or All Photos.

Use / to select, then press ENTER.

•Folders – The files in the selected folder are

displayed.

•All Photos – All the recorded files are displayed.

If you have selected All Photos, proceed to step 6.

5 Select the folder containing the file you want to

play.

Use ///- to select, then press ENTER.

A list of the files and folders in the selected folder is

displayed.

6 Select and set the file you want to play.

Use ///- to select, then press ENTER.

A slideshow starts from the selected file, and continues

until the end of the list is reached.

About Slideshow

A display of the files on the disc or in the folder that

switches automatically. Use / to display the

previous or next file.

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

HOME

MENU RETURN

ENTER

TV CONTROL

AUDIO SUBTITLE ANGLE FL DIMMER

INPUT

SELECT

CH VOL

PLAY

PREV PAUSE STOP NEXT

BD-R BDAV

My Favorite TV Program

10 items

Morning serial drama

News at noon

Evening movie

Midnight variety show

Playback protection

World heritage

Drama: Blank time

Music and us

My Folder

DVD-RW/Photos/Folders

99 items

V6000_CUXJ_EN.book 36 ページ２００９年６月５日　金曜日　午前１１時５７分

Rotating images

Press ANGLE while playing a slideshow.

• The image rotates each time the button is pressed

(90°  180°  270°  0°  ... ).

The image can also be rotated by selecting Rotate from

the TOOLS menu.

Playing audio files

1 Press HOME MEDIA GALLERY to display the

Home Media Gallery.

The Home Media Gallery can also be displayed by

selecting Home Media Gallery from the Home Menu

then pressing ENTER.

2 Select the disc.

Use / to select, then press ENTER.

3 Select Music.

Use / to select Music, then press ENTER.

4 Select Folders or All Songs.

Use / to select, then press ENTER.

•Folders – The files in the selected folder are

displayed.

•All Songs – All the recorded files are displayed.

If you have selected All Songs, proceed to step 6.

5 Select the folder containing the file you want to

play.

Use / to select, then press ENTER.

A list of the files and folders in the selected folder is

displayed.

6 Select and set the file you want to play.

Use / to select, then press ENTER.

Playback starts from the selected file, and continues until

the end of the list is reached. Use / to play the

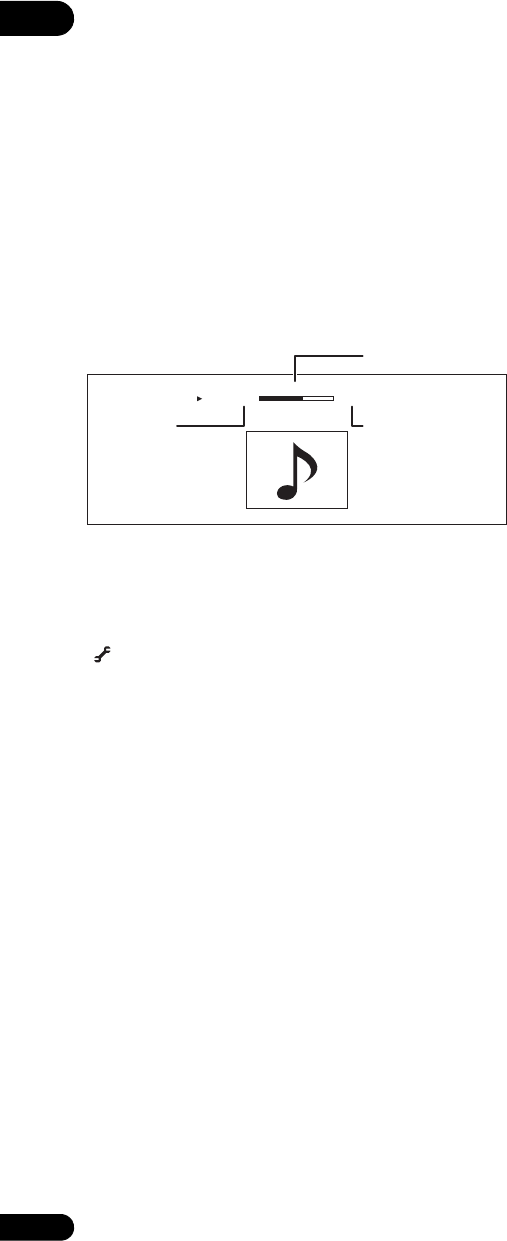

previous or next file. The Now Playing screen (shown

below) is displayed.

Playing in the desired order

(HMG Playlist)

The discs that can add tracks and files to the HMG (Home

Media Gallery) Playlist are as shown below.

• Audio CDs (CD-DAs and DTS-CDs)

• DVDs/CDs on which audio files are recorded

Adding tracks/files

Use this procedure to add tracks and files, and create the

HMG Playlist.

1 Press HOME MEDIA GALLERY to display the

Home Media Gallery.

The Home Media Gallery can also be displayed by

selecting Home Media Gallery from the Home Menu

pressing ENTER.

2 Select the disc.

Load the disc beforehand.

Use / to select, then press ENTER.

3 Select the track/file to be added.

Use / to select.

4 Press TOOLS to display the TOOLS menu.

5 Select Add to HMG Playlist.

Use / to select, then press ENTER.

The track or file selected in step 3 is added to the HMG Playlist.

To add more tracks or files, repeat steps 3 to 5.

To add the currently playing track/

file to the HMG Playlist

1 While the track/file is playing, press TOOLS

to display the TOOLS menu.

2Use / to select Add to HMG Playlist, then

press ENTER.

Note

• A maximum of 24 tracks/files can be added to the

HMG Playlist.

•The HMG Playlist is cleared in the following cases:

–When the power is turned off.

–When the disc tray is opened.

Music 001.mp3

DATA DISC

0.05.340.02.33

Play

Currently playing

file

Total file playing

time

Elapsed time

Folders

CD-ROM/Music

15Items

Music001.mp3

Music002.mp3

Music003.mp3

Music004.mp3

Music005.mp3

Music006.mp3

Music007.mp3

Music008.mp3

Play from Beginning

Add to HMG Playlist

Now Playing

BD PLAYER

TOOLS

V6000_CUXJ_EN.book 37 ページ２００９年６月５日　金曜日　午前１１時５７分

Playing the HMG Playlist

1 Press HOME MEDIA GALLERY to display the

Home Media Gallery.

The Home Media Gallery can also be displayed by

selecting Home Media Gallery from the Home Menu

pressing ENTER.

2 Select HMG Playlist.

Use / to select, then press ENTER.

3 Select the track/file to be played.

Use / to select, then press ENTER.

Playback starts from the selected track/file, and

continues until the end of the list is reached. Use /

 to play the previous or next track/file. The Now

Playing screen (shown below) is displayed.

Deleting tracks/files from the HMG

Playlist

1 Select the track/file to be deleted, then press

TOOLS to display the TOOLS menu.

2Use / to select Delete from HMG Playlist, then

press ENTER.

Music 001.mp3

DATA DISC

0.05.340.02.33

Play HMG

Currently playing

track/file

Total track/file

playing time

Elapsed time

V6000_CUXJ_EN.book 38 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 6

Adjusting audio and video

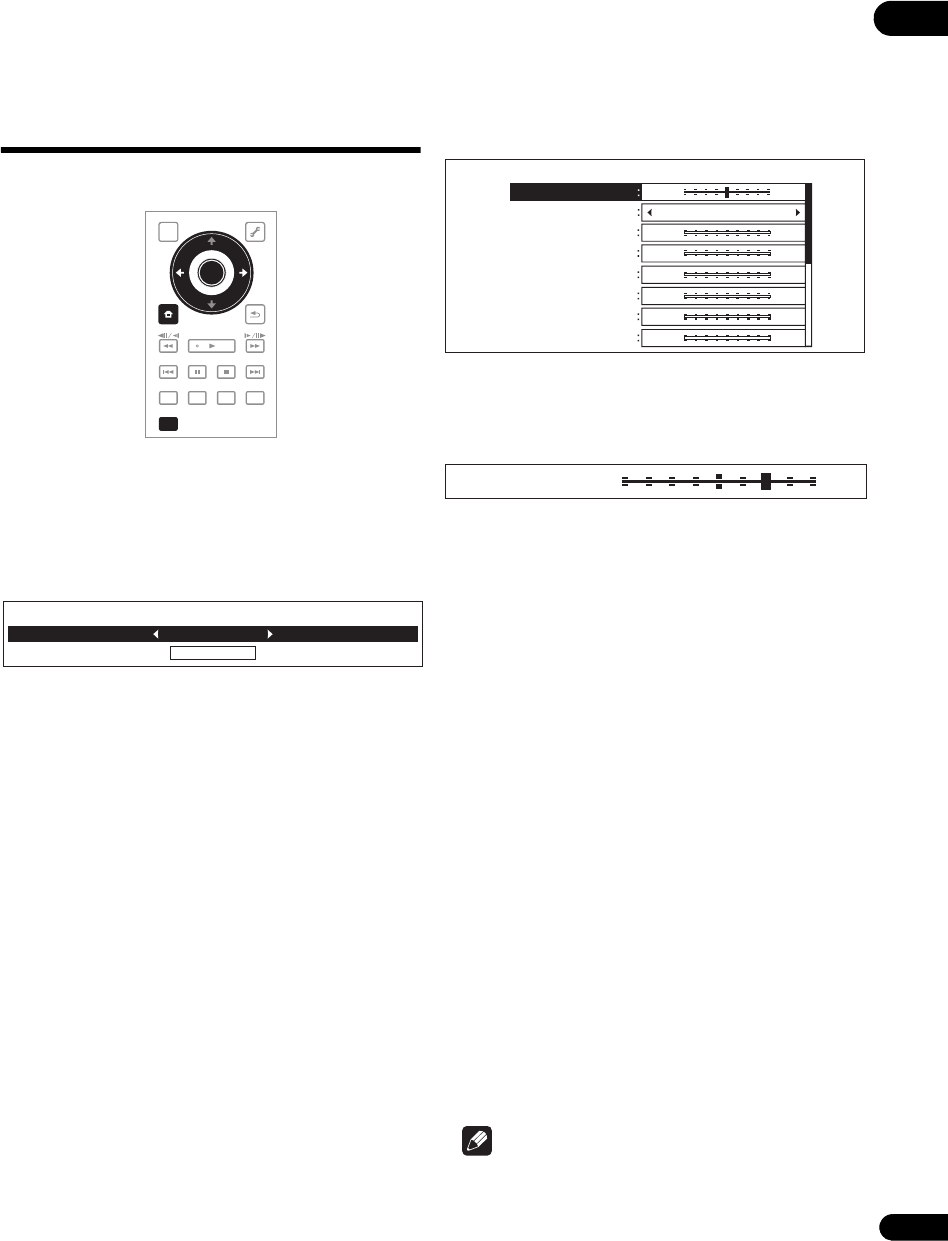

Adjusting the video

The quality of the playback picture can be adjusted

according to the TV you are using.

1 During playback, press VIDEO ADJUST to display

the Video Adjust screen.

The Video Adjust screen can also be displayed by

selecting Video Adjust from the TOOLS menu.

2 Select a preset.

Select using /- according to the TV being used.

•Pioneer PDP – Select this when connected to a

Pioneer plasma TV.

•Pioneer LCD – Select this when connected to a

Pioneer liquid crystal display TV.

•Pioneer Projector – Select this when connected to a

Pioneer front projector.

•PDP – Select this when connected to a plasma TV of

another brand.

•LCD – Select this when connected to a liquid crystal

display of another brand.

•Projector – Select this when connected to a front

projector of another brand.

•Professional – With this setting, video signal

processing is restrained. Select this when connected

to a professional monitor.

•Memory1 to 3 – Picture quality settings with

adjusted parameters can be stored in the memory.

For a description of the parameters, see When

Memory1, 2 or 3 is selected below.

When Memory1, 2 or 3 is selected

1 Select Adjustments.

Use  to select Adjustments, then press ENTER.

A detailed settings screen appears.

2 Select the item to be adjusted.

Use / to select.

3 Adjust the picture quality.

When /- are pressed, the adjustments can be made

viewing the picture. The detailed settings screen

reappears when ENTER is pressed.

•Prog.Motion – Adjust according to the type of image

(moving or still image). This is effective mainly when

outputting video materials as progressive images.

•Pure Cinema – This setting optimizes the operation of

the progressive scanning circuit for playing film

materials. Normally set it to Auto1. If the picture

seems unnatural, switch this to Auto 2, On or Off

(page 40).

•YNR – Reduces noise in the luminance (Y) signal.

•CNR – Reduces noise in the chroma (C) signal.

•BNR – Reduces the block noise (block-shaped

distortion generated upon MPEG compression).

•MNR – Reduces the mosquito noise (distortion along

the contours of the picture generated upon MPEG

compression).

•Detail – Adjusts the picture’s contours.

•White Level – Adjusts the level of the white portions.

•Black Level – Adjusts the level of the black portions.

•Black Setup – Select the black level as the setup level.

Normally select 7.5 IRE. If the black level is too bright

due to the combination with the connected TV, select

0 IRE.

•Gamma Correction – Adjusts how the dark portions

of the picture look.

•Hue – Adjusts the balance between green and red.

•Chroma Level – Adjusts the density of the colors.

Note

•Prog.Motion and Pure Cinema have the effect only

for pictures recorded in the interlaced scan format

(480i or 1080i signals).

TOP MENU TOOLS

HOME

MENU RETURN

PLAY

PREV PAUSE STOP NEXT

RED GREEN YELLOWBLUE

VIDEO ADJUST

ENTER

Adjustments

Video Adjust

PDP

Prog. Motion

Pure Cinema

YNR

CNR

BNR

MNR

Detail

White Level

Video Adjust [ Memory1 ]

Motion

Still

Auto1

Off Max

Soft Fine

Min Max

Motion Still

Prog. Motion

V6000_CUXJ_EN.book 39 ページ２００９年６月５日　金曜日　午前１１時５７分

•Prog.Motion is disabled when Pure Cinema is set to

On.

•Black Setup has the effect only for pictures output

from the VIDEO output terminals and signals output

with a frame/field frequency of 60Hz.

•YNR, CNR, BNR and MNR have no effect on 1080/24p

video signals output from the HDMI OUT terminal.

Closing the Video Adjust screen

Press HOME MENU.

About Pure Cinema

There are two types of video signals:

•Video material – Video signals recorded at 25 or 30

frames/second

•Film material – Video signals recorded at 24 frames/

second

“Pure Cinema” uses signal processing suited for “film

material” when converting 480i/576ior 1080i interlaced

video signals into progressive video signals, resulting in

clear picture reproduction without losing the quality of

the material.

is displayed on the disc information screen when

playing the “film material” pictures of BD-ROM, BD-R/-RE

and DVD-Video discs (page 31).

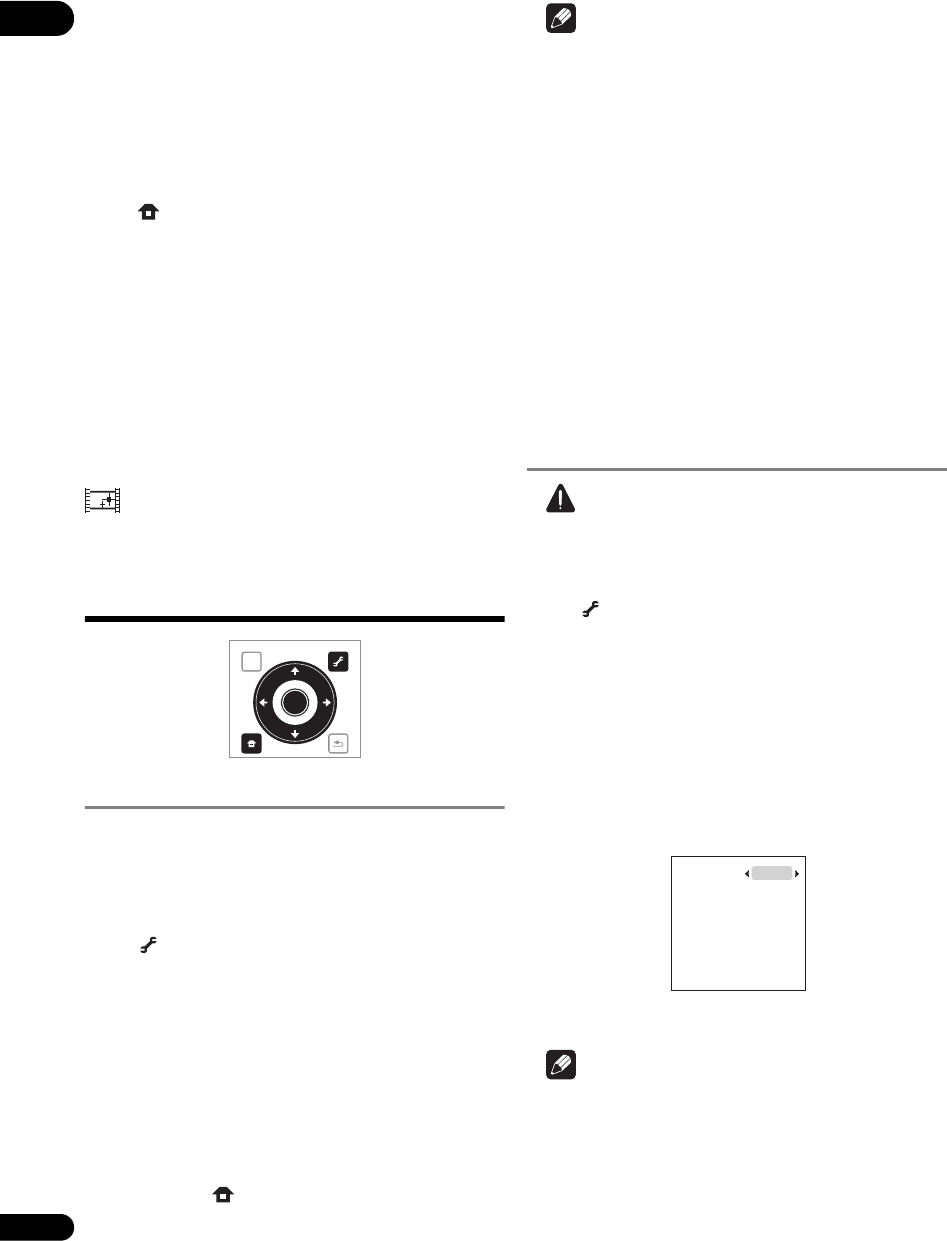

Adjusting the audio

Adjusting the Audio DRC

Audio DRC (Dynamic Range Control) has the effect of

playing loud sounds softly and soft sounds loudly. Adjust

the setting for example when viewing movies late at night

and the dialogs are difficult to hear.

1 During playback, display the TOOLS menu.

Press TOOLS.

2 Select and set Audio Adjust.

Use / to select, then press ENTER.

3 Select and set Audio DRC.

Use / to select, then press ENTER.

4 Adjust the setting.

Use /- to switch between Off, Low, Medium, High

and Auto.

Closing the Audio DRC screen

Press ENTER or HOME MENU.

Note

• This only affects the Dolby TrueHD, Dolby Digital Plus

and Dolby Digital audio signals of BDs and DVDs.

• When Auto is selected, the setting has the same

effect as High or Off for Dolby TrueHD signals,

depending on the content. For Dolby Digital Plus and

Dolby Digital, the setting has the same effect as Off.

• Audio DRC affects the audio signals output from the

following audio output terminals:

– Analog audio signals output from the AUDIO OUT

terminals.

–Linear PCM audio signals output from the DIGITAL

OUT terminal or HDMI OUT terminal.

• The effect may be weak for some discs.

Adjusting the output level of

the different speakers

during BD/DVD playback

(Channel Level)

Caution

•Channel Level of the speakers set to None or No at

Speaker Setup cannot be adjusted (page 47).

1 During playback, display the TOOLS menu.

Press TOOLS.

2 Select and set Audio Adjust.

Use / to select, then press ENTER.

3 Select and set Channel Level.

Use / to select, then press ENTER.

4 Adjust the output level.

Use / to select, /- to adjust.

The output levels of the L, C, R, SL, SR, SBL, SBR and SW

speakers can be adjusted within the range of –6.0 dB to

+6.0 dB.

5 Press ENTER to set.

Note

•The adjustment of Channel Level is only applicable to

the sound output from AUDIO OUT.

• This cannot be adjusted when in the following cases:

–Output Terminal is set to HDMI or DIGITAL

AUDIO (page 51).

–Audio Output Mode is set to 2 Channel

(page 43).

TOP MENU TOOLS

HOME

MENU RETURN

ENTER

SBR

SBL

0.0 dB

V6000_CUXJ_EN.book 40 ページ２００９年６月５日　金曜日　午前１１時５７分

–Channel Level is set to Fix (page 43).

Closing the Channel Level screen

Press HOME MENU.

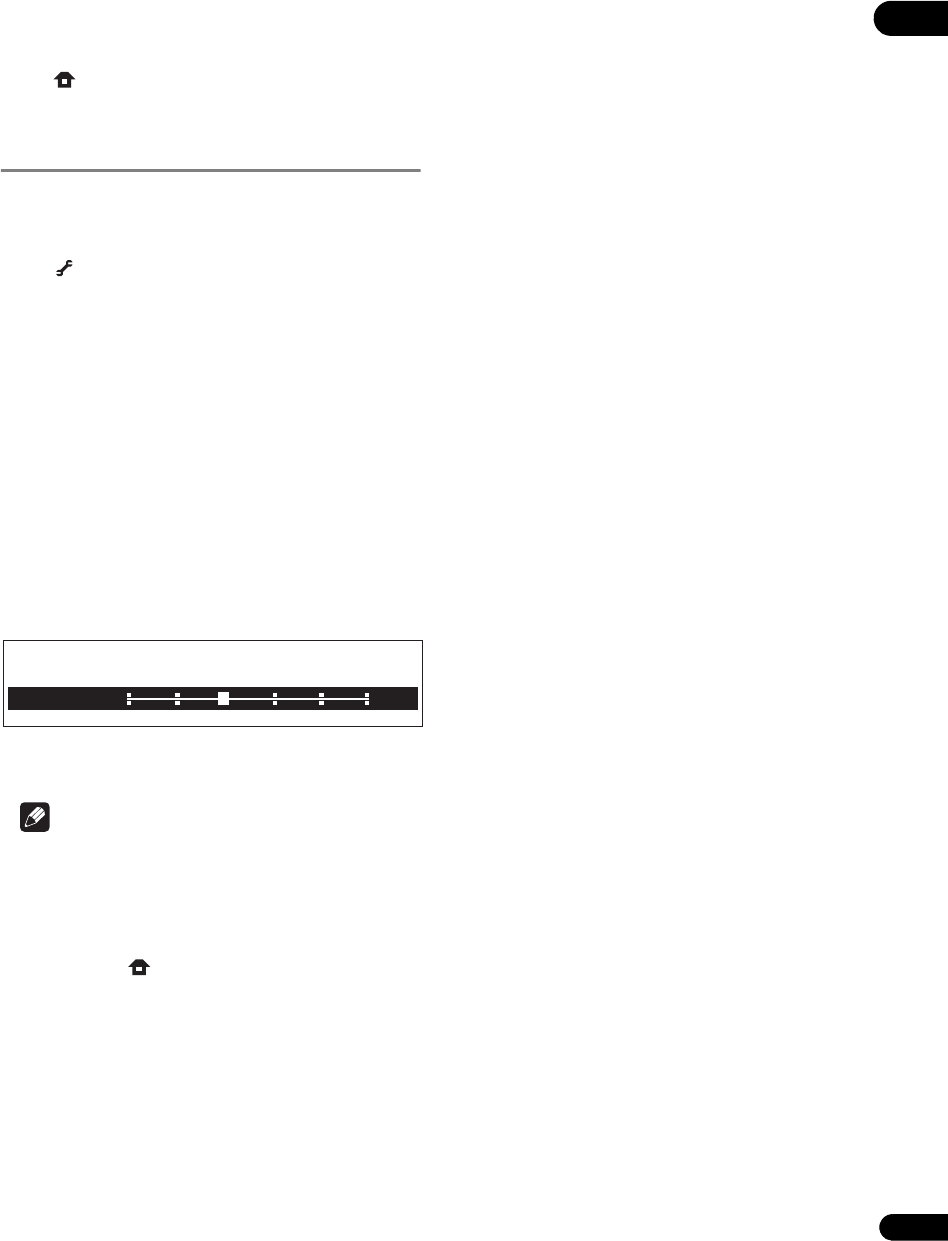

Adjusting the audio delay

(Lip Sync)

Adjust the audio delay for the selected video output

terminal if the video and audio are not synchronized.

1 During playback, display the TOOLS menu.

Press TOOLS.

2 Select and set Audio Adjust.

Use / to select, then press ENTER.

3 Select and set Lip Sync.

Use / to select, then press ENTER.

4 Select Auto or Manual.

Use /- to select.

•Auto – The player automatically adjusts the timing of

the video and audio when connected to a device

equipped with the HDMI Auto Lipsync Correction

feature using an HDMI cable.

•Manual – Adjust manually while viewing the video.

If you have selected Manual, proceed to step 5.

5 Adjusting the amount of audio delay.

Press , then use /- to adjust.

The audio delay can be adjusted from 0 to 250 ms in steps

of 5 ms.

Note

•The Lip Sync adjustment is only applicable to the

output terminal set at Output Terminal (page 51).

• The sound may be interrupted while setting the delay.

Closing the Lip Sync screen

Press ENTER or HOME MENU.

Lip Sync

Manual

100 ms

0 50 150100 200 250

V6000_CUXJ_EN.book 41 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 7

Detailed settings

Changing the settings Operating the Initial Setup

screen

1 When playback is stopped, display the Home

Menu screen.

Press HOME MENU.

2 Select and set Initial Setup.

Use / to select, then press ENTER.

3 Select the item and change the setting.

Use ///- to select, then press ENTER.

Closing the Initial Setup screen

Press HOME MENU.

Note

• Items that cannot be changed are indicated in gray. The items that can be selected depend on the player’s status.

• In Options, the factory default settings are indicated in bold.

VIDEO SELECT PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

HOME

MENU RETURN

AUDIO VIDEO

SECONDARY OUTPUT

RESOLUTION

CLEAR ENTER

ENTER

PLAY

PREV PAUSE STOP NEXT

16:9 (Widescreen)

Full

Letter Box

Initial Setup

BD PLAYER

TV Aspect Ratio

4:3 Video Out

DVD 16:9 Video Out

Video Out

Audio Out

Speakers

HDMI

Network

Language

Data Management

Setup Navigator

Setting Options Explanation

Video Out

TV Aspect Ratio 16:9 (Widescreen) Select this when connected to a wide (16:9) TV.

4:3 (Standard) Select this when connected to a conventional TV.

4:3 Video Out Full 4:3 pictures are displayed over the entire screen.

Normal 4:3 pictures are displayed with vertical black bars along the sides. Select this

when you cannot switch the aspect ratio to 4:3 on the TV.

4:3 Video Out is only valid when TV Aspect Ratio is set to16:9 (Widescreen).

DVD 16:9 Video Out Letter Box 16:9 pictures are displayed with black bars at the top and bottom when

viewing on a 4:3 screen.

Pan & Scan The picture is displayed over the entire screen, with the left and right sides of

the 16:9 picture cropped. Select this to view 4:3 pictures over the entire

screen. For some discs, the picture will be displayed in the Letter Box mode

even if Pan & Scan is set.

• DVD 16:9 Video Out is only valid when TV Aspect Ratio is set to 4:3 (Standard).

• DVD 16:9 Video Out is only valid when playing 16:9 pictures of DVD-Video or DVD-R/-RW (VR format) discs. When other 16:9

pictures are played, they are output in the Letter Box mode.

V6000_CUXJ_EN.book 42 ページ２００９年６月５日　金曜日　午前１１時５７分

Video Out

NTSC on PAL TV On Select this when a TV that only supports PAL is connected. The picture is

displayed correctly when playing a disc recorded with a frame/field rate other

than 50 Hz.

Off Select this when connected to an NTSC-compatible TV.

• Many recent PAL TVs support the input of NTSC signals, in which case this can be set to Off. Also check your TV’s operating

instructions.

Audio Out

Dolby Digital Out

* Only valid for the DIGITAL

OUT terminal.

Dolby Digital 1 Dolby Digital audio signals are output. With BD-ROMs, the secondary audio

and interactive audio are mixed for output.

Dolby Digital 2 Dolby Digital audio signals are output. With BD-ROMs, the signals are output

without mixing the secondary audio and interactive audio signals.

Dolby Digital 

PCM

Select this when the connected AV receiver or amplifier, etc., is not

compatible with Dolby Digital audio signals. The Dolby Digital audio signals

are converted into linear PCM audio signals for output.

DTS Out

* Only valid for the DIGITAL

OUT terminal.

DTS 1 DTS Digital Surround audio signals are output. With BD-ROMs, the

secondary audio and interactive audio are mixed for output.

DTS 2 DTS Digital Surround audio signals are output. With BD-ROMs, the signals

are output without mixing the secondary audio and interactive audio signals.

DTS  PCM Select this when the connected AV receiver or amplifier, etc., is not

compatible with DTS Digital Surround audio signals. The DTS Digital

Surround audio signals are converted into linear PCM audio signals for

output.

AAC Out

* Only valid for the DIGITAL

OUT terminal.

AAC Select this when the connected AV receiver or amplifier, etc., is compatible

with AAC audio signals. The AAC audio signals are output.

AAC  PCM Select this when the connected AV receiver or amplifier, etc., is not

compatible with AAC audio signals. The AAC audio signals are converted into

linear PCM audio signals for output.

DTS Downmix Stereo DTS-HD Master Audio signals, DTS-HD High Resolution Audio signals or

DTS Digital Surround audio signals converted to linear PCM audio signals

are converted into 2-channel (stereo) signals for output.

Lt/Rt DTS-HD Master Audio signals, DTS-HD High Resolution Audio signals or

DTS Digital Surround audio signals converted to linear PCM audio signals

are converted into 2-channel signals compatible with Dolby Surround for

output (when the connected AV receiver or amplifier, etc., is compatible with

Dolby Pro Logic, the AV receiver or amplifier outputs the linear PCM audio

signals as surround audio signals).

Speakers

Audio Output Mode

* Only valid for the AUDIO

OUT terminals.

2 Channel Select this when the TV’s analog 2-channel (stereo) audio input terminals are

connected to the player’s AUDIO OUT terminals.

Multi-channel Select this when the multi-channel audio input terminals of an AV receiver or

amplifier, etc., are connected to the player’s AUDIO OUT terminals.

Speaker Setup

* Only valid for the AUDIO

OUT terminals.

When an AV receiver or amplifier, etc., is connected to the player’s AUDIO OUT terminals, set

whether or not speakers are connected to an AV receiver or amplifier, etc., their size and their

crossover frequency. For details, see Changing the speaker setup on page 47.

Speaker Distance

* Only valid for the AUDIO

OUT terminals.

Specify the distance of your speakers from your listening position (page 47).

Channel Level

* Only valid for the AUDIO

OUT terminals.

Fix The output for the various speakers is set to the maximum.

Variable The output level of the various speakers is set within the range of –6.0 dB to

+6.0 dB (in 0.5 dB steps) (page 47).

Setting Options Explanation

V6000_CUXJ_EN.book 43 ページ２００９年６月５日　金曜日　午前１１時５７分

HDMI

HDMI High Speed

Transmission

On Select this when connected with a High Speed HDMI™ cable (page 18).

Off Select this when connected with a Standard HDMI™ cable (page 18).

The player’s setting screen is closed if the output video resolution is switched by changing the HDMI High Speed Transmission

setting.

HDMI Color Space Auto Select this to automatically switch the video output between YCbCr and RGB

signals according to the connected equipment.

YCbCr 4:4:4 Select this to output the video signals as YCbCr 4:4:4 signals.

YCbCr 4:2:2 Select this to output the video signals as YCbCr 4:2:2 signals.

RGB (16 to 235) Select this to output the video signals as RGB signals. Choose this if the

colors seem too dense and all the dark colors are displayed in a uniform black

when RGB (0 to 255) is selected.

RGB (0 to 255) Select this to output the video signals as RGB signals. Choose this if the

colors seem too faint and the black seems too bright when RGB (16 to 235)

is selected.

Normally it is recommended to set this to Auto. When set to Auto, the optimum video signals for your TV are output.

HDMI Audio Out Auto The signals are output with as many audio channels as possible. In cases

when the number of channels does not decrease when the signals are output

as such without converting them to linear PCM, they are output as such

(page 52).

PCM Select this when you want the secondary audio and interactive audio signals

to be mixed for output or when you want to output prioritizing sampling

frequency over the number of channels (page 52).

Off Select this when you do not want to output the audio from the HDMI output

terminal.

KURO LINK On Select this to control the player with the remote control of the AV device

connected using an HDMI cable. Also refer to About KURO LINK function on

page 19.

Off Select this when you do not want to control the player with the remote control

of the AV device connected using an HDMI cable.

Display Power On

* Only valid when KURO

LINK is set to On.

On Select this when you want the TV to turn on each time playback is started or

the Home Menu or Home Media Gallery is displayed on the player.

Off Select this when you do not want the TV to turn on each time playback is

started or the Home Menu or Home Media Gallery is displayed on the player.

Display Power Off

* Only valid when KURO

LINK is set to On.

On Select this when you want the player’s power to turn off together with the TV’s

power.

Off Select this when you do not want the player’s power to turn off together with

the TV’s power.

PQLS

* Only valid when KURO

LINK is set to On.

Auto Enables PQLS function (page 19).

Off Disables PQLS function (page 19).

Network

IP Address Select this to set the IP address of the player and DNS server (page 48).

Proxy ServerOnly set the proxy server if so instructed by your Internet service provider (page 48).

Display Network

Configuration Select this to display a list of the network settings (page 49).

Connection Test Select this to test the network connection (page 49).

Language

OSD Language English Select this to set the language of the on-screen displays to English.

available languages Choose a language for the on-screen displays from the listed languages.

Audio Language

* For some discs, it may not

be possible to change to the

selected language.

English Select this to set both the BD-ROM and DVD-Video default audio language to

English.

available languages Choose a language from the listed languages to set the default audio

language for BD-ROM and DVD-Video playback.

OtherContinue to the next screen to set the default audio language for BD-ROM

and DVD-Video playback. You can select the language name or enter the

code number (see on page 54 for the code table).

If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected and played.

Setting Options Explanation

V6000_CUXJ_EN.book 44 ページ２００９年６月５日　金曜日　午前１１時５７分

Language

Subtitle Language

* For some discs, it may not

be possible to change to the

selected language.

English Select this to set the default subtitle language for BD-ROM and DVD-Video

playback to English.

available languages Choose a language from the listed languages to set the default subtitle

language for BD-ROM and DVD-Video playback.

OtherContinue to the next screen to set the default subtitle language for BD-ROM

and DVD-Video playback. You can select the language name or enter the

code number (see on page 54 for the code table).

If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected and played.

BDMV/DVD-Video Menu

Lang.

* For some discs, it may not

be possible to change to the

selected language.

w/Subtitle

Language

Sets the language of BD-ROM and DVD-Video menus to the same as that set

for the subtitle language.

available languages Choose a language from the listed languages to set the default language for

BD-ROM and DVD-Video menus.

OtherContinue to the next screen to set the default menu language for BD-ROM

and DVD-Video menus. You can select the language name or enter the code

number (see on page 54 for the code table).

If a language not recorded on the BD/DVD is set, one of the recorded languages is automatically selected and played.

Subtitle Display On Select this to display the subtitles.

Off Select this if you do not want to display the subtitles. Note that on some discs

the subtitles are displayed by force.

Data Management

Individual/Shared Data

Erase

Use this to display the list of data used for the BD-LIVE and BONUSVIEW functions and to erase the

data (page 49).

Remove the disc from the disc tray when changing the setting.

Application Data Erase Use this to erase bookmarks, high scores of games and other data (page 49).

Remove the disc from the disc tray when changing the setting.

Storage Format Select this to format the storage device on which the data used by the BD-LIVE and BONUSVIEW

functions is stored (page 49).

Remove the disc from the disc tray when changing the setting.

Setup NavigatorStart making the settings using the Setup Navigator menu. For details, see Making settings using

the Setup Navigator menu on page 23.

Playback

Still Picture Field This eliminates instability of the picture when playback is paused.

Frame This makes pictures clear when playback is paused, but instability may be

observed.

Auto Field or Frame is switched automatically according to the disc or file being

played.

Angle/Secondary IndicatorOn Select this to display the angle mark, secondary video mark and secondary

audio mark on the TV screen (pages 30 and 31).

Off Select this if you do not want to display the angle mark, secondary video mark

and secondary audio mark on the TV screen.

Hybrid Disc Playback BD The BD layer of hybrid discs with two or more layers (BD and DVD or CD) is

played.

DVD The DVD layer of hybrid discs with two or more layers (BD and DVD) is played.

If there is no DVD layer, the BD layer is played.

CD The CD layer of hybrid discs with two or more layers (BD and CD) is played. If

there is no CD layer, the BD layer is played.

Remove the disc from the disc tray when changing the setting.

BDMV/BDAV Playback

Priority

BDMV Select this to play the BDMV format on BD-R/-RE discs containing both

BDMV and BDAV formats.

BDAV Select this to play the BDAV format on BD-R/-RE discs containing both

BDMV and BDAV formats.

Remove the disc from the disc tray when changing the setting.

Setting Options Explanation

V6000_CUXJ_EN.book 45 ページ２００９年６月５日　金曜日　午前１１時５７分

Parental Lock

Set Password (Change

Password)

parental lock feature (page 50).

DVD-Video Parental Lock Change the player’s parental lock level (page 50).

BDMV Parental Lock Change the restricted age (page 50).

Country Code Change the Country/Area code (page 50).

Options

Output Terminal Set the terminals from which the player’s video and audio signals are to be output (page 51).

On Screen Display On Select this to display the operation indicators (Play, Stop, etc.) on the TV

screen.

Off Select this if you do not want to display the operation indicators (Play, Stop,

etc.) on the TV screen.

Screen SaverOn The black screen (the screen saver) is displayed, if there is no operation for

over 1 minute after playback is stopped or paused.

The screen saver is automatically activated if there is no operation for over 1

minute after the Home Menu or Home Media Gallery is displayed while

playing a BD or DVD.

With audio CDs and audio files, the screen saver is automatically activated if

no button is operated for over 1 minute, even while the audio CD or audio file

is playing.

The screen saver turns off when an operation is performed on the player or

remote control.

Off The screen saver is not activated.

Auto Power Off On Select this to turn the power off automatically (the power turns off

automatically if no operation is performed for over 30 minutes).

Off Select this if you do not want the power to turn off automatically.

Software Update The Software Update function can check for and download updated system software from the

network server (page 51).

Advanced SetupUse this to make advanced settings (page 55).

Setting Options Explanation

V6000_CUXJ_EN.book 46 ページ２００９年６月５日　金曜日　午前１１時５７分

Changing the speaker setup

Set whether or not speakers are connected to an AV

receiver or amplifier, etc., their size and their crossover

frequency. This setting is only valid for the AUDIO OUT

terminals.

When there are no speakers whose speaker size is set to

Small, select Bypass for the crossover frequency.

When there are speakers whose speaker size is set to

Small, select the crossover frequency (Bypass cannot be

selected).

Caution

•The Speaker Setup cannot be selected when Audio

Output Mode is set to 2 Channel. Change the

setting to Multi-channel (page 43).

1Select and set Speakers  Speaker Setup  Next

Screen.

Use / to select, then press ENTER.

2 Select the speaker and change the setting.

Use / to select, then use /- to change the setting.

•L/R (front left and right speakers): Large/Small

•C (center speaker): Large/Small/None

•SL/SR (left and right surround speakers): Large/

Small/None

•SBL/SBR (left and right surround back speakers):

Large/Small/None

•SW (subwoofer): Yes/No

•Crossover: Bypass/50 Hz/80 Hz/100 Hz/150 Hz

Note

•D

epending on the combination of settings of the

different speakers, the settings of speakers other than

the one you have changed may also change

automatically.

•When a subwoofer with a filter bypass function is

connected and there is no speaker whose speaker

size is set to Small, if the subwoofer’s filter is set to be

bypassed, the player’s high precision digital filter is

used. In this case, set the crossover frequency to

something other than Bypass.

•Upon purchase, the crossover frequency is set to

Bypass.

Adjusting the distance of the

different speakers

Adjust the distance between you and the different

speakers. This setting is only valid for

the

AUDIO OUT

terminals

Caution

• This cannot be selected when Audio Output Mode

is set to 2 Channel. Change the setting to Multi-

channel (page 43).

•Speaker Distance of the speakers set to None or No

at Speaker Setup cannot be adjusted (above).

1 Select and set Speakers  Speaker Distance 

Next Screen.

Use / to select, then press ENTER.

2 Select the speaker and adjust the distance.

Use / to select, then use /- to adjust.

• The distance of all the speakers can be set to between

1 inch and 45 feet, in units of 1 inch.

Adjusting the output level of the

different speakers (Channel Level)

Adjust each output level of the different speakers by using

test tones.

This setting is only valid for the AUDIO OUT

terminals.

Caution

• This cannot be selected when Audio Output Mode

is set to 2 Channel. Change the setting to Multi-

channel (page 43).

•Channel Level of the speakers set to None or No at

Speaker Setup cannot be adjusted (above).

• Test tones are output. Lower the volume of the device

connected to the player.

1 Select and set Speakers  Channel Level, then

Fix or Variable.

Use / to select, then press ENTER.

•Fix – The output level of all the speakers is set to the

maximum.

•Variable – The output level of all the speakers is set

6.0 dB lower than when Fix is selected. From this

point, the output levels of the L, C, R, SL, SR, SBL, SBR

and SW speakers can be adjusted within the range of

–6.0 dB to +6.0 dB.

If you have selected Variable, proceed to step 2.

L/R

SL/SR

SBL/SBR

Large

Yes

Crossover Bypass

Speaker Setup

BD PLAYER

SBR

SBL

Speaker Distance

BD PLAYER

10’00”

V6000_CUXJ_EN.book 47 ページ２００９年６月５日　金曜日　午前１１時５７分

2 Select and set the method for switching the

speaker to be adjusted.

Use /- to select, then press ENTER.

•Auto – Switch the speaker to be adjusted

automatically.

•Manual – Switch the speaker to be adjusted

manually.

3 Adjust the output level.

Use / to select, /- to adjust.

Note

• You can also adjust while listening to the sound being

played (page 40).

• The volume of the test tones output from the

subwoofer may seem lower than the tones output

from the other channels. Adjust the subwoofer based

on the sound during playback (page 40).

•When Auto is selected, the speaker cannot be

selected with /. In this case, test tones are not

output from the subwoofer.

Setting the IP address

1 Select and set Network  IP Address  Next

Screen.

Use / to select, then press ENTER.

2 Set IP address.

Use ///- to set the IP address of the player or DNS

server, then press ENTER.

•Auto Set IP Address

On – The player’s IP address is obtained

automatically. Select this when using a broadband

router or broadband modem that has a DHCP

(Dynamic Host Configuration Protocol) server

function. This player’s IP address will automatically

be allocated from the DHCP server.

Off – The player’s IP address must be set manually.

Use the number buttons (0 to 9) to input the IP

address, subnet mask and default gateway.

•Auto Set DNS Server Address

On – The DNS server’s IP address is obtained

automatically.

Off – The DNS server’s IP address must be set

manually. Use the number buttons (0 to 9) to input the

DNS server’s IP address stipulated by your Internet

service provider.

Note

• When Auto Set IP Address is set to Off, Auto Set

DNS Server Address is also set to Off.

•For information on DHCP server function, refer to the

network device’s operating instructions.

• You may need to contact your Internet service

provider or network administrator when inputting the

IP address manually.

Setting the proxy server

Only set the proxy server if so instructed by your Internet

service provider.

1 Select and set Network  Proxy Server  Next

Screen.

Use / to select, then press ENTER.

2 Select and set Use or Not use at Proxy Server.

Use /- to change, then press .

•Use – Select this when using a proxy server.

•Not use – Select this when not using a proxy server.

If you have selected Use, proceed to step 3.

3 Select and set Server Select Method.

Use /- to change, then press .

•IP Address – Input the IP address.

•Server Name – Input the server name.

4 Input IP Address or Server Name.

Use the number buttons (0 to 9) to input the number if you

select IP address by step 3. Use /- to move the cursor.

Use the number buttons (0 to 9) to input characters if you

select Server Name by step 3.

The characters that can be input for the server name are

listed on the table below. Pressing a button repeatedly

cycles through the characters shown.

SBR

SBL

0.0 dB

Channel Level

BD PLAYER

IP Address

Auto Set IP Address

IP Address

Subnet Mask

Default Gateway

Auto Set DNS Server Address

DNS Server (Primary)

DNS Server (Secondary)

Off

Network

BD PLAYER

Off 

Use 

Proxy Server

Server Select Method

Server Name

Port Number

Server Name

Network

BD PLAYER

V6000_CUXJ_EN.book 48 ページ２００９年６月５日　金曜日　午前１１時５７分

• If you want to enter two characters in succession that

are both on the same button (for example a P and an

R), press - after inputting the first character then

input the second character.

•Use CLEAR to delete the last character.

•Use /- to move the displayed characters when all

the input characters cannot be displayed.

5 Input Port Number.

Press , use the number buttons (0 to 9) to input the

number.

6 Press ENTER to set.

Displaying the network settings

Select and set Network  Display Network

Configuration  Next Screen.

Use / to select, then press ENTER.

The MAC address, IP address, subnet mask, default

gateway and DNS server (primary and secondary)

settings are displayed.

When Auto Set IP Address is set to On, the values

obtained automatically are displayed.

Note

• “0.0.0.0” is displayed when each IP address has not

been set.

Testing the network connection

Select and set Network  Connection Test 

Start.

Use / to select, then press ENTER.

“Network connection test completed successfully.” is

displayed once the test is completed. If any other

message is displayed, check the connections and/or

settings (pages 22 and 48).

Changing to other language at

language setting

1 Select and set Language.

Use / to select, then press ENTER.

2 Select and set Audio Language, Subtitle

Language or BDMV/DVD-Video Menu Lang.

Use / to select, then press ENTER.

3 Select and set Other.

Use / to select, then press ENTER.

4 Change the language.

Use /- to change, then press ENTER.

• The language can also be changed using the number

buttons. Use / to move the cursor to Number,

use the number buttons (0 to 9) to input the number,

then press ENTER. Refer to Language Code Table and

Country/Area Code Table on page 54.

Note

• If a language not recorded on the BD/DVD is set, one

of the recorded languages is automatically selected

and played.

Erasing data that has been added to

BDs and application data

Use this procedure to erase data that has been added to

BDs (data downloaded with the BD-LIVE function and

data used with the BONUSVIEW function) and

application data.

Caution

•Some time is required to erase the data.

• Do not unplug the power cord while data is being

erased.

•This operation does not work when a disc is loaded.

1 Select and set Data Management.

Use / to select, then press ENTER.

2 Select and set the erase menu.

Use / to select, then press ENTER.

• Individual/Shared Data Erase

Use this procedure to select and erase data

downloaded with the BD-LIVE function and data used

with the BONUSVIEW function (page 9).

Select Next Screen, then press ENTER. The list

screen appears.

Key Characters Key Characters

11 . – 6m n o 6

2a b c 2 7p q r s 7

3d e f 3 8t u v 8

4g h i 4 9w x y z 9

5j k l 5 00

Number

Audio Language

Initial Setup

BD PLAYER

Language

Video Out

Audio Out

Speakers

HDMI

Network

Language

Data Management

Setup Navigator

English

0514

Individual/Shared Data Erase

BD PLAYER

15 items

Shared Data

Disc Name 1

Disc Name 2

Disc Name 3

Disc Name 4

Disc Name 5

Disc Name 6

Disc Name 7

V6000_CUXJ_EN.book 49 ページ２００９年６月５日　金曜日　午前１１時５７分

When a disc name is selected, the data downloaded

with the BD-LIVE function and data used with the

BONUSVIEW is erased.

When Shared Data is selected, all the data

downloaded with the BD-LIVE function and not

associated to discs is erased.

Use / to select the data to be erased, then press

ENTER.

• Application Data Erase

Use this procedure to erase BD-ROM application data

(high scores of games, bookmarks data, etc.).

Select Start, then press ENTER.

• Storage Format

Use this procedure to format the storage in which the

data downloaded with the BD-LIVE function and data

used with the BONUSVIEW function is stored

(page 9).

When this is done, all the data on the external

storage device is erased.

Select Start, then press ENTER.

3 Select Yes, then press ENTER.

Use /- to select, then press ENTER.

Registering or Changing the

password

Use this procedure to register or change the code

number required for the Parental Lock settings.

1 Select and set Parental Lock  Set Password 

Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) or / to input the

number, then press ENTER to set.

Use /- to move the cursor.

3 Re-input the password.

Use the number buttons (0 to 9) or / to input the

number, then press ENTER to set.

Use /- to move the cursor.

•To change the password, input the previously

registered password, then input the new password.

Note

•We recommend making a note of the password.

• If you forget the password, reset the player to the

factory default setting, then register the password

again (page 51).

Changing the Parental Lock level for

viewing DVDs

Some DVD-Video discs containing scenes of violence, for

example, have Parental Lock levels (check the indications

on the disc’s jacket or elsewhere). To restrict viewing

these discs, set the player’s level to the level lower than

the discs.

1 Select and set Parental Lock  DVD-Video

Parental Lock  Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) or / to input the

number, then press ENTER to set.

Use /- to move the cursor.

3 Change the level.

Use /- to change, then press ENTER to set.

Note

• The level can be set to Off or between Level1 and

Level8. When set to Off, viewing is not restricted.

Changing the Age Restriction for

viewing BD-ROMs

For BD-ROMs containing scenes of violence, for example,

viewing can be restricted by setting an age restriction for

the BD-ROMs.

1 Select and set Parental Lock  BDMV Parental

Lock  Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) or / to input the

number, then press ENTER to set.

Use /- to move the cursor.

3 Change the age.

Use the number buttons (0 to 9) or / to input the

number, then press ENTER to set.

Use /- to move the cursor.

Note

• When Age Restriction is set to 255, viewing is not

restricted.

Changing the Country/Area code

1 Select and set Parental Lock  Country Code 

Next Screen.

Use / to select, then press ENTER.

2 Input the password.

Use the number buttons (0 to 9) or / to input the

number, then press ENTER to set.

Use /- to move the cursor.

3 Change the country/area code.

Use /- to change, then press ENTER to set.

• The the country/area code can also be changed using

the number buttons. Use / to move the cursor to

Number, use the number buttons (0 to 9) to input the

number, then press ENTER. Refer to Language Code

Table and Country/Area Code Table on page 54.

V6000_CUXJ_EN.book 50 ページ２００９年６月５日　金曜日　午前１１時５７分

Setting the output terminals

Set the terminals from which the player’s video and audio

signals are to be output.

1 Select and set Options  Output Terminal 

Next Screen.

Use / to select, then press ENTER.

2 Select and set the video and audio output

terminals.

Select the actually connected video and audio output

terminals.

Use ///- to select, then press ENTER.

For details on the settings, refer to step 4 on page 23.

When COMPONENT VIDEO or VIDEO is selected for

Video, no sound is output from the HDMI OUT terminal

(a warning message is displayed).

Software updating

The software of the player can be updated by connecting

it to the Internet using a LAN cable.

Before updating the software, make sure that you have

connected the player to the network and made the

necessary settings (pages 22 and 48).

Caution

• 10 to 20 minutes are required to update the software.

The picture turns off during this process, but do not

unplug the power cord until the front panel display

turns off.

•When the front panel display is off, turn it on with FL

DIMMER. When updating the player’s software with

the front panel display off, do not unplug the power

cord until the FL OFF indicator turns off.

•Depending on the Internet connection conditions,

downloading may take a long time.

•Do not unplug the power cord during software

updating. Doing so may result in an operation failure.

•There are two processes for software updating,

downloading and updating. Both processes may take

a certain period of time.

•Other operations are defeated during software

updating. Furthermore updating process cannot be

canceled.

Note

•Steps 1 to 4 are the operations performed by the user

(they are intended to download the software from the

Internet).

•Steps 5 to 7 are the operations performed

(automatically) by the player (they are intended to

update the software).

1 When playback is stopped, display the Home

Menu screen.

Press HOME MENU.

2 Select and set Initial Setup.

Use / to select, then press ENTER.

3 Select and set Options  Software Update 

Start.

Use / to select, then press ENTER.

•If the player is already running the latest software, the

message “The player’s software is up to date and does

not need updating.” is displayed.

4 Select and set Yes.

Use /- to select Yes, then press ENTER.

•The help menu is displayed if the player cannot

connect to the Internet. Check the connections and

settings (pages 22 and 48).

5 Downloading of the software start.

The software download status is displayed on the screen.

•Depending on the Internet connection conditions,

software downloading may take a certain period of

time.

6 Updating starts.

“DOWNLOAD” and a number are displayed on the front

panel display, after which the display switches alternately

between this and “DATA CHECK”, “WRT IPL”, “WRT SD”,

“WRT KRNL”, “WRT SYS1”, “WRT SYS2”, “WRT DRV”

and “WRT FLC”.

• Software updating may take a certain period of time.

7 Updating completes.

The front panel display shows “DOWNLOAD OK” and the

player turns off automatically.

Restoring all the settings to

the factory default settings

1 Check that the player’s power is turned on.

2 Check that there is no disc in the player.

If there is a disc in the player, remove it.

3 While pressing , press STANDBY/ON.

Operate using the buttons on the player’s front panel.

Note

•After restoring all the settings to the factory default

settings, use Setup Navigator to reset the player

(page 23).

• When all the settings are restored to the factory

defaults, all the data for the secondary video (Picture-

in-Picture), secondary audio, bookmarks, etc., is

erased.

• If a disc is loaded, the settings cannot be restored to

the factory defaults by performing the above

operation.

V6000_CUXJ_EN.book 51 ページ２００９年６月５日　金曜日　午前１１時５７分

About the audio output settings

The audio signals that are output differ according to the audio format recorded on the disc and the player’s settings.

Check on the table below.

Caution

•When ANALOG AUDIO is selected at Output Terminal, no audio signals are output from the HDMI OUT terminal

or DIGITAL OUT terminal (pages 23 and 51).

•When HDMI or DIGITAL AUDIO is selected at Output Terminal, linear PCM audio signals (2 channels) are output

from all terminals other than the ones selected at Output Terminal (pages 23 and 51).

• The output from all terminals other than the ones selected for Audio does not sound as intended by the content

provider.

Audio format

AUDIO OUT terminals DIGITAL OUT terminal HDMI OUT terminal

2ch1

1. When Audio Output Mode is set to 2 Channel or Multi-channel (page 43).

Multi-channel1

Converted to

linear PCM

audio2

2. When Dolby Digital Out is set to Dolby Digital  PCM, DTS Out is set to DTS  PCM, or AAC Out is set to AAC  PCM (page 43).

Not converted

to linear PCM

audio3

3. When Dolby Digital Out is set to Dolby Digital 1/Dolby Digital 2, DTS Out is set to DTS 1/DTS 2 or AAC Out is set to AAC (page 43).

PCM4

4. When HDMI Audio Out is set to PCM or Auto (page 44).

Auto4

BD-

ROM

Dolby Digital

Converted to 2-

channel audio

5.1-channel

audio

Converted to 2-

channel audio

Dolby Digital5

5. When outputting Dolby Digital or DTS Digital Surround bitstream with Dolby Digital Out set to Dolby Digital 2 and DTS Out set to DTS

2, the secondary audio and interactive audio signals are not mixed for output.

5.1-channel

audio Dolby Digital6,7

6. When outputting the bitstream of Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS-HD High Resolution Audio

or DTS Digital Surround, the secondary audio and interactive audio signals are not mixed for output.

7. If the connected HDMI device is not compatible with Dolby TrueHD or Dolby Digital Plus bitstream, the signals are output in linear PCM (7.1

channels) or Dolby Digital bitstream.

If the connected HDMI device is not compatible with Dolby Digital bitstream, the signals are output in linear PCM (2 channels).

Dolby Digital

Plus 7.1-channel

audio

7.1-channel

audio

Dolby Digital

Plus6,7

Dolby TrueHD 7.1-channel

audio8

8. When the output video resolution is set to 480i/576i or 480p/576p, the signals may be output in linear PCM (2 channels), depending on HDMI

High Speed Transmission setting and/or the connected HDMI device (page 18).

Dolby

TrueHD6,7,9

DTS Digital

Surround 7.1-channel

audio

DTS Digital

Surround5

7.1-channel

audio

DTS Digital

Surround6,10

DTS-HD High

Resolution

Audio

7.1-channel

audio

7.1-channel

audio8

DTS-HD High

Resolution

Audio6,8,10

DTS-HD Master

Audio

DTS-HD Master

Audio6,10,11

Linear PCM Converted to 2-

channel audio 7.1-channel audio8

BD-R/

-RE

Dolby Digital Converted to 2-

channel audio

5.1-channel

audio

Converted to 2-

channel audio

Dolby Digital 5.1-channel

audio

Dolby Digital7

MPEG-2 AAC MPEG-2 AAC MPEG-2 AAC

MPEG 2-channel audio

Linear PCM

DVD-

Video

Dolby Digital Converted to 2-

channel audio

5.1-channel

audio

Converted to 2-

channel audio

Dolby Digital 5.1-channel

audio

Dolby Digital7

DTS Digital

Surround DTS Digital

Surround

DTS Digital

Surround10

MPEG 2-channel audio

Linear PCM

DVD-R/

-RW

(VR

format)

Dolby Digital Converted to 2-

channel audio

5.1-channel

audio

Converted to 2-

channel audio Dolby Digital 5.1-channel

audio Dolby Digital7

MPEG 2-channel audio

Linear PCM

V6000_CUXJ_EN.book 52 ページ２００９年６月５日　金曜日　午前１１時５７分

Note

•Only compatible with 7.1-channel surround back. 6.1-channel surround back is output in 7.1 channels. In other

cases, output as audio signals of 5.1-channels or less.

•When outputting linear PCM audio signals, if the number of compatible channels of the connected HDMI device

is lower, the signals are output with the number of channels for which the device is compatible.

• The audio signals output from the

DIGITAL OUT

terminal have a sampling frequency of 48 kHz (44.1 kHz for audio

CDs).

9. When the output video resolution is set to 480i/576i or 480p/576p, the signals may be output in linear PCM (2 channels) or Dolby Digital

bitstream, depending on HDMI High Speed Transmission setting and/or the connected HDMI device (page 18).

10. If the connected HDMI device is not compatible with DTS-HD Master Audio or DTS-HD High Resolution Audio, the signals are output in

linear PCM (7.1 channels) or DTS Digital Surround bitstream.

If the connected HDMI device is not compatible with DTS Digital Surround bitstream, the signals are output in linear PCM (2 channels).

11. When the output video resolution is set to 480i/576i or 480p/576p, the signals may be output in linear PCM (2 channels) or DTS Digital

Surround, depending on HDMI High Speed Transmission setting and/or the connected HDMI device.

V6000_CUXJ_EN.book 53 ページ２００９年６月５日　金曜日　午前１１時５７分

Language Code Table and Country/Area Code Table

Language Code Table

Language name, language code, input code

Country/Area Code Table

Country/Area name, Country/Area code, input code

Abkhazian, ab/abk, 0102

Afar, aa/aar, 0101

Afrikaans, af/afr, 0106

Albanian, sq/sqi, 1917

Amharic, am/amh, 0113

Arabic, ar/ara, 0118

Armenian, hy/hye, 0825

Assamese, as/asm, 0119

Aymara, ay/aym, 0125

Azerbaijani, az/aze, 0126

Bashkir, ba/bak, 0201

Basque, eu/eus, 0521

Belarusian, be/bel, 0205

Bengali, bn/ben, 0214

Bihari, bh/bih, 0208

Bislama, bi/bis, 0209

Breton, br/bre, 0218

Bulgarian, bg/bul, 0207

Burmese, my/mya, 1325

Catalan, ca/cat, 0301

Central Khmer, km/khm, 1113

Chinese, zh/zho, 2608

Corsican, co/cos, 0315

Croatian, hr/hrv, 0818

Czech, cs/ces, 0319

Danish, da/dan, 0401

Dutch, nl/nld, 1412

Dzongkha, dz/dzo, 0426

English, en/eng, 0514

Esperanto, eo/epo, 0515

Estonian, et/est, 0520

Finnish, fi/fin, 0609

Fijian, fj/fij, 0610

Faroese, fo/fao, 0615

French, fr/fra, 0618

Galician, gl/glg, 0712

Georgian, ka/kat, 1101

German, de/deu, 0405

Greek, el/ell, 0512

Guarani, gn/grn, 0714

Gujarati, gu/guj, 0721

Hausa, ha/hau, 0801

Hebrew, iw/heb, 0923

Hindi, hi/hin, 0809

Hungarian, hu/hun, 0821

Icelandic, is/isl, 0919

Indonesian, in/ind, 0914

Interlingua, ia/ina, 0901

Interlingue, ie/ile, 0905

Inupiaq, ik/ipk, 0911

Irish, ga/gle, 0701

Italian, it/ita, 0920

Japanese, ja/jpn, 1001

Javanese, jw/jav, 1023

Kalaallisut, kl/kal, 1112

Kannada, kn/kan, 1114

Kashmiri, ks/kas, 1119

Kazakh, kk/kaz, 1111

Kinyarwanda, rw/kin, 1823

Kirghiz, ky/kir, 1125

Korean, ko/kor, 1115

Kurdish, ku/kur, 1121

Lao, lo/lao, 1215

Latin, la/lat, 1201

Latvian, lv/lav, 1222

Lingala, ln/lin, 1214

Lithuanian, lt/lit, 1220

Macedonian, mk/mkd, 1311

Malagasy, mg/mlg, 1307

Malay, ms/msa, 1319

Malayalam, ml/mal, 1312

Maltese, mt/mlt, 1320

Maori, mi/mri, 1309

Marathi, mr/mar, 1318

Mongolian, mn/mon, 1314

Moldavian, mo/mol, 1315

Nauru, na/nau, 1401

Nepali, ne/nep, 1405

Norwegian, no/nor, 1415

Occitan, oc/oci, 1503

Oriya, or/ori, 1518

Oromo, om/orm, 1513

Panjabi, pa/pan, 1601

Persian, fa/fas, 0601

Polish, pl/pol, 1612

Portuguese, pt/por, 1620

Pushto, ps/pus, 1619

Quechua, qu/que, 1721

Romanian, ro/ron, 1815

Romansch, rm/roh, 1813

Rundi, rn/run, 1814

Russian, ru/rus, 1821

Samoan, sm/smo, 1913

Sango, sg/sag, 1907

Sanskrit, sa/san, 1901

Scottish Gaelic, gd/gla, 0704

Serbian, sr/srp, 1918

Serbo-Croatian, sh/---, 1908

Shona, sn/sna, 1914

Sindhi, sd/snd, 1904

Sinhalese, si/sin, 1909

Slovak, sk/slk, 1911

Slovenian, sl/slv, 1912

Somali, so/som, 1915

Sotho, Southern, st/sot, 1920

Spanish, es/spa, 0519

Sundanese, su/sun, 1921

Swahili, sw/swa, 1923

Swati, ss/ssw, 1919

Swedish, sv/swe, 1922

Tagalog, tl/tgl, 2012

Tajik, tg/tgk, 2007

Tamil, ta/tam, 2001

Tatar, tt/tat, 2020

Telugu, te/tel, 2005

Thai, th/tha, 2008

Tibetan, bo/bod, 0215

Tigrinya,

ti/tir, 2009

Tonga (Tonga Islands),

to/ton, 2015

Tsonga, ts/tso, 2019

Tswana, tn/tsn, 2014

Turkmen, tk/tuk, 2011

Turkish, tr/tur, 2018

Twi, tw/twi, 2023

Ukrainian, uk/ukr, 2111

Urdu, ur/urd, 2118

Uzbek, uz/uzb, 2126

Vietnamese, vi/vie, 2209

Volapük, vo/vol, 2215

Welsh, cy/cym, 0325

Western Frisian, fy/fry, 0625

Wolof, wo/wol, 2315

Xhosa, xh/xho, 2408

Yiddish, ji/yid, 1009

Yoruba, yo/yor, 2515

Zulu, zu/zul, 2621

Anguilla, ai, 0109

Antigua and Barbuda, ag, 0107

Argentina, ar, 0118

Armenia, am, 0113

Australia, au, 0121

Austria, at, 0120

Azerbaijan, az, 0126

Bahamas, bs, 0219

Barbados, bb, 0202

Belarus, by, 0225

Belgium, be, 0205

Belize, bz, 0226

Bermuda, bm, 0213

Brazil, br, 0218

Bulgaria, bg, 0207

Canada, ca, 0301

Cayman Islands, ky, 1125

Chile, cl, 0312

China, cn, 0314

Colombia, co, 0315

Croatia, hr, 0818

Cyprus, cy, 0325

Czech Republic, cz, 0326

Denmark, dk, 0411

Dominica, dm, 0413

Dominican Republic, do, 0415

Estonia, ee, 0505

Finland, fi, 0609

France, fr, 0618

Georgia, ge, 0705

Germany, de, 0405

Greece, gr, 0718

Greenland, gl, 0712

Grenada, gd, 0704

Guyana, gy, 0725

Haiti, ht, 0820

Hong Kong, hk, 0811

Hungary, hu, 0821

Iceland, is, 0919

India, in, 0914

Indonesia, id, 0904

Ireland, ie, 0905

Israel, il, 0912

Italy, it, 0920

Jamaica, jm, 1013

Japan, jp, 1016

Kazakhstan, kz, 1126

Korea, Republic of, kr, 1118

Kyrgyzstan, kg, 1107

Latvia, lv, 1222

Liechtenstein, li, 1209

Lithuania, lt, 1220

Luxembourg, lu, 1221

Macedonia, the Former Yugoslav

Republic of, mk, 1311

Malaysia, my, 1325

Malta, mt, 1320

Mexico, mx, 1324

Moldova, Republic of, md, 1304

Monaco, mc, 1303

Montserrat, ms, 1319

Netherlands, nl, 1412

New Zealand, nz, 1426

Norway, no, 1415

Pakistan, pk, 1611

Peru, pe, 1605

Philippines, ph, 1608

Poland, pl, 1612

Portugal, pt, 1620

Puerto Rico, pr, 1618

Romania, ro, 1815

Russian Federation, ru, 1821

Saint Kitts and Nevis, kn, 1114

Saint Lucia, lc, 1203

Saint Vincent and the

Grenadines, vc, 2203

San Marino, sm, 1913

Singapore, sg, 1907

Slovakia, sk, 1911

Slovenia, si, 1909

Spain, es, 0519

Suriname, sr, 1918

Sweden, se, 1905

Switzerland, ch, 0308

Taiwan, Province of China,

tw, 2023

Tajikistan, tj, 2010

Thailand, th, 2008

Trinidad and Tobago, tt, 2020

Tunisia, tn, 2014

Turkey, tr, 2018

Turkmenistan, tm, 2013

Turks and Caicos Islands,

tc, 2003

Ukraine, ua, 2101

United Kingdom, gb, 0702

United States, us, 2119

Uruguay, uy, 2125

Uzbekistan, uz, 2126

Venezuela, ve, 2205

Virgin Islands, British, vg, 2207

V6000_CUXJ_EN.book 54 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 8

Advanced setup

Changing the settings Operating the Advanced

Setup screen

1 When playback is stopped, display the Home

Menu screen.

Press HOME MENU.

2 Select and set Initial Setup  Advanced Setup.

Use / to select, then press ENTER.

3 Select the item and change the setting.

Use ///- to select, then press ENTER.

Closing the Advanced Setup screen

Press HOME MENU.

Note

• Items that cannot be changed are indicated in gray. The items that can be selected depend on the player’s status.

• In Options, the factory default settings are indicated in bold.

VIDEO SELECT PLAY MODE

HOME MEDIA

GALLERY

DISPLAY POPUP MENU

TOP MENU TOOLS

HOME

MENU RETURN

AUDIO VIDEO

SECONDARY OUTPUT

RESOLUTION

CLEAR ENTER

ENTER

PLAY

PREV PAUSE STOP NEXT

Off

0 Items

Off

9600 bps

Front Key Lock

Power on Start

Playlist

Playlist Auto Start

Playlist Auto Repeat

Baud Rate

Playback

Data Management

Setup Navigator

Parental Lock

Options

Advenced Setup

Initial Setup

BD PLAYER

Setting Options Explanation

Advanced Setup

Front Key Lock ALL Select this to lock operation of the buttons on the player's front panel and

opening/closing of the disc tray.

Tray Select this to only lock opening/closing of the disc tray.

Off Select this if you do not want to lock operation of the buttons on the player's

front panel and opening/closing of the disc tray.

Power on Start On Select this if you want the power to turn on automatically when the power

cord is plugged into a power outlet.

Off Select this if you do not want the power to turn on automatically when the

power cord is plugged into a power outlet.

Playlist Creates a playlist (page 56).

Playlist Auto Start On Select this if you want the play the playlist automatically when the power is

turned on or  is pressed.

Off Select this if you do not want to play the playlist automatically when the

power is turned on or  is pressed.

V6000_CUXJ_EN.book 55 ページ２００９年６月５日　金曜日　午前１１時５７分

Playing titles/chapters

in the registered order

(Playlist)

the order in which they were registered.

The discs that can be played with a playlist are as follows:

•DVDs recorded in DVD-Video format

•BDs recorded in BDMV format

Caution

•To create and play the playlist, use discs created

specifically for this player, not commercially available

discs. When a commercially available disc is used,

the player may not play in the order registered on the

playlist due to the program on the disc.

Creating playlist

1 When playback is stopped, display the Home

Menu screen.

Press HOME MENU.

2 Select and set Initial Setup.

Use / to select, then press ENTER.

3 Select and set Advanced Setup  Playlist  Next

Screen.

Use / to select, then press ENTER.

4 Select "--- - ---".

Use / to select, then press ENTER.

5 Input the title/chapter you want to register.

Use the number buttons (0 to 9) or / to input the

number.

Use /- to move the cursor.

•To register title 32, chapter 3, input 0, 3, 2, 0, 0 and 3.

6 Register the title/chapter.

Press ENTER. The specified title/chapter is registered on

the playlist. To register more titles/chapters, repeat steps

4 to 6.

7 Close the Playlist screen.

Press HOME MENU.

Note

• Title numbers and chapter numbers can be changed

by selecting already registered titles/chapters.

•000 cannot be registered for the title number.

• When 000 is entered for the chapter number, all the

chapters of the registered title are registered.

•A maximum of 24 titles/chapters can be registered on

the playlist.

• All titles/chapters registered on the playlist are

deleted when all the player's settings are restored to

the factory defaults (page 51).

•Depending on the disc and contents, titles/chapters

may not be playable, even when registered on the

playlist.

Deleting titles/chapters from the

playlist

Use





to select the title/chapter to be deleted, then

press

CLEAR

Deleting all titles/chapters from the

playlist

First press

TOOLS

, next use





to select

Delete

all playlists

, then press

ENTER

. Use



to select

Yes

then press

ENTER

Advanced Setup

Playlist Auto Repeat On Select this if you want to play the playlist repeatedly.

Off Select this if you do not want to play the playlist repeatedly.

Baud Rate 2400 bps Set the RS-232C terminal's signal transfer speed to 2 400 bps.

4800 bps Set the RS-232C terminal's signal transfer speed to 4 800 bps.

9600 bps Set the RS-232C terminal's signal transfer speed to 9 600 bps.

19200 bps Set the RS-232C terminal's signal transfer speed to 19 200 bps.

115200 bps Set the RS-232C terminal's signal transfer speed to 115 200 bps.

Setting Options Explanation

Playlist

Title ޓ Chapter

--- - ---

0 items

032-003





Title - Chapter

V6000_CUXJ_EN.book 56 ページ２００９年６月５日　金曜日　午前１１時５７分

Playing the playlist

Caution

•Depending on the disc or operation, the titles/

chapters may not be played as they were registered

on the playlist.

•The playlist cannot be played from the playlist screen.

Perform the operation below to play the playlist.

1 When playback is stopped, display the Home

Menu screen.

Press HOME MENU.

2 Select and set Initial Setup.

Use / to select, then press ENTER.

3 Select and set Advanced Setup  Playlist Auto

Start  On.

Use / to select, then press ENTER.

4 Close the Initial Setup screen.

Press HOME MENU.

5 Play the playlist.

Press PLAY.

Playback continues through to the end of the last title/

chapter registered on the playlist. When the / is

pressed during playback, playback skips from the

currently playing title/chapter to the previous/next title/

chapter registered in the playlist.

Note

•The Resume playback and Play Mode functions do

not work when Playlist Auto Start is set to On.

• If you do not want to play the playlist, set Playlist

Auto Start to Off.

V6000_CUXJ_EN.book 57 ページ２００９年６月５日　金曜日　午前１１時５７分

Chapter 9

Additional information

Serial interface

specifications

In addition to the basic operations on the player's front

panel and remote control, the player is equipped with a

serial interface conforming to RS-232C standards allowing

connection to a computer. The interface is a 9-pin D-Sub

connector.

Caution

•The 9-pin connector uses inch screw threads.

The D-Sub connector's pin layout is as shown below.

Serial control specifications

(1) Signal level

RS-232C level

(2) Data format

Data length: 8 bits

Stop bit: 1 bit

Parity: None

(3) Communication speed (Baud rate)

The communication speed (Baud rate) is selectable

among the following: 2400 bps, 4800 bps, 9600 bps,

19200 bps and 115200 bps. Set to 9600 bps by

factory default (page 56).

Connection to a computer

The player communicates with the computer using the

9-pin D-Sub connector's pins 2 and 3 for signal transfer

and pin 5 as the ground.

The computer and player are connected as shown on the

diagram below.

The player can accept commands whenever the power is

on. In addition, the player can accept the commands

below even when the power is off.

•Power ON command

•Play command

• Commands with the power (A181AFBC), play

(A181AF39) and power on (A181AFBA) Remote

Control Button commands as arguments.

There is no need to connect control lines other than TxD

and RxD.

Pin no. Terminal Input/Output Function

1DCDInput NC (not connected on

the player)

2RxD Input receive data

3 TxD Output send data

4DTR Output NC (not connected on

the player)

5 GND -- ground

6DSRInput NC (not connected on

the player)

7RTS Outupt Connected to CTS pin

internally.

8CTS Input Connected to RTS pin

internally.

9RI Input NC (not connected on

the player)

RxD

TxD

GND

BDP-V6000

RxDPin 2

Pin 3

Pin 5

Pin 2

Pin 3

Pin 5

TxD

GND

Control terminal such as

a computer

V6000_CUXJ_EN.book 58 ページ２００９年６月５日　金曜日　午前１１時５７分

Commands and statuses

Serial interface control is performed by the computer sending commands, etc., and the player returning the status.

When command execution is fully completed, the player returns a completion message (R<CR>). If an error is

generated, the player returns the error code (for example, E04<CR>).

List of usable commands

*1 The PL commands include both the PL command

without address and the PL command with address.

The PL command without address is set to  for the

respective discs, but how the PL command with address is

handled differs according to the address mode.

*2 For the SE and SP commands, handling differs

according to the address mode. See Table 2 for details.

*3 For the SM command, handling differs according to

the address mode. See Table 1 for details.

*4 Used to specify the address mode specification when

using the PL, SE, SP and SM commands.

Handling differs according to the command being used.

See Tables 1 and 2 for details.

Arguments

mnemonics

Command name

DVD

1PNPower ON  

2PFPower OFF  

3OPOpen  

4COClose 

599 RJ Stop 

6Adress PL Play *1 *1 *1

7PAPause 

8 ST Still  

9SFStep Forward 

10 SR Step Reverse  

11 NS Scan Stop 

12 Adress SE Search *2 *2 *2

13 Adress SL Search & Play *2 *2 *2

14 Adress SM Stop Marker*3 *3 *3

15 CL Clear 

16 TM Time *4 *4 *4

17 CH Chapter*4 *4 

18 TI Title *4 *4 

19 TR Track  *4

20 Argument KL Key Lock  

21 Argument BS Advanced

Playlist Playback

 

22 ?A Current Address

Request

 

23 ?R Title/Track

Number

Request

 

24 ?C Chapter Number

Request

 

25 ?T Time Code

Request

 

26 ?I Index Number

Request

 

27 ?V DVD Disc Status

Request



28 ?J BD Disc Status

Request

 

29 ?D Get Information  

30 ?K CD Disc Status

Request

 

31 ?P Player Active

Mode Request

 

32 ?L Player Model

Name Request

 

33 Argument SW Slow  

34 ?E Error Code

Request

 

35 Argument MC Menu Call  

36 Argument NB Numeric Button  

37 Argument CU Button Select  

38 ET Enter Button  

39 ?Z Firmware

Version Request

 

/Argument/

RU Remote Control

Button

 

Arguments

mnemonics

Command name

DVD

V6000_CUXJ_EN.book 59 ページ２００９年６月５日　金曜日　午前１１時５７分

Table 1 Address modes in which the PL and SM

commands are valid

Table 2 Address modes in which the SE and SL commands

are valid

Command mnemonics

Command mnemonics consist of two-digit ASCII

alphabetic coded characters. Upper-case and lower-case

characters can be used without distinction.

Arguments

(1) Arguments are placed in front of the command.

If a command requiring an argument has no

argument, an error is generated.

(2) Arguments are of the following types:

1. Address:

The address consists of ASCII digit characters for the title

number, chapter number, track number and time code,

according to the address mode.

The address mode is determined by the TI, CH, TR and TM

commands.

If a value greater than the maximum value is attributed, the

command will not work normally.

2. Argument:

The argument expresses a parameter for commands with

arguments other than the address (KL, BS, SW, etc.).

The argument consists of ASCII alphabetic coded

characters and digit characters.

Communications interface

manual

For detailed information on the serial interface commands,

download the "BDP-V6000 Communications Interface

Manual" from the Pioneer website.

BD DVD CD

TM(Time) 

CH(Chapter)

TI(Title) 

TR(Track) 

BD DVD CD

TM(Time) 

CH(Chapter)

TI(Title) 

TR(Track) 

V6000_CUXJ_EN.book 60 ページ２００９年６月５日　金曜日　午前１１時５７分

Licenses

The licenses for the software used on

this player are shown below.

libxml2

The MIT License

Permission is hereby granted, free of charge, to any person

obtaining a copy of this software and associated

documentation files (the “Software”), to deal in the

Software without restriction, including without limitation

the rights to use, copy, modify, merge, publish, distribute,

sublicense, and/or sell copies of the Software, and to

permit persons to whom the Software is furnished to do so,

subject to the following conditions:

The above copyright notice and this permission notice shall

be included in all copies or substantial portions of the

Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE AND NONINFRINGEMENT. IN NO EVENT

SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE

LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,

WHETHER IN AN ACTION OF CONTRACT, TORT OR

OTHERWISE, ARISING FROM, OUT OF OR IN

CONNECTION WITH THE SOFTWARE OR THE USE OR

OTHER DEALINGS IN THE SOFTWARE.

OpenSSL

The OpenSSL toolkit stays under a dual license, i.e. both the

conditions of the OpenSSL License and the original SSLeay

license apply to the toolkit.

See below for the actual license texts. Actually both

licenses are BSD-style Open Source licenses. In case of any

license issues related to OpenSSL please contact openssl-

core@openssl.org.

OpenSSL License

reserved.

Redistribution and use in source and binary forms, with or

without modification, are permitted provided that the

following conditions are met:

1. Redistributions of source code must retain the above

disclaimer.

2. Redistributions in binary form must reproduce the above

disclaimer in the documentation and/or other materials

provided with the distribution.

3. All advertising materials mentioning features or use of

this software must display the following

acknowledgment: “This product includes software

developed by the OpenSSL Project for use in the

OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project”

must not be used to endorse or promote products

derived from this software without prior written

permission. For written permission, please contact

openssl-core@openssl.org.

5. Products derived from this software may not be called

“OpenSSL” nor may “OpenSSL” appear in their names

without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the

following acknowledgment: “This product includes

software developed by the OpenSSL Project for use in the

OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL

PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE

DISCLAIMED. IN NO EVENT SHALL THE OpenSSL

PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR

SERVICES; LOSS OF USE, DATA, OR PROFITS; OR

BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON

ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR

OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE.

This product includes cryptographic software written by

Eric Young (eay@cryptsoft.com).This product includes

software written by Tim Hudson (tjh@cryptsoft.com).

Original SSLeay License

This package is an SSL implementation written by Eric

Young (eay@cryptsoft.com). The implementation was

written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use

as long as the following conditions are aheared to. The

following conditions apply to all code found in this

distribution, be it the RC4, RSA, lhash, DES, etc., code; not

just the SSL code. The SSL documentation included with

this distribution is covered by the same copyright terms

except that the holder is Tim Hudson (tjh@cryptsoft.com).

notices in the code are not to be removed. If this package is

used in a product, Eric Young should be given attribution as

the author of the parts of the library used. This can be in the

form of a textual message at program startup or in

documentation (online or textual) provided with the

package.

Redistribution and use in source and binary forms, with or

without modification, are permitted provided that the

following conditions are met:

1. Redistributions of source code must retain the copyright

notice, this list of conditions and the following

disclaimer.

2. Redistributions in binary form must reproduce the above

disclaimer in the documentation and/or other materials

provided with the distribution.

3. All advertising materials mentioning features or use of

this software must display the following

acknowledgement: “This product includes cryptographic

software written by Eric Young (eay@cryptsoft.com)”

The word ‘cryptographic’ can be left out if the rouines

from the library being used are not cryptographic related

:-).

4. If you include any Windows specific code (or a derivative

thereof) from the apps directory (application code) you

must include an acknowledgement: “This product

includes software written by Tim Hudson

(tjh@cryptsoft.com)”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS”

AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO

EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically

available version or derivative of this code cannot be

changed. i.e. this code cannot simply be copied and put

under another distribution licence [including the GNU

Public Licence.]

zlib

This software is based in part on zlib see http://www.zlib.net

for information.

FreeType2

The FreeType Project LICENSE

Robert Wilhelm, and Werner Lemberg

Introduction

The FreeType Project is distributed in several archive

packages; some of them may contain, in addition to the

FreeType font engine, various tools and contributions

which rely on, or relate to, the FreeType Project.

This license applies to all files found in such packages, and

which do not fall under their own explicit license. The

license affects thus the FreeType font engine, the test

programs, documentation and makefiles, at the very least.

This license was inspired by the BSD, Artistic, and IJG

(Independent JPEG Group) licenses, which all encourage

inclusion and use of free software in commercial and

freeware products alike. As a consequence, its main points

are that:

•We don’t promise that this software works. However, we

will be interested in any kind of bug reports.(‘as is’

distribution)

•You can use this software for whatever you want, in parts

or full form, without having to pay us.(‘royalty-free’

usage)

•You may not pretend that you wrote this software. If you

use it, or only parts of it, in a program, you must

acknowledge somewhere in your documentation that

you have used the FreeType code.(‘credits’)

We specifically permit and encourage the inclusion of this

software, with or without modifications, in commercial

products. We disclaim all warranties covering The FreeType

Project and assume no liability related to The FreeType

Project.

Finally, many people asked us for a preferred form for a

credit/disclaimer to use in compliance with this license.

We thus encourage you to use the following text:

Please replace <year> with the value from the FreeType

version you actually use.

Legal Terms

0. Definitions

Throughout this license, the terms ‘package’, ‘FreeType

Project’, and ‘FreeType archive’ refer to the set of files

originally distributed by the authors (David Turner,

Robert Wilhelm, and Werner Lemberg) as the ‘FreeType

Project’, be they named as alpha, beta or final release.

‘You’ refers to the licensee, or person using the project,

where ‘using’ is a generic term including compiling the

project’s source code as well as linking it to form a

‘program’ or ‘executable’. This program is referred to as

‘a program using the FreeType engine’.

This license applies to all files distributed in the original

FreeType Project, including all source code, binaries and

documentation, unless otherwise stated in the file in its

original, unmodified form as distributed in the original

archive. If you are unsure whether or not a particular file

is covered by this license, you must contact us to verify

this.

Turner, Robert Wilhelm, and Werner Lemberg. All rights

reserved except as specified below.

1. No Warranty

THE FREETYPE PROJECT IS PROVIDED ‘AS IS’

WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY

OF THE AUTHORS OR COPYRIGHT HOLDERS BE

LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR

THE INABILITY TO USE, OF THE FREETYPE PROJECT.

2. Redistribution

This license grants a worldwide, royalty-free, perpetual

and irrevocable right and license to use, execute,

perform, compile, display, copy, create derivative works

of, distribute and sublicense the FreeType Project (in

both source and object code forms) and derivative works

thereof for any purpose; and to authorize others to

exercise some or all of the rights granted herein, subject

to the following conditions:

•Redistribution of source code must retain this license

file (‘FTL.TXT’) unaltered; any additions, deletions or

changes to the original files must be clearly indicated

in accompanying documentation. The copyright

notices of the unaltered, original files must be

preserved in all copies of source files.

•Redistribution in binary form must provide a

disclaimer that states that the software is based in part

of the work of the FreeType Team, in the distribution

documentation. We also encourage you to put an URL

to the FreeType web page in your documentation,

though this isn’t mandatory.

These conditions apply to any software derived from or

based on the FreeType Project, not just the unmodified

files. If you use our work, you must acknowledge us.

However, no fee need be paid to us.

3. Advertising

Neither the FreeType authors and contributors nor you

shall use the name of the other for commercial,

advertising, or promotional purposes without specific

prior written permission.

We suggest, but do not require, that you use one or more

of the following phrases to refer to this software in your

documentation or advertising materials: ‘FreeType

Project’, ‘FreeType Engine’, ‘FreeType library’, or

‘FreeType Distribution’.

As you have not signed this license, you are not required

to accept it. However, as the FreeType Project is

copyrighted material, only this license, or another one

contracted with the authors, grants you the right to use,

distribute, and modify it. Therefore, by using,

distributing, or modifying the FreeType Project, you

indicate that you understand and accept all the terms of

this license.

4. Contacts

There are two mailing lists related to FreeType:

•freetype@nongnu.org

Discusses general use and applications of FreeType,

as well as future and wanted additions to the library

and distribution. If you are looking for support, start in

this list if you haven’t found anything to help you in the

documentation.

•freetype-devel@nongnu.org

Discusses bugs, as well as engine internals, design

issues, specific licenses, porting, etc.

Our home page can be found at

http://www.freetype.org

V6000_CUXJ_EN.book 61 ページ２００９年６月５日　金曜日　午前１１時５７分

libpng

If you modify libpng you may insert additional notices

immediately following this sentence.

libpng versions 1.2.6, August 15, 2004, through 1.2.26, April

Pehrson, and are distributed according to the same

disclaimer and license as libpng-1.2.5 with the following

individual added to the list of Contributing Authors

Cosmin Truta

libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October

Pehrson, and are distributed according to the same

disclaimer and license as libpng-1.0.6 with the following

individuals added to the list of Contributing Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the disclaimer:

There is no warranty against interference with your

enjoyment of the library or against infringement. There is

no warranty that our efforts or the library will fulfill any of

your particular purposes or needs. This library is provided

with all faults, and the entire risk of satisfactory quality,

performance, accuracy, and effort is with the user.

libpng versions 0.97, January 1998, through 1.0.6, March

Pehrson, and are distributed according to the same

disclaimer and license as libpng-0.96, with the following

individuals added to the list of Contributing Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through 0.96, May 1997,

according to the same disclaimer and license as libpng-

0.88, with the following individuals added to the list of

Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88, January 1996,

Inc.

For the purposes of this copyright and license,

“Contributing Authors” is defined as the following set of

individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied “AS IS”. The

Contributing Authors and Group 42, Inc. disclaim all

warranties, expressed or implied, including, without

limitation, the warranties of merchantability and of fitness

for any purpose. The Contributing Authors and Group 42,

Inc. assume no liability for direct, indirect, incidental,

special, exemplary, or consequential damages, which may

result from the use of the PNG Reference Library, even if

advised of the possibility of such damage.

Permission is hereby granted to use, copy, modify, and

distribute this source code, or portions hereof, for any

purpose, without fee, subject to the following restrictions:

1. The origin of this source code must not be misrepresented.

2. Altered versions must be plainly marked as such and

must not be misrepresented as being the original source.

3. This Copyright notice may not be removed or altered from

any source or altered source distribution.

The Contributing Authors and Group 42, Inc. specifically

permit, without fee, and encourage the use of this source

code as a component to supporting the PNG file format in

commercial products. If you use this source code in a

product, acknowledgment is not required but would be

appreciated.

A “png_get_copyright” function is available, for convenient

use in “about” boxes and the like:

printf(“%s”,png_get_copyright(NULL));Also, the PNG logo

(in PNG format, of course) is supplied in the files

“pngbar.png” and “pngbar.jpg (88x31) and “pngnow.png”

(98x31).

Libpng is OSI Certified Open Source Software. OSI Certified

Open Source is a certification mark of the Open Source

Initiative.

Glenn Randers-Pehrson

glennrp at users.sourceforge.net

2-Apr-08

libjpg

The Independent JPEG Group’s JPEG software

README for release 6b of 27-Mar-1998

This distribution contains the sixth public release of the

Independent JPEG Group’s free JPEG software. You are

welcome to redistribute this software and to use it for any

purpose, subject to the conditions under LEGAL ISSUES,

below.

Serious users of this software (particularly those

incorporating it into larger programs) should contact IJG at

jpeg-info@uunet.uu.net to be added to our electronic

mailing list. Mailing list members are notified of updates

and have a chance to participate in technical discussions,

etc.

This software is the work of Tom Lane, Philip Gladstone, Jim

Boucher, Lee Crocker, Julian Minguillon, Luis Ortiz, George

Phillips, Davide Rossi, Guido Vollbeding, Ge’ Weijers, and

other members of the Independent JPEG Group.

IJG is not affiliated with the official ISO JPEG standards

committee.

DOCUMENTATION ROADMAP

This file contains the following sections:

OVERVIEW General description of JPEG and

the IJG software.

LEGAL ISSUES Copyright, lack of warranty, terms

of distribution.

REFERENCES Where to learn more about JPEG.

ARCHIVE LOCATIONS Where to find newer versions of

this software.

RELATED SOFTWARE Other stuff you should get.

FILE FORMAT WARS Software *not* to get.

TO DO Plans for future IJG releases.

Other documentation files in the distribution are:

User documentation:

install.doc How to configure and install the IJG

software.

usage.doc Usage instructions for cjpeg, djpeg,

jpegtran, rdjpgcom, and wrjpgcom.

*.1 Unix-style man pages for programs (same info as

usage.doc).

wizard.doc Advanced usage instructions for JPEG

wizards only.

change.log Version-to-version change highlights.

Programmer and internal documentation:

libjpeg.doc How to use the JPEG library in your own

programs.

example.c Sample code for calling the JPEG library.

structure.doc Overview of the JPEG library’s internal

structure.

filelist.doc Road map of IJG files.

coderules.doc Coding style rules --- please read if you

contribute code.

Please read at least the files install.doc and usage.doc.

Useful information can also be found in the JPEG FAQ

(Frequently Asked Questions) article. See ARCHIVE

LOCATIONS below to find out where to obtain the FAQ

article.

If you want to understand how the JPEG code works, we

suggest reading one or more of the REFERENCES, then

looking at the documentation files (in roughly the order

listed) before diving into the code.

OVERVIEW

This package contains C software to implement JPEG

image compression and decompression. JPEG

(pronounced “jay-peg”) is a standardized compression

method for full-color and gray-scale images. JPEG is

intended for compressing real-world scenes; line drawings,

cartoons and other non-realistic images are not its strong

suit. JPEG is lossy, meaning that the output image is not

exactly identical to the input image. Hence you must not

use JPEG if you have to have identical output bits. However,

on typical photographic images, very good compression

levels can be obtained with no visible change, and

remarkably high compression levels are possible if you can

tolerate a low-quality image. For more details, see the

references, or just experiment with various compression

settings.

This software implements JPEG baseline, extended-

sequential, and progressive compression processes.

Provision is made for supporting all variants of these

processes, although some uncommon parameter settings

aren’t implemented yet. For legal reasons, we are not

distributing code for the arithmetic-coding variants of

JPEG; see LEGAL ISSUES. We have made no provision for

supporting the hierarchical or lossless processes defined

in the standard.

We provide a set of library routines for reading and writing

JPEG image files, plus two sample applications “cjpeg” and

“djpeg”, which use the library to perform conversion

between JPEG and some other popular image file formats.

The library is intended to be reused in other applications.

In order to support file conversion and viewing software, we

have included considerable functionality beyond the bare

JPEG coding/decoding capability; for example, the color

quantization modules are not strictly part of JPEG

decoding, but they are essential for output to colormapped

file formats or colormapped displays. These extra functions

can be compiled out of the library if not required for a

particular application. We have also included jpegtran, a

utility for lossless transcoding between different JPEG

processes, and “rdjpgcom” and “wrjpgcom”, two simple

applications for inserting and extracting textual comments

in JFIF files.

The emphasis in designing this software has been on

achieving portability and flexibility, while also making it fast

enough to be useful. In particular, the software is not

intended to be read as a tutorial on JPEG. (See the

REFERENCES section for introductory material.) Rather, it

is intended to be reliable, portable, industrial-strength

code. We do not claim to have achieved that goal in every

aspect of the software, but we strive for it.

We welcome the use of this software as a component of

commercial products. No royalty is required, but we do ask

for an acknowledgement in product documentation, as

described under LEGAL ISSUES.

LEGAL ISSUES

In plain English:

1. We don’t promise that this software works. (But if you

find any bugs, please let us know!)

2. You can use this software for whatever you want. You

don’t have to pay us.

3. You may not pretend that you wrote this software. If you

use it in a program, you must acknowledge somewhere

in your documentation that you’ve used the IJG code.

In legalese:

The authors make NO WARRANTY or representation, either

express or implied, with respect to this software, its quality,

accuracy, merchantability, or fitness for a particular

purpose. This software is provided “AS IS”, and you, its

user, assume the entire risk as to its quality and accuracy.

Rights Reserved except as specified below.

Permission is hereby granted to use, copy, modify, and

distribute this software (or portions thereof) for any

purpose, without fee, subject to these conditions:

(1)If any part of the source code for this software is

distributed, then this README file must be included,

with this copyright and no-warranty notice unaltered;

and any additions, deletions, or changes to the original

files must be clearly indicated in accompanying

documentation.

(2)If only executable code is distributed, then the

accompanying documentation must state that “this

software is based in part on the work of the Independent

JPEG Group”.

(3)Permission for use of this software is granted only if the

user accepts full responsibility for any undesirable

consequences; the authors accept NO LIABILITY for

damages of any kind.

These conditions apply to any software derived from or

based on the IJG code, not just to the unmodified library. If

you use our work, you ought to acknowledge us.

Permission is NOT granted for the use of any IJG author’s

name or company name in advertising or publicity relating

to this software or products derived from it. This software

may be referred to only as “the Independent JPEG Group’s

software”.

We specifically permit and encourage the use of this

software as the basis of commercial products, provided

that all warranty or liability claims are assumed by the

product vendor.

ansi2knr.c is included in this distribution by permission of

L. Peter Deutsch, sole proprietor of its copyright holder,

Aladdin Enterprises of Menlo Park, CA. ansi2knr.c is NOT

covered by the above copyright and conditions, but instead

by the usual distribution terms of the Free Software

Foundation; principally, that you must include source code

if you redistribute it. (See the file ansi2knr.c for full details.)

However, since ansi2knr.c is not needed as part of any

program generated from the IJG code, this does not limit

you more than the foregoing paragraphs do.

The Unix configuration script “configure” was produced

with GNU Autoconf. It is copyright by the Free Software

Foundation but is freely distributable. The same holds for its

supporting scripts (config.guess, config.sub, ltconfig,

ltmain.sh). Another support script, install-sh, is copyright

by M.I.T. but is also freely distributable.

It appears that the arithmetic coding option of the JPEG

spec is covered by patents owned by IBM, AT&T, and

Mitsubishi. Hence arithmetic coding cannot legally be

used without obtaining one or more licenses. For this

reason, support for arithmetic coding has been removed

from the free JPEG software. (Since arithmetic coding

provides only a marginal gain over the unpatented Huffman

mode, it is unlikely that very many implementations will

support it.) So far as we are aware, there are no patent

restrictions on the remaining code.

The IJG distribution formerly included code to read and

write GIF files. To avoid entanglement with the Unisys LZW

patent, GIF reading support has been removed altogether,

and the GIF writer has been simplified to produce

uncompressed GIFs. This technique does not use the LZW

algorithm; the resulting GIF files are larger than usual, but

are readable by all standard GIF decoders.

We are required to state that

V6000_CUXJ_EN.book 62 ページ２００９年６月５日　金曜日　午前１１時５７分

“The Graphics Interchange Format(c) is the Copyright

property of CompuServe Incorporated. GIF(sm) is a

Service Mark property of CompuServe Incorporated.”

REFERENCES

We highly recommend reading one or more of these

references before trying to understand the innards of the

JPEG software.

The best short technical introduction to the JPEG

compression algorithm is

Wallace, Gregory K. “The JPEG Still Picture Compression

Standard”,

Communications of the ACM, April 1991 (vol. 34 no. 4),

pp. 30-44.

(Adjacent articles in that issue discuss MPEG motion

picture compression, applications of JPEG, and related

topics.) If you don’t have the CACM issue handy, a

PostScript file containing a revised version of Wallace’s

article is available at ftp://ftp.uu.net/graphics/jpeg/

wallace.ps.gz. The file (actually a preprint for an article that

appeared in IEEE Trans. Consumer Electronics) omits the

sample images that appeared in CACM, but it includes

corrections and some added material. Note: the Wallace

article is copyright ACM and IEEE, and it may not be used

for commercial purposes.

A somewhat less technical, more leisurely introduction to

JPEG can be found in The Data Compression Book by Mark

Nelson and Jean-loup Gailly, published by M&T Books (New

York), 2nd ed. 1996, ISBN 1-55851-434-1. This book provides

good explanations and example C code for a multitude of

compression methods including JPEG. It is an excellent

source if you are comfortable reading C code but don’t

know much about data compression in general. The book’s

JPEG sample code is far from industrial-strength, but when

you are ready to look at a full implementation, you’ve got

one here...

The best full description of JPEG is the textbook “JPEG Still

Image Data Compression Standard” by William B.

Pennebaker and Joan L. Mitchell, published by Van

Nostrand Reinhold, 1993, ISBN 0-442-01272-1. Price

US$59.95, 638 pp. The book includes the complete text of

the ISO JPEG standards (DIS 10918-1 and draft DIS 10918-

2). This is by far the most complete exposition of JPEG in

existence, and we highly recommend it.

The JPEG standard itself is not available electronically; you

must order a paper copy through ISO or ITU. (Unless you

feel a need to own a certified official copy, we recommend

buying the Pennebaker and Mitchell book instead; it’s

much cheaper and includes a great deal of useful

explanatory material.) In the USA, copies of the standard

may be ordered from ANSI Sales at (212) 642-4900, or from

Global Engineering Documents at (800) 854-7179. (ANSI

doesn’t take credit card orders, but Global does.) It’s not

cheap: as of 1992, ANSI was charging $95 for Part 1 and $47

for Part 2, plus 7% shipping/handling. The standard is

divided into two parts, Part 1 being the actual specification,

while Part 2 covers compliance testing methods. Part 1 is

titled “Digital Compression and Coding of Continuous-tone

Still Images, Part 1: Requirements and guidelines” and has

document numbers ISO/IEC IS 10918-1, ITU-T T.81. Part 2 is

titled “Digital Compression and Coding of Continuous-tone

Still Images, Part 2: Compliance testing” and has

document numbers ISO/IEC IS 10918-2, ITU-T T.83.

Some extensions to the original JPEG standard are defined

in JPEG Part 3, a newer ISO standard numbered ISO/IEC IS

10918-3 and ITU-T T.84. IJG currently does not support any

Part 3 extensions.

The JPEG standard does not specify all details of an

interchangeable file format. For the omitted details we

follow the “JFIF” conventions, revision 1.02. A copy of the

JFIF spec is available from:

Literature Department

C-Cube Microsystems, Inc.

1778 McCarthy Blvd.

Milpitas, CA 95035

phone (408) 944-6300, fax (408) 944-6314

A PostScript version of this document is available by FTP at

ftp://ftp.uu.net/graphics/jpeg/jfif.ps.gz. There is also a plain

text version at ftp://ftp.uu.net/graphics/jpeg/jfif.txt.gz, but it

is missing the figures.

The TIFF 6.0 file format specification can be obtained by FTP

from ftp://ftp.sgi.com/graphics/tiff/TIFF6.ps.gz. The JPEG

incorporation scheme found in the TIFF 6.0 spec of 3-June-

92 has a number of serious problems. IJG does not

recommend use of the TIFF 6.0 design (TIFF Compression

tag 6). Instead, we recommend the JPEG design proposed

by TIFF Technical Note #2 (Compression tag 7). Copies of

this Note can be obtained from ftp.sgi.com or from ftp://

ftp.uu.net/graphics/jpeg/. It is expected that the next

revision of the TIFF spec will replace the 6.0 JPEG design

with the Note’s design. Although IJG’s own code does not

support TIFF/JPEG, the free libtiff library uses our library to

implement TIFF/JPEG per the Note. libtiff is available from

ftp://ftp.sgi.com/graphics/tiff/.

ARCHIVE LOCATIONS

The “official” archive site for this software is ftp.uu.net

(Internet address 192.48.96.9). The most recent released

version can always be found there in directory graphics/

jpeg. This particular version will be archived as ftp://

ftp.uu.net/graphics/jpeg/jpegsrc.v6b.tar.gz. If you don’t

have direct Internet access, UUNET’s archives are also

available via UUCP; contact help@uunet.uu.net for

information on retrieving files that way.

Numerous Internet sites maintain copies of the UUNET

files. However, only ftp.uu.net is guaranteed to have the

latest official version.

You can also obtain this software in DOS-compatible “zip”

archive format from the SimTel archives (ftp://

ftp.simtel.net/pub/simtelnet/msdos/graphics/), or on

CompuServe in the Graphics Support forum (GO

CIS:GRAPHSUP), library 12 JPEG Tools. Again, these

versions may sometimes lag behind the ftp.uu.net release.

The JPEG FAQ (Frequently Asked Questions) article is a

useful source of general information about JPEG. It is

updated constantly and therefore is not included in this

distribution. The FAQ is posted every two weeks to Usenet

newsgroups comp.graphics.misc, news.answers, and

other groups. It is available on the World Wide Web at http:/

/www.faqs.org/faqs/jpeg-faq/ and other news.answers

archive sites, including the official news.answers archive at

rtfm.mit.edu: ftp://rtfm.mit.edu/pub/usenet/news.answers/

jpeg-faq/. If you don’t have Web or FTP access, send e-mail

to mail-server@rtfm.mit.edu with body

send usenet/news.answers/jpeg-faq/part1

send usenet/news.answers/jpeg-faq/part2

RELATED SOFTWARE

Numerous viewing and image manipulation programs now

support JPEG. (Quite a few of them use this library to do so.)

The JPEG FAQ described above lists some of the more

popular free and shareware viewers, and tells where to

obtain them on Internet.

If you are on a Unix machine, we highly recommend Jef

Poskanzer’s free PBMPLUS software, which provides many

useful operations on PPM-format image files. In particular,

it can convert PPM images to and from a wide range of

other formats, thus making cjpeg/djpeg considerably more

useful. The latest version is distributed by the NetPBM

group, and is available from numerous sites, notably ftp://

wuarchive.wustl.edu/graphics/graphics/packages/

NetPBM/. Unfortunately PBMPLUS/NETPBM is not nearly

as portable as the IJG software is; you are likely to have

difficulty making it work on any non-Unix machine.

A different free JPEG implementation, written by the PVRG

group at Stanford, is available from ftp://

havefun.stanford.edu/pub/jpeg/. This program is designed

for research and experimentation rather than production

use; it is slower, harder to use, and less portable than the

IJG code, but it is easier to read and modify. Also, the PVRG

code supports lossless JPEG, which we do not. (On the

other hand, it doesn’t do progressive JPEG.)

FILE FORMAT WARS

Some JPEG programs produce files that are not compatible

with our library. The root of the problem is that the ISO

JPEG committee failed to specify a concrete file format.

Some vendors “filled in the blanks” on their own, creating

proprietary formats that no one else could read. (For

example, none of the early commercial JPEG

implementations for the Macintosh were able to exchange

compressed files.)

The file format we have adopted is called JFIF (see

REFERENCES). This format has been agreed to by a

number of major commercial JPEG vendors, and it has

become the de facto standard. JFIF is a minimal or “low

end” representation. We recommend the use of TIFF/JPEG

(TIFF revision 6.0 as modified by TIFF Technical Note #2) for

“high end” applications that need to record a lot of

additional data about an image. TIFF/JPEG is fairly new and

not yet widely supported, unfortunately.

The upcoming JPEG Part 3 standard defines a file format

called SPIFF. SPIFF is interoperable with JFIF, in the sense

that most JFIF decoders should be able to read the most

common variant of SPIFF. SPIFF has some technical

advantages over JFIF, but its major claim to fame is simply

that it is an official standard rather than an informal one. At

this point it is unclear whether SPIFF will supersede JFIF or

whether JFIF will remain the de-facto standard. IJG intends

to support SPIFF once the standard is frozen, but we have

not decided whether it should become our default output

format or not. (In any case, our decoder will remain capable

of reading JFIF indefinitely.)

Various proprietary file formats incorporating JPEG

compression also exist. We have little or no sympathy for

the existence of these formats. Indeed, one of the original

reasons for developing this free software was to help force

convergence on common, open format standards for JPEG

files. Don’t use a proprietary file format!

TO DO

The major thrust for v7 will probably be improvement of

visual quality. The current method for scaling the

quantization tables is known not to be very good at low Q

values. We also intend to investigate block boundary

smoothing, “poor man’s variable quantization”, and other

means of improving quality-vs-file-size performance

without sacrificing compatibility.

In future versions, we are considering supporting some of

the upcoming JPEG Part 3 extensions --- principally,

variable quantization and the SPIFF file format.

As always, speeding things up is of great interest.

Please send bug reports, offers of help, etc. to jpeg-

info@uunet.uu.net.

libupnp

Redistribution and use in source and binary forms, with or

without modification, are permitted provided that the

following conditions are met:

*Redistributions of source code must retain the above

disclaimer.

*Redistributions in binary form must reproduce the above

disclaimer in the documentation and/or other materials

provided with the distribution.

*Neither name of Intel Corporation nor the names of its

contributors may be used to endorse or promote

products derived from this software without specific

prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS

“AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO

EVENT SHALL INTEL OR CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

AVC/H.264

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT

PORTFOLIO LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER TO (i) ENCODE

VIDEO IN COMPLIANCE WITH THE AVC STANDARD (”AVC

VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS

ENCODED BY A CONSUMER ENGAGED IN A PERSONAL

AND NON-COMMERCIAL ACTIVITY AND/OR WAS

OBTAINED FROM A VIDEO PROVIDER LICENSED TO

PROVIDE AVC VIDEO. No LICENSE IS GRANTED OR

SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL

INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.

SEE HTTP://MPEGLA.COM.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim

copies of this license document, but changing it is not

allowed.

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the GNU

General Public License is intended to guarantee your

freedom to share and change free software - to make sure

the software is free for all its users. This General Public

License applies to most of the Free Software Foundation’s

software and to any other program whose authors commit

to using it. (Some other Free Software Foundation software

is covered by the GNU Lesser General Public License

instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to

freedom, not price. Our General Public Licenses are

designed to make sure that you have the freedom to

distribute copies of free software (and charge for this

service if you wish), that you receive source code or can get

it if you want it, that you can change the software or use

pieces of it in new free programs; and that you know you

can do these things.

To protect your rights, we need to make restrictions that

forbid anyone to deny you these rights or to ask you to

surrender the rights. These restrictions translate to certain

responsibilities for you if you distribute copies of the

software, or if you modify it.

For example, if you distribute copies of such a program,

whether gratis or for a fee, you must give the recipients all

the rights that you have. You must make sure that they, too,

receive or can get the source code. And you must show

them these terms so they know their rights.

V6000_CUXJ_EN.book 63 ページ２００９年６月５日　金曜日　午前１１時５７分

We protect your rights with two steps: (1) copyright the

software, and (2) offer you this license which gives you legal

permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to

make certain that everyone understands that there is no

warranty for this free software. If the software is modified by

someone else and passed on, we want its recipients to

know that what they have is not the original, so that any

problems introduced by others will not reflect on the

original authors’ reputations.

Finally, any free program is threatened constantly by

software patents. We wish to avoid the danger that

redistributors of a free program will individually obtain

patent licenses, in effect making the program proprietary.

To prevent this, we have made it clear that any patent must

be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution

and modification follow.

TERMS AND CONDITIONS FOR COPYING,

DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which

contains a notice placed by the copyright holder saying it

may be distributed under the terms of this General Public

License. The “Program”, below, refers to any such

program or work, and a “work based on the Program”

means either the Program or any derivative work under

Program or a portion of it, either verbatim or with

modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in

the term “modification”.) Each licensee is addressed as

“you”.

Activities other than copying, distribution and

modification are not covered by this License; they are

outside its scope. The act of running the Program is not

restricted, and the output from the Program is covered

only if its contents constitute a work based on the

Program (independent of having been made by running

the Program). Whether that is true depends on what the

Program does.

1. You may copy and distribute verbatim copies of the

Program’s source code as you receive it, in any medium,

provided that you conspicuously and appropriately

publish on each copy an appropriate copyright notice

and disclaimer of warranty; keep intact all the notices

that refer to this License and to the absence of any

warranty; and give any other recipients of the Program a

copy of this License along with the Program.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty

protection in exchange for a fee.

2. You may modify your copy or copies of the Program or

any portion of it, thus forming a work based on the

Program, and copy and distribute such modifications or

work under the terms of Section 1 above, provided that

you also meet all of these conditions:

a) You must cause the modified files to carry prominent

notices stating that you changed the files and the date

of any change.

b) You must cause any work that you distribute or

publish, that in whole or in part contains or is derived

from the Program or any part thereof, to be licensed as

a whole at no charge to all third parties under the

terms of this License.

c) If the modified program normally reads commands

interactively when run, you must cause it, when

started running for such interactive use in the most

ordinary way, to print or display an announcement

including an appropriate copyright notice and a notice

that there is no warranty (or else, saying that you

provide a warranty) and that users may redistribute the

program under these conditions, and telling the user

how to view a copy of this License. (Exception: if the

Program itself is interactive but does not normally

print such an announcement, your work based on the

Program is not required to print an announcement.)

These requirements apply to the modified work as a

whole. If identifiable sections of that work are not derived

from the Program, and can be reasonably considered

independent and separate works in themselves, then this

License, and its terms, do not apply to those sections

when you distribute them as separate works. But when

you distribute the same sections as part of a whole which

is a work based on the Program, the distribution of the

whole must be on the terms of this License, whose

permissions for other licensees extend to the entire

whole, and thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the

distribution of derivative or collective works based on the

Program.

In addition, mere aggregation of another work not based

on the Program with the Program (or with a work based

on the Program) on a volume of a storage or distribution

medium does not bring the other work under the scope

of this License.

3. You may copy and distribute the Program (or a work

based on it, under Section 2) in object code or executable

form under the terms of Sections 1 and 2 above provided

that you also do one of the following:

a) Accompany it with the complete corresponding

machine-readable source code, which must be

distributed under the terms of Sections 1 and 2 above

on a medium customarily used for software

interchange; or,

b) Accompany it with a written offer, valid for at least

three years, to give any third party, for a charge no

more than your cost of physically performing source

distribution, a complete machine-readable copy of the

corresponding source code, to be distributed under

the terms of Sections 1 and 2 above on a medium

customarily used for software interchange; or,

c) Accompany it with the information you received as to

the offer to distribute corresponding source code.

(This alternative is allowed only for noncommercial

distribution and only if you received the program in

object code or executable form with such an offer, in

accord with Subsection b above.)

The source code for a work means the preferred form of

the work for making modifications t o it. For an executable

work, complete source code means all the source code

for all modules it contains, plus any associated interface

definition files, plus the scripts used to control

compilation and installation of the executable. However,

as a special exception, the source code distributed need

not include anything that is normally distributed (in

either source or binary form) with the major components

(compiler, kernel, and so on) of the operating system on

which the executable runs, unless that component itself

accompanies the executable.

If distribution of executable or object code is made by

offering access to copy from a designated place, then

offering equivalent access to copy the source code from

the same place counts as distribution of the source code,

even though third parties are not compelled to copy the

source along with the object code.

4. You may not copy, modify, sublicense, or distribute the

Program except as expressly provided under this

License. Any attempt otherwise to copy, modify,

sublicense or distribute the Program is void, and will

automatically terminate your rights under this License.

However, parties who have received copies, or rights,

from you under this License will not have their licenses

terminated so long as such parties remain in full

compliance.

5. You are not required to accept this License, since you

have not signed it. However, nothing else grants you

permission to modify or distribute the Program or its

derivative works. These actions are prohibited by law if

you do not accept this License. Therefore, by modifying

or distributing the Program (or any work based on the

Program), you indicate your acceptance of this License

to do so, and all its terms and conditions for copying,

distributing or modifying the Program or works based on

it.

6. Each time you redistribute the Program (or any work

based on the Program), the recipient automatically

receives a license from the original licensor to copy,

distribute or modify the Program subject to these terms

and conditions. You may not impose any further

restrictions on the recipients’ exercise of the rights

granted herein.

You are not responsible for enforcing compliance by

third parties to this License.

7. If, as a consequence of a court judgment or allegation of

patent infringement or for any other reason (not limited

to patent issues), conditions are imposed on you

(whether by court order, agreement or otherwise) that

contradict the conditions of this License, they do not

excuse you from the conditions of this License. If you

cannot distribute so as to satisfy simultaneously your

obligations under this License and any other pertinent

obligations, then as a consequence you may not

distribute the Program at all. For example, if a patent

license would not permit royalty-free redistribution of the

Program by all those who receive copies directly or

indirectly through you, then the only way you could

satisfy both it and this License would be to refrain entirely

from distribution of the Program.

If any portion of this section is held invalid or

unenforceable under any particular circumstance, the

balance of the section is intended to apply and the

section as a whole is intended to apply in other

circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or to

contest validity of any such claims; this section has the

sole purpose of protecting the integrity of the free

software distribution system, which is implemented by

public license practices. Many people have made

generous contributions to the wide range of software

distributed through that system in reliance on consistent

application of that system; it is up to the author/donor to

decide if he or she is willing to distribute software

through any other system and a licensee cannot impose

that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted

in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the

Program under this License may add an explicit

geographical distribution limitation excluding those

countries, so that distribution is permitted only in or

among countries not thus excluded. In such case, this

License incorporates the limitation as if written in the

body of this License.

9. The Free Software Foundation may publish revised and/

or new versions of the General Public License from time

to time. Such new versions will be similar in spirit to the

present version, but may differ in detail to address new

problems or concerns.

Each version is given a distinguishing version number. If

the Program specifies a version number of this License

which applies to it and “any later version”, you have the

option of following the terms and conditions either of

that version or of any later version published by the Free

Software Foundation. If the Program does not specify a

version number of this License, you may choose any

version ever published by the Free Software Foundation.

10.If you wish to incorporate parts of the Program into other

free programs whose distribution conditions are

different, write to the author to ask for permission. For

software which is copyrighted by the Free Software

Foundation, write to the Free Software Foundation; we

sometimes make exceptions for this. Our decision will be

guided by the two goals of preserving the free status of all

derivatives of our free software and of promoting the

sharing and reuse of software generally.

NO WARRANTY

11.BECAUSE THE PROGRAM IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE

PROGRAM, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS AND/

OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS”

WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE PROGRAM IS WITH YOU.

SHOULD THE PROGRAM PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY

AND/OR REDISTRIBUTE THE PROGRAM AS

PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THE USE OR INABILITY TO USE THE PROGRAM

(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR

DATA BEING RENDERED INACCURATE OR LOSSES

SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE

OF THE PROGRAM TO OPERATE WITH ANY OTHER

PROGRAMS), EVEN IF SUCH HOLDER OR OTHER

PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the

greatest possible use to the public, the best way to achieve

this is to make it free software which everyone can

redistribute and change under these terms.

To do so, attach the following notices to the program. It is

safest to attach them to the start of each source file to most

effectively convey the exclusion of warranty; and each file

should have at least the “copyright” line and a pointer to

where the full notice is found.

<one line to give the program’s name and a brief idea of

what it does.>

This program is free software; you can redistribute it and/

or modify it under the terms of the GNU General Public

License as published by the Free Software Foundation;

either version 2 of the License, or (at your option) any

later version.

This program is distributed in the hope that it will be

useful, but WITHOUT ANY WARRANTY; without even the

implied warranty of MERCHANTABILITY or FITNESS FOR

A PARTICULAR PURPOSE. See the GNU General Public

License for more details.

You should have received a copy of the GNU General

Public License along with this program; if not, write to

V6000_CUXJ_EN.book 64 ページ２００９年６月５日　金曜日　午前１１時５７分

the Free Software Foundation, Inc., 51 Franklin Street,

Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic

and paper mail.

If the program is interactive, make it output a short notice

like this when it starts in an interactive mode:

author

Gnomovision comes with ABSOLUTELY NO WARRANTY;

for details type ‘show w’. This is free software, and you

are welcome to redistribute it under certain conditions;

type ‘show c’ for details.

The hypothetical commands ‘show w’ and ‘show c’ should

show the appropriate parts of the General Public License.

Of course, the commands you use may be called

something other than ‘show w’ and ‘show c’; they could

even be mouse-clicks or menu items - whatever suits your

program.

You should also get your employer (if you work as a

programmer) or your school, if any, to sign a “copyright

disclaimer” for the program, if necessary. Here is a sample;

alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in

the program ‘Gnomovision’ (which makes passes at

compilers) written by James Hacker.

<signature of Ty Coon>, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating

your program into proprietary programs. If your program is

a subroutine library, you may consider it more useful to

permit linking proprietary applications with the library. If

this is what you want to do, use the GNU Lesser General

Public License instead of this License.

GNU LESSER GENERAL PUBLIC

LICENSE

Version 2.1, February 1999

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim

copies of this license document, but changing it is not

allowed.

[This is the first released version of the Lesser GPL. It also

counts as the successor of the GNU Library Public License,

version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the GNU

General Public Licenses are intended to guarantee your

freedom to share and change free software - to make sure

the software is free for all its users. This license, the Lesser

General Public License, applies to some specially

designated software packages - typically libraries - of the

Free Software Foundation and other authors who decide to

use it. You can use it too, but we suggest you first think

carefully about whether this license or the ordinary General

Public License is the better strategy to use in any particular

case, based on the explanations below.

When we speak of free software, we are referring to

freedom of use, not price. Our General Public Licenses are

designed to make sure that you have the freedom to

distribute copies of free software (and charge for this

service if you wish); that you receive source code or can get

it if you want it; that you can change the software and use

pieces of it in new free programs; and that you are informed

that you can do these things.

To protect your rights, we need to make restrictions that

forbid distributors to deny you these rights or to ask you to

surrender these rights. These restrictions translate to

certain responsibilities for you if you distribute copies of the

library or if you modify it.

For example, if you distribute copies of the library, whether

gratis or for a fee, you must give the recipients all the rights

that we gave you. You must make sure that they, too,

receive or can get the source code. If you link other code

with the library, you must provide complete object files to

the recipients, so that they can relink them with the library

after making changes to the library and recompiling it. And

you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we

which gives you legal permission to copy, distribute and/or

modify the library.

To protect each distributor, we want to make it very clear

that there is no warranty for the free library. Also, if the

library is modified by someone else and passed on, the

recipients should know that what they have is not the

original version, so that the original author’s reputation will

not be affected by problems that might be introduced by

others.

Finally, software patents pose a constant threat to the

existence of any free program. We wish to make sure that a

company cannot effectively restrict the users of a free

program by obtaining a restrictive license from a patent

holder. Therefore, we insist that any patent license obtained

for a version of the library must be consistent with the full

freedom of use specified in this license.

Most GNU software, including some libraries, is covered by

the ordinary GNU General Public License. This license, the

GNU Lesser General Public License, applies to certain

designated libraries, and is quite different from the ordinary

General Public License. We use this license for certain

libraries in order to permit linking those libraries into non-

free programs.

When a program is linked with a library, whether statically

or using a shared library, the combination of the two is

legally speaking a combined work, a derivative of the

original library. The ordinary General Public License

therefore permits such linking only if the entire

combination fits its criteria of freedom. The Lesser General

Public License permits more lax criteria for linking other

code with the library.

We call this license the “Lesser” General Public License

because it does Less to protect the user’s freedom than the

ordinary General Public License. It also provides other free

software developers Less of an advantage over competing

non-free programs. These disadvantages are the reason we

use the ordinary General Public License for many libraries.

However, the Lesser license provides advantages in certain

special circumstances.

For example, on rare occasions, there may be a special

need to encourage the widest possible use of a certain

library, so that it becomes a de-facto standard. To achieve

this, non-free programs must be allowed to use the library.

A more frequent case is that a free library does the same

job as widely used non-free libraries. In this case, there is

little to gain by limiting the free library to free software only,

so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-

free programs enables a greater number of people to use a

large body of free software. For example, permission to use

the GNU C Library in non-free programs enables many

more people to use the whole GNU operating system, as

well as its variant, the GNU Linux operating system.

Although the Lesser General Public License is Less

protective of the users’ freedom, it does ensure that the

user of a program that is linked with the Library has the

freedom and the wherewithal to run that program using a

modified version of the Library.

The precise terms and conditions for copying, distribution

and modification follow. Pay close attention to the

difference between a “work based on the library” and a

“work that uses the library”. The former contains code

derived from the library, whereas the latter must be

combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING,

DISTRIBUTION AND MODIFICATION

0. This License Agreement applies to any software library or

other program which contains a notice placed by the

be distributed under the terms of this Lesser General

Public License (also called “this License”). Each licensee

is addressed as “you”.

A “library” means a collection of software functions and/

or data prepared so as to be conveniently linked with

application programs (which use some of those

functions and data) to form executables.

The “Library”, below, refers to any such software library or

work which has been distributed under these terms. A

“work based on the Library” means either the Library or

any derivative work under copyright law: that is to say, a

work containing the Library or a portion of it, either

verbatim or with modifications and/or translated

straightforwardly into another language. (Hereinafter,

translation is included without limitation in the term

“modification”.)

“Source code” for a work means the preferred form of the

work for making modifications to it. For a library,

complete source code means all the source code for all

modules it contains, plus any associated interface

definition files, plus the scripts used to control

compilation and installation of the library.

Activities other than copying, distribution and

modification are not covered by this License; they are

outside its scope. The act of running a program using the

Library is not restricted, and output from such a program

is covered only if its contents constitute a work based on

the Library (independent of the use of the Library in a tool

for writing it). Whether that is true depends on what the

Library does and what the program that uses the Library

does.

1. You may copy and distribute verbatim copies of the

Library’s complete source code as you receive it, in any

medium, provided that you conspicuously and

appropriately publish on each copy an appropriate

all the notices that refer to this License and to the

absence of any warranty; and distribute a copy of this

License along with the Library.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty

protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any

portion of it, thus forming a work based on the Library,

and copy and distribute such modifications or work

under the terms of Section 1 above, provided that you

also meet all of these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent

notices stating that you changed the files and the date

of any change.

c) You must cause the whole of the work to be licensed at

no charge to all third parties under the terms of this

License.

d) If a facility in the modified Library refers to a function

or a table of data to be supplied by an application

program that uses the facility, other than as an

argument passed when the facility is invoked, then you

must make a good faith effort to ensure that, in the

event an application does not supply such function or

table, the facility still operates, and performs whatever

part of its purpose remains meaningful. (For example,

a function in a library to compute square roots has a

purpose that is entirely well-defined independent of

the application. Therefore, Subsection 2d requires that

any application-supplied function or table used by this

function must be optional: if the application does not

supply it, the square root function must still compute

square roots.)

These requirements apply to the modified work as a

whole. If identifiable sections of that work are not derived

from the Library, and can be reasonably considered

independent and separate works in themselves, then this

License, and its terms, do not apply to those sections

when you distribute them as separate works. But when

you distribute the same sections as part of a whole which

is a work based on the Library, the distribution of the

whole must be on the terms of this License, whose

permissions for other licensees extend to the entire

whole, and thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim rights or

contest your rights to work written entirely by you; rather,

the intent is to exercise the right to control the

distribution of derivative or collective works based on the

Library.

In addition, mere aggregation of another work not based

on the Library with the Library (or with a work based on

the Library) on a volume of a storage or distribution

medium does not bring the other work under the scope

of this License.

3. You may opt to apply the terms of the ordinary GNU

General Public License instead of this License to a given

copy of the Library. To do this, you must alter all the

notices that refer to this License, so that they refer to the

ordinary GNU General Public License, version 2, instead

of to this License. (If a newer version than version 2 of the

ordinary GNU General Public License has appeared, then

you can specify that version instead if you wish.) Do not

make any other change in these notices.

Once this change is made in a given copy, it is

irreversible for that copy, so the ordinary GNU General

Public License applies to all subsequent copies and

derivative works made from that copy. This option is

useful when you wish to copy part of the code of the

Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or

derivative of it, under Section 2) in object code or

executable form under the terms of Sections 1 and 2

above provided that you accompany it with the complete

corresponding machine-readable source code, which

must be distributed under the terms of Sections 1 and 2

above on a medium customarily used for software

interchange.

If distribution of object code is made by offering access

to copy from a designated place, then offering equivalent

access to copy the source code from the same place

satisfies the requirement to distribute the source code,

even though third parties are not compelled to copy the

source along with the object code.

5. A program that contains no derivative of any portion of

the Library, but is designed to work with the Library by

being compiled or linked with it, is called a “work that

uses the Library”. Such a work, in isolation, is not a

derivative work of the Library, and therefore falls outside

the scope of this License.

However, linking a “work that uses the Library” with the

Library creates an executable that is a derivative of the

Library (because it contains portions of the Library),

rather than a “work that uses the library”. The executable

is therefore covered by this License. Section 6 states

terms for distribution of such executables.

When a “work that uses the Library” uses material from a

header file that is part of the Library, the object code for

the work may be a derivative work of the Library even

V6000_CUXJ_EN.book 65 ページ２００９年６月５日　金曜日　午前１１時５７分

though the source code is not. Whether this is true is

especially significant if the work can be linked without

the Library, or if the work is itself a library. The threshold

for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters,

data structure layouts and accessors, and small macros

and small inline functions (ten lines or less in length),

then the use of the object file is unrestricted, regardless

of whether it is legally a derivative work. (Executables

containing this object code plus portions of the Library

will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you

may distribute the object code for the work under the

terms of Section 6. Any executables containing that work

also fall under Section 6, whether or not they are linked

directly with the Library itself.

6. As an exception to the Sections above, you may also

combine or link a “work that uses the Library” with the

Library to produce a work containing portions of the

Library, and distribute that work under terms of your

choice, provided that the terms permit modification of

the work for the customer’s own use and reverse

engineering for debugging such modifications.

You must give prominent notice with each copy of the

work that the Library is used in it and that the Library and

its use are covered by this License. You must supply a

copy of this License. If the work during execution displays

for the Library among them, as well as a reference

directing the user to the copy of this License. Also, you

must do one of these things:

a) Accompany the work with the complete

corresponding machine-readable source code for the

Library including whatever changes were used in the

work (which must be distributed under Sections 1 and

2 above); and, if the work is an executable linked with

the Library, with the complete machine-readable “work

that uses the Library”, as object code and/or source

code, so that the user can modify the Library and then

relink to produce a modified executable containing the

modified Library. (It is understood that the user who

changes the contents of definitions files in the Library

will not necessarily be able to recompile the

application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking

with the Library. A suitable mechanism is one that (1)

uses at run time a copy of the library already present

on the user’s computer system, rather than copying

library functions into the executable, and (2) will

operate properly with a modified version of the library,

if the user installs one, as long as the modified version

is interface-compatible with the version that the work

was made with.

c) Accompany the work with a written offer, valid for at

least three years, to give the same user the materials

specified in Subsection 6a, above, for a charge no

more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to

copy from a designated place, offer equivalent access

to copy the above specified materials from the same

place.

e) Verify that the user has already received a copy of

these materials or that you have already sent this user

a copy.

For an executable, the required form of the “work that

uses the Library” must include any data and utility

programs needed for reproducing the executable from it.

However, as a special exception, the materials to be

distributed need not include anything that is normally

distributed (in either source or binary form) with the

major components (compiler, kernel, and so on) of the

operating system on which the executable runs, unless

that component itself accompanies the executable.

It may happen that this requirement contradicts the

license restrictions of other proprietary libraries that do

not normally accompany the operating system. Such a

contradiction means you cannot use both them and the

Library together in an executable that you distribute.

7. You may place library facilities that are a work based on

the Library side-by-side in a single library together with

other library facilities not covered by this License, and

distribute such a combined library, provided that the

separate distribution of the work based on the Library

and of the other library facilities is otherwise permitted,

and provided that you do these two things:

a) Accompany the combined library with a copy of the

same work based on the Library, uncombined with any

other library facilities. This must be distributed under

the terms of the Sections above.

b) Give prominent notice with the combined library of the

fact that part of it is a work based on the Library, and

explaining where to find the accompanying

uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or

distribute the Library except as expressly provided under

this License. Any attempt otherwise to copy, modify,

sublicense, link with, or distribute the Library is void, and

will automatically terminate your rights under this

License. However, parties who have received copies, or

rights, from you under this License will not have their

licenses terminated so long as such parties remain in full

compliance.

9. You are not required to accept this License, since you

have not signed it. However, nothing else grants you

permission to modify or distribute the Library or its

derivative works. These actions are prohibited by law if

you do not accept this License. Therefore, by modifying

or distributing the Library (or any work based on the

Library), you indicate your acceptance of this License to

do so, and all its terms and conditions for copying,

distributing or modifying the Library or works based on it.

10.Each time you redistribute the Library (or any work based

on the Library), the recipient automatically receives a

license from the original licensor to copy, distribute, link

with or modify the Library subject to these terms and

conditions. You may not impose any further restrictions

on the recipients’ exercise of the rights granted herein.

You are not responsible for enforcing compliance by

third parties with this License.

11.If, as a consequence of a court judgment or allegation of

patent infringement or for any other reason (not limited

to patent issues), conditions are imposed on you

(whether by court order, agreement or otherwise) that

contradict the conditions of this License, they do not

excuse you from the conditions of this License. If you

cannot distribute so as to satisfy simultaneously your

obligations under this License and any other pertinent

obligations, then as a consequence you may not

distribute the Library at all. For example, if a patent

license would not permit royalty-free redistribution of the

Library by all those who receive copies directly or

indirectly through you, then the only way you could

satisfy both it and this License would be to refrain entirely

from distribution of the Library. If any portion of this

section is held invalid or unenforceable under any

particular circumstance, the balance of the section is

intended to apply, and the section as a whole is intended

to apply in other circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or to

contest validity of any such claims; this section has the

sole purpose of protecting the integrity of the free

software distribution system which is implemented by

public license practices. Many people have made

generous contributions to the wide range of software

distributed through that system in reliance on consistent

application of that system; it is up to the author donor to

decide if he or she is willing to distribute software

through any other system and a licensee cannot impose

that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this License.

12.If the distribution and/or use of the Library is restricted

in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the

Library under this License may add an explicit

geographical distribution limitation excluding those

countries, so that distribution is permitted only in or

among countries not thus excluded. In such case, this

License incorporates the limitation as if written in the

body of this License.

13.The Free Software Foundation may publish revised and/

or new versions of the Lesser General Public License

from time to time. Such new versions will be similar in

spirit to the present version, but may differ in detail to

address new problems or concerns.

Each version is given a distinguishing version number. If

the Library specifies a version number of this License

which applies to it and “any later version”, you have the

option of following the terms and conditions either of

that version or of any later version published by the Free

Software Foundation. If the Library does not specify a

license version number, you may choose any version ever

published by the Free Software Foundation.

14.If you wish to incorporate parts of the Library into other

free programs whose distribution conditions are

incompatible with these, write to the author to ask for

permission. For software which is copyrighted by the

Free Software Foundation, write to the Free Software

Foundation; we sometimes make exceptions for this. Our

decision will be guided by the two goals of preserving the

free status of all derivatives of our free software and of

promoting the sharing and reuse of software generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,

TO THE EXTENT PERMITTED BY APPLICABLE LAW.

EXCEPT WHEN OTHERWISE STATED IN WRITING THE

PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESSED OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS

TO THE QUALITY AND PERFORMANCE OF THE LIBRARY

IS WITH YOU. SHOULD THE LIBRARY PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL

NECESSARY SERVICING, REPAIR OR CORRECTION.

16.IN NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY

AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED

ABOVE, BE LIABLE TO YOU FOR DAMAGES,

INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE

USE OR INABILITY TO USE THE LIBRARY (INCLUDING

BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING

RENDERED INACCURATE OR LOSSES SUSTAINED BY

YOU OR THIRD PARTIES OR A FAILURE OF THE

LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the

greatest possible use to the public, we recommend making

it free software that everyone can redistribute and change.

You can do so by permitting redistribution under these

terms (or, alternatively, under the terms of the ordinary

General Public License).

To apply these terms, attach the following notices to the

library. It is safest to attach them to the start of each source

file to most effectively convey the exclusion of warranty; and

each file should have at least the “copyright” line and a

pointer to where the full notice is found.

<one line to give the library’s name and a brief idea of

what it does.>

This library is free software; you can redistribute it and/or

modify it under the terms of the GNU Lesser General Public

License as published by the Free Software Foundation;

either version 2.1 of the License, or (at your option) any later

version.

This library is distributed in the hope that it will be useful,

but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A

PARTICULAR PURPOSE. See the GNU Lesser General

Public License for more details.

You should have received a copy of the GNU Lesser General

Public License along with this library; if not, write to the

Free Software Foundation, Inc., 51 Franklin Street, Fifth

Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic

and paper mail.

You should also get your employer (if you work as a

programmer) or your school, if any, to sign a “copyright

disclaimer” for the library, if necessary. Here is a sample;

alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in

the library ‘Frob’ (a library for tweaking knobs) written by

James Random Hacker.

<signature of Ty Coon>, 1 April 1990

Ty Coon, President of Vice

That’s all there is to it!

[Notice on GNU General Public

License]

This product include the software licensed for use under

the terms of a GNU General Public License. A copy of the

corresponding source code can be obtained by being

charged the fee for distribution.

To obtain a copy, contact your local Pioneer Customer

Support Center.

See the GNU website (http://www.gnu.org) for details of the

GNU General Public License.

V6000_CUXJ_EN.book 66 ページ２００９年６月５日　金曜日　午前１１時５７分

Troubleshooting

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this

component, check the points below. Sometimes the trouble may lie in another component. Inspect the other

components and electrical appliances being used. If the trouble cannot be rectified after checking the items below,

please contact customer services. In the US, call Toll Free (800) 421-1404. (Telephone lines are open Monday through

Friday 6:00 AM to 4:30 PM (Pacific Time).) In Canada, call Local (905) 479-4411, or Long distance +1(877) 283-5901.

(Telephone lines are open Monday through Friday 9:00 AM to 5:30 PM (EST).)

Playback

Problem Check Remedy

• Disc does not play.

• Disc tray opens

automatically.

Is the disc one that is

playable on this player?

Check whether the disc is one that can be played on this player

(page 8).

Is the file one that is playable

on this player?

• Check whether the file is one that can be played on this player

(page 10).

• Check whether or not the file is damaged.

Is the disc scratched? It may not be possible to play scratched discs.

Is the disc dirty? Clean the disc (page 15).

Is there a piece of paper or

sticker attached to the disc?

The disc may be warped and unplayable.

Is the disc properly set in the

disc tray?

• Set the disc with the printed side facing up.

• Set the disc properly in the depression in the disc tray.

Is the region number correct? See About region numbers on page 10 for the region numbers of discs

that can be played on this player.

No picture is displayed or the

picture is not displayed

properly.

Is the video cable properly

connected?

• Connect the cable properly according to the connected devices

(page 18).

• Insert the cable firmly and all the way in.

Is the video cable damaged? If the cable is damaged, replace it with a new one.

Is the input setting on the

connected TV or AV receiver

or amplifier right?

Read the operating instructions of the connected components and

switch to the proper input.

Are you viewing the picture

from the video output

terminal selected with VIDEO

SELECT?

Press VIDEO SELECT to switch the video output terminal to be viewed

(page 26).

Is the output video resolution

properly set?

Use OUTPUT RESOLUTION to switch to a resolution at which the video

and audio signals are output (page 27).

• Is the player connected

with an HDMI cable other

than a High Speed HDMI™

cable (with a Standard

HDMI™ cable)?

• Are you using an HDMI

cable with built-in equalizer?

1080p or Deep Color video signals may not be output properly,

depending on the HDMI cable being used or the player’s settings.

Press  while pressing  on the player’s front panel to restore the

video outputs to the factory default settings. After this, if you wish to

output the video signals with 1080p or Deep Color, connect the TV

using a High Speed HDMI™ cable without built-in equalizer, then reset

the player using the Setup Navigator (page 23).

Does the connected TV

support the frame rate of the

video signal being output by

the player?

If the picture is not displayed when playing a disc with a frame rate that

is not supported, the picture will not be displayed even when playback

is stopped. In this case, use the procedure below to switch the frame

rate of the video signals output from the player.

Eject the disc and close the disc tray. Then, press  OPEN/CLOSE

while pressing  on the player’s front panel to switch to a frame rate

supported by the connected TV.

Is a DVI device connected? The picture may not be displayed properly if a DVI device is connected.

Is NTSC on PAL TV properly

set?

When viewing the video signals output from the player’s Video

terminal, set NTSC on PAL TV properly (page 43).

Is HDMI Color Space

properly set?

Change the HDMI Color Space setting (page 44).

V6000_CUXJ_EN.book 67 ページ２００９年６月５日　金曜日　午前１１時５７分

No picture is displayed or the

picture is not displayed

properly.

Are you using an extremely

long cable?

Using an extremely long cable may result in noise. Use a relatively short

cable.

Picture freezes and the front

panel and remote control

buttons stop working.

• Press STOP to stop playback, then restart playback.

• If the playback cannot be stopped, press STANDBY/ON on the

player’s front panel to turn off the power, then turn the power back on.

• If the power cannot be turned off, press and hold STANDBY/ON

on the player’s front panel for over 5 seconds. The power will turn off.

Motion is unnatural or

picture is not clear.

Change the Pure Cinema setting (page 39).

No picture is displayed or

picture is not output in high

definition when playing BDs.

With some discs, it may not be possible to output the video signals from

the

VIDEO

output terminal or the

COMPONENT VIDEO

output

terminals. In this case, connect using an HDMI cable (page 18).

• Picture is disturbed during

playback.

• Picture is dark.

• This player supports Macrovision analog copy protection technology.

With some TVs (such as with built-in video deck), the picture will not be

displayed properly when the copy protected DVD title is played. This is

not a malfunction.

• If the player and TV are connected via a DVD recorder/video deck,

etc., the picture will not be displayed properly due to analog copy

protection. Connect the player and TV directly.

• Picture is stretched.

• Picture is cropped.

• Aspect ratio cannot be

switched.

Is the TV’s aspect ratio

properly set?

Read the TV’s operating instructions and set the TV’s aspect ratio

properly.

Is TV Aspect Ratio properly

set?

Set TV Aspect Ratio properly (page 42).

Is 4:3 Video Out properly

set?

Set 4:3 Video Out properly (page 42).

Is DVD 16:9 Video Out

properly set?

Set DVD 16:9 Video Out properly (page 42).

When video signals with a resolution of 1080/60i, 1080/60p, 720/60p,

1080/24p, 1080/50i, 1080/50p or 720/50p are being output from the

HDMI OUT

terminal or the

COMPONENT VIDEO

output terminals,

they may be output with an aspect ratio of 16:9 even if

TV Aspect Ratio

is set to

4:3 (Standard)

(page 42).

Picture is interrupted. The picture may be interrupted when the resolution of the recorded

video signal switches. Press OUTPUT RESOLUTION to select a setting

other than Auto or Source Direct (page 27).

The subtitles cannot be

switched.

The subtitles cannot be switched for discs recorded on a DVD or BD

recorder.

Sound and picture are not

synchronized.

Is Output Terminal properly

set?

Set Output Terminal properly (pages 23 and 51).

Is Lip Sync properly set? Adjust the amount of audio delay with the Lip Sync setting (page 41).

• No sound is output.

• Sound is not output

properly.

Is the disc played back in

slow motion?

Is the disc played back in fast

forward or fast reverse?

No sound is output during slow motion play and forward and reverse

scanning.

Are the audio cables properly

connected?

• Connect the cable properly according to the connected devices

(page 18).

• Insert the cable firmly and all the way in.

Is the audio cable damaged? If the cable is damaged, replace it with a new one.

Are the connected

components (AV receiver or

amplifier, etc.) properly set?

Read the operating instructions of the connected components and

check the volume, input, speaker settings, etc.

Problem Check Remedy

V6000_CUXJ_EN.book 68 ページ２００９年６月５日　金曜日　午前１１時５７分

• No sound is output.

• Sound is not output

properly.

Are you trying to listen to the

sound of the HDMI OUT

terminal while watching the

picture from the

COMPONENT VIDEO or

VIDEO

output

terminals?

Audio signals are not output from the HDMI OUT terminal when video

signals are being output from the COMPONENT VIDEO or VIDEO

output

terminals. When watching the picture of the COMPONENT

VIDEO or VIDEO

output

terminals, connect an optical digital audio

cable or regular audio cables to listen to the sound (page 21). Once

connections are completed, use Setup Navigator to make the player’s

settings (page 23).

Is HDMI Audio Out properly

set?

Set HDMI Audio Out to Auto or PCM. (page 44).

Is Output Terminal properly

set?

When ANALOG AUDIO is selected at Output Terminal, no audio

signals are output from the HDMI OUT or DIGITAL OUT terminal

(page 51).

Is the output video resolution

properly set?

Use OUTPUT RESOLUTION to switch to the resolution at which the

video and audio signals are output (page 27).

Is the AV receiver or

amplifier, etc., connected to

the AUDIO OUT terminals?

To listen to 2-channel analog audio, connect to FRONT (L/R) of the

AUDIO OUT terminals (page 13) and set Audio Output Mode to 2

Channel (page 43).

Are the speakers properly

set?

When the AV receiver or amplifier, etc., is connected to the AUDIO

OUT terminals and Audio Output Mode is set to Multi-channel, set

Speaker Setup properly (page 47).

Is a DVI device connected?

The sound will not be output from the

HDMI OUT

terminal if a DVI

device is connected. Connect the device to a

DIGITAL OUT

terminal or

the

AUDIO OUT

terminals (page 21).

For some BDs, audio signals are only output from DIGITAL OUT

terminal or the HDMI OUT terminal.

Multi-channel sound is not

output.

Is Output Terminal properly

set?

Linear PCM (2-channel) audio signals are output from output terminals

other than the one set at Output Terminal under Audio Out. Set

Output Terminal properly (page 51).

Is the audio output of the

connected AV receiver or

amplifier, etc., properly set?

Read the operating instructions of the connected AV receiver or

amplifier and check the audio output settings of AV receiver or

amplifier.

Is multi-channel sound

selected?

Use the menu screen or AUDIO to switch the disc’s sound to multi-

channel.

Is the AV receiver or

amplifier, etc., connected to

the AUDIO OUT terminals?

When the AV receiver or amplifier, etc., is connected to the AUDIO

OUT terminals, set Audio Output Mode to Multi-channel (page 43).

Also, set Speaker Setup properly (page 47).

Noise can be heard when

outputting DTS Digital

Surround signals from the

DIGITAL OUT terminal.

Is the connected AV receiver

or amplifier compatible with

DTS Digital Surround?

If an AV receiver or amplifier that is not compatible with DTS Digital

Surround is connected to the DIGITAL OUT terminal, set DTS Out to

DTS  PCM (page 43).

192 kHz or 96 kHz digital

audio signals cannot be

output from the DIGITAL

OUT terminal.

It is not possible to output 192 kHz or 96 kHz digital audio signals from

this player’s DIGITAL OUT terminal. The signals are automatically

converted to 48 kHz or less for output.

Secondary audio or

interactive audio is not

output.

Is HDMI Audio Out properly

set?

When listening to the sound from an HDMI OUT terminal, set HDMI

Audio Out to PCM (page 44).

Are Dolby Digital Out and

DTS Out properly set?

When listening to the sound from an DIGITAL OUT terminal, set Dolby

Digital Out to Dolby Digital 1, DTS Out to DTS 1 (page 43).

Sound is fast or slow. When an HDMI cable is

connected, are audio signals

being output from devices

connected with cables other

than HDMI cables?

When a Pioneer AV receiver or amplifier compatible with the PQLS

function is connected directly to the player’s HDMI OUT terminal using

an HDMI cable, the PQLS function is activated when playing discs.

Because of this, the sound output from components other than the

ones connected by HDMI cable may be fast or slow. If this happens, set

PQLS to Off (page 44).

After a disc is inserted,

Loading stays displayed and

playback does not start.

Are there too many files

recorded on the disc?

When a disc on which files are recorded is inserted, depending on the

number of files recorded on the disc, loading may take several dozen

minutes.

 is displayed in file names,

etc.

The characters that cannot be displayed on this player are displayed in

.

Problem Check Remedy

V6000_CUXJ_EN.book 69 ページ２００９年６月５日　金曜日　午前１１時５７分

KURO LINK

A message indicating low

memory appears while

playing a BD-ROM disc.

• Perform Individual/Shared Data Erase or Storage Format

(page 49).

• Perform Application Data Erase (page 49).

The DVD layer of BD and DVD

hybrid discs cannot be

played.

Is Hybrid Disc Playback

properly set?

Set Hybrid Disc Playback to DVD (page 45).

The CD layer of BD and CD

hybrid discs cannot be

played.

Is Hybrid Disc Playback

properly set?

Set Hybrid Disc Playback to CD (page 45).

The BDMV format on BD-R/

-RE discs cannot be played.

To play the BDMV format on BD-R/-RE discs containing both BDMV

and BDAV formats, set BDMV/BDAV Playback Priority to BDMV

(page 45).

The player does not play in

the order registered on the

playlist.

Are you using a commercially

available disc for the playlist

playback?

When a commercially available disc is used, the player may not play in

the order registered on the playlist. To play a playlist, use a disc created

specifically for this player, not commercially available discs.

Problem Check Remedy

KURO LINK function does

not work.

Is the HDMI cable properly

connected?

To use the KURO LINK function, connect the Flat Panel TV and AV

system (AV receiver or amplifier, etc.) to the HDMI OUT terminal

(page 20).

Is the HDMI cable you are

using a High Speed HDMI™

cable?

Use a High Speed HDMI™ cable. The KURO LINK function may not

work properly if HDMI cable other than a High Speed HDMI™ cable is

used.

Are you connected to the TV

using an HDMI cable to

watch the picture?

If video signals are being output from a terminal other than the HDMI

OUT terminal, the KURO LINK function does not work. Connect to the

TV using an HDMI cable and press VIDEO SELECT to switch to the

HDMI OUT terminal (pages 20 and 26).

Is KURO LINK set to On on

the player?

Set KURO LINK to On on the player (page 44).

Does the connected device

support the KURO LINK

function?

• The KURO LINK function will not work with devices of other brands

that do not support the KURO LINK function, even when connected

using an HDMI cable.

• The KURO LINK function will not work if devices that do not support

the KURO LINK function are connected between the KURO LINK-

compatible device and the player.

• See About connections to components of other makes supporting the

KURO LINK function on page 20.

• Even when connected to a Pioneer product compatible with the

KURO LINK function, some of the functions may not work.

Also refer to the operating instructions of the connected device.

Is KURO LINK set to On on

the connected device?

Set KURO LINK to On on the connected device. The KURO LINK

function operates when KURO LINK is set to On for all devices

connected to the HDMI OUT terminal.

Once connections and settings of all the devices are finished, be sure

to check that the player’s picture is output to the Flat Panel TV. (Also

check after changing the connected devices and connecting and/or

disconnecting HDMI cables.) If the player’s picture is not being output

to the Flat Panel TV, the KURO LINK function may not work properly.

For details, refer to the operating instructions of the connected device.

Are multiple players

connected?

The KURO LINK function may not work if three or more players,

including this player, are connected by HDMI cable.

Problem Check Remedy

V6000_CUXJ_EN.book 70 ページ２００９年６月５日　金曜日　午前１１時５７分

Network

The input does not switch

automatically on the Flat

Panel TV and AV system (AV

receiver or amplifier, etc.)

when playback is started on

the player or the Home Menu

or Home Media Gallery is

displayed.

Is Display Power On set to

Off on the player?

Set Display Power On to On (page 44).

Problem Check Remedy

• BD-LIVE function

(connection to the Internet)

cannot be used.

• “Connection to the software

updating server failed” is

displayed when you try to

update the software.

Perform Connection Test (page 49). If “Network connection test

completed successfully.” is displayed, check the proxy server settings

(page 48). Also there may be a problem with the Internet connection.

Contact your Internet service provider.

“OK to grant network access

to BD applications?” is

displayed when a BD-LIVE

compatible disc is read.

• This is displayed for discs presenting security risks related to

connection to the Internet. Normally select No when this is displayed.

To allow connection to the Internet, select Yes.

• This may be displayed even if the disc does not support the BD-Live

function.

Software updating is slow. Depending on the Internet connection and other conditions, some time

may be required to update the software.

The player stops operating

while software is being

updated.

Software updating takes 10 to 20 minutes. Wait until updating is

completed. DO NOT turn the power off while the software is being

updated. Doing so may result in an operation failure.

• “WRT NG ****” is displayed

on the front panel display

during software updating.

(**** meaning any

characters)

• “WRT FAILED” is displayed

on the front panel display

during software updating.

The message is displayed when software updating has failed. Check

again whether it can be updated properly.

A message other than

“Network connection test

completed successfully” is

displayed when Connection

Test is performed.

Is “LAN cable not connected”

displayed?

Check that this player and Ethernet hub (or router with hub

functionality) are properly connected.

• Is “IP address cannot be

obtained.” displayed?

• Is “No response from the

gateway.” displayed?

• If the IP address is obtained using the DHCP server function, check

the setting is correct at the Display Network Configuration

(page 49). For details on the DHCP server function, see the operating

instructions of the Ethernet hub (or router with hub functionality).

• Set the IP address manually.

Is “IP address is overlapped.”

displayed?

• Check the operation and settings of the DHCP server function of the

Ethernet hub (or router with hub functionality). For details on the DHCP

server function, see the operating instructions of the Ethernet hub (or

router with hub functionality).

• If this player’s has been set manually, reset the IP address of this

player or other components.

Is the Ethernet hub (or router

with hub functionality)

operating properly?

• Check the settings and operation the Ethernet hub (or router with hub

functionality). For details, see the operating instructions of the Ethernet

hub.

• Reboot the Ethernet hub (or router with hub functionality).

Problem Check Remedy

V6000_CUXJ_EN.book 71 ページ２００９年６月５日　金曜日　午前１１時５７分

Others

Problem Check Remedy

Player cannot be restored to

the factory defaults.

Is a disc loaded in the player? Remove the disc from the player before restoring the player to the

factory defaults (page 51).

Player cannot be controlled

by RS-232C.

Check the Advanced Setup  Baud Rate setting and the serial

interface specifications (page 56 and 58).

The player’s power turns off

automatically.

Is Auto Power Off set to

On?

If Auto Power Off is set to On, the player’s power turns off

automatically if no operation is performed for over 30 minutes

(page 46).

Is Display Power Off set to

On?

The player’s power may turn off together with the power of the TV

connected to the HDMI OUT terminal. If you do not want the player’s

power to turn off when the TV’s power is turned off, set Display Power

Off to Off (page 44).

The player’s power turns on

automatically.

Is KURO LINK set to On?The player’s power may turn on together with the power of the TV

connected to the HDMI OUT terminal. If you do not want the player’s

power to turn on when the TV’s power is turned on, set KURO LINK to

Off (page 44).

Player cannot be operated

with remote control.

Is an AV receiver or amplifier

connected to the CONTROL

IN terminal on the player’s

rear panel?

Operate with the remote control of the device connected to the

CONTROL IN terminal.

Are you operating the remote

control from a point too far

away from the player?

Operate from within 23 feet (7 m) of the remote control sensor.

Are the batteries dead? Replace the batteries (page 7).

Is the RC-232C Key Lock

command set?

Cancel the Key Lock command. For details, see the communications

interface user's manual.

Black screen is displayed

though no operations are

being performed.

Is Screen Saver set to On?• The screensaver turns off when the player’s front panel or remote

control is operated.

• If you do not want the screensaver to be activated, set Screen Saver

to Off (page 46).

Front panel display does not

turn on.

Has the front panel display

been turned off?

Press FL DIMMER on the remote control to switch the front panel

display’s brightness (page 12).

Buttons on the player's front

panel cannot be operated or

the disc tray does not open.

Is Front Key Lock set to All

or Tray?

Set Front Key Lock to Off (page 55).

Input of connected TV and AV

system switches

automatically.

Is KURO LINK set to On?The input of the TV and AV system (AV receiver or amplifier, etc.)

connected to the HDMI OUT terminal may automatically switch to the

player when playback starts on the player or the menu screen (Home

Media Gallery, etc.) is displayed. If you do not want the inputs of the

connected TV and AV system (AV receiver or amplifier, etc.) to switch

automatically, set KURO LINK to Off (page 44).

“Processing failed.” is

displayed.

If the message appears repeatedly, please ask your nearest Pioneer

authorized service center or your dealer to carry out repair work.

Settings you have made have

been cleared.

• Have you disconnected the

power cord while the player’s

power was on?

• Has there been a power

failure?

Always press STANDBY/ON on the player’s front panel or

STANDBY/ON on the remote control and check that POWER OFF

has turned off from the player’s front panel display before

disconnecting the power cord. Be particularly careful when the power

cord is connected to the AC outlet on another device because the

player turns off in conjunction with the device.

V6000_CUXJ_EN.book 72 ページ２００９年６月５日　金曜日　午前１１時５７分

Glossary

Angle (Multi angle)

Up to 9 camera angles can be recorded simultaneously on BD-

ROM or DVD-Video discs, letting you view the same scene from

different angles.

AVCHD (Advanced Video Codec High

Definition)

See Playing DVDs on page 10.

BDAV

Of the BD format, the Audio Visual Format Specifications for HD

digital broadcast recording is referred to as BDAV on this player

and in this operating instructions.

BD-J

See Playing BDs on page 9.

BD-LIVE

See Playing BDs on page 9.

BDMV

Of the BD format, the Audio Visual Format Specifications

designed for pre-packaged high definition (HD) movie contents is

referred to as BDMV on this player and in this operating

instructions.

BONUSVIEW

See Playing BDs on page 9.

Component video output

This video output terminal provides clearer pictures when

connected to a TV equipped with component inputs. Component

video signals consist of three signals, Y, PB and PR.

Deep Color

See About HDMI on page 18.

Default Gateway

A default gateway is a communication device such as a router

which passes data between networks. It is used to direct data to

networks on which the destination gateway is not explicitly

specified.

DHCP (Dynamic Host Configuration

Protocol)

This protocol provides configuration parameters (IP address,

etc.) for computers and other devices connected to the network.

DNS (Domain Name System)

This is a system for associating Internet host names with IP

addresses.

Dolby Digital

Dolby Digital is an audio format to record the sound in up to 5.1

channels with a fraction of the amount of data as compared to

linear PCM audio signals.

Dolby Digital Plus

Dolby Digital Plus is an audio format for high-definition media.

Built on Dolby Digital, it combines the efficiency and flexibility to

provide high quality multi-channel audio. With BD-ROMs, up to

7.1 channels of digital sound can be recorded.

Dolby TrueHD

Dolby TrueHD is an audio format using lossless coding. With BD-

ROMs, up to 8 channels can be recorded at 96 kHz/24 bits, or up

to 6 channels at 192 kHz/24 bits.

DRM

A technology for protecting copyrighted digital data. Digitized

videos, images and audio retain the same quality even when they

are copied or transferred repeatedly. DRM is a technology for

restricting the distribution or playback of such digital data

without the authorization of the copyright holder.

EXT does not light on the

player’s front panel display

when a USB (external

storage) device is connected.

Is the external storage device

properly connected?

• Turn the player’s power off, then turn the power back on.

• Turn the player’s power off, then reconnect the external storage

device (page 21).

Are you using a USB cable

that is longer than 2 meters?

Use a USB cable with a length of 2 meters or less.

Is the power of the external

hard disk turned on?

Turn the player’s power off, then turn the external hard disk’s power on.

Is the external storage device

connected to the USB port via

a memory card reader or USB

hub?

External storage device may not work if connected to the USB port via

a memory card reader or USB hub.

Does the external storage

device contain multiple

partitions?

External storage devices may not be recognized if they contain multiple

partitions.

Some external storage devices may not operate.

EXT flashes on the player’s

front panel display when a

USB (external storage) device

is connected.

Is the external storage device

write-protected?

Turn the player’s power off, then disable the write-protection.

Is the external storage

device’s file system FAT16 or

FAT32?

Only external storage devices with a FAT16 or FAT32 file system can be

used. They may be usable if they are formatted from the player

(page 49).

Turn the player’s power off, then turn the power back on.

Problem Check Remedy

V6000_CUXJ_EN.book 73 ページ２００９年６月５日　金曜日　午前１１時５７分

DTS Digital Surround

DTS Digital Surround is an audio format to record 48 kHz/24 bits

audio signals in 5.1 channels.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is an audio format using lossy

coding. It can record 7.1 channels at 96 kHz/24 bits.

DTS-HD Master Audio

DTS-HD Master Audio is an audio format using lossless coding.

With BD-ROMs, 7.1 channels can be recorded at 96 kHz/24 bits,

or 5.1 channels at 192 kHz/24 bits.

Ethernet

A standard for local area networks (LANs) used to connect

multiple computers, etc. in the same location. This player

supports 100BASE-TX.

Frames and fields

A frame is the unit for one of the still pictures which compose

motion pictures. One frame consists of a picture of odd lines and

a picture of even lines called fields in video signal with interlaced

scan method (480i, 1080i, etc.).

HDMI (High-Definition Multimedia

Interface)

See About HDMI on page 18.

Interactive audio

The audio signals recorded in the titles of BD-ROMs. They include

for example the clicking sound made when the menu screen is

operated.

Interlaced scan

With this method, one picture is displayed by scanning it twice.

The odd lines are displayed in the first pass, the even lines are

displayed in the second, to form a single picture (frame).

Interlaced scan is indicated in this player and operating

instructions by an “i” after the resolution value (for example, 480i).

IP address

An address that identifies a computer or other device connected

to the Internet or local area network. It is represented a number

in four sections.

Linear PCM

This is referred as the audio signals that are not compressed.

MAC (Media Access Control) address

A hardware identification number assigned specifically to the

network device (LAN card, etc.).

MPEG (Moving Picture Experts Group)

The name of a family of standards used to encode video and

audio signals in a digital compressed format. The video encoding

standards include MPEG-1 Video, MPEG-2 Video, MPEG-4 Visual,

MPEG-4 AVC, etc. The audio encoding standards include MPEG-

1 Audio, MPEG-2 Audio, MPEG-2 AAC, etc.

Parental Lock

See Changing the Parental Lock level for viewing DVDs and

Changing the Age Restriction for viewing BD-ROMs on page 50.

Picture-in-Picture (P-in-P)

This is a function for superimposing a sub video on the main

video. Some BD-ROMs include secondary video, which can be

superimposed on the primary video.

Port number

This is a sub-address provided below the IP address for

simultaneously connecting to multiple parties during Internet

communications.

Progressive scan

With this method, one picture is consisted of a single picture,

without dividing it in two pictures. Progressive scan provides

clear pictures with no flicker, in particular for still pictures that

contain much text, graphics, or horizontal lines. Progressive scan

is indicated in this player and operating instructions by a “p” after

the resolution value (for example, 480p).

Proxy server

This is a relay server for ensuring fast access and safe

communications when connecting to the Internet from an

internal network.

Region number

See About region numbers on page 10.

Secondary audio

Some BD-ROMs include sub audio streams mixed with the main

audio stream. These sub audio streams are called “secondary

audio”. On some discs this secondary audio is recorded as the

audio for the secondary video.

Secondary video

Some BD-ROMs include sub videos superimposed on the main

videos using the Picture-in-Picture function. These sub videos are

called “secondary video”.

Subnet mask

This is used to identify which part of the IP address corresponds

to the subnet (a separately managed network). The subnet mask

is expressed as “255.255.255.0”.

USB(Universal Serial Bus)

USB is the industry standard for connecting peripherals to PCs.

VC-1

A video codec developed by Microsoft and standardized by the

Society of Motion Picture and Television Engineers (SMPTE).

Some BDs include videos encoded in this codec.

x.v.Color

See About HDMI on page 18.

V6000_CUXJ_EN.book 74 ページ２００９年６月５日　金曜日　午前１１時５７分

Specifications

Note

•The specifications and design of this product are subject to change without notice.

•This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of

NEC Corporation.

Model BDP-V6000

Type Blu-ray Disc PLAYER

Rated voltage AC 120 V

Rated frequency 60 Hz

Power consumption 32 W

Power consumption (standby) 0.3 W

Inrush current 26 A or less

Weight 7 lb 12 oz (3.5 kg)

External dimensions (including projecting parts) 16 9/16 in. (W) x 3 in. (H) x 11 5/16 in. (D)

(420 mm (W) x 75 mm (H) x 287 mm (D))

Tolerable operating temperature +41 °F to +95 °F (+5 °C to +35 °C)

Tolerable operating humidity 5 % to 85 % (no condensation)

Output terminals

HDMI 1 set, 19-pin: 5 V, 250 mA

Video outputs Video 1 set, RCA jack: 1.0 Vp-p (75 Ω)

Component video 1 set, RCA jacks:

Y: 1.0 Vp-p (75 Ω)

PB, PR: 0.7 Vp-p (75 Ω)

Audio outputs 7.1-channel (multi-channel: front left/

right, surround left/right, center,

surround back left/right, subwoofer)

1 set, Number of channels: 8, RCA jacks

Audio output level 200 mVrms (1 kHz, –20 dB)

Frequency response 4 Hz to 88 kHz (192 kHz sampling)

Digital audio outputs Optical 1 set, Optical digital jack

LAN 1 set, Ethernet jack (100BASE-TX)

Control Input 1 set, Minijack (3.5 ø)

USB 1 set, Type A

RS-232C 1 set, D-sub 9-pin (male) connector conforming to RS-232C

standards x 1 (inch screw threads)

V6000_CUXJ_EN.book 75 ページ２００９年６月５日　金曜日　午前１１時５７分

Printed in

<VRB1522-A>

PIONEER CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901, 905-479-4411

Published by Pioneer Corporation.

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer

Authorized Independent Service Company, or if you wish to purchase replacement parts,

operating instructions, service manuals, or accessories, please call the number shown

below.

1 – 8 0 0 – 8 7 2 – 4 1 5 9

Please do not ship your product to Pioneer without first calling the Customer Support at the

above listed number for assistance.

Pioneer Electronics (USA), INC.

Service Support Division

P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian

Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada.

Alternatively, please contact the Customer Satisfaction Department at the following address:

Pioneer Electronics of Canada, Inc.

Customer Satisfaction Department

300 Allstate Parkway, Markham, Ontario L3R 0P2

1-877-283-5901

905-479-4411

For warranty information please see the Limited Warranty sheet included with your product.

Si ce produit doit être réparé au Canada, veuillez vous adresser à un distributeur autorisé

Pioneer du Canada pour obtenir le nom du Centre de Service Autorisé Pioneer le plus près

de chez-vous. Vous pouvez aussi contacter le Service à la clientèle de Pioneer:

Pioneer Électroniques du Canada, Inc.

Service Clientèle

300, Allstate Parkway, Markham, Ontario L3R 0P2

1-877-283-5901

905-479-4411

Pour obtenir des renseignements sur la garantie, veuillez vous reporter au feuillet sur la

garantie restreinte qui accompagne le produit.

S021_C_EF
