Operating Instructions

DVD PLAYER

DVJ-1000

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D1-4-2-3_En-A

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such

as radiators, heat registers, stoves,

or other apparatus (including amplifiers)

that produce heat.

Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type

plug has two blades and a third grounding

prong. The wide blade or the third prong

are provided for your safety. If the provided

plug does not fit into your outlet, consult

an electrician for replacement of the

obsolete outlet.

Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

10)

Only use attachments/accessories

specified by the manufacturer.

Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

Unplug this apparatus during lightning

storms or when unused for long periods of

time.

Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

P1-4-2-2_En

11)

12)

13)

14)

NOTE:

THE NO USER-SERVICEABLE PARTS COMPARTMENT WARNING IS LOCATED ON THE APPLIANCE BOTTOM.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_En

WARNING

This equipment is not waterproof. To prevent a fire

or shock hazard, do not place any container filed

with liquid near this equipment (such as a vase or

flower pot) or expose it to dripping, splashing, rain

or moisture.

D3-4-2-1-3_A_En

IMPORTANT NOTICE – THE SERIAL NUMBER FOR

THIS EQUIPMENT IS LOCATED ON THE BOTTOM.

PLEASE WRITE THIS SERIAL NUMBER ON YOUR

ENCLOSED WARRANTY CARD AND KEEP IN A

SECURE AREA. THIS IS FOR YOUR SECURITY.

D1-4-2-6-1_En

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme

à la norme NMB-003 du Canada.

D8-10-1-3_EF

Information to User

Alteration or modifications carried out without

appropriate authorization may invalidate the user’s

right to operate the equipment.

D8-10-2_En

CAUTION: This product satisfies FCC regulations

when shielded cables and connectors are used to

connect the unit to other equipment. To prevent

electromagnetic interference with electric appliances

such as radios and televisions, use shielded cables

and connectors for connections.

D8-10-3a_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the

product will expose you to chemicals listed on

proposition 65 known to the State of California and

other governmental entities to cause cancer and

birth defect or other reproductive harm.

Wash hands after handling

D36-P4_A_En

WARNING

To prevent a fire hazard, do not place any naked

flame sources (such as a lighted candle) on the

equipment.

D3-4-2-1-7a_A_En

VENTILATION CAUTION

When installing this unit, make sure to leave space

around the unit for ventilation to improve heat

radiation (at least 5 cm at rear, and 5 cm at each

side).

WARNING

Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the

product, and to protect it from overheating. To

prevent fire hazard, the openings should never be

blocked or covered with items (such as newspapers,

table-cloths, curtains) or by operating the

equipment on thick carpet or a bed.

D3-4-2-1-7b_A_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the

plug by tugging the cord and never touch the power

cord when your hands are wet as this could cause a

short circuit or electric shock. Do not place the unit, a

piece of furniture, etc., on the power cord, or pinch the

cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed such that they

are not likely to be stepped on. A damaged power cord

can cause a fire or give you an electrical shock. Check

the power cord once in a while. When you find it

damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement.

S002_En

CAUTION

This product is a class 1 laser product, but this

product contains a laser diode higher than Class 1.

To ensure continued safety, do not remove any covers

or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: top of the DVD drive

CLASS 1

LASER PRODUCT

D3-4-2-1-8_B_En

DRW2317-A

If the AC plug of this unit does not match the AC

outlet you want to use, the plug must be removed

and appropriate one fitted. Replacement and

mounting of an AC plug on the power supply cord of

this unit should be performed only by qualified

service personnel. If connected to an AC outlet, the

cut-off plug can cause severe electrical shock. Make

sure it is properly disposed of after removal.

The equipment should be disconnected by removing

the mains plug from the wall socket when left

unused for a long period of time (for example, when

on vacation). D3-4-2-2-1a_A_En

CAUTION

The POWER switch on this unit will not completely

shut off all power from the AC outlet. Since the

power cord serves as the main disconnect device for

the unit, you will need to unplug it from the AC outlet

to shut down all power. Therefore, make sure the

unit has been installed so that the power cord can

be easily unplugged from the AC outlet in case of an

accident. To avoid fire hazard, the power cord should

also be unplugged from the AC outlet when left

unused for a long period of time (for example, when

on vacation). D3-4-2-2-2a_A_En

Before Operating

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading

the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory

drawings. However the method of connecting and operating the unit is the same. K015 En

S001_En

Selecting fine audio equipment such as the unit

you’ve just purchased is only the start of your

musical enjoyment. Now it’s time to consider how

you can maximize the fun and excitement your

equipment offers. This manufacturer and the

Electronic Industries Association’s Consumer

Electronics Group want you to get the most out of

your equipment by playing it at a safe level. One that

lets the sound come through loud and clear without

annoying blaring or distortion-and, most importantly,

without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing

“comfort level” adapts to higher volumes of sound.

So what sounds “normal” can actually be loud and

harmful to your hearing. Guard against this by

setting your equipment at a safe level BEFORE your

hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it

comfortably and clearly, and without distortion.

Once you have established a comfortable sound

level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent

hearing damage or loss in the future. After all, we

want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will

provide a lifetime of fun and enjoyment. Since

hearing damage from loud noise is often

undetectable until it is too late, this manufacturer

and the Electronic Industries Association’s

Consumer Electronics Group recommend you avoid

prolonged exposure to excessive noise. This list of

sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

50 Light traffic, normal conversation, quiet office

60 Air conditioner at 20 feet, sewing machine

70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock

at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS

UNDER CONSTANT EXPOSURE

Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers,

thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

Before Operating

Contents

Before Operating

Features ................................................................................... 6

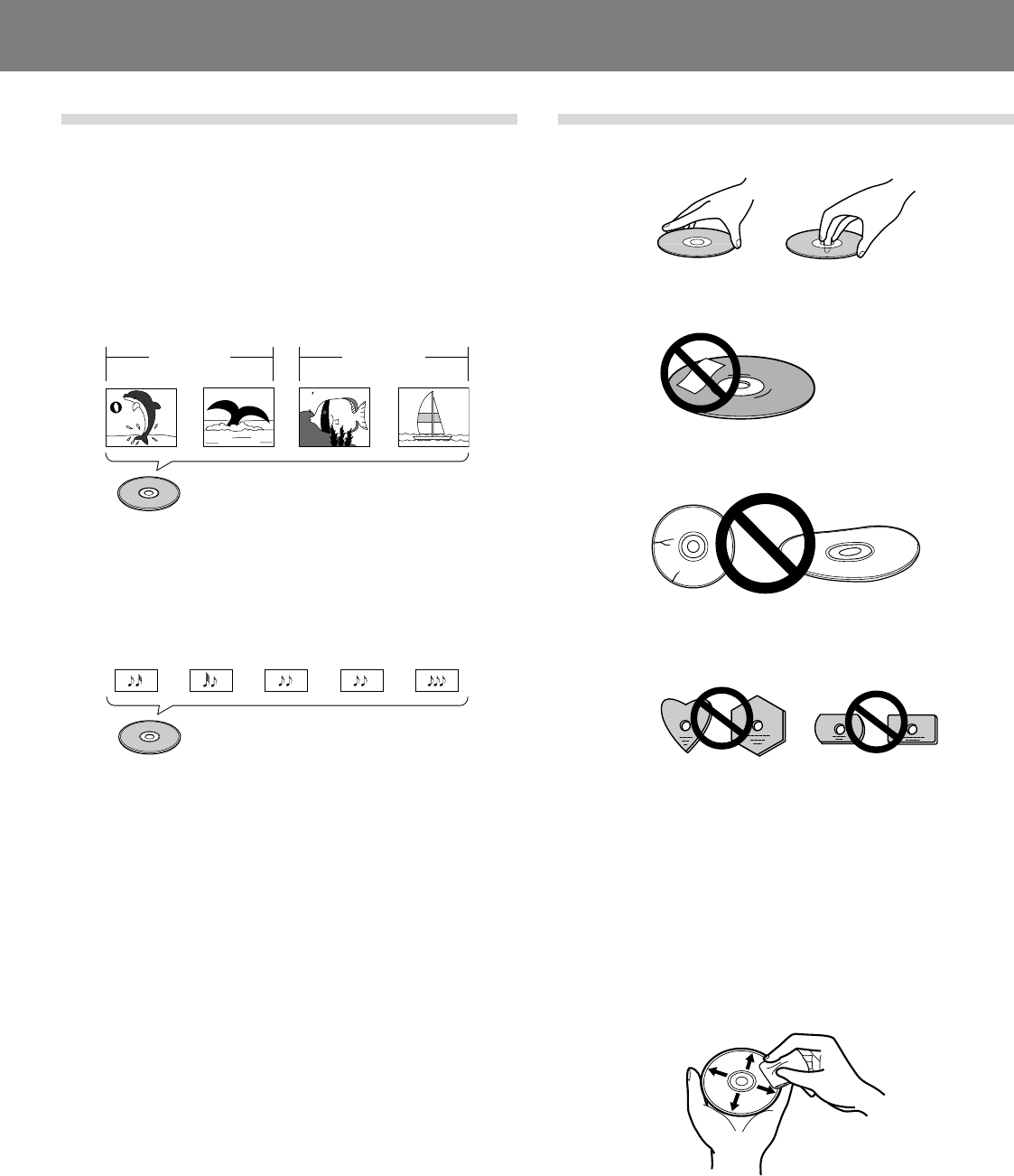

Handling Precautions ............................................................... 8

Discs Usable with This Unit ..................................................... 9

Names and Functions of Parts ............................................... 12

Operation panel ................................................................ 12

Display .............................................................................. 14

Jog dial display ................................................................. 15

Rear panel ........................................................................ 15

Main video output (VIDEO OUT) and preview video output

(PREVIEW OUT) ............................................................... 16

Connections ........................................................................... 17

1. Connections to a Pioneer DJ mixer (sold separately)

(audio output and control connector) ........................... 17

2. Control cord connection for relay play ......................... 18

3. Connection to stereo amplifier (without DJ mixer) ...... 18

4. Connection to component equipped

with digital input connector.......................................... 18

5. Connection to television monitor

(composite video/S-Video) ........................................... 19

6. Connection to video mixer ........................................... 20

7. Connecting the power cord ......................................... 20

Preparations

Setup ...................................................................................... 21

TV system setting for video output .................................. 21

How to perform setup ...................................................... 21

Using the Setup Navigator ............................................... 21

Setup Menu items ............................................................ 23

To return all settings to their factory defaults ................... 24

Using the Setup Menu ..................................................... 24

Advanced settings ............................................................ 25

Adjusting Dolby Digital audio ............................................ 25

Digital output setting ........................................................ 25

[Audio2] settings .............................................................. 26

[Video1] settings ............................................................... 27

Video quality adjust........................................................... 28

[Video2] settings ............................................................... 29

[Language] Settings .......................................................... 30

Setting Parental Lock ....................................................... 33

Basic Operations

Loading and Removing Discs ................................................. 35

Basic Operations .................................................................... 36

Beginning playback ........................................................... 36

Auto cue function ............................................................. 37

To stop playback ............................................................... 37

To eject the disc ............................................................... 37

To temporarily interrupt playback (pause mode) ............... 37

To change language/subtitle settings during playback

(DVD only) ........................................................................ 37

Changing the viewing angle (DVD only) ........................... 38

Fast forward/fast reverse ................................................. 38

Track search (skip) ............................................................ 39

Title search (DVD only) ..................................................... 39

Folder search (MP3 only) .................................................. 39

Setting cue points ............................................................ 40

Changing playback speed ................................................. 40

Setting master tempo ...................................................... 41

Jog dial functions ............................................................. 41

Jog sensitivity adjustment ................................................ 41

About the WAVE display ................................................... 41

About the TEXT display .................................................... 42

Mixing different tracks (splicing) ...................................... 42

Advanced Operations

Advanced Operations ............................................................. 43

Scratch play ...................................................................... 43

Hyper jog mode ................................................................ 43

Spin play ........................................................................... 43

Braking ............................................................................. 43

Hot cue ............................................................................. 43

Loop playback ................................................................... 44

Back & Forth Loop Mode ................................................. 45

Reverse play ..................................................................... 45

About fader start play ....................................................... 45

Relay play with two players .............................................. 45

Selecting tracks with MP3 navigator (MP3 only) .............. 46

To view guide displays...................................................... 46

Operations Using Memory Cards........................................... 47

Recording to memory cards ............................................. 47

To recall data recorded on memory cards ........................ 48

To delete information recorded on memory cards ........... 50

To copy memory card data ............................................... 50

Other

Troubleshooting ...................................................................... 51

Error message display ...................................................... 53

Dot Matrix Guide Display Messages ...................................... 54

Specifications ......................................................................... 55

Before Operating (Features)

Features

This player has been designed to provide CD/DVD playback fea-

tures and functions demanded by professional disco club DJs

and VJs. It is a professional DVD player equipped with opera-

tional ease, sound quality, and functions superior to those found

on the professional analog players conventionally used by DJs.

JOG DIAL

Large-diameter (206 mm) dial for operating sensitivity ex-

ceeding that possible with conventional analog turntables

¶PITCH BEND

Changes playback pitch in proportion to the direction and speed

of jog dial rotation.

¶SCRATCH PLAY

In VINYL mode, when the top surface of the jog dial is touched,

playback stops and starts in response to the direction and speed

of jog dial rotation. The user can also adjust the sensitivity of

start-up when the jog dial is touched and released, making pos-

sible new DJ techniques.

¶FRAME SEARCH

When the jog dial is rotated during pause, the pause position is

changed in units of individual frames (1/75th second).

¶SUPER FAST SEARCH

When the jog dial is rotated while depressing the manual search

button, track search button or title/folder search button, the search

will be performed more quickly than the conventional search or

track search (or title/chapter search) functions.

¶HYPER JOG MODE

In VINYL mode, when the jog dial is rotated, the amount of sound

or image change quadruples (x4) in response to the rotation. Per-

formance possibilities are enhanced by employing this function

together with the ordinary mode.

JOG ADJUST

This function allows you to adjust the felt resistance when rotat-

ing the jog dial.

ON JOG DISPLAY

The center of the jog dial is furnished with a display providing vari-

ety of information, including disc status, cue point position, audio/

video memory status, jog touch detect display, and VINYL mode.

WAVE DISPLAY

With an analog record, the user could look for the breaks in the

grooves to use as mix points and end points. In the same way,

the WAVE display reveals track breaks in advance, allowing the

DJ to use them as break points.

CUE/LOOP MEMORY

Cue points and loop points can be recorded for each disc on

external SD memory cards or Multimedia cards (MMC), and re-

called later as desired.

HOT CUE

Up to 3 hot cue points (A, B, C) can be recorded in advance and

called up later for instant playback from those points. Hot cues

can be used not only to record normal cue points, but also for

loop point playback.

REVERSE PLAY

By pulling the DIRECTION select switch toward the front (REV

position), tracks can be played in reverse.

TEMPO CONTROL

High-performance 100 mm slider for precise adjustment of

track speed

Using a digital display with 0.02 % increments (within control

range ±6 %), the user can accurately and easily match the tem-

pos of playback tracks.

¶TEMPO CONTROL RANGE

Four tempo control ranges are provided: ±6 %, ±10 %, ±16 %,

and WIDE.

¶TEMPO CONTROL RESET

This control allows tempo to be reset to the default 0 % status

instantly, regardless of the slider position.

¶MASTER TEMPO

Allows pitch to be maintained while changing track speed.

CUE

¶BACK CUE

By previously recording a cue point, it can be returned to instantly

by pressing the CUE button during subsequent playback, thus

starting playback again from that point.

¶AUTO CUE

This function cues a track by skipping the non-recorded portion

before the beginning of music, setting the player to standby mode

immediately before music begins. In this way, playback can be-

gin instantly when the PLAY/PAUSE (6) button is pressed.

¶CUE POINT SAMPLER

This function allows one-touch playback from the cue points

stored in memory, a convenient function for confirming cue points

and sampling the points stored.

REAL TIME SEAMLESS LOOP

Allows simple setting and canceling of playback loops. Loops

can be set quickly during track playback; also allows quick set-

ting of a loop immediately before the end of a track, thus pre-

venting the track from ending. In addition, loop functions have

been facilitated by the addition of an ADJUST mode that allows

one-touch modification of loop-in and loop-out points.

Before Operating (Features)

RELOOP

Once set, a loop can be returned to any number of times

After canceling loop play, pressing the RELOOP/EXIT button

causes playback to return and begin again from the previously

set loop. Turning the function ON/OFF in time with the track’s

rhythm allows a variety of new performance possibilities.

4-BEAT LOOP

When the 4-BEAT/ONE-TRACK button is pressed, the point at

which the button is pressed is set as a loop-in point, and a loop-out

point is set automatically 4 beats later, and automatic loop play is

performed.

ONE-TRACK LOOP

When the 4-BEAT/ONE-TRACK button is held depressed for one

second or more, the chapter loop or track loop function is enabled.

BACK & FORTH LOOP

The Back & Forth Loop mode repeats playback in forward direc-

tion from the loop-in point to loop-out point, followed by reverse

play from the loop-out point to the loop-in point.

PLAYING ADDRESS

With an analog record, the position of the stylus gives the opera-

tor an immediate grasp of the progress of playback. In the same

way, the play address display shows a bar graph that provides

an immediate visual grasp of the track’s playback progress. The

current position in the track is indicated by the length of the bar;

in addition, the bar flashes to warn that playback is approaching

the end of the track.

FADER START

When the player is connected to a Pioneer DJ mixer (sold sepa-

rately), the mixer’s fader operation can be used to perform fader

start and back cue.

MULTI READ

Discs readable on this player include CD-R/CD-RW (recorded in

audio CD format or MP3), and DVD-R/DVD-RW (recorded in video

format or MP3). However, since this player uses high-speed data

read for the purposes of its DJ operations, some discs may not

play back properly depending on the characteristics of the disc and

the recorder, as well as a result of dirt or scratches on the disc, etc.

MP3 DJ PLAY

This function allows use of the DJ function to play MP3 files re-

corded on CD or DVD.

PREVIEW MONITOR OUTPUT

This is an auxiliary video output that produces an overlay display

of operating information on the main video output screen, and

provides the DJ with a visual aids when operating the unit. Dur-

ing use of DVD play, cue points, loop points, and hot-cue points

are shown as thumbnail displays overlain on the main output

making possible interactive DJ operations.

LEGATO PRO

The player is equipped with a digital filter that uses up-sampling

technology (DVD: 48 kHz \ 192 kHz; CD: 44.1 kHz \ 176.4 kHz)

for reproducing audio information lost in some disc (DVD, CD) for-

mats.

HI-BIT

This function extends the bit length of audio data. By transform-

ing 16-bit or 20-bit data to 24-bit, even minute signals can be

reproduced with smooth, finely defined sound.

DIGITAL AUDIO OUT

96 kHz 24-bit digital audio output is supported in DJ mode as

well as NORMAL mode.

About DVD playback in DJ mode

Since various special operations are supported in DJ mode, certain

limitations are placed on normal playback functions such as SCAN.

For this reason, operations which are possible in the NORMAL mode

may be limited or disabled when attempted in DJ mode. In short, if

you wish to use all ordinary DVD play functions, use the NORMAL

mode.

Limited or disabled functions (when in DJ mode)

¶Cannot play sub-pictures (can’t display subtitles or onscreen but-

tons)

¶Cannot use password input command (when using interactive

commands, the same operations may not produce the same

results as when in NORMAL mode).

¶May only play midway through titles.

¶May skip certain parts of titles.

¶Playback may be temporarily interrupted when switching audio

functions.

¶Playback may be temporarily interrupted when changing view-

ing angle.

¶Cannot use pan-and-scan function.

¶The title itself may disallow use of DJ operations. In this case,

DJ operations are prohibited, and the same operations are per-

formed as when in NORMAL mode.

Before Operating (Handling Precautions)

CUE

DVJ-1000

Installation location

¶Placing and using the player for long periods on heat-generat-

ing sources such as amplifiers or near spotlights, etc. will af-

fect product performance. Avoid placing the player on heat-

generating sources.

¶Install this player as far as possible away from tuners and TV

sets. The player installed in close proximity to such equip-

ment may cause noise or degradation of the picture.

Noise may be noticeable when an indoor antenna is used. In

such cases, make use of an outdoor antenna or turn off power

to the player.

¶When the unit is used in a loud-sound environment, e.g., near

a speaker, sound skip may occur. Install the unit away from

the speaker or reduce the listening volume.

¶Place this unit on a level surface and a stable platform.

Take adequate note of the following precautions when pre-

paring a place for installation:

Be sure the player, including its video, audio and power supply

cords, does not touch vibrating materials. Any vibration other

than that transmitted through the insulators may cause the disc

to skip. Take special care when using the player while it is in-

stalled in a carrying case.

Do not place on or

against vibrating

materials!

Leave space to

allow for heat

dissipation.

Leave space to

allow for heat

dissipation.

Leave space to allow for heat

dissipation.

Moving the unit

■Never move the unit during playback!

During playback, a disc rotates at very high speed; moving the

player during playback may result in scratches or other damage

to the disc.

■When moving the unit is necessary

Before moving the unit, remove any disc and disconnect the

power. Malfunctions or damage may result if the unit is moved

with a disc loaded. Also take care to prevent exposing the unit to

heat or moisture during transport.

About the carrying case

The upper surface of the jog dial is equipped with a touch-sensi-

tive switch. When placing the player in its carrying case, avoid

placing any pressure on the jog dial.

Condensation

When this unit is brought into a warm room from previously cold

surroundings or when the room temperature rises sharply, con-

densation may form inside the unit and impair its performance.

In such cases, disconnect the power cord and allow the unit to

set for 1 to 2 hours, or raise the room temperature gradually

before playing.

Cleaning the player

To clean the player wipe with a polishing or a soft, dry cloth. For

stubborn dirt, moisten a soft cloth with a weak solution of neu-

tral detergent (diluted in five to six parts water), wring the cloth

well, and wipe away the dirt. Use a dry cloth to wipe the surface

dry. Do not use volatile liquids such as benzene or thinner which

will damage the unit.

About the lens cleaner

The player's pickup lens should not become dirty in normal use.

If for some reason, the lens becomes soiled and malfunctions,

contact your nearest PIONEER authorized service center. Lens

cleaners for DVD (CD) players are commercially available, but

special care should be exercised in their use as some may cause

damage to the lens.

Regarding data recorded on memory cards

It is the users responsibility to make regular backups of important

memory card data. Pioneer disclaims any responsibility for damage

to or loss of memory card data, or other incidental damages arising

from incompatibilities of the player and memory card, static electric-

ity or other external causes.

Handling Precautions

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by

tugging the cord and never touch the power cord when your

hands are wet as this could cause a short circuit or electric shock.

Do not place the unit, a piece of furniture, etc., on the power

cord, or pinch the cord. Never make a knot in the cord or tie it

with other cords. The power cords should be routed such that

they are not likely to be stepped on. A damaged power cord can

cause a fire or give you an electrical shock. Check the power

cord once in a while. When you find it damaged, ask your near-

est PIONEER authorized service center or your dealer for a re-

placement. S002_En

Lawful use of DVJ-1000: Copyright etc

Neither Pioneer nor its dealers are responsible for the use made of the DVJ-

1000. The user must ensure it has all relevant licences and consents in place

(whether for copyright/public performance, performers rights, moral rights

or otherewise) to allow the lawful use of the DVJ-1000.

This is likely to include licences from organisations administering perform-

ance rights in audio or video recordings or consents from any other relevant

rights holders.

Before Operating (Discs Usable with This Unit)

Discs Usable with This Unit

Types of discs playable on this unit

¶ The following marks and logos are displayed on disc labels,

packaging, or jackets.

Note 1) About DVD-R disc playback:

This player can play back DVD-R discs recorded in “DVD video”

format or MP3.

Note 2) About DVD-RW disc playback:

¶This player can play back DVD-RW discs recorded in “DVD

video” format or MP3.

¶When playing a disc that has been edited on a DVD recorder,

portions of the recording including links between tracks may

appear as a momentary still image.

¶When playing a disc that has been recorded or edited on a

DVD recorder, the locations of edited portions may shift some-

what.

* For details, consult the Operating Instructions for your recorder.

Note 3) Regarding CD-TEXT display:

The number of characters that can be displayed is up to 72 for

disc title, and 48 for track titles. Displays of 15 characters or

more will scroll. Only alpha-numerics and a limited number of

symbols can be displayed.

Note 4) CD-R/CD-RW discs:

This player supports playback of CD-R/CD-RW discs recorded in

audio CD format or MP3.

* For details, consult the Operating Instructions for your recorder.

When playing 8 cm CDs, always use an 8 cm CD adapter

(☞ P. 35).

■The following discs cannot be played on this unit:

¶DVD video discs not marketed for region “1” or “ALL”

¶DVD-R/DVD-RW discs recorded in VR format

¶DVD audio discs

¶DVD-ROM/DVD-R/DVD-RW discs containing no MP3 files

¶DVD-RAM

¶Video CDs

¶CD-ROM/CD-R/CD-RW discs containing no MP3 files

¶Photo CD

¶DTS-CD, etc.

Notes:

Some DVD-R/DVD-RW and CD-R/CD-RW discs recorded on

standalone recorders or computer drives may not be playable

back on this player, due to a variety of reasons, including disc

characteristics, scratches, dirt, player lens dirt or condensa-

tion, etc.

Some discs recorded on computer drives may not be playable

on this player, depending on the recording application used,

its settings, and operating environment. Be sure to use the

correct formatting for the discs used. For details, consult the

application author.

This unit cannot play DVD-R/DVD-RW discs recorded in video

format unless they have been finalized.

This unit cannot play DVD-R/DVD-RW discs recorded in VR

format.

This unit cannot play partially recorded CD-R/CD-RW discs that

have not been finalized.

For detailed information regarding the handling of DVD-R/DVD-

RW and CD-R/CD-RW discs, consult the handling precautions

printed on the disc case or otherwise supplied with each disc.

■Regarding copy-control CDs

This unit is designed to conform with audio CD standards. Op-

eration is not guaranteed when playing CDs produced outside

the normal CD standards.

■About DualDisc playback

A DualDisc is a new two-sided disc, one side of which contains

DVD content – video, audio, etc. – while the other side contains

non-DVD content such as digital audio material.

The non-DVD, audio side of the disc is not compliant with the

CD Audio specification and therefore may not play.

The DVD side of a DualDisc plays in this product.

DVD-Audio content will not play.

For more detailed information on the DualDisc specification,

please refer to the disc manufacturer or disc retailer.

■Regarding DVD-R/DVD-RW, CD-R/CD-RW discs

Due to the unique construction of DVD-R/DVD-RW and CD-R/

CD-RW discs, leaving them for extended periods of time in the

pause (or cue standby) mode at a single point may result in the

discs’ becoming difficult to play at that place. The same symp-

tom may also occur if the loop function is used to play back a

single point on the disc excessively.

As a result, users are advised to construct backup archive discs

when playing discs containing important data.

Types and Logos of playable discs

DVD video

DVD-R (Note 1) DVD-RW (Note 2)

CD CD-TEXT (Note 3) CD-R (Note 4) CD-RW (Note 4)

Note:

This player does not support playback of 8 cm DVDs. Do

not attempt to use adapters meant for 8 cm CDs, since the

adapter may come loose during rotation, causing damage

to the disc or player.

is a trademark of DVD Format/Logo Licensing Corporation.

Before Operating (Discs Usable with This Unit)

DVD operating limitations

Some DVDs are designed explicitly to prevent the use of certain

operations or to prevent changing operation methods. As a re-

sult, the methods used to operate each disc may vary, and some

techniques may not be usable with certain discs. In the event

that a prohibited technique is attempted with a disc on this player,

the display will show the disc operation prohibited mark . Also,

certain other operations may not be supported on discs that sup-

port menus or dialogue-type operations during playback. In such

cases, the player operation prohibited mark will be displayed.

Regarding copyright

¶Unauthorized copying, broadcasting, public performance, or

rental of copyrighted discs is prohibited by law.

¶This product incorporates copyright protection technology

that is protected by method claims of certain U.S. patents

and other intellectual property rights owned by Macrovision

Corporation and other rights owners. Use of this copyright

protection technology must be authorized by Macrovision Cor-

poration, and is intended for home and other limited viewing

uses only unless otherwise authorized by Macrovision Cor-

poration. Reverse engineering or disassembly is prohibited.

Playing MP3 files

MP3 files must follow the format requirements listed below.

* This unit is not equipped with a sort function allowing playback by order of file names or ID3 tags. Playback is performed in the

order tracks are recorded on the disc.

* Plays MP3 files stored on CD or DVD. Cannot play MP3 files stored on SD memory cards or Multimedia cards (MMC).

* Startup time increases with the number of folders.

MP3 format

Disc format

MPEG-1

MPEG-2

ID3 tag

File extension

Folder levels

Maximum number of folders

Maximum number of files

CD-R/CD-RW recording mode

DVD-R/DVD-RW recording mode

Supports Audio Layer-3 sampling frequency 32 kHz, 44.1 kHz, 48 kHz,

Bit Rate 32 Kbps to 320 Kbps.

Supports Audio Layer-3 sampling frequency 16 kHz, 22.05 kHz, 24 kHz,

Bit Rate 16 Kbps (stereo) to 160 Kbps.

Supports ID3 Vers. 1.0/1.1/2.2/2.3/2.4.

Displays title, artist, album.

.mp3, .MP3, .mP3, .Mp3

Maximum of 8 folders.

Files located in folders exceeding 8 levels cannot be played.

99 (99 folders + 1 root)

999 (per folder)

Record in accordance with ISO9660 file system standards.

Supports only Disc At Once or Track At Once.

DVJ-1000 does not support Packet Write recorded discs.

Record in accordance with ISO9660 file system standards.

Does not support multi-border recording.

Mark Meaning

Number of recorded audio tracks

Number of recorded subtitles

Number of recorded angles

Recorded aspect ratio

Region number. This player can play discs

marked with region “1” or “ALL”.

16 : 9 LB

1ALL

Marks displayed on DVD

The following symbols and marks may be displayed on DVD la-

bels or packaging:

Before Operating (Discs Usable with This Unit)

Disc composition

Digital Versatile Discs (DVD)

DVD video, DVD-R or DVD-RW discs are recorded in units called

“titles,” with each title being divided into one or more sub-divi-

sions called “chapters.” Further, some, discs are furnished with

menus for navigating the disc, but menus may not be included

with all titles. In the case of commercial films, a single movie

normally corresponds to a single title. On so-called “karaoke”

discs, each song track composes a single title, although there

are some exceptions to this rule, so care is needed when using

search functions.

Compact Discs (CD)

In the case of compact discs, each disc is divided into units of

individual tracks (normally, each song is contained on a single

track). In addition, tracks may have sub-divisions called index

numbers.

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2

DVD/DVD-R/DVD-RW

Track 1 Track 2 Track 3 Track 4 Track 5

Handling discs

■When holding discs, do not touch their signal surfaces. Hold

by the edges, or by one edge and the center hole.

■Do not affix gummed labels or tape to the disc surface. Also,

do not scratch or damage the label.

■Discs rotate at high speeds inside the player. Do not use dam-

aged, cracked or warped discs.

■Do not play a disc with a special shape

¶Do not play a disc having other shape than a circular disc,

such as heart shaped disc. Otherwise malfunction may occur.

■Storing discs

¶Discs are made of the same kinds of plastic used for con-

ventional analog audio records. Be careful not to allow discs

to warp. Always store discs in their cases vertically, avoiding

locations with high heat, humidity, or extremely low tem-

peratures. Avoid leaving discs in cars; the interior of a car in

direct sunlight can become extremely hot.

¶Always read and abide by the precautionary notes listed on

disc labels.

■Cleaning discs

¶Always keep your discs clean by wiping them gently with a

soft cloth from the inner edge toward the outer edge.

¶When cleaning discs, the use of a commercial CD/DVD clean-

ing kit is recommended.

¶If a disc becomes very dirty, dampen a soft cloth with water,

(be sure to wring it out well) and wipe the away dirt gently.

Remove any water drops with another soft, dry cloth.

¶Do not use record cleaning sprays or anti-static agents on discs.

Never clean discs with benzene, thinner, or other volatile sol-

vents or damage to the disc surface may result.

Before Operating (Names and Functions of Parts)

Operation panel

1. POWER OFF (—)/ON (_) switch

Located on the rear panel.

2. Loop in/realtime cue/loop in point adjust button/indica-

tor (IN/REALTIME CUE/IN ADJUST)

Real time cue ☞ P.40

Loop-in point input ☞ P.44

Loop-in point adjust ☞ P.44

3. Loop out/loop out point adjust button/indicator

(OUT/OUT ADJUST)

Loop-out point input ☞ P.44

Loop-out point adjust ☞ P.44

4. BACK & FORTH button ☞ P.45

Use to switch between normal loop mode and back & forth loop mode.

5. Loop mode indicator ☞ P.45

Lights during back & forth loop mode.

6. RELOOP/EXIT button/indicator ☞ P.44

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

CUE

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWD

REV

12 35678

46 4748

252627282930

53525150 54

449 10

7. 4-BEAT/ONE-TRACK button ☞ P.45

• 4-Beat Loop

When this button is pressed, loop play will be-

gin with that point as the loop-in point, and the

loop-out automatically point set 4 beats later.

• One-Track Loop

When this button is held depressed for 1 sec-

ond or more, the chapter loop or track loop play

will begin.

8. CUE/LOOP CALL button ☞ P.48

Press to turn cue point navigation mode ON/

OFF.

9. Cursor button ( / / / )

This button is used for cue point navigation;

during MP3 playback, functions for performing

selections with MP3 navigator, and for making

various DVD settings.

10. ENTER button

This button is used for cue point navigation;

during MP3 playback, functions for performing

selections with MP3 navigator, and for making

various DVD settings.

11. NORMAL/DJ switch ☞ P.18

Located on the rear panel.

12. STOP button

Stops disc playback. When the eject/stop mode

select switch is set to LOCK, playback will not

stop unless the PAUSE mode is set first.

13. Eject/stop mode select switch

(UNLOCK/LOCK)

UNLOCK: If the EJECT (0) button is pressed

during playback, the disc stops and is ejected.

If the STOP button is pressed during playback,

the disc playback stops.

LOCK: If the EJECT (0) button is pressed dur-

ing playback, the disc will not be ejected. To

eject the disc, set the unit to pause, then press

the EJECT (0) button. Likewise, playback will

not stop if the STOP button is pressed during

playback; to stop disc playback, set the unit to

pause, then press the STOP button.

14. EJECT (0) button

When this button is pressed, disc rotation stops

and the disc is ejected from the loading slot. If

Buttons and controls with the mark are disabled when the NORMAL/DJ switch is set to NORMAL.

Buttons and controls with the mark are disabled when the NORMAL/DJ switch is set to DJ.

the eject/stop mode select switch is set to the LOCK position, the

disc will not be ejected unless the unit is set to pause before press-

ing the EJECT (0) button (☞ P.35).

15. TOUCH/BRAKE response dial

Adjusts the disc deceleration speed (time to playback stop) when

the jog dial’s top surface is touched with jog mode set to VINYL ON.

Rotate the dial counterclockwise to stop playback quickly, and rotate

dial clockwise to cause slower deceleration.

16. RELEASE/START response dial

Adjusts the disc acceleration speed (playback startup time) when

the jog dial’s top surface is released with jog mode set to VINYL ON.

Rotate the dial counterclockwise to restart playback quickly, and ro-

tate dial clockwise to cause slower acceleration.

17. JOG ADJUST dial

Use to adjust the felt resistance (light/heavy) of the jog dial when it is

rotated.

18. HYPERJOG MODE button/indicator

When hyper jog mode is set to ON with jog mode set to VINYL ON,

turning the jog dial causes the rate of change of image and sound to

increase to 4x the rate of changed normally produced (when the hyper

jog mode is OFF).

Names and Functions of Parts

Before Operating (Names and Functions of Parts)Before Operating (Names and Functions of Parts)

19. JOG MODE select button

Each time pressed, sets VINYL mode alternately ON/OFF.

VINYL mode ON: If surface of jog dial is touched during playback,

playback stops, and if the dial is then rotated, image and sound are

output in response to the amount of rotation. (if the angled surface

of the jog dial is rotated without touching the top, pitch bend opera-

tion is enabled.)

¶The current jog mode is memorized even when power is turned

off.

VINYL mode OFF: The above operations are disabled even when

the jog dial’s surface is touched.

20. VINYL mode indicator

Lights when the jog mode is set to VINYL mode.

21. TEMPO control range select button

Each time this button is pressed, the TEMPO control slider’s vari-

able range changes (±6 %, ±10 %, ±16 %, WIDE).

When WIDE is selected, the variable range during DVD and MP3 play-

back is set to +70 % to –100 %, and during CD playback, ±100 %.

22. TEMPO control range indicator (±6, ±10, ±16, WIDE)

¶When control range is set to ±6 %, the ±6 indicator lights.

¶When control range is set to ±10 %, the ±6 and ±10 indicators

light.

¶When control range is set to ±16 %, the ±6, ±10 and ±16 indica-

tors light.

¶When control range is set to WIDE, the ±6, ±10, ±16 and WIDE

indicators light.

23. MASTER TEMPO button/indicator ☞ P.41

Each time this button is pressed, the master tempo function turns

alternately ON/OFF.

24. TEMPO control slider

When pulled forward (+), playback tempo is accelerated, and when

pushed away (–), tempo is slowed.

25. TEMPO RESET indicator

When lighted, indicates that the playback tempo is set to normal

tempo “0”, regardless of the position of the TEMPO control slider.

26. TEMPO RESET button

Pressing this button instantly resets the playback tempo to “0” (nor-

mal tempo), regardless of the current position of the TEMPO control

slider. Press the button once again to cancel the reset.

27. Jog dial display ☞ P.15

28. Jog dial (+FWD/–REV) ☞ P.41

29. Disc loading slot ☞ P.35

30. Forced eject hole ☞ P.35

31. Memory card door and slot ☞ P.47

32. Memory card indicator ☞ P.47

This indicator lights with a memory card is loaded and the door is

closed, and flashes during memory card access.

¶Do not open the door or turn off power while the indicator is flash-

ing.

33. PLAY/PAUSE indicator

Lights during playback, and flashes during pause mode.

34. PLAY/PAUSE (3/8) button ☞ P.37

35. CUE indicator ☞ P.40

Lights to indicate a cue point has been set. Flashes during pause

mode.

36. CUE button ☞ P.40

Cue point setting

Back cue

Cue point sampler

37. Manual search buttons (REV1/FWD¡) ☞ P.38

38. Track search buttons

(PREVIOUS 4/NEXT ¢) ☞ P.39

Use to return/advance playback by track (during CD, MP3) or chapter

(during DVD).

During DVD playback, use to return to menu page or change page.

39. REV indicator

Lights when DIRECTION FWD/REV select switch is set to reverse.

40. DIRECTION FWD/REV select switch

Set to REV position for reverse playback.

41. HOT CUE REC MODE button ☞ P.43

Press to select the HOT CUE button’s function (record/call).

¶Defaults to call mode when power is switched on.

42. HOT CUE (A, B, C) buttons/indicators ☞ P.43

A, B, or C indicator lights red to indicate hot cue point record mode.

A, B, or C indicator lights green for hot cue point, and orange for hot

loop point; when an indicator is lighted, call mode is enabled for that

point; pressing the button initiates playback from the hot cue point.

When indicator is not lighted, no hot cue point is recorded.

43. Title/folder search buttons

(DVD TITLE/MP3 FOLDER |/\) ☞ P.39

During DVD playback, titles are forwarded or reversed in the direc-

tion corresponding to the button pressed.

During MP3 playback, goes in designated direction for folders in lay-

ered CD or DVD.

44. TEXT MODE select button ☞ P.42

Each time this button is pressed, the display alternates between

WAVE and TEXT (track name/album name/artist name).

45. TIME MODE/AUTO CUE button

TIME MODE:

Each time the button is pressed, the time display switches alter-

nately between playback elapsed time and remaining time (REMAIN).

In the case of MP3, the remaining playtime (REMAIN) may not im-

mediately be displayed, depending on the file.

¶The time mode remains set in memory even when power is turned

off.

AUTO CUE:

Hold depressed for one second or more to set/release the auto cue

function.

Hold depressed for five seconds or more to switch the auto cue

level (☞ P.37).

¶The auto cue ON/OFF setting and auto cue level remains set in

memory even when power is turned off.

46. ANGLE button

Press to change the viewing angle during DVD playback (on sup-

ported discs only).

¶In DJ mode, when the angle is changed both video and audio

playback temporarily stop (due to writing to buffer memory).

47. SUBTITLE button

During DVD playback, press to alternately turn subtitle display ON/

OFF (on supported discs only).

¶This function is disabled in DJ mode.

48. AUDIO button

During DVD playback, press this button to change language or audio

channel (on supported discs only).

¶In DJ mode, when the language/audio channel is changed, both

video and audio playback temporarily stop (due to writing to buffer

memory).

49. Display ☞ P.14 (1 to 24)

50. DISPLAY button ☞ P.46

When pressed in DJ mode, turns the hot cue, cue point, and play-

back time guide display ON/OFF on the monitor connected to the

preview video output connector.

When pressed in NORMAL mode, turns the disc information guide

display ON/OFF.

¶When power is switched ON, the display function defaults to ON

when the unit is in the DJ mode, and OFF (no display) in the NOR-

MAL mode.

51. DELETE button ☞ P.50

Press to delete cue points and loop points recorded in memory card.

52. MEMORY button ☞ P.47

Press to store cue points or loop points in memory card.

53. MENU button

Press to display DVD menu.

Also, during MP3 playback, displays MP3 navigator screen. (☞ P.46)

54. Top menu (T.MENU) button

Press to display a DVD’s top menu level.

55. SETUP button ☞ P.21

Press to display the setup menu.

56. RETURN button

When setup or other menus are displayed, press this button to re-

turn to the previous menu or item.

Before Operating (Names and Functions of Parts)

123

456 7 8

9 10 11

16 151923 18202122

Display

1. Title/Folder number display (TITLE/FLD 00 to 99)

Indicates the DVD title number.

During MP3 playback, displays folder number.

Not displayed during CD playback.

2. Chapter number (CHP 000 to 999)

Indicates the DVD chapter number.

During CD/MP3 playback, “CHP” does not appear.

3. Track number (TRACK 00 to 99/000 to 999 (MP3))

Indicates CD or MP3 track number.

“TRACK” is not displayed during DVD playback.

4. Total track number (ALL)

When playing DVD, displays the total number of chapters within the

title. When playing an audio CD, displays the total number of tracks

on the disc. When playing MP3, displays the total number of tracks

within the folder.

5. Auto cue (A.CUE) indicator

Lights when auto cue is ON. Does not light during NORMAL mode.

6. Remaining time (REMAIN) indicator

Indicates that the current numerical display is of a track’s remaining

time.

7. Minutes display (000 to 999 M)

8. Seconds display (00 to 59 S)

9. Frame display (00 to 74 F)

Display audio frame numbers. 75 frames are equivalent to one sec-

ond of normal play. Not displayed in NORMAL mode.

10. Video frame display (00 to 29 VIDEO F)

Lights during DVD playback in DJ mode. 30 frames are equivalent to

one second. Video frame display does not appear during CD play-

back and in NORMAL mode.

Since this unit controls video frames (1/30 second) based on the

audio frame (1/75 second), combining the two will result in a maxi-

mum deviation of 1.

11. TEMPO indicator

Displays tempo variation produced when TEMPO control slider is

operated.

Does not light in NORMAL mode.

12. Tempo control range display (±6, ±10, ±16, WIDE)

Lights to indicate the TEMPO control slider’s variable range as se-

lected with the tempo control range select button.

Does not light in NORMAL mode.

13. BPM counter display

Lights to indicate the beats per minute (BPM) of the currently play-

ing track. Some tracks may not be measurable with the automatic

BPM counter.

Does not light in NORMAL mode.

14. Master tempo indicator (MT)

Lights when master tempo function is ON.

Does not light in NORMAL mode.

15. Dot matrix display (100x7 dots)

Used for displaying various items, including TEXT, WAVE, guide, etc.

During CD TEXT display, shows up to 72 characters for disc title or

up to 48 characters for track title; for MP3, displays up to 48 charac-

ters (display scrolls when 15 or more characters are to be shown).

In the case of WAVE display, the varying volume levels of the cur-

rently playing track are displayed, with the track sized to fit into the

entire 100-dot display width.

For guide messages, see P.54 “Dot Matrix Guide Display Mes-

sages”.

16. Play address display

Displays a bar graph to allow an immediate visual grasp of the elapsed

and remaining playing time of the currently playing track. The full

scale bar length indicates the full track length.

¶The bar graph is off at the beginning of the track, and lights from

left to right.

¶The bar graph is lighted at the beginning of the track, and goes out

from left to right.

¶When the remaining playing time falls below 30 seconds, the bar

graph flashes slowly; when less than 15 seconds are left, the bar

graph flashes quickly.

17. Prohibited indicator ( )

Some DVD discs or players do not support certain functions or op-

erations; if an effort is made to perform such operations, this indica-

tor appears for about 2 seconds.

18. CUE point indicator

When a point is recorded in the CUE button or IN/REALTIME CUE/

IN ADJUST button for the currently selected track, the “CUE” indi-

cator lights and the point’s relative starting position is shown in the

display (2 lighted dots).

Does not light in NORMAL mode.

19. MEMORY display

If the currently selected track includes cue memory or loop memory,

the “MEMORY” indicator lights and the MEMORY display indicates

the relative starting position of the cue or loop. Two dots are used to

display 1 point, and even if multiple starting positions are included

within a single point, only one point is displayed.

Does not light in NORMAL mode.

20. SRS indicator ( )

Lights when TruSurround function is selected. This function is disa-

bled in DJ mode.

21. Dolby Digital indicator (2 D)

Lights during playback when Dolby Digital audio has been selected.

22. DTS indicator

Lights during playback when DTS audio has been selected.

Not supported in DJ mode.

23. Video out indicators (VIDEO OUT/PAL/NTSC)

When the video output TV system is set to AUTO, only the “VIDEO

OUT” indicator lights.

When NTSC has been selected, both the “VIDEO OUT” and “NTSC”

indicators light.

When PAL has been selected, both the “VIDEO OUT” and “PAL”

indicators light.

24. Angle indicator ( )

During DVD playback, this mark appears to indicate a scene with

variable angle.

Before Operating (Names and Functions of Parts)Before Operating (Names and Functions of Parts)

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

POWER

OFF ON

AC IN

125

678 9

Rear panel

1. POWER OFF (—)/ON (_) switch

2. NORMAL/DJ switch (☞ P.18)

If this switch position is changed during playback, playback

will stop, and then resume playback from the disc’s begin-

ning.

DJ: For jog dial, tempo variation and other DJ operations.

During DVD playback, subtitles and some other functions,

operations, or playback points may not be supported.

NORMAL: DJ functions are not supported. Pause mode is

silent, not audible. During DVD playback, selected audio sig-

nals are output from the digital output connectors. During

CD playback, digital data containing subcodes are output (does

not support CD graphics).

3. CONTROL connector

Using the supplied accessory control cord, this connector can

be connected to a Pioneer DJ mixer (sold separately) to al-

low control of this unit from the DJ mixer. This facilitates the

use of functions such as fader start play and back cue.

Alternately, linking this connector to another DJ player allows

automatic relay play (☞ P.45).

4. AUDIO OUT L/R connectors

RCA type analog audio output connectors.

5. Main video output connectors (VIDEO OUT)

Includes RCA and BNC type connectors for outputting DVD

playback video only (composite signals), as well as S-Video

output connector.

6. DIGITAL OUT connector

RCA type coaxial digital output, for connecting AV amplifier,

Dolby Digital/DTS decoder, CD recorder, etc.

When NORMAL/DJ switch is set to “DJ”, during DVD play-

back the unit outputs 2-channel linear PCM digital data, re-

gardless of the selected audio signal format. During CD play-

back, the unit outputs only audio data that do not include

subcodes.

When NORMAL/DJ switch is set to “NORMAL”, during DVD

playback the unit outputs digital data in the audio signal for-

mat selected. During CD playback, the unit outputs digital

data including subcodes.

7. Preview video output connectors (PREVIEW OUT)

RCA type connector (composite signals) and S-Video output

connector. These connectors output monitor images used to

aid the DJ during operation. Outputs various guide messages

and displays (☞ P.16).

8. SYNC IN connector

BNC type input connector for inputting external sync signal.

Use to connect optional dedicated sync signal generator.

9. AC inlet (AC IN)

Use auxiliary power cord to connect to standard electrical

outlet.

Jog dial display

1. Operation display

Displays play position, with one revolution equivalent to 135 frames. The display rotates

during playback, and stops during pause.

2. Cue point position display

Displays the position of cue points.

3. Audio/video memory status display

Flashes during writing to the audio/video memory. While indicator is flashing, it may not be

possible to record real time cue points or hot cue points.

4. Jog touch detector indicator

When VINYL mode is set to ON, this indicator lights when the top panel of the jog dial is

touched.

5. VINYL mode indicator (Vinyl)

Lights when VINYL mode is set to ON.

Before Operating (Names and Functions of Parts)

Play

REV

1–010 3. 45. 67/ 4. 56

CUE

CBA

VIDEO OUT PREVIEW OUT

Guide

display area

Angle indicator

Title number,

chapter number

Area for onscreen display of thumbnail images of

points recorded in HOT CUE and CUE buttons.

In reverse mode displays

“REV” indicator

“Prohibited” mark and other

indicators

Total time in chapter (min-

utes / seconds)

Chapter contents are displayed as minutes, seconds,

and frames. When time mode is set to REMAIN, dis-

played numbers are preceded with a “minus” (–) sym-

bol, for example, “–1.10.08”.

Status indicator

Play: Normal playback

Loop: Loop playback

Cue: Cue standby

Pause: Normal pause (standby)

Scratch: Scratch operation

Search: Chapter/track search

¡: Forward search (scan)

1: Reverse search (scan)

Reading: Recall hot cue, or cue point

Main video output (VIDEO OUT) and preview video output (PREVIEW OUT)

★The example shown here is an illustration meant to depict the general display contents, and may differ somewhat from actual monitor

appearance.

This unit is equipped with both main video output (VIDEO OUT) and preview video output (PREVIEW OUT) connectors.

In NORMAL mode, both VIDEO OUT and PREVIEW OUT produce the same video signals.

In DJ mode, the outputs of the two connectors are different, as indicated below. Even in DJ mode, however, if a non-supported DJ

operation is attempted, the outputs will be the same as in NORMAL mode.

■VIDEO OUT

This outputs only the DVD playback image; it should be connected to the main publicly viewed monitor.

■PREVIEW OUT

This outputs the images used by the DJ when operating the unit, and includes various additional guide messages and menus.

WAVE Display:

Displays relative music levels of entire track

spread over full scale length.

Playing address display:

The current relative point in track playback is

displayed as a bar graph, with entire track length

spread over full scale length, thus allowing immedi-

ate visual grasp of the current playback position in

the track.

PREVIEW OUT (for MP3) PREVIEW OUT (for CD)

Before Operating (Connections)Before Operating (Connections)

SIGNAL GND

DIGITAL

PHONO

CONTROL

LINE

CONTROL

DIGITAL IN

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

DJM-800

DVJ-1000

Connections

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

1. Connections to a Pioneer DJ mixer (sold separately) (audio output and

control connector)

Using the accessory audio cable, connect the white plug to the L (left) connector, and connect the red plug to the R (right) connector.

By connecting the accessory control cord, the player can be controlled from the mixer, allowing fader start play and back cue operations.

Note that digital connections can be made only with mixers equipped with digital input connectors (models DJM-800, DJM-1000, etc.).

Use a commercially available coaxial digital cable to connect this unit’s DIGITAL OUT connector to the DJ mixer’s DIGITAL IN connec-

tor.

Connection example DJM-800:

Accessory

audio cable

Accessory control cord

¶When making connections to the DJM-1000, the furnished audio cables can be used to connect one set of the CD/LINE connectors

to player A, and the other set of CD/LINE connectors to a second player B. When making digital audio connections, a commercially

available coaxial digital signal cable must be used to connect this unit’s DIGITAL OUT connector to one of the DIGITAL IN connec-

tors (3 to 6) of the DJM-1000 mixer.

¶When connecting to the DJM-600, DJM-500, or DJM-300, use the furnished audio cables to connect the CD1 connectors to player

A, and CD2 connectors to player B.

¶When connecting to DJM-909, DJM-707 or DJM-400 use the furnished audio cables to connect the CH-1 CD connectors to player

A, and CH-2 CD connectors to player B.

¶When connecting to DJM-3000, connect player A to CH-1 LINE 1, and player B to CH-2 LINE 3.

¶When connecting this unit to other audio mixers, connect the unit ’s AUDIO OUT connectors to the mixer’s LINE IN or AUX IN

connectors. (★ DO NOT connect to the PHONO connectors, since it may result in distorted sound or improper playback.)

Coaxial digital cable

(sold separately)

Before Operating (Connections)

3. Connection to stereo amplifier (without DJ mixer)

4. Connection to component equipped with digital input connector

■Setting the NORMAL/DJ switch (rear panel)

When the unit is used normally as a DJ DVD player, the mode select switch should be set to the “DJ” position. If the switch position

is changed during playback, playback will stop and after the stop, playback will begin from the beginning of the disc.

When set to DJ (DJ mode):

¶During DVD playback, the digital output connectors produce 2-channel linear PCM digital data, regardless of the selected audio

signal format. In addition, subtitles and certain other functions and operations are not supported.

¶During CD playback, the digital connector outputs only audio data without sub-codes. However, sampling frequency is fixed at 44.1

kHz. As a result, limitations of recording or other functions may be experienced when certain CD recorders or other components are

connected. For details, consult the Operating Instructions for the component to be connected.

¶Some functions may be limited or disabled during DVD playback (☞ P.7, “About DVD playback in DJ mode”).

When set to NORMAL (NORMAL mode):

¶The digital connector outputs digital data including sub-codes, but the player’s DJ functions are disabled.

¶When unsupported operations are attempted the message “NORMAL” will appear in the display.

¶When power is turned ON, if the NORMAL/DJ switch is set to “NORMAL”, the display shows the message “NORMAL”.

¶If you wish to use all ordinary functions during DVD playback, set the unit to NORMAL mode (☞ P.7, “About DVD playback in DJ

mode”).

Connect CD or AUX input connector

(do not connect to PHONO input connector)

Accessory audio cable

Stereo amplifier

CD recorder or amplifier with

digital input connector, etc.

Coaxial digital cable

(sold separately)

2. Control cord connection for relay play

By using the accessory control cord to connect two DJ players, automatic relay play can be performed between the two units. (☞ P.45)

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

POWER

OFF ON

AC IN

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

POWER

OFF ON

AC IN

DVJ-1000 DVJ-1000

Accessory control cord

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

DVJ-1000

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

DVJ-1000

Before Operating (Connections)Before Operating (Connections)

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

VIDEO

INPUT

VIDEO INPUT

S-VIDEO

INPUT

S-VIDEO

INPUT

VIDEO

INPUT

DVJ-1000

5. Connection to television monitor (composite video/S-Video)

This player is equipped with two video output connectors: a main video output connector (VIDEO OUT) which outputs only the DVD

playback image, and a preview video output connector (PREVIEW OUT) which produces a variety of data displays used by the DJ

during a performance.

¶Each of the television monitors is connected by using standard video cables (RCA plug) or S-Video cables.

¶The main video output is also equipped with a BNC type output connector (COMPOSITE), allowing the use of a BNC connector

cable if desired.

* Only one video cable is provided as an accessory. S-Video cables and BNC connector cables are not provided.

★Connect the player’s video output directly to a television monitor, not to a video deck (if connected through a video deck,

the copy guard function may prevent proper playback).

Main monitor BNC connector

cable

S-Video cable S-Video cable

Video cable Video cable

Preview monitor

Note:

Most DJ functions (cue, loop, reloop, tempo adjust, hot cue, jog dial, reverse play) are not supported when the NORMAL/DJ

switch is set to “NORMAL”. In addition, the pause mode is silent, not audible.

Before Operating (Connections)

6. Connection to video mixer

Use a standard video cable (RCA plug) or S-Video cable for these connections.

7. Connecting the power cord

After all other connections are completed, connect one end of the accessory power cord to the rear-panel AC inlet, and connect the

other end (power plug) to a wall outlet.

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

DIGITAL

OUT

SYNC IN

COMPOSITE

NORMAL

AUDIO OUT

CONTROL

VIDEO OUT

R L

PREVIEW OUT

DVJ-1000 B

VIDEO INPUT 1

VIDEO INPUT 2

VIDEO OUTPUT

DVJ-1000 A

VIDEO

INPUT

S-VIDEO

INPUT

VIDEO

INPUT

S-VIDEO

INPUT VIDEO

INPUT

S-VIDEO

INPUT

Video cable

Main monitor

Video mixer Preview monitor

Preview monitor

S-Video cable

S-Video cable S-Video cable

S-Video

cable

S-Video cable

Video cable

Video

cable

Video

cable

Video cable

Preparations (Setup)Preparations (Setup)

Setup

Initial setup is required before playing DVDs.

TV system setting for video output

This setting is used to switch the TV system used for video out-

put. Confirm on the following table the TV system format in which

each kind of disc will be output.

Using the Setup Navigator

The “Setup Navigator” uses a dialog format to make basic tel-

evision and amplifier settings. The various settings are made au-

tomatically as the user responds to displayed questions. The

Setup Navigator function cannot be used during playback.

When Setup Navigator is started, setup questions appear in the

following order:

Language (OSD Language) \ TV Connection (TV type) \ Amp

Connection

1. Set POWER switch to ON.

If a disc is already loaded, remove it.

2. Press SETUP button.

The Setup Navigator screen will appear.

General

A2 V2 Language

Audio1 Video1

Exit

Move Select

Setup using the Setup Navigator

Setup Navigator

Setup Navigator Start

Auto Start Off

SETUP

ENTER

Start:

Select to begin the Setup Navigator.

Auto Start Off:

Select if Setup Navigator settings are already completed.

¶When [Auto Start Off] is selected, the next time the SETUP

button is pressed the manual Setup Menu will appear.

3. Press ENTER button.

The Setup Navigator is initiated.

■During setup, to return to the previous menu screen:

Press the cursor button’s left side ( ).

Select On-Screen-Display (OSD) Language

Languages selectable include English, French, German, Italian,

or Spanish.

Press the cursor button’s up/down sides ( /) to

move the cursor to the language desired, then

press ENTER button to confirm.

General

A2 V2 Language

Audio1 Video1

Exit

Move Select

Select the On Screen Language

Setup Navigator

OSD Language

Language

English

français

Deutsch

Italiano

Español

SETUP

ENTER

English: OSD Language is English.

Français: OSD Language is French.

Deutsch: OSD Language is German.

Italiano: OSD Language is Italian.

Español: OSD Language is Spanish.

¶The language selected as the OSD Language is automatically

selected as the language used in subtitles and audio.

(☞ P. 30)

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUSTIN ADJUST

ENTER

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

DVJ-1000

ENTER

MENU T.MENU

RETURN

SETUP

TOUCH/BRAK

RELEASE/STA

JOG ADJUST

1. Set the player’s POWER switch to OFF.

2. While depressing the DVD TITLE \ button, set

the power to ON.

3. Release the DVD TITLE \ button once the TV

system is shown in the display.

Each time steps 1 to 3 are repeated, the setting alternates as

follows:

NTSC (factory default) = PAL

PAL = AUTO

AUTO = NTSC

¶Note that visual quality may deteriorate if the disc’s record-

ing method differs from the TV system selected for out-

put.

How to perform setup

Setup operations are performed by first pressing the SETUP

button to display the Setup Menu on the screen; the cursor but-

ton is used to select items, and items are confirmed with the

ENTER button.

The cursor button contains four sensors ( ///) in a single

button. Press the top ( ), bottom ( ), left ( ) and right ( ) sides

of the button to move in the corresponding directions on the

screen.

Settings are performed via a “Setup Navigator” which uses a

dialog format to make basic settings of television and amplifier;

a “Setup Menu Mode” is used for individual settings. First press

the SETUP button to start the “Setup Navigator”.

“Setup Menu Mode” includes “Basic” and “Expert”; the latter

mode allows more detailed settings.

Player setting

Disc type

DVD (NTSC)

DVD (PAL)

CD or no disc

AUTO mode

NTSC

PAL

NTSC or PAL

NTSC mode

NTSC

PAL mode

PAL

Preparations (Setup)

Select type of television connected

Sets the type of television connected to the player.

Press the cursor button’s up/down sides ( /) to

move the cursor to the item desired, then press

ENTER button to confirm.

SETUP

ENTER

General

A2 V2 Language

Audio1 Video1

Exit

Move Select

Widescreen TV

16:9 aspect ratio

Setup Navigator

TV Type

TV Connection

Widescreen(16:9)

Standard(4:3)

Widescreen(16:9):

Select this option when connecting a television with Widescreen

(16:9) aspect ratio.

Standard(4:3):

Select this option when connecting a television with conven-

tional (4:3) aspect ratio.

Select the type of digital signal supported

by your amplifier

★Digital output during DJ mode is automatically converted

to linear PCM only.

Set the type of digital signal supported by the amplifier connected

to the player. (Consult the Operating Instructions for your ampli-

fier when making this setting.)

Press the cursor button’s up/down sides ( /) to

move the cursor to the item desired, then press

ENTER button to confirm.

General

A2 V2 Language

Audio1 Video1

Exit

Move Select

Compatible with Dolby Digital

Setup Navigator

Digital Jack

Amp Connection

Dolby Digital

Dolby Digital/DTS

Dolby Digital/MPEG

Dolby D/DTS/MPEG

PCM

Not Connected

SETUP

ENTER

Dolby Digital:

Select this item if you have used a digital audio cable to connect

a AV amplifier to the player, and the amplifier supports the Dolby

Digital format.

Dolby Digital/DTS:

Select this item if you have used a digital audio cable to connect

an AV amplifier to the player, and the amplifier supports Dolby

Digital and DTS formats.

Dolby Digital/MPEG:

Select this item if you have used a digital audio cable to connect

an AV amplifier to the player, and the amplifier supports Dolby

Digital and MPEG formats.

Dolby D/DTS/MPEG:

Select this item if you have used a digital audio cable to connect

an AV amplifier to the player, and the amplifier supports Dolby

Digital, DTS, and MPEG formats.

PCM:

Select this item if you have used a digital audio cable to connect

a stereo or Dolby Pro Logic amplifier.

Not Connected:

Select this item if you have used the accessory analog audio

cable to connected an amplifier, or if you do not know whether

the amplifier supports digital signals. When this item is selected,

the next setting [96kHz PCM Audio] is not required; skip it and

go directly to [Exit Setup Navigator].

¶If your amplifier does not support DTS audio, do not select

the [Dolby Digital/DTS] or [Dolby D/DTS/MPEG], since ad-

ditional noise may occur.

Select whether connected amplifier

supports 96 kHz audio

Set this item to reflect whether the connected amplifier sup-

ports linear PCM 96 kHz audio.

Press the cursor button’s up/down sides ( /) to

move the cursor to the item desired, then press

ENTER button to confirm.

SETUP

ENTER

General

A2 V2 Language

Audio1 Video1

Exit

Move Select

Digital jack not compatible with 96kHz

Setup Navigator

96kHz PCM Audio

Amp Connection No

Yes

Don't Know

No:

Connected amplifier does not support linear PCM 96 kHz audio.

Yes:

Connected amplifier does support linear PCM 96 kHz audio.

Don’t Know:

Select this item if you are unsure whether the connected ampli-

fier supports linear PCM 96 kHz audio.

¶If [No] or [Don’t Know] is selected, DVD audio will be con-

verted to 48 kHz for output, regardless of whether it is origi-

nally linear PCM 96 kHz.

Exit Setup Navigator

Choices here include: to save the new settings and close Setup

Navigator; to abandon (delete) the new settings and close Setup

Navigator, or to start over without closing.

Press the cursor button’s up/down sides ( /) to

move the cursor to the item desired, then press

ENTER button to confirm.

SETUP

ENTER

General

A2 V2 Language

Audio1 Video1

Exit

Move Select

Changes are saved

Setup Navigator

Exit Setup Navigator

Save Changes

Delete Changes

Start Again

Save Changes:

The new settings will be saved and applied, and Setup Navigator

will close.

Delete Changes:

New settings will be abandoned and Setup Navigator will close.

Start Again:

Setup Navigator will return to the [OSD Language] and start

settings again.

¶If [Save Changes] or [Delete Changes] is chosen, the initial

setup menu will close.

¶If [Start Again] is selected, the display will return to the [OSD

Language] menu screen.

Preparations (Setup)Preparations (Setup)

General

A2 V2 Language

Audio1 Video1

Language

A2 V2 General

Audio1 Video1

Video2

A2 Language General

Audio1 V1

Audio1 Video1 Language General

A2 V2

Audio2 Video1 Language General

A1 V2

V2Video1 General

A2 Language

Audio1

Audio DRC Off

Dolby Digital Out Dolby Digital

Dolby Digital PCM

DTS Out Off

DTS

96kHz PCM Out 96kHz 48kHz

96kHz

MPEG Out MPEG

MPEG PCM

Digital Out On

Off

Background Pioneer Logo

Black

Video Adjust Start

Still Picture Field

Frame

Auto

On Screen Display On

Off

Angle Indicator On

Off

OSD Language English

français

Deutsch

Italiano

Español

Audio Language English

French

German

Italian

Spanish

Other

Subtitle Language English

French

German

Italian

Spanish

Other

Auto Language On

Off

DVD Language w / Subtitle Language

English

French

German

Italian

Spanish

Other

Subtitle Display On

Off

Assist Subtitle

Subtitle Off With Audio

Selected Subtitle

Setup Menu Mode Expert

Basic

Setup Navigator Start

Parental Lock Password (Change)

Level

Country Code

TV Screen 4 : 3(Letter Box)

4 : 3(Pan&Scan)

16 : 9(Wide)

S-Video Out S1

Screen Saver On

Off

Virtual Surround Off

TruSurround

Legato PRO Off

Standard

Effect1

Effect2

Effect3

Hi-Bit On

Off

P.25

P.26

P.27

P.28

P.29

P.28

P.29

P.30

P.25

P.21

P.33

P.30

P.31

P.32

Setup Menu items

Manual setup using the Setup Menu allows a greater variety of

setup options than the Setup Navigator. Consult the pages Noted

for more information about the contents of items and options

listed on the menu.

¶❚ indicates factory default values.

¶ settings are displayed in the Setup Menu’s

[Expert] mode.

Preparations (Setup)

To return all settings to their factory

defaults

Use this command to return all changed settings to their factory

default values.

1. Turn power OFF.

2. While holding the STOP button depressed, set

the POWER switch to ON, and continue holding

the STOP button until the “POWER ON”

indication goes off.

¶All setting contents will be returned to their factory default

values.

The DJ mode functions listed below are set to the follow-

ing factory defaults in addition to the items in the Setup

Menu (P.23).

Auto Cue: OFF

Auto Cue level: –60 dB

Jog mode: VINYL ON

Time mode: REMAIN

TV system setting for video output: NTSC

■This command additionally erases all memory contents, in-

cluding “video memory” (☞ P.28). Be sure you wish to delete

all memory contents before using this command.

Using the Setup Menu

★Setup menu functions are disabled during DVD playback

in DJ mode, and during CD playback. Set the unit to stop,

or remove the disc before attempting setup operations.

The Setup Menu is used when you wish to modify the default

factory settings. The following instructions introduce the basic

operations and controls used with the Setup Menu.

¶If you have not yet performed the basic setup using the Setup

Navigator, the Setup Navigator screen will appear first.

Confirm that power is turned ON, then

1. Press the SETUP button.

The Setup Menu will appear.

[Example]

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Audio1

—

Off

Dolby Digital

Off

96kHz 3 48kHz

MPEG 3 PCM

Setup audio

Digital output format/tone adjust

SETUP

2. Press the left and right sides of the cursor button

( / ) to move between the tags at the top of the

menu ([Audio1], [Audio2], [Video1], [Video2],

[Language], or [General]).

3. Use the upper and lower sides of the cursor

button ( /) to select the desired setting item.

4. Press the cursor button’s right side ( ) to move to

the options list.

5. Use the upper and lower sides of the cursor

button ( /) to move between options.

6. Press the ENTER button to confirm the selection.

Repeat steps 2 to 6 to modify other settings.

Tags

Usable operation buttons

7. Press the SETUP button.

The Setup Menu will close.

¶If the Setup Menu is opened again after you have previously

made settings there, the previously shown menu screen will

appear.

■Disc-dependent settings

Some setting changes are not supported, depending on the kind

of disc (DVD/CD) used. Whether a desired setting is supported

can be confirmed by viewing the indicator color at the left of the

selected setting item. Consult the accompanying table for infor-

mation regarding what settings are supported for each disc type.

Changed settings become effective immediately.

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

English

French

German

Italian

Spanish

Other

Setup disc's subtitle language

SETUP

Indicator Color Disc Type

Blue, Yellow DVD only

Green All

■Items not changeable during playback

Items that cannot be set during playback are displayed in grey.

Perform this operation in the stop mode, or when no disc is

loaded.

Indicator

—

Language

A2 V2 General

Audio1 Video1

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

English

Grey

Preparations (Setup)Preparations (Setup)

Advanced settings

The Setup Menu includes two mode levels, [Basic] and [Expert];

the [Expert] mode allows more advanced settings.

—

General

A2 V2 Language

Audio1 Video1

Setup Menu Mode

Setup Navigator

Parental Lock

Expert

Basic

Off (us)

Change menu mode

SETUP Exit

Move

Expert:

Displays advanced settings.

Basic:

Displays basic settings; simple explanations ( ) are displayed

for the items selected (factory default settings).

Adjusting Dolby Digital audio

★Digital output during DJ mode is automatically converted

to linear PCM only.

This item allows adjustment of the dynamic range of digital sound.

By adjusting the audio DRC (dynamic range compression), large-

volume sounds can be attenuated and low-volume sounds can

be enhanced for a variety of playback effects. This setting is ef-

fective, for example, when it is difficult to hear dialog on a televi-

sion program, or when you do not wish to disturb neighbors while

watching movies late at night.

¶See P.24 for menu instructions.

—

— 96kHz 3 48kHz

— MPEG 3 PCM

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Audio1

Off

Dynamic playback at low volume

SETUP

Off:

Cancels Audio DRC. Allows maximum audio presence when used

with high-fidelity speakers (factory default setting).

On:

Suppresses loud sounds (explosions, etc.) making it easier to

understand dialog.

¶Audio DRC is supported only when using Dolby Digital audio.

¶Some discs may produce less effect.

¶Audio DRC is also applied to audio produced from the digital

output (coaxial) connectors. In this case, set [Dolby Digital

Out] to [Dolby Digital 3 PCM], and set [Digital Out] to [On].

¶The effect produced with Audio DRC differs depending on

the speakers used and the volume setting of the AV amplifier.

Turn the setting ON/OFF while adjusting your sound volume

so as to produce most effective results.

Digital output setting

★Digital output during DJ mode is automatically converted

to linear PCM only.

This item allows selection of the kind of digital signals supported

by the connected amplifier.

¶If this item is set incorrectly, unwanted noise may be pro-

duced.

¶Consult the Operating Instructions for your amplifier when

making this setting.

¶See P.24 for menu instructions.

Dolby Digital output

Set to [Dolby Digital 3 PCM] when the connected amplifier

does not supports Dolby Digital audio.

—

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Audio1

Off

Dolby Digital

Dolby Digital 3 PCM

96kHz 3 48kHz

MPEG 3 PCM

Change Dolby Digital output mode

SETUP

Dolby Digital:

Setting for amplifier or decoders supporting Dolby Digital audio

(factory default setting).

Dolby Digital 3 PCM:

Dolby Digital signals are converted to linear PCM for output. Se-

lect this setting when the connected amplifier does not support

Dolby Digital audio.

DTS output

Set this item to [DTS] when the connected amplifier supports DTS.

—

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Audio1

Off

Dolby Digital

Off

DTS

MPEG 3 PCM

Change DTS output mode

SETUP

Off:

Select this item when the connected amplifier does not support

DTS (factory default setting).

DTS:

Select this item when the connected amplifier or decoder sup-

ports DTS.

96kHz PCM output

Set this option to [96kHz] when the connected amplifier sup-

ports 96 kHz output.

—

SETUP

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Audio1

Off

Dolby Digital

Off

96kHz 3 48kHz

96kHz

Change 96kHz output mode

96kHz 3 48kHz:

96 kHz signals are converted to 48 kHz for output. Select this

option when the connected amplifier does not support 96 kHz

signals (factory default setting).

96kHz:

Select this option if the connected amplifier or decoder supports

96 kHz output.

Preparations (Setup)

MPEG output

Set this option to [MPEG] if the connected amplifier supports

MPEG audio.

—

SETUP

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Audio1

Off

Dolby Digital

Off

MPEG

MPEG 3 PCM

Change MPEG audio output mode

MPEG:

Select this option if the connected amplifier or decoder supports

MPEG audio.

MPEG 3 PCM:

MPEG signals are converted to linear PCM for output. Select

this option if the connected amplifier does not support MPEG

(factory default setting).

Digital output ON/OFF (Expert Mode)

This setting allows disabling of outputs from the digital audio

output connectors.

—

V2Video1 General

A2 Language

Exit

Move

Audio DRC

Dolby Digital Out

DTS Out

96kHz PCM Out

MPEG Out

Digital Out

Audio1

Off

Dolby Digital

Off

96kHz 3 48kHz

MPEG 3 PCM

Off

SETUP

On:

Signals are output from the rear panel digital output connectors

(factory default setting).

Off:

Signals are not output from the rear panel digital output connec-

tors.

[Audio2] settings

¶See P.24 for menu instructions.

Surround setting

★This option is not supported in DJ mode.

This function is supported only when connected to the audio

output connectors. Not supported during use of DTS audio, lin-

ear PCM 96 kHz audio.

—

Audio2 Video1 Language General

A1 V2

Exit

Move

Virtual Surround

Legato

Off

TruSurround

Surround effect from 2 speakers

SETUP

Off:

Disabled (factory default setting)

TruSurround:

Select for virtual surround sound.

¶If [TruSurround] is selected during playback of DVD Dolby

Digital 2ch discs, the audio level produced from the digital

output connectors will be reduced.

Also note that if the [Audio1] menu item [Dolby Digital Out]

is set to [Dolby Digital 3 PCM] when playing discs other

than those recorded in Dolby Digital 2ch format, selecting

[TruSurround] will cause audio output to be disabled from

the digital output connectors.

¶Some discs may produce less surround effect than others.

Legato PRO function

Select from among the four ambience modes based on your

own preferences and the style of music being played. The char-

acteristics of the four modes are as follows:

Audio2 Video1 Language General

A1 V2

Exit

Move

Virtual Surround

Legato PRO

Off

Standard

Effect1

Effect2

Effect3

SETUP

Wide Range Digital filter

You can select the quality of sound.

Off:

Legato function disabled (factory default setting).

Standard:

Produces full-bodied sound presence.

Effect1:

Produces bright, vivid sound.

Effect2:

Produces sound with depth and reserve.

Effect3:

Produces sound with solid bass and balance.

¶The Legato PRO function operates to change the audio digital

filter response of those bands primarily outside the audio

range.

¶The amount of tonal change may vary, depending on the lis-

tening room environment.

■Supports Dolby*1 Digital / DTS*2 for genuine

theater-like sound impact

By connecting an amplifier supporting Dolby Digital/DTS, you

can enjoy the immediacy and power of 5.1 channel movies

and music DVDs.

■Equipped with SRS TruSurround

(Virtual Surround)

Recreates the ambience of 5.1 channel sound using only 2

speakers. SRS TruSurround*3 technology performs direct

processing of 5.1 channel digital sound data.

*1 Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

*2 “DTS” and “DTS Digital Out” are registered trademarks of Digital Theater Sys-

tems, Inc.

*3 TruSurround, SRS and symbol are trademarks of SRS Labs, Inc.

TruSurround technology is incorporated under license from SRS Labs, Inc.

Preparations (Setup)Preparations (Setup)

¶See P.24 for menu instructions.

Set the screen aspect ratio for

the television

Select the value matching the type of televi-

sion connected. Select [16:9(Wide)] when a

wide-screen television is connected. Most

DVD movies are recorded to support wide

television screens with an aspect of 16 hori-

zontal to 9 vertical. As a result, when DVDs

are viewed on conventional televisions, the

image is projected at the television’s aspect

ratio of 4:3, causing it to appear horizontally

compressed. In order to eliminate this kind of

distortion, set the aspect ratio either for [4:3

(Letter Box)] or [4:3(Pan&Scan)] when us-

ing a conventional television.

¶This setting cannot be changed during play-

back.

—

Audio1 Video1 Language General

A2 V2

Exit

Move

TV Screen

Component Video

4:3(Letter Box)

4:3(Pan&Scan)

16:9(Wide

)

Select your display preference

SETUP

4:3(Letter Box):

Select this setting when using a conventional

television and you wish to view movies in

letterbox format.

4:3(Pan&Scan) :

Select this setting when using a conventional

television and you wish to view movies in “pan

and scan” format.

16:9(Wide):

Select this setting when using a widescreen

(16:9) television (factory default setting)

★The 4:3(Pan&Scan) format is not sup-

ported in DJ mode. If [4:3(Pan&Scan)]

is selected when the unit is in DJ mode,

output will be in letterbox setting.

¶Some DVDs do not support changing of

aspect ratio. Consult the information printed

on your disc’s jacket for more details.

Hi-Bit function (Expert Mode)

By converting 16-bit to 20-bit audio data to 24-bit, smooth, de-

tailed sound quality is produced even at low listening levels.

—

SETUP

Audio2 Video1 Language General

A1 V2

Exit

Move

Virtual Surround

Legato PRO

Hi–Bit

Off

On:

Hi-Bit function is enabled (factory default setting)

Off:

Hi-Bit function is disabled.

¶In DJ mode, 24-bit processing is normally used, regardless of

the setting selected.

[Video1] settings

■Aspect ratio formats

[With conventional television set]

DVD recording format Player Setting Viewing appearance

4:3(Letter Box) Black bands appear at top

and bottom of screen; im-

age is projected in correct

aspect ratio.

4:3(Pan&Scan) Right/left sides of image

are cut off, but image is

projected in correct as-

pect ratio.

16:9(Wide) Image is horizontally com-

pressed (appears vertically

stretched).

If the image appears as

shown here, set the player’s aspect ratio to [4:3

(LetterBox)] or [4:3 (Pan&Scan)].

All settings Appears with correct aspect

ratio.

16:9 disc

4:3 disc

DVD recording format Player Setting Viewing appearance

[With widescreen television set]

16:9 disc

4:3 disc

16:9(Wide)

Appears with correct

aspect ratio.

Black bands may appear at top/bottom with some discs.

Black bands appear at

right/left, but image is

projected in correct as-

pect ratio.

Image is vertically

compressed (appears

horizontally stretched)

If the image appears as shown here, set the television

set’s aspect ratio “normal”. For details consult the

Operating Instructions for your television set.

Preparations (Setup)

Select S-Video output (Expert Mode)

Set this option to select the video signal output from the S-Video

connector.

¶When the S-Video connector is used to connect the player to

a television set, the image may appear vertically compressed

(or stretched horizontally). In this case, select [S1].

—

Audio1 Video1 Language General

A2 V2

Exit

Move

TV Screen

S-Video Out

Screen Saver

16:9(Wide)

SETUP

S2:

The S2 video signal is output (factory default setting).

S1:

The S1 video signal is output.

S1 Video Output:

S1 is S-Video with added signal for discrimination of aspect

ratio (4:3, 16:9).

S2 Video Output:

S2 is the S1 signal with the addition of another signal for dis-

crimination of the picture viewing format (letter box, pan and

scan). When played on a wide television supporting S2, the

appropriate picture mode will be selected automatically.

Screen Saver setting (Expert mode)

The screen saver function is provided in order to prevent image

burn (residual image) on a television screen when a single image

is paused or otherwise remains on the screen for an extended

period of time.

¶When enabled, the screen saver function operates after an

image has been displayed for about five minutes.

—

Audio1 Video1 Language General

A2 V2

Exit

Move

TV Screen

S-Video Out

Screen Saver

16:9(Wide)

Off

SETUP

On:

Screen saver function is enabled (factory default setting).

Off:

Screen saver function is disabled.

★In DJ mode, the screen saver function does not operate

when the unit is in pause mode.

Video quality adjust

The video quality can be set to provide optimum reproduction of

specific types of image (movies, animation, etc.). Further, each

of the video image quality options can be set individually, and

each setting can be recorded in memory. If playback is performed

while displaying the initial setup menu, the picture quality can be

adjusted while viewing the actual television image.

To select a preset picture quality

1. Using the four sides of the cursor button ( / / /

), select [Video2] \ [Video Adjust] \ [Start].

—

Video2

A2 Language General

Audio1 V1

Exit

Move

Background

Video Adjust

Pioneer Logo

Start

Picture Quality Controls

SETUP

2. Press the ENTER button.

The Picture Quality Controls menu will appear.

Video Memory Select

Video Setup

3. Select [Video Memory Select] and press the

ENTER button.

Memory 1 Memory 2 Memory 3

Cinema AnimationStandard

4. Use the four sides of the cursor button ( / / / )

to select the desired preset picture quality.

Standard:

Reproduces the picture quality recorded on the disc as is.

Cinema:

Optimum for watching in a darkened room, to recreate the

atmosphere of a movie theater.

Animation:

Produces bright, crisp colors, optimum for watching video ani-

mation.

Memory1/Memory2/Memory3:

Favorite picture quality settings can be recorded in memory,

as described in the following section, “Adjusting picture

quality”.

5. Press the ENTER button.

The Picture Quality Controls menu will close.

INDEXPreparations (Setup)Preparations (Setup)

Adjusting picture quality

1. Use the four sides of the cursor button ( / / / )

to select [Video2] \ [Video Adjust] \ [Start],

then press the ENTER button.

The Picture Quality Controls menu will appear.

2. Use the cursor button’s up/down sides ( /) to

select [Video Setup] and press the ENTER button.

Video Memory Select

Video Setup

3. Use the cursor button’s up/down sides ( /) to

select the item you wish to adjust.

DISPLAY

ENTER

Fine Focus On Off

Move Select Check

When the DISPLAY button is pressed, a submenu list of the

selected adjustment items will be displayed. Press the DIS-

PLAY button once again to return to the previous menu.

Memory

Fine Focus

Contrast

Sharpness

Chroma Level

Hue

On Off

soft fine

min max

green red

Off 1 2 3

Fine Focus:

Set to [On] to reproduce high-resolution images.

Contrast:

Use to adjust the ratio between the brightest and darkest parts

of the image.

Sharpness:

Use to adjust the image brightness with respect to the middle

frequency range. This function is disabled when [Fine Focus] is

set to [On].

Chroma Level:

Use to adjust the depth of color. This function is particularly ef-

fective when watching heavily colored animations.

Hue:

Use to adjust the red-green balance.

4. Use the cursor button’s left/right sides ( /) to

adjust the selected item’s level.

When setting [Fine Focus], select between [On] or [Off].

5. Repeat steps 3 and 4 for all desired setting items.

If you wish to record the selected settings in memory, use

the cursor button’s up/down sides ( /) to select [Memory],

then use the cursor button’s left/right ( /) sides to select

[1], [2], or [3] to record the combination of settings in the cor-

responding memory space.

• If a combination of settings has previously been memo-

rized in the selected memory space, the previous settings

will be overwritten (erased) by the new settings.

DISPLAY

ENTER

Memory

Move Select

Off 1 2 3

Check

6. Press the ENTER button.

The Picture Quality Controls menu will close.

• The effect of picture quality control changes may not appear

as distinct with some DVDs and on some television sets.

[Video2] settings

¶See P.24 for menu instructions.

Select Background

Select the kind of background that appears when disc is stopped.

—

SETUP

Video2

A2 Language General

Audio1 V1

Exit

Move

Background

Video Adjust

Pioneer Logo

Black

Put Background Selections

Pioneer Logo:

The Pioneer Logo mark appears as background when disc is

stopped (factory default setting).

Black:

Background appears black when disc is stopped.

Still Picture selection (Expert Mode)

Use to eliminate image shaking when viewing still images (DVD

pause mode), and produce a clearer picture.

¶Some discs may not appear clearer even when [Field] is se-

lected.

—

Video2

A2 Language General

Audio1 V1

Exit

Move

Background

Video Adjust

Still Picture

On Screen Display

Angle Indicator

Pioneer Logo

Field

Frame

Auto

SETUP

Field:

Eliminates shaking during still images.

Frame:

Normal mode.

Auto:

Switches automatically between [Field] and [Frame] (factory de-

fault setting).

¶Automatically defaults to [Auto] in DJ mode.

Preparations (Setup)

Turn on-screen display ON/OFF (Expert Mode)

Sets player’s onscreen display ON/OFF.

—

Video2

A2 Language General

Audio1 V1

Exit

Move

Background

Video Adjust

Still Picture

On Screen Display

Angle Indicator

Pioneer Logo

Auto

Off

SETUP

On:

On-screen display is enabled (factory default setting).

Off:

On-screen display is disabled.

Angle mark display (Expert Mode)

Use this option to turn the on-screen angle indicator mark

ON/OFF. In DJ mode, the preview image output angle indicator

mark is turned ON/OFF using the DISPLAY button, regardless of

the setting of this option.

—

Video2

A2 Language General

Audio1 V1

Exit

Move

Background

Video Adjust

Still Picture

On Screen Display

Angle Indicator

Pioneer Logo

Auto

Off

SETUP

On:

The angle indicator mark appears on screen (factory default

setting).

Off:

The angle indicator mark does not appear on screen.

[Language] settings

Some DVDs include multiple subtitle and audio languages, al-

lowing the user to select different languages as desired. This

setting item allows the selection of such language and subtitle

alternatives.

¶See P.24 for menu instructions.

Set the OSD Language

Select the language used for Setup Menu and other on-screen

displays (OSD).

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

English

français

Deutsch

Italiano

Español

Select the On Screen Language

SETUP

English: OSD Language is English.

Français: OSD Language is French.

Deutsch: OSD Language is German.

Italiano: OSD Language is Italian.

Español: OSD Language is Spanish.

¶In the DJ mode, the guide display language for preview im-

ages, etc., is always English, regardless of the setting of this

item.

Select the Audio Language

Select the language heard in audio channels. This setting cannot

be changed during playback.

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

English

French

German

Italian

Spanish

Other

Setup audio language

SETUP

English: Audio Language is English.

French: Audio Language is French.

German: Audio Language is German.

Italian: Audio Language is Italian.

Spanish: Audio Language is Spanish.

Other: Select from among 136 languages.

For information on this item, see the section “■ When Select-

ing [Other] for Subtitle Language, Audio Language, or DVD

Language”.

Select the Subtitle Language

Select the language you wish subtitles to appear in. This setting

cannot be changed during playback.

★No subtitles are displayed in DJ mode.

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

English

French

German

Italian

Spanish

Other

Setup disc's subtitle language

SETUP

English: Subtitle Language is English.

French: Subtitle Language is French.

German: Subtitle Language is German.

Italian: Subtitle Language is Italian.

Spanish: Subtitle Language is Spanish.

Other: Select from among 136 languages.

For information on this item, see the section “■ When Select-

ing [Other] for Subtitle Language, Audio Language, or DVD

Language”.

¶If an attempt is made to select an Audio Language or Subtitle

Language not actually recorded on the disc, the disc’s original

language of recording will be selected automatically.

INDEXPreparations (Setup)Preparations (Setup)

■When selecting [Other] for Subtitle Language,

Audio Language, or DVD Language

Make this selection while looking at the “Language Code

List” on P.32. If a language is selected that is not actually

recorded on the DVD, one of the recorded languages will be

used for the menu display.

1. Select [Other] and press the ENTER button.

The Language selection menu will appear.

(Example): To set the Audio Language

List of Language Code (0~2)

en: English

Setup audio language

Language

A2 V2 General

Audio1 Video1

Exit

Return

Move Select

–/+

Audio Language

0514

ENTER

SETUP

RETURN

2. Select [List of Language] or [Code]

Some languages are not displayed on the Code page. For

details, see the “Language Code List”.

¶The numbers listed in parentheses ( ) beside [Code] in-

dicate the range of numbers possible.

Use one of the following methods:

■Select language using [Code]

Use the cursor button’s up/down sides ( /) to select

the desired number for each digit; use the cursor but-

ton’s left/right sides ( /) to move between digits.

■Select language using [List of Language]

(Example): To select French

Press the rear side ( ) of the cursor button twice.

3. Press the ENTER button.

Automatic language and subtitle setting

This function selects either automatic audio and subtitle language

selection, or manual selection via the Setup Menu are used. This

setting cannot be changed during playback.

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

English

Off

Play dialog, etc. in original language

Subtitle ON with foreign audio

SETUP

On:

Enabled when [Audio Language] and [Subtitle Language] are

the same, and when subtitle display is set to ON (factory default

setting).

Off:

Automatic audio language setting is canceled; instead, the lan-

guages set manually with [Audio Language] and [Subtitle Lan-

guage] are enabled.

Set DVD menu language (Expert Mode)

Many DVDs contain menus; this command allows selection of

the menu display language, when available.

¶This setting cannot be changed during playback.

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

DVD Language

Subtitle Display

Subtitle Off

w/ Subtitle Language

English

French

German

Italian

Spanish

Other

SETUP

w/Subtitle Language:

The language selected in [Subtitle Language] becomes the

menu display language (factory default setting).

English: Menu display Language is English.

French: Menu display Language is French.

German: Menu display Language is German.

Italian: Menu display Language is Italian.

Spanish: Menu display Language is Spanish.

Other: Select from among 136 languages.

For information on this item, see the section “■ When Select-

ing [Other] for Subtitle Language, Audio Language, or DVD

Language”.

Preparations (Setup)

Set Subtitle Display ON/OFF (Expert Mode)

Select whether to turn subtitles ON, OFF, or to display assist

subtitles.

¶This setting cannot be changed during playback.

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

DVD Language

Subtitle Display

Subtitle Off

English

Off

Assist Subtitle

SETUP

On:

Subtitles are displayed normally (factory default setting).

Off:

Subtitles are not displayed. However, some DVDs have subti-

tles that are displayed by default, regardless of this setting (see

paragraph at right).

Assist Subtitle:

[Assist Subtitle] are subtitles that provide additional informa-

tion about the current scene, for example descriptions of ambi-

ent sounds for the hearing impaired. Select this option to display

such assist subtitles. Note that assist subtitles are displayed

only when they originally recorded on the DVD being played.

Set language for forced subtitles (Expert Mode)

On some DVDs, even when the [Subtitle Display] is set to [Off],

some subtitles may be displayed automatically. Use this com-

mand to select the language used for such subtitles.

¶This setting cannot be changed during playback.

—

Language

A2 V2 General

Audio1 Video1

Exit

Move

OSD Language

Audio Language

Subtitle Language

Auto Language

DVD Language

Subtitle Display

Subtitle Off

English

With Audio

Selected Subtitle

SETUP

With Audio:

Display subtitles in the same language as the audio being played.

Selected Subtitle:

Display subtitles in the language selected with the [Subtitle Lan-

guage] in the Setup Menu (factory default setting).

Language Code List

Japanese (ja)

English (en)

French (fr)

German (de)

Italian (it)

Spanish (es)

Chinese (zh)

Dutch (nl)

Portuguese (pt)

Swedish (sv)

Russian (ru)

Korean (ko)

Greek (el)

Afar (aa)

Abkhazian (ab)

Afrikaans (af)

Amharic (am)

Arabic (ar)

Assamese (as)

Aymara (ay)

Azerbaijani (az)

Bashkir (ba)

Byelorussian (be)

Bulgarian (bg)

Bihari (bh)

Bislama (bi)

Bengali (bn)

Tibetan (bo)

Breton (br)

Catalan (ca)

Corsican (co)

Czech (cs)

Welsh (cy)

Danish (da)

Bhutani (dz)

Esperanto (eo)

Estonian (et)

Basque (eu)

Persian (fa)

Finnish (fi)

Fiji (fj)

Faroese (fo)

Frisian (fy)

Irish (ga)

Scots-Gaelic (gd)

Galician (gl)

Guarani (gn)

1001

0514

0618

0405

0920

0519

2608

1412

1620

1922

1821

1115

0512

0101

0102

0106

0113

0118

0119

0125

0126

0201

0205

0207

0208

0209

0214

0215

0218

0301

0315

0319

0325

0401

0426

0515

0520

0521

0601

0609

0610

0615

0625

0701

0704

0712

0714

Language Input-code

Gujarati (gu)

Hausa (ha)

Hindi (hi)

Croatian (hr)

Hungarian (hu)

Armenian (hy)

Interlingua (ia)

Interlingue (ie)

Inupiak (ik)

Indonesian (in)

Icelandic (is)

Hebrew (iw)

Yiddish (ji)

Javanese (jw)

Georgian (ka)

Kazakh (kk)

Greenlandic (kl)

Cambodian (km)

Kannada (kn)

Kashmiri (ks)

Kurdish (ku)

Kirghiz (ky)

Latin (la)

Lingala (ln)

Laothian (lo)

Lithuanian (lt)

Latvian (lv)

Malagasy (mg)

Maori (mi)

Macedonian (mk)

Malayalam (ml)

Mongolian (mn)

Moldavian (mo)

Marathi (mr)

Malay (ms)

Maltese (mt)

Burmese (my)

Nauru (na)

Nepali (ne)

Norwegian (no)

Occitan (oc)

Oromo (om)

Oriya (or)

Panjabi (pa)

Polish (pl)

Pashto, Pushto (ps)

Quechua (qu)

0721

0801

0809

0818

0821

0825

0901

0905

0911

0914

0919

0923

1009

1023

1101

1111

1112

1113

1114

1119

1121

1125

1201

1214

1215

1220

1222

1307

1309

1311

1312

1314

1315

1318

1319

1320

1325

1401

1405

1415

1503

1513

1518

1601

1612

1619

1721

Language Input-code

Rhaeto-Romance (rm)

Kirundi (rn)

Romanian (ro)

Kinyarwanda (rw)

Sanskrit (sa)

Sindhi (sd)

Sangho (sg)

Serbo-Croatian (sh)

Sinhalese (si)

Slovak (sk)

Slovenian (sl)

Samoan (sm)

Shona (sn)

Somali (so)

Albanian (sq)

Serbian (sr)

Siswati (ss)

Sesotho (st)

Sundanese (su)

Swahili (sw)

Tamil (ta)

Telugu (te)

Tajik (tg)

Thai (th)

Tigrinya (ti)

Turkmen (tk)

Tagalog (tl)

Setswana (tn)

Tonga (to)

Turkish (tr)

Tsonga (ts)

Tatar (tt)

Twi (tw)

Ukrainian (uk)

Urdu (ur)

Uzbek (uz)

Vietnamese (vi)

Volapük (vo)

Wolof (wo)

Xhosa (xh)

Yoruba (yo)

Zulu (zu)

1813

1814

1815

1823

1901

1904

1907

1908

1909

1911

1912

1913

1914

1915

1917

1918

1919

1920

1921

1923

2001

2005

2007

2008

2009

2011

2012

2014

2015

2018

2019

2020

2023

2111

2118

2126

2209

2215

2315

2408

2515

2621

Language Input-code

INDEXPreparations (Setup)Preparations (Setup)

Setting Parental Lock

Some DVDs containing violent or other mature material are pro-

vided with a parental lock function allowing parents to limit the

disc’s viewing (see the disc’s jacket or label for information). By

setting the player’s lock level lower than that of the disc, you can

limit what discs can be viewed on the player. For example, by

setting the player’s level to 6, discs with level designation 7 or 8

cannot be viewed unless a previously recorded password is input.

¶See P. 24 for menu instructions.

Recording a password

1. Use the four sides of the cursor button ( / / / )

to navigate to the [General] \ [Parental Lock] \

[Password]

A password must be recorded before the [Level] and [Coun-

try Code] can be selected.

—

General

A2 V2 Language

Audio1 Video1

Exit

Move

Setup Menu Mode

Setup Navigator

Parental Lock

Basic

Password

Level

Country Code

Setup viewing restrictions

SETUP

2. Press the ENTER button.

The [Register Code Number] screen will appear.

General

A2 V2 Language

Audio1 Video1

Exit

+/–

Move

Return

Parental Lock: Register Code Number

Enter 4—Digit Code

SETUP

RETURN

3. Enter a 4-digit numerical code as your new

password.

Press the cursor button’s up/down sides ( /) to increment/

decrement numbers, and use the left/right ( /) sides to move

between digits.

4. Press the ENTER button.

The following Setup Menu will be displayed.

—

General

A2 V2 Language

Audio1 Video1

Exit

Move

Setup Menu Mode

Setup Navigator

Parental Lock

Basic

Password Change

Level

Country Code

Setup viewing restrictions

SETUP

Password Change:

Select this item to change your password (code number).

Level:

Select this item to set the parental lock level.

Country Code:

Select this item to select the country code of discs.

¶It is recommended that you make a memo of your password

number and store in a safe place.

¶If you forget your password, return the unit to its factory de-

fault settings, and set the password again.

¶Some discs allow parental lock to be applied at the scene

level, in which case restricted scenes will be skipped during

playback. For details, consult the Operation Instructions ac-

companying your disc.

Change the Parental Lock level

1. Select [Level] and press the ENTER button.

The [Confirm Code Number] screen will appear.

General

A2 V2 Language

Audio1 Video1

Exit

+/–

Move

Return

Level: Confirm Code Number

Enter 4—Digit Code

SETUP

RETURN

2. Input the previously recorded 4-digit password

(code number).

Input the four digits by pressing the cursor button’s up/down

sides ( /) to increment/decrement numbers, and the left/

right ( /) sides to move between digits.

3. Press the ENTER button.

The parental lock level setting screen will appear. The factory

default setting is [Off].

General

A2 V2 Language

Audio1 Video1

Exit

Return

Move Select

Parental Lock: Level Change

Set Parental Lock Level

SETUPENTER

RETURN

Level 234 678

5 Off

4. Press the cursor button’s left/right sides ( /) to

select the desired level, and press the ENTER

button.

The selected parental lock level will be set.

■To play back DVDs with parental lock restrictions

When an attempt is made to play back a disc restricted with the

parental lock function, a screen may appear asking you to input

the password (code number). The disc cannot be played back if

the code number is not input correctly.

Input the code number as follows:

1Input the 4-digits by pressing the cursor button’s up/down ( /

) sides to increment/decrement numbers, and the left/right

sides ( /) to move between digits.

2Press the ENTER button.

To change your password

1. Select the [Password Change] and press the

ENTER button.

The [Confirm Code Number] screen will appear.

General

A2 V2 Language

Audio1 Video1

Exit

+/–

Move

Return

Parental Lock: Confirm Code Number

Enter 4—Digit Code

SETUP

RETURN

2. Input the previously set code number.

Input the 4-digits by pressing the cursor button’s up/down ( /

) sides to increment/decrement numbers, and the left/right

sides ( /) to move between digits.

Preparations (Setup)

3. Press the ENTER button.

The [Change Code Number] screen will appear.

General

A2 V2 Language

Audio1 Video1

Exit

+/–

Move

Return

Parental Lock: Change Code Number

Enter 4—Digit Code

SETUP

RETURN

4. Enter a new 4-digit password (code number).

Input the 4-digits by pressing the cursor button’s up/down

sides ( /) to increment/decrement numbers, and the left/

right sides ( /) to move between digits.

5. Press the ENTER button.

The password (code number) will be changed.

To change the country code

Consult the accompanying Country Code List when making this

setting.

1. Select [Country Code] and press the ENTER

button.

The [Confirm Code Number] screen will appear.

General

A2 V2 Language

Audio1 Video1

Exit

+/–

Move

Return

Country Code: Confirm Code Number

Enter 4—Digit Code

SETUP

RETURN

2. Input the previously recorded 4-digit password

(code number).

Input the 4-digits by pressing the cursor button’s up/down

sides ( /) to increment/decrement numbers, and the left/

right sides ( /) to move between digits.

3. Press the ENTER button.

The Setup Country Code menu will appear.

List of Codes Code (0~2)

Setup Country Code

Language

A2 V2 General

Audio1 Video1

Exit

Return

Move Select

+/–

Country Code

2119

SETUP

RETURN

ENTER

4. Select either [List of Codes] or [Code]

The numbers listed in parentheses ( ) beside [Code] indicate

the range of numbers possible.

■When using [Code] to select the country code:

(Example) Selecting the code for U.S.A.

Input the 4-digit code number (2, 1, 1, 9) by pressing the

cursor button’s up/down sides ( /) to increment/decre-

ment numbers, and the left/right sides ( /) to move be-

tween digits.

■When using [List of Codes] to select the country

code:

(Example) Selecting the code for U.S.A.

Use the cursor button’s up/down side ( /) to highlight

[us].

5. Press the ENTER button.

ARGENTINA

AUSTRALIA

AUSTRIA

BELGIUM

BRAZIL

CANADA

CHILE

CHINA

DENMARK

FINLAND

FRANCE

GERMANY

HONG KONG

INDIA

INDONESIA

ITALY

JAPAN

KOREA, REPUBLIC OF

MALAYSIA

MEXICO

NETHERLANDS

NEW ZEALAND

NORWAY

PAKISTAN

PHILIPPINES

PORTUGAL

RUSSIAN FEDERATION

SINGAPORE

SPAIN

SWEDEN

SWITZERLAND

TAIWAN

THAILAND

UNITED KINGDOM

UNITED STATES OF

AMERICA

0118

0121

0120

0205

0218

0301

0312

0314

0411

0609

0618

0405

0811

0914

0904

0920

1016

1118

1325

1324

1412

1426

1415

1611

1608

1620

1821

1907

0519

1905

0308

2023

2008

0702

2119

Country/area Input-code Country/area-

code

Country/Area Code List

Basic Operations (Loading and Removing Discs)Basic Operations (Loading and Removing Discs)

Loading and Removing Discs

Hold evenly when inserting

Insert with label

surface upwards

1. Set the rear panel POWER switch to ON.

Do not attempt to forcibly insert a disc when the POWER switch

is set to OFF, since the disc or player may be damaged.

2. Insert the disc into the loading slot.

¶Hold the disc with label surface upwards and insert evenly into

the front-panel disc loading slot.

¶When using 8 cm compact discs, place the disc into an adapter

first.

¶Only one disc can be loaded at a time. Do not attempt to load two

or more discs simultaneously, or to load a second disc when an-

other disc is already loaded.

¶When loading a disc, do not apply bending force on the disc, or

attempt to force the disc into the mechanism. Also, when the load-

ing mechanism begins to pull the disc into the player or to eject a

disc, do not attempt to forcibly override the mechanism’s move-

ment, since the disc or player may be damaged.

3. When the UNLOCK/LOCK switch is set to UNLOCK, press

the EJECT (0) button to eject a loaded disc.

If the UNLOCK/LOCK switch is set to LOCK, during play-

back press the PLAY/PAUSE (6) button to first stop the

disc, then press the EJECT (0) button. If a cue point has

been set, during playback press the CUE button to initi-

ate back cue, then press the EJECT (0) button to eject

the disc.

¶When the button is pressed, disc rotation will stop and the disc

will be ejected partway from the loading slot.

Note:

Do not attempt to press the disc back into the slot while the “EJECT”

indicator is lighted. If the disc is pressed back in while the “EJECT”

indicator is lighted, the loading mechanism may stop. In this case,

press the EJECT (0) button again, and do not attempt to reload the

disc until the “EJECT” indicator has turned OFF.

Precautions when playing 8 cm CD singles

1When playing 8 cm CD singles, be sure to use an adapter de-

signed for 8 cm CDs. Before loading the disc into the player,

confirm that the disc is fastened correctly by the adapter’s tabs.

If an 8 cm disc is loaded by mistake without an adapter, immedi-

ately press the EJECT (0) button and remove the disc. If the

disc is not ejected the first time the EJECT (0) button is pressed,

press the button again.

2Use only 8 cm disc adapters that feature the ' logo mark (rec-

ommended compatible adapters). When mounting the disc to

an adapter, confirm that the disc is able to rotate freely, and is

not bent or warped.

Forced eject function

In event of a player malfunction or if the EJECT (0) button

does not respond to allow removal of a disc, the disc can be

removed by inserting the accessory pin into the forced eject

hole on the front of the player.

When using the forced eject function, be sure to following

the accompanying precautions.

1Turn off the player’s power and wait for at least one

minute.

Attempting the forced eject function im-

mediately after turning off the power may

cause the following dangers:

¶The disc may be ejected while still rotating, resulting

in personal injury.

¶The disc may be damaged due to the disc clamp’s

rotating in an unstable condition.

2Use only the provided accessory pin for this procedure

(do not use other pointed objects). The forced eject pin

is located on the bottom surface of the player.

When the accessory pin is inserted fully into the forced

eject hole, the disc will be ejected from the loading slot

by about 5 mm to 10 mm. It can then be grasped with the

fingers and removed.

Forced eject hole

Note:

This player does not support playback of 8 cm DVDs. Do

not attempt to use adapters meant for 8 cm CDs, since the

adapter may come loose during rotation, causing damage

to the disc or player.

Basic Operations

Buttons and controls with the mark are disabled when the NORMAL/DJ switch is set to NORMAL.

Buttons and controls with the mark are disabled when the

NORMAL/DJ

switch is set to DJ.

Beginning playback

The playback operation differs depending on the type of disc, the setting

of the rear panel NORMAL/DJ switch, and the setting of auto cue and

other functions.

When a CD is loaded

When the rear panel NORMAL/DJ switch is set to “NORMAL”, play-

back will begin automatically from the first track, and when the final track

ends, playback will stop. Special DJ functions are not supported in this

mode.

When the rear panel NORMAL/DJ switch is set to the “DJ”, if the auto

cue function is OFF, playback will begin automatically from the first track,

and when the final track ends, playback will stop and the unit will enter

standby. When the auto cue function is set to ON, the player will auto-

matically cue to the selected cue point and the cue indicator will light;

the play/pause indicator will flash, indicating that the player is in standby

mode. If the PLAY/PAUSE (6) button is then pressed, the player will

skip over the non-recorded portion of the indicated track and immedi-

ately begin playback. When playback comes to the end of the current

track, the next track will be cued. The cue indicator will light, and the

play/pause indicator will flash, indicating that the player is in standby

mode. When the PLAY/PAUSE (6) button is pressed, playback will

begin from the next track.

When playing a CD disc recorded with MP3 files, playback will begin

automatically from the first track in the first folder on the disc; when the

final track of the folder ends, playback will stop and the unit will enter

standby.

When a DVD is loaded

When a commercial DVD title is loaded, the initial default cautionary

warnings will be displayed first (these warning messages cannot be

skipped). When the DVD is recorded with a menu and automatic play-

back start has not been set, the menu will appear. The menu can also be

displayed by pressing the MENU button or the T.MENU button. The

menu allows the setting of audio and subtitle languages, and the selec-

tion of special features on the disc.

EXAMPLE: Main Menu

1. Highlight clips

2. Chapter list

3. Previews

4. Subtitle settings

5. Audio settings

6. Play

Depending on the disc, the style, contents, and operation method

used in the menu may be different. Basic operations are performed

by using the cursor button’s four sides ( ///) to select options,

and by pressing the ENTER button to confirm the selection. For de-

tailed instructions on using a disc’s menu, consult the operating guide

provided with the disc.

★DJ operations cannot be performed on the menu display.

When the rear panel NORMAL/DJ switch is set to “NORMAL” and the

disc has been set for automatic playback start (or the menu’s “Play”

item has been selected), playback will begin. Special DJ functions are

not supported in this mode.

When the rear panel NORMAL/DJ switch is set to “DJ” and auto cue

function (see next item) is OFF, if the disc is set for automatic playback

start (or or the menu’s “Play” item has been selected), playback will

begin. When the auto cue function is set to ON, the player will automati-

cally cue to the selected cue point and the cue indicator will light; the

play/pause indicator will flash, indicating that the player is in standby

mode. If the PLAY/PAUSE (6) button is then pressed, the player will

skip over the non-recorded portion of the indicated chapter and immedi-

ately begin playback. When playback comes to the end of the current

track, the next track will be cued. The cue indicator will light, and the

play/pause indicator will flash, indicating that the player is in standby

mode. When the PLAY/PAUSE (6) button is pressed, the player will

begin playback of the next chapter.

¶Some of the above operations may not be supported, depending on

the disc or the portion being played.

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

MENU T.MENU

IN ADJUST

CUE

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

DVJ-1000

FWDREV

PLAY/PAUSE

ENTER

UNLOCK/LOCK

STOP

TIME MODE/AUTO CUE

PLAY/

PAUSE



CUE

AUDIO

TOUCH/

BRAKE

RELEASE

/START

SUBTITLE

JOG

MODE

EJECT

DVD TITLE

MP3 FOLDER

/

ENTER

T.MEMU

NEXT ¢

NORMAL/DJ

Basic Operations

Auto cue function

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

This function is used to skip non-recorded (silent) portions at the begin-

ning of tracks and automatically set the cue point (☞ P. 40) immediately

before actual sound begins when loading a disc, performing track search

(chapter search), and when the playback track (chapter) changes. If the

track signal cannot be found within ten seconds, the track’s beginning

will be set as the cue point.

■Setting auto cue ON/OFF

Hold the TIME MODE/AUTO CUE button depressed for 1 second or

more to alternate the auto cue function ON/OFF. The display’s auto cue

indicator (A.CUE) lights when the auto cue function is active.

¶The auto cue function ON/OFF status is memorized even when the

player’s power is turned off.

¶The auto cue sensitivity level can be changed if desired.

■Changing the auto cue sensitivity level

1. Hold the TIME MODE/AUTO CUE button depressed for 5

seconds or more.

¶The display will show the “A.CUE –60dB” indicator (factory de-

fault setting).

2. Press the cursor button’s left/right sides ( /) to change

the sensitivity level.

¶Supported sensitivity levels include: –36 dB, –42 dB, –48 dB,

–54 dB, –60 dB, –66 dB, –72 dB, –78 dB.

¶Either press the TIME MODE/AUTO CUE button or wait 15 sec-

onds and the setting mode will be canceled and the newly se-

lected level will be set.

¶The newly set sensitivity level is memorized even when the play-

er’s power is turned off.

To stop playback

■When the UNLOCK/LOCK switch is set to UNLOCK: Press

the STOP button.

■When the UNLOCK/LOCK switch is set to LOCK: During

playback, press the PLAY/PAUSE (6) button, or if a cue

point has been set, during playback press the CUE button

to initiate back cue, then press the STOP button.

¶When the STOP button is pressed, the current stop location will be

recorded (resume function).

¶To resume play from the previous stop position, press the PLAY/

PAUSE (6) button.

¶To cancel the resume function, press the DVD TITLE/MP3 FOLDER

|/\ or PREVIOUS 4/NEXT ¢ button.

To eject the disc

1. Press the EJECT (0) button when the UNLOCK/LOCK

switch is set to UNLOCK.

When the UNLOCK/LOCK switch is set to LOCK, press

the PLAY/PAUSE (6) button during playback, or when

a cue point has been set, press the CUE button (back cue)

before pressing the EJECT (0) button to eject the disc.

¶Playback will stop and the disc will be ejected.

Resume function

¶If the EJECT (0) button is accidentally pressed when the UNLOCK/

LOCK switch is in the UNLOCK position, immediately press the PLAY/

PAUSE (6) button to restore the unit to the mode it was in immedi-

ately prior to pressing the EJECT (0) button. However, video and

audio output will be interrupted during this interval.

¶Following disc eject, if the same disc is reinserted, the unit will return

to the same status it was in before the disc was ejected (with excep-

tion of loop).

¶After ejecting a disc, if the DVD TITLE/MP3 FOLDER |/\ button or

PREVIOUS 4/NEXT ¢ button is pressed the resume function

will be canceled.

¶The resume function may not operate when playing DVDs in NOR-

MAL mode.

To temporarily interrupt playback (pause mode)

During playback, press the PLAY/PAUSE (6) button.

¶The play/pause indicator and cue indicator will flash and play will be

interrupted.

¶Some DVDs prohibit the use of playback pause; in this case pressing

the PLAY/PAUSE (6) button will cause the prohibited mark to

light, and the corresponding prohibited mark will appear on the

monitor.

¶If the PLAY/PAUSE (6) button is pressed when the player is in the

pause (standby) mode, the play/pause indicator will light and play-

back will begin.

¶If the pause mode is allowed to continue for 100 minutes or more,

the disc playback will automatically stop. In this case, press the PLAY/

PAUSE (6) button to resume playback.

[In DJ mode, with jog mode set to VINYL mode OFF]

¶Placing the player in pause mode enables audible pause (the video

image appears as a still image, but audio sound can be heard inter-

mittently). If sound is not desired in this case, lower the audio mixer’s

output level.

[In DJ mode, with jog mode set to VINYL mode ON]

¶Placing the player in pause mode enables silent pause (still image

with no sound).

¶The TOUCH/BRAKE response dial can be used to modify the disc’s

deceleration speed (time until playback stops).

¶The RELEASE/START response dial can be used to modify the disc’s

playback acceleration time (time until disc reaches full playback speed).

[In NORMAL mode]

¶Placing the player in pause mode enables silent pause (still image

with no sound).

To change language/subtitle settings

during playback (DVD only)

■To change language during playback:

The language setting can be changed during playback when the DVD

has been recorded with multiple language options.

Press the AUDIO button.

The currently selected audio (language) option will be displayed on the

screen. Each time the button is pressed the language will alternate be-

tween the available language options.

¶If the language is changed when the player is in DJ mode, both video

and audio playback will be temporarily interrupted (due to writing to

buffer memory).

¶Some discs do not allow the audio language option to be changed

with the AUDIO button (pressing the button will cause the prohibited

mark to light, and the corresponding prohibited mark will ap-

pear on the screen). In this case, go to the disc’s main menu to switch

the language option.

¶When a disc is removed from the player, the language setting will

revert to that selected on the Setup Menu.

¶With some discs, changing the language will cause the image to pause

momentarily.

■Changing the subtitle option during playback

★This option is not supported when the rear panel NORMAL/DJ

switch is set to DJ (subtitles are not displayed in DJ mode).

The subtitle language can be changed when the DVD has been recorded

with multiple subtitle language options.

Press the SUBTITLE button.

The currently selected subtitle option will be displayed on the screen.

Each time the button is pressed, the subtitle language will alternate be-

tween the available options; if OFF is selected, subtitles will not appear.

¶Some discs do not allow the subtitle option to be changed with the

SUBTITLE button (pressing the button will cause the prohibited mark

to light, and the corresponding prohibited mark will appear on

the screen). In this case, go to the disc’s main menu to switch the

subtitle language.

¶When a disc is removed from the player, the subtitle setting will re-

vert to that selected on the Setup Menu.

Basic Operations

Fast forward/fast reverse

Press the REV1/FWD¡ button during playback

or when in the pause mode.

[During CD playback]

Hold the FWD¡ button depressed to perform fast forward.

Hold the REV1 button depressed to perform fast reverse.

[During DVD playback in DJ mode]

Hold the FWD¡ button depressed to perform fast forward.

Hold the REV1 button depressed to perform fast reverse.

Fast forward and reverse are performed only within a single disc title.

[During DVD playback in NORMAL mode]

Press the FWD¡ button to perform fast forward.

Press the REV1 button to perform fast reverse.

Each time the button is pressed and released, the speed of fast for-

ward/reverse changes (in three stages). Press the PLAY/PAUSE (6)

button to return the player from search mode to normal playback mode.

No sound is output during manual search.

¶Some DVDs prohibit the use of manual search. In this case, the pro-

hibited mark will light, and the same prohibited mark will ap-

pear on the monitor screen.

¶When playing a DVD in DJ mode, the above functions may not be

supported depending on the disc or on the part being played.

¶In the case of MP3, fast forward and reverse can be performed only

within the same folder.

¶In the case of MP3, the speed of fast forward/fast reverse may be

reduced, depending on the file.

■Super-fast search

Rotate the jog dial while holding either one of the REV1/

FWD¡ buttons depressed.

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

¶While holding either button depressed, rotate the jog dial in the

direction you wish the search operation to occur, and the player

will enter the super-fast search mode.

¶The speed of the search operation varies in response to the speed

at which the jog dial is turned. In the case of DVDs, search speed

is limited to a single high-speed setting.

¶The search direction corresponds to the direction of jog dial rotation

(rotate clockwise for fast forward, counterclockwise for fast reverse).

The direction indicated by the manual search button is ignored.

¶When the jog dial is released, the disc will enter the playback mode.

¶If the manual search button is released, the super-fast search mode

will be canceled.

¶In the case of MP3, fast forward and reverse can be performed

only within the same folder.

¶In the case of MP3, the speed of fast forward/fast reverse may be

reduced, depending on the file.

Changing the viewing angle (DVD only)

Alternate viewing angles can be selected during playback of DVDs re-

corded with multiple angles.

¶DVDs recorded with multiple angles display the mark on their jacket.

During playback, when the mark is displayed,

press the ANGLE button.

Each time the button is pressed the angle view alternates between those

available.

¶If the angle is changed when the player is in DJ mode, both video and

audio playback will be temporarily interrupted (due to writing to buffer

memory).

¶Some discs may not allow changing of the viewing angle, even though

they display the mark.

¶While in NORMAL mode or the main unit’s display shows “DISABLE

DJ MODE” message, the pause mode will be released if the angle is

changed during playback pause.

¶Some DVDs allow changing of the angle by means of the disc’s main

menu as well.

To turn off the angle indicator

While in NORMAL mode, go to the Setup Menu and set [Angle Indica-

tor] to [Off] (☞ P.30).

Regardless of the setting of the Setup Menu’s [Angle Indicator], when in

DJ mode, the mark will not appear in individual scenes during playback.

When display mode is ON, the mark will be displayed within the guide

area of the preview monitor, during the playback of points that allow the

selection of alternate angles.

Jog dial

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

CUE

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

ANGLE

PLAY/PAUSE

DVD TITLE

MP3 FOLDER

/

REV

FWD

NEXT ¢

NORMAL/DJ

Basic Operations

Track search (skip)

Use the PREVIOUS 4/NEXT¢ buttons.

¶Each time the button is pressed, playback skips to the next chap-

ter (DVD) or track (CD) in the direction indicated by the button

pressed. To return to the start of the currently playing track, press

the PREVIOUS 4 button once. To return to the beginning of

the track preceding the currently playing track, press the PREVI-

OUS 4 button twice.

¶Hold the button depressed to perform continuous track search. If

the button is held depressed for 2 seconds, the search speed will

increase.

¶If auto cue is enabled and the player is in cue standby mode at the

beginning of a track, pressing the PREVIOUS 4 button will cause

the player to search for the track previous to the current one, and

enter cue standby at the beginning of that track.

¶In the case of MP3, the search will skip to the first track found in

the designated direction; also, the skip function is supported only

within the same folder.

[During CD playback]

¶During playback of the disc’s first track (01), pressing the PREVI-

OUS 4 button twice in succession will cause the player to search

for the beginning of the last track.

In the case of MP3, when reverse direction skip is performed down

to the lowest numbered track, the next skip will take it to the last

track in the same folder.

¶During playback of the last track, pressing the NEXT ¢ button

once will cause the player to search for the disc’s first track (01).

In the case of MP3, if you attempt to move beyond the last track,

the skip will move to the lowest numbered track within the same

folder.

[During DVD playback in DJ mode]

¶During playback of the disc’s first chapter (001), pressing the PRE-

VIOUS 4 button twice in succession will cause the player to

search for the beginning of the last chapter.

¶During playback of the last chapter, pressing the NEXT ¢ but-

ton will cause the player to search for the disc’s first chapter (001).

[During DVD playback in NORMAL mode]

¶During playback of the last chapter, pressing the NEXT ¢ but-

ton will cause the player to search for the disc’s next title.

¶Some DVDs prohibit the use of chapter search. In this case, the pro-

hibited mark will light, and the same prohibited mark will ap-

pear on the monitor screen.

¶When playing a DVD in DJ mode, the above functions may not be

supported depending on the disc or on the part being played.

■Super-fast track search

Rotate the jog dial while holding either one of the PREVI-

OUS 4/NEXT¢ buttons depressed.

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

¶While holding either button depressed, rotate the jog dial in the

direction you wish the search operation to occur, and the player will

search for tracks in response to the amount of jog dial rotation.

¶The search direction corresponds to the direction of jog dial rotation

(rotate clockwise for fast forward, counterclockwise for fast reverse).

The direction indicated by the PREVIOUS 4/NEXT ¢ button is

ignored.

¶This mode is canceled when the PREVIOUS 4/NEXT ¢ but-

ton is released.

Title search (DVD only)

Use the DVD TITLE/MP3 FOLDER |/\ buttons.

¶Each time the button is pressed, the player will search for the

next (or previous) title (or PGC on multi-PGC discs) in the direction

indicated.

¶If the button is held depressed, the player will enter continuous

search mode. If the button is held depressed for 2 seconds, the

search speed will accelerate.

¶Some DVDs prohibit the use of title search. In this case, the prohib-

ited mark will light, and the same prohibited mark will appear

on the monitor screen.

¶When playing a DVD in DJ mode, the above functions may not be

supported depending on the disc or on the part being played.

■Super-fast title search

Rotate the jog dial while holding either one of the DVD TI-

TLE/MP3 FOLDER |/\ buttons depressed.

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

¶While holding either of the buttons depressed, rotate the jog dial in

the direction you wish the search operation to occur, and the player

will search for titles in response to the amount of jog dial rotation.

¶The search direction corresponds to the direction of jog dial rotation

(rotate clockwise for fast forward, counterclockwise for fast reverse).

The direction indicated by the DVD TITLE/MP3 FOLDER |/\ but-

ton is ignored.

¶This mode is canceled when the DVD TITLE/MP3 FOLDER |/\

button is released.

Folder search (MP3 only)

Use this function when performing track search on CD or DVD with lay-

ered folder structure.

Use the DVD TITLE/MP3 FOLDER |/\ buttons.

¶Each time the button is pressed, search advances in the next folder

of the direction designated by the button pressed. In the root di-

rectory, the folder number “00” and folder name “ROOT” are

displayed.

¶If the button is held depressed, continuous folder search will be

performed. If the button is held depressed for two seconds or

more, the speed of search will increase.

¶If an attempt is made to move backwards from the lowest num-

bered folder, the search will move to the last folder on the disc.

¶If an attempt is made to move forwards from the highest num-

bered (last) folder, the search will move to the first (lowest num-

bered) folder on the disc.

¶ Folders not containing any playable tracks will be ignored, and the

search will move to the next folder.

■Super-fast folder search

Rotate the jog dial while holding either one of the DVD TI-

TLE/MP3 FOLDER |/\ buttons depressed.

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

¶While holding one of the buttons depressed, rotate the jog dial in

the direction corresponding to the desired direction of search; search

of folder numbers will be quickly performed in the indicated direc-

tion.

¶The search direction corresponds to the direction of jog dial rotation

(rotate clockwise for fast forward, counterclockwise for fast reverse).

The direction indicated by the DVD TITLE/MP3 FOLDER |/\

button is ignored.

¶This mode is canceled when the DVD TITLE/MP3 FOLDER |/\

button is released.

Basic Operations

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

ENTER

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

IN ADJUST

REALTIME CUE

CUE

REV 1,

FWD ¡

PLAY/PAUSE

TEMPO

MASTER

TEMPO

RESET

JOG

ADJUST

DVD TITLE

MP3 FOLDER

/

NEXT ¢

TEXT MODE

IN/

REAL TIME CUE/

IN ADJUST

CUE

NORMAL/DJ

Jog dial

Setting cue points

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

When a cue point has been previously set, pressing the CUE button

during playback will cause the player to move instantly to the cue point

and enter the cue standby mode.

¶Storing to memory may not be possible while the jog dial’s audio/

video memory status display is flashing.

■Setting a cue point with VINYL mode OFF

1. During playback, press the PLAY/PAUSE (6) button near

the point you wish to set as a cue point. The player will

enter the pause mode.

2. Search for the precise cue point.

¶Using frame numbers:

The cue point position can be set in units of single frames (75

frames per second).

Using the jog dial or the REV1/FWD¡ buttons, advance or

reverse the frames to the desired point. One revolution of the jog

dial is equivalent to 135 frames; each time the search button is

pressed, the disc moves one frame in the direction corresponding

to the button.

¶Search for cue point using audible pause:

Rotate the jog dial slowly and reverse the disc to the instant just

prior to the point from which you wish to begin playback (the cue

point will be set at the point immediately after the sound heard

during audible pause).

3. When you have found the desired cue point using the

frame number or audible pause, press the CUE button.

¶When the cue indicator lights, the new cue point has been re-

corded in memory.

¶During DVD playback, a thumbnail of the cue point appears on the

preview monitor screen.

¶During CD or MP3 playback, the cue point's track number and

time are displayed on the preview screen.

¶When a new cue point is recorded in memory, the previously

memorized cue point will be erased.

[Modifying a cue point]

1. During playback, press the CUE button.

¶Playback will return to the set cue point and enter cue standby.

2. Use the REV1/FWD¡ buttons to enter audible pause

mode.

3. Find the new cue point by performing steps 2 and 3 of

the above section “■ Setting a cue point with VINYL mode

OFF”.

■Setting a cue point with VINYL mode ON

1. As playback nears the desired cue point, either press the

top surface of the jog dial or press the PLAY/PAUSE (6)

button to set the unit in pause mode.

2. While pressing the surface of the jog dial, listen to the

playback sound as you rotate the dial, and return play-

back to the point just before the spot you wish to use as

the cue point.

3. When the sound is at the desired cue point, continue hold-

ing the surface of the jog dial depressed, and press the

CUE button.

¶When the cue indicator lights, the new cue point has been re-

corded in memory.

¶When a new cue point is recorded in memory, the previously

memorized cue point will be erased.

[Modifying a cue point]

1. During playback, press the CUE button.

¶Playback will return to the set cue point and enter cue standby.

2. Perform steps 2 and 3 of the previous section “■ Setting

a cue point with VINYL mode ON”.

¶In the same way as for VINYL mode OFF, the REV1/FWD¡

buttons can also be used to modify a cue point.

■Real time cue

During forward playback, press the IN/REALTIME CUE/IN

ADJUST button at the place you wish to set as cue point.

¶This point will be recorded as the new cue point.

■Confirm cue point (cue point sampler)

After setting a cue point, depress the CUE button while the

unit is in the cue standby mode.

¶The audio and video from the cue point will be played back while

the CUE button is held depressed, allowing you to confirm the point.

■To return to a cue point (back cue)

During playback, press the CUE button.

¶Playback will return to the previously set cue point, sound will be

muted, and the monitor screen will display black background as

the unit enters the cue standby mode.

¶Press the PLAY/PAUSE (6) button to resume playback instantly

from the cue point.

¶When playing a DVD that prohibits title or other searches, playback

will continue, and the prohibited mark will appear in the display;

the similar mark will appear on the monitor screen.

¶In the case of MP3, back cue is supported only within one and the

same folder.

Changing playback speed

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

Slide the TEMPO control slider forward or back.

When the slider is moved forward (+), playback speed will increase, and

when moved back (–), playback speed will decrease.

¶The rate of tempo change is displayed.

¶It is also possible to change playback speed without affecting the

pitch (☞ P.41, “Setting master tempo”).

■Selecting a tempo control range

Press the TEMPO button.

Each time the button is pressed, the TEMPO control slider’s variable

control range alternates between the values ±6 %, ±10 %, ±16 %, and

WIDE. The range can be adjusted in increments of 0.02 % (for ±6 %),

0.05 % (for ±10 %), 0.05 % (for ±16 %), and 0.5 % (for WIDE).

The variable control range setting value is shown by the tempo control

range indicator (±6, ±10, ±16, WIDE), as well as in the onscreen display.

¶The variability in the WIDE range is:

±100 % (CD)

+70 % to –100 % (DVD, MP3)

■Tempo Reset

Press the TEMPO RESET button.

The TEMPO RESET indicator lights and the tempo change rate is reset to

“0” (normal tempo), regardless of the position of the TEMPO control slider.

¶If the TEMPO RESET button is pressed once again, tempo reset is

canceled, and the tempo returns to the value set with the TEMPO

control slider.

Basic Operations

Setting master tempo

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

During playback, press the MASTER TEMPO button.

The master tempo indicator lights and the “MT” indicator appears on

the display. In this way, the music pitch will not vary even if the TEMPO

control slider is used to change the tempo (speed).

¶Note that sound quality will deteriorate, however, due to digital

processing of the audio signals.

¶When power is first turned on, this function defaults to OFF.

Jog dial functions

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

1. Rotate during playback (pitch bend).

When the jog dial is set to VINYL mode ON, take care to operate the

jog dial by rotating its outer periphery (the inclined surface); touching

the top panel will cause operation of a separate function.

¶Playback is accelerated (FWD+) or decelerated (REV–) in an amount

corresponding to the degree of jog dial rotation. In the reverse

play mode, the operating directions are reversed (accelerated when

rotated in the REV– direction, and decelerated when rotated in

the FWD+ direction).

¶When the jog dial rotation is stopped, playback returns to its previ-

ous speed.

2. Rotate during playback (scratch play).

See the section “Scratch Play” in Advanced Operations (P. 43).

3. Rotate during pause (frame search).

[When jog mode is in VINYL mode OFF]

The player will enter the audible pause mode (the paused image is

displayed).

¶When the jog dial is rotated, the audible pause position changes in

individual frame units, in the direction corresponding to the direc-

tion of jog dial rotation.

¶One full revolution of the jog dial is equivalent to 1.8 seconds (135

frames) of disc advance (or reversal).

[When jog mode is in VINYL mode ON]

The player will enter the silent pause mode (the paused image is

displayed).

¶When the jog dial is rotated, the disc is played back in the direction

and at a speed proportional to the direction and speed of jog dial

rotation, and the pause position changes in individual frame units.

¶When the hand is removed from the surface of the jog dial and

rotation stops, the unit enters the silent pause mode again with

paused image displayed.

¶One full revolution of the jog dial is equivalent to 1.8 seconds (135

frames) of disc advance (or reversal).

4. Rotate during playback or in pause mode (spin).

See the section “Spin play” in Advanced Operations (P. 43).

5. Rotate during playback, while depressing the REV1/

FWD¡ buttons (super-fast search).

While holding one of the REV1/FWD¡ buttons depressed, ro-

tate the jog dial in the direction corresponding to the direction of de-

sired search; the search will be performed at faster- than-normal speed.

6. Rotate while depressing PREVIOUS4/NEXT¢ button

(super-fast track search).

While holding one of the PREVIOUS4/NEXT¢ buttons de-

pressed, rotate the jog dial in the direction corresponding to the di-

rection of desired search (track search or chapter search); the search

will be performed at a faster-than-normal speed, proportionate to the

direction and speed of jog dial rotation.

7. Rotate while depressing the DVD TITLE/MP3 FOLDER |/

\ button.

(Super-fast title search) (DVD)

(Super-fast folder search) (MP3)

While holding one of the DVD TITLE/MP3 FOLDER |/\ buttons

depressed, turn the jog dial in the direction you wish to perform the

search. Super-fast title (or folder) search will be performed in the direc-

tion the jog dial is turned, and in proportion to the speed of the jog dial’s

rotation.

Note:

The top surface of the jog dial is equipped with a pressure-sensitive

switch. Do not rest objects on the dial, or subject it to severe im-

pact or pressure. Do not rest drinks or other open liquids on the

player; if the liquid spills, it may enter the player’s parts, damaging

the player.

Jog sensitivity adjustment

By rotating the JOG ADJUST dial, the sensation of resistance felt when

rotating the jog dial can be adjusted.

Rotate JOG ADJUST dial.

¶When rotated clockwise, resistance increases.

¶When rotated counterclockwise, resistance decreases.

¶Adjust the setting within the scale’s gray zone to set the jog dial sen-

sation equivalent to that of the CDJ-1000MK2.

JOG ADJUST

LIGHT

HEAVY

Gray zone

About the WAVE display

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position (replaced by TEXT dis-

play).

The WAVE display shows the changes in a track’s bass beat (bass drum,

etc.), thus allowing the DJ to understand where breaks and end points

come in the track. When the TEXT MODE button is used to switch to

WAVE display, the single chapter or track will be displayed over the full

range (100 points) of the display.

¶After a track change, some time is required before the entire track’s

WAVE display can be shown. By prerecording desired tracks’ WAVE

patterns on a memory card, the next time the track is played its WAVE

pattern can be displayed instantly.

¶If a track’s low-frequency beat changes are too low in volume, the

break points in the track may not be displayed properly.

¶If a search or pause operation is performed during the time the wave-

form is being read, the waveform will not be displayed properly.

¶Read-ahead processing of the WAVE display is not possible during

DVD or MP3 playback.

¶When playing MP3, WAVE display may not be possible, depending

on the track.

Basic Operations

About the TEXT display

When the TEXT MODE button is used to select TEXT display, the dis-

play shows CD-TEXT, including the names of tracks, albums, and artists.

During MP3 playback, the display shows ID3 tag track name (if no ID3

tag is recorded, the display shows the file name) /ID3 tag album name/

ID3 tag artist name.

¶Each title display can include up to 48 characters; title displays of 15

or more characters will scroll.

¶Text may include alphanumerics and some symbols.

¶If no text is available, the “NO TEXT” message will be displayed.

¶The text will not be displayed during DVD playback.

When a track name is selected in TEXT display, the “ ” icon will be

displayed followed by the track name (with MP3, the ID3 tag’s title name

or file name will be displayed).

Also, during MP3 play, the bit rate will be displayed following the track

name.

DVJ-1000 128 kbps

When an album name is selected in TEXT display, the “ ” icon will be

displayed followed by the album name.

Pioneer

When an artist name is selected in TEXT display, the “ ” icon will be

displayed followed by the artist’s name.

Pioneer PRO DJ

When folder search is performed with MP3, the folder name is displayed

during the search.

Pioneer DJ

Mixing different tracks (splicing)

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

(Example) To splice the next track (B) to the currently playing track (A).

¶Connect the first player A to DJ mixer CH-1, and second player B to

CH-2.

¶Raise trim, channel fader, and master volume to appropriate levels,

and set player A for playback.

Set the DJ mixer’s CROSS FADER lever to the left (CH-1) side.

¶Track A plays.

2. Load the desired disc on player B.

3. Use the PREVIOUS4/NEXT¢ buttons on the player B

to select the desired track B.

4. Monitor CH-2 on the DJ mixer.

5. Rotate the DJ mixer’s MONITOR LEVEL dial and listen to

track B on headphones.

¶The main speakers produce the sound of track A only.

6. Select the cue point for track B while listening on the head-

phones.

1With the player B in playback mode, press the PLAY/PAUSE (6)

button near the desired track B cue point.

¶If the jog mode is set to VINYL mode OFF, the audible pause

mode will be enabled; if the jog mode is VINYL mode ON, the

silent pause mode will be enabled.

2Rotate the player B jog dial to find the exact cue point (first beat)

of track B.

3Once track B’s cue point has been set, press the CUE button on

player B.

¶Sound will be muted and the cue point will be set.

7. In beat with the sound of track A from the speakers, press

the player B’s PLAY/PAUSE (6) button.

¶The speakers will produce the sound of track A.

¶The headphones will produce the sound of track B.

8. Move the second player B’s TEMPO control slider so that

the tempo (BPM) of track A and B are aligned.

Move the player B’s TEMPO control slider so that the displayed BPM

of track B matches the BPM value for track A.

¶When the BPM numbers match, tempo adjustment is completed.

9. Press the player B’s CUE button.

¶The player B will return to the previously set track B cue point.

10. While listening to the closing sounds of player A’s track

A from the speakers, press the player B’s PLAY/PAUSE

(6) button.

¶The player B begins playing track B.

11. While confirming the sound on the headphone, steadily

move the DJ mixer’s cross fader lever toward the right side.

¶The sounds of track B will gradually mix with and replace the sounds

of track A heard from the speaker.

¶When the DJ mixer’s cross fader lever has moved completely to

the right side, the splicing has been completed.

■Long mix play

As long as the BPM rates match, track A and track B will mix well, even

if the cross fader lever is in the middle position.

■Fader start play

Using the cross fader start function on a Pioneer DJ mixer (sold sepa-

rately), the mixing operation can be simplified by eliminating step 10

(above).

Also, when the cross fader lever is returned, the players return to the

status of step 9 (above), so sound can be produced repeatedly.

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

ENTER

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

IN ADJUST

REALTIME CUE

CUE

PLAY/PAUSE

TEMPO

NEXT ¢

TEXT MODE

CUE

NORMAL/DJ

Jog dial

Advanced Operations

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

CUE

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

PLAY/PAUSE

JOG MODE

RELEASE

START

TOUCH

BRAKE

HOT CUE

REC MODE

IN/

REALTIME CUE/

IN ADJUST

OUT/

OUT ADJUST

HYPERJOG

MODE

NORMAL/DJ

Jog dial

Scratch play

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

When the jog mode is set to VINYL mode ON, pressing the jog dial’s top

panel while rotating the dial will cause audio and video to be output in

proportion to the direction and speed of jog dial rotation.

1. Press the JOG MODE select button so that the VINYL

mode indicator lights.

2. During playback, press the top of the jog dial.

¶Playback will slow and come to a stop (the time required to com-

plete stop can be set independently).

¶If the jog dial is rotated as playback slows but before it has com-

pletely stopped, sound will be interrupted suddenly, and will then

start again, but in the direction corresponding to the direction the

jog dial is rotated in step 3.

3. Rotate the jog dial in the desired direction of playback.

¶Playback will occur in proportion to the direction and speed of jog

dial rotation.

4. Release hand from surface of jog dial.

¶Playback will return to its original status (the time required until

full acceleration can be set independently).

■To set the deceleration time (time until playback fully stops

when jog dial surface is pressed)

Rotate the TOUCH/BRAKE response dial.

¶The time till playback stops changes.

¶This is the same setting as the deceleration speed adjustment

used when the PLAY/PAUSE (6) button is pressed in VINYL

mode to temporarily pause playback.

■To set the acceleration time (time until playback fully re-

gains original speed when hand is released from jog dial

surface)

Rotate the RELEASE/START response dial.

¶The time till playback returns to normal speed changes.

¶This is the same setting as the acceleration speed adjustment

used when the PLAY/PAUSE (6) button is pressed in VINYL

mode to resume playback.

[Hyper jog mode]

When jog mode is set to VINYL mode ON, press the HYPERJOG MODE

button so that the indicator lights. When the jog dial is then rotated, the

amount of sound or image change will quadruple (x4) in response to the

rotation angle of the dial.

Spin play

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

With VINYL mode ON, press the surface of the jog dial, or press the

PLAY/PAUSE (6) button to set the unit to pause, then rotate the jog

dial quickly; even if you remove your hand from the jog dial, playback will

occur in proportion to the direction and speed of the jog dial rotation.

Braking

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

¶During playback in VINYL mode, if the PLAY/PAUSE (6) button is

pressed to pause playback, the sound decelerates at the braking speed

set with the TOUCH/BRAKE dial.

¶When the PLAY/PAUSE (6) button is pressed once again to resume

playback, the sound accelerates at the speed set with the RELEASE/

START dial.

Hot cue

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

This function allows playback to be started quickly from one of three

points (A, B, C), by previous setting of cue point and loop information.

¶Storing to memory may not be possible while the jog dial’s audio/

video memory status display is flashing.

■Setting hot cue point

1. Press the HOT CUE REC MODE button so that the HOT

CUE A, B, and C button indicators light red.

2. During playback, pause mode or cue standby mode, find

the point you wish to use as the hot cue, and at that point

press the button (A, B, or C) in which you wish to store

the cue information.

¶The button memory will recorded with the time position data and

playback method.

¶The pressed button will flash red for about 2 seconds, then light

steadily.

¶During DVD playback, a thumbnail of the hot cue point will be

displayed on the preview monitor screen.

¶If the HOT CUE button is pressed during the loop setting mode

(while OUT/OUT ADJUST and IN/REALTIME CUE/IN ADJUST

buttons are flashing), the currently playing loop information will be

stored in memory.

¶If a memory card is loaded, the data recorded to the HOT CUE

button will be stored on the memory card; in this way, the previ-

ously set information can be called up quickly when playing the

same disc at a later date (☞ P.47).

Buttons and controls with the mark are disabled when

the NORMAL/DJ switch is set to NORMAL.

Advanced Operations

■Starting a hot cue

1. Press the HOT CUE REC MODE button so that the HOT

CUE A, B, and C button indicators light green or orange.

¶Buttons containing stored hot cue points will light green.

¶Buttons containing stored loop information will light orange.

¶Buttons without any stored information will not light.

2. During playback, pause, or cue standby mode, press one

of the buttons with recorded information (A, B, or C).

¶During playback, pause mode or cue standby mode, if a green or

orange lighted button is pressed, playback will begin instantly based

on the information recorded in the button. In this case, cue point

information stored in the normal CUE button, or loop information

stored in the RELOOP/EXIT button will not be overwritten, but

remain valid.

¶Pressing a HOT CUE button with stored loop information causes

loop playback to begin instantly based on the stored information.

In this case, the RELOOP/EXIT button can be used to cancel the

loop playback just as with normal loop play; in addition, the IN/

REALTIME CUE/IN ADJUST button can be used to modify the

loop-in point, and the OUT/OUT ADJUST button can be used to

modify the loop-out point. If loop information is modified, the loop

information stored in the button will simultaneously be modified.

¶If a memory card is loaded, inserting a disc will allow previously

recorded hot cue and loop information for that disc to be restored

(☞ P.48).

* When playing a DVD that prohibits title or other searches, it may be

impossible to begin playback from the hot cue point.

In this case, the prohibited mark will appear in the display and the

similar mark will appear on the monitor screen.

* In the case of MP3, hot cue is supported only within one and the

same folder.

Loop playback

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

■To create a loop

1. Press the PLAY/PAUSE (3/8) button to begin playback.

2. During playback, press the IN/REALTIME CUE/IN ADJUST

button.

¶This step is unnecessary if you wish to use a previously recorded

cue point as the loop-in point.

¶During the time required for writing the loop-in point, the IN/

REALTIME CUE/IN ADJUST button will flash for about 2 sec-

onds.

REV

FWD

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWD

REV

DIRECTION

CUE

PLAY/PAUSE

HOT CUE

REC MODE

IN/

REALTIME CUE/

IN ADJUST

OUT/

OUT ADJUST

REV 1,

FWD ¡

4-BEAT/

ONE-TRACK

RELOOP/

EXIT

BACK&

FORTH

DIRECTION

FWD/REV

CUE

NORMAL/DJ

Jog dial

3. During playback, press the OUT/OUT ADJUST button at

the point you wish to use as the loop-out point.

¶Repeat play (loop play) will begin without break between the se-

lected loop-in and loop-out points.

¶The frame search function can be used to set more accurate out

points.

¶If an alternate viewing angle or audio channel is selected before

setting a loop-out point, it may not possible to designate a loop-

out point.

¶Loop-out points cannot be set during reverse play.

¶In the case of MP3, looping is possible only within the same track

where the cue point was set.

■To cancel loop play

During loop playback, press the RELOOP/EXIT button.

¶The loop will be canceled and playback will continue normally past

the loop-out point.

■To adjust a loop-in point

1. During loop playback, press the IN/REALTIME CUE/IN

ADJUST button.

¶The display will show the loop-in point time, and the IN/REALTIME

CUE/IN ADJUST button will flash rapidly, while the OUT/OUT

ADJUST button light will go out.

2. Press the REV1/FWD¡ button, or rotate the jog dial.

¶The loop-in point will be moved in one-frame increments.

The permissible range of loop-in point adjustment is ±30 frames

during CD play, or ±6 frames for DVD play, and must be located

before the loop-out point.

¶In the case of MP3 play, loop adjustment can be performed only

within the same track where the cue point is set.

¶The loop-in point cannot be adjusted during reverse play or scratch

play.

¶If the IN/REALTIME CUE/IN ADJUST button is pressed, or 30

seconds is allowed to elapse, the loop adjust mode will be canceled

and operation will return to normal loop play.

■To adjsut a loop-out point

1. During loop playback, press the OUT/OUT ADJUST but-

ton.

¶The display will show the loop-out point time, and the OUT/OUT

ADJUST button will flash rapidly, while the IN/REALTIME CUE/

IN ADJSUT button indicator turns off.

2. Press the REV1/FWD¡ button, or rotate the jog dial.

¶The loop-out point will change in one-frame units.

¶The loop-out point cannot be moved to a location before the loop-

in point.

¶If the OUT/OUT ADJUST button is pressed, or 30 seconds is

allowed to elapse, the loop adjust mode will be canceled and op-

eration will return to normal loop play.

¶The loop-out point cannot be adjusted during reverse play.

¶In the case of MP3 play, loop adjustment can be performed only

within the same track where the cue point is set.

■To return to a loop (reloop)

After cancellation of a loop, press the RELOOP/EXIT button

during normal playback.

¶Playback will return to the loop-in point of the previously set loop,

and loop play will resume.

¶In the case of MP3, reloop can be performed only within the same

folder.

Advanced Operations

Relay play with two players

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

Relay play can be performed by using the supplied accessory control

cord to connect the CONTROL connectors of this player and another

CDJ series CD player.

¶Set the auto cue functions of the two players to ON (auto cue (A.CUE)

indicator lights in the display).

¶If connected to a DJ mixer, set the mixer’s fader control to its center

position.

1. Begin playback on the first player.

2. When the currently playing track ends, the other player

(in standby mode) will automatically begin playback.

3. Set the first player to cue standby at the beginning of the

next desired track.

¶By repeating these steps, you can perform continuous automatic

relay play between the two players.

¶By replacing the disc on the waiting player and cueing it to a de-

sired track, an unending variety of tracks can be played.

¶By setting a cue point on the waiting player, playback can be set to

begin automatically from any point in any desired track (☞ P.40,

“Setting cue points”).

Notes:

¶Relay play may not occur smoothly if the two players’ audio

output terminals are not connected to the same DJ mixer.

¶If power is interrupted to the currently playing player, the other

player will automatically begin playback.

¶Since fader start and relay play require that the same control

connectors be connected in different ways, they cannot be

performed simultaneously.

■Automatic loop setting

4-beat loop

During playback, press the 4-BEAT/ONE-TRACK button.

¶The normal loop playback indicators will appear (OUT/OUT AD-

JUST and IN/REALTIME CUE/IN ADJUST buttons will flash).

¶The point at which the button is pressed will become the loop-in

point, and a loop-out point will be set automatically as described

below; loop playback will then continue between the two points.

·If the immediately preceding BPM value is known, a point four

beats afterwards will become the loop-out point.

·If the immediately preceding BPM value is not known, the loop-

out point will be set four seconds after the loop-in point.

¶When the RELOOP/EXIT button is pressed, the loop play will end

and normal playback will resume.

¶4-beat loop cannot be designated during reverse play.

One-track loop (chapter/track repeat)

During playback, hold the 4-BEAT/ONE-TRACK button de-

pressed for 1 second or more.

When the 4-BEAT/ONE-TRACK button is held depressed for 1 second

or more during playback, one-track loop is enabled, thus repeating play-

back of the currently playing chapter or track.

¶The indicator “CHAPTER LOOP” (during DVD playback) or “TRACK

LOOP” (during CD or MP3 playback) will appear in the display, and

the unit will search to the beginning of the currently playing chapter

or track, and set the loop-in point there.

¶The normal loop playback indicators will appear (OUT/OUT ADJUST

and IN/REALTIME CUE/IN ADJUST buttons will flash), and the chap-

ter end or track end will be automatically set at the loop-out points

and playback will resume.

¶If the RELOOP/EXIT button is pressed, the loop play will be canceled

and normal playback will resume.

¶When recording to a memory card, record after playing the track to

the end.

¶One-track loop cannot be designated during reverse play.

[Back & Forth Loop Mode]

¶When the BACK & FORTH button is pressed so that the loop mode

indicator lights, loop play will change to the back & forth loop mode.

¶During the back & forth loop mode, repeated playback is performed

in the forward direction from loop-in point to loop-out point, followed

by reverse playback from the loop-out point to the loop-in point.

¶If the BACK & FORTH button is pressed again so that the loop mode

indicator goes out, playback will return to normal loop mode.

Reverse play

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

Set the DIRECTION FWD/REV select switch to the REV posi-

tion (forward).

The reverse indicator will light and play will commence in the reverse

direction.

¶The jog dial’s operation to accelerate/decelerate playback is reversed.

¶During reverse playback, loop points cannot be set nor loop-out points

modified.

¶When track search or loop play are performed, the jog dial’s audio/

video memory status display will flash for 1 to 2 seconds and scratch/

reverse operations may not respond.

About fader start play

★This function is not supported when the rear panel NORMAL/DJ

switch is set to the NORMAL position.

When the accessory control cord is used to connect this player’s CON-

TROL connector to the CONTROL connector of a Pioneer DJ mixer (sold

separately), the operation of the DJ mixer’s channel fader lever can be

used to release the player from cue standby and start playback instantly.

Fader start can also be started by using the cross fader operation; when

the fader lever is returned to its original position, the player also returns

to its cue point (back cue) and enters cue standby.

Advanced Operations

To view guide displays

Press the DISPLAY button to turn the guide displays ON/OFF.

In the DJ mode, onscreen guide displays are not output to the main

video output (VIDEO OUT) connectors; in this case, the button operates

to enable and disable the guide displays (hot cue, cue point, playing time,

etc.) output to the preview video output (PREVIEW OUT) connectors.

[DVD playback in DJ mode]

CUE

CBA

Guide display ON Guide display OFF

In the NORMAL mode, pressing the DISPLAY button turns the guide

display ON/OFF on both the main video and preview video outputs. Press-

ing the DISPLAY button changes the display contents in the following

way:

[DVD playback in NORMAL mode]

¶Chapter and time may not be displayed with some titles.

* Transmission rate is a value indicating the data volume recorded on

the DVD. While higher transmission rates indicate larger amounts of

data, they do not necessarily translate to higher picture quality.

Play 2–2 0. 30

Title –121. 13/121. 43

Play 2–2 0. 30

Chapter 0. 10/ 5. 43

Play 2–2 0. 30

Chapter –5. 33/ 5. 43

Play

Tr.Rate:

2–2 0. 30

8. 6

Current title number - Chapter number Current title elapsed time

Remaining title time Total title time

Current title number - Chapter number Current title elapsed time

Elapsed chapter time Total chapter time

Current title number - Chapter number Current title elapsed time

Remaining chapter time Total chapter time

Current title number - Chapter number Current title elapsed time

Transmission rate (*) level meter Transmission rate level

Display OFF

LDE

10MUS.m

11MUS.m

12MUS.m

13MUS.m

LDE

04FOLDER

05MUS.m

06MUS.m

MEN

ENTER

RET

Exi

LDE

20MUS.m

21MUS.m

22MUS.m

MEN

ENTER

RET

Exi

7FOLDER

LDE

09FOLDER

10MUS.m

11MUS.m

12MUS.m

13MUS.m

Selecting tracks with MP3 navigator

(MP3 only)

1. Press the MENU button.

¶The MP3 navigator screen will be displayed.

Currently open folder

Folder

Track

2. Use the up ( ) or down ( ) side of the cursor button to

select the desired track or the folder holding the desired

track.

3. With the cursor placed over a folder, press the ENTER

button to open the selected folder.

¶The folder can also be opened by pressing the right side ( ) of the

cursor button.

¶Pressing the left side ( ) of the cursor button will cause the dis-

play to return to the next higher folder level.

4. Repeat steps 2 and 3 to select the desired track.

5. Press ENTER.

¶Playback of the selected track will begin.

When the cursor is moved over a folder, press

the ENTER button to display the folder’s con-

tents.

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUSTIN ADJUST

ENTER

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

DVJ-1000

ENTER

DISPLAY

Advanced Operations (Operations Using Memory Cards)

Operations Using Memory Cards

■Using memory cards

This player supports the use of SD memory cards or MultiMedia Cards

for the recording of disc identification data, cue point data, loop point

data, and hot cue data. Data regarding cue points and loop points include

each point’s position, as well as audio channel, angle, and thumbnail

image. Thumbnail images cannot be recorded, however, in the case of

copy-protected discs (included those using Macrovision technologies).

★SD memory cards must be formatted in accordance with “SD

Memory Card Specifications Part2 FILE SYSTEM SPECIFICA-

TION Version 1.0” (commercially purchased SD memory cards

are factory formatted to the above standards). Unformatted

cards cannot be used (the “UNFORMAT” message will be dis-

played).

★Memory cards formatted on computers or in digital cameras

may not be usable with this player.

★MultiMedia Cards (MMC) formatted on the CDJ-1000 or CDJ-

1000MK2 have the following limitations:

¶DVD and MP3 data cannot be recorded.

¶Loop data set in hot cues cannot be recorded.

¶It is not possible to use a computer to copy or backup the

cards.

¶When recording loop points, a single loop point requires

two points of memory area.

¶The cards cannot be reformatted in this unit.

■Loading a memory card

Open the memory card door, and insert the memory card, label side up

and with the beveled edge toward the front. Insert the card slowly, hold-

ing it flat, and push it in until it stops. Shut the memory card door.

The display will show “SD CARD” (for cards conforming to the SD

memory card standard) or “CDJ CARD” (for cards formatted with the

CDJ-1000 or CDJ-1000MK2), followed by the number of discs whose

data are recorded on the card.

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

CUE

MEMORY

CUE

Memory

CARD indicator

Label

surface up

Memory card

Memory card door

To protect important data

¶Set the write-protect switch to the LOCK position to prevent fur-

ther writing to the card. Return the switch to its original position if

you wish to record further data on the card.

¶The CARD indicator lights while the recorder is writing data to the

disc. During this period, do not attempt to remove the card, or

disconnect power to the unit, since card data may be destroyed.

Pioneer disclaims any responsibility for damage to or loss of

data recorded on memory cards, or other incidental damages

arising from such loss.

Rear view

Write-protect switch

Notes:

¶Do not open the card door or turn off power while the CARD

indicator is flashing, since the recorded data may be dam-

aged.

¶Memory cards are precision electronic devices. Do not bend

or drop them, or subject them to strong forces or impacts.

Also, avoid using or storing memory cards in environments

subject to static electricity or electrical noise.

¶Memory cards can be broken when subjected to impacts

or static electricity. Be very careful when handling them,

and make regular backups of important recorded data (☞

P. 50).

¶Pioneer disclaims any responsibility for damage to or loss

of data recorded on memory cards, or other incidental dam-

ages arising from such loss.

Recording to memory cards

¶Up to 100 points (total of both cue and loop points) can be stored for

each disc. When 100 points have been stored, attempts to record

further points will result in the display of the “POINT FULL” mes-

sage, and no further points can be recorded.

¶If insufficient memory space exists on the card to record the current

points, the “CARD FULL” message will appear.

¶If the card has been set to write-protect, the “CARD PROTECTED“

message will be displayed.

■Recording a cue point

1. Use the auto cue function or CUE button to input a cue

point.

2. Press the MEMORY button.

¶The display will show the cue point position data, and the word

“CARD MEMORY” will appear in the display, indicating that the

cue point has been stored in the memory card.

¶If no memory card is loaded, the “NO CARD” message will ap-

pear.

¶If the memory card door is open without any memory card being

loaded, the message “CLOSE CARD DOOR” will appear in the

display.

¶Removing the memory card

Open the memory card door and wait until the CARD indicator lamp

goes out, then press in the memory card slightly and allow it to eject;

grasp the end of the card and pull out carefully.

Advanced Operations (Operations Using Memory Cards)

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

CUE

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

ENTER

CUE/LOOP

CALL

MEMORY

HOT CUE

REC MODE

ENTER

■Message displays during recording of cue and loop points

Player display

“CARD MEMORY”

“CANNOT MEMORIZE ON THIS CARD”

“CARD FULL”

“CARD PROTECTED”

“INTERNAL MEMORY”, followed by

“NO CARD”

“INTERNAL MEMORY”, followed by

“CLOSE CARD DOOR”

“UNFORMAT”

“CARD ERROR”

“POINT FULL”

“CARD MEMORY”, followed by

“PICTURE IS NOT RECORDED”

Contents

Cue point or loop point data have been successfully recorded on the memory card.

Displayed during DVD/MP3 playback, when a memory card formatted and recorded using the CDJ-

1000 or CDJ-1000MK2 has been loaded on this unit and an attempt is made to record data to the card.

Point data cannot be recorded.

Insufficient space remains on the memory card. Point data cannot be recorded to the card.

The memory card’s LOCK (write protect) function is enabled, and further point data cannot be recorded

on the card.

No memory card is loaded.

A memory card is loaded, but the memory card door has not been closed. Close the door and retry.

Displayed when the loaded memory card does not conform to SD memory card standards, or has not

been formatted to CDJ-1000 or CDJ-1000MK2 (MMC) standards. Point data cannot be recorded on

the card.

The loaded memory card appears to be damaged.

Displayed when the total number of recorded cue points and loop points has already reached 100.

Displayed when an attempt is made to record points from a copy-protected disc. Thumbnail image is

not recorded.

Insert memory card whenever recording cue point data, loop point data, hot cue data, or WAVE data. If no memory card is inserted, any designated

setting data will be lost when the power is turned off or the disc is removed.

■Recording a loop point

1. Set a loop-in point and loop-out point and begin loop play-

back.

2. During loop playback, press the MEMORY button.

¶The display will show the cue point position data, and the word

“CARD MEMORY” will appear in the display, indicating that the

loop-in and loop-out points have been stored in the memory card.

¶If no memory card is loaded, the “NO CARD” message will ap-

pear.

¶If the memory card door is open without any memory card being

loaded, the message “CLOSE CARD DOOR” will appear in the

display.

■Recording hot cue points A, B, C

Hot cue points A, B, and C are automatically recorded on the memory

card.

■WAVE display

Wave displays are automatically recorded on the memory card.

* As one example of the use of a 32 MB SD memory card, up to 75

discs’ worth of cue and loop points can be recorded per card (assum-

ing use of DVD discs with 20 points per disc, and recording of thumb-

nail images for each point).

To recall data recorded on memory cards

■To recall a recorded cue or loop point

1. Press the CUE/LOOP CALL button.

¶The preview monitor screen will display the cue point navigation

menu.

1–006 0.00.39CUE

ENTER

CALL

CBA

While the call screen is displayed,

point information is also shown

on the player’s display.

Advanced Operations (Operations Using Memory Cards)

If thumbnail images

are not recorded, the

memory point time

data for the cue points

or loop points will be

displayed instead.

Point information is

also shown on the

main unit’s display,

allowing you to select

points even without a

preview monitor.

2. Use the cursor button ( ///) to select the desired

thumbnail image, and press the ENTER button.

While reading data from a memory

card, the main unit’s display will

show the “CUE Readin” or “LOOP

Readin” message.

¶The cue point or loop point will be read into the player, and the

memory point time will be displayed; the player will search for the

cue point and enter cue standby there.

CUE

CBA

■To read a cue/loop point into a hot cue

1. Press the CUE/LOOP CALL button.

¶The preview monitor screen will display the cue point navigation

menu.

1–001 0.11.05CUE

ENTER

CALL

CBA

While the call screen is displayed, point

information is also shown on the play-

er’s display.

2. Use the cursor button to select the desired thumbnail im-

age, and press the HOT CUE REC MODE button so that

the HOT CUE A, B, and C button indicators light red. Then

press the button (A, B, or C) into which you wish to store

the hot cue point.

While reading data from the memory

card, the main unit’s display will show

the “HOT * Readin” message.

¶Playback will begin when data reading is completed.

CUE

CBA

¶When playing a copy-protected disc, thumbnail image of set point

data cannot be recorded to the memory card.

1–001

0.23

1–002

0.04

1–003

0.05

1–004

0.02

1–004

0.07

1–006

0.00

1–006

0.06

1–006

0.12

1–006

0.20

1–006

0.28

1–006

0.45

1–006

1.11

1–006 0.06.00CUE

ENTER

CALL

CBA

¶Cue point navigation screen when CD is loaded.

TRK–01

0.35

TRK–01

0.39

TRK–01

3.57

TRK–03

0.11

TRK–01 0.39.60CUE

ENTER

CALL

CBA

¶Cue point navigation screen displays during MP3 playback are as fol-

lows.

–

NTER

ALL

–

001

–

008

–

004

–

003

■To recall recorded hot cue points

Hot cue points A, B, and C are automatically recorded on the memory

card. If points have been previously recorded for a disc, when that disc is

inserted the HOT CUE buttons A, B, and C will begin flashing green or

orange. To call one of the recorded hot cue points, press the correspond-

ing button A, B, or C. The flashing green or orange button will change to

light steadily (sound will not begin instantly when a point is called up). If

you have no need of calling one of the hot cue points, press the HOT

CUE REC MODE button. The indicators will change to red, and the hot

cue setting mode will be enabled. (To subsequently call up one of the

hot cue points previously recorded on the memory card, remove the

disc or memory card and reinsert it so that the A, B, and C buttons flash

once again. Then press the desired flashing button).

■WAVE display

When playing a track with which you have previously used the WAVE

display function, the recorded WAVE pattern will automatically be re-

called and displayed.

Point information is

also shown on the

main unit’s display,

allowing you to select

points even without a

preview monitor.

Advanced Operations (Operations Using Memory Cards)

To delete information recorded on

memory cards

■To delete individual cue/loop points

1. Press the CUE/LOOP CALL button.

¶The preview monitor screen will display the cue point navigation

menu.

2. Use the cursor button ( ///) to select the thumbnail

of the cue point you wish to erase, then press the DE-

LETE button.

¶The display will show the “DELETE” message, and the selected

cue point or loop point data will be erased from the memory card.

■To delete all cue/loop point information for an

entire disc

1. Load the disc whose cue/loop point information you wish

to erase.

2. Hold the DELETE button depressed for 5 or more seconds.

¶The display will scroll the “DISC DELETE? PUSH MEMORY” con-

firmation message.

3. Press the MEMORY button.

¶All cue and loop data for the loaded disc will be deleted from the

memory card.

¶If any button other than the MEMORY button is pressed, the de-

lete mode will be canceled.

■To delete all memory card data

1. With no disc loaded, hold the DELETE button depressed

for 5 seconds or more.

¶The display will scroll the “ALL DELETE? PUSH MEMORY” con-

firmation message.

2. Press the MEMORY button.

¶All data will be deleted from the memory card.

¶If any button other than the MEMORY button is pressed, the de-

lete mode will be canceled.

To copy memory card data

1. With no disc or memory card loaded:

Hold the MEMORY button pressed for 5 seconds or more.

¶The display will scroll the “COPY MODE” “CARD A IN” mes-

sages.

2. Insert the original source memory card into the memory

card slot.

¶The display will show the “READING” message; after several min-

utes, the “CARD B IN” message will appear.

3. Remove the source card and insert the target memory

card.

¶Be sure to delete earlier contents of the target card to provide

sufficient recording capacity.

¶The display will show the “WRITING” message, and after several

minutes, the “CARD A IN” message will appear.

4. Remove the target card, and once more insert the origi-

nal source card.

¶The display will show the “READING” message; after several min-

utes, the “CARD B IN” message will appear.

5. Repeat steps 3 and 4 as required.

¶The copying process is completed when the display shows the

“COMPLETE” message.

¶Copying of a full 32 MB memory card will require a maximum of 3

cycles of recording steps 3 and 4.

¶If the target card has insufficient memory capacity to complete

the copying process, the “CAPACITY ERROR” message will ap-

pear.

¶ If you possess a computer with memory card reader, the reader can

be used to copy your memory cards. (A computer cannot be used to

copy Multimedia cards (MMC) formatted with the CDJ-1000 or CDJ-

1000MK2.)

☞ P.47, precautions regarding memory card formatting.

REV

FWD

DIRECTION

HOT CUE

REC MODE

LOOP

OUT ADJUST

TEMPO

IN ADJUST

ENTER

CUE

REALTIME CUE

OUT

RELOOP/

EXIT

4-BEAT

ONE-TRACK

CUE / LOOP

CALL

BACK & FORTH

ANGLE SUBTITLE AUDIO DISPLAY

DELETE

MEMORY MENU T.MENU

RETURN

SETUP

TOUCH/BRAKE

RELEASE/START

JOG MODE

VINYL

HYPERJOG MODE

TEMPO

MASTER TEMPO

WIDE

TEXT MODE

TIME

MODE

AUTO

CUE

DVD TITLE

MP3 FOLDER

JOG ADJUST

LIGHT

HEAVY

TEMPO

RESET

REV

FWD

POWER

OFF ON

STOP

LOCK

UNLOCK

EJECT

PLAY/PAUSE

DVJ-1000

FWDREV

CUE/LOOP

CALL

MEMORYDELETE

Other (Troubleshooting)

Troubleshooting

Incorrect operations can be mistaken as malfunctions. If you believe the unit is not operating correctly, consult the chart below. Sometimes incorrect

operation may be due to a malfunction in another component. If the problem is not fixed, check the other components used with the player. If the

problem still persists, contact your nearest Pioneer authorized service center or dealer for service.

Symptom

No power.

Discs don’t eject when the EJECT

(0) button is pressed.

Playback doesn’t start when a disc

is inserted.

Playback stops immediately after

starting.

DVD-R/DVD-RW discs cannot be

played.

“NOT VIDEO FORMAT” is displayed.

Can’t play DVD.

The marks appear.

MP3 can’t be played.

Can’t search for MP3 files.

Images don’t appear on screen.

No sound.

Sound is distorted or has noise.

Certain discs produce much noise.

Playback is interrupted.

DVDs and CDs produce different

sound volumes.

When auto cue function is ON, track

search does not end.

During playback, back cue doesn’t

occur when CUE button is pressed.

Loop play doesn’t start when OUT/

OUT ADJUST button is pressed.

Auto cue setting is not retained.

All settings cannot be returned to

their factory defaults.

Probable Diagnosis

¶Power cord isn’t connected.

¶The eject/stop mode select switch is set to

LOCK.

¶Auto cue function is set to ON.

¶Disc is loaded with label side down.

¶Disc is fogged or dirty.

¶The disc has a different region number.

¶Disc isn’t recorded in video format.

¶NORMAL/DJ switch is set to “DJ”. Some DVDs

are constructed to prohibit playing in DJ mode.

¶Operation is prohibited by disc or player.

¶Format is wrong.

¶You attempted to search (fast forward/reverse) for

files in a different folder.

¶Output cables are loose or not connected

correctly.

¶Improper operation of television or video mixer,

etc.

¶Output cables are loose or not connected correctly.

¶Improper operation of audio mixer.

¶Connectors or plugs are dirty.

¶Player is set to pause mode.

¶Output cables are not connected correctly.

¶Connectors or plugs are dirty.

¶Electromagnetic influence from television.

¶Disc has large scratches.

¶Disc is very dirty.

¶Due to difference in recording formats.

¶If intervals between tracks is very long, track

search takes longer.

¶If a non-recorded intervals continue for more than

10 seconds, play will not begin unless auto cue

function is turned OFF.

¶No cue point is set.

¶NORMAL/DJ switch is set to “NORMAL”.

¶With DVD, some discs do not support DJ

operations during playback.

¶When playing MP3, cue point is in another folder.

¶No cue point (loop-in point) has been set.

¶NORMAL/DJ switch is set to “NORMAL”.

¶Cue points and angle, audio settings are different.

¶With DVD, some discs do not support point DJ

operations during playback.

¶The power was turned off right after settings

were made or changed.

Remedy

¶Connect power cord properly.

¶Set the player to pause mode or cue standby

mode then press EJECT (0) button.

¶Set the eject/stop mode selector switch to

UNLOCK then press EJECT (0) button.

¶Hold the TIME MODE/AUTO CUE button

depressed for 1 second or more to turn the

auto cue function off.

¶Reload the disc with label side up.

¶Clean the disc.

¶Check the disc for correct region number. If it

is not correct, it cannot be played on this unit.

¶Record disc in video format.

¶Set NORMAL/DJ switch to “NORMAL”.

¶Perform correct operation.

¶See section “Playing MP3 files” on page 10.

¶MP3 searches can be performed only within

the same folder.

¶Connect correctly.

¶Confirm settings of television or video mixer,

etc.

¶Connect cables correctly.

¶Check audio mixer’s switches and volume

settings.

¶Clean connectors and plugs.

¶Press PLAY/PAUSE (6) button to begin

playback.

¶Connect cables correctly to audio mixer line

input connectors. Do not connect to MIC

connector.

¶Clean connectors and plugs.

¶Turn off television or move farther away.

¶Replace disc.

¶Clean disc.

¶Not a malfunction.

¶Hold the TIME MODE/AUTO CUE button

depressed for 1 second or more to turn auto

cue function OFF.

¶Set a cue point. (☞ P.40)

¶Set NORMAL/DJ switch to “DJ”.

¶Play back a part supporting DJ operations.

¶Back cue with MP3 can be performed only

within the same folder.

¶Set a loop-in point. (☞ P.44)

¶Set NORMAL/DJ switch to “DJ”.

¶Set angle and audio conditions the same.

¶Play a part supporting DJ operations.

¶Wait 10 seconds before turning off the unit

after changing settings.

Other (Troubleshooting)

Symptom

Jog dial doesn’t respond.

Jog dial performs different operation

from that intended.

DJ operations don’t respond.

With power ON, disc stops.

Screen images stops and com-

mands don’t respond.

Setting items don’t appear on Setup

Menu.

Digital sound isn’t reproduced.

96 kHz audio is not output in digital.

DTS audio is not reproduced.

Image appears stretched horizon-

tally or vertically.

During DVD playback, image is

distorted or dark.

Subtitles don’t appear.

Can’t open Setup Menu.

When angle is changed, playback is

momentarily interrupted.

When audio format is changed,

playback is momentarily interrupted.

Title or chapter search command

doesn’t respond.

Can’t begin playback from title or

chapter designated before loading

disc.

Cue point navigation menu doesn’t

display thumbnail images.

Cue point memory cannot be

recorded.

Can’t use SD memory cards.

Probable Diagnosis

¶NORMAL/DJ switch is set to “NORMAL”.

¶Jog mode is incorrect.

¶Hyper-jog mode is incorrect.

¶With DVD, some discs do not support point DJ

operations during playback.

¶NORMAL/DJ switch is set to “NORMAL”.

¶With DVD, some discs or players do not support

point DJ operations during playback.

¶“DISABLE DJ MODE” is displayed.

¶With DVD, DJ operations not be possible when

playback is performed from the Setup Menu.

¶If left in pause mode without command input for

100 minutes or more, player automatically stops

disc rotation.

¶Disc rotation stops with disc playback completes

last track.

¶Operations prohibited on some discs.

¶Setup Menu is set for [Basic] mode.

¶[Digital Out] option is set to [Off].

[96kHz PCM Out] option is set to [96kHz 3 48kHz].

¶Some discs prohibit 96 kHz output.

¶Amplifier or decoder does not support DTS audio.

¶[TV Screen] option settings are incorrect.

¶S-terminal video output connection is incorrect.

¶Disc is equipped with analog copy protect

technology.

¶NORMAL/DJ switch is set to “DJ”. (Subtitles

aren’t displayed in DJ mode)

¶Setup cannot be performed during playback in DJ

mode.

¶In DJ mode, a special playback mode is used so

changing the angle causes temporary playback

interruption.

¶In DJ mode, a special playback mode is used so

changing the audio causes temporary playback

interruption.

¶With DVD, some discs do not support certain

operations.

¶With DVD, some discs require playback from a

specified place.

¶Disc is copy protected.

¶No memory card is loaded.

¶Disc loaded is CD.

¶During DVD/MP3 play, the inserted memory card

was recorded on a CDJ-1000, CDJ-1000MK2.

¶No memory card is loaded.

¶SD memory card has been set for write-protect.

¶SD memory card not loaded.

¶SD memory card has been set for write-protect.

¶SD memory card not formatted properly.

Remedy

¶Set NORMAL/DJ switch to “DJ”.

¶Press the JOG MODE button to select desired

jog mode (VINYL ON/OFF).

¶Press the HYPERJOG MODE button to select

desired mode.

¶Play a part supporting DJ operations.

¶Set NORMAL/DJ switch to “DJ”.

¶Play a part supporting DJ operations.

¶DJ operations are not supported here. Play a

part of the disc supporting DJ operations.

¶Press PLAY/PAUSE (6) button to resume

playback. Or press EJECT (0) button to

remove disc.

¶Press the STOP button, then begin playback

again.

¶Set Setup Menu to [Expert] mode.

¶Set [Digital Out] option to [On].

¶Set [96kHz PCM Out] option to [96kHz].

¶Press audio button to select audio format

other than DTS.

¶Set [TV Screen] options properly.

¶Due to television signal processing, images

may appear lengthened horizontally or

vertically. In this case, set [S-Video Out]

option to [S1].

¶Not a malfunction.

¶Set NORMAL/DJ switch to “NORMAL”.

¶Stop playback before performing settings.

¶Perform settings in NORMAL mode.

¶Not a malfunction.

¶If the disc includes a copy-protect signal,

thumbnail images cannot be recorded to the

memory card.

¶Insert memory card formatted in compliance

with SD memory card standards.

¶Thumbnail images are not displayed with CDs.

¶DVD/MP3 data cannot be recorded to

multimedia cards (MMC) recorded on a CDJ-

1000 or CDJ-1000MK2.

¶Insert memory card formatted in compliance

with SD memory card standards.

¶Set write-protect switch to allow writing to card.

¶Insert SD memory card.

Set write-protect switch to allow writing to card.

¶Insert memory card formatted in compliance

with SD memory card standards.

Other (Troubleshooting)

¶This component may fail to operate properly due to influence of static electricity or other external influences. In this case, try turning

off the POWER switch, and turn on the power again only when the disc has fully stopped rotating.

¶This unit cannot play DVD-R/DVD-RW discs recorded in video format unless they have been finalized.

¶This unit cannot play DVD-R/DVD-RW discs recorded in VR format.

¶This unit cannot play partially recorded CD-R/CD-RW discs that have not been finalized.

¶This unit plays only standard 12 cm discs and 8 cm discs mounted in proper disc adapters; it cannot play irregularly shaped discs

(damage or malfunctions may occur).

¶When playing 8 cm discs mounted on adapters, some speed loss may be experienced when using scratch and reverse operations.

This unit for high performance when rotating discs at high speed, but when 8 cm discs are mounted in adapters, the rotation speed

is reduced for safety. This is not a malfunction.

¶BPM values measured with this unit may differ from published values found on DVD or CD labels, or those measured on Pioneer DJ

mixers. This is a result of differences in BPM measuring methods, and is not a malfunction.

¶When playing DVD-R/DVD-RW or CD-R/CD-RW discs, some degradation in performance may be experienced depending on the

recording quality of the individual disc.

¶This unit supports analog copy-protection technology. Some discs include copy-protection signals and when such discs are played,

some images may display horizontal stripes or other distortions, this is not a malfunction. Also, when viewing or recording images

through a VTR, the copy guard device may prevent proper playback.

¶In DJ mode, the following option values change, regardless of the setting of the Setup Menu.

Setup Menu item Setting value

[TV Screen]: [4:3 (Letter Box)] (The 4:3(Pan&Scan) format is not supported in DJ mode.)

[Still Picture]: [Auto]

[Angle indicator]: [Off]

¶When playing DVDs, the same disc may display different playback patterns when played in DJ mode and NORMAL mode.

¶SD memory cards formatted using ordinary computer OS formatting software are not generally compatible with SD memory card

standards.

Error message display

When the unit is unable to operate properly, an error code is displayed on the display panel. Check the error code displayed against the

following table and take the recommended action to correct the error. If an error code other than any of the error codes listed in the

table below is displayed or if the same error code is displayed even after corrective action has been taken, contact your nearest Pioneer

Service Station or contact the store from which you purchased your player for assistance.

Error code

E–72 01

E–83 01

E–83 02

E–83 03

E-83 04

E-83 05

E–91 01

E–72 02

Error type

TOC READ ERROR

PLAYER ERROR

MP3 DECODE ERROR

DATA FORMAT ERROR

MECHANICAL TIME OUT

WRONG REGION NO.

Error content

Can’t read TOC data.

Can’t play this disc properly.

Loaded disc cannot be played properly.

Mechanical operation did not end within

specified time.

Does not match supported region number.

Cause and remedy

Disc is cracked.

= Replace disc.

Disc is dirty.

= Clean disc.

If other discs operate normally, problem is with

this disc.

Does not conform to MP3 format.

= Change to disc conforming to MP3 format.

Foreign object in disc loading slot.

= Remove foreign object.

Confirm the region number for the disc.

Discs cannot be played if their region number

is not supported.

Other (Dot Matrix Guide Display Messages)

Message

LOAD IN

END

EJECT

NO DISC

STOP

RESUME

STILL

PLAY

PAUSE

¡1, ¡2,

¡3

11, 12,

CHAPTER

LOOP

TRACK LOOP

NO TRACK

DISABLE DJ

MODE

NOT VIDEO

FORMAT

SETUP

NO TEXT

NORMAL

DJ MODE

SD CARD

CDJ CARD

*****DISCS

CARD

MEMORY

CANNOT

MEMORIZE ON

THIS CARD

CARD FULL

CARD

PROTECTED

INTERNAL

MEMORY

NO CARD

Event/Display Timing

Displayed when loading a disc.

Displayed at end of playback.

Displayed during ejection of a disc.

Displayed when no disc is loaded.

Displayed when the STOP button is pressed.

Displayed during resume mode.

Displayed when playing a still image during

DVD playback in NORMAL mode.

Displayed during DVD playback in NORMAL mode.

Displayed during DVD pause mode in NORMAL

mode.

Displayed during DVD chapter search or title

search in NORMAL mode.

Displays DVD fast forward speed in NORMAL

mode.

Displays DVD fast reverse speed in NORMAL

mode.

Displayed when one-track loop command is

received during DVD playback.

Displayed when one-track loop command is

received during CD or MP3 playback.

Displayed when the CD-ROM/CD-R/CD-RW

disc loaded contains no MP3 files.

Displayed during DVD play in DJ mode, when

attempting an operation at a point not sup-

ported in DJ mode.

Displayed when playing a DVD not recorded in

video format (VR format, DVD audio or DVD-

ROM/DVD-R/DVD-RW discs containing no MP3

files, etc.).

Displayed when television monitor shows

setup menu screen.

Displayed when showing menu or top menu

during DVD play.

Displayed when no supported text data is available.

Displayed when power is turned on in NOR-

MAL mode, or when switching the NORMAL/

DJ switch to NORMAL mode. Also displayed

when a button is pressed or operation at-

tempted that is not supported in NORMAL

mode.

Displayed when switching to DJ mode.

Displayed when a memory card conforming to

SD memory card standards is loaded.

Displayed when a memory card formatted on

CDJ-1000 or CDJ-1000MK2 is loaded.

Displayed when a memory card is loaded,

following the above display; indicates number

of disc data recorded on the card.

Displayed when cue point or loop point data is

recorded to memory card.

When playing DVD/MP3, displayed when

attempting to record to a card formatted on

CDJ-1000 or CDJ-1000MK2.

Displayed when the loaded memory card has

insufficient capacity.

Displayed when the write-protect (LOCK) function

has been set on the loaded memory card.

Displayed when attempting to record cue point

or loop point data without a properly loaded

memory card.

Displayed when no memory card is loaded.

Message

CLOSE CARD

DOOR

UNFORMAT

CARD ERROR

POINT FULL

PICTURE IS NOT

RECORDED

READ ERROR

CUE POINT

LOOP POINT

NO POINT

CUE Readin

LOOP Readin

HOT A Readin

HOT B Readin

HOT C Readin

COPY-MODE

CARD A IN

READING

CARD B IN

WRITING

COMPLETE

CAPACITY

ERROR

NO DATA

DISC DELETE ?

PUSH MEMORY

ALL DELETE ?

PUSH MEMORY

DELETE

A.CUE-**dB

AUTO

PAL

NTSC

factory defaults

Event/Display Timing

Displayed when a memory card is loaded, but

the memory card door has not been closed.

Displayed when the card loaded does not conform

to SD memory card standards, or was not

formatted on a CDJ-1000, CDJ-1000MK2 (MMC).

Displayed to indicate corrupted memory card.

Displayed when the total number of cue points

and loop points recorded has already reached 100.

Displayed when setting a point for a copy-

protected disc.

Displayed when the card inserted contains

corrupted data.

Displayed when using cue point navigation to

select cue point data.

Displayed when using cue point navigation to

select loop point data.

Displayed when point data is not recorded with

cue point navigation.

Displayed when using cue point navigation to

read in (call) cue point data.

Displayed when using cue point navigation to

read in (call) loop point data.

Displayed when reading in (calling) hot cue A

data from cue point navigation, or when hot

cue point is reread after loading a disc.

Displayed when reading in (calling) hot cue B

data from cue point navigation, or when hot

cue point is reread after loading a disc.

Displayed when reading in (calling) hot cue C

data from cue point navigation, or when hot

cue point is reread after loading a disc.

Displayed when beginning memory card copy

mode.

Displayed in copy mode when no source

memory card is loaded.

Displayed in copy mode when reading data

from source memory card.

Displayed in copy mode when no destination

memory card is loaded.

Displayed in copy mode when writing data to

destination memory card.

Displayed when memory card copying is

completed.

Displayed when destination memory card has

insufficient capacity.

Displayed when source memory card contains

no data.

Confirmation screen displayed when erasing

cue point/loop point memory data from

memory card in units of disc.

Confirmation screen displayed when erasing all

data from memory card.

Displayed while erasing data from memory card.

Displays auto cue level.

Displayed when TV system setting for video

output is set to AUTO.

Displayed when TV system setting for video

output is set to PAL.

Displayed when TV system setting for video

output is set to NTSC.

Displayed when all settings have been returned

to their factory default values.

Dot Matrix Guide Display Messages

Other (Specifications)

1. General

Type of Unit ........................................................ DVD video, CD

Power ............................................................... AC 120 V, 60 Hz

Power consumption .......................................................... 42 W

Operating environment temperature

........................................ +5 °C to +35 °C (+41 °F to +95 °F)

Operating environment humidity

............................... 5 % to 85 % (RH) without condensation

Weight................................................................ 5.4 kg (11.9 lb)

External dimensions

............................. 320 mm (W) × 408 mm (D) × 109 mm (H)

12 5/8 in. (W) × 16 1/16 in. (D) × 4 5/16 in. (H)

2. Video output section

Composite output (2)

Output level ...................................................... 1 Vp-p (75 Ω)

Output connector sets ................................ RCA (1), BNC (1)

S-Video output

Y output level .................................................... 1 Vp-p (75 Ω)

C output level ................................ 286 mVp-p (75 Ω) (NTSC)

300 mVp-p (75 Ω) (PAL)

Output connector ........................................................ S type

3. Preview video output section

Composite output

Output level ...................................................... 1 Vp-p (75 Ω)

Output connector ................................................... RCA type

S-Video output

Y output level .................................................... 1 Vp-p (75 Ω)

C output level ................................ 286 mVp-p (75 Ω) (NTSC)

300 mVp-p (75 Ω) (PAL)

Output connector ........................................................ S type

Specifications

4. Audio output section

Audio output (2-channel)

Audio output level .............................. 2.0 Vrms (1 kHz, 0 dB)

Channels .............................................................................. 2

Output connectors .................................................. RCA type

Digital audio output response

Frequency response (CD) ............................... 4 Hz to 20 kHz

Frequency response (DVD [96 kHz] ) .............. 4 Hz to 44 kHz

S/N ratio ........................................... 115 dB or above (JEITA)

Total harmonic distortion ............................. 0.004 % (JEITA)

Digital output

Coaxial digital output ..................................... RCA connector

5. Other connectors

Control connector........................................ Minijack (ø3.5 mm)

Sync input connector .................................................. BNC type

6. Accessories

¶Power cord .......................................................................... 1

¶Audio cable .......................................................................... 1

¶Video cable .......................................................................... 1

¶Control cord ......................................................................... 1

¶Forcible eject pin (mounted on unit’s bottom panel) ........... 1

¶Operating Instructions ......................................................... 1

¶Warranty card ...................................................................... 1

All specifications and descriptions are subject to change without

notice.

Supply of this product only conveys a license for private, non-com-

mercial use and does not convey a license nor imply any right to

use this product in any commercial (i.e. revenue-generating) real

time broadcasting (terrestrial, satellite, cable and/or any other me-

dia), broadcasting/streaming via internet, intranets and/or other

networks or in other electronic content distribution systems, such

as pay-audio or audio-on-demand applications. An independent

license for such use is required. For details, please visit

http://www.mp3licensing.com MPEG Layer-3 audio coding technology licensed from Fraunhofer

IIS and Thomson multimedia.

300 Allstate Parkway

Markham, ON L3R OP2

(905) 479-4411

1 (877) 283-5901

For warranty information please see the Limited Warranty

sheet included with your product.

Should this product require service in Canada, please contact a

Pioneer Canadian Authorized Dealer to locate the nearest Pio-

neer Authorized Service Company in Canada.

Alternatively, please contact the Customer Service Department

at the following address:

Pioneer Electronics of Canada, Inc.

Should this product require service in the U.S.A. and you wish

to locate the nearest Pioneer Authorized Independent Service

Company, or if you wish to purchase replacement parts,

operating instructions, service manuals, or accessories, please

call the number shown below.

800 – 421 – 1625

Please do not ship your product to Pioneer without first calling

the Customer Support Division at the above listed number for

assistance.

PIONEER ELECTRONICS (USA), INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH,

CA 90801-1760, U.S.A.

For warranty information please see the Limited Warranty

sheet included with your product.

Published by Pioneer Corporation.

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

Multimedia and Mass Storage Division: 2265 East 220th Street, Long Beach, CA 90810, U.S.A. TEL: 800-444-OPTI (6784)

PIONEER ELECTRONICS OF CANADA, INC.

Industrial Products Department: 300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: 905-479-4411

Printed in Japan <DRB1413-A>
