AUDIO/VIDEO MULTI-CHANNEL

RECEIVER

VSX-1016TXV-K

Operating Instructions

• Protect your new investment

The details of your purchase will be on file for reference in the event of an

insurance claim such as loss or theft.

• Improve product development

Your input helps us continue to design products that meet your needs.

• Receive a free Pioneer newsletter

Registered customers can opt in to receive a monthly newsletter.

• Receive free tips, updates and service bulletins on

your new product

www.pioneerelectronics.com (US)

www.pioneerelectronics.ca (Canada)

VSX-1016TXV_KU.book.fm 1 ページ２００６年３月２４日　金曜日　午後９時１９分

WARNING – TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

D1-4-2-1_En

IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR.

PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND

KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY. D1-4-2-6-1_En

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

D8-10-1-3_EF

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_En

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate

the equipment.

D8-10-2_En

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the

unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and

televisions, use shielded cables and connectors for connections.

D8-10-3a_En

CAUTION – TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION

CORD.

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

ATTENTION –

POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN

PROLONGATEUR, UNE PRISE DE COURANT, OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES

LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

D2-4-4-1_EF

For U.S. and Australia Model

C67-7-3_En

FEDERAL COMMUNICATIONS DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Product Name: AUDIO/VIDEO MULTI-CHANNEL RECEIVER

Model Number: VSX-1016TXV-K

Responsible Party Name: PIONEER ELECTRONICS SERVICE INC.

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90801-1760, USA

Phone: 310–952–2915

WARNING:

Handling the cord on this product or

cords associated with accessories sold with the

product will expose you to chemicals listed on

proposition 65 known to the State of California and

other governmental entities to cause cancer and

birth defect or other reproductive harm.

D36-P4_A_En

Wash hands after handling

VSX-1016TXV_KU.book.fm 2 ページ２００６年３月２４日　金曜日　午後９時１９分

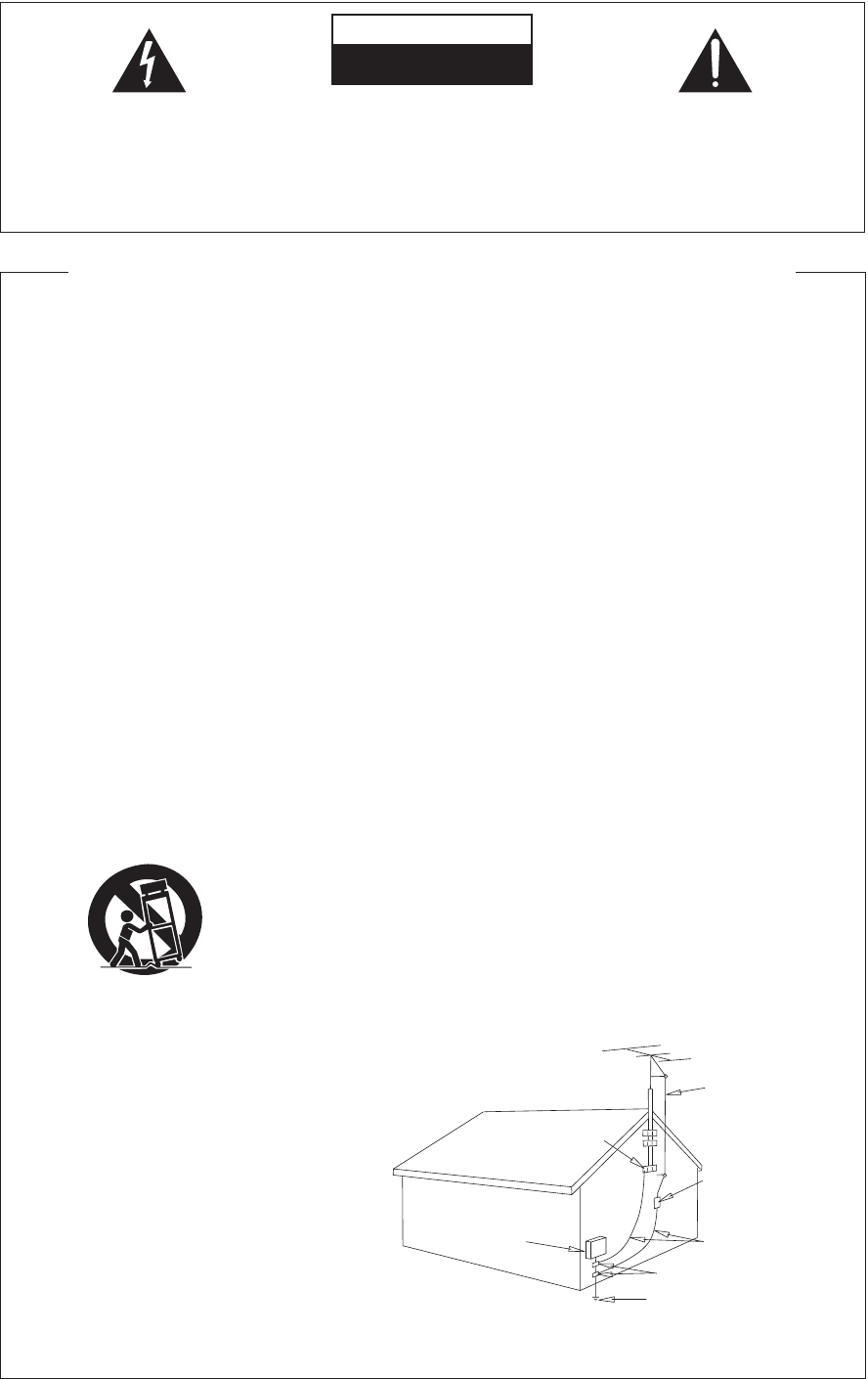

READ INSTRUCTIONS — All the safety and

operating instructions should be read before the

product is operated.

RETAIN INSTRUCTIONS — The safety and

operating instructions should be retained for

future reference.

HEED WARNINGS — All warnings on the product

and in the operating instructions should be

adhered to.

FOLLOW INSTRUCTIONS — All operating and use

instructions should be followed.

CLEANING — The product should be cleaned only

with a polishing cloth or a soft dry cloth. Never

clean with furniture wax, benzine, insecticides

or other volatile liquids since they may corrode

the cabinet.

ATTACHMENTS — Do not use attachments not

recommended by the product manufacturer as

they may cause hazards.

WATER AND MOISTURE — Do not use this

product near water — for example, near a

bathtub, wash bowl, kitchen sink, or laundry

tub; in a wet basement; or near a swimming

pool; and the like.

ACCESSORIES — Do not place this product on an

unstable cart, stand, tripod, bracket, or table.

The product may fall, causing serious injury to a

child or adult, and serious damage to the

product. Use only with a cart, stand, tripod,

bracket, or table recommended by the

manufacturer, or sold with the product. Any

mounting of the product should follow the

manufacturer’s instructions, and should use a

mounting accessory recommended by the

manufacturer.

CART — A product and cart combination should be

moved with care. Quick stops, excessive force,

and uneven surfaces may cause the product

and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet

are provided for ventilation and to ensure

reliable operation of the product and to protect

it from overheating, and these openings must

not be blocked or covered. The openings should

never be blocked by placing the product on a

bed, sofa, rug, or other similar surface. This

product should not be placed in a built-in

installation such as a bookcase or rack unless

proper ventilation is provided or the

manufacturer’s instructions have been adhered

to.

POWER SOURCES — This product should be

operated only from the type of power source

indicated on the marking label. If you are not

sure of the type of power supply to your home,

consult your product dealer or local power

company.

LOCATION – The appliance should be installed in a

stable location.

NONUSE PERIODS – The power cord of the

appliance should be unplugged from the outlet

when left un-used for a long period of time.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized

alternating current line plug (a plug having one

blade wider than the other), it will fit into the

outlet only one way. This is a safety feature. If

you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should

still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

• If this product is equipped with a three-wire

grounding type plug, a plug having a third

(grounding) pin, it will only fit into a grounding

type power outlet. This is a safety feature. If you

are unable to insert the plug into the outlet,

contact your electrician to replace your obsolete

outlet. Do not defeat the safety purpose of the

grounding type plug.

POWER-CORD PROTECTION — Power-supply

cords should be routed so that they are not likely

to be walked on or pinched by items placed

upon or against them, paying particular

attention to cords at plugs, convenience

receptacles, and the point where they exit from

the product.

OUTDOOR ANTENNA GROUNDING — If an

outside antenna or cable system is connected to

the product, be sure the antenna or cable

system is grounded so as to provide some

protection against voltage surges and built-up

static charges. Article 810 of the National

Electrical Code, ANSI/NFPA 70, provides

information with regard to proper grounding of

the mast and supporting structure, grounding of

the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of

antenna-discharge unit, connection to

grounding electrodes, and requirements for the

grounding electrode. See Figure A.

LIGHTNING — For added protection for this

product during a lightning storm, or when it is

left unattended and unused for long periods of

time, unplug it from the wall outlet and

disconnect the antenna or cable system. This

will prevent damage to the product due to

lightning and power-line surges.

POWER LINES — An outside antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power

circuits, or where it can fall into such power

lines or circuits. When installing an outside

antenna system, extreme care should be taken

to keep from touching such power lines or

circuits as contact with them might be fatal.

OVERLOADING — Do not overload wall outlets,

extension cords, or integral convenience

receptacles as this can result in a risk of fire or

electric shock.

OBJECT AND LIQUID ENTRY — Never push

objects of any kind into this product through

openings as they may touch dangerous voltage

points or short-out parts that could result in a

fire or electric shock. Never spill liquid of any

kind on the product.

SERVICING — Do not attempt to service this

product yourself as opening or removing covers

may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service

personnel.

DAMAGE REQUIRING SERVICE — Unplug this

product from the wall outlet and refer servicing

to qualified service personnel under the

following conditions:

• When the power-supply cord or plug is

damaged.

• If liquid has been spilled, or objects have fallen

into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation.

• If the product has been dropped or damaged in

any way.

• When the product exhibits a distinct change in

performance — this indicates a need for service.

REPLACEMENT PARTS — When replacement parts

are required, be sure the service technician has

used replacement parts specified by the

manufacturer or have the same characteristics

as the original part. Unauthorized substitutions

may result in fire, electric shock, or other

hazards.

SAFETY CHECK — Upon completion of any service

or repairs to this product, ask the service

technician to perform safety checks to

determine that the product is in proper

operating condition.

WALL OR CEILING MOUNTING — The product

should not be mounted to a wall or ceiling.

HEAT — The product should be situated away from

heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers)

that produce heat.

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

LEAD IN

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

Fig. A

IMPORTANT SAFETY INSTRUCTIONS

D1-4-2-2_En

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead, within

an equilateral triangle, is intended to alert

the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

D1-4-2-3_En

VSX-1016TXV_KU.book.fm 3 ページ２００６年３月２４日　金曜日　午後９時１９分

Contents

01 Before you start

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Checking what’s in the box. . . . . . . . . . . . . . . . . . . . . . . 6

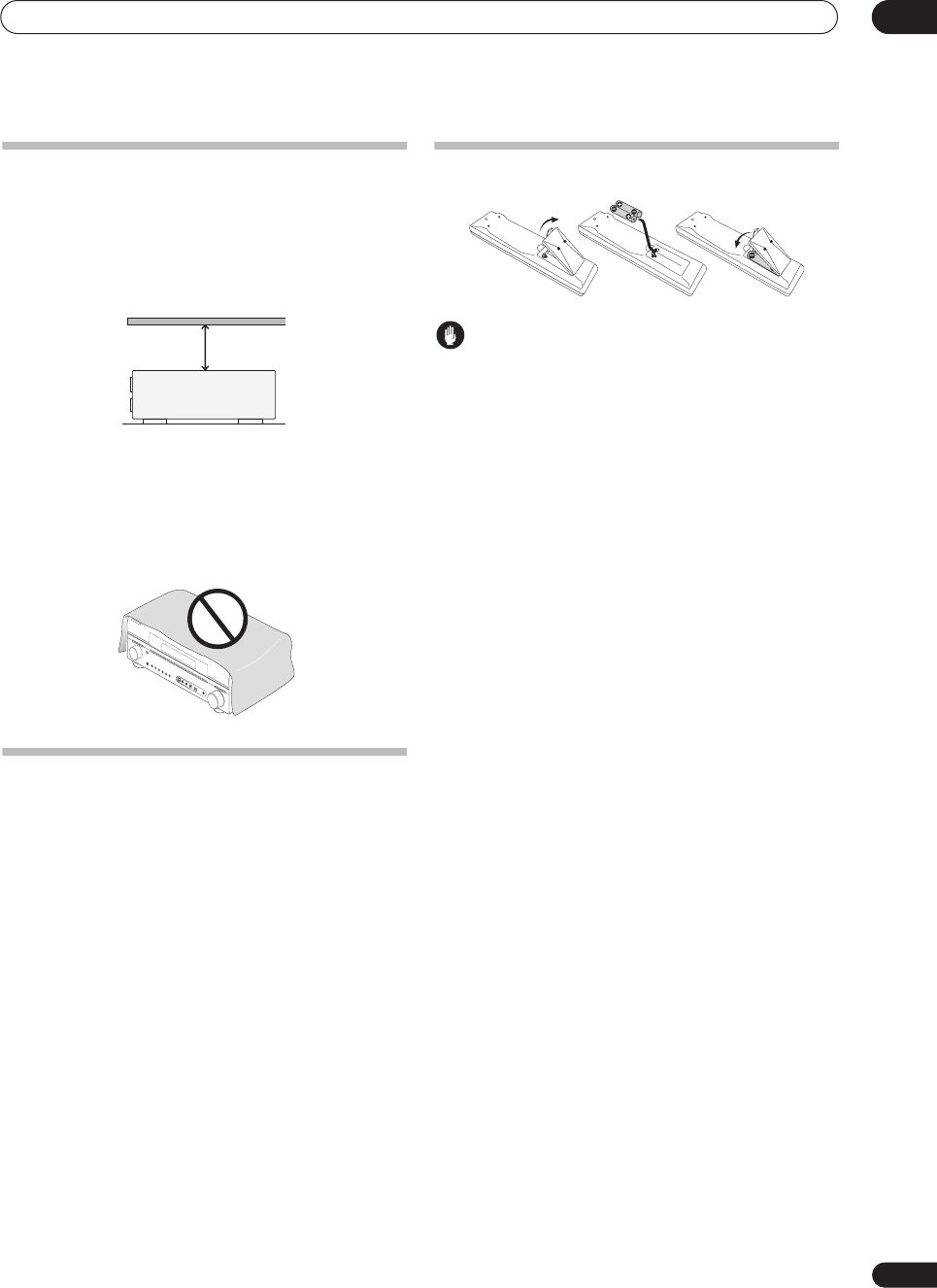

Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Loading the batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

02 5 minute guide

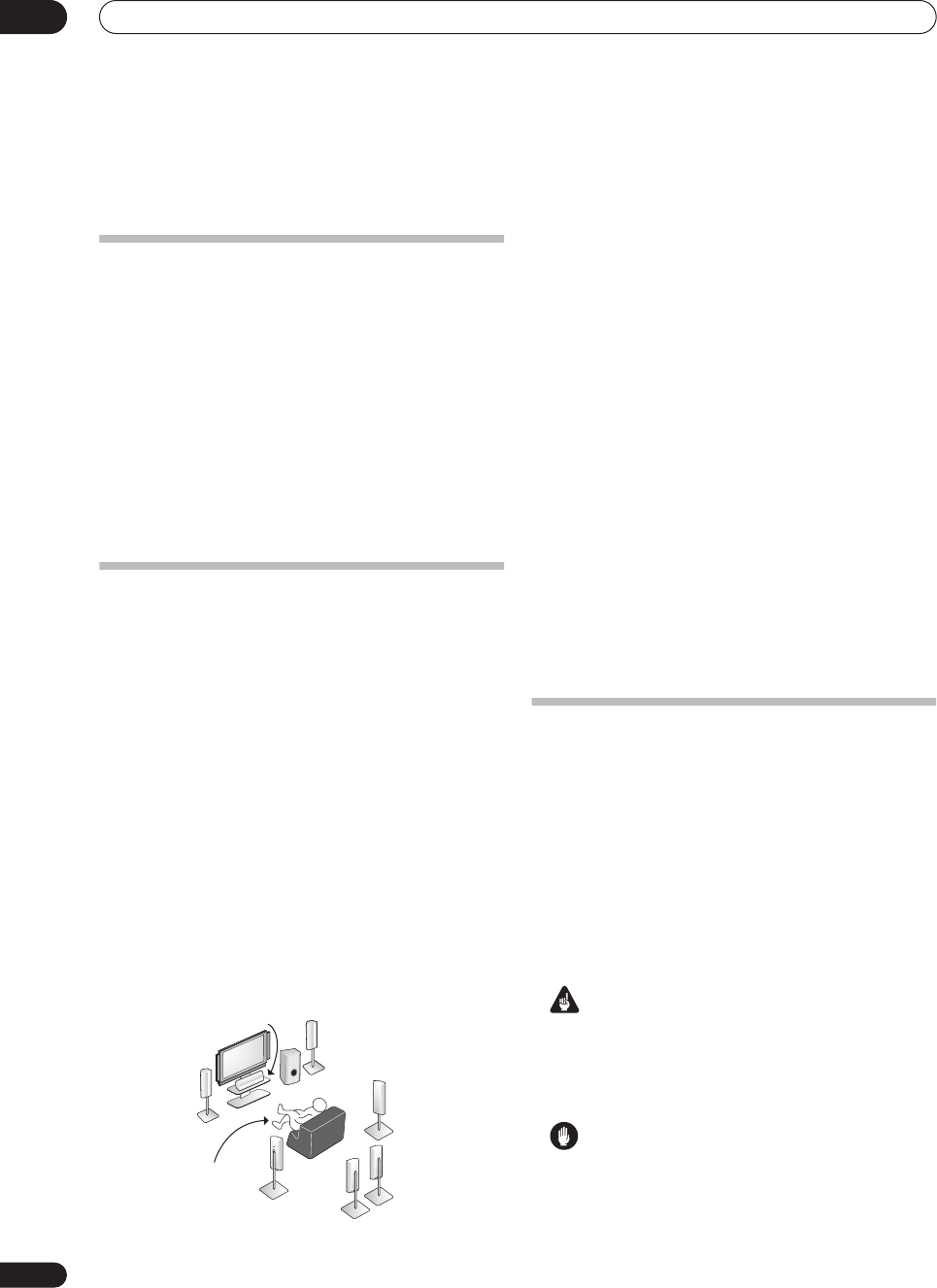

Introduction to home theater . . . . . . . . . . . . . . . . . . . . . 8

Listening to Surround Sound . . . . . . . . . . . . . . . . . . . . . 8

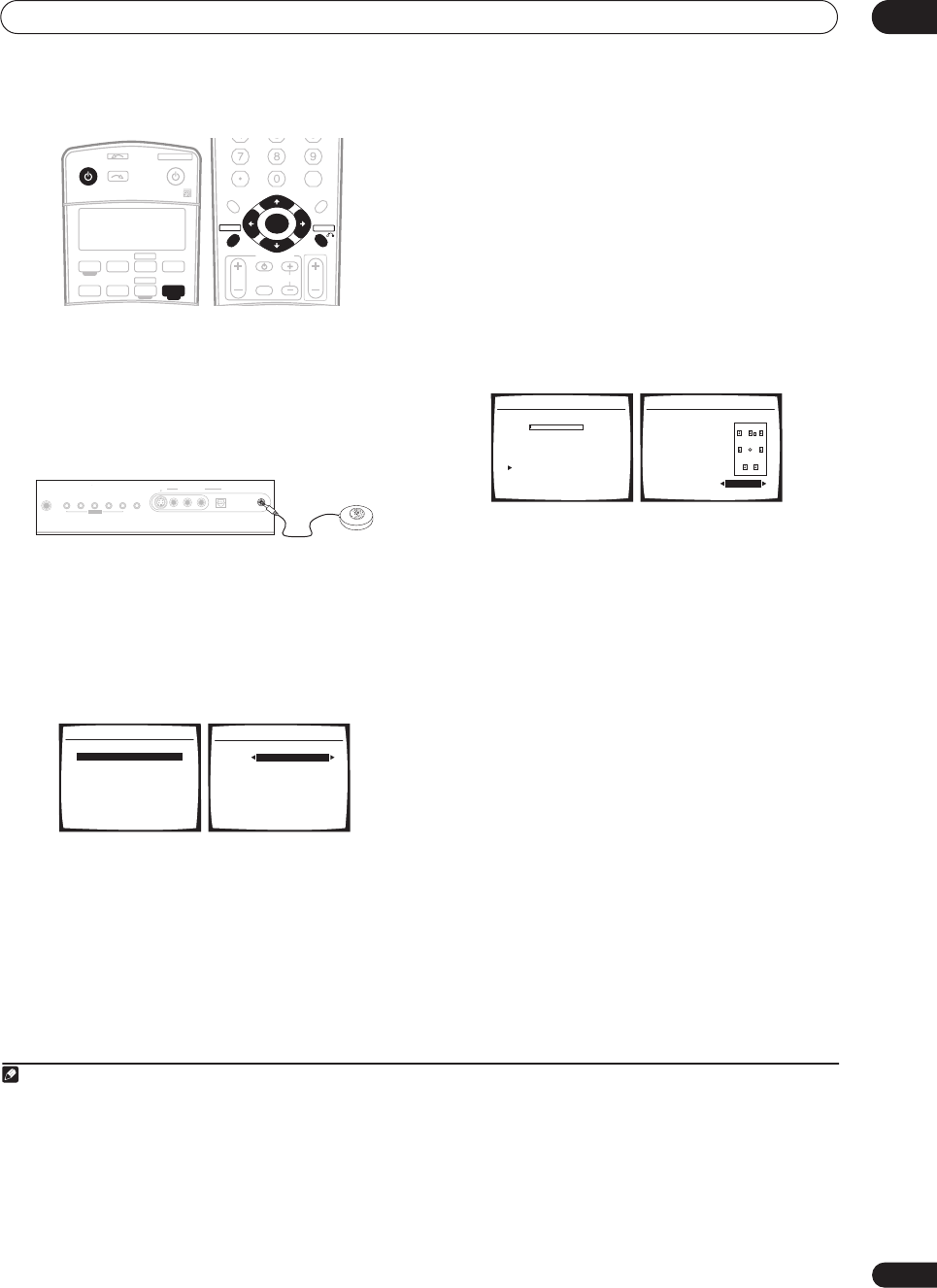

Automatically setting up for surround sound

(MCACC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Problems when using the Auto MCACC Setup . . . . 10

Playing a source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Better sound using Basic Phase Control . . . . . . . . . . 10

03 Connecting your equipment

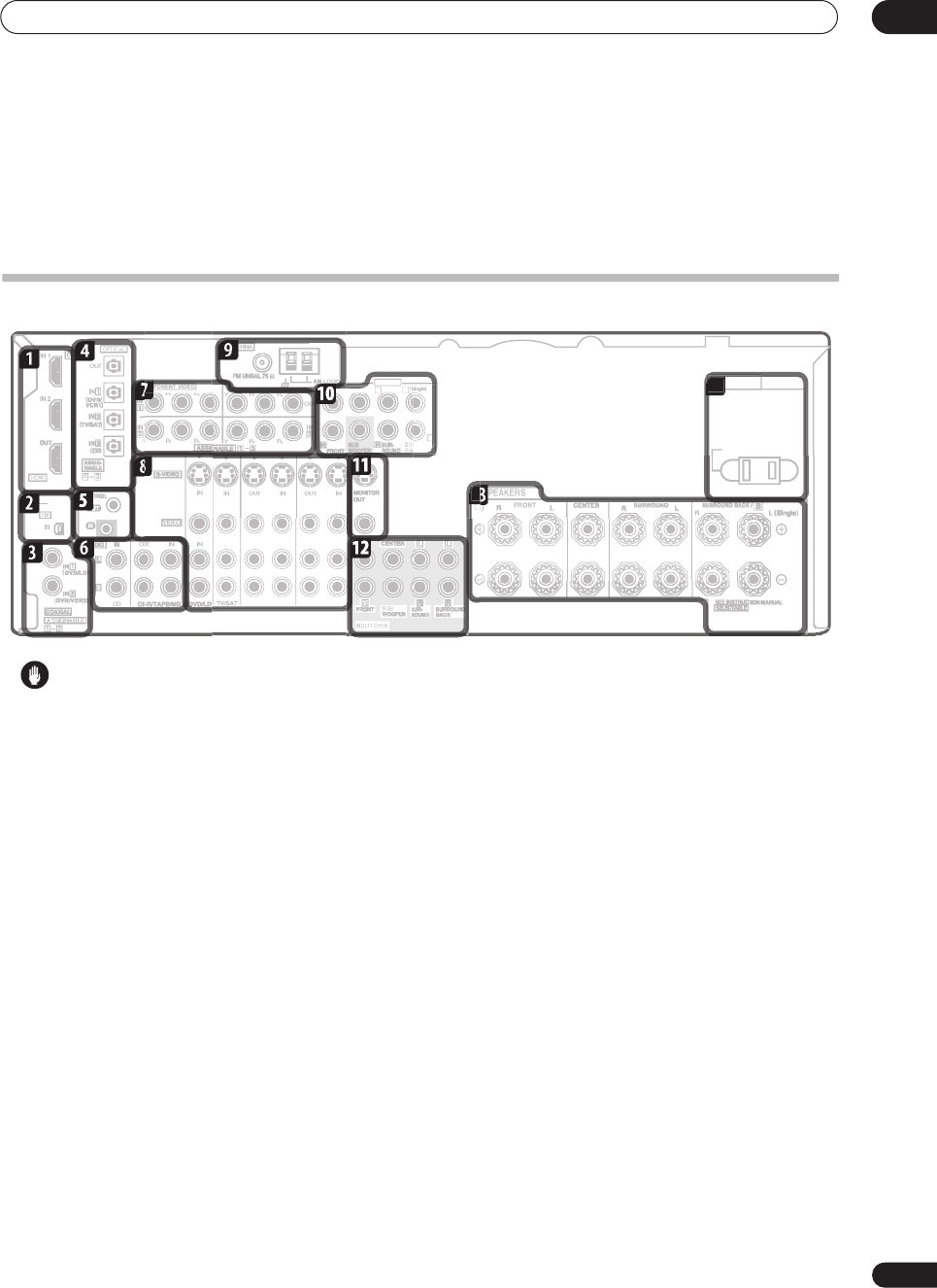

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

When making cable connections. . . . . . . . . . . . . . . . . 12

About the video converter . . . . . . . . . . . . . . . . . . . . . . . 12

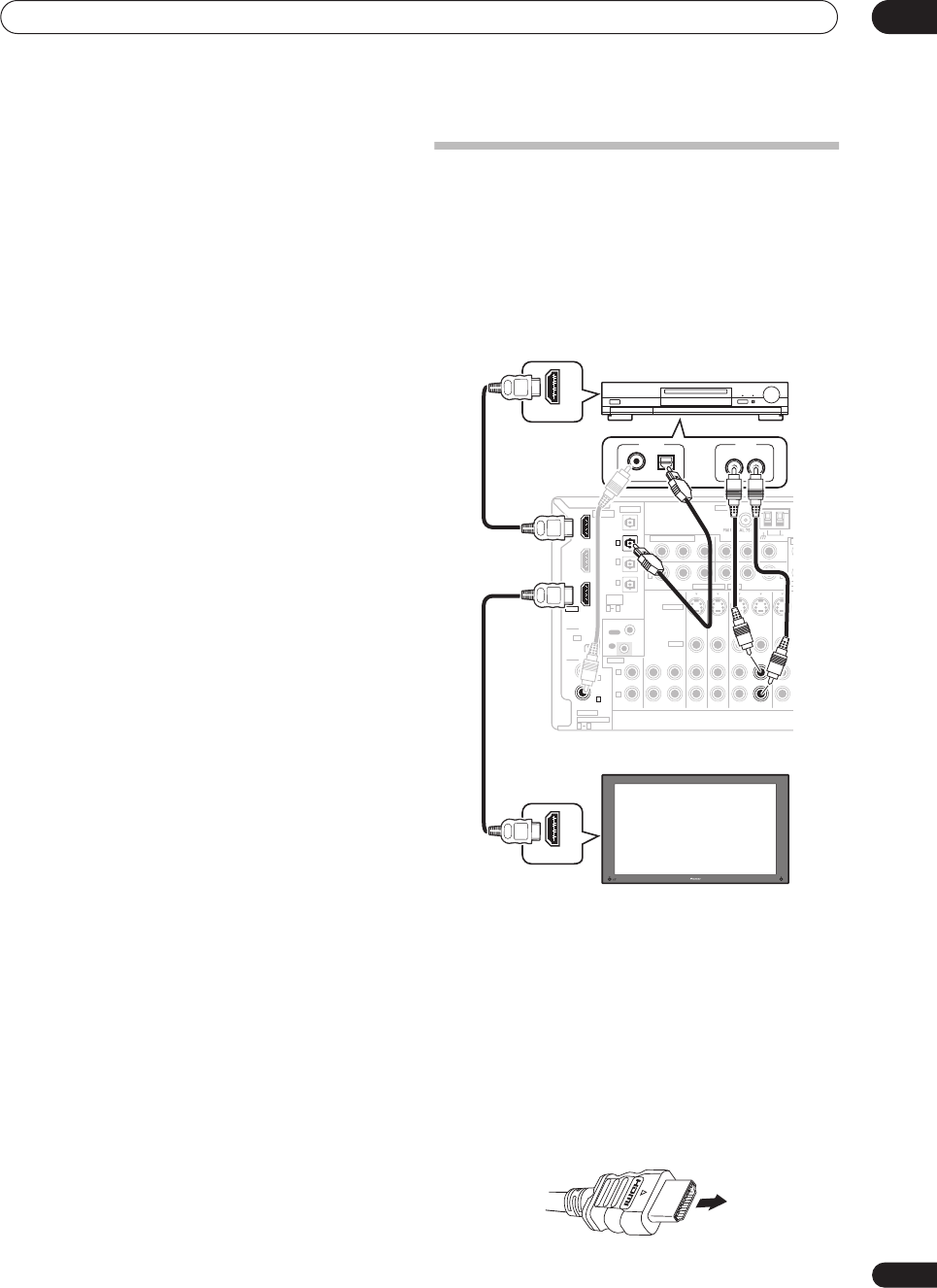

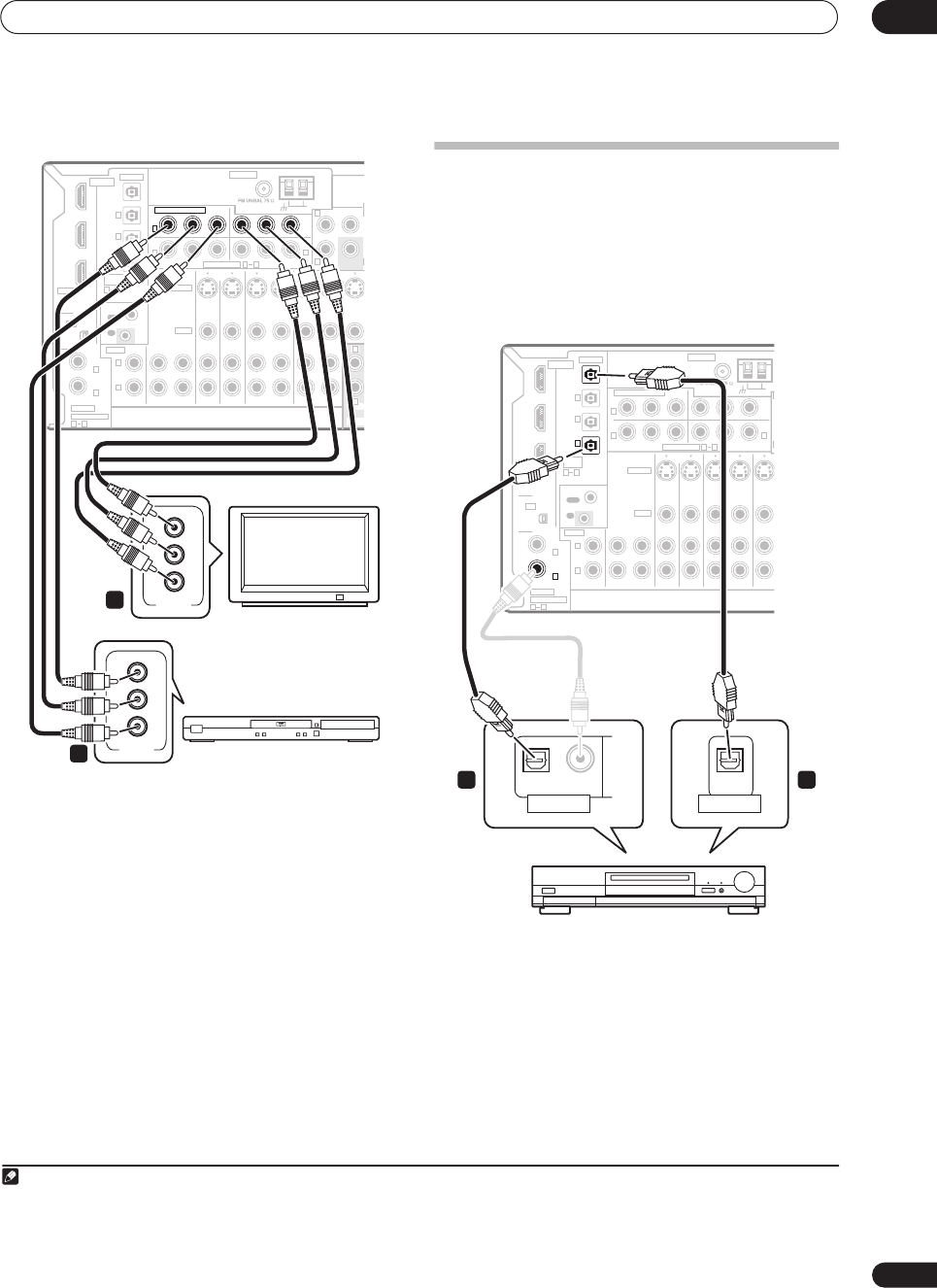

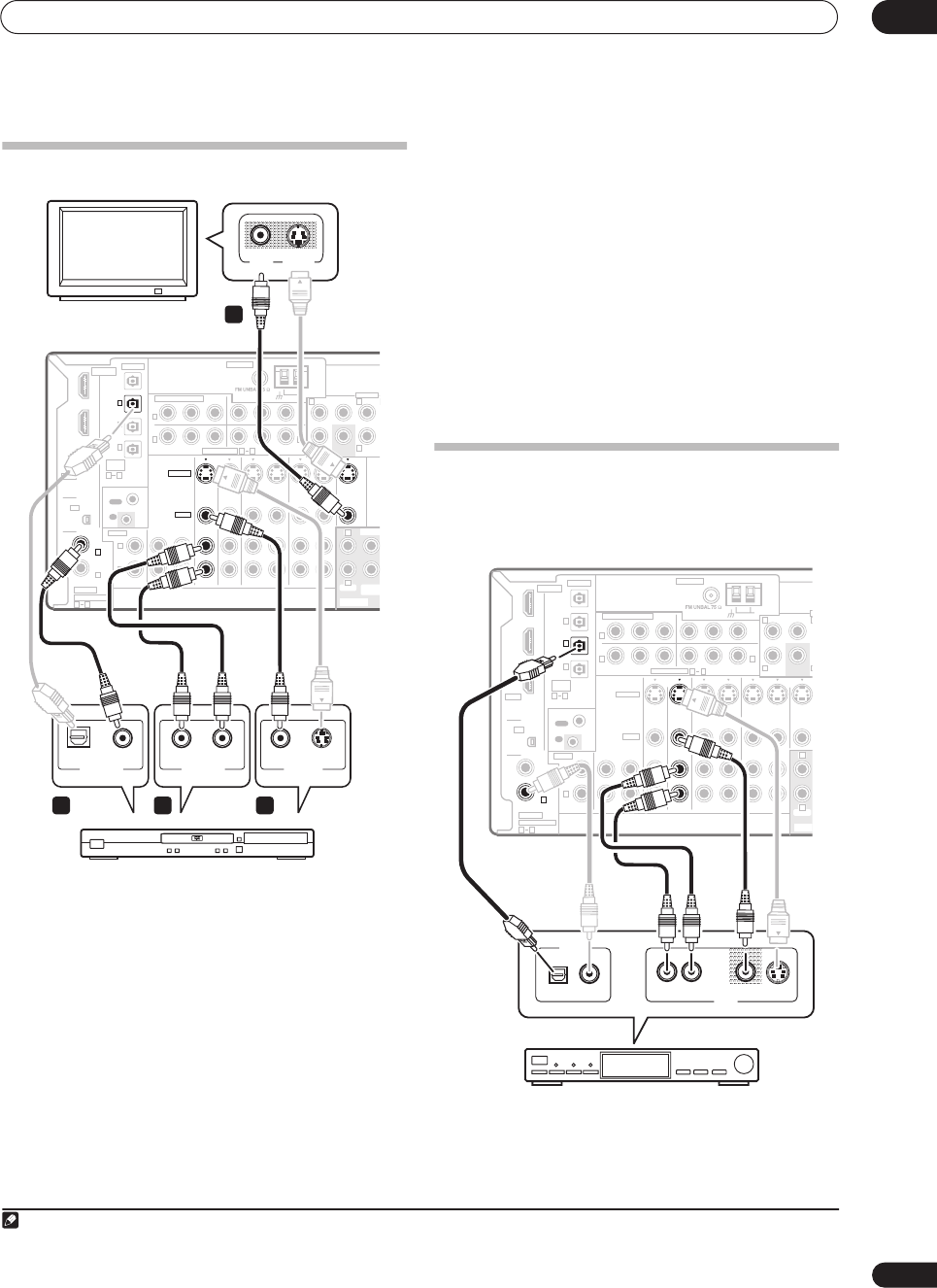

Connecting your TV and DVD player . . . . . . . . . . . . . . 13

Connecting a satellite/cable receiver or other

set-top box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting a DVD/HDD recorder, VCR and

other video sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the component video jacks . . . . . . . . . . . . . . . . 14

Connecting digital audio sources . . . . . . . . . . . . . . . . 15

About the WMA9 Pro decoder. . . . . . . . . . . . . . . . . . 16

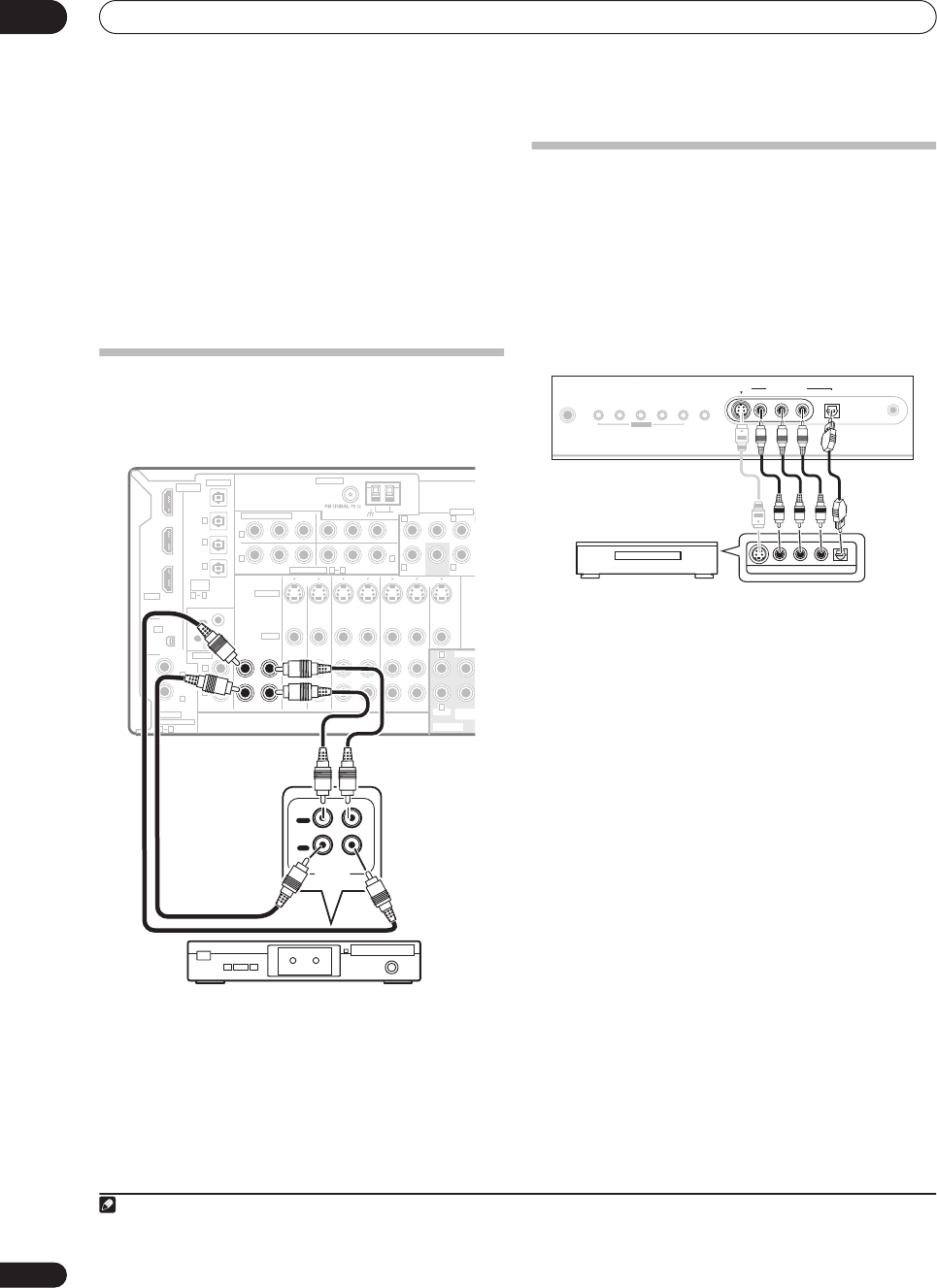

Connecting analog audio sources . . . . . . . . . . . . . . . . 16

Connecting a component to the front panel

inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installing your speaker system . . . . . . . . . . . . . . . . . . . 17

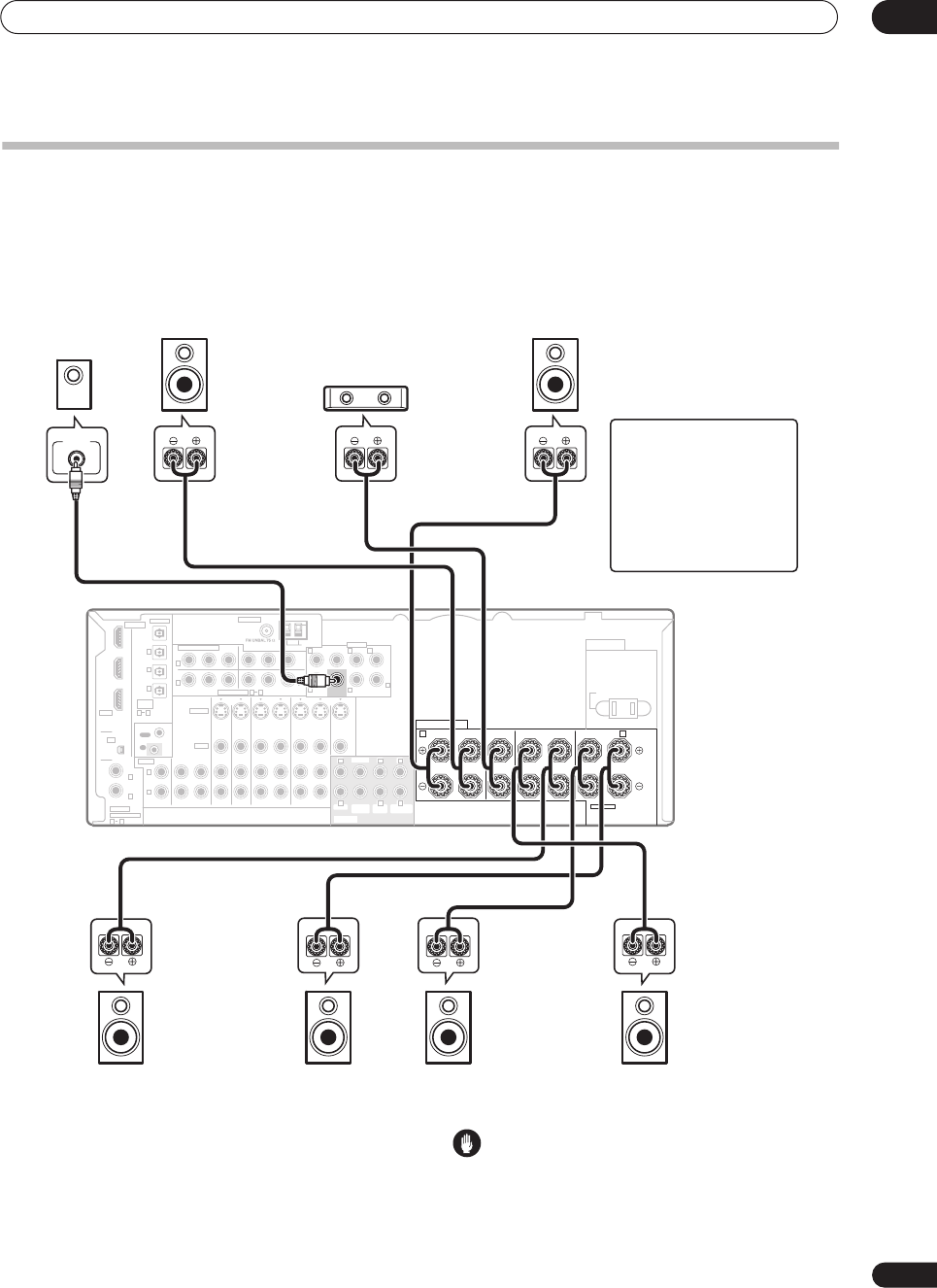

Connecting the speakers . . . . . . . . . . . . . . . . . . . . . . 17

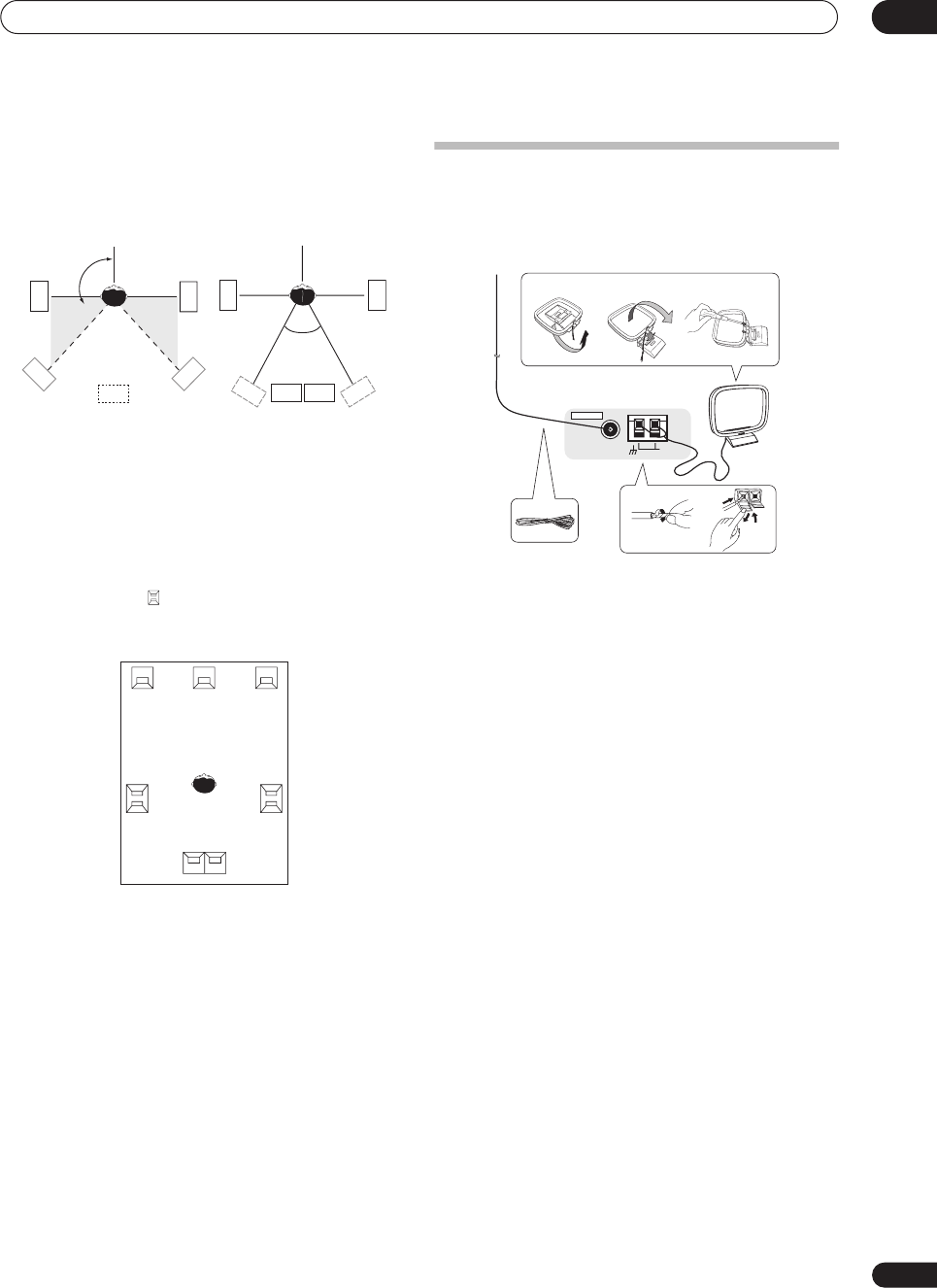

Placing the speakers. . . . . . . . . . . . . . . . . . . . . . . . . . 18

THX speaker system setup . . . . . . . . . . . . . . . . . . . . . 19

Connecting antennas . . . . . . . . . . . . . . . . . . . . . . . . . . 19

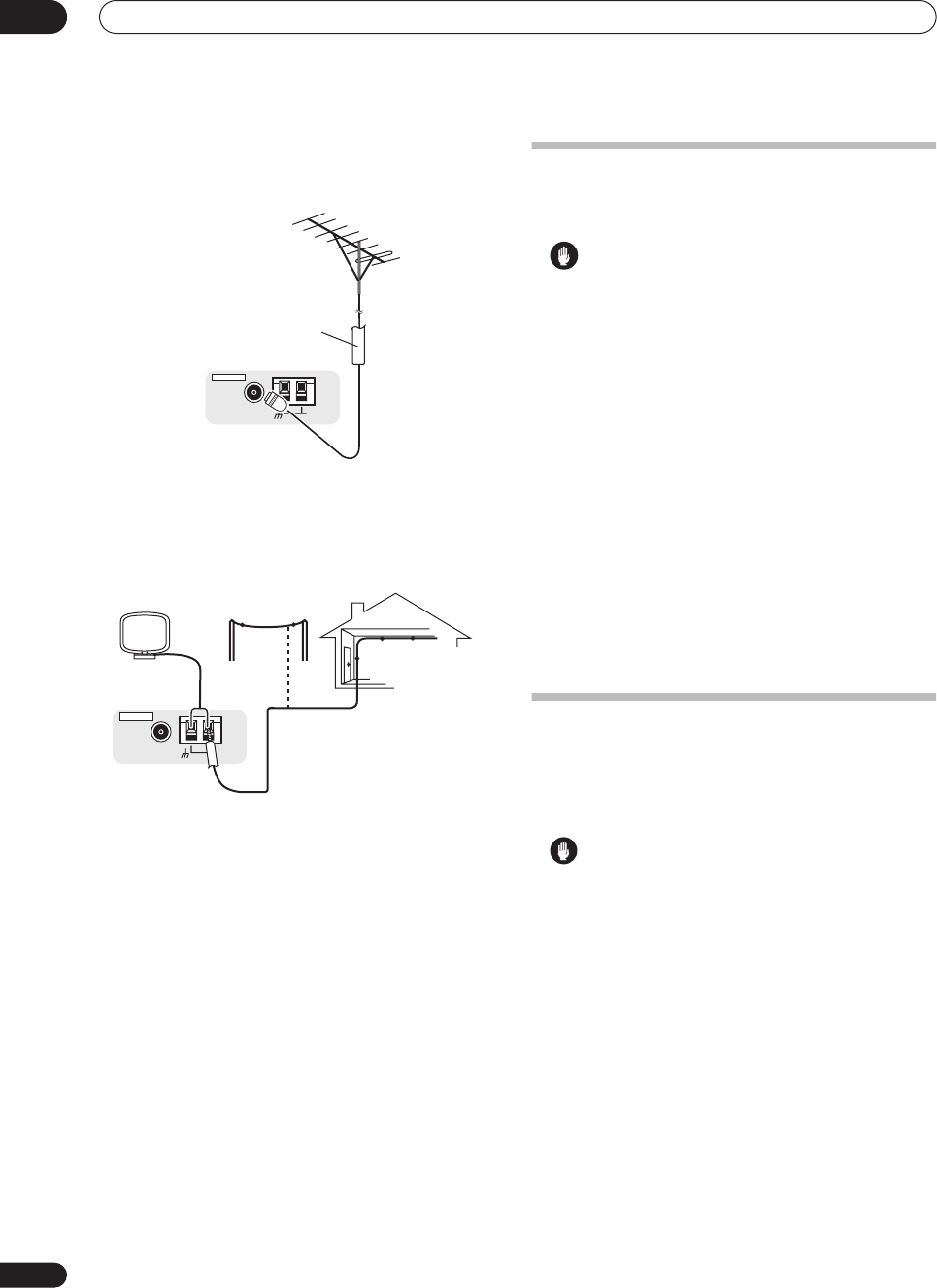

Connecting external antennas. . . . . . . . . . . . . . . . . . 20

Plugging in the receiver . . . . . . . . . . . . . . . . . . . . . . . . 20

AC outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

04 Controls and displays

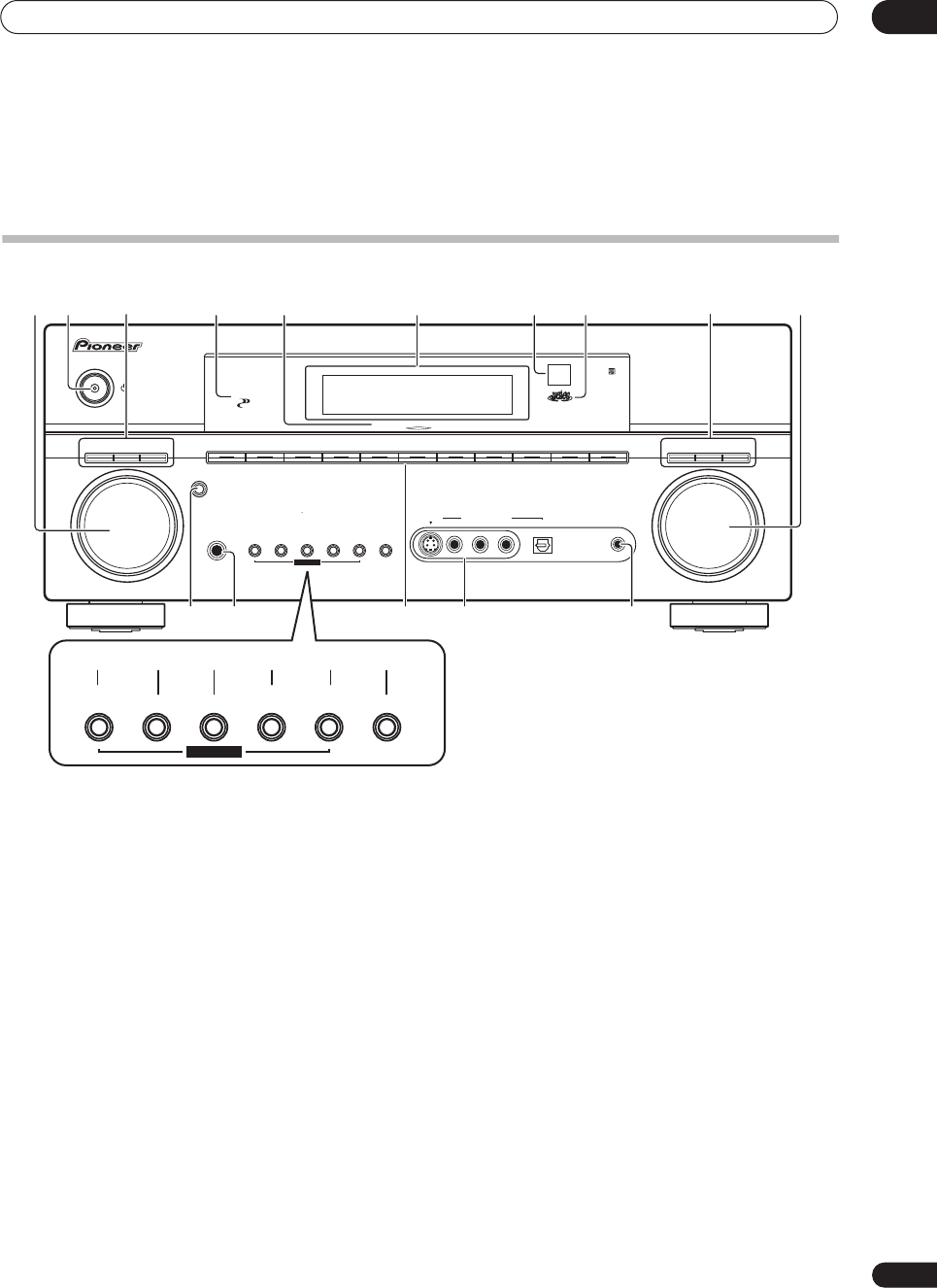

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

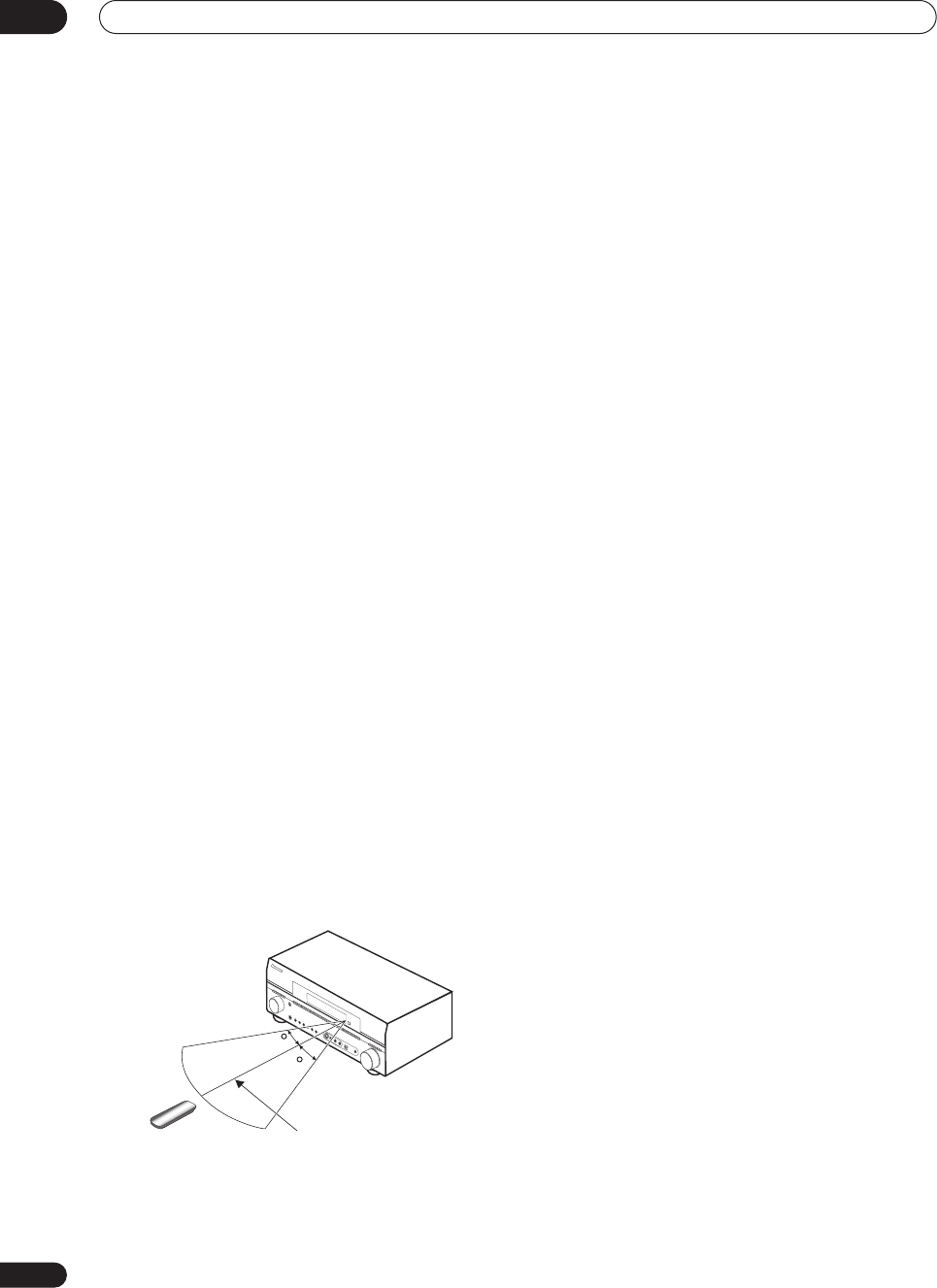

Operating range of remote control unit . . . . . . . . . . 22

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

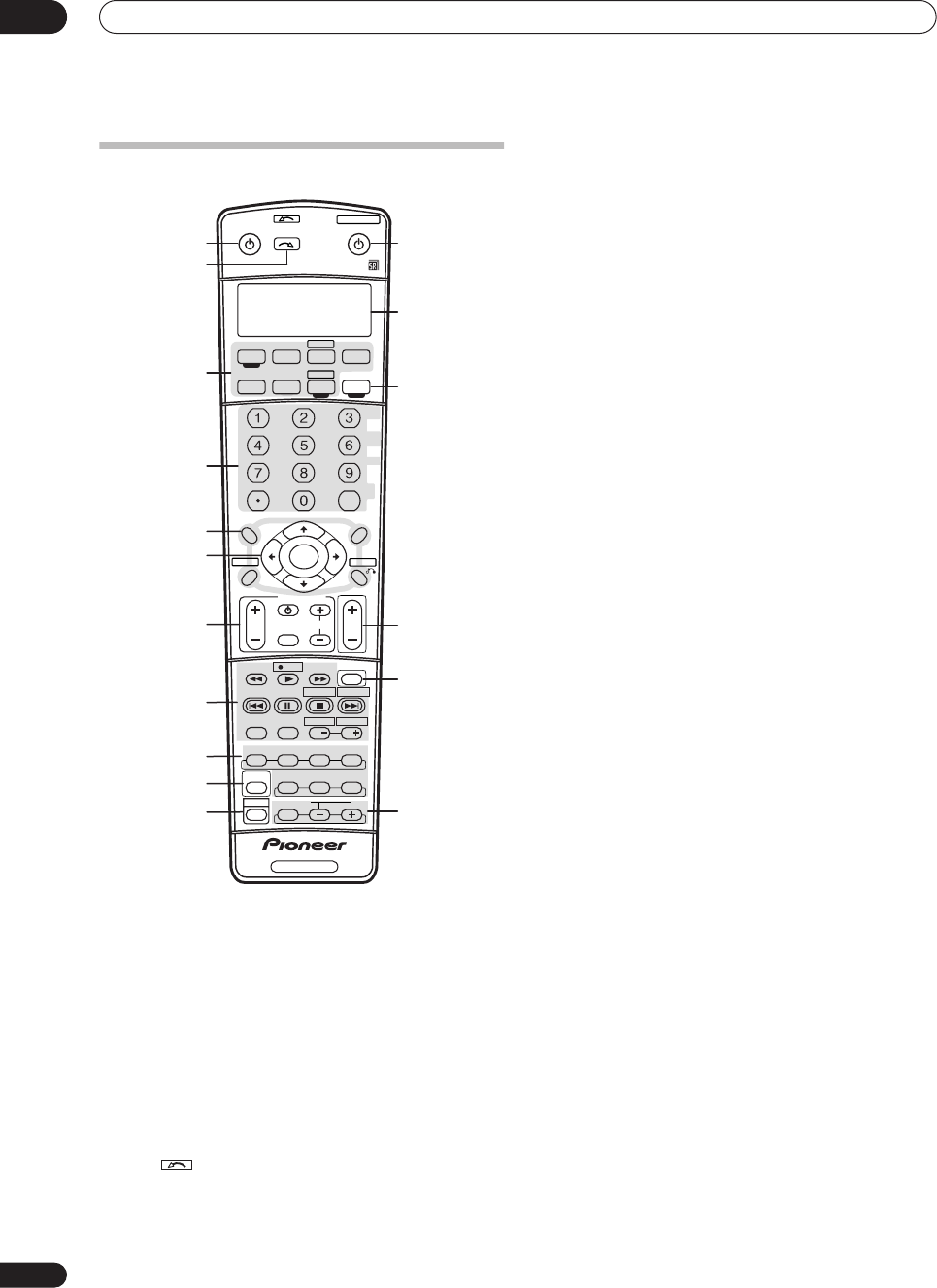

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

05 Listening to your system

Auto playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Listening in surround sound . . . . . . . . . . . . . . . . . . . . 26

Standard surround sound . . . . . . . . . . . . . . . . . . . . . 26

Using the Home THX modes. . . . . . . . . . . . . . . . . . . 27

Using the Advanced surround effects . . . . . . . . . . . 27

Setting the effect options. . . . . . . . . . . . . . . . . . . . . . 27

Listening in stereo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Listening with Acoustic Calibration EQ . . . . . . . . . . . 28

Choosing the input signal . . . . . . . . . . . . . . . . . . . . . . 29

Using surround back channel processing . . . . . . . . . 29

Using the Virtual Surround Back mode . . . . . . . . . . 29

Using Midnight and Loudness. . . . . . . . . . . . . . . . . . . 30

Using the Sound Retriever . . . . . . . . . . . . . . . . . . . . . . 30

Enhancing dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the tone controls . . . . . . . . . . . . . . . . . . . . . . . . 30

06 Using the tuner

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Improving FM stereo sound. . . . . . . . . . . . . . . . . . . . 31

Tuning directly to a station . . . . . . . . . . . . . . . . . . . . 31

Saving station presets . . . . . . . . . . . . . . . . . . . . . . . . . 31

Naming station presets . . . . . . . . . . . . . . . . . . . . . . . 32

Listening to station presets . . . . . . . . . . . . . . . . . . . . 32

07 The System Setup menu

Making receiver settings from the System Setup

menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Surround back speaker setting . . . . . . . . . . . . . . . . . . 33

Manual MCACC setup . . . . . . . . . . . . . . . . . . . . . . . . . 34

Fine Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Fine Speaker Distance . . . . . . . . . . . . . . . . . . . . . . . . 35

Acoustic Calibration EQ. . . . . . . . . . . . . . . . . . . . . . . 35

Manual speaker setup . . . . . . . . . . . . . . . . . . . . . . . . . 37

Speaker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Crossover Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Speaker Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

THX Audio Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

THX Speaker Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate

your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

VSX-1016TXV_KU.book.fm 4 ページ２００６年３月２４日　金曜日　午後９時１９分

08 Other connections

Using XM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Connecting your XM Radio receiver . . . . . . . . . . . . . 40

Listening to XM Radio. . . . . . . . . . . . . . . . . . . . . . . . . 40

Using XM HD Surround . . . . . . . . . . . . . . . . . . . . . . . 41

Saving channel presets . . . . . . . . . . . . . . . . . . . . . . . 41

Connecting using HDMI . . . . . . . . . . . . . . . . . . . . . . . . 41

About HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Connecting the multichannel analog inputs . . . . . . . 42

Selecting the multichannel analog inputs . . . . . . . . 42

Second Zone speaker B setup . . . . . . . . . . . . . . . . . . . 42

Switching the speaker system . . . . . . . . . . . . . . . . . . 43

Bi-amping your front speakers . . . . . . . . . . . . . . . . . . . 43

Bi-wiring your speakers. . . . . . . . . . . . . . . . . . . . . . . . . 44

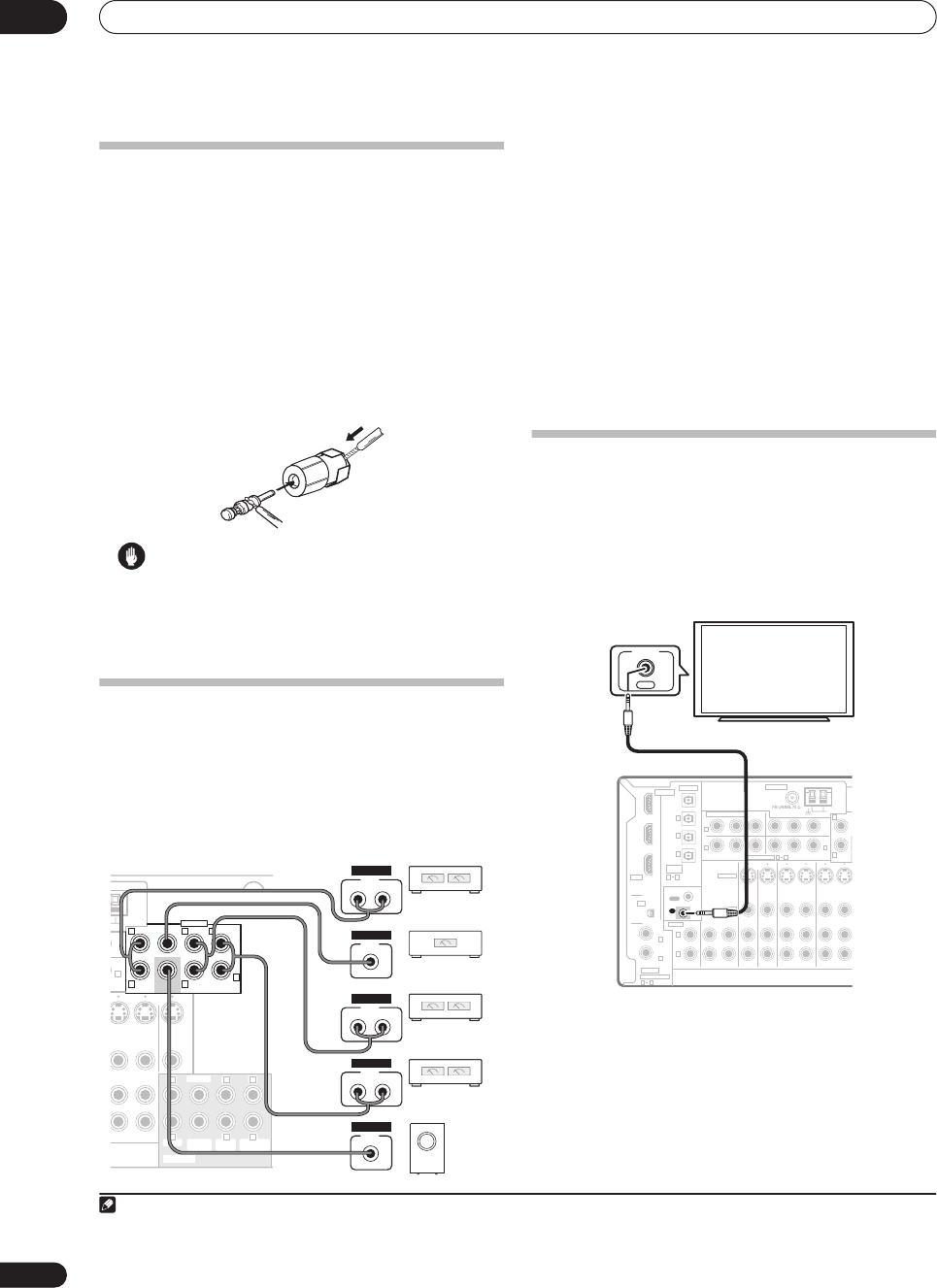

Connecting additional amplifiers. . . . . . . . . . . . . . . . . 44

Using this receiver with a Pioneer plasma display. . . 44

Using the SR+ mode with a Pioneer plasma

display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

09 Other Settings

The Input Assign menu. . . . . . . . . . . . . . . . . . . . . . . . . 46

The Other Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . 47

Dynamic Range Control Setup . . . . . . . . . . . . . . . . . 47

Dual Mono Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

LFE Attenuator Setup . . . . . . . . . . . . . . . . . . . . . . . . . 48

SR+ Setup for Pioneer plasma displays. . . . . . . . . . 48

Video Converter Setup . . . . . . . . . . . . . . . . . . . . . . . . 48

10 Using other functions

Making an audio or a video recording . . . . . . . . . . . . . 49

Reducing the level of an analog signal . . . . . . . . . . . . 49

Watching video and audio sources independently . . 49

Using the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Dimming the display . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Switching the speaker impedance. . . . . . . . . . . . . . . . 50

Resetting the system. . . . . . . . . . . . . . . . . . . . . . . . . . . 50

11 Controlling the rest of your system

Setting the remote to control other components . . . . 51

Selecting preset codes directly . . . . . . . . . . . . . . . . . . 51

Programming signals from other remote controls. . . 51

Erasing one of the remote control button settings. . . 52

Resetting the remote control presets . . . . . . . . . . . . . 52

Confirming preset codes. . . . . . . . . . . . . . . . . . . . . . . . 52

Direct function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Multi Operation and System Off. . . . . . . . . . . . . . . . . . 53

Programming a multi-operation or a shutdown

sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Using multi operations . . . . . . . . . . . . . . . . . . . . . . . . 54

Using System off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Controls for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Controls for other components . . . . . . . . . . . . . . . . . . 55

Operating other Pioneer components with this

unit’s sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

12 Additional information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

No sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Other audio problems . . . . . . . . . . . . . . . . . . . . . . . . 58

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

XM radio messages . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Surround sound formats . . . . . . . . . . . . . . . . . . . . . . . 62

Dolby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

DTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Windows Media® Audio 9 Professional . . . . . . . . . 62

About THX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Listening modes with different input signal

formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Cleaning the unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

This product is for general household purposes. Any

failure due to use for other than household purposes

(such as long-term use for business purposes in a

restaurant or use in a car or ship) and which requires

repair will be charged for even during the warranty

period. K041_En

VSX-80TXV_81TXV_TOC.fm 5 ページ２００６年４月４日　火曜日　午後６時１０分

Before you start

Chapter 1:

Before you start

Features

• Advanced Direct Energy design

This receiver offers a new advancement in discrete

design unique to Pioneer for high-power drivability, low

distortion and stable imaging. Through symmetrical

placement of power amplification units, this receiver

generates equal amplifier power to all channels,

eliminating the possibility of one channel dominating a

particular sound field.

• Easy setup using Multichannel Acoustic

Calibration (MCACC)

Setting up for home theater sound is as easy as

connecting your speakers, a DVD player or other source,

and your TV. The Auto Surround Setup provides a quick

but accurate surround sound setup, while for complete

surround sound control you still have access to the full

range of surround sound settings.

• THX Select2 certified design

This receiver bears the THX Select2 logo, which means it

has passed a rigorous series of quality and performance

tests covering every aspect of the product. This includes

testing of pre-amplifier and power amplifier performance

and operation, and hundreds of other parameters in both

the digital and analog domain, making your home

theater experience as faithful as possible to what the

director intended.

•Dolby Digital and DTS decoding, including Dolby

Digital EX, Dolby Pro Logic IIx, DTS 96/24 and DTS-ES

Dolby Digital and DTS decoding brings theater sound

right into your home with up to six channels of surround

sound, including a special LFE (Low Frequency Effects)

channel for deep, realistic sound effects.

The built-in Dolby Pro Logic IIx and DTS Neo:6 decoders

not only provide full surround sound decoding for Dolby

Surround sources, but will also generate convincing

surround sound for any stereo source.

Also, with the addition of a surround back speaker, you

can take advantage of the built-in Dolby Digital EX and

DTS-ES decoders for six-channel surround sound.

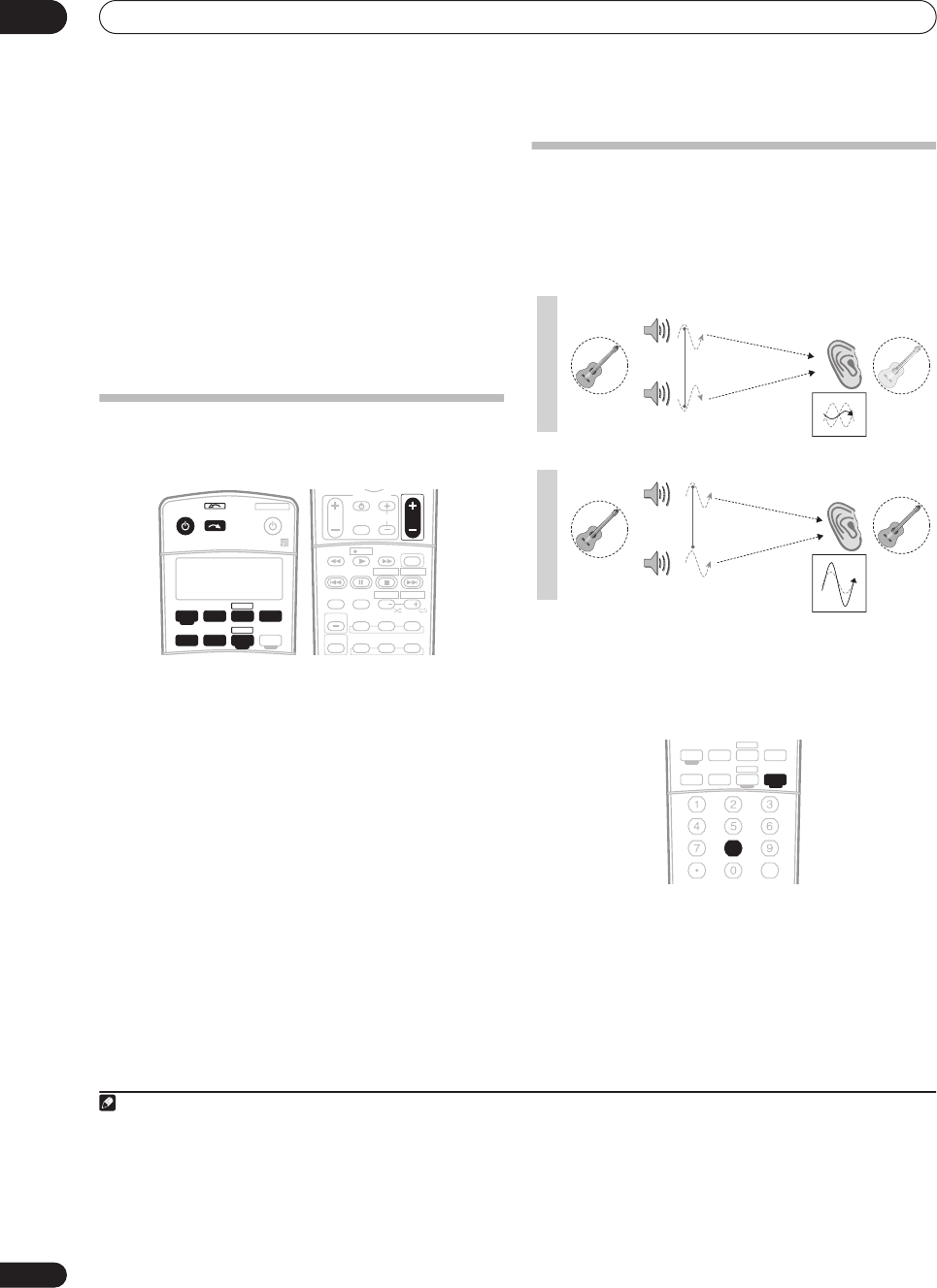

• Phase correction

Based on Pioneer’s unique Phase Control Technology,

the Basic Phase Control feature incorporated into this

receiver’s design provides coherent sound reproduction

through the use of phase matching for an optimal sound

image at your listening position.

• Sound Retriever

The Sound Retriever feature employs new DSP

technology that helps bring CD quality sound back to

WMA, MP3 and MPEG-4 AAC audio files by restoring

sound pressure and smoothing jagged artifacts left over

after compression.

• HDMI compatibility

This receiver is compatible with the HDMI digital video

format, providing you high-definition digital video and

digital audio via a single cable.

• Built-in video converter

The built-in video converter provides output of all analog

video signals to your TV or monitor (regardless of the type

of connection), allowing you to connect components

using component, S-video, and composite video

connections as you like.

• XM Ready

With the new XM Radio terminal, you’ll be up and

running in no time, now that this receiver’s enhanced

compatibility makes XM HD Surround playback and on-

screen control of XM Radio an added possibility.

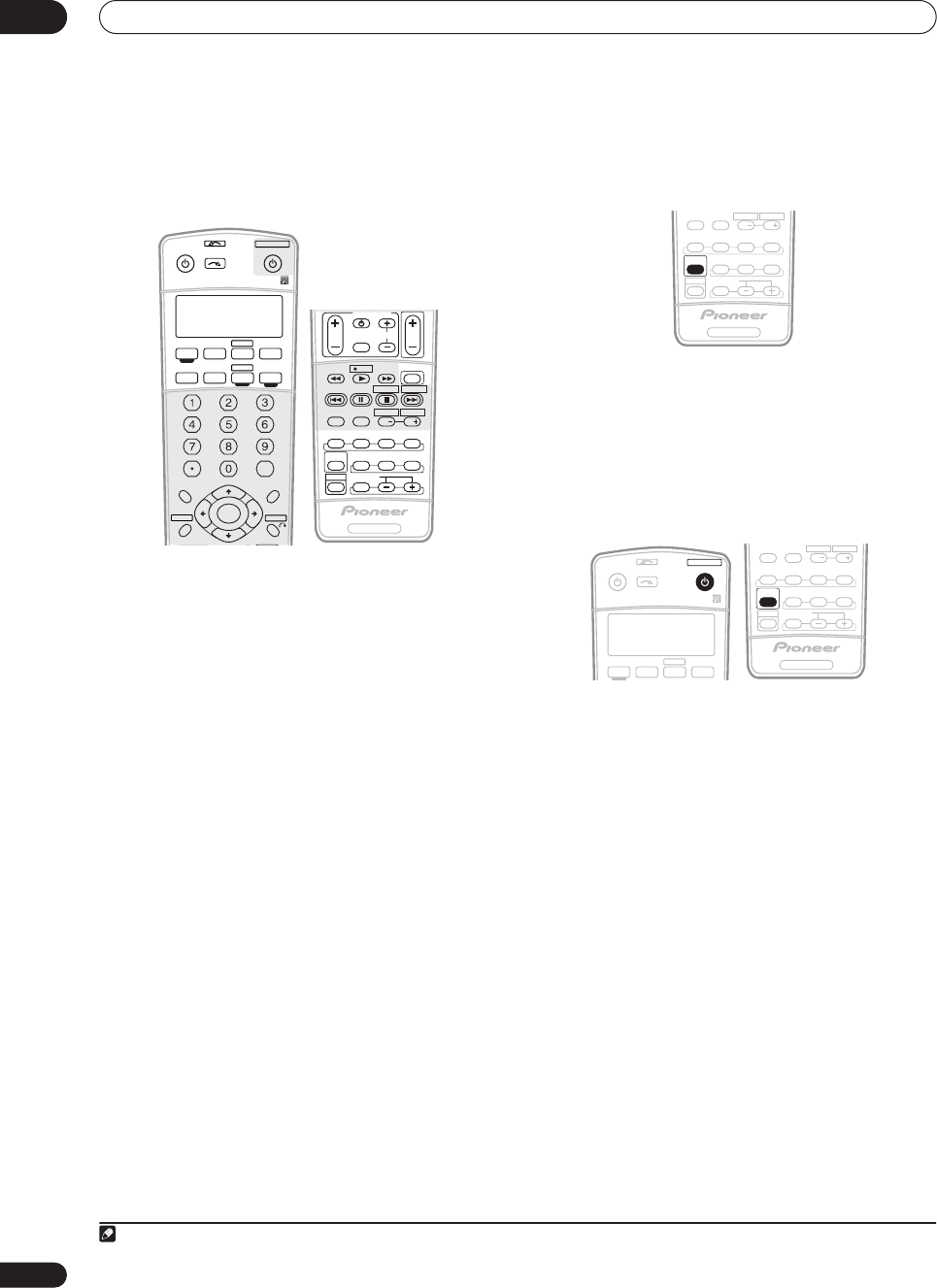

• Easy-to-use LCD remote control

The remote control gives you not only complete control

over every function of this receiver, but also over the main

functions for other components in your home theater

system. Using a system of preset codes, you can

program the remote to operate a wide range of other

equipment.

Checking what’s in the box

Please check that you've received the following supplied

accessories:

• Setup microphone (cable: 16.4 ft.)

• Remote control unit

• AA/IEC R6P dry cell batteries x2

• AM loop antenna

• FM wire antenna

• Warranty card

• These operating instructions

VSX-1016TXV_KU.book.fm 6 ページ２００６年３月２４日　金曜日　午後９時１９分

Before you start 01

Ventilation

When installing this unit, make sure to leave space

around the unit for ventilation to improve heat dispersal

(at least 8 in. (20 cm) at the top). If not enough space is

provided between the unit and walls or other equipment,

heat will build up inside, interfering with performance

and/or causing malfunctions.

Slot and openings in the cabinet are provided for

ventilation and to protect the equipment from

overheating. To prevent fire hazard, do not place anything

directly on top of the unit, make sure the openings are

never blocked or covered with items (such as

newspapers, table-cloths and curtains), and do not

operate the equipment on thick carpet or a bed.

Installing the

receiver

• When installing this unit, make sure to put it on a

level and stable surface.

Don’t install it on the following places:

– on a color TV (the screen may distort)

– near a cassette deck (or close to a device that gives off

a magnetic field). This may interfere with the sound.

– in direct sunlight

– in damp or wet areas

– in extremely hot or cold areas

– in places where there is vibration or other movement

– in places that are very dusty

– in places that have hot fumes or oils (such as a kitchen)

Loading the batteries

Caution

Incorrect use of batteries may result in such hazards as

leakage and bursting. Observe the following precautions:

• Never use new and old batteries together.

• Insert the plus and minus sides of the batteries

properly according to the marks in the battery case.

• Batteries with the same shape may have different

voltages. Do not use different batteries together.

• When disposing of used batteries, please comply

with governmental regulations or environmental

public instruction’s rules that apply in your country or

area.

• Do not use or store batteries in direct sunlight or

other excessively hot place, such as inside a car or

near a heater. This can cause batteries to leak,

overheat, explode or catch fire. It can also reduce the

life or performance of batteries.

8 inches

(20 cm)

Receiver

DOWN

VSX-1016TXV_KU.book.fm 7 ページ２００６年３月２４日　金曜日　午後９時１９分

5 minute guide

Chapter 2:

5 minute guide

Introduction to home theater

Home theater refers to the use of multiple audio tracks to

create a surround sound effect, making you feel like

you're in the middle of the action or concert. The

surround sound you get from a home theater system

depends not only on your speaker setup, but also on the

source and the sound settings of the receiver.

This receiver will automatically decode multichannel

Dolby Digital, DTS, or Dolby Surround sources according

to your speaker setup. In most cases, you won’t have to

make changes for realistic surround sound, but other

possibilities (like listening to a CD with multichannel

surround sound) are explained in

Listening to your

system

on page 26.

Listening to Surround Sound

This receiver was designed with the easiest possible

setup in mind, so with the following quick setup guide,

you should have your system hooked up for surround

sound in no time at all. In most cases, you can simply

leave the receiver in the default settings.

• Be sure to complete all connections before

connecting this unit to an AC power source.

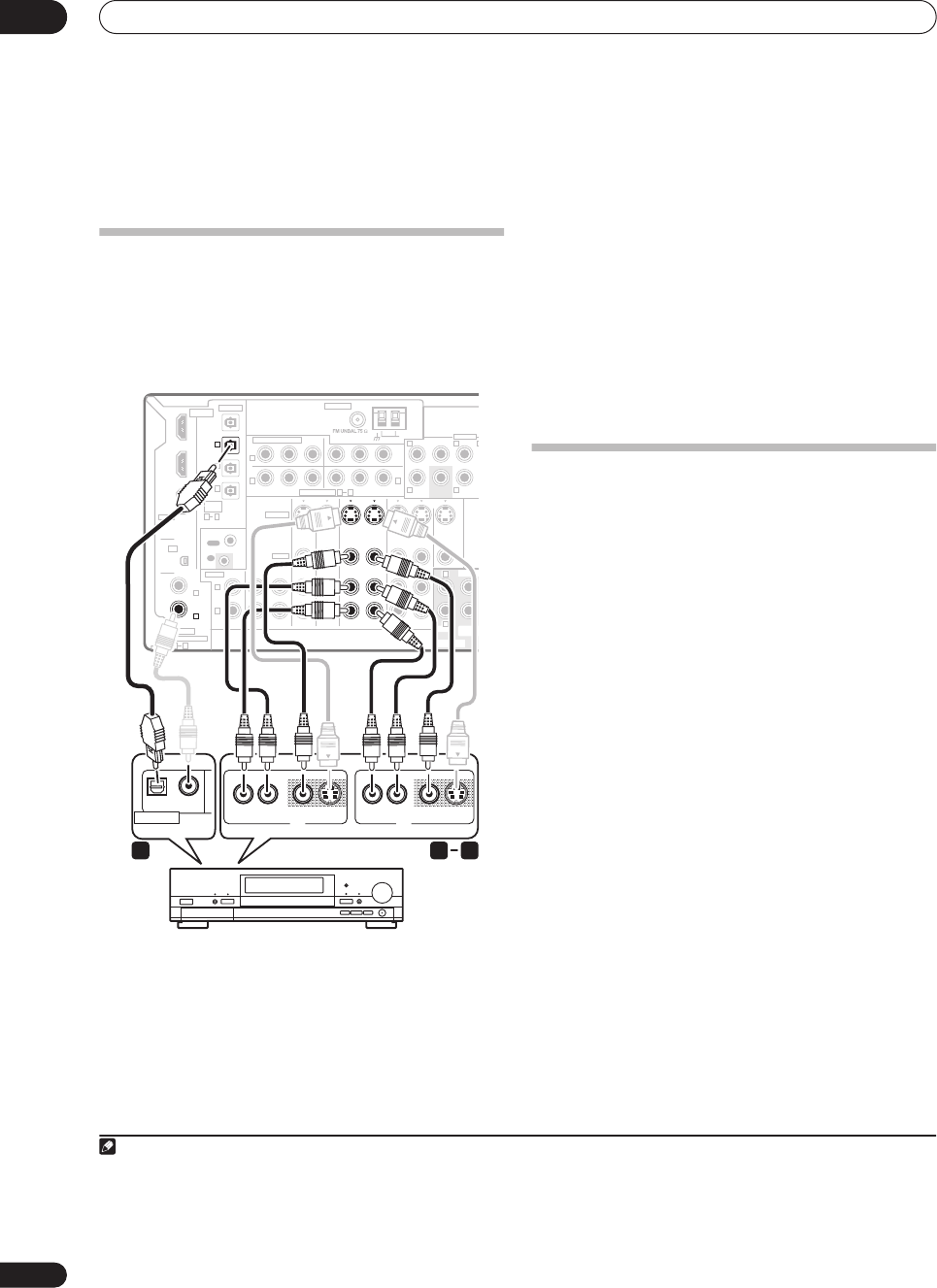

1 Connect your TV and DVD player.

See

Connecting your TV and DVD player

on page 13 to do

this. For surround sound, you’ll want to hook up using a

digital connection from the DVD player to the receiver.

2 Connect your speakers and place them for optimal

surround sound.

Connect your speakers as shown in

Installing your

speaker system

on page 17.

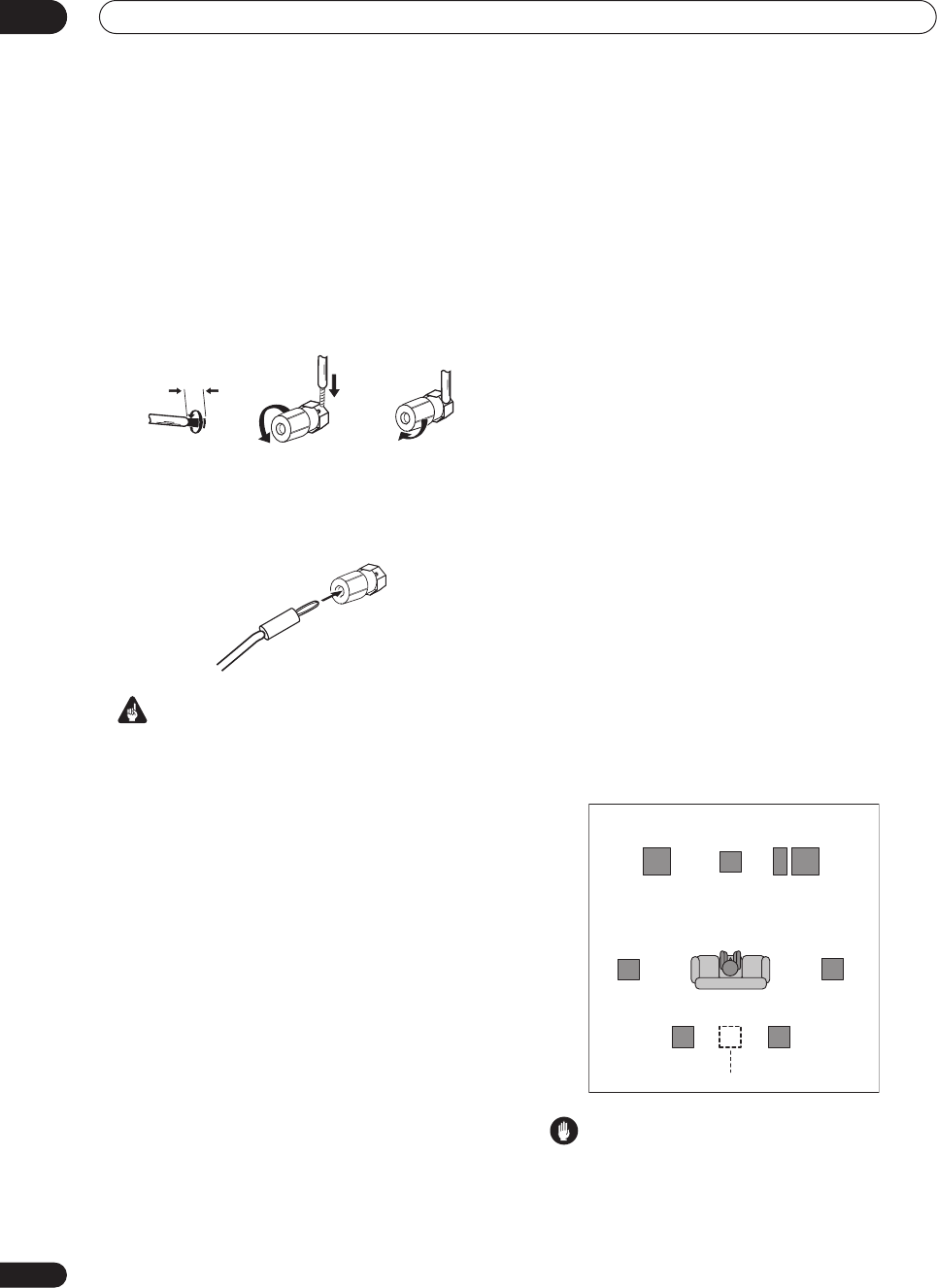

Where you place the speakers will have a big effect on the

sound. Place your speakers as shown below for the best

surround sound effect. Also see

Placing the speakers

page 18 for more on this.

3 Plug in the receiver and switch it on, followed by

your DVD player, your subwoofer and the TV.

Make sure you’ve set the video input on your TV to this

receiver. Check the manual that came with the TV if you

don’t know how to do this.

• Set the subwoofer volume to a comfortable level.

4Use the on-screen automatic MCACC setup to set up

your system.

See

Automatically setting up for surround sound

(MCACC)

below for more on this.

5 Play a DVD, and adjust the volume to your liking.

Make sure that

DVD/LD

is showing in the receiver’s

display, indicating that the DVD input is selected. If it

isn’t, press

DVD

on the remote control to set the receiver

to the DVD input.

In addition to the basic playback explained in

Playing a

source

on page 10, there are several other sound options

you can select. See

Listening to your system

on page 26

for more on this.

See also

Making receiver settings from the System Setup

on page 33 for more setup options.

Automatically setting up for surround

sound (MCACC)

The Auto MCACC Setup measures the acoustic

characteristics of your listening area, taking into account

ambient noise, speaker size and distance, and tests for

both channel delay and channel level. After you have set

up the microphone provided with your system, the

receiver uses the information from a series of test tones

to optimize the speaker settings and equalization for your

particular room.

Make sure you do this before moving on to

Playing a

source

on page 10.

Important

• Make sure the microphone and speakers are not

moved during the Auto MCACC Setup.

• Before using the Auto MCACC Setup the

headphones should be disconnected.

Caution

• The test tones used in the Auto MCACC Setup are

output at high volume.

Front

Left (L)

Surround

Left (SL)

Surround

Right (SR)

Surround

Back Left (SBL)

Surround

Back

Right (SBR)

Center (C)

Subwoofer (SW)

Listening

position

Front

Right (R)

VSX-1016TXV_KU.book.fm 8 ページ２００６年３月２４日　金曜日　午後９時１９分

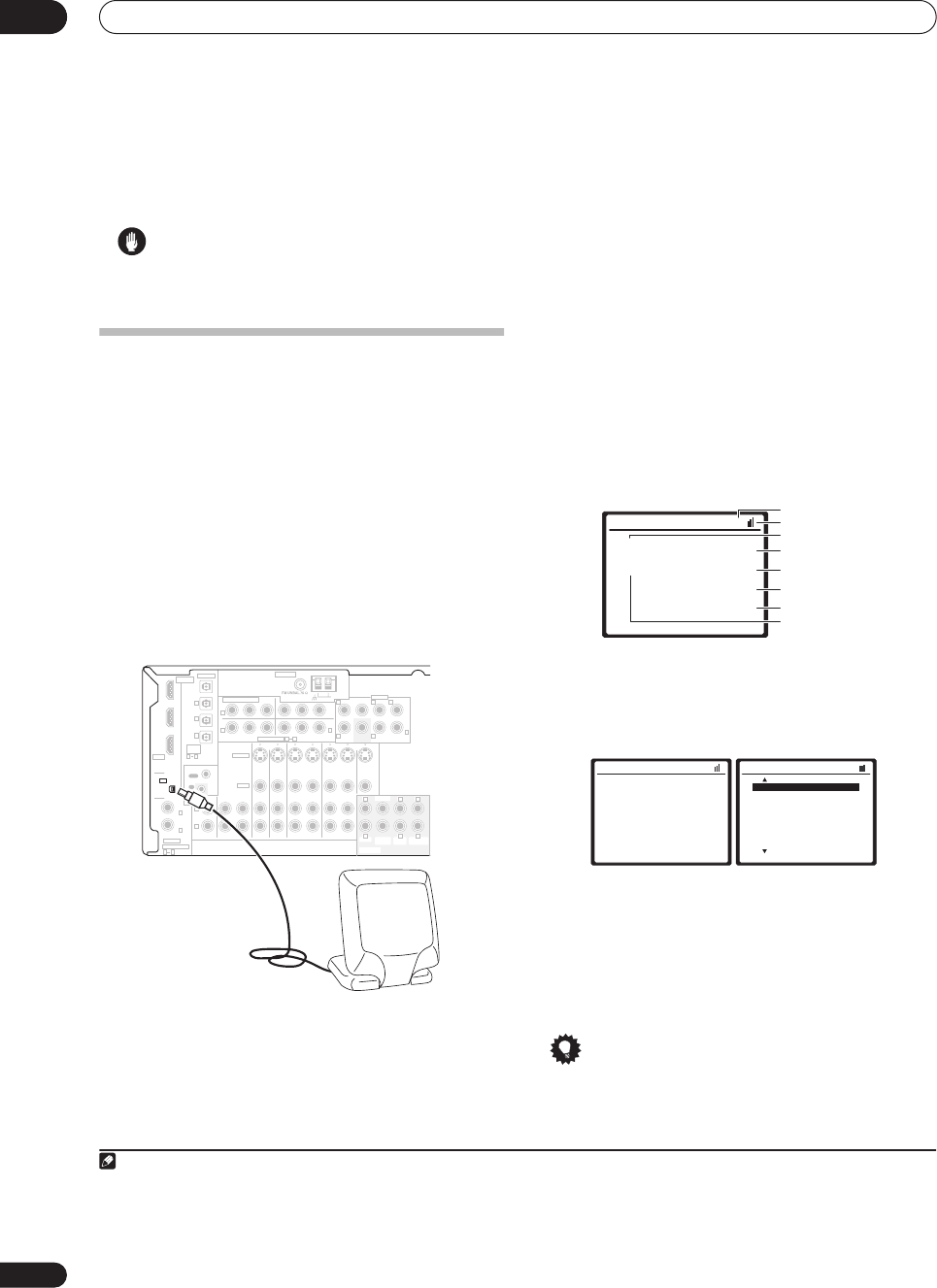

5 minute guide 02

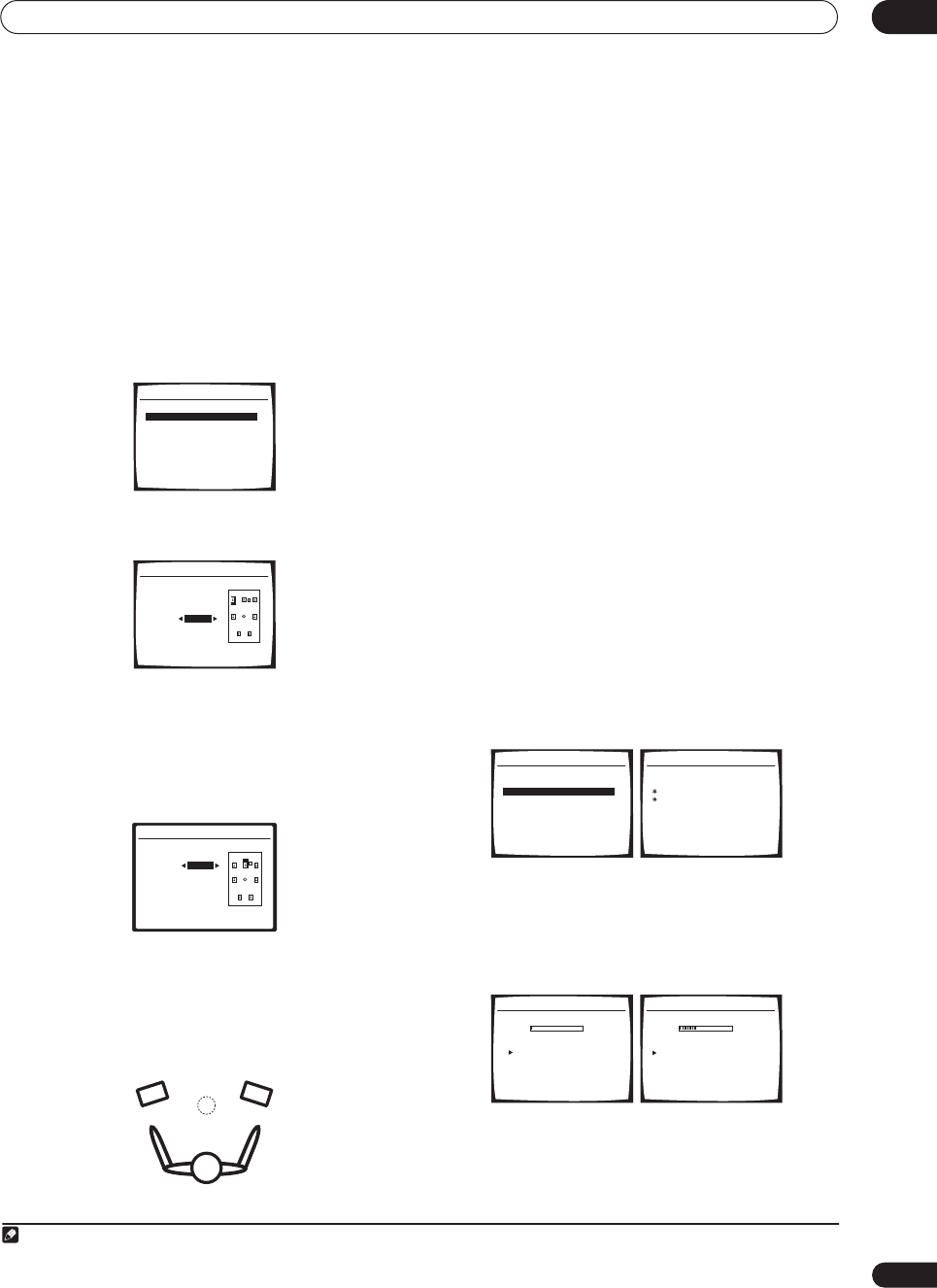

1 Switch on the receiver and your TV.

2Connect the microphone to the

MCACC SETUP MIC

jack on the front panel.

Place the microphone so that it’s about ear level at your

normal listening position (use a tripod if possible). Make

sure there are no obstacles between the speakers and

the microphone.

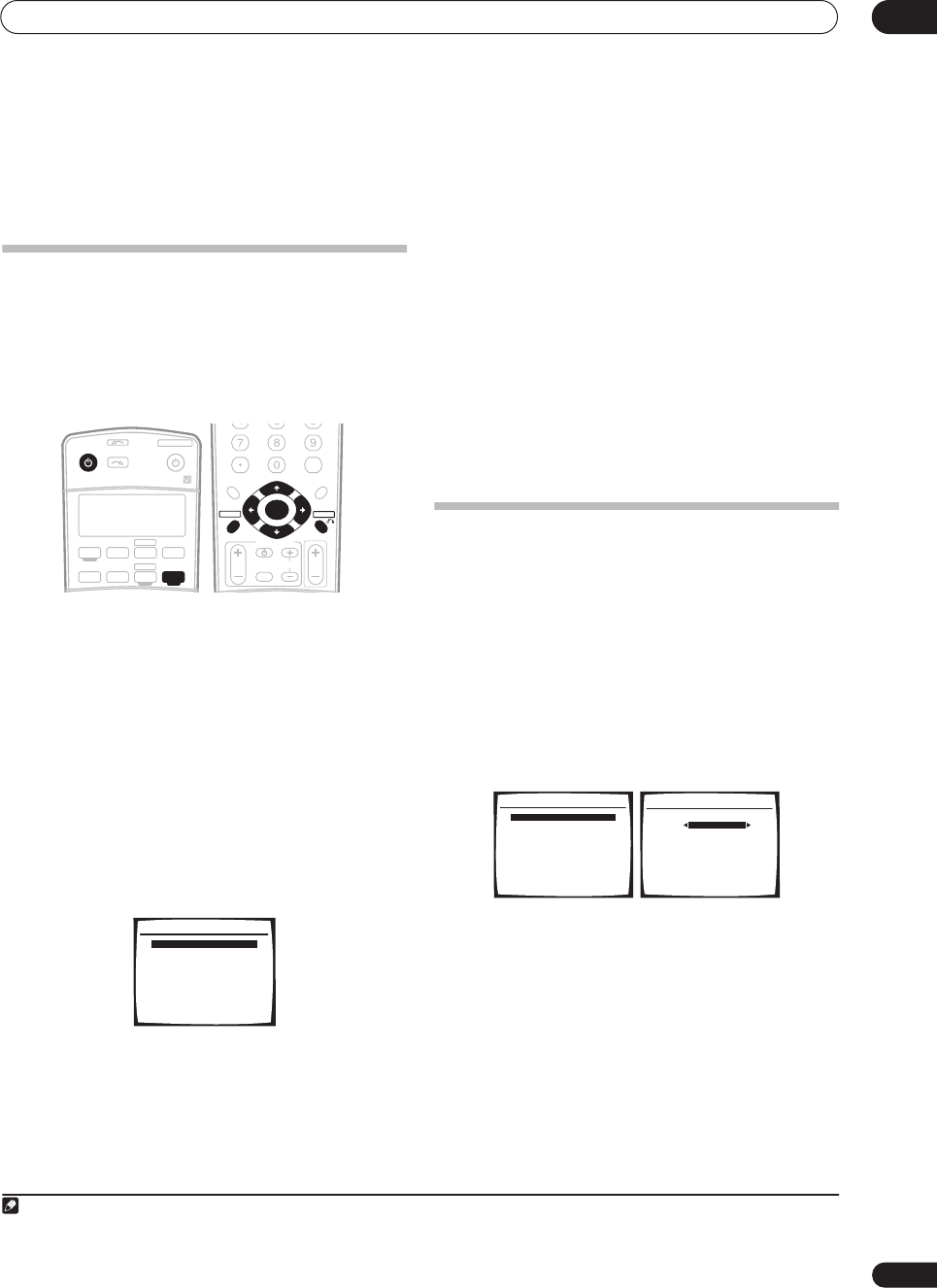

3 Press

RECEIVER

on the remote, then press

SETUP

An on-screen display (OSD) appears on your TV. Use the

///

buttons and

ENTER

to navigate through the

screens and select menu items. Press

RETURN

to exit

the current menu. Press

SETUP

at any time to cancel.

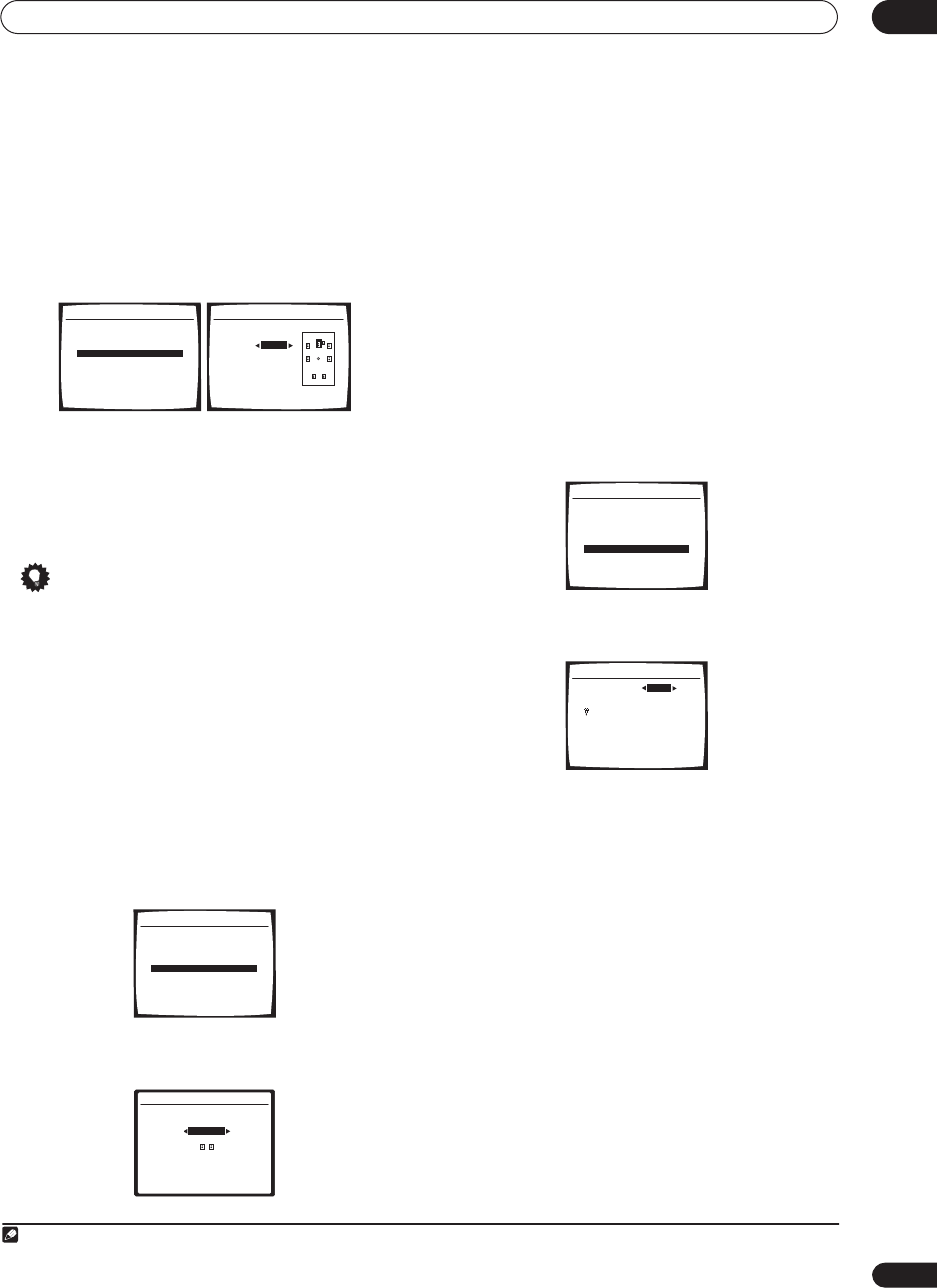

4 Select ‘Auto MCACC’ from the System Setup menu

then press

ENTER

Make sure ‘Normal (SB)’ is selected then press

ENTER.

6 Follow the instructions on-screen.

Make sure the microphone is connected, and if you’re

using a subwoofer, make sure it is switched on and set to

a comfortable volume level.

7 Wait for the test tones to finish then confirm the

speaker configuration in the OSD.

A progress report is displayed on-screen while the

receiver outputs test tones to determine the speakers

present in your setup. Try to be as quiet as possible while

it’s doing this.

• With error messages (such as

Ambient Noise

Microphone Check

) select

RETRY

after checking for

ambient noise (see

Problems when using the Auto

MCACC Setup

below) and verifying the mic

connection. If there doesn’t seem to be a problem,

you can simply select

and continue.

The configuration shown on-screen should reflect the

actual speakers you have.

If you see an error message (

ERR

) in the right side

column (or the speaker configuration displayed isn’t

correct), there may be a problem with the speaker

connection. If selecting

RETRY

doesn’t work, turn off the

power and check the speaker connections. If there

doesn’t seem to be a problem, you can simply use

/

to select the speaker and

/

to change the setting

(and number for surround back) and continue.

8 Make sure ‘OK’ is selected, then press

ENTER

A progress report is displayed on-screen while the

receiver outputs more test tones to determine the

optimum receiver settings for channel level, speaker

distance, and Acoustic Calibration EQ.

Again, try to be as quiet as possible while this is

happening. It may take 3 to 8 minutes.

9 The Auto MCACC Setup has finished! Select

‘SKIP’ to go back to the System Setup menu.

The settings made in the Auto MCACC Setup should give

you excellent surround sound from your system, but it is

also possible to adjust these settings manually using the

System Setup menu (starting on page 33).

Note

1• If you cancel the Auto MCACC Setup, or leave an error message for over three minutes, the screen saver will appear.

• The OSD will not appear if you have connected using the HDMI output to your TV. Use component, S-video, or composite connections for system setup.

2 You can’t use the System Setup menu when the XM Radio input source is selected.

3• If you are planning on bi-amping your front speakers, or setting up a separate speaker system in another room, read through

Surround back speaker

setting

on page 33 and make sure to connect your speakers as necessary before continuing to step 6.

• If you have THX-certified speakers, make sure

YES

is selected in

THX Speaker Setup

on page 39.

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

XM RADIO

DVR 2

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

ENTER

TV CONTROL

VOL

TUNE

ST ST

INPUT

SELECT TV CH

TV VOL

ENTER

TOP MENU

CATEGORY

T.EDITDTV MENU

RETURN

GUIDE BAND

SETUP

PHONES

MCACC

SETUP MIC

DIGITAL INAUDIO RLVIDEO

VIDEO/GAME

INPUT

S-VIDEO

SYSTEM

SETUP

TUNING/

STATIO N

TUNER

EDIT SPEAKERSRETURN TONE

MULTI JOG

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

2. Auto MCACC

Surr Back System

Normal (SB) ]

 : Cancel Enter : Start

4 Do not adjust the volume during the test tones. This may result in incorrect speaker settings.

5 If you’re using the front panel display, the diagram in

Listening to Surround Sound

above indicates (in bold) how each speaker is displayed.

6• Depending on the characteristics of your room, sometimes identical speakers with cone sizes of around 5 inches will end up with different size settings.

You can correct the setting manually using the

Manual speaker setup

on page 37.

• The subwoofer distance setting may be farther than the actual distance from the listening position. This setting should be accurate (taking delay and

room characteristics into account) and generally does not need to be changed.

2.Auto MCACC

Now Analyzing

Environment Check

Ambient Noise [ OK ]

Microphone [ ]

Speaker YES/NO [ ]

:Cancel

2.Auto MCACC

Check!

Front [ YES ]

Center [ YES ]

Surround [ YES ]

SB [ Yx2 ]

SUB W. [ YES ]

:Cancel

VSX-1016TXV_KU.book.fm 9 ページ２００６年３月２４日　金曜日　午後９時１９分

5 minute guide

Problems when using the Auto MCACC Setup

If the room environment is not optimal for the Auto

MCACC Setup (too much background noise, echo off the

walls, obstacles blocking the speakers from the

microphone) the final settings may be incorrect. Check

for household appliances (air conditioner, fridge, fan,

etc.), that may be affecting the environment and switch

them off if necessary. If there are any instructions

showing in the front panel display, please follow them.

• Some older TVs may interfere with the operation of

the microphone. If this seems to be happening,

switch off the TV when doing the Auto MCACC Setup.

Playing a source

Here are the basic instructions for playing a source (such

as a DVD disc) with your home theater system.

1 Switch on your system components and receiver.

Start by switching on the playback component (for

example a DVD player), your TV

and subwoofer (if you

have one), then the receiver (press



RECEIVER

• Make sure the setup mic is disconnected.

2 Select the input source you want to play.

You can use the input source buttons on the remote

control,

INPUT SELECT

, or the front panel controls.

3 Press

AUTO SURR

to select ‘AUTO SURROUND’ and

start playback of the source.

If you’re playing a Dolby Digital or DTS surround sound

DVD disc, you should hear surround sound. If you are

playing a stereo source, you will only hear sound from the

front left/right speakers in the default listening mode.

• See also

Listening to your system

on page 26 for

information on different ways of listening to sources.

4 Use the volume control to adjust the volume level.

Turn down the volume of your TV so that all sound is

coming from the speakers connected to this receiver.

Better sound using Basic Phase Control

This receiver’s Basic Phase Control feature uses phase

correction measures to make sure your sound source

arrives at the listening position in phase, preventing

unwanted distortion and/or coloring of the sound (see

illustration below).

Phase Control technology provides coherent sound

reproduction through the use of phase matching

for an

optimal sound image at your listening position. The

default setting is on and we recommend leaving Phase

Control switched on for all sound sources.

• Press

RECEIVER

then PHASE (

PHASE CONTROL

) to

switch on phase correction.

The

PHASE CONTROL

indicator on the front panel lights.

Note

1 Make sure that the TV’s video input is set to this receiver. (For example, if you connected this receiver to the

VIDEO 1

jacks on your TV, make sure that

the

VIDEO 1

input is now selected.)

2 If you need to manually switch the input signal type press

SIGNAL SEL

(page 29).

3• You may need to check the digital audio output settings on your DVD player or digital satellite receiver. It should be set to output Dolby Digital, DTS

and 88.2 kHz / 96 kHz PCM (2 channel) audio, and if there is an MPEG audio option, set this to convert the MPEG audio to PCM.

• Depending on your DVD player or source discs, you may only get digital 2 channel stereo and analog sound. In this case, the receiver must be set to

a multichannel listening mode (see

Listening in surround sound

on page 26 if you need to do this) if you want multichannel surround sound.

XM RADIO

DVR 2

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

TV CONTROL

VOL

STEREO

STATUS

SIGNAL SEL

THX ADV.SURR

SBch

INPUT

SELECT TV CH

MPX

AUDI O

DISP

SUBTITLE

MULTI OPE

STANDARD

RECDTV ON/OFF DTV INFO

MUTE

TV VOL

REC STOP JUKEBOX

HDD

CH CH

DVD

GUIDE

4 Phase matching is a very important factor in achieving proper sound reproduction. If two waveforms are 'in phase', they crest and trough together, re-

sulting in increased amplitude, clarity and presence of the sound signal. If a crest of a wave meets a trough (as shown in the upper section of the diagram

above) then the sound will be 'out of phase' and an unreliable sound image will be produced.

Sound

source

Sound

source

Listening

position

Listening

position

Front speaker

Subwoofer

Front speaker

Subwoofer

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

ENTER

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

VSX-1016TXV_KU.book.fm 10 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment 03

Chapter 3

Connecting your equipment

This receiver provides you with many connection possibilities, but it doesn’t have to be difficult. This page explains the

kinds of components you can connect to make up your home theater system.

Rear panel

Caution

• Before making or changing the connections, switch

off the power and disconnect the power cord from the

power outlet. Plugging in should be the final step.

1 HDMI connectors (x3)

Two inputs and one output for high-quality audio/video

connection to compatible HDMI devices.



Connecting using HDMI

on page 41.

2 XM Radio input



See

Using XM Radio

on page 40.

3 Coaxial digital audio inputs (x2)

Use for digital audio sources, including DVD players/

recorders, digital satellite receivers, CD players, etc.



See also

The Input Assign menu

on page 46 to assign

the inputs.

4 Optical digital audio output / input(s) (x4)

Use the

OUT

jack for recording to a CD or MiniDisc

recorder.



Connecting digital audio sources

on page 15.

Use the

jacks for digital audio sources, including DVD

players/recorders, digital satellite receivers, CD players,

etc.



See also

The Input Assign menu

on page 46 to assign

the inputs.

5 Control input/output

Use to connect other Pioneer components so that you

can control all your equipment from a single IR remote

sensor.



Operating other Pioneer components with this unit’s

sensor

on page 56.

6 Stereo analog audio source inputs/(outputs) (x3)

Use for connection to audio sources such as CD players,

tape decks, turntables, etc.



Connecting analog audio sources

on page 16.

7 Component video connections (x4)

Use the inputs to connect any video source that has

component video output, such as a DVD recorder. Use

the output for connection to a monitor or TV.



Using the component video jacks

on page 14.

8 Audio/video source inputs/(outputs) (x6)

Use for connection to audio/visual sources, such as DVD

players/recorders, VCRs, etc. Each set of inputs has jacks

for composite video, S-video and stereo analog audio.



Connecting a DVD/HDD recorder, VCR and other video

sources

on page 14.

9 AM and FM antenna terminals

Use to connect indoor or outdoor antennas for radio

broadcasts.



Connecting antennas

on page 19.

UTLE

IN IN INOUT OUT

DVR/V

PRE

CENTER

SWITCHED 100 W

(

0.8 A

)

CENTE

VSX-1016TXV_KU.book.fm 11 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment

10 Multichannel pre-amplifier outputs

Use to connect separate amplifiers for front, center,

surround, surround back and subwoofer channels.



Connecting additional amplifiers

on page 44 (see also

Installing your speaker system

on page 17 for powered

subwoofer connection).

11 Composite and S-video monitor outputs

Use to connect monitors and TVs.



Connecting your TV and DVD player

on page 13.

12 Multichannel analog audio inputs

7.1 channel inputs for connection to a DVD player with

multichannel analog outputs.



Connecting the multichannel analog inputs

page 42.

13 Speaker terminals

Use for connection to the main front, center, surround

and surround back speakers.



Installing your speaker system

on page 17.

14 Switched AC power outlet

(100 W/0.8 A max.)

Use to power another component in the system. Power to

the outlet switches on and off with the receiver.



AC outlet

on page 20.

When making cable connections

• To avoid hum, do not lay connected cables over the

top of the receiver.

• When connecting optical cables, be careful when

inserting the plug not to damage the shutter

protecting the optical socket.

• When storing optical cable, coil loosely. The cable

may be damaged if bent around sharp corners.

About the video converter

When the video converter is enabled, all analog video

sources are output through all of the

MONITOR VIDEO

OUT

jacks (HDMI and high-definition progressive

component video cannot be converted).

See

Video

Converter Setup

on page 48 to switch the video converter

on or off.

If several video components are assigned to the same

input function (see

The Input Assign menu

on page 46),

the converter gives priority to component, S-video, then

composite (in that order).

• For optimal video performance, THX recommends

switching video conversion (in

Video Converter Setup

on page 48)

OFF

Note

1You must connect your monitor/TV to the receiver’s HDMI/component video outputs when connecting these video sources. If the video signal does not

appear on your TV or plasma display, try adjusting the resolution settings on your component or display. Note that some components (such as video game

units) have resolutions that may not be converted. In this case, use an (analog) S-video or composite connection.

This product incorporates copyright protection technology

that is protected by U.S. patents and other intellectual

property rights. Use of this copyright protection

technology must be authorized by Macrovision

Corporation, and is intended for home and other limited

consumer uses only unless otherwise authorized by

Macrovision. Reverse engineering or disassembly is

prohibited.

VSX-1016TXV_KU.book.fm 12 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment 03

Connecting your TV and DVD player

The diagram shows a basic setup of this receiver together

with a TV and DVD player, with S-video or composite

video connections. Different TVs and DVD players may

offer alternative connections. See also

Using the

component video jacks

on page 14 if your TV and/or DVD

player has component video inputs/outputs. If your DVD

player offers multichannel analog audio outputs, see

Connecting the multichannel analog inputs

on page 42.

1 Connect the MONITOR OUT video jack to a video

input on your TV.

Use a standard RCA/phono jack video cable to connect to

the composite video jack, or for higher quality video, use

an S-video cable to connect to the S-video jack.

2Connect a composite or S-video output on your DVD

player to the

DVD/LD

VIDEO or

DVD/LD

S-VIDEO input.

Connect using a standard video cable or an S-video

cable.

3 Connect a coaxial-type

digital audio output on

your DVD player to the COAXIAL 1 (

DVD/LD

) input.

Use a coaxial cable designed for digital audio.

4 Connect the stereo audio outputs on your DVD

player to the

DVD/LD

AUDIO inputs.

Connect using a stereo RCA/phono jack cable.

•If your DVD player has multichannel analog outputs,

you can connect these instead. See also

Connecting

the multichannel analog inputs

on page 42.

Connecting a satellite/cable

receiver

or other set-top box

Satellite and cable receivers, and terrestrial digital TV

tuners are all examples of so-called ‘set-top boxes’.

1Connect the audio/video outputs on the set-top box

to the TV/SAT AUDIO and VIDEO inputs.

Connect using a stereo RCA/phono jack cable and a

video or S-video cable.

VIDEO

S-VIDEO

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITOR

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

YPBPRYPBPR

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

PRE OUT

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

R R

L L

OUT

ASSIGNABLE 31

CENTE

CENTER

MULTI CH IN

FRONT

SUR-

ROUND

SUB

WOOFE

SUB

WOOFER

S-VIDEOOPTICAL

DIGITAL OUT VIDEO OUT

COAXIAL

DVD player

AUDIO LR

ANALOG OUT

VSX-1016TXV

Note

1If your DVD player only has an optical digital output, you can connect it to one of the optical inputs on this receiver using an optical cable. When you set

up the receiver you’ll need to tell the receiver which input you connected the player to (see

The Input Assign menu

on page 46).

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITO

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

YPBPRYPBPR

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

OUT

ASSIGNABLE 31

CENTER

MULTI

FRONT

SUB

WOOFER

DIGITAL OUT

AV OUT

VIDEO S-VIDEOAUDIO LR

STB

VSX-1016TXV

VSX-1016TXV_KU.book.fm 13 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment

2Connect an optical-type

digital audio output from

your set-top box to the OPTICAL 2 (TV/SAT) input.

Use an optical cable for the connection.

Connecting a DVD/HDD recorder, VCR

and other video sources

This receiver has two sets of audio/video inputs and

outputs suitable for connecting analog or digital video

devices, including DVD/HDD recorders and VCRs.

1 Connect the audio/video outputs of the video

player/recorder to the DVR/VCR1 AUDIO and VIDEO

inputs.

Use a stereo RCA/phono jack audio cable for the audio

connection and a video or S-video cable for the video

connection.

• For a second recorder, use the

DVR/

VCR2 IN

inputs.

2 If the device can record, connect the DVR/VCR1

AUDIO and VIDEO outputs to the recorder’s audio/

video inputs.

Use a stereo RCA/phono jack audio cable for the audio

connection and a video or S-video cable for the video

connection.

• For a second recorder, use the

DVR/

VCR2

outputs.

3 If the device can output digital audio, connect an

optical-type

digital audio output from the recorder to

the OPTICAL 1 (DVR/VCR1) input.

Use an optical cable for the connection.

• For a second recorder, use the

COAXIAL 2

(

DVR/

VCR2

)

inputs.

Using the component video jacks

Component video should give superior picture quality

when compared to composite or S-video. You can also

take advantage of progressive scan video (if your source

and TV are both compatible), which delivers a very stable,

flicker-free picture. See the manuals that came with your

TV and source component to check whether they are

compatible with progressive-scan video.

Note

1 If your set-top box only has a coaxial digital output, you can connect it to one of the coaxial inputs on this receiver using a coaxial digital audio cable.

When you set up the receiver you’ll need to tell the receiver which input you connected the set-top box to (see

The Input Assign menu

on page 46).

2 If your satellite/cable receiver doesn’t have a digital audio output, you can skip this step.

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITOR

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

YPBPRYPBPR

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

PRE OUT

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

R R

L L

OUT

ASSIGNABLE 31

CENTER

MULTI CH IN

FRONT

SUR-

ROUND

SUB

WOOFE

SUB

WOOFER

AV IN

VIDEOAUDIO LR

AV OUT

S-VIDEO AUDIO VIDEO S-VIDEO

OPTICAL COAXIAL

DIGITAL OUT

DVR, VCR, etc.

1 23

VSX-1016TXV

3• In order to record, you must connect the analog audio cables (the digital connection is for playback only).

• If your video component doesn’t have a digital audio output, you can skip this step.

4If your recorder only has a coaxial digital output, you can connect it to one of the coaxial inputs on this receiver using a coaxial digital audio cable. When

you set up the receiver you’ll need to tell the receiver which input you connected the recorder to (see also

The Input Assign menu

on page 46).

VSX-1016TXV_KU.book.fm 14 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment 03

1 Connect the component video outputs of your

source to a set of ASSIGNABLE COMPONENT VIDEO

inputs.

Connect using a three-way component video cable.

• Since they are assignable, it doesn’t matter which

component video inputs you use for which source.

After connecting everything, you’ll need to assign the

component video inputs—see

The Input Assign

on page 46.

2 Connect the COMPONENT VIDEO OUT jacks to the

component video inputs on your TV or monitor.

Use a three-way component video cable.

Connecting digital audio sources

This receiver has both digital inputs and outputs,

allowing you to connect digital audio components for

playback and for making digital recordings.

Most digital components also have analog connections.

See

Connecting analog audio sources

on the following

page if you want to connect these too.

1 Connect an optical-type

digital audio output on

your digital component to the DIGITAL 3 (CD) input.

Use an optical cable for the connection.

2 For recording equipment, connect the optical-type

DIGITAL output to a digital input on the recorder.

Use an optical cable to connect to the

DIGITAL OUT

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITO

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

YPBPRYPBPR

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

OUT

ASSIGNABLE 31

CENTER

MULTI

FRONT

SUB

WOOFER

VSX-1016TXV

COMPONENT

VIDEO

COMPONENT

VIDEO

DVD player

Note

1• If your digital component only has a coaxial digital output, you can connect it to one of the coaxial inputs on this receiver using a coaxial cable. When

you set up the receiver you’ll need to tell the receiver which input you connected the component to (see also

The Input Assign menu

on page 46).

• The digital outputs from other components can be connected to any spare digital audio inputs on this receiver. You can assign them when setting up

the receiver (see also

The Input Assign menu

on page 46).

2 In order to record some digital sources, you must make analog connections as explained in

Connecting analog audio sources

below.

IN IN IN IN INOUT OUT OUT

IN IN INOUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DV

TV/SAT

CONTROL

AUDIO

ANTENNA

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

OUT

ASSIGNABLE

OPTICAL COAXIAL

DIGITAL OUT

OPTICAL

DIGITAL IN

CD-R, MD, DAT, etc.

1 2

VSX-1016TXV

VSX-1016TXV_KU.book.fm 15 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment

About the WMA9 Pro decoder

This unit has an on-board Windows Media

Audio 9

Professional

(WMA9 Pro) decoder, so it is possible to

playback WMA9 Pro-encoded audio using a coaxial or

optical digital connection when connected to a WMA9

Pro-compatible player. However, the connected PC, DVD

player, set-top box, etc. must be able to output WMA9 Pro

format audio signals through a coaxial or optical digital

output.

Connecting analog audio sources

This receiver features two stereo audio-only inputs. One

of these inputs (

CD-R/TAPE/MD

) has corresponding

outputs for use with audio recorders.

• Connect the analog audio outputs of the source

component to one of the AUDIO inputs.

Connect using a stereo RCA/phono jack audio cable.

• If you’re connecting a tape deck, MD recorder, etc.,

connect the analog audio outputs (

OUT

) to the

analog audio inputs on the recorder.

Connecting a component to the front

panel inputs

The front panel inputs comprise a composite video jack

(

VIDEO

), an S-Video jack (

S-VIDEO

), stereo analog audio

inputs (

AUDIO L/R

) and an optical digital audio input

(

DIGITAL

). You can use these connections for any kind of

audio/video component, but they are especially

convenient for portable equipment such as camcorders,

video games and portable audio/video equipment.

• Select these inputs by pressing

VIDEO/GAME

using

INPUT SELECT

(remote) to select

VIDEO/

GAME

Note

1•

Microsoft, Windows Media®, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other

countries.

• With WMA9 Pro, sound problems may occur depending on your computer system. Note that WMA9 Pro 96 kHz sources will be downsampled to 48 kHz.

VSX-1016TXV

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITOR

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

PRE OUT

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

R R

L L

OUT

ASSIGNABLE 31

CENTE

CENTER

MULTI CH IN

FRONT

SUR-

ROUND

SUB

WOOFE

SUB

WOOFER

PLAY

OUT

REC

R L

AUDIO IN/OUT

Tape deck, etc.

TV game, video camera, etc.

PHONES

MCACC

SETUP MIC

DIGITAL INAUDI O RLVIDEO

VIDEO/GAME

INPUT

S-VIDEO

SYSTEM

SETUP

TUNING/

STATION

TUNER

EDIT SPEAKERSRETURN TONE

MULTI JOG

VIDEO/AUDIO OUTPUT

DIGITAL OUT

VSX-1016TXV_KU.book.fm 16 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment 03

Installing your speaker system

To take full advantage of the receiver’s surround sound

capabilities connect front, center, surround and

surround back speakers, as well as a subwoofer.

Although this is ideal, other configurations with fewer

speakers—no subwoofer or no center speaker, or even

no surround speakers—will work. At the very least, front

left and right speakers only are necessary. Note that your

main surround speakers should always be connected as

a pair, but you can connect just one surround back

speaker if you like (it must be connected to the left

surround back terminal). You can use speakers with a

nominal impedance between 6

Ω

to 16

Ω

(please see

Switching the speaker impedance

on page 50 if you plan

to use speakers with an impedance of less than 8

Ω

Connecting the speakers

Each speaker connection on the receiver comprises a

positive (+) and negative (–) terminal. Make sure to

match these up with the terminals on the speakers

themselves.

Caution

• Make sure that all the bare speaker wire is twisted

together and inserted fully into the speaker terminal.

If any of the bare speaker wire touches the back panel

it may cause the power to cut off as a safety measure.

SPEAKERS

AC OUTLET

RL RL

RL(Single)

(Single)

FRONT CENTER SURROUND

SURROUND BACK /

SELECTABLE

SEE INSTRUCTION MANUAL

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITOR

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

YPBPRYPBPR

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

PRE OUT

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

R R

L L

LLL

OUT

ASSIGNABLE 31

CENTER

MULTI CH IN

FRONT

SUR-

ROUND

SUR-

ROUND

SURROUND

BACK

SURROUND

BACK

SUB

WOOFER

SUB

WOOFER

SWITCHED 100 W(0.8 A) MAX

VSX-1016TXV

Front

left

Front

right

Center

Surround

left

Surround

right

Surround

back right

Surround

back left

LINE LEVEL

INPUT

Subwoofer

CAUTION

These speaker terminals carry

HAZARDOUS LIVE voltage.

To prevent the risk of electric

shock when connecting or

disconnecting the speaker

cables, disconnect the power

cord before touching any

uninsulated parts.

VSX-1016TXV_KU.book.fm 17 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment

Bare wire connections

Make sure that the speaker cable you’re going to use is

properly prepared with about

in. of insulator stripped

from each wire, and the exposed wire strands twisted

together (

fig. A

To connect a terminal, unscrew the terminal a few turns

until there is enough space to insert the exposed wire

(

fig. B

). Once the wire is in position, tighten the terminal

until the wire is firmly clamped (

fig. C

Banana plug connections

If you want to use speaker cables terminated with banana

plugs, screw the speaker terminal fully shut then plug the

banana plug into the end of the speaker terminal.

Important

• Please refer to the manual that came with your

speakers for details on how to connect the other end

of the speaker cables to your speakers.

•

Other connections

on page 40 provides greater detail

on alternate speaker setups, such as using speaker

system B (page 42), bi-amping (page 43) and bi-

wiring (page 44).

• If you are using a THX certified subwoofer use the

THX INPUT

jack on the subwoofer (if your subwoofer

has one) or switch the filter position to

THX

on your

subwoofer.

Placing the speakers

Where you put your speakers in the room has a big effect

on the quality of the sound. The following guidelines

should help you to get the best sound from your system.

•The subwoofer can be placed on the floor. Ideally, the

other speakers should be at about ear-level when

you’re listening to them. Putting the speakers on the

floor (except the subwoofer), or mounting them very

high on a wall is not recommended.

• For the best stereo effect, place the front speakers

6 ft. to 9 ft. apart, at equal distance from the TV.

•When placing speakers near the TV, we recommend

using magnetically shielded speakers to prevent

possible interference, such as discoloration of the

picture when the TV is switched on. If you do not have

magnetically shielded speakers and notice

discoloration of the TV picture, move the speakers

farther away from the TV.

• If you're using a center speaker, place the front

speakers at a wider angle. If not, place them at a

narrower angle.

• Place the center speaker above or below the TV so

that the sound of the center channel is localized at

the TV screen. Also, make sure the center speaker

does not cross the line formed by the leading edge of

the front left and right speakers.

•It is best to angle the speakers towards the listening

position. The angle depends on the size of the room.

Use less of an angle for bigger rooms.

• Surround and surround back speakers should be

positioned a foot-and-a-half to three feet higher than

your ears and titled slight downward. Make sure the

speakers don't face each other. For DVD-Audio, the

speakers should be more directly behind the listener

than for home theater playback.

• Try not to place the surround speakers farther away

from the listening position than the front and center

speakers. Doing so can weaken the surround sound

effect.

• To achieve the best possible surround sound, install

your speakers as shown below. Be sure all speakers

are installed securely to prevent accidents and

improve sound quality.

Caution

• Make sure that all speakers are securely installed.

This not only improves sound quality, but also

reduces the risk of damage or injury resulting from

speakers being knocked over or falling in the event of

external shocks such as earthquakes.

3/8 in.

fig. A fig. B fig. C

Surround

left Surround

right

Listening position

Front

left

Front

right

Center

Surround back Surround back

Single surround back speaker

left right

Subwoofer

VSX-1016TXV_KU.book.fm 18 ページ２００６年３月２４日　金曜日　午後９時１９分

Connecting your equipment 03

The diagrams below show suggested surround and

surround back speaker orientation. The first diagram (fig.

A) shows orientation with one surround back speaker (or

none) connected. The second (fig. B) shows orientation

with two surround back speakers connected.

• If you have two surround back speakers THX

recommends placing them together and the same

distance from your listening position (see below).

THX speaker system setup

If you have a complete THX speaker system, follow the

diagram below to place your speakers. Note that the

surround speakers ( indicates bi-polar radiating

speakers) should output at an angle parallel to the

listener.

• If you have two surround back speakers THX

recommends placing them together and the same

distance from your listening position for the following

THX modes: THX Select2 CINEMA, THX

MUSICMODE and THX GAMES MODE.

Connecting antennas

Connect the AM loop antenna and the FM wire antenna

as shown below. To improve reception and sound quality,

connect external antennas (see Connecting external

antennas below).

1 Pull off the protective shields of both AM antenna

wires.

2 Push open the tabs, then insert one wire fully into

each terminal, then release the tabs to secure the AM

antenna wires.

3 Fix the AM loop antenna to the attached stand.

To fix the stand to the antenna, bend in the direction

indicated by the arrow (fig. a) then clip the loop onto the

stand (fig. b).

•If you plan to mount the AM antenna to a wall or other

surface, secure the stand with screws (fig. c) before

clipping the loop to the stand. Make sure the

reception is clear.

4 Place the AM antenna on a flat surface and in a

direction giving the best reception.

5 Connect the FM wire antenna in the same way as

the AM loop antenna.

For best results, extend the FM antenna fully and fix to a

wall or door frame. Don’t drape loosely or leave coiled up.

to 120

to 60

fig. A fig. B

SL SR

SBL

SBR

Surround

Surround back

Surround

SBL SBR

AM LOOP

FM UNBAL 75 Ω

ANTENNA

fig. a fig. b fig. c

03_connecting_up.fm 19 ページ２００６年４月４日　火曜日　午後６時１３分

Connecting your equipment

Connecting external antennas

To improve FM reception connect an external FM

antenna to the

FM UNBAL 75

Ω

terminal.

To improve AM reception, connect a 15 ft. to 18 ft. length

of vinyl-coated wire to the

AM LOOP

terminals without

disconnecting the supplied AM loop antenna.

For the best possible reception, suspend horizontally

outdoors.

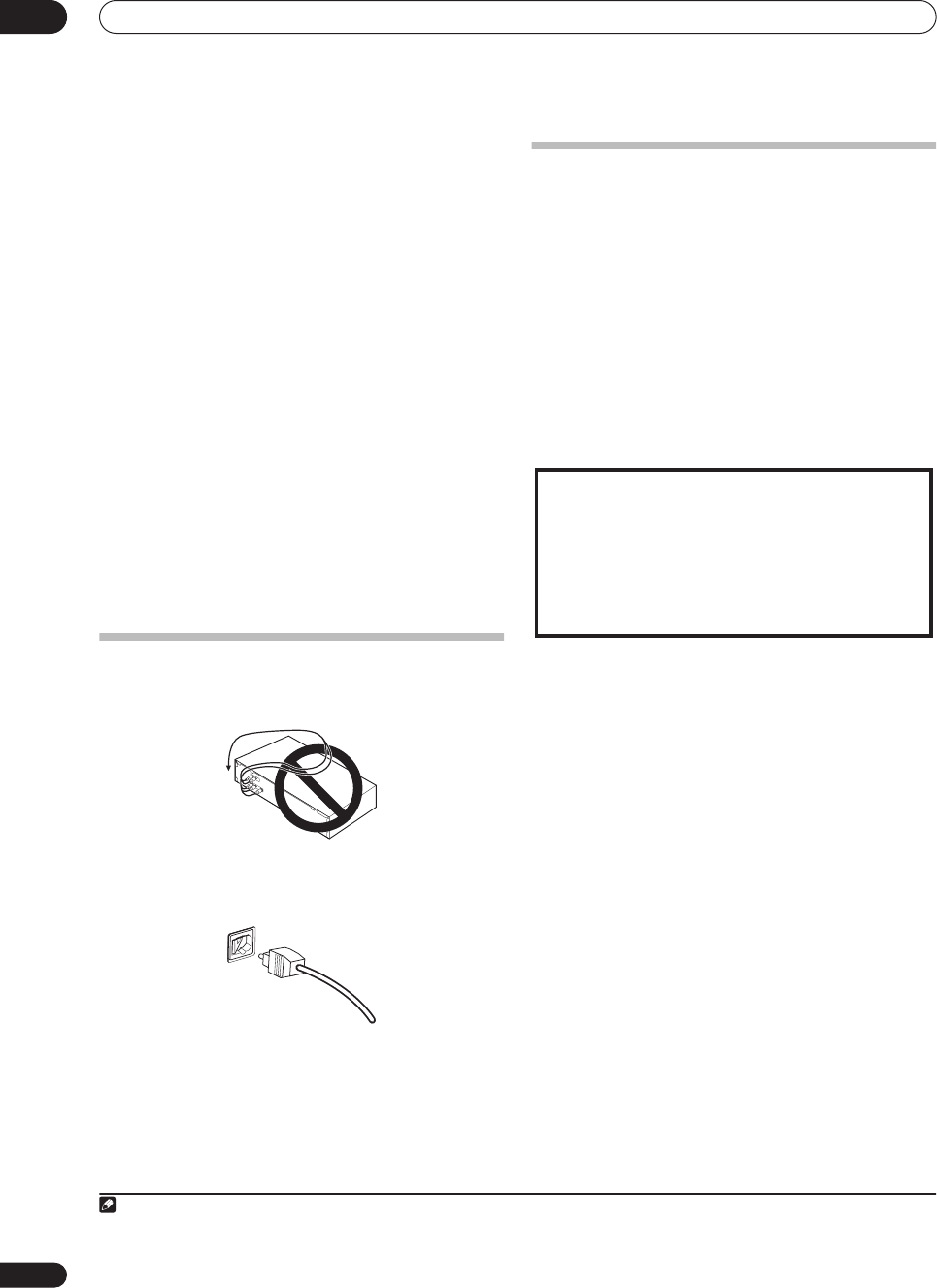

Plugging in the

receiver

Only plug in after you have connected all your

components to this receiver, including the speakers.

Caution

• Handle the power cord by the plug part. Do not pull

out the plug by tugging the cord, and never touch the

power cord when your hands are wet, as this could

cause a short circuit or electric shock. Do not place

the unit, a piece of furniture, or other object on the

power cord or pinch the cord in any other way. Never

make a knot in the cord or tie it with other cables. The

power cords should be routed so that they are not

likely to be stepped on. A damaged power cord can

cause a fire or give you an electric shock. Check the

power cord once in a while. If you find it damaged,

ask your nearest Pioneer authorized independent

service company for a replacement.

•The receiver should be disconnected by removing the

mains plug from the wall socket when not in regular

use, e.g., when on vacation.

•Make sure the blue



STANDBY/ON

light has gone

out before unplugging.

• Plug the power cord into a power outlet.

AC outlet

Power supplied through this outlet is turned on and off by

the receiver's power switch. Total electrical power

consumption of connected equipment should not exceed

100 W (0.8 A).

Caution

• Do not connect a TV set, monitor, heater, or similar

appliance to this unit's AC outlet.

• Do not connect appliances with high power

consumption to the AC outlet in order to avoid

overheating and fire risk. This can also cause the

receiver to malfunction.

•Since a subwoofer or power amplifier can exceed the

100 W maximum when playing sources at a high

volume, this type of equipment should not be

connected to the AC outlet.

AM LOOP

FM UNBAL 75 Ω

ANTENNA

75 Ω coaxial cable

AM LOOP

FM UNBAL 75 Ω

ANTENNA

Outdoor antenna

15 ft. to 18 ft.

Indoor antenna

(vinyl-coated wire)

VSX-1016TXV_KU.book.fm 20 ページ２００６年３月２４日　金曜日　午後９時１９分

Controls and displays 04

Chapter 4:

Controls and displays

Front panel

MULTI JOG

dial

Use the

MULTI JOG

dial to select various settings and

menu options.



STANDBY/ON

Switches the receiver between on and standby. Power

indicator lights when the receiver is on.

3 PHASE CONTROL

– Press to switch on/off Basic

Phase Control (page 10).

ACOUSTIC EQ

– Press to select an Acoustic

Calibration EQ setting (page 28).

LISTENING MODE

– Use with the

MULTI JOG

dial to

select the various listening modes (page 26).

PHASE CONTROL

indicator

Lights when Basic Phase Control is switched on

(page 10).

5 DIGITAL PRECISION PROCESSING indicator

Lights to indicate digital processing (for example, it

disappears when listening through the multichannel

analog inputs).

6 Character display

See

Display

on page 23.

7 Remote sensor

Receives the signals from the remote control (see

Operating range of remote control unit

on page 22).

8 MCACC indicator

Lights when Acoustic Calibration EQ (page 35) is on

(Acoustic Calibration EQ is automatically set to

ALL CH

ADJUST

after the Auto MCACC Setup (page 8) or EQ

Auto Setup (page 35)).

9 SIGNAL SELECT

– Use to select an input signal

(page 29).

SBch PROCESSING

– Selects the surround back

channel mode (page 29) or virtual surround back

mode (page 29).

SOUND RETRIEVER

– Press to restore CD quality

sound to compressed audio sources (page 30).

MASTER VOLUME

dial

ENTER

PHONES

jack

Use to connect headphones. When the headphones are

connected, there is no sound output from the speakers.

MULTI JOG MASTER

VOLUME

ENTER

AUDIO/VIDEO MULTI- CHANNEL

RECEIVER

VSX-1016TXV

STANDBY/ON

PHONES

DVD/ LD

PHASE

CONTROL

TV/ SAT DVR/ VCR1 DVR / VCR2 VIDEO/GAME CD

CD-R/TAPE/MD

FM/AM

LISTENING

MODE

PHASE

CONTROL

ACOUSTIC

SB ch

PROCESSING

SIGNAL

SELECT

MCACC

SETUP MIC

DIGITAL INAUDIO RLVIDEO

VIDEO/GAME

INPUT

S-VIDEO

SYSTEM

SETUP

TUNING/

STATION

TUNER

EDIT SPEAKERSRETURN TONE

MULTI JOG

MULTI CH

VIDEO

SELECT

SOUND

RETRIEVER

DIGITAL PRECISION PROCESSING

SYSTEM

SETUP

TUNING/

STATION

TUNER

EDIT SPEAKERSRETURN TONE

MULTI JOG

1 62 5 7

11 1413 1512

8910

16 19 201817 21

VSX-1016TXV_KU.book.fm 21 ページ２００６年３月２４日　金曜日　午後９時１９分

Controls and displays

13 Input source buttons

Press to select an input source (press

VIDEO SELECT

repeatedly to select the video source (page 49)).

VIDEO/GAME INPUT

See

Connecting a component to the front panel inputs

page 16.

MCACC SETUP MIC

jack

Use to connect the supplied microphone.

SYSTEM SETUP

Press to access the System Setup menu (see page 33).

RETURN

Press to confirm and exit the current menu screen.

TONE

Press this button to access the bass and treble controls,

which you can then adjust with the

MULTI JOG

dial

(page 30).

TUNING/STATION

Use to find radio frequencies and to select preset

stations (page 31).

TUNER EDIT

Use with the

MULTI JOG

dial to memorize and name

stations for recall

(page 31).

SPEAKERS

Use to change the speaker system (page 43).

Operating range of remote control unit

The remote control may not work properly if:

•There are obstacles between the remote control and

the receiver's remote sensor.

•Direct sunlight or fluorescent light is shining onto the

remote sensor.

• The receiver is located near a device that is emitting

infrared rays.

•The receiver is operated simultaneously with another

infrared remote control unit.

DOWN

23 ft. (7 m)

DOWN

VSX-1016TXV_KU.book.fm 22 ページ２００６年３月２４日　金曜日　午後９時１９分

Controls and displays 04

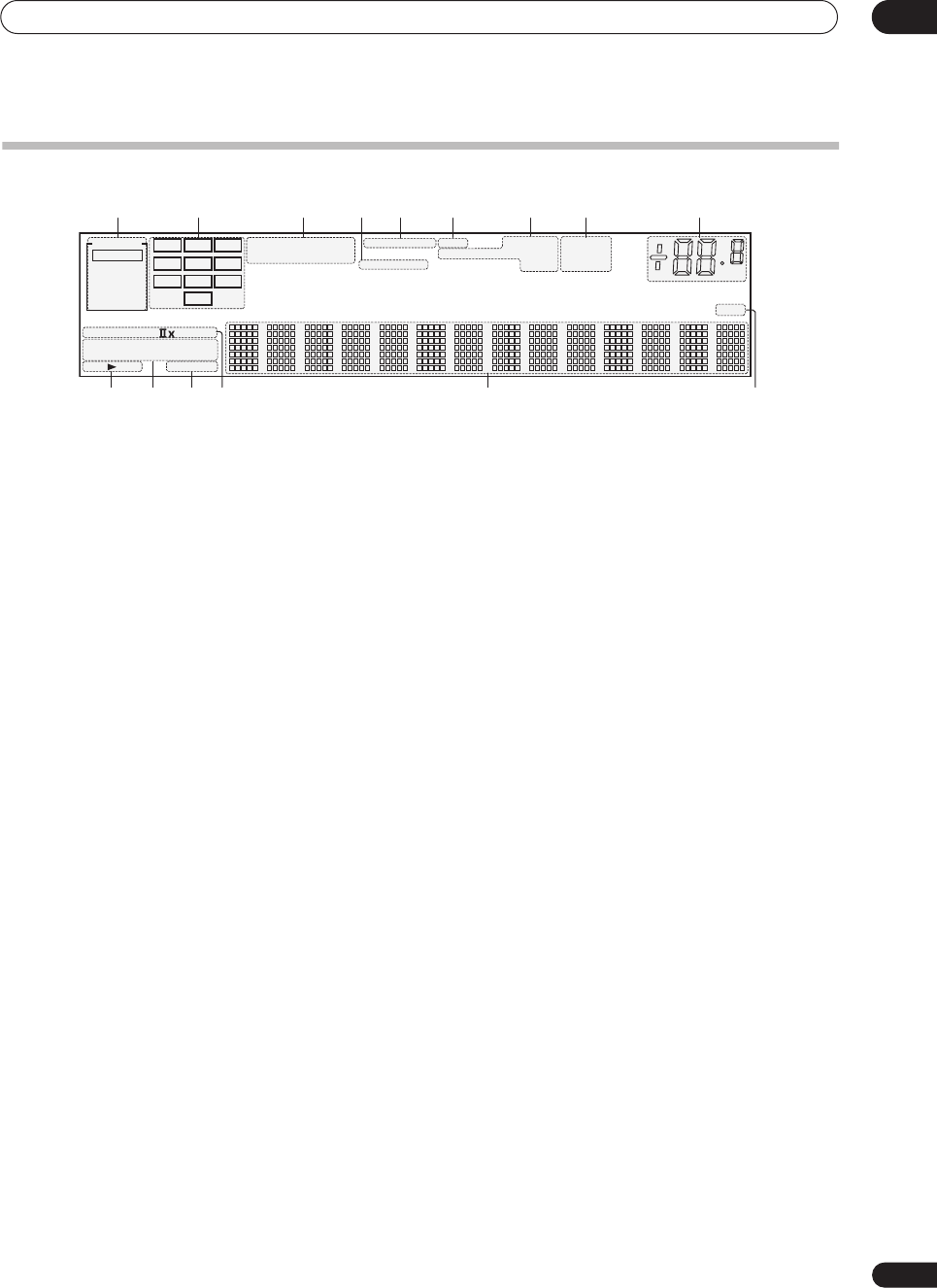

Display

SIGNAL

indicators

Light to indicate the currently selected input signal.

AUTO

lights when the receiver is set to select the input

signal automatically (page 29).

2 Program format indicators

These change according to which channels are active in

digital sources.

– Left front channel

– Center channel

– Right front channel

– Left surround channel

– Surround channel (mono)

– Right surround channel

SBL

– Left surround back channel

– Surround back channel (mono)

SBR

– Right surround back channel

LFE

– Low frequency effects channel

3 Digital format indicators

Light when a signal encoded in the corresponding format

is detected.

OVER

ATT

OVER

lights to indicate that the level of an analog source

is too high.

ATT

lights when you use the attenuator

(

ANALOG ATT

) to reduce it.

VIDEO CONV.

Lights when digital video conversion is enabled

(page 48).

6 V.SB

Lights during Virtual surround back processing

(page 29)

7 Sound processing indicators

Light according to the active sound processing feature.

TUNER

indicators

TUNED

– Lights when a broadcast is being received.

STEREO

– Lights when a stereo FM broadcast is

being received in auto stereo mode.

MONO

– Lights when the mono mode is set using

the

MPX

button.

9 Master volume level

10 Speaker indicators

Indicate the current speaker system,

and/or

(page 43)

11 Listening mode indicators

THX

– Lights when a Home THX mode is selected.

ADV. SURROUND

– Lights when an Advanced

Surround mode has been selected.

STEREO

– Lights when stereo listening is switched

on (see

Listening in stereo

on page 28).

STANDARD

– Lights when a Standard Surround

mode is switched on (see

Listening in surround

sound

on page 26).

SLEEP

Lights when the receiver is in sleep mode (page 50).

13 Matrix decoding format indicators

PRO LOGIC IIx

–

This lights to indicate

Pro

Logic II /

Pro Logic IIx decoding (page 26).

Neo:6

– When one of the Neo:6 modes of the receiver

is on, this lights to indicate Neo:6 processing

(page 26).

14 Character display

Displays various system information.

SR+

Lights when the SR+ mode is switched on (page 45).

21 3 765 8 9

1410 12 1513

SIGNAL L C R

SL SSR

SBL SB

LFE

SBR

AUTO

ADV.SURROUND

STANDARD

SLEEP

THX

STEREO

SP AB

DIGITAL

PRO LOGIC

DIGITAL

WMA9 Pro

SR+

96/24

DTS

OVER ATT

TONE

MONO

DIALOGUE LOUDNESS

STEREO

V.SB

MIDNIGHT TUNED

: 6

ANALOG

VIDEO

CONV.

VSX-1016TXV_KU.book.fm 23 ページ２００６年３月２４日　金曜日　午後９時１９分

Controls and displays

Remote control

The remote has been conveniently color-coded according

to component control using the following system (press

the corresponding input source button to access):

•

Green

– Receiver controls (see below)

•

Red

– DVD controls (page 55)

•

Blue

– Tuner/XM Radio controls (page 31)

•

White

– Other controls (page 55)

1 RECEIVER



This switches between standby and on for this receiver.

2 INPUT SELECT

Use to select the input source (use

SHIFT

for

INPUT

SELECT

3 Input source buttons

Press to select control of other components (see

Controlling the rest of your system

on page 51).

4 Number buttons and other receiver/component

controls

Use the number buttons to directly select a radio

frequency (page 31) or the tracks on a CD, DVD, etc.

DISC (ENTER)

can be used to enter commands for TV or

DTV, and also to select a disc in a multi-CD player.

Press

RECEIVER

first to access:

SLEEP

– Use to put the receiver in sleep mode and

select the amount of time before sleep (page 50).

SBch

– Use to select the surround/virtual back

channel mode (page 29).

ANALOG ATT

– Attenuates (lowers) the level of an

analog input signal to prevent distortion (page 49).

SR+

– Switches the SR+ mode on/off (page 45).

DIMMER

– Dims or brightens the display (page 50).

MIDNIGHT/LOUDNESS

– Use Midnight when

listening to movie soundtracks at low volume. Use

Loudness to boost the bass and treble at low volume

(page 30).

DIALOG E

– Use to make dialog stand out when

watching TV or a movie (page 30).

PHASE

– Press to switch on/off Basic Phase Control

(page 10).

S. RETRIEVER

– Press to restore CD quality sound to

compressed audio sources (page 30).

Press

TUNER

first to access:

D.ACCESS

– After pressing, you can access a radio

station directly using the number buttons (page 31).

CLASS

– Switches between the three banks (classes)

of radio station presets (page 31).

5 Tuner/component control buttons/

SETUP

These button controls can be accessed after you have

selected the corresponding input source button (

DVD

DVR1

, etc.). The

BAND

and

T.EDIT

tuner controls are

explained from page 31. Press

RECEIVER

first to access

the following controls:

SETUP

– Use to access the System Setup menu

(page 33).

RETURN

– Press to confirm and exit the current

menu screen (also use to return to the previous menu

with DVDs or to select closed captioning with DTV).



(TUNE/ST) /

ENTER

Use the arrow buttons when setting up your surround

sound system (page 33). Also used to control DVD

menus/options and for deck 1 of a double cassette deck

player. Use the

TUNE

/

buttons to find radio

frequencies and use

/

to find preset stations

(page 31).

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

ENTER

TV CONTROL

SHIFT

VOL

TUNE

ST ST

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

INPUT

SELECT TV CH

MPX

AUDIO

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

RECDTV ON/OFF DTV INFO

MUTE

TV VOL

ENTER

REC STOP JUKEBOX

HDD

CH CH

DVD

TOP MENU

CATEGORY

T.EDITDTV MENU

RETURN

GUIDE BAND

SETUP

RECEIVER

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

XM RADIO

DVR 2

VSX-1016TXV_KU.book.fm 24 ページ２００６年３月２４日　金曜日　午後９時１９分

Controls and displays 04

7 TV CONTROL buttons

These buttons are dedicated to control the TV assigned to

the TV CTRL button. Thus if you only have one TV to hook

up to this system assign it to the TV CTRL input source

button. If you have two TVs, assign the main TV to the TV

CTRL button (see page 51 for more on this).

TV – Use to turn on/off the power of the TV.

TV VOL +/– – Use to adjust the volume on your TV.

INPUT SELECT – Use to select the TV input signal.

TV CH +/– – Use to select channels.

8 Component control buttons

The main buttons (, , etc.) are used to control a

component after you have selected it using the input

source buttons.

The controls above these buttons can be accessed after

you have selected the corresponding input source button

(for example DVD, DVR1 or TV). The following controls

can be accessed when listening to the built-in tuner:

MPX – Switches between stereo and mono reception

of FM broadcasts. If the signal is weak then switching

to mono will improve the sound quality (page 31).

DISP – Switches between named station presets and

radio frequencies (page 32).

9 Receiver controls

THX – Press to select a Home THX listening mode

(page 27).

STANDARD – Press for Standard decoding and to

switch between the various 2Pro Logic IIx and

Neo:6 options (page 26).

ADV.SURR – Use to switch between the various

surround modes (page 27).

STEREO – Switches between direct and stereo

playback. Direct playback bypasses the tone controls

and any other signal processing for the most

accurate reproduction of a source (page 28).

AUTO SURR – Selects Auto Surround (Auto playback

on page 26).

ACOUSTIC EQ – Press to select an Acoustic

Calibration EQ setting (page 28).

SIGNAL SEL – Use to select an input signal (page 29).

MULTI OPE

Use this button to perform multi operations (page 53).

SHIFT

Press to access the controls outlined in white boxes (for

example, INPUT SELECT ), or to display the currently

selected input source in the remote control LCD.

SOURCE

Press to turn on/off other components connected to the

receiver (see page 51 for more on this).

13 Character display (LCD)

This display shows information when transmitting

control signals.

The following commands are shown when you’re setting

the remote to control other components (see Controlling

the rest of your system on page 51):

SETUP – Indicates the setup mode, from which you

choose the options below.

PRESET – See Selecting preset codes directly on

page 51.

LEARNING – See Programming signals from other

remote controls on page 51.

MULTI OP – See Multi Operation and System Off on

page 53.

SYS OFF – See Multi Operation and System Off on

page 53.

DIRECT F – See Direct function on page 53.

ERASE – See Erasing one of the remote control button

settings on page 52.

RESET – See Resetting the remote control presets on

page 52.

READ ID – See Confirming preset codes on page 52.

14 RECEIVER

Switches the remote to control the receiver (used to

select the green commands above the number buttons

(ANALOG ATT, etc)). Also use this button to set up

surround sound (page 8, page 33).

15 VOL +/–

Use to set the listening volume.

16 MUTE

Mutes the sound or restores the sound if it has been

muted (adjusting the volume also restores the sound).

17 EFFECT/CH SEL

Press repeatedly to select a channel, then use +/– to

adjust the level (see Tip on page 38). Also adjusts the

level of the Advanced Surround effects, Dolby Pro

Logic IIx Music, and Neo:6 Music parameters

(page 27). You can then use the +/– buttons to make

these adjustments.

04_controls_displays.fm 25 ページ２００６年４月４日　火曜日　午後６時１５分

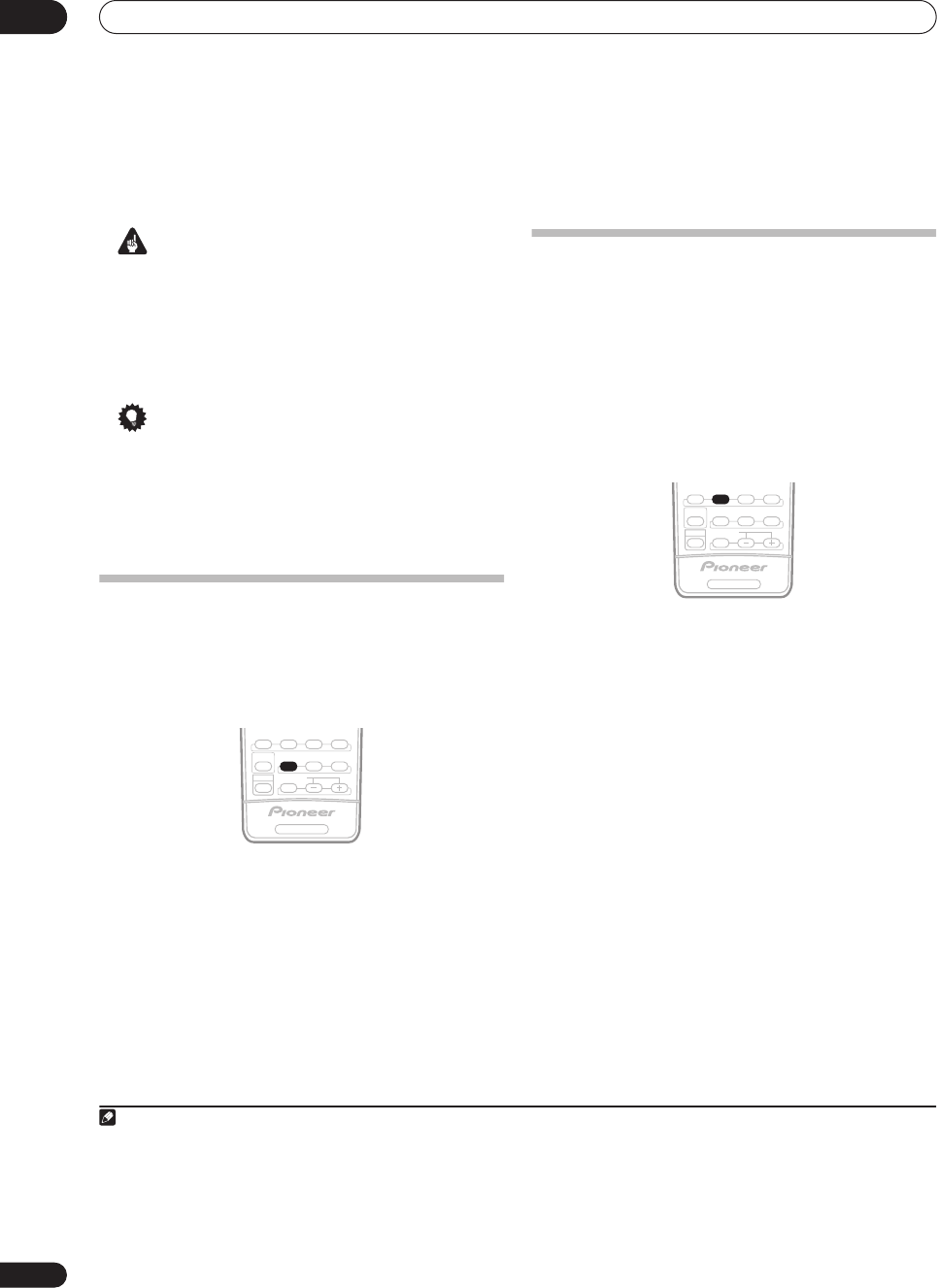

Listening to your system

Chapter 5:

Listening to your system

Important

•The listening modes and many features described in

this section may not be available depending on the

current source (for example, PCM 88.2 kHz / 96 kHz,

DTS 96 kHz (24 bit) or WMA9 Pro), settings and status

of the receiver. See

Listening modes with different

input signal formats

on page 64 for more on this.

Tip

• The listening modes described below can also be

selected using the front panel controls. Simply press

LISTENING MODE

repeatedly to access the modes

you want, then use the

MULTI JOG

to select a

particular listening mode (after five seconds the

mode is automatically set).

Auto playback

There are many ways to listen back to sources using this

receiver, but for the simplest, most direct listening option

is the Auto Surround feature. The receiver automatically

detects what kind of source you’re playing and selects

multichannel or stereo playback as necessary.

• While listening to a source, press

AUTO SURR

for

auto playback of a source.

AUTO SURROUND

shows briefly in the display before

showing the decoding or playback format. Check the

digital format indicators in the front panel display to see

how the source is being processed.

• When listening to XM Radio, the XM HD Surround

feature is selected automatically (see

Using XM HD

Surround

on page 41 for more on this).

Listening in surround sound

Using this receiver, you can listen to any source in

surround sound. However, the options available will

depend on your speaker setup and the type of source

you’re listening to.

If you connected surround back speakers, see also

Using

surround back channel processing

on page 29.

Standard surround sound

The following modes provide basic surround sound for

stereo and multichannel sources.

• While listening to a source, press

STANDARD

If necessary, press repeatedly to select a listening mode.

•If the source is Dolby Digital, DTS, or Dolby Surround

encoded, the proper decoding format will

automatically be selected and shows in the display.

With two channel sources

, you can select from:

•

Pro Logic IIx MOVIE

– Up to 7.1 channel sound,

especially suited to movie sources

•

Pro Logic IIx MUSIC

– Up to 7.1 channel sound,

especially suited to music sources

•

Pro Logic IIx GAME

– Up to 7.1 channel sound,

especially suited to video games

•

PRO LOGIC

– 4.1 channel surround sound (sound

from the surround speakers is mono)

•

Neo:6 CINEMA

– 6.1 channel sound, especially

suited to movie sources

•

Neo:6 MUSIC

– 6.1 channel sound, especially suited

to music sources

With multichannel sources, if you have connected

surround back speaker(s) and have selected

SBch ON

, you

can select (according to format):

Note

1• Stereo surround (matrix) formats are decoded accordingly using

Neo:6 CINEMA

Pro Logic IIx MOVIE

(see

Listening in surround sound

above

for more on these decoding formats).

• The Auto Surround feature is canceled if you connect headphones or select the multichannel analog inputs.

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

2 In modes that give 6.1 channel sound, the same signal is heard from both surround back speakers.

3If surround back channel processing (page 29) is switched

OFF

, or the surround back speakers are set to

(this happens automatically if the

Surround

back speaker setting

on page 33 is set to anything but

Normal (SB)

Pro Logic IIx

becomes

Pro Logic II

(5.1 channel sound).

4 When listening to 2-channel sources in Dolby Pro Logic IIx Music mode, there are three further parameters you can adjust: Center Width, Dimension,

and Panorama. See

Setting the effect options

on page 27 to adjust them.

5 When listening to 2-channel sources in Neo:6 Music mode, you can also adjust the center image effect (see

Setting the effect options

on page 27).

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

VSX-1016TXV_KU.book.fm 26 ページ２００６年３月２４日　金曜日　午後９時１９分

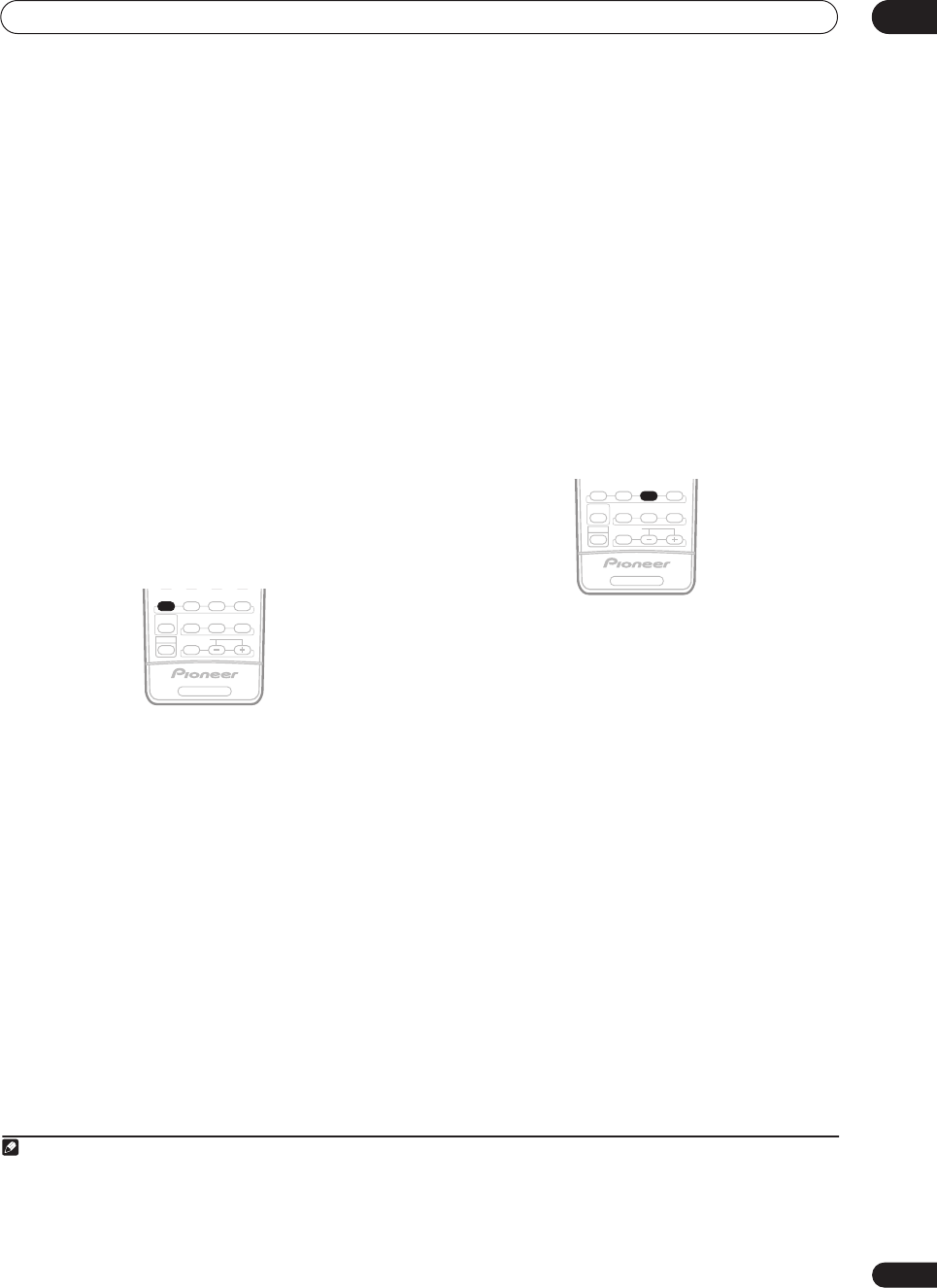

Listening to your system 05

•

Pro Logic IIx MOVIE

– See above (only available

when you’re using two surround back speakers)

•

Pro Logic IIx MUSIC

– See above

•

Dolby Digital EX

– Creates surround back channel

sound for 5.1 channel sources and provides pure

decoding for 6.1 channel sources (like Dolby Digital

Surround EX)

•

DTS-ES

– Allows you to hear 6.1 channel playback

with DTS-ES encoded sources

•

DTS Neo:6

– Allows you to hear 6.1 channel playback

with DTS encoded sources

Using the Home THX modes

THX and Home THX are technical standards created by

THX Ltd. for cinema and home theater sound. Home THX

is designed to make home theater audio sound more like

what you hear in a cinema.

Different THX options will be available depending on the

source and the setting for surround back channel

processing (see

Using surround back channel processing

on page 29 for more on this).

• Press

THX

(

HOME THX

) to select a listening mode.

With two channel sources

, press

THX

repeatedly to select

a matrix-decoding process for the

THX CINEMA

mode

(see

Listening in surround sound

above for an

explanation of each process):

•

Pro Logic IIx MOVIE+THX

•

PRO LOGIC+THX

• Neo:6 CINEMA+THX

• THX GAMES MODE

With multichannel sources

, press

THX

(

HOME THX

)

repeatedly to select from:

•

THX CINEMA

– Gives you cinema-quality sound from

your home theatre system using all the speakers in

your setup

•

Pro Logic IIx MOVIE+THX

– Especially suited to

movie sources, this allows you to hear 7.1 channel

playback with 5.1 channel sources

•

THX Surround EX

– Allows you to hear 6.1 or 7.1

channel playback with 5.1 channel sources

•

THX Select2 CINEMA

– Allows you to hear 7.1

channel playback with 5.1 channel sources

•

THX MUSICMODE

– Allows you to hear 7.1 channel

playback with 5.1 channel sources

•

THX GAMES MODE

– Allows you to hear 7.1 channel

playback from the output of a video game console

Using the Advanced surround effects

The Advanced surround effects can be used for a variety

of additional surround sound effects. Most Advanced

Surround modes are designed to be used with film

soundtracks, but some modes are also suited for music

sources. Try different settings with various soundtracks

to see which you like.

• Press

ADV.SURR

repeatedly to select a listening

mode.

•

ADVANCED MOVIE

– Suitable for movie sources.

•

ADVANCED MUSIC

– Suitable for music sources.

•

TV SURROUND

– Provides surround sound for both

mono and stereo TV sources.

•

SPORTS

– Suitable for sports programs.

•

ADVANCED GAME

– Suitable for video games.

•

EXPANDED

– Simulates multichannel surround

sound for two-channel sources.

•

7ch STEREO

– Gives multichannel sound to a stereo

source, using all of your speakers.

•

VIR. SURROUND

– A virtual surround effect using

just the subwoofer and front speakers.

•

PhonesSurround

– Creates the effect of overall

surround with headphones.

Setting the effect options

When using surround effects, there are a number of

settings you can adjust.

Note

1 You can’t use the THX modes when headphones are connected.

2 If you only have one surround back speaker connected,

Pro Logic IIx MOVIE+THX, THX Select2 CINEMA, THX MUSICMODE and THX GAMES

MODE are not available.

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

3• Depending on the source and the sound mode you have selected, you may not get sound from the surround back speakers in your setup. For more on

this, refer to Using surround back channel processing on page 29.

• If you press ADV. SURR when the headphones are connected, the PhonesSurround mode will automatically be selected.

4 Use with Dolby Pro Logic for a stereo surround effect (stereo field is wider than Standard modes with Dolby Digital sources).

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

VSX-1016TXV_KU.book.fm 27 ページ２００６年３月２４日　金曜日　午後９時１９分

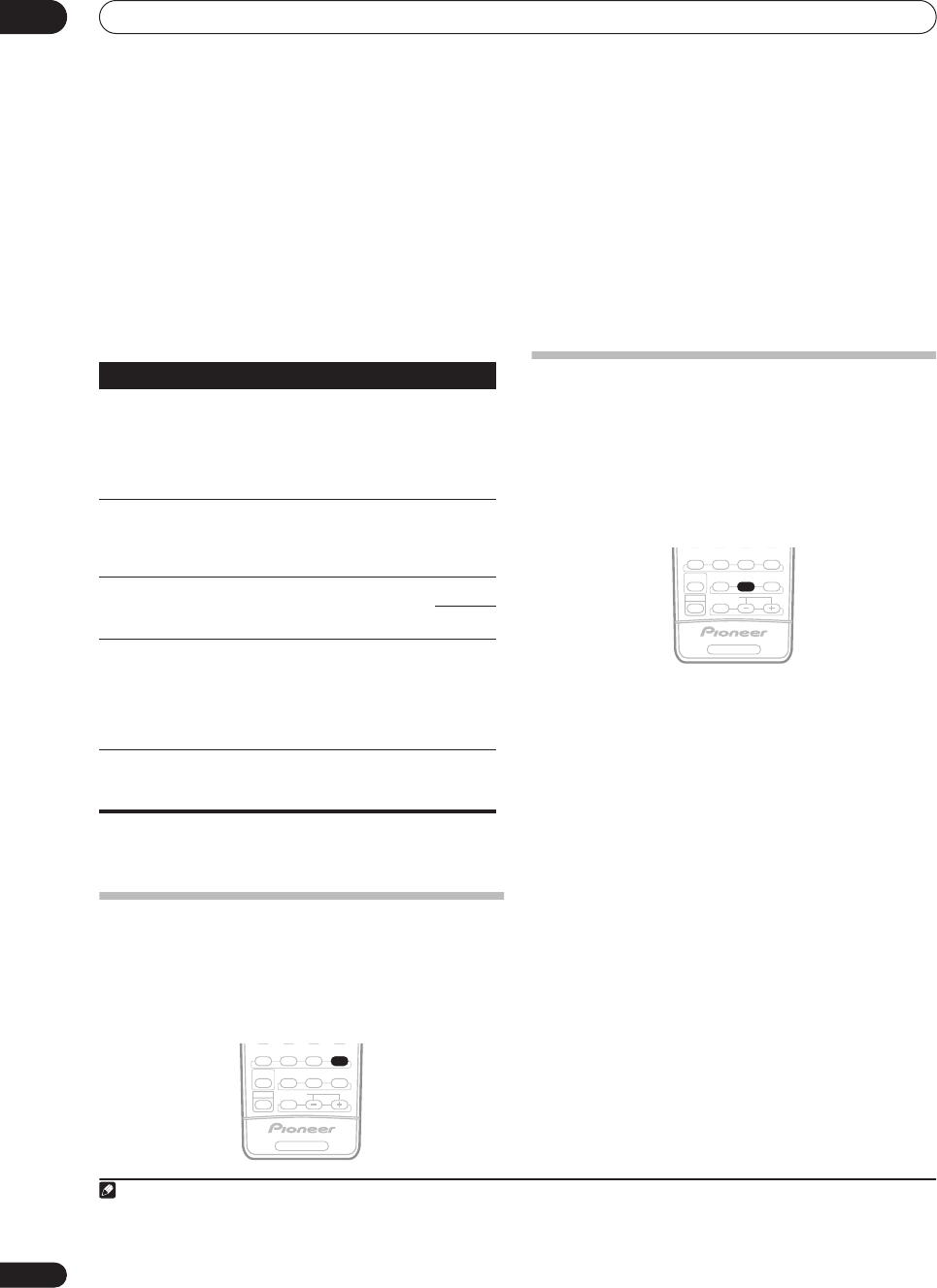

Listening to your system

1 Press

EFFECT/CH SEL

repeatedly to select the

setting you want to adjust.

Depending on the current status / mode of the receiver,

certain options may not appear. Check the table below

for notes on this.

Use the +/– buttons

to set it as necessary.

See the table below for the options available for each

setting. The defaults, if not stated, are listed in bold.

Press EFFECT/CH SEL again to adjust other

settings

Listening in stereo

When you select

STEREO

DIRECT

, you will hear the

source through just the front left and right speakers (and

possibly your subwoofer depending on your speaker

settings). Dolby Digital, DTS and WMA9 Pro

multichannel sources are downmixed to stereo.

•While listening to a source, press

STEREO

for stereo

playback.

Press repeatedly to switch between:

•

STEREO

– The audio is heard with your surround

settings and you can still use the Midnight, Loud-

ness, and Tone functions.

•

DIRECT

– Bypass all effects and surround settings so

that the audio remains as close to the source audio

signal as possible.

Listening with Acoustic Calibration EQ

•Default setting:

OFF

ALL CH ADJUST

(after the Auto

MCACC Setup or EQ Auto Setting)

You can listen to sources using the Acoustic Calibration

Equalization set in

Automatically setting up for surround

sound (MCACC)

on page 8 or

Acoustic Calibration EQ

page 35. Refer to these pages for more on Acoustic

Calibration Equalization.

• While listening to a source, press ACOUSTIC EQ.

Press repeatedly to select between:

•

ALL CH ADJUST

– No special weighting is given to

any one channel.

•

FRONT ALIGN

– All speakers are heard in

accordance with the front speaker settings.

•

CUSTOM 1/2

– Custom settings

•

EQ OFF

– Switches Acoustic Calibration EQ off.

The MCACC indicator on the front panel lights when

Acoustic Calibration EQ is active.

Setting What it does

Options

Center

Width

(Applicable

only when

using a cen-

ter speaker)

a.Only available with 2 ch sources in Dolby Pro Logic IIx Music / Dolby

Pro Logic II Music mode.

Spreads the center channel between the

front right and left speakers, making it

sound wider (higher settings) or narrower

(lower settings).

0 to 7

Default:

Dimension

Adjusts the surround sound balance from

front to back, making the sound more

distant (minus settings), or more forward

(positive settings).

–3 to +3

Default:

Panorama

Extends the front stereo image to include

surround speakers for a ‘wraparound’

effect.

OFF

Center


(Applicable

only when

using a cen-

ter speaker)

b.Only available with 2 ch sources in Neo:6 Music mode.

Adjusts the center image to create a wider

stereo effect with vocals. Adjust the effect

from

(all center channel sent to front

right and left speakers) to

(center

channel sent to the center speaker only).

0 to 10

Default:

Effect

Sets the effect level for the currently

selected Advanced Surround mode (each

mode can be set separately).

10 to 90

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

Note

1 If you switch on Midnight listening, Loudness, Dialog Enhancement, the Sound Retriever or the Tone controls when

DIRECT

is selected, the receiver

automatically switches to

STEREO

2• You can’t use Acoustic Calibration EQ with

MULTI CH IN

, XM HD Surround or WMA9 Pro, and it has no effect with headphones.

• If you switch on Acoustic Calibration EQ when

DIRECT

is selected, the receiver automatically switches to

STEREO

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

VSX-1016TXV_KU.book.fm 28 ページ２００６年３月２４日　金曜日　午後９時１９分

Listening to your system 05

Choosing the input signal

You need to hook up a component to both analog and

digital inputs on the receiver to select between input

signals.

• Press

SIGNAL SEL (SIGNAL SELECT

) to select the

input signal corresponding to the source component.

Each press cycles through the options as follows:

•

AUTO

– This is the default setting. The receiver

selects the first available signal in the following

order:

DIGITAL

;

ANALOG

•

ANALOG

– Selects an analog signal.

•

DIGITAL

– Selects an optical or coaxial digital signal.

When set to

DIGITAL

AUTO

DIGITAL

lights with

Dolby Digital decoding,

DTS

lights with DTS decoding,

and

WMA9 Pro

lights to indicate decoding of a WMA9

Pro signal.

Using surround back channel processing

• Default setting:

SBch ON

You can have the receiver automatically use 6.1 or 7.1

decoding for 6.1 encoded sources (for example, Dolby

Digital EX or DTS-ES), or you can choose to always use

6.1 or 7.1 decoding (for example, with 5.1 encoded

material). With 5.1 encoded sources, a surround back

channel will be generated, but the material may sound

better in the 5.1 format for which it was originally

encoded (in which case, you can simply switch surround

back channel processing off).

The table below indicates when you will hear the

surround back channel when playing various kinds of

sources. (



=Sound plays through surround back

speaker(s))

• Press

RECEIVER

then press

SBch

(SBch

PROCESSING) repeatedly to cycle the surround back

channel options.

Each press cycles through the options as follows:

•

SBch ON

– 6.1 or 7.1 decoding is always used (for

example, a surround back channel will be generated

for 5.1 encoded material)

•

SBch AUTO

– Automatically switches to 6.1 or 7.1

decoding for 6.1 encoded sources (for example,

Dolby Digital EX or DTS-ES)

•

SBch OFF

– Maximum 5.1 playback

Using the Virtual Surround Back mode

When you’re not using surround back speakers,

selecting this mode allows you to hear a virtual surround

back channel through your surround speakers. You can

choose to listen to sources with no surround back

channel information, or if the material sounds better in

the format (for example, 5.1) for which it was originally

encoded, you can have the receiver only apply this effect

to 6.1 encoded sources like Dolby Digital EX or DTS-ES.

The table indicates when you will hear the virtual

surround back channel. (



=Virtual surround back

channel is active)

• Press

RECEIVER

then press

SBch

(SBch

PROCESSING) repeatedly to cycle the virtual surround

back channel options.

Each press cycles through the options as follows:

•

VirtualSB ON

– Virtual Surround Back is always used

(for example, on 5.1 encoded material)

•

VirtualSB AUTO

– Virtual Surround Back is

automatically applied to 6.1 encoded sources (for

example, Dolby Digital EX or DTS-ES)

Note

1• This receiver can only play back Dolby Digital, PCM (32 kHz to 96 kHz), DTS (including DTS 96 kHz/24 bit) and WMA9 Pro digital signal formats. With

other digital signal formats, set to

ANALOG

(the

MULTI CH IN

and

TUNER

functions are all fixed to

ANALOG

• You may get digital noise when a LD or CD player compatible with DTS is playing an analog signal. To prevent noise, make the proper digital connec-

tions (page 15) and set the signal input to

DIGITAL

• Some DVD players don’t output DTS signals. For more details, refer to the instruction manual supplied with your DVD player.

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

2• You can’t use the Virtual Surround Back mode with headphones, or with the

THX

, XM HD Surround,

STEREO

DIRECT

modes.

• You can only use the Virtual Surround Back mode if the surround speakers are on and the

Surr Back

setting is set to

in the

Speaker Setting

page 37.

• Depending on the input signal and the listening mode, the Virtual Surround Back mode may not be effective.

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

DIALOG E

S.RETRIEVER

PHASE

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

VSX-1016TXV_KU.book.fm 29 ページ２００６年３月２４日　金曜日　午後９時１９分

Listening to your system

•

VirtualSB OFF

– Virtual Surround Back mode is

switched off

Using Midnight and Loudness

The Midnight listening feature allows you to hear effec-

tive surround sound of movies at low volume levels. The

effect automatically adjusts according to the volume at

which you’re listening. The Loudness listening feature

can be used to get good bass and treble from music

sources at low volume levels.

• Press

RECEIVER

then press MIDNIGHT/LOUDNESS

to switch between MIDNIGHT, LOUDNESS, and OFF.

Using the Sound Retriever

When audio data is removed during the WMA/MP3/

MPEG-4 AAC compression process, sound quality often

suffers from an uneven sound image. The Sound

Retriever feature employs new DSP technology that

helps bring CD quality sound back to compressed 2-

channel audio by restoring sound pressure and

smoothing jagged artifacts left over after compression.

• Press

RECEIVER

then press

S. RETRIEVER (SOUND

RETRIEVER) to switch the sound retriever on or off.

Enhancing dialog

• Default setting:

OFF

The Dialog Enhancement feature localizes dialog in the

center channel to make it stand out from other

background sounds in a TV or movie soundtrack.

•

Press

RECEIVER

then p

ress DIALOG E to switch

dialog enhancement on or off.

Using the tone controls

Depending on what you are listening to, you may want to

adjust the bass or treble using the front panel tone

control.

1 Press TONE to select the frequency you want to

adjust.

Press to switch between

BASS

and

TREBLE

2 Use the

MULTI JOG

dial to change the amount of

bass or treble as necessary.

The bass and treble can be adjusted from

–6

(dB).

•Wait about five seconds for your changes to be input

automatically.

Type of source

SBch

Processing /

Virtual SB

mode

Standard / THX

Advanced

surround

Multichannel

sources

Stereo sources

Pro Logic IIx

Pro Logic Neo:6

Dolby Digital EX/DTS-ES/WMA9 Pro encoded

multichannel sources with 6.1ch surround



AUTO



Dolby Digital/DTS/WMA9 Pro encoded

multichannel sources



AUTO



Dolby Digital/DTS/PCM/WMA9 Pro encoded

stereo sources



a,b



AUTO





Analog 2-channel (stereo) sources



AUTO





a. Only applicable when using the Virtual Surround Back mode.

b.Excluding the WMA9 Pro format.

c. Not applicable when using the Virtual Surround Back mode.

Note

1 The tone controls are only available when

STEREO

is selected (except when

STEREO

is selected using

AUTO SURROUND

VSX-1016TXV_KU.book.fm 30 ページ２００６年３月２４日　金曜日　午後９時１９分

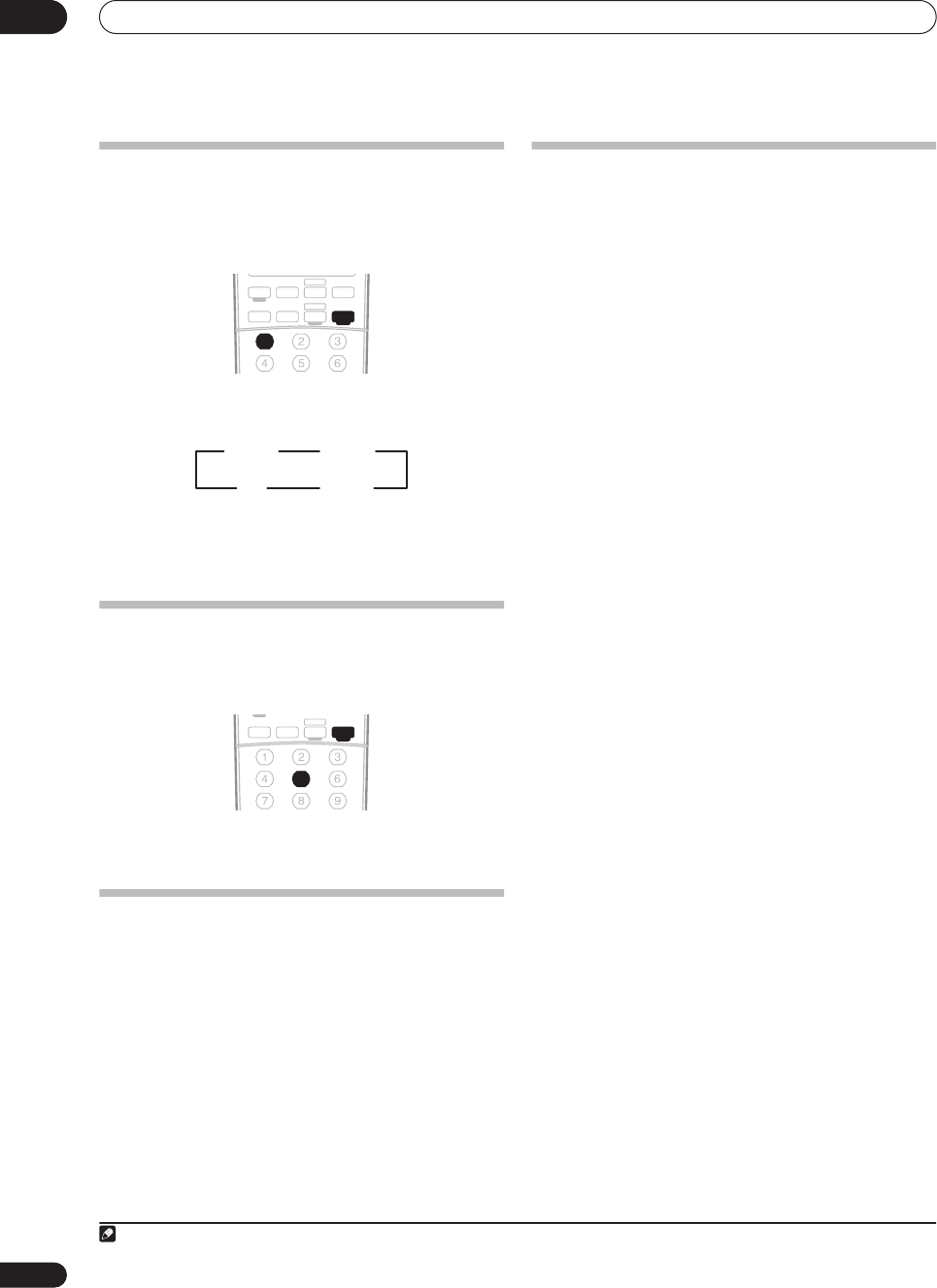

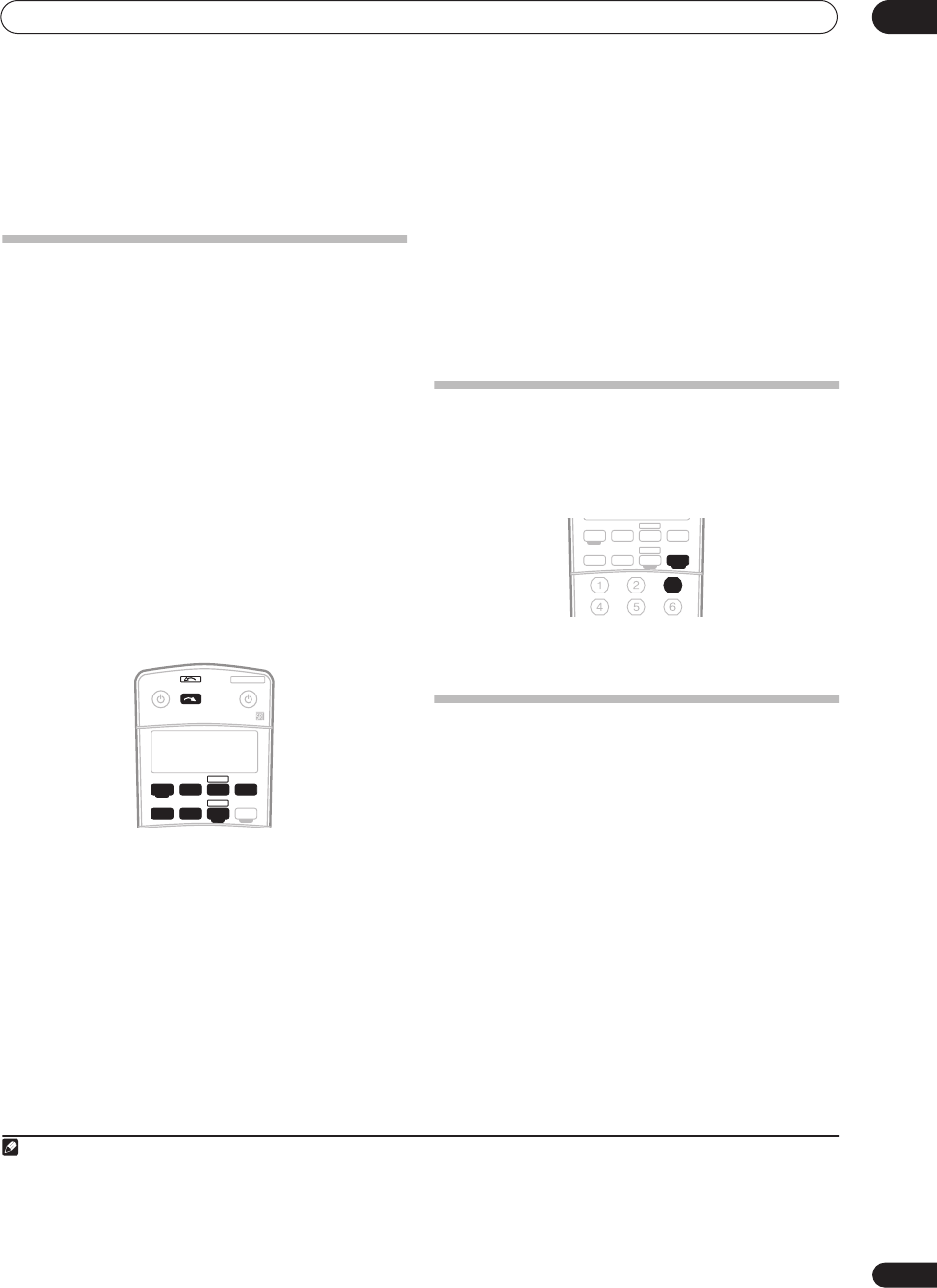

Using the tuner 06

Chapter 6:

Using the tuner

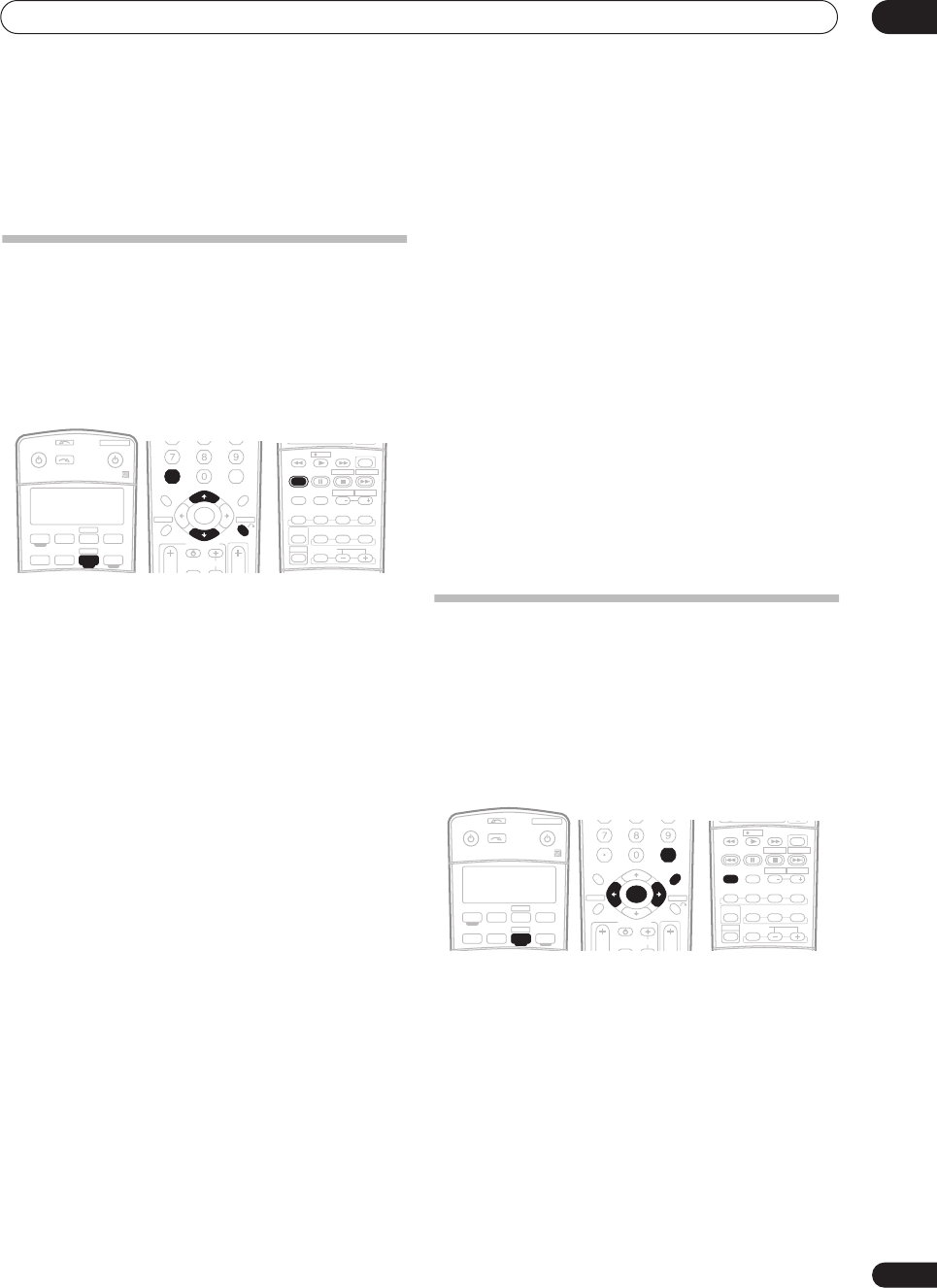

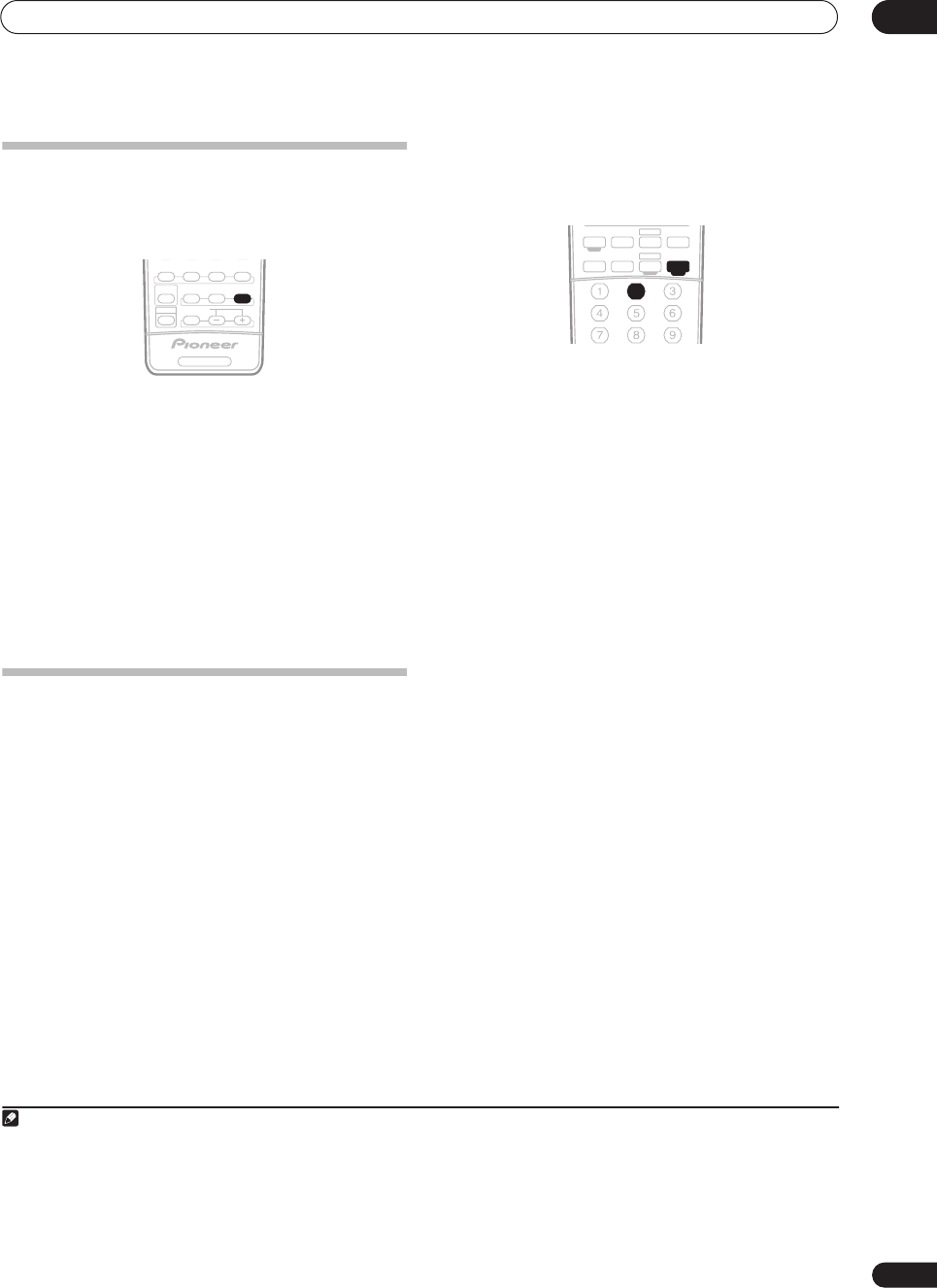

Listening to the radio

The following steps show you how to tune in to FM and

AM radio broadcasts using the automatic (search) and

manual (step) tuning functions. If you already know the

frequency of the station you want, see

Tuning directly to a

station

below. Once you are tuned to a station you can

memorize the frequency for recall later—see

Saving

station presets

on page 31 for more on how to do this.

1 Press the

TUNER

button to select the tuner.

2 Use the BAND button to change the band (FM or

AM), if necessary.

Each press switches the band between FM and AM.

3 Tune to a station.

There are three ways to do this:

Automatic tuning

To search for stations in the currently selected band,

press and hold

TUNE

/

for about a second. The

receiver will start searching for the next station,

stopping when it has found one. Repeat to search for

other stations.

Manual tuning

To change the frequency one step at a time, press

TUNE

/

High speed tuning

Press and hold

TUNE

/

for high speed tuning.

Release the button at the frequency you want.

Improving FM stereo sound

If the

TUNED

STEREO

indicators don't light when

tuning to an FM station because the signal is weak, press

the

MPX

button to switch the receiver into mono

reception mode. This should improve the sound quality

and allow you to enjoy the broadcast.

Tuning directly to a station

Sometimes, you'll already know the frequency of the

station you want to listen to. In this case, you can simply

enter the frequency directly using the number buttons on

the remote control.

1 Press the

TUNER

button to select the tuner.

2 Use the BAND button to change the band (FM or

AM), if necessary.

Each press switches the band between FM and AM.

3 Press D.ACCESS (Direct Access).

4 Use the number buttons to enter the frequency of

the radio station.

For example, to tune to

106.00

(FM), press

If you make a mistake halfway through, press

D.ACCESS

twice to cancel the frequency and start over.

Saving station presets

If you often listen to a particular radio station, it's

convenient to have the receiver store the frequency for

easy recall whenever you want to listen to that station.

This saves the effort of manually tuning in each time. This

receiver can memorize up to 30 stations, stored in three

banks, or classes, (A, B and C) of 10 stations each. When

saving an FM frequency, the

MPX

setting (see page 31) is

also stored.

1 Tune to a station you want to memorize.

See

Listening to the radio

on page 31 for more on this.

2 Press T.EDIT (TUNER EDIT).

The display shows

STATION MEMORY

, then a blinking

memory class.

3 Press CLASS to select one of the three classes then

press ST

/

to select the station preset you want.

You can also use the number buttons to select a station

preset.

4 Press

ENTER

After pressing

ENTER

, the preset class and number stop

blinking and the receiver stores the station.

XM RADIO

DVR 2

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

ENTER

TV CONTROL

VOL

ST ST

INPUT

SELECT TV CH

TV VOL

ENTER

TOP MENU

CATEGORY

T.EDITDTV MENU

RETURN

GUIDE BAND

SETUP

TUNE

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MPX

AUDI O

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

RECDTV ON/OFF DTV INFO

MUTE

REC STOP JUKEBOX

HDD

CH CH

DVD

XM RADIO

DVR 2

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

ENTER

TV CONTROL

VOL

TUNE

INPUT

SELECT TV CH

TV VOL

ENTER

TOP MENU

CATEGORY

T.EDITDTV MENU

RETURN

GUIDE BAND

SETUP

ST ST

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

MPX

AUDI O

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

RECDTV ON/OFF DTV INFO

MUTE

REC STOP JUKEBOX

HDD

CH CH

DVD

VSX-1016TXV_KU.book.fm 31 ページ２００６年３月２４日　金曜日　午後９時１９分

Using the tuner

Naming station presets

For easier identification, you can name your station

presets.

1 Choose the station preset you want to name.

See

Listening to station presets

below for how to do this.

2 Press T.EDIT (TUNER EDIT).

The display shows

STATION NAME

, then a blinking

cursor at the first character position.

3 Input the name you want.

Choose from the following characters for a name up to

four characters long.

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcdefghijklmnopqrstuvwxyz

0123456789

!”#$%&’()

∗

+,–./:;<=>?@[ \ ]^_{|} ˜

[space]

• Use the

/

buttons (remote) to select

characters.

• Press

ENTER

to confirm a character. If no character

is input, a space is input.

• The name is stored when

ENTER

is pressed after

choosing the fourth character.

Tip

• To erase a station name, simply repeat steps 1 to 3

and input four spaces instead of a name.

•Once you have named a station preset, you can press

DISP

when listening to a station to switch the display

between name and frequency.

Listening to station presets

You will need to have some presets stored to do this. See

Saving station presets

above if you haven’t done this

already.

1 Press

TUNER

to select the tuner.

2 Press CLASS to select the class in which the station

is stored.

Press repeatedly to cycle through classes A, B and C.

3Press ST

/

to select the station preset you want.

•You can also use the number buttons on the remote

control to recall the station preset.

VSX-1016TXV_KU.book.fm 32 ページ２００６年３月２４日　金曜日　午後９時１９分

The System Setup menu 07

Chapter 7:

The System Setup menu

Making receiver settings from the

System Setup menu

The following section shows you how to make detailed

settings to specify how you’re using the receiver (for

example, if you want to set up two speaker systems in

separate rooms), and also explains how to fine-tune

individual speaker system settings to your liking.

1 Switch on the receiver and your TV.

Use the



RECEIVER

button to switch on.

• If headphones are connected to the receiver,

disconnect them.

2Press RECEIVER on the remote control, then press

the SETUP button.

An on-screen display (OSD) appears on your TV. Use

/

//

and

ENTER

to navigate through the screens

and select menu items. Press

RETURN

to confirm and

exit the current menu.

• Press

SETUP

at any time to exit the System Setup

menu.

3 Select the setting you want to adjust.

•

Surr Back System

– Specify how you are using your

surround back speakers (see

Surround back speaker

setting

below).

•

Auto MCACC

– This is a quick and effective

automatic surround setup (see

Automatically setting

up for surround sound (MCACC)

on page 8).

•

Manual MCACC

– Fine tune your speaker settings

and customize the Acoustic Calibration EQ (see

Manual MCACC setup

on page 34).

•

Manual SP Setup

– Specify the size, number,

distance and overall balance of the speakers you’ve

connected (see

Manual speaker setup

on page 37).

•

Input Assign

– Specify what you’ve connected to the

digital and component video inputs (see

The Input

Assign menu

on page 46).

•

Other Setup

– Make customized settings to reflect

how you are using the receiver (see

The Other Setup

on page 47).

Surround back speaker setting

• Default setting:

Normal (SB)

There are several ways you can use the surround back

speaker channels with this system. In addition to a

normal home theater setup where they are used for the

surround back speakers, they can be used for bi-amping

the front speakers or as a separate speaker system in

another room.

1Select ‘Surr Back System’ from the System Setup

menu.

See

Making receiver settings from the System Setup menu

above if you’re not already at this screen.

2 Select the surround back speaker setting.

•

Normal (SB)

– Select for normal home theater use

with surround back speakers in your main (speaker

system A) setup.

•

Second Zone

– Select to use the (surround back) B

speaker terminals to listen to stereo playback in

another room (see

Second Zone speaker B setup

page 42).

•

Front Bi-Amp

– Select this setting if you’re bi-

amping your front speakers (see

Bi-amping your front

speakers

on page 43).

3 When you’re finished, press RETURN.

You return to the System Setup menu.

Note

1• Make sure not to switch off the power when using the System Setup menu.

• The OSD will not appear if you have connected using the HDMI output to your TV. Use component, S-video, or composite connections for system setup.

2 You can’t use the System Setup menu when the XM Radio input source is selected.

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

XM RADIO

DVR 2

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

ENTER

TV CONTROL

VOL

TUNE

ST ST

INPUT

SELECT TV CH

TV VOL

ENTER

TOP MENU

CATEGORY

T.EDITDTV MENU

RETURN

GUIDE BAND

SETUP

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

1.Surround Back System

Surr Back System

Normal (SB) ]

 : Finish

VSX-1016TXV_KU.book.fm 33 ページ２００６年３月２４日　金曜日　午後９時１９分

The System Setup menu

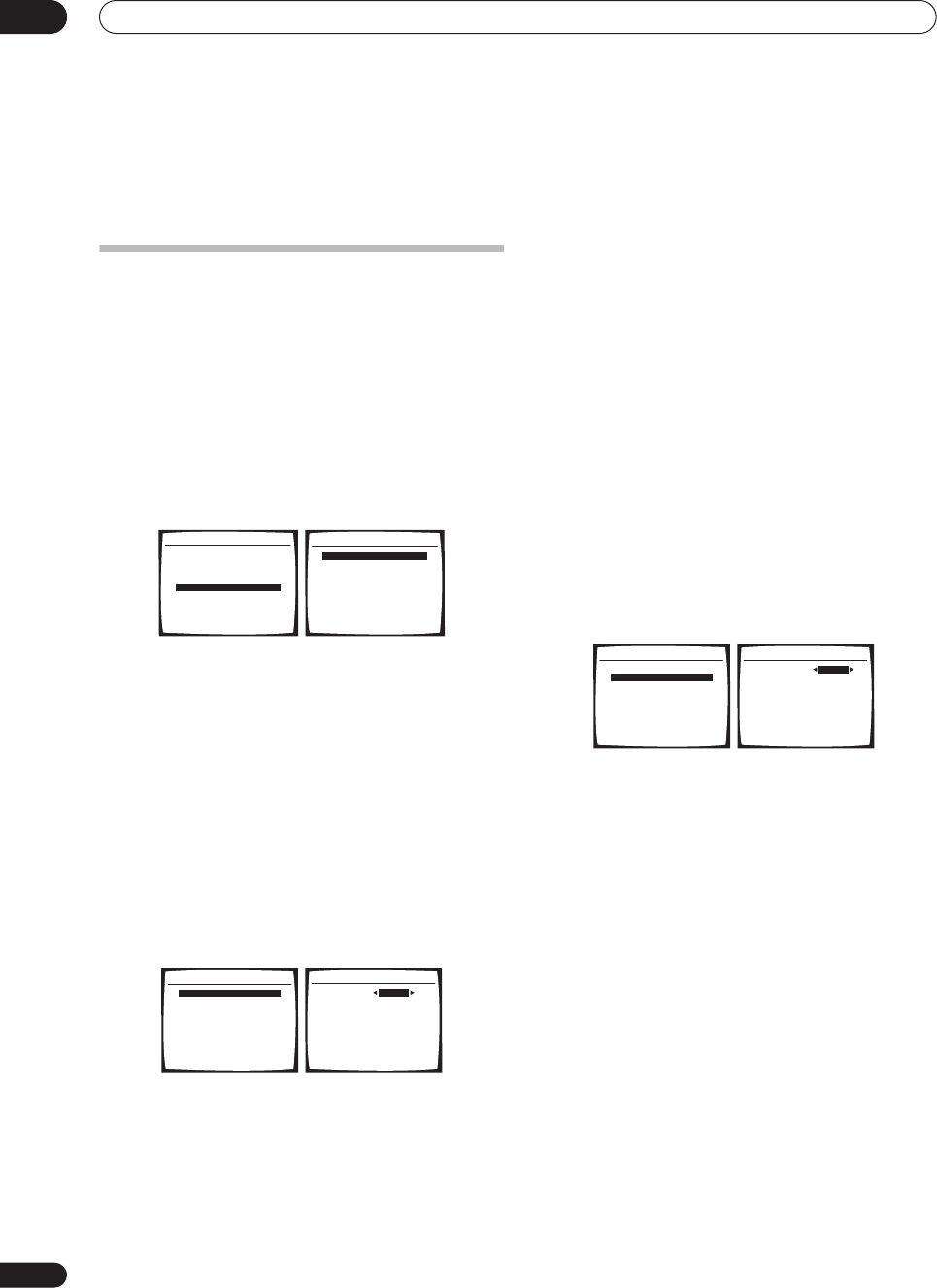

Manual MCACC setup

You can use the settings in the Manual MCACC setup

menu to make detailed adjustments when you’re more

familiar with the system. Before making these settings,

you should have already completed

Automatically setting

up for surround sound (MCACC)

on page 8.

You only need to make these settings once (unless you

change the placement of your current speaker system or

add new speakers).

Important

•For some of the settings below, you’ll have to connect

the setup microphone to the front panel and place it

about ear level at your normal listening position. See

Automatically setting up for surround sound (MCACC)

on page 8 if you’re unsure how to do this. Also see

Problems when using the Auto MCACC Setup

page 10 for notes regarding background noise and

other possible interference.

•If you’re using a subwoofer, switch it on and turn up

the volume as necessary.

Caution

• The test tones used in the MCACC setup are output

at high volume.

1 Select ‘Manual MCACC’ from the System Setup

menu.

See

Making receiver settings from the System Setup menu

above if you’re not already at this screen.

2 Select the setting you want to adjust.

If you’re doing this for the first time, you might want to

make these settings in order.

•

Fine Ch Level

– Make fine adjustments to the overall

balance of your speaker system (see

Fine Channel

Level

below).

•

Fine SP Distance

– Make precise delay settings for

your speaker system (see

Fine Speaker Distance

page 35).

The last five settings are specifically for customizing the

parameters explained in

Acoustic Calibration EQ

below:

•

EQ Auto Setting

– Measure the acoustic

characteristics of your room and automatically

adjust the frequency balance of your speaker system

(see

Setting the Acoustic Calibration EQ automatically

below).

•

EQ Data Copy

– Copy Acoustic Calibration EQ

settings for manual adjustment (see

Copying your

Acoustic Calibration EQ settings

on page 36).

•

EQ CUSTOM1/2 Adjust

– Make detailed manual

adjustments to your custom Acoustic Calibration EQ

settings (see

Setting the Acoustic Calibration EQ

manually

on page 36).

•

EQ Data Check

– Check the

ALL CH ADJUST

FRONT ALIGN

and custom settings using the on-

screen display (see

Checking your Acoustic

Calibration EQ settings

on page 36).

Fine Channel Level

• Default setting:

0.0dB

(all channels)

You can achieve better surround sound by properly

adjusting the overall balance of your speaker system. The

following setting can help you make detailed

adjustments that you may not achieve using the

Manual

speaker setup

on page 37.

1 Select ‘Fine Ch Level’ from the Manual MCACC

setup menu.

After the volume increases to the reference level, test

tones will be output.

2Select each channel in turn and adjust the levels

(

+/– 10 dB

)

as necessary.

Use

/

to adjust the volume of the speaker you

selected to match the reference speaker.

• The level of the left channel (the primary reference

speaker) is fixed at

0.0dB

so that you’ll have plenty of

room to adjust the other speaker levels.

When it sounds like both tones are the same volume,

press

ENTER

to confirm and continue to the next

channel.

•For comparison purposes, the reference speaker will

change depending on which speaker you select.

• If you want to go back and adjust a channel, simply

use

/

to select it.

3 When you're finished, press RETURN.

You return to the Manual MCACC setup menu.

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

3a.Fine Channel Level

Please Wait... 20

Caution!

Loud test tones

will be output.

:Cancel

3a.Fine Channel Level

L +　0.0dB (Reference)

R [ 0.0dB ]

C +　1.0dB

SL [ -3.0dB ]

SR [+ 10.0dB ]

SBL [– 10.0dB ]

SBR [+ 9.5dB ]

SW [– 1.5dB ]

:Finish

VSX-1016TXV_KU.book.fm 34 ページ２００６年３月２４日　金曜日　午後９時１９分

The System Setup menu 07

Fine Speaker Distance

• Default setting:

10.0 ft.

(all channels)

For proper sound depth and separation with your system,

it is necessary to add a slight bit of delay to some

speakers so that all sounds will arrive at the listening

position at the same time. The following setting can help

you make detailed adjustments that you may not achieve

using the

Manual speaker setup

below.

1Select ‘Fine SP Distance’ from the Manual MCACC

setup menu.

The volume increases to the reference level.

2 Adjust the distance of the left channel from the

listening position.

After pressing

ENTER

, test tones will be output.

3 Select each channel in turn and adjust the

distance as necessary.

Use

/

to adjust the delay of the speaker you selected

to match the reference speaker. The delay is measured in

terms of speaker distance from

0.5

45.0

feet.

Listen to the reference speaker and use it to measure the

target channel. From the listening position, face the two

speakers with your arms outstretched pointing at each

speaker. Try to make the two tones sound as if they are

arriving simultaneously at a position slightly in front of

you and between your arm span.

When it sounds like the delay settings are matched up,

press

ENTER

to confirm and continue to the next

channel.

•For comparison purposes, the reference speaker will

change depending on which speaker you select.

• If you want to go back and adjust a channel, simply

use

/

to select it.

4 When you're finished, press RETURN.

You return to the Manual MCACC setup menu.

Acoustic Calibration EQ

Acoustic Calibration Equalization is a kind of room

equalizer for your speakers (excluding the subwoofer). It

works by measuring the acoustic characteristics of your

room and neutralizing the ambient characteristics that

can color the original source material. This provides a ‘flat’

equalization setting. If you’re not satisfied with the

automatic adjustment, you can also adjust these settings

manually to get a frequency balance that suits your tastes.

Setting the Acoustic Calibration EQ automatically

If you have already completed

Automatically setting up for

surround sound (MCACC)

on page 8,

ALL CH ADJUST

and

FRONT ALIGN

(below) should already be set.

Therefore, if you want to adjust your settings manually,

you can skip to

Setting the Acoustic Calibration EQ

manually

below.

1Select ‘EQ Auto Setting’ from the Manual MCACC

setup menu.

• Make sure the microphone is connected.

• See

Problems when using the Auto MCACC Setup

page 10 for notes regarding high background noise

levels and other possible interference.

2 Wait for the EQ Auto Setting to finish.

As the receiver outputs test tones, the frequency balance

is adjusted automatically for the following settings:

•

ALL CH ADJUST

– A ‘flat’ setting where all the

speakers are set individually so no special weighting

is given to any one channel.

Note

1 If you can’t seem to achieve this by adjusting the distance setting, you may need to change the angle of your speakers very slightly.

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

3b.Fine SP Distance

L(Reference)

10.0 ft

ENTER:Next :Cancel

3b.Fine SP Distance

L 10.0ft (Reference)

R [ 9.0ft ]

C 9.5ft

SL [ 6.0ft ]

SR [ 6.5ft ]

SBL [ 6.0ft ]

SBR [ 6.5ft ]

SW [ 12.5ft ]

:Finish

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

3c.EQ Auto Setting

Set microphone.

Turn on Subwoofar.

:Cancel

3c.EQ Auto Setting

Now Analyzing

Environment Check

Ambient Noise [ ]

Microphone [ ]

Speaker YES/NO [ ]

:Cancel

3c.EQ Auto Setting

Now Analyzing

Surround Analyzing

Channel Level [ ]

Acoustic Cal EQ [ ]

:Cancel

VSX-1016TXV_KU.book.fm 35 ページ２００６年３月２４日　金曜日　午後９時１９分

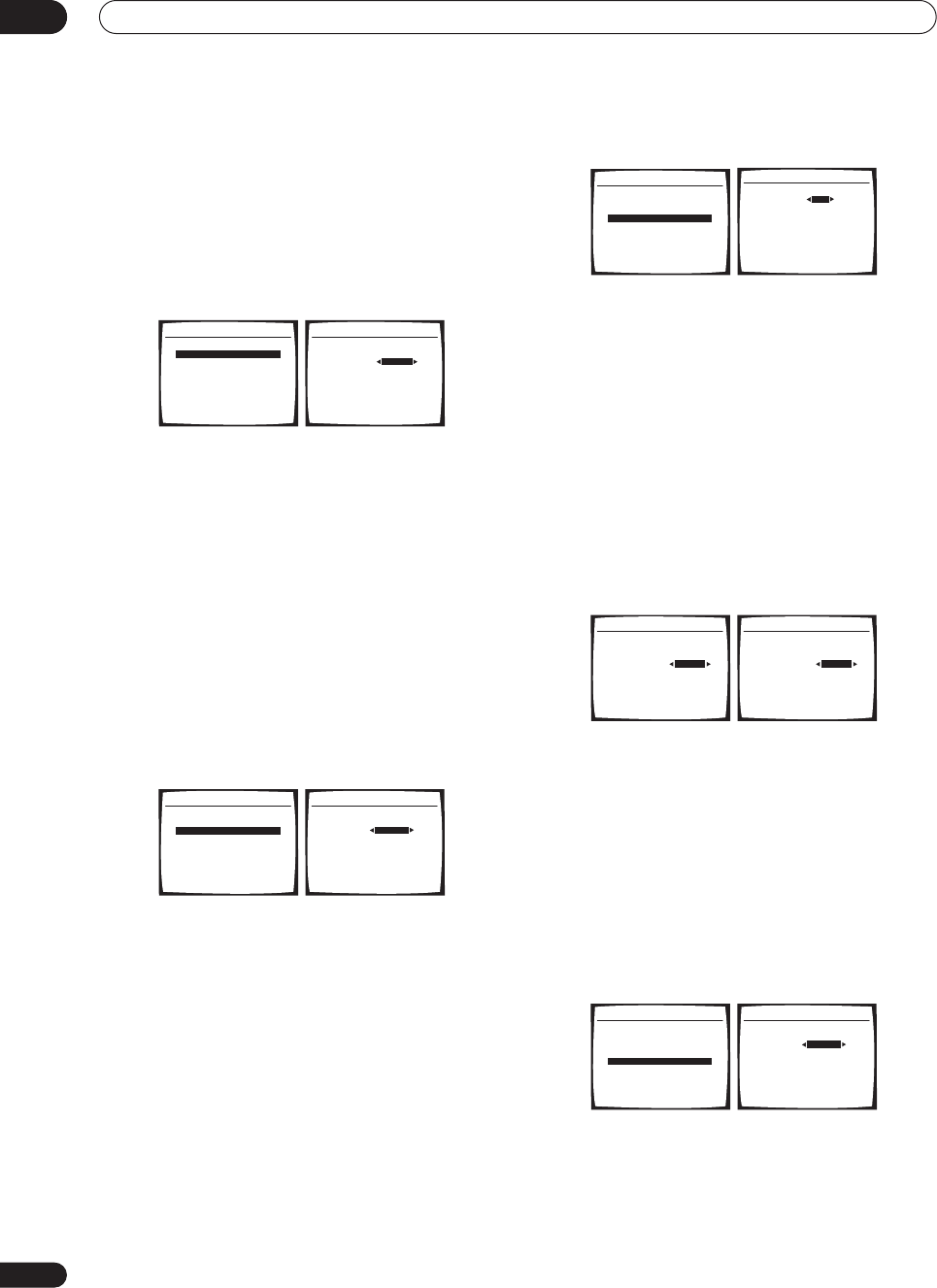

The System Setup menu

•

FRONT ALIGN

– All speakers are set in accordance

with the front speaker settings (no equalization is

applied to the front left and right channels).

You return to the Acoustic Cal EQ setup menu after the

Acoustic Calibration Equalization is set.

Copying your Acoustic Calibration EQ settings

If you want to manually adjust the Acoustic Calibration

EQ (see

Setting the Acoustic Calibration EQ manually

below), we recommend copying the

ALL CH ADJUST

the

FRONT ALIGN

settings from the

EQ Auto

setup

above (or from

Automatically setting up for surround

sound (MCACC)

on page 8) to one of the custom settings.

Instead of just a flat EQ curve, this will give you a

reference point from which to start.

1 Select ‘EQ Data Copy’ from the Manual MCACC

setup menu.

2Select CUSTOM1 or CUSTOM2 then use

/

select the setting you want to copy.

• You can also copy from one custom setting to

another. For more on the

ALL CH ADJUST

and

FRONT ALIGN

settings, see

Setting the Acoustic

Calibration EQ automatically

above.

3 Select ‘OK’ to copy and confirm.

Setting the Acoustic Calibration EQ manually

Before manually adjusting the Acoustic Calibration EQ,

we recommend copying the

ALL CH ADJUST

or the

FRONT ALIGN

settings from the auto setup above (or

from

Automatically setting up for surround sound

(MCACC)

on page 8) to one of the custom settings.

Instead of just a flat EQ curve, this will give you a

reference point from which to start (see

Copying your

Acoustic Calibration EQ settings

above for how to do this).

1 Select ‘EQ CUSTOM1 Adjust or EQ CUSTOM2

Adjust’ from the Manual MCACC setup menu.

2 Select which method you would like to use to

adjust the overall frequency balance.

It is best to choose whichever one you copied to the

custom setting in

Copying your Acoustic Calibration EQ

settings

above.

•

ALL CH ADJUST

– All the speakers can be set

independently so no special weighting is given to any

one channel. When adjusting, test tones will sound

for each individual channel.

•

FRONT ALIGN

– Speakers are set in accordance with

the front speaker settings. The sound of the test tone

will alternate between the left front (reference)

speaker and the target speaker.

3 Select the channel(s) you want and adjust to

your liking.

Use

/

to select the channel.

Use

/

to select the frequency and

/

to boost or

cut the EQ. When you’re finished, go back to the top of

the screen and use

/

to select the next channel.

• The front speakers can’t be adjusted if you selected

FRONT ALIGN

• The

OVER!

indicator shows in the display if the

frequency adjustment is too drastic and might

distort. If this happens, bring the level down until

OVER!

disappears from the display.

Tip

• Changing the frequency curve of one channel too

drastically will affect the overall balance. If the

speaker balance seems uneven, you can raise or

lower channel levels using test tones with the

TRIM

feature. Use

/

to select

TRIM

then use

/

raise or lower the channel level for the current

speaker.

4 When you're finished, press RETURN.

You return to the Manual MCACC setup menu.

Checking your Acoustic Calibration EQ settings

After you have completed an automatic or manual

Acoustic Calibration EQ adjustment, you can check the

ALL CH ADJUST

FRONT ALIGN

and custom settings

using the on-screen display.

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

3d.EQ Data Copy

:Cancel

TO FROM

CUSTOM1 CUSTOM1

CUSTOM2 [ CUSTOM2 ]

Start Copy [ OK ]

3d.EQ Data Copy

:Cancel

TO FROM

CUSTOM1 ALL CH ADJ

CUSTOM2 [ CUSTOM2 ]

Start Copy [ OK ]

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

3e.EQ CUSTOM1 Adjust

Test Tone Type

ALL CH ADJUST

ENTER:Next :Cancel

40Hz : [+ 1.0dB ]

125Hz : [ 0.0dB ]

250Hz : [ 0.0dB ]

4kHz : [ 0.0dB ]

13kHz : [ 0.0dB ]

TRIM : [ 0.0dB ]

3e.EQ CUSTOM1 Adjust

:Finish

Test Tone Type:

"ALL CH ADJUST"

Left

40Hz : + 1.0dB

125Hz : [ 0.0dB ]

250Hz : [ 0.0dB ]

4kHz : [ 0.0dB ]

13kHz : [ 0.0dB ]

TRIM : [ 0.0dB ]

3e. EQ CUSTOM1 Adjust

:Finish

Test Tone Type:

"ALL CH ADJUST"

[ Left ]

VSX-1016TXV_KU.book.fm 36 ページ２００６年３月２４日　金曜日　午後９時１９分

The System Setup menu 07

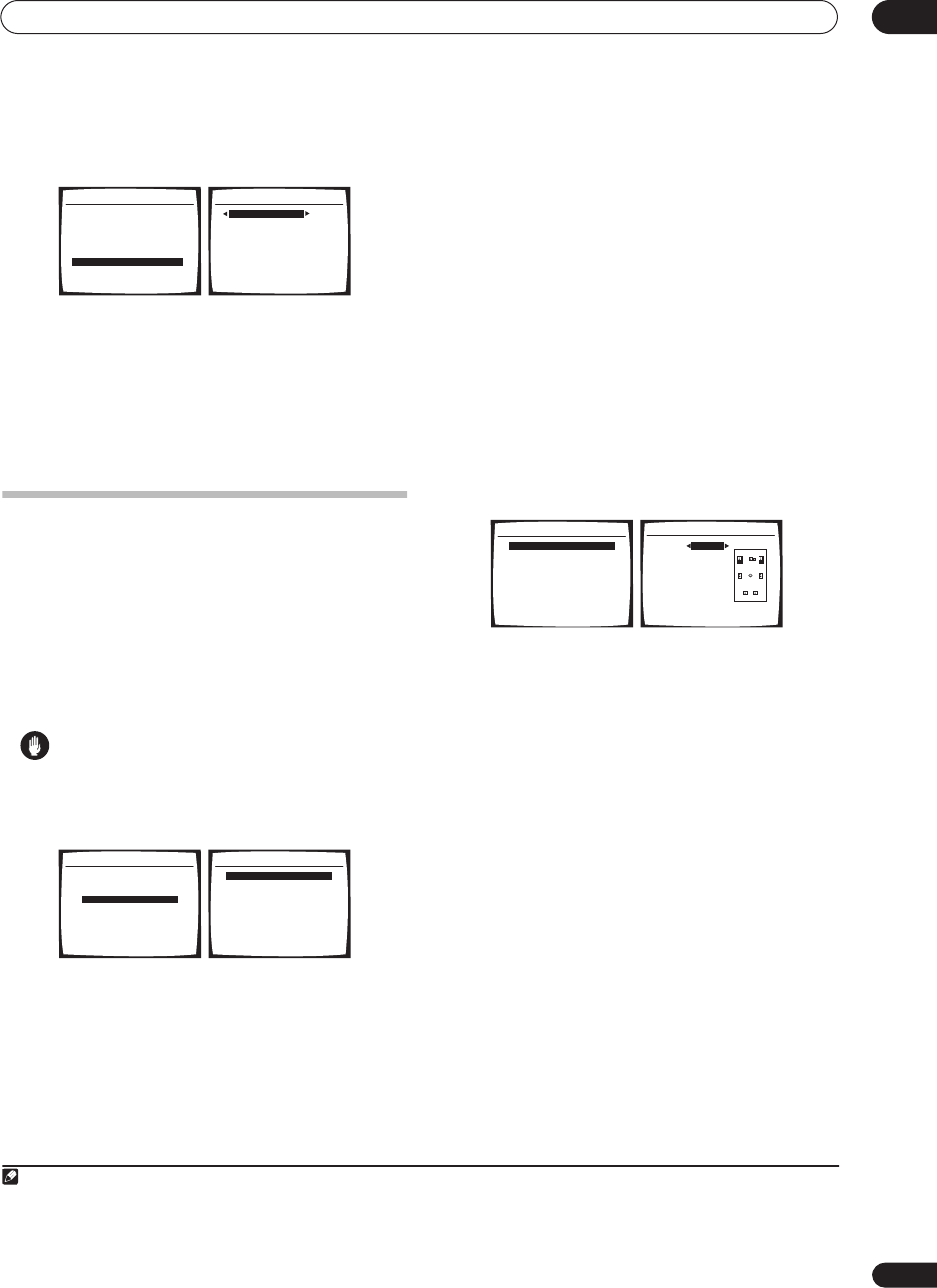

1 Select ‘EQ Data Check’ from the Manual MCACC

setup menu.

2 Select the setting you want to check.

•It is useful to do this while a source is playing so you

can compare the different settings.

3 Select the channels you want, pressing ENTER

when you’re finished checking each one.

4 When you're finished, press RETURN.

You return to the Manual MCACC setup menu.

Manual speaker setup

This receiver allows you to make detailed settings to

optimize the surround sound performance. You only

need to make these settings once (unless you change the

placement of your current speaker system or add new

speakers.).

These settings are designed to fine-tune your system, but

if you’re satisfied with the settings made in

Automatically

setting up for surround sound (MCACC)

on page 8, it isn’t

necessary to make all of these settings.

Caution

•The test tones used in the System Setup are output at

high volume.

1 Select ‘Manual SP Setup’ then press ENTER.

2 Select the setting you want to adjust.

If you are doing this for the first time, you may want to

adjust these settings in order:

•

Speaker Setting

– Specify the size and number of

speakers you’ve connected (page 37).

•

Crossover Network

– Specify which frequencies will

be sent to the subwoofer (page 38).

•

Channel Level

– Adjust the overall balance of your

speaker system (page 38).

•

Speaker Distance

– Specify the distance of your

speakers from the listening position (page 39).

•

THX Audio Setting

– Specify the distance of your

surround back speakers from each other (page 39).

•

THX Speaker Setup

– Specify whether or not you

have a THX speaker system (page 39).

3 Make the adjustments necessary for each

setting, pressing RETURN to confirm after each

screen.

Speaker Setting

Use this setting to specify your speaker configuration

(size, number of speakers). It is a good idea to make sure

that the settings made in

Automatically setting up for

surround sound (MCACC)

on page 8 are correct.

1 Select ‘Speaker Setting’ from the Manual SP

Setup menu.

2Choose the set of speakers that you want to set

then select a speaker size.

Use

/

to select the size (and number) of each of the

following speakers:

•

Front

– Select

LARGE

if your front speakers

reproduce bass frequencies effectively, or if you

didn’t connect a subwoofer. Select

SMALL

to send

the bass frequencies to the subwoofer.

•

Center

– Select

LARGE

if your center speaker

reproduces bass frequencies effectively, or select

SMALL

to send bass frequencies to the other

speakers or subwoofer. If you didn’t connect a center

speaker, choose

(the center channel is sent to

the other speakers).

•

Surr

– Select

LARGE

if your surround speakers

reproduce bass frequencies effectively. Select

SMALL

to send bass frequencies to the other

speakers or subwoofer. If you didn’t connect

surround speakers choose

(the sound of the

surround channels is sent to the other speakers).

•

– Select the number of surround back speakers

you have (one, two or none). Select

LARGE

if your

surround back speakers reproduce bass frequencies

effectively. Select

SMALL

to send bass frequencies to

the other speakers or subwoofer. If you didn’t

connect surround back speakers choose

3.Manual MCACC

:Return

a.Fine Ch Level

b.Fine SP Distance

c.EQ Auto Setting

d.EQ Data Copy

e.EQ CUSTOM1 Adjust

f .EQ CUSTOM2 Adjust

g.EQ Data Check

40Hz :

1.0dB

125Hz : 0.0dB

250Hz : 0.0dB

4kHz : 0.0dB

13kHz : 0.0dB

TRIM : 0.0dB

3g.EQ Data Check

:Return

ALL CH ADJUST

[ Left ]

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

Note

1If you select

SMALL

for the front speakers the subwoofer will automatically be fixed to

YES

. Also, the center, surround, and surround back speakers can’t

be set to

LARGE

if the front speakers are set to

SMALL

. In this case, all bass frequencies are sent to the subwoofer.

2• If the surround speakers are set to

, the surround back speakers will automatically be set to

• If you selected

Second Zone

Front Bi-Amp

(in

Surround back speaker setting

on page 33) you can’t adjust the surround back settings.

• If you select one surround back speaker only, make sure that speaker is hooked up to the left surround back terminal.

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

4a.Speaker Setting

Front SMALL

Center [ SMALL ]

Surr [ SMALL ]

SB [

SMALL x2

]

SUB W. YES

:Finish

[ THX : ALL

SMALL

]

VSX-1016TXV_KU.book.fm 37 ページ２００６年３月２４日　金曜日　午後９時１９分

The System Setup menu

•

SUB W.

– LFE signals and bass frequencies of

channels set to

SMALL

are output from the subwoofer

when

YES

is selected (see notes below). Choose the

PLUS

setting if you want the subwoofer to output bass

sound continuously or you want deeper bass (the bass

frequencies that would normally come out the front

and center speakers are also routed to the subwoofer).

If you did not connect a subwoofer choose

(the

bass frequencies are output from other speakers).

3 When you’re finished, press RETURN.

You return to the Manual SP Setup menu.

Tip

• If you have a subwoofer and like lots of bass, it may

seem logical to select

LARGE

for your front speakers

and

PLUS

for the subwoofer. This may not, however,

yield the best bass results. Depending on the speaker

placement of your room you may actually experience

a decrease in the amount of bass due to low

frequency cancellations. In this case, try changing

the position or direction of speakers. If you can’t get

good results, listen to the bass response with it set to

PLUS

and

YES

or the front speakers set to

LARGE

and

SMALL

alternatively and let your ears judge which

sounds best. If you’re having problems, the easiest

option is to route all the bass sounds to the

subwoofer by selecting

SMALL

for the front speakers.

Crossover Network

• Default setting:

80Hz

This setting decides the cutoff between bass sounds

playing back from the speakers selected as

LARGE

, or

the subwoofer, and bass sounds playing back from those

selected as

SMALL

. It also decides where the cutoff will

be for bass sounds in the LFE channel.

1 Select ‘Crossover Network’ from the Manual SP

Setup menu.

2 Choose the frequency cutoff point.

Frequencies below the cutoff point will be sent to the

subwoofer (or

LARGE

speakers).

3 When you’re finished, press RETURN.

You return to the Manual SP Setup menu.

Channel Level

Using the channel level settings, you can adjust the

overall balance of your speaker system, an important

factor when setting up a home theater system.

1Select ‘Channel Level’ from the Manual SP Setup

menu.

2 Select a setup option.

•

Manual

– Move the test tone manually from speaker

to speaker and adjust individual channel levels.

•

Auto

– Adjust channel levels as the test tone moves

from speaker to speaker automatically.

3 Confirm your selected setup option.

The test tones will start after you press

ENTER

4 Adjust the level of each channel using

/

If you selected

Manual

, use

/

to switch speakers. The

Auto

setup will output test tones in the order shown on-

screen:

Adjust the level of each speaker as the test tone is emitted.

5 When you’re finished, press RETURN.

You return to the Manual SP Setup menu.

Tip

• You can change the channel levels at any time by

using

EFFECT/CH SEL

and

+/–

on the remote control.

You can set two channel levels: one for

MULTI CH IN

and one for the listening modes.

Note

1• For more on selecting the speaker sizes, see

Speaker Setting

above.

• If you’re using a THX speaker setup, confirm that the crossover frequency is set to

80Hz

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

4b.Crossover Network

:Finish

Frequency 80Hz

( THX : 80Hz )

2• If you are using a Sound Pressure Level (SPL) meter, take the readings from your main listening position and adjust the level of each speaker to 75 dB

SPL (C-weighting/slow reading).

• The subwoofer test tone is output at low volumes. You may need to adjust the level after testing with an actual soundtrack.

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

4c.Channel Level

Test Tone Manual

:Cancel

ENTER:Next

4c.Channel Level

Test Tone [ Manual ]

Please Wait . . . 20

Caution!

Loud test tones

will be output.

:Cancel

4c.Channel Level

L 0.0dB

C [ 0.0dB ]

R [ 0.0dB ]

SR [ 0.0dB ]

SBR [ 0.0dB ]

SBL [ 0.0dB ]

SL [ 0.0dB ]

SW [ 0.0dB ]

:Finish

VSX-1016TXV_KU.book.fm 38 ページ２００６年３月２４日　金曜日　午後９時１９分

The System Setup menu 07

Speaker Distance

For good sound depth and separation from your system,

you need to specify the distance of your speakers from

the listening position. The receiver can then add the

proper delay needed for effective surround sound.

1 Select ‘Speaker Distance’ from the Manual SP

Setup menu.

2 Adjust the distance of each speaker using

/

You can adjust the distance of each speaker in 0.5 foot

increments.

3 When you’re finished, press RETURN.

You return to the Manual SP Setup menu.

Tip

• For best surround sound, make sure the surround

back speakers are the same distance from the

listening position.

THX Audio Setting

For the most effective results when using the THX Select2

Cinema and THX MusicMode listening modes (see

Using

the Home THX modes

on page 27) with the Advanced

Speaker Array (ASA) system (see

About THX

on page 63),

it is required that you make the setting. See

THX speaker

system setup

on page 19 for more on THX speaker

placement.

1 Select ‘THX Audio Setting’ from the Manual SP

Setup menu.

2Specify the distance of your surround back speakers

from each other.

•

0–1 ft

– Surround speakers within 1 foot apart (best

for THX surround sound).

•

1– 4 ft

– Surround speakers between 1 and 4 feet

apart.

•

4 ft <

– Surround speakers more than 4 feet apart.

3 When you're finished, press RETURN.

You will return to the Manual SP Setup menu.

THX Speaker Setup

If you have a complete THX speaker system, you should

make this setting for the most effective results when

using surround sound. See

THX speaker system setup

page 19 for more on using a THX speaker system.

1 Select ‘THX Speaker Setup’ from the Manual SP

Setup menu.

2Specify whether or not you are using a THX speaker

system.

•

YES –

All speaker settings are fixed to

SMALL

(see

Speaker Setting

on page 37) during the Auto MCACC

setup.

•

– Individual speaker sizes are determined

according to the Auto MCACC setup.

3 When you're finished, press RETURN.

You will return to the Manual SP Setup menu.

Note

1 If you don't have surround back speakers, or just have one, you won't be able to select this setting (

Cannot select

shows in the display).

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

4d.Speaker Distance

L 10.0ft (Reference)

R [ 9.0ft ]

C 9.5ft

SL [ 6.0ft ]

SR [ 6.5ft ]

SBL [ 6.0ft ]

SBR [ 6.5ft ]

SW [ 12.5ft ]

:Finish

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

4e.THX Audio Setting

SB SP Position

0-1 ft

SBL-SBR

:Finish

4.Manual SP Setup

:Return

a.Speaker Setting

b.Crossover Network

c.Channel Level

d.Speaker Distance

e.THX Audio Setting

f.THX Speaker Setup

4f.THX Speaker Setup

:Finish

THX Speaker NO

If you are using THX

speakers, select YES.

VSX-1016TXV_KU.book.fm 39 ページ２００６年３月２４日　金曜日　午後９時１９分

Other connections

Chapter 8:

Other connections

Caution

•Make sure the power is switched off before making or

changing the connections.

Using XM Radio

XM is the leading provider of satellite radio service in the

United States. Through two high-power satellites,

Rock

and

Roll

, XM Radio service offers over 150 channels of

music, news, talk, sports and children's programming on

a monthly subscription basis. XM Radio offers

consumers clear sound quality from digital signal radios,

an extensive variety of programming and nationwide

coverage. Visit www.xmradio.com for more details on

this service.

Connecting your XM Radio receiver

After purchasing a Connect-and-Play™ antenna (sold

separately), you will also need to activate the XM Radio

digital radio service to receive broadcasts.

1 Connect an XM Radio Connect-and-Play™ antenna

to the XM Radio jack on the rear of this receiver.

You will also need to activate the XM Radio service.

2 Press

XM RADIO (SHIFT+TUNER)

to switch to the

XM RADIO input.

For best reception, you may need to move the Connect-

and-Play™ antenna near a window (the southernmost

window should produce the best results).

•If after pressing

XM RADIO

the display shows

Check

Antenna

, try disconnecting the antenna and

reconnecting.

Listening to XM Radio

After connecting, you will be able to use this receiver to

select channels and navigate categories using the on-

screen display.

The information displayed is as follows:

Selecting channels and browsing by genre

From the XM Channel Guide, you can browse XM Radio

channels in the order that they appear, or you can narrow

your channel search by genre.

• Press

/

to display the XM Channel Guide then

///

and

ENTER

to select the channel of the XM

radio broadcast you want to hear.

• To browse by genre, first press

CATEGORY

, use

/

//

to select a genre then press

ENTER

• To cancel and exit any time, press

RETURN

Tip

• You can select channels directly by pressing

D.ACCESS

then the three-digit channel number.

Note

1Hardware and required basic monthly subscription sold separately. Premium Channel available at additional monthly cost. Installation costs and other

fees and taxes, including a one-time activation fee may apply. Subscription fee is consumer only. All fees and programming subject to change. Channels

with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO. Subscriptions

subject to Customer Agreement available at xmradio.com. Only available in the 48 contiguous United States.

(Single)

IN IN IN IN IN INOUT OUT OUT

IN IN IN IN MONITOR

OUT

OUT OUT

CD-R/TAPE/MD DVD/LD DVR/VCR1 DVR/VCR2

TV/SAT

CONTROL

AUDIO

ANTENNA

AM LOOP

YPBPRYPBPR

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

PRE OUT

COMPONENT VIDEO

OUT

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

R R

L L

LLL

OUT

ASSIGNABLE 31

CENTER

MULTI CH IN

FRONT

SUR-

ROUND

SUR-

ROUND

SURROUND

BACK

SURROUND

BACK

SUB

WOOFER

SUB

WOOFER

Connect-and-Play antenna

VSX-1016TXV

2It’s easiest if you have your TV switched on to take advantage of the OSDs. You can, however, use just the front panel display to do everything if you prefer.

3 Select

XM000

(

RADIO ID

) from the on-screen display to check the Radio ID of the Connect-and-Play antenna.

XM Satellite Radio A

Decades

Fifties (50's) XM005

Remy Sherman

Lovin' You

Preset class

Signal strength

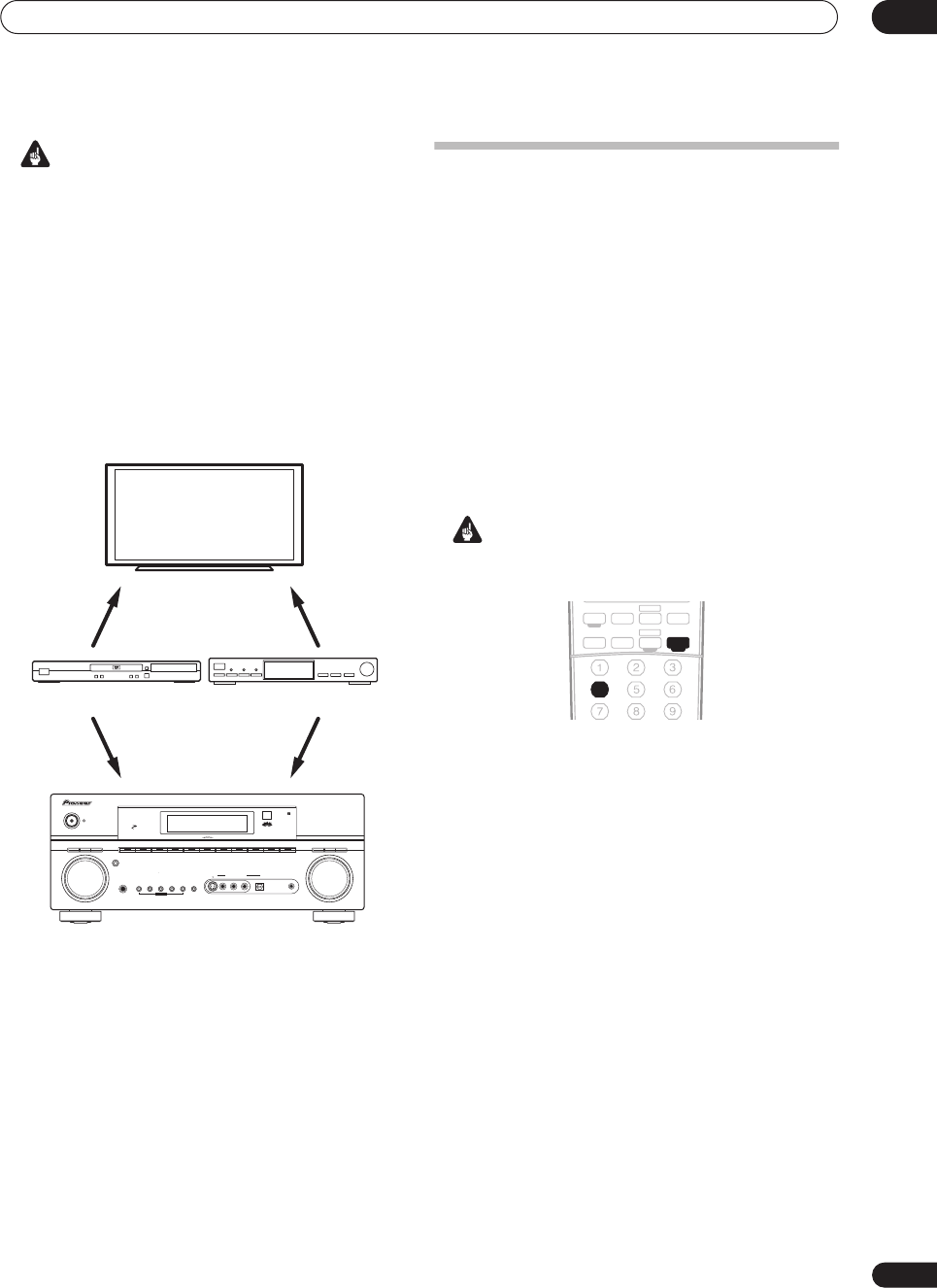

See also

SR+ Setup for Pioneer plasma displays

page 48 for more on setting up the receiver.

Important

• The additional SR+ features do not work when the

XM Radio function is selected.

1Make sure that the plasma display and this receiver

are switched on and that they are connected with the

SR+ cable.

See

Using this receiver with a Pioneer plasma display

above for more on connecting these components.

•Make sure you have also selected the display input to

which you’ve connected the receiver in

The Input

Assign menu

on page 46.

2 To switch SR+ mode on/off, press

RECEIVER

, then

the SR+ button.

The front panel display shows

SR+ ON

SR+ OFF

• The automatic volume muting feature is enabled

separately; see

SR+ Setup for Pioneer plasma displays

on page 48.

MULTI JOG MASTER

VOLUME

ENTER

AUDIO/VIDEO MULTI -CHANNEL

RECEIVER

VSX-1016TXV

STANDBY/ON

PHONES

DVD/LD

PHASE

CONTROL

TV/SAT DVR /VCR1 DVR/VCR2 VIDEO/GAME CD

CD-R/TAPE/MD

FM/AM

LISTENING

MODE

PHASE

CONTROL

ACOUSTIC

SB ch

PROCESSING

SIGNAL

SELECT

MCACC

SETUP MIC

DIGITAL INAUDIO RLVIDEO

VIDEO/GAME

INPUT

S-VIDEO

SYSTEM

SETUP

TUNING/

STATION

TUNER

EDIT SPEAKERSRETURN TONE

MULTI JOG

MULTI CH

VIDEO

SELECT

SOUND

RETRIEVER

DIGITAL PRECISION PROCESSING

DVD player

Pioneer plasma

display

Satellite receiver, etc

VIDEO

INPUT 1

VIDEO

INPUT 2

TV/SAT

AUDIO IN

DVD/LD

AUDIO IN

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

DIALOG E

S.RETRIEVER

PHASE

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

VSX-1016TXV_KU.book.fm 45 ページ２００６年３月２４日　金曜日　午後９時１９分

Other Settings

Chapter 9:

Other Settings

The Input Assign menu

You only need to make settings in the Input Assign menu

if you didn’t hook up your digital equipment according to

the default settings for the digital inputs, or if you have

connected equipment using component video cables.

1 Press

RECEIVER

on the remote control, then press

the

SETUP

button.

An on-screen display (OSD) appears on your TV. Use

/

//

and

ENTER

to navigate through the screens

and select menu items. Press

RETURN

to confirm and

exit the current menu.

2 Select ‘Input Assign’ from the System Setup menu.

Assigning the digital inputs

• Default settings:

Coaxial - 1

–

DVD/LD

Coaxial - 2

–

DVR 2

Optical - 1

–

DVR 1

Optical - 2

–

TV/SAT

Optical - 3

–

You only need to do this if you didn’t hook up your digital

equipment according to the default settings for the

digital inputs (see above). This setting tells the receiver

what digital equipment is hooked up to which terminal so

the buttons on the remote correspond to what you have

hooked up.

1 Select ‘Digital Input’ from the Input Assign menu.

Select the number of the digital input to

which

you’ve connected the digital component.

The numbers correspond with the numbers beside the

inputs on the back of the receiver.

3 Select the component that corresponds with the

one you connected to that input.

Select between

DVD

CD-R

DVR 1

DVR 2

OFF

• Use

/

and

ENTER

to do this.

• If you assign a digital input to a certain function (for

example,

DVD/LD

) then any digital inputs previously

assigned to that function will automatically be

switched off.

4 When you're finished, press RETURN.

You return to the Input Assign menu.

Assigning the component video inputs

• Default settings:

Component - 1

–

OFF

Component - 2

–

OFF

Component - 3

–

OFF

If you used component video cords to connect your video

equipment you must tell the receiver which device it is, or

else you may see the S-video or composite video input

instead of the component video signal. For more on this,

see

Using the component video jacks

on page 14.

1 Select ‘Component Input’ from the Input Assign

menu.

2Select the number of the component video input to

which you’ve connected your video component.

The numbers correspond with the numbers beside the

inputs on the back of the receiver.

3 Select the component that corresponds with the

one you connected to that input.

Select between

DVD

DVR 1

DVR 2

OFF

• Use

/

and

ENTER

to do this.

• Make sure you have connected the audio from the

component to the corresponding inputs on the rear

of the receiver.

•If you connect any source component to the receiver

using a component video input, you should also have

your TV connected to this receiver's component video

MONITOR

output (downconverting component video

is not possible after assigning an input).

4 When you're finished, press RETURN.

You return to the Input Assign menu.

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

5.Input Assign

:Return

a.Digital Input

b.Component Input

c.HDMI Input

5.Input Assign

:Return

a.Digital Input

b.Component Input

c.HDMI Input

5a.Digital Input Setup

:Finish

Coaxial - 1

DVD/LD

Coaxial - 2 [ DVR 2 ]

Optical - 1 [ DVR 1 ]

Optical - 2 [ TV/SAT ]

Optical - 3 [ CD ]

5. Input Assign

:Return

a.Digital Input

b.Component Input

c.HDMI Input

5b.Component Input

:Finish

Component - 1

DVD/LD

Component - 2 [ TV/SAT ]

Component - 3 [ DVR 1

]

VSX-1016TXV_KU.book.fm 46 ページ２００６年３月２４日　金曜日　午後９時１９分

Other Settings 09

Assigning the HDMI inputs

• Default settings:

HDMI - 1 – OFF

HDMI - 2 – OFF

If you used HDMI to connect your video equipment, you

must tell the receiver which input terminal(s) you have

used, so that you see the proper video signal when you

select the input source.

1 Select ‘HDMI Input’ from the Input Assign menu.

2 Select the number of the HDMI input to which

you’ve connected your video component.

The numbers correspond with the numbers beside the

inputs on the back of the receiver.

3 Select the component that corresponds with the

one you connected to that input.

Select between

DVD

DVR 1

DVR 2

OFF

• Use

/

and

ENTER

to do this.

• To hear audio from your HDMI component (through

this system), you must also make separate audio

connections to the corresponding inputs on the rear

of the receiver. For more on this, see

Connecting

using HDMI

on page 41.

• If you connect any video component to the receiver

using HDMI, you should also have your TV connected

to this receiver's HDMI output.

4 When you're finished, press RETURN.

You return to the Input Assign menu.

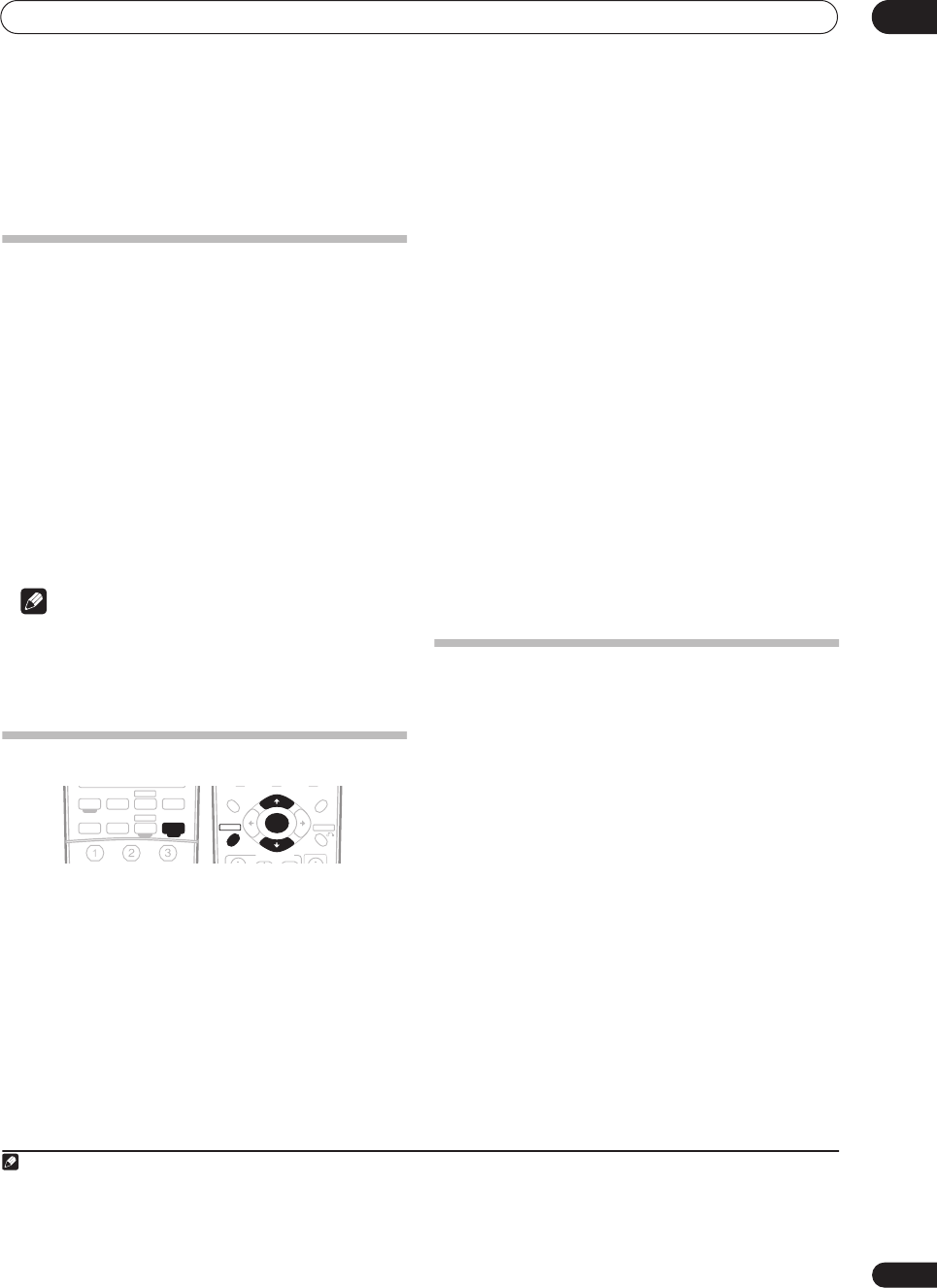

The Other Setup menu

The Other Setup menu is where you can make

customized settings to reflect how you are using the

receiver.

1 Press

RECEIVER

on the remote control, then press

the

SETUP

button.

An on-screen display (OSD) appears on your TV. Use

/

//

and

ENTER

to navigate through the screens

and select menu items. Press

RETURN

to confirm and

exit the current menu.

2 Select ‘Other Setup’ then press

ENTER

3 Select the setting you want to adjust.

If you are doing this for the first time, you may want to

adjust these settings in order:

•

DRC Setup

– Specify the amount of dynamic range

adjustment to Dolby Digital soundtracks (see

Dynamic Range Control Setup

below).

•

Dual Mono Setup

– Isolate one channel when

listening to discs with dual mono encoding (see

Dual

Mono Setup

below).

•

LFE ATT Setup

– Choose the attenuator level for the

LFE channel (

LFE Attenuator Setup

on page 48).

•

SR+ Setup

– Specify how you want to control your

Pioneer plasma display (

SR+ Setup for Pioneer

plasma displays

on page 48).

•

Video Conv. Setup

– Specify if you want analog

video signals converted for output to your TV (

Video

Converter Setup

on page 48).

4 Make the adjustments necessary for each setting,

pressing RETURN to confirm after each screen.

Dynamic Range Control Setup

• Default setting:

OFF

This setting specifies the amount of dynamic range

adjustment to Dolby Digital and DTS movie soundtracks.

You may want to use this when listening to surround

sound at low volumes.

1 Select ‘DRC Setup’ from the Other Setup menu.

2 Choose the setting that you want.

•

OFF

– No dynamic range adjustment (use when

listening at higher volume).

•

MID

– Mid setting.

•

MAX

– Dynamic range is reduced (loud sounds are

reduced in volume while quieter sounds are

increased).

3 When you're finished, press

RETURN

You return to the Other Setup menu.

5. Input Assign

:Return

a.Digital Input

b.Component Input

c.HDMI Input

System Setup

1.Surr Back System

2.Auto MCACC

3.Manual MCACC

4.Manual SP Setup

5.Input Assign

6.Other Setup

 : Exit

6.Other Setup

:Return

a.DRC Setup

b.Dual Mono Setup

c.LFE ATT Setup

d.SR+ Setup

e.Video Conv. Setup

6.Other Setup

:Return

a.DRC Setup

b.Dual Mono Setup

c.LFE ATT Setup

d.SR+ Setup

e.Video Conv. Setup

DRC OFF

6a.Dynamic Range Control

:Finish

VSX-1016TXV_KU.book.fm 47 ページ２００６年３月２４日　金曜日　午後９時１９分

Other Settings

Dual Mono Setup

• Default setting:

CH1

You can specify how dual mono encoded Dolby Digital

and DTS soundtracks should be played. Dual mono is not

widely used, but is sometimes necessary when two

languages need to be sent to separate channels.

1 Select ‘Dual Mono Setup’ from the Other Setup

menu.

2 Choose the setting that you want.

•

CH1

– Only channel 1 is played

•

CH2

– Only channel 2 is played

•

CH1 CH2

– Both channels are played through the

front speakers

3 When you're finished, press

RETURN

You return to the Other Setup menu.

LFE Attenuator Setup

• Default setting:

ATT 0dB

Some Dolby Digital and DTS audio sources include ultra-

low bass tones. Set the LFE attenuator as necessary to

prevent the ultra-low bass tones from distorting the

sound from the speakers.

1 Select ‘LFE ATT Setup’ from the Other Setup menu.

2 Choose the setting that you want.

•

ATT 0dB

– No limiting (recommended)

•

ATT 10dB

– 10 dB of limiting

•

LFE OFF

– No sound from LFE channel

3 When you're finished, press

RETURN

You return to the Other Setup menu.

SR+ Setup for Pioneer plasma displays

• Default setting:

OFF

(all settings)

Make the following settings if you have connected a

Pioneer plasma display to this receiver using an SR+

cable. Note that the number of settings available will

depend on the plasma display you’ve connected.

See also

Using this receiver with a Pioneer plasma display

on page 44.

1 Select ‘SR+ Setup’ from the Other Setup menu.

2 Select the ‘PDP Volume Control’ setting you want.

•

OFF

– The receiver does not control the volume of the

plasma display

•

– When the receiver is switched to one of the inputs

that use the plasma display (

DVD/LD

, or another

function below), the volume on the plasma display is

muted so only sound from the receiver is heard.

3 Assign any input source connected to the plasma

display to the corresponding input number.

This matches the receiver’s input source with a numbered

video input on the plasma display. For example,

assign

DVD/LD

input-2

if you have connected your DVD video

output to video input 2 on the plasma display.

• The

Monitor Out

should be set to the input that you’ve

used to connect this receiver to your plasma display.

4 When you're finished, press

RETURN

You return to the Other Setup menu.

Video Converter Setup

• Default setting:

The video converter allows you to see analog video

sources through all of this receiver’s

MONITOR VIDEO

OUT

jacks. Note that the converter gives priority to

component, S-video, then composite (in that order). See

About the video converter

on page 12 for more on this.

1 Select ‘Video Conv. Setup’ from the Other Setup

menu.

2 Choose the setting that you want.

•

– All analog video signals are output from the

MONITOR VIDEO OUT

jacks.

•

OFF

– No conversion between video formats.

3 When you're finished, press

RETURN

You return to the Other Setup menu.

6.Other Setup

:Return

a.DRC Setup

b.Dual Mono Setup

c.LFE ATT Setup

d.SR+ Setup

e.Video Conv. Setup

Dual Mono [ CH1

6b.Dual Mono Setup

:Finish

6.Other Setup

:Return

a.DRC Setup

b.Dual Mono Setup

c.LFE ATT Setup

d.SR+ Setup

e.Video Conv. Setup

LFE ATT ATT 0dB

6c. LFE ATT Setup

:Finish

6.Other Setup

:Return

a.DRC Setup

b.Dual Mono Setup

c.LFE ATT Setup

d.SR+ Setup

e.Video Conv. Setup

PDP Volume Control

OFF

PDP Input Select

DVD/LD [ OFF ]

TV/SAT [ OFF ]

DVR 1 [ OFF ]

DVR 2 [ OFF ]

VIDEO [ OFF ]

Monitor Out [ OFF ]

6d.SR+ Setup

:Finish

PDP Volume Control

[ ON ]

PDP Input Select

DVD/LD OFF

TV/SAT [ OFF ]

DVR 1 [ OFF ]

DVR 2 [ OFF ]

VIDEO [ OFF ]

Monitor Out [ OFF ]

6d.SR+ Setup

:Finish

PDP Volume Control

[ ON ]

PDP Input Select

DVD/LD input-2

TV/SAT [ OFF ]

DVR 1 [ OFF ]

DVR 2 [ OFF ]

VIDEO [ OFF ]

Monitor Out [ OFF ]

6d.SR+ Setup

:Finish

6.Other Setup

:Return

a.DRC Setup

b.Dual Mono Setup

c.LFE ATT Setup

d.SR+ Setup

e.Video Conv. Setup

Video Conv. ON

6e. Video Converter Setup

:Finish

VSX-1016TXV_KU.book.fm 48 ページ２００６年３月２４日　金曜日　午後９時１９分

Using other functions 10

Chapter 10

Using other functions

Making an audio or a video recording

You can make an audio or a video recording from the

built-in tuner, or from an audio or video source

connected to the receiver (such as a CD player or TV).

Keep in mind you can't make a digital recording from an

analog source or vice-versa, so make sure the

components you are recording to/from are hooked up in

the same way (see

Connecting your equipment

page 11 for more on connections).

Since the video converter is not available when making

recordings (from the video

OUT

jacks) make sure to use

the same type of video cable for connecting your recorder

as you used to connect your video source (the one you

want to record) to this receiver. For example, you must

connect your recorder using S-video if your source has

also been connected using S-video.

For more information about video connections, see

Connecting a DVD/HDD recorder, VCR and other video

sources

on page 14.

1 Select the source you want to record.

Use the input source buttons (or

INPUT SELECT

•If necessary, press

SIGNAL SEL

(

SIGNAL SELECT

) to

select the input signal corresponding to the source

component (see

Choosing the input signal

page 29 for more on this).

2 Prepare the source you want to record.

Tune to the radio station, load the CD, video, DVD etc.

3 Prepare the recorder.

Insert a blank tape, MD, video etc. into the recording

device and set the recording levels.

Refer to the instructions that came with the recorder if

you are unsure how to do this. Most video recorders set

the audio recording level automatically—check the

component's instruction manual if you're unsure.

4 Start recording, then start playback of the source

component.

Reducing the level of an analog signal

The input attenuator lowers the input level of an analog

signal when it’s too strong. You can use this if you find

the that the

OVER

indicator is lights often, or you can

hear distortion in the sound.

• Press

RECEIVER

then press ANALOG ATT to switch

the input attenuator on or off.

Watching video and audio sources

independently

You can listen to a sound source and select a different

video source on your TV.

• While listening to a source, press

VIDEO SELECT

(front panel) to select the video source you want to

watch.

Press repeatedly to cycle through the possible video

sources. You can select

DVD

DVR1

DVR2

VIDEO

OFF

(no video signal).

Note

1• The receiver's volume, DSP (the tone controls, for example), and surround effects have no effect on the recorded signal.

• Some digital sources are copy-protected, and can only be recorded in analog.

• Some video sources are copy-protected. These cannot be recorded.

XM RADIO

DVR 2

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

2 The attenuator isn’t available with digital sources.

3• The video select feature is canceled if you change the source input or switch off the receiver.

• Note that this feature will not work with video sources assigned to either of the HDMI video inputs.

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

VSX-1016TXV_KU.book.fm 49 ページ２００６年３月２４日　金曜日　午後９時１９分

Using other functions

Using the sleep timer

The sleep timer switches the receiver into standby after a

specified amount of time so you can fall asleep without

worrying about the receiver being left on all night. Use

the remote control to set the sleep timer.

• Press

RECEIVER

then press

SLEEP

repeatedly to set

the sleep time.

• You can check the remaining sleep time at any time

by pressing

SLEEP

once. Pressing repeatedly will

cycle through the sleep options again.

Dimming the display

You can choose between four brightness levels for the

front panel display. Note that when selecting sources,

the display automatically brightens for a few seconds.

• Press

RECEIVER

then press DIMMER repeatedly to

change the brightness of the front panel display.

Switching the speaker impedance

We recommend using speakers of 8

Ω

with this system,

but it is possible to switch the impedance setting if you

plan to use speakers with a 6

Ω

impedance rating. Use

the front panel controls to do this.

• With the receiver in standby, press



STANDBY/

while holding down the

SPEAKERS

button.

Each time you do this, you switch between the

impedance settings:

•

SP 6 OHM

– Use this setting if your speakers are

rated at 6

Ω

•

SP 8 OHM

– Use this setting if your speakers are

rated at 8

Ω

or more.

Resetting the system

Use this procedure to reset all the receiver’s settings to

the factory default. Use the front panel controls to do this.

1 Switch the receiver into standby.

2 While holding down the front panel

TONE

button,

press and hold



STANDBY/ON for about three

seconds.

The display shows

RESET?

3 Press the front panel

ENTER

button.

The display shows

RESET OK?

4 Press

SYSTEM SETUP

to confirm.

appears in the display to indicate that the receiver

has been reset to the factory default settings.

• Note that all settings will be saved, even if the

receiver is unplugged.

Note

1 You can also switch off the sleep timer simply by switching off the receiver.

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

Off

30 min 60 min

90 min

XM RADIO

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

DACCESS

DIALOG E

S.RETRIEVER

PHASE

RECEIVER

TUNERCD-R

VSX-1016TXV_KU.book.fm 50 ページ２００６年３月２４日　金曜日　午後９時１９分

Controlling the rest of your system 11

Chapter 11:

Controlling the rest of your system

Setting the remote to control other

components

Most components can be assigned to one of the input

source buttons (such as

DVD/LD

) using the

component’s manufacturer preset code stored in the

remote.

However, there are cases where only certain functions

may be controllable after assigning the proper preset

code, or the codes for the manufacturer in the remote

control will not work for the model that you are using.

If you can’t find a preset code that matches the

component you want to control, you can still teach the

remote individual commands from another remote

control (see

Programming signals from other remote

controls

below).

Note

• You can cancel or exit any of the steps by pressing

RECEIVER

. To go back a step, press

RETURN

• After one minute of inactivity, the remote

automatically exits the operation.

Selecting preset codes directly

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows

SETUP

2 Use

/

to select PRESET then press

ENTER

3 Press the input source button for the component

you want to control then press

ENTER

The LCD on the remote displays the component you want

to control (for example

DVD

DVR

4 Use

/

to select the first letter of the brand name

of your component then press

ENTER

This should be the manufacturer’s name (for example,

for Pioneer).

5 Use

/

to select the manufacturer’s name from

the list then press

ENTER

6 Use

/

to select the proper code from the list,

then try using this remote with your component.

The code should start with the component type (for

example,

DVD 020

). If there is more than one, start with

the first one.

To try out the remote control, switch the component on or

off (into standby) by pressing

SOURCE



. If it doesn’t

seem to work, select the next code from the list (if there

is one).

• If you can’t find or properly enter a preset code, you

can still teach the remote individual commands from

another remote control (see

Programming signals

from other remote controls

below).

7 If your component is controlled successfully, press

ENTER

to confirm.

The remote LCD display shows

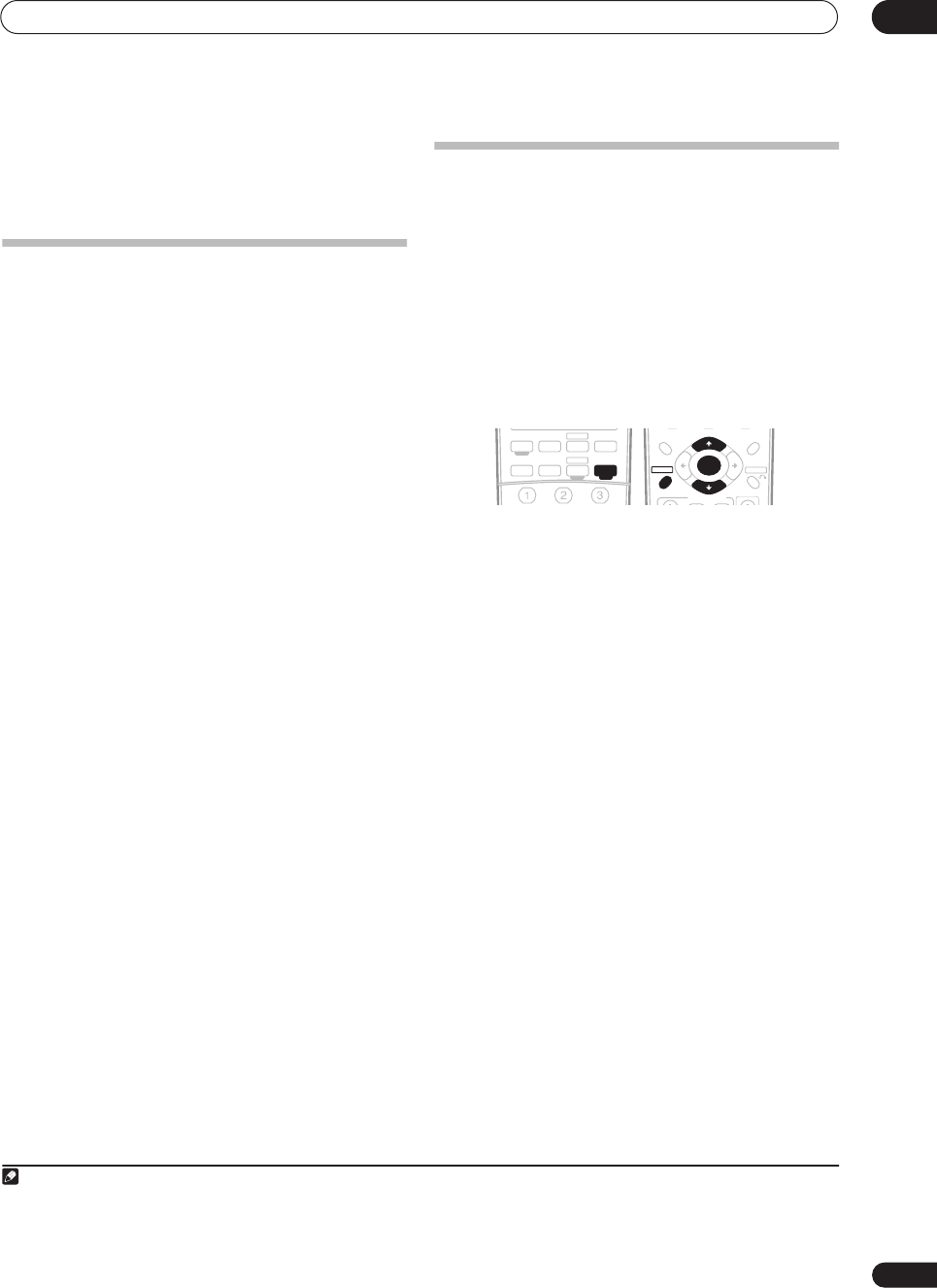

Programming signals from other

remote controls

If the preset code for your component is not available, or

the available preset codes do not operate correctly, you

can program signals from the remote control of another

component. This can also be used to program additional

operations (buttons not covered in the presets) after

assigning a preset code.

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows

SETUP

2 Use

/

to select LEARNING then press

ENTER

The LCD on the remote prompts you for the component

you want to control (for example

DVD

VIDEO

3 Press the input source button for the component

you want to control then press

ENTER

PRES KEY

shows in the LCD display.

4 Point the two remote controls towards each other

then press the button that will be doing the learning on

this receiver’s remote control.

PRES KEY

starts flashing to indicate the remote is ready

to accept a signal.

Note

1 You can’t assign the

RECEIVER, XM RADIO or TUNER buttons.

XM RADIO

DVR 2

ANALOG

AT T

SB ch

SLEEP

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

ENTER

TV CONTROL

TUNE

ST ST

TOP MENU

CATEGORY

T.EDITDT V MENU

RETURN

GUIDE BAND

SETUP

2• When using a Pioneer HDD recorder, please select PIONEER DVR 487, 488, 489 or 493.

• When using a Pioneer plasma display released prior to summer 2005, please select preset codes 637 or 660.

3 The remote can store about 200 preset codes (this has been tested with codes of Pioneer format only).

4• You can’t assign the RECEIVER, XM RADIO or TUNER buttons.

• TV CONTROL buttons (TV,TV VOL +/–, TV CH +/– and INPUT SELECT) can only be learned after selecting TV CTRL.

VSX-1016TXV_KU.book.fm 51 ページ２００６年３月２４日　金曜日　午後９時１９分

Controlling the rest of your system

• The remote controls should be 1 to 2 inches apart.

5Press the corresponding button on the other remote

control that is sending (teaching) the signal to this

receiver’s remote control.

For example, if you want to learn the playback control

signal, press and hold



briefly. The LCD display will

show

if the operation has been learned.

If for some reasons the operation hasn’t been learned the

LCD will display

ERROR

briefly and then display

PRES

KEY

again. If this happens, keep pressing the (teaching)

button as you vary the distance between the two remotes,

until the LCD display shows

Certain buttons represent operations that cannot be

learned from other remote controls.

The buttons

available are shown below (with the exception of the TV

controls, a combination of

SHIFT

and these buttons can

also be learned):

6 To program additional signals for the current

component repeat steps 4 and 5.

To program signals for another component, exit and

repeat steps 1 through 5.

7Press and hold the RECEIVER button for a couple of

seconds to exit and store the operation(s).

Erasing one of the remote control

button settings

This erases one of the buttons you have programmed and

restores the button to the factory default.

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows

SETUP

2 Use

/

to select

ERASE

then press

ENTER

The LCD on the remote prompts you for the component

corresponding to the button setting to be erased.

3Press the input source button corresponding to the

command to be erased then press

ENTER

The LCD display flashes

PRES KEY

4 Press and hold the button to be erased for two

seconds.

The LCD display shows

NO CODE

to confirm the

button has been erased.

5 Repeat step 4 to erase other buttons.

6Press and hold the RECEIVER button for a couple of

seconds when you’re done.

Resetting the remote control presets

This will erase all preset remote control preset codes and

programmed buttons.

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows

SETUP

2 Use

/

to select

RESET

then press

ENTER

RESET

flashes in the LCD display.

3 Press and hold

ENTER for about two seconds

The LCD shows

to confirm the remote presets have

been erased.

Confirming preset codes

Use this feature to check which preset code is assigned

to an input source button.

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows

SETUP

2 Use

/

to select READ ID then press

ENTER

The LCD on the remote prompts you for the input source

button you want to check.

Note

1 Note that interference from TVs or other devices will sometimes result in the remote control learning the wrong signal.

2• Some commands from other remote controls cannot be learned, but in most cases the remotes just need to be moved closer together or farther apart.

• If the remote LCD shows

FULL

, it means the memory is full. See

Erasing one of the remote control button settings

below to erase a programmed button

you’re not using to free up more memory (note that some signals may take more memory than others).

3 Note that the number key decimal button (

+10

D.ACCESS

) may not be learned with some components.

1 to 2 inches

SLEEP

+10

SR+

ANALOG

ATT

DISC

VIDEO

SEL

DIMMER

CLASS

D.ACCESS

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

ENTER

TV CONTROL

SHIFT

VOL

DVD SAT

VIDEO 1 TV CONT

DVR1

TUNE

ST ST

STATUS

MCACC S.DIRECT

MULTI OPE

SIGNAL SEL

SBch

STEREO

MEMORY

TV CH

INPUT

SELECT

MPX

AUDIO SUBTITLE

ADV. SURR

STANDARD

ISOPHASE

THX

DTV INFO

MUTE

REC

TV VOL

i Pod

TUNER

RECEIVER

ENTER

REC STOP

HDD

DVD

AV PARA METER

TOP MENU 

DTV MENU

CH LEVEL

T.EDI T

BAND

GUIDE



RETURN

SETUP

CATEGORY

DVR2 CD-R

TV VIDEO 2

XM RADIO

DISP

RECEIVER

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

+10

D.ACC ES S

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

ENTER

TUNE

ST ST

ENTER

TOP MENU

CATEGORY

T.EDITDT V MENU

RETURN

GUIDE BAND

SETUP

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

RECEIVER

TV CONTROL

SHIFT

VOL

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

INPUT

SELECT TV CH

MPX

AUDIO

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

RECDTV ON/OFF DTV INFO

MUTE

TV VOL

REC STOP JUKEBOX

HDD

CH CH

DVD

VSX-1016TXV_KU.book.fm 52 ページ２００６年３月２４日　金曜日　午後９時１９分

Controlling the rest of your system 11

3 Press the button of the component for which you

want to check the preset code, then press ENTER.

The brand name and preset code appears in the display

for three seconds.

Direct function

• Default setting: ON

You can use the direct function feature to control one

component using the remote control while at the same

time, using your receiver to playback a different

component. This could let you, for example, use the

remote control to set up and listen to a CD on the receiver

and then use the remote control to rewind a tape in your

VCR while you continue to listen to your CD player.

When direct function is on, any component you select

(using the input source buttons) will be selected by both

the receiver and the remote control. When you turn direct

function off, you can operate the remote control without

affecting the receiver.1

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows SETUP.

2 Use

/

to select

DIRECT F

then press

ENTER

The LCD on the remote prompts you for the button of the

input source you want to control.

3 Press the input source button for the component

you want to control then press

ENTER

4 Use

/

to switch direct function ON or OFF then

press

ENTER

The LCD shows OK to confirm the setting.

Multi Operation and System Off

The Multi Operation feature allows you to program a

series of up to 5 commands for the components in your

system. For example, you could turn on your TV, turn on

your DVD player and start playing the loaded DVD using

only two buttons on the remote control.

Similar to multi operations, System Off allows you to use

one button to stop and switch off a series of components

in your system at the same time.2

Programming a multi-operation or a

shutdown sequence

1 While pressing the RECEIVER button, press

SETUP

The remote LCD display shows SETUP.

2 Use

/

to select MULTI OP or SYS OFF from the

menu and press

ENTER

If you selected Multi Operation (

MULTI OP

), the LCD on

the remote prompts you for an input source button.

If you selected System Off (

SYSOFF

), go to step 4.

3 Press the input source button for the component

that will start the multi-operation then press

ENTER

For example, if you want to start the sequence by

switching on your DVD player, press DVD.

4 Use

/

to select CODE EDT then press

ENTER

To erase any previously stored multi-operations (or

shutdown sequences) select CODE ERS above.

5 Use

/

to select a command in the sequence then

press

ENTER

If this is the first command in the sequence, select 1ST

CODE. Otherwise, simply choose the next command in

the sequence. PRES KEY flashes after you press ENTER.

6 If necessary, press the input source button for the

component whose command you want to input.

This is only necessary if the command is for a new

component (input source).

Note

1 You can’t use direct function with the TV CTRL function.

2• Before Multi Operation and System Off will work correctly, you must setup the remote to work with your TV and other components (see Setting the

remote to control other components on page 51 for more on this).

• Some units may take some time to power up, in which case multiple operations may not be possible.

• Power on and off commands only work with components that have a standby mode.

XM RADIO

DVR 2

ANALOG

AT T

SB ch

SLEEP

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

ENTER

TV CONTROL

TUNE

ST ST

TOP MENU

CATEGORY

T.EDITDT V MENU

RETURN

GUIDE BAND

SETUP

12_controlling_system.fm 53 ページ２００６年４月４日　火曜日　午後６時１９分

Controlling the rest of your system

7 Select the button for the command you want to

input.

The following remote control commands can be

selected:

• You don't need to program the receiver to switch on

or off. This is done automatically.

With Pioneer components, you don’t need to:

• program the power to switch off in a shutdown

sequence (except DVD recorders);

• program the power to switch on if it’s the source

component selected in step 3;

• program a Pioneer TV or monitor to switch on if the

input function (selected in step 2) has video input

terminals;

These take priority in multi operations (not shutdown).

8 Repeat steps 5–7 to program a sequence of up to

five commands.

9 When you’re finished, use

/

to select EDITEXIT

from the menu and press

ENTER

You will return to the remote control SETUP menu. Select

* EXIT * again to exit.

Using multi operations

You can start multi operations with the receiver switched

on, or in standby.

1 Press MULTI OPE.

MULTI OP flashes in the display.

Press

an input source button that has been set up

with a multi operation.

The receiver switches on (if it was in standby) and the

programmed multi operation is performed automatically.

Using System off

1 Press MULTI OPE.

MULTI OP flashes in the display.

2 Press

SOURCE

The command sequence you programmed will run, then

all Pioneer components will switch off1, followed by this

receiver.

XM RADIO

DVR 2

ANALOG

AT T

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

+10

D.ACC ES S

DIALOG E

S.RETRIEVER

PHASE

CLASS DISC

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

ENTER

TUNE

ST ST

ENTER

TOP MENU

CATEGORY

T.EDITDT V MENU

RETURN

GUIDE BAND

SETUP

TV DVR1

TV CTRL

RECEIVER

TUNERCD-R

DVD

RECEIVER

TV CONTROL

SHIFT

VOL

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

INPUT

SELECT TV CH

MPX

AUDIO

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

RECDTV ON/OFF DTV INFO

MUTE

TV VOL

REC STOP JUKEBOX

HDD

CH CH

DVD

Note

1 In order to avoid accidently switching off a DVD recorder that is currently recording, no DVD recorder power off codes are sent.

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

AUDI O

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

HDD

CH CH

DVD

RECEIVER SOURCE

SYSTEM OFF

INPUT

SELECT

TV DVR1

TV CTRL

DVD

DVR 2

RECEIVER

SHIFT

STEREO

THX STANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

AUDI O

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

HDD

CH CH

DVD

12_controlling_system.fm 54 ページ２００６年４月４日　火曜日　午後６時２２分

Controlling the rest of your system 11

Controls for TVs

This remote control can control components after

entering the proper codes or teaching the receiver the

commands (see

Setting the remote to control other

components

on page 51 for more on this). Use the input

source buttons to select the component.

• The

TV CONTROL

buttons on the remote control are

dedicated to control the TV assigned to the

TV CTRL

button. If you have two TVs, assign the main TV to the

TV CTRL

button.

Controls for other components

This remote control can control these components after

entering the proper codes or teaching the receiver the

commands (see

Setting the remote to control other

components

on page 51 for more on this). Use the input

source buttons to select the component.

Button(s) Function Components



Press to switch the component

assigned to the

TV CONT

button on or off.

Cable TV/Satellite

TV/TV/DTV

INPUT

SELECT

Switches the TV input. (Not

possible with all models.) Cable TV/Satellite

TV/TV/DTV

TV CH +/–

Selects channels. Cable TV/Satellite

TV/TV/DTV

TV VOL +/–

Adjust the TV volume. Cable TV/Satellite

TV/TV/DTV

SOURCE



Switches the DTV on or off. DTV

Switches the TV or CATV between

standby and on. Cable TV/Satellite

TV/TV



Switches the DTV on or off. DTV



Press to get information on DTV

programs. DTV



Use to choose the BLUE

commands on a DTV menu. DTV



Use to choose the YELLOW

commands on a DTV menu. DTV



Use to choose the GREEN

commands on a DTV menu. DTV



Use to choose the RED

commands on a DTV menu. DTV

AUDIO / DISP

Use to switch DTV audio tracks. DTV

SUBTITLE

Use to return to the previously

selected channel. Cable TV/Satellite

TV/TV/DTV

DTV MENU

Press to display the DTV menu. DTV

GUIDE

Use as the

GUIDE

button for

navigating. Cable TV/Satellite

TV/TV/DTV

RETURN

Use to select

RETURN

EXIT

. DTV

Number

buttons Use to select a speciﬁc TV

channel. Cable TV/Satellite

TV/TV/DTV

+10

button Use to add a decimal point when

selecting a speciﬁc TV channel. DTV

ENTER/

DISC

Use to enter a channel. Cable TV/Satellite

TV/TV/DTV

Select different menus from the

DTV functions. DTV

Select the menu screen. Cable TV/Satellite

TV/TV

///

ENTER

Press to select or adjust and

navigate items on the menu

screen.

Cable TV/Satellite

TV/TV/DTV

Button (s) Function Components

SOURCE



Press to switch the component

between standby and on. CD/MD/CD-R/

VCR/DVD/LD/

DVR player/

Cassette deck



Press to return to the start of the

current track or chapter.

Repeated presses skips to the

start of previous tracks or

chapters.

CD/MD/CD-R/

DVD/LD player



Press to advance to the start of

the next track or chapter.

Repeated presses skips to the

start of following tracks or

chapters.

CD/MD/CD-R/

DVD/LD player



Pause playback or recording. CD/MD/CD-R/

VCR/DVD/LD/

DVR player/

Cassette deck



Start playback. CD/MD/CD-R/

VCR/DVD/LD/

DVR player/

Cassette deck



Hold down for fast forward

playback. CD/MD/CD-R/

VCR/DVD/LD/

DVR player/

Cassette deck



Hold down for fast reverse

playback. CD/MD/CD-R/

VCR/DVD/LD/

DVR player/

Cassette deck



Stops playback. CD/MD/CD-R/

VCR/DVD/LD/

DVR player/

Cassette deck



REC

(

SHIFT+



)

Starts recording. MD/CD-R/VCR/

DVR player/

Cassette deck

REC STOP

(

SHIFT+



)

Stops recording. DVR player

JUKEBOX

(

SHIFT+



)

Switches to the Jukebox feature. DVR player

Number

buttons

Directly access tracks on a

program source. CD/MD/CD-R/

VCR/LD player

Use the number buttons to

navigate the on-screen

display.

DVD/DVR

player

+10

button

Selects tracks higher than 10.

(For example, press

+10

then

to select track 13.)

CD/MD/CD-R/

VCR/LD player

VSX-1016TXV_KU.book.fm 55 ページ２００６年３月２４日　金曜日　午後９時１９分

Controlling the rest of your system

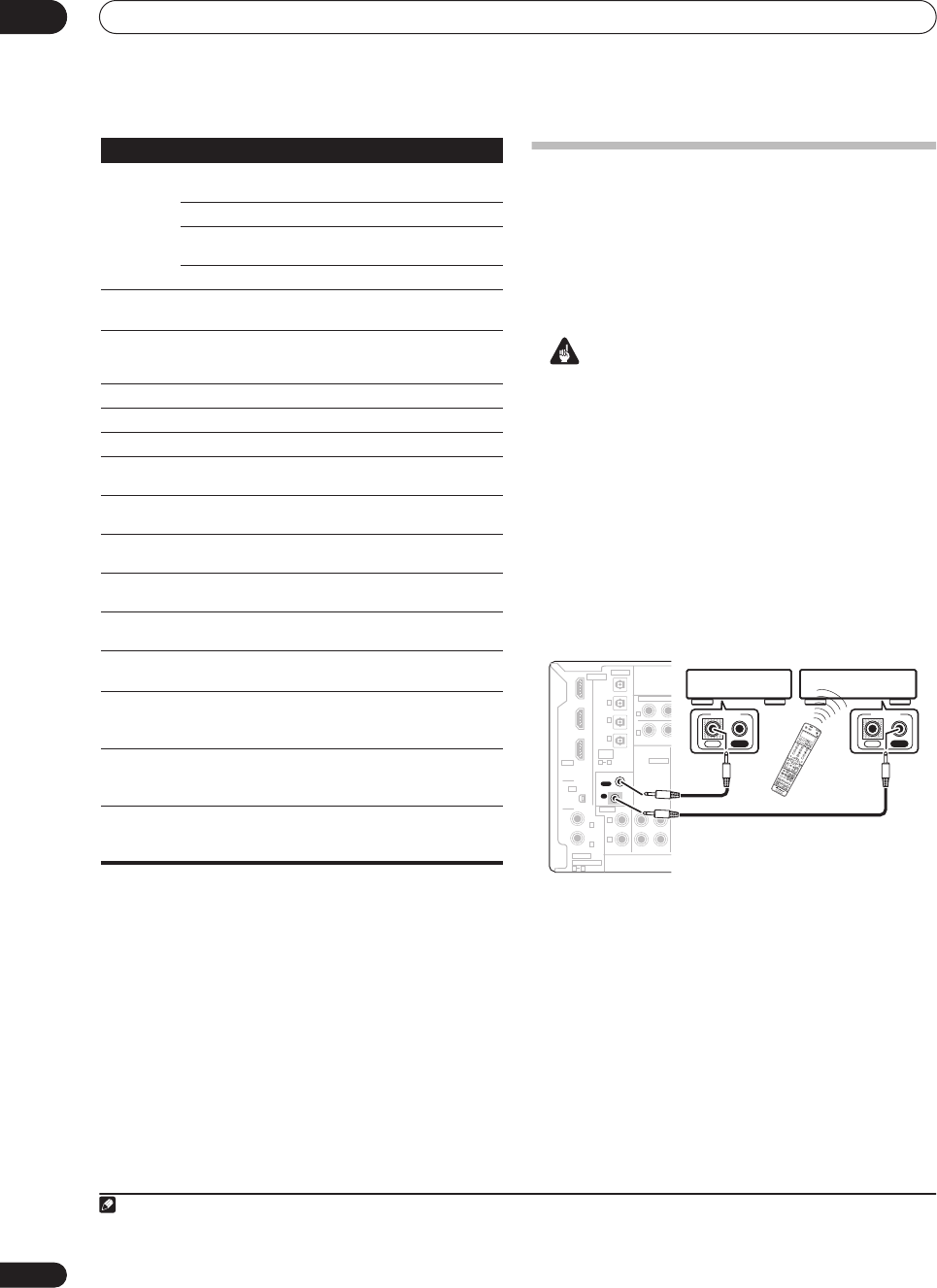

Operating other Pioneer components

with this unit’s sensor

Many Pioneer components have SR

CONTROL

jacks

which can be used to link components together so that

you can use just the remote sensor of one component.

When you use a remote control, the control signal is

passed along the chain to the appropriate component.

Important

• Note that if you use this feature,

make sure that you

also have at least one set of analog audio or video jacks

connected

to another component for grounding

purposes.

1 Decide which component you want to use the

remote sensor of.

When you want to control any component in the chain,

this is the remote sensor at which you’ll point the

corresponding remote control.

2Connect the

CONTROL OUT

jack of that component

to the

CONTROL IN

jack of another Pioneer component.

Use a cable with a mono mini-plug on each end for the

connection.

3 Continue the chain in the same way for as many

components as you have.

ENTER/

DISC

Chooses the disc. Multiple CD

player

Use as the

ENTER

button. VCR/DVD player

Displays the setup screen for

DVR players. DVR player

Changes sides of the LD. LD player

TOP MENU

Displays the disc ‘top’ menu of a

DVD player. DVD/DVR

player

Displays menus concerning the

current DVD or DVR you are

using.

DVD/DVR

player



Pauses the tape. Cassette deck



Stops the tape. Cassette deck

ENTER

Starts playback. Cassette deck

/

Fast rewinds/fast forwards the

tape. Cassette deck

///

ENTER

Navigates DVD menu/options. DVD/DVR

Player

GUIDE

Press to access the DVD player

setup screen. DVD/DVR

Player

CH +/–

Selects channels. VCR/DVD/DVR

Player

AUDIO

Changes the audio language or

channel. DVD/DVR

Player

SUBTITLE

Displays/changes the subtitles

on multilingual DVDs. DVD/DVR

Player

SHIFT

+SUBTITLE

Switches to the VCR controls

when using a VCR/DVD/HDD

recorder.

VCR/DVD/DVR

Player

HDD (SHIFT

+ CH–)

Switches to the hard disk

controls when using a DVD/

HDD recorder.

DVR Player

DVD (SHIFT

+ CH+)

Switches to the DVD controls

when using a DVD/HDD

recorder.

DVR Player

Button (s) Function Components

Note

1• If you want to control all your components using this receiver’s remote control, refer to

Setting the remote to control other components

on page 51.

If you have connected a remote control to the

CONTROL IN

jack (using a mini-plug cable), you won't be able to control this unit using the remote sensor.

• See

Using this receiver with a Pioneer plasma display

on page 44 if you are connecting a Pioneer plasma display.

ANALOG

MIDNIGHT/

LOUDNESS

SB ch

DIMMER

SLEEP

SR+

+10

D.ACCESS

DIALOG E

S.RETRIEVER

PHASE

CLASSDISC

RECEIVERSOURCE

SYSTEM OFF

INPUT

SELECT

ENTER

TV CONTROL

SHIFT

VOL

TUNE

STST

STEREO

THXSTANDARD

AUTO SURR

SIGNAL SEL

ADV.SURR

INPUT

SELECTTV CH

MPX

AUDIO

DISP

SUBTITLE

MULTI OPE

EFFECT/CH SEL

ACOUSTIC EQ

REC

DTV ON/OFFDTV INFO

MUTE

VOL

ENTER

REC STOPJUKEBOX

HDD

CHCH

DVD

TOP MENU

TEGORY

.EDIT

DTV MENU

RETURN

GUIDEBAND

SETUP

RECEIVER

TVDVR1

TV CTRL

RECEIVER

TUNER

CD-R

DVD

XM RADIO

ROOM 2

DVR 2

V PRE-PROGRAMMED AND LEARNING

REMOTE CONTROL UNIT

IN INOUT

CD-R/TAPE/MD

CONTROL

AUDIO

YPB

DIGITAL

ASSIGNABLE

OPTICAL

COAXIAL

VIDEO

S-VIDEO

COMPONENT VI

HDMI

ASSIG-

NABLE

OUT

(TV/SAT)

(CD)

(DVR/

VCR1)

IN 1

IN 2

OUT

(DVD/LD)

IN 1

(DVR/VCR2)

IN 2

IN 3

OUT

IN OUT

CONTROL

IN OUT

CONTROL

VSX-1016TXV_KU.book.fm 56 ページ２００６年３月２４日　金曜日　午後９時１９分

Additional information 12

Chapter 12:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with

this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other

components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks

listed below, ask your nearest Pioneer authorized independent service company to carry out repair work.

Power

No sound

Symptom Remedy

The power does not turn on. • Make sure that the power cable is plugged in to an active power outlet.

• Try disconnecting from the power outlet, then plugging back in.

The receiver suddenly switches

off or the Phase Control indicator

blinks.

• Check that there are no loose strands of speaker wire touching the rear panel or another set of wires. If

so, re-attach the speaker wires, making sure there are no stray strands.

• The receiver may have a serious problem. Disconnect from the power and call a Pioneer authorized

independent service company.

During loud playback the power

suddenly switches off.

• Turn down the volume.

• Lower the 40 Hz and 125 Hz equalizer levels in the

Manual MCACC setup

on page 34.

• Try switching on the digital safety feature (put the receiver into standby, hold down the

SYSTEM SETUP

button on the front panel and press



STANDBY/ON

to switch between

SAFETY ON

and

SAFETY OFF

. If

the power switches off even with

SAFETY ON

selected, turn down the volume.

The unit does not respond when

the buttons are pressed.

• Try switching the receiver off then back on again.

• Try disconnecting the power cable, then connect again.

AMP ERR

blinks in the display,

then the power automatically

switches off. The

MCACC

blinks

and the power does not turn on.

• The receiver may have a serious problem. Do not try switching the receiver on. Contact a Pioneer

authorized independent service company for help.

OVERHEAT

blinks in the display

then the power automatically

switches off.

• Allow the unit to cool down in a well-ventilated place before switching back on. Check the safety

precautions on pages 2–3 for information on improving heat dispersal.

Symptom Remedy

No sound is output when an

input source is selected.

No sound output from the front

speakers.

• Check the volume, mute setting (press

MUTE

) and speaker setting (press

SPEAKERS

• Make sure the correct input source is selected.

• Check that the MCACC setup microphone is disconnected.

• Make sure the correct input signal is selected (press

SIGNAL SELECT

• Check that the source component is connected properly (see

Connecting your equipment

on page 11).

• Check that the speakers are connected properly (see

Connecting the speakers

on page 17).

No sound from the surround or

center speakers.

• Check that the Stereo listening mode isn’t selected; select one of the surround listening modes (see

Listening in surround sound

on page 26).

• Check that the surround/center speakers are not set to

(see

Speaker Setting

on page 37).

• Check the channel level settings (see

Channel Level

on page 38).

• Check the speaker connections (see

Connecting the speakers

on page 17).

VSX-1016TXV_KU.book.fm 57 ページ２００６年３月２４日　金曜日　午後９時１９分

Additional information

Pioneer Vsx 1016Txv K Users Manual ARB7360 A

Pioneer VSX-1016TXV AandV Receiver Owner’s Manual 315642730VSX1016TXVOperatingInstructions Troubleshoot Pioneer VSX-1016TXV AandV Receiver |
