AV Receiver
VSX-1022-K
VSX-822-K
Operating Instructions
2
.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_A1_En
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_A1_En
Information to User
Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate
the equipment.
D8-10-2_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
WARNING
Before plugging in for the first time, read the following
section carefully.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel.
D3-4-2-1-4*_A1_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 40 cm at top, 20 cm at rear, and 20 cm at each
side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed.
D3-4-2-1-7b*_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light) D3-4-2-1-7c*_A1_En
Caution
To prevent fire hazard, the Class 2 Wiring Cable
should be used for connection with speaker, and
should be routed away from hazards to avoid damage
to the insulation of the cable.
D3-7-13-67*_A1_En
.
3
This Class B digital apparatus complies with
Canadian ICES-003. D8-10-1-3_A1_En
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Only use attachments/accessories specified by
the manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
D3-7-13-69_En
11)
12)
13)
14)
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left unused
for a long period of time (for example, when on
vacation).
D3-4-2-2-1a_A1_En
CAUTION
The STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation).
D3-4-2-2-2a*_A1_En
CAUTION
This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit
to other equipment. To prevent electromagnetic
interference with electric appliances such as radios
and televisions, use shielded cables and connectors
for connections. D8-10-3a_A1_En
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF
THIS EQUIPMENT ARE ON THE REAR OR BOTTOM.
RECORD THESE NUMBERS ON YOUR ENCLOSED
WARRANTY CARD AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.
D36-AP9-1_A1_En
WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product may expose you to chemicals listed on
proposition 65 known to the State of California and
other governmental entities to cause cancer and
birth defect or other reproductive harm.
D36-P5_B1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period. K041_A1_En
These symbols are only valid
in the European Union.
K058c_A1_En
(Symbol examples for batteries)
Pb
4
Thank you for buying this Pioneer product. Please read
through these operating instructions so you will know how to
operate your model properly.
Before you start
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Checking what’s in the box. . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Flow of settings on the receiver
. . . . . . . . . . . . . . 6
01 Controls and displays
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading the batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating range of remote control . . . . . . . . . . . . . . . . 10
02 Connecting your equipment
Determining the speakers’ application . . . . . . . . . . . . . . . 11
Some tips for improving sound quality . . . . . . . . . . . . . 11
Connecting the speakers . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connect the surround back or front height speakers
(In case of VSX-1022). . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connect the surround back or front height speakers
(In case of VSX-822). . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the speaker terminal . . . . . . . . . . . . . . . . . . . 14
Making cable connections . . . . . . . . . . . . . . . . . . . . . . . . 14
HDMI cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
About HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Analog audio cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Digital audio cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Video cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
About the video converter (VSX-1022 only) . . . . . . . . . . . . 16
About video outputs connection (VSX-822 only) . . . . . . . . 16
Connecting a TV and playback components . . . . . . . . . . . 17
Connecting using HDMI . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting your TV with no HDMI input . . . . . . . . . . . . 18
Connecting your DVD player with no HDMI output
(VSX-1022 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting optional Bluetooth® ADAPTER . . . . . . . . . . . 20
Connecting to the network through LAN interface . . . . . . 20
Connecting antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using external antennas . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting an iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting a USB device. . . . . . . . . . . . . . . . . . . . . . . . . 22
Plugging in the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . 22
03 Basic Setup
Canceling the demo display . . . . . . . . . . . . . . . . . . . . . . . 23
Automatically setting up for surround sound (MCACC) . . 23
Other problems when using the Auto MCACC setup. . . 24
04 Basic playback
Playing a source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting the audio input signal . . . . . . . . . . . . . . . . . . 25
Playing an iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Playing back files stored on an iPod . . . . . . . . . . . . . . . 27
Basic playback controls. . . . . . . . . . . . . . . . . . . . . . . . . 27
Watching photos and video content . . . . . . . . . . . . . . . 27
Playing a USB device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Playing back audio files stored on a USB memory
device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Playing back photo files stored on a USB memory
device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
About playable file formats . . . . . . . . . . . . . . . . . . . . . . 29
Bluetooth
®
ADAPTER for Wireless Enjoyment of Music
. . . 30
Wireless music play. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Pairing the Bluetooth ADAPTER and Bluetooth
wireless technology device . . . . . . . . . . . . . . . . . . . . . . 30
Listening to Music Contents of Bluetooth wireless
technology device with Your System . . . . . . . . . . . . . . . 31
AIR JAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Improving FM sound . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Saving station presets . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Listening to station presets . . . . . . . . . . . . . . . . . . . . . . 32
Naming preset stations . . . . . . . . . . . . . . . . . . . . . . . . . 32
05 Listening to your system
Choosing the listening mode . . . . . . . . . . . . . . . . . . . . . . 33
Auto playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Listening in surround sound . . . . . . . . . . . . . . . . . . . . . 33
Using the Advanced surround . . . . . . . . . . . . . . . . . . . 34
Using Stream Direct . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using the Sound Retriever . . . . . . . . . . . . . . . . . . . . . . . . 34
Listening with Acoustic Calibration EQ. . . . . . . . . . . . . . . 34
Better sound using Phase Control . . . . . . . . . . . . . . . . . . 35
Using surround back channel processing . . . . . . . . . . . . 35
Setting the Up Mix function . . . . . . . . . . . . . . . . . . . . . . . 35
Setting the Audio options . . . . . . . . . . . . . . . . . . . . . . . . . 36
06 Playback with NETWORK features
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
About playable DLNA network devices. . . . . . . . . . . . . . 38
Using AirPlay on iPod touch, iPhone, iPad, and iTunes
. . 38
About the DHCP server function . . . . . . . . . . . . . . . . . . 38
Authorizing this receiver . . . . . . . . . . . . . . . . . . . . . . . . 38
Playback with Network functions . . . . . . . . . . . . . . . . . . . 39
Basic playback controls . . . . . . . . . . . . . . . . . . . . . . . . . 39
Listening to Internet radio stations. . . . . . . . . . . . . . . . . 39
Listening to Pandora Internet Radio. . . . . . . . . . . . . . . . 40
Playing back audio files stored on components on the
network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Playing back your favorite songs . . . . . . . . . . . . . . . . . . 40
The Network Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . 41
Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
About network playback . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Content playable over a network . . . . . . . . . . . . . . . . . . 43
About playback behavior over a network . . . . . . . . . . . . 44
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
About playable file formats . . . . . . . . . . . . . . . . . . . . . . . . 45
07 Home Menu
Using the Home Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Manual speaker setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Speaker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
X.Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Speaker Distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
The Input Assign menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Analog Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Component Input (VSX-1022 only) . . . . . . . . . . . . . . . . . 49
The Speaker System setting (VSX-1022 only) . . . . . . . . . . . 49
The Video Parameter setting (VSX-1022 only) . . . . . . . . . . 49
Video Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
The Pre Out Setting (VSX-822 only) . . . . . . . . . . . . . . . . . . 50
The Auto Power Down menu. . . . . . . . . . . . . . . . . . . . . . . 51
The Network Standby menu . . . . . . . . . . . . . . . . . . . . . . . 51
The FL Demo Mode menu . . . . . . . . . . . . . . . . . . . . . . . . . 51
Contents
Contents
5
08 Control with HDMI function
Making Control with HDMI connections. . . . . . . . . . . . . . 52
HDMI Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Before using synchronization . . . . . . . . . . . . . . . . . . . . . . 53
About synchronized operations . . . . . . . . . . . . . . . . . . . . 53
Cautions on the Control with HDMI function . . . . . . . . . . 53
09 Controlling the rest of your system
Setting the remote to control other components . . . . . . . 54
Selecting preset codes directly. . . . . . . . . . . . . . . . . . . . . 54
Clearing all the remote control settings . . . . . . . . . . . . . . 54
Controls for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controls for other components. . . . . . . . . . . . . . . . . . . . . 55
Preset Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10 Additional information
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
NETWORK feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Important information regarding the HDMI
connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
About iPod/iPhone/iPad . . . . . . . . . . . . . . . . . . . . . . . . . . 62
About FLAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
About messages displayed when using network
functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Resetting the main unit . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
6
Before you start
Checking what’s in the box
Please check that you’ve received the following supplied
accessories:
Setup microphone
Remote control
AAA size IEC R03 dry cell batteries (to confirm system
operation) x2
AM loop antenna
FM wire antenna
iPod cable
Warranty card
Quick start guide
Safety Brochure
These operating instructions (CD-ROM)
Installing the receiver
When installing this unit, make sure to put it on a level and
stable surface.
Don’t install it on the following places:
– on a color TV (the screen may distort)
– near a cassette deck (or close to a device that gives off a
magnetic field). This may interfere with the sound.
– in direct sunlight
– in damp or wet areas
– in extremely hot or cold areas
– in places where there is vibration or other movement
– in places that are very dusty
– in places that have hot fumes or oils (such as a kitchen)
Flow of settings on the receiver
The unit is a full-fledged AV receiver equipped with an
abundance of functions and terminals. It can be used easily
after following the procedure below to make the connections
and settings.
The colors of the steps indicate the following:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Required setting item
Setting to be made as necessary
1
Connecting the speakers
Where you place the speakers will have a big effect on
the sound.
Determining the speakers’ application (page 11)
Connecting the speakers (page 12)
Switching the speaker terminal (page 14)
2
Connecting the components
For surround sound, you’ll want to hook up using a
digital connection from the Blu-ray Disc/DVD player to
the receiver.
About the video converter (VSX-1022 only) (page 16)
About video outputs connection (VSX-822 only)
(page 16)
Connecting a TV and playback components (page 17)
Connecting antennas (page 21)
Plugging in the receiver (page 22)
3
Power On
Make sure you’ve set the video input on your TV to this
receiver. Check the manual that came with the TV if you
don’t know how to do this.
4
The Speaker System setting (VSX-1022 only) (page 49)
(Specify either using the surround back or front height
speaker.)
The Pre Out Setting (VSX-822 only) (page 50)
(When connecting the front height speakers.)
The Input Assign menu (page 49)
(When using connections other than the recommended
connections.)
HDMI Setup (page 52)
(When the connected TV supports the HDMI Audio Return
Channel function.)
5
Use the on-screen automatic MCACC setup to set up
your system
Automatically setting up for surround sound (MCACC)
(page 23)
6
Basic playback (page 25)
Selecting the audio input signal (page 25)
Playing an iPod (page 27)
Playing a USB device (page 28)
Choosing the listening mode (page 33)
7
Adjusting the sound as desired
Using the Sound Retriever (page 34)
Better sound using Phase Control (page 35)
Listening with Acoustic Calibration EQ (page 34)
Using surround back channel processing (page 35)
Setting the Up Mix function (page 35)
Setting the Audio options (page 36)
Manual speaker setup (page 46)
8
Making maximum use of the remote control
Setting the remote to control other components
(page 54)
1
1
Chapter
7
Controls and displays
Front panel
1
INPUT SELECTOR
dial
Selects an input source (page 25).
2
MCACC indicator
Lights when Acoustic Calibration EQ (page 34) is on (Acoustic
Calibration EQ is automatically set to on after the Auto
MCACC setup (page 23)).
3
Receiver control buttons
SPEAKERS
– See Switching the speaker terminal on
page 14.
DIMMER
– Dims or brightens the display. The brightness
can be controlled in four steps.
DISPLAY
– Switches the display of this unit. The listening
mode, sound volume, Speaker System (VSX-1022)/Pre Out
(VSX-822) setting or input name can be checked by
selecting an input source.
The Speaker System/Pre Out setting may or may not be
displayed, depending on the input source you have
selected.
4
Character display
See Display on page 8.
5
Tuner control buttons
BAND
– Switches between AM, FM ST (stereo) and FM
MONO radio bands (page 32).
TUNER EDIT
– Use with
TUNE
/
,
PRESET
/-
and
ENTER
to memorize and name stations for recall
(page 32).
TUNE
/
– Used to find radio frequencies (page 32).
PRESET
/-
– Use to select preset radio stations
(page 32).
6
HDMI indicator
Blinks when connecting an HDMI-equipped component;
lights when the component is connected (page 17).
7
iPod iPhone iPad indicator
Lights when an iPod/iPhone/iPad is connected and
iPod/USB
input is selected (page 27).
8
Remote sensor
Receives the signals from the remote control (see Operating
range of remote control on page 10).
9
MASTER VOLUME
dial
10
STANDBY/ON
11
PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers. The
listening mode when the sound is heard from the headphone
can be selected only from PHONES SURR, STEREO or
STEREO ALC mode (S.R AIR mode can be also selected with
ADAPTER input).
12
Listening mode buttons
AUTO SURROUND/STREAM DIRECT
– Switches between
Auto surround mode (page 33) and Stream Direct
playback (page 34).
ALC/STANDARD SURR
– Press for standard decoding
and to switch between the modes of 2 Pro Logic II, 2
Pro Logic IIx, 2 Pro Logic IIz and NEO:6, and the Auto
level control stereo mode (page 33).
ADVANCED SURROUND
– Switches between the various
surround modes (page 34).
13
MCACC SETUP MIC jack
Use to connect a microphone when performing Auto MCACC
setup (page 23).
MASTER
VOLUME
STANDBY/ ON
INPUT
SELECTOR
iPod iPhone iPad
DIRECT CONTROL
SOUND
RETRIEVER AIR
ADVANCED
SURROUND
PHONES
MCACC
SETUP
MIC VIDEO
SPEAKERS DIMMER DISPLAY BAND TUNER EDIT TUNE PRESET ENTER
HDMIMCACC iPod iPhone iPad
iPod
iPhone
iPad
ALC/
STANDARD SURR
AUTO SURROUND
/
STREAM DIRECT
USB
5 V
2.1
A
456
10 11 1512 13 14
21 7 938
16
17 18 19 20 21 19
24 25 26 27 27 2928
22
23
Controls and displays
1
1
8
14
iPod iPhone iPad/USB terminal
Use to connect your Apple iPod or USB mass storage device
as an audio source (page 21).
15
SOUND RETRIEVER AIR
When the button is pressed, the input switches to ADAPTER
and the listening mode is automatically set to S.R AIR
(page 31).
16
iPod iPhone iPad DIRECT CONTROL
Change the receiver’s input to the iPod and enable iPod
operations on the iPod (page 28).
Display
17
PHASE
Lights when the Phase Control is switched on (page 35).
18
AUTO
Lights when the Auto Surround feature is switched on
(page 33).
19
Tuner indicators
ST – Lights when a stereo FM broadcast is being received
in auto stereo mode (page 32).
TUNE – Lights when a normal broadcast channel.
PRESET – Shows when a preset radio station is registered
or called.
MEM – Blinks when a radio station is registered.
kHz/MHz – Lights when the character display is showing
the currently received AM/FM broadcast frequency.
20
Speaker indicators
Shows if the speaker system is on or not (page 14).
21
Sleep timer indicator
Lights when the receiver is in sleep mode (page 9).
22
PRESET information or input signal indicator
Shows the preset number of the tuner or the input signal type,
etc.
23
Character display
Displays various system information.
24
DTS indicators
DTS – Lights when a source with DTS encoded audio
signals is detected.
HD – Lights when a source with DTS-EXPRESS or DTS-HD
encoded audio signals is detected.
ES – Lights to indicate DTS-ES decoding.
96/24 – Lights when a source with DTS 96/24 encoded
audio signals is detected.
NEO:6 – When one of the NEO:6 modes of the receiver is
on, this lights to indicate NEO:6 processing (page 33).
25
Dolby Digital indicators
2 D – Lights when a Dolby Digital encoded signal is
detected.
2 D+ – Lights when a source with Dolby Digital Plus
encoded audio signals is detected.
2HD – Lights when a source with Dolby TrueHD encoded
audio signals is detected.
EX – Lights to indicate Dolby Digital EX decoding.
2PLII(x) – Lights to indicate 2 Pro Logic II/2 Pro Logic
IIx decoding. Light will go off during 2 Pro Logic IIz
decoding (see Listening in surround sound on page 33 for
more on this).
26
ADV.S.
Lights when one of the Advanced Surround modes has been
selected (see Using the Advanced surround on page 34 for
more on this).
27
SIGNAL SELECT indicators
DIGITAL – Lights when a digital audio signal is selected.
Blinks when a digital audio signal is selected and selected
audio input is not provided.
HDMI – Lights when an HDMI signal is selected. Blinks
when an HDMI signal is selected and selected HDMI input
is not provided.
28
Up Mix/DIMMER indicator
Lights when the Up Mix function is set to ON (page 35). Also,
lights when DIMMER is set to off.
29
DIR.
Lights when the DIRECT or PURE DIRECT mode is switched
on (page 34).
Removing the front cover
Attaching the front cover
MCACC
SETUP
MIC VIDEO
iPod
iPhone
iPad USB
5 V
2.1
A
MCACC
SETUP
MIC VIDEO
iPod
iPhone
iPad USB
5 V
2.1
A
1
2
Controls and displays
1
1
9
Remote control
The following buttons are not used with this receiver:
-
PTY
,
1
SLEEP
Press to change the amount of time before the receiver
switches into standby (30 min – 60 min – 90 min – Off). You
can check the remaining sleep time at any time by pressing
SLEEP
once.
2
RECEIVER
Switches the receiver between standby and on.
3
Switches the remote to control the receiver (used to select the
white commands above the number buttons (
MIDNIGHT
,
etc)). Also use this button to set up surround sound (page 46)
or Audio parameters (page 36).
4
INPUT SELECT
Use to select the input source (page 25).
5
Input function buttons
Use to select the input source to this receiver (page 25). This
will enable you to control other components with the remote
control (page 54).
6
Listening mode buttons
AUTO/DIRECT
– Switches between Auto surround mode
(page 33) and Stream Direct playback (page 34).
ALC/STANDARD SURR
– Press for standard decoding
and to switch between the modes of 2 Pro Logic II, 2
Pro Logic IIx, 2 Pro Logic IIz and NEO:6, and the Auto
level control stereo mode (page 33).
ADV SURR
– Switches between the various surround
modes (page 34).
7
Receiver and component control buttons
The following button controls can be accessed after you have
selected the corresponding input function button (
BD
,
DVD
,
etc.).
Press first to access:
AUDIO PARAMETER
– Use to access the Audio options
(page 36).
HOME MENU
– Press to access the Home Menu
(page 46).
RETURN
– Confirm and exit the current menu screen.
Press
BD
,
DVD
or
DVR/BDR
first to access:
TOP MENU
– Displays the disc ‘top’ menu of a Blu-ray
Disc/DVD.
HOME MENU
– Displays the HOME MENU screen.
RETURN
– Confirm and exit the current menu screen.
MENU
– Displays the TOOLS menu of Blu-ray Disc player.
Press
TUNER
first to access:
TOOLS
– Memorizes stations for recall (page 32), also
used to change the name (page 32).
BAND
– Switches between AM, FM ST (stereo) and FM
MONO radio bands (page 32).
Press
iPod/USB
first to access:
iPod CTRL
– Switches between the iPod controls and the
receiver controls (page 27).
8
///-
(
TUNE
/
,
PRESET
/-
),
ENTER
Use the arrow buttons when setting up your surround sound
system (page 46). Also used to control Blu-ray Disc/DVD
menus/options.
Use
TUNE
/
can be used to find radio frequencies and
PRESET
/-
can be used to select preset radio stations
(page 32).
9
Component control buttons
The main buttons (
,
, etc.) are used to control a component
after you have selected it using the input function buttons.
The controls above these buttons can be accessed after you
have selected the corresponding input function button (
BD
,
DVD
and
CD
). These buttons also function as described
below.
Press first to access:
BASS +/–
,
TRE +/–
– Use to adjust Bass or Treble.
• These controls are disabled when the listening mode is
set to DIRECT or PURE DIRECT.
• When the front speaker is set at SMALL in the Speaker
Setting (or automatically via the Auto MCACC setup)
and the X.Over is set above 150 Hz, the subwoofer
channel level will be adjusted by pressing
BASS +/–
(page 47).
SLEEP
INPUT
1
4
7
RECEIVER
ENTER
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
MUTE
RETURN
AUDIO
PARAMETER
MENU
HOME
MENU
RECEIVER
RECEIVER
SOURCE
TOOLS
BAND
iPod CTRL
PTY
TOP
MENU
T
U
N
E
T
U
N
E
P
R
E
S
E
T
P
R
E
S
E
T
SHIFT
1
2
11
12
13
14
15
16
3
4
5
6
7
8
9
10
SHIFT
RECEIVER
RECEIVER
RECEIVER
Controls and displays
1
1
10
10
Number buttons and other component controls
Use the number buttons to directly select a radio frequency
(page 32) or the tracks on a CD, etc. There are other buttons
that can be accessed after is pressed. (For example
MIDNIGHT
, etc.)
EQ
– Press to switch on/off Acoustic Calibration EQ
setting (page 34).
PHASE
– Press to switch on/off Phase Control (page 35).
SIGNAL SEL
– Press to select the audio input signal of the
component to play back (page 25).
S.RETRIEVER
– Press to restore CD quality sound to
compressed audio sources (page 34).
SB CH
– Press to select ON, AUTO or OFF the surround
back channel (page 35).
CH SELECT
– Press repeatedly to select a channel, then
use
LEV +/–
to adjust the level (page 48).
LEV +/–
– Use to adjust the channel level.
MIDNIGHT
– Switches to Midnight or Loudness listening
(page 36).
SPEAKERS
– See Switching the speaker terminal on
page 14.
DIMMER
– Dims or brightens the display. The brightness
can be controlled in four steps.
11
SOURCE
Press to turn on/off other components connected to the
receiver (page 54).
12
TV CONTROL buttons
These buttons are dedicated to control the TV assigned to the
TV
button. Thus if you only have one TV to hook up to this
system assign it to the
TV
button (page 55).
– Use to turn on/off the power of the TV.
INPUT
– Use to select the TV input signal.
CH +/–
– Use to select channels.
VOL +/–
– Use to adjust the volume on your TV.
13
+Favorite
Press while a song is being played back or stopped. The
selected song is then registered in the Favorites folder
(page 40).
14
VOLUME +/–
Use to set the listening volume.
15
MUTE
Mutes/unmutes the sound.
16
DISP
Switches the display of this unit. The listening mode, sound
volume, Speaker System (VSX-1022)/Pre Out (VSX-822) setting
or input name can be checked by selecting an input source.
The Speaker System/Pre Out setting may or may not be
displayed, depending on the input source you have
selected.
Loading the batteries
The batteries included with the unit are to check initial
operations; they may not last over a long period. We
recommend using alkaline batteries that have a longer life.
CAUTION
Incorrect use of batteries may result in such hazards as
leakage and bursting. Observe the following precautions:
-
Never use new and old batteries together.
-
Insert the plus and minus sides of the batteries properly
according to the marks in the battery case.
-
Batteries with the same shape may have different
voltages. Do not use different batteries together.
-
When disposing of used batteries, please comply with
governmental regulations or environmental public
instruction’s rules that apply in your country or area.
-
Do not use or store batteries in direct sunlight or other
excessively hot place, such as inside a car or near a
heater. This can cause batteries to leak, overheat,
explode or catch fire. It can also reduce the life or
performance of batteries.
Operating range of remote control
The remote control may not work properly if:
There are obstacles between the remote control and the
receiver’s remote sensor.
Direct sunlight or fluorescent light is shining onto the
remote sensor.
The receiver is located near a device that is emitting
infrared rays.
The receiver is operated simultaneously with another
infrared remote control unit.
RECEIVER
30°
7 m (23 ft.)
30°
2
2
11
Chapter
Connecting your equipment
Determining the speakers’ application
By connecting the left and right front speakers (L/R), the
center speaker (C), the left and right surround speakers (SL/
SR), the left and right surround back speakers (SBL/SBR) (or
the left and right front height speakers (FHL/FHR)), and the
subwoofer (SW), a surround sound system up to 7.1 channel
can be enjoyed.
The 5.1 channel surround system is the most commonly-used
in home theaters. To achieve the best possible surround
sound, install your speakers as shown below.
Important
VSX-1022 only: Both the surround back speakers and the
front height speakers can be connected at the same time.
In this case, sound will be output from either the front
height speaker or the surround back speaker depending on
which one was selected in the Speaker System setting
(see The Speaker System setting (VSX-1022 only) on
page 49).
VSX-822 only: To connect the surround back or front
height speakers, an additional amplifier is required.
Connect the additional amplifier to the PRE OUT SURR
BACK/FRONT HEIGHT outputs of this unit and connect the
surround back or front height speakers to the additional
amplifier (see Connect the surround back or front height
speakers (In case of VSX-822) on page 12).
VSX-1022 only: Another way, you can use the speakers
connected to the B speaker terminals to listen to stereo
playback in another room. See Switching the speaker terminal
on page 14 for the listening options with this setup.
You will not be able to connect the B speakers if you
connect the front height speakers in the main zone.
Further, if you use the B speakers, a 5.1 ch playback will be
the maximum in the main zone. (No sound is output from
the surround back speaker.)
Some tips for improving sound quality
Where you put your speakers in the room has a big effect on
the quality of the sound. The following guidelines should help
you to get the best sound from your system.
It is best to angle the speakers towards the listening
position. The angle depends on the size of the room. Use
less of an angle for bigger rooms.
Refer to the chart below for placement of speakers you
intend to connect.
-
Place the surround speakers at 120º from the center. If
you, (1) use the surround back speaker, and, (2) don’t use
the front height speakers, we recommend placing the
surround speaker right beside you.
-
If you intend to connect only one surround back
speakers, place it directly behind you.
-
If the surround speakers cannot be set directly to the side
of the listening position with a 7.1-channel system, the
surround effect can be enhanced by turning off the Up
Mix function (see Setting the Up Mix function on page 35).
For the best stereo effect, place the front speakers 2 m to
3 m apart, at equal distance from the TV.
If you’re using a center speaker, place the front speakers at
a wider angle. If not, place them at a narrower angle.
Place the center speaker above or below the TV so that the
sound of the center channel is localized at the TV screen.
Also, make sure the center speaker does not cross the line
formed by the leading edge of the front left and right
speakers.
SL
L
SW
C
RR
SR
SL
L
SW
C
SR
SB
C
SL
L
FHL
FHR
SW
R
SR
SL
L
SW
C
R
SR
SBL
SBR
7.1 channel surround
(Surround back) system:
7.1 channel surround
(Front height) system:
L
R
Main zone
Speaker B
L
SW
C
FHL
SL
SBL SBR
SB
SR
R
FHR
30 30
60
120 120
Connecting your equipment
2
2
12
Surround and surround back speakers should be
positioned 60 cm to 90 cm higher than your ears and titled
slight downward. Make sure the speakers don’t face each
other. For DVD-Audio, the speakers should be more directly
behind the listener than for home theater playback.
Try not to place the surround speakers farther away from
the listening position than the front and center speakers.
Doing so can weaken the surround sound effect.
Place the left and right front height speakers at least one
meter directly above the left and right front speakers.
If you’re going to place speakers around your CRT TV, use
shielded speakers or place the speakers at a sufficient
distance from your CRT TV.
The subwoofer can be placed on the floor. Ideally, the other
speakers should be at about ear-level when you’re listening
to them. Putting the speakers on the floor (except the
subwoofer), or mounting them very high on a wall is not
recommended.
When not connecting a subwoofer, connect speakers with
low frequency reproduction capabilities to the front
channel. (The subwoofer’s low frequency component is
played from the front speakers, so the speakers could be
damaged.)
After connecting, be sure to conduct the Auto MCACC
(speaker environment setting) procedure.
See Automatically setting up for surround sound (MCACC)
on page 23.
CAUTION
Make sure that all speakers are securely installed. This not
only improves sound quality, but also reduces the risk of
damage or injury resulting from speakers being knocked
over or falling in the event of external shocks such as
earthquakes.
Connecting the speakers
The receiver will work with just two stereo speakers (the front
speakers in the diagram) but using at least three speakers is
recommended, and a complete setup is best for surround
sound.
Make sure you connect the speaker on the right to the right (R)
terminal and the speaker on the left to the left (L) terminal.
Also make sure the positive and negative (+/) terminals on
the receiver match those on the speakers.
You can use speakers with a normal impedance between 6 Ω
and 16 Ω.
Be sure to complete all connections before connecting this unit
to the AC power source.
Bare wire connections
1
Twist exposed wire strands together.
2
Loosen terminal and insert exposed wire.
3
Tighten terminal.
Connect the wires to the B-Speakers terminals of the VSX-1022
as shown below:
1
Twist exposed wire strands together.
2
Push open the tabs and insert exposed wire.
3
Release the tabs.
CAUTION
These speaker terminals carry HAZARDOUS LIVE voltage.
To prevent the risk of electric shock when connecting or
disconnecting the speaker cables, disconnect the power
cord before touching any uninsulated parts.
Make sure that all the bare speaker wire is twisted together
and inserted fully into the speaker terminal. If any of the
bare speaker wire touches the back panel it may cause the
power to cut off as a safety measure.
Connect the surround back or front height
speakers (In case of VSX-1022)
The Speaker System setting must be set if the above
connections are performed. Select Surr.Back if the surround
back speaker is connected and Height if the front height
speaker is connected (If neither the surround back speaker
nor the front height speaker is connected, either setting will
suffice) (see The Speaker System setting (VSX-1022 only) on
page 49).
When using only one surround back speaker, connect it to
the SURROUND BACK L (Single) terminals.
Connect the surround back or front height
speakers (In case of VSX-822)
Connect the PRE OUT SURR BACK/FRONT HEIGHT outputs
of the unit and additional amplifier to add a surround back or
front height speaker.
The Pre Out setting must be set if the above connections are
performed. Select Surr.Back if the surround back speaker is
connected and Height if the front height speaker is
connected (If neither the surround back speaker nor the front
height speaker is connected, either setting will suffice) (see
The Pre Out Setting (VSX-822 only) on page 50).
You can use the additional amplifier on the surround back
channel pre-outs for a single speaker as well. In this case
plug the amplifier into the left (L (Single)) terminal only.
12 3
10 mm
(3/8 in.)
12 3
10 mm
(3/8 in.)
Connecting your equipment
2
2
13
VSX-1022 connection diagram VSX-822 connection diagram
R
L
AUDIO
O
NENT VIDEO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN
(10/100)
DVD
IN
SAT/CBL
IN
DVD
PBPR
SAT/CBL
ANALOG IN
IN
IN
DVD GAME VIDEOBD
SAT /CBL DVR/BDR
(CD)
(TV)
IN
1
IN
1
(CD)
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE Class 2 Wiring
SEE INSTRUCTION MANUAL
VOIR LE MODE D’EMPLOI
6 -16 . 6 -16 .
AM LOOP
SURROUND
SURROUND BACK FRONT HEIGHT
/
CENTER
FRONT RL
RL
RL
(Single)
RL
AB
SUB WOOFER
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
SELECTABLE
SELECTABLE
LINE LEVEL
INPUT
FRONT
R L
SURROUND
R L
FRONT HEIGHT
R L
CENTER
PREOUT
SUBWOOFER
SURROUND BACK
R L
Front height setting
Speaker B setting
Front right
Subwoofer
Center
Front left
Surround right Surround left
Surround
back right
Surround
back left
Front height right
Speaker B - right
Front height left
Speaker B - left
The front height terminals can also be used for Speaker B.
When using only one surround back speaker, connect it
to the SURROUND BACK L (Single) terminals.
HDMI
VIDEO
R
L
AUDIO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN (10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
SAT/CBL
ANALOG IN
IN
R
L
PRE OUT
SURR BACK/
FRONT HEIGHT
IN
DVD GAME VIDEOBD
SAT /CBL DVR/BDR
(CD)
(Single)
(TV)
IN
1
IN
1
(CD)
OUT
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE
Class 2 Wiring
6 -16 . 6 -16 .
AM LOOP
SURROUND
CENTER
FRONT RL
RL
A
SUB WOOFER
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
LINE LEVEL
INPUT
SPEAKER RSPEAKER L
PREOUT
SURR BACK/
FRONT HEIGHT
FRONT
R L
SURROUND
R L
CENTER
PREOUT
SUBWOOFER
RL
ANALOG
AUDIO IN
Center
Surround right
Front right Front left
Subwoofer
Surround left
Right
Surround back or
front height speakers
Surround back or front height
channel amplifier
Left
Connecting your equipment
2
2
14
Switching the speaker terminal
Use
SPEAKERS
button to change the speaker system on or
off. When the SP OFF is selected, no sound is output from the
speakers connected to this receiver.
VSX-1022 only: If you selected Surr.Back in The Speaker System
setting (VSX-1022 only) on page 49, you can switch between
speakers using the
SPEAKERS
button. If you selected Height,
the button will simply switch your main speaker terminal on or
off. The options below are for the Surr.Back setting only.
Use the
SPEAKERS
button on the front panel to select a
speaker terminal setting.
Press repeatedly to choose a speaker terminal option:
SPA – Sound is output from the speakers connected to
the A-speaker terminals and PRE OUT SURR BACK/FRONT
HEIGHT (VSX-822 only) (multichannel playback is possible).
SPB (VSX-1022 only) – Sound is output from the two
speakers connected to the B-speaker terminals (only stereo
playback is possible).
SPAB (VSX-1022 only) – Sound is output from the A-
speaker terminals, the two speakers in the B-speaker
terminals, and the subwoofer. Multichannel sources are
downmixed only when the STEREO or STEREO ALC mode
is selected for stereo output from A- and B-speaker
terminals.
SP – No sound is output from the speakers.
Note
VSX-1022 only: The subwoofer output depends on the
settings you made in Speaker Setting on page 46. However,
if SPB is selected above, no sound is heard from the
subwoofer (the LFE channel is not downmixed).
All speaker terminals are switched off (SP) when
headphones are connected. SPB can be selected even
when headphones are connected for VSX-1022.
Making cable connections
Make sure not to bend the cables over the top of this unit (as
shown in the illustration). If this happens, the magnetic field
produced by the transformers in this unit may cause a
humming noise from the speakers.
Important
Before making or changing connections, switch off the
power and disconnect the power cord from the AC outlet.
Before unplugging the power cord, switch the power into
standby.
HDMI cables
Both video and sound signals can be transmitted
simultaneously with one cable. If connecting the player and
the TV via this receiver, for both connections, use HDMI
cables.
Be careful to connect the terminal in the proper direction.
Note
Set the HDMI parameter in Setting the Audio options on
page 36 to THRU (THROUGH) and set the input signal in
Selecting the audio input signal on page 25 to HDMI, if you
want to hear HDMI audio output from your TV (no sound
will be heard from this receiver).
If the video signal does not appear on your TV, try adjusting
the resolution settings on your component or display. Note
that some components (such as video game units) have
resolutions that may not be displayed. In this case, use a
(analog) composite connection.
When the video signal from the HDMI is 480i, 480p, 576i or
576p, Multi Ch PCM sound and HD sound cannot be
received.
About HDMI
The HDMI connection transfers uncompressed digital video,
as well as almost every kind of digital audio that the
connected component is compatible with, including DVD-
Video, DVD-Audio, SACD, Dolby Digital Plus, Dolby TrueHD,
DTS-HD Master Audio (see below for limitations), Video CD/
Super VCD and CD.
This receiver incorporates High-Definition Multimedia
Interface (HDMI®) technology.
This receiver supports the functions described below through
HDMI connections.
Digital transfer of uncompressed video (contents protected
by HDCP (1080p/24, 1080p/60, etc.))
3D signal transfer
Deep Color signal transfer
x.v.Color signal transfer
Audio Return Channel
Input of multi-channel linear PCM digital audio signals
(192 kHz or less) for up to 8 channels
Input of the following digital audio formats:
– Dolby Digital, Dolby Digital Plus, DTS, High bitrate audio
(Dolby TrueHD, DTS-HD Master Audio), DVD-Audio, CD,
SACD (DSD 2 ch only), Video CD, Super VCD
Synchronized operation with components using the
Control with HDMI function (see Control with HDMI
function on page 52)
SPEAKERS DIMMER DISPLAY
HDMI
Connecting your equipment
2
2
15
Note
Use a High Speed HDMI® cable. If HDMI cable other than
a High Speed HDMI® cable is used, it may not work
properly.
When an HDMI cable with a built-in equalizer is connected,
it may not operate properly.
3D, Deep Color, x.v.Color signal transfer and Audio Return
Channel are only possible when connected to a compatible
component.
HDMI format digital audio transmissions require a longer
time to be recognized. Due to this, interruption in the audio
may occur when switching between audio formats or
beginning playback.
Turning on/off the device connected to this unit’s HDMI
OUT terminal during playback, or disconnecting/
connecting the HDMI cable during playback, may cause
noise or interrupted audio.
HDMI, the HDMI Logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing, LLC in the United States and other countries.
“x.v.Color” and are trademarks of Sony
Corporation.
Analog audio cables
Use stereo RCA phono cables to connect analog audio
components. These cables are typically red and white, and
you should connect the red plugs to R (right) terminals and
white plugs to L (left) terminals.
Digital audio cables
Commercially available coaxial digital audio cables or optical
cables should be used to connect digital components to this
receiver.
Note
When connecting optical cables, be careful when inserting
the plug not to damage the shutter protecting the optical
socket.
When storing optical cable, coil loosely. The cable may be
damaged if bent around sharp corners.
You can also use a standard RCA video cable for coaxial
digital connections.
Video cables
Standard RCA video cables
These cables are the most common type of video connection
and are used to connect to the composite video terminals. The
yellow plugs distinguish them from cables for audio.
Component video cables (VSX-1022 only)
Use component video cables to get the best possible color
reproduction of your video source. The color signal of the TV is
divided into the luminance (Y) signal and the color (PB and PR)
signals and then output. In this way, interference between the
signals is avoided.
L
R
AUDIO
White (Left)
Red (Right)
COAXIAL
IN
OPTICAL
IN
Coaxial digital
audio cable
Optical cable
VIDEO
Yellow
YP
B
P
R
COMPONENT VIDEO
Green (Y)
Red (PR)
Blue (PB)
Connecting your equipment
2
2
16
About the video converter (VSX-1022 only)
The video converter ensures that all video sources are output
from the HDMI OUT terminal.
Note
If several video components are assigned to the same input
function, the converter gives priority to HDMI, component,
then composite (in that order).
If the video signal does not appear on your TV, try adjusting
the resolution settings on your component or display. Note
that some components (such as video game units) have
resolutions that may not be converted. In this case, try
switching Video Converter OFF (see Video Converter on
page 49).
The signal input resolutions that can be converted from the
component video input for the HDMI output are 480i/576i,
480p/576p, 720p and 1080i. 1080p signal cannot be
converted.
About video outputs connection
(VSX-822 only)
This receiver is not loaded with a video converter. When you
use HDMI cables for connecting to the input device, the same
cables should be used for connecting to the TV.
The signals input from the analog (composite) video inputs of
this unit will not be output from the HDMI OUT terminal.
VIDEO
IN IN
HDMI
VIDEO
MONITOR
OUT
HDMI
OUT
IN
COMPONENT VIDEO
YP
B
P
R
Terminal for connection with source device
Terminal for connection with TV monitor
Playback component
TV
Video signals can be output.
The OSD will
not appear.
This item incorporates copy protection technology that is
protected by U.S. patents and other intellectual property
rights of Rovi Corporation. Reverse engineering and
disassembly are prohibited.
VIDEO
VIDEO
IN IN
HDMI
MONITOR
OUT
HDMI
OUT
Terminal for connection with
source device
Terminal for connection
with TV monitor
Playback component
TV
The OSD will
not appear.
Video signals can be output.
Connecting your equipment
2
2
17
Connecting a TV and playback components
Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped component
(Blu-ray Disc player, etc.), you can connect it to this receiver
using a commercially available HDMI cable.
If the TV and playback components support the Control with
HDMI feature, the convenient Control with HDMI functions
can be used (see Control with HDMI function on page 52).
The following connection/setting is required to listen to the
sound of the TV over this receiver.
-
If the TV does not support the HDMI Audio Return
Channel function, connect the receiver and TV with audio
cables (as shown).
-
If the TV supports the HDMI Audio Return Channel
function, the sound of the TV can be input to the receiver
via the HDMI terminal, so there is no need to connect an
audio cable. In this case, set ARC at HDMI Setup to ON
(see HDMI Setup on page 52).
Note
In order to listen to the audio from the TV that is connected
to this receiver using an analog audio cables, set-up for
analog audio input is required (see The Input Assign menu
on page 49).
HDMI
VIDEO
R
L
AUDIO
COMPONENT VIDEO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN
(10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
YP
B
P
R
SAT/CBL
ANALOG IN
IN
IN
DVD GAME VIDEOBD
SAT /CBL DVR/BDR
(CD)
(TV)
IN
1
IN
1
(CD)
OUT
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE Class 2 Wiring
6 -16 . 6 -16 .
AM LOOP
SURROUND
SURROUND BACK
CENTER
FRONT
RLRL
(Single)
RL
A
SUB WOOFER
1
IN
(DVD)
1
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
SEL
E
SEL
E
HDMI
OUT
ANALOG
IN1 (CD)
HDMI OUT
HDMI IN
DIGITAL AUDIO OUT
OPTICAL
HDMI OUT
HDMI IN
RL
ANALOG AUDIO OUT
OPTICAL
IN1 (TV)
Select one
HDMI/DVI-compatible TV
Set-top box
DVD player Blu-ray Disc player
Game console
HDMI/DVI-compatible components
If the TV does not support
the HDMI Audio Return
Channel function, this
connection is required to
listen to the TV sound over
the receiver.
DVD recorder,
Blu-ray Disc recorder
Video component
VSX-1022
Connecting your equipment
2
2
18
Connecting your TV with no HDMI input
This diagram shows connections of a TV (with no HDMI input)
and DVD player (or other playback component) to the receiver.
With these connections, the picture is not output to the TV
even if the DVD player is connected with an HDMI cable.
Connect the DVD player’s video signals using a composite
cable.
In order to listening to HD audio with this receiver, connect
an HDMI cable, and use analog video cable for video signal
input.
Depending on the player, it may not be possible to output
video signals to both HDMI and other video output
(composite, etc.) simultaneously, and it may be necessary
to make video output settings. Please refer to the operating
instructions supplied with your player for more information.
Important
When the receiver and TV are connected by composite
cable, the OSD function allowing display of the receiver’s
settings, operations, etc., on the TV’s screen cannot be
used. In this case, watch the receiver’s front panel display
while performing the various operations and making
settings.
Note
In order to listen to the audio from the TV that is connected
to this receiver using a analog audio cables, set-up for
analog audio input is required (see The Input Assign menu
on page 49).
Only one component can be connected to both the optical
input terminal and coaxial input terminal. If connecting
other devices, please use a different method to connect the
audio.
In order to listen to the audio from the source component
that is connected to this receiver using an optical cable or
a coaxial cable, first, switch to the DVD (DVD player) or
SAT/CBL (set-top box), then use and
SIGNAL
SEL
to choose the audio signal O1 (OPTICAL1) or C1
(COAXIAL1) (see Selecting the audio input signal on
page 25).
RECEIVER
HDMI
VIDEO
R
L
AUDIO
COMPONENT VIDEO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN (10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
YPBPR
SAT/CBL
ANALOG IN
IN
IN
DVD GAME VIDEOBD
SAT/CBL DVR/BDR
(CD)
(TV)
IN
1
IN
1
(CD)
OUT
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE Class 2 Wiring
6 -16 . 6 -16 .
AM LOOP
SURROUND
SURROUND BACK
CENTER
FRONT RLRL
(Single)
RL
A
SUB WOOFER
1
IN
(DVD)
1
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
SELECTABLE
SELECTABLE
ANALOG
IN1 (CD)
VIDEO IN
DIGITAL AUDIO OUT
OPTICAL
RL
ANALOG AUDIO OUT
OPTICAL
IN1 (TV)
DVD IN
SAT/CBL IN
VIDEO OUT
DIGITAL AUDIO OUT
OPTICALCOAXIAL
RL
ANALOG AUDIO OUT
RL
ANALOG AUDIO OUT
VIDEO OUT
COAXIAL
IN1 (CD)
MONITOR
OUT
HDMI
DVD IN
DIGITAL AUDIO OUT
OPTICALCOAXIAL
HDMI OUT
Select one Select one
Select one
TV
DVD player Set-top box
This connection is
required in order to listen
to the sound of the TV
over the receiver.
VSX-1022
Connecting your equipment
2
2
19
Connecting your DVD player with no HDMI
output (VSX-1022 only)
This diagram shows connections of a TV (with HDMI input)
and DVD player (or other playback component with no HDMI
output) to the receiver.
The following connection/setting is required to listen to the
sound of the TV over this receiver.
-
If the TV does not support the HDMI Audio Return
Channel function, connect the receiver and TV with audio
cables (as shown).
-
If the TV supports the HDMI Audio Return Channel
function, the sound of the TV can be input to the receiver
via the HDMI terminal, so there is no need to connect an
audio cable. In this case, set ARC at HDMI Setup to ON
(see HDMI Setup on page 52).
Note
In order to listen to the audio from the TV that is connected
to this receiver using a analog audio cables, set-up for
analog audio input is required (see The Input Assign menu
on page 49).
Only one component can be connected to both the optical
input terminal and coaxial input terminal. If connecting
other devices, please use a different method to connect the
audio.
In order to listen to the audio from the source component
that is connected to this receiver using an optical cable or
a coaxial cable, first, switch to the DVD (DVD player) or
SAT/CBL (set-top box), then use and
SIGNAL
SEL
to choose the audio signal O1 (OPTICAL1) or C1
(COAXIAL1) (see Selecting the audio input signal on
page 25).
RECEIVER
HDMI
VIDEO
R
L
AUDIO
COMPONENT VIDEO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN (10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
YPBPR
SAT/CBL
ANALOG IN
IN
IN
DVD GAME VIDEOBD
SAT/CBL DVR/BDR
(CD)
(TV)
IN
1
IN
1
(CD)
OUT
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE Class 2 Wiring
6 -16 . 6 -16 .
AM LOOP
SURROUND
SURROUND BACK
CENTER
FRONT RLRL
(Single)
RL
A
SUB WOOFER
1
IN
(DVD)
1
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
SELECTABLE
SELECTABLE
COAXIAL
IN1 (CD)
OPTICAL
IN1 (TV)
DVD IN SAT/CBL
IN
SAT/CBL
IN
VIDEO OUT
DIGITAL AUDIO OUT
OPTICALCOAXIAL
RL
ANALOG AUDIO OUT
RL
ANALOG AUDIO OUT
COMPONENT VIDEO OUT
VIDEO OUT
DIGITAL AUDIO OUT
OPTICALCOAXIAL
HDMI
OUT
HDMI IN
YPBPR
ANALOG
IN1 (CD)
DIGITAL AUDIO OUT
OPTICAL
RL
ANALOG AUDIO OUT
Select one
DVD player
Select one Select one
Set-top box
If the TV does not
support the HDMI
Audio Return Channel
function, this
connection is required
to listen to the TV
sound over the
receiver.
Select one
HDMI/DVI-compatible TV
Connecting your equipment
2
2
20
Connecting optional
Bluetooth
®
ADAPTER
When the Bluetooth ADAPTER (Pioneer Model No. AS-BT100
or AS-BT200) is connected to this unit, a product equipped
with Bluetooth wireless technology (portable cell phone,
digital music player, etc.) can be used to listen to music
wirelessly.
Connect a
Bluetooth
ADAPTER to the ADAPTER PORT
terminal on the rear panel.
For instructions on playing the Bluetooth wireless
technology device, see Pairing the Bluetooth ADAPTER and
Bluetooth wireless technology device on page 30.
Important
Do not move the receiver with the Bluetooth ADAPTER
connected. Doing so could cause damage or faulty contact.
Connecting to the network through LAN
interface
By connecting this receiver to the network via the LAN
terminal, you can listen to Internet radio stations. To listen to
Internet radio stations, you must sign a contract with an ISP
(Internet Service Provider) beforehand.
When connected in this way, you can play audio files stored
on the components on the local network, including your
computer.
Connect the LAN terminal on this receiver to the LAN terminal
on your router (with or without the built-in DHCP server
function) with a straight LAN cable (CAT 5 or higher).
Turn on the DHCP server function of your router. In case your
router does not have the built-in DHCP server function, it is
necessary to set up the network manually. For details, see The
Network Setup menu on page 41.
Note
Refer to the operation manual of the equipment you have as
the connected equipment and connection method may
differ depending on your Internet environment.
When using a broadband Internet connection, a contract
with an Internet service provider is required. For more
details, contact your nearest Internet service provider.
HDMI
VIDEO
R
L
AUDIO
PRE OUT
SPEAKERS
ANTENNA
LAN (10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
SAT/CBL
ANALOG IN
IN
R
L
PRE OUT
SURR BACK/
FRONT HEIGHT
IN
DVD GAME VIDEOBD
SAT/CBL DVR/BDR
(CD)
(Single)
OUT
ASSIGNABLE
1
FM UNBAL
75
Class 2 Wiring
AM LOOP
CE
N
FRONT
RL
SUB WOOFER
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
Bluetooth® ADAPTER
VSX-822
V
IDEO
R
L
AUDIO
PRE OUT
SPEAKERS
ANTENNA
COAXIAL
LAN (10/100)
DVD
IN
DVD
SAT/CBL
ANALOG IN
IN
R
L
PRE OUT
SURR BACK/
FRONT HEIGHT
IN
GAME VIDEOBD
SAT/CBL DVR/BDR
(CD)
(Single)
IN
1
(CD)
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: A
T
SPEAKER IMPEDANCE
EN
C
Class 2 Wiring
6 -16 . 6
AM LOOP
SURROUND
CENTER
FRONT RL
RL
A
SUB WOOFER
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
WAN
3
2
1
LAN
to LAN port
LAN cable
(sold separately)
Router
Modem
Internet
VSX-822
PC
Connecting your equipment
2
2
21
Connecting antennas
Connect the AM loop antenna and the FM wire antenna as
shown below. To improve reception and sound quality,
connect external antennas (see Using external antennas
below).
1
Push open the tabs, then insert one wire fully into each
terminal, then release the tabs to secure the AM antenna
wires.
2
Fix the AM loop antenna to the attached stand.
To fix the stand to the antenna, bend in the direction indicated
by the arrow (fig. a) then clip the loop onto the stand (fig. b).
3
Place the AM antenna on a flat surface and in a direction
giving the best reception.
4
Connect the FM wire antenna into the FM antenna
socket.
For best results, extend the FM antenna fully and fix to a wall
or door frame. Don’t drape loosely or leave coiled up.
Using external antennas
To improve FM reception
Use an F connector (not supplied) to connect an external FM
antenna.
To improve AM reception
Connect a 5m to 6m (16ft. to 20 ft.) length of vinyl-coated
wire to the AM antenna terminal without disconnecting the
supplied AM loop antenna.
For the best possible reception, suspend horizontally
outdoors.
Connecting an iPod
This receiver has a dedicated iPod terminal that will allow you
to control playback of audio content from your iPod using the
controls of this receiver.
Switch the receiver into standby, and then use the iPod
cable to connect your iPod to the iPod iPhone iPad USB
terminal on the front panel of this receiver.
For the cable connection, refer to also the operating
instructions for iPod.
For instructions on playing the iPod, see Playing an iPod on
page 27.
ANTENNA
FM UNBAL
75
AM LOOP
2
1
3
4
fig. a fig. b
FM UNBAL
75
F connector
ANTENNA
AM LOOP
Outdoor
antenna
5 m to 6 m
(16 ft. to 20 ft.)
Indoor antenna
(vinyl-coated wire)
MASTER
VOLUME
iPod iPhone iPad
DIRECT CONTROL
SOUND
RETRIEVER AIR
ADVANCED
SURROUND
MCACC
SETUP
MIC VIDEO
BAND TUNER EDIT TUNE PRESET ENTER
HDMI iPod iPhone iPad
iPod
iPhone
iPad
ALC/
STANDARD SURR
T
O SURROUND
/
R
EAM DIRECT
USB
5 V
2.1
A
CONTROL ON
/
OFF
iPod/iPhone/iPad
iPod cable
(supplied)
Connecting your equipment
2
2
22
Connecting a USB device
It is possible to play audio and photo files by connecting USB
devices to this receiver.
Switch the receiver into standby then connect your USB
device to the USB terminal on the front panel of this
receiver.
This receiver does not support a USB hub.
For instructions on playing the USB device, see Playing a
USB device on page 28.
Plugging in the receiver
Only plug in after you have connected all your components to
this receiver, including the speakers.
Plug the AC power cord into a convenient AC power
outlet.
CAUTION
Handle the power cord by the plug part. Do not pull out the
plug by tugging the cord, and never touch the power cord
when your hands are wet, as this could cause a short
circuit or electric shock. Do not place the unit, a piece of
furniture, or other object on the power cord or pinch the
cord in any other way. Never make a knot in the cord or tie
it with other cables. The power cords should be routed so
that they are not likely to be stepped on. A damaged power
cord can cause a fire or give you an electric shock. Check
the power cord once in a while. If you find it damaged, ask
your nearest Pioneer authorized independent service
company for a replacement.
The receiver should be disconnected by removing the
mains plug from the wall socket when not in regular use,
e.g., when on vacation.
Note
After this receiver is connected to an AC outlet, a 2 second
to 10 second HDMI initialization process begins. You
cannot carry out any operations during this process. The
HDMI indicator in the front panel display blinks during this
process, and you can turn on this receiver once it has
stopped blinking. When you set the Control with HDMI to
OFF, you can skip this process. For details about the
Control with HDMI feature, see HDMI Setup on page 52.
MASTER
VOLUME
iPod iPhone iPad
DIRECT CONTROL
SOUND
RETRIEVER AIR
ADVANCED
SURROUND
MCACC
SETUP
MIC VIDEO
BAND TUNER EDIT TUNE PRESET ENTER
HDMI iPod iPhone iPad
iPod
iPhone
iPad
ALC/
STANDARD SURR
T
O SURROUND
/
R
EAM DIRECT
USB
5 V
2.1
A
CONTROL ON
/
OFF
USB mass
storage device
3
Chapter
3
23
Basic Setup
Canceling the demo display
The display on the front panel shows various information
(demo displays) when the receiver is not operating.
You can turn off the demo display. For details, see The FL
Demo Mode menu on page 51.
The demo mode is canceled automatically when the Auto
MCACC setup is performed (see below).
Automatically setting up for surround sound
(MCACC)
The Auto Multi-Channel Acoustic Calibration (MCACC) setup
measures the acoustic characteristics of your listening area,
taking into account ambient noise, speaker size and distance,
and tests for both channel delay and channel level. After you
have set up the microphone provided with your system, the
receiver uses the information from a series of test tones to
optimize the speaker settings and equalization for your
particular room.
CAUTION
The test tones used in the Auto MCACC setup are output at
high volume.
Important
The OSD will not appear if you have connected using the
composite output to your TV. Use HDMI connection for
Auto MCACC setup.
The Auto MCACC setup will overwrite any existing speaker
settings you’ve made.
Before using the Auto MCACC setup, the NETRADIO,
PANDORA, M.SERVER, FAVORITE, iPod/USB or
ADAPTER input should not be selected as an input source.
VSX-1022 only: When both the surround back speaker and
the front height speaker are connected, conduct Auto
MCACC setup twice: once with the Speaker System setting
is in Surr.Back and once with the Speaker System setting
is in Height. (There is no need to conduct Auto MCACC
setup every time the Speaker System setting is changed.)
VSX-822 only: If you connected either the surround back
speaker or the front height speaker, make sure that the Pre
Out setting is correctly set before performing the Auto
MCACC setup (see page 50). (Here is an explanation using
the OSD screen for a surround back speaker connection.)
1
Switch on the receiver and your TV.
2
Switch the TV input to the input that connects this
receiver to the TV through the corresponding HDMI
cable.
3
Connect the microphone to the MCACC SETUP MIC jack
on the front panel.
Make sure there are no obstacles between the speakers
and the microphone.
If you have a tripod, use it to place the microphone so that
it’s about ear level at your normal listening position.
Otherwise, place the microphone at ear level using a
table or a chair.
4
Press on the remote control, then press the
HOME MENU
button.
The Home Menu appears on your TV. Use
///-
and
ENTER
on the remote control to navigate through the
screens and select menu items. Press
RETURN
to exit
the current menu.
Press
HOME MENU
at any time to exit the Home
Menu. If you cancel the Auto MCACC setup at any
time, the receiver automatically exits and no settings
will be made.
The screensaver automatically starts after three
minutes of inactivity.
MASTER
VOLUME
iPod iPhone iPad
DIRECT CONTROL
SOUND
RETRIEVER AIR
ADVANCED
SURROUND
MCACC
SETUP
MIC VIDEO
BAND TUNER EDIT TUNE PRESET ENTER
HDMI iPod iPhone iPad
iPod
iPhone
iPad
ALC/
STANDARD SURR
T
O SURROUND
/
R
EAM DIRECT
USB
5 V
2.1
A
CONTROL ON
/
OFF
Tripod
Microphone
RECEIVER
Basic Setup
3
3
24
5
Select ‘Auto MCACC’ from the Home Menu, then press
ENTER
.
Mic In! blinks when the microphone is not connected
to MCACC SETUP MIC jack.
Try to be as quiet as possible after pressing
ENTER
. The
system outputs a series of test tones to establish the
ambient noise level.
6
Follow the instructions on-screen.
Make sure the microphone is connected.
Make sure the subwoofer is on and the volume is
turned up.
When using surround back or front height speakers,
turn on the power to the amplifier to which the
surround back or front height speakers are connected,
and adjust the sound level to the desired level.
See below for notes regarding background noise and
other possible interference.
7
Wait for the test tones to finish.
A progress report is displayed on-screen while the
receiver outputs test tones to determine the speakers
present in your setup. Try to be as quiet as possible while
it’s doing this.
For correct speaker settings, do not adjust the volume
during the test tones.
8
Confirm the speaker configuration.
The configuration shown on-screen should reflect the
actual speakers you have.
With error messages (such as Too much ambient
noise) select RETRY after checking for ambient noise
(see Other problems when using the Auto MCACC
setup below).
If the speaker configuration displayed isn’t correct, use
/
to select the speaker and
/-
to change the
setting. When you’re finished, go to the next step.
If you see an error message (ERR) in the right side
column, there may be a problem with the speaker
connection. If selecting RETRY doesn’t fix the problem,
turn off the power and check the speaker connections.
9
Make sure ‘OK’ is selected, then press
ENTER
.
If the screen in step 7 is left untouched for 10 seconds
and
ENTER
is not pressed in step 8, the Auto MCACC
setup will start automatically as shown.
A progress report is displayed on-screen while the
receiver outputs more test tones to determine the
optimum receiver settings for channel level, speaker
distance, and Acoustic Calibration EQ.
Again, try to be as quiet as possible while this is
happening. It may take 1 to 3 minutes.
10
The Auto MCACC setup has finished! You return to the
Home Menu.
The settings made in the Auto MCACC setup should give
you excellent surround sound from your system, but it is
also possible to adjust these settings manually using the
Home Menu (starting on page 46).
Note
Depending on the characteristics of your room, sometimes
identical speakers with cone sizes of around 12 cm
(5 inches) will end up with different size settings. You can
correct the setting manually using the Speaker Setting on
page 46.
The subwoofer distance setting may be farther than the
actual distance from the listening position. This setting
should be accurate (taking delay and room characteristics
into account) and generally does not need to be changed.
Other problems when using the Auto MCACC
setup
If the room environment is not optimal for the Auto MCACC
setup (too much background noise, echo off the walls,
obstacles blocking the speakers from the microphone) the
final settings may be incorrect. Check for household
appliances (air conditioner, fridge, fan, etc.), that may be
affecting the environment and switch them off if necessary. If
there are any instructions showing in the front panel display,
please follow them.
Some older TVs may interfere with the operation of the
microphone. If this seems to be happening, switch off the
TV when doing the Auto MCACC setup.
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Pre Out Setting
5
. HDMI Setup
6
. Auto Power Down
7
. Network Standby
8
. FL Demo Mode
VSX-1022 VSX-822
1
. Auto MCACC
Now Analyzing
Environment Check
Ambient Noise
Speaker YES/NO
Return
1
. Auto MCACC
Check!
OK
Return
10:Next
Front
Center
Surr
Surr. Back
Subwoofer
[ YES ]
[ YES ]
[ YES ]
[
---
]
[ YES ]
1
. Auto MCACC
Now Analyzing
Surround Analyzing
Speaker System
Speaker Distance
Channel Level
Acoustic Cal EQ
Return
4
Chapter
4
25
Basic playback
Playing a source
Here are the basic instructions for playing a source (such as
a DVD disc) with your home theater system.
1
Switch on your system components and receiver.
Start by switching on the playback component (for
example a DVD player), your TV and subwoofer (if you
have one), then the receiver (press
RECEIVER
).
Make sure the setup microphone is disconnected.
2
Switch the TV input to the input that connects this
receiver.
For example, if you connected this receiver to the VIDEO
jacks on your TV, make sure that the VIDEO input is now
selected.
3
Press input function buttons to select the input function
you want to play.
The input of the receiver will switch over, and you will
be able to operate other components using the remote
control. To operate the receiver, first press
on the remote control, then press the appropriate
button to operate.
The input source can also be selected by using
INPUT
SELECT
buttons on the remote control, or by
using the front panel
INPUT SELECTOR
dial. In this
case, the remote control won’t switch operational
modes.
If you selected the proper input source and there is still
no sound, select the audio input signal for playback (see
Selecting the audio input signal below).
4
Press
AUTO/DIRECT
to select ‘AUTO SURROUND’ and
start playback of the source.
If you’re playing a Dolby Digital or DTS surround sound
DVD disc, with a digital audio connection, you should
hear surround sound. If you’re playing a stereo source or
if the connection is an analog audio connection, you will
only hear sound from the front left/right speakers in the
default listening mode.
It is possible to check on the front panel display whether
or not surround sound playback is being performed
properly.
When using a surround back speaker, 2D+PLIIx is
displayed when playing Dolby Digital 5.1-channel signals,
and DTS+NEO:6 is displayed when playing DTS 5.1-
channel signals.
When not using a surround back speaker, 2D is
displayed when playing Dolby Digital signals.
If the display does not correspond to the input signal and
listening mode, check the connections and settings.
Note
You may need to check the digital audio output settings on
your DVD player or digital satellite receiver. It should be set
to output Dolby Digital, DTS and 88.2 kHz/96 kHz PCM (2
channel) audio, and if there is an MPEG audio option, set
this to convert the MPEG audio to PCM.
Depending on your DVD player or source discs, you may
only get digital 2 channel stereo and analog sound. In this
case, the receiver must be set to a multichannel listening
mode if you want multichannel surround sound.
5
Use
VOLUME +/–
to adjust the volume level.
Turn down the volume of your TV so that all sound is
coming from the speakers connected to this receiver.
Selecting the audio input signal
The audio input signal can be selected for each input source.
Once it is set, the audio input that was selected will be applied
whenever you select the input source using the input function
buttons.
Press , then press
SIGNAL SEL
to select the
audio input signal corresponding to the source
component.
Each press cycles through the following:
H – Selects an HDMI signal. H can be selected for BD,
DVD, SAT/CBL, DVR/BDR, VIDEO or GAME input. For
other inputs, H cannot be selected.
-
When the HDMI option in Setting the Audio options
on page 36 is set to THRU, the sound will be heard
through your TV, not from this receiver.
A – Selects the analog inputs.
C1/O1 – Selects the digital input. The coaxial 1 input is
selected for C1, and the optical 1 audio input is
selected for O1.
When H (HDMI) or C1/O1 (digital) is selected and the
selected audio input is not provided, A (analog) is
automatically selected.
Note
BD, DVR/BDR, VIDEO and GAME inputs are fixed to H
(HDMI). It cannot be changed.
For the TV input, only A (analog) or C1/O1 (digital) can be
selected. However, if the ARC at HDMI Setup is set to ON,
the input is fixed to H (HDMI) and cannot be changed.
When set to H (HDMI) or C1/O1 (digital), 2 lights when a
Dolby Digital signal is input, and DTS lights when a DTS
signal is input.
When the H (HDMI) is selected, the A and DIGITAL
indicators are off (see page 8).
SLEEP
INPUT
RECEIVER
SOURCE
ENTER
MUTE
RETURN
AUDIO
PARAMETER
MENU
HOME
MENU
TOOLS
BAND
iPod CTRL
PTY
TOP
MENU
T
U
N
E
T
U
N
E
P
R
E
S
E
T
P
R
E
S
E
T
RECEIVER
SLEEP
INPUT
RECEIVER
SOURCE
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
SHIFT
RECEIVER
Basic playback
4
4
26
When digital input (optical or coaxial) is selected, this
receiver can only play back Dolby Digital, PCM (32 kHz to
96 kHz) and DTS (including DTS 96 kHz/24 bit) digital signal
formats. The compatible signals via the HDMI terminals
are: Dolby Digital, DTS, SACD (DSD 2 ch only), PCM
(32 kHz to 192 kHz sampling frequencies), Dolby TrueHD,
Dolby Digital Plus, DTS-EXPRESS, DTS-HD Master Audio
and DVD Audio (including 192 kHz). With other digital
signal formats, set to A (analog).
You may get digital noise when a LD or CD player
compatible with DTS is playing an analog signal. To prevent
noise, make the proper digital connections (page 15) and
set the signal input to C1/O1 (digital).
Some DVD players don’t output DTS signals. For more
details, refer to the instruction manual supplied with your
DVD player.
Tip
In order to enjoy the picture and/or sound from devices connected to each terminal, select the input by doing the following.
HDMI
VIDEO
R
L
AUDIO
COMPONENT VIDEO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN
(10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
YPBPR
SAT/CBL
ANALOG IN
IN
IN
DVD GAME VIDEOBD
SAT/CBL DVR/BDR
(CD)
(TV)
IN
1
IN
1
(CD)
OUT
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION: ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE Class 2 Wiring
6 -16 . 6 -16 .
AM LOOP
SURROUND
SURROUND BACK
CENTER
FRONT RLRL
(Single)
RL
A
SUB WOOFER
1
IN
(DVD)
1
1
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
SELECTAB
L
SELECTAB
L
DVD BD
TUNER
ADAPTER
SAT/CBL
DVD
DVD
SAT/CBL
DVD
SAT/CBL
GAME VIDEODVR/BDR NETWORK
DVD
SAT/CBL
C1
TV
1.
2.
A
CD TV
CD TV
RECEIVER SIGNAL SEL
3
O1
RECEIVER SIGNAL SEL
3
A
RECEIVER SIGNAL SEL
3
A
RECEIVER SIGNAL SEL
3
Audio
Audio
Audio
Audio
Video/Audio (HDMI)
Video
Other than TV input
(TV input)
Video (VSX-1022 only)
Reassignable
(page 49)
ANALOG IN1 audio input terminal is
assigned to CD under factory settings.
If you want to change this to TV input,
please change the settings in the Input
Assign menu (page 49).
Basic playback
4
4
27
Playing an iPod
This receiver has the iPod iPhone iPad USB terminal that will
allow you to control playback of audio content from your iPod
using the controls of this receiver.
Important
Pioneer cannot under any circumstances accept
responsibility for any direct or indirect loss arising from any
inconvenience or loss of recorded material resulting from
the iPod failure.
About one minute is required between turning the power
on and completion of startup.
Note
This receiver is compatible with the audio and video of the
iPod nano (audio only for the iPod nano 3G/4G/5G/6G), iPod
touch (1G/2G/3G/4G), iPhone, iPhone 3G, iPhone 3GS,
iPhone 4, iPhone 4S, iPad and iPad 2. However, some of the
functions may be restricted for some models. The receiver
is not compatible with the iPod shuffle.
This receiver has been developed and tested for the
software version of iPod/iPhone/iPad indicated on the
website of Pioneer (http://pioneer.jp/homeav/support/ios/
na/).
Installing software versions other than indicated on the
website of Pioneer to your iPod/iPhone/iPad may result in
incompatibility with this receiver.
iPod, iPhone and iPad are licensed for reproduction of non-
copyrighted materials or materials the user is legally
permitted to reproduce.
Features such as the equalizer cannot be controlled using
this receiver, and we recommend switching the equalizer
off before connecting.
1
Switch on the receiver and your TV.
See Connecting an iPod on page 21.
2
Switch the TV input so that it connects to the receiver.
Switch the TV input to the input that connects this
receiver to the TV through the corresponding HDMI
cable.
3
Press
iPod/USB
to switch the receiver to the iPod/USB
input.
When the display shows the names of folders and files,
you’re ready to play music from the iPod.
If after pressing
iPod/USB
the display shows NO
DEVICE, try switching off the receiver and
reconnecting the iPod to the receiver.
The controls of your iPod will be inoperable when
connected to this receiver.
Playing back files stored on an iPod
To navigate songs on your iPod, you can take advantage of the
OSD of your TV connected to this receiver.
Note that non-roman characters in the title are displayed as
#’.
This feature is not available for photos or video clips on your
iPod.
Finding what you want to play
When your iPod is connected to this receiver, you can browse
songs stored on your iPod by playlist, artist, album name,
song name, genre or composer, similar to using your iPod
directly.
1
Use
/
to select a category, then press
ENTER
to
browse that category.
To return to the previous level any time, press
RETURN
.
2
Use
/
to browse the selected category (e.g.,
albums).
Use
/-
to move to previous/next levels.
3
Continue browsing until you arrive at what you want to
play, then press
to start playback.
Tip
If you’re in the song category, you can also press
ENTER
to
start playback.
You can play all of the songs in a particular category by
selecting the All item at the top of each category list. For
example, you can play all the songs by a particular artist.
Basic playback controls
This receiver’s remote control buttons can be used for basic
playback of files stored on an iPod.
Press
iPod/USB
to switch the remote control to the iPod/
USB operation mode.
Watching photos and video content
To view photos or video on your iPod, since video control is not
possible using this receiver, you must use the main controls
of your iPod instead.
Important
To play photos or video on your iPod, you must connect the
HDMI OUT terminal and TV.
iPod photos and video content can be viewed only when the
iPod is connected to the iPod VIDEO input on the front
panel.
This feature can only be used with an iPod having video
output.
1
Press
iPod CTRL
to switch to the iPod controls for photo
and video playback.
The receiver controls will be unavailable while you are
watching iPod videos or browsing photos.
2
Press
iPod CTRL
again to switch back to the receiver
controls when you’re done.
Tip
Change the receiver’s input to the iPod in one action by
pressing
iPod iPhone iPad DIRECT CONTROL
on the
front panel to enable iPod operations on the iPod.
ENTER
AUDIO
PARAMETER
MENU
HOME
MENU
TOOLS
iPod CTRL
PTY
T
U
N
E
T
U
N
E
P
R
E
S
E
T
P
R
E
S
E
T
1
4
7
2
5
8
DISP
3
6
9
CH
CH
MUTE
SHIFT
Basic playback
4
4
28
Playing a USB device
It is possible to play files using the USB interface on the front
of this receiver.
Important
Pioneer cannot guarantee compatibility (operation and/or
bus power) with all USB mass storage devices and
assumes no responsibility for any loss of data that may
occur when connected to this receiver.
About one minute is required between turning the power
on and completion of startup.
Note
Compatible USB devices include external magnetic hard
drives, portable flash memory (particularly keydrives) and
digital audio players (MP3 players) of format FAT16/32. It
includes the case of connection with Smartphones via
USB.
Copyrighted audio files cannot be played back on this
receiver.
With large amounts of data, it may take longer for the
receiver to read the contents of a USB device.
If the file selected cannot be played back, this receiver
automatically skips to the next file playable.
When the file currently being played back has no title
assigned to it, the file name is displayed in the OSD instead;
when neither the album name nor the artist name is
present, the row is displayed as a blank space.
Note that non-roman characters in the playlist are
displayed as ‘#’.
Make sure the receiver is in standby when disconnecting
the USB device.
1
Switch on the receiver and your TV.
See Connecting a USB device on page 22.
2
Switch the TV input so that it connects to the receiver.
Switch the TV input to the input that connects this
receiver to the TV through the corresponding HDMI
cable.
3
Press
iPod/USB
on the remote control to switch the
receiver to the iPod/USB input.
When the display shows the names of folders and files,
you’re ready to play from the USB device.
If a USB Error message lights in the display, try following
the points below:
Switch the receiver off, then on again.
Reconnect the USB device with the receiver switched
off.
Select another input source (like BD), then switch back
to iPod/USB.
Use a dedicated AC adapter (supplied with the device)
for USB power.
If this doesn’t remedy the problem, it is likely your USB
device is incompatible.
Playing back audio files stored on a USB memory
device
The maximum number of levels that you can select in Step 2
(below) is 8.
Note that non-Roman characters in the playlist are
displayed as ‘#’.
1
Use
/
to select a folder, then press
ENTER
to browse
that folder.
To return to the previous level any time, press
RETURN
.
2
Continue browsing until you arrive at what you want to
play, then press
to start playback.
Basic playback controls
This receiver’s remote control buttons can be used for basic
playback of files stored on USB devices.
Press
iPod/USB
to switch the remote control to the iPod/
USB operation mode.
Playing back photo files stored on a USB memory
device
1
Use
/
to select a folder, then press
ENTER
to browse
that folder.
To return to the previous level any time, press
RETURN
.
2
Continue browsing until you arrive at what you want to
play, then press
to start playback.
The selected content is displayed in full screen and a
slideshow starts.
After a slideshow launches, pressing
ENTER
toggles
between play and pause.
If the slideshow is left in the pause mode for five
minutes, the list screen reappears.
Basic playback controls
ENTER
,
– Starts displaying a photo and playing a slideshow.
– Stops the player and returns to the previous menu.
ENTER
AUDIO
PARAMETER
MENU
HOME
MENU
TOOLS
iPod CTRL
PTY
T
U
N
E
T
U
N
E
P
R
E
S
E
T
P
R
E
S
E
T
1
4
7
2
5
8
DISP
3
6
9
CH
CH
MUTE
SHIFT
ENTER
MUTE
RETURN
HOME
MENU
BAND
iPod CTRL
PTY
TOP
MENU
T
U
N
E
T
E
P
R
E
S
E
T
P
R
E
S
E
T
Basic playback
4
4
29
Tip
Slideshows of photo files can be played while listening to
music files by returning to the folder/file list display while
playing a music file on a USB device then playing the photo
files.
About playable file formats
The USB function of this receiver supports the following file
formats. Note that some file formats are not available for
playback although they are listed as playable file formats.
Music files
a. MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
b. Files encoded using Windows Media Codec 9 may be playable
but some parts of the specification are not supported;
specifically, Pro, Lossless, Voice.
c. Apple lossless encoding is not supported.
Photo files
Extension Stream
MP3 (MPEG-1 Audio Layer 3)
.mp3aSampling frequency 32 kHz, 44.1 kHz, 48 kHz
Quantization bitrate 16 bit
Channel 2 ch
Bitrate 8 kbps to 320 kbps
VBR/CBR Supported/Supported
WAV (LPCM)
.wav Sampling frequency 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
Quantization bitrate 16 bit, 24 bit
Channel 2 ch
WMA (WMA2/7/8/9)
.wmabSampling frequency 32 kHz, 44.1 kHz, 48 kHz
Quantization bitrate 16 bit
Channel 2 ch
Bitrate 5 kbps to 320 kbps
VBR/CBR Supported/Supported
AAC (MPEG-4 AAC LC, MPEG-4 HE AAC (aacPlus v1/2))
.m4ac
.aac
.3gp
.3g2
Sampling frequency 32 kHz, 44.1 kHz, 48 kHz
Quantization bitrate 16 bit
Channel 2 ch
Bitrate 16 kbps to 320 kbps
VBR/CBR Supported/Supported
FLAC
.flac Sampling frequency 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
Quantization bitrate 16 bit, 24 bit
Channel 2 ch
Extension Format
JPEG
.jpg Meeting the following conditions:
• Baseline JPEG format
• Y:Cb:Cr - 4:2:2
Basic playback
4
4
30
Bluetooth
®
ADAPTER for Wireless Enjoyment
of Music
Wireless music play
When the Bluetooth ADAPTER (Pioneer Model No. AS-BT100
or AS-BT200) is connected to this unit, a product equipped
with Bluetooth wireless technology (portable cell phone,
digital music player, etc.) can be used to listen to music
wirelessly. Also, by using a commercially available transmitter
supporting Bluetooth wireless technology, you can listen to
music on a device not equipped with Bluetooth wireless
technology. The AS-BT100 and AS-BT200 model supports
SCMS-T contents protection, so music can also be enjoyed on
devices equipped with SCMS-T type Bluetooth wireless
technology.
With the AS-BT100, some functions may not be available on
this receiver.
It must be necessary that the Bluetooth wireless technology
enabled device supports A2DP profiles.
Important
Pioneer does not guarantee proper connection and
operation of this unit with all Bluetooth wireless technology
enabled devices.
About one minute is required between turning the power
on and completion of startup.
Remote control operation
The remote control supplied with this unit allows you to play
and stop media, and perform other operations.
It must be necessary that the Bluetooth wireless technology
enabled device supports AVRCP profiles.
Remote control operations cannot be guaranteed for all
Bluetooth wireless technology enabled devices.
Pairing the
Bluetooth
ADAPTER and
Bluetooth
wireless technology device
“Pairing” must be done before you start playback of Bluetooth
wireless technology content using Bluetooth ADAPTER. Make
sure to perform pairing first time you operate the system or
any time pairing data is cleared. “Pairing” is the step
necessary to register Bluetooth wireless technology device to
enable Bluetooth communications. For more details, see also
the operating instructions of your Bluetooth wireless
technology device.
Pairing is required when you first use Bluetooth wireless
technology device and Bluetooth ADAPTER.
To enable Bluetooth communication, pairing should be
done with both of your system and Bluetooth wireless
technology device.
If the Bluetooth wireless technology device’s security code
is “0000”, there is no need to make the security code setting
on the receiver. Press
ADAPTER
to switch the ADAPTER
input, then conduct the pairing operation on the Bluetooth
wireless technology device. If pairing is successful, there is
no need to performing the pairing operation below.
When using the AS-BT200 only: This unit complies with
Bluetooth Specifications Ver. 2.1. When this unit and
another device equipped with Bluetooth wireless
technology both comply with Bluetooth Specification Ver.
2.1, pairing of the two may be possible without the need for
inputting a password.
In this case, a passcode may be displayed on this receiver
and on the device equipped with Bluetooth wireless
technology. If this happens, check that the same passcode
is displayed on this receiver and the device equipped with
Bluetooth wireless technology, then press
ENTER
. After
this, also perform the connection operation on the
Bluetooth device to be connected. If the passcode does not
match the code displayed on the Bluetooth device to be
connected, press
RETURN
to cancel pairing, then try
starting over.
Press
ADAPTER
to set the ADAPTER input, then conduct
the pairing operation on the Bluetooth wireless technology
device. If pairing is successful, there is no need to
performing the pairing operation below.
Pair one unit at a time.
When connecting this receiver by Bluetooth connections
with a device equipped with the Bluetooth function to listen
to music, do not connect any devices other than this
receiver by Bluetooth connection to the Bluetooth-equipped
device. If a Bluetooth connection is already established with
a device other than this receiver, disconnect the other
device before connecting this receiver.
1
Press
ADAPTER
to switch the receiver to ADAPTER
input.
2
Press
TOP MENU
to select Bluetooth Setup.
3
Use
/
to select PIN, then press
ENTER
.
4
Use
/
to select one of PIN codes 0000, 1234 or 8888,
then press
ENTER
.
You can use any of 0000/1234/8888 PIN codes.
Bluetooth wireless technology device using any other PIN
code cannot be used with this system.
5
Switch on the
Bluetooth
wireless technology device
that you want to make pairing, place it near the system
and set it into the pairing mode.
6
Check to see that the
Bluetooth
ADAPTER is detected by
the
Bluetooth
wireless technology device.
When Bluetooth wireless technology device is connected:
Bluetooth wireless technology device name appears in
the receiver display.
Bluetooth wireless technology enabled device:
cell phone
Bluetooth wireless technology enabled device:
Digital music player
Device not equipped with Bluetooth wireless
technology: Digital music player + Bluetooth
audio transmitter (sold commercially)
Music data
Remote control
operation
Bluetooth®
ADAPTER
This receiver
Basic playback
4
4
31
The system can display alphanumeric characters only.
Other characters may not be displayed correctly.
When Bluetooth wireless technology device is not
connected:
WAITING appears in the receiver display. In this case,
perform the connection operation from the side of the
Bluetooth wireless technology device.
7
From the
Bluetooth
wireless technology device list,
select
Bluetooth
ADAPTER and enter the PIN code
selected in the step 4.
PIN code may in some case be referred to as
PASSKEY.
Listening to Music Contents of
Bluetooth
wireless
technology device with Your System
1
Press
ADAPTER
to switch the receiver to ADAPTER
input.
The ADAPTER input can also be selected by pressing
SOUND RETRIEVER AIR
on the front panel. In this case,
S.R AIR, the optimum listening mode, is selected
automatically.
2
Perform the connection operation from the side of the
Bluetooth
wireless technology device to the
Bluetooth
ADAPTER.
When the Bluetooth ADAPTER is not plugged into the
ADAPTER PORT terminal, NO ADP will be displayed if
ADAPTER input is selected.
3
Start playback of music contents stored in
Bluetooth
wireless technology device.
This receiver’s remote control buttons can be used for
basic playback of files stored on the Bluetooth wireless
technology device.
Bluetooth wireless technology device should be
compatible with AVRCP profile.
Depending on Bluetooth wireless technology device
you use, operation may differ from what is shown in
the remote control buttons.
4
While listening to a source, press then press
ADV SURR
repeatedly to select S.R AIR.
AIR JAM
Air Jam – a Pioneer-exclusive application and available for
free.
Air Jam lets you connect multi compatible devices to this unit
using Bluetooth wireless technology. With it, you can make a
group playlist directly on a supported device to play in your
home theater through the unit. You and your friends can add
songs from your devices to the playlist. Also Air Jam lets you
delete the song before anyone has to hear it.
1
Press
ADAPTER
to switch the receiver to ADAPTER
input.
2
Press
TOP MENU
to select Bluetooth Setup.
3
Use
/
to select ‘Air Jam’, then press
ENTER
.
4
Use
/
to select ‘Air Jam ON’, then press
ENTER
.
For more details on using Air Jam, access our website.
http://pioneer.jp/support/soft/iapp_airjam/en.html
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by PIONEER CORPORATION is under license. Other
trademarks and trade names are those of their respective
owners.
RECEIVER
Basic playback
4
4
32
Listening to the radio
The following steps show you how to tune in to FM and AM
radio broadcasts using the automatic (search) and manual
(step) tuning functions. Once you are tuned to a station you
can memorize the frequency for recall later—see Saving
station presets below for more on how to do this.
1
Press
TUNER
to select the tuner.
2
Use
BAND
to change the band (FM or AM), if necessary.
Each press switches the band between FM (stereo or
mono) and AM.
3
Tune to a station.
There are three ways to do this:
Automatic tuning
To search for stations in the currently selected band,
press and hold
TUNE
/
for about a second. The
receiver will start searching for the next station, stopping
when it has found one. Repeat to search for other
stations.
Manual tuning
To change the frequency one step at a time, press
TUNE
/
.
High speed tuning
Press and hold
TUNE
/
for high speed tuning.
Release the button at the frequency you want.
Improving FM sound
If the TUNE or ST indicators don’t light when tuning to an FM
station because the signal is weak, set the receiver to the
mono reception mode.
Press
BAND
to select FM MONO.
This should improve the sound quality and allow you to
enjoy the broadcast.
Saving station presets
If you often listen to a particular radio station, it’s convenient
to have the receiver store the frequency for easy recall
whenever you want to listen to that station. This saves the
effort of manually tuning in each time. This unit can memorize
up to 30 stations.
1
Tune to a station you want to memorize.
See Listening to the radio above for more on this.
2
Press
TOOLS
.
The display shows PRESET, then a blinking MEM and
station preset.
3
Press
PRESET
/-
to select the station preset you
want.
You can also use the number buttons.
4
Press
ENTER
.
The preset number stop blinking and the receiver stores
the station.
Note
If the receiver is left disconnected from the AC power outlet
for over a month, the station memories will be lost and will
have to be reprogrammed.
Stations are stored in stereo. When the station is stored in
the FM MONO mode, it shows as ST when recalled.
Listening to station presets
You will need to have some presets stored to do this. See
Saving station presets above if you haven’t done this already.
Press
PRESET
/-
to select the station preset you
want.
You can also use the number buttons on the remote
control to recall the station preset.
Naming preset stations
For easier identification, you can name all of your preset
stations.
1
Choose the station preset you want to name.
See Listening to station presets above for how to do this.
2
Press
TOOLS
twice.
The cursor at the first character position is blinking on
the display.
3
Input the name you want.
Choose a name up to eight characters long.
Use
PRESET
/-
to select character position.
Use
TUNE
/
to select characters.
The name is stored when
ENTER
is pressed.
Tip
To erase a station name, follow steps 1 and 2, and press
ENTER
while the display is blank. Press
TOOLS
while the
display is blank, to keep the previous name.
Once you have named a station preset, Press
DISP
to show
the name. When you want to return to the frequency
display, press
DISP
several times to show the frequency.
ENTER
MUTE
AUDIO
PARAMETER MENU
HOME
MENU
TOOLS
iPod CTRL
PTY
TOP
MENU
P
R
E
S
E
T
P
R
E
S
E
T
1
ENTER
2
DISP
3
MUTE
AUDIO
PARAMETER
HOME
MENU
iPod CTRL
PTY
TOP
MENU
SLEEP
INPUT
RECEIVER
SOURCE
5
Chapter
5
33
Listening to your system
Choosing the listening mode
This receiver offers a variety of listening modes to
accommodate playback of various audio formats. Choose one
according to your speaker environment or the source.
While listening to a source, press the listening mode
button repeatedly to select a listening mode you want.
The listening mode is shown on the display on the front
panel.
Important
The listening modes and many features described in this
section may not be available depending on the current
source, settings and status of the receiver.
Auto playback
The simplest, most direct listening option is the AUTO
SURROUND feature. With this, the receiver automatically
detects what kind of source you’re playing and selects
multichannel or stereo playback as necessary.
Press
AUTO/DIRECT
repeatedly until AUTO SURROUND
shows briefly in the display (it will then show the decoding
or playback format). Check the digital format indicators in
the display to see how the source is being processed.
Note
Stereo surround (matrix) formats are decoded accordingly
using NEO:6 CINEMA or DOLBY PLIIx MOVIE (see
Listening in surround sound below for more on these
decoding formats).
When listening to the ADAPTER input, the S.R AIR feature
is selected automatically (see Using the Advanced surround
on page 34 for more on this).
Listening in surround sound
Using this receiver, you can listen to any source in surround
sound. However, the options available will depend on your
speaker setup and the type of source you’re listening to.
If the source is Dolby Digital, DTS, or Dolby Surround
encoded, the proper decoding format will automatically be
selected and shows in the display.
When you select STEREO ALC (Auto Level Control stereo
mode), this unit equalizes playback sound levels if each sound
level varies with the music source recorded in a portable
audio player.
When you select STEREO, you will hear the source through
just the front left and right speakers (and possibly your
subwoofer depending on your speaker settings). Dolby Digital
and DTS multichannel sources are downmixed to stereo.
The following modes provide basic surround sound for stereo
and multichannel sources.
Explanatory notes
No: No connected / Yes: Connected / Two: Two speakers are
connected / –: Whether connected or no
a. If surround back channel processing (page 35) is switched off,
or the surround back speakers are set to NO, DOLBY PLIIx
becomes DOLBY PLII (5.1 channel sound).
AUDIO
PARAMETER MENU
TOOLS
ADVANCED
SURROUND
SOUND
RETRIEVER AIR
iPod iPhone iPad
DIRECT CONTROL
DISPLAY BAND TUNER EDIT TUNE
ALC/
STANDARD SURR
AUTO SURROUND
/
STREAM DIRECT
AUTO/
DIRECT
AUTO SURROUND
/
STREAM DIRECT
ALC/
STANDARD
ALC/
STANDARD SURR
Type of surround
modes Suitable sources
Surround back
speaker(s)
Front height
speakers
Two channel sources
STEREO ALC See above.
DOLBY PLIIx MOVIE Movie YesaNo
DOLBY PLII MOVIE No –
DOLBY PLIIx MUSICbMusic YesaNo
DOLBY PLII MUSICbNo –
DOLBY PLIIx GAME Video games YesaNo
DOLBY PLII GAME No –
DOLBY PLIIz HEIGHTcMovie/Music No Yes
NEO:6 CINEMAdMovie – –
NEO:6 MUSICdMusic – –
DOLBY PRO LOGIC Old movies
Straight DecodeeNo additional effects No
STEREOfSee above.
Multichannel sources
STEREO ALC See above.
DOLBY PLIIx MOVIE Movie Two No
DOLBY PLIIx MUSICbMusic Yes No
DOLBY DIGITAL EX Movie/Music Yes No
DTS-ES Movie/Music Yes No
DTS NEO:6 Movie/Music Yes No
DOLBY PLIIz HEIGHT Movie/Music No Yes
Straight DecodeeNo additional effects
STEREOfSee above.
Listening to your system
5
5
34
b. You can also adjust the C.WIDTH, DIMEN., and PNRM. effect
(see Setting the Audio options on page 36).
c. You can also adjust the H.GAIN effect (see Setting the Audio
options on page 36).
d. You can also adjust the C.IMG effect (see Setting the Audio
options on page 36).
e. In case of VSX-1022: Cannot be selected when the Speaker
System is set to Surr. Back (see The Speaker System setting
(VSX-1022 only) on page 49).
In case of VSX-822: Cannot be selected when the Pre Out is
set to Surr. Back (see The Pre Out Setting (VSX-822 only) on
page 50).
f. The audio is heard with your surround settings and you can still
use the Midnight, Loudness, Phase Control, Sound Retriever
and Tone functions.
Note
In modes that give 6.1 channel sound, the same signal is
heard from both surround back speakers.
Using the Advanced surround
The Advanced surround feature creates a variety of surround
effects. Try different modes with various soundtracks to see
which you like.
Using Stream Direct
Use the Stream Direct modes when you want to hear the
truest possible reproduction of a source. All unnecessary
signal processing is bypassed.
Using the Sound Retriever
When audio data is removed during the compression
process, sound quality often suffers from an uneven sound
image. The Sound Retriever feature employs new DSP
technology that helps bring CD quality sound back to
compressed 2-channel audio by restoring sound pressure
and smoothing jagged artifacts left over after compression.
Press , then press
S.RETRIEVER
to switch the
S.RTV (Sound Retriever) ON or OFF.
Note
The Sound Retriever is only applicable to 2-channel
sources.
Listening with Acoustic Calibration EQ
You can listen to sources using the Acoustic Calibration
Equalization set in Automatically setting up for surround
sound (MCACC) on page 23. Refer to these pages for more on
Acoustic Calibration Equalization.
While listening to a source, press , then press
EQ
to switch the EQ (Acoustic Calibration EQ) ON or
OFF.
The MCACC indicator on the front panel lights when
Acoustic Calibration EQ is active.
You can’t use Acoustic Calibration EQ with Stream
Direct mode and it has no effect with headphones.
ACTION Designed for action movies with dynamic
soundtracks.
DRAMA Designed for movies with lots of dialog.
ENT.SHOW Suitable for musical sources.
ADVANCED GAME Suitable for video games.
SPORTS Suitable for sports programs.
CLASSICAL Gives a large concert hall-type sound
ROCK/POP Creates a live concert sound for rock and/or
pop music.
UNPLUGGED Suitable for acoustic music sources.
EXT.STEREO Gives multichannel sound to a stereo
source, using all of your speakers
BD MENU
ADV SURR
ADVANCED
SURROUND
F.S.S.ADVANCE
(Front Stage
Surround
ADVANCE)
Allows you to create natural surround
sound effects using just the front speakers
and the subwoofer.
Use to provide a rich surround sound effect
directed to the center of where the front left
and right speakers sound projection area
converges.
S.R AIR
(Sound Retriever
AIR)
Suitable for listening to the sound from a
Bluetooth wireless technology device.
The S.R AIR listening mode can only
selected when the ADAPTER input.
PHONES SURR When listening through headphones, you
can still get the effect of overall surround
AUTO SURROUND See Auto playback on page 33.
DIRECT Sources are heard according to the settings
made in the Manual SP Setup (speaker
setting, channel level, speaker distance), as
well as with dual mono settings. You will
hear sources according to the number of
channels in the signal.
Phase Control, Acoustic Calibration EQ,
Sound Delay, Auto Delay, LFE Attenuate
and Center image functions are available.
PURE DIRECT Analog and PCM sources are heard without
any digital processing.
Front left
speaker
Front right
speaker
AUTO/
DIRECT
AUTO SURROUND
/
STREAM DIRECT
SLEEP
INPUT
RECEIVER
SOURCE
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
SHIFT
RECEIVER
SLEEP
INPUT
RECEIVER
SOURCE
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
SHIFT
RECEIVER
Listening to your system
5
5
35
Better sound using Phase Control
This receiver’s Phase Control feature uses phase correction
measures to make sure your sound source arrives at the
listening position in phase, preventing unwanted distortion
and/or coloring of the sound.
Phase Control technology provides coherent sound
reproduction through the use of phase matching for an
optimal sound image at your listening position. The default
setting is on and we recommend leaving Phase Control
switched on for all sound sources.
While listening to a source, press , then press
PHASE
to switch the P.CTL (Phase Control) ON or OFF.
Note
Phase matching is a very important factor in achieving
proper sound reproduction. If two waveforms are ‘in phase’,
they crest and trough together, resulting in increased
amplitude, clarity and presence of the sound signal. If a
crest of a wave meets a trough, then the sound will be ‘out
of phase’ and an unreliable sound image will be produced.
If your subwoofer has a phase control switch, set it to the
plus (+) sign (or 0°). However, the effect you can actually
feel when Phase Control is set to ON on this receiver
depends on the type of your subwoofer. Set your subwoofer
to maximize the effect. It is also recommended you try
changing the orientation or the place of your subwoofer.
Set the built-in lowpass filter switch of your subwoofer to
OFF. If this cannot be done on your subwoofer, set the
cutoff frequency to a higher value.
If the speaker distance is not properly set, you may not have
a maximized Phase Control effect.
The Phase Control mode cannot be set to ON in the
following cases:
-
When the PURE DIRECT mode is switched on.
-
When the headphones are connected.
Using surround back channel processing
You can have the receiver automatically use 6.1 or 7.1
decoding for 6.1 encoded sources (for example, Dolby Digital
EX or DTS-ES), or you can choose to always use 6.1 or 7.1
decoding (for example, with 5.1 encoded material). With 5.1
encoded sources, a surround back channel will be generated,
but the material may sound better in the 5.1 format for which
it was originally encoded (in which case, you can simply
switch surround back channel processing off).
With a 7.1-channel surround system, audio signals that
have undergone matrix decoding processing through
surround back channel processing to which the Up Mix
function is added are output from the surround back
speakers.
Press , then press
SB CH
repeatedly to cycle
the surround back channel options.
Each press cycles through the options as follows:
SB ON – Matrix decoding processing for generating
the surround back component from the surround
component is turned on.
SB AUTO – Matrix decoding processing for generating
the surround back component from the surround
component is switched automatically. Matrix
decoding processing is only performed when surround
back channel signals are detected in the input signals.
SB OFF – Matrix decoding processing for generating
the surround back component from the surround
component is turned off.
Setting the Up Mix function
In a 7.1-channel surround system with surround speakers
placed directly at the sides of the listening position, the
surround sound of 5.1-channel sources is heard from the side.
The Up Mix function mixes the sound of the surround
speakers with the surround back speakers so that the
surround sound is heard from diagonally to the rear as it
should be.
Using the Up Mix function is effective when the speakers in
the 7.1-channel surround system are set up as
recommended in the example on page 11.
Depending on the positions of the speakers and the sound
source, in some cases it may not be possible to achieve
good results. In this case, set the setting to OFF.
1
Switch the receiver into standby.
2
While holding down
PRESET
-
on the front panel, and
hold the
STANDBY/ON
for about two seconds.
UP MIX: OFF appears and the Up Mix function turns off.
If you want to turn this function on, perform steps 1 and
2 again.
When set to ON, the (Up Mix) indicator on the front
panel lights.
Note
Set to ON regardless of this setting when playing DTS-HD
signals.
May automatically be set to OFF even when set to ON,
depending on the input signal and listening mode.
SLEEP
INPUT
RECEIVER
SOURCE
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
SHIFT
RECEIVER
SLEEP
INPUT
RECEIVER
SOURCE
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
SHIFT
RECEIVER
C
SW
L R
SL SR
SBL SBR SBL SBR
C
SW
L R
SL SR
UP MIX OFF UP MIX ON
Listening to your system
5
5
36
Setting the Audio options
There are a number of additional sound settings you can
make using the AUDIO PARAMETER menu. The defaults, if
not stated, are listed in bold.
Important
Note that if a setting doesn’t appear in the AUDIO
PARAMETER menu, it is unavailable due to the current
source, settings and status of the receiver.
1
Press , then press
AUDIO PARAMETER
.
2
Use
/
to select the setting you want to adjust.
Depending on the current status/mode of the receiver,
certain options may not be able to be selected. Check the
table below for notes on this.
3
Use
/-
to set it as necessary.
See the table below for the options available for each
setting.
4
Press
RETURN
to confirm and exit the menu.
SLEEP
INPUT
RECEIVER
SOURCE
RECEIVER
Setting/What it does Option(s)
EQ (Acoustic Calibration EQ)
Switches on/off the effect of Acoustic
Calibration EQ.
ON
OFF
S.DELAY (Sound Delay)
Some monitors have a slight delay when
showing video, so the soundtrack will be
slightly out of sync with the picture. By adding
a bit of delay, you can adjust the sound to
match the presentation of the video.
0.0 to 9.0
(frames)
1 second = 30
frames (NTSC)
Default: 0.0
MIDNIGHT/LOUDNESSa
The MIDNIGHT allows you to hear effective
surround sound of movies at low volumes.
The LOUDNESS is used to get good bass and
treble from music sources at low volumes.
M/L OFF
MIDNIGHT
LOUDNESS
S.RTV (Sound Retriever)b
When audio data is removed during the
compression process, sound quality often
suffers from an uneven sound image. The
Sound Retriever feature employs new DSP
technology that helps bring CD quality sound
back to compressed 2-channel audio by
restoring sound pressure and smoothing
jagged artifacts left over after compression.
OFFc
ON
DUAL MONOd
Specifies how dual mono encoded Dolby
Digital soundtracks should be played.
CH1 – Channel 1
is heard only
CH2 – Channel 2
is heard only
CH1 CH2 – Both
channels heard
from front
speakers
F.PCM (Fixed PCM)
This is useful if you find there is a slight delay
before OFF recognizes the PCM signal on a
CD, for instance.
When ON is selected, noise may be output
during playback of non-PCM sources. Please
select another input signal if this is a problem.
OFF
ON
DRC (Dynamic Range Control)
Adjusts the level of dynamic range for movie
soundtracks optimized for Dolby Digital, DTS,
Dolby Digital Plus, Dolby TrueHD, DTS-HD
and DTS-HD Master Audio (you may need to
use this feature when listening to surround
sound at low volumes).
AUTOe
MAX
MID
OFF
LFE ATT (LFE Attenuate)
Some Dolby Digital and DTS audio sources
include ultra-low bass tones. Set the LFE
attenuator as necessary to prevent the ultra-
low bass tones from distorting the sound from
the speakers.
The LFE is not limited when set to 0 dB, which
is the recommended value. When set to –15
dB, the LFE is limited by the respective
degree. When OFF is selected, no sound is
output from the LFE channel.
0 (0 dB)
5 (–5 dB)
10 (–10 dB)
15 (–15 dB)
20 (–20 dB)
** (OFF)
SACD G. (SACD Gain)f
Brings out detail in SACDs by maximizing the
dynamic range (during digital processing).
0 (0 dB)
+6 (+6 dB)
HDMI (HDMI Audio)
Specifies the routing of the HDMI audio signal
out of this receiver (AMP) or through to a TV
(THRU). When THRU is selected, no sound is
output from this receiver.
AMP
THRU
A.DLY (Auto Delay)g
This feature automatically corrects the audio-
to-video delay between components
connected with an HDMI cable. The audio
delay time is set depending on the operational
status of the display connected with an HDMI
cable. The video delay time is automatically
adjusted according to the audio delay time.
OFF
ON
C.WIDTH (Center Width)h
(Applicable only when using a center speaker)
Spreads the center channel between the front
right and left speakers, making it sound wider
(higher settings) or narrower (lower settings).
0 to 7
Default: 3
Setting/What it does Option(s)
Listening to your system
5
5
37
a. You can change the MIDNIGHT/LOUDNESS options at any
time by using
MIDNIGHT
button.
b. You can change the Sound Retriever feature at any time by
using
S.RETRIEVER
button.
c. The default setting when the iPod/USB, ADAPTER,
NETRADIO, PANDORA, M.SERVER or FAVORITE input is
selected is ON.
d. This setting works only with dual mono encoded Dolby Digital
and DTS soundtracks.
e. The initial set AUTO is only available for Dolby TrueHD signals.
Select MAX or MID for signals other than Dolby TrueHD.
f. You shouldn’t have any problems using this with most SACD
discs, but if the sound distorts, it is best to switch the gain
setting back to 0 dB.
g. This feature is only available when the connected display
supports the automatic audio/video synchronizing capability
(‘lip-sync’) for HDMI. If you find the automatically set delay time
unsuitable, set A.DLY to OFF and adjust the delay time
manually. For more details about the lip-sync feature of your
display, contact the manufacturer directly.
h. Only available with 2-channel sources in DOLBY PLII MUSIC
mode.
i. Only when listening to 2-channel sources in NEO:6 CINEMA
and NEO:6 MUSIC mode.
DIMEN (Dimension)h
Adjusts the surround sound balance from
front to back, making the sound more distant
(minus settings), or more forward (positive
settings).
–3 to +3
Default: 0
PNRM. (Panorama)h
Extends the front stereo image to include
surround speakers for a ‘wraparound’ effect.
OFF
ON
C.IMG (Center Image)i
(Applicable only when using a center speaker)
Adjust the center image to create a wider
stereo effect with vocals. Adjust the effect
from 0 (all center channel sent to front right
and left speakers) to 10 (center channel sent
to the center speaker only).
0 to 10
Default: 3
(NEO:6 MUSIC),
10 (NEO:6
CINEMA)
H.GAIN (Height Gain)
Adjusts the output from the front height
speaker when listening in DOLBY PLIIz
HEIGHT mode. If set to H, the sound from the
top will be more emphasized.
L (Low)
M (Mid)
H (High)
Setting/What it does Option(s)
6
Chapter
6
38
Playback with NETWORK features
Introduction
This receiver is equipped with the LAN terminal and you can
enjoy the following features by connecting your components
to these terminals.
Listening to Internet radio stations
You can select and listen to your favorite Internet radio station
from the list of Internet radio stations created, edited, and
managed by the vTuner database service exclusively for use
with the Pioneer products.
See Playback with Network functions on page 39 and Listening
to Internet radio stations on page 39.
Playback the music files stored in PCs
You can playback a lot of musics stored in your PCs using this
unit.
Besides a PC, you can also play back audio files stored on
your other components with the built-in media server
function based on DLNA 1.0 or DLNA 1.5 framework and
protocols (i.e. network-capable hard disks and audio
systems).
See Playback with Network functions on page 39 and Playing
back audio files stored on components on the network on
page 40.
Listening to Pandora
See Listening to Pandora Internet Radio on page 40.
Note
To listen to Internet radio stations, you must sign a contract
with an ISP (Internet Service Provider) beforehand.
Photo or video files cannot be played back.
With Windows Media Player 11 or Windows Media Player
12, you can even play back copyrighted audio files on this
receiver.
About playable DLNA network devices
This unit allows you to play music on media servers connected
on an identical Local Area Network (LAN) as the receiver. This
unit allows for the playing of files stored on the following
devices:
PCs running Microsoft Windows Vista or XP with Windows
Media Player 11 installed
PCs running Microsoft Windows 7 with Windows Media
Player 12 installed
DLNA-compatible digital media servers (on PCs or other
components)
Files stored in a PC or DMS (Digital Media Server) as
described above can be played via command from an external
Digital Media Controller (DMC). Devices controlled by this
DMC to play files are called DMRs (Digital Media Renderers).
This receiver supports this DMR function. When in the DMR
mode, such operations as playing and stopping files can be
performed from the external controller. Volume adjustment
and the muting control are also possible. The DMR mode is
canceled if the remote control unit is operated while in the
DMR mode (aside from certain buttons, including the
VOLUME +/–
,
MUTE
and
DISP
).
Depending on the external controller being used, playback
may be interrupted when the volume is adjusted from the
controller. In this case, adjust the volume from the receiver
or remote control.
Using AirPlay on iPod touch, iPhone, iPad, and
iTunes
AirPlay works with iPhone 4S, iPhone 4, iPhone 3GS, iPod
touch (4th, 3rd and 2nd generations), iPad 2, iPad with iOS 4.2
or later, and iTunes 10.1 (Mac and PC) or later.
To use AirPlay, select your receiver on your iPod touch,
iPhone, iPad or in iTunes. *1
The receiver’s input will switch automatically to AirPlay when
AirPlay is in use. *2
The following operations can be performed when in AirPlay
mode:
Adjustment of the receiver’s volume from iPod touch,
iPhone, iPad or iTunes.
Pause/resume, next/previous track, and shuffle/repeat
from the remote control of the receiver. (Press
NETWORK
to switch the remote control to the network operation
mode.)
*1: For more information, see the Apple website (http://
www.apple.com).
*2: The receiver’s power automatically turns on when
Network Standby is set to ON (page 51).
Note
A network environment is required to use AirPlay.
AirPlay provided on this receiver has been developed and
tested based on the software versions for the iPod, iPhone,
iPad and the software versions for iTunes that are indicated
on the Pioneer website. AirPlay may not be compatible with
iPod, iPhone, iPad or iTunes software versions other than
those indicated on the Pioneer website.
About the DHCP server function
To play back audio files stored on components on the network
or listen to Internet radio stations, you must turn on the DHCP
server function of your router. In case your router does not
have the built-in DHCP server function, it is necessary to set
up the network manually. Otherwise, you cannot play back
audio files stored on components on the network or listen to
Internet radio stations. See The Network Setup menu on
page 41 for more on this.
Authorizing this receiver
This receiver must be authorized to enable playback. This
happens automatically when the receiver makes a connection
over the network to the PC. If not, please authorize this
receiver manually on the PC. The authorization (or
permission) method for access varies depending on the type
of server currently being connected. For more information on
authorizing this receiver, refer to the instruction manual of
your server.
Playback with NETWORK features
6
6
39

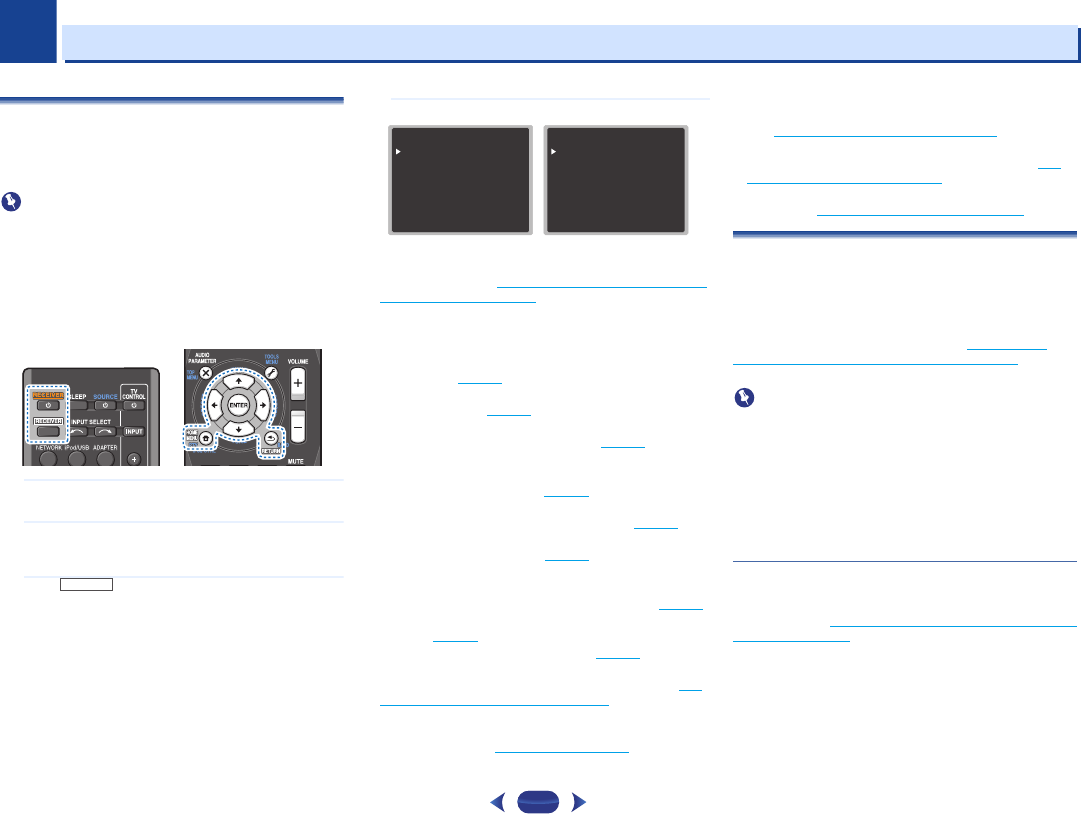

Playback with Network functions
Important
In case a domain is configured in a Windows network
environment, you cannot access a PC on the network while
you are logged onto the domain. Instead of logging onto the
domain, log onto the local machine.
There are cases where the time elapsed may not be
correctly displayed.
About one minute is required between turning the power
on and completion of startup.
1
Press
NETWORK
repeatedly to select the category you
want to play back.
It may take several seconds for this receiver to access the
network.
Select a category from the following list:
NETRADIO – Internet radio
PANDORA – Internet radio that supports Pandora
M.SERVER – Server components on the network
(Media server)
FAVORITE – Favorite songs currently being registered
Depending on the selected category, the names of
folders, files, and Internet radio stations are displayed.
2
Use
/
to select the folder, music files or Internet
radio station to play back, and then press
ENTER
.
Press
/
to scroll up and down the list and select the
desired item. When you press
ENTER
, playback starts
with the playback screen being displayed for the selected
item. To return to the list screen, press
RETURN
.
When the list screen is displayed from the playback
screen, the playback screen reappears automatically if
no operation is performed for 10 seconds while the list
screen is displayed.
Only audio files with the mark can be played. In case
of the folders with the mark, use
/
and
ENTER
to
select the desired folder and audio files.
3
Repeat step 2 to play back the desired song.
For detailed operating instructions, refer to the section
shown below.
Internet radio stations – See Listening to Internet radio
stations below.
Pandora – See Listening to Pandora Internet Radio on
page 40.
Media server – See Playing back audio files stored on
components on the network on page 40.
Favorites – See Playing back your favorite songs on
page 40.
Basic playback controls
You can perform the following operations with the remote
control of this receiver. Note that some buttons are not
available for operation depending on the category currently
being played back.
Press NETWORK to switch the remote control to the
NETRADIO, PANDORA, M.SERVER or FAVORITE
operation mode.
Listening to Internet radio stations
Internet radio is an audio broadcasting service transmitted via
the Internet. There are a large number of Internet radio
stations broadcasting a variety of services from every corner
of the world. Some are hosted, managed, and broadcast by
private individuals while others are by the corresponding
traditional terrestrial radio stations or radio networks.
Whereas terrestrial, or OTA (over-the-air), radio stations are
geographically restricted on the range of radio waves
broadcast from a transmitter through the air, Internet radio
stations are accessible from anywhere in the world, as long as
there is a connection to the Internet, as services are not
transmitted through the air but are delivered over the World
Wide Web. On this receiver you can select Internet radio
stations by genre as well as by region.
Depending on the Internet line conditions, the sound may not
be smooth when playing Internet radio.
About list of Internet radio
The list of Internet radio stations on this receiver is created,
edited, and managed by the vTuner database service
exclusively for use with this receiver. For details about vTuner,
see vTuner on page 44.
Saving and retrieving Internet radio stations
You can easily save and retrieve saved Internet radio stations.
See Playing back your favorite songs on page 40 for more on
this.
To listen to Internet radio stations, you must have high-
speed broadband Internet access. With a 56 K or ISDN
modem, you may not enjoy the full benefits of Internet
radio.
The port number varies depending on the Internet radio
station. Check the firewall settings.
A list of Internet radio stations provided by the vTuner
database service is subject to change or deletion without
notice due to various reasons.
Broadcasts may be stopped or interrupted depending on
the Internet radio station. In this case, you cannot listen to
a radio station selected from the list of Internet radio
stations.
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
MUTE
SHIFT
ENTER
AUDIO
PARAMETER
HOME
MENU
iPod CTRL
PTY
T
U
N
E
T
U
N
E
P
R
E
S
E
T
P
R
E
S
E
T
Playback with NETWORK features
6
6
40
Registering broadcast stations not on the vTuner list
from the special Pioneer site
With the receiver, broadcast stations not included on the list
of station distributed by vTuner can be registered and played.
Check the access code required for registration on the
receiver, use this access code to access the special Pioneer
Internet radio site and register the desired broadcast stations
in your favorites. The address of the special Pioneer Internet
radio site is:
http://www.radio-pioneer.com
1
Display the Internet Radio list screen.
To display the Internet Radio list screen, perform step 1 at
Playback with Network functions on page 39.
2
Use
/
to select ‘Help’, then press
ENTER
.
3
Use
/
to select ‘Get access code’, then press
ENTER
.
The access code required for registration on the special
Pioneer Internet radio site is displayed. Make a memo of
this address.
The following can be checked on the Help screen:
Get access code – The access code required for
registration on the special Pioneer Internet radio site is
displayed.
Show Your WebID/PW – After registering on the
special Pioneer Internet radio site, the registered ID
and password are displayed.
Reset Your WebID/PW – Resets all the information
registered on the special Pioneer Internet radio site.
When reset, all the registered broadcast stations are
also cleared. If you want to listen to the same stations,
re-register after resetting.
4
Access the special Pioneer Internet radio site from your
computer and perform the registration process.
http://www.radio-pioneer.com
Access the above site and use the access code in step 3
to perform user registration, following the instructions on
the screen.
5
Register the desired broadcast stations as your
favorites, following the instructions on the computer’s
screen.
Both broadcast stations not on the vTuner list and
stations on the vTuner list can be registered. In this case
they are registered on the receiver as favorite broadcast
stations and can be played.
Listening to Pandora Internet Radio
Pandora is personalized internet radio that is designed to help
you discover new music you’ll love mixed in with music you
already know.
For details, check the website: http://www.pandora.com
You must have a registered account in order to listen to
songs using Pandora Internet Radio.
Select PANDORA, then follow the instructions on the
screen to make the account settings.
As of April 2011, the Pandora service is only offered in the
United States.
Some functions may be changed at Pandora’s discretion.
Note
When disposing of the product, we recommend you reset it
to delete the data. See Resetting the main unit on page 63.
Pandora®, the leading internet radio service, gives people
music they love anytime, anywhere, through personalized radio
stations.
Playing back audio files stored on components on
the network
This unit allows you to play music on media servers connected
on an identical Local Area Network (LAN) as the receiver. This
unit allows for the playing of files stored on the following
devices:
PCs running Microsoft Windows Vista or XP with Windows
Media Player 11 installed
PCs running Microsoft Windows 7 with Windows Media
Player 12 installed
DLNA-compatible digital media servers (on PCs or other
components)
Playing back your favorite songs
Up to 64 favorite tracks on the media server and/or Internet
radio stations can be registered in the Favorites folder. Note
that only the audio files stored on components on the network
can be registered.
Registering and deleting audio files and Internet
radio stations in and from the Favorites folder
1
Press
NETWORK
to switch the remote control to the
M.SERVER or NETRADIO operation mode.
2
With the track or Internet radio station you want to
register selected, press
+Favorite
.
The selected song or Internet radio station is then
registered in the Favorite.
Note
To delete a registered song, select the Favorites folder,
select the song you want to delete from the folder, and
press
CLEAR
. The selected song is then deleted from the
Favorites folder.
Playback with NETWORK features
6
6
41
The Network Setup menu
Setting up the network to listen to Internet radio on this
receiver.
1
Press
NETWORK
repeatedly to switch the receiver to
NETRADIO input.
2
Press
HOME MENU
.
Network Setup menu appears on your TV. Use
///
-
and
ENTER
on the remote control to navigate through
the screens and select menu items. Press
RETURN
to
exit the current menu.
Press
HOME MENU
at any time to exit the Network
Setup menu.
3
Select the setting you want to adjust.
Network Configuration
-
IP Address, Proxy – Sets up the IP address/Proxy of
this receiver (see below).
-
Friendly Name – The name of the receiver displayed
on a computer or other device connected to the
network can be changed (see below).
-
Parental Lock – Restricts usage of network
functions (page 42).
Language – Language can be set the NETWORK
function OSD screen (page 42).
Firmware Update – Use to update the receiver’s
software and check the version (page 42).
Factory Reset – Use to reset all network connection
settings to their initial, factory-setting condition
(page 42).
System Info – You can check the network settings of
this receiver (page 42).
Network Configuration
IP address/Proxy setting
In case the router connected to the LAN terminal on this
receiver is a broadband router (with a built-in DHCP server
function), simply turn on the DHCP server function, and you
will not need to set up the network manually. You must set up
the network as described below only when you have
connected this receiver to a broadband router without a
DHCP server function. Before you set up the network, consult
with your ISP or the network manager for the required
settings. It is advised that you also refer to the operation
manual supplied with your network component.
IP Address
The IP address to be entered must be defined within the
following ranges. If the IP address defined is beyond the
following ranges, you cannot play back audio files stored on
components on the network or listen to Internet radio
stations.
Class A: 10.0.0.1 to 10.255.255.254
Class B: 172.16.0.1 to 172.31.255.254
Class C: 192.168.0.1 to 192.168.255.254
Subnet Mask
In case an xDSL modem or a terminal adapter is directly
connected to this receiver, enter the subnet mask provided
by your ISP on paper. In most cases, enter 255.255.255.0.
Default Gateway
In case a gateway (router) is connected to this receiver,
enter the corresponding IP address.
Primary DNS Server/Secondary DNS Server
In case there is only one DNS server address provided by
your ISP on paper, enter it in the “Primary DNS Server
field. In case there are more than two DNS server
addresses, enter “Secondary DNS Server” in the other
DNS server address field.
Proxy Hostname/Proxy Port
This setting is required when you connect this receiver to
the Internet via a proxy server. Enter the IP address of your
proxy server in the “Proxy Hostname” field. Also, enter the
port number of your proxy server in the “Proxy Port” field.
1
Select ‘Network Configuration’ from the Network
Setup menu.
2
Select ‘
IP Address, Proxy
’ from the Network
Configuration menu.
3
Select the DHCP setting you want.
When you select ON, the network is automatically set up,
and you do not need to follow Steps 4. Proceed with Step
5.
If there is no DHCP server on the network and you select
ON, this receiver will use its own Auto IP function to
determine the IP address.
The IP address determined by the Auto IP function is
169.254.X.X. You cannot listen to an Internet radio
station if the IP address is set for the Auto IP function.
4
Enter the IP Address, Subnet Mask, Default Gateway,
Primary DNS Server and Secondary DNS Server.
Press
/
to select a number and
/-
to move the
cursor.
5
Select ‘OFF’ or ‘ON’ for the Enable Proxy Server setting
to deactivate or activate the proxy server.
In case you select OFF, proceed with Step 8. In case you
select ON, on the other hand, proceed with Step 6.
6
Enter the address of your proxy server or the domain
name.
Use
/
to select a character,
/-
to set the position,
and
ENTER
to confirm your selection.
7
Enter the port number of your proxy server.
Use
/
to select a character,
/-
to set the position,
and
ENTER
to confirm your selection.
8
Select ‘OK’ to confirm the IP Address/Proxy setup.
Friendly Name
1
Select ‘Network Configuration’ from the Network
Setup menu.
2
Select ‘
Friendly Name
’ from the Network
Configuration menu.
3
Select ‘Edit Name’ then select ‘Rename’.
If after changing the name you want to restore the name
to the default, select Default.
4
Input the name you want.
Use
/
to select a character,
/-
to set the position,
and
ENTER
to confirm your selection.
Playback with NETWORK features
6
6
42
Parental Lock
Set restrictions for using Internet services. Also set the
password accompanying the usage restrictions.
Upon shipment from the factory, the password is set to
“0000”.
1
Select ‘Network Configuration’ from the Network
Setup menu.
2
Select ‘
Parental Lock
’ from the Network Configuration
menu.
3
Input the password.
Use
/
to select a character,
/-
to set the position,
and
ENTER
to confirm your selection.
4
Specify whether to turn Parental Lock on or off.
OFF – Internet services are not restricted.
ON – Internet services are restricted.
5
If you want to change the password, select ‘Change
Password’.
In this case, the procedure returns to step 3.
Language
Language can be set on the NETWORK function OSD screen.
1
Select ‘Language’ from the Network Setup menu.
2
Select the language you want.
3
When you’re finished, press
RETURN
.
You return to the Network Setup menu.
Firmware Update
Use this procedure to update the receiver’s software.
Updating via a USB memory device is performed by
downloading the update file from a computer, reading this file
onto a USB memory device then inserting this USB memory
device into the USB port on the receiver’s front panel. With
this procedure, the USB memory device containing the
update file must first be inserted into the USB port on the
receiver’s front panel.
If an update file is provided on the Pioneer website,
download it onto your computer. When downloading an
update file from the Pioneer website onto your computer,
the file will be in ZIP format. Unzip the ZIP file before saving
it on the USB memory device. If there are any old
downloaded files or downloaded files for other models on
the USB memory device, delete them.
Important
DO NOT unplug the power cord during updating.
Do not disconnect the USB memory device during
updating.
Verify the software version of the receiver in the System
Info menu before updating and confirm that the software
in the USB memory device is a newer version.
Updating may reset the receiver’s settings to the initial,
factory-setting condition. Whether this is applicable to your
receiver can be confirmed at our Pioneer website.
1
Select ‘Firmware Update’ from the Network Setup
menu.
The receiver checks whether the USB memory device
inserted into the USB port on the receiver’s front panel
contains updatable software.
2
To update, select ‘Start’.
3
When ‘Updating in progress, don’t unplug!’ is
displayed, select ‘OK’.
If ‘File Not Found’ is displayed, try the following:
-
No update file was found on the USB memory
device. Store the file in the USB memory device’s
root directory.
-
Try disconnecting then reconnecting the USB device
or storing the update file again. If the error still
occurs, try using a different USB memory device.
4
The software update will start. Please wait.
The OSD display will turn off during update and the words
UPDATE’ will flash on the front panel.
5
If ‘COMPLETE’ is displayed, updating is completed.
The screen will return automatically to the play screen.
If ‘FAIL’ is displayed on the front panel display,
updating has failed. Try the following:
-
Turn the receiver’s power off, then turn it back on
and try updating the software again.
-
Try disconnecting then reconnecting the USB device
or storing the update file again. If the error still
occurs, try using a different USB memory device.
Factory Reset
Use to reset all network connection settings to their initial,
factory-setting condition.
1
Select ‘
Factory Reset
’ from the Network Setup menu.
2
Select ‘Start’.
3
Select ‘OK’ to confirm.
The screen will return automatically to the play screen.
System Information
The setting status of the following network-related items can
be checked.
IP Address – Check the IP address of this receiver.
MAC Address – Check the MAC address of this receiver.
Release ID – Check the software version of this receiver.
1
Select ‘System Info’ from the Network Setup menu.
Display the setting status of the network-related items.
2
When you’re finished, press
RETURN
.
You return to the Network Setup menu.
Playback with NETWORK features
6
6
43
About network playback
The network playback function of this unit uses the following
technologies:
Windows Media Player
See Windows Media Player 11/ Windows Media Player 12 on
page 44 for more on this.
Windows Media DRM
Microsoft Windows Media Digital Rights Management
(WMDRM) is a platform to protect and securely deliver
content for playback on computers, portable devices and
network devices. This unit’s functions as a WMDRM 10 for
networked devices. WMDRM protected content can only be
played on media servers supporting WMDRM.
Content owners use WMDRM technology to protect their
intellectual property, including copyrights. This device uses
WMDRM software to access WMDRM protected content. If the
WMDRM software fails to protect the content, content owners
may ask Microsoft to revoke the software’s ability to use
WMDRM to play or copy protected content. Revocation does not
affect unprotected content. When you download licenses for
protected content, you agree that Microsoft may include a
revocation list with the licenses. Content owners may require
you to upgrade WMDRM to access their content. If you decline
an upgrade, you will not be able to access content that requires
the upgrade.
This product is protected by certain intellectual property rights
of Microsoft. Use or distribution of such technology outside of
this product is prohibited without a license from Microsoft.
DLNA
DLNA CERTIFIED™ Audio Player
The Digital Living Network Alliance (DLNA) is a cross-industry
organization of consumer electronics, computing industry
and mobile device companies. Digital Living provides
consumers with easy sharing of digital media through a wired
or wireless network in the home.
The DLNA certification logo makes it easy to find products
that comply with the DLNA Interoperability Guidelines. This
unit complies with DLNA Interoperability Guidelines v1.5.
When a PC running DLNA server software or other DLNA
compatible device is connected to this player, some setting
changes of software or other devices may be required. Please
refer to the operating instructions for the software or device
for more information.
DLNA™, the DLNA Logo and DLNA CERTIFIED™ are
trademarks, service marks, or certification marks of the Digital
Living Network Alliance.
Content playable over a network
Even when encoded in a compatible format, some files may
not play correctly.
Movie or Photo files cannot be played back.
There are cases where you cannot listen to an Internet radio
station even if the station can be selected from a list of
radio stations.
Some functions may not be supported depending on the
server type or version used.
Supported file formats vary by server. As such, files not
supported by your server are not displayed on this unit. For
more information check with the manufacturer of your
server.
Disclaimer for Third Party Content
ACCESS TO THIRD PARTY CONTENT SERVICES, INCLUDING
ALL ASSOCIATED FEATURES AND FUNCTIONALITIES, IS
PROVIDED “AS IS,” “AS AVAILABLE” AND AT THE USER’S
OWN RISK, WITHOUT WARRANTY OF ANY KIND. PIONEER
DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, IN
CONNECTION WITH ACCESS TO AND USE OF CONTENT
SERVICES THROUGH THIS DEVICE, INCLUDING WITHOUT
LIMITATION WARRANTIES OF MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, AND NON-INFRINGEMENT. PIONEER DOES NOT
GUARANTEE, REPRESENT, OR WARRANT THAT CONTENT
SERVICES WILL BE FREE FROM ERRORS, INTERRUPTION,
LOSS, CORRUPTION, ATTACK, VIRUSES, INTERFERENCE,
HACKING, OR OTHER SECURITY INTRUSION, AND PIONEER
DISCLAIMS ANY LIABILITY IN CONNECTION WITH THE
FOREGOING. PIONEER IS NOT LIABLE OR RESPONSIBLE
FOR ANY LOSS OR DAMAGE ARISING FROM ACCESS TO OR
USE OF CONTENT. NO ORAL OR WRITTEN INFORMATION
OR ADVICE GIVEN BY PIONEER OR ITS CUSTOMER
SERVICES REPRESENTATIVES WILL CREATE ANY SUCH
WARRANTY.
IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR
RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES BE
LIABLE IN CONNECTION WITH YOUR USE OF THIRD PARTY
CONTENT SERVICES THROUGH THIS DEVICE FOR
PERSONAL INJURY OR SPECIAL, INCIDENTAL, INDIRECT
OR CONSEQUENTIAL DAMAGES OF ANY KIND, INCLUDING
WITHOUT LIMITATION DAMAGES FOR ATTORNEY’S FEES,
LOST DATA OR LOST PROFITS, REGARDLESS OF THE
THEORY OF LIABILITY AND WHETHER OR NOT ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL
PIONEER’S TOTAL LIABILITY TO YOU FOR ALL DAMAGES
ARISING FROM THE USE OR INABILITY TO USE THIRD
PARTY CONTENT SERVICES (OTHER THAN AS MAY BE
REQUIRED BY LAW IN CASES INVOLVING PERSONAL
INJURY) EXCEED $10.00. THE FOREGOING LIMITATIONS
WILL APPLY EVEN IF THE ABOVE REMEDY FAILS OF ITS
ESSENTIAL PURPOSE. IF ANY APPLICABLE AUTHORITY
HOLDS ANY PORTION OF THIS SECTION TO BE
UNENFORCEABLE, THEN LIABILITY WILL BE LIMITED TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
Playback with NETWORK features
6
6
44
About playback behavior over a network
Playback may stall when the PC is switched off or any
media files stored on it are deleted while playing content.
If there are problems within the network environment
(heavy network traffic, etc.) content may not be displayed or
played properly (playback may be interrupted or stalled).
For best performance, a 100BASE-TX connection between
player and PC is recommended.
If several clients are playing simultaneously, as the case
may be, playback is interrupted or stalled.
Depending on the security software installed on a
connected PC and the setting of such software, network
connection may be blocked.
Pioneer is not responsible for any malfunction of the player
and/or the NETWORK features due to communication error/
malfunctions associated with your network connection and/
or your PC, or other connected equipment. Please contact
your PC manufacturer or Internet service provider.
“Windows Media™” is a trademark of Microsoft Corporation.
This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a license
from Microsoft Licensing, Inc.
Microsoft®, Windows®7, Windows®Vista, Windows®XP,
Windows®2000, Windows®Millennium Edition, Windows®98,
and WindowsNT® are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or
other countries.
Glossary
aacPlus
AAC decoder uses aacPlus developed by Coding Technologies.
(www.codingtechnologies.com)
FLAC
FLAC (Free Lossless Audio Codec) is an audio format allows
lossless codec. Audio is compressed in FLAC without any loss
in quality. For more details about FLAC, visit the following
website: http://flac.sourceforge.net/
vTuner
vTuner is a paid online database service that allows you to
listen to radio and TV broadcasts on the Internet. vTuner lists
thousands of stations from over 100 different countries
around the globe. For more detail about vTuner, visit the
following website:
http://www.radio-pioneer.com
“This product is protected by certain intellectual property rights
of NEMS and BridgeCo. Use or distribution of such technology
outside of this product is prohibited without a license from
NEMS and BridgeCo or an authorized subsidiary.”
Windows Media
Windows Media is a multimedia framework for media
creation and distribution for Microsoft Windows. Windows
Media is either a registered trademark or trademark of
Microsoft Corporation in the U.S. and/or other countries. Use
an application licensed by Microsoft Corporation to author,
distribute, or play Windows Media formatted content. Using
an application unauthorized by Microsoft Corporation is
subject to malfunction.
Windows Media DRM
Windows Media DRM is a DRM (Digital Rights Management)
service for the Windows Media platform. It is designed to
provide secure delivery of audio and/or video content over an
IP network to a PC or other playback device in such a way that
the distributor can control how that content is used. The
WMDRM-protected content can only be played back on a
component supporting the WMDRM service.
Windows Media Player 11/
Windows Media Player 12
Windows Media Player is software to deliver music, photos
and movies from a Microsoft Windows computer to home
stereo systems and TVs.
With this software, you can play back files stored on the PC
through various devices wherever you like in your home.
This software can be downloaded from Microsoft’s website.
Windows Media Player 11 (for Windows XP or Windows
Vista)
Windows Media Player 12 (for Windows 7)
For more information check the official Microsoft website.
Playback with NETWORK features
6
6
45
About playable file formats
The NETWORK feature of this receiver supports the following
file formats. Note that some file formats are not available for
playback although they are listed as playable file formats.
Also, the compatibility of file formats varies depending on the
type of server. Check with your server to ensure the
compatibility of file formats supported by your server.
Internet radio playback may be affected by the Internet
communications environment, and in this case playback
may not be possible even with the file formats listed here.
Music files
a. MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
b. Files encoded using Windows Media Codec 9 may be playable
but some parts of the specification are not supported;
specifically, Pro, Lossless, Voice.
Extension Stream
MP3 (MPEG-1 Audio Layer 3)
.mp3aSampling frequency 32 kHz, 44.1 kHz, 48 kHz
Quantization bitrate 16 bit
Channel 2 ch
Bitrate 8 kbps to 320 kbps
VBR/CBR Supported/Supported
WAV (LPCM)
.wav Sampling frequency 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
Quantization bitrate 16 bit, 24 bit
Channel 2 ch
WMA (WMA2/7/8/9)
.wmabSampling frequency 32 kHz, 44.1 kHz, 48 kHz
Quantization bitrate 16 bit
Channel 2 ch
Bitrate 5 kbps to 320 kbps
VBR/CBR Supported/Supported
AAC (MPEG-4 AAC LC, MPEG-4 HE AAC (aacPlus v1/2))
.m4a
.aac
.3gp
.3g2
Sampling frequency 32 kHz, 44.1 kHz, 48 kHz
Quantization bitrate 16 bit
Channel 2 ch
Bitrate 16 kbps to 320 kbps
VBR/CBR Supported/Supported
FLAC
.flac Sampling frequency 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
Quantization bitrate 16 bit, 24 bit
Channel 2 ch
7
Chapter
7
46
Home Menu
Using the Home Menu
The following section shows you how to make detailed
settings to specify how you’re using the receiver, and also
explains how to fine-tune individual speaker system settings
to your liking.
Important
The OSD will not appear if you have connected using the
composite output to your TV. Use HDMI connection for
Home Menu.
If headphones are connected to the receiver, disconnect
them.
You can’t use the Home Menu when the NETRADIO,
PANDORA, M.SERVER, FAVORITE, iPod/USB or
ADAPTER input is selected.
1
Switch on the receiver and your TV.
Press
RECEIVER
to switch on.
2
Switch the TV input to the input that connects this
receiver to the TV through the corresponding HDMI
cable.
3
Press , then press
HOME MENU
.
The Home Menu appears on your TV. Use
///-
and
ENTER
on the remote control to navigate through the
screens and select menu items. Press
RETURN
to exit
the current menu.
Press
HOME MENU
at any time to exit the Home
Menu.
4
Select the setting you want to adjust.
Auto MCACC – This is a quick and effective automatic
surround setup (see Automatically setting up for surround
sound (MCACC) on page 23).
Manual SP Setup
-
Speaker Setting – Specify the size and number of
speakers you’ve connected (see below).
-
X.Over – Specify which frequencies will be sent to the
subwoofer (page 47).
-
Channel Level – Adjust the overall balance of your
speaker system (page 48).
-
Speaker Distance – Specify the distance of your
speakers from the listening position (page 48).
Input Assign
-
Analog Input – Specify what you’ve connected to the
ANALOG IN1 audio input (page 49).
-
Component Input (VSX-1022 only) – Specify what you’ve
connected to the component video inputs (page 49).
Speaker System (VSX-1022 only) – Specifies how you are
using the speaker terminals (page 49).
Video Parameter (VSX-1022 only)
-
Video Converter – Converts video signals for output
from the HDMI OUT terminal for all video types (page 49).
-
Resolution – Specifies the output resolution of the video
signal (page 50).
-
Aspect – Specifies the aspect ratio (page 50).
Pre Out Setting (VSX-822 only) – Specify how to use the
PRE OUT SURR BACK/FRONT HEIGHT outputs (see The
Pre Out Setting (VSX-822 only) on page 50).
HDMI Setup – Set the audio return channel function or set
the HDMI input signal to Standby Through output or not
during standby (see HDMI Setup on page 52).
Auto Power Down – Sets to automatically turn off the
power when the receiver has not operated for several hours
(see The Auto Power Down menu on page 51).
Network Standby – Allows the AirPlay function to be used
even when the receiver is in the standby mode (see The
Network Standby menu on page 51).
FL Demo Mode – Sets the demo display on the front panel
display (see The FL Demo Mode menu on page 51).
Manual speaker setup
This receiver allows you to make detailed settings to optimize
the surround sound performance. You only need to make
these settings once (unless you change the placement of your
current speaker system or add new speakers).
These settings are designed to fine-tune your system, but if
you’re satisfied with the settings made in Automatically
setting up for surround sound (MCACC) on page 23, it isn’t
necessary to make all of these settings.
Important
VSX-1022 only: Depending on the Speaker System setting,
there will be differences in the speaker items that can be
adjusted. The OSD display for these operating instructions
is an example of when the Speaker System setting is set to
Surr. Back.
VSX-822 only: Depending on the Pre Out Setting, there will
be differences in the speaker items that can be adjusted.
The OSD display for these operating instructions is an
example of when the Pre Out Setting is set to Surr. Back.
Speaker Setting
Use this setting to specify your speaker configuration (size,
number of speakers). It is a good idea to make sure that the
settings made in Automatically setting up for surround sound
(MCACC) on page 23 are correct.
RECEIVER
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Pre Out Setting
5
. HDMI Setup
6
. Auto Power Down
7
. Network Standby
8
. FL Demo Mode
VSX-1022 VSX-822
Home Menu
7
7
47
1
Select ‘Manual SP Setup’ from the Home Menu.
2
Select ‘Speaker Setting’ from the Manual SP Setup
menu.
3
Choose the set of speakers that you want to set then
select a speaker size.
Use
/-
to select the size (and number) of each of the
following speakers:
Front – Select LARGE if your front speakers reproduce bass
frequencies effectively, or if you didn’t connect a
subwoofer. Select SMALL to send the bass frequencies to
the subwoofer.
Center – Select LARGE if your center speaker reproduces
bass frequencies effectively, or select SMALL to send bass
frequencies to the other speakers or subwoofer. If you
didn’t connect a center speaker, choose NO (the center
channel is sent to the other speakers).
Front Height – Select LARGE if your front height speakers
reproduce bass frequencies effectively. Select SMALL to
send bass frequencies to the other speakers or subwoofer.
If you didn’t connect front height speakers choose NO.
-
You can only adjust the Front Height setting when Pre
Out Setting is set to Height.
Surr – Select LARGE if your surround speakers reproduce
bass frequencies effectively. Select SMALL to send bass
frequencies to the other speakers or subwoofer. If you
didn’t connect surround speakers choose NO (the sound of
the surround channels is sent to the other speakers).
Surr. Back – Select the number of surround back speakers
you have (one, two or none). Select LARGE if your surround
back speakers reproduce bass frequencies effectively.
Select SMALL to send bass frequencies to the other
speakers or subwoofer. If you didn’t connect surround back
speakers choose NO.
-
VSX-822 only: You can only adjust the Surr. Back setting
when Pre Out Setting is set to Surr. Back.
-
VSX-822 only: If you select one surround back speaker
only, make sure that additional amplifier is hooked up to
the PRE OUT L (Single) terminal.
-
VSX-1022 only: When using only one surround back
speaker, connect it to the SURROUND BACK L (Single)
terminals.
Subwoofer – LFE signals and bass frequencies of
channels set to SMALL are output from the subwoofer
when YES is selected (see notes below). Choose the PLUS
setting if you want the subwoofer to output bass sound
continuously or you want deeper bass (the bass
frequencies that would normally come out the front and
center speakers are also routed to the subwoofer). If you did
not connect a subwoofer choose NO (the bass frequencies
are output from other speakers).
4
When you’re finished, press
RETURN
.
You return to the Manual SP Setup menu.
Note
If you select SMALL for the front speakers, the subwoofer
will automatically be fixed to YES. Also, the center,
surround, surround back and front height speakers can’t
be set to LARGE if the front speakers are set to SMALL. In
this case, all bass frequencies are sent to the subwoofer.
If the surround speakers are set to NO, the surround back
speakers will automatically be set to NO.
If you have a subwoofer and like lots of bass, it may seem
logical to select LARGE for your front speakers and PLUS
for the subwoofer. This may not, however, yield the best
bass results. Depending on the speaker placement of your
room you may actually experience a decrease in the
amount of bass due to low frequency cancellations. In this
case, try changing the position or direction of speakers. If
you can’t get good results, listen to the bass response with
it set to PLUS and YES or the front speakers set to LARGE
and SMALL alternatively and let your ears judge which
sounds best. If you’re having problems, the easiest option
is to route all the bass sounds to the subwoofer by selecting
SMALL for the front speakers.
X.Over
Default setting: 100Hz
This setting decides the cutoff between bass sounds playing
back from the speakers selected as LARGE, or the subwoofer,
and bass sounds playing back from those selected as SMALL.
It also decides where the cutoff will be for bass sounds in the
LFE channel.
For more on selecting the speaker sizes, see Speaker Setting
on page 46.
1
Select ‘Manual SP Setup’ from the Home Menu.
2
Select ‘X.Over’ from the Manual SP Setup menu.
3
Choose the frequency cutoff point.
Frequencies below the cutoff point will be sent to the
subwoofer (or LARGE speakers).
4
When you’re finished, press
RETURN
.
You return to the Manual SP Setup menu.
2
. Manual SP Setup
Return
a
. Speaker Setting
b
. X.Over
c
. Channel Level
d
. Speaker Distance
2a
. Speaker Setting
Front
Center
Surr
Surr. Back
Subwoofer:
Return
[ SMALL ]
[ SMALL ]
[ NO
]
YES
SMALL
2
. Manual SP Setup
Return
a
. Speaker Setting
b
. X.Over
c
. Channel Level
d
. Speaker Distance
2b
. X.Over
Return
Frequency 100Hz
Home Menu
7
7
48
Channel Level
Using the channel level settings, you can adjust the overall
balance of your speaker system, an important factor when
setting up a home theater system.
CAUTION
The test tones used in the Channel Level settings are output
at high volume.
1
Select ‘Manual SP Setup’ from the Home Menu.
2
Select ‘Channel Level’ from the Manual SP Setup menu.
3
Select a setup option.
Manual – Move the test tone manually from speaker to
speaker and adjust individual channel levels.
Auto – Adjust channel levels as the test tone moves
from speaker to speaker automatically.
4
Confirm your selected setup option.
The test tones will start after you press
ENTER
. After the
volume increases to the reference level, test tones will be
output.
5
Adjust the level of each channel using
/-
.
If you selected Manual, use
/
to switch speakers. The
Auto setup will output test tones in the order shown on-
screen:
Adjust the level of each speaker as the test tone is
emitted.
Note
If you are using a Sound Pressure Level (SPL) meter, take
the readings from your main listening position and adjust
the level of each speaker to 75 dB SPL (C-weighting/slow
reading).
The subwoofer test tone is output at low volumes. You may
need to adjust the level after testing with an actual
soundtrack.
6
When you’re finished, press
RETURN
.
You return to the Manual SP Setup menu.
Tip
You can change the channel levels at any time by press
, then press
CH SELECT
and
LEV +/–
on the
remote control. You can also press
CH SELECT
and use
/
to select the channel, and then use
/-
to adjust the
channel levels.
Speaker Distance
For good sound depth and separation from your system, you
need to specify the distance of your speakers from the
listening position. The receiver can then add the proper delay
needed for effective surround sound.
1
Select ‘Manual SP Setup’ from the Home Menu.
2
Select ‘Speaker Distance’ from the Manual SP Setup
menu.
3
Adjust the distance of each speaker using
/-
.
You can adjust the distance of each speaker in 0.1 feet
increments.
4
When you’re finished, press
RETURN
.
You return to the Manual SP Setup menu.
2
. Manual SP Setup
Return
a
. Speaker Setting
b
. X.Over
c
. Channel Level
d
. Speaker Distance
2c
. Channel Level
ENTER:Next Return
Test Tone Manual
2c
. Channel Level
Please Wait . . .20
Caution
Loud test tones
will be output.
Return
Test Tone [ Manual ]
2c
. Channel Level
Front L
Center
Front R
Surround R
Surr. Back R
Surr. Back L
Surround L
Subwoofer
Return
[ 0dB ]
[ 0dB ]
[ 0dB ]
[
– ]
[
– ]
[ 0dB ]
[ 0dB ]
0dB
RECEIVER
2
. Manual SP Setup
Return
a
. Speaker Setting
b
. X.Over
c
. Channel Level
d
. Speaker Distance
2d
. Speaker Distance
Front L
Center
Front R
Surround R
Surr. Back R
Surr. Back L
Surround L
Subwoofer
Return
[ 10.0 ft ]
[ 10.0 ft ]
[ 10.0 ft ]
[ –
– ]
[ –
– ]
[ 10.0 ft ]
[ 10.0 ft ]
10.0 ft
Home Menu
7
7
49
The Input Assign menu
Assigns input function for analog audio input terminal and
component video input terminal (component video input
terminal for VSX-1022 only).
For the assignment of the digital signal inputs, see
Selecting the audio input signal on page 25.
Analog Input
ANALOG IN1 audio input terminal is assigned to CD under
factory settings, but this can be changed to TV input.
1
Select ‘Input Assign’ from the Home Menu.
2
Select ‘Analog Input’ from the Input Assign menu.
3
Select the desired input option for the ANALOG IN1
audio input terminal.
4
When you’re finished, press
RETURN
.
You return to the Input Assign menu.
Note
When playing analog input audio, switch to the CD or TV
input menu, press and press
SIGNAL SEL
several times to choose A (Analog). (see Selecting the audio
input signal on page 25)
Component Input (VSX-1022 only)
COMPONENT VIDEO IN1 input terminal is assigned to DVD
under factory settings, but this can be changed to SAT/CBL
input.
1
Select ‘Input Assign’ from the Home Menu.
2
Select ‘Component Input’ from the Input Assign menu.
3
Select the desired input option for the COMPONENT
VIDEO IN1 input terminal.
Select between DVD, SAT/CBL or OFF.
4
When you’re finished, press
RETURN
.
You return to the Input Assign menu.
Make sure you have connected the audio from the
component to the corresponding inputs on the rear of
the receiver.
The Speaker System setting (VSX-1022 only)
Specify either using the surround back speaker (or the
speaker B), or the front height speaker connection with the B-
speaker terminals.
Default setting: Surr. Back
1
Select ‘Speaker System’ from the Home Menu.
2
Select the speaker system setting using
/-
.
Surr. Back – Sound is output from the surround back
speaker or the speaker B.
Height – Sound is output from front height speaker.
3
When you’re finished, press
RETURN
.
You return to the Home Menu.
The Video Parameter setting (VSX-1022 only)
This receiver can up-convert the video signal input from the
composite or component video terminals; the output is from
the HDMI OUT terminal. The following shows the various
settings for this function.
Video Converter
This setting specifies valid/invalid for the function that
converts the input video signal from each composite video
terminal. When OFF is selected, Resolution and Aspect can
not be set.
1
Select ‘Video Parameter’ from the Home Menu.
2
Select ‘Video Converter’ from the Video Parameter
menu.
3
Select the setting for converting each type of video
input.
ON – The signal is output also to the HDMI OUT
terminal.
OFF – The signal input from the HDMI terminal of the
selected input function will be output from the HDMI
OUT terminal. The signal input from the composite
and component video terminals will not be output from
the HDMI OUT terminal.
4
When you’re finished, press
RETURN
.
You return to the Video Parameter menu.
3
. Input Assign
Return
a
. Analog Input
b
. Component Input
3a
. Analog Input
Return
Analog CD
VSX-1022
RECEIVER
3
. Input Assign
Return
a
. Analog Input
b
. Component Input
3b
. Component Input
Return
Component DVD
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
4
. Speaker System
Return
SP System Surr. Back
5
. Video Parameter
Return
a
. Video Converter
b
. Resolution
c
. Aspect
5a
. Video Converter
DVD
SAT/CBL
Return
[ ON
]
ON
Home Menu
7
7
50
Resolution
Specifies the output resolution of the video signal (when video
input signals are output at the HDMI OUT terminal, select this
according to the resolution of your monitor and the images
you wish to watch).
1
Select ‘Video Parameter’ from the Home Menu.
2
Select ‘Resolution’ from the Video Parameter menu.
3
Select output resolution.
AUTO – The resolution is selected automatically
according to the capacity of the TV (monitor)
connected by HDMI.
PURE – The signals are output with the same
resolution as when input.
480p/720p/1080i/1080p – The signal is output with
the resolution specified here (480p means the
resolution of 480p/576p).
4
When you’re finished, press
RETURN
.
You return to the Video Parameter menu.
Note
When set to a resolution with which the TV (monitor) is not
compatible, no picture is output. Also, in some cases no
picture will be output due to copyright protection signals. In
this case, change the setting.
Aspect
Specifies the aspect ratio when analog video input signals are
output at the HDMI OUT terminal. Make your desired settings
while checking each setting on your display (if the image
doesn’t match your monitor type, cropping or black bands
appear).
1
Select ‘Video Parameter’ from the Home Menu.
2
Select ‘Aspect’ from the Video Parameter menu.
3
Select desired output aspect ratio.
THROUGH – The input video signal is output
unchanged.
NORMAL – Black bands will appear either at top and
bottom or on both sides.
4
When you’re finished, press
RETURN
.
You return to the Video Parameter menu.
Note
If the image doesn’t match your monitor type, adjust the
aspect ratio on the source component or on the monitor.
The Pre Out Setting (VSX-822 only)
Specify either using the surround back speaker or the front
height speaker connection with the PRE OUT SURR BACK/
FRONT HEIGHT outputs. An additional amplifier is required
for the speaker connection.
Default setting: Surr. Back
1
Select ‘Pre Out Setting’ from the Home Menu.
2
Select which speaker to connect to the PRE OUT SURR
BACK/FRONT HEIGHT outputs using
/-
.
Surr. Back – Connect the surround back speaker.
Height – Connect the front height speaker.
3
When you’re finished, press
RETURN
.
You return to the Home Menu.
5
. Video Parameter
Return
a
. Video Converter
b
. Resolution
c
. Aspect
5b
. Resolution
Resolution
Return
AUTO 5
. Video Parameter
Return
a
. Video Converter
b
. Resolution
c
. Aspect
5c
. Aspect
DVD
SAT/CBL
FRONT VIDEO
Return
[
THROUGH
]
[
THROUGH
]
NORMAL
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Pre Out Setting
5
. HDMI Setup
6
. Auto Power Down
7
. Network Standby
8
. FL Demo Mode
4
. Pre Out Setting
Return
Pre Out Surr. Back
Home Menu
7
7
51
The Auto Power Down menu
Set to automatically turn off the receiver after a specified time
has passed (when the power has been on with no operation
for several hours).
Default setting: OFF
1
Select ‘Auto Power Down’ from the Home Menu.
2
Specify the amount of time to allow before the power
is turned off (when there has been no operation).
You can select 2, 4 or 6 hours, or OFF (if no automatic
shutoff is desired).
3
When you’re finished, press
RETURN
.
You return to the Home Menu.
Important
If the Standby Through of the HDMI Setup is not set to
OFF, the Auto Power Down setting will automatically be
set to OFF and cannot be changed.
The Network Standby menu
This setting allows the AirPlay function for operating the
receiver from a computer connected on the same LAN as the
receiver to be used even when the receiver is in the standby
mode.
1
Select ‘Network Standby’ from the Home Menu.
2
Choose ON or OFF for the Network Standby.
ON – The AirPlay function can be used even when the
receiver is in the standby mode.
OFF – The AirPlay function cannot be used when the
receiver is in the standby mode (This lets you reduce
power consumption in the standby mode).
-
If the
Network Standby
setting is set to ON, the
power consumption during standby will increase.
3
When you’re finished, press
RETURN
.
You return to the Home Menu.
The FL Demo Mode menu
Set whether or not various demos are to be shown on the front
panel display.
1
Select ‘FL Demo Mode’ from the Home Menu.
2
Choose ON or OFF for the demo display.
3
When you’re finished, press
RETURN
.
You return to the Home Menu.
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
7
. Auto Power Down
Return
Auto Power Down
OFF
VSX-1022
8
. Network Standby
Return
Network Standby
OFF
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
VSX-1022
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
9
. FL Demo Mode
Return
FL Demo ON
VSX-1022
8
Chapter
8
52
Control with HDMI function
Synchronized operations below with a Control with HDMI-
compatible Pioneer TV or Blu-ray Disc player are possible
when the component is connected to the receiver using an
HDMI cable.
Synchronized amp mode
The receiver’s volume can be set and the sound can be
muted using the TV’s remote control.
Power synchronization with TV
Automatic switching of inputs
The receiver’s input switches over automatically when the
TV’s input is changed or a Control with HDMI-compatible
component is played.
Important
With Pioneer devices, the Control with HDMI functions are
referred to as “KURO LINK”.
You cannot use this function with components that do not
support Control with HDMI.
We only guarantee this receiver will work with Pioneer
made Control with HDMI-compatible components.
However, we do not guarantee that all synchronized
operations will work with components that support the
Control with HDMI function.
Use a High Speed HDMI® cable when you want to use the
Control with HDMI function. The Control with HDMI
function may not work properly if a different type of HDMI
cable is used.
For details about concrete operations, settings, etc., refer to
also the operating instructions for each component.
Making Control with HDMI connections
You can use synchronized operation for a connected TV and
other components.
Be sure to connect the TV’s audio cable to the audio input
of this unit. When the TV and receiver are connected by
HDMI connections, if the TV supports the HDMI Audio
Return Channel function, the sound of the TV is input to the
receiver via the HDMI terminal, so there is no need to
connect an audio cable. In this case, set ARC at HDMI
Setup to ON (see HDMI Setup below).
For details, see Connecting using HDMI on page 17.
Important
When connecting this system or changing connections, be
sure to switch the power off and disconnect the power cord
from the wall socket.
After completing all connections, connect the power cords
to the wall socket.
After this receiver is connected to an AC outlet, a 2 second
to 10 second HDMI initialization process begins. You
cannot carry out any operations during initialization. The
HDMI indicator on the display unit blinks during
initialization, and you can turn this receiver on once it has
stopped blinking.
To get the most out of this function, we recommend that
you connect your HDMI component not to a TV but rather
directly to the HDMI terminal on this receiver.
HDMI Setup
You must adjust the settings of this receiver as well as the
connected Control with HDMI-compatible components in
order to make use of the Control with HDMI function. For
more information see the operating instructions for each
component.
1
Switch on the receiver and your TV.
Press
RECEIVER
to switch on.
2
Switch the TV input to the input that connects this
receiver to the TV through the corresponding HDMI
cable.
3
Press , then press
HOME MENU
.
The Home Menu appears on your TV. Use
///-
and
ENTER
on the remote control to navigate through the
screens and select menu items. Press
RETURN
to exit
the current menu.
Press
HOME MENU
at any time to exit the Home
Menu.
4
Select ‘HDMI Setup’ from the Home Menu.
5
Select the ‘Control’ setting you want.
Choose whether to set this unit’s Control with HDMI
function ON or OFF. You will need to set it to ON to use
the Control with HDMI function.
When using a component that does not support the
Control with HDMI function, set this to OFF.
ON – Enables the Control with HDMI function. When
this unit’s power is turned off and you have a
supported source begin playback while using the
Control with HDMI function, the audio and video
outputs from the HDMI connection are output from the
TV.
OFF – The Control with HDMI is disabled.
Synchronized operations cannot be used. When this
unit’s power is turned off, audio and video of sources
connected via HDMI are not output.
6
Select the ‘ARC’ setting you want.
When a TV supporting the HDMI Audio Return Channel
function is connected to the receiver, the sound of the TV
can be input via the HDMI terminal.
ON – The TV’s sound is input via the HDMI terminal.
This can only be selected when Control is set to ON.
OFF – The TV’s sound is input from the audio input
terminals other than HDMI inputs.
7
Choose the ‘Standby Through’ setting you want.
When the receiver is in standby, the HDMI input signal
selected here will be output to the TV by HDMI.
LAST – The HDMI input signal selected previously will
be output. This can only be selected when Control is
set to OFF.
RECEIVER
Home Menu
1
. Auto MCACC
2
. Manual SP Setup
3
. Input Assign
4
. Speaker System
5
. Video Parameter
6
. HDMI Setup
7
. Auto Power Down
8
. Network Standby
9
. FL Demo Mode
6
. HDMI Setup
Return
Control
ON
ARC
[
OFF
]
Standby Through
[
---
]
VSX-1022
Control with HDMI function
8
8
53
BD, DVD, SAT/CBL, DVR/BDR, VIDEO, GAME – The
HDMI input signal selected here will be output. This
can only be selected when Control is set to OFF.
OFF – Signal will not be output during standby.
-
If the Standby Through setting is not set to OFF, the
power consumption during standby will increase.
The Auto Power Down setting will also be
automatically set to OFF.
8
When you’re finished, press
RETURN
.
You return to the Home Menu.
Before using synchronization
Once you have finished all connections and settings, you
must:
1
Put all components into standby mode.
2
Turn the power on for all components, with the power
for the TV being turned on last.
3
Choose the HDMI input to which the TV is connected to
this receiver, and see if video output from connected
components displays properly on the screen or not.
4
Check whether the components connected to all HDMI
inputs are properly displayed.
About synchronized operations
The Control with HDMI-compatible component connected to
the receiver operates in sync as described below.
Synchronized amp mode
-
From the menu screen of the Control with HDMI-
compatible TV, set audio to be played through this
receiver, and the receiver will switch to the synchronized
amp mode.
-
When in the synchronized amp mode, the synchronized
amp mode is canceled when the receiver’s power is
turned off. To turn the synchronized amp mode back on,
set audio to be played through the receiver from the TV’s
menu screen, etc. This receiver will power up and switch
to the synchronized amp mode.
-
When in the synchronized amp mode, the synchronized
amp mode is canceled if an operation that produces
sound from the TV is performed from the TV’s menu
screen, etc.
-
When the synchronized amp mode is canceled, the
receiver’s power turns off if you were viewing an HDMI
input or a TV program on the TV.
Power synchronization with TV
-
When the TV’s power is set to standby, the receiver’s
power is also set to standby. (Only when the input for a
component connected to the receiver by HDMI
connection is selected or when watching the TV.)
Automatic switching of inputs
-
The receiver’s input switches automatically when the
Control with HDMI-compatible component is played.
-
The receiver’s input switches automatically when the
TV’s input is switched.
-
The synchronized amp mode remains in effect even if the
receiver’s input is switched to a component other than
one connected by HDMI.
Cautions on the Control with HDMI function
Connect the TV and components (Blu-ray Disc player, etc.)
directly to this receiver. Interrupting a direct connection
with other amps or an AV converter (such as an HDMI
switch) can cause operational errors.
When the receiver’s Control is turned ON, even if the
receiver’s power is in the standby mode, it is possible to
output the audio and video signals from a player via HDMI
to the TV without producing sound from the receiver, but
only when a Control with HDMI-compatible component
(Blu-ray Disc player, etc.) and compatible TV are
connected. In this case, the receiver’s power turns on and
the power and HDMI indicators light.
9
Chapter
9
54
Controlling the rest of your system
Setting the remote to control other
components
Most components can be assigned to one of the input
function buttons using the component’s manufacturer preset
code stored in the remote.
However, please note that there are cases where only certain
functions may be controllable after assigning the proper
preset code, or the codes for the manufacturer in the remote
control will not work for the model that you are using.
Note
TV CONTROL
buttons are only dedicated to control the TV
(for example, codes for TV, CATV, Satellite TV or DTV).
You can cancel or exit any of the steps by pressing
.
After one minute of inactivity, the remote automatically
exits the operation.
Selecting preset codes directly
1
While pressing , press and hold the ‘1’ button
for three seconds.
2
Press the input function button for the component you
want to control.
The component can be assigned to the
BD
,
DVD
,
DVR/
BDR
,
SAT/CBL
,
GAME
,
VIDEO
,
CD
, or
TV
button.
When assigning preset codes to
TV CONTROL
, press
INPUT
here.
3
Use the number buttons to enter the preset code.
You can find the preset codes on page 55.
If the correct code has been input the power of the
component being input will turn on or off.
The power of the component being input will only turn on
or off if that component is able to be turned on directly by
remote control.
4
Repeat steps 2 through 3 to try a different code, or to
enter a code for another component you want to
control.
5
When you’re done, press .
Clearing all the remote control settings
You can clear all presets and restore the factory default
settings.
While pressing , press and hold the ‘0’ button
for three seconds.
Default preset codes
RECEIVER
1
4
7
2
5
8
DISP
CLR
3
6
9
0
ENTER
CH
CH
RECEIVER
SHIFT
SLEEP
INPUT
RECEIVER
SOURCE
RECEIVER
RECEIVER
Input function
button Preset code
BD
2255
DVD
2256
DVR/BDR
2257
SAT/CBL
6325
GAME
5003
VIDEO
6099
CD
5000
TV
0291
TV CONTROL
0291
RECEIVER
Controlling the rest of your system
9
9
55
Controls for TVs
This remote control can control components (TV, DTV,
Satellite TV or Cable TV) after entering the proper codes or
teaching the receiver the commands (see Controlling the rest
of your system on page 54 for more on this). Use the input
function buttons to select the component.
The
TV CONTROL
buttons on the remote control are
dedicated to control the TV assigned to the
TV CONTROL
INPUT
button.
Controls for other components
This remote control can control these components (BD, DVD,
CD, DVR (BDR), VCR, CD-R) after entering the proper codes
or teaching the receiver the commands (see Controlling the
rest of your system on page 54 for more on this). Use the input
function buttons to select the component.
For Blu-ray Disc player, DVD player, CD player, DVR (BDR), VCR,
CD-R:
Preset Code List
You should have no problem controlling a component if you
find the manufacturer in this list, but please note that there
are cases where codes for the manufacturer in the list will not
work for the model that you are using. There are also cases
where only certain functions may be controllable after
assigning the proper preset code.
Important
We do not guarantee the operations of all the
manufacturers and devices listed. Operation may not be
possible even if a preset code is entered.
Button(s) Function
TV CONTROL
Switches the TV between standby and on.
TV CONTROL
INPUT
Switches the TV input. (Not possible with all
models.)
TV CONTROL
CH
+/–
Selects channels.
TV CONTROL
VOL +/–
Adjust the TV volume.
SOURCE
Press to switch the component assigned to the
TV
button on or off.
HOME MENU
Use as the GUIDE button for navigating.
RETURN
Use to select closed captioning with DTV.
Number buttons Use to select a specific TV channel.
ENTER
Use to enter a channel.
MENU
Press to display the TV menu.
///-
/
ENTER
Press to select or adjust and navigate items on
the menu screen.
CH +/–
Selects channels.
Button(s) Function
SOURCE
Press to switch the component between
standby and on.
Press to return to the start of the current track.
Repeated presses skips to the start of previous
tracks.
Press to advance to the start of the next track.
Repeated presses skips to the start of following
tracks.
Pause playback or recording.
Start playback.
Hold down for fast forward playback.
Hold down for fast reverse playback.
Stops playback (on some models, pressing this
when the disc is already stopped will cause the
disc tray to open).
Number buttons Use to enter a title/chapter/track number.
DISP
Press to display information.
TOP MENU
Displays the disc ‘top’ menu of a BD/DVD
player.
MENU
Displays menus for the current BD/DVD or
DVR you are using.
///-
/
ENTER
/
RETURN
Navigates BD/DVD menu/options.
HOME MENU
Displays the HOME MENU.
CH +/–
Selects channels. (DVR/VCR only)
TV
Pioneer
0004
example:
Category
Preset code
Manufacturer
Controlling the rest of your system
9
9
56
TV
Pioneer
0004, 0006, 0113, 0233, 0252,
0275, 0291, 0305
Admiral
0001, 0014
Adventura
0012
Aiwa
0002
Akai
0002, 0100
Albatron
0097
Alleron
0009
America Action
0104
Amtron
0008
Anam
0104
Anam National
0003, 0008
AOC
0004, 0005, 0006, 0100
Apex
0021, 0102, 0106
Audiovox
0008, 0104
Aventura
0103
Axion
0094
Bang & Olufsen
0111
Belcor
0004
Bell & Howell
0001
Benq
0064
Bradford
0008, 0104
Brillian
0109
Brockwood
0004
Broksonic
0104
Candle
0004, 0006, 0012, 0100
Carnivale
0100
Carver
0101
CCE
0110
Celebrity
0002
Celera
0106
Changhong
0106
Citizen
0004, 0006, 0008, 0100
Clarion
0104
Coby
0056
Colortyme
0004, 0006
Concerto
0004, 0006
Contec
0104
Contec/Cony
0007, 0008
Craig
0008, 0104
Crosley
0081, 0101
Crown
0008, 0104
CTX
0063
Curtis Mathes
0000, 0004, 0006,
0014, 0100, 0101
CXC
0008, 0104
Cytron
0093
Daewoo
0004, 0005, 0006, 0023
Daytron
0004 0006
Dell
0073
DiamondVision
0096
Dimensia
0000
Disney
0046
Dumont
0004, 0011, 0099
Durabrand
0041, 0103, 0104
Dwin
0014
Electroband
0002
Electrograph
0107
Electrohome
0002, 0003, 0004, 0006
Element
0082
Emerson
0004, 0006, 0007, 0008,
0009, 0023, 0103, 0104
Emprex
0092
Envision
0004, 0006, 0100
Epson
0061
ESA
0103
Fujitsu
0009
Funai
0008, 0009, 0103, 0104
Futuretech
0008, 0104
Gateway
0067, 0107, 0108
GE
0000, 0003, 0004, 0006, 0010, 0016,
0039
GFM
0080, 0084
Gibralter
0004, 0011, 0099, 0100
Goldstar
0004, 0005, 0006, 0007, 0100
Gradiente
0066
Grunpy
0008, 0009, 0104
Haier
0112
Hallmark
0004, 0006
Harman/Kardon
0101
Harvard
0008, 0104
Havermy
0014
Hewlett Packard
0053
Hisense
0069
Hitachi
0004, 0006, 0007
Hyundai
0098
Ilo
0089, 0091
IMA
0008
Infinity
0101
InFocus
0074
Initial
0091
Insignia
0085, 0086
Inteq
0099
Janeil
0012
JBL
0101
JC Penney
0000, 0004, 0005, 0006,
0010
JCB
0002
Jensen
0004, 0006
JVC
0007, 0010, 0044
Kawasho
0002, 0004, 0006
KEC
0104
Kenwood
0004, 0006, 0100
KLH
0106
Kloss Novabeam
0008, 0012
KTV
0008, 0100, 0104, 0110
LG
0005, 0052, 0078, 0097
Logik
0001
Luxman
0004, 0006
LXI
0000, 0006, 0101, 0102
Magnavox
0004, 0006, 0019, 0020,
0037, 0042, 0100, 0101
Majestic
0001
Marantz
0004, 0006, 0062, 0100, 0101
Maxent
0087, 0107
Megapower
0097
Megatron
0006
Memorex
0001, 0005, 0006, 0041
MGA
0004, 0005, 0006, 0100
Midland
0010, 0011, 0099
Mintek
0091
Mitsubishi
0004, 0005, 0006, 0014,
0045
Monivision
0097
Montgomery Ward
0001
Motorola
0003, 0014
MTC
0004, 0005, 0006, 0100
Multitech
0008, 0104, 0110
NAD
0006, 0102
NEC
0003, 0004, 0005, 0006, 0100
Net-TV
0107
Nikko
0006, 0100
Norcent
0060
Olevia
0048, 0054, 0059
Onwa
0008, 0104
Oppo
0095
Optimus
0105
Optoma
0075
Optonica
0014
Orion
0025
Panasonic
0003, 0010, 0017, 0027,
0105, 0114
Penney
0100, 0102
Philco
0003, 0004, 0005, 0006, 0007,
0100, 0101
Philips
0003, 0004, 0007, 0019, 0020,
0101
Philips Magnavox
0019
Pilot
0004, 0100
Polaroid
0057, 0106
Portland
0004, 0005, 0006
Prima
0065
Princeton
0097
Prism
0010
Proscan
0000
Proton
0004, 0006, 0007
Protron
0055
Proview
0068
Pulsar
0004, 0011, 0099
Quasar
0003, 0010, 0105
Radio Shack
0100, 0104
Radio Shack/Realistic
0000, 0004,
0006, 0007, 0008
RCA
0000, 0003, 0004, 0005, 0006,
0013, 0024, 0035
Realistic
0100, 0104
Runco
0011, 0099, 0100
Sampo
0004, 0006, 0100, 0107
Samsung
0004, 0005, 0006, 0007,
0022, 0032, 0076, 0077, 0083, 0100,
0110
Sansui
0025
Sanyo
0004, 0050
Sceptre
0072
Scotch
0006
Scott
0004, 0006, 0007, 0008, 0009,
0090, 0104
Sears
0000, 0004, 0006, 0009, 0101,
0102, 0103
Sharp
0004, 0006, 0007, 0014, 0033
Sheng Chia
0014
Shogun
0004
Signature
0001
Sony
0002, 0018, 0029, 0030, 0031,
0034
Soundesign
0004, 0006, 0008, 0009,
0104
Squareview
0103
SSS
0004, 0008, 0104
Starlite
0008, 0104
Superscan
0014
Supre-Macy
0012
Supreme
0002
SVA
0088
Sylvania
0004, 0006, 0049, 0079,
0080, 0100, 0101, 0103
Symphonic
0008, 0041, 0103, 0104
Syntax
0054
Syntax-Brillian
0054
Tandy
0014
Tatung
0003, 0108
Technics
0010, 0105
Techwood
0004, 0006, 0010
Teknika
0001, 0004, 0005, 0006, 0007,
0008, 0009, 0101, 0104
TMK
0004, 0006
TNCi
0099
Toshiba
0026, 0028, 0036, 0038, 0040,
0043, 0102
Vector Research
0100
Vidikron
0101
Vidtech
0004, 0005, 0006
Viewsonic
0058, 0107
Viking
0012
Viore
0089
Vizio
0004, 0070, 0071, 0108
Wards
0000, 0001, 0004, 0005, 0006,
0009, 0100, 0101
Waycon
0102
Westinghouse
0047, 0051
White Westinghouse
0023
Yamaha
0004, 0005, 0006, 0100
Zenith
0001, 0004, 0011, 0015, 0099
DVD
If operations are not possible
using the preset codes below,
you may be able to conduct
operations with the preset codes
for the BD, DVR (BDR, HDR).
Pioneer
2014, 2197, 2256
Accurian
2092
Advent
2072
Aiwa
2012
Akai
2066
Alco
2070
Allegro
2087
Amphion MediaWorks
2037
AMW
2037
Apex
2002, 2018, 2079, 2080
Apple
2058
Arrgo
2088
Aspire
2073
Astar
2052
Audiovox
2070
Axion
2040
Bang & Olufsen
2081
Blaupunkt
2080
Blue Parade
2078
Boston
2059
Broksonic
2066
California Audio Labs
2068
CambridgeSoundWorks
2065
CineVision
2087
Coby
2029
Curtis Mathes
2089
CyberHome
2000, 2088
Cytron
2039
Daewoo
2021, 2087
Denon
2026, 2068
Desay
2055
DiamondVision
2042
Disney
2022
Durabrand
2090
Emerson
2067, 2082, 2091
Enterprise
2082
ESA
2053, 2091
Fisher
2083
Funai
2091
GE
2016, 2077, 2080
GFM
2043
Go Video
2087
Gradiente
2068
Greenhill
2080
Haier
2094
Harman/Kardon
2030, 2084
Hitachi
2011
Hiteker
2079
iLive
2062
Ilo
2038
Initial
2038, 2080
Insignia
2036, 2064, 2091
Integra
2078
iSymphony
2060
JBL
2084
JVC
2013
Kawasaki
2070
Kenwood
2028, 2068
KLH
2070, 2080
Koss
2024, 2069, 2075
Landel
2093
Lasonic
2085
Lenoxx
2074, 2090
LG
2019, 2051, 2061, 2082, 2087
Liquid Video
2075
Liteon
2025, 2092
Magnavox
2067, 2076, 2091
Memorex
2066
Microsoft
2077
Mintek
2038, 2080, 2086
Mitsubishi
2020
Nesa
2080
Next Base
2093
Nexxtech
2056
Onkyo
2076
Oppo
2041, 2057
Oritron
2069, 2075
Panasonic
2005, 2007, 2017, 2032,
2033, 2050, 2068, 2076
Philips
2045, 2076
Proceed
2079
Proscan
2077
Qwestar
2069
RCA
2008, 2016, 2070, 2077, 2078,
2080
Regent
2074
Rio
2087
Rowa
2071
Samsung
2009, 2011, 2015, 2031,
2044, 2068
Sansui
2066
Sanyo
2066, 2083
Sharp
2035
Sherwood
2063
Shinsonic
2086
Sonic Blue
2087
Sony
2003, 2004, 2010, 2012, 2027,
2046, 2047, 2048
Sungale
2054
Superscan
2067
Sylvania
2023, 2067, 2091
Symphonic
2023
Teac
2070
Technics
2068
Theta Digital
2078
Toshiba
2001, 2006, 2049, 2066, 2076
Trutech
2000
Urban Concepts
2076
US Logic
2086
Venturer
2070
Xbox
2077
Yamaha
2005, 2068
Zenith
2019, 2076, 2082, 2087
Controlling the rest of your system
9
9
57
BD
If operations are not possible
using the preset codes below,
you may be able to conduct
operations with the preset codes
for the DVD, DVR (BDR, HDR).
Pioneer
2034, 2192, 2255, 2258, 2259,
2260, 2281
Denon
2310, 2311, 2312
Hitachi
2307, 2308, 2309
JVC
2290, 2291, 2293, 2294, 2295, 2296
LG
2286, 2287
Marantz
2302, 2303
Mitsubishi
2300, 2301
Onkyo
2289
Panasonic
2277, 2278, 2279,
Philips
2280
Samsung
2282
Sharp
2304, 2305, 2306
Sony
2283, 2284, 2285, 2292
Toshiba
2288, 2262
Yamaha
2297, 2298, 2299
DVR (BDR, HDR)
If operations are not possible
using the preset codes below,
you may be able to conduct
operations with the preset codes
for the DVD, BD.
Pioneer
2078, 2099, 2107, 2109, 2144,
2193, 2194, 2195, 2196, 2257, 2258,
2259, 2260, 2261, 2264, 2265, 2266,
2270
Panasonic
2263, 2269
Sharp
2267, 2275
Sony
2268, 2271, 2272, 2273, 2276
Toshiba
2274
VCR
Pioneer
1053, 1108
ABS
1017
Adventura
1005
Aiwa
1005
Alienware
1017
American High
1004
Asha
1002
Audio Dynamics
1000
Audiovox
1003
Bang & Olufsen
1032
Beaumark
1002
Bell & Howell
1001
Calix
1003
Candle
1002, 1003
Canon
1004
Citizen
1002, 1003
Colortyme
1000
Craig
1002, 1003
Curtis Mathes
1000, 1002, 1004
Cybernex
1002
CyberPower
1017
Daewoo
1005
DBX
1000
Dell
1017
DIRECTV
1016, 1020, 1022, 1023,
1024, 1027, 1030, 1031
Dish Network
1029
Dishpro
1029
Durabrand
1018
Dynatech
1005
Echostar
1029
Electrohome
1003
Electrophonic
1003
Emerson
1003, 1004, 1005
Expressvu
1029
Fisher
1001
Fuji
1004
Funai
1005
Garrard
1005
Gateway
1017
GE
1002, 1004
GOI
1029
Goldstar
1000, 1003
Gradiente
1005
Harley Davidson
1005
Harman/Kardon
1000
Headquarter
1001
Hewlett Packard
1017
HNS
1016
Howard Computers
1017
HP
1017
HTS
1029
Hughes Network Systems
1016,
1020, 1022, 1023, 1024
Humax
1016, 1020
Hush
1017
iBUYPOWER
1017
Instant Replay
1004
JC Penney
1000, 1001, 1002, 1003,
1004
JCL
1004
JVC
1000, 1001, 1020, 1029
Kenwood
1000, 1001
Kodak
1003, 1004
LG
1003
Linksys
1017
Lloyd’s
1005
LXI
1003
Magnavox
1004, 1018
Magnin
1003
Marantz
1000, 1001, 1004
Marta
1003
Media Center PC
1017
MEI
1004
Memorex
1001, 1002, 1003, 1004,
1005, 1018, 1019
MGN Technology
1002
Microsoft
1017
Mind
1017
Mitsubishi
1010
Motorola
1004
MTC
1002
Multitech
1002, 1005
NEC
1000, 1001
Nikko
1003
Niveus Media
1017
Noblex
1002
Northgate
1017
Olympus
1004
Optimus
1003
Orion
1014, 1019
Panasonic
1004, 1008
Philco
1004
Philips
1004, 1011, 1016, 1020, 1022,
1023, 1024, 1025
Philips Magnavox
1011
Pilot
1003
Proscan
1030
Pulsar
1018
Quarter
1001
Quartz
1001
Quasar
1004
Radio Shack
1003
Radio Shack/Realistic
1001, 1002,
1003, 1004, 1005
Radix
1003
Randex
1003
RCA
1002, 1004, 1007, 1016, 1020,
1022, 1030, 1031
Realistic
1001, 1002, 1003, 1004, 1005
ReplayTV
1026
Ricavision
1017
Runco
1018
Samsung
1002, 1016, 1022, 1024
Sanky
1018
Sansui
1014, 1019
Sanyo
1001, 1002
Sears
1001, 1003, 1004
Sharp
1012
Shogun
1002
Singer
1004
Sonic Blue
1026
Sony
1006, 1009, 1017, 1021
Stack
1017
STS
1004
Sylvania
1004, 1005
Symphonic
1005
Systemax
1017
Tagar Systems
1017
Tandy
1001
Tashiko
1003
Teac
1005
Technics
1004
Teknika
1003, 1004, 1005
Tivo
1016, 1020, 1021, 1022, 1025
TMK
1002
Toshiba
1015, 1017, 1028
Totevision
1002, 1003
Touch
1017
UltimateTV
1031
Unitech
1002
Vector Research
1000
Video Concepts
1000
Videosonic
1002
Viewsonic
1017
Voodoo
1017
Wards
1002, 1003, 1004, 1005
XR-1000
1004, 1005
Yamaha
1000, 1001
Zenith
1013, 1018
ZT Group
1017
Satellite Set Top Box
Pioneer
6097, 6098, 6325, 6328, 6329
ADB
6035, 6001
Akai
6102
Alba
6005, 6011, 6013
Allsat
6102
Alltech
6011
Amstrad
6033, 6030, 6044
Anttron
6013
Asat
6102
Austar
6000, 6045
Bell ExpressVu
6002, 6003
British Sky Broadcasting
6030
Canal
6105
Chaparral
6034
CNS
6001
Coolsat
6021
Crossdigital
6043
Digenius
6104
Digiwave
6053
DirecTV
6070, 6110, 6111, 6062, 6063,
6113, 6008, 6038, 6054, 6069, 6060,
6059, 6043, 6018, 6114, 6115, 6116,
6093
Dish Network System
6002, 6089,
6003, 6004
Dishpro
6002, 6089, 6004
Echostar
6002, 6089, 6036, 6005,
6003, 6004
Expressvu
6002, 6004
Fortec Star
6123, 6023
Fresat
6014
Funai
6070
GE
6111
General Instrument
6032
GOI
6002, 6004
Grundig
6007, 6030
Hirschmann
6033
Hisense
6020
Hitachi
6038, 6049
Houston
6002
HTS
6002, 6004
Hughes Network Systems
6113,
6038, 6054, 6114, 6115, 6116
Hyundai
6016
iLo
6020
Innova
6059
Jerrold
6032
JVC
6002, 6003, 6004
Kathrein
6096
Lava
6053
LG
6047, 6018
Marantz
6102
McIntosh
6032
Mitsubishi
6038
Motorola
6032, 6042
NEC
6050
Netsat
6059
Next Level
6032
nfusion
6015
Nokia
6025, 6026, 6118, 6119, 6121
Pace
6035, 6005, 6030, 6031
Panarex
6016
Panasonic
6008, 6009, 6030
Pansat
6016, 6022
Philips
6002, 6113, 6038, 6054, 6060,
6059, 6102, 6103, 6030, 6114
Primestar
6032
Proscan
6110, 6111
Proton
6020
RadioShack
6002, 6111, 6032
Radix
6036
RCA
6002, 6110, 6111, 6113, 6109,
6061, 6114
Saba
6014
Sagem
6041, 6120
Samsung
6070, 6113, 6091, 6043,
6017, 6114, 6093
Sanyo
6046
Sat Cruiser
6015
Schwaiger
6066
Siemens
6007, 6036
SKY
6042, 6059, 6030, 6031
SM Electronic
6011
Smart
6051
Sonicview
6055, 6107
Sony
6062, 6063, 6030
Star Choice
6032
Star Trak
6032
TechniSat
6033
Thomson
6110, 6111, 6014
Tivo
6113, 6114, 6115, 6116
Toshiba
6038, 6054, 6039
TPS
6041
Triasat
6033
Ultrasat
6021
US Digital
6020
USDTV
6020
ViewSat
6048
Voom
6032
Zehnder
6101
Zenith
6042, 6069, 6037
Satellite Set Top Box
(SAT/PVR Combination)
Bell ExpressVu
6002, 6003
DirecTV
6070, 6110, 6062, 6113, 6060,
6059, 6114, 6115, 6116
Dish Network System
6002, 6089
Dishpro
6002, 6089
Echostar
6002, 6089, 6003
Expressvu
6002
Hughes Network Systems
6113,
6114, 6115, 6116
JVC
6003
Motorola
6032
Philips
6113, 6114
Proscan
6110
Samsung
6114
Sonicview
6055, 6107
Sony
6062
Star Choice
6032
Tivo
6113, 6114, 6115, 6116
Cable Set Top Box
Pioneer
0297, 6028, 6029, 6095, 6099,
6325, 6328, 6329
ABC
6122
Accuphase
6122
Amino
6077, 6078
Auna
6082
BCC
6072
Bell & Howell
6122
Bright House
6074, 6029
Cable One
6074, 6029
Cablevision
6074, 6029
Charter
6074, 6029, 6058
Cisco
6029, 6028, 6083
Comcast
6074, 6029, 1982
Cox
6074, 6029
Digeo
6029, 6058
Director
6073
Emerson
6122
Fosgate
6072
General Instrument
6073, 6072,
6122
Homecast
6024
Controlling the rest of your system
9
9
58
i3 Micro
6077
Insight
6074, 6073, 6029
Jebsee
6122
Jerrold
6073, 6072, 6122
Knology
6029
Macab
6040
Mediacom
6074, 6029
Memorex
6112
Motorola
6074, 6073, 6072, 6029,
6122, 6094
MTS
6094
Myrio
6077, 6078
Noos
6040
Pace
6074, 6029, 6028, 6106, 6083
Panasonic
6112, 6083
Paragon
6112
Penney
6112
Philips
6012
Pulsar
6112
Quasar
6112
Regal
6072
Rogers
6029
Runco
6112
Samsung
6095
Scientific Atlanta
6029, 6028, 6027,
6112
Sejin
6077
Shaw
6074
Starcom
6122
Stargate
6122
Suddenlink
6074, 6029
Supercable
6072
Time Warner
6074, 6029, 6058
Tivo
6076
Toshiba
6112
United Cable
6072, 6122
US Electronics
6072
Videoway
6112
Zenith
6112
Cable Set Top Box (Cable/
PVR Combination)
Pioneer
6029, 6325, 6328, 6329
Amino
6078
Bright House
6074, 6029
Cable One
6074, 6029
Cablevision
6074, 6029
Charter
6074, 6029, 6058
Cisco
6029, 6083
Comcast
6074, 6029, 6083, 6076
Cox
6074, 6029
Digeo
6081, 6058
Homecast
6024
Insight
6074, 6029
Knology
6029
Mediacom
6074, 6029
Motorola
6074, 6081
Myrio
6078
Pace
6029
Panasonic
6083
Rogers
6029
Scientific Atlanta
6029
Shaw
6074
Suddenlink
6074, 6029
Supercable
6072
Time Warner
6074, 6029, 6058
Tivo
6076
CD
Pioneer
5000, 5011, 5070
AKAI
5043
Asuka
5045
Denon
5019
Fisher
5048
Goldstar
5040
Hitachi
5042
Kenwood
5020, 5021, 5031
Luxman
5049
Marantz
5033
Onkyo
5017, 5018, 5030, 5050
Panasonic
5036
Philips
5022, 5032, 5044
RCA
5013, 5029
Roadstar
5052
Sharp
5051
Sony
5012, 5023, 5026, 5027, 5028,
5039
TEAC
5015, 5016, 5034, 5035, 5037
Technics
5041
Victor
5014
Yamaha
5024, 5025, 5038, 5046, 5047
CD-R
Pioneer
5001, 5053, 5071
Philips
5054
Yamaha
5055
Tuner
Pioneer
5060
Laser Disc Player
Pioneer
5002, 5003
Casette Deck
Pioneer
5058, 5059
Digital Tape
Pioneer
5057
MD
Pioneer
5056
Network Audio Player
Pioneer
5063
Game
X-Box
2313
AV Receiver
Pioneer
5062
10
Chapter
10
59
Additional information
Troubleshooting
Incorrect operations are often mistaken for trouble and
malfunctions. If you think that there is something wrong with
this component, check the points below. Take a look at the
other components and electrical appliances being used,
because sometimes the problem may lie there. If the trouble
isn’t sorted out even after going through the checks below,
ask your nearest Pioneer authorized independent service
company to carry out repair work.
If the unit does not operate normally due to external effects
such as static electricity disconnect the power plug from
the outlet and insert again to return to normal operating
conditions.
General
The power does not turn on.
Disconnect the power plug from the outlet, and insert again.
Make sure there are no loose strands of speaker wire touching
the rear panel. This could cause the receiver to shut off
automatically.
The receiver suddenly switches off.
When the Auto Power Down function is working, the power will
automatically turn off if the receiver has not operated for
several hours. Check the setting for the Auto Power Down
function (see The Auto Power Down menu on page 51).
After about a minute (you won’t be able to switch the unit on
during this time), switch the receiver back on. If the message
persists, call a Pioneer authorized independent service
company.
The power suddenly turns on or off, or the input suddenly
changes (When the Control with HDMI is ON).
This happens because of the synchronized operation due to
the Control with HDMI function. If synchronized operations
are not needed, set the Control with HDMI to OFF (see HDMI
Setup on page 52).
OVERHEAT shows in the display and the power turns off.
The temperature within the unit has exceeded the allowable
value. Try moving the unit for better ventilation (page 2).
Lower the volume level.
TEMP shows in the display and the volume level drops.
The temperature within the unit has exceeded the allowable
value. Try moving the unit for better ventilation (page 2).
Lower the volume level.
No sound is output when an input function is selected.
Use
VOLUME +/–
to turn up the volume.
Press
MUTE
on the remote control to turn muting off.
Press
SPEAKERS
to select the proper speaker set (see
Switching the speaker terminal on page 14).
Set the
SIGNAL SEL
to H (HDMI), C1/O1 (digital) or A (analog)
according to the type of connections made (page 25).
Make sure the component is connected correctly (refer to
Connecting your equipment on page 11).
Check the audio output settings of the source component.
Refer to the instruction manual supplied with the source
component.
No image is output when an input function is selected.
Make sure the component is connected correctly (refer to
Connecting your equipment on page 11).
VSX-822 only: Use the same type of video cables for the source
component and TV to connect to this receiver (see About video
outputs connection (VSX-822 only) on page 16).
VSX-1022 only: Check The Input Assign menu on page 49 to
make sure you’re assigned the correct input.
The video input selected on the TV monitor is incorrect. Refer
to the instruction manual supplied with the TV.
VSX-1022 only: For HDMI, or when Video Converter is set to OFF
and a TV and another component are connected with different
cords (in Video Converter on page 49), you must connect your
TV to this receiver using the same type of video cable as you
used to connect your video component.
VSX-1022 only: Some components (such as video game units)
have resolutions that may not be converted. If adjusting this
receiver’s Resolution setting (in Resolution on page 50) and/or
the resolution settings on your component or display doesn’t
work, try switching Video Converter (in Video Converter on
page 49) OFF.
No sound from subwoofer.
Make sure the subwoofer is switched on.
If the subwoofer has a volume knob, make sure it’s turned up.
The Dolby Digital or DTS source you are listening to may not
have an LFE channel.
Switch the subwoofer setting in Speaker Setting on page 46 to
YES or PLUS.
Switch the LFE ATT (LFE Attenuate) on page 36 to LFEATT 0 or
LFEATT 5.
No sound from surround or center speakers.
Connect the speakers properly (page 12).
Refer to Speaker Setting on page 46 to check the speaker
settings.
Refer to Channel Level on page 48 to check the speaker levels.
The OSD screen (Home Menu, etc.) isn’t displayed.
The OSD will not appear if you have connected using the
composite output to your TV. Use HDMI connection when
setting up the system.
The Phase Control feature doesn’t seem to have an
audible effect.
If applicable, check that the lowpass filter switch on your
subwoofer is off, or the lowpass cutoff is set to the highest
frequency setting. If there is a PHASE setting on your
subwoofer, set it to 0º (or depending on the subwoofer, the
setting where you think it has the best overall effect on the
sound).
Make sure the speaker distance setting is correct for all
speakers (see Speaker Distance on page 48).
Considerable noise in radio broadcasts.
Connect the antenna (page 21) and adjust the position for best
reception.
Route any loose cables away from the antenna terminals and
wires.
Fully extend the FM wire antenna, position for best reception,
and secure to a wall (or connect an outdoor FM antenna).
Connect an additional internal or external AM antenna
(page 21).
Turn off equipment causing interference or move it away from
the receiver (or move antennas farther away from equipment
causing noise).
Broadcast stations cannot be selected automatically.
Connect an outdoor antenna (page 21).
Noise during playback of a cassette deck.
Move the cassette deck away from your receiver, until the noise
disappears.
No sound is output or a noise is output when software
with DTS is played back.
Make sure the player’s settings are correct and/or the DTS
signal out is on. Refer to the instruction manual supplied with
the DVD player.
There seems to be a time lag between the speakers and
the output of the subwoofer.
See Automatically setting up for surround sound (MCACC) on
page 23 to set up your system again using MCACC (this will
automatically compensate for a delay in the subwoofer output).
Additional information
10
10
60
After using the Auto MCACC setup, the speaker size
setting (LARGE or SMALL) is incorrect.
Low-frequency noise could have been caused by an air
conditioner or motor. Switch off all appliances in the room and
rerun the Auto MCACC setup.
Can’t operate the remote control.
Replace the batteries (page 10).
Operate within 7 m (23 ft.), 30º of the remote sensor (page 10).
Remove the obstacle or operate from another position.
Avoid exposing the remote sensor on the front panel to direct
light.
The display is dark or off.
Press
DIMMER
on the remote control repeatedly to return to
the default.
The front panel display switches over for no apparent
reason to various different displays.
This happens because the demo display is in operation. To turn
off the demo display, press any button to go back to the
original display, or set the FL Demo Mode to OFF (see The FL
Demo Mode menu on page 51).
The receiver doesn’t recognize iPod touch/iPhone.
Try the following.
1. Simultaneously keep pressing the sleep button and home
button on the iPod touch or iPhone for over 10 seconds to
restart.
2. Turn on the receiver.
3. Connect the iPod touch/iPhone to the receiver.
The
Bluetooth
wireless technology device cannot be
connected or operated. Sound from the
Bluetooth
wireless technology device is not emitted or the sound is
interrupted.
Check that no object that emits electromagnetic waves in the
2.4 GHz band (microwave oven, wireless LAN device or
Bluetooth wireless technology apparatus) is near the unit. If
such an object is near the unit, set the unit far from it. Or, stop
using the object emitting the electromagnetic waves.
Check that the Bluetooth wireless technology device is not too
far from the unit and that obstructions are not set between the
Bluetooth wireless technology device and the unit. Set the
Bluetooth wireless technology device and the unit so that the
distance between them is less than about 10 m and no
obstructions exist between them.
Check that the Bluetooth ADAPTER and the ADAPTER PORT
terminal of the unit are correctly connected.
The Bluetooth wireless technology device may not be set to the
communication mode supporting the Bluetooth wireless
technology. Check the setting of the Bluetooth wireless
technology device.
Check that pairing is correct. The pairing setting was deleted
from this unit or the Bluetooth wireless technology device.
Reset the pairing.
Check that the profile is correct. Use a Bluetooth wireless
technology device that supports A2DP profile and AVRCP
profile.
NETWORK feature
Cannot access the network.
The LAN cable is not firmly connected. Firmly connect the LAN
cable (page 20).
The router is not switched on. Switch on the router.
Internet security software is currently installed in the
connected component. There are cases where a component
with Internet security software installed cannot be accessed.
The audio component on the network which has been
switched off is switched on. Switch on the audio component
on the network before switching on this receiver.
Playback does not start while ‘Connecting Wired...’
continues to be displayed.
The component is currently disconnected from this receiver or
the power supply. Check whether the component is properly
connected to this receiver or the power supply.
The PC or Internet radio is not properly operated.
The corresponding IP address is not properly set. Switch on the
built-in DHCP server function of your router, or set up the
network manually according to your network environment
(page 51).
The IP address is being automatically configured. The
automatic configuration process takes time. Please wait.
The audio files stored on components on the network,
such as a PC, cannot be played back.
Windows Media Player 11 or Windows Media Player 12 is not
currently installed on your PC. Install Windows Media Player 11
or Windows Media Player 12 on your PC.
Audio files recorded in MPEG-4 AAC or FLAC are being played
back on Windows Media Player 11 or Windows Media Player
12. Audio files recorded in MPEG-4 AAC or FLAC cannot be
played back on Windows Media Player 11 or Windows Media
Player 12. Try using another server. Refer to the operation
manual supplied with your server.
The component connected to the network is not properly
operated.
-
Check whether the component is affected by special
circumstances or is in the sleep mode.
-
Try rebooting the component if necessary.
The component connected to the network does not permit file
sharing. Try changing the settings for the component
connected to the network.
The folder stored on the component connected to the network
has been deleted or damaged. Check the folder stored on the
component connected to the network.
Additional information
10
10
61
Network connections could be restricted due to the
computer’s network settings, security settings, etc. Check the
computer’s network settings, security settings, etc.
Cannot access the component connected to the network.
The component connected to the network is not properly set. If
the client is automatically authorized, you need to enter the
corresponding information again. Check whether the
connection status is set to “Do not authorize”.
There are no playable audio files on the component connected
to the network. Check the audio files stored on the component
connected to the network.
Audio playback is undesirably stopped or disturbed.
The audio file currently being played back was not recorded in
a format playable on this receiver.
-
Check whether the audio file was recorded in a format
supported by this receiver.
-
Check whether the folder has been damaged or corrupted.
-
Note that there are cases where even the audio files listed as
playable on this receiver cannot be played back or displayed
(page 45).
The LAN cable is currently disconnected. Connect the LAN
cable properly (page 20).
There is heavy traffic on the network with the Internet being
accessed on the same network. Use 100BASE-TX to access the
components on the network.
When in the DMR mode, depending on the external controller
being used, playback may be interrupted when a volume
operation is performed from the controller. In this case, adjust
the volume from the receiver or remote control.
Cannot access Windows Media Player 11 or Windows
Media Player 12.
In case of Windows Media Player 11: You are currently logged
onto the domain through your PC with Windows XP or
Windows Vista installed. Instead of logging onto the domain,
log onto the local machine (page 39).
In case of Windows Media Player 12: You are currently logged
onto the domain through your PC with Windows 7 installed.
Instead of logging onto the domain, log onto the local machine
(page 39).
Cannot listen to Internet radio stations.
The firewall settings for components on the network are
currently in operation. Check the firewall settings for
components on the network.
You are currently disconnected from the Internet. Check the
connection settings for components on the network, and
consult with your network service provider if necessary
(page 41).
The broadcasts from an Internet radio station are stopped or
interrupted. There are cases where you cannot listen to some
Internet radio stations even when they are listed in the list of
Internet radio stations on this receiver (page 39).
The NETWORK function cannot be operated with the
buttons on the remote control.
The remote control is not currently set to the NETWORK mode.
Press
NETWORK
to set the remote control to the NETWORK
mode (page 43).
HDMI
No picture or sound.
If the problem still persists when connecting your HDMI
component directly to your monitor, please consult the
component or monitor manual or contact the manufacturer for
support.
No picture.
VSX-822 only: Video signals that are input from the analog video
terminal will not output from the HDMI terminal. Signals that
are input from the HDMI terminal will not output from the
analog video terminal. Be consistent with the type of cable
between input and output.
Depending in the output settings of the source component, it
may be outputting a video format that can’t be displayed.
Change the output settings of the source, or connect using the
composite video jacks.
This receiver is HDCP-compatible. Check that the components
you are connecting are also HDCP-compatible. If they are not,
please connect them using the composite video jacks.
Depending on the connected source component, it’s possible
that it will not work with this receiver (even if it is HDCP-
compatible). In this case, connect using the composite video
jacks between source and receiver.
If video images do not appear on your TV, try adjusting the
resolution, Deep Color or other setting for your component.
To output signals in Deep Color, use an HDMI cable (High
Speed HDMI® Cable) to connect this receiver to a component
or TV with the Deep Color feature.
No sound, or sound suddenly ceases.
Check that the HDMI setting is set to AMP (page 36).
If the component is a DVI device, use a separate connection for
the audio.
HDMI format digital audio transmissions require a longer time
to be recognized. Due to this, interruption in the audio may
occur when switching between audio formats or beginning
playback.
Turning on/off the device connected to this unit’s HDMI OUT
terminal during playback, or disconnecting/connecting the
HDMI cable during playback, may cause noise or interrupted
audio.
Synchronized operation not possible using Control with
HDMI function.
Check the HDMI connections.
The cable may be damaged.
Select ON for the Control with HDMI setting (see HDMI Setup
on page 52).
Turn the TV’s power on before turning on this receiver’s power.
Set the TV side Control with HDMI setting to on (see TV’s
operating instructions).
Important information regarding the HDMI
connection
There are cases where you may not be able to route HDMI
signals through this receiver (this depends on the HDMI
equipped component you are connecting-check with the
manufacturer for HDMI compatibility information).
If you aren’t receiving HDMI signals properly through this
receiver (from your component), please try the following
configuration when connecting up.
Configuration A
Connect your HDMI-equipped component directly to the
display using an HDMI cable. Then use the most convenient
connection (digital is recommended) for sending audio to the
receiver. See the operating instructions for more on audio
connections. Set the display volume to minimum when using
this configuration.
Note
Depending on the component, audio output may be limited
to the number of channels available from the connected
display unit (for example audio output is reduced to 2
channels for a monitor with stereo audio limitations).
Additional information
10
10
62
If you want to switch the input source, you’ll have to switch
functions on both the receiver and your display unit.
Since the sound is muted on the display when using the
HDMI connection, you must adjust the volume on the
display every time you switch input sources.
Configuration B (VSX-1022 only)
Use component video cables to connect the video output of
your HDMI-equipped component to the receiver’s component
video input. The receiver can then convert the analog
component video signal to a digital HDMI signal for
transmission to the display. For this configuration, use the
most convenient connection (digital is recommended) for
sending audio to the receiver. See the operating instructions
for more on audio connections.
Note
The picture quality will change slightly during conversion.
About iPod/iPhone/iPad
“Made for iPod,” “Made for iPhone” and “Made for iPad” mean
that an electronic accessory has been designed to connect
specifically to iPod, iPhone, or iPad, respectively, and has
been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this
device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone,
or iPad may affect wireless performance.
Apple, AirPlay, the AirPlay logo, iPad, iPhone, iPod, iPod shuffle,
iPod nano, iPod touch, iTunes and Mac are trademarks of Apple
Inc., registered in the U.S. and other countries.
About FLAC
FLAC Decoder
Copyright © 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Josh Coalson
Redistribution and use in source and binary forms, with or
without modification, are permitted provided that the
following conditions are met:
Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.
Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.
Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS
AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Additional information
10
10
63
About messages displayed when using
network functions
Refer to the following information when you come up with a
status message while operating the Network functions.
Resetting the main unit
Use this procedure to reset all the receiver’s settings to the
factory default. Use the front panel controls to do this.
1
Switch the receiver into standby.
2
While holding down
BAND
, press and hold
STANDBY/ON
for about two seconds.
3
When you see RESET? appear in the display, press
AUTO SURROUND/STREAM DIRECT
.
OK? shows in the display.
4
Press
ALC/STANDARD SURR
to confirm.
OK appears in the display to indicate that the receiver
has been reset to the factory default settings.
Important
If the Control with HDMI function is set to ON, you may not
be able to reset the unit. In this case, reset either by turning
OFF the Control with HDMI function, or by putting the unit
into standby mode by turning off the power of all the
connected devices, and resetting after the HDMI indicator
on the front panel turns off.
Cleaning the unit
Use a polishing cloth or dry cloth to wipe off dust and dirt.
When the surface is dirty, wipe with a soft cloth dipped in
some neutral cleanser diluted five or six times with water,
and wrung out well, and then wipe again with a dry cloth.
Do not use furniture wax or cleansers.
Never use thinners, benzine, insecticide sprays or other
chemicals on or near this unit, since these will corrode the
surface.
Status messages Descriptions
Connection Down The selected category or Internet radio
station cannot be accessed.
File Format Error Cannot be played back for some
reasons.
Track Not Found The selected song has not been found
anywhere on the network.
Server Error The selected server cannot be accessed.
Server Disconnected The server has been disconnected.
Empty There are no files stored in the selected
folder.
License Error The license for the contents to be played
back is invalid.
Item Already Exists This is displayed when the file you have
attempted to register in the Favorites
folder has already been registered.
Favorite List Full This is displayed when you have
attempted to register a file in the
Favorites folder but the Favorites folder is
already full.
Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, “Surround EX”, and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929;
7,392,195; 7,272,567 & other U.S. and worldwide patents
issued & pending. DTS-HD, the Symbol, & DTS-HD and the
Symbol together are registered trademarks & DTS-HD Master
Audio is a trademark of DTS, Inc. Product includes software.
© DTS, Inc. All Rights Reserved.
Additional information
10
10
64
Specifications
Amplifier section
Continuous average power output of 80 watts* per
channel, min., at 8 ohms, from 20 Hz to 20 000 Hz with no
more than 0.08 %** total harmonic distortion.
Front (stereo) . . . . . . . . . . . . . . . . . . . . . . . . . . 80 W + 80 W
Power output (1 kHz, 6 Ω, 1 %) . . . . . . . . . 140 W per channel
Guaranteed speaker impedance . . . . . . . . . . . . . . . 6 Ω to 16 Ω
* Measured pursuant to the Federal Trade Commission’s Trade
Regulation rule on Power Output Claims for Amplifiers
** Measured by Audio Spectrum Analyzer
Audio Section
Input (Sensitivity/Impedance)
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 mV/47 kΩ
Signal-to-Noise Ratio (IHF, short circuited, A network)
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98 dB
Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)]
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79 dB
Video Section
Signal level
Composite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)
Tuner Section
Frequency Range (FM). . . . . . . . . . . . . . 87.5 MHz to 108 MHz
Antenna Input (FM) . . . . . . . . . . . . . . . . . . . . 75 Ω unbalanced
Frequency Range (AM) . . . . . . . . . . . . . . 530 kHz to 1700 kHz
Antenna (AM) . . . . . . . . . . . . . . . . . . . . . . . . . . . .Loop antenna
Digital In/Out Section
HDMI terminal . . . . . . . . . . . . . . . . . . . . . . . . . . Type A (19-pin)
HDMI output type . . . . . . . . . . . . . . . . . . . . . . . . . . 5 V, 100 mA
USB terminal . . . . . . . . . . . . . . . . USB2.0 Full Speed (Type A)
iPod terminal . . . . . . . . . . . . . . . USB, and Video (Composite)
ADAPTER PORT terminal . . . . . . . . . . . . . . . . . . . 5 V, 100 mA
Network Section
LAN terminal. . . . . . . . . . . . . . . . . . . . 10 BASE-T/100 BASE-TX
Miscellaneous
Power Requirements. . . . . . . . . . . . . . . . . . . . AC 120 V, 60 Hz
Power Consumption . . . . . . . . . . . . . . . . . . . 520 W (VSX-1022)
450 W (VSX-822)
In standby . . . . . . . . . . . . . . . . . . . . . . . 0.4 W (Control OFF)
Dimensions . . . . . 435 mm (W) x 168 mm (H) x 342.5 mm (D)
173/16 in. (W) x 65/8 in. (H) x 145/16 in. (D)
Weight (without package). . . . . .9.3 kg (20 lb 9 oz) (VSX-1022)
8.9 kg (19 lb 10 oz) (VSX-822)
Furnished Parts
Microphone (for Auto MCACC setup) . . . . . . . . . . . . . . . . . . . 1
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Dry cell batteries (AAA size IEC R03). . . . . . . . . . . . . . . . . . . . 2
AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
iPod cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Quick start guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Brochure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
These operating instructions (CD-ROM)
Note
Specifications and the design are subject to possible
modifications without notice, due to improvements.
This product includes FontAvenue® fonts licensed by NEC
Corporation. FontAvenue is a registered trademark of NEC
Corporation.
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a
safe level – a level that lets the sound come through
clearly without annoying blaring or distortion and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time, your hearing
“comfort level” adapts to higher volumes of sound, so
what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by setting
your equipment at a safe level BEFORE your hearing
adapts.
ESTABLISH A SAFE LEVEL:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Once you have established a comfortable sound
level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING
GUIDELINES:
Do not turn up the volume so high that you can’t
hear what’s around you.
Use caution or temporarily discontinue use in
potentially hazardous situations.
Do not use headphones while operating a motorized
vehicle; the use of headphones may create a traffic
hazard and is illegal in many areas.
S001a_A1_En
<ARB7470-A>
To register your product, find the nearest authorized service location, to purchase replacement parts,
operating instructions, or accessories, please go to one of following URLs :
Pour enregistrer votre produit, trouver le service après-vente agréé le plus proche et pour acheter des
pièces de rechange, des modes d’emploi ou des accessoires, reportez-vous aux URL suivantes :
In the USA/Aux Etats-Unis http://www.pioneerelectronics.com
In Canada/Aux Canada http://www.pioneerelectronics.ca
S018_B1_EnFr
© 2011 PIONEER CORPORATION.
All rights reserved.
PIONEER CORPORATION
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404
PIONEER ELECTRONICS OF CANADA, INC.
340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: 1-877-283-5901, 905-479-4411
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270
K002_B3_En
