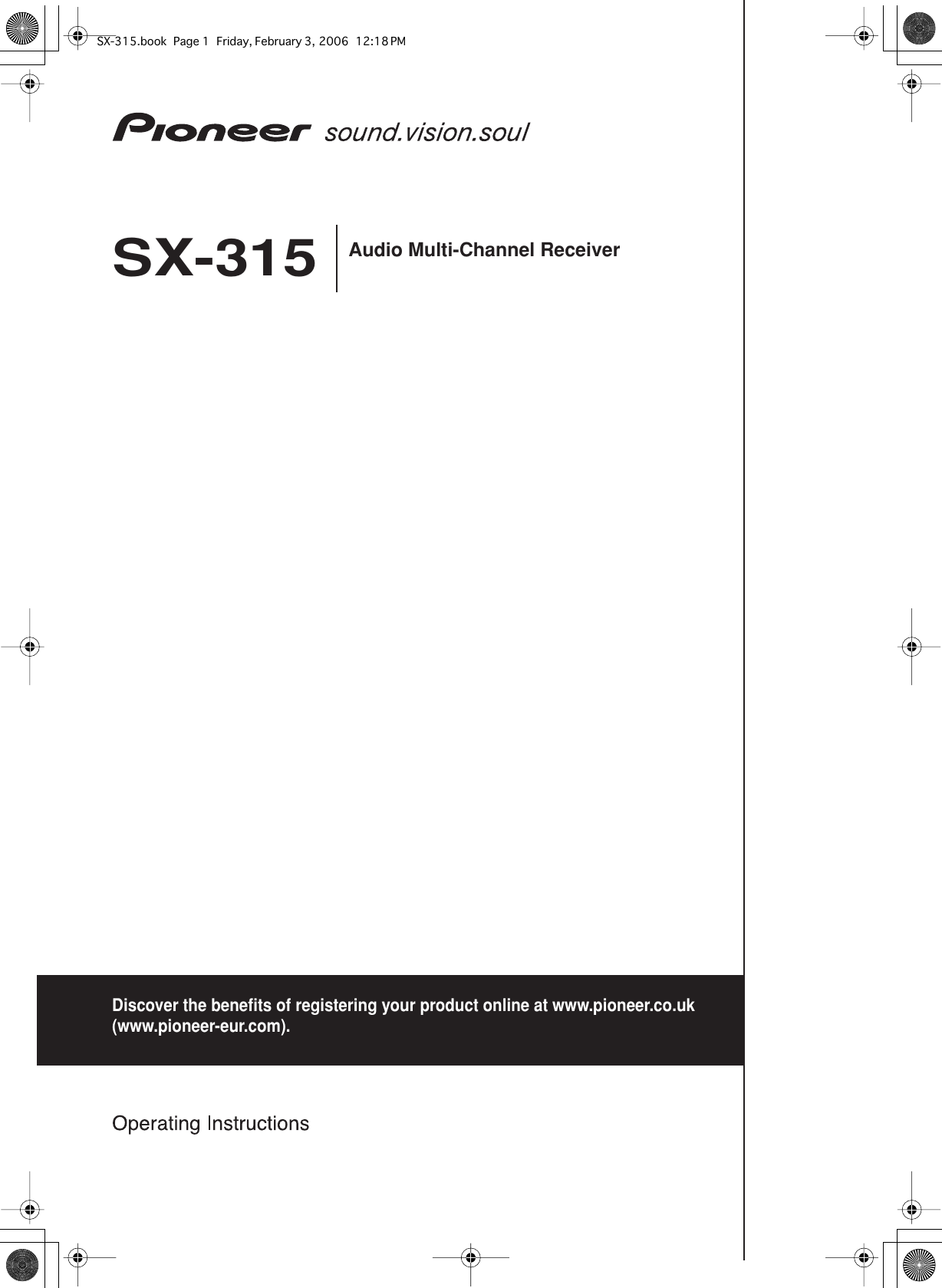

SX-315Audio Multi-Channel ReceiverDiscover the benefits of registering your product online at www.pioneer.co.uk (www.pioneer-eur.com).SX-315.book Page 1 Friday, February 3, 2006 12:18 PM

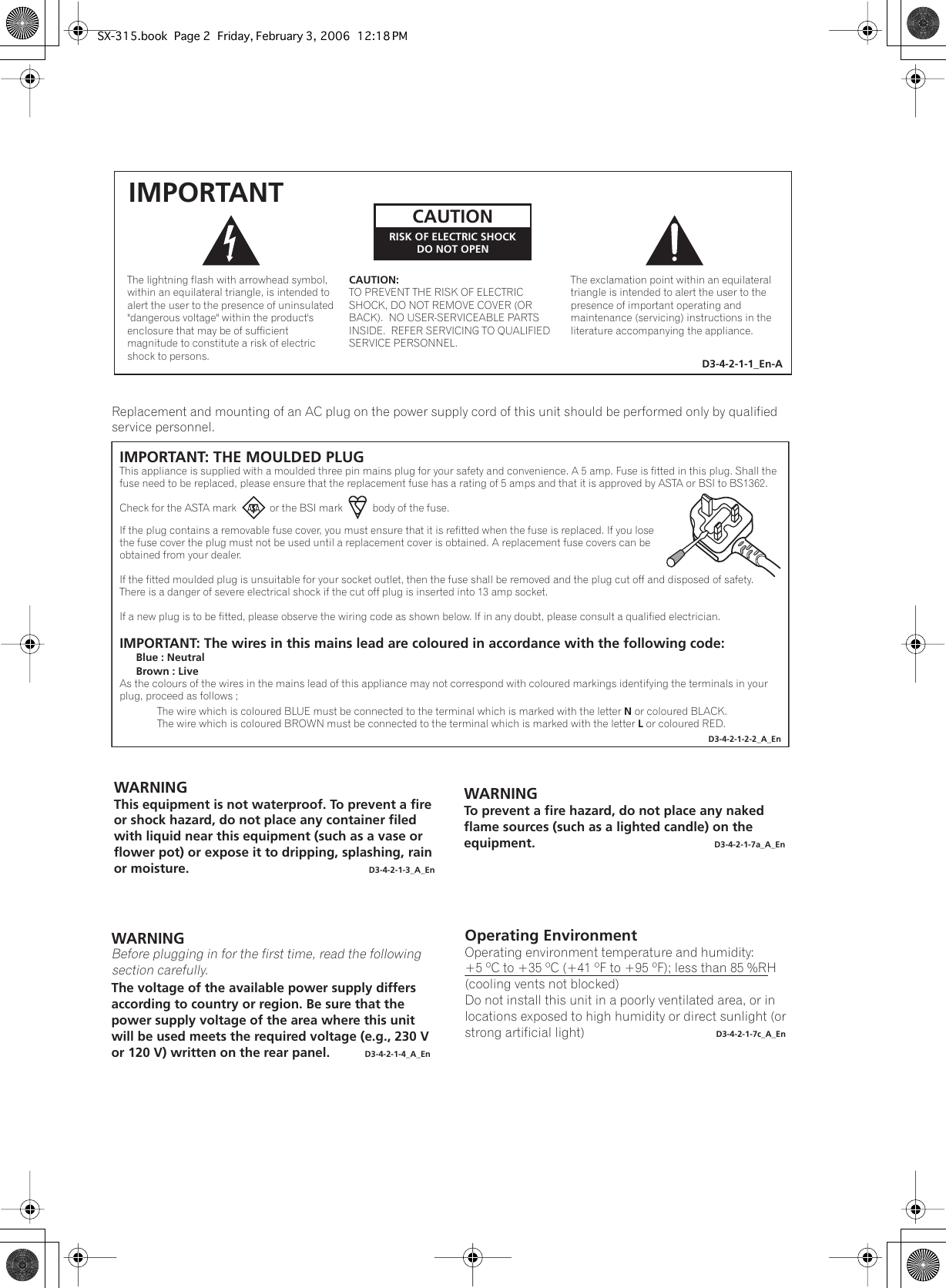

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.CAUTION:TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENIMPORTANTD3-4-2-1-1_En-AWARNINGThis equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_EnWARNING The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4_A_EnBefore plugging in for the first time, read the following section carefully.WARNINGTo prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_EnOperating EnvironmentOperating environment temperature and humidity:+5 ºC to +35 ºC (+41 ºF to +95 ºF); less than 85 %RH (cooling vents not blocked)Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_EnReplacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.D3-4-2-1-2-2_A_EnIMPORTANT: THE MOULDED PLUGThis appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp. Fuse is fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.Check for the ASTA mark or the BSI mark body of the fuse.If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse covers can be obtained from your dealer.If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safety.There is a danger of severe electrical shock if the cut off plug is inserted into 13 amp socket.If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral Brown : LiveAs the colours of the wires in the mains lead of this appliance may not correspond with coloured markings identifying the terminals in your plug, proceed as follows ;The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.SX-315.book Page 2 Friday, February 3, 2006 12:18 PM
