Pismolabs Technology P1625 PEPWAVE WIRELESS PRODUCT User Manual PePWave PolePoint

Pismo Labs Technology Limited PEPWAVE WIRELESS PRODUCT PePWave PolePoint

Contents

Users Manual

COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
Copyright © 2011
User Manual
Document Rev. 1.0
May-11
Page 2
User Manual
Table of Contents
1 INTRODUCTION AND SCOPE ................................................................................. 3
2 PRODUCT FEATURES ............................................................................................. 4
3 INSTALLATION ......................................................................................................... 5
3.1 INSTALLATION PROCEDURES .................................................................................................. 5
3.2 QUICK START ........................................................................................................................ 6
Page 3
User Manual
1 Introduction and Scope
Access Point Unit (APU) is a carrier-grade 802.11b/g Wi-Fi access point with centralized
management system. One device can masquerade up to 16 different access points. Each
virtual access point can have its own security policy (e.g. WPA, WPA2, etc.) and
authentication mechanism (e.g. 802.1x, open, captive portal, etc), to facilitate building your
wholesale network much faster, easier and more cost-effective than ever before.
Page 4
User Manual
2 Product Features
Key features of devices:
Designed for wholesale wireless networks with multiple SSID and VLAN support
Independent security policies and encryption mechanisms per virtual AP
Centralized managed via web based InControl
High-power output enhances coverage and lowers cost of ownership
WMM (Wi-Fi Multimedia) and QoS (Quality of Service) Support
WDS (Wireless Distribution System) Support
Captive Portal Support
Mesh Connector Bridging
Page 5
User Manual
3 Installation
3.1 Installation Procedures
1. Attach the antenna to the device.
2. Connect the LAN port on the unit with the backbone network using an Ethernet cable.
3. Connect the power adapter to the power connector of the unit, and then plug in the
power adapter.
4. Wait for the status LED to turn green.
5. Connect a PC to the backbone network, and configure the IP address of the PC to be
any IP address between 192.168.0.4 and 192.168.0.254, with subnet mask of
255.255.255.0.
6. With Microsoft Internet Explorer 6 or above, or Mozilla Firefox 2.0 or above, connect
to the URL https://192.168.0.3.
7. When prompted, enter the default admin login ID and password, admin and public
respectively.

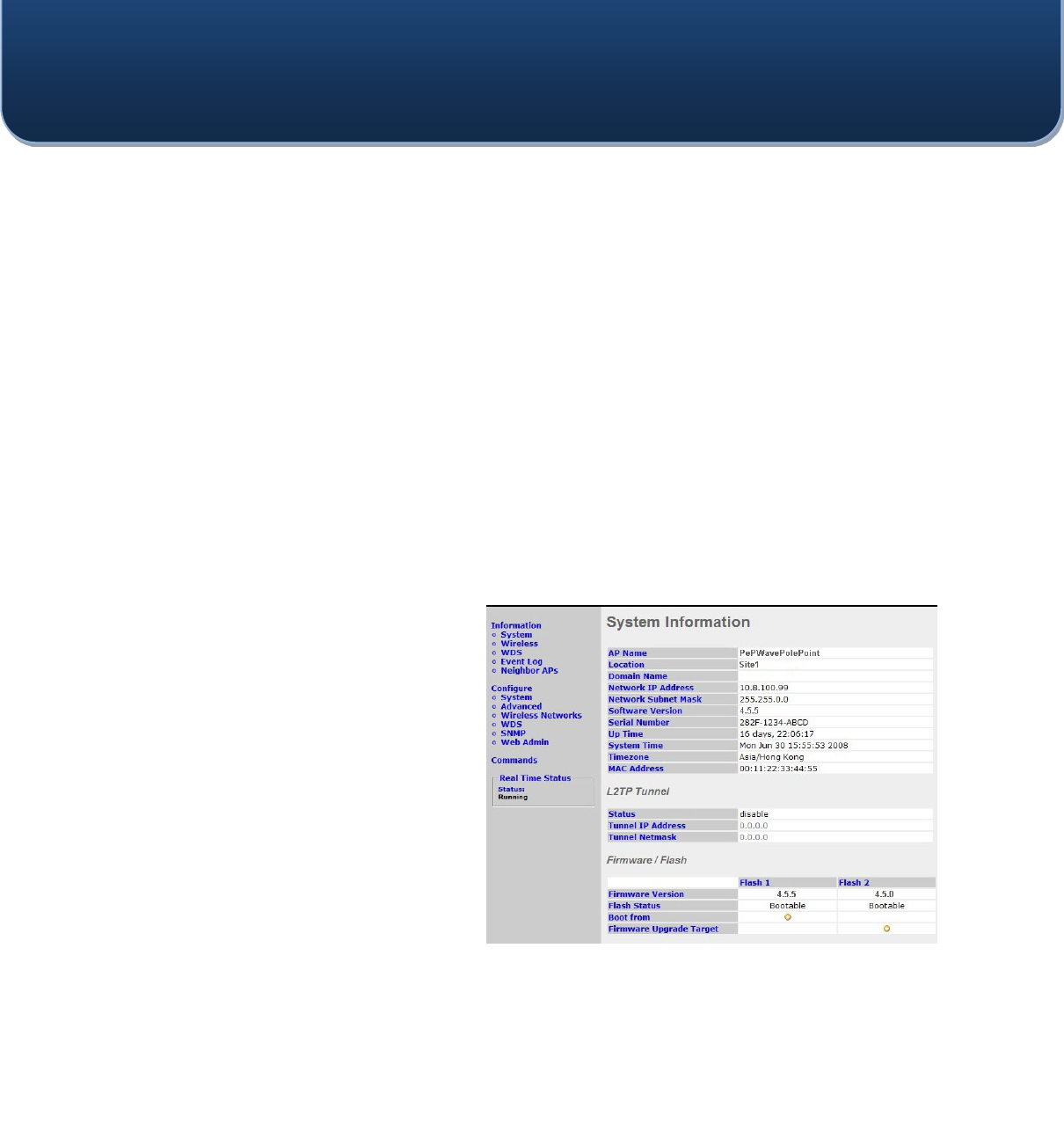

8. After logging in, a Main Menu
page appears to facilitate
further configuration of the unit:
Page 6
User Manual
3.2 Quick Start
By default, an access point is preset with SSID: PEPWAVE_XXXX, where XXXX is the last 4
hex digits of the LAN MAC Address of the unit.
The default access point bridges the Wi-Fi interface to the Ethernet port, with both
encryption and VLAN tagging disabled.

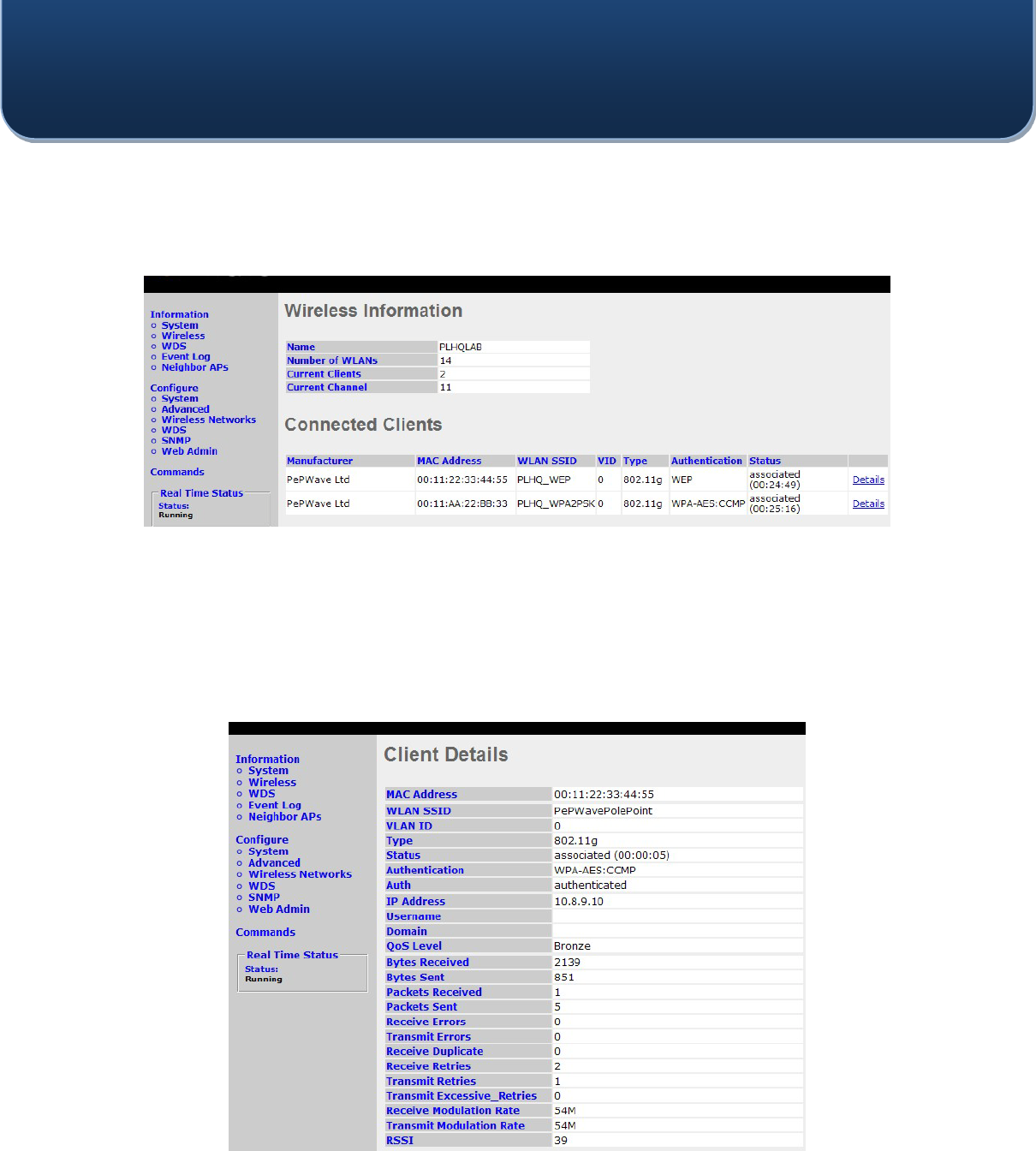

To access the backbone network connected via the Ethernet port of the unit, establish a
session at the Wi-Fi interface with a Wi-Fi client. After establishing a Wi-Fi client session,
information about the established Wi-Fi session appears at the Web Administration Interface
of APU device, under the section Information-> Wireless.
Clicking on the link labeled Details causes the following screen to be displayed:
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device must be installed to provide a separation distance of at least 20 cm from all persons
and must not be collocated or operating in conjunction with any other antenna or transmitter.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
NOTE 3: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
