User manual
Copyright & Trademarks
Specifications are subject to change without notice. Copyright © 2017 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks
of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.
Pepwave MAX and Pepxim
User Manual
Pepwave Products:
MAX 700/HD2/HD2 IP67/HD2 mini/HD4/Transit/CX4/BR1/BR1 Mini/BR1 Slim/BR1 ENT/BR1
Pro LTE/BR1 IP55/BR2 IP55//BR1 IP67/On-The-Go/MAX HD2/HD4 with MediaFast
Pepxim Products:
NPC/SD-PMU
Pepwave Firmware 7
January 2017
http://www.peplink.com
2
Copyright @ 2017 Pepwave
Table of Contents
1 Introduction and Scope 8
2 Glossary 9
3 Product Features 10
3.1 Supported Network Features 10
3.1.1 WAN 10
3.1.2 LAN 11
3.1.3 VPN 11
3.1.4 Firewall 11
3.1.5 Captive Portal 11
3.1.6 Outbound Policy 11
3.1.7 AP Controller 12
3.1.8 QoS 12
3.2 Other Supported Features 12
4 Pepwave MAX Mobile Router Overview 13
4.1 MAX 700 13

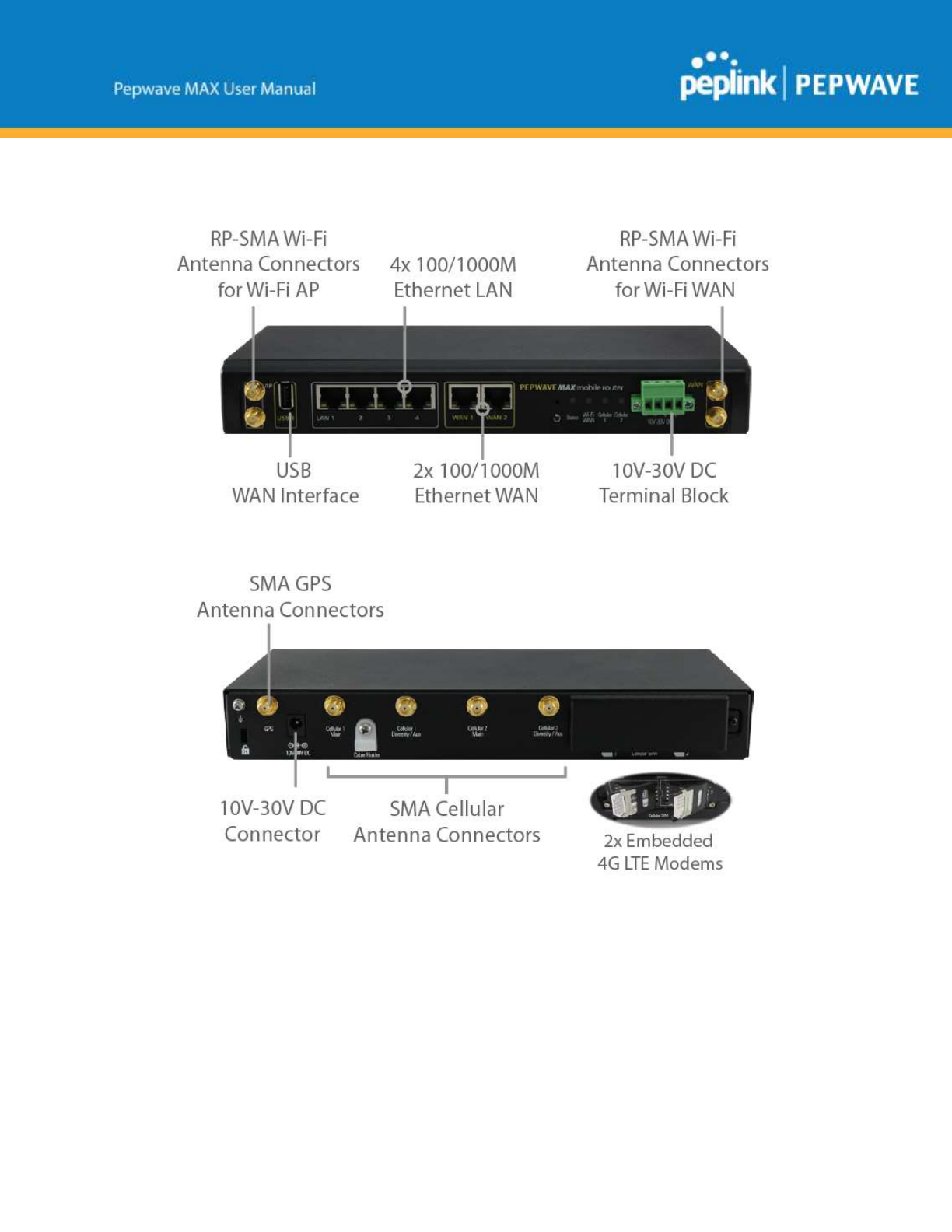

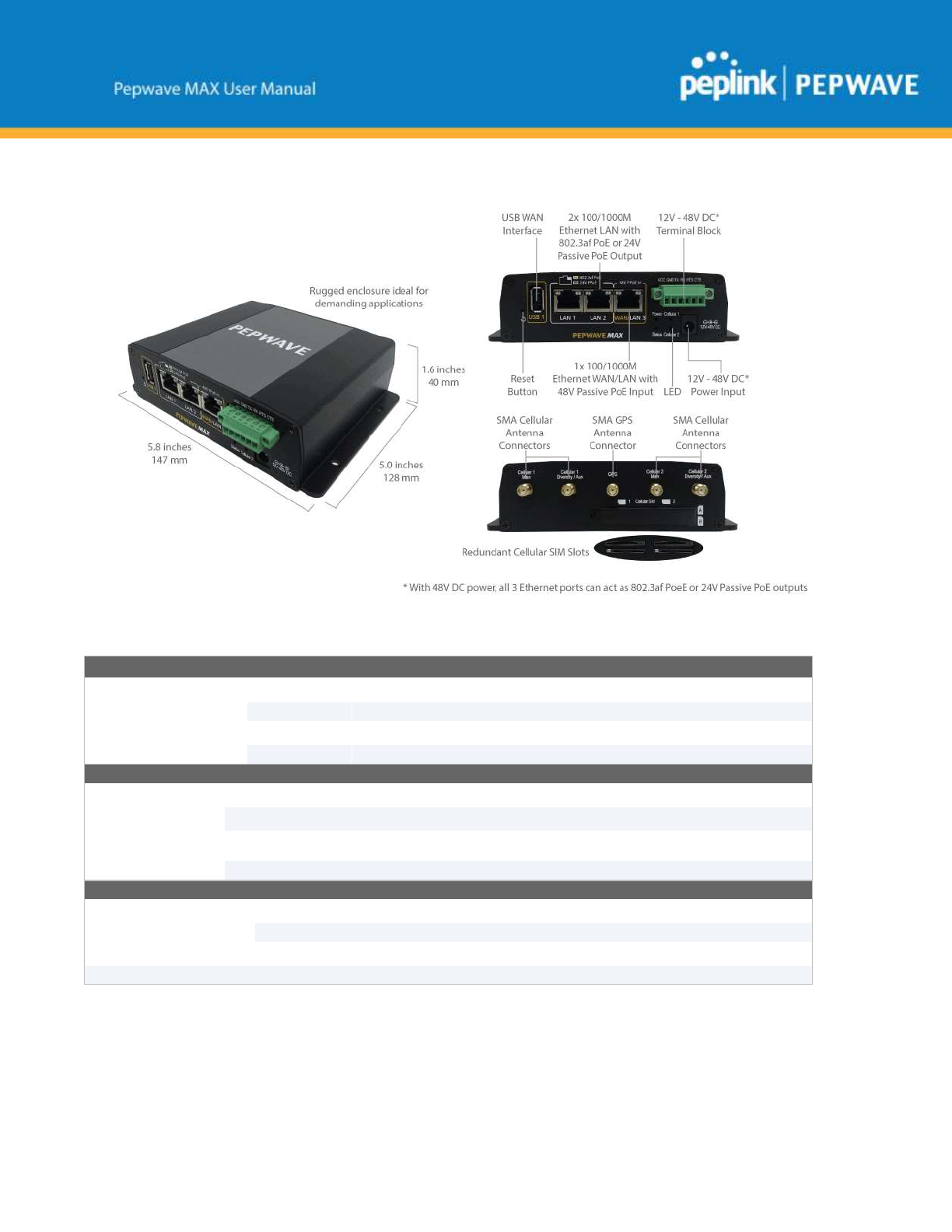

4.2 MAX HD2 15
4.3 MAX HD2 IP67 17
4.4 MAX HD2 Mini 18
4.5 MAX Transit 19
4.6 MAX CX4 20
4.7 MAX HD4 / HD2 and HD4 with MediaFast 21
4.8 MAX BR1 22
4.9 MAX BR1 MK2 24
4.10 MAX BR1 Slim 25
4.11 MAX BR1 ENT 25
4.12 MAX BR1 Pro LTE 27
4.13 MAX Hotspot 28
4.14 BR1 Mini 29
http://www.peplink.com
3
Copyright @ 2017 Pepwave
4.15 MAX BR1/2 IP55 30
4.16 MAX BR1 IP67 32
4.17 MAX On-The-Go 32
4.18 NPC (Network Power Controller) 33
4.19 SD-PMU 34
5. Advanced Feature Summary 35

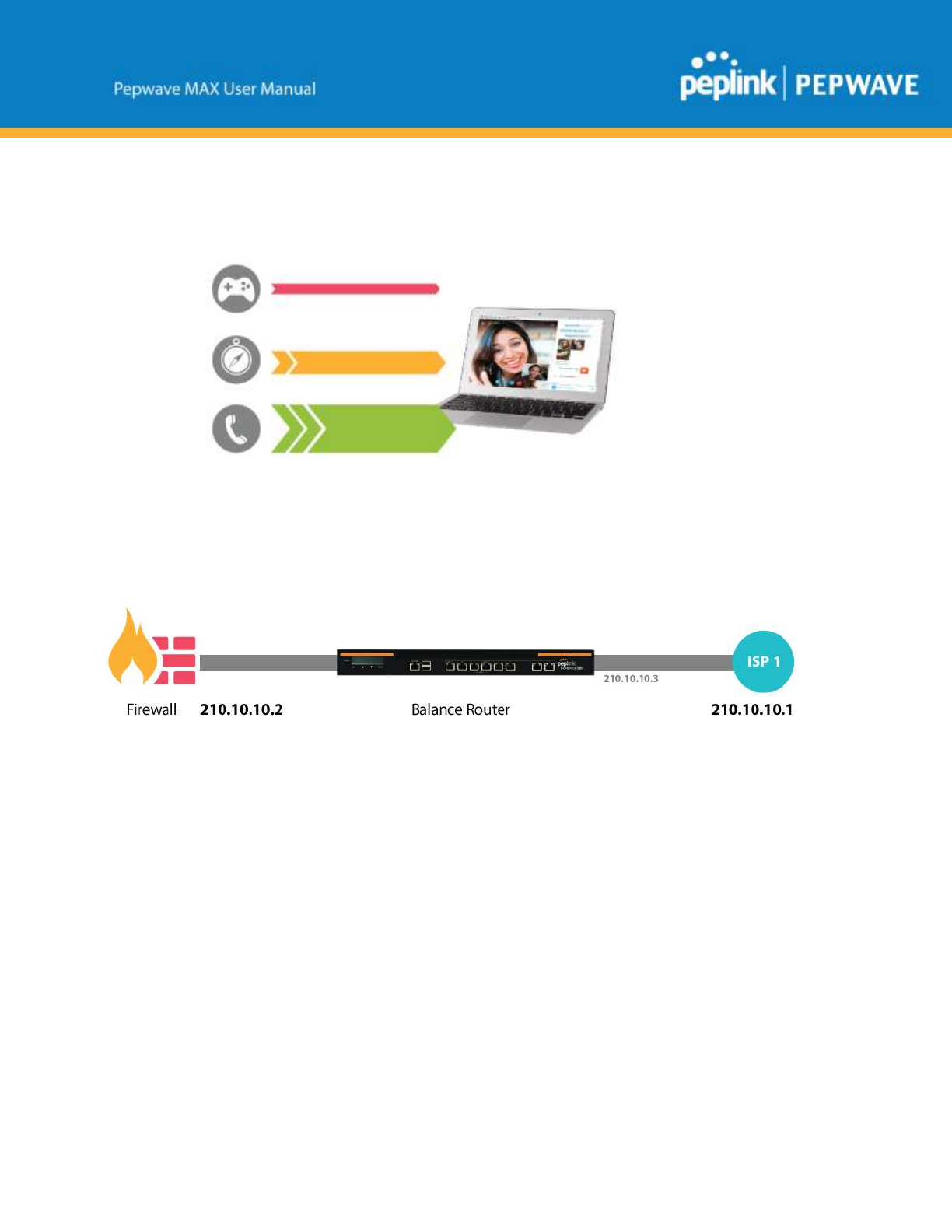

5.1 Drop-in Mode and LAN Bypass: Transparent Deployment 35
5.2 QoS: Clearer VoIP 35

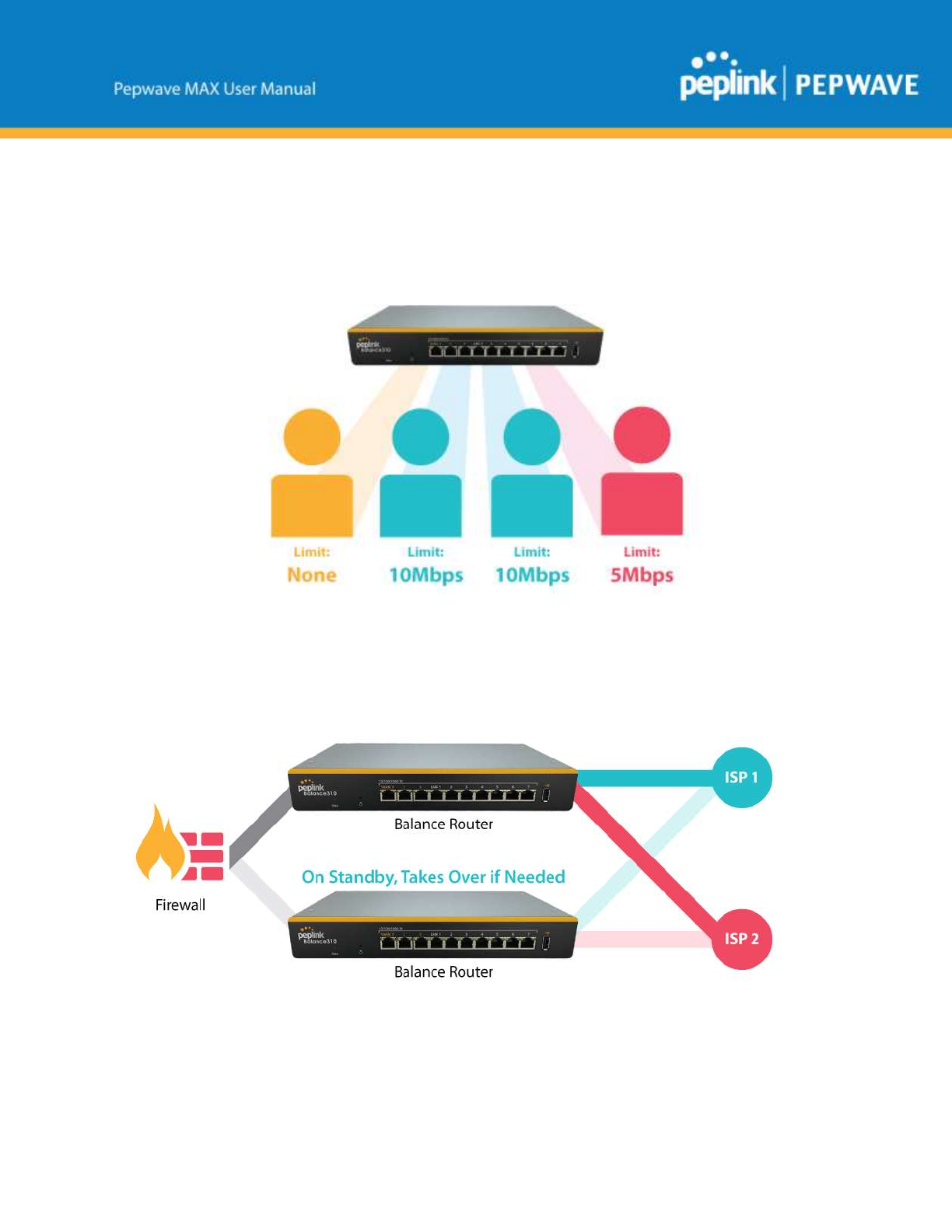

5.3 Per-User Bandwidth Control 36
5.4 High Availability via VRRP 36
5.5 USB Modem and Android Tethering 37
5.6 Built-In Remote User VPN Support 38
5.7 SIM-card USSD support 39
6. Installation 40
6.1 Preparation 40
6.2 Constructing the Network 41
6.3 Configuring the Network Environment 41
7 Mounting the Unit 42
7.1 Wall Mount 42
7.2 Car Mount 42
7.3 IP67 Installation Guide 42
8 Connecting to the Web Admin Interface 43
9 Configuring the LAN Interface(s) 45

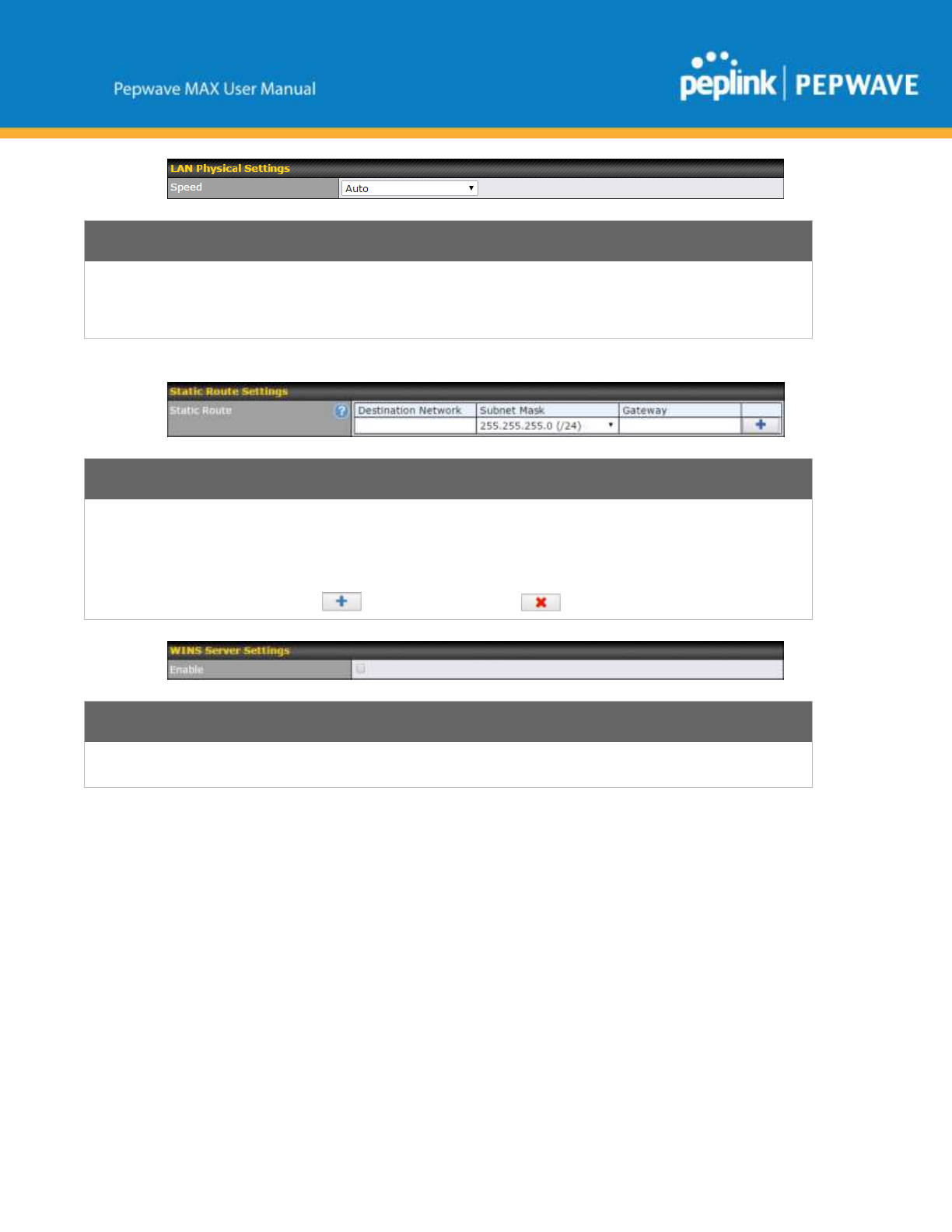

9.1 Basic Settings 45
9.2 Port Settings 55
9.3 Captive Portal 56
10 Configuring the WAN Interface(s) 59
10.1 Ethernet WAN 60
10.1.1 DHCP Connection 62
http://www.peplink.com
4
Copyright @ 2017 Pepwave
10.1.2 Static IP Connection 63
10.1.3 PPPoE Connection 65

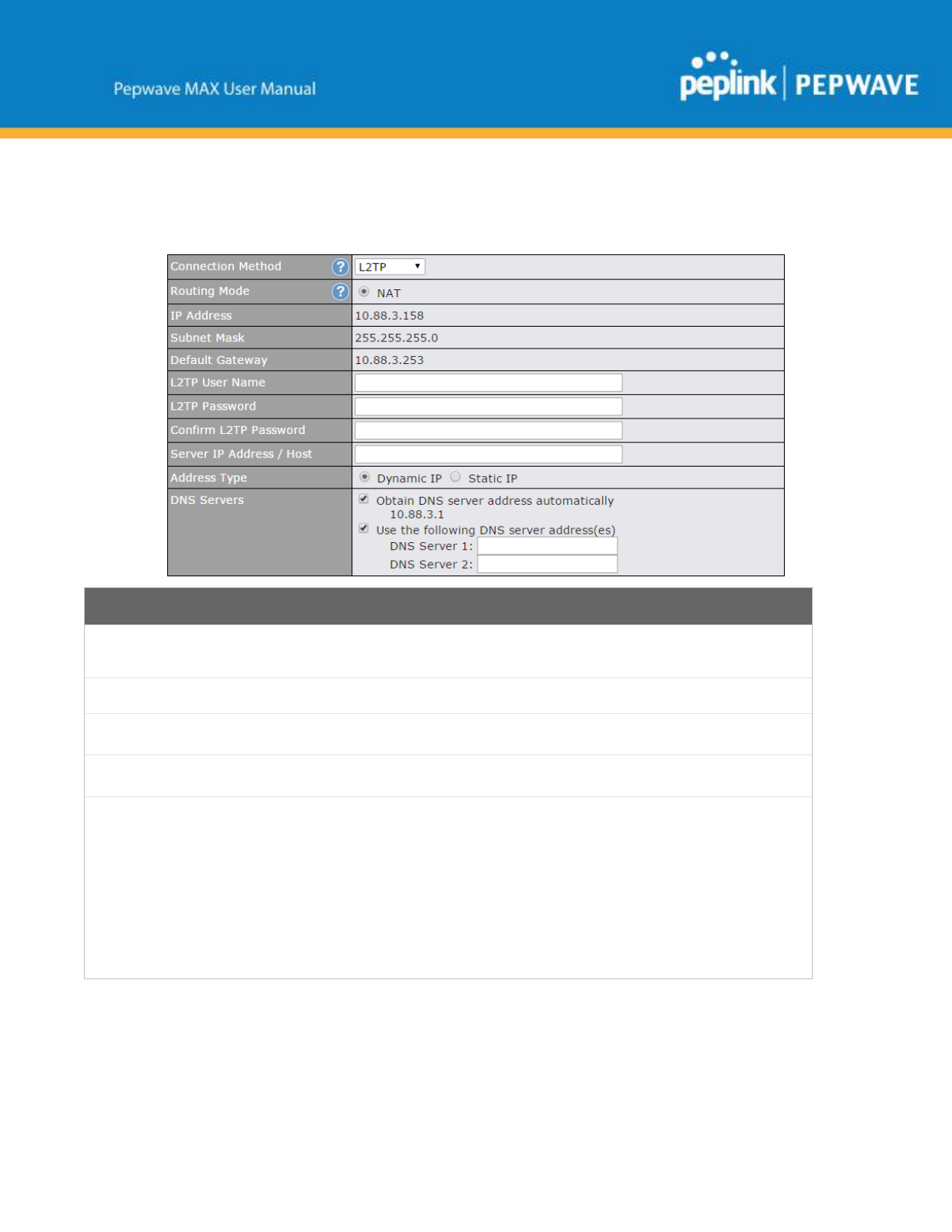

10.1.4 L2TP Connection 66
10.2 Cellular WAN 67
10.3 Wi-Fi WAN 73

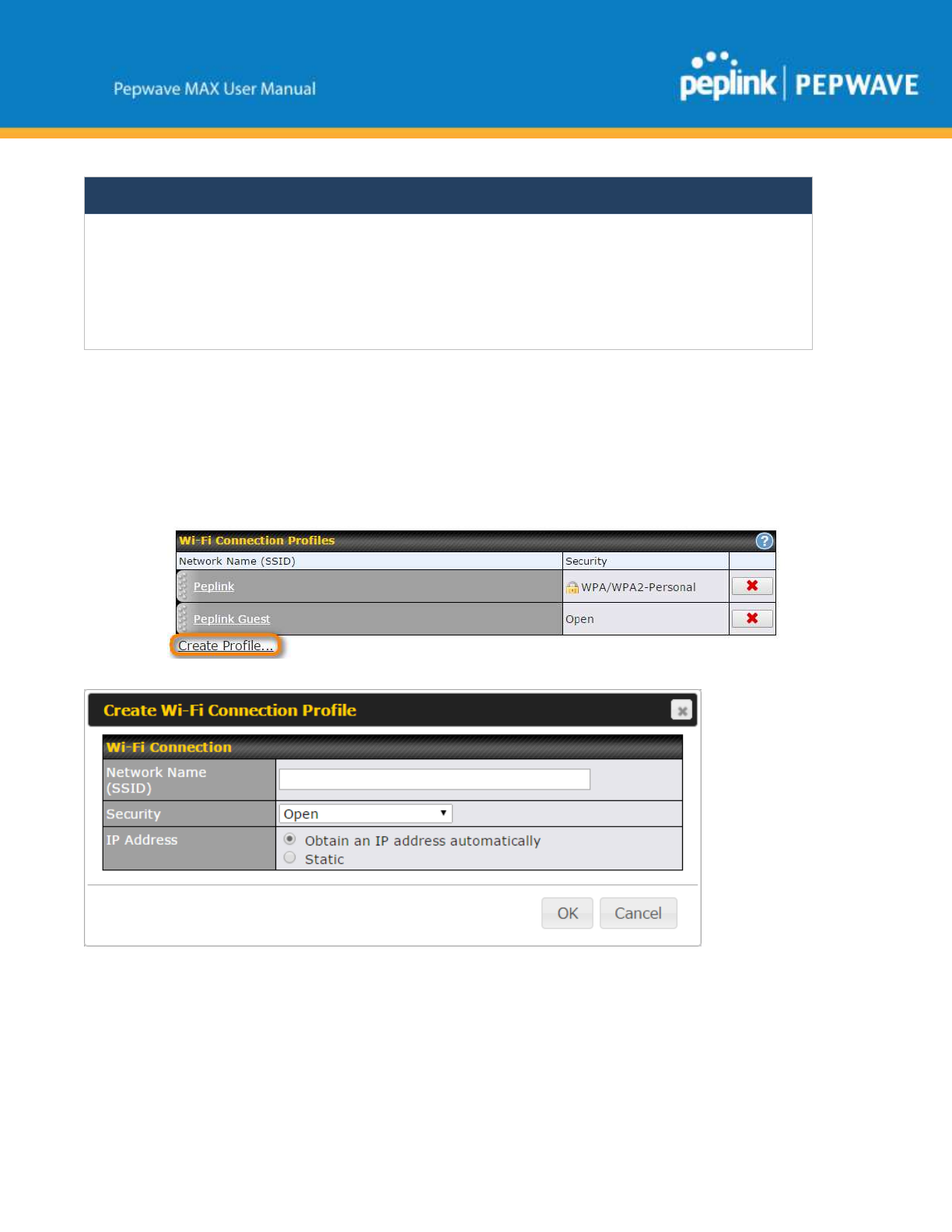

10.3.1 Creating Wi-Fi Connection Profiles 79

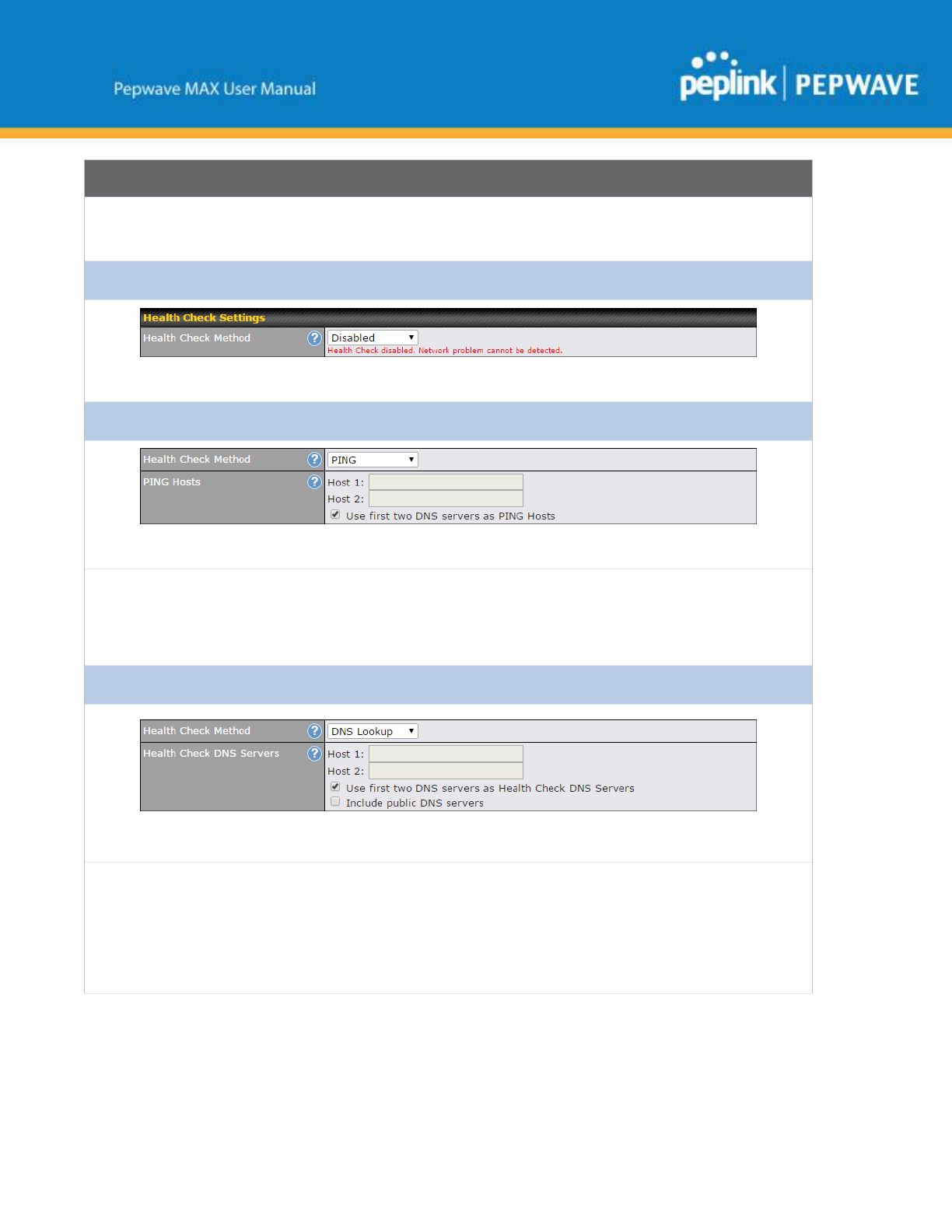

10.4 WAN Health Check 80

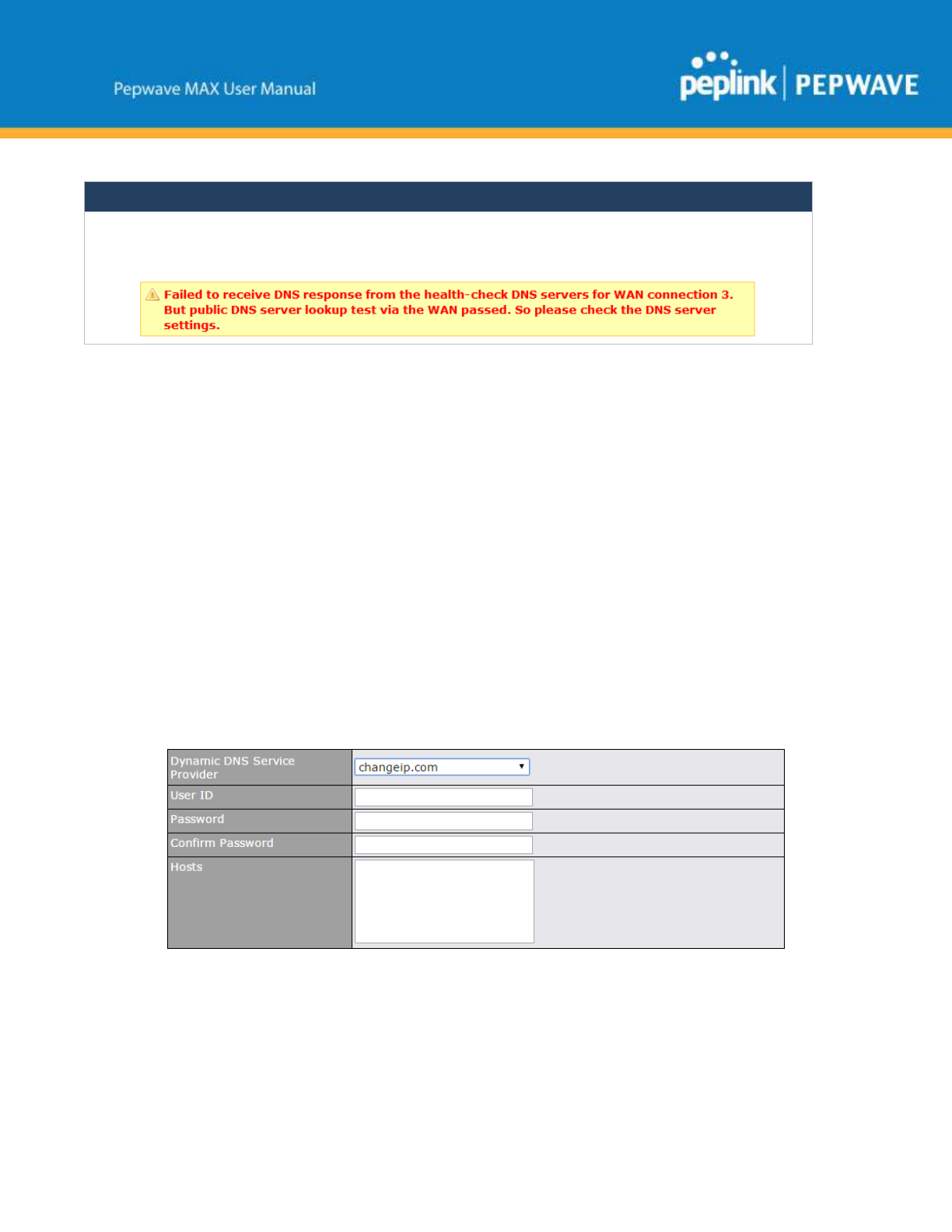

10.5 Dynamic DNS Settings 83
11 Advanced Wi-Fi Settings 85
12 MediaFast Configuration 89
12.1 Setting Up MediaFast Content Caching 89

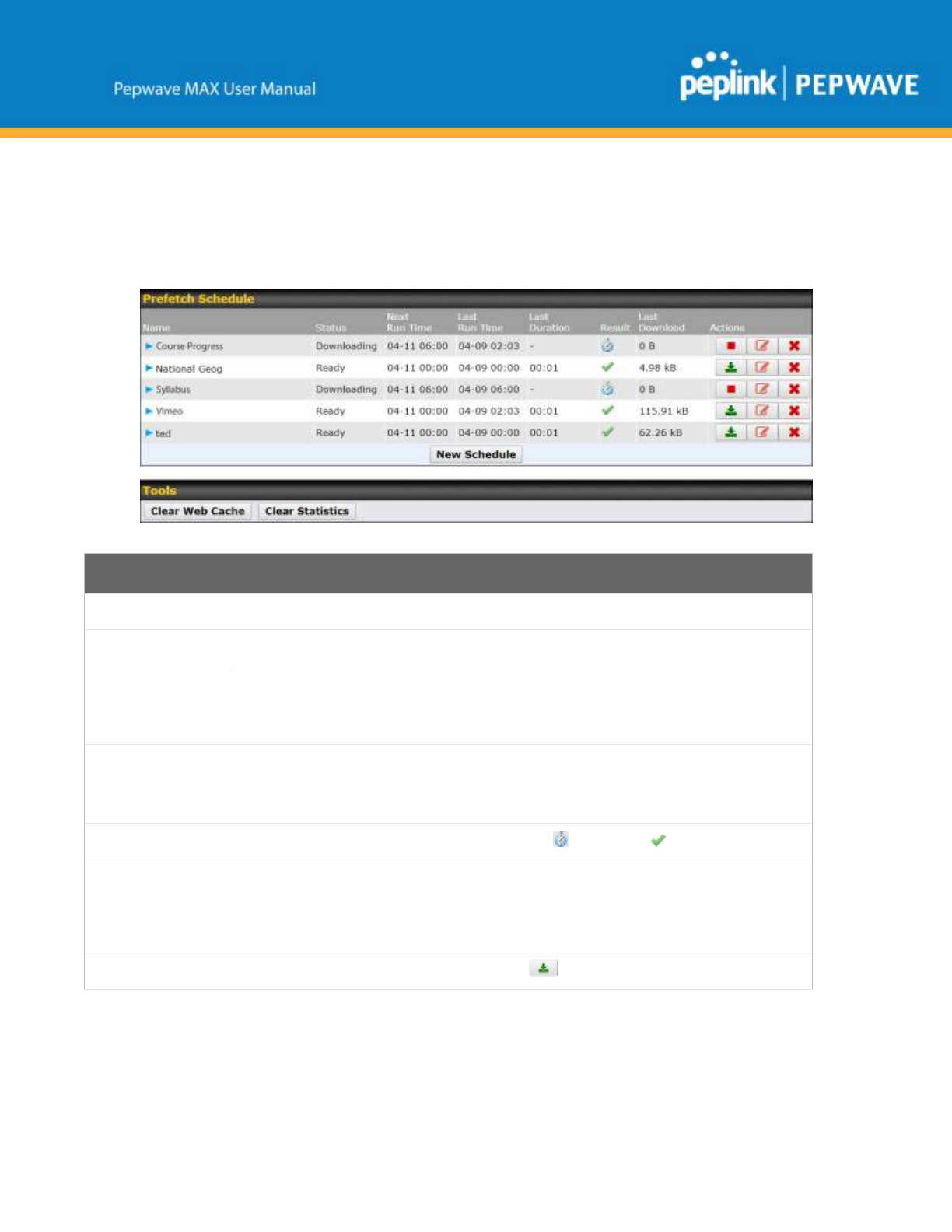

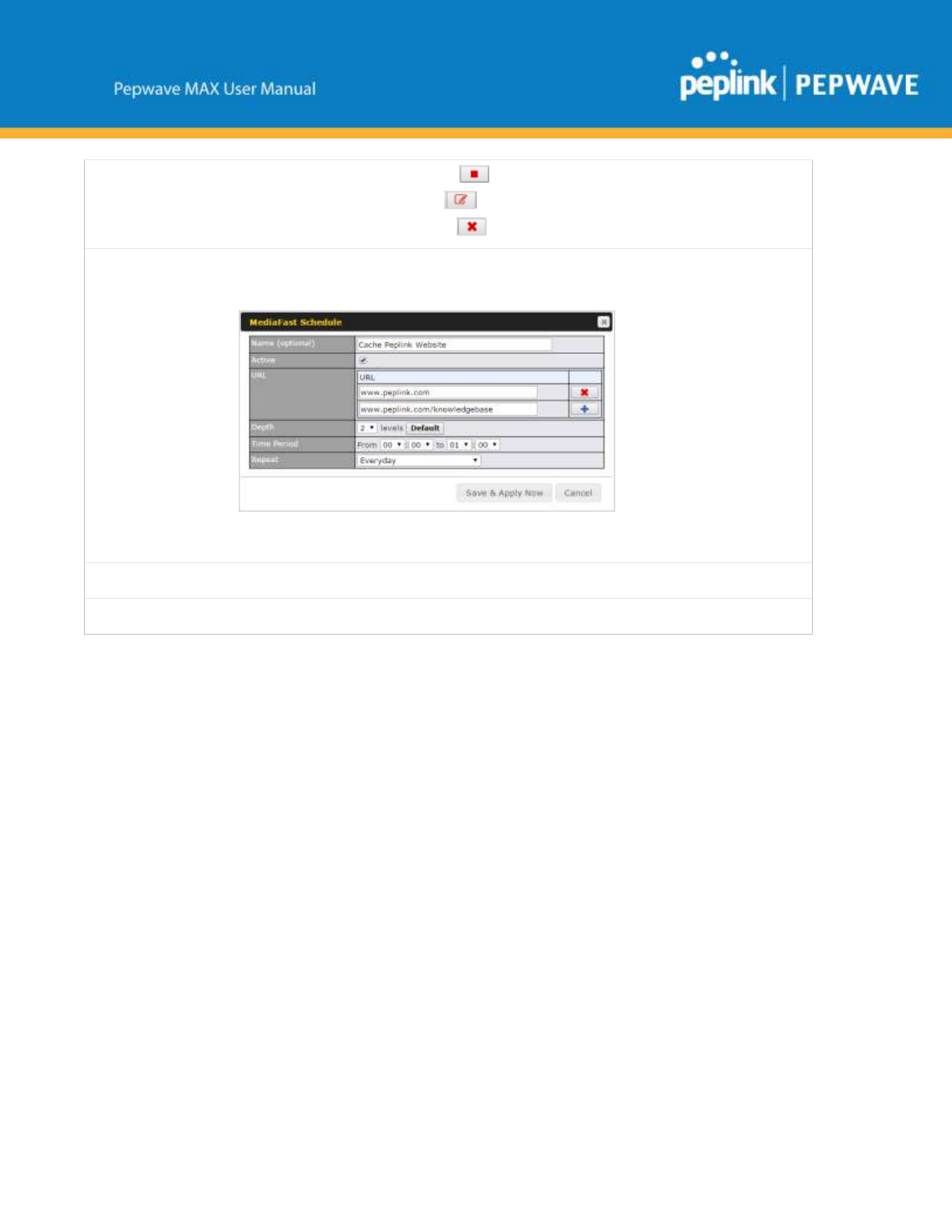

12.2 Scheduling Content Prefetching 90
12.3 Viewing MediaFast Statistics 92
13 Bandwidth Bonding SpeedFusionTM / PepVPN 93

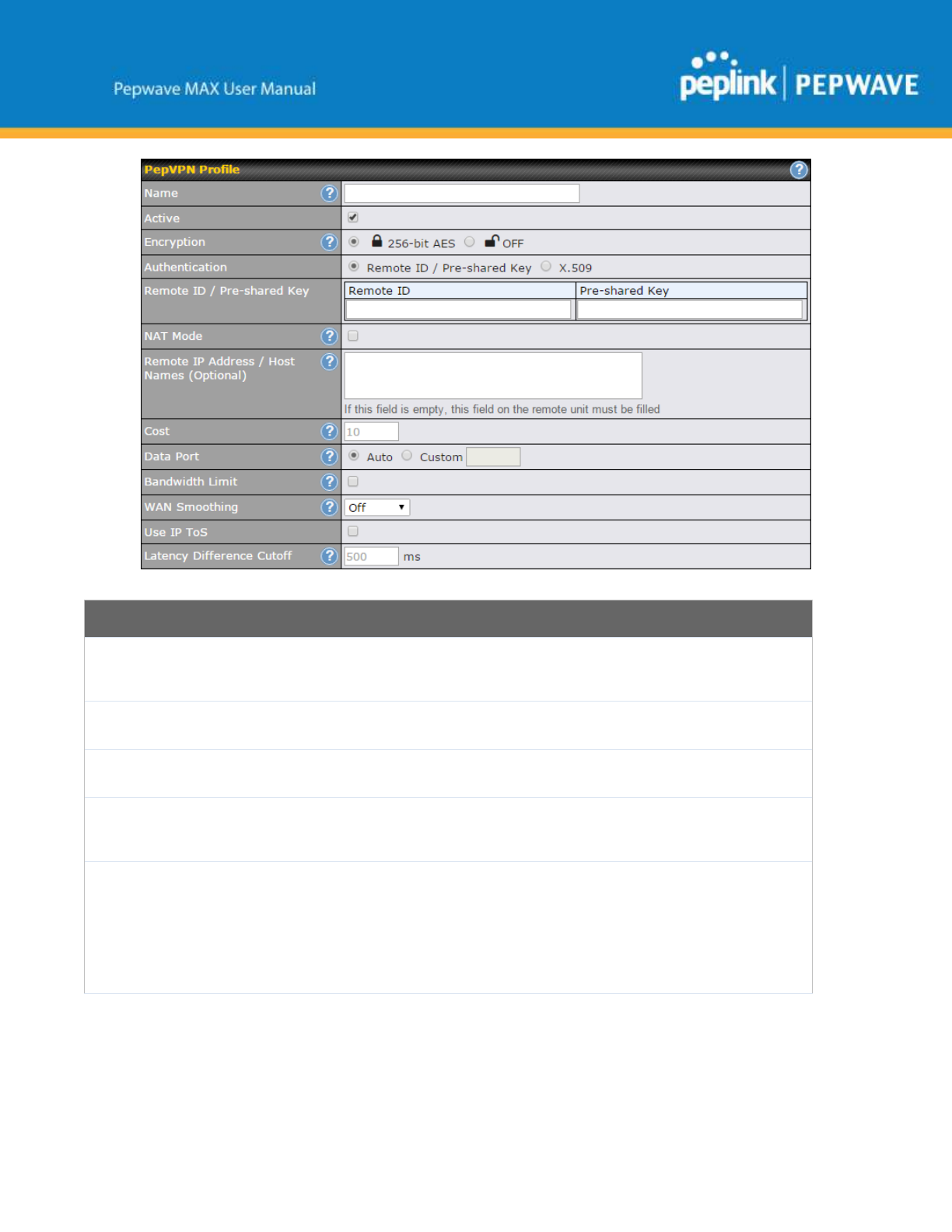

13.1 PepVPN 93
13.2 The Pepwave Router Behind a NAT Router 100

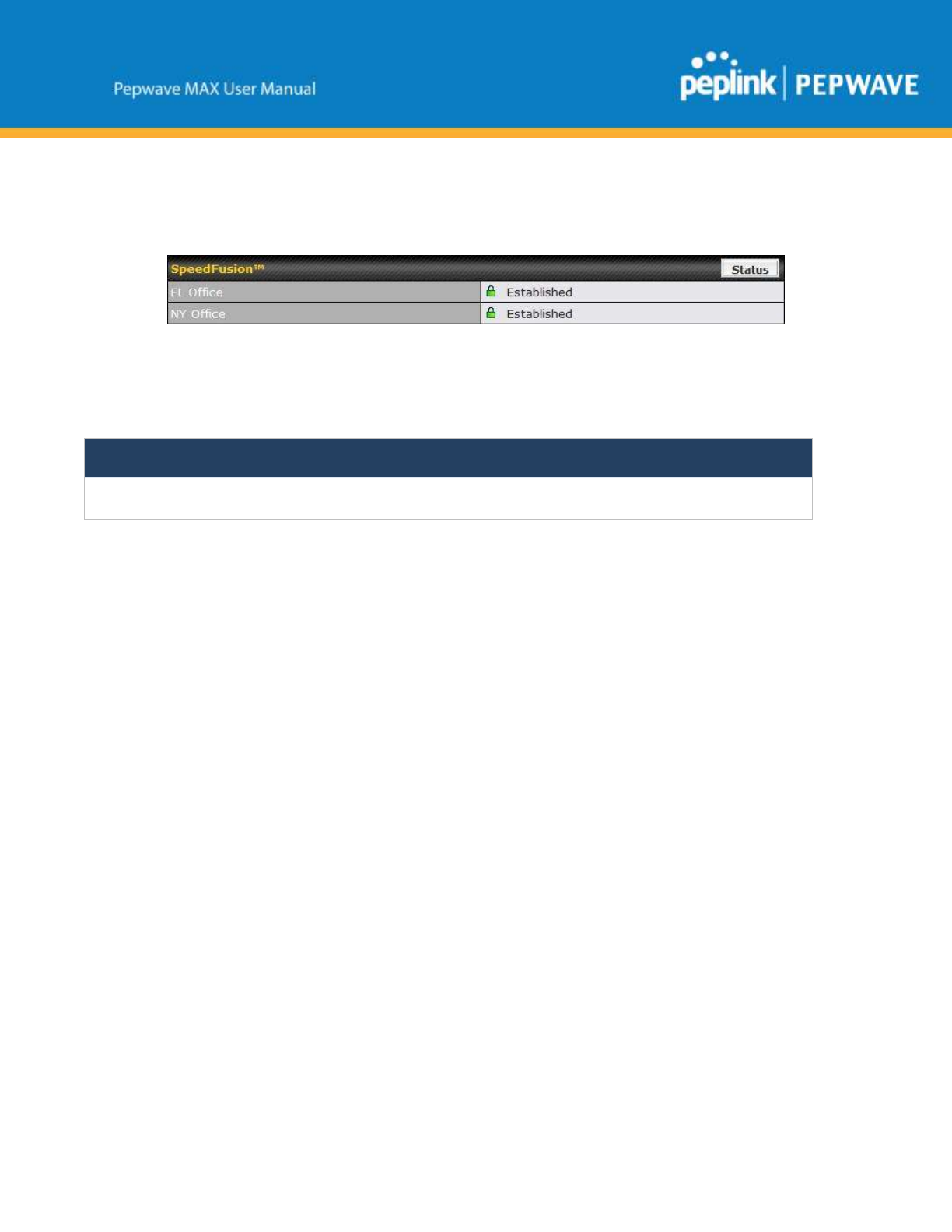

13.3 SpeedFusionTM Status 101
14 IPsec VPN 102

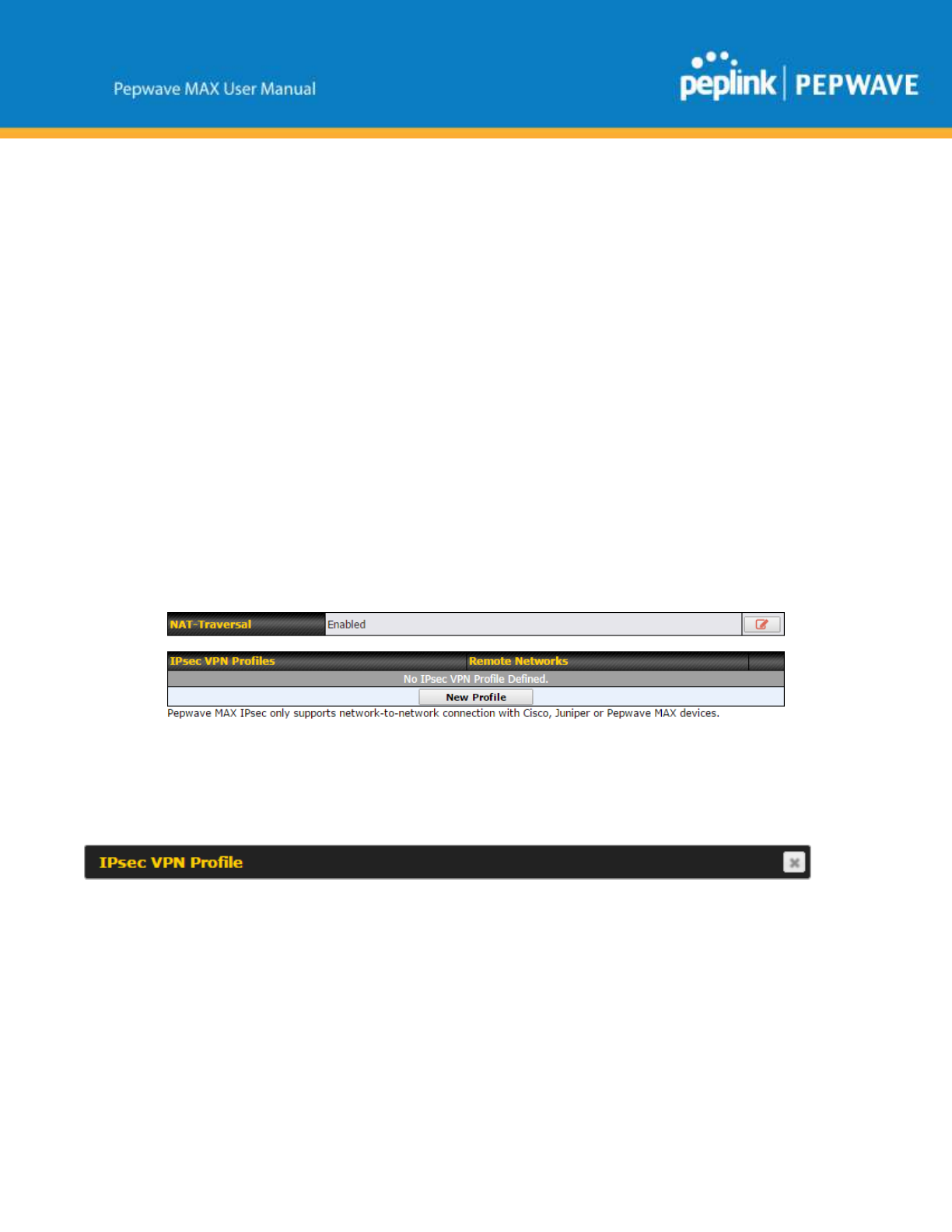

14.1 IPsec VPN Settings 102
15 Outbound Policy Management 106

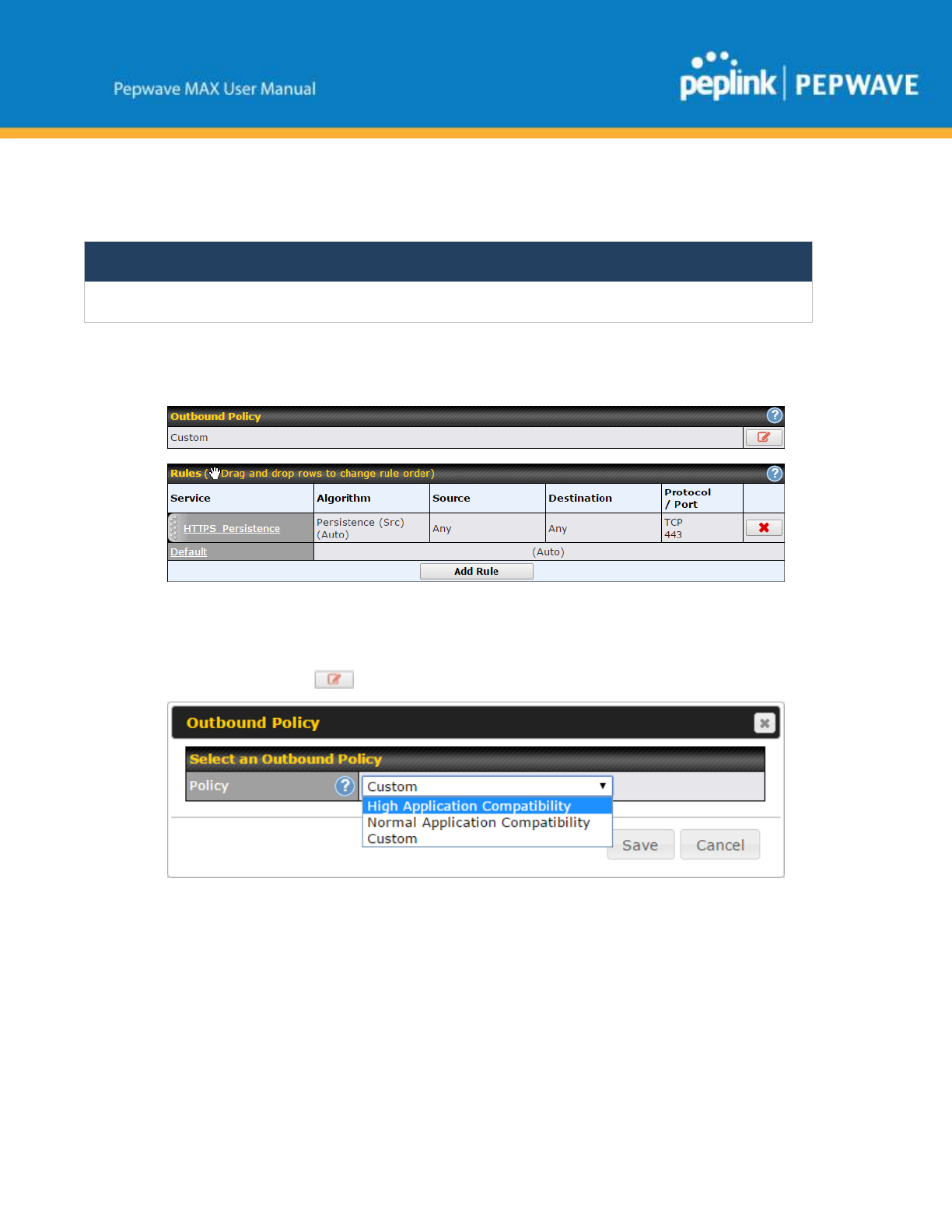

15.1 Outbound Policy 106
15.2 Custom Rules for Outbound Policy 107
15.2.1 Algorithm: Weighted Balance 108

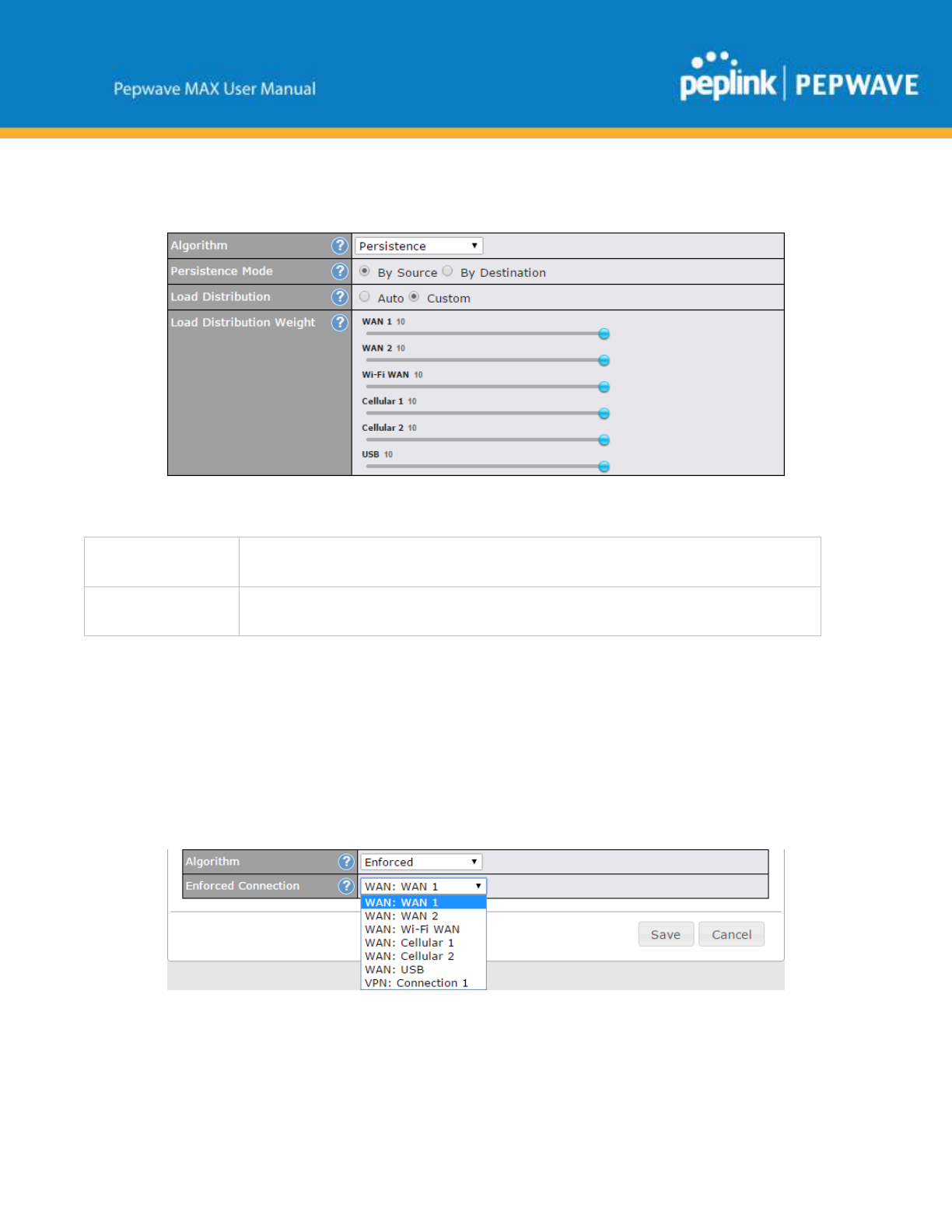

15.2.2 Algorithm: Persistence 109
15.2.3 Algorithm: Enforced 110
15.2.4 Algorithm: Priority 111

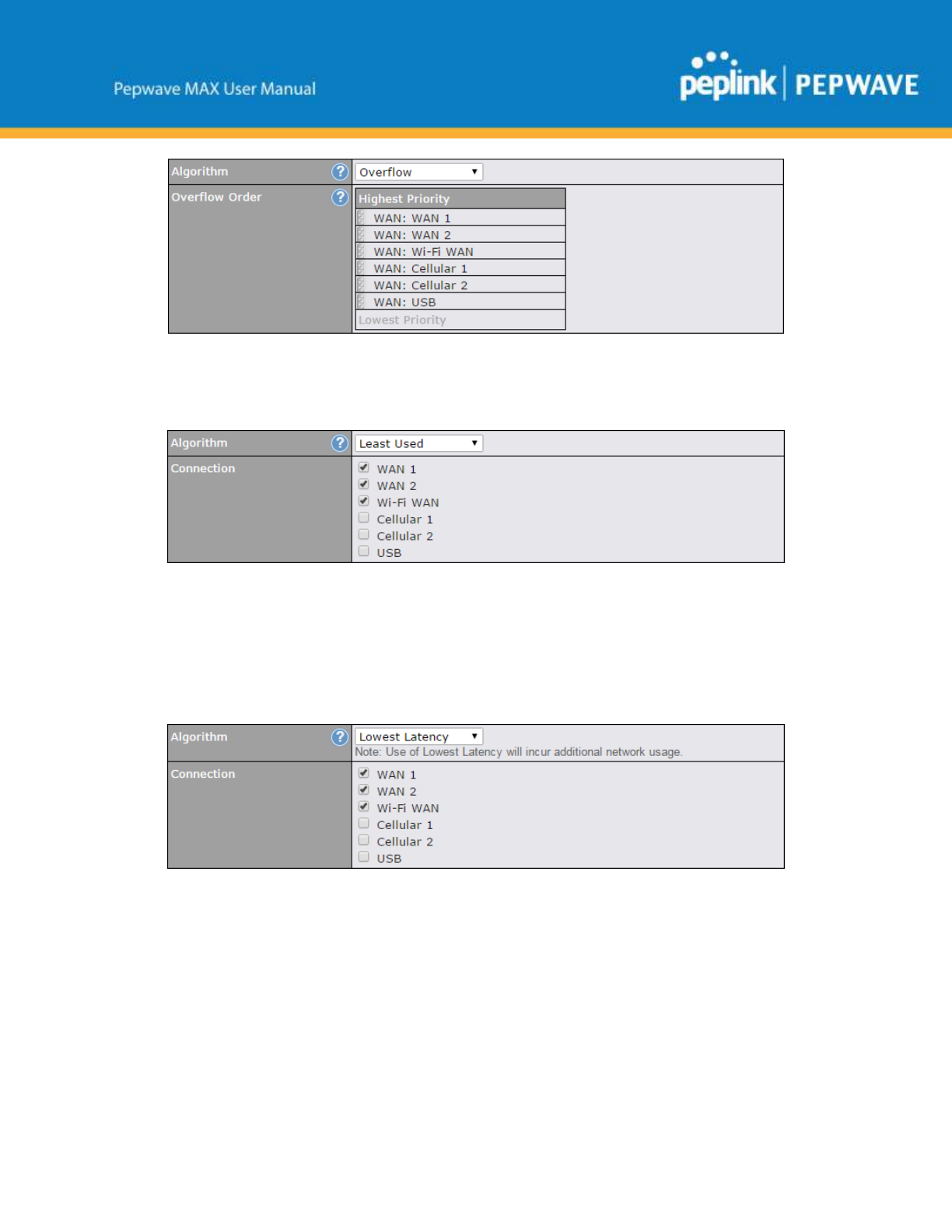

15.2.5 Algorithm: Overflow 111
15.2.6 Algorithm: Least Used 112
15.2.7 Algorithm: Lowest Latency 112
15.2.8 Expert Mode 113
http://www.peplink.com
5
Copyright @ 2017 Pepwave
16 Inbound Access 114
16.1 Port Forwarding Service 114
16.1.1 UPnP / NAT-PMP Settings 116

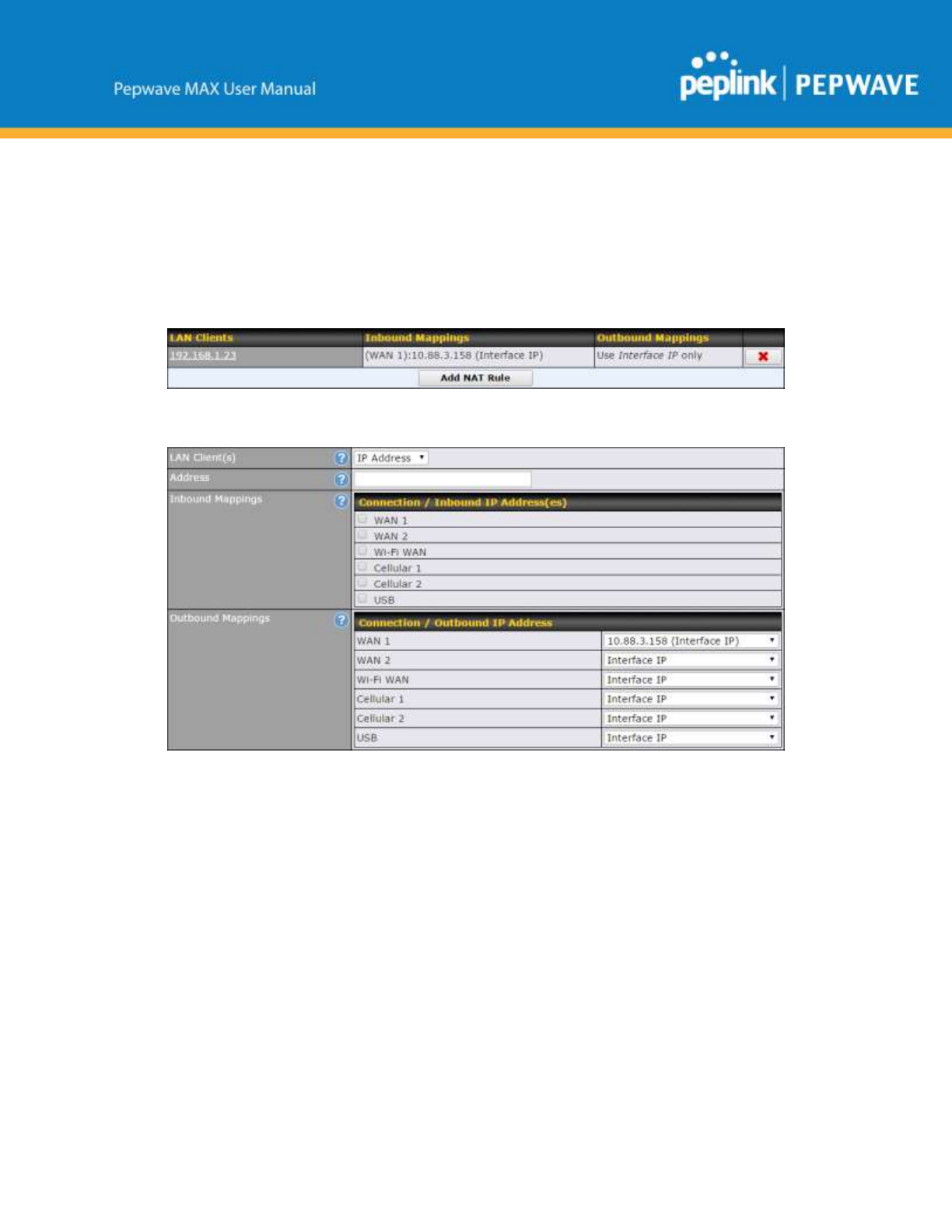

17 NAT Mappings 117
18 QoS 119

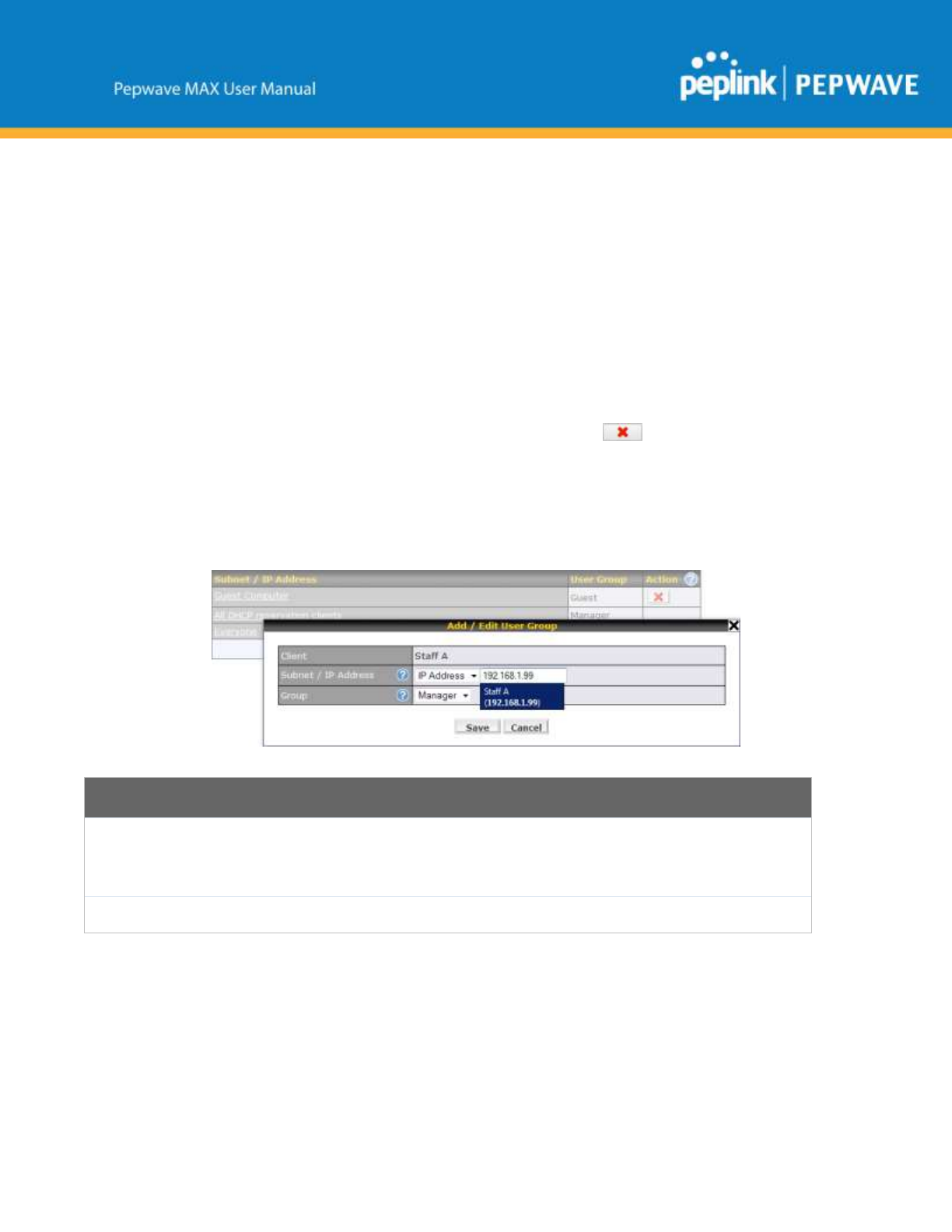

18.1 User Groups 119
18.2 Bandwidth Control 120
18.3 Application 120
18.3.1 Application Prioritization 120
18.3.2 Prioritization for Custom Applications 121
18.3.3 DSL/Cable Optimization 121
19 Firewall 121

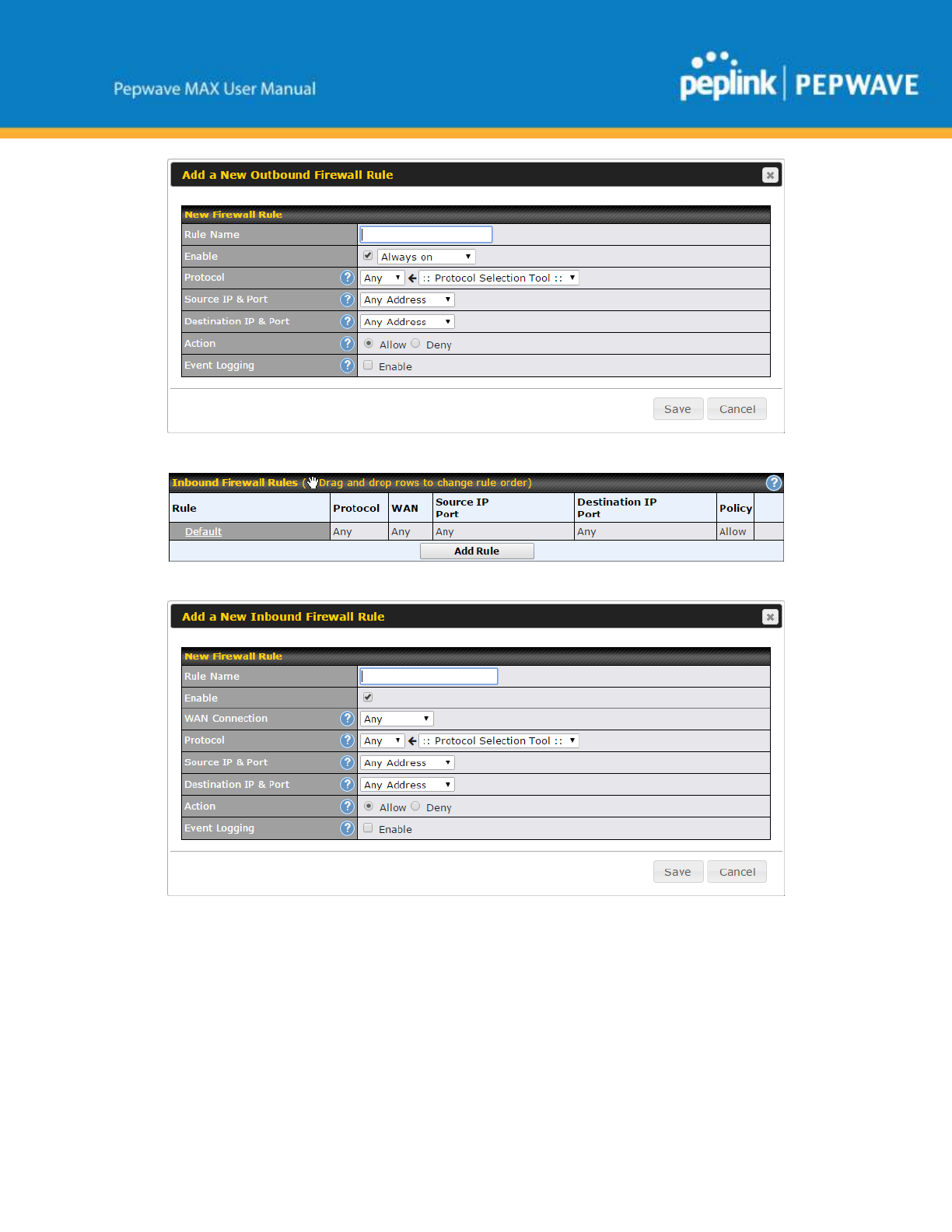

19.1 Outbound and Inbound Firewall Rules 122
19.1.1 Access Rules 122

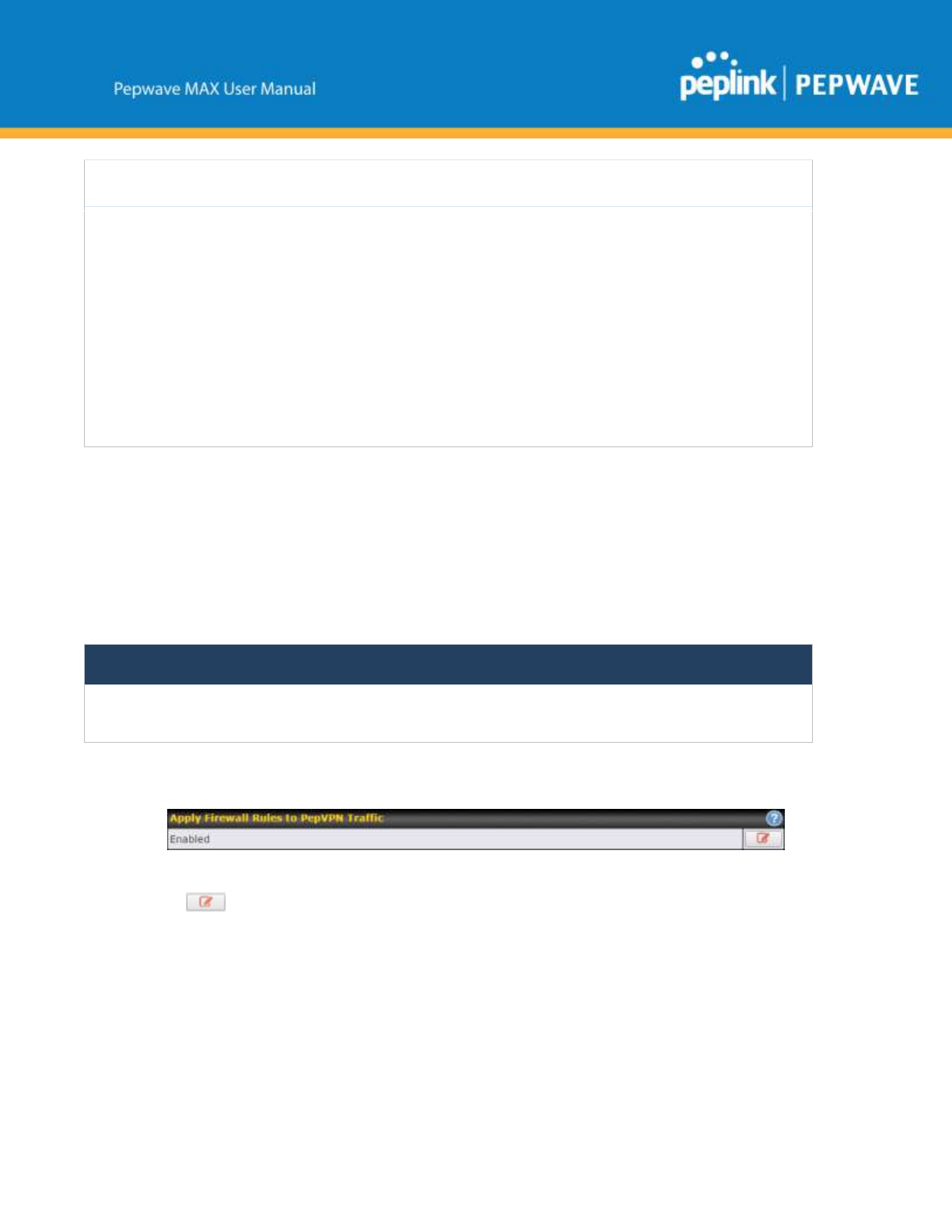

19.1.2 Apply Firewall Rules to PepVpn Traffic 125
19.1.3 Intrusion Detection and DoS Prevention 126

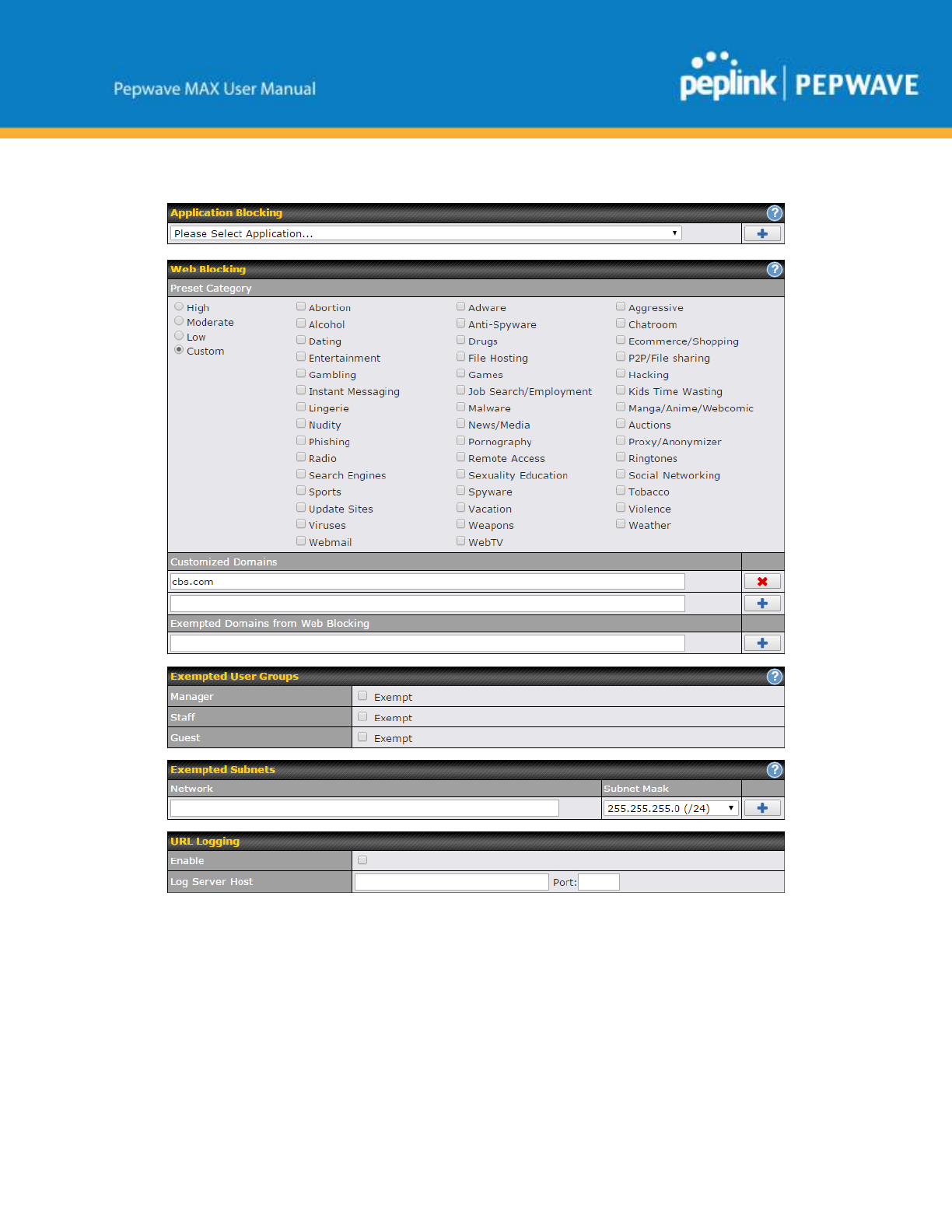

19.2 Content Blocking 127
19.2.1 Application Blocking 127
19.2.2 Web Blocking 128
19.2.3 Customized Domains 128
19.2.4 Exempted User Groups 128
19.2.5 Exempted Subnets 128
19.2.6 URL Logging 128
20 OSPF & RIPv2 129

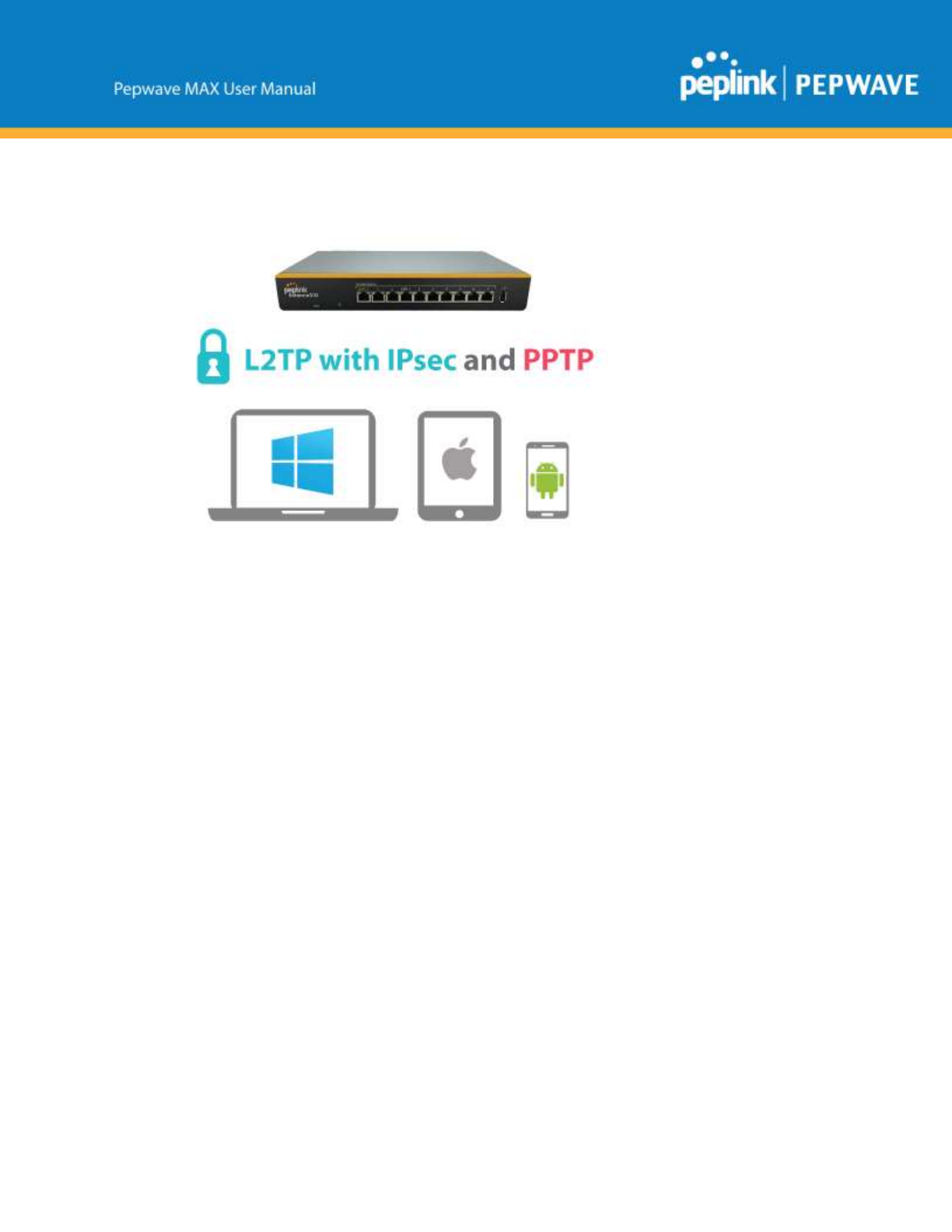

21 Remote User Access 131
Miscellaneous Settings 133
21.1 High Availability 133
21.2 PPTP Server 137
21.3 Certificate Manager 139
http://www.peplink.com
6
Copyright @ 2017 Pepwave
21.4 Service Forwarding 139

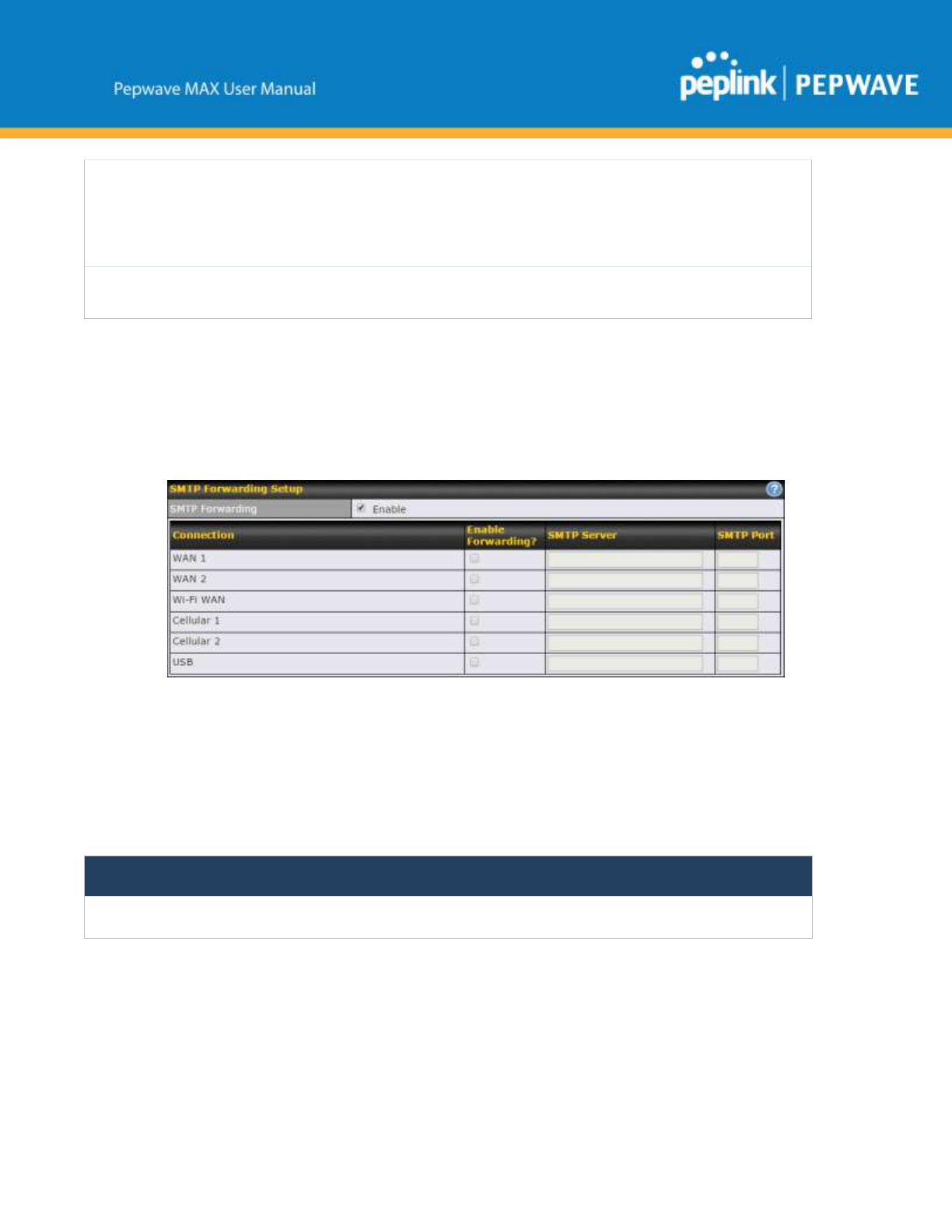

21.4.1 SMTP Forwarding 140

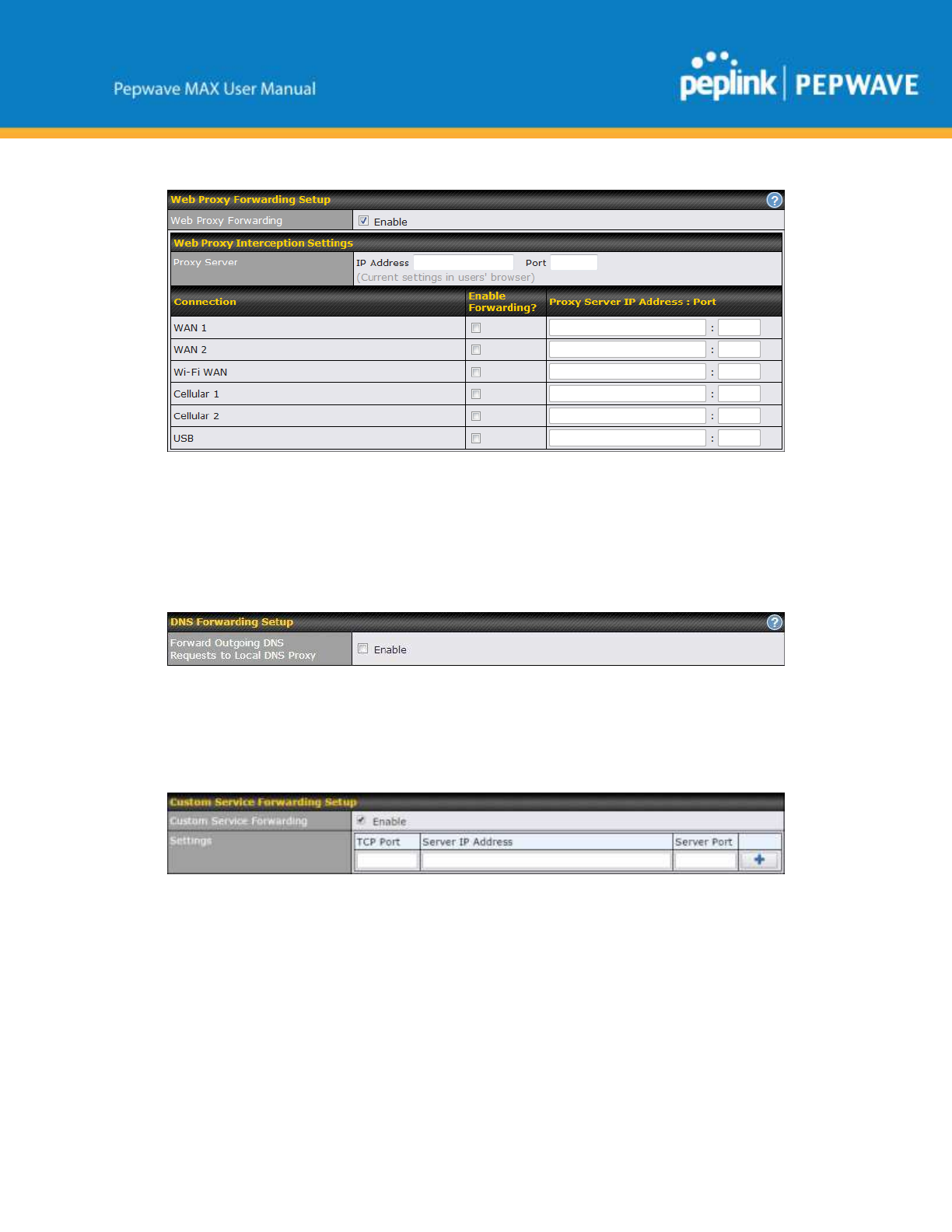

21.4.2 Web Proxy Forwarding 141
21.4.3 DNS Forwarding 141
21.4.4 Custom Service Forwarding 141
21.5 Service Passthrough 142

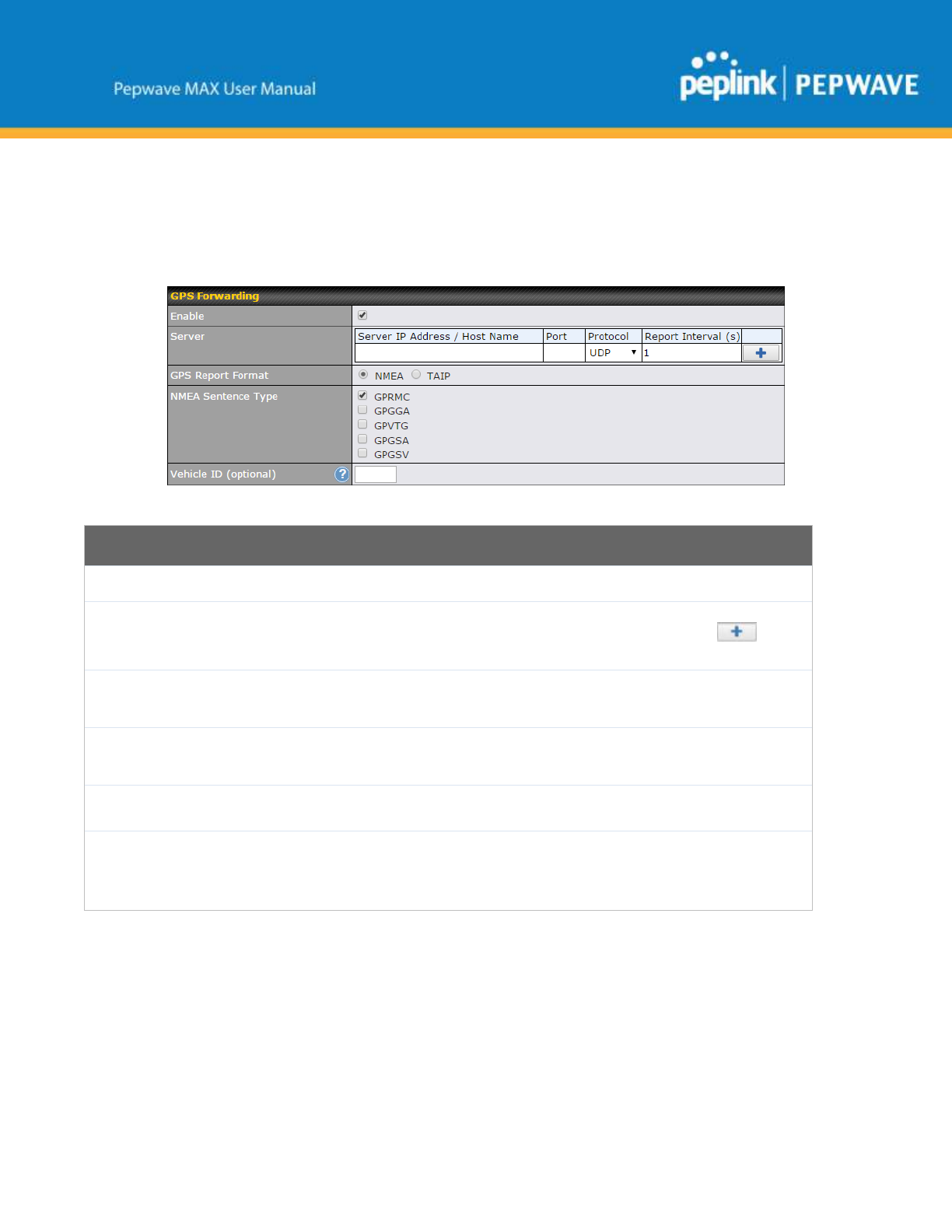

21.6 GPS Forwarding 143

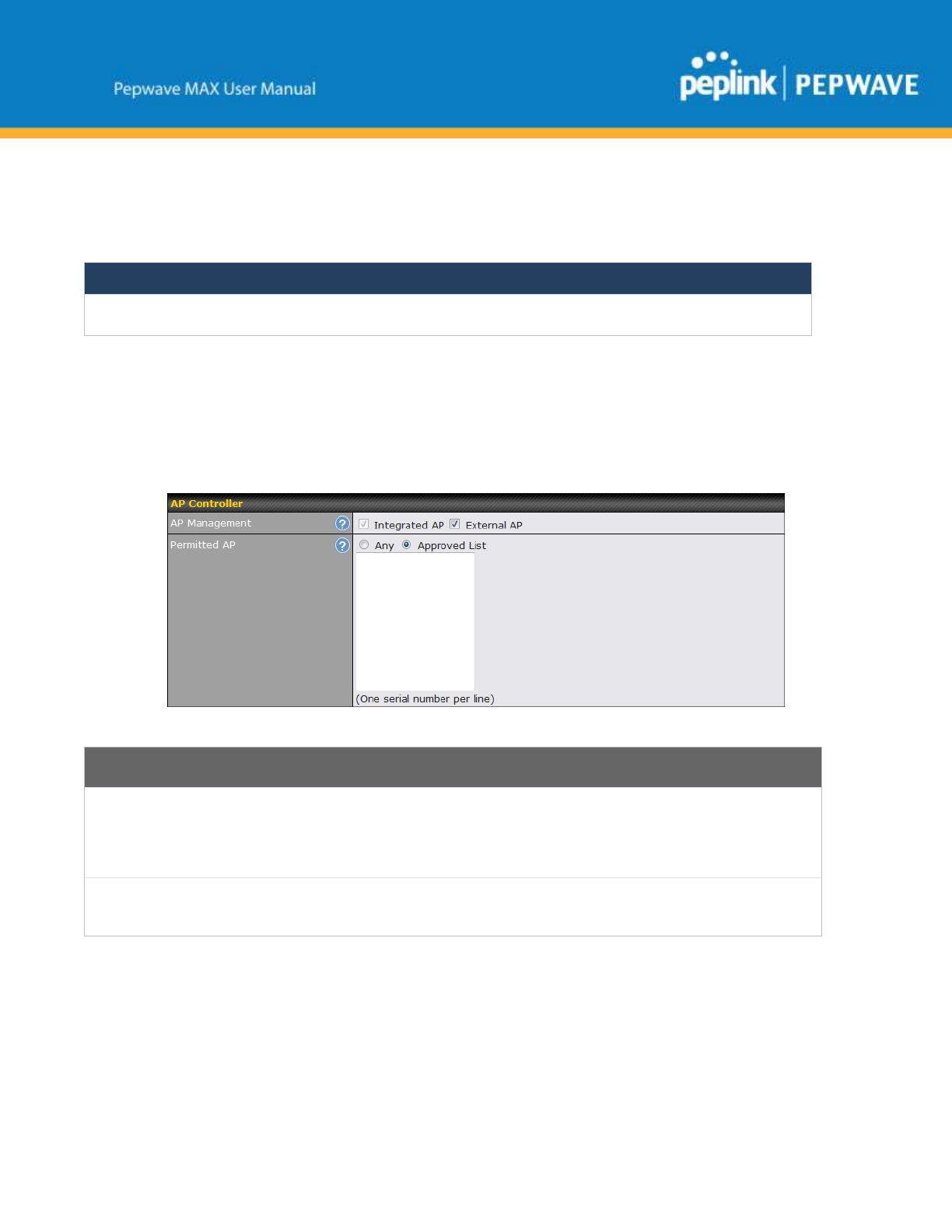

22 AP Controller 144
22.1 Wireless SSID 144
22.2 Settings 148
23 AP Controller Status 154
23.1 Info 154
23.2 Access Point (Usage) 156
23.3 Wireless SSID 158

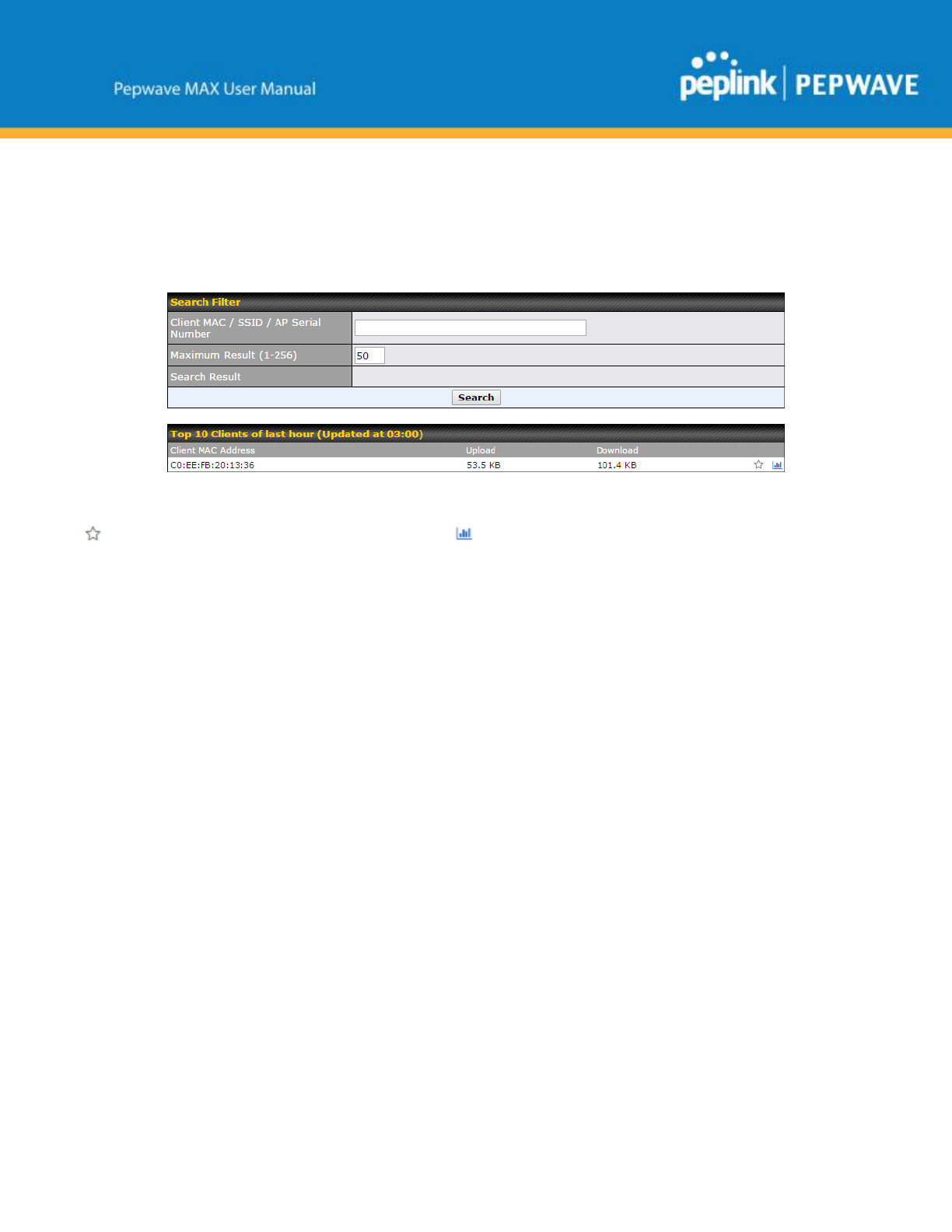

23.4 Wireless Client 159
23.5 Nearby Device 161

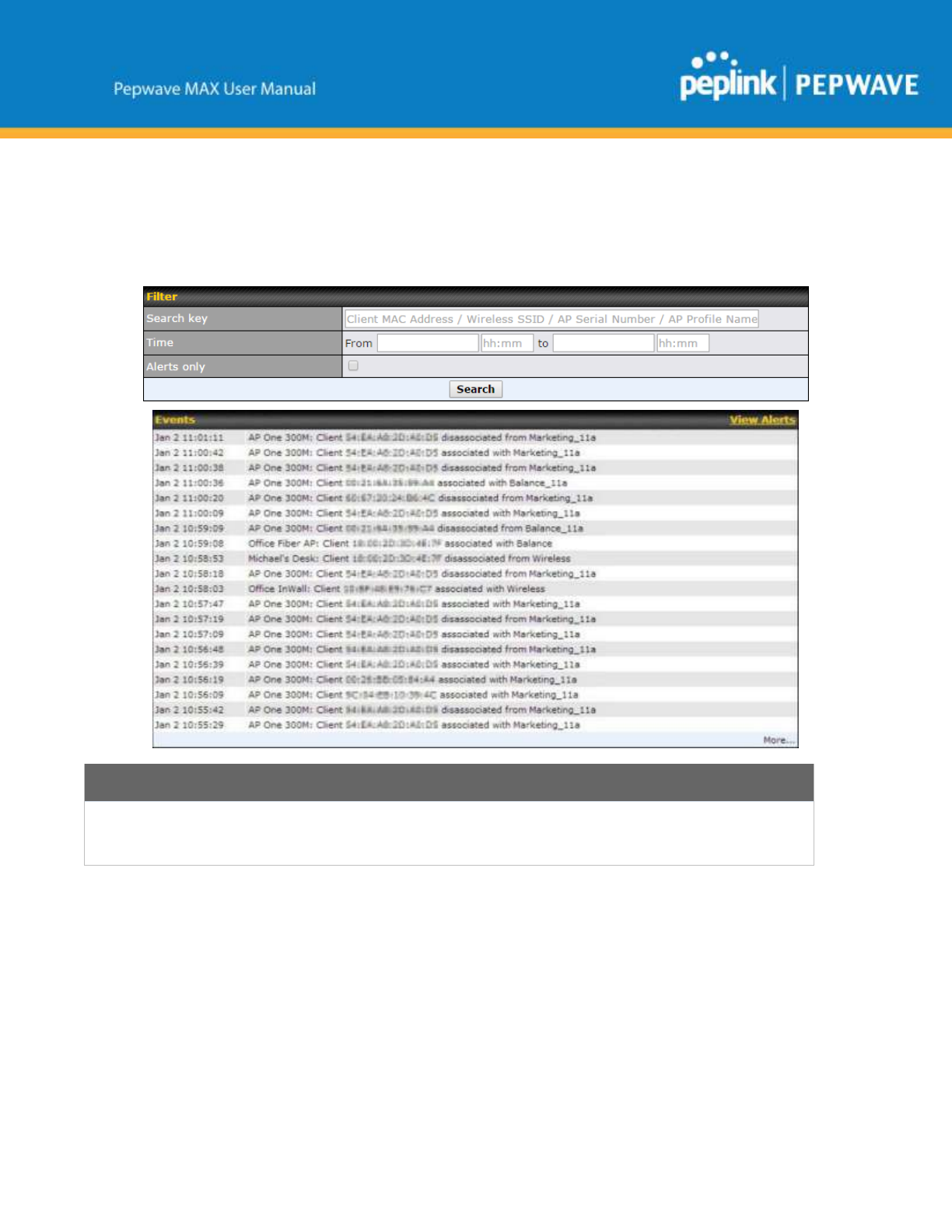

23.6 Event Log 162
24 Toolbox 163
25 System Settings 163
25.1 Admin Security 163
25.2 Firmware 168
25.3 Time 169
25.4 Schedule 169

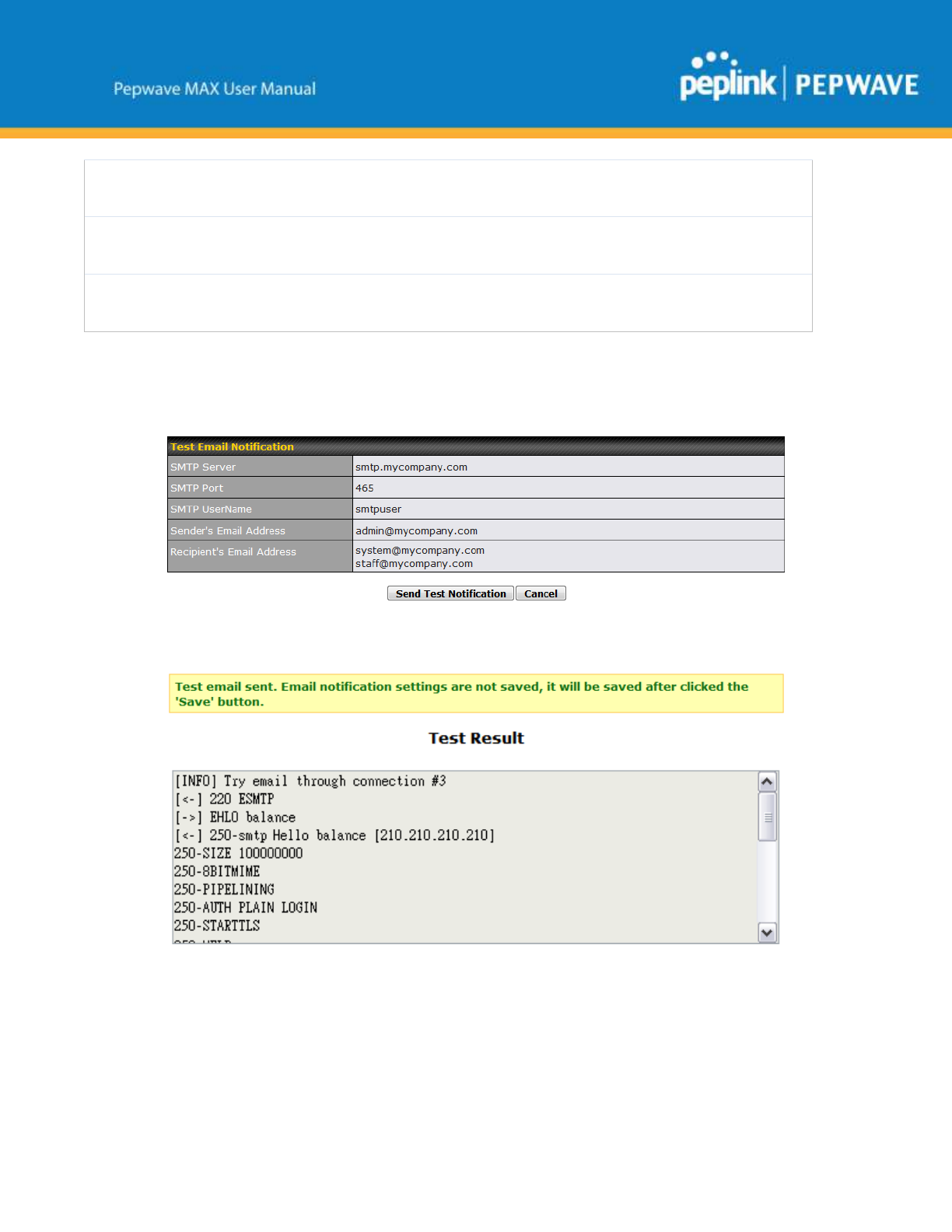

25.5 Email Notification 171
25.6 Event Log 173
25.7 SNMP 173
25.8 InControl 176
25.9 Configuration 176
25.10 Feature Add-ons 178
25.11 Reboot 178
http://www.peplink.com
7
Copyright @ 2017 Pepwave
26 Tools 178

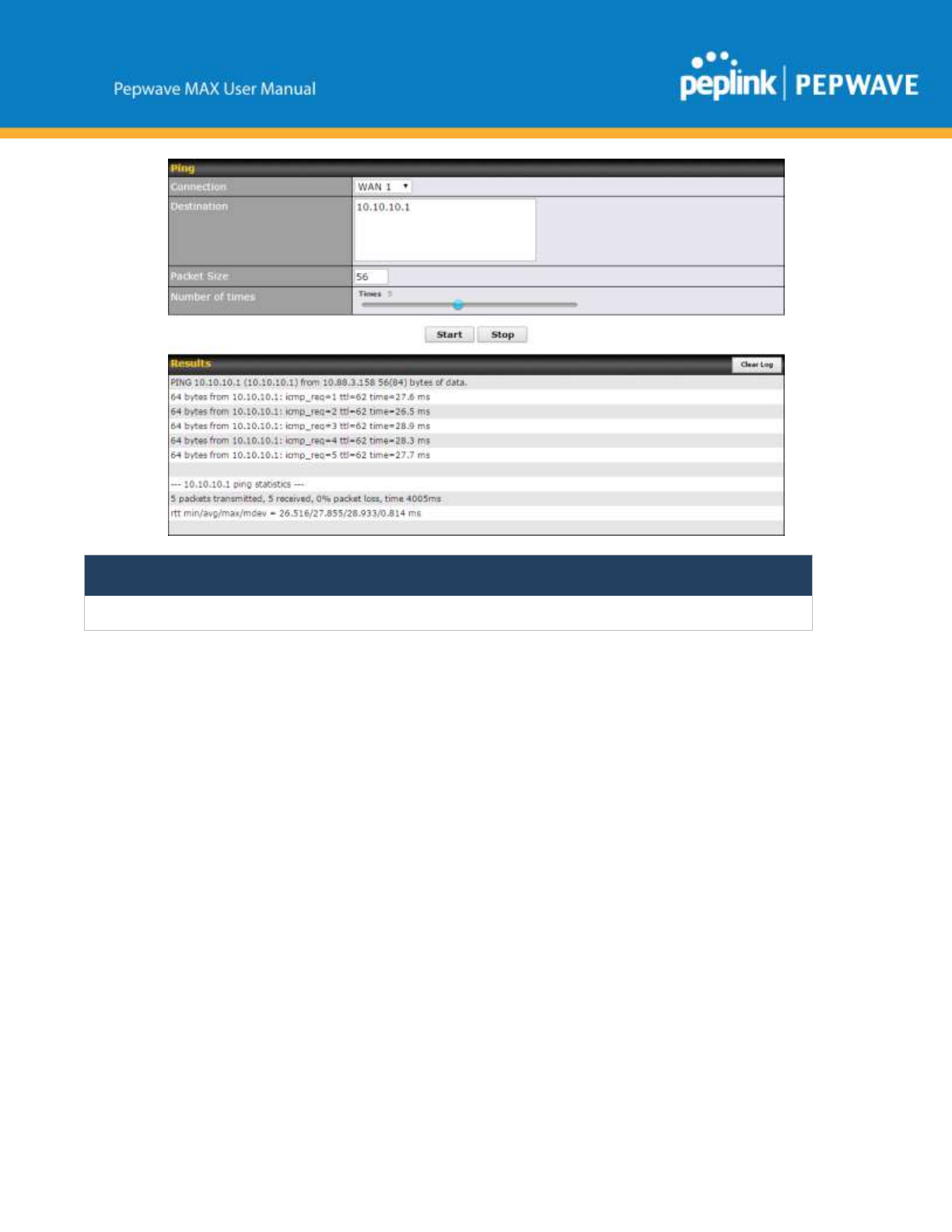

26.1 Ping 178
26.2 Traceroute Test 179
26.3 PepVPN Test 180
26.4 Wake-on-LAN 181
26.5 CLI (Command Line Interface Support) 181
27 Status 182
27.1 Device 182
27.2 GPS Data 183
27.3 Active Sessions 183
27.4 Client List 185
27.5 WINS Client 186
27.6 UPnP / NAT-PMP 186
27.7 SpeedFusion Status 187
27.8 Event Log 191
28 Bandwidth Status 192
28.1 Real-Time 192
28.2 Hourly 193
28.3 Daily 194

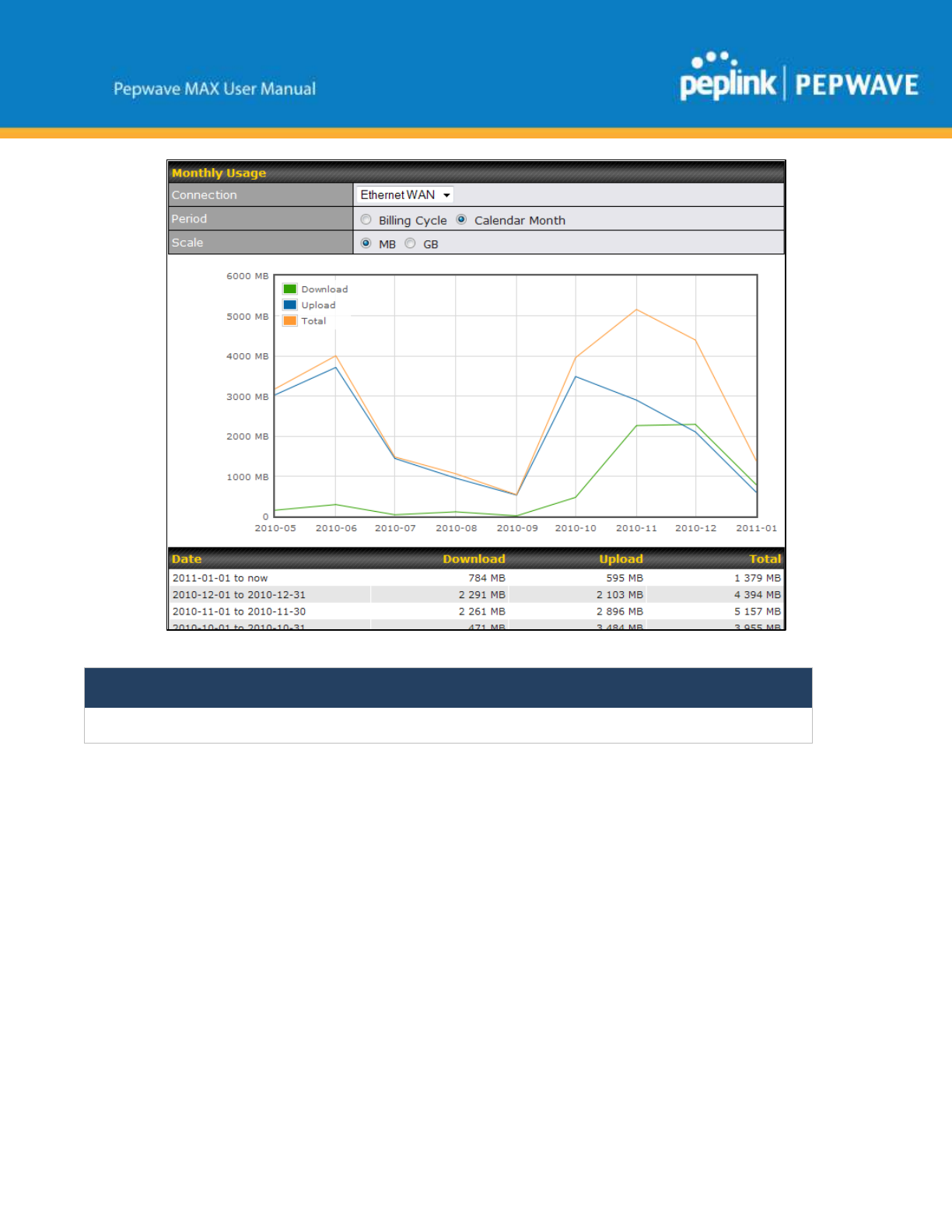

28.4 Monthly 195
Appendix A: Restoration of Factory Defaults 197
Appendix B: Declaration 198
http://www.peplink.com
8
Copyright @ 2017 Pepwave
1 Introduction and Scope

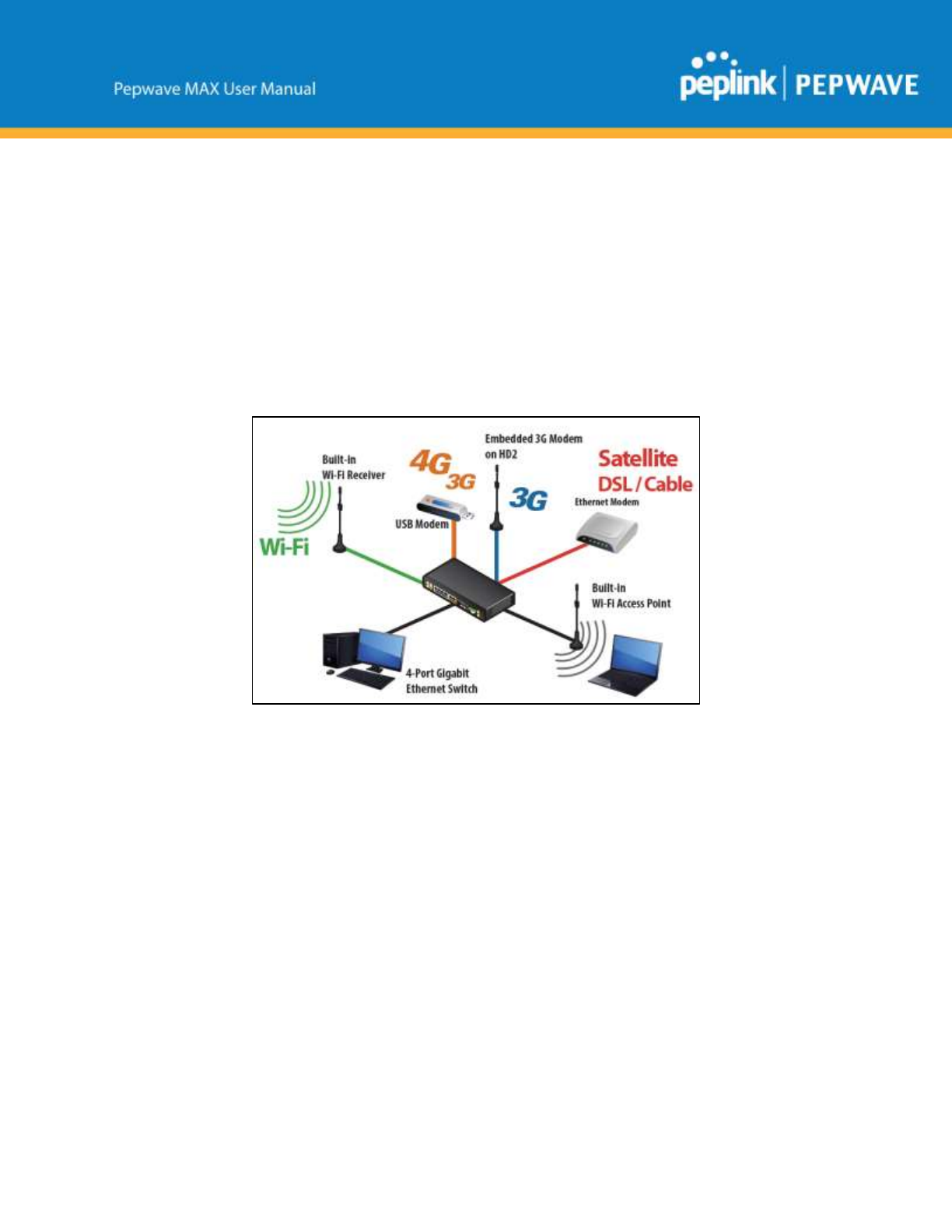

Pepwave routers provide link aggregation and load balancing across multiple WAN connections,
allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE, Wi-Fi, external WiMAX
dongle, and satellite to be utilized to connect to the Internet.
The MAX wireless SD-WAN router series has a wide range of products suitable for many different
deployments and markets. Entry level SD-WAN models such as the MAX BR1 are suitable for SMEs or
branch offices. High-capacity SD-WAN routers such as the MAX HD2 are suitable for larger
organizations and head offices.
This manual covers setting up Pepwave routers and provides an introduction to their features and usage.
Tips

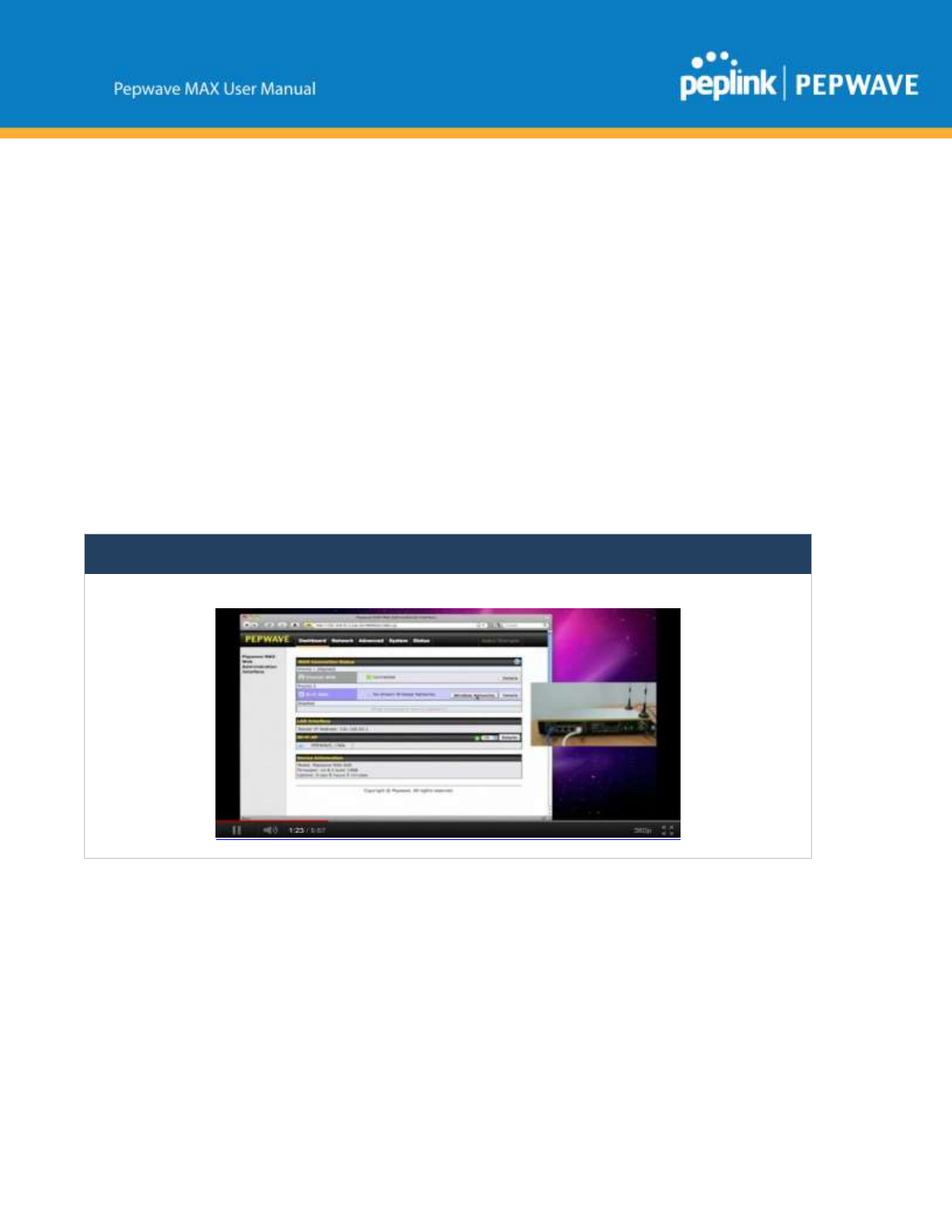

Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction!
http://youtu.be/UCkVQThLKO4
http://www.peplink.com
9
Copyright @ 2017 Pepwave
2 Glossary
The following terms, acronyms, and abbreviations are frequently used in this manual:
Term
Definition
3G
3rd generation standards for wireless communications (e.g., HSDPA)
4G
4th generation standards for wireless communications (e.g., LTE)
DHCP
Dynamic Host Configuration Protocol
DNS
Domain Name System
EVDO
Evolution-Data Optimized
FQDN
Fully Qualified Domain Name
HSDPA
High-Speed Downlink Packet Access
HTTP
Hyper-Text Transfer Protocol
ICMP
Internet Control Message Protocol
IP
Internet Protocol
LAN
Local Area Network
MAC Address
Media Access Control Address
MTU
Maximum Transmission Unit
MSS
Maximum Segment Size
NAT
Network Address Translation
PPPoE
Point to Point Protocol over Ethernet
QoS
Quality of Service
SNMP
Simple Network Management Protocol
TCP
Transmission Control Protocol
UDP
User Datagram Protocol
VPN
Virtual Private Network
VRRP
Virtual Router Redundancy Protocol
WAN
Wide Area Network
WINS
Windows Internet Name Service
WLAN
Wireless Local Area Network
http://www.peplink.com
10
Copyright @ 2017 Pepwave
3 Product Features
Pepwave routers enable all LAN users to share broadband Internet connections, and they provide
advanced features to enhance Internet access. Our Max BR wireless routers support multiple SIM cards.
They can be configured to switch from using one SIM card to another SIM card according to different
criteria, including wireless network reliability and data usage.
Our MAX HD series wireless routers are embedded with multiple 4G LTE modems, and allow
simultaneous wireless Internet connections through multiple wireless networks. The wireless Internet
connections can be bonded together using our SpeedFusion technology. This allows better reliability,
larger bandwidth, and increased wireless coverage are comparing to use only one 4G LTE modem.
Below is a list of supported features on Pepwave routers. Features vary by model. For more information,
please see peplink.com/products.
3.1 Supported Network Features
3.1.1 WAN
● Ethernet WAN connection in full/half duplex
● Static IP support for PPPoE
● Built-in cellular modems
● USB mobile connection(s)
● Wi-Fi WAN connection
● Network address translation (NAT)/port address translation (PAT)
● Inbound and outbound NAT mapping
● IPsec NAT-T and PPTP packet passthrough
● MAC address clone and passthrough
● Customizable MTU and MSS values
● WAN connection health check
● Dynamic DNS (supported service providers: changeip.com, dyndns.org, no-ip.org, tzo.com and
DNS-O-Matic)
● Ping, DNS lookup, and HTTP-based health check
http://www.peplink.com
11
Copyright @ 2017 Pepwave
3.1.2 LAN
● Wi-Fi AP
● Ethernet LAN ports
● DHCP server on LAN
● Extended DHCP option support
● Static routing rules
● VLAN on LAN support
3.1.3 VPN
● PepVPN with SpeedFusionTM
● PepVPN performance analyzer
● X.509 certificate support
● VPN load balancing and failover among selected WAN connections
● Bandwidth bonding and failover among selected WAN connections
● IPsec VPN for network-to-network connections (works with Cisco and Juniper only)
● Ability to route Internet traffic to a remote VPN peer
● Optional pre-shared key setting
● SpeedFusionTM throughput, ping, and traceroute tests
● PPTP server
● PPTP and IPsec passthrough
3.1.4 Firewall
● Outbound (LAN to WAN) firewall rules
● Inbound (WAN to LAN) firewall rules per WAN connection
● Intrusion detection and prevention
● Specification of NAT mappings
● Outbound firewall rules can be defined by destination domain name
3.1.5 Captive Portal
● Splash screen of open networks, login page for secure networks
● Customizable built-in captive portal
● Supports linking to outside page for captive portal
3.1.6 Outbound Policy
● Link load distribution per TCP/UDP service
● Persistent routing for specified source and/or destination IP addresses per TCP/UDP service
● Traffic prioritization and DSL optimization
http://www.peplink.com
12
Copyright @ 2017 Pepwave
● Prioritize and route traffic to VPN tunnels with Priority and Enforced algorithms
3.1.7 AP Controller
● Configure and manage Pepwave AP devices
● Review the status of connected APs
3.1.8 QoS
● Quality of service for different applications and custom protocols
● User group classification for different service levels
● Bandwidth usage control and monitoring on group- and user-level
● Application prioritization for custom protocols and DSL/cable optimization
3.2 Other Supported Features
● User-friendly web-based administration interface
● HTTP and HTTPS support for web admin interface
● Configurable web administration port and administrator password
● Firmware upgrades, configuration backups, ping, and traceroute via web admin interface
● Remote web-based configuration (via WAN and LAN interfaces)
● Time server synchronization
● SNMP
● Email notification
● Read-only user for web admin
● Shared IP drop-in mode
● Authentication and accounting by RADIUS server for web admin
● Built-in WINS servers*
● Syslog

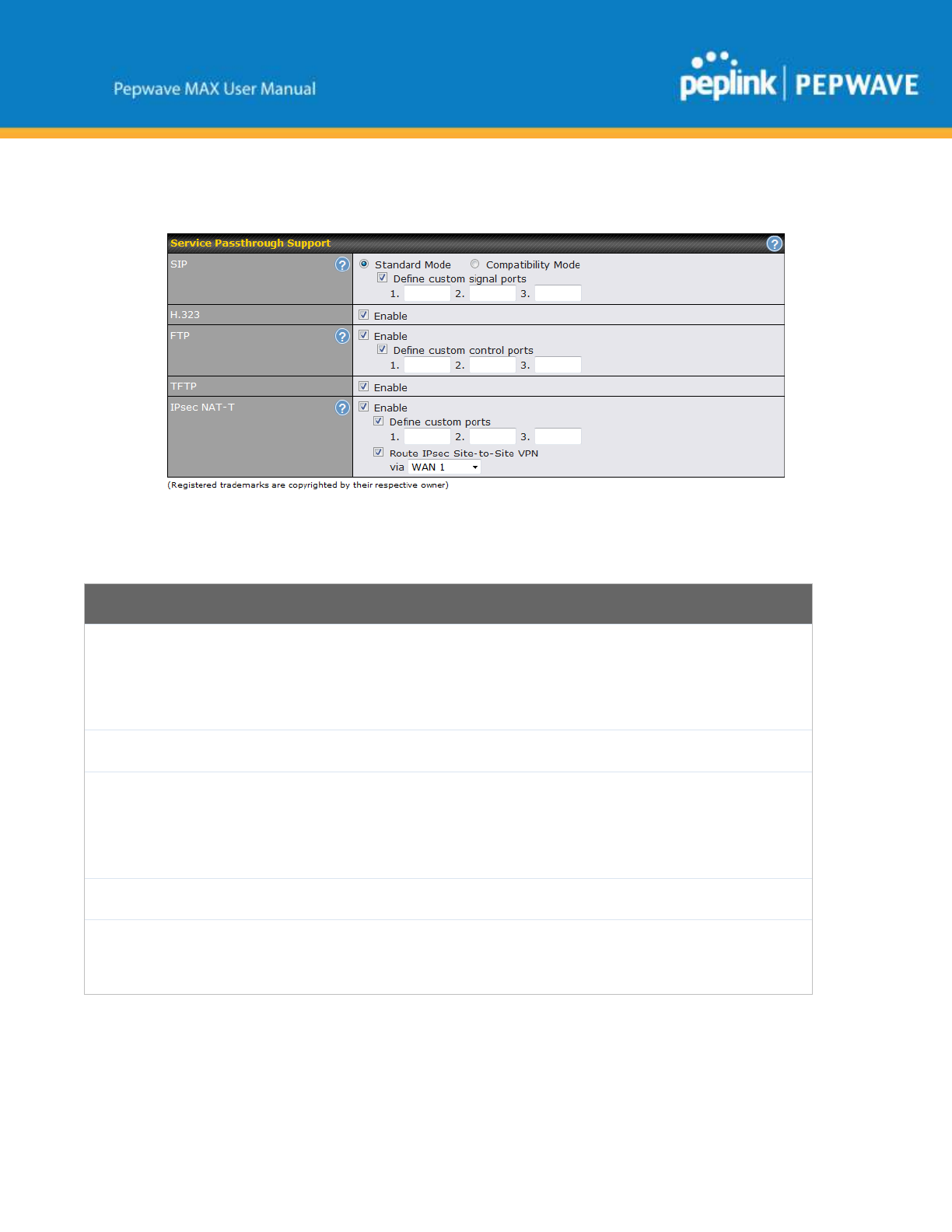

● SIP passthrough
● PPTP packet passthrough

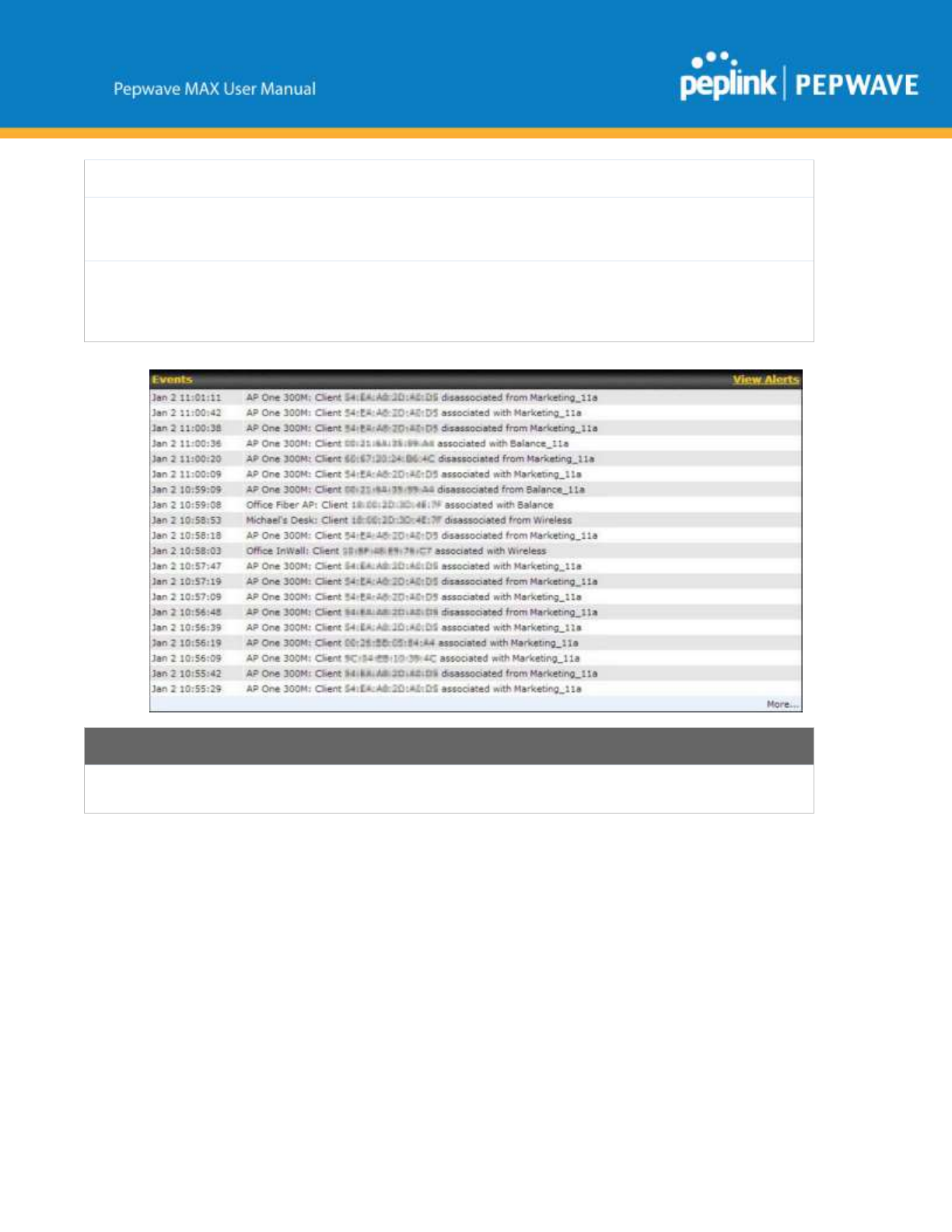

● Event log

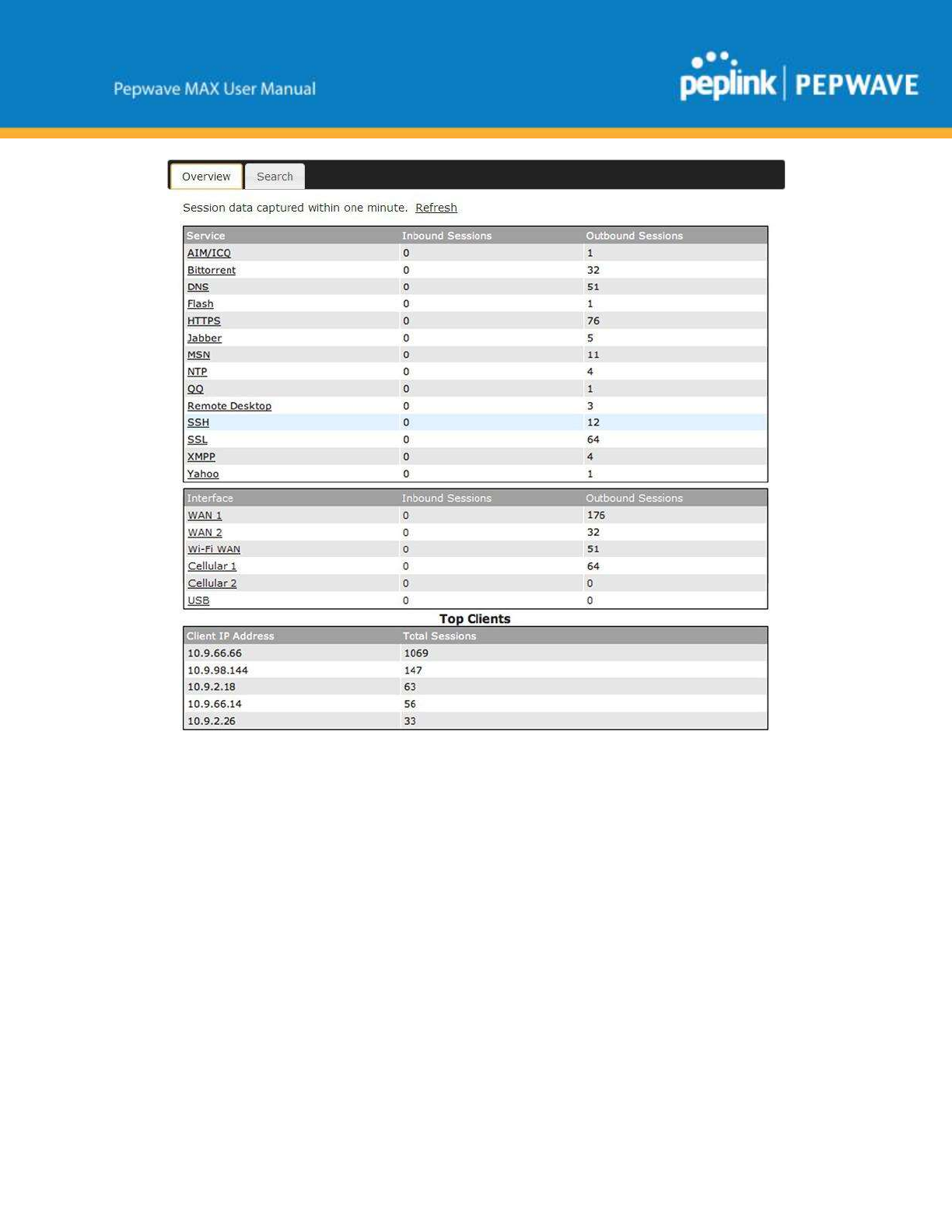

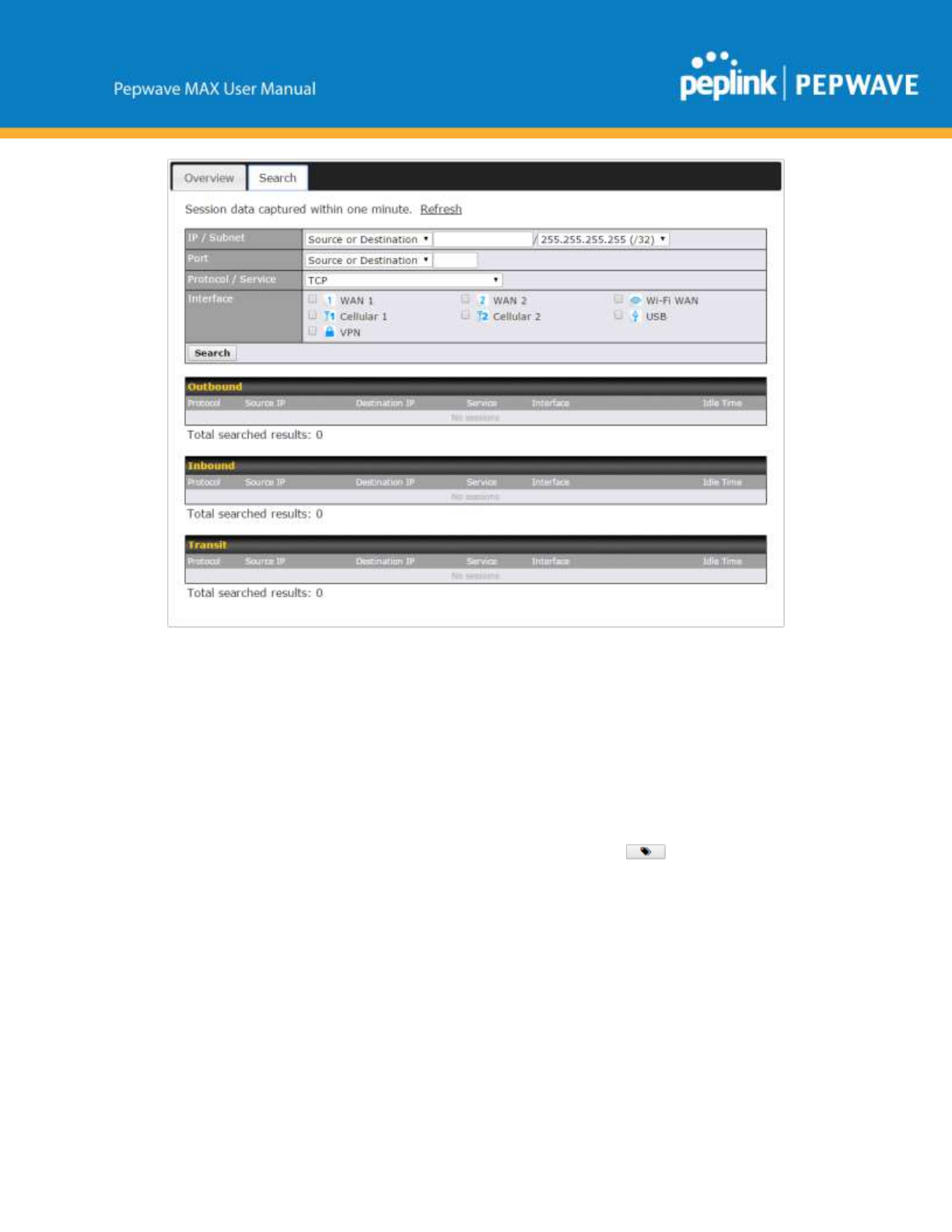

● Active sessions

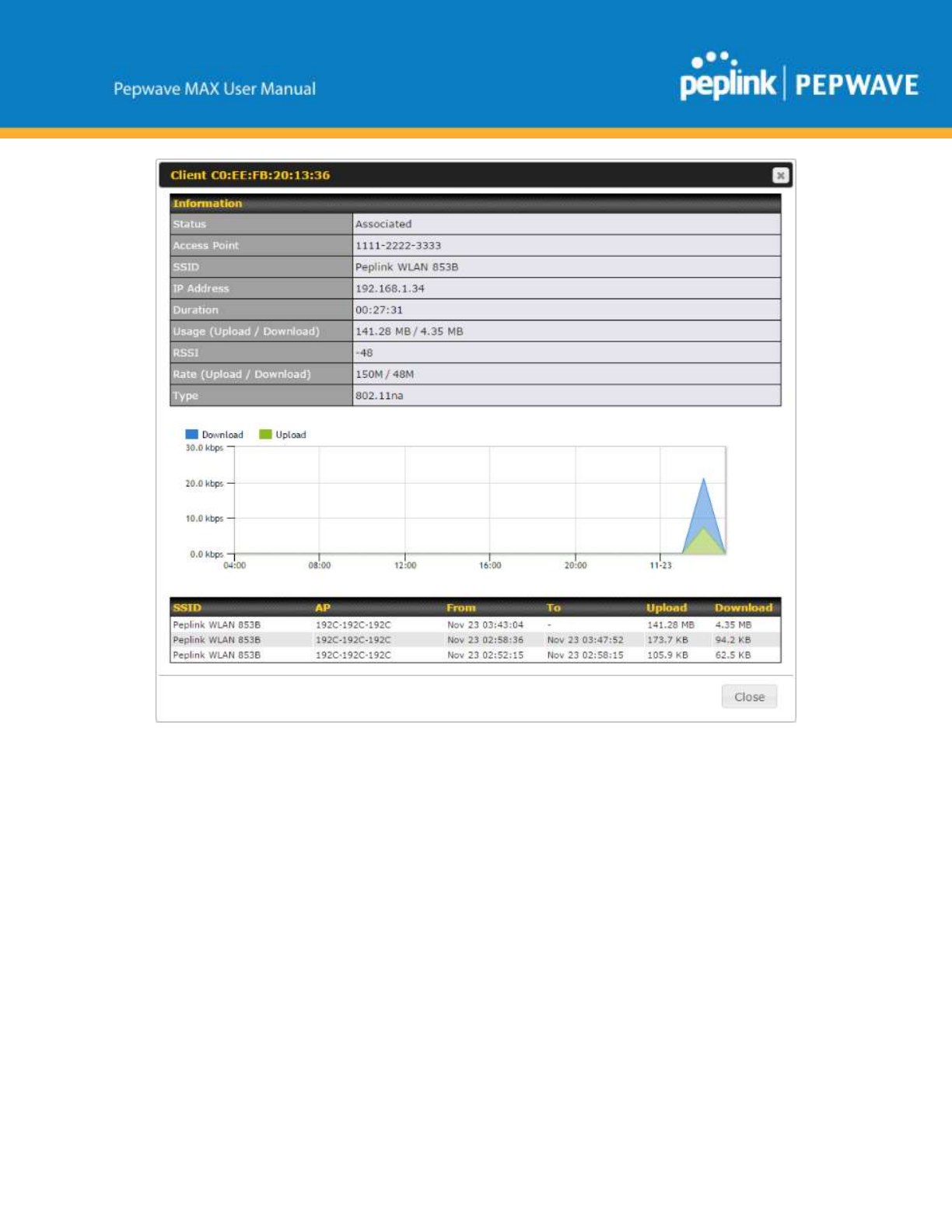

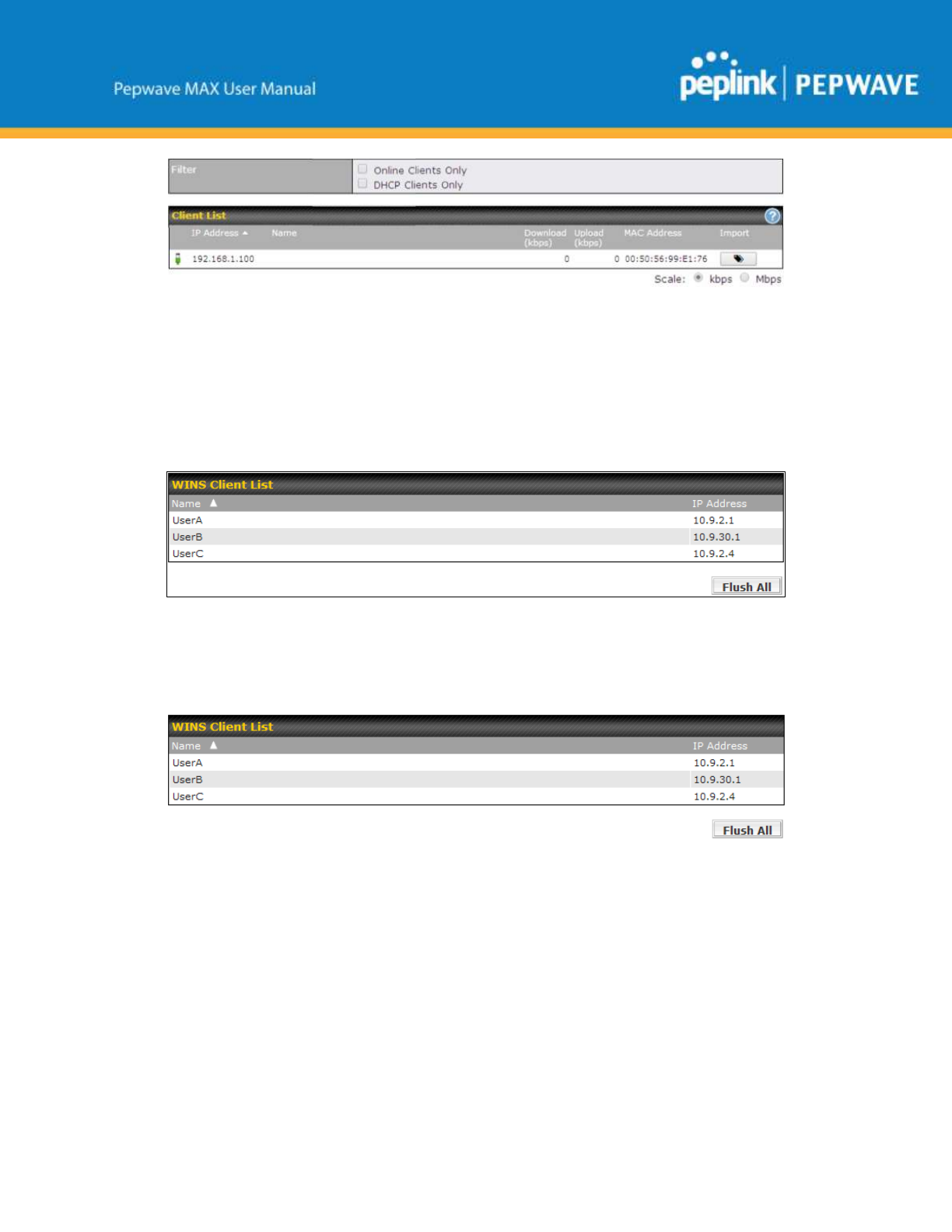

● Client list
● WINS client list *

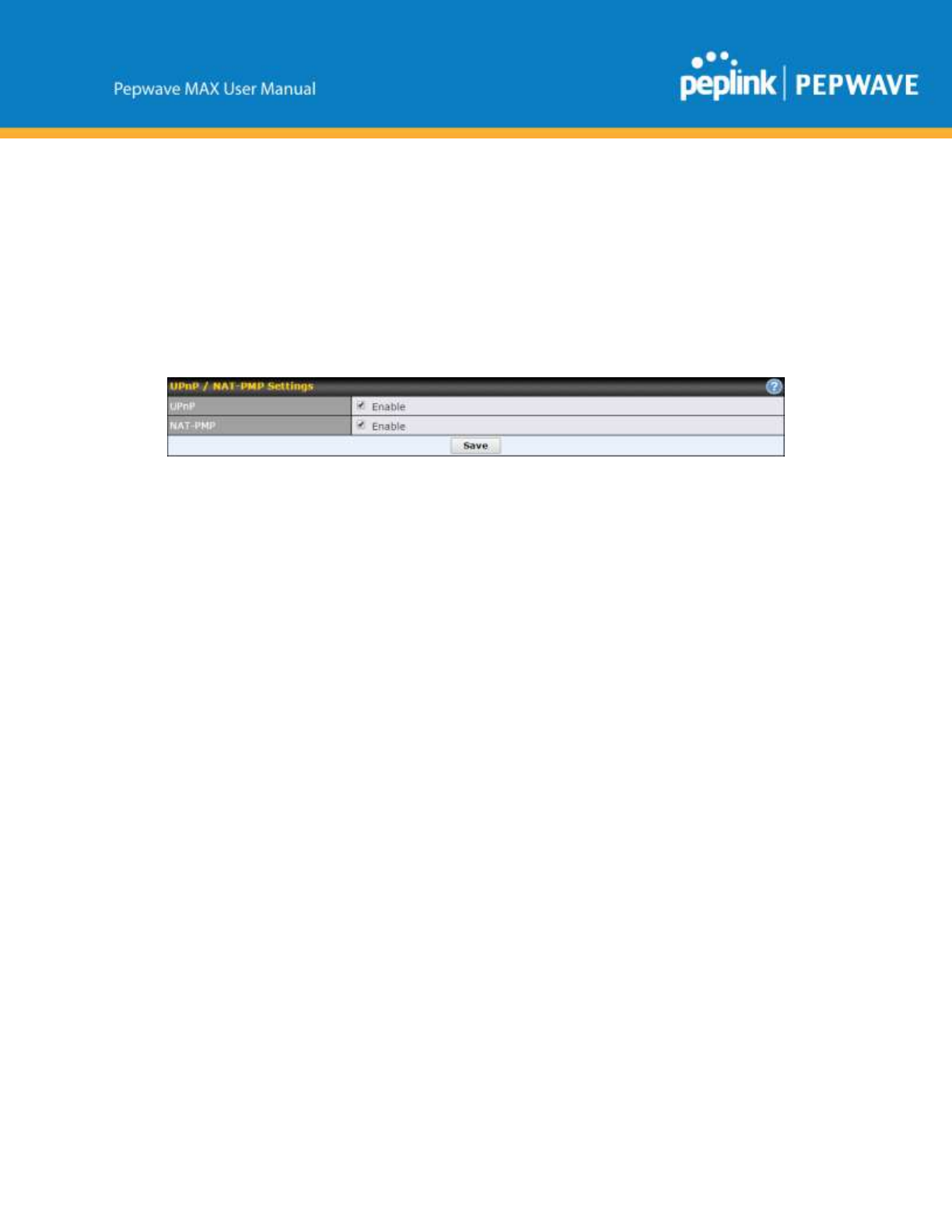

● UPnP / NAT-PMP

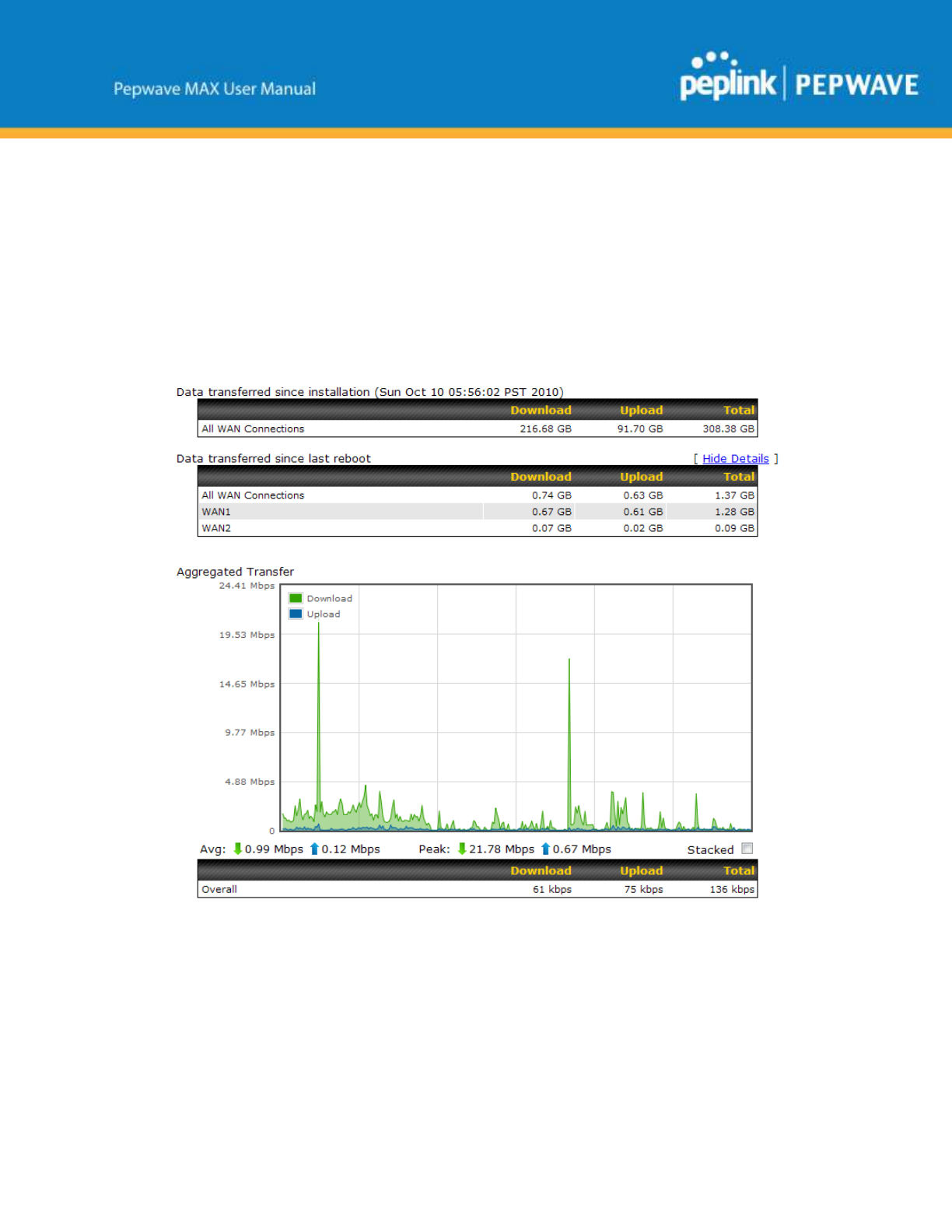

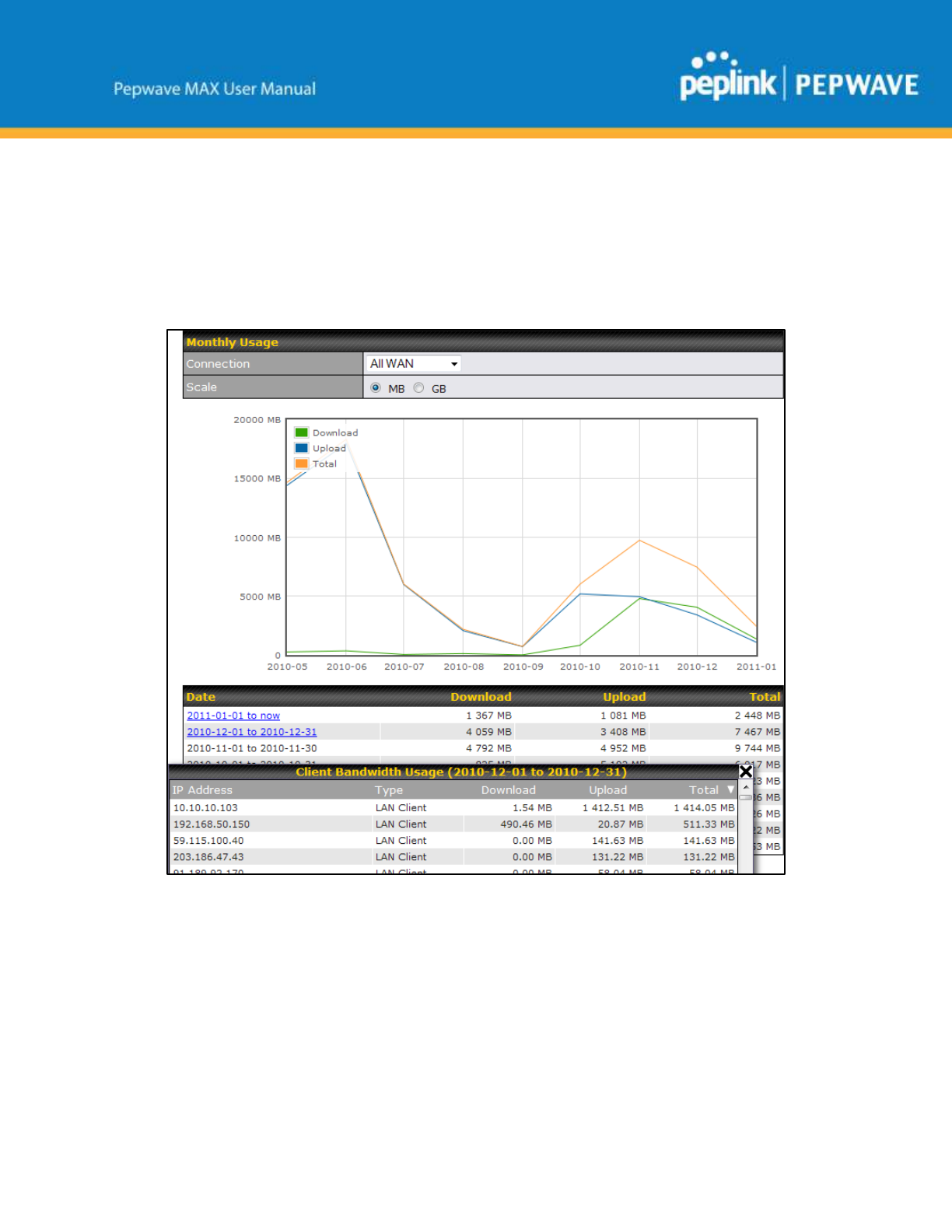

● Real-time, hourly, daily, and monthly bandwidth usage reports and charts
● IPv6 support
http://www.peplink.com
13
Copyright @ 2017 Pepwave
● Support USB tethering on Android 2.2+ phones
* Not supported on MAX Surf-On-The-Go, and BR1 variants
4 Pepwave MAX Mobile Router Overview
4.1 MAX 700

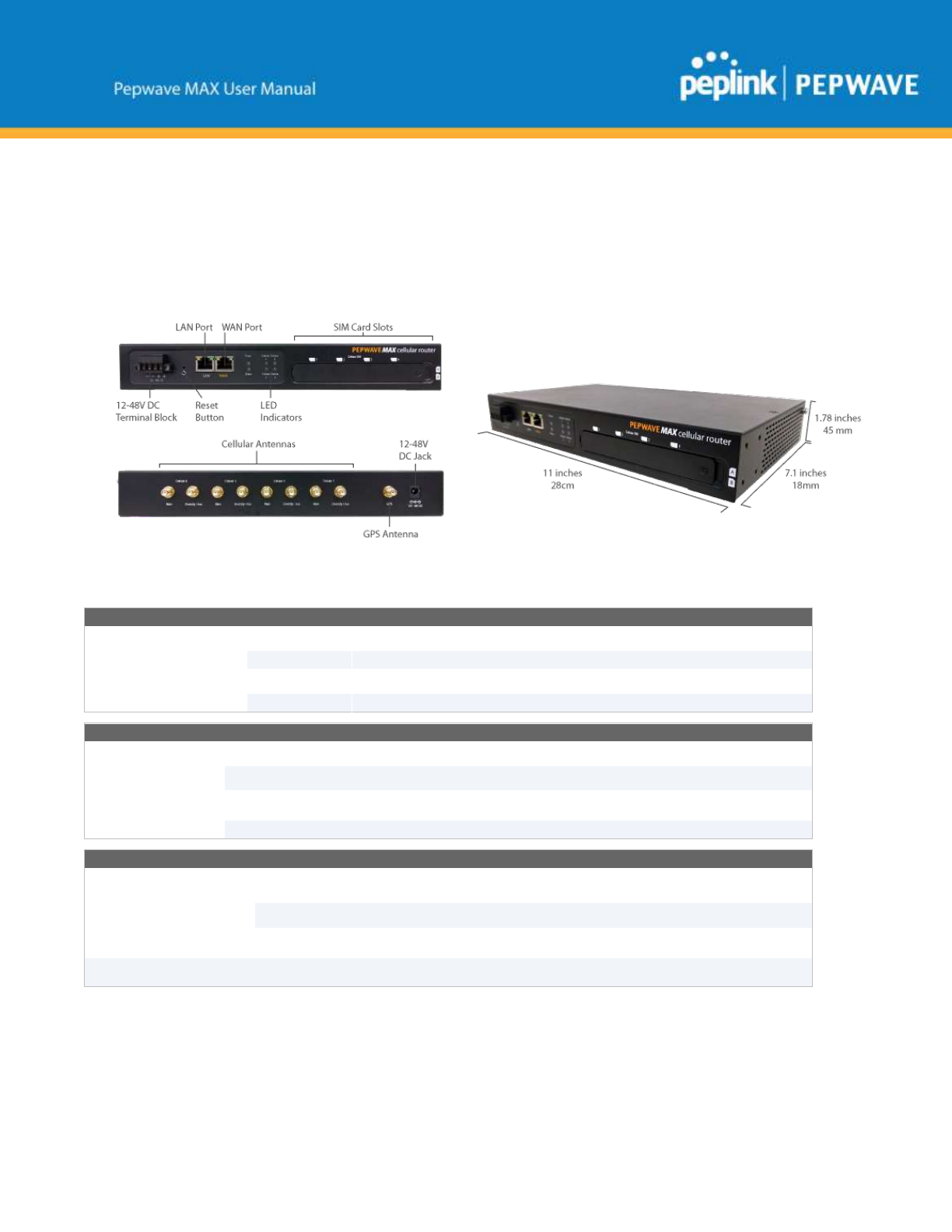

4.1.1 Panel Appearance
4.1.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
http://www.peplink.com
14
Copyright @ 2017 Pepwave
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN
OFF
Disconnected
Blinking slowly
Connecting to network
Blinking
Connected to network with traffic
ON
Connected to network without traffic
Wi-Fi AP
OFF
Disabled
Blinking slowly
Enabled but no client connected
Blinking
Connected to network with traffic
ON
Client(s) connected to wireless network
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100/ 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
15
Copyright @ 2017 Pepwave
4.2 MAX HD2
4.2.1 Panel Appearance
http://www.peplink.com
16
Copyright @ 2017 Pepwave
4.2.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking
red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
17
Copyright @ 2017 Pepwave

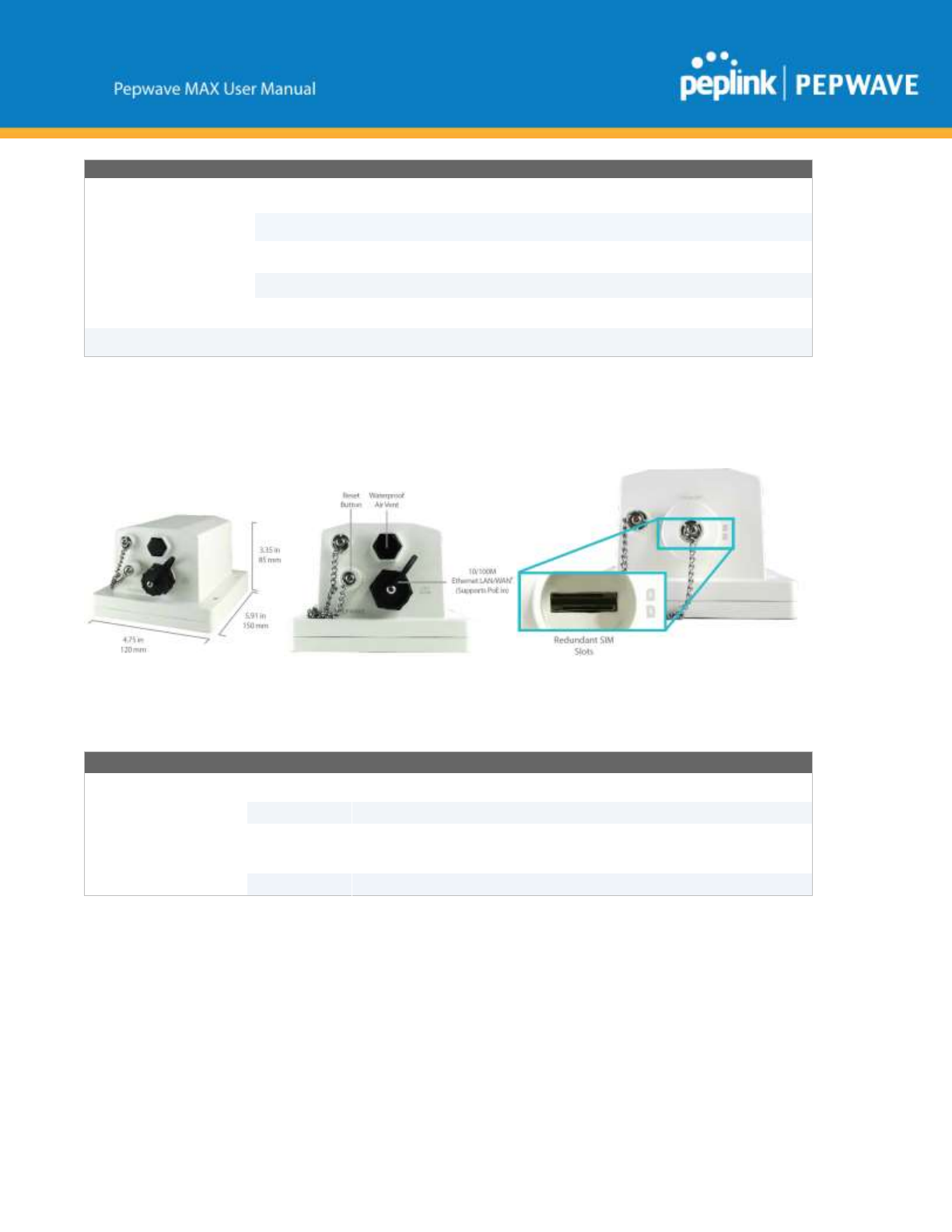

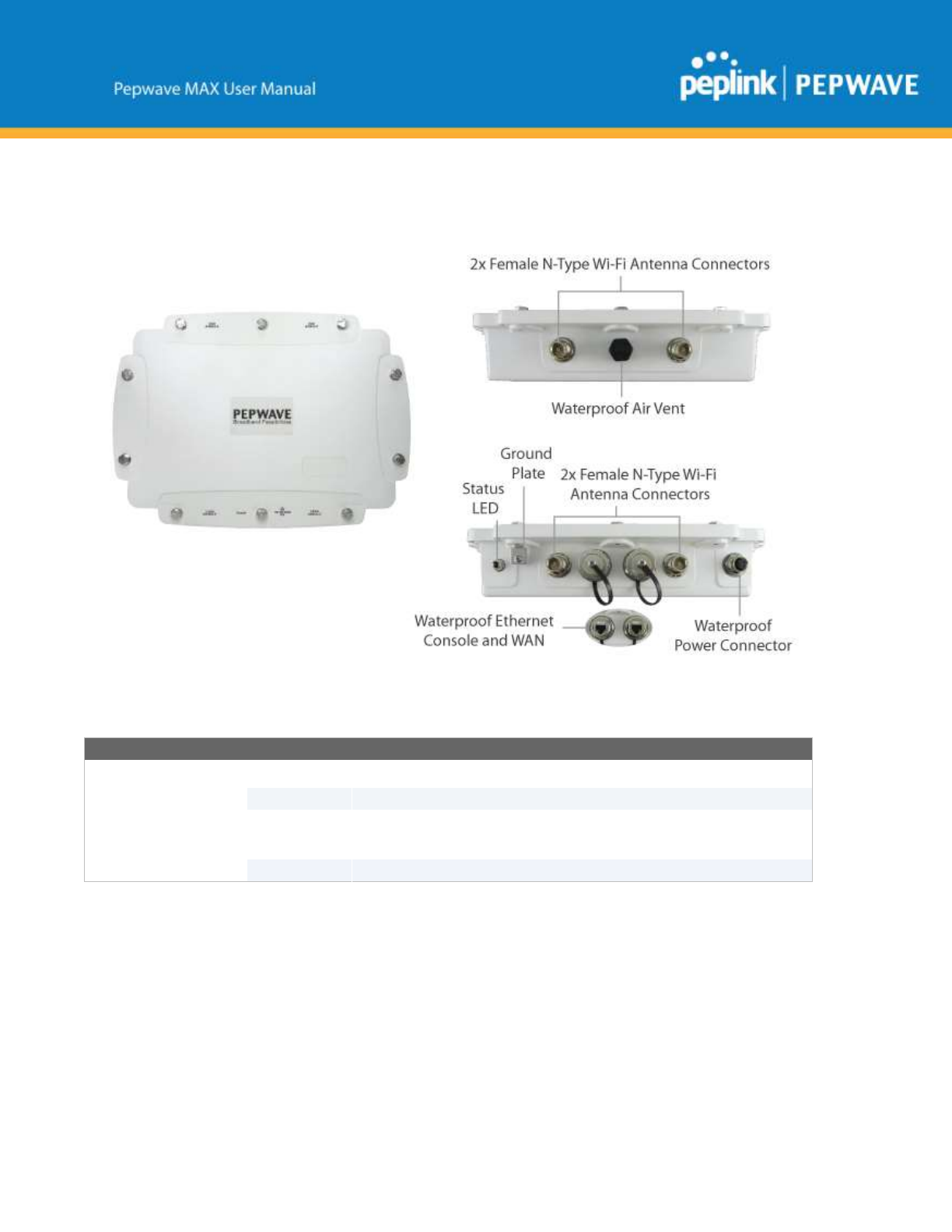

4.3 MAX HD2 IP67
4.3.1 Panel Appearance
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking
red
Boot up error
Green
Ready
http://www.peplink.com
18
Copyright @ 2017 Pepwave
4.4 MAX HD2 mini
4.4.1 Panel Appearance
4.4.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular WAN Indicators
Cellular 1 /
Cellular 2
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
19
Copyright @ 2017 Pepwave
4.5 MAX Transit
4.5.1 Panel Appearance
4.5.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular WAN Indicators
Cellular 1 /
Cellular 2*
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
* For MAX-TST_DUO
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
20
Copyright @ 2017 Pepwave
4.6 MAX CX4
4.6.1 Panel Appearance
4.6.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
21
Copyright @ 2017 Pepwave

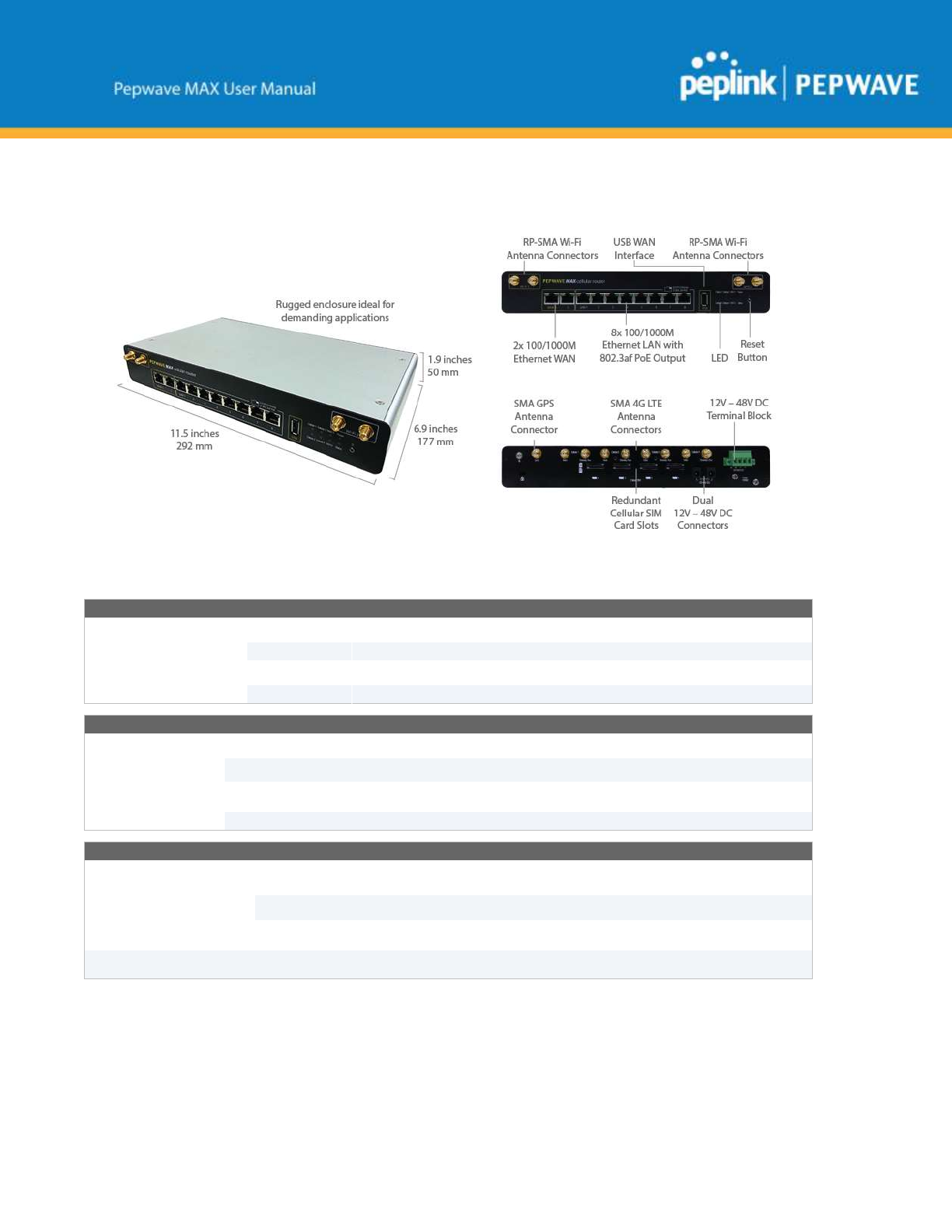

4.7 MAX HD4 / HD2 and HD4 with MediaFast
4.7.1 Panel Appearance
4.7.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
22
Copyright @ 2017 Pepwave
4.8 MAX BR1

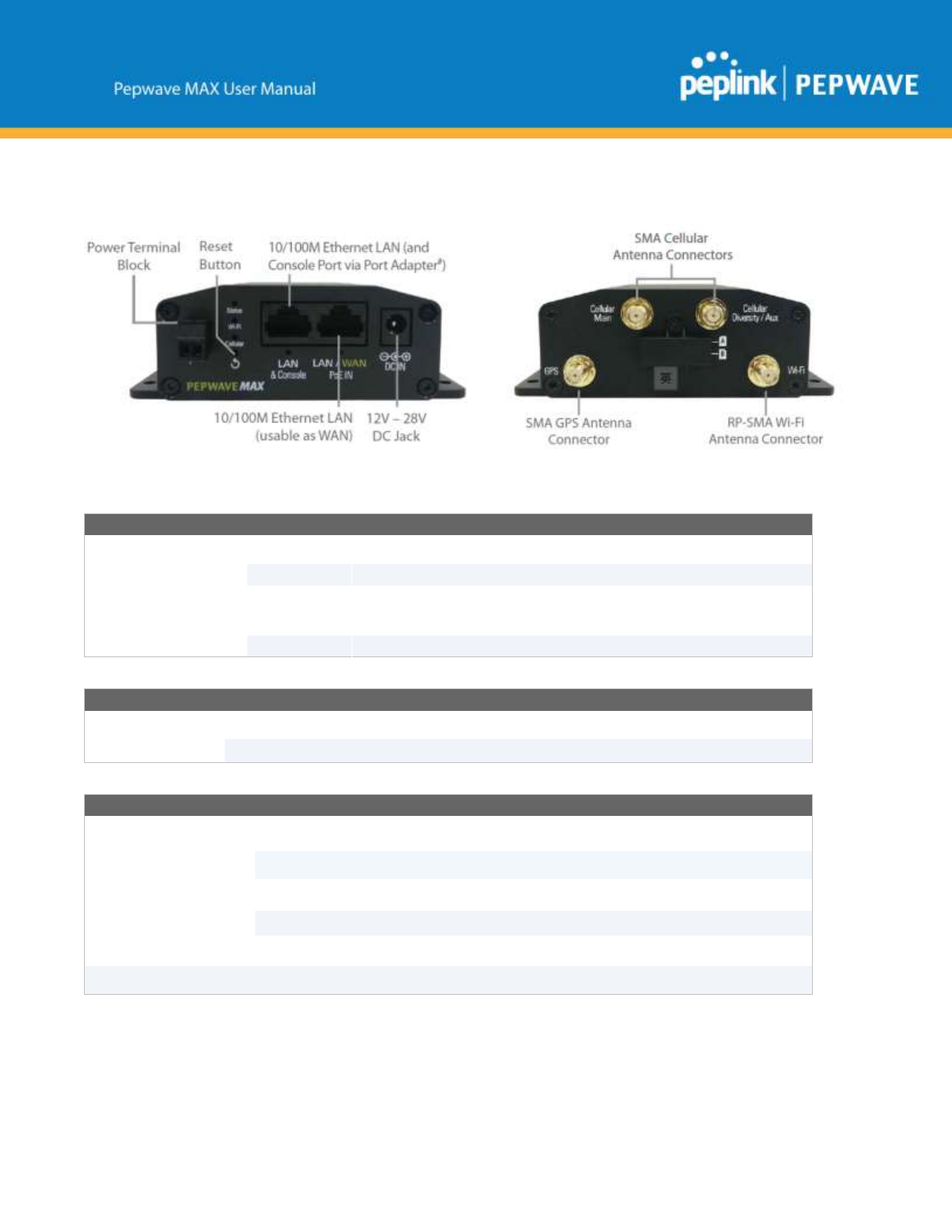

4.8.1 Panel Appearance
4.8.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi Indicators
Wi-Fi
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
http://www.peplink.com
23
Copyright @ 2017 Pepwave
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
24
Copyright @ 2017 Pepwave
4.9 MAX BR1 MK2

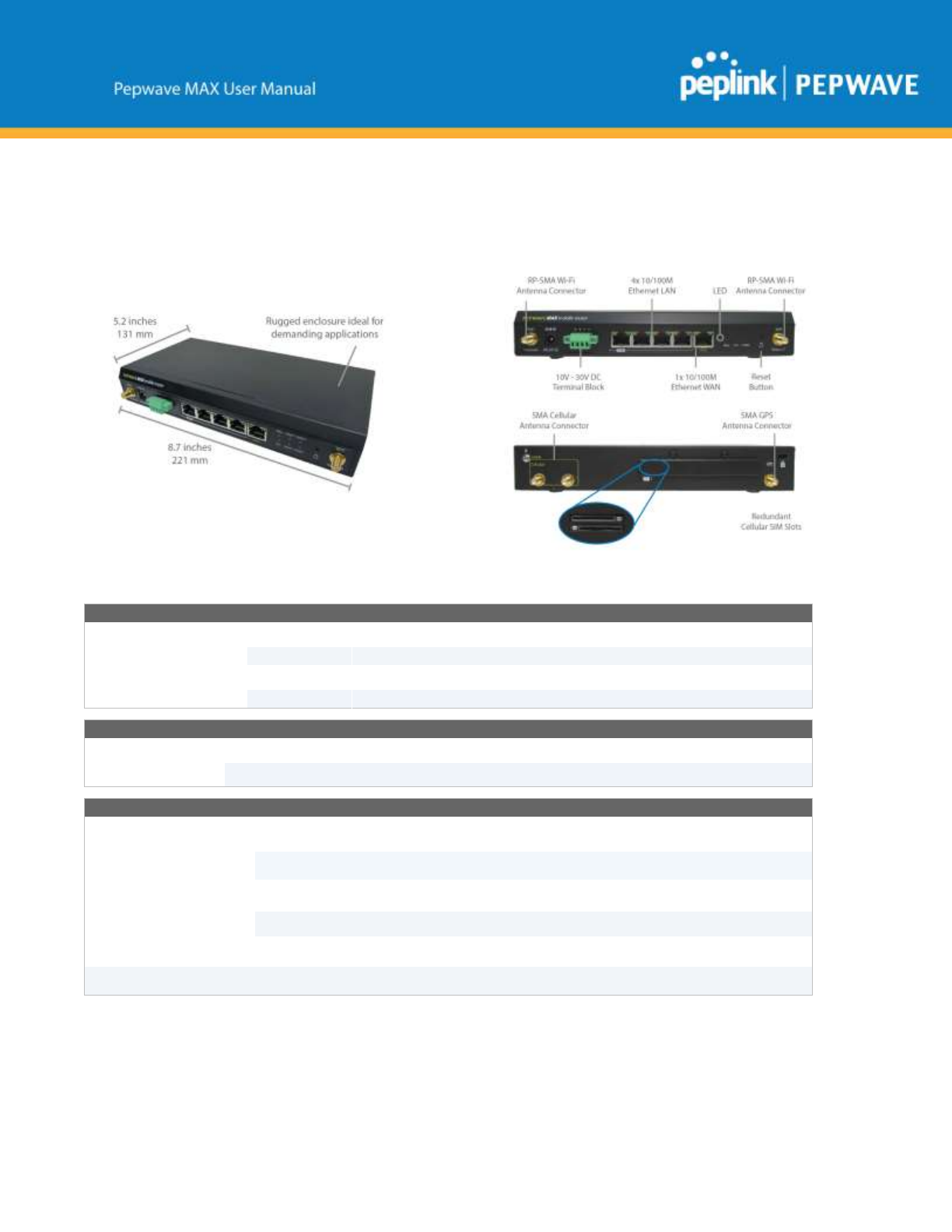

4.9.1 Panel Appearance
4.9.2 LED Indicators
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
25
Copyright @ 2017 Pepwave
4.10 MAX BR1 Slim
4.10.1 Panel Appearance
4.10.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi Indicators
Wi-Fi
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
http://www.peplink.com
26
Copyright @ 2017 Pepwave
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
4.11 MAX BR1 ENT

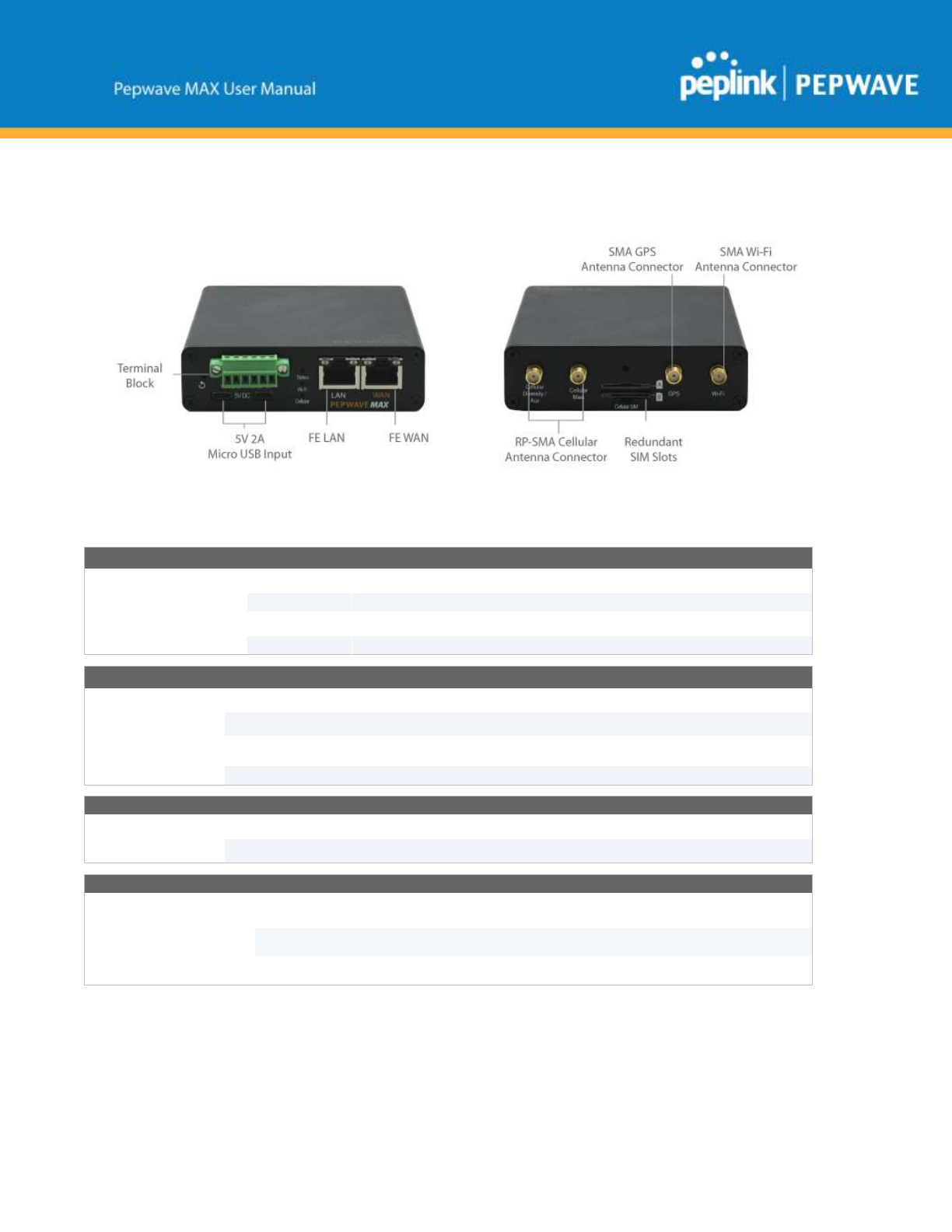

4.11.1 Panel Appearance
4.11.2 LED Indicators
● The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
27
Copyright @ 2017 Pepwave
4.12 MAX BR1 Pro LTE
4.12.1 Panel Appearance
4.12.2 LED Indicators
● The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
28
Copyright @ 2017 Pepwave
4.13 MAX Hotspot

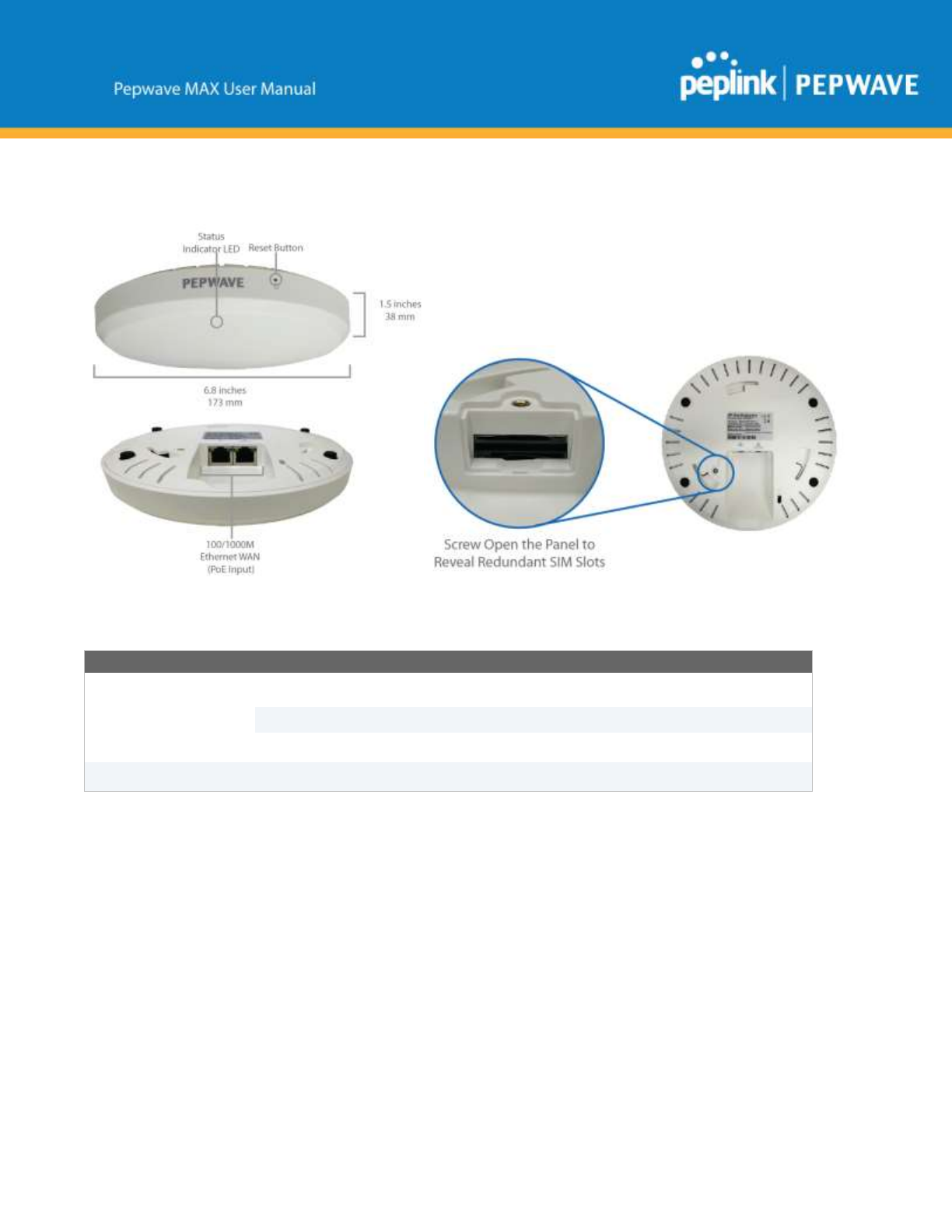

4.13.1 Panel Appearance
4.13.2 LED Indicators
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
29
Copyright @ 2017 Pepwave
4.14 BR1 Mini
4.14.1 Panel Appearance
4.14.2 LED Indicators
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking
red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
30
Copyright @ 2017 Pepwave
4.15 MAX BR1/2 IP55
4.15.1 Panel Appearance
4.15.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi Indicators
Wi-Fi
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
http://www.peplink.com
31
Copyright @ 2017 Pepwave
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports

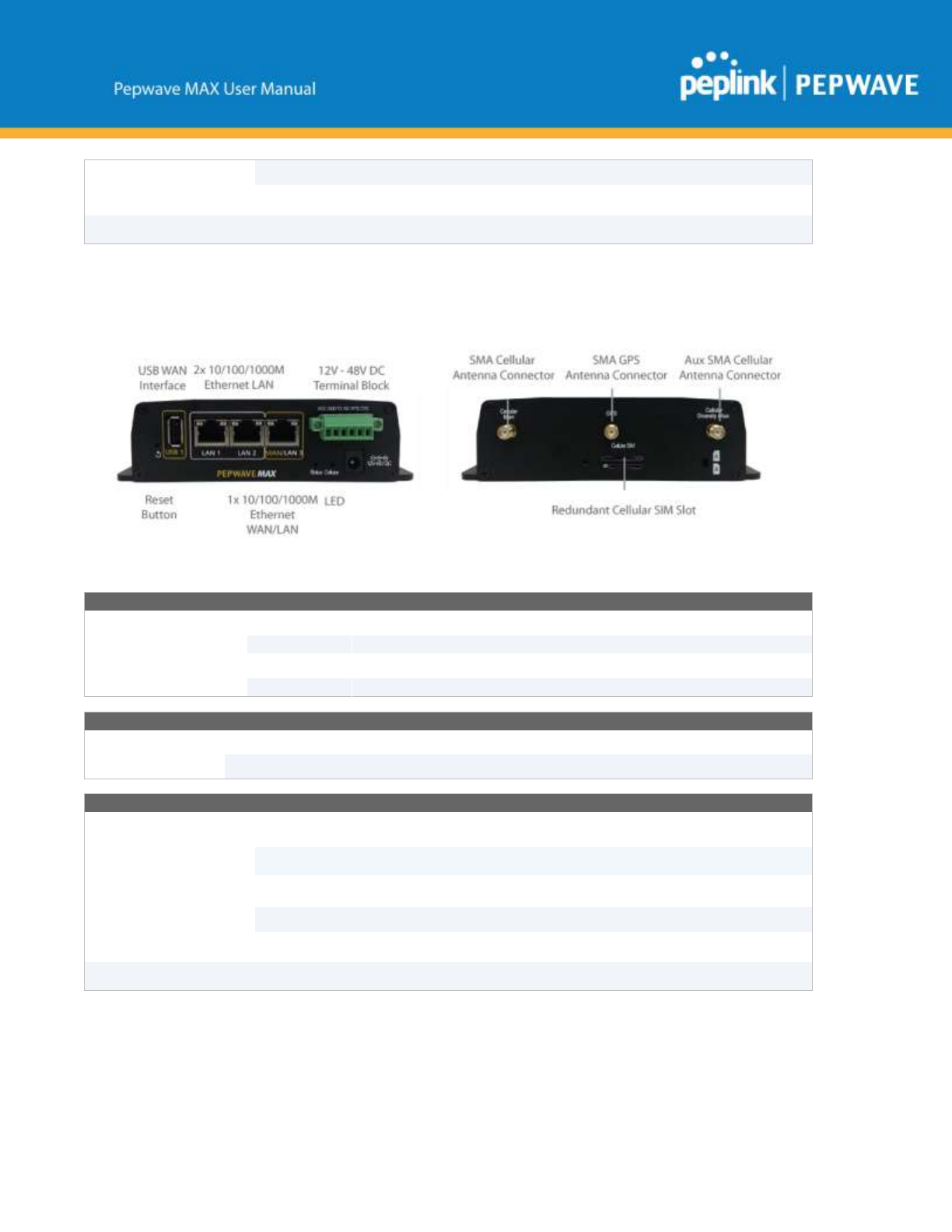

4.16 MAX BR1 IP67
4.16.1 Panel Appearance
4.16.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking
red
Boot up error
Green
Ready
http://www.peplink.com
32
Copyright @ 2017 Pepwave

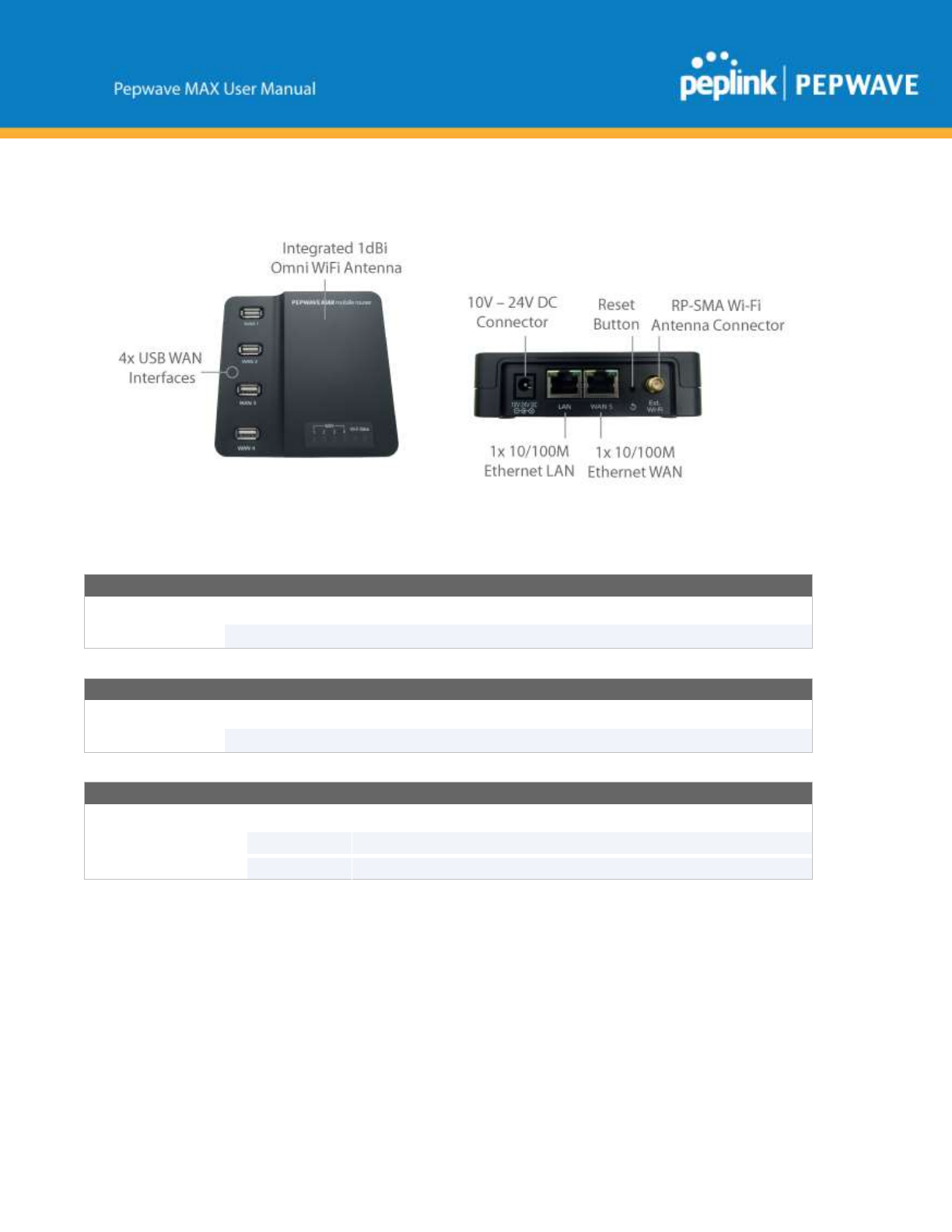

4.17 MAX On-The-Go
4.17.1 Panel Appearance
4.17.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Cellular Indicators
WAN
OFF
Modem is not attached to the port
Green
Modem is attached to the port
Wi-Fi Indicators
Wi-Fi
OFF
Disconnected from AP
Green
Connected to AP
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready
http://www.peplink.com
33
Copyright @ 2017 Pepwave
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
Port Type
Auto MDI/MDI-X ports

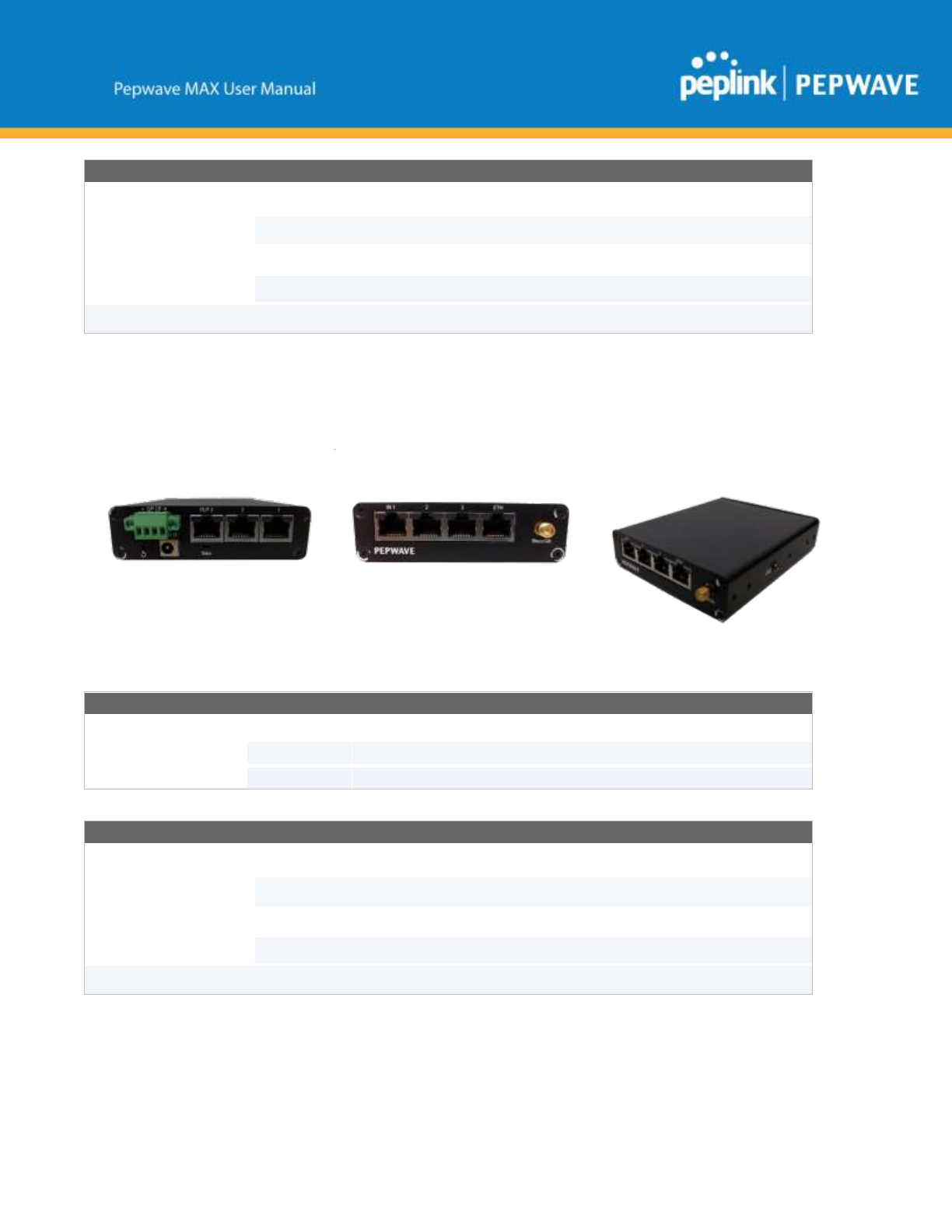

4.18 NPC (Network Power Controller)

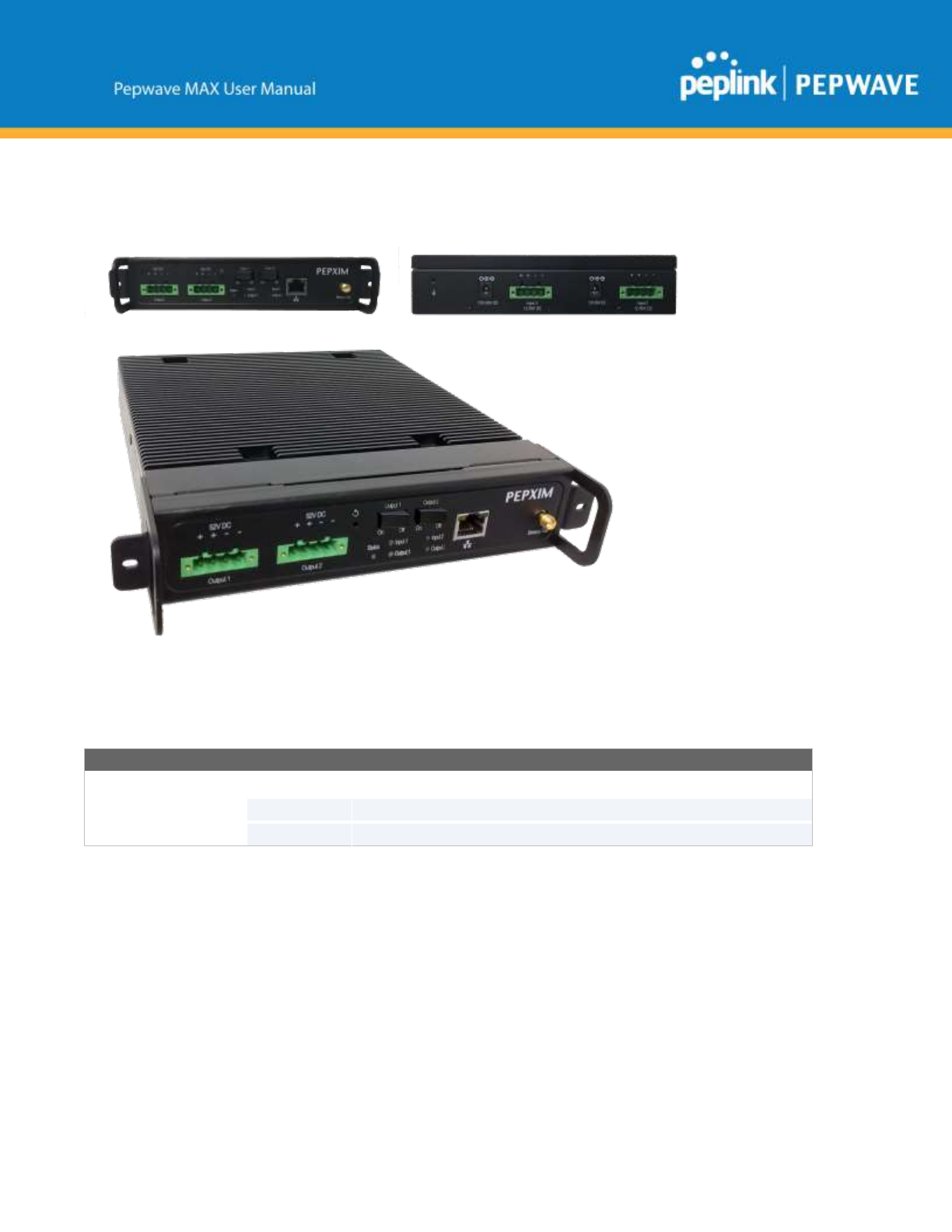

4.18.1 Panel Appearance
4.18.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready
LAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
34
Copyright @ 2017 Pepwave
4.19 SD-PMU
4.19.1 Panel Appearance
4.19.2 LED Indicators
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready
http://www.peplink.com
35
Copyright @ 2017 Pepwave
5 Advanced
Feature
Summary
5.1 Drop-in
Mode and LAN
Bypass:
Transparent
Deployment
As your organization grows, it needs more bandwidth. But modifying your network would require effort better
spent elsewhere. In Drop-in Mode, you can conveniently install your Peplink router without making any
changes to your network. And if the Peplink router loses power for any reason, LAN Bypass will safely and
automatically bypass the Peplink router to resume your original network connection.
Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants)
5.2 QoS: Clearer VoIP
VoIP and videoconferencing are highly sensitive to latency. With QoS, Peplink routers can detect VoIP
http://www.peplink.com
36
Copyright @ 2017 Pepwave
traffic and assign it the highest priority, giving you crystal-clear calls.
5.3 Per-User Bandwidth Control
With per-user bandwidth control, you can define bandwidth control policies for up to 3 groups of users to
prevent network congestion. Define groups by IP address and subnet, and set bandwidth limits for every
user in the group.

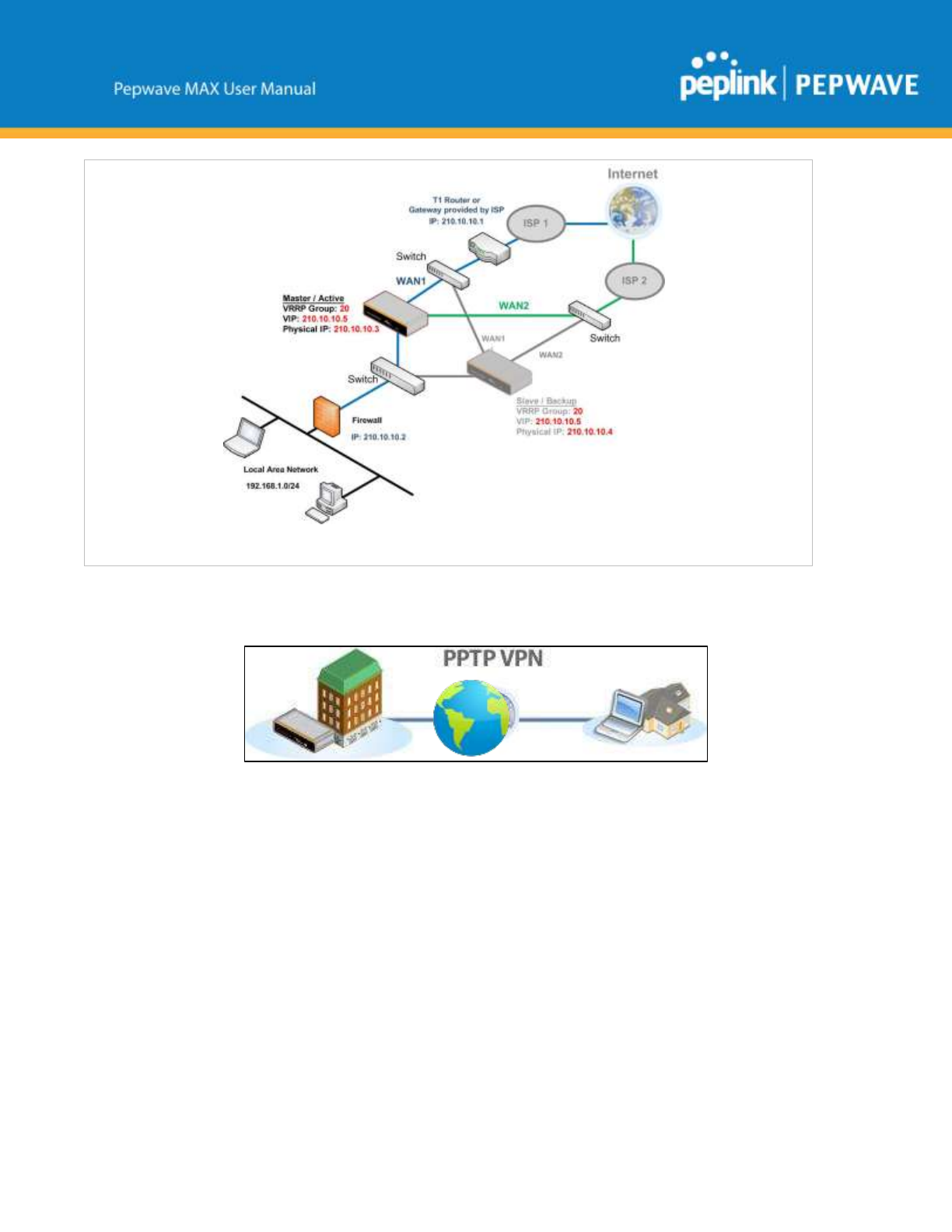

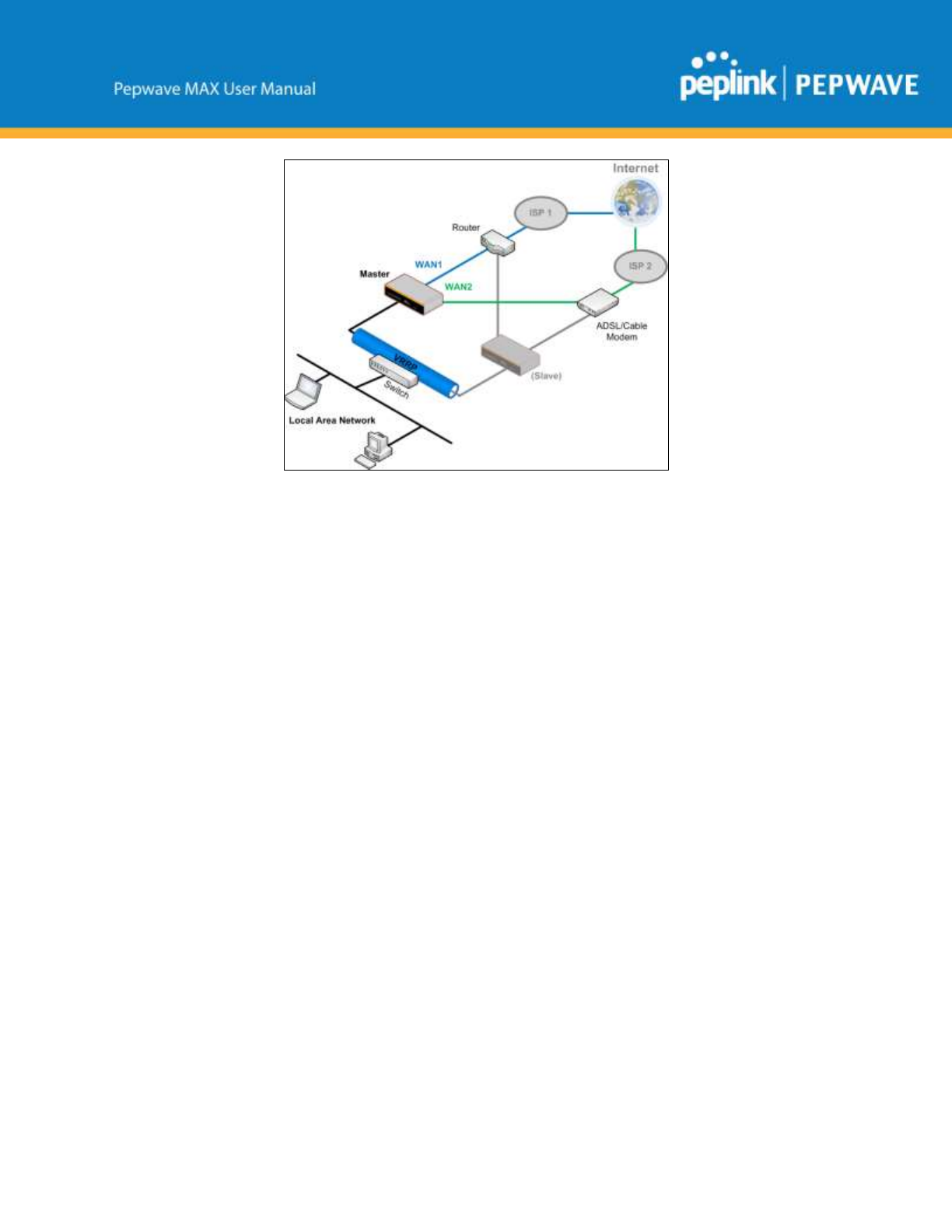

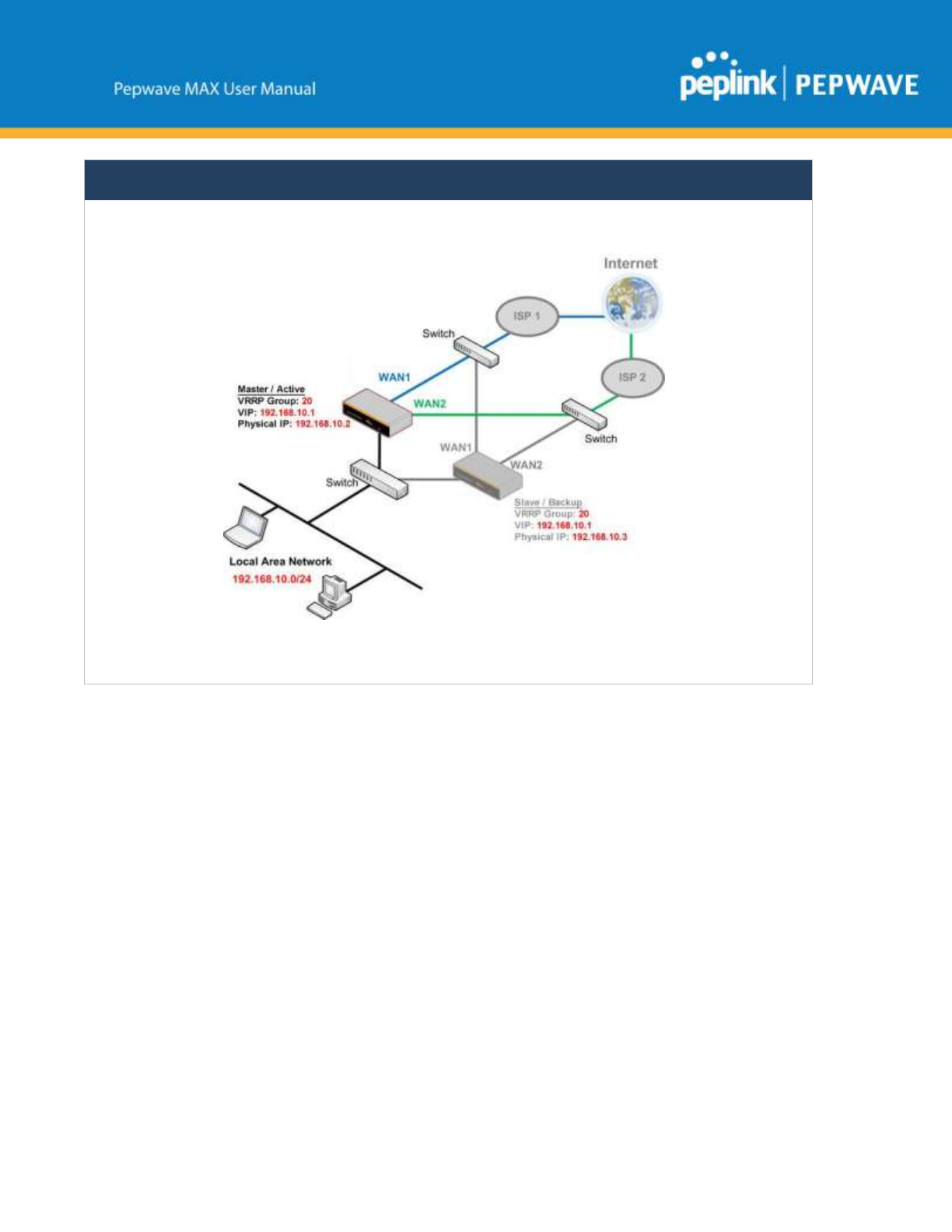

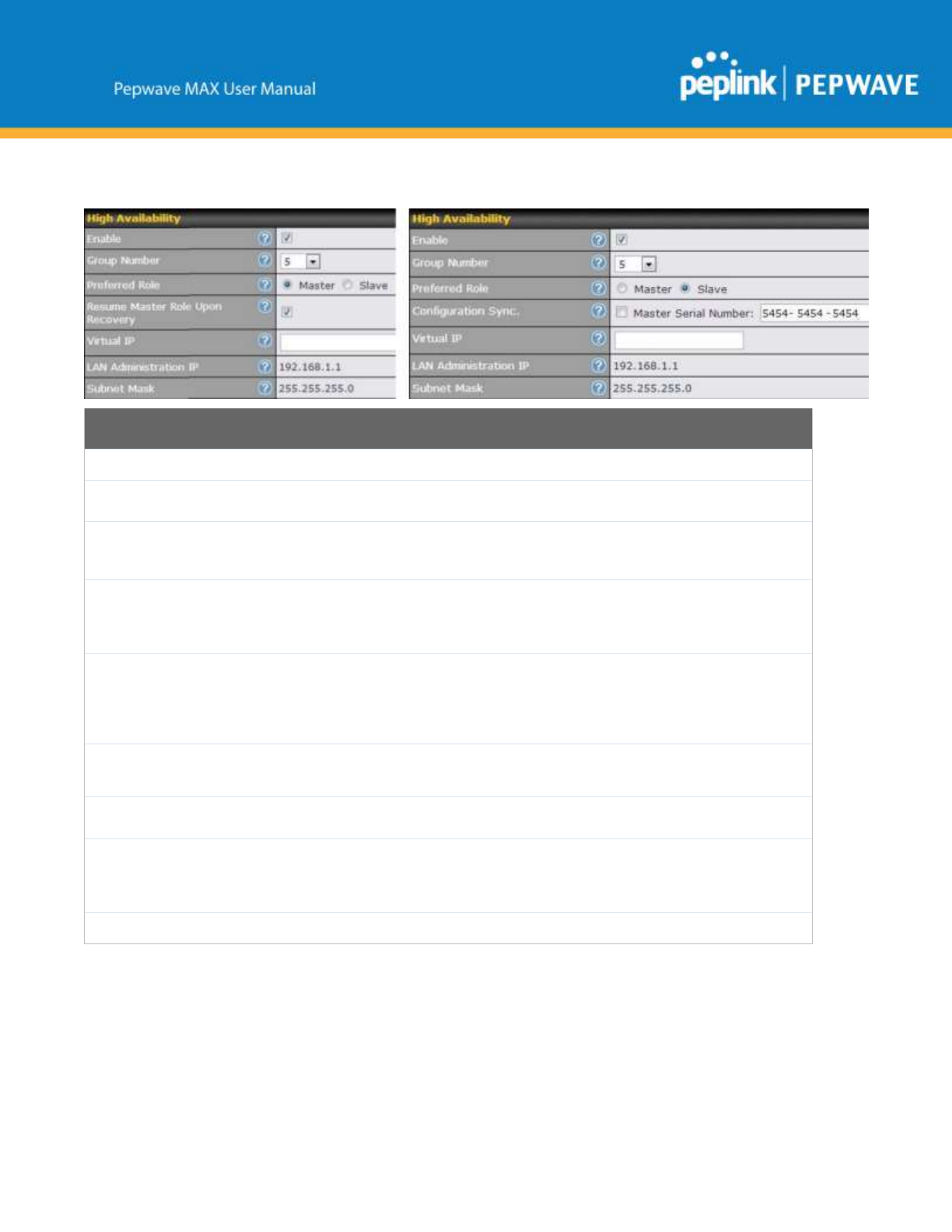

5.4 High Availability via VRRP
http://www.peplink.com
37
Copyright @ 2017 Pepwave
When your organization has a corporate requirement demanding the highest availability with no single point
of failure, you can deploy two Peplink routers in High Availability mode. With High Availability mode, the
second device will take over when needed.
Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants)
5.5 USB Modem and Android Tethering
For increased WAN diversity, plug in a USB LTE modem as backup. Peplink routers are compatible with
over 200 modem types. You can also tether to smartphones running Android 4.1.X and above.
Compatible with: MAX 700, HD2 (all variants except IP67), HD4 (All variants)
http://www.peplink.com
38
Copyright @ 2017 Pepwave
5.6 Built-In Remote User VPN Support
Use L2TP with IPsec to safely and conveniently connect remote clients to your private network. L2TP with
IPsec is supported by most devices, but legacy devices can also connect using PPTP.
Click here for full instructions on setting up L2TP with IPsec.
http://www.peplink.com
40
Copyright @ 2017 Pepwave
6 Installation
The following section details connecting Pepwave routers to your network.
6.1 Preparation
Before installing your Pepwave router, please prepare the following as appropriate for your installation:
● At least one Internet/WAN access account and/or Wi-Fi access information
● Depending on network connection type(s), one or more of the following:
● Ethernet WAN: A 10/100/1000BaseT UTP cable with RJ45 connector
● USB: A USB modem
● Embedded modem: A SIM card for GSM/HSPA service
● Wi-Fi WAN: Wi-Fi antennas
● PC Card/Express Card WAN: A PC Card/ExpressCard for the
corresponding card slot
● A computer installed with the TCP/IP network protocol and a supported web browser. Supported
browsers include Microsoft Internet Explorer 8.0 or above, Mozilla Firefox 10.0 or above, Apple
Safari 5.1 or above, and Google Chrome 18 or above.
http://www.peplink.com
41
Copyright @ 2017 Pepwave
6.2 Constructing the Network
At a high level, construct the network according to the following steps:
1. With an Ethernet cable, connect a computer to one of the LAN ports on the Pepwave router.
Repeat with different cables for up to 4 computers to be connected.
2. With another Ethernet cable or a USB modem/Wi-Fi antenna/PC Card/Express Card,
connect to one of the WAN ports on the Pepwave router. Repeat the same procedure for
other WAN ports.
3. Connect the power adapter to the power connector on the rear panel of the Pepwave router,
and then plug it into a power outlet.
The following figure schematically illustrates the resulting configuration:
6.3 Configuring the Network Environment
To ensure that the Pepwave router works properly in the LAN environment and can access the Internet
via WAN connections, please refer to the following setup procedures:
● LAN configuration
For basic configuration, refer to Section 8, Connecting to the Web Admin Interface.
For advanced configuration, go to Section 9, Configuring the LAN Interface(s).
● WAN configuration
For basic configuration, refer to Section 8, Connecting to the Web Admin Interface.
For advanced configuration, go to Section 9.2, Captive Portal.
http://www.peplink.com
42
Copyright @ 2017 Pepwave
7 Mounting the Unit
7.1 Wall Mount
The Pepwave MAX 700/HD2/On-The-Go can be wall mounted using screws. After adding the screw on
the wall, slide the MAX in the screw hole socket as indicated below. Recommeneded screw
specification: M3.5 x 20mm, head diameter 6mm, head thickness 2.4mm.
The Pepwave MAX BR1 requires four screws for wall mounting.

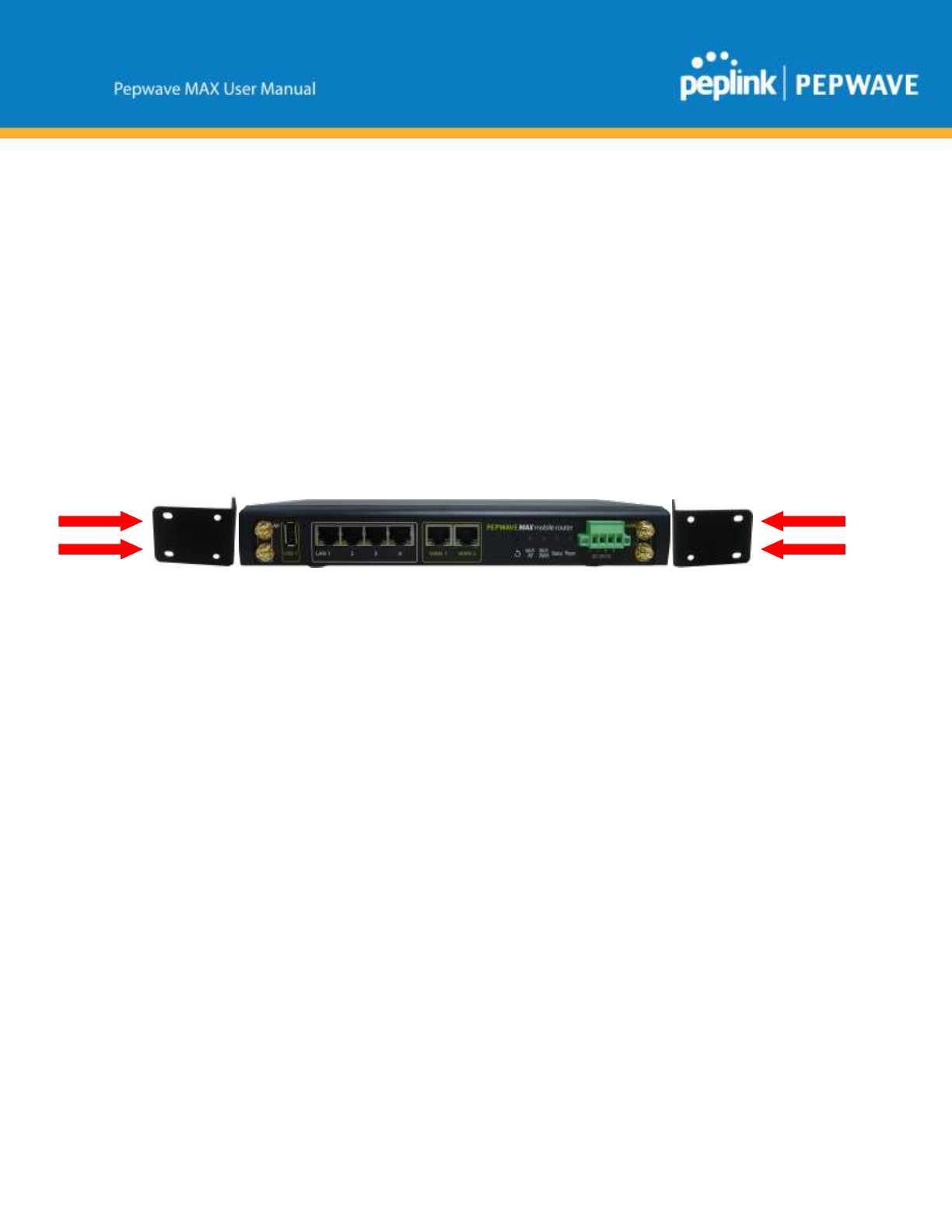

7.2 Car Mount
The Pepwave MAX700/HD2 can be mounted in a vehicle using the included mounting brackets. Place
the mounting brackets by the two sides and screw them onto the device.
7.3 IP67 Installation Guide
Installation instructions for IP67 devices can be found here:
http://download.peplink.com/manual/IP67_Installation_Guide.pdf
http://www.peplink.com
43
Copyright @ 2017 Pepwave
8 Connecting to the Web Admin Interface
1. Start a web browser on a computer that is connected with the Pepwave router through the
LAN.
2. To connect to the router’s web admin interface, enter the following LAN IP address in the
address field of the web browser:
http://192.168.50.1
(This is the default LAN IP address for Pepwave routers.)

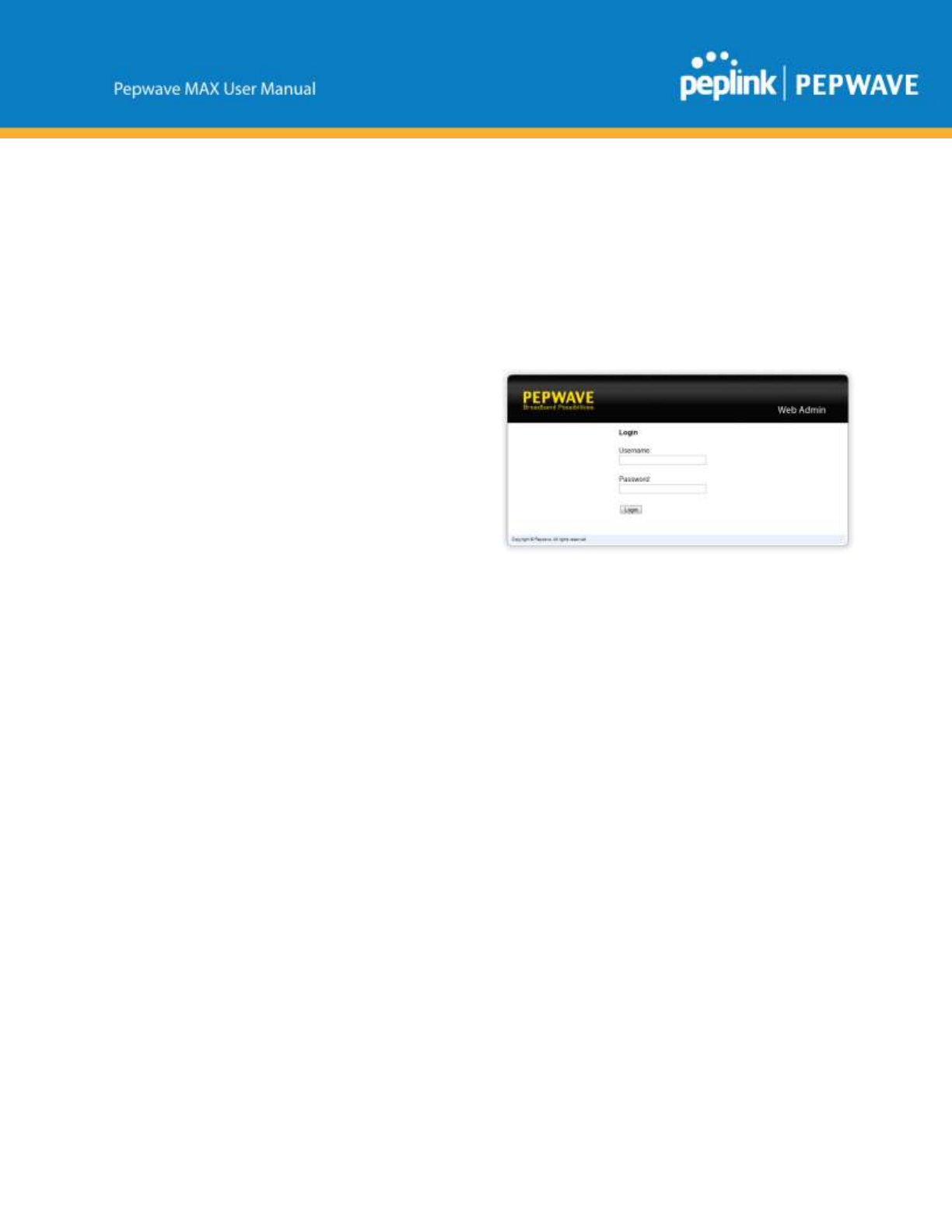

3. Enter the following to access the web admin
interface.
Username: admin
Password: admin
(This is the default username and password for
Pepwave routers. The admin and read-only user
passwords can be changed at System>Admin
Security.)
4. After successful login, the Dashboard will be
http://www.peplink.com
44
Copyright @ 2017 Pepwave
displayed

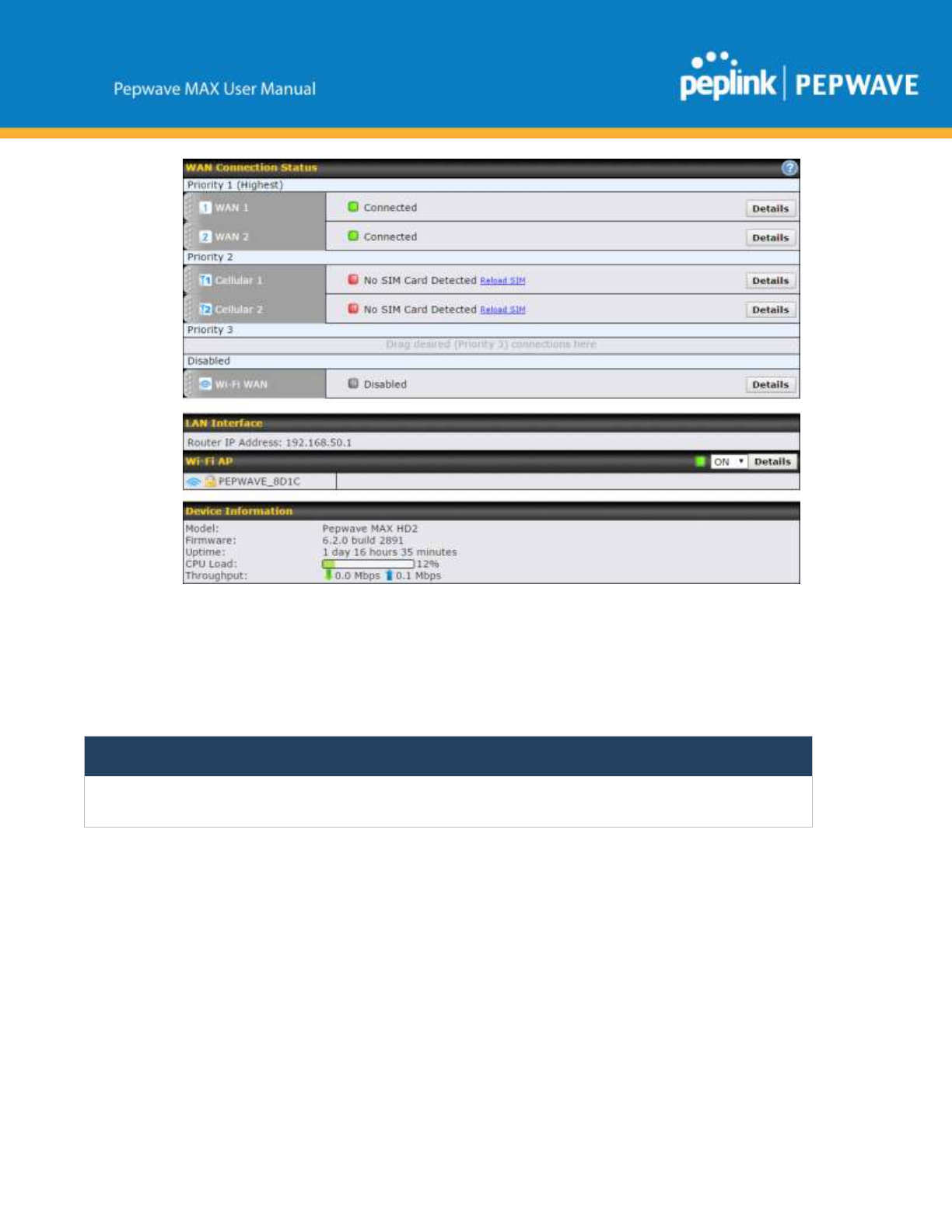

The Dashboard shows current WAN, LAN, and Wi-Fi AP statuses. Here, you can change WAN
connection priority and switch on/off the Wi-Fi AP. For further information on setting up these
connections, please refer to Sections 8 and 9.

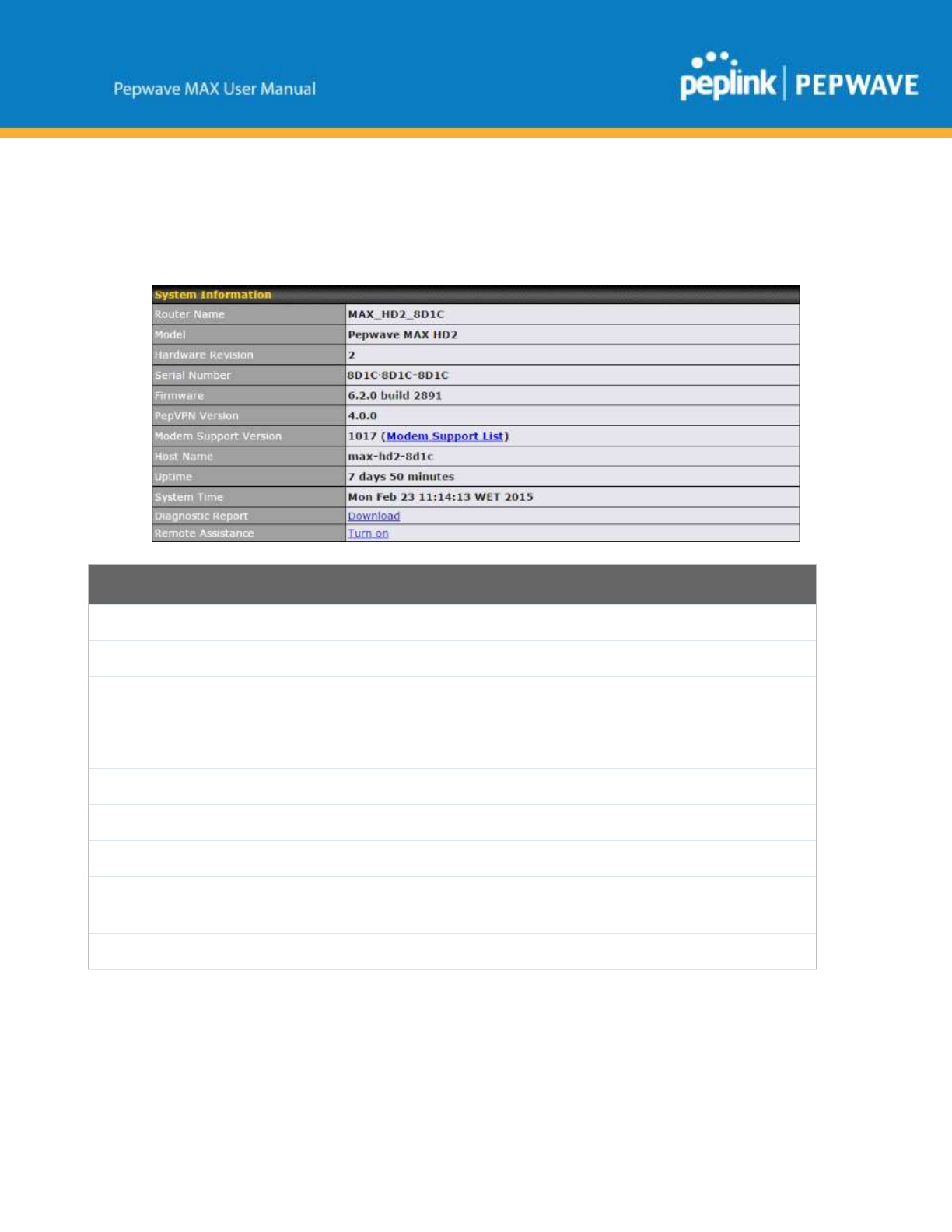

Device Information displays details about the device, including model name, firmware version, and
uptime. For further information, please refer to Section 22.
Important Note
Configuration changes (e.g. WAN, LAN, admin settings, etc.) will take effect only after clicking the Save button at the
bottom of each page. The Apply Changes button causes the changes to be saved and applied.
http://www.peplink.com
45
Copyright @ 2017 Pepwave

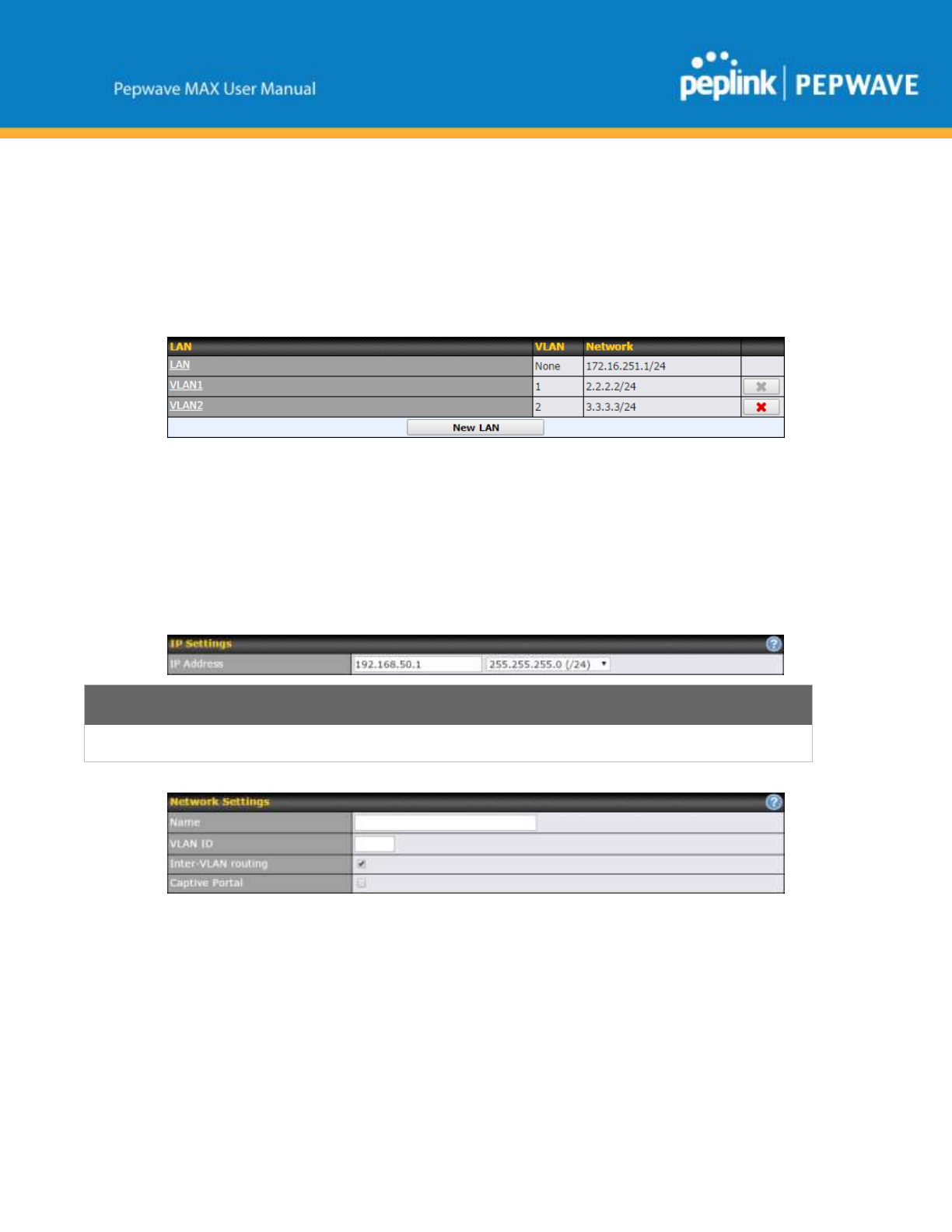

9 Configuring the LAN Interface(s)

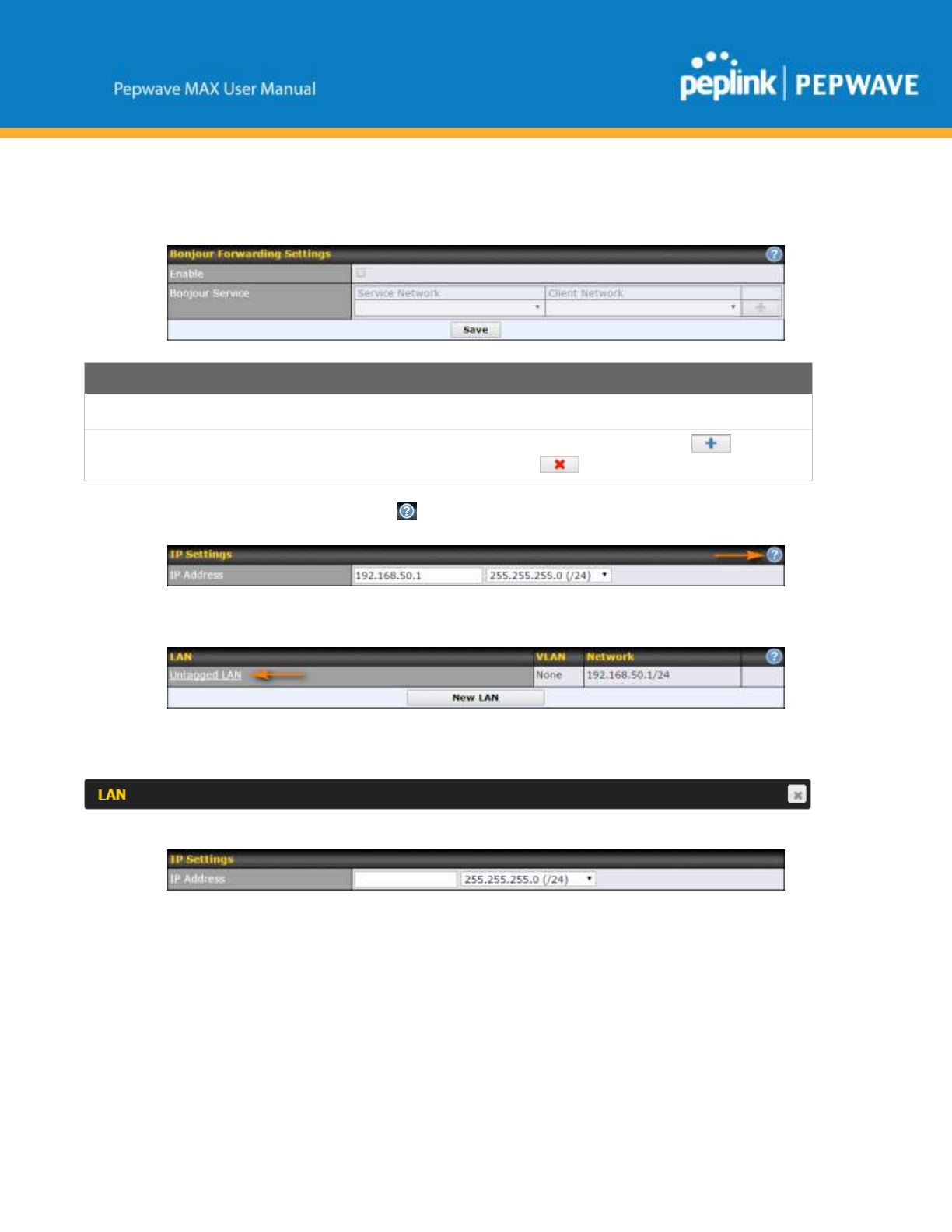

9.1 Basic Settings
LAN interface settings are located at Network>LAN>Network Settings. Navigating to that page will
result in the following dashboard:
This represents the LAN interfaces that are active on your router (including VLAN). A grey “X” means
that the VLAN is used in other settings and cannot be deleted. You can find which settings are using the
VLAN by hovering over the grey “X”.
Alternatively, a red “X” means that there are no settings using the VLAN. You can delete that VLAN by
clicking the red “X”
Clicking any of the existing LAN interfaces (or creating a new one) will result in the following
IP Settings
IP Address
The IP address and subnet mask of the Pepwave router on the LAN.
http://www.peplink.com
46
Copyright @ 2017 Pepwave

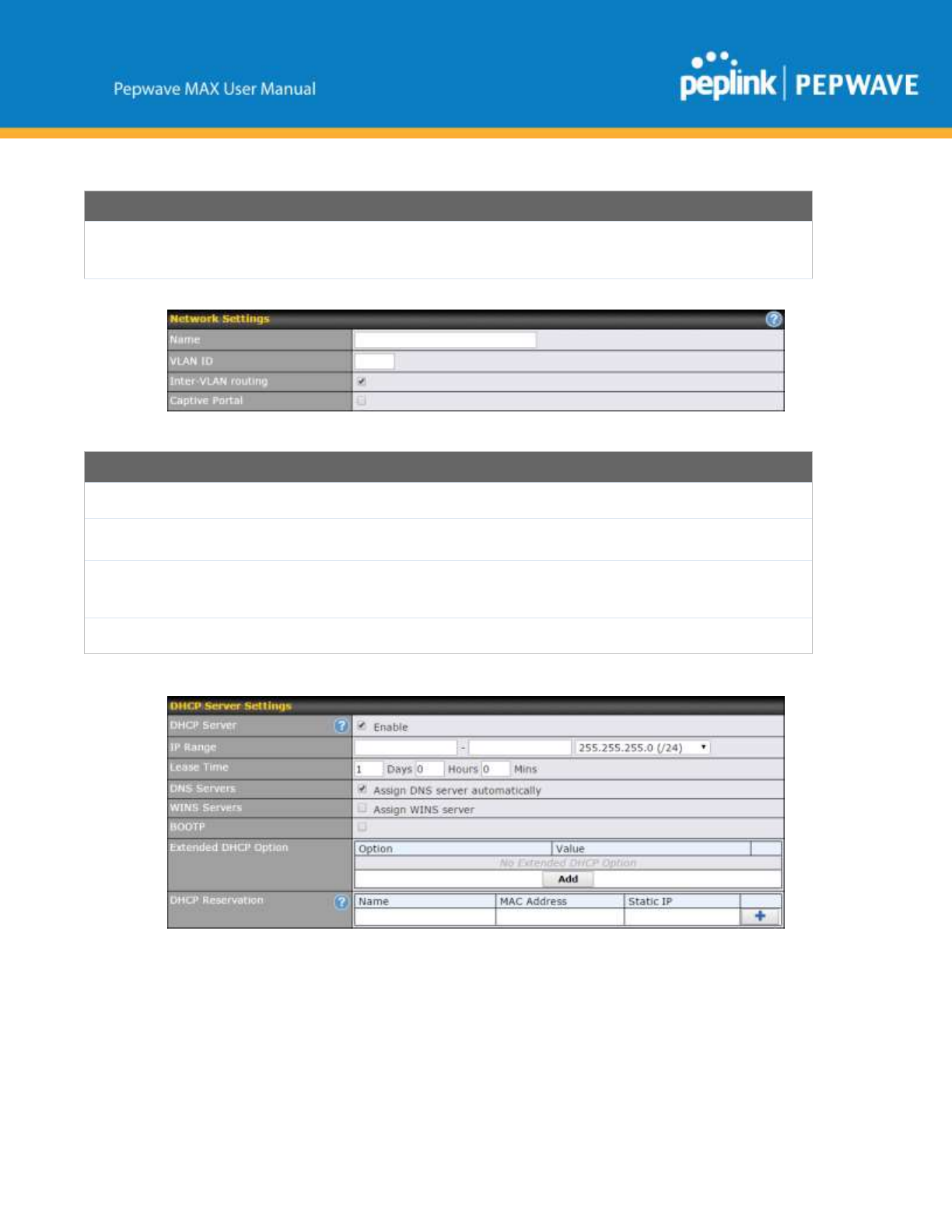

Network Settings
Name
Enter a name for the LAN.
VLAN ID
Enter a number for your VLAN.
Inter-VLAN
routing
Check this box to enable routing between virtual LANs.
Captive Portal
Check this box to turn on captive portals.
http://www.peplink.com
47
Copyright @ 2017 Pepwave

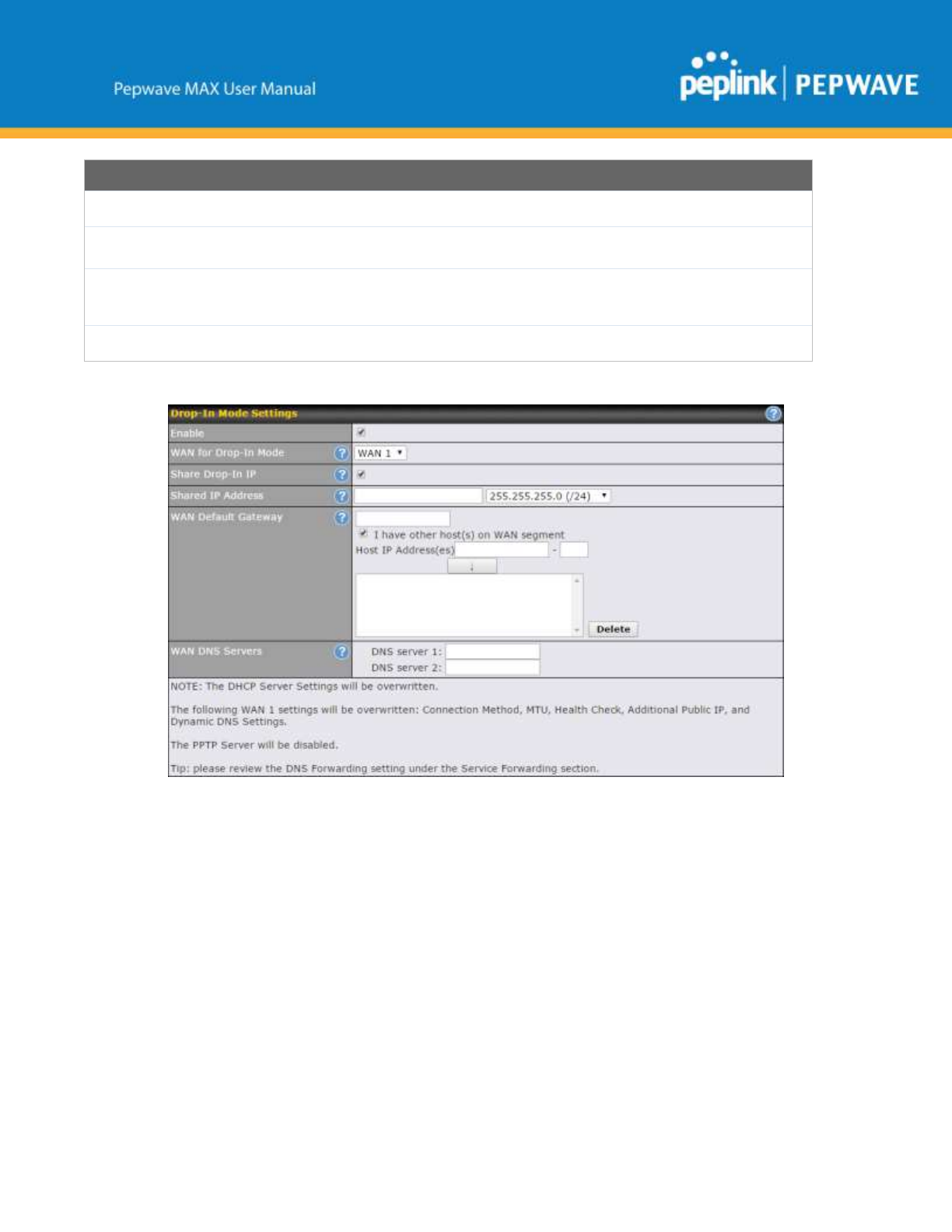

Drop-in Mode Settings
Enable
Drop-in mode eases the installation of Peplink routers on a live network between the existing
firewall and router, such that no configuration changes are required on existing equipment. Check the
box to enable the drop-in mode feature, if available on your model.
WAN for Drop-
In Mode
Select the WAN port to be used for drop-in mode. If WAN 1 with LAN Bypass is selected, the high
availability feature will be disabled automatically.
Share Drop-In
IPA
When this option is enabled, the passthrough IP address will be used to connect to WAN hosts (email
notification, remote syslog, etc.). The Pepwave router will listen for this IP address when WAN hosts
access services provided by the Pepwave router (web admin access from the WAN, DNS server
requests, etc.).
To connect to hosts on the LAN (email notification, remote syslog, etc.), the default gateway address
will be used. The Pepwave router will listen for this IP address when LAN hosts access services
provided by the Pepwave router (web admin access from the WAN, DNS proxy, etc.).
Shared IP
AddressA
Access to this IP address will be passed through to the LAN port if this device is not serving the
service being accessed. The shared IP address will be used in connecting to hosts on the WAN (email
notification, remote syslog, etc.) The device will also listen on the IP address when hosts on the
WAN access services served on this device (web admin access from the WAN, DNS server, etc.)
WAN Default
Gateway
Enter the WAN router's IP address in this field. If there are more hosts in addition to the router on the
WAN segment, check the I have other host(s) on WAN segment box and enter the IP address of the
hosts that need to access LAN devices or be accessed by others.
WAN DNS
Servers
Enter the selected WAN's corresponding DNS server IP addresses.
A - Advanced feature, please click the button on the top right-hand corner to activate.
http://www.peplink.com
48
Copyright @ 2017 Pepwave

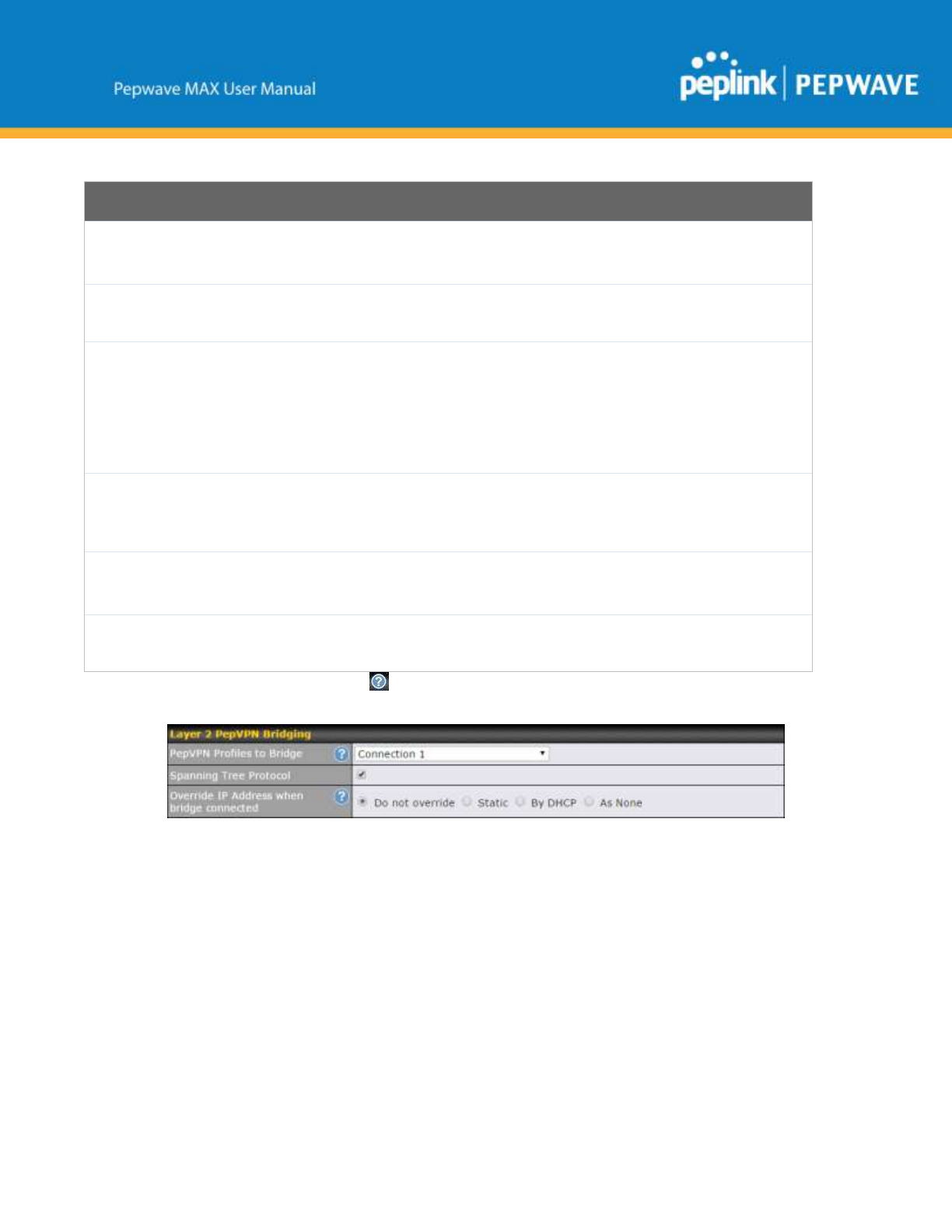

Layer 2 PepVPN Bridging
PepVPN Profiles
to Bridge
The remote network of the selected PepVPN profiles will be bridged with this local LAN, creating a
Layer 2 PepVPN, they will be connected and operate like a single LAN, and any broadcast or
multicast packets will be sent over the VPN.
Spanning Tree
Protocol
Click the box will enable STP for this layer 2 profile bridge.
Override IP
Address when
bridge connected
Select "Do not override" if the LAN IP address and local DHCP server should remain unchanged
after the Layer 2 PepVPN is up.
If you choose to override IP address when the VPN is connected, the device will not act as a router,
and most Layer 3 routing functions will cease to work.
http://www.peplink.com
49
Copyright @ 2017 Pepwave

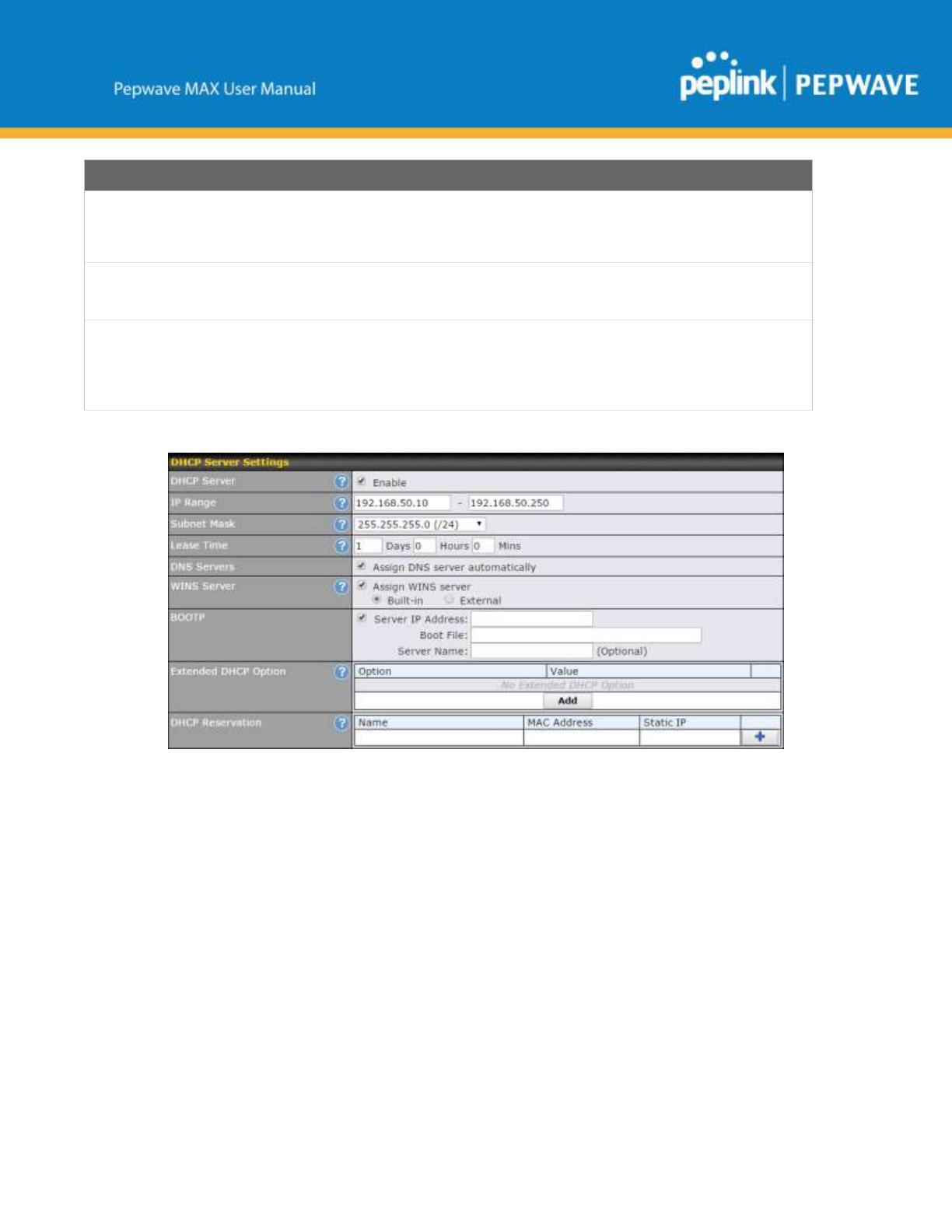

DHCP Server Settings
DHCP Server
When this setting is enabled, the DHCP server automatically assigns an IP address to each computer
that is connected via LAN and configured to obtain an IP address via DHCP. The Pepwave router’s
DHCP server can prevent IP address collision on the LAN.
IP Range &
Subnet Mask
These settings allocate a range of IP addresses that will be assigned to LAN computers by the
Pepwave router’s DHCP server.
Lease Time
This setting specifies the length of time throughout which an IP address of a DHCP client remains
valid. Upon expiration of the lease time, the assigned IP address will no longer be valid and renewal
of the IP address assignment will be required.
DNS Servers
This option allows you to input the DNS server addresses to be offered to DHCP clients. If Assign
DNS server automatically is selected, the Pepwave router’s built-in DNS server address (i.e., LAN
IP address) will be offered.
WINS Server
This option allows you to optionally specify a Windows Internet Name Service (WINS) server. You
may choose to use the built-in WINS server or external WINS servers.
When this unit is connected using SpeedFusionTM, other VPN peers can share this unit's built-in
WINS server by entering this unit's LAN IP address in their DHCP WINS Server setting.
Afterward, all PC clients in the VPN can resolve the NetBIOS names of other clients in remote
peers. If you have enabled this option, a list of WINS clients will be displayed at Status>WINS
Clients.
BOOTP
Check this box to enable BOOTP on older networks that still require it.
Extended
DHCP Option
In addition to standard DHCP options (e.g., DNS server address, gateway address, subnet mask),
you can specify the value of additional extended DHCP options, as defined in RFC 2132. With
these extended options enabled, you can pass additional configuration information to LAN hosts.
To define an extended DHCP option, click the Add button, choose the option to define and enter its
value. For values that are in IP address list format, you can enter one IP address per line in the
provided text area input control. Each option can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers on the LAN. The
computers to be assigned fixed IP addresses on the LAN are identified by their MAC addresses. The
fixed IP address assignment is displayed as a cross-reference list between the computers’ names,
MAC addresses, and fixed IP addresses.
Name (an optional field) allows you to specify a name to represent the device. MAC addresses
should be in the format of 00:AA:BB:CC:DD:EE. Press to create a new record. Press
to remove a record. Reserved client information can be imported from the Client List,
located at Status>Client List. For more details, please refer to Section 22.3.
http://www.peplink.com
50
Copyright @ 2017 Pepwave
LAN Physical Settings
Speed
This is the port speed of the LAN interface. It should be set to the same speed as the connected
device to avoid port negotiation problems. When a static speed is set, you may choose whether to
advertise its speed to the peer device. Auto is selected by default. You can choose not to advertise
the port speed if the port has difficulty negotiating with the peer device.
Static Route Settings
Static Route
This table is for defining static routing rules for the LAN segment. A static route consists of the
network address, subnet mask, and gateway address. The address and subnet mask values are in
w.x.y.z format.
The local LAN subnet and subnets behind the LAN will be advertised to the VPN. Remote routes
sent over the VPN will also be accepted. Any VPN member will be able to route to the local
subnets. Press to create a new route. Press to remove a route.
WINS Server Settings
Enable
Check the box to enable the WINS server. A list of WINS clients will be displayed at
Status>WINS Clients.
http://www.peplink.com
51
Copyright @ 2017 Pepwave
DNS Proxy Settings
Enable
To enable the DNS proxy feature, check this box, and then set up the feature at
Network>LAN>DNS Proxy Settings. A DNS proxy server can be enabled to serve DNS
requests originating from LAN/PPTP/SpeedFusionTM peers. Requests are forwarded to the
DNS servers/resolvers defined for each WAN connection.
DNS Caching
This field is to enable DNS caching on the built-in DNS proxy server. When the option is
enabled, queried DNS replies will be cached until the records’ TTL has been reached. This
feature can help improve DNS lookup time. However, it cannot return the most up-to-date
result for those frequently updated DNS records. By default, DNS Caching is disabled.
Include Google Public
DNS Servers
When this option is enabled, the DNS proxy server will also forward DNS requests to
Google's Public DNS Servers, in addition to the DNS servers defined in each WAN. This
could increase the DNS service's availability. This setting is disabled by default.
Local DNS Records
This table is for defining custom local DNS records. A static local DNS record consists of
a host name and IP address. When looking up the host name from the LAN to LAN IP of
the Pepwave router, the corresponding IP address will be returned. Press to create a
new record. Press to remove a record.
DNS Resolvers A
Check the box to enable the WINS server. A list of WINS clients will be displayed at
Network>LAN>DNS Proxy Settings>DNS Resolvers. This field specifies which DNS
resolvers will receive forwarded DNS requests. If no WAN/VPN/LAN DNS resolver is
selected, all of the WAN’s DNS resolvers will be selected.
If a SpeedFusionTM peer is selected, you may enter the VPN peer’s DNS resolver IP
address(es). Queries will be forwarded to the selected connections’ resolvers. If all of the
selected connections are down, queries will be forwarded to all resolvers on healthy WAN
connections.
A - Advanced feature, please click the button on the top right hand corner to activate.
http://www.peplink.com
52
Copyright @ 2017 Pepwave
Finally, if needed, configure Bonjour forwarding, Apple’s zero configuration networking protocol. Once
VLAN configuration is complete, click Save to store your changes.
Bonjour Forwarding Settings
Enable
Check this box to turn on Bonjour forwarding.
Bonjour Service
Choose Service and Client networks from the drop-down menus, and then click to add the
networks. To delete an existing Bonjour listing, click .
To enable VLAN configuration, click the button in the IP Settings section.
To add a new LAN, click the New LAN button. To change LAN settings, click the name of the LAN to
change under the LAN heading.
The following settings are displayed when creating a new LAN or editing an existing LAN.
http://www.peplink.com
53
Copyright @ 2017 Pepwave
IP Settings
IP Address &
Subnet Mask
Enter the Pepwave router’s IP address and subnet mask values to be used on the LAN.
Network Settings
Name
Enter a name for the LAN.
VLAN ID
Enter a number for your VLAN.
Inter-VLAN
routing
Check this box to enable routing between virtual LANs.
Captive Portal
Check this box to turn on captive portals.
http://www.peplink.com
54
Copyright @ 2017 Pepwave
DHCP Server Settings
DHCP Server
When this setting is enabled, the Pepwave router’s DHCP server automatically assigns an IP address
to each computer that is connected via LAN and configured to obtain an IP address via DHCP. The
Pepwave router’s DHCP server can prevent IP address collisions on the LAN.
To enable DHCP bridge relay, please click the icon on this menu item.
IP Range &
Subnet Mask
These settings allocate a range of IP address that will be assigned to LAN computers by the Pepwave
router’s DHCP server.
Lease Time
This setting specifies the length of time throughout which an IP address of a DHCP client remains
valid. Upon expiration of Lease Time, the assigned IP address will no longer be valid and the IP
address assignment must be renewed.
DNS Servers
This option allows you to input the DNS server addresses to be offered to DHCP clients. If Assign
DNS server automatically is selected, the Pepwave router’s built-in DNS server address (i.e., LAN
IP address) will be offered.
WINS Servers
This option allows you to specify the Windows Internet Name Service (WINS) server. You may
choose to use the built-in WINS server or external WINS servers. When this unit is connected using
SpeedFusionTM, other VPN peers can share this unit's built-in WINS server by entering this unit's
LAN IP address in their DHCP WINS Servers setting. Therefore, all PC clients in the VPN can
resolve the NetBIOS names of other clients in remote peers. If you have enabled this option, a list of
WINS clients will be displayed at Status>WINS Clients.
BOOTP
Check this box to enable BOOTP on older networks that still require it.
Extended DHCP
Option
In addition to standard DHCP options (e.g. DNS server address, gateway address, subnet mask), you
can specify the value of additional extended DHCP options, as defined in RFC 2132. With these
extended options enabled, you can pass additional configuration information to LAN hosts. To define
an extended DHCP option, click the Add button, choose the option to define, and then enter its value.
For values that are in IP address list format, you can enter one IP address per line in the provided text
area input control. Each option can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers on the LAN. The
computers to be assigned fixed IP addresses on the LAN are identified by their MAC addresses. The
fixed IP address assignment is displayed as a cross-reference list between the computers’ names,
MAC addresses, and fixed IP addresses.
Name (an optional field) allows you to specify a name to represent the device. MAC addresses
should be in the format of 00:AA:BB:CC:DD:EE. Press to create a new record. Press
to remove a record. Reserved clients information can be imported from the Client List, located at
Status>Client List. For more details, please refer to Section 22.3.
To configure DHCP relay, first click the button found next to the DHCP Server option to display the
settings.
http://www.peplink.com
55
Copyright @ 2017 Pepwave

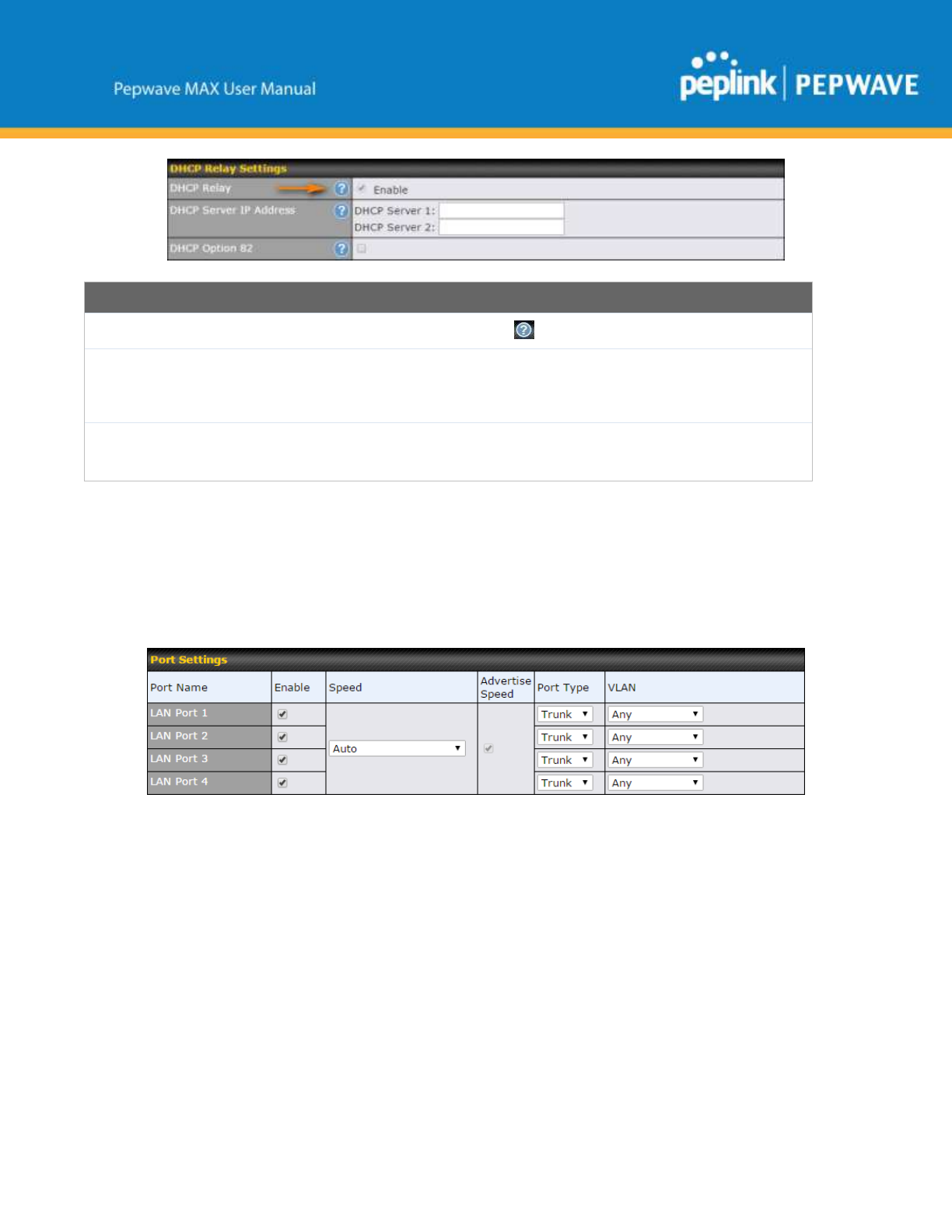

DHCP Relay Settings
Enable
Check this box to turn on DHCP relay. Click the icon to disable DHCP relay.
DHCP Server IP
Address
Enter the IP addresses of one or two DHCP servers in the provided fields. The DHCP servers entered
here will receive relayed DHCP requests from the LAN. For active-passive DHCP server
configurations, enter active and passive DHCP server relay IP addresses in DHCP Server 1 and
DHCP Server 2.
DHCP Option 82
DCHP Option 82 includes device information as relay agent for the attached client when forwarding
DHCP requests from client to server. This option also embeds the device’s MAC address and
network name in circuit and remote IDs. Check this box to enable DHCP Option 82.
Once DHCP is set up, configure LAN Physical Settings, Static Route Settings, WINS Server
Settings, and DNS Proxy Settings as noted above.
9.2 Port Settings
To configure port settings, navigate to Network > Port Settings
On this screen, you can enable specific ports, as well as determine the speed of the LAN ports, whether
each port is a trunk or access port, can well as which VLAN each link belongs to, if any.
http://www.peplink.com
56
Copyright @ 2017 Pepwave

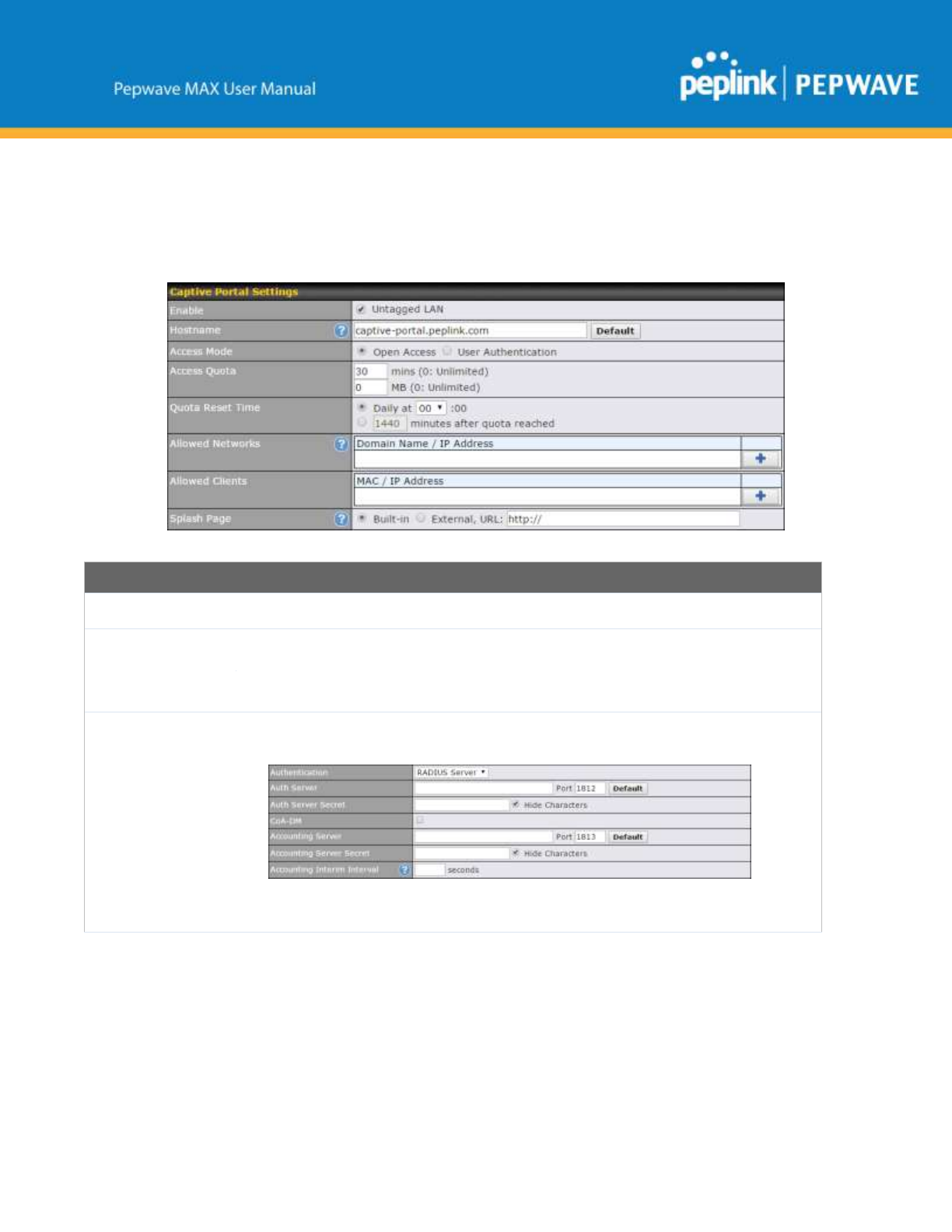

9.3 Captive Portal
The captive portal serves as gateway that clients have to pass if they wish to access the internet using
your router. To configure, navigate to Network>LAN>Captive Portal.
Captive Portal Settings
Enable
Check Enable and then, optionally, select the LANs/VLANs that will use the captive portal.
Hostname
To customize the portal’s form submission and redirection URL, enter a new URL in this field.
To reset the URL to factory settings, click Default.
Access Mode
Click Open Access to allow clients to freely access your router. Click User Authentication to
force your clients to authenticate before accessing your router.
RADIUS Server
This authenticates your clients through a RADIUS server. After selecting this option, you will see
the following fields:

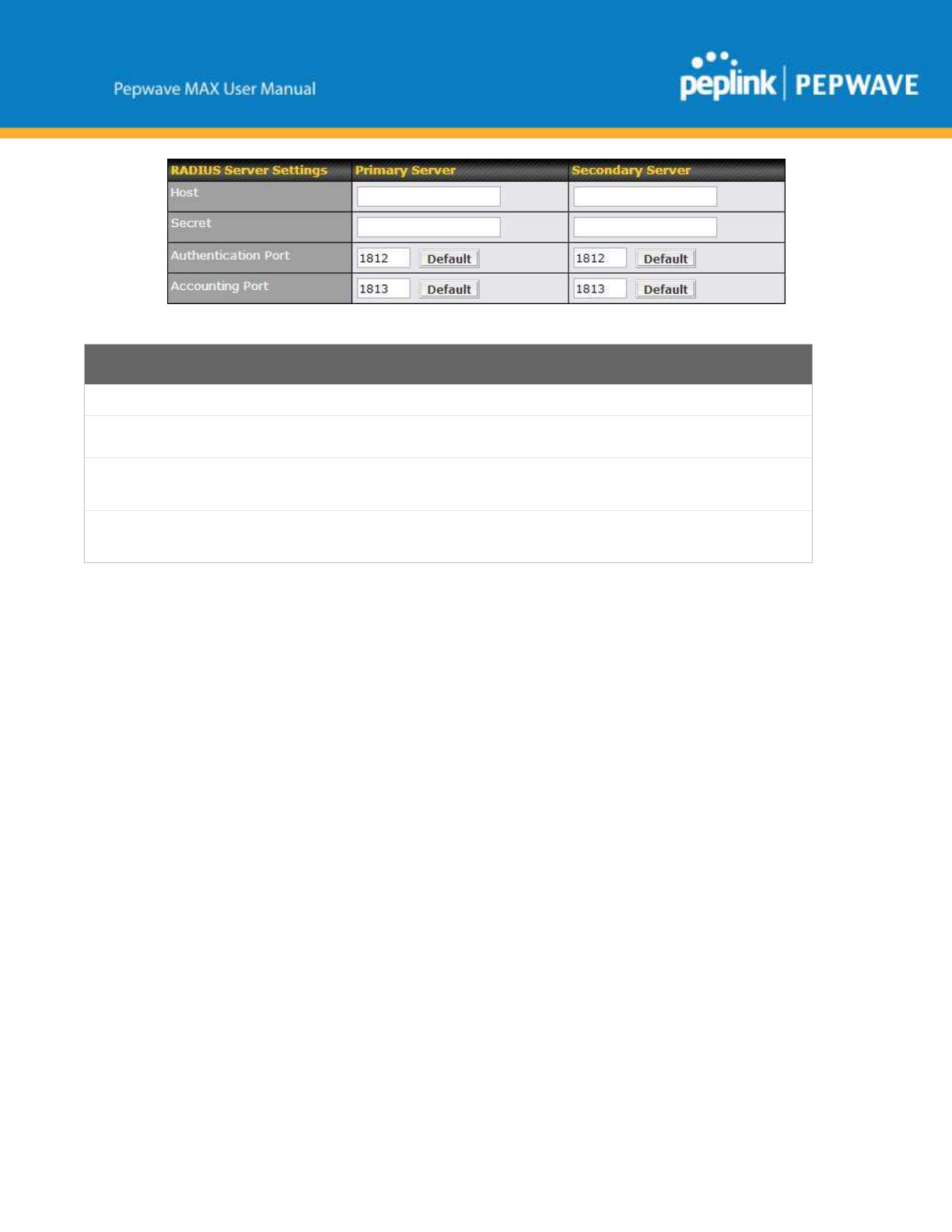

Fill in the necessary information to complete your connection to the server and enable
authentication.
http://www.peplink.com
57
Copyright @ 2017 Pepwave

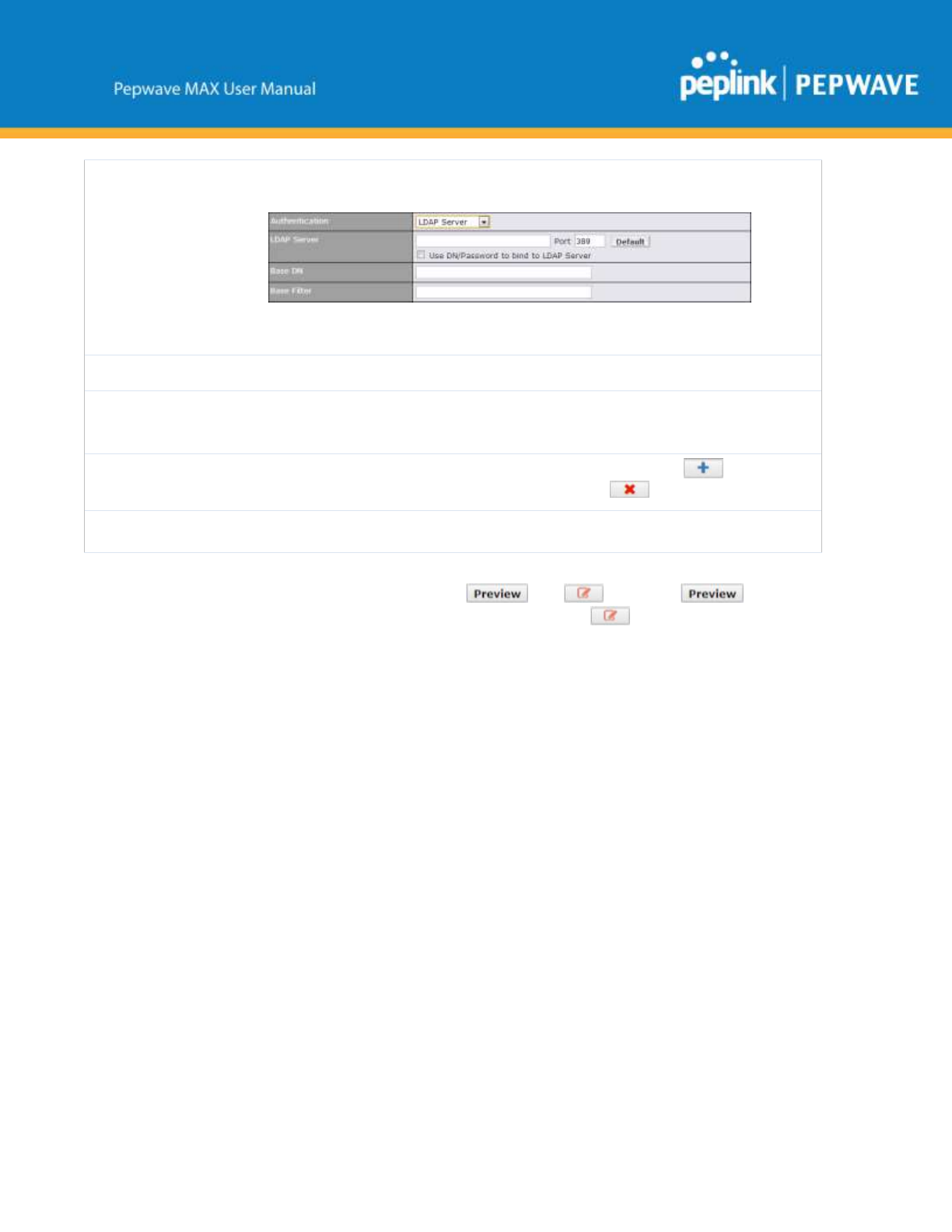

LDAP Server
This authenticates your clients through a LDAP server. Upon selecting this option, you will see
the following fields:
Fill in the necessary information to complete your connection to the server and enable
authentication.
Access Quota
Set a time and data cap to each user’s Internet usage.
Quota Reset
Time
This menu determines how your usage quota resets. Setting it to Daily will reset it at a specified
time every day. Setting a number of minutes after quota reached establish a timer for each user
that begins after the quota has been reached.
Allowed
Networks
To whitelist a network, enter the domain name / IP address here and click . To delete an
existing network from the list of allowed networks, click the button next to the listing.
Splash Page
Here, you can choose between using the Pepwave router’s built-in captive portal and redirecting
clients to a URL you define.
The Portal Customization menu has two options: and . Clicking displays a pop-
up previewing the captive portal that your clients will see. Clicking displays the following menu:
http://www.peplink.com
58
Copyright @ 2017 Pepwave
Portal Customization
Logo Image
Click the Choose File button to select a logo to use for the built-in portal.
Message
If you have any additional messages for your users, enter them in this field.
Terms &
Conditions
If you would like to use your own set of terms and conditions, please enter them here. If left
empty, the built-in portal will display the default terms and conditions.
Custom
Landing
Page
Fill in this field to redirect clients to an external URL.
http://www.peplink.com
59
Copyright @ 2017 Pepwave
10 Configuring the WAN Interface(s)
WAN Interface settings are located at Network>WAN. To reorder WAN priority, drag on the
appropriate WAN by holding the left mouse button, move it to the desired priority (the first one would
be the highest priority, the second one would be lower priority, and so on), and drop it by releasing the
mouse button.
To disable a particular WAN connection, drag on the appropriate WAN by holding the left mouse
button, move it the Disabled row, and drop it by releasing the mouse button.
You can also set priorities on the Dashboard. Click the Details button in the corresponding row to
modify the connection setting.
Important Note
Connection details will be changed and become effective immediately after clicking the Save and Apply button.
http://www.peplink.com
60
Copyright @ 2017 Pepwave
10.1 Ethernet WAN

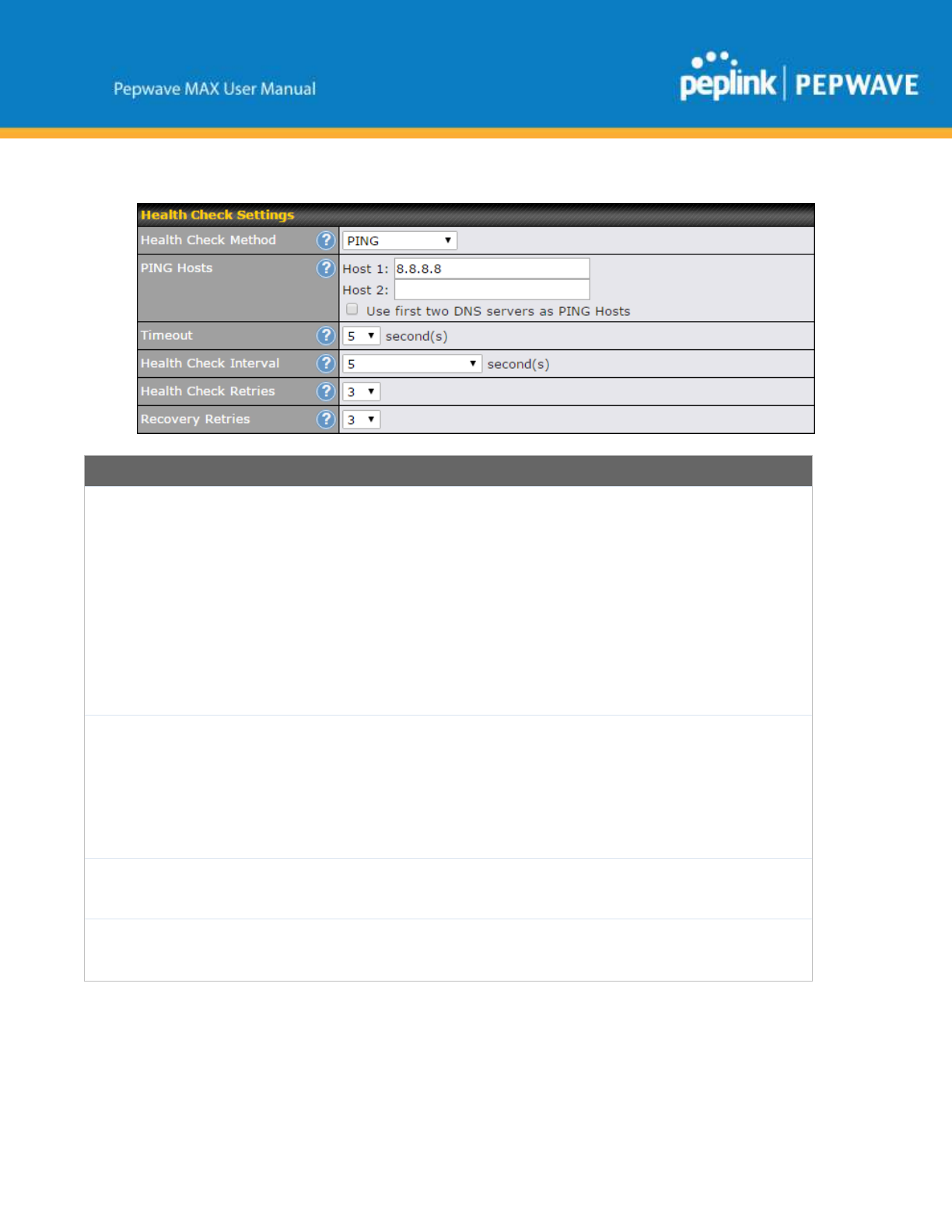

Health Check Settings
Health Check
Method
This field specifies the Health Check method to be used for this WAN connection.
● Disabled - The WAN connection is always considered to be up and will not be treated as
down for any IP routing errors.
● PING - ICMP PING packets will be issued to test connectivity with configurable target IP
addresses or host names.
● DNS Lookup - DNS lookups will be issued to test the connectivity with configurable target
DNS server IP addresses.
● HTTP - HTTP connections will be issued to test the connectivity with configurable URLs
and strings to match.
Default: DNS Lookup
PING Hosts
These fields are for specifying the target IP addresses or host names where ICMP Ping packets will be
sent to for health check.
If the box Use first two DNS servers as PING Hosts is checked, the first two DNS servers will be the
ping targets for checking the connection healthiness. If the box is not checked, the field Host 1 must
be filled and the field Host 2 is optional.
The connection is considered to be up if ping responses are received from any one of the ping hosts.
Timeout
If a health check test cannot be completed within the specified amount of time, the test will be treated
as failed.
Health Check
Interval
This is the time interval between each health check test.
http://www.peplink.com
61
Copyright @ 2017 Pepwave

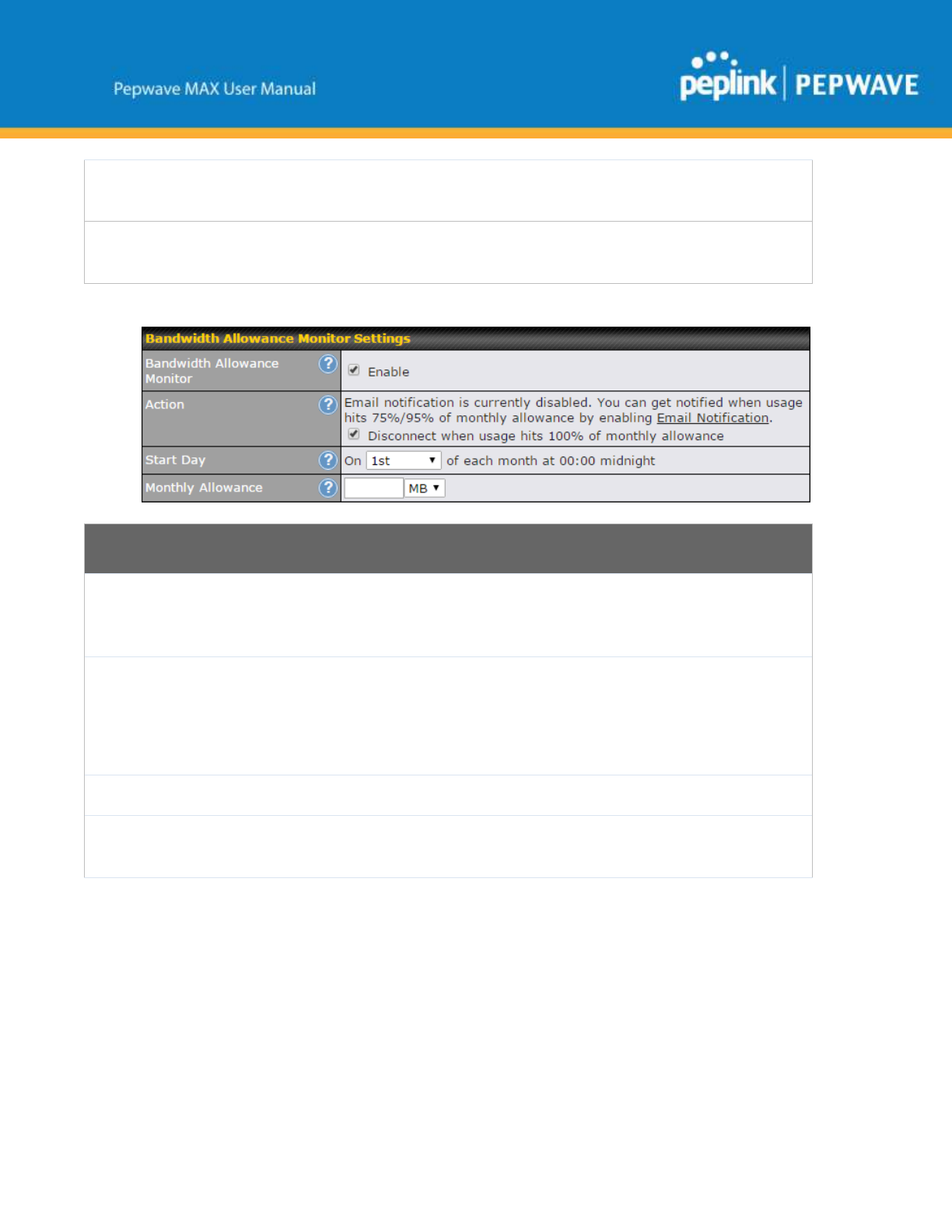

Health Check
Retries
This is the number of consecutive check failures before treating a connection as down.
Recovery
Retries
This is the number of responses required after a health check failure before treating a connection as up
again.
Bandwidth Allowance Monitor Settings
Bandwidth
Allowance
Monitor
Check the box Enable to enable bandwidth usage monitoring on this WAN connection for each billing
cycle. When this option is not enabled, bandwidth usage of each month is still being tracked but no
action will be taken.
Action
If Email Notification is enabled, you will receive an email notification when usage hits 75% and 95%
of the monthly allowance.
If the box Disconnect when usage hits 100% of monthly allowance is checked, this WAN connection
will be disconnected automatically when the usage hits the monthly allowance. It will not resume
unless this option has been turned off or the usage has been reset when a new billing cycle starts.
Start Day
This option allows you to select which day of the month a billing cycle starts.
Monthly
Allowance
This field is to specify the bandwidth allowance for each billing cycle.
http://www.peplink.com
62
Copyright @ 2017 Pepwave

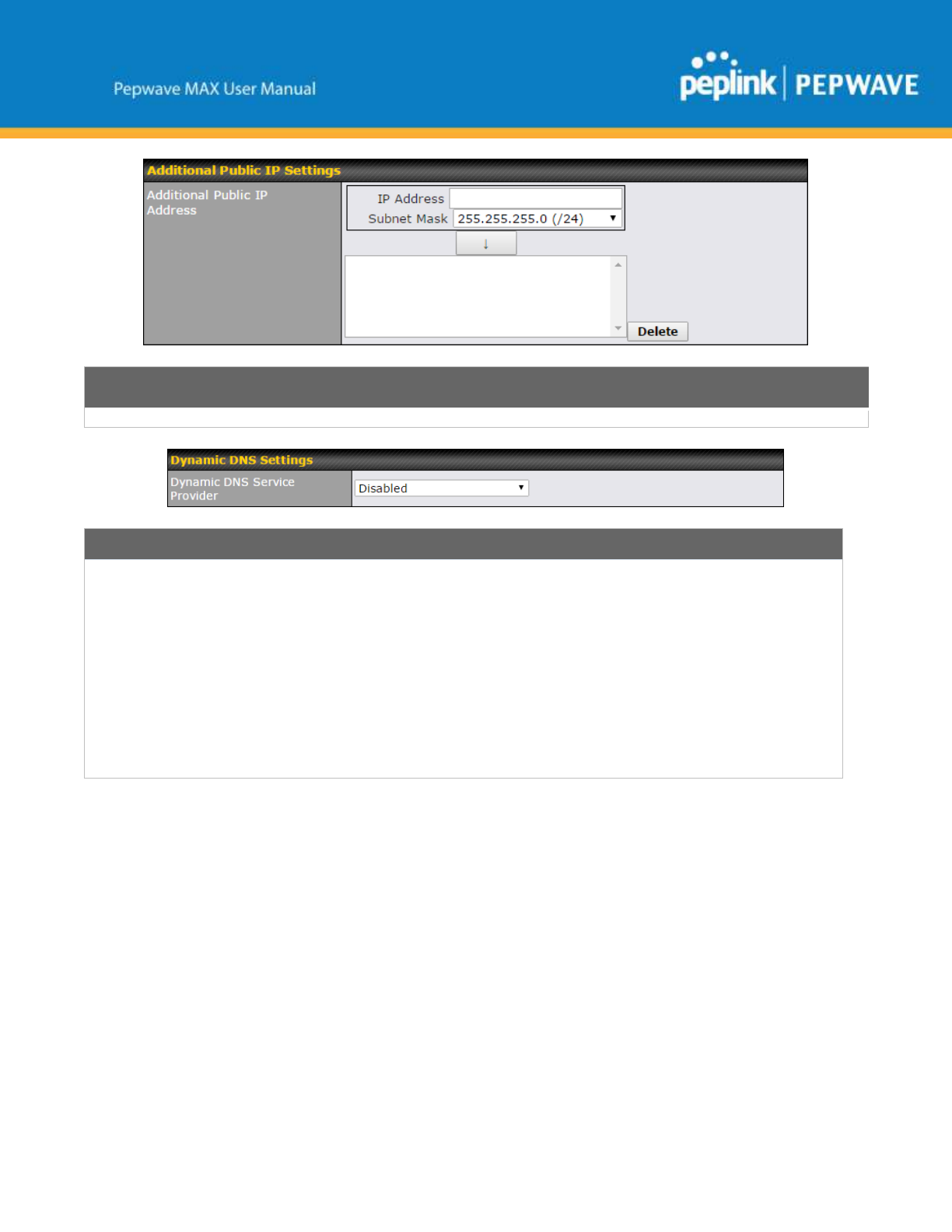

Additional Public IP Settings
If you have access to status public IP addresses,, you can assign them on this field.
Dynamic DNS Settings
Dynamic DNS
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN based on supported
dynamic DNS service providers:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
Select Disabled to disable this feature. See Section 9.5 for configuration details.
10.1.1 DHCP Connection
There are four possible connection methods:
1. DHCP
2. Static IP
3. PPPoE
http://www.peplink.com
63
Copyright @ 2017 Pepwave
4. L2TP
The DHCP connection method is suitable if the ISP provides an IP address automatically using DHCP
(e.g., satellite modem, WiMAX modem, cable, Metro Ethernet, etc.).

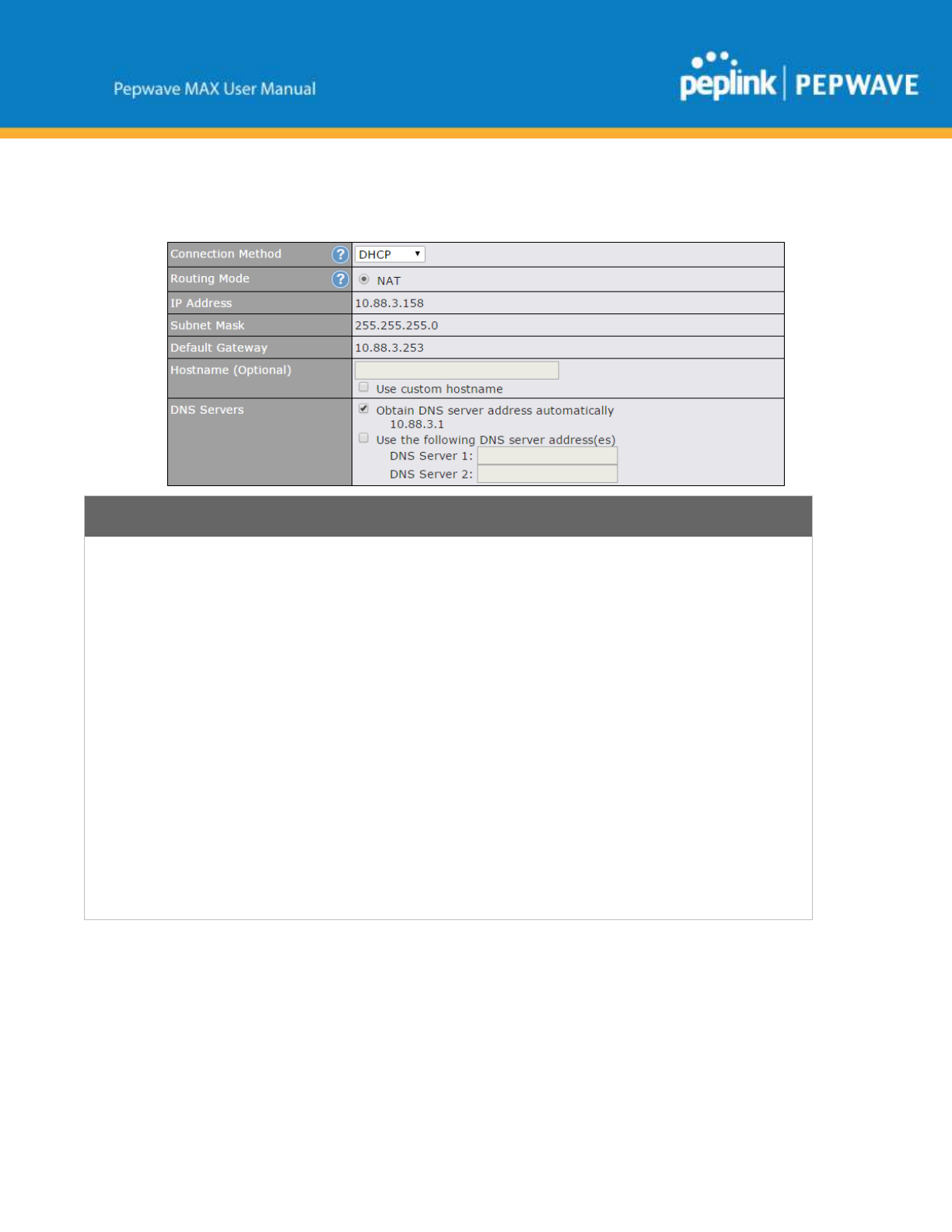

DHCP Connection Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can
display the IP Forwarding option, if your network requires it.
IP Address/ Subnet
Mask/ Default
Gateway
This information is obtained from the ISP automatically.
Hostname
(Optional)
If your service provider's DHCP server requires you to supply a hostname value upon
acquiring an IP address, you may enter the value here. If your service provider does not
provide you with the value, you can safely bypass this option.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the
DNS (Domain Name System) servers to be used when a DNS lookup is routed through this
connection.
Selecting Obtain DNS server address automatically results in the DNS servers being
assigned by the WAN DHCP server to be used for outbound DNS lookups over the
connection. (The DNS servers are obtained along with the WAN IP address assigned from
the DHCP server.)
When Use the following DNS server address(es) is selected, you may enter custom DNS
server addresses for this WAN connection into the DNS Server 1 and DNS Server 2
fields.
10.1.2 Static IP Connection
The static IP connection method is suitable if your ISP provides a static IP address to connect directly.
http://www.peplink.com
64
Copyright @ 2017 Pepwave

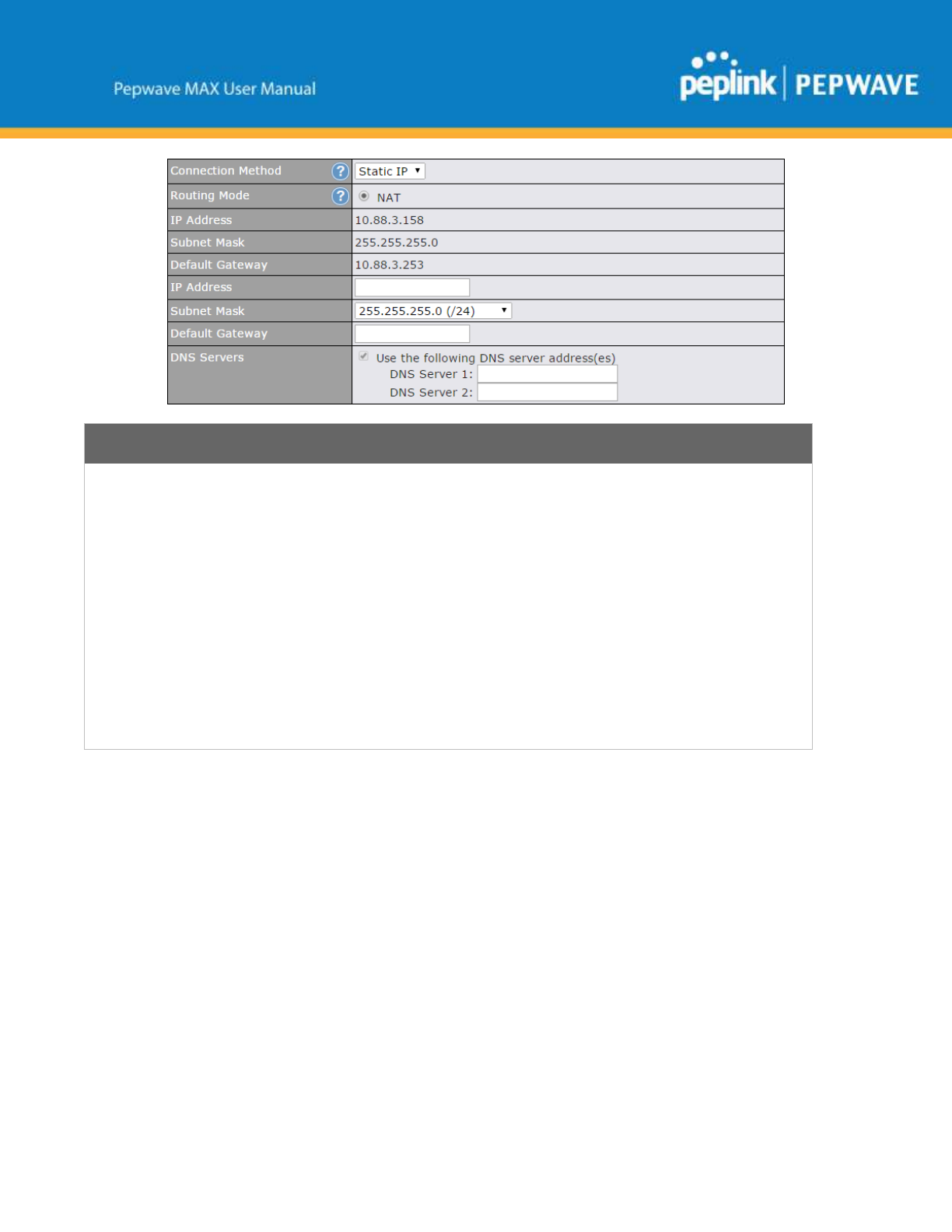

Static IP Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can display
the IP Forwarding option, if your network requires it.
IP Address /
Subnet Mask /
Default
Gateway
These settings allow you to specify the information required in order to communicate on the
Internet via a fixed Internet IP address. The information is typically determined by and can be
obtained from the ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS
(Domain Name System) servers to be used when a DNS lookup is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers being assigned by
the WAN DHCP server to be used for outbound DNS lookups over the connection. (The DNS
servers are obtained along with the WAN IP address assigned from the DHCP server.) When Use
the following DNS server address(es) is selected, you may enter custom DNS server addresses for
this WAN connection into the DNS Server 1 and DNS Server 2 fields.
http://www.peplink.com
65
Copyright @ 2017 Pepwave
10.1.3 PPPoE Connection
This connection method is suitable if your ISP provides a login ID/password to connect via PPPoE.

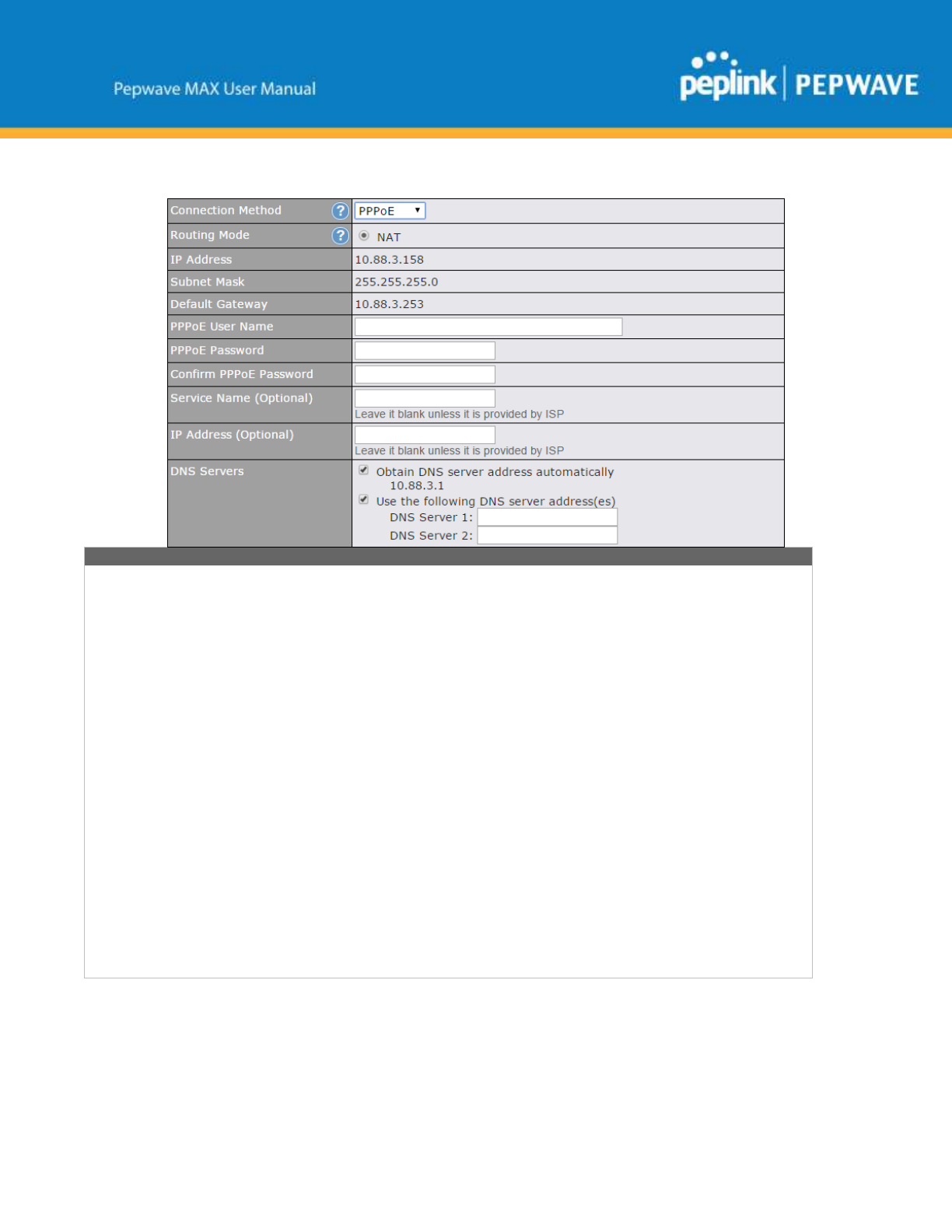

PPPoE Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is
routable on the destination network. By clicking the help icon in this field, you can
display the IP Forwarding option, if your network requires it.
IP Address / Subnet
Mask / Default Gateway
This information is obtained from the ISP automatically.
PPPoE User Name /
Password
Enter the required information in these fields in order to connect via PPPoE to the ISP. The
parameter values are determined by and can be obtained from the ISP.
Confirm PPPoE
Password
Verify your password by entering it again in this field.
Service Name (Optional)
Service name is provided by the ISP.
Note: Leave this field blank unless it is provided by your ISP.
IP Address (Optional)
If your ISP provides a PPPoE IP address, enter it here.
Note: Leave this field blank unless it is provided by your ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS
(Domain Name System) servers to be used when a DNS lookup is routed through this
connection. Selecting Obtain DNS server address automatically results in the DNS servers
being assigned by the WAN DHCP server to be used for outbound DNS lookups over the
connection. (The DNS servers are obtained along with the WAN IP address assigned from
the DHCP server.) When Use the following DNS server address(es) is selected, you may
enter custom DNS server addresses for this WAN connection into the DNS Server 1 and
DNS Server 2 fields.
http://www.peplink.com
66
Copyright @ 2017 Pepwave
10.1.4 L2TP Connection
L2TP has all the compatibility and convenience of PPTP with greater security. Combine this with IPsec
for a good balance between ease of use and security.
L2TP Settings
L2TP User Name /
Password
Enter the required information in these fields in order to connect via L2TP to your ISP.
The parameter values are determined by and can be obtained from your ISP.
Confirm L2TP Password
Verify your password by entering it again in this field.
Server IP Address / Host
L2TP server address is a parameter which is provided by your ISP.
Note: Leave this field blank unless it is provided by your ISP.
Address Type
Your ISP will also indicate whether the server IP address is Dynamic or Static. Please click the
appropriate value.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the
DNS (Domain Name System) servers to be used when a DNS lookup is routed through this
connection.
Selecting Obtain DNS server address automatically results in the DNS servers assigned
by the PPPoE server to be used for outbound DNS lookups over the WAN connection.
(The DNS servers are obtained along with the WAN IP address assigned from the PPPoE
server.)
When Use the following DNS server address(es) is selected, you can enter custom DNS server
addresses for this WAN connection into the DNS server 1 and DNS server 2 fields.
http://www.peplink.com
67
Copyright @ 2017 Pepwave
10.2 Cellular WAN

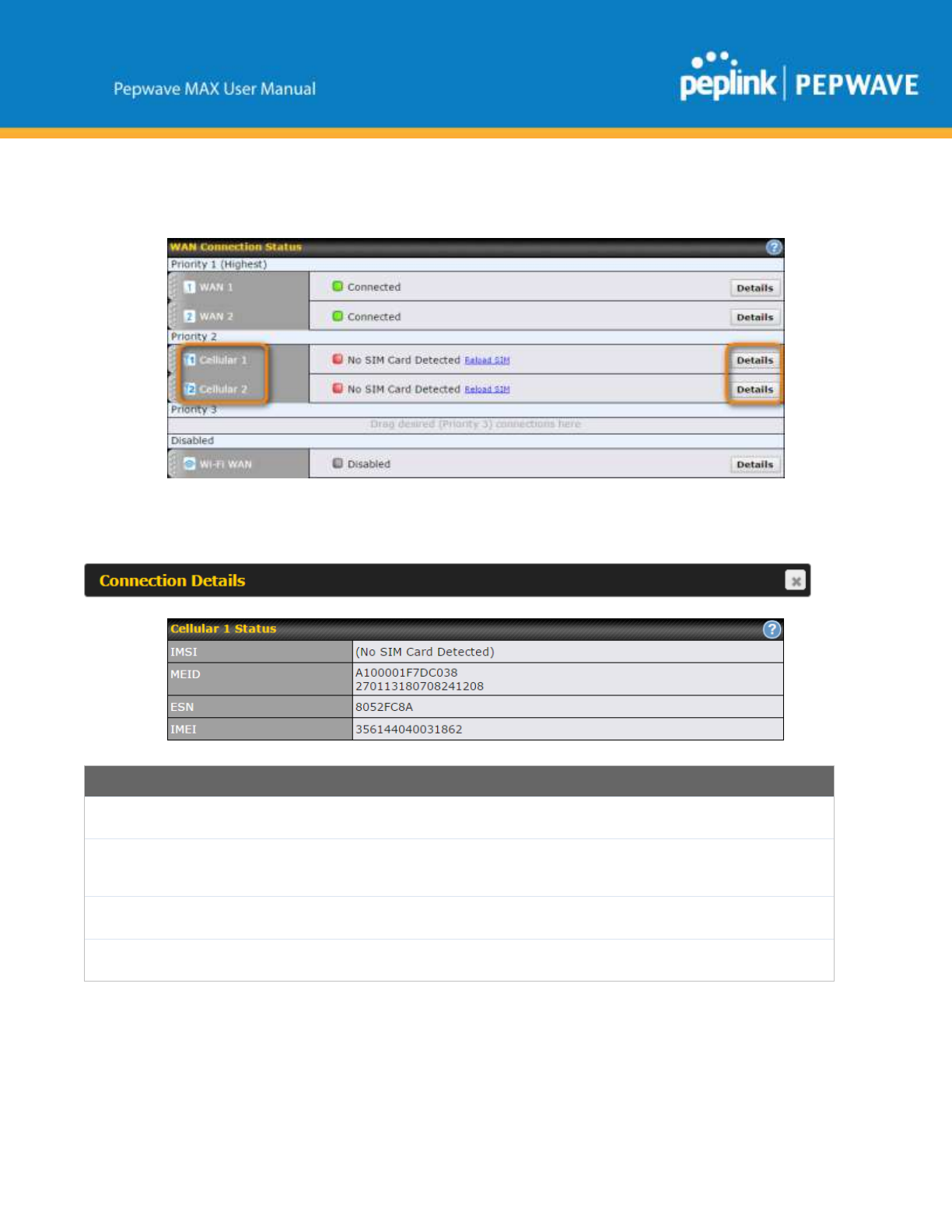

To access cellular WAN settings, click Network>WAN>Details.
(Available on the Pepwave MAX BR1, HD2, and HD2 IP67 only)
Cellular Status
IMSI
This is the International Mobile Subscriber Identity which uniquely identifies the SIM card. This is
applicable to 3G modems only.
MEID
Some Pepwave routers support both HSPA and EV-DO. For Sprint or Verizon Wireless EV-DO users, a
unique MEID identifier code (in hexadecimal format) is used by the carrier to associate the EV-DO
device with the user. This information is presented in hex and decimal format.
ESN
This serves the same purpose as MEID HEX but uses an older format.
IMEI
This is the unique ID for identifying the modem in GSM/HSPA mode.
http://www.peplink.com
68
Copyright @ 2017 Pepwave

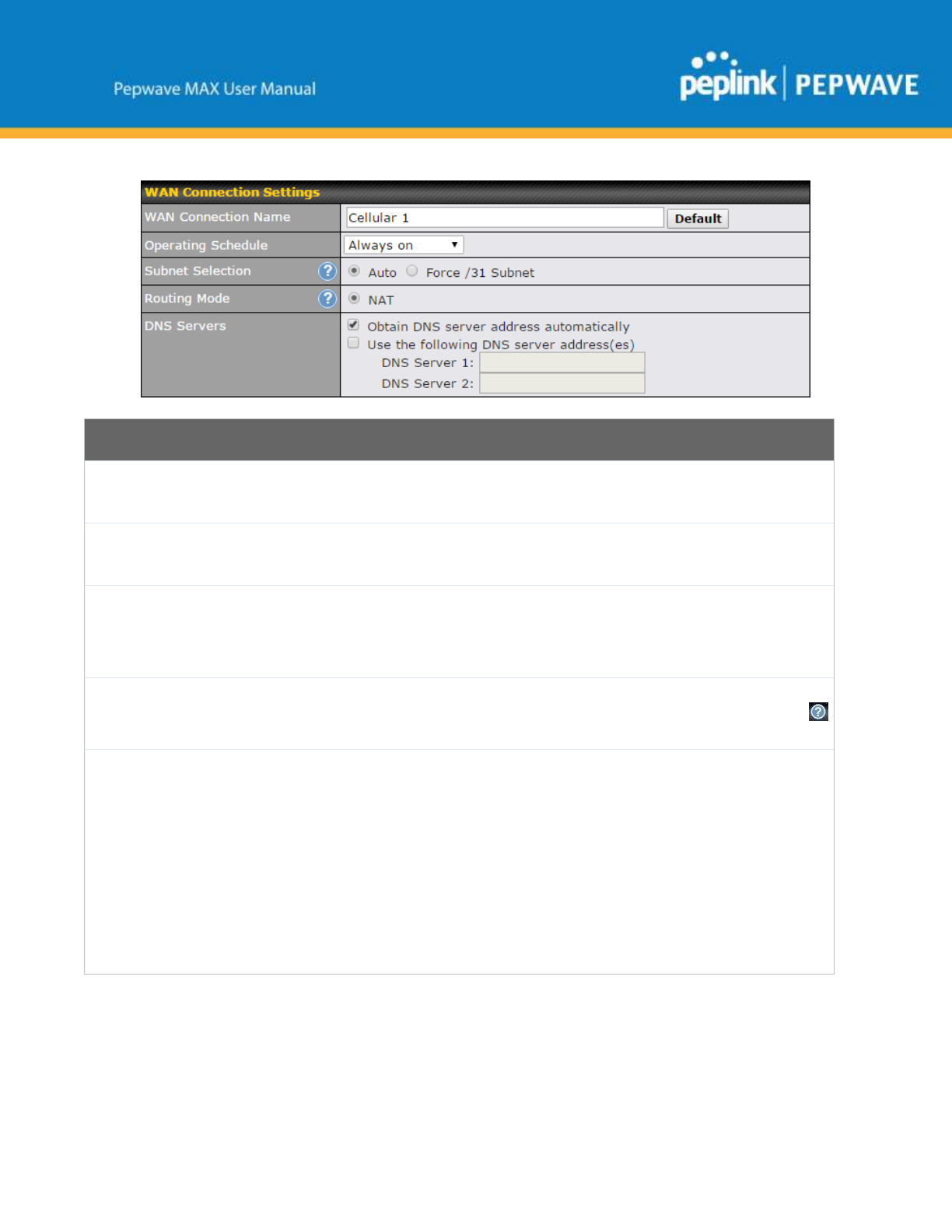

WAN Connection Settings
WAN Connection
Name
Enter a name to represent this WAN connection.
Operating
Schedule
Click the drop-down menu to apply a time schedule to this interface if needed.
Subnet Selection
Auto: The subnet mask will be set automatically.
Force /31 Subnet: The subnet mask will be set as 255.255.255.254(/31), and the gateway IP address will
be recalculated.
Routing Mode
This option allows you to select the routing method to be used in routing IP frames via the WAN
connection. The mode can be either NAT (network address translation) or IP Forwarding. Click the
button to enable IP forwarding.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the
DNS (Domain Name System) servers to be used when a DNS lookup is routed through this
connection.
Selecting Obtain DNS server address automatically results in the DNS servers assigned
by the PPPoE server to be used for outbound DNS lookups over the WAN connection.
(The DNS servers are obtained along with the WAN IP address assigned from the PPPoE
server.)
When Use the following DNS server address(es) is selected, you can enter custom DNS server
addresses for this WAN connection into the DNS server 1 and DNS server 2 fields.
http://www.peplink.com
69
Copyright @ 2017 Pepwave
http://www.peplink.com
70
Copyright @ 2017 Pepwave
Cellular Settings
SIM Card
Indicate which SIM card this cellular WAN will use. Only applies to cellular WAN with redundant SIM
cards.
Preferred SIM
Card
If both cards were enabled on the above field, then you can designate the priority of the SIM card slots
here.
3G/2G
This drop-down menu allows restricting cellular to particular band. Click the button to enable the
selection of specific bands.
Authentication
Choose from PAP Only or CHAP Only to use those authentication methods exclusively. Select Auto
to automatically choose an authentication method.
Data Roaming
This checkbox enables data roaming on this particular SIM card. Please check your service provider’s
data roaming policy before proceeding.
Operator Settings
This setting applies to 3G/EDGE/GPRS modems only. It does not apply to EVDO/EVDO Rev. A
modems. This allows you to configure the APN settings of your connection. If Auto is selected, the
mobile operator should be detected automatically. The connected device will be configured and
connection will be made automatically. If there is any difficulty in making connection, you may select
Custom to enter your carrier’s APN, Login, Password, and Dial Number settings manually. The
correct values can be obtained from your carrier. The default and recommended setting is Auto.
APN / Login /
Password /
SIM PIN
When Auto is selected, the information in these fields will be filled automatically. Select Custom to
customize these parameters. The parameter values are determined by and can be obtained from the ISP.
Bandwidth
Allowance
Monitor
Check the box Enable to enable bandwidth usage monitoring on this WAN connection for each billing
cycle. When this option is not enabled, bandwidth usage of each month is still being tracked but no
action will be taken.
Action
If email notification is enabled, you will be notified by email when usage hits 75% and 95% of the
monthly allowance. If Disconnect when usage hits 100% of monthly allowance is checked, this WAN
connection will be disconnected automatically when the usage hits the monthly allowance. It will not
resume connection unless this option has been turned off or the usage has been reset when a new billing
cycle starts.
Start Day
This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance
This field is for defining the maximum bandwidth usage allowed for the WAN connection each month.
http://www.peplink.com
71
Copyright @ 2017 Pepwave
General Settings
Independent
from Backup
WANs
If this is checked, the connection will be working independent from other Backup WAN connections.
Those in Backup Priority will ignore the status of this WAN connection, and will be used when none of
the other higher priority connections are available.
Standby State
This option allows you to choose whether to remain connected or disconnected when this WAN
connection is no longer in the highest priority and has entered the standby state. When Remain
connected is chosen, bringing up this WAN connection to active makes it immediately available for use.
Idle Disconnect
When Internet traffic is not detected within the user-specified timeframe, the modem will automatically
disconnect. Once the traffic is resumed by the LAN host, the connection will be re-activated.
http://www.peplink.com
72
Copyright @ 2017 Pepwave

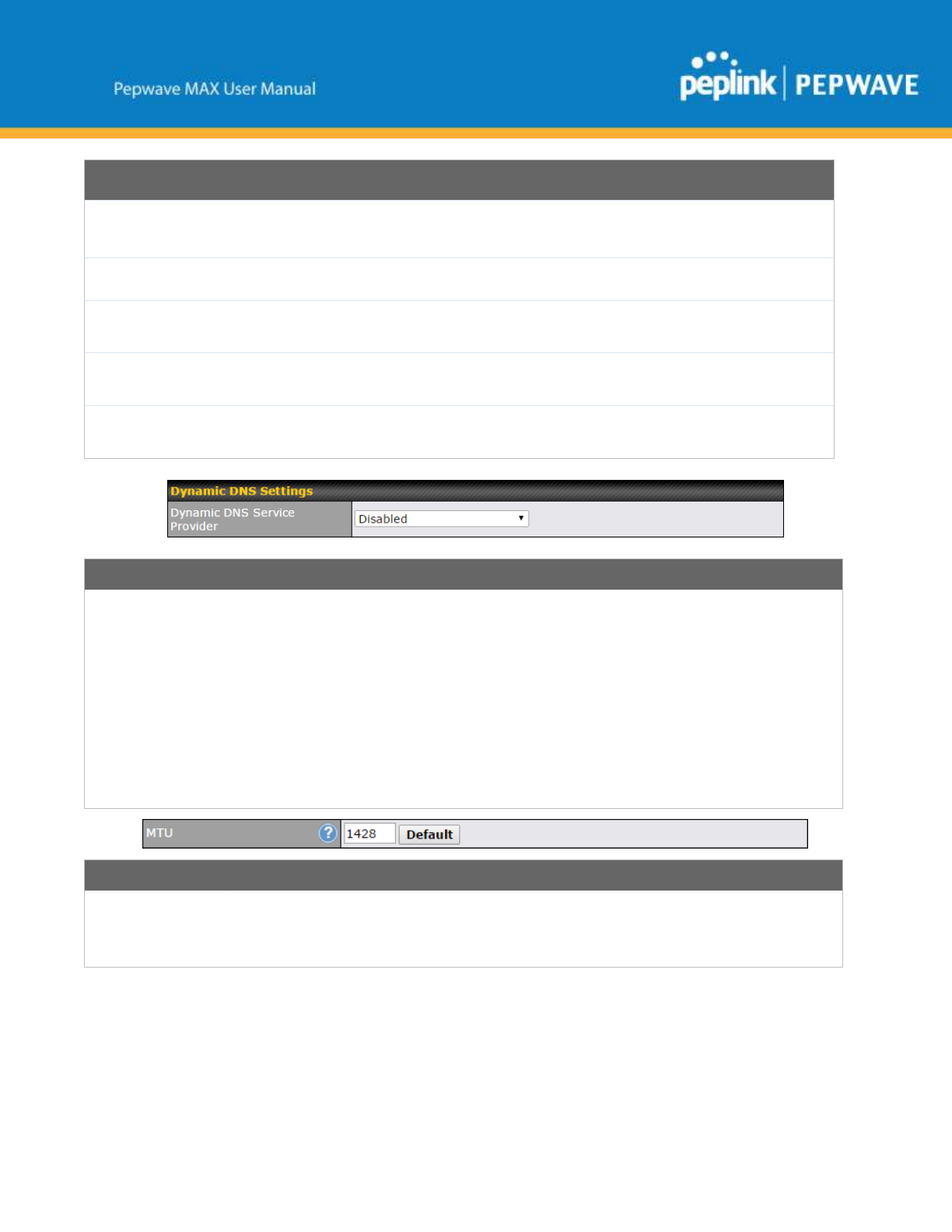

Health Check Settings
Health Check
Method
This setting allows you to specify the health check method for the cellular connection. Available options
are Disabled, Ping, DNS Lookup, HTTP, and SmartCheck. The default method is DNS Lookup. See
Section 10.4 for configuration details.
Timeout
If a health check test cannot be completed within the specified amount of time, the test will be treated as
failed.
Health Check
Interval
This is the time interval between each health check test.
Health Check
Retries
This is the number of consecutive check failures before treating a connection as down.
Recovery
Retries
This is the number of responses required after a health check failure before treating a connection as up
again.
Dynamic DNS Settings
Dynamic DNS
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN based on supported
dynamic DNS service providers:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
Select Disabled to disable this feature. See Section 9.5 for configuration details.
MTU
MTU
This field is for specifying the Maximum Transmission Unit value of the WAN connection. An excessive
MTU value can cause file downloads stall shortly after connected. You may consult your ISP for the
connection's MTU value.
http://www.peplink.com
73
Copyright @ 2017 Pepwave
10.3 Wi-Fi WAN
To access Wi-Fi WAN settings, click Network>WAN>Details.

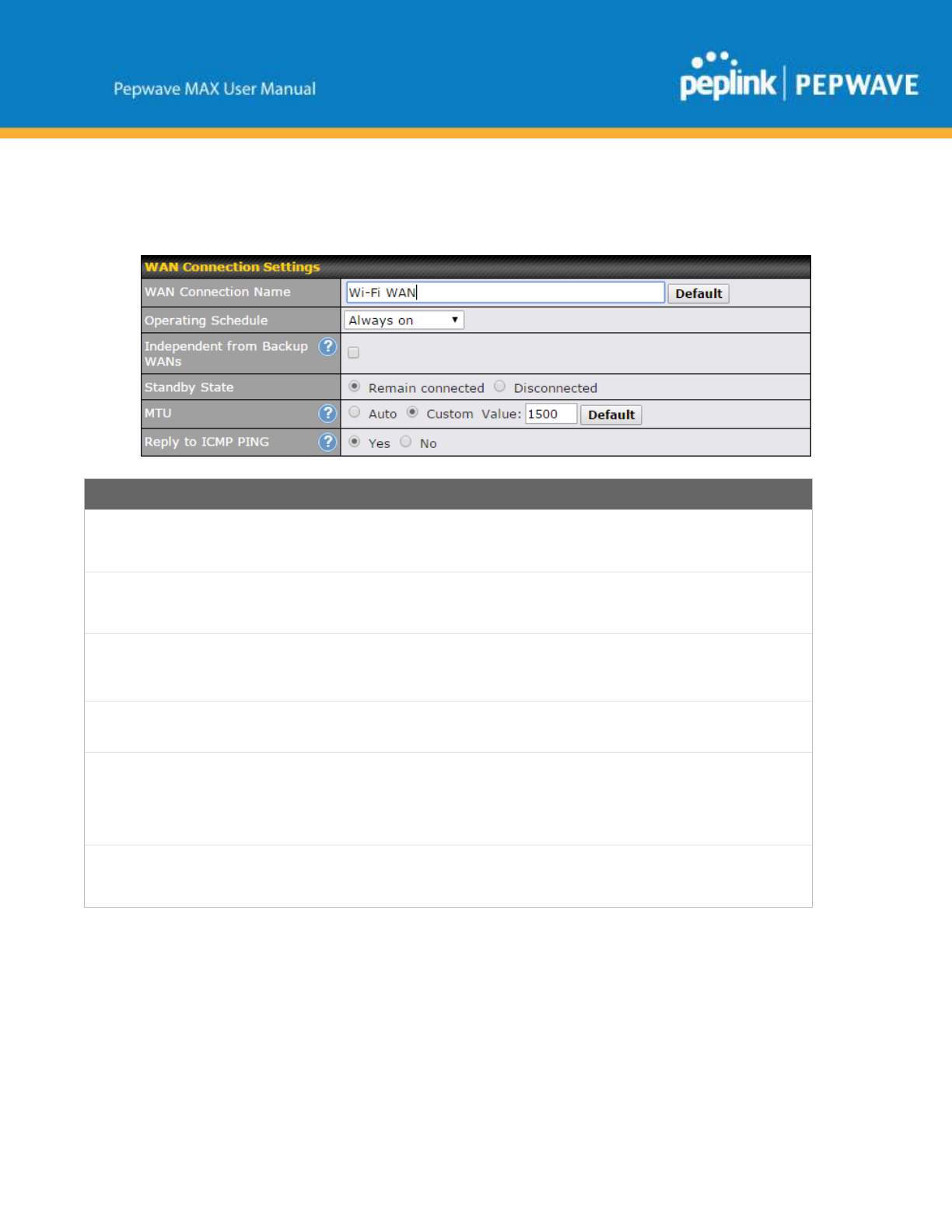

WAN Connection Settings
WAN Connection
Name
Enter a name to represent this WAN connection.
Operating
Schedule
Click the drop-down menu to apply a time schedule to this interface.
Independent from
Backup WANs
If this is checked, the connection will be working independent from other Backup WAN
connections. Those in Backup Priority will ignore the status of this WAN connection, and will be
used when none of the other higher priority connections are available.
Standby State
This setting specifies the state of the WAN connection while in standby. The available options are
Remain Connected (hot standby) and Disconnect (cold standby).
MTU
This setting specifies the maximum transmission unit. By default, MTU is set to Custom 1440.
You may adjust the MTU value by editing the text field. Click Default to restore the default MTU
value. Select Auto and the appropriate MTU value will be automatically detected. The auto-
detection will run each time the WAN connection establishes
Reply to ICMP
PING
If this setting is disabled, the WAN connection will not respond to ICMP ping requests. By
default, this setting is enabled.
http://www.peplink.com
74
Copyright @ 2017 Pepwave

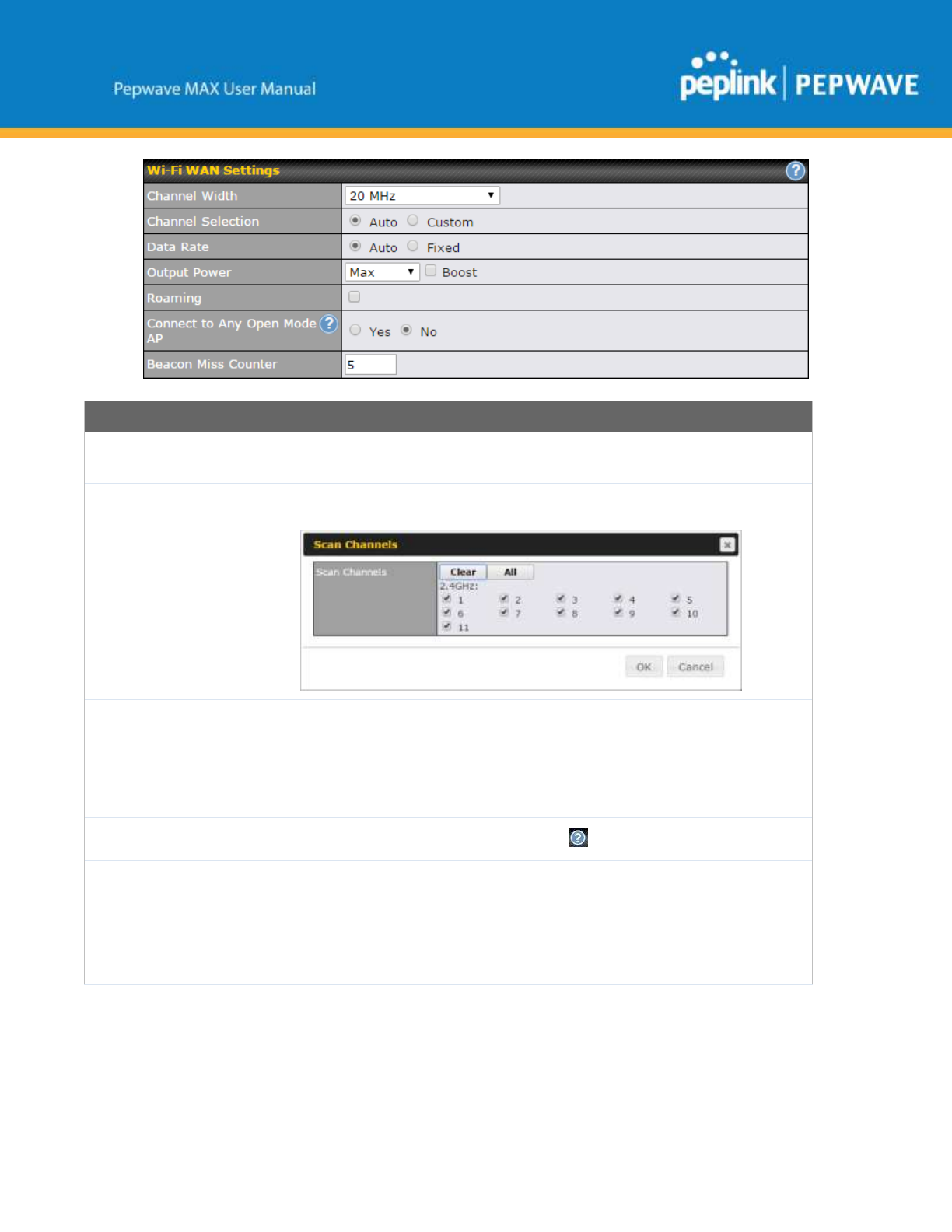

Wi-Fi WAN Settings
Channel Width
Select the channel width for this Wi-Fi WAN. 20MHz will have greater support for older devices
using 2.4Ghz, while 40MHz is appropriate for networks with newer devices that connect using 5Ghz
Channel
Selection
Determine whether the channel will be automatically selected. If you select custom, the following
table will appear:
Data Rate
Selecting Auto will enable the router to automatically determine the best data rate, while manually
selecting a rate will force devices to connect using the fixed rate.
Output Power
If you are setting up a network with many Wi-Fi devices in close proximity, then you can configure
the output power here. Click the “boost” button for additional power. However, with that option
ticked, output power may exced local regulatory limits.
Roaming
Checking this box will enable Wi-Fi roaming. Click the icon for additional options.
Connect to Any
Open Mode AP
This option is to specify whether the Wi-Fi WAN will connect to any open mode access points it
finds.
Beacon Miss
Counter
This sets the threshold for the number of missed beacons.
http://www.peplink.com
75
Copyright @ 2017 Pepwave

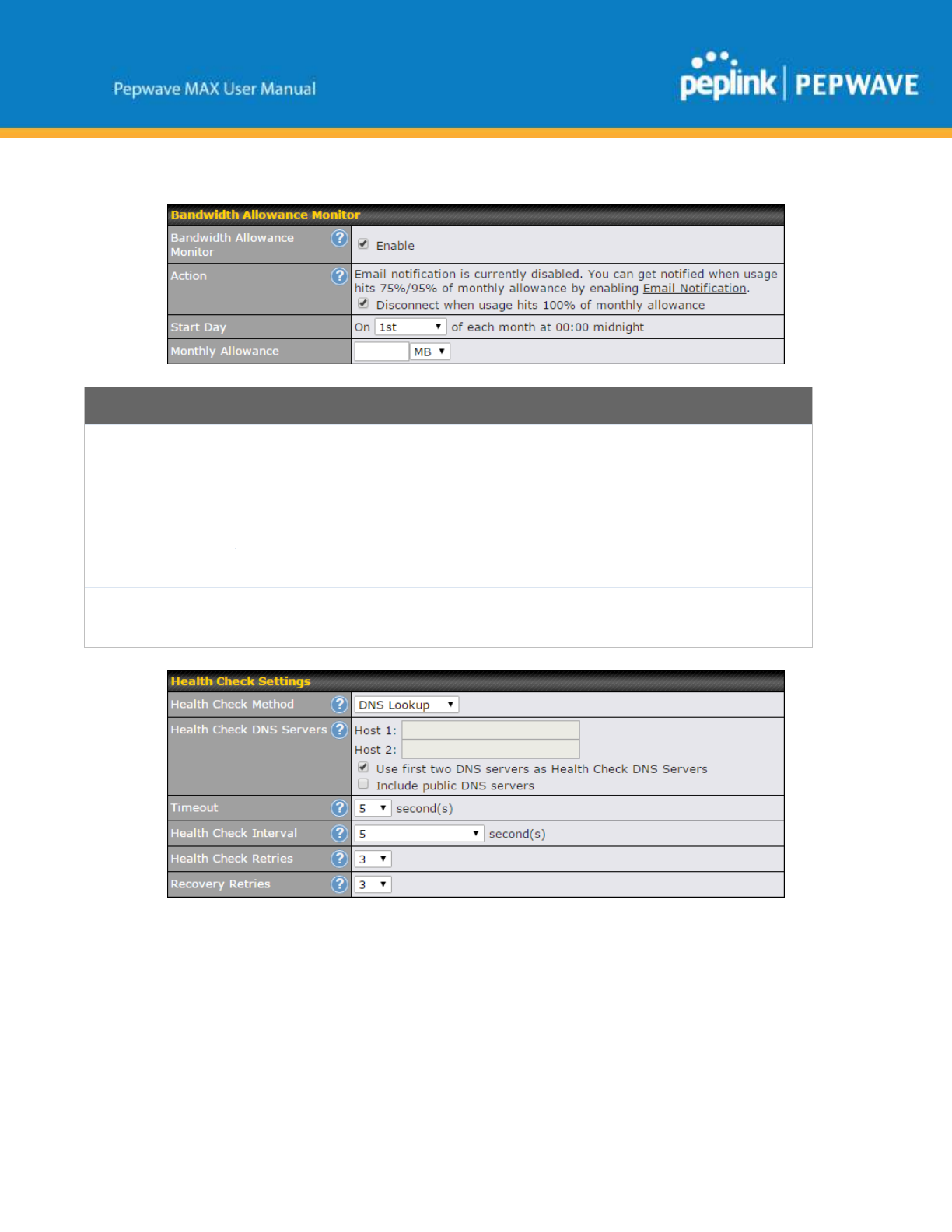

Bandwidth Allowance Monitor
Action
If Error! Reference source not found. is enabled, you will be notified by email when
usage hits 75% and 95% of the monthly allowance.
If Disconnect when usage hits 100% of monthly allowance is checked, this WAN connection will
be disconnected automatically when the usage hits the monthly allowance. It will not resume
connection unless this option has been turned off or the usage has been reset when a new billing
cycle starts.
Start Day
This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance
This field is for defining the maximum bandwidth usage allowed for the WAN connection each
month.
http://www.peplink.com
76
Copyright @ 2017 Pepwave

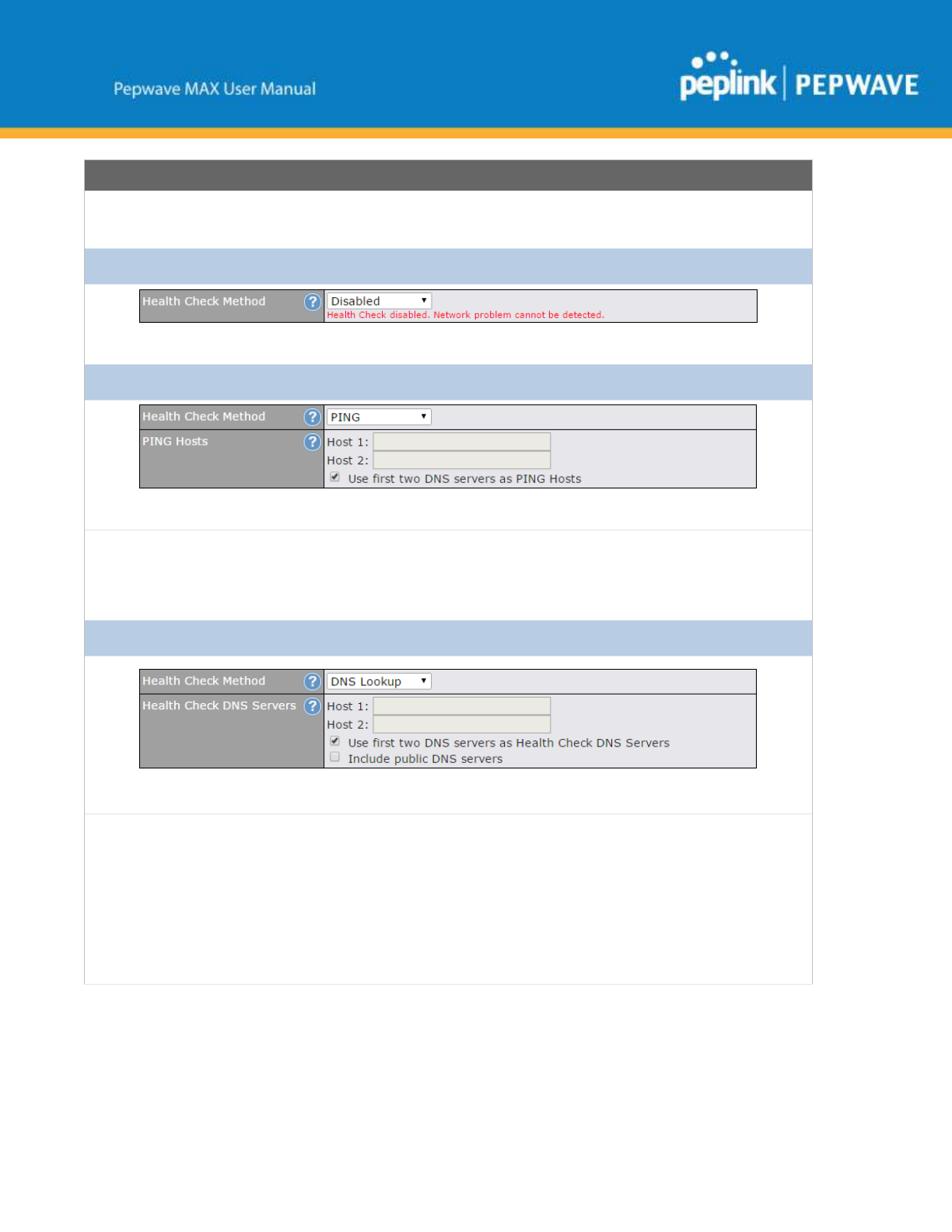

Health Check Settings
Method
This setting specifies the health check method for the WAN connection. This value can be
configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS Lookup. For
mobile Internet connections, the value of Method can be configured as Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up. The connection will NOT
be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or hostname. A WAN
connection is considered as up if ping responses are received from either one or both of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be tested via ICMP
ping. If Use first two DNS servers as Ping Hosts is checked, the target ping host will be the first
DNS server for the corresponding WAN connection. Reliable ping hosts with a high uptime should
be considered. By default, the first two DNS servers of the WAN connection are used as the ping
hosts.
Health Check Method: DNS Lookup
DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated as up if DNS responses
are received from one or both of the servers, regardless of whether the result was positive or negative.
Health Check
DNS Servers
This field allows you to specify two DNS hosts’ IP addresses with which connectivity is to be tested
via DNS Lookup.
If Use first two DNS servers as Health Check DNS Servers is checked, the first two DNS servers
will be the DNS lookup targets for checking a connection's health. If the box is not checked, Host 1
must be filled, while a value for Host 2 is optional.
If Include public DNS servers is selected and no response is received from all specified DNS
servers, DNS lookups will also be issued to some public DNS servers. A WAN connection will be
http://www.peplink.com
77
Copyright @ 2017 Pepwave
treated as down only if there is also no response received from the public DNS servers.
Connections will be considered as up if DNS responses are received from any one of the health
check DNS servers, regardless of a positive or negative result. By default, the first two DNS servers
of the WAN connection are used as the health check DNS servers.

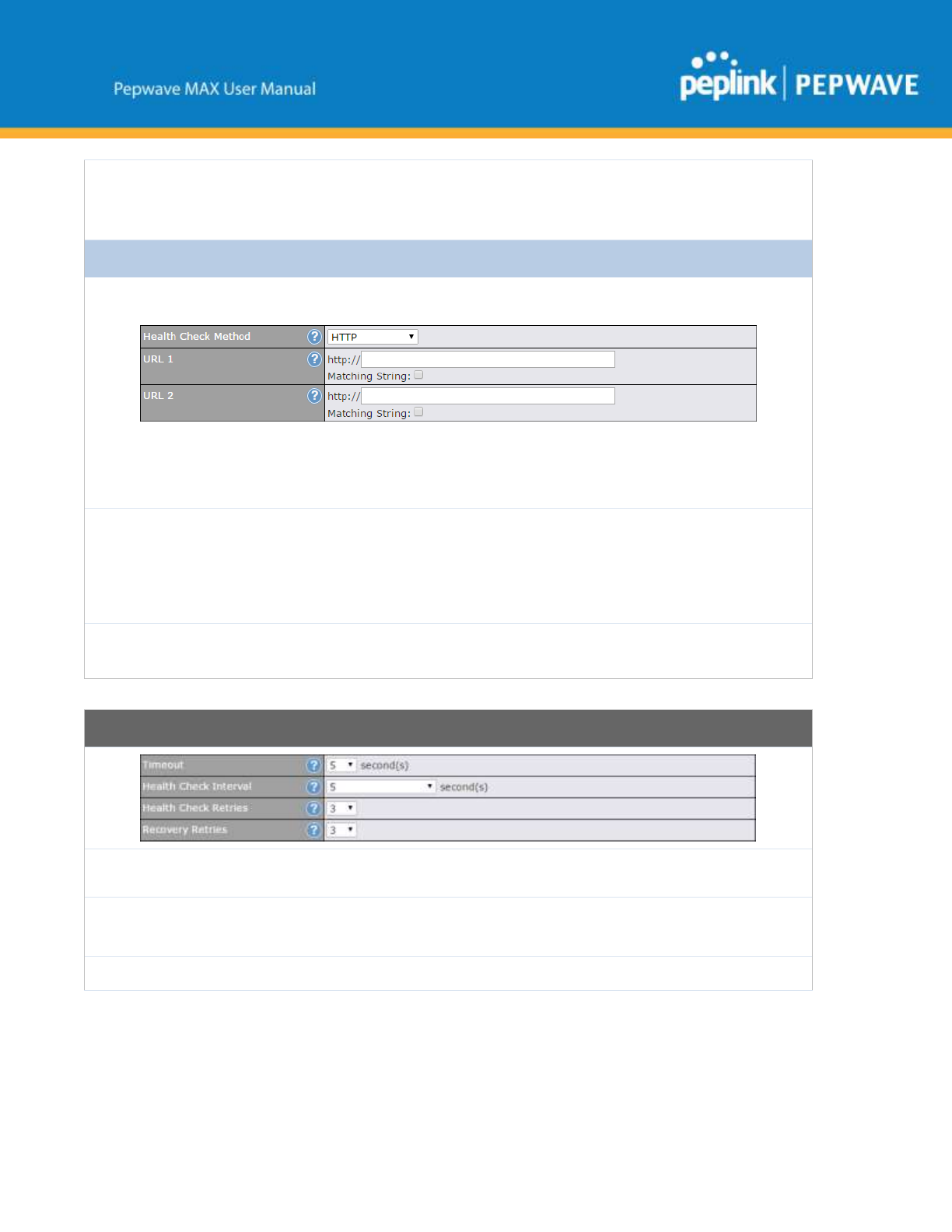

Health Check Method: HTTP
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String to Match is left
blank, a health check will pass if the HTTP return code is between 200 and 299 (Note: HTTP
redirection codes 301 or 302 are treated as failures). When String to Match is filled, a health check
will pass if the HTTP return code is between 200 and 299 and if the HTTP response content contains
the string.
URL 2
WAN Settings>WAN Edit>Health Check Settings>URL2
If URL2 is also provided, a health check will pass if either one of the tests passed.
Other Health Check Settings
Timeout
This setting specifies the timeout in seconds for ping/DNS lookup requests. The default timeout is 5
seconds.
Health Check
Interval
This setting specifies the time interval in seconds between ping or DNS lookup requests. The default
health check interval is 5 seconds.
Health Check
This setting specifies the number of consecutive ping/DNS lookup timeouts after which the Peplink
http://www.peplink.com
78
Copyright @ 2017 Pepwave
Retries
Balance will treat the corresponding WAN connection as down. Default health retries is set to 3.
Using the default Health Retries setting of 3, the corresponding WAN connection will be treated as
down after three consecutive timeouts.
Recovery Retries
This setting specifies the number of consecutive successful ping/DNS lookup responses that must be
received before the Peplink Balance treats a previously down WAN connection as up again. By
default, Recover Retries is set to 3. Using the default setting, a WAN connection that is treated as
down will be considered as up again upon receiving three consecutive successful ping/DNS lookup
responses.
Dynamic DNS Settings
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN. Supported
providers are:
● changeip.com
● dyndns.org
● no-ip.org

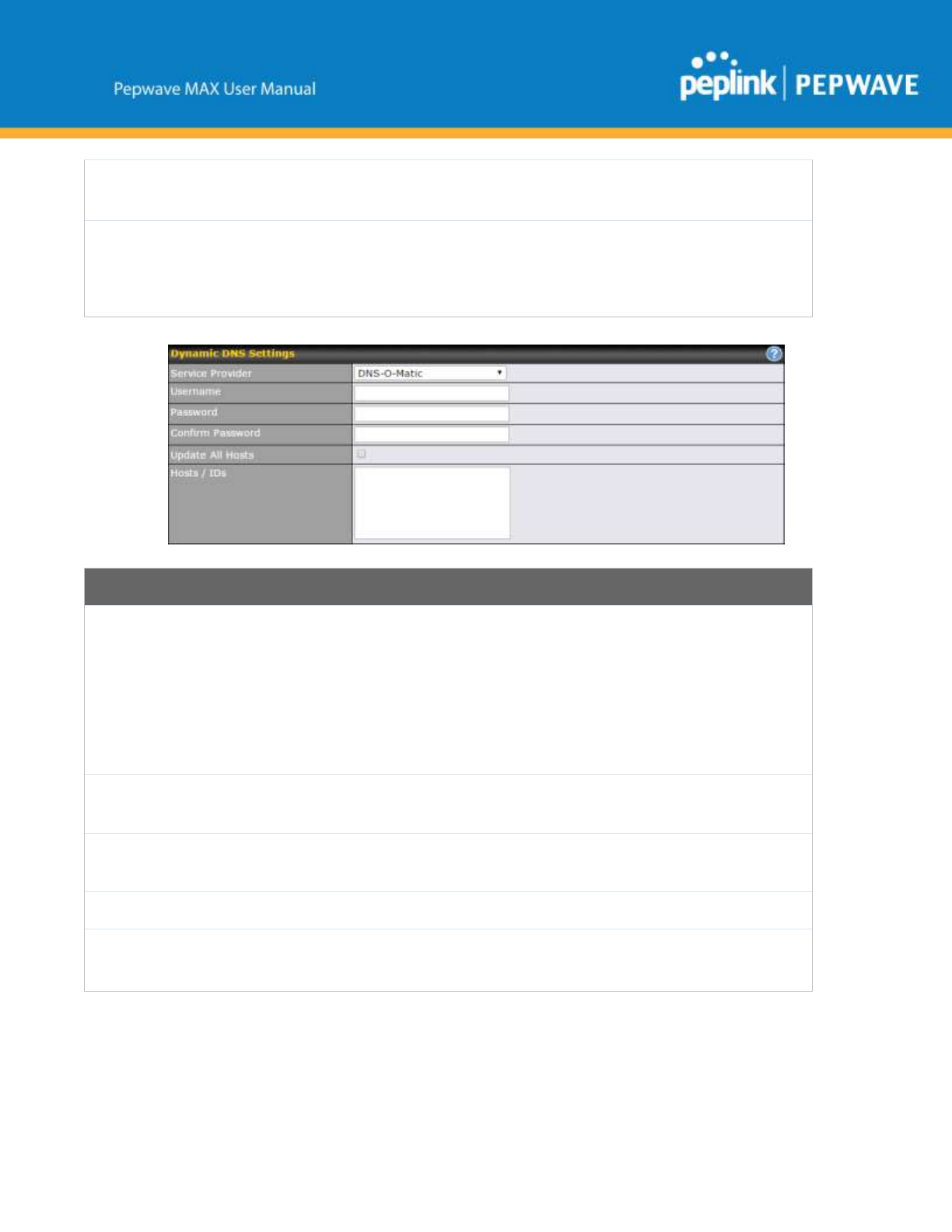

● tzo.com
● DNS-O-Matic
Select Disabled to disable this feature.
User ID / User /
Email
This setting specifies the registered user name for the dynamic DNS service.
Password / Pass /
TZO Key
This setting specifies the password for the dynamic DNS service.
Update All Hosts
Check this box to automatically update all hosts.
Hosts / Domain
This setting specifies a list of hostnames or domains to be associated with the public Internet IP
address of the WAN connection.
http://www.peplink.com
79
Copyright @ 2017 Pepwave
Important Note
In order to use dynamic DNS services, appropriate hostname registration(s), as well as a valid account with a supported
dynamic DNS service provider, are required.
A dynamic DNS update is performed whenever a WAN’s IP address is changed, such as when an IP is changed after a DHCP
IP refresh or reconnection.
Due to dynamic DNS service providers’ policies, a dynamic DNS host expires automatically when the host record has not been
not updated for a long time. Therefore, the Peplink Balance performs an update every 23 days, even if a WAN’s IP address did
not change.
10.3.1 Creating Wi-Fi Connection Profiles
You can manually create a profile to connect to a Wi-Fi connection. This is useful for creating a profile
for connecting to hidden-SSID access points. Click Network>WAN>Details>Create Profile… to get
started.
This will open a window similar to the one shown below
http://www.peplink.com
80
Copyright @ 2017 Pepwave
Wi-Fi Connection Profile Settings
Type
Select whether the network will connect automatically or manually.
Network Name
(SSID)
Enter a name to represent this Wi-Fi connection.

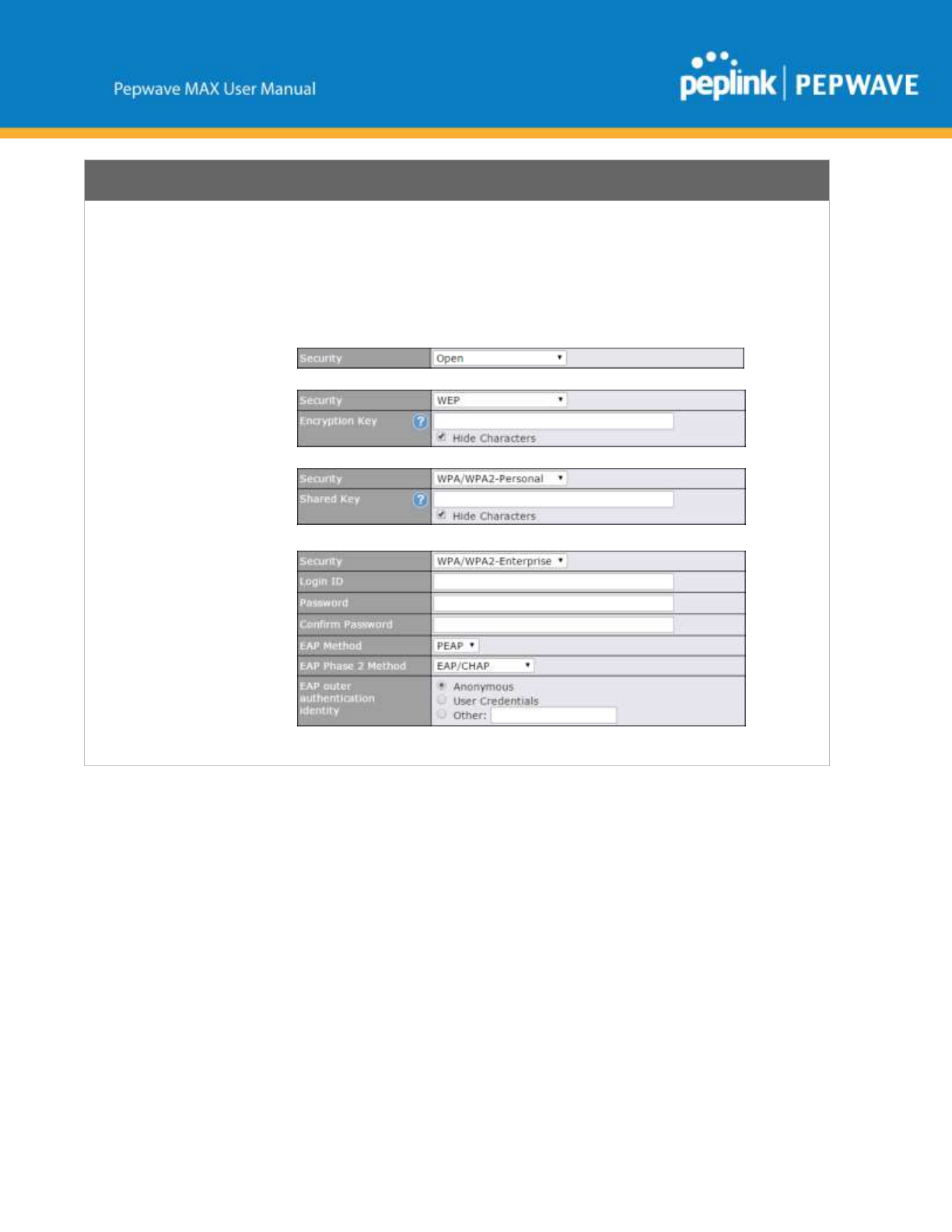

Security
This option allows you to select which security policy is used for this wireless network.
Available options:
● Open
● WEP
● WPA/WPA2 – Personal
● WPA/WPA2 – Enterprise
10.4 WAN Health Check
To ensure traffic is routed to healthy WAN connections only, the Pepwave router can periodically check
the health of each WAN connection. The health check settings for each WAN connection can be
independently configured via Network>WAN>Details.
http://www.peplink.com
81
Copyright @ 2017 Pepwave
Health Check Settings
Method
This setting specifies the health check method for the WAN connection. This value can be
configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS Lookup. For
mobile Internet connections, the value of Method can be configured as Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up. The connection will NOT
be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or hostname. A WAN
connection is considered as up if ping responses are received from either one or both of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be tested via ICMP
ping. If Use first two DNS servers as Ping Hosts is checked, the target ping host will be the first
DNS server for the corresponding WAN connection. Reliable ping hosts with a high uptime should
be considered. By default, the first two DNS servers of the WAN connection are used as the ping
hosts.
Health Check Method: DNS Lookup
DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated as up if DNS responses
are received from one or both of the servers, regardless of whether the result was positive or negative.
Health Check
DNS Servers
This field allows you to specify two DNS hosts’ IP addresses with which connectivity is to be tested
via DNS lookup.
If Use first two DNS servers as Health Check DNS Servers is checked, the first two DNS servers
will be the DNS lookup targets for checking a connection's health. If the box is not checked, Host 1
must be filled, while a value for Host 2 is optional.
If Include public DNS servers is selected and no response is received from all specified DNS
servers, DNS lookups will also be issued to some public DNS servers. A WAN connection will be
treated as down only if there is also no response received from the public DNS servers.
Connections will be considered as up if DNS responses are received from any one of the health
check DNS servers, regardless of a positive or negative result. By default, the first two DNS servers
http://www.peplink.com
82
Copyright @ 2017 Pepwave
of the WAN connection are used as the health check DNS servers.
Health Check Method: HTTP
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String to Match is left
blank, a health check will pass if the HTTP return code is between 200 and 299 (Note: HTTP
redirection codes 301 or 302 are treated as failures). When String to Match is filled, a health check
will pass if the HTTP return code is between 200 and 299 and if the HTTP response content contains
the string.
URL 2
WAN Settings>WAN Edit>Health Check Settings>URL2
If URL2 is also provided, a health check will pass if either one of the tests passed.
Other Health Check Settings
Timeout
This setting specifies the timeout in seconds for ping/DNS lookup requests. The default timeout is 5
seconds.
Health Check
Interval
This setting specifies the time interval in seconds between ping or DNS lookup requests. The default
health check interval is 5 seconds.
Health Check
Retries
This setting specifies the number of consecutive ping/DNS lookup timeouts after which the Pepwave
router will treat the corresponding WAN connection as down. Default health retries is set to 3. Using
the default Health Retries setting of 3, the corresponding WAN connection will be treated as down
after three consecutive timeouts.
Recovery Retries
This setting specifies the number of consecutive successful ping/DNS lookup responses that must be
received before the Pepwave router treats a previously down WAN connection as up again. By
default, Recover Retries is set to 3. Using the default setting, a WAN connection that is treated as
down will be considered as up again upon receiving three consecutive successful ping/DNS lookup
responses.
http://www.peplink.com
83
Copyright @ 2017 Pepwave
Automatic Public DNS Server Check on DNS Test Failure
When the health check method is set to DNS Lookup and health checks fail, the Pepwave router will automatically perform
DNS lookups on public DNS servers. If the tests are successful, the WAN may not be down, but rather the target DNS server
malfunctioned. You will see the following warning message on the main page:
10.5 Dynamic DNS Settings
Pepwave routers are capable of registering the domain name relationships to dynamic DNS service
providers. Through registration with dynamic DNS service provider(s), the default public Internet IP
address of each WAN connection can be associated with a host name. With dynamic DNS service
enabled for a WAN connection, you can connect to your WAN's IP address from the external, even if its
IP address is dynamic. You must register for an account from the listed dynamic DNS service providers
before enabling this option.
If the WAN connection's IP address is a reserved private IP address (i.e., behind a NAT router), the
public IP of each WAN will be automatically reported to the DNS service provider.
Either upon a change in IP addresses or every 23 days without link reconnection, the Pepwave router
will connect to the dynamic DNS service provider to perform an IP address update within the provider’s
records.
The settings for dynamic DNS service provider(s) and the association of hostname(s) are configured via
Network>WAN>Details>Dynamic DNS Service Provider/Dynamic DNS Settings.
http://www.peplink.com
84
Copyright @ 2017 Pepwave
Dynamic DNS Settings
Dynamic DNS
This setting specifies the dynamic DNS service provider to be used for the WAN based on
supported dynamic DNS service providers:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
● Others…
Support custom Dynamic DNS servers by entering its URL. Works with any
service compatible with DynDNS API.
Select Disabled to disable this feature.
Account Name /
Email Address
This setting specifies the registered user name for the dynamic DNS service.
Password / TZO
Key
This setting specifies the password for the dynamic DNS service.
Hosts / Domain
This field allows you to specify a list of host names or domains to be associated with the public
Internet IP address of the WAN connection. If you need to enter more than one host, use a
carriage return to separate them.
Important Note
In order to use dynamic DNS services, appropriate host name registration(s) and a valid account with a supported dynamic
DNS service provider are required. A dynamic DNS update is performed whenever a WAN’s IP address changes (e.g., the IP
is changed after a DHCP IP refresh, reconnection, etc.). Due to dynamic DNS service providers’ policy, a dynamic DNS host
will automatically expire if the host record has not been updated for a long time. Therefore the Pepwave router performs an
update every 23 days, even if a WAN’s IP address has not changed.
http://www.peplink.com
85
Copyright @ 2017 Pepwave
11 Advanced Wi-Fi Settings
Wi-Fi settings can be configured at Advanced>Wi-Fi Settings (or AP>Settings on some models). Note
that menus displayed can vary by model.

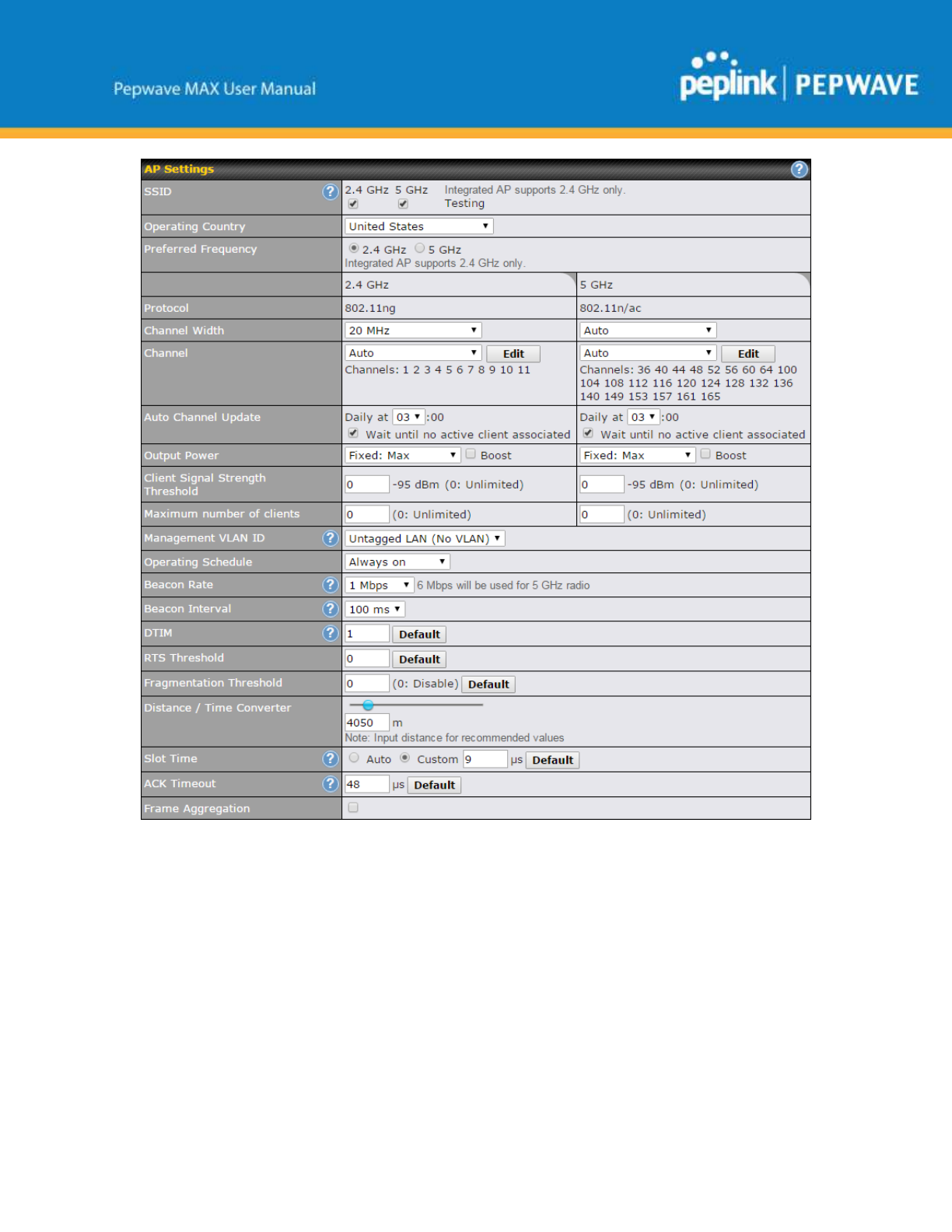

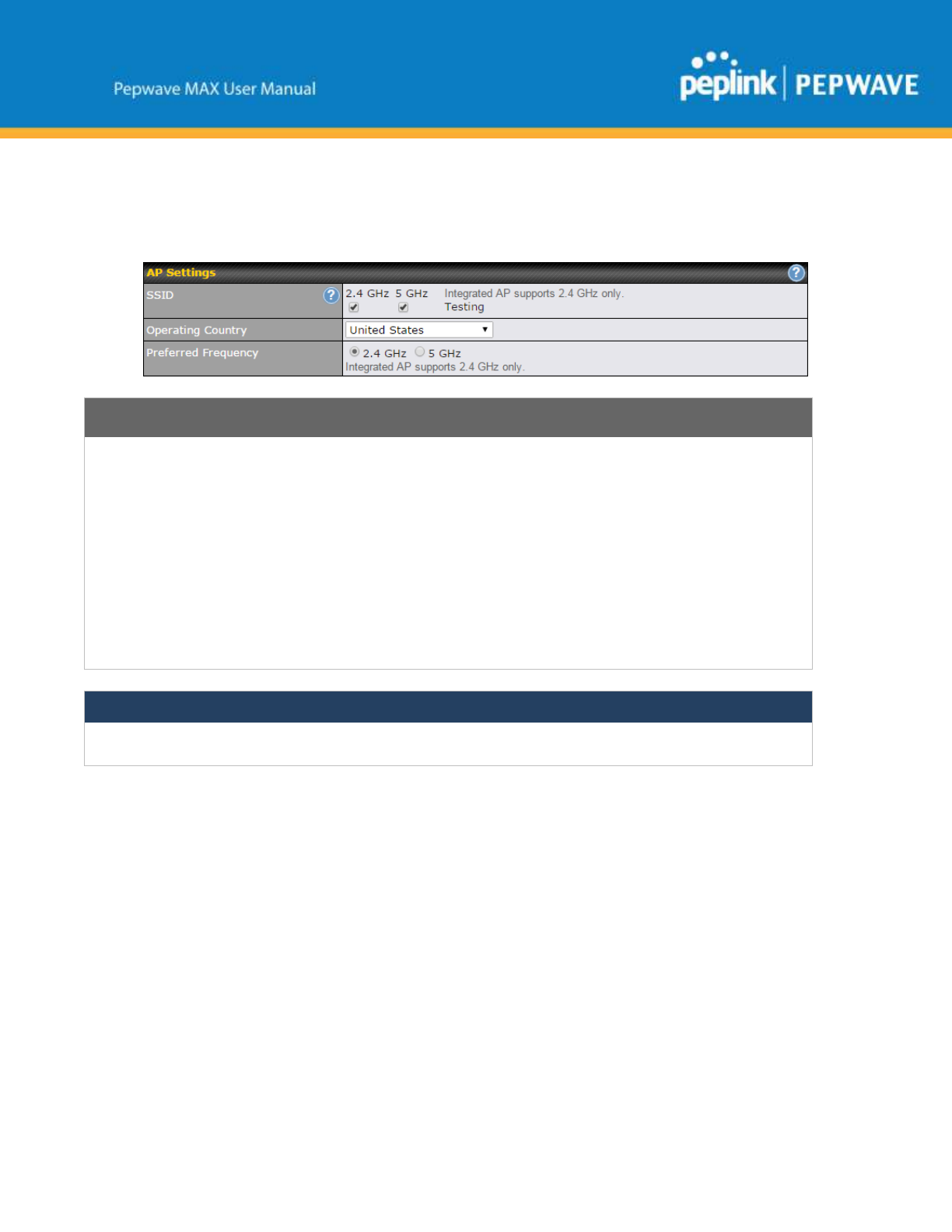

AP Settings
SSID
You can select the wireless networks for 2.4 GHz or 5 GHz seperately for each SSID.
Operating
Country
This drop-down menu specifies the national/regional regulations which the Wi-Fi radio should
follow.
● If a North American region is selected, RF channels 1 to 11 will be available and the
maximum transmission power will be 26 dBm (400 mW).
● If European region is selected, RF channels 1 to 13 will be available. The maximum
transmission power will be 20 dBm (100 mW).
NOTE: Users are required to choose an option suitable to local laws and regulations.
Preferred
Frequency
Indicate the preferred frequency to use for clients to connect.
Important Note
Per FCC regulation, the country selection is not available on all models marketed in the US.
All US models are fixed to US channels only.
http://www.peplink.com
86
Copyright @ 2017 Pepwave

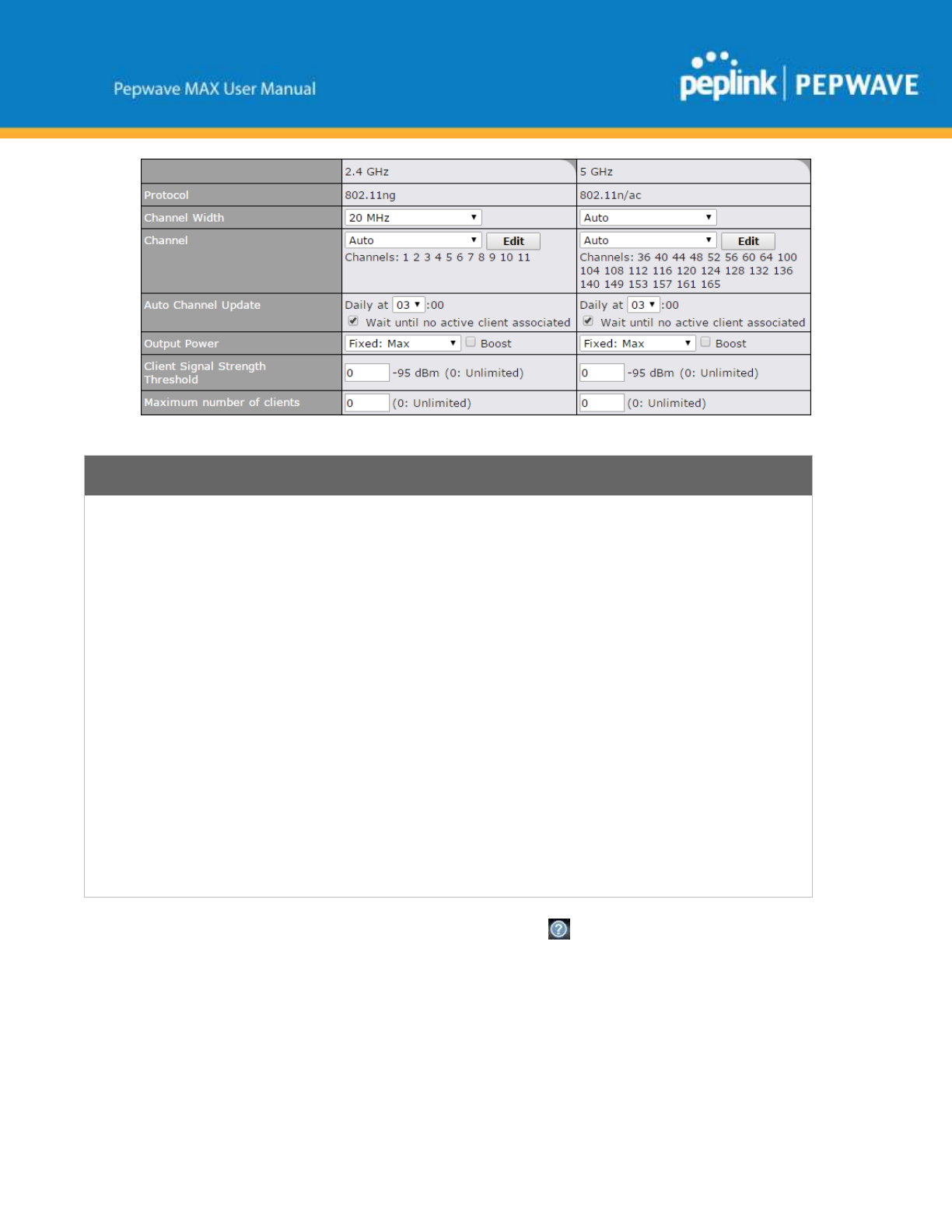

AP Settings (part 2)
Protocol
This option allows you to specify whether 802.11b and/or 802.11g client association requests
will be accepted. Available options are 802.11ng and 802.11na. By default, 802.11ng is
selected.
Channel Width
Available options are 20 MHz, 40 MHz, and Auto (20/40 MHz) . Default is Auto (20/40
MHz), which allows both widths to be used simultaneously.
Channel
This option allows you to select which 802.11 RF channel will be utilized. Channel 1 (2.412
GHz) is selected by default.
Auto Channel
Update
Indicate the time of day at which update automatic channel selection.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP. There are 4
relative power levels available – Max, High, Mid, and Low. The actual output power will be
bound by the regulatory limits of the selected country.
Client Signal
Strength
Threshold
This setting determines the maximum strength at which the Wi-Fi AP can broadcast
Maximum
number of clients
This setting determines the maximum number of clients that can connect to this Wi-Fi
frequency.
Advanced Wi-Fi AP settings can be displayed by clicking the on the top right-hand corner of the Wi-
Fi AP Settings section, which can be found at AP>Settings. Other models will display a separate
section called Wi-Fi AP Advanced Settings, which can be found at Advanced>Wi-Fi Settings.
http://www.peplink.com
87
Copyright @ 2017 Pepwave

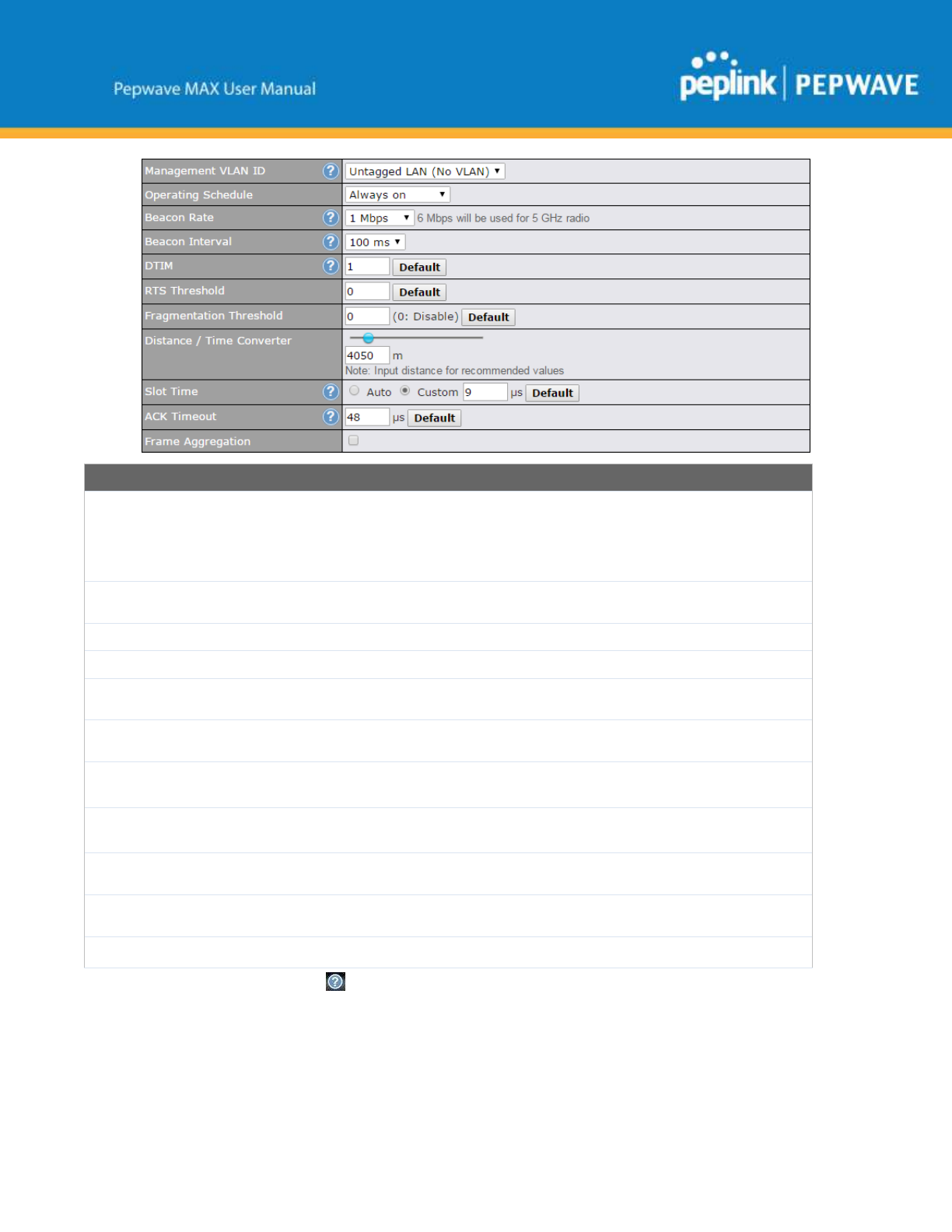

Advanced AP Settings
Management VLAN ID
This field specifies the VLAN ID to tag to management traffic, such as communication traffic
between the AP and the AP Controller. The value is zero by default, which means that no VLAN
tagging will be applied.
NOTE: Change this value with caution as alterations may result in loss of connection to the AP
Controller.
Operating Schedule
Choose from the schedules that you have defined in System>Schedule. Select the schedule for the
integrated AP to follow from the drop-down menu.
Beacon Rate A
This option is for setting the transmit bit rate for sending a beacon. By default, 1Mbps is selected.
Beacon Interval A
This option is for setting the time interval between each beacon. By default, 100ms is selected.
DTIM A
This field allows you to set the frequency for the beacon to include delivery traffic indication
messages. The interval is measured in milliseconds. The default value is set to 1 ms.
RTS Threshold A
The RTS (Request to Clear) threshold determines the level of connection required before the AP
starts sending data. The recommended standard of the RTS threshold is around 500.
Fragmentation
Threshold A
This setting determines the maximum size of a packet before it gets fragmented into multiple
pieces.
Distance / Time
Convertor
Select the range you wish to cover with your Wi-Fi, and the router will make recommendations
for the Slot Time and ACK Timeout.
Slot Time A
This field is for specifying the unit wait time before transmitting a packet. By default, this field is
set to 9 µs.
ACK Timeout A
This field is for setting the wait time to receive an acknowledgement packet before performing a
retransmission. By default, this field is set to 48 µs.
Frame Aggregation A
This option allows you to enable frame aggregation to increase transmission throughput.
A - Advanced feature, please click the button on the top right-hand corner to activate.
http://www.peplink.com
88
Copyright @ 2017 Pepwave

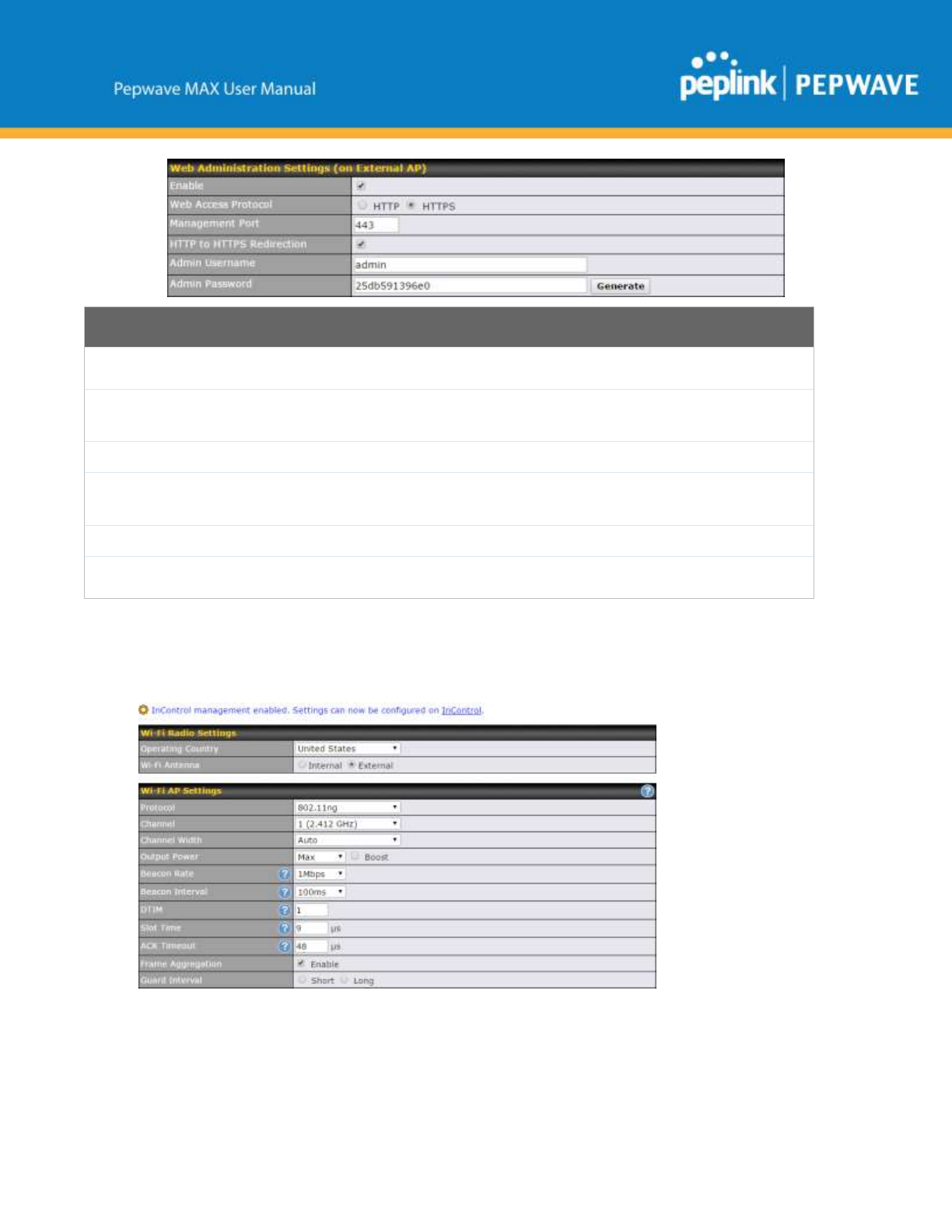

Web Administration Settings
Enable
Ticking this box enables web admin access for APs located on the WAN.
Web Access
Protocol
Determines whether the web admin portal can be accessed thorugh HTTP or HTTPS
Management Port
Determines the port at which the management UI can be accessed.
Admin Username
Determines the username to be used for logging into the web admin portal
Admin Password
Determines the password for the web admin portal on external AP.
Wi-Fi WAN settings can be configured at Advanced>Wi-Fi Settings (or Advanced>Wi-Fi WAN or
some models).
Wi-Fi WAN Settings
Channel Width
Available options are 20/40 MHz and 20 MHz. Default is 20/40 MHz, which allows both
widths to be used simultaneously.
Bit Rate
This option allows you to select a specific bit rate for data transfer over the device’s Wi-Fi
network. By default, Auto is selected.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP. There are 4
relative power levels available – Max, High, Mid, and Low. The actual output power will be
bound by the regulatory limits of the selected country. Note that selecting the Boost option may
cause the MAX’s radio output to exceed local regulatory limits.
http://www.peplink.com
89
Copyright @ 2017 Pepwave
12 MediaFast Configuration
MediaFast settings can be configured from the Network menu.
12.1 Setting Up MediaFast Content Caching
To access MediaFast content caching settings, select Advanced>Cache Control

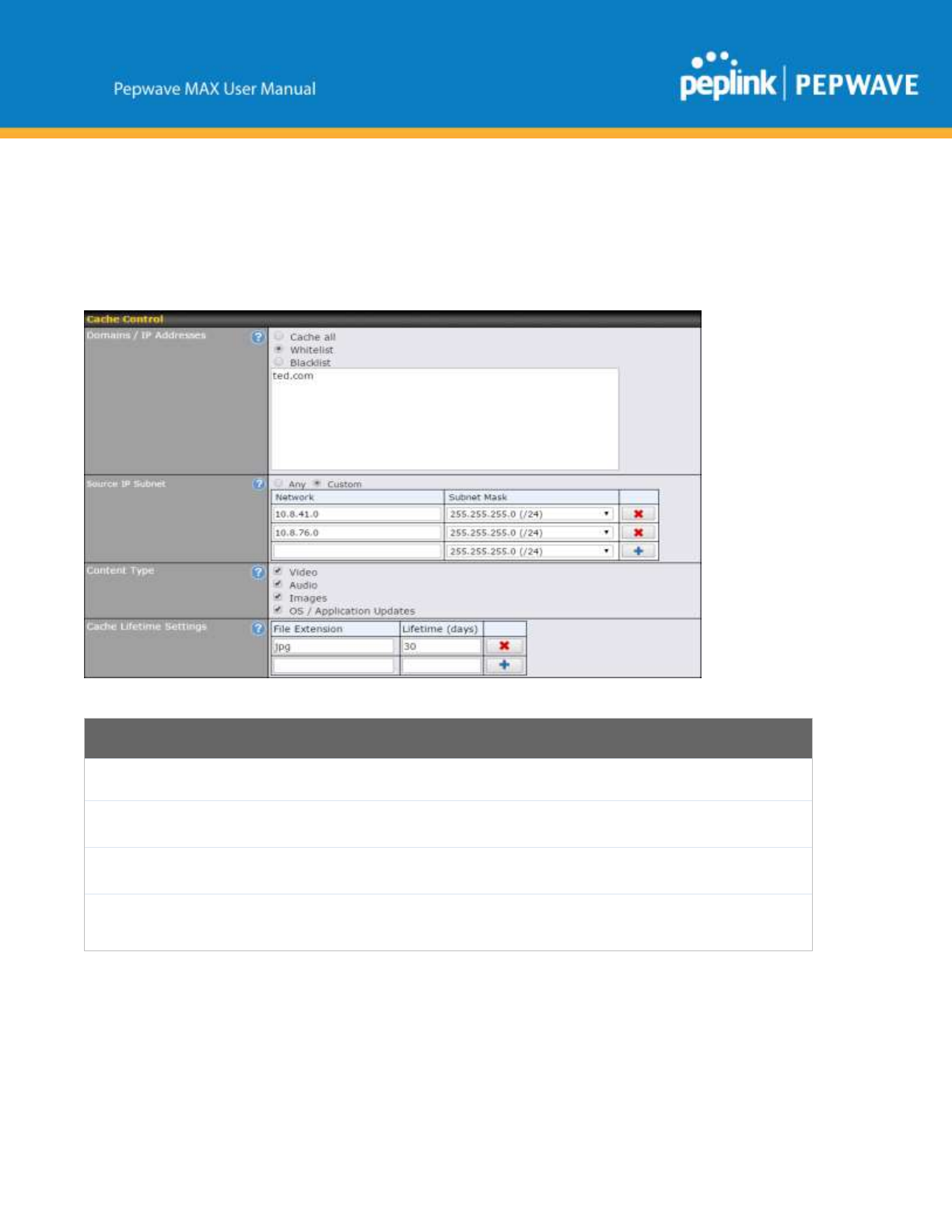

Cache Control Settings
Domain
Choose to Cache on all domains, or enter domain names and then choose either Cache the
specified domains only or Do not cache the specified domains.
Source IP Subnet
This setting allows caching to be applied to the user-specified IP subnets. If "Any" is selected, then
caching will apply to all subnets.
Content Type
Check these boxes to cache the listed content types or leave boxes unchecked to disable caching for
the listed types.
Cache Lifetime
Settings
Enter a file extension, such as JPG or DOC. Then enter a lifetime in days to specify how long files
with that extension will be cached. Add or delete entries using the controls on the right.
http://www.peplink.com
90
Copyright @ 2017 Pepwave
12.2 Scheduling Content Prefetching
Content prefetching allows you to download content on a schedule that you define, which can help to
preserve network bandwidth during busy times and keep costs down. To access MediaFast content
prefetching settings, select Advanced >Prefetch Schedule.
Prefetch Schedule Settings
Name
This field displays the name given to the scheduled download.
Status
Check the status of your scheduled download here.
Next Run
Time/Last Run
Time
These fields display the date and time of the next and most recent occurrences of the scheduled
download.
Last Duration
Check this field to ensure that the most recent download took as long as expected to complete. A
value that is too low might indicate an incomplete download or incorrectly specified download
target, while a value that is too long could mean a download with an incorrectly specified target or
stop time.
Result
This field indicates whether downloads are in progress ( ) or complete ( ).
Last Download
Check this field to ensure that the most recent download file size is within the expected range. A
value that is too low might indicate an incomplete download or incorrectly specified download
target, while a value that is too long could mean a download with an incorrectly specified target or
stop time. This field is also useful for quickly seeing which downloads are consuming the most
storage space.
Actions
To begin a scheduled download immediately, click .
http://www.peplink.com
91
Copyright @ 2017 Pepwave
To cancel a scheduled download, click .
To edit a scheduled download, click .
To delete a scheduled download, click .
New Schedule
Click to begin creating a new scheduled download. Clicking the button will cause the following
screen to appear:
Simply provide the requested information to create your schedule.
Clear Web Cache
To clear all cached content, click this button. Note that this action cannot be undone.
Clear Statistics
To clear all prefetch and status page statistics, click this button.
http://www.peplink.com
92
Copyright @ 2017 Pepwave

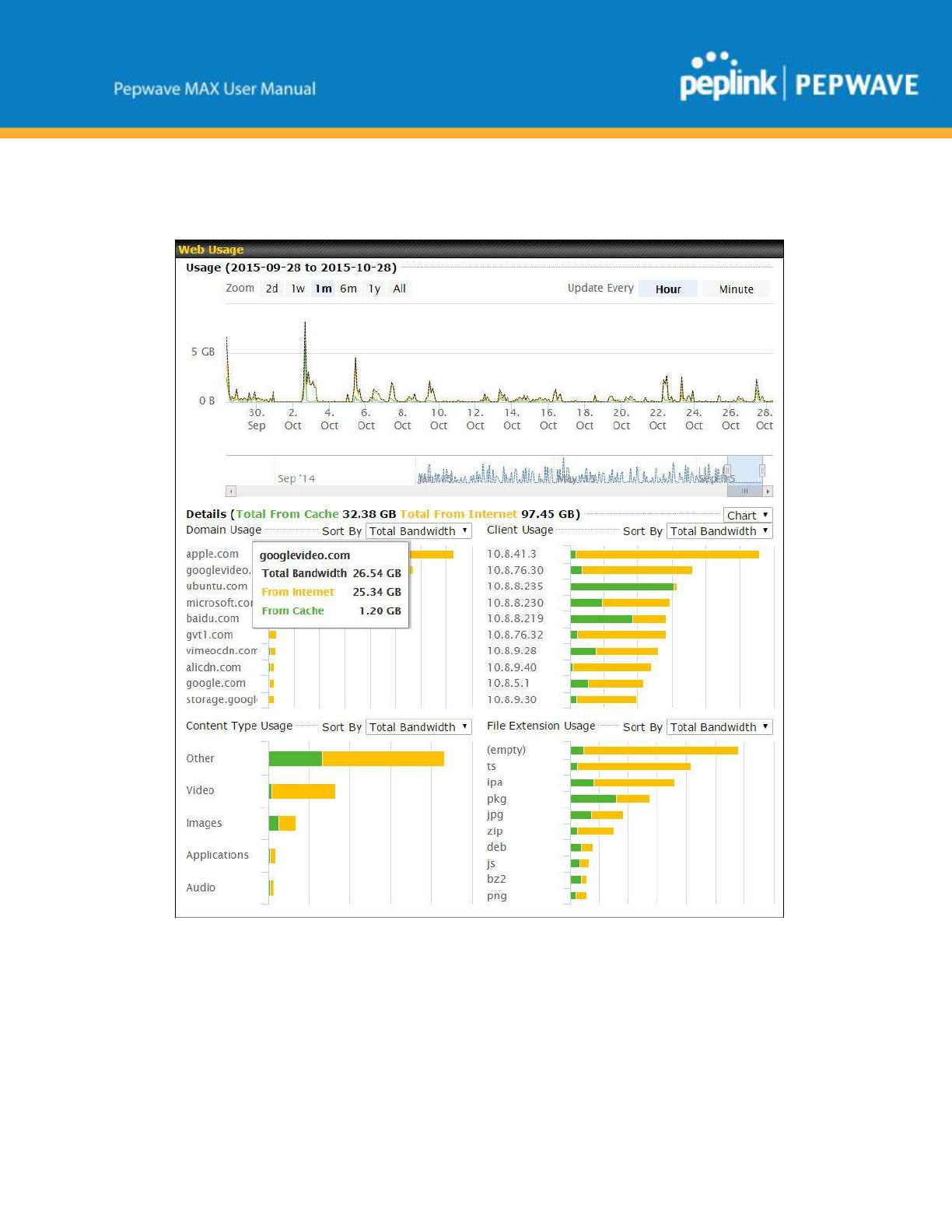

12.3 Viewing MediaFast Statistics
To get details on storage and bandwidth usage, select Status>MediaFast.
http://www.peplink.com
93
Copyright @ 2017 Pepwave

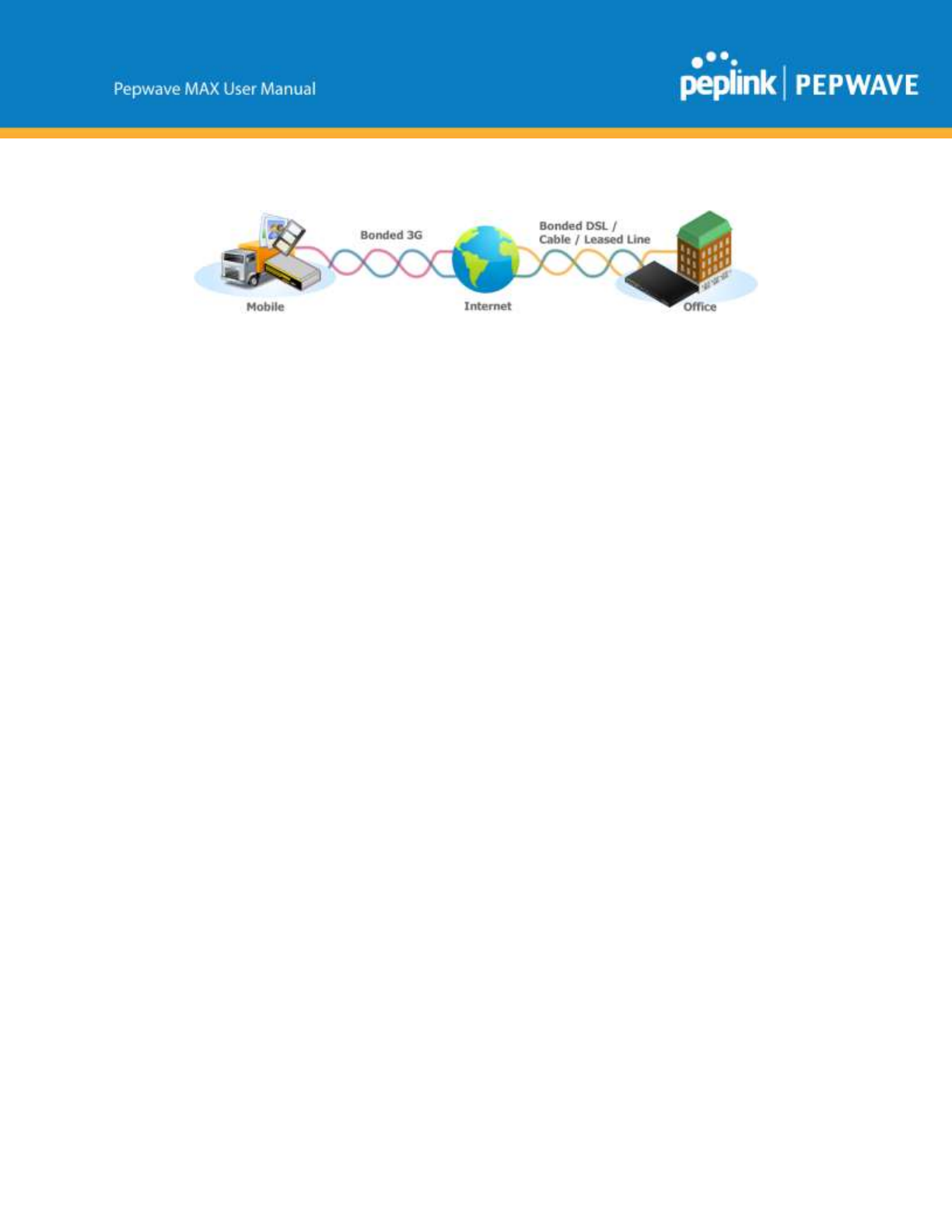

13 Bandwidth Bonding SpeedFusionTM / PepVPN
Pepwave bandwidth bonding SpeedFusionTM is our patented technology that enables our SD-WAN
routers to bond multiple Internet connections to increase site-to-site bandwidth and reliability.
SpeedFusion functionality securely connects your Pepwave router to another Pepwave or Peplink device
(Peplink Balance 210/310/380/580/710/1350 only). Data, voice, or video communications between these
locations are kept confidential across the public Internet.
Bandwidth bonding SpeedFusionTM is specifically designed for multi-WAN environments. In case of
failures and network congestion at one or more WANs, other WANs can be used to continue carrying the
network traffic.
Different models of our SD-WAN routers have different numbers of site-to-site connections allowed.
End-users who need to have more site-to-site connections can purchase a SpeedFusion license to
increase the number of site-to-site connections allowed.
Pepwave routers can aggregate all WAN connections’ bandwidth for routing SpeedFusionTM traffic.
Unless all the WAN connections of one site are down, Pepwave routers can keep the VPN up and
running.
VPN bandwidth bonding is supported in Firmware 5.1 or above. All available bandwidth will be utilized
to establish the VPN tunnel, and all traffic will be load balanced at packet level across all links. VPN
bandwidth bonding is enabled by default.
13.1 PepVPN
To configure PepVPN and SpeedFusion, navigate to Advanced>SpeedFusion™ or
Advanced>PepVPN.
http://www.peplink.com
94
Copyright @ 2017 Pepwave
The local LAN subnet and subnets behind the LAN (defined under Static Route on the LAN settings
page) will be advertised to the VPN. All VPN members (branch offices and headquarters) will be able to
route to local subnets.
Note that all LAN subnets and the subnets behind them must be unique. Otherwise, VPN members will
not be able to access each other.
All data can be routed over the VPN using the 256-bit AES encryption standard. To configure, navigate
to Advanced>SpeedFusion™ or Advanced>PepVPN and click the New Profile button to create a new
VPN profile (you may have to first save the displayed default profile in order to acesss the New Profile
button). Each profile specifies the settings for making VPN connection with one remote Pepwave or
Peplink device. Note that available settings vary by model.

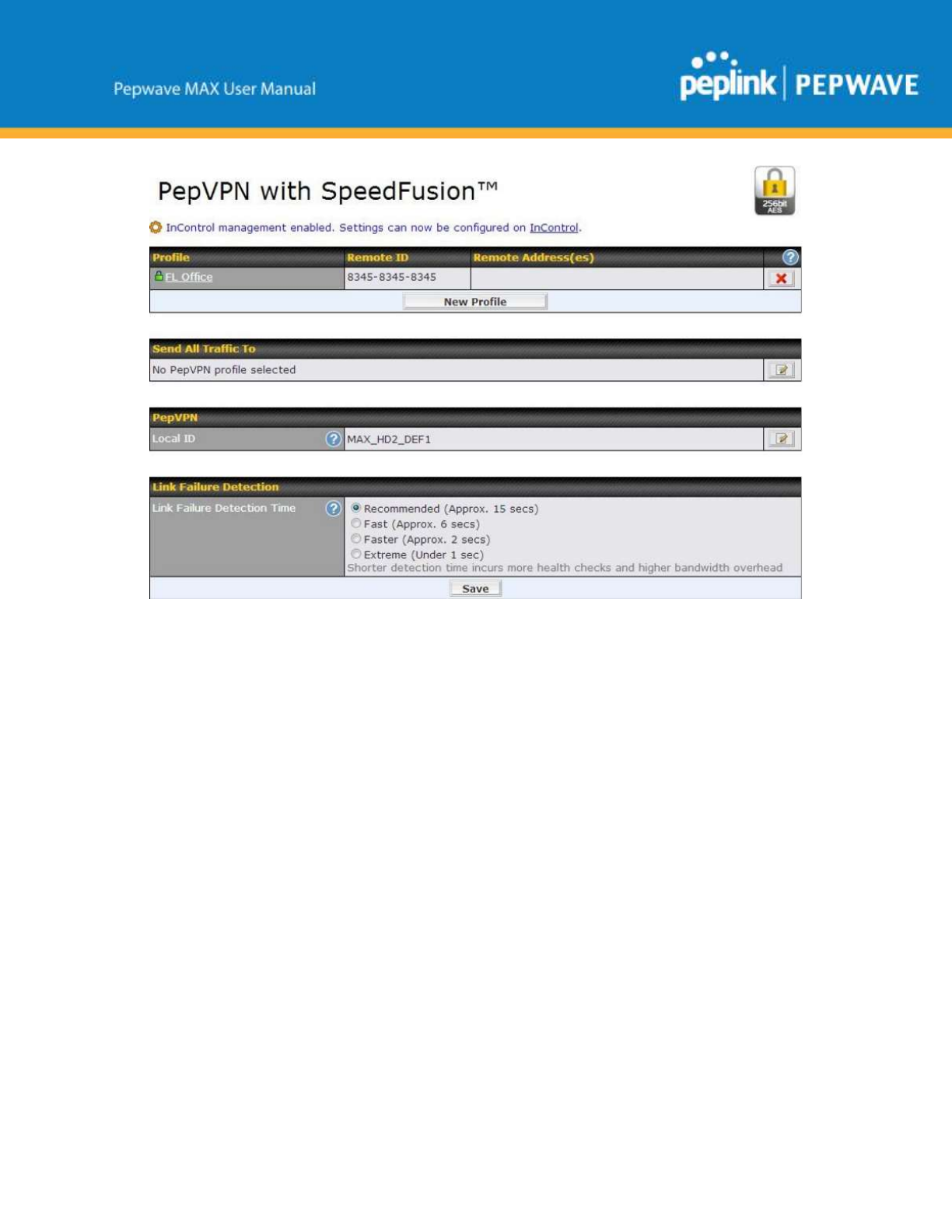

A list of defined SpeedFusion connection profiles and a Link Failure Detection Time option will be
shown. Click the New Profile button to create a new VPN connection profile for making a VPN
connection to a remote Peplink Balance via the available WAN connections. Each profile is for making
a VPN connection with one remote Peplink Balance.
http://www.peplink.com
95
Copyright @ 2017 Pepwave
PepVPN Profile Settings
Name
This field is for specifying a name to represent this profile. The name can be any combination of
alphanumeric characters (0-9, A-Z, a-z), underscores (_), dashes (-), and/or non-leading/trailing
spaces ( ).
Active
When this box is checked, this VPN connection profile will be enabled. Otherwise, it will be
disabled.
Encryption
By default, VPN traffic is encrypted with 256-bit AES. If Off is selected on both sides of a VPN
connection, no encryption will be applied.
Authentication
Select from By Remote ID Only, Preshared Key, or X.509 to specify the method the Peplink
Balance will use to authenticate peers. When selecting By Remote ID Only, be sure to enter a
unique peer ID number in the Remote ID field.
Remote ID /
Pre-shared Key
This optional field becomes available when Remote ID / Pre-shared Key is selected as the Peplink
Balance’s VPN Authentication method, as explained above. Pre-shared Key defines the pre-shared
key used for this particular VPN connection. The VPN connection's session key will be further
protected by the pre-shared key. The connection will be up only if the pre-shared keys on each side
match. When the peer is running firmware 5.0+, this setting will be ignored.
Enter Remote IDs either by typing out each Remote ID and Pre-shared Key, or by pasting a CSV. If
http://www.peplink.com
96
Copyright @ 2017 Pepwave
you wish to paste a CSV, click the icon next to the “Remote ID / Preshared Key” setting.
Remote
ID/Remote
Certificate
These optional fields become available when X.509 is selected as the Peplink Balance’s VPN
authentication method, as explained above. To authenticate VPN connections using X.509
certificates, copy and paste certificate details into these fields. To get more information on a listed
X.509 certificate, click the Show Details link below the field.
Allow Shared
Remote ID
When this option is enabled, the router will allow multiple peers to run using the same remote ID.
NAT Mode
Check this box to allow the local DHCP server to assign an IP address to the remote peer. When
NAT Mode is enabled, all remote traffic over the VPN will be tagged with the assigned IP address
using network address translation.
Remote IP
Address / Host
Names
(Optional)
If NAT Mode is not enabled, you can enter a remote peer’s WAN IP address or hostname(s) here. If
the remote uses more than one address, enter only one of them here. Multiple hostnames are allowed
and can be separated by a space character or carriage return. Dynamic-DNS host names are also
accepted.
This field is optional. With this field filled, the Peplink Balance will initiate connection to each of the
remote IP addresses until it succeeds in making a connection. If the field is empty, the Peplink
Balance will wait for connection from the remote peer. Therefore, at least one of the two VPN peers
must specify this value. Otherwise, VPN connections cannot be established.
Cost
Define path cost for this profile.
OSPF will determine the best route through the network using the assigned cost.
Default: 10
Data Port
This field is used to specify a UDP port number for transporting outgoing VPN data. If Default is
selected, UDP port 4500 will be used. Port 32015 will be used if the remote unit uses Firmware prior
to version 5.4 or if port 4500 is unavailable. If Custom is selected, enter an outgoing port number
from 1 to 65535.
Bandwidth Limit
Define maximum download and upload speed to each individual peer. This functionality requires the
peer to use PepVPN version 4.0.0 or above.
Cost
Define path cost for this profile.
OSPF will determine the best route through the network using the assigned cost.
Default: 10
WAN
SmoothingA
Select the degree to which WAN Smoothing will be implemented across your WAN links.
Use IP ToS
Checking this button enables the use of IP ToS header field.
Latency
Difference Cutoff
Traffic will be stopped for links that exceed the specified millisecond value with respect to the
lowest latency link. (e.g. Lowest latency is 100ms, a value of 500ms means links with latency 600ms
or more will not be used)
http://www.peplink.com
97
Copyright @ 2017 Pepwave
A - Advanced feature, please click the button on the top right-hand corner to activate.
To enable Layer 2 Bridging between PepVPN profiles, navigate to Network>LAN>Basic
Settings>*LAN Profile Name* and refer to instructions in section 9.1
8.41

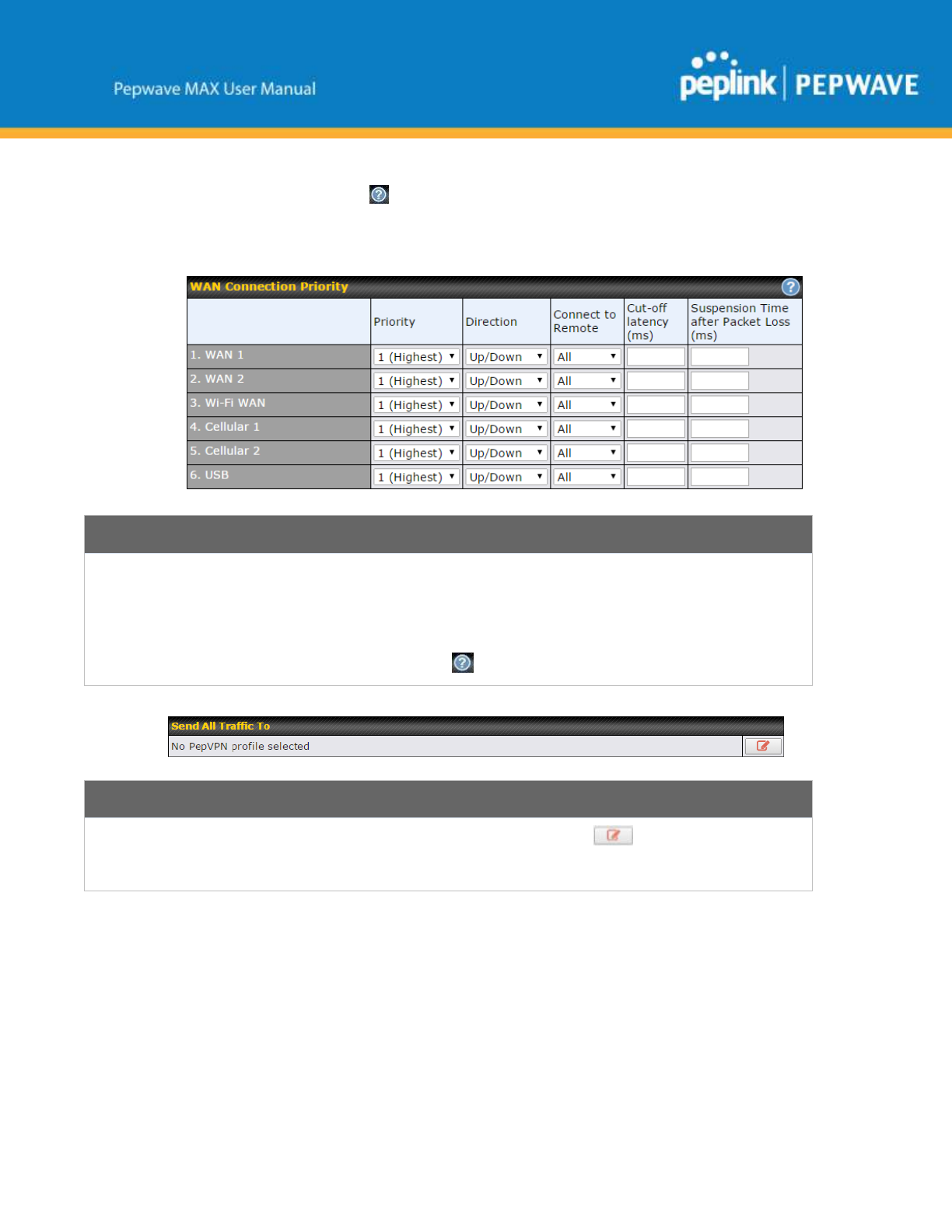

WAN Connection Priority
WAN
Connection
Priority
If your device supports it, you can specify the priority of WAN connections to be used for making
VPN connections. WAN connections set to OFF will never be used. Only available WAN
connections with the highest priority will be used.
To enable asymmetric connections, connection mapping to remote WANs, cut-off latency, and
packet loss suspension time, click the button.
Send All Traffic To
This feature allows you to redirect all traffic to a specified PepVPN connection. Click the button to select your
connection and the following menu will appear:
http://www.peplink.com
98
Copyright @ 2017 Pepwave

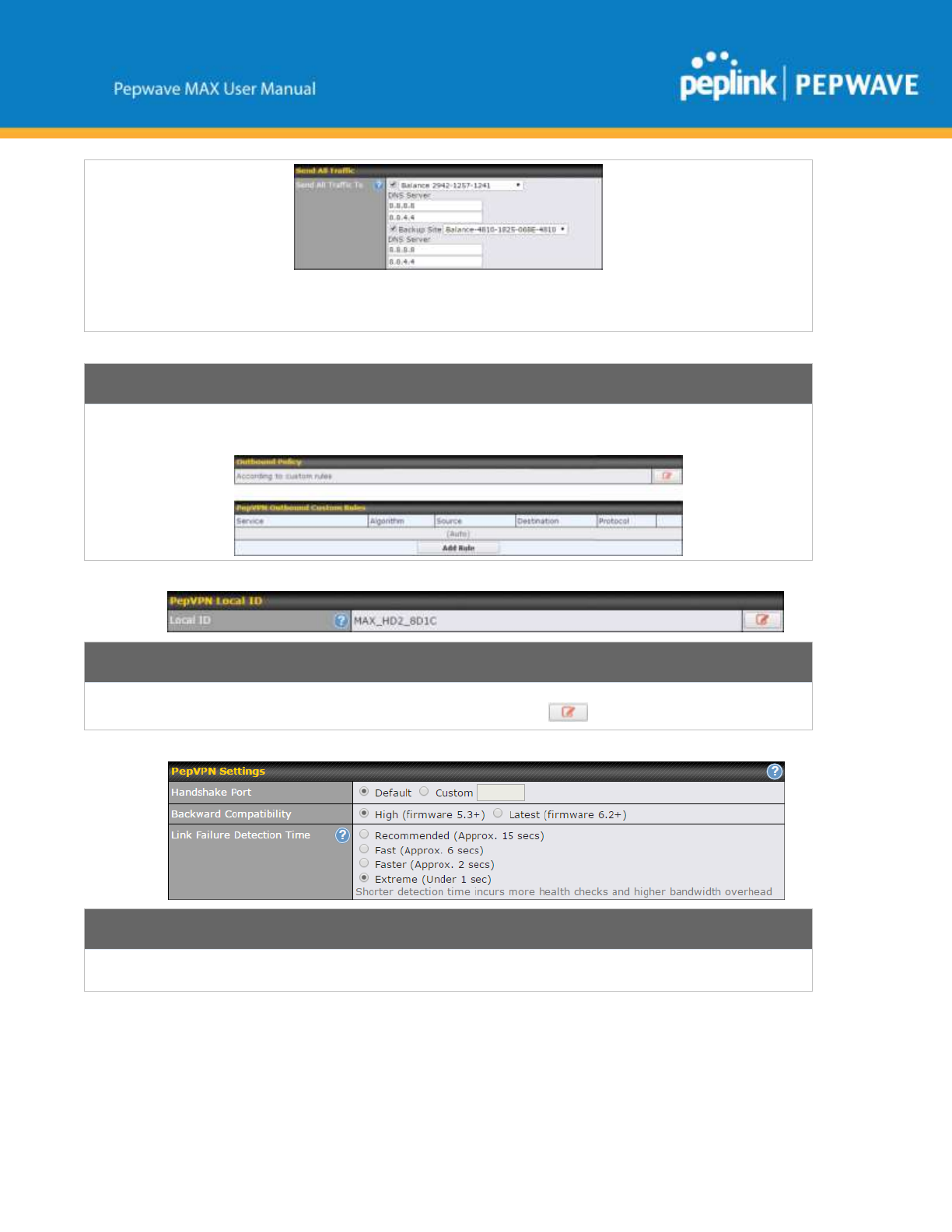

You could also specify a DNS server to resolve incoming DNS requests. Click the checkbox next to Backup Site to designate a
backup SpeedFusion profile that will take over, should the main PepVPN connection fail.
Outbound Policy/PepVPN Outbound Custom Rules
Some models allow you to set outbound policy and custom outbound rules from Advanced>PepVPN. See Section 14 for more
information on outbound policy settings.
PepVPN Local ID
The local ID is a text string to identify this local unit when establishing a VPN connection. When creating a profile on a remote
unit, this local ID must be entered in the remote unit's Remote ID field. Click the icon to edit Local ID.
PepVPN Settings
Handshake PortA
To designate a custom handshake port (TCP), click the custom radio button and enter the port
number you wish to designate.
http://www.peplink.com
99
Copyright @ 2017 Pepwave
Backward
Compatibility
Determine the level of backward compatibility needed for PepVPN tunnels. The use of the Latest
setting is recommended as it will improve the performance and resilience of SpeedFusion
connections.
Link Failure
Detection Time
The bonded VPN can detect routing failures on the path between two sites over each WAN
connection. Failed WAN connections will not be used to route VPN traffic. Health check packets are
sent to the remote unit to detect any failure. The more frequently checks are sent, the shorter the
detection time, although more bandwidth will be consumed.
When Recommended (default) is selected, a health check packet is sent every five seconds, and the
expected detection time is 15 seconds.
When Fast is selected, a health check packet is sent every three seconds, and the expected detection
time is six seconds.
When Faster is selected, a health check packet is sent every second, and the expected detection time
is two seconds.
When Extreme is selected, a health check packet is sent every 0.1 second, and the expected
detection time is less than one second.
A - Advanced feature, please click the button on the top right-hand corner to activate.
Important Note
Peplink proprietary SpeedFusionTM uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If you have a
firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols to allow inbound and
outbound traffic to pass through the firewall.
Tip
Want to know more about VPN sub-second session failover? Visit our YouTube Channel for a video tutorial!
http://youtu.be/TLQgdpPSY88
http://www.peplink.com
100
Copyright @ 2017 Pepwave
13.2 The Pepwave Router Behind a NAT Router
Pepwave routers support establishing SpeedFusionTM over WAN connections which are behind a NAT
(network address translation) router.
To enable a WAN connection behind a NAT router to accept VPN connections, you can configure the
NAT router in front of the WAN connection to inbound port-forward TCP port 32015 to the Pepwave
router.
If one or more WAN connections on Unit A can accept VPN connections (by means of port forwarding
or not), while none of the WAN connections on the peer Unit B can do so, you should enter all of Unit
A’s public IP addresses or hostnames into Unit B’s Remote IP Addresses / Host Names field. Leave
the field in Unit A blank. With this setting, a SpeedFusionTM connection can be set up and all WAN
connections on both sides will be utilized.
See the following diagram for an example of this setup in use:

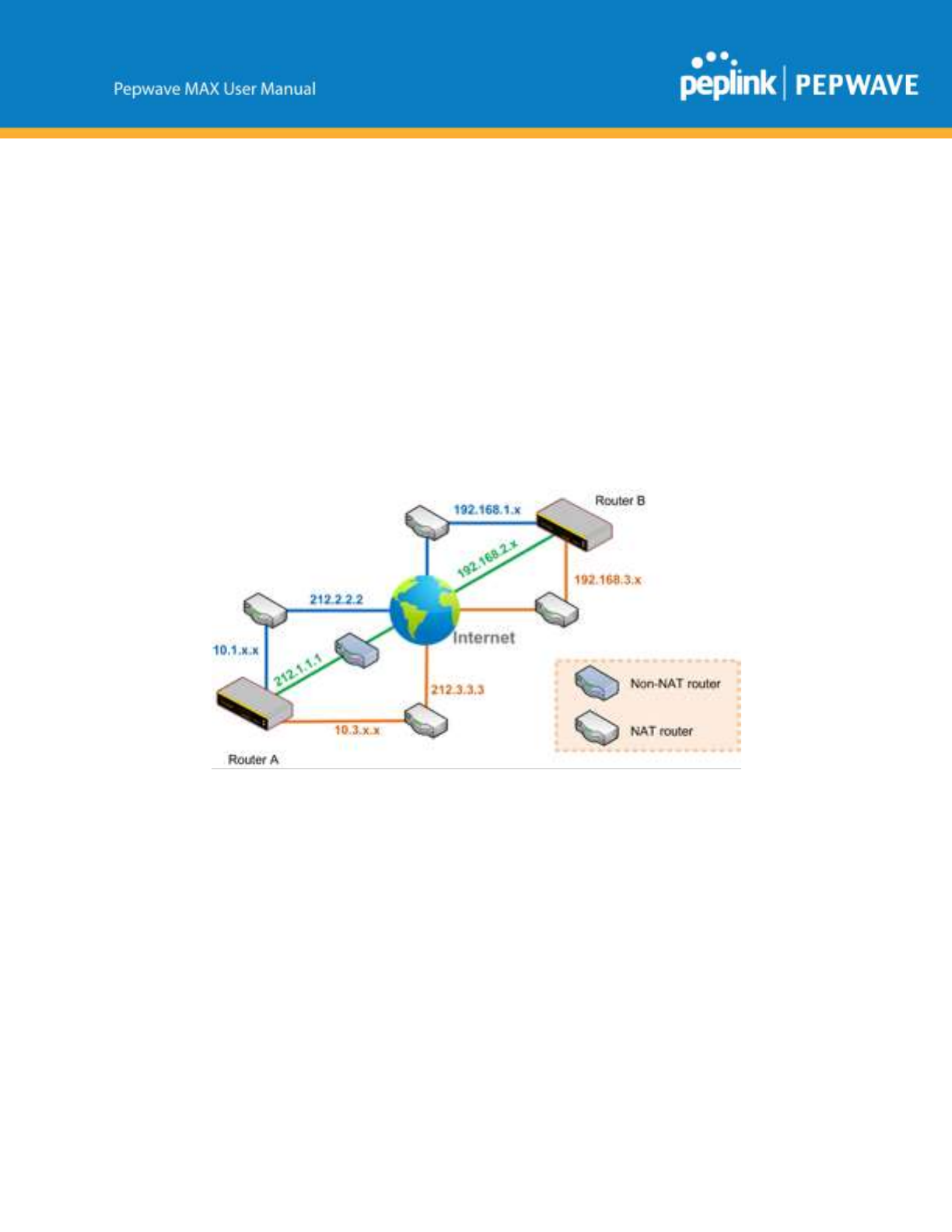

One of the WANs connected to Router A is non-NAT’d (212.1.1.1). The rest of the WANs connected to
Router A and all WANs connected to Router B are NAT’d. In this case, the Peer IP Addresses / Host
Names field for Router B should be filled with all of Router A’s hostnames or public IP addresses (i.e.,
212.1.1.1, 212.2.2.2, and 212.3.3.3), and the field in Router A can be left blank. The two NAT routers
on WAN1 and WAN3 connected to Router A should inbound port-forward TCP port 32015 to Router A
so that all WANs will be utilized in establishing the VPN.
http://www.peplink.com
101
Copyright @ 2017 Pepwave
13.3 SpeedFusionTM Status
SpeedFusionTM status is shown in the Dashboard. The connection status of each connection profile is
shown as below.
After clicking the Status button at the top right corner of the SpeedFusionTM table, you will be
forwarded to Status>SpeedFusionTM, where you can view subnet and WAN connection information for
each VPN peer. Please refer to Section 22.6 for details.
IP Subnets Must Be Unique Among VPN Peers
The entire interconnected SpeedFusionTM network is a single non-NAT IP network. Avoid duplicating subnets in your sites to
prevent connectivity problems when accessing those subnets.
http://www.peplink.com
102
Copyright @ 2017 Pepwave
14 IPsec VPN
IPsec VPN functionality securely connects one or more branch offices to your company's main
headquarters or to other branches. Data, voice, and video communications between these locations are
kept safe and confidential across the public Internet.
IPsec VPN on Pepwave routers is specially designed for multi-WAN environments. For instance, if a
user sets up multiple IPsec profiles for a multi-WAN environment and WAN1 is connected and healthy,
IPsec traffic will go through this link. However, should unforeseen problems (e.g., unplugged cables or
ISP problems) cause WAN1 to go down, our IPsec implementation will make use of WAN2 and WAN3
for failover.
14.1 IPsec VPN Settings
Many Pepwave products can make multiple IPsec VPN connections with Peplink, Pepwave, Cisco, and
Juniper routers. Note that all LAN subnets and the subnets behind them must be unique. Otherwise,
VPN members will not be able to access each other. All data can be routed over the VPN with a
selection of encryption standards, such as 3DES, AES-128, and AES-256. To configure IPsec VPN on
Pepwave devices that support it, navigate to Advanced>IPsec VPN.
A NAT-Traversal option and list of defined IPsec VPN profiles will be shown. NAT-Traversal should
be enabled if your system is behind a NAT router. Click the New Profile button to create new IPsec
VPN profiles that make VPN connections to remote Pepwave, Cisco, or Juniper routers via available
WAN connections. To edit any of the profiles, click on its associated connection name in the leftmost
column.
http://www.peplink.com
103
Copyright @ 2017 Pepwave
http://www.peplink.com
104
Copyright @ 2017 Pepwave
IPsec VPN Settings
Name
This field is for specifying a local name to represent this connection profile.
Active
When this box is checked, this IPsec VPN connection profile will be enabled. Otherwise, it will be
disabled.
Connect Upon
Disconnection
of
Check this box and select a WAN to connect to this VPN automatically when the specified WAN
is disconnected.
Remote
Gateway IP
Address / Host
Name
Enter the remote peer’s public IP address. For Aggressive Mode, this is optional.
Local Networks
Enter the local LAN subnets here. If you have defined static routes, they will be shown here.
Using NAT, you can map a specific local network / IP address to another, and the packets received
by remote gateway will appear to be coming from the mapped network / IP address. This allow
you to establish IPsec connection to a remote site that has one or more subnets overlapped with
local site.
Two types of NAT policies can be defined:
One-to-One NAT policy: if the defined subnet in Local Network and NAT Network has the same
size, for example, policy "192.168.50.0/24 > 172.16.1.0/24" will translate the local IP address
192.168.50.10 to 172.16.1.10 and 192.168.50.20 to 172.16.1.20. This is a bidirectional mapping
which means clients in remote site can initiate connection to the local clients using the mapped
address too.
Many-to-One NAT policy: if the defined NAT Network on the right hand side is an IP address (or
having a network prefix /32), for example, policy "192.168.1.0/24 > 172.168.50.1/32" will
translate all clients in 192.168.1.0/24 network to 172.168.50.1. This is a unidirectional mapping
which means clients in remote site will not be able to initiate connection to the local clients.
Remote
Networks
Enter the LAN and subnets that are located at the remote site here.
Authentication
To access your VPN, clients will need to authenticate by your choice of methods. Choose between
the Preshared Key and X.509 Certificate methods of authentication.
Mode
Choose Main Mode if both IPsec peers use static IP addresses. Choose Aggressive Mode if one of
the IPsec peers uses dynamic IP addresses.
Force UDP
Encapsulation
For forced UDP encapsulation regardless of NAT-traversal, tick this checkbox.
Pre-shared Key
This defines the peer authentication pre-shared key used to authenticate this VPN connection. The
connection will be up only if the pre-shared keys on each side match.
http://www.peplink.com
105
Copyright @ 2017 Pepwave
Remote
Certificate (pem
encoded)
Available only when X.509 Certificate is chosen as the Authentication method, this field allows
you to paste a valid X.509 certificate.
Local ID
In Main Mode, this field can be left blank. In Aggressive Mode, if Remote Gateway IP Address
is filled on this end and the peer end, this field can be left blank. Otherwise, this field is typically a
U-FQDN.
Remote ID
In Main Mode, this field can be left blank. In Aggressive Mode, if Remote Gateway IP Address
is filled on this end and the peer end, this field can be left blank. Otherwise, this field is typically a
U-FQDN.
Phase 1 (IKE)
Proposal
In Main Mode, this allows setting up to six encryption standards, in descending order of priority,
to be used in initial connection key negotiations. In Aggressive Mode, only one selection is
permitted.
Phase 1 DH
Group
This is the Diffie-Hellman group used within IKE. This allows two parties to establish a shared
secret over an insecure communications channel. The larger the group number, the higher the
security.
Group 2: 1024-bit is the default value.
Group 5: 1536-bit is the alternative option.
Phase 1 SA
Lifetime
This setting specifies the lifetime limit of this Phase 1 Security Association. By default, it is set at
3600 seconds.
Phase 2 (ESP)
Proposal
In Main Mode, this allows setting up to six encryption standards, in descending order of priority,
to be used for the IP data that is being transferred. In Aggressive Mode, only one selection is
permitted.
Phase 2 PFS
Group
Perfect forward secrecy (PFS) ensures that if a key was compromised, the attacker will be able to
access only the data protected by that key.
None - Do not request for PFS when initiating connection. However, since there is no valid reason
to refuse PFS, the system will allow the connection to use PFS if requested by the remote peer.
This is the default value.
Group 2: 1024-bit Diffie-Hellman group. The larger the group number, the higher the security.
Group 5: 1536-bit is the third option.
Phase 2 SA
Lifetime
This setting specifies the lifetime limit of this Phase 2 Security Association. By default, it is set at
28800 seconds.

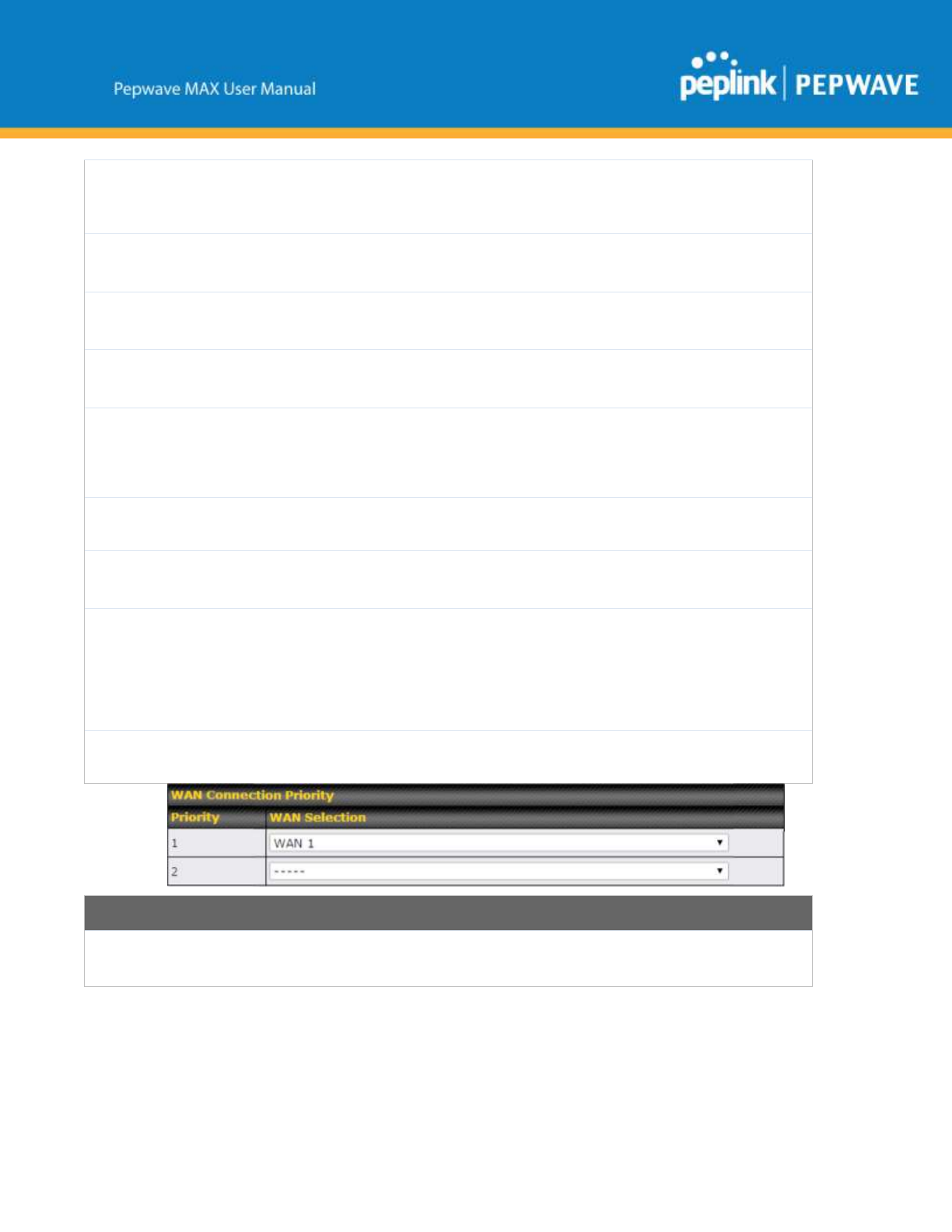

WAN Connection Priority
WAN Connection
Select the appropriate WAN connection from the drop-down menu.
http://www.peplink.com
106
Copyright @ 2017 Pepwave
15 Outbound Policy Management
Pepwave routers can flexibly manage and load balance outbound traffic among WAN connections.
Important Note
Outbound policy is applied only when more than one WAN connection is active.
The settings for managing and load balancing outbound traffic are located at
Advanced>Outbound Policy or Advanced>PepVPN, depending on the model.
15.1 Outbound Policy
Outbound policies for managing and load balancing outbound traffic are located at
Network>Outbound Policy> or Advanced>PepVPN>Outbound Policy.
There are three main selections for the outbound traffic policy:
● High Application Compatibility
● Normal Application Compatibility
● Custom
http://www.peplink.com
107
Copyright @ 2017 Pepwave
Note that some Pepwave routers provide only the Send All Traffic To setting here. See Section 12.1 for
details.
Outbound Policy Settings
High Application
Compatibility
Outbound traffic from a source LAN device is routed through the same WAN connection regardless
of the destination Internet IP address and protocol. This option provides the highest application
compatibility.
Normal
Application
Compatibility
Outbound traffic from a source LAN device to the same destination Internet IP address will be routed
through the same WAN connection persistently, regardless of protocol. This option provides high
compatibility to most applications, and users still benefit from WAN link load balancing when
multiple Internet servers are accessed.
Custom
Outbound traffic behavior can be managed by defining rules in a custom rule table. A default rule
can be defined for connections that cannot be matched with any of the rules.
The default policy is Normal Application Compatibility.
Tip
Want to know more about creating outbound rules? Visit our YouTube Channel for a video tutorial!
http://youtu.be/rKH4AS_bQnE
http://www.peplink.com
108
Copyright @ 2017 Pepwave

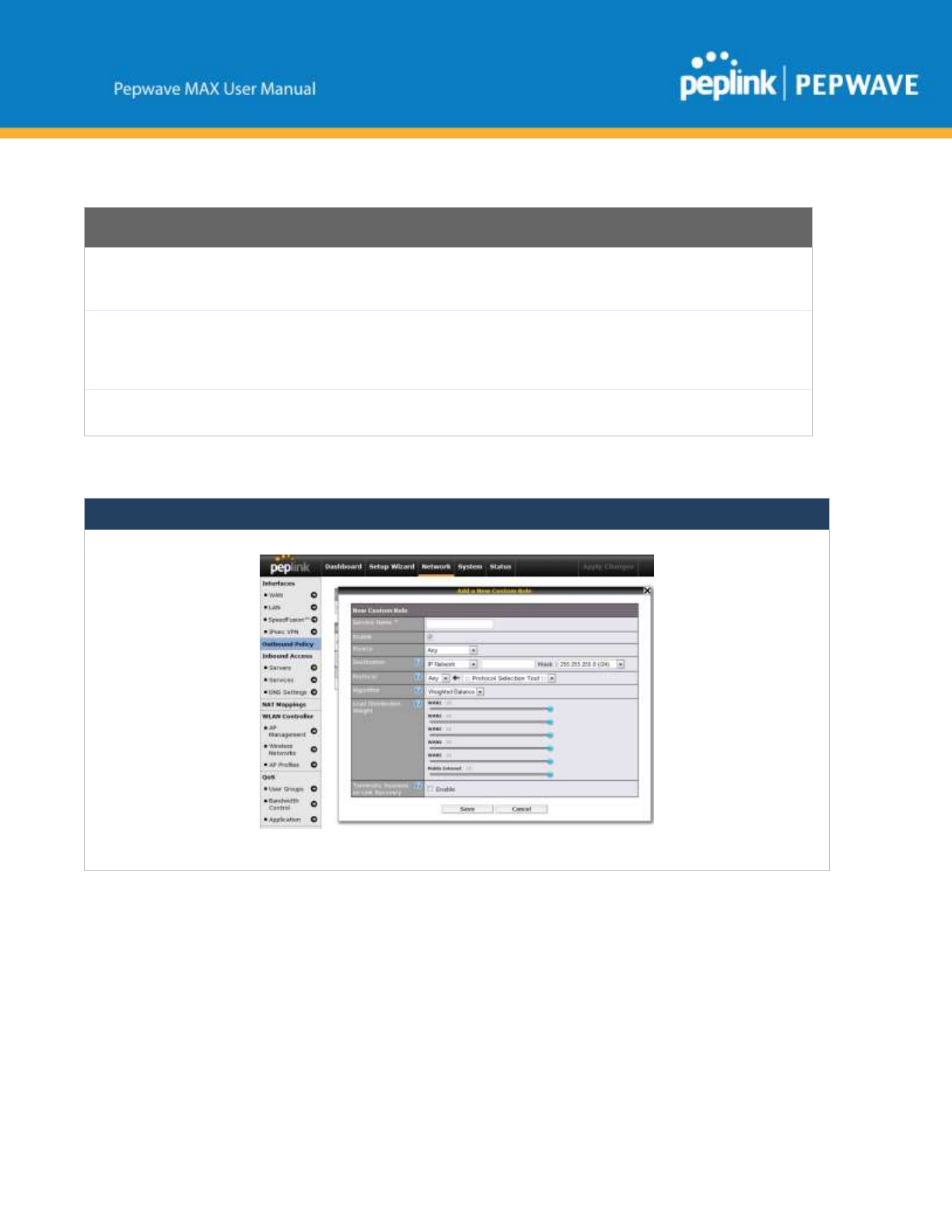

15.2 Custom Rules for Outbound Policy

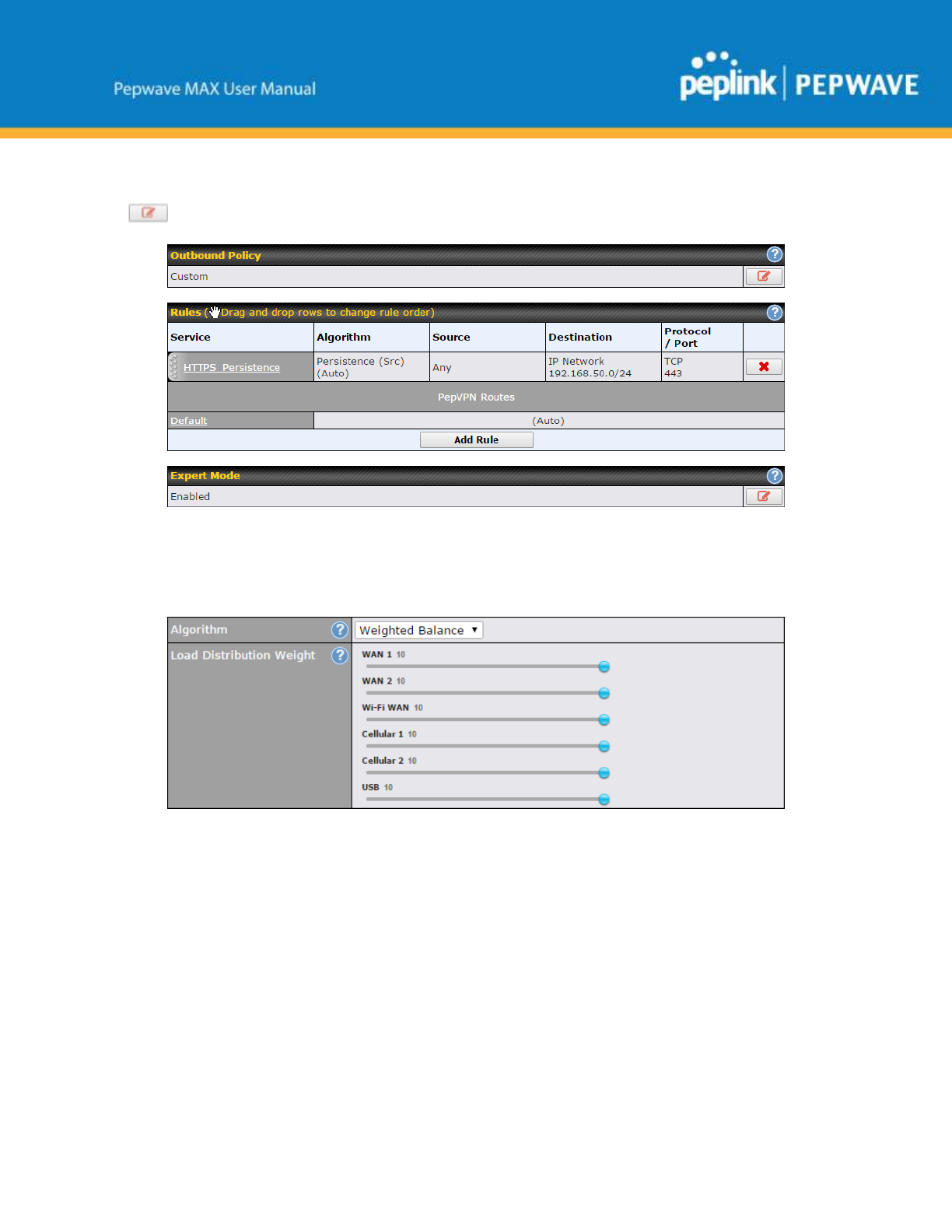

Click in the Outbound Policy form. Choose Custom and press the Save button.
15.2.1 Algorithm: Weighted Balance
This setting specifies the ratio of WAN connection usage to be applied on the specified IP protocol and
port. This setting is applicable only when Algorithm is set to Weighted Balance.
http://www.peplink.com
109
Copyright @ 2017 Pepwave
The amount of matching traffic that is distributed to a WAN connection is proportional to the weight of
the WAN connection relative to the total weight. Use the sliders to change each WAN’s weight.
For example, with the following weight settings:
● Ethernet WAN1: 10
● Ethernet WAN2: 10
● Wi-Fi WAN: 10
● Cellular 1: 10
● Cellular 2: 10
● USB: 10
Total weight is 60 = (10 +10 + 10 + 10 + 10 + 10).
Matching traffic distributed to Ethernet WAN1 is 16.7% = (10 / 60 x 100%.
Matching traffic distributed to Ethernet WAN2 is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to Wi-Fi WAN is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to Cellular 1 is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to Cellular 2 is 16.7% = (10 / 60) x 100%.
Matching traffic distributed to USB is 16.7% = (10 / 60) x 100%.
15.2.2 Algorithm: Persistence
The configuration of persistent services is the solution to the few situations where link load distribution
for Internet services is undesirable. For example, for security reasons, many e-banking and other secure
websites terminate the session when the client computer’s Internet IP address changes mid-session.
In general, different Internet IP addresses represent different computers. The security concern is that an
IP address change during a session may be the result of an unauthorized intrusion attempt. Therefore, to
prevent damages from the potential intrusion, the session is terminated upon the detection of an IP
address change.
Pepwave routers can be configured to distribute data traffic across multiple WAN connections. Also, the
Internet IP depends on the WAN connections over which communication actually takes place. As a
result, a LAN client computer behind the Pepwave router may communicate using multiple Internet IP
addresses. For example, a LAN client computer behind a Pepwave router with three WAN connections
may communicate on the Internet using three different IP addresses.
http://www.peplink.com
110
Copyright @ 2017 Pepwave
With the persistence feature, rules can be configured to enable client computers to persistently utilize the
same WAN connections for e-banking and other secure websites. As a result, a client computer will
communicate using one IP address, eliminating the issues mentioned above.
There are two persistent modes: By Source and By Destination.
By Source:
The same WAN connection will be used for traffic matching the rule and originating from the
same machine, regardless of its destination. This option will provide the highest level of
application compatibility.
By Destination:
The same WAN connection will be used for traffic matching the rule, originating from the same
machine, and going to the same destination. This option can better distribute loads to WAN
connections when there are only a few client machines.
The default mode is By Source. When there are multiple client requests, they can be distributed
(persistently) to WAN connections with a weight. If you choose Auto in Load Distribution, the
weights will be automatically adjusted according to each WAN’s Downstream Bandwidth which is
specified in the WAN settings page). If you choose Custom, you can customize the weight of each
WAN manually by using the sliders.
15.2.3 Algorithm: Enforced
This setting specifies the WAN connection usage to be applied on the specified IP protocol and port.
This setting is applicable only when Algorithm is set to Enforced.
http://www.peplink.com
111
Copyright @ 2017 Pepwave
Matching traffic will be routed through the specified WAN connection, regardless of the health check
status of the WAN connection. Starting from Firmware 5.2, outbound traffic can be enforced to go
through a specified SpeedFusionTM connection.

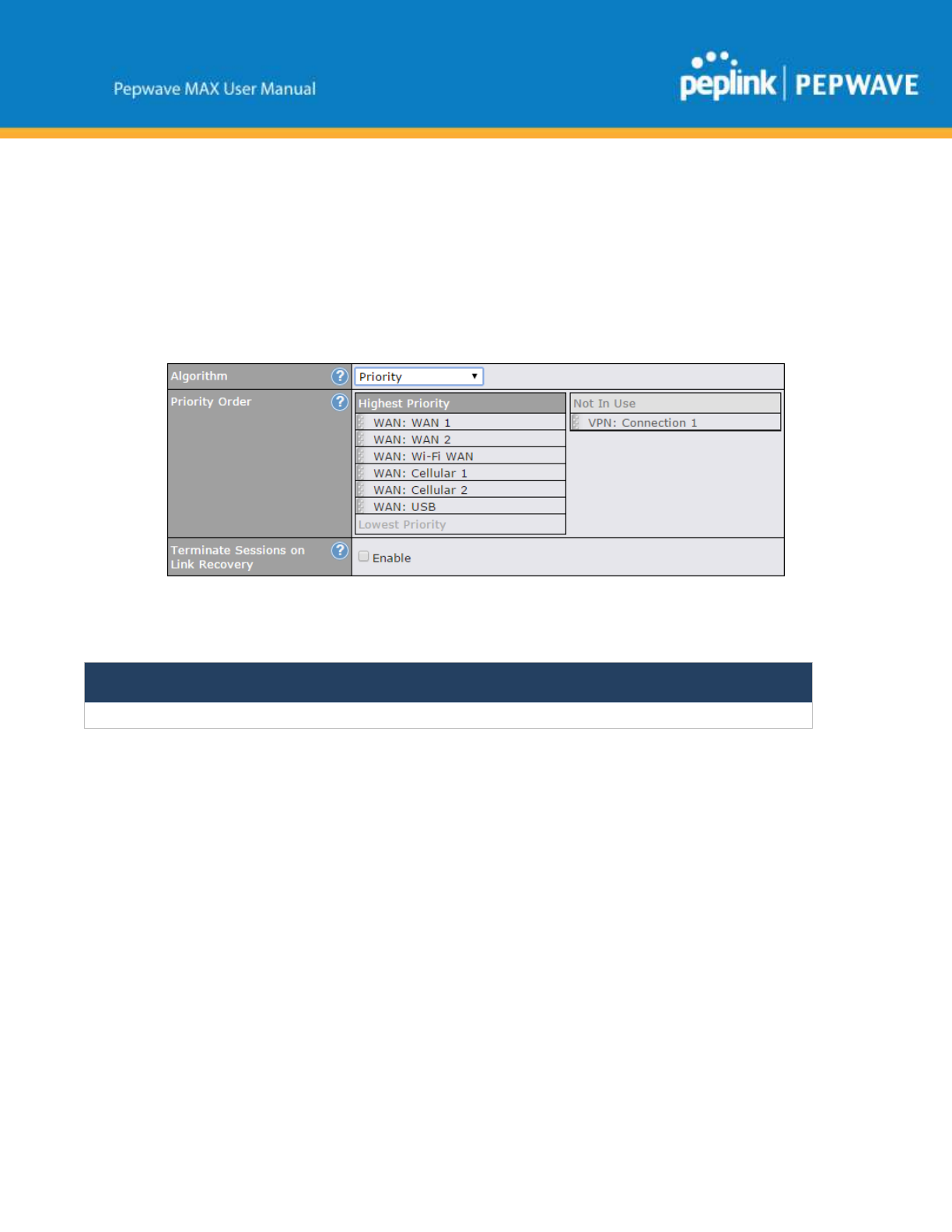

15.2.4 Algorithm: Priority
This setting specifies the priority of the WAN connections used to route the specified network service.
The highest priority WAN connection available will always be used for routing the specified type of
traffic. A lower priority WAN connection will be used only when all higher priority connections have
become unavailable.
Starting from Firmware 5.2, outbound traffic can be prioritized to go through SpeedFusionTM
connection(s). By default, VPN connections are not included in the priority list.
Tip
Configure multiple distribution rules to accommodate different kinds of services.
15.2.5 Algorithm: Overflow
The traffic matching this rule will be routed through the healthy WAN connection that has the highest
priority and is not in full load. When this connection gets saturated, new sessions will be routed to the
next healthy WAN connection that is not in full load.
http://www.peplink.com
112
Copyright @ 2017 Pepwave
Drag and drop to specify the order of WAN connections to be used for routing traffic. Only the highest
priority healthy connection that is not in full load will be used.
15.2.6 Algorithm: Least Used
The traffic matching this rule will be routed through the healthy WAN connection that is selected in
Connection and has the most available download bandwidth. The available download bandwidth of a
WAN connection is calculated from the total download bandwidth specified on the WAN settings page
and the current download usage. The available bandwidth and WAN selection is determined every time
an IP session is made.
15.2.7 Algorithm: Lowest Latency
The traffic matching this rule will be routed through the healthy WAN connection that is selected in
Connection and has the lowest latency. Latency checking packets are issued periodically to a nearby
router of each WAN connection to determine its latency value. The latency of a WAN is the packet
round trip time of the WAN connection. Additional network usage may be incurred as a result.
http://www.peplink.com
113
Copyright @ 2017 Pepwave
Tip
The roundtrip time of a 6M down/640k uplink can be higher than that of a 2M down/2M up link because the overall round trip
time is lengthened by its slower upload bandwidth, despite its higher downlink speed. Therefore, this algorithm is good for two
scenarios:
● All WAN connections are symmetric; or
● A latency sensitive application must be routed through the lowest latency WAN, regardless of the WAN’s available
bandwidth.
15.2.8 Expert Mode
Expert Mode is available on some Pepwave routers for use by advanced
users. To enable the feature, click on the help icon and click turn on Expert
Mode.
In Expert Mode, a new special rule, SpeedFusionTM Routes, is displayed in
the Custom Rules table. This rule represents all SpeedFusionTM routes
learned from remote VPN peers. By default, this bar is on the top of all
custom rules. This position means that traffic for remote VPN subnets will be
routed to the corresponding VPN peer. You can create custom Priority or
Enforced rules and move them
above the bar to override the SpeedFusionTM routes.
Upon disabling Expert Mode, all rules above the bar will be removed.
http://www.peplink.com
114
Copyright @ 2017 Pepwave
16 Inbound Access
16.1 Port Forwarding Service
Pepwave routers can act as a firewall that blocks, by default, all inbound access from the Internet. By
using port forwarding, Internet users can access servers behind the Pepwave router. Inbound port
forwarding rules can be defined at Advanced>Port Forwarding.
To define a new service, click Add Service.
Port Forwarding Settings
Enable
This setting specifies whether the inbound service takes effect. When Enable is checked, the inbound
service takes effect: traffic is matched and actions are taken by the Pepwave router based on the other
parameters of the rule. When this setting is disabled, the inbound service does not take effect: the
Pepwave router disregards the other parameters of the rule.
Service Name
This setting identifies the service to the system administrator. Valid values for this setting consist of only
alphanumeric and underscore “_” characters.
http://www.peplink.com
115
Copyright @ 2017 Pepwave
IP Protocol
The IP Protocol setting, along with the Port setting, specifies the protocol of the service as TCP, UDP,
ICMP, or IP. Traffic that is received by the Pepwave router via the specified protocol at the specified
port(s) is forwarded to the LAN hosts specified by the Servers setting. Please see below for details on the
Port and Servers settings. Alternatively, the Protocol Selection Tool drop-down menu can be used to
automatically fill in the protocol and a single port number of common Internet services (e.g. HTTP,
HTTPS, etc.). After selecting an item from the Protocol Selection Tool drop-down menu, the protocol
and port number remain manually modifiable.
Port
The Port setting specifies the port(s) that correspond to the service, and can be configured to behave in
one of the following manners:
Any Port, Single Port, Port Range, Port Map, and Range Mapping
Any Port: all traffic that is received by the Pepwave router via the specified protocol is forwarded to the
servers specified by the Servers setting. For example, with IP Protocol set to TCP, and Port set to Any
Port, all TCP traffic is forwarded to the configured servers.
Single Port: traffic that is received by the Pepwave router via the specified protocol at the specified port
is forwarded via the same port to the servers specified by the Servers setting. For example, with IP
Protocol set to TCP, and Port set to Single Port and Service Port 80, TCP traffic received on port 80 is
forwarded to the configured servers via port 80.
Port Range: traffic that is received by the Pepwave router via the specified protocol at the specified port
range is forwarded via the same respective ports to the LAN hosts specified by the Servers setting. For
example, with IP Protocol set to TCP, and Port set to Port Range and Service Ports 80-88, TCP traffic
received on ports 80 through 88 is forwarded to the configured servers via the respective ports.
Port Mapping: traffic that is received by Pepwave router via the specified protocol at the specified port
is forwarded via a different port to the servers specified by the Servers setting.
For example, with IP Protocol set to TCP, and Port set to Port Mapping, Service Port 80, and Map to
Port 88, TCP traffic on port 80 is forwarded to the configured servers via port 88.
(Please see below for details on the Servers setting.)
Range Mapping: traffic that is received by the Pepwave router via the specified protocol at the specified
port range is forwarded via a different port to the servers specified by the Servers setting.
Inbound IP
Address(es)
This setting specifies the WAN connections and Internet IP address(es) from which the service can be
accessed.
Server IP
Address
This setting specifies the LAN IP address of the server that handles the requests for the service.
http://www.peplink.com
116
Copyright @ 2017 Pepwave
16.1.1 UPnP / NAT-PMP Settings
UPnP and NAT-PMP are network protocols which allow a computer connected to the LAN port to
automatically configure the router to allow parties on the WAN port to connect to itself. That way, the
process of inbound port forwarding becomes automated.
When a computer creates a rule using these protocols, the specified TCP/UDP port of all WAN
connections' default IP address will be forwarded.
Check the corresponding box(es) to enable UPnP and/or NAT-PMP. Enable these features only if you
trust the computers connected to the LAN ports.

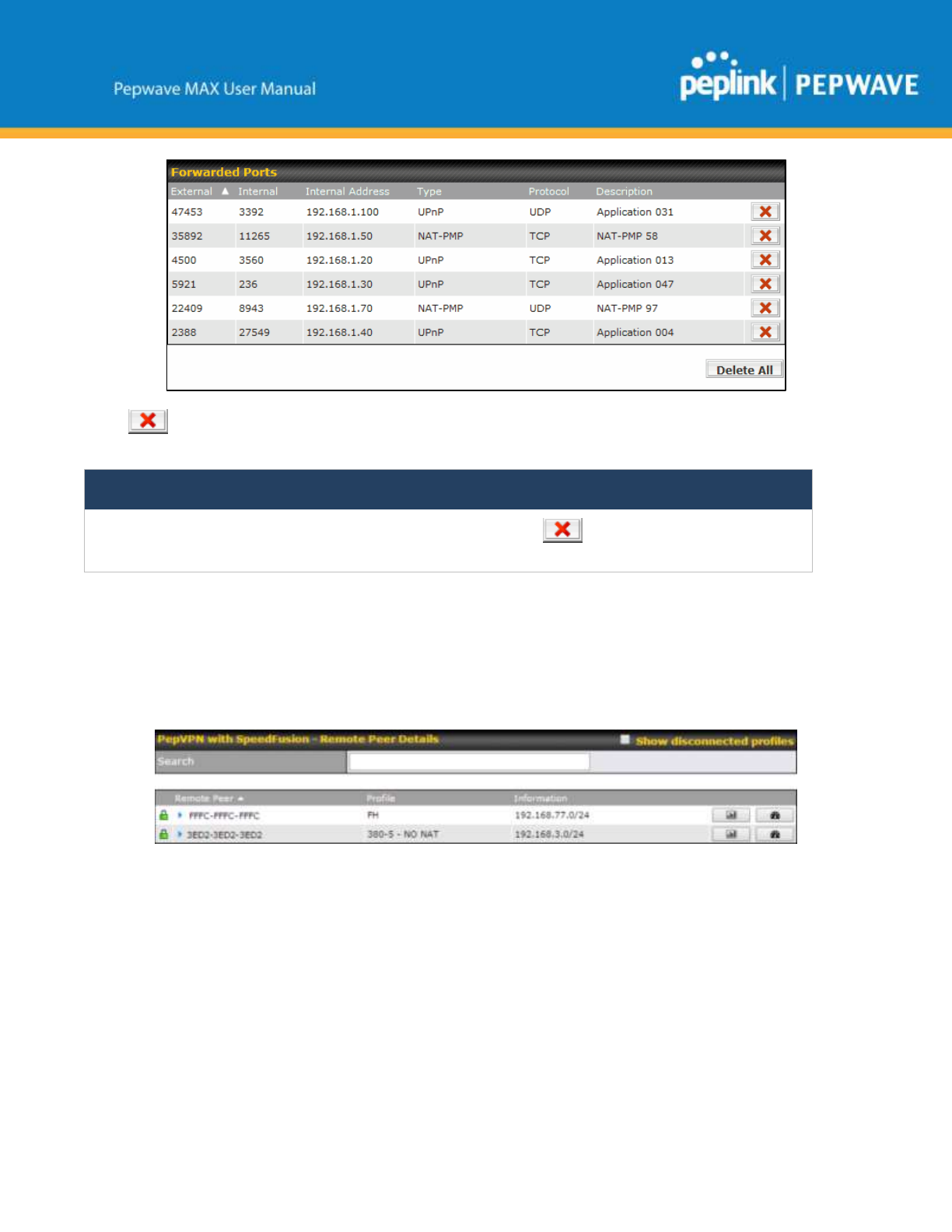

When the options are enabled, a table listing all the forwarded ports under these two protocols can be
found at Status>UPnP / NAT-PMP.
http://www.peplink.com
117
Copyright @ 2017 Pepwave
17 NAT Mappings
NAT mappings allow IP address mapping of all inbound and outbound NAT’d traffic to and from an
internal client IP address. Settings to configure NAT mappings are located at Advanced>NAT
Mappings.
To add a rule for NAT mappings, click Add NAT Rule.
http://www.peplink.com
118
Copyright @ 2017 Pepwave
NAT Mapping Settings
LAN
Client(s)
NAT mapping rules can be defined for a single LAN IP Address, an IP Range, or an IP
Network.
Address
This refers to the LAN host’s private IP address. The system maps this address to a number of
public IP addresses (specified below) in order to facilitate inbound and outbound traffic. This
option is only available when IP Address is selected.
Range
The IP range is a contiguous group of private IP addresses used by the LAN host. The system
maps these addresses to a number of public IP addresses (specified below) to facilitate outbound
traffic. This option is only available when IP Range is selected.
Network
The IP network refers to all private IP addresses and ranges managed by the LAN host. The
system maps these addresses to a number of public IP addresses (specified below) to facilitate
outbound traffic. This option is only available when IP Network is selected.
Inbound
Mappings
This setting specifies the WAN connections and corresponding WAN-specific Internet IP
addresses on which the system should bind. Any access to the specified WAN connection(s) and
IP address(es) will be forwarded to the LAN host. This option is only available when IP Address
is selected in the LAN Client(s) field.
Note that inbound mapping is not needed for WAN connections in drop-in mode or IP forwarding
mode. Also note that each WAN IP address can be associated to one NAT mapping only.
Outbound
Mappings
This setting specifies the WAN IP addresses that should be used when an IP connection is made
from a LAN host to the Internet. Each LAN host in an IP range or IP network will be evenly
mapped to one of each selected WAN's IP addresses (for better IP address utilization) in a
persistent manner (for better application compatibility).
Note that if you do not want to use a specific WAN for outgoing accesses, you should still choose
default here, then customize the outbound access rule in the Outbound Policy section. Also note
that WAN connections in drop-in mode or IP forwarding mode are not shown here.
Click Save to save the settings when configuration has been completed.
Important Note
Inbound firewall rules override the Inbound Mappings settings.
http://www.peplink.com
119
Copyright @ 2017 Pepwave
18 QoS
18.1 User Groups
LAN and PPTP clients can be categorized into three user groups: Manager, Staff, and Guest. This
menu allows you to define rules and assign client IP addresses or subnets to a user group. You can apply
different bandwidth and traffic prioritization policies on each user group in the Bandwidth
Control and Application sections (note that the options available here vary by model).
The table is automatically sorted by rule precedence. The smaller and more specific subnets are put
towards the top of the table and have higher precedence; larger and less specific subnets are placed
towards the bottom.
Click the Add button to define clients and their user group. Click the button to remove the defined
rule. Two default rules are pre-defined and put at the bottom. They are All DHCP reservation
clients and Everyone, and they cannot be removed. The All DHCP reservation client represents the
LAN clients defined in the DHCP Reservation table on the LAN settings page. Everyone represents all
clients that are not defined in any rule above. Click on a rule to change its group.
Add / Edit User Group
Subnet / IP Address
From the drop-down menu, choose whether you are going to define the client(s) by an IP
Address or a Subnet. If IP Address is selected, enter a name defined in DHCP reservation table
or a LAN client's IP address. If Subnet is selected, enter a subnet address and specify its subnet
mask.
Group
This field is to define which User Group the specified subnet / IP address belongs to.
Once users have been assigned to a user group, their internet traffic will be restricted by rules defined
for that particular group. Please refer to the following two sections for details.
http://www.peplink.com
120
Copyright @ 2017 Pepwave

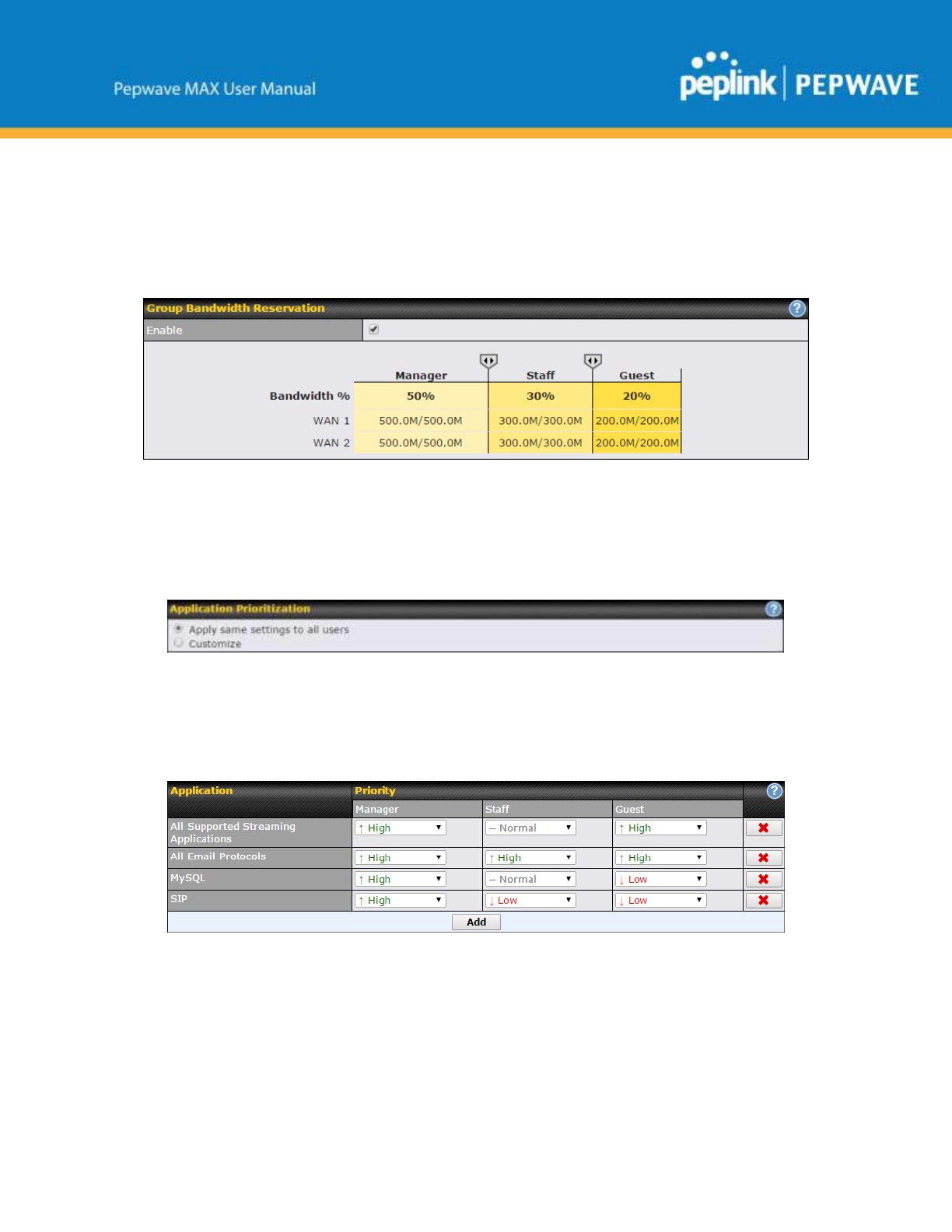

18.2 Bandwidth Control
You can define a maximum download speed (over all WAN connections) and upload speed (for each
WAN connection) that each individual Staff and Guest member can consume. No limit can be imposed
on individual Manager members. By default, download and upload bandwidth limits are set to unlimited
(set as 0).
18.3 Application
18.3.1 Application Prioritization
On many Pepwave routers, you can choose whether to apply the same prioritization settings to all user
groups or customize the settings for each group.
Three application priority levels can be set: ↑High,━ Normal, and↓Low. Pepwave routers can detect
various application traffic types by inspecting the packet content. Select an application by choosing a
supported application, or by defining a custom application manually. The priority preference of
supported applications is placed at the top of the table. Custom applications are at the bottom.
http://www.peplink.com
121
Copyright @ 2017 Pepwave

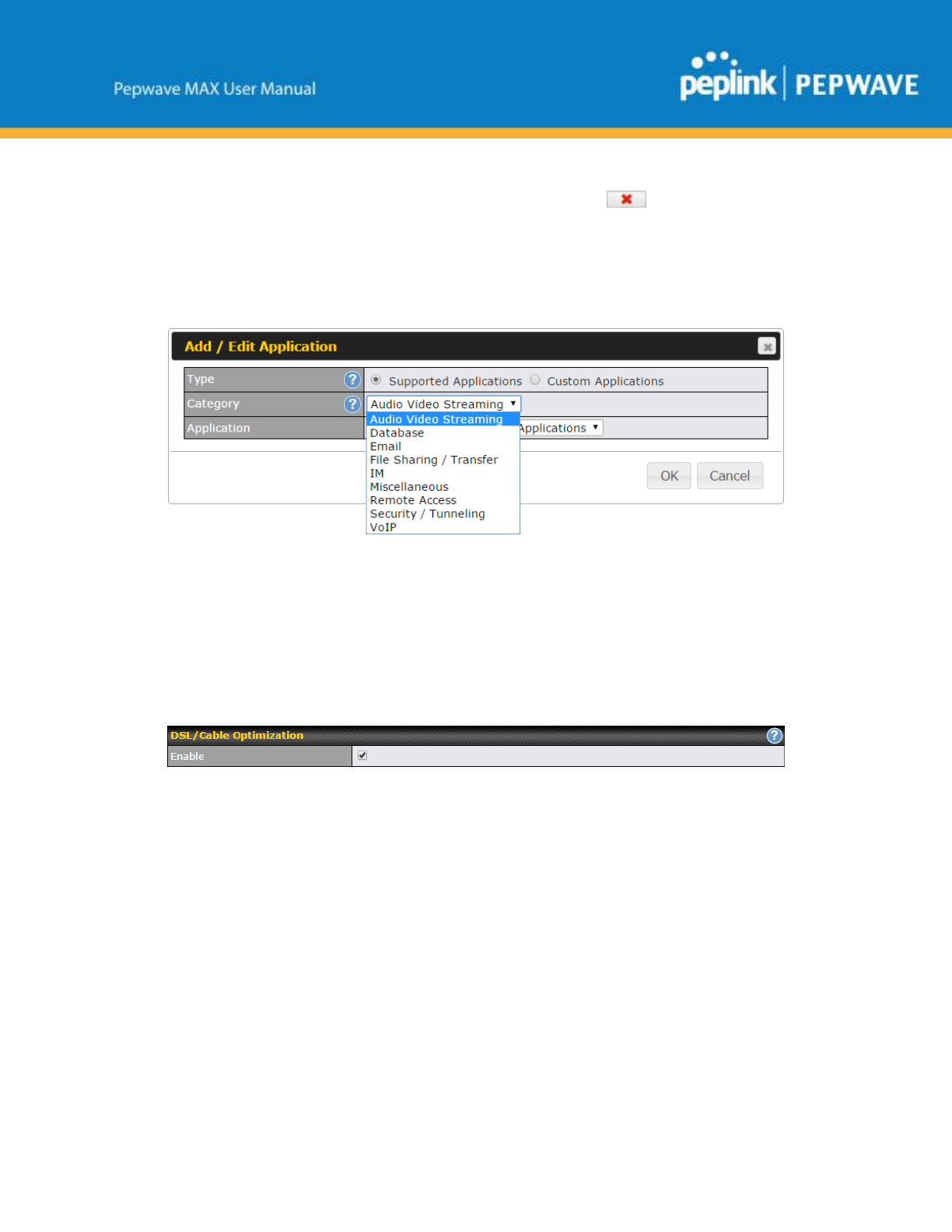

18.3.2 Prioritization for Custom Applications
Click the Add button to define a custom application. Click the button in the Action column to
delete the custom application in the corresponding row.
When Supported Applications is selected, the Pepwave router will inspect network traffic and
prioritize the selected applications. Alternatively, you can select Custom Applications and define the
application by providing the protocol, scope, port number, and DSCP value.
18.3.3 DSL/Cable Optimization
DSL/cable-based WAN connections have lower upload bandwidth and higher download bandwidth.
When a DSL/cable circuit's uplink is congested, the download bandwidth will be affected. Users will not
be able to download data at full speed until the uplink becomes less congested. DSL/Cable
Optimization can relieve such an issue. When it is enabled, the download speed will become less
affected by the upload traffic. By default, this feature is enabled.
19 Firewall
A firewall is a mechanism that selectively filters data traffic between the WAN side (the Internet) and
the LAN side of the network. It can protect the local network from potential hacker attacks, access to
offensive websites, and/or other inappropriate uses.
The firewall functionality of Pepwave routers supports the selective filtering of data traffic in both
directions:
http://www.peplink.com
122
Copyright @ 2017 Pepwave
● Outbound (LAN to WAN)
● Inbound (WAN to LAN)
The firewall also supports the following functionality:
● Intrusion detection and DoS prevention
● Web blocking
With SpeedFusionTM enabled, the firewall rules also apply to VPN tunneled traffic.

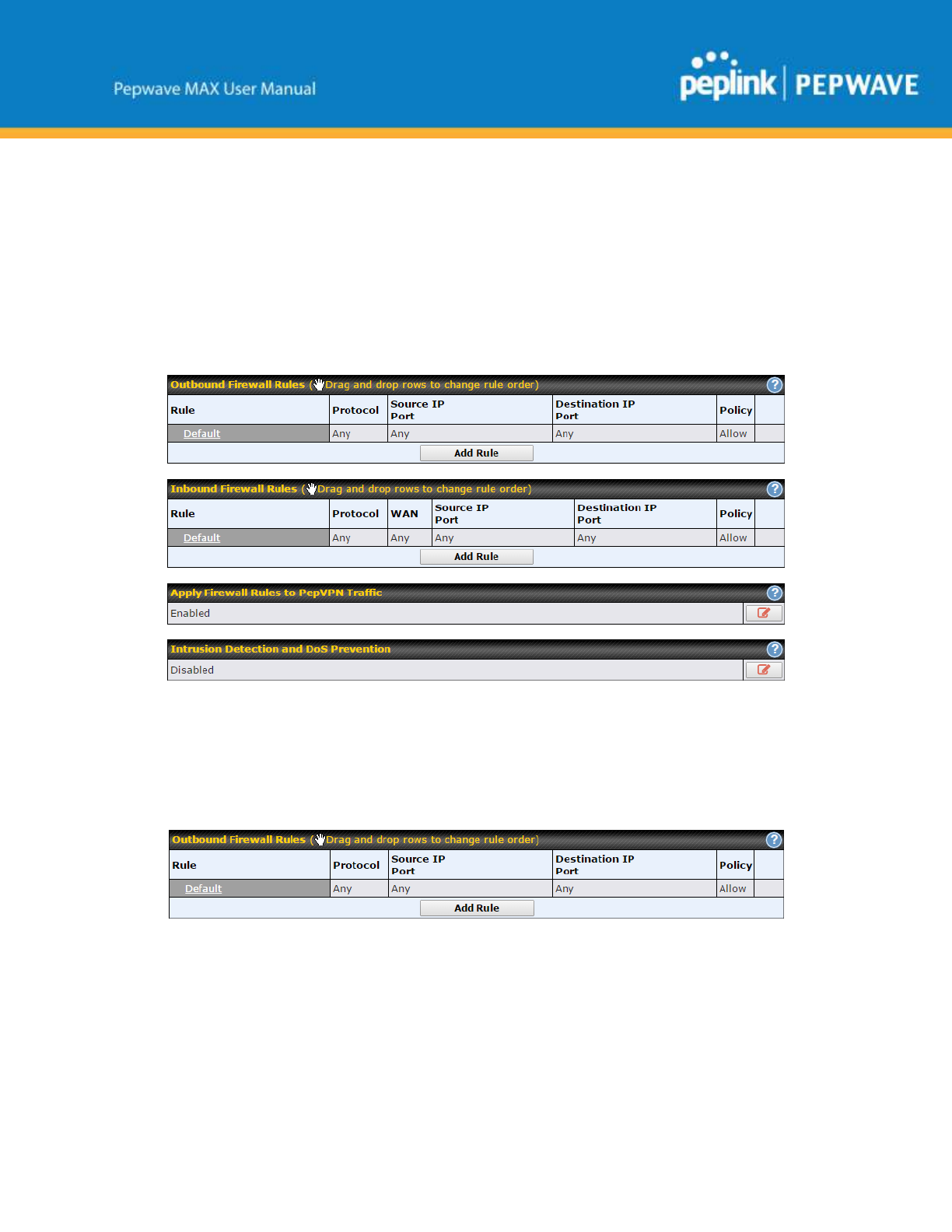

19.1 Outbound and Inbound Firewall Rules
19.1.1 Access Rules
The outbound firewall settings are located at Advanced>Firewall>Access Rules>Outbound Firewall
Rules.
Click Add Rule to display the following screen:
http://www.peplink.com
123
Copyright @ 2017 Pepwave
Inbound firewall settings are located at Advanced>Firewall>Access Rules>Inbound Firewall Rules.
Click Add Rule to display the following screen:
Rules are matched from top to bottom. If a connection matches any one of the upper rules, the matching
process will stop. If none of the rules match, the Default rule will be applied. By default, the Default
rule is set as Allow for both outbound and inbound access.
http://www.peplink.com
124
Copyright @ 2017 Pepwave

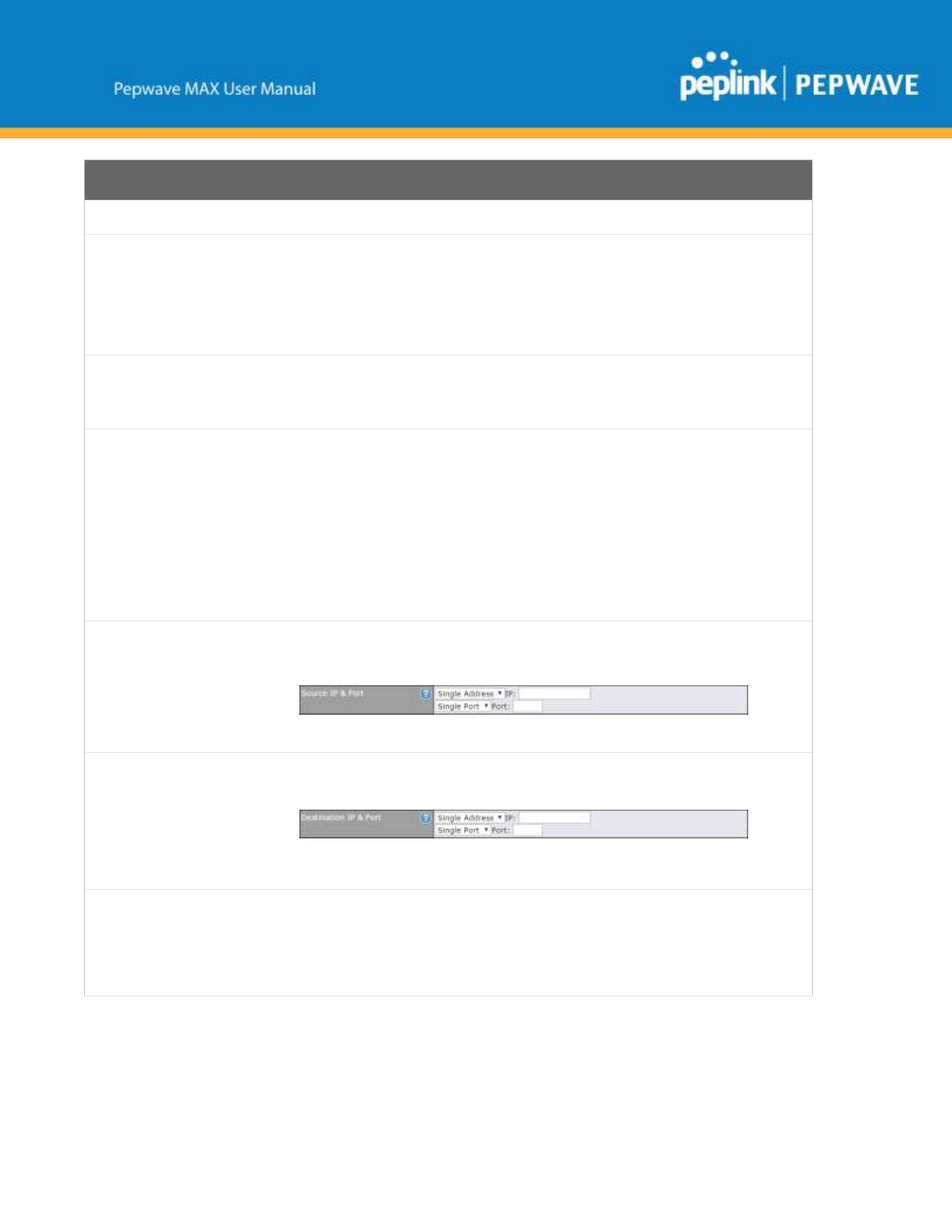

Inbound / Outbound Firewall Settings
Rule Name
This setting specifies a name for the firewall rule.
Enable
This setting specifies whether the firewall rule should take effect. If the box is checked, the firewall
rule takes effect. If the traffic matches the specified protocol/IP/port, actions will be taken by the
Pepwave router based on the other parameters of the rule. If the box is not checked, the firewall rule
does not take effect. The Pepwave router will disregard the other parameters of the rule.
Click the dropdown menu next to the checkbox to place this firewall rule on a time schedule.
WAN
Connection
(Inbound)
Select the WAN connection that this firewall rule should apply to.
Protocol
This setting specifies the protocol to be matched. Via a drop-down menu, the following protocols can
be specified:
● TCP
● UDP
● ICMP
● IP
Alternatively, the Protocol Selection Tool drop-down menu can be used to automatically fill in the
protocol and port number of common Internet services (e.g., HTTP, HTTPS, etc.)
After selecting an item from the Protocol Selection Tool drop-down menu, the protocol and port
number remains manually modifiable.
Source IP & Port
This specifies the source IP address(es) and port number(s) to be matched for the firewall rule. A
single address, or a network, can be specified as the Source IP & Port setting, as indicated by the
following screenshot:
In addition, a single port, or a range of ports, can be specified for the Source IP & Port settings.
Destination IP &
Port
This specifies the destination IP address(es) and port number(s) to be matched for the firewall rule. A
single address, or a network, can be specified as the Destination IP & Port setting, as indicated by
the following screenshot:
In addition, a single port, or a range of ports, can be specified for the Destination IP & Port
settings.
Action
This setting specifies the action to be taken by the router upon encountering traffic that matches the
both of the following:
● Source IP & port
● Destination IP & port
With the value of Allow for the Action setting, the matching traffic passes through the router (to be
http://www.peplink.com
125
Copyright @ 2017 Pepwave
routed to the destination). If the value of the Action setting is set to Deny, the matching traffic does
not pass through the router (and is discarded).
Event Logging
This setting specifies whether or not to log matched firewall events. The logged messages are shown
on the page Status>Event Log. A sample message is as follows:
Aug 13 23:47:44 Denied CONN=Ethernet WAN SRC=20.3.2.1
DST=192.168.1.20 LEN=48 PROTO=TCP SPT=2260 DPT=80
● CONN: The connection where the log entry refers to
● SRC: Source IP address
● DST: Destination IP address
● LEN: Packet length
● PROTO: Protocol
● SPT: Source port
● DPT: Destination port
Click Save to store your changes. To create an additional firewall rule, click Add Rule and repeat the
above steps.
To change a rule’s priority, simply drag and drop the rule:
● Hold the left mouse button on the rule.
● Move it to the desired position.
● Drop it by releasing the mouse button.
Tip
If the default inbound rule is set to Allow for NAT-enabled WANs, no inbound Allow firewall rules will be required for
inbound port forwarding and inbound NAT mapping rules. However, if the default inbound rule is set as Deny, a
corresponding Allow firewall rule will be required.
19.1.2 Apply Firewall Rules to PepVpn Traffic
When this option is enabled, Outbound Firewall Rules will be applied to PepVPN traffic. To turn on this
feature, click , check the Enable check box, and press the Save button.
http://www.peplink.com
126
Copyright @ 2017 Pepwave

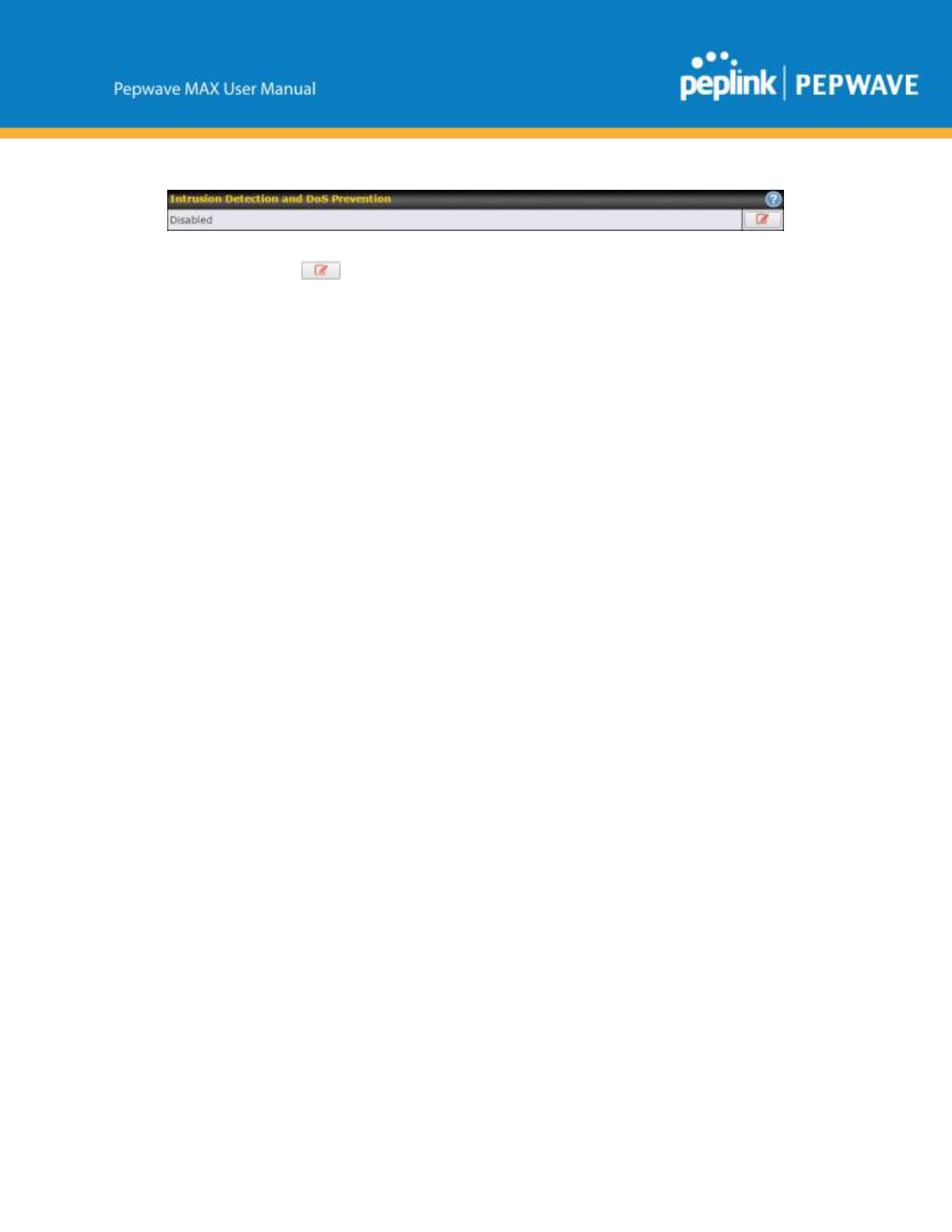

19.1.3 Intrusion Detection and DoS Prevention
Pepwave routers can detect and prevent intrusions and denial-of-service (DoS) attacks from the Internet.
To turn on this feature, click , check the Enable check box, and press the Save button.
When this feature is enabled, the Pepwave router will detect and prevent the following kinds of
intrusions and denial-of-service attacks.
● Port scan
o NMAP FIN/URG/PSH
o Xmas tree
o Another Xmas tree
o Null scan
o SYN/RST
o SYN/FIN
● SYN flood prevention
● Ping flood attack prevention
http://www.peplink.com
127
Copyright @ 2017 Pepwave
19.2 Content Blocking
19.2.1 Application Blocking
Choose applications to be blocked from LAN/PPTP/PepVPN peer clients' access, except for those on the
Exempted User Groups or Exempted Subnets defined below.
http://www.peplink.com
128
Copyright @ 2017 Pepwave
19.2.2 Web Blocking
Defines web site domain names to be blocked from LAN/PPTP/PepVPN peer clients' access except for
those on the Exempted User Groups or Exempted Subnets defined below.
If "foobar.com" is entered, any web site with a host name ending in foobar.com will be blocked, e.g.
www.foobar.com, foobar.com, etc. However, "myfoobar.com" will not be blocked.
You may enter the wild card ".*" at the end of a domain name to block any web site with a host name
having the domain name in the middle. If you enter "foobar.*", then "www.foobar.com",
"www.foobar.co.jp", or "foobar.co.uk" will be blocked. Placing the wild card in any other position is not
supported.
The device will inspect and look for blocked domain names on all HTTP traffic. Secure web (HTTPS)
traffic is not supported.
19.2.3 Customized Domains
Enter an appropriate website address, and the Peplink Balance will block and disallow
LAN/PPTP/SpeedFusionTM peer clients to access these websites. Exceptions can be added using the
instructions in Sections 20.1.3.2 and 20.1.3.3.
You may enter the wild card ".*" at the end of a domain name to block any web site with a host name
having the domain name in the middle. For example, If you enter "foobar.*," then "www.foobar.com,"
"www.foobar.co.jp," or "foobar.co.uk" will be blocked. Placing the wild card in any other position is not
supported.
The Peplink Balance will inspect and look for blocked domain names on all HTTP traffic. Secure web
(HTTPS) traffic is not supported.
19.2.4 Exempted User Groups
Check and select pre-defined user group(s) who can be exempted from the access blocking rules. User
groups can be defined at QoS>User Groups section. Please refer to Section 17.1 for details.
19.2.5 Exempted Subnets
With the subnet defined in the field, clients on the particular subnet(s) can be exempted from the access
blocking rules.
19.2.6 URL Logging
Click enable, and the enter the ip address and port (if applicable) where your remote syslog server is
located.
http://www.peplink.com
129
Copyright @ 2017 Pepwave
20 OSPF & RIPv2
The Peplink Balance supports OSPF and RIPv2 dynamic routing protocols. Click the Network tab from
the top bar, and then click the OSPF & RIPv2 item on the sidebar to reach the following menu:
OSPF
Router ID
This field determines the ID of the router. By default, this is specified as the LAN IP address. If you
want to specify your own ID, enter it in the Custom field.
Area
This is an overview of the OSPFv2 areas you have defined. Click on the area name to configure it.
To set a new area, click Add. To delete an existing area, click .
http://www.peplink.com
130
Copyright @ 2017 Pepwave

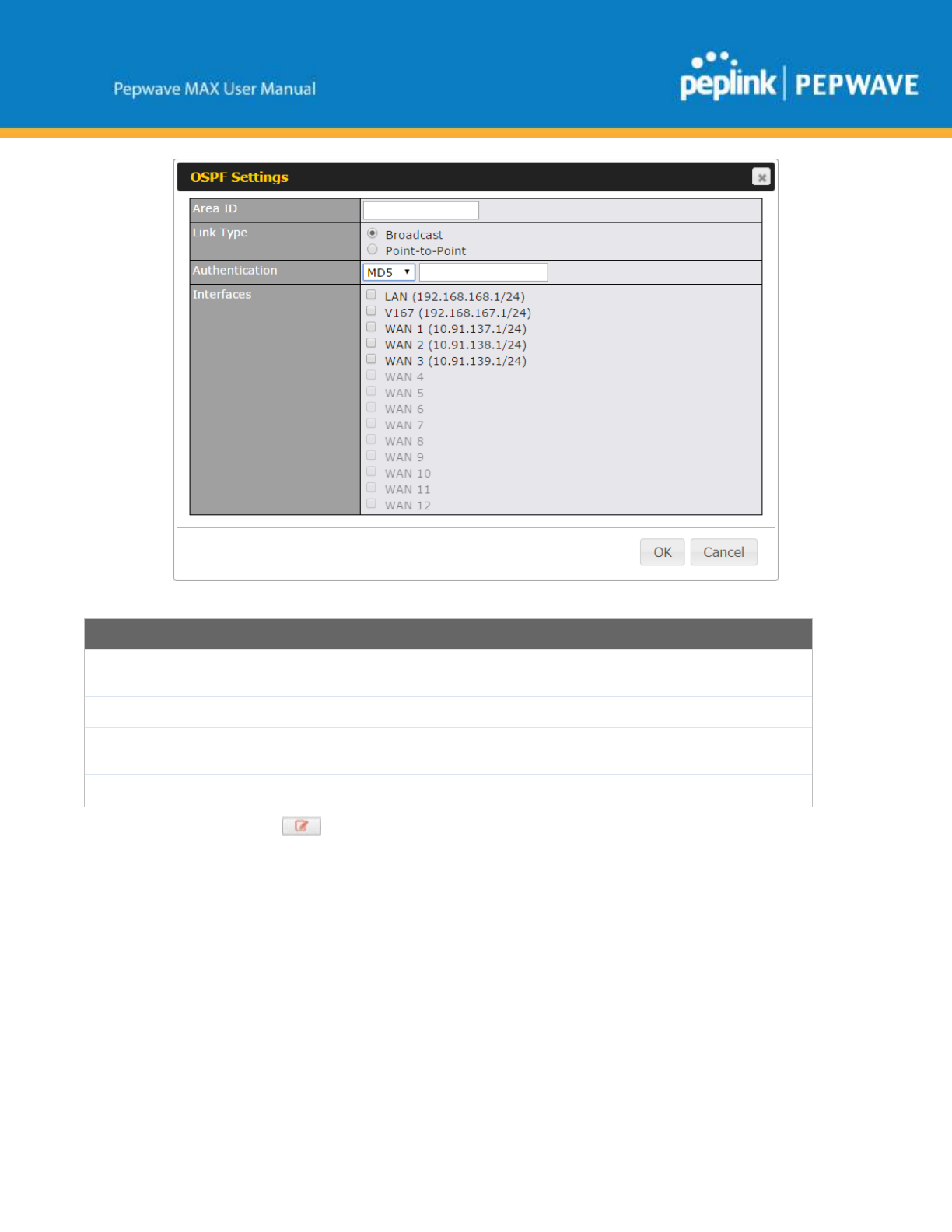

OSPF Settings
Area ID
Determine the name of your Area ID to apply to this group. Machines linked to this group will send
and receive related OSPF packets, while unlinked machines will ignore it.
Link Type
Choose the network type that this area will use.
Authentication
Choose an authentication method, if one is used, from this drop-down menu. Available options are
MD5 and Text. Enter the authentication key next to the drop-down menu.
Interfaces
Determine which interfaces this area will use to listen to and deliver OSPF packets
To access RIPv2 settings, click .
http://www.peplink.com
131
Copyright @ 2017 Pepwave

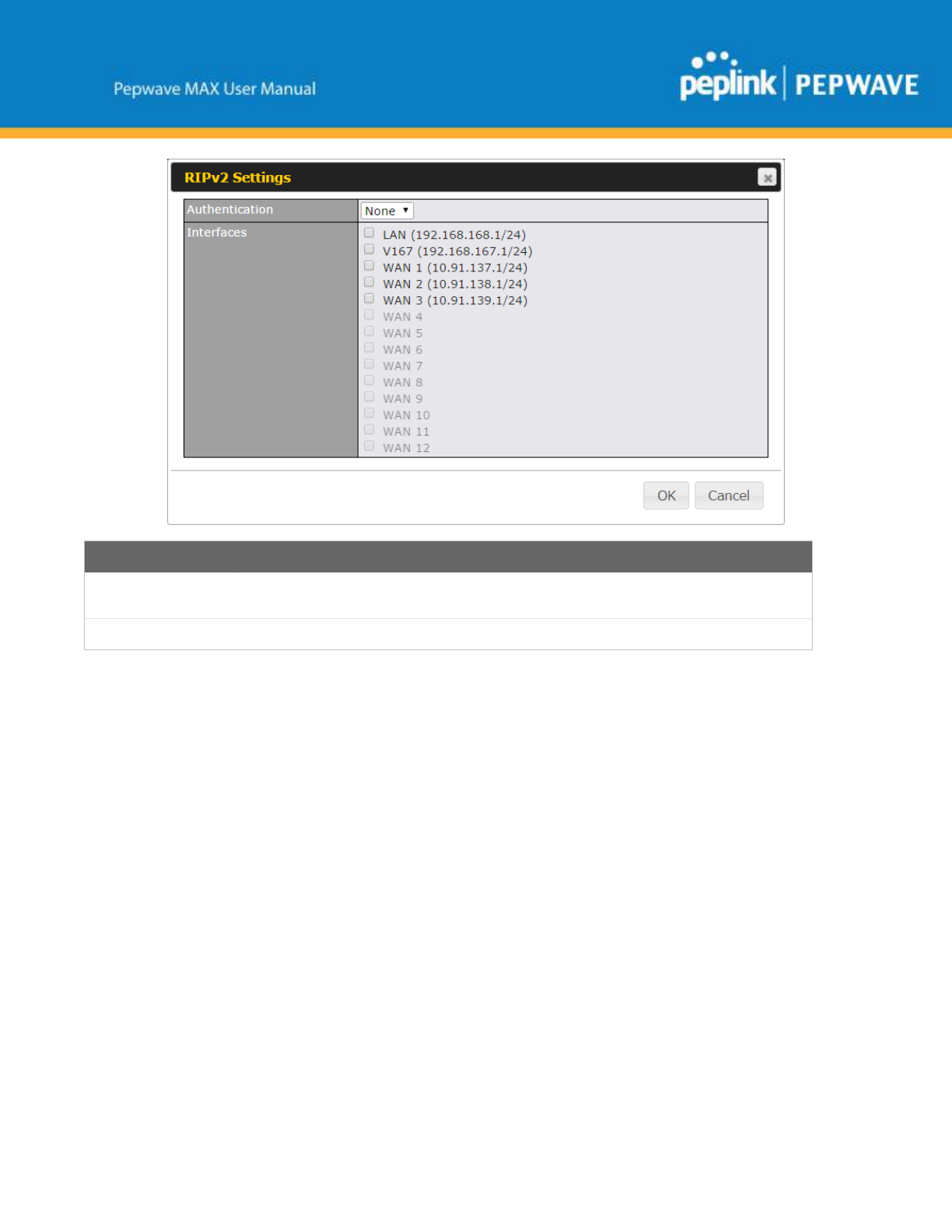

RIPv2 Settings
Authentication
Choose an authentication method, if one is used, from this drop-down menu. Available options are
MD5 and Text. Enter the authentication key next to the drop-down menu.
Interfaces
Determine which interfaces this group will use to listen to and deliver RIPv2 packets.
21 Remote User Access
a Networks routed by a Peplink Balance can be remotely accessed via L2TP with IPsec or PPTP. To
configure this feature, navigate to Network > Remote User Access
http://www.peplink.com
132
Copyright @ 2017 Pepwave
Remote User Access Settings
Enable
Click the checkbox to enable Remote User Access.
http://www.peplink.com
133
Copyright @ 2017 Pepwave
VPN Type
Determine whether remote devices can connect to the Balance using L2TP with IPsec or PPTP. For
greater security, we recommend you connect using L2TP with IPsec.
Preshared Key
Enter your preshared key in the text field. Please note that remote devices will need this preshared
key to access the Balance.
Listen On
This setting is for specifying the WAN IP addresses where the PPTP server of the router should
listen on.
Connect to
Network
Select the VLAN network for remote users to enable remote user access on.
Authentication
Determine the method of authenticating remote users.
User Accounts
This setting allows you to define the PPTP User Accounts. Click Add to input username and
password to create an account. After adding the user accounts, you can click on a username to edit
the account password. Click the button X to delete the account in its corresponding row.
Click the button to switch to enters user accounts by pasting the information in.CSV format.
Miscellaneous Settings
The miscellaneous settings include configuration for high availability, PPTP server, service forwarding,
and service passthrough.
21.1 High Availability
Many Pepwave routers support high availability (HA) configurations via an open standard virtual router
redundancy protocol (VRRP, RFC 3768). In an HA configuration, two Pepwave routers provide
redundancy and failover in a master-slave arrangement. In the event that the master unit is down, the
slave unit becomes active. High availability will be disabled automatically where there is a drop-in
connection configured on a LAN bypass port.
http://www.peplink.com
134
Copyright @ 2017 Pepwave
In the diagram, the WAN ports of each Pepwave router connect to the router and to the modem. Both
Pepwave routers connect to the same LAN switch via a LAN port.
An elaboration on the technical details of the implementation of the virtual router redundancy protocol
(VRRP, RFC 3768) by Pepwave routers follows:
● In an HA configuration, the two Pepwave routers communicate with each other using VRRP
over the LAN.
● The two Pepwave routers broadcast heartbeat signals to the LAN at a frequency of one heartbeat
signal per second.
● In the event that no heartbeat signal from the master Pepwave router is received in 3 seconds (or
longer) since the last heartbeat signal, the slave Pepwave router becomes active.
● The slave Pepwave router initiates the WAN connections and binds to a previously configured
LAN IP address.
● At a subsequent point when the master Pepwave router recovers, it will once again become
active.
You can configure high availability at Advanced>Misc. Settings>High Availability.
http://www.peplink.com
135
Copyright @ 2017 Pepwave
Interface for Master Router
Interface for Slave Router
High Availability
Enable
Checking this box specifies that the Pepwave router is part of a high availability configuration.
Group Number
This number identifies a pair of Pepwave routers operating in a high availability configuration. The
two Pepwave routers in the pair must have the same Group Number value.
Preferred Role
This setting specifies whether the Pepwave router operates in master or slave mode. Click the
corresponding radio button to set the role of the unit. One of the units in the pair must be configured as
the master, and the other unit must be configured as the slave.
Resume Master
Role Upon
Recovery
This option is displayed when Master mode is selected in Preferred Role. If this option is enabled,
once the device has recovered from an outage, it will take over and resume its Master role from the
slave unit.
Configuration
Sync.
This option is displayed when Slave mode is selected in Preferred Role. If this option is enabled and
the Master Serial Number entered matches with the actual master unit's, the master unit will
automatically transfer the configuration to this unit. Please make sure the LAN IP Address and the
Subnet Mask fields are set correctly in the LAN settings page. You can refer to the Event Log for the
configuration synchronization status.
Master Serial
Number
If Configuration Sync. is checked, the serial number of the master unit is required here for the feature
to work properly.
Virtual IP
The HA pair must share the same Virtual IP. The Virtual IP and the LAN Administration IP must
be under the same network.
LAN
Administration
IP
This setting specifies a LAN IP address to be used for accessing administration functionality. This
address should be unique within the LAN.
Subnet Mask
This setting specifies the subnet mask of the LAN.
http://www.peplink.com
136
Copyright @ 2017 Pepwave

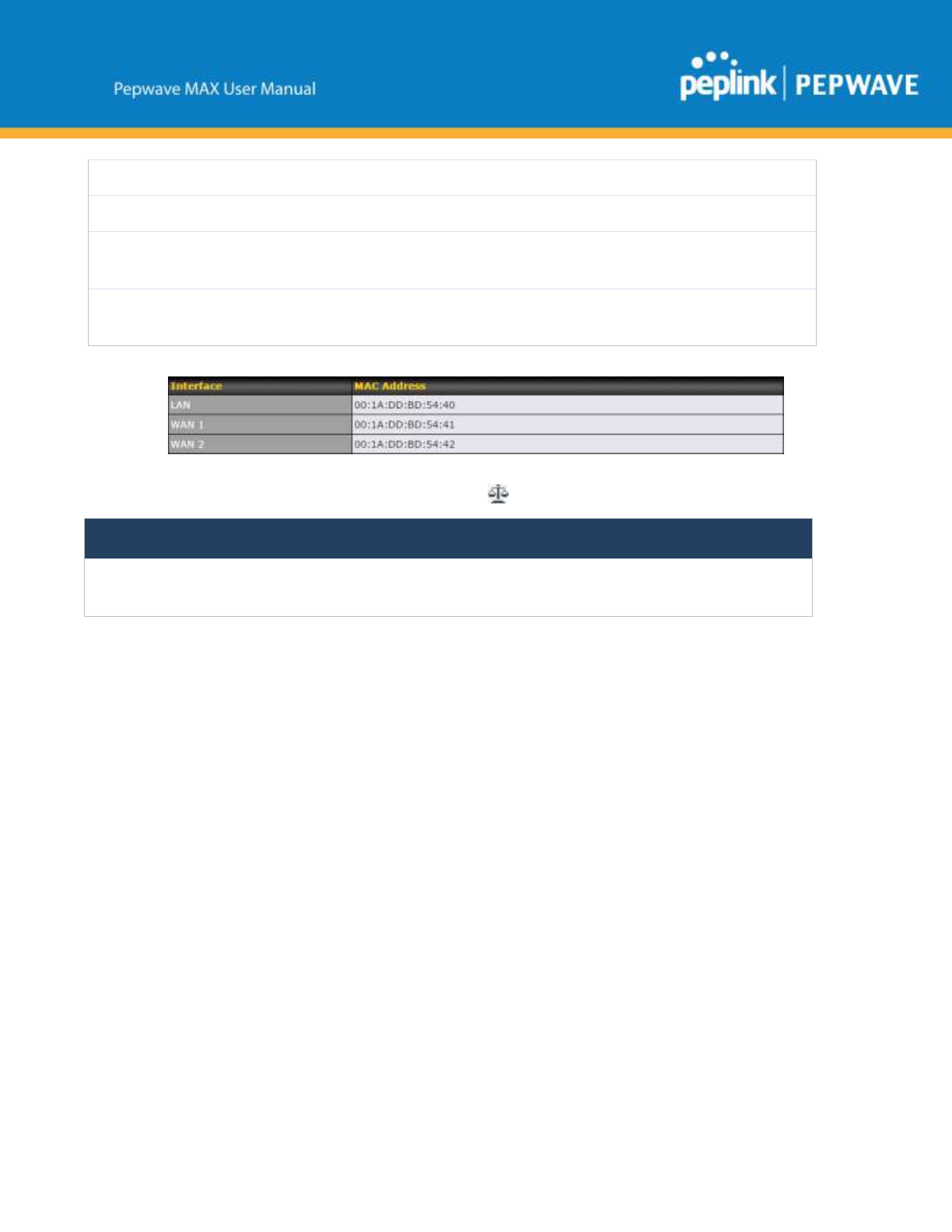

Important Note
For Pepwave routers in NAT mode, the virtual IP (VIP) should be set as the default gateway for all hosts on the LAN
segment. For example, a firewall sitting behind the Pepwave router should set its default gateway as the virtual IP instead of
the IP of the master router.
In drop-in mode, no other configuration needs to be set.
http://www.peplink.com
137
Copyright @ 2017 Pepwave
Please note that the drop-in WAN cannot be configured as a LAN bypass port while it is configured for high availability.
21.2 PPTP Server
Pepwave routers feature a built-in PPTP server, which enables remote computers to conveniently and
securely access the local network. PPTP server settings are located at Advanced>Misc. Settings>PPTP
Server.
Check the box to enable PPTP server functionality. All connected PPTP sessions are displayed at
Status>Client List. Please refer to Section 22.3 for details. Note that available options vary by model.
http://www.peplink.com
138
Copyright @ 2017 Pepwave
PPTP Server Settings
Listen On
This setting is for specifying the WAN connection(s) and IP address(es) that the PPTP server should
listen on.
Authentication
This setting is for specifying the user database source for PPTP authentication. Three sources can be
selected: Local User Accounts, LDAP Server, or RADIUS Server.
Local User Accounts - User accounts are stored in the Pepwave router locally. You can
add/modify/delete accounts in the User Accounts table.
LDAP Server - Authenticate with an external LDAP server. This has been tested with Open LDAP
servers where passwords are NTLM hashed. Active Directory is not supported. (You can choose to
use RADIUS to authenticate with a Windows server.)
RADIUS Server - Authenticate with an external RADIUS server. This has been tested with
Microsoft Windows Internet Authentication Service and FreeRADIUS servers where passwords are
http://www.peplink.com
139
Copyright @ 2017 Pepwave
NTLM hashed or in plain text.
User Accounts
This setting allows you to define PPTP user accounts for authentication via local user accounts. Click
Add to input username and password to create an account. After adding the user accounts, you can
click on a username to edit the account password. Click to delete the account in its
corresponding row.

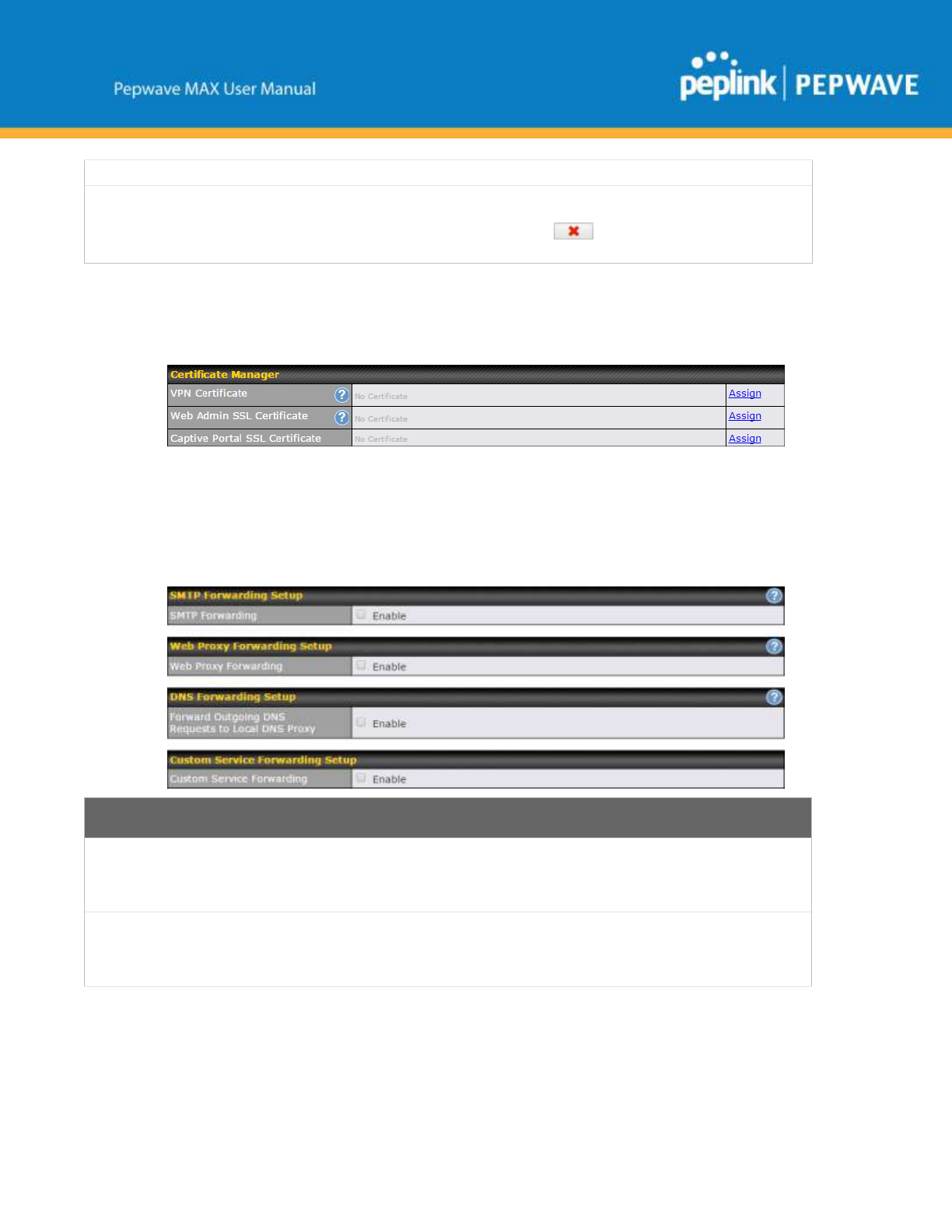

21.3 Certificate Manager
This section allows you to assign certificates for local VPN and web admin SSL. The local keys will not
be transferred to another device by any means.
21.4 Service Forwarding
Service forwarding settings are located at Advanced>Misc. Settings>Service Forwarding.
Service Forwarding
SMTP Forwarding
When this option is enabled, all outgoing SMTP connections destined for any host at TCP
port 25 will be intercepted. These connections will be redirected to a specified SMTP server
and port number. SMTP server settings for each WAN can be specified after selecting
Enable.
Web Proxy
Forwarding
When this option is enabled, all outgoing connections destined for the proxy server specified
in Web Proxy Interception Settings will be intercepted. These connections will be
redirected to a specified web proxy server and port number. Web proxy interception settings
and proxy server settings for each WAN can be specified after selecting Enable.
http://www.peplink.com
140
Copyright @ 2017 Pepwave
DNS Forwarding
When this option is enabled, all outgoing DNS lookups will be intercepted and redirected to
the built-in DNS name server. If any LAN device is using the DNS name servers of a WAN
connection, you may want to enable this option to enhance the DNS availability without
modifying the DNS server setting of the clients. The built-in DNS name server will distribute
DNS lookups to corresponding DNS servers of all available WAN connections. In this case,
DNS service will not be interrupted, even if any WAN connection is down.
Custom Service
Forwarding
When custom service forwarding is enabled, outgoing traffic with the specified TCP port will
be forwarded to a local or remote server by defining its IP address and port number.
21.4.1 SMTP Forwarding
Some ISPs require their users to send e-mails via the ISP’s SMTP server. All outgoing SMTP
connections are blocked except those connecting to the ISP’s. Pepwave routers support intercepting and
redirecting all outgoing SMTP connections (destined for TCP port 25) via a WAN connection to the
WAN’s corresponding SMTP server.
To enable the feature, select Enable under SMTP Forwarding Setup. Check Enable Forwarding for
the WAN connection(s) that needs forwarding. Under SMTP Server, enter the ISP’s e-mail server host
name or IP address. Under SMTP Port, enter the TCP port number for each WAN.
The Pepwave router will intercept SMTP connections. Choose a WAN port according to the outbound
policy, and then forward the connection to the SMTP server if the chosen WAN has enabled forwarding.
If the forwarding is disabled for a WAN connection, SMTP connections for the WAN will be simply be
forwarded to the connection’s original destination.
Note
If you want to route all SMTP connections only to particular WAN connection(s), you should create a custom rule in
outbound policy (see Section 14.2).
http://www.peplink.com
141
Copyright @ 2017 Pepwave
21.4.2 Web Proxy Forwarding
When this feature is enabled, the Pepwave router will intercept all outgoing connections destined for the
proxy server specified in Web Proxy Interception Settings, choose a WAN connection with reference
to the outbound policy, and then forward them to the specified web proxy server and port number.
Redirected server settings for each WAN can be set here. If forwarding is disabled for a WAN, web
proxy connections for the WAN will be simply forwarded to the connection’s original destination.
21.4.3 DNS Forwarding
When DNS forwarding is enabled, all clients’ outgoing DNS requests will also be intercepted and
forwarded to the built-in DNS proxy server.
21.4.4 Custom Service Forwarding
After clicking the enable checkbox, enter your TCP port for traffic heading to the router, and then specify
the IP Address and Port of the server you wish to forward to the service to.
http://www.peplink.com
142
Copyright @ 2017 Pepwave
21.5 Service Passthrough
Service passthrough settings can be found at Advanced>Misc. Settings>Service Passthrough.
Some Internet services need to be specially handled in a multi-WAN environment. Pepwave routers can
handle these services such that Internet applications do not notice being behind a multi-WAN router.
Settings for service passthrough support are available here.
Service Passthrough Support
SIP
Session initiation protocol, aka SIP, is a voice-over-IP protocol. The Pepwave router can act as a
SIP application layer gateway (ALG) which binds connections for the same SIP session to the
same WAN connection and translate IP address in the SIP packets correctly in NAT mode. Such
passthrough support is always enabled, and there are two modes for selection: Standard Mode
and Compatibility Mode. If your SIP server’s signal port number is non-standard, you can check
the box Define custom signal ports and input the port numbers to the text boxes.
H.323
With this option enabled, protocols that provide audio-visual communication sessions will be
defined on any packet network and pass through the Pepwave router.
FTP
FTP sessions consist of two TCP connections; one for control and one for data. In a multi-WAN
situation, they must be routed to the same WAN connection. Otherwise, problems will arise in
transferring files. By default, the Pepwave router monitors TCP control connections on port 21 for
any FTP connections and binds TCP connections of the same FTP session to the same WAN. If
you have an FTP server listening on a port number other than 21, you can check Define custom
control ports and enter the port numbers in the text boxes.
TFTP
The Pepwave router monitors outgoing TFTP connections and routes any incoming TFTP data
packets back to the client. Select Enable if you want to enable TFTP passthrough support.
IPsec NAT-T
This field is for enabling the support of IPsec NAT-T passthrough. UDP ports 500, 4500, and
10000 are monitored by default. You may add more custom data ports that your IPsec system uses
by checking Define custom ports. If the VPN contains IPsec site-to-site VPN traffic,
check Route IPsec Site-to-Site VPN and choose the WAN connection to route the traffic to.
http://www.peplink.com
143
Copyright @ 2017 Pepwave
21.6 GPS Forwarding
Using the GPS forwarding feature, some Pepwave routers can automatically send GPS reports to a
specified server. To set up GPS forwarding, navigate to Advanced>GPS Forwarding.
GPS Forwarding
Enable
Check this box to turn on GPS forwarding.
Server
Enter the name/IP address of the server that will receive GPS data. Also specify a port number,
protocol (UDP or TCP), and a report interval of between 1 and 10 seconds. Click to save
these settings.
GPS Report
Format
Choose from NMEA or TAIP format for sending GPS reports.
NMEA Sentence
Type
If you’ve chosen to send GPS reports in NMEA format, select one or more sentence types for
sending the data (GPRMC, GPGGA, GPVTG, GPGSA, and GPGSV).
Vehicle ID
The vehicle ID will be appended in the last field of the NMEA sentence. Note that the NMEA
sentence will become customized and non-standard.
TAIP Sentence
Type/TAIP ID
(optional)
If you’ve chosen to send GPS reports in TAIP format, select one or more sentence types for
sending the data (PV—Position / Velocity Solution and CP—Compact Velocity Solution). You
can also optionally include an ID number in the TAIP ID field.
http://www.peplink.com
144
Copyright @ 2017 Pepwave
22 AP Controller
The AP controller acts as a centralized controller of Pepwave AP devices. With this feature, users can
customize and manage multiple APs from a single Pepwave router interface.
Special Note
Each Pepwave router can control a limited number of routers without additional cost. To manage more, a Full Edition license
is required. Please contact your Authorized Reseller or the Peplink Sales Team for more information and pricing details.
To configure, navigate to the AP tab.
22.1 Wireless SSID
This menu is the first one that appears after clicking the AP tab. This screen can also be reached by
clicking AP>Wireless SSID. Note the appearance of this screen varies by model.
AP Controller
AP Management
The AP controller for managing Pepwave APs can be enabled by checking this box. When this option is
enabled, the AP controller will wait for management connections originating from APs over the LAN
on TCP and UDP port 11753. It will also wait for captive portal connections on TCP port 443. An
extended DHCP option, CAPWAP Access Controller addresses (field 138), will be added to the
DHCP server. A local DNS record, AP Controller, will be added to the local DNS proxy.
Permitted AP
Access points to manage can be specified here. If Any is selected, the AP controller will manage any
AP that reports to it. If Approved List is selected, only APs with serial numbers listed in the provided
text box will be managed.
http://www.peplink.com
145
Copyright @ 2017 Pepwave
Current SSID information appears in the SSID section. To edit an existing SSID, click its name in the
list. To add a new SSID, click Add. Note that the following settings vary by model.
http://www.peplink.com
146
Copyright @ 2017 Pepwave
SSID Settings
SSID
This setting specifies the SSID of the virtual AP to be scanned by Wi-Fi clients.
Enable
Click the drop-down menu to apply a time schedule to this interface
VLAN ID
This setting specifies the VLAN ID to be tagged on all outgoing packets generated from this
wireless network (i.e., packets that travel from the Wi-Fi segment through the Pepwave AP
One unit to the Ethernet segment via the LAN port). The default value of this setting is 0,
which means VLAN tagging is disabled (instead of tagged with zero).
Broadcast SSID
This setting specifies whether or not Wi-Fi clients can scan the SSID of this wireless network.
Broadcast SSID is enabled by default.
Data Rate A
Select Auto to allow the Pepwave router to set the data rate automatically, or select Fixed and
choose a rate from the displayed drop-down menu.
Multicast FilterA
This setting enables the filtering of multicast network traffic to the wireless SSID.
Multicast RateA
This setting specifies the transmit rate to be used for sending multicast network traffic. The
selected Protocol and Channel Bonding settings will affect the rate options and values
available here.
IGMP Snooping A
To allow the Pepwave router to listen to internet group management protocol (IGMP)
network traffic, select this option.
DHCP Option 82 A
If you use a distributed DHCP server/relay environment, you can enable this option to provide
additional information on the manner in which clients are physically connected to the
network.
Network Priority
(QoS) A
Select from Gold, Silver, and Bronze to control the QoS priority of this wireless network’s
traffic.
Layer 2 Isolation A
Layer 2 refers to the second layer in the ISO Open System Interconnect model.
When this option is enabled, clients on the same VLAN, SSID, or subnet are isolated to that
VLAN, SSID, or subnet, which can enhance security. Traffic is passed to upper
communication layer(s). By default, the setting is disabled.
Maximum Number of
Clients
Indicate the maximum number of clients that should be able to connect to each frequency.
Band Steering A
Band steering allows the Pepwave router to steer AP clients from the 2.4GHz band to the
5GHz band for better usage of bandwidth. To make steering mandatory, select Enforce. To
cause the Pepwave router to preferentially choose steering, select Prefer. The default for this
setting is Disable.
A - Advanced feature. Click the button on the top right-hand corner to activate.
http://www.peplink.com
147
Copyright @ 2017 Pepwave

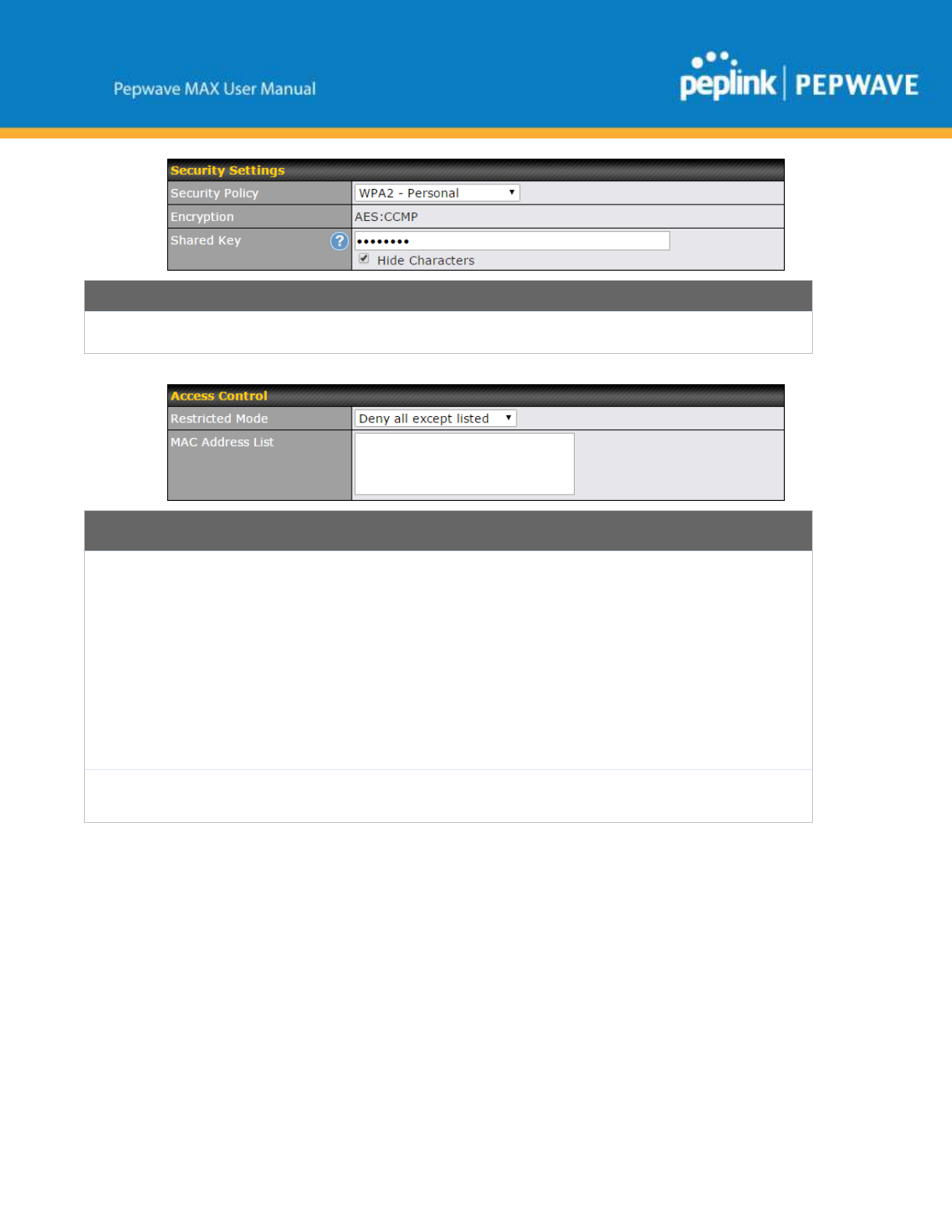

Security Settings
Security Policy
This setting configures the wireless authentication and encryption methods. Available options are
Open (No Encryption), WPA/WPA2 - Personal, WPA/WPA2 – Enterprise and Static WEP.
Access Control
Restricted
Mode
The settings allow administrator to control access using MAC address filtering. Available options are
None, Deny all except listed, Accept all except listed, and RADIUS MAC Authentication.
When WPA/WPA2 - Enterprise is configured, RADIUS-based 802.1 x authentication is enabled.
Under this configuration, the Shared Key option should be disabled. When using this method, select
the appropriate version using the V1/V2 controls. The security level of this method is known to be very
high.
When WPA/WPA2- Personal is configured, a shared key is used for data encryption and
authentication. When using this configuration, the Shared Key option should be enabled. Key length
must be between eight and 63 characters (inclusive). The security level of this method is known to be
high.
The configuration of Static WEP parameters enables pre-shared WEP key encryption. Authentication
is not supported by this method. The security level of this method is known to be weak.
MAC Address
List
Connection coming from the MAC addresses in this list will be either denied or accepted based the
option selected in the previous field.
http://www.peplink.com
148
Copyright @ 2017 Pepwave
RADIUS Server Settings
Host
Enter the IP address of the primary RADIUS server and, if applicable, the secondary RADIUS server.
Secret
Enter the RADIUS shared secret for the primary server and, if applicable, the secondary RADIUS
server.
Authentication
Port
In field, enter the UDP authentication port(s) used by your RADIUS server(s) or click the Default
button to enter 1812.
Accounting
Port
In field, enter the UDP accounting port(s) used by your RADIUS server(s) or click the Default button
to enter 1813.
22.2 Settings
On many Pepwave models, the AP settings screen (AP>Settings) looks similar to the example below:
http://www.peplink.com
149
Copyright @ 2017 Pepwave
http://www.peplink.com
150
Copyright @ 2017 Pepwave
AP Settings
SSID
These buttons specify which wireless networks will use this AP profile. You can also select the
frequencies at which each network will transmit. Please note that the Peplink Balance does not
detect whether the AP is capable of transmitting at both frequencies. Instructions to transmit at
unsupported frequencies will be ignored by the AP.
Operating Country
This drop-down menu specifies the national / regional regulations which the AP should follow.
● If a North American region is selected, RF channels 1 to 11 will be available and the
maximum transmission power will be 26 dBm (400 mW).
● If European region is selected, RF channels 1 to 13 will be available. The maximum
transmission power will be 20 dBm (100 mW).
NOTE: Users are required to choose an option suitable to local laws and regulations.
Per FCC regulation, the country selection is not available on all models marketed in US. All US
models are fixed to US channels only.
Preferred
Frequency
These buttons determine the frequency at which access points will attempt to broadcast. This
feature will only work for APs that can transmit at both 5.4GHz and 5GHz frequencies.
Protocol
This section displays the 2.4 GHz protocols your APs are using.
Channel Width
There are three options: 20 MHz, 20/40 MHz, and 40 MHz. With this feature enabled, the Wi-Fi
system can use two channels at once. Using two channels improves the performance of the Wi-Fi
connection.
Channel
This drop-down menu selects the 802.11 channel to be utilized. Available options are from 1 to 11
and from 1 to 13 for the North America region and Europe region, respectively. (Channel 14 is
only available when the country is selected as Japan with protocol 802.11b.) If Auto is set, the
system will perform channel scanning based on the scheduled time set and choose the most
suitable channel automatically.
Auto Channel
Update
Indicate the time of day at which update automatic channel selection.
Output PowerA
This drop-down menu determines the power at which the AP under this profile will broadcast.
When fixed settings are selected, the AP will broadcast at the specified power level, regardless of
context. When Dynamic settings are selected, the AP will adjust its power level based on its
surrounding APs in order to maximize performance.
The Dynamic: Auto setting will set the AP to do this automatically. Otherwise, the Dynamic:
Manual setting will set the AP to dynamically adjust only of instructed to do so. If you have set
Dynamic:Manual, you can go to AP>Toolbox>Auto Power Adj. to give your AP further
instructions.
If you click the Boost checkbox, the AP under this profile will transmit using additional power.
Please note that using this option with several APs in close proximity will lead to increased
interference.
http://www.peplink.com
151
Copyright @ 2017 Pepwave
Client Signal
Strength
ThresholdA
This field determines that maximum signal strength each individual client will receive. The
measurment unit is megawatts.
Max number of
ClientsA
This field determines the maximum clients that can be connected to APs under this profile.
Management
VLAN ID
This field specifies the VLAN ID to tag to management traffic, such as AP to AP controller
communication traffic. The value is 0 by default, meaning that no VLAN tagging will be applied.
NOTE: change this value with caution as alterations may result in loss of connection to the AP
controller.
Operating Schedule
Choose from the schedules that you have defined in System>Schedule. Select the schedule for
the integrated AP to follow from the drop-down menu.
Beacon RateA
This drop-down menu provides the option to send beacons in different transmit bit rates. The bit
rates are 1Mbps, 2Mbps, 5.5Mbps, 6Mbps, and 11Mbps.
Beacon IntervalA
This drop-down menu provides the option to set the time between each beacon send. Available
options are 100ms, 250ms, and 500ms.
DTIMA
This field provides the option to set the frequency for beacon to include delivery traffic indication
messages (DTIM). The interval unit is measured in milliseconds.
RTS ThresholdA
This field provides the option to set the minimum packet size for the unit to send an RTS using
the RTS/CTS handshake. Setting 0 disables this feature.
Fragmentation
ThresholdA
Determines the maximum size (in bytes) that each packet fragment will be broken down into. Set
0 to disable fragmentation.
Distance/Time
ConverterA
Select the distance you want your Wi-Fi to cover in order to adjust the below parameters. Default
values are recommended.
Slot TimeA
This field provides the option to modify the unit wait time before it transmits. The default value is
9μs.
ACK TimeoutA
This field provides the option to set the wait time to receive acknowledgement packet before
doing retransmission. The default value is 48μs.
Frame
AggregationA
With this feature enabled, throughput will be increased by sending two or more data frames in a
single transmission.
Frame Length
This field is only available when Frame Aggregation is enabled. It specifies the frame length for
frame aggregation. By default, it is set to 50000.
A - Advanced feature. Click the button on the top right-hand corner to activate.
http://www.peplink.com
152
Copyright @ 2017 Pepwave
Web Administration Settings
Enable
Check the box to allow the Pepwave router to manage the web admin access information of the
AP.
Web Access
Protocol
These buttons specify the web access protocol used for accessing the web admin of the AP. The
two available options are HTTP and HTTPS.
Management Port
This field specifies the management port used for accessing the device.
HTTP to HTTPS
Redirection
This option will be available if you have chosen HTTPS as the Web Access Protocol. With this
enabled, any HTTP access to the web admin will redirect to HTTPS automatically.
Admin User Name
This field specifies the administrator username of the web admin. It is set as admin by default.
Admin Password
This field allows you to specify a new administrator password. You may also click the Generate
button and let the system generate a random password automatically.
Navigating to AP>Settings on some Pepwave models displays a screen similar to the one shown below:
http://www.peplink.com
153
Copyright @ 2017 Pepwave
Wi-Fi Radio Settings
Operating
Country
This option sets the country whose regulations the Pepwave router follows.
Wi-Fi Antenna
Choose from the router's internal or optional external antennas, if so equipped.
Important Note
Per FCC regulations, the country selection is not available on all models marketed in
the US. All US models are fixed to US channels only.
Wi-Fi AP Settings
Protocol
This option allows you to specify whether 802.11b and/or 802.11g client association requests
will be accepted. Available options are 802.11ng and 802.11na. By default, 802.11ng is
selected.
Channel
This option allows you to select which 802.11 RF channel will be used. Channel 1 (2.412 GHz)
is selected by default.
Channel Width
Auto (20/40 MHz) and 20 MHz are available. The default setting is Auto (20/40 MHz), which
allows both widths to be used simultaneously.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP. There are 4
relative power levels available – Max, High, Mid, and Low. The actual output power will be
bound by the regulatory limits of the selected country.
Beacon RateA
This option is for setting the transmit bit rate for sending a beacon. By default, 1Mbps is
selected.
Beacon IntervalA
This option is for setting the time interval between each beacon. By default, 100ms is selected.
DTIMA
This field allows you to set the frequency for the beacon to include a delivery traffic indication
message. The interval is measured in milliseconds. The default value is set to 1 ms.
Slot TimeA
This field is for specifying the wait time before the Router transmits a packet. By default, this
field is set to 9 µs.
ACK TimeoutA
This field is for setting the wait time to receive an acknowledgement packet before performing a
retransmission. By default, this field is set to 48 µs.
Frame
AggregationA
This option allows you to enable frame aggregation to increase transmission throughput.
Guard IntervalA
This setting allows choosing a short or long guard period interval for your transmissions.
A - Advanced feature, please click the button on the top right-hand corner to activate.
http://www.peplink.com
154
Copyright @ 2017 Pepwave
23 AP Controller Status
23.1 Info
A comprehensive overview of your AP can be accessed by navigating to AP > Controller Status > Info.

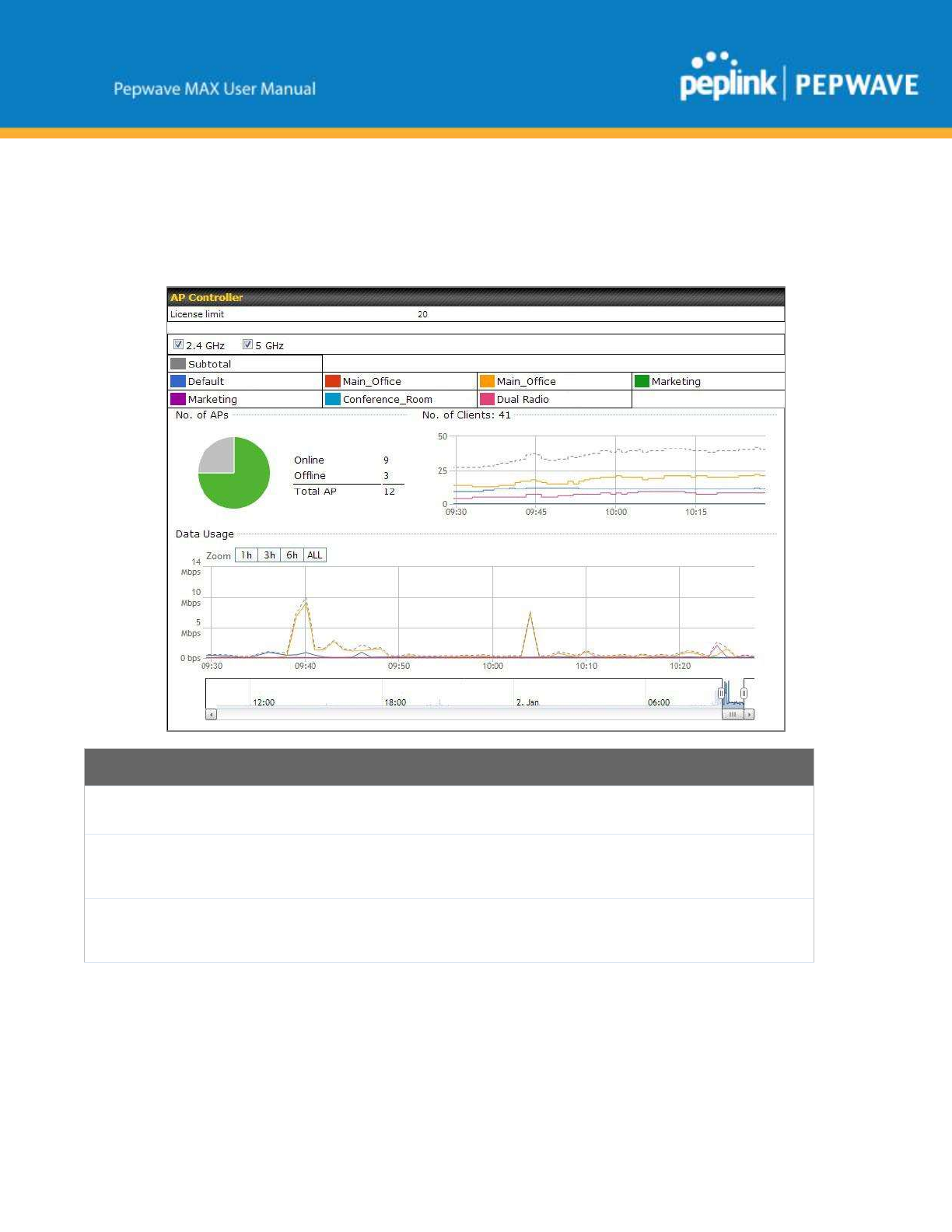

AP Controller
License Limit
This field displays the maximum number of AP your Balance router can control. You can
purchase licenses to increase the number of AP you can manage.
Frequency
Underneath, there are two check boxes labeled 2.4 Ghz and 5 Ghz. Clicking either box will
toggle the display of information for that frequency. By default, the graphs display the number of
clients and data usage for both 2.4GHz and 5 GHz frequencies.
SSID
The colored boxes indicate the SSID to display information for. Clicking any colored box will
toggle the display of information for that SSID. By default, all the graphs show information for all
SSIDs.
http://www.peplink.com
155
Copyright @ 2017 Pepwave
No. of APs
This pie chart and table indicates how many APs are online and how many are offline.
No.of Clients
This graph displays the number of clients connected to each network at any given time. Mouse
over any line on the graph to see how many clients connected to a specific SSID for that point in
time.
Data Usage
This graph enables you to see the data usage of any SSID for any given time period. Mouse over
any line on the graph to see the data usage by each SSID for that point in time. Use the buttons
next to Zoom to select the time scale you wish to view. In addition, you could use the sliders at
the bottom to further refine your timescale.
Events
This event log displays all activity on your AP network, down to the client level. Click View Alerts to see only alerts, and click
the More… link for additional records.
http://www.peplink.com
156
Copyright @ 2017 Pepwave
23.2 Access Point (Usage)
A detailed breakdown of data usage for each AP is available at AP > Controller Status > Access Point.

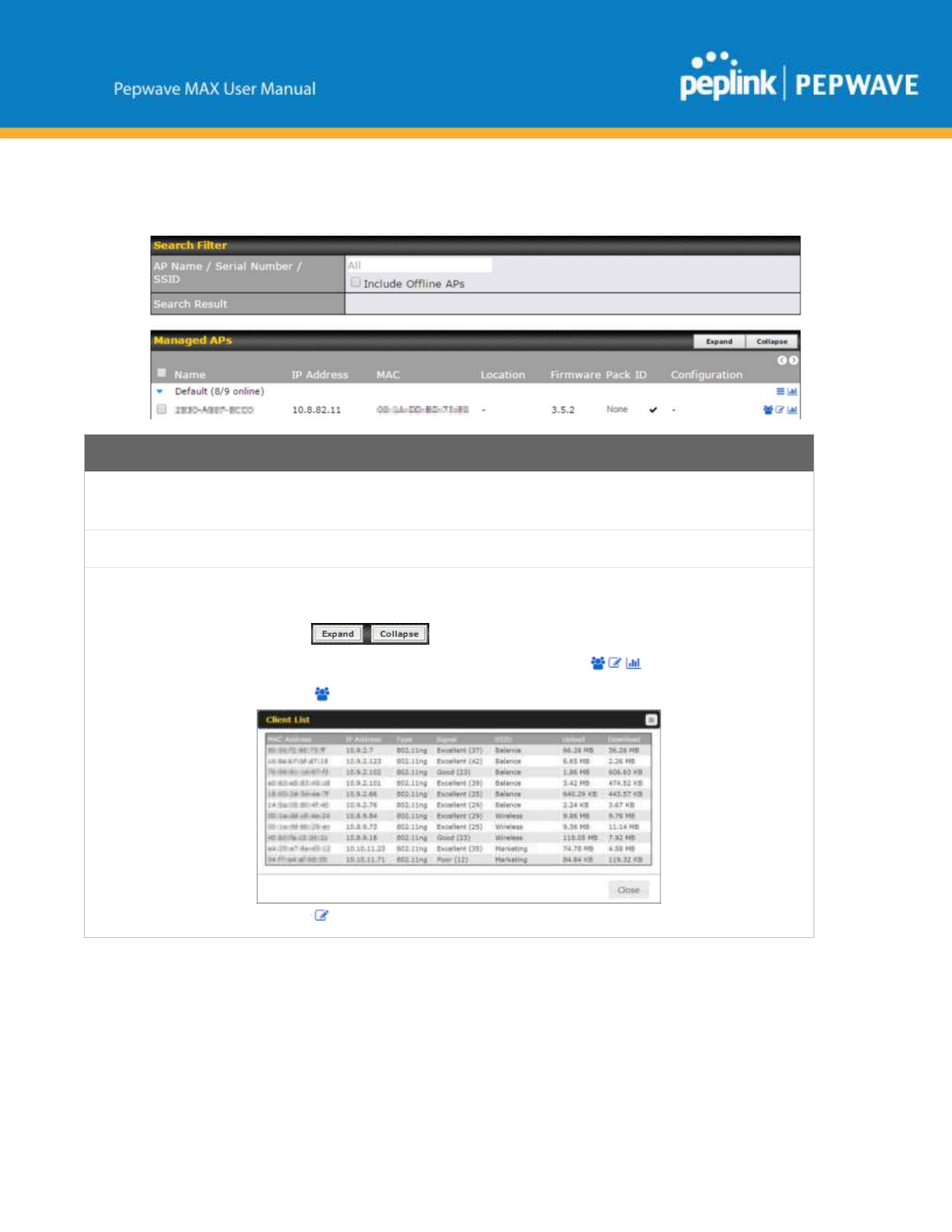

Usage
AP Name/Serial
Number
This field enables you to quickly find your device if you know its name or serial number. Fill in
the field to begin searching. Partial names and serial numbers are supported.
Online Status
This button toggles whether your search will include offline devices.
Managed Wireless
Devices
This table shows the detailed information on each AP, including channel, number of clients,
upload traffic, and download traffic. Click the blue arrows at the left of the table to expand and
collapse information on each device group. You could also expand and collapse all groups by
using the buttons.
On the right of the table, you will see the following icons: .
Click the icon to see a usage table for each client:
Click the icon to configure each client
http://www.peplink.com
157
Copyright @ 2017 Pepwave
For easier network management, you can give each client a name and designate its location. You
can also designate which firmware pack (if any) this client will follow, as well as the channels on
which the client will broadcast.
Click the icon to see a graph displaying usage:
Click any point in the graphs to display detailed usage and client information for that device,
using that SSID, at that point in time. On the Data Usage by menu, you can display the
information by SSID or by AP send/receive rate.
Click the Event tab next to Wireless Usage to view a detailed event log for that particular device:
http://www.peplink.com
158
Copyright @ 2017 Pepwave
23.3 Wireless SSID

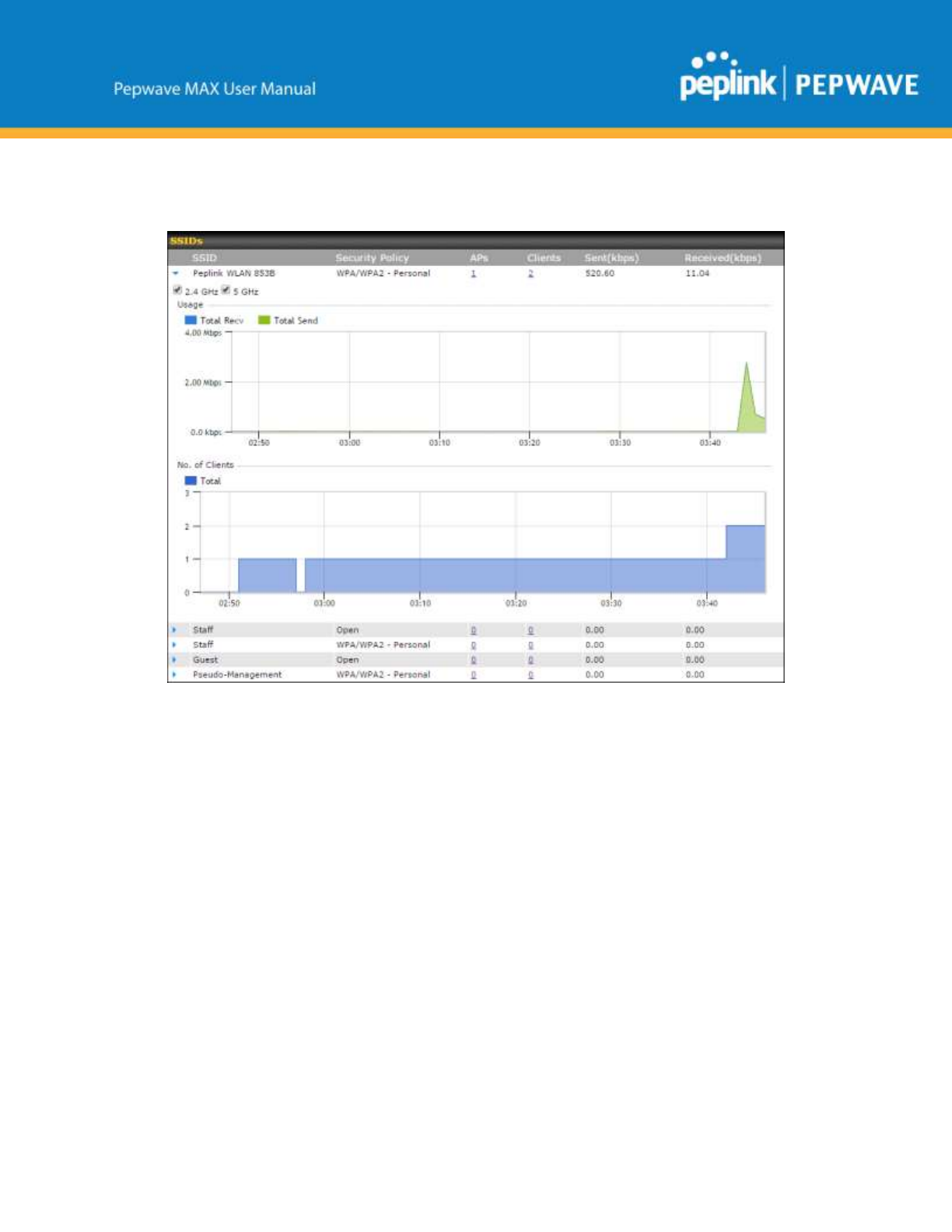

In-depth SSID reports are available under AP > Controller Status > Wireless SSID.
Click the blue arrow on any SSID to obtain more detailed usage information on each SSID.
http://www.peplink.com
159
Copyright @ 2017 Pepwave
23.4 Wireless Client
You can search for specific Wi-Fi users by navigating to AP > Controller Status > Wireless Client.
Here, you will be able to see your network’s heaviest users as well as search for specific users. Click the
icon to bookmark specific users, and click the icon for additional details about each user:
http://www.peplink.com
160
Copyright @ 2017 Pepwave
http://www.peplink.com
161
Copyright @ 2017 Pepwave
23.5 Nearby Device
A listing of near devices can be accessed by navigating to AP > Controller Status > Nearby Device.

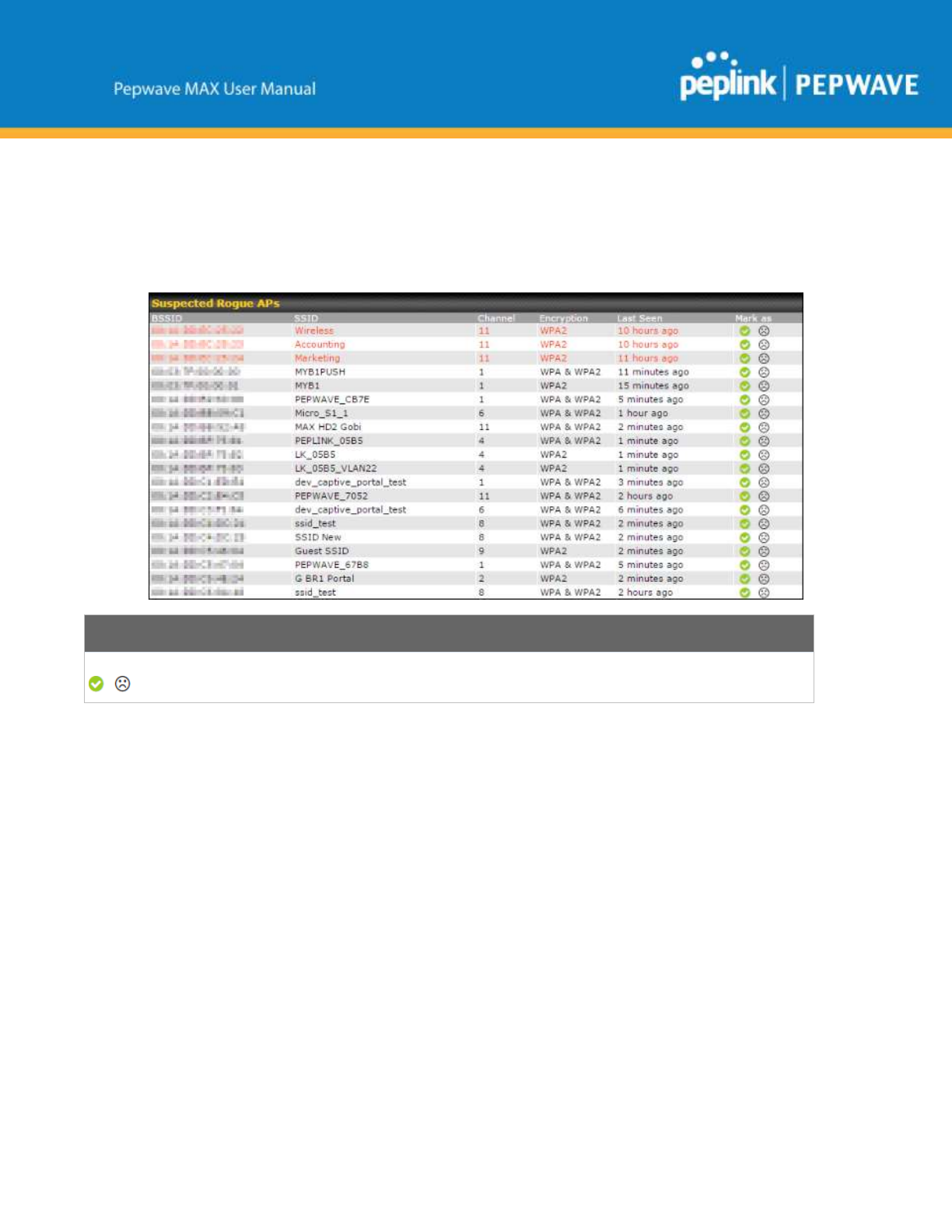

Suspected Rogue Devices
Hovering over the device MAC address will result in a popup with information on how this device was detected. Click the
icons and the device will be moved to the bottom table of identified devices.
http://www.peplink.com
162
Copyright @ 2017 Pepwave
23.6 Event Log
You can access the AP Controller Event log by navigating to AP > Controller Status > Event Log.
Events
This event log displays all activity on your AP network, down to the client level. Use to filter box to search by MAC address,
SSID, AP Serial Number, or AP Profile name. Click View Alerts to see only alerts, and click the More… link for additional
records.
http://www.peplink.com
163
Copyright @ 2017 Pepwave
24 Toolbox
Tools for managing firmware packs can be found at AP>Toolbox.

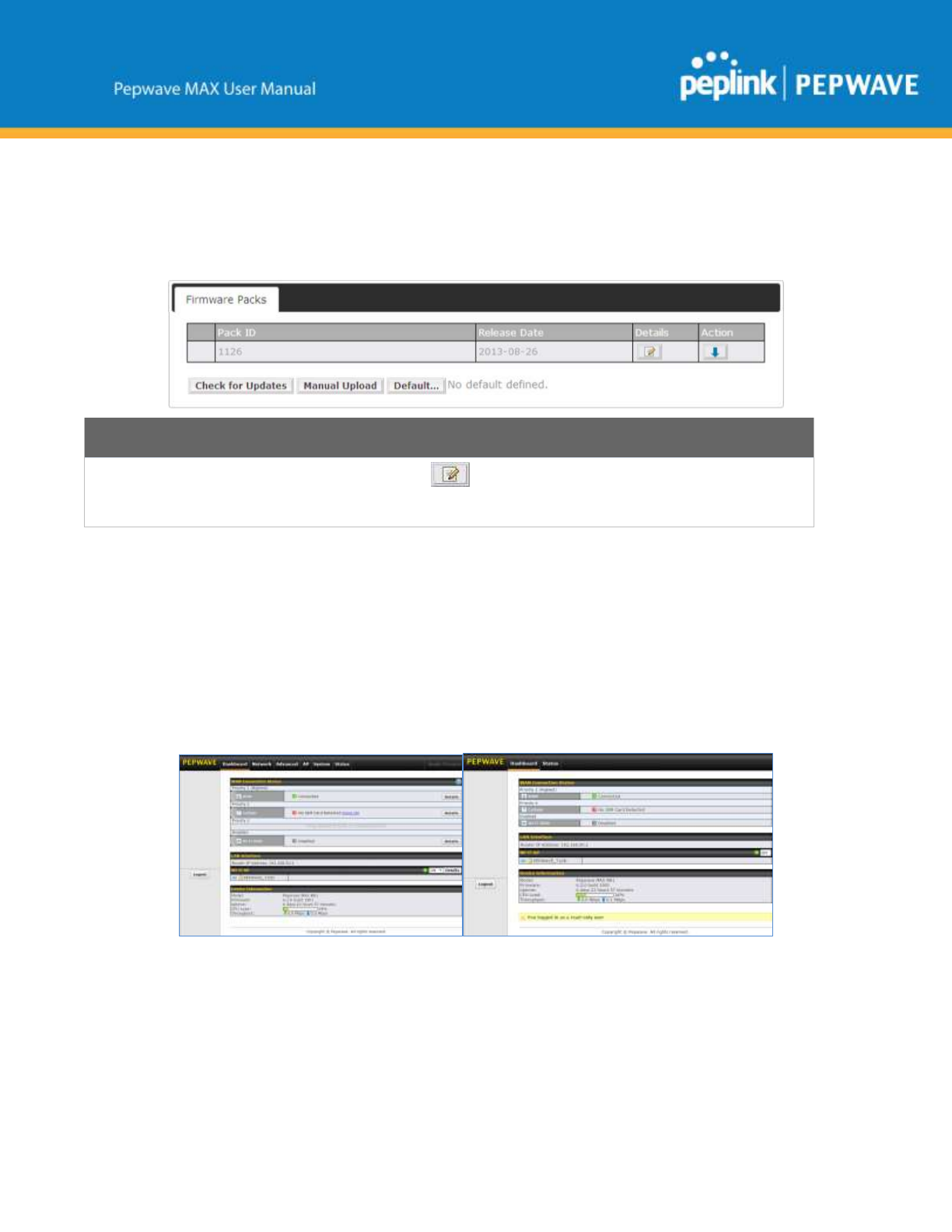

Firmware Packs
Here, you can manage the firmware of your AP. Clicking on will result in information regarding each firmware pack. To
receive new firmware packs, you can click Check for Updates to download new packs, or you can click Manual Upload to
manually upload a firmware pack. Click Default to define which firmware pack is default.
25 System Settings
25.1 Admin Security
There are two types of user accounts available for accessing the web admin: admin and user. They
represent two user levels: the admin level has full administration access, while the user level is read-
only. The user level can access only the device's status information; users cannot make any changes on
the device.
Admin account UI
User account UI
http://www.peplink.com
164
Copyright @ 2017 Pepwave
A web login session will be logged out automatically when it has been idle longer than the Web Session
Timeout. Before the session expires, you may click the Logout button in the web admin to exit the
session.
0 hours 0 minutes signifies an unlimited session time. This setting should be used only in special
situations, as it will lower the system security level if users do not log out before closing the browser.
The default is 4 hours, 0 minutes.
For security reasons, after logging in to the web admin Interface for the first time, it is recommended to
change the administrator password. Configuring the administration interface to be accessible only from
the LAN can further improve system security. Administrative settings configuration is located at
System>Admin Security.
http://www.peplink.com
165
Copyright @ 2017 Pepwave
Admin Settings
Router Name
This field allows you to define a name for this Pepwave router. By default, Router Name is set as
MAX_XXXX, where XXXX refers to the last 4 digits of the unit’s serial number.
Admin User
Name
Admin User Name is set as admin by default, but can be changed, if desired.
Admin Password
This field allows you to specify a new administrator password.
Confirm Admin
Password
This field allows you to verify and confirm the new administrator password.
Read-only User
Name
Read-only User Name is set as user by default, but can be changed, if desired.
User Password
This field allows you to specify a new user password. Once the user password is set, the read-only
user feature will be enabled.
Confirm User
Password
This field allows you to verify and confirm the new user password.
Web Session
Timeout
This field specifies the number of hours and minutes that a web session can remain idle before the
Pepwave router terminates its access to the web admin interface. By default, it is set to 4 hours.
Authentication
by RADIUS
With this box is checked, the web admin will authenticate using an external RADIUS server.
Authenticated users are treated as either "admin" with full read-write permission or “user” with
read-only access. Local admin and user accounts will be disabled. When the device is not able to
communicate with the external RADIUS server, local accounts will be enabled again for
emergency access. Additional authentication options will be available once this box is checked.
Auth Protocol
This specifies the authentication protocol used. Available options are MS-CHAP v2 and PAP.
Auth Server
This specifies the access address and port of the external RADIUS server.
Auth Server
Secret
This field is for entering the secret key for accessing the RADIUS server.
Auth Timeout
This option specifies the time value for authentication timeout.
Accounting
Server
This specifies the access address and port of the external accounting server.
Accounting
Server Secret
This field is for entering the secret key for accessing the accounting server.
Network
This option is for specifying the network connection to be used for authentication. Users can
http://www.peplink.com
166
Copyright @ 2017 Pepwave
Connection
choose from LAN, WAN, and VPN connections.
CLI SSH
The CLI (command line interface) can be accessed via SSH. This field enables CLI support. For
additional information regarding CLI, please refer to Section 21.16.
CLI SSH Port
This field determines the port on which clients can access CLI SSH.
CLI SSH Access
This menu allows you to choose between granting access to LAN and WAN clients, or to LAN
clients only.
Security
This option is for specifying the protocol(s) through which the web admin interface can be
accessed:
● HTTP
● HTTPS
● HTTP/HTTPS
Web Admin Port
This field is for specifying the port number on which the web admin interface can be accessed.
Web Admin
Access
This option is for specifying the network interfaces through which the web admin interface can be
accessed:
● LAN only
● LAN/WAN
If LAN/WAN is chosen, the WAN Connection Access Settings form will be displayed.

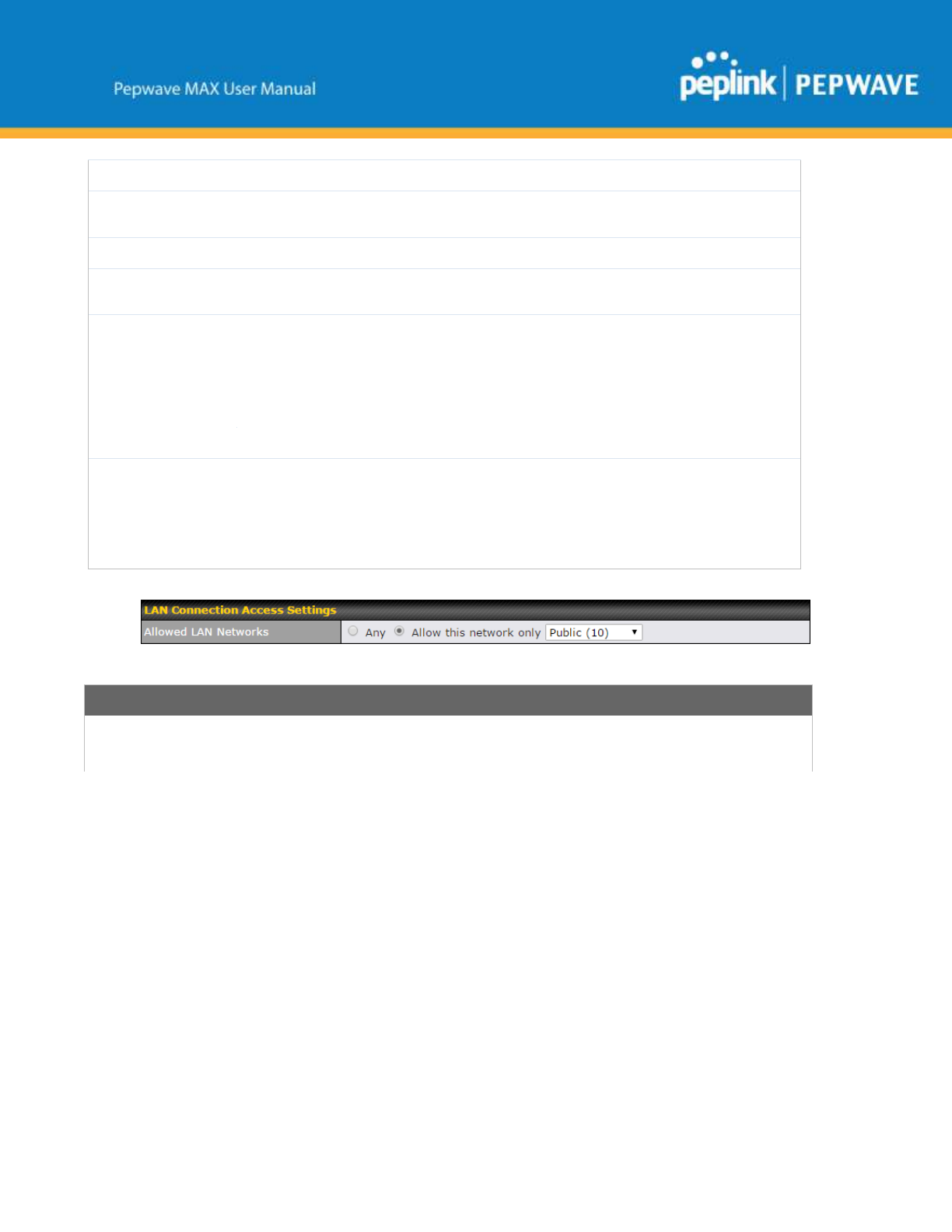

LAN Connection Access Settings
Allowed LAN
Networks
This field allows you to permit only specific networks or VLANs to access the Web UI.
http://www.peplink.com
167
Copyright @ 2017 Pepwave

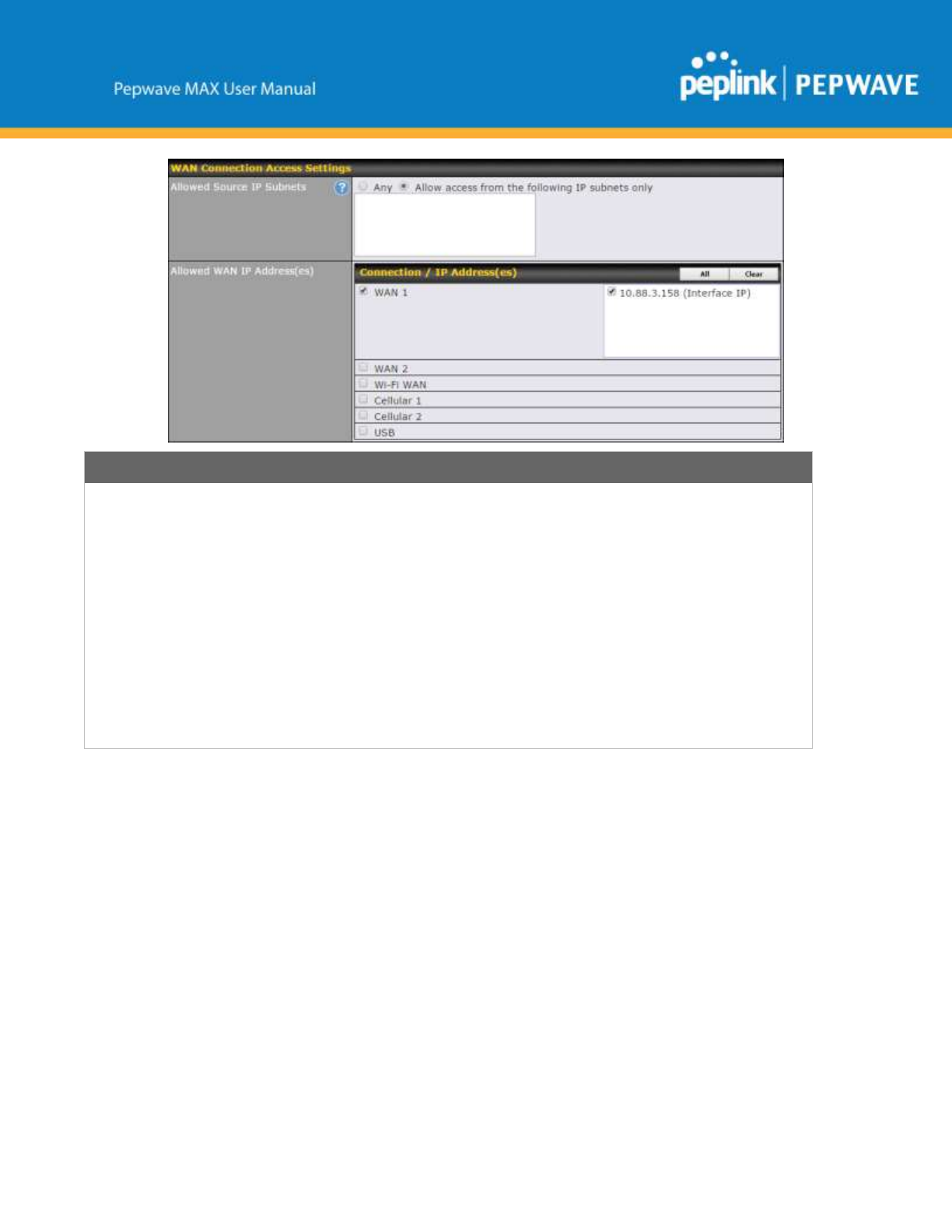

WAN Connection Access Settings
Allowed Source
IP Subnets
This field allows you to restrict web admin access only from defined IP subnets.
● Any - Allow web admin accesses to be from anywhere, without IP address restriction.
● Allow access from the following IP subnets only - Restrict web admin access only from the
defined IP subnets. When this is chosen, a text input area will be displayed beneath:
The allowed IP subnet addresses should be entered into this text area. Each IP subnet must be in
form of w.x.y.z/m, where w.x.y.z is an IP address (e.g., 192.168.0.0), and m is the subnet mask in
CIDR format, which is between 0 and 32 inclusively (For example, 192.168.0.0/24).
To define multiple subnets, separate each IP subnet one in a line. For example:
● 192.168.0.0/24
● 10.8.0.0/16
Allowed WAN
IP Address(es)
This is to choose which WAN IP address(es) the web server should listen on.
http://www.peplink.com
168
Copyright @ 2017 Pepwave
25.2 Firmware
Pepwave router firmware is upgradeable through the web admin interface. Firmware upgrade
functionality is located at System>Firmware.
There are two ways to upgrade the unit. The first method is through an online download. The second
method is to upload a firmware file manually.
To perform an online download, click on the Check for Firmware button. The Pepwave router will
check online for new firmware. If new firmware is available, the Pepwave router will automatically
download the firmware. The rest of the upgrade process will be automatically initiated.
You may also download a firmware image from the Peplink website and update the unit manually. To
update using a firmware image, click Choose File to select the firmware file from the local computer,
and then click Manual Upgrade to send the firmware to the Pepwave router. It will then automatically
initiate the firmware upgrade process.
Please note that all Peplink devices can store two different firmware versions in two different partitions.
A firmware upgrade will always replace the inactive partition. If you want to keep the inactive firmware,
you can simply reboot your device with the inactive firmware and then perform the firmware upgrade.
Important Note
The firmware upgrade process may not necessarily preserve the previous configuration, and the behavior varies on a case-by-
case basis. Consult the release notes for the particular firmware version before installing. Do not disconnect the power during
firmware upgrade process. Do not attempt to upload a non-firmware file or a firmware file that is not supported by Peplink.
Upgrading the Pepwave router with an invalid firmware file will damage the unit and may void the warranty.
Important Note
If the firmware is rolled back from 5.x to 4.x, the configurations will be lost.
http://www.peplink.com
169
Copyright @ 2017 Pepwave
25.3 Time
Time Settings enables the system clock of the Pepwave router to be synchronized with a specified time
server. Time settings are located at System>Time.

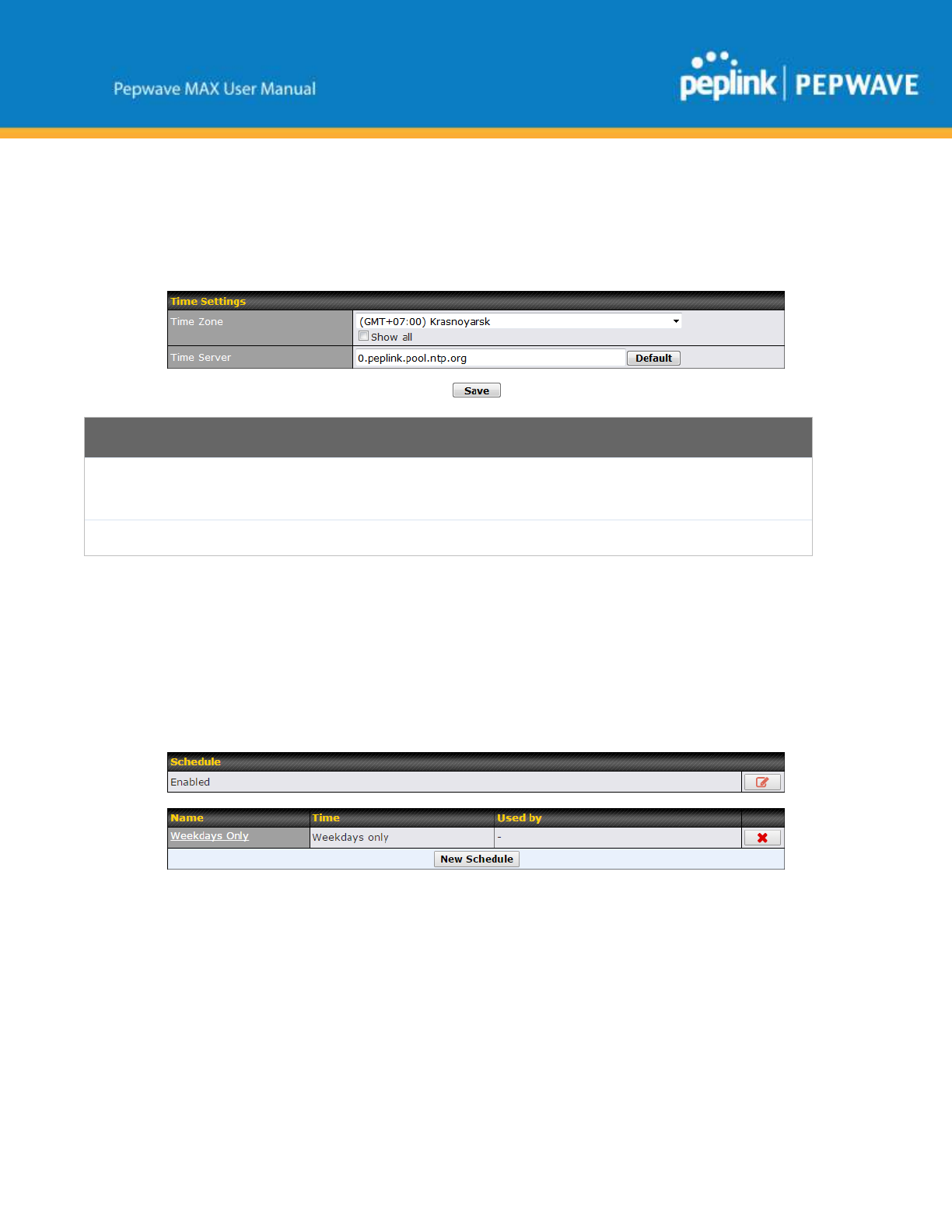

Time Settings
Time Zone
This specifies the time zone (along with the corresponding Daylight Savings Time scheme). The
Time Zone value affects the time stamps in the Pepwave router’s event log and e-mail notifications.
Check Show all to show all time zone options.
Time Server
This setting specifies the NTP network time server to be utilized by the Pepwave router.
25.4 Schedule
Enable and disable different functions (such as WAN connections, outbound policy, and firewalls at
different times, based on a user-scheduled configuration profile. The settings for this are located at
System > Schedule
Enable scheduling, and then click on your schedule name or on the New Schedule button to begin.
http://www.peplink.com
170
Copyright @ 2017 Pepwave

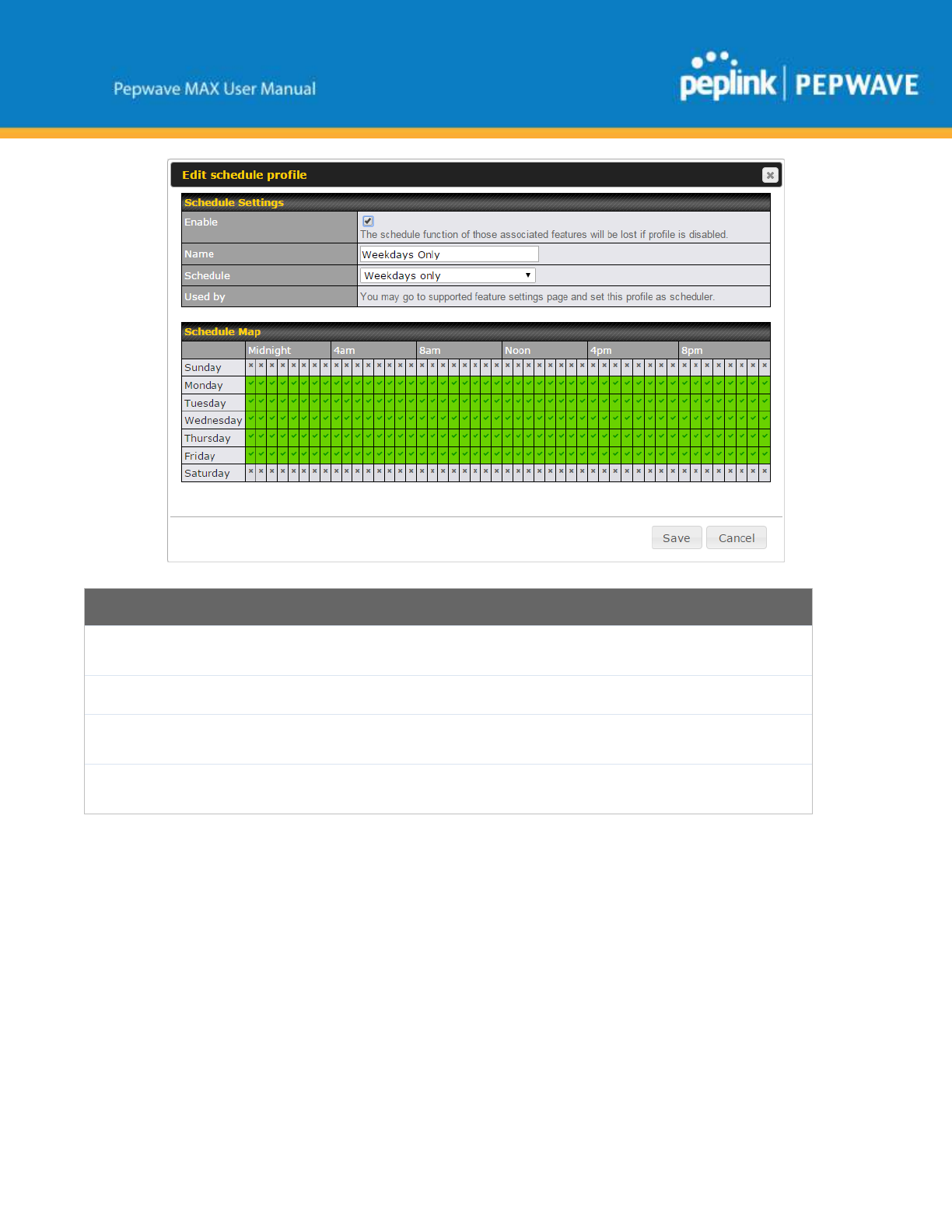

Edit Schedule Profile
Enabling
Click this checkbox to enable this schedule profile. Note that if this is disabled, then any associated
features will also have their scheduling disabled.
Name
Enter your desired name for this particular schedule profile.
Schedule
Click the drop-down menu to choose pre-defined schedules as your starting point. Please note that
upon selection, previous changes on the schedule map will be deleted.
Schedule Map
Click on the desired times to enable features at that time period. You can hold your mouse for faster
entry.
http://www.peplink.com
171
Copyright @ 2017 Pepwave
25.5 Email Notification
Email notification functionality provides a system administrator with up-to-date information on network
status. The settings for configuring email notifications are found at System>Email Notification.

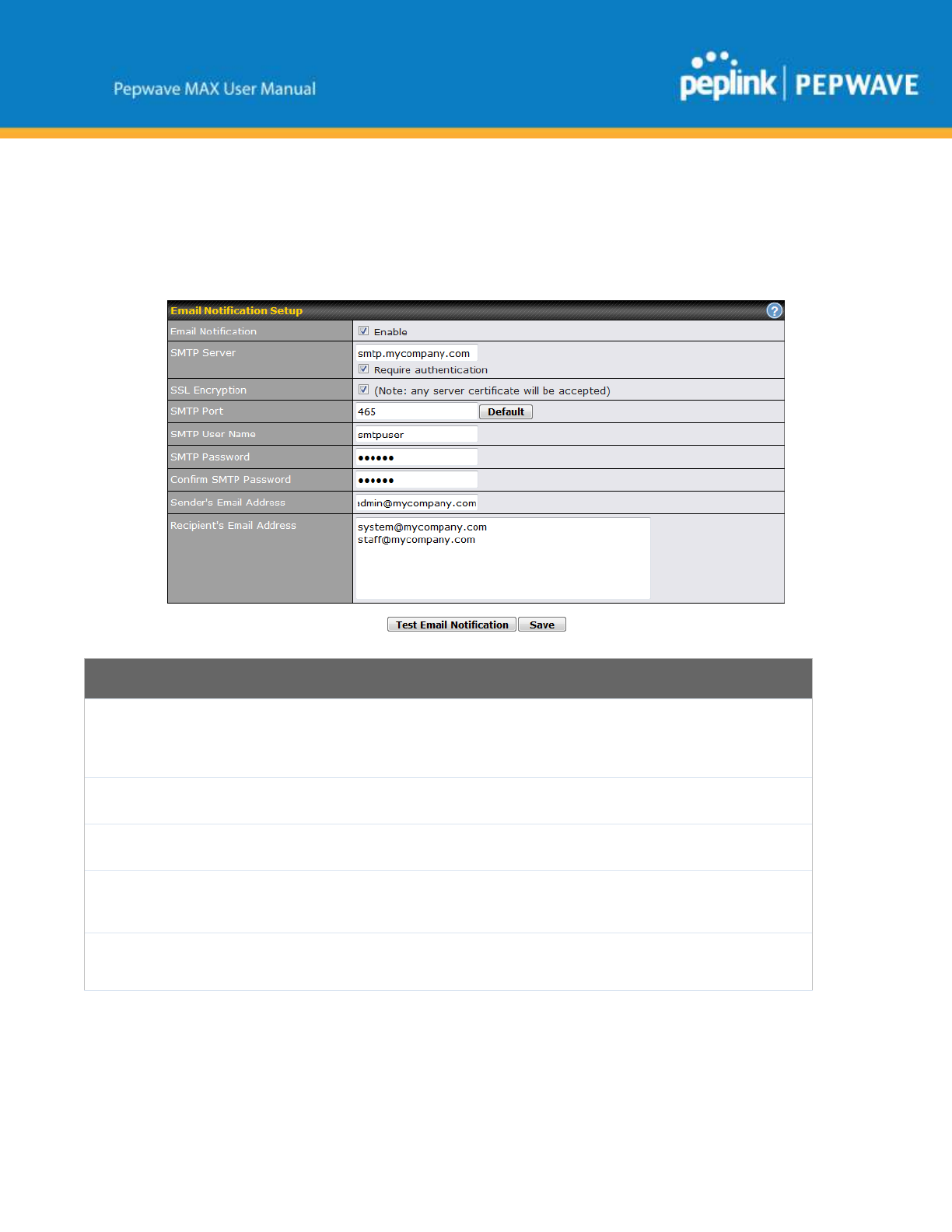

Email Notification Settings
Email
Notification
This setting specifies whether or not to enable email notification. If Enable is checked, the Pepwave
router will send email messages to system administrators when the WAN status changes or when
new firmware is available. If Enable is not checked, email notification is disabled and the Pepwave
router will not send email messages.
SMTP Server
This setting specifies the SMTP server to be used for sending email. If the server requires
authentication, check Require authentication.
SSL Encryption
Check the box to enable SMTPS. When the box is checked, SMTP Port will be changed to 465
automatically.
SMTP Port
This field is for specifying the SMTP port number. By default, this is set to 25; when SSL
Encryption is checked, the default port number will be set to 465. You may customize the port
number by editing this field. Click Default to restore the number to its default setting.
SMTP User
Name / Password
This setting specifies the SMTP username and password while sending email. These options are
shown only if Require authentication is checked in the SMTP Server setting.
http://www.peplink.com
172
Copyright @ 2017 Pepwave
Confirm SMTP
Password
This field allows you to verify and confirm the new administrator password.
Sender’s Email
Address
This setting specifies the email address the Pepwave router will use to send reports.
Recipient’s
Email Address
This setting specifies the email address(es) to which the Pepwave router will send email
notifications. For multiple recipients, separate each email addresses using the enter key.
After you have finished setting up email notifications, you can click the Test Email Notification button
to test the settings before saving. After Test Email Notification is clicked, you will see this screen to
confirm the settings:
Click Send Test Notification to confirm. In a few seconds, you will see a message with detailed test
results.
http://www.peplink.com
173
Copyright @ 2017 Pepwave
25.6 Event Log
Event log functionality enables event logging at a specified remote syslog server. The settings for
configuring the remote system log can be found at System>Event Log.

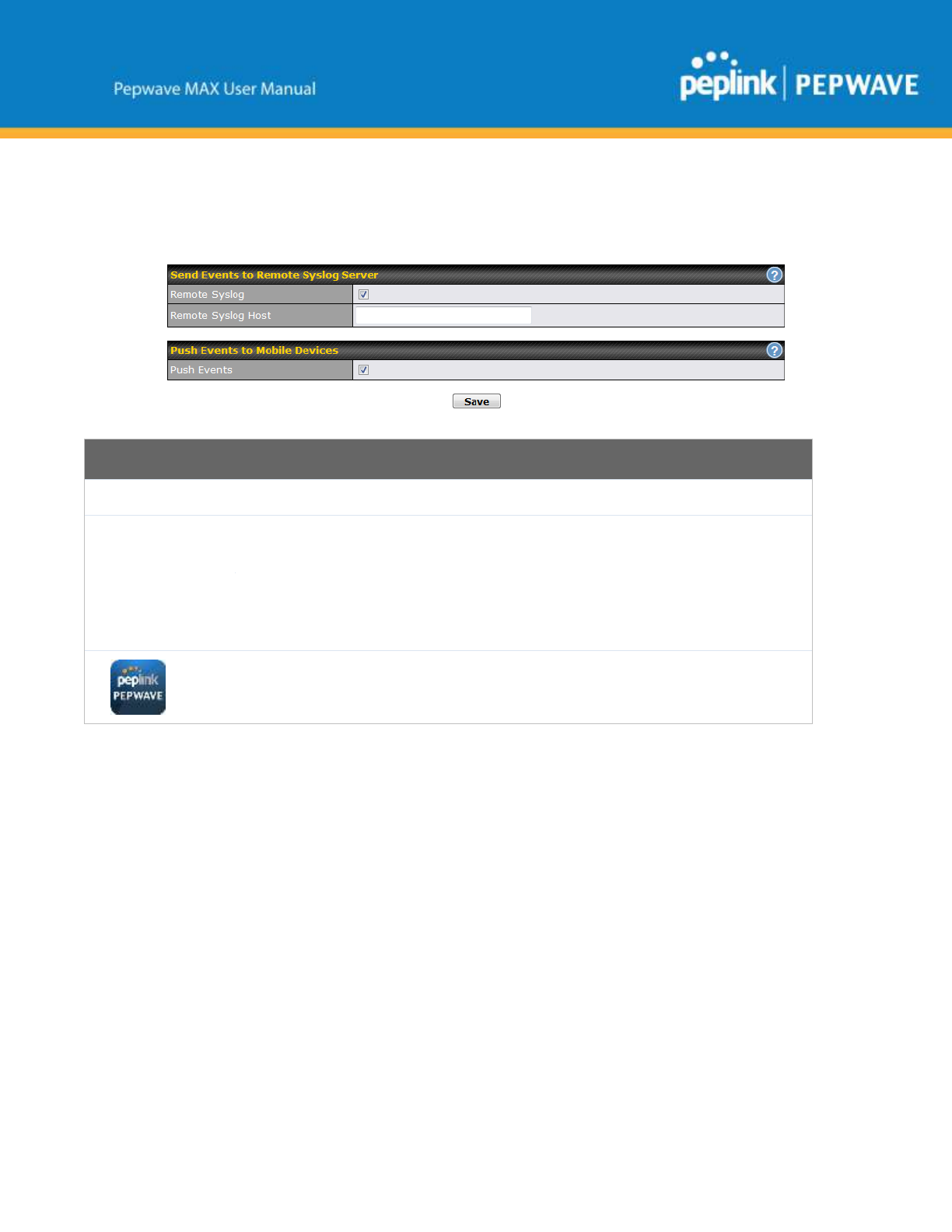

Event Log Settings
Remote Syslog
This setting specifies whether or not to log events at the specified remote syslog server.
Remote Syslog
Host
This setting specifies the IP address or hostname of the remote syslog server.
Push Events
The Pepwave router can also send push notifications to mobile devices that have our Mobile Router
Utility installed. Check the box to activate this feature.
For more information on the Router Utility, go to: HYPERLINK
"http://www.peplink.com/products/router-utility"
www.peplink.com/products/router-utility
25.7 SNMP
SNMP or simple network management protocol is an open standard that can be used to collect
information about the Pepwave router. SNMP configuration is located at System>SNMP.
http://www.peplink.com
174
Copyright @ 2017 Pepwave

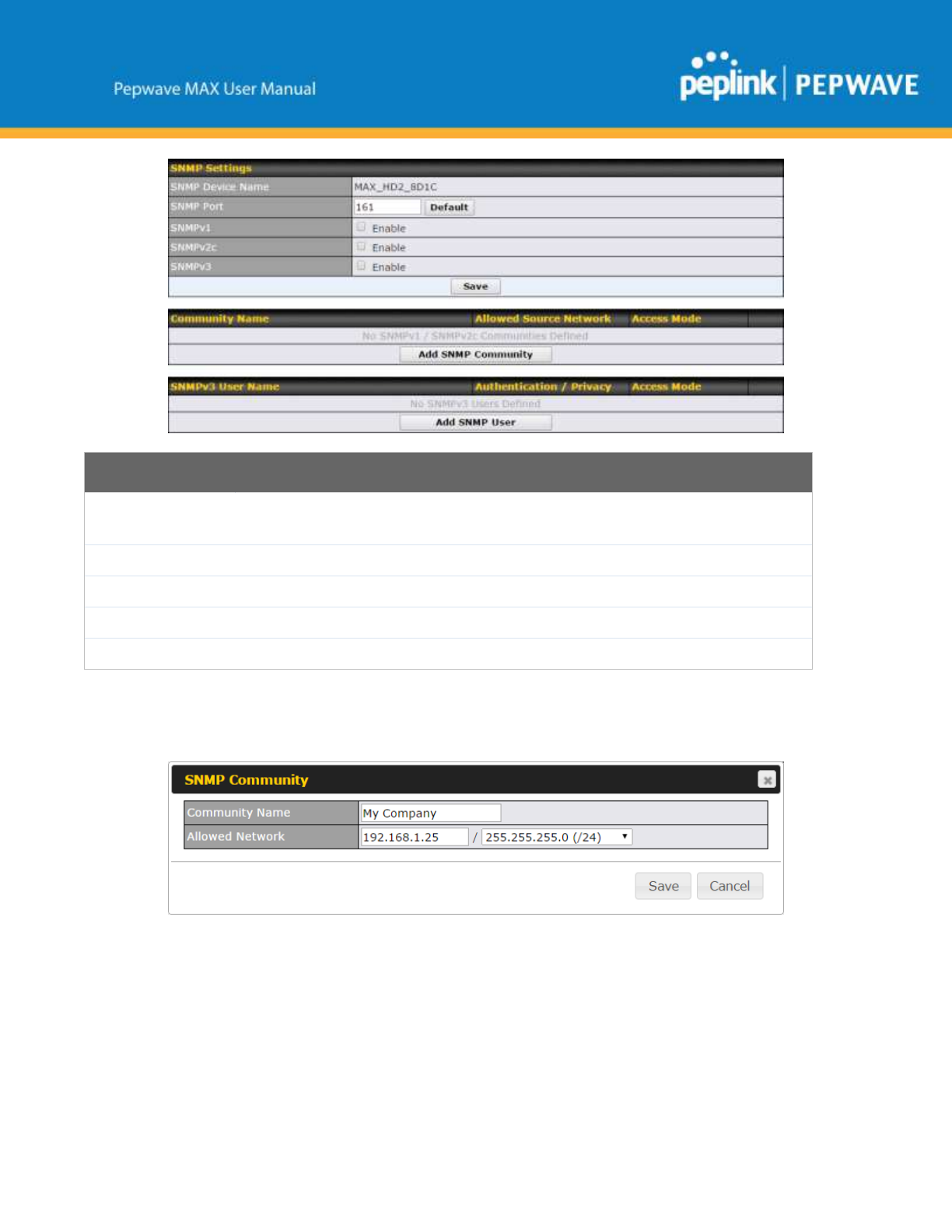

SNMP Settings
SNMP Device
Name
This field shows the router name defined at System>Admin Security.
SNMP Port
This option specifies the port which SNMP will use. The default port is 161.
SNMPv1
This option allows you to enable SNMP version 1.
SNMPv2
This option allows you to enable SNMP version 2.
SNMPv3
This option allows you to enable SNMP version 3.
To add a community for either SNMPv1 or SNMPv2, click the Add SNMP Community button in the
Community Name table, upon which the following screen is displayed:
http://www.peplink.com
175
Copyright @ 2017 Pepwave
SNMP Community Settings
Community
Name
This setting specifies the SNMP community name.
Allowed Source
Subnet Address
This setting specifies a subnet from which access to the SNMP server is allowed. Enter subnet address
here (e.g., 192.168.1.0) and select the appropriate subnet mask.
To define a user name for SNMPv3, click Add SNMP User in the SNMPv3 User Name table, upon
which the following screen is displayed:

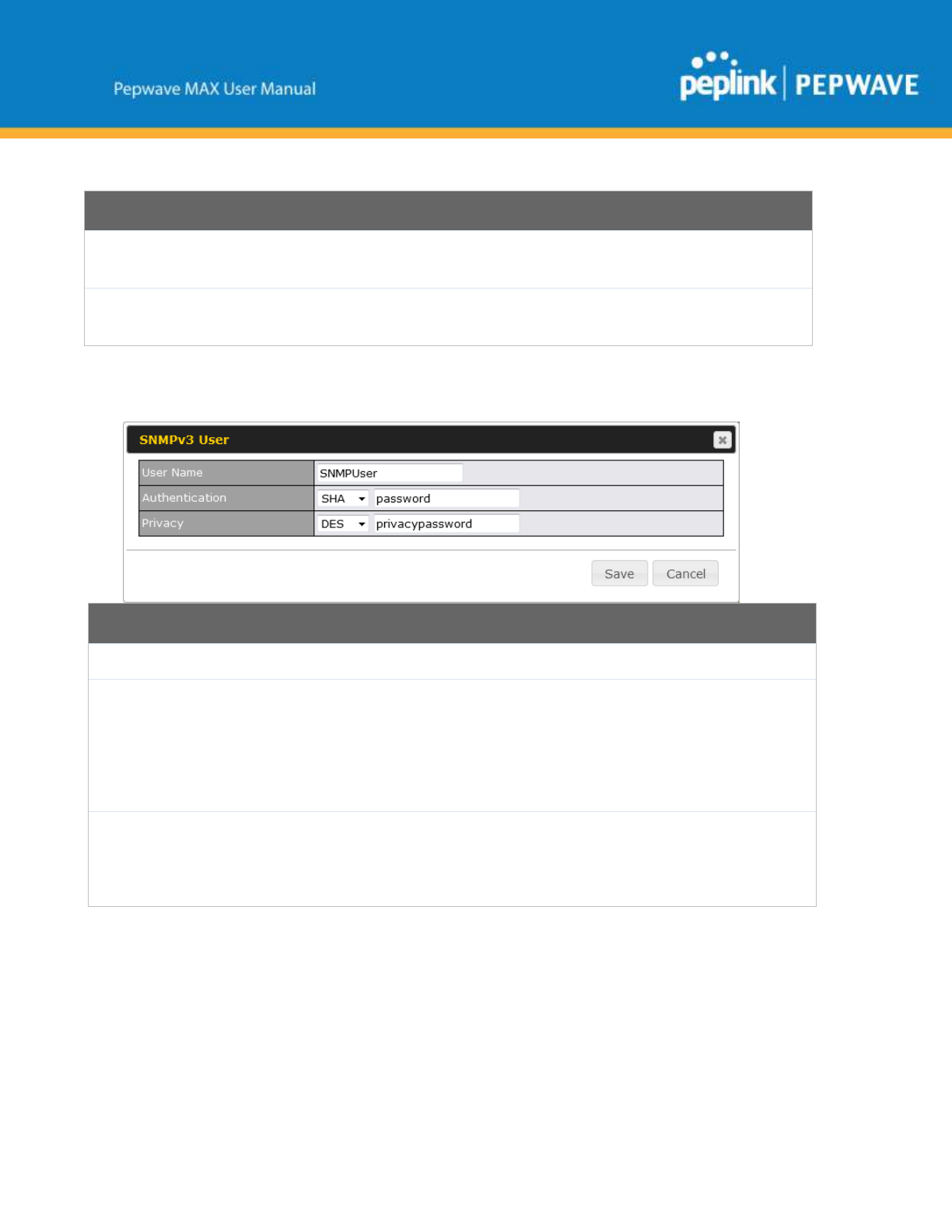

SNMPv3 User Settings
User Name
This setting specifies a user name to be used in SNMPv3.
Authentication
Protocol
This setting specifies via a drop-down menu one of the following valid authentication
protocols:
● NONE
● MD5
● SHA
When MD5 or SHA is selected, an entry field will appear for the password.
Privacy Protocol
This setting specifies via a drop-down menu one of the following valid privacy protocols:
● NONE
● DES
When DES is selected, an entry field will appear for the password.
http://www.peplink.com
176
Copyright @ 2017 Pepwave

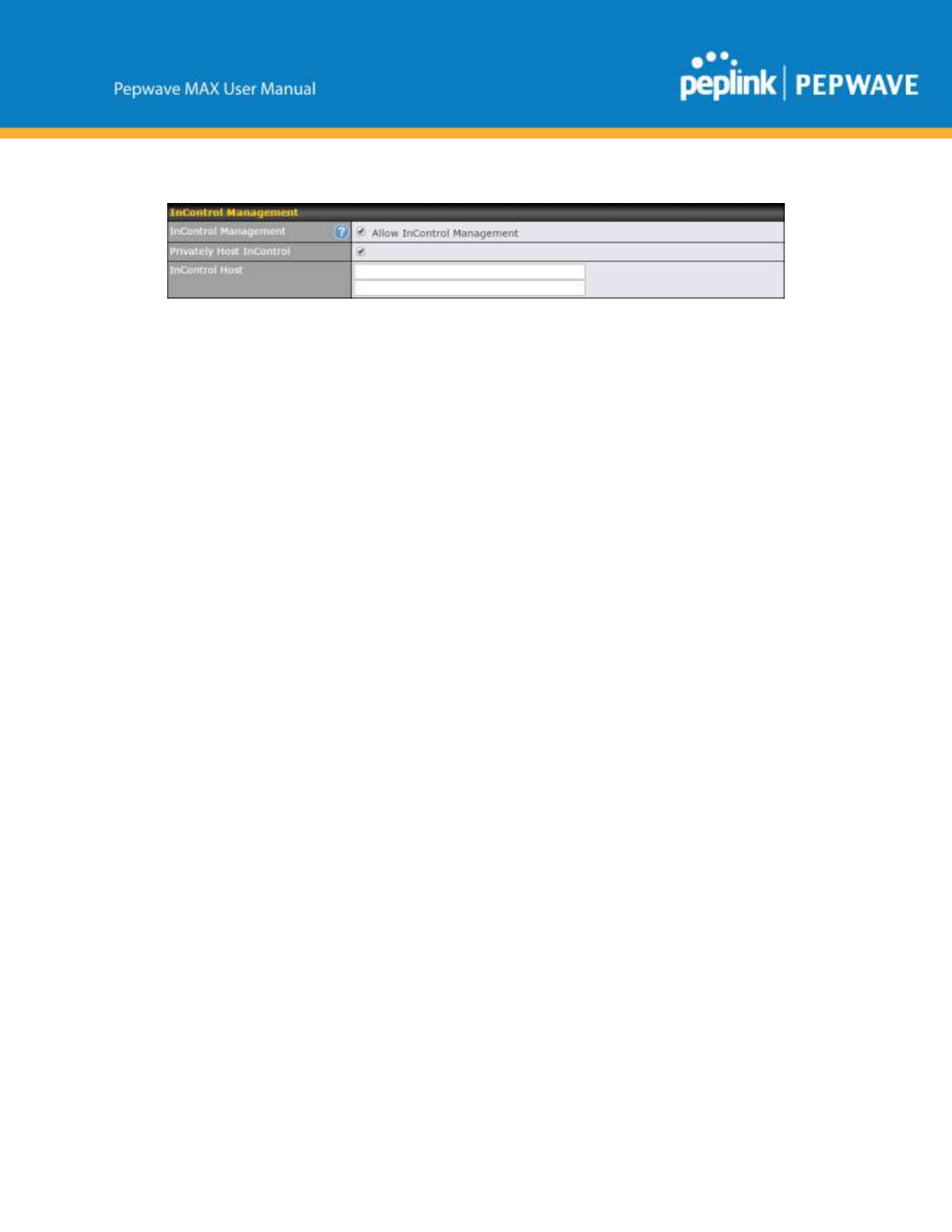

25.8 InControl
InControl is a cloud-based service which allows you to manage all of your Peplink and Pepwave devices
with one unified system. With it, you can generate reports, gather statistics, and configure your devices
automatically. All of this is now possible with InControl.
When this check box is checked, the device's status information will be sent to the Peplink InControl
system. This device's usage data and configuration will be sent to the system if you enable the features in
the system.
Alternately, you could also privately host InControl. Simply check the box beside the “Privately Host
InControl” open, and enter the IP Address of your InControl Host.
You can sign up for an InControl account at https://incontrol2.peplink.com/. You can register your
devices under the account, monitor their status, see their usage reports, and receive offline notifications.
25.9 Configuration
Backing up Pepwave router settings immediately after successful completion of initial setup is strongly
recommended. The functionality to download and upload Pepwave router settings is found at
System>Configuration. Note that available options vary by model.
http://www.peplink.com
177
Copyright @ 2017 Pepwave

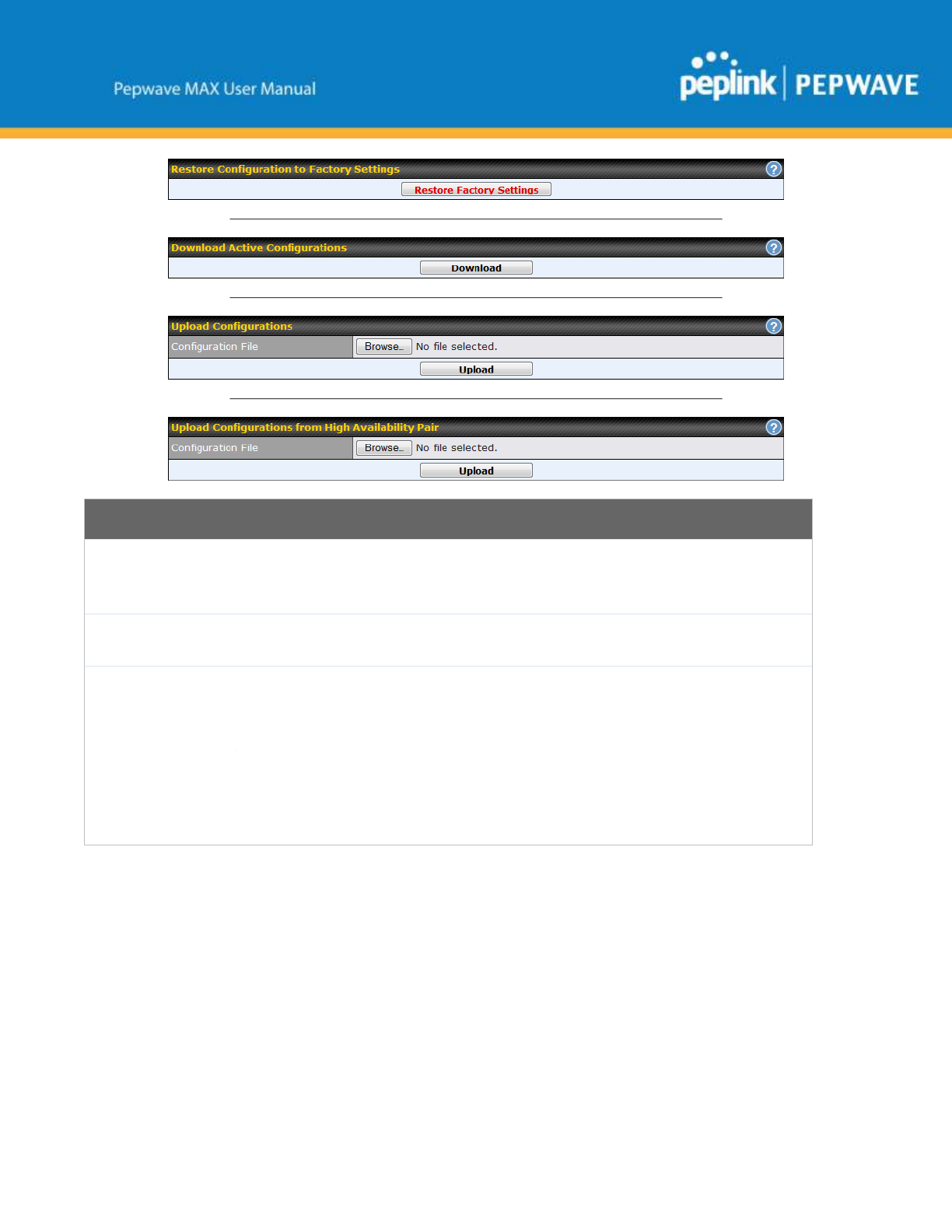

Configuration
Restore
Configuration to
Factory Settings
The Restore Factory Settings button is to reset the configuration to factory default settings. After
clicking the button, you will need to click the Apply Changes button on the top right corner to make
the settings effective.
Download Active
Configurations
Click Download to backup the current active settings.
Upload
Configurations
To restore or change settings based on a configuration file, click Choose File to locate the
configuration file on the local computer, and then click Upload. The new settings can then be
applied by clicking the Apply Changes button on the page header, or you can cancel the procedure
by pressing discard on the main page of the web admin interface.
Upload
Configurations
from High
Availability Pair
In a high availability (HA) configuration, a Pepwave router can quickly load the configuration of its
HA counterpart. To do so, click the Upload button. After loading the settings, configure the LAN IP
address of the Pepwve router so that it is different from the HA counterpart.
http://www.peplink.com
178
Copyright @ 2017 Pepwave
25.10 Feature Add-ons
Some Pepwave routers have features that can be activated upon purchase. Once the purchase is
complete, you will receive an activation key. Enter the key in the Activation Key field, click Activate,
and then click Apply Changes.
25.11 Reboot
This page provides a reboot button for restarting the system. For maximum reliability, the Pepwave
router can equip with two copies of firmware. Each copy can be a different version. You can select the
firmware version you would like to reboot the device with. The firmware marked with (Running) is the
current system boot up firmware.
Please note that a firmware upgrade will always replace the inactive firmware partition.
26 Tools
26.1 Ping
The ping test tool sends pings through a specified Ethernet interface or a SpeedFusionTM VPN
connection. You can specify the number of pings in the field Number of times, to a maximum number
of 10 times. Packet Size can be set to a maximum of 1472 bytes. The ping utility is located at
System>Tools>Ping, illustrated below:
http://www.peplink.com
179
Copyright @ 2017 Pepwave
Tip
A system administrator can use the ping utility to manually check the connectivity of a particular LAN/WAN connection.
26.2 Traceroute Test
The traceroute test tool traces the routing path to the destination through a particular Ethernet interface
or a SpeedFusionTM connection. The traceroute test utility is located at System>Tools>Traceroute.
http://www.peplink.com
180
Copyright @ 2017 Pepwave
Tip
A system administrator can use the traceroute utility to analyze the connection path of a LAN/WAN connection.

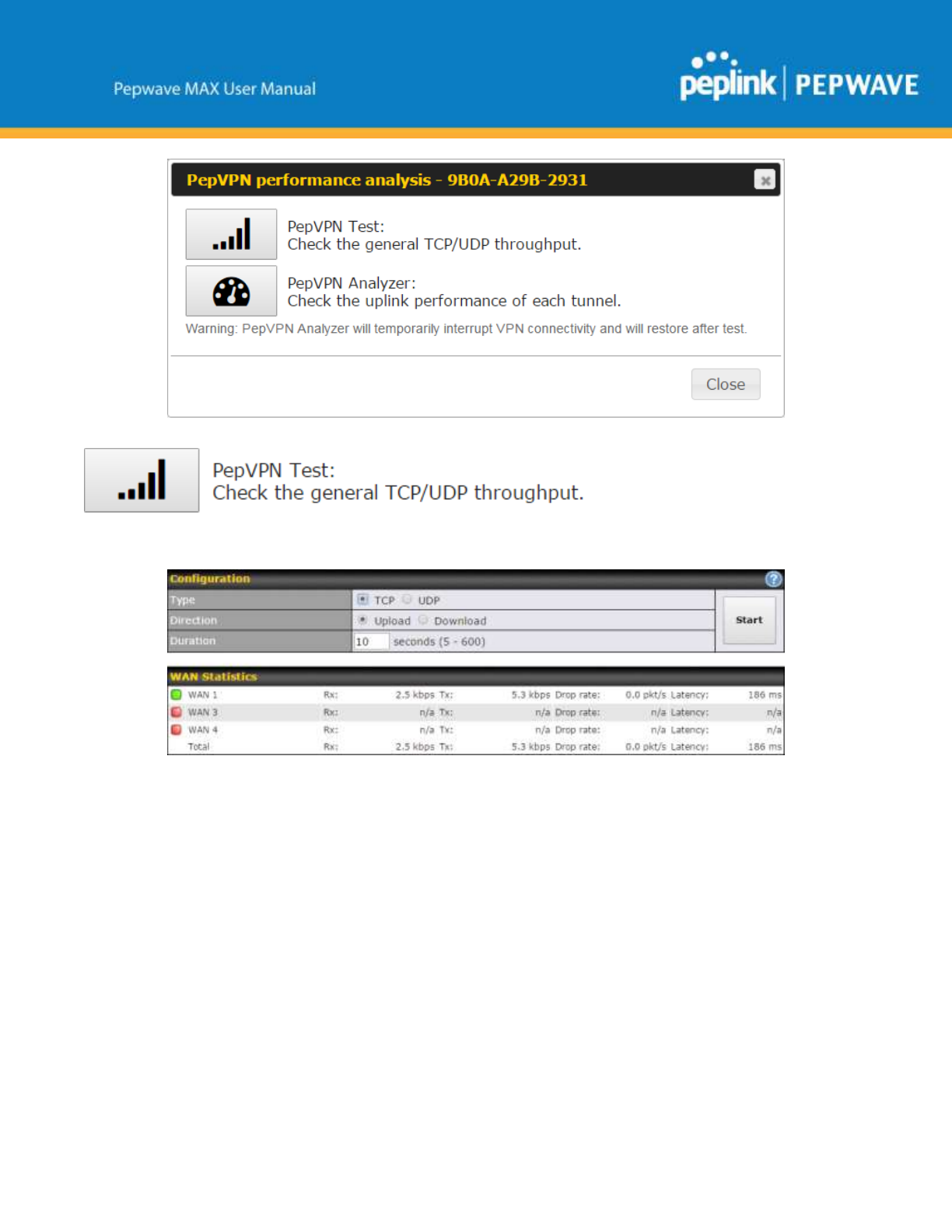

26.3 PepVPN Test

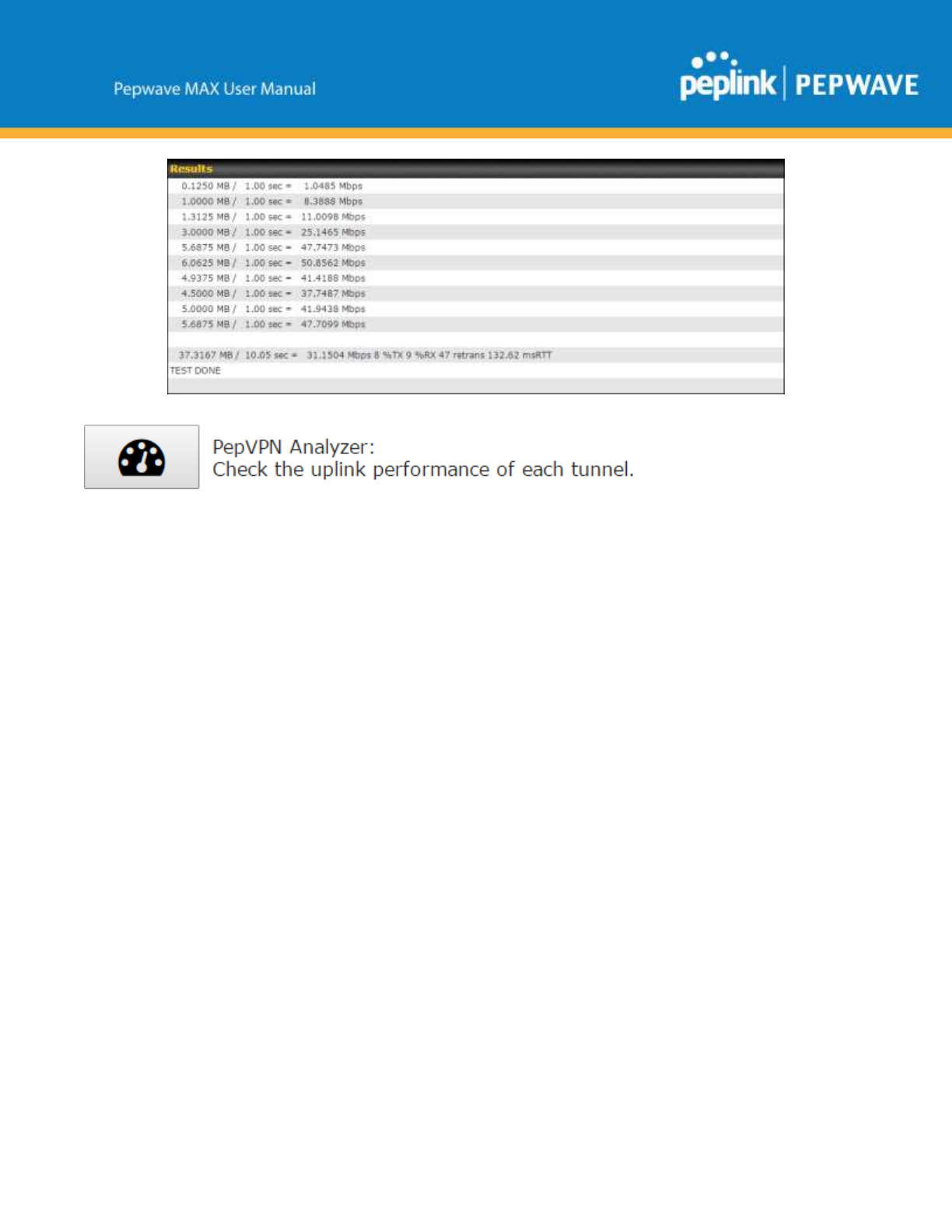

The PepVPN Test tool can help to test the throughput between different VPN peers.
You can define the Test Type, Direction, and Duration of the test, and press Go! to perform the
throughput test. The VPN test utility is located at System>Tools>PepVPN Test, illustrated as follows:
http://www.peplink.com
181
Copyright @ 2017 Pepwave

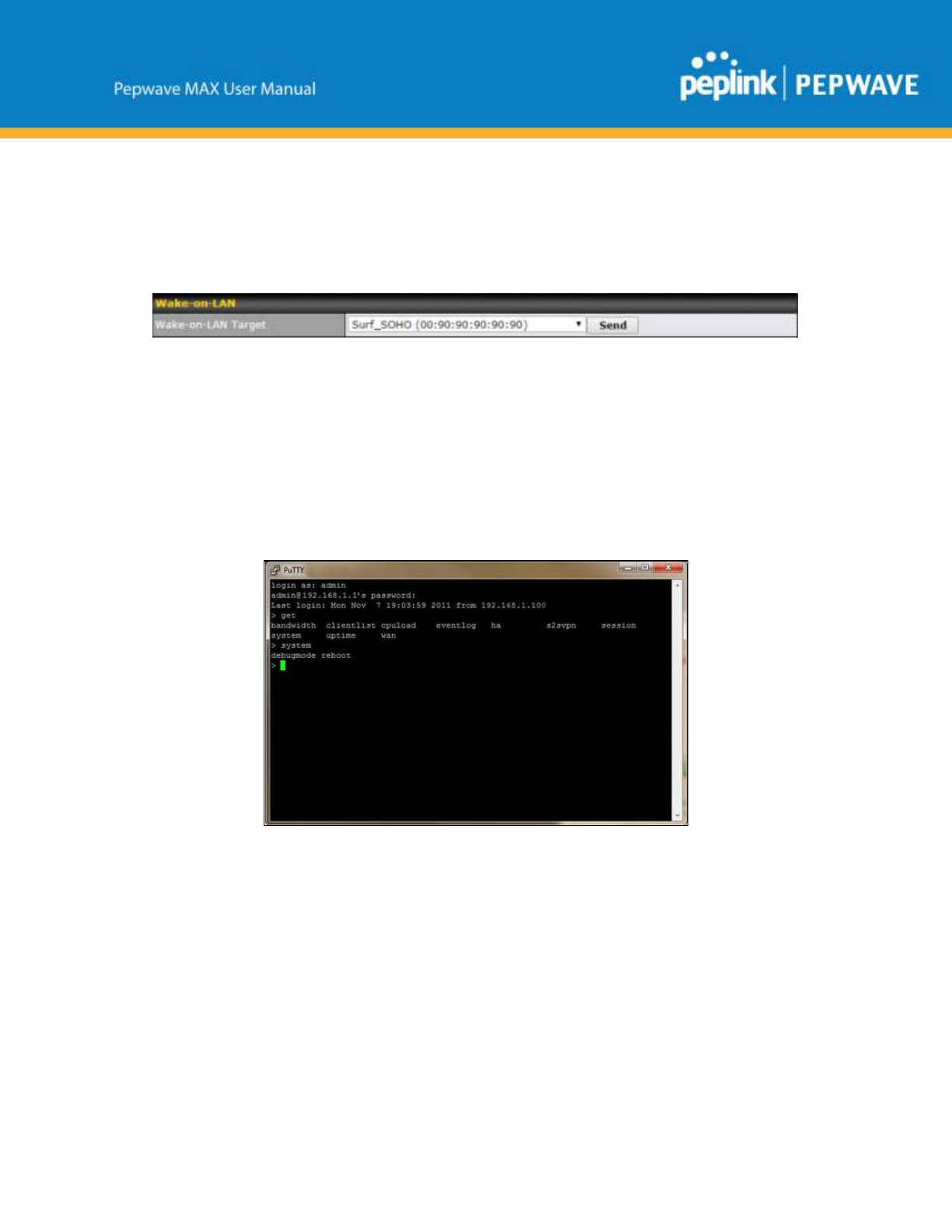

26.4 Wake-on-LAN
Peplink routers can send special “magic packets” to any client specified from the Web UI. To access this
feature, navigate to System > Tools > Wake-on-LAN
Select a client from the drop-down list and click Send to send a “magic packet”
26.5 CLI (Command Line Interface Support)
The CLI (command line interface) can be accessed via SSH. This field enables CLI support. The below
settings specify which TCP port and which interface(s) should accept remote SSH CLI access. The user
name and password used for remote SSH CLI access are the same as those used for web admin access.
http://www.peplink.com
182
Copyright @ 2017 Pepwave
27 Status
27.1 Device
System information is located at Status>Device.
System Information
Router Name
This is the name specified in the Router Name field located at System>Admin Security.
Model
This shows the model name and number of this device.
Product Code
If your model uses a product code, it will appear here.
Hardware
Revision
This shows the hardware version of this device.
Serial Number
This shows the serial number of this device.
Firmware
This shows the firmware version this device is currently running.
PepVPN Version
This shows the current PepVPN version.
Modem Support
Version
This shows the modem support version. For a list of supported modems, click Modem Support List.
Host Name
The host name assigned to the Pepwave router appears here.
http://www.peplink.com
183
Copyright @ 2017 Pepwave
Uptime
This shows the length of time since the device has been rebooted.
System Time
This shows the current system time.
Diagnostic
Report
The Download link is for exporting a diagnostic report file required for system investigation.
Remote
Assistance
Click Turn on to enable remote assistance.
The second table shows the MAC address of each LAN/WAN interface connected. To view your
device’s End User License Agreement (EULA), click .
Important Note
If you encounter issues and would like to contact the Pepwave Support Team (http://www.pepwave.com/contact/), please
download the diagnostic report file and attach it along with a description of your issue.
In Firmware 5.1 or before, the diagnostic report file can be obtained at System>Reboot.
27.2 GPS Data
The MAX HD2 and HD2 IP67 automatically store up to seven days of GPS location data in GPS
eXchange format (GPX). To review this data using third-party applications, click Status>Device and
then download your GPX file.
The Pepwave MAX BR1, HD2, and HD2 IP67 export real-time location data in NMEA format through
the LAN IP address at TCP port 60660. It is accessible from the LAN or over a SpeedFusion connection.
To access the data via a virtual serial port, install a virtual serial port driver. Visit
http://www.peplink.com/index.php?view=faq&id=294 to download the driver.
27.3 Active Sessions
Information on active sessions can be found at Status>Active Sessions>Overview.
http://www.peplink.com
184
Copyright @ 2017 Pepwave
This screen displays the number of sessions initiated by each application. Click on each service listing
for additional information. This screen also indicates the number of sessions initiated by each WAN
port. In addition, you can see which clients are initiating the most sessions.
You can also perform a filtered search for specific sessions. You can filter by subnet, port, protocol, and
interface. To perform a search, navigate to Status>Active Sessions>Search.
http://www.peplink.com
185
Copyright @ 2017 Pepwave
This Active Sessions section displays the active inbound/outbound sessions of each WAN connection
on the Pepwave router. A filter is available to sort active session information. Enter a keyword in the
field or check one of the WAN connection boxes for filtering.
27.4 Client List
The client list table is located at Status>Client List. It lists DHCP and online client IP addresses, names
(retrieved from the DHCP reservation table or defined by users), current download and upload rate, and
MAC address.
Clients can be imported into the DHCP reservation table by clicking the button on the right. You
can update the record after import by going to Network>LAN.
http://www.peplink.com
186
Copyright @ 2017 Pepwave
If the PPTP server (see Section 19.2), SpeedFusionTM (see Section 12.1), or AP controller (see Section
20) is enabled, you may see the corresponding connection name listed in the Name field.
27.5 WINS Client
The WINS client list table is located at Status>WINS Client.
The WINS client table lists the IP addresses and names of WINS clients. This option will only be
available when you have enabled the WINS server (navigation: Network>Interfaces>LAN). The
names of clients retrieved will be automatically matched into the Client List (see previous section).
Click Flush All to flush all WINS client records.
27.6 UPnP / NAT-PMP
The table that shows the forwarded ports under UPnP and NAT-PMP protocols is located at
Status>UPnP/NAT-PMP. This section appears only if you have enabled UPnP / NAT-PMP as
mentioned in Section 16.1.1.
http://www.peplink.com
187
Copyright @ 2017 Pepwave
Click to delete a single UPnP / NAT-PMP record in its corresponding row. To delete all records,
click Delete All on the right-hand side below the table.
Important Note
UPnP / NAT-PMP records will be deleted immediately after clicking the button or Delete All, without the need to
click Save or Confirm.
27.7 SpeedFusion Status
Current SpeedFusionTM status information is located at Status>SpeedFusionTM.
Details about SpeedFusionTM connection peers appears as below:
Click on the corresponding peer name to explore the WAN connection(s) status and subnet information
of each VPN peer.
http://www.peplink.com
188
Copyright @ 2017 Pepwave
Click the button for a chart displaying real-time throughput, latency, and drop-rate information
for each WAN connection.
When pressing the button, the following menu will appear:
http://www.peplink.com
189
Copyright @ 2017 Pepwave
After clicking the icon, the following menu appears:
Select the L2 protocol (TCP/UDP), direction, and duration and click the Start button to begin the
general throughput test.
http://www.peplink.com
190
Copyright @ 2017 Pepwave
The bandwidth bonding feature of PepVPN occurs when multiple WAN lines from one end merge with
multiple WAN lines from the other end. For this to happen, each WAN line needs to form a connection
with all the WAN lines on the opposite end. The function of the PepVPN analyzer is to report the
throughput, packet loss, and latency of all possible combinations of connections. Please note that the
PepVPN Analyzer will temporarily interrupt VPN connectivity and will restore after test.
After clicking the icon, the analyzer will require several minutes to perform its analysis depending the
number of WAN links in the SpeedFusionTM Tunnel. Once the test the complete, the report will appear:
http://www.peplink.com
191
Copyright @ 2017 Pepwave
"O" indicates that specific WAN / Tunnel is active for that particular test.
"Tx Avg." is the averaged throughput across the full 10 seconds time, while "Tx Max." is the averaged
throughput of the fastest 30% of time.
27.8 Event Log
Event log information is located at Status>Event Log.
The log section displays a list of events that has taken place on the Pepwave router. Check Auto Refresh to refresh log
entries automatically. Click the Clear Log button to clear the log.
http://www.peplink.com
192
Copyright @ 2017 Pepwave
28 Bandwidth Status
This section shows bandwidth usage statistics and is located at Status>Bandwidth. Bandwidth usage at the LAN while the
device is switched off (e.g., LAN bypass) is neither recorded nor shown.
28.1 Real-Time
The Data transferred since installation table indicates how much network traffic has been processed
by the device since the first bootup. The Data transferred since last reboot table indicates how much
network traffic has been processed by the device since the last bootup.
http://www.peplink.com
193
Copyright @ 2017 Pepwave
28.2 Hourly
This page shows the hourly bandwidth usage for all WAN connections, with the option of viewing each
individual connection. Select the desired connection to check from the drop-down menu.
http://www.peplink.com
194
Copyright @ 2017 Pepwave

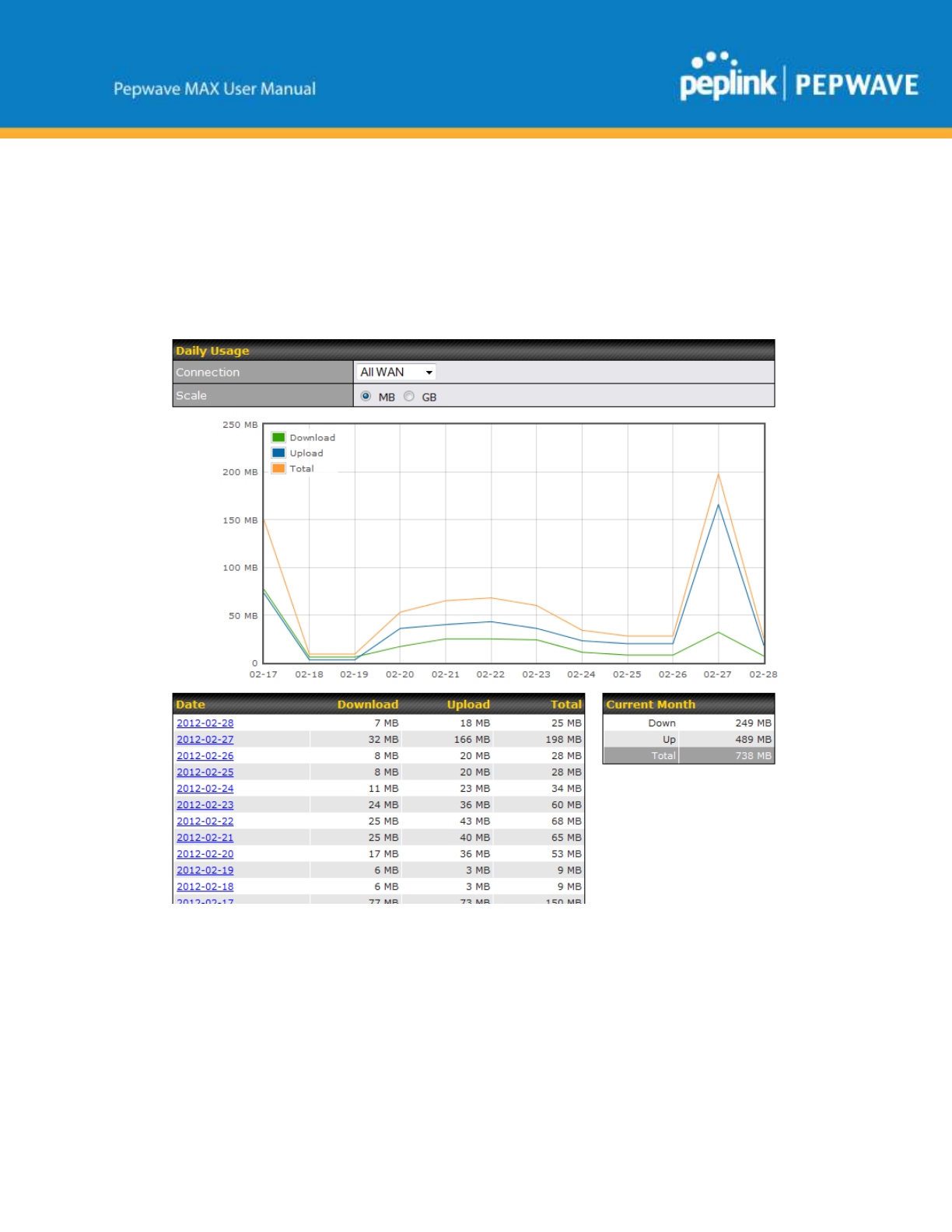

28.3 Daily
This page shows the daily bandwidth usage for all WAN connections, with the option of viewing each individual connection.
Select the connection to check from the drop-down menu. If you have enabled the Bandwidth Monitoring feature, the
Current Billing Cycle table for that WAN connection will be displayed.
Click on a date to view the client bandwidth usage of that specific date. This feature is not available if you have selected to
view the bandwidth usage of only a particular WAN connection. The scale of the graph can be set to display megabytes (MB)
or gigabytes (GB).
All WAN Daily Bandwidth Usage
http://www.peplink.com
195
Copyright @ 2017 Pepwave
28.4 Monthly
This page shows the monthly bandwidth usage for each WAN connection. If you have enabled the Bandwidth Monitoring
feature, you can check the usage of each particular connection and view the information by Billing Cycle or by Calendar
Month.
Click the first two rows to view the client bandwidth usage in the last two months. This feature is not available if you have
chosen to view the bandwidth of an individual WAN connection. The scale of the graph can be set to display megabytes
(MB) or gigabytes (GB).
All WAN Monthly Bandwidth Usage
http://www.peplink.com
196
Copyright @ 2017 Pepwave
Ethernet WAN Monthly Bandwidth Usage
Tip
By default, the scale of data size is in MB. 1GB equals 1024MB.
http://www.peplink.com
197
Copyright @ 2017 Pepwave
Appendix A. Restoration of Factory Defaults
To restore the factory default settings on a Pepwave router, follow the steps below:
1. Locate the reset button on the front or back panel of the Pepwave router.
2. With a paper clip, press the reset button and hold it for at least 10 seconds, until the unit reboots
itself.
After the Pepwave router finishes rebooting, the factory default settings will be restored.
Important Note
All previous configurations and bandwidth usage data will be lost after restoring factory default settings. Regular backup of
configuration settings is strongly recommended.
http://www.peplink.com
198
Copyright @ 2017 Pepwave
Appendix B: Declaration
1. The device supports time division technology
2. Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications
not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
http://www.peplink.com
199
Copyright @ 2017 Pepwave
IMPORTANT NOTE
FCC Radiation Exposure Statement (for MAX BR1 MK2)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 24cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the
factory to match the intended destination.
FCC Radiation Exposure Statement (for MAX BR1 Mini)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 25cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the
factory to match the intended destination.
FCC Radiation Exposure Statement (for MAX700/ HD2/ HD2 IP67/ BR1/ Surf SOHO)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
FCC Radiation Exposure Statement (for MAX On-The-Go)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
1. 20cm minimum when the product is operated alone without co-transmitting with a plug-in 3G USB dongle device.
2. 65cm minimum when the product is operated with a plug-in 3G USB device which has maximum of 7W ERP output power.
3. For co-transmission scenario which is not covered above, please consult the RF technician or device supplier.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the
factory to match the intended destination.
http://www.peplink.com
200
Copyright @ 2017 Pepwave
3. Industry Canada Statement (for MAX BR1 MK2)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
To maintain compliance with the RF exposure guidelines, place the unit at least 30cm from nearby persons.
Mise en garde_: Pour assurer la conformité aux directives relatives à l'exposition aux fréquences radio, le jouet doit êtreplacé à au moins
30_cm des personnes à proximité.
Caution:
(i).The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-
channel Mobile Satellite systems;
(ii).the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the
e.i.r.p limits specified for point-to-point and non-point-to-point operation as appropriate; and
(iii).Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5650-5850 MHz
and that these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i). Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire
les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.
(ii)vLe gain maximal d’antenne permis (pour les dispositifs utilisant les bandes 5250 à 5850) doit se conformer à la limite de p.i.r.e. Le
gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5825 MHz) doit être conforme à la limite de p.i.r.e. spécifiée
pour l’exploitation point à point et l’exploitation non point à point, selon le cas;
(iii).De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
http://www.peplink.com
201
Copyright @ 2017 Pepwave
Industry Canada Statement (for MAX Hotspot/ Surf SOHO/ MAX HD2 / MAX BR1 mini)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
To maintain compliance with the RF exposure guidelines, place the unit at least 20cm from nearby persons.
Mise en garde_: Pour assurer la conformité aux directives relatives à l'exposition aux fréquences radio, le jouet doit êtreplacé à au
moins 20_cm des personnes à proximité.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with
the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and
(iii) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5650-5850 MHz
and that these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5725 à 5 850 MHz) doit être conforme à la limite de
la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point, selon le cas;
(iii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
Radiation Exposure Statement: (For MAX BR1 Mini)
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 25cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 25 cm de distance entre la source de rayonnement et votre corps.
http://www.peplink.com
202
Copyright @ 2017 Pepwave
3. CE Statement for Pepwave Routers
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been
applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
This device complies with the essential requirements of the Radio Equipment Directive 2014/53/EC. The following test methods have
been applied in order to prove presumption of conformity with the essential requirements of the RE Directive 2014/53/EU:
- EN 60950-1: 2006 + A11: 2009+A1: 2010+ A12: 2011+A12: 2013
Safety of Information Technology Equipment
- EN50385 : 2002
Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication
systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields
(110MHz - 40 GHz) - General public
EN 300 328 V1.7.1: 2006
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
- EN 301 908-1 V5.2.1: 2011
Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS), Repeaters and User Equipment (UE) for
IMT-2000 Third-Generation cellular networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements,
covering essential requirements of article 3.2 of the R&TTE Directive
- EN 301 511 V9.0.2: 2003
Global System for Mobile communications (GSM); Harmonized standard for mobile stations in the GSM 900 and DCS 1800 bands
covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC)
- EN 301 489-1 V1.9.2: 2008
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements
- EN 301 489-7 V1.3.1: 2005
ElectroMagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment ad services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio
telecommunications systems (GSM and DCS)
- EN 301 489-17 V2.2.1: 2012
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment
- EN 301 489-24 V1.5.1: 2010
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE)
radio and ancillary equipment
Recycling - Our product bears this selective sorting symbol for Waste Electrical and Electronic Equipment (WEEE)
Directive 2012/19/EU. This means this product must be handled according to this Directive. Old electrical appliance
must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the
communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to
these collecting points.
http://www.peplink.com
203
Copyright @ 2017 Pepwave
Česky [Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus]megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia]spĺňa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Suomi [Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
http://www.peplink.com
204
Copyright @ 2017 Pepwave
4. NCC for Pepwave Routers
For MAX Transit, MAX BR1 MK2, MAX BR1 MK2 LTE
WLAN
[警語]
「電磁波曝露量 MPE 標準值 1mW/cm2，本產品使用時建議應距離人體 24 cm」
電磁波
「減少電磁波影響，請妥適使用」。
[警語內容]
(1) 電磁波警語標示：「減少電磁波影響，請妥適使用」。 標示方式：必須標示於設備本體適當位置及設備外包裝
及使用說明書上。
低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變
更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至
無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工
業、科學及醫療用電波輻射性電機設備之干擾。
本行動寬頻設備的行動寬頻頻段(LTE900/LTE1800)
警告使用者:
此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某些適
當的對策。
http://www.peplink.com
205
Copyright @ 2017 Pepwave
5. Compliance (For MAX BR1 mini & MAX BR1 & BR1 MK2)
Please observe the following instructions:
5.1 Ex marking:
CLASS I, DIVISION 2, GROUP C AND D
5.2 Warning：
5.2.2 The Antenna shall not be disconnected while the power is connected.
5.2.3 The front panel presents an electrostatic hazard. Clean only by using a damp
cloth.
5.3.3 Provision shall be made to prevent the rated voltage being exceeded by the
transient disturbances of more than 140% of the peak rated voltage.
5.3.4 Explosion Hazard. Do not connect or disconnect when energized.
5.2 Mise en garde：
5.2.2 L’antenne ne doit pas être déconnectée quand le matériel est toujours sous
tension
5.2.3 Le panneau avant présente un risque électrostatique. Utiliser un chiffon humide.
5.3.3 Des dispositions doivent être mises en place contre les perturbations passagères
entrainant un dépassement de la tension assignée de plus de 140% du pic pouvant être
atteint.
5.3.4 Risque d’explosion. Ne connectez ou ne déconnectez pas le produit quand celle-ci
est sous tension.
5.3 Temperature class
Temperature class is T4.
http://www.peplink.com
206
Copyright @ 2017 Pepwave
5. Compliance (Important Information and Safety Compliance for MAX HD4 / MAX HD4
LTE / MAX HD4 LTEA / Pismo 803AC)
Please observe the following instructions:
5.1 User should pay attention to use manufacturer supplied power adapter:
ADAPTER TECH.
AC ADAPTER
INPUT: 100-240V~ 50-60Hz, 1.2A MAX,
OUTPUT: 12V 4.2A LPS
FOR INDOOR USE ONLY
5.2 USB port output rating：5VDC, 2A
5.3 Temperature suitable for use: ambient temp. Maximum 40 oC.
Additional information
Module information:
LTEA module: MC7455 (FCC ID: N7NMC7455) or
LTE module: MC7354 (FCC ID: N7NMC7355)
Operating frequency for the Pepwave MAX Mobile Router:
Model:
Operating frequency:
4.1 MAX 700
2.4GHz + 5GHz
4.2 MAX HD2
2.4GHz + 5GHz
4.3 MAX HD2 IP67
3G/4G cellular network, no Wi-Fi for MAX HD2 IP67
(Contains FCC ID: MC7455 / Contains FCC ID: MC7354)
/ 698-960MHz, 1710-2170MHz, 2500-2700MHz
(Cellular Antenna)
4.4 MAX HD2 Mini
3G/4G cellular network, no Wi-Fi for MAX HD2 mini
(Contains FCC ID: MC7455 / Contains FCC ID:
MC7354 ) / 698-960MHz, 1710-2170MHz, 2500-
2700MHz (Cellular Antenna)
4.5 MAX Transit
2.4GHz + 5GHz
4.6 MAX CX4
No Wi-Fi for CX4, 2.4GHz + 5GHz for MAX Transit Quad
(U8G-P1817) still in testing stage, not certified
4.7 MAX HD4/ HD2 and HD4
with MediaFast
2.4GHz + 5GHz
4.8 MAX BR1
2.4GHz only
4.9 MAX BR1 MK2
2.4GHz + 5GHz
4.10 MAX BR1 Slim
3G/4G cellular network, no Wi-Fi for MAX BR1 Slim
(Contains FCC ID: MC7455 / Contains FCC ID: MC7354)
/ 698-960MHz, 1710-2170MHz, 2500-2700MHz
(Cellular Antenna)
4.11 MAX BR1 ENT
3G/4G cellular network, no Wi-Fi for MAX BR1 ENT
(Contains FCC ID: MC7455 / Contains FCC ID: MC7354)
/ 698-960MHz, 1710-2170MHz, 2500-2700MHz
(Cellular Antenna)
4.12 MAX BR1 Pro LTE
2.4GHz only
4.13 MAX Hotspot
2.4GHz + 5GHz
4.14 BR1 Mini
2.4GHz only
4.15 MAX BR1/2 IP55
2.4GHz only
4.16 MAX BR1 IP67
2.4GHz only
4.17 MAX On-The Go
2.4GHz + 5GHz
4.18 NPC (Network Power
Controller)
no wireless function for existing version of NPC
4.19 SD-PMU
no wireless function for existing version of SD-PMU
Remark: FCC ID of Item 4.16 MAX BR1 IP67 is U8G-P193067
