PePLink Surf

User’s Manual

Document Version : 2.6

Firmware Version : 6.0.4

Date : 2006-02-10

PePLink Surf User’s Manual v2.6

Table of Content

1 Copyright 3

2 Disclaimer 3

3 Product Description 4

3.1 Features 4

3.2 Hardware Setup 5

3.3 LED Description 6

4 Using the PePLink Surf 9

4.1 First Time Setup 10

4.2 Settings Details 13

4.3 Advanced Settings: Port Forward 15

4.4 WPA/WPA2 with 802.1x Authentication 16

4.5 Test the Setup 19

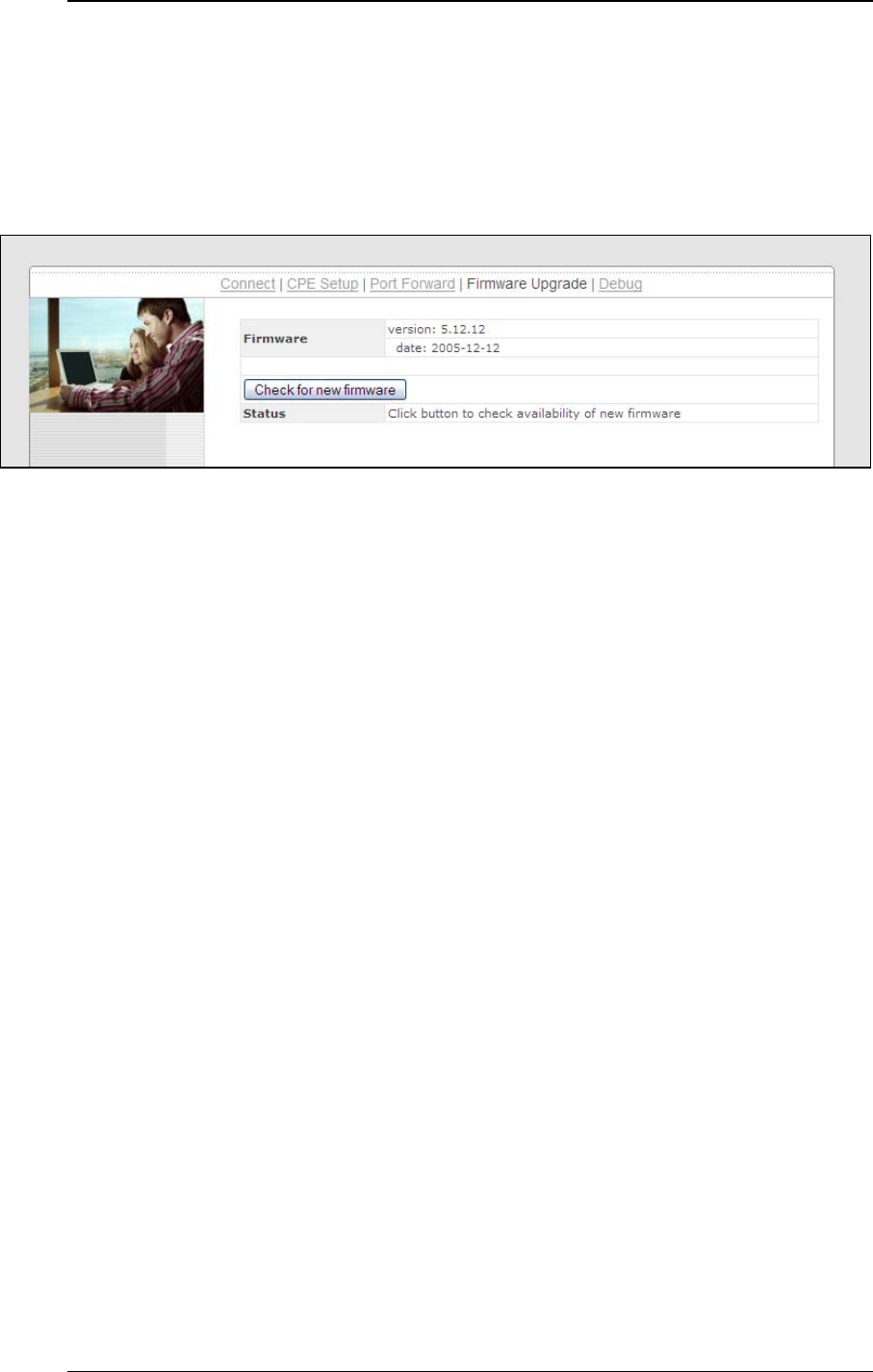

4.6 Firmware Upgrade 20

4.7 Debug Page 21

4.8 Restore to Factory Defaults 22

4.9 System Settings 23

5 Appendix - Demo CA and Server Certification Generation Instructions 28

5.1 Prerequisite 28

5.2 Create your own Certificate Authority (CA) 28

5.3 Create a server certificate request from your servers 29

5.4 Sign the server certificate with your own CA 31

PePLink Surf User’s Manual v2.6

1 Copyright

The content of this documentation may not be reproduced in any part or as a

whole without the prior written permission of PePLink Ltd.

2 Disclaimer

PePLink does not assume any liability arising out of the application or use of

any products, or software described herein. Neither does it convey any

license under its patent right nor the patent rights of others. PePLink further

reserves the right to make changes in any products described herein without

notice. This documentation is subject to change without notice.

PePLink Surf User’s Manual v2.6

3 Product Description

PePLink Surf, formerly known as MANGA Surf, is a Wi-Fi Station Mode (Client)

Router with WPA, WPA2 and 802.1x supplicant support. It is designed to act

as a Wireless router which connects to Wireless Broadband Internet Service

and allows LAN users to access the Internet via it.

It associates to a service provider and authenticates using 802.1x (if needed)

on start up. Upon successful association and authentication, it will acquire an

IP address from the service provider using DHCP. A DHCP server is built-in

on its LAN port. Network Address Translation is performed for all outbound

connections. Thus it supports multiple terminals to access the Internet

simultaneously.

3.1 Features

• 10/100 Ethernet interface with auto-crossover detection

• Reset button for restoring settings to factory defaults

• Signal strength LED for showing the current signal strength

• WPA/WPA2-Personal and WPA/WPA2-Enterprise support

• Network Address Translation (NAT)

routing

• Built-in DHCP server

• Inbound port range forwarding

PePLink Surf User’s Manual v2.6

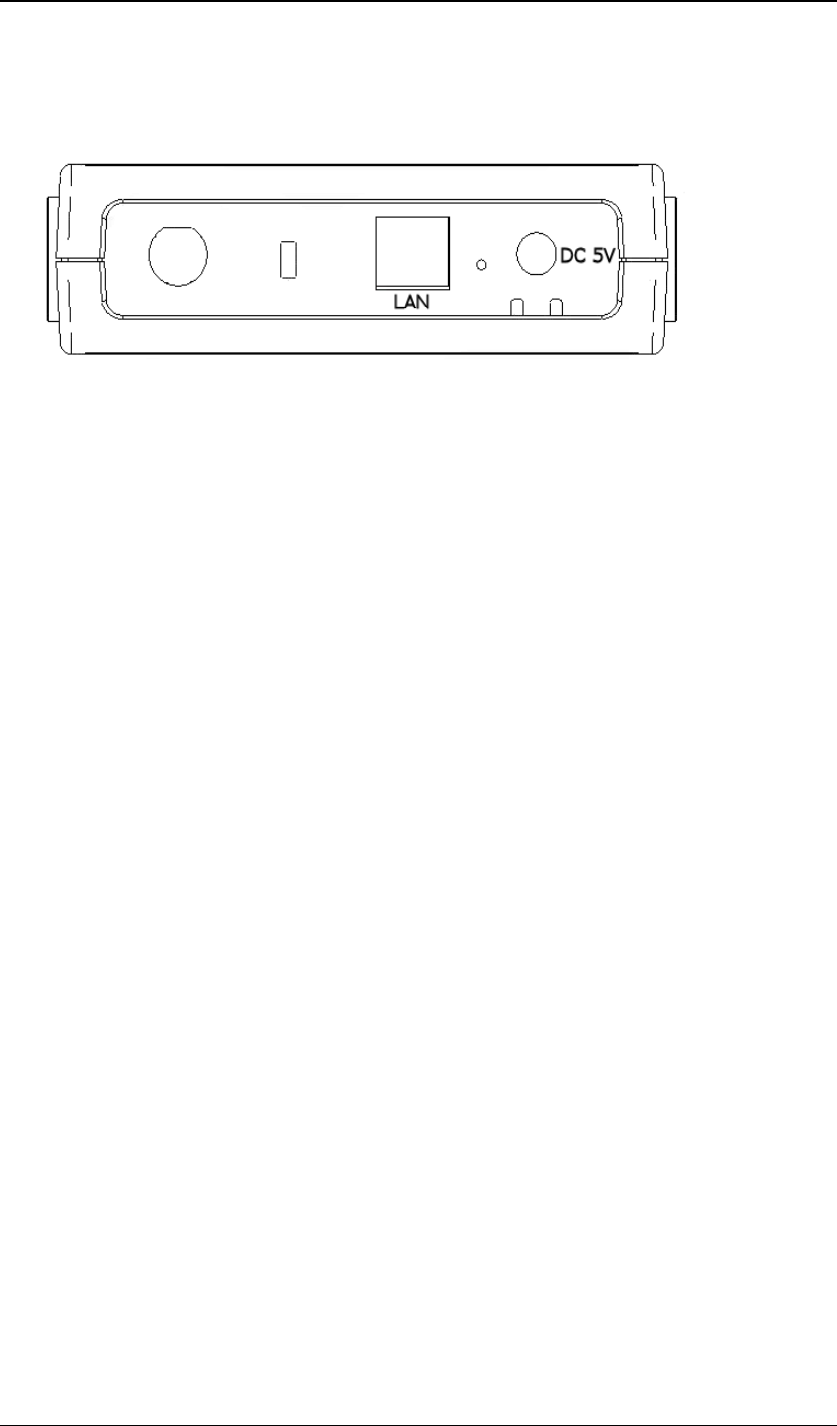

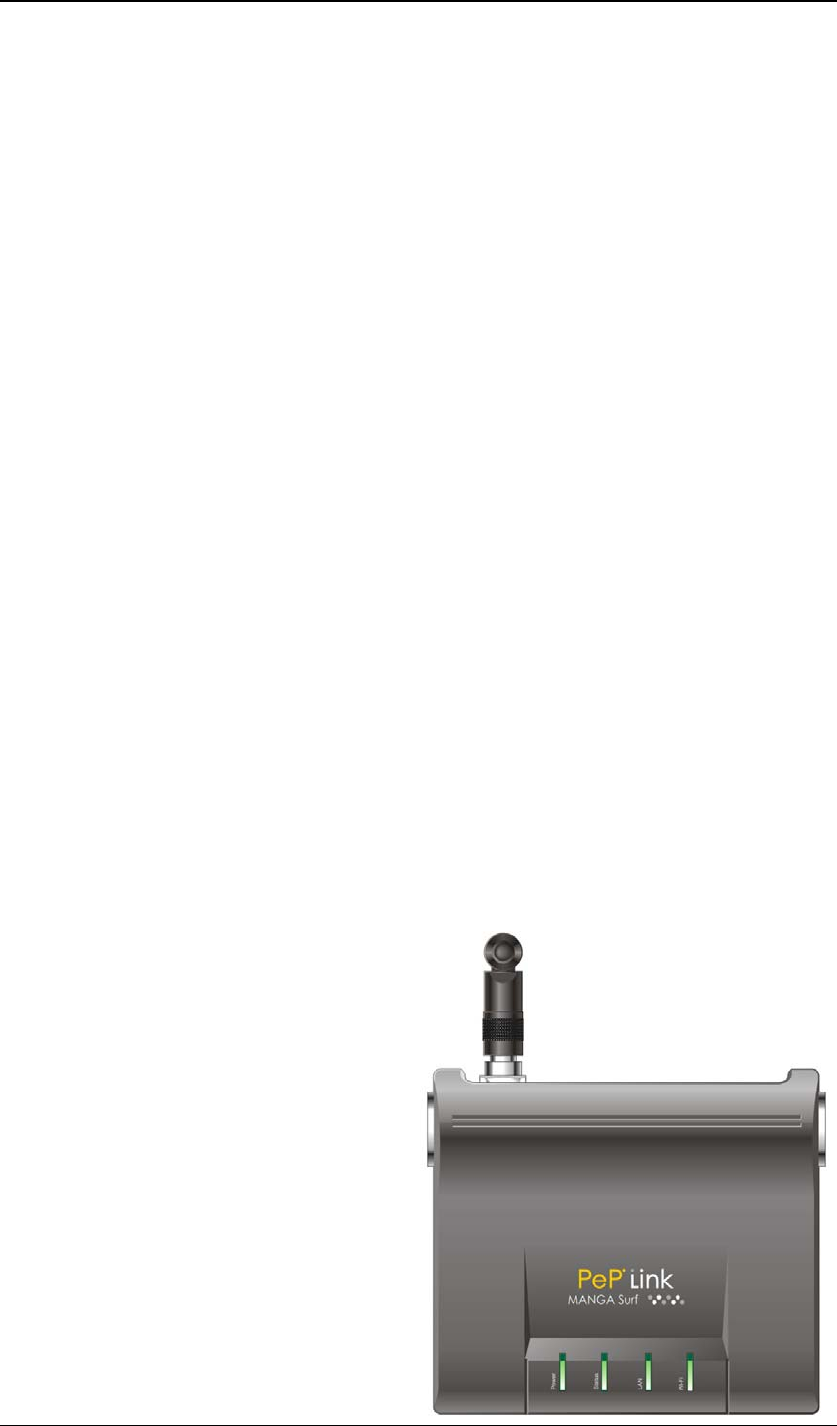

3.2 Hardware Setup

1. Attach the provided antenna to the left most antenna connector

2. Connect the LAN port to the computer’s Ethernet port with an Ethernet

cable.

3. Connect the end of the included power adapter to the power socket

(labeled “DC 5V”) on PePLink Surf.

4. Power on the power adaptor.

PePLink Surf User’s Manual v2.6

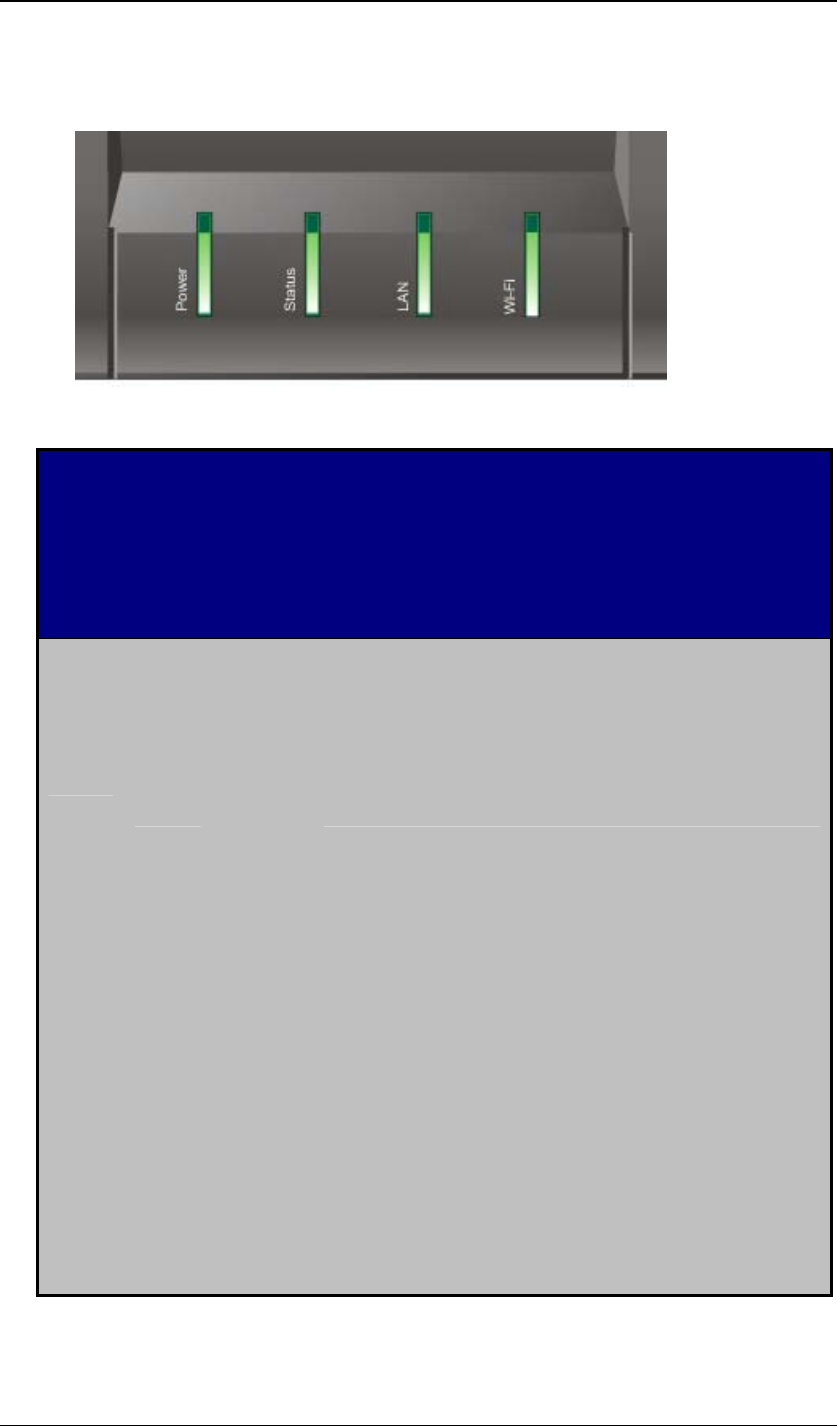

3.3 LED Description

L

E

D

C

o

l

o

r

S

t

a

t

u

s

Description

G

r

e

n

O

n

Power is on

P

o

w

e

r

O

f

Power is off

G

r

e

n

S

o

l

i

d

Received signal is Excellent, Very Good and

Good

S

t

a

t

u

s

G

r

e

n

B

l

i

n

k

i

n

g

Received signal is Low

PePLink Surf User’s Manual v2.6

A

m

b

e

r

B

l

i

n

k

i

n

g

Received signal is Very Low

A

m

b

e

r

S

o

l

i

d

No wireless signal is detected

O

f

Booting up / Upgrading firmware

G

r

e

n

O

n

Ethernet is connected

G

r

e

n

B

l

i

n

k

i

n

g

Sending/Receiving data

L

A

N

O

f

Ethernet is not connected

W

i

-

F

i

G

r

e

n

O

n

Associated with an access point

PePLink Surf User’s Manual v2.6

G

r

e

n

B

l

i

n

k

i

n

g

Sending/Receiving data

O

f

Not associated with any access point

This is the Signal Strength and Status LED state conversion table.

Received

Signal

Strength

Status

LED

Indication on the

web

based power

meter

> -70 Solid

Green

Excellent

-70 to -74 Solid

Green

Very good

-75 to -79 Solid

Green

Good

-80 to -84 Blinking

Green

Low

-85 to -87 Blinking

Amber

Very Low

-87 to -89 Blinking

Amber

Very Low

-89 < Blinking

Amber

Very Low

PePLink Surf User’s Manual v2.6

4 Using the PePLink Surf

You should set up your computer’s LAN interface to obtain an IP address

automatically. If you do so, you should have set it up correctly.

In order to do so, select the “Start” menu, “Control Panel” and then “Network

Connections”. Right click on the “Local Area Connection” icon, choose

“Properties”, double click on the item “Internet Protocol (TCP/IP)” from the list.

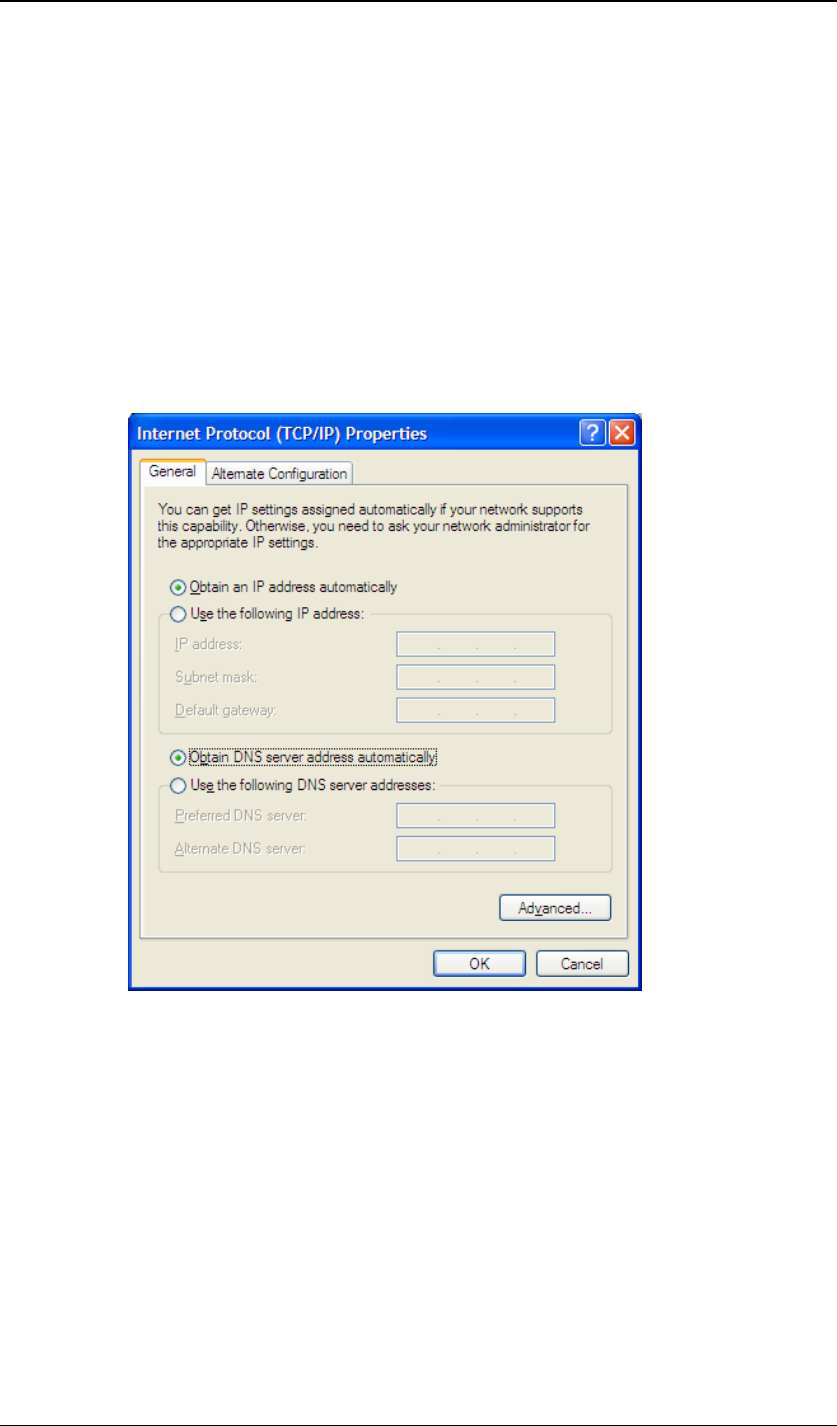

On the screen, just set it as follows:

Click the “OK” button to confirm the change.

PePLink Surf User’s Manual v2.6

4.1 First Time Setup

On your PC, start a web browser, e.g. Internet Explorer, Mozilla Firefox, etc.

Visit an Internet web site. If you are not associated to an access point, you

should be redirected to a logon page. Or you can go also go to this URL

http://192.168.20.1/

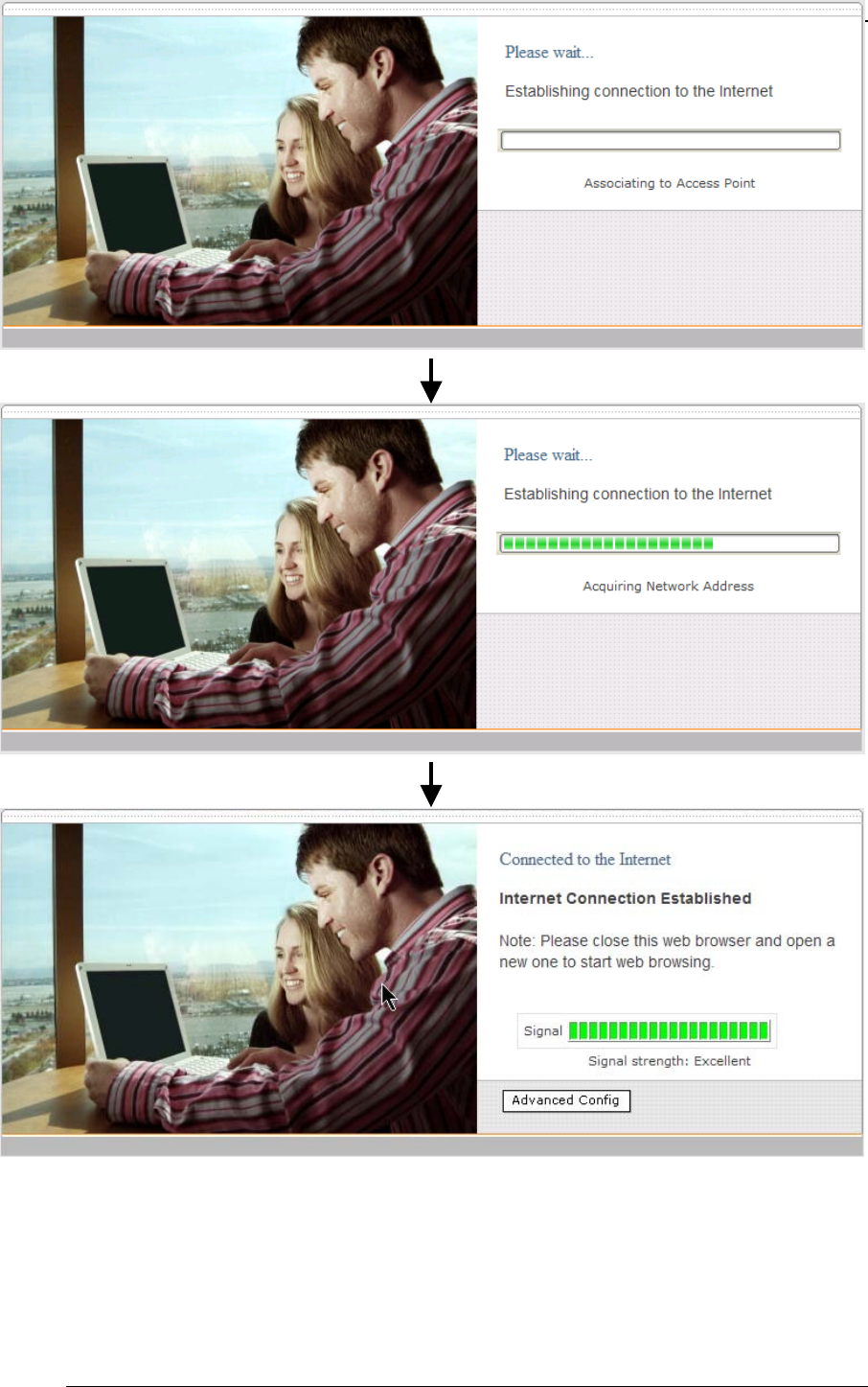

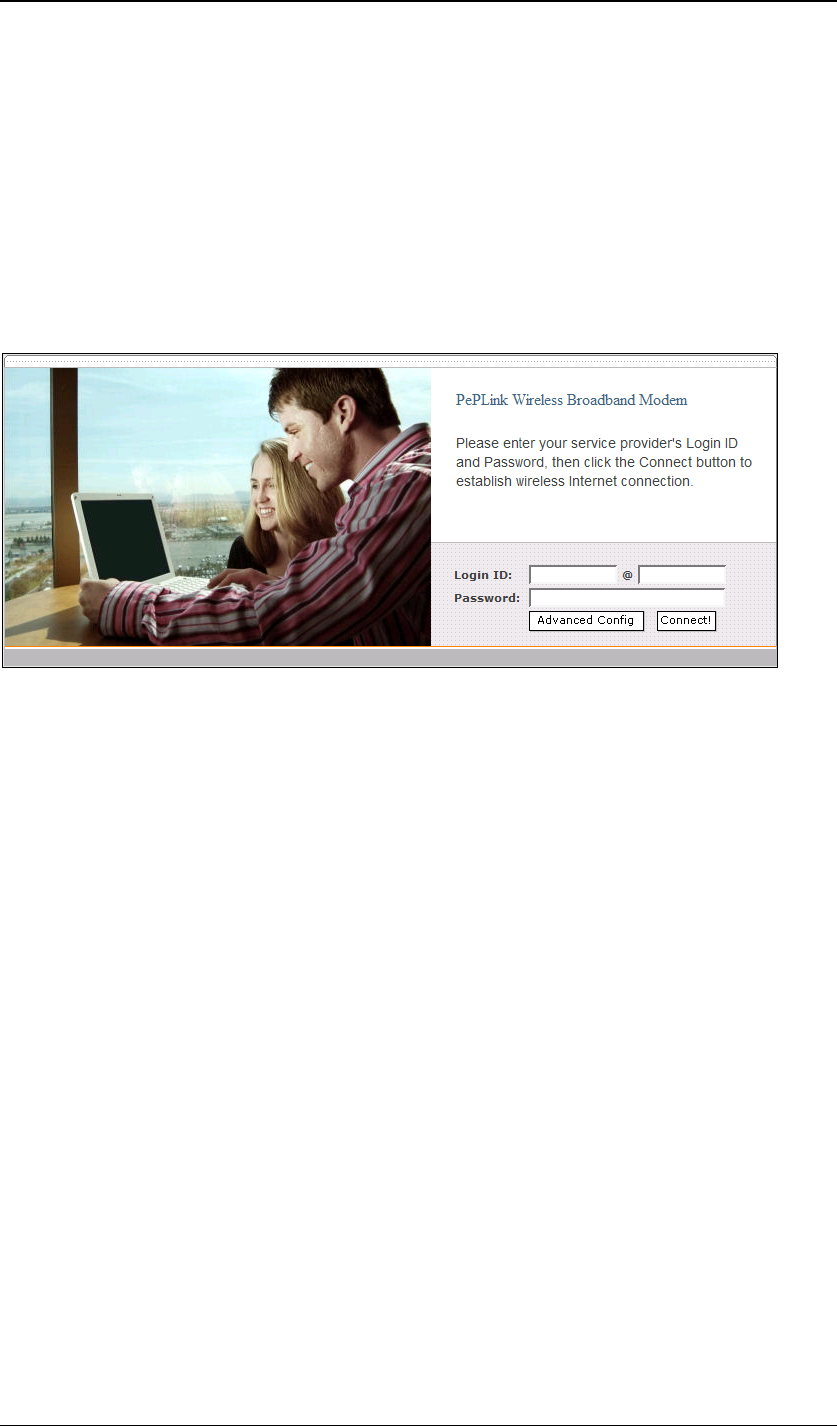

The page will look like this.

Once it is associated to an access point, you can also access the page from

this URL:

https://wan.ip.addr.here:8000/

Login ID and password are “admin” and “MSurf000”.

PePLink Surf User’s Manual v2.6

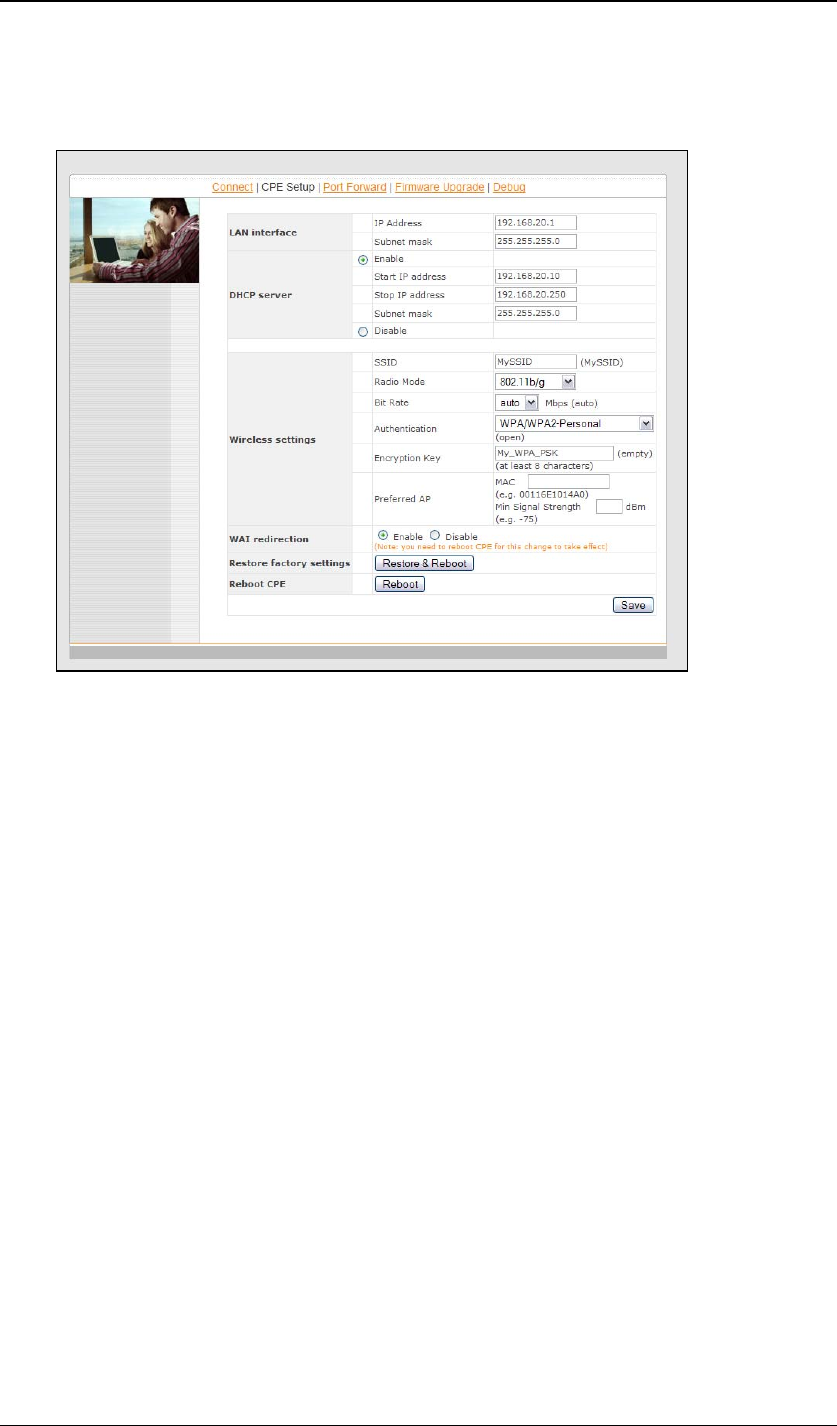

Click the “Advanced Config” button to enter the parameters of the access point

to associate to. You should see this screen:

In the field “SSID” under Wireless Settings, input the access point’s SSID

(sometimes it is called “network name”). According to the setting of the

Access Point you are associating to, you may choose different “Authentication

setting”.

If “Static WEP key” or “WPA/WPA2-Personal” is selected, input the Encryption

Key field as well.

Click the “Save” button at the bottom to complete.

You can now click the “Connect” link on the top bar and then click the

“Connect” button to associate with the access point.

There are also options of “802.1x with dynamic WEP key” and

“WPA/WPA2-Enterprise”. For their details, please refer to chapter 4.4 .

PePLink Surf User’s Manual v2.6

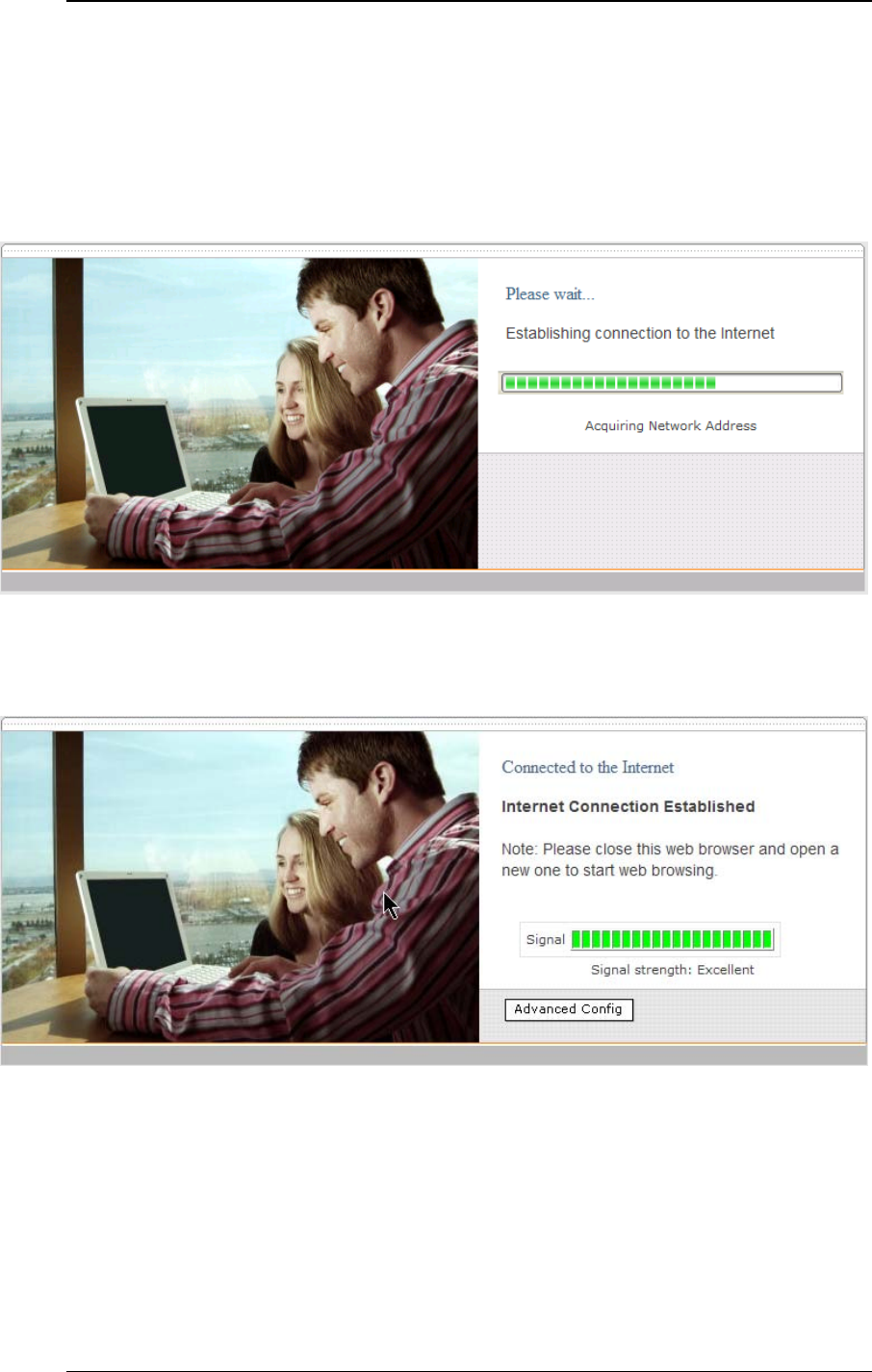

At this point, you are associated with the access point. You may now close

the web browser and open a new one to start web browsing.

PePLink Surf User’s Manual v2.6

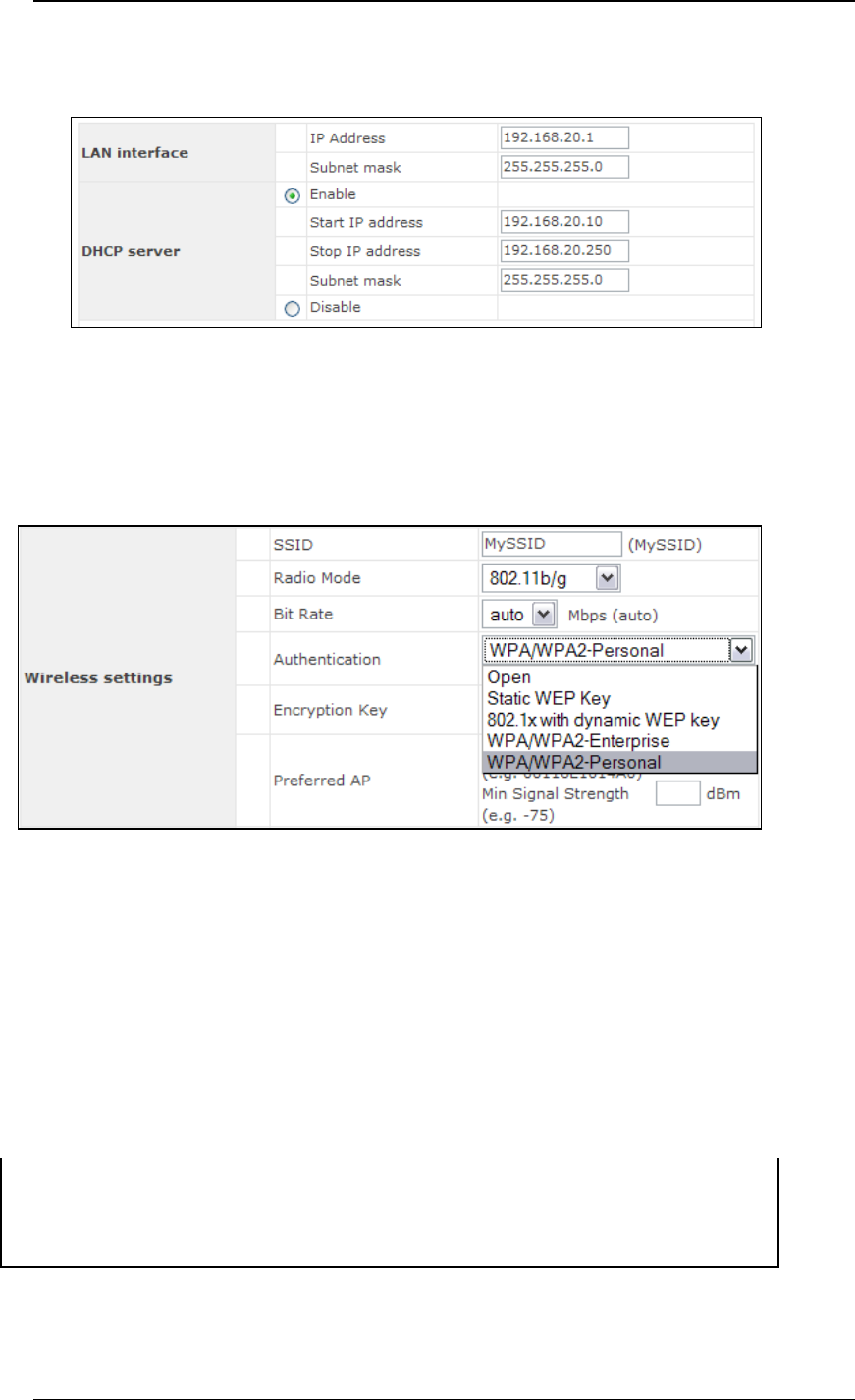

4.2 Settings Details

LAN Interface: To configure the LAN interface’s IP address and subnet mask.

DHCP Server: To configure to enable the built-in DHCP server or not. If

enabled, the IP address range can be configured.

Wireless Settings:

SSID: To configure the SSID / ESSID / Network Name of the wireless network

to associate to.

Radio Mode: It allows the user to choose between radio modulations support.

E.g. 802.11b/g, 802.11g only, 802.11b, etc. The available settings depend on

the Wi-Fi module installed on the device.

Note: Under 802.11g only mode, 802.11b rates are used during

access point association.

PePLink Surf User’s Manual v2.6

Bit Rate: To fix the 802.11 transmit bit rate. Available options depend on the

Radio Mode chosen. If “auto” is chosen, the device will choose the best bit

rate dynamically and automatically.

Authentication: Available options are Open, Static WEP Key, 802.1x with

dynamic WEP key, WPA/WPA2-Enterprise and WPA/WPA2-Personal. The

selection should be according to the setting of the access point you are

associating to. Data transferred are encrypted under all modes except the

Open mode. When Static WEP Key or WPA/WPA2-Personal is chosen, you

should enter an encryption key in the Encryption Key field. For 802.1x and

WPA/WPA2-Enterprise options, please refer to chapter 4.4 .

Preferred AP: The MAC address of a preferred access point can be entered

here. When the preferred access point is found and its signal strength is

higher than the “Min Signal Strength”, it will connect to this preferred access

point, no matter the other access points are found even they have higher

signal strength or the same SSID.

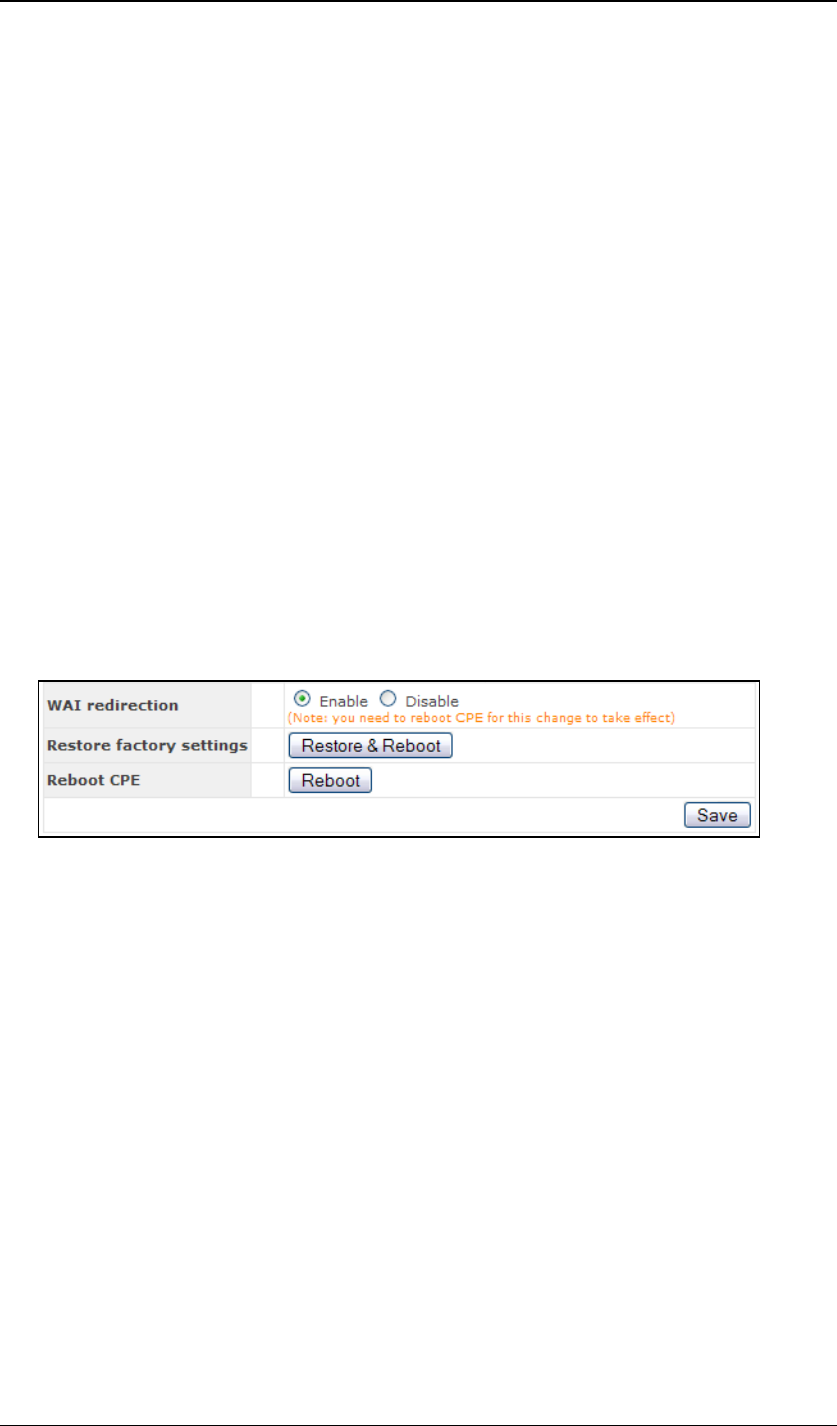

WAI redirection: If the device is not connected to an access point, and the

user is accessing an Internet web site, the settings control whether to redirect

the web access to the web admin interface page or not. If this is disabled and

the device is not connected, the browser will then show web access error.

The user can still access the web admin interface by accessing to the device’s

LAN IP address. By default, it’s http://192.168.20.1 .

Restore factory settings: To restore the device to factory default settings.

After clicked, the settings will be restored to factory defaults and the device will

be restarted.

Reboot: To restart the device.

PePLink Surf User’s Manual v2.6

4.3 Advanced Settings: Port Forward

The PePLink Surf supports forwarding inbound TCP and UDP connections to

servers on the LAN.

For example, if your PC is hosting a web server and you want to let Internet

users access it, you should define a rule on a role. Enter “80” and “80” for the

Port Range. Select “TCP” for the protocol. Enter the PC’s IP address to the

“IP Address” field.

Click the “Save” button to save and apply the changes.

PePLink Surf User’s Manual v2.6

4.4 WPA/WPA2 with 802.1x Authentication

The PePLink Surf supports authentication and encryption methods of “802.1x

with dynamic WEP key encryption” and WPA/WPA2-Enterprise. A radius

server can be used to perform authentication based on the IEEE standard

802.1x with EAP-TTLS.

To set it up, you have to configure the PePLink Surf, the access point and a

radius server.

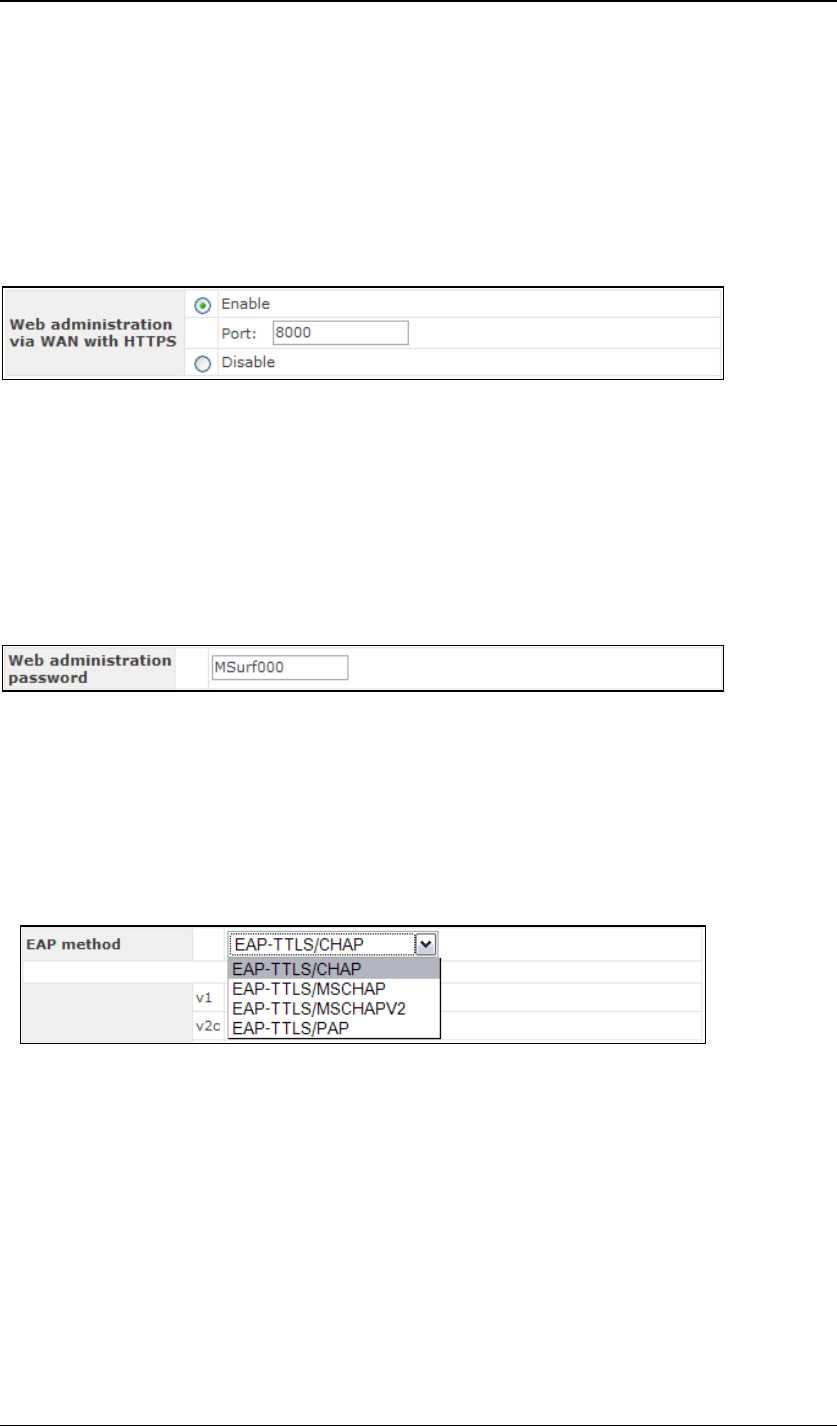

By default, EAP-TTLS/CHAP is used as the EAP authentication method. You

can change this setting in the System Settings page. Please refer to chapter

4.9.3 .

4.4.1 Configure the PePLink Surf

To enable the 802.1x authentication, you can go to the CPE Setup page,

choose “WPA” for the Authentication setting and leave the WEP key setting

empty.

Certificate checking

By default, the PePLink Surf does not verify the radius server’s

certificate. If you would like to check the certificate, you can use a

command-line based FTP client to upload your certificate to the

PePLink Surf.

1. ftp to the PePLink Surf (default IP is 192.168.20.1)

2. Type the login ID and password: “root” and “MSurf000

”

3. cd /etc/1x

4. put root.pem

5. bye

PePLink Surf User’s Manual v2.6

4.4.2 Access Point

Access point set up procedure is different from one brand to the others. Here

are some necessary configuration parameters to be configured in the access

point:

- Enable WPA2 with 802.1x authentication

- Enter the radius server IP address, port number and the secret (for the provided

radius server config mentioned in 4.4.3 , the secret is “testing123”)

4.4.3 Radius Server

The commercial radius server, Radiator, is used in the set up. It is a product

of Open System Consultants Pty Ltd.

Radiator version 3.9 is known to be interoperable. Any version above 3.9

should work too. Just follow the server’s installation guide to install it on a

server.

After installed, you should put the root cert file and server cert file to a directory,

update radiator’s configuration file and the users files.

A demo CA cert file (cacert.pem), a server cert file (server_cert.pem)

and a server key file (/etc/radiator/server_key.pem) are

pre-generated and attached. You can generate them by yourself by following

the instructions in the Appendix. Put the files to the directory

/etc/radiator.

A sample Radiator configuration file is as follows. Save it as radius.cfg

and put it under /etc/radiator.

PePLink Surf User’s Manual v2.6

To change user login name and password, just edit the file

/etc/radiator/users. A sample user entry is like this:

Then start the radius server by executing this:

Now the Radiator server’s setup completed.

AuthPort 1812

AcctPort 1813

LogDir /var/log/radius

DbDir /etc/radiator

Trace 4

Secret testing123

DupInterval 0

</Client>

Filename /etc/radiator/users

EAPType TTLS

EAPTLS_CAFile /etc/radiator/cacert.pem

EAPTLS_CertificateFile /etc/radiator/server_cert.pem

EAPTLS CertificateType PEM

demoid1

User-Password=demopass1

/usr/bin/radiusd -

c

onfig_file

/t/ dit / di f

PePLink Surf User’s Manual v2.6

4.5 Test the Setup

To test to setup, you can now go to the PePLink Surf’s Main page, enter the

user name and password. The realm (the text box next to the “@” sign) value

can be left empty. Then click the Connect button.

After connected, you should see:

PePLink Surf User’s Manual v2.6

4.6 Firmware Upgrade

The PePLink Surf is able to check whether a newer firmware (the software

running on the PePLink Surf) is available. To do so, click the link “Firmware

Upgrade” on the top bar. You will see this screen:

Click the “Check for new firmware” on the screen. If there is a firmware

available, you can simply click a “Download and Upgrade” button.

During an upgrade, please do not interrupt the process.

PePLink Surf User’s Manual v2.6

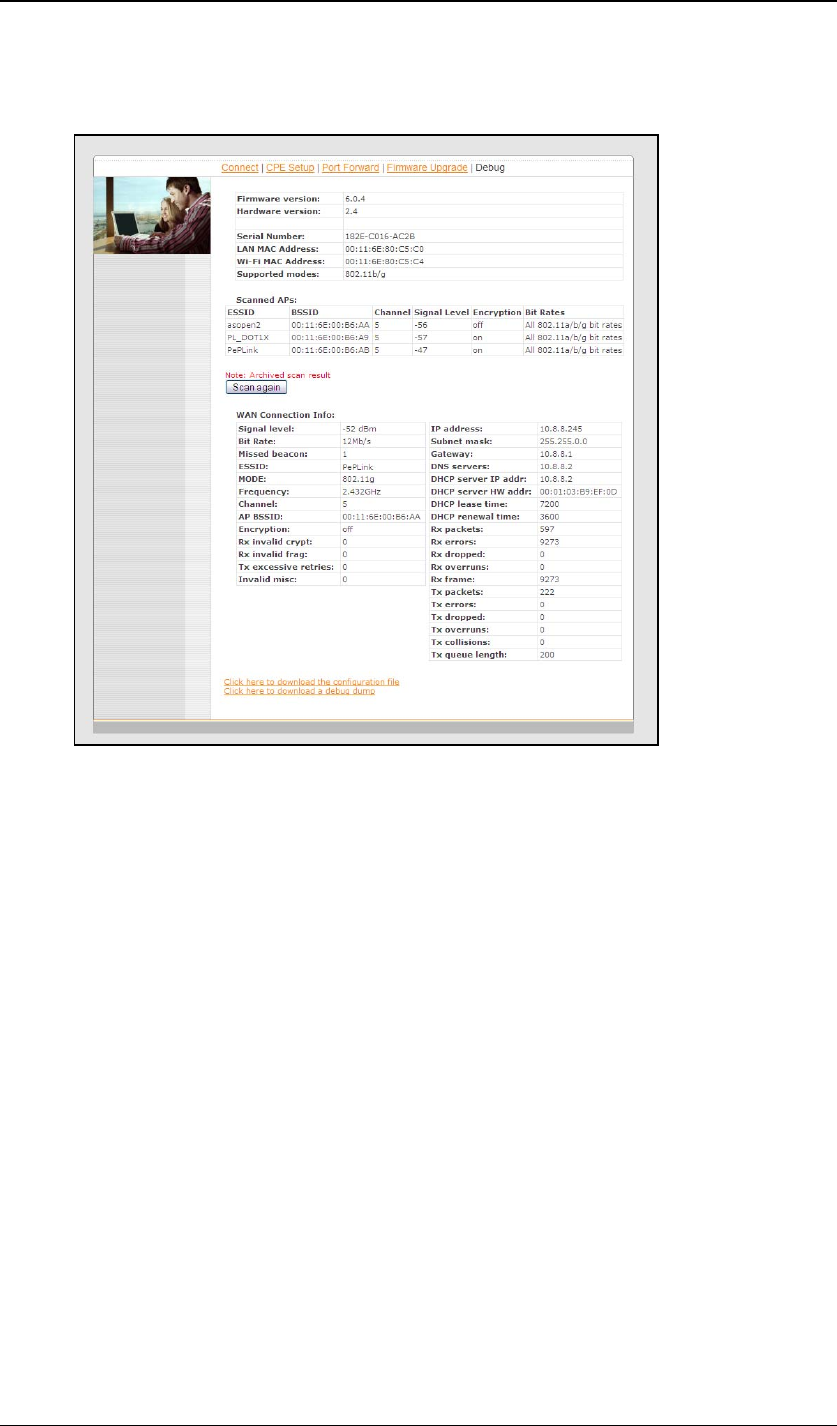

4.7 Debug Page

A debug page is provided for advanced network troubleshooting.

This page shows the unit’s firmware version, hardware version, serial number,

LAN MAC address, Wi-Fi MAC address, supported Wi-Fi modes, scanned

access points’ information and WAN connection information.

For the Scanned AP section, the scanned result may not be up to date. You

can click the “Scan again” button to update the scanned AP list. But note that,

while it is connected to an AP, clicking the button may drop the connection.

On the page bottom, you are allowed to download a debug dump file and

configuration file. In case you need to contact PePLink for technical support,

you can send the debug dump file to support@peplink.com.

PePLink Surf User’s Manual v2.6

4.8 Restore to Factory Defaults

To restore the PePLink Surf to factory defaults, there are two methods.

If you are able to access the web admin interface, go to the “CPE Setup” page,

and click the “Restore and Reboot” button.

Otherwise, you can also power up the unit and wait for about 1 min. Then

press the Reset button at the rear side of the unit using a pin and then hold it

for 5 secs. The unit will restore the settings to factory defaults and reboot.

PePLink Surf User’s Manual v2.6

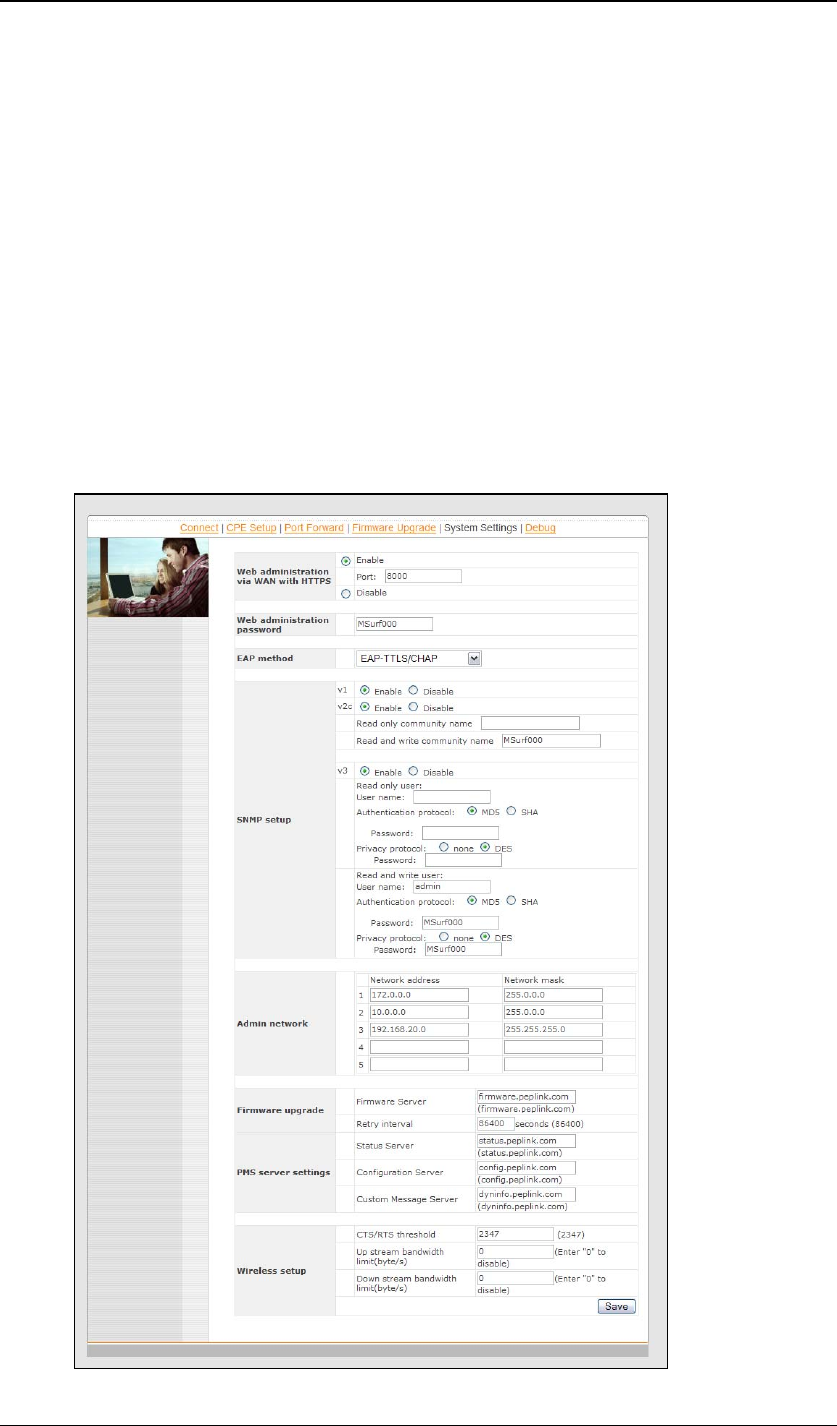

4.9 System Settings

Some system settings are hidden from the end users. They are for the

service provider to change some system specific settings

To access the page, type this URL on your browser:

http://192.168.20.1/ss/

The page’s login ID and password are “admin” and “MSurf000”.

The page is like this:

PePLink Surf User’s Manual v2.6

4.9.1 Web via WAN with HTTPS

This is to enable or disable the secure web administration server to be

accessible from WAN (wireless side) or not. If enabled, the HTTPS port

number is entered here. It must be between 1024 and 65535. The default

port number is 8000.

4.9.2 Web Administration Password

This is to change the web administration interface’s access password when

accessing to http://ip.addr/ss/ (from LAN) or

https://wan.ip.addr/ (from WAN). The login name is “admin”.

4.9.3 EAP Types

For the authentication methods “802.1x with dynamic WEP key” and

“WPA/WPA2-Enterprise”, the EAP type can be chosen here. Available

options are CHAP, MSCHAP, MSCHAPV2 and PAP.

PePLink Surf User’s Manual v2.6

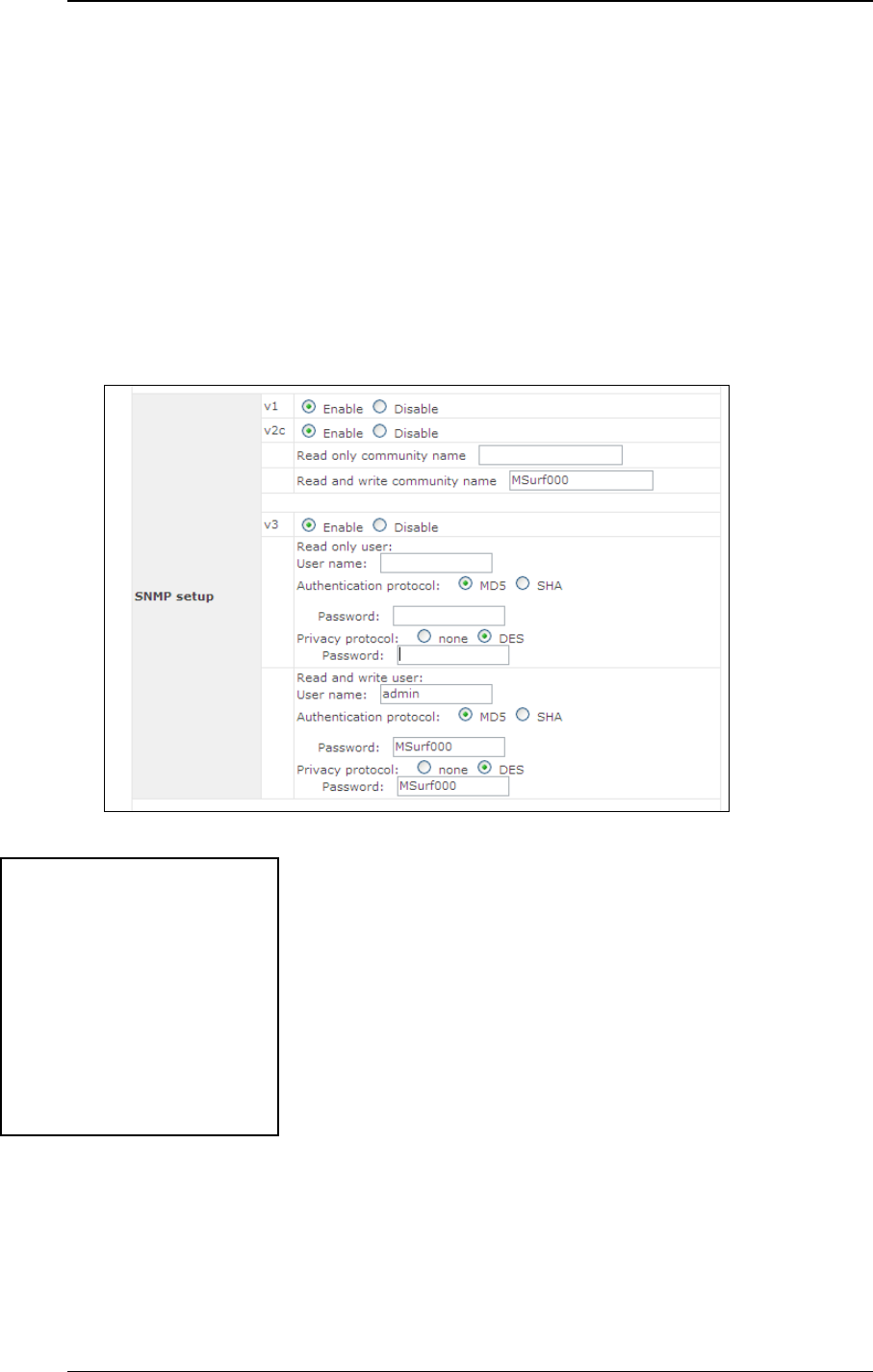

4.9.4 SNMP Settings

The unit has a built-in SNMP agent. It allows the administrator to get some

basic system information and to toggle the unit’s Status LED for

troubleshooting. The agent can only be accessed from administration

network only. Please refer to chapter 4.9.5 .

This section is for configure the SNMP agent’s access permission.

Toggling the

LED

The unit’s Status

LED can be

toggled by using

SNMP. The

p

ur

p

ose is fo

r

PePLink Surf User’s Manual v2.6

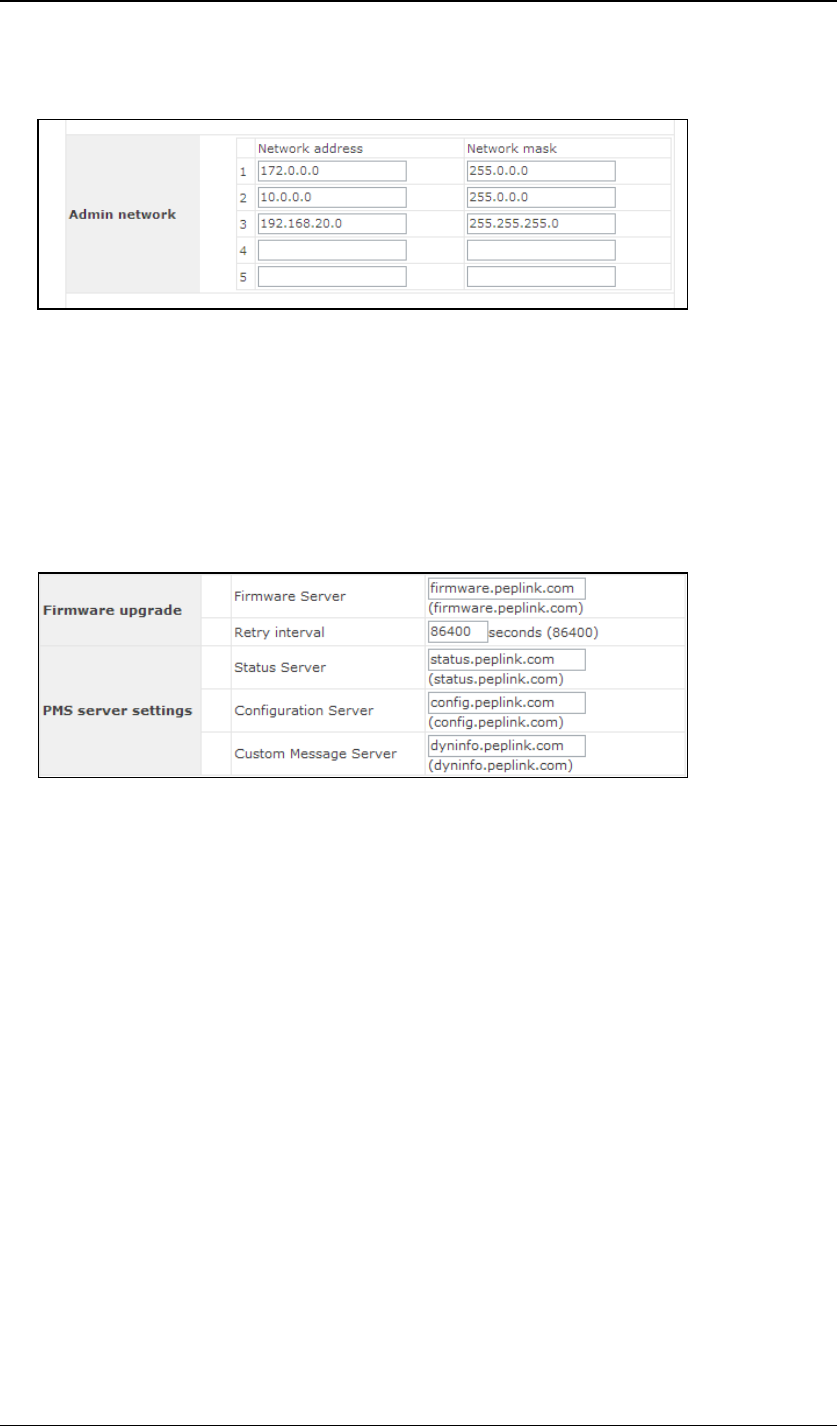

4.9.5 Admin Network Settings

This section is for configuring which network’s IP addresses are allowed to

access the ssh server and the SNMP agent.

4.9.6 PePLink Management System settings

The Surf units can be managed by the PePLink Management System (PMS).

The PMS is divided into several sub systems. This section is for configuring

which sub system the Surf should communicate to. They include Firmware

server, Status Server, Configuration Server and Custom Message Server.

PePLink Surf User’s Manual v2.6

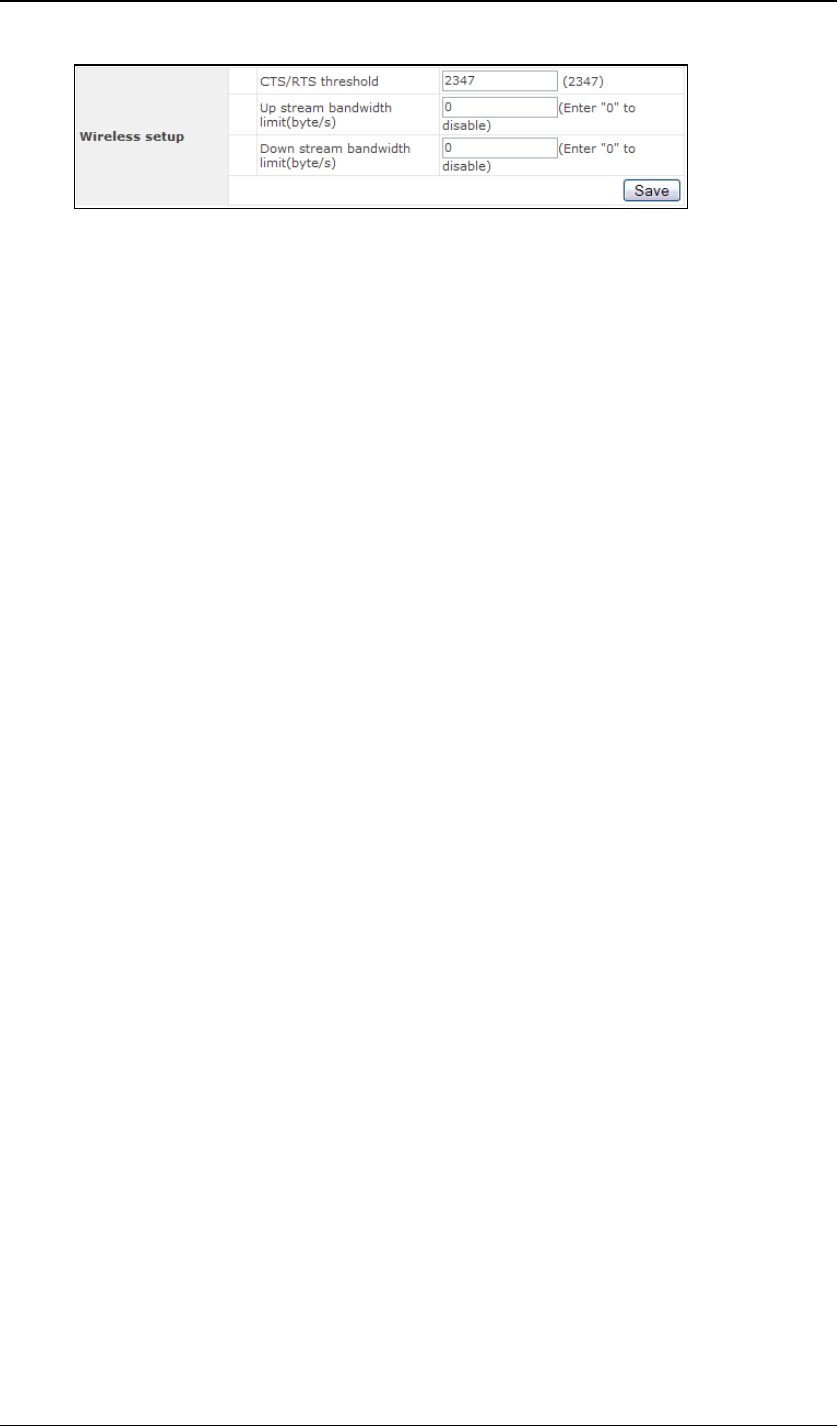

4.9.7 Wireless Settings

The CTS/RTS threshold value 2347 means this setting is disabled. If the

packet that the Surf is transmitting is larger than the threshold, it will initiate the

CTS/RTS function.

The up stream and down stream bandwidth are for controlling the maximum up

link and down link bandwidth that the user can consume. The unit is bit per

second. Setting them to “0” will disable the bandwidth control. The default

value is “0”.

PePLink Surf User’s Manual v2.6

5 Appendix - Demo CA and Server Certification

Generation Instructions

5.1 Prerequisite

OpenSSL v0.9.7a or above

Note: The illustration below is based on Linux.

5.2 Create your own Certificate Authority (CA)

1. Create a working directory (e.g. ~/demoCA)

mkdir ~/demoCA

chmod 700 ~/demoCA

cd ~/demoCA

mkdir private certs newcerts

echo -n 01 > serial

touch index.txt

2. Create a private key for your CA, for example:

openssl genrsa -des3 -passout pass:democa -out private/cakey.pem 2048

(A CA private key called "cakey.pem" is then created in the directory

"private". This is a 2048bit RSA private key with pass phrase 'democa'.)

3. Create the server certificate for your CA, for example:

openssl req -new -x509 -days 8000 -key private/cakey.pem -passin

pass:democa -out cacert.pem

Then a series of questions will be asked:

You are about to be asked to enter information that will be incorporated

into your certificate request.

PePLink Surf User’s Manual v2.6

What you are about to enter is what is called a Distinguished Name or a

DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [GB]:US

State or Province Name (full name) [Berkshire]:US

Locality Name (eg, city) [Newbury]:US

Organization Name (eg, company) [My Company Ltd]:

Organizational Unit Name (eg, section) []:

Common Name (eg, your name or your server's hostname) []:demoCA

Email Address []:

(The CA server certificate is now generated in "cacert.pem")

4. In some applications (e.g. Microsoft Windows), DER version of server

certificate is needed:

openssl x509 -outform DER -in cacert.pem -out cacert.der

(The CA server certificate in DER format is now ready in "cacert.der")

5.3 Create a server certificate request from your servers

1. Create your working directory (e.g. ~/myCert)

mkdir ~/myCert

chmod 700 ~/myCert

cd ~/myCert

2. Create the private key of your server, for example:

openssl genrsa -des3 -passout pass:demoserver -out server_key.pem 2048

(The private key for CA called "server_key.pem" is then created.

This is 2048bit RSA private key with pass phrase 'demoserver'.)

PePLink Surf User’s Manual v2.6

3. Create the certificate singing request of your server, for example:

openssl req -new -key server_key.pem -passin pass:demoserver -out

server_req.pem

Then a series of questions will be asked:

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a

DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [GB]:US

State or Province Name (full name) [Berkshire]:US

Locality Name (eg, city) [Newbury]:US

Organization Name (eg, company) [My Company Ltd]:

Organizational Unit Name (eg, section) []:

Common Name (eg, your name or your server's hostname) []:myserver.com

Email Address []:

Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []:

An optional company name []:

(Your server certificate request for "myserver.com" is now generated in

"server_req.pem")

PePLink Surf User’s Manual v2.6

5.4 Sign the server certificate with your own CA

Assume server request is also in the same server's

~/myCert/server_req.pem

openssl ca -policy policy_anything -passin pass:democa -in

~/myCert/server_req.pem -days 8000 -out ~/myCert/server_cert.pem

Then a series of questions will be asked (details will vary in your case):

Using configuration from /usr/share/ssl/openssl.cnf

Check that the request matches the signature

Signature ok

Certificate Details:

Serial Number: 1 (0x1)

Validity

Not Before: Aug 24 04:58:01 2005 GMT

Not After : Jul 20 04:58:01 2027 GMT

Subject:

countryName = US

stateOrProvinceName = US

localityName = US

organizationName = My Company Ltd

commonName = myserver.com

X509v3 extensions:

X509v3 Basic Constraints:

CA:FALSE

Netscape Comment:

OpenSSL Generated Certificate

X509v3 Subject Key Identifier:

0E:D5:E9:F6:A5:B6:88:51:EB:22:8C:ED:C3:AA:17:A1:A8:FC:EC:92

X509v3 Authority Key Identifier:

keyid:85:B5:08:F3:21:1B:99:5D:E1:4B:D1:57:2C:EC:9C:00:A2:F4:24:9B

DirName:/C=US/ST=US/L=US/O=My Company Ltd/CN=demoCA

serial:00

Certificate is to be certified until Jul 20 04:58:01 2027 GMT (8000 days)

Sign the certificate? [y/n]:y

1 out of 1 certificate requests certified, commit? [y/n]y

Write out database with 1 new entries

PePLink Surf User’s Manual v2.6

Data Base Updated

(The signed server certificate is now in "~/myCert/server_cert.pem")
