2008 Equipment Price List
Effective 07/01/08
For additional copies, please visit www.pitco.com
L15-020 Rev 09 (11/07)
Pitco Pasta Cookers
Page 10
- Second Edition -
How to contact Pitco:
Tel: 603-225-6684
Fax: 603-225-8472
www.pitco.com
For Literature:
Tel: 603-230-5553
Fax: 603-230-5554
E-mail: literature@pitco.com
TABLE OF CONTENTS
TABLE OF CONTENTS
Description Page
Gas Fryers
  SolsticeHighEfciencySupremeSeries................................................................2
  StandAloneGasFryers .........................................................................................3
  SolsticeFilterDrawerFiltrationSystem ..................................................................4
  SolsticeGasFryers ................................................................................................5
  SolsticeGasPrepackagedSystems.......................................................................6
Economy, Solstice Counter Fryer, Solstice Stand Alone, Solstice Drop-In
  Donut&HighVolumeFryers-Gas&Electric .......................................................12
  FlatBottomFryers .................................................................................................13
  MEGAFRY-HighVolume,HighEfciency ...........................................................13
Electric Fryers
  SolsticeElectricPrepackagedSystems .................................................................7
  SolsticeFilterDrawerFiltrationSystem ..................................................................8
  SolsticeElectricFryers ...........................................................................................9
  Donut&HighVolumeFryers-Gas&Electric .......................................................12
Filtration Systems
  SolsticeFilterDrawerFiltrationSystem-BatteryandSoloFilter ........................ 4,8
Portable Filtration................................................................................................ 4,8
  PrepackagedSystemsGas ....................................................................................6
  PrepackagedSystemsElectric ...............................................................................7
PastaCookers-Gas&Electric ........................................................................................10
SolsticeRethermalizer-Gas&Electric............................................................................11
Basket and Wire Goods....................................................................................................16
Options and Accessories ........................................................................................... 14,15
Casters, Gas Lines, Cleaning, Filtering Accessories, Covers, BNB Cabinets
InstitutionalPackages.......................................................................................................15
OrderingInformation.........................................................................................................17

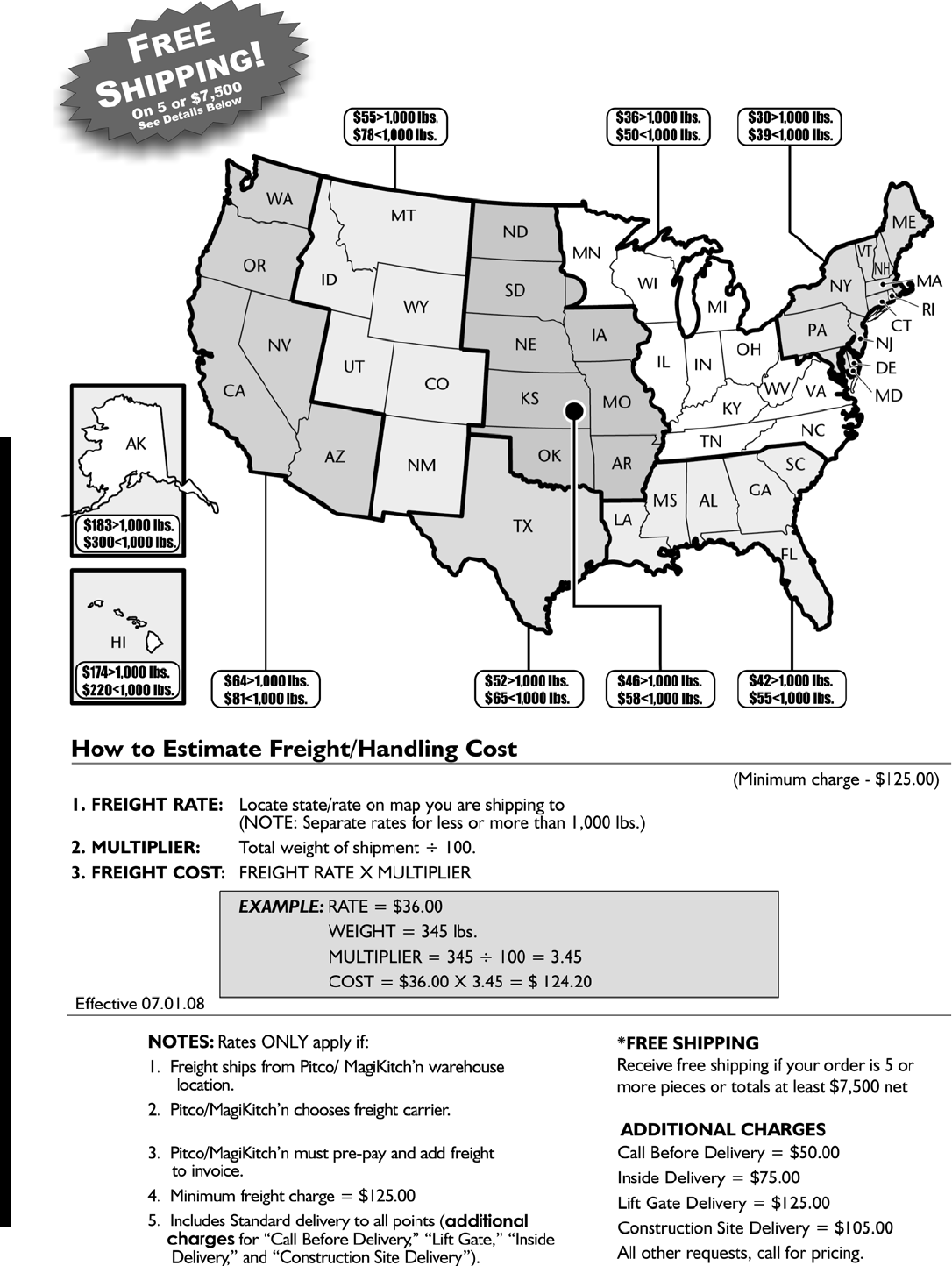

ShippingInformation.........................................................................................................18
L15-020 Rev 10 Effective 07.01.08
1
L15-020 Rev 10 Effective 07.01.08
It’s 3p.m. (E.S.T.)
Do you know
where your
fryer is?
If it’s a Pitco fryer....
it’s on its way to you. That’s because
we guarantee next business day
shipment on fax or phone orders
received by 3 P.M. E.S.T., or we’ll
send you a check for $100.
So we don’t just have the best fryers
and the best service. We have the best
delivery, too.
THE PITCO PLEDGE
AVAILABLE MODELS
Mix and match up to 4 fryers.
Frying Systems - Natural Gas Only -
Rear ‘T’ Manifold and Casters
SG14S/FD-FFB(BNB) $21,076
SG14RS/FD-FF $21,888
Portable Filtration
P14 w/o Heater $3,728
Economy Fryers
35C+S $3,244
45C+S $4,240
Free Standing Floor Fryers
SG14 $3,618
SG14S $4,950
SG14RS $6,250
SG18S $6,832
REQUIREMENTS
1. Program good for ultimate destination
within the United States only.
2. For authorized Pitco Dealers only.
3. If order is called in after 3:00 P.M. E.S.T.,
shipment will be made on the second
business day.
4. Customer must be in good credit
standing.
5. Natural or propane models available.
6. Guaranteed Next Day Shipment using
Pitco house carriers.
7. Specify Pitco Pledge Program when
ordering.
8. For elevations of 2,000 ft or less.
Prices and specications subject to change without notice.
THE PITCO PLEDGE
2L15-020 Rev 10 Effective 07.01.08
Solstice Supreme High Efciency
GAS MIX AND MATCH
Models Available With Or Without Filtration
All SSH Gas Fryer Systems standard with rear “T” manifold and 9” legs. Casters available below.
Model Oil BTU’s Sufx S Sufx SS Approx Approx Basket
Number Capacity Stainless Tank Stainless Tank Ship Wt. Cubic Lifts
(Lbs.) Stainless Stainless (Lbs.) Feet (see Note 1)
Front/Door Front/Door
Sides Sides and Back
Solid State Thermostat - standard with melt cycle, boil-out capability, matchless ignition, drain valve interlock
switch, self-clean burner (patent pending), and downdraft protection (patent pending).
SSH55-SSTC 40-50 80,000 $7,074 $7,484 230 17
SSH55R-SSTC 40-50 100,000 $7,898 $8,308 230 17
SSH55T-SSTC 20-25ea 40,000ea $8,246 $8,656 250 17
SSH75-SSTC 75 105,000 $7,494 $7,904 275 17
SSH75R-SSTC 75 125,000 $8,318 $8,728 275 17
Digital Control ** - standard with two count down timers, melt cycle, boil-out capability, matchless ignition, drain
valve interlock switch, self-clean burner (patent pending), and downdraft protection (patent pending).
SSH55-D 40-50 80,000 $7,290 $7,700 230 17 $2,402
SSH55R-D 40-50 100,000 $8,114 $8,524 230 17 $2,402
SSH55T-D 20-25ea 40,000ea $8,624 $9,034 250 17 $2,402
SSH75-D 75 105,000 $7,710 $8,120 275 17 $2,402
SSH75R-D 75 125,000 $8,534 $8,944 275 17 $2,402
Computerized Control ** - standard with twelve count down timers with elastic “ex time” for more
product consistency. Melt cycle, boil-out capability, matchless ignition, drain valve interlock switch, self-clean burner
(patent pending), and downdraft protection (patent pending).
SSH55-C 40-50 80,000ea $8,382 $8,792 230 17 $2,402
SSH55R-C 40-50 100,000 $9,206 $9,616 230 17 $2,402
SSH55T-C 20-25ea 40,000ea $10,284 $10,694 250 17 $2,402
SSH75-C 75 105,000 $8,802 $9,212 275 17 $2,402
SSH75R-C 75 125,000 $9,626 $10,036 275 17 $2,402
Supreme Series SSH Filter System with Unique Filter Drawer Design (/FD)
Approx.
Number of Full and/or Twin Tanks in System Weight
Note: Twin Tank =2 Tanks when pricing Filter Drawer lbs
SoloFilter
2 3 4 5 6
FD-SSH
$8,290 $9,072 $9,854 $10,636 $11,418 $12,200 150
** Solid state backup controller can be added to any fryer that uses a Digital or Computerized Control. Add $434
for full fryers, $652 for twin fryers
Note: Filter paper and other accessories available on pages 14 and 15.
Note: 9” casters available for $316 per set. Batteries require 1/2 set per cabinet, minimum 1 set.
Note 1: To meet AGA/CGA/CSA specication, all gas fryers with basket lifts must be ordered with casters and installed with exible gas
connector with restraining device. Basket lifts add 3-7/8” to overall depth of fryer.
SSH Frying Systems
Prepackaged With Filter System
Solid State Digital Control Computer Approx. Approx.
Control (-D) Control Ship Wt. Cubic
(-SSTC) (-C) (Lbs.) Feet
SSH55/FD-FF $23,220 $23,652 $25,836 570 52
SSH55/FD-FFF $31,076 $31,724 $35,000 800 70
SSH55/FD-FFFF $38,932 $39,796 $44,164 1,030 91
SSH55/FD-FT $25,174 $25,768 $28,520 590 52
SSH55/FD-FFT $33,030 $33,840 $37,684 820 70
SSH55/FD-FFFT $40,886 $41,912 $46,848 1,050 91
SSH55/FD-FTT $34,984 $35,956 $40,368 840 70
SSH55/FD-FFTT $42,840 $44,028 $49,532 1,070 91
Note: 9” casters available for $316 per set. Batteries require 1/2 set per cabinet, minimum 1 set.
SOLSTICE SUPREME GAS PREPACKAGED SYSTEMS
3
L15-020 Rev 10 Effective 07.01.08
Stand Alone Gas Fryers
GAS
Models not available with ltration. See page 4 for portable lter systems.
Model Oil Mild Steel Tank, Sufx S Sufx SS Approx. Approx.
Number Capacity BTU’s Stainless Steel Stainless Steel Stainless Steel Ship Wt. Cubic
(Lbs.) Front/Door Tank/Front/Door Tank/Exterior (Lbs.) Feet
Economy Fryers - Free Standing, stand alone fryer only
35C+ 35-40 90,000 $2,472 $3,244 --- 161 17
45C+ 42-50 122,000 $3,170 $4,240 --- 181 17
Solstice Counter Top Fryer
Mild Steel Tank, Sufx S Sufx SS
Millivolt control only. Stainless Steel Stainless Steel Stainless Steel
Sides/Front Tank/Front/Sides Tank/Exterior
SGC 35 75,000 --- $4,992 --- 150 17
Solstice Floor Fryers - Stand Alone
Millivolt control only. Solstice fryers are available in systems and/or with ltration. See pages 6-7.
SG14* 40-50 110,000 $3,618 $4,950 $5,360 200 17
SG14R 40-50 122,000 $4,918 $6,250 $6,660 208 17
SG14T 20-25ea 50,000ea $6,188 $7,538 $7,948 230 17
SG18 70-90 140,000 $5,380 $6,832 $7,242 226 23
*Free standing, stand alone fryer only (SPECIAL PRICE)
Solstice Drop-In Fryers Cutout
Standard millivolt fryers without a cabinet. Drop-in fryers are AGA approved. Dimensions
SG14DI 40-50 110,000 --- $4,630 --- 150 17 15”W x 32-1/8”L
SG14RDI 40-50 122,000 --- $5,494 --- 155 17 15”W x 32-1/8”L
SG14TDI 20-25ea 50,000ea --- $6,534 --- 175 17 15”W x 32-1/8”L
SG18DI 70-90 140,000 --- $5,880 --- 175 23 19”W x 32-1/8”L
Casters, covers and other accessories available on pages 14-15.
STAND ALONE GAS FRYERS
Model 35C+ Model SG18 Model SG14DI
4L15-020 Rev 10 Effective 07.01.08
Solstice Filter Drawer Filtration System
For Use With Gas Or Electric Fryers
Make a SoloFilter by combining a single fryer with a lter drawer or make a system with up to six fryers.
Model Number of fryers in system. Add lter price to fryer pricing.
Sizes SoloFilter 2 3 4 5 6
Filter Drawer Filtration System
For Use With Solstice Fryers Only - for twin tanks add price for two fryers.
Solstice lter requires separate power connection on all gas fryers and electric fryers of 400 or 440 volt.
FD Solstice $8,290 $9,072 $9,854 $10,636 $11,418 $12,200
Filter Drawer Filtration System With Optional BNB Dump Station
For Use With Solstice Fryers Only - for twin tanks add price for two fryers.
Solstice lter requires separate power connection on all gas fryers and electric fryers of 400 or 440 volt.
FD-Solstice $9,002 $9,784 $10,566 $11,348 $12,130 $12,912
Flush Hose $390 - Filter Heater $418
Special Piping Charges For All Filter Systems
Piping charge for fryer to add to existing Solstice Battery Filter Drawer or
SoloFilter, and piping through a BNB Dump Station. $782
Rules Of Thumb:
1. Filter Drawer - when pricing twin tank fryers in a lter system, add for two fryers.
Example: Filter Drawer for two full tank and two twin tank fryers would use the 6 fryer pricing.
Two full tank = two fryers; two twin tanks = four fryers.
2. All lters for gas fryers are available in 115vac -60hz. All single phase.
For other voltages, please contact factory.
3. All lters for electric fryers are wired at the factory for the fryer voltage on models from
208-240v. All 440-480v units require an additional 115v supply to power the lter system.
4. All systems standard with lter cover and channel strip.
5. All multiple tank gas lter systems come standard with rear “T” manifolds.
6. Shipping weight 150 lbs. Add 15 pounds for each lter piping.
7. Tie into a remote oil system with waste oil piping option, fuse with
Solstice Filter Drawer in a battery of two or more fryers $824
Portable Filtration
Filter requires separate power connection.
For use with gas or electric fryers.
Filter Oil Filter mounted on 2” casters (P6071062) List Approx. Filter
Model No. Capacity Price Ship Wt. Heater
Lbs. For use with: Lbs. (add-on)
P14 55 All 14 size fryers $3,728 131 $418
P18 75 All 18 size fryers $4,396 156 $418
P24 160 All 24 fryers $5,084 181 $418
RP14 55 All 14 size fryers (Reversible Pump) $3,930 131 $418
RP18 75 All 18 size fryers (Reversible Pump) $4,604 156 $418
P34 210 All 34 size fryers $5,084 206 $418
SOLSTICE FILTER SYSTEMS and PORTABLE FILTERS
Model P14
Portable Filter
Solstice Filter Drawer SoloFilter
5
L15-020 Rev 10 Effective 07.01.08
Solstice Gas Fryers
For Use In A System Or Stand Alone
GAS
All Solstice Gas Systems standard with rear “T” gas manifold and 9” legs. For prepackaged systems see page 6.
Model Oil Sufx S Sufx SS Approx. Approx. Back-up Basket
Number Capacity BTU’s Stainless Steel Stainless Steel Ship Wt. Cubic T-Stat Lifts
(Lbs.) Tank, Front Tank, Front (Lbs) Feet (See Note 1)
and Sides Sides and Back
Millivolt Thermostat
SG14 40-50 110,000 $5,384 $5,794 200 17
SG14R 40-50 122,000 $6,250 $6,660 208 17
SG14T 20-25ea 50,000ea $7,538 $7,948 230 17
SG18 70-90 140,000 $6,832 $7,242 226 23
Solid State Thermostat - standard with melt cycle, boil-out
capability, matchless ignition, and drain valve interlock switch.
SG14-SSTC 40-50 110,000 $6,092 $6,502 200 17
SG14R-SSTC 40-50 122,000 $6,958 $7,368 208 17
SG14T-SSTC 20-25ea 50,000ea $8,600 $9,010 230 17
SG18-SSTC 70-90 140,000 $7,540 $7,950 226 23
Digital Control - standard with two count down timers, melt cycle,
boil-out capability, matchless ignition and drain valve interlock switch.
SG14-D 40-50 110,000 $6,286 $6,696 200 17 $434 $2,402
SG14R-D 40-50 122,000 $7,152 $7,562 208 17 $434 $2,402
SG14T-D 20-25ea 50,000ea $8,946 $9,356 230 17 $652 $2,402
SG18-D 70-90 140,000 $7,734 $ 8,144 226 23 $434 $2,402
Computerized Control - standard with twelve count down timers
with elastic “ex time” for more product consistency. Melt cycle, boil-out
capability, matchless ignition, and drain valve interlock switch.
SG14-C 40-50 110,000 $7,464 $7,874 200 17 $ 434 $2,402
SG14R-C 40-50 122,000 $8,330 $8,740 208 17 $434 $2,402
SG14T-C 20-25ea 50,000ea $10,738 $11,148 230 17 $652 $2,402
SG18-C 70-90 140,000 $8,912 $9,322 226 23 $434 $2,402
Solstice Bread And Batter - BNB Dump Station
Standard with 4-5/8” recessed pan and screen. Scooped pan liner available at no additional cost in lieu of screen.
Additional BNB accessories on page 15.
BNB-SG14 $1,762 $2,172 150 17
BNB-SG18 $1,762 $2,172 150 23
Note 1: To meet AGA/CGA/CSA requirements, all fryers with basket lifts must be ordered with casters and installed with a FLEXIBLE GAS CONNECTOR
with restraining device. Add 100 lbs to fryer weight. Basket lifts add 3-7/8” to overall depth of fryer.
SOLSTICE GAS FRYERS
Model SG14 with Optional
Computer and Casters
Model SG14R with
Optional Casters
6L15-020 Rev 10 Effective 07.01.08
Solstice Gas Prepackaged Systems
GAS
Select From These Prepackaged Systems Or Build Your Own On Pages 4 - 5.
All Solstice Gas Fryer Systems standard with rear “T” manifold and 9” legs. Casters available below.
Sufx SS Back-up Basket
# of Line-up Model Model Model Stainless T-stat Lifts
Fryers SG14S SG14RS SG18S Back (See Note 2)
Millivolt Thermostat
1 SoloFilter $13,674 $14,540 $15,122 $410
2 /FD-FF $19,840 $21,572 $22,736 $820
3 /FD-FFF $26,006 $28,604 $30,350 $1,230
4 /FD-FFFF $32,172 $35,636 $37,964 $1,640
5 /FD-FFFFF $38,338 $42,668 $45,578 $2,050
6 /FD-FFFFFF $44,504 $49,700 $53,192 $2,460
Solid State Thermostat - standard with melt cycle, boil-out capability, matchless ignition, and drain valve
interlock switch.
1 SoloFilter $14,382 $15,248 $15,830 $410
2 /FD-FF $21,256 $22,988 $24,152 $820
3 /FD-FFF $28,130 $30,728 $32,474 $1,230
4 /FD-FFFF $35,004 $38,468 $40,796 $1,640
5 /FD-FFFFF $41,878 $46,208 $49,118 $2,050
6 /FD-FFFFFF $48,752 $53,948 $57,440 $2,460
Digital Control - standard with two count down timers, melt cycle, boil-out capability, matchless ignition, and drain
valve interlock switch.
1 SoloFilter $14,576 $15,442 $16,024 $410 $434 $2,402
2 /FD-FF $21,644 $23,376 $24,540 $820 $868 $4,804
3 /FD-FFF $28,712 $31,310 $33,056 $1,230 $1,302 $7,206
4 /FD-FFFF $35,780 $39,244 $41,572 $1,640 $1,736 $9,608
5 /FD-FFFFF $42,848 $47,178 $50,088 $2,050 $2,170 $12,010
6 /FD-FFFFFF $49,916 $55,112 $58,604 $2,460 $2,604 $14,412
Computerized Control - standard with twelve count down timers with elastic “ex time” for more product
consistency. Melt cycle, boil-out capability, matchless ignition, and drain valve interlock switch.
1 SoloFilter $15,754 $16,620 $17,202 $410 $434 $2,402
2 /FD-FF $24,000 $25,732 $26,896 $820 $868 $4,804
3 /FD-FFF $32,246 $34,844 $36,590 $1,230 $1,302 $7,206
4 /FD-FFFF $40,492 $43,956 $46,284 $1,640 $1,736 $9,608
5 /FD-FFFFF $48,738 $53,068 $55,978 $2,050 $2,170 $12,010
6 /FD-FFFFFF $56,984 $62,180 $65,672 $2,460 $2,604 $14,412
Options
BNB Dump Station (see Note 1) $762
Filter Heater $418
Flush Hose $390
Casters (1/2 set per cabinet, minimum 1 set)
# of Price # of Price
Fryers Fryers
1 $316 4 $632
2 $316 5 $790
3 $474 6 $948
For systems with SG14TS Twin Tank fryers or mix and match congurations, please contact your Pitco representative or
call the factory for pricing assistance.
Approx. Shipping Weight Chart Lbs.
SG14S SG14RS SG18S
/FD-FF 550 566 602
/FD-FFF 765 789 843
/FD-FFFF 980 1,012 1,084
/FD-FFFFF 1,195 1,235 1,325
/FD-FFFFFF 1,410 1,458 1,566
SOLSTICE GAS PREPACKAGED SYSTEMS
Note 1: Special price applies to BNB when used in a Solstice Filter Drawer system. For each additional BNB, the standard price of
$1,762 applies. For Sufx SS Stainless Back add $410. If BNB is added between two fryers, an additional $782 piping charge will apply.
Note 2: To meet AGA/CGA/CSA specication, all gas fryers with basket lifts must be ordered with casters and installed with exible gas
connector with restraining device. Basket lifts add 3-7/8” to overall depth of fryer.
7
L15-020 Rev 10 Effective 07.01.08
Solstice Electric Prepackaged Systems
ELECTRIC
Select From These Prepackaged Systems Or Build Your Own On Pages 8-9.
All Solstice Electric Fryer Systems standard with 9” legs. Casters available below.
Model Model Model Model Model Sufx SS Back-up Basket
# of Line-up SE14X SE14S SE14RS SE18S SE18RS Stainless T-stat Lifts
Fryers (14kW) (17kW) (22kW) (17kW) (22kW) Back (See Note 2)
Solid State Thermostat - standard with melt cycle, boil-out capability, and drain valve interlock switch.
1 SoloFilter $14,360 $15,380 $16,168 $17,004 $17,806 $410
2 /FD-FF $21,212 $23,252 $24,828 $26,500 $28,104 $820
3 /FD-FFF $28,064 $31,124 $33,488 $35,996 $38,402 $1,230
4 /FD-FFFF $34,916 $38,996 $42,148 $45,492 $48,700 $1,640
5 /FD-FFFFF $41,768 $46,868 $50,808 $54,988 $58,998 $2,050
6 /FD-FFFFFF $48,620 $54,740 $59,468 $64,484 $69,296 $2,460
Digital Control - standard with two count down timers, melt cycle, boil-out capability, and drain valve interlock
switch.
1 SoloFilter $14,646 $15,666 $16,454 $17,290 $18,092 $410 $434 $2,402
2 /FD-FF $21,784 $23,824 $25,400 $27,072 $28,676 $820 $868 $4,804
3 /FD-FFF $28,922 $31,982 $34,346 $36,854 $39,260 $1,230 $1,302 $7,206
4 /FD-FFFF $36,060 $40,140 $43,292 $46,636 $49,844 $1,640 $1,736 $9,608
5 /FD-FFFFF $43,198 $48,298 $52,238 $56,418 $60,428 $2,050 $2,170 $12,010
6 /FD-FFFFFF $50,336 $56,456 $61,184 $66,200 $71,012 $2,460 $2,604 $14,412
Computerized Control - standard with twelve count down timers with elastic “ex time” for more product
consistency. Melt cycle, boil-out capability, and drain valve interlock switch.
1 SoloFilter $16,440 $17,460 $18,248 $19,084 $19,886 $410 $434 $2,402
2 /FD-FF $25,372 $27,412 $28,988 $30,660 $32,264 $820 $868 $4,804
3 /FD-FFF $34,304 $37,364 $39,728 $42,236 $44,642 $1,230 $1,302 $7,206
4 /FD-FFFF $43,236 $47,316 $50,468 $53,812 $57,020 $1,640 $1,736 $9,608
5 /FD-FFFFF $52,168 $57,268 $61,208 $65,388 $69,398 $2,050 $2,170 $12,010
6 /FD-FFFFFF $61,100 $67,220 $71,948 $76,964 $81,776 $2,460 $2,604 $14,412
Options
BNB Dump Station (see Note 1) $762
Filter Heater $418
Flush Hose $390
Casters (1/2 set per cabinet, minimum 1 set)
# of # of
Fryers Fryers
1 $316 4 $632
2 $316 5 $790
3 $474 6 $948
For systems with SE14TS, SE14TRS Twin Tank fryers or mix and match congurations, please contact your Pitco
representative or call the factory for pricing assistance.
SOLSTICE ELECTRIC PREPACKAGED SYSTEMS
Approx. Shipping Weight Chart Lbs.
SE14XSE14/SE14R SE18S/SE18R
/FD-FF 550 602
/FD-FFF 765 843
/FD-FFFF 980 1,084
/FD-FFFFF 1,195 1,325
/FD-FFFFFF 1,410 1,566
*For BNB dump station, add 150 lbs to above weight.
*For basket lifts, add 100 lbs per fryer to above weight.
Note 1: Special price applies to BNB when used in a Solstice Filter Drawer system. For each additional BNB, the standard price of
$1,762 applies. For Sufx SS Stainless Back add $410. If BNB is added between two fryers, an additional $782 piping charge will
apply.
Note 2: Basket Lifts add 3-7/8” to overall depth of fryer. Basket lifts are wired at the factory for the fryer voltage on 208-240v units. All
440-480v models require an additional 115v supply to power the basket lifts.
8L15-020 Rev 10 Effective 07.01.08
Solstice Filter Drawer Filtration System
For Use With Gas Or Electric Fryers
Make a SoloFilter by combining a single fryer with a lter drawer or make a system with up to six fryers.
Model Number of fryers in system. Add lter price to fryer pricing.
Sizes SoloFilter 2 3 4 5 6
Filter Drawer Filtration System
For Use With Solstice Fryers Only - for twin tanks add price for two fryers.
Solstice lter requires separate power connection on all gas fryers and electric fryers of 400 or 440 volt.
FD Solstice $8,290 $9,072 $9,854 $10,636 $11,418 $12,200
Filter Drawer Filtration System With Optional BNB Dump Station
For Use With Solstice Fryers Only - for twin tanks add price for two fryers.
Solstice lter requires separate power connection on all gas fryers and electric fryers of 400 or 440 volt.
FD-Solstice $9,002 $9,784 $10,566 $11,348 $12,130 $12,912
Flush Hose $390 - Filter Heater $418
Special Piping Charges For All Filter Systems
Piping charge for fryer to add to existing Solstice Battery Filter Drawer or
SoloFilter, and piping through a BNB Dump Station. $782
Rules Of Thumb:
1. Filter Drawer - when pricing twin tank fryers in a lter system, add for two fryers.
Example: Filter Drawer for two full tank and two twin tank fryers would use the 6 fryer pricing.
Two full tank = two fryers; two twin tanks = four fryers.
2. All lters for gas fryers are available in 115vac -60hz. All single phase.
For other voltages, please contact factory.
3. All lters for electric fryers are wired at the factory for the fryer voltage on models from
208-240v. All 440-480v units require an additional 115v supply to power the lter system.
4. All systems standard with lter cover and channel strip.
5. All multiple tank gas lter systems come standard with rear “T” manifolds.
6. Shipping weight 150 lbs. Add 15 pounds for each lter piping.
7. Tie into a remote oil system with waste oil piping option, fuse with
Solstice Filter Drawer in a battery of two or more fryers $824
Portable Filtration
Filter requires separate power connection.
For use with gas or electric fryers.
Filter Oil Filter mounted on 2” casters (P6071062) List Approx. Filter
Model No. Capacity Price Ship Wt. Heater
Lbs. For use with: Lbs. (add-on)
P14 55 All 14 size fryers $3,728 131 $418
P18 75 All 18 size fryers $4,396 156 $418
P24 160 All 24 fryers $5,084 181 $418
RP14 55 All 14 size fryers (Reversible Pump) $3,930 131 $418
RP18 75 All 18 size fryers (Reversible Pump) $4,604 156 $418
P34 210 All 34 size fryers $5,084 206 $418
SOLSTICE FILTER SYSTEMS and PORTABLE FILTERS
Model P14
Portable Filter
Solstice Filter Drawer SoloFilter
9
L15-020 Rev 10 Effective 07.01.08
Solstice Electric Fryers
For Use In A System Or Stand Alone
ELECTRIC
All Solstice Electric Systems standard with 9” legs. For prepackaged systems see page 7.
Electric fryers available 208, 220, 230 or 240VAC, 1 or 3 phase. Add $592 for 480VAC service.
For other voltages please consult factory
Model Oil Power Sufx S Sufx SS Approx. Approx. Back-up Basket
Number Capacity kW Stainless Steel Stainless Steel Ship Wt. Cubic T-Stat Lifts
(Lbs.) Tank, Front, Tank,Front, (Lbs) Feet (See Note 1)
and Sides Sides and Back
Solid State Thermostat - standard with melt cycle, boil-out
capability and drain valve interlock switch. Add $592 for 480VAC service.
SE14X-SSTC 40-50 14 $6,070 $6,480 200 17
SE14-SSTC 40-50 17 $7,090 $7,500 200 17
SE14R-SSTC 40-50 22 $7,878 $8,288 208 17
SE14TX-SSTC 20-25ea 7ea $7,280 $7,690 230 17
SE14T-SSTC 20-25ea 8.5ea $8,860 $9,270 230 17
SE14TR-SSTC 20-25ea 11ea $9,648 $10,058 230 17
SE18-SSTC 70-90 17 $8,714 $9,124 226 23
SE18R-SSTC 70-90 22 $9,516 $9,926 226 23
Digital Control - standard with two count down timers, melt cycle,
boil-out capability and drain valve interlock switch. Add $592 for 480VAC service.
SE14X-D 40-50 14 $6,356 $6,766 200 17 $434 $2,402
SE14-D 40-50 17 $7,376 $7,786 200 17 $434 $2,402
SE14R-D 40-50 22 $8,164 $8,574 208 17 $434 $2,402
SE14TX-D 20-25ea 7ea $7,852 $8,262 230 17 $652 $2,402
SE14T-D 20-25ea 8.5ea $9,432 $9,842 230 17 $652 $2,402
SE14TR-D 20-25ea 11ea $10,220 $10,630 230 17 $652 $2,402
SE18-D 70-90 17 $9,000 $9,410 226 23 $434 $2,402
SE18R-D 70-90 22 $9,802 $10,212 226 23 $434 $2,402
Computerized Control - standard with twelve count down timers
with elastic “ex time” for more product consistency. Melt cycle, boil-out
capability and drain valve interlock switch. Add $592 for 480VAC service.
SE14X-C 40-50 14 $8,150 $8,560 200 17 $434 $2,402
SE14-C 40-50 17 $9,170 $9,580 200 17 $434 $2,402
SE14R-C 40-50 22 $9,958 $10,368 208 17 $434 $2,402
SE14TX-C 20-25ea 7ea $9,420 $9,830 230 17 $652 $2,402
SE14T-C 20-25ea 8.5ea $11,000 $11,410 230 17 $652 $2,402
SE14TR-C 20-25ea 11ea $11,788 $12,198 230 17 $652 $2,402
SE18-C 70-90 17 $10,794 $11,204 226 23 $434 $2,402
SE18R-C 70-90 22 $11,596 $12,006 226 23 $434 $2,402
Solstice Bread And Batter - BNB Dump Station
Standard with 4-5/8” recessed pan and screen. Scooped pan liner available at no additional cost in lieu of screen.
Additional BNB accessories available on page 17.
BNB-SE14 $1,762 $2,172 150 17
BNB-SE18 $1,762 $2,172 175 23
Note 1: Basket lifts add 3-7/8” to overall depth of fryer. Add 100 lbs to fryer weight. Basket lifts are wired at the factory for the fryer voltage
on 208-240v units. All 440-480v models require an additional 115v supply to power the basket lifts.
SOLSTICE ELECTRIC FRYERS
10 L15-020 Rev 10 Effective 07.01.08
S = Standard O = Optional - = Not Available
Pasta Cookers - Gas & Electric
Select From The Prepackaged Systems Or Build Your Own
Model Power Water All Approx. Approx.
Number BTU’s/kW Capacity Stainless Ship Wt. Cubic
(Gallons) Steel (Lbs) Feet
Pasta Perfect System
GAS SYSTEM - Includes cooker with automatic lift(s), rinse station,
hot/cold faucet, tube rack, single drain attachment connecting bottom
and overow drain.
PPG14D-L 77,500 BTU 12 $13,506 335 55 S - S O O S S O O O O O O
PPG14D-LL 77,500 BTU 12 $14,700 335 55 - S S O O S S O O O O O O
GAS COOKER
PG14D 77,500 BTU 12 $8,118 190 17 O O S O - - - O O O O O O
GAS RINSE STATION - Standard with faucet
RS14D $3,976 140 17 - - - - O S - O O O O O O
ELECTRIC SYSTEM - Includes cooker with automatic lift(s), rinse
station, hot/cold faucet, single drain attachment connecting bottom
and overow drain.
Available in single and three phase. Not available in 480v.
PPE14D-L 12.5 kW 12 $11,730 315 55 S - S O O S S O O O O - O
PPE14D-LL 12.5 kW 12 $12,924 315 55 - S S O O S S O - O O - O
ELECTRIC COOKER
PE14D 12.5 kW 12 $6,444 171 17 O O S O - - - O O O O O O
ELECTRIC RINSE STATION - Standard with faucet
RSE14D $3,836 136 17 - - - - O S ** O O O O O O
ELECTRIC COUNTER PASTA UNIT
CPE14 5.5 - 6kW* 7 $5,898 80 10 - - S O - - ** O - O O - O
RSC14 Rinse Station 7 $3,012 80 10 - - - - O S ** O - O O - O
*220 - 5kW / 200 & 230 - 5.5kW / 208 & 240 - 6kW
** Drain “T” manifold not available for single units
OPTIONS
Single Basket Lift $1,264
Dual Basket Lift $2,402
Manual Water Fill $566
Rinse Tank Insulation $866
Drain “T” Manifold (specify when ordering) n/c
Hot/Cold Swivel Faucet (for PG14D/PE14D*) $324
*Faucet not available on PE14 with basket lifts.
PASTA COOKERS - GAS & ELECTRIC
Round Basket - 4-5/8” or 6-1/4” for
use with gas or electric. Standard or
ne mesh available.
For cooking of various types of pasta
or reconstituting of small portions.
Individual Portion Cups and Rack
(9) 4”x4” cups for use in gas or electric.
For cooking or reconstituting of single
portions.
Bulk Baskets
Small 13-1/4” x 13-1/4” x 9” for use with
gas or electric. Small bulk loads up to 5 lbs
of dry pasta. Can also be used with single
basket lift.
Large 16” x 13-1/4” x 10” for use with gas
units only. Large bulk loads up to 12 lbs of dry
pasta. Can also be used with single basket
lift.
Oblong Basket - 15-3/4” x 6” x 7” for use with
any pasta cooker except CPE14. Can also be
used with dual basket lift.
For cooking of smaller portions. Can be used
as holding rack for small round baskets, 2 ea.
Single Lift
Dual Lift
Digital Thermostat
Manual Water Fill
Rinse Tank Insulation
Hot/Cold Faucet
(Note 1)
Drain “T” Manifold
Small Bulk
Large Bulk
Round 4-5/8”
Round 6-1/4”
Oblong
Portion Cups & Rack
11
L15-020 Rev 10 Effective 07.01.08
GAS
Standard with Digital Thermostat, electronic ignition, automatic water ll, auxiliary manual ll, common drain/
overow, stainless steel hinged tank cover(s), tube rack, 6” legs. Supplied with cord and plug.
SRTG14 (Single) 55,000 BTU 17.5 $8,496 $8,904 220 lbs.
SRTG14-2 (Dual) 55,000 BTU ea 17.5 ea $14,626 $15,444 477 lbs.
ELECTRIC
Standard with Digital Thermostat, automatic water ll, auxiliary water ll, common drain/over ow, stainless
steel hinged tank cover(s), element rack, 6” legs. No power cord supplied. Electric service must be hardwired
by a licensed electrician.
SRTE14 (Single) 8 kW * 16.5 $7,386 $7,796 220 lbs,
SRTE14-2 (Dual) 8 kW ea* 16.5 ea $12,990 $13,808 477 lbs.
CRTE 6 kW 6 n/a $3,012 60 lbs
FLOOR MODEL OPTIONS AND ACCESSORIES Per Tank
Automatic Water Fill Allows for automatic water ll of tank - manual bypass standard Standard
Common Drain/Overow Manifolds overow and drain to a single point connection Standard
Computer Controller I-8 8 button programmable computerized control $2,078
Digital Thermostat Monitors and maintains temperature Standard
Food Product Suitcase Sized for prepackaged food pouch - Narrow B4511101 $86
Food Product Suitcase Sized for prepackaged food pouch - Wide B45133301 $212
Vertical Food Rack Wire rack - supports food product suitcase in tank B4513302 $138
Water Quick Disconnect Self closing single hand operation water supply hose $310
1/3 Pan Rails Holds various sizes of hotel pans to keep foods warm.
Set of 2 for single tank $196
Set of 3 for dual tank $294
NOTE: Casters available for $316 per set.
*SRTE wattage changes by voltage. Consult factory for specs.
Model Power Water Sufx S Sufx SS Approx.
Number BTU’s/kW Capacity Stainless Tank, Stainless Tank Ship Wt.
(Gallons) Front and Door and Exterior (lbs)
SOLSTICE WATER RETHERMALIZERS
Solstice Combustion System For Improved Gas Efciency
Convenience Over Range Top Application
Reduces Kitchen Labor and Training
Exceptional Product Quality
Improves Kitchen Safety
Reduces Energy Usage
CRTE Counter Top
Electric Rethermalizer
12 L15-020 Rev 10 Effective 07.01.08
Donut & High Volume Fryers - Gas & Electric
GAS
Models not available with ltration except 24RUFM. See page 8 for portable lter systems.
All models standard with stainless steel tank and exterior.
Model Oil Select Thermostat Type Approx. Approx. Dropper Bracket
Number Capacity BTU’s Ship Wt. Cubic Stainless
(Lbs.) Mechanical Solid State (Lbs.) Feet (see Note 1)
Donut Fryer With UFM Filter - Price includes ltration. Without UFM deduct $2,800 per unit.
Solid State thermostat, melt cycle, boil out capability, standing pilot, On/Off switch, indicating lights, drainboard,
submerger, lter heater, ush hose and Under Fryer Filter. Electronic ignition available $724.
24RUFM 117 72,000 --- $19,772 510 45 $236
Donut Fryers - Standard with submerger and drainboard.
Electric thermostat available in lieu of Mechanical Thermostat at no additional cost.
24P 150 120,000 $11,004 $11,712 375 45 $236
34P 210 110,000 $12,818 $13,526 495 69 $236
Food/Chicken/Fish Fryers - High Volume Workshelves
1-1/2” full port drain valve standard. Front/
Electric thermostat available in lieu of Mechanical Thermostat at no additional cost. Top/Side
Low Splashback, Food/Fish Grid
24F 150 150,000 $10,406 $11,114 330 45 $686 ea
34F 210 190,000 $12,132 $12,840 490 69 $686 ea
High Splashback, Drainboard, Submerger, Food/Fish Grid.
24FF 150 150,000 $10,810 $11,518 330 45 $686 ea
34FF 210 190,000 $12,548 $13,256 490 69 $686 ea
ELECTRIC
All models standard with stainless steel tank and exterior.
Model Oil Power Electric Solid State Approx. Approx. Dropper Bracket
Number Capacity kW Thermostat Thermostat Ship Wt. Cubic Stainless
(Lbs.) (Lbs.) Feet (see Note 1)
Donut Fryers - Standard with submerger and drainboard
Electric thermostat, On/Off switch, indicating lights.
E24 150 18.0 $11,728 --- 400 55 $236
E34 210 24.0 --- $13,160 450 69 $236
Note: Add $592 for 480 Volt Service
Note 1: Dropper bracket price includes anged, bolt-down leg assembly.
DONUT & HIGH VOLUME FRYERS
Model 24RUFM
(Casters Optional)
Model 24F
(Low Splashback)
13
L15-020 Rev 10 Effective 07.01.08
MEGAFRY
Model Size Solid State Digital Control Computer Control Approx Ship
(-SSTC) (-D) (-C) Wt. (Lbs)
SGM34 34” x 24” $12,500 $12,728 $13,874 495
SGM24 24” x 24” $10,726 $10,954 $12,100 375
SGM18x24 18” x 24” $8,712 $8,940 $10,086 250
Accessories
Lg Basket 10”x23-1/4” $330 ea
Sm Basket 5-3/4”x23-1/4” $295 ea
Flush Hose $390
Filter Heater $418
Filter Drawer Filtration System For MEGAFRY or Flat Bottom Fryer
Number of fryers in system 1 2 3 4
FD-MEGA or FD-Flat Bottom $8,532 $9,314 $10,096 $10,878
(Filter must be under largest fryer in the battery)
Flat Bottom Fryer
Model Size Solid State Approx
(Standard) Ship Wt (Lbs)
FBG24 24”x24” $10,080 315
FBG18 18”x24” $9,348 270
Flat Bottom Filter Drawer (see above)
Mix and match any of the
MEGAFRY models to make the
battery you need.
- High Efciency & High Production
- Standard with solid state control
- Standard with stainless steel tank,
front, sides and splashback
- Optional ltration system
- Upgrade controls available
Perfect for free oat frying, no tubes
No combustion blower
24” x 24” and 18” x 24” sizes
Optional lter system
Standard stainless steel front, sides and splashback
Standard mild steel tank
*
Options and Accessories Price
Solid State Temperature Control Standard
Matchless Ignition Standard
Automatic Melt Cycle Standard
Boil Out Mode Standard
Marine Front Edge Standard
9” Legs Standard
9” Casters $316/set
Crumb Tray - rear mount $398
Perforated Pan Divider $416
Tank Cover (18x24) $304
Tank Cover (24x24) $432
Flue Splash Guard $124
Channel Strip n/c
MEGAFRY & FLAT BOTTOM
As shown:
SMG34-C, SMG24-D,
SMG18x24-SSTC, FD-MEGA
with optional baskets and casters
As shown:
SGFB24x24, SGFB24x24,
FD-Flat Bottom with optional casters
14 L15-020 Rev 10 Effective 07.01.08
Options and Accessories
Casters
Set of 4 - 4”, 6”, 7”, 8”, 9” or 11” Adjustable Casters Assembly. Includes 2 With Brakes.
Caster Chart
# of Units Including Dump Station 1 2 3 4 5 6 7 8
# of Sets Required 1 1 1-1/2 2 2-1/2 3 3-1/2 4
Part# Price
6” Swivel B3901501 $316 Set
7” Swivel B3901502 $316 Set
8” Swivel B3901503 $316 Set
9” Swivel B3901504 $316 Set
9” Rigid/non lkg B3902302 $79 ea
9” Rigid/lkg B3902304 $79 ea
10” Rigid/non lkg B3902301 $79 ea
10” Rigid/lkg B3902303 $79 ea
11” Swivel B3901505 $316 Set
Flexible Connectors (Gas Quick Disconnect)
Gas quick disconnect couplings with exible hose, restraining device and thermal shut-off.
Gas Connector Size Disconnect BTU Capacity Part# Price
Single Units Multiple Units
3/4” x 36” 240,000 --- B8003102 $562
3/4” x 48” 240,000 --- B8003103 $634
1” x 36” --- 390,000 B8003105 $694
1” x 48” --- 390,000 B8003106 $792
1-1/4” x 36” --- 575,000 B8003108 $942
1-1/4” x 48” --- 575,000 B8003109 $1,056
Fryers - Cleaning Accessories Part# Price
Clean Out Rod Used to clean fryer drain line A3301001 $34
Cleaner - 25 Lbs. Extends the life of the fryer and shortening P6071397 $234
Cleaning Brush High temperature, Teon cleaning brush PP10056 $54
Crumb Scoop Designed to t between tubes and elements Std - B7490701 $58
for removal of heavy sediment. Twin,SE - B5008101 $58
Fat Vat Convenient, safe oil transport system D9109105 $868
holds 40 pounds (5.3 gallons) D9109105 $838
Skimmer Used for removing food particles from the oil PP10725 $40
surface.
Filter Accessories
Crumb Catch For use with Solstice Filter Drawer Only $300
Filter Crumb Scoop Used to remove debris from lter pan B7404801 $42
Powder Filter powder - 120, 8 oz. packets PP10733 $124
Paperless Filter (Priced as substitute for standard assembly in new $312
assembly lter system.)
Filter Paper
Part# Type Gauge Size Model Numbers Price
PP10613 Envelope Heavy Duty 18-1/2” x 20-1/2” Solstice Filter Drawer $238
A6667104 Envelope Heavy Duty 10” x 20-1/2” Solstice SoloFilter 14 $144
A7025301 Envelope Heavy Duty 14” x 22” Solstice SoloFilter 18 $188
P5045157 Envelope Standard 11” x 13” 24RUFM $144
PP10617 Envelope Heavy Duty 11” x 13” 24RUFM $226
P6071371 Flat Standard 13-1/2” x 24” P14 $144
PP10612 Flat Heavy Duty 13-1/2” x 24” P14 $188
P6071373 Flat Standard 17-1/2” x 28” P18/P24/P34 $188
PP10606 Flat Heavy Duty 17-1/2” x 28” P18/P24/P34 $246
A6667103 Envelope Heavy Duty 20-1/2” x 14-1/4” RP14/RP18 $226
Caster Rules:
1. Chicken/Food/Fish/Donut fryers require one set per unit.
2. 8” caster assembly needed if Chicken/Food/Fish/Donut fryers are used
with Portable Filter.
3. 9” caster assembly for use on Solstice fryers - no more than six units.
4. 10” caster assembly for use on Solstice SoloFilter in place of legs.
5. 11” caster optional for Solstice Platform only.
(Qty 1-50)
(Qty 51-150)
FRYER OPTIONS AND ACCESSORIES
15
L15-020 Rev 10 Effective 07.01.08
Options and Accessories
Tank Cover Chart
Model Numbers 18 Gauge Price
Cover Each
With Out Basket Lifts
SG14, SG14R, BNB-SG14, SSH55/55T B2101501 $214
SG14T B2101501 $214
SG18, SE18, BNB-SG18, SGM18x24, SSH75
B2101502 $286
SE14/14R/14T/14TR B2101505 $214
SE18/18R B2101506 $286
FBG18 B2101510 $304
FBG24 B2101511 $432
SGM24 B2101512 $432
SGM34 B2101513 $432
24P, 24FF, 24R, E24, E24FF B2100204 $426
34P, 34FF, E34, E34FF B2100210 $426
35C+ B3307401 $214
45C+ B3304501 $214
With Basket Lifts
SG14/14R/14T, SSH55/55T B2101603 $214
SG18, SSH75 B2101604 $286
SE14/14R/14T/14TR B2101605 $214
SE18/18R B2101606 $286
Portable Filter Covers
P14, RP14 B6604902 $214
P18, RP18 B6604904 $286
P24, P34 B6609406 $426
BNB Dump Station - Standard with 4-5/8” recessed top/screen. Matches dimensions of fryer.
Approximate shipping weight 150 pounds.
Bread and Batter Dump Station $1,762
All Stainless Steel (Add Sufx SS) $2,172
PFW-1 Built-in Foodwarmer, 750watt $932
PFW-2 Free Standing Foodwarmer, 500watt $696
Scooped Pan Liner (in lieu of screen) No Additional Cost - Specify at Point of Order
Flat Worktop Call factory for availability n/c
Flush Worktop Call factory for availability n/c
Cut-outs (w/Flat or Flush Worktop) Call factory for availability
Splashguard - Mounts on tank side to prevent splashing of oil from one unit to another. Consult factory for other height requirements
6” $140
10” (Economy Fryers Only) $158
12” $188
18” $282
Workshelves Call factory for specications and availability. $686
Institutional Packages SG14S/14RS/14TS SG18S
SE14S/14RS/14T/14RT SE18S MegaFry FD Filter Drawer BNB
Door Latch Assembly Required Required - Required
16ga. Tank/Front panel cover assembly Required Required - Required
Flanged legs Required Required - Required
Stainless back Required Required - Required
Gas - Total Add-on $1,194 $1,265 $1,454 See Note 1 $1,000
Electric - Total Add-on $1,327 $1,405 n/a See Note 1 $1,136
-Locks and keys to be supplied by end user
-Not available with institutional package: Basket Lifts, Filter Flush Hose, Quick Disconnects, Casters, Fat Vat
NOTE 1: No modications required for institutional packages on this product
-All exposed fasteners meet or exceed requirements set forth by the American Correctional Food Service association (Std. No. 1, section 1401)
FRYER OPTIONS AND ACCESSORIES
16 L15-020 Rev 10 Effective 07.01.08
Basket and Wire Goods
Description Part Size Type of Quantity List
Number Handle(s) per Tank Each
Pasta Wire Goods
Small Bulk Basket - Stainless B4510202 13-1/4” x 13-1/4” x -9” Sides 1 $300
Large Bulk Basket - Stainless (gas only) B4512702 16” x 13-1/4” x 10” Sides 1 $300
Round Basket 4-5/8”- Stainless Fine Mesh B4510002 4-1/2” I.D. Front 6 $178
Round Basket 4-5/8” - Stainless B4510001 4-1/2” I.D. Front 6 $122
Round Basket 6-1/4” Stainless B4509901 6-1/4” I.D. Front 4 $122
Oblong Basket Stainless B4509801 15-3/4” x 6” x 7” Front 2 $204
Individual Serving Baskets With Rack B9010006 9 Individual Baskets w/Rack --- 1 $184
Individual Serving Basket Only P6071998 Single 4” x 4” Basket --- 6 $26
Element Rack - Electric B7611202 --- --- 1 $126
Tube Rack - Gas B4510101 --- --- 1 $288
Solstice Fryer, Donut, Food and Fish Wire Goods
Twin Baskets - Regular Mesh (shipped standard with equipment)
35/45C+, SG14/14R, SE14/14R, SSH55 P6072145 13-1/2” x 6-1/2” x 5-1/2” deep Front 2 $94
SG14T, SE14T/14TR , SSH55T P6072145 13-1/2” x 6-1/2” x 5-1/2” deep Front 1 $94
SG18, SE18/18R, SSH75 P6072184 17-1/4” x 8-1/2” x 5-3/4” deep Front 2 $184
Twin Baskets - Fine Mesh
35/45C+, SG14/14R, SE14/14R , SSH55 P6072146 13-1/2” x 6-1/2” x 5-1/2” deep Front 2 $190
SG14T, SE14T/14TR , SSH55T P6072146 13-1/2” x 6-1/2” x 5-1/2” deep Front 1 $190
SG18, SE18/18R, SSH75 P6072188 17-1/4” x 8-1/2” x 5-3/4” deep Front 2 $230
Square/Full Size Basket - Regular Mesh (optional in lieu of Twin Baskets with standard fryers)
35/45C+, SG14/14R, SE14/14R, SSH55 P6072143 13-1/2” x 13-1/2” x 5-1/2” deep Front 1 $190
SG18, SE18/18R, SSH75 P6072181 17” x 17” x 5-3/4” deep Front/Back 1 $336
SG18, SE18/18R, SSH75 P6072180 17” x 17” x 5-3/4” deep Sides 1 $322
Square/Full Size Basket - Fine Mesh
35/45C+, SG14/14R, SE14/14R, SSH55 P6072144 13-1/2” x 13-1/2” x 5-1/2” deep Front 1 $280
Triple Size Baskets
35/45C+, SG14/14R, SE14/14R, SSH55 P6072147 13-1/2” x 4-1/4” x 5-1/2” deep Front 3 $192
SG18, SE18/18R, SSH75 P6072185 17” x 5-5/8” x 5-3/4” deep Front 3 $230
Tank Rack
35C+ PP10434 13-1/2” x 11-1/2” --- 1 $62
SG14/14R, 45C+ A4500601 13-1/4” x 13-1/4” --- 1 $62
SG14T, SSH55T B4511801 13-1/2” x 6” --- 1 $62
SG18, SSH75 B4511901 17-1/2” x 17 - 1/2” Reversible --- 1 $62
SE18/18R, SSH75/75R P6073186 17-1/2” x 17-1/2” --- 1 $62
SE14/14R, SSH55/55R A4500601 13-1/2” x 13-1/2” --- 1 $62
SE14T/14TR B4512401 13-1/2” x 6-3/4” --- 1 $62
Tank Screen - Mesh
SG14/14R, SSH55 A4500201 13-1/4” X 13-1/4” --- 1 $76
SG18 P6072186 17-1/2” x 17-1/2” --- 1 $76
SE14, SE14R, SSH55/55R A4500201 13-1/2” x 13-1/2” --- 1 $76
SE14T, SSH55T B4512501 13-1/2” x 6” --- 1 $76
SE18/18R, SSH75/75R A4514801 17-12” x 17-1/2” --- 1 $76
24 P6072402 23-1/2” x 23-1/2” --- 1 $134
34 P6072342 23-1/2” x 33” --- 1 $172
Donut Screen
24P, 24R, E24 P6072401 23” x 23” Side 1 $172
24P, 24R, E24 P6072404 23” x 23” --- 1 $136
34P, E34 P6072341 23” x 33” Side 1 $218
34P, E34 P6072344 23” x 33” --- 1 $190
Detachable Handles For Donut Screens B7441101 --- --- --- $50
Submerger - Crueller
24P B4506824 --- --- --- $272
24R B4507401 --- --- --- $272
Submerger Screen Handle w/Hardware B4506901 --- --- --- $126
Drain Screen for Bread and Batter Cabinet (Dump Station)
BNB-SG14 B4508108 --- --- --- $136
BNB-SG18 B4508107 --- --- --- $172
BNB-SE14 B4508111 --- --- --- $136
BNB-SE18 B4508110 --- --- --- $172
Fish Grids
SG14/14R, SSH55 B7425301 13-1/4” x 13-1/4” --- --- $354
SG18, SE18/18R, SSH75 B7425401 17-1/2” x 17-1/2” --- --- $400
24 B7425601 23” x 23” --- --- $454
34 B7425602 23” x 33” --- --- $520
BASKET AND WIRE GOODS
17
L15-020 Rev 10 Effective 07.01.08

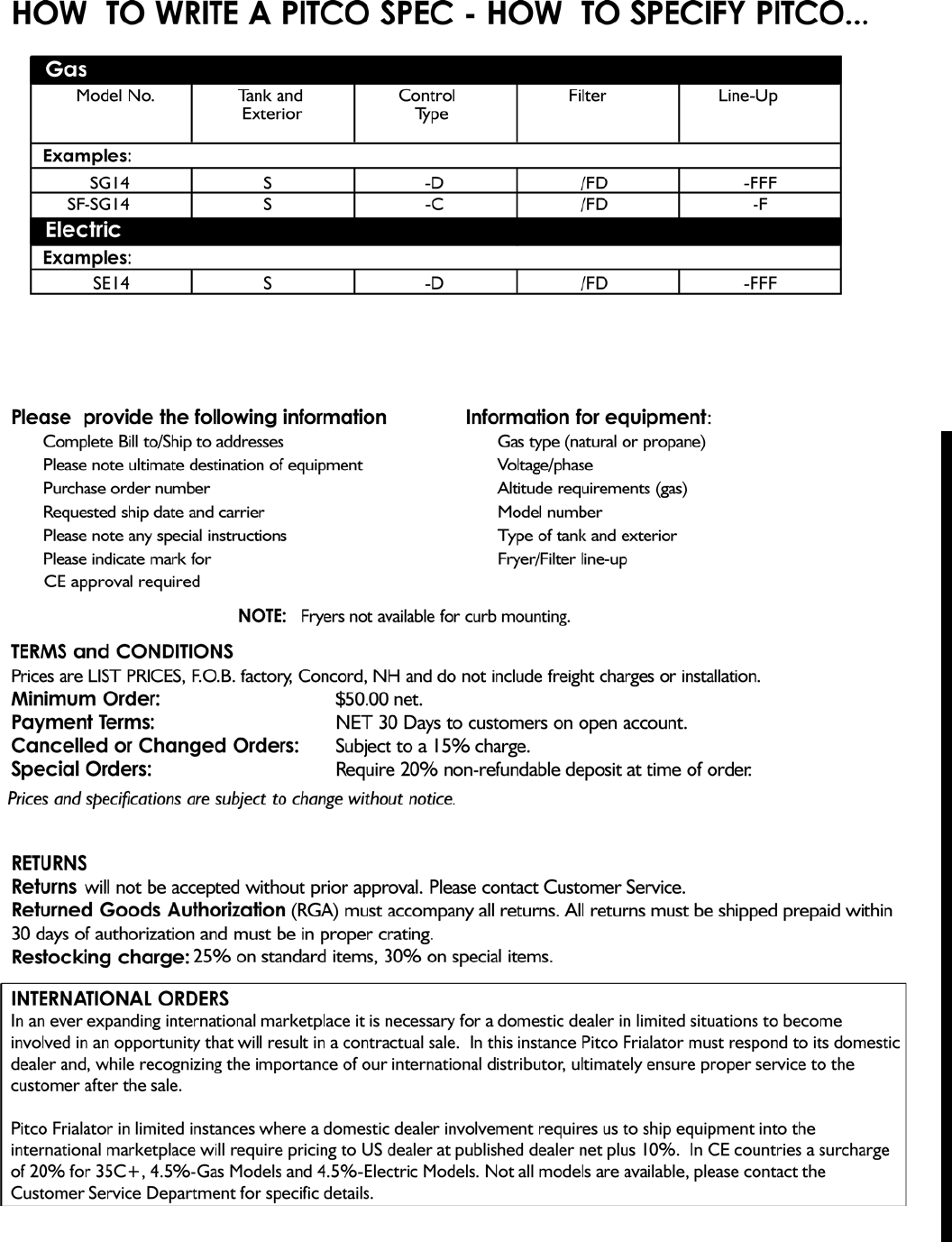

ORDERING INFORMATION
Ordering Information
18 L15-020 Rev 10 Effective 07.01.08
SHIPPING INFORMATION
Shipping Information
19
L15-020 Rev 10 Effective 07.01.08
NOTES
20 L15-020 Rev 10 Effective 07.01.08
The McCall Group
4902 E Cholla Street
Scottsdale, AZ 85254
(602) 795-7304
(602) 795-7338
01
Tel:
Fax:
C.R. Peterson Associates, Inc.
31 Eastman Street
Easton, MA 02334
(800) 257-4040
(508) 238-3647
02
Tel:
Fax:
www.crpeterson.com
Benchmark Sales
3 Townline Circle
Rochester, NY 14623
(585) 295-8200
(585) 295-8299
03
Tel:
Fax:
www.benchmarksales.com
Pecinka Ferri Associates
49 Sindle Avenue
Little Falls, NJ 07424
(973) 812-4277
(973) 812-4284
04
Tel:
Fax:
www.pecinkaferri.com
Schmid Dewland Associates
138 Haddonfield-Berlin Road
Gibbsboro, NJ 08026
(856) 783-3400
(856) 783-7375
05
Tel:
Fax:
www.schmiddewland.com
Griffin Marketing Group
P.O. Box 867
Irmo, SC 29063
(803) 407-7373
(803) 407-7395
06
Tel:
Fax:
www.griffinreps.com
PMR Inc.
6079 Oakbrook Parkway
Norcross, GA 30093
(770) 441-3100
(770) 449-6834
07
Tel:
Fax:
www.pmreps.com
Finn Marketing Group, Inc.
14605 McCormick Drive
Tampa, FL 33626
(813) 925-1122
(813) 925-1607
08
Tel:
Fax:
www.finnmarketing.com
DRC Marketing Group, Inc.
251 Outerbelt Street
Columbus, OH 43213
(877) 372-5866
(614) 367-1450
09
Tel:
Fax:
www.drcmktg.com
Stiefel Associates, Inc.
3125 Pine Tree Road Ste 3C
Lansing, MI 48911
(517) 393-3019
(517) 393-3023
10
Tel:
Fax:
www.stiefelrep.com
Tatlock-Ordoyne & Assciates
84 River Bluff Drive
Madisonville, LA 70447
(985) 485-4656
(985) 845-0262
11
Tel:
Fax:
www.tatlock-ordoyne.com
The Jay Mark Group
175 Lively Blvd.
Elk Grove Village, IL 60007
(847) 545-1918
(847) 545-1932
12
Tel:
Fax:
www.jaymark.net
North Star Agency, Inc.
1405 Lilac Drive North Ste 108
Minneapolis, MN 55422
(763) 545-1400
(763) 545-7158
13
Tel:
Fax:
www.northstaragencyinc.com
Kain-McArthur, Inc.
2000 E. Prairie Circle
Olathe, KS 66062
(913) 829-3700
(913) 829-0000
14
Tel:
Fax:
www.kainmcarthur.com
Ettinger Rosini & Associates
11114 Grader Street
Dallas, TX 75238
(214) 343-2548
(214) 343-2727
15
Tel:
Fax:
www.ettros.com
Johnson Pike & Associates, Inc.
740 Umatilla Street
Denver, CO 80204
(303) 572-0084
(303) 572-8152
16
Tel:
Fax:
US & CANADA
REPRESENTATIVE
LOCATOR
State Rep
Code
Zip
Alabama ........................... 07
Alaska ............................... 18
Arizona ............................. 01
Arkansas............................11
California
900-908 ..................... 20
910-928 ..................... 20
930-935 ..................... 20
936-937 ..................... 19
939-941 ..................... 19
943-961 ..................... 19
Colorado .......................... 16
Connecticut
060-063 ..................... 02
0641-0642 ................. 02
0643 .......................... 04
0644-0648 ................. 02
0649 .......................... 04
065 ............................ 02
066, 068-069 ............. 04
Delaware ......................... 05
District of Columbia ......... 22
Florida
324-325 ..................... 07
All other zip codes ..... 08
Georgia ............................ 07
Government ..................... 24
Hawaii .............................. 19
Idaho................................ 18
Illinois
600-606 ..................... 12
609-619 ..................... 12
620, 622 .................... 14
623 ............................ 12
624 ............................ 14
625-628 ..................... 12
629 ............................ 14
Indiana
463-464 ..................... 12
All other zip codes ..... 09
Iowa ................................. 14
Kansas............................. 14
Kentucky .......................... 09
Louisiana ..........................11
Maine ............................... 02
Maryland .......................... 22
Massachusetts................. 02
Michigan .......................... 10
Minnesota ........................ 13
Mississippi ........................11
Missouri ........................... 14
Montana........................... 18
Nebraska ......................... 14
Nevada
890-891 ..................... 20
893-898 ..................... 19
New Hampshire ............... 02
SALES REPRESENTATIVES
L15-020 Rev 10 Effective 07.01.08 21
US & CANADA
REPRESENTATIVE
LOCATOR
State Rep
Code
Zip
New Jersey
070-079 ..................... 04
080-086 ..................... 05
087-089 ..................... 04
New Mexico ...................... 21
New York
100-119 ..................... 04
All other zip codes ..... 03
North Carolina ................. 06
North Dakota .................... 13
Ohio .................................. 09
Oklahoma ......................... 15
Oregon.............................. 18
Pennsylvania
150-168 ..................... 09
All other zip codes ..... 05
Rhode Island .................... 02
South Carolina .................. 06
South Dakota .................... 13
Tennessee
380-383 ......................11
All other zip codes ..... 07
Texas
798-799 ..................... 21
All other zip codes ..... 15
Utah .................................. 16
Vermont ............................ 02
Virginia .............................. 22
Washington ....................... 18
West Virginia .................... 09
Wisconsin
530-539 ..................... 17
540 ............................ 13
541-546 ..................... 17
547-548 ..................... 13
549 ............................ 17
Wyoming ........................... 16
CANADA
Alberta .............................. 30
British Columbia ............... 31
Manitoba &
Saskatchewan .................. 32
New Brunswick ................. 33
Ontario .............................. 34
Quebec ............................. 35
Specialized Marketing
2236 Bluemound Road Unit B
Waukesha, WI 53186
(262) 798-1533
(262) 798-1536
17
Tel:
Fax:
www.specmktgwi.com
GFR Inc.
8557 154th Avenue NE Bldg. B
Redmond, WA 98052
(425) 284-3358
(425) 885-5957
18
Tel:
Fax:
www.gfr2000.com
Marketsmart
6900 Koll Center Parkway Ste. 406
Pleasanton, CA 94566
(925) 846-6237
(925) 846-4465
19
Tel:
Fax:
www.marketsmartinc.com
Fischer Group
1636 North Brian Street
Orange, CA 92867
(714) 921-2660
(714) 921-2544
20
Tel:
Fax:
www.fischergroup.com
Annabelle Systems, Inc.
1010 4th St. N.W.
Albuquerque, NM 87102
(505) 842-5724
(505) 842-5731
21
Tel:
Fax:
The Schmid Wilson Group, Inc.
11409 Cronhill Drive Ste K
Owings Mills, MD 21117
(410) 998-9191
(410) 998-9195
22
Tel:
Fax:
www.theswg.com
Gill Marketing
1904 W. Parkside Lane Ste 100
Phoenix, AZ 85027
(602) 943-7700
(602) 943-2500
24
Tel:
Fax:
www.gillmarketing.com
W.D. Colledge
1104 Deer River Circle, SE
Calgary, Alberta T2J 7A3
(403) 278-3901
(403) 278-3903
30
Tel:
Fax:
W.D. Colledge
329 North Road Co
Coquitam, BC V3K 6Z8
(604) 522-1964
(604) 522-3050
31
Tel:
Fax:
W.D. Colledge
2 Huppe Bay
Winnipeg, Manitoba R3X 1H3
(204) 257-7180
(204) 255-0441
32
Tel:
Fax:
W.D. Colledge
82 white Oak Terrace
Moncton, New Brunswick
(506) 859-4127
(506) 852-4002
33
Tel:
Fax:
W.D. Colledge
3220 Orlando Drive, Unit 3
Mississauga, Ontario
(905) 677-4428
(905) 677-5357
34
Tel:
Fax:
W.D. Colledge
3579 Leamn Street
Halifax, Nove Scotia B3K 3Z8
(902) 477-4562
(902) 477-0243
35
Tel:
Fax:
SALES REPRESENTATIVES

Navigation menu
