Project_________________________

Item No._________________________

Quantity_________________________

Pitco Frialator, Inc • P.O. Box 501, Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304

603-225-6684 • FAX: 603-225-8497 • www.pitco.com

L10-266 Rev 1 02/07 Printed in the USA

Model SSH, SSH55T and SSH75

Solstice Supreme Gas Fryer

STANDARD FEATURES & ACCESSORIES

 Tank - stainless steel construction

 Cabinet - stainless front, door and sides

 Solstice Burner Technology, No blower or ceramics

 Self Cleaning Burner & Down Draft Protection

 Solid State T-Stat with melt cycle and boil out mode

 Matchless Ignition with DVI drain valve interlock

 Heavy duty 3/16” bottom door hinge

 1 ¼” (3.2 cm) Full port drain valve for fast draining

 Separate Manual gas shutoffs, for front servicing

 Integrated flue deflector

 9” (22.9 cm) adjustable legs, easier access to clean

 Tube rack, allows crumbs & debris into cool zone

 Removable basket hanger, requires no tools

 Drain Line Clean out rod

 Drain Extension

 Fryer cleaner sample packet

 Choice of basket options :

 Twin Baskets

 Full Basket

CONTROLS

 Matchless Ignition automatically lights the pilot when the

power is turned on and saves you money during off times.

 Solid State Thermostat with melt cycle and boil out mode.

 Optional: Digital Controller with displaying 2 product timer

 Optional: I-12 Computer with 12 product timer and flex time

 DVI drain valve interlock safety system turns the heat off

preventing the oil from scorching and overheating.

 Integrated gas control safety valve controls gas flow.

 Temperature limit switch safely shuts off all heat if the

upper temperature limit is exceeded.

HIGH EFFICIENCY SERIES OF GAS FRYERS

For Energy Saving High Production frying specify Pitco

Model SSH55, SSH55T, SSH75 tube fired gas fryers with

Solstice Supreme Burner Technology which provides very

dependable atmospheric heat transfer and fuel saving

Energy Star TM** performance without the need for complex

power blowers. This patented atmospheric burner system

with its long lasting alloy heat baffles reaches up to 70%

thermal efficiency and delivers lower flue temperatures. New

Self Clean Burner (patent pending) goes through a daily 30

second cleaning cycle to keep your burners tuned to operate

in the most energy efficient manner. Ventilation troubles are

virtually eliminated with the Down Draft Protection (patent

pending) that safely monitors your fryer, making this a low

maintenance, highly reliable fryer.

MODELS AVAILABLE

 SSH55 (40-50 lbs, 80KBtu/hr, 14” x 14” fry area)

 SSH55T (20-25 lbs, 40KBtu/hr, 7” x 14” fry area

per side for this split vat fryer)

 SSH75 (75 lbs, 105KBtu/hr, 18” x 18” fry area)

OPTIONS & ACCESSORIES (AT ADDITIONAL COST)

 Digital Controller

 I-12 Computer

 Backup thermostat (only on Digital and I-12 computer)

 Basket Lift (must be ordered with Digital Control or Computer)

(To meet AGA/CGA/CSA specification, must be ordered with

casters & installed with flexible gas hose w/restraining cable)

 Stainless Steel back (not available with basket lift)

 9”(22.9 cm) adjustable,non-lock rear & front lock casters

 Flexible gas hose with disconnect and restraining cable

 Tank cover

 Triple Baskets

 Institutional Prison security package

 BNB Dump Station

 Filter System, see Supreme Filter spec sheet for details

TYPICAL APPLICATIONS

High Volume restaurants or multi-store restaurant chains

that require a Reliable, Highly Efficient EnergyStarTM**

rating, High Production Fryer with low operational energy

cost and lower annual maintenance and repair cost

Model SSH55, SSH55T and SSH75 Solstice Supreme Gas Fryer

SSH55

SSH75 with optional

Computer, Basket

Lift and casters

Patent Pending

**

on some

Model SSH55, SSH55T and SSH75 Solstice Supreme Gas Fryer

Pitco Frialator, Inc • P.O. Box 501, Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304

603-225-6684 • FAX: 603-225-8497 • www.pitco.com L10-266 Rev 1 02/07 Printed in the USA

We reserve the right to change specifications without notice and without incurring any obligation for equipment previously or subsequently sold.

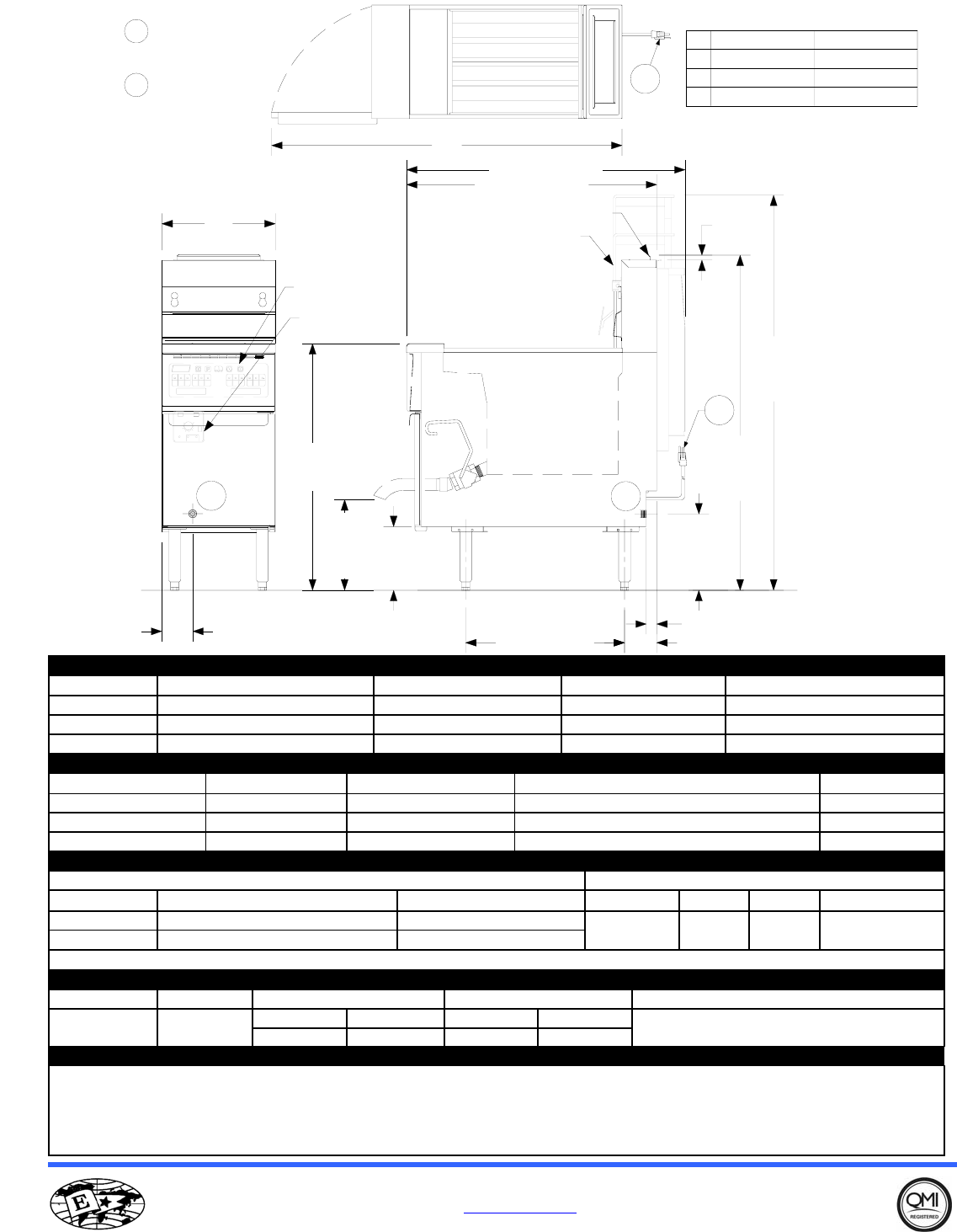

Model SSH55, SSH55T and SSH75 Solstice Supreme Gas Fryer

12 13/16

[32.5]

NOM.

A

C

B

3/4 INCH GAS CONNECTION

(CE 3/4 INCH BSP ADAPTOR

ADDS 1 1/2 [3.8] TO

CONNECTION)

6 FOOT (183 CM) POWER

CORD (NEMA 5-15 PLUG

115VAC UNITS ONLY)

P

G

34 15/32 [87.5]

11/16

[1.7]

4 13/32 [11.2]21 7/8 [55.6]

9 [22.9]

NOM.

INTEGRAL FLUE DEFLECTOR

G

P

38 11/32 [97.4]

P

G

54 13/32

[138.2]

NOM.

46 1/8

[117.1]

NOM.

OPTIONAL BASKET LIFT

THERMOSTAT

OPTIONAL

SOLID STATE

COMPUTER

IN [CM]

A

SSH75

B

C

15 5/8 [39.7]

SSH55/55T

52 11/32 [132.9]

6 1/4 [15.9]

19 5/8 [49.8]

48 11/32 [122.8]

4 1/4 [10.8]

34 [86.4]

NOM.

10 1/2

[26.7]

NOM.

1 13/32 [3.6]

276 Lbs (125 kg)

230 Lbs (104 kg)

Cook Depth Oil Capacity

3-1/4 - 5 in (8.3 -12.7cm)

208 Lbs (95 kg) 258 Lbs (117 kg) 58 x 22 x 44 in (147.3 x 55.8 x 111.7 cm)

Shipping Crate Size H x W x L

280 Lbs (127 kg)

Gas Input Rate / Hr

Gas Type

3-1/4 - 5 in

(

8.3 -12.7cm

)

20 - 25 Lbs (9 -11 kg) 40,000 BTUs (18 kW) (42 MJ)

SSH75 18 x 18 in (45.7 x 45.7 cm) 3-1/4 - 5 in (8.3 -12.7cm) 75 Lbs (34 kg)

80,000 BTUs (23 kW) (84 MJ)

Store Supply Pressure *

Natural

Propane Fryer

Amps

10" w.c. (25mbars/2.4 kPa)

4" w.c. (10 mbars / 1 kPa)

Frying Area

208 / 220-240V 115V

ELECTRIC SYSTEM REQUIREMENTS (50/60 hz)

40 - 50 Lbs (18 - 23 kg)

# of Cord

105,000 BTUs (31 kW) (110 MJ)

GAS SYSTEM REQUIREMENTS

Burner Manifold Pressure

SSH55

58 x 22 x 44 in (147.3 x 55.8 x 111.7 cm) 32.5 ft3. (0.9m3 )

Shipping Weight w B/L

Model

Model Shipping Weight

SSH55 14 x 14 in (35.6 x35.6cm)

SSH55T per side 7 x 14 in

(

35.6 x35.6cm

)

Shipping Cube

32.5 ft3. (0.9m3 )

58 x 22 x 44 in (147.3 x 55.8 x 111.7 cm) 32.5 ft3. (0.9m3 )

SHORT FORM SPECIFICATION

Provide Pitco Model (SSH55,55T,75) tube fired high efficiency gas floor fryer with EnergyStar TM**rating. Fryer shall be xx-xx lbs oil capacity, xxx Kbtu/hr,

xx” by xx” fry area, 304 SS peened tank, stainless front, door, sides. Blower Free atmospheric burner system with up to 70% thermal efficiency, self cleaning

burners, down draft protection, matchless ignition, drain valve interlock, behind the door solid state t-stat with melt and boil mode, separate gas shut off, 3/4" npt

rear gas connect, recessed cabinet back, 1-1/4" Full port drain, 3/16" bottom hinge, 9” adjustable legs, manual reset high limit. If supplied with casters: Casters

with 1" min. adjustment and front toe locks. Provide options and accessories as follows:

SSH75 226 Lbs (103 kg)

Rear min. Do not block / restrict flue gases from flowing into hood

or install vent hood drains over the flue.

6" (15.2cm) 6" (15.2cm)

7 - 10" w.c.(17.4 mbars/ 1.7 kPa)

Sides min.

INDIVIDUAL FRYER SPECIFICATIONS

FRYER SHIPPING INFORMATION (Approximate)

Combustible material Non-Combustible material

INSTALLATION INFORMATION

11 - 13" w.c.(27.4 mbars/ 2.7 kPa) 0.4

SSH55T

10.7

0"

30"

(76.2 cm)

6"

(15.25 cm)

Sides min. Rear min.

0"

* Check plumbin

g

/

g

as codes for proper

g

as suppl

y

line sizin

g

to sustain burner pressure when all

g

as appliances are full on.

CLEARANCES (Do Not Curb Mount)

Fryer Flue AreaFront min. Floor min.
