Table of Contents
Introduction to the Manual
Getting Started
How to Install the BlackVue
Video Recording
Simple Video Playback
How to use the BlackVue
Software
Firmware Upgrade
Product Specications &
Standards
4
5 Cautions for Safety
8 Checks for GPS
8 Checks for the microSD Cards
9 Product Features
11 Package Components
12 Names of Each Part
13 How to Attach & Detach the
Mounting Bracket
14 Checking Installation Position
14 How to Insert & Remove the
microSD Card
15 Installation
17 Normal Recording
17 Parking Mode Recording
18 Event Recording
19 How to Playback using a microSD
Card
22 How to Playback using the
BlackVue Application
24 Installation & Execution
26 Screen Description
27 Video Playback
33 Conguration
38
40 Product Specications
41 LED Indicators
41 microSD Card Standard
4
Introduction to the Manual
Thank you for purchasing a BlackVue by Pittasoft Co., Ltd.
This instruction manual contains information on how to operate your BlackVue.
Before using the product, make sure to read through this manual so as to use
the product in the correct way.
To enhance the performance of the product, the contents of this instruction
manual may be changed without prior notice.
Warranty & Support
yThis product records and saves videos of vehicle accidents, but it is not
guaranteed to record all accidents. Accidents with light impact that is not
enough to activate the impact detection sensor may not be recorded.
yIn accordance with Personal Information Security Law & related legislation,
Pittasoft Co., Ltd. will not be held responsible for any problem due to illegal
use of this product.
yThe recorded video produced by this product constitutes the secondary
data that may help to determine the circumstances of an accident. Pittasoft
Co., Ltd. will not be held responsible for any loss or damage caused by any
accident.
Copyright & Trademark
yThis instruction manual is protected by Copyright Law, and all rights to it
are protected by law.
yIt is prohibited to reproduce, copy, modify, or translate this instruction
manual without permission.
y BlackVue is the registered trademark of Pittasoft Co., Ltd.
Pittasoft Co., Ltd. reserves the rights regarding all works related to the Black-
Vue brand such as product design, trademarks, and product-promotional
videos. It is prohibited to reproduce, copy, modify, or use related works
without permission. Any violation may be penalized in accordance with the
relevant regulations.
DR500GW-HD 5
Getting Started
Cautions for Safety
The purpose of these cautions is to maintain user safety and avoid damage to
property.
Please make sure to read through this manual so as to use the product in the
correct way.
DANGER Death or property damage can be caused for users if
the following directions are not followed:
yDo not disassemble, repair, or modify the product yourself.
It can cause re, electric shock, or malfunction. For internal inspection and
repair, call the sales headquater.
yIf any foreign matter gets inside the product, detach the power cord
straightaway.
Call the sales headquater for repair.
yDo not operate the product while driving.
It can cause an accident. Stop or park your car in a safe place to operate it.
yDo not install the product where it can interfere with the driver's vision.
It can cause an accident.
yDo not use a damaged or modied power cord. Use the cords provided
by the manufacturer.
Otherwise it can cause explosion, re, or malfunction.
yDo not operate the product with wet hands.
It can cause electric shock.
yDo not install it in an environment with high humidity, or combustible
gases or liquids.
It can cause explosion & re.
6
WARNING Death or serious injury can be caused for users if the
following directions are not followed:
yDo not leave the product where infants, children, or pets can reach it.
They might swallow small components, or their saliva could get into it and
cause an explosion due to a short circuit.
yWhile cleaning the inside of the car, do not spray water or wax directly
onto the product.
It can cause re, electric shock, or malfunction.
yIf smoke or an unsual smell is emitted from the power cord, detach it
immediately.
Call the sales headquater or the dealer.
yKeep the terminal of the power cord clean.
A dirty terminal can cause excessive heat and re.
yUse the correct input voltage.
Otherwise it can cause explosion, re, or malfunction.
yConnect the power cord rmly so that it cannot easily be disconnected.
Othersise it can cause re.
yDo not cover the product with any material.
It can cause external deformation of the product or re. Use the product
and peripherals where ventilation is ensured.
DR500GW-HD 7
CAUTION Injury or property damage can be caused for users if
the following directions are not followed:
yDo not spray cleaning products directly onto the outside of the prod-
uct.
It can cause discoloration, cracks, or malfunction.
yDo not press the RESET button with a sharp object such as an awl.
It can cause damage or malfunction.
yIf the product is used outside the optimal temperature range (0°C ~
60°C), performance can decline or malfunction can be caused.
yMake sure that the product is installed properly.
The product can fall as a result of vibration, and may cause physical injury.
yWhile entering or exiting a tunnel, during daytime in the face of bright
sunlight, or at night with no light, the quality of recorded video can
deteriorate.
yIf the product is damaged or the power supply is cut due to an accident,
video may not be recorded.
yExcessively tinted windshield glass can distort the recorded video or
cause it to be indistinct.
yProlonged use of the product can increase the interior temperature
and cause burns.
ymicroSD cards are a consumable so replace them after prolonged use.
They may not record video correctly after a long time in use, so check their
recording capability periodically and replace it as necessary.
yClean the lens regularly.
Foreign material attached to the lens can aect the recording quality.
yDo not remove the microSD card while it is saving or reading data.
The data can be damaged or malfunction caused.
yDo not use the BlackVue, while cover is open.
8
Checks for GPS
Even if the GPS isn't working, video is recorded, but position coordinates and
driving speed are not recorded. When used for the rst time, or when the prod-
uct is not used for 3 consecutive days, it will take some time for the GPS to nd
the current position.
If there is an error with the GPS time when checking recorded video with a
viewer program or the BlackVue application, turn the GPS o and on after a
signal is received.
Make sure to observe the following for an uninterrupted GPS signal.
yDo not place any objects on the GPS.
yDo not have the windshield glass tinted with a metallic component.
y Be careful with the installation of devices that may interfere with GPS recep-
tion (e.g. some wireless starters & alarms and MP3/CD players).
y Do not use it simultaneously with other devices that use GPS signal.
y Cloudy weather can interfere with GPS reception.
y GPS reception can be poor in tunnels, underpasses, or streets with may
Skyscrapers or high rise buildings, and generating stations, military bases,
or broadcasting transmitters etc.
Checks for the microSD Card
Refer to the followings for trouble-free use of your microSD card.
yIt is recommended to format it once a week.
y If the recorded video suers from break-up, format the microSD card.
yFor stable function, format it with programs recommended by the SD card as-
sociation. For more details, refer to the BlackVue website (www.blackvue.com).
y Before formatting it, copy important les to other storage media to store
them.
yPress the Wi-Fi button on the side for 10 seconds
to format a microSD card
without using a PC.
y Insert the formatted microSD card into the product so that the microSD
card is automatically initialized and the rmware is installed on it.
yInsert or remove the microSD card only when the product is turned o.
ymicroSD cards are a consumables and they are guaranteed for 6 months.
yOther manufacturer's microSD cards can cause compatibility problems so it
is recommended to use a Pittasoft microSD card.
DR500GW-HD 9
Product Features
Q
Ultra-high quality and smooth video
Full HD (1920x1080) 30-frame ultra-high quality video
High-class design with functionality
Simple, luxurious design in pearl black
Dedicated app support for BlackVue
Support for the BlackVue app for Android, iPhone, and tablets
with diverse congurations.
(Smartphone resolution support tablets)
Megapixel lens & 2M-pixel CMOS sensor
Clearer vision with high-resolution megapixel lens during both
day/night-time driving
VOD & real-time live view function
With built-in Wi-Fi and the BlackVue app, video can be played
regardless of place and time
(14
G-sensor & highly-sensitive GPS
Detailed driving record such as vehicle speed and recording loca-
tion information can be checked with BlackVue software
High-quality wide-angle lens (156°)
Maximized viewing angle to record accurate video of any acci-
dent
10
u
l
w
Diverse recording options (Normal/Event/Parking)
Event recording and automatic conversion & deactivation of
parking mode
High-compression recording mode to extend SD-card life
Ecient memory usage with high-compression storage method
Support of viewer programs for Windows PC and Mac
BlackVue software with convenient congurations such as power
video search, resolution change, voice direction, and parking
mode
DR500GW-HD 11
Package Components

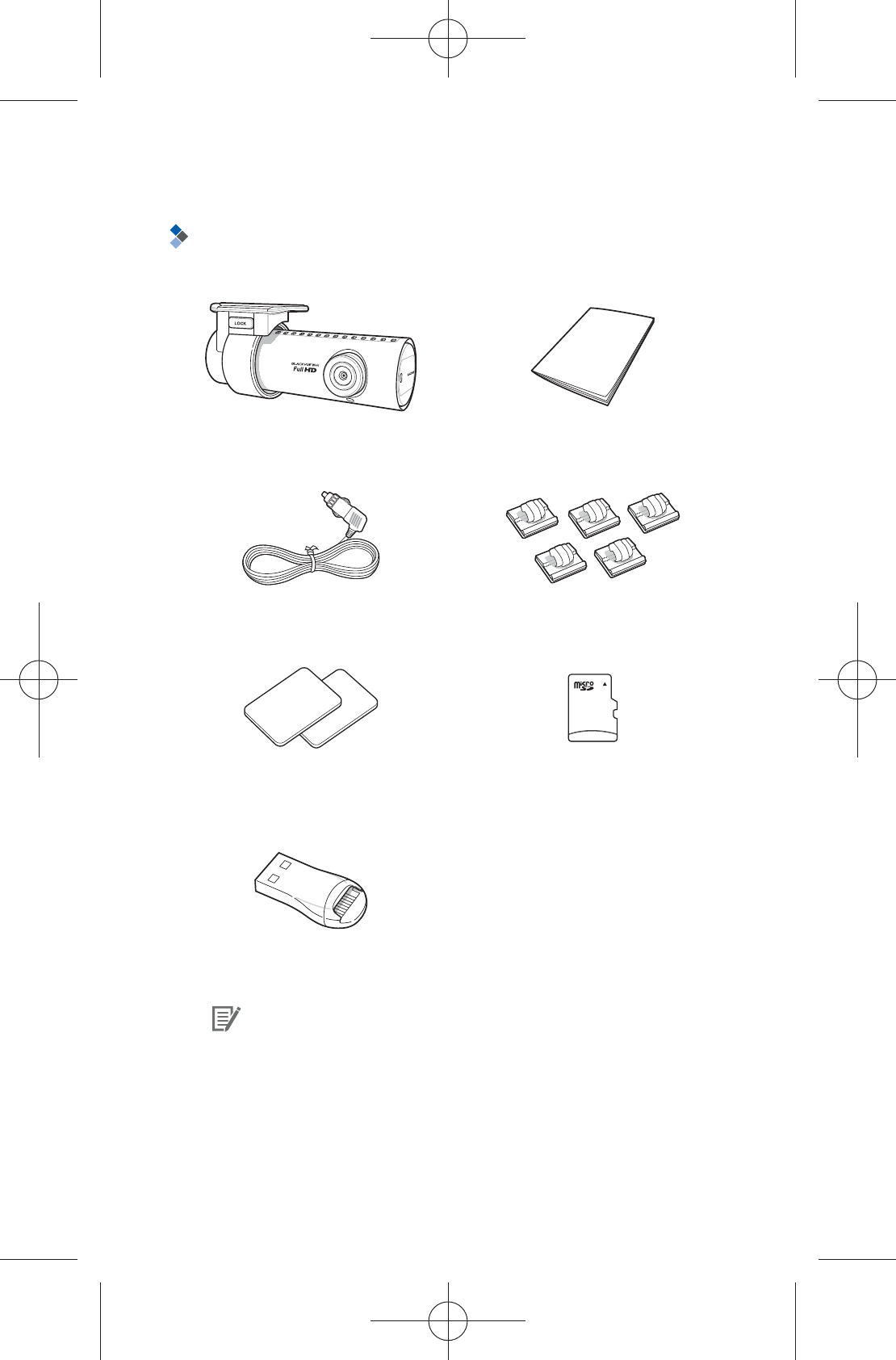

BlackVue Manual
Power Cord Cable Clips (5 EA)
Double-sided Tape for the Mounting
Bracket (2 EA)
microSD Card
(Including BlackVue Software)
microSD Card Reader
Note
yPictures of the components may dier from the actual ones.
y To enhance the performance of the product, components may be
changed without prior notice.
12
Names of Each Part
Camera Lens
Recording LED
Mounting Bracket Security LED
Lock Button
GPS LED Speaker
Voice on/o Button Wi-Fi Button
(Format Button: Press for 10 seconds
for Formatting)
Reset Button
Power Socket microSD Card Slot
Wi-Fi LED
Cover
DR500GW-HD 13
Note
yTap the Voice on/o button to turn the voice recording function on or
o.
yPress the Wi-Fi button on the side for 10 seconds
to format the mi-
croSD card without using a PC.
yIf you need to reset BlackVue, press the Reset button. It is
recommended for emergency use only.
How to Attach & Detach the Mounting Bracket
1 Pull the unit out of the mounting bracket with the LOCK button pressed.
2 Insert the unit into the mounting bracket until you hear clicking sound,
to attach it.
14
How to Install the BlackVue
Checking Installation Position

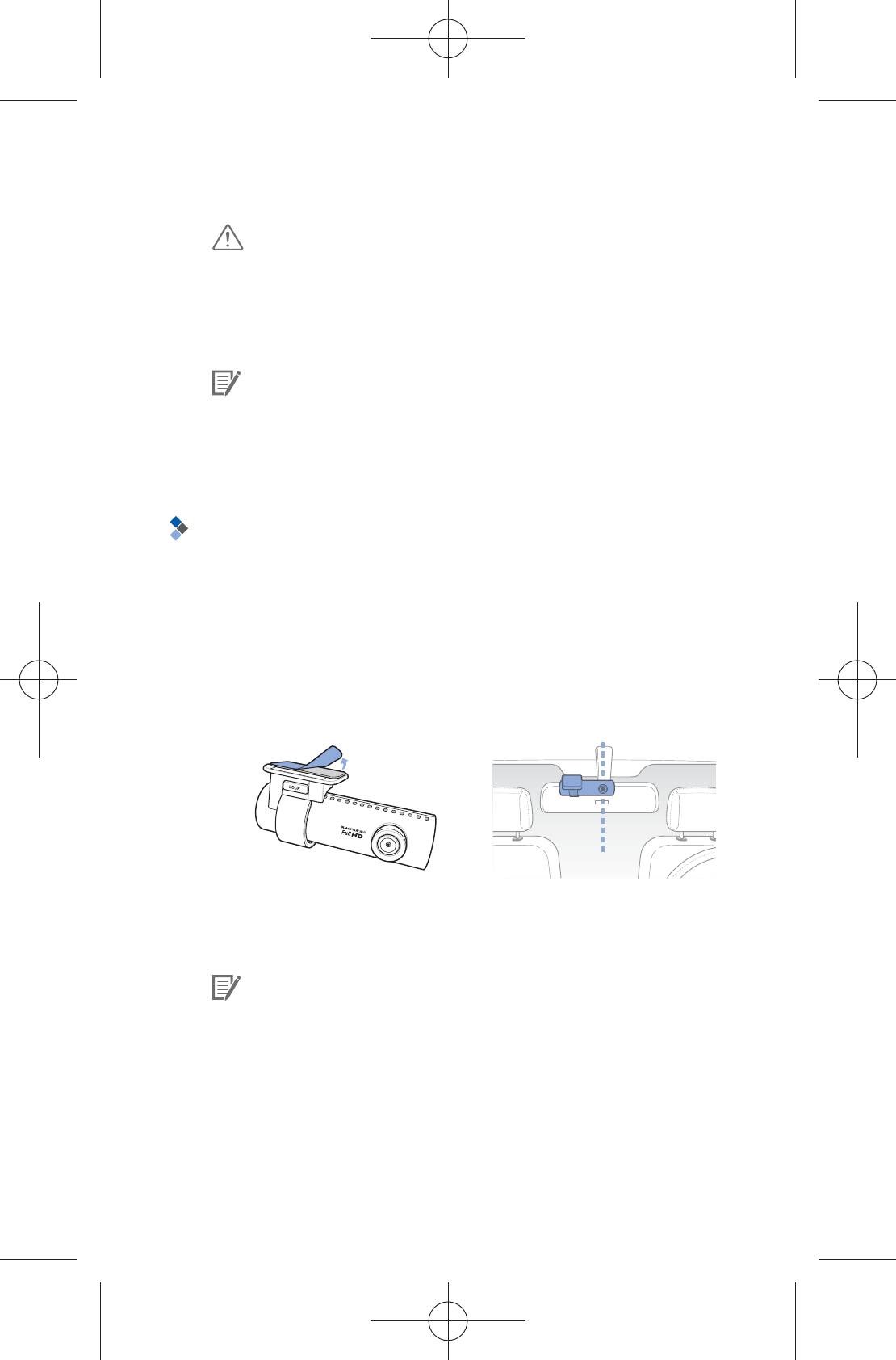

1 It is recommended to install it at the back of rear view mirror. Clean any
foreign matter and moisture from the place where the product will be
installed.
Note
yDo not install the product where it can interfere with the driver's vi-
sion.
How to Insert & Remove the microSD Card
1 Open the cover on the side of the product.
2 Insert the microSD card into the microSD card slot, as shown in the pic-
ture.
3 To remove the microSD card, press the microSD card once and then pull
it out. Make sure that the microSD card doesn't pop out while trying to
remove it.
DR500GW-HD 15
Caution
yDo not remove the microSD card while it is saving or reading data.
The data may be damaged or malfunction caused.
y Copy important data to other storage media to store. Pittasoft Co.,
Ltd. will not be held responsible for data loss due to user negligence.
Note
yInsert or remove the microSD card only when the product is turned
o.
ymicroSD cards are consumables. Replace them after prolonged use.
Installation
1 Stop the engine where there is some light and in a safe place, and then
remove the key.
2 Attach the product to the windshield glass with the double-sided tape.
Set the camera lens to point directly forwards to the center when install-
ing it. After installing the product, remove the lens cap.
3 Use the power cord to connect the DC IN of the product to car's power
socket.
Note
yIt is recommended to use Power Magic (the Battery Discharge Pre-
vention Device) to record video while the car is parked.
y To use the BlackVue at the same time as other equipment, purchase
and use a two-way adaptor.
16
4 Use the cable clip to organize the power cord so that it doesn't interfere
with the driver's vision.
5 Adjust the lens angle of the camera.
Note
yAfter adjusting the angle of the camera lens, remember the angle of
the mounting bracket so that it can be installed at the same angle
next time.
yWith smartphone and Wi-Fi connections, it is possible to adjust
the angle of the camera lens while watching real-time video. (22
Page)
6 Start the engine and check if the product works properly.
Caution
yDo not remove the microSD card while it is saving or reading data.
The data may be damaged or malfunction caused.
Note
yAfter a test drive, check if video was correctly recorded.
yRecorded video is saved in the MP4 format.
DR500GW-HD 17
Video Recording
Normal Recording
1 When the engine is started, the BlackVue is turned on automatically.
2 When the BlackVue is turned on, normal recording is automatically
started.
Note
yIf Power Magic (the Battery Discharge Prevention Device) is con-
nected, the BlackVue is not turned o.
yThe normal recording function can be disabled in the BlackVue soft-
ware conguration. (33 Page)
Parking Mode Recording
1 If the car doesn't move for 10 min or longer when in normal mode, it is
automatically converted to parking mode recording.
2 In parking mode recording, if movement or impact is detected by the
camera, video is recorded.
Note
yTo use parking mode recording while the engine is stopped, con-
nect Power Magic (the Battery Discharge Prevention Device).
yAutomatic conversion function of parking mode recording can be
disabled in the BlackVue software conguration. (33 Page)
18
Event Recording
1 If an impact is detected in normal or parking mode recording, event
recording is started.
2 It records video for 5 seconds before and 55 seconds after the impact.
Note
ySensitivity to impact can be adjusted in the BlackVue software con-
guration. (34 Page)
yEvent recording time can be adjusted in the BlackVue software
configuration. (33 Page) If you set the event recording time for 2
minute, it records video for 5 seconds before and 115 seconds after
the impact.
DR500GW-HD 19
Simple Video Playback
How to Playback using a microSD Card
Playback Using a Smartphone
With a smartphone that supports microSD cards video can be played back.
1 Turn o the BlackVue and remove the microSD card.
Note
y For the details on how to remove the microSD card, refer to How to
Insert & Remove the microSD Card. (14 Page)
2 Insert the microSD card into the smartphone.
3
Open an application to play back recorded videos and select the
movie you want to play back.
Note
yHow to play back recorded videos may dier between smartphones,
so refer to your instruction manual for the details.
y If there are many recorded videos in the microSD card, it may take a
long time to load the le.
y Some smartphones don't support full HD video playback. For smart-
phones that support full HD video playback, refer to the BlackVue
website (www.blackvue.com).
yWith the BlackVue application, it's easy to play back videos and the
Live View function can be used. For details of the BlackVue applica-
tion, refer to How to Playback using the BlackVue Application.
(22 Page)
20
Watching with a GPS navigation
Recorded videos can be played back using a GPS navigation.

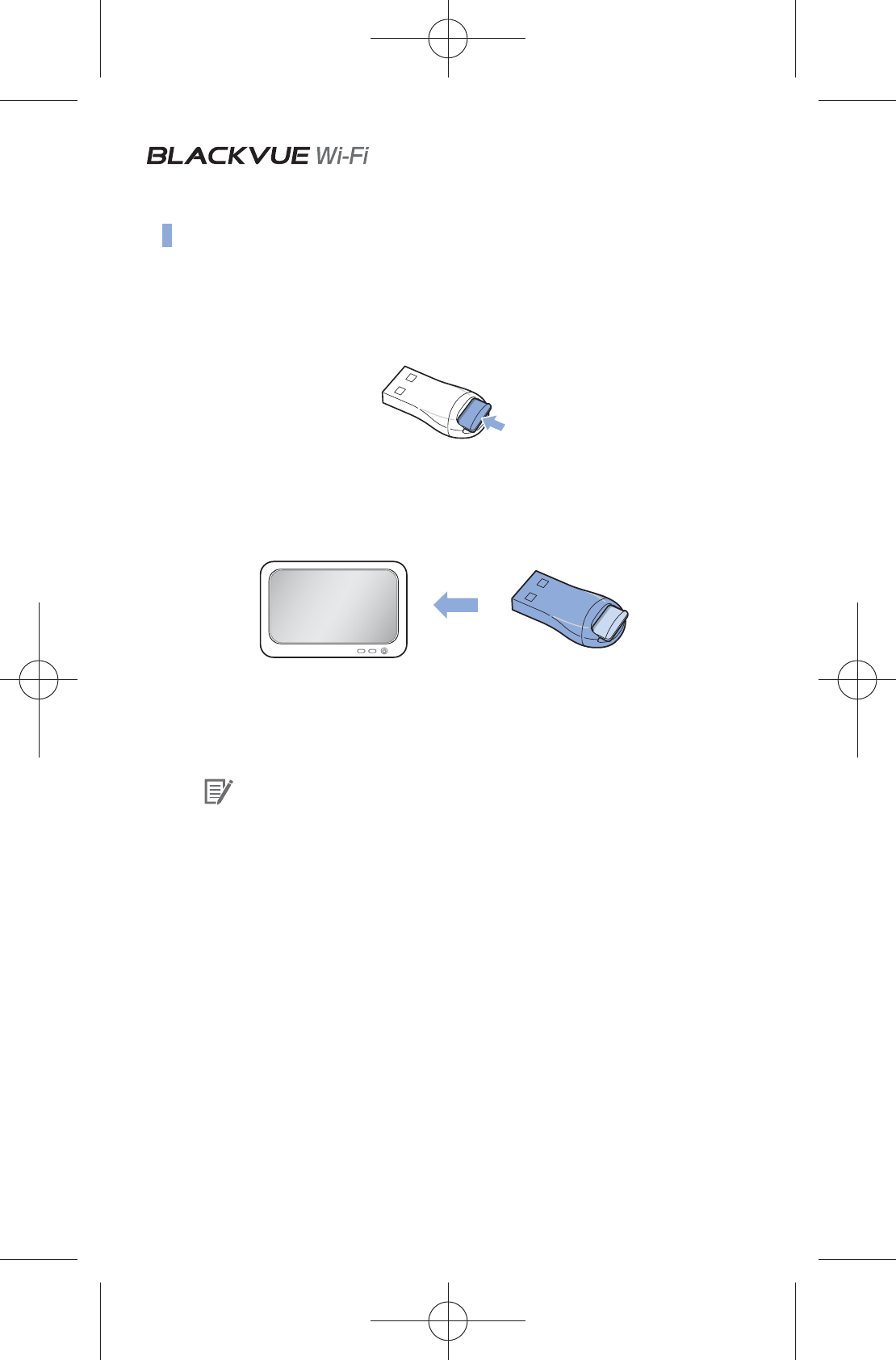

1 Insert the provided microSD card into a microSD card reader.
2 Connect the microSD card reader to the GPS navigation.
3 Open an application to play back recorded videos and select the movie
you want to play back from the removable drive.
Note
yHow to play back recorded videos may dier between navigators, so
refer to your instruction manual for the details.
y If there are many recorded videos in the microSD card, it may take a
long time to load the le.
y Some stanav don't support full HD video playback.
DR500GW-HD 21
How to Playback using a PC
Recorded videos can be played back with a PC.

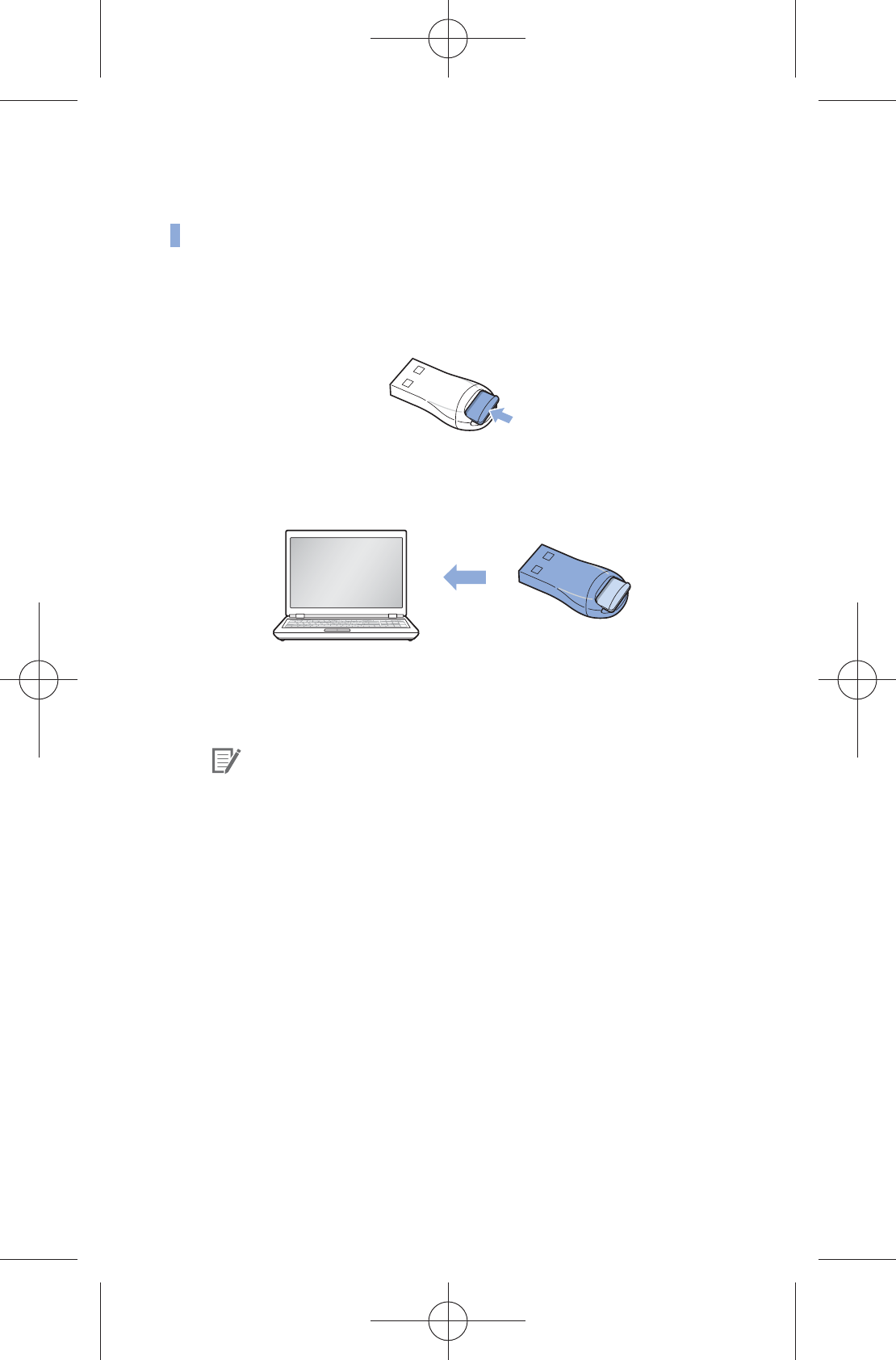

1 Insert the provided microSD card into a microSD card reader.
2 Connect the microSD card reader to the PC.
3 Open an application to play back recorded videos and select the movie
you want to play back from the removable drive.
Note
y When trying to play back a recorded video with a movie playback
program on a PC, install the H.264 and AAC audio codecs.
yFor how to play back using the BlackVue software, refer to Video
Playback. (27 Page)
22
How to Playback using the BlackVue Application
1 Install the BlackVue application and open it in the smartphone. The
BlackVue application can be downloaded from the Google Play store
and Apple App Store.
Note
yThe BlackVue application can be used with Android 2.3 or later and
iOS 5.0 or later.
yDepending on your smartphone, some of the BlackVue application
functions might not be supported.
2 Press the Wi-Fi button on the side of the product, to turn on Wi-Fi.
3 Tap the Wi-Fi button in the BlackVue application. The Wi-Fi SSID is
'DR500GW-last 6-digit number of MAC Address' and MAC address
printed on the sticker attached to the back of the product box. (e.g.
DR500GW-A682DE). Select the device you want to connect and, enter
the password. Tap the OK button to connect it to the selected device.
DR500GW-HD 23
Note
yIf you save the connection information when connecting using Wi-
Fi, you can tap the Wi-Fi button in the BlackVue application to con-
nect it without turning on the Wi-Fi function of the smartphone.
yThe initial password is blackvue, but the user can change it.
yFor the Live View function, Wi-Fi can be used within a 10m range,
although the range may vary in some circumstances.
yFor playback of recorded videos using Wi-Fi, reception may vary ac-
cording to the data transfer rate.
yFor details about how to congure Wi-Fi, refer to How to Congure
Wi-Fi etc. (36 Page)

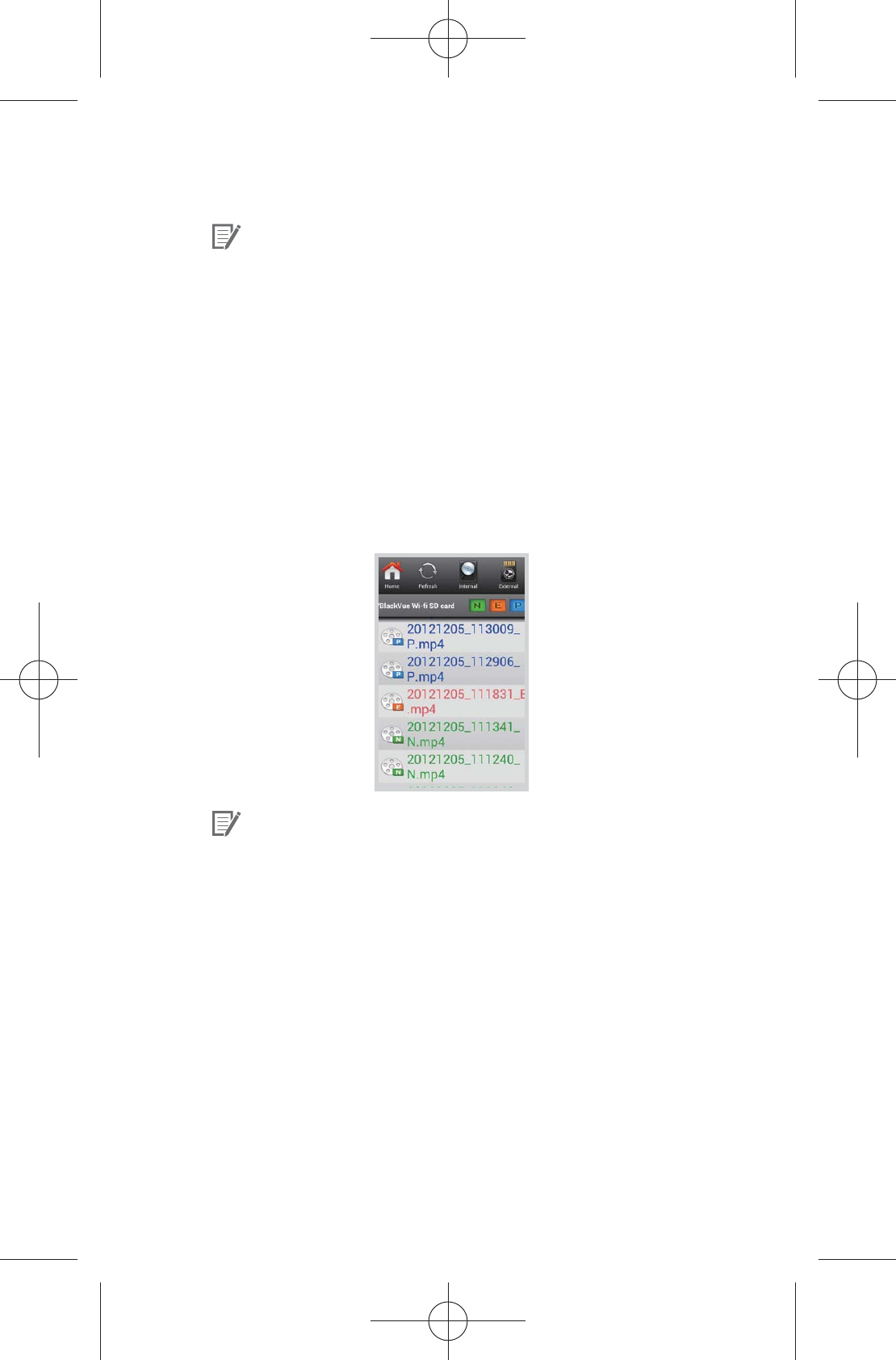

4 Select the recorded video you want to play back.
Note
y Tap the Live View button to check the video in real time.
yIf the Live View or VOD playback & copy function is used while it is con-
nected via Wi-Fi and recording Full HD (1920x1080) @30fps, the record-
ing frame is reduced to 20 fps.
24
How to use the BlackVue Software
Installation & Execution
How to Install

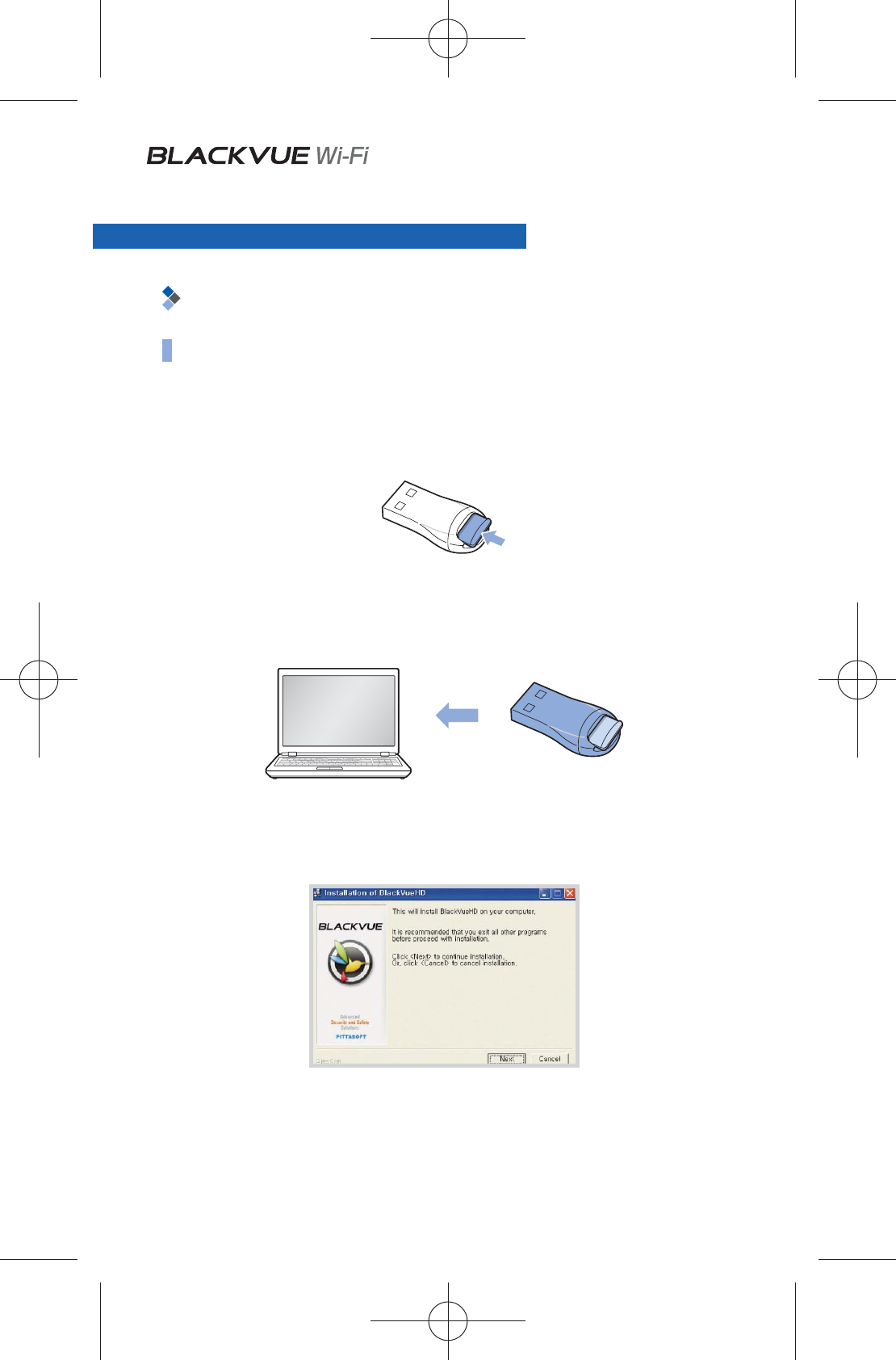

Dedicated BlackVue software can be installed in a PC.
1 Insert the provided microSD card into a microSD card reader.
2 Connect the microSD card reader to the PC.
3 Execute the 'BlackVueSetup(HD).exe' file in the 'BlackVue\Software'
folder.
DR500GW-HD 25
4 Install the program according the installation program instruction. When
the installation is nished, the BlackVue software icon is displayed on the
desktop.
5 Double-click the icon to execute the program.
Note
yOnly the English version of BlackVue software is available for Mac,
and the functions & screen may be different from the BlackVue
software for Windows.
How to Execute Without Installation
It is possible to execute the dedicated BlackVue program without installation.
1 Insert the provided microSD card into a microSD card reader.
2 Connect the microSD card reader to the PC.
3 Double-click 'BlackVue.exe' in the 'BlackVue\Application' folder.
26

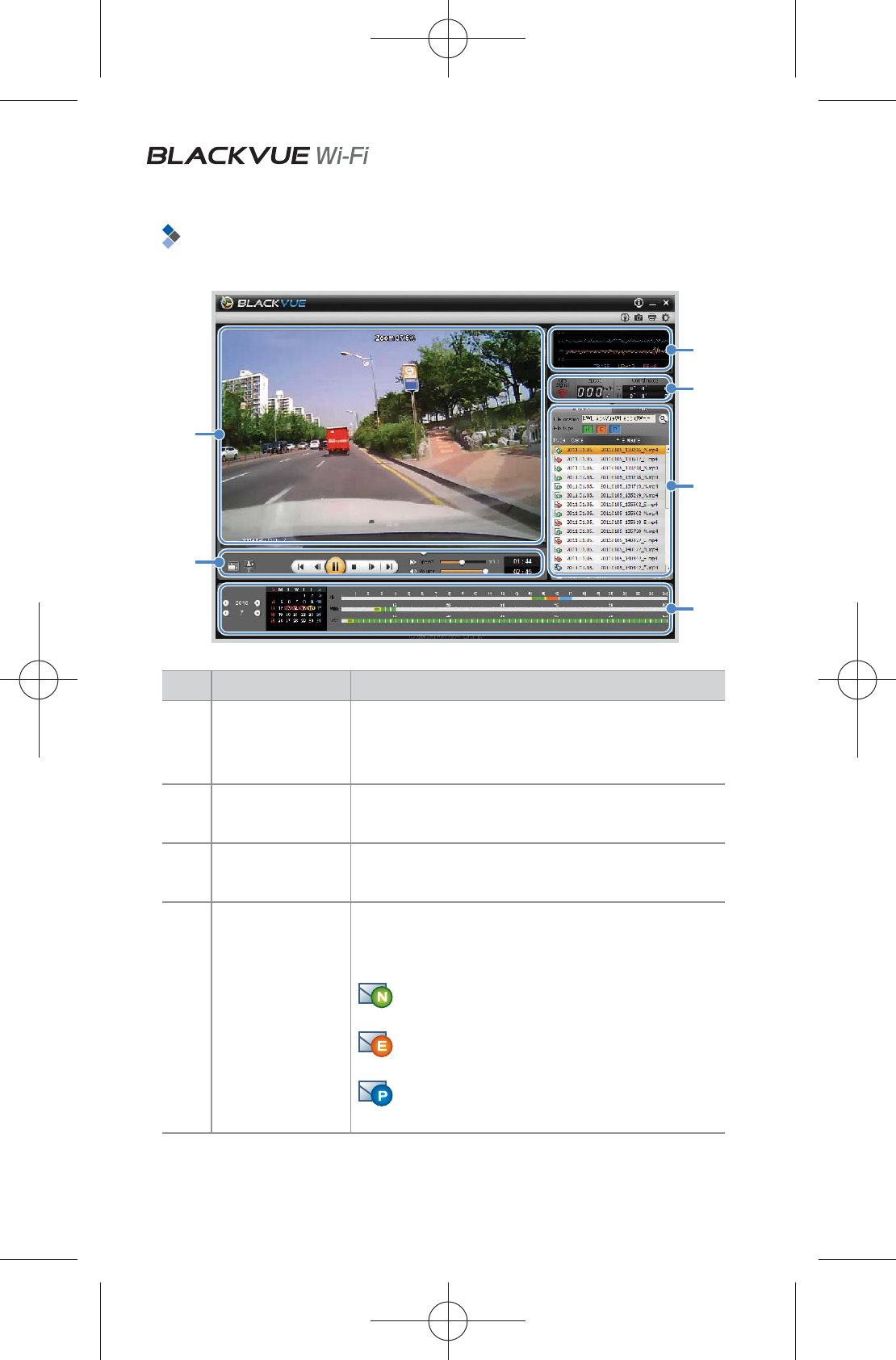

Screen Description
1
6
2
3
4
5
No. Name Description
1
Playback Screen
for Recorded
Videos
Videos can be played back using this screen. The
mouse can be used to zoom in/out.
2
G-Sensor
Information
G-sensor information can be checked, at the time
the video was recorded.
3
GPS Information GPS information can be checked, at the time the
video was recorded.
4
Recorded Video
List
Using the file list and map tab, the recorded
video list, and where a video was recorded can be
checked.
: This is an normal recording le and marked
with green in the timeline.
: This is an event recording le and marked
with orange in the timeline.
: This is a parking mode recording le and
marked with blue in the timeline.
DR500GW-HD 27
No. Name Description
5
Timeline Video can be explored with the date, hr, min, and
sec of when a video was recorded.
6
Playback Option
Button
The playing-back window can be extended to full
screen and be reversed upside down. With the
playback control button, video playback, speed,
and volume can be controlled.
Video Playback
How to Control the Playback of Recorded Video
The recorded video can be played back in full screen mode and be reversed
upside down. The playback speed can be adjusted.
View Upside-Down
Playback/Pause StopFull Screen View Volume Control
Playback Time
Play Previous File Play Next File
Playback Speed Control
Frame Move (Previous) Frame Move (Next)
Note
yWhile a recorded video is played back, double-click the screen to
switch to full screen view. Double-click the screen again or press ESC
to return to default view.
yWhile playing back a recorded video, use the mouse wheel to zoom
in/out.
yWhile playing back a recorded video, right-click the screen to view
100 % zoom-in screen.
28
Magnifying Glass
Some parts of a recorded video can be zoomed in while playing back.
Left-click the screen while a recorded video is being played back to see a partial
zoom-in window and
to use it to identify the number plate of a car while moving it.
Note
yBlackVue software for Mac will be upgraded to support the
magnier function.
Timeline
Video can be explored with the date, hr, min, and sec of when a video was re-
corded.
Year Selection Timeline for Hr Selection
Timeline for Min Selection Timeline for Sec Selection
Month Selection
Note
yIn the date selection area, the date with a recorded video is marked
by a red circle and the currently-selected date is marked by a yellow
circle.
DR500GW-HD 29

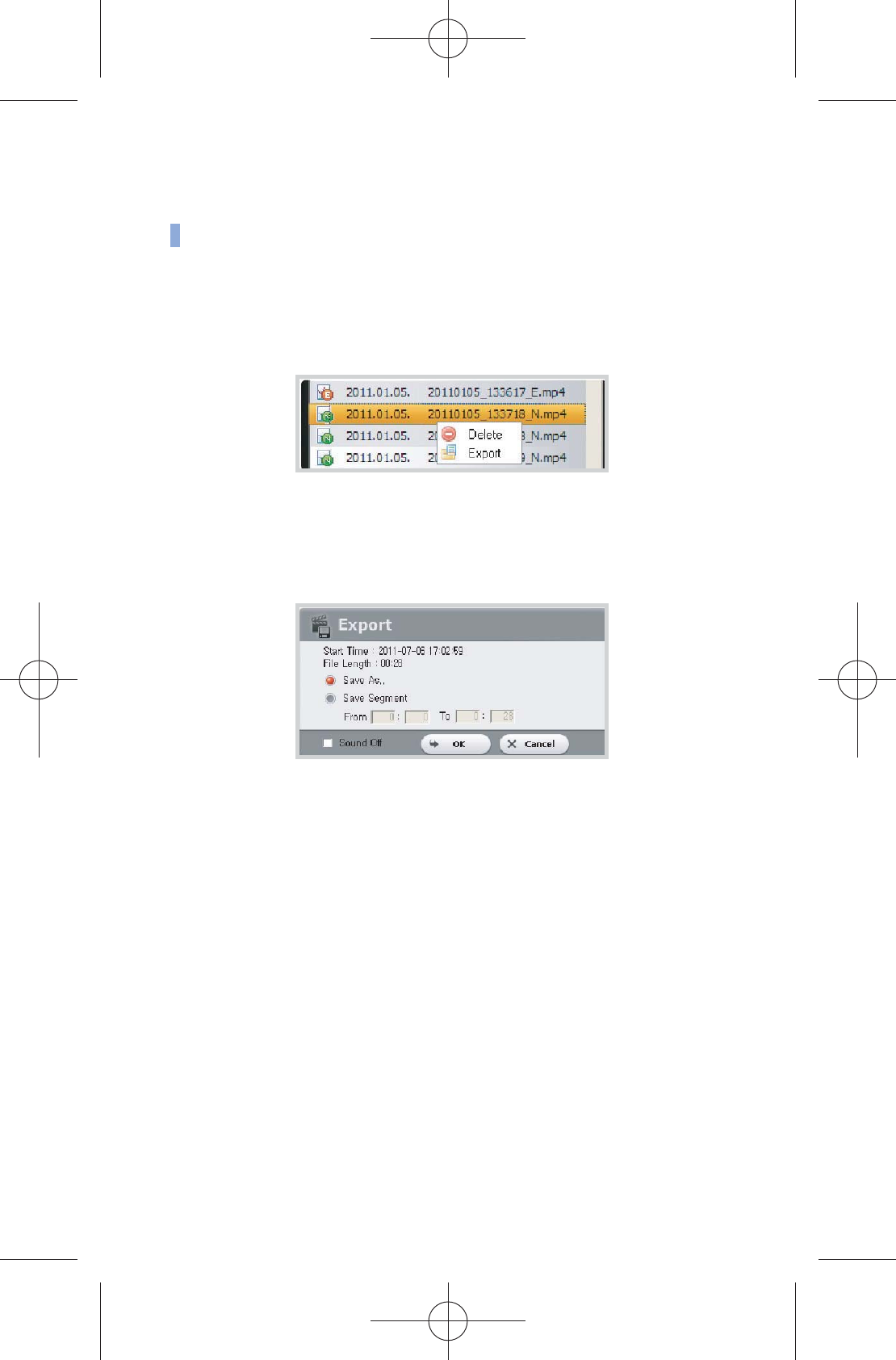

How to Manage Files
With the recorded video list, a file can be deleted or saved with a different
name.
1 Select a le from the recorded video list and right-click it.
2 To delete a le, click Delete.
3
To save it with dierent name, click Export and select the option you
want.
4 Press the OK button and select the le name you want, together with
the path.
5 Press the Save button to nish.
30
How to Check the Map
Where a video was recorded can be checked with the map.

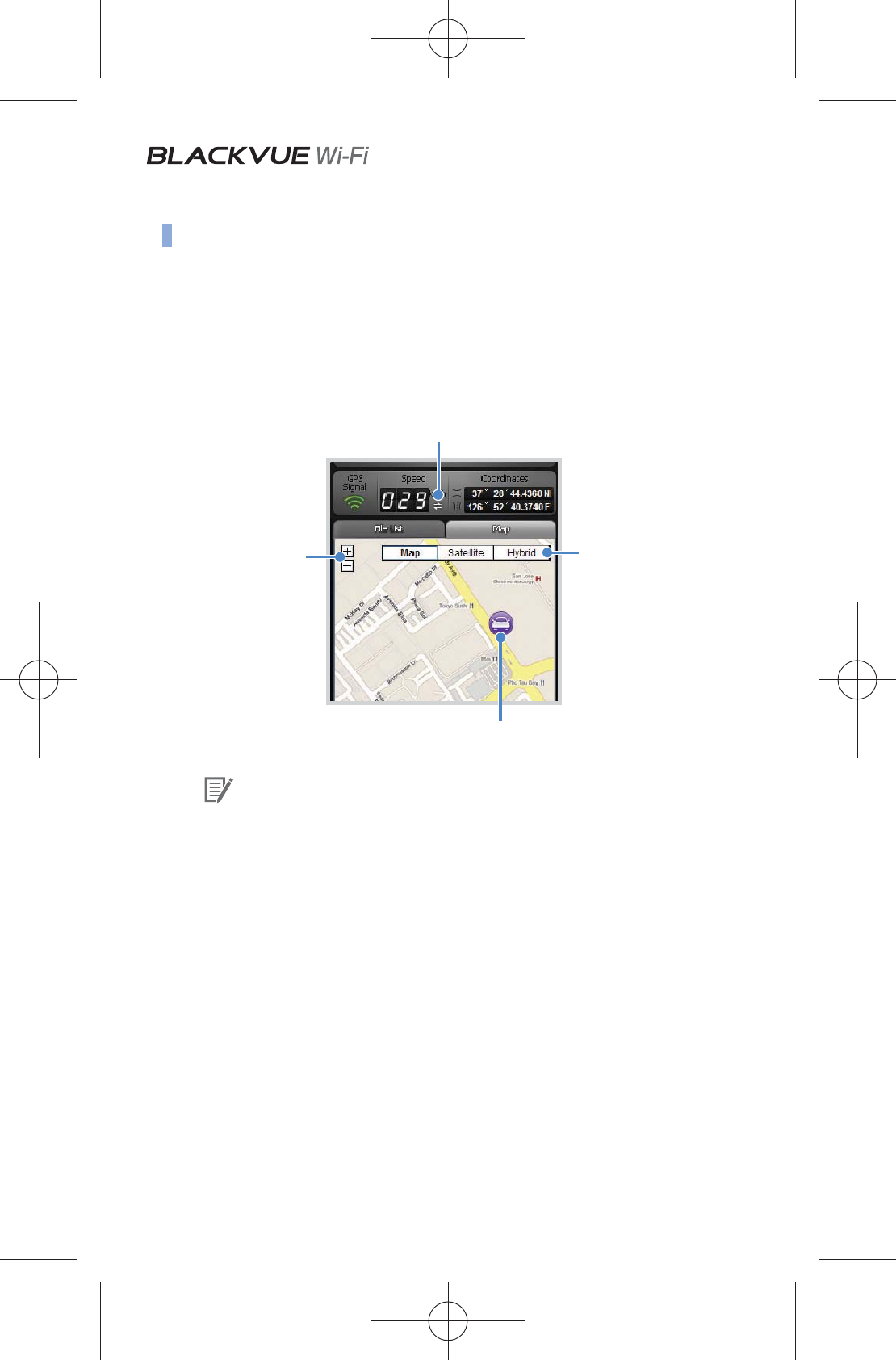

1 Select a le from the recorded video list and play it back.
2 Press the Map tab.
3 With the +/- button or mouse wheel, the map can be zoomed in/out.
Speed Unit Change
Map Type
Selection
Car Location
Map Zoom-
In/Out
Note
yTo use the map service, an Internet connection is required.
y Only for the recorded file with GPS information, the data can be
checked.
DR500GW-HD 31
How to Check MyWay Viewer
The driving route of a recorded video can be checked.

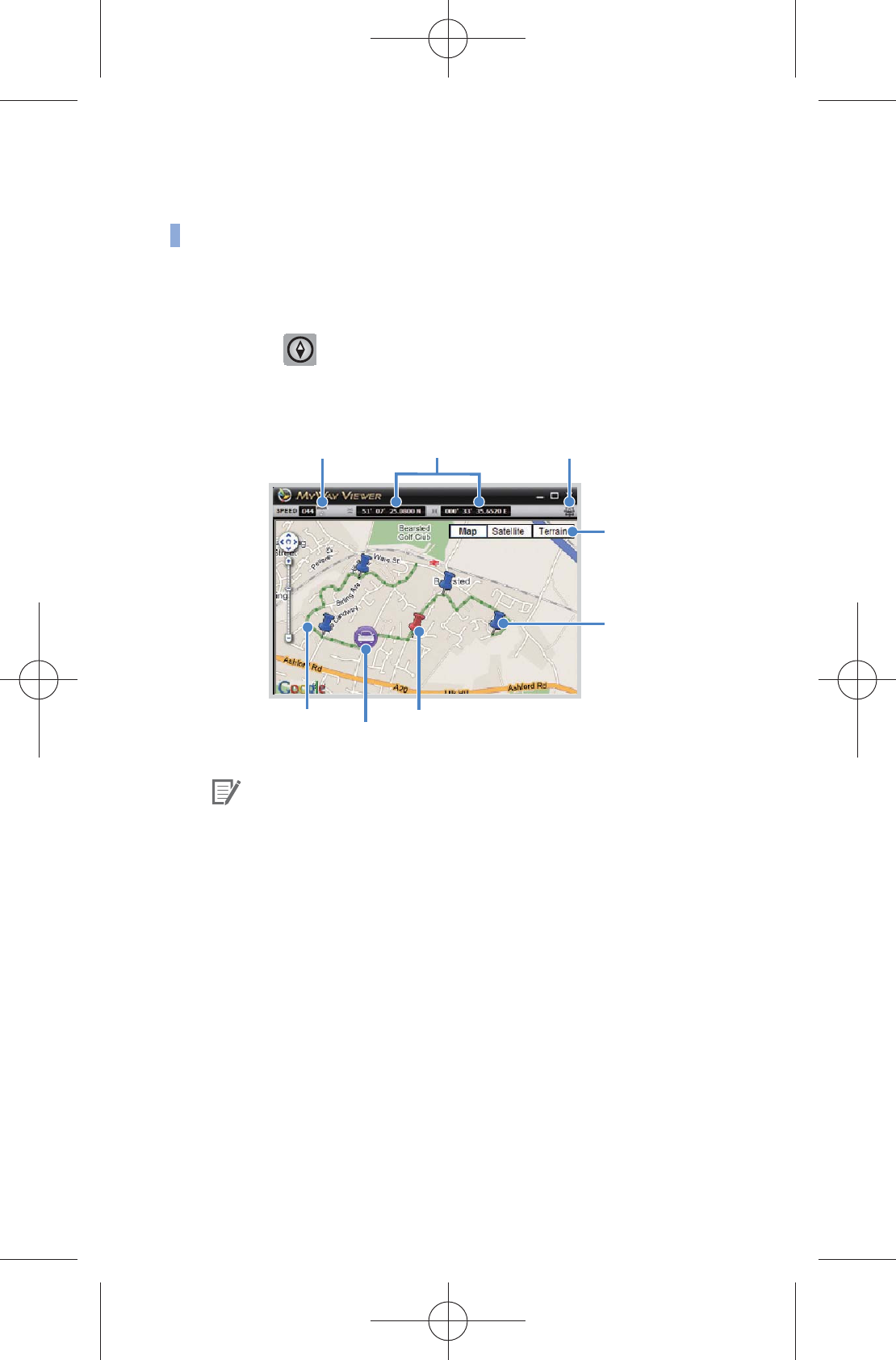

1 Select a le from the recorded video list and play it back.
2 Press the button. The driving route will be displayed on the map.
3 Double-click the map to play back the recorded video of the nearest
driving route from the clicked point.
Speed Unit Change
Car Location
Record
Starting
Point
Driving Route Currently-Played File
Latitude & Longitude Car Location
Map Type
Select
Note
yTo use the map service, an Internet connection is required.
y Only for the recorded file with GPS information, the data can be
checked.
32
How to Save as an Image
While playing back a recorded video, some parts can be saved as images if you
want.
1 Select a le from the recorded video list and play it back.
2 From the image to be saved, press the button.
Note
yUsing the timeline or press the / button to explore detailed
images.
3 Press the
G
button.
4 Select the le name you want, together with the path, and click the Save
button.
Note
yJPG and BMP formats are supported for image les.
How to Print Out an Image
While playing back a recorded video, some parts can be printed out as images
if you want.
1 Select a le from the recorded video list and play it back.
2 From the image to be saved, press the button.
Note
yUsing the timeline or press the / button to explore detailed
images.
3 Press the button.
4 Select the printer and click the OK button.
DR500GW-HD 33
Conguration
Basic Conguration
Time, video, and recording congurations can be changed.

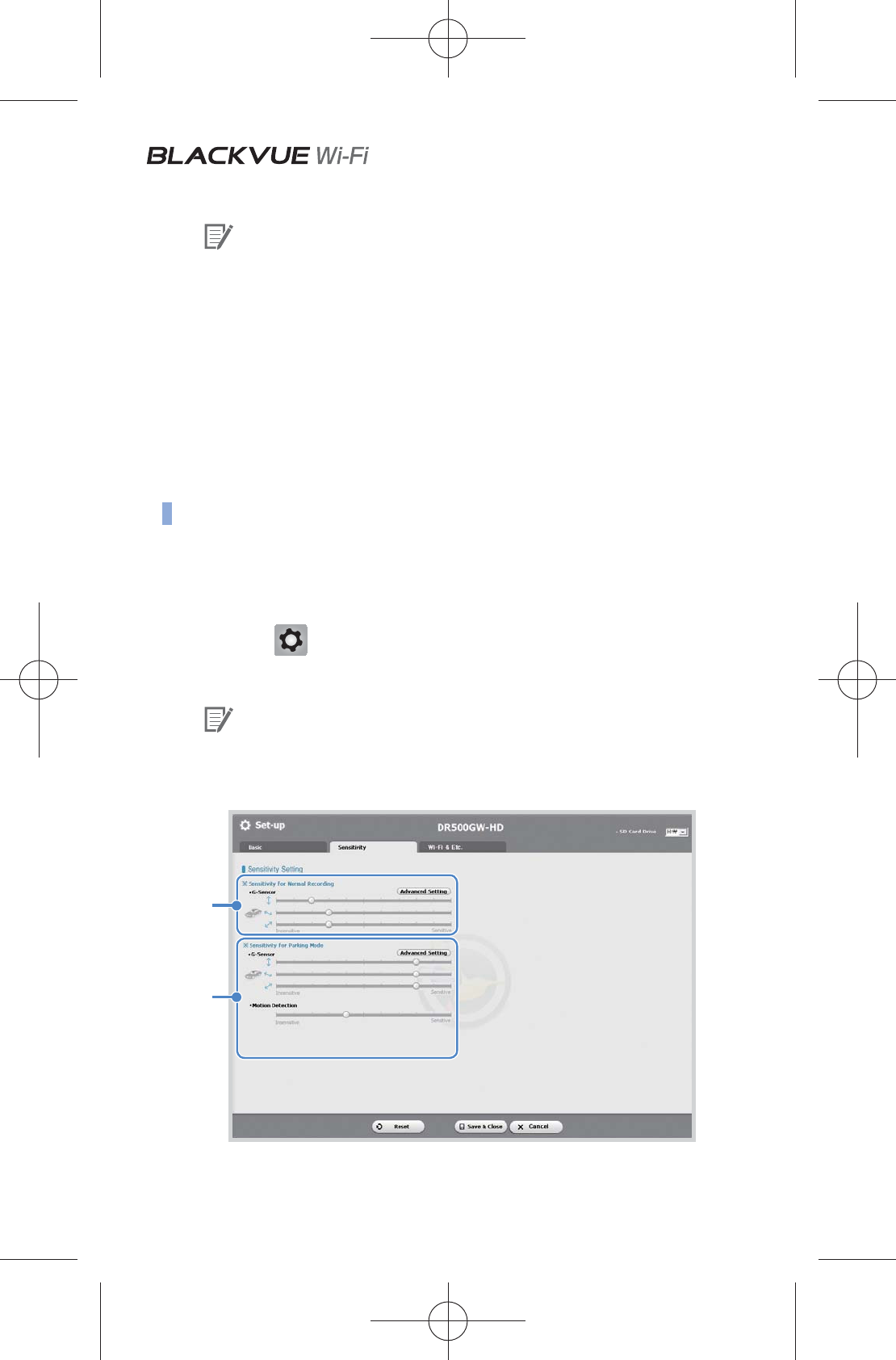

1 Click the
G
button and click the Basic tab.
2 After changing the conguration, click Save & Close.
1
23
No. Function Description
1
Time Zone
(Timezone
Conguration)
The time zone can be configured for where it is
used. The congured time zone is used as informa-
tion for recorded video.
2
Image Setting
Quality, compression rates, and the brightness of
the recorded video can be congured. According to
the compression rate, recording time varies: for the
details, refer to the microSD card standard.
(41 Page)
3
Recording
Setting
Normal Record, Voice Record, Date and Time
Display and Auto Switching to Parking Mode
function can be turned on/o.
Speed Display and recording mode, Record File
Unit and Recording Storage Setting can be
changed.
34
Note
yWith the normal recording function disabled, only event and
parking mode recording videos are saved.
y With the speed display unit disabled, the vehicle speed is not dis-
played when the recorded videos are played back.
y On microSD cards, older files are deleted first to mark space for
newly-recorded videos. Copy and store important les such as even
recording les to other storage media.
yTap the Voice on/o button to turn the voice recording function on
or o.
How to Congure Sensitivity
It is possible to congure the G-sensor sensitivity to start event recording dur-
ing normal recording and the G-sensor & motion detection sensitivity to start
event recording during parking mode recording, respectively.
1 Click the
G
button and click the Sensitivity tab.
2 After changing the conguration, click Save & Close.
Note
yFor details about advanced sensitivity configuration, refer to Ad-
vanced Conguration of Sensitivity. (35 Page)
1
2
DR500GW-HD 35
No. Function Description
1
Sensitivity
for Normal
Recording
It is possible to congure the G-sensor sensitivity to
start event recording during normal recording.
2
Sensitivity for
Parking Mode
It is possible to congure the G-sensor and motion
detection sensitivity to start event recording during
parking mode recording.
Advanced Sensitivity Conguration
The sensitivity can be congured while watching a recorded video.
1 Click the
G
button and click the Sensitivity tab.
2 Click the Advanced Setting button of the conguration you want.
3 Play back a recorded video. Saved G-sensor information is displayed at
the bottom of the recorded video which is played back.
36
4 Move the control bar up/down to adjust the sensitivity range. If the
range is wide, it is less sensitive, and if the range is narrow, it is more sen-
sitive.
It is recorded as an event. It is not recorded as an event.
Note
yIf an event recording is started due to the sensitivity configured
while a recorded video is being played back, the edge of the play-
back screen blinks in orange.
5 After changing the conguration, click Save & Close.
Wi-Fi & Other Conguration
Congurations for Wi-Fi, LED indication, and voice direction can be changed.
1
2
DR500GW-HD 37
No. Function Description
1
Wi-Fi Setting
With Login Setting, Wi-Fi access privilege can be
congured. SSID and password may be changed by
the user. The BlackVue application can be accessed
with the SSID and password chosen by the user.
2
Etc.
For video recording status, normal recording mode,
and parking mode recording, the LED indicators can
be turned on/o.
Voice direction item or the volume can be changed.
How to Apply Conguration
The user's conguration can be applied to the product.
1 Insert the microSD card into the product. For details on how to insert the
microSD card, refer to How to Insert & Remove the microSD Card.
(14 Page)
2 When the power is turned on, the user's conguration is automatically
applied.
Note
yInsert the microSD card only when the product is turned o.
38
Firmware Upgrade
Existing products can be upgraded by downloading a new version of the rm-
ware.
1 Connect the microSD card to the PC. For details on how to connect, refer
to How to Playback using a PC. (21 Page)
2 Access the BlackVue website (www.blackvue.com) and download the
rmware upgrade le.
3 Double-click the firmware upgrade file to execute it and perform the
upgrade according to instructions provided in the program.
Note
yAfter rmware upgrade, the user's conguration is initiated.
y When the firmware upgrade is finished, the BlackVue software is
automatically installed. If you don't want it to be installed, click the
Cancel button.
DR500GW-HD 39
4 After the rmware upgrade is nished, insert the microSD card into the
BlackVue.
Note
yFor detailes on how to insert the microSD card, refer to How to
Insert & Remove the microSD Card. (14 Page)
yInsert the microSD card only when the product is turned o.
5 When the power is turned on, it is automatically upgraded.
Caution
yMake sure that the power is never turned off while firmware up-
grade is in progress.
40
Product Specications & Standards
Product Specications
Model Name DR500GW-HD
Color/Size/Weight Pearl Black / Length 118.5mm x Diameter 36mm / 114g
Memory microSD Card (16GB / 32GB)
Recording Mode
Normal Recording, Event Recording (Impact Detection), and
Parking Mode Recording (Motion+Impact Detection)
K
For parking mode recording, a battery discharge prevention
device is required.
Camera CMOS Sensor (Approx. 2M Pixel)
Viewing Angle Opposite Angle 156°, Horizontal 123°, Vertical 90°
Resolution/Frame
Full HD(1920x1080)@30fps, Full HD(1920x1080)@15fps,
HD(1280x720)@30fps, HD(1280x720)@15fps, D1(720x480)@30fps
K Resolution/frame can be changed
Compression Mode Video H.264 / Audio AAC-LC
K Baseline and High prole can be selected
Wi-Fi Built-in (802.11b/g/n(2.4~2.4835GHz), Max150Mbps,
OFDM/CCK/16-QAM/64-QAM)
GPS Built-in
Microphone Built-in
Speaker Built-in
K Voice Directions
LED Indicators Recording LED, GPS LED, Wi-Fi LED, Security LED
Sensor 3-Axis Acceleration Sensor
Button
Wi-Fi on/o Button
K Self-format Function: Press it for 10 seconds to format the
microSD card
Voice on/o Button
K
The proximity sensor is built-in so that voice recording
can be turned on/o by approaching it with a hand
K Touch the button or it recognizes when a hand approach-
es to within about 2 cm
Battery Built-in Super Capacitor
Input Power DC 12V-24V
Current Consumption About 300 mA
K Varies depending on Wi-Fi usage
Operation Temperature -20°C ~ 70°C
Certicates KCC, FCC, CE, and RoHS
Software
BlackVue Viewer Program (Windows XP or later & Mac Leop-
ard OS (10.5) or later)
Application BlackVue (Android 2.3 or later & iOS 5.0 or later)
DR500GW-HD 41
LED Indicators
LED
State
Recording
(REC) GPS Wi-Fi Security
Boot-up Blinking
Re-
cord-
ing
Normal Orange
Blinking White Blinking
Event
Red Blinking
Face White Blinking
Parking
Green Blinking
White Blinking
Wi-Fi ON Light White Blinking
Wi-Fi ON/OFF
Change Blinking
GPS ON Blue Light White Blinking
Software Control Available Unavailable Unavailable Available
microSD Card Standard
Quality
Memory
Capacity
Normal Image Compression
Full HD
1920x1080
30fps
Full HD
1920x1080
15fps
HD
1280x720
30fps
HD
1280x720
15fps
D1
720x480
30fps
16GB 4 HR 37 MIN 6 HR 54 MIN 6 HR 54 MIN
11 HR 29 MIN
17 HR 09 MIN
32GB 9 HR 24 MIN 13 HR 59 MIN 13 HR 59 MIN 22 HR 51 MIN 34 HR 09 MIN
Quality
Memory
Capacity
High Image Compression
Full HD
1920x1080
30fps
Full HD
1920x1080
15fps
HD
1280x720
30fps
HD
1280x720
15fps
D1
720x480
30fps
16GB 7 HR 02 MIN 8 HR 49 MIN 8 HR 41 MIN
11 HR 31 MIN
17 HR 12 MIN
32GB
13 HR 55 MIN
17 HR 11 MIN 17 HR 10 MIN 23 HR 18 MIN 35 HR 48 MIN
Note
yThere may be some variation with actual recording time.
Before Requesting A/S Service
It is required for users to back up important data regularly from
the storage device (to other separate media). Depending on the
situation, it will be necessary to delete the data from the internal
storage device (component). It might be necessary to delete all
the data from the product for A/S Service. So it is required for us-
ers to back up important data by themselves before requesting
A/S Service. For all A/S services, it is assumed that the user has
already backed up their data, so there is no additional back-up
process. Therefore, it is important to note that we will not be held
responsible for any data lost during A/S service.
FCC Compliance Information
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
$"65*0/$IBOHFTPSNPEJGJDBUJPOTOPUFYQSFTTMZBQQSPWFECZ
UIFQBSUZSFTQPOTJCMFGPSDPNQMJBODFDPVMEWPJEUIFVTFSTBV
UIPSJUZUPPQFSBUFUIFFRVJQNFOU
/PUF5IJTFRVJQNFOUIBTCFFOUFTUFEBOEGPVOEUPDPNQMZXJUI
UIFMJNJUTGPSB$MBTT#EJHJUBMEFWJDFQVSTVBOUUPQBSUPGUIF
'$$3VMFT5IFTFMJNJUTBSFEFTJHOFEUPQSPWJEFSFBTPOBCMFQSP
UFDUJPOBHBJOTUIBSNGVMJOUFSGFSFODFJOBSFTJEFOUJBMJOTUBMMBUJPO
5IJTFRVJQNFOUHFOFSBUFTVTFTBOEDBOSBEJBUFSBEJPGSFRVFODZ
FOFSHZBOEJGOPUJOTUBMMFEBOEVTFEJOBDDPSEBODFXJUIUIF
JOTUSVDUJPOTNBZDBVTFIBSNGVMJOUFSGFSFODFUPSBEJPDPNNVOJ
DBUJPOT)PXFWFSUIFSFJTOPHVBSBOUFFUIBUJOUFSGFSFODFXJMMOPU
PDDVSJOBQBSUJDVMBSJOTUBMMBUJPO*GUIJTFRVJQNFOUEPFTDBVTF
IBSNGVMJOUFSGFSFODFUPSBEJPPSUFMFWJTJPOSFDFQUJPOXIJDIDBO
CFEFUFSNJOFECZUVSOJOHUIFFRVJQNFOUPGGBOEPOUIFVTFSJT
FODPVSBHFEUPUSZUPDPSSFDUUIFJOUFSGFSFODFCZPOFPSNPSFPG
UIFGPMMPXJOHNFBTVSFT
3FPSJFOUPSSFMPDBUFUIFSFDFJWJOHBOUFOOB
*ODSFBTFUIFTFQBSBUJPOCFUXFFOUIFFRVJQNFOUBOESFDFJWFS
$POOFDUUIFFRVJQNFOUJOUPBOPVUMFUPOBDJSDVJUEJGGFSFOUGSPN
UIBUUPXIJDIUIFSFDFJWFSJTDPOOFDUFE
$POTVMUUIFEFBMFSPSBOFYQFSJFODFESBEJP57UFDIOJDJBOGPSIFMQ
.PEJGJDBUJPOTOPUFYQSFTTMZBQQSPWFECZUIFNBOVGBDUVSFSDPVME
WPJEUIFVTFShTBVUIPSJUZUPPQFSBUFEUIFFRVJQNFOUVOEFS'$$SVMFT
5IJTFRVJQNFOUDPNQMJFTXJUI'$$SBEJBUJPOFYQPTVSFMJNJUTTFUGPSUI
GPSBOVODPOUSPMMFEFOWJSPONFOU5IJTFRVJQNFOUTIPVMECFJOTUBMMFE
BOEPQFSBUFEXJUINJOJNVNDNCFUXFFOUIFSBEJBUPSBOEZPVS
CPEZ5IJTUSBOTNJUUFSNVTUOPUCFDPMMPDBUFEPSPQFSBUJPOJODPOKVO
DUJPOXJUIBOZPUIFSBOUFOOBPSUSBOTNJUUFSVOMFTTBVUIPSJ[FEUPEPTP
CZUIF'$$
'$$*%:$,%3(8)%

Product Warranty
Q
The term of this product warranty is 1 year from the purchase date. (Accessories
such as Battery/microSD Card : 6 Months)
Q
We, Pittasoft Co., Ltd., provide the product warranty according to Consumer Dispute
Settlement Regulations (drawn up by the Fair Trade Commission). Pittasoft or designated
partners will provide the service upon request.
Q
If standard product is used for commercial purpose, the warranty term is reduced by half.
Product Name
(Model Name) Serial No.
Purchased When Purchased Where
Customer Information Address / Call Number
Consumer Injury
Warranty
Within the
Term Out of the Term
For per-
formance/
functional
problems
under normal
use condi-
tions
For serious repair required within 10 days of purchase Exchange/
Refund
N/A
For serious repair required within 1 month of purchase Exchange
For serious repair required within 1 month of exchange Exchange/
Refund
When not exchangeable Refund
Repair
If Avail-
able
For Defect Free Repair
Paid Repair/
Paid Product
Exchange
Repeated problem with the same defect (up to 3
times)
Exchange/
Refund
Repeated problem with dierent parts (up
to 5 times)
Repair
If Un-
avail-
able
For the loss of a product while in A/S Refund with
10% added to the
valuation of the
product taking
depreciation into
account
(Upper Limit:
Purchase Price)
When repair is unavailable due to lack of
spare parts within the component holding
period
When repair is unavailable even with spare
parts
Exchange/
Refund after
depreciation
1) Malfunction due to customer fault
- Malfunction & damage caused by user negligence (fall, shock, dam-
age, unreasonable operation, etc) or careless use
- Malfunction & damage after the customer or a third party repaired
or modied the product.
- Malfunction & damage due to used of unauthorized components,
consumables, or separately sold parts
2) Other Cases
- Malfunction due to natural disasters (re, ood, earthquake, etc)
- Expired life span of a consumable part
- Malfunction due to external reasons
Paid Repair Paid Repair
Q
This warranty is only valid in the country where you purchased the product.
MEMO

Navigation menu
