FOR SL94 EGO

FEATURE

SUPPLEMENT

CONGRATULATIONS,

Thank you for purchasing an SL-94 Ego marker. The SL range represents

the very best of Eclipse in terms of cutting edge performance and

technology that deliver on our philosophy of refined design and super

fast markers that produce devastating firepower!

I know you’ll be blown away with your new Eclipse SL-94, but before

you use your Marker please read through this Feature Supplement

as well as the Ego9 Operation Manual in its entirety and pay particular

attention to all of the Warnings and Safety Guidelines. If you are missing

either the Feature Supplement or the Ego9 Operational Manual both can

be downloaded from the Downloads page at :

www.planeteclipse.com

At the back of this supplement is a section that will allow you to record and

track your Markers Service History.

If you have any questions or problems turn to the Dealers & Service

Section in the Operation Manual where you

will find a list of accredited Dealer Service

Centres that will be able to help you out

or of course you can always contact

Nicky T in our Tech Support

Department directly on:

nick.t@planeteclipse.com

04 SL SHAFT3 BARREL KIT

05 SL94 FIXED OUTPUT LPR

05 ZICK 2 RAMMER SYSTEM

06 ADDITIONAL TRIGGER SYSTEMS

07 FSD DELAY PARAMETER

07 CURE 3 BOLT SYSTEM

08 SERVICE HISTORY

JACK WOOD - CHIEF ENGINEER

READ AND ADHERE STICTLY TO ALL OF THE

SAFETY INSTRUCTIONS AND GUIDELINES IN

THE EGO9 OPERATORS MANUAL!

SL94 FIXED OUTPUT LPR

ZICK 2 RAMMER SYSTEM

LPR CAP

#013 NBR

LPR PISTON

SPRING

LPR PISTON

#14x2 NBR 70

OR #016 NBR 70

#010 NBR 70

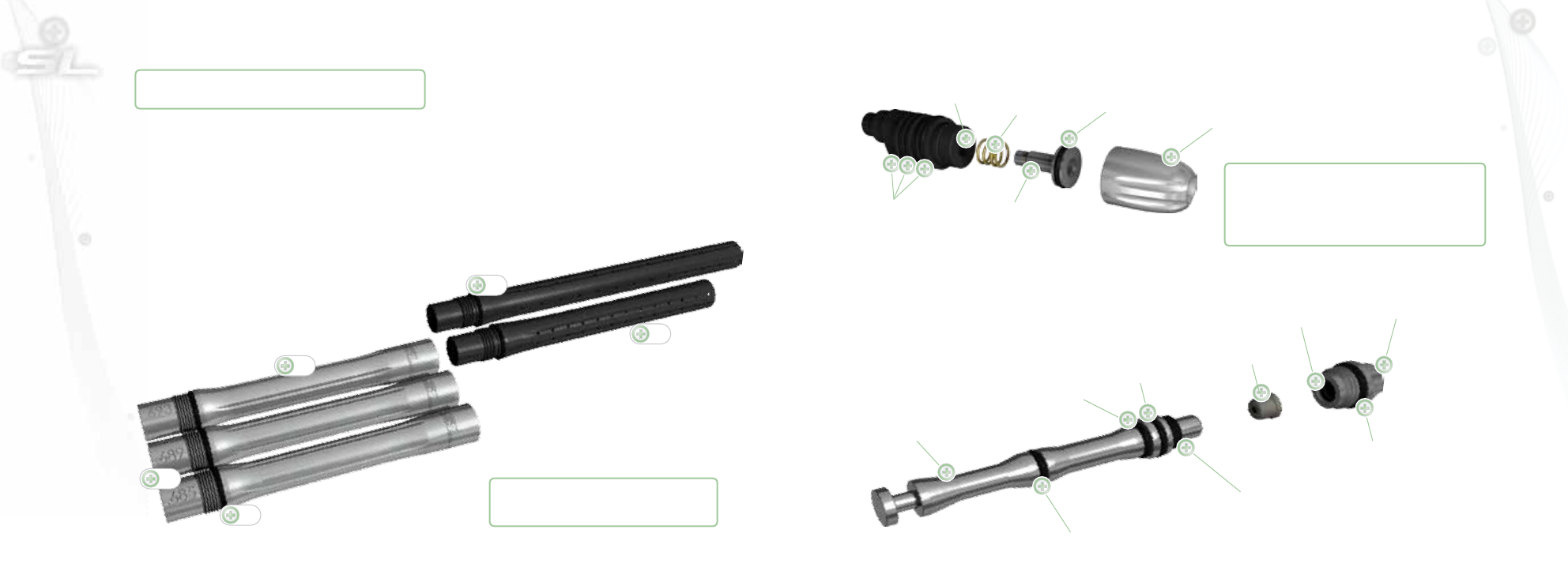

Your Eclipse SL comes as standard with an Eclipse SL Shaft 3 barrel.

The barrel screws into the body of the SL using a right hand thread meaning

that if you hold the SL pointing away from you the barrel screws into the

body in a counter-clockwise direction.

The barrel comprises of two parts, a barrel back A and a barrel front B .

The two parts are joined together with a left hand thread meaning that

if you hold the barrel, with the back nearest you, the front unscrews in a

counter-clockwise direction. The bore size of the barrel back is engraved at

the end of the barrel back C .

On the barrel back there is a 016 NBR 70 o-ring D which prevents the barrel

from vibrating loose from the SL body when the marker is fired. There is also

a 015 NBR 70 o-ring on the barrel front E helps with alignment when the

two sections are screwed together.

Replace and lubricate these o-rings with Eclipse Grease as necessary.

SL SHAFT3 BARREL KIT

NOTE: THE SL WILL ONLY ACCEPT COCKER THREADED

BARRELS. DO NOT USE ANY OTHER TYPE OF BARREL

THREAD.

NOTE: WHEN INSTALLING THE FIXED OUTPUT LPR CAP, DO NOT

USE THE SMALL LPR ADJUSTER SPRING IN THE FRONT OF THE

PISTON FROM THE ADJUSTABLE LPR CAP. INSTALLING THE SMALL

LPR SPRING INTO THE FRONT OF THE FIXED LPR CAP WILL CAUSE

THE OUTPUT PRESSURE TO DROP TOO LOW AND CAUSE LOW AND

INCONSISTENT VELOCITIES.

NOTE: THE BORE SIZE OF YOUR SHAFT 3 MAY VARY ACCORDING TO THE

MODEL OF SL YOU HAVE.

#009 NBR 70

ZICK 2 RAMMER

#009 NBR 70

#011 NBR 70

CUSHION

ZICK 2

CAP

#010 NBR 70

#011 NBR 70

BUMPER

FEATURE SUPPLEMENT

FSD DLY

THE FIRST SHOT DROP OFF

DELAY PARAMETER

This parameter sets the amount of time after the last shot before the FSD

COMP is used on the next shot. The first shot after powering on the SL94

will always have FSD COMP. This parameter can be set between 30 and

240 seconds in 10 second increments.

THE SL94

TRIGGER SYSTEMS

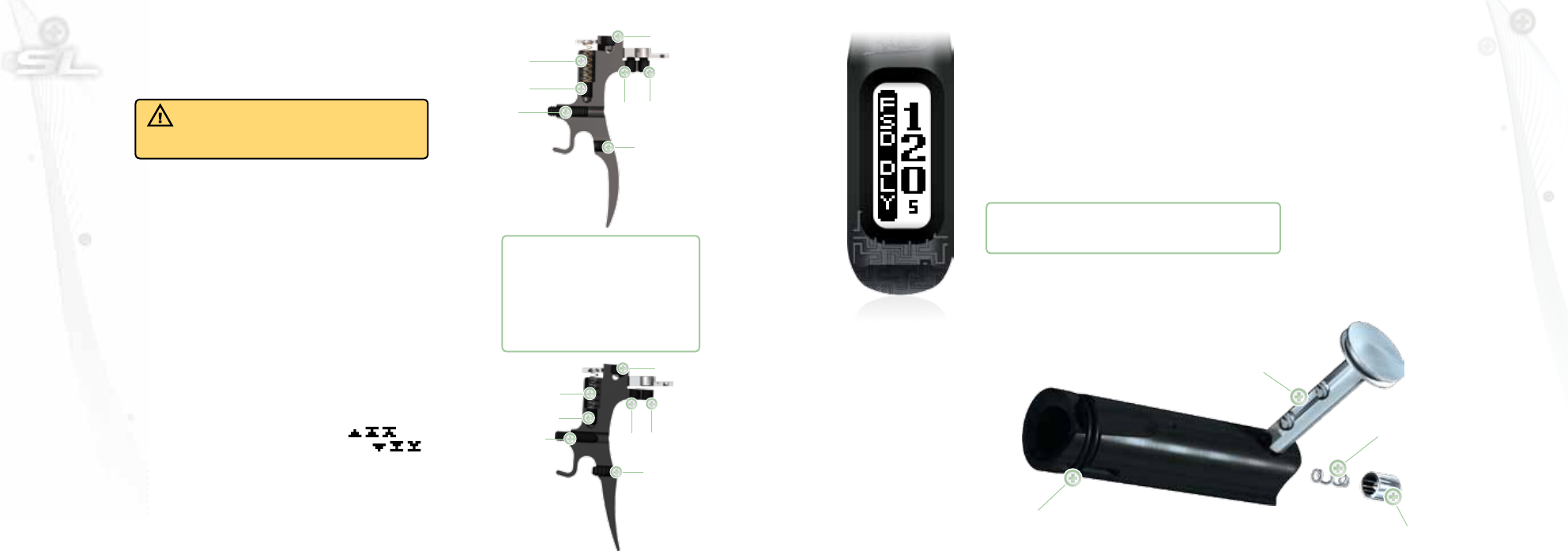

The SL94 comes with two complete trigger systems (bearing carrier, trigger,

spring and set-screws) that are interchangeable with the SL94 frame.

For full details of how to change the trigger system in the SL94 please

consult the “Ego9 Trigger Assembly” section in the Ego9 Operators

Manual. If you have any doubts about how to conduct this procedure then

do not hesitate to contact your nearest Eclipse Service Center (see Eclipse

Certified Service Center pages of Ego9 Operators Manual).

For full details of how to adjust your trigger please refer to the Setting th

Trigger Section of the Ego9 Operators Manual.

IMPORTANT

When setting the trigger it is essential to ensure that the electronic trigger

detection is working correctly. When the trigger is fully depressed the

Trigger Detection Indicator (TDI) should point upwards . When

the trigger is fully released the TDI should point downwards .

For more information, see Understanding the Trigger Detection Indicator

(TDI) and Filter Menu in the Ego9 Operators Manual.

A Spring

B Spring Return Strength Screw

C Trigger Pin Locking Screw

D Front Stop Trigger Screw

E Magnet Return Strength Screw

F Micro Switch Activation Screw

G Rear Stop Trigger Screw

WARNING: REMOVE ALL PAINTBALLS & DE-GAS YOUR MARKER,

DISCHARGING ANY STORED GAS IN A SAFE DIRECTION,

DISCONNECT THE BATTERY & REMOVE THE BARREL, LOADER & AIR SYSTEM

TO MAKE THE MARKER EASIER & SAFER TO WORK ON.

BOLT PLUNGER

BOLT SPRING

#015 NBR 70

BOLT PIN

NOTE: FOR FULL INSTRUCTIONS OF HOW TO ADJUST THE FSD DLY

PARAMETER PLEASE CONSULT THE ADVANCED SET-UP SECTION OF THE

EGO9 OPERATORS MANUAL.

CURE 3 BOLT SYSTEM

FEATURE SUPPLEMENT

SERVICE HISTORY

WORK UNDERTAKEN:SERVICE STAMP: SERVICE STAMP:

SERVICE STAMP: SERVICE STAMP:

DATE: SIGNATURE: DATE: SIGNATURE:

WORK UNDERTAKEN:

SERVICE HISTORY

WORK UNDERTAKEN:

FEATURE SUPPLEMENT

NOTES NOTES

FEATURE SUPPLEMENT
