User Manual rev.pdf
I
I
Copyright
Copyright 2017 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular
purpose. Any software described in this manual is sold or licensed "as is". Should the programs
prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer)
assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software. Further, this company reserves the right to revise
this publication and to make changes from time to time in the contents hereof without obligation to
notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of
their respective holders.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter. To assure continued compliance, for example, use
only shielded interface cables when connecting to computer or peripheral devices.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
operation.
II
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 21cm between the
radiator and your body.
CE Compliance Statement
This device meets the RED directive 2014/53/EU of EU requirements on the limitation of exposure of
the general public to electromagnetic fields by way of health protection. The device complies with RF
specifications in that the distance between the device and your body should not be less than 20 cm.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However,
special attention must be paid to the dangers of electric shock and static electricity when working with
electrical equipment. All guidelines must be followed at all times to ensure the safe use of the
equipment.
WEEE regulation
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and
electronic equipment should understand the meaning of the crossed-out wheeled bin
symbol. Do not dispose of WEEE as unsorted municipal waste; WEEE should be collected
separately.
Revision
User Manual of PLANET 2.4GHz 300Mbps 802.11n Outdoor Wireless AP/CPE
Model: WAP-200N/WBS-200N
Rev: 1.0 (August, 2017)
Part No. EM-WAP-200N_WBS-200N_v1.0
III
CONTENTS
Chapter 1. Product Introduction ........................................................................................................... 7

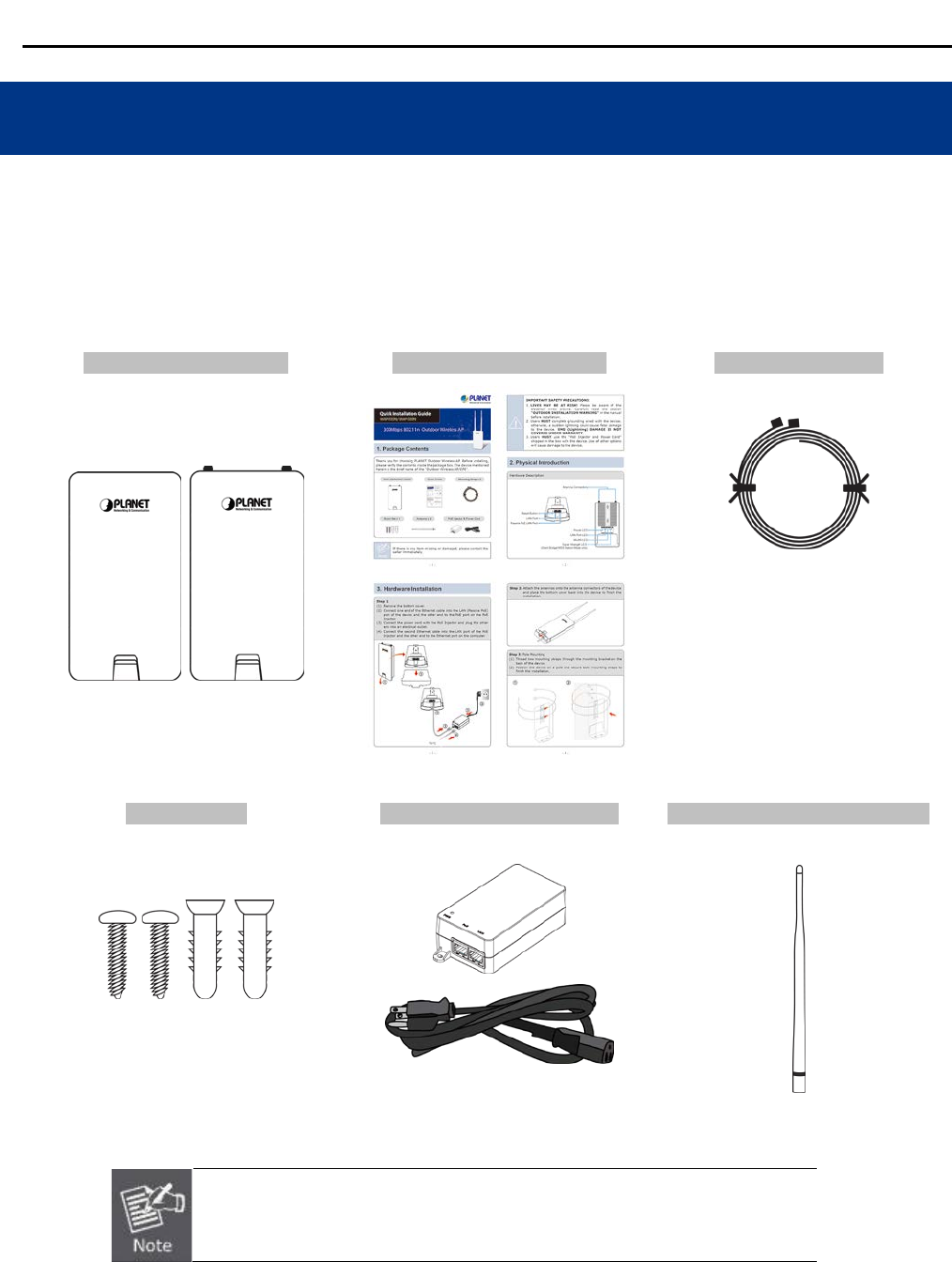

1.1 Package Contents ............................................................................................................... 7
1.2 Product Description ............................................................................................................ 8
1.3 Product Features ............................................................................................................... 10
1.4 Product Specifications ..................................................................................................... 11
Chapter 2. Hardware Installation ........................................................................................................ 14
2.1 Hardware Description ....................................................................................................... 14
2.1.1 The Bottom Panel ................................................................................................... 16
Chapter 3. Connecting to the AP ........................................................................................................ 18
3.1 Preparation before Installation ........................................................................................ 18
3.1.1 Professional Installation Required .......................................................................... 18

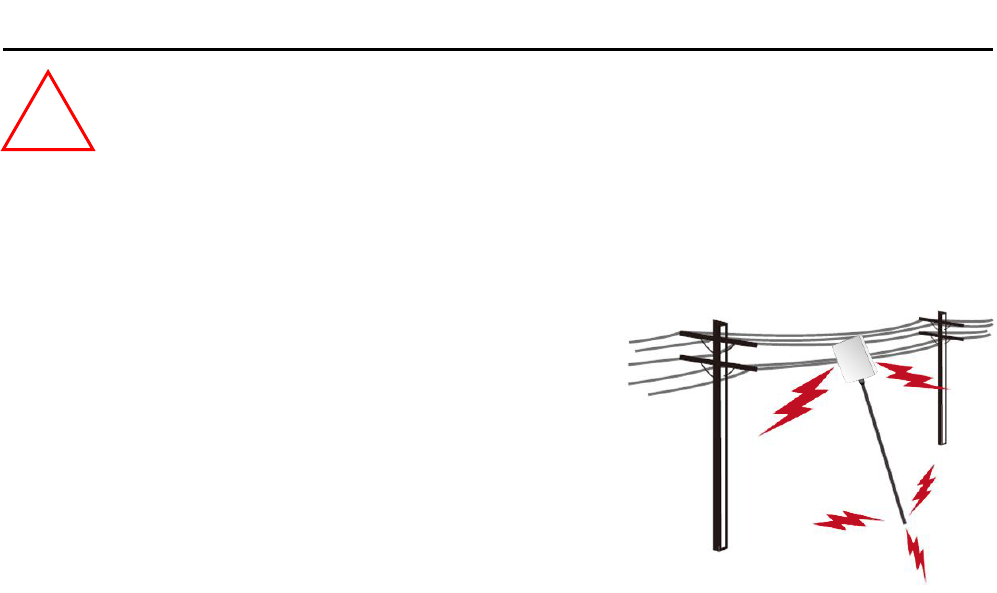

3.1.2 Safety Precautions .................................................................................................. 18
3.2 Installation Precautions .................................................................................................... 18
3.3 Installing the AP ................................................................................................................ 20
Chapter 4. Quick Installation Guide ................................................................................................... 22
4.1 Manual Network Setup -- TCP/IP Configuration ............................................................. 22
4.1.1 Configuring the IP Address Manually ..................................................................... 22
4.2 Starting Setup in the Web UI ............................................................................................ 25
Chapter 5. Configuring the AP ............................................................................................................ 27
5.1 Operation Mode ................................................................................................................. 27
5.1.1 Access Point (AP) ................................................................................................... 29
5.1.2 Client Bridge (CB) ................................................................................................... 30
5.1.3 WDS Access Point (WDS AP) ................................................................................ 31
5.1.4 WDS Station (WDS STA) ........................................................................................ 32

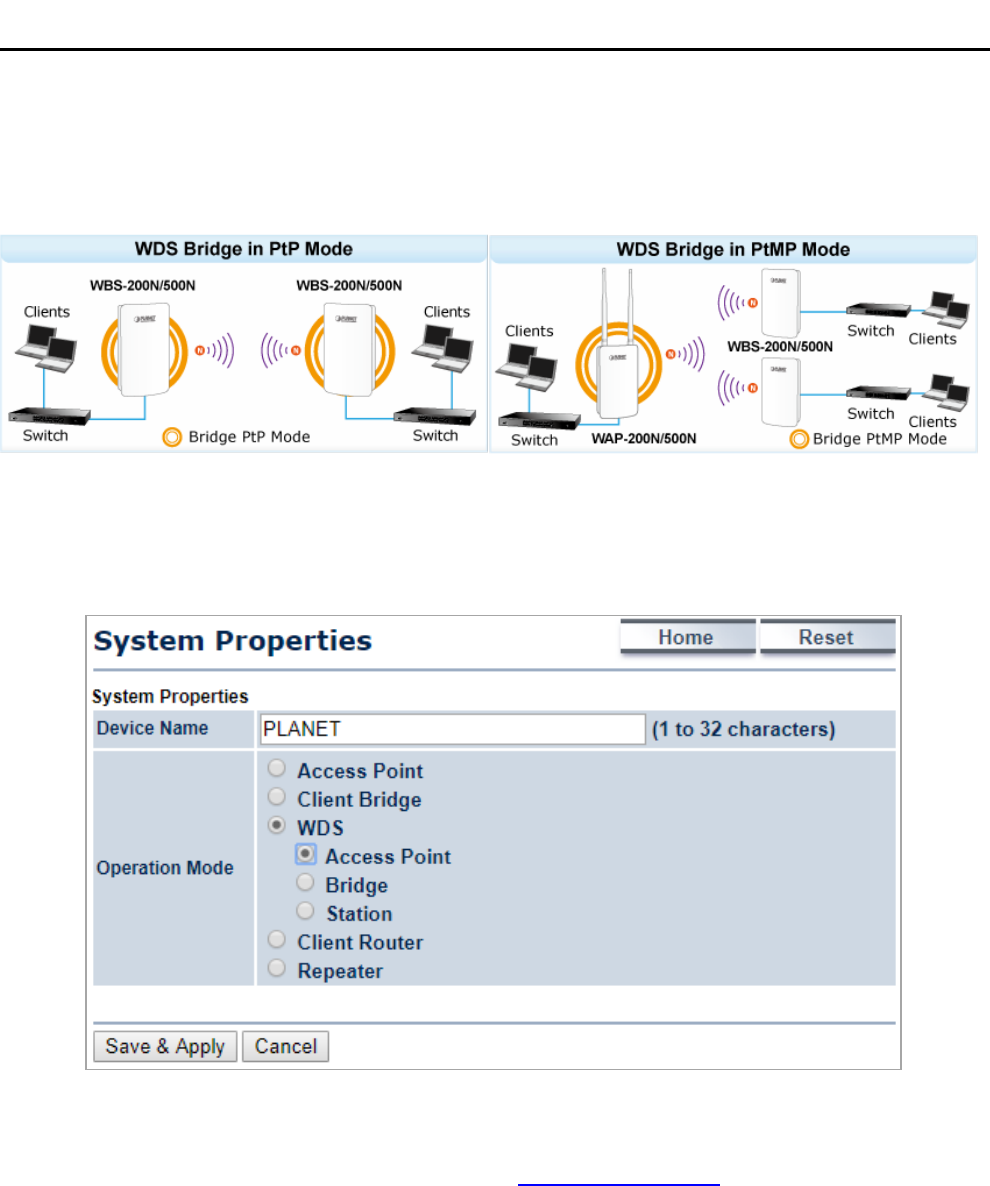

5.1.5 WDS Bridge (WDS PtP/WDS PtMP) ...................................................................... 33
5.1.6 Client Router (CR/WISP) ........................................................................................ 38
5.1.7 Repeater ................................................................................................................. 44
5.2 Status.................................................................................................................................. 48
5.2.1 Main ........................................................................................................................ 48
5.2.2 Save/Reload ........................................................................................................... 50
5.2.3 Wireless Client List ................................................................................................. 51
5.2.4 WDS Link List ......................................................................................................... 52
5.2.5 DHCP Client Table .................................................................................................. 52
5.2.6 Connection Status ................................................................................................... 53
5.2.7 System Log ............................................................................................................. 54
5.3 System ................................................................................................................................ 55

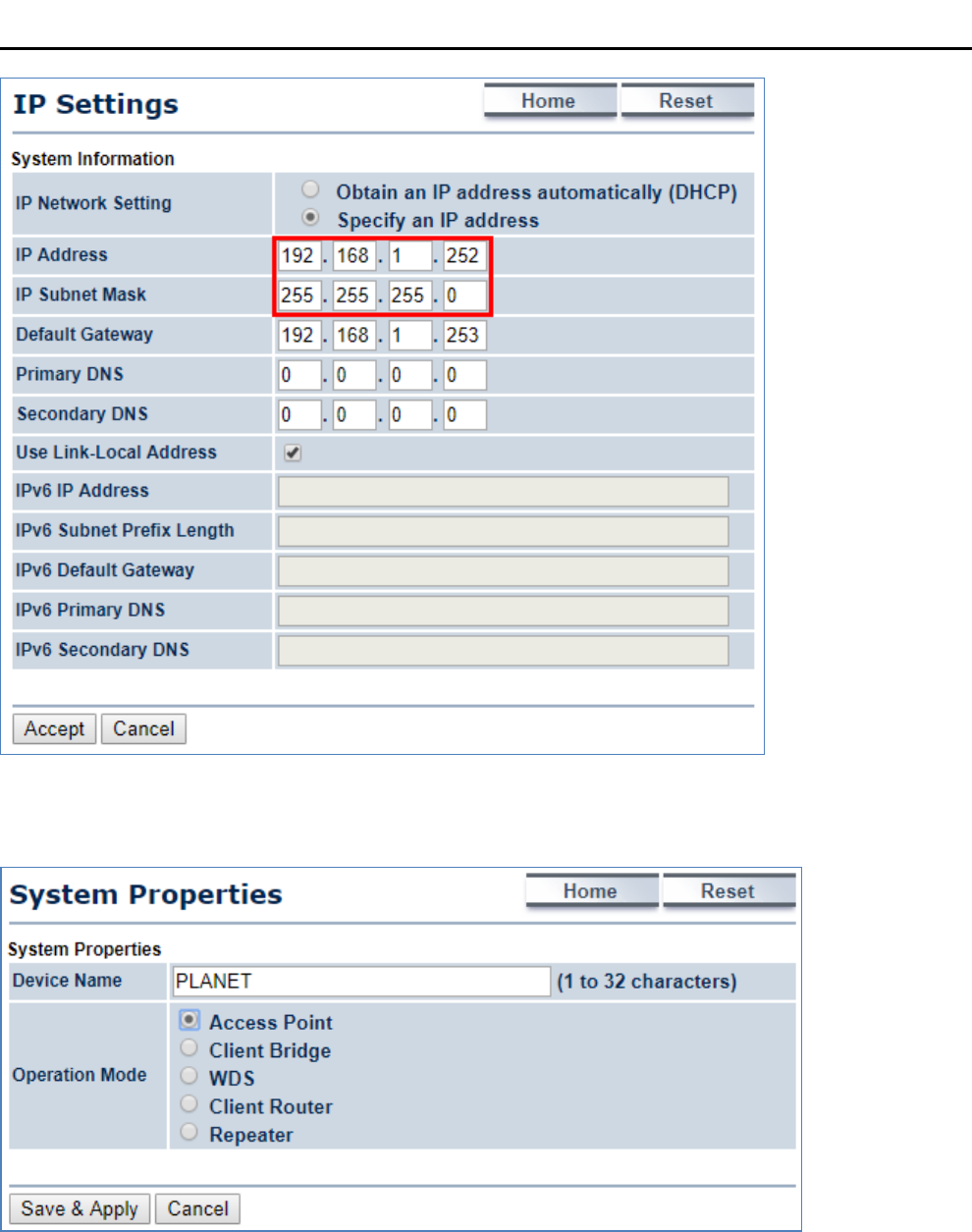

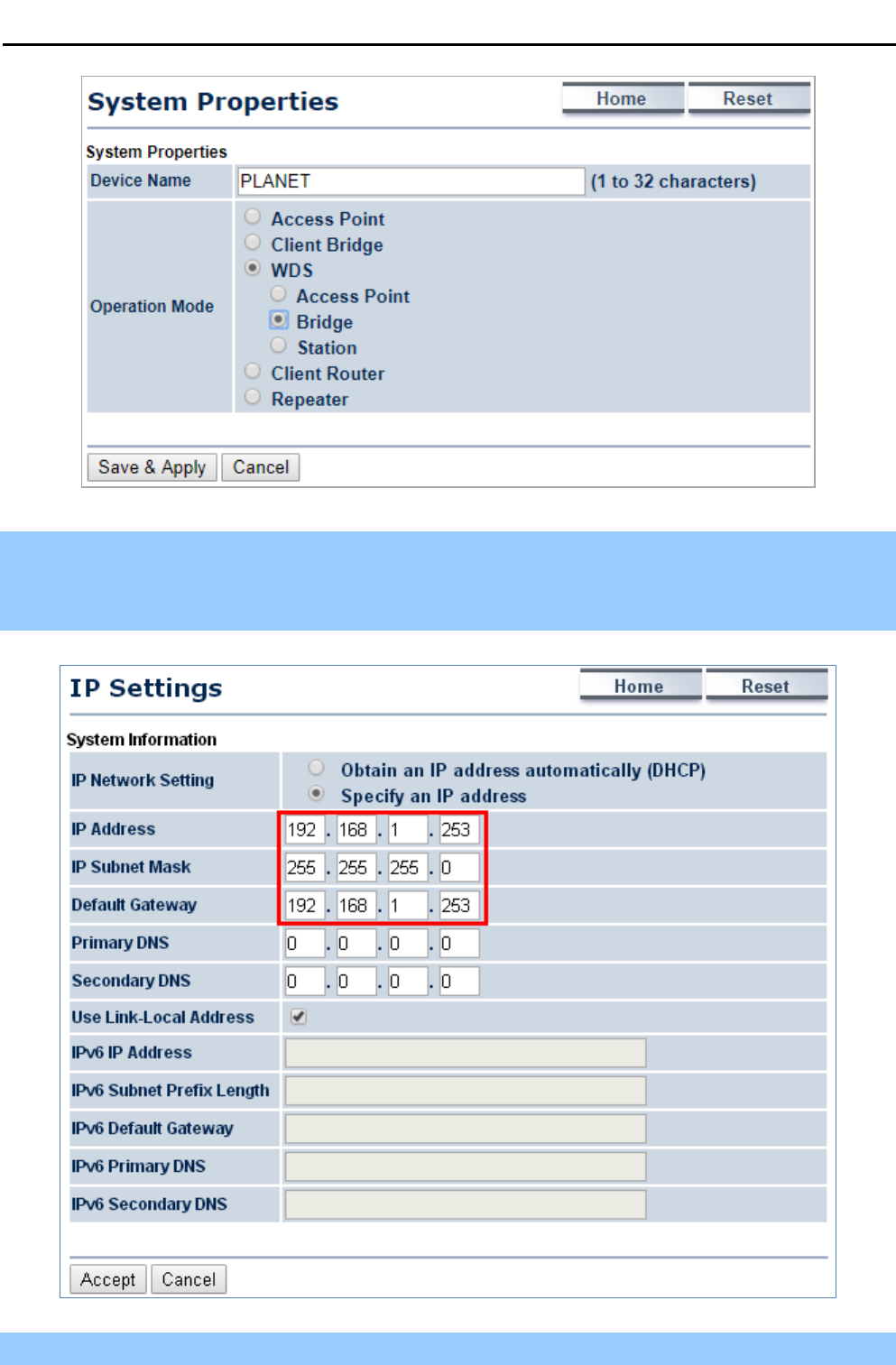

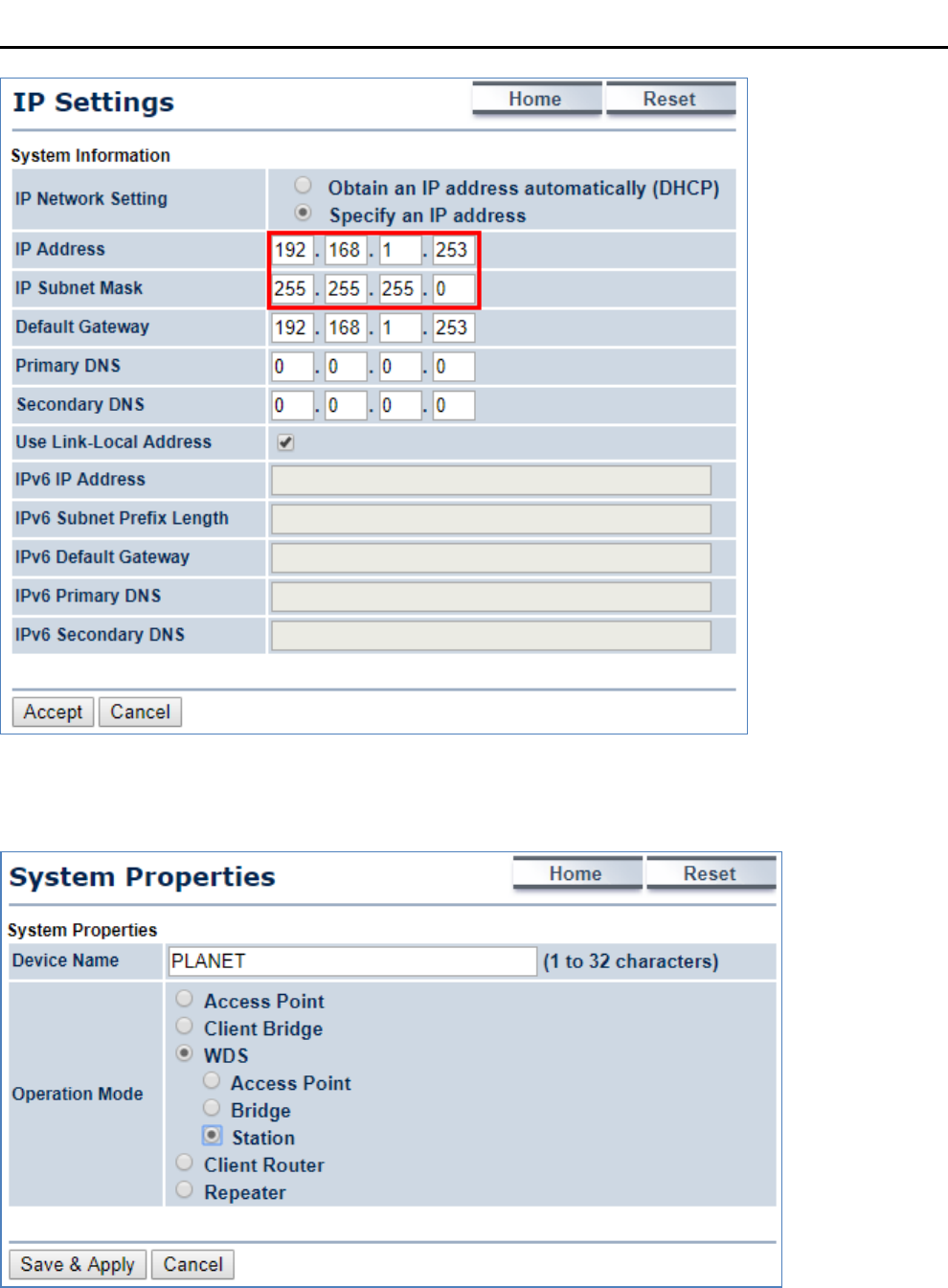

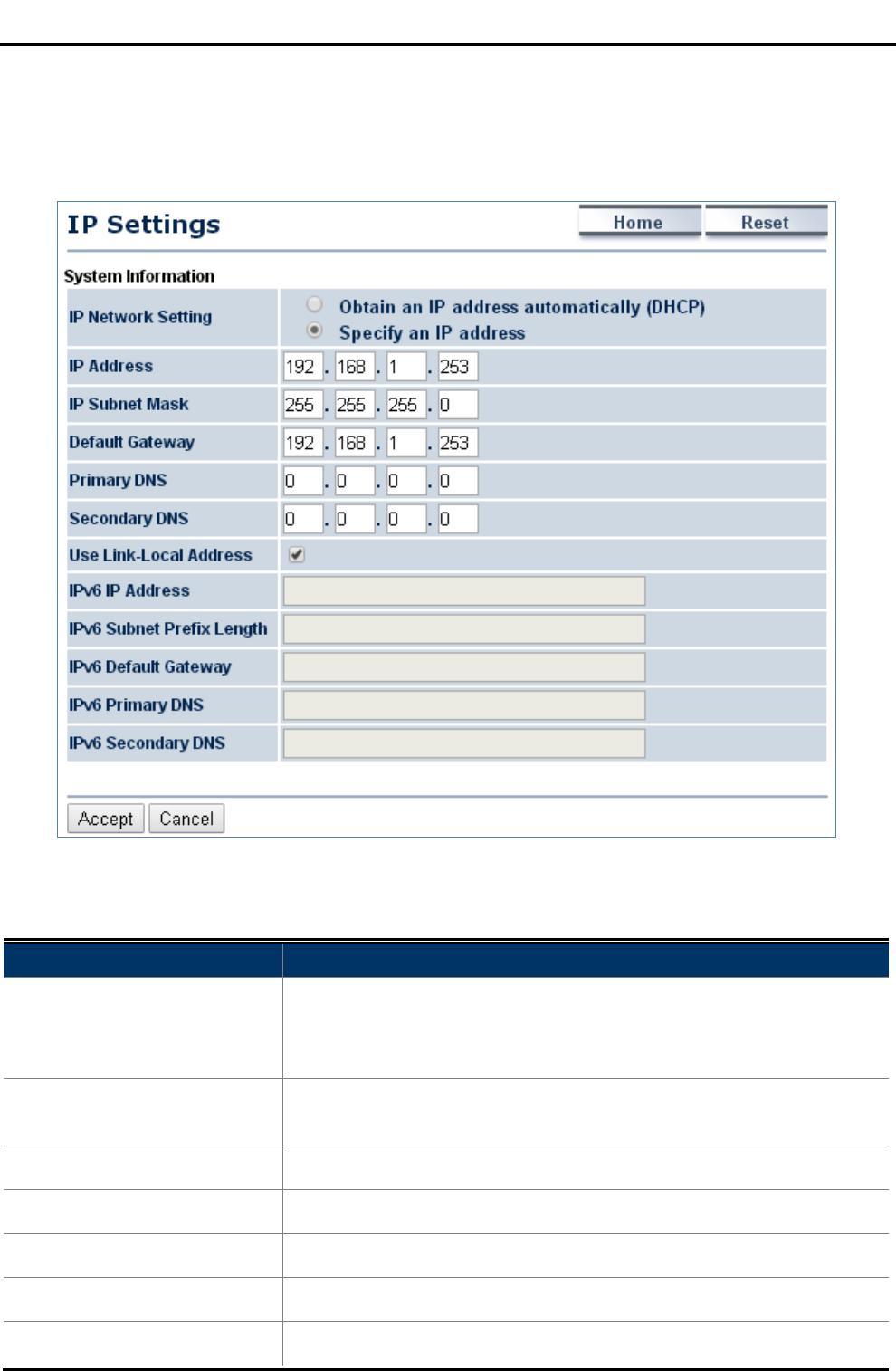

5.3.1 IP Settings ............................................................................................................... 55
IV

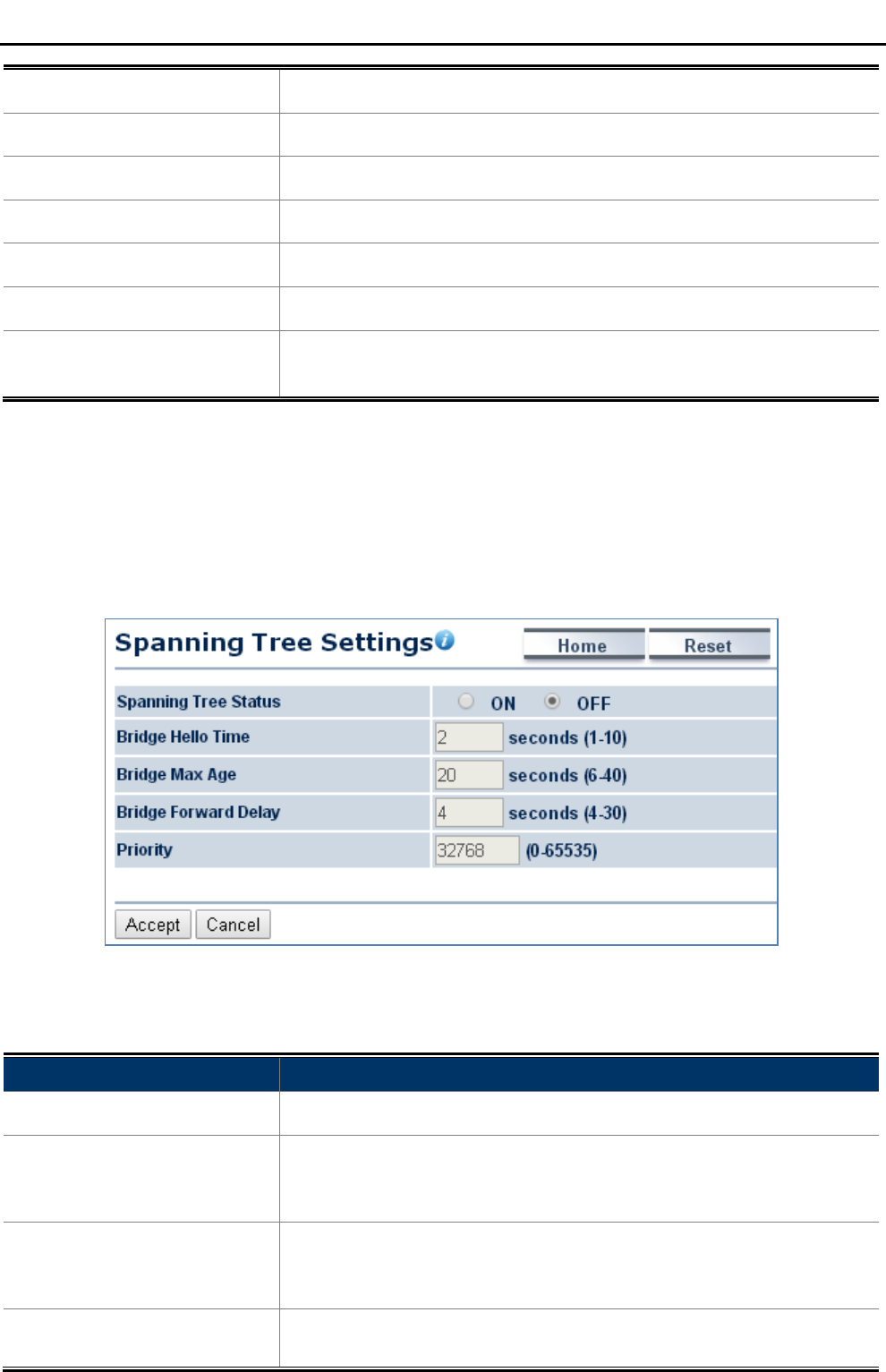

5.3.2 Spanning Tree Settings (STP) ................................................................................ 56
5.4 Router (WISP Mode Only) ................................................................................................. 57
5.4.1 DHCP Server Settings ............................................................................................ 57

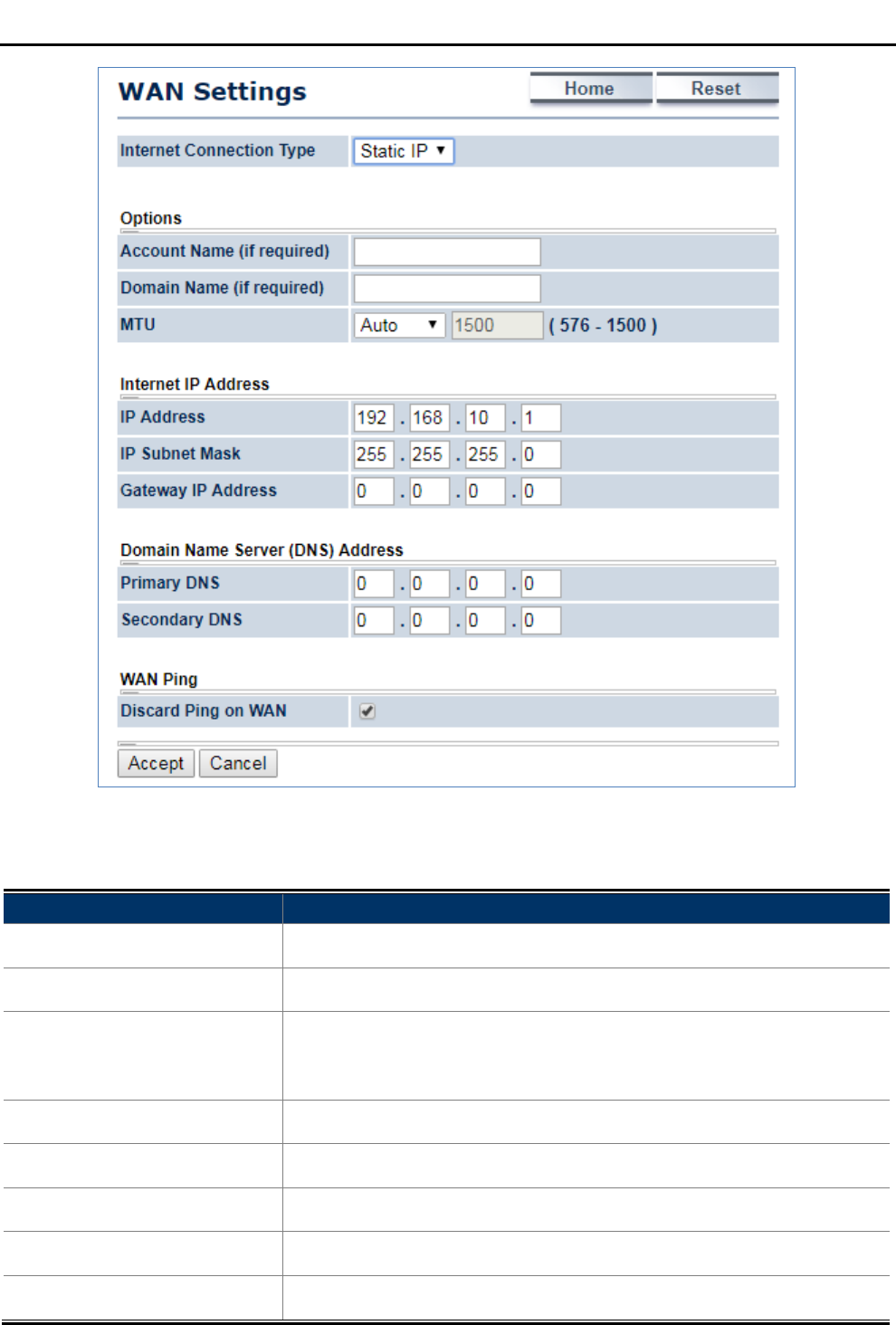

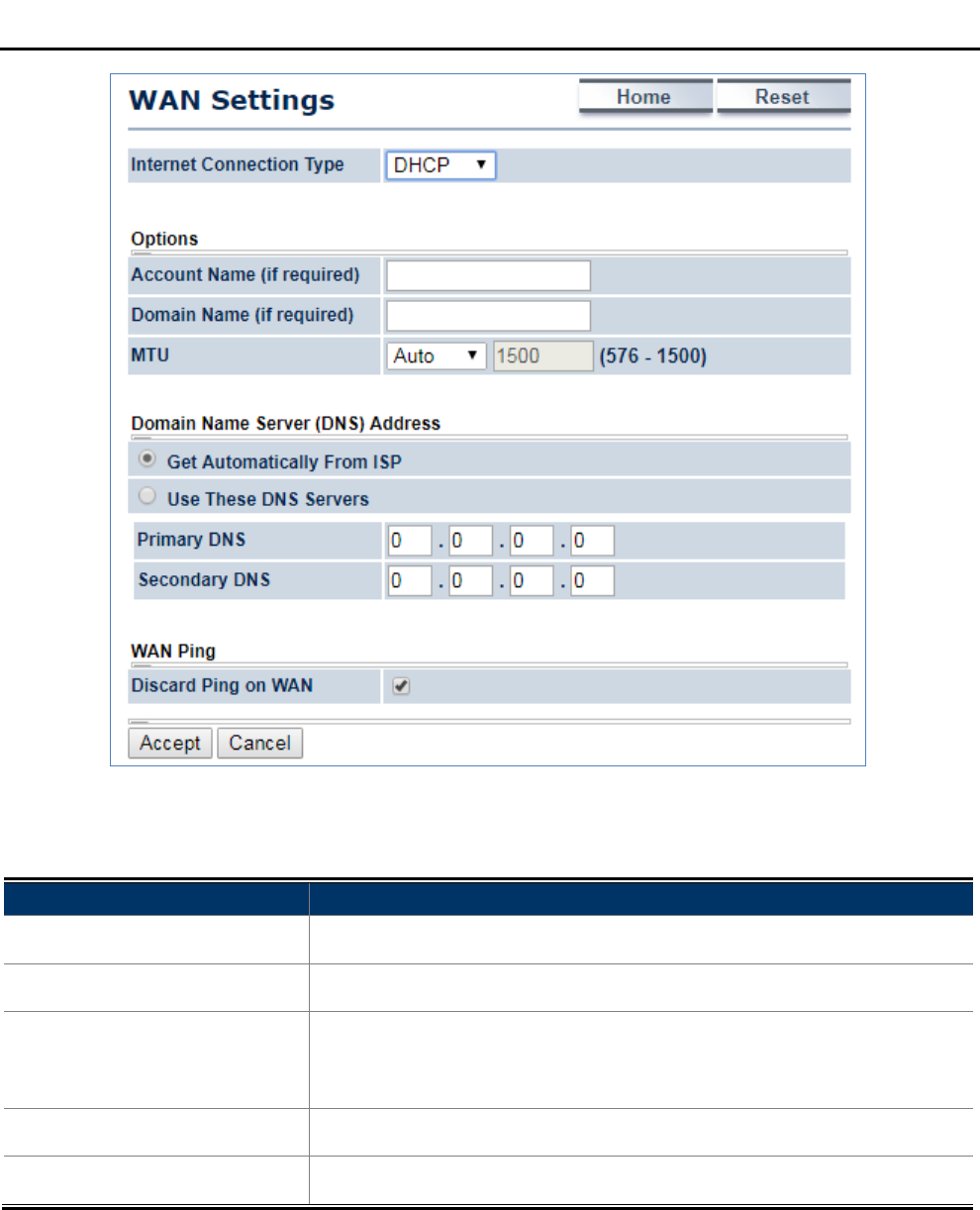

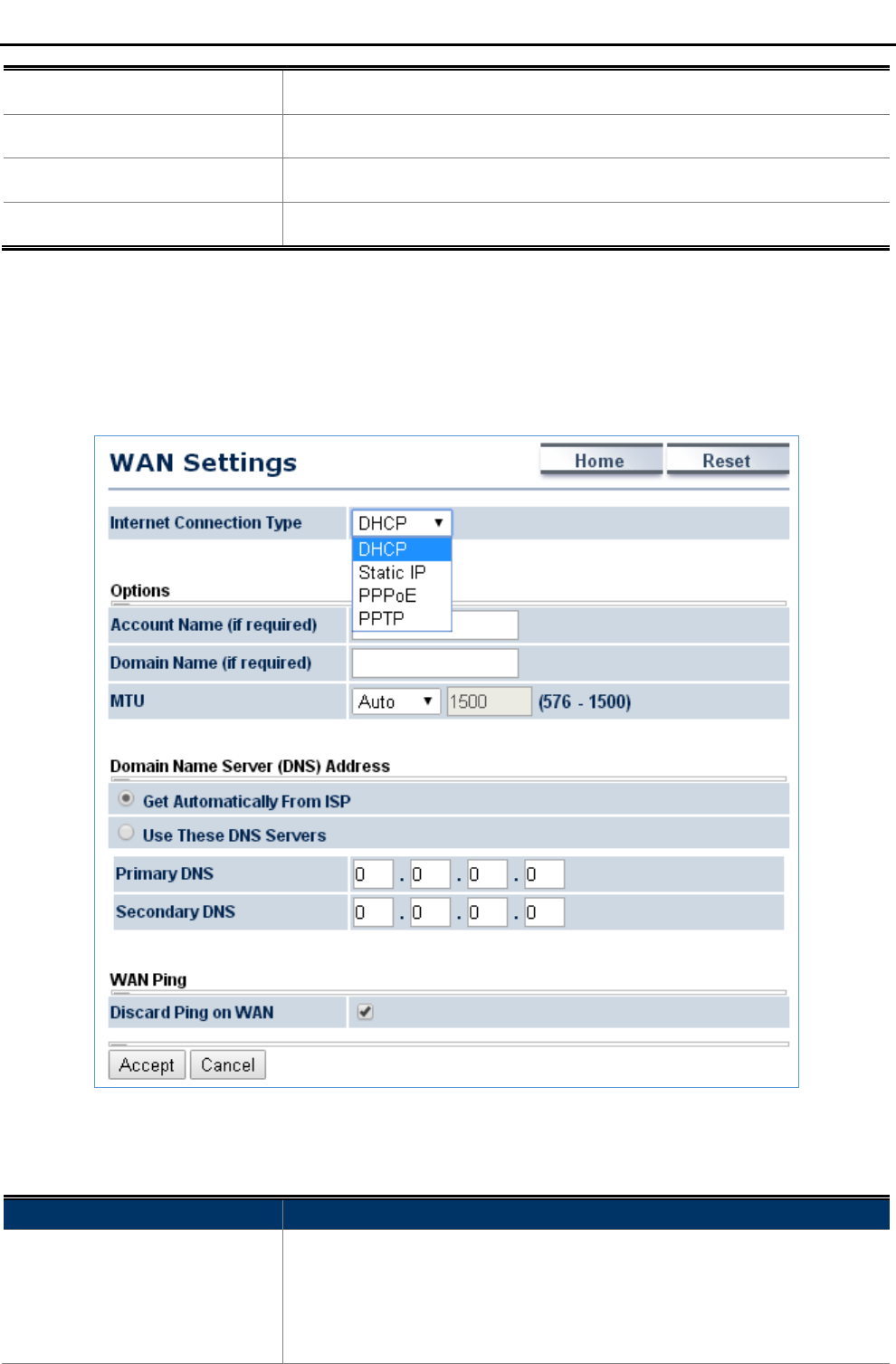

5.4.2 WAN Settings .......................................................................................................... 58
5.4.2.1. DHCP ............................................................................................................................. 59
5.4.2.2. Static IP .......................................................................................................................... 60

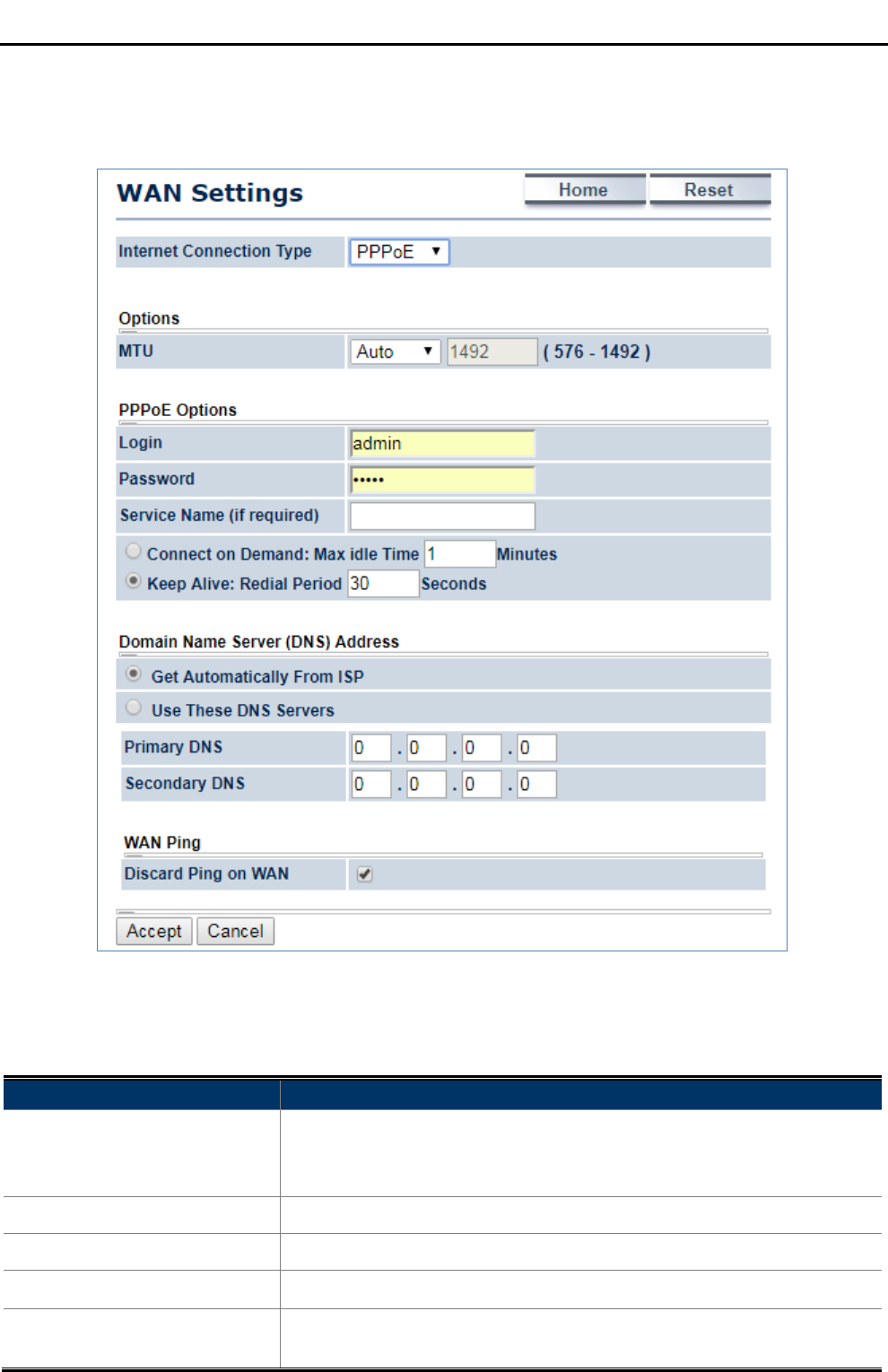

5.4.2.3. PPPoE ........................................................................................................................... 62

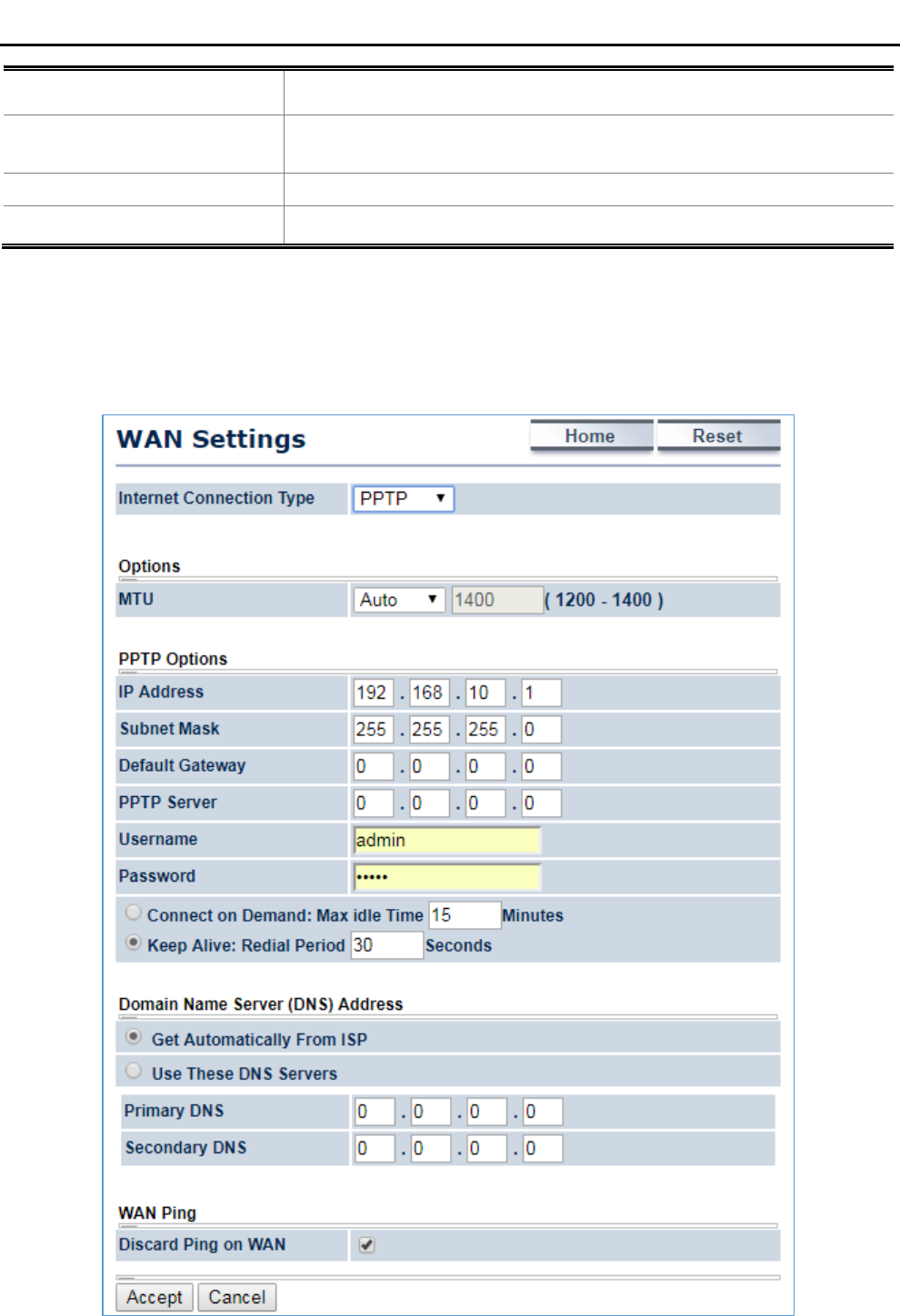

5.4.2.4. PPTP ............................................................................................................................. 63
5.4.3 VPN Pass Through ................................................................................................. 64

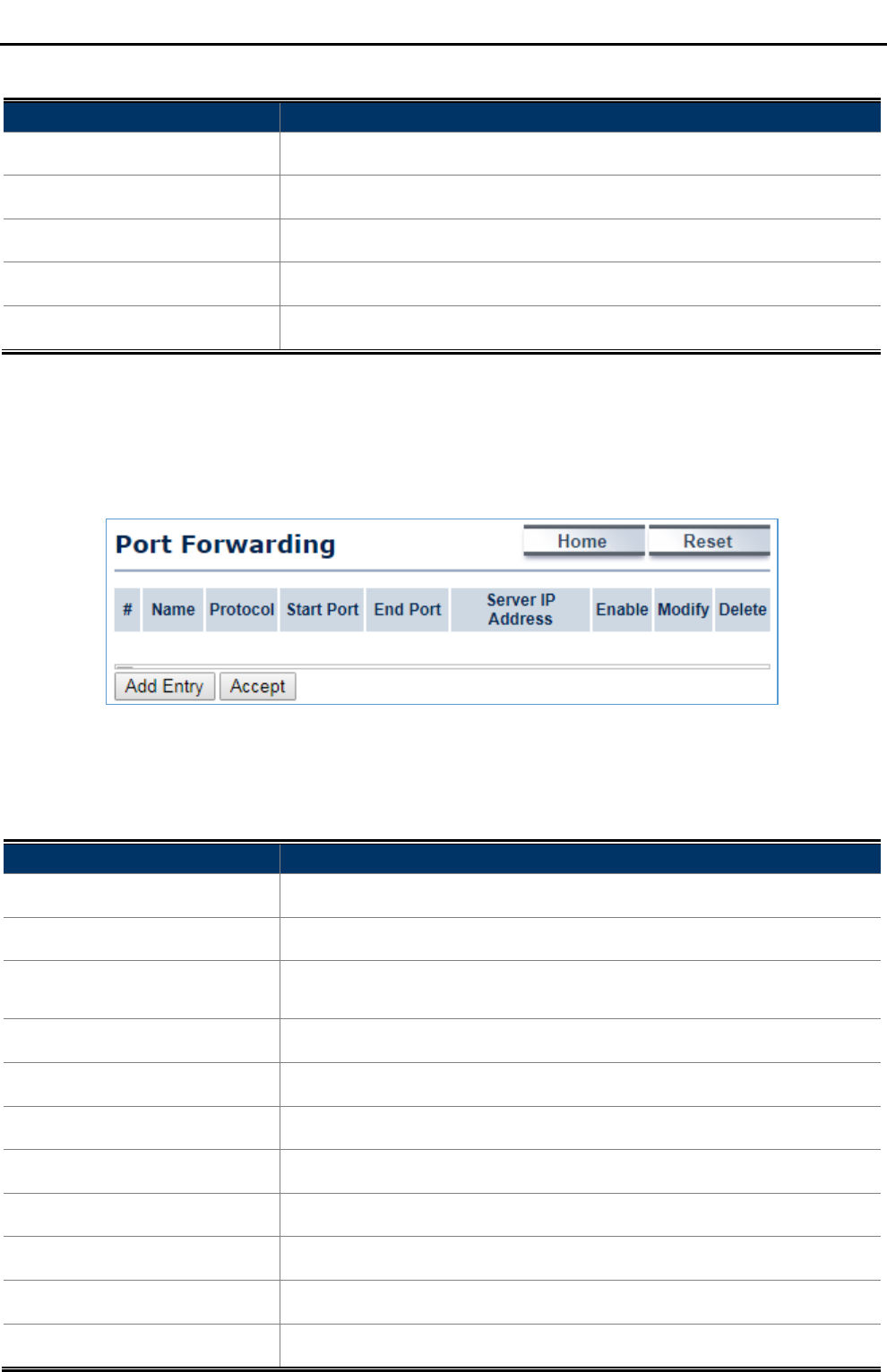

5.4.4 Port Forwarding ...................................................................................................... 65

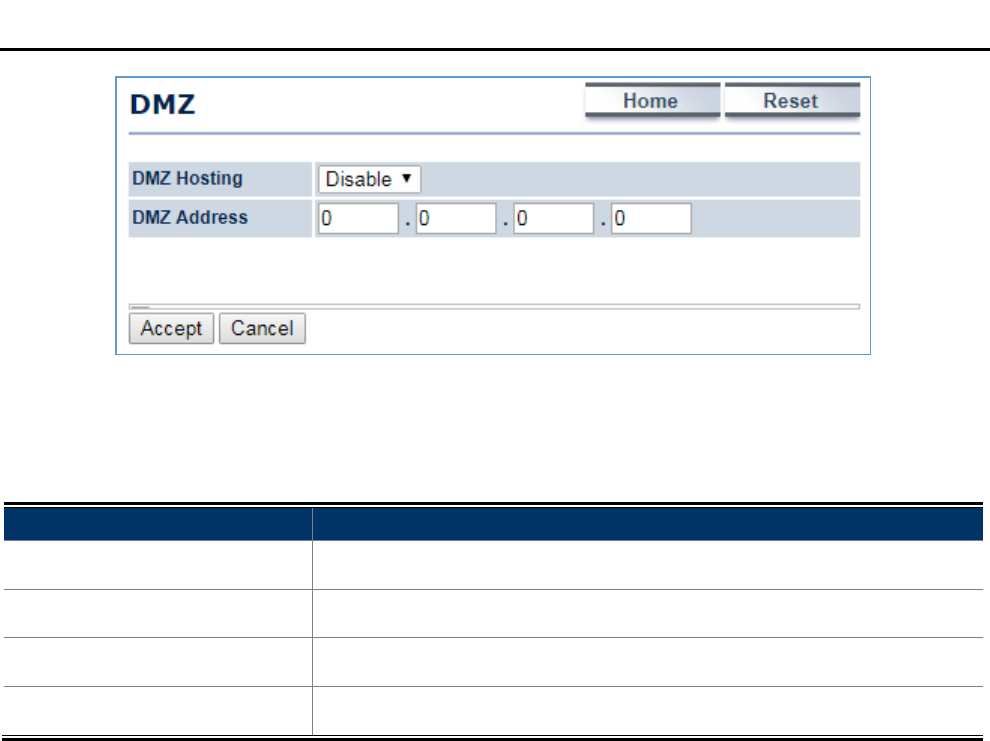

5.4.5 DMZ Settings .......................................................................................................... 66
5.5 Wireless .............................................................................................................................. 67

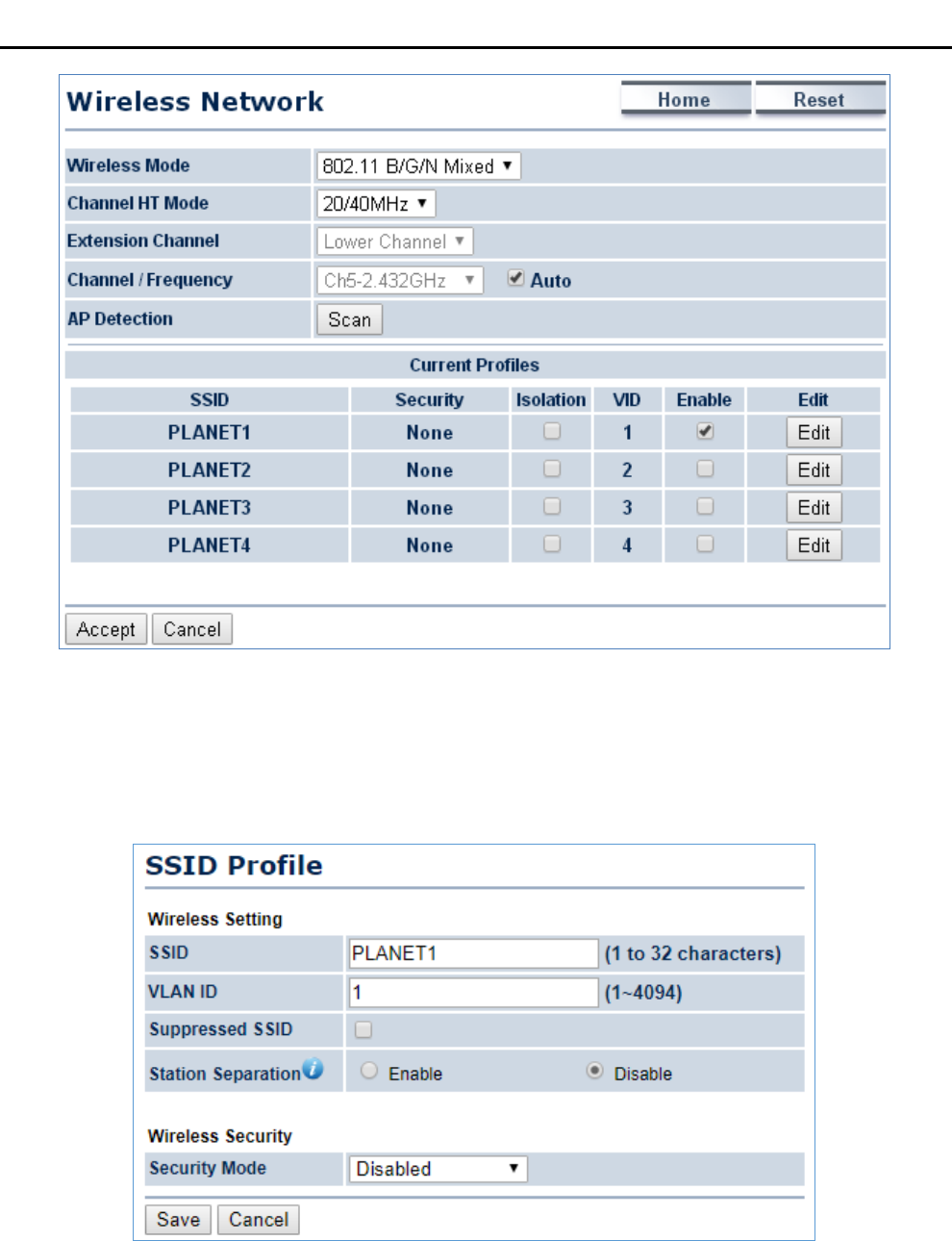

5.5.1 Wireless Network .................................................................................................... 67
5.5.2 WDS Link Settings .................................................................................................. 70

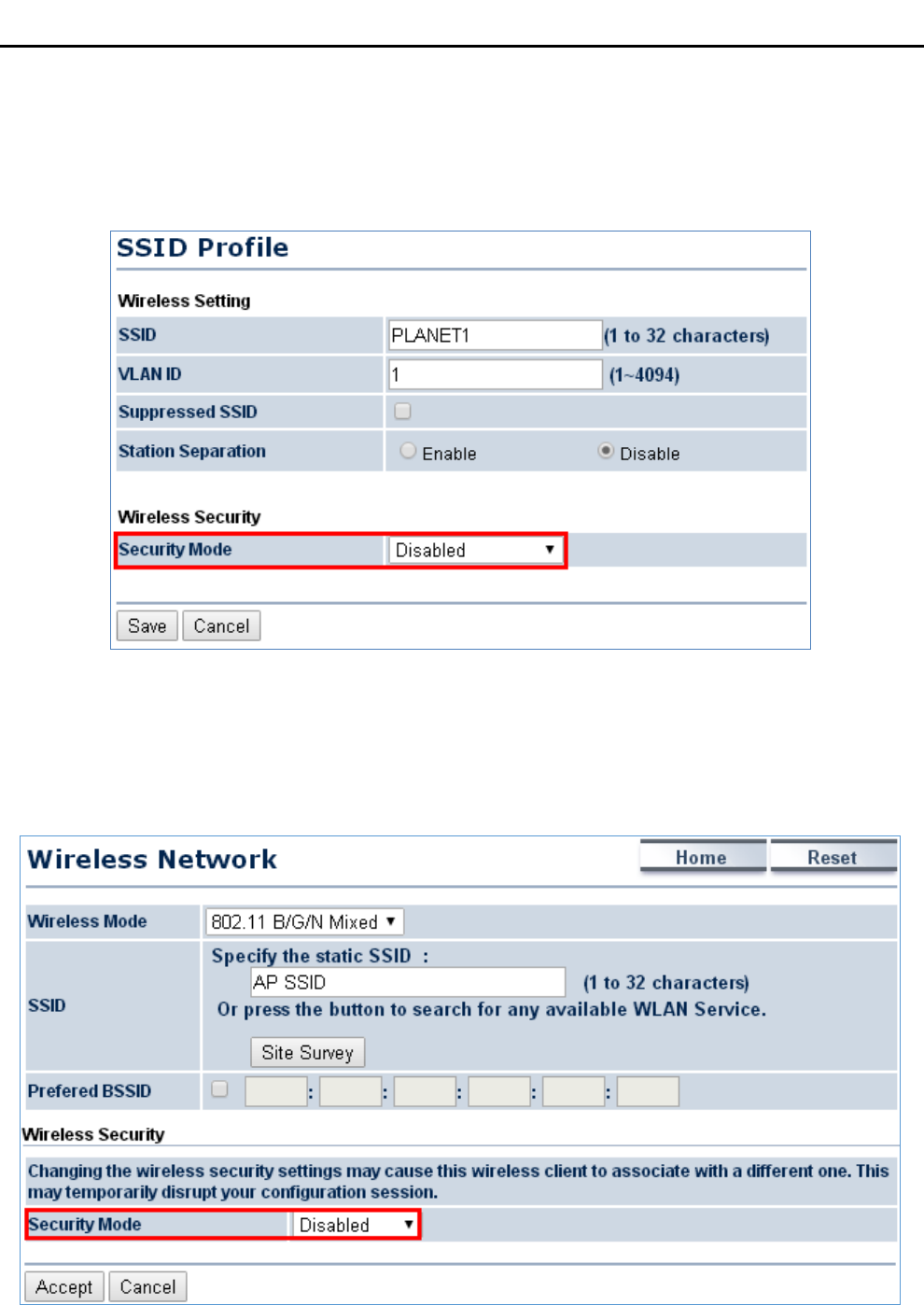

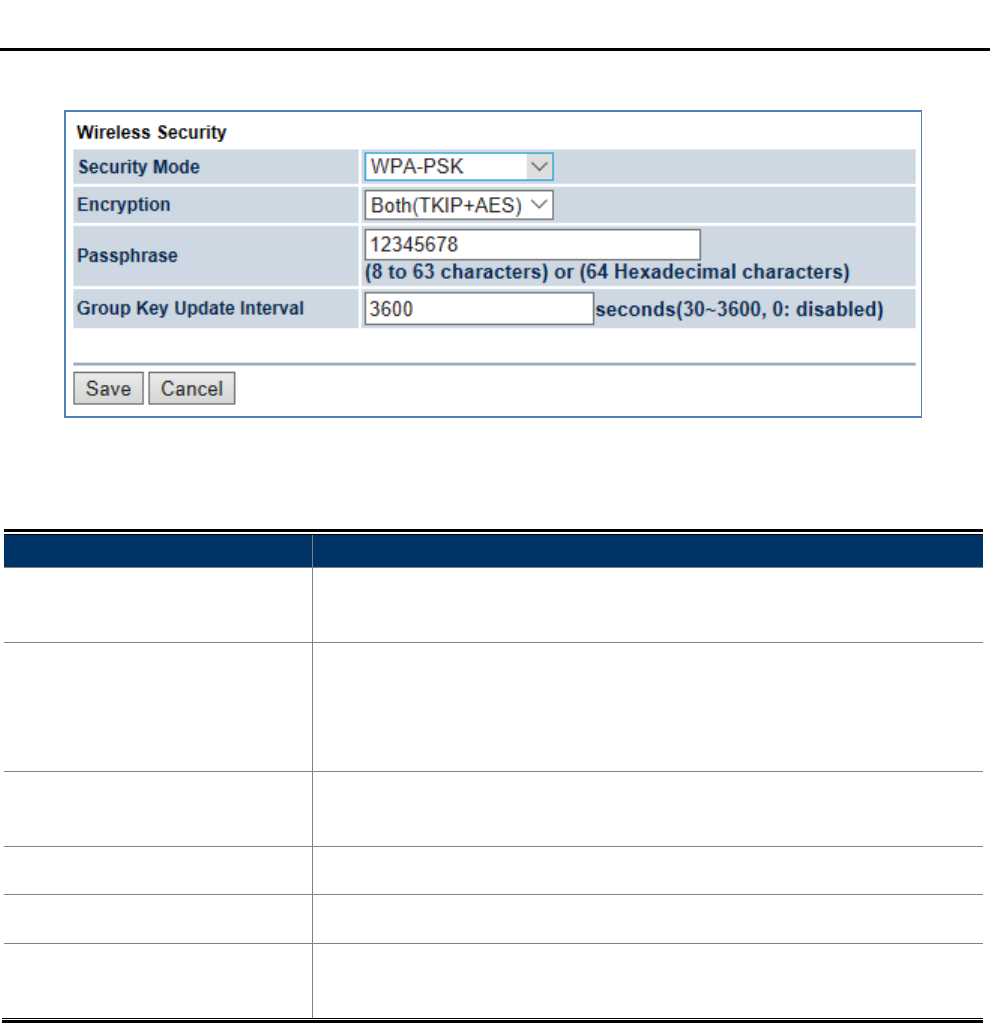

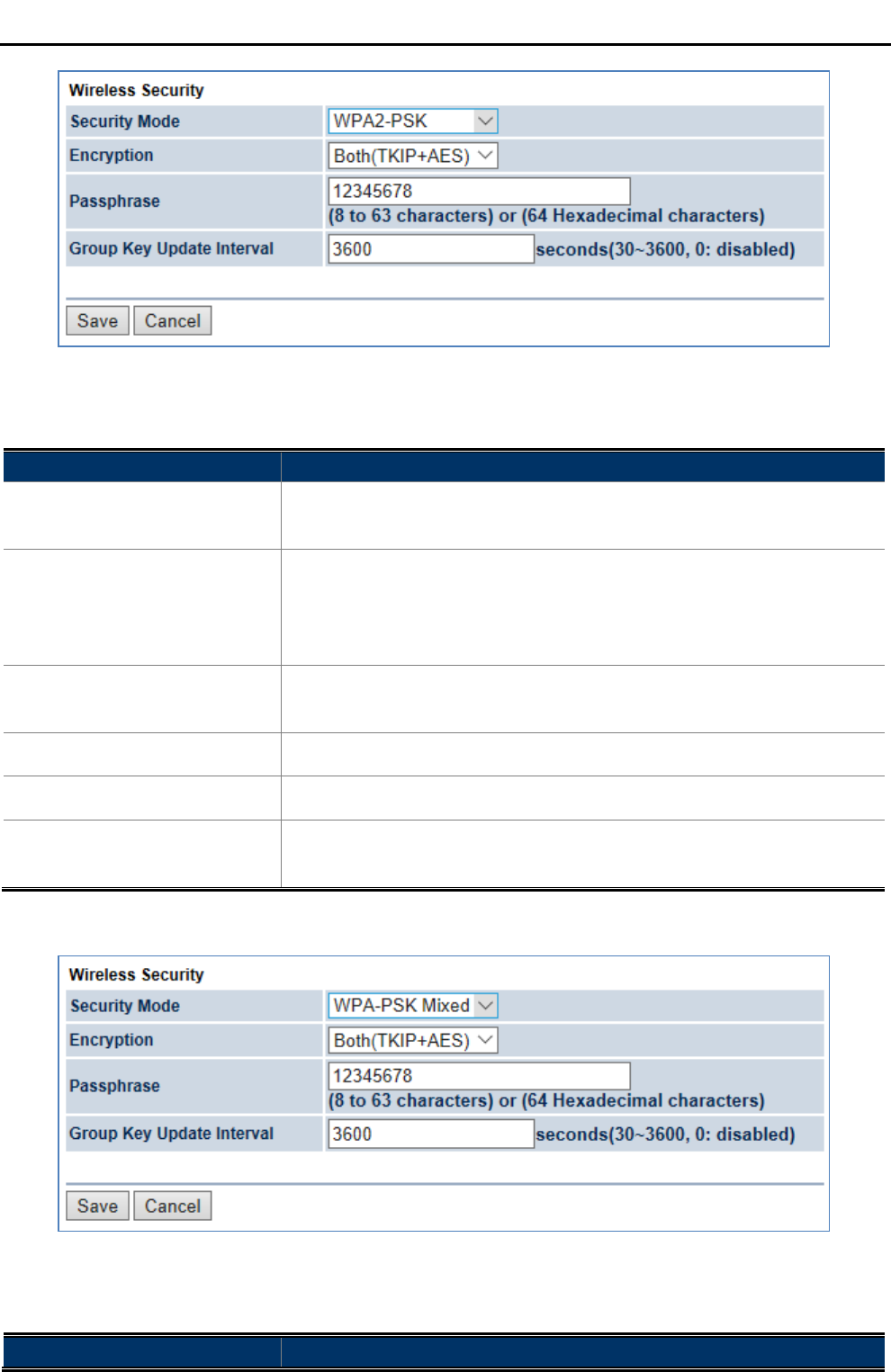

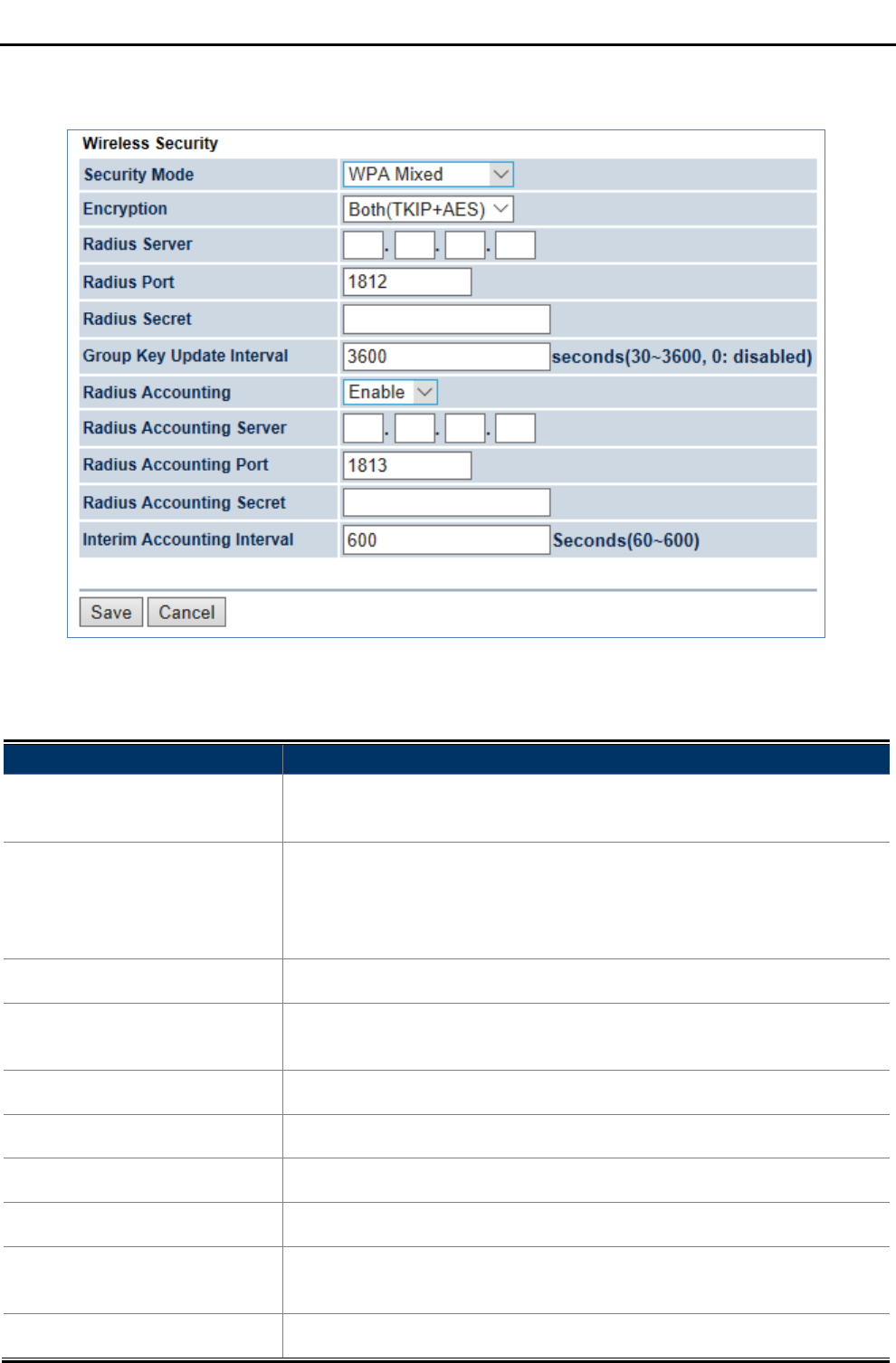

5.5.3 Security Settings ..................................................................................................... 72

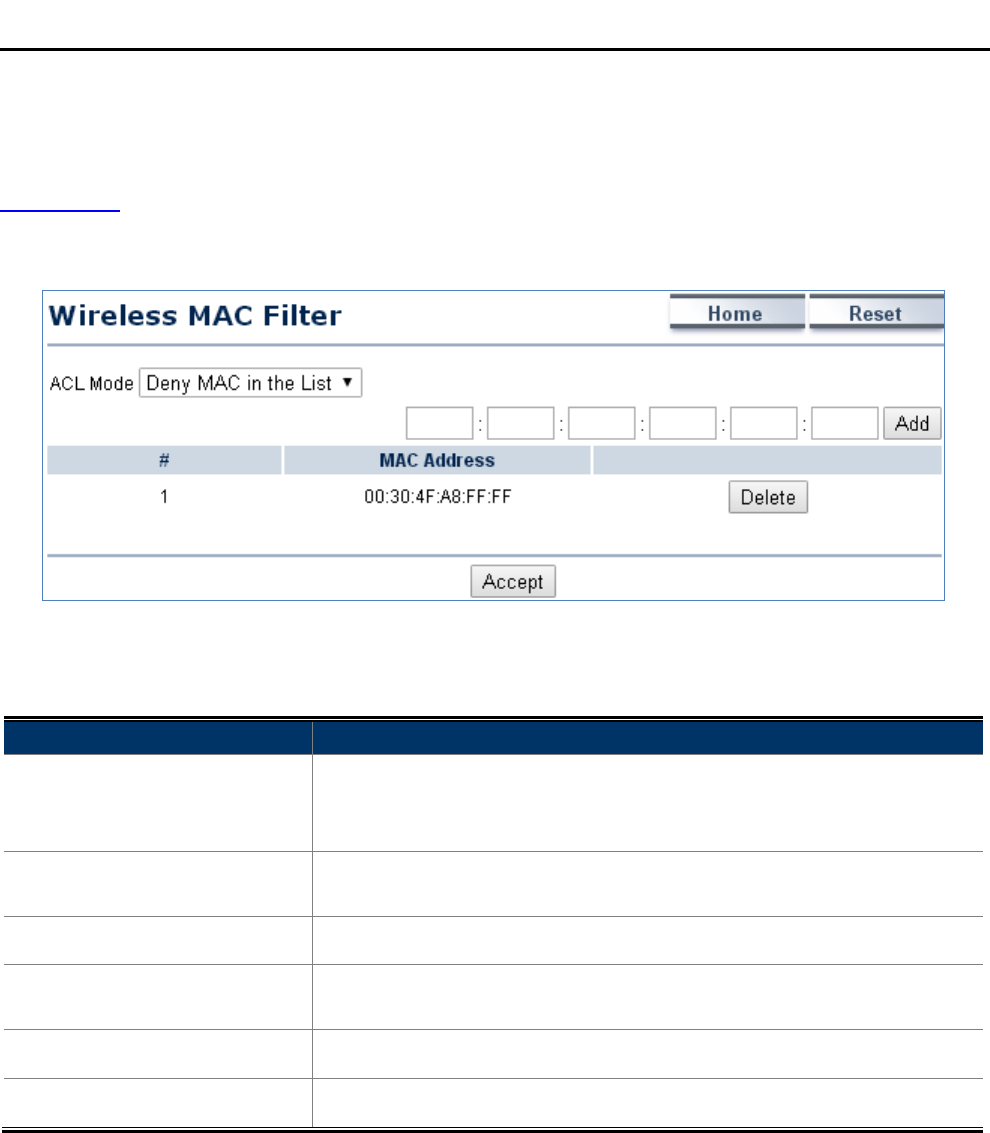

5.5.4 Wireless MAC Filter ................................................................................................ 82

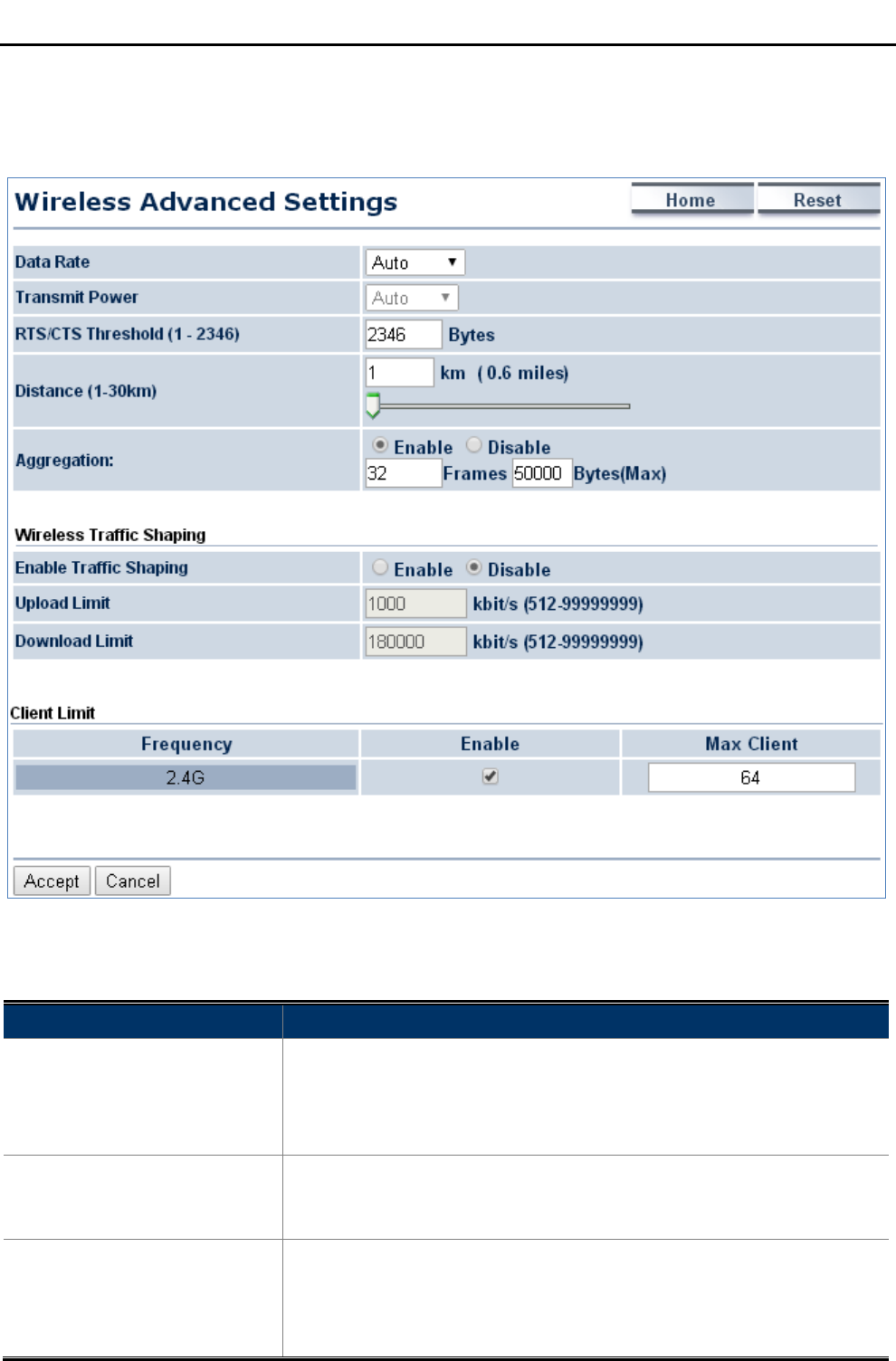

5.5.5 Wireless Advanced Settings ................................................................................... 83
5.6 Management ...................................................................................................................... 84

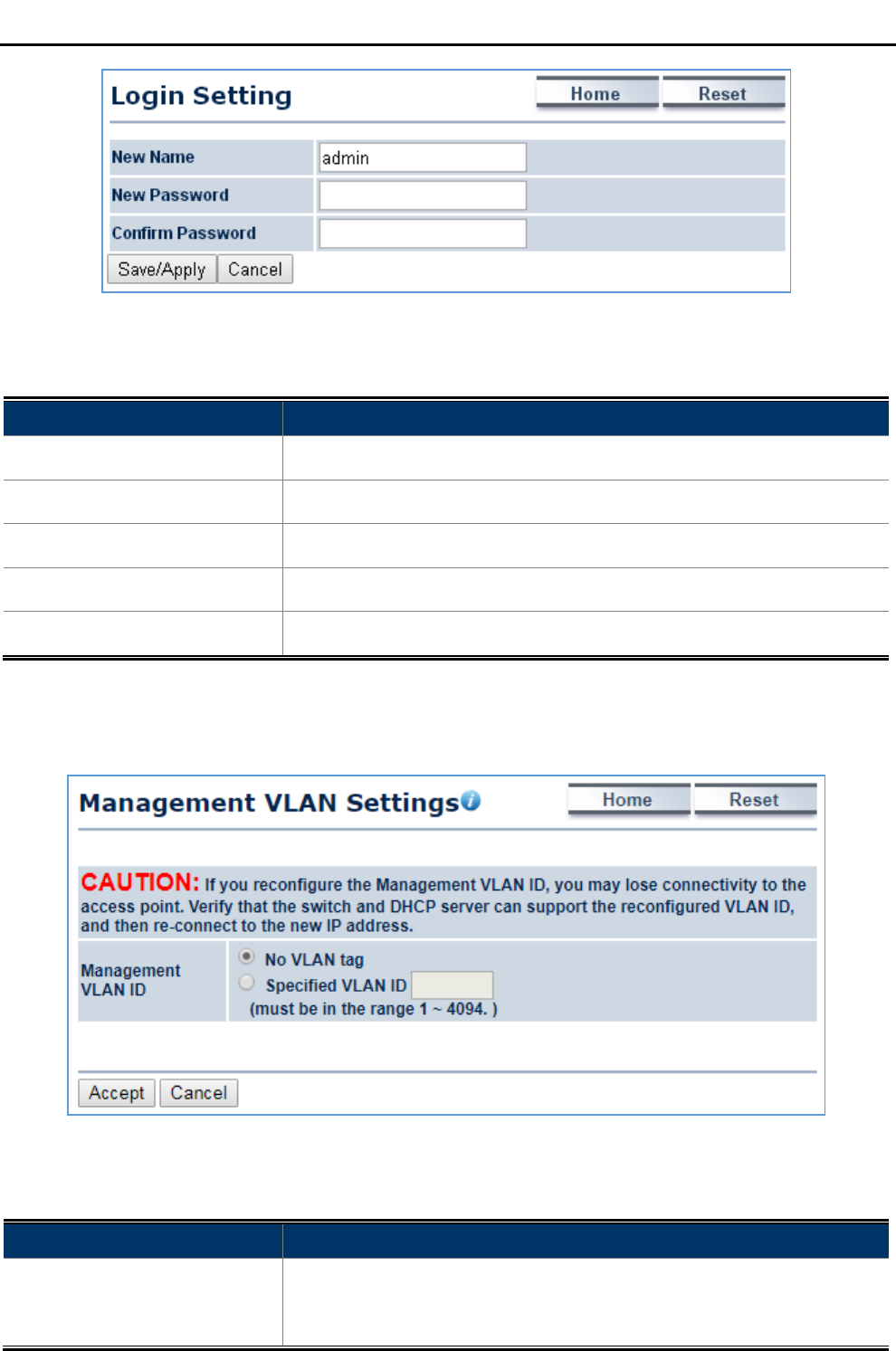

5.6.1 Administration (Password Settings) ........................................................................ 84
5.6.2 Management VLAN ................................................................................................ 85

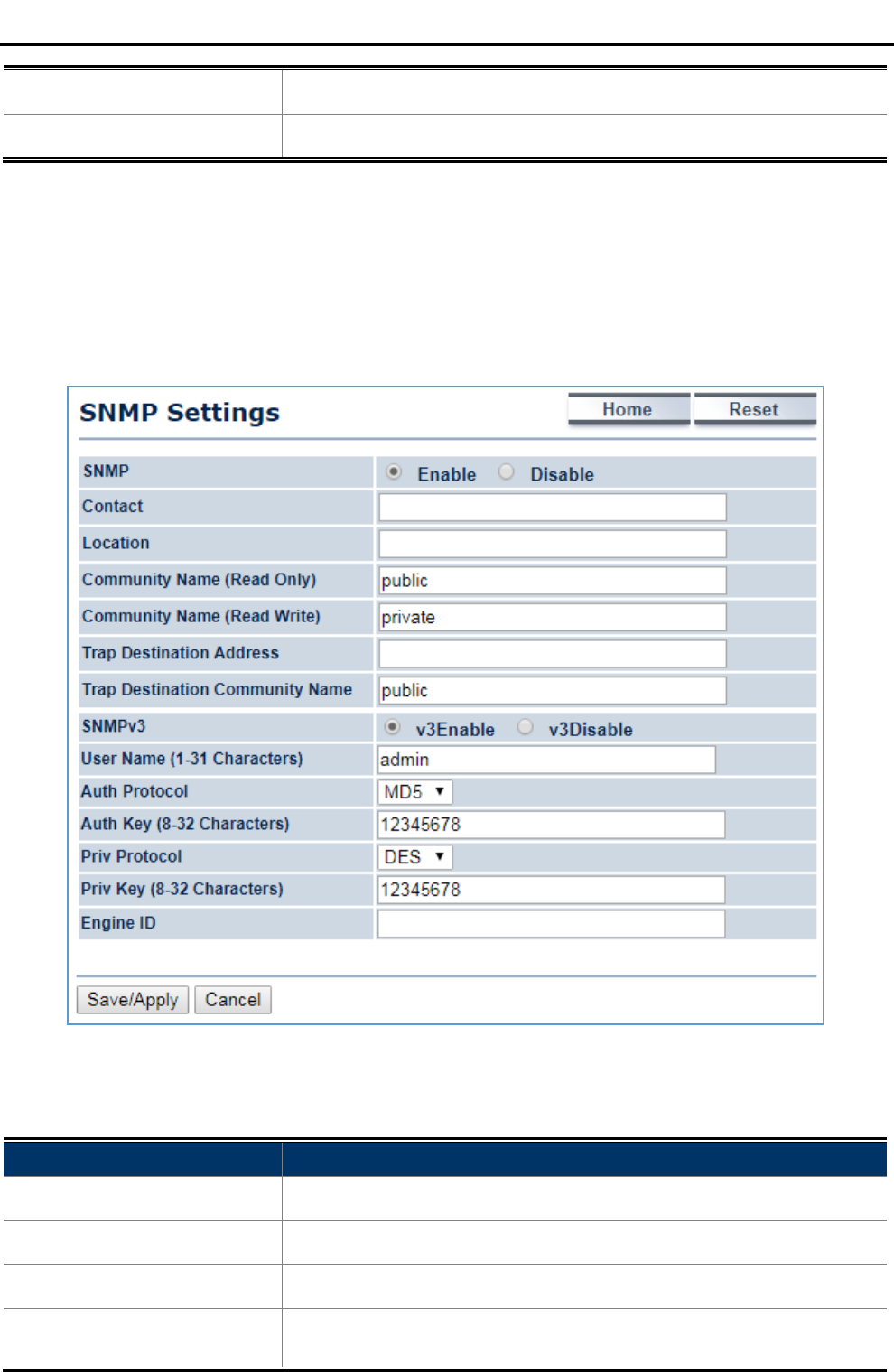

5.6.3 SNMP Settings ....................................................................................................... 86
5.6.4 Backup/Restore Settings ........................................................................................ 87

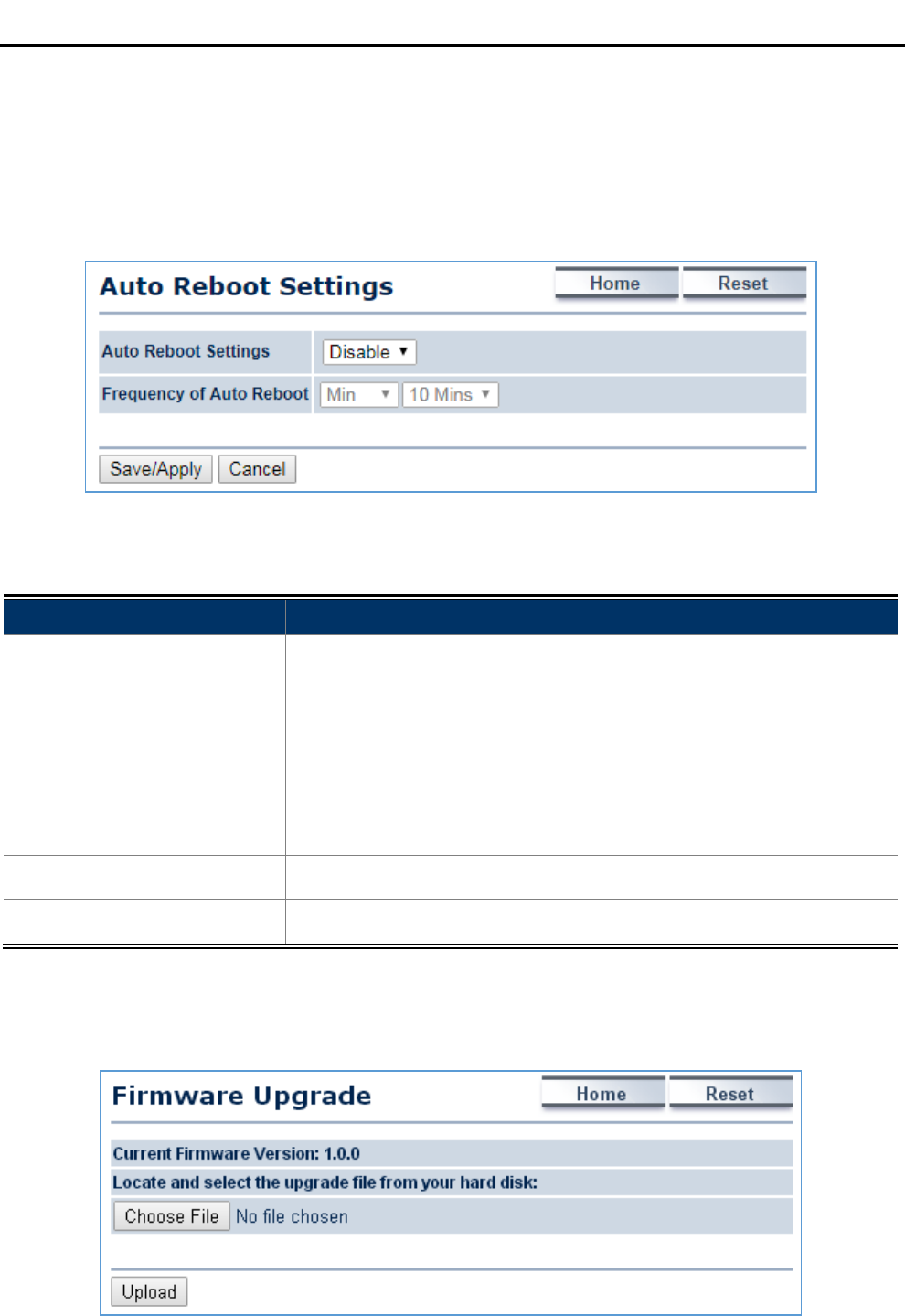

5.6.5 Auto Reboot Settings .............................................................................................. 88
5.6.6 Firmware Upgrade .................................................................................................. 88
5.6.7 Time Settings .......................................................................................................... 90
5.6.8 Wi-Fi Schedule ....................................................................................................... 91

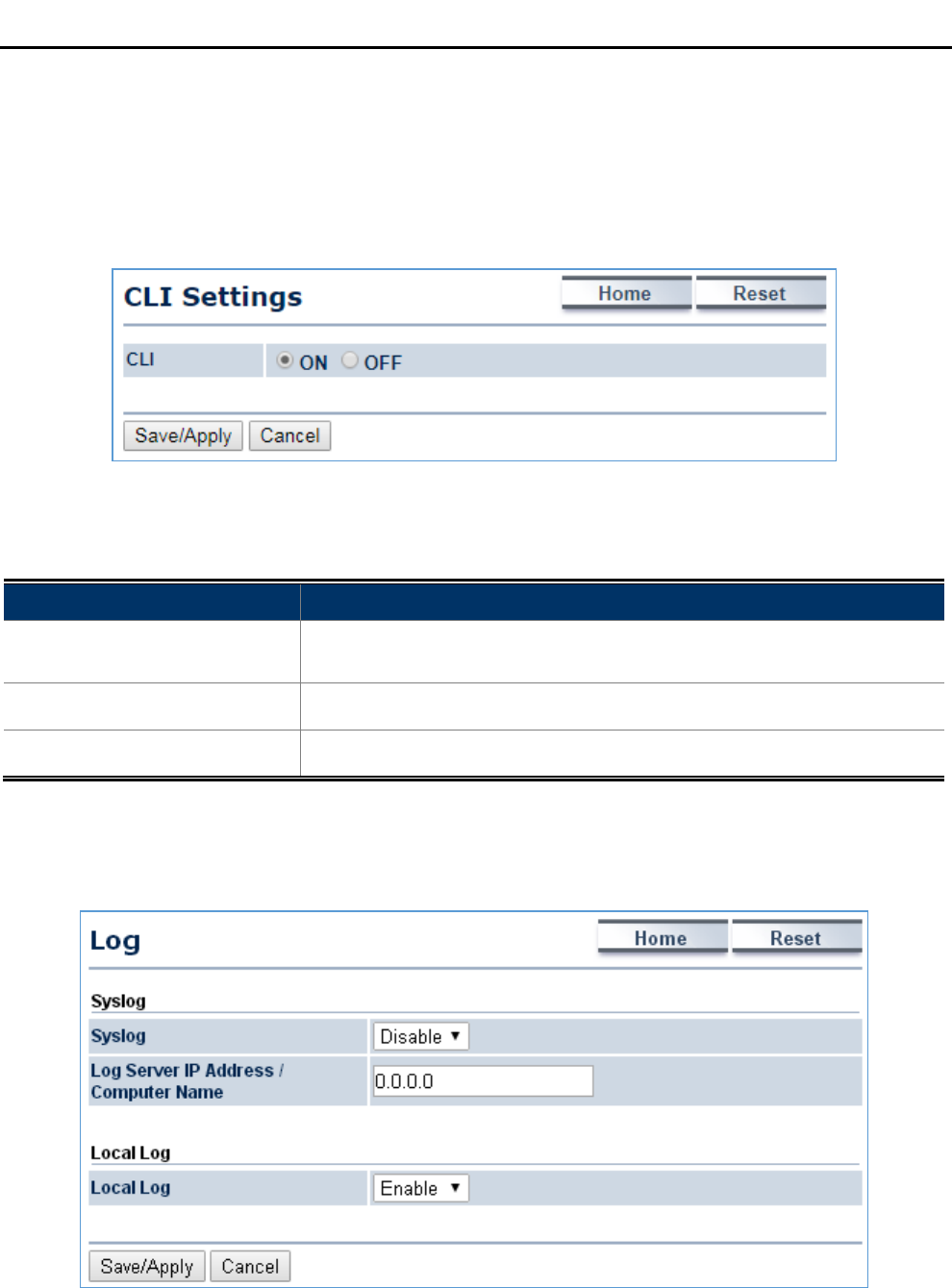

5.6.9 CLI Settings ............................................................................................................ 92
5.6.10 Log .......................................................................................................................... 92
5.6.11 Diagnostics ............................................................................................................. 93

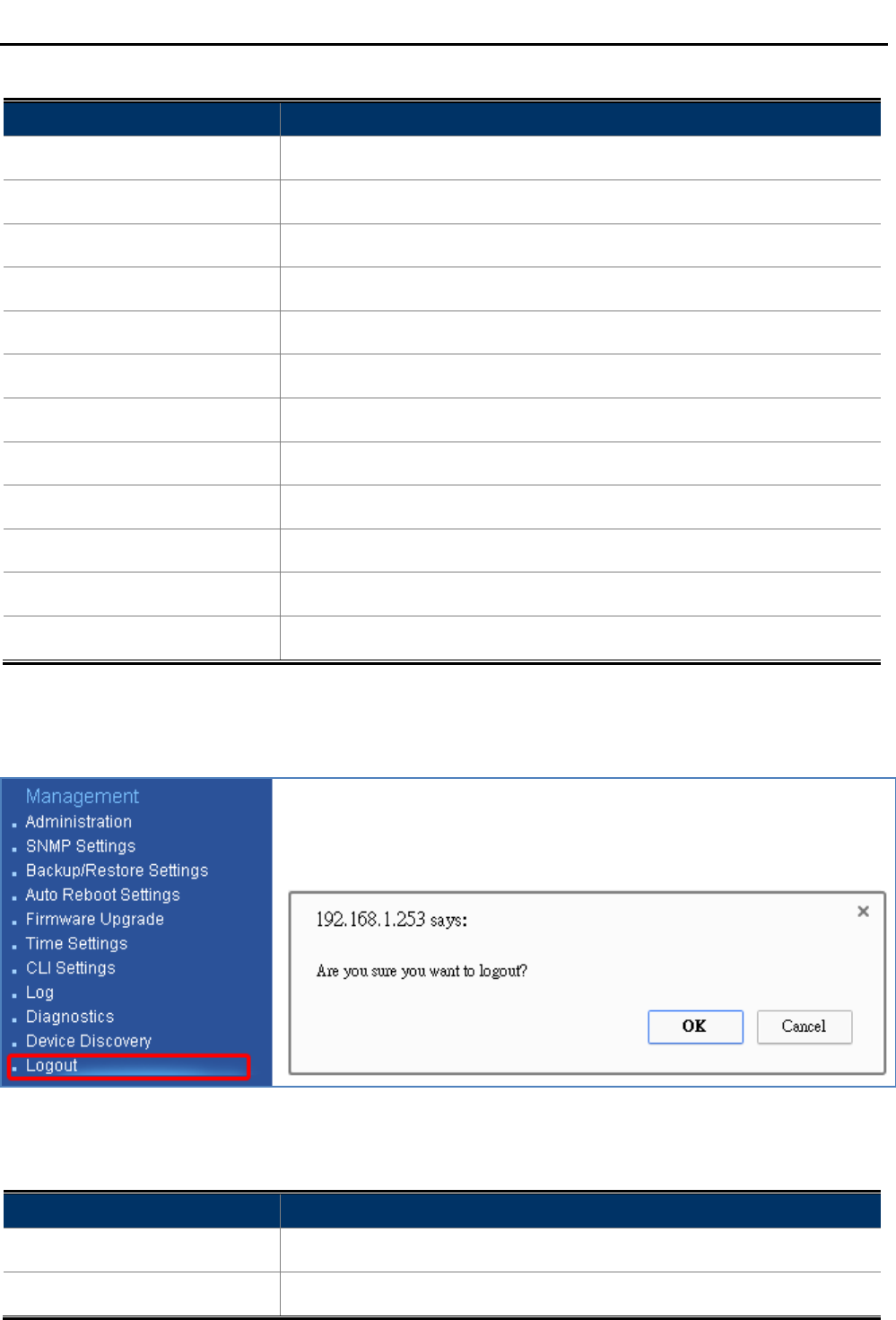

5.6.12 Logout ..................................................................................................................... 94
Appendix A: Troubleshooting ............................................................................................................ 95

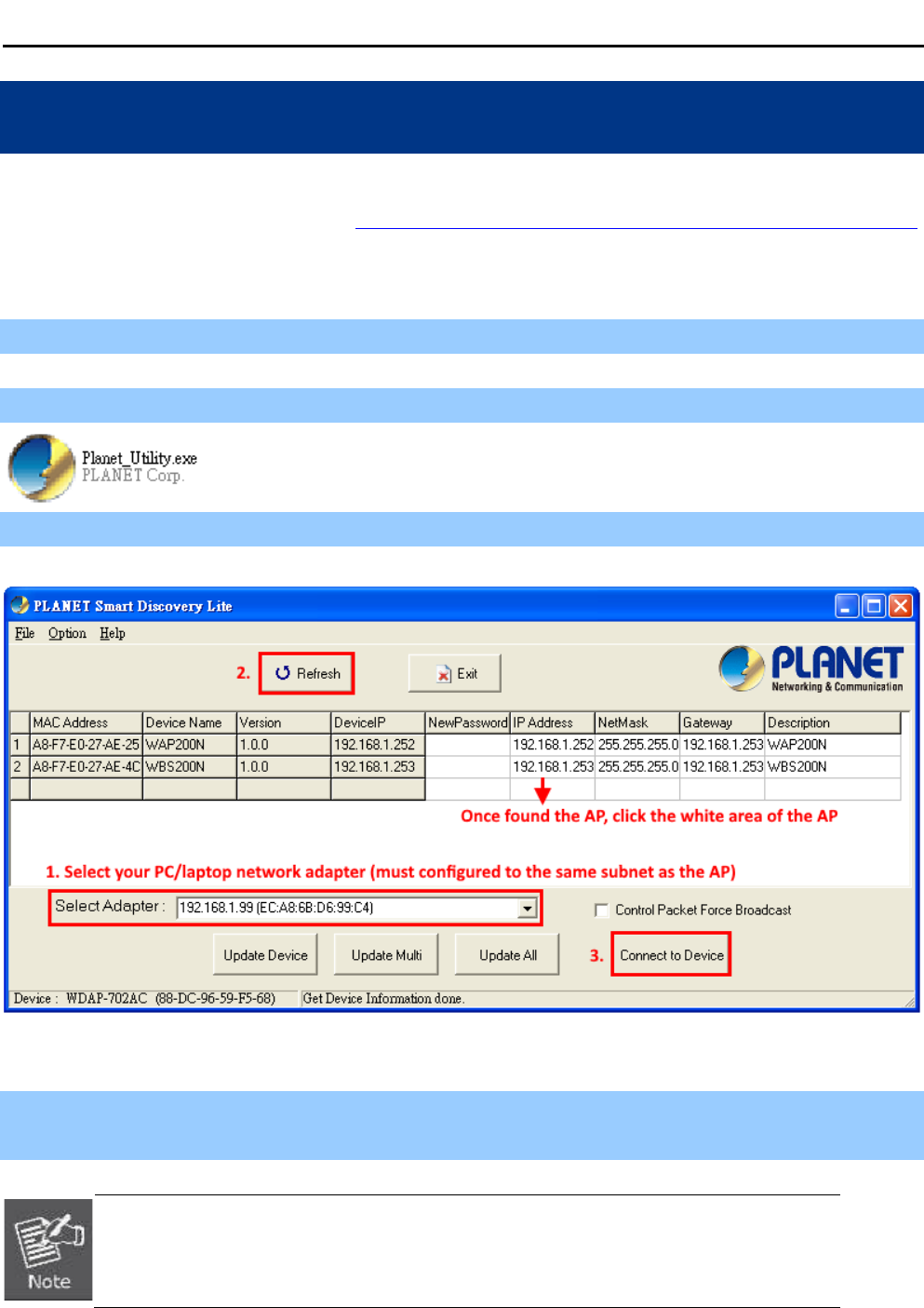

Appendix B: Use Planet Smart Discovery to find AP ...................................................................... 97
Appendix C: FAQ ................................................................................................................................. 98

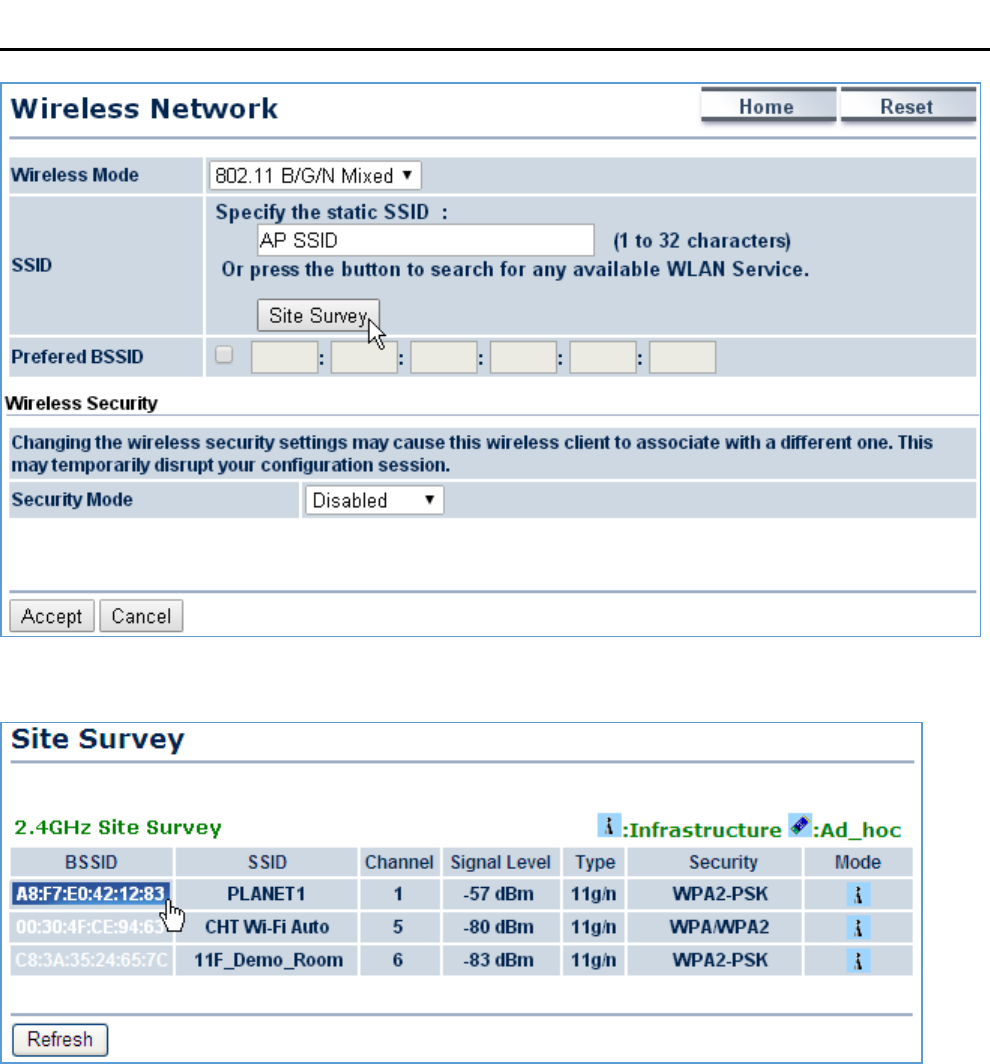

Q1: How to set up the AP Client Connection ........................................................................... 98
Q2: How to set up the WDS Connection ................................................................................ 107
V
FIGURES

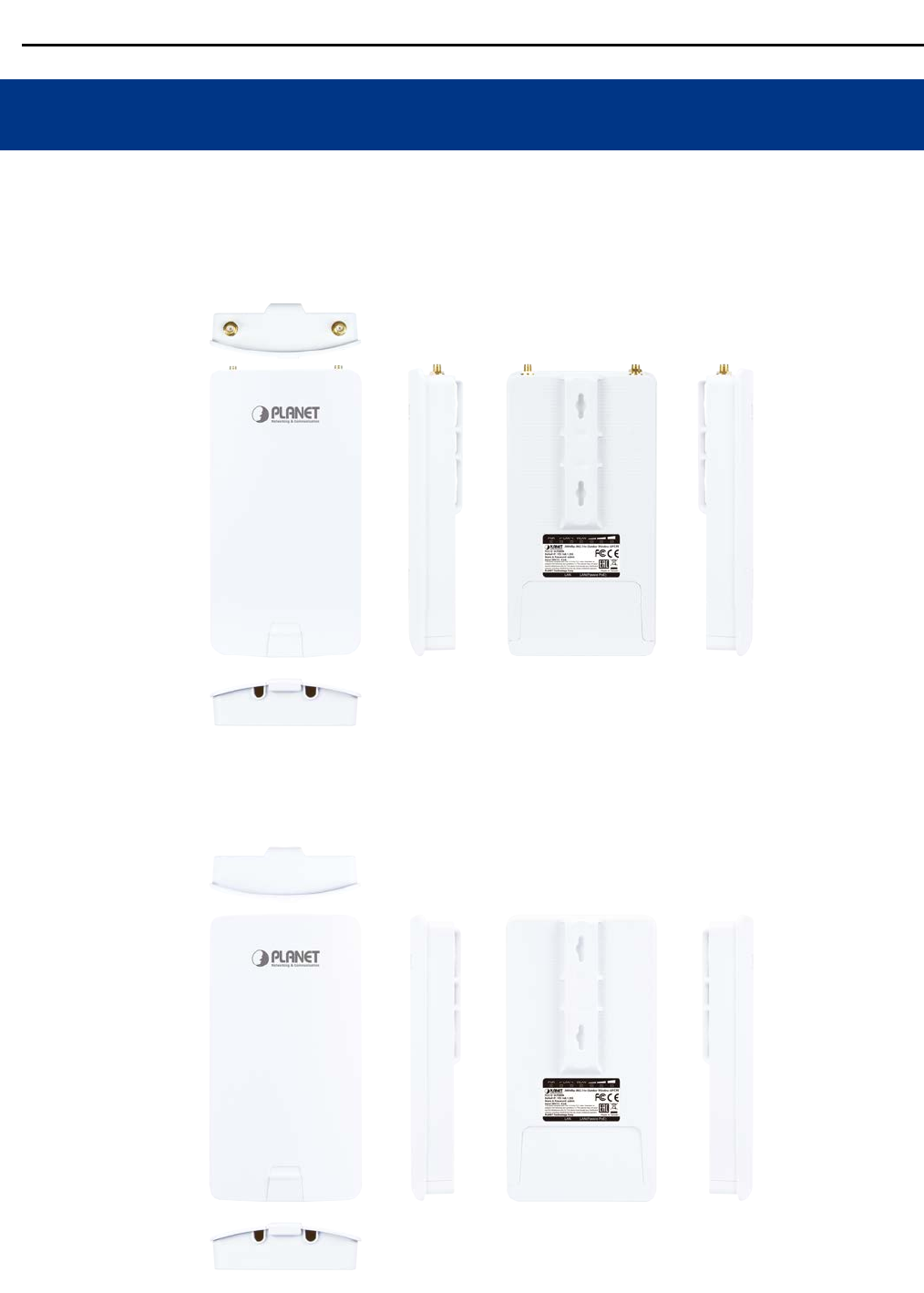

FIGURE 2-1 THREE-WAY VIEW (WAP-200N) ........................................................................................................ 14
FIGURE 2-2 THREE-WAY VIEW (WBS-200N) ........................................................................................................ 14

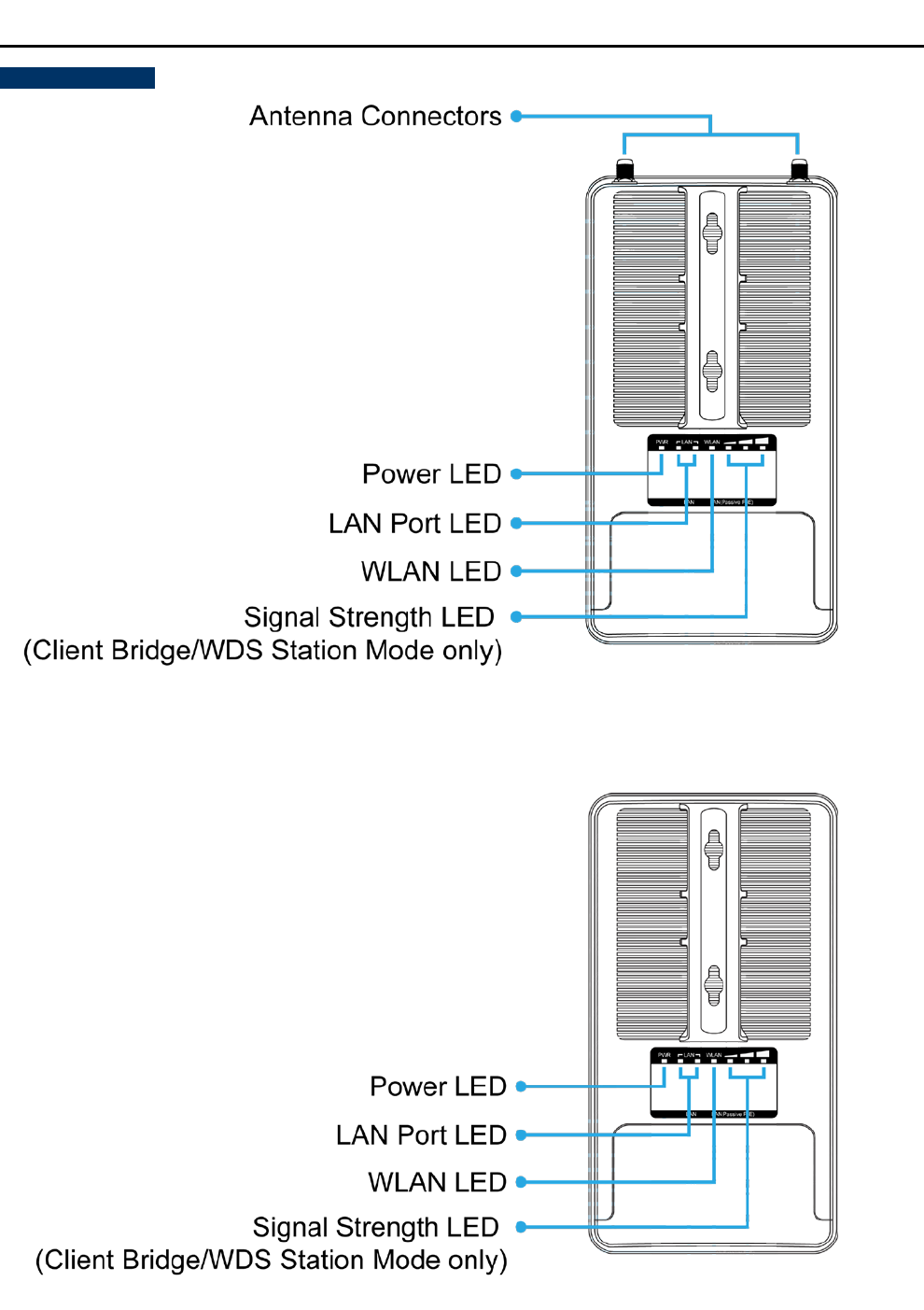

FIGURE 2-3 REAR PANEL (WAP-200N) ................................................................................................................ 15
FIGURE 2-4 REAR PANEL (WBS-200N) ................................................................................................................ 15
FIGURE 2-5 BOTTOM PANEL (WAP-200N/WBS-200N) ........................................................................................ 17
FIGURE 2-6 POE WARNING LABEL ....................................................................................................................... 17

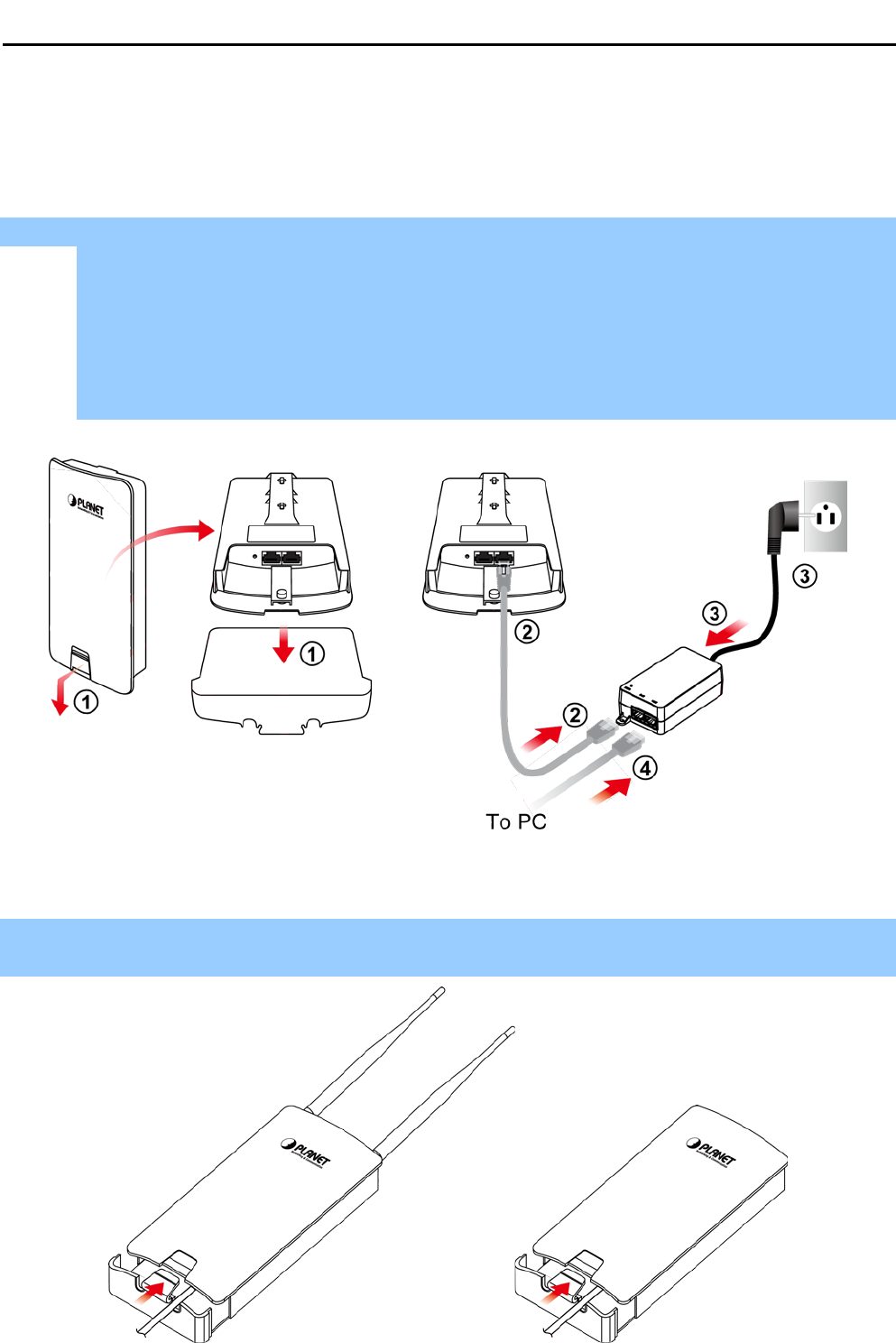

FIGURE 3-1 POE AND LAN PORT CONNECTION ..................................................................................................... 20
FIGURE 3-2 FINISH INSTALLATION AND CONNECT TO ANTENNAS (WAP-200N ONLY) ........................................... 20

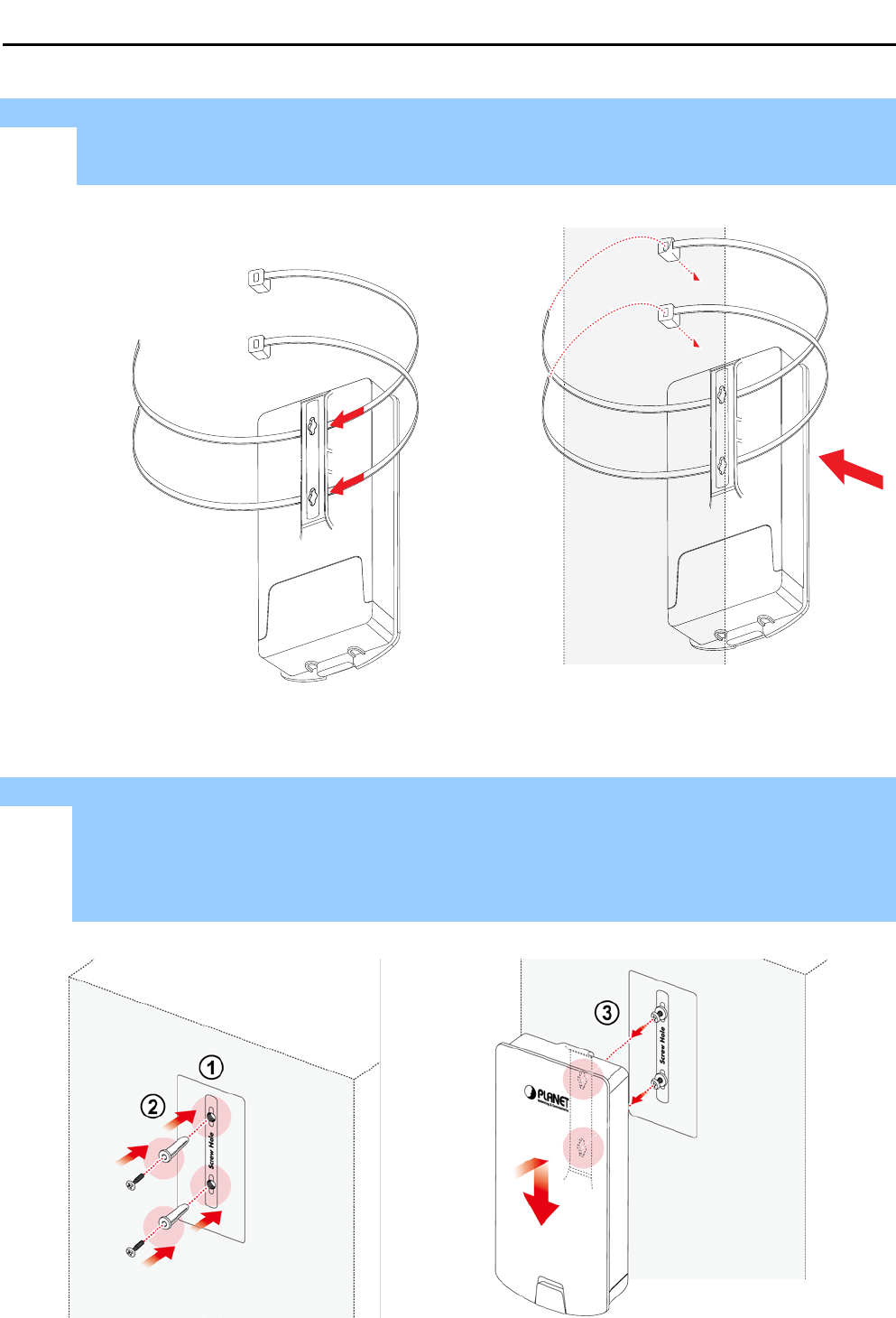

FIGURE 3-3 POLE MOUNTING ............................................................................................................................... 21
FIGURE 3-4 WALL MOUNTING .............................................................................................................................. 21

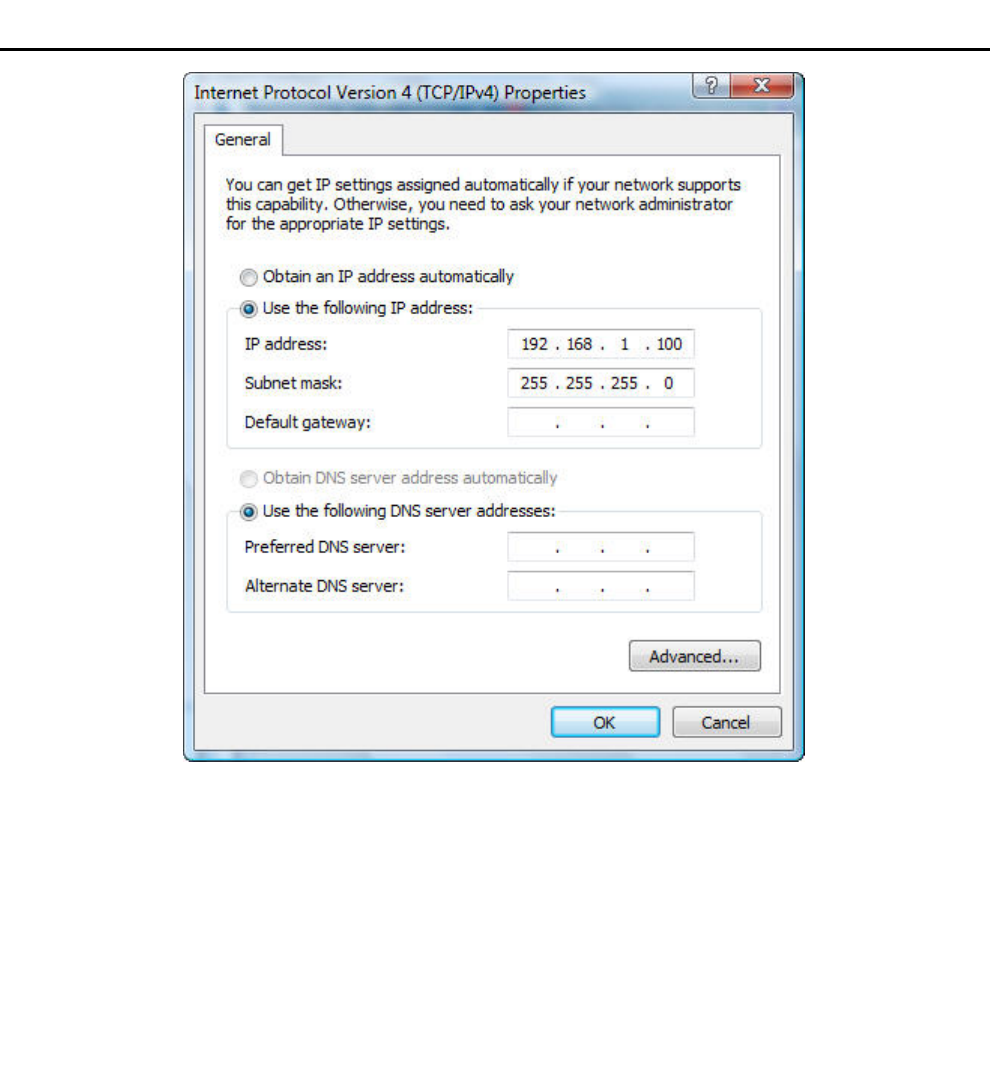

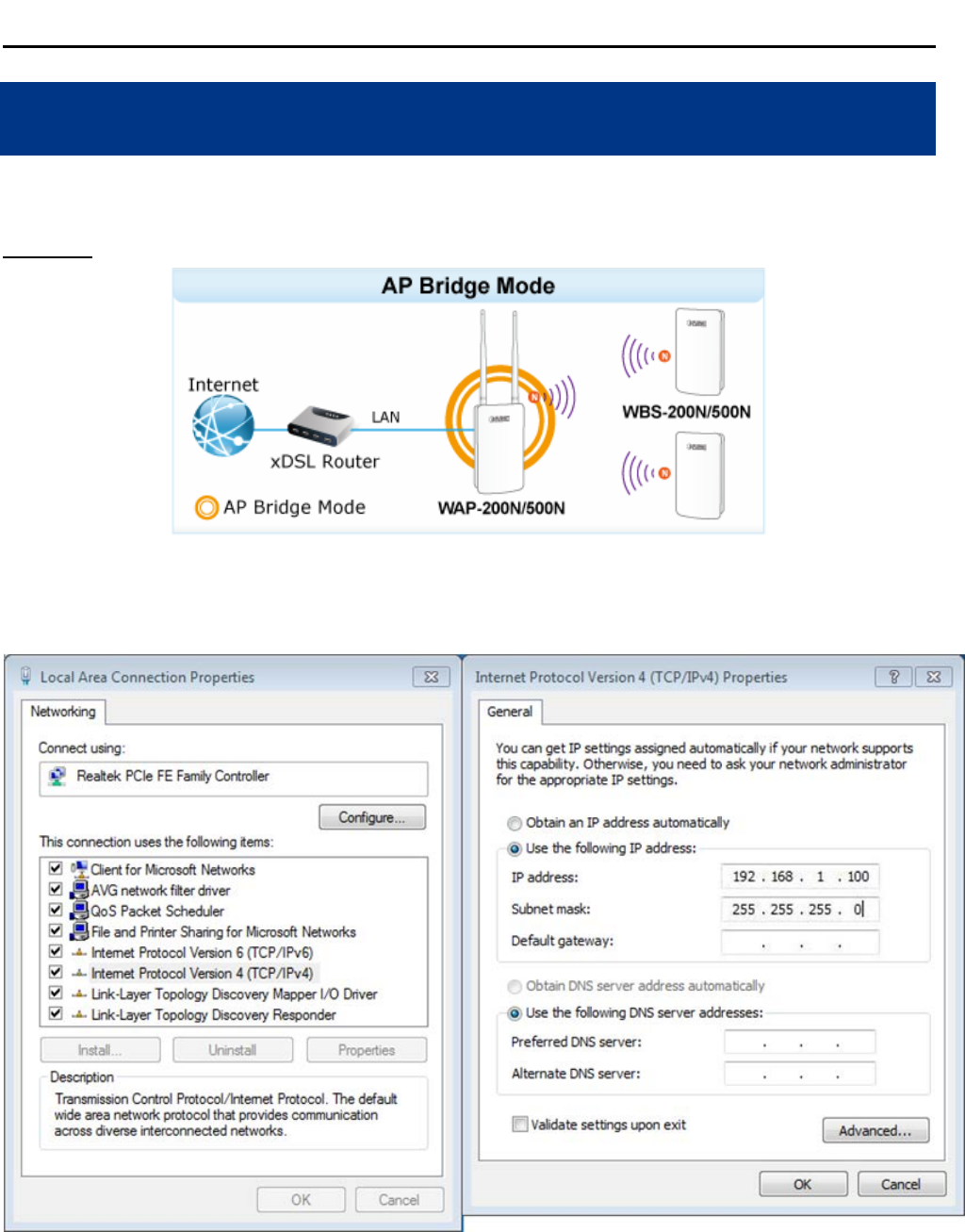

FIGURE 4-1 TCP/IP SETTING ................................................................................................................................ 23

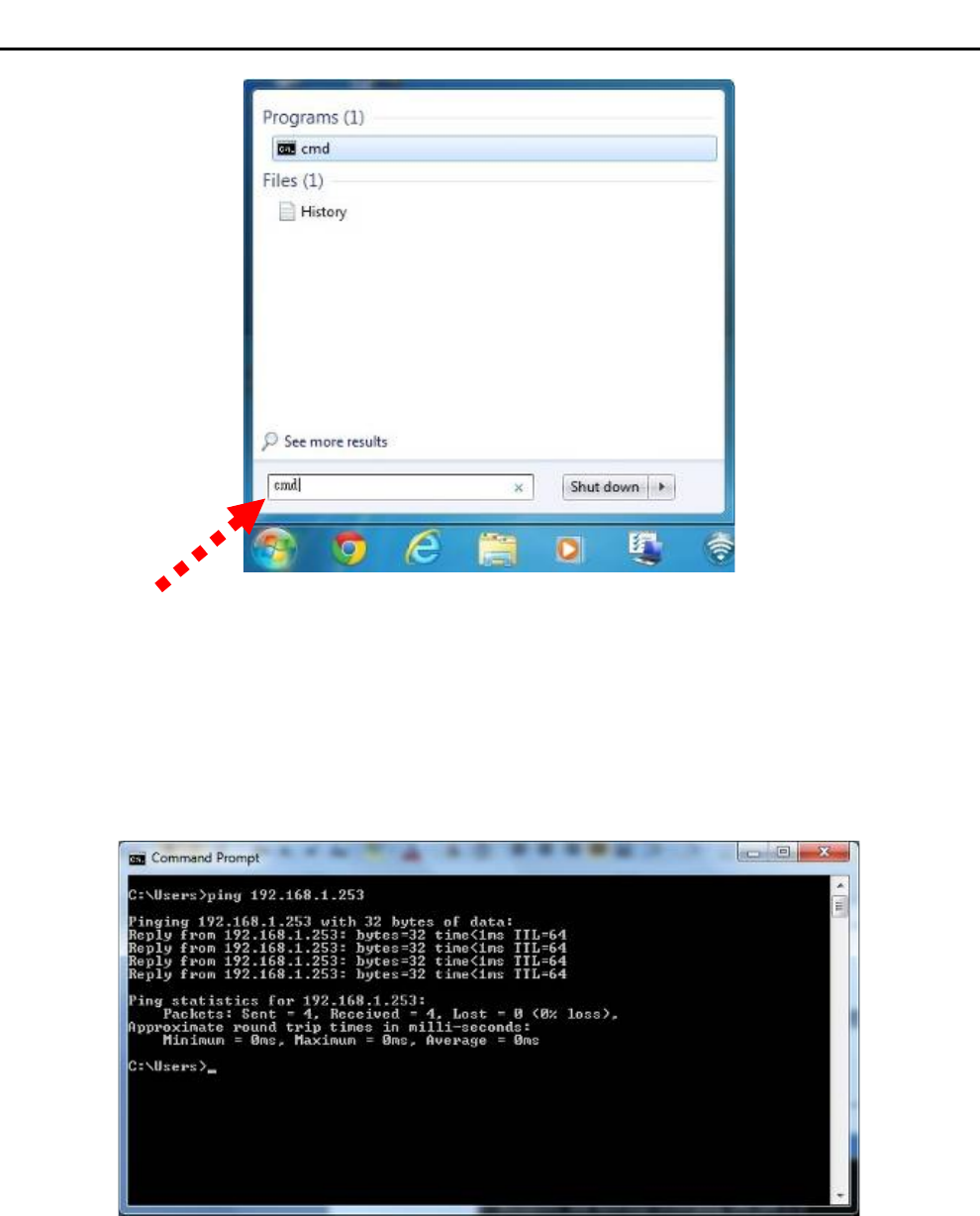

FIGURE 4-2 WINDOWS START MENU .................................................................................................................... 24
FIGURE 4-3 SUCCESSFUL RESULT OF PING COMMAND .......................................................................................... 24

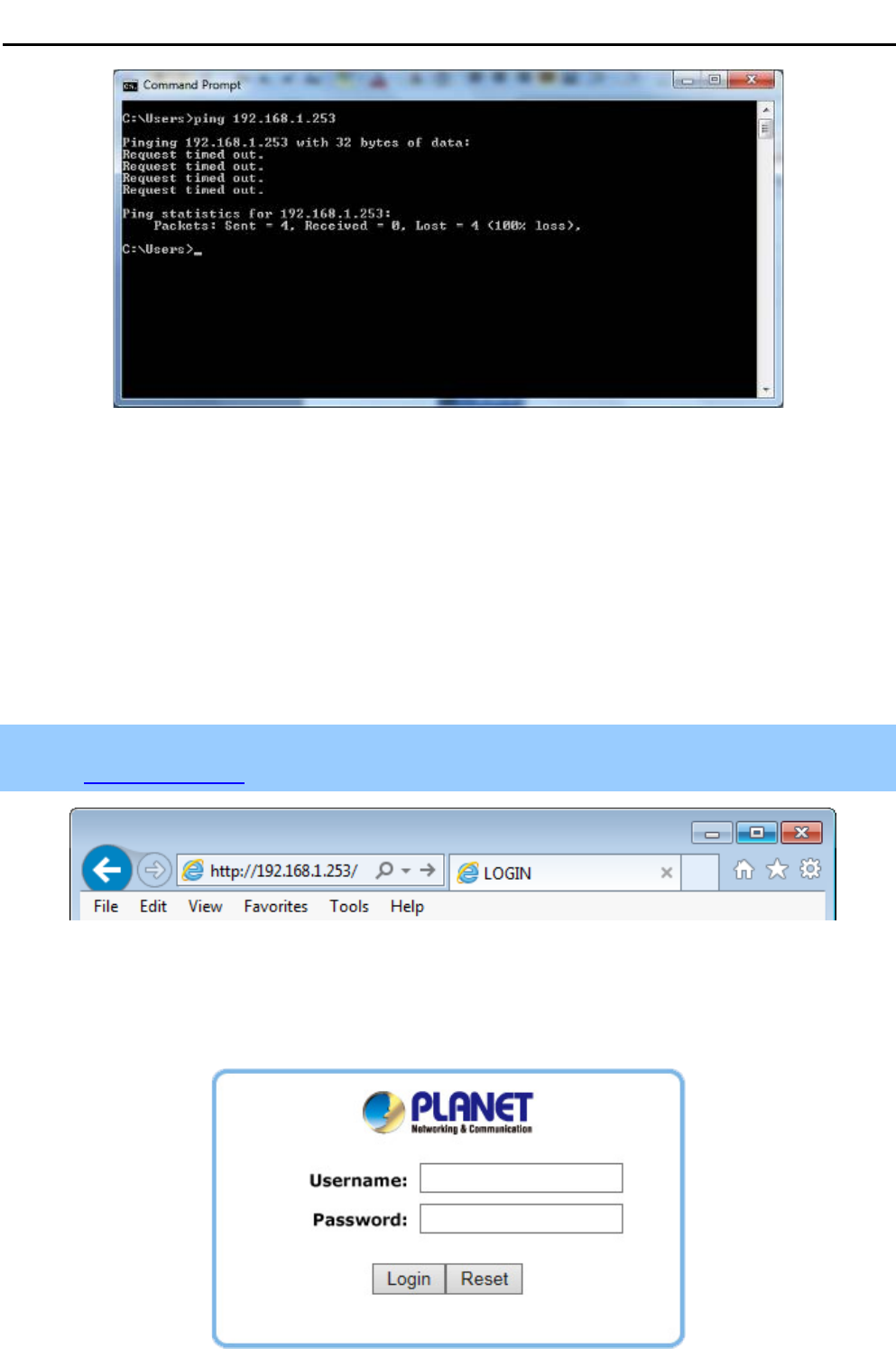

FIGURE 4-4 FAILED RESULT OF PING COMMAND ................................................................................................... 25
FIGURE 4-5 LOGIN BY DEFAULT IP ADDRESS ......................................................................................................... 25
FIGURE 4-6 LOGIN WINDOW ................................................................................................................................ 25
FIGURE 4-7 WEB UI SCREENSHOT ........................................................................................................................ 26

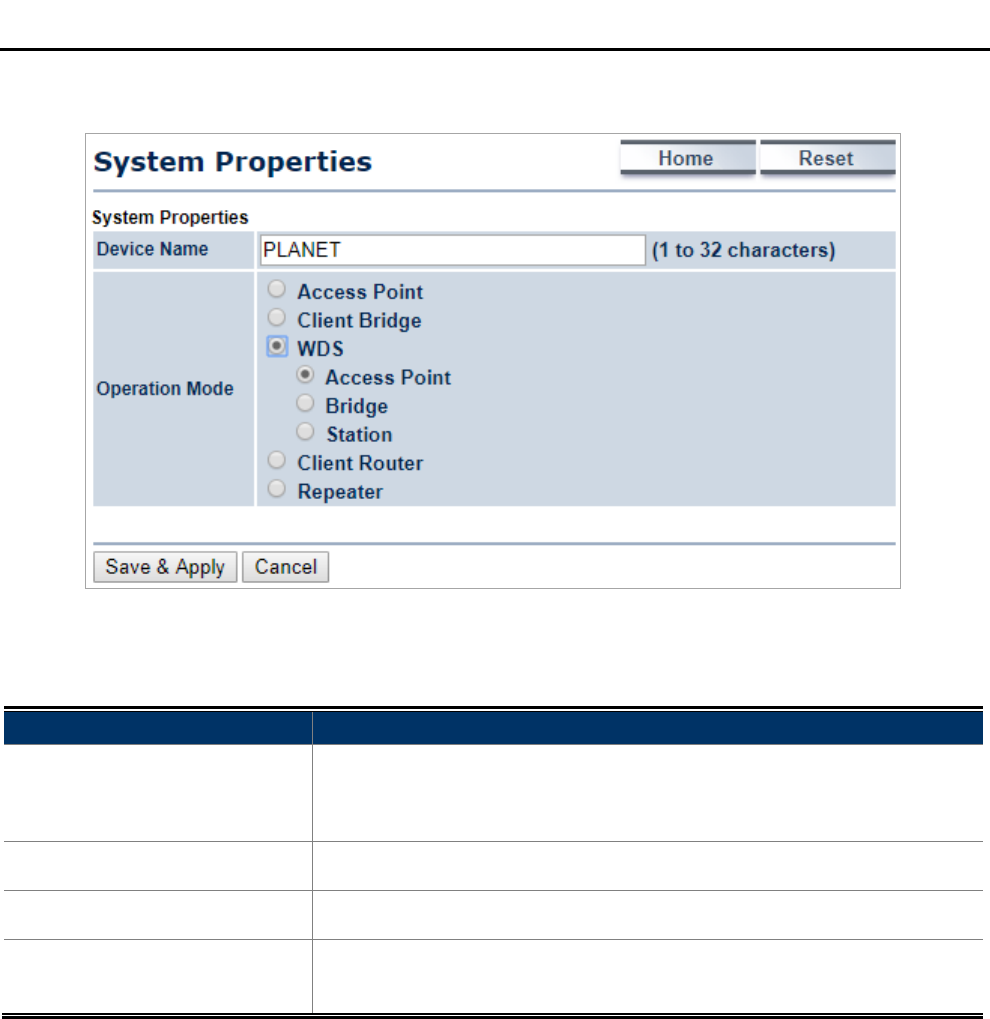

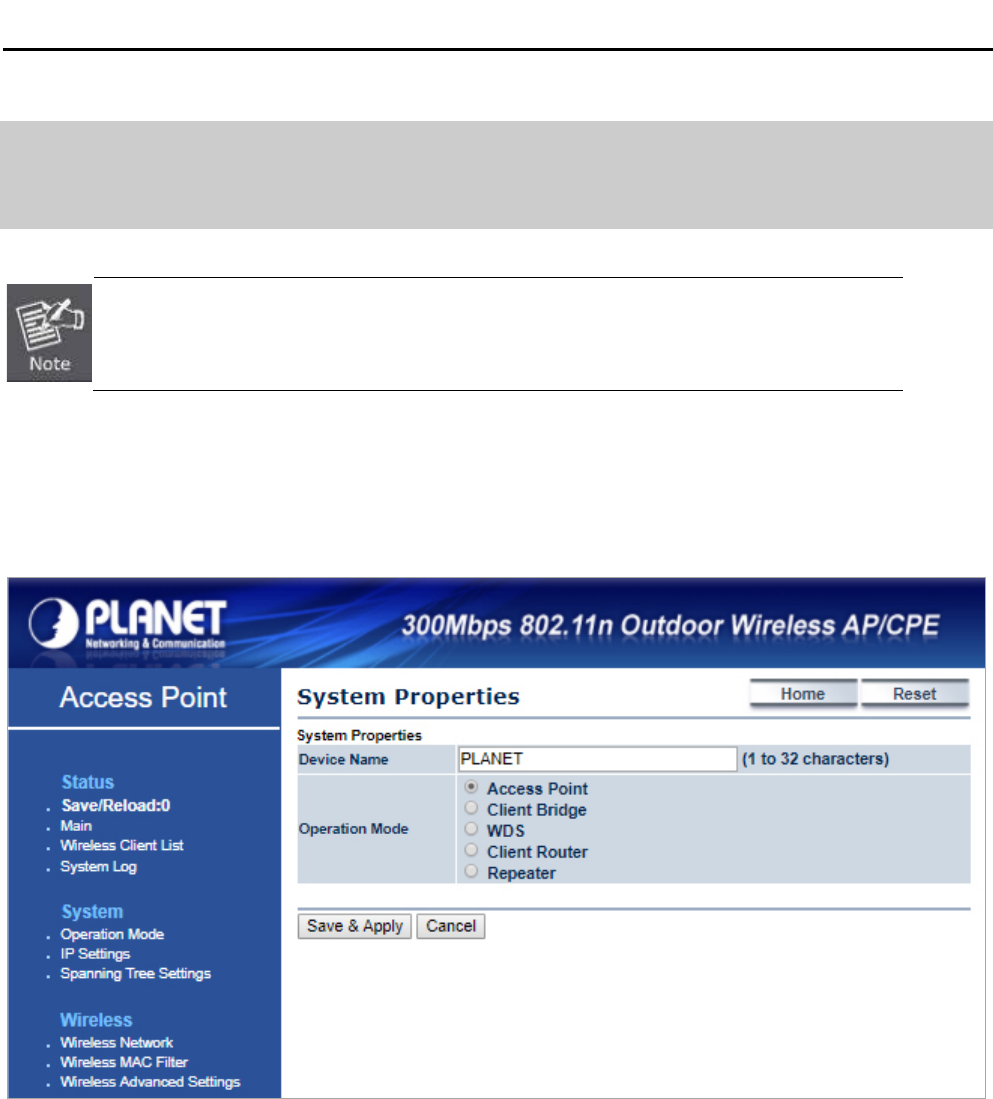

FIGURE 5-1 OPERATION MODE – ALL ................................................................................................................... 28

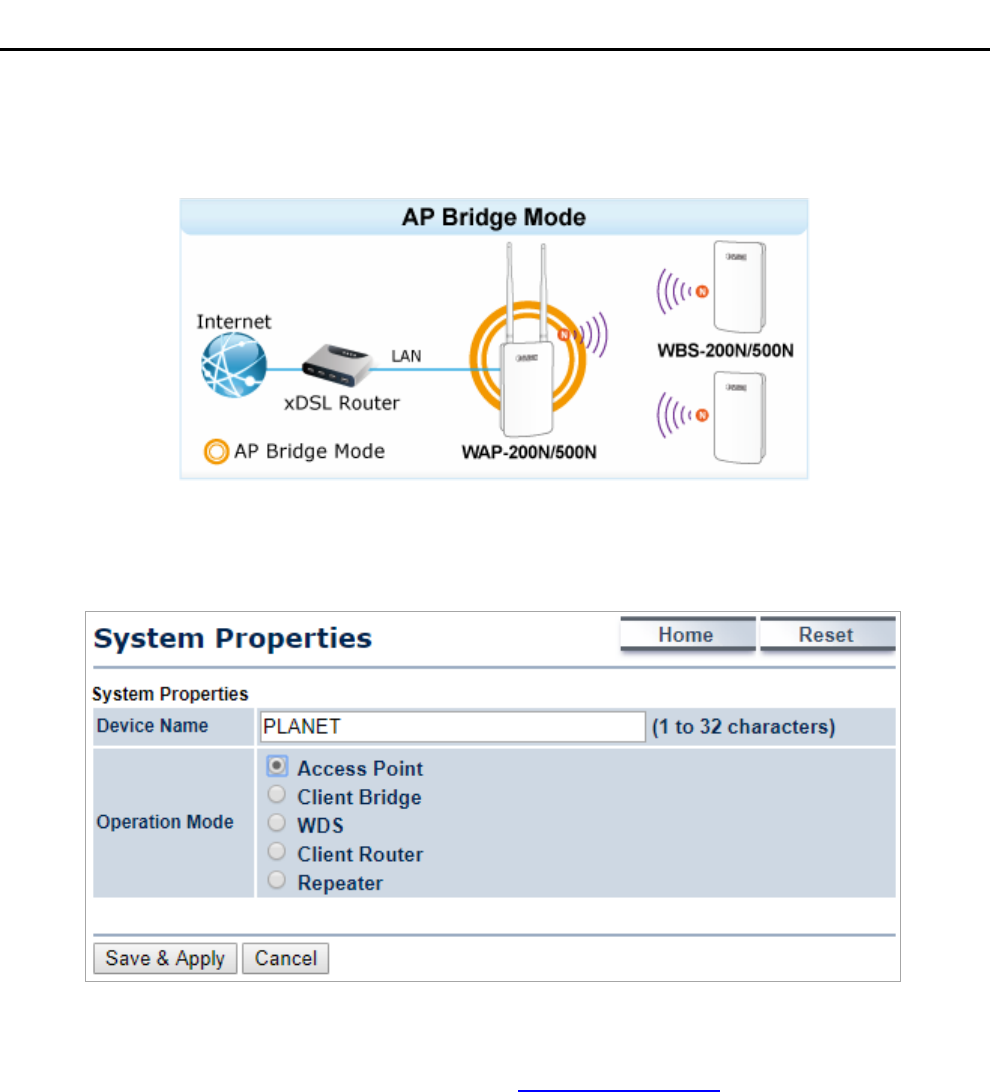

FIGURE 5-2 OPERATION MODE – AP ..................................................................................................................... 29

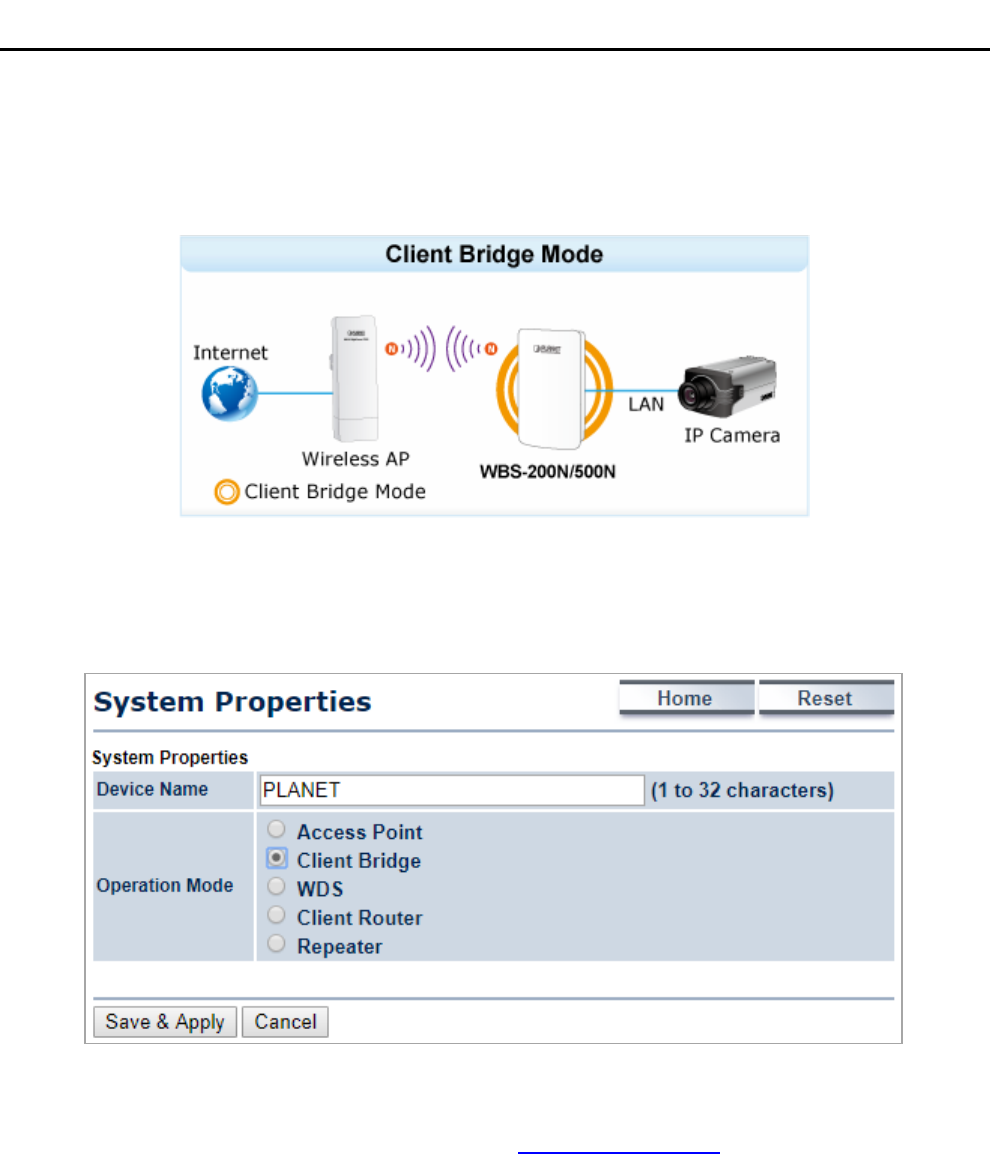

FIGURE 5-3 OPERATION MODE – CLIENT BRIDGE ................................................................................................. 30
FIGURE 5-4 OPERATION MODE – WDS AP ........................................................................................................... 31
FIGURE 5-5 OPERATION MODE – WDS STATION ................................................................................................... 32

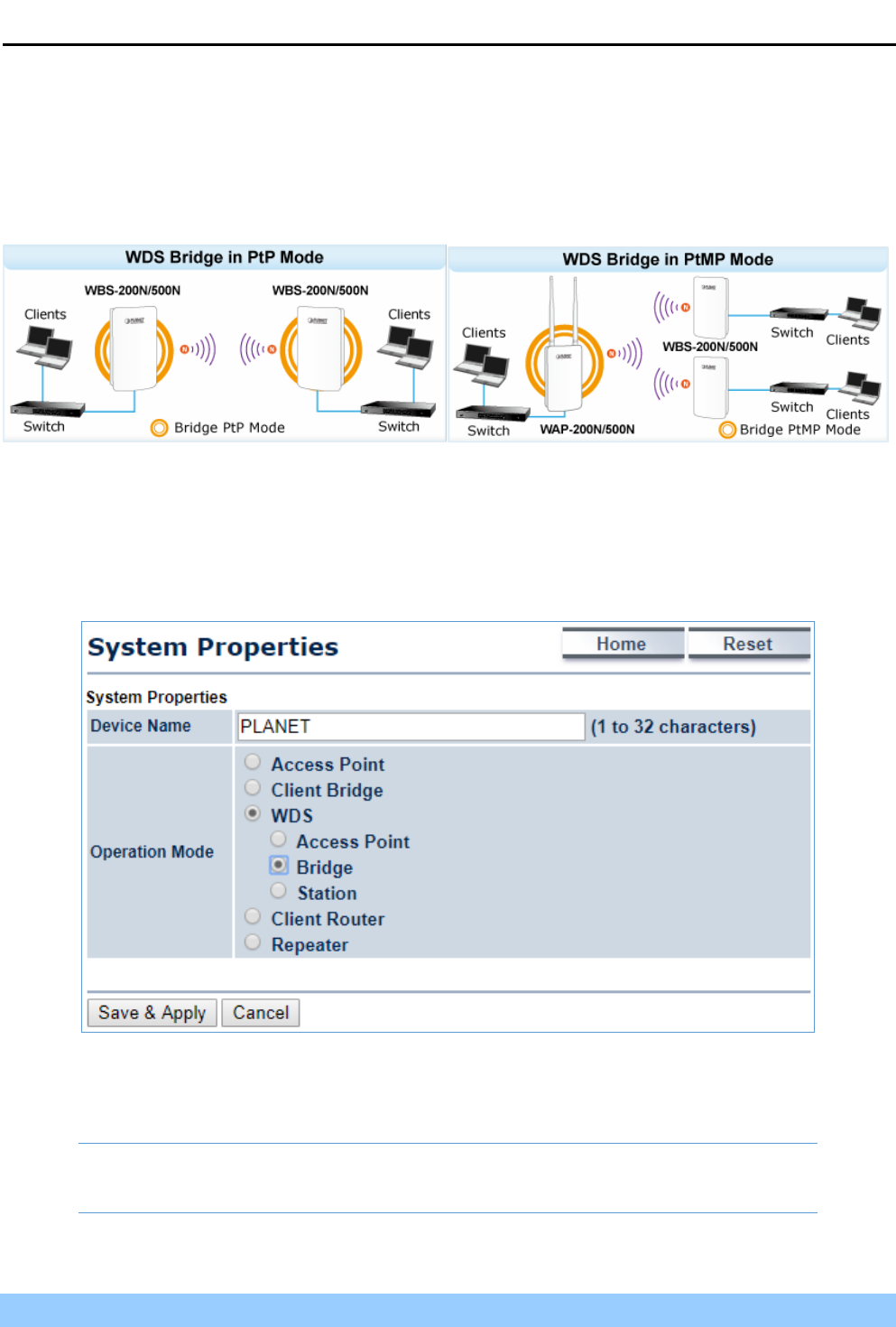

FIGURE 5-6 OPERATION MODE – WDS BRIDGE .................................................................................................... 33

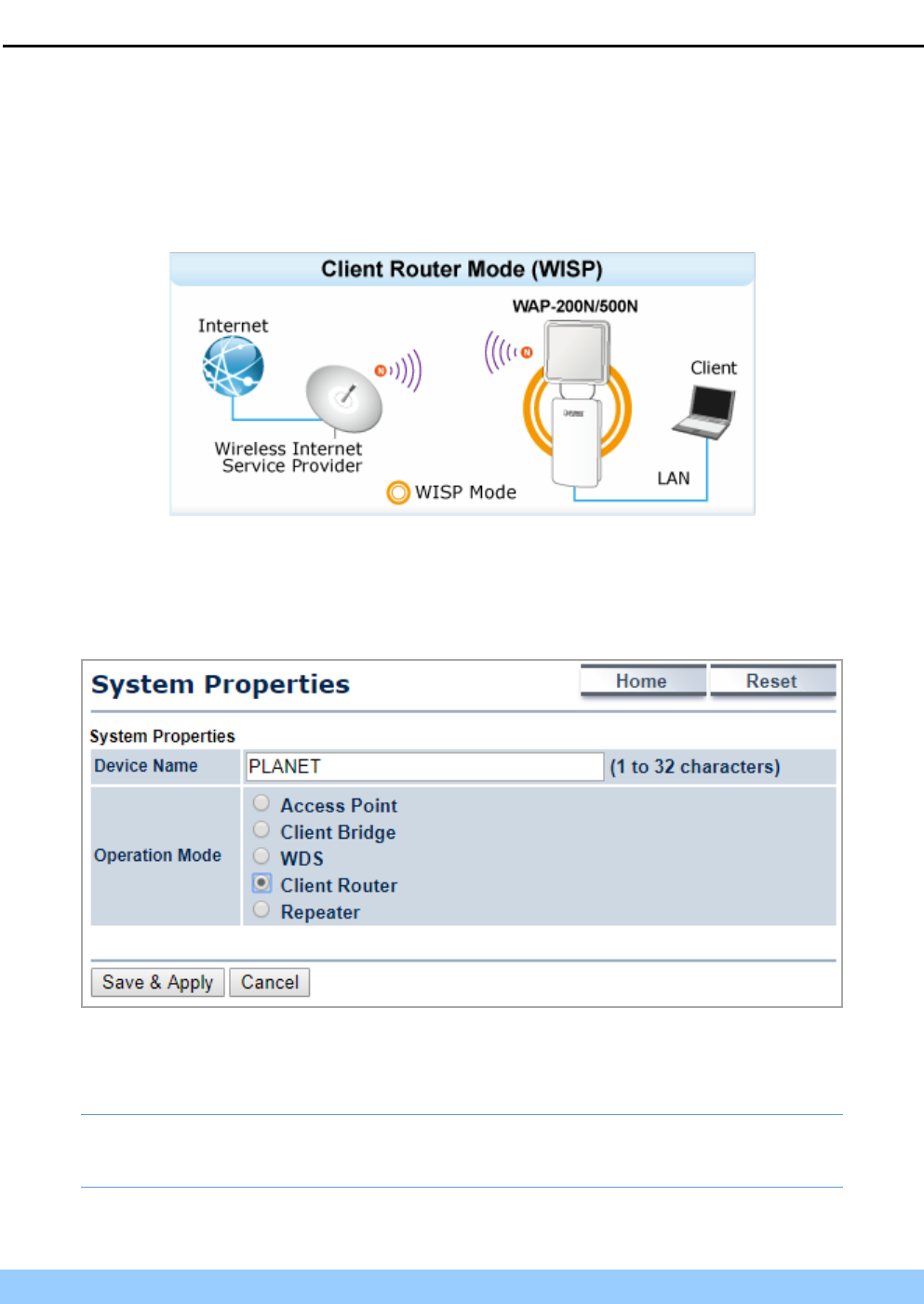

FIGURE 5-7 OPERATION MODE – CLIENT ROUTER (WISP) ................................................................................... 38

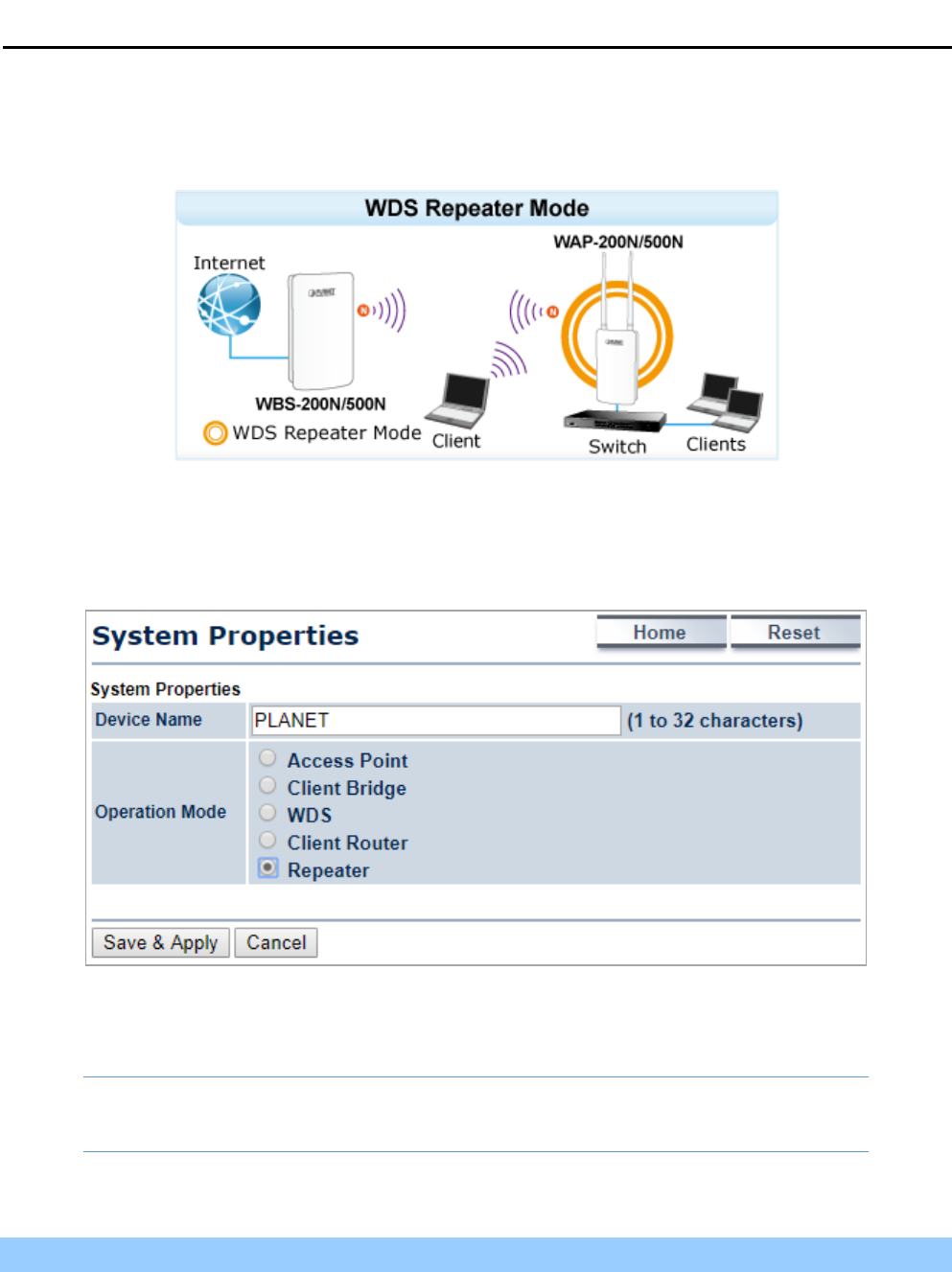

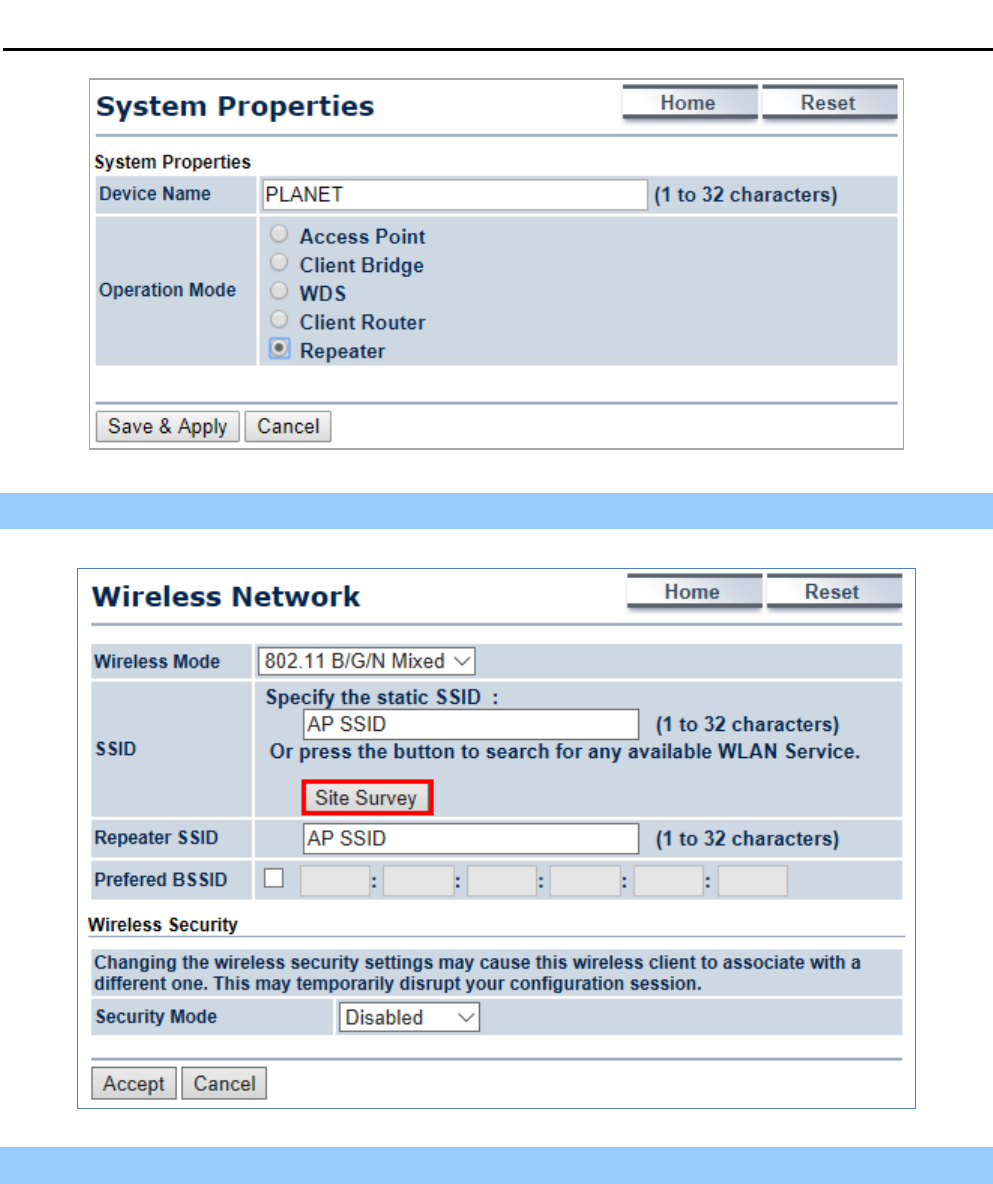

FIGURE 5-8 OPERATION MODE – REPEATER ......................................................................................................... 44

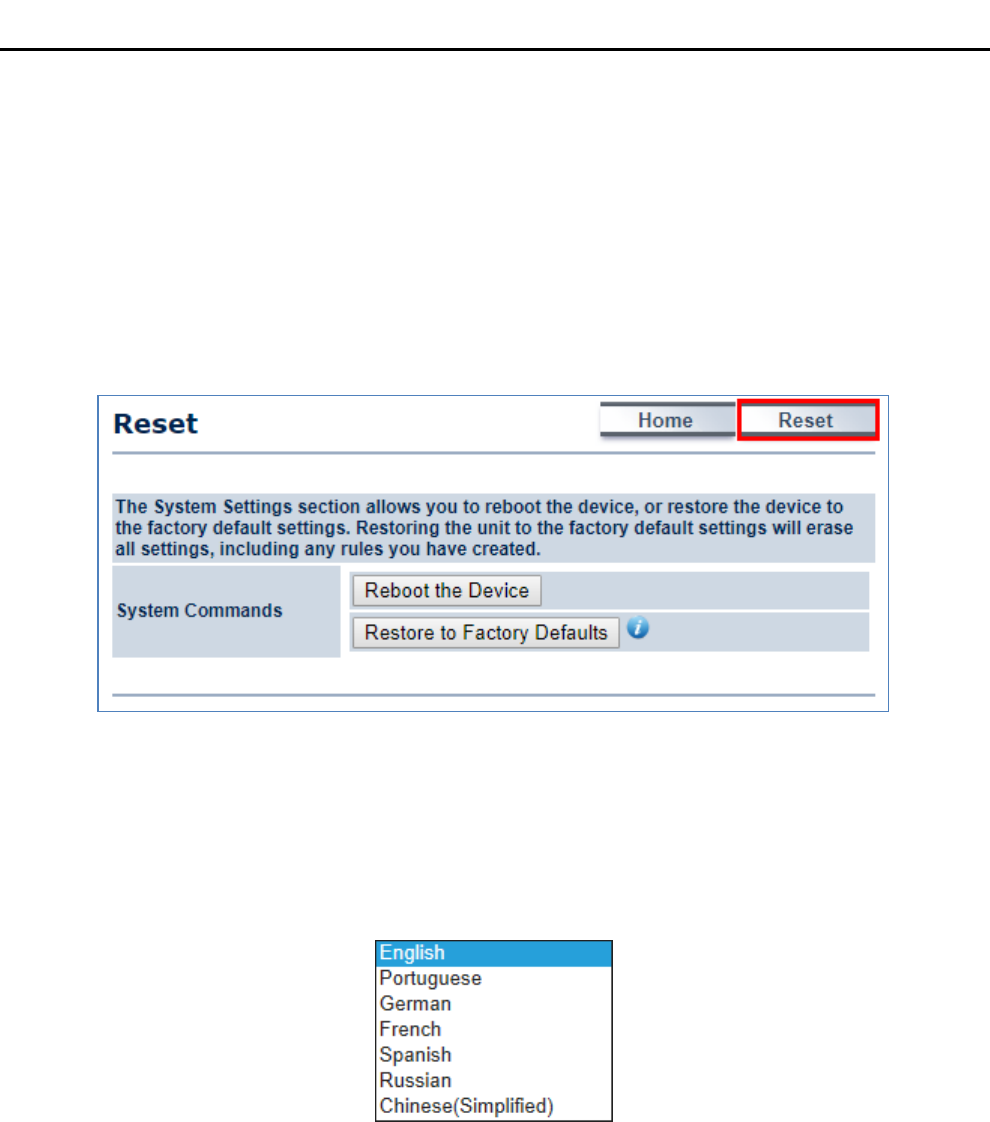

FIGURE 5-9 SYSTEM MENU - RESET ..................................................................................................................... 48
FIGURE 5-10 SYSTEM MENU – LANGUAGE OPTION .............................................................................................. 48

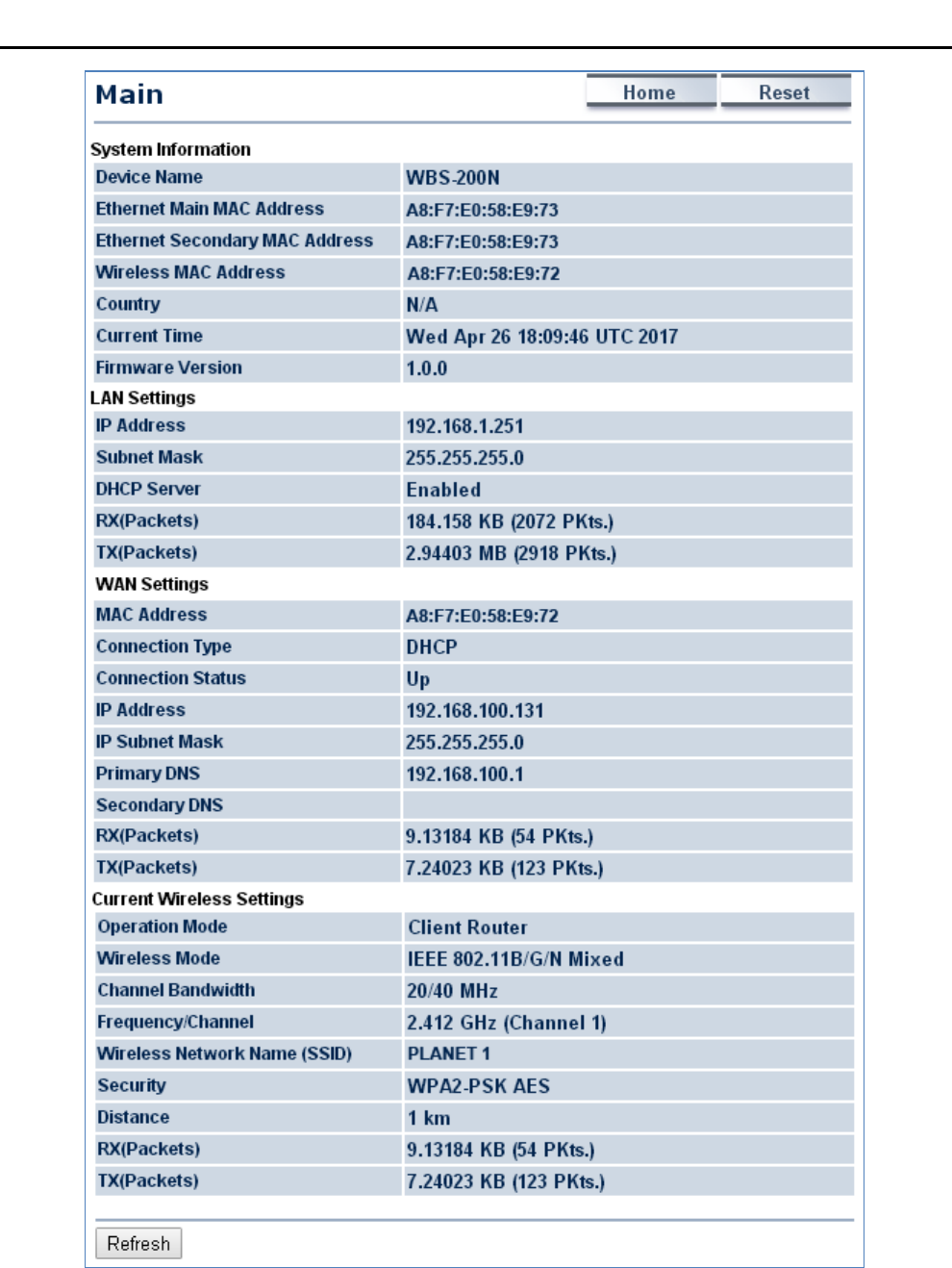

FIGURE 5-11 MAIN STATUS ................................................................................................................................... 49

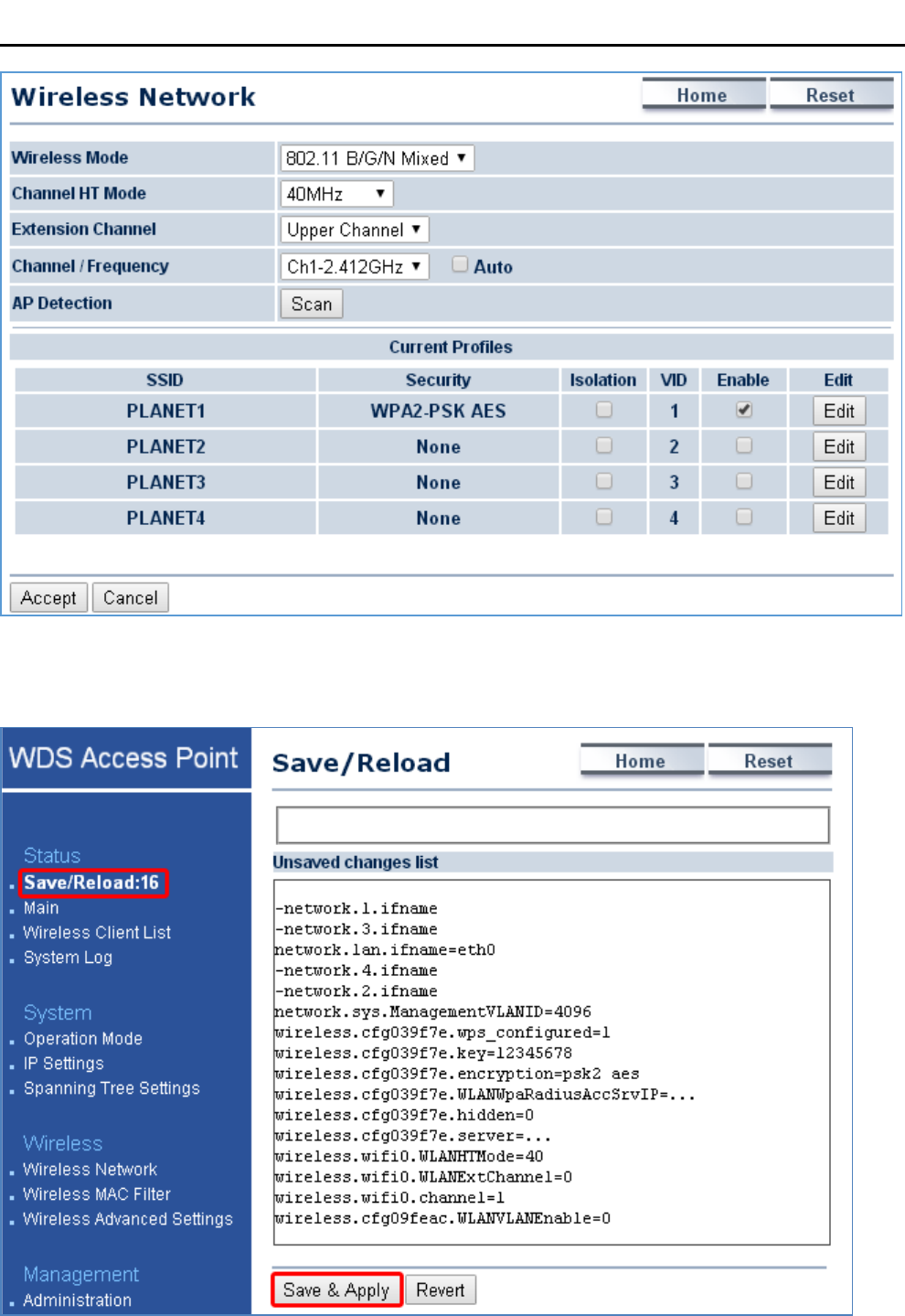

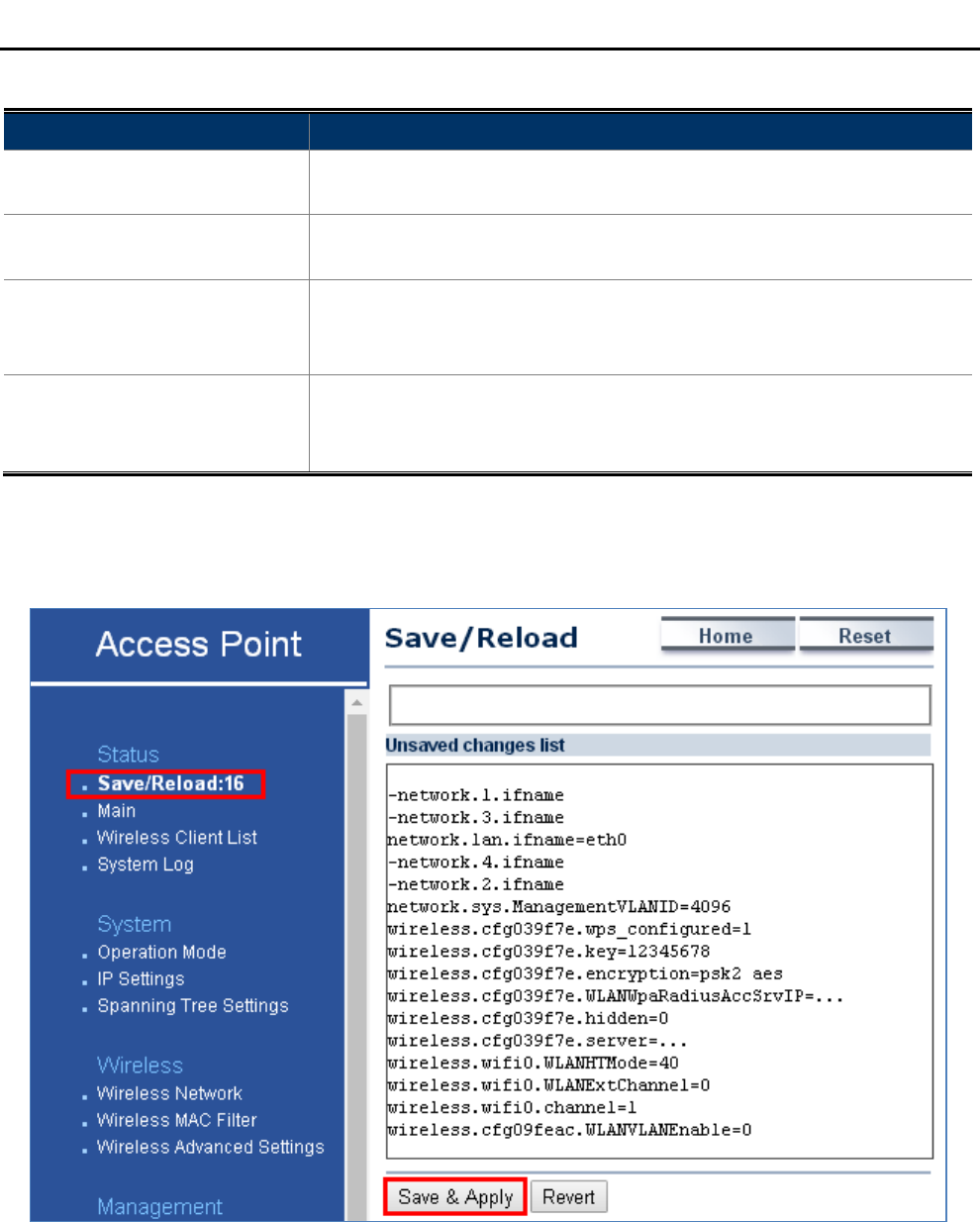

FIGURE 5-12 SAVE/RELOAD ................................................................................................................................. 50
FIGURE 5-13 SAVE/RELOAD - DEFAULT ................................................................................................................ 51

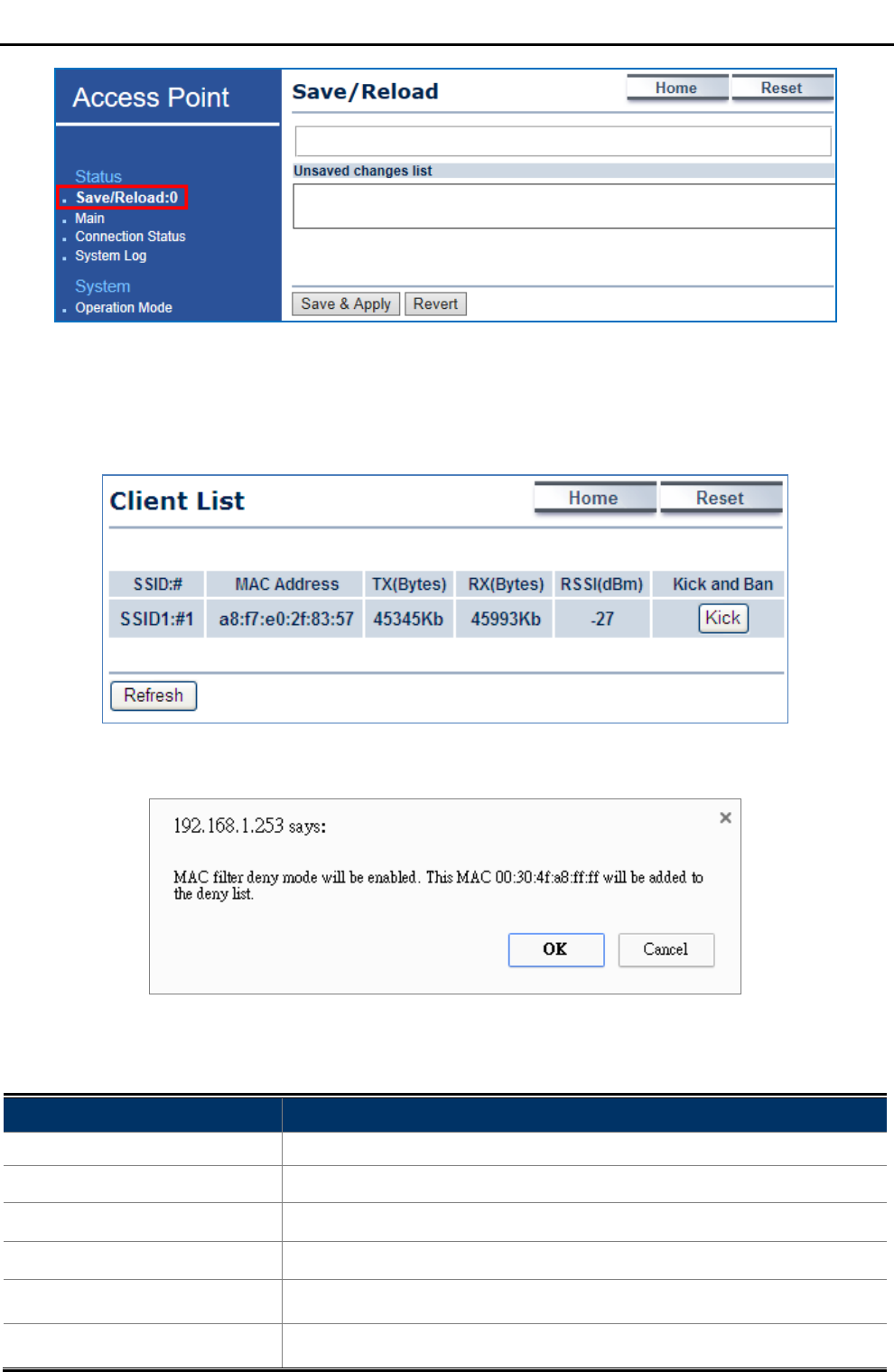

FIGURE 5-14 WIRELESS CLIENT LIST ................................................................................................................... 51
FIGURE 5-15 KICK THE CLIENT ............................................................................................................................. 51

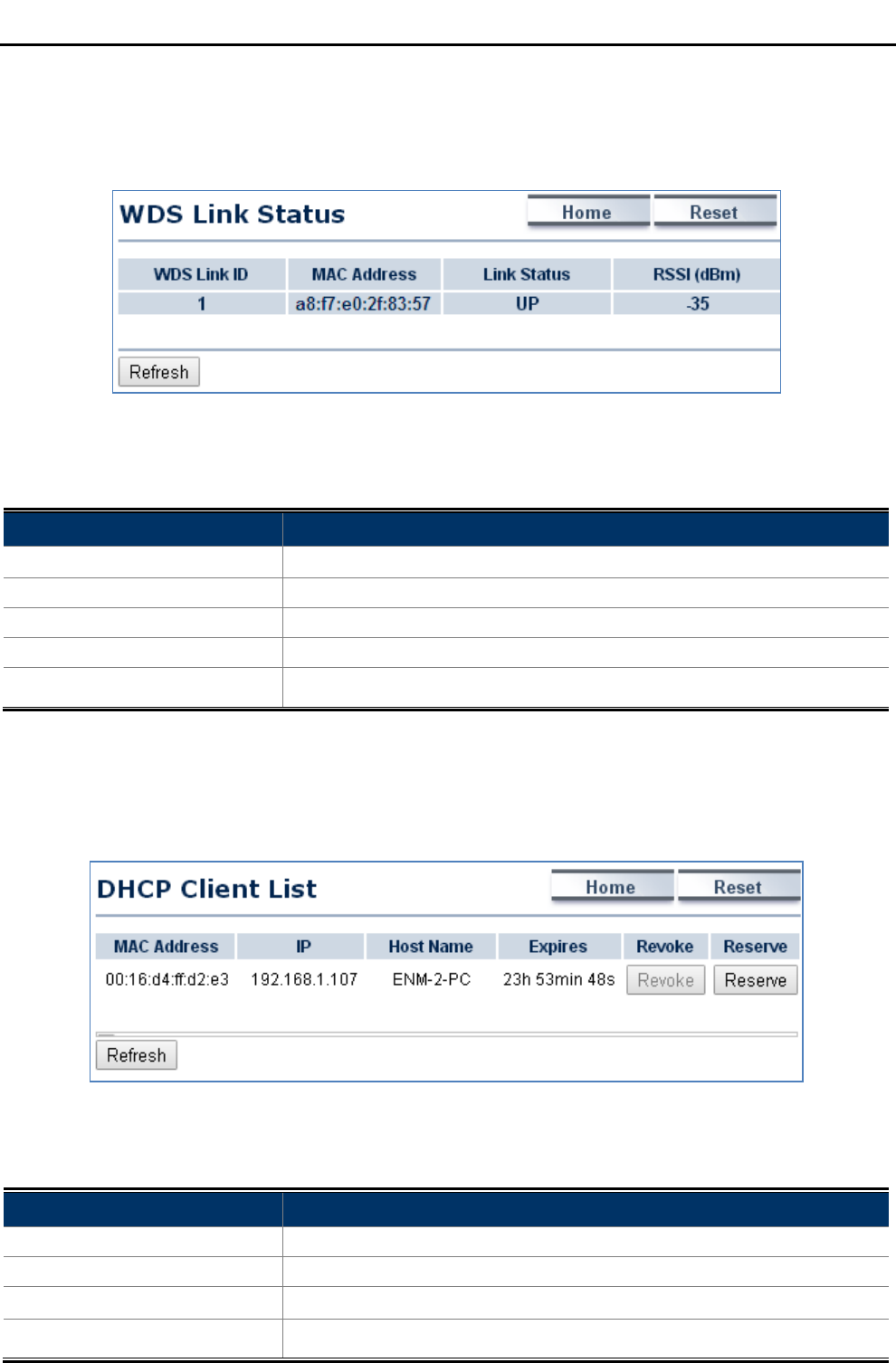

FIGURE 5-16 WDS LINK STATUS .......................................................................................................................... 52

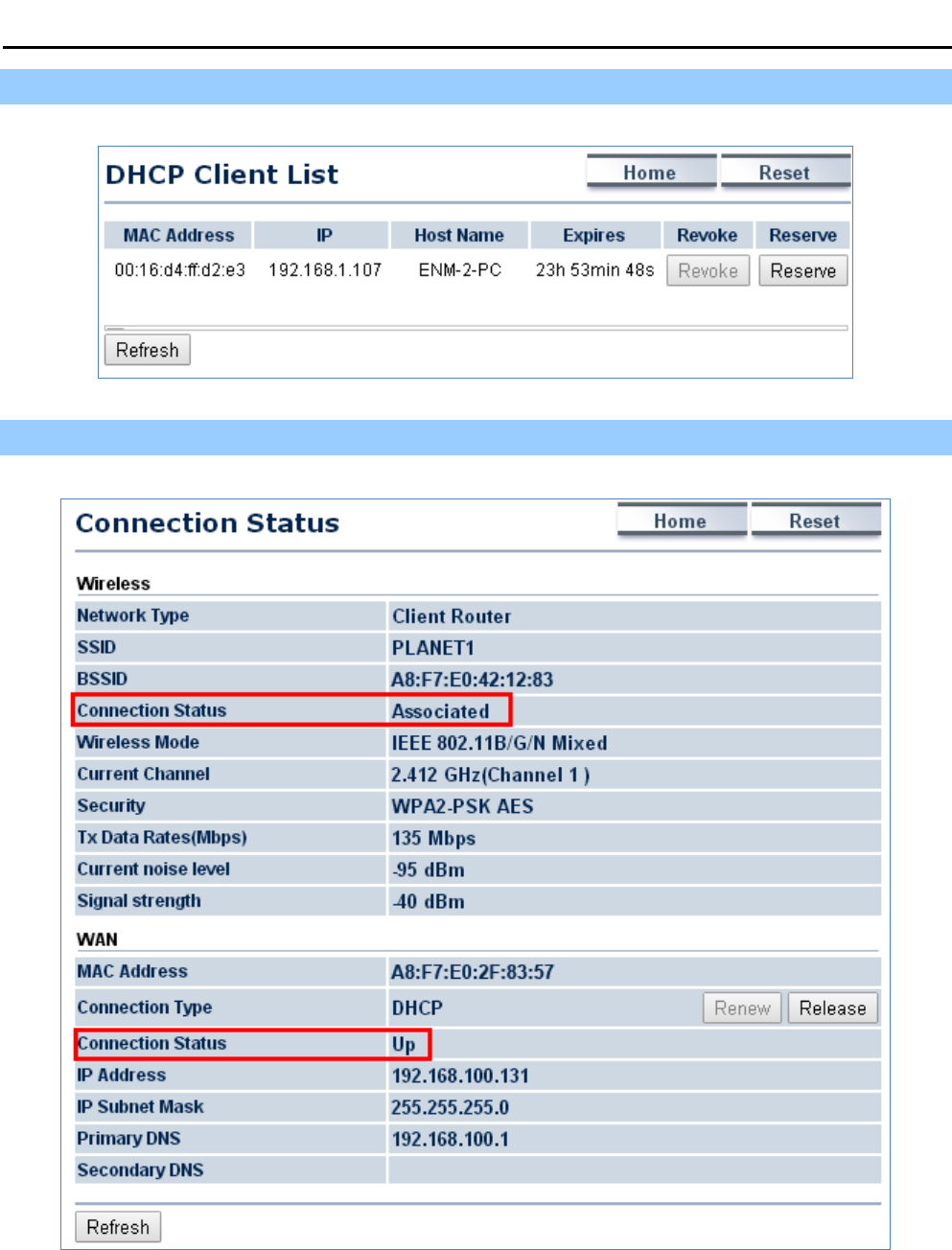

FIGURE 5-17 DHCP CLIENT LIST ......................................................................................................................... 52

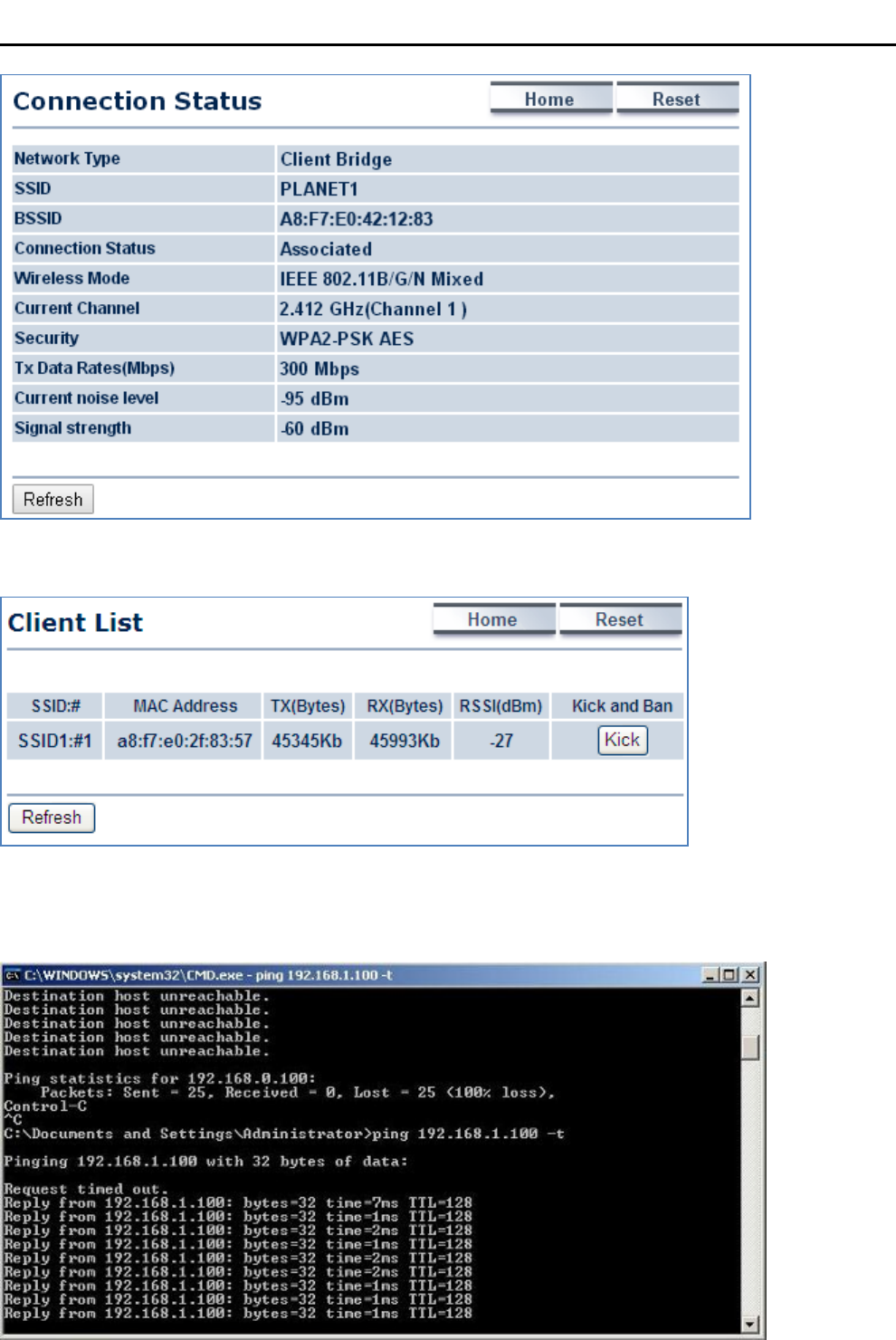

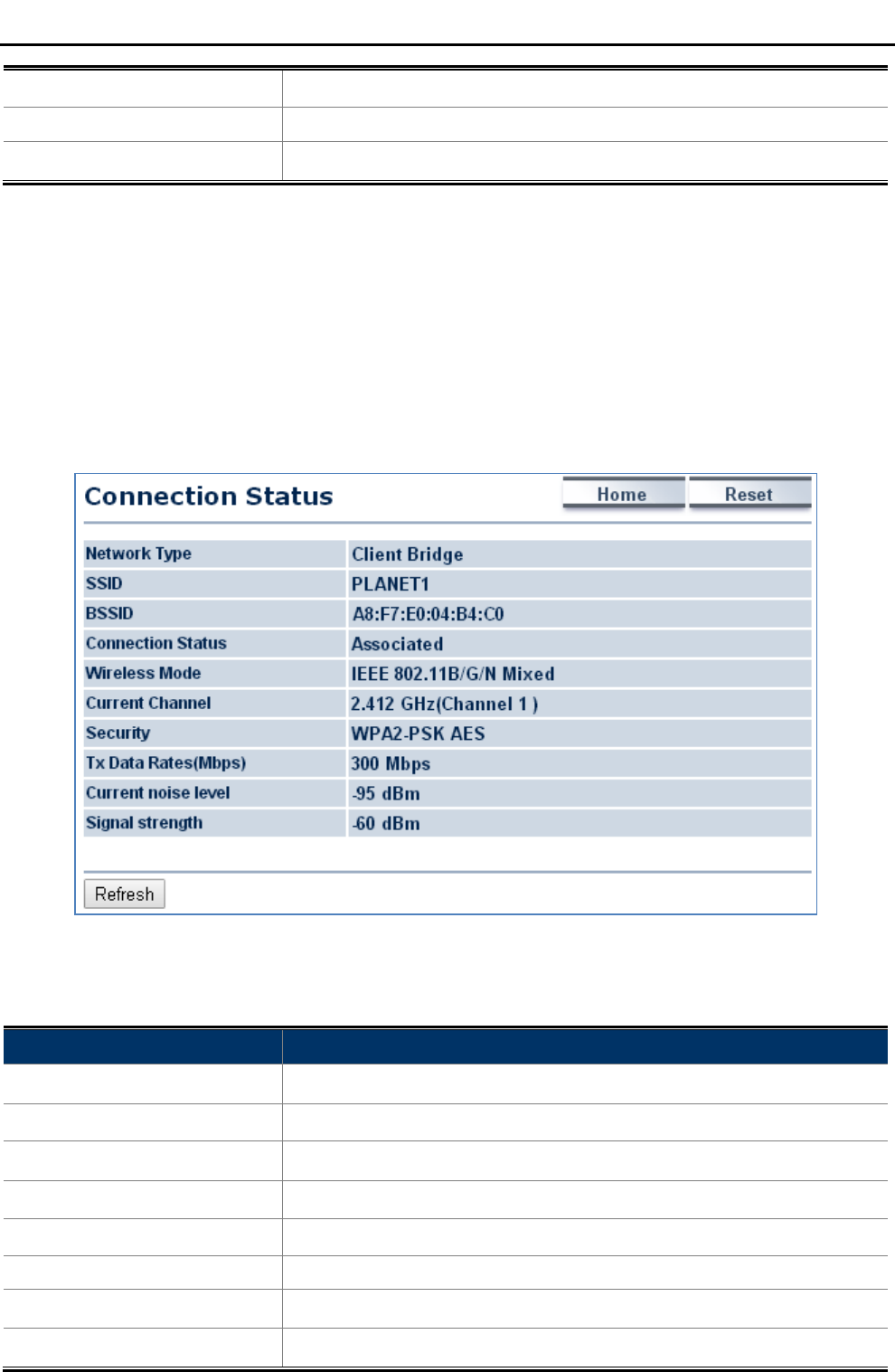

FIGURE 5-18 CONNECTION STATUS ...................................................................................................................... 53
FIGURE 5-19 SYSTEM LOG ................................................................................................................................... 54

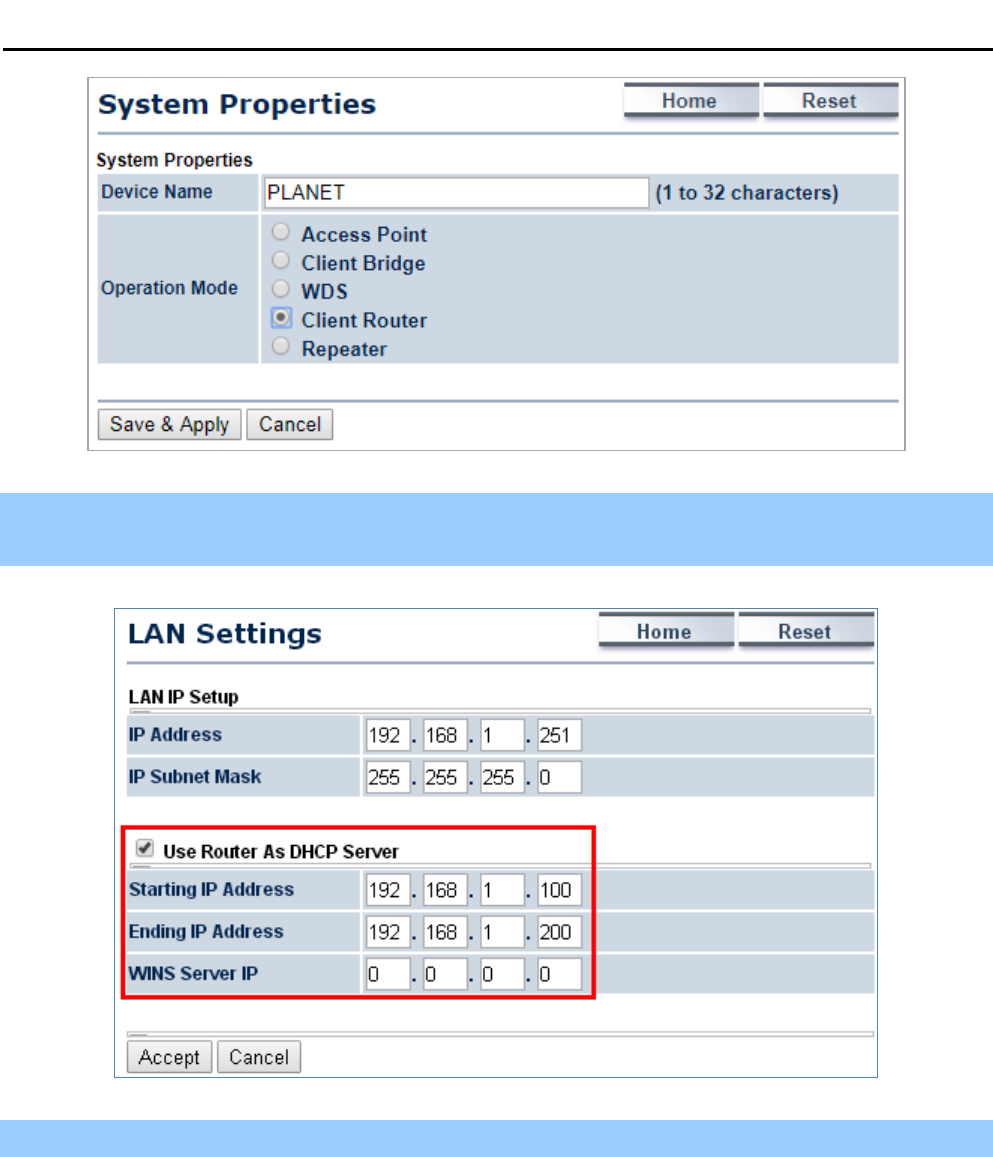

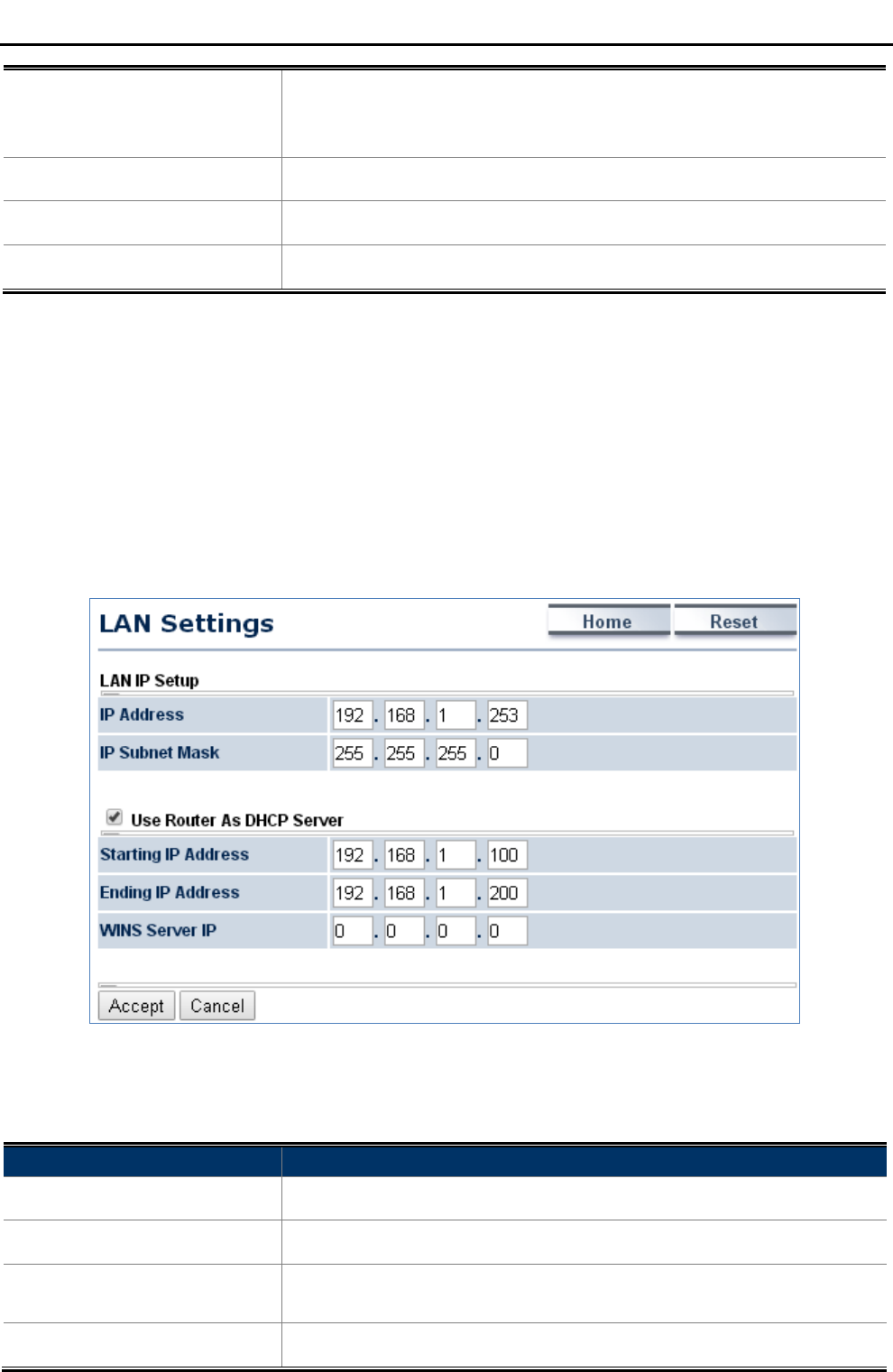

FIGURE 5-20 LAN IP SETTINGS ............................................................................................................................ 55
FIGURE 5-21 SPANNING TREE SETTINGS ............................................................................................................... 56
FIGURE 5-22 DHCP SERVER SETTINGS ................................................................................................................ 57

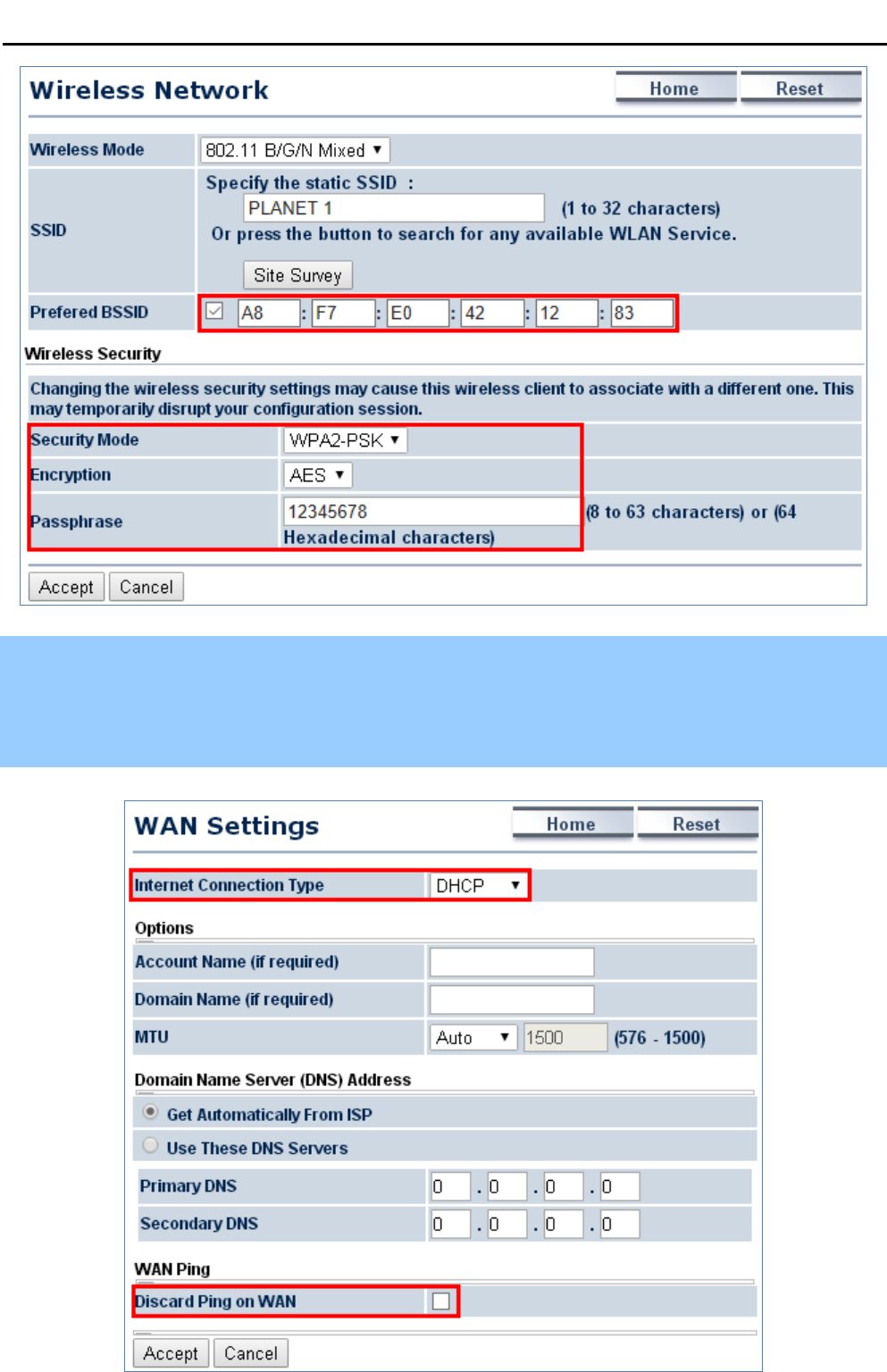

FIGURE 5-23 WAN SETTINGS – ALL ..................................................................................................................... 58
FIGURE 5-24 WAN SETTINGS – DHCP ................................................................................................................. 60
FIGURE 5-25 WAN SETTINGS – STATIC IP ............................................................................................................ 61
VI
FIGURE 5-26 WAN SETTINGS – PPPOE ................................................................................................................ 62
FIGURE 5-27 WAN SETTINGS – PPTP .................................................................................................................. 63
FIGURE 5-28 VPN PASS THROUGH ....................................................................................................................... 64

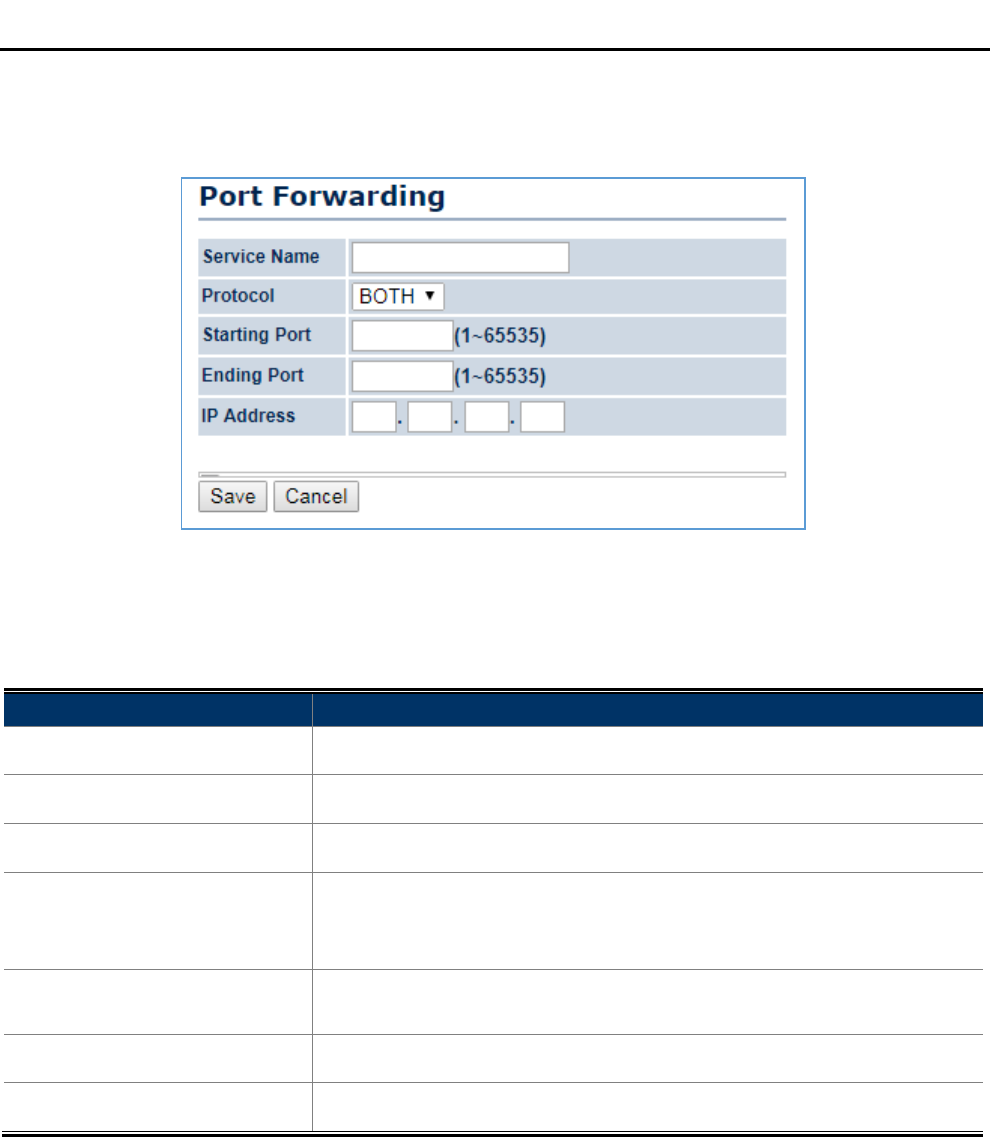

FIGURE 5-29 PORT FORWARDING .......................................................................................................................... 65
FIGURE 5-30 PORT FORWARDING .......................................................................................................................... 66
FIGURE 5-31 DMZ ............................................................................................................................................... 67

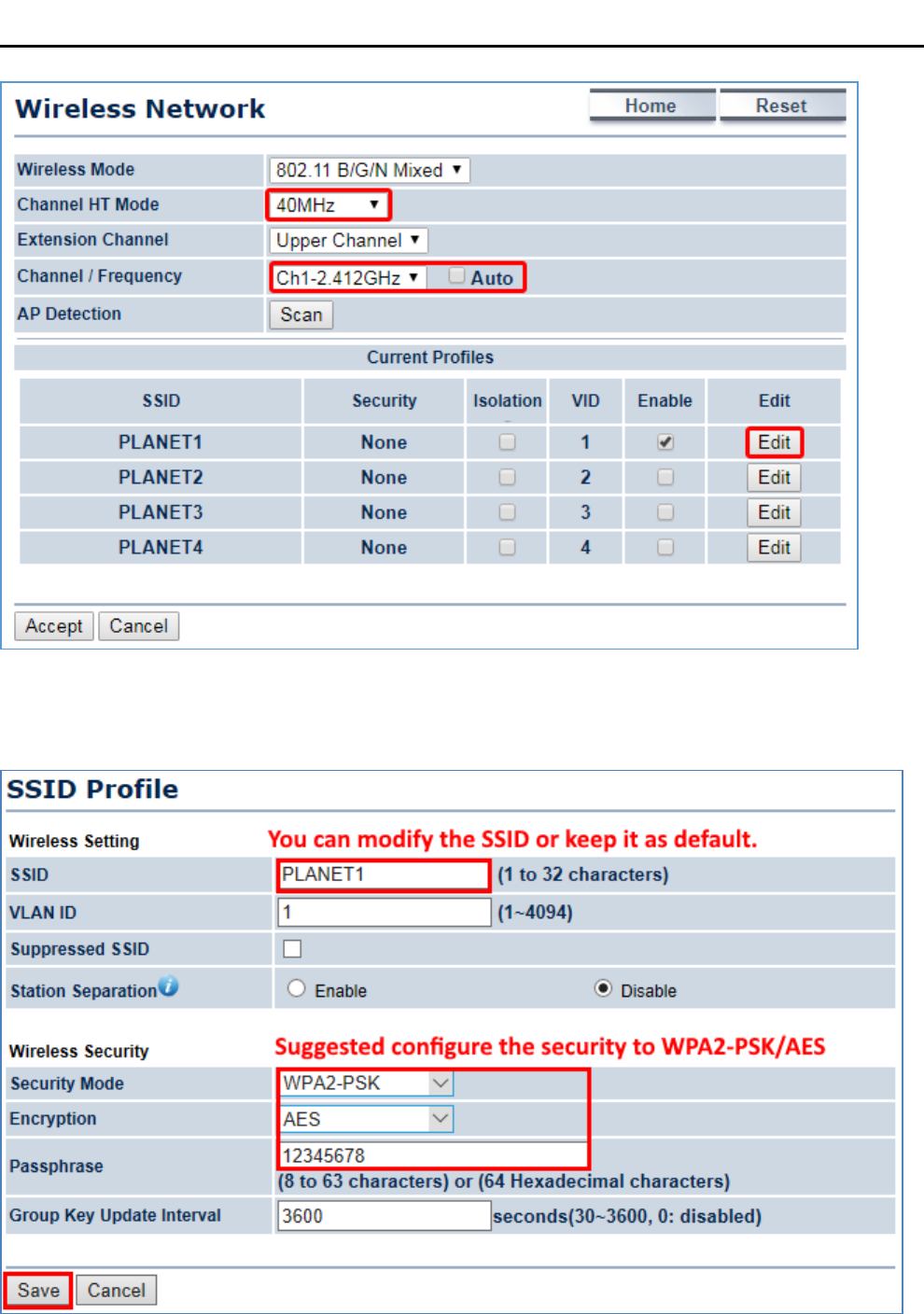

FIGURE 5-32 WIRELESS NETWORK – AP/WDS AP MODE .................................................................................... 68
FIGURE 5-33 WIRELESS NETWORK – SSID PROFILE............................................................................................. 68

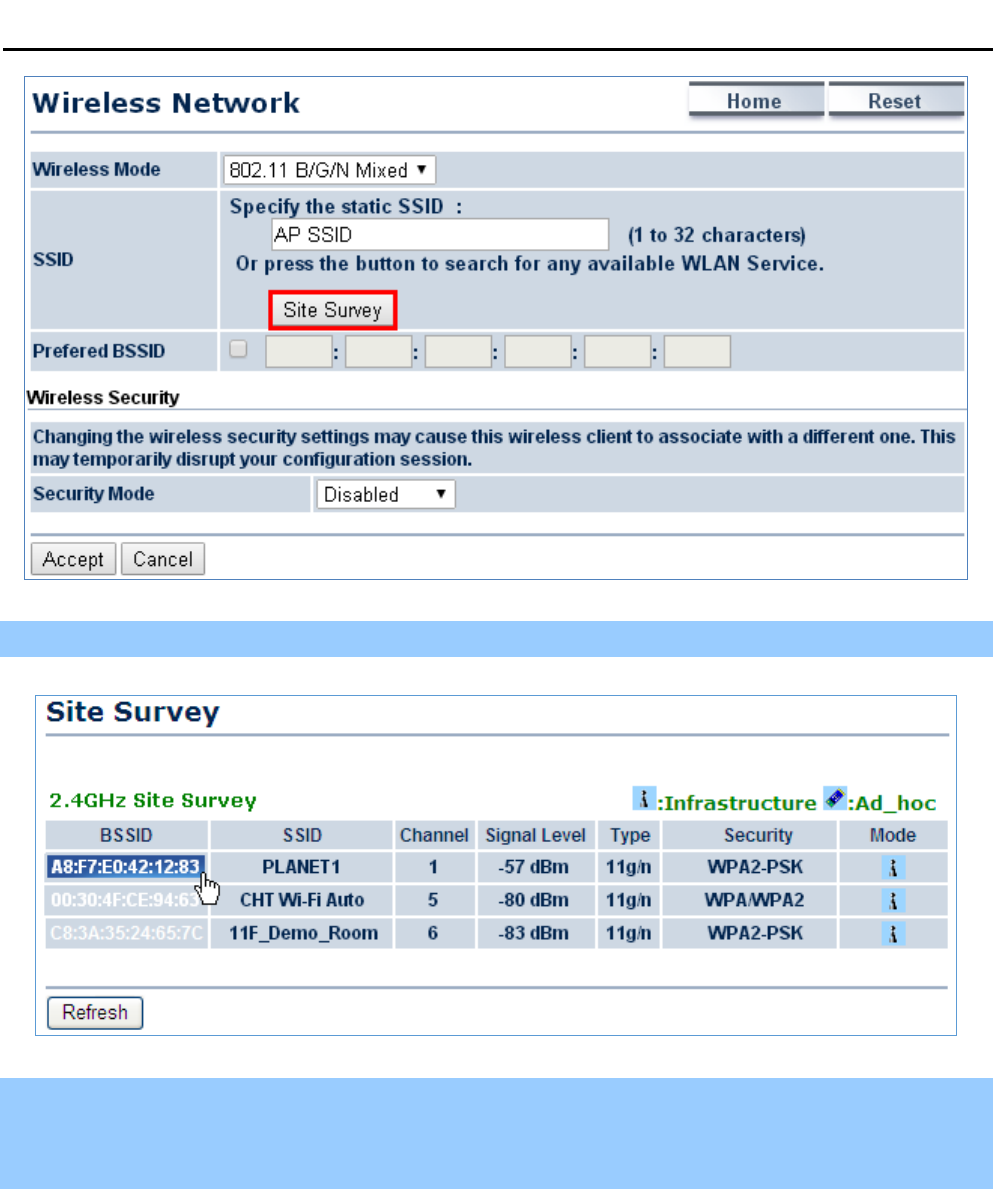

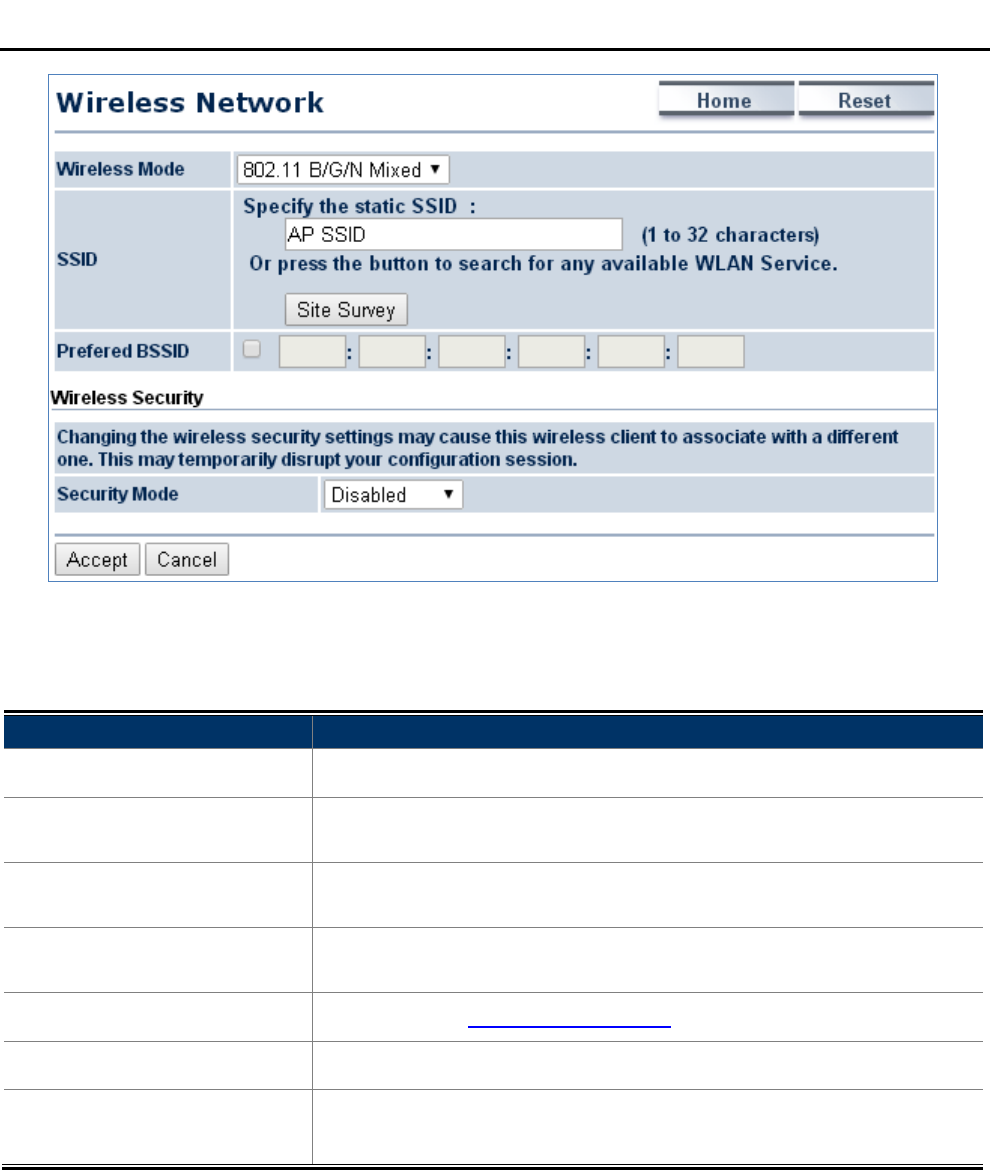

FIGURE 5-34 WIRELESS NETWORK – CB/WDS STA/CR/REPEATER MODE ......................................................... 70

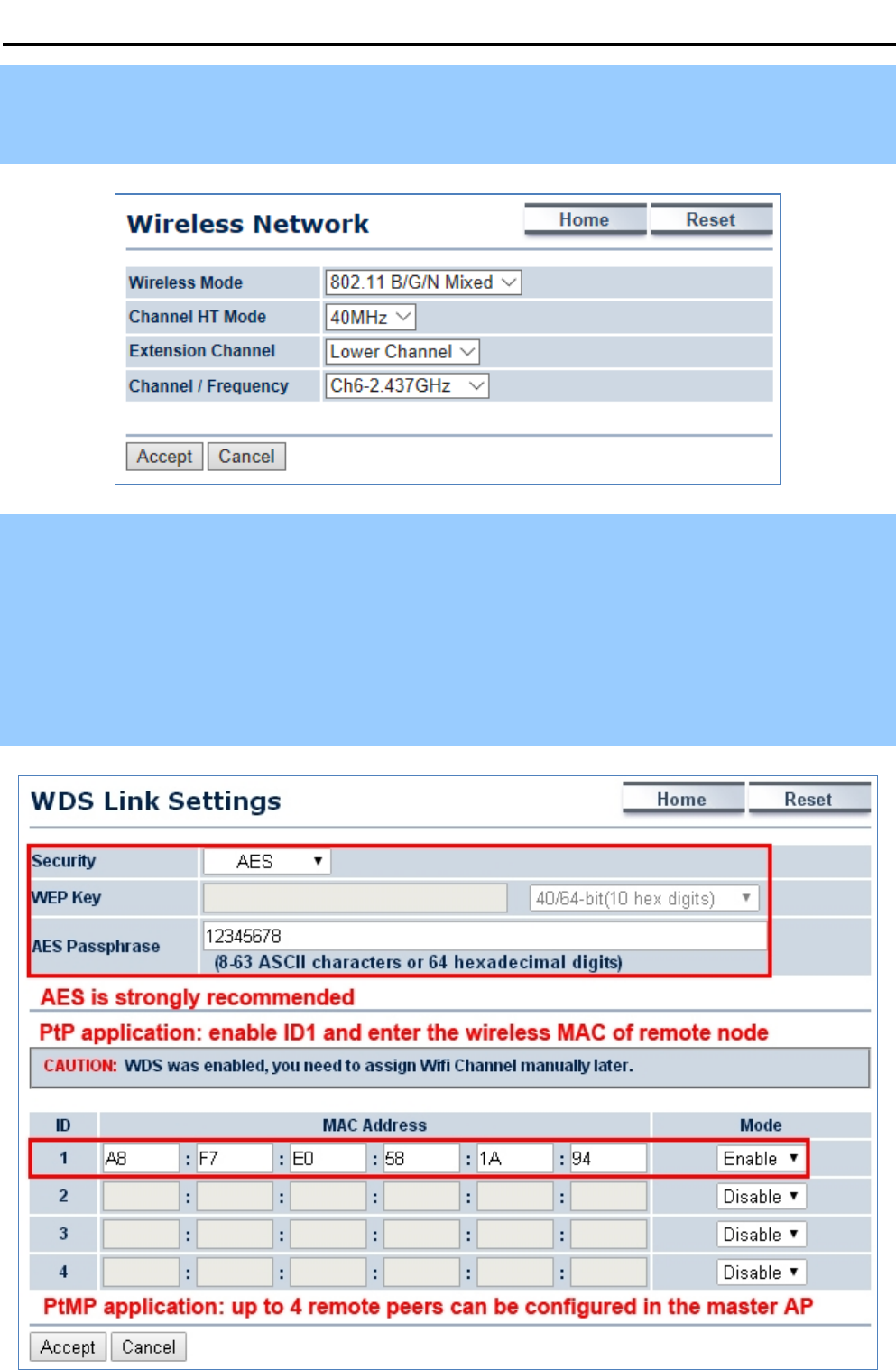

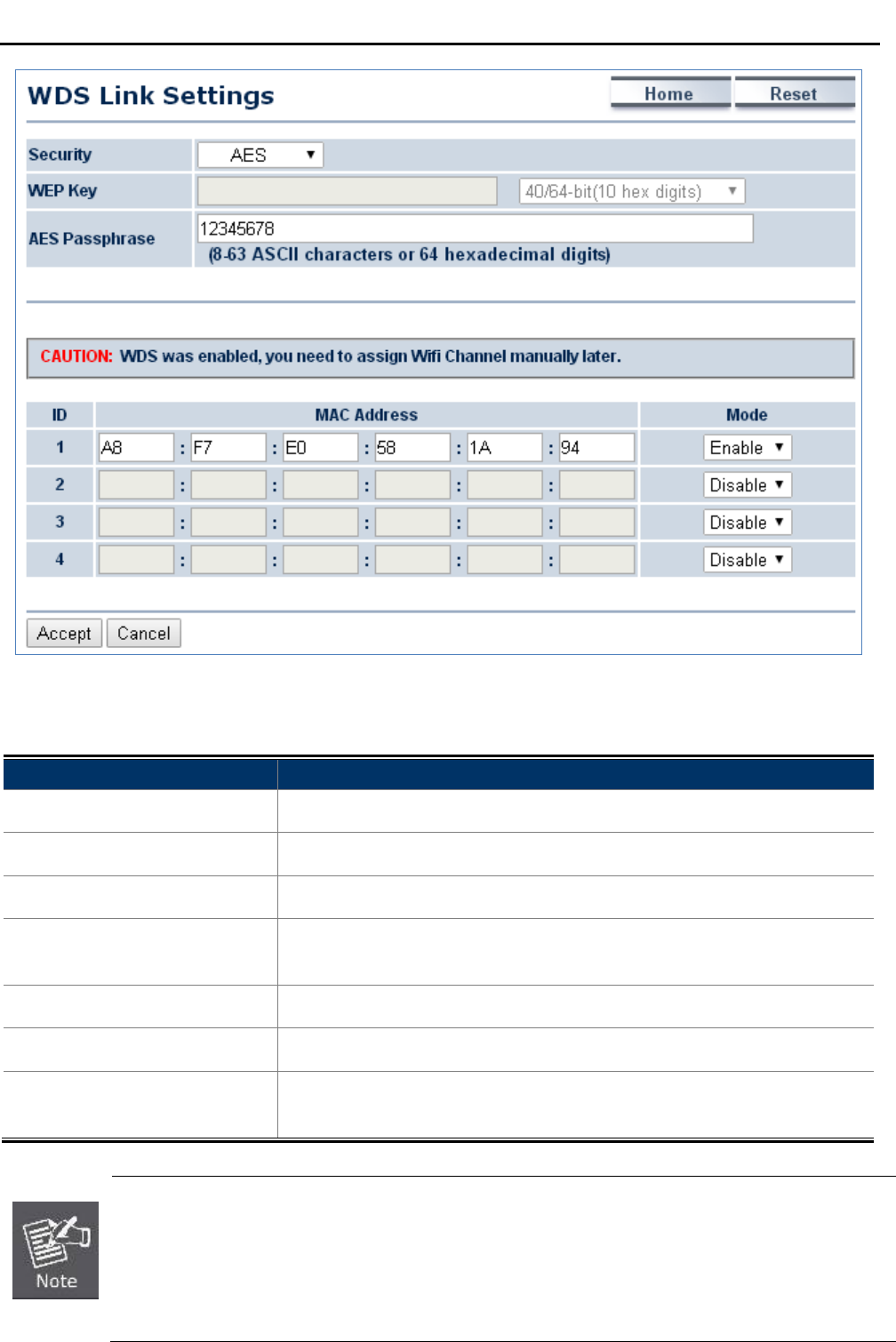

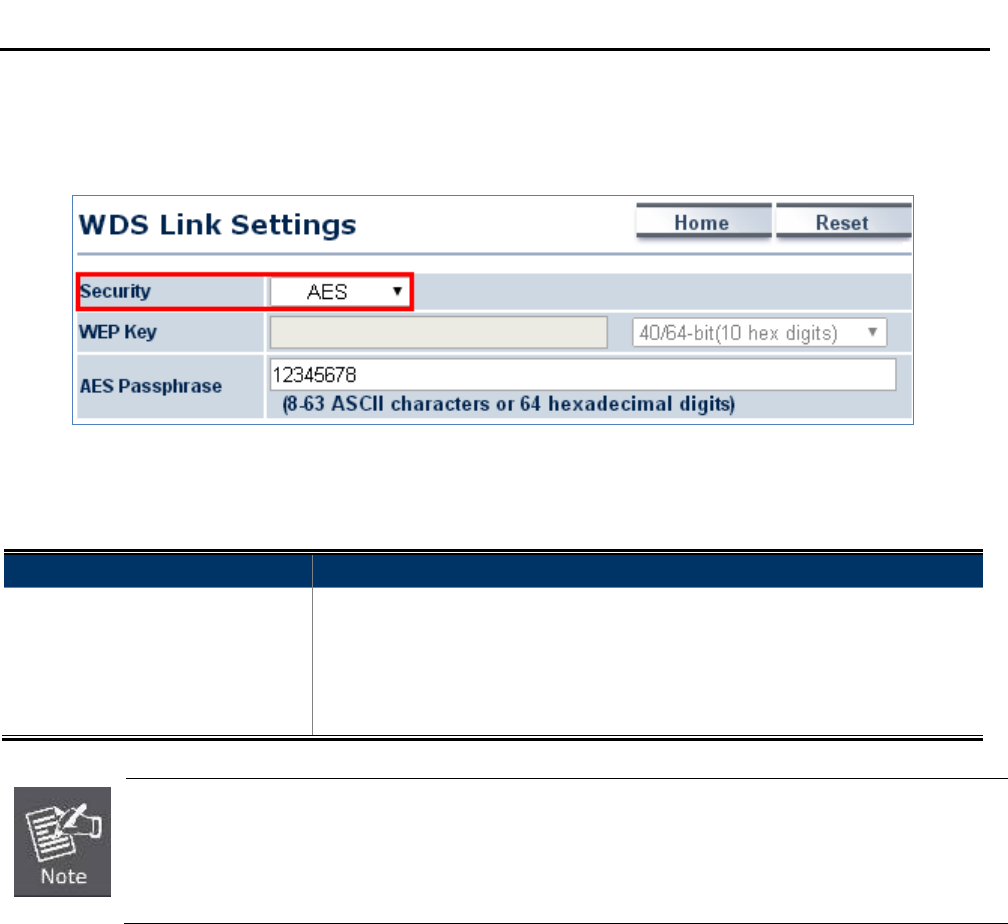

FIGURE 5-35 WDS LINK SETTINGS – WDS BRIDGE MODE .................................................................................. 71
FIGURE 5-36 SECURITY SETTINGS – AP/WDS AP MODE ..................................................................................... 72
FIGURE 5-37 SECURITY SETTINGS – CB/WDS STA/CR/REPEATER MODE ........................................................... 72
FIGURE 5-38 SECURITY SETTINGS – WDS BRIDGE MODE .................................................................................... 73

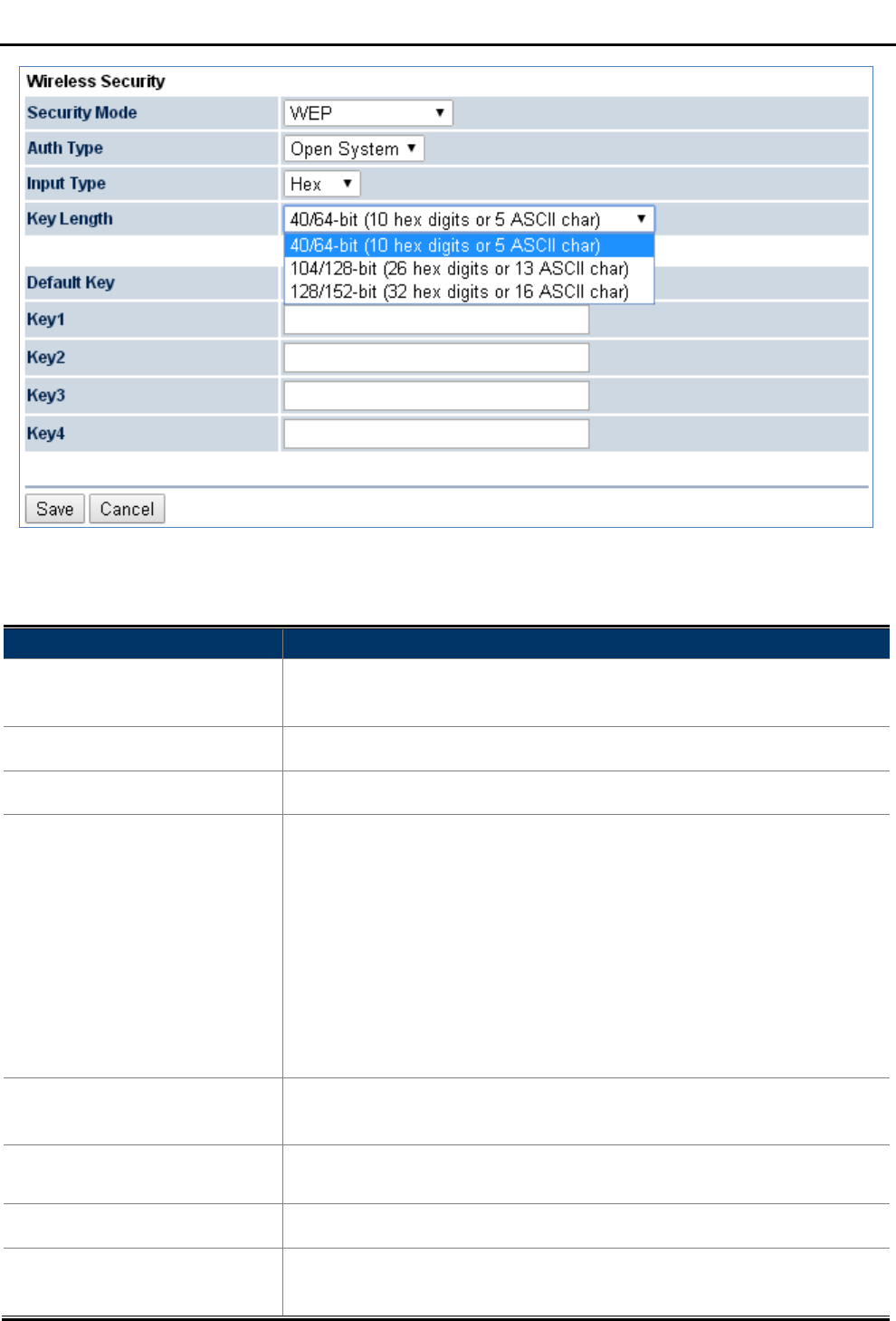

FIGURE 5-39 SECURITY SETTINGS – WEP ............................................................................................................ 74
FIGURE 5-40 SECURITY SETTINGS – WPA-PSK .................................................................................................... 75
FIGURE 5-41 SECURITY SETTINGS – WPA2-PSK .................................................................................................. 76
FIGURE 5-42 SECURITY SETTINGS – WPA-PSK MIXED ........................................................................................ 76

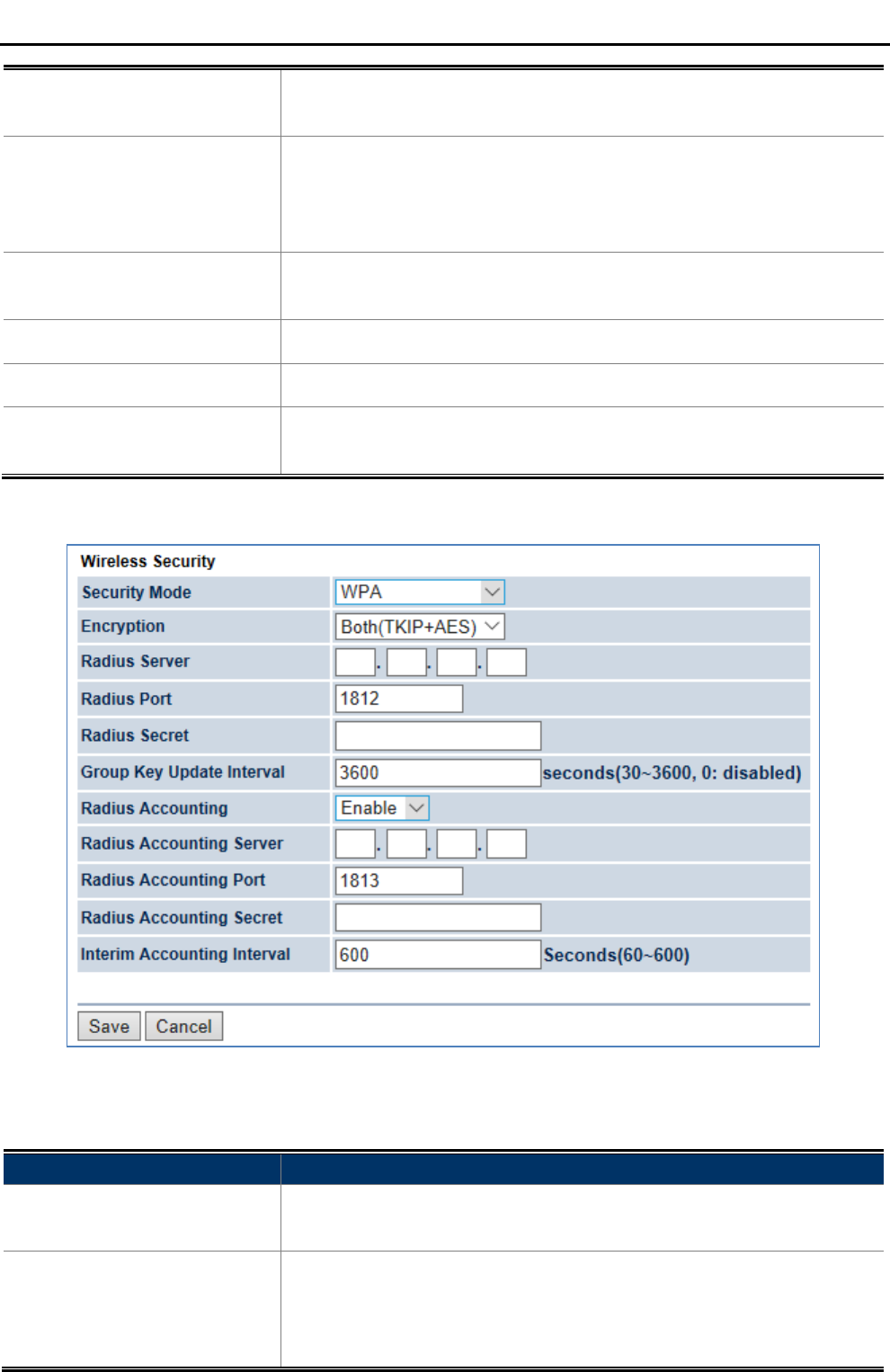

FIGURE 5-43 SECURITY SETTINGS – WPA (WPA ENTERPRISE) ............................................................................. 77

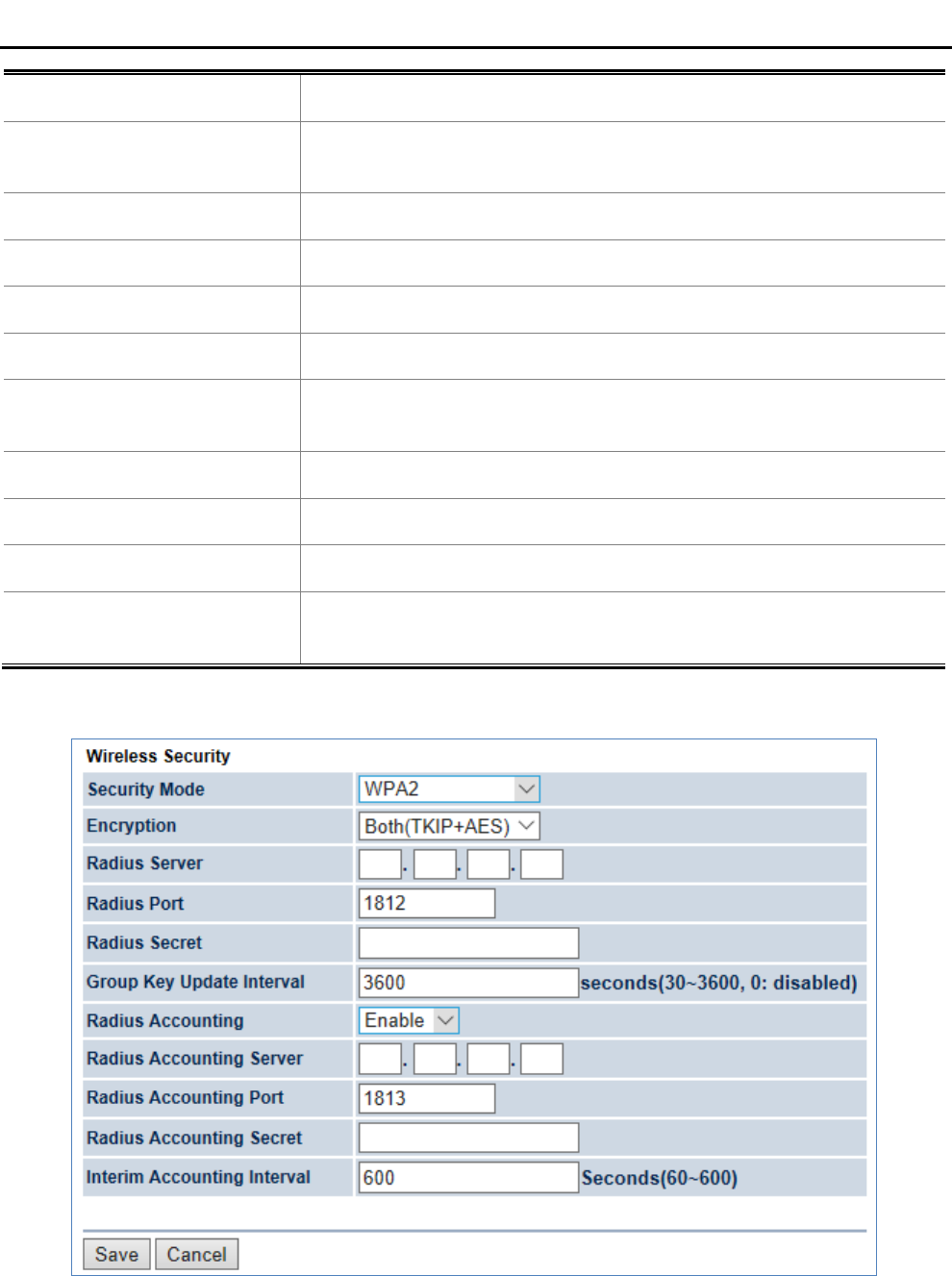

FIGURE 5-44 SECURITY SETTINGS – WPA2 (WPA2 ENTERPRISE) ........................................................................ 78
FIGURE 5-45 SECURITY SETTINGS – WPA MIXED (WPA MIXED ENTERPRISE) ..................................................... 80
FIGURE 5-46 WIRELESS MAC FILTER .................................................................................................................. 82

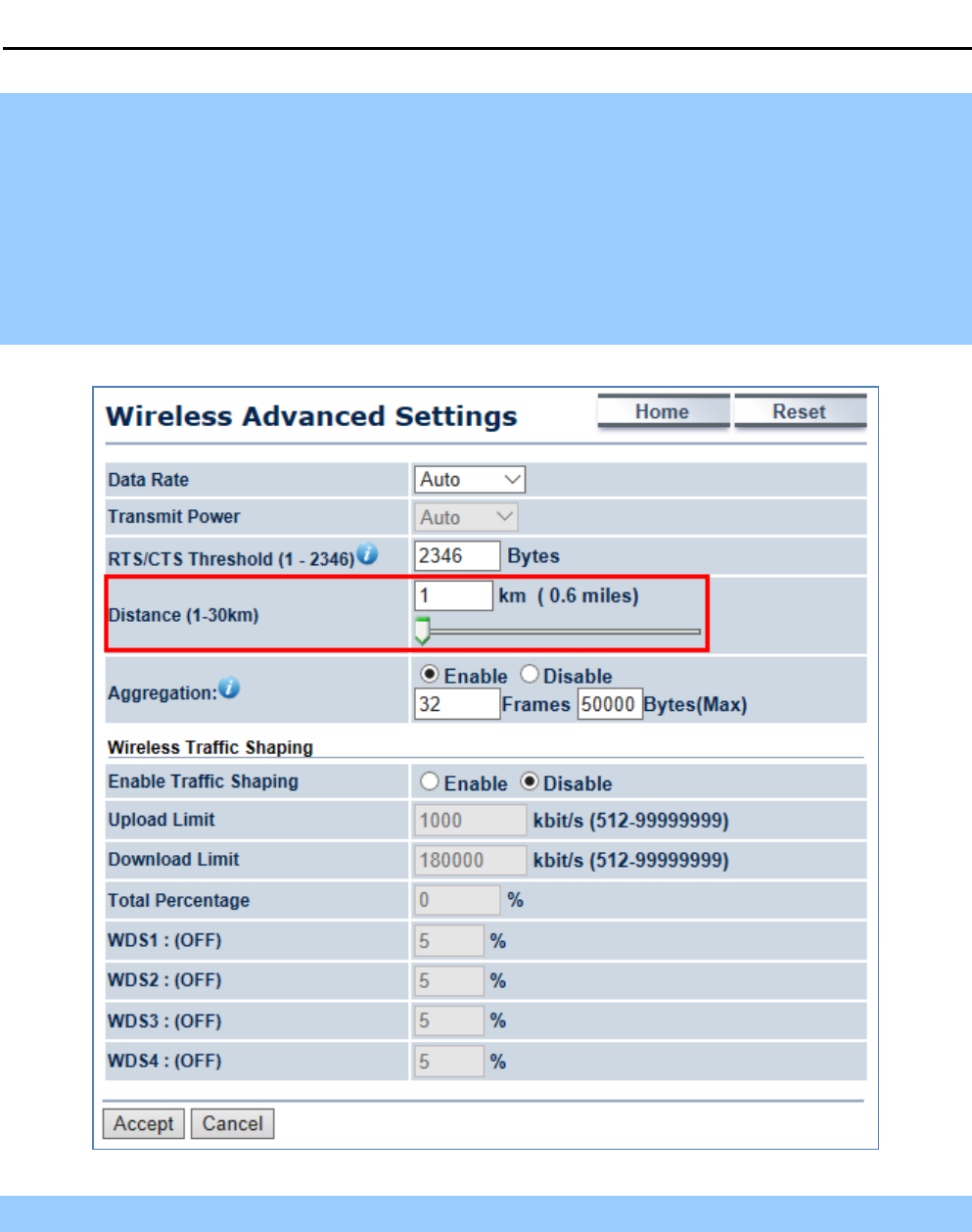

FIGURE 5-47 WIRELESS ADVANCED SETTINGS ..................................................................................................... 83
FIGURE 5-48 ADMINISTRATION (PASSWORD SETTINGS) ........................................................................................ 85
FIGURE 5-49 MANAGEMENT VLAN ..................................................................................................................... 85
FIGURE 5-50 SNMP SETTINGS ............................................................................................................................. 86

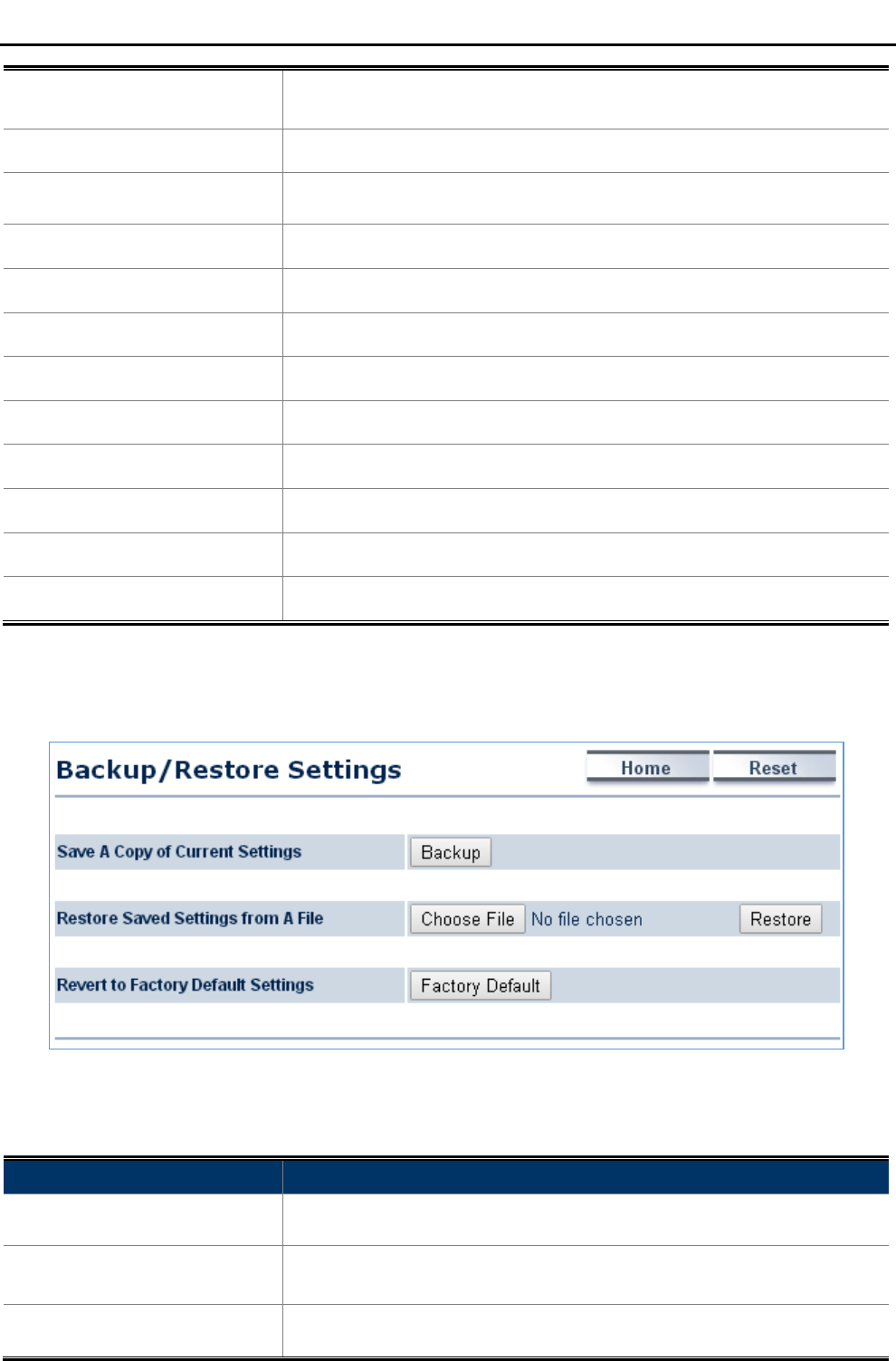

FIGURE 5-51 BACKUP/RESTORE SETTINGS ........................................................................................................... 87
FIGURE 5-52 AUTO REBOOT SETTINGS ................................................................................................................. 88

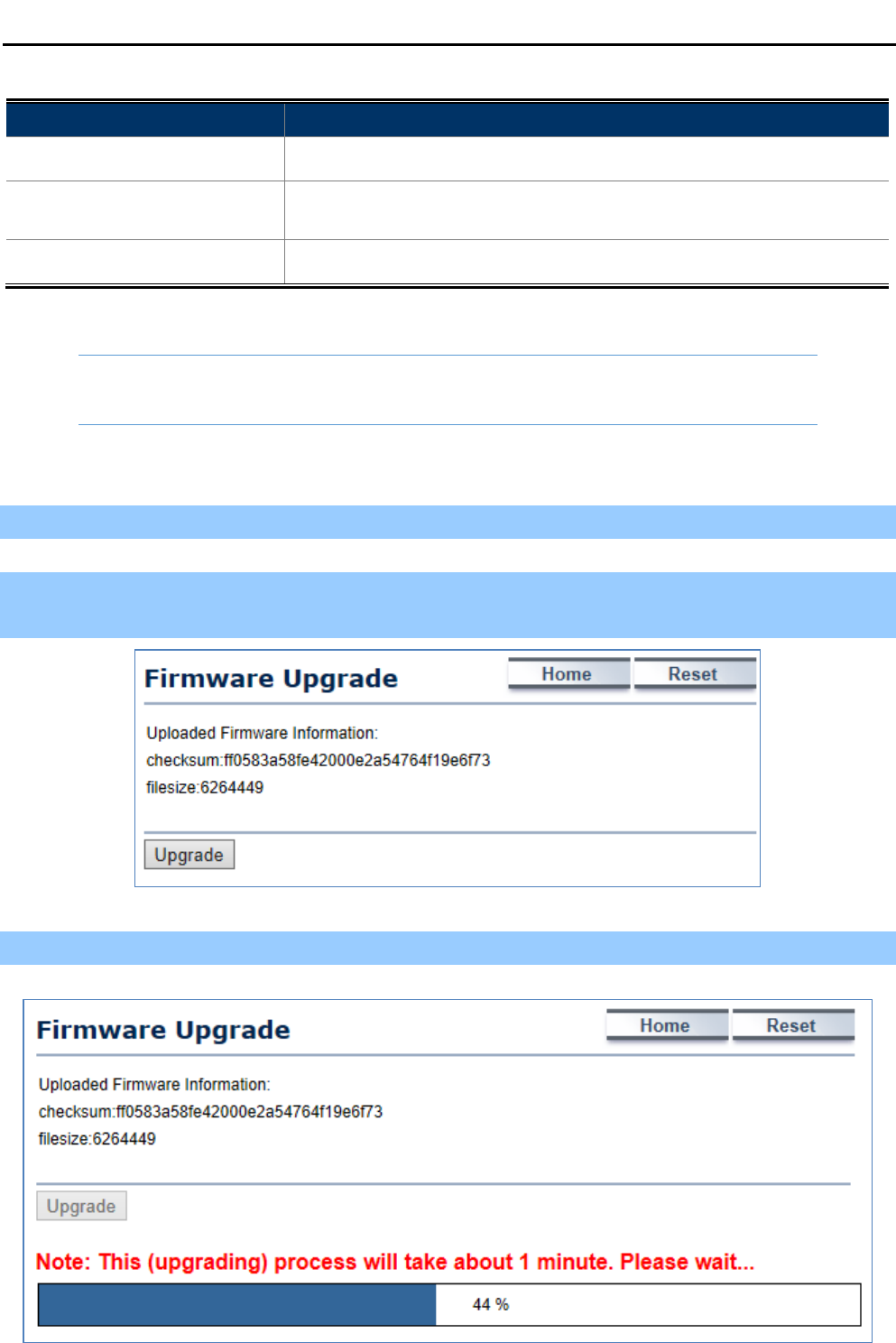

FIGURE 5-53 FIRMWARE UPGRADE ....................................................................................................................... 88

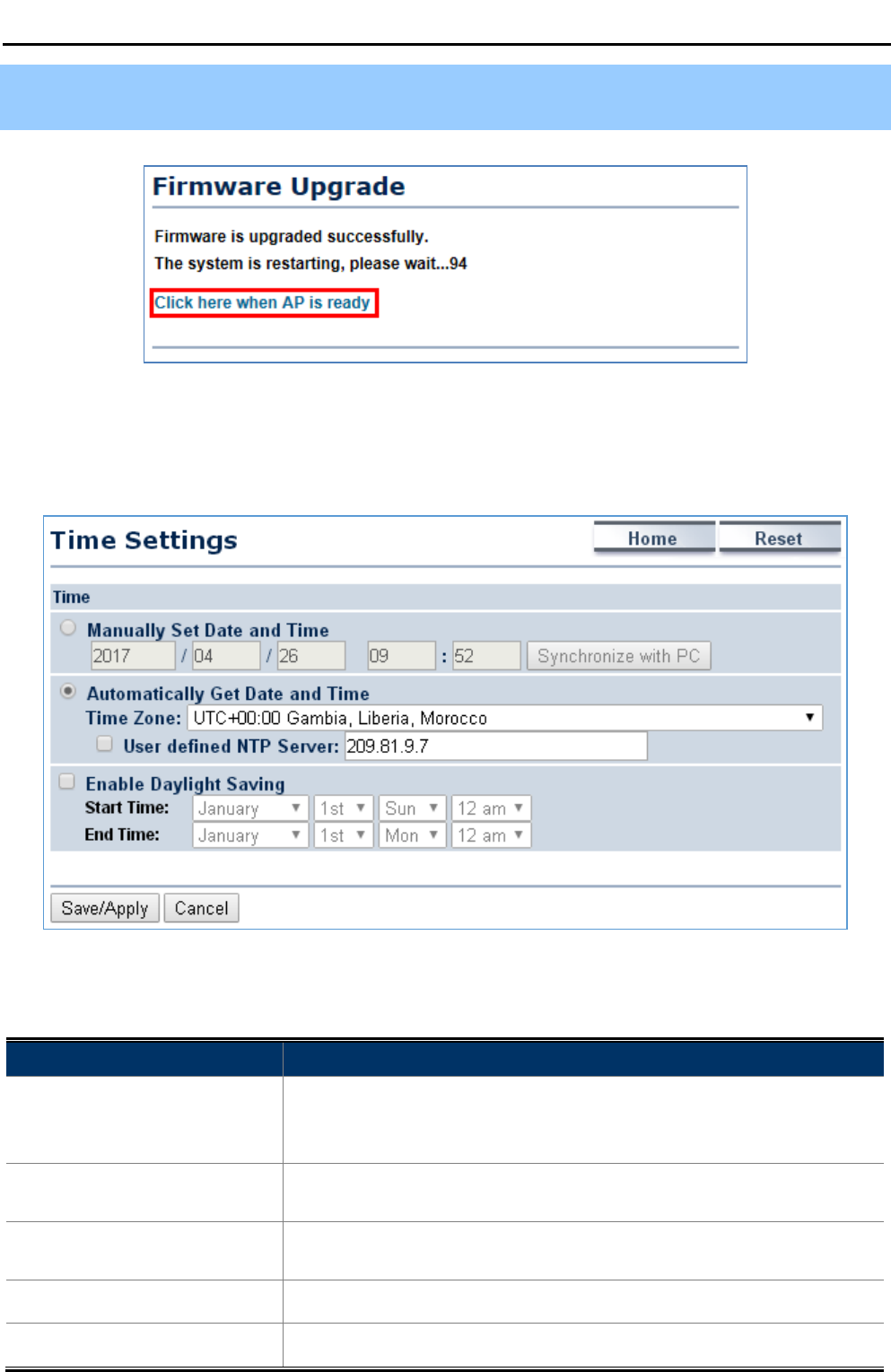

FIGURE 5-54 TIME SETTINGS ................................................................................................................................ 90
FIGURE 5-55 WI-FI SCHEDULE ............................................................................................................................. 91
FIGURE 5-56 CLI SETTINGS .................................................................................................................................. 92
FIGURE 5-57 LOG ................................................................................................................................................. 92

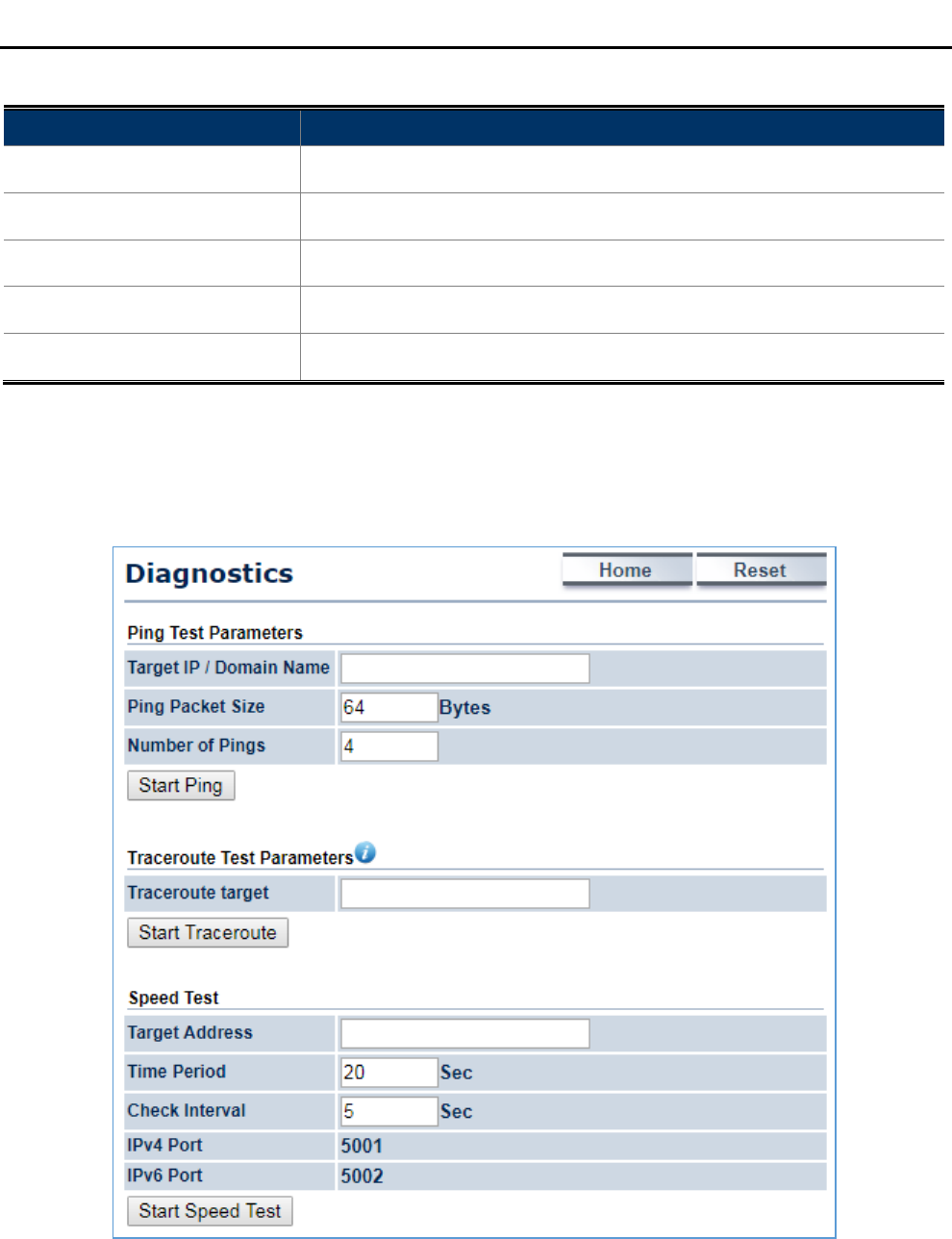

FIGURE 5-58 DIAGNOSTICS................................................................................................................................... 93
FIGURE 5-59 LOGOUT ........................................................................................................................................... 94
User Manual of WAP-200N/WBS-200N
-7-
Chapter 1. Product Introduction
1.1 Package Contents
Thank you for choosing PLANET WAP-200N/WBS-200N series. Before installing the AP/CPE, please verify the
contents inside the package box.
WBS-200N / WAP-200N Quick Installation Guide Mounting Strap x 2
Screw Set x 1 PoE Injector & Power Cord Antenna x 2 (WAP-200N only)
If there is any item missing or damaged, please contact the seller
immediately.
User Manual of WAP-200N/WBS-200N
-8-
1.2 Product Description
Cost-effective Wireless Solution with Superior Performance
PLANET WAP-200N/WBS-200N 300Mbps 802.11n Outdoor Wireless AP/CPE offers a better range and
excellent throughput. Via the WAP-200N's RP-SMA antenna connectors and the WBS-200N's embedded 8dBi
dual-polarity directional antenna, it is easy to build different point to multi-point applications with good diversity
coverage and better noise immunity effect, thus heightening the performance and stability of a long-distance
connectivity.
Designed for Various Requirements
The WAP-200N/WBS-200N is dedicatedly designed for WISP solution that provides CPE users with Internet
access via the WISP provider in rural areas. Besides, it caters to various wireless communication connectivities
(AP, Client, WDS, Repeater and WISP), thus meeting users’ application requirements.
User Manual of WAP-200N/WBS-200N
-9-

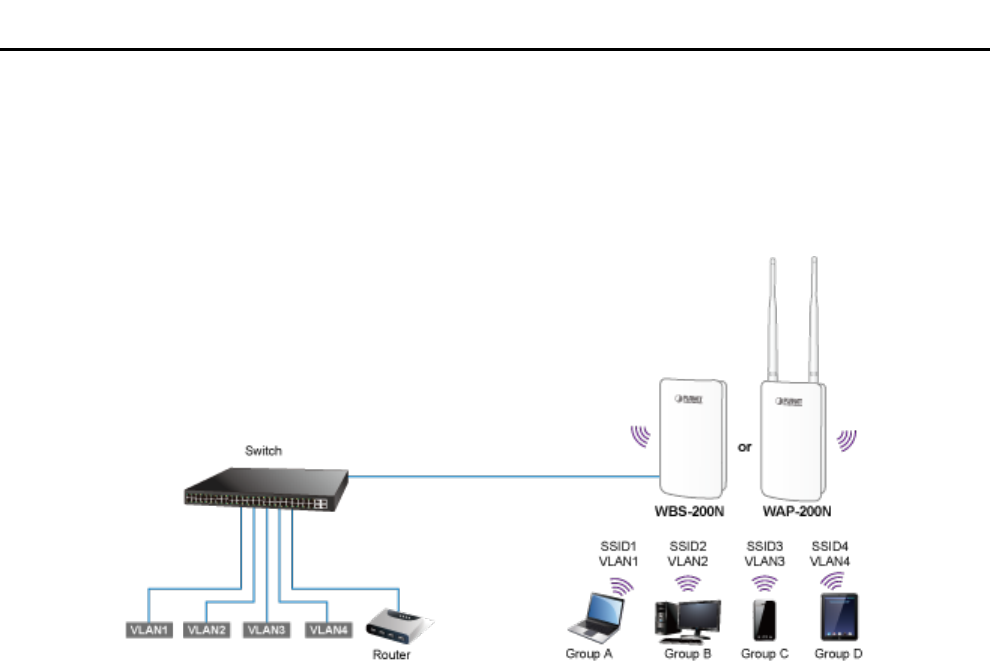

Multiple SSIDs with VLAN Tagging
Multiple SSIDs can broadcast up to four wireless networks with different names. For management purposes, the
IEEE 802.1Q VLAN supported allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the
wireless access. This makes it possible for the WAP-200N/WBS-200N to work with managed Ethernet switches
to have VLANs assigned for a different access level and authority.

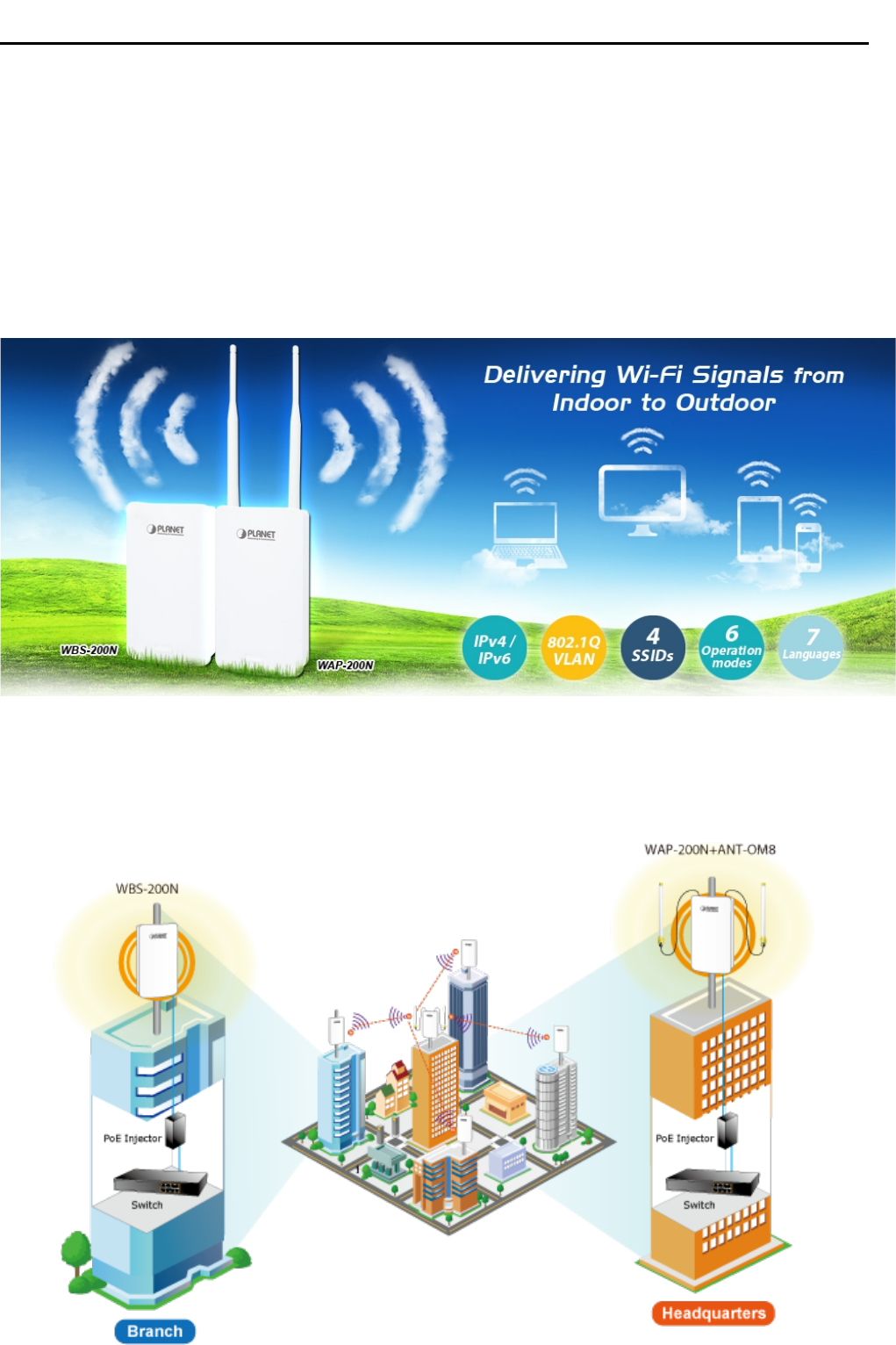

Flexible and Reliable Outdoor Characteristics
The WAP-200N/WBS-200N is definitely suitable for wireless IP surveillance to enable to have wide deployments
between buildings and to act as the backbone of public service. Additionally, its self-healing capability keeps
connection alive all the time. With the IP55-rated outdoor UV-resistant enclosure, the WAP-200N/WBS-200N
can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor
environments. With the proprietary Power over Ethernet (PoE) design, the WAP-200N/WBS-200N can be
easily installed in the areas where power outlets are not available.
Advanced Security and Rigorous Authentication
The WAP-200N/WBS-200N supports 152-bit WEP, WPA/WPA2, WPA-PSK and WPA2-PSK wireless encryptions,
the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent
eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore,
any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List)
that the administrator pre-established.
Easy Deployment and Management
With user-friendly Web UI and comprehensive management features including client limit control and wireless
traffic shaping, the WAP-200N/WBS-200N is easy to limit the client access and inbound/outbound bandwidth
control, even for users who have no experience in setting up a wireless network. Furthermore, with the Planet
Smart Discovery Utility, SNMP and diagnostics tools, the WAP-200N/WBS-200N is convenient to be managed
remotely.
User Manual of WAP-200N/WBS-200N
-10-
1.3 Product Features
Industrial Compliant Wireless LAN
Compliant with the IEEE 802.11b/g/n wireless technology
2T2R architecture with data rate of up to 300Mbps
Equipped with two 10/100Mbps RJ45 ports, with auto MDI/MDI-X supported
Fixed Network Broadband Router
Supported WAN connection types in WISP mode: DHCP, Static IP, PPPoE, PPTP
Supports Port Forwarding and DMZ for various networking applications
Supports DHCP server in WISP mode
RF Interface Characteristics
Built-in 5dBi detachable antennas with RP-SMA connectors (WAP-200N)
Built-in 8dBi dual-polarization antenna (WBS-200N)
High output power
Outdoor Environmental Characteristics
IP55 rating
Passive Power over Ethernet design
Operating temperature: -20~70°C
Multiple Operation Modes and Wireless Features
Multiple operation modes: AP, Client Bridge, Client Router (WISP), WDS, Repeater
WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
Wireless Traffic Shaping to control the upload/download bandwidth
Wi-Fi scheduler allows to be enabled or disabled based on predefined schedule
Secure Network Connection
Full encryption supported: 64-/128-/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X
RADIUS authentication
Supports 802.1Q VLAN pass-through over WDS and SSID-to-VLAN mapping
Supports up to 50 entries of MAC address filtering
Easy Installation and Management
IPv4/IPv6 dual-stack management networks
Multilingual Web User Interface: English, Spanish, French, German, Portuguese, Russian, and
Simplified Chinese
CLI command and SNMP-based management interface
Self-healing mechanism through system auto reboot setting
System status monitoring through remote Syslog Server and Device Discovery
Diagnostic tools include Ping, Traceroute, Speed
Planet Smart Discovery Utility allows administrator to discover and locate each AP
User Manual of WAP-200N/WBS-200N
-11-
1.4 Product Specifications
Product
WAP-200N
WBS-200N
2.4GHz 300Mbps 802.11n Outdoor Wireless AP/CPE
Hardware Features
Standard Support
IEEE802.11b/g/n
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
Memory 64 Mbytes DDR SDRAM
16 Mbytes Flash
PoE Passive PoE
Interface
Wireless IEEE 802.11b/g/n, 2T2R
PoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, 24V passive PoE In
LAN 2: 1 x 10/100BASE-TX, auto-MDI/MDIX
Button Reset button
LED PWR, LAN, WLAN, Signal Strength
Dimensions (W x D x H) 100 x 29 x 186mm (without antennas)
100 x 29 x 380mm (with antennas)
100 x 29 x 186mm
Weight 300g (without antennas)
332g (with antennas)
300g
Power Consumption Maximum 7.2W
Power Requirements
LAN1
24V DC, 0.6A (Passive PoE)
Pin 4, 5 V DC+
Pin 7, 8 V DC-
Mounting Type Mast, wall mount
Wireless Interface Specifications
Antenna
Built-in 5dBi detachable
omnidirectional antennas with RP-
SMA
connectors
HPBW Horizontal: 360 degrees
HPBW Vertical: 30 degrees
Built-
in 8dBi directional antenna with dual
polarization
[Port1]
HPBW Horizontal: 78 degrees
HPBW Vertical: 45 degrees
[Port2]
HPBW Horizontal: 54 degrees
HPBW Vertical: 59 degrees
Data Rate
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
User Manual of WAP-200N/WBS-200N
-12-
Media Access Control CSMA/CA
Modulation Transmission/Emission type: OFDM
Data Modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band 2.412GHz ~ 2.472GHz
Operating Channel United States -- FCC: 2.414~2.462GHz (11 channels)
Europe -- ETSI: 2.412~2.472GHz (13 channels)
RF Output Power (dBm)
FCC: IEEE 802.11b/g/n: up to 26 ± 2dBm
ETSI: IEEE 802.11b/g/n: < 20dBm (EIRP)
Receiver Sensitivity
(dBm)
IEEE 802.11b:
-95/ -93dBm (1~2/ 5.5~11Mbps)
IEEE 802.11g:
-95/ -93/ -92/ -80/ -77/ -75dBm (6/ 9~18/ 24/ 36/ 48/ 54Mbps)
IEEE 802.11n:
MCS0/ MCS8: -95dBm
MCS1/ MCS9: -93dBm
MCS2/ MCS10: -92dBm
MCS3/ MCS11: -90dBm
MCS4/ MCS12: -86dBm
MCS5/ MCS13: -83dBm
MCS6/ MCS14: -76dBm
MCS7/ MCS15: -73dBm
Environment & Certification
Operating Temperature -20~70 degrees C
Operating Humidity 10~90% (non-condensing)
IP Level IP55
Regulatory CE, FCC, RoHS
Software Features
LAN
Static IP
Dynamic IP
DHCP server in WISP mode
Supports 802.1d STP (Spanning Tree)
WAN Connection Type
(WISP Mode only)
Static IP
Dynamic IP
PPPoE
PPTP
Wireless Modes
Access Point
Client Bridge
WDS (AP/Bridge/Station)
Client Router (WISP)/Client AP Router (WISP+AP)
Repeater
User Manual of WAP-200N/WBS-200N
-13-
Firewall
Offers DoS protection to guard user's content network against DoS attacks
Built-in DMZ and Port Forwarding
VPN Pass-through:
PPTP Pass-through
L2TP Pass-through
IPSec Pass-through
Channel Width 20MHz/40MHz
Encryption Type 64-/128-/152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security
Enable/Disable SSID Broadcast
Wireless MAC address filtering up to 50 entries
VAP Separation, Station Separation
Max. Wireless Clients Max. 64 (Suggested 32, depending on usage)
Max. SSIDs Up to 4
Max. WDS Peers Up to 4
Wireless QoS Supports Wi-Fi Multimedia (WMM)
Supports Wireless Traffic Shaping per Radio
Wireless Advanced
Control
Auto Channel Selection
Auto Transmit Power by Regular Domains
Client Limit Control
Distance Control (Auto Ack Timeout)
Wi-Fi Schedule
Status Monitoring
Connection Status
Device Discovery, PLANET Smart Discovery
Wireless Client List/WDS Link List
DHCP Client Table
System Log supports remote syslog server
Signal Strength LEDs in Client Bridge and WDS Station modes
VLAN
VLAN pass-through over WDS
SSID-to-VLAN mapping
Management VLAN (VID: 1~4094)
Self-healing Supports auto reboot settings
NTP Network Time Management
Management
Web-based UI, CLI (Command Line Interface) supported
Configuration backup and restore
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Diagnostic Tools Built-in Ping, Trace Route, Speed Test Tools
User Manual of WAP-200N/WBS-200N
-14-
Chapter 2. Hardware Installation
2.1 Hardware Description
Dimensions (W x D x H): 100 x 29 x 186mm (without antennas)/100 x 29 x 380mm (with 5dBi antennas)
Figure 2-1 Three-way View (WAP-200N)
Figure 2-2 Three-way View (WBS-200N)
User Manual of WAP-200N/WBS-200N
-15-
Rear Panel – LED
Figure 2-3 Rear Panel (WAP-200N)
Figure 2-4 Rear Panel (WBS-200N)
User Manual of WAP-200N/WBS-200N
-16-
LED Definition
LED State Meaning
Power On The device is powered on
Off The device is powered off
LAN Ports
On Port linked
Blinking Data is transmitting or receiving data
Off No link
WLAN
On The wireless radio is on
Blinking Data is transmitting or receiving over wireless
Off The wireless radio is off
Signal Strength
(Client Bridge/WDS
Station/Client Router
mode only)
Green LED on Signal is good
Orange LED on Signal is normal
Red LED on Signal is poor
Table 2-1 The LED indication
2.1.1 The Bottom Panel
The Bottom panel provides the physical connectors connected to the power adapter and any other network
device. Figure 2-5 shows the bottom panel of the WAP-200N/WBS-200N.
User Manual of WAP-200N/WBS-200N
-17-
Bottom Panel
Figure 2-5 Bottom Panel (WAP-200N/WBS-200N)
PoE Warning Label
Figure 2-6 PoE Warning Label
Hardware Interface Definition
Object Description
Antenna Connectors
(WAP-200N only) 2 RP-SMA (Female) antenna connectors
Passive PoE LAN Port
10/100Mbps RJ45 port, auto MDI/MDI-X
Passive PoE/PD supported, 24V DC In
Pin assignment:
Pins 4, 5 (+)
Pins 7, 8 (-)
NOTE: Please use the 24V DC Passive PoE only (included)
LAN Port 10/100Mbps RJ45 port, auto MDI/MDI-X
Reset Button Press and hold the Reset button on the device for over 10 seconds
to return to the factory default setting.
Table 2-2 Hardware Interface Definition
User Manual of WAP-200N/WBS-200N
-18-
Chapter 3. Connecting to the AP
3.1 Preparation before Installation
3.1.1 Professional Installation Required
Please seek assistance from a professional installer who is well trained in the RF installation and knowledgeable
in the local regulations.
3.1.2 Safety Precautions
1. To keep you safe and install the hardware properly, please read and follow these safety precautions.
2. If you are installing the WBS-200N or WAP-200N for the first time, for your safety as well as others’,
please seek assistance from a professional installer who has received safety training on the hazards
involved.
3. Keep safety as well as performance in mind when selecting your installation site, especially where there
are electric power and phone lines.
4. When installing the WBS-200N or WAP-200N, please note the following things:
♦ Do not use a metal ladder;
♦ Do not work on a wet or windy day;
♦ Wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
5. When the system is operational, avoid standing directly in front of it. Strong RF fields are present when the
transmitter is on.
3.2 Installation Precautions
Users MUST use a proper and well-installed surge arrestor and grounding kit with WBS-200N or
WAP-200N; otherwise, a random lightning could easily cause fatal damage to the WBS-200N or
WAP-200N. EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.
Users MUST use the “Power Cord and PoE Injector” shipped in the box with the WBS-200N or
WAP-200N. Use of other options will cause damage to the WBS-200N or WAP-200N.
User Manual of WAP-200N/WBS-200N
-19-
OUTDOOR INSTALLATION WARNING
IMPORTANT SAFETY PRECAUTIONS:
LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the
equipment you are installing.
CONTACTING POWER LINES CAN BE LETHAL. Make sure no power
lines are anywhere where possible contact can be made. Antennas, masts,
towers, guy wires or cables may lean or fall and contact these lines. People
may be injured or killed if they are touching or holding any part of equipment
when it contacts electric lines. Make sure that equipment or personnel do
not come in contact directly or indirectly with power lines.
The horizontal distance from a tower, mast or antenna to the nearest power
line should be at least twice the total length of the mast/antenna
combination. This will ensure that the mast will not contact power if it falls either during installation or later.
TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.
Select equipment locations that will allow safe, simple equipment installation.
Don’t work alone. A friend or co-worker can save your life if an accident happens.
Use approved non-conducting lasers and other safety equipment. Make sure all equipment is in good repair.
If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.
If anything such as a wire or mast does come in contact with a power line, DON’T TOUCH IT OR ATTEMPT TO
MOVE IT. Instead, save your life by calling the power company.
Don’t attempt to erect antennas or towers on windy days.
MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED TO
ANTENNAS HAVE LIGHTNING ARRESTORS. This will help prevent fire damage or human injury in case of lightning, static
build-up, or short circuit within equipment connected to the antenna.
The base of the antenna mast or tower must be connected directly to the building protective ground or to one or more
approved grounding rods, using 1 OAWG ground wire and corrosion-resistant connectors.
Refer to the National Electrical Code for grounding details.
IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:
DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.
Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical
power.
Once they are no longer contacting electrical power, administer CPR if you are certified, and make sure that emergency
medical aid has been requested.
!
User Manual of WAP-200N/WBS-200N
-20-
3.3 Installing the AP
Please install the AP according to the following steps. Don't forget to pull out the power plug and keep your
hands dry.
Step 1. PoE and LAN port connection:
(1) Remove the bottom cover.
(2) Connect one end of the Ethernet cable into the LAN (Passive PoE) port of the device and the other
end to the PoE port on the PoE Injector.
(3) Connect the power cord with the PoE Injector and plug the other end into an electrical outlet.
(4) Connect the second Ethernet cable into the LAN port of the PoE Injector and the other end to the
Ethernet port on the computer.
Figure 3-1 PoE and LAN port connection
Step 2. Attach the antennas onto the antenna connectors of the device and place the bottom cover back into
the device to finish the installation.
Figure 3-2 Finish installation and connect to antennas (WAP-200N only)
User Manual of WAP-200N/WBS-200N
-21-
Step 3. Pole Mounting:
(1) Thread two mounting straps through the mounting bracket on the back of the device.
(2) Position the device on a pole and secure both mounting straps to finish the installation.
Figure 3-3 Pole Mounting
Step 4. Wall Mounting:
(1) Secure the adhesive label to a position on the wall where you would like to install the device.
(2) Follow the plotting sticker to drill two holes and secure the plastic anchors.
(3) Align the screw holes on the mounting bracket with the screws and then install the device on the
wall to finish the installation.
Figure 3-4 Wall Mounting
User Manual of WAP-200N/WBS-200N
-22-
Chapter 4. Quick Installation Guide
This chapter will show you how to configure the basic functions of your AP within minutes.
A computer with wired Ethernet connection to the Wireless AP is required for the first-
time
configuration.
4.1 Manual Network Setup -- TCP/IP Configuration
The default IP address of the WBS-200N and WAP-200N is 192.168.1.253. And the default Subnet Mask is
255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for
description.
Connect the WBS-200N or WAP-200N with your PC via an Ethernet cable which is then plugged into a LAN port
of the PoE injector with one end and into a LAN port of the PC with the other end. Then power on the WBS-200N
and WAP-200N via PoE injector or PoE switch.
In the following sections, we’ll introduce how to install and configure the TCP/IP correctly in Windows 7. And the
procedures in other operating systems are similar. First, make sure your Ethernet adapter is working, and refer
to the Ethernet adapter’s manual if needed.
4.1.1 Configuring the IP Address Manually
Summary:
Set up the TCP/IP Protocol for your PC.
Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is any number from 2 to
252), Subnet Mask is 255.255.255.0.
1 Select Use the following IP address radio button.
2 If the AP's LAN IP address is 192.168.1.253, enter IP address 192.168.1.x (x is from 2 to 254 except
192.168.1.253), and Subnet mask is 255.255.255.0.
3 Select Use the following DNS server addresses radio button. In the Preferred DNS Server field, you can
enter the DNS server IP address which has been provided by your ISP
User Manual of WAP-200N/WBS-200N
-23-
Figure 4-1 TCP/IP Setting
Now click OK to save your settings.
Now, you can run the ping command in the command prompt to verify the network connection between your
PC and the AP. The following example is in Windows 7 OS. Please follow the Steps below:
1. Click on Start > Run.
2. Type “cmd” in the Search box.
User Manual of WAP-200N/WBS-200N
-24-
Figure 4-2 Windows Start Menu
3. Open a command prompt and type ping 192.168.1.253, and then press Enter.
If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP
has been established well.
Figure 4-3 Successful result of Ping command
If the result displayed is similar to Figure 4-4, it means the connection between your PC and the AP
has failed.
User Manual of WAP-200N/WBS-200N
-25-
Figure 4-4 Failed result of Ping command
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP. Some
firewall software programs may block a DHCP request on newly installed adapters.
4.2 Starting Setup in the Web UI
It is easy to configure and manage the WBS-200N or WAP-200N with the web browser.
Step 1. To access the configuration page, open a web browser and enter the default IP address
http://192.168.1.253 in the web address field of the browser.
Figure 4-5 Login by default IP address
After a moment, a login window will appear. Enter admin for the User Name and Password, both in lower case
letters. Then click the OK button or press the Enter key.
Figure 4-6 Login Window
User Manual of WAP-200N/WBS-200N
-26-
Default IP Address: 192.168.1.253
Default User Name: admin
Default Password: admin
If the above screen does not pop up, it may mean that your web browser has been set to a
proxy. Go to Tools menu> Internet Options> Connections> LAN Settings in the screen
that appears, cancel the Using Proxy checkbox, and click OK to finish it.
After you enter into the Web User Interface, click Operation Mode at the left hand side of the screen to
configure the wireless connection. Once the basic configuration of the device is done, go to the Save/Reload
page to save and apply the changes.
Figure 4-7 Web UI Screenshot
You can choose an Operation Mode according to your application. Please refer to the instructions in the next
chapter for configuring different Operation Modes.
User Manual of WAP-200N/WBS-200N
-27-
Chapter 5. Configuring the AP
This chapter instructs you how to quickly configure the AP/CPE in different operation modes.
5.1 Operation Mode
On this page, you can select different operation modes of the AP depending on your application, including:
Operation Modes Description
Access Point Access Point mode is used to provide wireless connectivity to wireless clients. This
mode is compatible with general wireless clients.
Client Bridge Client Bridge mode allows the Access Point to become a wireless client to associate
to another AP thus enabling the wireless capability of wired clients.
WDS Access Point In WDS Access Point mode, the device functions as a WDS bridge with Access
Point Mode. For WDS Access Point, it can be connected by same series of devices
which using the WDS station mode. In this mode, the setting is same as Access
Point Mode.

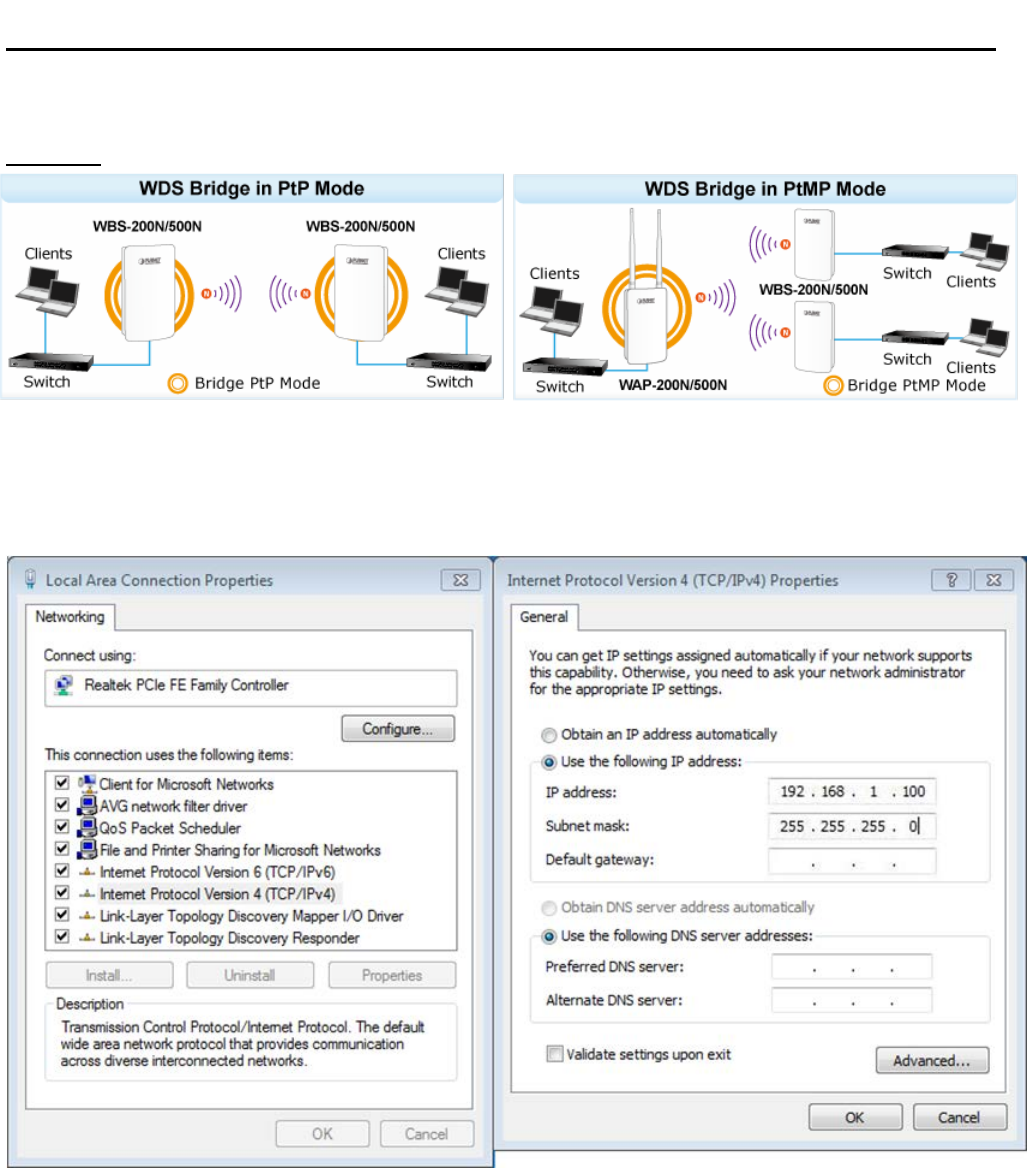

WDS Bridge In WDS Bridge mode, the device can bridge with remote LAN networks through
MAC address. This application can create two individual networks for two groups of
users sharing one Internet.
The advantage of WDS is the Layer 2 transparent
bridging and broadcasting across wireless connections so that
all connected
network devices form one common broadcast domain.
NOTE: The WDS mode is a non-
standard extension to the IEEE 802.11
standard, which implemented differently in wireless driver and firmware
making them incompatible with each other. In order to use WDS, the same
model of devices should be used.
WDS Station In WDS Station mode, the device functions as a wireless client which can bridge the
remote WDS Access Point with SSID. In this mode, the setting is same as Client
Bridge mode.
Client Router With Client Router (Wireless ISP) mode, the device
can connect to a wireless
network and share the Internet connection to the WISP subscribers.
On the LAN side, the device acts like a wired router for IP sharing function. In this
mode, the wireless interface acts as WAN side.
Repeater Repeater mode is used to extend
the wireless coverage with same SSID and
security.
Go to “System Operation Mode” page to configure the device in the operation mode which is suitable for
your application. Then go to “Wireless Wireless Network” to configure the related wireless settings of each
mode.
User Manual of WAP-200N/WBS-200N
-28-
Figure 5-1 Operation Mode – All
The page includes the following settings:
Object Description
• Device Name
Enter a name for the device (1-32 characters). The name you type
appears in SNMP management. This name is not the SSID and is not
broadcast to other devices.
• Operation Mode Use the radio button to select an operation mode.
• Save & Apply Click Save & Apply to save changes.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
User Manual of WAP-200N/WBS-200N
-29-
5.1.1 Access Point (AP)
This section allows you to configure the AP Bridge mode to provide wireless connectivity for wireless clients.
Go to the “System Operation Mode” page to configure the device as “Access Point” and then go to
“Wireless Wireless Network” to configure the related wireless settings.
Figure 5-2 Operation Mode – AP
For the configuration example, please refer to the section “Appendix C: FAQ, Q1”.
User Manual of WAP-200N/WBS-200N
-30-
5.1.2 Client Bridge (CB)
This section allows you to configure the Client Bridge mode. In this mode, the device enables the wired client to
be connected to the central site through wireless interface.
Go to the “System Operation Mode” page to configure the device as “Client Bridge” and then go to
“Wireless Wireless Network” to configure the related wireless settings.
Figure 5-3 Operation Mode – Client Bridge
For the configuration example, please refer to the section “Appendix C: FAQ, Q1”.
User Manual of WAP-200N/WBS-200N
-31-
5.1.3 WDS Access Point (WDS AP)
This section allows you to configure the WDS AP mode. In this mode, the device is acting as master AP in the
WDS connection.
Go to the “System Operation Mode” page to configure the device as “WDS Access Point” and then go to
“Wireless Wireless Network” to configure the related wireless settings.
Figure 5-4 Operation Mode – WDS AP
For the configuration example, please refer to the section “Appendix C: FAQ, Q2”.
User Manual of WAP-200N/WBS-200N
-32-
5.1.4 WDS Station (WDS STA)
This section allows you to configure the WDS Station mode. In this mode, the device is acting as slave AP in the
WDS connection.
Go to the “System Operation Mode” page to configure the device as “WDS Station” and then go to
“Wireless Wireless Network” to configure the related wireless settings.
Figure 5-5 Operation Mode – WDS Station
For the configuration example, please refer to the section “Appendix C: FAQ, Q2”.
User Manual of WAP-200N/WBS-200N
-33-
5.1.5 WDS Bridge (WDS PtP/WDS PtMP)
This section allows you to configure the WDS Bridge mode. In this mode, the device is bridging to remote node
through wireless MAC address. When suppressed SSID broadcast is checked, unknown wireless clients are
not allowed to connect to the AP.
Go to the “System Operation Mode” page to configure the device as “WDS Bridge” and then go to
“Wireless WDS Link Settings” to configure the WDS bridge mode in PtP (Point to Point) or PtMP (Point to
Multiple Points) applications.
Figure 5-6 Operation Mode – WDS Bridge
Configuration Example
The following procedure will guide you to how to establish WDS connection.
Step 1. Go to the “Operation Mode” page to configure the device as “WDS Bridge”.
User Manual of WAP-200N/WBS-200N
-34-

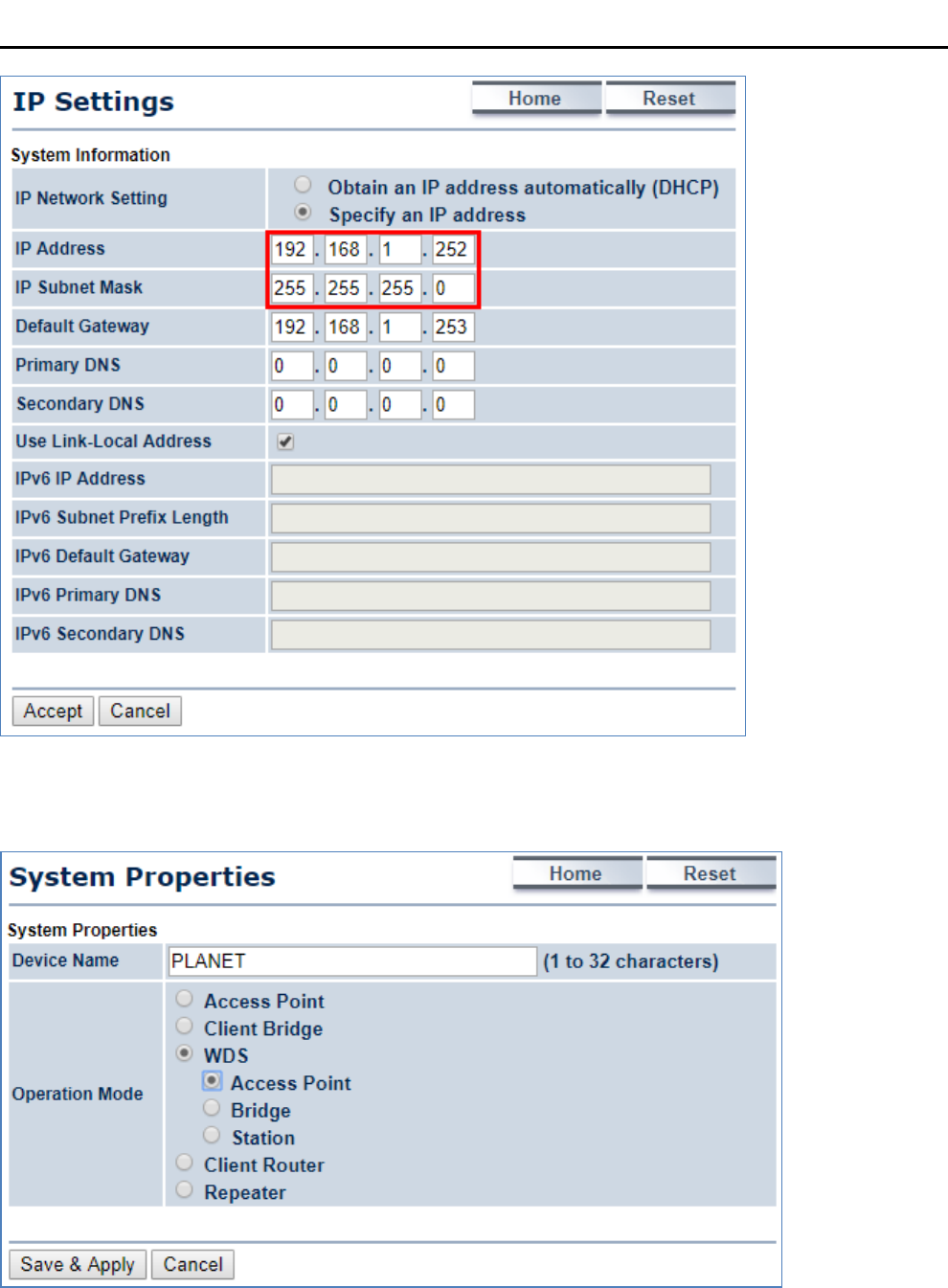

Step 2. Go to the “System IP Settings” page to configure LAN IP of central site and remote site. The LAN IP
must be different at both sites. In this example, the master AP at the central site is configured to
192.168.1.252 and the slave AP at remote site is configured to 192.168.1.253.
Step 3. Go to the “Wireless Wireless Network” page to configure the wireless parameters of the WDS link.
User Manual of WAP-200N/WBS-200N
-35-
In this example, we set the channel to 6 and channel width to 40MHz.
(1) Channel HT Mode: set to 40MHz for wider bandwidth to optimize performance
(2) Channel/Frequency: set to a fixed channel. For the WDS link, the fixed channel must be used.
Step 4. Go to the “Wireless WDS Link Settings” page to enter the wireless MAC of the remote node and add
encryption to protect the WDS link. Click Accept to save the changes.
(1) In PtMP of the master node: enter the wireless MAC of each remote slave node up to 4 entries.
(2) In PtMP, the distance from each slave node must be configured to the actual distance from each slave node
to the master node. As to the master node, it should be configured to the value of the farthest node. In PtMP
application, the distance from each node to master node should not have too much deviation to ensure the
connection stability.
User Manual of WAP-200N/WBS-200N
-36-
Step 5. If the connection range exceeds 1km, go to the “Wireless Wireless Advanced Settings” page to
configure the distance parameter between two sites.
(3) In PtP, the distance must be configured to the same at both sites.
(4) In PtMP, the distance at each slave nodes must be configured to the actual distance from each slave node to
the master node; as to the master node should be configured to the value of the farthest node. In PtMP
application, the distance from each node to master node should not have too much deviation to ensure the
connection stability.
Step 6. Go to the “Status -> Save/Reload” page to save and apply settings.
User Manual of WAP-200N/WBS-200N
-37-
Step 7. Repeat Steps1 to 6 for each node.
Step 8. Go to the “Status -> WDS Link List” page to check the connection status.
User Manual of WAP-200N/WBS-200N
-38-
5.1.6 Client Router (CR/WISP)
This section allows you to configure the Client Router (Wireless ISP) mode to enable clients to access Internet
through remote wireless AP provided by ISP. In this mode, the DHCP server is enabled and able to assign IP
address to local clients after the device is connected to remote wireless AP provided by ISP.
Go to the “System Operation Mode” page to configure the device as “Client Router” and then go to
“Wireless Wireless Network” to configure the related wireless settings.
Figure 5-7 Operation Mode – Client Router (WISP)
Configuration Example
The following procedure will guide you to how to establish WISP connection.
Step 1. Go to the “Operation Mode” page to configure the device as “Client Router”.
User Manual of WAP-200N/WBS-200N
-39-
Step 2. Go to the “Router LAN Settings” page to configure LAN IP and enable the DHCP server. The LAN IP
must be a different subnet from the remote wireless AP provided by ISP.
Step 3. Go to the “Wireless Wireless Network” page to click the Site Survey button to discover the root AP.
User Manual of WAP-200N/WBS-200N
-40-
Step 4. Click the root AP as shown below and it will go back to the previous wireless network page.
Step 5. Click the check box of the preferred BSSID and configure the encryption to be the same as the root AP.
The Repeater SSID can be modified to an easily-recognized name for wireless clients. Then, click “Accept” to
save the configurations.
User Manual of WAP-200N/WBS-200N
-41-
Step 6. Go to the “Router -> WAN Settings” page to configure WAN settings. The Internet connection type is
provided by your ISP and should be configured properly. Disable “Discard Ping on WAN” and then you’ll be
able to use ping test tool of Diagnostics page to ping DNS to ensure the WAN connection is established properly
through WISP mode.
User Manual of WAP-200N/WBS-200N
-42-
Step 7. Go to the “Status -> Save/Reload” page to save and apply settings.
Step 8. Modify your PC/laptop connected to the LAN port of this client router to “Obtain an IP address
automatically”.
User Manual of WAP-200N/WBS-200N
-43-
Step 9. Go to “Status -> DHCP Client Table” to ensure your PC/laptop receives the IP automatically.
Step 10. Go to “Status -> Connection Status” to check whether the connection is established successfully.
User Manual of WAP-200N/WBS-200N
-44-
5.1.7 Repeater
This section allows you to configure the Repeater mode to extend the root AP’s signal coverage.
Go to the “System Operation Mode” page to configure the device as “Repeater” and then go to “Wireless
Wireless Network” to configure the related wireless settings.
Figure 5-8 Operation Mode – Repeater
Configuration Example
The following procedure will guide you to how to establish repeater connection.
Step 1. Go to “Operation Mode” page to configure the device as “Repeater”.
User Manual of WAP-200N/WBS-200N
-45-
Step 2. Go to the “Wireless Wireless Network” page to click the Site Survey button to discover the root AP.
Step 3. Click the root AP as shown below and it will go back to the previous wireless network page.
User Manual of WAP-200N/WBS-200N
-46-

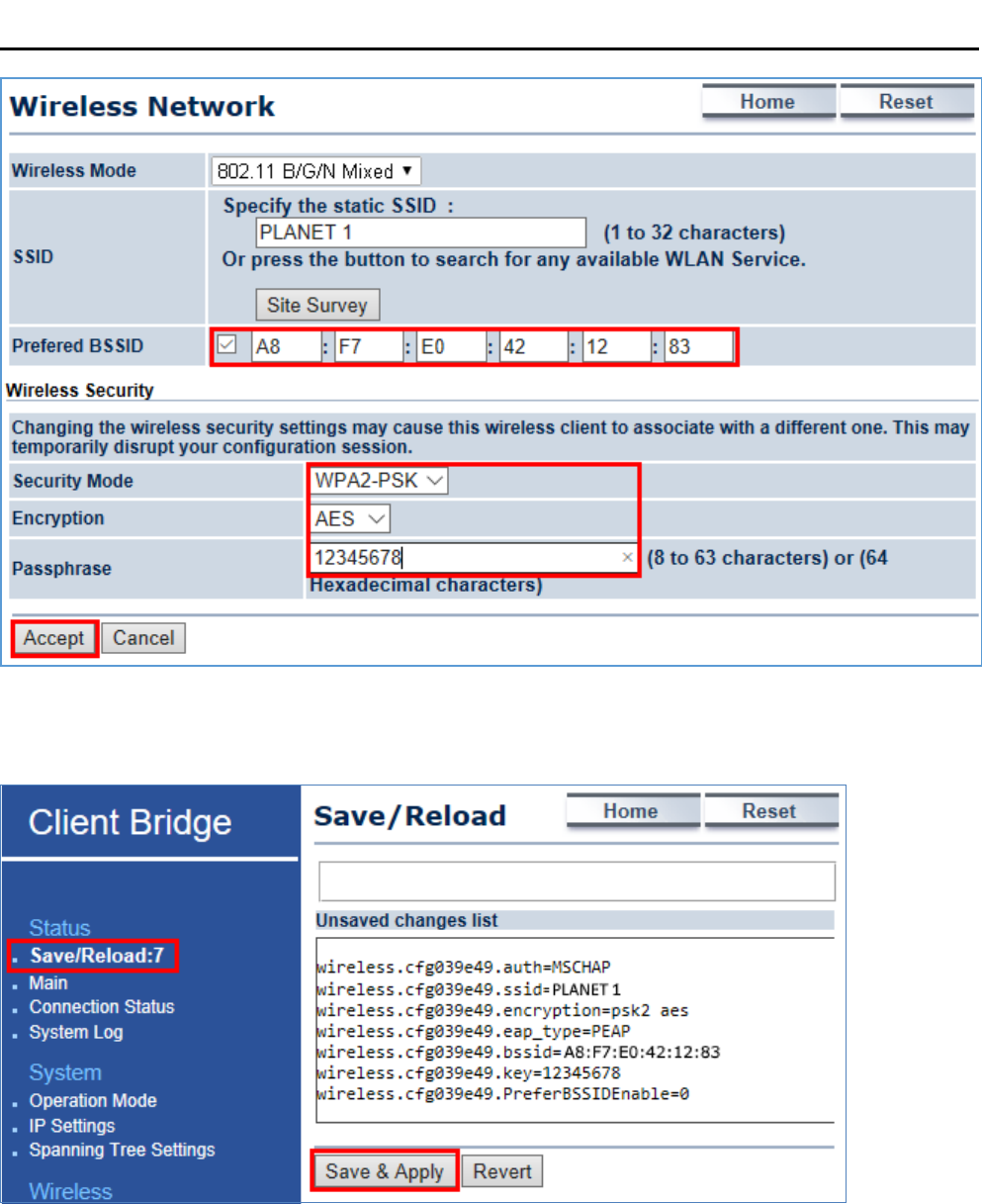

Step 4. Click the check box of the preferred BSSID and configure the encryption to be the same as the root AP.
The Repeater SSID can be modified to an easily-recognized name for wireless clients. Then, click “Accept” to
save the configurations.

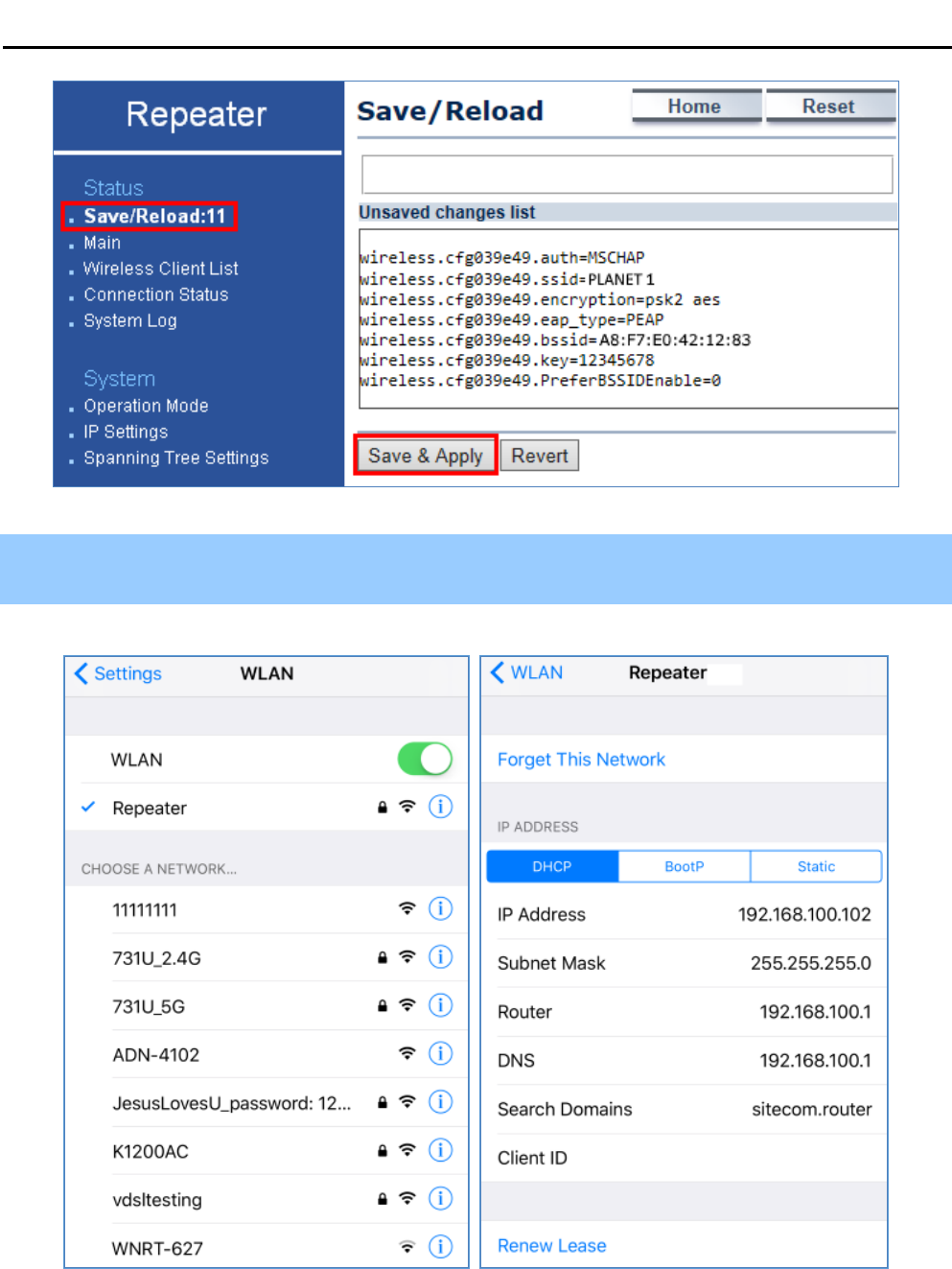

Step 5. Go to the “Status-> Save/Reload” page to save and apply settings.
User Manual of WAP-200N/WBS-200N
-47-
Step 6. Use a wireless client to connect to the repeater AP and ensure it is able to receive IP address from the
root AP’s network.
User Manual of WAP-200N/WBS-200N
-48-
5.2 Status
This section provides the current system summary, system log and connection status including Wireless Client
List, WDS Link List, DHCP Client Table and Connection Status to assist the administrator in viewing the network
status.
In the upper-right corner of each function page, you can click “Home” to go back to the Main page to view the
current system status and click “Reset” to force the system to reboot or reset the device to factory defaults.
Figure 5-9 System Menu - Reset
In the upper-right corner of each function page, you can choose the Language supported in the system from the
drop-down list for better user experience. Once the language is chosen, the whole web page will be translated in
the language.
Figure 5-10 System Menu – Language option
5.2.1 Main
Click “Status Main” to view the current system summary.
User Manual of WAP-200N/WBS-200N
-49-
Figure 5-11 Main Status
User Manual of WAP-200N/WBS-200N
-50-
The page includes the following settings:
Object Description
• System Information Shows the general system information such as device name, MAC
address, country, current time, and firmware version.
• LAN Settings Shows Local Area Network settings such as the LAN IP address, subnet
mask, DHCP Server, and Rx/Tx packets.
• WAN Settings
Shows Wide Area Network settings such as the MAC address, connection
type, connection status, IP address, subnet mask, primary and secondary
DNS, and Rx/Tx packets.
• Current Wireless Settings
Shows wireless information such as operation mode, wireless mode,
channel bandwidth, frequency, channel, information about each SSID,
security settings, and Rx/Tx packets.
5.2.2 Save/Reload
Click “Status Save/Reload” and the following page will be displayed.
Figure 5-12 Save/Reload
Click Save & Apply to save and apply all configurations.
Click Revert to cancel the unsaved changes and revert to the previous settings that have been saved.
It's not necessary to save and apply the settings if unsaved changes list is empty.
User Manual of WAP-200N/WBS-200N
-51-
Figure 5-13 Save/Reload - Default
5.2.3 Wireless Client List
Click “Status Wireless Client List” to view the current associated client.
Figure 5-14 Wireless Client List
Figure 5-15 Kick the client
The page includes the following settings:
Object Description
• SSID:# The SSID number that the client associated to.
• MAC Address The MAC Address of the associated client.
• TX (Bytes) The current transmit packet of the associated client.
• RX (Bytes) The current received packet of the associated client.
• RSSI (dBm) The current signal strength of the associated client.
• Kick and Ban Click Kick to add the client to the wireless mac filtering deny list.
User Manual of WAP-200N/WBS-200N
-52-
5.2.4 WDS Link List
Click “Status WDS Link List” to view the current WDS link client.
The WDS Link List is only available in WDS Bridge mode.
Figure 5-16 WDS Link Status
The page includes the following settings:
Object Description
• WDS Link ID The sequence number of the WDS link.
• MAC Address The MAC Address of the associated remote node.
• Link Status The current link status.
• RSSI (dBm) The current signal strength of the associated remote node.
• Refresh Click Refresh to update the current list.
5.2.5 DHCP Client Table
Click “Status DHCP Client Table” to view the current DHCP client.
The DHCP Client Table is only available in Client Router (WISP) mode.
Figure 5-17 DHCP Client List
The page includes the following settings:
Object Description
• MAC Address The MAC Address of the DHCP client.
• IP The IP assigned to the DHCP client.
• Host Name The Host Name of the DHCP client.
• Expires The Expiry time of the DHCP client.
User Manual of WAP-200N/WBS-200N
-53-
• Revoke Click Revoke to revoke the DHCP lease of the client.
• Reserve Click Reserve to reserve the IP to the client.
• Refresh Click Refresh to update the client list.
5.2.6 Connection Status
Click “Status Connection Status” to view the current DHCP client.
The Connection Status is only available in the following operation modes:
(1) Client Bridge
(2) Client Router
(3) WDS Station
(4) Repeater
Figure 5-18 Connection Status
The page includes the following settings:
Object Description
• Network Type The current operation mode of the device.
• SSID The SSID of the connected AP.
• BSSID The MAC Address of the connected AP.
• Connection Status The status of the connection.
• Wireless Mode The current wireless mode of the AP.
• Current Channel The current channel used of this connection.
• Security The encryption method of the AP.
• Tx Data Rates (Mbps) The current data rates of the connection.
User Manual of WAP-200N/WBS-200N
-54-
• Current noise level The current noise level of the connection
• Signal Strength The current signal strength of the connected AP.
• Refresh Click Refresh to update the current data.
5.2.7 System Log
Click “Status System Log” to view the system log.
Figure 5-19 System Log
The page includes the following settings:
Object Description
• Show log type Select log type to filter the records.
• Save Click Save to save the records.
• Refresh Click Refresh to update the current data.
• Clear Click Clear to erase the records.
User Manual of WAP-200N/WBS-200N
-55-
5.3 System
5.3.1 IP Settings
Click “System IP Settings” to configure the LAN IP address.
Figure 5-20 LAN IP Settings
The page includes the following settings:
Object Description
• IP Network Setting
Select Obtain an IP address automatically (DHCP) to receive the IP
from DHCP server.
Select Specify an IP address to configure the AP to use static IP.
• IP Address The LAN IP of the AP.
The default is 192.168.1.253. You can change it according to your needs.
• IP Subnet Mask The LAN subnet mask of the AP.
• Default Gateway Enter the Gateway IP address of the AP.
• Primary DNS Enter the primary DNS server of the AP.
• Secondary DNS Enter the secondary DNS server of the AP.
• Use Link-Local Address Click to enable a link-local address for the AP.
User Manual of WAP-200N/WBS-200N
-56-
• IPv6 IP Address Enter the IPv6 LAN IP of the AP.
• IPv6 Subnet Prefix Length Enter the secondary DNS server of the AP.
• IPv6 Default Gateway Enter the IPv6 Gateway IP address of the AP.
• IPv6 Primary DNS Enter the IPv6 primary DNS server of the AP.
• IPv6 Secondary DNS Enter the IPv6 secondary DNS server of the AP.
• Accept Click Accept to apply the new settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
5.3.2 Spanning Tree Settings (STP)
The Spanning Tree Settings (STP) protocol allows network to provide a redundant link in the event of a link
failure. It is advised to turn on this option for multi-point bridge network to avoid network loop.
Click “System Spanning Tree Settings” to enable/disable Spanning Tree Settings.
Figure 5-21 Spanning Tree Settings
The page includes the following settings:
Object Description
• Spanning Tree Status Click ON to enable or click OFF to disable the option.
• Bridge Hello Time
Specify Bridge Hello Time, in seconds. This value determines how often
the AP sends hello packets to communicate information about the
topology throughout the entire Bridged Local Area Network.
• Bridge Max Age
Specify Bridge Max Age, in seconds. If another bridge in the spanning
tree does not send a hello packet for a long period of time, it is assumed
to be dead.
• Bridge Forward Delay Specify Bridge Forward Delay, in seconds. Forwarding delay time is the
time spent in each of the Listening and Learning states before the
User Manual of WAP-200N/WBS-200N
-57-
Forwarding state is entered. This delay is provided so that when a new
bridge comes onto a busy network, it looks at some traffic before
participating.
• Priority Specify the Priority number. Smaller numbers have greater priority.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4 Router (WISP Mode Only)
5.4.1 DHCP Server Settings
Go to the “Operation Mode” page to configure the device as “Client Router” and then go to “Router LAN
Settings” to configure the device’s LAN IP settings in client router mode.
On this page, enable the DHCP server to assign IP address to local wired/wireless clients after the device is
connected to the remote AP supplied by wireless ISP.
Figure 5-22 DHCP Server Settings
The page includes the following settings:
Object Description
• IP Address The LAN IP of the AP.
• IP Subnet Mask The LAN subnet mask of the AP.
• Use Router As DHCP
Server Select it to enable DHCP server. In here the device is acting as a router.
• Starting IP Address Specify the starting IP address for the DHCP range.
User Manual of WAP-200N/WBS-200N
-58-
• Ending IP Address Specify the ending IP address for the DHCP range.
• WINS Server IP Enter the IP address of the WINS server.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4.2 WAN Settings
Go to the “Operation Mode” page to configure the device as “Client Router” and then go to “Router WAN
Settings” to configure the device’s WAN settings in client router mode. The WAN settings should be provided by
the ISP.
Figure 5-23 WAN Settings – All
The page includes the following common settings in each Internet Connection Type:
Object Description
• Internet Connection Type
• DHCP: Dynamic IP addressing assigns a different IP address each
time a device connects to an ISP service provider.
• Static IP: Setting a static IP address allows an administrator to set a
specific IP address for the router and guarantees that it cannot be
User Manual of WAP-200N/WBS-200N
-59-
assigned a different address.
• PPPoE: Point-to-Point Protocol over Ethernet (PPPoE) is used mainly
by ISPs that provide DSL modems to connect to the Internet.
• PPTP: The point-to-point tunneling protocol (PPTP) is used in
association with virtual private networks (VPNs).
Options: This section will not be the same depending on the Internet Connection Type.
Refer to settings of each corresponding section from 5.4.2.1 to 5.4.2.4
Domain Name Server (DNS) Address
• Get Automatically From ISP Select it to obtain the DNS automatically from the DHCP server.
• Use These DNS Servers Select it to set up the Primary DNS and Secondary DNS servers
manually.
• Primary DNS Enter the primary DNS server address.
• Secondary DNS Enter the secondary DNS server address.
WAN Ping
• Discard Ping on WAN Check it to enable pings on the WAN interface or disable to block pings on
the WAN interface.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4.2.1. DHCP
Select DHCP and the device will automatically obtain IP addresses, subnet masks and gateway addresses from
the ISP.
User Manual of WAP-200N/WBS-200N
-60-
Figure 5-24 WAN Settings – DHCP
The page includes the following specific settings in DHCP type:
Object Description
• Account Name (if required) Enter the account name provided by your ISP.
• Domain Name (if required) Enter the domain name provided by your ISP.
• MTU
The maximum transmission unit (MTU) specifies the largest packet size
permitted for an internet transmission. The factory default MTU size for
DHCP is 1500. The MTU size can be set between 576 and 1500.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4.2.2. Static IP
If your ISP offers you static IP Internet connection type, select Static IP and then enter IP address, subnet mask,
primary DNS and secondary DNS information provided by ISP in the corresponding fields.
User Manual of WAP-200N/WBS-200N
-61-
Figure 5-25 WAN Settings – Static IP
The page includes the following specific settings in Static IP type:
Object Description
• Account Name (if required) Enter the account name provided by your ISP.
• Domain Name (if required) Enter the domain name provided by your ISP.
• MTU
The maximum transmission unit (MTU) specifies the largest packet size
permitted for an internet transmission. The factory default MTU size for
static IP is 1500. The MTU size can be set between 576 and 1500.
• IP Address Enter the device’s WAN IP address provided by ISP.
• IP Subnet Mask Enter the device’s WAN IP subnet mask provided by ISP.
• Gateway IP Address Enter the device’s WAN Gateway IP provided by ISP.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
User Manual of WAP-200N/WBS-200N
-62-
5.4.2.3. PPPoE
Select PPPOE if ISP is using a PPPoE connection and provide you with PPPoE user name and password.
Figure 5-26 WAN Settings – PPPOE
The page includes the following specific settings in PPPoE type:
Object Description
• MTU
The maximum transmission unit (MTU) specifies the largest packet size
permitted for an internet transmission. The factory default MTU size for
PPPoE is 1492. The MTU size can be set between 576 and 1492.
• Login Enter the username provided by ISP.
• Password Enter the password provided by ISP.
• Service Name (if required) Enter the service name of an ISP (optional).
• Connect on Demand Select it to specify the maximum idle time. Internet connection will
disconnect when it reaches the maximum idle time, but it will
User Manual of WAP-200N/WBS-200N
-63-
automatically connect when user tries to access the network.
• Keep Alive Select whether to keep the Internet connection always on, or enter a
redial period once the internet loses connection.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4.2.4. PPTP
Select PPTP if ISP is using a PPTP connection.
Figure 5-27 WAN Settings – PPTP
User Manual of WAP-200N/WBS-200N
-64-
The page includes the following specific settings in PPTP type:
Object Description
• MTU
The maximum transmission unit (MTU) specifies the largest packet size
permitted for an internet transmission. The factory default MTU size for
PPTP is 1400. The MTU size can be set between 1200 and 1400.
• IP Address Enter the device’s WAN IP address provided by ISP.
• Subnet Mask Enter the device’s WAN IP subnet mask provided by ISP.
• Default Gateway Enter the device’s WAN Gateway IP provided by ISP.
• PPTP Server Enter the IP address of the PPTP server.
• Username Enter the username provided by ISP.
• Password Enter the password provided by ISP.
• Connect on Demand
Select it to specify the maximum idle time. Internet connection will
disconnect when it reaches the maximum idle time, but it will
automatically connect when user tries to access the network.
• Keep Alive Select whether to keep the Internet connection always on, or enter a
redial period once the internet loses connection.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4.3 VPN Pass Through
VPN Pass-through allows a secure virtual private network (VPN) connection between two sites. Enabling the
options on this page opens a VPN port and enables connections to pass through the AP without interruption.
Go to the “Operation Mode” page to configure the device as “Client Router” and then go to “Router VPN
Pass Through” to enable VPN pass through you required in client router mode.
Figure 5-28 VPN Pass Through
User Manual of WAP-200N/WBS-200N
-65-
The page includes the following settings:
Object Description
• PPTP Pass Through Check this option to enable PPTP pass-through mode.
• L2TP Pass Through Check this option to enable L2TP pass-through mode.
• IPSec Pass Through Check this option to enable IPSec pass-through mode.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.4.4 Port Forwarding
Go to “Operation Mode” page to configure the device as “Client Router” and then go to “Router Port
Forwarding” to enable VPN pass through you required in client router mode.
Figure 5-29 Port Forwarding
The page includes the following settings:
Object Description
• # Displays the sequence number of the forwarded port.
• Name Displays the name of the forwarded port.
• Protocol Displays the protocol to use for mapping from the following: TCP, UDP or
Both.
• Start Port Displays the LAN port number that WAN client packets will be forward to.
• End Port Displays the port number that the WAN client packets are received.
• Server IP Address Displays the IP address of the server for the forwarded port.
• Enable Click to enable or disable the forwarded port profile.
• Modify Click to modify the forwarded port profile.
• Delete Click to delete the forwarded port profile.
• Add Entry Click Add Entry to add the new forwarding rule.
• Accept Click Accept to apply the setting.
User Manual of WAP-200N/WBS-200N
-66-
When clicking Add Entry, the following window will pop up and fill in the fields required to add a new forwarding
rule.
Figure 5-30 Port Forwarding
The page includes the following settings:
Object Description
• Service Name Enter a name for the port forwarding rule.
• Protocol Select a protocol for the application: Choices are Both, TCP and UDP.
• Starting Port (1~65535) Enter a starting port number.
• Ending Port (1~65535)
Enter an ending port number.
All ports numbers between the starting and ending ports will forward users
to the IP address specified in the IP Address field.
• IP Address Enter the IP address of the server computer on the LAN network where
users will be redirected.
• Save Click Save to save the new forwarding rule.
• Cancel Click Cancel to cancel the setting.
5.4.5 DMZ Settings
The DMZ function allows the device to redirect all packets going to the WAN port IP address to a particular IP
address on the LAN. The difference between the virtual server and the DMZ function is that a virtual server
redirects a particular service or Internet application, such as FTP, to a particular LAN client or server, whereas a
DMZ redirects all packets, regardless of the service, going to the WAN IP address to a particular LAN client or
server.
Go to the “Operation Mode” page to configure the device as “Client Router” and then go to “Router DMZ
Settings” to enable/configure DMZ in client router mode.
User Manual of WAP-200N/WBS-200N
-67-
Figure 5-31 DMZ
The page includes the following settings:
Object Description
• DMZ Hosting Select Enable DMZ to activate DMZ functionality.
• DMZ Address Enter an IP address of a device on the LAN.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the setting.
5.5 Wireless
This section provides wireless related settings in different operation modes.
5.5.1 Wireless Network
Click “Wireless Wireless Network” to configure the wireless basic settings. The wireless settings on this
page may vary according to the selected operation mode.
User Manual of WAP-200N/WBS-200N
-68-
Figure 5-32 Wireless Network – AP/WDS AP Mode
In the AP/WDS AP mode, click the Edit button on the “Wireless Network” page to enter the “SSID Profile” page
to configure the SSID profile for the wireless network.
Figure 5-33 Wireless Network – SSID Profile
User Manual of WAP-200N/WBS-200N
-69-
The page includes the following settings:
Object Description
• Wireless Mode Wireless mode supports 802.11b/g/n mixed modes.
• Channel HT Mode The default channel bandwidth is 20/40MHz. The larger the channel, the
better the transmission quality and speed.
• Extension Channel Select upper or lower channel. Your selection may affect the Auto channel
function.
• Channel / Frequency Select the channel and frequency appropriate you’re your country’s
regulation.
• Auto Check this option to enable auto-channel selection.
• AP Detection AP Detection can select the best channel to use by scanning nearby
areas for Access Points.
• Current Profile
Configure up to four different SSIDs. If many client devices will be
accessing the network, you can arrange the devices into SSID groups.
Click Edit to configure the profile and check whether you want to enable
extra SSIDs.
SSID Profile
• SSID Specify the SSID for the current profile.
• VLAN ID Specify the VLAN tag for the current profile.
• Suppressed SSID Check this option to hide the SSID from clients. If checked, the SSID will
not appear in the site survey.
• Station Separation Click the appropriate radio button to allow or prevent communication
between client devices.
• Wireless Security Refer to section 5.5.3 Security Setting.
• Save Click Save to save changes.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
In the CB/WDS STA/CR/Repeater mode, select Security Mode on the “Wireless Network” page to configure
the wireless security to be the same as the root AP’s security settings.
User Manual of WAP-200N/WBS-200N
-70-
Figure 5-34 Wireless Network – CB/WDS STA/CR/Repeater Mode
The page includes the following settings:
Object Description
• Wireless Mode Wireless mode supports 802.11b/g/n mixed modes.
• SSID Specify the SSID if known. This field is completed automatically if you
select an Access Point in the Site Survey.
• Site Survey Scans nearby locations for Access Points. You can select a discovered
Access Point to establish a connection.
• Prefer BSSID Enter the MAC address if known. If you select an Access Point in the Site
Survey, this field is completed automatically.
• Wireless Security Refer to section 5.5.3 Security Setting.
• Accept Click Accept to apply the setting.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
5.5.2 WDS Link Settings
Go to the “Operation Mode” page to configure the device as “WDS Bridge” and then go to “Wireless WDS
Link Settings” to configure the WDS link settings including PtP (Point to Point) or PtMP (Point to Multiple Points)
applications.
User Manual of WAP-200N/WBS-200N
-71-
Figure 5-35 WDS Link Settings – WDS Bridge Mode
The page includes the following settings:
Object Description
• Security Select the type of WDS security: None, WEP, or AES.
• WEP Key Enter the WEP key if select security as WEP.
• AES Passphrase Enter the AES passphrase if select security as AES
• MAC Address Enter the wireless MAC address of the AP to which you want to extend
wireless connectivity.
• Mode Select Disable or Enable to disable or enable WDS.
• Accept Click Accept to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
NOTE:
1. The WDS link setting is only available in WDS Bridge mode and is communicating through
wireless MAC address to each other by using non-standard protocol which may not be
compatible with other brands/models of device. Using the same model for full compatibility is
required.
2. The security setting in each site of WDS link must be the same.
3. The wireless channel must be fixed and must be the same in each site of WDS link.
User Manual of WAP-200N/WBS-200N
-72-
5.5.3 Security Settings
Go to the “Wireless Wireless Network” page to configure the security settings.
In the AP/WDS AP mode, click the Edit button on the “Wireless Network” page to enter the “SSID Profile” page
and configure the wireless security for the wireless network.
Figure 5-36 Security Settings – AP/WDS AP Mode
In the CB/WDS STA/CR/Repeater mode, select Security Mode on the “Wireless Network” page to configure
the wireless security to be the same as the root AP’s security settings.
Figure 5-37 Security Settings – CB/WDS STA/CR/Repeater Mode
User Manual of WAP-200N/WBS-200N
-73-
In the WDS Bridge mode, select Security Mode on the “WDS Link Settings” page to configure the wireless
security settings. The security settings in each site of the WDS link must be configured to the same.
Figure 5-38 Security Settings – WDS Bridge Mode
The option includes the following settings:
Object Description
• Security Mode
Select the suitable security mode from the drop-down list to encrypt the
wireless network. The options include Disabled, WEP, WPA-PSK,
WPA2-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. The latest
WPA2-PSK mode is strongly recommended to use.
1. The WEP and WPA/WPA2 with TKIP didn't support in pure
802.11n mode and these options will
not available in pure 802.11n mode.
2. In 802.11b/g
/n mixed mode, if configured the security to WEP, WPA/WPA2 with TKIP, the
connection mode/speed will be changed from 802.11n to 802.11g.
Disabled
Authentication is disabled and no password/key is required to connect to the access point.
WEP
WEP (Wired Equivalent Privacy) is a basic encryption. For a higher level of security, consider using the WPA
encryption.
User Manual of WAP-200N/WBS-200N
-74-
Figure 5-39 Security Settings – WEP
The security mode includes the following settings:
Object Description
• Security Mode Select WEP from the drop-down list to configure the wireless network
using WEP encryption method.
• Auth Type Select Open System or Shared.
• Input Type Select an input type of Hex or ASCII.
• Key Length
Level of WEP encryption is applied to all WEP keys.
Select a 64-/128-/152-bit password length.
40/64-bit: enter 10 hexadecimal digits (any combination of 0-9, a-f,
A-F and null key is not permitted) or 5 ASCII characters.
104/128-bit: enter 26 hexadecimal digits (any combination of 0-9,
a-f, A-F and null key is not permitted) or 13 ASCII characters.
128/152-bit: enter 32 hexadecimal digits (any combination of 0-9,
a-f, A-F and null key is not permitted) or 16 ASCII characters.
• Default Key Select 1 – 4 to specify which of the four WEP keys the device uses as its
default.
• Key1 – Key4 Specify a password for the security key index. For security, each typed
character is masked by a dot.
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
User Manual of WAP-200N/WBS-200N
-75-
WPA-PSK
Figure 5-40 Security Settings – WPA-PSK
The security mode includes the following settings:
Object Description
• Security Mode Select WPA-PSK from the drop-
down list to configure the wireless
network using WPA-PSK encryption method.
• Encryption
Select Both, TKIP, or AES as the encryption type.
Both: uses TKIP and AES.
TKIP: automatic encryption with WPA-PSK; requires passphrase.
AES: automatic encryption with WPA2-PSK; requires passphrase.
• Passphrase
Specify the security password. For security, each typed character is
masked by a dot.
• Group Key Update Interval Specify how often, in seconds, the group key changes.
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
WPA2-PSK
The later WPA2 protocol features compliance with the full IEEE 802.11i standard and uses Advanced Encryption
Standard (AES) in addition to TKIP encryption protocol to guarantee better security than that provided by WEP
or WPA.
User Manual of WAP-200N/WBS-200N
-76-
Figure 5-41 Security Settings – WPA2-PSK
The security mode includes the following settings:
Object Description
• Security Mode Select WPA2-PSK from the drop-
down list to configure the wireless
network using WPA2-PSK encryption method.
• Encryption
Select Both, TKIP, or AES as the encryption type.
Both: uses TKIP and AES.
TKIP: automatic encryption with WPA-PSK; requires passphrase.
AES: automatic encryption with WPA2-PSK; requires passphrase.
• Passphrase
Specify the security password. For security, each typed character is
masked by a dot.
• Group Key Update Interval Specify how often, in seconds, the group key changes.
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
WPA-PSK Mixed
Figure 5-42 Security Settings – WPA-PSK Mixed
The security mode includes the following settings:
Object Description
User Manual of WAP-200N/WBS-200N
-77-
• Security Mode Select WPA-PSK Mixed from the drop-down list to configure the wireless
network using WPA-PSK Mixed encryption method.
• Encryption
Select Both, TKIP, or AES as the encryption type.
Both: uses TKIP and AES.
TKIP: automatic encryption with WPA-PSK; requires passphrase.
AES: automatic encryption with WPA2-PSK; requires passphrase.
• Passphrase
Specify the security password. For security, each typed character is
masked by a dot.
• Group Key Update Interval Specify how often, in seconds, the group key changes.
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
WPA (WPA Enterprise)
Figure 5-43 Security Settings – WPA (WPA Enterprise)
The security mode includes the following settings:
Object Description
• Security Mode Select WPA from the drop-down list to configure the wireless network
using WPA encryption method.
• Encryption
Select Both, TKIP, or AES as the encryption type.
Both: uses TKIP and AES.
TKIP: automatic encryption with WPA-PSK; requires passphrase.
AES: automatic encryption with WPA2-PSK; requires passphrase.
User Manual of WAP-200N/WBS-200N
-78-
• Radius Server Specify the IP address of the RADIUS server.
• Radius Port Specify the port number that your RADIUS server uses for authentication.
Default port is 1812.
• Radius Secret Specify RADIUS secret furnished by the RADIUS server.
• Group Key Update Interval Specify how often, in seconds, the group key changes.
• Radius Accounting Select to enable or disable RADIUS accounting.
• Radius Accounting Server Specify the IP address of the RADIUS accounting server.
• Radius Accounting Port
Specify the port number that your RADIUS accounting server uses for
authentication. Default port is 1813.
• Radius Accounting Secret Specify RADIUS accounting secret furnished by the RADIUS server.
• Interim Accounting Interval Specify the interim accounting interval (60 - 600 seconds).
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
WPA2 (WPA2 Enterprise)
Figure 5-44 Security Settings – WPA2 (WPA2 Enterprise)
User Manual of WAP-200N/WBS-200N
-79-
The security mode includes the following settings:
Object Description
• Security Mode Select WPA2 from the drop-down list to configure the wireless network
using WPA2 encryption method.
• Encryption
Select Both, TKIP, or AES as the encryption type.
Both: uses TKIP and AES.
TKIP: automatic encryption with WPA-PSK; requires passphrase.
AES: automatic encryption with WPA2-PSK; requires passphrase.
• Radius Server Specify the IP address of the RADIUS server.
• Radius Port Specify the port number that your RADIUS server uses for authentication.
Default port is 1812.
• Radius Secret Specify RADIUS secret furnished by the RADIUS server.
• Group Key Update Interval Specify how often, in seconds, the group key changes.
• Radius Accounting Select to enable or disable RADIUS accounting.
• Radius Accounting Server Specify the IP address of the RADIUS accounting server.
• Radius Accounting Port
Specify the port number that your RADIUS accounting server uses for
authentication. Default port is 1813.
• Radius Accounting Secret Specify RADIUS accounting secret furnished by the RADIUS server.
• Interim Accounting Interval Specify the interim accounting interval (60 - 600 seconds).
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
User Manual of WAP-200N/WBS-200N
-80-
WPA Mixed (WPA Mixed Enterprise)
Figure 5-45 Security Settings – WPA Mixed (WPA Mixed Enterprise)
The security mode includes the following settings:
Object Description
• Security Mode Select WPA Mixed from the drop-down list to configure the wireless
network using WPA Mixed encryption method.
• Encryption
Select Both, TKIP, or AES as the encryption type.
Both: uses TKIP and AES.
TKIP: automatic encryption with WPA-PSK; requires passphrase.
AES: automatic encryption with WPA2-PSK; requires passphrase.
• Radius Server Specify the IP address of the RADIUS server.
• Radius Port Specify the port number that your RADIUS server uses for authentication.
Default port is 1812.
• Radius Secret Specify RADIUS secret furnished by the RADIUS server.
• Group Key Update Interval Specify how often, in seconds, the group key changes.
• Radius Accounting Select to enable or disable RADIUS accounting.
• Radius Accounting Server Specify the IP address of the RADIUS accounting server.
• Radius Accounting Port Specify the port number that your RADIUS accounting server uses for
authentication. Default port is 1813.
• Radius Accounting Secret Specify RADIUS accounting secret furnished by the RADIUS server.
User Manual of WAP-200N/WBS-200N
-81-
• Interim Accounting Interval Specify the interim accounting interval (60 - 600 seconds).
• Save Click Save to save the settings.
• Cancel Click Cancel to cancel the unsaved changes and revert to the previous
settings.
User Manual of WAP-200N/WBS-200N
-82-
5.5.4 Wireless MAC Filter
Wireless MAC Filters are used to allow or deny network access to wireless clients according to their MAC
addresses. You can manually add a MAC address to restrict the permission to access the device or refer to
section 5.2.3 to kick the associated client from the wireless client list.
Click “Wireless Wireless MAC Filter” to configure the wireless access control settings.
Figure 5-46 Wireless MAC Filter
The page includes the following settings:
Object Description
• ACL Mode
Determines whether network access is granted or denied to clients whose
MAC addresses appear in the MAC Address table on this page. The
option includes Disable, Deny MAC in the list, or Allow MAC in the list.
• Add Enter the wireless MAC address of the client in front of the Add button
and then click Add to add the new entry to the MAC filtering list.
• # Displays the sequence number of the entries.
• MAC Address Displays the MAC Address that will be denied/allowed to access this
device.
• Delete Click Delete to remove the entry from the list.
• Accept Click Accept to apply the setting.
User Manual of WAP-200N/WBS-200N
-83-
5.5.5 Wireless Advanced Settings
Click “Wireless Wireless Advanced Settings” to configure the wireless advanced settings.
This section allows you to configure the wireless related settings to optimize the wireless network.
Figure 5-47 Wireless Advanced Settings
The page includes the following settings:
Object Description
• Data Rate
Select a data rate from the drop-down list. The data rate affects
throughput. If you select a low data rate
value, for example, the
throughput is reduced but the transmission distance increases. The
default is “Auto”.
• Transmit Power
The transmission power of the device (value: auto).
To meet the regional regulation, this option is not allowed to be configured
through the user interface.
• RTS/CTS Threshold
When the length of a data packet exceeds this value, the device will send
an RTS frame to the destination wireless node, and the latter will reply
with a CTS frame, and thus they are ready to communicate. The default
value is 2346. A small number causes RTS/CTS packets to be sent more
User Manual of WAP-200N/WBS-200N
-84-
often and consumes more bandwidth.
• Distance Specify the distance between the master AP and slave AP. Longer
distances may drop high-speed connections.
• Aggregation
A part of the 802.11n standard that allows sending multiple frames per
single access to the medium by combining frames together into one larger
frame. It creates the larger frame by combining smaller frames with the
same physical source, destination end points, and traffic class (QoS) into
one large frame with a common MAC header. This option reduces the
number of packets, but increases packet sizes.
Wireless Traffic Shaping
• Enable Traffic Shaping Enable or disable the regulation of packet flow leaving an interface for
improved QoS.
• Incoming Traffic Limit Specify the wireless transmission speed used for downloading.
• Outgoing Traffic Limit Specify the wireless transmission speed used for uploading.
• Total Percentage Specify the total percentage of the wireless traffic that is shaped.
• SSID1 to SSID4 Specify the percentage of the wireless traffic that is shaped for a specific
SSID.
Client Limit: This option is only available in AP and WDS AP modes.
• Frequency Display the frequency of the device’s radio interface.
• Enable Click to enable the client limit function.
• Max Client Specify the max. client quantity that is allowed to connect to the radio
interface.
• Accept Click Accept to apply all changes.
• Cancel Click Cancel to cancel the settings.
5.6 Management
On this page, you can configure the system settings for management purposes, including Management VLAN
settings, Time settings, Password settings, SNMP settings, CLI settings, Wi-Fi schedule, Firmware upgrade,
Configuration backup and restore, Factory default, and Auto reboot.
5.6.1 Administration (Password Settings)
Click “Management Administration” to configure username and password of the login account.
User Manual of WAP-200N/WBS-200N
-85-
Figure 5-48 Administration (Password Settings)
The page includes the following settings:
Object Description
• New Name Enter a new username for logging in to the Web page.
• New Password Enter a new password for logging in to the Web page.
• Confirm Password Re-enter the new password for confirmation.
• Save/Apply Click Save/Apply to apply all changes.
• Cancel Click Cancel to cancel the settings.
5.6.2 Management VLAN
Click “Management Management VLAN” to configure the management VLAN settings.
Figure 5-49 Management VLAN
The page includes the following settings:
Object Description
• Management VLAN ID
If your network includes VLANs and if tagged packets need to pass
through the Access Point, enter the VLAN ID. Otherwise, select No VLAN
tag.
User Manual of WAP-200N/WBS-200N
-86-
• Accept Click Accept to apply the changes.
• Cancel Click Cancel to cancel the settings.
5.6.3 SNMP Settings
SNMP is used in network management systems to monitor network-attached devices for conditions that warrant
administrative attention.
Click “Management SNMP Settings” to configure SNMP settings.
Figure 5-50 SNMP Settings
The page includes the following settings:
Object Description
• SNMP Enable or disable the SNMP service.
• Contact Enter the contact details of the device.
• Location Enter the location of the device.
• Community Name (Read
Only)
Enter the password for accessing the SNMP community for read-only
access.
User Manual of WAP-200N/WBS-200N
-87-
• Community Name
(Read/Write)
Enter the password for accessing the SNMP community for read and
write access.
• Trap Destination Address Enter the IP address where SNMP traps are to be sent.
• Trap Destination
Community Name
Enter the password of the SNMP trap community.
• SNMPv3 Enable or Disable the SNMPv3 feature.
• User Name Specify the username for SNMPv3.
• Auth Protocol Select the authentication protocol type: MD5 or SHA.
• Auth Key (8-32 Characters) Specify the authentication key for authentication.
• Priv Protocol Select the privacy protocol type: DES.
• Priv Key (8-32 Characters) Specify the privacy key for privacy.
• Engine ID Specify the engine ID for SNMPv3.
• Save/Apply Click Save/Apply to apply all changes.
• Cancel Click Cancel to cancel the settings.
5.6.4 Backup/Restore Settings
Click “Management Backup/Restore Settings” and the following page will be displayed.
Figure 5-51 Backup/Restore Settings
The page includes the following settings:
Object Description
• Save A Copy of Current
Settings
Click Backup to save the current configured settings.
• Restore Saved Settings
from A File
To restore settings that have been previously backed up, click Choose
File to select the file, and click Restore.
• Revert to Factory Default
Settings
Click Factory Default to restore the device to its factory default settings.
User Manual of WAP-200N/WBS-200N
-88-
5.6.5 Auto Reboot Settings
Click “Management Auto Reboot Settings” and the following page will be displayed.
This page allows you to enable and configure system auto reboot interval. The device can regularly reboot
according to the frequency in different time formats of interval.
Figure 5-52 Auto Reboot Settings
The page includes the following settings:
Object Description
• Auto Reboot Settings Select Enable from the drop-down menu to setup this function.
• Frequency of Auto Reboot
Select the frequency interval using the drop-down menus. The interval
supported in different time formats:
• Min: 10/20/30/40/50/60 Mins
• Hour: 1~24 hours
• Day: 1~31 days
• Week: 1~5 weeks
• Save/Apply Click Save/Apply to apply all changes.
• Cancel Click Cancel to cancel the settings.
5.6.6 Firmware Upgrade
Click “Management Firmware Upgrade” to upgrade the device’s firmware.
Figure 5-53 Firmware Upgrade
User Manual of WAP-200N/WBS-200N
-89-
The page includes the following settings:
Object Description
• Current Firmware Version Click ON to enable or click OFF to disable the option.
• Choose File Click Choose File to locate and select the upgrade file from your local
hard disk.
• Upload Click Upload to upgrade the firmware.
Firmware Upgrade Procedure
The following procedure will guide you to how to upgrade the firmware.
Step 1. Click the Choose File button to locate the firmware file path. Then, click the Upload button.
Step 2. The firmware checksum information appeared to help you confirm the file is correct. Once confirmed,
click the Upgrade button to begin the upgrade process.
Step 3. Wait for the process to finish.
User Manual of WAP-200N/WBS-200N
-90-
Step 4. When the upgrade is finished, the system will auto reboot and you can click the hyperlink “Click here
when AP is ready” after the system restarts.
5.6.7 Time Settings
Click “Management Time Settings” to configure time zone and NTP server settings to be in sync with the
device’s time.
Figure 5-54 Time Settings
The page includes the following settings:
Object Description
• Manually Set Date and Time
Enter the date and time values in the date and time fields or click the
Synchronize with PC to get the date and time values from the
administrator’s PC.
• Automatically Get Date and
Time
Select a time zone from the drop-down list and check whether you want to
enter the IP address of an NTP server or use the default NTP server.
• Enable Daylight Saving Click to enable or disable daylight savings time. Select the start and stop
times from the Start Time and Stop Time dropdown lists.
• Save/Apply Click Save/Apply to apply all changes.
• Cancel Click Cancel to cancel the settings.
User Manual of WAP-200N/WBS-200N
-91-
5.6.8 Wi-Fi Schedule
This page allows you to configure wireless schedule. The device can regularly enable/disable Wi-Fi function
according to the pre-defined schedule rules.
Click “Management Auto Reboot Settings” and the following page will be displayed.
Figure 5-55 Wi-Fi Schedule
The page includes the following settings:
Object Description
• Schedule Name Enter the description of the schedule service.
• Service Select the type of schedule service, either Wireless Power ON or
Wireless Power OFF.
• Day Select the days of the week to enable the schedule service.
• Time of Day Set the start time that the service is active.
• Add Click Add to append the schedule service to the schedule service table
• Cancel Click Cancel to discard changes.
User Manual of WAP-200N/WBS-200N
-92-
5.6.9 CLI Settings
The command line interface (CLI) allows user to access the device through a command console, modem or
Telnet connection for configuration.
Click “Management CLI Settings” to enable/disable CLI (Command Line Interface).
Figure 5-56 CLI Settings
The page includes the following settings:
Object Description
• CLI Select ON/OFF to enable or disable the ability to modify the device via a
command line interface (CLI).
• Save/Apply Click Save/Apply to apply all changes.
• Cancel Click Cancel to cancel the settings.
5.6.10 Log
Click “Management Log” to enable/disable system log.
Figure 5-57 Log
User Manual of WAP-200N/WBS-200N
-93-
The page includes the following settings:
Object Description
• Syslog Enable or disable the syslog function.
• Log Server IP Address Enter the IP address of the log server.
• Local Log Enable or disable the local log service.
• Save/Apply Click Save/Apply to apply all changes.
• Cancel Click Cancel to cancel the settings.
5.6.11 Diagnostics
Click “Management Diagnostics” to test the connection and performance through the built-in diagnostics
utilities.
Figure 5-58 Diagnostics
User Manual of WAP-200N/WBS-200N
-94-
The page includes the following settings:
Object Description
• Target IP / Domain Name Enter the IP address you would like to search.
• Ping Packet Size Enter the packet size of each ping.
• Number of Pings Enter the number of times you want to ping.
• Start Ping Click Start Ping to begin pinging.
• Trace route target Enter an IP address or domain name you want to trace.
• Start Traceroute Click Start Traceroute to begin the traceroute operation.
• Target Address Enter the IP address of the target PC.
• Time period Enter time period for the speed test.
• Check Interval Enter the interval for the speed test.
• Start Speed Test Click Start Speed Test to begin the speed test operation.
• IPv4 Port Displays the IPv4 port number of the device.
• IPv6 Port Displays the IPv6 port number of the device.
5.6.12 Logout
Click “Management Logout” to log out the system.
Figure 5-59 Logout
The page includes the following settings:
Object Description
• OK Click OK to log out the system.
• Cancel Click Cancel to cancel the operation.
User Manual of WAP-200N/WBS-200N
-95-
Appendix A: Troubleshooting
If you find the AP is working improperly or stop responding to you, please read this troubleshooting first before
contacting the Planet Tech Support for help. Some problems can be solved by yourself within very short time.
Scenario Solution
The AP
is not responding to me when I
want to access it by web browser.
a. Please check the connection of the power cord and the
Ethernet cable of this AP. All cords and cables should be
correctly and firmly inserted to the AP.
b. If all LEDs on this AP are off, please check the status of
power adapter, and make sure it is correctly powered.
c. You must use the same IP address section that AP uses.
d. Are you using MAC or IP address filter? Try to connect the
AP by another computer and see if it works; if not, please
reset the AP to the factory default settings (Press the ‘reset’
button for over 10 seconds).
e. Set your computer to static IP address, and see if the
Planet Smart Discovery can find the AP or not.
f. If you did a firmware upgrade and this happens, contact the
Planet Tech Support for help.
g. If all the solutions above don’t work, contact Planet Tech
Support for help.
I can’t get connected to the Internet. a. Check the Internet connection status from the router that is
connected with the AP.
b. Please be patient. Sometimes Internet is just that slow.
c. If you have connected a computer to Internet directly
before, try to do that again, and check if you can get
connected to Internet with your computer directly attached
to the device provided by your Internet service provider.
d. Check PPPoE / L2TP / PPTP user ID and password in your
router again.
e. Call your Internet service provider and check if there’s
something wrong with their service.
f. If you just can’t connect to one or more website, but you
can still use other internet services, please check
URL/Keyword filter.
g. Try to reset the AP and try again later.
h. Reset the device provided by your Internet service provider.
i. Try to use IP address instead of hostname. If you can use
IP address to communicate with a remote server, but can’t
use hostname, please check DNS setting.
I can’t locate my AP by my wireless device. a. ‘Broadcast ESSID’ set to off?
b. The antenna is properly secured.
User Manual of WAP-200N/WBS-200N
-96-
c. Are you too far from your AP? Try to get closer.
d. Please remember that you have to input ESSID on your
wireless client manually, if ESSID broadcast is disabled.
File downloading is very slow or breaks
frequently.
a. Are you using QoS function? Try to disable it and try again.
b. Internet is slow sometimes; try to be patient.
c. Try to reset the AP and see if it’s better after that.
d. Try to know what computers do on your local network. If
someone’s transferring big files, other people will think
Internet is really slow.
e. If this never happens before, call you Internet service
provider to know if there is something wrong with their
network.
I can’t log in to the
web management
interface; the password is wrong.
a. Make sure you’re connecting to the correct IP address of
the AP.
b. Password is case-sensitive. Make sure the ‘Caps Lock’
light is not illuminated.
c. If you really forget the password, do a hard reset.
The AP becomes hot a. This is not a malfunction, if you can keep your hand on the
AP’s case.
b. If you smell something wrong or see the smoke coming out
from AP or A/C power adapter, please disconnect the AP
and A/C power adapter from utility power (make sure it’s
safe before doing this!), and call your dealer for help.
User Manual of WAP-200N/WBS-200N
-97-
Appendix B: Use Planet Smart Discovery to find AP
To easily discover the WAP-200N/WBS-200N in your Ethernet environment, the Planet Smart Discovery Utility is
an ideal solution. The utility is available at: http://www.planet.com.tw/en/product/images/48590/Planet_Utility.zip
The following instructions will guide you to how to use the Planet Smart Discovery Utility.
Step 1. Download the Planet Smart Discovery Utility in administrator PC.
Step 2. Execute this utility.
Step 3. Click the “Refresh” button as shown below to update the list of the currently connected devices.
Figure B-1 PLANET Smart Discovery
Step 4. Select the AP from the list and then click the “Connect to Device” button to link to the Web
Management Configuration page.
The fields in white background can be modified
directly, and then you can apply the new
setting by clicking the “Update Device” button.
User Manual of WAP-200N/WBS-200N
-98-
Appendix C: FAQ
Q1: How to set up the AP Client Connection
Topology:
1. Use static IP in the PCs that are connected with AP-1 (Site-1) and AP-2 (Site-2). In this case, Site-1 is
“192.168.1.100”, and Site-2 is “192.168.1.200”.
2. In the AP-1, go to “System-> IP Settings” to configure the IP address to static and different from the CPE.
User Manual of WAP-200N/WBS-200N
-99-
3. In the AP-1, go to “System-> Operation Mode” and set it to use “Access Point” mode. Then, click “Save &
Apply”.
4. In the AP-1, go to “Wireless-> Wireless Network” to configure channel and click “Edit” for security setting.
(1) Channel HT Mode: set to “40MHz” for wider bandwidth
(2) Channel/Frequency: uncheck “Auto” and set to a fixed channel
User Manual of WAP-200N/WBS-200N
-100-
5. In the SSID Profile, you can configure your own SSID and Passphrase. Then, click “Save” to go back to the
main page.
6. Click “Accept” to save the configurations.
User Manual of WAP-200N/WBS-200N
-101-
7. Go to the “Status-> Save/Reload” page to click “Save & Apply” to force the AP to reboot so that it can
apply all configurations and take effect.
8. In the AP-2, go to “System-> IP Settings” to configure the IP address to static and different from the CPE.
User Manual of WAP-200N/WBS-200N
-102-
9. In the AP-2, go to “System-> Operation Mode” and set it to use “Client Bridge” mode. Then, click “Save &
Apply”.
10. In the AP-2, go to “Wireless-> Wireless Network”. Click “Site Survey” to discover the AP-1.
User Manual of WAP-200N/WBS-200N
-103-
11. Click the AP-1 to let the AP-2 to connect it. Then, it will go back to the main page.
12. Click the check box of the preferred BSSID and configure the encryption to be the same as the AP-1. Then,
click “Accept” to save the configurations.
User Manual of WAP-200N/WBS-200N
-104-
13. Go to the “Status-> Save/Reload” page to click “Save & Apply” to force the AP to reboot so that it can
apply all configurations and take effect.
14. In the AP-2, go to the “Status-> Connection Status” page to check whether the AP-2 is associated to the
AP-1 successfully.
User Manual of WAP-200N/WBS-200N
-105-
15. In the AP-1, go to the “Status-> Wireless Client List” page to check the client’s signal strength.
16. Use command line tool to ping each other to ensure the link is successfully established.
For example, from Site-1, ping 192.168.1.200; and at Site-2, ping 192.168.1.100.
User Manual of WAP-200N/WBS-200N
-106-
Attention should be paid to the following hints:
1) The encryption method must be the same at both sites if configured.
2) Both sites should be Line-of-Sight.
3) Included in the package are two 5dBi antennas for the WAP-2
00N only for long distance
over 1km. Please connect to the 2.4GHz antennas with higher gain.
4) For PtP connection over 1km, please adjust "Distance" setting to the actual distance between both
sites on the ‘both sites' setting page.
User Manual of WAP-200N/WBS-200N
-107-
Q2: How to set up the WDS Connection
Topology:
1. Use static IP in the PCs that are connected with WBS-200N-1 (Site-1) and WBS-200N-2 (Site-2). In this
case, Site-1 is “192.168.1.100”, and Site-2 is “192.168.1.200”.
2. In the AP-1, go to “System-> IP Settings” to configure the IP address to static and different from the CPE.
User Manual of WAP-200N/WBS-200N
-108-
3. In the AP-1, go to “System-> Operation Mode” and set it to use “WDS Access Point” mode. Then, click
“Save & Apply”.
4. In the AP-1, go to “Wireless-> Wireless Network” to configure channel and click “Edit” for security setting.
(1) Channel HT Mode: set to “40MHz” for wider bandwidth
(2) Channel/Frequency: uncheck “Auto” and set to a fixed channel
User Manual of WAP-200N/WBS-200N
-109-
5. In the SSID Profile, you can configure your own SSID and Passphrase. Then, click “Save” to go back to the
main page.
6. Click “Accept” to save the configurations.
User Manual of WAP-200N/WBS-200N
-110-
7. Go to the “Status-> Save/Reload” page to click “Save & Apply” to force the AP to reboot so that it can
apply all configurations and take effect.
8. In the AP-2, go to “System-> IP Settings” to configure the IP address to static and different from the CPE.
User Manual of WAP-200N/WBS-200N
-111-
9. In the AP-2, go to “System-> Operation Mode” and set it to use “WDS Station” mode. Then, click “Save &
Apply”.
10. In the AP-2, go to “Wireless-> Wireless Network”. Click “Site Survey” to discover the AP-1.
User Manual of WAP-200N/WBS-200N
-112-
11. Click the AP-1 to let the AP-2 connect it. Then, it will go back to the main page.
12. Click the check box of the preferred BSSID and configure the encryption to be the same as the AP-1. Then,
click “Accept” to save the configurations.
User Manual of WAP-200N/WBS-200N
-113-
13. Go to the “Status-> Save/Reload” page to click “Save & Apply” to force the AP to reboot so that it can apply
all configurations and take effect.
14. In the AP-2, go to the “Status-> Connection Status” page to check whether the AP-2 is associated with the
AP-1 successfully.
User Manual of WAP-200N/WBS-200N
-114-
15. In the AP-1, go to the “Status-> Wireless Client List” page to check the client’s signal strength.
16. Use command line tool to ping each other to ensure the link is successfully established.
For example, from Site-1, ping 192.168.1.200; and at Site-2, ping 192.168.1.100.
User Manual of WAP-200N/WBS-200N
-115-
Attention should be paid to the following hints:
1) The encryption method must be the same at both sites if configured.
2) Both sites should be Line-of-Sight.
3) Included in the package are two 5dBi antennas for the WAP-2
00N only for long distance
over 1km. Please connect to the 2.4GHz antennas with higher gain.
4) For PtP connection over 1km, please adjust "Distance" setting to the actual distance between both
sites on the ‘both sites' setting page.
User Manual of WAP-200N/WBS-200N
-116-
EC Declaration of Conformity
English Hereby, PLANET Technology Corporation,
declares that this 300Mbps 802.11n Wireless
Outdoor AP/CPE is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Lietuviškai Šiuo PLANET Technology Corporation,, skelbia,
kad 300Mbps 802.11n Wireless Outdoor AP/CPE
tenkina visus svarbiausius 1999/5/EC direktyvos
reikalavimus ir kitas svarbias nuostatas.
Česky Společnost PLANET Technology Corporation,
tímto prohlašuje, že tato 300Mbps 802.11n Wireless
Outdoor AP/CPE splňuje základní požadavky a
další příslušná ustanovení směrnice 1999/5/EC.
Magyar A gyártó PLANET Technology Corporation,
kijelenti, hogy ez a 300Mbps 802.11n Wireless
Outdoor AP/CPE megfelel az 1999/5/EK irányelv
alapkövetelményeinek és a kapcsolódó
rendelkezéseknek.
Dansk PLANET Technology Corporation, erklærer
herved, at følgende udstyr 300Mbps 802.11n
Wireless Outdoor AP/CPE overholder de
væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF
Malti Hawnhekk, PLANET Technology Corporation,
jiddikjara li dan 300Mbps 802.11n Wireless Outdoor
AP/CPE jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC
Deutsch Hiermit erklärt PLANET Technology Corporation,
dass sich dieses Gerät 300Mbps 802.11n Wireless
Outdoor AP/CPE in Übereinstimmung mit den
grundlegenden Anforderungen und den anderen
relevanten
Vorschriften der Richtlinie 1999/5/EG befindet".
(BMWi)
Nederlands Hierbij verklaart , PLANET Technology orporation,
dat 300Mbps 802.11n Wireless Outdoor AP/CPE in
overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG
Eestikeele
s
Käesolevaga kinnitab PLANET Technology
Corporation, et see 300Mbps 802.11n Wireless
Outdoor AP/CPE vastab Euroopa Nõukogu direktiivi
1999/5/EC põhinõuetele ja muudele olulistele
tingimustele.
