54M Wireless VPN
Firewall Router
VRT-401G
User’s Manual
1
Copyright
Copyright (C) 2005 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of PLANET Technology,
This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all
accompanying hardware, software, and documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form by any means by electronic or mechanical. Including
photocopying, recording, or information storage and retrieval systems, for any purpose other than the
purchaser's personal use, and without the prior express written permission of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and
applications, and makes no warranty and representation, either implied or expressed, with respect to the
quality, performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for
any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment
on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in
this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s
Manual, and reserves the right to make improvements to this User’s Manual and/or to the products
described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your
comments and suggestions.
CE mark Warning
This is a class B device, in a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the presence
of hazardous substances in electrical and electronic equipment, end users of electrical and
electronic equipment should understand the meaning of the crossed-out wheeled bin symbol.
Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE
separately.
Trademarks
The PLANET logo is a trademark of PLANET Technology.
This documentation may refer to numerous hardware and software products by their trade names. In most, if
not all cases, these designations are claimed as trademarks or registered trademarks by their respective
companies.
Revision
User’s Manual for PLANET 54M Wireless VPN Firewall Router
Model: VRT-401G
Rev: 1.0 (Dec, 2005)
Part No. 2081-B42060-000
2
Table of Content
Introduction.........................................................................................................5
Features...............................................................................................................5
Minimum Requirements .....................................................................................5
Package Content.................................................................................................5
Get to know the Wireless VPN Firewall Router ................................................6
Back Panel...........................................................................................................6
Front Panel..........................................................................................................6
Setup Diagram ....................................................................................................7
Getting started ....................................................................................................7
Chapter 1 ...........................................................................................................16
Quick Setup.......................................................................................................16

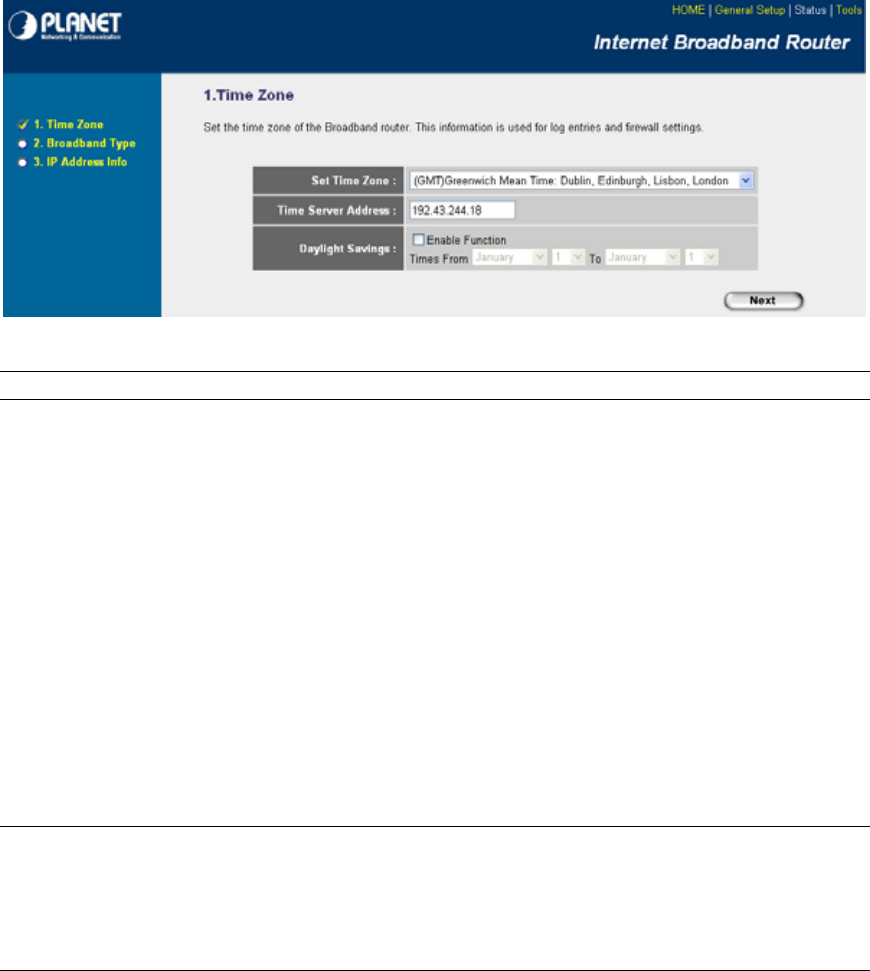

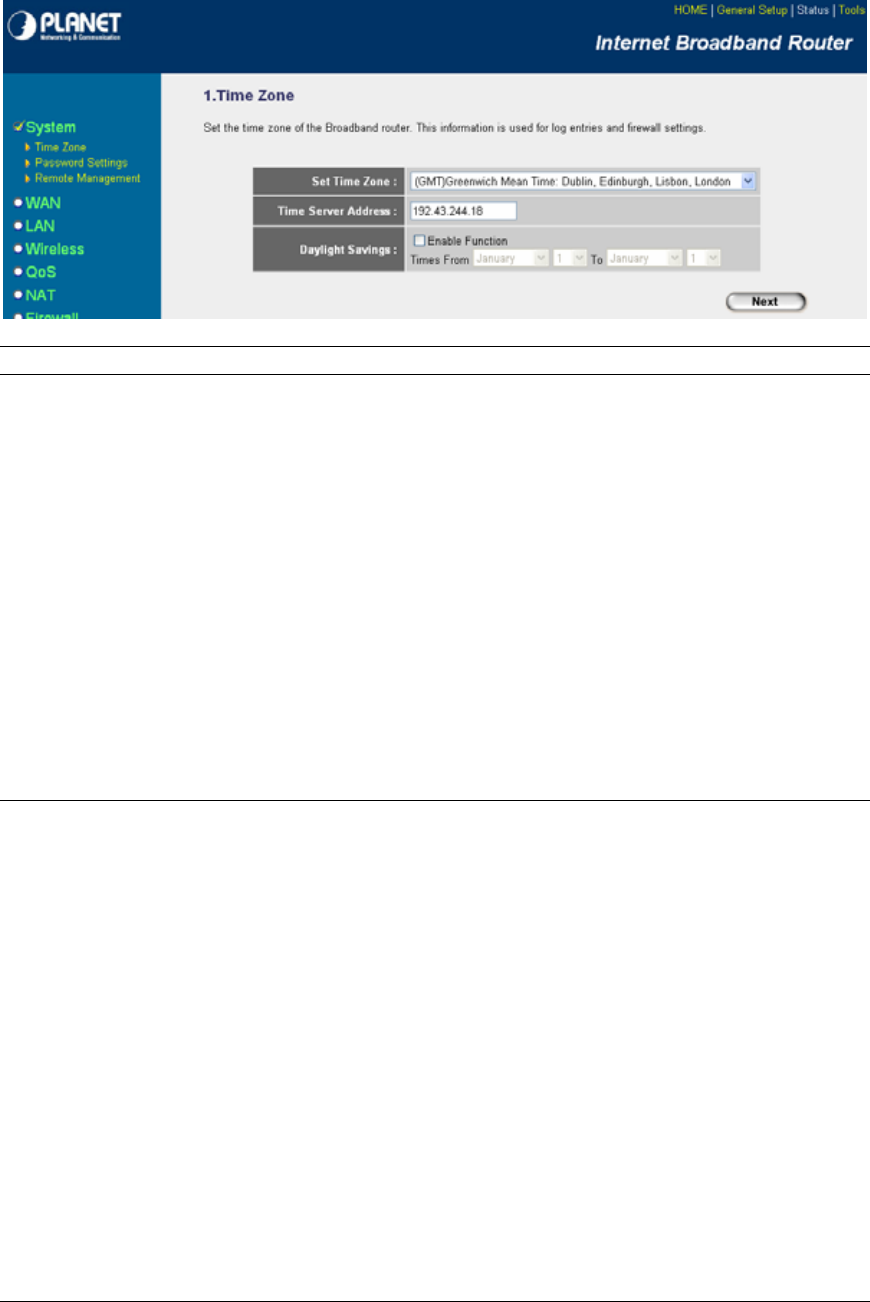

Step 1) Time Zone.............................................................................................16

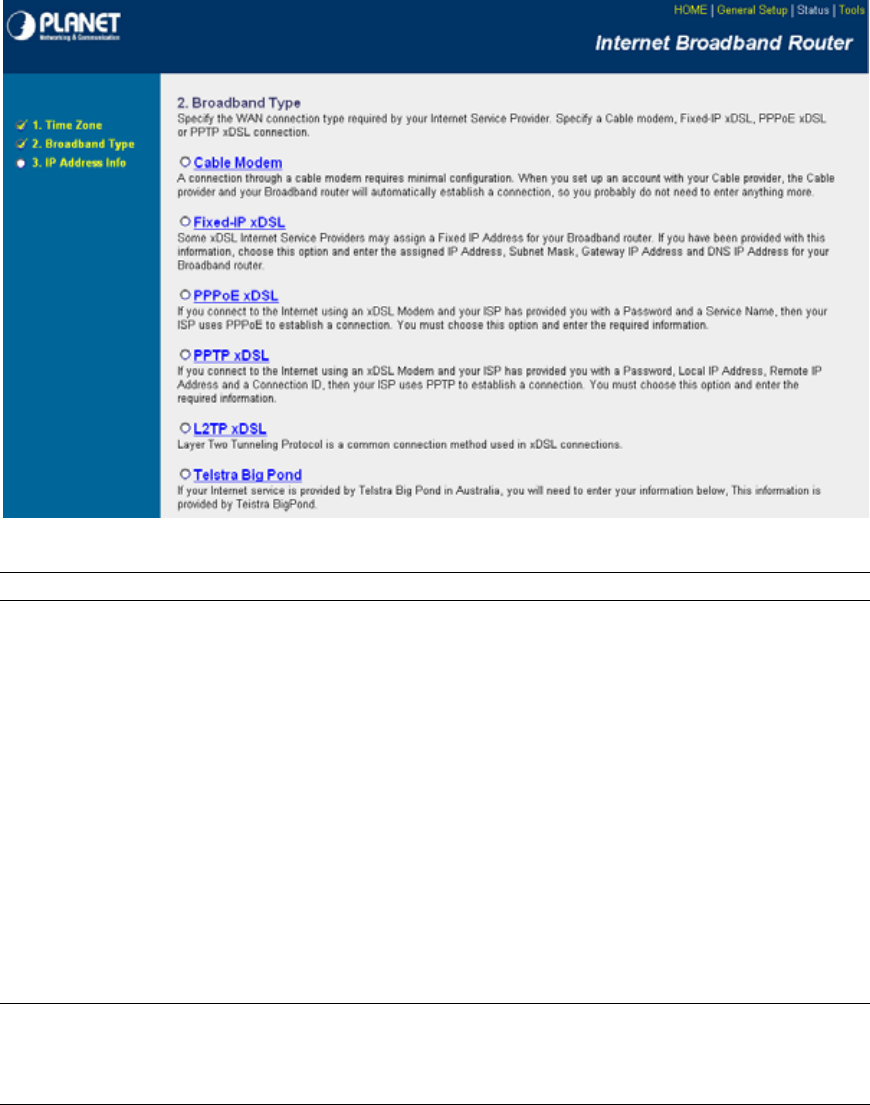

Step 2) Broadband Type...................................................................................17
1.1 Cable Modem ..............................................................................................18

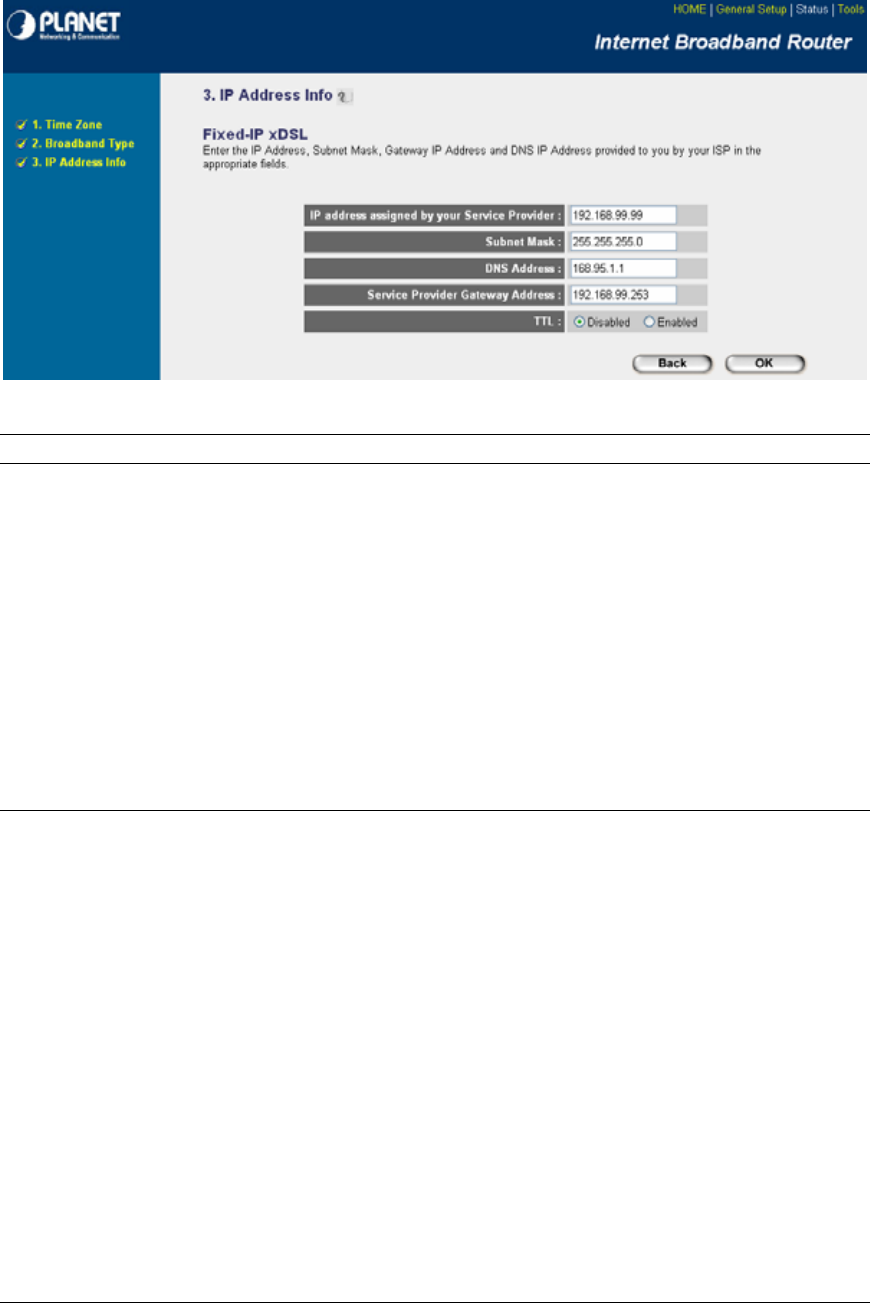

1.2 Fixed-IP xDSL..............................................................................................18
1.3 PPPoE..........................................................................................................19

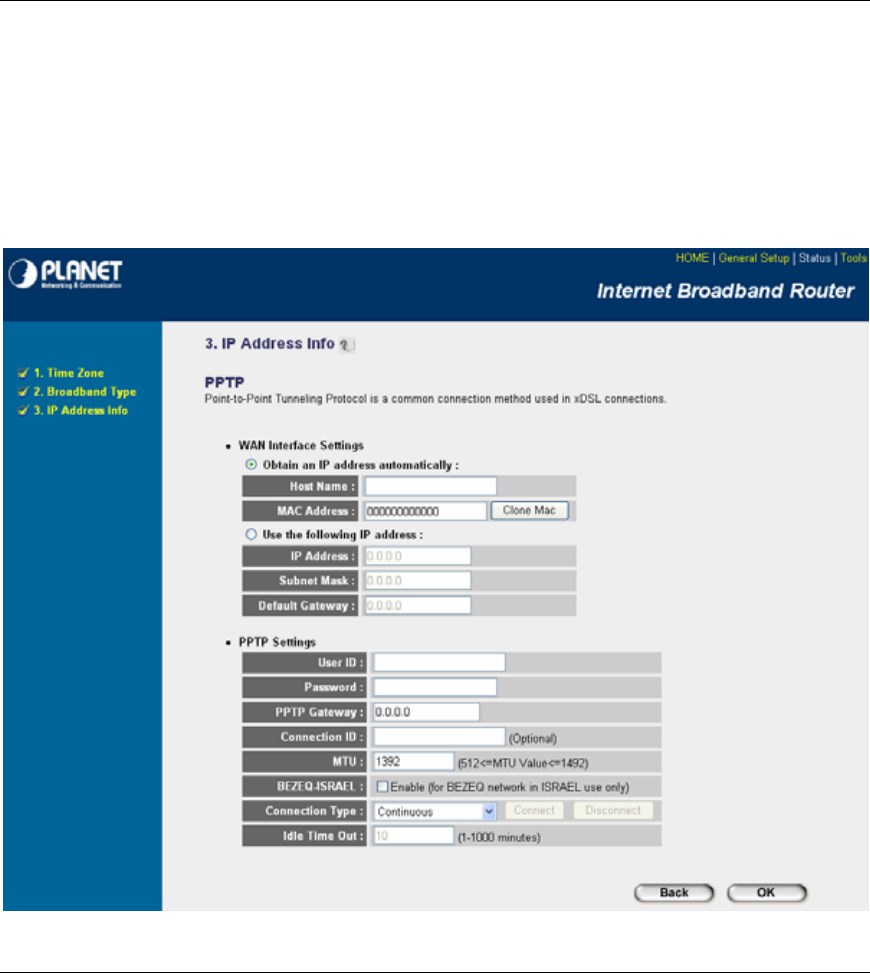

1.4 PPTP ............................................................................................................21

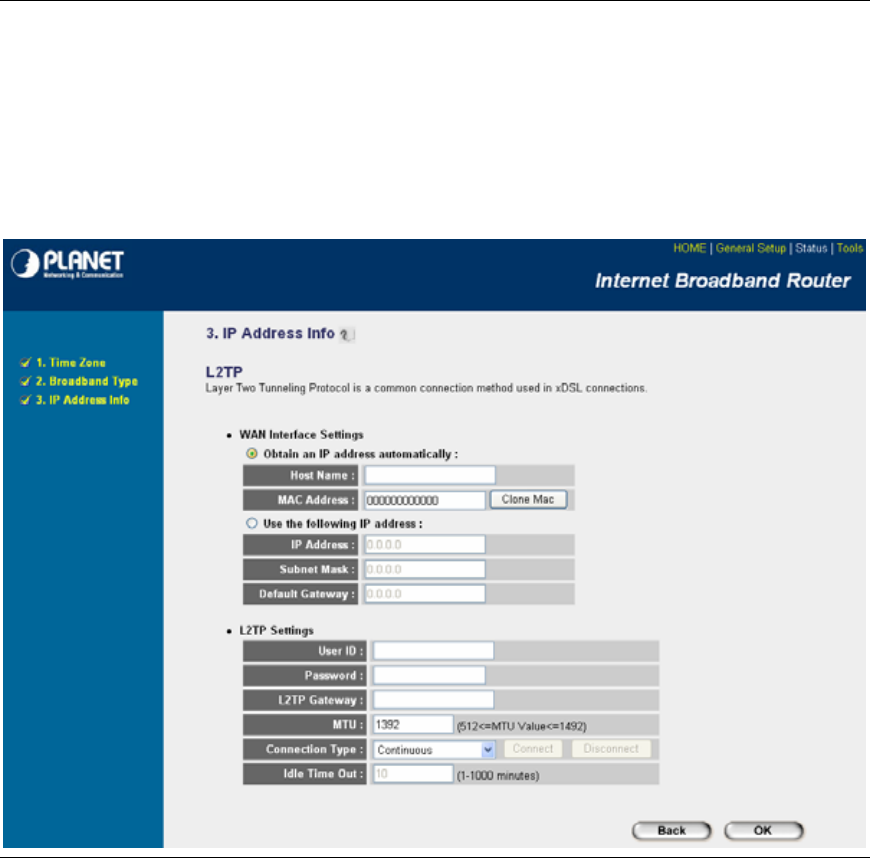

1.5 L2TP.............................................................................................................23

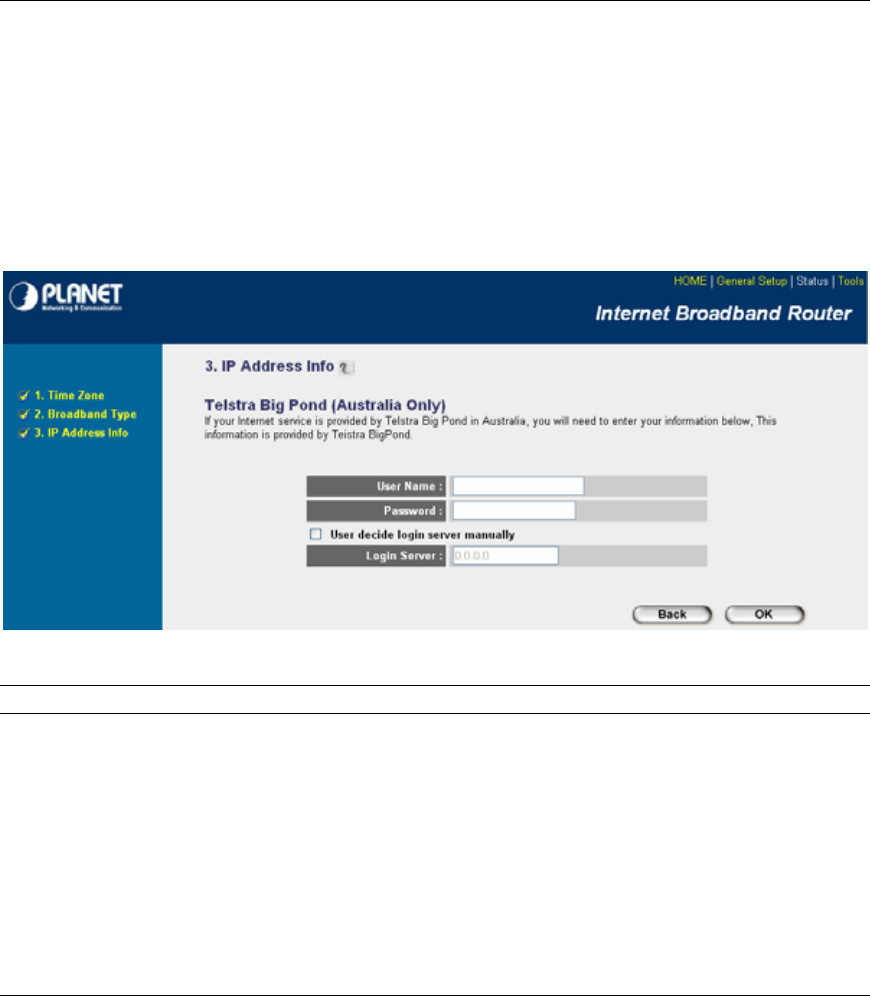

1.6 Telstra Big Pond .........................................................................................25
Chapter 2 ...........................................................................................................27
General Settings ...............................................................................................27
2.1 System.........................................................................................................28
2.1.1 Time Zone.................................................................................................28

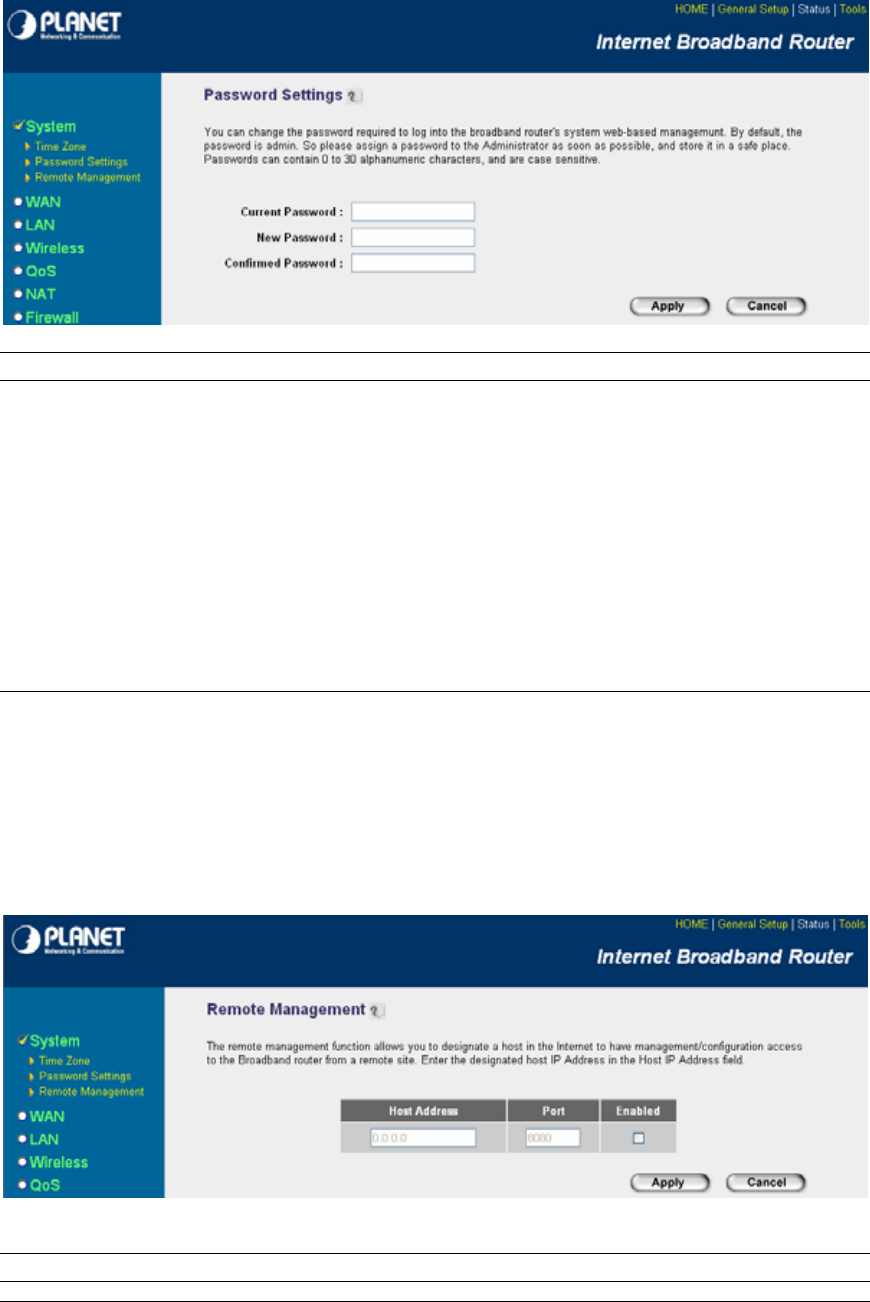

2.1.2 Password Settings...................................................................................29
2.1.3 Remote Management...............................................................................30

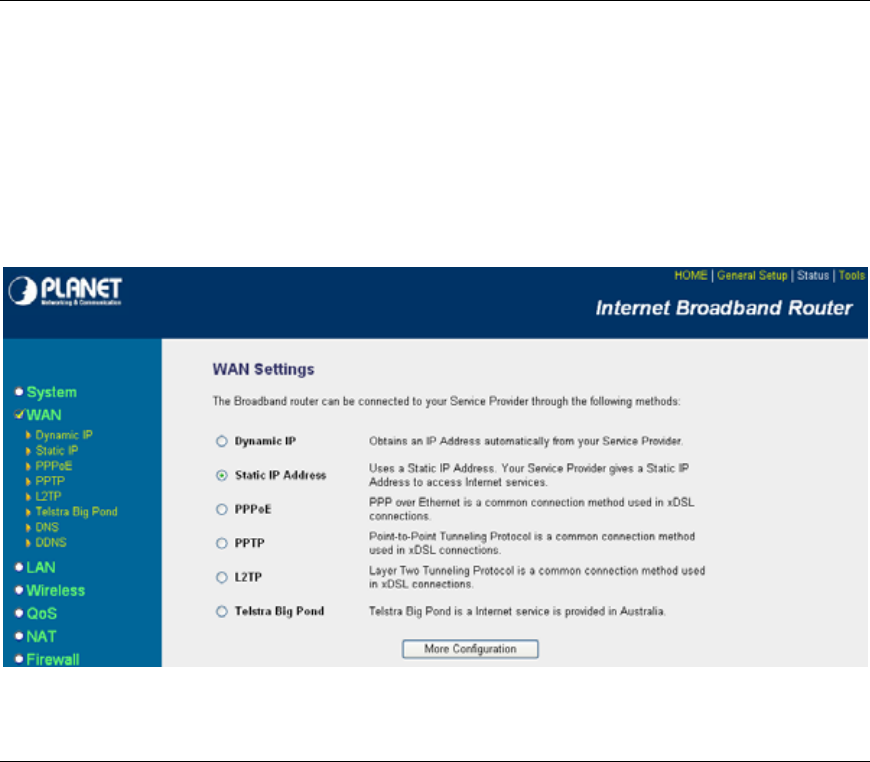

2.2 WAN .............................................................................................................31
2.2.1 Dynamic IP ...............................................................................................32
2.2.2 Static IP Address .....................................................................................32
2.2.3 PPPoE (PPP over Ethernet) ....................................................................32
2.2.4 PPTP .........................................................................................................32
2.2.5 L2TP..........................................................................................................33
2.2.6 Telstra Big Pond ......................................................................................33

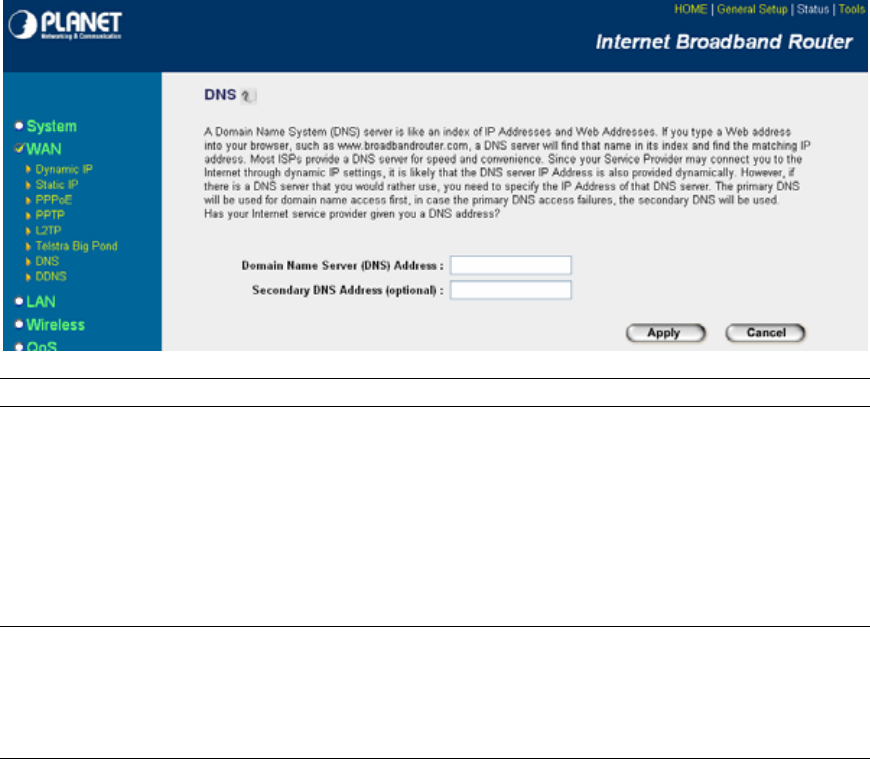

2.2.7 DNS ...........................................................................................................33

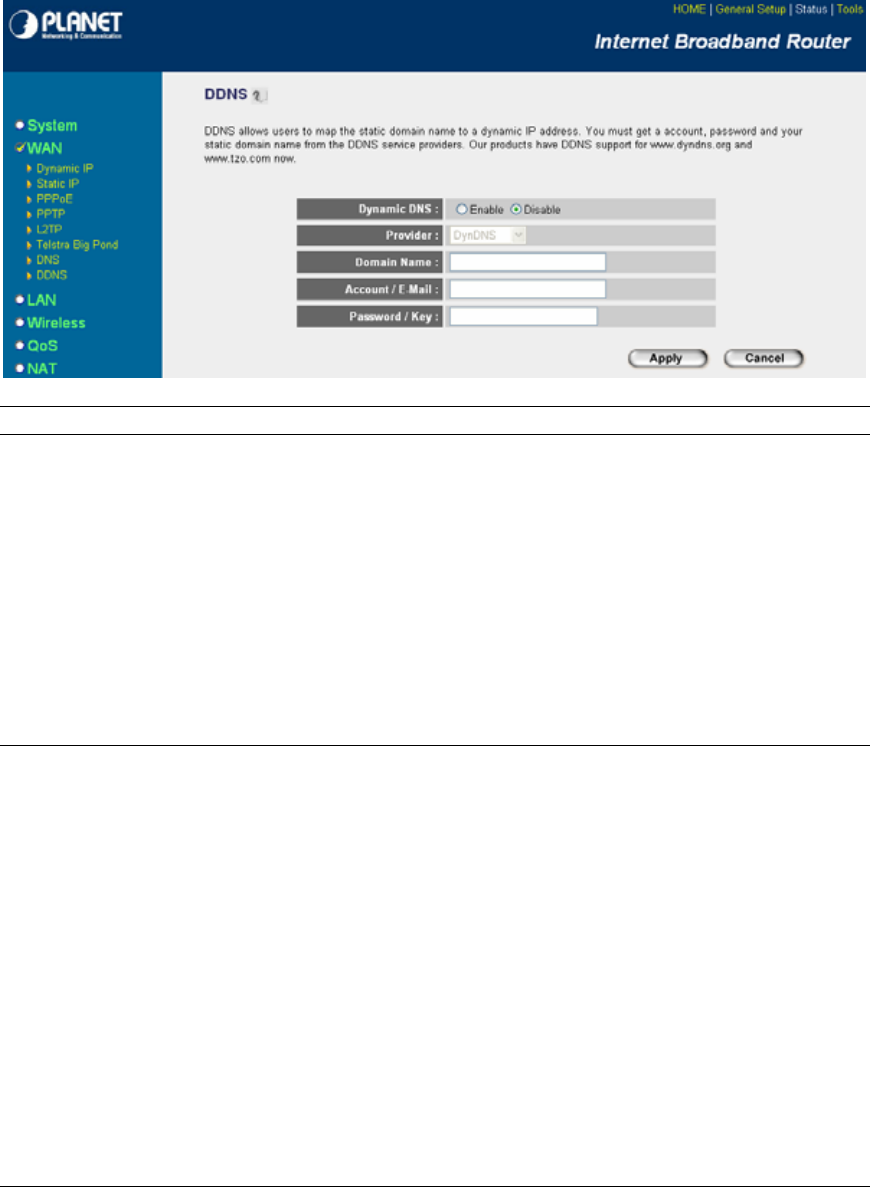

2.2.8 DDNS.........................................................................................................34

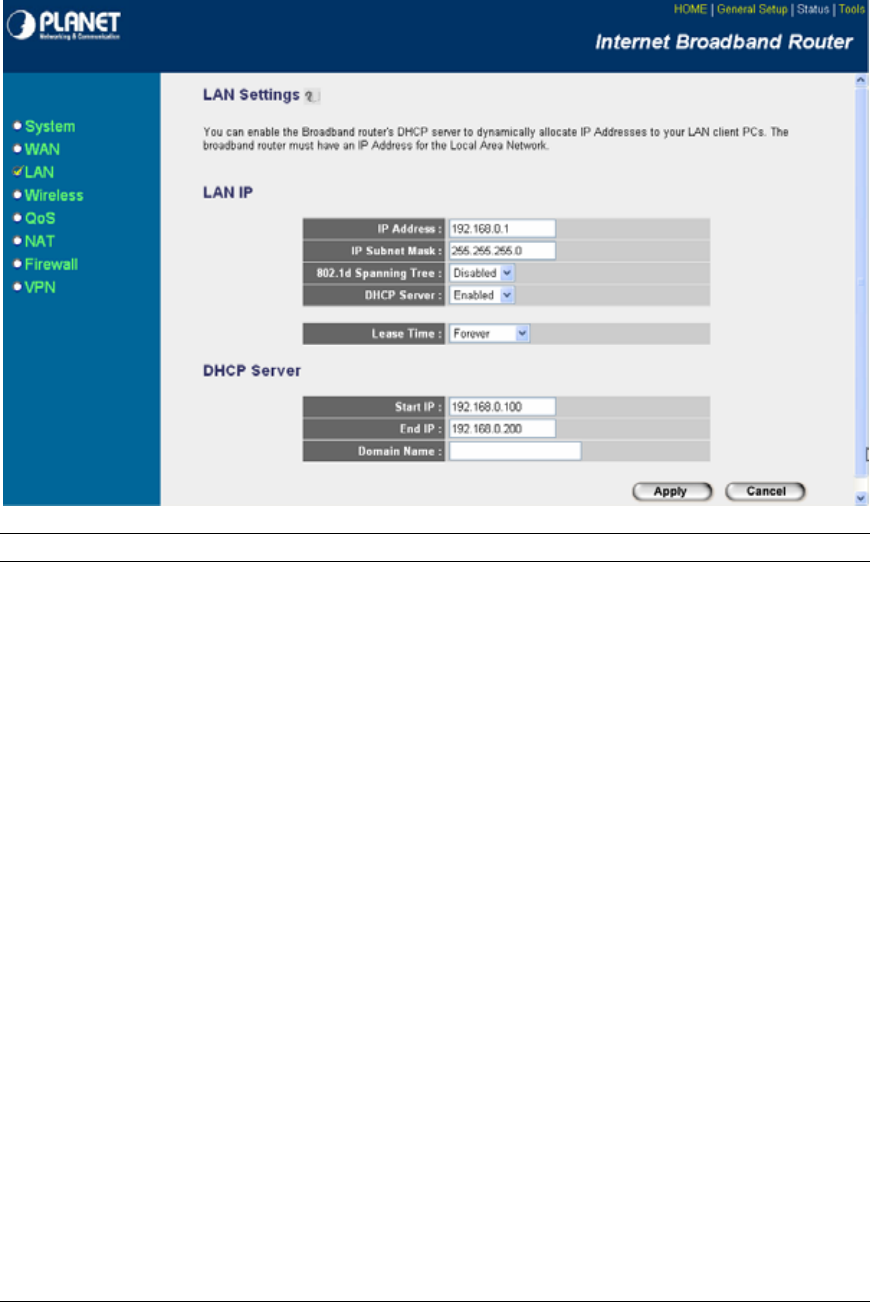

2.3 LAN ..............................................................................................................34
2.4 Wireless.......................................................................................................36

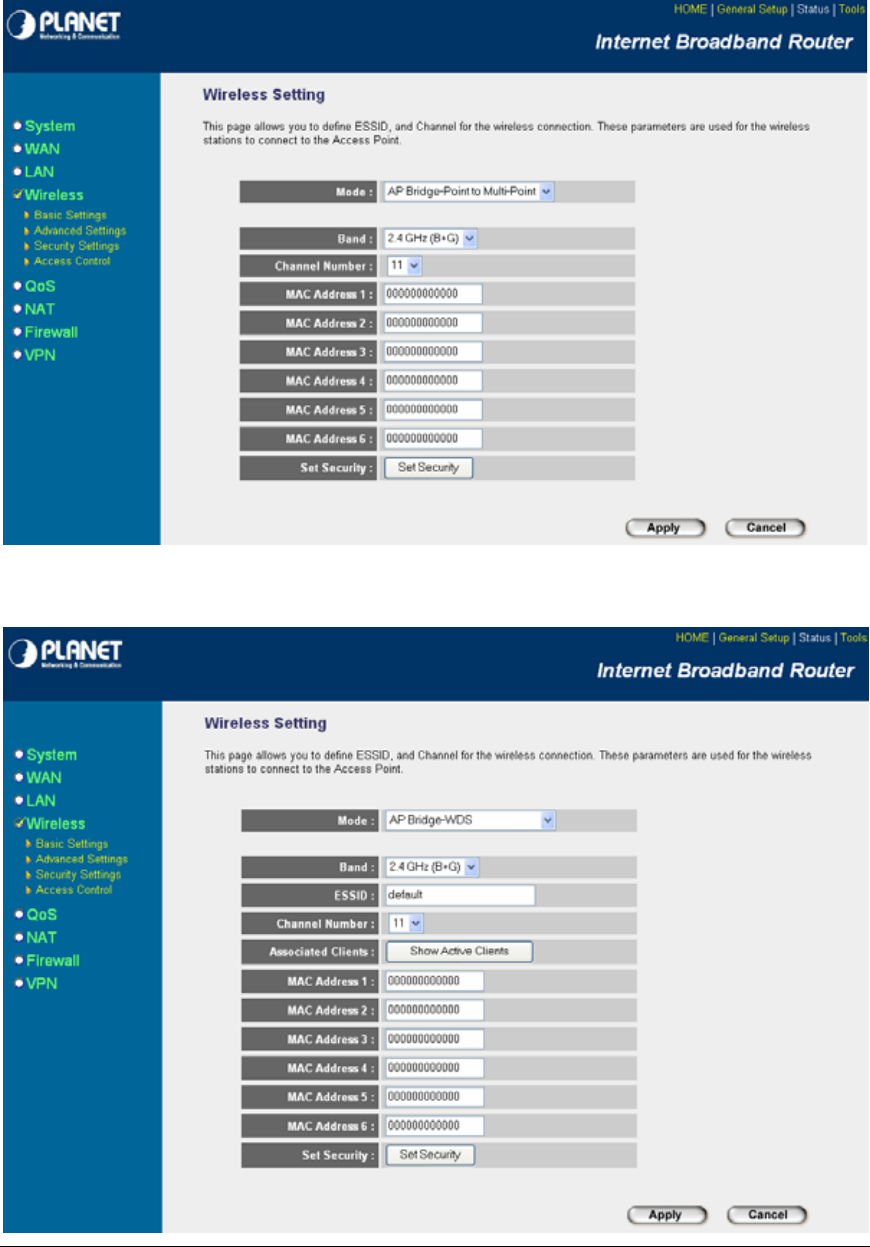

2.4.1 Basic Settings ..........................................................................................36
2.4.2 Advanced Settings...................................................................................41

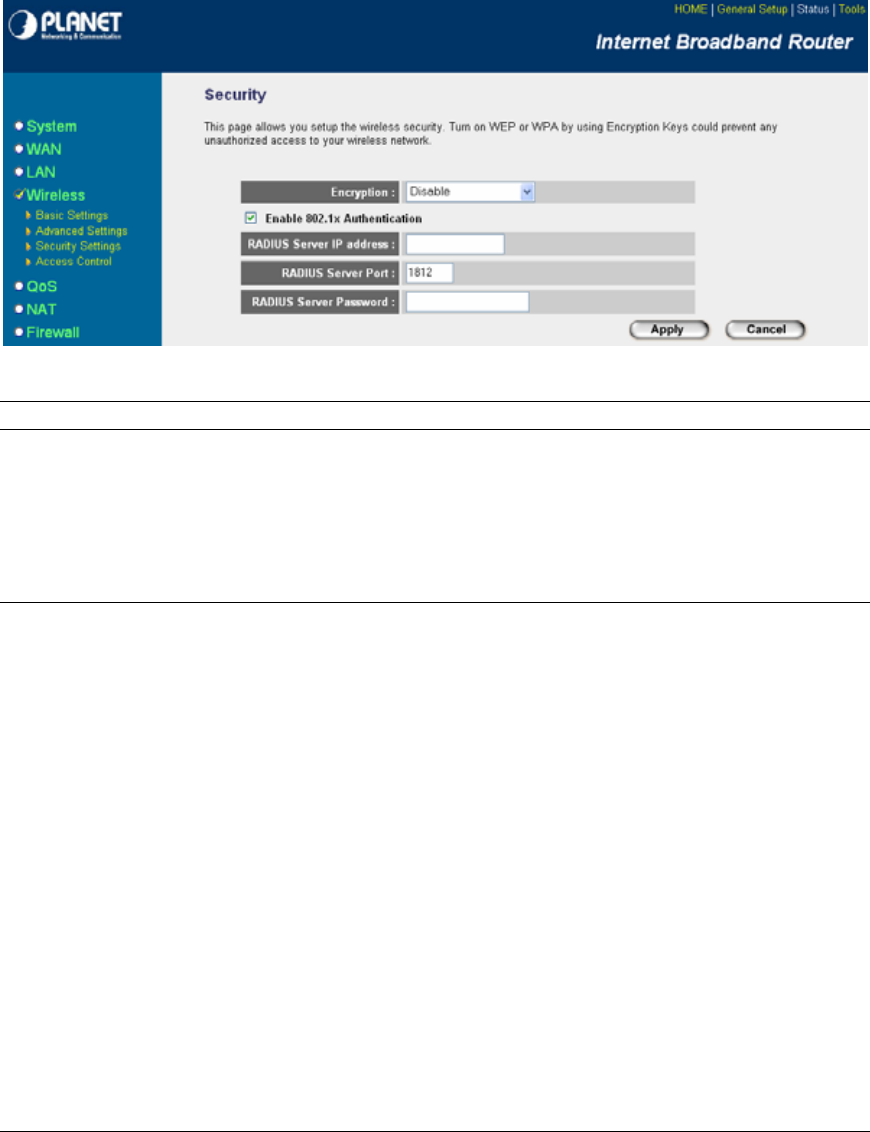

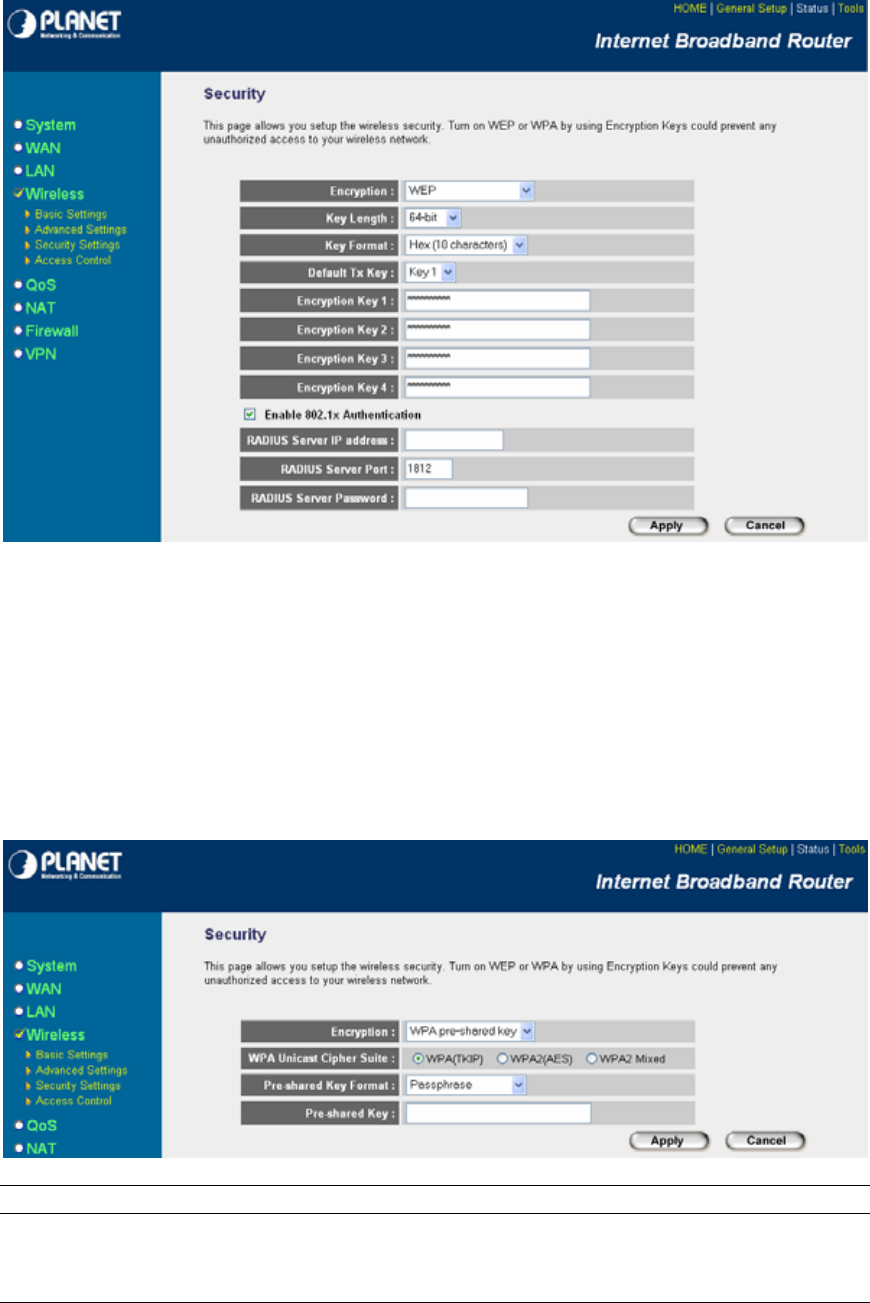

2.4.3 Security.....................................................................................................42
2.4.3.1 WEP only ...............................................................................................42
2.4.3.2 802.1x only ............................................................................................44
2.4.3.3 802.1x WEP Static key..........................................................................44
2.4.3.4 WPA Pre-shared key.............................................................................45
2.4.3.5 WPA Radius...........................................................................................46
2.4.4 Access Control.........................................................................................47
3

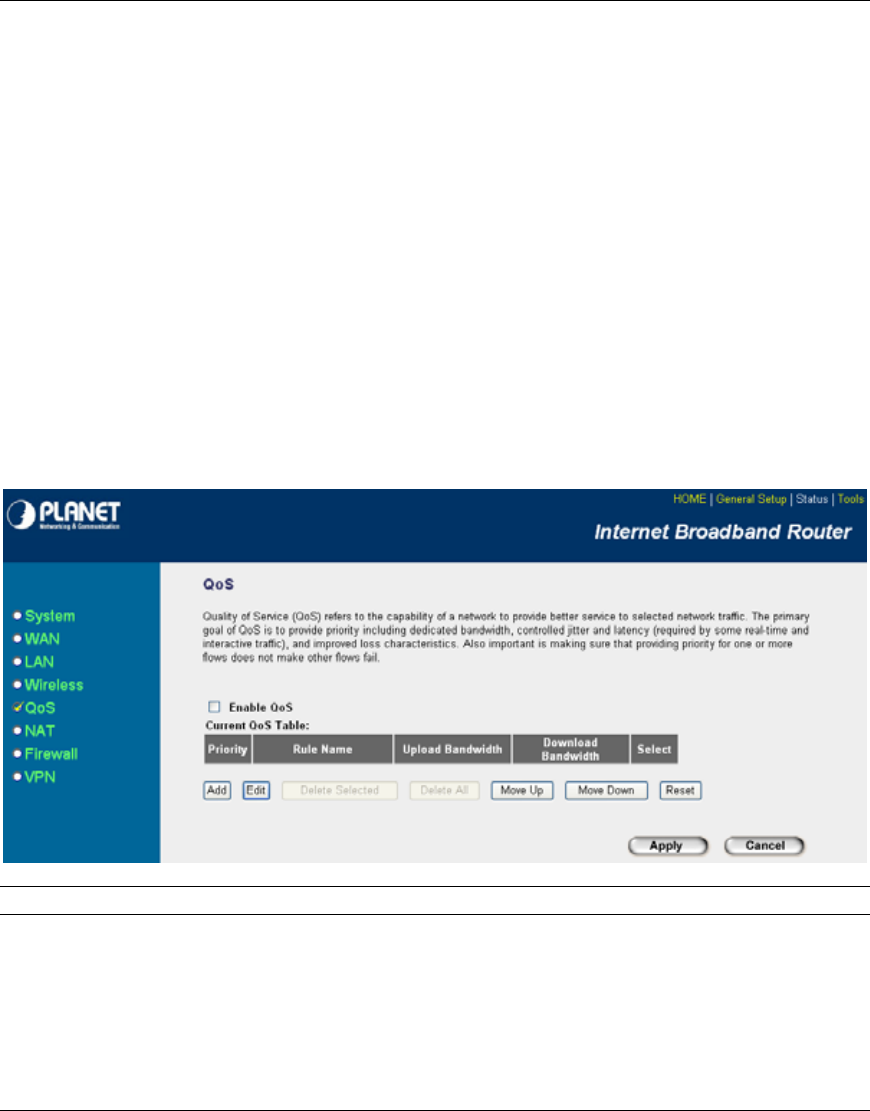

2.5 QoS ..............................................................................................................48
2.6 NAT ..............................................................................................................50
2.6.1 Port Forwarding .......................................................................................52

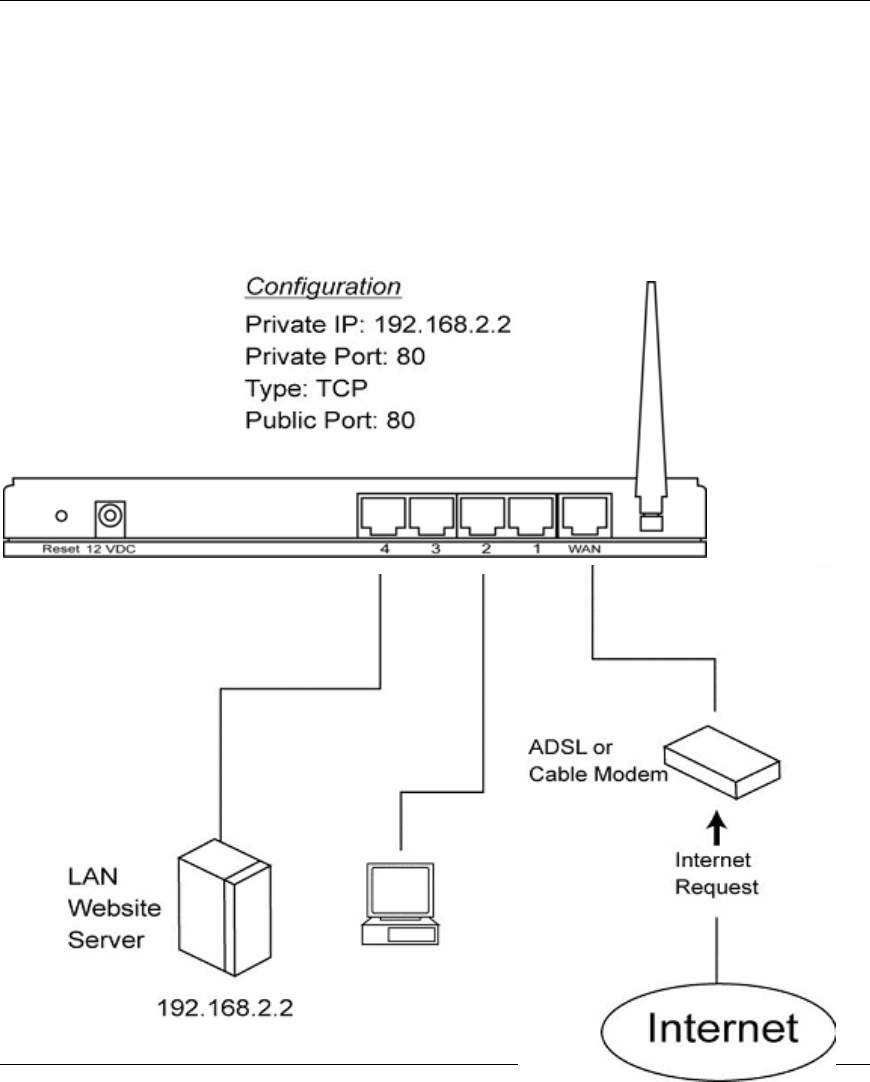

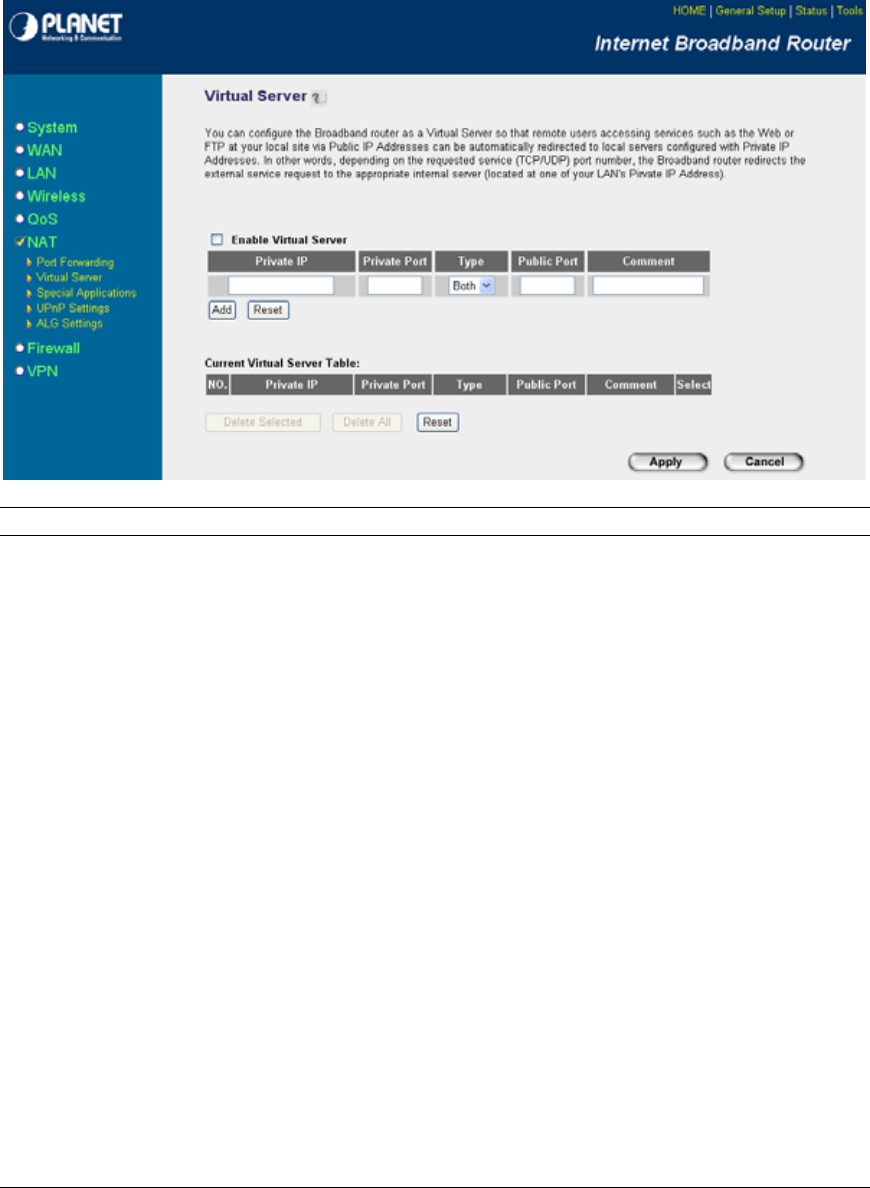

2.6.2 Virtual Server ...........................................................................................52

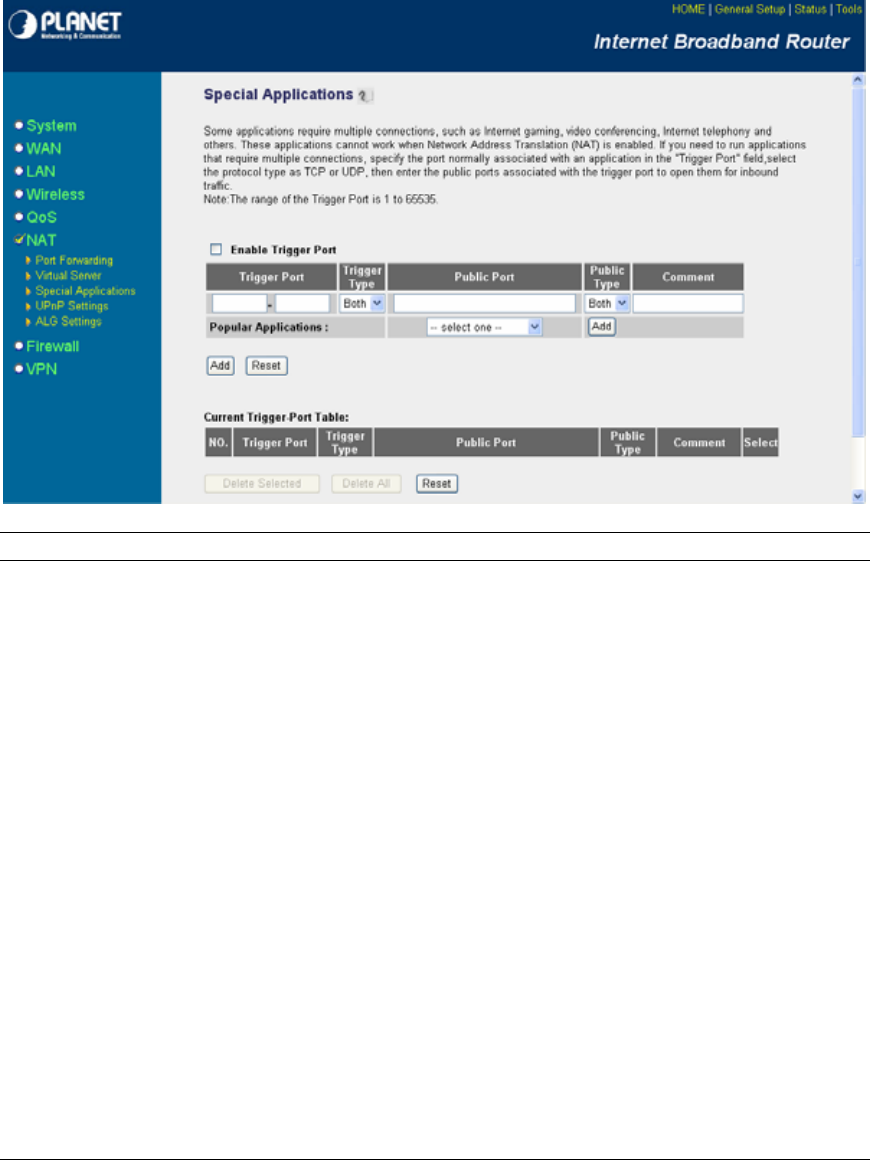

2.6.3 Special Applications................................................................................55

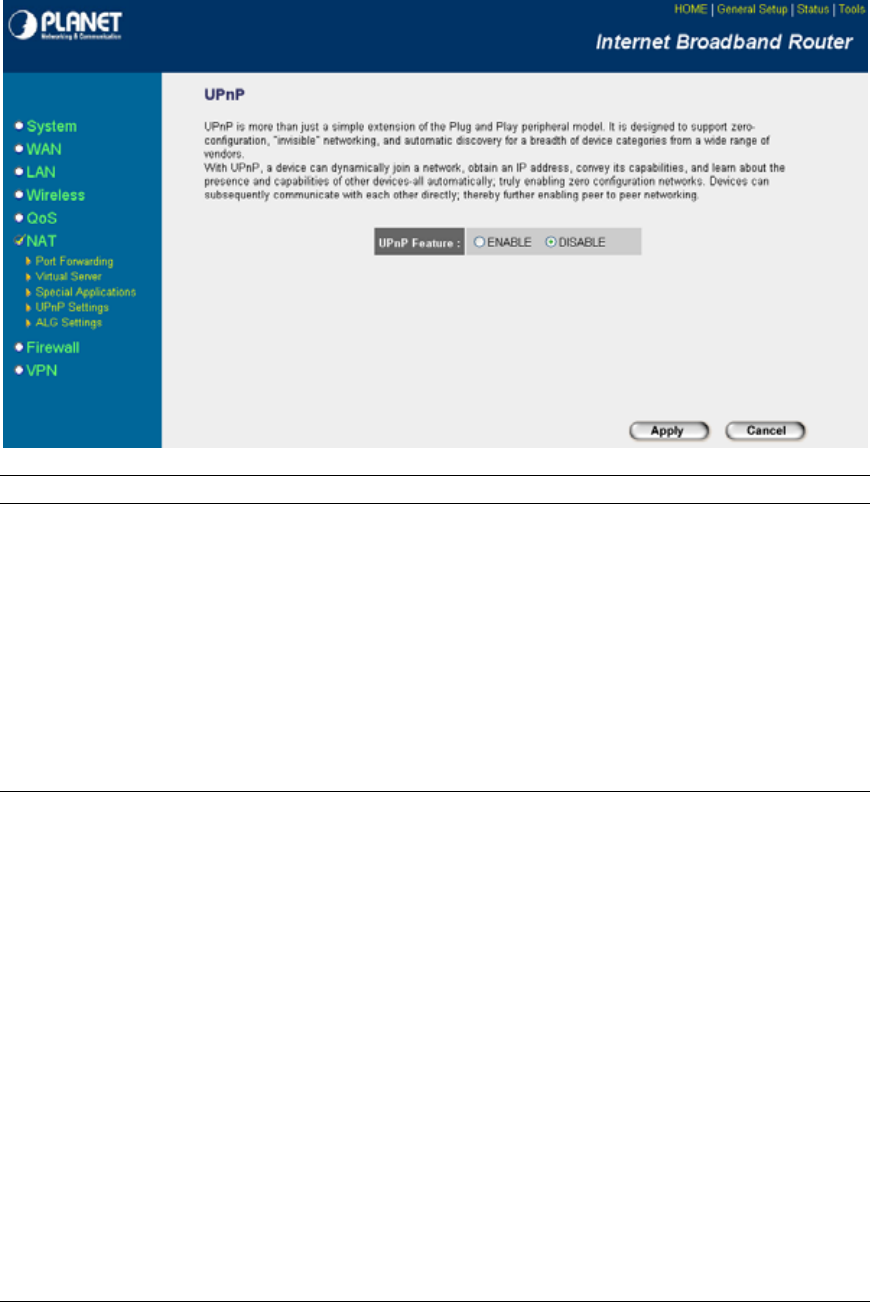

2.6.4 UPnP Settings ..........................................................................................56

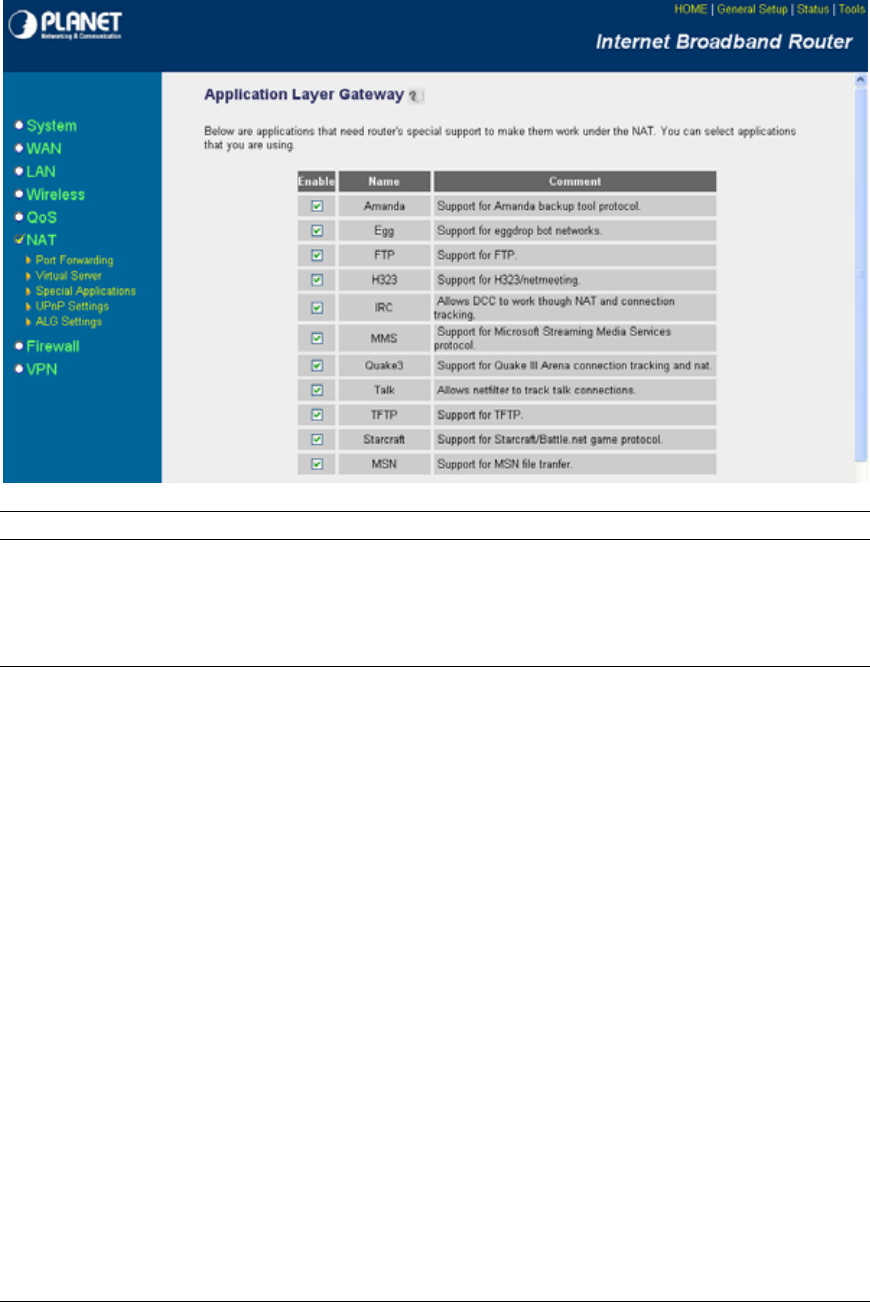

2.6.5 ALG Settings ............................................................................................57

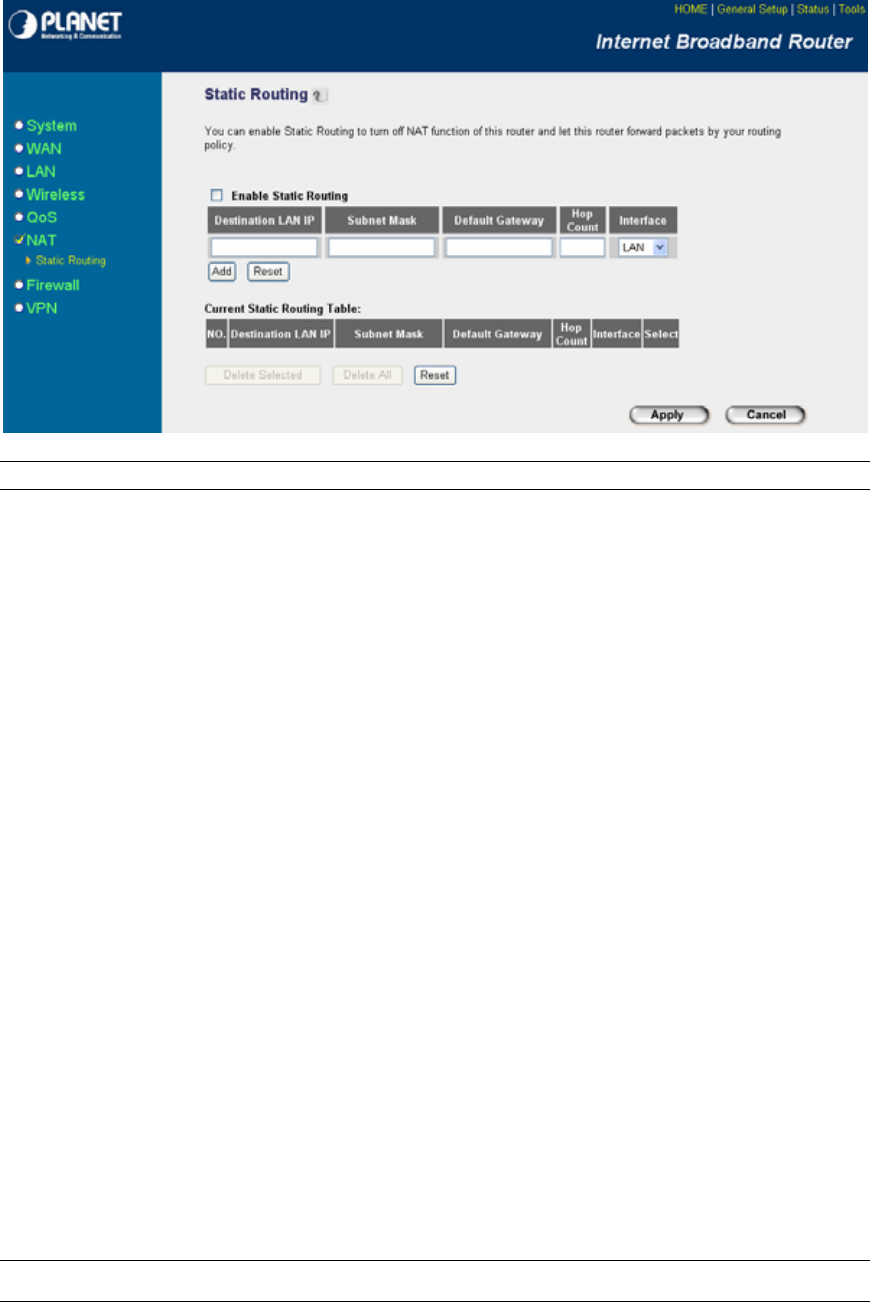

2.6.6 Static Routing...........................................................................................58
2.7 Firewall ........................................................................................................60

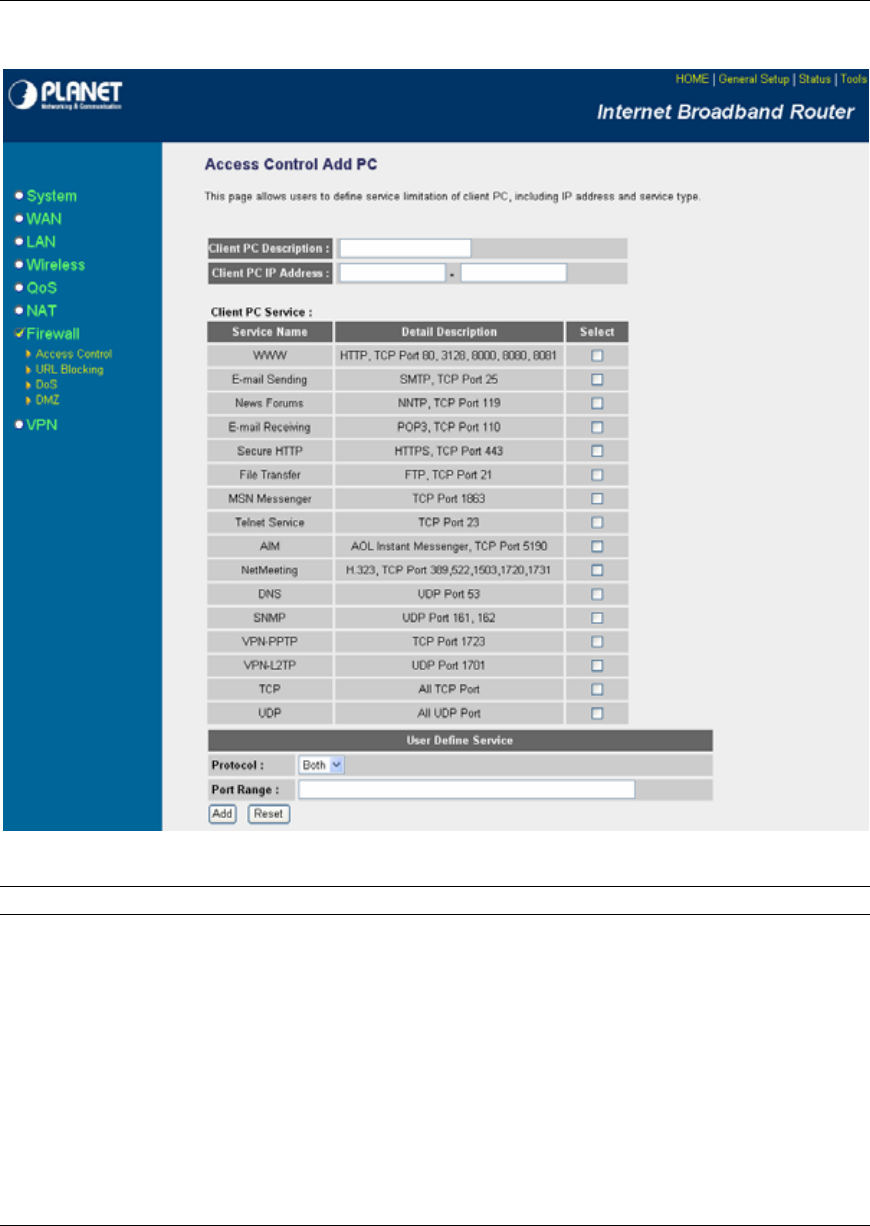

2.7.1 Access Control.........................................................................................60

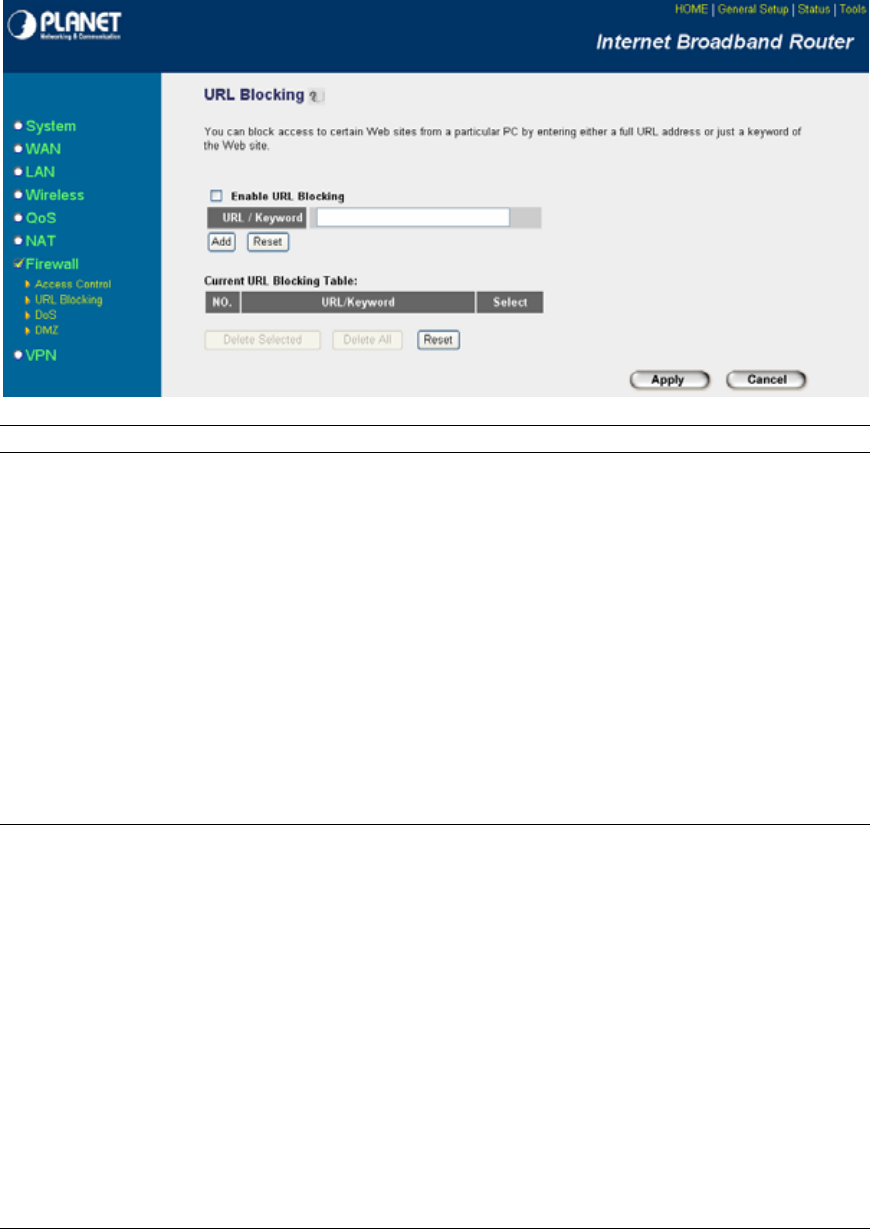

2.7.2 URL Blocking ...........................................................................................63
2.7.3 DoS (Denial of Service) ...........................................................................64

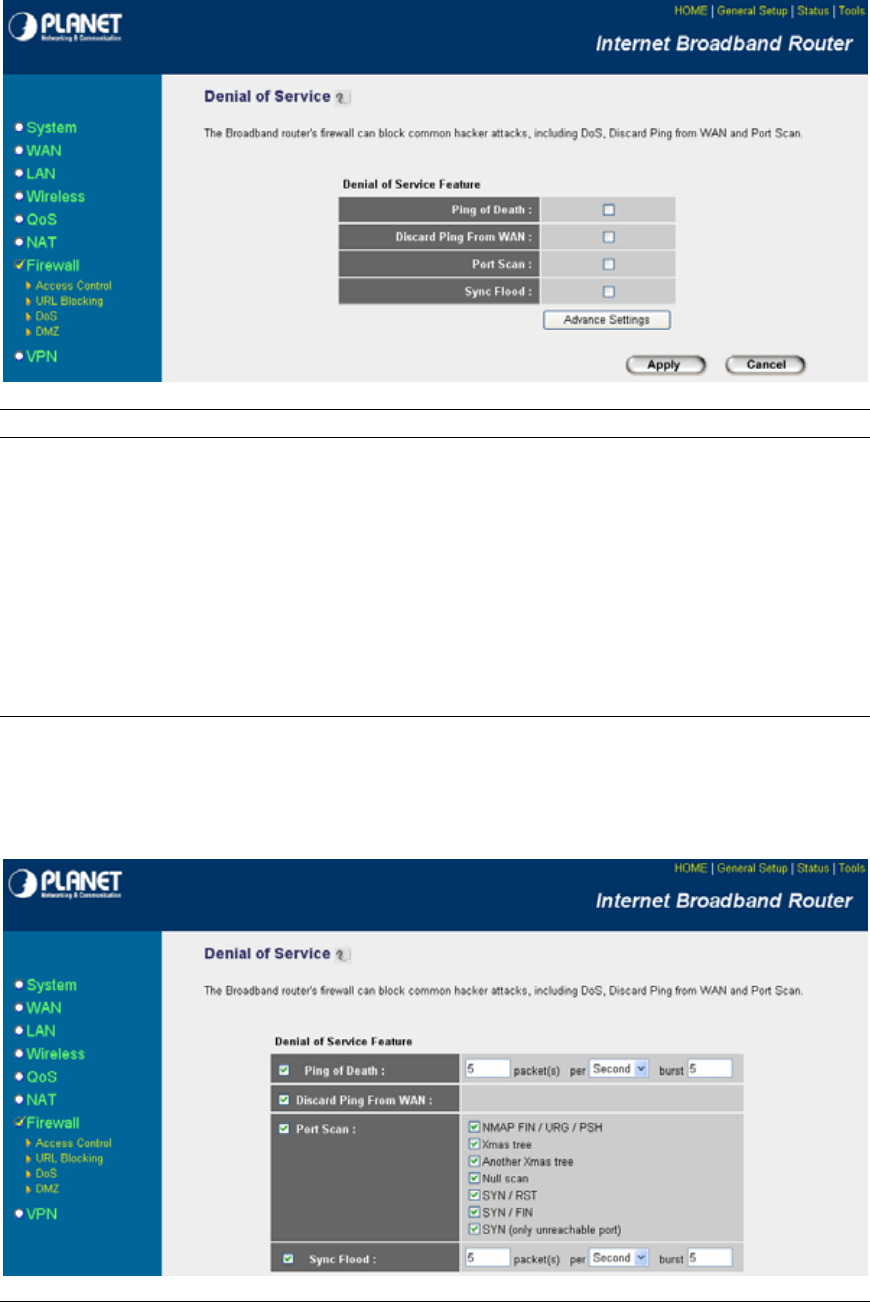

2.7.4 DMZ...........................................................................................................66
2.8 VPN ..............................................................................................................67

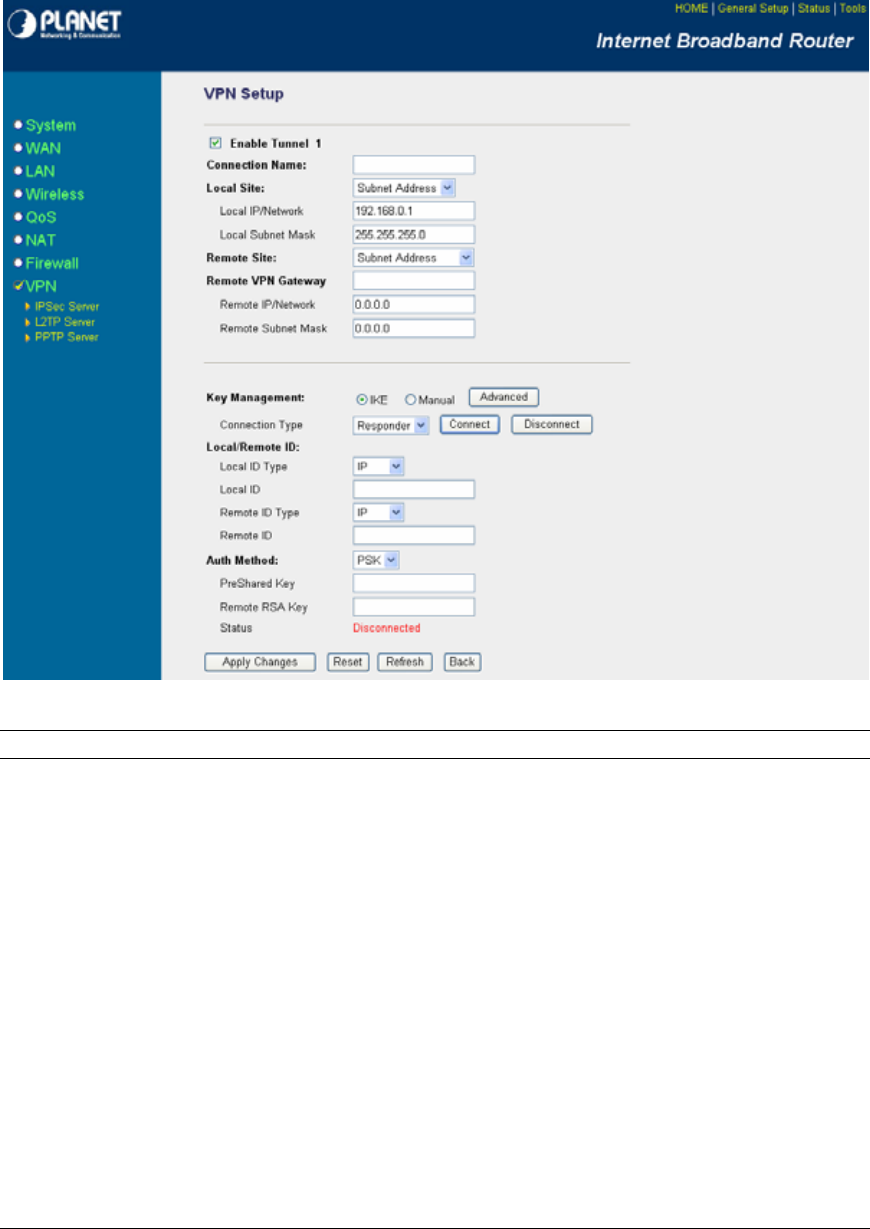

2.8.1 IPSec Server.............................................................................................67

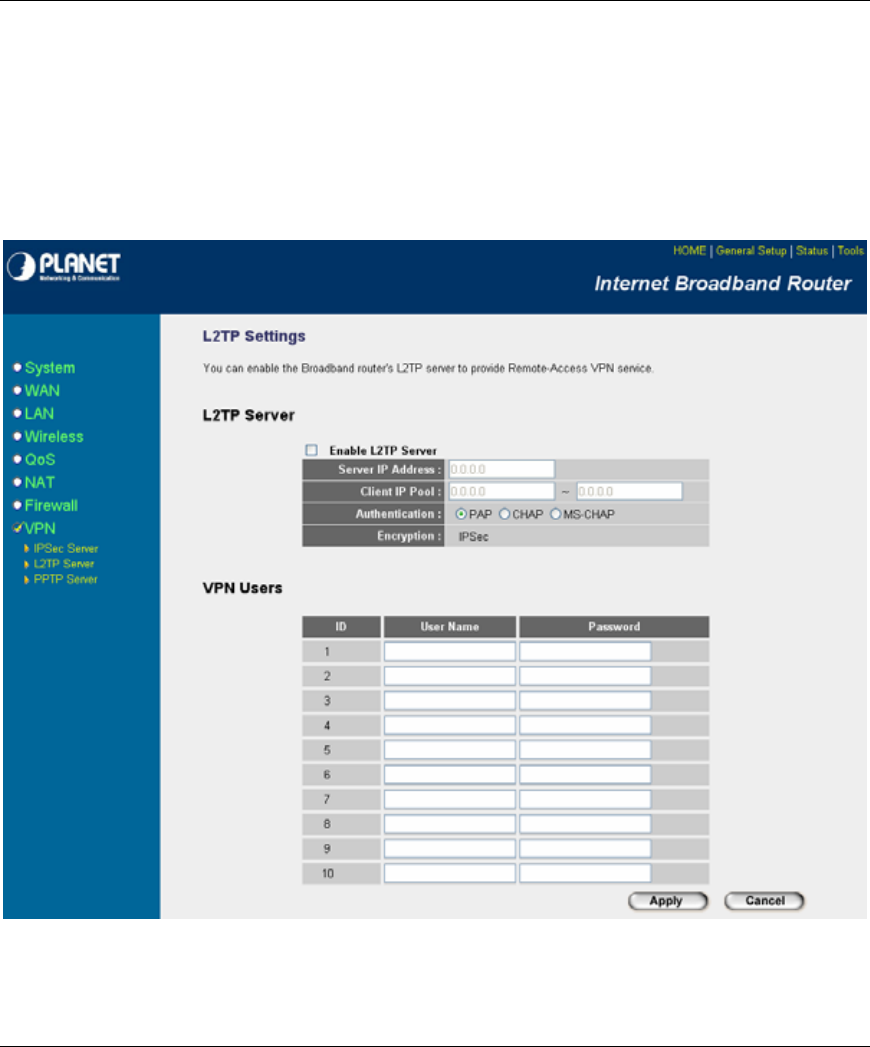

2.8.2 L2TP Server..............................................................................................71

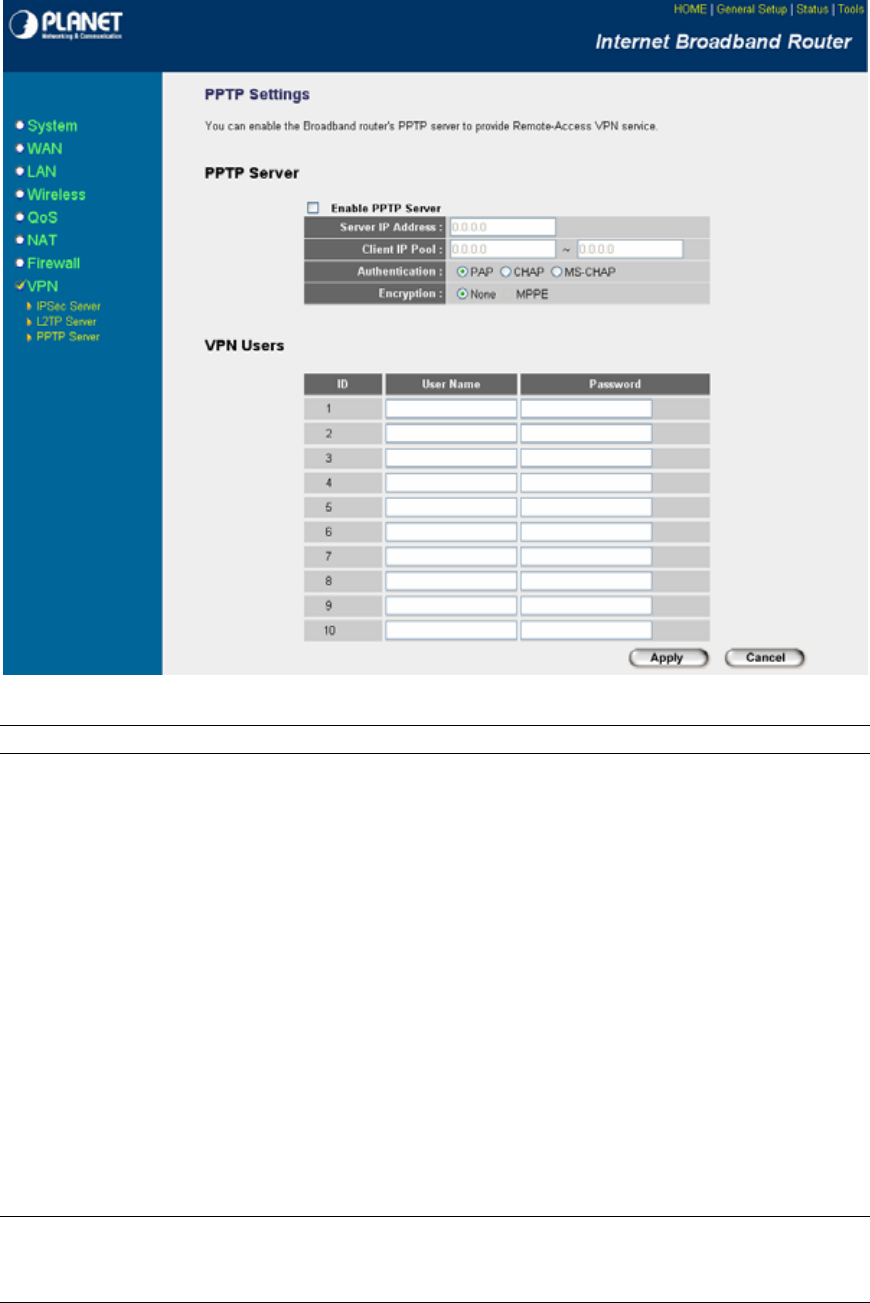

2.8.3 PPTP Server .............................................................................................72
Chapter 3 ...........................................................................................................74
Status.................................................................................................................74

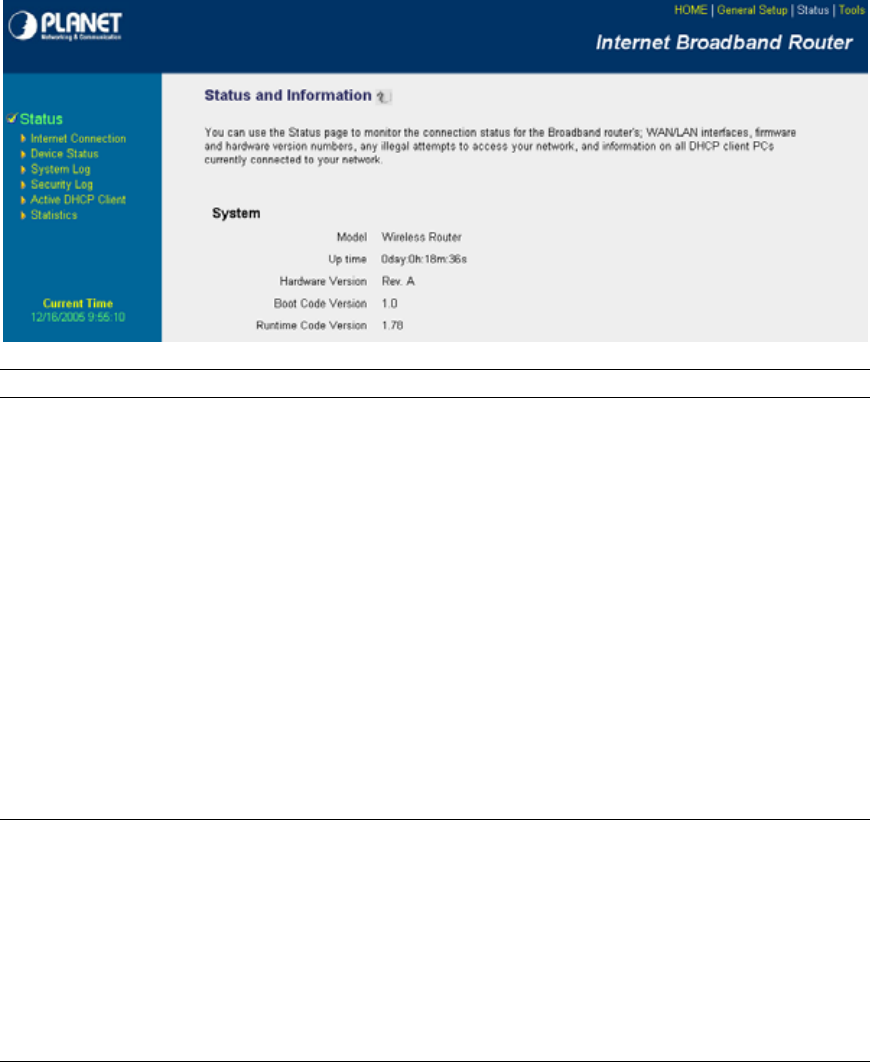

3.1 Status and Information...............................................................................74
3.2 Internet Connection....................................................................................75

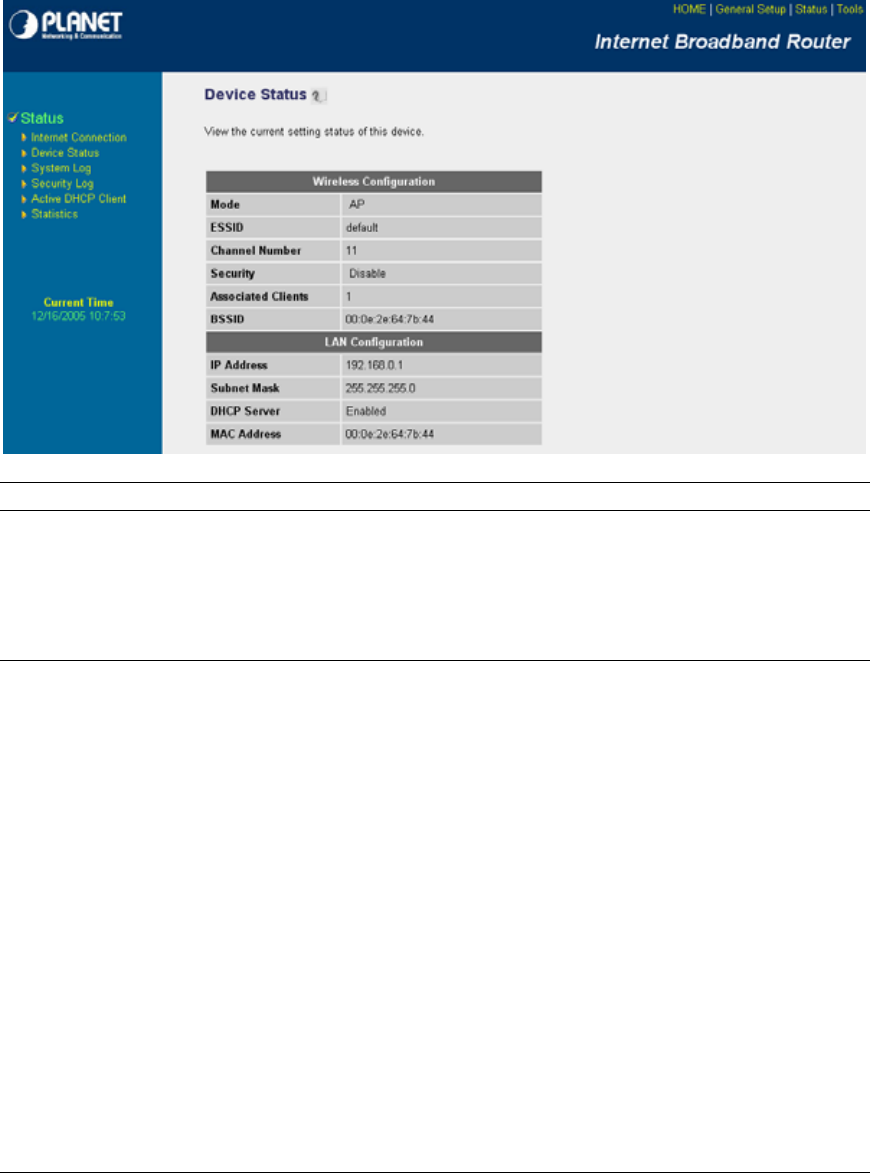

3.3 Device Status ..............................................................................................76
3.4 System Log .................................................................................................76
3.5 Security Log................................................................................................77
3.6 Active DHCP Client.....................................................................................78
3.7 Statistics......................................................................................................78
Chapter 4 ...........................................................................................................80
Tool ....................................................................................................................80

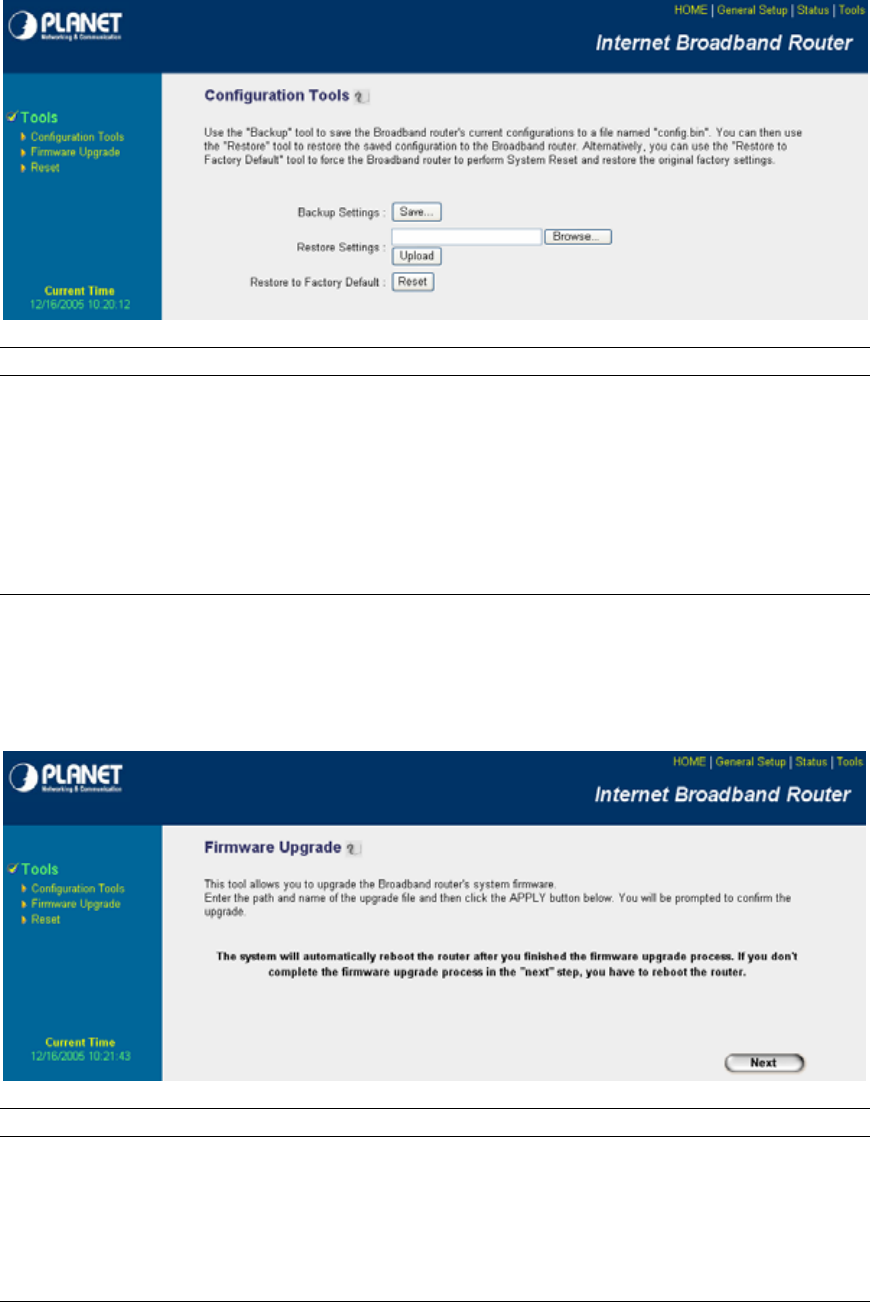

4.1 Configuration Tools....................................................................................80
4.2 Firmware Upgrade ......................................................................................81
4.3 Reset............................................................................................................82
Appendix A........................................................................................................83
Glossary ............................................................................................................84
4
Introduction
Congratulations on purchasing Planet 54M Wireless VPN Firewall Router – VRT-401G. It is a
cost-effective VPN Firewall Router that enables multiple users to access the resource through
VPN tunnel. Simply configure your Internet connection settings in the 54M Wireless VPN Firewall
Router and plug your PC to the LAN port and you're ready to share files and access the Internet.
The VRT-401G is embedded with an IEEE 802.11g/b access point that allows you to build up a
wireless LAN. The 54M Wireless VPN Firewall Router provides a total solution for the Small and
Medium-sized Business (SMB) and the Small Office/Home Office (SOHO) markets, giving you an
instant network today, and the flexibility to handle tomorrow's expansion and speed.
Features
Compliant with 802.11g / 802.11b standard
AP / AP Client / WDS / Bridge modes supported
Supports 64/128-bit WEP, WPA, WPA2 Encryption to protect the wireless data
transmissions
IPSec VPN gateway (ESP, IKE)
Provides 3DES / AES encryption and MD5 and SHA1 authentication algorithms
PPTP and L2TP server / client support
VPN Pass Through (IPSec/PPTP/L2TP)
QoS support
DHCP/PPPOE/PPTP/L2TP/Fixed IP/Wireless allocation
MAC/IP filter access control, URL blocking
SPI firewall + DoS prevention protection
Supports Virtual and DMZ function
Supports UPnP function
Supports DDNS function
Supports DHCP Server for easy setup
Easy to use Web-based GUI for configuration and remote management purposes
Status monitoring includes: Active DHCP Client, Security Log and Device/Connection
Status
Equipped with four LAN ports (10/100M) and one WAN port (10/100M), Auto-MDI/MDI-X
supported
Minimum Requirements
One External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45)
Network Interface Card (NIC) for each Personal Computer (PC)
PCs with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape Navigator 4.7 or
higher)
Package Content
54M Wireless VPN Firewall Router unit x 1
Quick Installation Guide x 1
User Manual CD x 1
Power Adapter x 1
Accessories
5
Get to know the Wireless VPN Firewall Router
Back Panel

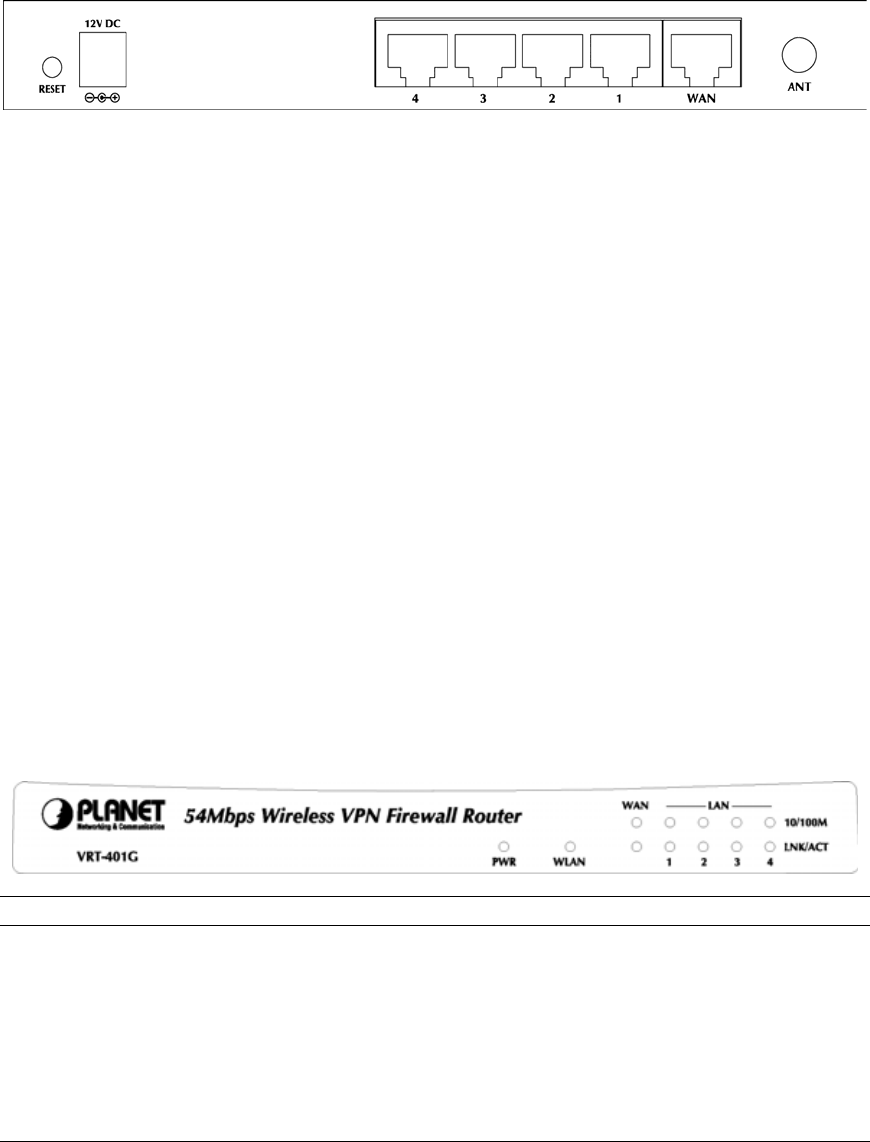

The diagram (fig1.0) below shows the VRT-401G’s back panel. The router’s back panel is divided
into three sections, LAN, WAN and Reset:
Figure 1.0
1) Local Area Network (LAN)
The VRT-401G’s 4 LAN ports are where you connect your LAN’s PCs, printer servers, hubs
and switches etc.
2) Wide Area Network (WAN)
The WAN port is the segment connected to your xDSL or Cable modem and is linked to the
Internet.
3) Reset
The Reset button allows you to do one of two things.
1) If problems occur with your router, press the router’s reset button with a pencil tip (for
less than 4 seconds) and the router will re-boot itself, keeping your original
configurations.
2) If problems persist or you experience extreme problems or you forgot your password,
press the reset button for longer than 4 seconds and the router will reset itself to the
factory default settings (warning: your original configurations will be replaced with
the factory default settings)
Front Panel
On the router’s front panel there are LED lights that inform you of the router’s current status.
Below is an explanation of each LED and its description.
Figure 1.1
LED Light Status Description
PWR ON Router’s power supply is on
WAN 10/100M ON WAN port 100Mbps is connected
OFF WAN port 10Mbps is connected
WAN LNK/ACT ON WAN is connected
OFF No WAN connection
Flashing WAN port has Activity (ACT), data being sent
6
LAN 10/100M ON LAN port 100Mbps is connected
(Port 1-4) OFF LAN port 10Mbps is connected
LAN LNK/ACT ON LAN is connected
(Port 1-4) OFF No LAN connection
Flashing LAN port has Activity (ACT), data being sent
WLAN ON Wireless LAN has been activated
OFF Wireless LAN is disabled
Flashing Wireless LAN has Activity (ACT) data being sent
Setup Diagram
Figure 1.2 below shows a typical setup for a Local Area Network (LAN).
Figure 1.2
Getting started
This is a step-by-step instruction on how to start using the router and get connected to the
Internet.
1) Setup your network as shown in the setup diagram above (fig 1.2).
2) You then need to set your LAN PC clients so that it can obtain an IP address automatically.
All LAN clients require an IP address. Just like an address, it allows LAN clients to find one
another. (If you have already configured your PC to obtain an IP automatically then proceed
to step 3, page 13)
7
Configure your PC to obtain an IP address automatically
By default the VRT-401G’s DHCP is on, this means that you can obtain an IP address
automatically once you’ve configured your PC to obtain an IP address automatically. This
section will show you how to configure your PC’s so that it can obtain an IP address
automatically for either Windows 95/98/Me, 2000 or NT operating systems. For other
operating systems (Macintosh, Sun, etc.), follow the manufacturer’s instructions. The
following is a step-by-step illustration on how to configure your PC to obtain an IP address
automatically for 2a) Windows 95/98/Me, 2b) Windows XP, 2c) Windows 2000 and 2d)
Windows NT.
2a) Windows 95/98/Me
1: Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2: Double-click Network icon. The Network window will appear.
3: Check your list of Network Components. If TCP/IP is not installed, click the Add button to
install it now. If TCP/IP is installed, go to step 6.
4: In the Network Component Type dialog box, select Protocol and click Add button.
5: In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the
OK button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
6: After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of
Network Components and then click the Properties button.

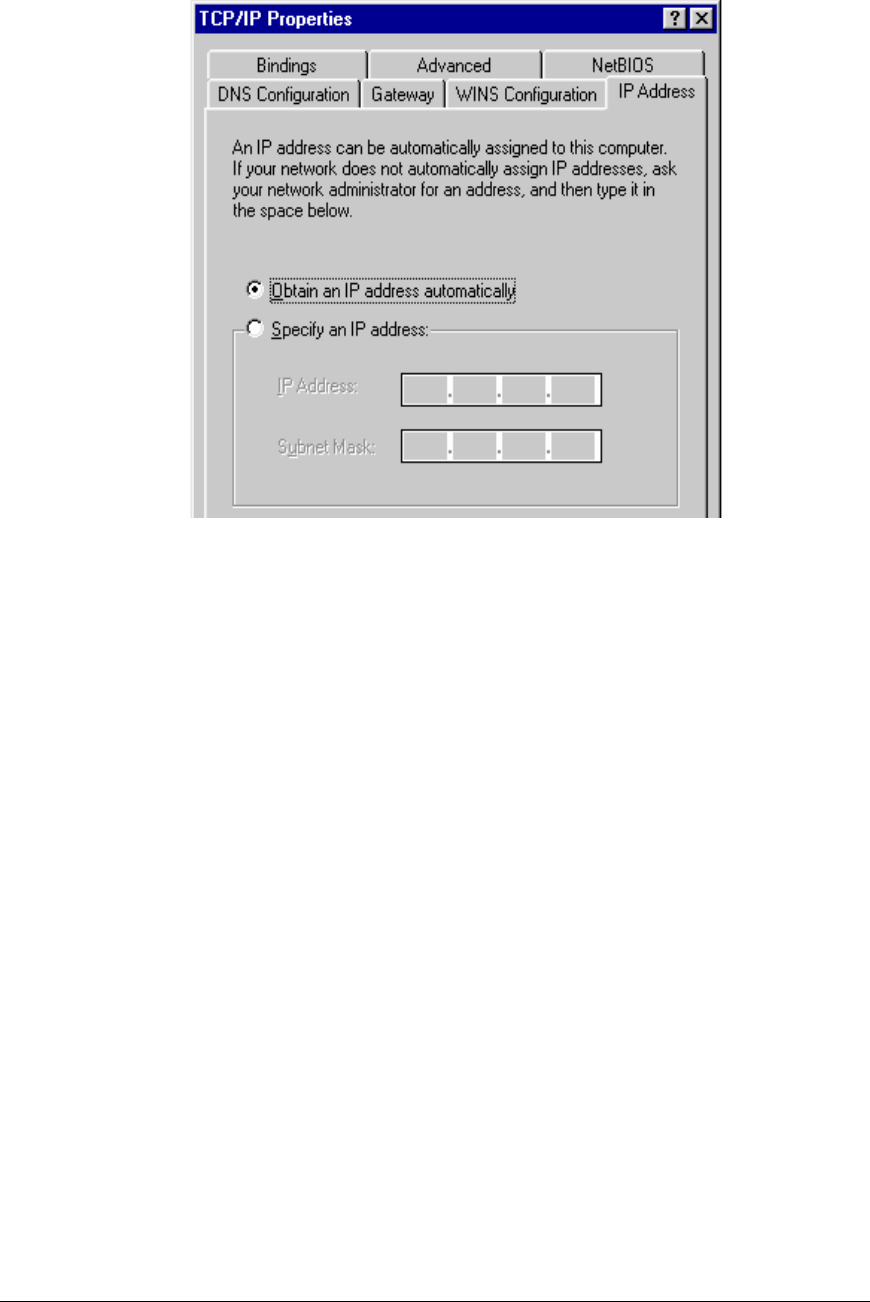

7: Check each of the tabs and verify the following settings:
Bindings: Check Client for Microsoft Networks and File and printer sharing for
Microsoft Networks.
Gateway: All fields are blank.
DNS Configuration: Select Disable DNS.
WINS Configuration: Select Disable WINS Resolution.
IP Address: Select Obtain IP address automatically.
8
8: Reboot the PC. Your PC will now obtain an IP address automatically you’re your
Broadband Router’s DHCP server.
Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server
available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3
2b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.

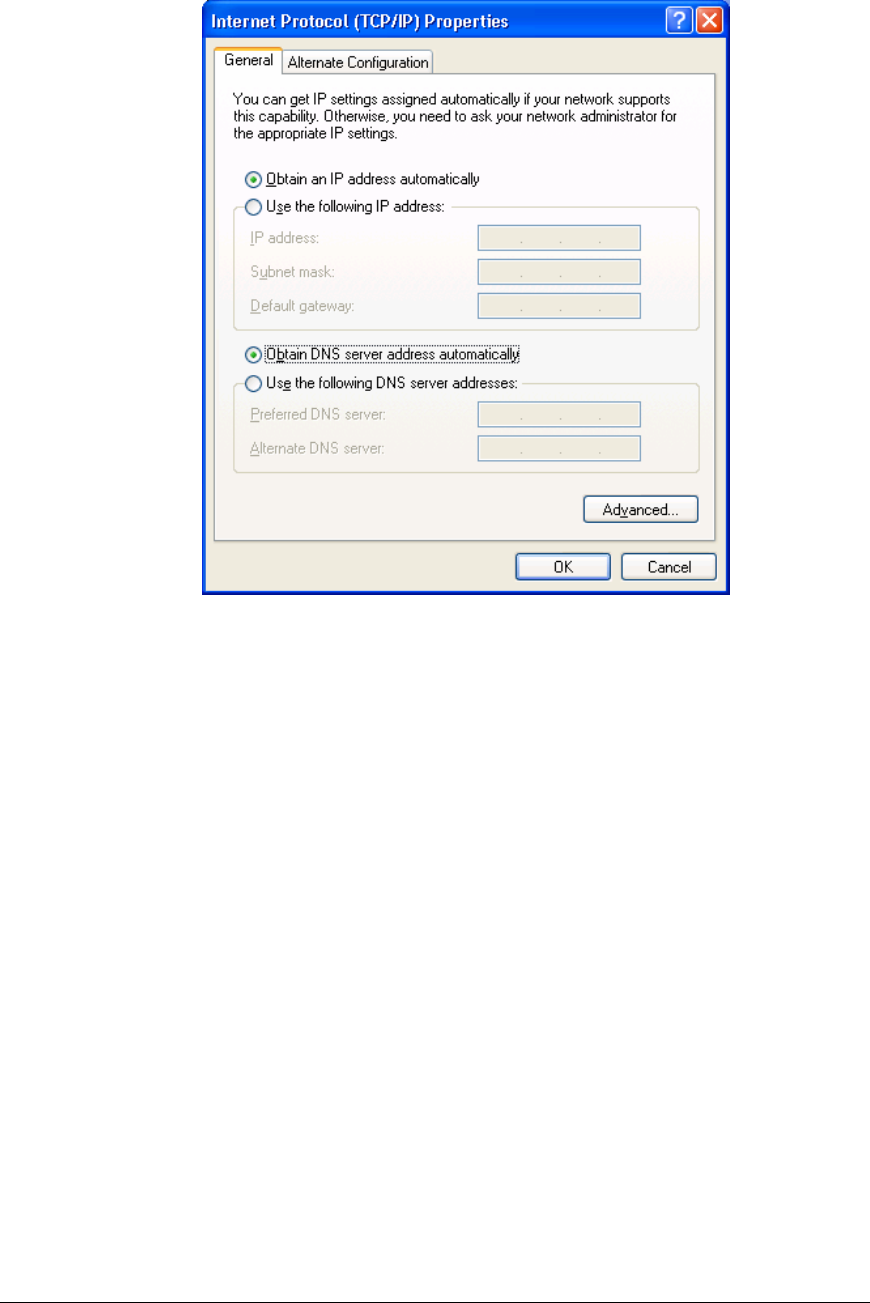

4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
automatically and Obtain DNS server address automatically as shown on the following
screen.
9
5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from
your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband routers DHCP server is the only DHCP server
available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
2c) Windows 2000
1: Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2: Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area Connection
window will appear.
3: In the Local Area Connection window, click the Properties button.
4: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
5: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
automatically and Obtain DNS server address automatically as shown on the following
screen.
10
6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from
your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband routers DHCP server is the only DHCP server
available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
2d) Windows NT
1: Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2: Double-click Network icon. The Network window will appear. Select the Protocol tab from
the Network window.
3: Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed,
click the Add button to install it now. If TCP/IP is installed, go to step 5.
4: In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok button
to start installing the TCP/IP protocol. You may need your Windows CD to complete the
installation.
5: After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of
Network Protocols and then click the Properties button.
11
6: Check each of the tabs and verify the following settings:
IP Address: Select Obtain an IP address from a DHCP server.
DNS: Let all fields are blank.
WINS: Let all fields are blank.
Routing: Let all fields are blank.
7: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from
your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband routers DHCP server is the only DHCP server
available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
3) Once you have configured your PCs to obtain an IP address automatically, the router’s
DHCP server will automatically give your LAN clients an IP address. By default the VRT-
401G’s DHCP server is enabled so that you can obtain an IP address automatically. To see if

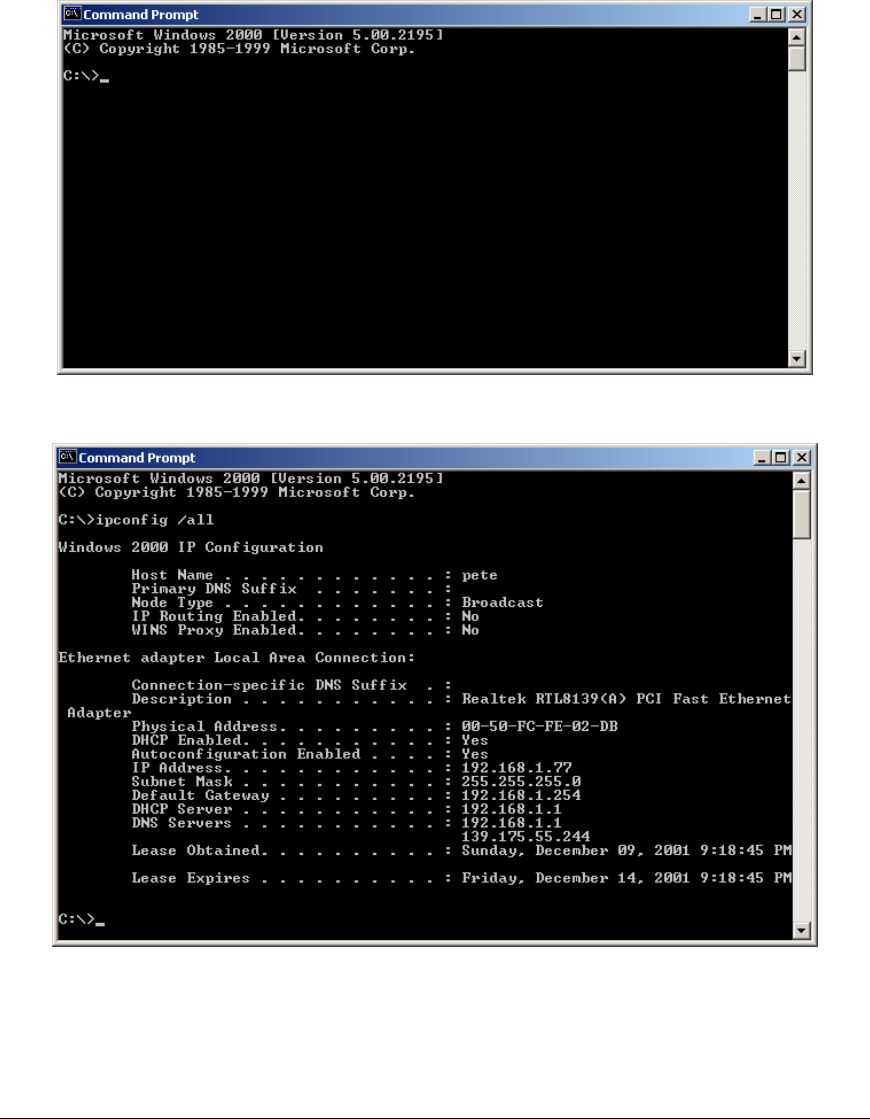

you have obtained an IP address, see Appendix A.
Note: Please make sure that the VRT-401G’s DHCP server is the only DHCP server
available on your LAN. If there is another DHCP on your network, then you’ll need to switch
one of the DHCP servers off. (To disable the VRT-401G’s DHCP server see chapter 2 LAN
Port)
12
4) Once your PC has obtained an IP address from your router, enter the default IP address
192.168.0.1 (VRT-401G’s IP address) into your PC’s web browser and press <enter>

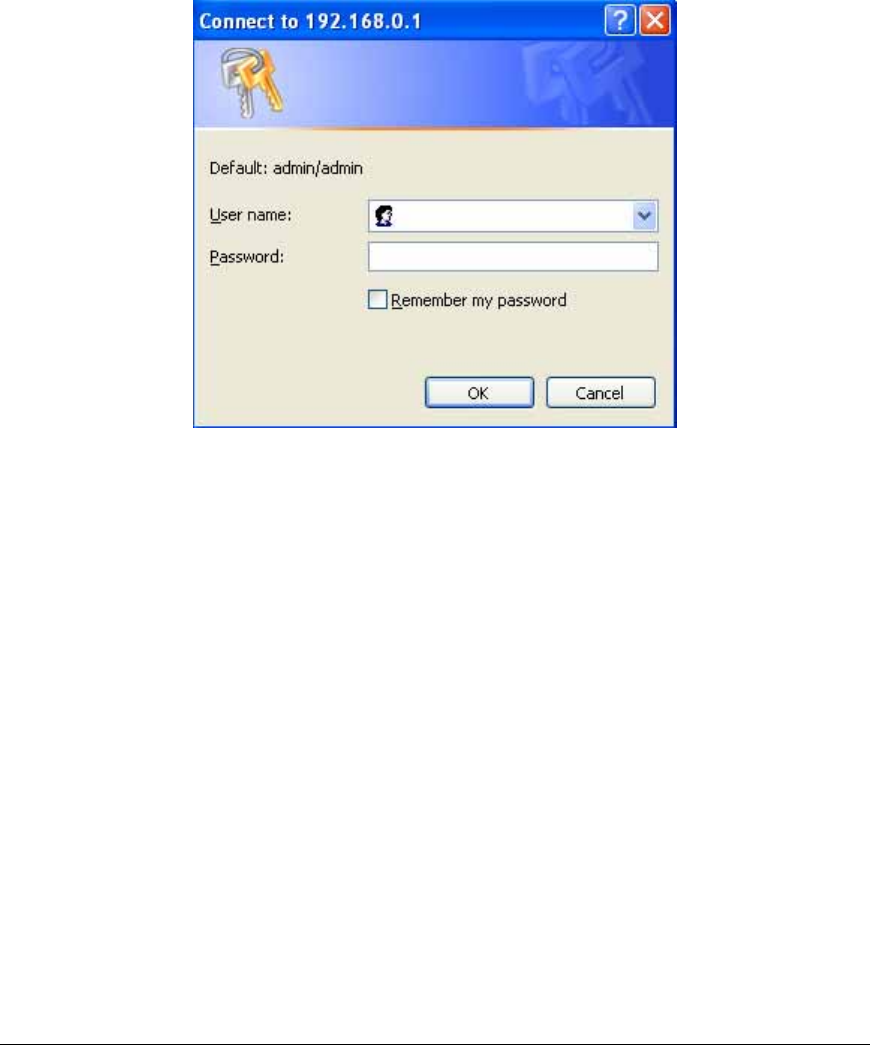

5) The login screen below will appear. Enter the “User Name” and “Password” and then click
<OK> to login.
Note: By default the user name is “admin” and the password is “admin”. For security
reasons it is recommended that you change the password as soon as possible (in
General setup/system/password, see chapter 2)
6) The HOME page screen below will appear. The Home Page is divided into four sections,
Quick Setup Wizard, General Setup, Status Information and Tools.
Quick Setup Wizard (Chapter 1)
If you only want to start using the VRT-401G as an Internet Access device then you ONLY
need to configure the screens in the Quick Setup Wizard section.
General Setup (Chapter 2)
If you want to use more advanced features that the VRT-401G has to offer, then you’ll need
to configure the Quick Setup Wizard and the General Setup section. Alternatively, you can
just configure the General Setup section, since the General Setup/WAN and the Quick Setup
Wizard contain the same configurations.
Status Information (Chapter 3)
The Status Information section is for you to monitor the router’s current status information
only.
Tools (Chapter 4)
If you want to Reset the router (because of problems) or save your configurations or upgrade
the firmware then the Tools section is the place to do this.
13
Menu Description
Quick Setup Wizard (Chapter 1) Select your Internet connection type and then
input the configurations needed to connect to
your Internet Service Provider (ISP).
General Setup (Chapter 2) This section contains configurations for the VRT-
401G’s advance functions such as: Address
Mapping, Virtual Server, Access Control, Hacker
Attack Prevention, DMZ, Special applications
and other functions to meet your LAN
requirements.
Status Information (Chapter 3) In this section you can see the VRT-401G's
system information, Internet Connection, Device
Status, System Log, Security Log and DHCP
client information.
Tools (Chapter 4) This section contains the VRT-401G’s Tools -
Tools include Configuration tools, Firmware
upgrade and Reset.
Configuration tools allow you to Backup
(save), Restore, or Restore to Factory Default
setting for your VRT-401G.
The Firmware upgrade tool allows you to
upgrade your VRT-401G's firmware.

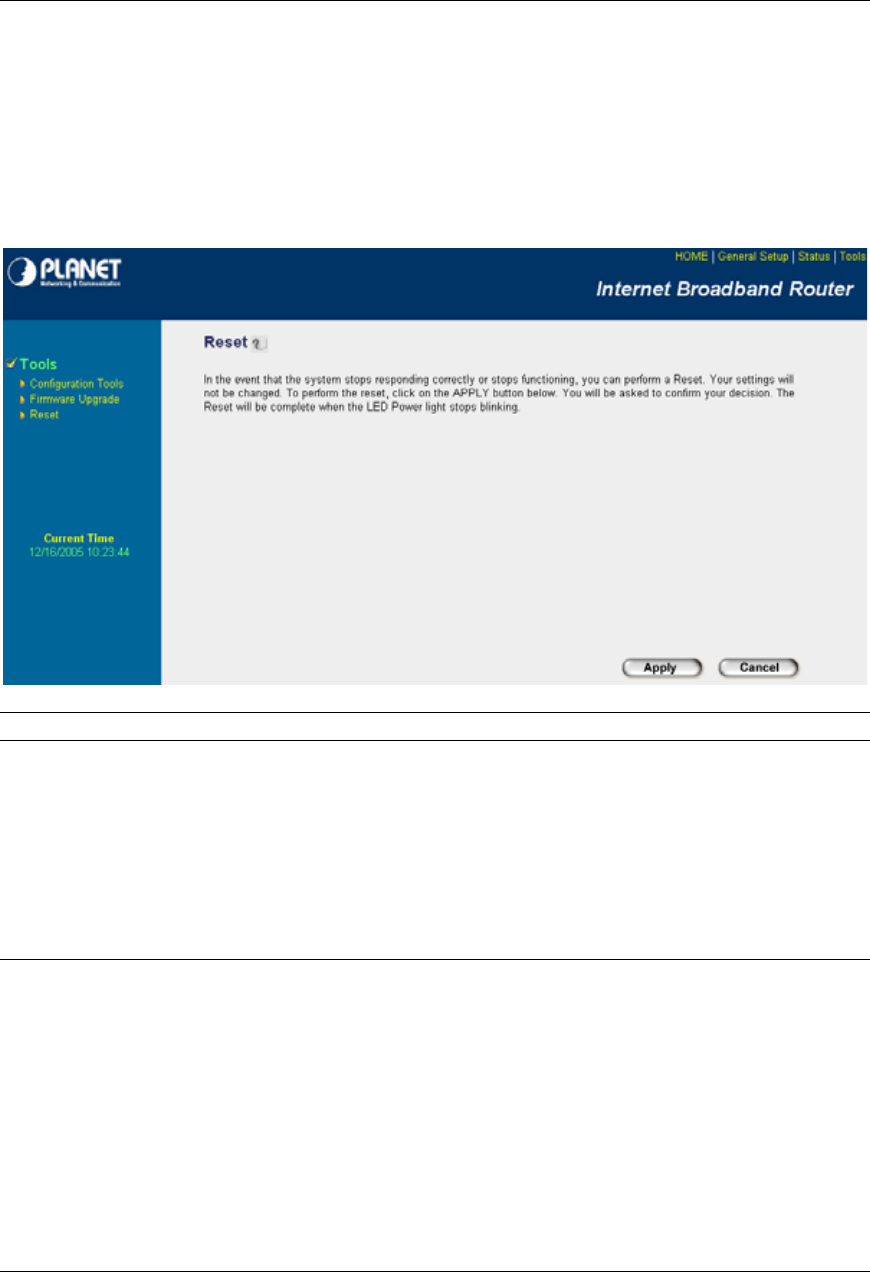

The RESET tool allows you to reset your VRT-
401G.
Logout Selecting logout will return you to the LOGIN
page
14
7) Click on Quick Setup Wizard (see chapter 1) to start configuring settings required by
your ISP so that you can start accessing the Internet. The other sections (General
Setup, Status Information and Tools) do not need to be configured unless you wish to
implement/monitor more advance features/information.

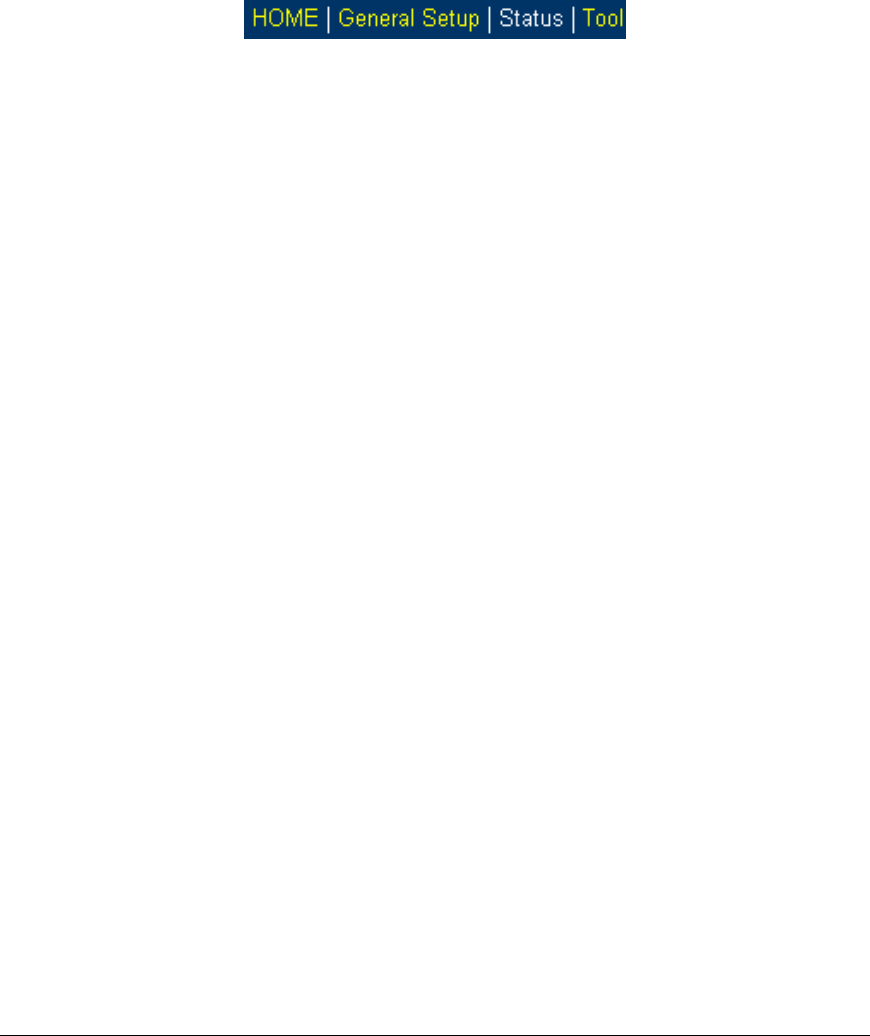

Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish
to configure and proceed to the corresponding chapter. Use the selections on the web
management’s top right hand page (see below) to navigate around the web-based management
User Interface.
15
Chapter 1
Quick Setup
The Quick Setup section is designed to get you using the VRT-401G as quickly as possible. In
the Quick Setup you are required to fill in only the information necessary to access the Internet.
Once you click on the Quick Setup Wizard in the HOME page, you should see the screen below.
Step 1) Time Zone
The Time Zone allows your router to be configured base on its time settings, this will affect
functions such as Log entries and Firewall settings.
Parameter Description
Set Time Zone Select the time zone of the country you are currently in.
The router will set its time based on your selection.
Time Server Address You can manually assign time server address if the
default time server does not work.
Enable Daylight Savings The router can also take Daylight savings into account. If
you wish to use this function, you must check/tick the
enable box to enable your daylight saving configuration
(below).
Start Daylight Savings Time Select the period in which you wish to start daylight
Savings Time
End Daylight Savings Time Select the period in which you wish to end daylight
Savings Time
Click on NEXT to proceed to the next page (step 2) Broadband Type.
16
Step 2) Broadband Type
In this section you have to select one of four types of connections that you will be using to
connect your VRT-401G’s WAN port to your ISP (see screen below).
Note: Different ISP’s require different methods of connecting to the Internet, please check with
your ISP as to the type of connection it requires.
Menu Description
1.1 Cable Modem Your ISP will automatically give you an IP address
1.2 Fixed-IP xDSL Your ISP has given you an IP address already

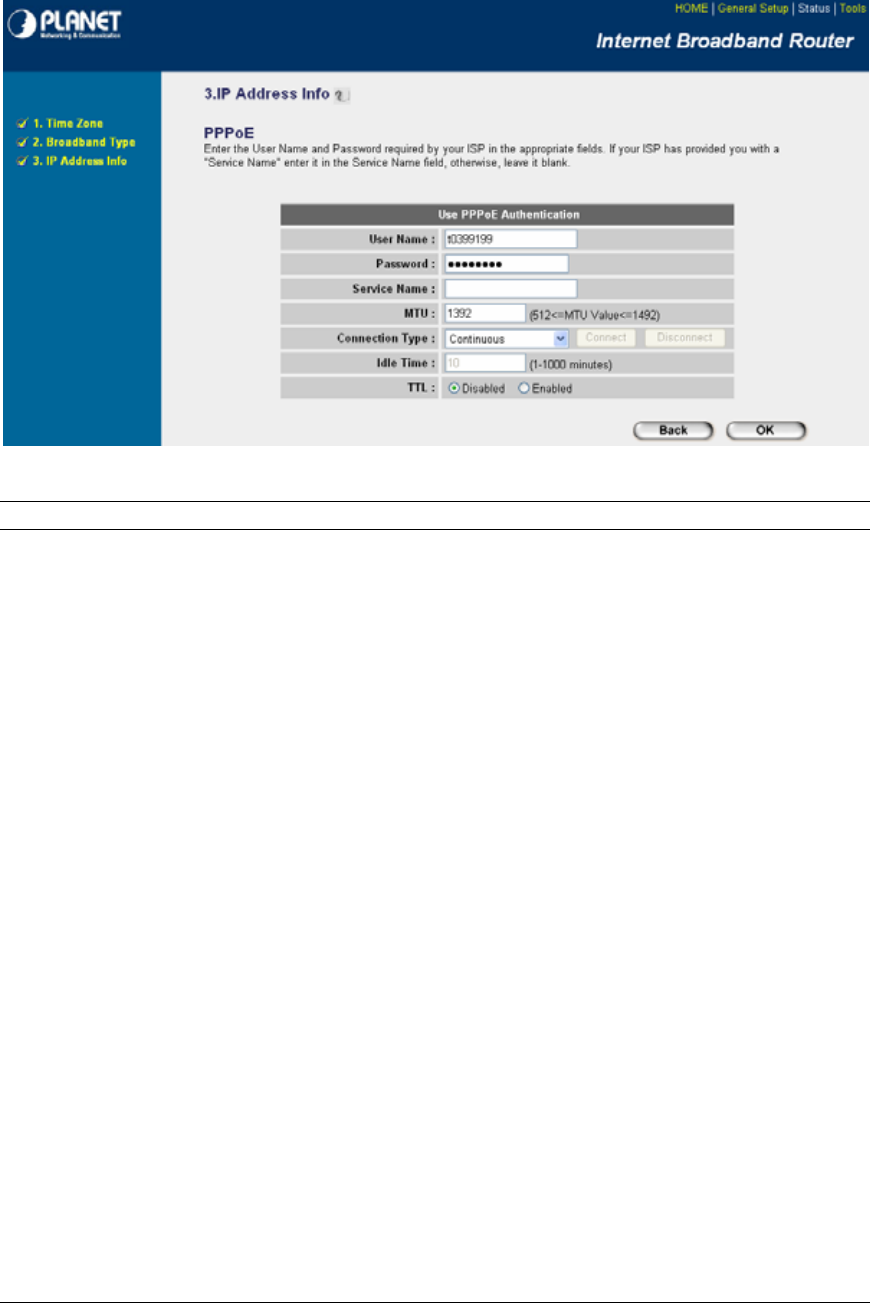

1.3 PPPoE Your ISP requires you to use a Point-to-Point Protocol over
Ethernet (PPPoE) connection.
1.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling Protocol
(PPTP) connection.
1.5 L2TP Your ISP requires you to use a Layer Two Tunneling Protocol
(L2TP) connection.
1.6 Telstra Big Pond This Protocol only used for Australia’s ISP connection.
Click on one of the WAN type and then proceed to the manual’s relevant sub-section (1.1, 1.2,
1.3, 1.4, 1.5 or 1.6). Click on Back to return to the previous screen.
17
1.1 Cable Modem
Choose Cable Modem if your ISP will automatically give you an IP address. Some ISP’s may also
require that you fill in additional information such as Host Name and MAC address (see screen
below).
Note: The Host Name and MAC address section is optional and you can skip this section if your
ISP does not require these settings for you to connect to the Internet.
Parameters Description
Host Name If your ISP requires a Host Name, type in the host name
provided by your ISP, otherwise leave it blank if your ISP does
not require a Host Name.
MAC Address Your ISP may require a particular MAC address in order for you
to connect to the Internet. This MAC address is the PC’s MAC
address that your ISP had originally connected your Internet
connection to. Type in this MAC address in this section or use
the “Clone MAC Address” button to replace the WAN MAC
address with the MAC address of that PC (you have to be using
that PC for the Clone MAC Address button to work). To find out
the PC’s MAC address see Appendix A. (see Glossary for an
explanation on MAC address)
TTL This is optional. Some ISP will check the TTL response to build
up the connection. When you select Enabled, VRT-401G will
respond the TTL time plus 1.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the Cable Modem connection. You can start using the router now,
if you wish to use some of the advance features supported by this router see chapter 2, 3, 4.
1.2 Fixed-IP xDSL
Select Fixed-IP xDSL if your ISP has given you a specific IP address for you to use. Your ISP
should provide all the information required in this section.
18
Parameters Description
IP This is the IP address that your ISP has given you.
Subnet Mask Enter the Subnet Mask provided by your ISP
(e.g. 255.255.255.0)
DNS This is the ISP’s DNS server IP address
Gateway IP This is the ISP’s IP address gateway
TTL This is optional. Some ISP will check the TTL response to build
up the connection. When you select Enabled, VRT-401G will
respond the TTL time plus 1.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the Fixed-IP x DSL connection. You can start using the router
now, if you wish to use some of the advance features supported by this router see chapter 2, 3, 4.
1.3 PPPoE
Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP
should provide all the information required in this section.
19
Parameter Description
User Name Enter the User Name provided by your ISP for the PPPoE
connection
Password Enter the Password provided by your ISP for the PPPoE
connection
Service Name This is optional. Enter the Service name should your ISP
requires it, otherwise leave it blank.
MTU This is optional. You can specify the maximum size of your
transmission packet to the Internet. Leave it as it is if you to not
wish to set a maximum packet size.
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will
auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone want to use the Internet and keep
connected until the WAN idle timeout. The router will close the
WAN connection if the time period that no one is using the
Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when
you click “Connect” manually from the Web user interface. The
WAN connection will not disconnect due to the idle timeout. If the
WAN line breaks down and latter links again, the router will not
auto-connect to the ISP.
Idle Time You can specify an idle time threshold (minutes) for the WAN
port. This means if no packets have been sent (no one using the
Internet) during this specified period, the router will automatically
disconnect the connection with your ISP.
20
Note: This “idle timeout” function may not work due to abnormal
activities of some network application software, computer virus
or hacker attacks from the Internet. For example, some software
sends network packets to the Internet in the background, even
when you are not using the Internet. So please turn off your
computer when you are not using it. This function also may not
work with some ISP. So please make sure this function can work
properly when you use this function in the first time, especially
your ISP charge you by time used.
TTL This is optional. Some ISP will check the TTL response to build up
the connection. When you select Enabled, VRT-401G will
respond the TTL time plus 1
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the PPPoE connection. You can start using the router now, if you
wish to use some of the advance features supported by this router see chapter 2, 3, 4.
1.4 PPTP
Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP
should provide all the information required in this section.
21
Parameter Description
Obtain an IP address The ISP requires you to obtain an IP address by DHCP
automatically before connecting to the PPTP server.
MAC Address Your ISP may require a particular MAC address in order for you
to connect to the Internet. This MAC address is the PC's MAC
address that your ISP had originally connected your Internet
connection to. Type in this MAC address in this section or use
the "Clone MAC Address" button to replace the WAN MAC
address with the MAC address of that PC (you have to be using
that PC for the Clone MAC Address button to work). To find out
the PC's MAC address see Appendix A. (see Glossary for an
explanation on MAC address)
Use the following IP address The ISP gives you a static IP to be used to connect to the PPTP
server.
IP Address This is the IP address that your ISP has given you to establish a
PPTP connection.
Subnet Mask Enter the Subnet Mask provided by your ISP
(e.g. 255.255.255.0)
Gateway Enter the IP address of the ISP Gateway
User ID Enter the User Name provided by your ISP for the PPTP
connection. Sometimes called a Connection ID
Password Enter the Password provided by your ISP for the PPTP
connection
PPTP Gateway If your LAN has a PPTP gateway, then enter that PPTP gateway
IP address here. If you do not have a PPTP gateway then enter
the ISP’s Gateway IP address above
Connection ID This is the ID given by ISP. This is optional.
MTU This is optional. You can specify the maximum size of your
transmission packet to the Internet. Leave it as it is if you to not
wish to set a maximum packet size.
BEZEQ-ISRAEL Select this item if you are using the service provided by BEZEQ
in Israel.
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will
auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone want to use the Internet and keep
connected until the WAN idle timeout. The router will close the
WAN connection if the time period that no one is using the
Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when
you click “Connect” manually from the Web user interface. The
22
WAN connection will not disconnect due to the idle timeout. If the
WAN line breaks down and latter links again, the router will not
auto-connect to the ISP.
Idle Time You can specify an idle time threshold (minutes) for the WAN
port. This means if no packets have been sent (no one using the
Internet) throughout this specified period, then the router will
automatically disconnect the connection with your ISP.
Note: This “idle timeout” function may not work due to abnormal
activities of some network application software, computer virus
or hacker attacks from the Internet. For example, some software
sends network packets to the Internet in the background, even
when you are not using the Internet. So please turn off your
computer when you are not using it. This function also may not
work with some ISP. So please make sure this function can work
properly when you use this function in the first time, especially
your ISP charge you by time used.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the PPTP connection. You can start using the router now, if you
wish to use some of the advance features supported by this router see chapter 2, 3, 4.
1.5 L2TP
Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP
should provide all the information required in this section.
23
Parameter Description
Obtain an IP address The ISP requires you to obtain an IP address by DHCP
automatically before connecting to the L2TP server.
MAC Address Your ISP may require a particular MAC address in order for you
to connect to the Internet. This MAC address is the PC's MAC
address that your ISP had originally connected your Internet
connection to. Type in this MAC address in this section or use
the "Clone MAC Address" button to replace the WAN MAC
address with the MAC address of that PC (you have to be using
that PC for the Clone MAC Address button to work). To find out
the PC's MAC address see Appendix A. (see Glossary for an
explanation on MAC address)
Use the following IP address The ISP gives you a static IP to be used to connect to the L2TP
server.
IP Address This is the IP address that your ISP has given you to establish a
L2TP connection.
Subnet Mask Enter the Subnet Mask provided by your ISP
(e.g. 255.255.255.0)
Gateway Enter the IP address of the ISP Gateway
User ID Enter the User Name provided by your ISP for the L2TP
connection. Sometimes called a Connection ID
Password Enter the Password provided by your ISP for the L2TP
connection
L2TP Gateway If your LAN has a L2TP gateway, then enter that L2TP gateway
IP address here. If you do not have a L2TP gateway then enter
the ISP’s Gateway IP address above
MTU This is optional. You can specify the maximum size of your
transmission packet to the Internet. Leave it as it is if you do not
wish to set a maximum packet size.
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will
auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone want to use the Internet and keep
connected until the WAN idle timeout. The router will close the
WAN connection if the time period that no one is using the
Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when
you click “Connect” manually from the Web user interface. The
WAN connection will not be disconnected due to the idle timeout.
If the WAN line breaks down and latter links again, the router will
not auto-connect to the ISP.
24
Idle Time Out The WAN "idle timeout" auto-disconnect function may not work
due to abnormal activities of some network application software,
computer virus or hacker attacks from the Internet. For example,
some software sends network packets to the Internet in the
background, even when you are not using the Internet. This
function also may not work with some ISP. So please make sure
this function can work properly when you use this function in the
first time, especially your ISP charge you by time used. Due to
the many uncontrollable issues, we do not guarantee the WAN
"idle timeout" auto-disconnect function will always work. In order
to prevent from extra fee charged by ISP, please TURN OFF
THE ROUTER WHEN YOU FINISHED USING THE INTERNET.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the L2TP connection. You can start using the router now, if you
wish to use some of the advance features supported by this router see chapter 2, 3, 4.
1.6 Telstra Big Pond
Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the
Internet. Your ISP should provide all the information required in this section. Telstra Big Pond
protocol is used by the ISP in Australia.
Parameter Description
User Name Enter the User Name provided by your ISP for the Telstra Big
Pond connection.
Password Enter the Password provided by your ISP for the Telstra Big
Pond connection.
User decide login server Select if you want to assign the IP of Telstra Big Pond’s login
manually server manually.
Login Server The IP of the Login Server.
25
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the Telstra Big Pond connection. You can start using the router
now, if you wish to use some of the advance features supported by this router see chapter 2, 3, 4.
26
Chapter 2
General Settings
Once you click on the General Setup button at the Home Page, you should see the screen below.
If you have already configured the Quick Setup Wizard you do NOT need to configure anything
thing in the General Setup screen for you to start using the Internet.
The General Setup contains advanced features that allow you to configure the router to meet
your network’s needs such as: Wireless, Address Mapping, Virtual Server, Access Control,
Hacker Attack Prevention, Special Applications, DMZ and other functions.
Below is a general description of what advance functions are available for this broadband router.
Menu Description
2.1 System This section allows you to set the VRT-401G’s system Time
Zone, Password and Remote Management Administrator.
2.2 WAN This section allows you to select the connection method in order
to establish a connection with your ISP (same as the Quick
Setup Wizard section)
2.3 LAN You can specify the LAN segment’s IP address, Subnet Mask,
enable/disable DHCP and select an IP range for your LAN
2.4 Wireless You can setup the wireless LAN’s SSID, WEP key, MAC filtering.
2.5 QoS You can setup the QoS bandwidth control policy.
2.6 NAT You can configure the Address Mapping, Virtual Server and
Special Applications functions in this section. This allows you to
specify what user/packet can pass your router’s NAT.
2.7 Firewall The Firewall section allows you to configure Access Control,
Hacker Prevention and DMZ.
2.8 VPN The VPN section allows you to configure VPN Server.
27
Select one of the above five General Setup selections and proceed to the manual’s relevant sub-
section
2.1 System

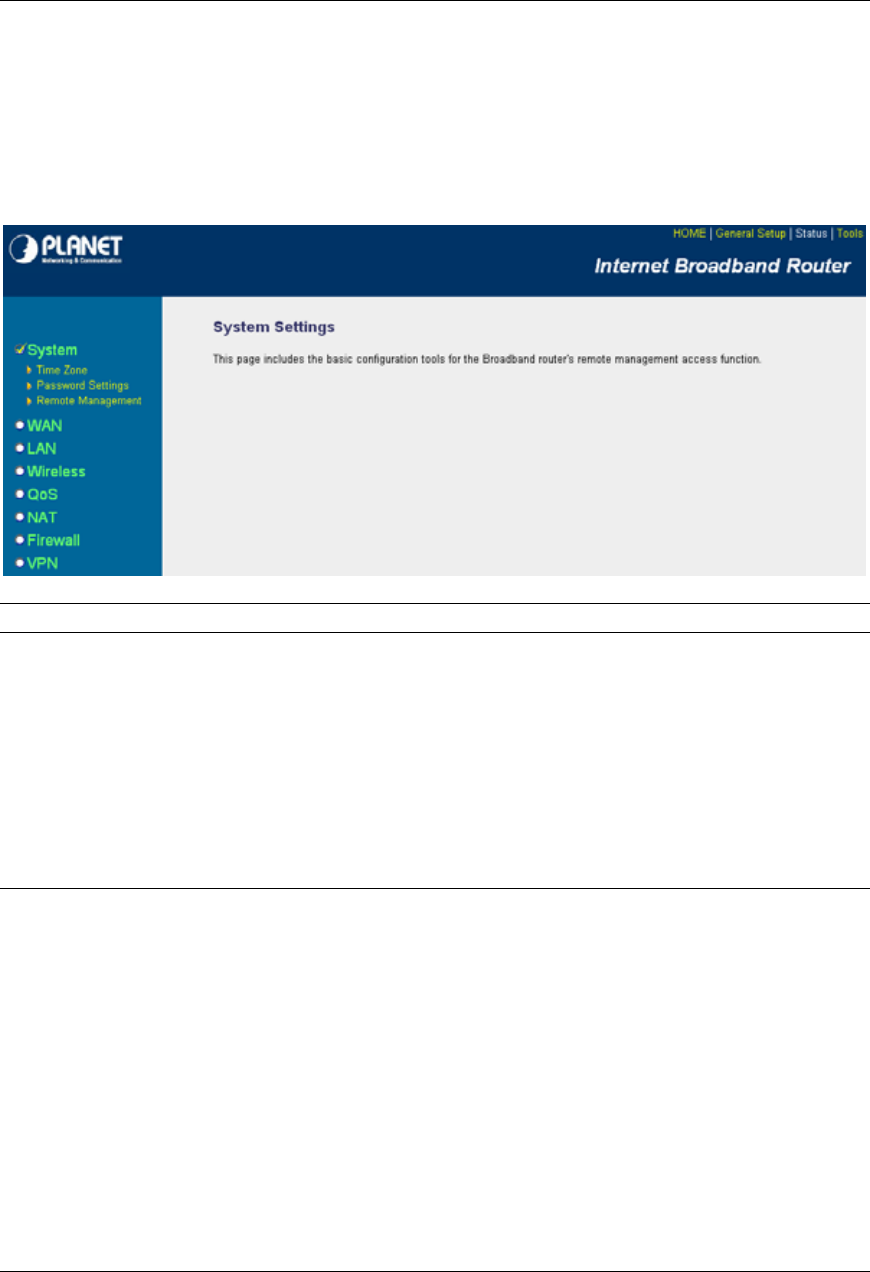

The system screen allows you to specify a time zone, to change the system password and to
specify a remote management user for the VRT-401G
Parameters Description
System Settings
2.1.1 Time Zone Select the time zone of the country you are currently in.
The router will set its time based on your selection.
2.1.2 Password Settings Allows you to select a password in order to access the
web-based management website.
2.1.3 Remote Management You can specify a Host IP address that can perform
remote management functions.
Select one of the above three system settings selections and proceed to the manual’s relevant
sub-section
2.1.1 Time Zone
The Time Zone allows your router to refer or base its time on the settings, which will affect
functions such as Log entries and Firewall settings.
28
Parameter Description
Set Time Zone Select the time zone of the country you are currently in.
The router will set its time based on your selection.
Time Server Address The router default the “Time Server Address” is
“192.43.244.18”
Enable Daylight Savings The router can also take Daylight savings into account. If
you wish to use this function, you must check/tick the
enable box to enable your daylight saving configuration
(below).
Start Daylight Savings Time Select the period in which you wish to start daylight
Savings Time
End Daylight Savings Time Select the period in which you wish to end daylight
Savings Time
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.1.2 Password Settings
You can change the password required to log into the VRT-401G's system web-based
management. By default, the password is admin. So please assign a password to the
Administrator as soon as possible, and store it in a safe place. Passwords can contain 0 to 12
alphanumeric characters, and are case sensitive.
29
Parameters Description
Current Password Enter your current password for the remote management
administrator to login to your VRT-401G.
Note: By default the password is admin
New Password Enter your new password
Confirmed Password Enter your new password again for verification purposes
Note: If you forget your password, you’ll have to reset the router
to the factory default with the reset button (see router’s back
panel)
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.1.3 Remote Management
The remote management function allows you to designate a host in the Internet the ability to
configure the VRT-401G from a remote site. Enter the designated host IP Address in the Host IP
Address field.
Parameters Description
30
Host Address This is the IP address of the host in the Internet that will have
management/configuration access to the VRT-401G from a remote site.
This means if you are at home and your home IP address has been
designated the Remote Management host IP address for this router
(located in your company office), then you are able to configure this
router from your home. If the Host Address is left 0.0.0.0 this means
anyone can access the router’s web-based configuration from a remote
location, providing they know the password.
Click the Enabled box to enable the Remote Management function.
Note: When you want to access the web-based management from a
remote site, you must enter the router’s WAN IP address (e.g. 10.0.0.1)
into your web-browser followed by port number 8080, e.g.
http://10.0.0.1:8080. You’ll also need to know the password set in the
Password Setting screen in order to access the router’s web-based
management.
Port The port number of remote management web interface.
Enabled Select “Enabled” to enable the remote management function.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.2 WAN
Use the WAN Settings screen if you have already configured the Quick Setup Wizard section and
you would like to change your Internet connection type. The WAN Settings screen allows to
specify the type of WAN port connect you want to establish with your ISP. The WAN settings offer
the following selections for the router’s WAN port, Dynamic IP, Static IP Address, PPPoE,
PPTP, L2TP, Telstra Big Pond, DNS and DDNS.
31
Parameters Description
2.2.1 Dynamic IP address Your ISP will automatically give you an IP address
2.2.2 Static IP address Your ISP has given you an IP address already
2.2.3 PPPoE Your ISP requires PPPoE connection.
2.2.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling
Protocol (PPTP) connection.
2.2.5 L2TP Your ISP requires L2TP connection.
2.2.6 Telstra Big Pond Your ISP requires Telstra Big Pond connection.
2.2.7 DNS You can specify a DNS server that you wish to use
2.2.8 DDNS You can specify a DDNS server that you wish to use and
configure the user name and password provided by you
DDNS service provider.
Once you have made a selection, click <More Configuration> at the bottom of the screen, and
proceed to the manual’s relevant sub-section
2.2.1 Dynamic IP
Choose the Dynamic IP selection if your ISP will automatically give you an IP address. Some
ISP’s may also require you to fill in additional information such as Host Name, Domain Name and
MAC address (see chapter 1 “Cable Modem” for more detail)
2.2.2 Static IP Address
Select Static IP address if your ISP has given you a specific IP address for you to use. Your ISP
should provide all the information required in this section. (See chapter 1 “Fixed IP” for more
detail)
2.2.3 PPPoE (PPP over Ethernet)
Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP
should provide all the information required in this section. (See chapter 1 “PPPoE” for more detail)
2.2.4 PPTP
Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP
should provide all the information required in this section. (See chapter 1 “PPTP” for more detail)
32
2.2.5 L2TP
Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP
should provide all the information required in this section. (See chapter 1 “L2TP” for more detail)
2.2.6 Telstra Big Pond
Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the
Internet. Your ISP should provide all the information required in this section. Telstra Big Pond
protocol is used by the ISP in Australia. (See chapter 1 “Telstra Big Pond” for more detail)
2.2.7 DNS
A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If
you type a Web address into your browser, such as www.router.com, a DNS server will find that
name in its index and the matching IP address. Most ISPs provide a DNS server for speed and
convenience. If your Service Provider connects you to the Internet with dynamic IP settings, it is
likely that the DNS server IP address is provided automatically. However, if there is a DNS server
that you would rather use, you need to specify the IP address of that DNS server here.
Parameters Description
Domain Name Server (DNS) Server This is the ISP’s DNS server IP address that
they gave you; or you can specify your own
preferred DNS server IP address
Secondary DNS Address (optional) This is optional. You can enter another DNS
server’s IP address as a backup. The secondary
DNS will be used should the above DNS fail.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
33
2.2.8 DDNS
DDNS allows you to map the static domain name to a dynamic IP address. You must get an
account, password and your static domain name from the DDNS service providers. This router
supports DynDNS, TZO and other common DDNS service providers.
Parameters Default Description
Enable/Disable Disable Enable/Disable the DDNS function of this router
Provider Select a DDNS service provider
Domain name Your static domain name that use DDNS
Account/E-mail The account that your DDNS service provider
assigned to you
Password/Key The password you set for the DDNS service
account above
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.3 LAN
The LAN Port screen below allows you to specify a private IP address for your router’s LAN ports
as well as a subnet mask for your LAN segment.
34
Parameters Default Description
LAN IP
IP address 192.168.0.1 This is the router’s LAN port IP address (Your
LAN clients default gateway IP address)
IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment
802.1d Spanning Tree Disabled If 802.1d Spanning Tree function is enabled, this
router will use the spanning tree protocol to
prevent from network loop happened in the LAN
ports.
DHCP Server Enabled You can enable or disable the DHCP server. By
enabling the DHCP server the router will
automatically give your LAN clients an IP
address. If the DHCP is not enabled then you’ll
have to manually set your LAN client’s IP
addresses; make sure the LAN Client is in the
same subnet as VRT-401G, if you want the
router to be your LAN client’s default gateway.
Lease Time The DHCP when enabled will temporarily give
your LAN clients an IP address. In the Lease
Time setting you can specify the time period that
the DHCP lends an IP address to your LAN
clients. The DHCP will change your LAN client’s
IP address when this time threshold period is
reached.
IP Address Pool You can select a particular IP address range for
your DHCP server to issue IP addresses to your
LAN Clients.
35
Note: By default the IP range is from: Start IP
192.168.0.100 to End IP 192.168.0.200. If you
want your PC to have a static/fixed IP address
then you’ll have to choose an IP address outside
this IP address Pool.
Domain Name You can specify a Domain Name for your LAN
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)

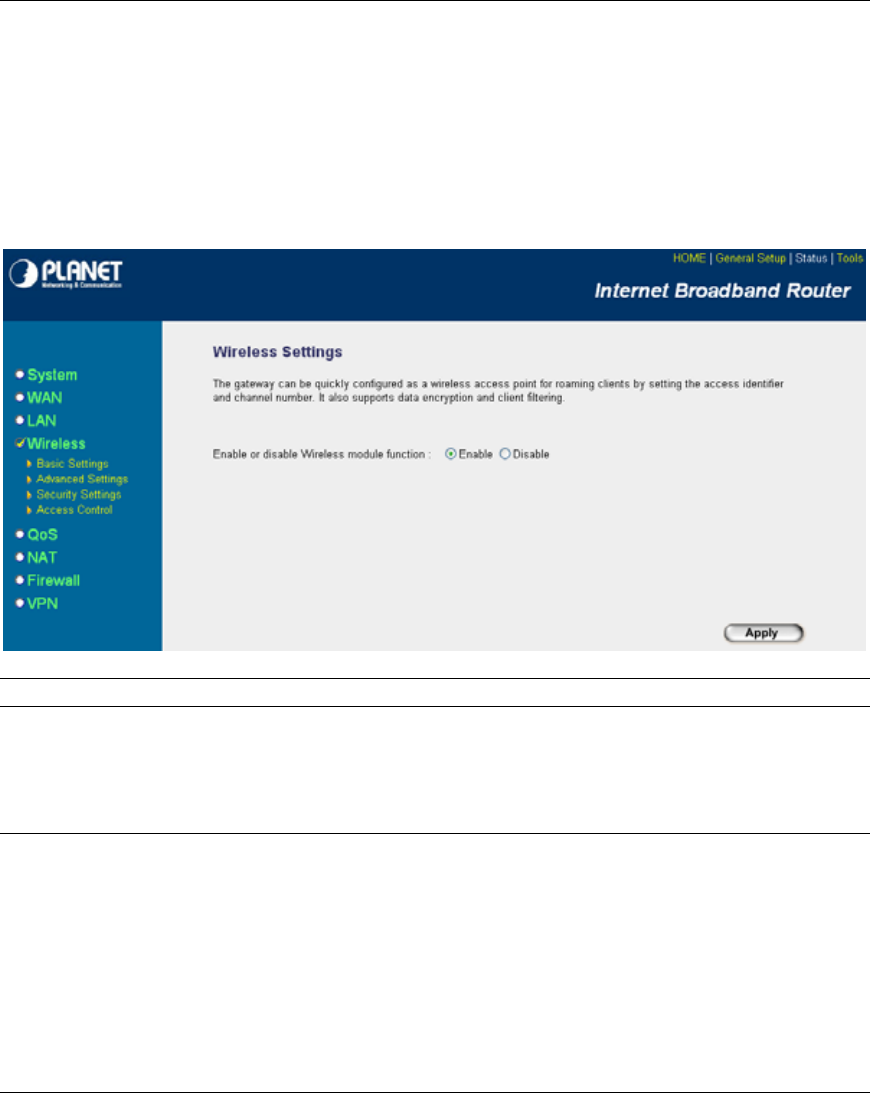

2.4 Wireless
Wireless Access Point builds a wireless LAN and can let all PCs equipped with IEEE 802.11b or
801.11g wireless network adaptor connect to your Intranet. It supports WEP and WPA2
encryption to enhance the security of your wireless network.
Parameters Default Description
Enable or disable Enable You can select to enable or disable the wireless
Wireless module access point module of this router.
function
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.4.1 Basic Settings
You can set parameters that are used for the wireless stations to connect to this router. The
parameters include Mode, ESSID, Channel Number and Associated Client.
36
AP Mode setting Page:
Station-Ad Hoc mode setting page:
37
Station-Infrastructure mode setting page:
AP Bridge-Point to Point mode setting page:
38
AP Bridge-Point to Multi-Point mode setting page:
AP Bridge-WDS mode setting page:
39
Parameters Default Description
Mode It allows you to set the AP to AP, Station, Bridge
or WDS mode.
Band It allows you to set the AP fix at 802.11b or
802.11g mode. You also can select B+G mode
to allow the AP select 802.11b and 802.11g
connection automatically.
ESSID default This is the name of the wireless LAN. All the
devices in the same wireless LAN should have
the same ESSID.
Channel Number 11 The channel used by the wireless LAN. All
devices in the same wireless LAN should use
the same channel.
Associated Clients Click “Show Active Clients” button, then an
“Active Wireless Client Table” will pop up. You
can see the status of all active wireless stations
that are connecting to the access point.
WLAN MAC This is the MAC address used by the Wireless
interface of this AP when it is in the station
modes.
Clone MAC Click the “Clone MAC” button will copy the MAC
address of your PC, that you are using to
configure the AP, to the WLAN MAC.
MAC address If you want to bridge more than one networks
together with wireless LAN, you have to set this
access point to “AP Bridge-Point to Point mode”,
“AP Bridge-Point to Multi-Point mode” or “AP
Bridge-WDS mode”. You have to enter the MAC
addresses of other access points that join the
bridging work.
Set Security Click the “Set Security” button, then a “WDS
Security Settings” will pop up. You can set the
security parameters used to bridge access
points together here when your AP is in AP
Bridge modes. You can refer to section 4.3
“Security Settings” for how to set the parameters.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
40
2.4.2 Advanced Settings
You can set advanced wireless LAN parameters of this router. The parameters include
Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Preamble Type ……
You should not change these parameters unless you know what effect the changes will have on
this router.
Parameters Description
Authentication Type There are two authentication types: "Open System" and
"Shared Key". When you select "Open System", wireless
stations can associate with this wireless router without
WEP encryption. When you select "Shared Key", you
should also setup WEP key in the "Encryption" page and
wireless stations should use WEP encryption in the
authentication phase to associate with this wireless router.
If you select "Auto", the wireless client can associate with
this wireless router by using any one of these two
authentication types.
Fragment Threshold "Fragment Threshold" specifies the maximum size of
packet during the fragmentation of data to be transmitted.
If you set this value too low, it will result in bad
performance.
RTS Threshold When the packet size is smaller the RTS threshold, the
wireless router will not use the RTS/CTS mechanism to
send this packet.
Beacon Interval The interval of time that this wireless router broadcast a
beacon. Beacon is used to synchronize the wireless
network.
41
Data Rate The “Data Rate” is the rate this access point uses to
transmit data packets. The access point will use the
highest possible selected transmission rate to transmit
the data packets.
Preamble Type The “Long Preamble” can provide better wireless LAN
compatibility while the “Short Preamble” can provide
better wireless LAN performance.
Broadcast ESSID If you enable “Broadcast ESSID”, every wireless station
located within the coverage of this access point can
discover this access point easily. If you are building a
public wireless network, enabling this feature is
recommended. Disabling “Broadcast ESSID” can provide
better security.
IAPP If you enable “IAPP”, it will allow wireless station roaming
between IAPP enabled access points within the same
wireless LAN.
802.11g Protection This is also called CTS Protection. It is recommended to
enable the protection mechanism. This mechanism can
decrease the rate of data collision between 802.11b and
802.11g wireless stations. When the protection mode is
enabled, the throughput of the AP will be a little lower due
to many of frame traffic should be transmitted.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router.
2.4.3 Security
This Access Point provides complete wireless LAN security functions, include WEP, IEEE
802.11x, IEEE 802.11x with WEP, WPA with pre-shared key and WPA with RADIUS. With these
security functions, you can prevent your wireless LAN from illegal access. Please make sure your
wireless stations use the same security function.
2.4.3.1 WEP only
When you select 64-bit or128-bit WEP key, you have to enter WEP keys to encrypt data. You can
generate the key by yourself and enter it. You can enter four WEP keys and select one of them
as default key. Then the router can receive any packets encrypted by one of the four keys
42
Parameters Default Description
Key Length 64-bit You can select the WEP key length for
encryption, 64-bit or 128-bit. Larger WEP key
length will provide higher level of security, but
the throughput will be lower.
Key Format You may select to choose ASCII Characters
(alphanumeric format) or Hexadecimal Digits (in
the "A-F", "a-f" and "0-9" range) to be the WEP
Key.
For example:
ASCII Characters: guest
Hexadecimal Digits: 12345abcde
Default Key Select one of the four keys to encrypt your data.
Only the key you select it in the "Default key" will
take effect.
Key 1 - Key 4 The WEP keys are used to encrypt data
transmitted in the wireless network. Fill the text
box by following the rules below.
64-bit WEP: input 10-digit Hex values (in the "A-
F", "a-f" and "0-9" range) or 5-digit ASCII
character as the encryption keys.
128-bit WEP: input 26-digit Hex values (in the
"A-F", "a-f" and "0-9" range) or 13-digit ASCII
characters as the encryption keys.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
43
2.4.3.2 802.1x only
IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this
Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS
server. This mode only authenticates user by IEEE 802.1x, but it does not encryption the data
during communication.
Parameters Default Description
RADIUS Server IP address The IP address of external RADIUS server.
RADIUS Server Port The service port of the external RADIUS server.
RADIUS Server Password The password used by external RADIUS server.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.4.3.3 802.1x WEP Static key
IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this
Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS
server. This mode also uses WEP to encrypt the data during communication.
44
For the WEP settings, please refer to section 2.4.3.1 “WEP only”. For the 802.1x settings, please
refer to section 2.4.3.2 “802.1x only”.
2.4.3.4 WPA Pre-shared key
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key
to authenticate wireless stations and encrypt data during communication. It uses TKIP or CCMP
(AES) to change the encryption key frequently. So the encryption key is not easy to be broken by
hackers. This can improve security very much.
Parameters Default Description
WPA(TKIP) TKIP can change the encryption key frequently
to enhance the wireless LAN security.
45
WPA2(AES) This use CCMP protocol to change encryption
key frequently. AES can provide high level
encryption to enhance the wireless LAN security.
WPA2 Mixed This will use TKIP or AES based on the other
communication peer automatically.
Pre-shared Key Format You may select to select Passphrase
(alphanumeric format) or Hexadecimal Digits (in
the “A-F”, “a-f” and “0-9” range) to be the Pre-
shared Key. For example:
Passphrase: iamguest
Hexadecimal Digits: 12345abcde
Pre-shared Key The Pre-shared key is used to authenticate and
encrypt data transmitted in the wireless network.
Fill the text box by following the rules below.
Hex WEP: input 64-digit Hex values (in the “A-F”,
“a-f” and “0-9” range) or at least 8 character pass
phrase as the pre-shared keys.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.4.3.5 WPA Radius
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external
RADIUS server to authenticate wireless stations and provide the session key to encrypt data
during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently.
This can improve security very much.

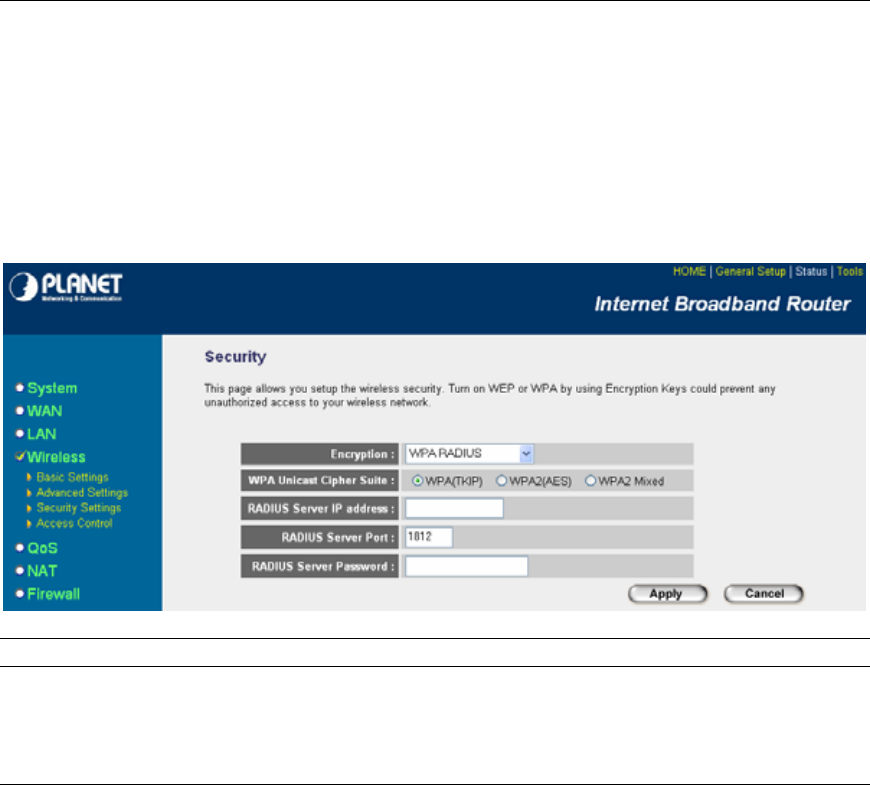

Parameters Default Description
WPA(TKIP) TKIP can change the encryption key frequently
to enhance the wireless LAN security.
46
WPA2(AES) This use CCMP protocol to change encryption
key frequently. AES can provide high level
encryption to enhance the wireless LAN security.
WPA2 Mixed This will use TKIP or AES based on the other
communication peer automatically.
RADIUS Server IP address The IP address of external RADIUS server.
RADIUS Server Port The service port of the external RADIUS server.
RADIUS Server Password The password used by external RADIUS server.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.4.4 Access Control
This wireless router provides MAC Address Control, which prevents the unauthorized MAC
Addresses from accessing your wireless network.
Parameters Description
Enable wireless access control Enable wireless access control
Add MAC address into the list Fill in the "MAC Address" and "Comment" of the
wireless station to be added and then click "Add".
Then this wireless station will be added into the
"Current Access Control List" below. If you find
any issues before adding it and want to retype
again. Just click "Clear" and both "MAC
Address" and "Comment" fields will be cleared.
47
Remove MAC address from the list If you want to remove some MAC address from
the "Current Access Control List ", select the
MAC addresses you want to remove in the list
and then click "Delete Selected". If you want
remove all MAC addresses from the table, just
click "Delete All" button. Click "Reset" will clear
your current selections.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.5 QoS
The QoS can let you classify Internet application traffic by source/destination IP address and port
number. You can assign priority for each type of application and reserve bandwidth for it. The
packets of applications with higher priority will always go first. Lower priority applications will get
bandwidth after higher priority applications get enough bandwidth. This can let you have a better
experience in using critical real time services like Internet phone, video conference …etc. All the
applications not specified by you are classified as rule name “Others”. The rule with smaller
priority number has higher priority; the rule with larger priority number has lower priority. You can
adjust the priority of the rules by moving them up or down.
Note: If the total assigned bandwidth of higher priority applications is larger than the
maximum bandwidth provided by the WAN port, the other applications will not get any
bandwidth.
Parameters Description
Enable/Disable QoS You can check “Enable QoS” to enable QoS
function for the WAN port. You also can uncheck
“Enable QoS” to disable QoS function for the
WAN port.
48
Add a QoS rule into the table Click “Add” then you will enter a form of the QoS
rule. Click “Apply” after filling out the form and
the rule will be added into the table.
Remove QoS rules from the table If you want to remove some QoS rules from the
table, select the QoS rules you want to remove
in the table and then click "Delete Selected". If
you want remove all QoS rules from the table,
just click "Delete All" button. Click "Reset" will
clear your current selections.
Edit a QoS rule Select the rule you want to edit and click “Edit”,
then you will enter the detail form of the QoS
rule. Click “Apply” after editing the form and the
rule will be saved.
Adjust QoS rule priority You can select the rule and click “Move Up” to
make its priority higher. You also can select the
rule and click “Move Down” to make its priority
lower.
Edit QoS Rule:
You can assign packet classification criteria by its local IP range, remote IP range, traffic type,
protocol, local port range and remote port range parameters. The parameters that you leave as
blank will be ignored. The priority of this rule will be applied to packets that match classification
criteria of this rule. You can limit bandwidth consumed by packets that match this rule or
guarantee bandwidth required by packets that match this rule.
Parameters Description
Rule Name The name of this rule.
49
Bandwidth You can assign the download or upload bandwidth by the unit of Kbps
(1024 bit per second). You can limit the maximum bandwidth consumed
by this rule by selecting “Maximum”. You also can reserve enough
bandwidth for this rule by selecting “Guarantee”.
Local IP Address Enter the local IP address range of the packets that this rule will apply to.
If you assign 192.168.2.3 – 192.168.2.5, it means 3 IP addresses:
192.168.2.3, 192.168.2.4 and 192.168.2.5
Local Port Range Enter the local port range of the packets that this rule will apply to. You
can assign a single port number here or assign a range of port numbers
by assigning the first port number and the last port number of the range.
The two numbers are separated by a dash “-“, for example “101-150”
means from port number 100 to port number 150 – the range of 50 port
numbers.
Remote IP Address Enter the remote IP address range of the packets that this rule will apply
to. If you assign 192.168.2.3 – 192.168.2.5, it means 3 IP addresses:
192.168.2.3, 192.168.2.4 and 192.168.2.5
Remote Port Range Enter the remote port range of the packets that this rule will apply to. You
can assign a single port number here or assign a range of port numbers
by assigning the first port number and the last port number of the range.
The two numbers are separated by a dash “-“, for example “101-150”
means from port number 100 to port number 150 – the range of 50 port
numbers.
Traffic Type Select the traffic type of the packets that this rule will apply to. We list
some popular applications here to ease the configuration. You also can
get the same result by using other parameters, for example source or
destination port number, if you are familiar with the application protocol.
Protocol Select the protocol type of the packets that this rule will apply to.
Save Save and exit the form.
Reset Clear the content of this form.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.6 NAT
Network Address Translation (NAT) allows multiple users at your local site to access the Internet
through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall
protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to
Public IP Addresses for key services such as Websites and FTP.
50
Parameter Description
2.6.1 Port Forwarding You can have different services (e.g. email, FTP, Web
etc.) going to different service servers/clients in your
LAN. The Port Forwarding allows you to re-direct a
particular range of service port numbers (from the
Internet/WAN Ports) to a particular LAN IP address.
2.6.2 Virtual Server You can have different services (e.g. email, FTP, Web
etc.) going to different service servers/clients in your
LAN. The Virtual Server allows you to re-direct a
particular service port number (from the Internet/WAN
Port) to a particular LAN IP address and its service port
number.
2.6.3 Special Applications Some applications require multiple connections, such as
Internet games, video conferencing, Internet telephony
and others. In this section you can configure the router
to support these types of applications.
2.6.4 UPnP Setting It allows to Enable or Disable UPnP feature here. After
you enable the UPnP feature, all client systems that
support UPnP, like Windows XP, can discover this router
automatically and access the Internet through this router
without any configuration. The NAT Traversal function
provided by UPnP can let applications that support
UPnP smoothly connect to Internet sites without any
incompatibility problem due to the NAPT port translation.
2.6.5 ALG Setting You can select special applications that need
“Application Layer Gateway” to support here.
2.6.6 Static Routing You can disable NAT function and setup the routing
rules manually.
Click on one of the three NAT selections and proceed to the manual's relevant sub-section.
51
2.6.1 Port Forwarding
The Port Forwarding allows you to re-direct a particular range of service port numbers (from the
Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the
router NAT firewall.
Parameter Description
Enable Port Forwarding Enable Port Forwarding
Private IP This is the private IP of the server behind the
NAT firewall.
Note: You need to give your LAN PC clients a
fixed/static IP address for Port Forwarding to
work properly.
Type This is the protocol type to be forwarded. You
can choose to forward “TCP” or “UDP” packets
only or select “both” to forward both “TCP” and
“UDP” packets.
Port Range The range of ports to be forward to the private IP.
Comment The description of this setting.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.6.2 Virtual Server
Use the Virtual Server function when you want different servers/clients in your LAN to handle
different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet.
52
Computers use numbers called port numbers to recognize a particular service/Internet application
type. The Virtual Server allows you to re-direct a particular service port number (from the
Internet/WAN Port) to a particular LAN private IP address and its service port number. (See
Glossary for an explanation on Port number)
Parameters Description
Enable Virtual Server Enable Virtual Server.
Private IP This is the LAN client/host IP address that the Public Port
number packet will be sent to.
Note: You need to give your LAN PC clients a fixed/static IP
address for Virtual Server to work properly.
Private Port This is the port number (of the above Private IP host) that the
below Public Port number will be changed to when the packet
enters your LAN (to the LAN Server/Client IP)
Type Select the port number protocol type (TCP, UDP or both). If you
are unsure, then leave it to the default both protocols.
Public Port Enter the service (service/Internet application) port number from
the Internet that will be re-directed to the above Private IP
address host in your LAN
Note: Virtual Server function will have priority over the DMZ
function if there is a conflict between the Virtual Server and the
DMZ settings.
Comment The description of this setting.
Add Virtual Server Fill in the "Private IP", "Private Port", "Type", “Public Port” and
"Comment" of the setting to be added and then click "Add", the
Virtual Server setting will be added into the "Current Virtual
53
Server Table" below. If you find any typo before adding it and
want to change the setting, just click "Clear" and retype it again..
Remove Virtual Server If you want to remove some Virtual Server settings from the
"Current Virtual Server Table", select the Virtual Server settings
you want to remove in the table and then click "Delete Selected".
If you want remove all Virtual Server settings from the table, just
click "Delete All" button. Click "Reset" will clear your current
selections.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
Example: Virtual Server
The diagram below demonstrates one of the ways you can use the Virtual Server function. Use
the Virtual Server when you want the web server located in your private LAN to be accessible to
Internet users. The configuration below means that any request coming form the Internet to
access your web server will be translated to your LAN’s web server (192.168.2.2). Note: For the
virtual server to work properly Internet/remote users must know your global IP address. (For
websites you will need to have a fixed/static global/public IP address)
54
2.6.3 Special Applications
Some applications require multiple connections, such as Internet games, video conferencing,
Internet telephony and others. In this section you can configure the router to support multiple
connections for these types of applications.
Parameters Description
Enable Trigger Port Enable the Special Application function.
Trigger Port This is the out going (Outbound) range of port numbers for this
particular application
Trigger Type Select whether the outbound port protocol is “TCP”, “UDP” or
both.
Public Port Enter the In-coming (Inbound) port or port range for this type of
application (e.g. 2300-2400, 47624)
Note: Individual port numbers are separated by a comma
(e.g. 47624, 5775, 6541 etc.). To input a port range use a “dash”
to separate the two port number range (e.g. 2300-2400)
Public Type Select the Inbound port protocol type: “TCP”, “UDP” or both
Comment The description of this setting.
Popular applications This section lists the more popular applications that require
multiple connections. Select an application from the Popular
Applications selection. Once you have selected an application,
select a location (1-10) in the Copy to selection box and then
click the Copy to button. This will automatically list the Public
55
Ports required for this popular application in the location (1-10)
you’d specified.
Add Special Application Fill in the "Trigger Port", "Trigger Type”, “Public Port”, "Public
Type", "Public Port" and "Comment" of the setting to be added
and then click "Add". Then this Special Application setting will be
added into the "Current Trigger-Port Table" below. If you find any
typo before adding it and want to retype again, just click "Clear"
and the fields will be cleared.
If you want to add a popular application, select one “Popular
Application” and then click “Add”.
Remove Special Application If you want to remove some Special Application settings from the
"Current Trigger-Port Table", select the Special Application
settings you want to remove in the table and then click "Delete
Selected". If you want remove all Special Application settings
from the table, just click "Delete All" button. Click "Reset" will
clear your current selections.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
Example: Special Applications
If you need to run applications that require multiple connections, then specify the port (outbound)
normally associated with that application in the "Trigger Port" field. Then select the protocol type
(TCP or UDP) and enter the public ports associated with the trigger port to open them up for
inbound traffic.
Example:
ID Trigger Port Trigger Type Public Port Public Type Comment
1 28800 UDP 2300-2400, 47624 TCP MSN Game Zone
2 6112 UDP 6112 UDP Battle.net
In the example above, when a user trigger’s port 28800 (outbound) for MSN Game Zone then the
router will allow incoming packets for ports 2300-2400 and 47624 to be directed to that user.
Note: Only one LAN client can use a particular special application at a time.
2.6.4 UPnP Settings
With UPnP, all PCs in you Intranet will discover this router automatically. So you do not have to
do any configuration for your PC and can access the Internet through this router easily.
56
Parameters Default Description
UPnP Feature Disable You can Enable or Disable UPnP feature here.
After you enable the UPnP feature, all client
systems that support UPnP, like Windows XP,
can discover this router automatically and
access the Internet through this router without
any configuration. The NAT Traversal function
provided by UPnP can let applications that
support UPnP smoothly connect to Internet sites
without any incompatibility problem due to the
NAPT port translation.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.6.5 ALG Settings
You can select applications that need “Application Layer Gateway” to support.
57
Parameters Default Description
Enable You can select to enable “Application Layer
Gateway”, then the router will let that application
correctly pass though the NAT gateway.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.6.6 Static Routing
This router provides Static Routing function when NAT is disabled. With Static Routing, the router
can forward packets according to your routing rules. The IP sharing function will not work any
more in Static Routing mode.
Note: The DMZ function of firewall will not work if static routing is enabled.
58
Parameter Description
Enable Static Routing Static Routing function is default disabled. You have to
enable the Static Routing function before your routing
rules take effect.
Destination LAN IP The network address of destination LAN.
Subnet Mask The subnet mask of destination LAN.
Default Gateway The next stop gateway of the path toward the destination
LAN. This is the IP of the neighbor router that this router
should communicate with on the path to the destination
LAN.
Hop Count The number of hops (routers) to pass through to reach
the destination LAN.
Interface The interface that go to the next hop (router).
Add a Rule Fill in the "Destination LAN IP", "Subnet Mask”, “Default
Gateway”, "Hop Count" and "Interface" of the rule to be
added and then click "Add". Then this rule of Static
Routing will be added into the "Static Routing Table"
below. If you find any typo before adding it and want to
retype again, just click "Reset" and the fields will be
cleared.
Remove a Rule If you want to remove some routing rules from the "Static
Routing Table", select the rules you want to remove in
the table and then click "Delete Selected". If you want
remove all rules from the table, just click "Delete All"
button. Click "Reset" will clear your current selections.
59
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
2.7 Firewall
The VRT-401G provides extensive firewall protection by restricting connection parameters, thus
limiting the risk of hacker attack, and defending against a wide array of common Internet attacks.
However, for applications that require unrestricted access to the Internet, you can configure a
specific client/server as a Demilitarized Zone (DMZ).
Note: To enable the Firewall settings select Enable and click Apply
Parameters Description
2.7.1 Access Control Access Control allows you to specify which hosts users can or
cannot have access to certain Internet applications
2.7.2 URL Blocking URL Blocking allows you to specify which URLs can not be
accessed by users.
2.7.3 DoS The VRT-401G's firewall can block common hacker attacks and
can log the attack activities.
2.7.4 DMZ The DMZ function allows you to re-direct all packets going to
your WAN port IP address to a particular IP address in your LAN.
Click on one of the firewall selections and proceed to the manual’s relevant sub-section
2.7.1 Access Control
If you want to restrict users from accessing certain Internet applications/services (e.g. Internet
websites, email, FTP etc.), then this is the place to set that configuration. Access Control allows
60
users to define the traffic type permitted in your LAN. You can control which PC client can have
access to these services.
Parameters Description
Deny If select “Deny” then all PCs will be allowed to access
Internet accept for the PCs in the list below.
Allow If select “Allow” then all PCs will be denied to access
Internet accept for the PCs in the list below.
Filter client PC by MAC address Check “Enable MAC Filtering” to enable MAC Filtering.
Add PC Fill in “Client PC MAC Address” and “Comment” of the
PC that is allowed to access the Internet, and then click
“Add”. If you find any typo before adding it and want to
retype again, just click "Reset" and the fields will be
cleared.
Remove PC If you want to remove some PC from the "MAC Filtering
Table", select the PC you want to remove in the table
and then click "Delete Selected". If you want remove all
PCs from the table, just click "Delete All" button. If you
want to clear the selection and re-select again, just click
“Reset”.
Filter client PCs by IP Fill “IP Filtering Table” to filter PC clients by IP.
Add PC You can click Add PC to add an access control rule for
users by IP addresses.
Remove PC If you want to remove some PC from the "IP Filtering
Table", select the PC you want to remove in the table
61
and then click "Delete Selected". If you want remove all
PCs from the table, just click "Delete All" button.
You can now configure other advance sections or start using the router (with the advance settings
in place)
Add PC
Parameters Description
Client PC Description The description for this client PC rule.
Client PC IP Addresses Enter the IP address range that you wish to apply this
Access Control rule. This is the user’s IP address(es)
that you wish to setup an Access Control rule.
Note: You need to give your LAN PC clients a
fixed/static IP address for the Access Control rule to
work properly.
Client PC Service You can block the clients from accessing some Internet
services by checking the services you want to block.
62
Protocol This allows you to select UDP, TCP or both protocol
types you want to block.
Port Range It can be assigned up to five port ranges. The router will
block clients from accessing Internet services that use
these ports.
Apply Changes Click “Apply Changes” to save the setting.
Reset Click “Reset” to clear all fields.
Click <Apply Changes> at the bottom of the screen to save the above configurations. You can
now configure other advance sections or start using the router (with the advance settings in place)
Example: Access Control
In the example below, LAN client A can only access websites that use Port 80. However, LAN
client B is able to access websites and any other service that uses ports between 80 and 999.
2.7.2 URL Blocking
63
You can block access to some Web sites from particular PCs by entering a full URL address or
just keyword of the Web site.
Parameters Description
Enable URL Blocking Enable/disable URL Blocking
Add URL Keyword Fill in “URL/Keyword” and then click “Add”. You can
enter the full URL address or the keyword of the web site
you want to block. If you find any typo before adding it
and want to retype again, just click "Reset" and the field
will be cleared.
Remove URL Keyword If you want to remove some URL keyword from the
"Current URL Blocking Table", select the URL keyword
you want to remove in the table and then click "Delete
Selected". If you want remove all URL keyword from the
table, just click "Delete All" button. If you want to clear
the selection and re-select again, just click “Reset”.
You can now configure other advance sections or start using the router (with the advance settings
in place)
2.7.3 DoS (Denial of Service)
The VRT-401G's firewall can block common hacker attacks, including Denial of Service, Ping of
Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events.
64
Parameters Description
Denial of Service Feature
Ping of Death Protections from Ping of Death attack
Discard Ping From WAN The router’s WAN port will not respond to any
Ping requests
Port Scan Protection the router from Port Scan.
Sync Flood Protection the router from Sync Flood attack.
Click <Apply> at the bottom of the screen to save the above configurations. You can now
configure other advance sections or start using the router (with the advance settings in place)
Note: You can press Advance Settings to configure more detail settings per each DoS feature if
necessary.
65
2.7.4 DMZ
If you have a local client PC that cannot run an Internet application (e.g. Games) properly from
behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access
by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN
port IP address to a particular IP address in your LAN. The difference between the virtual server
and the DMZ function is that the virtual server re-directs a particular service/Internet application
(e.g. FTP, websites) to a particular LAN client/server, whereas DMZ re-directs all packets
(regardless of services) going to your WAN IP address to a particular LAN client/server.
Parameters Description
Enable DMZ Enable/disable DMZ
Note: If there is a conflict between the Virtual Server and the
DMZ setting, then Virtual Server function will have priority over
the DMZ function.
Public IP Address The IP address of the WAN port or any other Public IP
addresses given to you by your ISP
Client PC IP Address Input the IP address of a particular host in your LAN that will
receive all the packets originally going to the WAN port/Public IP
address above
Note: You need to give your LAN PC clients a fixed/static IP
address for DMZ to work properly.
You can now configure other advance sections or start using the router (with the advance settings
in place
66
2.8 VPN
Virtual Private Network (VPN) provides a secure, private communication tunnel between two or
more devices across the Internet. These VPN devices can be either a computer running VPN
software or a special device like a VPN enabled router. It allows your home computer to be
connected to your office network or can allow two home computers in different locations to
connect to each over the Internet.
Note: To enable the VPN settings select Enable and click Apply
Parameters Description
2.8.1 IPSec Server IPSec Server allows you to set up a server that enables secure
data transfer between two devices or private networks.
2.8.2 L2TP Server L2TP Server allows you to set up a server that allows users
connect with L2TP over IPSec protocol.
2.8.3 PPTP Server PPTP Server allows you to set up a server that allows users
connect with PPTP protocol.
Click on one of the VPN selections and proceed to the manual’s relevant sub-section
2.8.1 IPSec Server
IPsec (IP Security Protocol) is an extended IP protocol which enables secure data transfer. It
provides services similar to SSL/TLS, however, these services are provided on a network layer.
67
Parameters Description
Enable IPSEC VPN Enable the IPSec VPN Server.
Enable NAT Traversal Enable the NAT Traversal function allows the clients
behind NAT to connect to this VPN server.
Generate RSA Key Automatically generate the RSA Public Key.
Show RSA Public Key Click this button to show the RSA Public Key.
Current VPN Connection Table This table shows the current tunnel settings and the
status of each tunnel. The maximum number of tunnel is
10.
WAN IP Shows the current WAN IP that this VPN Server listened
on.
Edit a VPN Connection Select the connection you want to edit and click “Edit”,
then you will enter the detail form of the Tunnel Setting.
Click “Apply Changes” after editing the form and the
tunnel setting will be saved.
68
Click <Apply Changes> at the bottom of the screen to save the above configurations. You can
now configure other advance sections or start using the router (with the advance settings in place)
Edit Connection
Parameters Description
Enable Tunnel # Check this check box to enable this tunnel setting.
Connection Name The name of this connection.
Note: The “Connection Name” can’t be the same with
other “Connection Name”.
Local Site You can choose which type of the local site is. It can be
a single site or a subnet.
Remote Site You can choose which type of the remote site is. It can
be a single site, a subnet, any address, NAT Traversal
any address, or L2TP Client. When you choose single
site or subnet, you must specify the remote IP Address.
Network Management Choose the key exchange method. It can be IKE or
Manual setting.
Advanced Press this button for the advanced setting of IKE.
69
Connection Type When select the Initiator, the tunnel will automatically
connect at the boot time. When select the Responder,
the tunnel will connect only when you pressed the
“Connect” button.
Local/Remote ID Specify the ID of local site and remote site. It can be IP
address, Domain Name, or E-Mail address.
Auth Method Choose PSK or RSA and fill the key for the
authentication.
Click <Apply Changes> at the bottom of the screen to save the above configurations. You can
now configure other advance sections or start using the router (with the advance settings in place)
Advanced VPN Setting
Parameters Description
Encryption Choose the encryption type with the remote peer. It can
be 3DES or AES128.
Note: If you choose the wrong method, the connection
may not be established.
Hash/Authentication Choose the hash method with the remote peer. It can be
MD5 or SHA1.
Note: If you choose the wrong method, the connection
may not be established.
70
Diffie Hellman You can choose which Diffie Hellman protocol you want
to use at the Phase 1.
Key Life Time Enter the life time for the key. After this time, the key will
expire.
PFS If you turn on this option, the keys that protect data
transmission are not used to derive additional keys. Also,
seeds used to create data transmission keys are not
reused.
Click <OK> at the bottom of the screen to save the above configurations.
2.8.2 L2TP Server
Layer Two Tunneling Protocol (L2TP) is an extension of the Point-to-Point Tunneling Protocol
(PPTP). By enable this server, we can enable the operation of a virtual private network (VPN)
over the Internet.
71
L2TP Settings
Parameters Description
Enable L2TP Server By enable this server, we can enable the operation of a
virtual private network (VPN) over the Internet.
Server IP Address Specify the IP Address that the L2TP clients talked with.
Note: The Server IP Address can be different to LAN IP
or WAN IP.
Client IP Pool Specify the IP Address for L2TP clients to use.
Authentication You can use PAP, CHAP, or MSCHAP for authentication.
VPN Users You can input up to ten usernames and passwords for
the L2TP/PPTP clients here.
Click <Apply> at the bottom of the screen to save the above configurations.
Note: L2TP client IP address must be public IP.
2.8.3 PPTP Server
PPTP is a protocol from Microsoft that is used to create a virtual private network (VPN) over the
Internet. It uses Microsoft's Point-to-Point Encryption (MPPE), which is based on RSA's RC4.
72
PPTP Settings
Parameters Description
Enable PPTP Server By enable this server, we can enable the operation of a
virtual private network (VPN) over the Internet.
Server IP Address Specify the IP Address that the PPTP clients talked with.
Note: The Server IP Address can be different to LAN IP
or WAN IP.
Client IP Pool Specify the IP Address for PPTP clients to use.
Authentication You can use PAP, CHAP, or MSCHAP for authentication.
Encryption When you choose MSCHAP for Authentication, you can
use MPPE (Microsoft's Point-to-Point Encryption) to
encryption the PPTP connection.
VPN Users You can input up to ten usernames and passwords for
the L2TP/PPTP clients here.
Click <Apply> at the bottom of the screen to save the above configurations.
73
Chapter 3
Status
The Status section allows you to monitor the current status of your router. You can use the Status
page to monitor: the connection status of the VRT-401G's WAN/LAN interfaces, the current
firmware and hardware version numbers, any illegal attempts to access your network, and
information on all DHCP client PCs currently connected to your network.
Parameters Description
3.1 Status and Information Shows the router’s system information
3.2 Internet Connection View the VRT-401Gs current Internet connection status and
other related information
3.3 Device Status View the VRT-401G’s current setting status
3.4 System Log View the VRT-401G’s system log
3.5 Security Log View any attempts that have been made to illegally gain access
to your network.
3.6 Active DHCP Client View your LAN client's information that is currently linked to the
VRT-401G's DHCP server
3.7 Statistics Shows the statistics
Select one of the above five Status selections and proceed to the manual’s relevant sub-section
3.1 Status and Information
The Status and Information section allows you to view the router’s system information
74
Parameters Description
Information You can see the router’s system information such as the router’s:
LAN MAC Address, WAN MAC Address, Hardware version,
Serial Number, Boot code Version, Runtime code Version
3.2 Internet Connection
View the VRT-401G’s current Internet connection status and other related information
Parameters Description
Internet Connection This page displays whether the WAN port is connected to a
Cable/DSL connection. It also displays the router’s WAN port
information, such as WAN IP address, Subnet Mask, and ISP
Gateway as well as the Primary DNS and Secondary DNS
being used.
75
3.3 Device Status
View the VRT-401G’s current configuration settings. The Device Status displays the settings
you’ve configured in the Quick Setup Wizard/General Setup section.
Parameters Description
Device Status This page shows the VRT-401G’s current device settings. This
page displays the VRT-401G LAN port’s current LAN IP
Address and Subnet Mask. It also shows whether the DHCP
Server function is enabled or disabled.
3.4 System Log
View the operation log of the system.
76
Parameters Description
System Log This page shows the current system log of the VRT-401G. It
displays any event occurred after system start up.
At the bottom of the page, the system log can be saved <Save>
to a local file for further processing or the system log can be
cleared <Clear> or it can be refreshed <Refresh> to get the
most updated situation. When the system is powered down, the
system log will disappear if not saved to a local file.
3.5 Security Log
View any attempts that have been made to illegally gain access to your network.
Parameters Description
77
Security Log This page shows the current security log of the VRT-401G. It
displays any illegal attempts to access your network.
At the bottom of the page, the security log can be saved <Save>
to a local file for further processing or the security log can be
cleared <Clear> or it can be refreshed <Refresh> to get the
most updated situation. When the system is powered down, the
security log will disappear if not saved to a local file.
3.6 Active DHCP Client
View your LAN client's information that is currently linked to the VRT-401G's DHCP server
arameters Description P
Active DHCP Client This page shows all DHCP clients (LAN PCs) currently
connected to your network. The “Active DHCP Client Table”
displays the IP address and the MAC address and Time Expired
of each LAN Client. Use the Refresh button to get the most
updated situation
3.7 Statistics of packets sent and received on WAN, LAN and Wireless LAN. View the statistics
78
Parameters Description
Statistics Shows the counters of packets sent and received on WAN, LAN
and Wireless LAN.
79
Chapter 4
Tool
This page includes the basic configuration tools, such as Configuration Tools (save or restore
configuration settings), Firmware Upgrade (upgrade system firmware) and Reset.
Parameters Description
4.1 Configuration Tools You can save the router’s current configuration, restore the
router’s saved configuration files and restore the router’s factory
default settings
4.2 Firmware Upgrade This page allows you to upgrade the router’s firmware
4.3 Reset You can reset the router’s system should any problem exist
Select one of the above three Tools Settings selection and proceed to the manual’s relevant
sub-section
4.1 Configuration Tools
The Configuration Tools screen allows you to save (Backup) the router’s current configuration
setting. Saving the configuration settings provides an added protection and convenience should
problems occur with the router and you have to reset to factory default. When you save the
configuration setting (Backup) you can re-load the saved configuration into the router through the
Restore selection. If extreme problems occur you can use the Restore to Factory Defaults
selection, this will set all configurations to its original default settings (e.g. when you first
purchased the router).
80
Parameters Description
Configuration Tools Use the "Backup" tool to save the VRT-401G current
configuration to a file named "config.bin" on your PC. You can
then use the "Restore" tool to restore the saved configuration to
the VRT-401G. Alternatively, you can use the "Restore to
Factory Defaults" tool to force the VRT-401G to perform a
power reset and restore the original factory settings.
4.2 Firmware Upgrade
This page allows you to upgrade the router’s firmware
Parameters Description
Firmware Upgrade This tool allows you to upgrade the VRT-401G’s system firmware.
To upgrade the firmware of your device, you need to download
the firmware file to your local hard disk, and enter that file name
and path in the appropriate field on this page. You can also use
the Browse button to find the firmware file on your PC.
81
Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to start the
upgrade process. (You may have to wait a few minutes for the upgrade to complete). Once the
upgrade is complete you can start using the router.
4.3 Reset
You can reset the router’s system should any problem exist. The reset function essentially re-
boots your router’s system
Parameters Description
Reset In the event that the system stops responding correctly or in
some way stops functioning, you can perform a reset. Your
settings will not be changed. To perform the reset, click on the
<APPLY> button, you will be asked to confirm your decision. The
reset will be complete when the power light stops blinking. Once
the reset process is complete you may start using the router
again.
82
Appendix A
How to Manually find your PC’s IP and MAC address
1) In Window’s open the Command Prompt program
2) Type Ipconfig /all and <enter>
Your PC’s IP address is the one entitled IP address (192.168.1.77)
The router’s IP address is the one entitled Default Gateway (192.168.1.254)
Your PC’s MAC Address is the one entitled Physical Address (00-50-FC-FE-02-DB)
83
Glossary
Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP
address. When the device sends out an IP packet, if the destination is not on the same network,
the device has to send the packet to its default gateway, which will then send it out towards the
destination.
DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer
on your home network an IP address.
DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers to
have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such
as 192.34.45.8). A DNS server keeps a database of Internet servers and their respective domain
names and IP addresses, so that when a domain name is requested (as in typing
"Broadbandrouter.com" into your Internet browser), the user is sent to the proper IP address. The
DNS server IP address used by the computers on your home network is the location of the DNS
server your ISP has assigned to you.
DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your existing phone
lines to transmit data at high speeds.
Ethernet: A standard for computer networks. Ethernet networks are connected by special cables
and hubs, and move data around at up to 10/100 million bits per second (Mbps).
Idle Timeout: Idle Timeout is designed so that after there is no traffic to the Internet for a pre-
configured amount of time, the connection will automatically be disconnected.
IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP address consists
of a series of four numbers separated by periods, that identifies a single, unique Internet
computer host in an IP network. Example: 192.168.2.1. It consists of 2 portions: the IP network
address, and the host identifier.
The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal
numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255,
or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb,
where each “b” can either be 0 or 1.
A network mask is also a 32-bit binary pattern, and consists of consecutive leading 1’s followed
by consecutive trailing 0’s, such as 11111111.11111111.11111111.00000000. Therefore
sometimes a network mask can also be described simply as “x” number of leading 1’s.
When both are represented side by side in their binary forms, all bits in the IP address that
correspond to 1’s in the network mask become part of the IP network address, and the remaining
bits correspond to the host ID.
For example, if the IP address for a device is, in its binary form,
11011001.10110000.10010000.00000111, and if its network mask is,
11111111.11111111.11110000.00000000
It means the device’s network address is
11011001.10110000.10010000.00000000, and its host ID is,
00000000.00000000.00000000.00000111. This is a convenient and efficient method for routers
to route IP packets to their destination.
ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for
the Internet router located at the ISP's office.
84
ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for
individuals and other businesses or organizations.
LAN: Local Area Network. A LAN is a group of computers and devices connected together in a
relatively small area (such as a house or an office). Your home network is considered a LAN.
MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address
of a device connected to a network. The MAC address is a unique identifier for a device with an
Ethernet interface. It is comprised of two parts: 3 bytes of data that corresponds to the
Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product’s
serial number.
NAT: Network Address Translation. This process allows all of the computers on your home
network to use one IP address. Using the broadband router’s NAT capability, you can access the
Internet from any computer on your home network without having to purchase more IP addresses
from your ISP.
Port: Network Clients (LAN PC) uses port numbers to distinguish one network
application/protocol over another. Below is a list of common applications and protocol/port
numbers:
Application Protocol Port Number
Telnet TCP 23
FTP TCP 21
SMTP TCP 25
POP3 TCP 110
H.323 TCP 1720
SNMP UCP 161
SNMP Trap UDP 162
HTTP TCP 80
PPTP TCP 1723
PC Anywhere TCP 5631
PC Anywhere UDP 5632
PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data
transmission method originally created for dial-up connections; PPPoE is for Ethernet
connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point
Protocol. It is a communications protocol for transmitting information over Ethernet between
different manufacturers
Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that
when they interface with each other based on such a protocol, the interpretation of their behavior
is well defined and can be made objectively, without confusion or misunderstanding.
Router: A router is an intelligent network device that forwards packets between different
networks based on network layer address information such as IP addresses.
Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your
ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to
85
create IP address numbers used only within a particular network (as opposed to valid IP address
numbers recognized by the Internet, which must be assigned by InterNIC).
TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram
Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP
and UDP are transport layer protocol. TCP performs proper error detection and error recovery,
and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet
Protocol), a network layer protocol.
WAN: Wide Area Network. A network that connects computers located in geographically
separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network.
Web-based management Graphical User Interface (GUI): Many devices support a graphical
user interface that is based on the web browser. This means the user can use the familiar
Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.
86

Navigation menu
