Planet Technology WNRT617V2 150Mbps 802.11n Wireless Broadband Router User Manual PLANET 802 11n Wireless Broadband Router
Planet Technology Corporation 150Mbps 802.11n Wireless Broadband Router PLANET 802 11n Wireless Broadband Router
User Manual
User’s Manual
www.PLANET.com.tw
150Mbps 802.11n
Wireless Broadband Router
WNRT-617
Copyright
Copyright 2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any
software described in this manual is sold or licensed "as is". Should the programs prove defective following
their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the
software. Further, this company reserves the right to revise this publication and to make changes from time to
time in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution:
To assure continued compliance, (example-use only shielded interface cables when connecting to computer or
peripheral devices) any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions:
(1) This device may not cause harmful interference
(2) This Device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
II
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna
shall not be less than 20 cm (8 inches) during normal operation.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal
Equipment and the mutual recognition of their conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to
ensure the safe use of the equipment.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following the EU
directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and
public service
France
Outdoor use limited to 10
mW e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian
Federation
None Only for indoor applications
Note: Please don’t use the product outdoors in France
WEEE regulation
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste; they have to be collected separately.
III
Revision
User’s Manual for PLANET 802.11n Wireless Broadband Router
Model: WNRT-617
Rev: 2.0 (MAY. 2013)
Part No: EM-WNRT-617v2_v2.0 (2081-E50200-002)
IV
CONTENTS
Chapter 1. Product Introduction.........................................................................................................12
1.1 Package Contents...............................................................................................................12
1.2 Product Description.............................................................................................................12
1.3 Product Features.................................................................................................................13
1.4 Product Specifications.........................................................................................................14
Chapter 2. Hardware Installation ........................................................................................................17
2.1 Hardware Description..........................................................................................................17

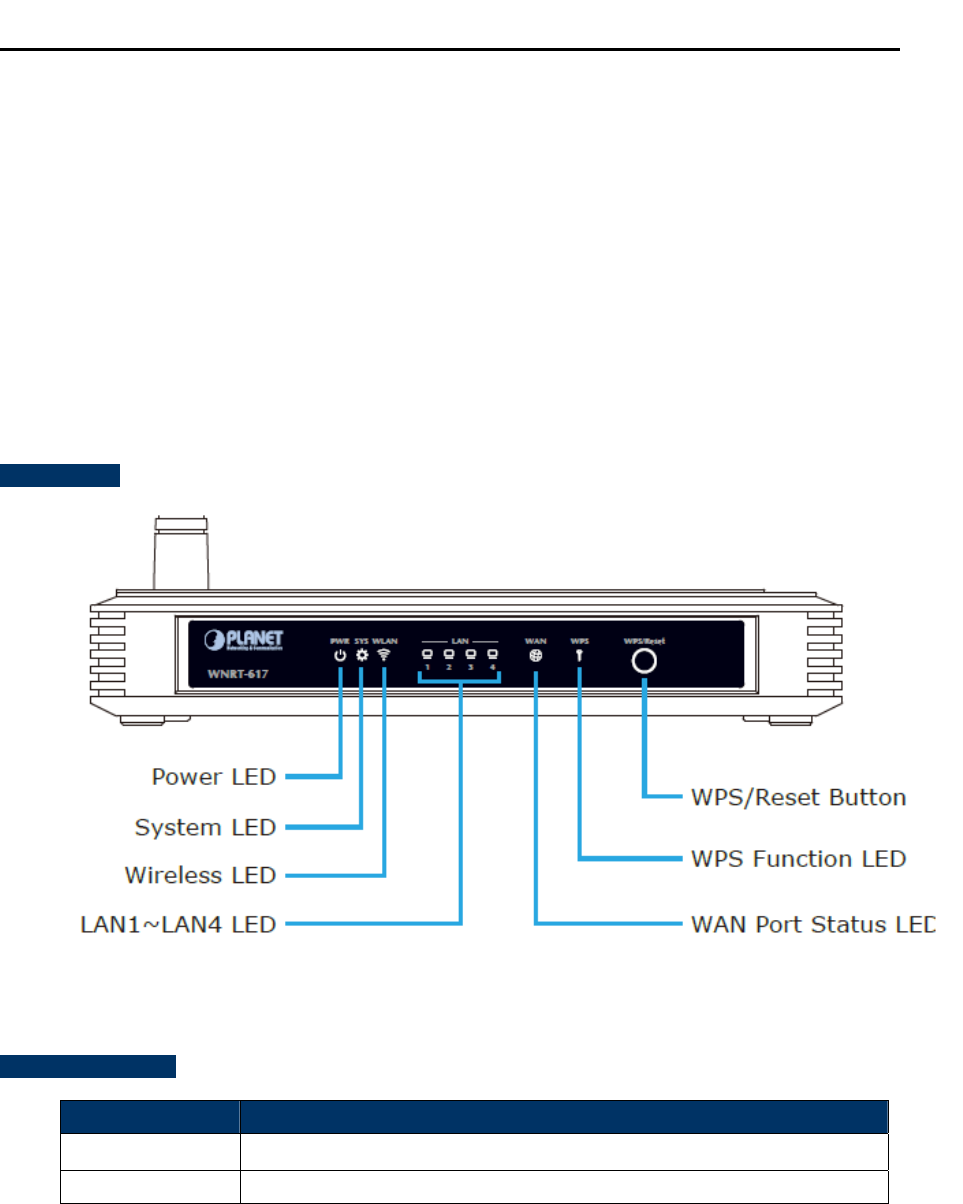

2.1.1 The Front Panel......................................................................................................17
2.1.2 LED Indications.......................................................................................................17

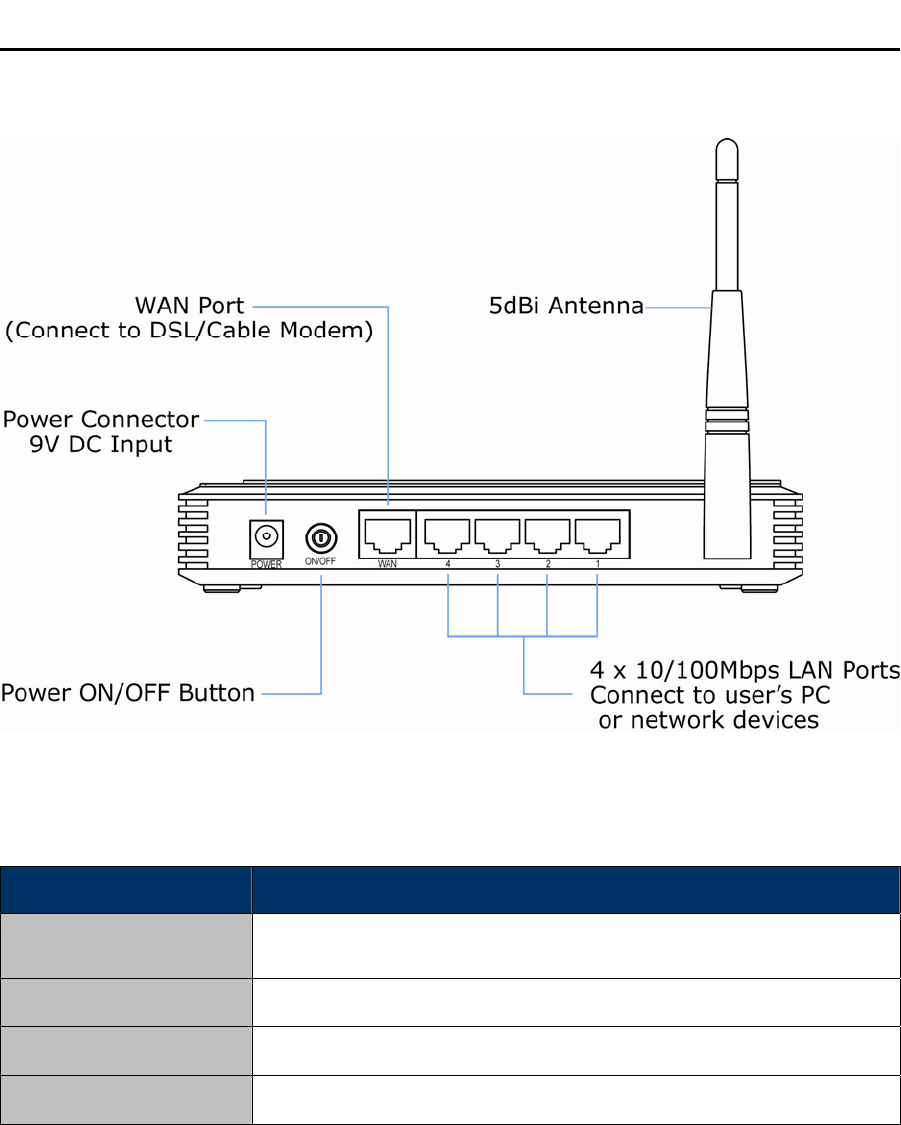

2.1.3 The Rear Panel.......................................................................................................19
Chapter 3. Connecting the Router...................................................................................................... 20
3.1 System Requirements.........................................................................................................20
3.2 Installing the Router ............................................................................................................20
Chapter 4. Quick Installation Guide ................................................................................................... 22
4.1 Manual Network Setup - TCP/IP Configuration ..................................................................22

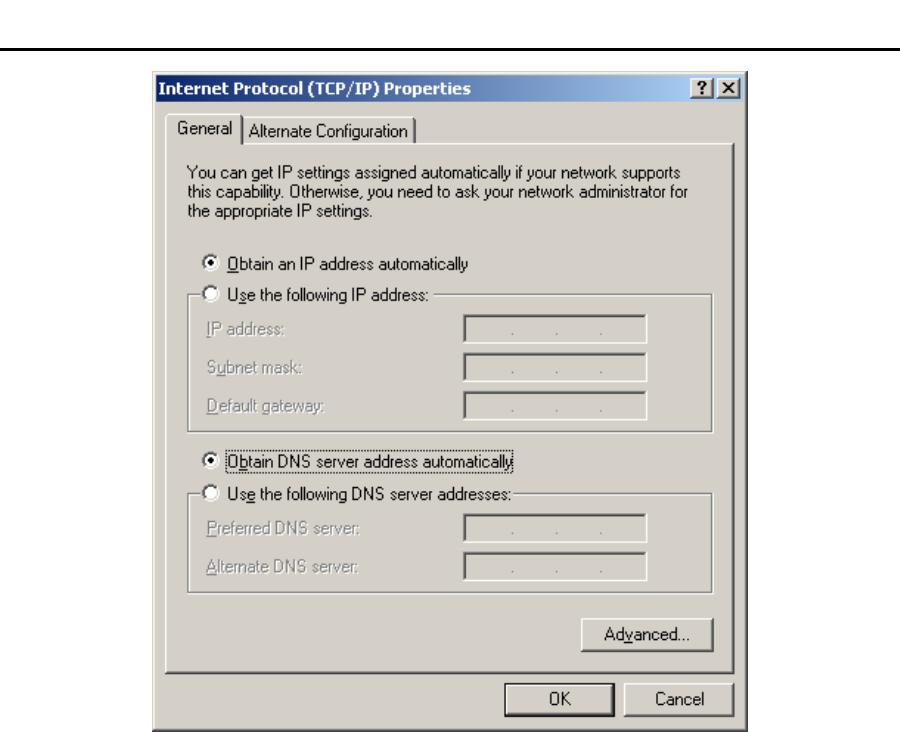

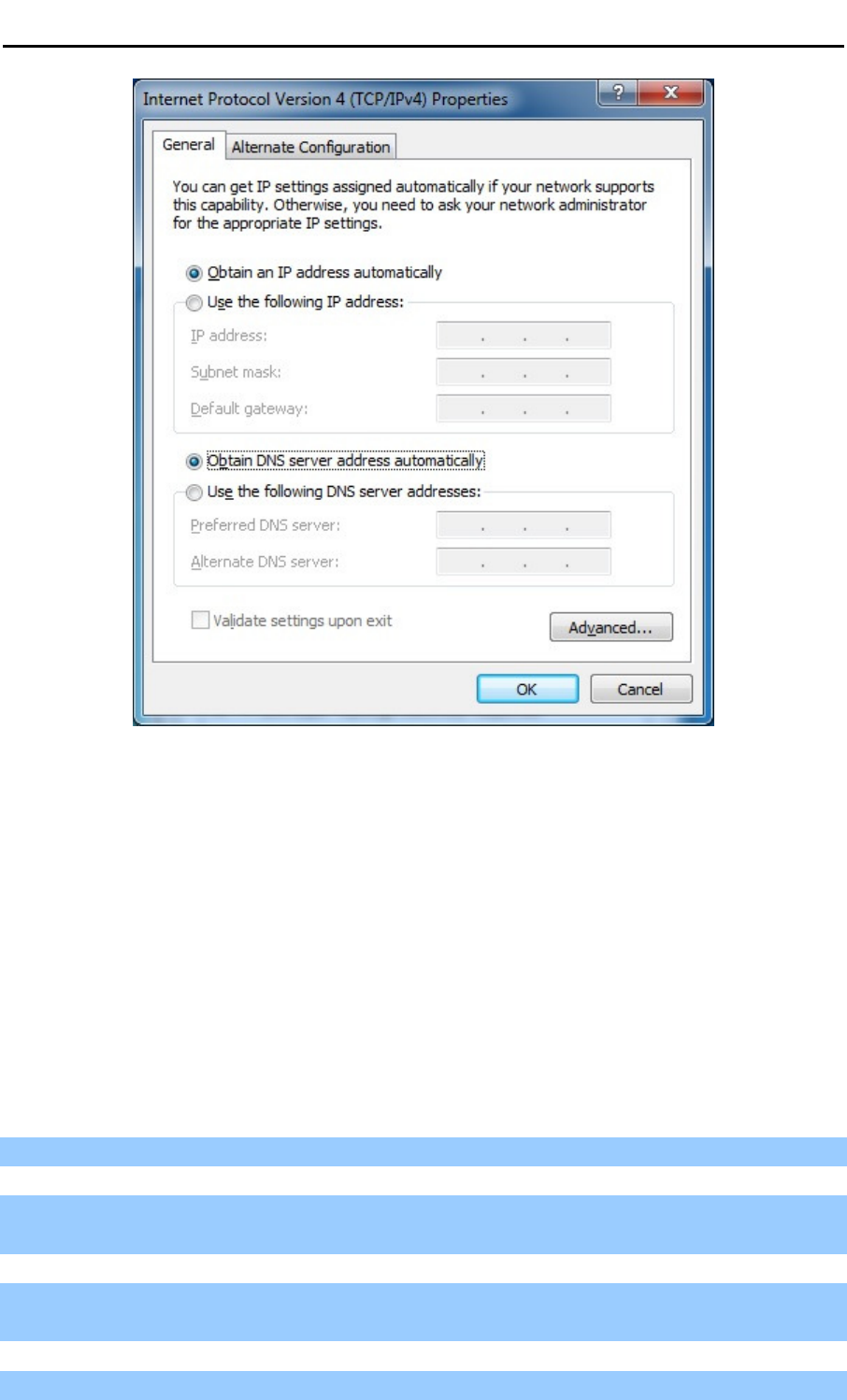

4.1.1 Obtain an IP Address Automatically........................................................................22

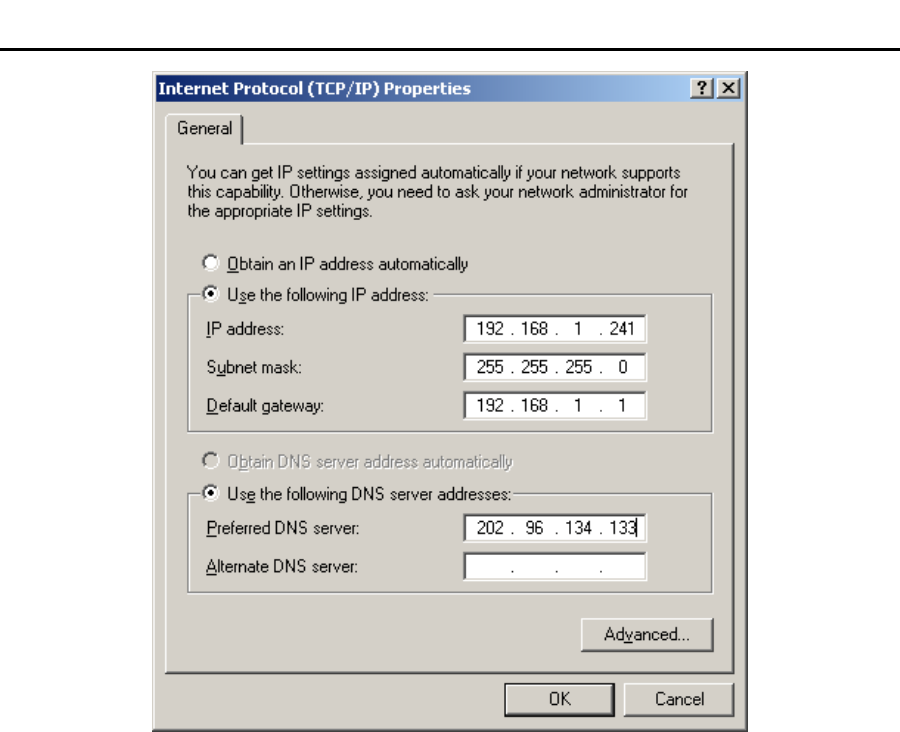

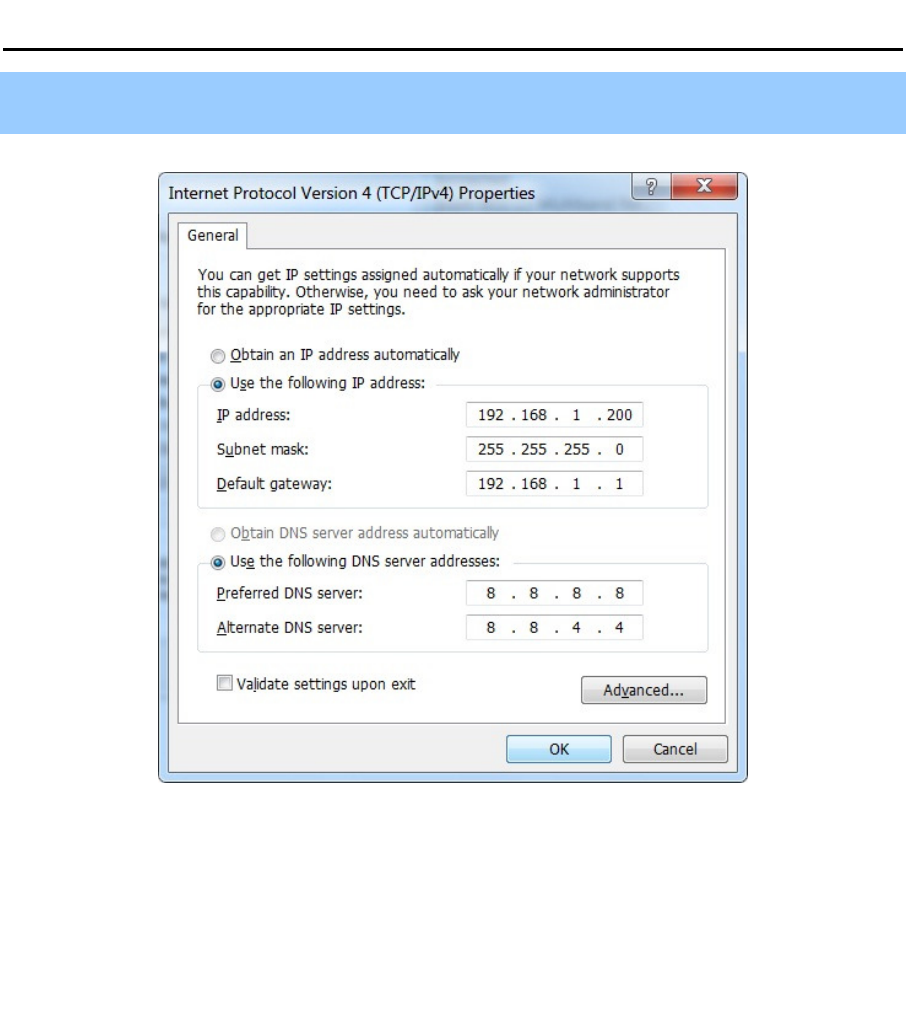

4.1.2 Configure the IP Address Manually ........................................................................25
4.2 Starting Setup in Web UI.....................................................................................................29

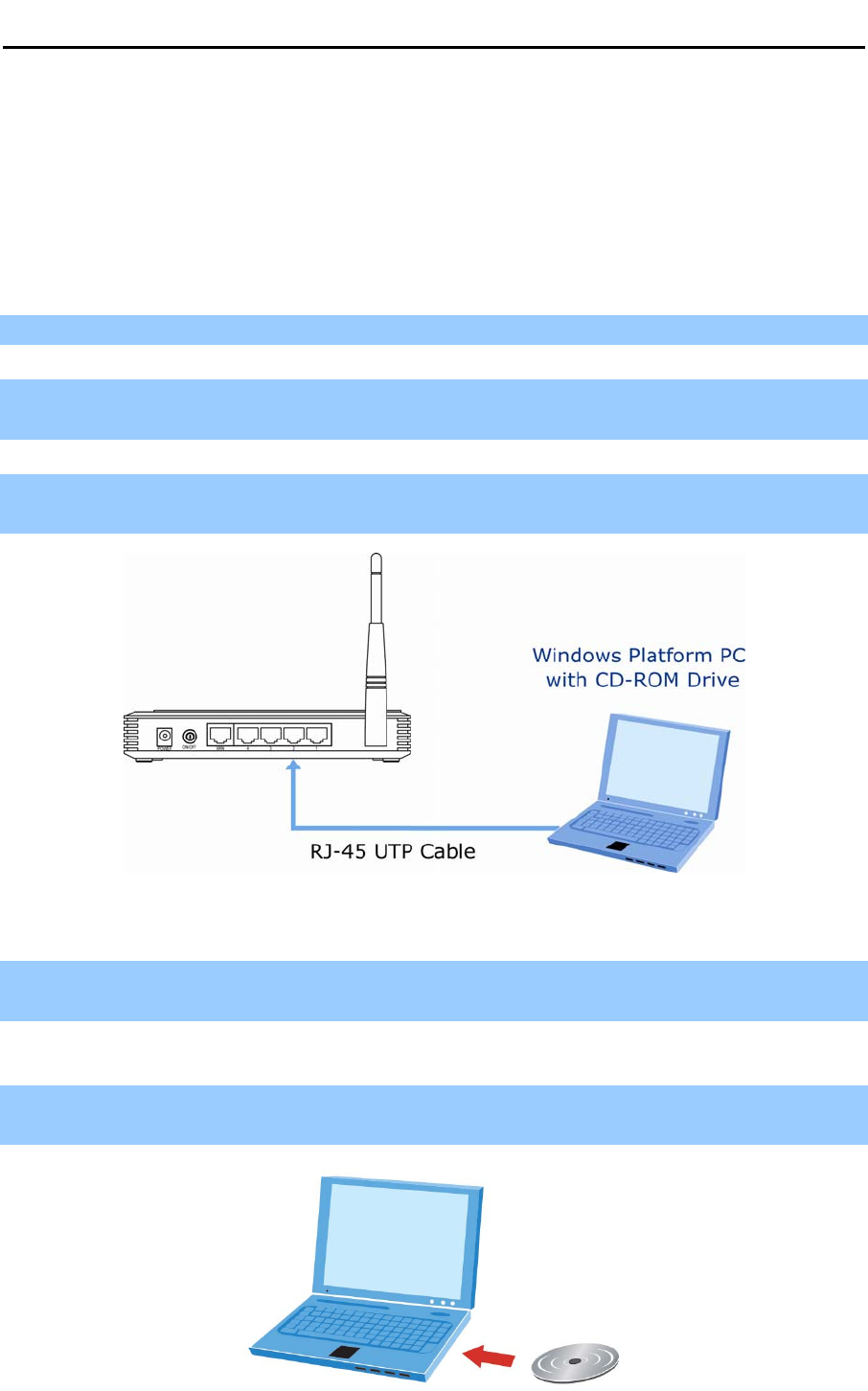

4.3 PLANET Smart Setup! Utility ..............................................................................................36
Chapter 5. Configuring the Router .....................................................................................................38

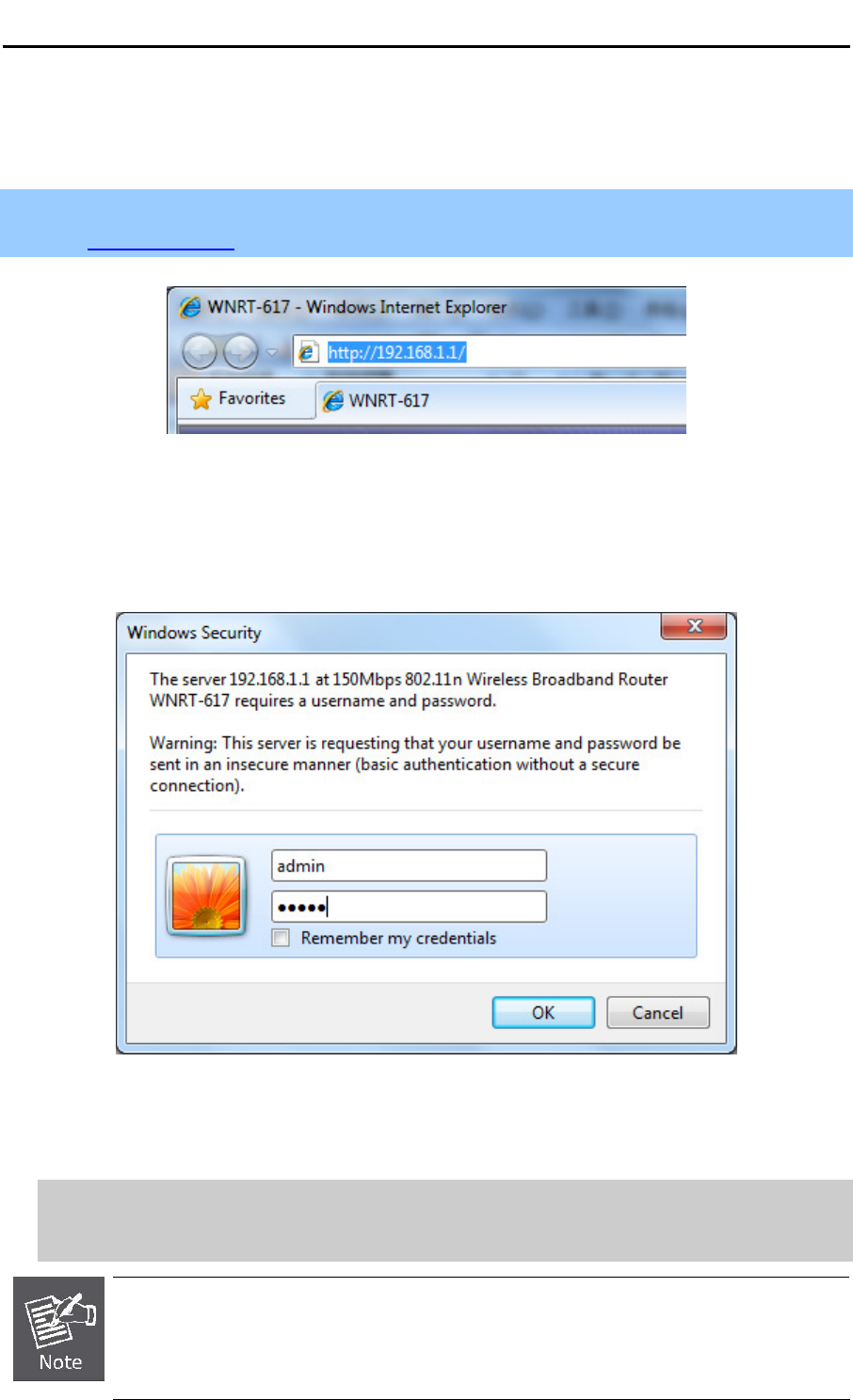

5.1 Login....................................................................................................................................38

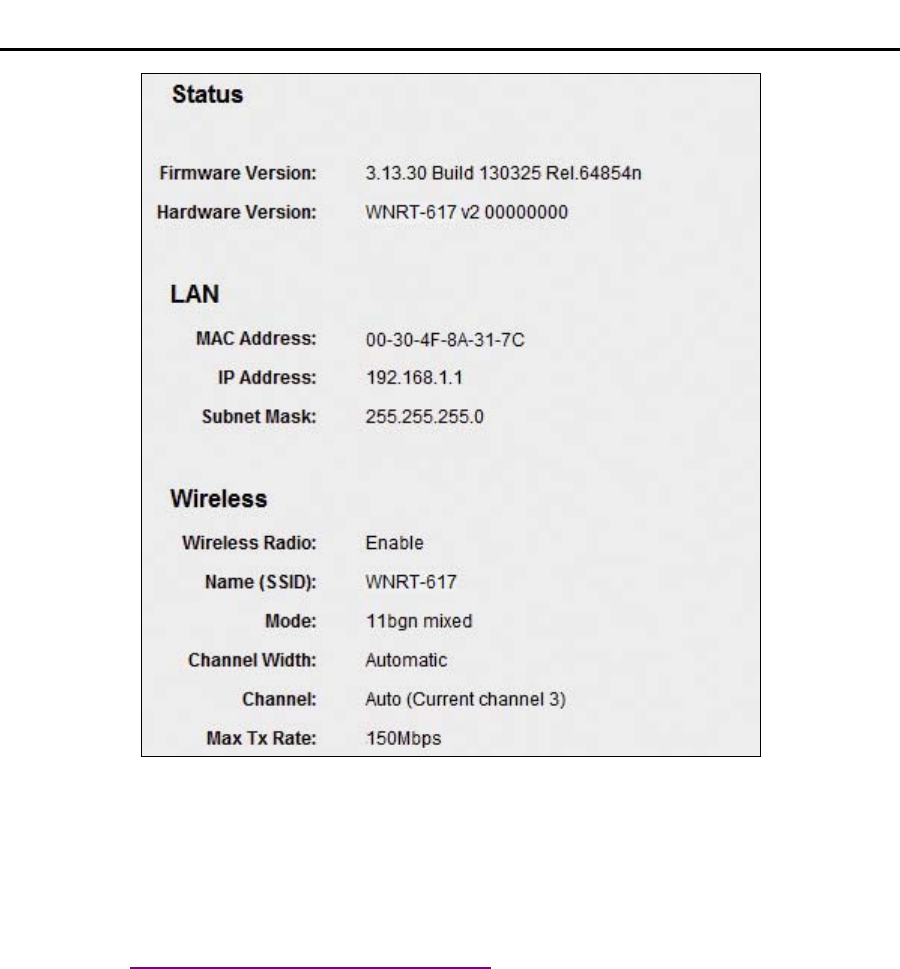

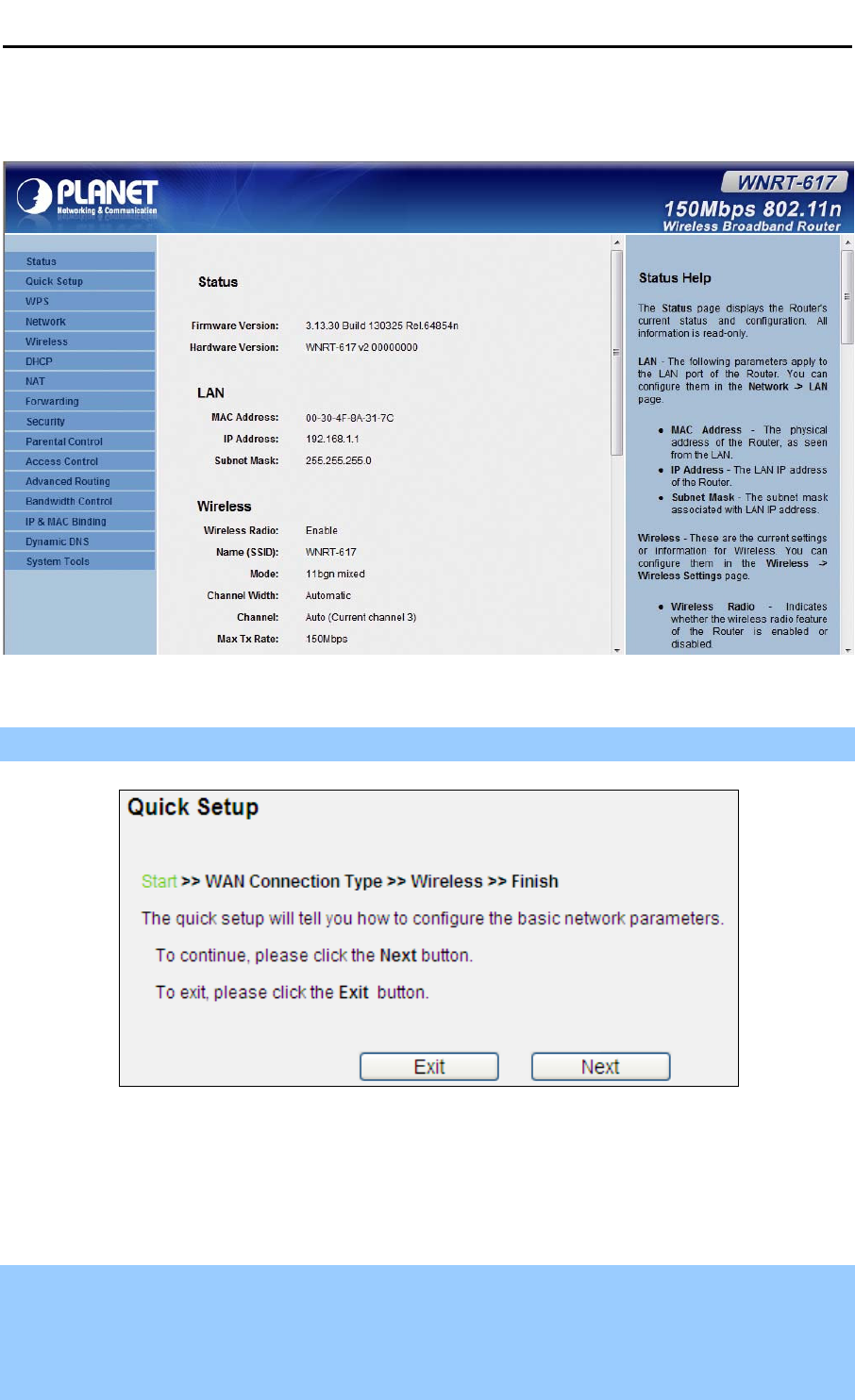

5.2 Status ..................................................................................................................................38

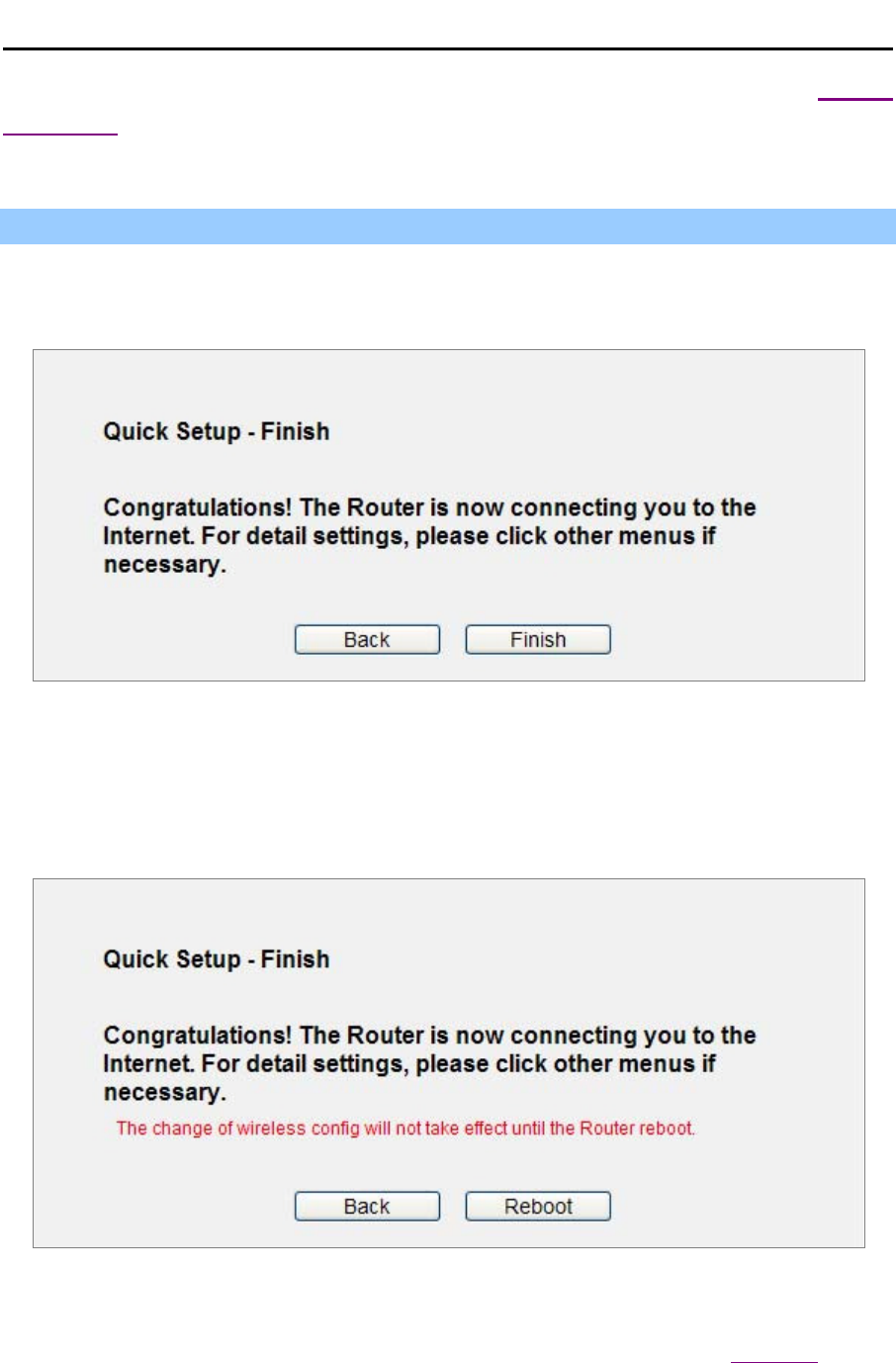

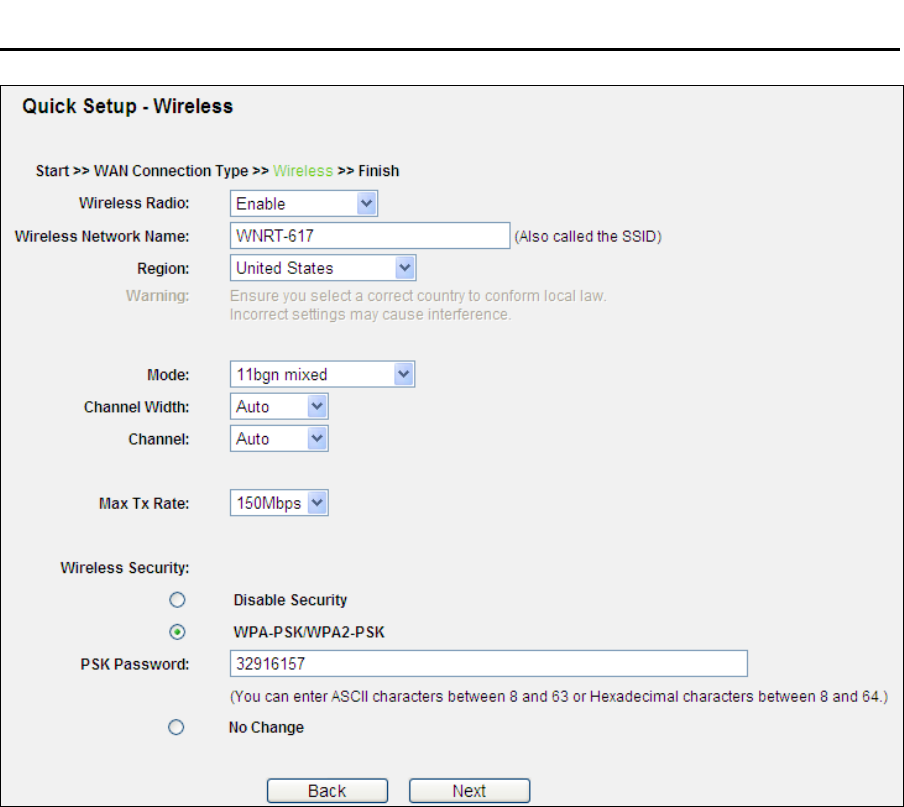

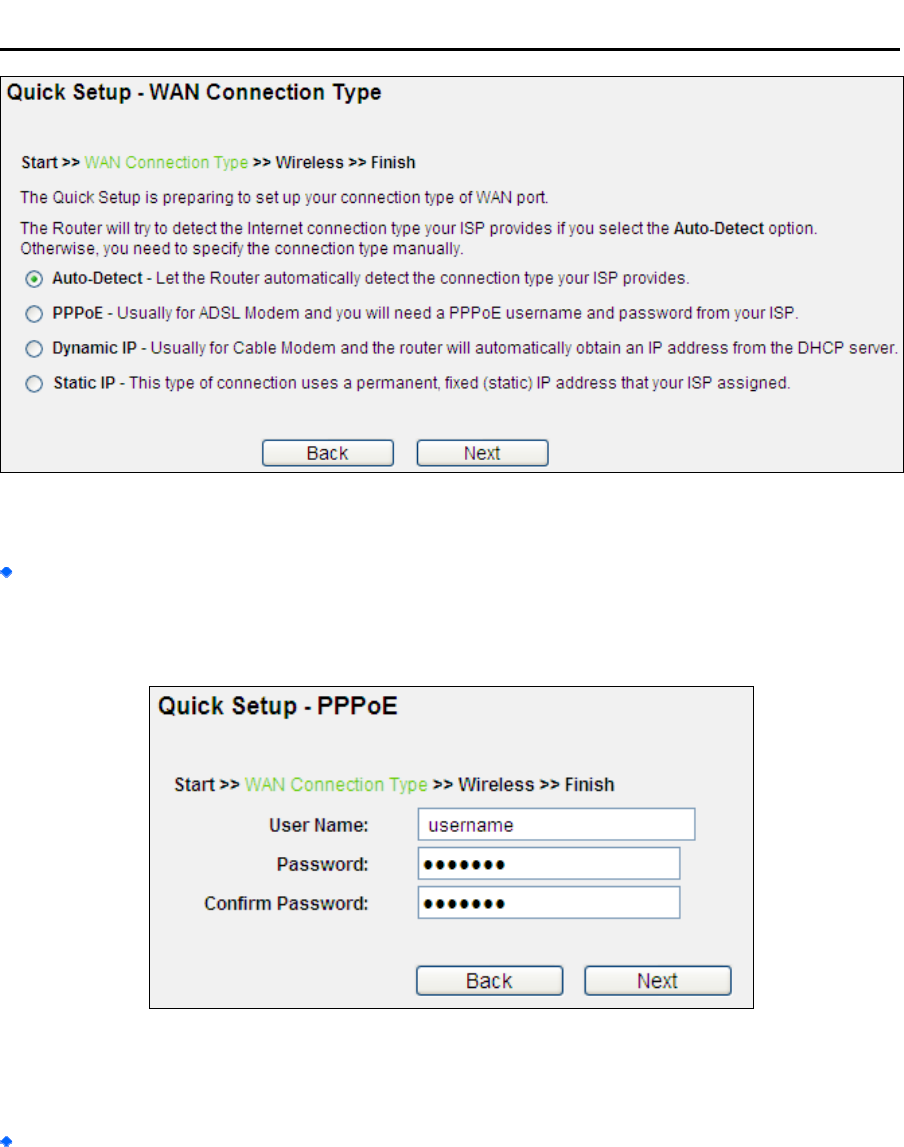

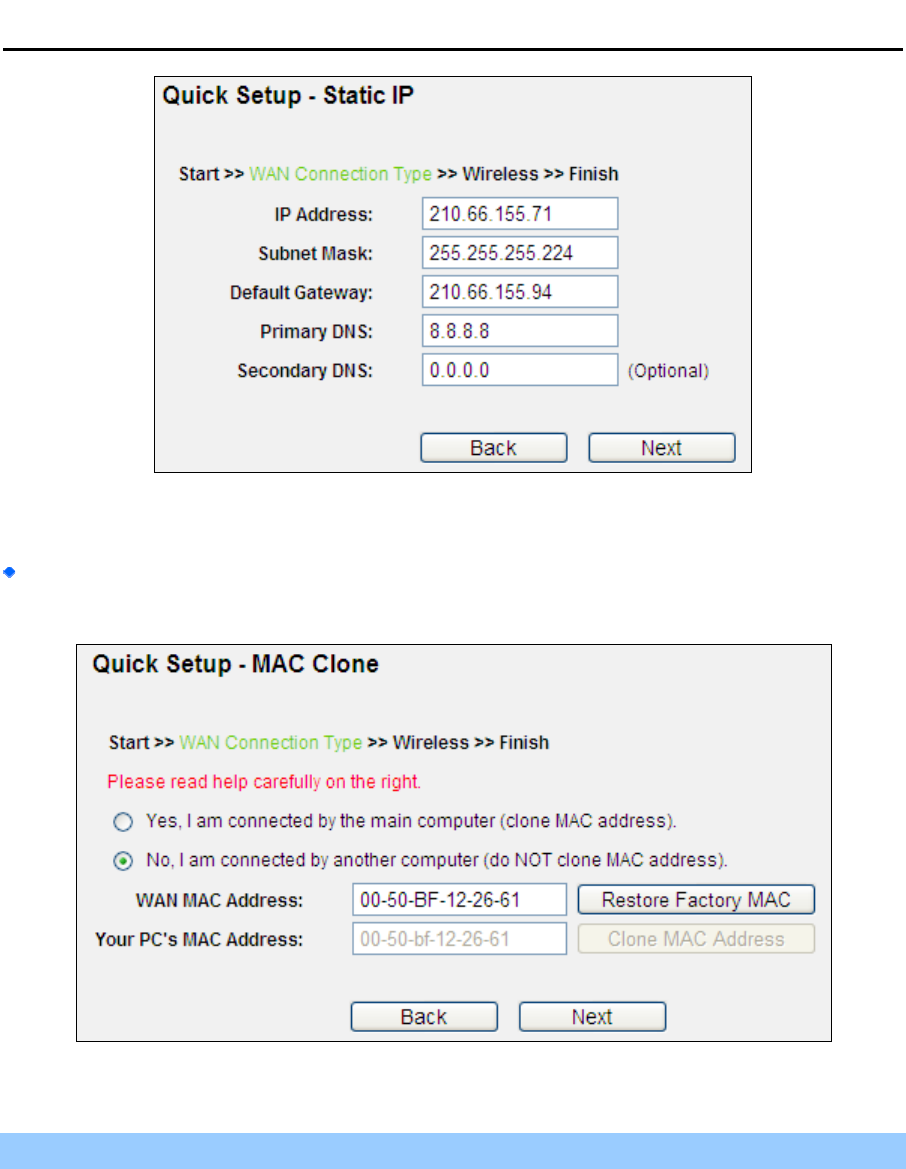

5.3 Quick Setup.........................................................................................................................39

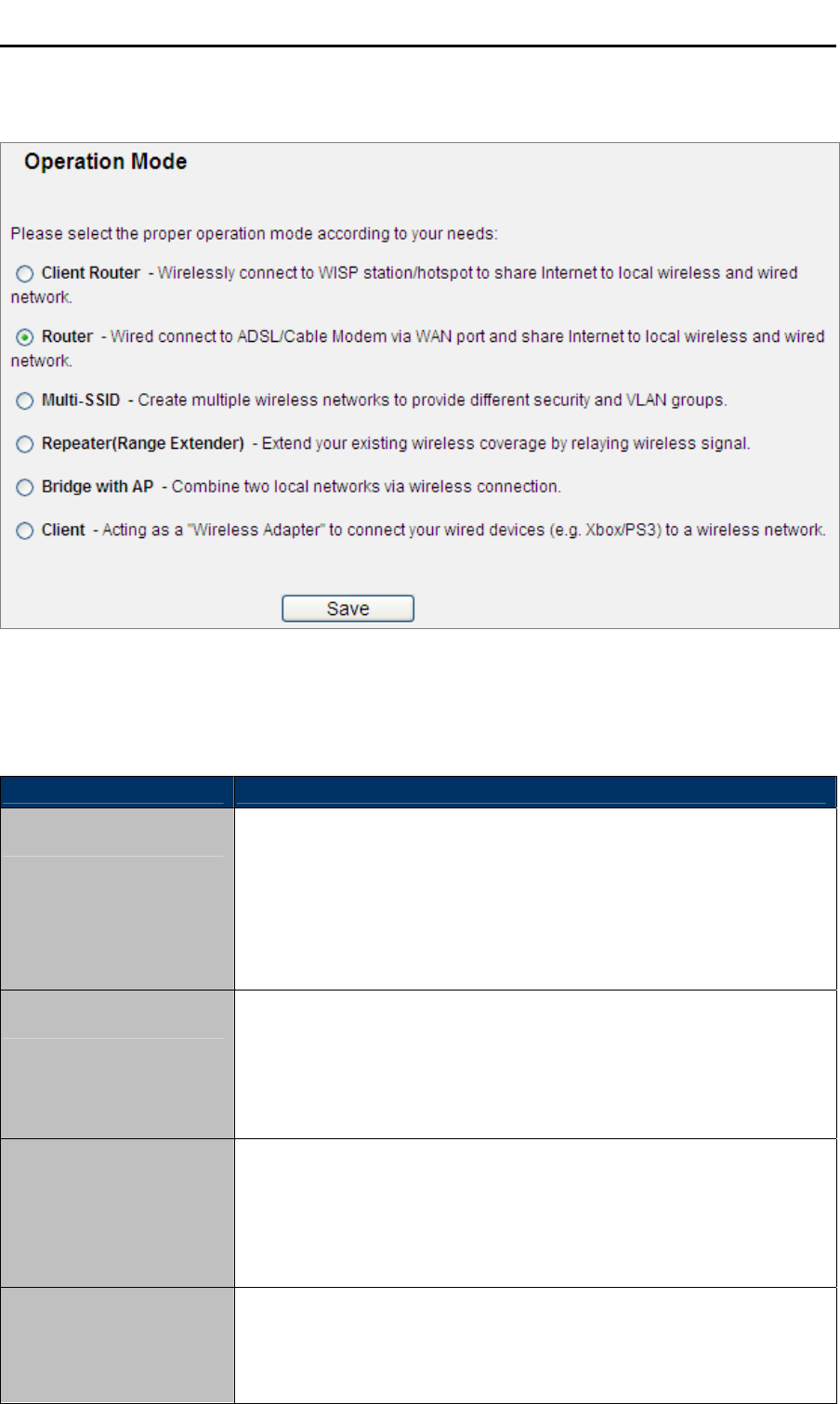

5.4 Operation Mode ..................................................................................................................40

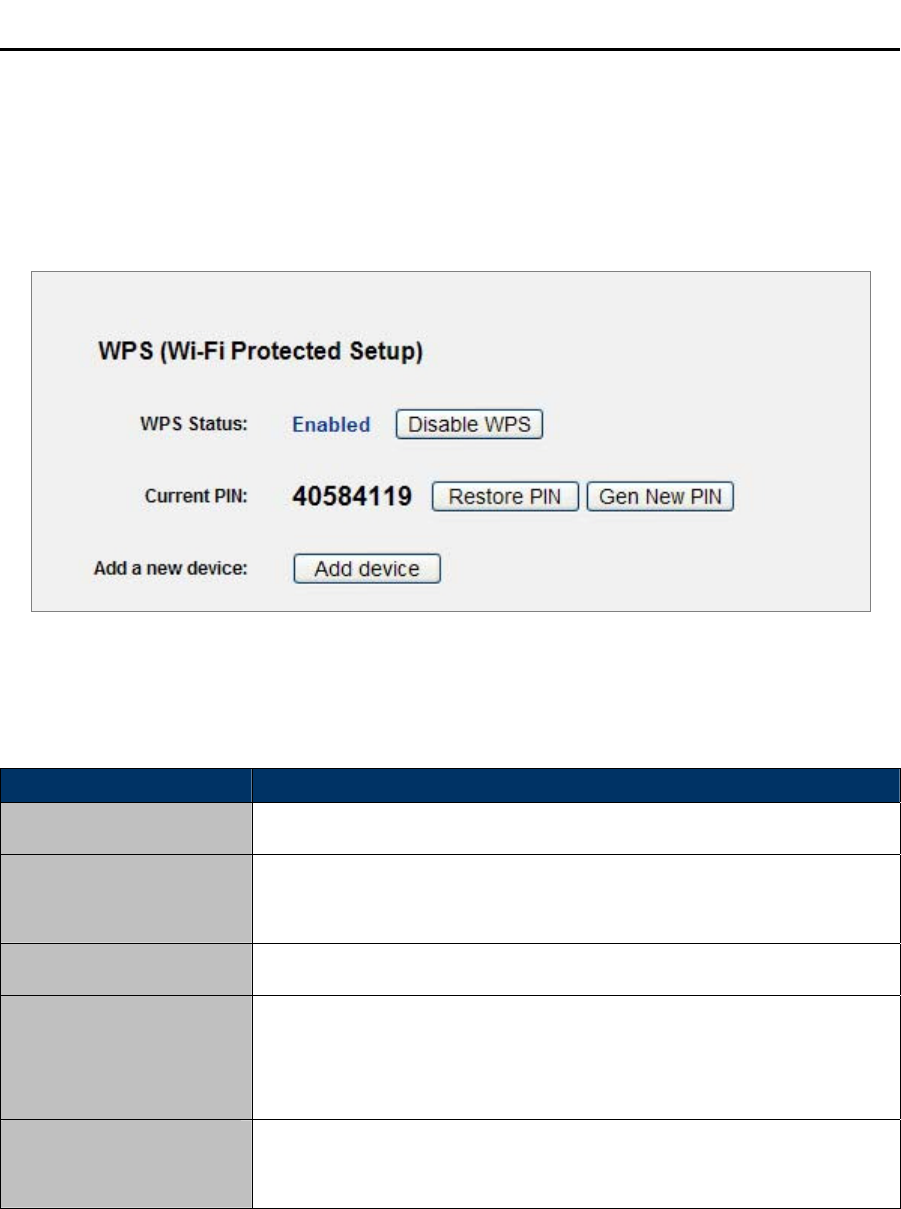

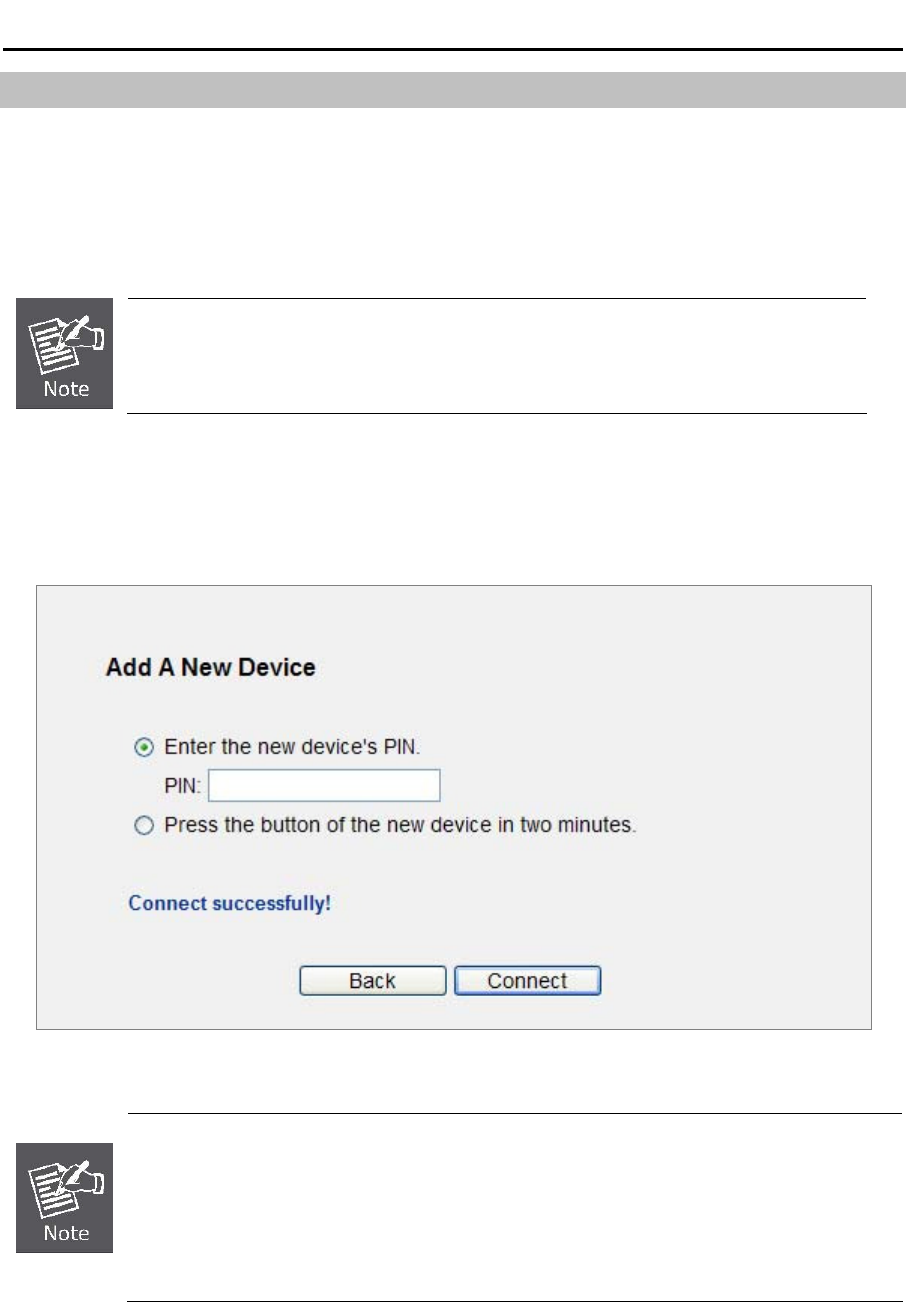

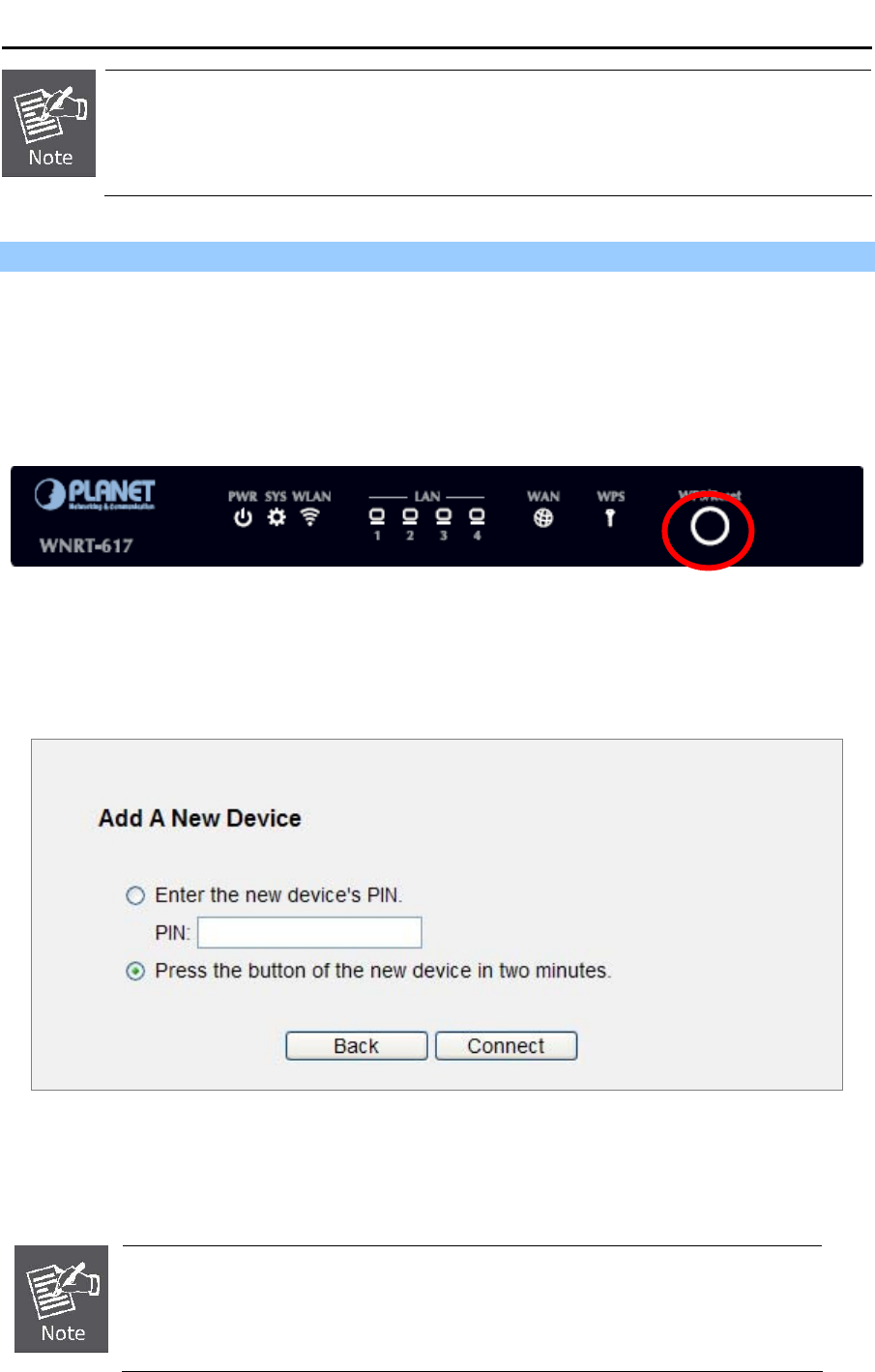

5.5 WPS ....................................................................................................................................42

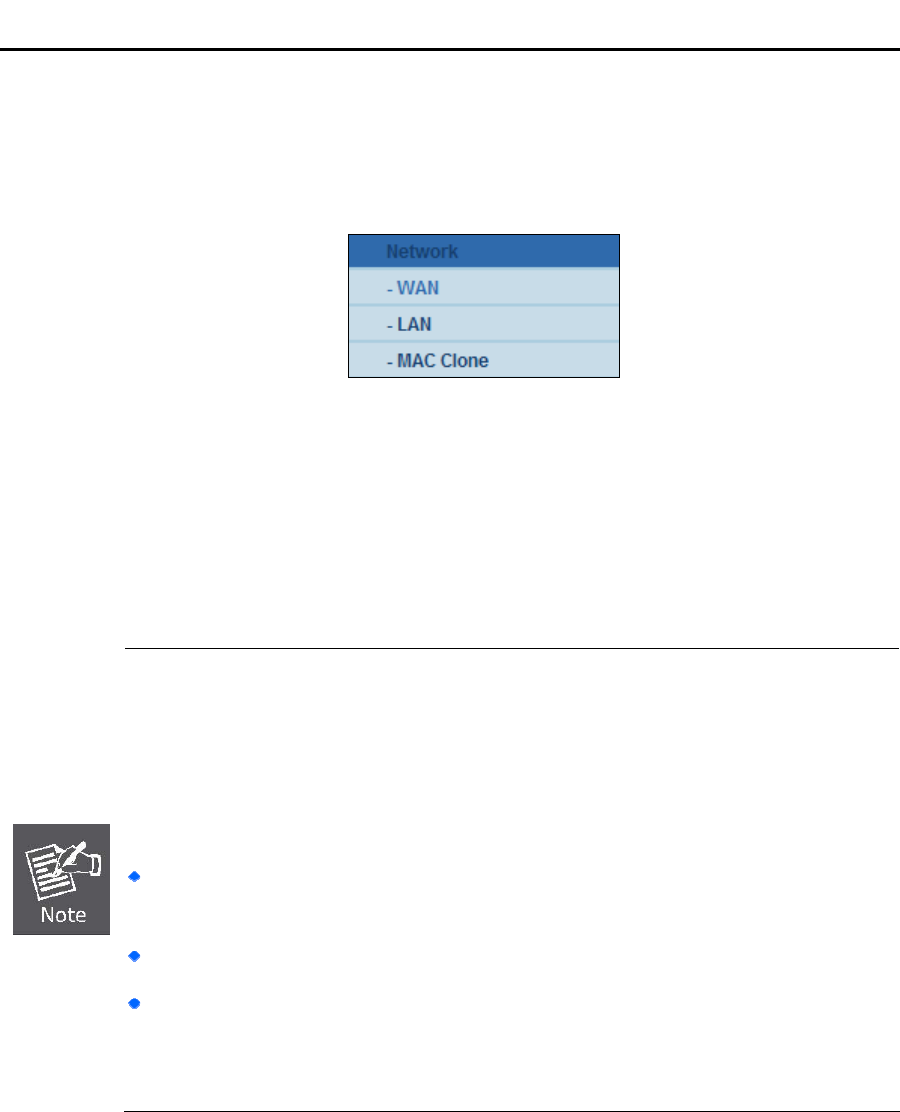

5.6 Network ...............................................................................................................................46

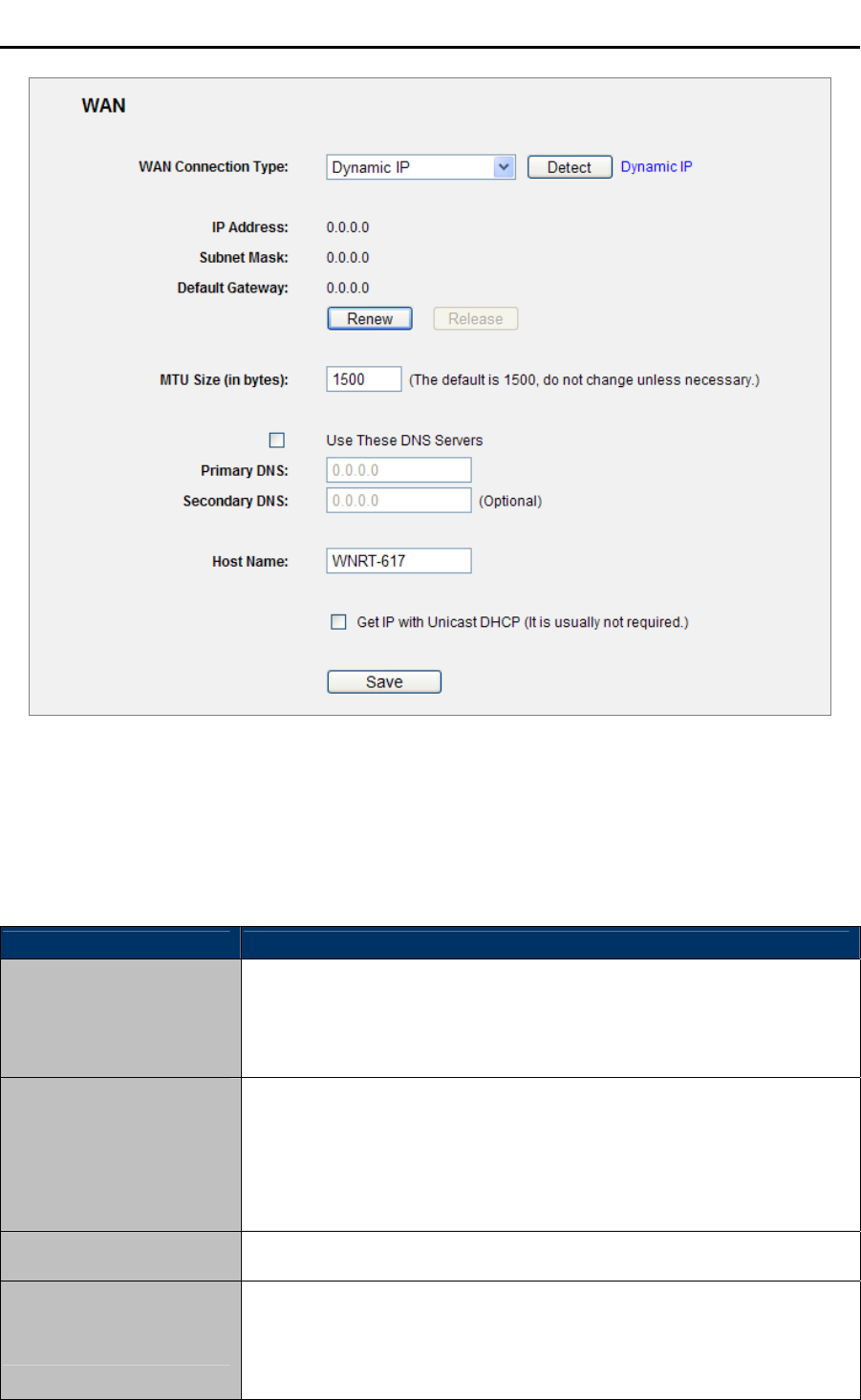

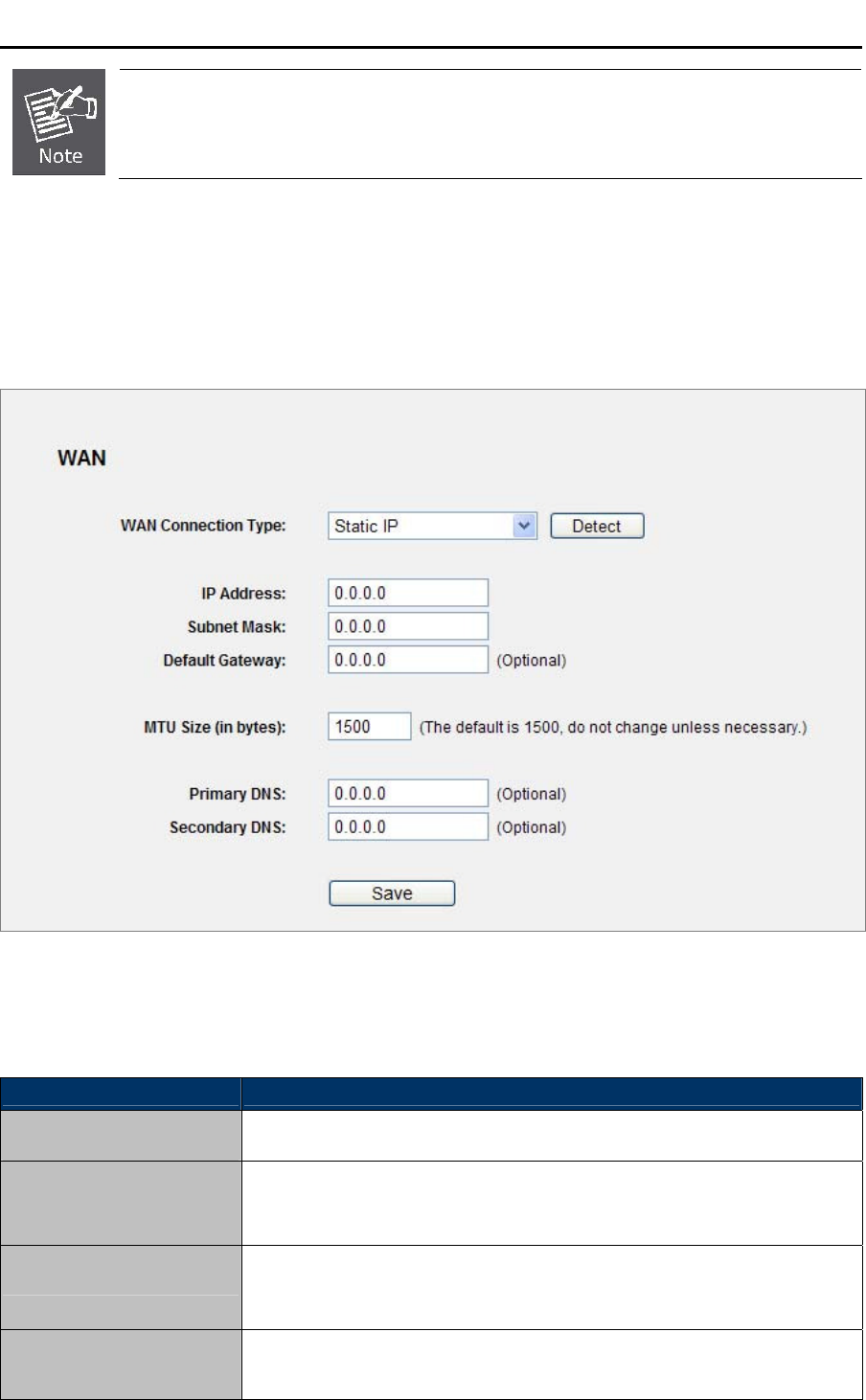

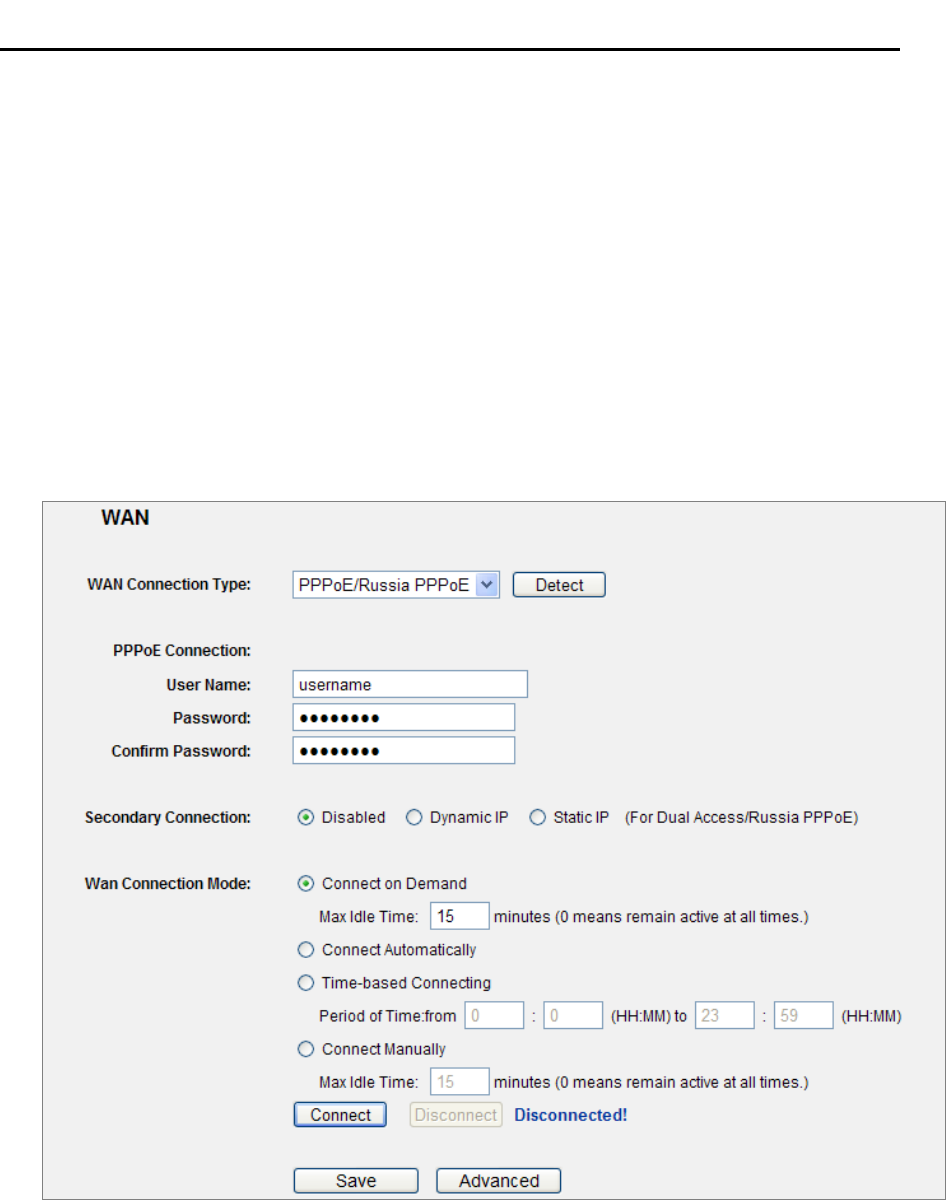

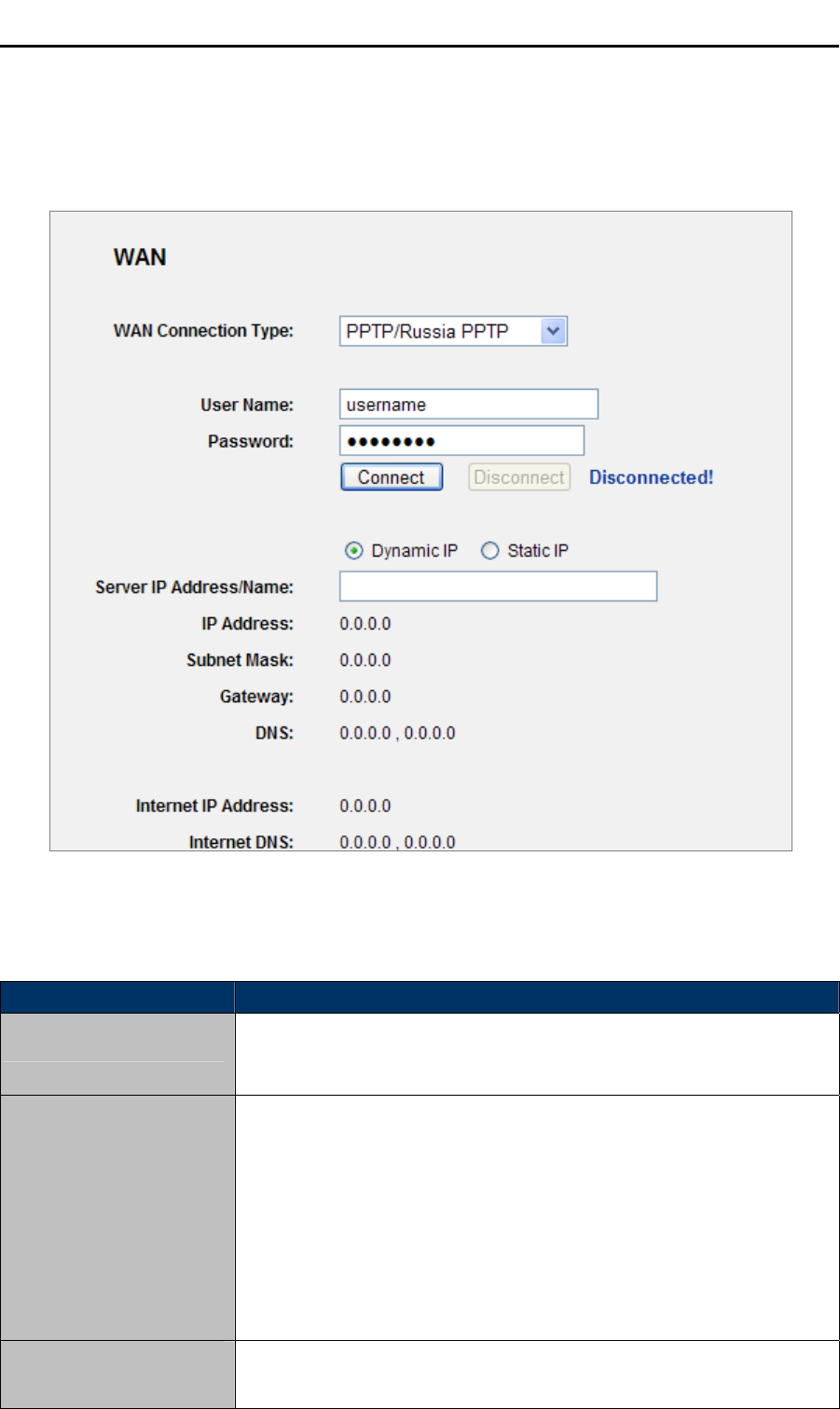

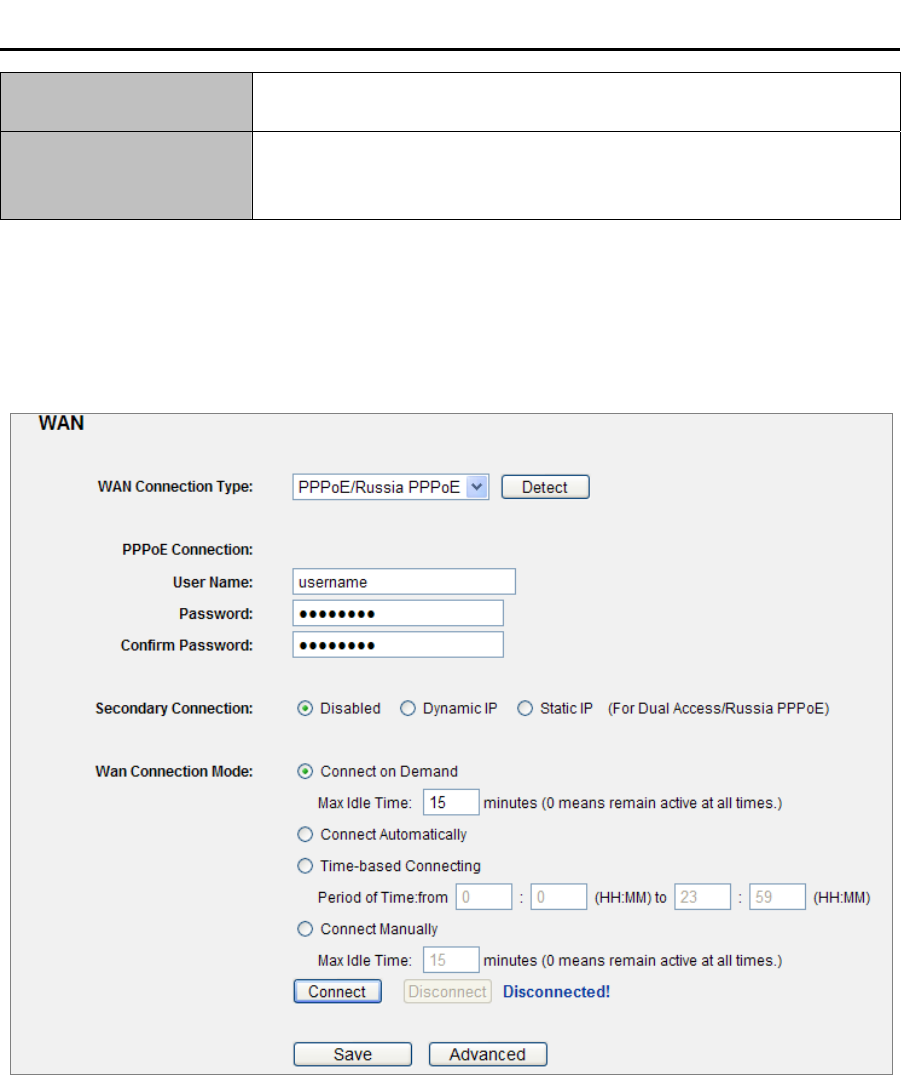

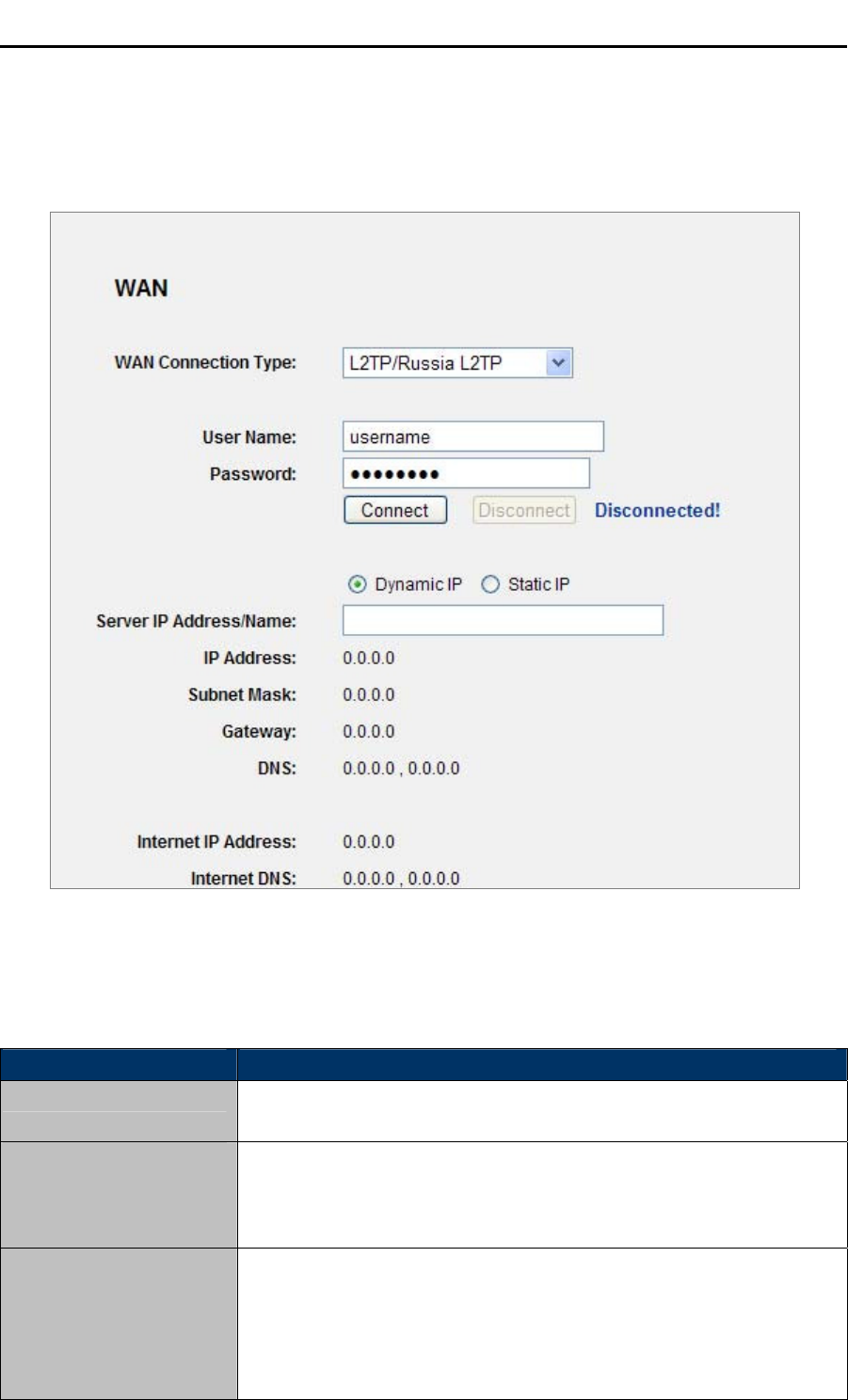

5.6.1 WAN........................................................................................................................46

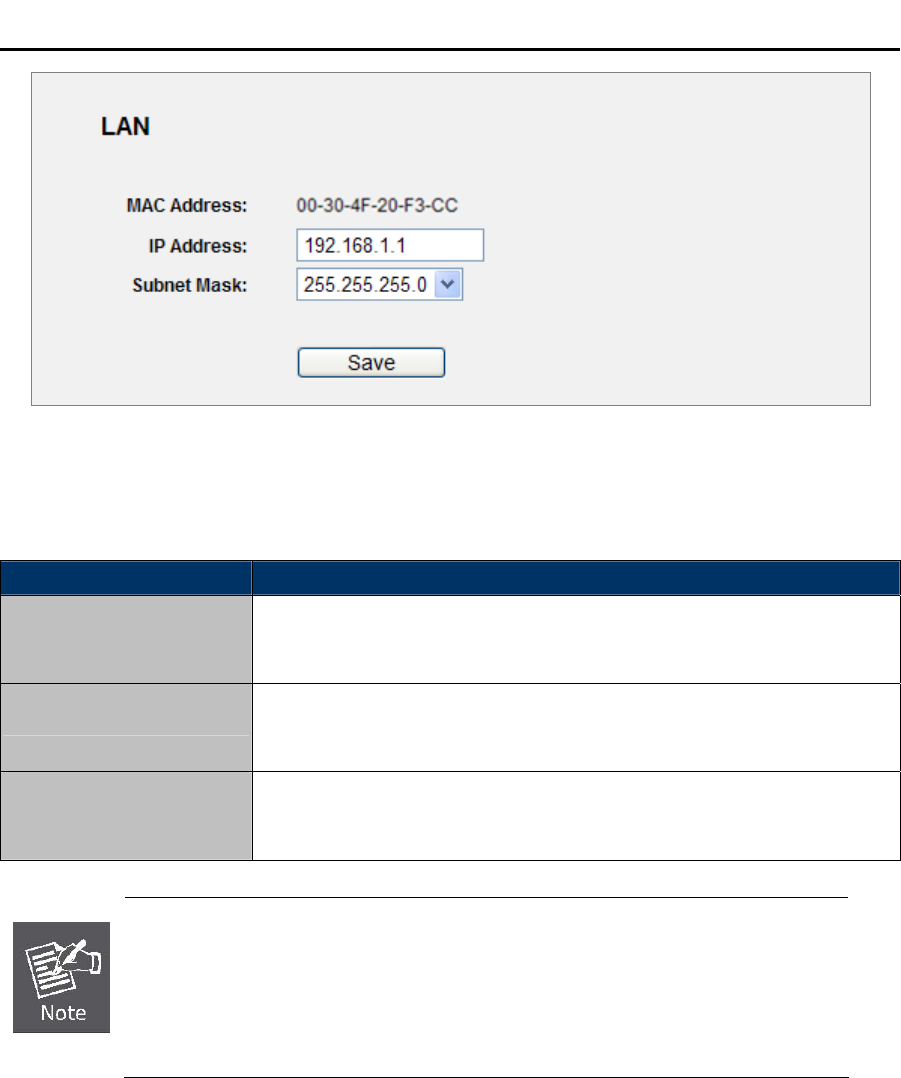

5.6.2 LAN.........................................................................................................................57

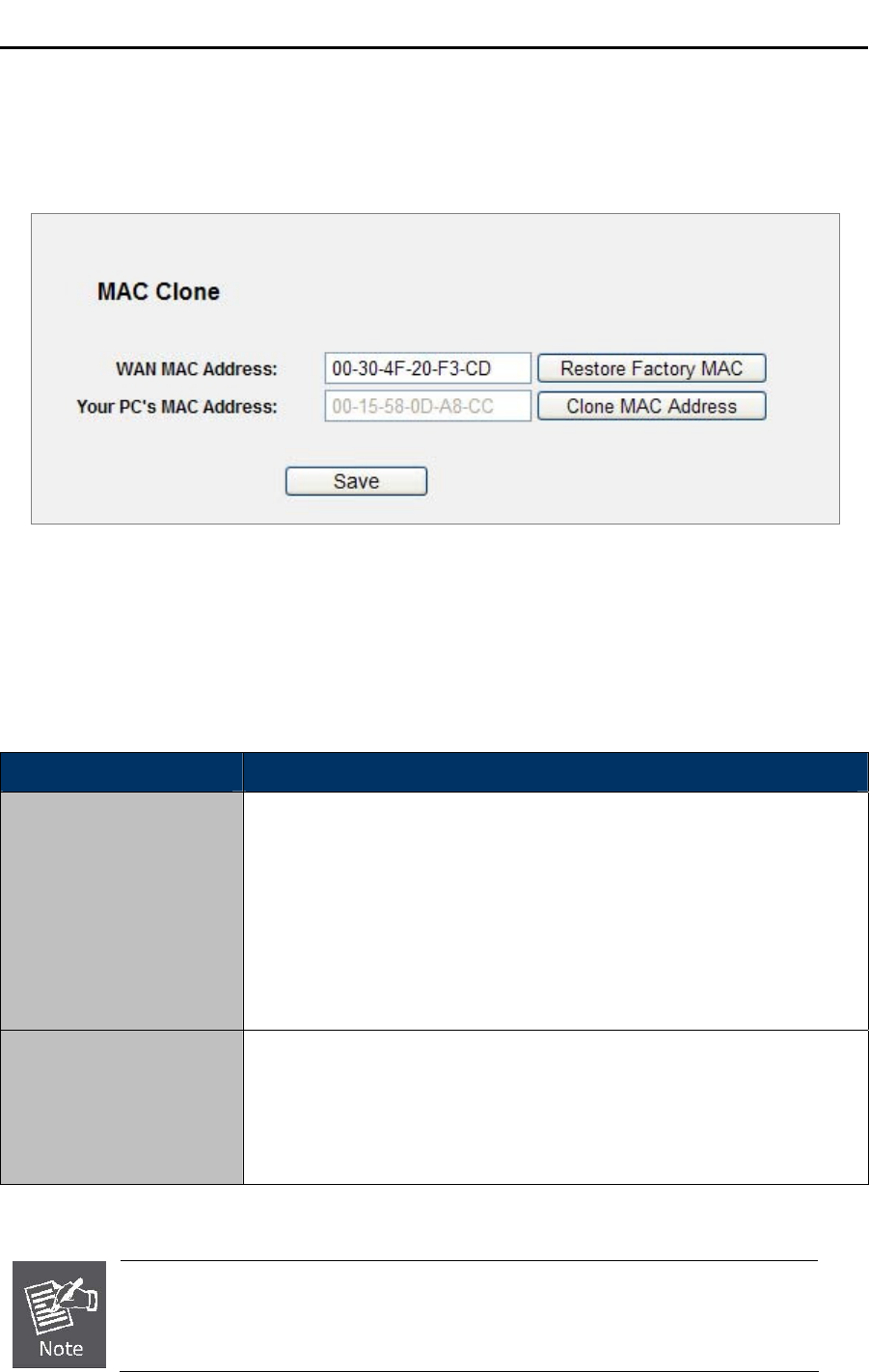

5.6.3 MAC Clone .............................................................................................................59
5.7 Wireless...............................................................................................................................60

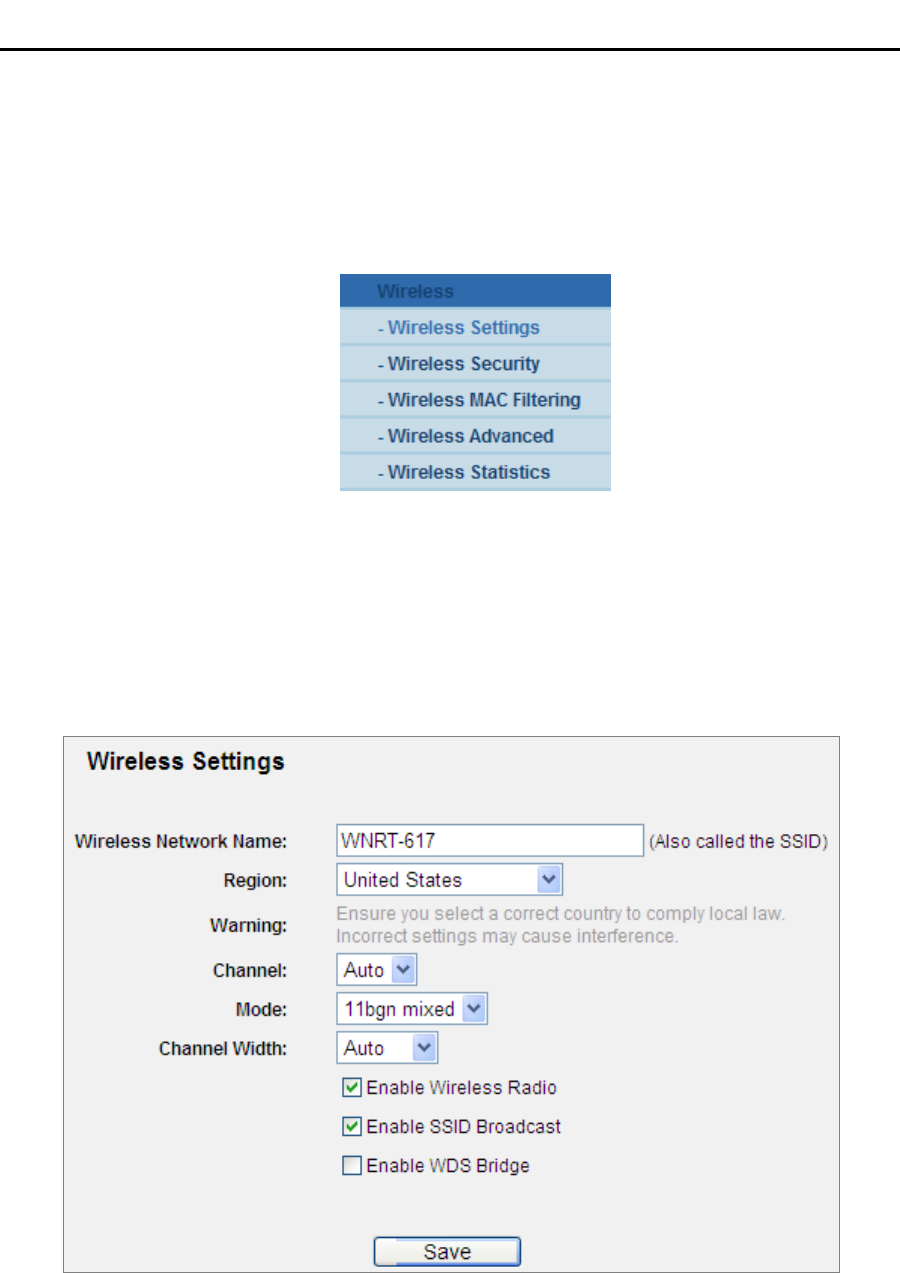

5.7.1 Wireless Settings ....................................................................................................60

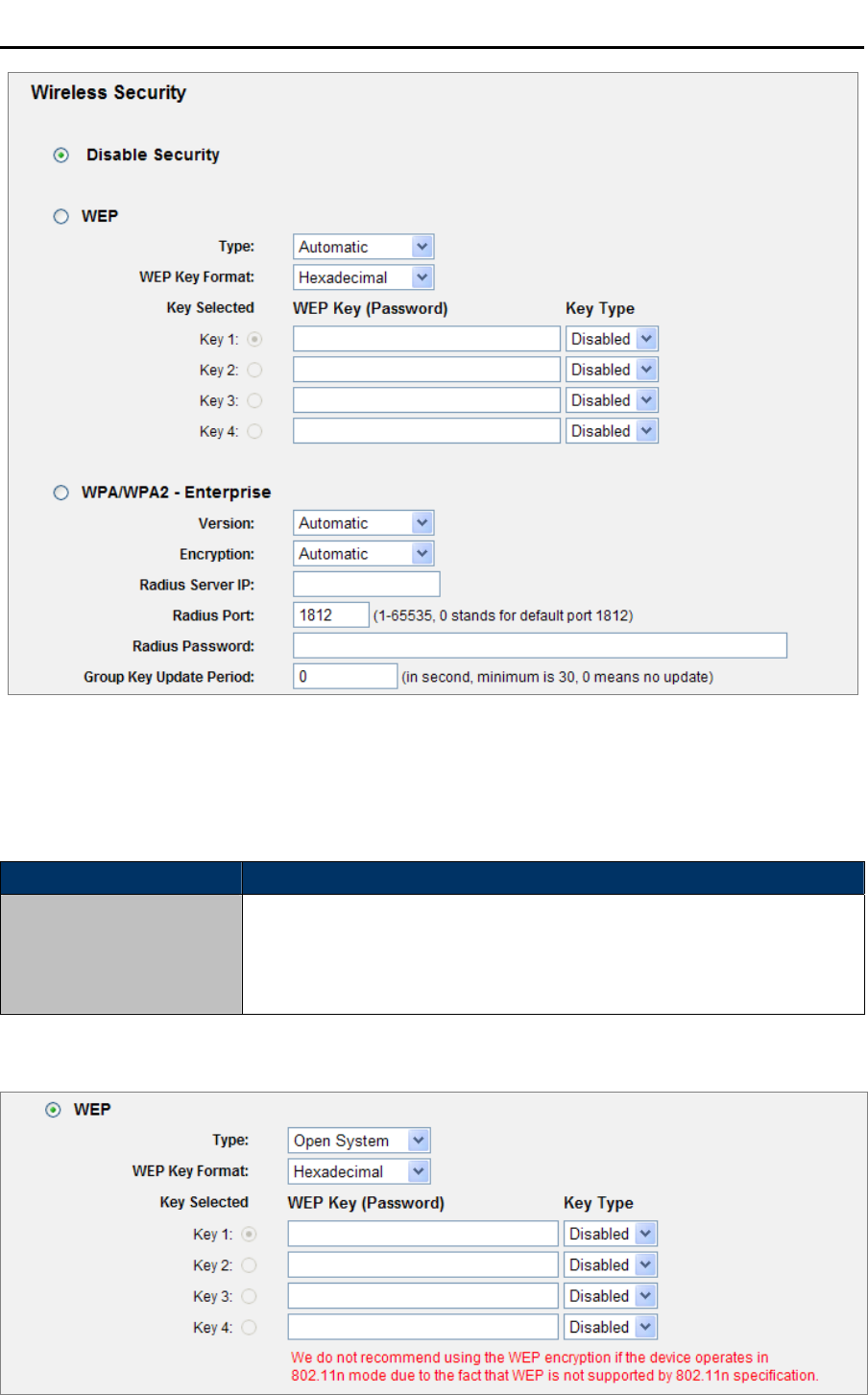

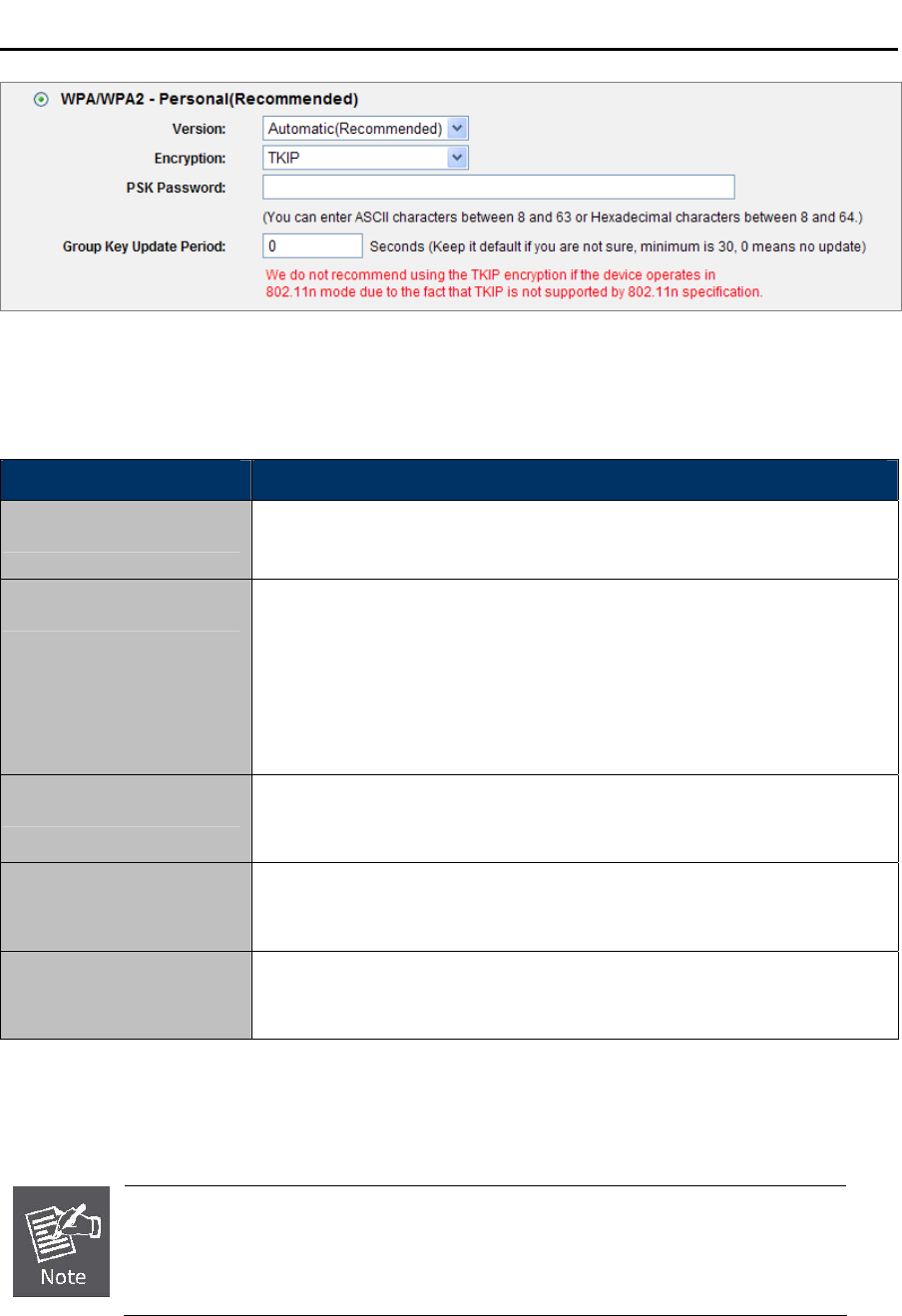

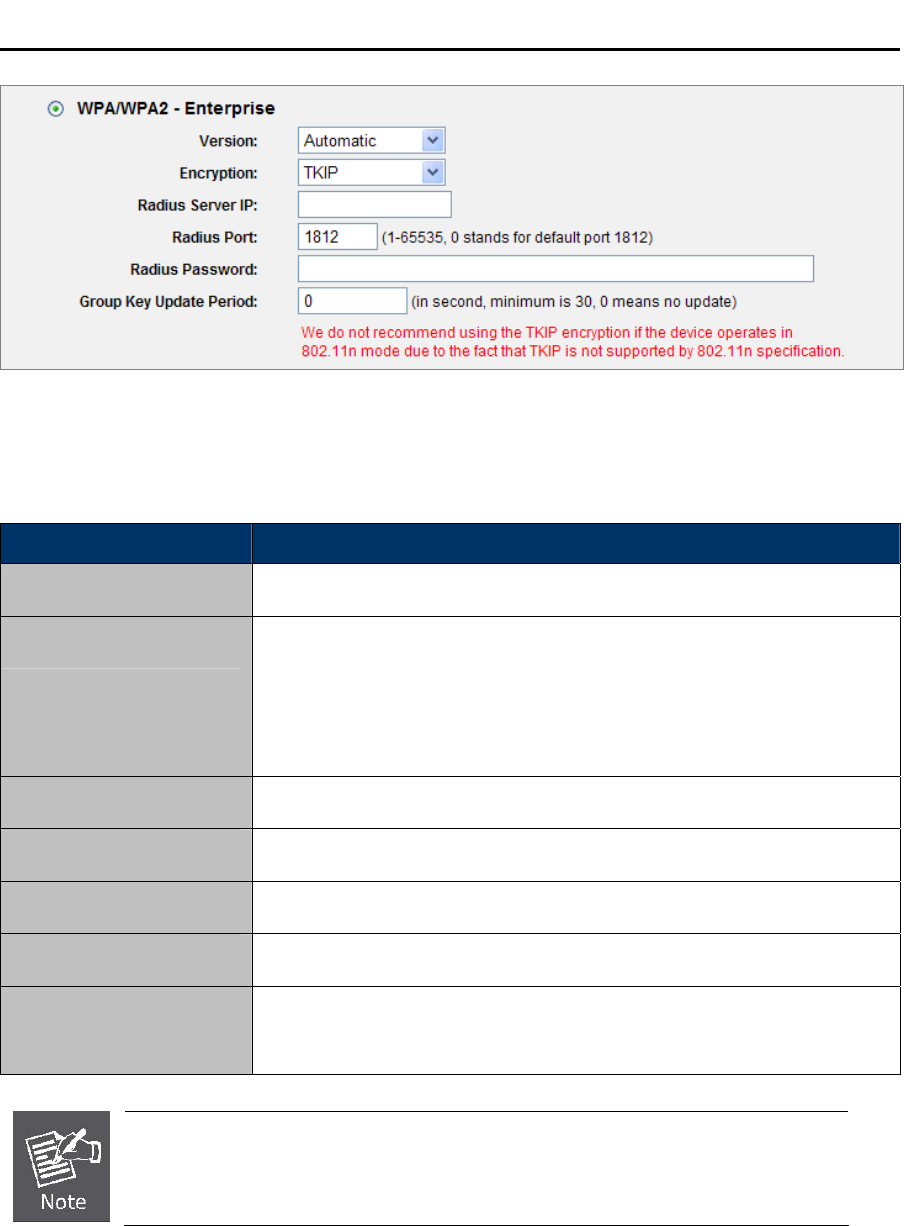

5.7.2 Wireless Security ....................................................................................................63

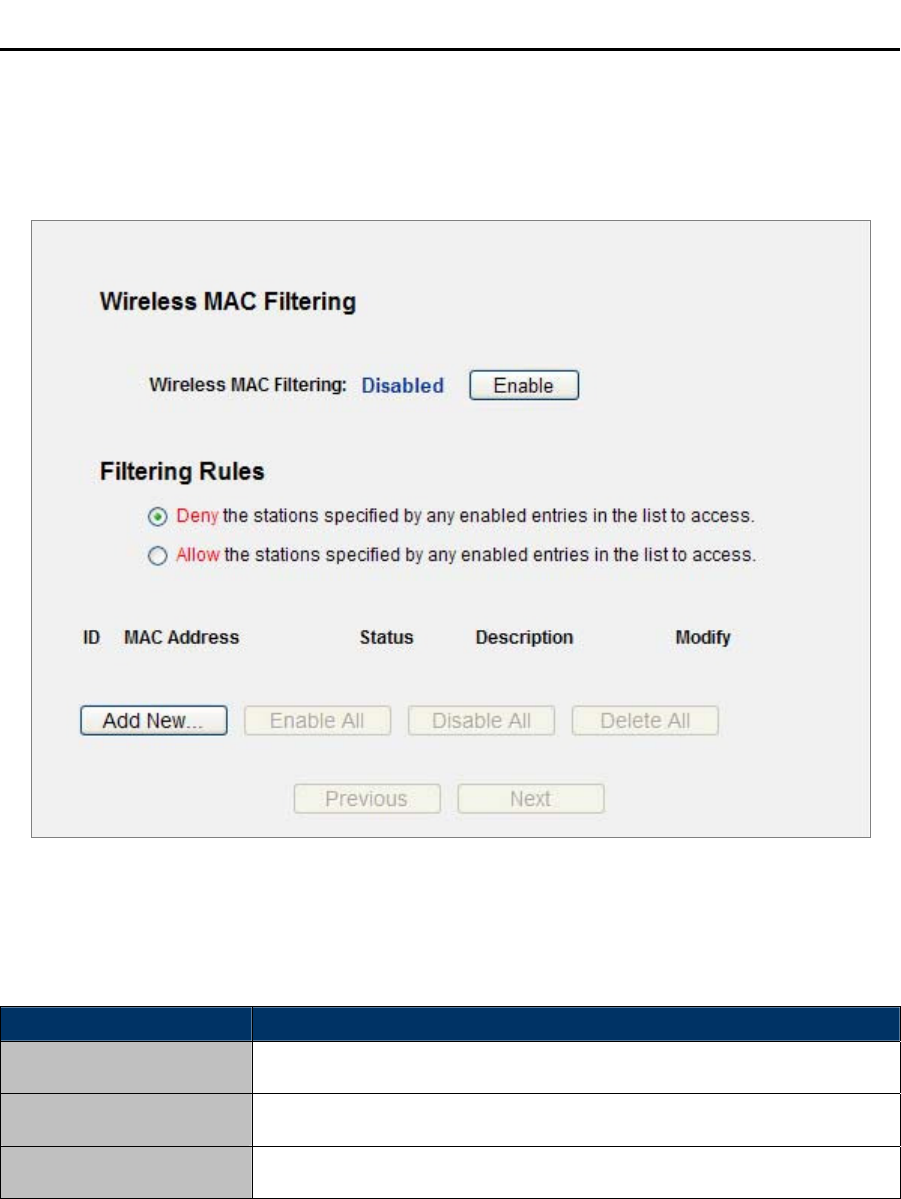

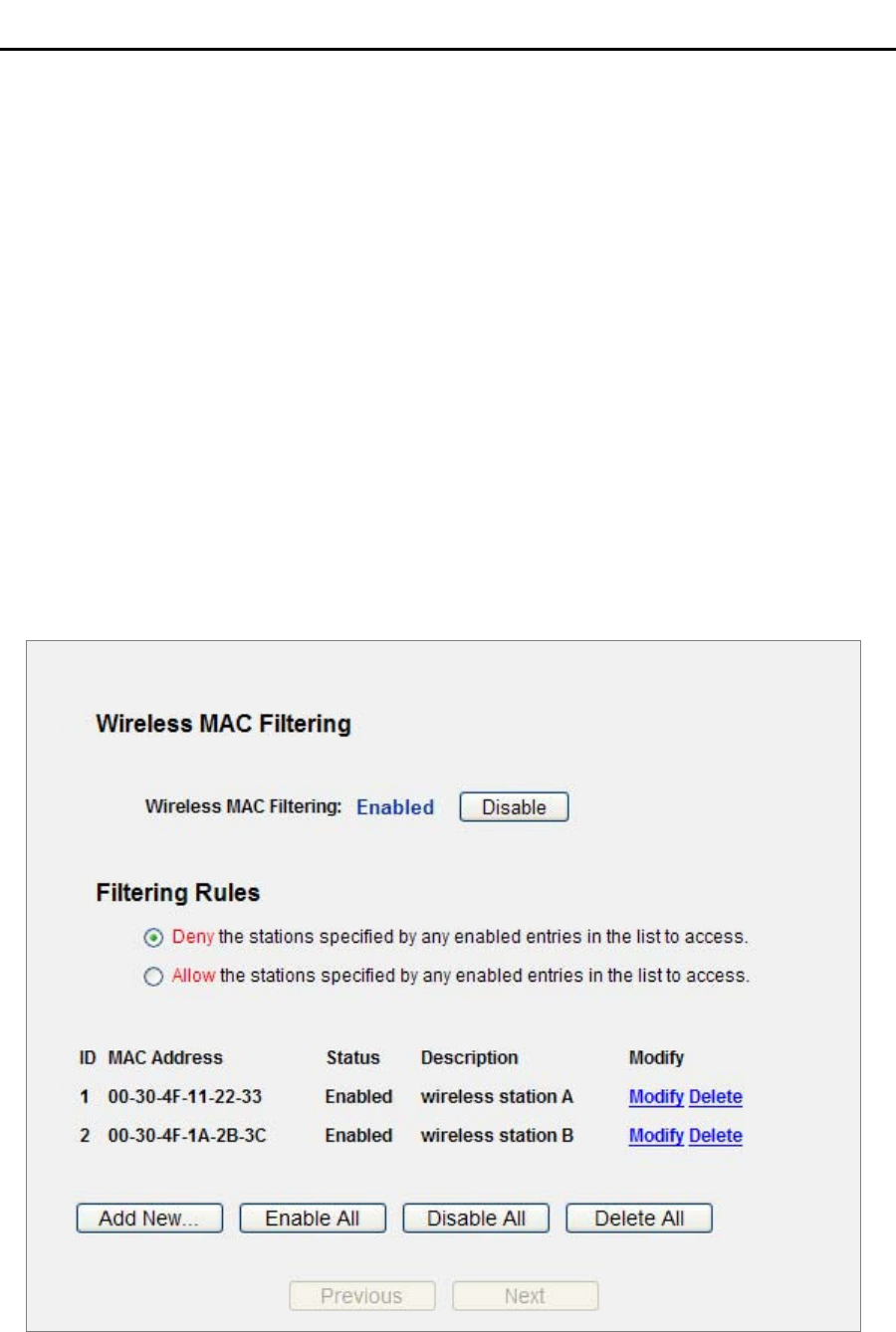

5.7.3 Wireless MAC Filtering ...........................................................................................68

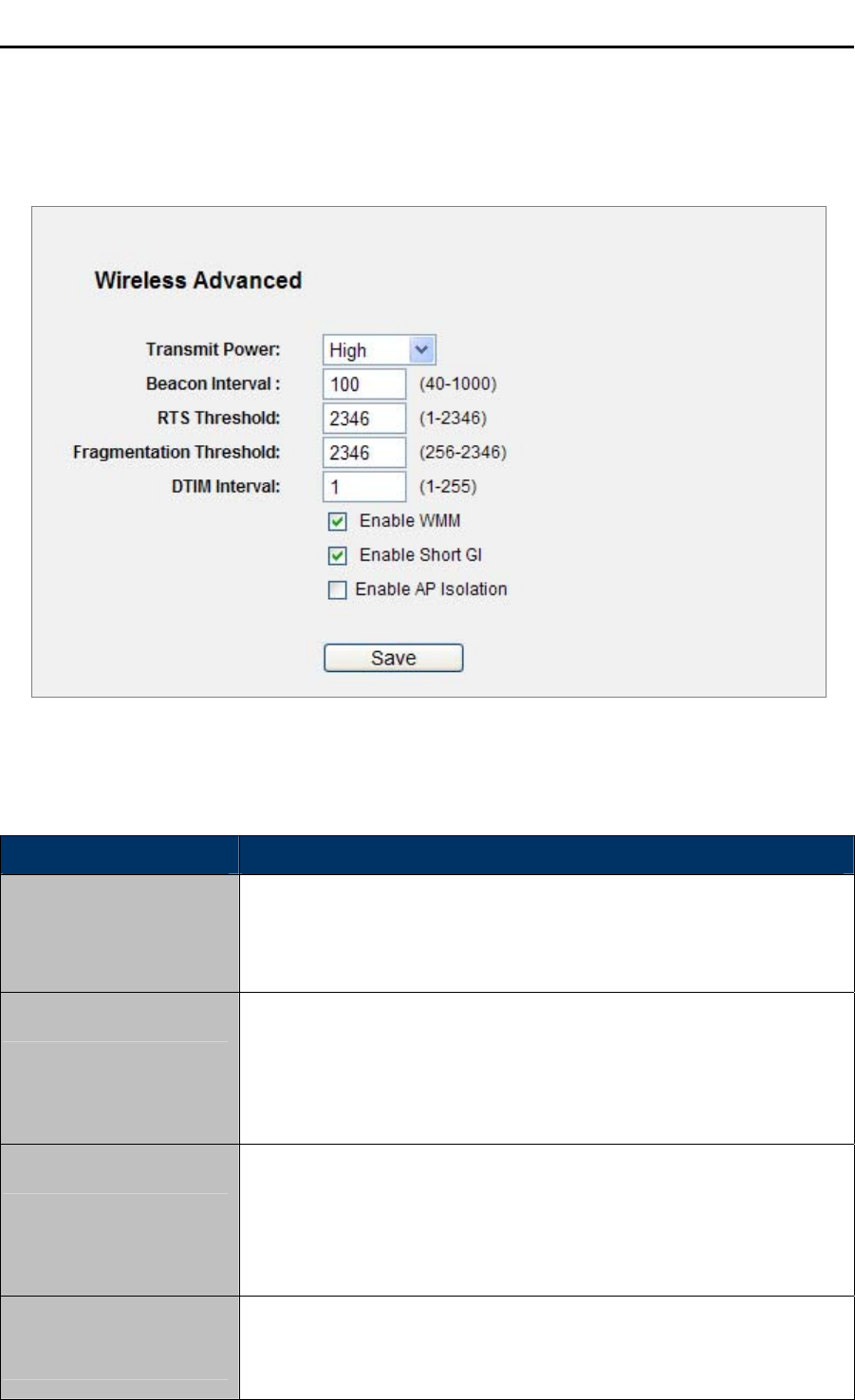

5.7.4 Wireless Advanced .................................................................................................71
V

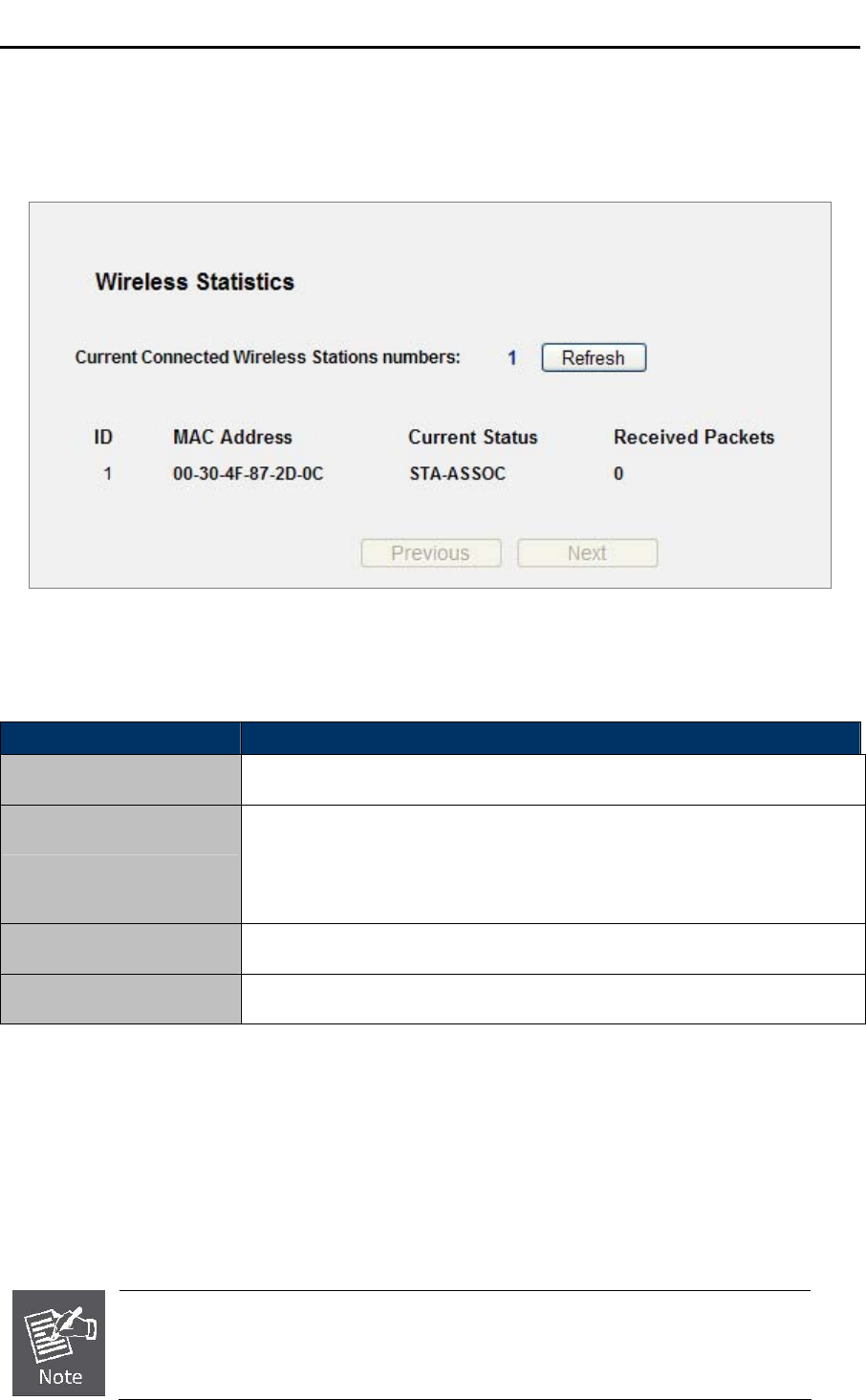

5.7.5 Wireless Statistics...................................................................................................73
5.8 DHCP ..................................................................................................................................74

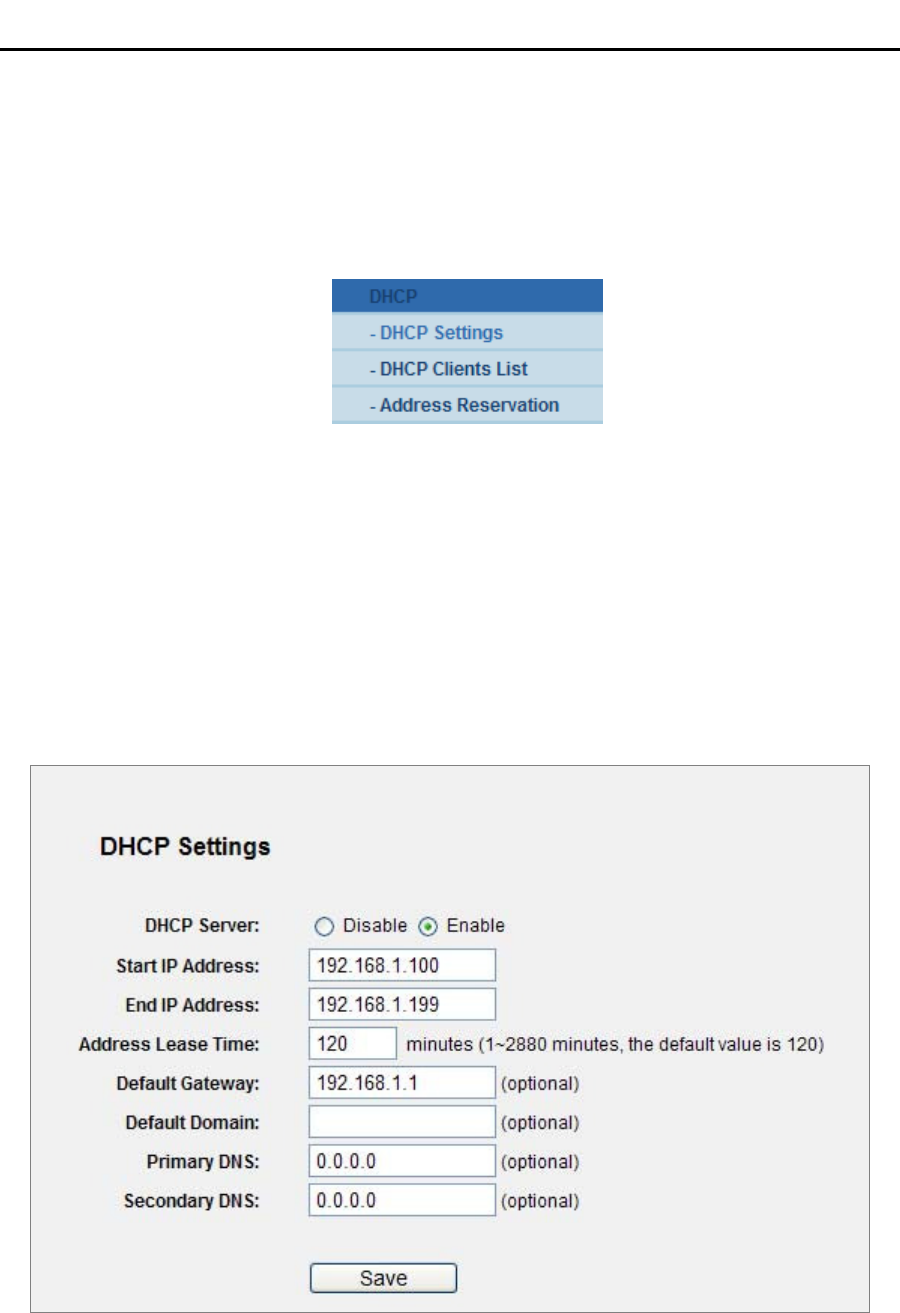

5.8.1 DHCP Settings........................................................................................................74

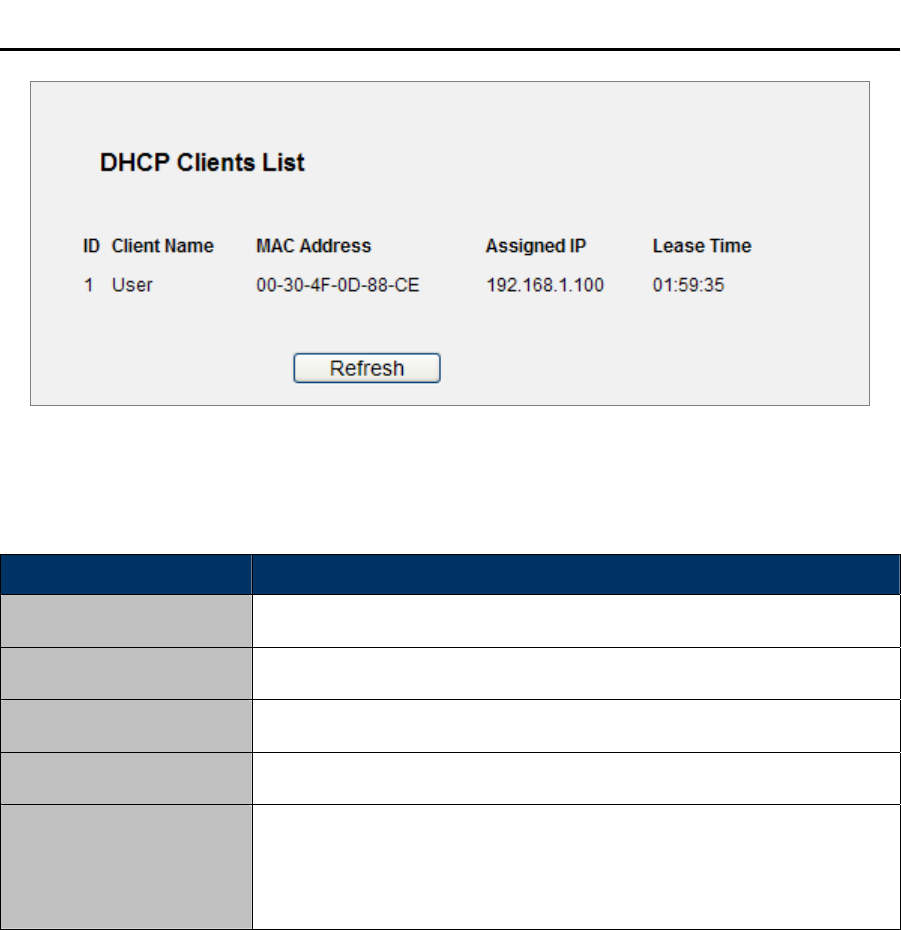

5.8.2 DHCP Clients List ...................................................................................................75

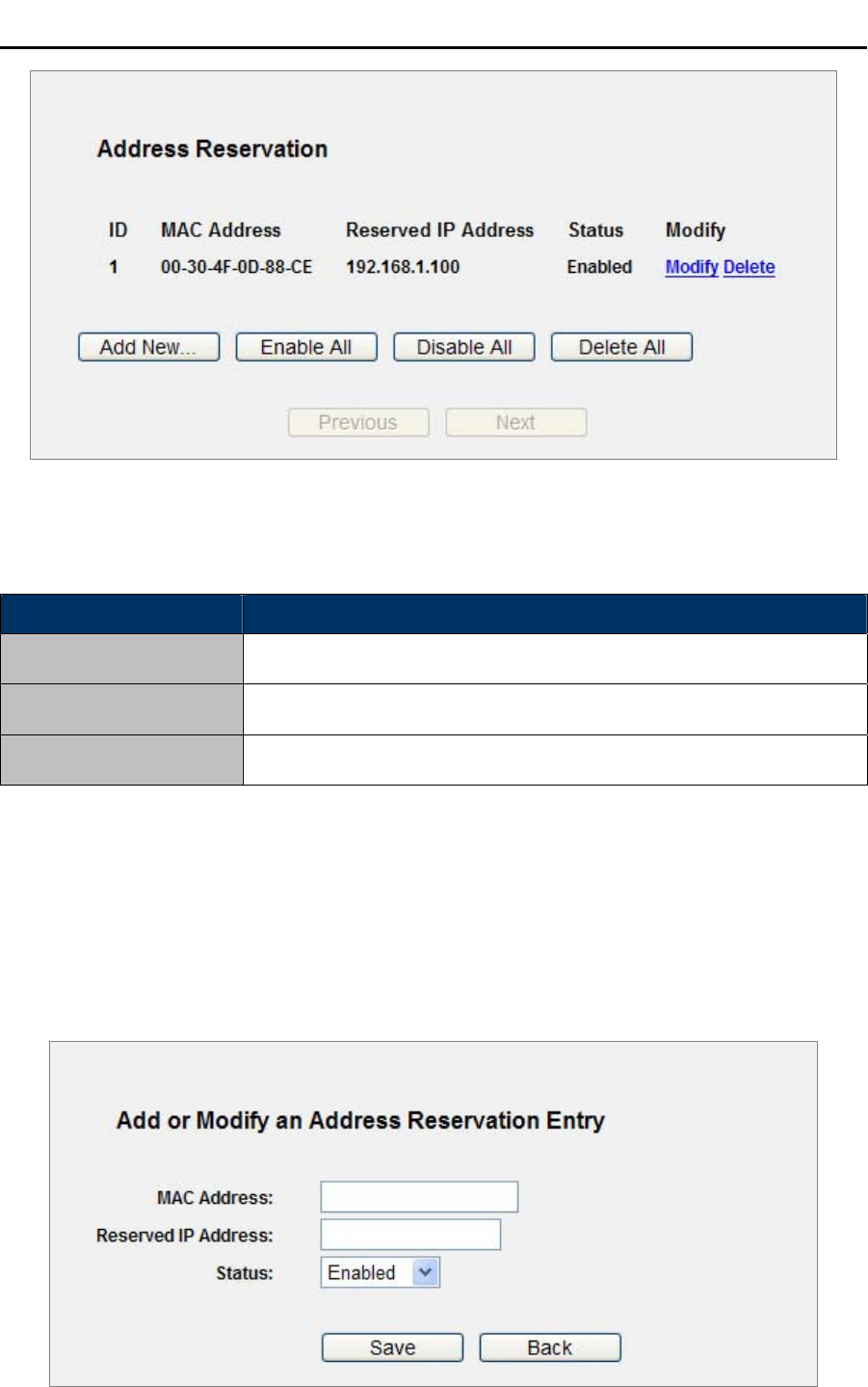

5.8.3 Address Reservation ..............................................................................................76

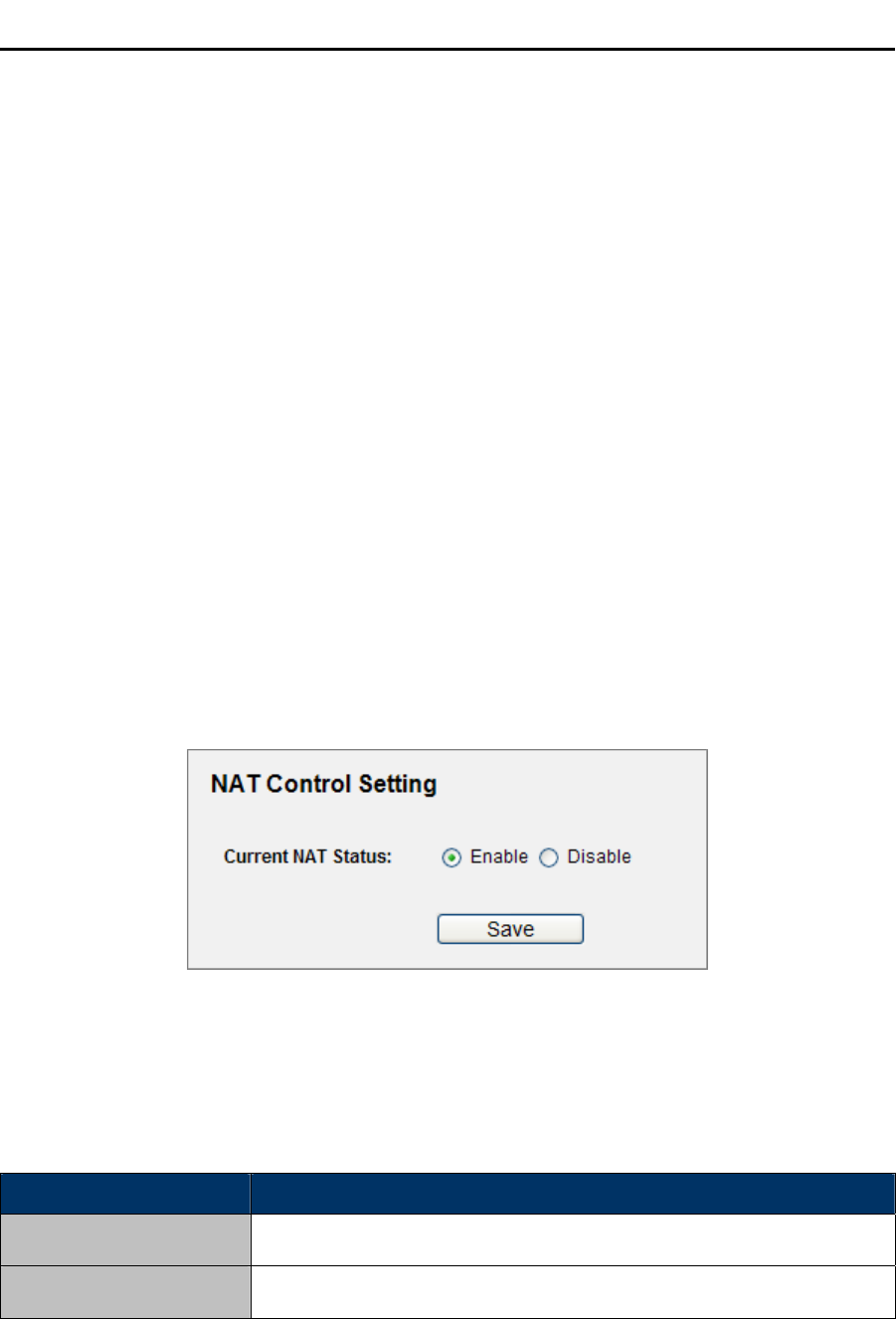

5.9 NAT .....................................................................................................................................78

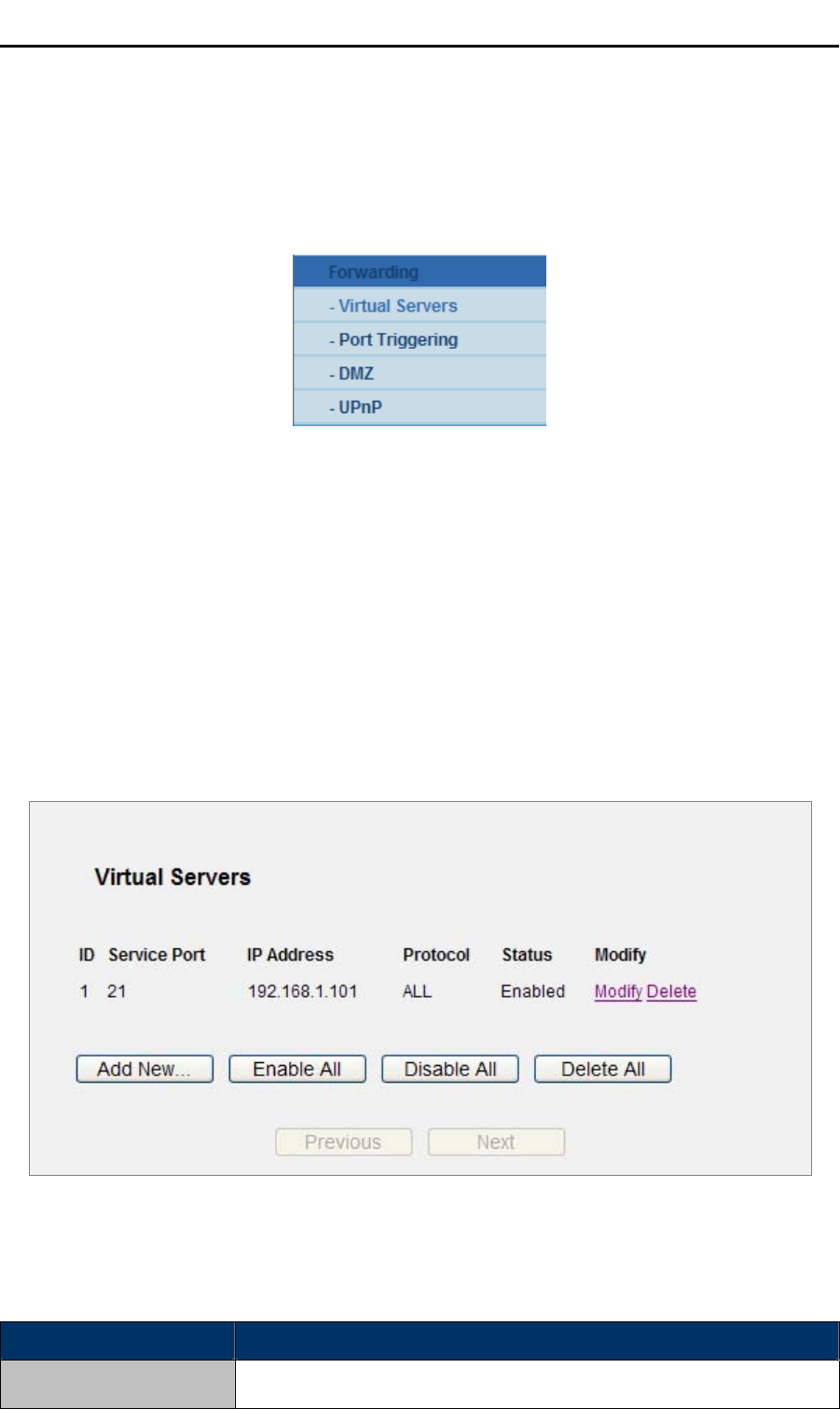

5.10 Forwarding ..........................................................................................................................79

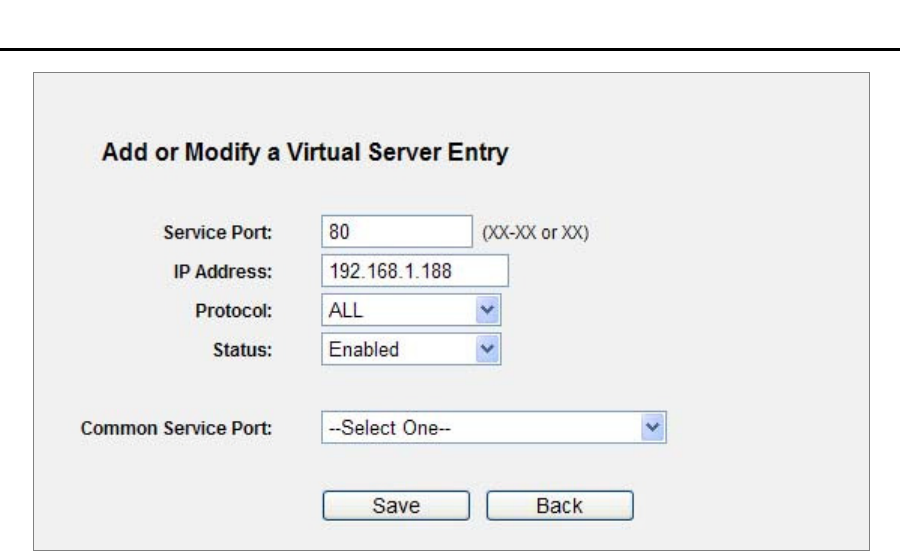

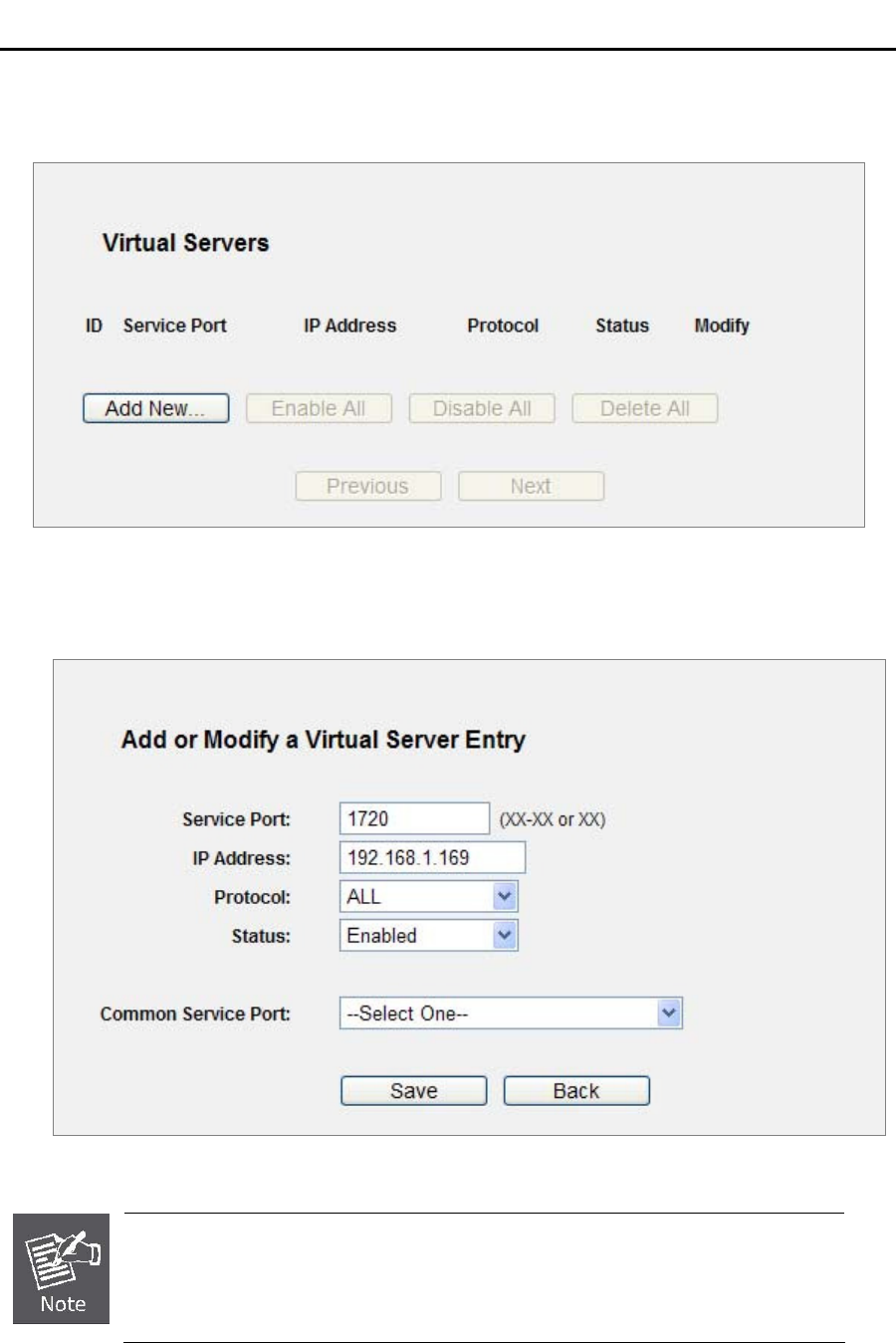

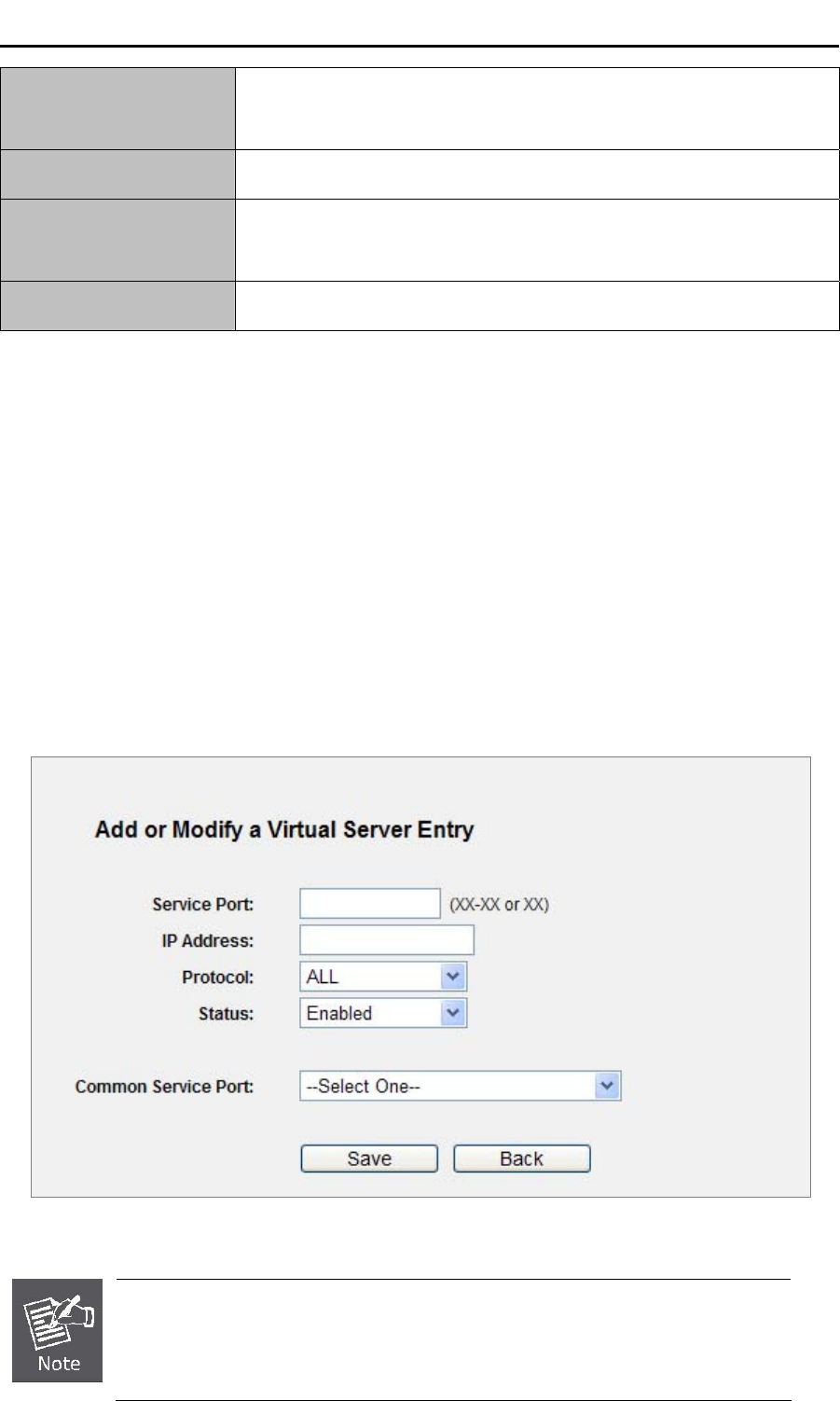

5.10.1 Virtual Servers ........................................................................................................79

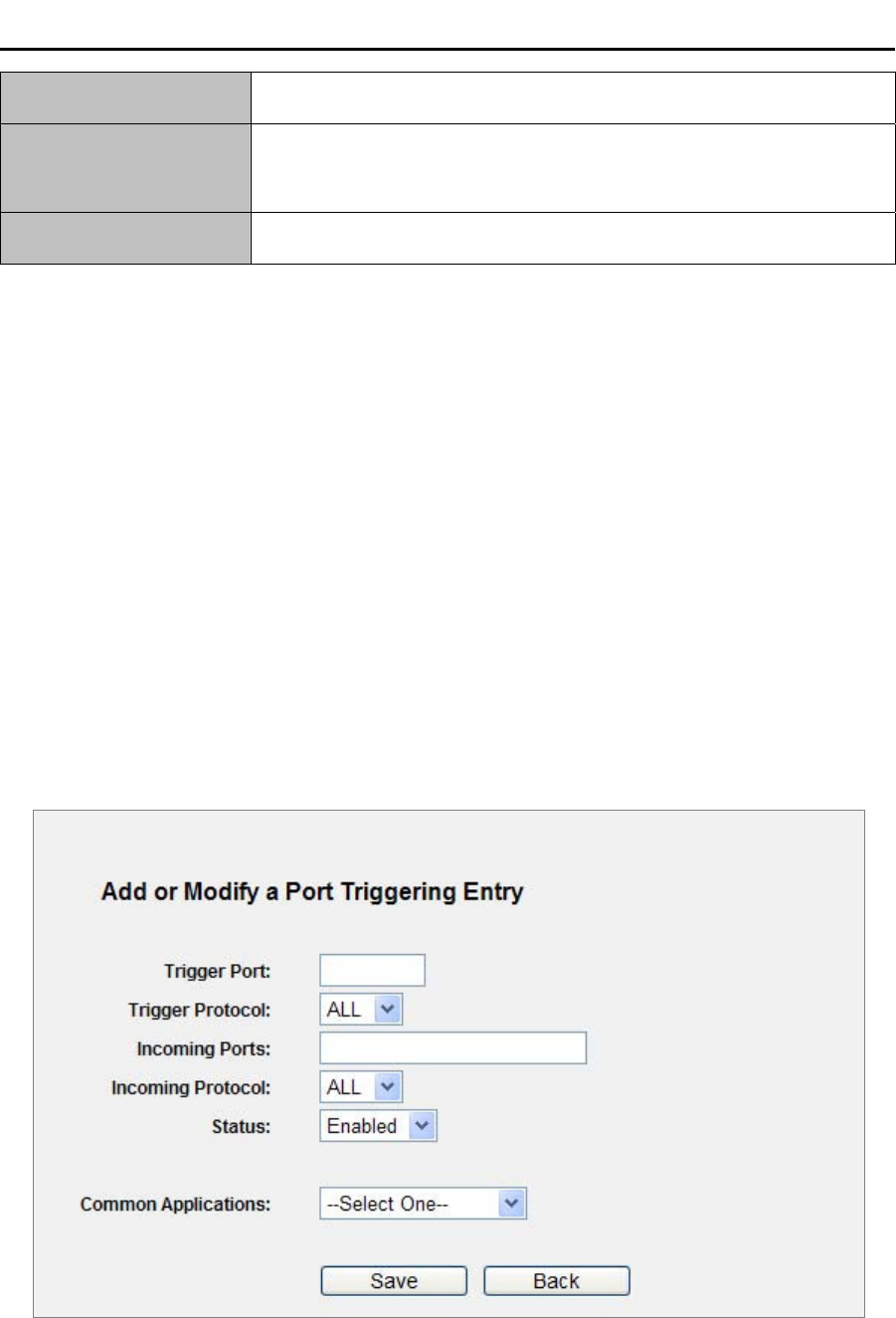

5.10.2 Port Triggering ........................................................................................................82

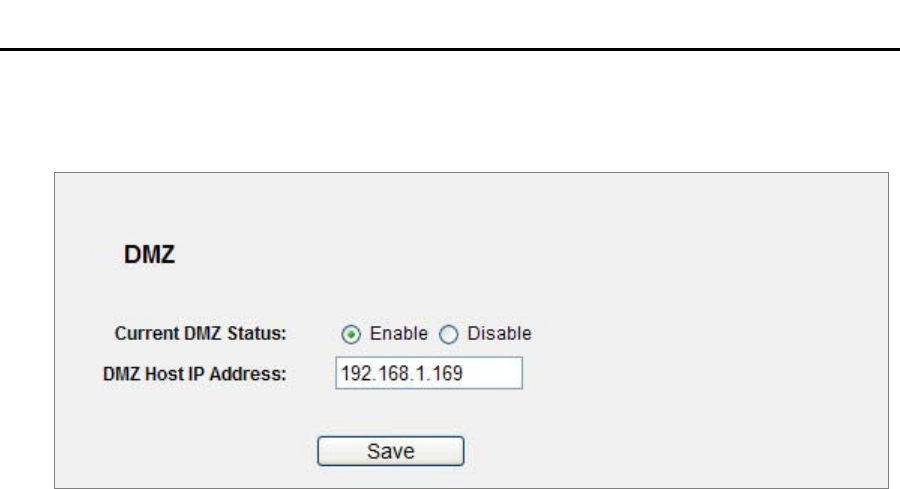

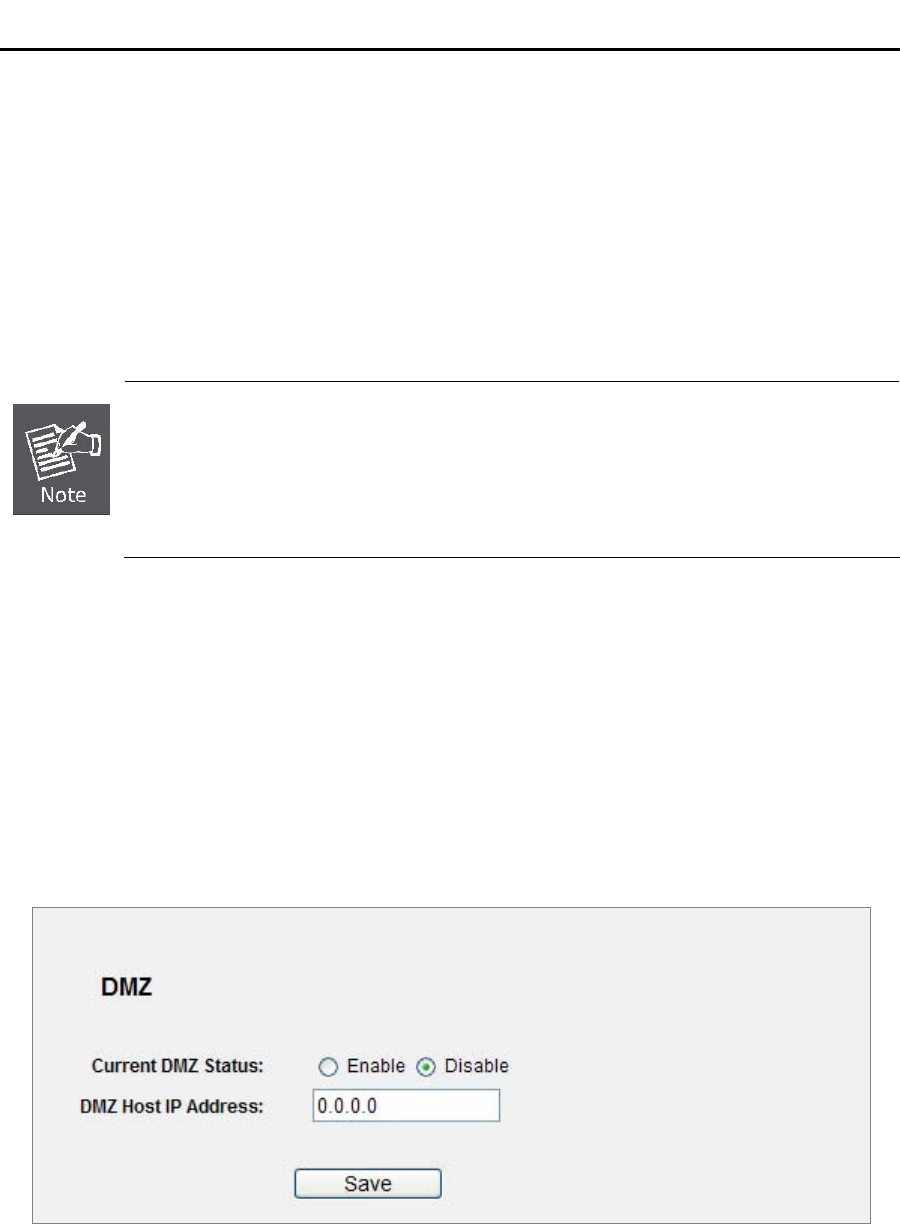

5.10.3 DMZ ........................................................................................................................84

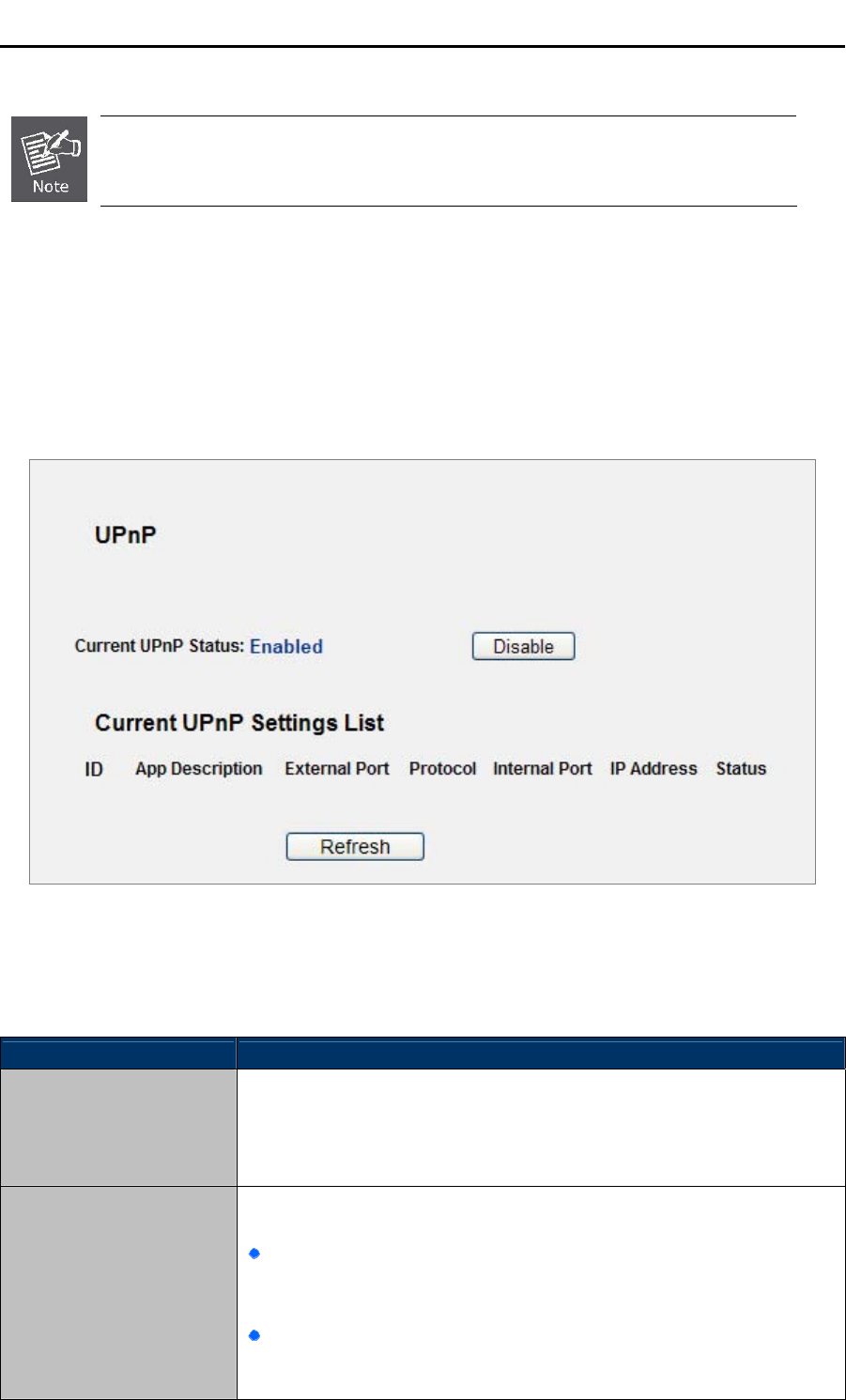

5.10.4 UPnP.......................................................................................................................85
5.11 Security ...............................................................................................................................86

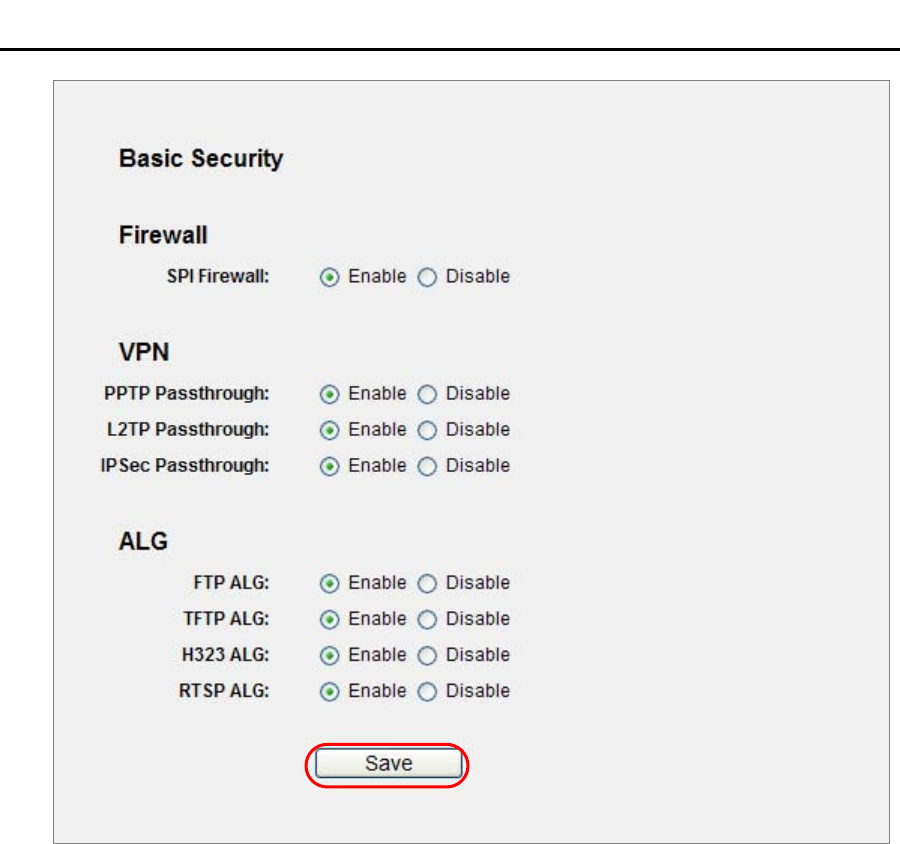

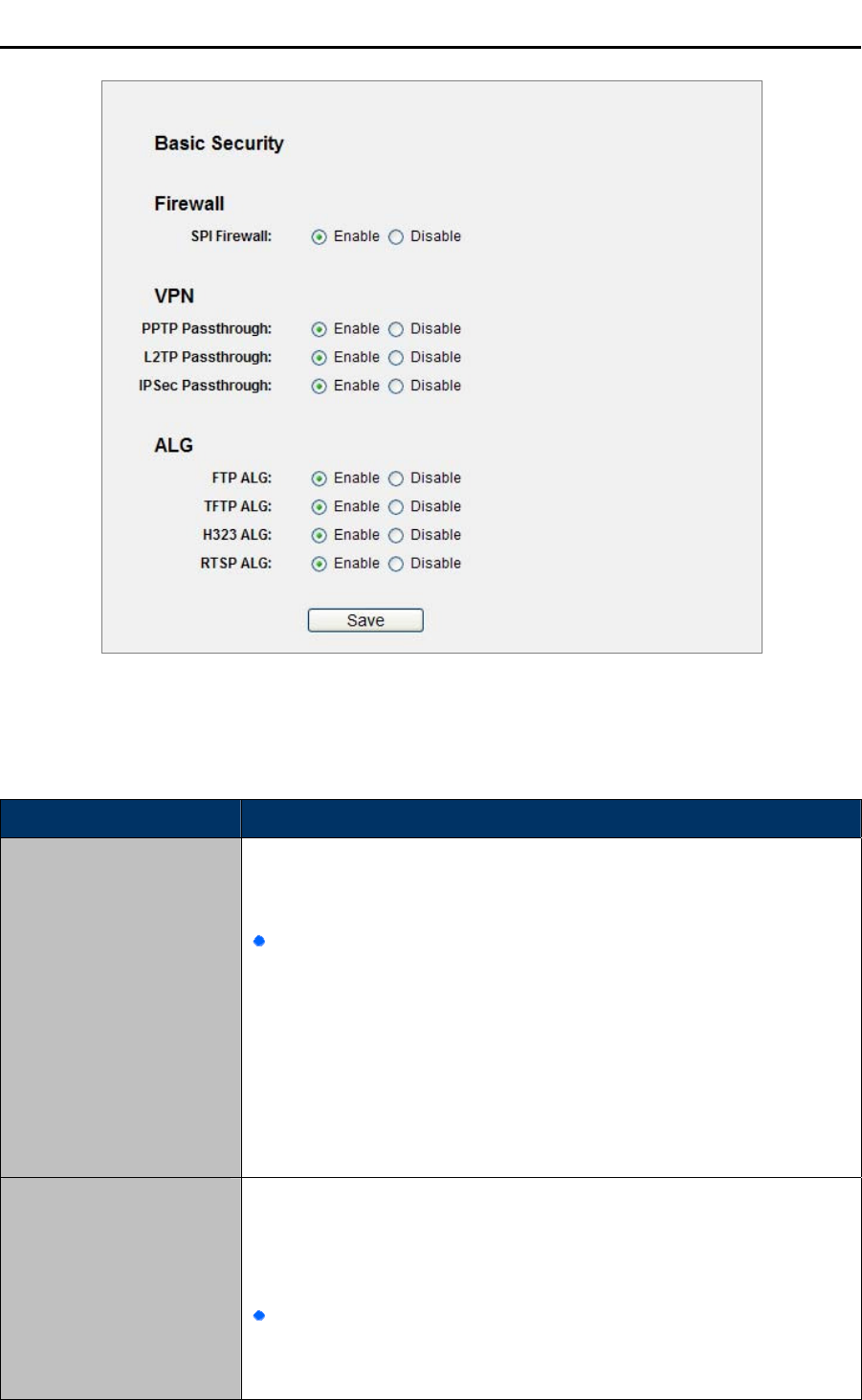

5.11.1 Basic Security .........................................................................................................86
5.11.2 Advanced Security..................................................................................................88

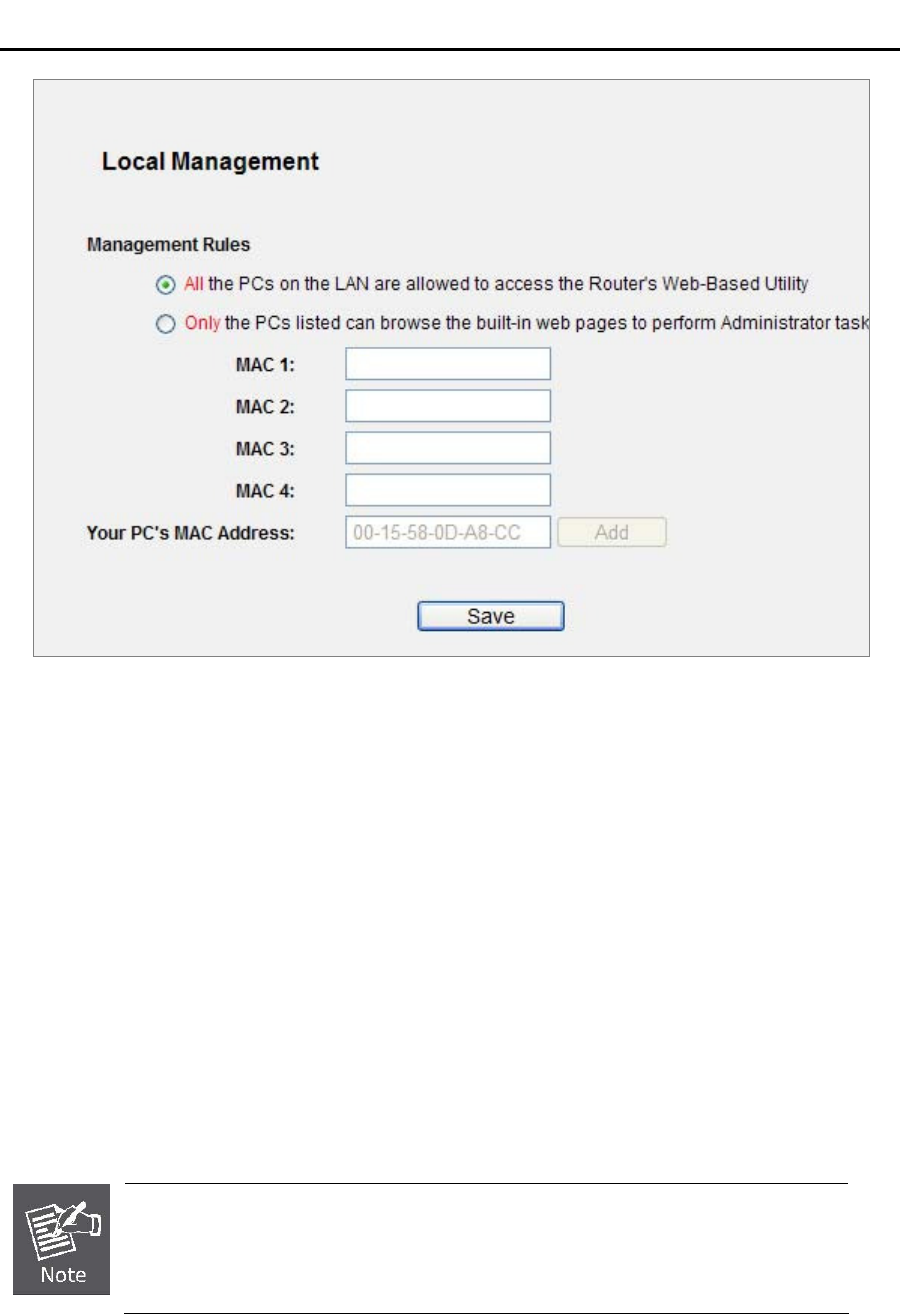

5.11.3 Local Management .................................................................................................90

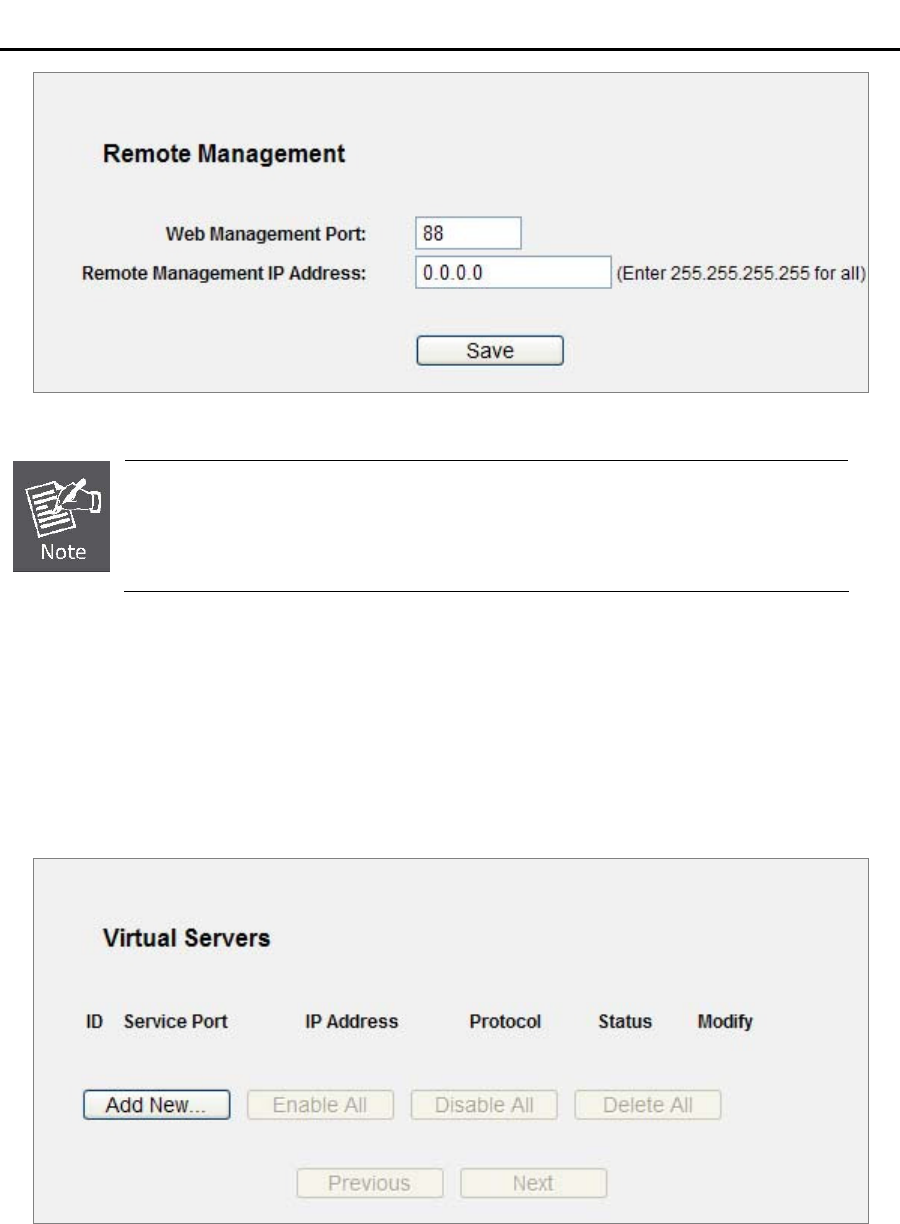

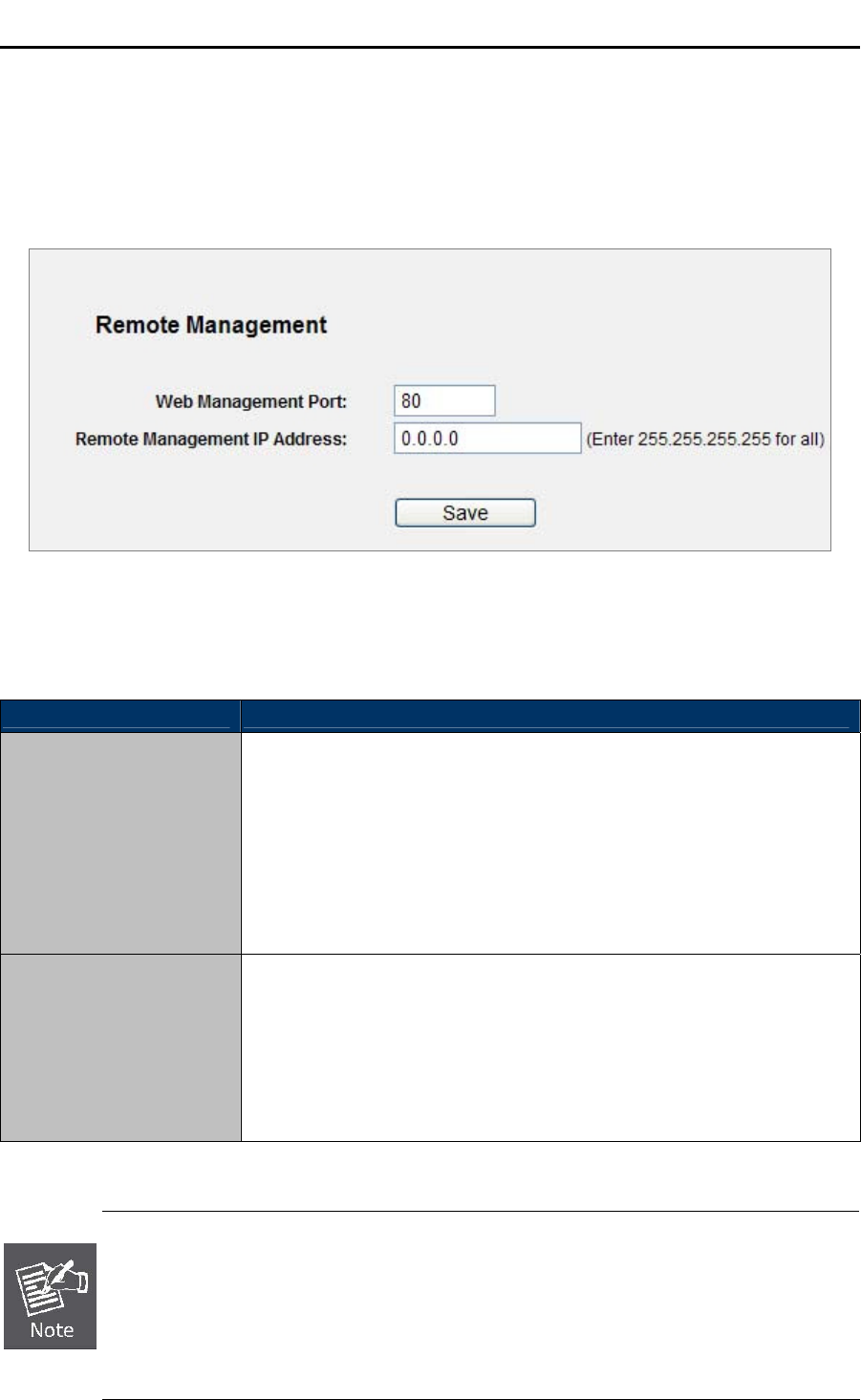

5.11.4 Remote Management .............................................................................................92

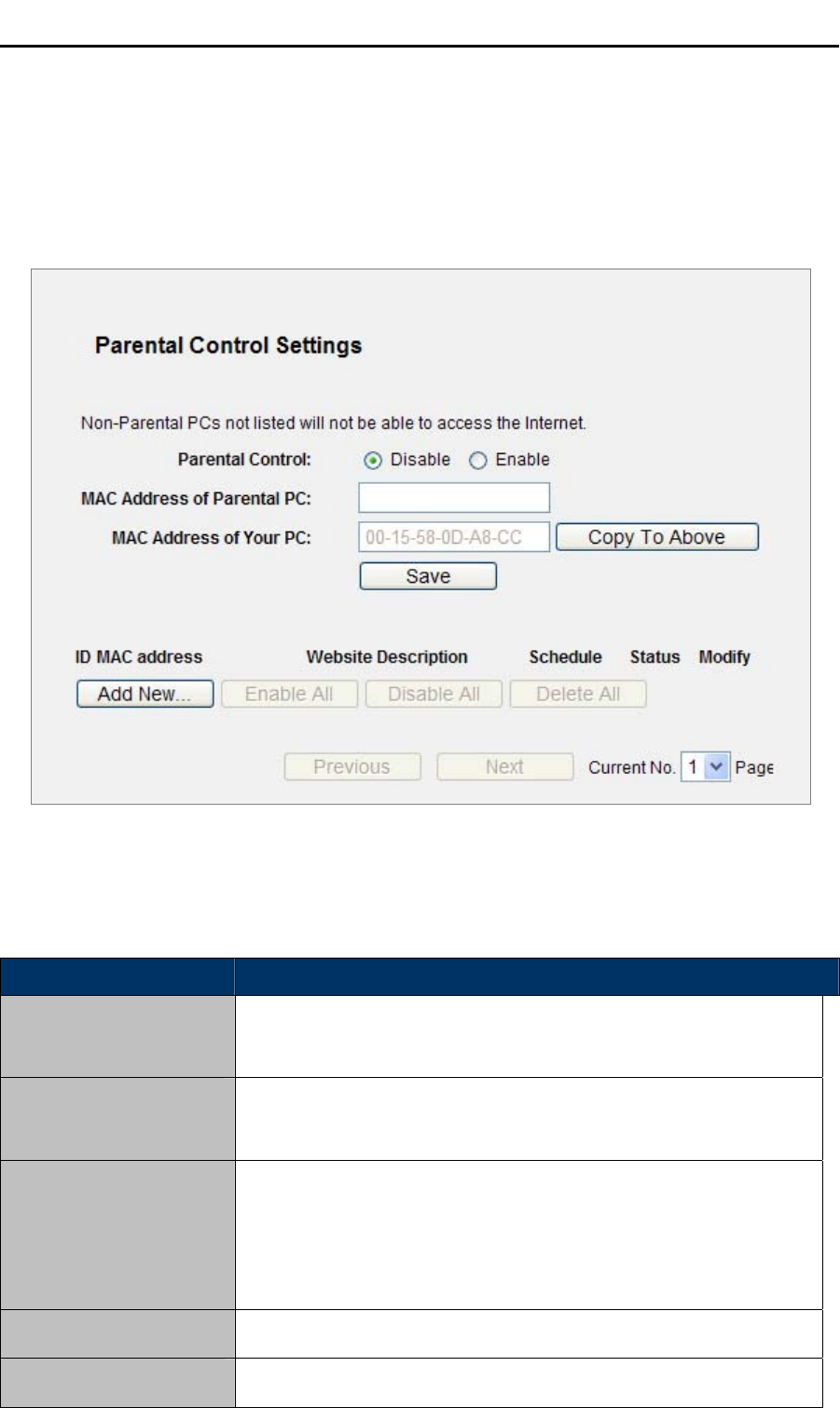

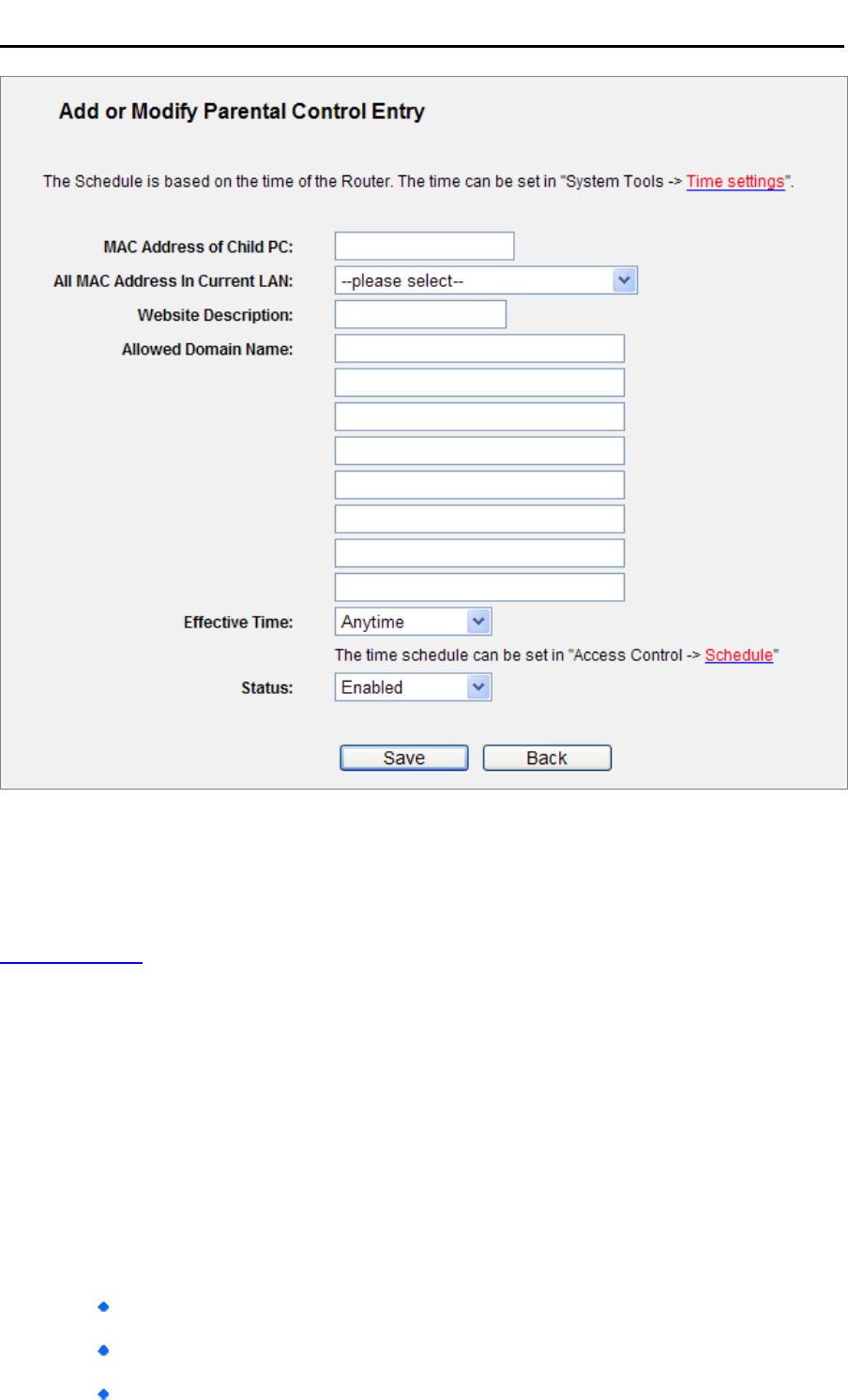

5.12 Parental Control ..................................................................................................................93

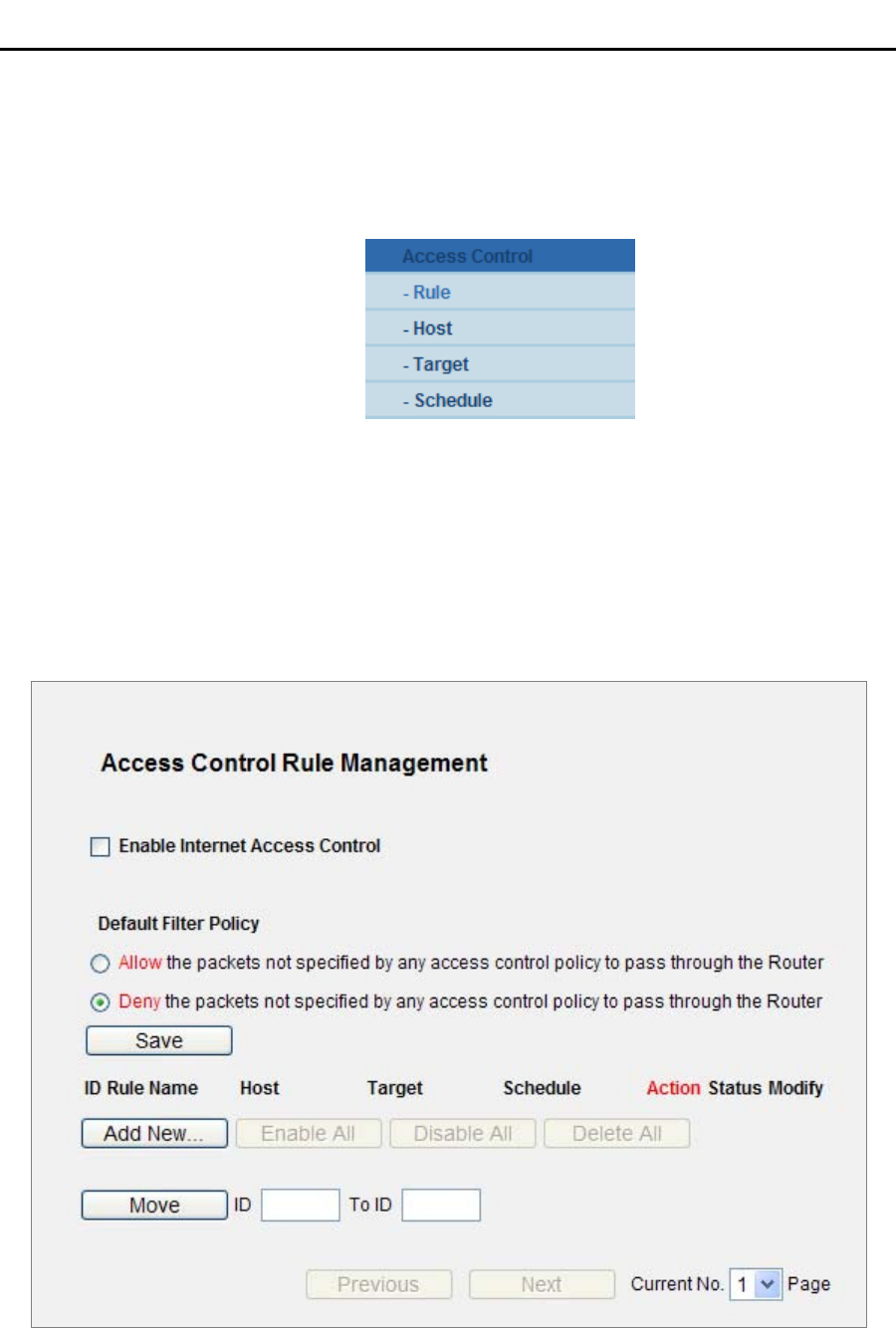

5.13 Access Control ....................................................................................................................97

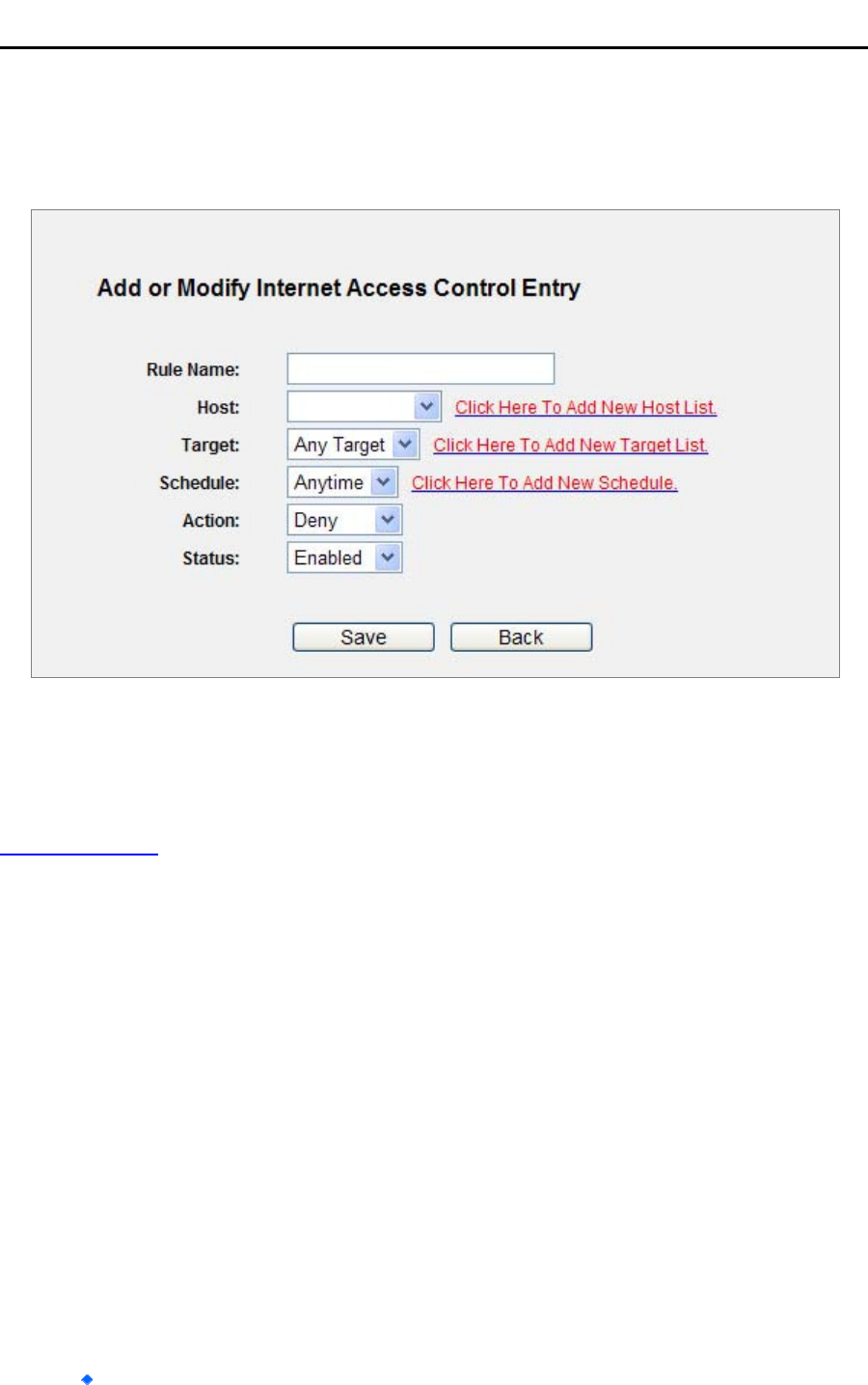

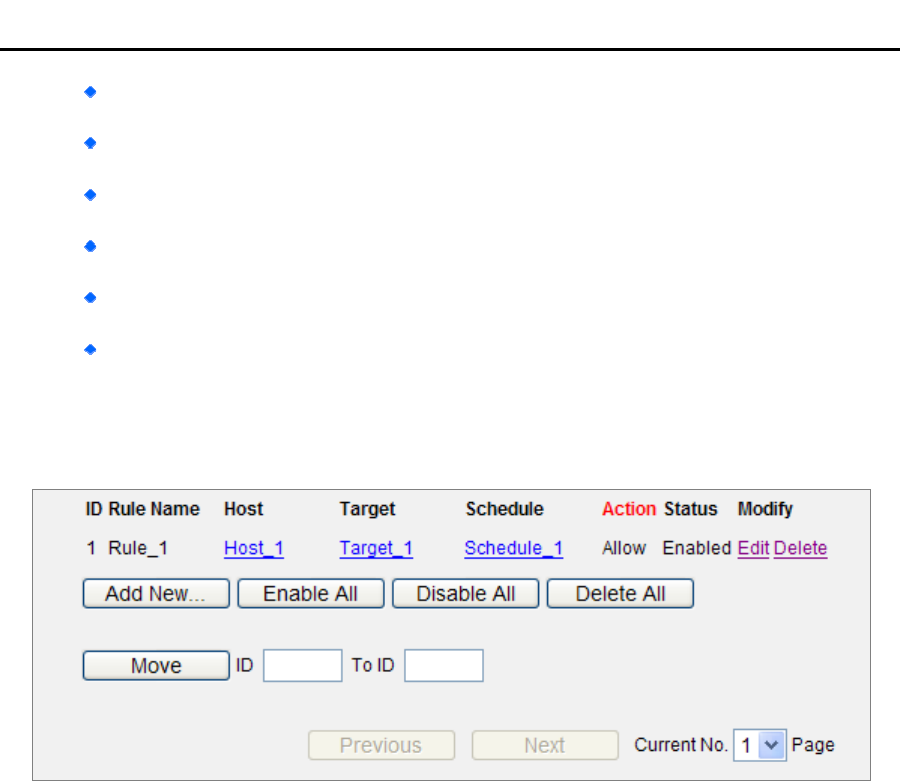

5.13.1 Rule.........................................................................................................................97

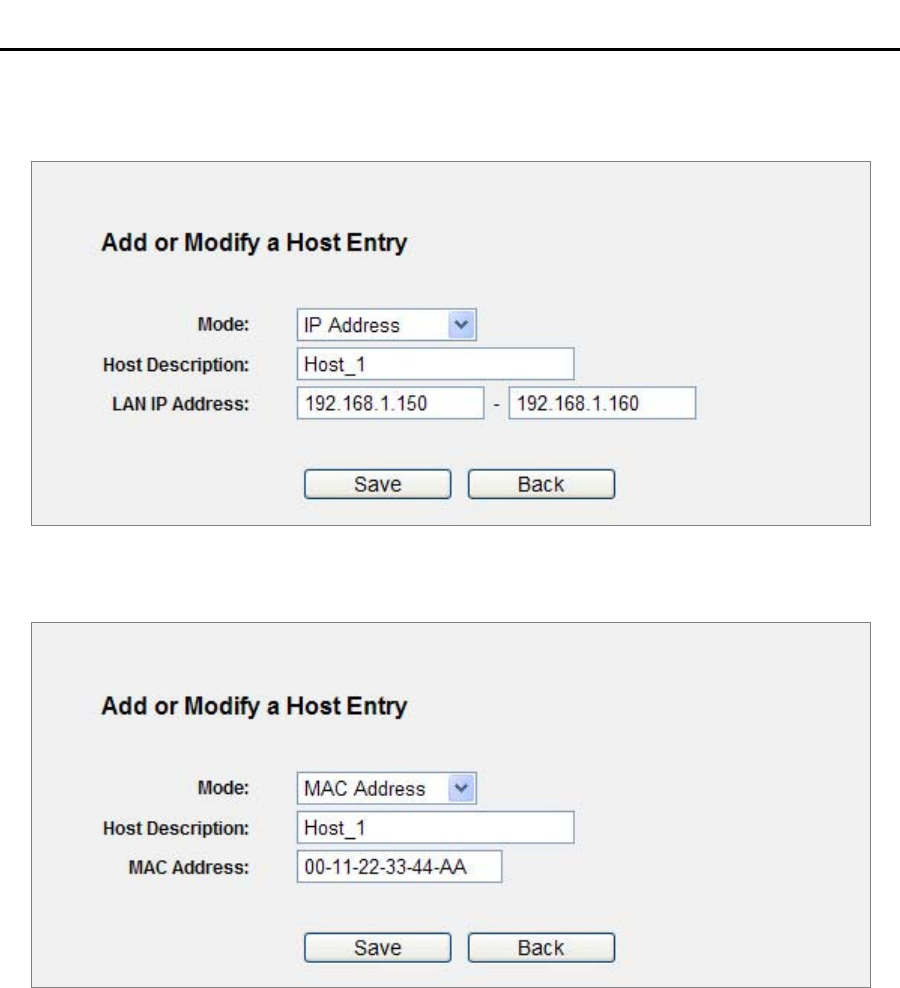

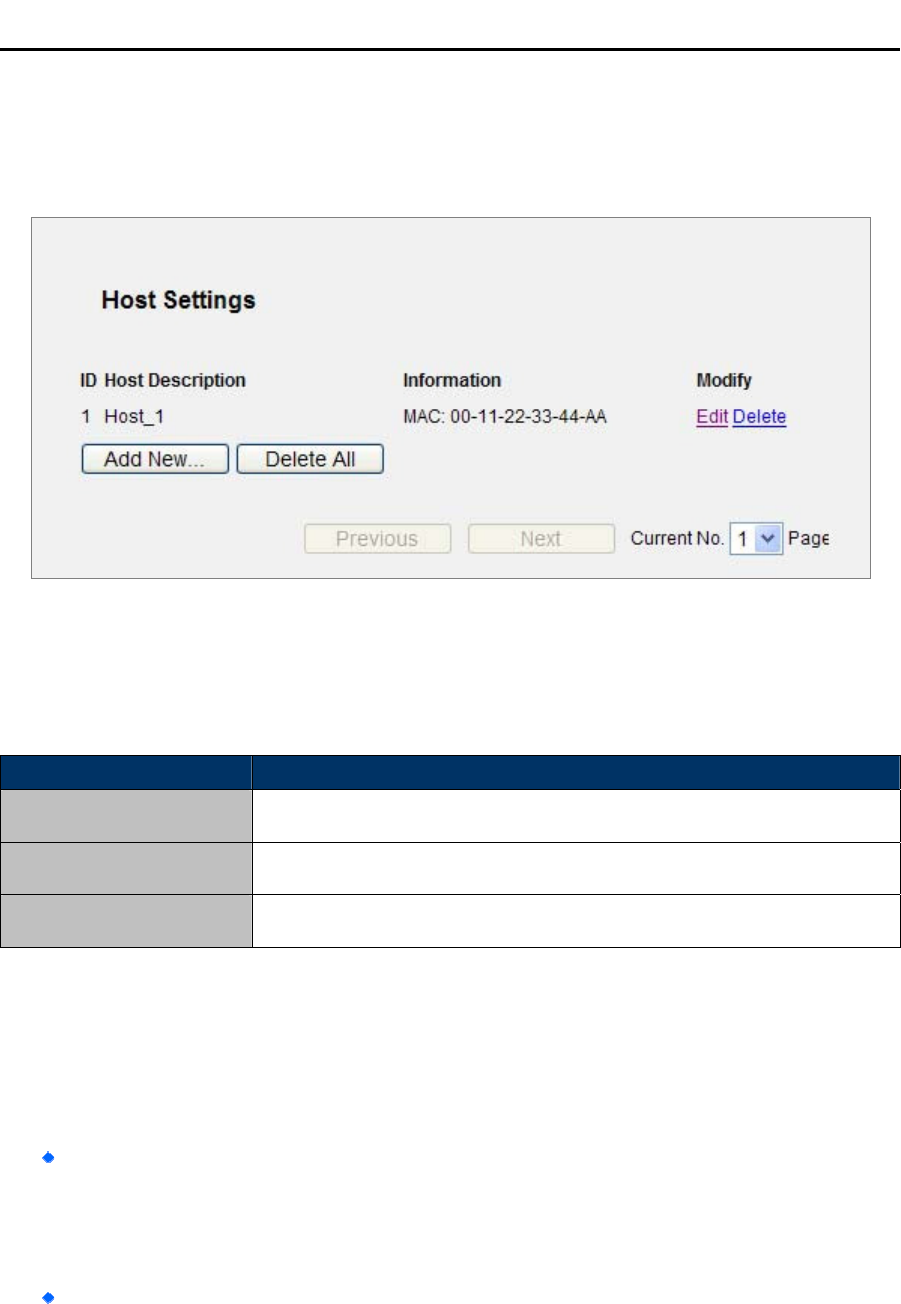

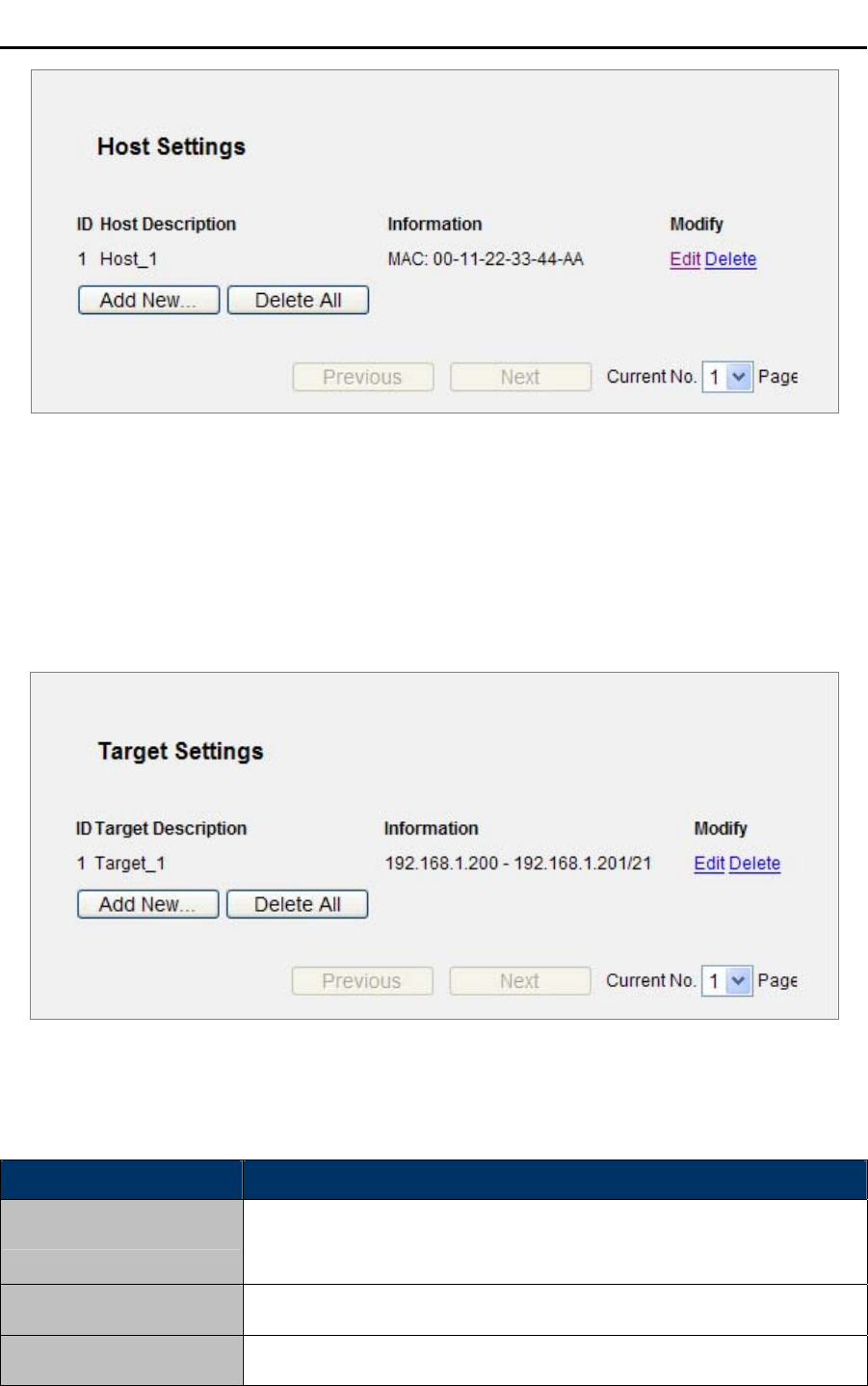

5.13.2 Host.......................................................................................................................101

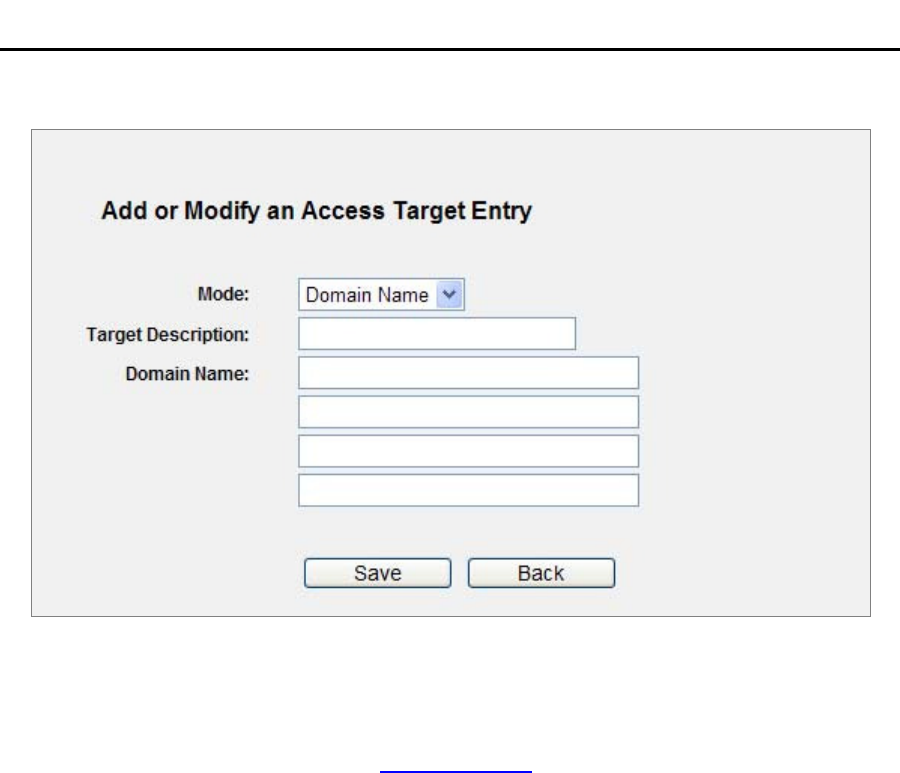

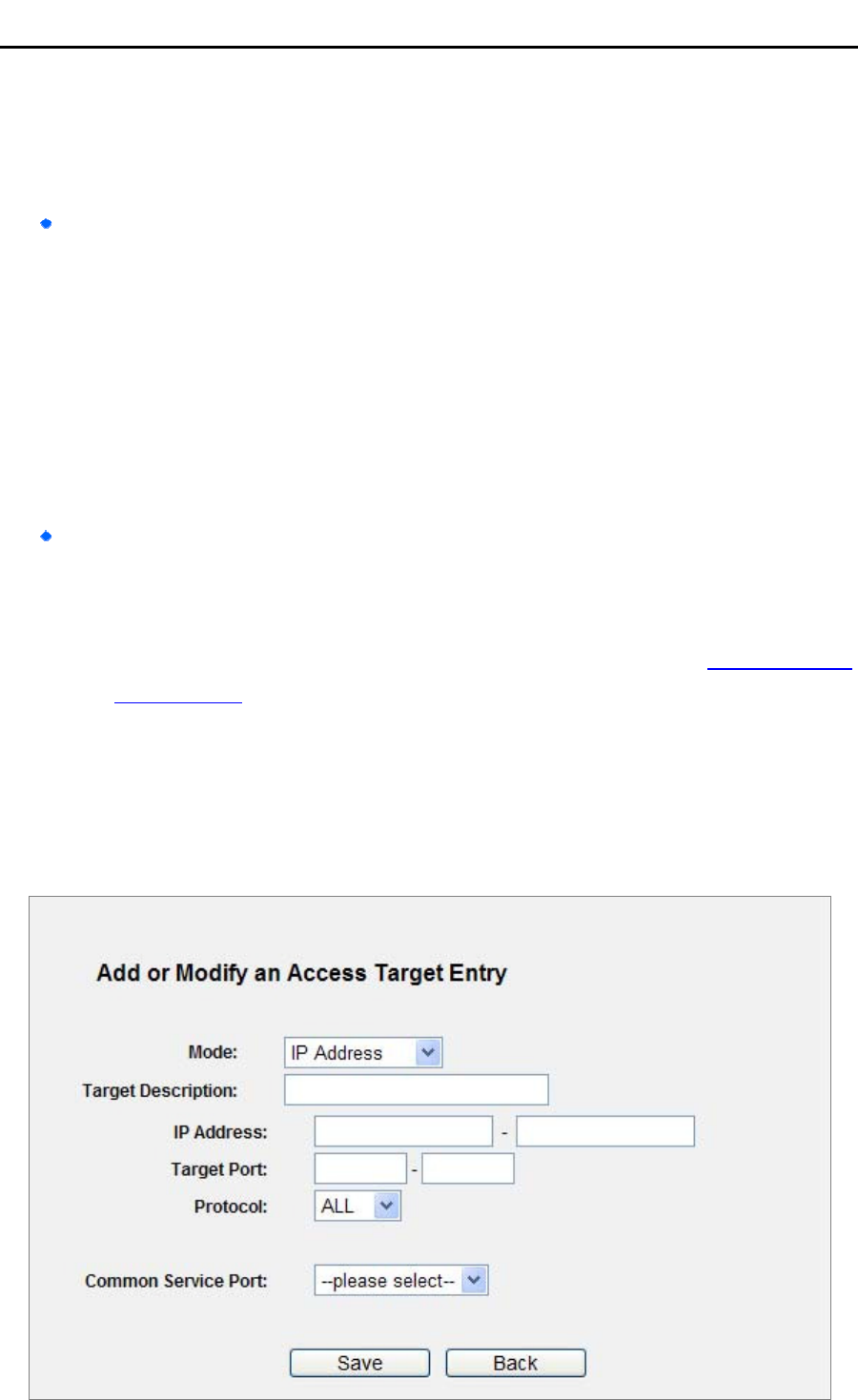

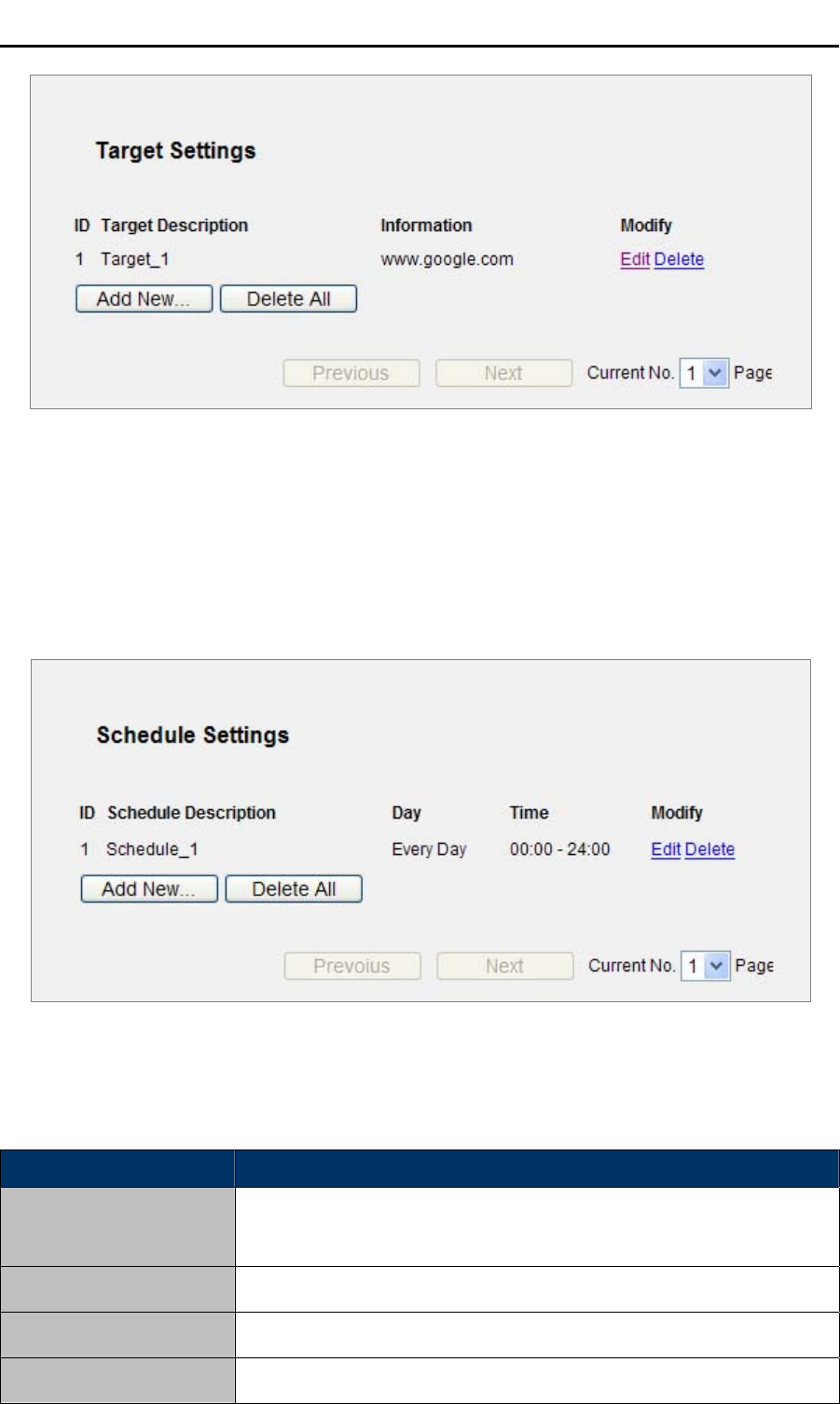

5.13.3 Target....................................................................................................................103

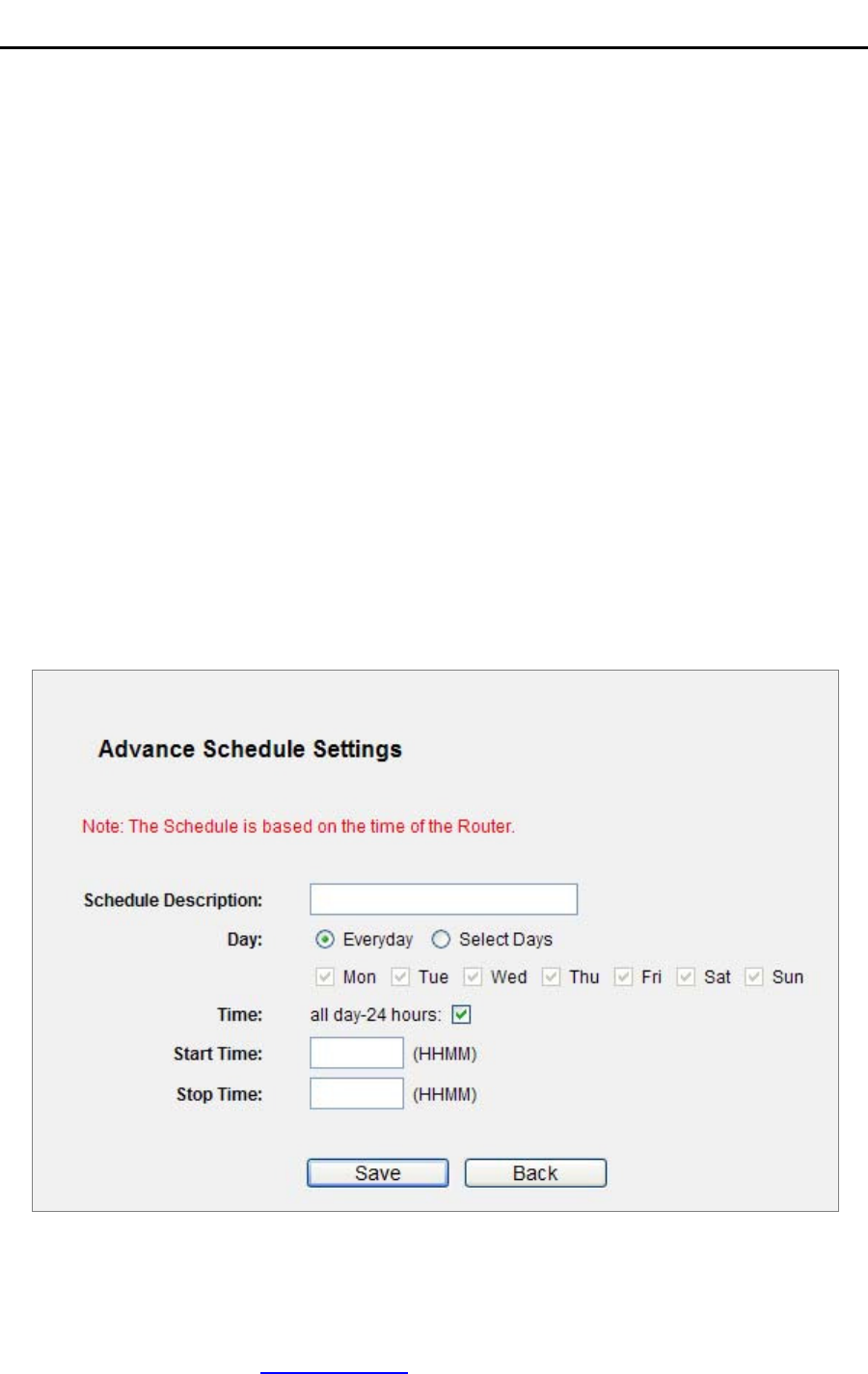

5.13.4 Schedule...............................................................................................................106
5.14 Advanced Routing.............................................................................................................108
5.14.1 Static Routing List.................................................................................................108
5.14.2 System Routing Table........................................................................................... 110

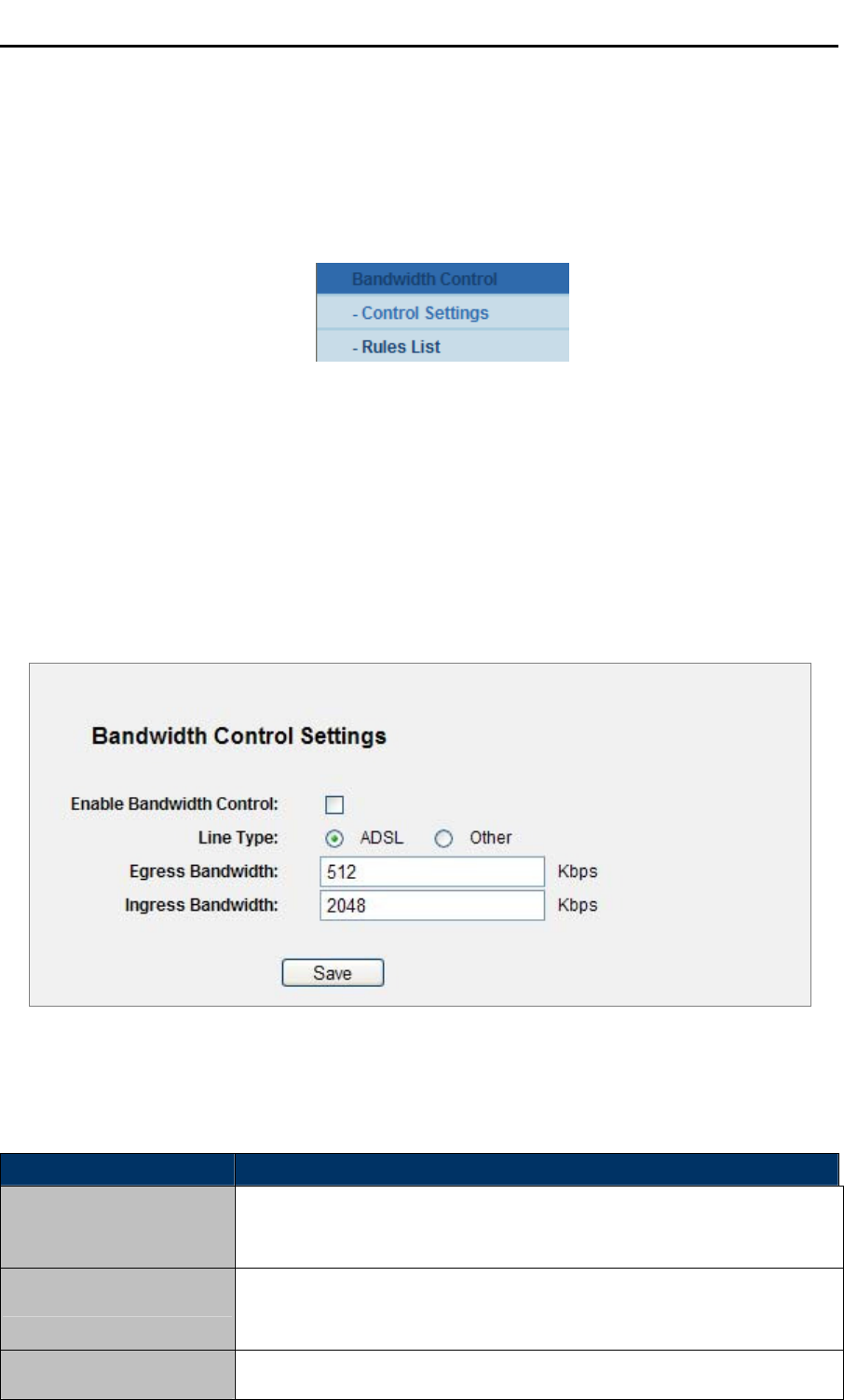

5.15 Bandwidth Control............................................................................................................. 111
5.15.1 Control Settings .................................................................................................... 111

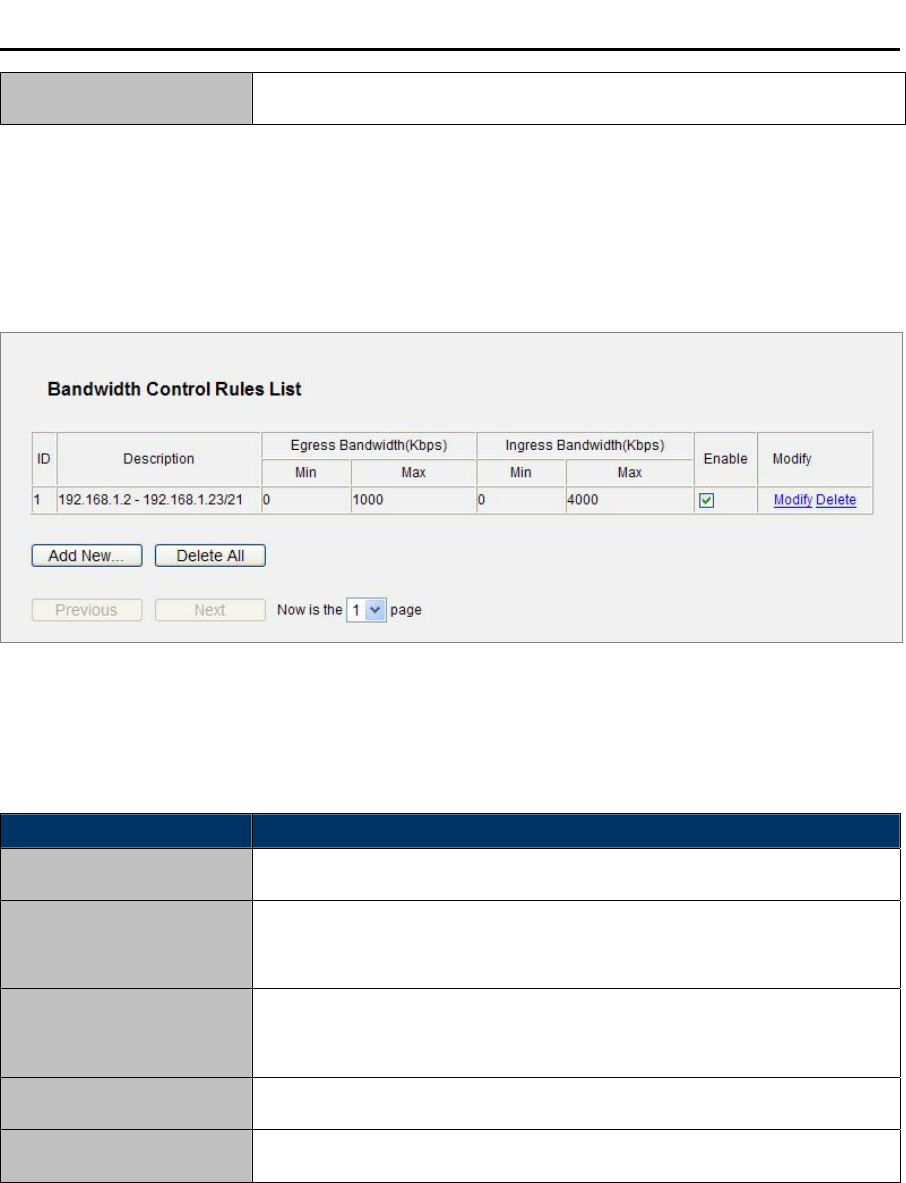

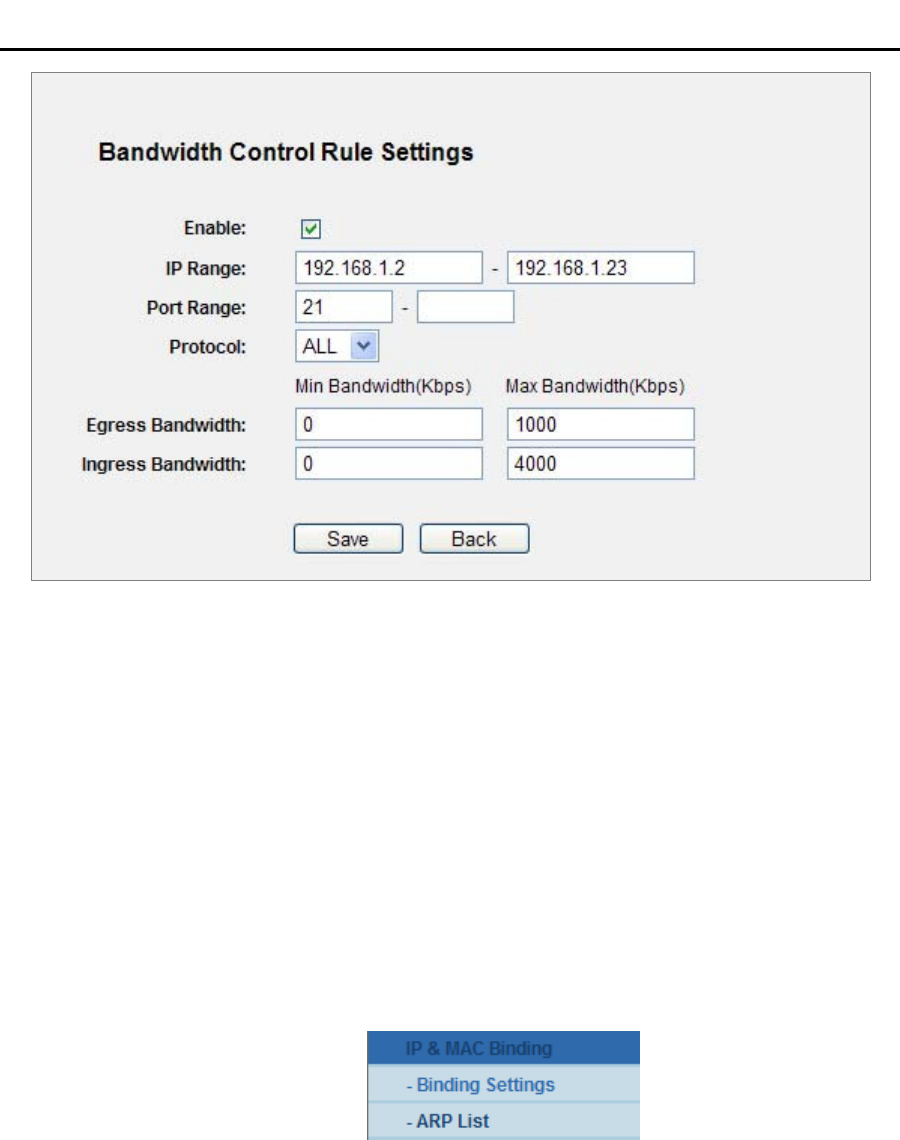

5.15.2 Rules List .............................................................................................................. 112
5.16 IP & MAC Binding ............................................................................................................. 113

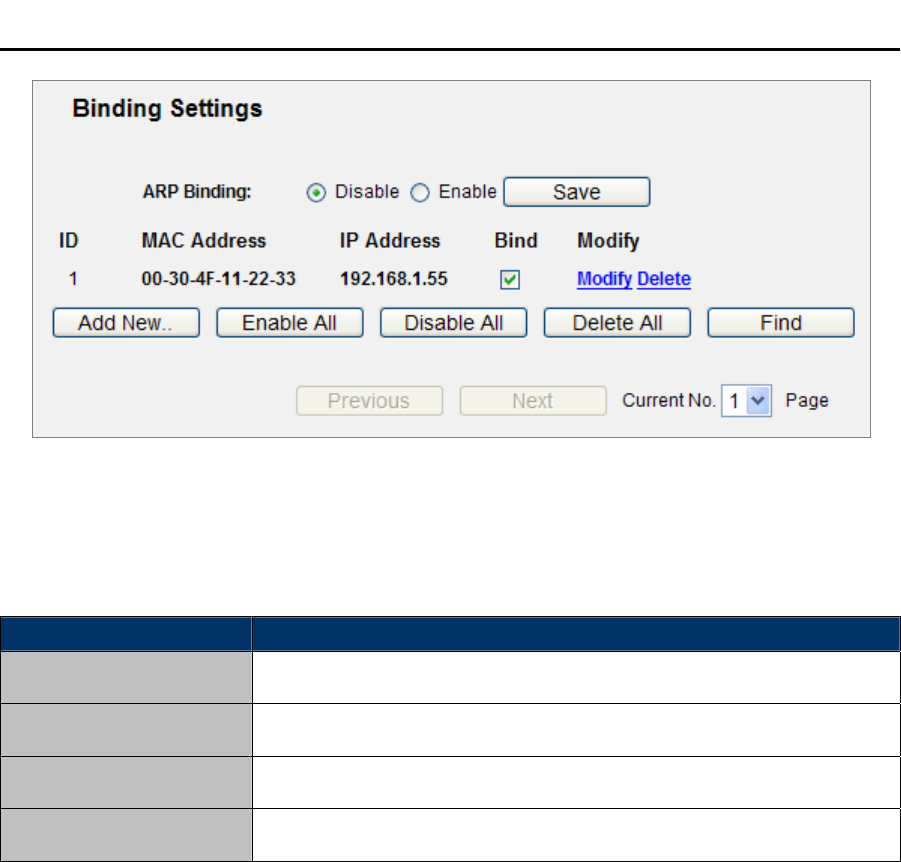

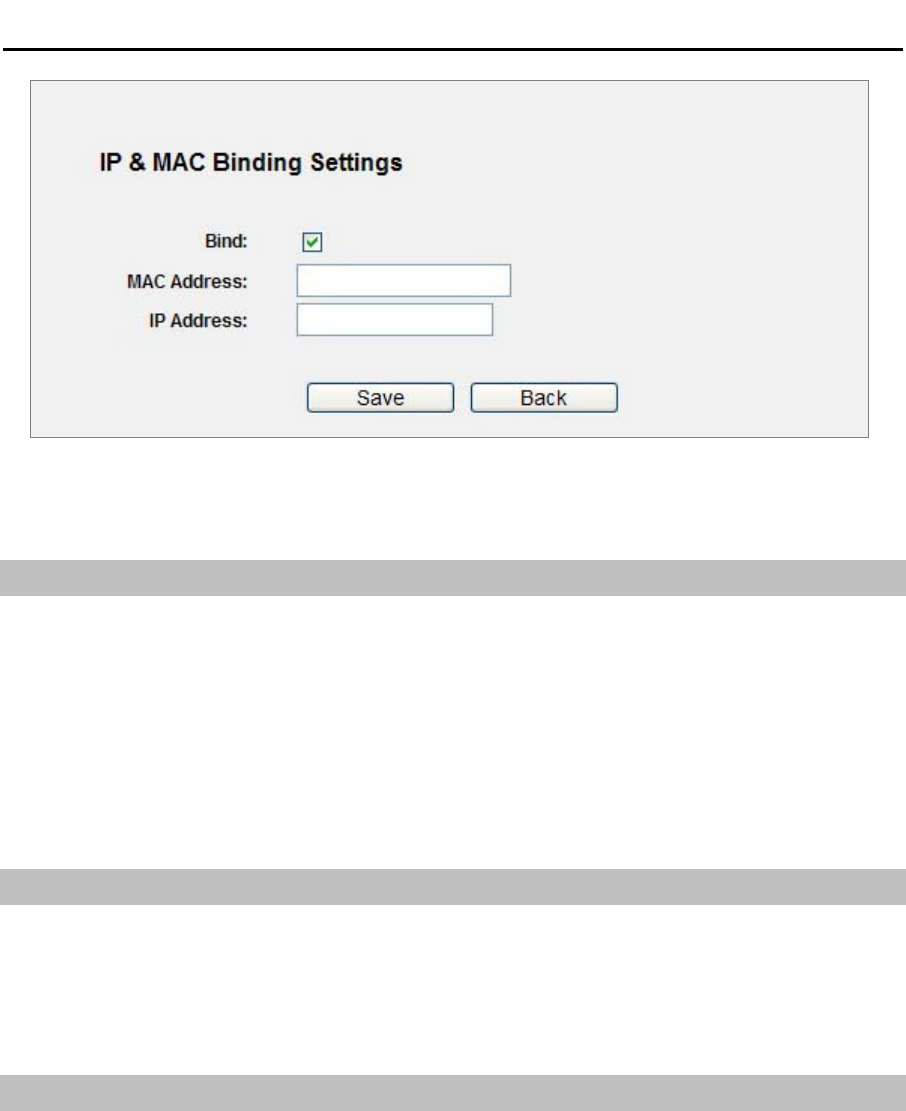

5.16.1 Binding Settings.................................................................................................... 113

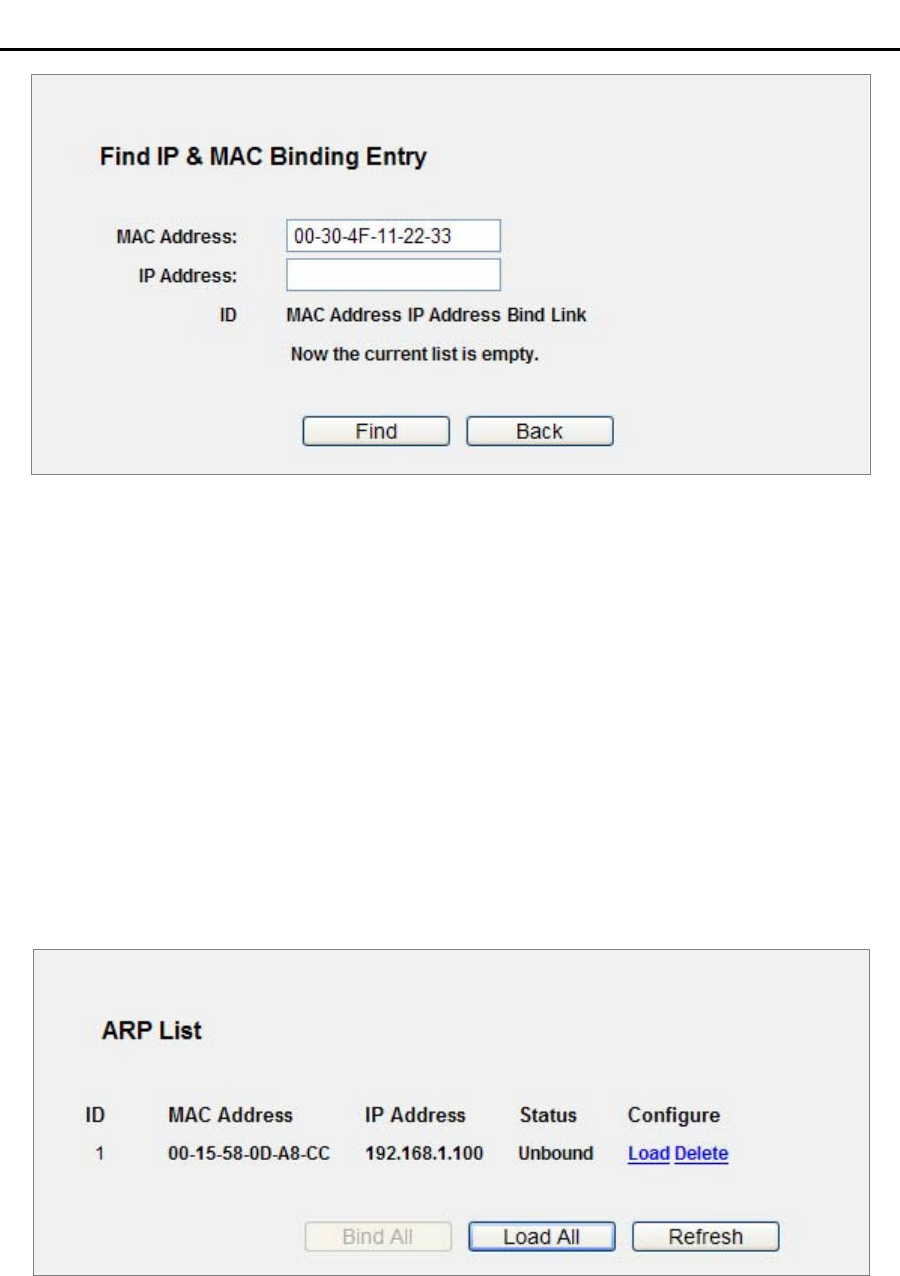

5.16.2 ARP List................................................................................................................ 116
5.17 Dynamic DNS.................................................................................................................... 118

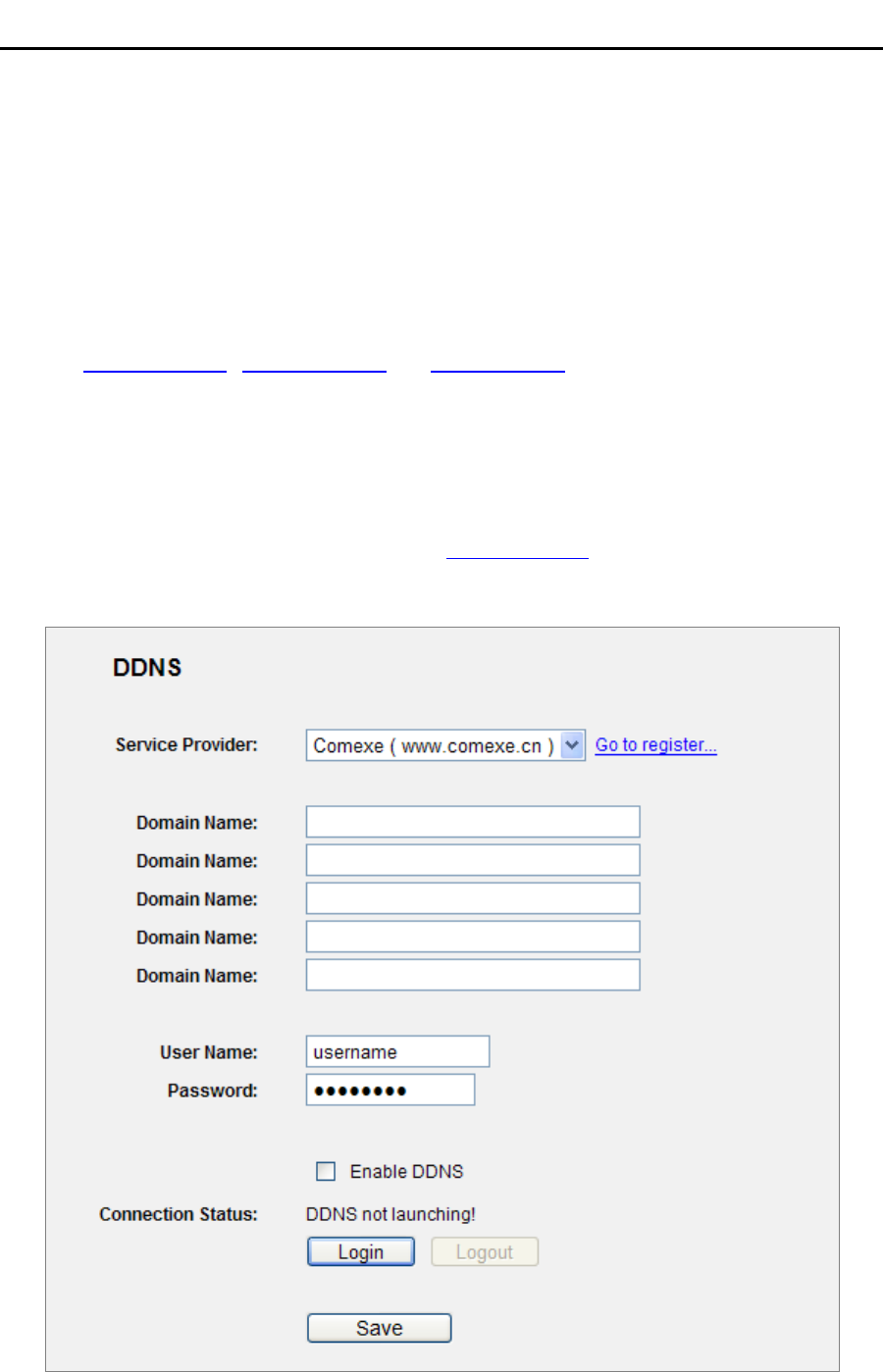

5.17.1 Comexe.cn DDNS ................................................................................................ 118

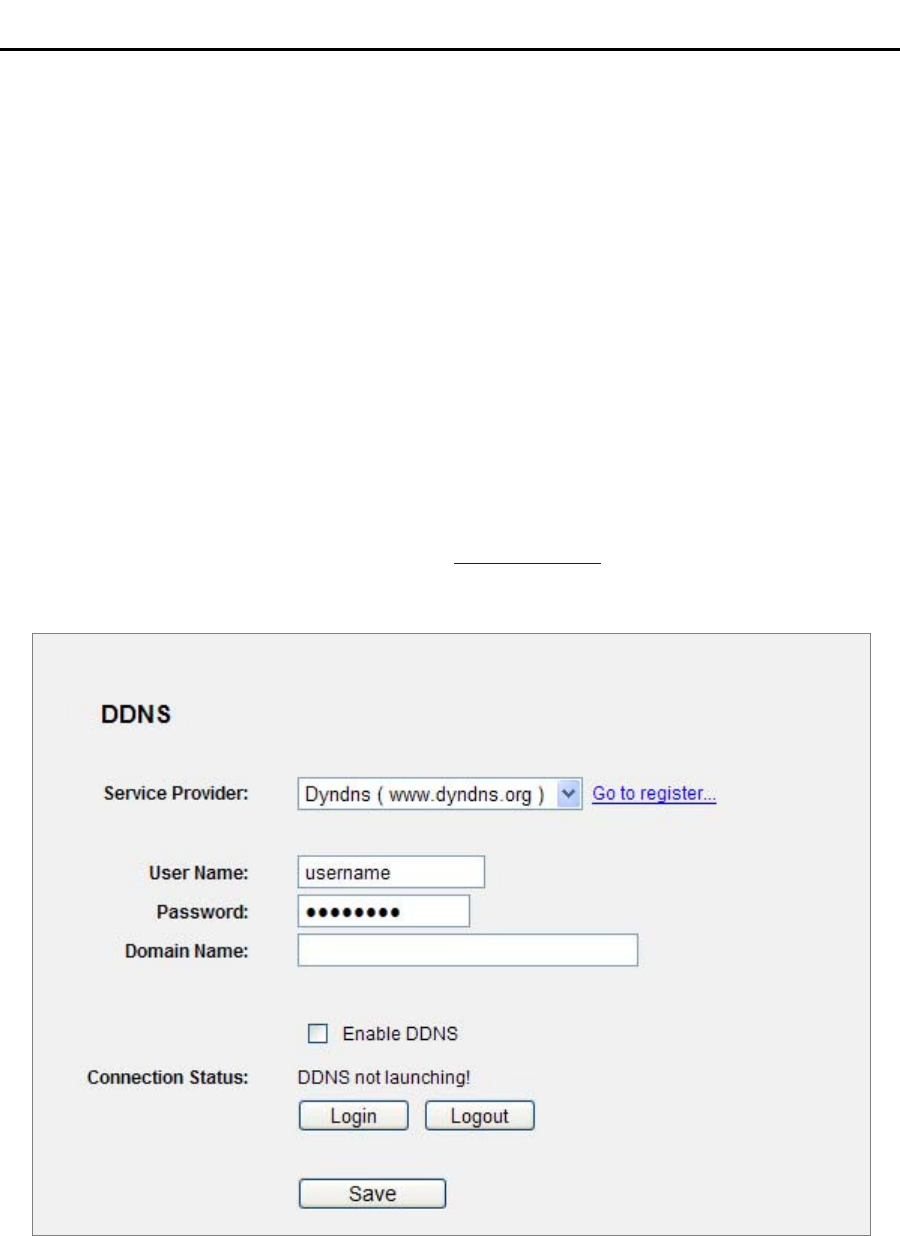

5.17.2 Dyndns.org DDNS ................................................................................................ 119

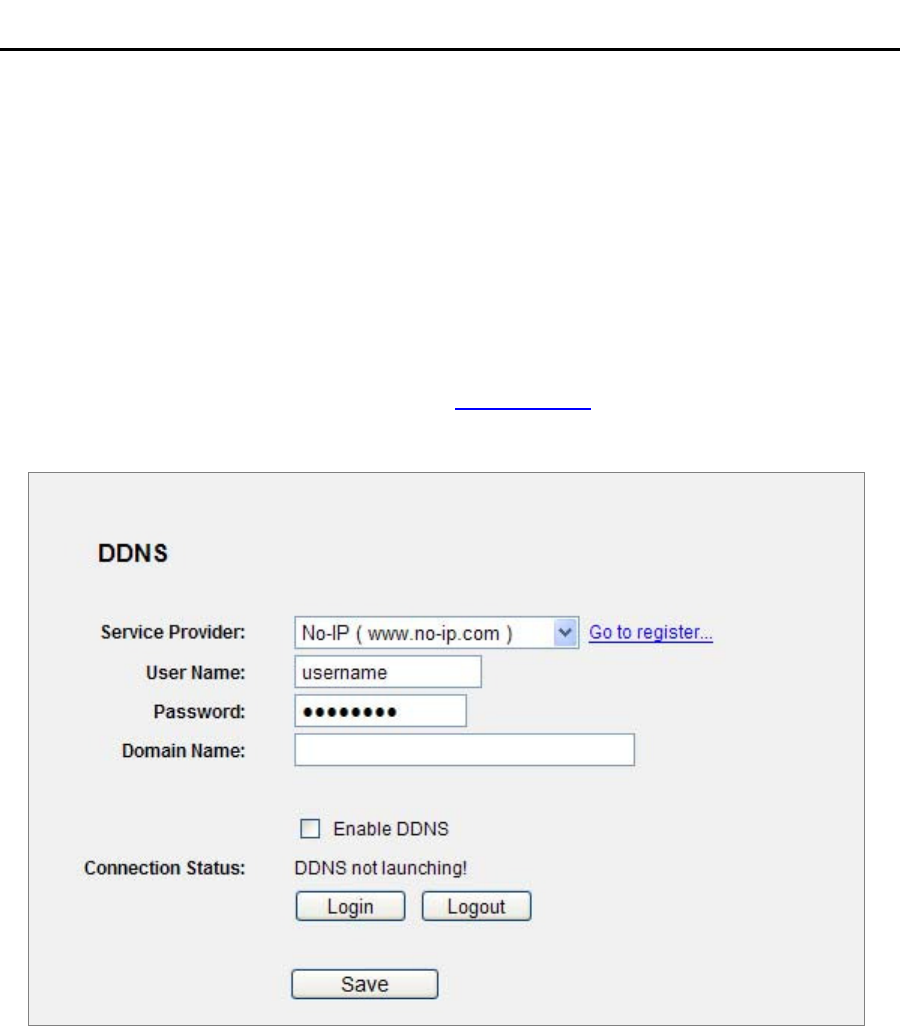

5.17.3 No-ip.com DDNS ..................................................................................................120

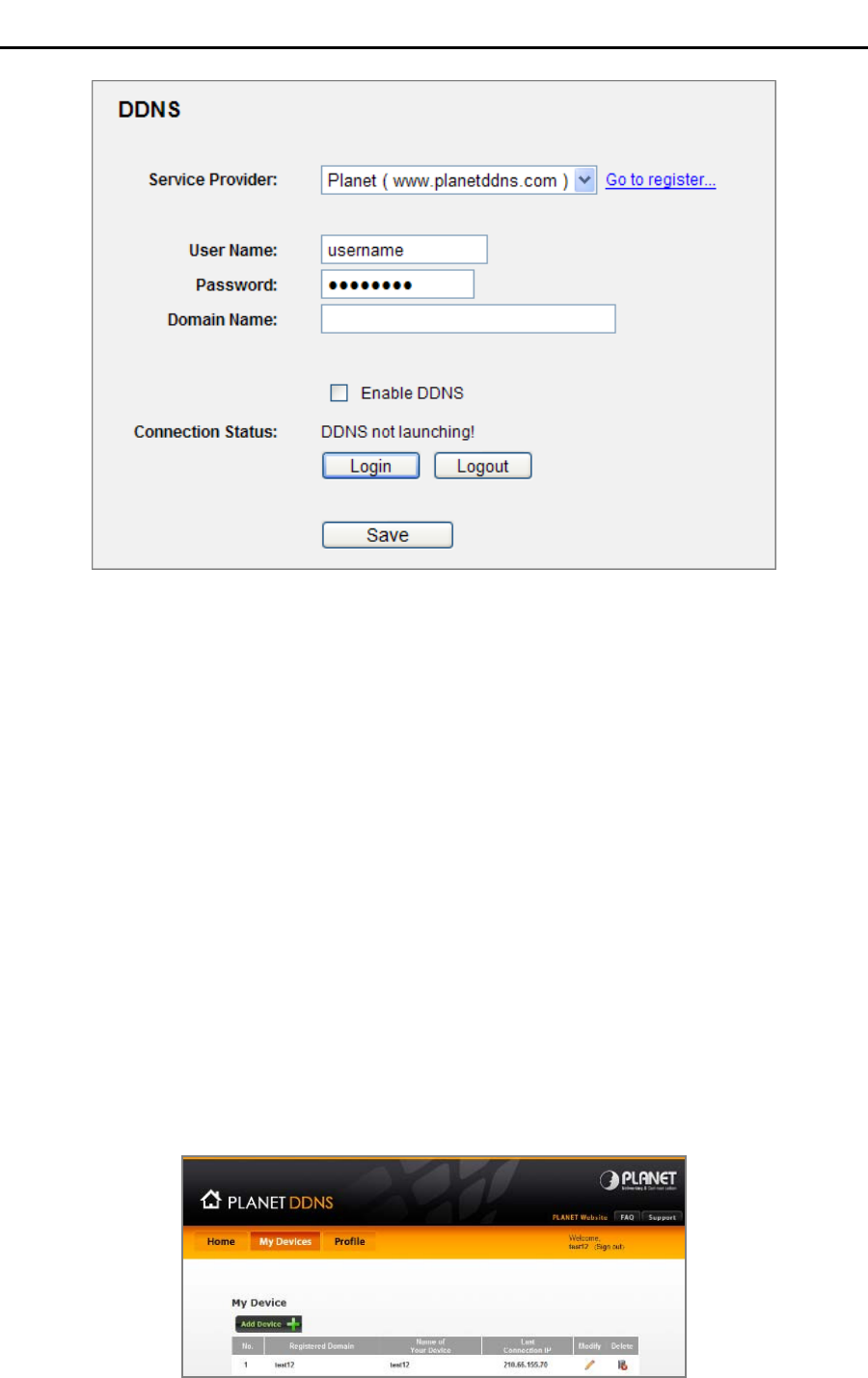

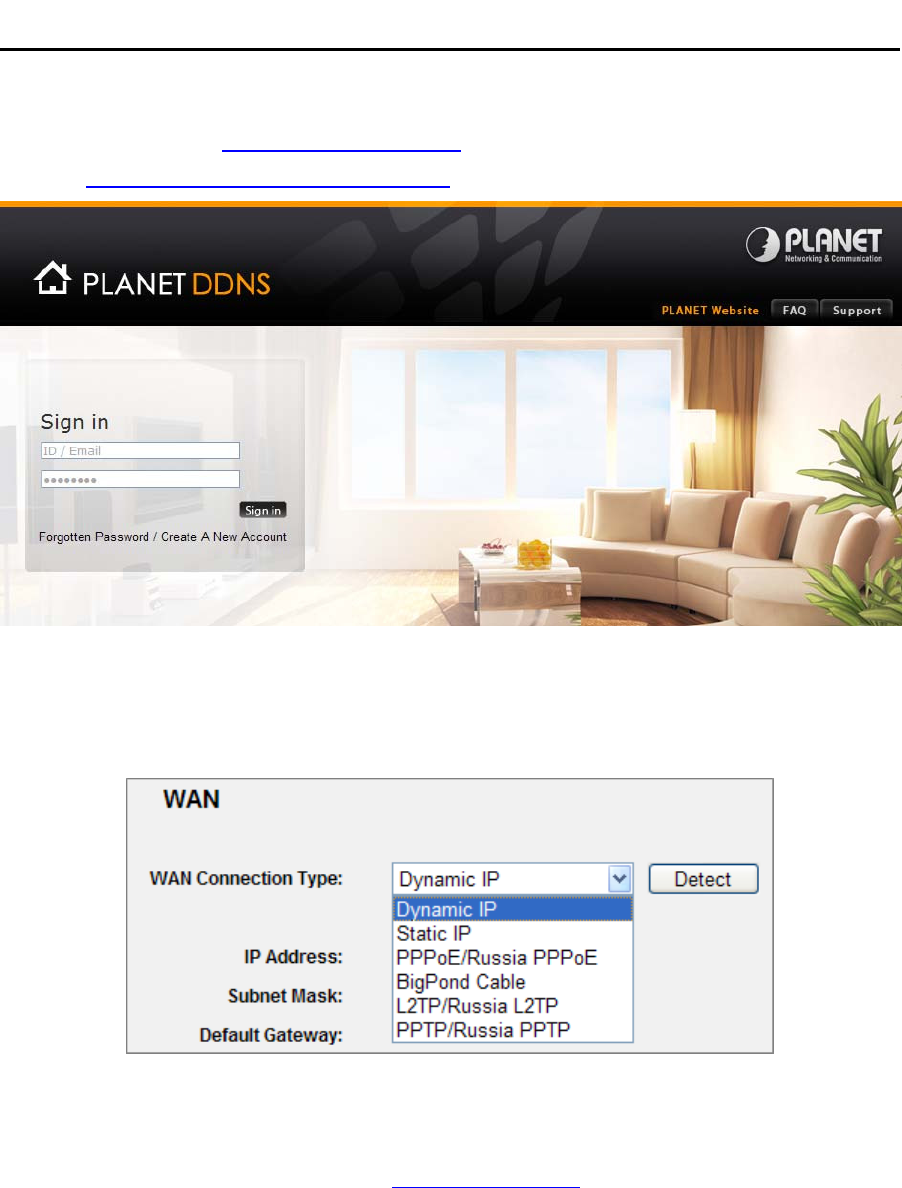

5.17.4 Planetddns.com DDNS.........................................................................................121
5.18 System Tools.....................................................................................................................123
VI

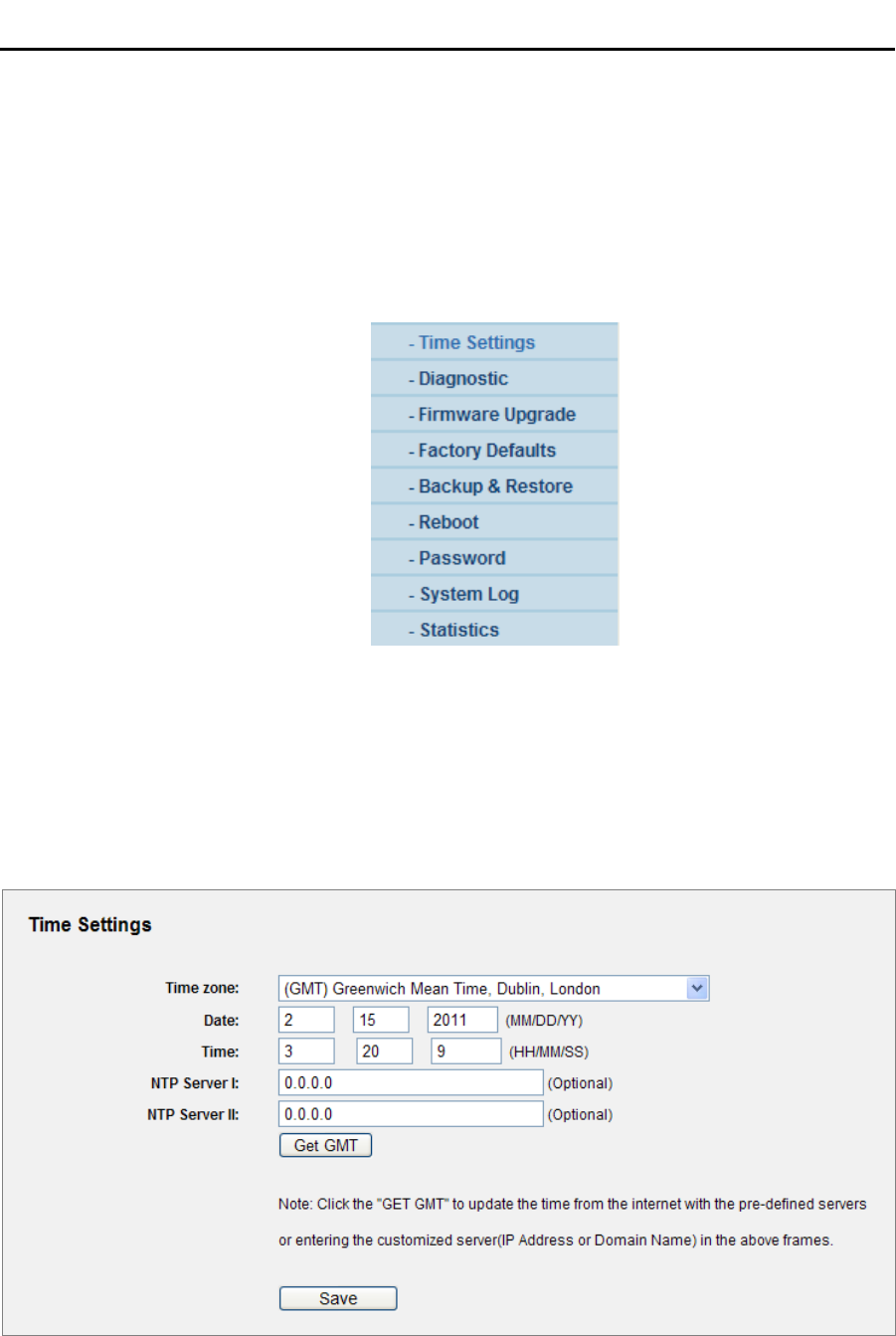

5.18.1 Time Settings........................................................................................................123

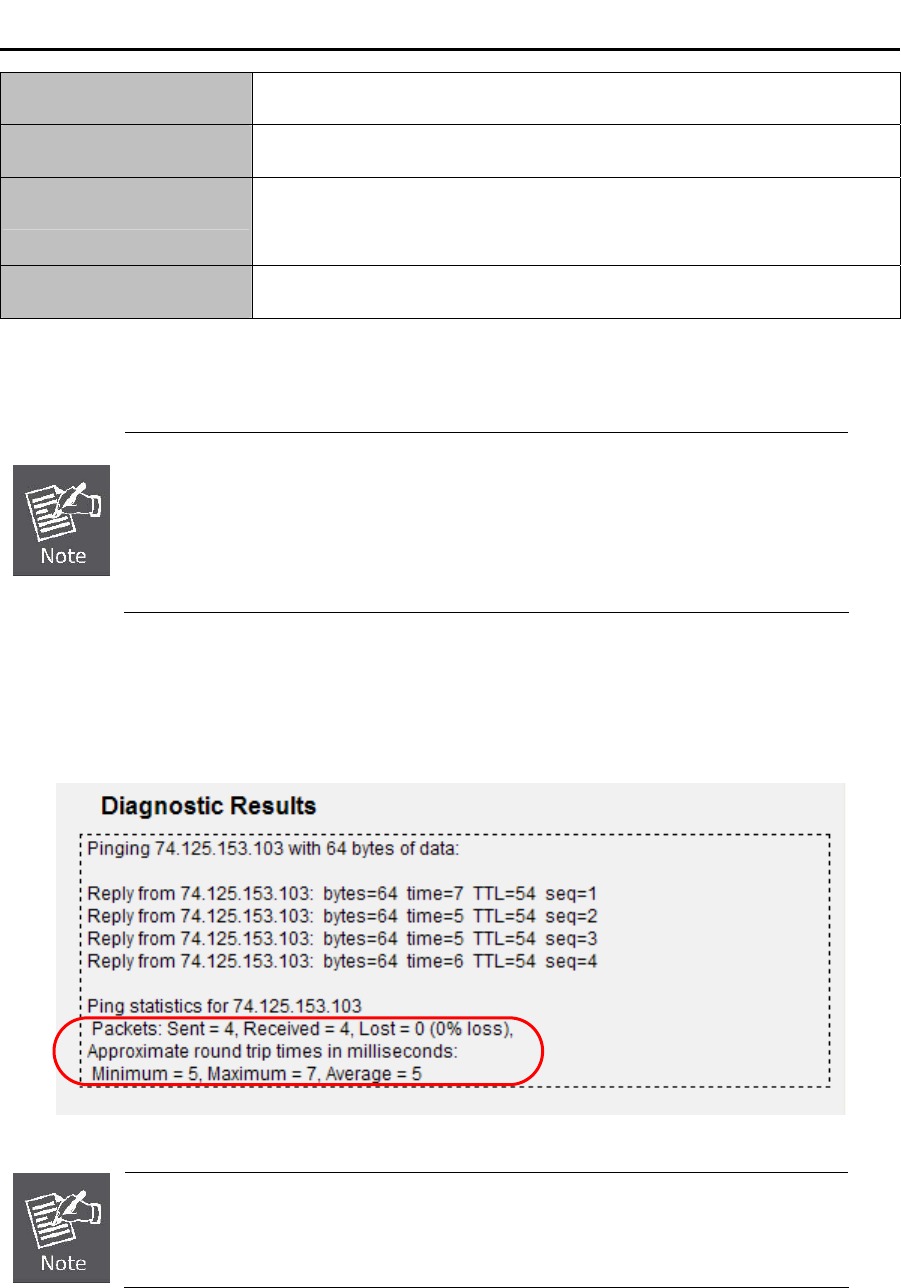

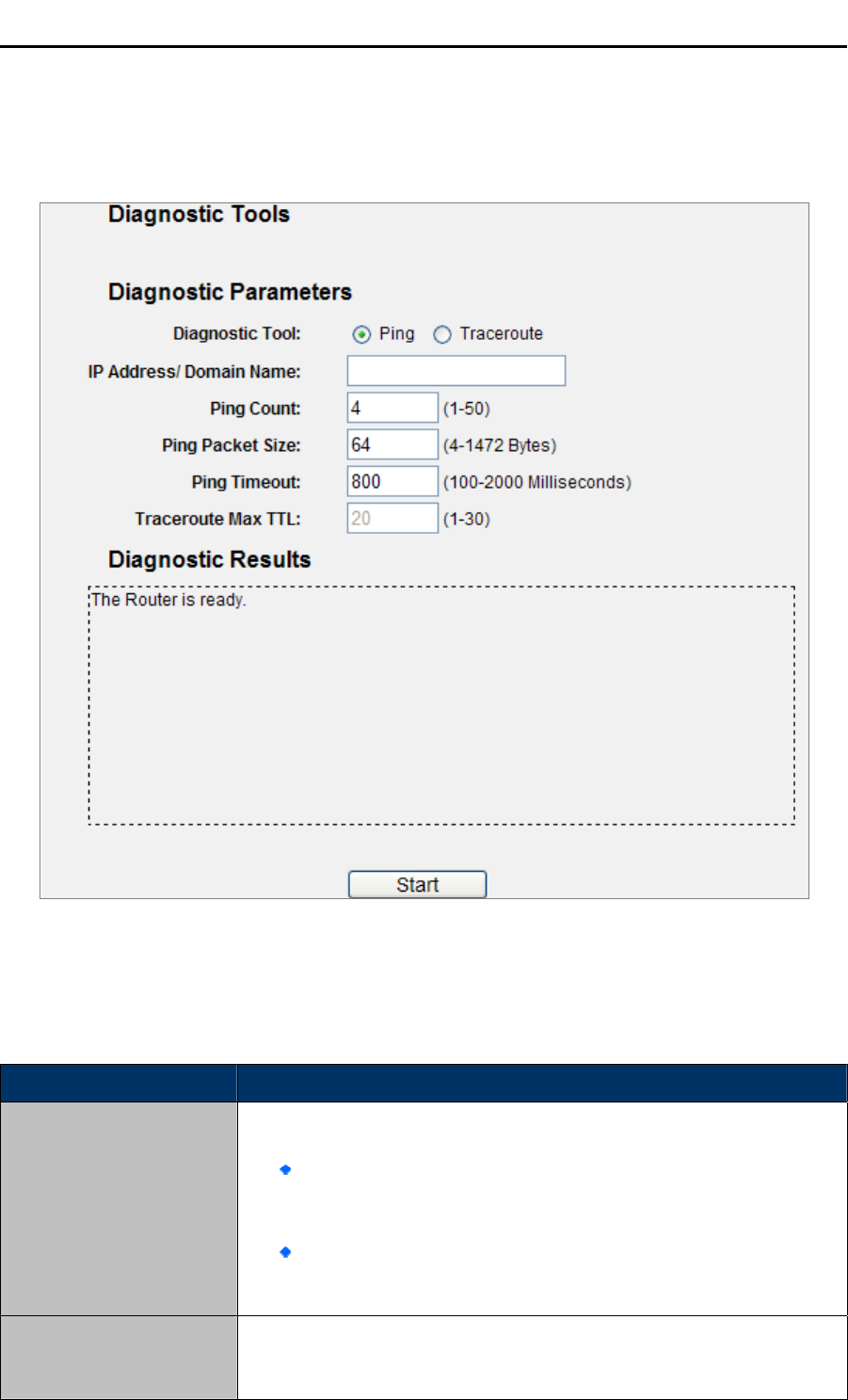

5.18.2 Diagnostic .............................................................................................................125
5.18.3 Firmware Upgrade................................................................................................127

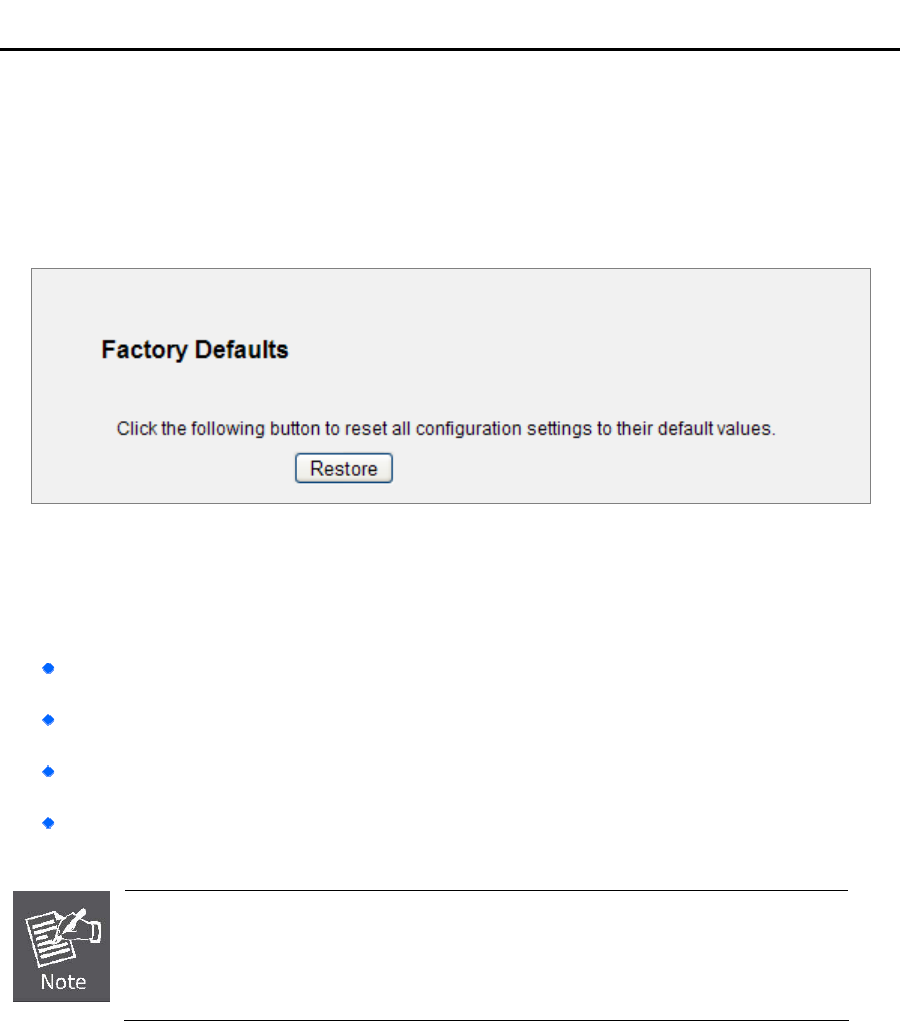

5.18.4 Factory Defaults....................................................................................................128

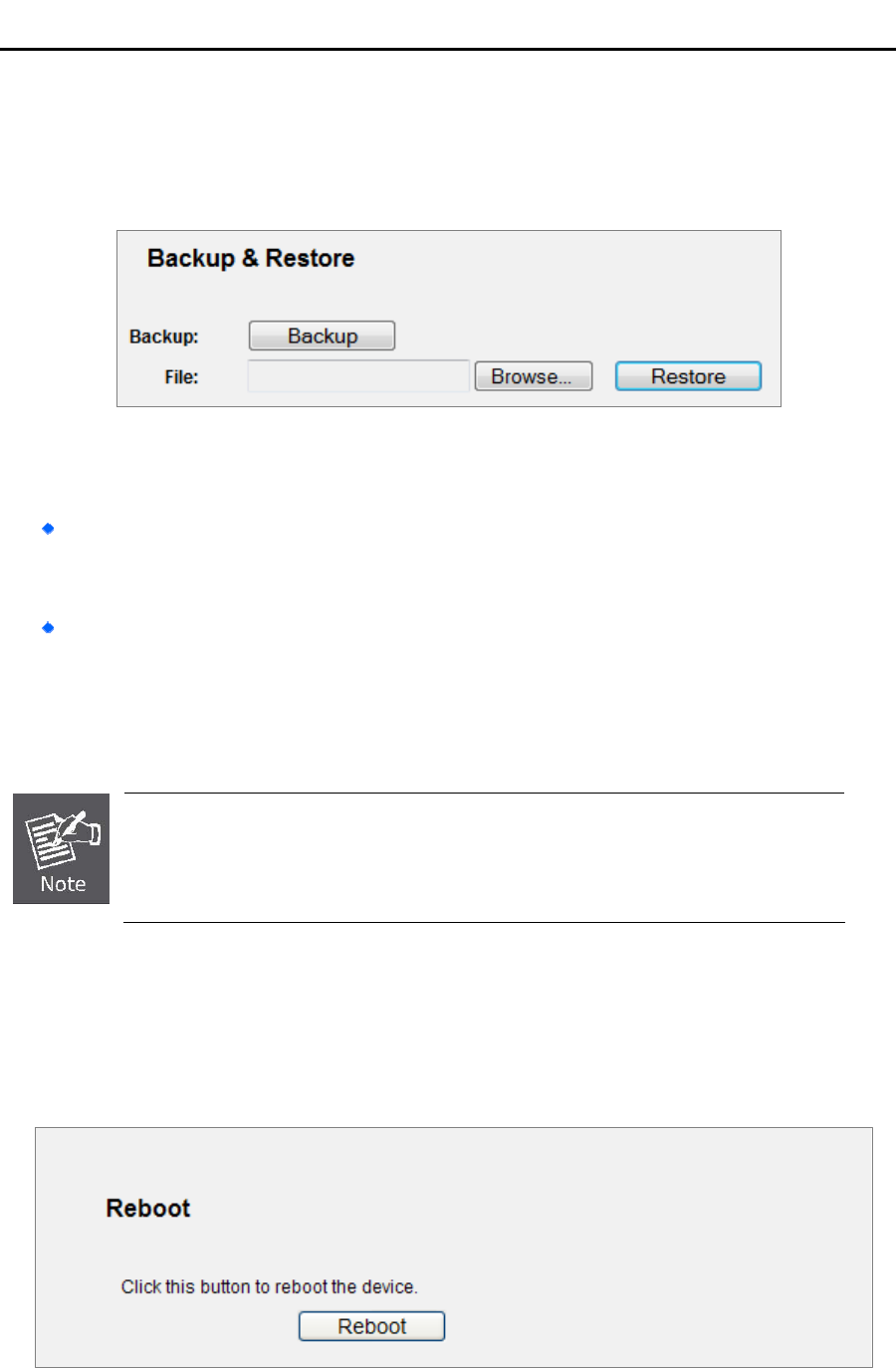

5.18.5 Backup & Restore.................................................................................................129
5.18.6 Reboot ..................................................................................................................129

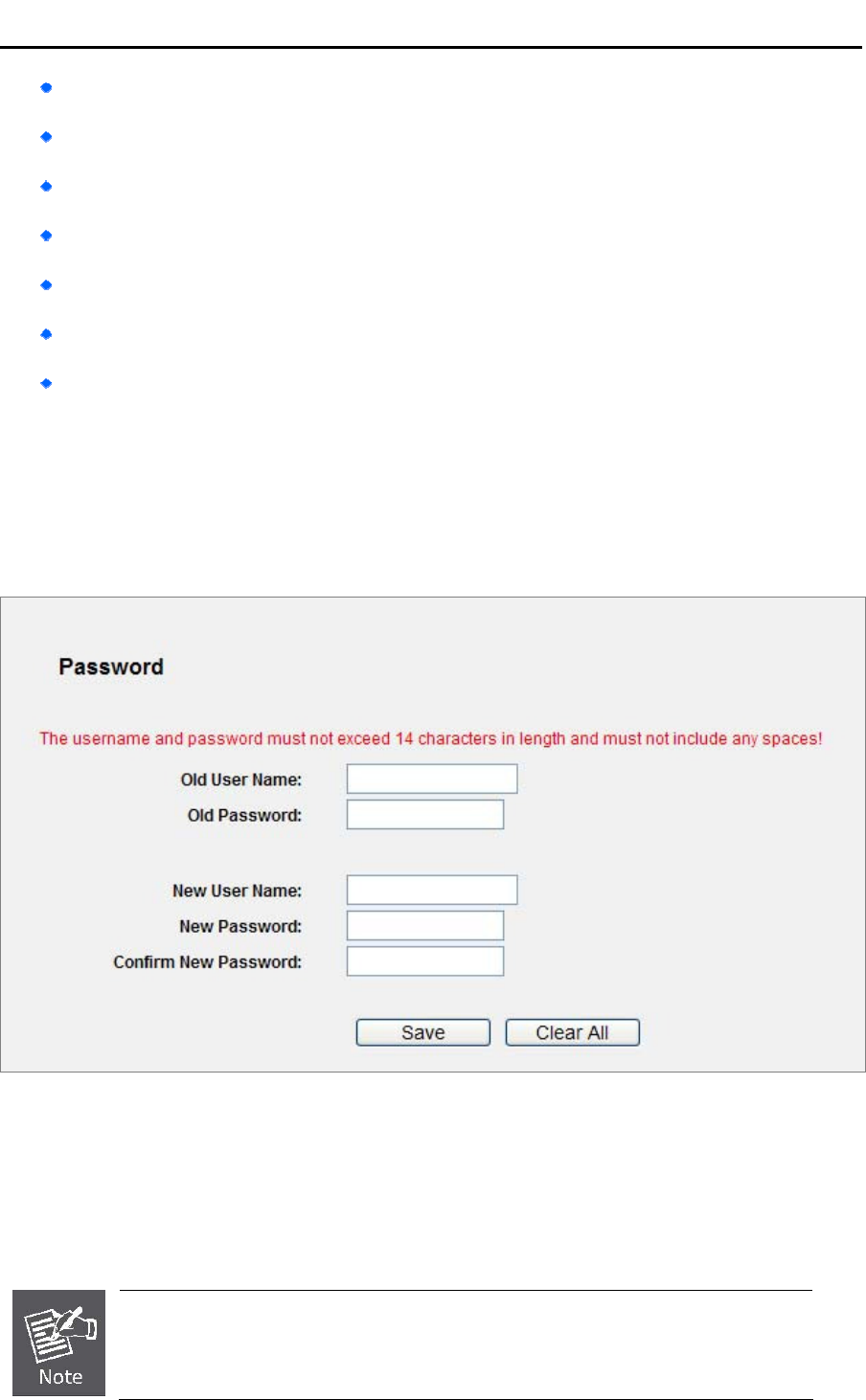

5.18.7 Password ..............................................................................................................130

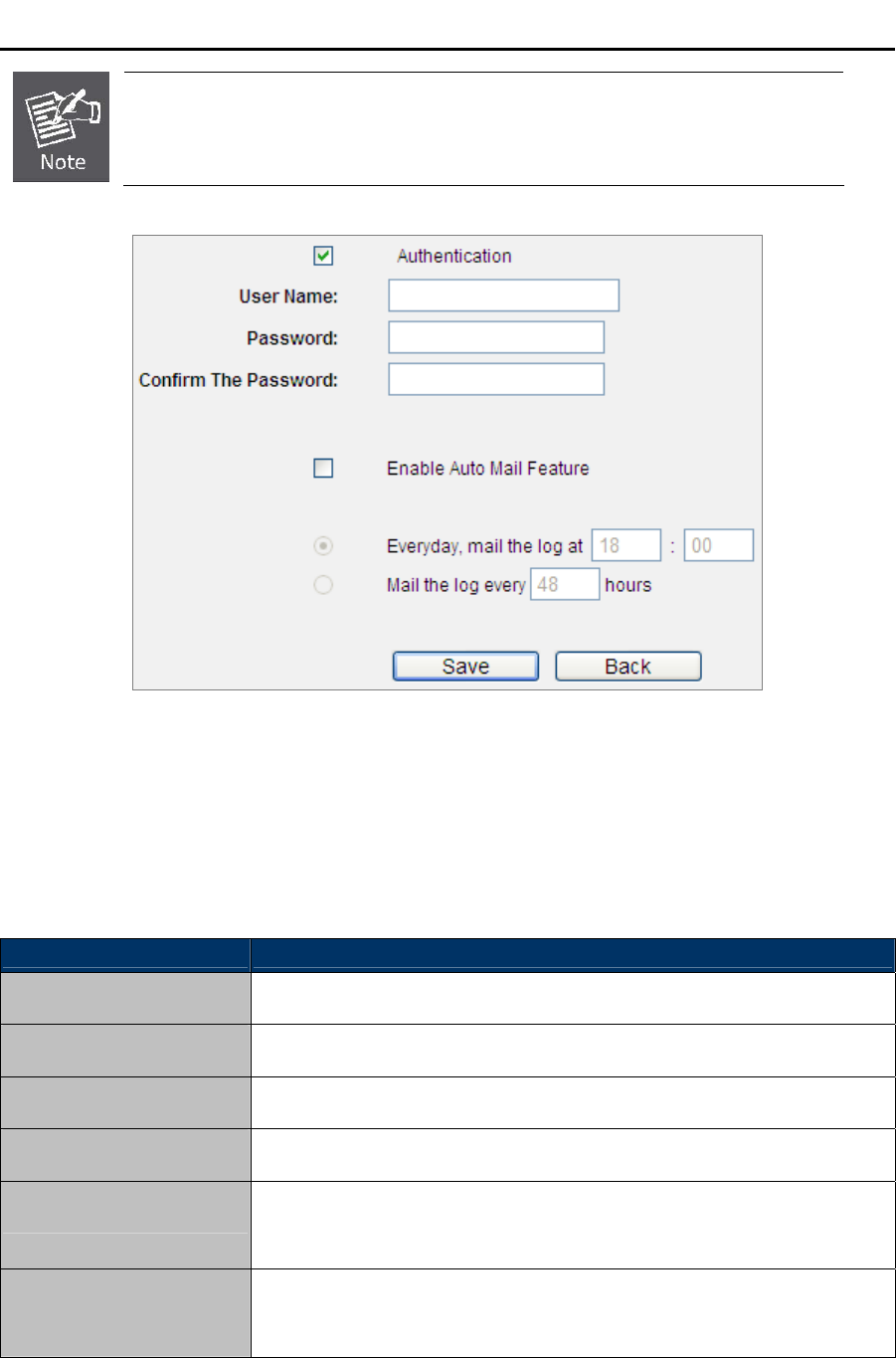

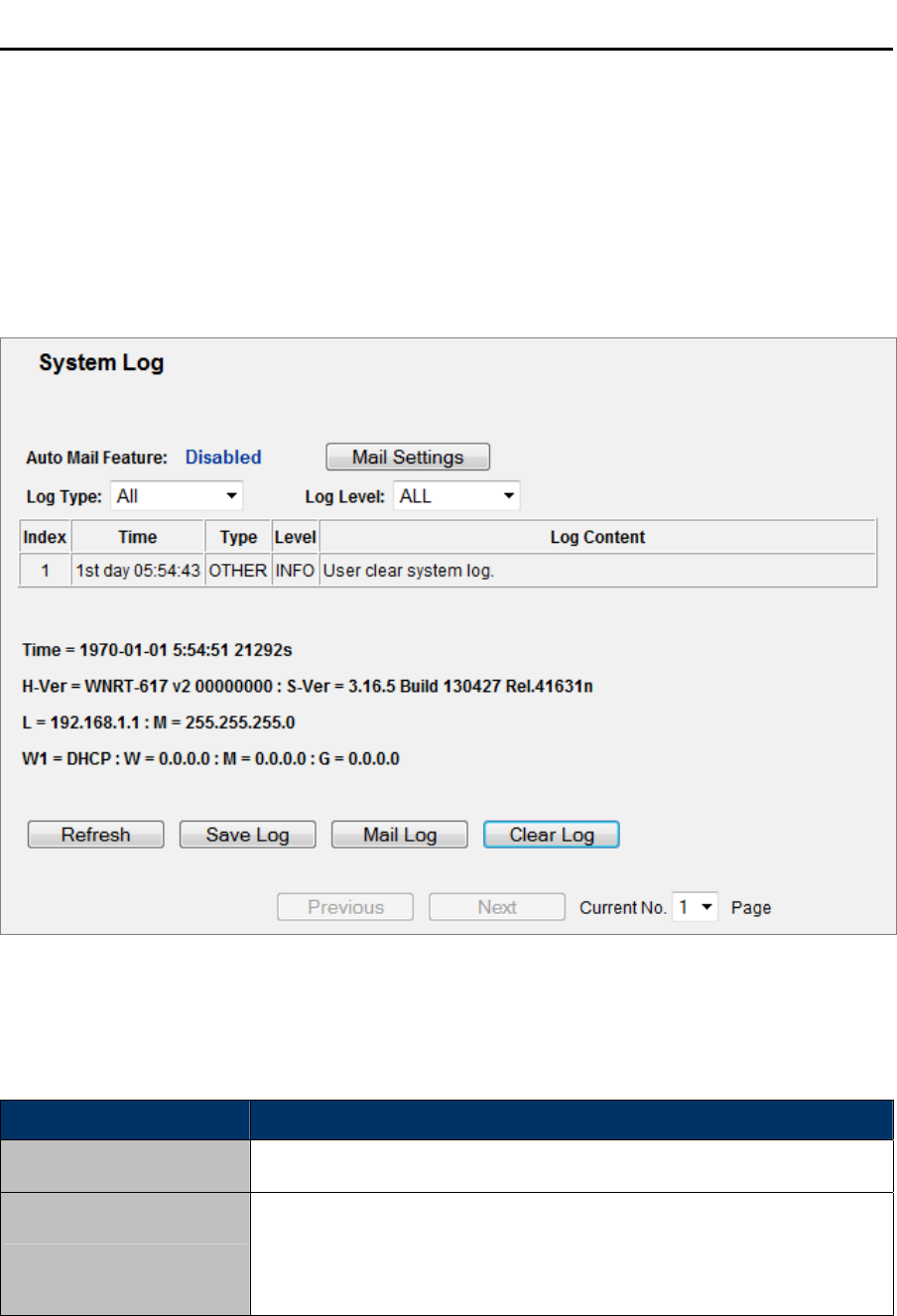

5.18.8 System Log...........................................................................................................131

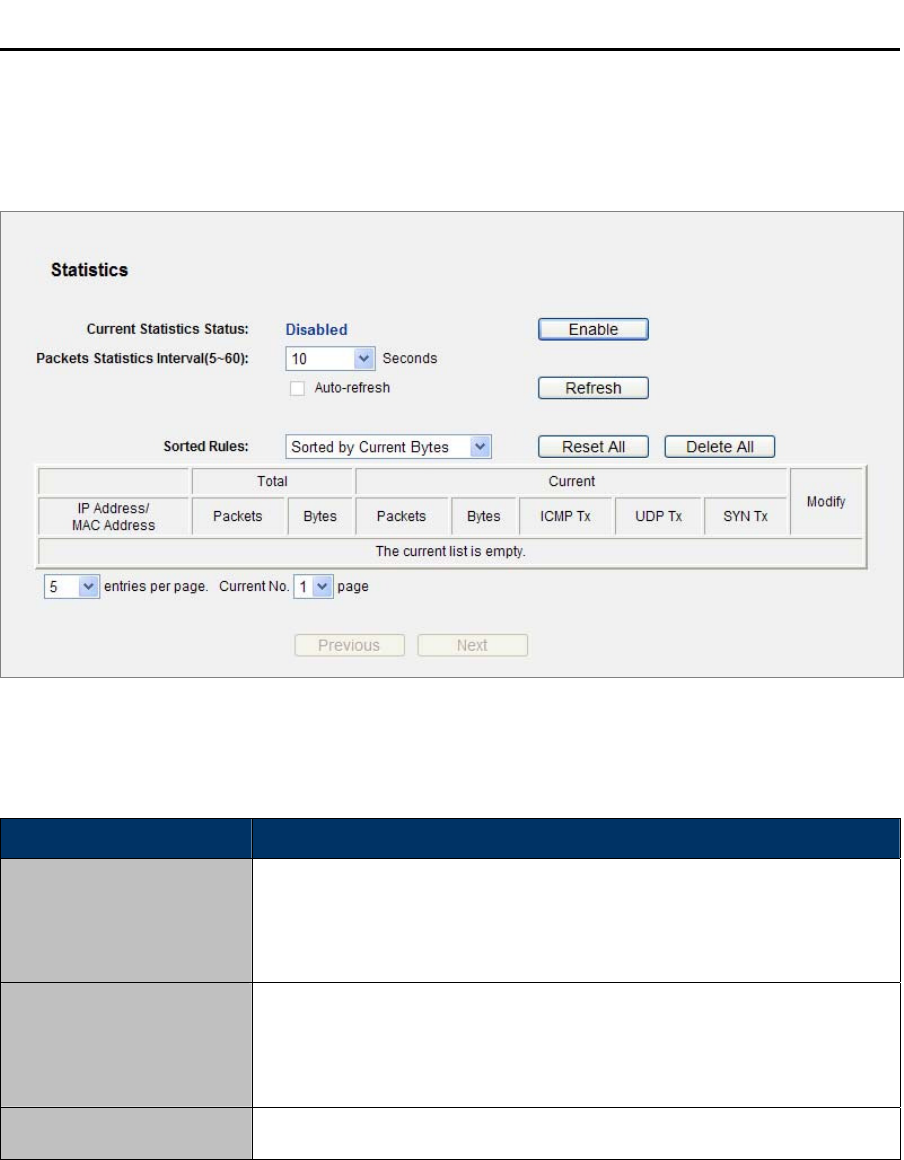

5.18.9 Statistics................................................................................................................134
Chapter 6. Quick Connection to a Wireless Network .....................................................................136

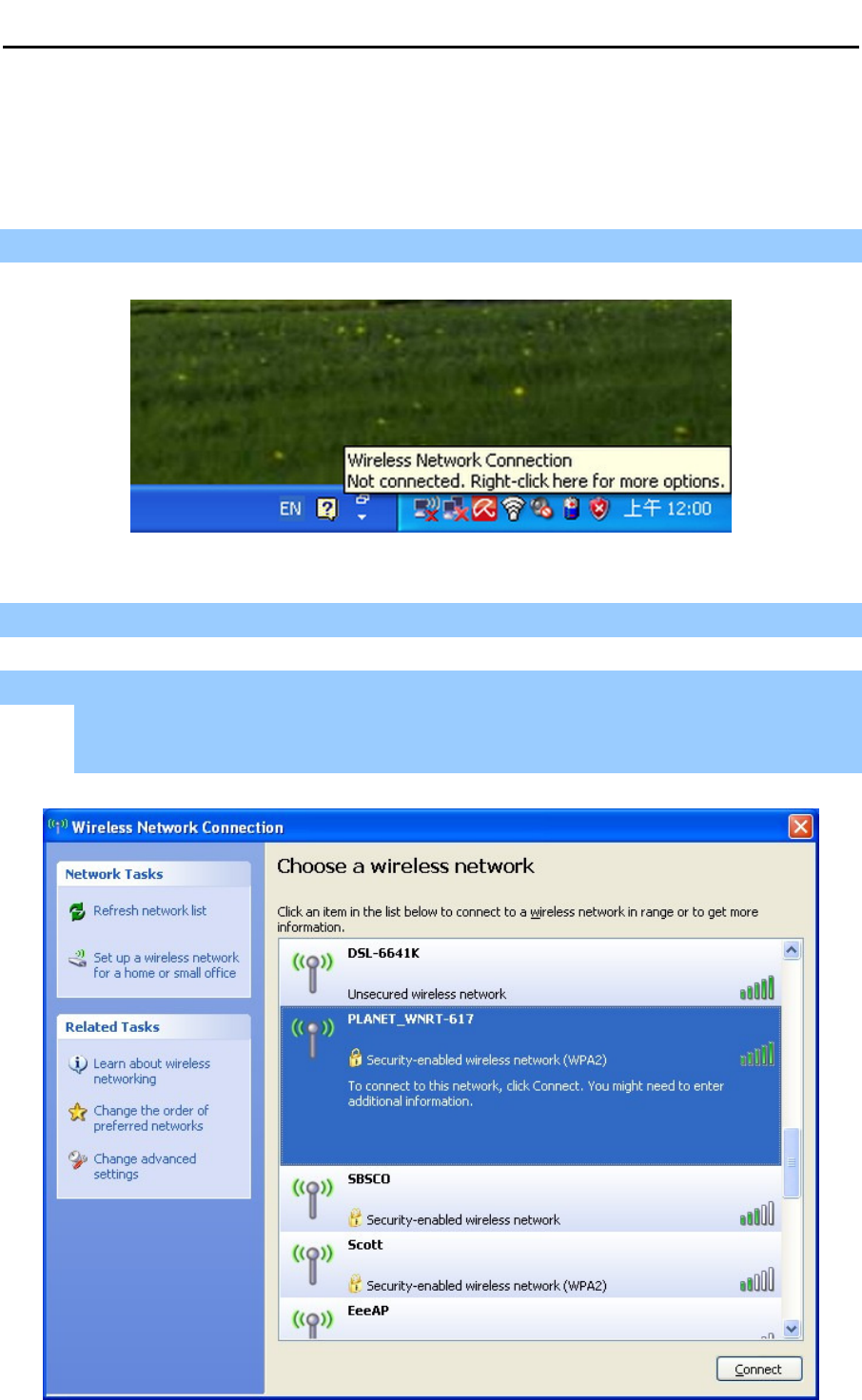

6.1 Windows XP (Wireless Zero Configuration)......................................................................136

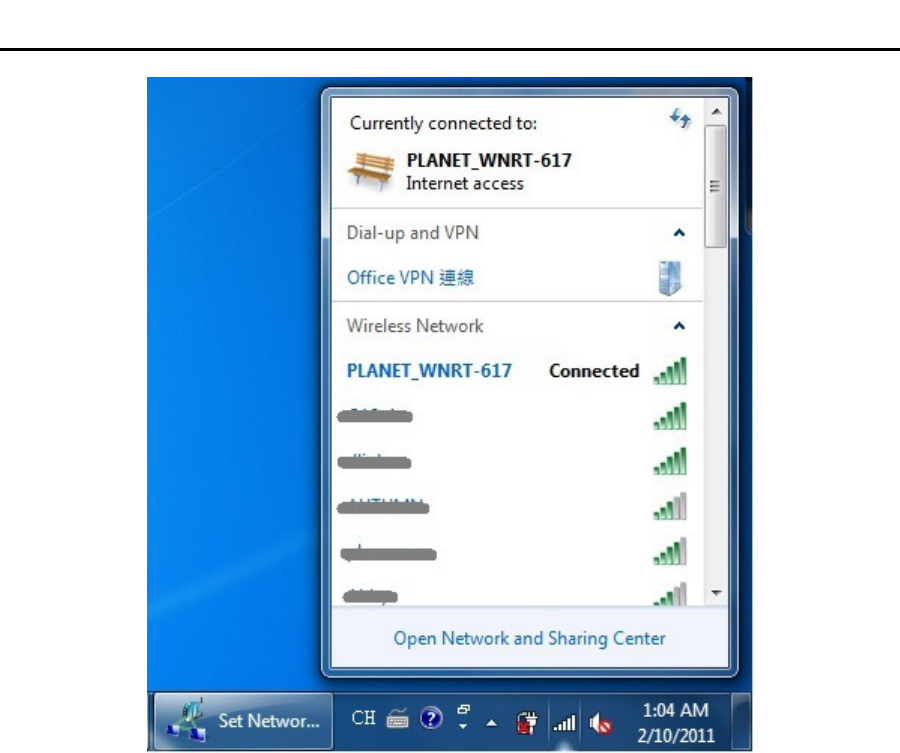

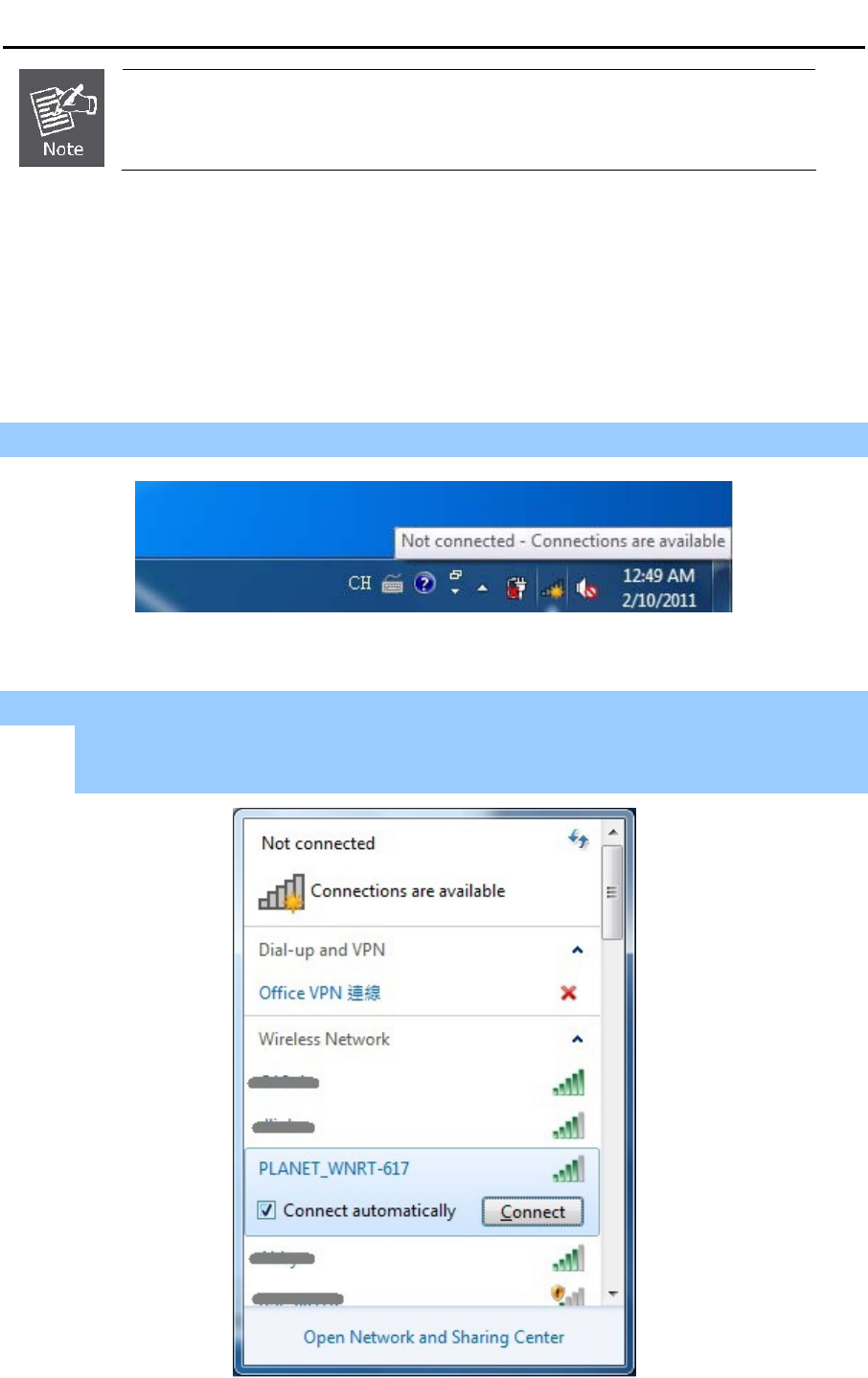

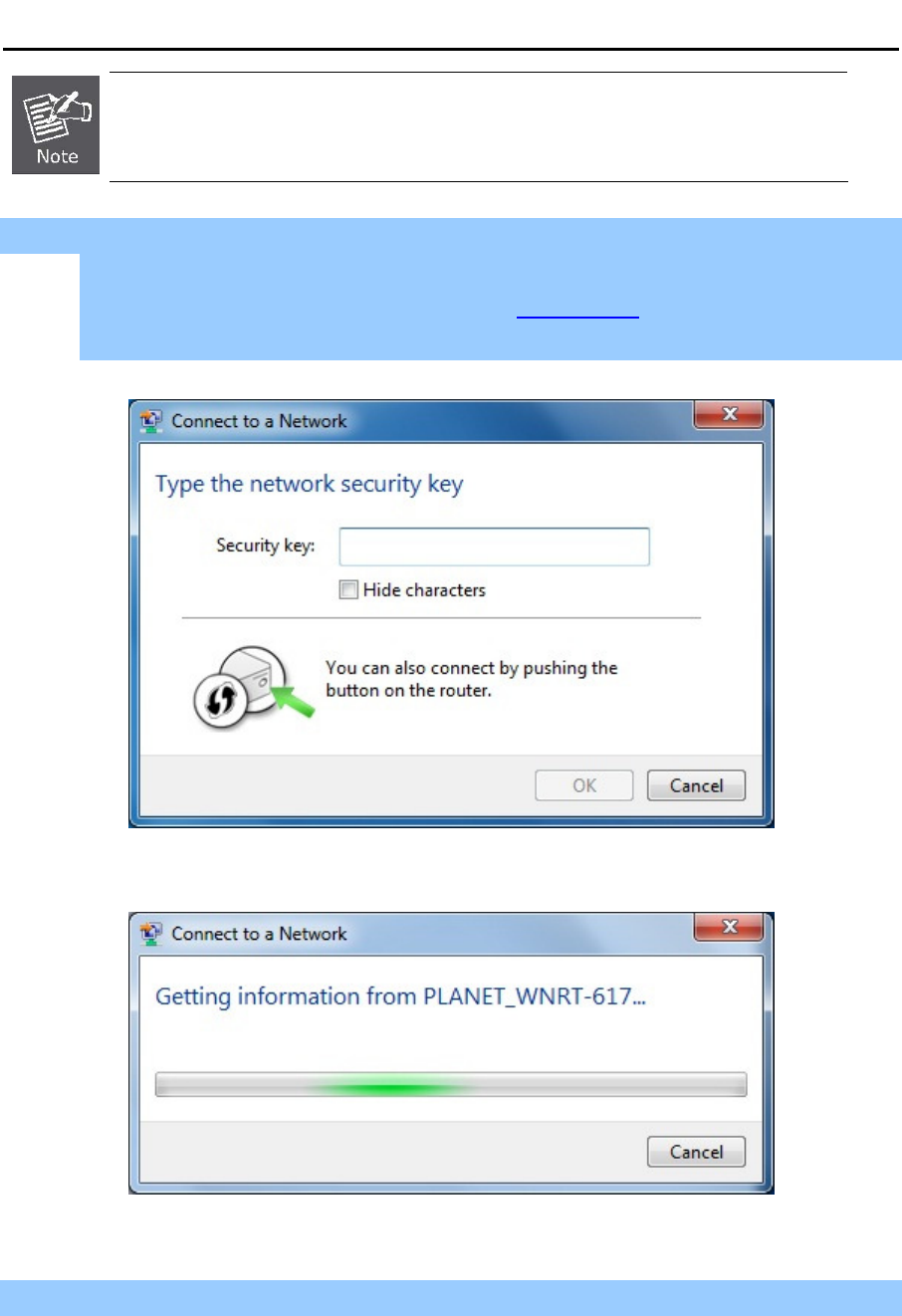

6.2 Windows 7 (WLAN AutoConfig) ........................................................................................138

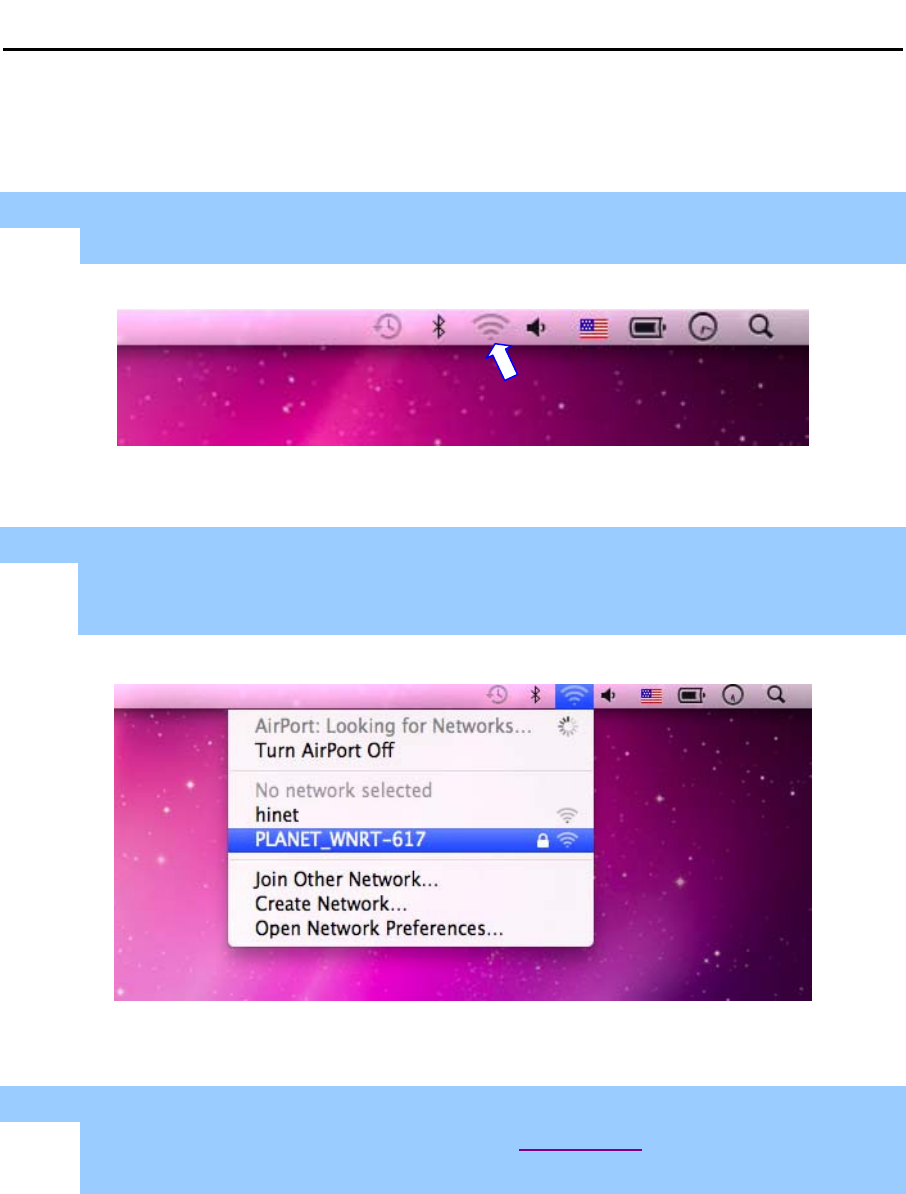

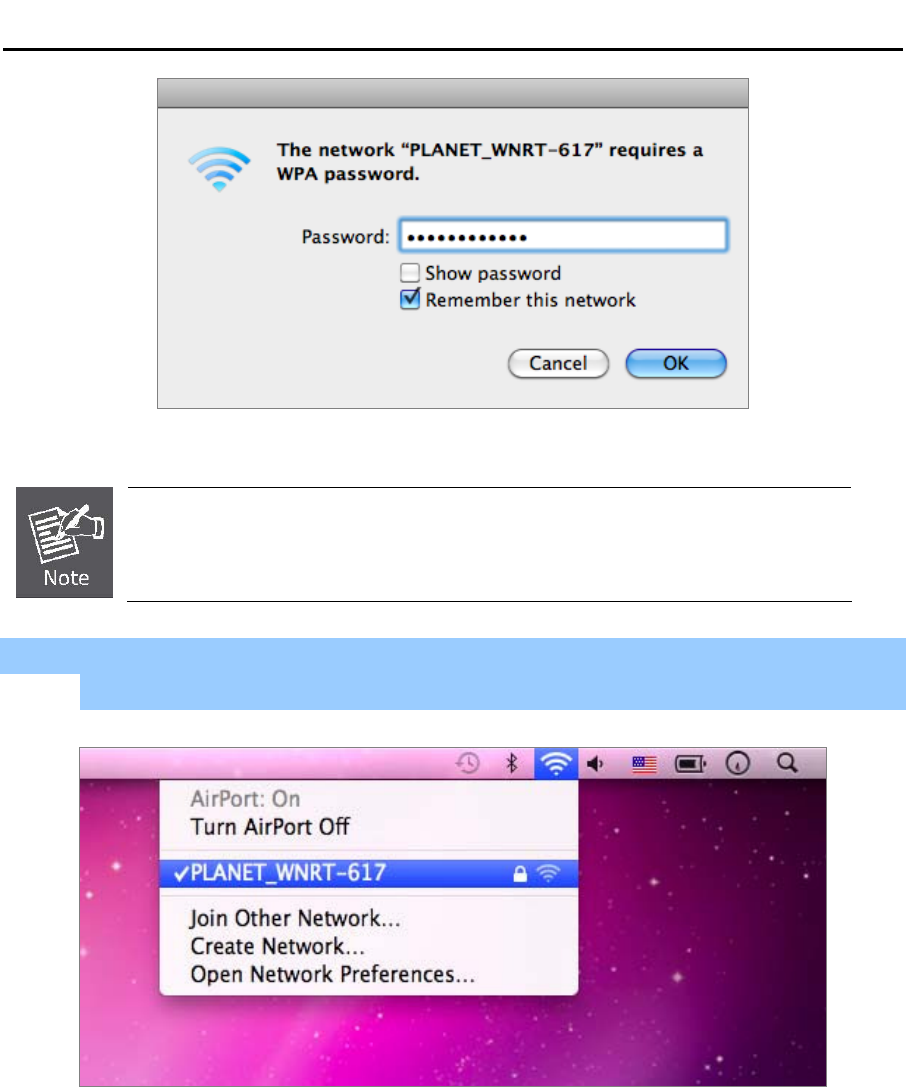

6.3 Mac OS X 10.x ..................................................................................................................141

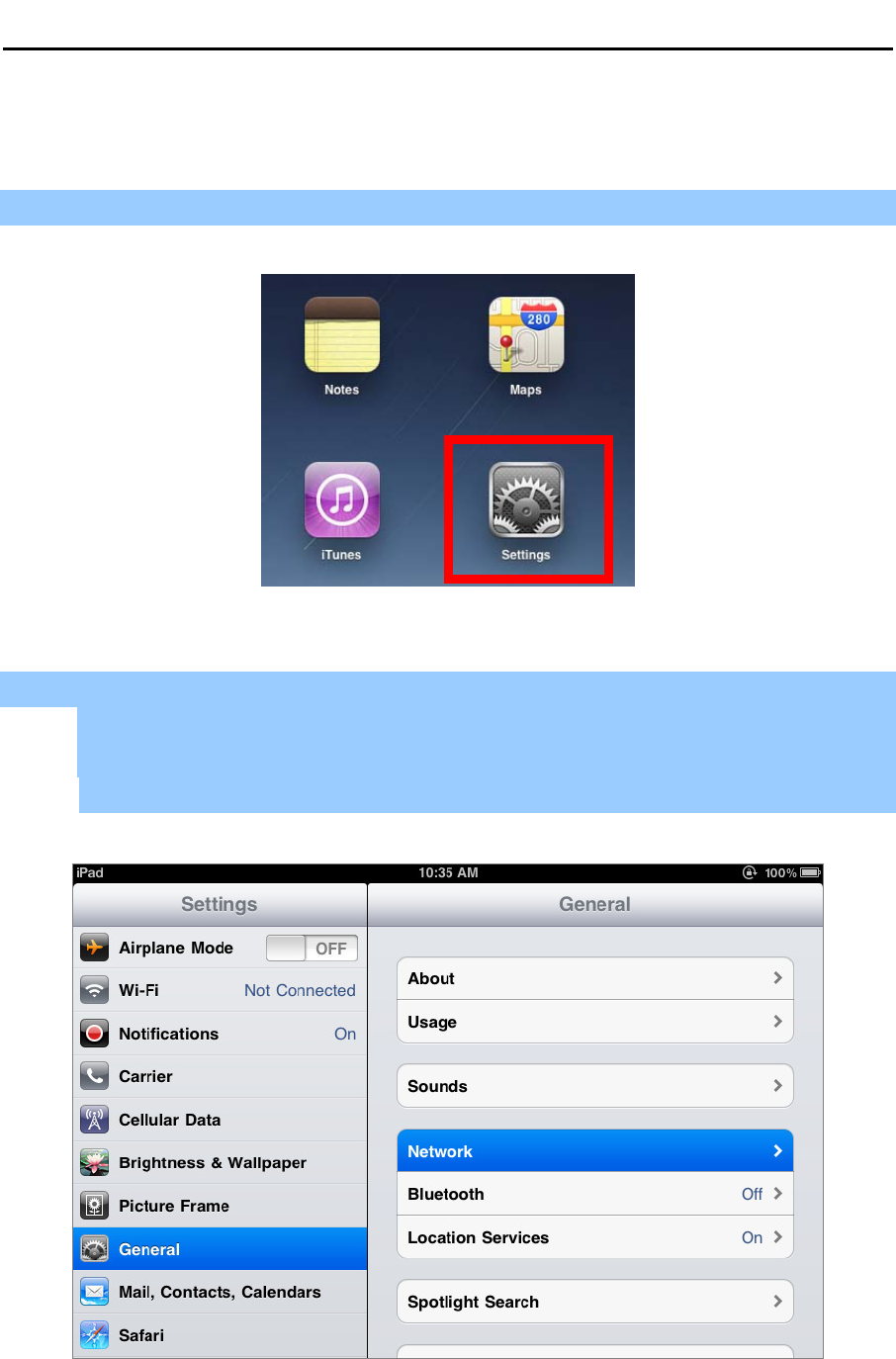

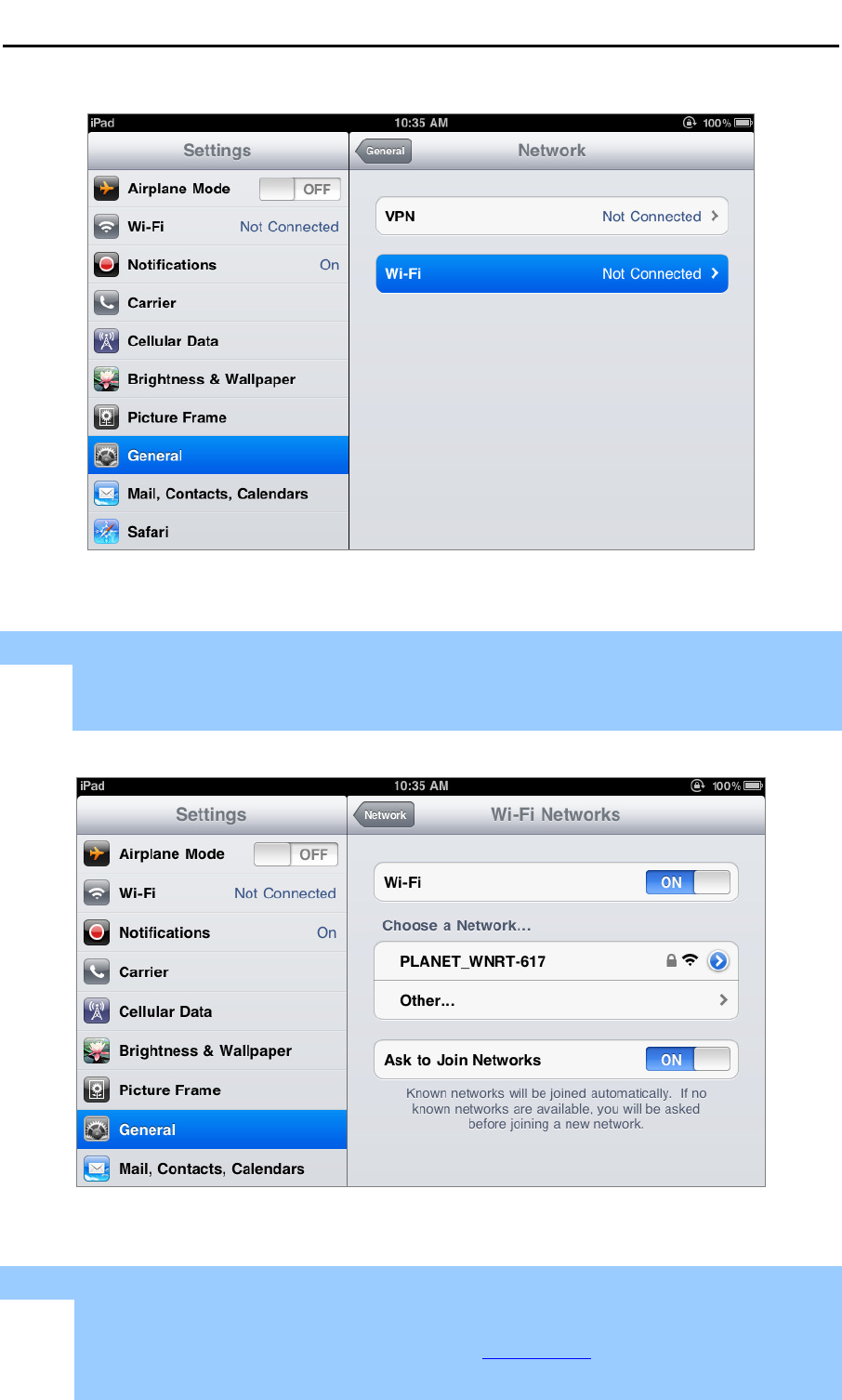

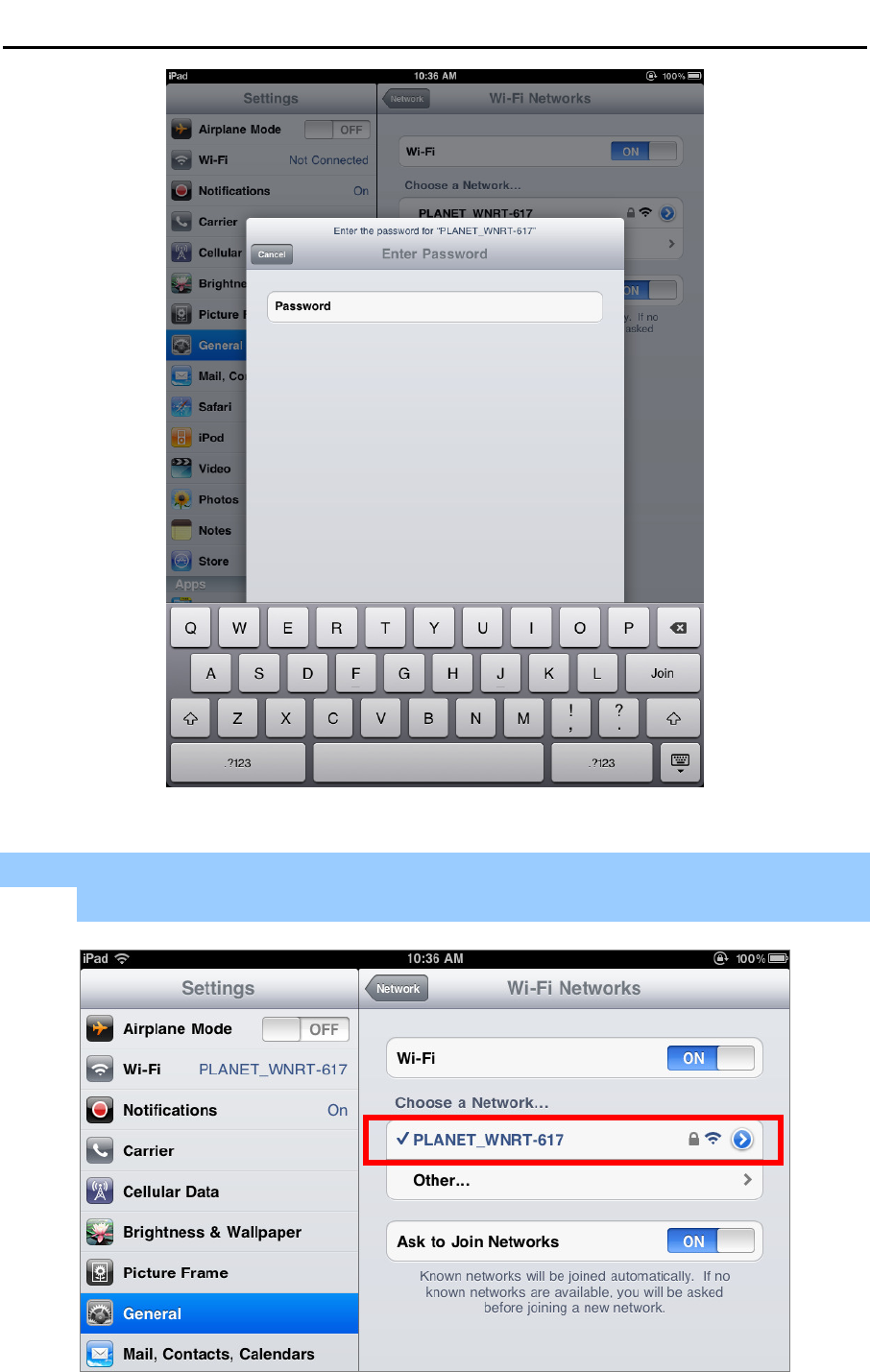

6.4 iPhone / iPod Touch / iPad................................................................................................143
Appendix A: FAQ ..................................................................................................................................146

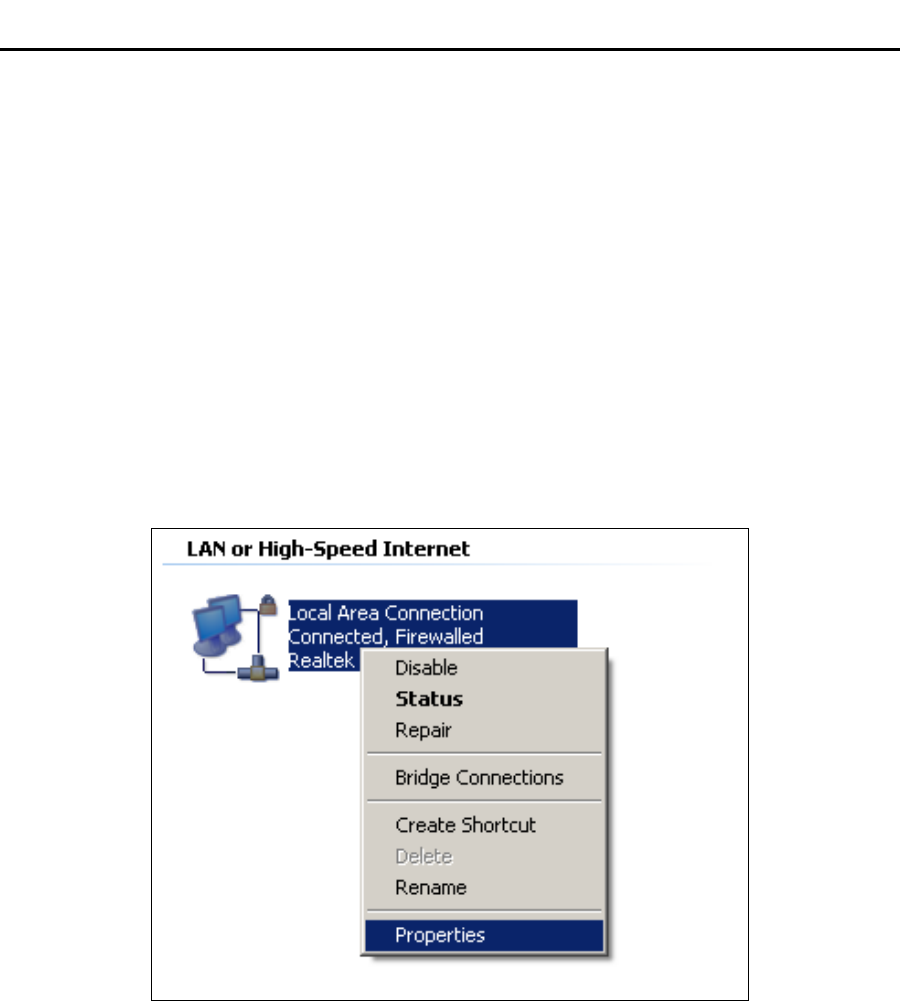

Appendix B: Configuring the PCs ......................................................................................................153
Appendix C: Specifications.................................................................................................................157
Appendix D: Glossary..........................................................................................................................160
VII
FIGURE

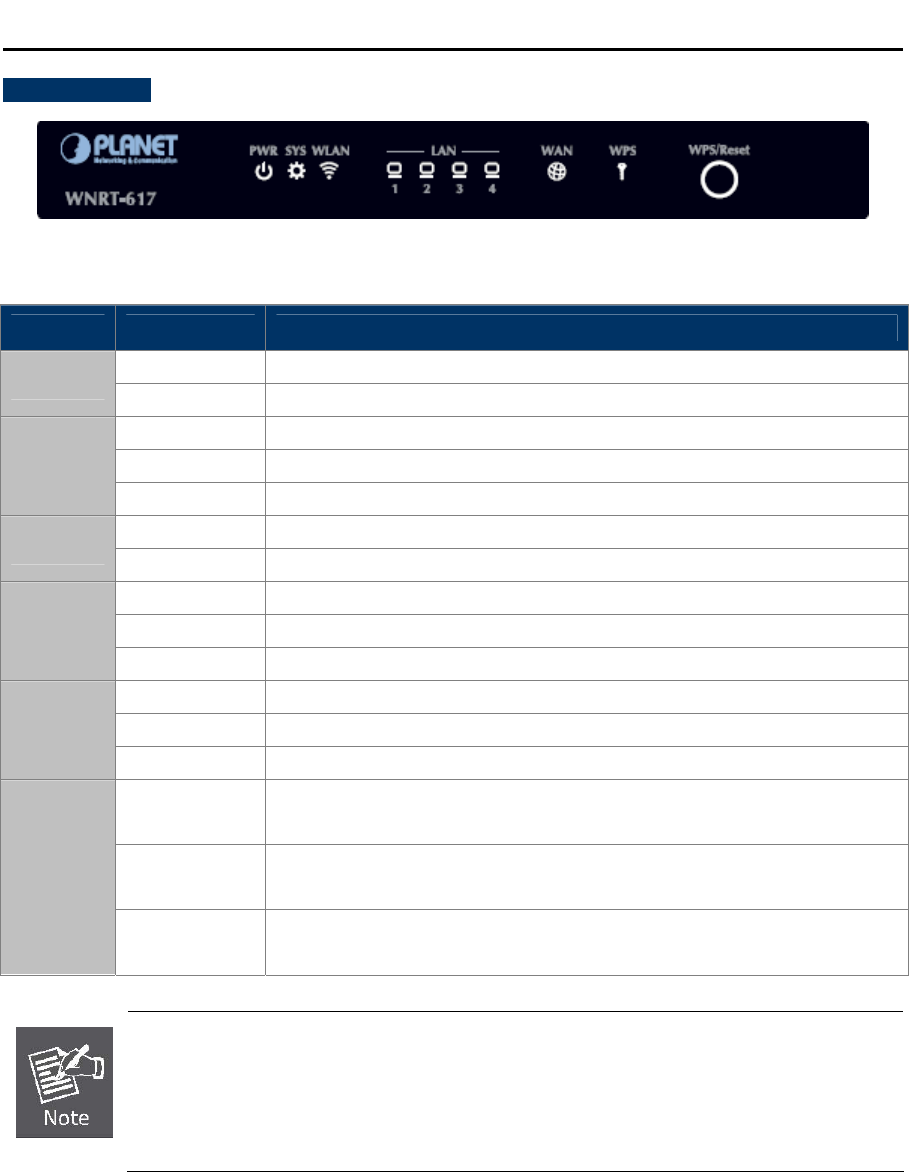

FIGURE 2-1 WNRT-617 FRONT PANEL...................................................................................................17
FIGURE 2-2 WNRT-617 FRONT PANEL...................................................................................................18

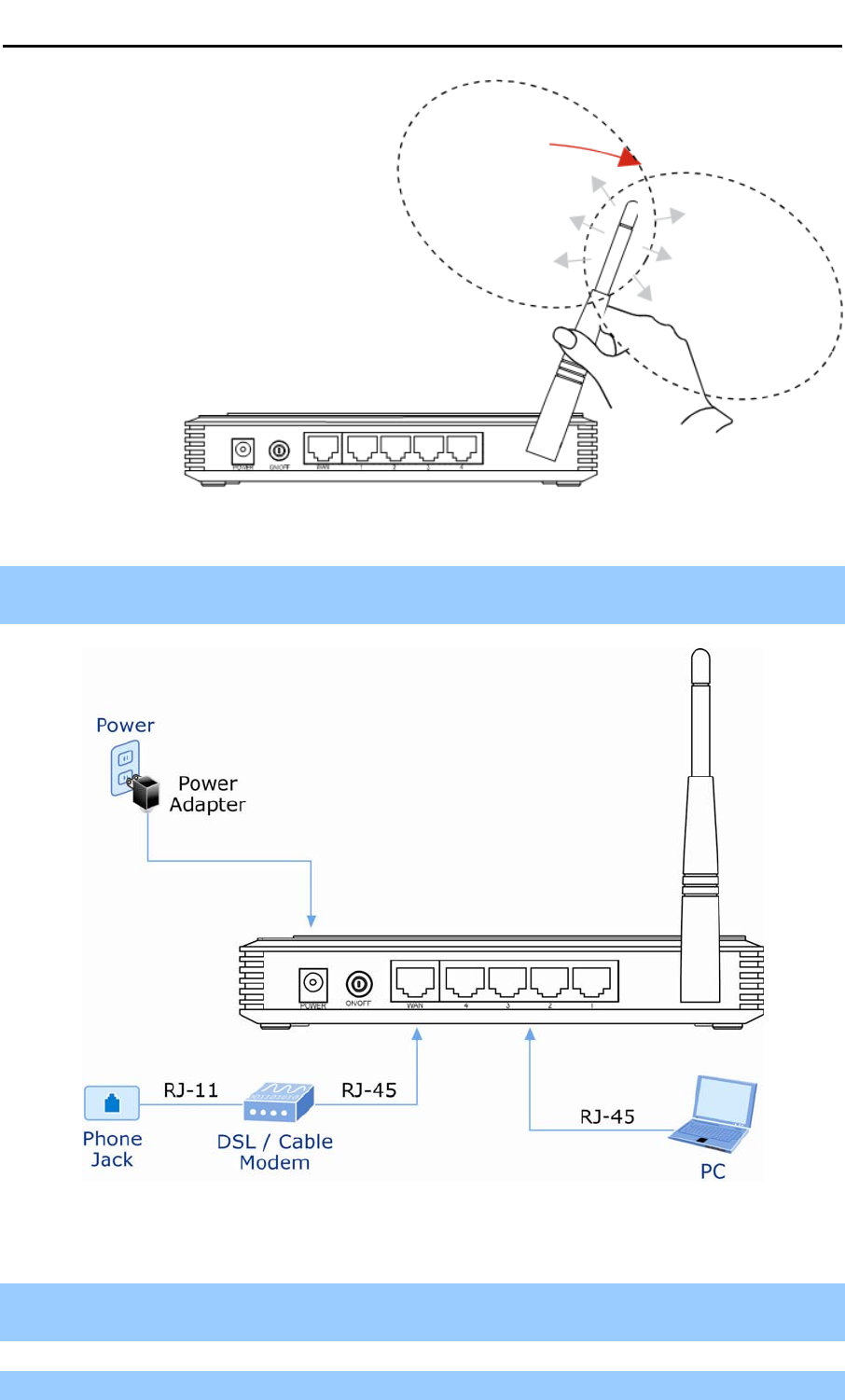

FIGURE 3-1 ADJUST THE DIRECTION OF THE ANTENNA .............................................................................21
FIGURE 3-2 HARDWARE INSTALLATION OF THE WNRT-617 WIRELESS ROUTER........................................21

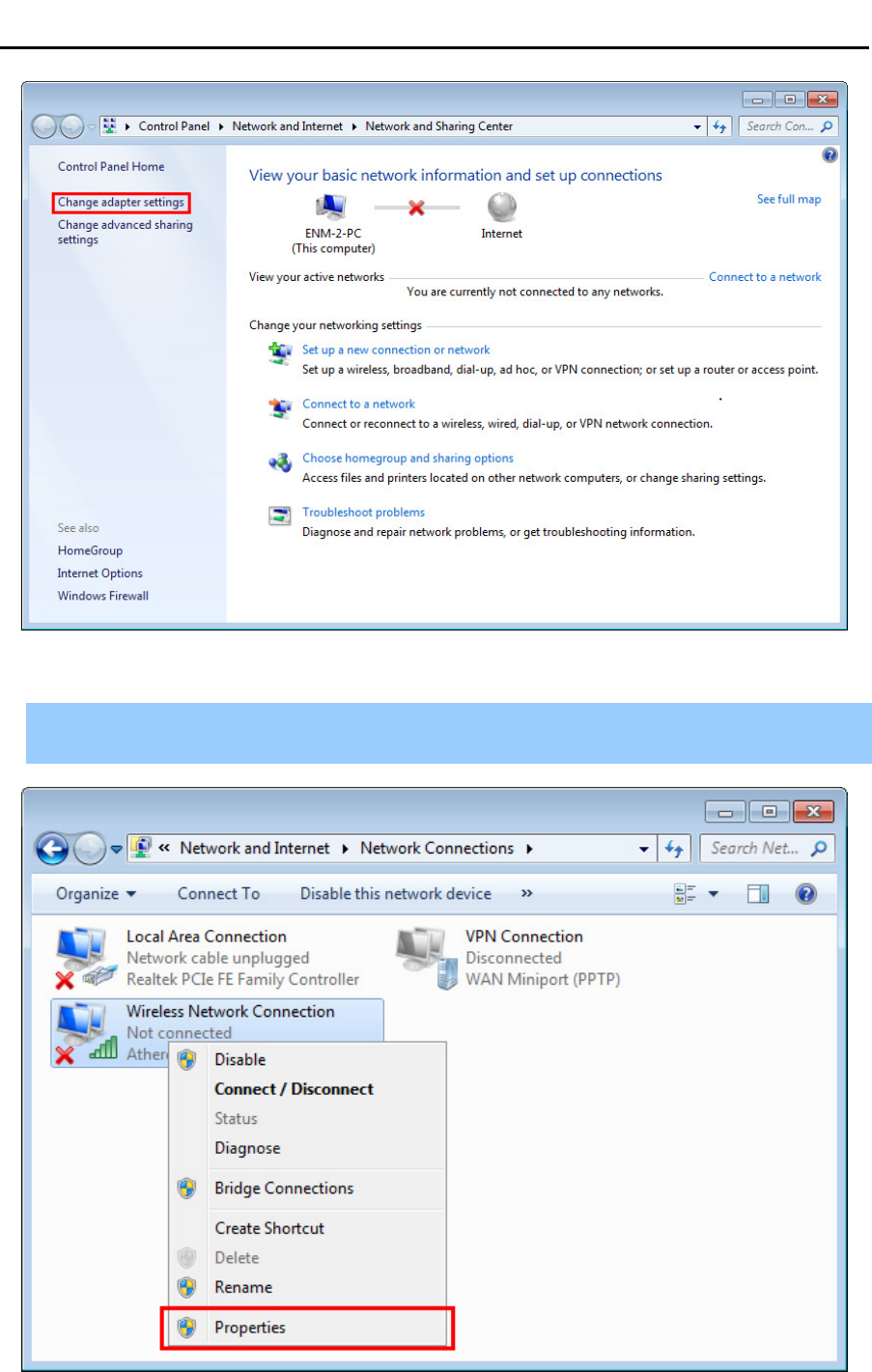

FIGURE 4-1 CHANGE ADAPTER SETTINGS................................................................................................23

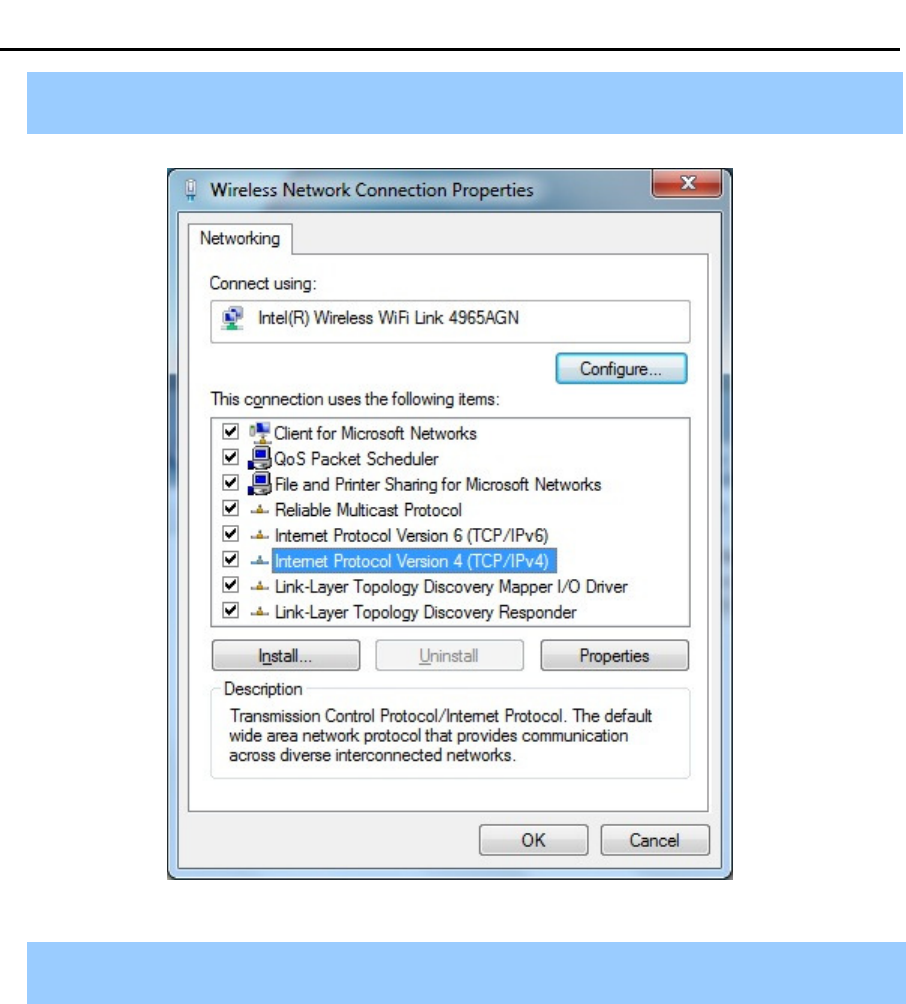

FIGURE 4-2 NETWORK CONNECTION PROPERTIES ..................................................................................23
FIGURE 4-3 TCP/IP SETTING.................................................................................................................24
FIGURE 4-4 OBTAIN AN IP ADDRESS AUTOMATICALLY ...............................................................................25
FIGURE 4-5 USE STATIC IP ADDRESS......................................................................................................26

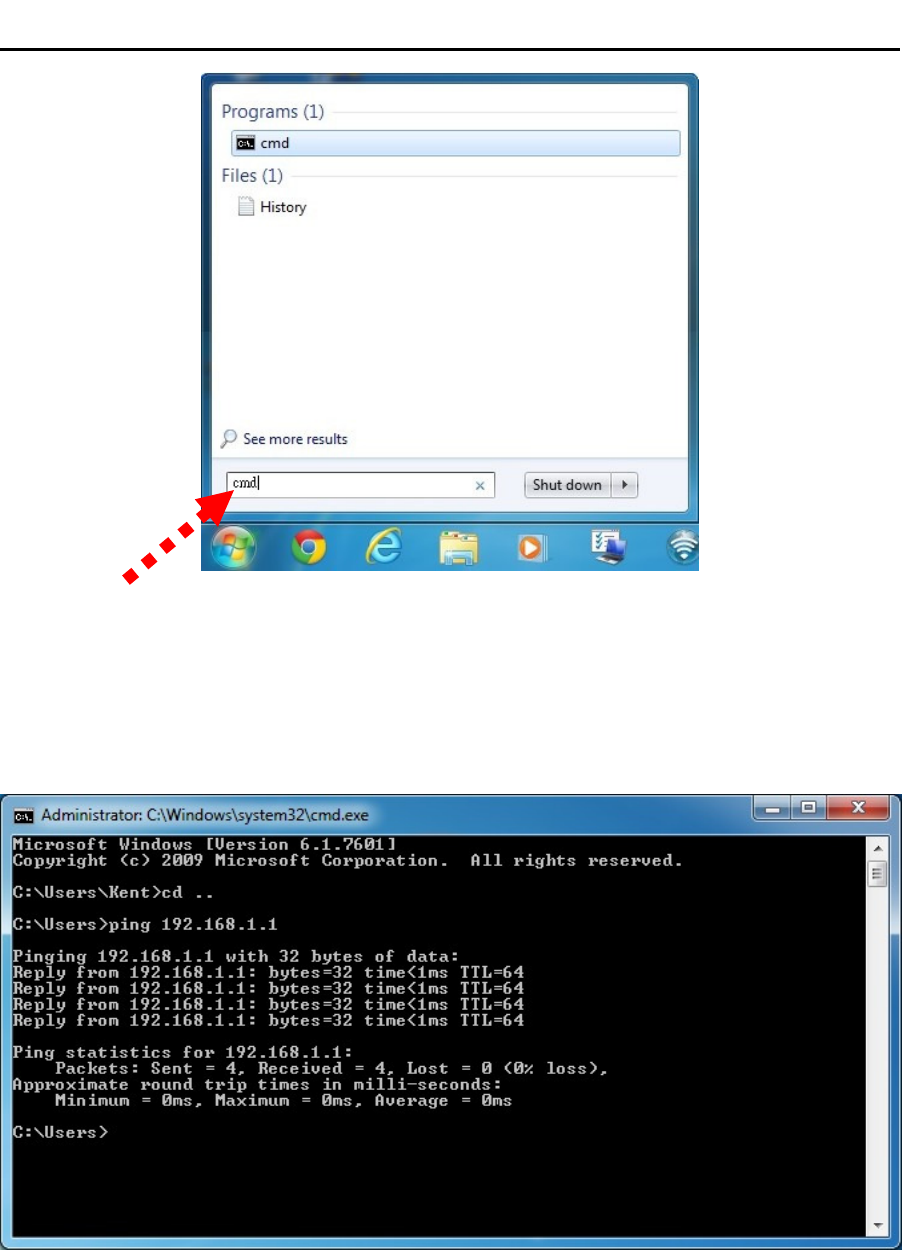

FIGURE 4-6 WINDOWS 7 - SEARCH BOX..................................................................................................27
FIGURE 4-7 SUCCESSFUL RESULT OF PING COMMAND .............................................................................27

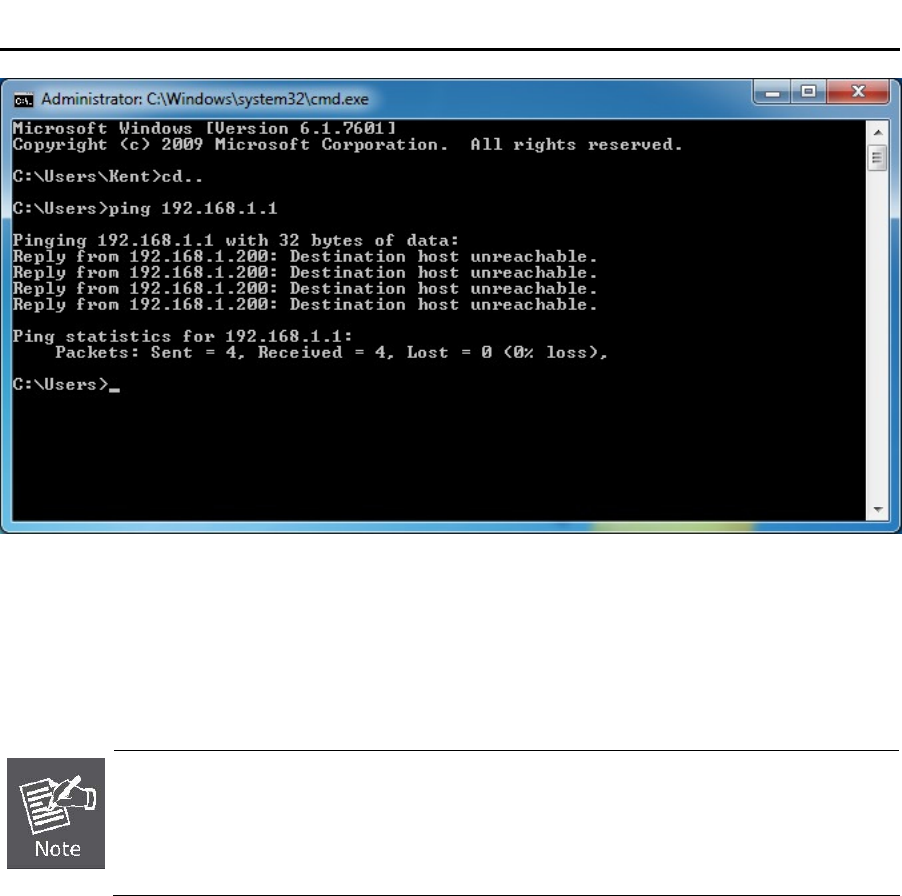

FIGURE 4-8 FAILED RESULT OF PING COMMAND ......................................................................................28
FIGURE 4-9 LOGIN THE ROUTER.............................................................................................................29
FIGURE 4-10 LOGIN WINDOW ................................................................................................................29
FIGURE 4-11 WNRT-617 WEB UI SCREENSHOT ....................................................................................30
FIGURE 4-12 QUICK SETUP ...................................................................................................................30
FIGURE 4-13 QUICK SETUP – WAN CONNECTION TYPE ..........................................................................31
FIGURE 4-14 QUICK SETUP – PPPOE....................................................................................................31
FIGURE 4-15 QUICK SETUP - STATIC IP ..................................................................................................32
FIGURE 4-16 QUICK SETUP – MAC CLONE ............................................................................................32
FIGURE 4-17 QUICK SETUP – WIRELESS ................................................................................................33
FIGURE 4-18 QUICK SETUP – FINISH (NO WIRELESS PARAMETER CHANGED) ............................................35
FIGURE 4-19 QUICK SETUP – FINISH (REBOOT IS REQUIRED) ..................................................................35
FIGURE 4-20 LAN PORT CONNECTION OF THE WNRT-617 WIRELESS ROUTER .......................................36
FIGURE 4-21 INSERT THE CD TO THE LAPTOP .........................................................................................36

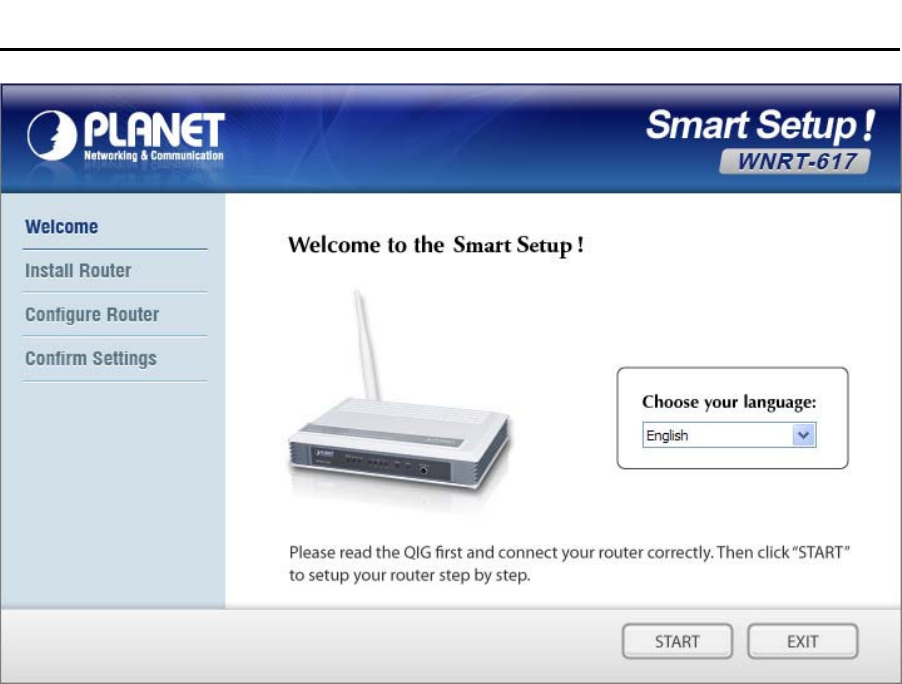

FIGURE 4-22 PLANET SMART SETUP! PROGRAM SCREENSHOT..............................................................37

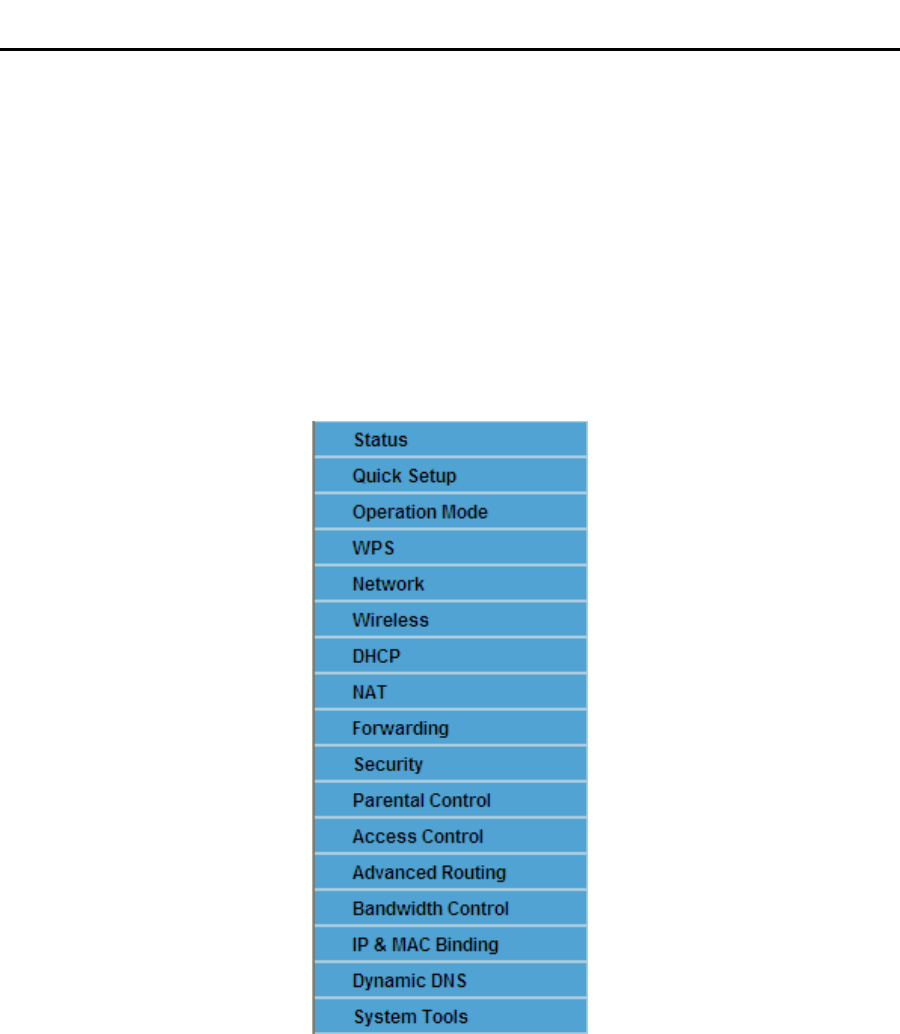

FIGURE 5-1 MAIN MENU ........................................................................................................................38
FIGURE 5-2 ROUTER STATUS .................................................................................................................39
FIGURE 5-3 OPERATION MODE...............................................................................................................40
FIGURE 5-4 WPS..................................................................................................................................42
FIGURE 5-5 HARDWARE WPS/RESET BUTTON .......................................................................................43
FIGURE 5-6 SOFTWARE WPS/RESET BUTTON ........................................................................................43
FIGURE 5-7 ADD A NEW DEVICE..............................................................................................................44
FIGURE 5-8 NEW DEVICE CONNECTED SUCCESSFULLY ............................................................................45
FIGURE 5-9 THE NETWORK MENU ..........................................................................................................46
FIGURE 5-10 WAN - DYNAMIC IP...........................................................................................................47
FIGURE 5-11 WAN - STATIC IP...............................................................................................................48
FIGURE 5-12 WAN – PPPOE ................................................................................................................49
VIII

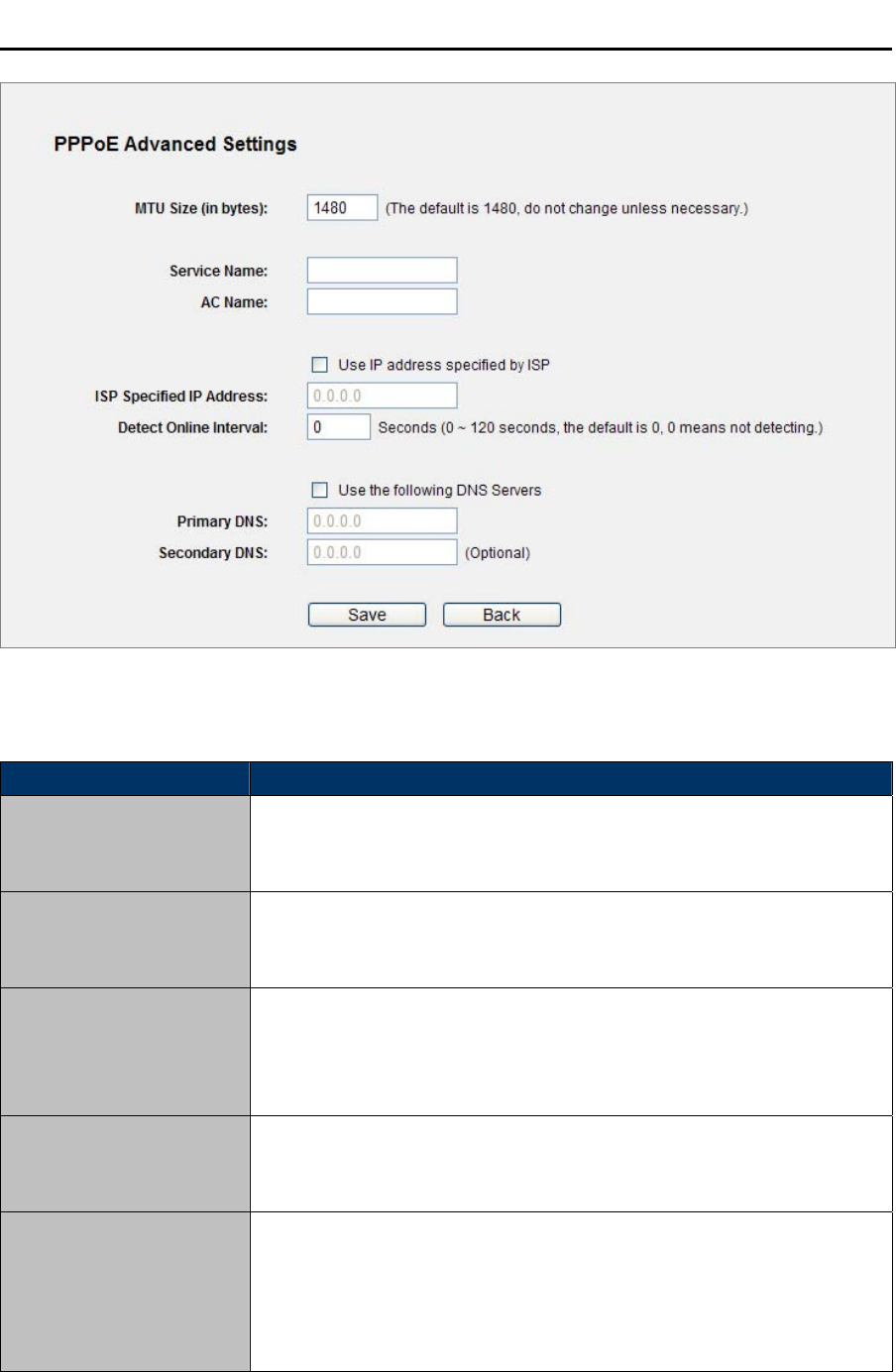

FIGURE 5-13 PPPOE ADVANCED SETTINGS ...........................................................................................51
FIGURE 5-14 WAN – BIGPOND CABLE ...................................................................................................52
FIGURE 5-15 WAN - L2TP SETTINGS.....................................................................................................54
FIGURE 5-16 WAN - PPTP SETTINGS....................................................................................................56
FIGURE 5-17 LAN SETTINGS .................................................................................................................58

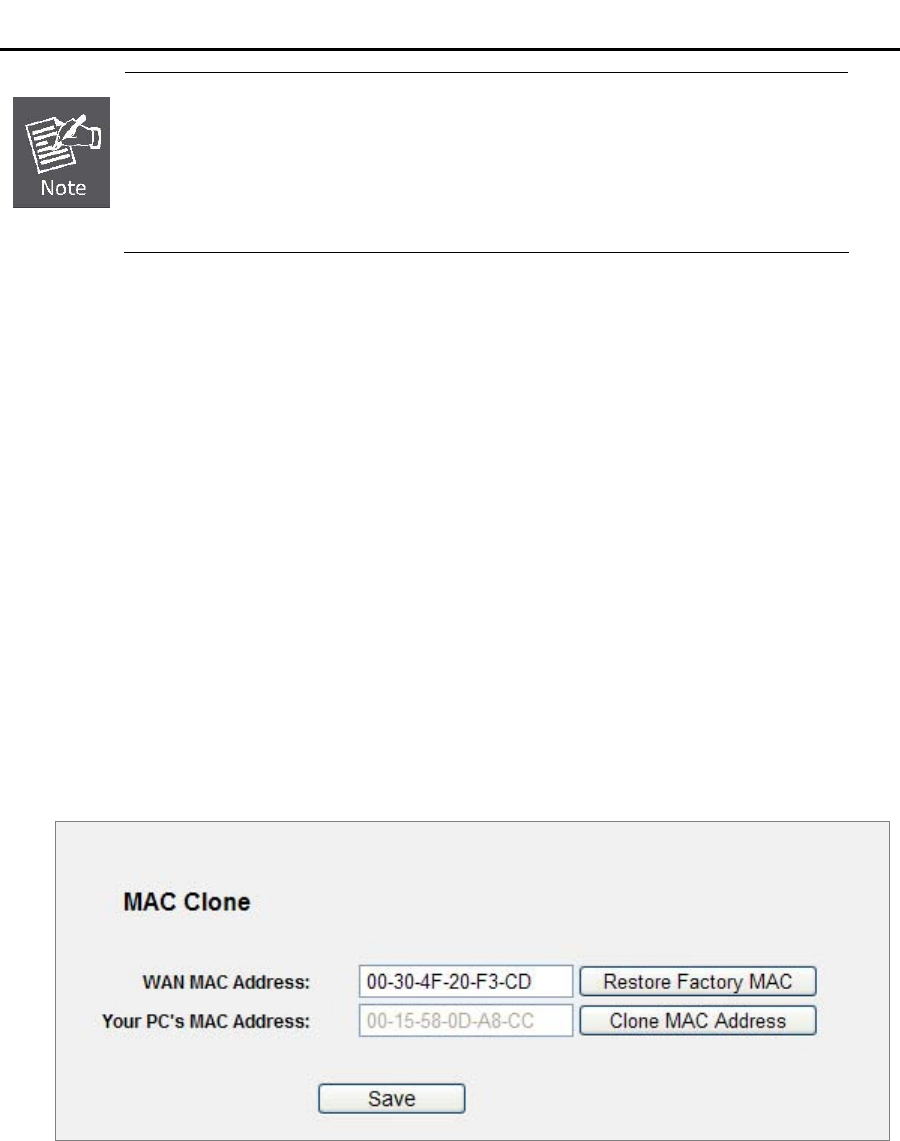

FIGURE 5-18 MAC ADDRESS CLONE......................................................................................................59
FIGURE 5-19 WIRELESS MENU ...............................................................................................................60
FIGURE 5-20 WIRELESS SETTINGS.........................................................................................................60

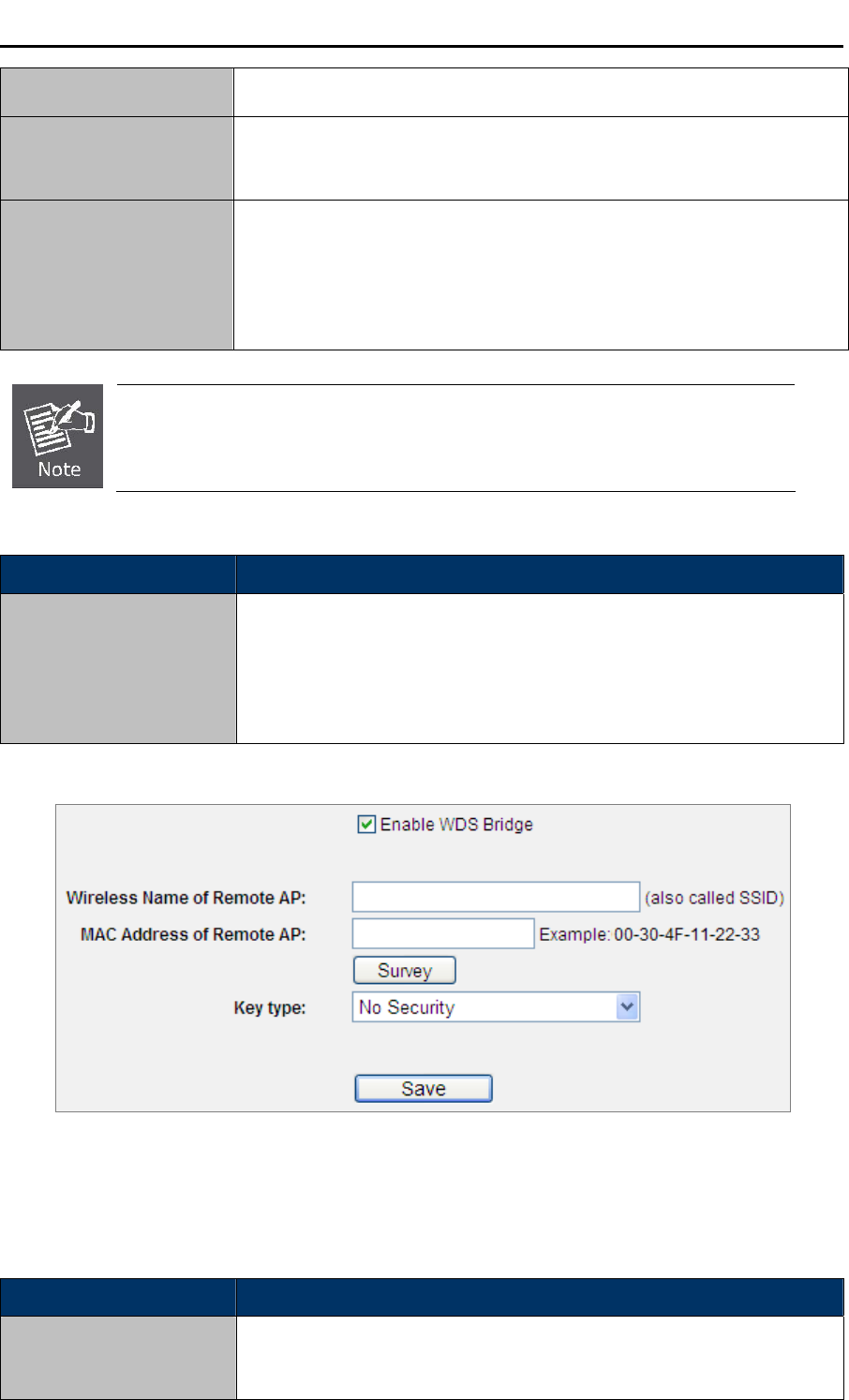

FIGURE 5-21 WDS SETTINGS ................................................................................................................62
FIGURE 5-22 WIRELESS SECURITY - NONE.............................................................................................64
FIGURE 5-23 WIRELESS SECURITY - WEP .............................................................................................64
FIGURE 5-24 WIRELESS SECURITY - WPA/WPA2 ENTERPRISE ...............................................................66
FIGURE 5-25 WIRELESS SECURITY - WPA/WPA2 PERSONAL..................................................................67
FIGURE 5-26 WIRELESS MAC ADDRESS FILTERING ................................................................................68

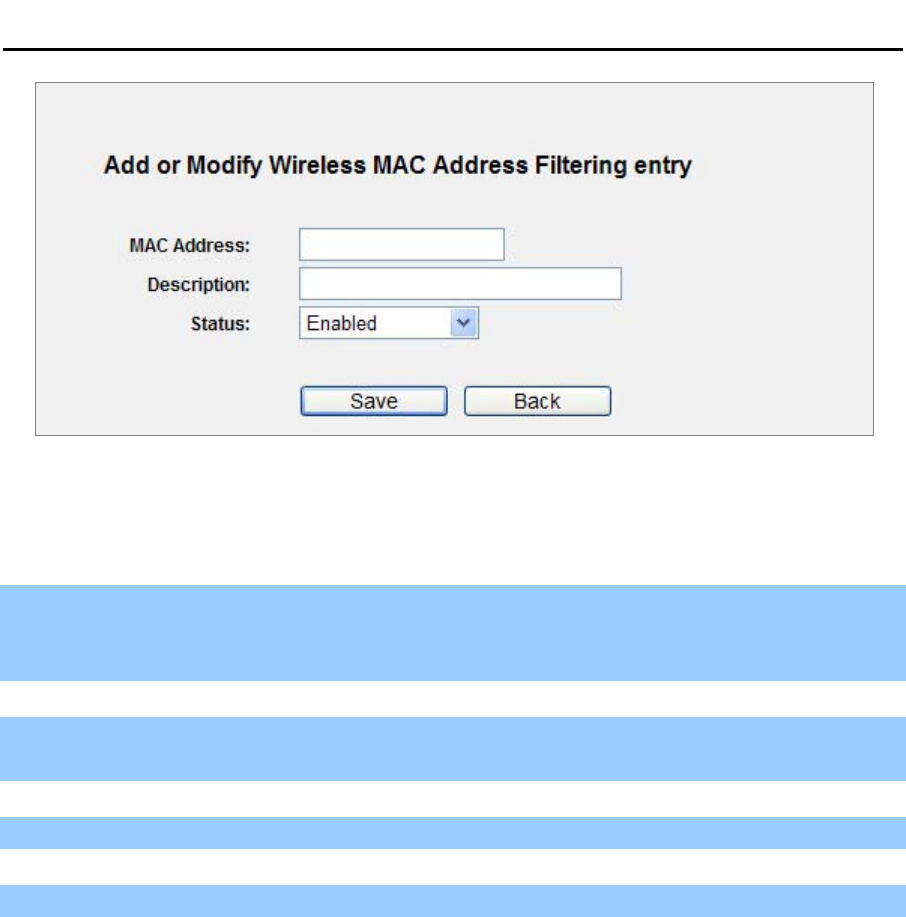

FIGURE 5-27 ADD OR MODIFY WIRELESS MAC ADDRESS FILTERING ENTRY ............................................69

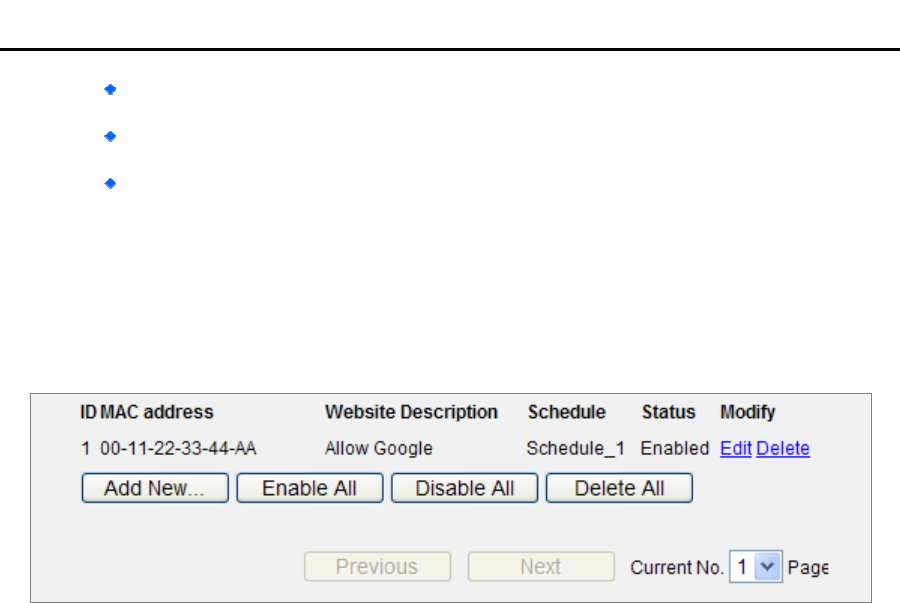

FIGURE 5-28 WIRELESS MAC ADDRESS FILTERING ................................................................................70
FIGURE 5-29 WIRELESS ADVANCED .......................................................................................................71
FIGURE 5-30 THE ROUTER ATTACHED WIRELESS STATIONS......................................................................73
FIGURE 5-31 THE DHCP MENU..............................................................................................................74
FIGURE 5-32 DHCP SETTINGS ..............................................................................................................74
FIGURE 5-33 DHCP CLIENTS LIST .........................................................................................................76
FIGURE 5-34 ADDRESS RESERVATION ....................................................................................................77
FIGURE 5-35 ADD OR MODIFY AN ADDRESS RESERVATION ENTRY ...........................................................77
FIGURE 5-36 NAT FUNCTION .................................................................................................................78
FIGURE 5-37 THE FORWARDING MENU ...................................................................................................79
FIGURE 5-38 VIRTUAL SERVERS ............................................................................................................79
FIGURE 5-39 ADD OR MODIFY A VIRTUAL SERVER ENTRY........................................................................80

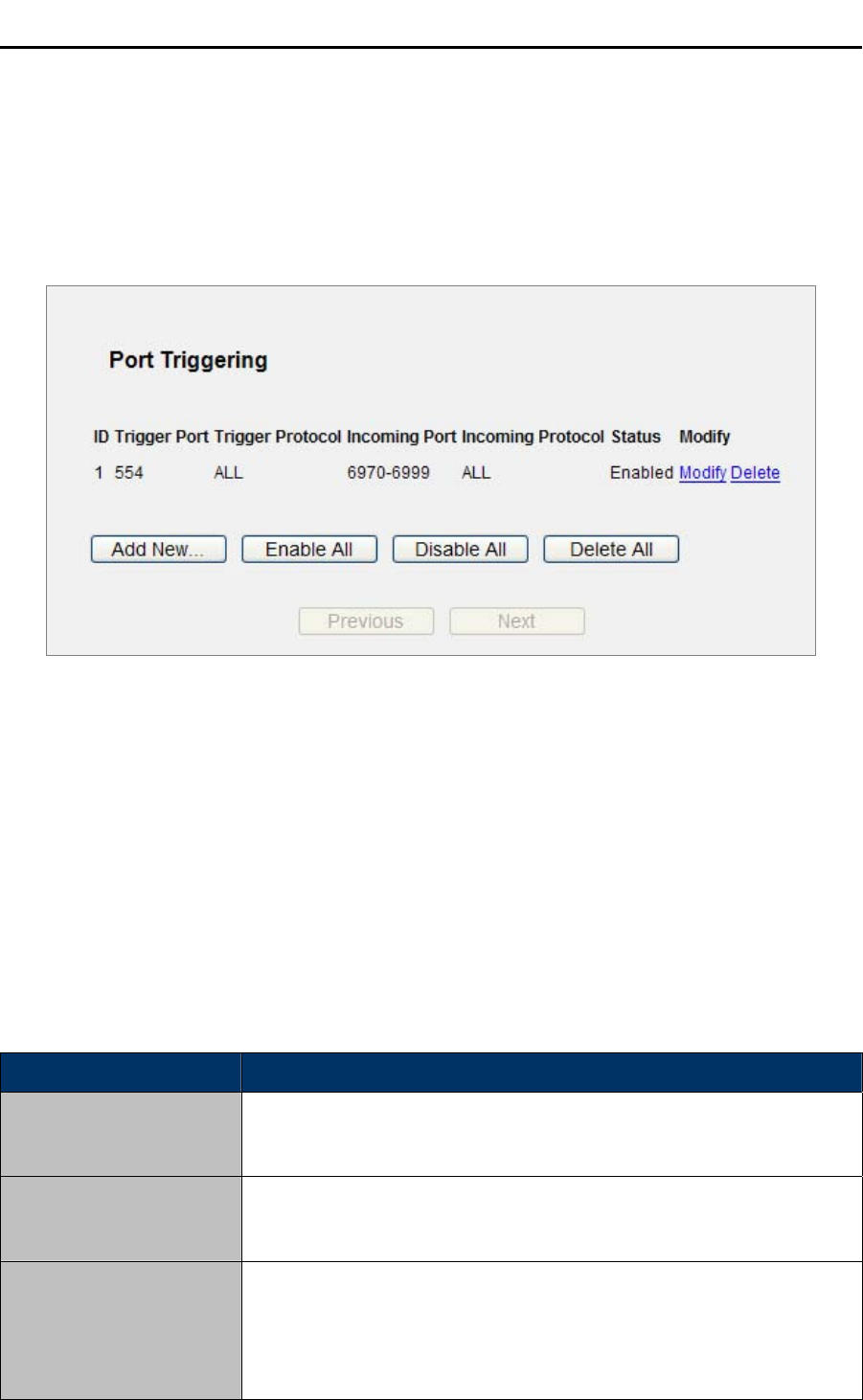

FIGURE 5-40 PORT TRIGGERING ............................................................................................................82
FIGURE 5-41 ADD OR MODIFY A TRIGGERING ENTRY...............................................................................83
FIGURE 5-42 DMZ ................................................................................................................................84
FIGURE 5-43 UPNP SETTING.................................................................................................................85

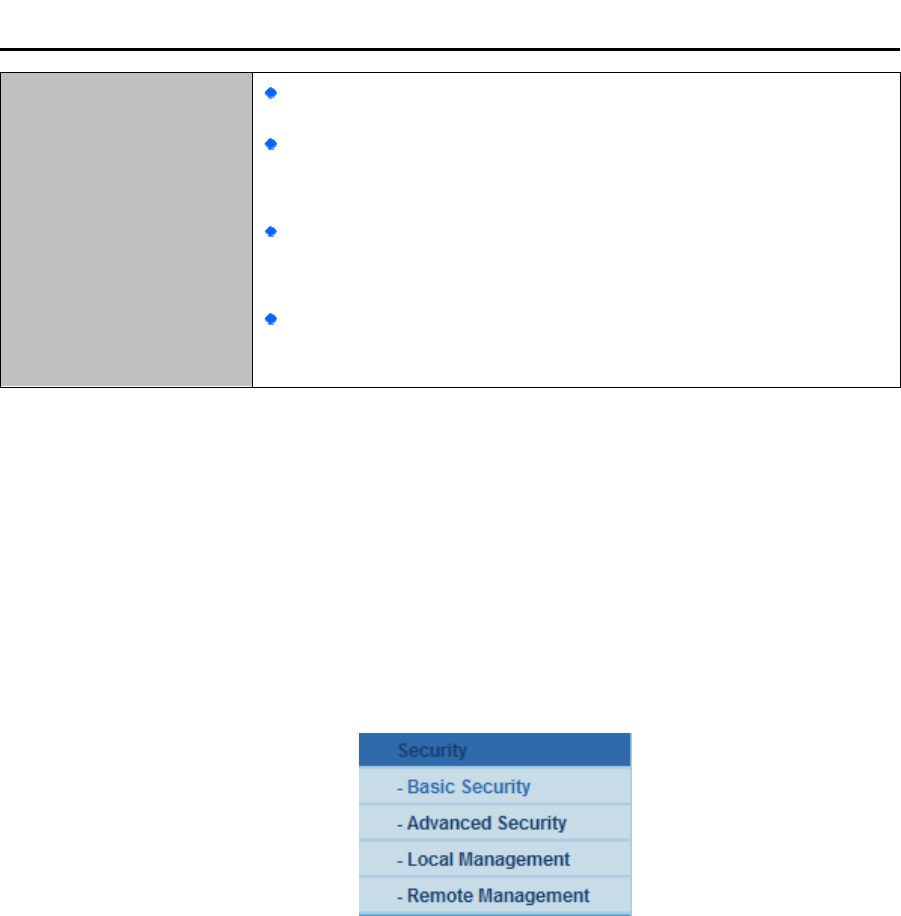

FIGURE 5-44 THE SECURITY MENU.........................................................................................................86
FIGURE 5-45 BASIC SECURITY ...............................................................................................................87

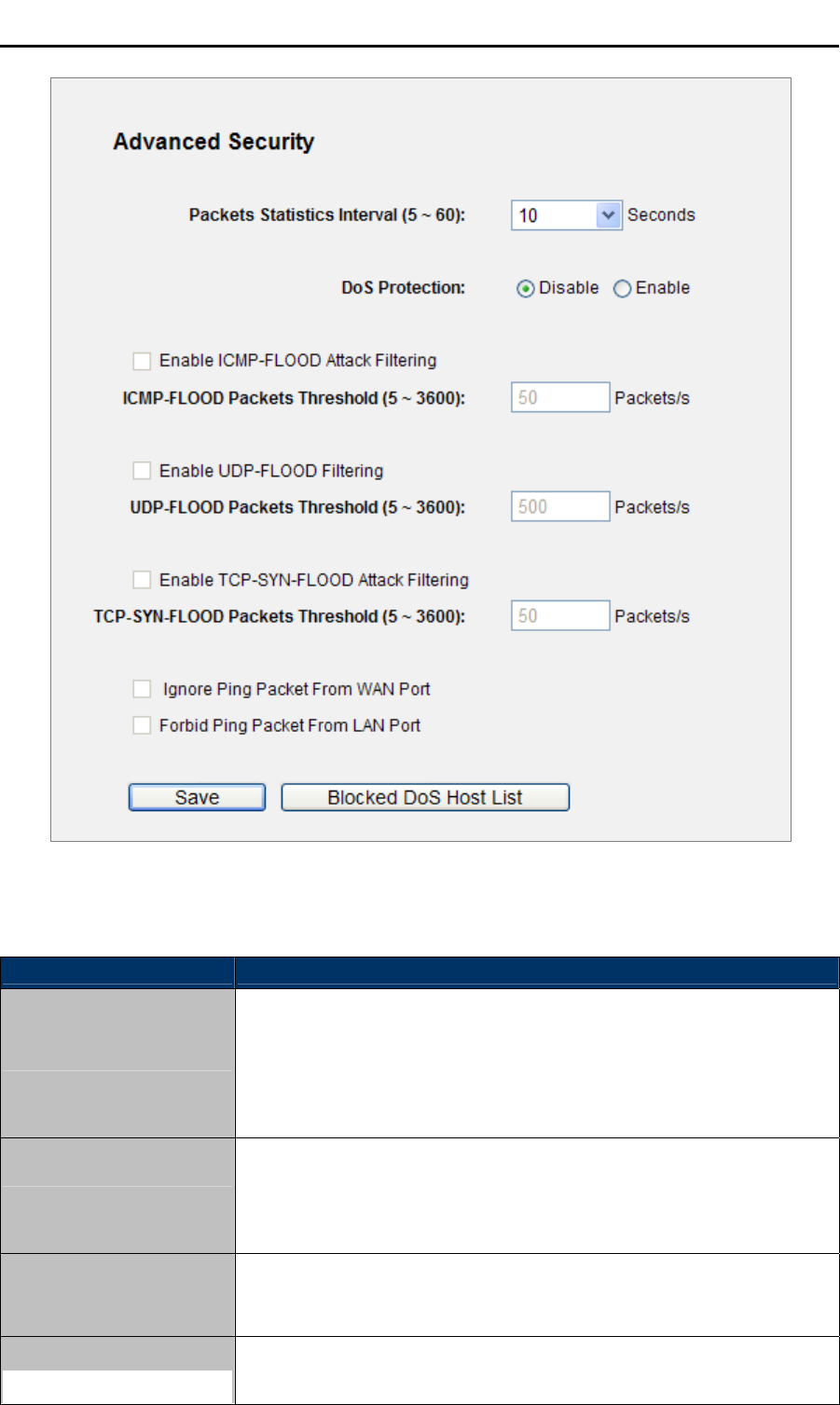

FIGURE 5-46 ADVANCED SECURITY........................................................................................................89
FIGURE 5-47 LOCAL MANAGEMENT ........................................................................................................91
FIGURE 5-48 REMOTE MANAGEMENT .....................................................................................................92
FIGURE 5-49 PARENTAL CONTROL SETTINGS..........................................................................................93
FIGURE 5-50 ADD OR MODIFY PARENTAL CONTROL ENTRY .....................................................................95
FIGURE 5-51 PARENTAL CONTROL SETTINGS..........................................................................................96
FIGURE 5-52 ACCESS CONTROL ............................................................................................................97
IX
FIGURE 5-53 ACCESS CONTROL RULE MANAGEMENT .............................................................................97
FIGURE 5-54 ADD OR MODIFY INTERNET ACCESS CONTROL ENTRY.........................................................99
FIGURE 5-55 ACCESS CONTROL RULE LIST ..........................................................................................100
FIGURE 5-56 ACCESS CONTROL HOST SETTINGS..................................................................................101
FIGURE 5-57 ADD OR MODIFY A HOST ENTRY – IP MODE......................................................................102
FIGURE 5-58 ADD OR MODIFY A HOST ENTRY – MAC ADDRESS MODE ..................................................102
FIGURE 5-59 HOST SETTINGS LIST ......................................................................................................103
FIGURE 5-60 TARGET SETTINGS ..........................................................................................................103
FIGURE 5-61 ADD OR MODIFY AN ACCESS TARGET ENTRY ....................................................................104
FIGURE 5-62 ADD OR MODIFY AN ACCESS TARGET ENTRY ....................................................................105
FIGURE 5-63 TARGET SETTINGS LIST...................................................................................................106
FIGURE 5-64 SCHEDULE SETTINGS ......................................................................................................106
FIGURE 5-65 ADVANCED SCHEDULE SETTINGS.....................................................................................107
FIGURE 5-66 SCHEDULE SETTINGS LIST...............................................................................................108
FIGURE 5-67 ADVANCED ROUTING .......................................................................................................108

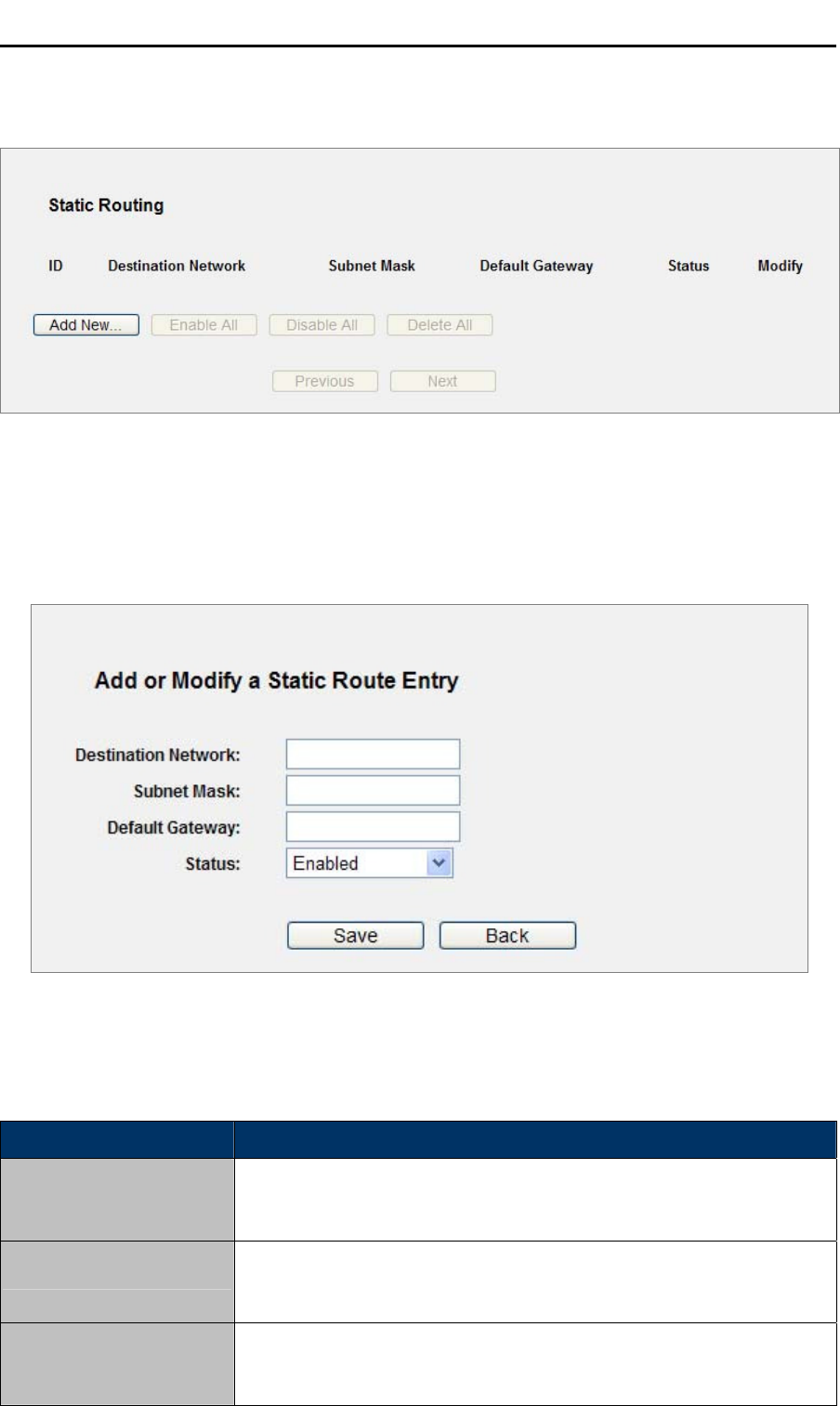

FIGURE 5-68 STATIC ROUTING .............................................................................................................109
FIGURE 5-69 ADD OR MODIFY A STATIC ROUTE ENTRY..........................................................................109

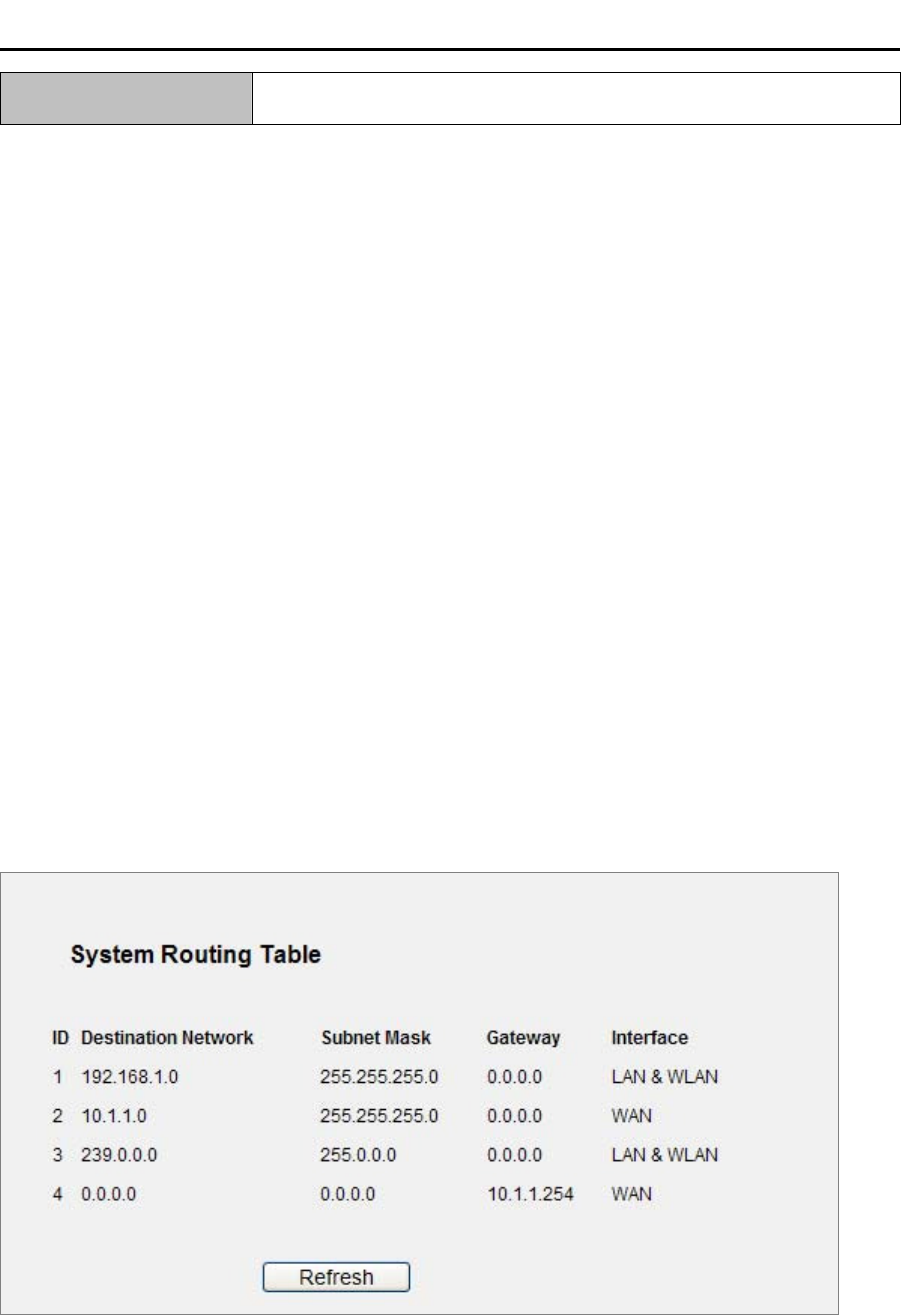

FIGURE 5-70 SYSTEM ROUTING TABLE................................................................................................. 110
FIGURE 5-71 BANDWIDTH CONTROL..................................................................................................... 111
FIGURE 5-72 BANDWIDTH CONTROL SETTINGS..................................................................................... 111
FIGURE 5-73 BANDWIDTH CONTROL RULES LIST .................................................................................. 112
FIGURE 5-74 BANDWIDTH CONTROL RULE SETTINGS............................................................................ 113
FIGURE 5-75 THE IP & MAC BINDING MENU ......................................................................................... 113
FIGURE 5-76 BINDING SETTING............................................................................................................ 114
FIGURE 5-77 IP & MAC BINDING SETTING (ADD & MODIFY).................................................................. 115
FIGURE 5-78 FIND IP & MAC BINDING ENTRY ...................................................................................... 116
FIGURE 5-79 ARP LIST ....................................................................................................................... 116
FIGURE 5-80 COMEXE.CN DDNS SETTINGS ......................................................................................... 118
FIGURE 5-81 DYNDNS.ORG DDNS SETTINGS ....................................................................................... 119
FIGURE 5-82 NO-IP.COM DDNS SETTINGS ...........................................................................................120
FIGURE 5-83 WAN SETTINGS ..............................................................................................................121
FIGURE 5-84 PLANETDDNS.COM DDNS SETTINGS ...............................................................................122
FIGURE 5-85 MY DEVICES ...................................................................................................................122
FIGURE 5-86 THE SYSTEM TOOLS MENU ..............................................................................................123
FIGURE 5-87 TIME SETTINGS ...............................................................................................................123
FIGURE 5-88 DIAGNOSTIC TOOLS.........................................................................................................125
FIGURE 5-89 DIAGNOSTIC RESULTS .....................................................................................................126

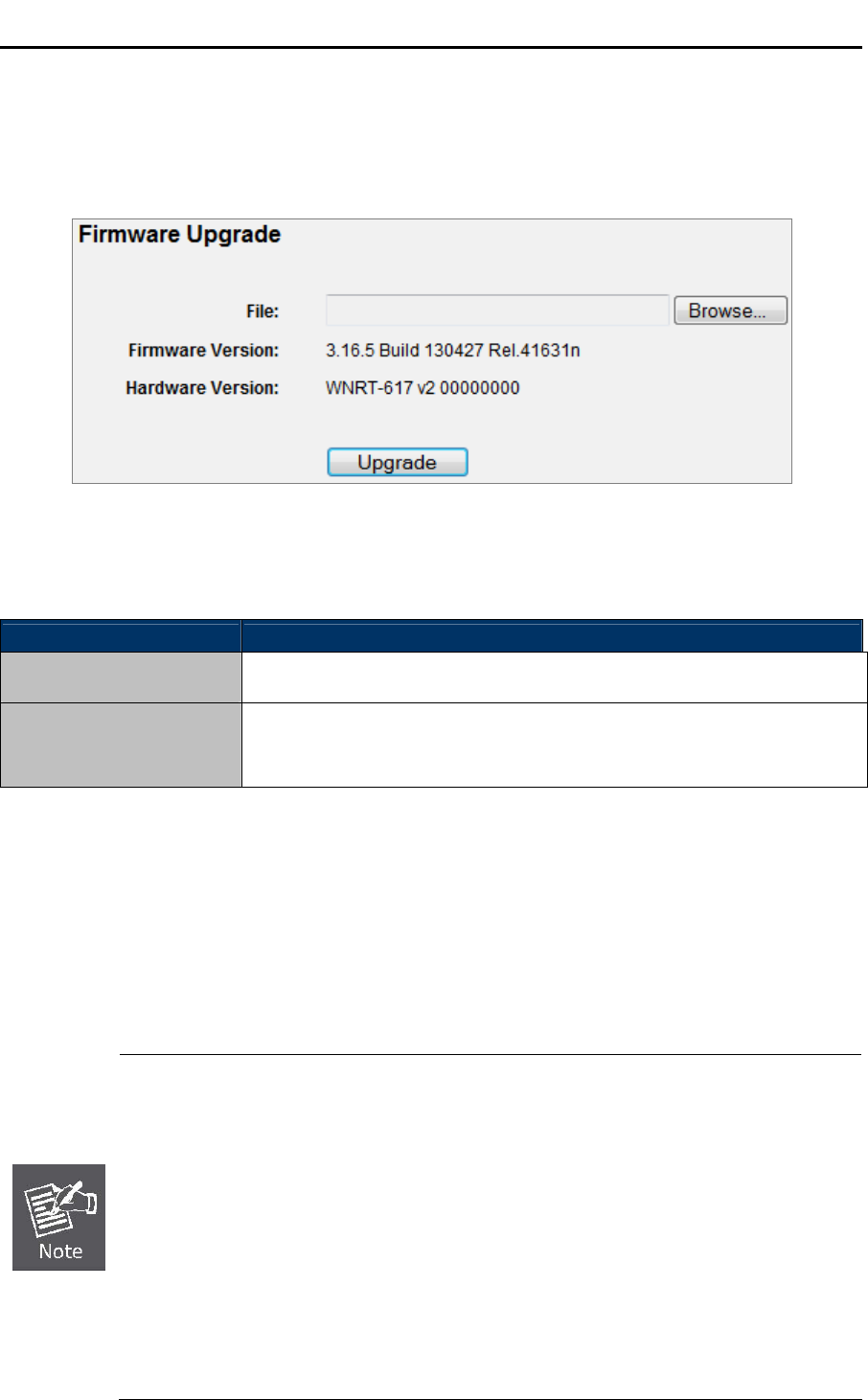

FIGURE 5-90 FIRMWARE UPGRADE ......................................................................................................127
FIGURE 5-91 RESTORE FACTORY DEFAULT...........................................................................................128
FIGURE 5-92 BACKUP & RESTORE CONFIGURATION..............................................................................129
X
XI
FIGURE 5-93 REBOOT THE ROUTER .....................................................................................................129
FIGURE 5-94 PASSWORD .....................................................................................................................130
FIGURE 5-95 SYSTEM LOG ..................................................................................................................131

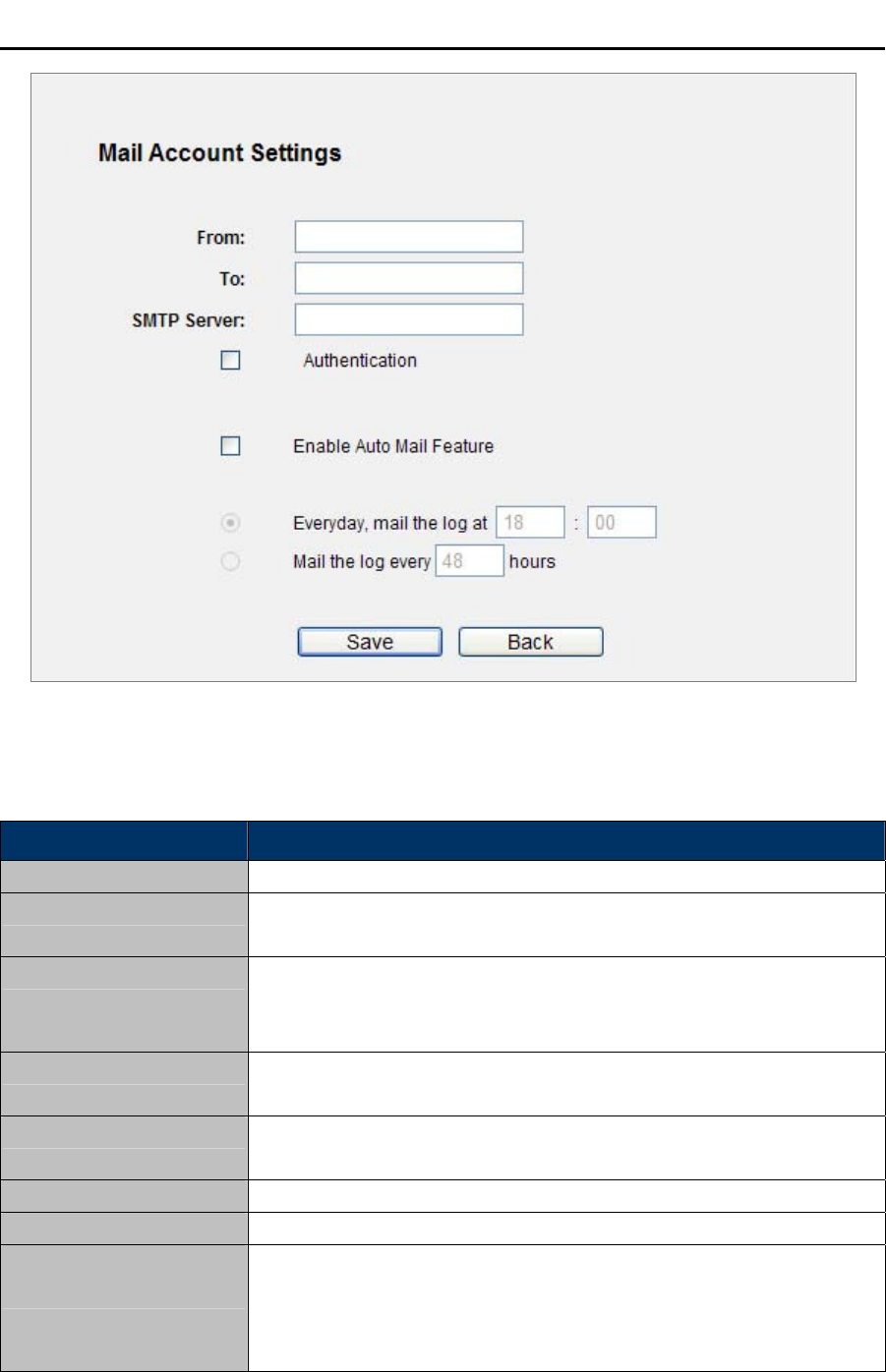

FIGURE 5-96 MAIL ACCOUNT SETTINGS................................................................................................132
FIGURE 5-97 MAIL ACCOUNT SETTINGS - AUTHENTICATION ...................................................................133
FIGURE 5-98 STATISTICS .....................................................................................................................134
FIGURE 6-1 WIRELESS ZERO CONFIGURATION......................................................................................136
FIGURE 6-2 CHOOSE A WIRELESS NETWORK .........................................................................................136

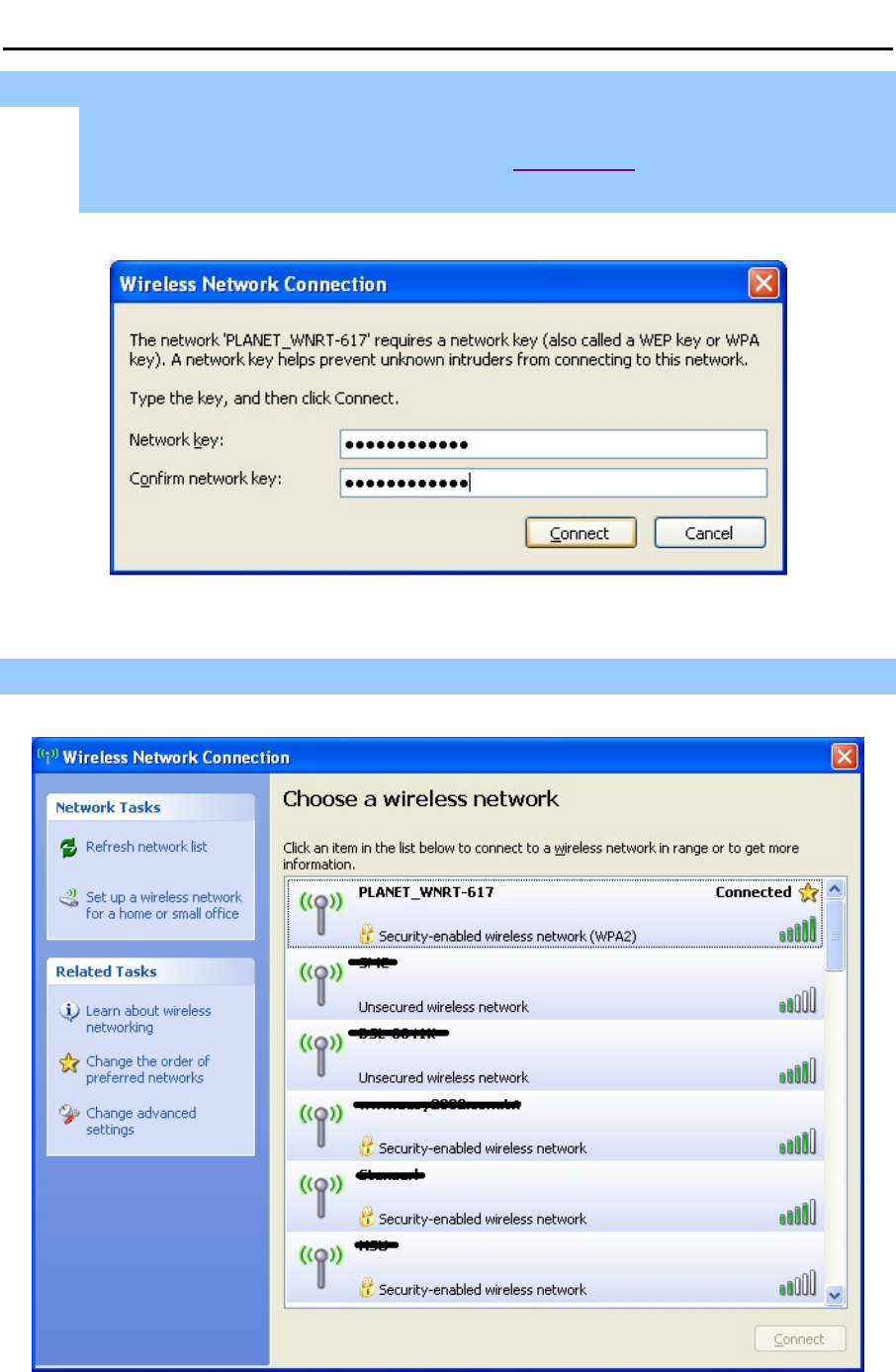

FIGURE 6-3 ENTER THE ENCRYPTION KEY.............................................................................................137
FIGURE 6-4 WIRELESS NETWORK CONNECTED.....................................................................................137
FIGURE 6-5 WLAN AUTOCONFIG.........................................................................................................138
FIGURE 6-6 WLAN AUTOCONFIG WINDOW ...........................................................................................138
FIGURE 6-7 WLAN AUTOCONFIG – TYPE THE NETWORK SECURITY KEY .................................................139
FIGURE 6-8 WLAN AUTOCONFIG – CONNECTING..................................................................................139
FIGURE 6-9 WLAN AUTOCONFIG – CONNECTED ..................................................................................140
FIGURE 6-10 THE AIRPORT NETWORK CONNECTION ICON ....................................................................141
FIGURE 6-11 THE AIRPORT NETWORK CONNECTION MENU ...................................................................141
FIGURE 6-12 THE AIRPORT NETWORK CONNECTION – ENTER PASSWORD..............................................142
FIGURE 6-13 THE AIRPORT NETWORK CONNECTION – CONNECTED.......................................................142
FIGURE 6-14 THE WI-FI SETTINGS IN IPHONE/IPOD TOUCH/IPAD...........................................................143
FIGURE 6-15 GENERAL SETTINGS ........................................................................................................143
FIGURE 6-16 GENERAL SETTINGS – NOT CONNECTED ..........................................................................144
FIGURE 6-17 GENERAL SETTINGS – WI-FI ON......................................................................................144
FIGURE 6-18 GENERAL SETTINGS – ENTER PASSWORD.........................................................................145
FIGURE 6-19 GENERAL SETTINGS – WI-FI NETWORK CONNECTED ........................................................145
FIGURE A-1 PPPOE CONNECTION TYPE ..............................................................................................146
FIGURE A-2 MAC CLONE ....................................................................................................................147
FIGURE A-3 VIRTUAL SERVERS ............................................................................................................148
FIGURE A-4 ADD OR MODIFY A VIRTUAL SERVER ENTRY .......................................................................148
FIGURE A-5 DMZ................................................................................................................................149
FIGURE A-6 BASIC SECURITY ..............................................................................................................150
FIGURE A-7 REMOTE MANAGEMENT ....................................................................................................151
FIGURE A-8 VIRTUAL SERVERS ............................................................................................................151
FIGURE A-9 ADD OR MODIFY A VIRTUAL SERVER ENTRY .......................................................................152

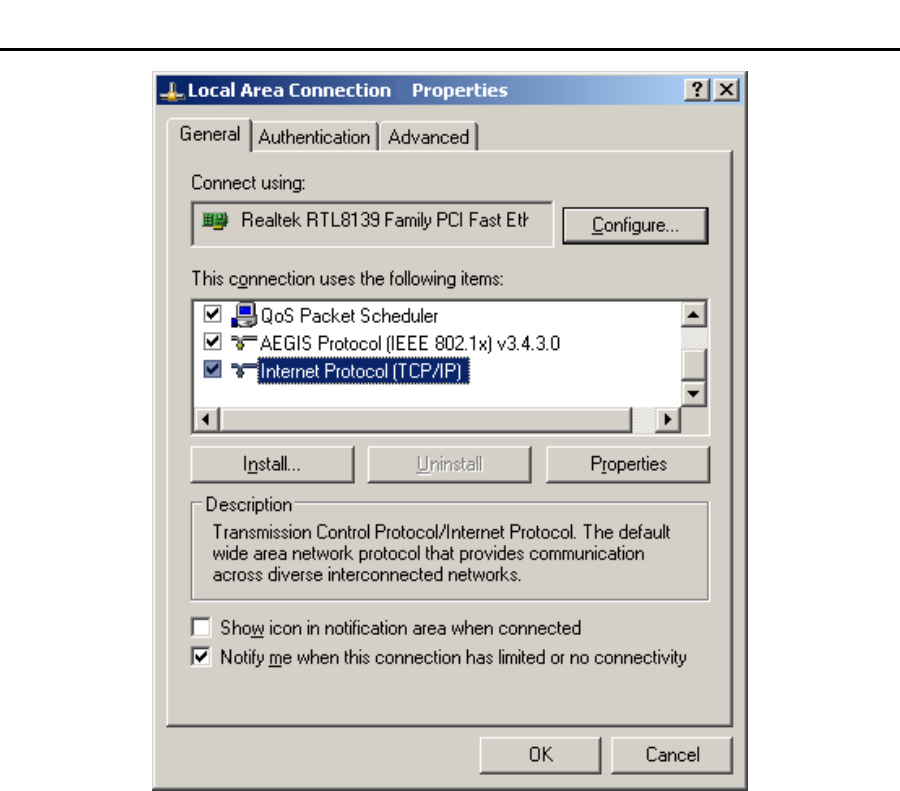

FIGURE B-1 NETWORK CONNECTION PROPERTIES ...............................................................................153
FIGURE B-2 TCP/IP SETTINGS ............................................................................................................154
FIGURE B-3 TCP/IP – OBTAIN AN IP ADDRESS AUTOMATICALLY .............................................................155
FIGURE B-4 TCP/IP SETTINGS – STATIC IP..........................................................................................156
User’s Manual of WNRT-617
-12-
Chapter 1. Product Introduction
1.1 Package Contents
The following items should be contained in the package:
WNRT-617 Wireless Broadband Router
Power Adapter
Ethernet Cable
Quick Installation Guide
CD-ROM (User’s Manual included)
If there is any item missing or damaged, please contact the seller immediately.
1.2 Product Description
The WNRT-617 is integrated with a 4-port Switch, Firewall, NAT-Router and Wireless AP. The 150Mbps
Wireless Broadband Router delivers an exceptional range and speed, which can fully meet the need of
Small Office/Home Office (SOHO) networks and the users demanding higher networking performance.
Easy Installation
The WNRT-617 provides a total solution for the home and the SOHO users. With the MIMO 11n
wireless technology, it’s easy to combine the wireless devices with existing wired network.
Multiple Wireless Network Technologies for Greater Access
PLANET Wireless Broadband Router, WNRT-617, features 802.11n radio with 1T1R antenna
technology compliant with 802.11b/g standards. Compared with general wireless routers, the
WNRT-617 offers more powerful and flexible capability for LAN clients to access the Internet with
management functions.

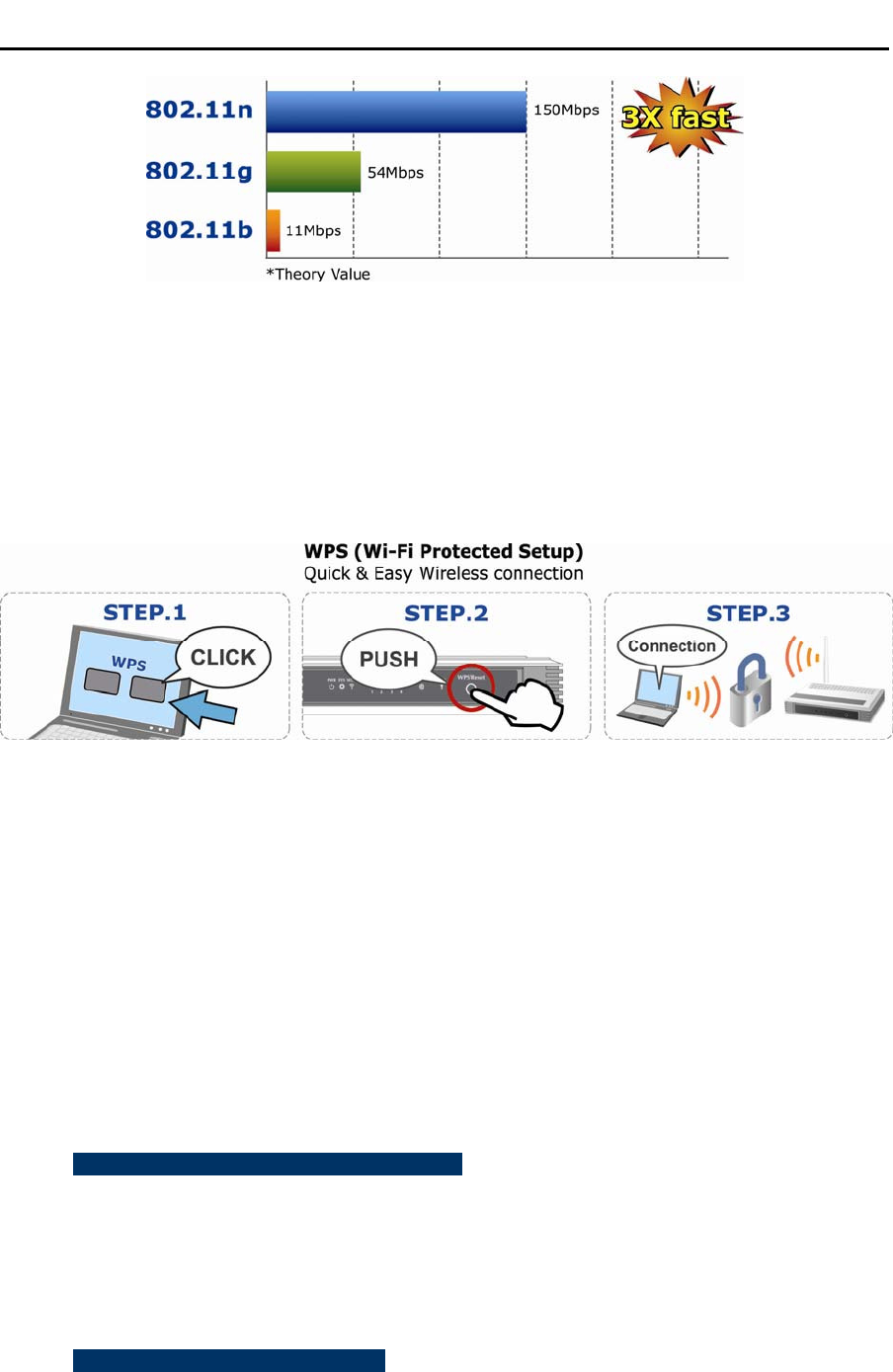

Incredibly High Speed
The WNRT-617 Wireless Broadband Router provides speed of up to 150Mbps which is 3x of the
traditional 11g products, and the use of high bandwidth-consuming applications such as HD Videos.
User’s Manual of WNRT-617
-13-
Wide Range of Wireless Security Support
The WNRT-617 supports one WAN port for wired cable or DSL service connection. To secure the
wireless communication, the WNRT-617 supports up-to-date encryption, WPA-PSK/WPA2-PSK with
TKIP/AES. In order to simplify the security settings, the WNRT-617 supports Wi-Fi Protected Setup
(WPS) configuration with PBC/PIN method. By just clicking the options, the secure connection
between AP and wireless client will be built immediately.
Advanced Firewall Security
The WNRT-617 supports NAT function to allow multiple users to access the Internet via a single legal
IP. It also provides Virtual Server for LAN PC to act as an application server and offers certain service
to the clients on Internet. Furthermore, the SPI (Stateful Packet Inspection) firewall protects your
Intranet PCs from unauthorized accesses and many kinds of DoS attacks from the Internet. In the
aspect of firewall, the WNRT-617 supplies IP-based and MAC-based access control, and prevents
possible hackers attack.
1.3 Product Features
Industrial Compliant Wireless LAN & LAN
Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate
Backward compatible with 802.11b/g standard
Equipped with four LAN ports (10/100Mbps) and one WAN port (10/100Mbps), Auto
MDI/MDI-X supported
Fixed-network Broadband Router
Supported connection types: Dynamic IP/ Static IP / PPPoE / Telstra Big Pond / L2TP /
PPTP
Supports Static Routing, WDS, UPnP, Dynamic DNS
User’s Manual of WNRT-617
-14-
Secure Network Connection
Supports Wi-Fi Protected Setup (WPS)
Advanced security: 64/128/152-bit WEP, WPA/WPA2 and
WPA-PSK/WPA2-PSK(TKIP/AES encryption), 802.1x
Supports NAT firewall features, with SPI function to protect against DoS attacks.
Supports IP / Protocol-based access control and MAC Filtering
Advanced Networking function for Specific Application
Supports multiple sessions IPSec, L2TP and PPTP VPN pass-through
Supports Virtual Server, ALG, DMZ and UPnP for various networking applications
Supports DHCP Server
Easy Installation & Management
Web-based UI for and Quick setup for easy configuration
Remote Management allows configuration from a remote site
System status monitoring includes DHCP Client, System Log
1.4 Product Specifications
Product WNRT-617
150Mbps 802.11n Wireless Broadband Router
Hardware Specification
WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
Interface LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ45 ports
Gain: 1 x Fixed 5dBi Antenna
Antenna Orientation: Omni-directional
Power Button Power On/Off button at rear panel
WPS / Reset Button WPS / Reset button at front panel
Push for above 5 seconds to reset to factory default setting
LED Indicators PWR, SYS, WLAN, LAN x 4, WAN, WPS with green light
Material Plastic
Wireless Interface Specification
Standard Compliance with IEEE 802.11b/g/n
Frequency Band 2.4~2.4835GHz
Extend Frequency DSSS
Modulation Type DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Data Transmission
Rates
11n: 135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)
11g: 54/48/36/24/18/12/9/6Mbps (Dynamic)
11b: 11/5.5/2/1Mbps (Dynamic)
User’s Manual of WNRT-617
-15-
Transmission
Distance
Indoor up to 100m
Outdoor up to 300m (it is limited to the environment)
Channel
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF Power
High: 18 dBm (max)
Middle: 15 dBm
Low: 12 dBm
Receive Sensitivity
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Management Features
Wireless Operation
Mode AP, WDS (AP+Bridge)
WEP (64/128/152-bit) encryption security
Encryption Security WPA-PSK / WPA2-PSK (TKIP/AES)
WPA / WPA2 (TKIP/AES)
WPA / WPA2 enterprise mode (802.1x authentication)
Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS(WIFI Protected Setup )
Wireless Security
Enable/Disable SSID Broadcast
Supports 802.11e WMM (Wi-Fi Multimedia)
Supports Wireless Roaming
Wireless Advanced
Provides Wireless Statistics
Router Features
Internet Connection
Type
Shares data and Internet access for users, supporting the following internet access:
PPPoE / Russia PPPoE
Dynamic IP
Static IP
Telstra Big Pond
PPTP / Russia PPTP
L2TP / Russia L2TP
NAT firewall with SPI (Stateful Packet Inspection)
NAT with ALG (Application Layer Gateway)
Built-in NAT server supporting Virtual Server, and DMZ
Built-in firewall with IP address filtering, Domain Name filtering, and MAC address filtering
Firewall
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
User’s Manual of WNRT-617
-16-
Routing Protocol Static Routing
VPN Pass-through PPTP, L2TP, IPSec
Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports Flow Statistics
IP & MAC Binding
IP / Protocol-based Bandwidth Control
LAN
Session Number: Max 5210
Web-based (HTTP) management interface
Remote management
SNTP time synchronize
Easy firmware upgrade
System Management
System Log supports auto mail and saves to local host
OS Compatibility
Windows 7(32-bit/64-bit)
Windows Vista (32-bit/64-bit)
Windows XP
Mac OS X 10.4 and higher
Standards Conformance
IEEE Standards
IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
Other Protocols and
Standards
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
User’s Manual of WNRT-617
-17-
Chapter 2. Hardware Installation
Please follow the instructions below to build the wireless network connection between WNRT-617 and your
computers.
2.1 Hardware Description
2.1.1 The Front Panel
The front panel provides a simple interface monitoring the router. Figure 2-1 shows the front panel of
WNRT-617.
Front Panel
Figure 2-1 WNRT-617 Front Panel
WPS/Reset Button
ACTIVE TIME
WPS Press and hold the button for less than 5 seconds for WPS configuration
Reset Press and hold the button for more than 8 seconds to the factory default setting
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, wireless data activity and system power;
and helps monitor and troubleshoot when needed. Figure 2-2 shows the LED indications of the
Wireless Router.
User’s Manual of WNRT-617
-18-
LED Definition
Figure 2-2 WNRT-617 Front Panel
LED Status Function
On Power is on.
PWR Off Power is off.
On The Router is initializing.
Flashing The Router is working properly.
SYS
Off The Router has a system error.
Flashing The Wireless function is enabled.
WLAN Off The Wireless function is disabled.
On A device is linked to the corresponding port but there is no activity.
Flashing An active device is linked to the corresponding port.
LAN1-4
Off No device is linked to the corresponding port.
On A device is linked to the corresponding port but there is no activity.
Flashing An active device is linked to the corresponding port.
WAN
Off No device is linked to the WAN port.
Slow Flashing A wireless device is connecting to the network by WPS function. This
process will last for about 2 minutes.
On A wireless device has been successfully added to the network by WPS
function. The LED will keep on for about 5 minutes.
WPS
Quick
Flashing
A wireless device has failed to be added to the network by WPS
function.
1. When a device has been successfully added to the network by WPS function, the
WPS LED will keep on for about 5 minutes and then turn off.
2. When pressing and holding the WPS/Reset Button for more than 5 seconds, you
will reset the router.
User’s Manual of WNRT-617
-19-
2.1.3 The Rear Panel
Figure 2-3 Rear Panel
Interface Function
POWER pter.
ter provided with WNRT-617.
The power socket is where you will connect the power ada
Please use the power adap
ON/OFF The button of the power.
WAN Connect to the DSL/cable Modem, or Ethernet
1,2,3,4 (LAN) Connect to the user’s PC or network devices
User’s Manual of WNRT-617
-20-
Chapter 3. Connecting the Router
3.1 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet connection)
One DSL/Cable Modem that has an RJ-45 connector (not necessary if the Router is
connected directly to the Ethernet.)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ-45 connectors
PC of subscribers running Windows 98/ME, NT4.0, 2000/XP, Windows Vista / Win 7, MAC
OS 9 or later, Linux, UNIX or other platform compatible with TCP/IP protocols
The above PC is installed with WEB Browser
It is recommended to use Internet Explore 7.0 or above to access the Router.
3.2 Installing the Router
Before installing the Router, make sure your PC is connected to the Internet through the broadband
service successfully at this moment. If there is any problem, please contact your local ISP. After that,
please install the Router according to the following steps. Don't forget to pull out the power plug and
keep your hands dry.
Step 1. Power off your PC, Cable/DSL Modem, and the Router.
Step 2. Locate an optimum location for the Router. The best place is usually at the center of your
wireless network.
Step 3. Adjust the direction of the antenna. Normally, upright is a good direction.
User’s Manual of WNRT-617
-21-
Figure 3-1 Adjust the direction of the antenna
Step 4. Connect the PC or Switch/Hub in your LAN to the LAN Ports (Yellow ports) of the Router with
Ethernet cable as shown in Figure 3-2.
Figure 3-2 Hardware Installation of the WNRT-617 Wireless Router
Step 5. Connect the power adapter to the power socket on the Router, and the other end into an
electrical outlet. Then power on the Router.
Step 6. Power on your PC and Cable/DSL Modem.
User’s Manual of WNRT-617
-22-
Chapter 4. Quick Installation Guide
This chapter will show you how to configure the basic functions of your wireless broadband router
using Quick Setup within minutes.
A
computer with wired Ethernet connection to the Wireless Router is required for the
first-time configuration.
4.1 Manual Network Setup - TCP/IP Configuration
The default IP address of the WNRT-617 is 192.168.1.1. And the default Subnet Mask is
255.255.255.0. These values can be changed as you desire. In this guide, we use all the default
values for description.
Connect the local PC to the LAN ports of the Router. And then you can configure the IP address for
your PC in the following two ways.
Obtain an IP address automatically
Configure the IP address manually
In the following sections, we’ll introduce how to install and configure the TCP/IP correctly in Windows
XP. First, make sure your Ethernet Adapter is working, and refer to the Ethernet adapter’s manual if
needed.
4.1.1 Obtain an IP Address Automatically
Summary:
Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.
Then the WNRT-617 built-in DHCP server will assign IP address to the PC automatically.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Control Panel, and then click it.
2) Under the Network and Internet icon, click on the View network status and tasks. And then
click Change adapter settings.
User’s Manual of WNRT-617
-23-
Figure 4-1 Change adapter settings
3) Right-click on the Wireless Network Connection, and select Properties in the appearing
window.
Figure 4-2 Network Connection Properties
User’s Manual of WNRT-617
-24-
4) In the prompt window shown below, double click on the Internet Protocol Version 4
(TCP/IPv4).
Figure 4-3 TCP/IP Setting
5) Choose Obtain an IP address automatically, and Obtain DNS server address automatically
as shown in the figure below. Then click OK to save your settings.
User’s Manual of WNRT-617
-25-
Figure 4-4 Obtain an IP address automatically
4.1.2 Configure the IP Address Manually
Summary:
Set up the TCP/IP Protocol for your PC.
Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is any number
from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1 (The Router's
default IP address)
1) Continue the settings from the last figure, select Use the following IP address radio button.
2) If the LAN IP address of the WNRT-627 is 192.168.1.1, enter IP address 192.168.1.x (x is from 2
to 254), and Subnet mask 255.255.255.0.
3) Enter the LAN IP address of the WNRT-627 (the default IP is 192.168.1.1) into the Default
gateway field.
4) Select Use the following DNS server addresses radio button. In the Preferred DNS Server field,
User’s Manual of WNRT-617
-26-
you can enter the DNS server IP address provided by your local ISP. Then click OK to save your
settings.
Figure 4-5 Use Static IP address
Now, you can run the Ping command in the command prompt to verify the network connection
between your PC and the Router. The following example is in Windows 7 OS. Please follow the steps
below:
1. Click on Start
2. Type “cmd” in the Search box.
User’s Manual of WNRT-617
-27-
Figure 4-6 Windows 7 - Search box
3. Open a command prompt, and type ping 192.168.1.1, and then press Enter.
If the result displayed is similar to Figure 4-7, it means the connection between your PC and
the Router has been established well.
Figure 4-7 Successful result of Ping command
If the result displayed is similar to Figure 4-8, it means the connection between your PC and
the Router has failed.
User’s Manual of WNRT-617
-28-
Figure 4-8 Failed result of Ping command
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your
router. Some firewall software programs may block a DHCP request on newly installed adapters.
1. The 1/2/3/4 LEDs of LAN ports which you link to on the Router and LEDs on your
PC's adapter should be lit.
2. If the Router's IP address is 192.168.1.1, your PC's IP address must be within the
range of 192.168.1.2 ~ 192.168.1.254.
User’s Manual of WNRT-617
-29-
4.2 Starting Setup in Web UI
It is easy to configure and manage the WNRT-617 with web browser.
Step 1. To access the configuration utility, open a web-browser and enter the default IP address
http://192.168.1.1 in the address field of the browser.
Figure 4-9 Login the Router
After a moment, a login window will appear. Enter admin for the User Name and Password, both in
lower case letters. Then click the OK button or press the Enter key.
Figure 4-10 Login Window
Default User name: admin
Default Password: admin
If the above screen does not pop up, it may mean that your web-browser has been set to
a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen
that appears, cancel the Using Proxy checkbox, and click OK to finish it.
User’s Manual of WNRT-617
-30-
After entering the username and password, the main screen appears as Figure 4-11.
Figure 4-11 WNRT-617 Web UI Screenshot
Step 2. After successfully login in, you can click the Quick Setup to quickly configure your Router.
Figure 4-12 Quick Setup
Click Next, and then WAN Connection Type page will appear, shown in Figure 4-13.
Step 3. Select Auto-Detect, the Router will automatically detect the connection type your ISP
provides. Make sure the cable is plugged into the WAN port before detection. The
appropriate configuration page will be displayed when an active Internet service is
successfully detected by the Router.
User’s Manual of WNRT-617
-31-
Figure 4-13 Quick Setup – WAN Connection Type
If the connection type detected is PPPoE, the next screen will appear as shown in Figure 4-14.
Enter the User Name and Password provided by your ISP. These fields are case-sensitive. If
you have difficulty with this process, please contact your ISP.
Figure 4-14 Quick Setup – PPPoE
If the connection type detected is Static IP, the next screen will appear as shown in Figure 4-15.
Enter the parameters in the corresponding blanks.
User’s Manual of WNRT-617
-32-
Figure 4-15 Quick Setup - Static IP
If the connection type detected is Dynamic IP, the next screen will appear as shown in Figure
4-16. Then you can go on with the wireless configuration.
Figure 4-16 Quick Setup – MAC Clone
Step 4. Click Next to continue, the Wireless settings page will appear as shown in Figure 4-17.
User’s Manual of WNRT-617
-33-
Figure 4-17 Quick Setup – Wireless
User’s Manual of WNRT-617
-34-

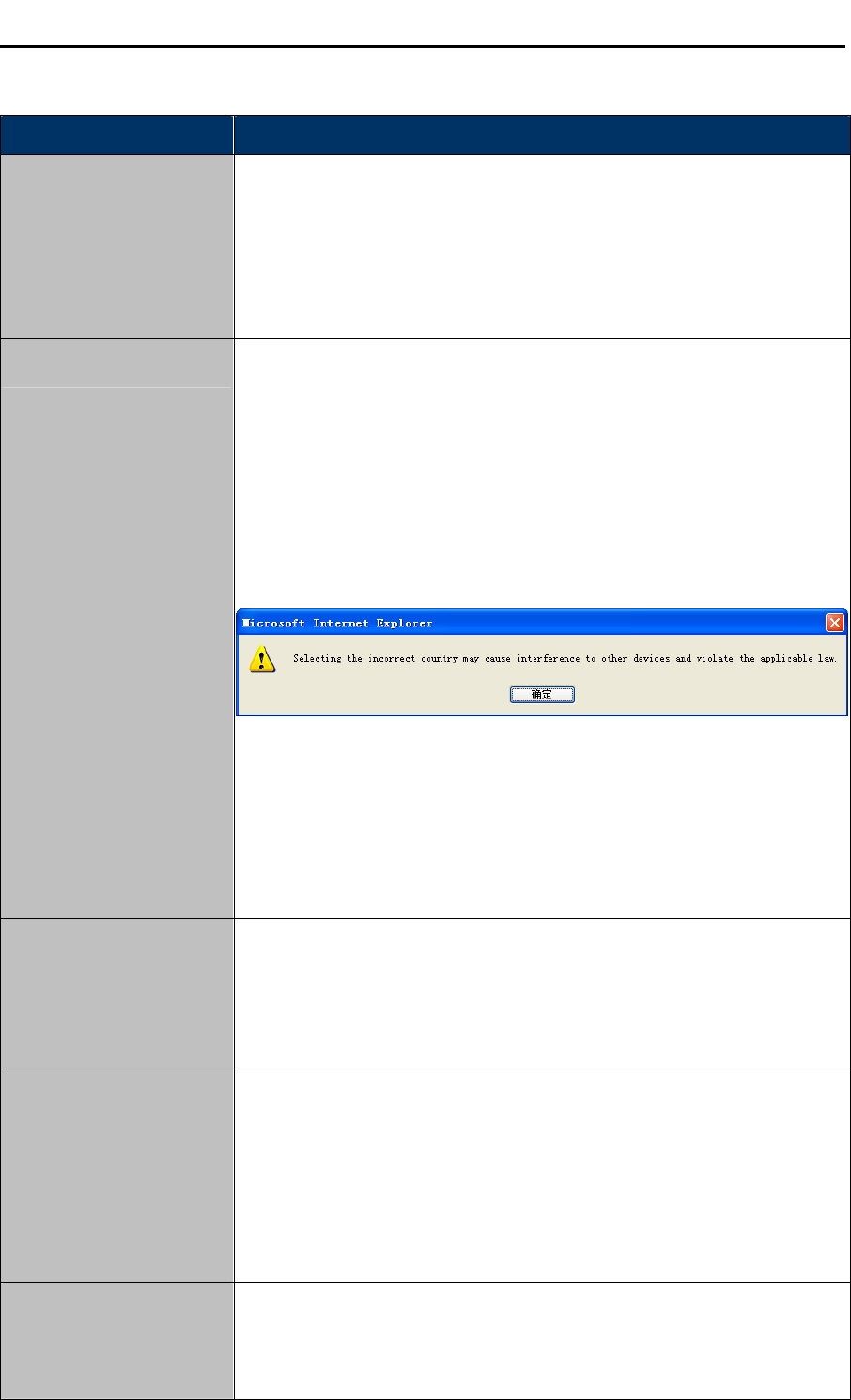

The page includes the following fields:
Object Description
Wireless Radio Enable or disable the wireless radio choosing from the pull-down list.
Wireless Network
Name (SSID)
Enter a value of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network.
Considering your wireless network security, the default SSID is set to be
default. This value is case-sensitive. For example, PLANET is NOT the
same as planet.
Region Select your region from the pull-down list. This field specifies the region
where the wireless channel of the router can be used.
Channel This field determines which operating frequency will be used. The default
channel is set to Auto, so the router will choose the best channel
automatically. It is not necessary to change the wireless channel unless you
notice interference problems with another nearby access point.
Mode This field determines the wireless mode which the Router works on.
Channel Width Select any channel width from the pull-down list. The default setting is
automatic, which can adjust the channel width for your clients automatically.
Max Tx Rate You can limit the maximum transmission rate of the Router through this
field.
Disable Security The wireless security function can be enabled or
disabled. If disabled, the wireless stations will be able
to connect to the Router without encryption. It is
recommended strongly that you choose one of
following options to enable security.
WPA-PSK /
WPA2-PSK
WPA-PSK/WPA2-PSK - Select WPA based on
pre-shared passphrase.
PSK Password - You can enter ASCII or
Hexadecimal characters.
For ASCII, the key can be made up of any numbers 0
to 9 and any letters A to Z, the length should be
between 8 and 63 characters.
For Hexadecimal, the key can be made up of any
numbers 0 to 9 and letters A to F, the length should be
between 8 and 64 characters.
Please also note the key is case-sensitive.
Wireless Security
No Change If you choose this option, wireless security
configuration will not change.
User’s Manual of WNRT-617
-35-
Chapter These settings are only for basic wireless parameters. For advanced settings, please refer to
5.7 Wireless.
Step 5. Click the Next button. You will then see the Finish page.
If you don’t make any change on the Wireless page, you will see the Finish page as shown in
Figure 4-18. Click the Finish button to finish the Quick Setup.
Figure 4-18 Quick Setup – Finish (No wireless parameter changed)
If there is something changed on the Wireless page, you will see the Finish page as shown in
Figure 4-19. Click the Reboot button to make your wireless configuration to take effect and finish
the Quick Setup.
Figure 4-19 Quick Setup – Finish (Reboot is required)
After the rebooting, please check whether you can access the Internet or not in the 5.2 Status page.
User’s Manual of WNRT-617
-36-
4.3 PLANET Smart Setup! Utility
You can configure the Wireless Router by running the SMART SETUP! in the CD-ROM provided in the
package.
To setup through the Smart Setup! program, insert the CD into your Windows XP / Vista / Win 7 PC
and follow the instructions on the screen.
Step 1. Power on the Cable/DSL Modem.
Step 2. Connect the WAN port (Blue port) of the WNRT-617 to the Cable/DSL Modem with RJ-45 UTP
Ethernet cable.
Step 3. Connect the PC LAN port to the LAN Ports (Yellow ports) of the WNRT-617 with RJ-45 UTP
Ethernet cable, shown in Figure 4-20.
Figure 4-20 LAN Port connection of the WNRT-617 Wireless Router
Step 4. Connect the power adapter to the power socket on the WNRT-617, and the other end into an
electrical outlet. Then power on the Wireless Router.
Step 5. Insert the CD into your Windows platform PC and follow the instructions on the screen to
quickly setup for the Internet connection..
Figure 4-21 Insert the CD to the laptop
User’s Manual of WNRT-617
-37-
Figure 4-22 PLANET Smart Setup! Program screenshot
User’s Manual of WNRT-617
-38-
Chapter 5. Configuring the Router
This chapter will show each Web page's key functions and the configuration way.
5.1 Login
After successfully login, you will see the fifteen main menus on the left of the Web-based utility. On the
right, there are the corresponding explanations and instructions.
Figure 5-1 Main Menu
The detailed explanations for each Web page’s key function are listed below.
5.2 Status
The Status page provides the current status information about the Router. All information is read-only.
User’s Manual of WNRT-617
-40-
5.4 Operation Mode
Figure 5-3 Operation Mode
The page includes the following fields:
Object Description
Client Router In this mode, the device enables multiusers to share Internet from
WISP. The LAN port devices share the same IP from WISP through
Wireless port. While connecting to WISP, the Wireless port works as a
WAN port at AP Client Router mode. The ethernet port acts as a LAN
port.
Router In this mode, the device enables multiusers to share Internet via
ADSL/Cable Modem.The wireless port share the same IP to ISP
through ethernet WAN port. The Wireless port acts the same as a LAN
port while at AP Router mode.
Multi-SSID In this mode, the device can create up to 4 wireless networks labeled
with different SSIDs and assign each SSID with different security or
VLAN, especially for the situation when the various access policies and
functions are required.
Repeater(Range
Extender)
In this mode, the device can copy and reinforce the existing wireless
signal to extend the coverage of the signal, especially for a large space
to eliminate signal-blind corners.
User’s Manual of WNRT-617
-41-
Bridge with AP In this mode, the device can be used to combine multiple local
networks together to the same one via wireless connections, especially
for a home or office where separated networks can't be connected
easily together with a cable.
Client In this mode, the device can be connected to another device via
Ethernet port and act as an adaptor to grant your wired devices access
to a wireless network, especially for a Smart TV, Media Player, or
game console only with an Ethernet port.
Be sure to click the Save button to save your settings on this page.
The device will reboot automatically after you click the Save button.
When you change the operation mode to Client/Repeater, WPS function will stay
disabled. Please manually enable this function if needed when you switch back to
Access Point/Multi-SSID/Bridge mode.
User’s Manual of WNRT-617
-42-
5.5 WPS
This section will guide you to add a new wireless device quickly to an existing network by WPS (Wi-Fi
Protected Setup) function.
Step 1. Choose menu “WPS”, you will see the next screen (shown in Figure 5-4 ).
Figure 5-4 WPS
The page includes the following fields:
Object Description
WPS Status Enable or disable the WPS function here.
Current PIN The current value of the Router's PIN displayed here. The default PIN
of the Router can be found in the label or User Guide.
Restore PIN Restore the PIN of the Router to its default.
Gen New PIN Click this button, and then you can get a new random value for the
Router's PIN. You can ensure the network security by generating a
new PIN.
Add device You can add the new device to the existing network manually by
clicking this button.
Step 2. To add a new device:
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection
between wireless adapter and Router using either Push Button Configuration (PBC) method or PIN
method.
User’s Manual of WNRT-617
-43-
To build a successful connection by WPS, you should also do the corresponding
configuration of the new device for WPS function.
I. By Push Button Configuration (PBC)
If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC)
method, you can add it to the network by PBC with the following two methods.
Step 1: Press the WPS/Reset Button on the front panel of the Router.
Figure 5-5 Hardware WPS/Reset Button
Or you can keep the default WPS Status as Enabled and click the Add device button in Figure 5-6,
then the following screen will appear.
Figure 5-6 Software WPS/Reset Button
Choose Press the button of the new device in two minutes, and click Connect.
When pressing and holding the WPS/Reset Button on the router for more than 5
seconds, you will reset the router.
User’s Manual of WNRT-617
-44-
Step 2: Press and hold the WPS Button equipped on the adapter directly for 2 or 3 seconds. Or you
can click the WPS button with the same function in the configuration utility of the adapter.
Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS
configuration.
II. By PIN
If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by
PIN with the following two methods.
Method One: Enter the PIN of your Wireless adapter into the configuration utility of the Router
Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 5-7,
then the following screen will appear.
Figure 5-7 Add a new device
Step 2: Choose Enter the new device's PIN and enter the PIN code of the wireless adapter in the
field behind PIN in the above figure. Then click Connect.
The PIN code of the adapter is always displayed on the WPS configuration screen.
Step 3: For the configuration of the wireless adapter, please choose the option that you want to
enter PIN into the Router in the configuration utility of the WPS, and click Next.
User’s Manual of WNRT-617
-45-
Method Two: Enter the PIN of the Router into the configuration utility of your Wireless adapter
Step 1: Get the Current PIN code of the Router in Figure 5-4 (each Router has its unique PIN code).
Step 2: For the configuration of the wireless adapter, please choose the option that you want to
enter the PIN of the Router in the configuration utility of the Wireless adapter, and enter it
into the field. Then click Next.
The default PIN code of the Router can be found in WPS configuration screen as
shown in Figure 5-4.
Step 3. You will see the following screen when the new device has successfully connected to the
network.
Figure 5-8 New device connected successfully
1) The WPS LED on the Router will light in green for about 5 minutes if the device
has been successfully added to the network.
2) The WPS function cannot be configured if the Wireless Function of the Router is
disabled. Please make sure the Wireless Function is enabled before configuring
the WPS.
User’s Manual of WNRT-617
-46-
5.6 Network
There are three submenus under the Network menu (shown in Figure 5-9): WAN, LAN, and MAC
Clone. Click any of them, and you will be able to configure the corresponding function.
Figure 5-9 The Network menu
5.6.1 WAN
Choose menu “Network→WAN”, you can configure the IP parameters of the WAN on the screen
below.
If you don't know how to choose the appropriate connection type, click the Detect
button to allow the Router to automatically search your Internet connection for servers
and protocols. The connection type will be reported when an active Internet service is
successfully detected by the Router. This detect result is for your reference only. To
make sure the connection type your ISP provides, please refer to the ISP. The various
types of Internet connections that the Router can detect are as follows:
PPPoE - Connections which use PPPoE that requires a user name and
password.
Dynamic IP - Connections which use dynamic IP address assignment.
Static IP - Connections which use static IP address assignment.
The Router cannot detect PPTP / L2TP / BigPond connections with your ISP. If your ISP
uses one of these protocols, then you must configure your connection manually.
Dynamic IP
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will
automatically obtain IP parameters from your ISP. You can see the page as follows (Figure
5-10):
User’s Manual of WNRT-617
-47-
Figure 5-10 WAN - Dynamic IP
This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address,
Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP.
Click the Release button to release the IP parameters.
Object Description
MTU Size The normal MTU (Maximum Transmission Unit) value for most
Ethernet networks is 1500 Bytes. It is not recommended that you
change the default MTU Size unless required by your ISP.
Use These DNS Servers If your ISP gives you one or two DNS addresses, select Use These
DNS Servers and enter the primary and secondary addresses into the
correct fields. Otherwise, the DNS servers will be assigned
dynamically from your ISP.
Host Name This option specifies the Host Name of the Router.
Get IP with Unicast
DHCP
A few ISPs' DHCP servers do not support the broadcast applications. If
you cannot get the IP Address normally, you can choose this option. (It
is rarely required.)
User’s Manual of WNRT-617
-48-
If you get “Address not found” error when you access a Website, it is likely that your
DNS servers are set up improperly. You should contact your ISP to get the correct DNS
server address.
Static IP
2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,
select Static IP. The Static IP settings page will appear, shown in Figure 5-11.
Figure 5-11 WAN - Static IP
The page includes the following fields:
Object Description
IP Address Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0
Default Gateway (Optional) Enter the gateway IP address in dotted-decimal notation
provided by your ISP.
MTU Size The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the
User’s Manual of WNRT-617
-49-
default MTU Size unless required by your ISP.
Primary/Secondary DNS (Optional) Enter one or two DNS addresses in dotted-decimal notation
provided by your ISP.
PPPoE / Russia PPPoE
3. If your ISP provides a PPPoE / Russia PPPoE connection, select PPPoE/Russia PPPoE option.
And enter the following parameters (Figure 5-12):
Figure 5-12 WAN – PPPoE
User’s Manual of WNRT-617
-50-
The page includes the following fields:
Object Description
User Name/Password Enter the User Name and Password provided by your ISP. These fields
are case-sensitive.
Disabled The Secondary Connection is disabled by
default, so there is PPPoE connection only. This
is recommended.
Dynamic IP You can check this radio button to use Dynamic
IP as the secondary connection to connect to
the local area network provided by ISP.
Secondary Connection
Static IP You can check this radio button to use Static IP
as the secondary connection to connect to the
local area network provided by ISP.
Connect on Demand In this mode, the Internet connection can be terminated automatically
after a specified inactivity period (Max Idle Time) and be
re-established when you attempt to access the Internet again. If you
want your Internet connection to keep active all the time, please enter
“0” in the Max Idle Time field. Otherwise, enter the number of minutes
you want to have elapsed before your Internet access disconnects.
Connect Automatically The connection can be re-established automatically when it was down.
Time-based Connecting The connection will only be established in the period from the start time
to the end time (both are in HH:MM format).
Note:
Only when you have configured the system time on System Tools ->
Time page can the Time-based Connecting function take effect.
Connect Manually You can click the Connect/ Disconnect button to connect/disconnect
immediately. This mode also supports the Max Idle Time function as
Connect on Demand mode. The Internet connection can be
disconnected automatically after a specified inactivity period and
re-established when you attempt to access the Internet again.
Sometimes the connection cannot be terminated although you specify a time to
Max Idle Time, since some applications are visiting the Internet continually in the
background.
If you want to do some advanced configurations, please click the Advanced button, and the page
shown in Figure 5-13 will then appear:
User’s Manual of WNRT-617
-51-
Figure 5-13 PPPoE Advanced Settings
The page includes the following fields:
Object Description
MTU Size The default MTU size is “1480” bytes, which is usually fine. It is not
recommended that you change the default MTU Size unless required
by your ISP.
Service Name/AC Name The service name and AC (Access Concentrator) name, which should
not be configured unless you are sure it is necessary for your ISP. In
most cases, leaving these fields blank will work.
ISP Specified IP
Address
If your ISP does not automatically assign IP addresses to the Router
during login, please click “Use IP address specified by ISP” check
box and enter the IP address provided by your ISP in dotted-decimal
notation.
Detect Online Interval The Router will detect Access Concentrator online at every interval.
The default value is “0”. You can input the value between “0” and “120”.
The value “0” means no detect.
DNS IP address If your ISP does not automatically assign DNS addresses to the Router
during login, please click “Use the following DNS servers” check box
and enter the IP address in dotted-decimal notation of your ISP’s
primary DNS server. If a secondary DNS server address is available,
enter it as well.
Click the Save button to save your settings.
User’s Manual of WNRT-617
-52-
BigPond Cable
4. If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond
Cable. And you should enter the following parameters (Figure 5-14):
Figure 5-14 WAN – BigPond Cable
The page includes the following fields:
Object Description
User Name/Password Enter the User Name and Password provided by your ISP. These fields
are case-sensitive.
Auth Server Enter the authenticating server IP address or host name.
Auth Domain Type in the domain suffix server name based on your location.
e.g.
NSW / ACT - nsw.bigpond.net.au
VIC / TAS / WA / SA / NT - vic.bigpond.net.au
QLD - qld.bigpond.net.au
MTU Size The normal MTU (Maximum Transmission Unit) value for most
Ethernet networks is 1500 Bytes. It is not recommended that you
User’s Manual of WNRT-617
-53-
change the default MTU Size unless required by your ISP.
Connect on Demand In this mode, the Internet connection can be terminated automatically
after a specified inactivity period (Max Idle Time) and be
re-established when you attempt to access the Internet again. If you
want your Internet connection to keep active all the time, please enter
“0” in the Max Idle Time field. Otherwise, enter the number of minutes
you want to have elapsed before your Internet access disconnects.
Connect Automatically The connection can be re-established automatically when it was down.
Connect Manually You can click the Connect/Disconnect button to connect/disconnect
immediately. This mode also supports the Max Idle Time function as
Connect on Demand mode.
The Internet connection can be disconnected automatically after a
specified inactivity period and re-established when you attempt to
access the Internet again.
Click the Connect button to connect immediately.
Click the Disconnect button to disconnect immediately.
Click the Save button to save your settings.
Sometimes the connection cannot be terminated although you specify a time to
Max Idle Time, since some applications are visiting the Internet continually in the
background.
User’s Manual of WNRT-617
-54-
L2TP / Russia L2TP
5. If your ISP provides L2TP / Russia L2TP connection, please select L2TP/Russia L2TP option.
And enter the following parameters (Figure 5-15):
Figure 5-15 WAN - L2TP Settings
The page includes the following fields:
Object Description
User Name/Password Enter the User Name and Password provided by your ISP. These fields
are case-sensitive.
Dynamic IP/ Static IP Choose either as you are given by your ISP. Click the Connect button
to connect immediately.
Click the Disconnect button to disconnect immediately.
Connect on Demand You can configure the Router to disconnect from your Internet
connection after a specified period of inactivity (Max Idle Time). If your
Internet connection has been terminated due to inactivity, Connect on
Demand enables the Router to automatically re-establish your
connection as soon as you attempt to access the Internet again. If you
User’s Manual of WNRT-617
-55-
wish to activate Connect on Demand, click the radio button. If you
want your Internet connection to remain active at all times, enter 0 in
the Max Idle Time field. Otherwise, enter the number of minutes you
want to have elapsed before your Internet connection terminates.
Connect Automatically Connect automatically after the Router is disconnected. To use this
option, click the radio button.
Connect Manually You can configure the Router to make it connect or disconnect
manually. After a specified period of inactivity (Max Idle Time), the
Router will disconnect from your Internet connection, and you will not
be able to re-establish your connection automatically as soon as you
attempt to access the Internet again.
To use this option, click the radio button.
If you want your Internet connection to remain active at all times, enter
"0" in the Max Idle Time field. Otherwise, enter the number in minutes
that you wish to have the Internet connecting last unless a new link is
requested.
Click the Save button to save your settings.
Sometimes the connection cannot be terminated although you specify a time to
Max Idle Time, since some applications are visiting the Internet continually in the
background.
User’s Manual of WNRT-617
-56-
PPTP / Russia PPTP
6. If your ISP provides PPTP / Russia PPTP connection, please select PPTP/Russia PPTP option.
And enter the following parameters (Figure 5-16):
Figure 5-16 WAN - PPTP Settings
The page includes the following fields:
Object Description
User Name/Password Enter the User Name and Password provided by your ISP. These fields
are case-sensitive.
Dynamic IP/ Static IP Choose either as you are given by your ISP and enter the ISP’s IP
address or the domain name.
If you choose static IP and enter the domain name, you should also
enter the DNS assigned by your ISP. And click the Save button.
Click the Connect button to connect immediately. Click the
Disconnect button to disconnect immediately.
Connect on Demand You can configure the Router to disconnect from your Internet
connection after a specified period of inactivity (Max Idle Time). If your
User’s Manual of WNRT-617
-57-
Internet connection has been terminated due to inactivity, Connect on
Demand enables the Router to automatically re-establish your
connection as soon as you attempt to access the Internet again.
If you wish to activate Connect on Demand, click the radio button.
If you want your Internet connection to remain active at all times, enter
0 in the Max Idle Time field. Otherwise, enter the number of minutes
you want to have elapsed before your Internet connection terminates.
Connect Automatically Connect automatically after the Router is disconnected. To use this
option, click the radio button.
Connect Manually You can configure the Router to make it connect or disconnect
manually. After a specified period of inactivity (Max Idle Time), the
Router will disconnect from your Internet connection, and you will not
be able to re-establish your connection automatically as soon as you
attempt to access the Internet again. To use this option, click the radio
button. If you want your Internet connection to remain active at all
times, enter "0" in the Max Idle Time field. Otherwise, enter the
number in minutes that you wish to have the Internet connecting last
unless a new link is requested.
Sometimes the connection cannot be terminated although you specify a time to
Max Idle Time, since some applications are visiting the Internet continually in the
background.
5.6.2 LAN
Choose menu “Network→LAN”, you can configure the IP parameters of the LAN on the screen as
below.
User’s Manual of WNRT-617
-58-
Figure 5-17 LAN Settings
The page includes the following fields:
Object Description
MAC Address The physical address of the Router, as seen from the LAN. The value
can't be changed.
IP Address Enter the IP address of your Router or reset it in dotted-decimal notation
(factory default: 192.168.1.1).
Subnet Mask An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
1. If you change the IP Address of LAN, you must use the new IP Address to
login the Router.
2. If the new LAN IP Address you set is not in the same subnet, the IP Address
pool of the DHCP server will change accordingly at the same time，while the
Virtual Server and DMZ Host will not take effect until they are re-configured.
User’s Manual of WNRT-617
-59-
5.6.3 MAC Clone
Choose menu “Network→ MAC Clone”, you can configure the MAC address of the WAN on the
screen below (Figure 5-18).
Figure 5-18 MAC Address Clone
Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed
here.
The page includes the following fields:
Object Description
WAN MAC Address This field displays the current MAC address of the WAN port. If your
ISP requires you to register the MAC address, please enter the correct
MAC address into this field in XX-XX-XX-XX-XX-XX format(X is any
hexadecimal digit).
Click Restore Factory MAC to restore the MAC address of WAN port
to the factory default value.
Your PC's MAC
Address
This field displays the MAC address of the PC that is managing the
Router. If the MAC address is required, you can click the Clone MAC
Address button and this MAC address will fill in the WAN MAC
Address field.
Click the Save button to save your settings.
Only the PC on your LAN can use the MAC Address Clone function.
User’s Manual of WNRT-617
-60-
5.7 Wireless
There are five submenus under the Wireless menu (shown in Figure 5-19): Wireless Settings,
Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any
of them, and you will be able to configure the corresponding function.
Figure 5-19 Wireless menu
5.7.1 Wireless Settings
Choose menu “Wireless→Wireless Settings”, you can configure the basic settings for the wireless
network on this page.
Figure 5-20 Wireless Settings
User’s Manual of WNRT-617
-61-
The page includes the following fields:
Object Description
Wireless Network Name
(SSID)
Enter a value of up to 32 characters. The same name of SSID (Service
Set Identification) must be assigned to all wireless devices in your
network. Considering your wireless network security, the default SSID is
set to be default. This value is case-sensitive. For example, PLANET is
NOT the same as planet.
Region Select your region from the pull-down list. This field specifies the region
where the wireless function of the Router can be used. It may be illegal to
use the wireless function of the Router in a region other than one of those
specified in this field. If your country or region is not listed, please contact
your local government agency for assistance.
When you select your local region from the pull-down list, click
the Save button, then the Note Dialog appears. Click OK.
Note Dialog
Note:
Limited by local law regulations, version for North America does not have
region selection option.
Channel This field determines which operating frequency will be used. The default
channel is set to Auto, so the AP will choose the best channel
automatically. It is not necessary to change the wireless channel unless
you notice interference problems with another nearby access point.
Mode Select the desired mode. The default setting is 11bgn mixed.
11b only, 11g only, 11n only, 11bg mixed, 11bgn mixed.
It is strongly recommended that you set the Mode to 802.11b&g&n, and
all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the
Router.
Channel width Select any channel width from the pull-down list. The default setting is
automatic, which can adjust the channel width for your clients
automatically.
User’s Manual of WNRT-617
-62-
Max Tx Rate You can limit the maximum tx rate of the Router through this field.
Enable Wireless Router
Radio
The wireless radio of this Router can be enabled or disabled to allow
wireless stations access.
Enable SSID Broadcast When wireless clients survey the local area for wireless networks to
associate with, they will detect the SSID broadcast by the Router. If you
select the Enable SSID Broadcast checkbox, the Wireless Router will
broadcast its name (SSID) on the air.
If 11b only, 11g only, or 11bg mixed is selected in the Mode field, the Channel
Width selecting field will turn grey and the value will become 20M, which is unable
to be changed.
Object Description
Enable WDS Check this box to enable WDS. With this function, the Router can bridge
two or more WLANs. If this checkbox is selected, you will have to set the
following parameters as shown below. Make sure the following settings
are correct.
Figure 5-21 WDS Settings
The page includes the following fields:
Object Description
SSID(to be bridged) The SSID of the AP your Router is going to connect to as a client. You
can also use the search function to select the SSID to join.
User’s Manual of WNRT-617
-63-
BSSID(to be bridged) The BSSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the BSSID to join.
Search Click this button, you can search the AP which runs in the current
channel.
Key type This option should be chosen according to the AP's security
configuration. It is recommended that the security type is the same as
your AP's security type.
WEP Index This option should be chosen if the key type is WEP(ASCII) or
WEP(HEX).It indicates the index of the WEP key.
Auth Type This option should be chosen if the key type is WEP(ASCII) or
WEP(HEX).It indicates the authorization type of the Root AP.
Password If the AP your Router is going to connect needs password, you need to fill
the password in this blank.
5.7.2 Wireless Security
Choose menu “Wireless→Wireless Security”, and you can configure the security settings of your
wireless network.
There are five wireless security modes supported by the Router:
WEP (Wired Equivalent Privacy)
WPA (Wi-Fi Protected Access)
WPA2 (Wi-Fi Protected Access 2)
WPA-PSK (Pre-Shared Key)
WPA2-PSK (Pre-Shared Key)
User’s Manual of WNRT-617
-64-
Figure 5-22 Wireless Security - None
The page includes the following fields:
Object Description
Disable Security If you do not want to use wireless security, select this check box, but it’s
strongly recommended to choose one of the following modes to enable
security.
Figure 5-23 Wireless Security - WEP
User’s Manual of WNRT-617
-65-
Object Description
WEP It is based on the IEEE 802.11 standard. If you select this check box,
you will find a notice in red as show in Figure 5-23.
Type you can choose the type for the WEP security on the pull-down list. The
default setting is Automatic, which can select Open System or
Shared Key authentication type automatically based on the wireless
station's capability and request.
WEP Key Format Hexadecimal and ASCII formats are provided. Hexadecimal format stands
for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.
ASCII format stands for any combination of keyboard characters in the
specified length.
WEP Key Select which of the four keys will be used and enter the matching WEP
key that you create. Make sure these values are identical on all wireless
stations in your network.
You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption.
"Disabled" means this WEP key entry is invalid.
64-bit You can enter 10 hexadecimal digits (any
combination of 0-9, a-f, A-F, zero key is not
promoted) or 5 ASCII characters.
128-bit You can enter 26 hexadecimal digits (any
combination of 0-9, a-f, A-F, zero key is not
promoted) or 13 ASCII characters.
Key Type
152-bit You can enter 32 hexadecimal digits (any
combination of 0-9, a-f, A-F, zero key is not
promoted) or 16 ASCII characters.
If you do not set the key, the wireless security function is still disabled even if you
have selected Shared Key as Authentication Type.
User’s Manual of WNRT-617
-66-
Figure 5-24 Wireless Security - WPA/WPA2 Enterprise
The page includes the following fields:
Object Description
WPA/WPA2 It is based on Radius Server.
Version you can choose the version of the WPA security on the pull-down list.
The default setting is Automatic, which can select WPA (Wi-Fi
Protected Access) or WPA2 (WPA version 2) automatically based on
the wireless station's capability and request.
Encryption You can select either Automatic, or TKIP or AES.
Radius Server IP Enter the IP address of the Radius Server.
Radius Port Enter the port that radius service used.
Radius Password Enter the password for the Radius Server.
Group Key Update
Period
Specify the group key update interval in seconds. The value should be
30 or above. Enter 0 to disable the update.
If you check the WPA/WPA2 radio button and choose TKIP encryption, you will
find a notice in red as shown in Figure 5-24.
User’s Manual of WNRT-617
-67-
Figure 5-25 Wireless Security - WPA/WPA2 Personal
The page includes the following fields:
Object Description
WPA-PSK/WPA2-PSK It’s the WPA/WPA2 authentication type based on pre-shared
passphrase.
Version you can choose the version of the WPA-PSK security on the
drop-down list. The default setting is Automatic, which can select
WPA-PSK (Pre-shared key of WPA) or WPA2-PSK (Pre-shared key of
WPA) automatically based on the wireless station's capability and
request.
Encryption When WPA-PSK or WPA is set as the Authentication Type, you can select
either Automatic, or TKIP or AES as Encryption.
PSK Password You can enter ASCII characters between 8 and 63 characters or 8 to
64 Hexadecimal characters.
Group Key Update
Period
Specify the group key update interval in seconds. The value should be
30 or above. Enter 0 to disable the update.
Be sure to click the Save button to save your settings on this page.
If you check the WPA-PSK/WPA2-PSK radio button and choose TKIP encryption,
you will find a notice in red as shown in Figure 5-25.
User’s Manual of WNRT-617
-68-
5.7.3 Wireless MAC Filtering
Choose menu “Wireless→MAC Filtering”, you can control the wireless access by configuring the
Wireless MAC Address Filtering function, shown in Figure 5-26.
Figure 5-26 Wireless MAC Address Filtering
To filter wireless users by MAC Address, click Enable. The default setting is Disable.
Object Description
MAC Address The wireless station's MAC address that you want to filter.
Status The status of this entry either Enabled or Disabled.
Description A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear as shown in Figure 5-27:
User’s Manual of WNRT-617
-69-
Figure 5-27 Add or Modify Wireless MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
Step 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-30-4F-11-22-33.
Step 2. Enter a simple description of the wireless station in the Description field. For example:
Wireless station A.
Step 3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.
Step 4. Click the Save button to save this entry.
To modify or delete an existing entry:
Step 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
Step 2. Modify the information.
Step 3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page
Click the Previous button to return to the previous page.
User’s Manual of WNRT-617
-70-
For example: If you desire that the wireless station A with MAC address 00-30-4F-11-22-33 and the
wireless station B with MAC address 00-30-4F-1A-2B-3C are able to access the Router, but all the
other wireless stations cannot access the Router, you can configure the Wireless MAC Address
Filtering list by following these steps:
Step 1. Click the Enable button to enable this function.
Step 2. Select the radio button: Deny the stations not specified by any enabled entries in the list
to access for Filtering Rules.
Step 3. Delete all or disable all entries if there are any entries already.
Step 4. Click the Add New... button and enter the MAC address 00-30-4F-11-22-33
/00-30-4F-1A-2B-3C in the MAC Address field, then enter wireless station A/B in the
Description field, while select Enabled in the Status pull-down list. Finally, click the Save and
the Back button.
The filtering rules that configured should be similar to the following list:
Figure 5-28 Wireless MAC Address Filtering
User’s Manual of WNRT-617
-71-
5.7.4 Wireless Advanced
Choose menu “Wireless→Wireless Advanced”, and you can configure the advanced settings of your
wireless network.
Figure 5-29 Wireless Advanced
The page includes the following fields:
Object Description
Transmit Power Here you can specify the transmit power of Router. You can select
High, Middle or Low which you would like. High is the default setting
and is recommended.
Beacon Interval Enter a value between 20-1000 milliseconds for Beacon Interval here.
The beacons are the packets sent by the router to synchronize a
wireless network. Beacon Interval value determines the time interval of
the beacons. The default value is 100.
RTS Threshold Here you can specify the RTS (Request to Send) Threshold. If the
packet is larger than the specified RTS Threshold size, the router will
send RTS frames to a particular receiving station and negotiate the
sending of a data frame. The default value is 2346.
Fragmentation
Threshold
This value is the maximum size determining whether packets will be
fragmented. Setting the Fragmentation Threshold too low may result in
poor network performance since excessive packets. 2346 is the default
User’s Manual of WNRT-617
-72-
setting and is recommended.
DTIM Interval This value determines the interval of the Delivery Traffic Indication
Message (DTIM). A DTIM field is a countdown field informing clients of
the next window for listening to broadcast and multicast messages.
When the Router has buffered broadcast or multicast messages for
associated clients, it sends the next DTIM with a DTIM Interval value.
You can specify the value between 1-255 Beacon Intervals. The
default value is 1, which indicates the DTIM Interval is the same as
Beacon Interval.
Enable WMM WMM function can guarantee the packets with high- priority messages
being transmitted preferentially. It is strongly recommended enabled.
Enable Short GI This function is recommended for it will increase the data capacity by
reducing the guard interval time.
Enabled AP Isolation This function can isolate wireless stations on your network from each
other. Wireless devices will be able to communicate with the Router
but not with each other. To use this function, check this box. AP
Isolation is disabled by default.
If you are not familiar with the setting items on this page, it's strongly recommended to
keep the provided default values; otherwise, it may result in lower wireless network
performance.
User’s Manual of WNRT-617
-73-
5.7.5 Wireless Statistics
Choose menu “Wireless→Wireless Statistics”, and you can see the MAC Address, Current Status,
Received Packets and Sent Packets for each connected wireless station.
Figure 5-30 The Router attached wireless stations
The page includes the following fields:
Object Description
MAC Address The connected wireless station's MAC address
Current Status The connected wireless station's running status, one of STA-AUTH /
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP
/ AP-DOWN / Disconnected
Received Packets Packets received by the station
Sent Packets Packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click on the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to the
next page and click the Previous button to return the previous page.
This page will be refreshed automatically every 5 seconds.
User’s Manual of WNRT-617
-74-
5.8 DHCP
There are three submenus under the DHCP menu (shown in Figure 5-31): DHCP Settings, DHCP
Clients List and Address Reservation. Click any of them, and you will be able to configure the
corresponding function.
Figure 5-31 The DHCP menu
5.8.1 DHCP Settings
Choose menu “DHCP→DHCP Settings”, and you can configure the DHCP Server on the page
(shown in Figure 5-32).The Router is set up by default as a DHCP (Dynamic Host Configuration
Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to the
Router on the LAN.
Figure 5-32 DHCP Settings
User’s Manual of WNRT-617
-75-
The page includes the following fields:
Object Description
DHCP Server Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must
configure the computer manually.
Start IP Address Specify an IP address for the DHCP Server to start with when assigning IP
addresses. 192.168.1.100 is the default start address.
End IP Address Specify an IP address for the DHCP Server to end with when assigning
IP addresses. 192.168.1.199 is the default end address.
Address Lease Time The Address Lease Time is the amount of time a network user will be
allowed connection to the Router with their current dynamic IP Address.
Enter the amount of time in minutes and the user will be "leased" this
dynamic IP Address. After the time is up, the user will be automatically
assigned a new dynamic IP address. The range of the time is 1 ~ 2880
minutes. The default value is 120 minutes.
Default Gateway (Optional.) Suggest to input the IP address of the LAN port of the
Router, default value is 192.168.1.1
Default Domain (Optional.) Input the domain name of your network.
Primary DNS (Optional.) Input the DNS IP address provided by your ISP. Or consult
your ISP.
Secondary DNS (Optional.) Input the IP address of another DNS server if your ISP
provides two DNS servers.
To use the DHCP server function of the Router, you must configure all computers
on the LAN as "Obtain an IP Address automatically" mode.
5.8.2 DHCP Clients List
Choose menu “DHCP→DHCP Clients List”, and you can view the information about the clients
attached to the Router in the next screen.
User’s Manual of WNRT-617
-76-
Figure 5-33 DHCP Clients List
The page includes the following fields:
Object Description
ID The index of the DHCP Client
Client Name The name of the DHCP client
MAC Address The MAC address of the DHCP client
Assigned IP The IP address that the Router has allocated to the DHCP client.
Lease Time The time of the DHCP client leased. After the dynamic IP address has
expired, a new dynamic IP address will be automatically assigned to the
user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
5.8.3 Address Reservation
Choose menu “DHCP→Address Reservation”, you can view and add a reserved addresses for
clients via the next screen (shown in Figure 5-34).When you specify a reserved IP address for a PC
on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP
server. Reserved IP addresses should be assigned to the servers that require permanent IP settings.
User’s Manual of WNRT-617
-77-
Figure 5-34 Address Reservation
The page includes the following fields:
Object Description
MAC Address The MAC address of the PC for which you want to reserve IP address.
Assigned IP Address The IP address of the Router reserved.
Status The status of this entry either Enabled or Disabled.
To Reserve IP addresses:
Step 1. Click the Add New … button.
Step 2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in dotted-decimal
notation of the computer you wish to add.
Step 3. Click the Save button when finished.
Figure 5-35 Add or Modify an Address Reservation Entry
User’s Manual of WNRT-617
-78-
To modify or delete an existing entry:
Step 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
Step 2. Modify the information.
Step 3. Click the Save button.
Click the Enable/ Disabled All button to make all entries enabled/disabled
Click the Delete All button to delete all entries
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
5.9 NAT
To select NAT function to manage WNRT-617 as to how to avoid physical IP address that is too long.
Figure 5-36 NAT Function
The page includes the following fields:
Object Description
Enable The virtual IP address can connect to Internet through NAT function.
Disable Only uses physical IP address to link Internet.
User’s Manual of WNRT-617
-79-
5.10 Forwarding
There are four submenus under the Forwarding menu (shown in Figure 5-37): Virtual Servers, Port
Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding
function.
Figure 5-37 The Forwarding menu
5.10.1 Virtual Servers
Choose menu “Forwarding→Virtual Servers”, you can view and add virtual servers in the next
screen (shown in Figure 5-38). Virtual servers can be used for setting up public services on your LAN,
such as DNS, Email and FTP. A virtual server is defined as a service port, and all requests from the
Internet to this service port will be redirected to the computer specified by the server IP. Any PC that
was used for a virtual server must have a static or reserved IP Address because its IP Address may
be changed when using the DHCP function.
Figure 5-38 Virtual Servers
The page includes the following fields:
Object Description
Service Port The numbers of External Ports. You can type a service port or a range of
User’s Manual of WNRT-617
-80-
service ports (in XXX – YYY format, XXX is the start port number, YYY is
the end port number).
IP Address The IP Address of the PC providing the service application.
Protocol The protocol used for this application, either TCP, UDP, or All (all protocols
supported by the Router).
Status The status of this entry either Enabled or Disabled.
To setup a virtual server entry:
Step 1. Click the Add New… button.
Step 2. Select the service you want to use from the Common Service Port list. If the Common
Service Port list does not have the service that you want to use, type the number of the service
port or service port range in the Service Port box.
Step 3. Type the IP Address of the computer in the IP Address box.
Step 4. Select the protocol used for this application, either TCP or UDP, or All.
Step 5. Select the Enable check box to enable the virtual server.
Step 6. Click the Save button.
Figure 5-39 Add or Modify a Virtual Server Entry
If your computer or server has more than one type of available service, please
select another service, and enter the same IP Address for that computer or
server.
User’s Manual of WNRT-617
-81-
To modify or delete an existing entry:
Step 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
Step 2. Modify the information.
Step 3. Click the Save button.
Click the Enable/ Disabled All button to make all entries enabled/ disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and click the Previous button to return the previous
page.
If you set the service port of the virtual server as 80, you must set the Web
management port on System Tools –> Remote Management page to be any other
value except 80 such as 8080. Otherwise there will be a conflict to disable the
virtual server.
User’s Manual of WNRT-617
-82-
5.10.2 Port Triggering
Choose menu “Forwarding→Port Triggering”, and you can view and add port triggering in the next
screen (shown in Figure 5-40). Some applications require multiple connections, like Internet games,
video conferencing, Internet calling and so on. These applications cannot work with a pure NAT Router.
Port Triggering is used for some of these applications that can work with an NAT Router.
Figure 5-40 Port Triggering
Once the Router is configured, the operation is as follows:
1. A local host makes an outgoing connection using a destination port number defined in the
Trigger Port field.
2. The Router records this connection, opens the incoming port or ports associated with this entry
in the Port Triggering table, and associates them with the local host.
3. When necessary the external host will be able to connect to the local host using one of the ports
defined in the Incoming Ports field.
The page includes the following fields:
Object Description
Trigger Port The port for outgoing traffic. An outgoing connection using this port will
"Trigger" this rule.
Trigger Protocol The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols
supported by the Router).
Incoming Ports Range The port or port range used by the remote system when it responds to the
outgoing request. A response using one of these ports will be forwarded to the
PC that triggered this rule. You can input at most 5 groups of ports (or port
section). Every group of ports must be set apart with ",". For example,
User’s Manual of WNRT-617
-83-
2000-2038, 2050-2051, 2085, 3010-3030.
Incoming Protocol The protocol used for Incoming Ports Range, either TCP or UDP, or ALL
(all protocols supported by the Router).
Status The status of this entry either Enabled or Disabled.
To add a new rule, follow the steps below.
Step 1. Click the Add New… button, the next screen will pop up as shown in Figure 5-41.
Step 2. Select a common application from the Common Applications drop-down list, then the
Trigger Port field and the Incoming Ports field will be automatically filled. If the Common
Applications do not have the application you need, enter the Trigger Port and the
Incoming Ports manually.
Step 3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either
TCP, UDP, or All.
Step 4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list,
either TCP or UDP, or All.
Step 5. Select Enable in Status field.
Step 6. Click the Save button to save the new rule.
Figure 5-41 Add or Modify a Triggering Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.
User’s Manual of WNRT-617
-84-
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
1) When the trigger connection is released, the related opening ports will be closed.
2) Each rule is allowed to be used only by one host on LAN synchronously. The
trigger connection of other hosts on LAN will be refused.
3) Incoming Port Range cannot overlap each other.
5.10.3 DMZ
Choose menu “Forwarding→DMZ”, and you can view and configure DMZ host in the screen (shown
in Figure 5-42).The DMZ host feature allows one local host to be exposed to the Internet for a
special-purpose service such as Internet gaming or videoconferencing. DMZ host forwards all the
ports at the same time. Any PC whose port is being forwarded must have its DHCP client function
disabled and should have a new static IP Address assigned to it because its IP Address may be
changed when using the DHCP function.
Figure 5-42 DMZ
To assign a computer or server to be a DMZ server:
Step 1. Click the Enable radio button
Step 2. Enter the local host IP Address in the DMZ Host IP Address field
User’s Manual of WNRT-617
-85-
Step 3. Click the Save button.
After you set the DMZ host, the firewall related to the host will not work.
5.10.4 UPnP
Choose menu “Forwarding→UPnP”, and you can view the information about UPnP(Universal Plug
and Play) in the screen (shown in Figure 5-43).The UPnP feature allows the devices, such as Internet
computers, to access the local host resources or devices as needed. UPnP devices can be
automatically discovered by the UPnP service application on the LAN.
Figure 5-43 UPnP Setting
The page includes the following fields:
Object Description
Current UPnP Status UPnP can be enabled or disabled by clicking the Enable or Disable
button. As allowing this may present a risk to security, this feature is
enabled by default.
Current UPnP Settings
List
This table displays the current UPnP information.
App Description -The description provided by the application in
the UPnP request
External Port - External port, which the router opened for the
application.
User’s Manual of WNRT-617
-86-
Protocol - Shows which type of protocol is opened.
Internal Port - Internal port, which the router opened for local
host.
IP Address - The UPnP device that is currently accessing the
router.
Status - The port’s status displayed here. “Enabled” means that
port is still active. Otherwise, the port is inactive.
Click Refresh to update the Current UPnP Settings List.
5.11 Security
There are four submenus under the Security menu as shown in Figure 5-44: Basic Security,
Advanced Security, Local Management and Remote Management. Click any of them, and you will
be able to configure the corresponding function.
Figure 5-44 The Security menu
5.11.1 Basic Security
Choose menu “Security → Basic Security”, and you can configure the basic security in the next
screen.
User’s Manual of WNRT-617
-87-
Figure 5-45 Basic Security
The page includes the following fields:
Object Description
Firewall A firewall protects your network from the outside world. Here you can
enable or disable the Router’s firewall.
SPI Firewall - SPI (Stateful Packet Inspection, also known as
dynamic packet filtering) helps to prevent cyber attacks by
tracking more state per session. It validates that the traffic
passing through the session conforms to the protocol. SPI
Firewall is enabled by factory default. If you want all the
computers on the LAN exposed to the outside world, you can
disable it.
VPN VPN Passthrough must be enabled if you want to allow VPN tunnels
using IPSec, PPTP, or L2TP protocols to pass through the Router’s
firewall.
PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP)
allows the Point-to-Point Protocol (PPP) to be tunneled through
an IP network. To allow PPTP tunnels to pass through the
User’s Manual of WNRT-617
-88-
Router, keep the default, Enabled.
L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the
method used to enable Point-to-Point sessions via the Internet on
the Layer 2 level. To allow L2TP tunnels to pass through the
Router, keep the default, Enabled.
IPSec Passthrough - Internet Protocol Security (IPSec) is a suite
of protocols for ensuring private, secure communications over
Internet Protocol (IP) networks, through the use of cryptographic
security services. To allow IPSec tunnels to pass through the
Router, keep the default, Enabled.
ALG It is recommended to enable Application Layer Gateway (ALG)
because ALG allows customized Network Address Translation (NAT)
traversal filters to be plugged into the gateway to support address and
port translation for certain application layer "control/data" protocols
such as FTP, TFTP, H323 etc.
FTP ALG - To allow FTP clients and servers to transfer data
across NAT, keep the default Enable.
TFTP ALG - To allow TFTP clients and servers to transfer data
across NAT, keep the default Enable.
H323 ALG - To allow Microsoft NetMeeting clients to
communicate across NAT, keep the default Enable.
Click the Save button to save your settings.
5.11.2 Advanced Security
Choose menu “Security → Advanced Security”, you can protect the Router from being attacked by
TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in Figure 5-46.
User’s Manual of WNRT-617
-89-
Figure 5-46 Advanced Security
The page includes the following fields:
Object Description
Packets Statistics
Interval (5~60)
The default value is 10. Select a value between 5 and 60 seconds from
the drop-down list. The Packets Statistics Interval value indicates the
time section of the packets statistics. The result of the statistics is used
for analysis by SYN Flood, UDP Flood and ICMP-Flood.
DoS Protection Denial of Service protection. Check the Enable or Disable button to
enable or disable the DoS protection function. Only when it is enabled,
will the flood filters be enabled.
Enable ICMP-FLOOD
Attack Filtering
Enable or Disable the ICMP-FLOOD Attack Filtering.
ICMP-FLOOD Packets The default value is 50. Enter a value between 5 ~ 3600. When the
current ICMP-FLOOD Packets number is beyond the set value, the
User’s Manual of WNRT-617
-90-
Threshold (5~3600) Router will startup the blocking function immediately.
Enable UDP-FLOOD
Filtering
Enable or Disable the UDP-FLOOD Filtering.
UDP-FLOOD Packets
Threshold (5~3600)
The default value is 500. Enter a value between 5 ~ 3600. When the
current UPD-FLOOD Packets number is beyond the set value, the
Router will startup the blocking function immediately.
Enable TCP-SYN-FLOOD
Attack Filtering
Enable or Disable the TCP-SYN-FLOOD Attack Filtering.
TCP-SYN-FLOOD
Packets Threshold
(5~3600)
The default value is 50. Enter a value between 5 ~ 3600. When the
current TCP-SYN-FLOOD Packets numbers is beyond the set value,
the Router will startup the blocking function immediately.
Ignore Ping Packet From
WAN Port
Enable or Disable Ignore Ping Packet From WAN Port. The default
setting is disabled. If enabled, the ping packet from the Internet cannot
access the Router.
Forbid Ping Packet From
LAN Port
Enable or Disable Forbid Ping Packet From LAN Port. The default
setting is disabled. If enabled, the ping packet from LAN cannot access
the Router. This function can be used to defend against some viruses.
Click the Save button to save the settings.
Click the Blocked DoS Host List button to display the DoS host table by blocking.
DoSProtection will take effect only when the Traffic Statistics in “System Tool →
Traffic Statistics” is enabled.
5.11.3 Local Management
Choose menu “Security → Local Management”, and you can configure the management rule in the
screen as shown in Figure 5-47. The management feature allows you to deny computers in LAN from
accessing the Router.
User’s Manual of WNRT-617
-91-
Figure 5-47 Local Management
By default, the radio button “All the PCs on the LAN are allowed to access the Router's
Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the
Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button
“Only the PCs listed can browse the built-in web pages to perform Administrator tasks”, and
then enter each MAC Address in a separate field. The format for the MAC Address is
XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC address listed can use the
password to browse the built-in web pages to perform Administrator tasks while all the others will be
blocked.
After click the Add button, your PC's MAC Address will be placed in the list above.
Click the Save button to save your settings.
If your PC is blocked but you want to access the Router again, use a pin to press
and hold the Reset Button (hole) on the back panel for about 5 seconds to reset
the Router’s factory defaults on the Router’s Web-Based Utility.
User’s Manual of WNRT-617
-92-
5.11.4 Remote Management
Choose menu “Security → Remote Management”, and you can configure the Remote Management
function in the screen as shown in Figure 5-48. This feature allows you to manage your Router from a
remote location via the Internet.
Figure 5-48 Remote Management
The page includes the following fields:
Object Description
Web Management Port Web browser access normally uses the standard HTTP service port
80. This Router's default remote management web port number is 80.
For greater security, you can change the remote management web
port to a custom port by entering that number in the box provided.
Choose a number between 1 and 65534 but do not use the number of
any common service port.
Remote Management IP
Address
This is the current address you will use when accessing your Router
from the Internet. This function is disabled when the IP address is set
to the default value of 0.0.0.0. To enable this function change 0.0.0.0 to
a valid IP address. If set to 255.255.255.255, then all the hosts can
access the Router from internet.
To access the Router, you should type your Router's WAN IP address into your browser's
address (in IE) or Location (in Navigator) box, followed by a colon and the custom port
number. For example, if your Router's WAN address is 210.66.155.14, and the port
number used is 8080, please enter http://210.66.155.14:8080 in your browser. Later, you
may be asked for the Router's password. After successfully entering the username and
password, you will be able to access the Router's web-based utility.
Be sure to change the Router's default password to a very secure password.
User’s Manual of WNRT-617
-93-
5.12 Parental Control
Choose menu “Parental Control”, and you can configure the parental control in the screen as shown
in Figure 5-49. The Parental Control function can be used to control the internet activities of the child,
limit the child to access certain websites and restrict the time of surfing.
Figure 5-49 Parental Control Settings
The page includes the following fields:
Object Description
Parental Control Check Enable if you want this function to take effect, otherwise
check Disable.
MAC Address of
Parental PC
In this field, enter the MAC address of the controlling PC, or you can
make use of the Copy To Above button below.
MAC Address of Your
PC
This field displays the MAC address of the PC that is managing this
Router. If the MAC Address of your adapter is registered, you can
click the Copy To Above button to fill this address to the MAC
Address of Parental PC field above.
Website Description Description of the allowed website for the PC controlled.
Schedule The time period allowed for the PC controlled to access the Internet.
User’s Manual of WNRT-617
-94-
For detailed information, please go to “Access Control →
Schedule”.
Modify Here you can edit or delete an existing entry.
To add a new entry, please follow the steps below.
Step 1. Click the Add New… button and the next screen will pop-up as shown in Figure 5-49.
Step 2. Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d like to control in the
MAC Address of Child PC field. Or you can choose the MAC address from the All Address
in Current LAN drop-down list.
Step 3. Give a description (e.g. Allow Google) for the website allowed to be accessed in the
Website Description field.
Step 4. Enter the allowed domain name of the website, either the full name or the keywords (e.g.
google) in the Allowed Domain Name field. Any domain name with keywords in it
(www.google.com, www.google.com.tw) will be allowed.
Step 5. Select from the Effective Time drop-down list the schedule (e.g. Schedule_1) you want
the entry to take effect. If there are not suitable schedules for you, click the Schedule in
red below to go to the Advance Schedule Settings page and create the schedule you
need.
Step 6. In the Status field, you can select Enabled or Disabled to enable or disable your entry.
Step 7. Click the Save button.
Click the Enable All button to enable all the rules in the list.
Click the Disable All button to disable all the rules in the list.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button return to the previous page.
User’s Manual of WNRT-617
-95-
Figure 5-50 Add or Modify Parental Control Entry
For example: If you desire that the child PC with MAC address 00-11-22-33-44-AA can access
www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is
without any restriction, you should follow the settings below.
Step 1. Click “Parental Control” menu on the left to enter the Parental Control Settings page.
Check Enable and enter the MAC address 00-11-22-33-44-BB in the MAC Address of
Parental PC field. Then click Save button.
Step 2. Click “Access Control → Schedule” on the left to enter the Schedule Settings page.
Click Add New... button to create a new schedule with Schedule Description is
Schedule_1, Day is Sat and Time is all day-24 hours. Then click Save button.
Step 3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental
Control Entry page:
Click Add New... button.
Enter 00-11-22-33-44-AA in the MAC Address of Child PC field.
Enter “Allow Google” in the Website Description field.
User’s Manual of WNRT-617
-96-
Enter “www.google.com” in the Allowed Domain Name field.
Select “Schedule_1” you create just now from the Effective Time drop-down list.
In Status field, select Enable.
Step 4. Click Save to complete the settings.
Then you will go back to the Parental Control Settings page and see the following list, as shown
in Figure 5-51.
Figure 5-51 Parental Control Settings
User’s Manual of WNRT-617
-97-
5.13 Access Control
There are four submenus under the Access Control menu as shown in Figure 5-52: Rule, Host,
Target and Schedule. Click any of them, and you will be able to configure the corresponding function.
Figure 5-52 Access Control
5.13.1 Rule
Choose menu “Access Control → Rule”, and you can view and set Access Control rules in the
screen as shown in Figure 5-53.
Figure 5-53 Access Control Rule Management
The page includes the following fields:
User’s Manual of WNRT-617
-98-
Object Description
Enable Internet Access
Control
Select the check box to enable the Internet Access Control function, so
the Default Filter Policy can take effect.
Rule Name Here displays the name of the rule and this name is unique.
Host Here displays the host selected in the corresponding rule.
Target Here displays the target selected in the corresponding rule.
Schedule Here displays the schedule selected in the corresponding rule.
Action Here displays the action the Router takes to deal with the packets. It
could be Allow or Deny. Allow means that the Router permits the
packets to go through the Router. Deny means that the Router rejects
the packets to go through the Router.
Status This field displays the status of the rule. Enabled means the rule will
take effect, Disabled means the rule will not take effect.
Modify Here you can edit or delete an existing rule.
To add a new rule, please follow the steps below.
Step 1. Click the Add New… button and the next screen will pop-up as shown in Figure 5-53.
Step 2. Give a name (e.g. Rule_1) for the rule in the Rule Name field.
Step 3. Select a host from the Host drop-down list or choose “Click Here To Add New Host
List”.
Step 4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target
List”.
Step 5. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New
Schedule”.
Step 6. In the Action field, select Deny or Allow.
Step 7. In the Status field, select Enabled or Disabled to enable or disable your entry.
Step 8. Click the Save button.
Click the Enable All button to enable all the rules in the list.
Click the Disable All button to disable all the rules in the list.
Click the Delete All button to delete all the entries in the table.
You can change the entry’s order as desired. Fore entries are before hind entries. Enter the ID number
User’s Manual of WNRT-617
-99-
in the first box you want to move and another ID number in second box you want to move to, and then
click the Move button to change the entry’s order.
Click the Next button to go to the next page, or click the Previous button return to the previous page.
Figure 5-54 Add or Modify Internet Access Control Entry
For example: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access
www.google.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in the
LAN to access the Internet, you should follow the settings below:
Step 1. Click “Access Control → Host” in the left to enter the Host Settings page. Add a new entry
with the Host Description is Host_1 and MAC Address is 00-11-22-33-44-AA.
Step 2. Click “Access Control → Target” in the left to enter the Target Settings page. Add a new
entry with the Target Description is Target_1 and Domain Name is www.google.com.
Step 3. Click “Access Control → Schedule” in the left to enter the Schedule Settings page. Add a
new entry with the Schedule Description is Schedule_1, Day is Sat and Sun, Start Time is
1800 and Stop Time is 2000.
Step 4. Click “Access Control → Rule” in the left to return to the Access Control Rule
Management page. Select “Enable Internet Access Control” and choose "Deny the
packets not specified by any access control policy to pass through the Router".
Step 5. Click Add New... button to add a new rule as follows:
In Rule Name field, create a name for the rule. Note that this name should be unique,
for example Rule_1.
User’s Manual of WNRT-617
-100-
In Host field, select Host_1.
In Target field, select Target_1.
In Schedule field, select Schedule_1.
In Action field, select Allow.
In Status field, select Enable.
Click Save to complete the settings.
Then you will go back to the Access Control Rule Management page and see the following list.
Figure 5-55 Access Control Rule list
User’s Manual of WNRT-617
-101-
5.13.2 Host
Choose menu “Access Control → Host”, and you can view and set a Host list in the screen as
shown in Figure 5-56. The host list is necessary for the Access Control Rule.
Figure 5-56 Access Control host Settings
The page includes the following fields:
Object Description
Host Description Here displays the description of the host and this description is unique.
Information Here displays the information about the host. It can be IP or MAC.
Modify To modify or delete an existing entry.
To add a new entry, please follow the steps below.
Step 1. Click the Add New… button.
Step 2. In the Mode field, select IP Address or MAC Address.
If you select IP Address, the screen shown is Figure 5-57.
1) In Host Description field, create a unique description for the host (e.g. Host_1).
2) In LAN IP Address field, enter the IP address.
If you select MAC Address, the screen shown is Figure 5-58.
1) In Host Description field, create a unique description for the host (e.g. Host_1).
2) In MAC Address field, enter the MAC address.
Step 3. Click the Save button to complete the settings.
User’s Manual of WNRT-617
-102-
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button return to the previous page.
Figure 5-57 Add or Modify a Host Entry – IP Mode
Figure 5-58 Add or Modify a Host Entry – MAC Address Mode
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
Step 1. Click Add New... button in Figure 5-59 to enter the Add or Modify a Host Entry page.
Step 2. In Mode field, select MAC Address from the drop-down list.
Step 3. In Host Description field, create a unique description for the host (e.g. Host_1).
Step 4. In MAC Address field, enter 00-11-22-33-44-AA.
Step 5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
User’s Manual of WNRT-617
-103-
Figure 5-59 Host Settings List
5.13.3 Target
Choose menu “Access Control → Target”, and you can view and set a Target list in the screen as
shown in Figure 5-60. The target list is necessary for the Access Control Rule.
Figure 5-60 Target Settings
The page includes the following fields:
Object Description
Target Description Here displays the description about the target and this description is
unique.
Information The target can be IP address, port, or domain name.
Modify To modify or delete an existing entry.
User’s Manual of WNRT-617
-104-
To add a new entry, please follow the steps below.
Step 1. Click the Add New… button.
Step 2. In Mode field, select IP Address or Domain Name.
If you select IP Address, the screen shown is Figure 5-61.
1. In Target Description field, create a unique description for the target (e.g.
Target_1).
2. In IP Address field, enter the IP address of the target.
3. Select a common service from Common Service Port drop-down list, so that the
Target Port will be automatically filled. If the Common Service Port drop-down list
doesn’t have the service you want, specify the Target Port manually.
4. In Protocol field, select TCP, UDP, ICMP or ALL.
If you select Domain Name, the screen shown is Figure 5-62.
2) In Target Description field, create a unique description for the target (e.g. Target_1).
3) In Domain Name field, enter the domain name, either the full name or the keywords (for
example google) in the blank. Any domain name with keywords in it (www.google.com,
www.google.tw) will be blocked or allowed. You can enter 4 domain names.
Step 3. Click the Save button.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button return to the previous page.
Figure 5-61 Add or Modify an Access Target Entry
User’s Manual of WNRT-617
-105-
Figure 5-62 Add or Modify an Access Target Entry
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings
below:
Step 1. Click Add New… button in Figure 5-63 to enter the Add or Modify an Access Target Entry
page.
Step 2. In Mode field, select Domain Name from the drop-down list.
Step 3. In Target Description field, create a unique description for the target (e.g. Target_1).
Step 4. In Domain Name field, enter www.google.com.
Step 5. Click Save to complete the settings.
Then you will go back to the Target Settings page and see the following list.
User’s Manual of WNRT-617
-106-
Figure 5-63 Target Settings List
5.13.4 Schedule
Choose menu “Access Control → Schedule”, and you can view and set a Schedule list in the next
screen as shown in Figure 5-64. The Schedule list is necessary for the Access Control Rule.
Figure 5-64 Schedule Settings
The page includes the following fields:
Object Description
Schedule Description Here displays the description of the schedule and this description is
unique.
Day Here displays the day(s) in a week.
Time Here displays the time period in a day.
Modify Here you can edit or delete an existing schedule.
User’s Manual of WNRT-617
-107-
To add a new schedule, follow the steps below.
Step 1. Click Add New... button shown in Figure 5-64 and the next screen will pop-up as shown in
Figure 5-65.
Step 2. In Schedule Description field, create a unique description for the schedule (e.g.
Schedule_1).
Step 3. In Day field, select the day or days you need.
Step 4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time
in the corresponding field.
Step 5. Click Save to complete the settings.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button return to the previous page.
Figure 5-65 Advanced Schedule Settings
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday,
you should first follow the settings below:
User’s Manual of WNRT-617
-108-
Step 1. Click Add New... button shown in Figure 5-66 to enter the Advanced Schedule Settings
page.
Step 2. In Schedule Description field, create a unique description for the schedule (e.g.
Schedule_1).
Step 3. In Day field, check the Select Days radio button and then select Sat and Sun.
Step 4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field.
Step 5. Click Save to complete the settings.
Then you will go back to the Schedule Settings page and see the following list.
Figure 5-66 Schedule Settings List
5.14 Advanced Routing
There are two submenus under the Advanced Routing menu as shown in Figure 5-67: Static Routing
List, System Routing Table. Click any of them, and you will be able to configure the corresponding
function.
Figure 5-67 Advanced Routing
5.14.1 Static Routing List
Choose menu “Static Routing List”, and you can configure the static route in the next screen (shown
User’s Manual of WNRT-617
-109-
in Figure 5-68). A static route is a pre-determined path that network information must travel to reach a
specific host or network.
Figure 5-68 Static Routing
To add static routing entries:
Step 1. Click Add New… shown in Figure 5-69, you will see the following screen.
Figure 5-69 Add or Modify a Static Route Entry
Step 2. Enter the following data:
Object Description
Destination IP Address The Destination IP Address is the address of the network or host that
you want to assign to a static route.
Subnet Mask The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
Gateway This is the IP Address of the gateway device that allows for contact
between the Router and the network or host.
User’s Manual of WNRT-617
-110-
Status Select Enabled or Disabled for this entry on the Status pull-down list.
Step 3. Click the Save button to make the entry take effect.
Other configurations for the entries:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next button to view
the information in the next screen.
5.14.2 System Routing Table
Choose menu “System Routing Table”, and you can check all of the valid route entries in use. The
Destination IP address, Subnet Mask, Gateway, and Interface will be displayed for each entry. Click
the Refresh button to refresh the data displayed.
Figure 5-70 System Routing Table
User’s Manual of WNRT-617
-111-
5.15 Bandwidth Control
There are two submenus under the Bandwidth Control menu as shown in Figure 5-71. Click any of
them, and you will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.
Figure 5-71 Bandwidth Control
5.15.1 Control Settings
Choose menu “Bandwidth Control → Control Settings”, you can configure the Egress Bandwidth
and Ingress Bandwidth in the next screen. Their values you configure should be less than 100000Kbps.
For optimal control of the bandwidth, please select the right Line Type and ask your ISP for the total
bandwidth of the egress and ingress.
Figure 5-72 Bandwidth Control Settings
The page includes the following fields:
Object Description
Enable Bandwidth
Control
Check this box so that the Bandwidth Control settings can take effect.
Line Type Select the right type for you network connection. If you don’t know how
to choose, please ask your ISP for the information.
Egress Bandwidth The upload speed through the WAN port.
User’s Manual of WNRT-617
-112-
Ingress Bandwidth The download speed through the WAN port.
5.15.2 Rules List
Choose menu “Bandwidth Control → Rules List”, you can view and configure the Bandwidth
Control rules in the screen below.
Figure 5-73 Bandwidth Control Rules List
The page includes the following fields:
Object Description
Description This is the information about the rules such as address range.
Egress bandwidth This field displays the max and mix upload bandwidth through the WAN
port, the default is 0.
Ingress bandwidth This field displays the max and mix download bandwidth through the
WAN port, the default is 0.
Enable This displays the status of the rule.
Modify Click Modify to edit the rule. Click Delete to delete the rule.
To add/modify a Bandwidth Control rule, follow the steps below.
Step 1: Click Add New… shown in Figure 5-73, you will see a new screen shown in Figure 5-74.
Step 2: Enter the information like the screen shown below.
User’s Manual of WNRT-617
-113-
Figure 5-74 Bandwidth Control Rule Settings
Step 3: Click the Save button.
5.16 IP & MAC Binding
There are two submenus under the IP &MAC Binding menu (shown in Figure 5-75): Binding Settings
and ARP List. Click any of them, and you will be able to scan or configure the corresponding function.
The detailed explanations for each submenu are provided below.
Figure 5-75 the IP & MAC Binding menu
5.16.1 Binding Settings
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your desire.
(shown in Figure 5-76).
User’s Manual of WNRT-617
-114-
Figure 5-76 Binding Setting
The page includes the following fields:
Object Description
MAC Address The MAC address of the controlled computer in the LAN.
IP Address The assigned IP address of the controlled computer in the LAN.
Bind Check this option to enable ARP binding for a specific device.
Modify To modify or delete an existing entry.
When you want to add or modify an IP & MAC Binding entry, you can click the Add New button or
Modify button, and then you will go to the next page. This page is used for adding or modifying an IP
& MAC Binding entry (shown in Figure 5-77).
User’s Manual of WNRT-617
-115-
Figure 5-77 IP & MAC Binding Setting (Add & Modify)
To add IP & MAC Binding entries, follow the steps below.
Step 1. Click the Add New... button as shown in Figure 5-76.
Step 2. Enter the MAC Address and IP Address.
Step 3. Select the Bind checkbox.
Step 4. Click the Save button to save it.
To modify or delete an existing entry, follow the steps below.
Step 1. Find the desired entry in the table.
Step 2. Click Modify or Delete as desired on the Modify column.
To find an existing entry, follow the steps below.
Step 1. Click the Find button as shown in Figure 5-76.
Step 2. Enter the MAC Address or IP Address.
Step 3. Click the Find button in the page as shown in Figure 5-78.
User’s Manual of WNRT-617
-116-
Figure 5-78 Find IP & MAC Binding Entry
Click the Enable All button to make all entries enabled.
Click the Delete All button to delete all entries.
5.16.2 ARP List
To manage the computer, you could observe the computers in the LAN by checking the relationship of
MAC address and IP address on the ARP list, and you could configure the items on the ARP list also.
This page displays the ARP List; it shows all the existing IP & MAC Binding entries (shown in Figure
5-79).
Figure 5-79 ARP List
User’s Manual of WNRT-617
-117-
The page includes the following fields:
Object Description
MAC Address The MAC address of the controlled computer in the LAN.
IP Address The assigned IP address of the controlled computer in the LAN.
Status Indicates whether or not the MAC and IP addresses are bound.
Configure Load or delete an item.
Load - Load the item to the IP & MAC Binding list.
Delete - Delete the item.
Click the Bind All button to bind all the current items, available after enable.
Click the Load All button to load all items to the IP & MAC Binding list.
Click the Refresh button to refresh all items.
A
n item could not be loaded to the IP & MAC Binding list if the IP address of the
item has been loaded before. Error warning will prompt as well. Likewise, "Load
All" only loads the items without interference to the IP & MAC Binding list.
User’s Manual of WNRT-617
-118-
5.17 Dynamic DNS
Choose menu “Dynamic DNS”, and you can configure the Dynamic DNS function.
The Router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of a
website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a dynamic IP
address, and then your friends can connect to your server by entering your domain name no matter
what your IP address is. Before using this feature, you need to sign up for DDNS service providers
such as www.comexe.cn, www.dyndns.org, or www.no-ip.com. The Dynamic DNS client service
provider will give you a password or key.
5.17.1 Comexe.cn DDNS
If the dynamic DNS Service Provider you select is www.comexe.cn, the page will appear as shown in
Figure 5-80.
Figure 5-80 Comexe.cn DDNS Settings
User’s Manual of WNRT-617
-119-
To set up for DDNS, follow these instructions:
Step 1. Type the Domain Name received from your dynamic DNS service provider.
Step 2. Type the User Name for your DDNS account.
Step 3. Type the Password for your DDNS account.
Step 4. Click the Login button to log in to the DDNS service.
Connection Status -The status of the DDNS service connection is displayed here.
Click Logout to log out of the DDNS service.
5.17.2 Dyndns.org DDNS
If the dynamic DNS Service Provider you select is www.dyndns.org, the page will appear as shown in
Figure 5-81.
Figure 5-81 Dyndns.org DDNS Settings
To set up for DDNS, follow these instructions:
Step 1. Type the User Name for your DDNS account.
Step 2. Type the Password for your DDNS account.
User’s Manual of WNRT-617
-120-
Step 3. Type the Domain Name you received from dynamic DNS service provider here.
Step 4. Click the Login button to log in to the DDNS service.
Connection Status -The status of the DDNS service connection is displayed here.
Click Logout to logout of the DDNS service.
5.17.3 No-ip.com DDNS
If the dynamic DNS Service Provider you select is www.no-ip.com, the page will appear as shown in
Figure 5-82.
Figure 5-82 No-ip.com DDNS Settings
To set up for DDNS, follow these instructions:
Step 1. Type the User Name for your DDNS account.
Step 2. Type the Password for your DDNS account.
Step 3. Type the Domain Name you received from dynamic DNS service provider.
Step 4. Click the Login button to log in the DDNS service.
Connection Status - The status of the DDNS service connection is displayed here.
Click Logout to log out the DDNS service.
User’s Manual of WNRT-617
-121-
5.17.4 Planetddns.com DDNS
First of all, please go to http://www.planetddns.com to register a Planet DDNS account, and refer to
the FAQ (http://www.planetddns.com/index.php/faq) for how to register a free account.
Figure 5-70 Planet DDNS Website
When you finish your DDNS account, please return to Network -> WAN option to set up your WAN
type which can be connected to external network.
Figure 5-83 WAN Settings
To select dynamic DNS Service Provider www.planetddns.com, the page will appear as shown in
Figure 5-84.
User’s Manual of WNRT-617
-122-
Figure 5-84 Planetddns.com DDNS Settings
To set up for DDNS, follow these instructions:
Step 1. Type the User Name for your DDNS account.
Step 2. Type the Password for your DDNS account.
Step 3. Type the Domain Name you received from dynamic DNS service provider.
Step 4. Click the Login button to log in the DDNS service.
Connection Status - The status of the DDNS service connection is displayed here.
Click Logout to log out the DDNS service.
Lastly you can go to My Devices page of Planet DDNS website to check if the “Last
Connection IP” is displayed. This indicates your DDNS service is working properly.
Figure 5-85 My Devices
User’s Manual of WNRT-617
-123-
5.18 System Tools
Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings,
Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password,
System Log and Statistics. Click any of them, and you will be able to configure the corresponding
function. The detailed explanations for each submenu are provided below.
Figure 5-86 The System Tools menu
5.18.1 Time Settings
Choose menu “System Tools→Time Settings”, and you can configure the time on the following
screen.
Figure 5-87 Time settings
User’s Manual of WNRT-617
-124-
The page includes the following fields:
Object Description
Time Zone Select your local time zone from this pull down list.
Date Enter your local date in MM/DD/YY into the right blanks.
Time Enter your local time in HH/MM/SS into the right blanks.
NTP Server Prior Enter the address for the NTP Server, then the Router will get the time
from the NTP Server preferentially. In addition, the Router builds in
some common NTP Servers, so it can get time automatically once it
connects the Internet.
To configure the system manually:
Step 1. Select your local time zone.
Step 2. Enter date and time in the right blanks.
Step 3. Click Save to save the configuration.
To configure the system automatically:
Step 1. Select your local time zone.
Step 2. Enter the IP address for NTP Server Prior.
Step 3. Click the Get GMT button to get system time from Internet if you have connected to the
Internet.
This setting will be used for some time-based functions such as firewall. You must
specify your time zone once you login to the router successfully, otherwise, these
functions will not take effect.
The time will be lost if the router is turned off.
The router will obtain GMT automatically from Internet if it has already connected
to Internet.
User’s Manual of WNRT-617
-125-
5.18.2 Diagnostic
Choose menu “System Tools → Diagnostic”, and you can transact Ping or Traceroute function to
check connectivity of your network in the following screen.
Figure 5-88 Diagnostic Tools
The page includes the following fields:
Object Description
Diagnostic Tool Check the radio button to select one diagnostic too.
Ping - This diagnostic tool troubleshoots connectivity,
reachability, and name resolution to a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a
connection.
IP Address/Domain Name Type the destination IP address (such as 74.125.153.103) or Domain
name (such as http://www.google.com)
User’s Manual of WNRT-617
-126-
Pings Count The number of Ping packets for a Ping connection.
Ping Packet Size The size of Ping packet.
Ping Timeout Set the waiting time for the reply of each Ping packet. If there is no reply
in the specified time, the connection is overtime.
Traceroute Max TTL The max number of hops for a Traceroute connection.
Click Start to check the connectivity of the Internet.
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the
domain name is not, you might have a name resolution problem. In this case,
ensure that the domain name you are specifying can be resolved by using
Domain Name System (DNS) queries.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 5-89 Diagnostic Results
Only one user can use this tool at one time. Options “Number of Pings”, “Ping
Size” and “Ping Timeout” are used for Ping function. Option “Tracert Hops” are
used for Tracert function.
User’s Manual of WNRT-617
-127-
5.18.3 Firmware Upgrade
Choose menu “System Tools → Firmware Upgrade”, and you can update the latest version of
firmware for the Router on the following screen.
Figure 5-90 Firmware Upgrade
The page includes the following fields:
Object Description
Firmware Version This displays the current firmware version.
Hardware Version This displays the current hardware version. The hardware version of the
upgrade file must accord with the Router’s current hardware version.
To upgrade the Router's firmware, follow these instructions below:
Step 1. Download a more recent firmware upgrade file from our website.
Step 2. Type the path and file name of the update file into the File field. Or click the Browse
button to locate the update file.
Step 3. Click the Upgrade button.
New firmware versions posted at the website of PLANET Technology can be
downloaded for free. There is no need to upgrade the firmware unless the new firmware
has a new feature you want to use. However, when experiencing problems caused by
the Router rather than the configuration, you can try to upgrade the firmware.
When you upgrade the Router's firmware, you may lose its current configurations, so
before upgrading the firmware please write down some of your customized settings to
avoid losing important settings.
Do not turn off the Router or press the Reset button while the firmware is being
upgraded; otherwise, the Router may be damaged.
The Router will reboot after the upgrading has been finished.
User’s Manual of WNRT-617
-128-
5.18.4 Factory Defaults
Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of the
Router to factory defaults on the following screen
Figure 5-91 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default IP Address: 192.168.1.1
The default Subnet Mask: 255.255.255.0
Any settings you have saved will be lost when the default settings are restored.
User’s Manual of WNRT-617
-129-
5.18.5 Backup & Restore
Choose menu “System Tools → Backup & Restore”, and you can save the current configuration of
the Router as a backup file and restore the configuration via a backup file as shown in Figure 5-92.
Figure 5-92 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To upgrade the Router's configuration, follow these instructions.
Step 1. Click the Browse… button to locate the update file for the Router, or enter the exact
path to the Setting file in the text box.
Step 2. Click the Restore button.
The current configuration will be covered by the uploading configuration file. The
upgrade process lasts for 20 seconds and the Router will restart automatically.
Keep the Router power on during the upgrading process to prevent any damage.
5.18.6 Reboot
Choose menu “System Tools → Reboot”, and you can click the Reboot button to reboot the Router
via the next screen.
Figure 5-93 Reboot the Router
Some settings of the Router will take effect only after rebooting, which include
User’s Manual of WNRT-617
-130-
Change the LAN IP Address (system will reboot automatically).
Change the DHCP Settings.
Change the Wireless configurations.
Change the Web Management Port.
Upgrade the firmware of the Router (system will reboot automatically).
Restore the Router's settings to factory defaults (system will reboot automatically).
Update the configuration with the file (system will reboot automatically.
5.18.7 Password
Choose menu “System Tools → Password”, and you can change the factory default user name and
password of the Router in the next screen as shown in Figure 5-94.
Figure 5-94 Password
It is strongly recommended that you should change the factory default user name and password of the
Router, because all users who try to access the Router's Web-based utility or Quick Setup will be
prompted for the Router's default user name and password.
The new user name and password must not exceed 14 characters in length and
not include any spaces. Enter the new Password twice to confirm.
User’s Manual of WNRT-617
-131-
Click the Save button when finished.
Click the Clear All button to clear all.
5.18.8 System Log
Choose menu “System Tools → System Log”, and you can view the logs of the Router.
Figure 5-95 System Log
The page includes the following fields:
Object Description
Auto Mail Feature Indicates whether auto mail feature is enabled or not.
Mail Settings Set the receiving and sending mailbox address, server address,
validation information as well as the timetable for
A
uto Mail Feature, as
shown in Figure 5-96 .
User’s Manual of WNRT-617
-132-
Figure 5-96 Mail Account Settings
The page includes the following fields:
Object Description
From Your mail box address. The Router would connect it to send logs.
To Recipient’s address. The destination mailbox where the logs would be
received.
SMTP Server Your smtp server. It corresponds with the mailbox filled in the From
field. You can log on the relevant website for Help if you are not clear
with the address.
Authentication Most SMTP Server requires Authentication. It is required by most
mailboxes that need User Name and Password to log in.
User Name Your mail account name filled in the From field. The part behind @ is
excluded.
Password Your mail account password.
Confirm The Password Enter the password again to confirm.
Enable Auto Mail
Feature
Select it to mail logs automatically. You could mail the current logs
either at a specified time everyday or by intervals, but only one could be
the current effective rule. Enter the desired time or intervals in the
corresponding field as shown in Figure 5-96
User’s Manual of WNRT-617
-133-
Only when you select Authentication, you have to enter the User Name and
Password in the following fields.
Figure 5-97 Mail Account Settings - Authentication
Click Save to keep your settings.
Click Back to return to the previous page.
The system log page includes the following fields:
Object Description
Log Type By selecting the log type, only logs of this type will be shown.
Log Level By selecting the log level, only logs of this level will be shown.
Refresh Refresh the page to show the latest log list.
Save Log Click to save all the logs in a txt file.
Mail Log Click to send an email of current logs manually according to the address
and validation information set in Mail Settings.
Clear Log
A
ll the logs will be deleted from the Router permanently, not just from the
page.
User’s Manual of WNRT-617
-134-
5.18.9 Statistics
Choose menu “System Tools → Statistics”, and you can view the statistics of the Router, including
total traffic and current traffic of the last Packets Statistic Interval.
Figure 5-98 Statistics
The page includes the following fields:
Object Description
Current Statistics Status Enable or Disable. The default value is disabled. To enable, click the
Enable button. If disabled, the function of DoS protection in Security
settings will disabled.
Packets Statistics Interval
5-60
The default value is 10. Select a value between 5 and 60 seconds in the
pull-down list. The Packets Statistic interval indicates the time section of
the packets statistic.
Sorted Rules Choose how displayed statistics are sorted.
Select the Auto-refresh checkbox to refresh automatically.
Click the Refresh button to refresh immediately.
Click Reset All to reset the values of all the entries to zero.
Click Delete All to delete all entries in the table.
User’s Manual of WNRT-617
-135-
Statistics Table:
IP/MAC Address The IP and MAC address are displayed with related statistics.
Packets The total number of packets received and transmitted by the Router.
Total
Bytes The total number of bytes received and transmitted by the Router.
Packets The total number of packets received and transmitted in the last
Packets Statistic interval seconds.
Bytes The total number of bytes received and transmitted in the last
Packets Statistic interval seconds.
ICMP
Tx
The number of the ICMP packets transmitted to WAN per second at
the specified Packets Statistics interval. It is shown like “current
transmitting rate / Max transmitting rate”.
UDP Tx
The number of UDP packets transmitted to the WAN per second at
the specified Packets Statistics interval. It is shown like “current
transmitting rate / Max transmitting rate”.
Current
TCP
SYN Tx
The number of TCP SYN packets transmitted to the WAN per
second at the specified Packets Statistics interval. It is shown like
“current transmitting rate / Max transmitting rate”.
Reset Reset the value of he entry to zero.
Modify
Delete Delete the existing entry in the table.
There would be 5 entries on each page. Click Previous to return to the previous page and Next to the
next page.
User’s Manual of WNRT-617
-136-
Chapter 6. Quick Connection to a Wireless Network
6.1 Windows XP (Wireless Zero Configuration)
Step 1: Right-Click on the wireless network icon displayed in the system tray
Figure 6-1 Wireless Zero Configuration
Step 2: Select [View Available Wireless Networks]
Step 3: Highlight and select the wireless network (SSID) to connect
(1) Select SSID [PLANET_WNRT-617]
(2) Click the [Connect] button
Figure 6-2 Choose a wireless network
User’s Manual of WNRT-617
-137-
Step 4: Enter the encryption key of the Wireless Router
(1) The Wireless Network Connection box will appear
(2) Enter the encryption key that is configured in Section 5.6.2
(3) Click the [Connect] button
Figure 6-3 Enter the encryption key
Step 5: Check if “Connected” is displayed
Figure 6-4 Wireless Network Connected
User’s Manual of WNRT-617
-138-
Some laptops are equipped with a “Wireless ON/OFF” switch for the internal
wireless LAN. Make sure the hardware wireless switch is switch to “ON” position.
6.2 Windows 7 (WLAN AutoConfig)
WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless
network. This built-in wireless network connection tool is similar to wireless zero configuration tool in
Windows XP.
Step 1: Right-Click on the network icon displayed in the system tray
Figure 6-5 WLAN AutoConfig
Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select SSID [PLANET_WNRT-617]
(2) Click the [Connect] button
Figure 6-6 WLAN AutoConfig window
User’s Manual of WNRT-617
-139-
If you will be connecting to this Wireless Router in the future, check [Connect
automatically].
Step 4: Enter the encryption key of the Wireless Router
(1) The Connect to a Network box will appear
(2) Enter the encryption key that is configured in Section 5.6.2
(3) Click the [OK] button
Figure 6-7 WLAN AutoConfig – type the network security key
Figure 6-8 WLAN AutoConfig – connecting
Step 5: Check if “Connected” is displayed
User’s Manual of WNRT-617
-140-
Figure 6-9 WLAN AutoConfig – Connected
User’s Manual of WNRT-617
-141-
6.3 Mac OS X 10.x .3 Mac OS X 10.x
Step 1: Right-Click on the network icon displayed in the system tray
The AirPort Network Connection menu will appear
Figure 6-10 The AirPort Network Connection icon
Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select and SSID [PLANET_WNRT-617]
(2) Double-click on the selected SSID
Figure 6-11 The AirPort Network Connection menu
Step 4: Enter the encryption key of the Wireless Router
(1) Enter the encryption key that is configured in Section 5.6.2
(2) Click the [OK] button
User’s Manual of WNRT-617
-142-
Figure 6-12 The AirPort Network Connection – enter password
If you will connect this Wireless Router in the future, check [Remember this
network].
Step 5: Check if the AirPort is connected to the selected wireless network.
If “Yes”, then there will be a “check” symbol in the front of the SSID.
Figure 6-13 The AirPort Network Connection – connected
User’s Manual of WNRT-617
-143-
6.4 iPhone / iPod Touch / iPad .4 iPhone / iPod Touch / iPad
Step 1: Tap the [Settings] icon displayed in the home screen
Figure 6-14 The Wi-Fi Settings in iPhone/iPod Touch/iPad
Step 2: Check Wi-Fi setting and select the available wireless network
(1) Tap [General] \ [Network]
(2) Tap [Wi-Fi]
If this is the first time to connect to the Wireless Router, it should show “Not Connected”.
Figure 6-15 General Settings
User’s Manual of WNRT-617
-144-
Figure 6-16 General Settings – Not Connected
Step 3: Tap the target wireless network (SSID) in “Choose a Network…”
(1) Turn on Wi-Fi by tapping “Wi-Fi”
(2) Select SSID [PLANET_WNRT-617]
Figure 6-17 General Settings – Wi-Fi On
Step 4: Enter the encryption key of the Wireless Router
(1) The password input screen will be displayed
(2) Enter the encryption key that is configured in Section 5.6.2
(3) Tap the [Join] button
User’s Manual of WNRT-617
-145-
Figure 6-18 General Settings – Enter password
Step 5: Check if the iDevice is connected to the selected wireless network.
If “Yes”, then there will be a “check” symbol in the front of the SSID.
Figure 6-19 General Settings – Wi-Fi Network Connected
User’s Manual of WNRT-617
-146-
Appendix A: FAQ
1. How do I configure the Router to access Internet by ADSL users?
1) First, configure the ADSL Modem configured in RFC1483 bridge model.
2) Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. Plug the
telephone cord into the Line port of the ADSL Modem.
3) Login to the Router, click the “Network” menu on the left of your browser, and click "WAN"
submenu. On the WAN page, select “PPPoE” for WAN Connection Type. Type user name in
the “User Name” field and password in the “Password” field, finish by clicking “Connect”.
Figure A-1 PPPoE Connection Type
4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or
“Connect Manually” for Internet connection mode. Type an appropriate number for “Max Idle
Time” to avoid wasting paid time. Otherwise, you can select “Auto-connecting” for Internet
connection mode.
User’s Manual of WNRT-617
-147-
1. Sometimes the connection cannot be disconnected although you specify a
time to Max Idle Time, since some applicants are visiting the Internet
continually in the background.
2. If you are a Cable user, please configure the Router following the above
steps.
2. How do I configure the Router to access Internet by Ethernet users?
1) Login to the Router, click the “Network” menu on the left of your browser, and click "WAN"
submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type", finish by
clicking “Save”.
2) Some ISPs require that you register the MAC Address of your adapter, which is connected to
your cable/DSL Modem during installation. If your ISP requires MAC register, login to the
Router and click the "Network" menu link on the left of your browser, and then click "MAC
Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC address is proper MAC
address, click the "Clone MAC Address" button and your PC’s MAC address will fill in the
"WAN MAC Address" field. Or else, type the MAC Address into the "WAN MAC Address" field.
The format for the MAC Address is XX-XX-XX-XX-XX-XX. Then click the "Save" button. It will
take effect after rebooting.
Figure A-2 MAC Clone
3. I want to use Netmeeting, what do I need to do?
1) If you start Netmeeting as a host, you don’t need to do anything with the Router.
2) If you start as a response, you need to configure Virtual Server or DMZ Host and make sure
the H323 ALG is enabled.
3) How to configure Virtual Server: Log in to the Router, click the “Forwarding” menu on the left
of your browser, and click "Virtual Servers" submenu. On the "Virtual Servers" page, click
Add New…. Then on the “Add or Modify a Virtual Server Entry” page, enter “1720” for the
User’s Manual of WNRT-617
-148-
“Service Port” blank, and your IP address for the “IP Address” blank, taking 192.168.1.169 for
an example, remember to Enable and Save.
Figure A-3 Virtual Servers
Figure A-4 Add or Modify a Virtual Server Entry
Your opposite side should call your WAN IP, which is displayed on the “Status”
page.
4) How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left of
your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio button and
User’s Manual of WNRT-617
-149-
type your IP address into the “DMZ Host IP Address” field, using 192.168.1.169 as an
example, remember to click the Save button.
Figure A-5 DMZ
5) How to enable H323 ALG: Log in to the Router, click the “Security” menu on the left of your
browser, and click “Basic Security” submenu. On the “Basic Security” page, check the
Enable radio button next to H323 ALG. Remember to click the Save button.
User’s Manual of WNRT-617
-150-
Figure A-6 Basic Security
4. I want to build a WEB Server on the LAN, what should I do?
1) Because the WEB Server port 80 will interfere with the WEB management port 80 on the
Router, you must change the WEB management port number to avoid interference.
2) To change the WEB management port number: Log in to the Router, click the “Security”
menu on the left of your browser, and click "Remote Management" submenu. On the
"Remote Management" page, type a port number except 80, such as 88, into the "Web
Management Port" field. Click Save and reboot the Router.
User’s Manual of WNRT-617
-151-
Figure A-7 Remote Management
If the above configuration takes effect, you can configure the Router by typing
http://192.168.1.1:88 (the Router’s LAN IP address: Web Management Port) in
the address field of the Web browser.
3) Log in to the Router, click the “Forwarding” menu on the left of your browser, and click the
"Virtual Servers" submenu. On the "Virtual Servers" page, click Add New…, then on the
“Add or Modify a Virtual Server” page, enter “80” into the blank next to the “Service Port”,
and your IP address next to the “IP Address”, assuming 192.168.1.188 for an example,
remember to Enable and Save.
Figure A-8 Virtual Servers
User’s Manual of WNRT-617
-152-
Figure A-9 Add or Modify a Virtual Server Entry
5. The wireless stations cannot be connected to the Router.
1) Make sure the "Wireless Router Radio" is enabled.
2) Make sure that the wireless stations' SSID is in accord with the Router's SSID.
3) Make sure the wireless stations have the right KEY for encryption when the Router is
encrypted.
4) If the wireless connection is ready, but you can’t access the Router, check the IP Address of
your wireless stations.
User’s Manual of WNRT-617
-153-
Appendix B: Configuring the PCs
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First
make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
2. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control
Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.
3) Right click the icon shown below, select Properties on the prompt page.
Figure B-1 Network Connection Properties
4) On the prompt page shown below, double click on the Internet Protocol (TCP/IP).
User’s Manual of WNRT-617
-154-
Figure B-2 TCP/IP Settings
5) The following TCP/IP Properties window will display and the IP Address tab is open on this
window by default.
Now you have two ways to configure the TCP/IP protocol below:
Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as shown in
the Figure below:
User’s Manual of WNRT-617
-155-
Figure B-3 TCP/IP – Obtain an IP address automatically
Setting IP address manually
1 Select Use the following IP address radio button.
2 If the Router's LAN IP address is 192.168.1.1, type in IP address 192.168.1.x (x is from 2 to 254),
and Subnet mask 255.255.255.0.
3 Type the Router’s LAN IP address (the default IP is 192.168.1.1) into the Default gateway field.
4 Select Use the following DNS server addresses radio button. In the Preferred DNS Server
field you can type the DNS server IP address which has been provided by your ISP
User’s Manual of WNRT-617
-156-
Figure B-4 TCP/IP Settings – Static IP
Now click OK to keep your settings.
User’s Manual of WNRT-617
-157-
Appendix C: Specifications
Product WNRT-617
150Mbps 802.11n Wireless Broadband Router
Hardware Specifications
WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
Interface LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ45 port
Gain: 1 x Fixed 5dBi Antenna
Antenna Orientation: Omni-directional
Power Button Power On/Off button at rear panel
WPS / Reset Button WPS / Reset button at front panel
Push for above 5 seconds to reset to factory default setting
LED Indicators PWR, SYS, WLAN, LAN x 4, WAN, WPS with green light
Material Plastic
Wireless Interface Specifications
Standard Compliance with IEEE 802.11b/g/n
Frequency Band 2.4~2.4835GHz
Extend Frequency DSSS
Modulation Type DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Data Transmission
Rates
11n: 135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)
11g: 54/48/36/24/18/12/9/6Mbps (Dynamic)
11b: 11/5.5/2/1Mbps (Dynamic)
Transmission
Distance
Indoor up to 100m
Outdoor up to 300m (it is limited to the environment)
Channel
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF Power
High: 18 dBm (max)
Middle: 15 dBm
Low: 12 dBm
Receive Sensitivity
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Management Features
Wireless Operation
Mode AP, WDS (AP+Bridge)
User’s Manual of WNRT-617
-158-
WEP (64/128/152-bit) encryption security
Encryption Security WPA-PSK / WPA2-PSK (TKIP/AES)
WPA / WPA2 (TKIP/AES)
WPA / WPA2 enterprise mode (802.1x authentication)
Provide wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Support WPS(WIFI Protected Setup )
Wireless Security
Enable/Disable SSID Broadcast
Support 802.11e WMM (Wi-Fi Multimedia)
Support Wireless Roaming
Wireless Advanced
Provide Wireless Statistics
Router Features
Internet Connection
Type
Shares data and Internet access for users, supporting following internet access:
PPPoE
Dynamic IP
Static IP
Telstra Big Pond
PPTP
L2TP
NAT firewall with SPI (Stateful Packet Inspection)
NAT with ALG (Application Layer Gateway)
Built-in NAT server supporting Virtual Server, and DMZ
Built-in firewall with IP address filtering, Domain Name filtering, and MAC address
filtering
Firewall
Support ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
Routing Protocol Static Routing
VPN Pass-through PPTP, L2TP, IPSec
Built-in DHCP server supporting static IP address distributing
Support UPnP, Dynamic DNS
Support Flow Statistics
IP & MAC Binding
IP / Protocol-based Bandwidth Control
LAN
Session Number: Max 5210
Web-based (HTTP) management interface
Remote management
SNTP time synchronize
Easy firmware upgrade
System Management
System Log supports auto mail and save to local host
OS Compatibility Windows 7(32-bit/64-bit)
Windows Vista (32-bit/64-bit)
User’s Manual of WNRT-617
-159-
Windows XP
Mac OS X 10.4 and higher
Standards Conformance
IEEE Standards
IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
Other Protocols and
Standards
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
User’s Manual of WNRT-617
-160-
Appendix D: Glossary
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial
diversity, perhaps through coding schemes like Alamouti coding. The Enhanced Wireless
Consortium (EWC) [3] was formed to help accelerate the IEEE 802.11n development
process and promote a technology specification for interoperability of next-generation
wireless local area networking (WLAN) products.
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and
domain name to a dynamic Internet IP Address.
DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the
TCP/IP parameters for the all the PC(s) that are connected to a DHCP server.
DMZ (Demilitarized Zone) - A Demilitarized Zone allows one local host to be exposed to the
Internet for a special-purpose service such as Internet gaming or videoconferencing.
DNS (Domain Name System) - An Internet Service that translates the names of websites into
IP addresses.
Domain Name - A descriptive name for an address or group of addresses on the Internet.
DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over
existing traditional phone lines.
ISP (Internet Service Provider) - A company that provides access to the Internet.
MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be
transmitted.
NAT (Network Address Translation) - NAT technology translates IP addresses of a local area
network to a different IP address for the Internet.
PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote
hosts to the Internet over an always-on connection by simulating a dial-up connection.
User’s Manual of WNRT-617
-161-
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
EC De c la ra tion of Co nformity
For the following equipment:
*Type of Product: 150Mbps 802.11n Wireless Broadband Router
*Model Number: WNRT-617
* Produced by:
Manufacturer‘s
Name : Planet Technology Corp.
Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist.,
New Taipei City 231, Taiwan (R.O.C.)
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to 1999/5/EC R&TTE.
For the evaluation regarding the R&TTE the following standards were applied:
EN 300 328 V1.7.1 (2006-10)
EN 301 489-17 V2.1.1 (2009-05)
EN 301 489-1 V1.9.2 (2011-09)
EN 55022 (2010)
EN 61000-3-2 (2006 + A1:2009 + A2:2009)
EN 61000-3-3 (2008)
EN 55024 (2010)
IEC 61000-4-2 (2008)
IEC 61000-4-3 (2010)
IEC 61000-4-4 (2004 + A1:2010)
IEC 61000-4-5 (2005)
IEC 61000-4-6 (2008)
IEC 61000-4-8 (2009)
IEC 61000-4-11 (2004)
EN 62311 (2008)
EN 60950-1 (2006 + A11:2009)
Responsible for marking this declaration if the:
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
Person responsible for making this declaration
Name, Surname Kent Kang
Position / Title : Product Manager
T
aiwan 10
st June, 2013
Place Date Legal Signature
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528
User’s Manual of WNRT-617
-162-
EC De c la ra tion of Co nfo rmity
English Hereby, PLANET Technology Corporation,
declares that this 802.11n Wireless Broadband
Router is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Lietuviškai Šiuo PLANET Technology Corporation,,
skelbia, kad 802.11n Wireless Broadband
Router tenkina visus svarbiausius 1999/5/EC
direktyvos reikalavimus ir kitas svarbias
nuostatas.
Česky Společnost PLANET Technology Corporation,
tímto prohlašuje, že tato 802.11n Wireless
Broadband Router splňuje základní požadavky a
další příslušná ustanovení směrnice 1999/5/EC.
Magyar A gyártó PLANET Technology Corporation,
kijelenti, hogy ez a 802.11n Wireless
Broadband Router r megfelel az 1999/5/EK
irányelv alapkövetelményeinek és a kapcsolódó
rendelkezéseknek.
Dansk PLANET Technology Corporation, erklærer
herved, at følgende udstyr 802.11n Wireless
Broadband Router overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF
Malti Hawnhekk, PLANET Technology
Corporation, jiddikjara li dan 802.11n Wireless
Broadband Router jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li
hemm fid-Dirrettiva 1999/5/EC
Deutsch Hiermit erklärt PLANET Technology Corporation,
dass sich dieses Gerät 802.11n Wireless
Broadband Router in Übereinstimmung mit den
grundlegenden Anforderungen und den anderen
relevanten
Vorschriften der Richtlinie 1999/5/EG befindet".
(BMWi)
Nederlands
Hierbij verklaart , PLANET Technology
orporation, dat 802.11n Wireless Broadband
Router in overeenstemming is met de
essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG
Eesti keeles Käesolevaga kinnitab PLANET Technology
Corporation, et see 802.11n Wireless
Broadband Router vastab Euroopa Nõukogu
direktiivi 1999/5/EC põhinõuetele ja muudele
olulistele tingimustele.
Polski Niniejszym firma PLANET Technology
Corporation, oświadcza, że 802.11n Wireless
Broadband Router spełnia wszystkie istotne
wymogi i klauzule zawarte w dokumencie
„Directive 1999/5/EC”.
Εηνά Μ ΣΗΝ ΠΑΡΟΤΑ , PLANET Technology
Corporation, ΗΛΩΝΙ ΟΣΙ ΑΤ Σ Ο 802.11n
Wireless Broadband RouterΤΜΜΟΡΦΩΝΣΑΙ
ΠΡΟ ΣΙ ΟΤΙΩΙ ΑΠΑΙΣΗΙ ΚΑΙ ΣΙ
ΛΟΙΠ
ΧΣΙΚ ΙΑΣΑΞΙ ΣΗ ΟΗΓΙΑ 1999/5/Κ
Português
PLANET Technology Corporation, declara
que este 802.11n Wireless Broadband Router
está conforme com os requisitos essenciais e
outras disposições da Directiva 1999/5/CE.
Español Por medio de la presente, PLANET Technology
Corporation, declara que 802.11n Wireless
Broadband Router cumple con los requisitos
esenciales y cualesquiera otras disposiciones
aplicables o exigibles de
la Directiva 1999/5/CE
Slovensky Výrobca PLANET Technology Corporation,
týmto deklaruje, že táto 802.11n Wireless
Broadband Router je v súlade so základnými
požiadavkami a ďalšími relevantnými predpismi
smernice 1999/5/EC.
Français Par la présente, PLANET Technology
Corporation, déclare que les appareils du 802.11n
Wireless Broadband Router sont conformes aux
exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE
Slovensko PLANET Technology Corporation, s tem
potrjuje, da je ta 802.11n Wireless
Broadband Router skladen/a z osnovnimi
zahtevami in ustreznimi določili Direktive
1999/5/EC.
Italiano Con la presente , PLANET Technology
Corporation, dichiara che questo 802.11n
Wireless Broadband Router è conforme ai
requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva
1999/5/CE.
Suomi PLANET Technology Corporation, vakuuttaa
täten että 802.11n Wireless Broadband
Router tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Latviski Ar šo PLANET Technology Corporation,
apliecina, ka šī 802.11n Wireless Broadband
Router atbilst Direktīvas 1999/5/EK
pamatprasībām un citiem atbilstošiem
noteikumiem.
Svenska Härmed intygar, PLANET Technology
Corporation, att denna 802.11n Wireless
Broadband Router står i överensstämmelse
med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
