Planet Toys Worldwide 100 27 MHz Remote Control - TX User Manual

Planet Toys Worldwide Limited 27 MHz Remote Control - TX Users Manual

users manual

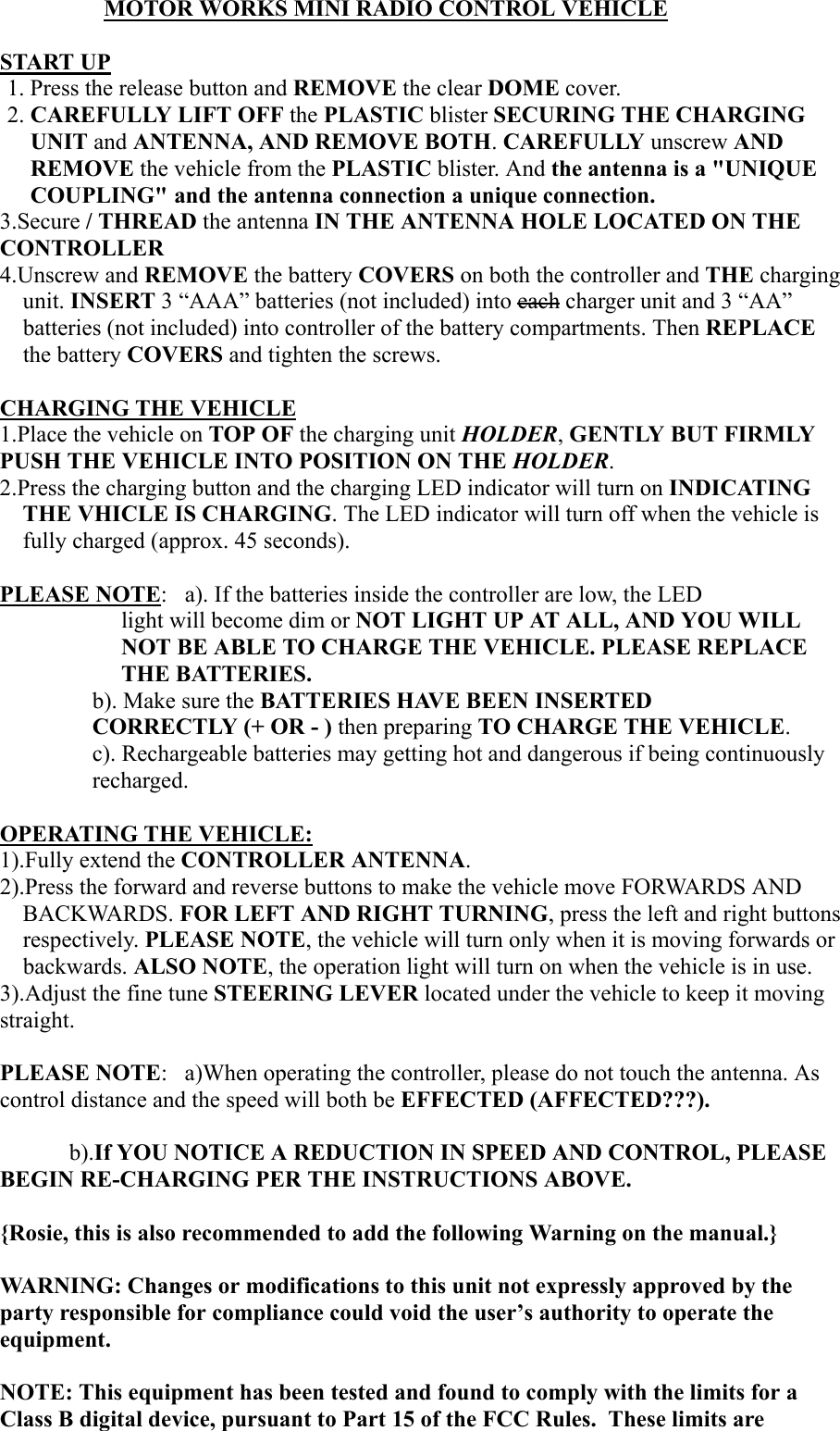

MOTOR WORKS MINI RADIO CONTROL VEHICLESTART UP1. Press the release button and REMOVE the clear DOME cover.2. CAREFULLY LIFT OFF the PLASTIC blister SECURING THE CHARGINGUNIT and ANTENNA, AND REMOVE BOTH. CAREFULLY unscrew ANDREMOVE the vehicle from the PLASTIC blister. And the antenna is a "UNIQUECOUPLING" and the antenna connection a unique connection.3.Secure / THREAD the antenna IN THE ANTENNA HOLE LOCATED ON THECONTROLLER4.Unscrew and REMOVE the battery COVERS on both the controller and THE chargingunit. INSERT 3 “AAA” batteries (not included) into each charger unit and 3 “AA”batteries (not included) into controller of the battery compartments. Then REPLACEthe battery COVERS and tighten the screws.CHARGING THE VEHICLE1.Place the vehicle on TOP OF the charging unit HOLDER, GENTLY BUT FIRMLYPUSH THE VEHICLE INTO POSITION ON THE HOLDER.2.Press the charging button and the charging LED indicator will turn on INDICATINGTHE VHICLE IS CHARGING. The LED indicator will turn off when the vehicle isfully charged (approx. 45 seconds).PLEASE NOTE: a). If the batteries inside the controller are low, the LEDlight will become dim or NOT LIGHT UP AT ALL, AND YOU WILLNOT BE ABLE TO CHARGE THE VEHICLE. PLEASE REPLACETHE BATTERIES.b). Make sure the BATTERIES HAVE BEEN INSERTEDCORRECTLY (+ OR - ) then preparing TO CHARGE THE VEHICLE.c). Rechargeable batteries may getting hot and dangerous if being continuouslyrecharged.OPERATING THE VEHICLE:1).Fully extend the CONTROLLER ANTENNA.2).Press the forward and reverse buttons to make the vehicle move FORWARDS ANDBACKWARDS. FOR LEFT AND RIGHT TURNING, press the left and right buttonsrespectively. PLEASE NOTE, the vehicle will turn only when it is moving forwards orbackwards. ALSO NOTE, the operation light will turn on when the vehicle is in use.3).Adjust the fine tune STEERING LEVER located under the vehicle to keep it movingstraight.PLEASE NOTE: a)When operating the controller, please do not touch the antenna. Ascontrol distance and the speed will both be EFFECTED (AFFECTED???).b).If YOU NOTICE A REDUCTION IN SPEED AND CONTROL, PLEASEBEGIN RE-CHARGING PER THE INSTRUCTIONS ABOVE.{Rosie, this is also recommended to add the following Warning on the manual.}WARNING: Changes or modifications to this unit not expressly approved by theparty responsible for compliance could void the user’s authority to operate theequipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits are

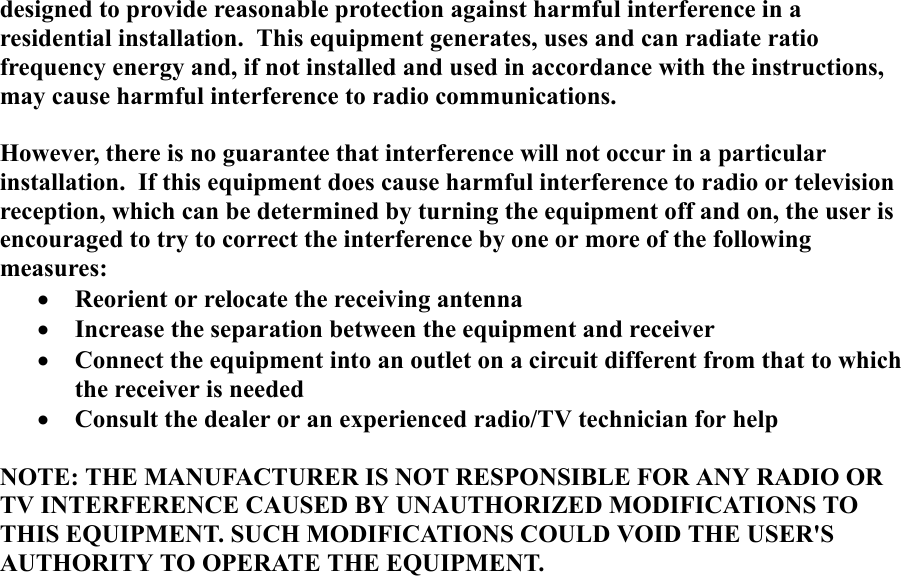

designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate ratiofrequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment and receiver• Connect the equipment into an outlet on a circuit different from that to whichthe receiver is needed• Consult the dealer or an experienced radio/TV technician for helpNOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO ORTV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TOTHIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'SAUTHORITY TO OPERATE THE EQUIPMENT.
