Users Manual

Audio Stereo Receiver

T-

-W

1/4

Product Description:

This Bluetooth Stereo Audio Adapter wirelessly connect to your Bluetooth

enabled music players (such as: PCs, laptops, mobile phone, MP3 player and i-

Pod …which supported Bluetooth A2DP profile) for all your multimedia

applications. Listen to music from your music player in full-range quality stereo

sound.

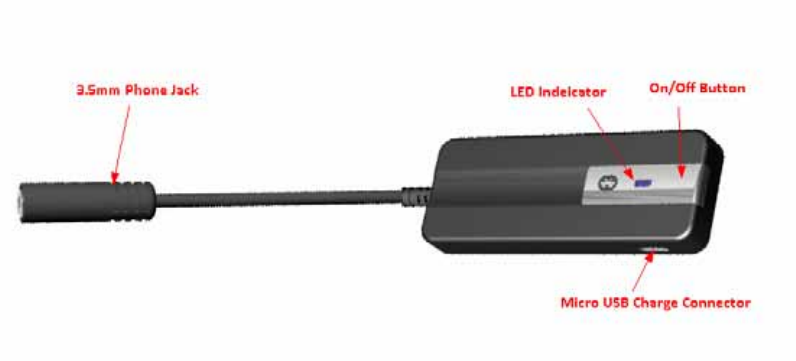

Now, you can use Bluetooth to enable your speaker system by plug in your

“BT-WRV01” into 3.5mm audio connector. No special software is required for

installation. This Bluetooth stereo audio adapter provides friendly user’s interface

and LED indication , all operations can be done in one buttons. This adapter is

Bluetooth Standard 3.0 compliant ,it supports Bluetooth A2DP-source profiles .

Audio Stereo Receiver

T-

-W

2/4



k

S

t

:

:



1. PowerOndongle



Topressbuttonfor2seconds,theBT‐WRV01willpoweronandblueLED

willflash3timesintwoseconds.



2. PowerOffdongle



Topressbuttonfor2seconds,theBT‐WRV01willpoweroffandredLED

willflash3timesintwoseconds.



3. Pairing



YouarerequiredtopairtheBT‐WRV01withyourBluetoothenabledaudio

devicelikemobilephone/PC/PDAbeforeusingit.



Audio Stereo Receiver

T-

-W

3/4

Step1:TurnOFFtheBT‐WRV01.Holdandkeeppressingthebuttonfor6

seconds

untilthered/blueLEDindicatorsalwayslightalternative.BT‐WRV01is

nowreadyforpairing.



Step2:InitiatepairingprocessonyourBluetoothenabledaudiodevice

topair.Aftersearch,youcanfindthedevicename“BT‐WRV01”



Step3:WhenaskedthePasskeybythemobilephone,enter“1234”and

confirmit.

Whenpairingissuccessful,theLEDindicatorwillchangetobeblue

andflash.



4. Connect



InitialconnectprocessonyourBluetoothenabledaudiodevicetoconnect

withBT‐WRV01.

Youalsocanpressbuttononetimetoconnectwithdevicewhichalready

paired.



5. LEDindicator



Pairing:Blue/RedLEDalternative

Connected:BlueLEDflashtwiceeach4seconds

Standby(disconnect):BlueLEDflasheach2seconds.

Charging:RedLEDlighton

Chargingcomplete:RedLEDturnoff

LowBattery:RedLEDflashtwiceevery6seconds

Audio Stereo Receiver

T-

-W

4/4

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the installation. , May cause harmful interference to

radio communication. However, there is no guarantee that interference

Will not occur in a particular installation. if this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

-Reorient or relocate the receiving antenna

-Increase the separation between the equipment and receiver

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

-Consult the dealer or an experienced radio / TV technician for help

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

This device complies with part 15 of the FCC rules. Operation is subject to the following

two conditions

(1) This device may not cause harmful interference and

This device must accept any interference received, including interference that may cause

undesired operation
