Planex Communications BT-WTM01 BLUETOOTH AUDIO TRANSMITTER User Manual BT WTM01
Planex Communications inc. BLUETOOTH AUDIO TRANSMITTER BT WTM01
Users Manual
Bluetooth Audio Transmitter
PCi
B
BT
T-
-W
WT
TM
M0
01
1
1/4
Product Description:
BT-WTM01 enables wireless connectivity of your music player via the
Bluetooth Technology. Before Bluetooth becomes a standard for music players,
the unique and portable Bluetooth stereo adapter is your intermediate solution to
reach the wireless world. This model is Bluetooth Standard 2.1 compliant.
Now, you may Bluetooth enable your music player by plug in your
BT-WTM01 into 3.5mm audio connector. No special software is required for
installation. It allows an operating range of more than 10 meters (33 feet). This
Bluetooth Audio Adapter brings you unlimited multimedia applications. Listen to
music from music player in full-range quality stereo sound wirelessly.

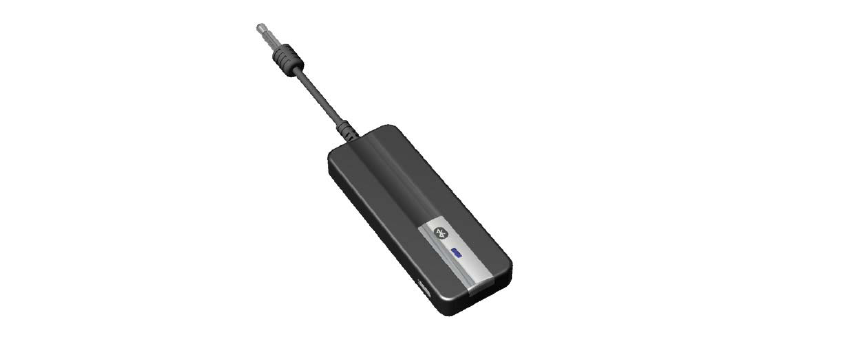

Product Picture:
Bluetooth Audio Transmitter
PCi
B
BT
T-
-W
WT
TM
M0
01
1
2/4

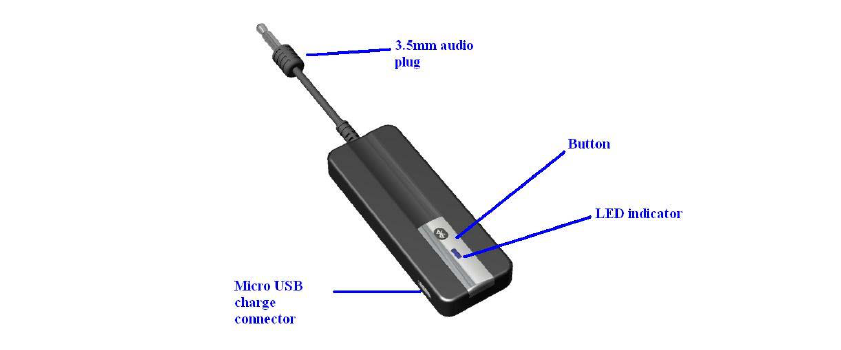

B
Bu
ut
tt
to
on
n
F
Fu
un
nc
ct
ti
io
on
n
:
:
Q
Qu
ui
ic
ck
k
S
St
ta
ar
rt
t
:
:
1. Power On dongle
To press button for 3 seconds , the BT-WTM01 will power on and blue LED flash.
2. Power Off dongle
To press button for 6 seconds , the BT-WTM01 will power off and red LED flash.
3. Pairing
power off the BT-WTM01 and then press button for 6 seconds till red and blue
LED flash alternative, then BT-WTM01 is under pairing mode. You can pair BT-
WTM01 with Bluetooth stereo headset( ex. VS-1000). BT-WTM01 supported
Bluetooth stereo device which pin code is “0000” ,“1234” ,”8888” ,“1111”, “7777”
Step 1. Let BT-WTM01 under pairing mode
Step 2. Let Bluetooth stereo headset under pairing mode
Step 3. BT-WTM01 will complete pairing process with headset automatically
4. Connect
1. To press connect button of headset to establish connection.
or
2. To press button of the BT-WTM01 establish connection.
Bluetooth Audio Transmitter
PCi
B
BT
T-
-W
WT
TM
M0
01
1
3/4
-- Single click : default volume
-- Double click : higher volume
Note :
1. The higher volume is only effective when connection be established from BT-
WTM01 by double click. If connection is established from headset, the volume is
default.
2. The connection maybe can not establish, if both BT-WTM01 and headset are
initiating connection.
5. Auto power off
The BT-WTM01 will auto power off if there is no connection be established for 1
minute.
6. LED indicator
Pairing : blue and red LED alternate flash
Connected : blue LED quick flash 1time/sec
Standby(disconnect) : blue LED slow flash 1time/2sec
Low Battery : red LED flash
Low Battery
When the RED indicator starts to flash, it indicates that the Adapter is running low on
battery.
Charge the Adapter until the RED indicator turns off.
Bluetooth Audio Transmitter
PCi
B
BT
T-
-W
WT
TM
M0
01
1
4/4
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the installation. , May cause harmful interference to
radio communication. However, there is no guarantee that interference
Will not occur in a particular installation. if this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
-Consult the dealer or an experienced radio / TV technician for help
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions
(1) This device may not cause harmful interference and
This device must accept any interference received, including interference that may cause
undesired operation
