Quick User Guide of GW-USFang300
Notice.........................................................................................................................2
Installing the software of USB dapter………………………………….3
Configuring your wireless network (with Wireless Utility) ......5
2
Notice
Please notice and cooperate while using this product based on the statement below.
a. FCC Section 15.105
This equipment has been tested and found to comply with the limits for a lass B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
b. Please keep 20cm distance away from the antenna while using this product.
c. Please don’t let this product co-exist or operate with any other transmitter while
using it.
d. FCC Part 15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation
e. FCC Part 15.21 information to user
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
3
Installing the software of USB Adapter
1. Select the setup file to install. The setup program will detect user’s
language automatically.

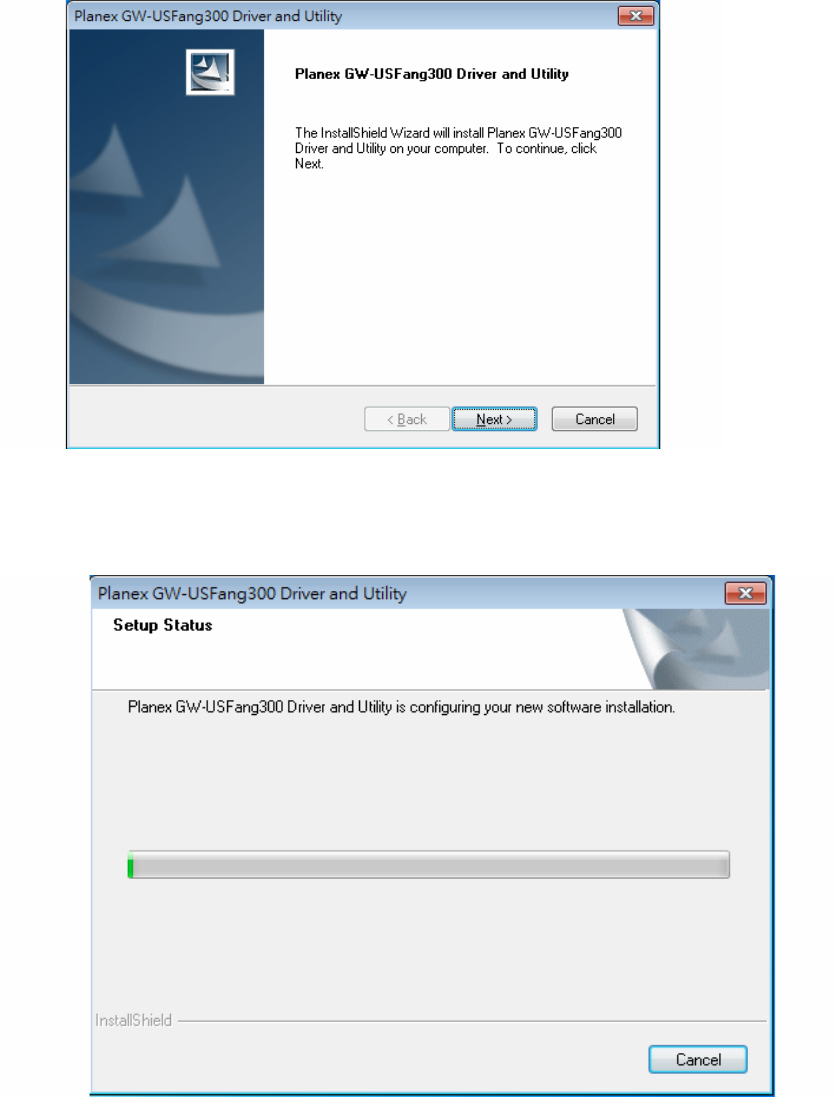

2. The setup program will install the driver and utility to computer. Please
click the “Next” button to continue.
3. The software installation should begin. This may take a few minutes.
4

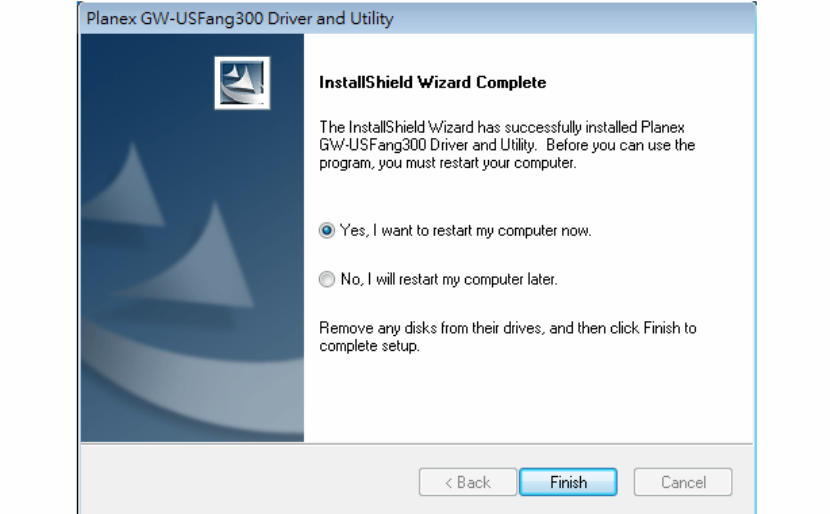

4. Once the installation success, click “Yes” to restart your system
(recommended). Otherwise, click “No” to restart your system later.
5. Once the installation complete, you may now configure your wireless
network.
5
Configuring your wireless network (with Wireless Utility)
1. Windows XP users, if you chose “Microsoft Zero Configuration Tool”
during the software installation please skip to page 11.

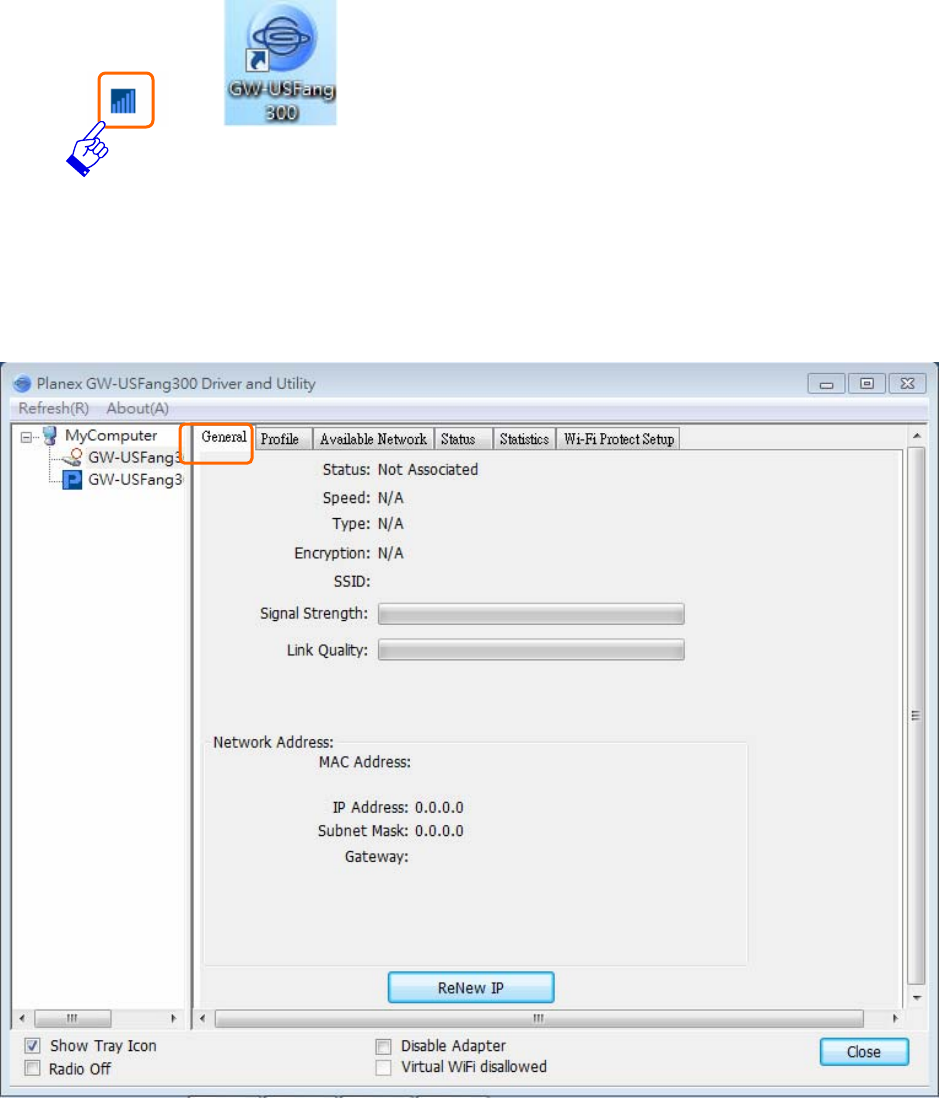

2. Double click on the computer with wireless signal icon in your taskbar or
the shortcut icon on the desktop.
3. It should pop up the Wireless Utility window. And then utility shows the
connecting wireless network that connected automatically or was the
default network in profile.
6
4. Click the “Available Network” tab to the wireless network surveying page.
Click the “Refresh” button to scan the area for wireless network(s). Once
the scan completed, select the desired wireless network from the list and
double click it or click the “Add to Profile” button.

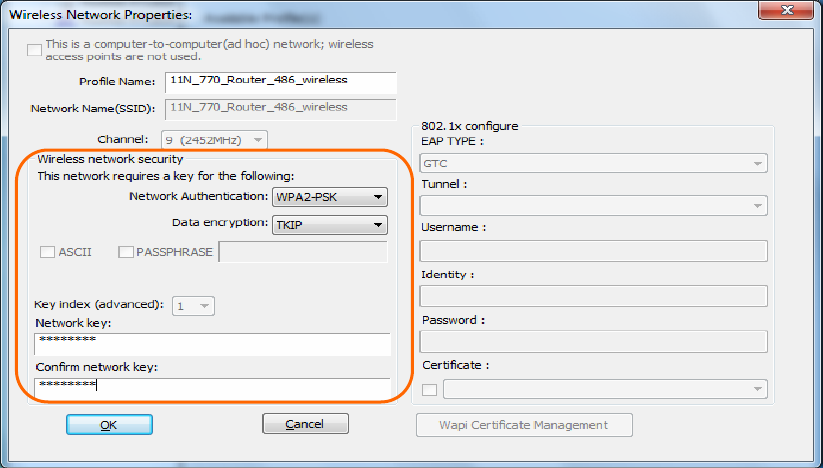

5. It should pop up the wireless Network Properties window. If you do not
have any wireless security (WEP, WPA, WPA2, and etc.) set on your
wireless network, simply click the “OK” button and skip to step7. If you
do have wireless securities on your wireless network, configure the
security setting in “Wireless network security” column.
7
6. Set your wireless securities settings, when it completed, click the “OK”
button. Select the Network Authentication and Data encryption to set the
encryption type.
- If you have WEP, typically you select the format and enter your WEP key
below the Data encryption.
- If you have WPA-PSK or WPA2-PSK, typically you only enter your key in
the “Network Key” and type again to confirm it.
- If you have 802.1x configure, typically you only configure your setting
in 802.1x configure column.

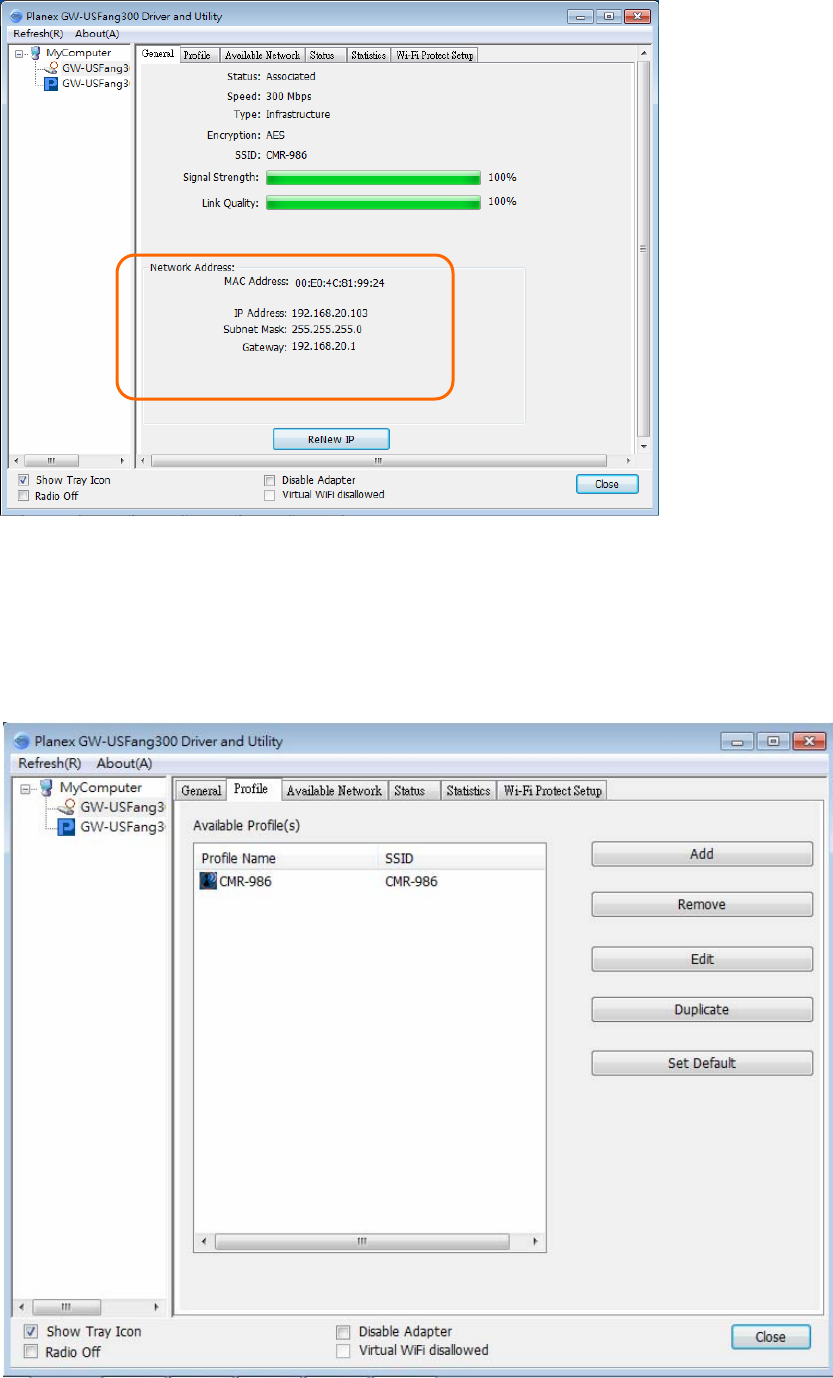

7. After connected to wireless network, utility will back to “General” page
and show the wireless network status. Once the wireless network
connected successfully, the Network Address will show the dongle has
gotten the IP address from DHCP.
8
8. Click the “Profile” tab to check the profile page. The wireless network
configuration has added in Available Profile(s). It could remove, edit,
duplicate and set default the profiles in this page.
