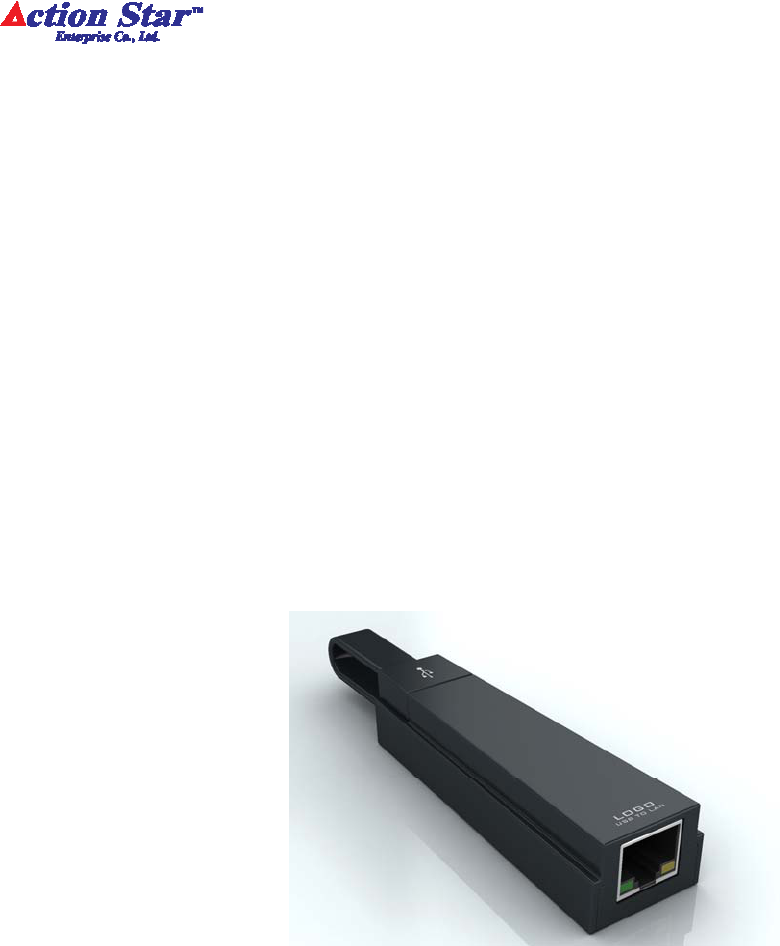

USB to LAN (Gigabit) Adapter
INTRODUCTION
The USB Ethernet Adapter provides users to launch Internet with easy installation and lower
power consumption via the USB interface. The adapter is compliant to USB2.0, which contribute
to the high compatibility and hence strengthen the brilliant transfer performance.
The device is compatible to USB 2.0 and 1.1. Along with complying 802.3, 802.3u and 802.3ab
standard, users are allowed to add the networking compatibility to the computer in any
environment that encountered. Users would not have to endure the effort opening PC cases
anymore.
FEATURES
z Compliant USB1.1 and 2.0 specification
z IEEE 802.3, 802.3u, 802.3ab (10BASE-T/100BASE-TX/1000BASE-T) compatible
z Supports both Full-duplex with flow control and Half-duplex with backpressure operation
z Supports 512 bytes for EEPROM
z Supports Wake-on-LAN
z Supports Win 2000, XP, Vista , 7, Linux and Mac
z Supports Linux kernel 2.6.9 and later
z Supports MAC OS 10.4/10.5/10.6 Driver for x86 and Power PC
SPECIFICATIONS
Function
Model No. IA-UEC0-00
Port 1 *10/100/1000 Mbps RJ-45 port
1 * USB type A/M Cable
Operating System Support Win 2000, XP, Vista , 7 , Linux , Mac
Standards
USB 1.1/2.0
IEEE802.3 for 10BASE-T
IEEE802.3u for 100BASE-TX
IEEE802.3ab for 10BASE-T
LED Indication Link: Green
Activity: Yellow
Off: No valid link
Input Power BUS power
Power Consumption 5V / 200mA(max)
Operating temperature 0 ℃ ~ 40 ℃
Storage temperature -20 ℃ ~ 60 ℃
Operating humidity < 80% R.H.
Storage humidity < 60% R.H.
Module Weight TBA
Module Dimension (L x W x H) 88mm * 28mm * 20mm
Class B:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receive
r
is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
