User instructions
1
A
Charging / Translation
2
1
2
Left/Tr a nslation
Right/Tr a nslation
Begin with headset turned off. Press but-
ton for 6 sec. Release button when LED
flashes blue and red. Headset is ready to
pair with Bluetooth device. /Spanish
T
ranslation
Charge for at least 20 minutes before
first use. Complete charging in 2 hours.
Headset will not function when charg-
ing.
Lift earloop/Spanish Translation Swivel earloop to the right or
left./Spanish Translation
Press the control button for 2 sec. to power
on. Press the control button for 3 sec. to
power off. Push Up/Down for Volume
Control./ Spanish Translation
USER GUIDE AND INFORMATION GUIDE
USER GUIDE AND INFORMATION GUIDE
Using the Headset / Translation
Adjusting to Fit/Translation
Explorer™
320
Includes: Headset, AC adapter, User Guide, Warranty Guide, & Safety Guide
Includes: Headset, AC adapter, User Guide, Warranty Guide, & Safety Guide
Control Button
Light Indicator
Earloop
Speaker
Charging Jack
Microphone
LIMITED WARRANTY
Warranty for Plantronics Mobile Products Purchased in the US and Canada
• This warranty covers defects in materials and workmanship of Mobile Products
manufactured, sold or certified by Plantronics which were purchased and used in the
United States and Canada.
• This warranty lasts for one year from the date of purchase of the Products.
• This warranty extends to you only if you are the end user with the original
purchase receipt.
• We will, at our option, repair or replace the Products that do not conform to the
warranty. We may use functionally equivalent reconditioned/refurbished/remanufactured/
pre-owned or new Products or parts.
• To obtain service in the U.S. contact Plantronics at (800) 544-4660 and in Canada call
(800) 540-8363. If you need additional information, please contact our service centers at
the numbers provided.
• THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE PRODUCTS.
• This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state or province to province. Please contact your dealer or our service
center for the full details of our limited warranty, including items not covered by this
limited warranty.
Technical Assistance
The Plantronics Bluetooth Technical Assistance Center (TAC) is ready to assist you at
866-746-4375, or visit the Support section of our website at www.plantronics.com. For
accessibility information also call the Bluetooth Technical Assistance Center.
TRANSLATION
3
Hold headset by earloop./Spanish
Translation
5
Pivot headset to place speaker into
ear./Spanish Translation
6
Position speaker and align microphone
with mouth./Spanish Translation
Use your device’s menu to enter pairing
mode and select “320 Plantronics” on the
display. When asked for passkey, type
“0000.” / Spanish Translation
4
Place earloop behind ear./Spanish
Translation
Bluetooth® v1.2 Hands-Free and Headset Profiles
Bluetooth® v1.2 Hands-Free and Headset Profiles
© 2005 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Plantronics and the logo
design combined, and Explorer are trademarks or registered trademarks of Plantronics, Inc. The
Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc., and are used by
Plantronics, Inc. under license. Patents Pending. Printed in USA 70258-01 (05-05)
69520-01 Car Lighter Adapter Charger
69520-01 Car Lighter Adapter Charger
61519-01 USB Headset Charger
61519-01 USB Headset Charger
ACCESSORIES/ACCESSORIES
Please read Safety
Instructions and
this User Guide
before using your
new headset.
05-PI-002_draft6 5/6/05 11:04 AM Page 1
FCC REGISTRATION INFORMATION
EXPOSURE TO RADIO FREQUENCY RADIATION
FCC Requirements – Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
The radiated output power of this internal wireless radio is far below the FCC radio
frequency exposure limits. Nevertheless, the wireless radio shall be used as described in
the manual.
The internal wireless radio operates within guidelines found in radio frequency safety
standards andrecommendations, which reflect the consensus of the scientific community.
Plantronics therefore believes the internal wireless radio is safe for use by consumers. The
level of energy emitted is far less than the electromagnetic energy emitted by wireless
devices such as mobile phones. However, the use of wireless radios may be restricted in
some situations or environments, such as aboard airplanes. If you are unsure of restrictions,
you are encouraged to ask for authorization before turning on the wireless radio.
NOTE: Modifications not expressly approved by Plantronics, Inc. could void the user’s
authority to operate the equipment.
FCC REGISTRATION INFORMATION
ESPOSURE TO RADIO FREQUESNCY RADIATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
The radiated output power of this internal wireless radio is far below the FCC radio
frequency exposure limits. Nevertheless, the wireless radio shall be used as described in
the manual.
The internal wireless radio operates within guidelines found in radio frequency safety
standards andrecommendations, which reflect the consensus of the scientific community.
Plantronics therefore believes the internal wireless radio is safe for use by consumers. The
level of energy emitted is far less than the electromagnetic energy emitted by wireless
devices such as mobile phones. However, the use of wireless radios may be restricted in
some situations or environments, such as aboard airplanes. If you are unsure of restrictions,
you are encouraged to ask for authorization before turning on the wireless radio.
NOTE: Modifications not expressly approved by Plantronics, Inc. could void the user’s
authority to operate the equipment.

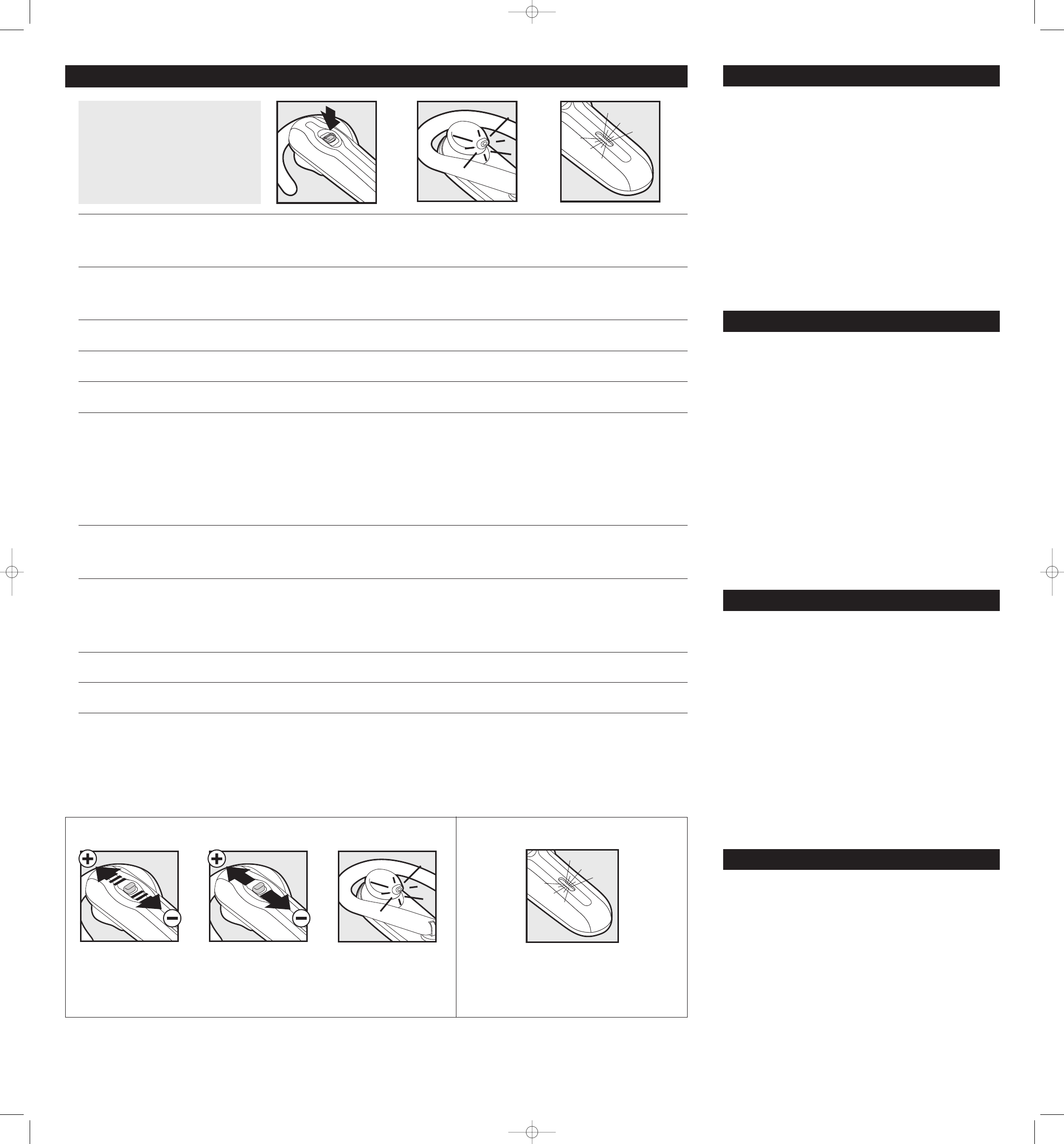

User Information Guide/Translation
Short key press = under 1 sec.
Long key press = 1-2 secs.
Very long key press = 3 or more secs.
Short key press = under 1 sec.
Long key press = 1-2 secs.
Very long key press = 3 or more secs.
Turning the headset on
Turning the headset on
Make or accept a phone call
Make or accept a phone call
Switching a call from phone to headset
Switching a call from phone to headset
Switching a call from headset to phone
Switching a call from headset to phone
Ending the phone call
Ending the phone call
Pairing and connecting
Please note:
You can only enter pairing mode from off position.
Bluetooth®device must be in discoverable mode. See
instructions for your device for specific information.
Pairing and connecting
Please note:
You can only enter pairing mode from off position.
Bluetooth®device must be in discoverable mode. See
instructions for your device for specific information.
Turning the headset off
T
urning the headset off
Long key press
Long key press
Short key press
Short key press
Short key press
Short key press
Long key press
Long key press
Short key press
Short key press
V
ery long key press
Very long key press
Very long key press
V
ery long key press
Mid tone
Mid tone
High tone
High tone
High tone
High tone
High tone followed by low tone
High tone followed by low tone
High tone
High tone
Mid tone followed by mid tone
Mid tone followed by mid tone
High tone followed by low tone
followed by mid tone
High tone followed by low tone
followed by mid tone
Indicator light flashes blue every 6
seconds (red if battery is low)
Indicator light flashes blue every 6
seconds (red if battery is low)
When ringing, indicator light
flashes purple
When ringing, indicator light
flashes purple
Indicator light flashes blue
Indicator light flashes blue
Indicator light flashes blue
Indicator light flashes blue
Indicator light flashes blue and red
Indicator light flashes blue and red
Indicator light flashes red
Indicator light flashes red
ADJUSTING THE VOLUME
ADJUSTING THE VOLUME
OTHER USEFUL FEATURES
OTHER USEFUL FEATURES
Short push for incremental
steps
Short push for incremental
steps
Hold push for continuous
increase/decrease in volume
Hold push for continuous
increase/decrease in volume
Low tone at high and low limit
of range
Low tone at high and low limit
of range
Missed call: Purple flash, reset by short key press
Charge indicator: At power on, indicator light flashes once
for 1/3 charge, twice for 2/3 charge, three
times for full charge.
HANDS-FREE FEATURES
Available only when Bluetooth device also supports hands-free profiles.
HANDS-FREE FEATURES
Available only when Bluetooth device also supports hands-free profiles.
Activate last number redial
Activate last number redial
Activate voice dial
Activate voice dial
Call reject
Call reject
Double short key press
Double short key press
Long key press
Long key press
Long key press (on incoming call)
Long key press (on incoming call)
High tone for each key press
High tone for each key press
High tone followed by low tone
High tone followed by low tone
High tone followed by low
tone, low tone if call rejected
Indicator light flashes purple
Indicator light flashes purple
05-PI-002_draft6 5/6/05 11:04 AM Page 2
