Plantronics B70 Bluetooth Headset User Manual PLANTRONICS Neo2 headset UG
Plantronics Inc Bluetooth Headset PLANTRONICS Neo2 headset UG

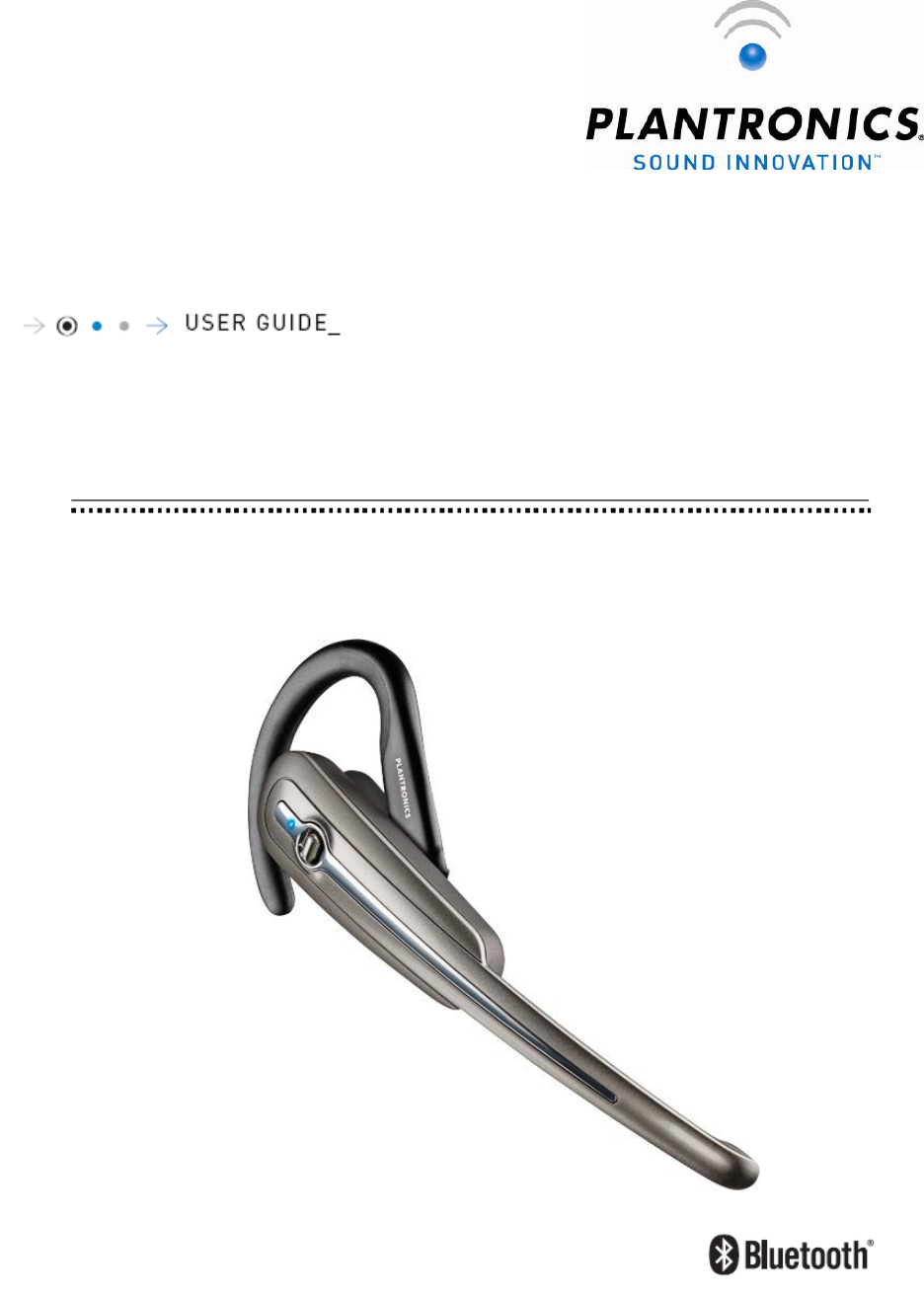

User manual
PLANTRONICS Calisto®
BLUETOOTH® HEADSET
Table of Contents
1. Packaging Contents
2. Initial Setup
3. Basic operations
4. Headset features
5. Product Specifications
6. Safety information
7. Warranty
8. Help/ Contact
WELCOME
Thank you for purchasing a Plantronics headset.
Let us provide you with the best possible service and technical support. After you review this user guide, if you need
additional assistance or have any product questions, please contact:
• Plantronics Technical Assistance Center at 866-363-BLUE (2583)
• www.plantronics.com/support
Before getting started, please review the safety information in this booklet.
REGISTER YOUR PRODUCT ONLINE
Visit www.plantronics.com/productregistration to register your product online so we can provide you with the best
possible service and technical support.
Packaging Contents
Your Plantronics Calisto headset should include the following items:
Headset Charging Cable
Printed Material Included:
User guide
Bluetooth safety booklet
Initial Setup
Once you have removed the contents of the packaging, your first step is to prepare the headset for initial use.
Charge headset for a minimum of 3 hours before initial use.
Headset Wearing Tips:
1. The headset can be worn on your left or right ear. To switch to left ear, flip the ear loop to the side, and twist
around as shown.
2. The ear tip should fit comfortably in the opening of your ear canal. It may take some adjusting to find a
comfortable and secure fit.
3. Make sure the mouthpiece is pointing toward your mouth for optimal performance
Basic Operations
Powering up: Press and hold Headset button for 2 seconds.
4 ascending beeps when powered on
Powering down: Press and hold Headset button for 4 seconds.
4 descending beeps when powered off
Volume adjustment
1. To adjust headset volume, you can push the headset button up or down to increase or decrease volume.
WARNING For your comfort, health and safety do not exceed moderate listening levels.
Headset Features

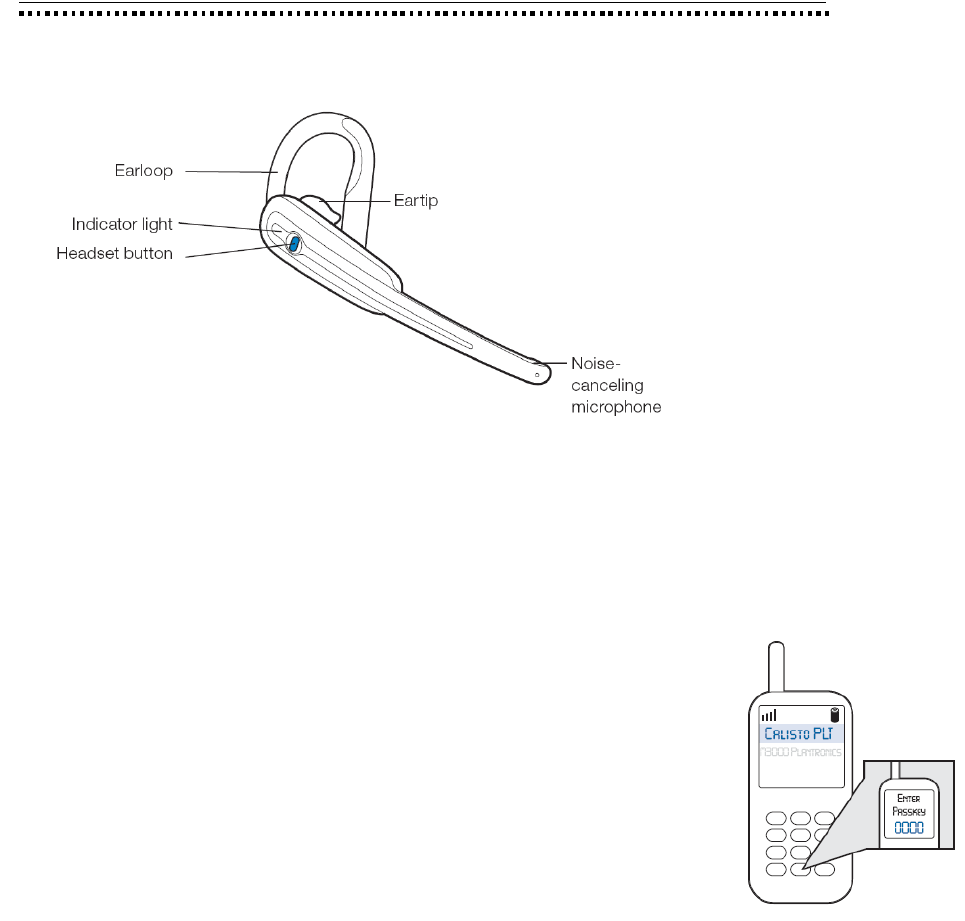

Plantronics Calisto Headset
Before using, you must first charge your headset (see instructions in initial setup section). For the best user experience,
always keep your headset fully charged.
Pairing headset with your mobile phone
- Before you begin, be sure your mobile phone has Bluetooth headset
capability.
- Turn Calisto headset off by holding down the headset button for 6
seconds, or until red light appears solid for 1 second before going away.
- Reference your mobile phone user’s manual to activate Bluetooth signal
on your phone.
- To begin headset pairing, hold down button on headset until you see
alternating red and blue flashes.
- While the headset is flashing red and blue, use the phone menu to search
for Bluetooth devices and select PLT_CALISTO
- When mobile phone detects Calisto headset it will ask for a pas code.
- ENTER PASSCODE: 0000
- Your Calisto headset is now paired with your mobile phone and is ready for use
NOTE: The headset can pair to multiple Bluetooth devices, but will only connect to one device at a time. The
headset will automatically connect to the last device to which it was connected.
Placing mobile calls using headset
- Dial the number on the mobile phone and press the headset button to transfer the call to the headset.
Some mobile phones require the user to first accept the headset connection.
- To end the call, press the headset button again or end the call on the mobile phone
Answering mobile calls using headset
- When a call comes in, your phone will ring and an incoming call earcon (beep) will sound in the headset.
Simply press the headset button once to answer the mobile phone call.
Headset functions
Action Lights Beeps
Mobile phone pairing Start with Power Off, press button for 2 sec.
(mobile phone should be in pairing mode)
alternates blue/red 1 beep at beginning, 1 beep when
completed
Power On Press button for 2 sec. flash for 2 sec.
(4 beeps increasing)
Power Off Press button for 4 sec. flash for 4 sec.
(4 beeps decreasing)
Call Answer/ End Press button for 1 sec. N/A 1 beep
Volume Push button up or down N/A 2 beeps when max/ min limit is
reached
Last # Redial Double tap N/A 2 beeps when initiated
Headset Alerts
Alert Lights Voice Prompt Beeps
Connected to phone N/A
“Connected” when it connects
to your phone 1 beep
Incoming Call
rapid flashing N/A
3 rapid beeps w/each ring
Low Battery
every 10 sec. “Recharge headset”
beep every 10 sec.
Charging
Solid red when charging
N/A N/A
Charged
Solid blue fully charged
N/A N/A
Product Specifications
HEADSET SPECIFICATIONS
- Talk Time* Up to 8 hours
- Standby Time** Approximately 240 hours
- Charge Time 2 hours
- Range Bluetooth standard 33 feet (10 meters)
- Power Requirements 5V DC – 300 mA
- Battery Type Lithium Ion Polymer
- Version Works with Bluetooth 1.1 or higher
- Storage and Usage Temperature 50F–104F (10C – 40C)
- Supports Bluetooth hands-free and headset profiles.
*Performance may vary by device.
**Headset can last up to four days without charging, based on average talk time of 1.5 hours per day.
Safety Information
ATTERY PRECAUT
SOUND WARNING: Exposure to high volume sound levels may damage your hearing. Although there is no single volume
setting that is appropriate for everyone, you should always use your headset or headphones with the volume set at
moderate levels and avoid prolonged exposure to high volume sound levels. The louder the volume, the less time is required
before your hearing could be affected. You may experience different sound levels when using your headset or headphones
with different devices. The device you use and its settings affect the level of sound you hear. If you experience hearing
discomfort, you should stop listening to the device through your headset or headphones. To protect your hearing, some
hearing experts suggest that you:
- Limit the amount of time you use headsets or headphones at high volume.
- Avoid turning up the volume to block out noisy surroundings.
- Turn the volume down if the sound from the headset or headphones prevents you from hearing people speaking
near you.
See www.plantronics.com/healthandsafety for more information on headsets and hearing.
Warranty
LIMITED WARRANTY
- This warranty covers defects in materials and workmanship of products manufactured, sold or certified by
Plantronics which were purchased and used in the United States.
- The warranty lasts for one year from the date of purchase of the products.
- This warranty extends to you only if you are the end user with the original purchase receipt.
- We will at our option, repair or replace the products that do not conform to the warranty. We may use functionally
equivalent reconditioned/refurbished/remanufactured/pre-owned or new products or parts.
- To obtain service in the U.S., contact Plantronics at (866) 363-BLUE (2583).
- THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE PRODUCTS.
- This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
Please contact your dealer or our service center for the full details of our limited warranty, including items not
covered by this limited warranty.
REGULATORY NOTICES
EXPOSURE TO RADIO FREQUENCY RADIATION
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with part 15 of the FCC Rules and Industry of Canada technical specifications of the RSS210. Operation
is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Help/Contact
TECHNICAL ASSISTANCE
Visit our Web site at www.plantronics.com/support for technical support including frequently asked questions,
compatibility and accessibility information.
The Plantronics Technical Assistance Center (TAC) is also ready to assist you on 866-363-BLUE (2583).
