Plantronics PBT180 Stereo Receiver with Bluetooth User Manual BT 13 14 TX HS
Plantronics Inc Stereo Receiver with Bluetooth BT 13 14 TX HS
Users Manual

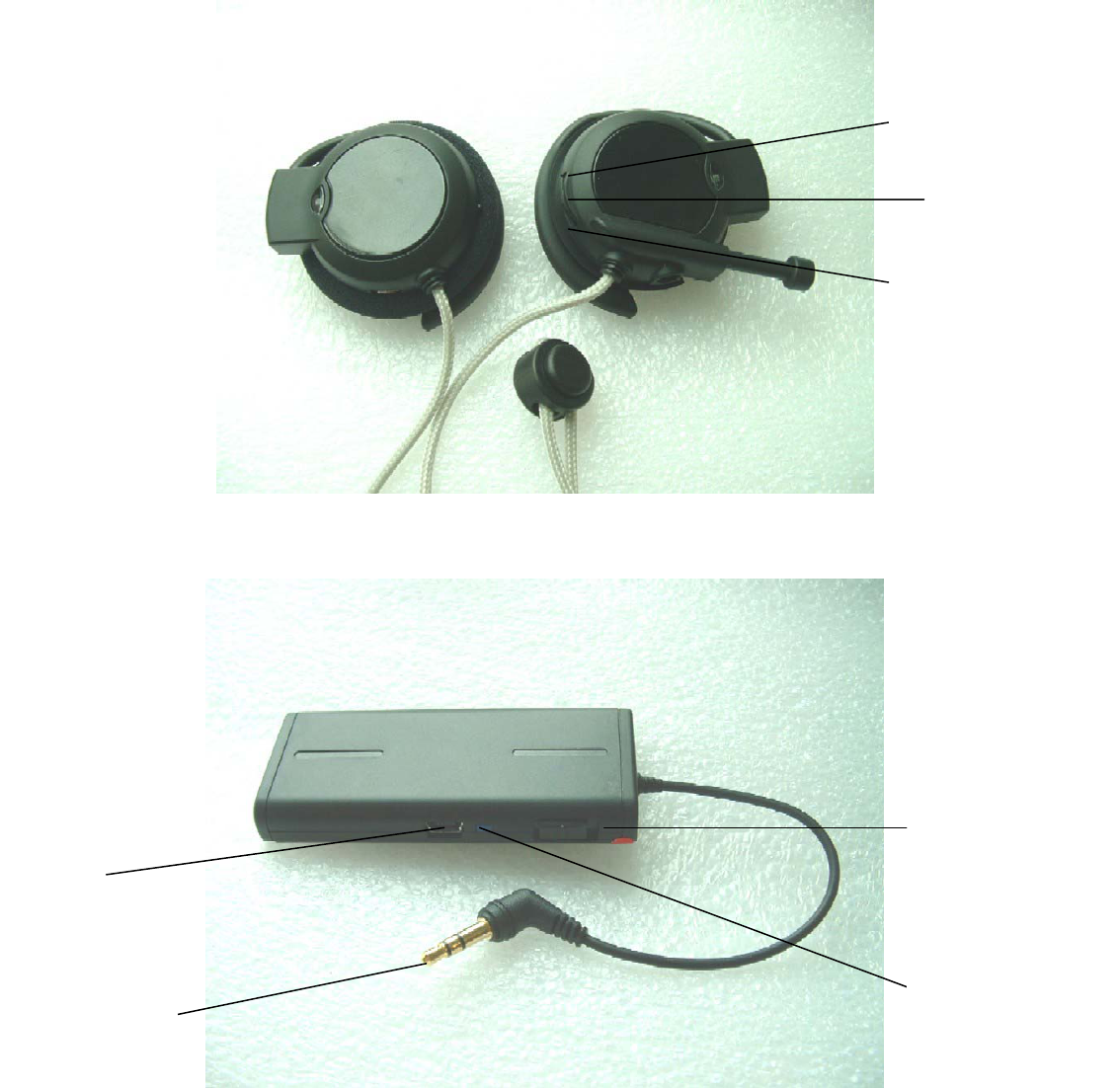

Bluetooth Headset / Transmitter Outline
Figure 1. Bluetooth Stereo Headset
Figure 2. Bluetooth Transmitter
Power On / Off
LED indicator
z Status LED
z Power LED
Mini USB
Char
g
in
g
Port
Audio Cable
(
3.5
ψ
mm
)
Button 1
Button 3
Button 2
PALM GARDEN ENTERPRISES CORP.
1
How to Use Bluetooth Headset & Transmitter
Respond to Cell Phone
1. Set Up / Prerequisite
Before you turn on the headset and transmitter (TX), please use the USB
charging cable to charge them.
2. Pair / Connect
(1) Turn on the headset.
(2) Operate the Bluetooth enabled cell phone to search headset.
(3) Enter PIN code “0000” when the pop-up screen is shown on the cell
phone.
(4) Pairing is done while the headset status LED indicator start flashing
slowly.
(5) Add the headset to a list of “Paired Device” in the phone to connect it with
cell phone.
3.Accept / Reject Calls
If you are going to answer the phone call, you need short press button 3 less
than 5 seconds. If you don’t want to answer the call right now, you can reject
the call by long press button 3 more than 5 seconds.
Enjoy the Superior Music Quality
1. Set Up / Prerequisite
(1) Link the TX to the audio source with the audio cable.
(2) Power on TX and the status LED indicator is flashing.
2.Connect TX / Headset
(1) Turn on the headset.
(2) The TX and the headset will be paired automatically after a few seconds.
(3) You can hear music from the headset.
PALM GARDEN ENTERPRISES CORP.
2
Switch Between Music and Phone Calls
1.Set Up / Prerequisite
(1) Repeat the procedure ”Enjoy the Superior Music Quality”, and play music.
(2) Use the cell phone and find the headset on the “Paired Device” list. Then,
operate the cell phone to connect to headset.
2. Make the Switch
(1) When the connection is set up, the music will pause and you can switch to
the cell phone mode automatically. You can start to make an outgoing call
and are able to converse over the phone.
(2) When your conversation is done and you stop using the cell phone, the
streaming of music will resume immediately and automatically.
(3) If someone calls you, the music will pause and you can answer the
phone.
(4) When headset is in the phone mode, the status LED indicator of TX will
be steadily on.
(5) After phone call ends, the music will resume; and the LED indicator of TX
will slowly flash again.
(6) You can repeat this scenario and switch freely between cell phone and
music mode.
Call Transfer
1.Phone Mode
When the link is set up and you use the headset to answer the call, it is in the
phone mode. Then you can long press the button 3 to transfer the call to cell
phone and talk via your cell phone.
In the phone mode, call transfer function can be enabled by long pressing
button 3 more than 5 seconds in or out of conversation.
2.Music Mode
When you are listening the music, you have two ways to use the call transfer
function. First, you can pick up your cell phone directly. Then you can long
press button 3 to transfer the call to the headset. The music will stop and you
PALM GARDEN ENTERPRISES CORP.
3
can use the headset to answer the phone. Second, you can long press button
3 more than 5 seconds. And you can hear the ring tone in the headset. Then
you can answer call by short press button one. The music will stop and you
can start your conversation.
Bluetooth Stereo Headset
Functions
Mode Button 1 Button 2 Button 3 Status LED Power LED
Mobile Mode Volume Up Volume
Down
Hang up Flash
Slowly 1
time in 2
seconds
N/A
Phone Ringing
Volume Up Volume
Down
z Long Press:
Reject
z Short Press:
Accept
Flash
Quickly
4 times in 1
second
N/A
Music Mode z Press hold:
Volume Up
z Short
Press:
Forward
z Press hold:
Volume
Down
z Short
Press:
Backward
Play / Pause Flash
Slowly
1 time in 2
seconds
N/A
Idle Mode
(unlinked)
N/A N/A N/A Flash
Quickly
3 times in 2
second
N/A
Battery Low
Power
N/A N/A N/A N/A Slow flash
1 time in 2
seconds
Battery
Charging
N/A N/A N/A N/A Always On
and will be
turned off
when
finish.
z In phone ringing mode, long press means more than 5 seconds. Short
PALM GARDEN ENTERPRISES CORP.
4
press means less than 5 seconds.
z In music mode, long press means more than 0.5 seconds. Short press
means less than 0.5 seconds.
Bluetooth Transmitter
Functions
Status Status LED Power LED
Searching device Flash Quickly
2 times in 2 seconds
N/A
Pairing mode Flash Quickly
4 times in 1 second
N/A
Link with HS in
music mode
Flash Slowly
1 time in 2 seconds
N/A
Indicate that HS is
operating in phone
mode
Always ON N/A
Indicate that TX
can’t find any
device to pair in 3
minutes
Always ON (Please reset it so
you can back to normal
function.)
N/A
Battery Low Power N/A Flash Slowly
1 time in 2 seconds
Battery Charging N/A Always On and will be
turned off when finish.
PALM GARDEN ENTERPRISES CORP.
5
Specification
Product Name Bluetooth Headset
Standard Bluetooth 1.2 compliant
Power Class Class 2
Frequency Band 2.402~2.480 GHZ unlicensed ISM band
Profile Supported A2DP, Headset and Hand Free Profiles
Audio Format SBC
Memory 8M flash external memory
Rx Sensitivity < 0.1% BER at -86 dBm
RF Output Power -6dBm to 4 dBm
Sampling Rate 48 KHz
Antenna embedded antenna
Working Distance up to 10 meters (in open space)
Note: The maximum operating range depends on
the paired phone model, battery power, and
environmental factors.
Power Consumption Music Streaming: 75 mA (Typical)
Operating Temperature -10 ~ +55 ℃℃
PALM GARDEN ENTERPRISES CORP.
6
Product Name Bluetooth Transmitter
Standard Bluetooth 1.2 compliant
Power Class Class 2
Frequency Band 2.402~2.480 GHZ unlicensed ISM band
Profile Supported A2DP Profiles
Audio Format SBC
Memory 8M flash external memory
Rx Sensitivity < 0.1% BER at -86 dBm
RF Output Power -6dBm~4 dBm
Sampling Rate 48KHz
Antenna embedded antenna
Working Distance up to 10 meters (in open space)
Note: The maximum operating range depends on the paired
phone model, battery power, and environmental factors.
Power Consumption Music Streaming 75 mA(Typical)
Operating Temperature -10 ~ +55 ℃℃
PALM GARDEN ENTERPRISES CORP.
7
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
