Marque 2
M165
User Guide
Contents
What's in the Box 3
Headset Overview 4
Pairing 5
Pair First Time 5
Pair Another Phone 5
Charge 6
Fit 7
Adjust the Fit 7
The Basics 8
Make/Take/End Calls 8
Mute 8
Adjust the Volume 8
Stream Audio 8
More Features 9
Save Power 9
Decipher the Lights 9
Hear it Whisper 9
Disable Voice Commands 9
Technical Specifications 10
2
Headset AC charger
Earloop Eartips
What's in the Box
3
Power button
Call button
Charge port
Headset LED (indicator light)
/Volume/Mute button
Headset Overview
4
The first time you power on your headset, it begins the pairing process.
1Put the headset on and turn it on.
•iPhone and Android™ Smartphones Follow the voice-guided pairing instructions.
•Other phones Use your phone's menu to:
2While the headset LEDs are flashing red and white, activate Bluetooth® on your phone and set it
to search for new devices.
3Select “PLT_M165.”
4If your phone asks, enter four zeros (0000) for the passcode or accept the connection. The
indicator light stops flashing red and white once successfully paired.
Multipoint technology lets you pair a second phone and answer calls from either phone.
1Power on your headset.
2Press and hold the Call button until the indicator light flashes red and white or you hear
“pairing.”
3While the indicator light flashes red and white, activate Bluetooth on your phone and set it
to search for new devices.
4Select “PLT_M165.”
5If your phone asks, enter four zeros (0000) for the passcode or accept the connection. The
indicator light stops flashing red and white once successfully paired.
Pairing
Pair First Time
Pair Another Phone
5
Your new headset has enough power to pair and make a few calls. It takes two hours to fully
charge the headset; the indicator light turns off once charging is complete.
Charge
6

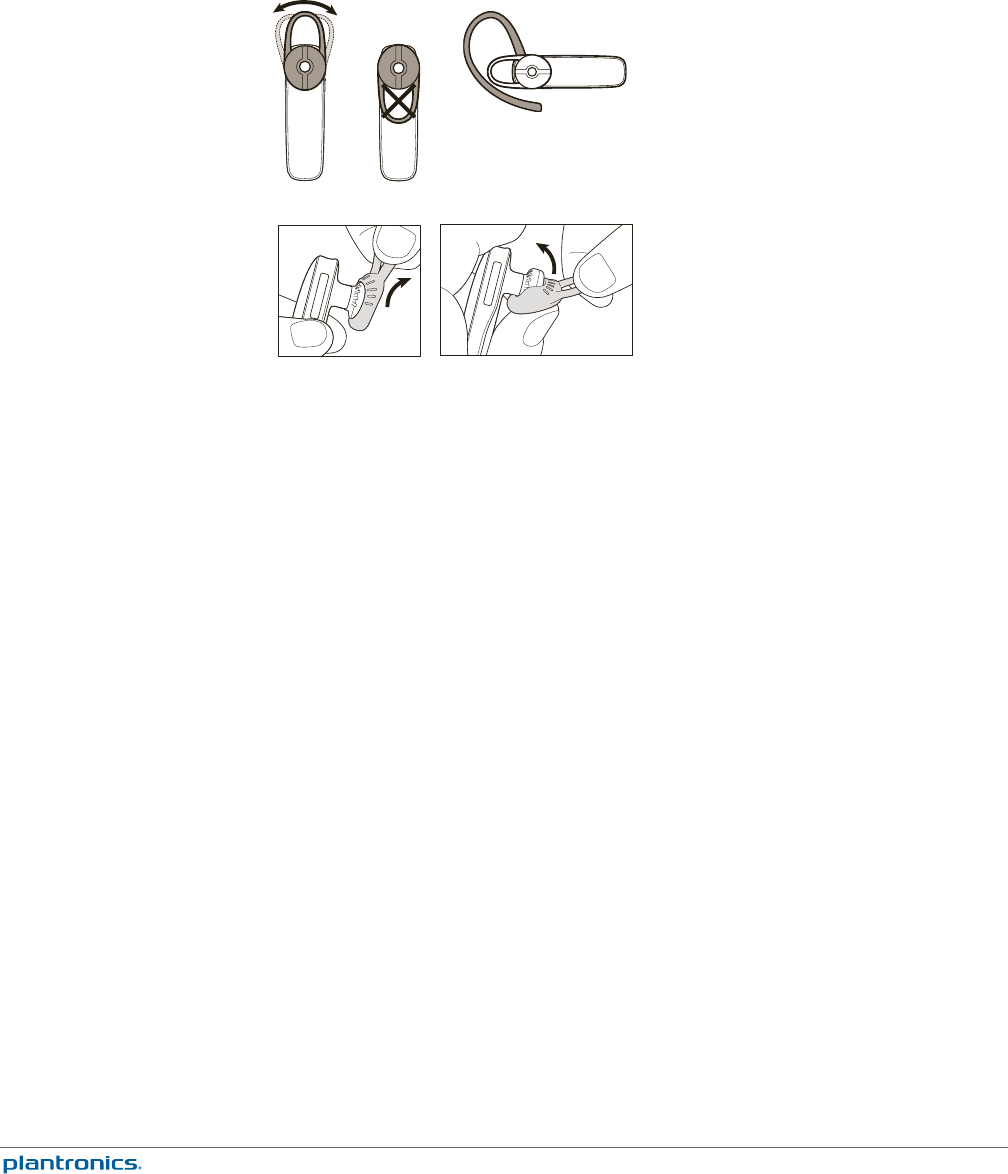

The universal-fit eartip has a thin loop that bends to gently tuck into the contours of either ear.
1Rotate the eartip on the headset or add the optional clip-on earloop to adjust the fit.
2Replace the gel eartip with one of the two alternate sizes, if it feels loose or tight in your ear.
Fit
Adjust the Fit
7
Answer a call
Choose:
•Tap the Call button
Answer a second call
First, tap the Call button to end current call, then tap the Call button again to answer new
call.
End a call
Tap the Call button to end current call.
Reject a call
Choose:
• Say “ignore” after call is announced, or
•Press Call button for 2 seconds
Call back last call
To dial your last number you dialed, double-tap the Call button .
Voice dial (phone feature)
Press the Call button for 2 seconds, wait for phone prompt and then tell the phone to dial the
name of a stored contact.
You can mute the microphone during a conversation.
During a call, tap the Volume/Mute / until you hear “mute on” or “mute off.” While the
microphone is muted, an alert repeats every 15 minutes.
Tap the Volume/Mute / button to cycle through preset levels.
Streaming audio is controlled using your phone, but when a call rings, the audio automatically
pauses to allow you to answer or ignore the call. Once the call is ignored or ends, the
streaming audio is resumed.
The Basics
Make/Take/End Calls
Mute
Adjust the Volume
Stream Audio
8
If you leave your headset powered on but out of range of your paired phone for more than 90
minutes, your headset will conserve its battery power by entering into a DeepSleep™ mode.
Once back in range with your phone, tap the Call button to exit DeepSleep mode. If your
phone is also ringing, tap the Call button again to answer your call.
Your headset has an indicator light that flashes in response to a change in status or after a
button press.
Some examples of what you will see are:
• Solid red until charging complete and then off
• Flashing red and white during pairing
• Triple red flash when less than 10 minutes of talk time
• Triple white flash at incoming call
Your headset tells you about status changes in English. For example:
“Power on”
“Pairing successful”
“Talk time (x) hours”
“Mute on”
“Lost connection”
“Recharge headset”
This headset only speaks and understands English. If you prefer to use the Call button to answer
or reject calls, you can disable the voice commands “answer” or “ignore.”
With the headset powered on, simultaneously press the Call and Volume buttons until you
see the indicator light flash white two times. Repeat these steps to reactivate the commands.
More Features
Save Power
Decipher the Lights
Hear it Whisper
Disable Voice Commands
9
Talk time Up to 7 hours*
Standby time Up to 11 days*
Headset weight 7 grams
DeepSleep technology • Activates when paired headset is out of range for over
90 minutes
• Provides up to 180 days* of battery readiness
Multipoint technology Use one headset to answer calls from either of two
paired Bluetooth phones
Charge connector Micro USB charging
Battery type Rechargeable, non-replaceable lithium-ion polymer
Charge time (maximum) 90 minutes for full charge
Headset battery meter On-screen for iPhone, enabled by Find MyHeadset™
Bluetooth version v3.0
Bluetooth profiles Advanced Audio Distribution Profile (A2DP), Wideband
Hands Free (HFP) Profile 1.6 and Headset (HSP) Profile
1.2
Operating and storage temperature 32°F – 104°F (0 – 40°C)
NOTE * Performance is dependent upon battery and may vary by device.
Technical Specifications
10
NEED MORE HELP?
www.plantronics.com/support
Plantronics, Inc. Plantronics BV
345 Encinal Street
Santa Cruz, CA 95060
United States
South Point Building C
Scorpius 140
2132 LR Hoofddorp, Netherlands
© 2012 Plantronics, Inc. All Rights Reserved. Bluetooth is a registered trademark of Bluetooth SIG, Inc. and any use by Plantronics is under license. All
other trademarks are the property of their respective owners.
Patents US 5,712,453; Patents Pending
89142-06 (10.12)
