Users Manual

BeLiveUserManual

Features

‐ Bluetoothver2.1+EDRwithSpecialAudioAlgorithmandDSPProcessorforclean,best‐in‐

classwirelessstereosound

‐ Loomingtouchkeypanelwithamberbacklight;touchkeylockattheback

‐ Built‐inmicwithadvancenoise‐cancellationenablesclearwirelesshands‐freecallingand

conferencing

‐ Two35mmfullrangedriversdeliversuperbmusicfidelity

‐ iUiPassiveWoofer

‐ ConvenientchargingwithincludedminiUSBchargingcable

‐ RechargeableLithium‐ionbatteryforupto4hoursofplaytime



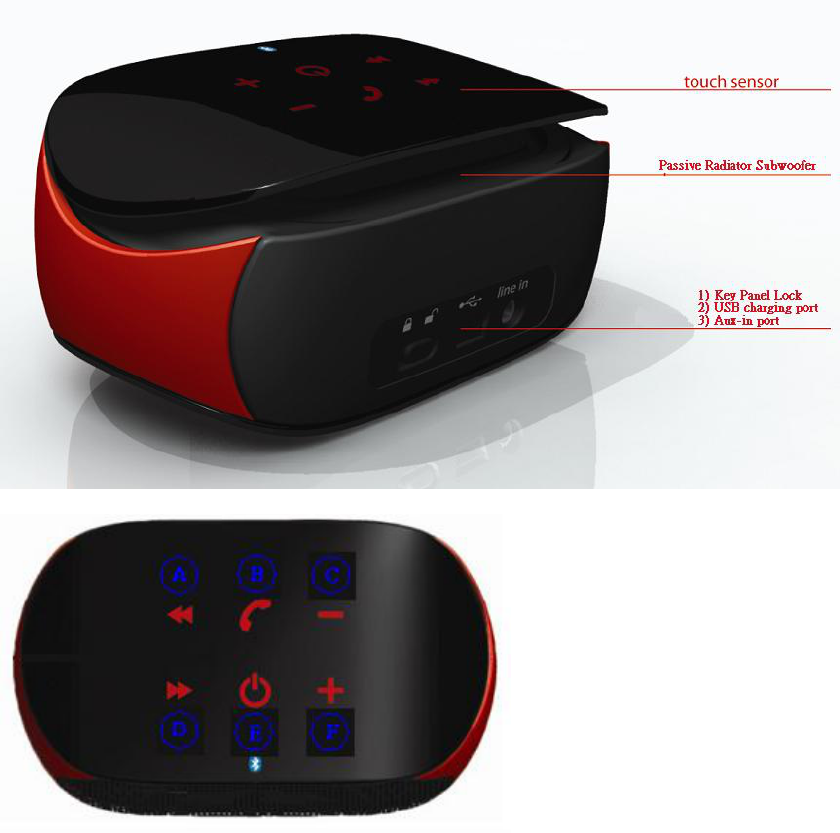

1) Anatomy

Button(inBluetoothMusic):

A:PerviousTrack

B:Play/Pause

C:Volume‐

D:NextTrack

E:PowerOFF(Longpress)

F:Volume+



Button(duringthephonecall):

A(duringthecall):Mute/UnmutetheMic

B(duringRinging):AnswerCall(Shortpress)/RejectCall(Longpress)

B(duringthecall):EndofCall(Shortpress)/TogglebetweenPhone(LongPress)

C:Volume–

D(duringthecall):Mute/UnmutetheMic

F:Volume+



Button(inGeneralwithoutBluetoothconnection):

E:PowerON/OFF(Longpress);EntryPairingmode(HoldpressingfromOFF)



Button(inAux‐inMusic):

E:PowerOFF



2)PowerupBeLive

‐ ChargeupBeLivewheneveritisneededbyplugintothewallchargerorbycomputervia

theUSBcable

‐ Releasetheslidebuttonatthebacktounlockthetouchpanel

‐ Press“Power”keyonthetouchpaneluntilthefrontlogoturnintoblue



Remarks:FullychargeBeLiveatleastonceamonth



3)PiringtoBeLive

‐ SelectaBT2.0orabovedevice(mobilephoneormusicplayer)andturnonBTconnection

‐ UnlocktheKeyPanelwiththeslideswitchatthebackoftheBeLive.

‐ ActivateyourBTdevicetothesearchingmode(newdevicesearching).

‐ Touchthetouchpaneltoactivate

‐ Pressandhold“Power(E)”keyuntilthefrontlogoflashinginBLUE/RED,BeLivehas3mins

(searchabletime)foryourBTdevicetopairwith.

‐ <<BeLive>>willbedisplayedinyourBTdeviceandselectitforpairing.“0000”isthepairing

codeifnecessary.(PairingcodeisnotnecessaryfortheiPhone,iPod,andiPad)

‐ Beep sound will be given when BeLive is successfully paired and stop flashing

Remark:Pairingstepsarefor1sttimeconnection,automaticconnectionisallowedonmost

BTdevicesexceptiPhone

‐ DoublecheckwithyourBTdevicetosee“BeLive”isconnected.

Remark:BeLivewillalsostopflashingwithadifferentsoundtoindicatepairingfailureafter

the3mins.Repeatfrombeginningtotryagain



4)ListeningtoBeLive

‐ Stay connected to BeLive via BT, repeat the pairing step if it has been disconnected 

‐ Select music to play in BT device

‐ Press“Phone”forPlay/Pause

‐ Press“>>”fornextsong

‐ Press“<<”forprevioussong

‐ Press“+”or“‐“toadjustvolumeleveloradjustitfromyourBTdevice

‐ Pressandhold“Power”keyuntillogolightofftoswitchoff



5)TalkingviaBeLive

Remarks: Only available on BT mobile with HFP/HSP



‐ Press“Phone”foransweringacall

‐ Press&hold“Phone”forrejectingthecall

‐ Press“Phone”tohangupwhenthecallfinish

‐ Press&hold“Phone”duringthecalltoswitchbetweenBeLiveandmobile

‐ DoublePress“Phone”toansweracallfrom3rdparty

‐ DoublePress“Phone”totogglebetweenoriginalcalland3rdparty

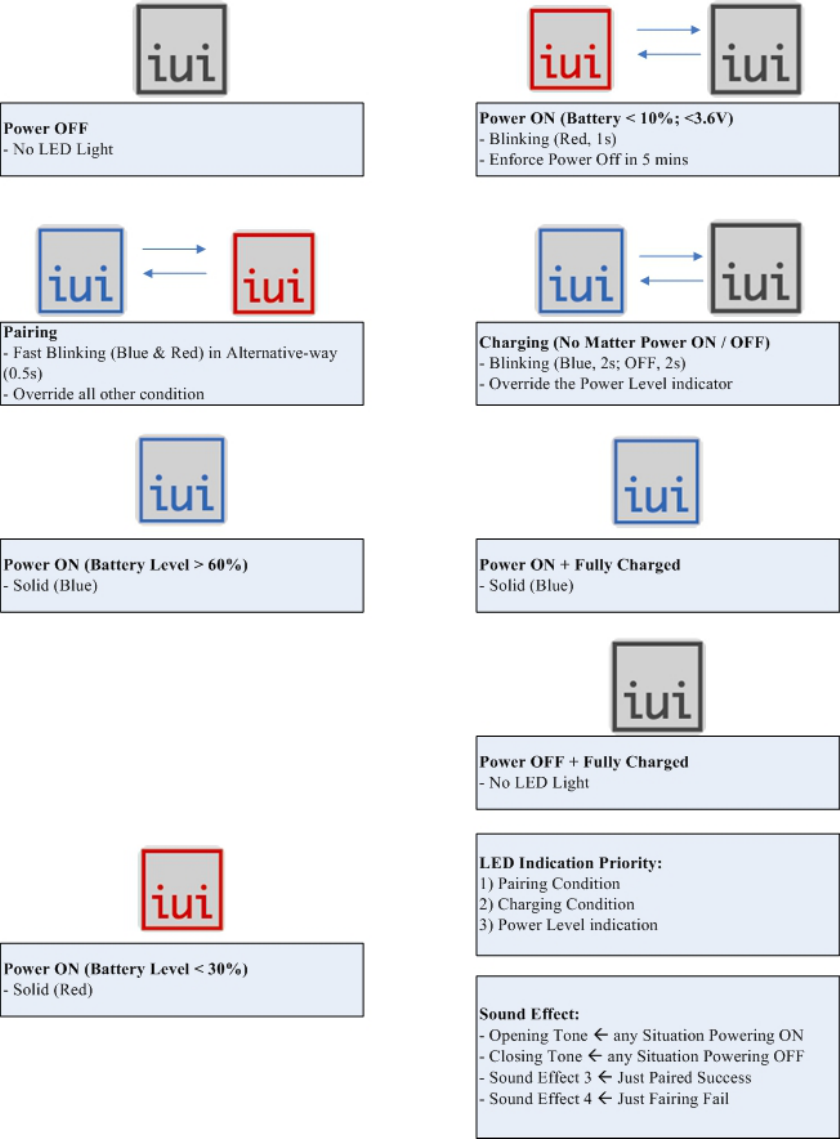

6)Frontlogolightindicator



7)Specifications

‐ Total6Woutput(3W/Channel)

‐ Full‐range(35mm)driver/Channel+PassiveRadiator

‐ Distortion<=10%

‐ S/Nratio:>75dB@1W

‐ FrequencyResponse:200Hz–15kHz

‐ Li—polymerBatt:1150mAh

‐ Playtime:5hoursin80%Volume

‐ RechargingTime:3hours

‐ (Optional)PowerAdaptor:5VDC@500mA



8)Compatibility(Bluetoothdevice)

‐ BT2.1orabovedevicewithA2DP/AVRCP/HFP/HSP



9)TroubleShooting

SoundnotClearornosound‐ PleasecheckBeLiveorBTdeviceVolume

Level

PlayingMusicNotTransferfromBTdeviceto

BeLive

‐ MakesureyourBTdevicehasA2DP

‐ Checkifbothdevicesareconnected

‐ RestartBeLiveforauto‐connectingwith

yourBTdevice

LEDNoPower‐ MakesureBeLiveisfullycharged.

SoundisToosmall/toomuchdistortion‐ AdjustthevolumelevelofBeLiveorBT

device

PhonecallNotAnswerbyBeLive‐ MakesureyourmobilehasHSP/HFP

‐ Checkifbothdevicesareconnected

‐ RestartBeLiveforauto‐connectingwith

yourBTdevice

NoMusicResumeafterhangingupacall‐ Pressplaytoresumemusic

NoMusicControlbyBeLive‐ MakesureyourBTdevicehasAVRCP

Important Information Required By the FCC The Manufacturer is not responsible for any radio or

TV interference caused by unauthorized modifications to this equipment. Such modifications

could void the user's authority to operate the equipment

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference

caused by unauthorized changes and modifications to this equipment. Such

changes and modifications could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.
