Platform2 PF306 Portable Bluetooth Speaker User Manual BeFan
Platform2 International Limited Portable Bluetooth Speaker BeFan
user manual
Feature:
• Bluetooth ver 2.1 + EDR with Special Audio Algorithm and DSP Processor for clean,
best-in-class wireless stereo sound
• Two 35 mm full range drivers deliver superb music fidelity
• Passive Woofer Radiator
• Rechargeable Lithium-ion battery for up to 4 hours of playtime
• Convenient charging with USB charging cable

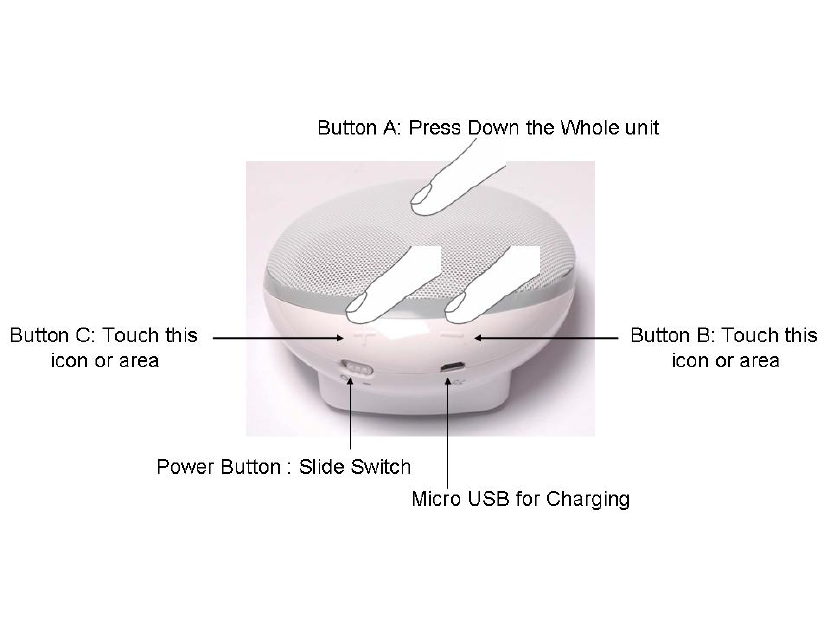

Button Location:
1) Anatomy

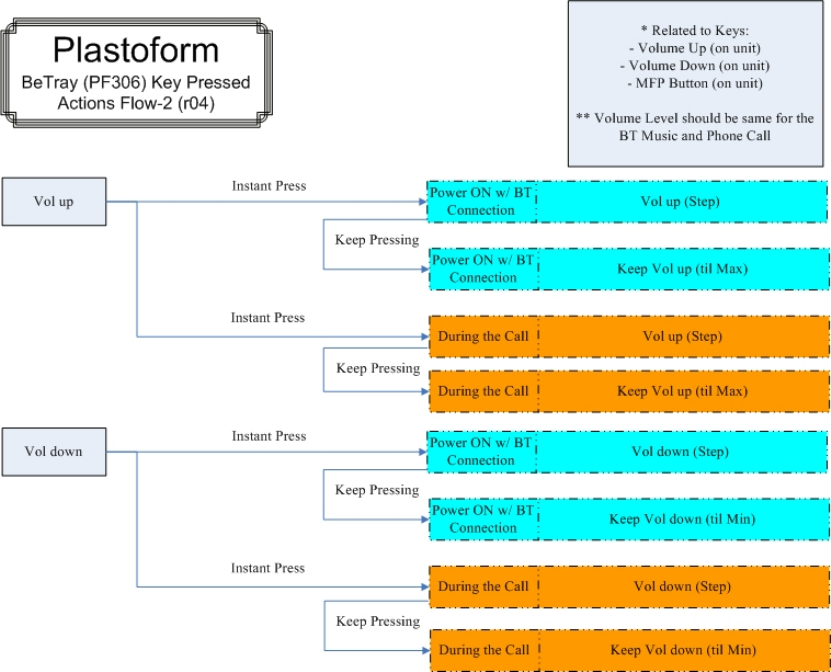

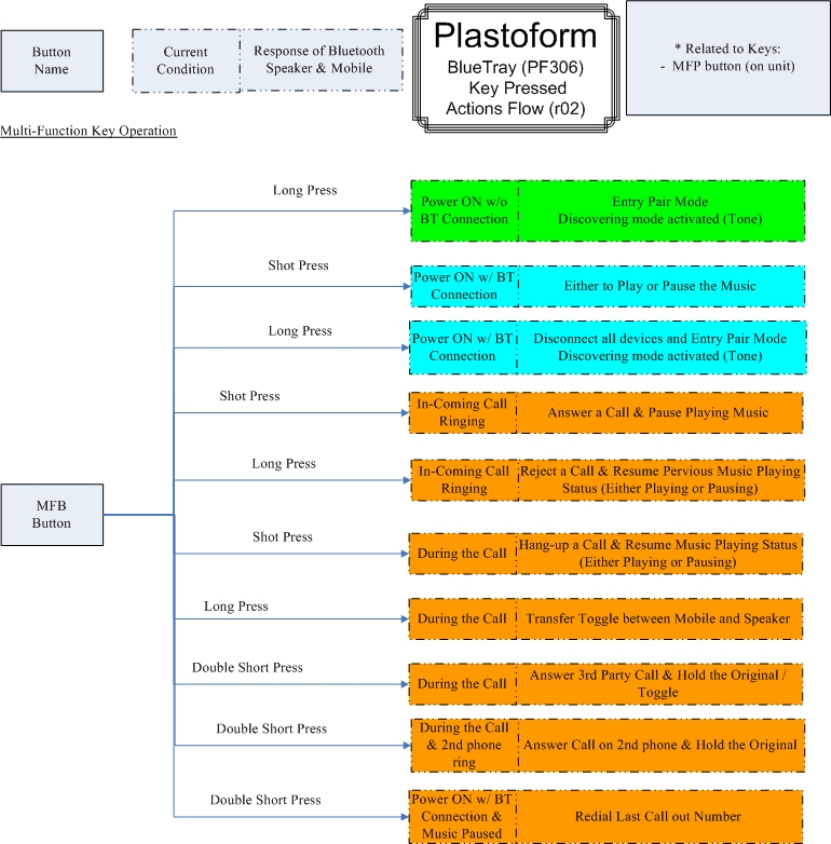

Button (in Bluetooth Music):
A: Play/Pause
B: Volume -
C: Volume +
Button (during the phone call):
A (during Ringing): Answer Call (Short press) / Reject Call (Long press)
A (during the call): End of Call (Short press) / Toggle between Phone (Long Press)
B: Volume –
C: Volume +
Button (in General without Bluetooth connection):
A: Entry Pairing mode (Long pressing)
Button (in Aux-in Music):
A: Entry Pairing mode (Long Pressing)
2) Power up PF306
• Charge up PF306 whenever it is needed by plug into the wall charger or by
computer via the USB cable
• Make sure the Slide button on the “ON” position
3) Pairing to PF306
• Select a BT 2.0 or above device (mobile phone or music player) and turn on BT
connection
• Activate your BT device to the searching mode (new device searching).
• Press Down and hold the speaker until the front Grid flashing in BLUE/RED and hear
the “Do Do” Sound, PF306 has 3 mins (searchable time) for your BT device to pair
with.
• <<PF306>> will be displayed in your BT device and select it for pairing. “0000” is the
pairing code if necessary. (Pairing code is not necessary for the iPhone,
iPod , and iPad)
• Beep sound will be given when PF306 is successfully paired and stop flashing
• Double check with your BT device to see “PF306” is connected.
Remark: Pairing steps are for 1st time connection, automatic connection is
allowed on most BT devices
Remark: PF306 will also stop flashing with a different sound to indicate pairing
failure after the 3mins.
5) Listening to PF306
• Stay connected to PF306 via BT, repeat the pairing step if it has been disconnected
• Select music to play in BT device
• Press Down the unit for Play / Pause
• Touch embossed “+” or “-“icon to adjust volume level or adjust it from your BT device
• Slide the Button at the back at “OFF” position to switch off
6) Talking via PF306
Remarks: Only available on BT mobile with HFP/HSP
• Press Down the unit for answering a call
• Press Down & hold the unit for rejecting the call
• Press Down to hang up when the call finish
• Press Down & hold the unit during the call to switch between PF306 and mobile
• Double Press Down the unit to answer a call from 3rd party

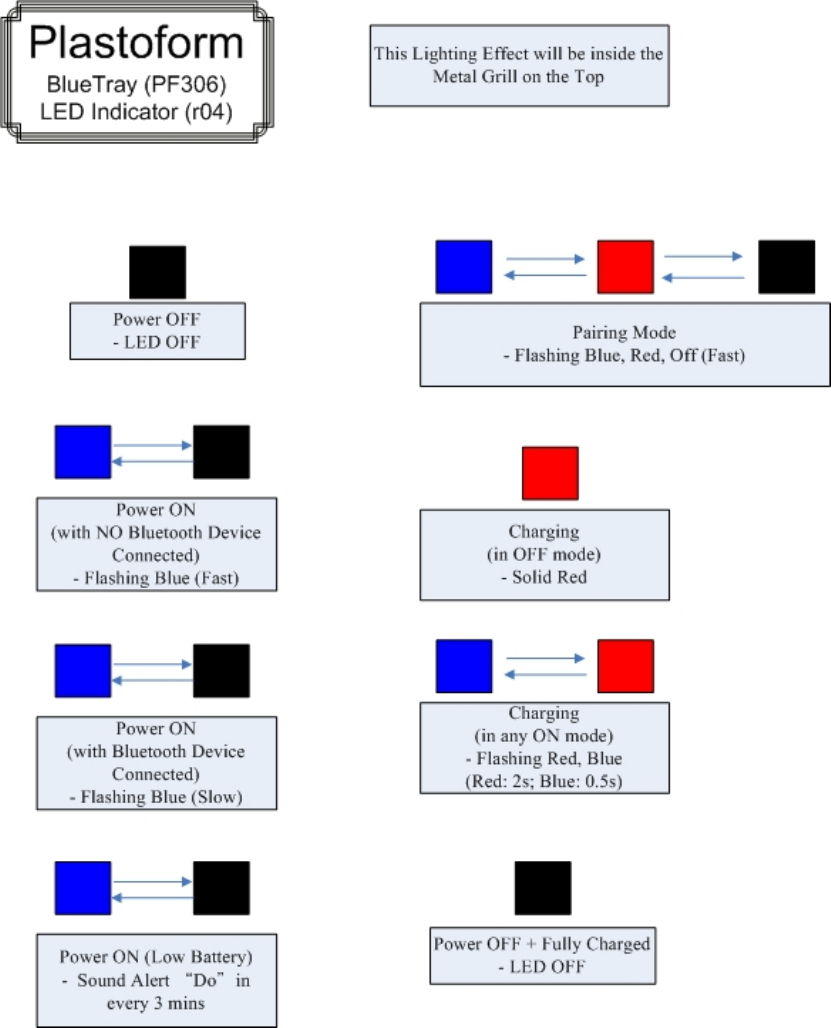

7) Front Logo Light indicator
8) Specifications
• Total 5W output (2.5W / Channel)
• Full-Range (35mm) driver / Channel + Passive Radiator
• Distortion <= 10%
• S/N ratio: >75dB@1W
• Frequency Response: 200Hz – 15k Hz
• Li-ion Batt: 750mAh
• Playtime: 4 hours in 80% Volume
• Recharging Time: 3 hours
• (Optional) Power Adaptor: 5V DC @ 700mA
9) Compatibility (Bluetooth Device)
• BT 2.1 or above device with A2DP / AVRCP / HFP / HSP
10) Trouble Shooting
Sound not Clear or no Sound • Please check PF306 or BT device Volume
Level
Playing Music Not Transfer from BT
device to PF306
• Make sure your BT device has A2DP
• Check if both devices are connected
• Re-Power up the PF306 for auto
connection with your BT device
LED No Power • Make sure PF306 is fully charged
Sound is Too small / Too much distortion • Adjust the Volume Level of PF306 or BT
device
Phone call Not Answer by PF306 • Make sure your mobile has HSP / HFP
• Check if both devices are connected
• Re-Power up the PF306 for auto
connection with your BT device
No Music Resume after hanging up a
call
• Press Play to resume music
No Music Control by PF306 • Make Sure your BT device has AVRCP
Important Information Required By the FCC the Manufacturer is not responsible for
any radio or TV interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the equipment
Appendix:
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
