Platform2 PF317 Portable Bluetooth Speaker User Manual
Platform2 International Limited Portable Bluetooth Speaker
User Manual

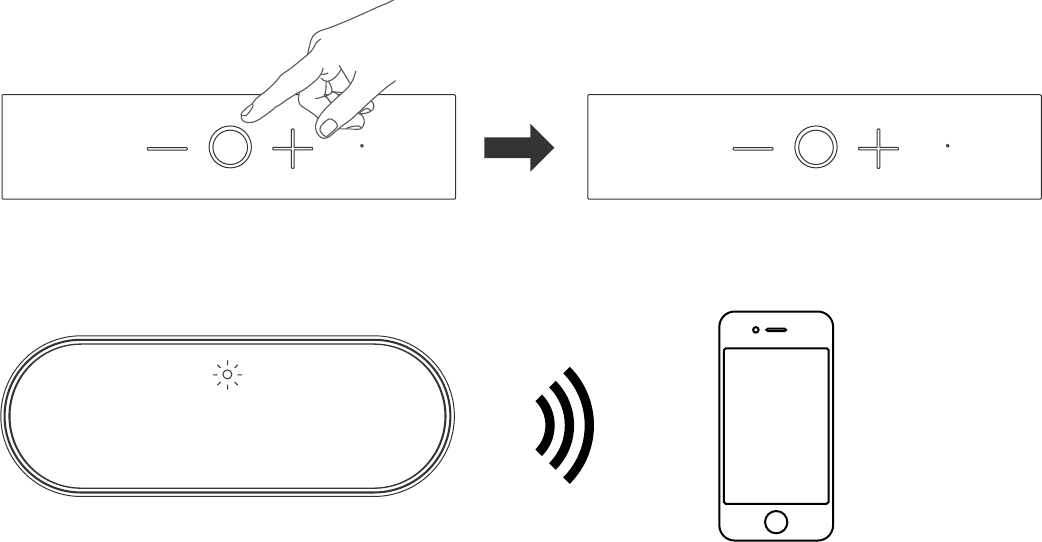

How to Connect…
1) Hold down the “Multi-Function Button (MFB)” to power ON / OFF
2) Hold down the “MFB” until LED ashing Blue + Red and connect to your Bluetooth device

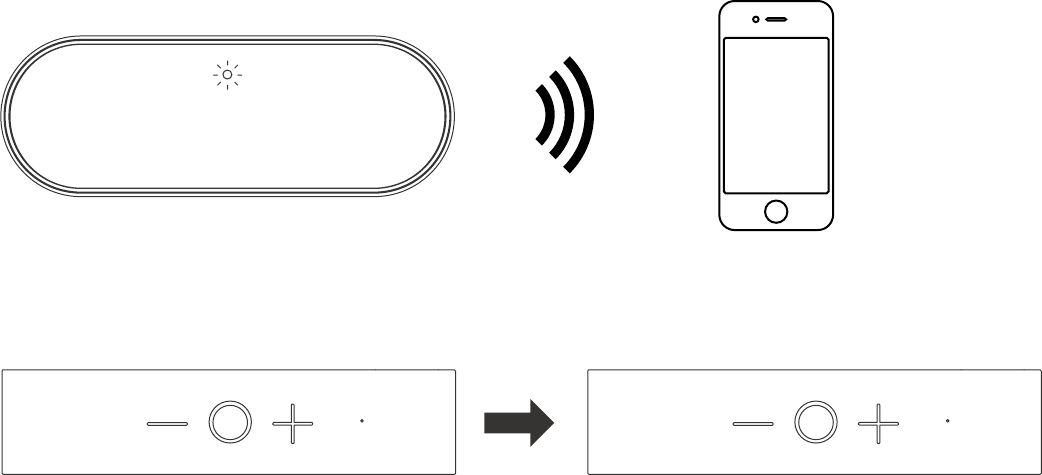

How to Connect Two Devices…
1) Connect the Second Bluetooth Device as same connection procedure as connecting to the First
Bluetooth Device.
2) Active the Bluetooth function on both Devices and Power ON the Speaker, both Devices will recon-
nect to the speaker automatically.
How to Call up Voice Control*…
1) Double Press the “MFB”, when connected to the Mobile Phone*
* The Siri service will be activated,
if iPhone connected
X 2
LED indicator
Power OFF
-LED OFF
Pairing
-Flashing Red and Blue
(ON - 0.5s; OFF - 0.5s)
Power ON
(Battery Level<30%)
-Flashing Red
(On - 2s; OFF - 2s)
Charging
(No Matter Power ON/OFF)
-Flashing Blue
(On - 2s; OFF - 2s)
Power ON
(Battery Level>40%;
During Music Playing)
- Solid Blue
Power OFF + Fully
Charged
-LED OFF
* At least fully charged once a month
* Make sure the iOS 4.1.x is NOT using on your iDevice, it will cause the speaker not stable when
playing music
Volume Down Aux in
Power / Pair /
Phone / Music Battery Indicator
Volume Up
USB charge port
1
6
2 43 5
1 5
2 6
3
4
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-lowing
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference re-ceived, including interference that may cause undesired
operation.
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the quipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/
TV technician for help.
