PF331BassJumperManual



SafetyInformation:(Pleasewritethesafetyinformation)



Introduction



ThanksforpurchasingiUiBassJumperspeaker.

TheiUiBassJumperisanIPX5water‐resistantoutdoorspeaker.Itcomeswithbuilt‐indaisychaintolink

upwithanotheriUiBassJumper(2ormoreBassJumpers)topowerupthevolume.The5Wpowerful

driverwithpassiveradiatoristoprovidegreatsoundperformance.Highbatterycapacityprovideslong

playtimewithupto10hrs.ItalsoequipwithNFCforeasypairing.



MainFeatures:

▫ Bluetooth2.1+EDR

▫ NFC

▫ Playtime:Up‐to10hours

▫ LEDIndication

▫ Multi‐PointConnectivity

▫ Aux‐inBuilt‐inCable

▫ OperatedbyLi‐ionRechargeableBatteries(withMicro‐USBCable)

▫ NoiseReduction&EchoCancellationoftheMic

▫ Aux‐outJackforDaisy‐chainFeature



What’sinthebox



1. iUiBassJumperSpeaker

 



2. Micro‐USBCable

 

3. QuickStartGuide

 

4. Bikemount

5. Carabinerhook



OverviewoftheSpeaker





⑤①     ②⑥⑦③④





ButtonFeature

①Poweron/off

②Pairing

③Lineout

④Micro‐USBchargingport

⑤NFC

⑥Microphone

⑦LEDindication



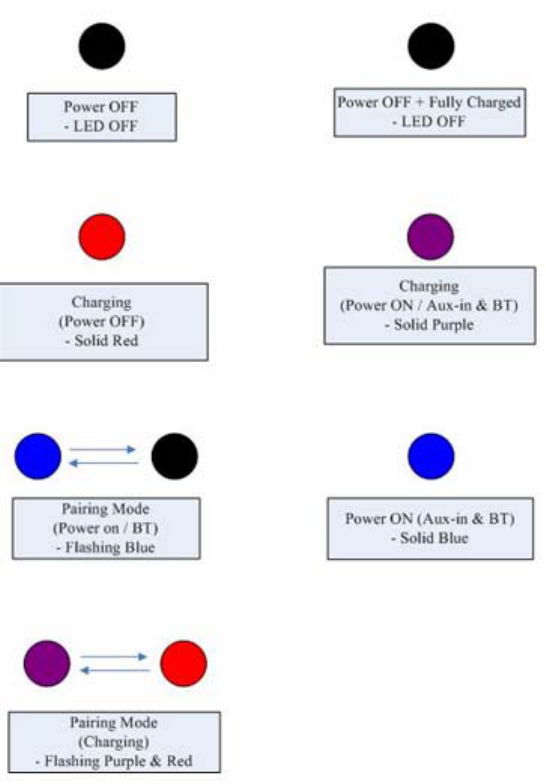

LEDIndication:



Howtouse…

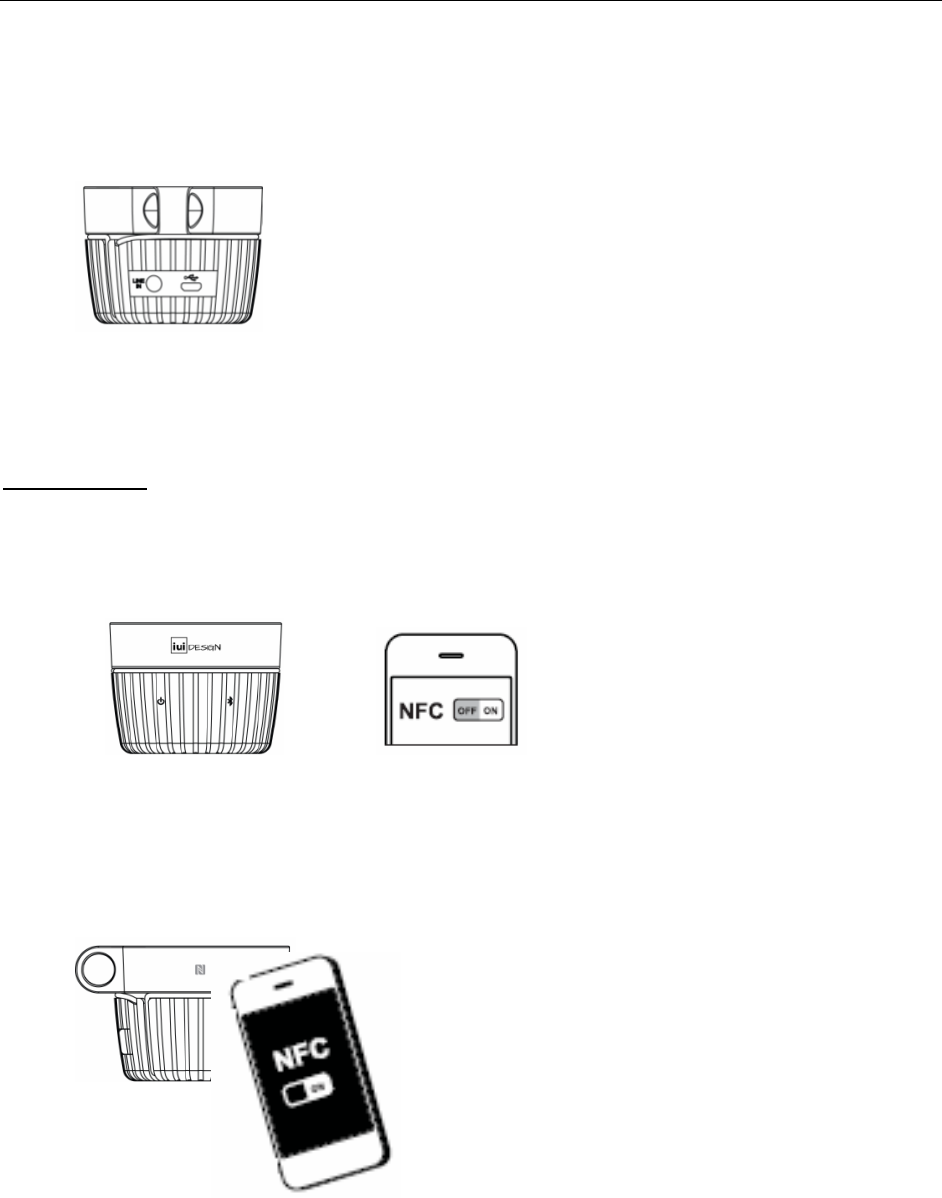

ChargingtheBattery:(Pleasefullychargethespeakerbeforeuse)

Plugthemicro‐USBcableintothechargingportforcharging







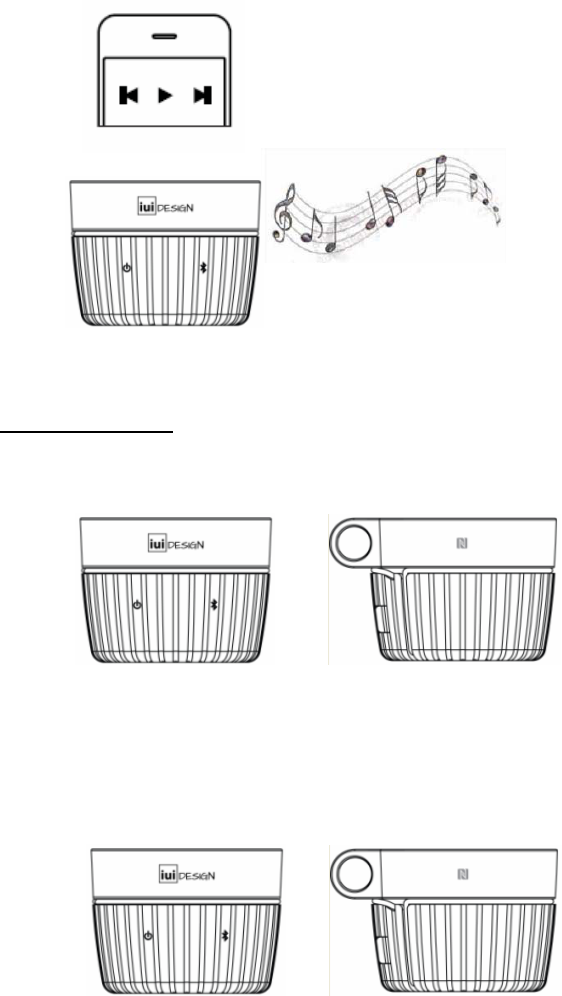

PairingwithBluetoothDevice:

PairingbyNFC

1. PressthepowerbuttononthespeakerandNFCfeatureonyourBluetoothdevice



 



2. TapyourBluetoothdevicetotheNFCpositionofthespeakerforpairing





3. Yourdevicewillpairandconnecttothespeakerautomatically

 

 



Pairingbysetting

1. PressthepowerbuttononthespeakerandtheBlueLEDindicatorwillbeon

  



2. PresstheBluetoothbuttonuntiltheblueLEDindicatorflashes



  



3. ActivateyourBluetoothdeviceandselect“BassJumper”.BlueLEDindicatorwillbesolidblue

aftersuccessfulconnection.EnjoyplayingmusicwithBassJumper.







Answer/EndCall:

Answer/endcall:Pressyourbluetoothdevicetoanswer/endacallwhenthespeakerisplaying

musicorconnected



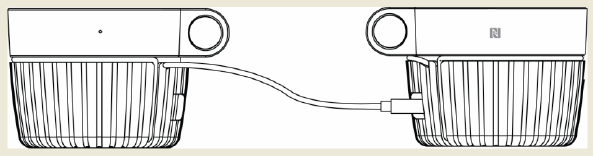

DaisyChain:

OnespeakerisconnectedbyyourBluetoothdeviceandtheotherspeakerisconnectedby

3.5mmcabletotheBluetoothconnectedspeakerlineoutjacktovolumeup.(2ormore

speakerscanbeapplied)



FCC Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

IC Statement

This device complies with Industry Canada Licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

(1) l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter

tout brouillage radioélectrique subi,même si le brouillage est susceptible d'en compromettre

le fonctionnement.
