Platform2 UD-1404 Sound bar User Manual UD 1404

Platform2 International Limited Sound bar UD 1404

UserManual.wiki >

Platform2 >

UD 1404 User Manual HTML Version

User manual

A5SIZE



<CoverPage>



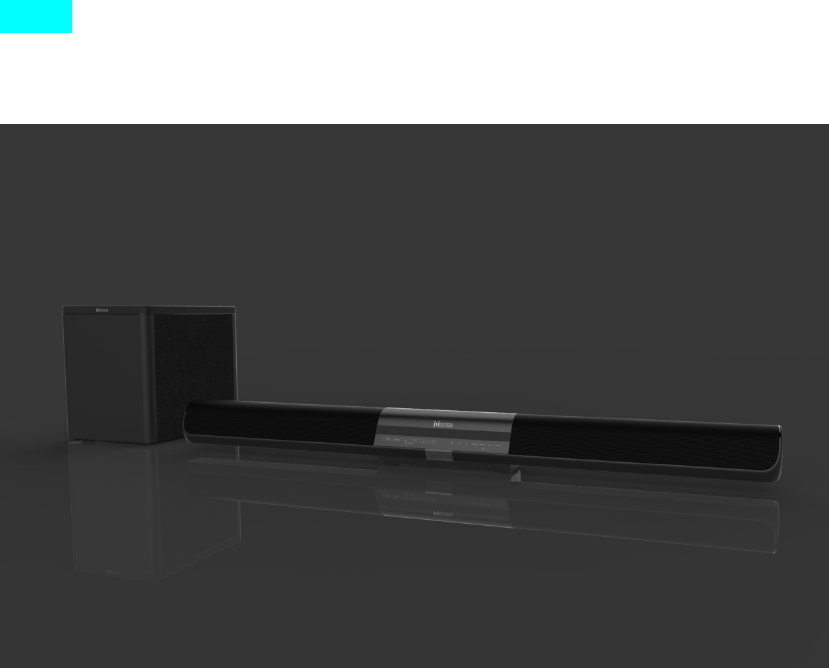

IMMERSEUD‐1404andUD‐1404SUserManual

2.1Wi‐Fi/BluetoothMulti‐RoomSoundBarwithWirelessSubwoofer



*Pleasereadtheinstructionscarefullybeforeusingthesystemandkeepthemanual

forfuturereference.



TableofContent



InsidetheBox

Precautions

ProductIntroduction

Overview

Soundbar

Subwoofer

RemoteControl

SetupIMMERSE

Placement

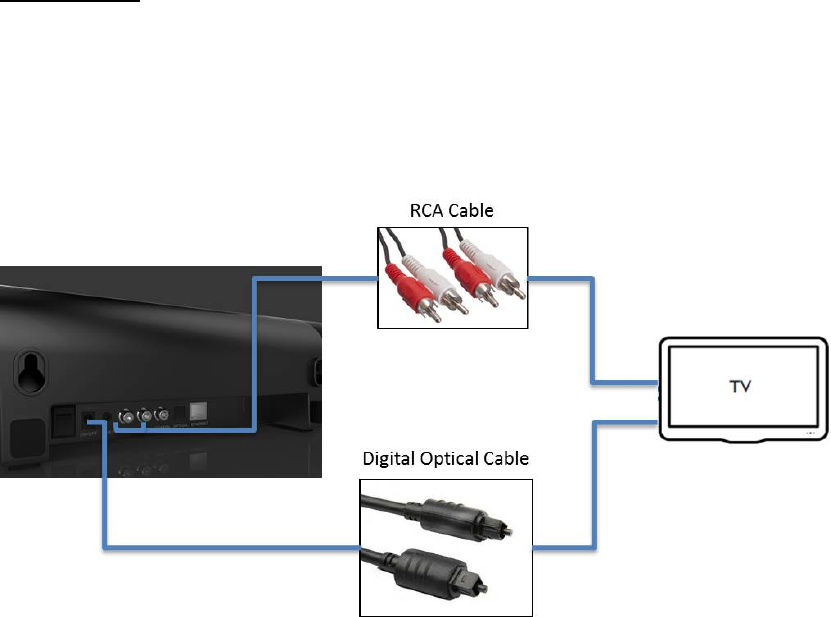

ConnecttoTV

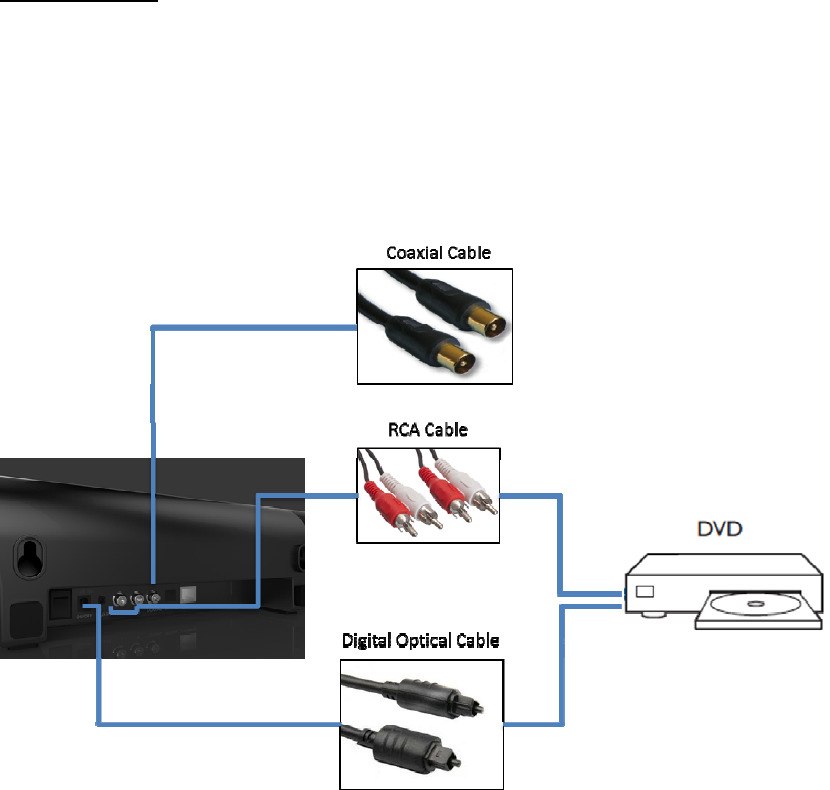

ConnecttoDVDplayer

Connecttootherdevices

‐Wi‐Fi

‐Bluetooth

‐Ethernet

‐Aux‐in/Analog/Optical/Coaxial

Multi‐Room

SoundEffectMode

FirmwareUpdate

Troubleshooting



InsidetheBox



Carefullyunpackthecartonandconfirmthatthefollowingpartsareincluded.



•IMMERSEWi‐Fi/Bluetoothsoundbar

•Subwoofer

•Remotecontrol

•ACadaptors

•Manual



Precautions

*Pleasereadthesesafetyinstructionscarefullytoensureyoursafety.

•Donotusethisproductwherecontactwithmoisture,liquids,humidityorrainis

possibletoavoidelectricshockandoperatingdamage.

•Avoidexposingthisproducttodirectsunlight,stovetopsoranyotherheatsources

topreventoperatingdamage.

•Donotcovertheventilationopenings–thismaycauseoverheating,damagetothe

product,andahazardouscondition.

•Donotdrop,disassemble,deform,modifyorinsertanyobjectsintothisproductas

operatingdamagewillresult.

•Donotattempttorepair,modifyordisassembletheproductyourself.Thisproduct

doesnotcontainanyuser‐serviceablecomponents.

•Donotcleantheproductwithalcohol,ammoniabasedcleaners,abrasivecleaners

orwetcloth.Onlycleanwithasoftdrycloth.

•Donotplacethisproductonitsside,onslantedsurfacesaswellasneartheedge

ofhighsurfaces,likeshelves.Takecaretopreventaccidentalfalling.Theproduct

mayvibratewhileplayingmusic,whichcauseittomoveandfalloffasurface.

•Donotbringyourproductintocontactwithanysharpobjectsasthismaycause

scratchesandoperatingdamage.

•ObserveallsignsanddisplaysthatrequireanelectricaldeviceorRFradioproduct

tobeswitchedoffindesignatedareas.

•Disposeoftheproductinaccordancewithlocallawsandregulations.



FCCStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgeneratesuseandcanradiateradiofrequencyenergy

and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCNotice

ThisdevicecomplieswithPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

1.Thisdevicemaynotcauseharmfulinterference,and

2.Thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.



FCCCaution

•Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser‘sauthoritytooperatethisequipment.

•Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunction

withanyotherantennaortransmitter.



FCCID:NKTUD‐1404,NKTUD‐1404S

TolocatetheFCCandICid‐entificationnumbers,pleaselookontheundersideofthe

IMMERSE.

ModelnumberUD‐1404,UD‐1404S



Thecrossed‐outwheeliebinsymbolmeansthattheproductmustbedisposedof

separatelyintheEuropeanUnion.Theseproductsmustnotbedisposedofwith

unsortedhouseholdwaste.



ProductIntroduction



TheiuiDESIGNUD‐1404“IMMERSE”multi‐room2.1soundbarisabreakthroughin

providinghighperformanceaudiotoyourTVandalsothewholehome.You’rein

control–youcanusesoundbarwithotheriuiDESIGNWi‐Fispeakers.Andthe

configurationoptionsarealmostlimitless.



Historically,ifyouwantedtolistentomusicfromyourTVordigitaldevice,youcould

connecttoyourspeakerwitha3.5mmaudiocable,orBluetooth.ButIMMERSE

providesyoubreakthroughflexibility.Whileitconnectsviaanaudiocableand

Bluetooth,italsocanconnectbyWi‐FiandwiredEthernet.



AndbyusingWi‐FiorwiredEthernet,youcancreateawholehomeaudiosystem,so

thatyouhavemusicdistributedthroughoutyourhome.



TogetthebestexperiencefromIMMERSE,it’sgoodtounderstandsomebasics.First

andforemost,youcansimplyconnecttheproductbyusingthe3.5mmaudiolinein

orBluetoothifyouwanttojustconnectaTVtothesoundbar.Buttoplayyourmusic

tothesoundbarandalsotootherWi‐Fispeakers,youneedtotakeafewadditional

steps.But,let’sfirstwalkthroughthebasics…



SinceIMMERSEisaveryhigh‐performancesoundbarwithamazingtechnology

capability,youhaveoptionstomeetyourlifestyle.First,youneedtodecidehowto

connectyourTVandotherdigitaldevicestotheproduct,andwhatthetrade‐offsare

foreachtypeofconnection.



3.5mmAudioLine‐in:

Ifyouusethe3.5mmstereoaudiolinein,youcansimplyconnectyouraudiosource

toIMMERSE,andyoucanenjoyhighperformanceaudio.Ofcourse,youwillbe

limitedtooneIMMERSEsoundbarandyouhavetoremainphysicallyconnected.



Bluetooth:

Bluetoothisasimplewirelessconnectiontoconnectyourdigitalsourcetoyour

IMMERSE.Bluetoothtechnologyonlyconnectsfromonesource(yourTVorother

digitalsource,likeaPCorSmartphone)toonespeaker,suchasIMMERSEsoundbar.

AndBluetoothhaslowersoundperformancethanawired3.5mmaudioconnection,

duetocompressionofthesignalduringwirelesstransmission.Itsrangeisalso

limited,typicallytooneroom.



Wi‐Fi:

UsingWi‐Fi,youcanconnectyourWi‐Fidigitalsource(suchasyourTV,PC,Mac,

tablet,smartphone,etc)totheIMMERSEsoundbarormoreWi‐Fispeakers.The

benefitofWi‐FioverBluetoothisimportant–Wi‐Fiallowsyoutostreamonesource

toIMMERSEsoundbarandotheriuiDESIGNWi‐Fispeakersalloveryourhouse

(becauseWi‐Fitypicallyhaslongerrange),andthebandwidthofWi‐Fiismuchhigher

thanBluetooth,sothequalityofthesoundperformanceisessentiallythesameasa

3.5mmwiredaudioconnection.



Ofcourse,Wi‐Fiperformanceinthehomeisinfluencedbymanyfactors–thequality

ofyourwirelessrouter,howmanypeopleareconnectedtotherouterand

downloadingatthesametime,thenumberofroutersthatareactive(whichisreally

importantinhigh‐densityhousingsuchasapartmentbuildings).



Ingeneral,werecommendamaximumofoneIMMERSEandtwoiuiDESIGNWi‐Fi

speakersconnectedtoyourrouter.Moreispossibleifyoutakecertaintechnical

stepstoimproveyourbandwidth–butthatdiscussionisbeyondthescopeofthis

manual.



AndWi‐FiperformanceisimpactedbythecapabilityofyourWi‐Fienabledigital

device–forexample,aniOSbasedproductsuchasaniPhonecanonlyreliably

connecttooneWi‐Fideviceatatime.ButifyouuseiTunesonyourPCorMac,you

canconnecttomultipleWi‐Fispeakers.YoucanalsouseAndroidsmartphones,

tabletsandPC’stoconnectusingastandardknownasDLNA,andconnectsto

multipleWi‐Fispeakers.



WiredEthernet:

WiredEthernet,wheretheIMMERSEisconnectedtoyourrouterorEthernetswitch

withanEthernetcablewillgiveyouthebestperformance.Youcantypically

connectmanymorethanthreeWi‐Fispeakers.Ultimately,thereisalimitationof

yourrouterorEthernetswitch,butformoststandardresidentialusersthisisnota

factor.AndwiredEthernetwillgiveyoutheaudioperformanceofa3.5mmwired

connection.



SothefirstdecisionyouwillhavetomakeishowyouwanttoconnecttoIMMERSE.

Onceyoumakethatdecision,thenyoucanfollowtheeasystepsinthismanualto

startenjoyingyourmusic.



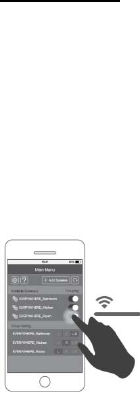

IfyouareusinganiPhoneor/andAndroiddevice,wehaveanappthatmakesiteasy

toset‐upyourIMMERSE.YoucanusetheapptoconnecttheIMMERSEtoyourhome

network,youcannameit(LivingRoom,Bedroom,Den),andyoucanassign

IMMERSEandotheriuiDESIGNWi‐Fispeakerstogroups,sothatyoucanplayyour

musictoone,someorallWi‐Fispeakersandsoundbar.



TheIMMERSEapplicationalsoupdatesthesoftwareonyourIMMERSEsoundbar,

keepingitcurrentanduptodate.TheIMMERSEapplicationdoesnottaketheplace

ofyourmusicplayersoftware,suchasiTunes,WindowsMediaPlayerorstreaming

musicserviceapplicationssuchasPandora.Theapplicationletsyouconfigureyour

IMMERSEspeakers,andthenyouuseyourfavoriteapplicationstoselectandplay

music.



Overview



SoundBar



Front



Touchpanel

z POWER–Switchthesoundbarandsubwooferonortostandby.

z SOURCE–Selectaninputsourceforthesoundbar.

z MFB–ActivateBluetoothpairingmodeinBluetoothmode.

z VOL+/VOL‐–Increaseordecreasevolume.

z SUB–Activatesoundbarandsubwooferpairingmode.

z LEDdisplaypanel–Showaudioinputselection

z NFCsensor–PairwithBluetoothenableddevisewithNFCfeature



Back



z Power‐Switchthesoundbarandsubwooferonortostandby.

z DCjack–Connectwithpowersource.

z AUXIN–Connecttoanaudiosourcewitha3.5mmaudioline‐incable.

z Analogline‐in(L/R)–ConnecttoanaudiosourcewithaRCAcable.

z Coaxialline‐in–Connecttoanaudiosourcewithacoaxialcable.

z Opticalline‐in–Connecttoanaudiosourcewithadigitalopticalcable.

z RJ45Ethernetjack–ConnecttoaWi‐FinetworkrouterwithaRJ45Ethernet

cable.



Wallmou

woofer

Power–

DCjack–

Pairingb

ntholes–

witchthes

Connectwi

tton–Acti

ountsou

ubwoofer

thpowers

atesound



dbaronw

noroff.

urce.

arandsu

llwithscr



wooferpai

ws(notincl

ringmode.

uded)

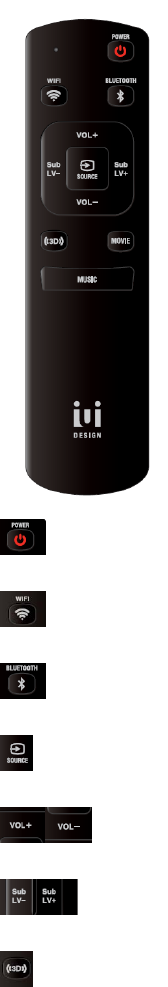

RemoteControl



Power–Switchthesoundbaronortostandby.

Wi‐Fimode‐SelectWi‐Fiasaninputsource

Bluetoothmode‐SelectBluetoothasaninputsource

SOURCE–Selectaninputsourceforthesoundbar.

VOL+/VOL‐‐Increaseordecreasesoundbarvolume

SubLV‐/SubLV+‐Increaseordecreasesubwoofervolume

Game/Movie/Music–Usepre‐installedsoundeffect



SetupIMMERSE



TheIMMERSEsoundbartransmitssoundsignalfromaudiosourcetothesubwoofer

by2.4GHzwirelesstechnologyforreliableconnection.



ConnectSoundbartoSubwoofer

Whenthesoundbarandsubwooferareconnectedtopowersourceandpoweredon,

theyconnectautomaticallyandtheLEDonsubwooferturnsgreen.



Iftheconnectionbetweenthesubwooferandthesoundbarislost…

1. Connectsoundbarandsubwoofertopowersource.

2. Switchonthepowerofsoundbarandsubwoofer

3. Pressthepairingbuttononthesubwoofer

4. Pressthe“SUB”buttononthesoundbartouchpanelorpressthe“SUB”button

ontheremotecontrol.

5. TheSUBLEDonsoundbarandtheLEDonsubwooferareflashingwhichindicate

thattheyareestablishingaconnection.

6. TheLEDonsoundbarstopsflashingandtheLEDonsubwooferturnstosolid

greenwhentheconnectionisestablished.



Placement



IMMERSEoffer2placementoptionsofsounbbartofitfordifferentplacements.For

bettersoundexperience,thesoundbarshouldbeplacedatorclosetoearlevel.



Option1:Tabletop

ComeswithrubberfootatthebottomofIMMERSE,placetheIMMERSEsoundbaron

flatsurfacehorizontallywiththeiuiDESIGNlogofacingout.



Option2:WallMounting

Comeswithscrewholesatthebackofthesoundbar,followthebelowstepsto

mountitonwall.



1.Preparescrews(notsupplied)thataresuitablefortheholesonthebackofthe

soundbar.

2.Fastenthescrewstothewall.Thescrewsshouldprotrude11to12mm.

3.Hangthesoundbarontothescrews.



Subwoofer

Thesubwoofershouldbeplacedflatsurface,preferablyonfloor.Forstable

connectionwiththesoundbar,placeitwithin3metersor9feetfromthesoundbar.



ConnecttoTV

AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttoaTVusinganalog

oropticalaudioinput.



ConnectthesoundbarandTVwithaRCAcable/adigitalopticalcableasshown

below.



IfyouconnectusingaRCAcable,select“ANALOG”astheaudiosource.

Ifyouconnectusingadigitalopticalcable,select“OPTICAL”astheaudiosource.





ConnecttoDVD

AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttoaDVDplayerusing

analog,opticalorcoaxialaudioinput.



ConnectthesoundbarandtheDVDplayerwithaRCAcable/adigitalopticalcable/

acoaxialcable.



IfyouconnectusingaRCAcable,select“ANALOG”astheaudiosource.

Ifyouconnectusingadigitalopticalcable,select“OPTICAL”astheaudiosource.

Ifyouconnectusingacoaxialcable,select“COAXIAL”astheaudiosource.





Connecttootherdevices

AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttootherdevices,such

assmartphones,tablets,PCs,videogameconsoles,etc.usingthefollowing

connectionoptions.



Wireless:

‐Wi‐Fi

‐Bluetooth



Wired

‐Ethernet

‐Aux‐in

‐Analog

‐Optical

‐Coaxial





Wi‐Fi‐Connecttootherdevices



AfteryoufinishsettinguptheIMMERSEsystem,itcanstreammusicwirelesslyfrom

adigitalmusicsourcethroughWi‐Ficonnection.



BeforeSetup

PleasemakesureyourdeviceisconnectedtothesameWi‐Finetworkwhere

IMMERSEwillbelocated.Otherwise,anerrormessagewillappearafterentering

passwordastheappcannotdetectIMMERSEinthecurrentWi‐Finetwork.



SetupforAndroid/iOSuser



1. DownloadthefreeiuiDESIGNWi‐FiAudioAppfromGooglePlayorAppStore.



2. Select“WIFI”astheaudiosource.



3. Launchtheapponyourdevice.Press“AddSpeaker”buttontostartthesetup

procedure.



4. OpentheWi‐Fisettingpageonyourdevice.TurnontheWi‐Fifeatureandselect

“IMMERSExxxx”*fromthelistofavailablewirelessnetworks*.



5. GobacktotheappandselectyourWi‐Finetworkinsidetheapp.



6. EnterpasswordforyourWi‐Finetworkyouchose#.TheLEDindicatorturnsto

solidgreen.



7. RenameIMMERSEandtap“Save”theconfirm.



*IftheIMMERSEcouldnotbefoundinthelist,followthesection“ResetWi‐Fi

Connection”toresetthespeakertofactorydefaultandtryagain.



#Incaseofincorrectpasswordorfailedconnection,followthesection“Reset

Wi‐FiConnection”toresetthespeakertofactorydefaultandstartthesetup

procedureagain.



SetupforPC/Macuser



1. Select“WIFI”astheaudiosource.



2. ConnectIMMERSEtoyourPC/MacusingWi‐Fi/RJ45Ethernetcable.



A.UseanEthernetcabletoconnectIMMERSEandyourdevice.Ittakes

approximately30secondstoestablishconnectionwithIMMERSE.TheLED

indicatorwillturntosolidamberoncetheconnectioniscompleted.



B.Searchandconnect“IMMERSExxxx”inWi‐Fisettingpage*.TheLED

indicatorwillturntosolidpurpleoncetheconnectioniscompleted.



3. Browsethebelowlinkonyourdevicetoenterthesetuppage:

http://192.168.6.1/



4. Select“ConnecttoHome”>“Wireless”inthesetuppage.



5. SelectyourWi‐Finetwork.



6. EnterpasswordforyourWi‐FinetworkyouchoseandClick“Join”.



7. Click“Done”andremovetheEthernetcableifyouuseitforsetup#.

 

*IftheIMMERSEcouldnotbefoundinthelist,followthesection“ResetWi‐Fi

Connection”toresetthespeakertofactorydefaultandtryagain.



#Incaseofincorrectpasswordorfailedconnection,followthesection“ResetWi‐Fi

Connection”toresetthespeakertofactorydefaultandstartthesetupprocedure

again.



StreamingMusicviaWi‐FiConnection



ForAndroidUser

YoushoulddownloadaDLNAcompatibleplayerforstreamingmusic.Select

IMMERSE(whichmayappearwiththenameyouassigned)asyouraudiooutput

deviceinthemusicplayer.Differentplayersmayhavedifferentsetups,pleaserefer

tothosecorrespondinguserguidesfordetail.



ForiOSuser

YoucanstreammusictoIMMERSEviaAirPlay:

1.Launchyourmusicplayer

2.TaponAirPlay

3.Choose“IMMERSE”

(Ifyourenamedit,itwillappearwiththenameyouassigned)



ForPCUser

WindowsMediaPlayer11andabovecanbeusedtostreammusictoIMMERSE

through"PlayTo"feature.Use"PlayTo"onyourmusiclibraryfromWindowsMedia

Player.Fordetailinstructionfor"PlayTo"feature,pleaseconsulttheusermanualfor

yourspecificdevice.



ForMacUser

YoucanstreammusictoIMMERSEviaiTunes:

1.LaunchiTunes

2.ClickAirPlay

3.Choose“IMMERSE”

(Ifyourenamedit,itwillappearwiththenameyouassigned)



*PleasemakesureyourdeviceisconnectedtothesameWi‐Finetworkas

IMMERSEislocated.





AdvancedSetting

UsingtheiuiDESIGNWi‐FiAudioApp,youcancontroltheadvancedsettingof

IMMERSEandotheriuiDESIGNWi‐Fispeakers,including“RenameYourSpeaker”,

“Multi‐Room”,“AudioChannel”and“FirmwareUpdate”.



Formulti‐roomsetting,seethesection“Multi‐Room”fordetailedinstructions.

Forfirmwareupdate,seethesection“FirmwareUpdate”fordetailedinstructions.



ResetWi‐FiConnection 

IfyouwishtoconnectIMMERSEtoanotherWi‐Finetworkoryoucouldnotfind

IMMERSEinthelistofavailablewirelessnetworksinWi‐Fisettingpage,youneedto

resettheWi‐Ficonnection.Afterrestoringthefactorysetting,thenameofspeaker

willbesetas“IMMERSExxxx”.

ToresettheWi‐Finetwork,followthebelowinstructions:



1. ConnectIMMERSEtopowersource.Select“WIFI”astheaudiosource.

2. PressandholdMFB+VolumeUp+VolumeDownkeysfor4seconds.TheLED

indicatorwillflashred4timestoindicatethatthefactoryresetisdone.



*TheFactoryResetonlyappliestoWi‐Fimodewithno3.5mmline‐inconnection.

Ifyouwanttoresettothefactorydefault,pleasedisconnectthe3.5mmaudiolinein

cable.



Bluetooth‐Connecttootherdevices

AfteryoufinishsettinguptheIMMERSEsystem,itcanstreammusicwirelesslyfrom

aBluetoothenableddevicebysettingorNFC(forNFCenableddevicesonly).



BySetting‐BluetoothConnection

1. Select“BT”astheaudiosource.

2. Press“Bluetooth”buttononremotecontroltoactivatepairingmode.Or,touch

andholdtheMBFbuttononthesoundbartouchpanel

3. TurnontheBluetoothfeatureonyourdevice

4. Search“IMMERSE”andselect.

5. ConfirmpairingandtheBTLEDindicatorlightsup.



ByNFC‐BluetoothConnection‐forNFCenableddeviceonly

1. Select“BT”astheaudiosource.

2. TurnontheNFCfeatureonyourdevice

3. TapontheNFCsensorforpairing.

4. ConfirmpairingandtheBTLEDindicatorlightsup.

 

Ethernet‐Connecttootherdevices



AfteryoufinishsettinguptheIMMERSEsystem,itcanstreammusicwirelesslyfrom

adigitalmusicsourcethroughWi‐FiconnectionwhiletheIMMERSEsystemis

physicallyconnectedwiththeWi‐Firouter.



BeforeSetup

PleaseprepareaRJ45EthernetcableandaPC/MacwhichhasWi‐Fifeaturefor

setup.



Setup

1. Select“LAN”astheaudiosource.



2. Searchandconnect“IMMERSExxxx”inWi‐Fisettingpage*.TheLEDindicator

willturntosolidpurpleoncetheconnectioniscompleted.



3. Browsethebelowlinkonyourdevicetoenterthesetuppage:

http://192.168.6.1/



4. Select“ConnecttoHome”>“LAN”inthesetuppage.



5. Click“Join”.UseanEthernetcabletoconnectthesoundbarandyourWi‐Fi

router.



6. Click“Done”.TheEthernetLEDindicatorlightsuponcetheconnectionis

completed.



StreamingMusicviaWi‐FiConnection 

Seethesection“StreamingMusicviaWi‐FiConnection”under“Wi‐Fi–Connectto

otherdevices”fordetailedinstructions.



AdvancedSetting

UsingtheiuiDESIGNWi‐FiAudioApp,youcancontroltheadvancedsettingof

IMMERSEandotheriuiDESIGNWi‐Fispeakers,including“RenameYourSpeaker”,

“Multi‐Room”,“AudioChannel”and“FirmwareUpdate”.



Formulti‐roomsetting,seethesection“Multi‐Room”fordetailedinstructions.

Forfirmwareupdate,seethesection“FirmwareUpdate”fordetailedinstructions.

Aux‐in/Analog/Optical/Coaxial‐Connecttootherdevices



AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttoanaudiosource

usingaux‐in,analog,opticalorcoaxialaudioinput.



Connectthesoundbarandtheaudiosourcewitha3.5mmaudioline‐incable/aRCA

cable/adigitalopticalcable/acoaxialcableasshownbelow.



Ifyouconnectusinga3.5mmaudioline‐incable,select“AUXIN”astheaudio

source.

IfyouconnectusingaRCAcable,select“ANALOG”astheaudiosource.

Ifyouconnectusingadigitalopticalcable,select“OPTICAL”astheaudiosource.

Ifyouconnectusingacoaxialcable,select“COAXIAL”astheaudiosource





Multi‐Room

“Multi‐Room”allowsgroupingIMMERSEandotheriuiDESIGNWi‐Fispeakerstoplay

togetherfromthesamemusicsource.ThisfeatureonlycanbeusedinWi‐Fior

EthernetconnectionandwithiuiDESIGNWi‐FiAudioApp,



IntheiuiDESIGNWi‐FiAudioApp,followthebelowstepsformulti‐roomsetup



Slidethebuttontogroupthespeakers.

StreammusicusingWi‐Ficonnection.



*Formostofthedevices,itcanconnectreliablyupto3speakers

*DuetolimitationofiPhone,multi‐roomisnotstableforiPhoneusers.



SoundEffectMode

Thereare3pre‐setsoundeffectmodesinIMMERSE:Musicmode,Moviemodeand

Gamemode.Differentmodeshavedifferentaudioequalizersetting.Youcanchoose

themodethatfitsyourusage.



FirmwareUpdate

“FirmwareUpdate”allowsupdatingthefirmwareofIMMERSEmaintainthebest

productperformance.Itisstronglyrecommendedthatyoualwaysupdateyour

firmware,andregularlychecktoseeifanupdateisavailable.



ForAndroid/iOSUser

IntheiuiDESIGNapp,thesignmeansthereisupdateavailable.

Tap““.

Taponthespeakeryouwishtoupdate.Press““button.



ForPCUser

1. ConnectyourPCtotheWi‐FinetworkwhereIMMERSEislocated.

2. Open“YourNeighborhoodNetwork”.

3. DoubleclickEVERYWHEREtoentersetuppage.

4. Click“Others…”.

5. Click“FirmwareUpgrade”.

6. Click“CheckUpdate”.

7. Click“Update”ifthereisavailableupdate.



ForMacUser

1. ConnectyourMactotheWi‐FinetworkwhereIMMERSEislocated.

2. Open“Safari”.

3. Select“Preferences…”inSafaritoolbar.

4. Click“Advanced”andchecktheboxfor“IncludeBonjourintheFavoritesbar”.

5. Select“Bonjour>Webpages>IMMERSE”toentersetuppage.

6. Click“Others…”.

7. Click“FirmwareUpgrade”.

8. Click“CheckUpdate”.

9. Click“Update”ifthereisavailableupdate.



*Pleasekeepstablenetworkandpowerconnectionduringfirmwareupgrade.



Troubleshooting



TBA

Platform2 UD-1404 Sound bar User Manual UD 1404

Platform2 International Limited Sound bar UD 1404

User manual

Navigation menu

Namespaces

Views

Navigation
