IMPORTANT
* DLP™ (Digital Light Processing) and DMD (Digital Micromirror Device) are registered trademarks of Texas Instru-
ments Incorporated (U.S.A.).
*DMD is an ultra-precise part developed by Texas Instruments (U.S.A.) which takes the place of liquid crystal (in the
projector).
*VGA and XGA are trademarks or registered trademarks of International Business Machines Corporation (U.S.A.).
*S-VGA is a registered trademark of Video Electronics Standards Association.
*Microsoft, Windows, and PowerPoint are registered trademarks of Microsoft Corporation (U.S.A. and other countries).
*Macintosh is a trademark of Apple Computer Inc. (U.S.A.).
*TMDS is a trademark of Silicon Image, Inc.
Note that even in the absence of explanatory notes, serious attention is paid to the trademarks of the various companies
and to the product trademarks.
DATA PROJECTOR
U2-1200/U2-817
User’s Manual
E-2
IMPORTANT SAFETY INFORMATION
Precautions
Please read this manual carefully before using your PLUS U2-1200/U2-817 Data Projector and keep the manual
handy for future reference.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PLUS SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude
to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside
of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of
this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
The above cautions are given on the bottom of the product.
WARNING
TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE
THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE
PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COM-
PONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED PLUS SERVICE PERSONNEL.
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
RF Interference
WARNING
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT
those specified by PLUS Vision in this manual. Failure to comply with this government regulation could void
your right to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
DOC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regula-
tions.
E-3
Important Safeguards
These safety instructions are to ensure the long life of the unit and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
•For best results, use the unit in a darkened room.
• Place the unit on a flat, level surface in a dry area away from dust and moisture.
•Do not place the unit in direct sunlight, near heaters or heat radiating appliances.
•Exposure to direct sunlight, smoke or steam can harm internal components.
•Handle the unit carefully. Dropping or jarring can damage internal components.
•Do not place heavy objects on top of the unit.
Power Supply
•The unit is designed to operate on a power supply of 100 - 240 V 50/60 Hz AC. Ensure that your power supply
fits these requirements before attempting to use the unit.
•For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be acces-
sible.
•Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or
fire.
•Disconnect the power cable (mains lead) from the power outlet after using the unit.
Before disconnecting the power cable, make sure that the POWER indicator lights in amber (not blinking or in
green).
Cleaning
•Disconnect the power cable (mains lead) from the unit.
•Clean the cabinet of the unit periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use
strong detergents or solvents such as alcohol or thinner.
•Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.
•Clean the ventilation slots and speaker grills on the unit periodically using a vacuum cleaner. If accumulated
dust blocks the ventilation slots, the unit will overheat, which may cause the unit to malfunction.
Use a soft brush attachment when using the vacuum cleaner. Do not use a hard attachment, such as a crevice
tool, to prevent the damage to the unit.
Lamp Replacement
•Be sure to replace the lamp when the Status indicator comes on. If you continue to use the lamp after 3000
hours of usage, the lamp will turn off.
Fire and Shock Precautions
•Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the buildup of heat inside
the unit. Allow at least 10 cm (3 inches) of space between the unit and walls.
•Prevent foreign objects such as paper clips and bits of paper from falling into the unit. Do not attempt to retrieve
any objects that fell into the unit. Do not insert any metal objects such as a wire or screwdriver into the unit. If
something should fall into the unit, immediately disconnect the power cable from the unit and have the object
removed by a qualified PLUS service person.
•Do not place any liquids on top of the unit.
•Do not look into the lens while the unit is on. Serious damage to your eyes could result.
Carrying around
When carrying the unit around, please use the carrying case that comes with it and, to protect the lens from
scratches, always shut the sliding lens cap. Also, do not subject the unit to strong mechanical shock.
IMPORTANT SAFETY INFORMATION
E-4
Major Features
Book-sized, lightweight (at about 2.5 kg/5.5 lb) high-intensity mobile projector
The synergy of the DLP™ (Digital Light Processing) display system and our own optical design serve to improve the optical
utilization efficiency. The three primary colors (RGB) required in color expression are reproduced with one DMD (Digital
Micromirror Device of high precision). These factors have enabled a design that offers both high intensity and small size/
lightweight features.
Sharp, clear picture
The DLP display system affords RGB color fidelity and inconspicuous gaps between the individual dots, thereby permitting
the display of small characters and diagrams with distinct clarity.
Powerful functions for presentations
A wide variety of easy-to-set functions have been built into the projector, from a digital keystone correction function (used
when making settings) that corrects picture distortion, to an auto adjustment function that automatically identifies the PC
signal.
A presentation timer that supports presentations and a startup logo creation function that permits unhindered logo creation
have also been added.
High contrast ration of 1500:1
Use of a new generation of DMD devices has given birth to an amazing 1500:1 high contrast ratio.
By widening the difference of brightness between black and white, you can see a degree of sharpness that is greater than just
the brightness based on specifications.
Beautiful reproduction of high-quality images from DVD
Faithful reproduction of color tones gives rise to the display of natural images. High-quality images such as those from DVD
and digital high-definition television broadcasts bring out the display capabilities that are an essential strength of the DLP
display system projector.
Enable RGB output in addition to digital/analog RGB input...
by using a DVI cable to connect the projector with a personal computer equipped with a DVI connector. This will allow fully
digital pictures to be enjoyed.
Also, by using the RGB output connector, the same image can be sent to the monitor of a personal computer.
Econo-mode switch function for the lamp output
Using the lamp Econo-mode will extend the life of the lamp and lower the power consumption.
By switching the lamp mode to suit your operating environment, you will save on lamp cost as well as contribute to energy
conservation and ecology.
E-5
Table of Contents
IMPORTANT SAFETY INFORMATION ................................................................................... E-2
Major Features ....................................................................................................................... E-4
Table of Contents ................................................................................................................... E-5
Checking the Supplied Accessories .................................................................................... E-7
Names of the Main Unit Parts ............................................................................................... E-9
Names of the Remote Control Parts ................................................................................... E-11
Preparing the Remote Control ............................................................................................ E-12
Button Battery Replacement ..................................................................................... E-12
Remote Control Range ............................................................................................. E-12
The Procedure Up to Projecting to the Screen ................................................................. E-13
Placement Guide .................................................................................................................. E-14
U2-1200 Screen Size and Projection Distance ......................................................... E-14
U2-817 Screen Size and Projection Distance ........................................................... E-15
Connecting Personal Computers and Video Equipment .................................................. E-16

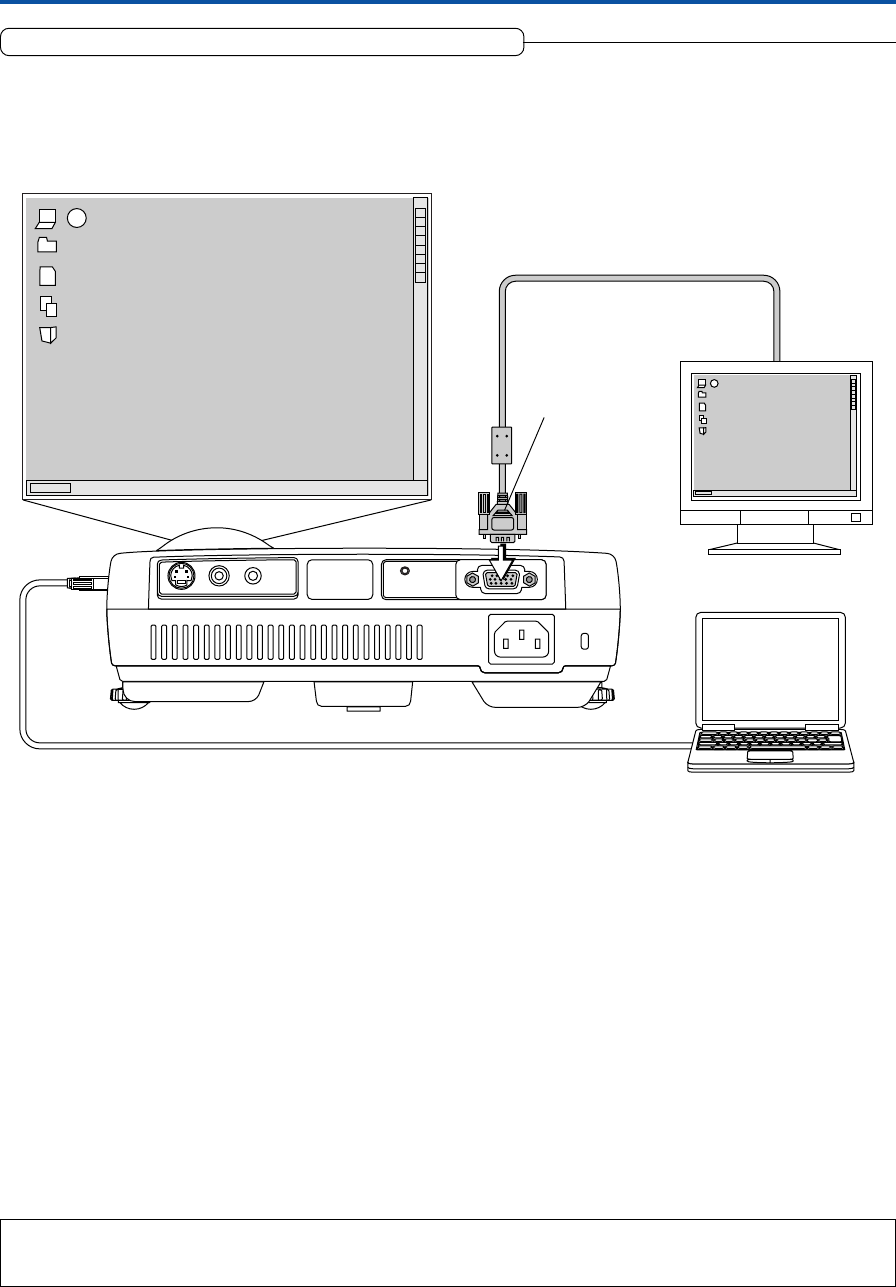

Connections with Personal Computer ....................................................................... E-16
Personal Computers with a DVI Connector ......................................................... E-16
Personal Computers with a Mini D-Sub 15-Pin Connector ................................. E-17
To Output the External Output Signal of a Notebook Computer ......................... E-18
Connections with Composite Signals ........................................................................ E-19
Video Equipment with VIDEO Connectors .......................................................... E-19
Video Equipment with S-VIDEO Connectors ...................................................... E-19

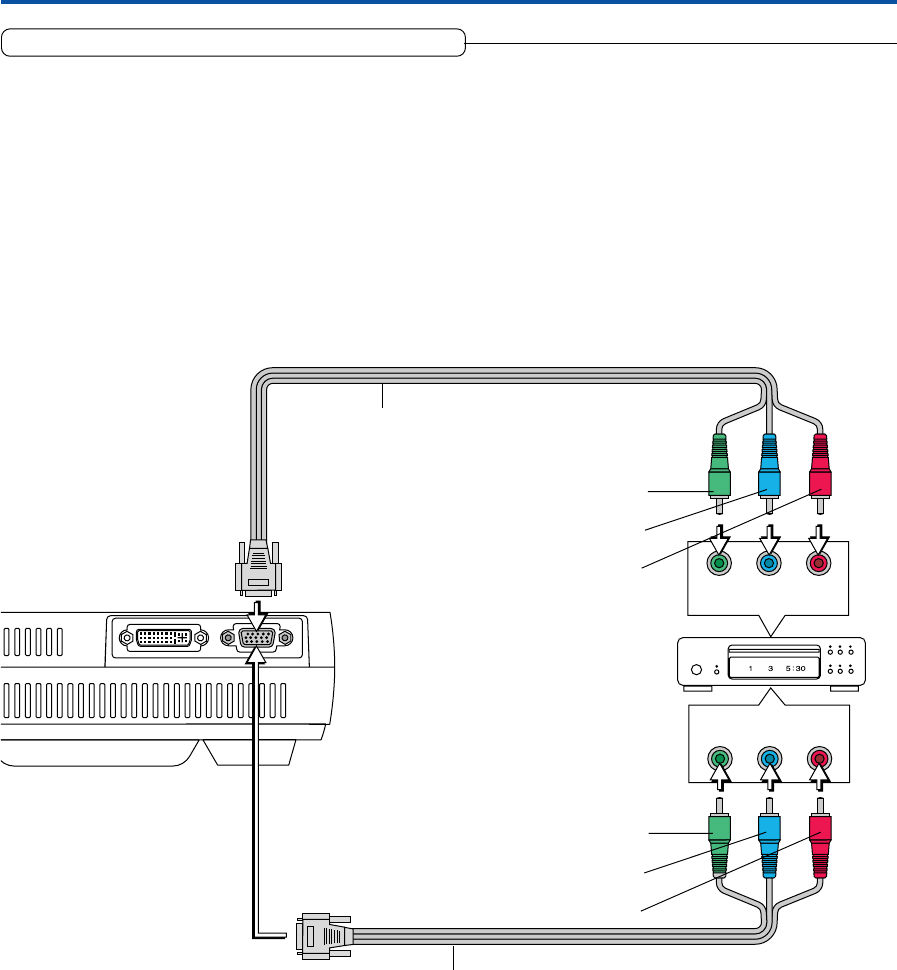

Connections with Component Signals ....................................................................... E-20
When the Video Equipment Has a YCbCr Connector or YPbPr Connector ........ E-20

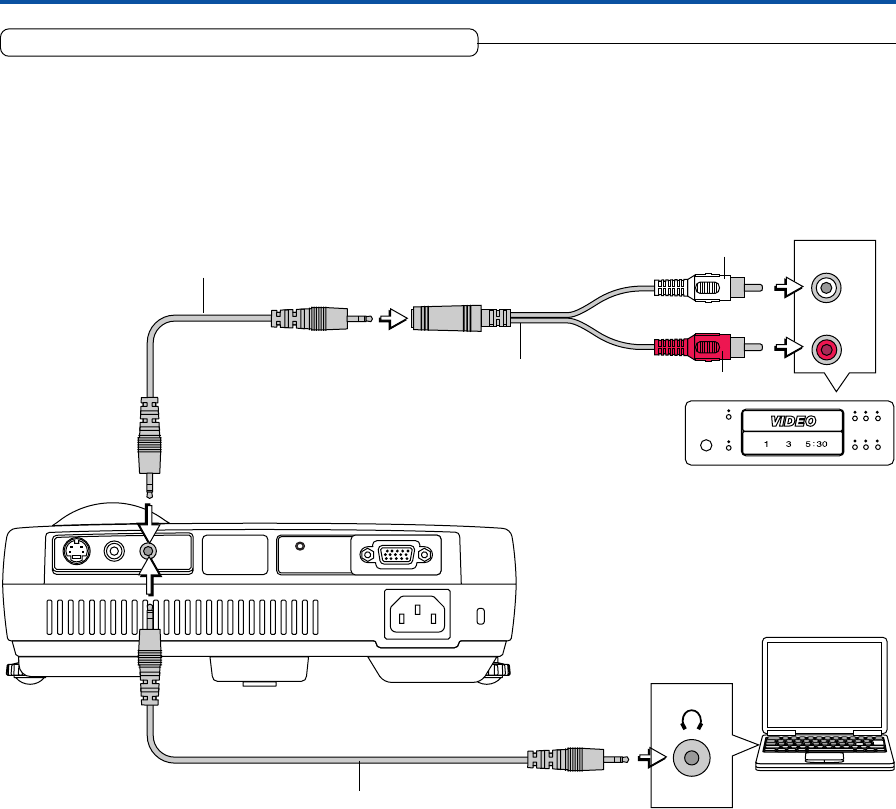

Connections with the AUDIO Jack ............................................................................ E-21
Connections with the RGB OUT Connector .............................................................. E-22
Power Cable Connections and Switching the Power On/Off ........................................... E-23
Operating ................................................................................................................... E-23
Finishing .................................................................................................................... E-25
Adjustment of the Projection Screen ................................................................................. E-26
Adjustment of the Projection Screen ......................................................................... E-26

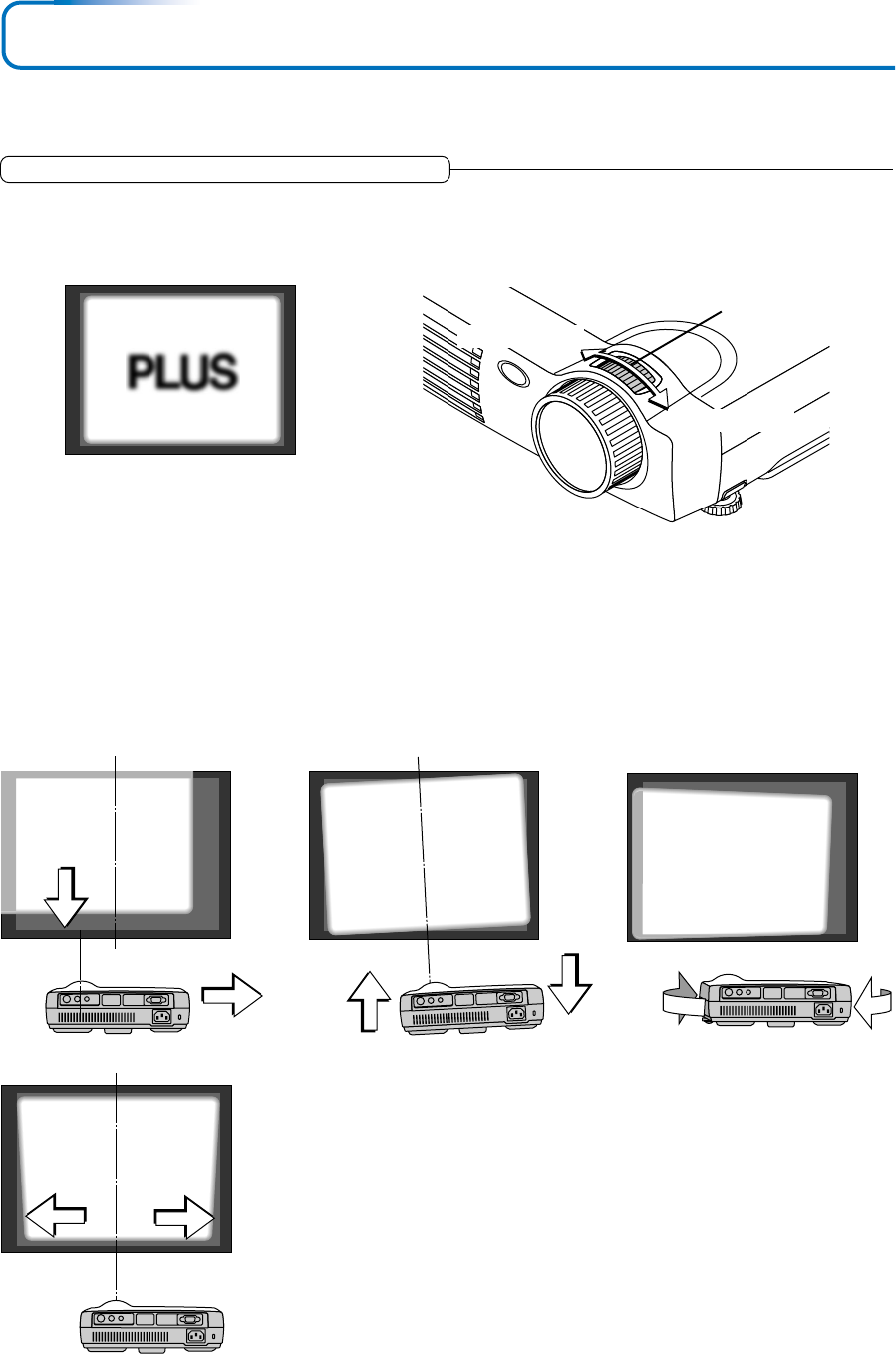

Making Adjustments with the Adjusters .............................................................. E-27
General Operation ................................................................................................................ E-28
Input Selection .......................................................................................................... E-28
Automatic Adjustment of Analog RGB ...................................................................... E-28
Selection of Aspect Ratio .......................................................................................... E-29
Freezing a Moving Picture ......................................................................................... E-30
Cancelling Video and Audio Temporarily ................................................................... E-30

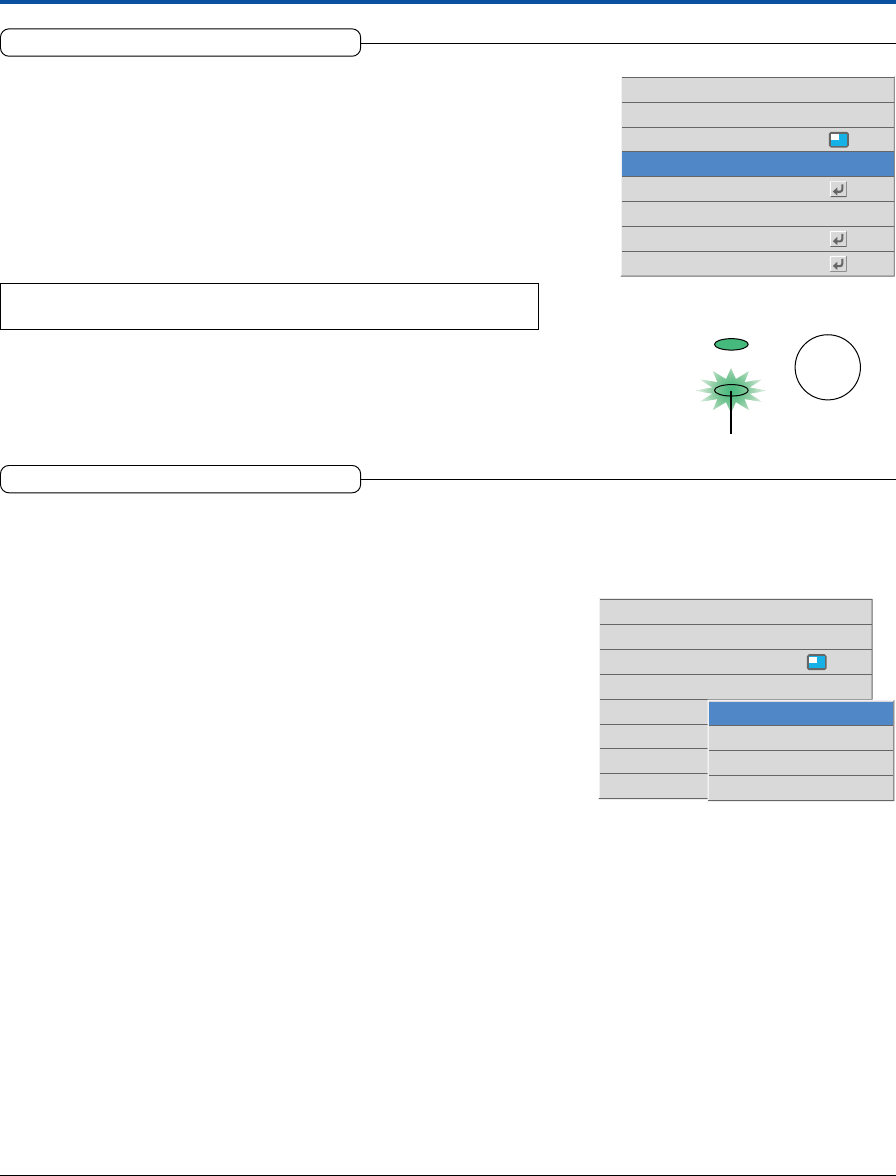

Lamp Mode ............................................................................................................... E-30
Using the Presentation Timer .................................................................................... E-31
Keystone .................................................................................................................... E-32
Adjustment of the Volume .......................................................................................... E-32

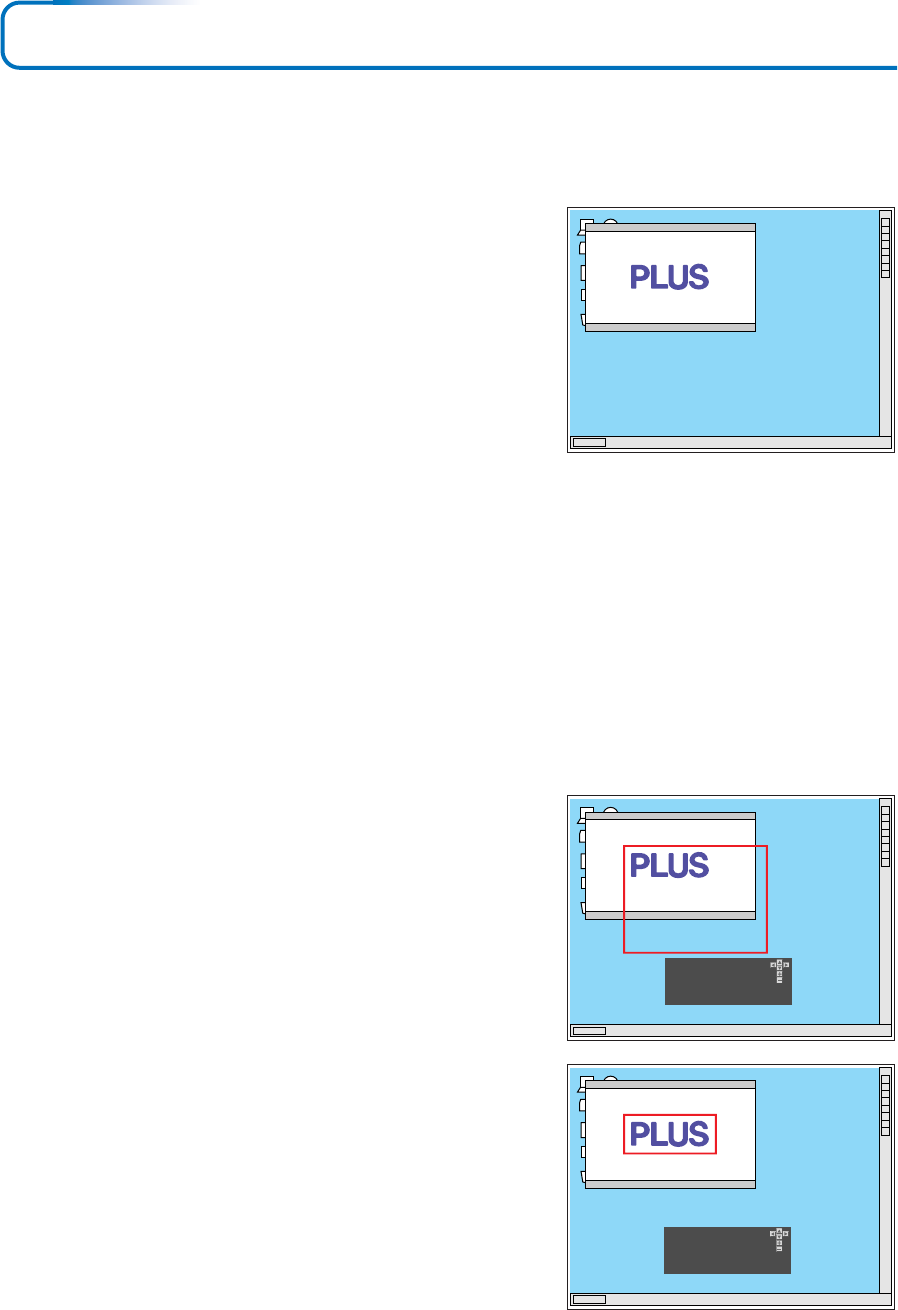

Enlargement of the Image and Video Movement ...................................................... E-33
Using the Quick Menu ............................................................................................... E-34
Menu Operation Method ...................................................................................................... E-35
Performing Menu Operations .................................................................................... E-37
List of Item Names Offering Input Selection and Adjustments/Settings .................... E-40
Picture ................................................................................................................................... E-42
Brightness / Contrast / Color / Tint / Sharpness ........................................................ E-42
Picture Adj. / Fine Picture / H Position / V Position .................................................... E-42
Reset ......................................................................................................................... E-43
E-6
Table of Contents
Color ...................................................................................................................................... E-44
Gamma ..................................................................................................................... E-44
Color Temp. ............................................................................................................... E-44
White ......................................................................................................................... E-44
Color Space .............................................................................................................. E-45
White Balance ........................................................................................................... E-45
View ....................................................................................................................................... E-46
Aspect ....................................................................................................................... E-46
Filter .......................................................................................................................... E-46
Ver tical Flip ................................................................................................................ E-47
Keystone .................................................................................................................... E-47
Keystone Save .......................................................................................................... E-47
Setup ..................................................................................................................................... E-48
Auto Source............................................................................................................... E-48
Auto Power Off .......................................................................................................... E-48
Menu Position ............................................................................................................ E-48
Lamp Mode ............................................................................................................... E-49
Input Format .............................................................................................................. E-49
Presentation Timer .................................................................................................... E-50
Logo Background ...................................................................................................... E-50
Logo Scaling ............................................................................................................. E-50
Logo Position ............................................................................................................. E-51
Capture Mode ........................................................................................................... E-51
Invalidata Logo .......................................................................................................... E-51
Start Logo Capture .................................................................................................... E-52
Preview ...................................................................................................................... E-52
Language .................................................................................................................. E-53
On Screen ................................................................................................................. E-53
Background ............................................................................................................... E-53
Startup Screen .......................................................................................................... E-54
Info. ........................................................................................................................................ E-55
Status ........................................................................................................................ E-55
Factory Default .......................................................................................................... E-55
Lamp Timer Reset ..................................................................................................... E-55
Resolution / Frequency ............................................................................................. E-56
Lamp Timer ............................................................................................................... E-56
Startup Logo Creation ......................................................................................................... E-57

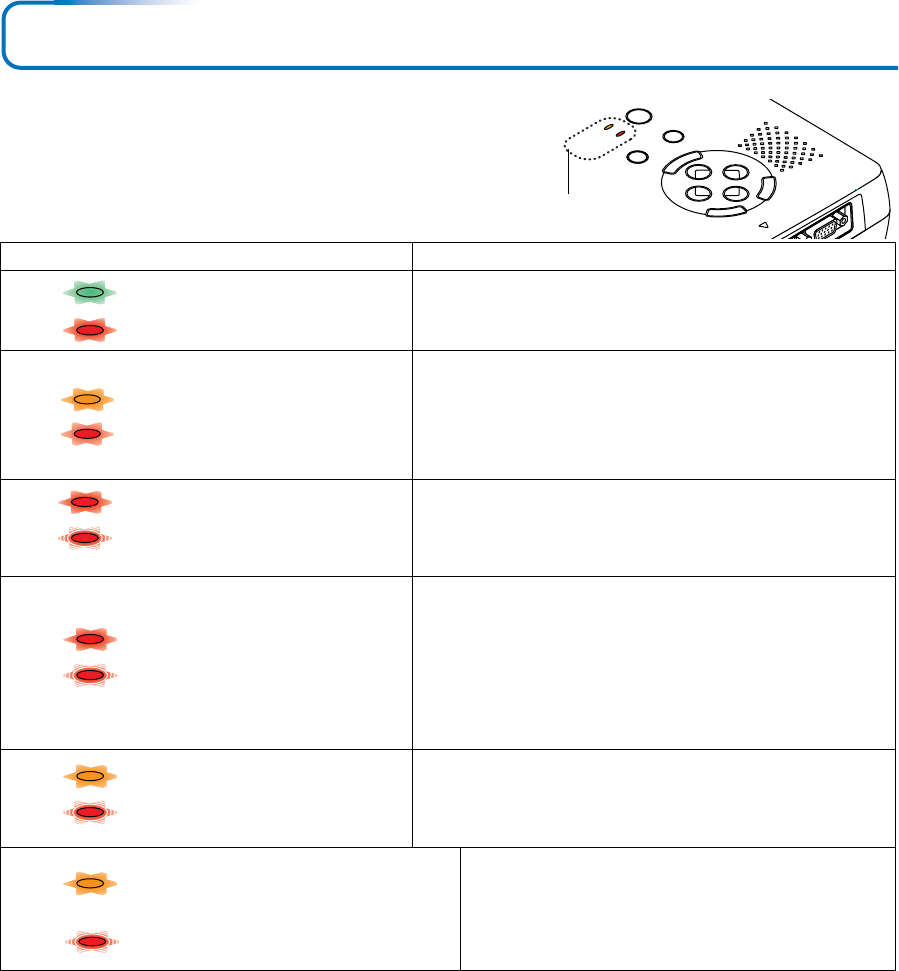

When an Indicator is Lit or Flashing .................................................................................. E-59
Troubleshooting ................................................................................................................... E-60
Cleaning ................................................................................................................................ E-61
Replacing the Lamp Cartridge ............................................................................................ E-62
Specifications ....................................................................................................................... E-65
Table of Supported Frequency ........................................................................................... E-66
Cabinet Dimensions ............................................................................................................ E-67
E-7
Checking the Supplied Accessories
Remove the main unit and the accessories from the box and check that the following items are included.
Remote control (includes one button battery) [1]
This controls the projector. Please remove the transportation
insulation sheet at time of purchase. (See Page E-12.)
Power cable (1.8 m / 5.9 feet) [1]
This power cable supplies power to the unit. See Page E-23
about connections.
DVI / Mini D-sub 15-pin conversion cable (18 cm / 0.6 feet) [1]
This is used in making connections with a personal computer.
See Page E-17 about connections.
No. 772708000
RGB signal cable
(Mini D-sub 15-pin, 2 m / 6.6 feet) [1]
This is used in making connections with a personal computer.
See Page E-17 about connections.
No. 772709000
S-Video cable (Mini DIN 4-pin plug, 2 m / 6.6 feet) [1]
This cable is used in the connection of video equipment that
has an S-video connector. Connections are described on Page
E-19.
No. 771709000
Video cable (RCA pin plug, 2 m / 6.6 feet) [1]
This cable is used in the connection of video equipment that
has a video connector. Connections are described on Page E-
19.
No. 771703000
Audio conversion cable (Mini plug / RCA pin plug, 15 cm /
0.5 feet) [1]
This cable is used with equipment whose audio connector is
of the phono pin type. Connections are described on Page E-
21.
No. 770704000
Audio cable (Mini plug, 2 m / 6.6 feet) [1]
This cable is used with equipment that has phono type audio
jacks. Connections are described on Page E-21.
No. 769710000
ONOFF
FREEZEMUTEECO
DVI RGB
VIDEOS-VIDEO
QUICK
ENTER
ZOOM
CANCEL
ASPECT AUTO
POWER
TIMER
KSTN
VOL
MENU
E-8
Carrying case (for projector and accessories) [1]
This is a case designed for storing the projector and its
accessories.
Use this carrying case when storing or moving the pro-
jector.
User's Manual (CD-ROM edition) [1]
User's Manual (Simplified Edition) [1]
HOW TO PUT THE PROJECTOR INTO THE CARRYING CASE
Attach the lens cap to the projector before putting the pro-
jector into the carrying case, and then fasten the velcro
strap. Put accessories into the pocket.
Pocket
Velcro strap
Checking the Supplied Accessories
E-9
Names of the Main Unit Parts
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
Front adjuster button [E-27]
(There is also one on the right side.)
Ventilation slots
Remote control sensor [E-12]
Zoom ring [E-26]
Focus ring [E-27]
Lens
Lens cap
To protect the lens, attach
the lens cap when the pro-
jector is not being used.
Exhaust vents
Front adjusters [E-27]
Ventilation slots
Rear adjuster [E-27]
Ventilation slots
Lamp cover [E-63]
E-10
Names of the Main Unit Parts
RGB OUTAUDIOVIDEOS-VIDEO
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
RGB
DVI
AUDIO
VIDEO
S-VIDEO
RGB OUT
RGBDVI
ENTER
CANCEL
SELECT
POWER
POWER
STATUS
AUTO SOURCE
MENU
ACCESS
POWER indicator [E-23,59]
STATUS indicator [E-23,59]
AUTO button [E-28]
Buttons used in menu
and toolbar operations
[E-24,34,35]
ENTER button
POWER button [E-23]
SOURCE button [E-28]
MENU button
SELECT ▲▼ buttons
CANCEL button
Built-in Security Slot
This security slot supports the MicroSaver Security System manufactured by
Kensington Microware Inc.
Ventilation slots
Speaker
Built-in security slot
(See description below.)
AC IN connector [E-23]
Remote control sensor [E-12]
Ventilation slots
DVI connector [E-16,17]
RGB connector [E-17,20]
S-VIDEO connector [E-19]
VIDEO connector [E-19]
AUDIO connector [E-21]
RGB OUT connector
[E-22]
ACCESS indicator [E-12]
E-11
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK
ZOOM
CANCEL
ASPECT AUTO
POWER
TIMER
KSTN
VOL
MENU
ENTER
Names of the Remote Control Parts
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK
ENTER
ZOOM
CANCEL
ASPECT AUTO
POWER
TIMER
KSTN
MENU
Infrared transmitter [E-12]
VOL button [E-32]
(Volume adjustment display)
Precautions
Handling of the Remote Control
*Do not drop the remote control or handle it inappropriately.
*Do not expose the remote control to water or other liquids. Should the remote control become wet, wipe it dry
immediately.
*Try to avoid use in hot and/or humid locations.
*Please keep button batteries out of the reach of children. If a battery is swallowed, promptly obtain the medical care
of a doctor.
*Remove the batteries from the remote control when it is not going to be used for a long period.
*Some operations (such as menu operations) are available only through the use of the remote control and attention
should be given to its careful handling.
POWER button [E-23,25]
FREEZE button [E-30]
(Freezes moving pictures)
MUTE button [E-30]
(Temporarily cancels the video
and audio)
ASPECT button [E-29]
(Selects the vertical and hori-
zontal ratio of the screen)
QUICK button [E-34]
(Displays a simplified menu)
TIMER button [E-31]
(Presentation timer time set-
ting display)
ZOOM button [E-33]
(Digital zoom adjustment display)
+/– button
(Used in all adjustments)
Buttons used for input selection
[E-28]
DVI button, RGB button, VIDEO but-
ton and S-VIDEO button
AUTO button [E-28]
(Automatic adjustment of the analog
RGB moving image)
Buttons used for menu operations
[E-35]
KSTN button [E-32]
(Keystone correction display)
ECO button [E-30]
(Selection of lamp mode)
E-12
5m / 16.4 feet 7m / 23 feet
20˚
20˚
30˚
30˚
Preparing the Remote Control
Button Battery Replacement
Using the remote control for the first time
The battery compartment is fitted with a transportation insulation sheet at the time of shipping. Pull
out the sheet and remove it. The remote control is now ready for use.
Replacement Method
1Insert the tip of a ballpoint pen
or some other pointed object
into the hole of the battery
holder, then pull out to open.
2Remove the old battery and in-
stall a new button battery with (+)
side facing upward in the battery
holder.
3Insert the battery holder into the re-
mote control and push in until the
battery holder closes with a "click"
sound.
CR2025
M
n
O
2
-
L
i
C
E
L
L
3
V
O
L
T
S
J
A
P
A
N
H
CR2025
CR2025
M
n
O
2
-
L
i
C
E
L
L
3
V
O
L
T
S
J
A
P
A
N
H
CR2025
Purchase a CR2025 type battery for replacement.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type (CR2025) recommended by the manufacturer.
Dispose of used batteries according to your local regulations.
Remote Control Range
Point the infrared transmitter of the remote control toward the remote control sensor located at the front
or rear of the main unit and operate.
Reception of the remote control signal should generally be possible within the range illustrated below.
Side View
Top View
Remote control in-
frared transmitter
Remote control in-
frared transmitter
Remote con-
trol sensor
ACCESS Indicator
Function of the ACCESS Indicator
When the projector's remote control sensor receives the remote control signal, the
ACCESS indicator flashes once and the projector begins operation. If the indicator
does not flash, check the following points.
•The indicator will not flash when bright light strikes the projector's remote control
sensor or the remote control's transmitter, or when there is an obstacle located in
between that blocks the signal.
•The indicator will not flash when the button battery is exhausted.
ENTER
CANCEL
SELECT
ACCESS
Remote con-
trol sensor
E-13
The Procedure Up to Projecting to the Screen
Perform setup adjustments in the following order.
1Position the projector
Determine the locations to set up the screen and the projector.
See "Placement Guide" on Page E-14, 15.
2Connect the video equipment and personal computer
Connect your equipment to the projector.

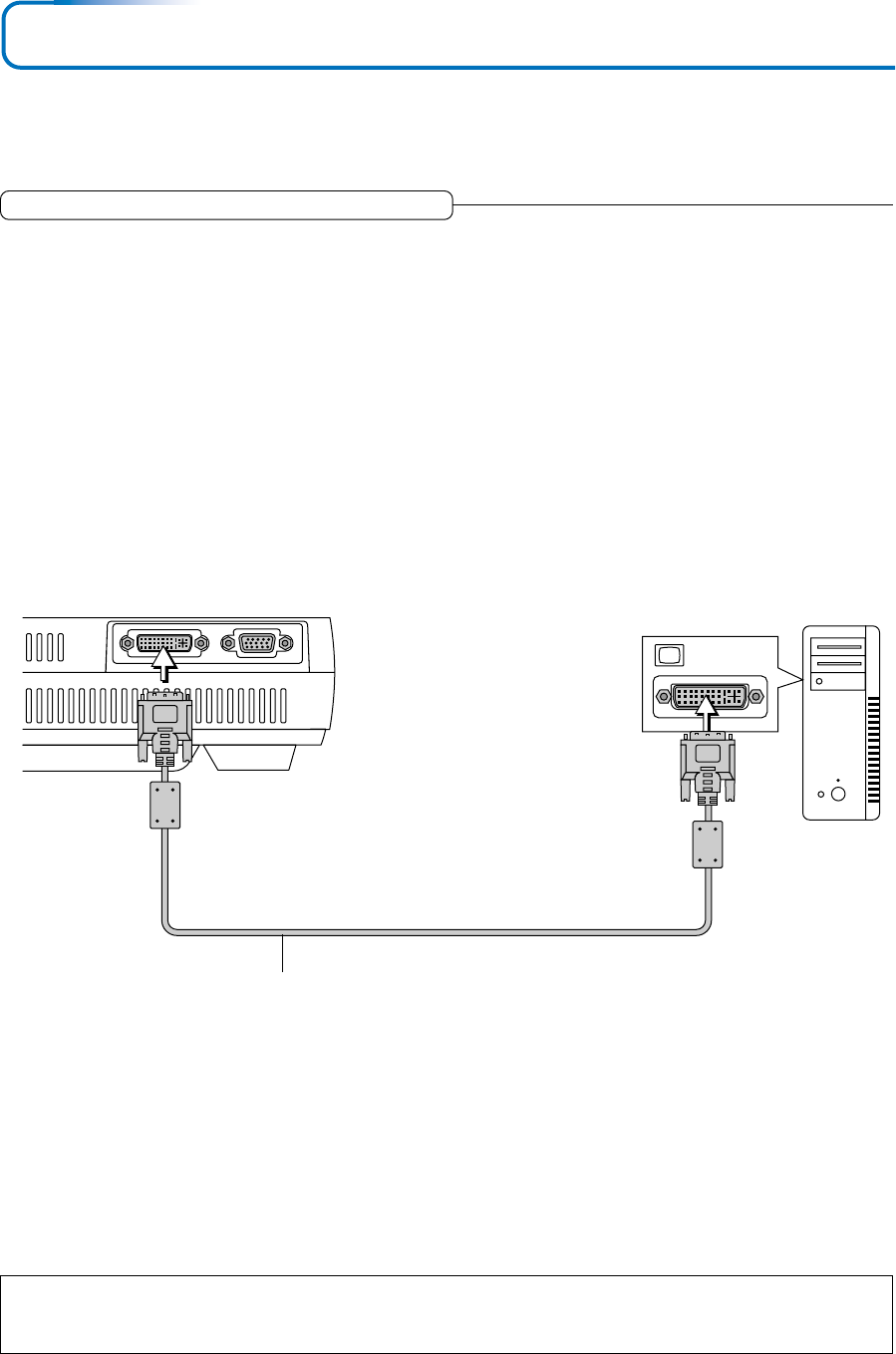

When making connections with the personal computer's DVI connector or RGB connector, see
"Connections with Personal Computers" on Page E-16.
When making connections with the video equipment's video connector or an S-video connector,
see "Connections with Composite Signals" on Page E-19.
When making connections with the video equipment's YCbCr connector or YPbPr connector,
see "Connections with Component Signals" on Page E-20.
When playing the audio through the built-in speaker of the projector, see "Connections with the
AUDIO Jack" on Page E-21.
Monitoring the analog RGB input signal, see "Connections with the RGB OUT Connector" on
Page E-22.
3Connecting the power cable and switching on the power
See "Operating" on Page E-23.
See "Finishing" on Page E-25.
4When selecting the language of menu displays, etc.
(Only when the power is first switched on following purchase)
See "When [Menu Language Select] Is Displayed Upon Switching On the Power" on Page E-
24.
5Switching on the power of the personal computer and video equipment
6Properly adjust the projection image to the screen
See "Adjustment of the Projection Screen" on Page E-26.
7Selecting input equipment
See "Input Selection" on Page E-28.
8Adjust the screen or video image
Adjust the image to the optimum condition as required.
See the Table of Contents for the adjustment items.
About DLP projectors
Though careful attention is paid to providing optimum quality, please note that with DLP type projectors, in rare cases there may
be black spots or bright spots among the picture elements.
Note:
* Please purchase a screen.
*A DVI-D cable (order code 28-697), which is available separately, is required for connections with the DVI connector of the personal
computer.
*A component cable (order code 28-690), which is available separately, is required to connect a DVD player or other equipment with YCbCr
connectors.
*A component cable (order code 28-690), which is available separately, is required to connect high definition (HD) video equipment or other
equipment with YPbPr connectors.
E-14
m (feet)
m
(feet)
1
(3.3) 2
(6.6) 3
(9.8) 4
(13.1) 5
(16.4) 6
(19.7) 7
(23.0) 8
(26.2) 9
(29.5) 10
(32.8) 11
(36.1) 12
(39.4) 13
(42.7) 14
(45.9)
0
1
(3.3)
2
(6.6)
3
(9.8)
4
(13.1)
5
(16.4)
6
(19.7)
h1
h2
h2
0
40" 60"
300"
27-33"
150"
120"
100"
80"
200"
250"
Placement Guide
*Use this information as a guide to find out about the screen size when the projector is placed at a certain location, or
to find out the approximate size of a screen that will be required.
*The projection distance (from the lens surface of the projector) within which focusing can be maintained is 1.20m /
3.94 feet to 13.81m/45.3 feet (for the U2-1200) and 1.20 m/3.94 feet to 17.70m/58.1 feet (for the U2-817). Please set up
the projector within this range.
*Refer to the projection distance table for your projector model.
*Please change the projection method for suspended projectors. See "Vertical Flip" on Page E-47.
U2-1200 Screen Size and Projection Distance
Height from center of lens to
bottom edge of the projection
Height from center of lens to
top edge of the projection
WIDE
Center of lens
Projection Distance
TELE
Screen size (Diagonal)
Width
Height
*There is a tolerance of ±5% due to design values.
*This table uses the lens apex and lens center as references and requires that the projector be in a horizontal condition
(with front and rear adjusters fully withdrawn).
27"
33"
40"
60"
80"
100"
120"
150"
200"
250"
300"
0.560.41
0.670.50
0.810.61
1.210.91
1.621.21
2.031.52
2.431.82
3.042.28
4.063.04
5.083.81
6.094.57
–- 1.20
1.23 - 1.48
1.49 - 1.80
2.26 - 2.73
3.03 - 3.65
3.80 - 4.57
4.57 - 5.50
5.73 - 6.88
7.65 - 9.19
9.57 - 11.50
11.50 - 13.81
0.48
0.59
0.72
1.07
1.43
1.79
2.14
2.68
3.58
4.48
5.38
0.07
0.09
0.11
0.16
0.22
0.27
0.32
0.40
0.54
0.67
0.81
Screen Size
Designation
(Inches)
Screen Size
Width x Height
Projection Distance Height h1 Height h2
1.83 1.35
2.19 1.64
2.65 2.00
3.96 2.98
5.31 3.96
6.66 4.98
7.97 5.97
9.97 7.48
13.32 9.97
16.66 12.50
19.98 14.99
(m) (feet)
1.57
1.94
2.36
3.51
4.69
5.87
7.02
8.79
11.75
14.70
17.65
0.23
0.30
0.36
0.52
0.72
0.89
1.05
1.31
1.77
2.20
2.66
(m) (feet)
(m) (feet) (m) (feet)
Wide - Tele Wide - Tele
–- 3.94
4.04 - 4.86
4.89 - 5.91
7.41 - 8.96
9.94 - 11.98
12.47 - 14.99
14.99 - 18.04
18.80 - 22.57
25.10 - 30.15
31.40 - 37.73
37.73 - 45.31
Center of lens
Screen Height
E-15
m
(feet)
0
1
(3.3) 2
(6.6) 3
(9.8) 4
(13.1) 5
(16.4) 6
(19.7) 7
(23.0) 8
(26.2) 9
(29.5) 10
(32.8) 11
(36.1) 12
(39.4) 13
(42.7) 14
(45.9) 15
(49.2) 16
(52.5) 17
(55.8) 18
(59.1)
0
1
(3.3)
2
(6.6)
3
(9.8)
4
(13.1)
5
(16.4)
6
(19.7)
m
(feet)
7
(23.0)
h1
h2
h2
60"
40"
300"
21-26"
250"
200"
150"
120"
100"
80"
U2-817 Screen Size and Projection Distance
Height from center of lens to
bottom edge of the projection
Height from center of lens to
top edge of the projection
WIDE
Center of
lens Projection Distance
TELE
Screen size (Diagonal)
Width
Height
*There is a tolerance of ±5% due to design values.
*This table uses the lens apex and lens center as references and requires that the projector be in a horizontal condition
(with front and rear adjusters fully withdrawn).
21"
26"
40"
60"
80"
100"
120"
150"
200"
250"
300"
0.430.32
0.530.40
0.810.61
1.210.91
1.621.21
2.031.52
2.431.82
3.042.28
4.063.04
5.083.81
6.094.57
–- 1.20
1.24 - 1.49
1.93 - 2.32
2.91 - 3.50
3.90 - 4.69
4.88 - 5.87
5.87 - 7.05
7.34 - 8.83
9.81 - 11.78
12.27 - 14.74
14.73 - 17.70
0.44
0.55
0.83
1.25
1.66
2.08
2.49
3.12
4.16
5.21
6.25
0.12
0.15
0.22
0.34
0.45
0.56
0.67
0.84
1.12
1.40
1.68
Screen Size
Designation
(Inches)
Screen Size
Width x Height
Projection Distance Height h1 Height h2
1.41 1.05
1.74 1.31
2.66 2.00
3.97 2.99
5.31 3.97
6.66 4.99
7.97 5.97
9.97 7.48
13.3 29.97
16.67 12.50
19.98 14.99
(m) (feet)
1.44
1.80
2.72
4.10
5.45
6.82
8.17
10.24
13.65
17.09
20.51
0.39
0.49
0.72
1.12
1.48
1.84
2.20
2.76
3.67
4.59
5.51
(m) (feet)
(m) (feet) (m) (feet)
Wide - Tele Wide - Tele
Center of lens
–- 3.93
4.07 - 4.89
6.33 - 7.61
9.55 - 11.48
12.80 - 15.39
16.01 - 19.26
19.26 - 23.13
24.08 - 28.97
32.19 - 38.65
40.26 - 48.36
48.33 - 58.07
Placement Guide
Screen Height
E-16
Connecting Personal Computers and Video Equipment
Connecting this unit with a personal computer permits presentation data to be projected as a large screen display at
conferences, lectures, and on other occasions. Furthermore, connecting this unit to a DVD player or other video equip-
ment source in combination with an audio/video amplifier and speaker system will allow you to enjoy convincing home
theater.
Connections with Personal Computer
Please check the following before making connections with the personal computer.
•A suitable resolution for the U2-817 is 800 600 dots (S-VGA) and the maximum displayable resolution is XGA (1024 768
dots).
•A suitable resolution for the U2-1200 is 1024 768 dots (XGA) and the maximum displayable resolution is S-XGA (1280
1024 dots).
Make changes to a displayable resolution at the personal computer side. Please check with "Table of Supported Frequency"
on Page E-66.
•The setting method for the personal computer will differ depending on the specific model. Please read the personal computer
instruction manual or the on-line help information, or contact the manufacturer of your personal computer.
Personal Computers with a DVI Connector
•Make the connection with a DVI-D cable and the PC connector of the projector.
When connecting, arrange the connectors in the proper orientation and plug in. Turn the screw knobs and fasten to the
connector of the main unit.
•The projector has been set to "Auto" at the factory; however, if it does not project, please change the input setting to "Digital"
using the menu sequence of [Setup] → [Input Format] → [DVI].
See "Input Format" on Page E-49.
RGBDVI
MONITOR OUT
Personal
computer
DVI-D cable (Available as an option. Order code: 28-697)
Note
This projector uses a 29-pin DVI connector that supports the digital interface. Digital signal TMDS (Transition Minimized Differential Signal-
ling) of the DVI (Digital Visual Interface) standard is used.
E-17
Connecting Personal Computers and Video Equipment
Personal Computers with a Mini D-Sub 15-Pin Connector
•When connections are made to the RGB connector of this projector, make these connections using the supplied RGB signal
cable.
Please orient the connector to mate properly when before inserting it, then turn the screw knobs to secure the connector to
that of the projector.
The projector has been set to "Auto" at the factory; however, if it does not project, please change the input setting to "RGB"
using the menu sequence of [Setup] → [Input Format] → [RGB].
See "Input Format" on Page E-49.
•When making connections with the DVI connector of the projector, please make the connection via the supplied DVI/mini D-
Sub 15-pin conversion cable.
The projector has been set to "Auto" at the factory; however, if it does not project, please change the input setting to "Analog"
using the menu sequence of [Setup] → [Input Format] → [DVI].
See "Input Format" on Page E-49.
RGBDVI
MONITOR OUT
RGB signal cable (Supplied item)
Personal computer
DVI/mini D-Sub 15-pin conversion cable
(Supplied item)
RGB signal cable (Supplied item)
Note:
*Before making connections, check the power of the projector and the equipment to be connected is switched off.
*When projection will be with a notebook computer connected, knowledge will be required for the cable connection and notebook computer
startup procedure as well as the operation that follows startup. Please consult the instruction manual of your notebook computer or the on-
line help.
E-18
Connecting Personal Computers and Video Equipment
To Output the External Output Signal of a Notebook Computer
When projection will be with a notebook computer connected, knowledge will be required for the cable connection and notebook
computer startup procedure as well as the operation that follows notebook startup. Please consult the instruction manual of your
notebook computer or the on-line help while performing the following procedure.
1Check whether a signal is being sent from the notebook computer to the projector.
An indication appearing on the liquid crystal display of the notebook computer does not necessarily mean that an external
output signal is being output.
REFERENCE: When "Resolution" or "Frequency" is not displayed under "Info." on the menu of the projector, this means that
the external output signal is not being output from the personal computer. See "Frequency /Resolution" on Page E-56.
2Should a sign not be output from the notebook computer, please try the operation described below.
For an IBM PC/AT compatible computer, press the [Fn] key plus any one of the [F1] to [F12] keys. (See the table below.)
Manufacturer Model Key
akia All computers Fn + F2
COMPAQ All computers Fn + F4
DELL All computers Fn + F8
EPSON All computers Fn + F8
FUJITSU All computers Fn + F10
GATEWAY All computers Fn + F3
iiyama All computers Fn + F3
IBM All computers Fn + F7
NEC All computers Fn + F3
Panasonic All computers Fn + F3
SHARP All computers Fn + F5
SONY All computers Fn + F7
SOTEC All computers Fn + F3
TOSHIBA All computers Fn + F5
Victor All computers Fn + F10
Note: Table information is current to September 2002.
Note:
When the liquid crystal display of the notebook computer and the projector are displayed at the same time, the projected image might not be
correct even though the liquid crystal display shows a correct indication. Should this occur, stop the simultaneous display of the notebook
computer and try the mode with external output only. Try an operation such as that described in aforementioned Step 2 and try closing the
liquid crystal panel which might result in external output only.
E-19
Connecting Personal Computers and Video Equipment
Connections with Composite Signals
Video Equipment with VIDEO Connectors
•Make the connection to the VIDEO connector of the projector using the supplied video cable.
•The input setting of the VIDEO connector has been set to "Auto" at the factory; however, if the projector does not project, please
change the input setting to "Your Country's Television Broadcast System" using the menu sequence of [Setup] → [Input For-
mat] → [Video].
See "Input Format" on Page E-49.
Video Equipment with S-VIDEO Connectors
•Make the connection to the S-VIDEO connector of the projector using the supplied S-video cable.
•The input setting of the S-VIDEO connector has been set to "Auto" at the factory; however, if the projector does not project,
please change the input setting to "Your Country's Television Broadcast System" using the menu sequence of [Setup] → [Input
format] → [Video].
See "Input Settings" on Page E-49.
S-VIDEO
VIDEO
RGB OUTAUDIOVIDEOS-VIDEO
Video cable (Supplied item)
Video deck, DVD player, document
camera, etc.
S-Video cable (Suppled item)
E-20
Connecting Personal Computers and Video Equipment
Connections with Component Signals
When the Video Equipment Has a YCbCr Connector or YPbPr Connector
•Make connections to the RGB connector of the projector using a component cable, which is available separately.
•The projector has been set to "Auto" at the factory; however, if it does not project, please change the input setting to "Compo-
nent" using the menu sequence of [Setup] → [Input Format] → [RGB].
See "Input Format" on Page E-49.
•This projector automatically distinguishes the YCbCr input signal and the YPbPr input signal and projects it.
When projecting the YCbCr signal or YPbPr signal, if the color of the overall image strongly leans toward being greenish or
another color, change the setting under the menu of [Color] → [Color Space].
See "Color Space" on Page E-45.
•Press the RGB button for input selection using the remote control.
RGBDVI
CrCbY
PrPbY
COMPONENT
COMPONENT
Component cable (Available as an option)
Order code: 28-690
Component cable (Available as an option)
Order code: 28-690
Green
Blue
Red
Green
Blue
Red
E-21
Connecting Personal Computers and Video Equipment
Connections with the AUDIO Jack
*Make the connection to the projector's AUDIO jack using the supplied audio cable. When the audio jack of the equipment that
is to be connected is of the RCA phono type, make connection via the supplied audio conversion cable.
*The built-in speaker of the projector provides monaural audio. To enjoy convincing audio reproduction, please connect the
audio output of the video equipment to your audio system.
*The built-in speaker outputs the audio of the equipment connected to the AUDIO jack.
R
L
AUDIO OUT
RGB OUTAUDIOVIDEOS-VIDEO
White
Red
Audio conversion cable
(Supplied item)
Audio cable (Supplied item)
Audio cable (Supplied item)
E-22
Connecting Personal Computers and Video Equipment
Connections with the RGB OUT Connector
•The screen of the personal computer that is connected to the RGB connector will be output.
•While controlling the personal computer in front of you, the same screen can be projected with the projector. This allows
personal computer control even from a position at which the projector image cannot be viewed.
RGB OUTAUDIOVIDEOS-VIDEO
RGB connector of
the monitor
(Mini D-Sub 15-pin)
Image projected to the screen
Note:
The RGB OUT connector is used exclusively for RGB. The proper signal will not be output from the RGB OUT connector when a component
signal is input to the RGB connector.
E-23
Power Cable Connections and Switching the Power On/Off
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
AUDIO
VIDEO
S-VIDEO
RGB OUT
STATUS STATUS STATUS
POWER POWER POWER
There is an order in which the power cable is connected and the power is switched on/off.
Operating
1Connect the AC IN connector of the projector and the power outlet using the supplied power cable.
The POWER indicator will light in amber, and the unit will enter the standby mode.
POWER
STATUS
Lit amber
Firmly plug in all the way.
To wall outlet
2Switch on the projector power
Projector operation: Press the POWER button.
Remote control operation: Press the POWER ON button.
This indicator is also lit green in Eco-mode.
Flashes green
(Approximately 60 seconds)
Lit green
Power is on
The first time the power is switched on after purchase, [Menu Language Select] will be displayed. See Page E-24 for
information about language selection.
•When the power is switched on, the POWER indicator changes to flashing green, then lights steadily after about 60
seconds and the projection screen is set to the brightness of normal mode. At this time, if the STATUS indicator is lit in
green, [Lamp Mode] is set to "Eco". See Pages E-30 and E-49 for information about the selection method.
•If the power does not come on, see "When the STATLIS Indicator is Lit or Flashing" on Page E-59.
•Your own logo can be projected at the time of startup. See "Startup Logo Creation" on Page E-57.
The projector is now capable of regular projection.
3Switch on the power of the connected equipment
Note:
•When the power plug will be unplugged from the power outlet, please place the projector near the power outlet so that it may be reached
easily.
•Press the POWER button or the POWER ON button after the POWER indicator is lit in amber.
ON OFF
POWER
Lit amber
E-24
Menu Language Select
Wählen Sie bitte die Menü Sprache aus. Deutsch
S’il vous plaît choisir la langue de menu. Français
Per favore di scegliere la lingua di menu. Italiano
Escoja por favor el idioma de menú. Español
Välj menyn språken. Svenska
Select " " , " " & "ENTER"
Please select a menu language English
When [Menu Language Select] is Displayed Upon Switching On the Power
The first time the power is switched on after purchase, [Menu Lan-
guage Select] will be displayed. Follow the procedure described be-
low and select the display language of the projector.
If the image is blurred, turn the focus ring counterclockwise or clock-
wise to focus it. See Page E-27.
Menu Language Select
Wählen Sie bitte die Menü Sprache aus. Deutsch
S’il vous plaît choisir la langue de menu. Français
Per favore di scegliere la lingua di menu. Italiano
Escoja por favor el idioma de menú. Español
Välj menyn språken. Svenska
Select " " , " " & "ENTER"
Please select a menu language English
1Press the SELECT 왖왔 buttons of the projector and
align the deep blue cursor with [English].
Cursor
ENTER
CANCEL
SELECT
MENU
2Press the ENTER button to set.
This will set the language and [Menu Language Select] will close.
This completes the selection of the display language.
ENTER
CANCEL
SELECT
Caution:
[Menu Language Select] will not appear the next time the power is switched on.
Should a change of language become necessary, see "Language" on Page E-53.
Power Cable Connections and Switching the Power On/Off
E-25
Power Cable Connections and Switching the Power On/Off
Finishing
1Switch off the power of the connected equipment
2Switch off the power of the projector
Main unit operation: Press and hold the POWER button for a while.
Remote control operation: Press the POWER OFF button.
The [Power Off] display appears.
When the level gauge reaches maximum, the projection screen will go
off (in about 5 seconds) and the projector will enter the power-off op-
eration.
Note
*The operation can be cancelled by pressing a button other than the POWER
button.
*One more press of the POWER (POWER OFF) button will switch off the
power.
Flashes amber
(Approximately 120 seconds)
Lit amber
Standby mode
The POWER indicator changes to flashing amber and
lights a steady amber after about 120 seconds (when
the unit enters the standby mode).
3Unplug the power cable
Check that the POWER indicator is lit in amber and then unplug the power cable.
The POWER indicator will go off when the power cable is unplugged.
Warrning
Do not unplug the power cable while the POWER indicator is flashing amber. Doing so may shorten the life of the lamp or
damage the projector.
ON OFF
POWER
Power Off
OK
?
Power Off
OK
?
POWER
STATUS
POWER
STATUS
POWER
STATUS
Lit green
E-26
Adjustment of the Projection Screen
Switch on the power of the connected equipment and make the adjustments with the video signal being input to the
projector.
Adjustment of the Projection Screen
1Turn the zoom ring and adjust the size of the screen.
Perform the setting adjustments using the projection distance table of the "Placement Guide" as your guide.
2Adjust the projection image to the screen.
Check that the screen is set level and vertically.
(1) If the image is shifted to the left or right, move the main unit horizontally. (Align the center of the screen and the center of
the projector lens.)
(2) If the image is shifted vertically, move the image up or down with the adjuster. See "Making Adjustments with the Adjust-
ers" on Page E-27.
(3) If the image is slanted, adjust by turning the right or left front adjuster. See "Making Adjustments with the Adjusters" on
Page E-27.
(4) A projection image such as that illustrated in the diagram is the result of the projector not being perpendicular to the
screen. Set the projector so that it is pointing straight toward the screen.
(5) If the image shows keystone distortion, adjust using remote control or menu operations. See "Keystone" on Page E-
32,47.
Smaller screen
Larger screen
Zoom ring
(2)
(1)
(3) (4)
(5)
(3)
(4)
E-27
Adjustment of the Projection Screen
(1)
RGB
DVI
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTOSOURCE
MENU
(1)
(2)
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
RGB
DVI
ACCESS
AUDIO
VIDEO
S-VIDEO
RGB OUT
3Turn the focus ring and adjust the focus of the screen
Focus ring
Making Adjustments with the Adjusters
Raising the projection image
While viewing the projection image, (1) press and hold
the front adjuster buttons located at the left and right and,
(2) raise the projector to align the image with the screen,
then release your fingers.
Turn the left and right front adjusters for fine adjustment.
Adjust so that there is no shaking of the projector.
Lowering the projection image
Lower the front adjusters using the operation described
above.
To lower the projection screen further, raise the rear ad-
juster. Fine adjustments are made by turning the left and
right front adjusters. Make adjustments so that there is
no rattling.
Note:
When the projector has a suspended or rear installation is used, the orientation of the projection will need to be changed.
Please see "Vertical Flip" on Page E-47.
E-28
General Operation
This section describes the use of direct operation with the main unit or remote control buttons.
For information about operation using the menu, see "Menu Operation Method" on Page E-35 and the various items on
Pages E-42 to E-56.

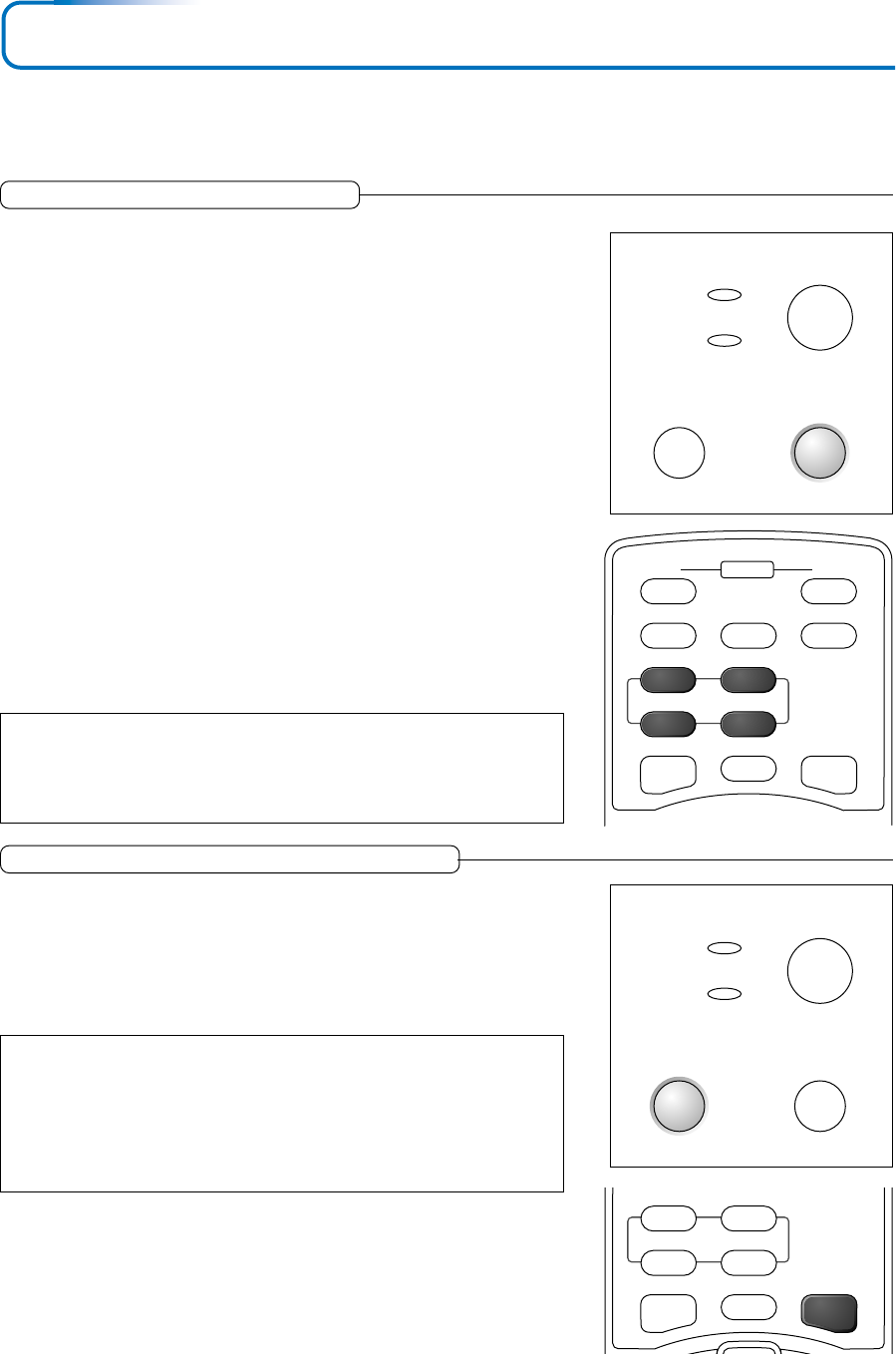

Input Selection
This operation selects the input signal to be projected.
Main unit operation: Press the SOURCE button.
(It will not function while the menu or the quick menu is displayed.)
When Auto Source is On
Whenever the SOURCE button is pressed, the projector automatically selects
another source that has the next input signal.
When Auto Source is Off
The input selection condition used last time will be set.
Each press of the button moves the selection one step in the sequence of RGB →
DVI → VIDEO → S-VIDEO. Note that the various input signals will become the
signal type set with [Input Format] See“Input Format” on page E-49.
Remote control operation: Press the desired input selection button.
When Auto Source is On
When an input signal is not present at the selected source, the projector automati-
cally selects the next source that has an input signal.
When Auto Source is Off
The projector switches to the selected source regardless of whether an input sig-
nal is present.
Note
*When you do not operate source selection, the projector will assume the input selec-
tion condition that was previously used.
*See "Auto Source" on Page E-48 for information about the Auto Source on and off
conditions.
POWER
POWER
STATUS
AUTO SOURCE
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK ASPECT AUTO
POWER
Automatic Adjustment of Analog RGB
This function automatically adjusts the position shift, screen size, vertical stripes,
and color infidelity of the projected analog RGB and DVI analog input signal.
Normally automatic adjustment is performed at the time of signal selection.
Main unit operation/Remote control operation: Press the AUTO button.
(This will not function while the menu or the quick menu is displayed.)
A press of the AUTO button starts the automatic adjustment.
Note:
*If the display position is shifted, vertical lines appear on the picture, or the projection
is not good even after using automatic adjustment, please perform image adjustment
manually. See "Picture Adj. / Fine Picture / H Position / V Position " on Page E-42.
*When the image extends beyond the boundaries of the screen or is smaller than the
screen, set Aspect to "Auto". See "Selection of Aspect Ratio" on Page E-29 and "As-
pect" on Page E-46.
POWER
POWER
STATUS
AUTO SOURCE
DVI RGB
VIDEO S-VIDEO
QUICK ASPECT AUTO
E-29
General Operation

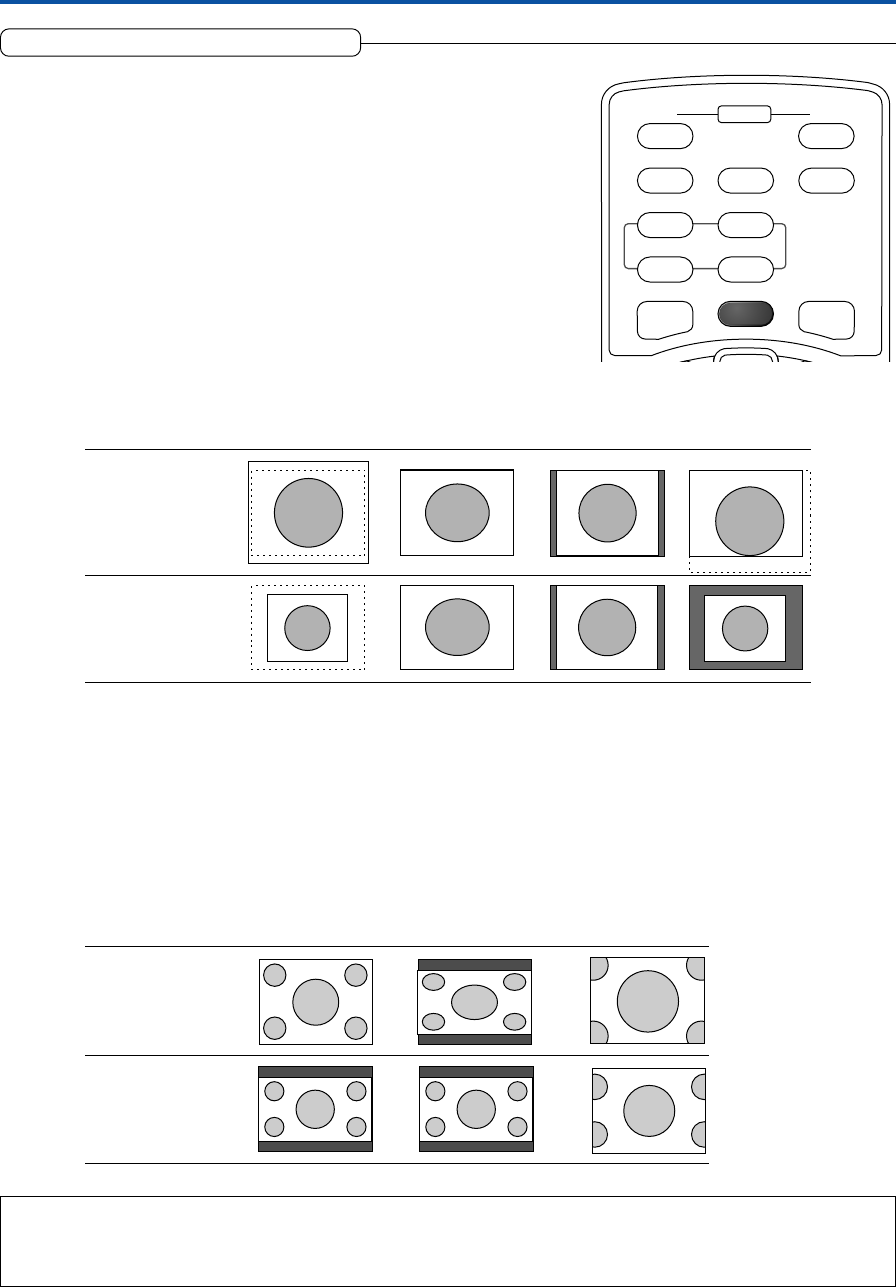

Selection of Aspect Ratio
This function selects horizontal and vertical picture proportions of the input
signal.
Press the ASPECT button while viewing the projected image and select the
aspect ratio.
Personal Computer Signal
Each press of the ASPECT button advances the selection one step in the se-
quence of Auto → Direct → Real, and then repeats.
Auto ............ Automatically enlarges or reduces the image to project a full screen in a ratio
of 4:3
Direct .......... Maintains the aspect ratio and projects a picture of the maximum displayable
size
Real ............ Projects the input signal without pixel conversion.
Video Signals
Each press of the ASPECT button advances the selection one step in the sequence of Auto → Wide → Zoom, and then repeats.
Auto ............ While maintaining the aspect ratio, projects a full screen so that no portions extend beyond the boundaries of the screen. The top
and bottom of the 16:9 image becomes black.
Wide ........... Projects to fill the full width with the entire image at 16:9.
(This feature is used to project a squeezed image in a proper aspect ratio.)
Zoom .......... Projects only the 4:3 portion within 16:9 image to fill the screen.
(Portion that extend off screen is cut.)
Input Signal Auto Direct Real
The setting is higher
than the display reso-
lution of the projector.
The setting is lower
than the display reso-
lution of the projector.
Aspect ratio selection Auto Wide Zoom
4:3 screen
16:9 screen
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK ASPECT AUTO
POWER
Note:
When selection has been made for the "Real" setting of the personal computer signal (i.e., when the input signal and the projector display
resolution are high) and the "Zoom" setting of the video signal, pressing the SELECT
왖왔왗왘
buttons will permit movement of the display
position. Note that there will not be any movement when the menu or the quick menu is displayed.
E-30

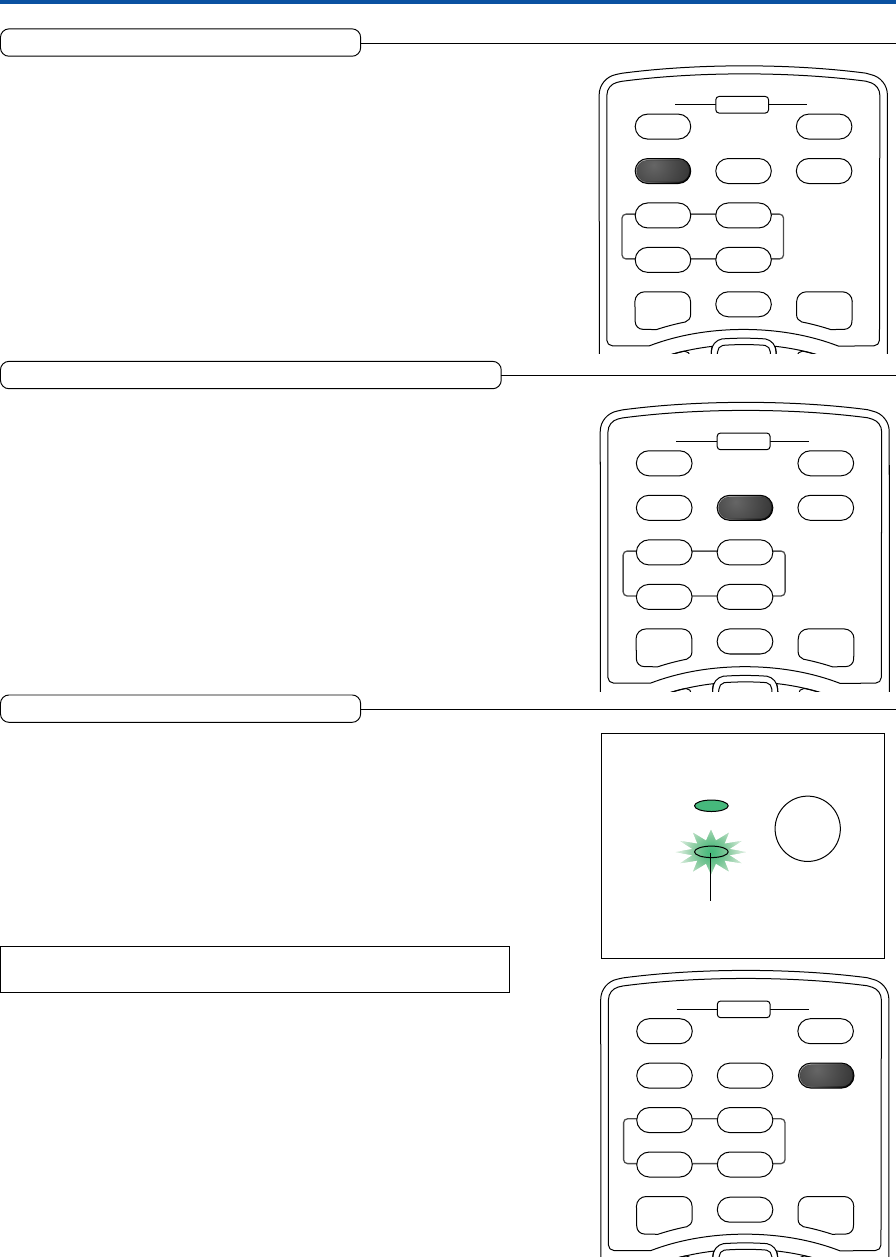

Freezing a Moving Picture
This function is used to stop and view a moving picture. Note that the input
image continues to advance even though the picture there is a still picture
condition.
A press of the FREEZE button changes the screen to a still picture. A
further press returns the screen to a moving picture.
General Operation
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK ASPECT AUTO
POWER
Cancelling Video and Audio Temporarily
This function is used to cancel the video and audio at the same time.
A press of the MUTE button will blank the picture and the sound, and
the screen will take on the background color that has been set.
Another press will cause a return to the original conditions.
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK ASPECT AUTO
POWER
Lamp Mode
Use this if the picture is projected on a small screen and the picture
is too bright or when projecting images in dark rooms.
Pressing the ECO button will set the lamp mode.
Eco (STATUS indicator is lit green)
Lamp brightness is set to 80% and the lamp life is extended.
Normal (STATUS indicator is off)
Lamp brightness is set to 100% and the screen is bright.
Note:
Frequent switching this mode can degrade the lamp.
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK ASPECT AUTO
POWER
POWER
POWER
STATUS
STATUS indicator
E-31
General Operation
Using the Presentation Timer
Note:
*The timer display will be closed while the menu or the quick menu is displayed, and while a message is displayed; however, the timer will
still be operating at such times. Also, the timer will not be displayed unless a signal is being input.
*While the presentation timer is being displayed, screen movement will not be possible in the zoom mode and the quick menu display will
not operate with the projector buttons.
TIMER
ENTER
ZOOM
CANCEL
KSTN
VOL
MENU
[Timer settings display]
The presentation is given while checking the timer displayed
on the screen.
The gauge display allows the remaining time to be known at
a glance.
(1) Press the TIMER button to show the settings display.
The display will close when an operation has not been made
for about 10 seconds.
Presentation Timer Off
Press the CANCEL button to close the display immediately.
(2) Press the "+" or the "–" button to set the time.
The setting contents are "off," and from 10 to 60 minutes (in
10-minute intervals)
Settings can also be made with the SELECT 왗왘 buttons.
Presentation Timer 10 min.
Gauge (Blue)
•Press the ENTER button to restart the timer. The timer will
start with the same time setting.
•Press the CANCEL button to close the timer display. The
timer setting will return to "off".
Moving the Position of the Timer Display
The SELECT 왖왔왗왘 buttons permit movement within the mov-
able range of the timer display.
(3) Press the ENTER button and start the timer.
•The display of the timer setting will close, the display of the
timer will appear and simultaneously the timer will start.
The blue gauge indicates the remaining time. When the
gauge disappears,the time is up.
The gauge continues to be displayed when the timer is
stopped.
[Timer Display]
When the remaining time is
"0" (Gray)
Movable Range of the Timer Display
(1)
(2)
(3)
E-32
Keystone
Use this to adjust for trapezoidal (keystone) distortion of the pro-
jected image.
Adjustment Method
(1) Press the KSTN button.
The keystone adjustment display will appear.
The dotted lines indicate the proper condition.
Keystone
0
(2) Press the "+" / "-" button while viewing the screen to set the left
and right sides parallel.
CANCEL
KSTN
ENTER
ZOOM
TIMER
VOL
MENU
Press the “–” button. Press the “+” button.
(1)
(2)
(3)
(3) Press the CANCEL button to immediately close the display.
The display will close when there has not been an operation in about
10 seconds.
Note:
*Keystone adjustment values can be saved. See "Keystone Save" on Page E-
47.
*Screen examples have been drawn in an exaggerated style for the purpose
of description.
General Operation
Adjustment of the Volume
This function adjusts the volume of the built-in speaker.
(1) Press the VOL button.
The volume adjustment display will appear.
(2) Adjust the volume.
The (+) button increases the volume and the (-) button decreases the
volume.
(3) To close the display immediately, press the CANCEL button.
In the absence of operations for a period of about 10 seconds, the
display will close automatically.
Note:
*Adjustment of the volume will not produce any sound unless an image is
being projected.
*Please make connections to the AUDIO connectors of the projector with the
supplied audio cable.
Volume
50
CANCEL
VOL
ENTER
ZOOM
TIMER
KSTN
MENU
(1)
(2)
(3)
E-33
ZOOM
CANCEL
ENTER
TIMER
KSTN
VOL
MENU
General Operation
Enlargement of the Image and Video Movement
This function digitally enlarges the personal computer image and video
image (up to 10 times).
(1) Press the ZOOM button.
The zoom selection display will appear.
(4)
(3)
(1)
(2)
(2) Enlarge to the desired size.
Each press of the (+) button enlarges the image and each press of the
(-) button makes the image smaller (returning it to 1:1).
(3) Pressing the SELECT 왖왔왗왘 buttons at the time of the zoom
operation will cause the display position to move.
(There will not be any movement when zoom is at 0.)
(4) To close the display immediately, press the CANCEL button.
In the absence of operations for a period of about 10 seconds, the
display will close automatically.
(1) (2) (3)
(No enlargement) (Approximately 2 times enlargement) (Movement)
The image can also be moved in the following circumstances.
•When "Aspect" is set to "Real" by the signal of the personal computer, and the input resolution is
higher than the display resolution of the projector.
•When "Aspect" is set to "Zoom" by the video signal.
Note:
After magnifying the image, be sure to use the ZOOM button to bring the gauge value back to "0".
Note
* Zoom and image movement functions are cancelled when the input is switched.
* The greater the zoom enlargement, the less distinct the image will appear. The reason for this is that the dots are being digitally corrected
so that they are not conspicuous.
* Movement of the screen will not be possible when the menu screen is being displayed.
Zoom
0
Zoom
0
Zoom
21
Zoom
21
E-34
Brightness
0
General Operation

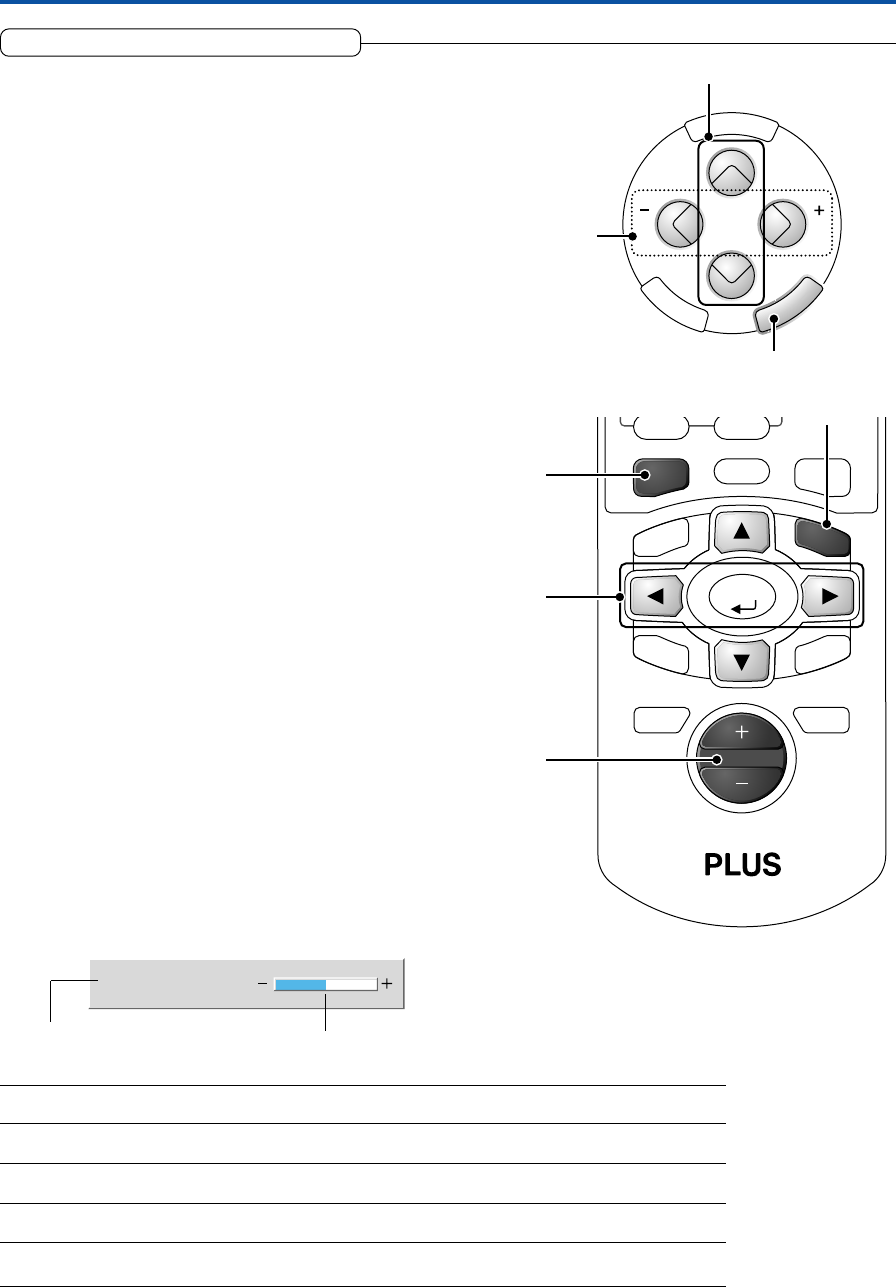

Using the Quick Menu
This function permits frequently used adjustments to be
performed quickly.
Note that the Quick Menu will not be displayed unless the signal
of the connected equipment is input. Please select the input that
you wish to adjust.
Main unit operation
(1) Press the SELECT 왖 or 왔 button to display the quick ad-
justment display.
Make further presses to switch to the desired adjustment dis-
play.
(2) Press the SELECT 왗 or 왘 button to adjust.
(3) To close the display immediately, press the CANCEL but-
ton.
In the absence of operations for a period of about 10 sec-
onds, the display will close automatically.
Remote control operation
(1) A press of the QUICK MENU button brings up the quick
adjustment display.
Further presses cause the adjustment display to change in
sequence.
The adjustment display can be selected with use of either the
SELECT 왖 or 왔 button.
(2) Press the cursor 왗 or 왘 button to make the adjustment.
Pressing the "+" or "-" button will also switch the adjustment
display.
(3) To close the display immediately, press the CANCEL but-
ton.
In the absence of operations for a period of about 10 sec-
onds, the display will close automatically.
ENTER
CANCEL
SELECT
MENU
CANCEL
QUICK
ENTER
ZOOM
ASPECT AUTO
TIMER
KSTN
VOL
MENU
(1)
(2)
(3)
(3)
(1)
(2)
(2)
Brightness Adjusts the brightness of the image. See page E-42.
Contrast Adjusts the contrast of the image. See page E-42.
Keystone Corrects (vertical) keystone distortion of the screen. See page E-32.
Volume This function adjusts the volume of the built-in speaker. See page E-32.
Presentation timer Sets the time of the presentation timer. See page E-31.
Content of Adjustments and Settings
Example: Brightness adjustment display
Display Item Adjustment/Setting
E-35
CANCEL
MENU
ON OFF
FREEZE MUTE ECO
DVI RGB
VIDEO S-VIDEO
QUICK
ZOOM
ASPECT AUTO
POWER
TIMER
KSTN
VOL
ENTER

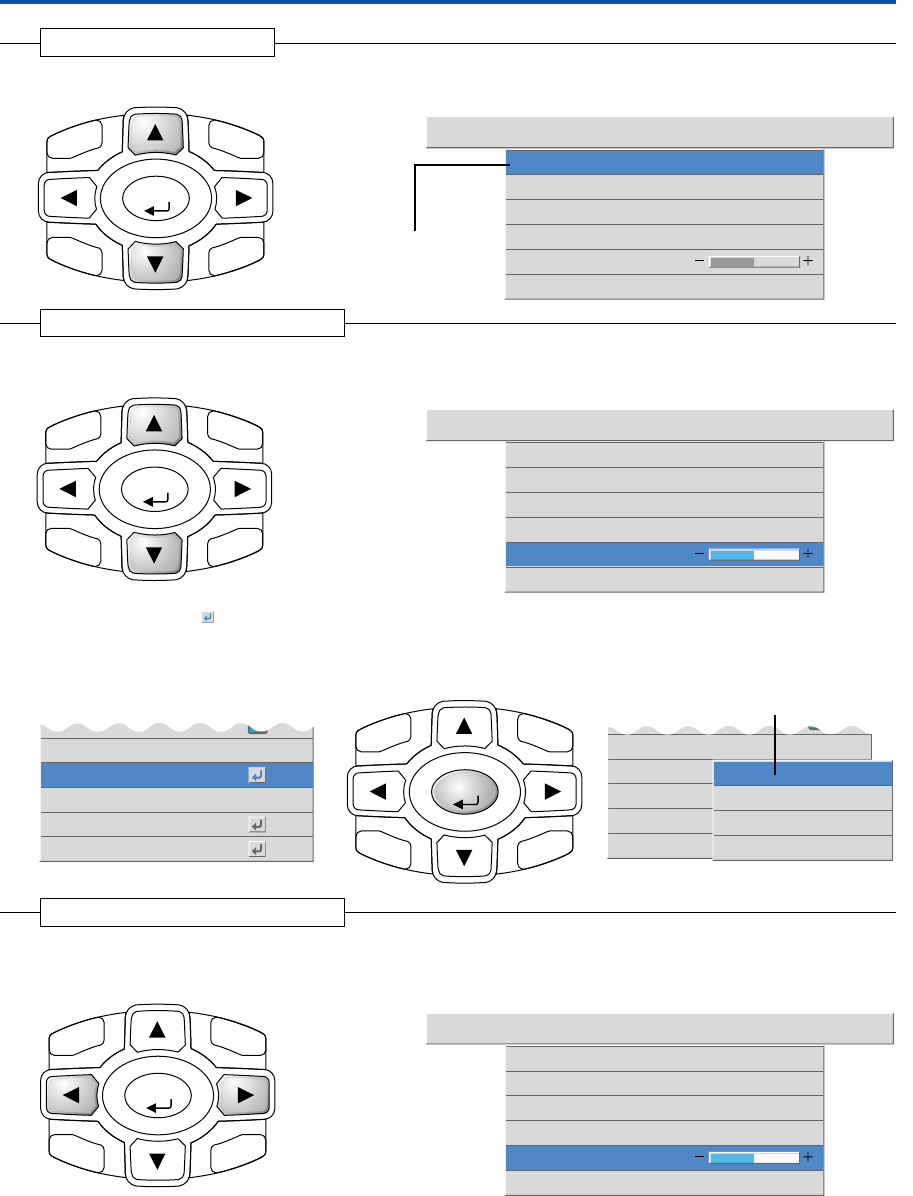

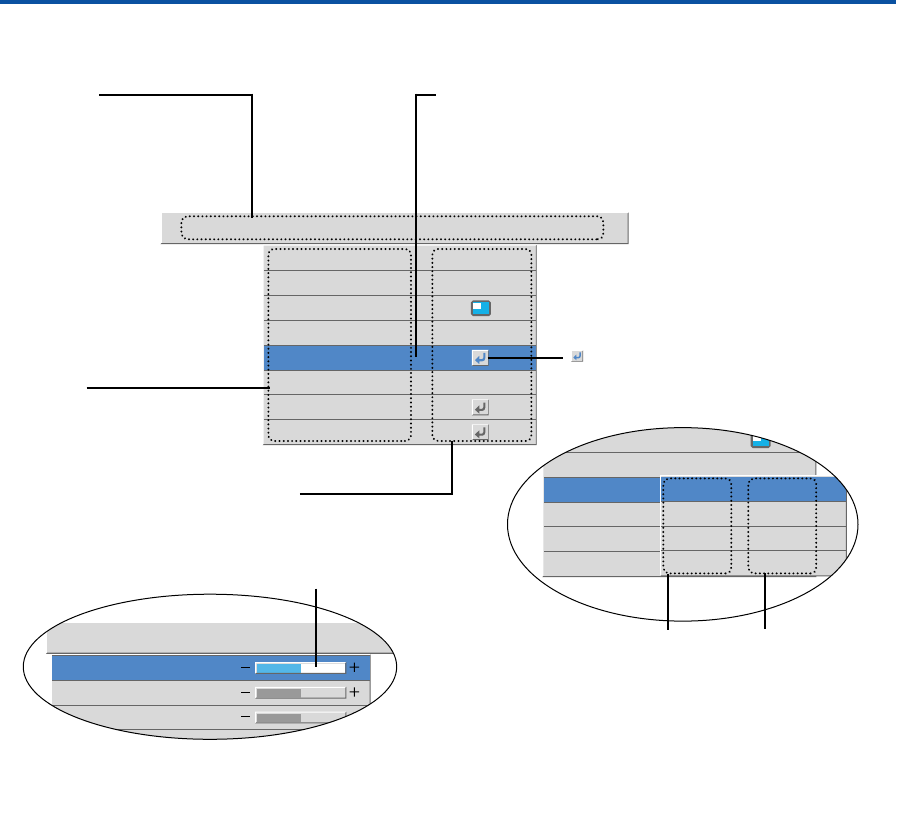

Menu Operation Method
•This section describes only the menu operation method. Please see this item should you need information while
performing menu operations.
•For information about a menu function, adjustment, or setting, please see one of the pages containing such descrip-
tions.
•Adjustments and settings are made by projecting an image and adjusting to an optimum condition.
•The remote control should be pointed toward the remote control sensor of the projector and operated.
•To return the various items that have been changed via the menu to their standard values (i.e., default values at time
of shipping from the factory), see "Factory Default" on Page E-55. (Some items will not return to their initial values.)
•The adjustment/setting items and contents will differ depending on the input selection and the adjustment/setting
items that can be used with the input signal are displayed on the menu.
MENU button
Used for menu display and menu closure.
SELECT 왖왔왗왘 buttons
Used in the selection of menu names and item names as
well as in setting and adjusting the item contents.
CANCEL button
Used to return to menu name selection as well as to close
the menu (and the sub menu display).
ENTER button
Used to set the verification display.
ENTER
CANCEL
SELECT
MENU
+ / – buttons
Used to set or adjust the item contents
Have the same functions as the SELECT 왗왘 buttons.
Names and functions of remote control unit buttons used for
menu operations
The buttons on the main unit operate in the same way.
Main unit buttons
E-36
Image Color View Setup Info.
Auto Power Off
メニュー位置
Memu Position
Presentation Timer
Logo Capture
Option
Auto Source On
Off
Normal
Off
Input Format
DVI
Video
RGB Auto
Auto
Auto
SVideo Auto
Settings Contents
Item Name
Sub menu
Image Color View Setup Info.
Contrast 0
Color 0
Tint 0
Sharpness 0
Reset
Brightness 0
Image Color View Setup Info.
Auto Power Off
Menu Potision
Lamp Mode
Presentation Timer
Logo Capture
Option
Auto Source On
Off
Normal
Off
Input Format
Menu Operation Method
Menu Screen Names and Functions
Menu Name
This is the title of the menu.
There is a change to the title
screen when the menu is se-
lected. The selected menu name
appears in red.
Cursor (Deep Blue)
This permits setting/adjustment of the
item located at the cursor position.
Item Name
This is the name of the ad-
justment or setting.
Icon: Pressing the ENTER button displays
the sub menu or setting contents.
Adjustment Bar and Settings Contents
Adjustment Bar: The increases and decreases in bar length ex-
press the adjustment condition.
Setting Contents: Displays the contents that have been set.
Adjustment Bar
E-37
Menu Operation Method
Performing Menu Operations
•When a signal is not being input, only [Setup] and [Info.] can be selected.
•The menu display will close if, after pressing a button, the next button operation is not made within 30 seconds.
•The adjustment and the setting values are stored even when the power is switched off or the plug is disconnected
from the power outlet.
(Note that some items are not stored.)
Preparation Switch on the power of the connected equipment, start the play operation or another operation, and input
the signal to the projector.
Select the input that you wish to adjust.
The menu display of the description diagram depicts an example in which the "Keystone" item name is selected.
1Press the MENU button to display the menu
Menu Display
The menu name that existed when the menu was closed previously will be displayed.
Note
Please check that the cursor of the item name has disappeared at the time of menu name selection.
Press the CANCEL button to make the cursor disappear.
MENU
ENTER
CANCEL
TIMER
KSTN
Image Color View Setup Info.
Contrast
0
Picture Adj.
0
Fine Picture
48
H Position
0
V Position
0
Reset
Brightness
0
2Press the SELECT 왗왘 button to select the menu name
Selection of the Menu Name
Each press of the SELECT 왘 button advances the selection one step in the sequence of "Color" → "View" → "Setup" →
"Info." → "Image". Each press of the SELECT 왗 button causes a return of one step.
The selected menu name will appear in red.
ENTER
CANCEL
TIMER
KSTN
MENU
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Image Color View Setup Info.
Aspect Auto
Off
Off
On
E-38
Normal
Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Input Format
Option
DVI
Video
RGB Auto
Auto
Auto
SVideo Auto
Normal
Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Input Format
Option
3Press the SELECT 왔 button to display the cursor
Displaying the Cursor
This condition al-
lows selection of the
item name.
ENTER
CANCEL
TIMER
KSTN
MENU
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Image Color View Setup Info.
Aspect Auto
Off
Off
On
Menu Operation Method
4Press the SELECT 왖왔 button to align the cursor with the item name
Selection of the Item Name
ENTER
CANCEL
TIMER
KSTN
MENU
Filter
Vertical Flip
Horizontal Flip
3
Keystone Save
Image Color View Setup Info.
Aspect Auto
Off
Off
On
Keystone
0
Items for which the Icon Is Displayed
A press of the ENTER button displays the sub menu and the cursor moves to the sub menu.
Press the SELECT 왖왔 button and align the cursor with the desired item name.
There are also some items for which the setting display or the verification display will appear. Please see the various item
descriptions.
CANCEL
TIMER
KSTN
MENU
ENTER
Sub menu
5
Press the SELECT 왗왘 button and make the adjustment (or setting) while viewing the image
When a button is pressed, the image will also change.
Making Adjustments/Settings
Adjustment display: Each press of the button results in a change of 1 point and continued presses
cause changes to proceed in order.
Setting display: The setting contents display changes with each press of the button.
Filter
Vertical Flip
Horizontal Flip
3
Keystone Save
Image Color View Setup Info.
Aspect Auto
Off
Off
On
Keystone
0
ENTER
CANCEL
TIMER
KSTN
MENU
E-39
Menu Operation Method
6Press the MENU button and close the menu display
Closing the Menu
MENU
ENTER
CANCEL
TIMER
KSTN
Selecting Another Menu Name with Remote Control Operation
When a sub menu is displayed, press the CANCEL but-
ton and close the sub menu.
Press the CANCEL button again and cancel the cursor
display.
Press the SELECT 왗왘 button and select the menu name.
(Selection of the menu name is not possible while the
cursor is displayed.)
Note
A press of the QUICK button while the menu is displayed will close the menu and display the quick menu. A press of the MENU button while
the quick menu is displayed will close the quick menu and display the menu.
CANCEL
ENTER
TIMER
KSTN
MENU
Filter
Vertical Flip
Horizontal Flip
3
Keystone Save
Image Color View Setup Info.
Aspect Auto
Off
Off
On
Keystone
0
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Image Color View Setup Info.
Aspect Auto
Off
Off
On
Image Color View Setup Info.
Contrast
0
Picture Adj.
0
Fine Picture
48
H Position
0
V Position
0
Reset
Brightness
0
ENTER
CANCEL
TIMER
KSTN
MENU
E-40

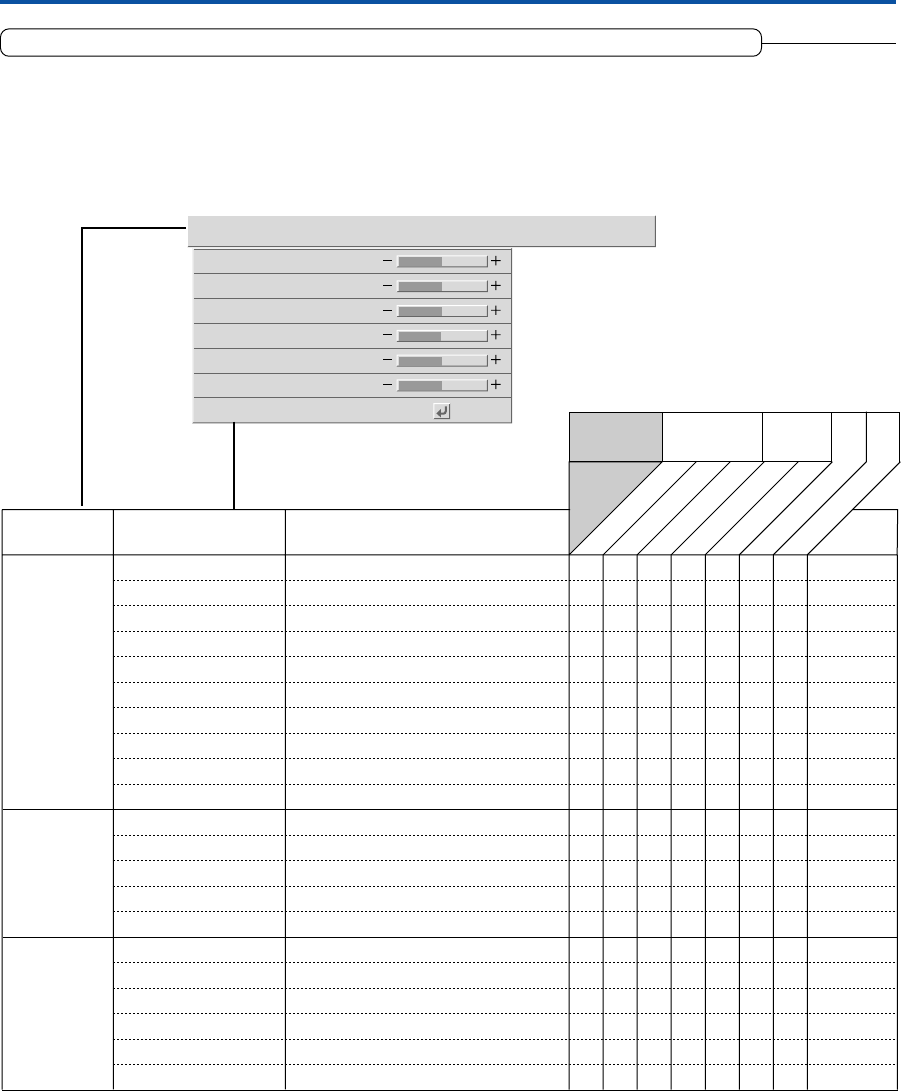

List of Item Names Offering Input Selection and Adjustments/Settings
The item names that can be adjusted/set will differ depending on the input signal.
"Tint" can be adjusted only at the time of NTSC composite/S signal input.
Menu Operation Method
[Example of Menu Display Items at the Time of Input Signal Analog RGB Selection]
Image Color View Setup Info.
Contrast 0
Picture Adj. 0
Fine Picture 48
H Position 0
V Position 0
Reset
Brightness 0
DVI Analog
DVI Digital
YPbPr
YCbCr
VIDEO
S-VIDEO
Menu name
Color
View
Brightness E-42
Analog RGB

Item Name
Imput
Terminal
Sub Menu
Item Name
Contrast E-42

Picture Adj.
Fine Picture
E-42
H Position
E-43
V Position
E-43
Color
E-43
Tint
E-42

Sharpness
E-42

Reset
E-42

E-43

Gamma E-44

Color Temp. E-44

White E-44

Color Space
E-45

White Balance E-45

Aspect E-46

Filter E-46

Vertical Flip E-47

Horizontal Flip E-47

Keystone E-47

Keystone Save E-47

RGB DVI
Reperence
Page
Input Signal
E-41
Image Color View Setup Info.
On
Off
Normal
Off
On
Black
Logo
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Auto Source
Input Format
Option
On Screen
Background
Language
Startup Screen
DVI Analog
DVI Digital
YPbPr
YCbCr
VIDEO
S-VIDEO
Menu name
Setup
Info.
Auto Source
E-48
Analog RGB

Item Name
Reperence
Page
Sub Menu
Item Name
Auto Power Off
E-48

 
 
 
Memu Position
Lamp Mode
E-48
Input Format RGB
E-49
DVI
E-49
 
 
 
 
Video
E-49
SVideo
E-49
Presentation Timer
E-49
Logo Capture Logo Background
E-50

E-50


Logo Scaling
E-50

Logo Position
E-51

Caputure Mode
E-51



Invalidata Logo
E-51
Start Logo Caputure
Preview
Language
On Screen
Background
Startup Screen
E-52
E-52

Option
E-53

E-53

E-53

E-54

Status
E-55

Factory Default
E-55

Lamp Timer Reset
E-55

Resolution
E-56

Frequency
E-56

Lamp Timer
E-56

Imput
Terminal RGB DVI
Input Signal
Menu Operation Method
E-42
•Perform this operation while projecting the picture for which the adjustment/setting will be made.
•Select the menu name "Picture".
See "Menu Operation Method" on Page E-35 for information about performing menu operations. The item name display will
differ depending on the input signal. See "List of Item Names Offering Input Selection and Adjustments/Settings" on Page E-40.
Brightness / Contrast / Color / Tint / Sharpness
Picture qualities such as brightness and contrast will change depend-
ing on the whether the room is bright or dark. Please adjust to suit your
preference.
Select the desired item name and then adjust with the SELECT 왗왘 buttons.
Item Name
Brightness
Contrast
Color
Tint
Sharpness
SELECT Button SELECT Button
Darker
Less contrast
Less dense color
More red
Softer image
Brighter
More contrast
Denser color
More green
Sharper image
Note:
*The adjustment values of the adjustable items are stored according to input source.
*"Tint" can be adjusted only at the time of NTSC composite/S signal input.
Contrast
0
Color
0
Tint
0
Sharpness
0
Reset
Brightness
0
Picture Adj. / Fine Picture / H Position / V Position
These adjustments are available when analog RGB signals are input.
Usually, automatic adjustment is performed at the time of signal selec-
tion, but when automatic adjustment is not effective, these adjustments
can be performed.
Note
When the image extends beyond the boundaries of the screen or is smaller than the
screen, check that the "View"
→
"Aspect" setting is set to "Auto". See "Aspect" on
Page E-46.
Picture Adj. (Picture Adjustment)
Adjust this when bright and dark vertical bands appear on the screen.
Select the "Picture Adj." item name and adjust with the SELECT 왗왘 buttons
so that the vertical bands disappear and brightness becomes uniform across
the screen.
Contrast
0
Picture Adj.
0
Fine Picture
48
H Position
0
V Position
0
Reset
Brightness
0
E-43
Fine Picture
Adjust this when the picture shows a lack of color fidelity or flickering.
Select the "Fine Picture" item name and adjust with the SELECT 왗왘 buttons
so that the lack of color fidelity or the flickering disappears.
H Position
Adjust this when the picture is shifted to the left or right.
Select the "H Position" item name and adjust with the SELECT 왗왘 buttons.
V Position
Adjust this when the picture is shifted up or down.
Select the "V Position" item name and adjust with the SELECT 왗왘 buttons.
Reset
This function resets (i.e., returns to the standard settings) the adjust-
ment/setting value of the "Image" menu name.
A press of the ENTER button forces the reset.
Note
* The item name "Fine Picture" at the time of analog RGB input will not be reset.
* "Reset" of the menu name "Image" can be reset for each input source.
* To reset the adjustments/settings of all the menu items (while noting that there are some items that cannot be reset), see "Factory Default"
on Page E-55.
Contrast
0
Color
0
Tint
0
Sharpness
0
Reset
Brightness
0
E-44
Color
• Do the following operation while displaying the image you want to adjust or set.
•Select the menu name "Color".
See "Menu Operation Method" on Page E-35 for information about performing menu operations. The item name display will
differ depending on the input signal. See "List of Item Names Offering Input Selection and Adjustments/Settings" on Pages E-
40.
Gamma
Gamma corrects the proportion of change of the dark portions from the
bright portions of the input signal.
Set this to reproduce natural color tone or to distinctly project a per-
sonal computer picture in a bright conference room.
Select the "Gamma" item name and select the setting contents with the SE-
LECT 왗왘 buttons.
Normal ....... Correction with standard settings
Natural ........ Corrects for natural color tones
Real ............ Corrects with emphasis on brightness
Color Temp.
The screen color is affected by the color of the illumination and other
extraneous light.
This function adjusts the white, which is the reference color for video
equipment, and improves the quality of color reproduction. Adjustment
can also be used to enhance skin colors.
Select the item name "Color Temp." and select the setting contents with the
SELECT 왗왘 buttons.
Low ............ Produces warm whites (reddish)
Medium ...... Produces warm whites (yellowish)
Normal ....... Produces the white of sunlight
High ............ Produces cool whites (bluish)
Color Temp.
White
Gamma Normal
Normal
High
Color Space YCbCrSMPT
White Balance
Normal
Normal
High
YCbCrSMPT
Color Temp.
White
Gamma
Color Space
White Balance
White
When projecting, this function is used to emphasize the whites of text or
diagrams on the personal computer.
Select the item name "White" and use the SELECT 왗왘 buttons to select the
setting contents.
Select the desired degree of white from among "Low", "Medium", and "High".
Color Temp.
White
Gamma Normal
Normal
High
Color Space YCbCrSMPT
White Balance
E-45
Color Space
Set this function when a component signal (YCbCr or YPbPr) is pro-
jected and the image is extremely red or extremely green.
Select the item name "Color Space" and use the SELECT 왗왘 buttons to
select a color space setting that provides a normal image.
Selection contents at the time of YCbCr input
YCbCr601, YCbCr709, YCbCrSMPT
Selection contents at the time of YPbPr input
YPbPr601, YPbPr709, YPbPrSMPT
Note
*When the component signal undergoes conversion processing to red, green,
and blue which express the image of the projector, the correct color cannot be
reproduced unless a system compliant with the color difference conversion sys-
tem of the input signal is used. Color Space serves to make this selection.
Color
Color Temp.
White
Gamma Normal
Normal
High
Color Space YCbCrSMPT
White Balance
White Balance
This function automatically adjusts the black level and the white level of
the analog RGB input signal to suit the personal computer.
1Select the item name [White Balance] and press the ENTER button.
The display will change to [Input Black Signal].
2The screen background color of the connected personal computer
will be set to black.
3. Press the ENTER button. The display will change to [Adjusting ßlack]
and the black level will be adjusted.
Input Black Signal
Adjusting Black
Color Temp.
White
Gamma Normal
Normal
High
Color Space YCbCrSMPT
White Balance
4The adjustment of the black level is completed and the display
changes to [Input White Signal].
5The screen background color of the connected personal computer
will be set to white.
6Press the ENTER button. The display will change to [Adjusting White]
and the white level will be adjusted.
[White balance complete] is displayed for a while and the adjustment is
completed.
Input White Signal
Adjusting White
White Balance Complete
E-46
View
•Perform this operation while projecting the picture for which the adjustment/setting will be made.
•Select the menu name "View".
See "Menu Operation Method" on Page E-35 for information about performing menu operations. The item name display will
differ depending on the input signal. See "List of Item Names Offering Input Selection and Adjustments/Settings" on Page E-40.
Aspect
This function sets the horizontal and vertical picture proportions of the
input signal.
Select the item name "Aspect" and select the setting contents with the SE-
LECT 왗왘 buttons.
Personal Computer Signal
Auto ............ Automatically enlarges or reduces the image to project a full screen in a
ratio of 4:3
Direct .......... Maintains the aspect ratio and projects a picture of the maximum
displayable size
Real ............ Projects the input signal without pixel conversion
Video Signals
Auto ............ While maintaining the aspect ratio, projects a full screen so that no por-
tions extend beyond the boundaries of the screen. The top and bottom of
the 16:9 image becomes black.
Wide ........... Projects to fill the full width with the entire image at 16:9.
(This feature is used to project a squeezed image in a proper aspect ra-
tio.)
Zoom .......... Projects only the 4:3 portion within 16:9 image to fill the screen.
(Portion that extend off screen is cut.)
See "Selection of Aspect Ratio" on Page E-29 for diagrams of projection screen
images that correspond to the input signals.
Note:
Please note that using this monitor for the purpose of commercial gain or the at-
traction of public attention in a venue such as a coffee shop or hotel and projecting
a 4:3 screen in wide mode or leaving a squeezed screen as a compressed image
raises concern about the infringement of the copyright holder's rights which are
protected by copyright law.
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Aspect Auto
Off
Off
On
Filter
This function sets the sharpness when the input signal is adjusted to
the resolution of the projector and enlarged or reduced.
Select the item name "Filter" and select the setting contents with the SELECT
왗왘 buttons.
Smaller numerical values result in a sharper picture and larger values result in
a softer picture. Please select your desired setting value.
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Aspect Auto
Off
Off
On
E-47

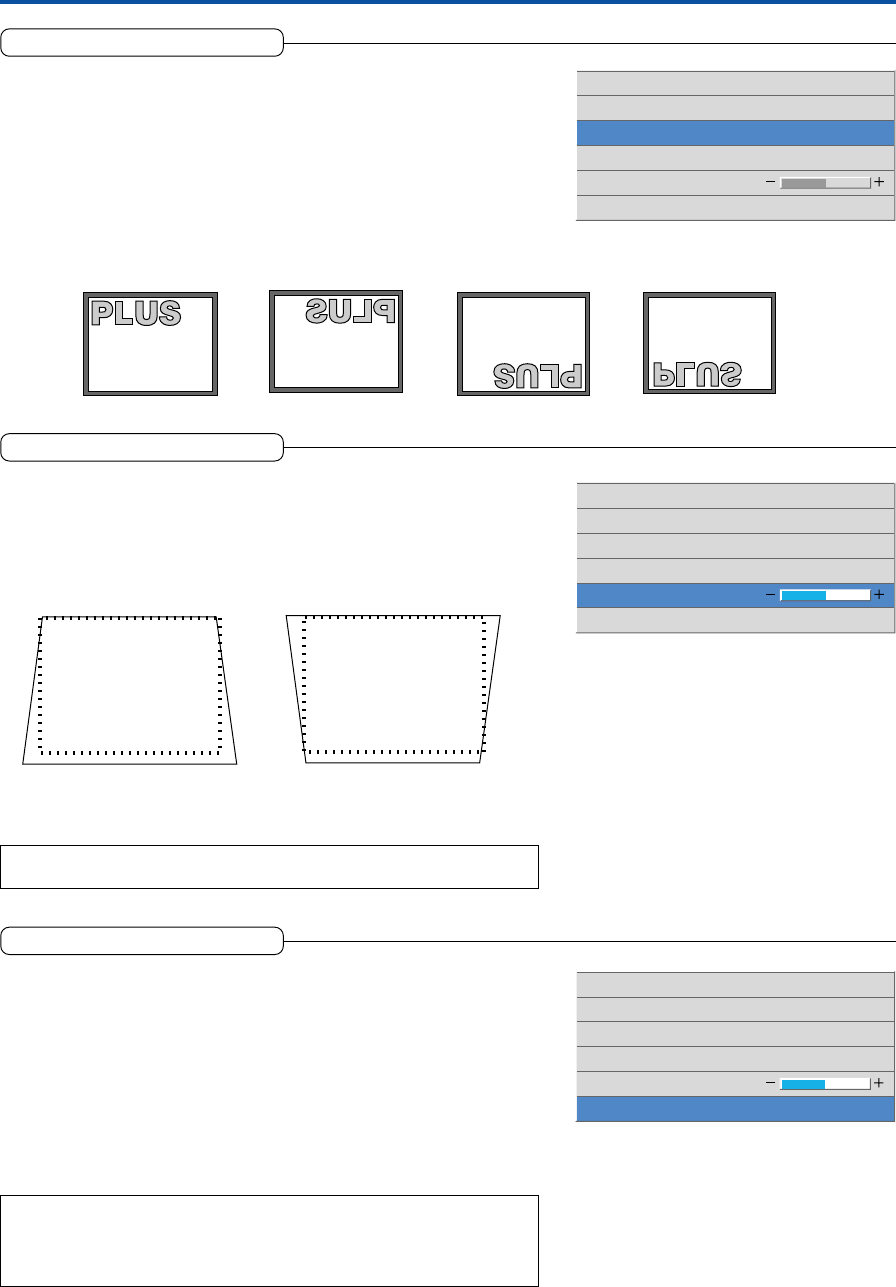

Vertical Flip
In selecting the method of projecting to the screen, these functions are
set when the projector is in a suspended or a rear screen installation.
Select the item name “Vertical Flip” or “Horizontal Flip” and select the setting
contents with the SELECT 왗왘 buttons.
In a suspended installation, set “Vertical Flip” On and “Horizontal Flip” On.
View
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Aspect Auto
Off
Off
On
"Vertical Flip" Off
"Horizontal Flip" Off
"Vertical Flip" Off
"Horizontal Flip" On
"Vertical Flip" On
"Horizontal Flip" On
"Vertical Flip" On
"Horizontal Flip" Off
Press the “–” button. Press the “+” button.
Keystone
Keystone distortion will occur when the projector and screen are on an
angle (in the vertical orientation). This function is used to correct this
distortion.
Select the item name “Keystone” and correct the keystone distortion using the
“+” and “–” buttons.
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Aspect Auto
Off
Off
On
Pressing the button will cause the projection screen to be corrected toward
the screen depicted by the dotted lines.
Note:
Menus and other on-screen displays will not be adjusted.
This function is used to save the keystone adjustment values.
Setting Keystone Save to on will set the previous keystone adjustment values
when projecting after the power cable has been disconnected and then recon-
nected.
Select the item name “Keystone Save” and set with the SELECT 왗왘 buttons.
Off .............. The keystone adjustment values return to the initial values when the power
cable is unplugged.
On ............... The keystone adjustment values are retained in storage even when the
power cable has been unplugged.
Note:
Regardless of whether Keystone Save is set to "On" or "Off", when projection is from
the standby condition, the picture is projected using the previous keystone adjust-
ment values.
Keystone Save
Filter
Vertical Flip
Horizontal Flip
Keystone
0
3
Keystone Save
Aspect Auto
Off
Off
On
E-48
Setup
• Select menu name "Setup".
See "Menu Operation Method" on Page E-35 for information about performing menu operations. The item name display will
differ depending on the input signal. See "List of Item Names Offering Input Selection and Adjustments/Settings" on Page E-41.
The Auto Source function automatically detects the input signal when
the power supply is switched on and when the input is switched.
Select the item name "Auto Source" and select the setting contents with the
SELECT 왗왘 buttons.
On ............... Switches on the automatic detection function
Off .............. Switches off the automatic detection function
Signal Detection Order When On
The sequence of RGB → DVI → VIDEO → S-VIDEO is searched repeatedly.
When a signal is detected, the search is stopped and the image is projected.
Auto Source
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Option
Auto Source On
Off
Normal
Off
Input Format
This function switches off the projector power automatically when the
input of the projector enters a no-signal condition.
Select item name "Auto Power Off" and select the setting contents with the
SELECT 왗왘 buttons.
On ............... The power is switched off when there is no signal.
Off .............. The power is not switch off even when there is no signal.
Operation when Function is On
•The "No Signal Power Off" display appears when a no-signal condition con-
tinues for approximately 10 seconds. The power is switched off about 5
minutes after this.
•If a signal is input during the appearance of the display and an operation
button other than the POWER button is pressed, the display is closed and
the function is cancelled.
Auto Power Off
Note:
Some video decks and other equipment output a blue background or other video when playback ends. When this happens, a signal is being
input to the projector and Auto Power Off is not activated.
No Signal
Power Off
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Option
Auto Source On
Off
Normal
On
Input Format
Menu Position
This function sets the display position of the menu.
Select item name "Menu Position" and select the setting contents with the
SELECT 왗왘 buttons.
............. Displays on the left side
............. Displays on the right side
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Option
Auto Source On
Off
Normal
Off
Input Format
E-49
Lamp Mode
Use this if the picture is projected on a small screen and the picture is
too bright or when projecting images in dark rooms.
Select the item name “Lamp Mode” and select the setting contents with the
SELECT 왗왘 buttons.
Eco ............. The lamp brightness is set to 80% and the lamp life is extended.
(STATUS indicator is green)
Normal ....... The lamp brightness is set to 100% and the screen is bright.
(STATUS indicator is off)
Note:
Frequent switching this mode can degrade the lamp.
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Option
Auto Source On
Off
Normal
Off
Input Format
Setup
Input Format
This function is used in setting the input signals of the input connec-
tors.
Normally, this should be set to Auto. When identification is not possible
with Auto, make the setting.
Select the item name “Input Format”, press the ENTER button, and the sub
menu will open.
Select the connector that is to be changed, and select the setting contents
with the SELECT 왗왘 buttons.
[RGB]
This is the signal setting for the RGB connector.
Auto ............ Automatically identifies the signal.
RGB ............ Analog RGB signal is set.
Component . Component signal is set.
(YPbPr and YCbCr signals are identified automatically.)
[DVI]
This is the signal setting for the DVI connector.
Auto ............ Automatically identifies the signal.
Analog ........ Analog RGB signal is set.
Digital ......... Digital RGB signal is set.
[Video] and [SVideo]
[Video] is the color system setting for the VIDEO connector and [SVideo] is
the color system setting for the S-VIDEO connector.
Auto ............ Automatic identification.
NTSC .......... Fixed to the NTSC system.
PAL ............. Fixed to the PAL system.
SECAM ....... Fixed to the SECAM system.
POWER
POWER
STATUS
STATUS Indicator
On
Off
Normal
Off
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Auto Source
Input Format
Option
DVI
Video
RGB Auto
Auto
Auto
SVideo Auto
E-50
Presentation Timer
The presentation is given while checking the timer displayed on the
screen.
The gauge display allows the remaining time to be known at a glance.
Select the item name “Presentation Timer” and select the setting contents
with the SELECT 왗왘 buttons.
Setting contents: Off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60
minutes
To start the timer...
Press the MENU button and open the menu.
The timer display will appear at the lower right and the timer will start.
See "Using the Presentation Timer" on Page E-31 for details.
Setup
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Option
Auto Source On
Off
Normal
Off
Input Format
Logo Capture
Logo Background
This is the setting of the background color when the logo is dis-
played. Changes cannot be made after the capture.
See “Startup Logo Creation” on Page E-57 for information about us-
ing logo capture.
Select item name “Logo Capture”, press the ENTER button, and the
sub menu will open.
Select “Logo Background” and select the background color with the
SELECT 왗왘 buttons.
Auto Power Off
Memu Position
Lamp
Presentation Timer
Option
Auto Source On
Off
Nonal
Off
Input Format
Logo Capture
Red
Green
Blue
Logo Position
Caputure mode
In alidata Logo
Logo Background Black
Real
High Quality
Logo Scaling
0
0
0
Red
Green
Blue
Lo
g
o Position
Logo Background Custom
Real
Logo Scaling
0
0
0
Selection contents: Black, White, Red, Green, Blue, Custom
When Custom is selected, the Red, Green, and Blue items will ap-
pear in black characters and will become selectable.
Select the various colors and create the background color with the
SELECT 왗왘 buttons.
Logo Scaling
This is the setting of the magnification for the display of the logo.
Changes cannot be made after the capture.
See "Startup Logo Creation" on Page E-57 for information about us-
ing logo capture.
Select item name “Logo Capture”, press the ENTER button, and the
sub menu will open.
Select “Logo Scaling” and select the magnification with the SELECT
왗왘 buttons.
Real: This is the size under the aspect "Real" setting.
The captured logo size can be enlarged in 10 steps up to the full size
of the screen.
Black
Real
High Quality
0
0
0
Red
Green
Blue
Logo Position
Caputure mode
Logo Background
Logo Scaling
50%0% 100%
Example: Setting of 30%
Size in the startup screen
"Real" Size
E-51
Setup
Logo Position
This is the setting of the position for the display of the logo. Changes
cannot be made after the capture.
See "Startup Logo Creation" on Page E-57 for information about using logo
capture.
Select item name “Logo Capture”, press the ENTER button, and the sub menu
will open.
Select “Logo Position” and select the display position icon with the SELECT
왗왘 buttons.
Icon Contents
The following can be selected: upper left, upper center, upper right, center left,
center, center right, lower left, lower center, lower right, and tile.
Note:
Tile displays the displayable captured images in order from the upper left.
Red
Green
Blue
Logo Position
Caputure mode
Invalidata Logo
Logo Background Black
Real
High Quality
Logo Scaling
Start Logo Capture
Preview
0
0
0
Capture Mode
This is the setting of the compression ratio for the logo that is to be
captured.
See "Startup Logo Creation" on Page E-57 for information about using logo
capture.
Select item name “Logo Capture”, press the ENTER button, and the sub menu
will open.
Select “Capture Mode” and select the compression ratio with the SELECT
왗왘 buttons.
High quality ............... Picture quality is a priority. Capture range is narrowed.
Standard .................... Standard compression is used.
High compression ..... Picture quality deteriorates somewhat, but the capture range wid-
ens.
Red
Green
Blue
Logo Position
Caputure mode
Invalidata Logo
Logo Background Black
Real
High Quality
Logo Scaling
Start Logo Capture
Preview
0
0
0
Invalidata Logo
This deletes logos for which creation is completed. It cannot be selected
in the absence of a logo.
See "Startup Logo Creation" on Page E-57 for information about using logo
capture.
Select item name “Logo Capture”, press the ENTER button, and the sub menu
will open.
Select “Invalidata Logo” and press the ENTER button.
The message "Invalidated" is displayed during logo deletion.
Invalidated
Red
Green
Blue
Logo Position
Caputure mode
Invalidata Logo
Logo Background Custom
Real
High Quality
Logo Scaling
Start Logo Capture
Preview
0
0
0
E-52
Setup
Start Logo Capture
This executes image capture.
See "Startup Logo Creation" on Page E-57 for information about using logo
capture.
Select item name “Logo Capture”, press the ENTER button, and the sub menu
will open.
Select “Start Logo Capture” and press the ENTER button.
There is a change to the capture range selection display.
Note:
Selection is not possible in the absence of a signal.
Movement of the Capture Range
Use the SELECT 왖왔왗왘 buttons to move the red frame.
Width/Height Adjustment of the Capture Range
The MENU button will switch between the height adjustment and the width
adjustment.
There is a change to the display of the selected “Adjust Capture Region Height”
or “Adjust Capture Region Width”.
Adjust the capture range (i.e., red frame) with the remote control “+”/“–” but-
tons.
To Cancel
Press the CANCEL button. There is a change to the menu display.
Starting Capture
Press the ENTER button start the capture.
Red
Green
Blue
Logo Position
Caputure mode
Invalidata Logo
Logo Background Black
Real
High Quality
Logo Scaling
Start Logo Capture
Preview
0
0
0
Move Capture Region.................................
Adjust Capture Region Height.........................
Toggle Width/Height Adjustment ................... “MENU”
Start .........“ENTER” Exit .........“CANCEL”
Move Capture Region ................................
Adjust Capture Region Height .......................
Toggle Width/Height Adjustment ..............“MENU”
Start .........“ENTER” Exit .........“CANCEL”
Display for capture selection
Preview
This is used in checking the logo capture display at startup time. Selec-
tion is not possible without using capture.
See "Startup Logo Creation" on Page E-57 for information about using logo
capture.
Select item name “Logo Capture”, press the ENTER button, and the sub menu
will open.
Select “Preview” and press the ENTER button to preview the image.
To close, press the CANCEL button or the ENTER button.
Blue
Logo Position
Caputure mode
Invalidata Logo
Real
High Quality
Logo Scaling
Start Logo Capture
Preview
0
E-53
Setup

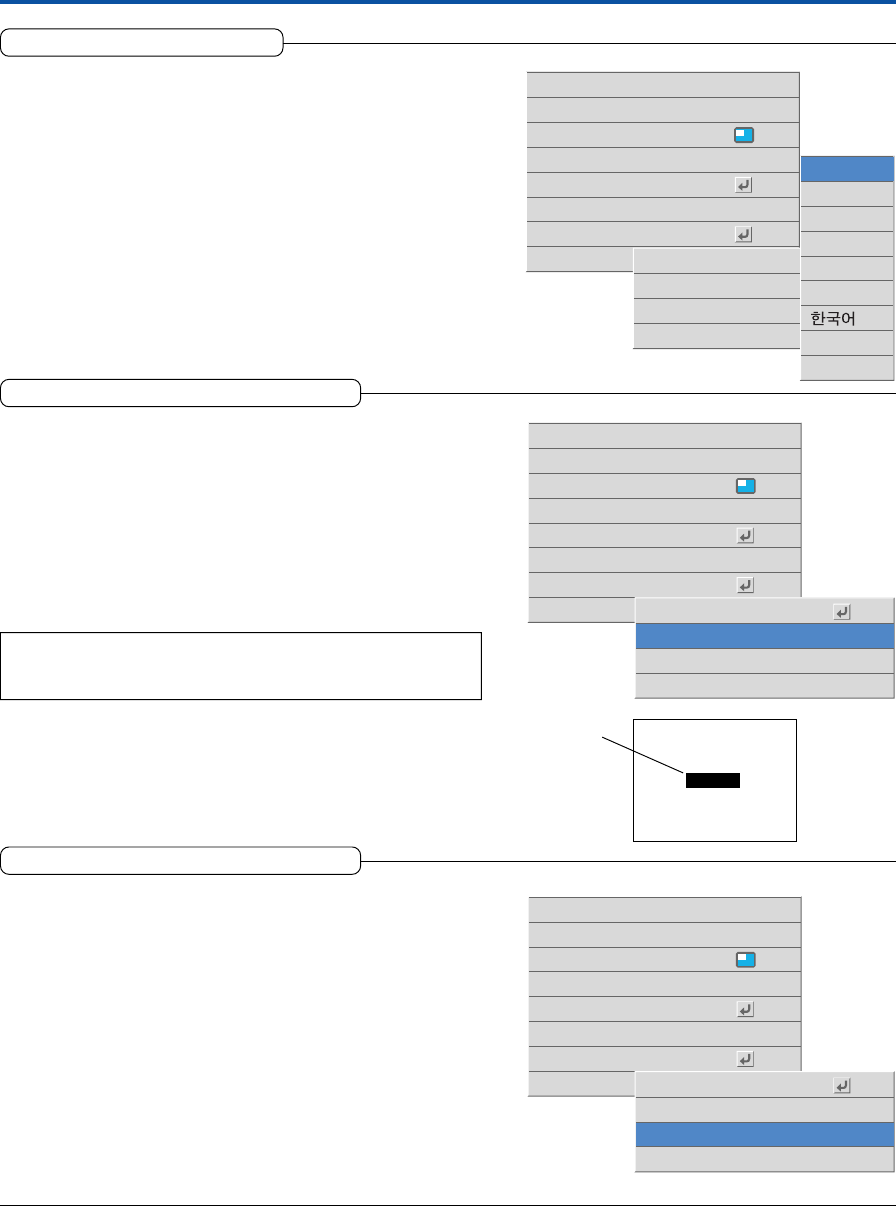

Language
This function sets the language that is displayed on screen in
the messages and menu displays.
Select item name “Options” and press the ENTER button to open the
Options sub menu.
Select item name “Language” and press the ENTER button to open
the Language sub menu.
Select the language with the SELECT 왖왔 buttons.
On
Off
Normal
Off
On Screen
Background
Language
オン
ブラック
Startup Screen
ロゴ
日本語
中文
English
Deutsch
Français
Italiano
Español
Svenska
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Auto Source
Input Format
Option
On Screen
This function switches on/off the messages displayed with a black
frame such as the input signal information and the aspect ratio.
Select item name “Options” and press the ENTER button to open the

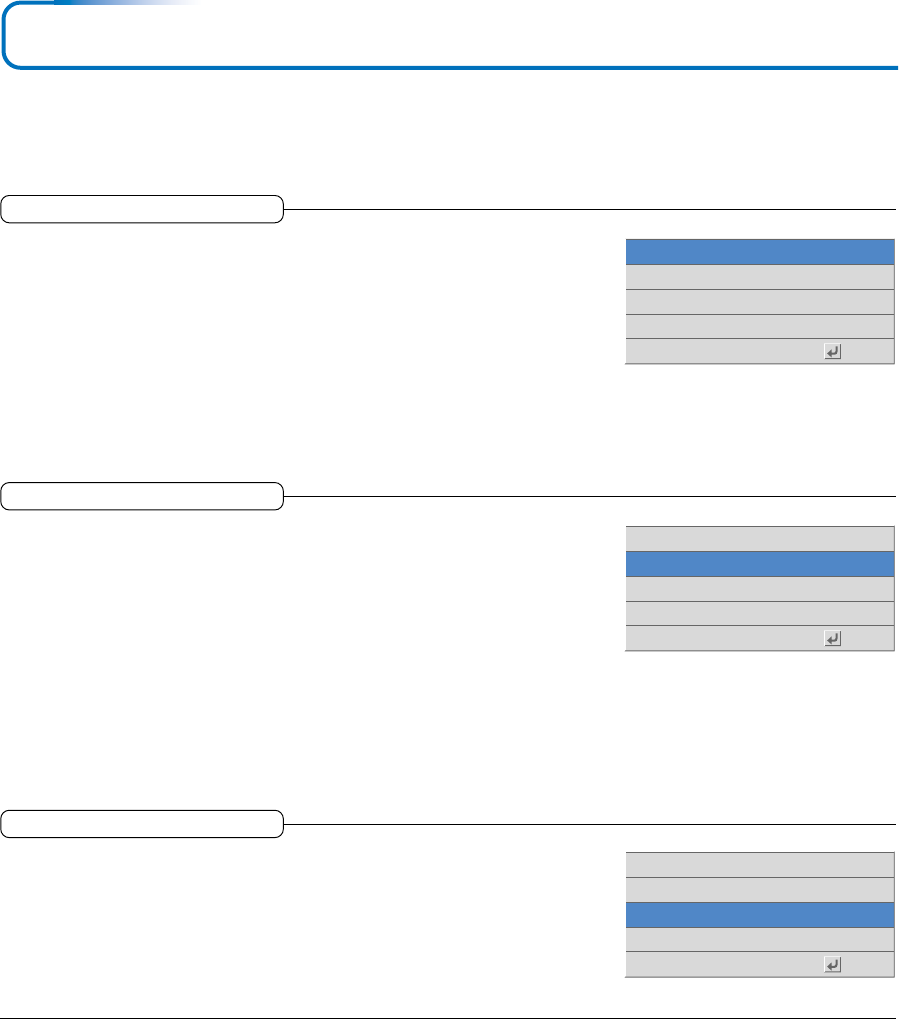

Options sub menu.
Select item name “On Screen” and select the setting contents with the
SELECT 왗왘 buttons.
On ............... The message is displayed.
Off .............. The message is not displayed.
Note:
Even when set to off, messages that are not in a black frame will be dis-
played.
Example of a display when the
ASPECT button is pressed
Wide
Background
Language
Black
Startup Screen Logo
On Screen On
On
Off
Normal
Off
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Auto Source
Input Format
Option
Background
This function sets the screen color when the input source is no-
signal.
Select item name “Options” and press the ENTER button to open the
Options sub menu.
Select item name “Background” and select the setting contents with
the SELECT 왗왘 buttons.
Black ........... Sets a black screen when there is no signal
Blue ............ Sets a blue screen when there is no signal
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Auto Source On
Off
Normal
Off
Input Format
Option
On Screen
Language
On
Black
Startup Screen Logo
Background
E-54
Startup Screen
This is the selection of whether or not to display the logo screen
at startup time.
See "Startup Logo Creation" on Page E-57 for information about us-
ing logo capture.
Select item name “Options” and press the ENTER button to open the
Options sub menu.
Select item name “On Screen” and select the setting contents with the
SELECT 왗왘 buttons.
Logo ........... Displays the logo.
Blank .......... Does not display the logo.
Note:
*When "Logo" is selected at the startup screen, the "PLUS" logo will be
displayed if the logo you created and captured is not set.
*When logo capture is performed after "Blank" has been set, the setting
of the starting screen will automatically display "Logo".
Setup
Auto Power Off
Memu Position
Lamp Mode
Presentation Timer
Logo Capture
Auto Source On
Off
Normal
Off
Input Format
Option
On Screen
Background
Language
On
Black
Startup Screen Logo
E-55
Info.
•Select menu name "Info.".
See "Menu Operation Method" on Page E-35 for information about performing menu operations. The
item name display will differ depending on the input signal. See "List of Item Names Offering Input
Selection and Adjustments/Settings" on Page E-41.

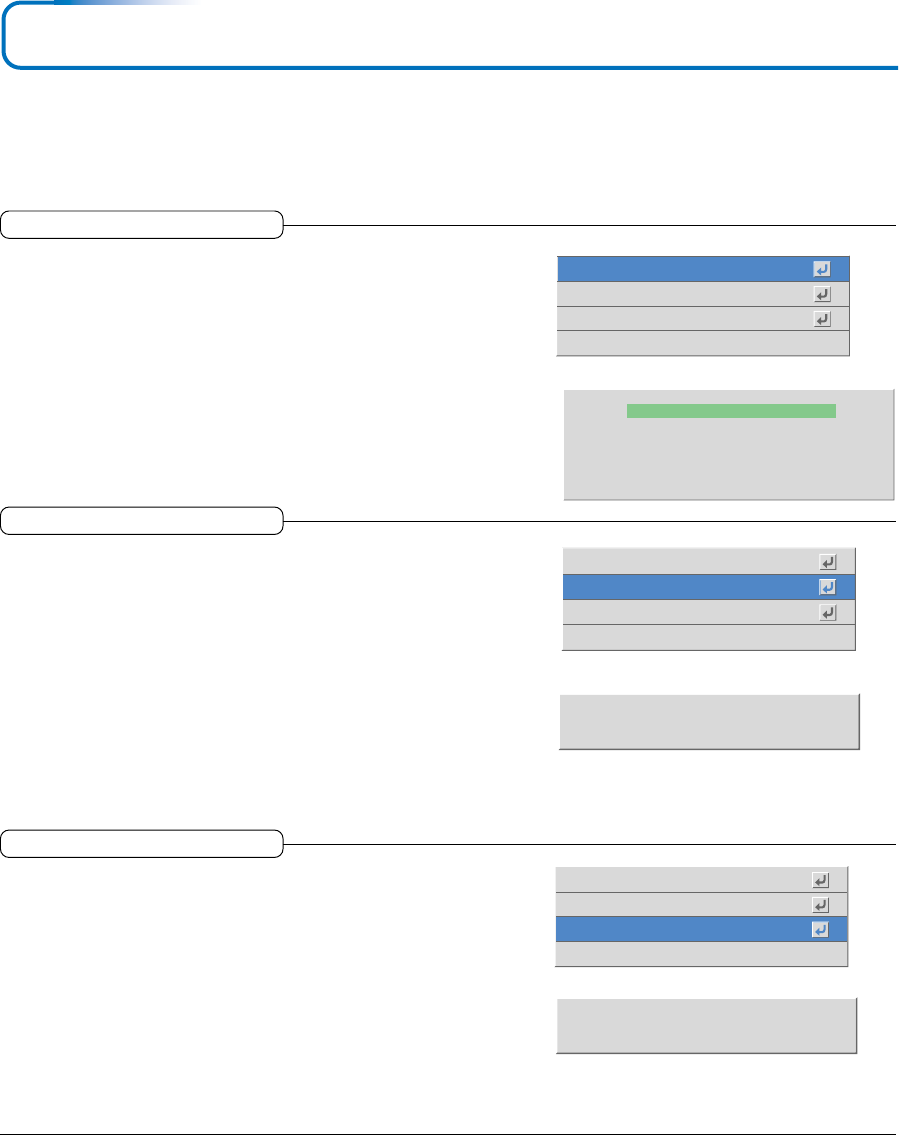

Status
This displays information about the equipment.
Select item name “Status” and press the ENTER button.
There is a change to the status display.
Press the CANCEL button to return to the menu.
Display Contents:
Projector model, firmware version, and the internet home page ad-
dress of PLUS Vision Corp.
Factory Default
Lamp Timer Reset
Lamp Timer
Status
1h
U2 Series
Version : 1 . 0 . 0 . 0 . 0
www.plus-vision.com
Factory Default
This function returns the adjustments and settings of all the in-
put sources to the standard factory default values.
Select item name “Factory Default” and press the ENTER button.
There is a change to the display [Press "ENTER" to Factory Default
Set].
Press the ENTER button to initialize.
To cancel, press the CANCEL button and there will be a return to the
menu.
Items that are not set to the factory default:
Projection method, Language and Lamp Timer
Factory Default
Lamp Timer Reset
Lamp Timer
Status
1h
Press “ENTER” to Factory Default Set
Press “ENTER” to Lamp Timer Reset
Lamp Timer Reset
This function resets the lamp timer. Be sure to perform the
reset operation when the lamp cartridge has been replaced.
Select item name “Lamp Timer Reset” and press the ENTER but-
ton.
There is a change to the display “Press "ENTER" to Lamp Timer
Reset”.
Press the ENTER button to initialize.
To cancel, press the CANCEL button and there will be a return to
the menu.
Factory Default
Lamp Timer Reset
Lamp Timer
Status
1h
E-56
Resolution / Frequency
This function displays the resolution and frequency of the detected in-
put signal.
When an analog RGB, DVI analog, or DVI digital signal is input, there will not
be a display unless input selection of RGB or DVI has already been made.
Factory Default
Lamp Timer Reset
Resolution
1024×768
75Hz 60kHz
12h
Frequency
Lamp Timer
Status
Lamp Timer
This displays the lamp timer.
This projector has an Eco mode function. The lamp life will differ between
Normal mode and Eco mode.
Lamp Life
Use only in Normal mode: approx.3000 hours
Use only in Eco mode: approx.4000 hours
*Lamp life will differ when there has been switching between the modes.
•When Lamp Life Has Been Reached
“Replace the Lamp Cartridge” is displayed on the screen for 10 seconds in
a 1-minute interval.
Please replace the lamp with a new one.
See "Replacing the Lamp Cartridge" on Page E-62 for information about
lamp cartridge replacement.
•When Over 100 Hours Have Elapsed Since Reaching Lamp Life
(Including Eco Mode)
[Warning!! System Shutdown] is displayed for 10 seconds and the power is
switched off. Pressing the POWER button under this condition will not switch
on the power. Please replace the lamp cartridge.
Factory Default
Lamp Timer Reset
Lamp Timer
Status
12h
Info.
E-57
Startup Logo Creation
The startup logo is a function that displays a created logo.
After turning on the power, a logo appears in about 15 seconds. The displayed logo disappears in about 30 seconds.
A logo can be displayed by creating it on a personal computer, then projecting it with this projector and capturing it.
See Pages E-50 to E-52 for information about the selection of “Logo Capture” and an explanation of the items.
Preparation and Projection of the Image
1. Using personal computer software, create an image that you would
like to use on the startup screen, then save that file.
2. Connect the personal computer and the projector, then project the
personal computer screen. The saved image will open.
Logo Capture Settings
1. Open “Logo Capture” on the menu
Select “Setup” → “Logo Capture” on the menu and press the ENTER
button.
The logo capture sub menu will open.
2. Set the Logo Background Color → Page E-50
Select “Logo Background” and determine the background color.
When the background of the created image is white, selection of
"White" permits creation of a seamless startup screen.
3. Set the Logo Scaling → Page E-50
Select “Logo Scaling” and set the size.
When a large magnification has been selected, the image will blur
somewhat.
4. Set the Logo Position → Page E-51
Select “Logo Position” and determine the display position of the logo.
5. Set the Compression Ratio → Page E-51
Select “Capture Mode” and select image quality priority or capture
range priority.
6. Determine the Capture Range of the Image → Page E-52
Select “Start Logo Capture” and press the ENTER button.
There is a change to the capture range selection display.
(1) Use the SELECT 왖왔왗왘 buttons to align the red frame with the up-
per left (starting point) of the image.
Move Capture Region ....................................
Adjust Capture Region Height .......................
Toggle Width/Height Adjustment ................... “MENU”
Start .........“ENTER” Exit .........“CANCEL”
Move Capture Region ....................................
Adjust Capture Region Height .......................
Toggle Width/Height Adjustment ................... “MENU”
Start .........“ENTER” Exit .........“CANCEL”
(2) Press the “+”/“–” buttons and determine the capture size. The lower right
(end point) will move. To switch between height and width, press the MENU
button.
To cancel, press the CANCEL button. There is a return to the menu dis-
play.
E-58
Startup Logo Creation
7. Start Capture → Page E-52
Selection will not be possible unless a signal is being input.
Pressing the ENTER button will start the capture.
(1) While capture is operating, “Capturing Logo” is displayed and the advance-
ment of the gauge is displayed.
(2) When the capture is completed, “Logo Capture Complete” is displayed for
about 10 seconds.
(3) When a logo capture has already been saved, it will be overwritten.
•When capture was not possible due to the logo size being too large,
“Not Enough Space. Over Memory Limit ***%” is displayed. (*** repre-
sents a numerical value.)
Change the capture size using the percentage exceeded as a guide, or
change the capture mode and start capture again.
•When a mistake has been made in logo capture, the message “Logo
Capture Failed” is displayed.
Please try it again.
8. Check the logo Capture Screen at Startup Time → Page E-52
Select “Preview” and press the ENTER button.
To close, press the ENTER button or the CANCEL button. There is a re-
turn to the menu display.
This completes the startup logo.
The next time the projector is started, the captured logo will be displayed.
Note:
*This function is for the logo. Full-color photographs with many colors that fill the
projection screen cannot be captured. Please make such photographs into a small
size.
*Capture ranges that exceed the output resolution of the projector cannot be se-
lected.
*The area outside the red lines of the red frame becomes the selection range for
the capture range selection.
*To match the background color of the startup logo with the background color of
the created image, examine the values (i.e., 0 to 255) of the RGB colors of the
created image using image software and set the various values to the custom
RGB of the logo background color.
*Pressing the POWER button during the capture will not switch off the power.
This is to prevent the loss of the capture data during the capture (by switching off
the power). To switch off the power, please press the POWER button after the
capture is completed.
*When a mistake has occurred with the capture, the logo that was previously
captured will also be deleted.
Capturing Logo
E-59
When an Indicator is Lit or Flashing
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
POWER
STATUS
POWER
STATUS
POWER
STATUS
POWER
STATUS
POWER
STATUS
POWER
The indicators on the projector’s control panel light or flash to no-
tify of problems, as described below.
An indicator is also used to notify you of the currently set power
mode (under normal circumstances). See “Power Cable Connec-
tions and Switching the Power On/Off” on page E-23.
Indicators
Indicator status What you should do
When the power is on (Lit green)
Standby (Lit amber)
Lit red
Flashing amber for 120 seconds, then
lit amber
Lit red
Lit red
Flashing red
(lit for 1 seconds/off for 1 seconds)
Lit red
Flashing red
(lit for 0.5 seconds/off for 0.5 seconds)
Lit amber
Flashing red
(lit for 0.5 seconds/off for 0.5 seconds)
When the lamp has burned out during use
Flashing amber for 120 seconds, then lit amber
When the lamp does not come on from the start
Lit amber
Flashing red
(lit for 1 seconds/off for 1 seconds)
It is time to replace the lamp.
Replace with a new lamp cartridge.
The lamp has reached the end of its service life. The power
will no longer turn on.
The projector can be used for 100 hours after the lamp has reached
the end of its service life.
Replace with a new lamp cartridge.
The lamp cover is open.
The lamp cover is not properly mounted. Mount it properly.
The temperature is abnormally high.
•The temperature protector has been activated. If the room tem-
perature is high, move the projector to a cool place. If the
projector’s internal temperature is high, check the cooling fan’s
ventilation slots and clean them if they are clogged.
•When the temperature protector is activated, the power turns
off and in some cases will not turn back on immediately. In this
case wait about 1 minute, then try again.
The fan has stopped.
Unplug the power cable and contact a store that sells the U2-
1200/U2-817 for repairs.
Should an indicator be in a condition other than normal or flash at a rate other than the aforementioned,
disconnect the power cable and contact your store of purchase.
Thermal Protector
When the temperature inside the projector becomes abnormally high, the STATUS indicator flashes red
(0.5 seconds on/0.5 seconds off), the POWER indicator is a steady red, and at the same time the tem-
perature protector operates and switches off the power of the projector.
Should this happen, please take the following actions.
1. Switch off the power and disconnect the power plug from the wall outlet.
2. Check the following matters and take the required measures.
When the projector is being used in a location that has a high ambient temperature, set it up again in
a cool location. Check the outflow and intake holes and clean them if they are obstructed.
3. Wait about 60 minutes until the temperature of the projector drops.
If after having performed the above matters, the problem still has not been solved, please contact your
store of purchase.
STATUS
The lamp will not light.
Wait at least 1 minute, then turn the power back on. If the
problem persists, unplug the power cord and contact a store
that sells the U2-1200/U2-817 for repairs.
E-60
Troubleshooting
Check the following matters before requesting servicing.
• Is the power cord plugged into a power outlet?
• Is the lamp cover properly mounted?
•Is the projector’s temperature high? To protect the projector, the power can-
not be turned on when the projector’s temperature is abnormally high.
• Has the lamp reached the end of its service life?
•Is a connected input selected?
•Is the cable properly connected to the input terminal?
•When a computer is connected, are signals being output from the computer?
•Does the signal being input have a frequency usable with this projector?
•Are the brightness and contrast adjusted to the minimum?
• Is the STATUS indicator lit a steady red or flashing red?
•When the component signal of the DVD player is connected with the RGB
connector and the image is not output, is [Input Settings] of the RGB con-
nector properly selected?
•For an RGB input, has the picture been properly adjusted?
•Is the projector properly installed?
•For trapezoidal (keystone) distortion, perform keystone adjustment.
•Is the lens properly focused?
• Are the screen and projector installed at the proper distance?
•Does the projection distance exceed the focusing range?
•Is there condensation on the lens, etc.?
If the projector is moved from a cool storage area to a warm place and the
power is turned on, condensation may form on the lens or internal optical
parts. If this happens, wait until the condensation has evaporated before
using the projector.
•For a computer input, are the horizontal and vertical positions properly ad-
justed?
•Does the input signal have a compatible resolution and frequency? Check
the computer’s resolution.
•If the image is crushed in the horizontal or vertical direction or if it is not
displayed over the entire screen, select a different aspect ratio.
•When a component signal is being input, is the color space setting proper?
•For a composite input, is the hue properly adjusted?
•From the menu, select "Picture" and adjust the clock frequency and phase.
•Other than [Settings] and [Information], selection will not be possible unless
a signal is being input to the projector and the image/picture is projected.
•Selection is not possible unless a signal is being input.
•Are the remote control unit’s batteries worn? Replace with new batteries.
•Is there an obstacle between the remote control unit and the projector’s
remote control signal sensor?
•Is the remote control unit outside of range?
•Are you pointing the remote control unit’s transmitter towards the projector’s
remote control signal sensor?
•See “When an indicator is lit or flashing”.
Power does not turn on
No image is produced
Image is distorted
Image is out of focus
Image is not in proper posi-
tion and is not displayed
properly
Video image is crushed
Colors of the overall image
are strange
Characters flicker or colors
are offset for RGB and DVI
(analog) inputs
Cannot select the menu
name
The item name “Start Logo
Capture” of the sub menu
cannot be selected
Remote control unit does
not operate
STATUS indicator is lit red
or flashing red
Problem Check Reference
Page
E-23
E-64
E-59
E-59
E-49
E-16-22
E-18
E-66
E-42
E-59
E-49
E-42,43
E-26
E-32,47
E-27
E-14,15
E-14,15
–
E-43
E-66
E-29
E-45
E-42
E-42,43
–
–
E-12
E-12
E-12
E-12
E-59
E-61
Cleaning
•Be certain to disconnect the power plug from the power outlet before cleaning.
•Do not spray or otherwise expose the projector, lens, or screen to volatile substances such as insecticides. Do not leave rubber
or vinyl products in contact with the projector for long periods. Doing so could cause them to undergo qualitative changes or the
coatings may peel, etc.
Cleaning a Soiled Projector Main Unit
•Wipe with a lint-free, soft, dry cloth.
When very dirty, wipe with a cloth that has been moistened with a diluted neutral detergent, then finish with a dry cloth. If a
chemically-treated cloth is going to be used, please follow any written warnings.
•Do not wipe with thinner, benzene, or other solvents. Doing so could cause them to undergo qualitative changes or the coatings
may peel, etc.
•When removing the dust of the outflow and intake holes, use the brush attachment on a vacuum cleaner to clean out the dust.
Avoid using the vacuum directly without attaching the adapter as well as the use of a nozzle adapter.
•Do not scratch or otherwise hit the projector body with your nails or other hard object, since this will cause scratches.
Dirty Lens
•Clean using the same method you would use to clean a camera lens: Use a commercial blower for camera use or cleaning
paper for eye glasses. Be careful not to scratch the lens at this time.
Dust of the Intake and Outflow Holes
Dust that collects in the intake and outflow holes will obstruct the ventilation and cause the internal temperature to rise which
could cause damage. Clean this area carefully. As a guideline, clean at least every 100 hours of usage.
•Switch off the power, check that the
POWER indicator has changed to a
steadily lit amber, then unplug the
power cable.
•Clean out the holes from the outside
using a vacuum cleaner. Use the
brush adapter of the vacuum cleaner
to do this. Avoid using the vacuum
directly without attaching the adapter
as well as the use of a nozzle adapter.
Cleaning the Inside of the Projector
Cleaning of the inside of the projector is required about once a year. Failure to clean over a long period while dust has collected
inside the projector could cause a fire or breakdown. Do not clean the inside of the projector by yourself. Please be sure to contact
your dealer.
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
RGB
DVI
AUDIO
VIDEO
S-VIDEO
RGB OUT
E-62
Replacing the Lamp Cartridge
•The lamp that is used as a light source in the projector has a limited service life. The rated service life of the lamp is
about 3000 hours (when used in normal mode only). This could be shortened depending on conditions of use and
other factors.
Note that lamp life will be extended when the projector is often used in Eco mode. (The rated service life of the lamp
means the average value of lamp life for lamps that have been manufactured over a long period, and it is derived from
test conditions at this company.)
•When the life of the lamp is exceeded, the STATUS indicator lights a steady red and the message [Replace the Lamp
Cartridge] is displayed on the screen. When this occurs, it is time to replace the lamp cartridge. Please make the
replacement following the procedure below.
•If the projector is used another 100 hours after the lamp’s service life is reached, the power is set to the standby mode
and no longer turns on.
•Contact a store that sells the U2-1200/U2-817 for a replacement lamp. Indicate you need a U2-210 replacement lamp
for the U2-1200/U2-817 (order code 28-300).
CAUTION
•DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Allow at least one hour for the
lamp to cool before handling.
•DO NOT LOOSEN ANY SCREWS except for those men-tioned in the instructions below. There is danger of electric
shock.
CAUTION
Do not use a lamp cartridge other than the PLUS replacement lamp cartridge. Order this from your PLUS dealer using the
unit model number.
E-63
Replacing the Lamp Cartridge
Preparations: Tur ning the projector upside-down on top of a soft cloth, etc., so that it does not get scratched makes it easier to
replace the lamp cartridge. Turn the projector right-side up after replacing the lamp cartridge.
1Unplug the power cord.
2Turn the projector upside-down.
3Remove the lamp cover.
(1) Turn the lamp cover’s set screw counterclockwise
and loosen until the screw turns freely. (The screw
does not come off.)
(2) Open the lamp cover a little, then pull it in the direc-
tion of the arrow and remove it.
4Remove the lamp cartridge.
(1) Turn the lamp cartridge’s two set screws counter-
clockwise and loosen them until the screws turn freely.
(The screws do not come off.)
(2) Grasp the lamp cartridge’s handle and pull upward
to remove the lamp cartridge.
E-64
Replacing the Lamp Cartridge
5Mount the new lamp cartridge.
(1) Placing the lamp cartridge with its socket facing to-
wards you, slowly press the lamp cartridge in.
(Line it up with the screw holes in the projector.)
6Mount the lamp cover.
(1) Set the tip of the lamp cover in place, then close the
lamp cover.
7Reset the Lamp Timer.
Connect the power cable, switch on the power, and then reset.
Select [Info.] → [Lamp Timer Reset] on the menu and press the ENTER button. There is a change to the initialization
verification display. Press the ENTER button again. See "Lamp Timer Reset" on Page E-55.
Note:
After reaching the lamp service life, if the lamp is used for more than another 100 hours, it will not be possible to switch on the power. Should
this happen, while the projector is in the standby mode, simultaneously holding down the projector's SOURCE button and AUTO button for
more than 5 seconds will clear the lamp timer. Checking that the STATUS indicator is out will show that the lamp timer has been cleared.
Contact a store that sells the U2-1200/U2-817 for a replacement lamp. Indicate you need a U2-210 replacement lamp for the U2-1200/U2-817
(order code 28-300).
(2) Turn the two lamp cartridge screws clockwise to
tighten them.
(2) Turn the lamp cover’s screw clockwise to tighten it.
E-65
Specifications
Model U2-1200/U2-817
Optical
Method of projection : DLP™ (single chip DMD)
DMD U2-1200: 0.7 inches 1024768 dots
U2-817: 0.55 inches 800600 dots
Lamp 200 W ultra-high pressure mercury lamp
Projection lens : Manual zoom (1.2), manual focus, F = 2.4 to 2.6, f = 26.5 to 31.8 mm
Image size U2-1200: Minimum 27 inches (projection distance: 1.2 meters, tele mode)
Maximum 300 inches (projection distance: 11.5 meters, wide mode)
U2-817: Minimum 21 inches (projection distance: 1.2 meters, tele mode)
Maximum 300 inches (projection distance: 14.8 meters, wide mode)
Light Output U2-1200:
2000 ANSI lumens
U2-817: 1500 ANSI lumens
Contrast Ratio 1500:1 (Full on/off)
Electrical
Inputs Video (NTSC3.58/NTSC4.43/PAL/PAL-N/PAL-M/PAL60/SECAM)
RGB (Horizontal :15 to 85 kHz, Vertical 50 to 120 Hz)
Output VGA (640480), S-VGA (800600), XGA (1024768) *
Color Reproduction Full color (16,770,000 colors)
Resolution U2-1200: VGA (640480) expansion/true, S-VGA (800600) expansion/true
XGA (1024768) true, S-XGA (12801024) compression
U2-817: VGA (640480) expansion/true, S-VGA (800600) true
XGA (1024768) compression
Input Current 2.8 A
Power Requirement 100 - 240 V AC, 50/60 Hz
Power Consumption 280 watts
Mechanical
Dimensions Excluding Stand 230 mm (W)58 mm (H)295 mm (D)
9.0 in.(W)2.3 in.(H)11.6 in.(D)
Weight Approximately 2.5 kg / 5.5 lbs
Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity
Regulations UL Approved (UL 1950, CSA 950)
Meets FCC Class A requirements
Meets EMC Directive (EN55022, EN55024)
Meets Low Voltage Directive (EN60950)
• Specifications and design are subject to change without notice.
* XGA can be supported for up to the horizontal synch range 68.7kHz and the vertical synch range 85Hz.
E-66
Table of Supported Frequency
The projector automatically identifies the signal input from the computer and selects the optimum resolution as shown on the table
below.
Manual adjustments may be required for some input signals. See “Picture Adj. / Fine Picture / H Position / V Position” on page E-
42, 43.
:Supported frequency
–:Not supported frequency
*The model name for XGA is U2-1200 and SVGA U2-817.
*The projector does not support the ADC connector on Apple Macintosh.
U2-1200
The display resolution is 1024768 dots. When displaying a signal with resolutions other than 1024768 dots such as 12801024,
sizes of characters or lines may be uneven.
U2-817
The display resolution is 800600 dots. When displaying a signal with resolutions other than 800600 dots such as 1024768,
sizes of characters or lines may be uneven.
XGA SVGA XGA SVGA
VIDEO(NTSC)
VIDEO(PAL/SECAM)
VESA
NEC(PC-9800)
Apple Macintosh
HDTV(1080i)
(720p)
SDTV(480p)
-
-
640 350
640 350
720 350
640 400
640 400
720 400
720 400
640 480
640 480
640 480
640 480
800 600
800 600
800 600
800 600
800 600
1024 763
1024 763
1024 763
1024 763
1024 763
1280 1024
640 400
640 400
640 480
640 480
800 600
800 600
1120 750
1024 768
1024 768
1280 1024
640 480
823 624
1024 768
1152 870
1920 1080
1280 720
720 480
15.734
15.625
31.5
37.9
31.54
31.5
37.9
31.5
37.9
31.5
37.9
37.5
43.3
35.2
37.9
46.9
48.1
53.7
48.4
56.5
57.7
60.0
68.7
64.0
24.8
31.5
31.5
37.5
37.9
46.9
50.0
56.5
60.0
64.6
35.0
49.7
60.2
68.7
33.75
45.0
31.47
60.0
50.0
70.1
85.1
70.0
70.1
85.1
70.0
85.0
60.0
72.8
75.0
85.0
56.3
60.3
75.0
72.2
85.1
60.0
70.1
72.0
75.0
85.0
60.0
56.4
70.1
60.0
75.0
60.3
75.0
60.1
70.1
75.0
59.9
66.7
74.5
74.9
75.1
60.0
60.0
59.94
Signal Resolution Frequency
Horizonral (kHz)
Vertical (Hz)
Video Digital Analog
E-67
RGBDVI
ACCESS
ENTER
CANCEL
SELECT
+
-
POWER
POWER
STATUS
AUTO SOURCE
MENU
Cabinet Dimensions
