The PMI Piranha™ is a semi-automatic paintball marker designed to shoot .68 caliber
paintballs for use in the sport of paintball.
Paintball is a recreational and competitive sport played worldwide. Special equipment
used in paintball includes paintball markers, which are airguns; and paintballs, which
are liquid-filled gelatin capsules that mark with a bright color. The object of the game
is to capture the opposing team’s flag; while on that quest, players try to mark their
opponents to eliminate them from the game.
WARNING
Protective goggles and headgear specifically designed for paintball
must be worn by all persons within range when a paintball marker
is in use. Paintball safety rules must be followed at all times.
WARNING
THE PMI PIRANHA™ PAINTBALL MARKER IS NOT A TOY. MISUSE
MAY CAUSE SERIOUS INJURY OR DEATH. EYE PROTECTION
DESIGNED FOR PAINTBALL USE MUST BE WORN BY THE USER AND
ANY PERSON WITHIN RANGE. READ THIS OWNER’S MANUAL
COMPLETELY BEFORE LOADING, PRESSURIZING, OR OPERATING
THE PMI PIRANHA™ PAINTBALL MARKER.
STATEMENT OF LIABILITY
This PMI Piranha™ semi-automatic paintball marker is surrendered by Pursuit
Marketing, Inc. (PMI, Inc.), with the express understanding that the purchaser
assumes all liability arising out of any unsafe handling of this marker or any action
that violates any applicable laws or regulations. PMI, Inc., assumes no liability for,
and shall not be responsible for, any personal injury or loss of property or life resulting
from the use of this paintball marker under any circumstances, including but not
limited to those resulting from intentional, reckless, negligent or accidental discharges.
READ THIS OWNER’S MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR
OPERATING THE PMI PIRANHA™ PAINTBALL MARKER.
PMI Piranha™ is a registered trademark of Pursuit Marketing, Inc.
Pursuit Marketing, Inc. (PMI, Inc.), founded in 1982 and manufacturer of the PMI
Piranha™ line of semi-automatic paintball markers, is an industry-leading manufacturer
and wholesale distributor with warehouses in key locations throughout the U.S.A.
Headquarters: PMI, Inc., 5035 River Road, Schiller Park, Illinois 60176 USA;
phone 847.233.9900;www.buypmi.com
PMI Piranha™ 1
WARNING
This paintball marker is intended for sale to adults only, for use in compliance with all applicable laws and
regulations. Adult supervision is recommended at all times whenever a minor is handling this paintball marker.
Protective goggles and headgear specifically designed for paintball must be worn by all persons within range when
a paintball marker is in use. Paintball safety rules must be followed at all times.
WARNING
THE PMI PIRANHA™ PAINTBALL MARKER IS NOT A TOY. MISUSE MAY CAUSE
S E R I O U S INJURY OR DEATH. EYE PROTECTION DESIGNED FOR PAINTBALL USE MUST
BE WORN BY THE USER AND ANY PERSON WITHIN RANGE. READ THIS OWNER’S
MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR OPERATING THE PMI
PIRANHA™ PAINTBALL MARKER.
TABLE OF CONTENTS
PAINTBALL SAFETY RULES .............3
OPERATING INSTRUCTIONS............5
COMPRESSED GAS/AIR....................7
VELOCITY ADJUSTMENT ..................9
PMI PIRANHA™ SPECIFICAT I O N S....11
piranha parts location…………12

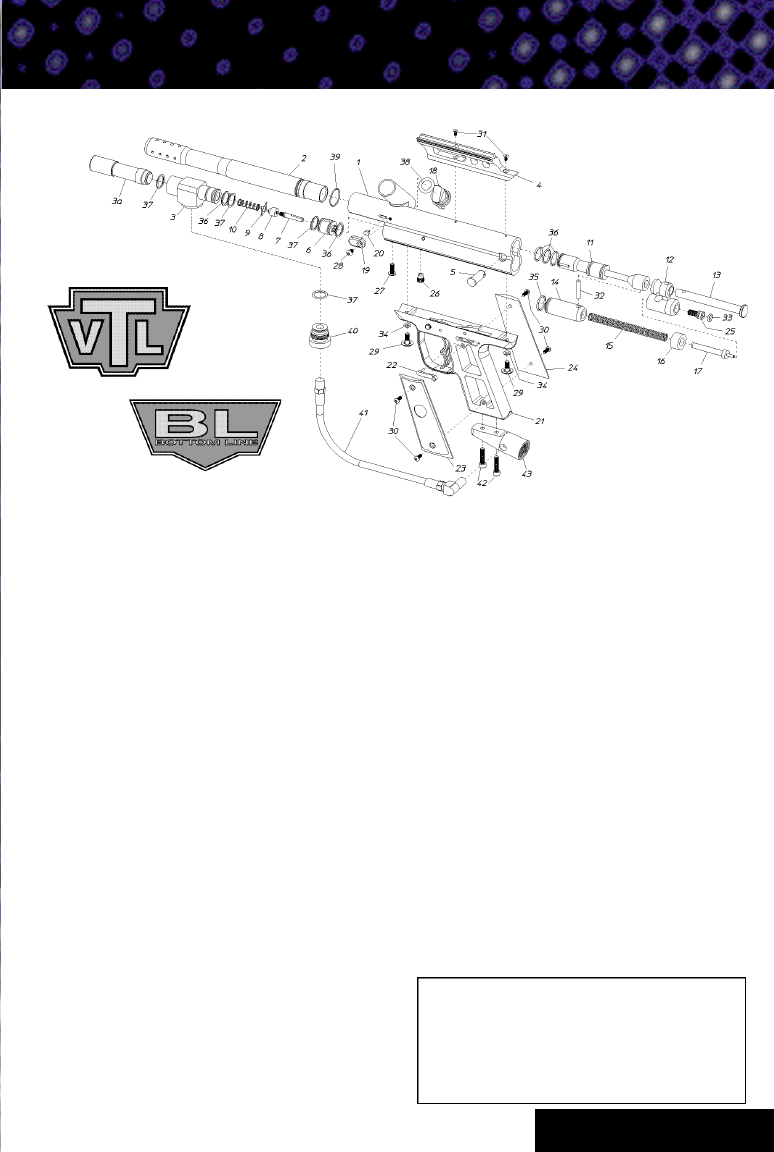

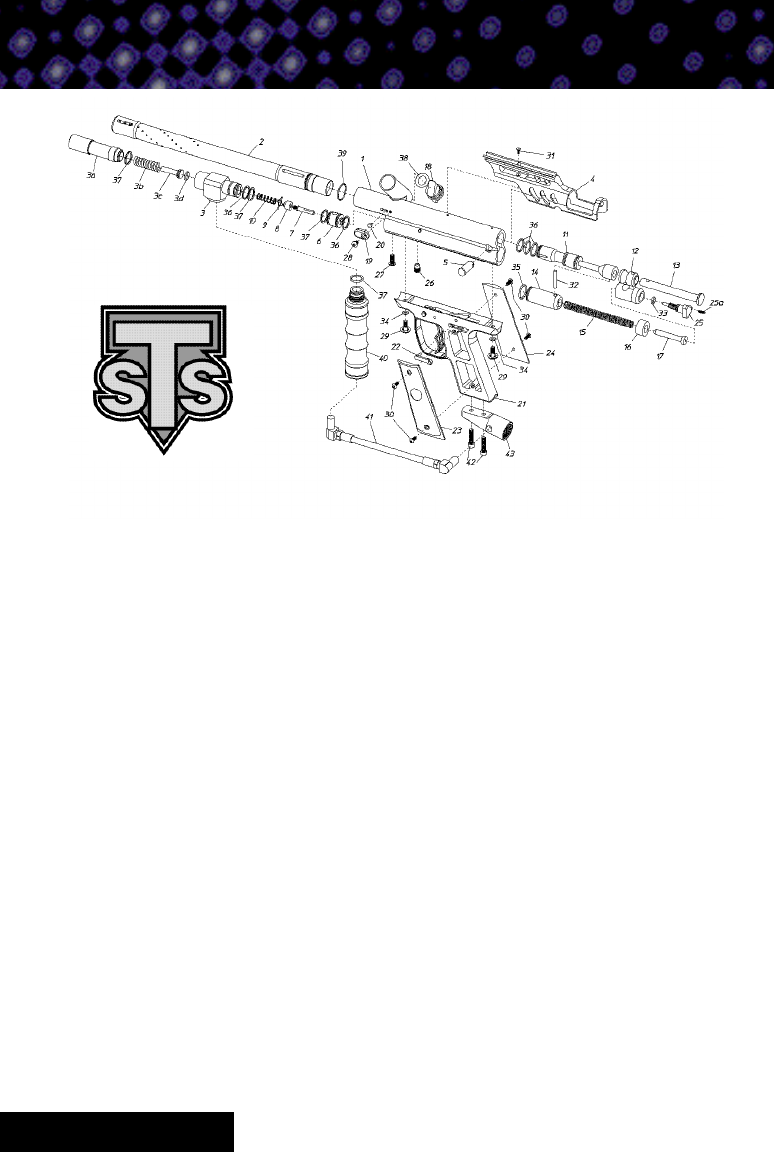

PARTS & DIAGRAM.........................20
MAINTENANCE & LUBRICATION ...23

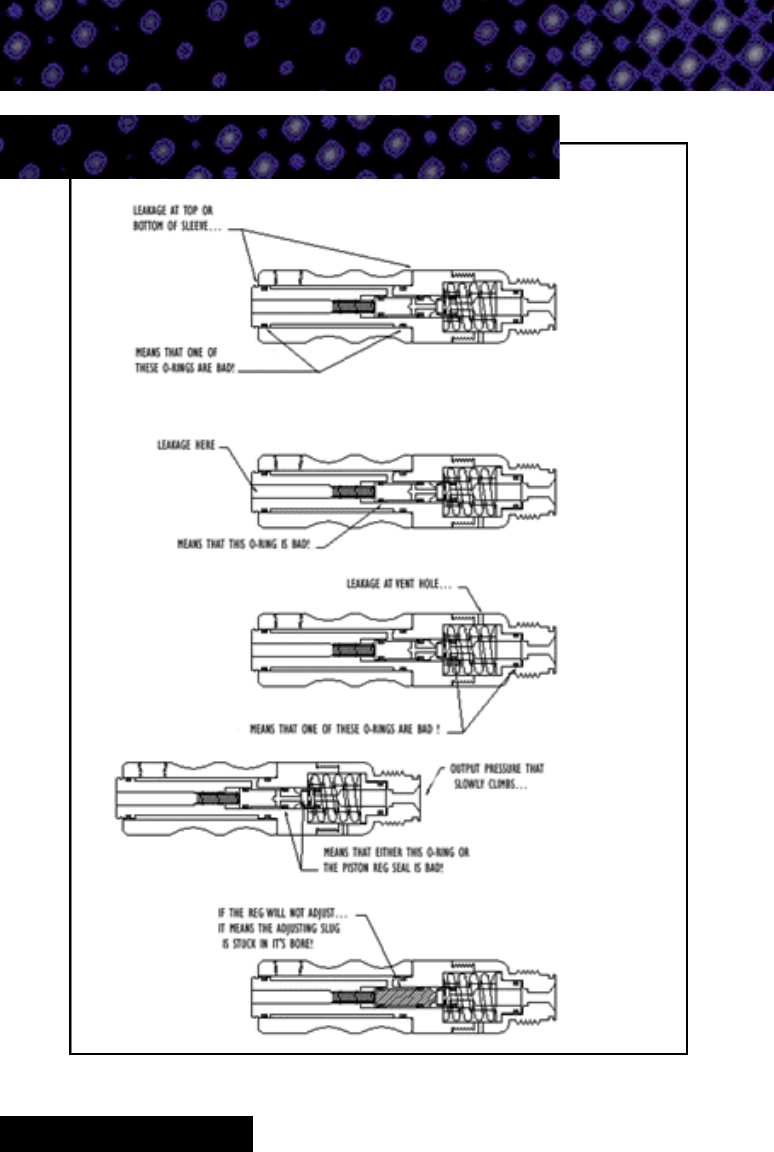

TROUBLESHOOTING......................32
WARRANTY ......................................36
This owner’s manual is provided with several models of the PMI Piranha™ paintball marker. Pursuit Marketing,
Inc. (PMI, Inc.), reserves the right to modify or change its markers without incurring any obligation to incorporate
such modifications or changes in any of its products that were sold prior to the modification. The information in
this owner’s manual may be updated or changed without notice.
This owner’s manual is intended to remain with the paintball marker upon any subsequent transfer of the marker,
whether through sale, resale, or furnishing in any manner. Updated and replacement owner’s manual may be
obtained from: Pursuit Marketing, Inc., 500 East Touhy Ave, Unit C, Des Plaines, IL 60176 USA; phone 800.579.1633;
www.buypmicom. Questions about the operation of the PMI Piranha™ paintball marker may be directed to
Pursuit Marketing Inc., or visit www.buypmi.com for updates regarding your Piranha™ purchase.
PMI Piranha™ 2
PMI PIRANHA™ OWNER’S MANUAL
WARNING
THE PMI PIRANHA™ PAINTBALL MARKER IS NOT A TOY. MISUSE MAY CAUSE
SERIOUS INJURY OR DEAT H . EYE PROTECTION DESIGNED FOR PAINTBALL USE MUST
BE WORN BY THE USER AND ANY PERSON WITHIN RANGE. READ THIS OW N E R ’ S
M A N UAL COMPLETELY BEFORE LOA D I N G,P R E S S U R I Z I N G, OR OPERATING THE PMI
PIRANHA™ PAINTBALL MARKER.
READ THIS OWNER’S MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR OPERATING THE
PMI PIRANHA™ PAINTBALL MARKER.
Always wear protective goggles and headgear specifically designed for paintball when shooting this marker.
Every person within range of an area where a paintball marker is in use must wear protective goggles and
headgear specifically designed for paintball.
Operate a paintball marker only in areas where it is safe and lawful to do so.
Misuse of this paintball marker can result in criminal penalties, including jail time.
This marker is intended for sale to adults only. Adult supervision is recommended at all times whenever a
minor is handling this marker in any manner.
Never aim or shoot a paintball marker toward any person who is not wearing protective goggles and
headgear specifically designed for paintball.
During game play, follow referee’s instructions and all field safety rules.Avoid shooting at a player’s head,
neck, or groin area.
Play paintball only where the rules of safe paintball play are followed.
SAFETY FIRST!
PAINTBALL BASIC SAFETY RULES
PMI Piranha™3
All paintball markers must be chronographed regularly.Adjust marker to shoot paintballs at a velocity
that is less than 300 feet per second (fps) and that does not exceed the velocity limit set by the
paintball park where the marker is in use.C h r o n ograph the marker at regular intervals during the day ,
as well as any time the power source is refilled or changed, a ny time the barrel or any part in the
p ower system is changed, and upon request of any player or game official.
This paintball marker operates using compressed gas or air at specified pressure ranges. Fo l l ow safety
procedures when handling compressed gas or air. All filling of compressed gas or air cylinders must be
done by qualified persons.
Follow the rules of safe marker handling: Keep finger off trigger until ready to shoot. Keep muzzle
pointed in a safe direction. In addition, firmly insert a barrel plug into the muzzle and push the
mechanical safety “on”when the marker is not in use and when in any non-shooting area.
Never shoot at domestic animals or wildlife.
Never mark objects outside the confines of the game or authorized shooting areas.
Never look down the barrel of the marker.
Before disassembly, storage, or transport of the marker, remove all paintballs from the marker, barrel,
and loader; remove power source; and remove all gas or air from the power system. Insert barrel plug
and put mechanical safety in “no shoot” position.
Carry marker in case or sturdy bag when in public.
Safely and securely store marker to prevent access to it by unauthorized persons.
Safety standards information is available from the American Society for Testing and Materials, 100 Barr
Harbor Drive,West Conshohocken, PA 19428-2959; phone 610.832.9500; www.astm.org.“Standard Practice
for Paintball Field Operation” is publication F1777-97, and “Standard Specification for Eye Protective
Devices for Paintball Sports” is publication F1776-97; inquire about additional publications which may be
available at the time request is made.
PMI Piranha™ 4
WARNING
Every person within range of an area where a paintball marker is in use must wear protective goggles
and headgear specifically designed for paintball.
1. Attach threaded barrel firmly to marker.
2. At this time, do not attach power source or loader and do not load paintballs into marker.
3. Insert barrel plug firmly into barrel.
4. Pull the cocking knob straight back from the rear of the marker until
the cocking mechanism locks back in the cocked position. Figures 1
and 2. Certain Piranha models come equipped with a flush cocking
bolt. See page 27.
5. Push safety “off.” See next page.
6. Squeeze the trigger with an even pressure.The cocking knob will snap
forward into the uncocked position.
7. Attach feed tube elbow and empty loader. If the feed tube elbow is
difficult to attach, run hot water over the elbow or soak it in hot
water for one minute, which will help the elbow expand for easier
attachment.When the elbow cools,the snug fit will help the loader
remain in position. Vertical feed guns do not need an elbow.
8. Cock the marker.
WARNING
The power system contains compressed gas or air when pressurized. Never disassemble marker until removing
all gas or air from the power system. Rules for safe handling of compressed gas or air must be followed at
all times.
Figure 1. Pull Back
Figure 2. Fully Cocked
o p e rating the pmi piranha™ marker
PMI Piranha™ 5
The safety is a small mechanical slide on the left
side of the marker above the trigger. When the safety
is “off,” a red dot is visible and the marker. The
trigger can still be pulled if the safety is “on,” but the
marker will not fire or de-cock.
PMI Piranha™ 6
8. Before attaching power source, read and understand the section in this manual on “Compressed Gas/Air”.
Follow safety rules for handling compressed gas/air. If any leak occurs in the power system, refer to
troubleshooting guide or to a qualified airsmith. Use only cylinders for compressed gas or air that comply
with all applicable laws and regulations,including but not limited to those of the U.S. Department of
Transportation, OSHA, Compressed Gas Association, and/or American Society for Testing and Materials.
Vertical air: The power source is attached by screwing the threads of the tank or power source
adapter into the threaded ASA, forward of the trigger frame.
Bottom line: The power source is attached by screwing the threads of the tank or power source
adapter into the threaded bottom line ASA at the base of the grip.
WARNING WHEN COCKING THE PRESSURIZED MARKER, DO
NOT RELEASE THE COCKING KNOB UNTIL AFTER THE COCKING MECHANISM HAS LOCKED BACK INTO THE
COCKED POSITION; RELEASING THE COCKING KNOB DURING COCKING CAN CAUSE THE MARKER TO SHOOT.
9. Test for function after attaching power source: Squeeze the trigger. The marker should shoot air and the
cocking knob should cycle forward and back, stopping in the cocked position, after each trigger squeeze.
Repeat several times.
The PMI Piranha™ semi-automatic marker shoots one paintball for each squeeze of the trigger, and recocks
itself after each shot.
10. Following safety rules, paintballs may be loaded.
Before disassembly, storage, or transport of the marker, remove power source first, then remove all paintballs
from the marker, barrel, and loader; and remove all gas or air from the power system. Insert barrel plug
and slide the mechanical safety forward into the “off ” position.
WARNING
The PMI Piranha™ paintball marker may be powered by CO2, regulated compressed air, or regulated
nitrogen.
THE SAFETY RULES FOR HANDLING COMPRESSED GAS OR AIR MUST BE FOLLOWED AT ALL TIMES.
O P E RATING PRESSURE AND INPUT
P R E SS U R E
• Operating pressure range: 650 p.s.i. to 1000 p.s.i.
• Recommended maximum input pressure is 1000 p.s.i.
• Do not exceed recommended pressures.
When using a regulator in the marker’s power system, follow the instructions provided by the
manufacturer of the regulator.
Do not leave cylinder or pressurized marker in direct sunlight or exposed to heat source. Increased
temperature will increase the pressure of compressed gas or air to dangerous levels.A stock Piranha
usually needs 650 p.s.i. to cycle and attain correct velocity
WARNING
DO NOT EXCEED RECOMMENDED INPUT OR OPERATING PRESSURE.
VALVE-CYLINDER CONNECTION
The valve on a cylinder is to remain screwed into the cylinder; Figures 3 and
4 . Should it loosen, the cylinder may detach from the valve with extremely
dangerous force. Call manufacturer or take to qualified personnel for
i n s p e c t i o n .
Every time a cylinder is filled, the connection between the valve and cylinder
must be inspected. If any looseness or leak is detected between the valve
and the cylinder, do not fill. Drain cylinder and call manufacturer or take to
qualified personnel for inspection.
During filling, if any looseness or leak is detected between the valve and the
cylinder filling must stop immediately. Drain cylinder and call manufacturer
o r take to qualified personnel for inspection.
Figure 3 Valve-cylinder
connection.
Figure 4 Valve-cylinder
connection.
COMPRESSED GAS/AIR
PMI Piranha™ 7
WARNING
A COMPRESSED GAS OR AIR CYLINDER IS A PRESSURE VESSEL. FOLLOW RULES FOR SAFE HANDLING OF
COMPRESSED GAS OR AIR. ALL FILLING OF COMPRESSED GAS OR AIR CYLINDERS, AND ALL REPAIRS TO A
MARKER’S POWER SYSTEM OR ITS COMPONENTS MUST BE PERFORMED BY QUALIFIED PERSONNEL.
FILLING COMPRESSED
GAS/AIR
An overfill of any compressed gas or air cylinder can cause the safety
burst disk (Figure 5) on the cylinder to burst, or the cylinder itself to
rupture. A cylinder may rupture with extremely dangerous force. Use
properly rated disk only. Inspect the burst disc for a vent hole. If no hole
is present contact a local store or PMI immediately. DONOTFILL!
A scale must be used for all CO2fills to prevent an overfill. A pressure gauge must be used for all
compressed gas or air fills to prevent an overfill.
Fills must be performed by qualified personnel. A cylinder must not be filled beyond the cylinder’s
capacity per the U.S. Department of Transportation. A cylinder’s rated capacity appears on the cylinder
itself.
WARNING
DO NOT OVERFILL ANY CYLINDER.AN OVERFILL CAN CAUSE THE SAFETY BURST DISK OR THE CYLINDER ITSELF
TO RUPTURE.
HYDROSTATIC TESTING DATE
M a n y cylinders are required by the U.S. D e p a rtment of Tr a n s p o rtation to be hydro tested at
periodic interv a l s, with the interval varying according to cylinder type. The date of the cylinder’s initial
or later testing appears on the cylinder. A cylinder that is out of date for hydrostatic
testing must not be filled or used.
Figure 5 Safety burst disk.
PMI Piranha™ 8
WARNING
All paintball markers must be chronographed regularly. Adjust marker to shoot paintballs at a velocity
that is less than 300 feet per second (fps) and that does not exceed the velocity limit set by the
paintball park where the marker is in use.
Chronograph the marker at regular intervals during the day, as well as any time the power source is
refilled or changed, any time the barrel or any part in the power system is changed, and upon request
of any player or game official.
1. Chronograph the marker using standard chronograph procedures and following safety rules. Shooting
velocity will vary based upon many factors, such as paint, weather, and air system.
2. Adjust velocity by using a 3/16" allen wrench to turn the velocity adjuster. Figure 6. Turn adjuster
clockwise to raise velocity. Turn adjuster counterclockwise to lower velocity. Figure 7. Turning the
velocity adjuster changes the amount of tension on the hammer spring. The hammer spring may be
changed for additional velocity adjustment; insert stiffer spring to raise velocity and less stiff spring
to lower velocity (red spring is stiffer than blue spring). See next page for more about springs.
3. Chronograph the marker after every velocity adjustment.
4. Chronograph the marker at regular intervals during the day, as well as any time the power source is
refilled or changed, any time the barrel or any part in the power system is changed, and upon
request of any player or game official.
Figure 7. Clockwise increases
velocity. Counterclockwise
reduces velocity.
Figure 6. 3/16
"
allen
is used to adjust velocity.
Increases
velocity Decreases
velocity
V E L OCITY ADJUSTMENT
PMI Piranha™9
Action: semi-automatic, open bolt blow-back
Length: 17 inches overall (with 9 in. barrel and without
a t t a c h m e n t s )
Weight: 1 lb. 12 oz. (PMI Piranha™ VTL)
2 lb. 2 oz. (PMI Piranha™ CLR)
2 lb. 8 oz. (PMI Piranha™ EXT, STS)
2 lb. 12 oz. (PMI Piranha™ PRO)
all weights are without attached air source or loader
Height: 8 inches (without attached loader)
Barrel: threaded and polished aluminum; ported for all models
Barrel Length: 9 inches for Piranha™ VTL, BL, CLR; 11 inches for
Piranha™ EXT, STS and PRO
Feed Port: 7/8inch outside diameter; fits standard elbow adapters
Paintballs: for use only with standard “.68 caliber” (.68-inch
diameter) paintballs
Power source: accepts standard connections for CO2, regulated N2,
or regulated compressed air
Operating pressure: recommended 650 p.s.i. to 1000 p.s.i.
Input pressure: not to exceed 1000 p.s.i.
Power source input: vertical or bottom line ASA; accepts
standard threading
Grip: molded .45 style
Safety: mechanical slide / barrel plug
This owner’s manual is provided with several models of the PMI Piranha™ paintball marker. Pursuit Marketing,
Inc. (PMI, Inc.), reserves the right to modify or change its markers without incurring any obligation to incorporate
such modifications or changes in any of its products that were sold prior to the modification. The information in
this owner’s manual may be updated or changed without notice.
This owner’s manual is intended to remain with the paintball marker upon any subsequent transfer of the
marker, whether through sale, resale, or furnishing in any manner. A replacement owner’s manual may be
obtained from Pursuit Marketing, Inc., 500 East Touhy Ave. Unit C, Des Plaines, Illinois USA; phone 800.579.1633;
www.buypmi.com
PMI Piranha™11
The hammer spring assembled with the PMI Piranha™ paintball marker is intended to provide appropriate
shooting velocity for most outdoor paintball game situations and will provide a range of velocities
suitable for most conditions. Shooting velocity will vary based upon form of regulated compressed gas or
air used to power the marker, outside temperature, and other factors.
DO NOT EXCEED 300 FEET PER SECOND (fps) VELOCITY.
spring kit instructions
1 . A l w ays remove the gas source and all paintballs from your marker before you even consider disassembly of any
part of it.
2. Before changing any component of a paintball marker, fully understand the entire owners manual.
3.When changing springs or anything else that will alter shooting velocity of the marker, have
appropriate chronograph available for testing results.
4 . For h i g h e r shooting ve l o c i t y use re d s p r i n g . Never allow the marker to shoot at velocities ex c e e d i n g
300 FPS.
5. For lower shooting velocity use the blue spring.
6. Never shoot marker at the heads of people or animals.Never shoot at anyone not wearing goggles and
head protection approved for paintball games.
SAFETY FIRST!
Use a Barrel Plug!
V E LOCITY ADJUSTMENT SPRINGS
PMI Piranha™10
PMI High
Performance Ported
Barrel
Power Feed
Power Feed Plug
Custom Vertical Bottle Adapter
Ball Detent
Ultra Light Double Trigger
Safety Slide
45.Grip Double Trigger Frame
Velocity Adjusting Screw
Field Strip Pin
Sear Release Slide
Cocking Knob
Shown: PMI Piranha™ VTL
PMI PIRANHA™ PARTS LOCATION
PMI Piranha™12
Shown: PMI Piranha™ BL
Power Feed
Beaver Tail
Sight Rail
Ultra Light Double Trigger
Safety Slide
45. Grip Double Trigger Frame
Velocity Adjusting Screw
Field Strip Pin
Sear Release Slide
10˚ Bottom Line Adapter
Cocking
Knob
PMI High
Performance Ported
Barrel
PMI PIRANHA™ PARTS LOCATION
PMI Piranha™ 13
Shown: PMI Piranha™ BL VF
vertical Feed Beaver Tail
Sight Rail
Ultra Light Double Trigger
Safety Slide
45. Grip Double Trigger Frame
Velocity Adjusting Screw
Field Strip
Pin
Sear Release Slide
10˚ Bottom Line Adapter
Cocking
Knob
PMI High
Performance Ported
Barrel
PMI PIRANHA™ PARTS LOCATION
PMI Piranha™ 14
Shown: PMI Piranha™ STS
RAM AIR CHAMBER
Power Feed
Beaver Tail
Sight Rail
Gas Thru Foregrip
Ultra Light Double Trigger
45. Grip Double Trigger Frame
Velocity Adjusting Knob
Field Strip Pin
Sear Release Slide
10˚ Bottom Line Adapter
Cocking
Knob
Ball Detent
PMI High
Performance Ported
Barrel
Safety Slide
PMI Piranha™15
PMI PIRANHA™ PARTS LOCATION
Ball Detent
Shown: PMI Piranha™ STS VF
PMI High
Performance Ported
Barrel
RAM AIR CHAMBER
Safety Slide
Gas Thru Foregrip
Ultra Light Double Trigger
45. Grip Double Trigger Frame
Sear Release Slide
10˚ Bottom Line Adapter
Field Strip Pin
Beaver Tail
Sight Rail
Vertical Feed
Velocity Adjusting Knob
Cocking
Knob
PMI PIRANHA™ PARTS LOCATION
PMI Piranha™ 16
SHOWN: PMI PIRANHA™ EXT PRO
RAM AIR CHAMBER
Vertical Feed
Beaver Tail
Sight Rail
PE Inline Reg
Ultra Light Double Trigger
45. Grip Double Trigger Frame
Velocity Adjusting Knob
Field Strip Pin
Sear Release Slide
10˚ Bottom Line Adapter
Flush Cocking
System
Ball Detent
Clear Prizm Barrel
Safety Slide
Custom Drop Forward
1500 psi PE Gauge
Chrome Nozzel
Brink
PMI PIRANHA™ PARTS LOCATION
PMI Piranha™ 17
SHOWN: PMI PIRA N H A ™ P R O T S
RAM AIR CHAMBER
Vertical Feed
Beaver Tail
Sight Rail
PE Inline Reg
Custom Double Trigger Shoe
aluminum 45. double
Trigger Frame
Velocity Adjusting Knob
Field Strip Pin
Sear Release Slide
10˚ Bottom Line Adapter
Ball Detent
Custom Drop Forward
1500 psi PE Gauge
PMI High
Performance Ported
barrel
Cocking
Knob
PMI PIRANHA™ PARTS LOCATION
PMI Piranha™18
PMI Piranha™ 19
Dear Piranha Owner:
Thank you for purchasing a PMI Piranha™ paintball marker.Your marker has
been designed to give you many years of trouble free service.
Please take a few minutes right now to complete your PMI Piranha’s
warranty card. By sending in your warranty card you will be kept up to date
on all the latest improvements and upgrades available for your PMI
Piranha™ marker.
Thank you once again for purchasing a PMI Piranha™ marker, we appreciate
your business and promise to provide you with the best after purchase
warranty service available in the Paintball Industry.
Regards
All of us at PMI Piranha™ Production
YOUR PMI PIRANHA WARRANTY CARD
PMI PIRANHA™ WARRANTY REGISTRATION
Please fill out entirely this PMI Piranha™ Warranty Registration form including the checklist and mail it to:
Pursuit Marketing, Inc., 500 East Touhy Ave, Unit C, Des Plaines, IL 60018 USA . Save your original sales
purchase receipt or packing slip. A copy must accompany the marker when warranty repairs are sought. Consult
owners manual for warranty information and instructions on obtaining repair service.
Purchaser’s name:
Mailing address:
City, State, Zip:
Phone number:
E-Mail Address:
Age:
Model purchased:
Serial number:
(Serial number is located left hand side of marker next to Piranha logo)
Where purchased:
Date of purchase:
Seller’s name:
Seller’s address:
City, State, Zip:
Purchase price:
Pursuit Marketing, Inc., thanks you for purchasing this high quality PMI Piranha™ paintball marker. Please read each of the
following items and initial that you have read and understood it before operating the PMI Piranha™ paintball marker:
1. This paintball marker is intended for sale to adults only, for use in compliance with all applicable laws and regulations.
Adult supervision is recommended at all times whenever a minor is handling this paintball marker in any manner.
Please initial: ______
2 . Always wear protective goggles and headgear specifically designed for paintball when shooting this marker.
Please initial: ______
3. Every person within range of an area where a paintball marker is in use must wear protective goggles and headgear
specifically designed for paintball. Please initial: ______
4. Operate a paintball marker only in areas where it is safe and lawful to do so. Please initial: ______
5. Misuse of this paintball marker can result in criminal penalties including jail time. Please initial: ______
6. Read this owner’s manual completely before loading, pressurizing, or operating the PMI Piranha™ paintball marker.
Please initial: ______
7. Never aim or shoot a paintball marker toward any person who is not wearing protective goggles and headgear specifically
designed for paintball. Please initial: ______
8. During game play, follow referee’s instructions and all field safety rules. Avoid shooting at a player’s head,
neck, or groin area. Please initial: ______
9. Play paintball only where the rules of safe paintball play are followed. Please initial: ______
10. All paintball markers must be chronographed regularly. Adjust marker to shoot paintballs at a velocity that is less than
300 feet per second (fps) and that does not exceed the velocity limit set by the paintball park where the marker is in use.
Chronograph the marker at regular intervals during the day, as well as any time the power source is refilled or changed,
any time the barrel or any part in the power system is changed, and upon request of any player or game official.
Please initial: ______
11. This paintball marker operates using compressed gas or air at specified input pressure ranges. Follow safety procedures
when handling compressed gas or air. All filling of compressed gas or air cylinders must be done by qualified persons.
Please initial: ______
12. Follow the rules of safe marker handling: Keep finger off trigger until ready to shoot. Keep muzzle pointed in a safe
direction. In addition, firmly insert a barrel plug into the muzzle and push the mechanical safety “on” when the marker is
not in use and when in any non-shooting area. Please initial: ______
WARNING
THE PMI PIRANHA™ PAINTBALL MARKER IS NOT A TOY. MISUSE MAY CAUSE SERIOUS INJURY
OR DEATH. EYE PROTECTION DESIGNED FOR PAINTBALL USE MUST BE WORN BY THE USER AND
ANY PERSON WITHIN RANGE. READ THIS OWNER’S MANUAL COMPLETELY BEFORE LOADING,
PRESSURIZING, OR OPERATING THE PMI PIRANHA™ PAINTBALL MARKER. Please initial: ______
13 .Never shoot at domestic animals or wildlife. Please initial: ______
14. Never mark objects outside the confines of the game or authorized shooting areas. Please initial: ______
15. Never look down the barrel of the marker. Please initial: ______
16. Before disassembly, storage, or transport of the marker, remove all paintballs from the marker, barrel, and loader;
remove power source; and remove all gas or air from the power system. Insert barrel plug and put mechanical safety in
“no shoot” position. Please initial: ______
17. Carry marker in case or sturdy bag when in public. Please initial: ______
18. Safely and securely store marker to prevent access to it by unauthorized persons. Please initial: ______
Detach and mail
PMI Piranha™20
1. Receiver 10110
2. Barrel 10124
3A. ASA Plug
3. Custom ASA with chamber 10785
4. Sight Rail 10123
5 Field Strip Pin 10021
6. Valve Body 10510
7. Valve Pin 10511
8. Valve Cup Seal 10512
9. Valve Guide 10520
10. Valve Spring 10550
11. Bolt 10210
12. Rear Block 10402
13. Cocking Rod 10211
14. Hammer 10310
15. Hammer Spring 10350
16. Hammer Cushion 10360
17. Spring Guide 10301
18. Ball Stop 10102
19. Ball Retention Cap 10101
20. Ball Retainer 10160
21. Double Trigger Frame Assembly 10052
22. Sear Release Slide 10702
23. Grip Left 10703
24. Grip Right 10704
25. Velocity Screw 10485
26. Valve Set Screw 10513
27. ASA Screw 10682
28. Ball Retainer Screw 10180
29. Trigger Frame Screw 10783
30. Grip Screws 10782
31. Sight Screw 20010
32. Bolt Pin 10291
33. Velocity Screw O-Ring 10460
34. Trigger Frame Screw O-Ring 10761
35. Hammer O-Ring 10361
36. Bolt O-Ring 10260
36. Valve O-Ring Rear 10260
36. ASA O-Ring Rear 10260
37. Valve O-Ring Front 41010
37. ASA O-Ring Front 41010
38. Ball Stop O-Ring 10162
39. Barrel O-Ring 10161
Bottom Line & CLR Only
40. Port Reducer 41035
41. 10" SS Braided Hose 47062
42. Bottom Line SS Screws 42016
43. 10˚ Bottom Line Adapter 42013
PMI PIRANHA™ PARTS DIAGRAM
1. Receiver 10110/10104
2. Barrel 10136/10135
3. ASA Body 10617/10615
3A. ASA Plug 10618/10616
3B. Ram Air Spring 10650
3C. Ram Air Piston 10619
3D. Piston O-Ring 10661
4. Sight Rail 10115/10116
5 Field Strip Pin 10021
6. Valve Body 10510
7. Valve Pin 10511
8. Valve Cup Seal 10512
9. Valve Guide 10520
10. Valve Spring 10550
11. Venturi Bolt 10209
12. Rear Block 10402
13. Cocking Rod 10211
14. Hammer 10310
15. Hammer Spring 10350
16. Hammer Cushion 10360
17. Spring Guide 10301
18. Ball Stop 10102
19. Ball Retention Cap 10101
20. Ball Retainer 10160
21. Double Trigger Frame Assembly 10700
22. Sear Release Slide 10702
23. Grip Left 10703
24. Grip Right 10704
25. Velocity Screw 10482
26. Valve Set Screw 10513
27. ASA Screw 10680
28. Ball Retainer Screw 10180
29. Trigger Frame Screw 10783
30. Grip Screws 10782
31. Sight Screw 20010
32. Bolt Pin 10291
33. Velocity Screw O-Ring 10460
34. Trigger Frame Screw O-Ring 10761
35. Hammer O-Ring 10361
36. Bolt O-Ring 10260
36. Valve O-Ring Rear 10260
36. ASA O-Ring Rear 10260
37. Valve O-Ring Front 41010
37. ASA O-Ring Front 41010
38. Ball Stop O-Ring 10162
39. Barrel O-Ring 10161
40. Gas Thru Grip 10788/100780
41. 6.75" SS Hose 47061
42. Bottom Line SS Screws 42016
43. 10˚ Bottom Line Adapter 42013/10779
PMI PIRANHA™ PARTS DIAGRAM
PMI Piranha™21
PMI PIRANHA™ PARTS DIAGRAM
1. Receiver 10109
2. Barrel 10126
3. ASA Gas Port 10613
3A. ASA Plug 10614
3B. Ram Air Spring 10650
3C. Ram Air Piston 10619
3D. Piston O-Ring 10661
4. Sight Rail 10121
5 Field Strip Pin 10021
6. Valve Body 10510
7. Valve Pin 10511
8. Valve Cup Seal 10512
9. Valve Guide 10520
10. Valve Spring 10550
11. Venturi Bolt 10209
12. Rear Block 10402
13. Custom Cocking Rod 10231
14. Hammer 10310
15. Hammer Spring 10350
16. Hammer Cushion 10360
17. Spring Guide 10301
19. Ball Retention Cap 10101
20. Ball Retainer 10160
21. Aluminum Trigger Frame 10707
22. Sear Release Slide 10702
23. Grip Left 10703
24. Grip Right 10704
25. Velocity Screw 10482
26. Valve Set Screw 10513
27. ASA Screw 10682
28. Ball Retainer Screw 10180
29. Trigger Frame Screw 10783
30. Grip Screws 10782
31. Sight Screw 20010
32. Bolt Pin 10291
33. Velocity Screw O-Ring 10460
34. Trigger Frame Screw O-Ring 10761
35. Hammer O-Ring 10361
36. Bolt O-Ring 10260
36. Valve O-Ring Rear 10260
36. ASA O-Ring Rear 10260
37. Valve O-Ring Front 41010
37. ASA O-Ring Front 41010
39. Barrel O-Ring 10161
40. Regulator 10787
41. 6.75" SS hose 47061
42. Bottom line SS screw 42016
43. 10˚ Bottom Line Adapter 42013
PMI Piranha™22
The PMI Piranha™ is easy to strip for cleaning and basic maintenance.Regular cleaning
and maintenance is highly recommended, including frequent checks of
all power system components. Keep screws tightened. Replace worn components with
factory parts; all leaks must be repaired promptly. Power system repairs are best performed by the
factory or an authorized factory repair facility; contact PMI for information regarding authorized PMI
Piranha™ repair facilities.
WARNING
DO NOT ATTEMPT TO PERFORM MAINTENANCE PROCEDURES UNLESS QUALIFIED TO DO SO. DO NOT
DISASSEMBLE MARKER UNTIL IT IS COMPLETELY DRAINED OF COMPRESSED GAS OR AIR AND ALL
PAINTBALLS HAVE BEEN REMOVED. ALL FILLING OF COMPRESSED GAS OR AIR CYLINDERS MUST BE
DONE BY QUALIFIED PERSONS.
CONTACT PMI, INC., FOR REPAIR ASSISTANCE AND INFORMATION REGARDING AUTHORIZED PMI
PIRANHA™ REPAIR FACILITIES. PHONE 800.579.1633;WWW. BUYPMI.COM
PAINTBALL MARKER POWER SYSTEMS MUST BE REPAIRED OR REPLACED ONLY WITH THE CORRECT
PRESSURE RATED COMPONENTS.
DISASSEMBLY PROCEDURE
1. Before disassembly of the marker, first remove the air tank, and then remove all paintballs from
the marker, barrel, and loader.
2. Leave barrel plug firmly inserted in
barrel and keep barrel pointed in a
safe direction.
3. To remove the bolt/hammer assembly,
first remove the field strip pin. Figure
10 The field strip pin is at the
center rear of the receiver and is
removed by pulling it out of the left
side of the marker.
Figure 10 Remove field strip pin to begin disassembly.
DISASSEMBLY
PMI Piranha™23
4. Grasp the block assembly and slowly begin to pull the bolt/hammer assembly out of the marker. Figure 11
5. When the bolt/hammer assembly is about halfway out, grasp it with one hand and continue to hold it
intact while removing it completely from the marker. Figure 12
LUBRICATION
It is recommended that a 100% synthetic gun oil, such as PMI Paintball Gun Oil, be used for lubricating the
marker.
1. Before each insertion of the removable power source (tank or remote line) into the ASA, clean the threads
and put two drops of oil onto them.
2. After removing the bolt/hammer assembly, put a drop of oil onto each o-ring.
3. Before screwing the barrel onto the marker clean the barrel threads.
4. After removing the trigger frame,put a drop of oil onto the pivot points of the trigger and sear.
5. The fastest way to oil the entire Piranha is to take off the barrel; put 4 drops of oil into the ASA, screw the
bottle in over the oil, and shoot the gun several dozen times without the barrel.
Figure 13 Bolt-hammer assembly
removed.
Figure 11 Figure 12 Grasp assembly.
PMI Piranha™24
LUBRICATION
REGULAR MAINTENANCE FOR THE PIRANHA™
1. Clean all broken paint out regularly. Do this before you oil the gun.
2. Oil marker each time you play with synthetic gun oil. Not 3-in-1. PMI’s new oil works the best.
3. The fastest way to oil your Piranha is to drop three or four drops in the ASA and screw the bottle in over it.
Take the barrel off and shoot the gun several dozen times to cycle oil through the gun.
4. Inspect the bolt and hammer o-rings after each time you oil the gun. Make sure they are getting oil.
5. Clean out the powerfeed or vertical feed. Any oil or paint in there will make the gun inaccurate.
6. Never wash the bolt assembly off with water unless you are going to oil them before you reassemble them. Dry
before oiling.
7. Check ball retainer every 25,000 shots.Replace if it is worn or broken.
8. Never stretch hammer spring to increase velocity. This will shorten the life span of the spring.

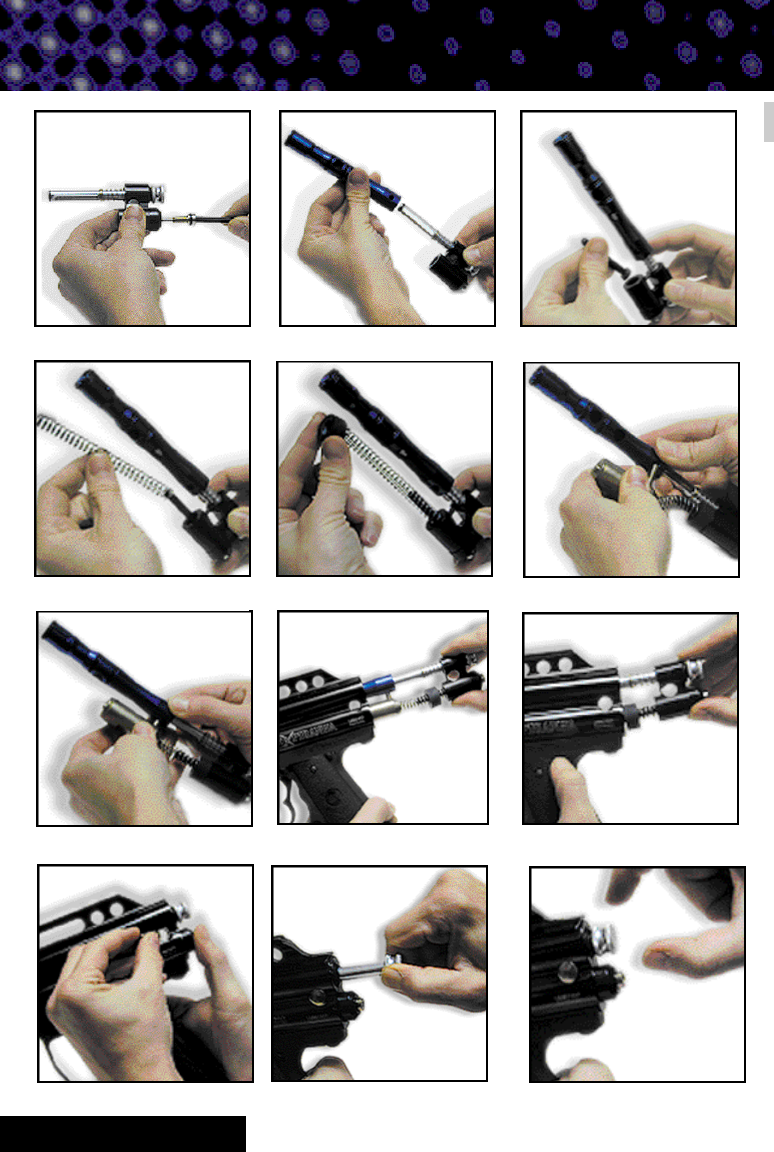

REASSEMBLY PROCEDURE
1. See Figures 15 through 23, which shows the procedure for reassembly of the bolt/hammer assembly.
The flush cocking bolt reassembly procedure can be found on the following page.
Once it is reassembled, hold the bolt/hammer assembly in one hand. Figure 24. Push it gently into the marker
until it stops sliding forward, which will be about halfway into the body of the marker. Figure 25.
2. Before it stops sliding forward, push the Sear Release Slide button forward. Figure 26. The Sear Release Slide
button is located on the left side of the marker near the top of the left grip panel. Continue to press
assembly into marker. Pushing the button allows the bolt/hammer assembly to
slide easily the rest of the way into the marker.
3. Field strip pin must be inserted into the left side of the marker. Figure 14
4. After reassembly, follow the procedures in this manual for adding power
system, loader, and paintballs.
PMI Piranha™25
Figure 14
maintenance and reassembly
Figure 22 Figure 23
Figure 24 Figure 25 Figure 26
Figure 18 Figure 19 Figure 20
Figure 21
Figure 17Figure 15 Figure 16
PMI Piranha™26

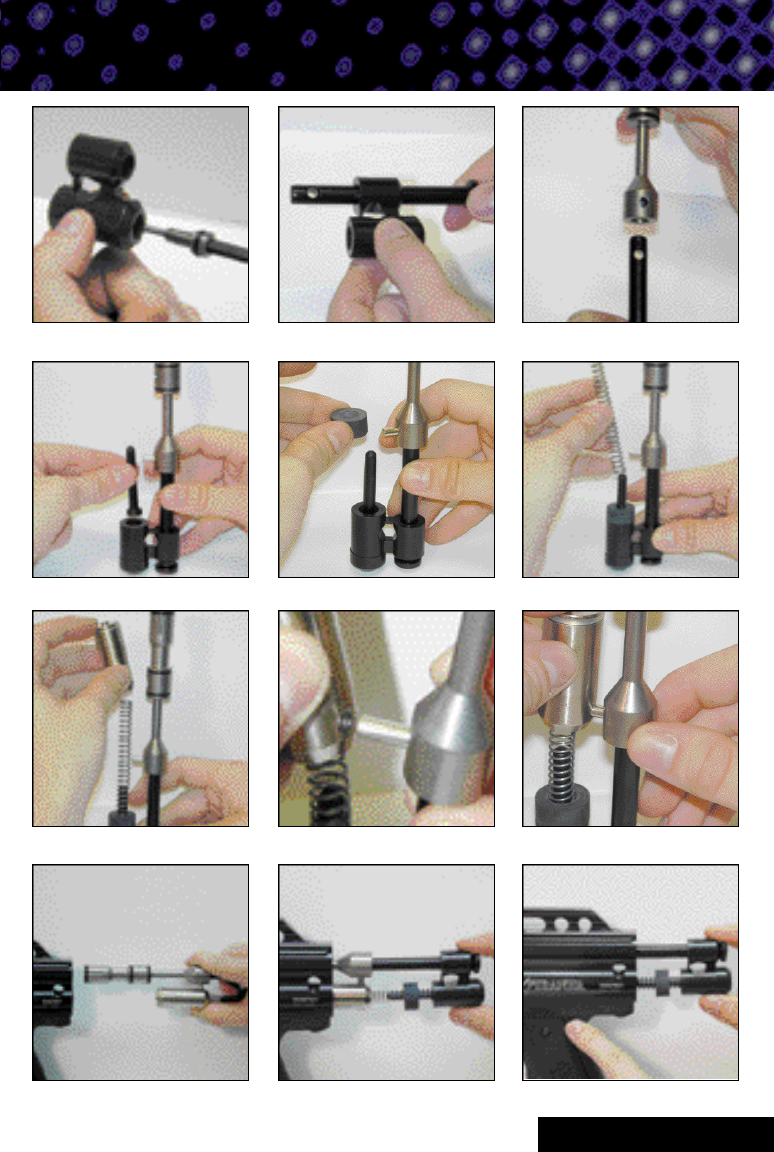

BOLT/HAMMER REASSEMBLY
Figure 27
FLUSH COCKING BOLT REASSEMBLY
PMI Piranha™27
Figure 28 Figure 29
Figure 30 Figure 31 Figure 32
Figure 33 Figure 34 Figure 35
Figure 36 Figure 37 Figure 38
WARNING
DO NOT ATTEMPT TO COMPLETELY DISASSEMBLE YOUR PIRANHA™ UNLESS QUALIFIED TO DO SO.
CONTACT PMI, INC., FOR REPAIR ASSISTANCE AND INFORMATION REGARDING AUTHORIZED PMI PIRANHA™
REPAIR FACILITIES. PHONE 800.579.1633 /BUYPMI.COM
PAINTBALL MARKER POWER SYSTEMS MUST BE REPAIRED OR REPLACED ONLY WITH THE CORRECT
PRESSURE RATED COMPONENTS.
1. Before disassembling the marker remove the power source, then remove all paintballs from the
marker, barrel, and loader.
2. To remove the bottom line air system (if needed), detach the bottom line ASA from the grip by removing
the two screws. Figure 39. Then unscrew the port reducer;vertical grip or regulator from the vertical
ASA adapter. Figure 40.
3. To remove trigger frame from the receiver,
remove the two large 1/8” socket allen screws
under the receiver.One is in front of the
trigger guard and one is behind the grip
portion of the frame. Figure 41. The
receiver then will disassemble from the
trigger frame.
Figure 39 Figure 40
Figure 41
Vertical ASA Adapter
Port Reducer
Large
Allen Screw
Large
Allen Screw
Grip
Bottom
line ASA
COMPLETE DISASSEMBLY
PMI Piranha™28
4. To remove the ASA adapter, remove the small allen screw under the receiver. Figure 42. The ASA adapter
can then be removed. Figure 43. NOTE: The o-ring on the ASA adapter that, at insertion, contacts the
receiver first is white. The other o-ring is black.
The valve body must be inserted correctly: note that the hole to the rear of the valve is tapered, and has a
black o-ring. The front of the valve has a larger hole, is not tapered, and has a white polyurethane o-ring. Be
careful reinserting valve body. Any scratches to the front can cause leaks.The valve pin assembly must be
inserted correctly; valve pin must drop down into valve body completely.Valve spring must be centered in bore.
IMPORTANT: Valve body o-rings and front valve portion of the receiver must
be well oiled prior to valve body insertion.
6. Follow the procedures in this manual for adding power system, loader, and paintballs.
Questions about the operation of the PMI Piranha™ paintball marker may be directed to: Pursuit Marketing,
Inc., 500 East Touhy Ave., Unit C, Des Plaines, IL. 60018 USA ; phone 800.579.1633 or buypmi.com for any
updates regarding your Piranha™ purchase.
Figure 44 Figure 45 Figure 46
Figure 42 Figure 43
5. To access the valve assembly,
remove the valve spring, pin, and
guide as in Figure 44. Remove
the small brass screw located in
the center of the underside of
the receiver, Figure 45. To remove
or reinsert the valve body, use a
flat ended wooden dowel or the
eraser end of a pencil to push
the valve body out of the front
of the r e c e i v e r , Figure 46.
PMI Piranha™29
The Pure Energy Regulator is a second stage regulator. The internal configuration and spring rates were
chosen to optimize the Pure Energy Regulator for input pressures in the 800 to 1200 psi range, and the
Pure Energy Regulator’s adjustment allows the delivery pressure to the gun to be adjusted anywhere in the
200 to 800 psi range.It is recommended that you use an anti-siphon tank or a remote if you use CO2
with this regulator. Liquid CO2will lead to erratic velocity.
The Pure Energy Regulator is adjusted with a 3/32”Allen Key inserted into the bottom end of the reg.
Turning the Allen Key counter clockwise increases output pressure and turning it clockwise reduces the
output pressure. It is necessary to cycle the gun, so that the new setting can take effect. Higher output
means higher velocity. Lower output means lower velocity but it might mean the marker will have
problems properly recocking. DO NOT EXCEED 300 fps.
ADJUSTING THE PURE ENERGY REGULATOR
PMI Piranha™30
pure energy vertical regulator
WARNING
The Pure Energy Regulator stays pressurized after the
tank is removed. The marker can still fire after the tank
is taken off!
THE THREADS ON THE BONNET & MAIN BODY ARE LEFT
HAND THREADS .
1 Bonnet
2 Piston
3 Reg Seal
4 Mainspring
5 Adjusted Slug
6 Main Body
7 Adjusting Screw
8 Outer Sleeve
9 Snap Ring
R-1 015-90 Urethane O-Ring
R-2 012-90 Urethane O-Ring
R-3 008-90 Urethane O-Ring
R-4 013-70 Buna O-Ring
R-5 019-70 Buna Friction Ring
PLEASE NOTE:
PMI Piranha™31
PURE ENERGY 2ND STAGE REGULATOR
WARNING
DO NOT ATTEMPT TO PERFORM MAINTENANCE PROCEDURES UNLESS QUALIFIED TO DO SO.
THIS TROUBLESHOOTING GUIDE DOES NOT COVER ALL SITUATIONS AN INDIVIDUAL MAY ENCOUNTER.
CONTACT PMI, INC., FOR REPAIR ASSISTANCE AND INFORMATION REGARDING AUTHORIZED PMI PIRANHA™
REPAIR FACILITIES. PHONE 800.579.1633 / BUYPMI.COM
PAINTBALL MARKER POWER SYSTEMS MUST BE REPAIRED OR REPLACED WITH THE CORRECT PRESSURE
RATED COMPONENTS.
BEFORE DISASSEMBLY OF THE MARKER, REMOVE POWER SOURCE; REMOVE ALL PAINTBALLS FROM THE
MARKER, BARREL, AND LOADER.
Leaks down barrel Check cup seal for wear or grooves. Replace.
Leaks at connection between braided air hose Requires disassembly of air hose assembly
.and fitting for repairs; contact factory or factory
authorized repair center
Leaks at body of marker or heavily down the barrel Requires removal of valve and inspection
of valve o-rings, cup seal, and valve surface.
Never use a screwdriver or metal object to
remove valve. Use a pencil eraser or other
soft instrument.
Leaks at connection between gas-through foregrip Remove foregrip unit and check o-rings.
& vertical ASA Replace with tank o-rings if worn or broken.
Leak in pressure source between tank valve Do not fill cylinder. Immediately take to
and cylinder qualified personnel for inspection. Cylinder
must be drained
Leaks at connection between ASA and tank Check o-ring at connection or on remote hose
connector
AIR LEAK
PMI Piranha™32
TROUBLESHOOTING
NOTE:Any PMI Piranha with a regulator will need the regulator adjusted properly to get adequate velocity
out of the marker. Please see page # for instructions how to adjust the regulator.
TRIGGER AND SHOOTING
Trigger pulls back, marker will not shoot Check that the safety slide is back and the
red dot is visible. Check that the marker is
cocked, air source is correctly attached and
air source is properly filled
Trigger action does not feel smooth Check pin at top of trigger frame; use center
punch to tap pin back into place
Marker runs on (partially cycles more than Check that air source is correctly attached to
once when trigger is squeezed) marker. Check that air source is adequately
filled. Check sear for wear. Check hammer o-ring
for wear and replace hammer o-ring (35) if
needed, using factory o-ring only. A tank
o-ring will not work. Use of other than
factory o-ring can cause run on. Check
that cup seal (8) is snug on valve pin (7).
VELOCITY
Low Check that air source is adequately filled
Low Adjust using velocity adjuster
Low Remove bolt/hammer assembly and clean it;
clean inside receiver area where bolt/hammer
assembly is located; lubricate all o-rings on bolt
assembly with synthetic oil
Low Change to a stiffer hammer spring
High Adjust using velocity adjuster
High Change to a less stiff hammer spring
DO NOT EXCEED 300 FPS VELOCITY.
NOTE:Any PMI Piranha with a regulator will need the regulator adjusted properly to get proper recock
out of the marker. Please see page # for instructions how to adjust the regulator.
TROUBLESHOOTING
PMI Piranha™33
TROUBLESHOOTING
WARNING
DO NOT ATTEMPT TO PERFORM MAINTENANCE PROCEDURES UNLESS QUALIFIED TO DO SO.
CONTACT PMI INC., FOR REPAIR ASSISTANCE AND INFORMATION REGARDING AUTHORIZED PMI PIRANHA™
REPAIR FACILITIES. PHONE 800.579.1633 /BUYPMI.COM
BEFORE DISASSEMBLY OF THE MARKER, REMOVE POWER SOURCE; REMOVE ALL PAINTBALLS FROM THE
MARKER, BARREL, AND LOADER.
PAINTBALL MARKER POWER SYSTEMS MUST BE REPAIRED OR REPLACED WITH THE CORRECT PRESSURE
RATED COMPONENTS.
SHOOT ONLY QUALITY PAINTBALLS. PMI PREMIUM, PMI GOLD TWO-TONE™, PMI EL TIGRE™, PMI ALL STAR™
AND MARBALLIZER™ PAINTBALLS ARE RECOMMENDED FOR USE IN THE PMI PIRANHA™
Barrel comes loose Check barrel o-ring; firmly tighten barrel
Do not over oil barrel o-ring
PAINTBALLS
Check for broken paint or oil in barrel, loader, feed
tube and chamber. Bolt/ hammer assembly area must
also be free of broken paint. Check that marker is
not shooting over 300 fps. Disassemble and clean.
Not flying straight
Check ball retainer (20) and replace if necessary. Check
that velocity does not exceed 300 fps.
Break in Barrel
Do not drop into feed tube Shake loader; check loader and feed tube
for broken paint
Two shoot at a time Check ball retainer (20) and replace if
necessary
Check to see that the threads on the barrel match, if it
is difficult to tighten the threads onto the receiver; if
threading is mismatched, barrel is not designed for use
with PMI Piranha™.
Aftermarket barrel does not tighten
BARREL
PMI Piranha™34
PURE ENERGY REGULATOR
TROUBLESHOOTING
PMI Piranha™35
ORIGINAL SALES PURCHASE RECEIPT
OR PACKING SLIP
Save your original sales purchase receipt or packing slip. A copy must accompany the warranty card.
PMI, Inc., takes pride in manufacturing high quality paintball products for many years of trouble free
enjoyment. Should you experience any difficulty in operating or maintaining this PMI Piranha™ paintball
marker, please re-read the owner’s manual carefully. If further assistance is needed, contact PMI, Inc., at
800.579.1633
WARRANTY REPAIR RETURN PROCEDURE
A returned product must be accompanied by a ReturnAuthorization (RA) number on the outside of the box;
please call PMI, Inc., at 800.579.1633 to obtain a RA number before shipping product to PMI, Inc. All
warranty returns must be accompanied by the owner’s name, address, and telephone number. Include owner’s
fax and e-mail if possible.Owner must remove all paintballs and completely drain power system before ship-
ping, and must pack product securely to avoid damage during shipping. Include a brief
description of what does not appear to work correctly.Ship to: PMI, Inc., 500 East
Touhy Ave., Unit C, Des Plaines, Illinois 60018 USA.
OUT OF WARRANTY REPAIRS
Should repairs be needed on a PMI Piranha™ that is out of warranty, contact PMI at 800.579.1633 for
information regarding authorized PMI Piranha™ repair facilities.
Any PMI Piranha™ marker returned to PMI for out of warranty repairs must be accompanied by a RA
number, description of what does not appear to work correctly, and owner’s information requested in
“Warranty Repair Return Procedure” above. Including sales purchase receipt or packing slip is optional for
out of warranty repairs. Please note that there will be a minimum labor charge and may be additional
charges for parts to repair an item/product that is not covered by warranty.An estimate of repair cost will
be provided to the customer and authorization to complete the repairs will be obtained prior to repairs
being done.
WARRANTY
PMI Piranha™36
PMI Piranha™37
Pursuit Marketing, Inc. (PMI, Inc.), extends a warranty to the original purchaser of the PMI Piranha™
paintball marker that the product is free from defects in materials and workmanship for a period of one
year from the date of purchase. PMI, Inc.’s obligation under this warranty shall be limited to repairing or
replacing any part of the product which is defective.
Service for this replacement or repair will be done free of charge upon delivery of the product to Pursuit
Marketing, Inc. (PMI, Inc.), 500 East Touhy Ave., Unit C, Des Plaines, IL 60018 USA; Customer pays shipping
charges. Please call PMI, Inc., at 800.579.1633 for information on obtaining warranty service or to obtain a
Return Authorization (RA) number before shipping product to PMI, Inc. Do not mail your gun in
without first obtaining an RA number.Please make sure to ship your marker
through a shipping company that allows you to track and insure your
package. PMI is not responsible for guns that never reach us.
WARRANTY EXCLUSIONS AND
LIMITATIONS
This warranty does not apply in the event of misuse or abuse of the product, use of any parts other than
original factory parts, or unauthorized repairs, modifications, or alterations, and does not apply to any parts
that are made defective by modification, misuse, abuse, or accident. This warranty does not apply to o-rings,
cup seals, or springs, or to normal fading of anodized finish, scratches, or other cosmetic wear, or to any
items or parts not manufactured by PMI, Inc.
Other than as expressly stated herein, PMI, Inc., does not make any warranties, express or implied, including
but not limited to implied warranties of merchantability or fitness,for any purpose other than that for which
the PMI Piranha™ was designed. This warranty gives you specific legal rights.You may have other rights
which may vary from state to state.
PMI, Inc., is not liable for any consequential damages or incidental damages which may arise from the use or
operation of the PMI Piranha™ or from any breach of the warranty herein set forth.
WARRANTY REGISTRATION FORM
Please fill out entirely the enclosed PMI Piranha™ Warranty Registration form and mail it to: Pursuit
Marketing, Inc., 500 East Touhy Ave., Unit C, Des Plaines, Illinois 60018 USA.
REPAIR PROCEDURE
The PMI Piranha™ is a registered trademark. Design rights &
all rights reserved. All patterns, drawings, photographs,
instructions or manuals remain the intellectual property of the
manufacturer. Patents pending. All rights will be strictly
enforced.
PMI Piranha™38
PMI Piranha™ Paintball Markers
manufactured by:
Pursuit Marketing, Inc.
500 E Touhy Ave. Unit C
Des Plaines, Illinois 60018 USA
Phone 847.299.5000
www.buypmi.com

Navigation menu
