Polar Electro 2R Heart Rate Sensor module User Manual HW CHR 1
Polar Electro Oy Heart Rate Sensor module HW CHR 1
User manual - v1
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166

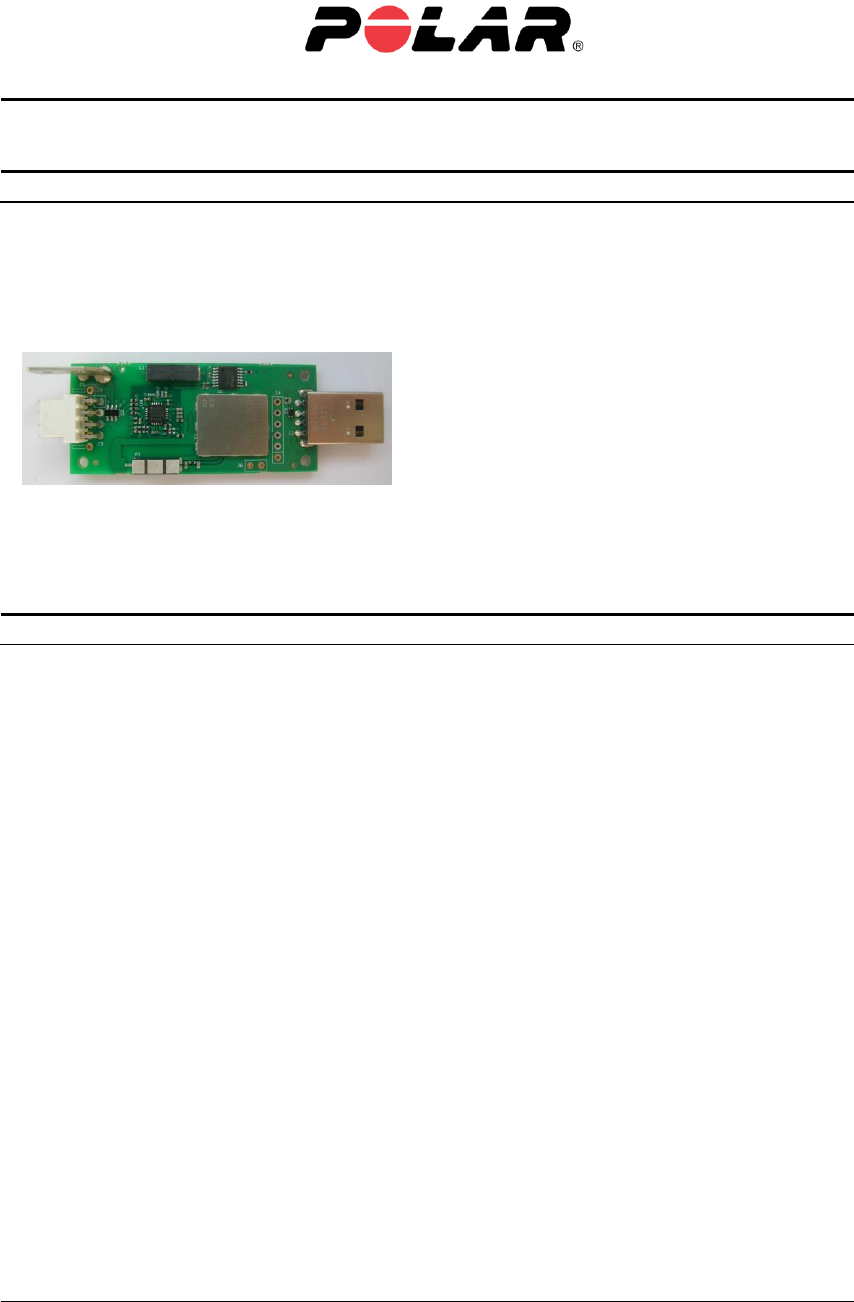

POLAR 2R
Bluetooth Smart, 5 kHz and Contact heart rate
KEY FEATURES
RF
Sensitivity -94dBm
TX power 0dBm
5 kHz
Coded / non-coded
Adjustable ranges (4 steps) thru the API
CHR
Detection time 4s. typical
Hands on/off information available
Automatic pairing to Polar dual transmitters
(H7/H10)
Selected Polar Smart coaching features
included
Polar API available
DESCRIPTION
Polar 2R –platform incorporates several key features into one simple package that can be
interfaced either by UART or by USB. The API is also available for several different operating
systems.
The platform includes Bluetooth Smart, 5 kHz receiver system and the contact heart rate –
function. It comes with selected coaching features that are available when compatible transmitter
belt is used. To be noted, coaching features require heart rate variability and not all transmitters
support that.
It is possible to perform auto-pairing to Polar H7 and H10 transmitters. This means when user
wears H7 or H10 and he/she walks to fitness equipment, the 5 kHz system detects the transmitter
and the transmission code. Then platform scans for Bluetooth sensors and when a match of this
data is found, the system connects to this particular Bluetooth transmitter. For the user this action
is invisible.
The platform has software update possibility.
The available options are listed on the last page of this datasheet. Please contact your local sales
representative to discuss your requirements. Contact information is found on the footer of each
page.
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
SYSTEM DESCRIPTION AND SPECIFICATION
BLOCK
FEATURE
INFO
RF
Bluetooth transceiver
Bluetooth 4.2
2400MHz – 2483.5MHz, 1MHz
nominal channel bandwidth
-94dBm receiver sensitivity
5 kHz receiver
Coded and non-coded
functionality
Adjustable lock-in and reception
range (thru API)
Auto-pairing
Filter selection
Contact Heart Rate
4 second detection time
Hands on/off information
Peripherals
UART
USB 1.1 FS
3.3V nominal for UART
5V standard USB
SW update
Available
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166

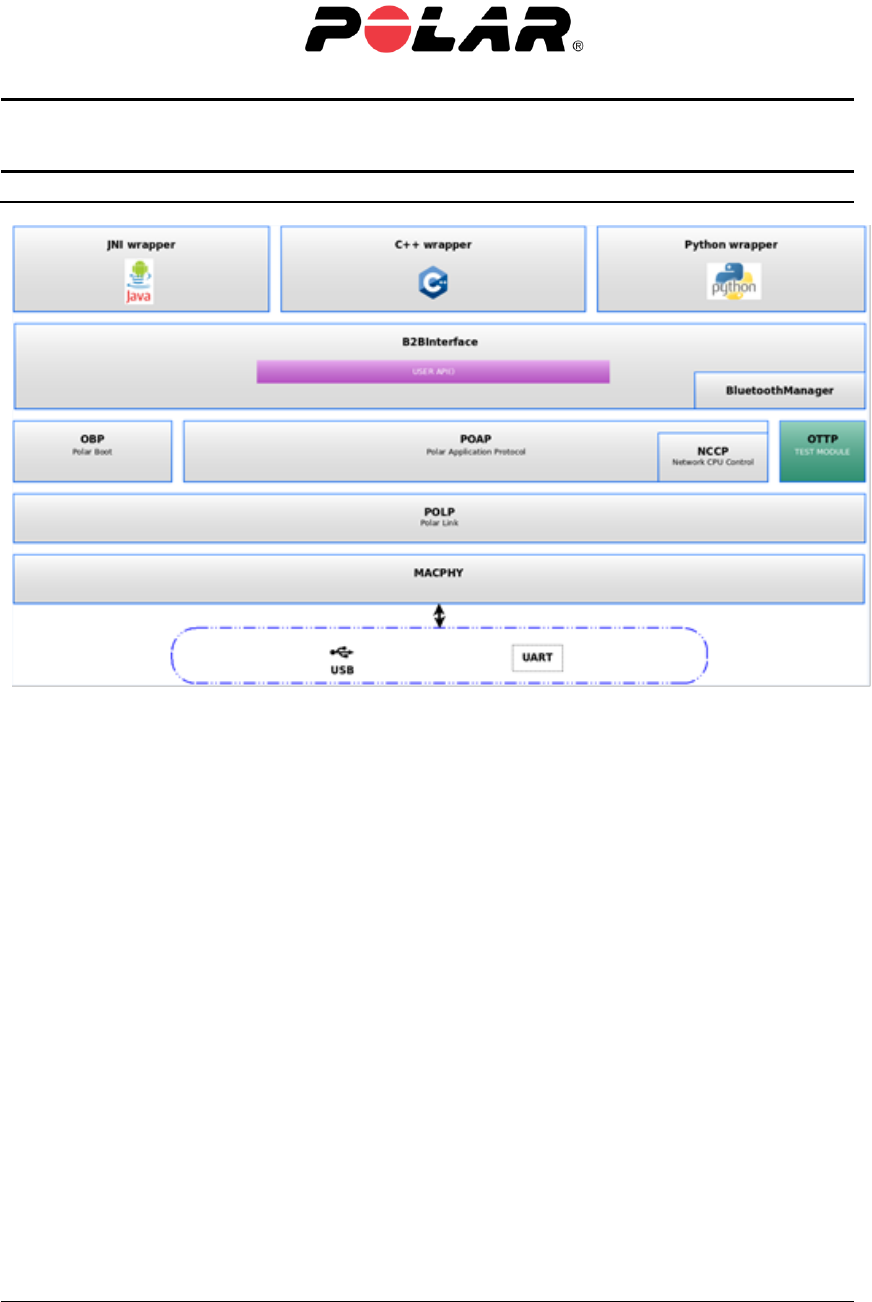

POLAR API BLOCK DIAGRAM
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
POLAR 2R HW BLOCK DIAGRAM
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166

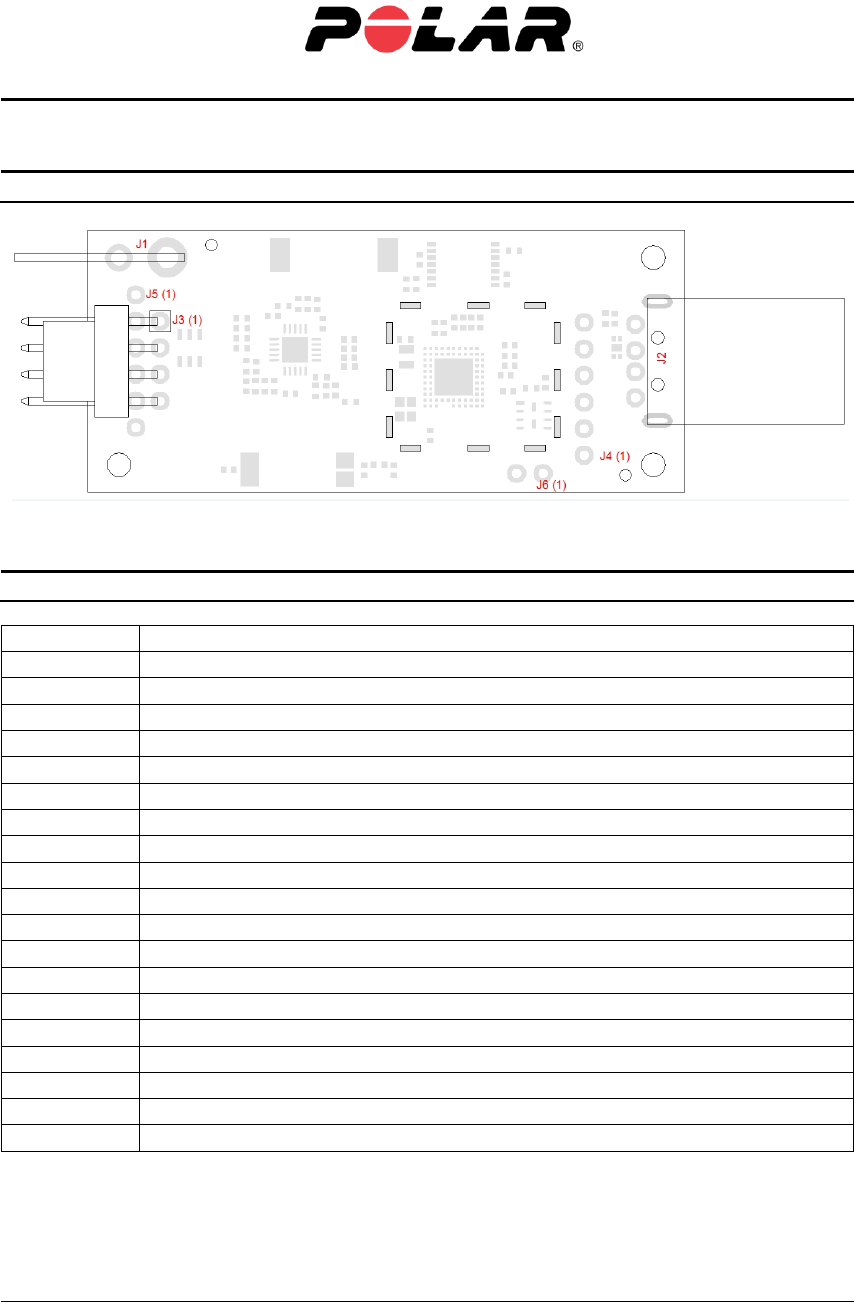

PIN CONFIGURATION
PIN DESCRIPTION
J1
Earth connector
J2
USB Connector (PTH)
J3 (1)
Hand right reference signal
J3 (2)
Hand Left signal
J3 (3)
Hand Right signal
J3 (4)
Hand left reference
J4 (1)
UART2 interface URTS2
J4 (2)
UART2 interface UCTS2
J4 (3)
UART2 interface URX2
J4 (4)
UART2 interface UTX2
J4 (5)
UART2 interface VBAT
J4 (6)
UART2 interface GND
J5 (1)
Hands AGND
J5 (2)
Hands Left Reference
J5 (3)
Hands Left signal
J5 (4)
Hands AGND
J5 (5)
Hands Right reference
J5 (6)
Hands Right signal
J6 (1)
UART UTX
J6 (2)
UART URX
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Min
Max
Unit
Supply voltage / UART version
Vcc
1.70
4.50
V
Supply voltage / USB version
Vcc
4.40
5.25
V
Storage temperature
Ts
-10
+50
C
Operating temperature
To
+5
+50
C
ESD endurance
Vesd
±20
kV
RECOMMENDED OPERATING CONDITIONS
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Supply voltage UART
Vcc
T=25C
3.3
V
Supply voltage USB
Vcc
T=25C
5.0
V
Supply current average
UART
Iavg
T=25C Vcc=3.3V
13
mA
Supply current average
USB
Iavg
T=25C Vcc=5.0V
13
mA
Storage temperature
Ts
+25
C
Operating temperature
To
+25
C
Detection time from
hands
t
T=25C Vcc=5.0V
4
s
Wireless reception
range (typical)*
l
T=25C Vcc=5.0V
80
105
cm
*) Depends of selected range settings.
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
ANTENNA CHARACTERISTICS
Antenna type: 2.4 GHz Bluetooth ceramic antenna
Features:
- Size: WxLxH (10x3.2x4) mm3
- Linear / omnidirectional
- Material: Copper on adhesive tape
Antenna location: Antenna SMD-soldered along the longer edge of the PWB

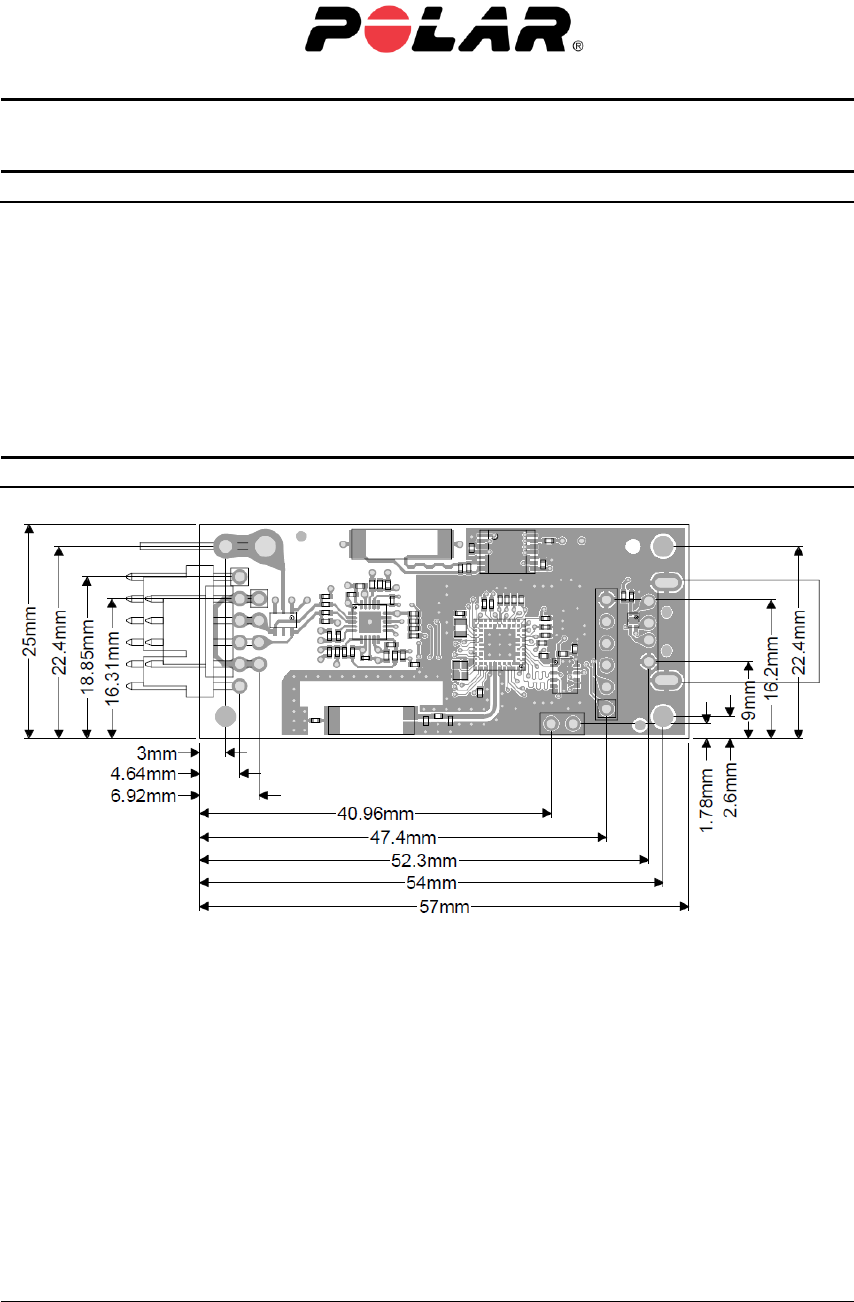

BOARD DIMENSIONS
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
REGULATORY & STANDARDS INFORMATION
POLAR 2R
English
This product is compliant with Directives 2014/53/EU and 2011/65/EU. The relevant Declaration of Conformity is available at
www.polar.com/en/regulatory_information.
Deutsch
Dieses Produkt erfüllt die Anforderungen der Richtlinien 2014/53/EU und 2011/65/EU. Die zugehörige Konformitätserklärung ist
erhältlich unter www.polar.com/de/rechtliche_informationen.
Français
Ce produit est conforme aux dispositions des directives 2014/53/UE et 2011/65/UE. La Déclaration de Conformité correspondante est
disponible à l’adresse www.polar.com/fr/informations_reglementaires.
Ελληνικά
Το πρϊόν αυτο είναι συμβατό με την Ευρωπαϊκή Οδηγία 2014/53/EU και 2011/65/EU. Η σχετική Δήλωση συμμόρφωσηϚ είναι
διαιθέσιμη στην ηλετρονική διεύθυνση www.polar.com/el/regulatory_information.
Nederlands
Dit product voldoet aan de richtlijnen 2014/53/EU en 2011/65/EU. De desbetreff ende conformiteitsverklaring is beschikbaar op
www.polar.com/nl/wettelijk_verplichte_informatie.
Italiano
Questo prodotto è conforme alle Direttive 2014/53/UE e 2011/65/UE. La Dichiarazione di conformità relativa è disponibile sul sito
www.polar.com/it/informazioni_normative.
Español
Este producto cumple con las Directivas 2014/53/UE y 2011/65/UE. La Declaración de conformidad correspondiente se puede
encontrar en www.polar.com/es/informacion_reguladora.
Português
Este produto está conforme às Directivas 2014/53/EU e 2011/65/EU. A respectiva Declaração de Conformidade está disponível em
www.polar.com/pt/informacao_regulatoria.
Suomi
Tämä tuote on direktiivien 2014/53/EU ja 2011/65/EU mukainen. Asiaankuuluva Vaatimustenmukaisuusvakuutus on luettavissa
osoitteessa www.polar.com/fi/lainsaadannolliset_tiedot.
Svenska
Denna produkt uppfyller direktiven 2014/53/EU och 2011/65/EU. Tillämplig försäkran om överensstämmelse finns tillgänglig på
www.polar.com/sv/gallande_bestammelser.
Dansk
Dette produkt er i overensstemmelse med direktiv 2014/53/EU og 2011/65/EU. Den relevante Erklæring om overensstemmelse findes
på adressen www.polar.com/da/oplysninger_om_regulering.
Norsk
Dette produktet er i samsvar med EU-direktivene 2014/53/EU og 2011/65/EU. Den relevante samsvarserklæringen finner du på
www.polar.com/nb/informasjon_om_forskrifter.
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
Compliance statement
CANADA
Polar Electro Oy has not approved any changes or modifications to this device by the user. Any changes or modifications could void
the user’s authority to operate the equipment.
Polar Electro Oy n’a approué aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement
ou toute modification peuvent annuler le droit d’utilisation de l’appareil par l’utilisateur.
Innovation, Science and Economic Development Canada (ISED) regulatory information
This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This device complies with the safety requirements for RF exposure in accordance with RSS-102 Issue 5 for portable use conditions.
Avis de conformité à la réglementation d’Innovation, Sciences et Développement économique Canada (ISDE)
Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Cet appareil est conforme aux exigences de sécurité concernant l’exposition aux RF selon la norme RSS-102, 5ème édition, pour des
conditions d’utilisation portable.
Class B digital device notice
This Class B digital apparatus complies with Canadian RSS-Gen and RSS-247.
Cet appareil numérique de la classe B est conforme à la norme CNR-Gen et CNR-247 du Canada.
CAN ICES-3(B)/NMB-3(B)
The AC/DC mains adapter shall meet the clause
2.5 of the standard for limited power supply
USA
Polar Electro Oy has not approved any changes or modifications to this device by the user. Any changes or modifi cations could void
the user’s authority to operate the equipment.
FCC regulatory information
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/ TV technician for help.
This product emits radio frequency energy, but the radiated output power of this device is far below the FCC radio frequency exposure
limits. This equipment complies with FCC RF radiation exposure limits forth for an uncontrolled environment. Nevertheless, the
device should be used in such a manner that the potential for human contact with the antenna during normal operation is minimized.
Adding Heart to Your Technology
V 0.9 25 September 2017
Polar Electro Inc - OEM Division
Polar Electro Europe AG
1111 Marcus Avenue, Suite M15
Sumpfstrasse 13
Lake Success, NY 11042-1034, USA
CH-6300 Zug, Switzerland
Tel. +1 516 364 0400
Tel. +41 41 727 1177
Fax. +1 516 364 5454
Fax. +41 41 727 1166
Regulatory information: https://www.polar.com/en/regulatory_information
