Start Guide
ENGLISH
CONTENTS
1. INTRODUCTION.................. 3
2. PREPARING...................... 9
3. TRAINING........................ 12
4. ANALYZING...................... 18
5. IMPORTANT INFORMATION .... . 20
Caring for Your Product...... .... . 20
Battery Information............... 21
Precautions....................... 24
Technical Specifications.... .... .. 26
Limited International Polar
Guarantee........................ 28
1. INTRODUCTION
Congratulations on the purchase of your Polar RC3 GPS training computer! The RC3
GPS offers you an all-in-one system to guide you in your training.
ENGLISH 3
The full user manual and the latest version of this getting started guide can be
downloaded at www.polar.fi/support. For video tutorials, go to
http://www.polar.fi/en/polar_community/videos.
4 ENGLISH

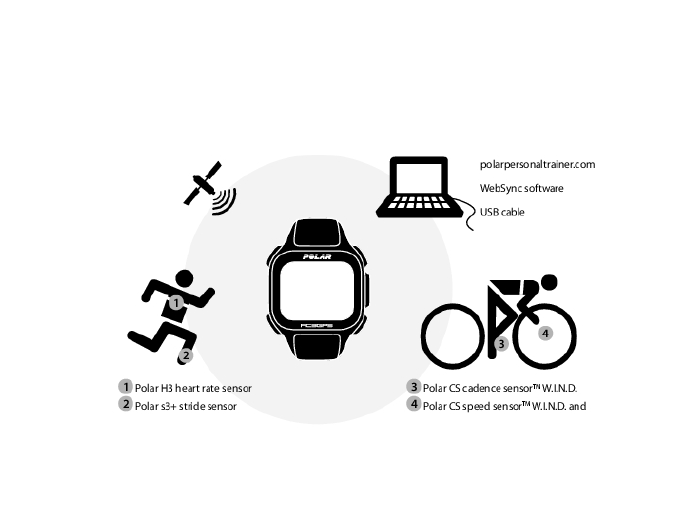

The Training System
With an integrated GPS unit the Polar RC3 GPS training
computer provides speed and distance data, as well as route
information at the polarpersonaltrainer.com web service, in all
outdoor sports using Global Positioning System (GPS) technology.
If you purchased a set which does not include a heart rate
sensor, turn it off in the Sport Profile settings. For
instructions, see Preparing.
Connect the Polar RC3 GPS training computer to your computer with
aUSB cable to charge the battery and to transfer data between the
training computer and the polarpersonaltrainer.com web service.
Polarpersonaltrainer.com is your online training diary and
interactive training community that keeps you motivated. For a
deeper analysis of your training, transfer the training data to the
polarpersonaltrainer.com web service using the USB cable and
WebSync software.
ENGLISH 5
Available Polar Accessories
With the help of Polar accessories, you can enhance your training experience and
achieve a more complete understanding of your performance.
Comfortable heart rate sensor Polar H3 detects your heart rate
accurately from the heart's electrical signals and sends the data to
the training computer in real time.
The heart rate sensor consists of a connector and a strap.
s3+ stride sensor transmits running speed/pace and distance data to the training
computer. It also measures running cadence and stride length.
CS speed sensor W.I.N.D. wirelessly measures distance and your real-time, average and
maximum cycling speed/pace.
CS cadence sensor W.I.N.D. wirelessly measures your real-time, average and maximum
cycling cadence as revolutions per minute.
Data from all compatible sensors is sent wirelessly to the training computer over the 2.4 GHz
W.I.N.D. technology, proprietary to Polar. This eliminates interference during training.
6 ENGLISH

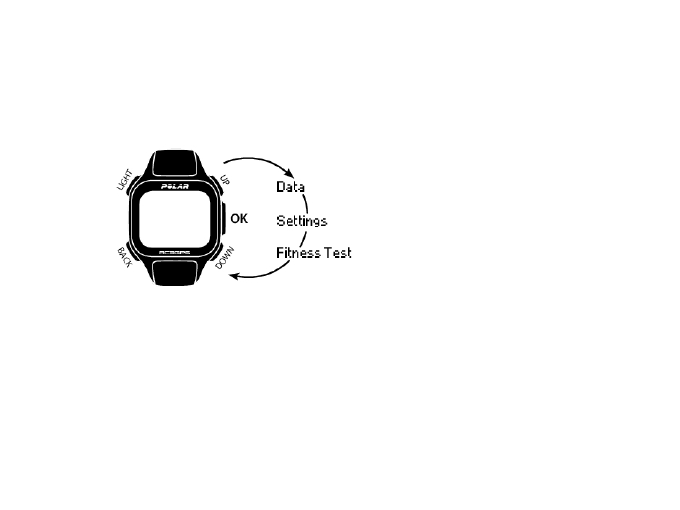

Menu Structure and Button Functions
In time view press UP to enter MENU.
Browse the menu structure with
UP/DOWN and enter with OK.
• Select Data to view all the saved training
information.
• Select Settings to modify sport profiles,
heart rate settings, user information,
general settings, and watch settings.
• Select Fitness test to start the test
or view the results. Polar Fitness Test
measures your aerobic fitness at rest
in five minutes. The result, Polar
OwnIndex, evaluates your maximal
oxygen uptake (VO2max). Perform the
test in every 6 weeks and see how you
progress.
ENGLISH 7
LIGHT
• Illuminate the display
•Press and hold to enter QUICK MENU:
In time view lock buttons, set alarm
or select time zone. During training
lock buttons, search sensor, adjust
training sounds, set automatic lap
on/off, show GPS info or show zone
limits.
BACK
• Exit the menu
• Return to previous level
• Leave settings unchanged
• Cancel selections
•Press and hold to return time mode
from any other mode.
UP
• Move through selection lists
• Adjust a selected value
•Press and hold to change the watch face.
OK (red button)
• Confirm selections
• Start training session
• Take a lap
•Press and hold to set zone lock on/off in
training mode.
DOWN
• Move through selection lists
• Adjust a selected value
•Press and hold to switch between Time 1/
Time 2.
8 ENGLISH
2. PREPARING
Charge the Battery
The RC3 GPS has an internal, rechargable battery.
Charge the RC3 GPS via a USB connection on your
computer by using the USB cable that comes with the
product set. If you want to plug the USB connector to
a wall outlet, use a USB power adapter (not included
in the product set).
1. Plug the micro USB connector into the USB port in
the RC3 GPS.
2. Plug the USB connector into a computer USB port.
It is recommended not to use USB hubs because a
USB hub may not supply enough power for the RC3
GPS.
3. The charging animation appears on the display.
Fully charging the battery takes up to two hours.
4. When the RC3 GPS is fully charged, Charging
complete is displayed. Disconnect the cable.
ENGLISH 9
The RC3 GPS goes to basic settings after
the first charge. To enter the basic
settings during the charge, press any
button.
Use a USB 1.1/2.0 compliant cable
included in the set package. The
charging time may be prolonged if you
charge from a USB hub.
Enter Basic Settings
Enter as accurate data as possible to
ensure correct feedback based on your
performance.
1. First, select your language. Confirm
your selection with OK.
2. Please enter basic settings is
displayed. Press OK and start entering
your personal data by using the
UP/DOWN buttons and confirm your
selections with OK.
3. After completing the basic settings,
adjust your activity level and
maximum heart rate at Settings >
User information, if necessary.
It is important that you are precise with
the Basic Settings, especially when
setting your weight, height, date of birth
and sex, as they have an impact on the
accuracy of the measuring values, such
as the heart rate limits and calorie
expenditure.
For detailed information on the settings
of RC3 GPS, consult the full user manual
at www.polar.fi/support.
10 ENGLISH
Adjust the Sport Profile Settings
The Sport Profile feature helps you start
your training session with ease. The RC3
GPS provides five sport profiles; one for
running, two for cycling and two for other
sports.
Adjust the settings for the sport profiles
to suit your training needs in MENU >
Settings >Sport Profiles. You can, for
example, activate the sensors you want to
use in the sport. Then when you start a
training session using the sport profile,
the RC3 GPS detects the needed sensors
automatically.
The heart rate sensor is on by default in
every sport. Due to this, the RC3 GPS will
automatically start searching for the
heart rate sensor signal once you press
OK in time view. If you purchased a set
which does not include a heart rate
sensor, turn it off in MENU >Settings
>Sport Profiles >Running >
Heart rate sensor >Off.
When you activate an optional sensor
(s3+ stride sensor, CS speed sensor
W.I.N.D. or CS cadence sensor W.I.N.D.)
for the first time, it needs to be paired
with the RC3 GPS. For more information
on the sport profile settings and pairing a
sensor with the RC3 GPS, see the full
user manual at www.polar.fi/support.
ENGLISH 11
3. TRAINING
Wear the Heart Rate Sensor
Wear the heart rate sensor to measure heart rate.
1. Moisten the electrode area of the strap.
2. Attach the connector to the strap.
3. Tie the strap around your chest, just below the chest
muscles, and attach the hook to the other end of the
strap.
4. Adjust the strap length to fit tightly but comfortably.
Check that the moist electrode areas are firmly against
your skin and that the Polar logo of the connector is in
a central and upright position.
Detach the connector from the strap and rinse the strap
under running water after every use. Sweat and moisture
may keep the electrodes wet and the heart rate sensor
activated. This will reduce the heart rate sensor battery life.
For more detailed washing instructions, see Important
Information.
12 ENGLISH
Start a Training Session
Start a training session by pressing OK.
If you purchased a set which does not include a heart rate sensor, and you have set the heart
rate sensor off in the Sport Profile settings, skip points 1 and 2 and go straight to point 3.
1. Wearing the RC3 GPS and the heart rate sensor, start by
pressing OK.Searching for new heart rate sensor is
displayed. The RC3 GPS searches for a heart rate sensor signal.
2. Heart rate sensor found is displayed, once the RC3 GPS
finds the signal. This action is called pairing and is performed
only once to the heart rate sensor. Pairing ensures that your RC3
GPS receives signal from your heart rate sensor only, and
enables interference-free training when there are other training
computer's around.
ENGLISH 13
3. The RC3 GPS enters the pre-training mode. Select the sport
profile you want to use by browsing with UP/DOWN.
If you have activated the GPS function and/or an optional sensor
in this sport profile, the RC3 GPS will automatically start
searching for the signal.
To catch satellite signals, go outdoors and away from tall
buildings and trees. In good conditions, acquiring satellite
signals for the first time typically takes 30-60 seconds. RC3
GPS will find the signals faster if you keep it immobile during
the search.
4. The check mark indicates that the signal is found. In this image
the RC3 GPS has found the heart rate sensor signal and the GPS
signal. If the RC3 GPS does not find the signal, the display
shows a triangle with an exclamation mark.
Once the RC3 GPS has found all the signals, press OK.
Recording started is displayed, and you can start recording
your training session.
14 ENGLISH
Training Functions
Training in Polar sport zones is an easy way to follow your intensity during
training. The Zonepointer feature shows the sport zone you are currently
training in with a heart symbol that moves on the scale according to your heart
rate.
You can lock your target sport zone for a training session. When your heart rate
goes below or above the target sport zone, the RC3 GPS gives a visual and
audible alarm.
By using the heartrate-variability based ZoneOptimizer feature at
the beginning of every training session you can make sure you train at
the right intensity. The ZoneOptimizer adjusts the sport zones
depending on your physiological state at that exact moment.
ENGLISH 15
The Back to starting point feature guides the way back to your starting
point. When you start a training session, the training computer saves your
location as your starting point. When it is time to return to your starting point,
do the following:
• Browse to the BACK TO START-view.
• Keep the RC3 GPS in a horizontal position in front of you
("POLAR" logo facing forward).
• Keep moving in order for the RC3 GPS to determine which
direction you are going. An arrow will point in the direction of your
starting point.
• When the arrow does not point forward, turn in the direction of
the arrow.
• The RC3 GPS also shows your current coordinates and the direct
distance (beeline) between you and the starting point.
Always keep a map handy in case the RC3 GPS loses the satellite signal
or the battery runs out.
See the full user manual at www.polar.fi/support for detailed instructions on using Polar
sport zones,ZoneOptimizer and Back to starting point feature.
16 ENGLISH
Button functions
• Change the training view on display by
browsing with UP/DOWN.
• Access the QUICK MENU by pressing
and holding LIGHT for two seconds.
• Record a lap by pressing OK.
• Lock a zone by pressing and holding
OK.
• Pause your training session by pressing
BACK.
• Stop training recording completely by
pressing BACK twice.
For further information on functions
during training, consult the full user
manual at www.polar.fi/support.
ENGLISH 17
4. ANALYZING
The Training Benefit feature helps you
better understand the effectiveness of
your training. This feature requires the
use of the heart rate sensor. After each
training session you get textual feedback
and a summary of your performance
providing that you have trained at least a
total of 10 minutes in the sport zones.
You can see details on your training
sessions by selecting MENU >Data >
Training files.
For a deeper analysis of your training,
transfer the training data to the
polarpersonaltrainer.com web service
using the USB cable and WebSync
software.
You can download the WebSync software
from www.polarpersonaltrainer.com after
you have registered to the web service.
Using the polarpersonaltrainer.com web
service is free of charge.
18 ENGLISH
With the polarpersonaltrainer.com web
service you can
• see your training route
• share your training result as your status
update in a social network
• challenge your friends to virtual sports
competitions
• get more detailed information on your
training feedback
• store your training files and follow up
your progress, and
• follow your training load and recovery in
the training diary.
For more information on the functions in
the polarpersonaltrainer.com web service,
consult the online help for
polarpersonaltrainer.com.
With WebSync software you can
• synchronize and transfer data between
your RC3 GPS and
polarpersonaltrainer.com,
• adjust your RC3 GPS settings, and
• customize your RC3 GPS display for
example with your own logo.
For more information on data transfer and
other functions in the WebSync software,
consult the full user manual at
www.polar.fi/support or the online help
for WebSync.
ENGLISH 19
5. IMPORTANT INFORMATION
Caring for Your Product
RC3 GPS training computer: Keep your
training computer clean. Clean it with a mild
soap and water solution and rinse them with
clean water. Do not immerse the training
computer in water. Dry it carefully with a soft
towel. Never use alcohol or any abrasive
material such as steel wool or cleaning
chemicals.
Connector: Detach the connector from the strap
after every use and dry the connector with a soft
towel. Clean the connector with a mild soap and
water solution when needed. Never use alcohol
or any abrasive material (eg. steel wool or
cleaning chemicals).
Strap: Rinse the strap under running water after
every use and hang to dry. Clean the strap
gently with a mild soap and water solution when
needed. Do not use moisturizing soaps, because
they can leave residue on the strap. Do not
soak, iron, dry clean or bleach the strap. Do not
stretch the strap or bend the electrode areas
sharply.
Never put the strap or the connector in a washing
machine or dryer!
Dry and store the strap and the connector
separately, to maximize the heart rate sensor
battery lifetime. Keep your training computer
and heart rate sensor in a cool and dry place.
Do not store them in a damp environment, in
non-breathable material (a plastic bag or a
sports bag) nor with conductive material (a wet
towel). Do not expose them to direct sunlight for
extended periods, such as by leaving it in a car
or mounted on the bike mount.
20 ENGLISH
Service
During the two-year guarantee/warranty period
we recommend that you have service, other than
battery replacement for the heart rate sensor,
done by an authorized Polar Service Center
only. The warranty does not cover damage or
consequential damage caused by service not
authorized by Polar Electro.
For contact information and all Polar Service
Center addresses, visit www.polar.fi/support and
country-specific websites.
Register your Polar product at
http://register.polar.fi/ to ensure we can keep
improving our products and services to better
meet your needs.
Battery Information
Training Computer
The training computer contains a rechargeable
battery. Polar encourages you to minimize
possible effects of waste on the environment
and human health by following local waste
disposal regulations and, where possible,
utilizing separate collection of electronic
devices at the end of the working life of the
product. Do not dispose of this product as
unsorted municipal waste.
Rechargeable batteries have a limited number
of charge cycles. You can charge and discharge
the battery over 300 times before a notable
decrease in its capacity. The number of charge
cycles also varies by use and operating
conditions. The battery will be 70-80% full
after one hour of charging. Charging the battery
fully takes up to two hours.
ENGLISH 21
Battery operating time
• in continuous use when recording a training
session with the GPS function ON: up to 13
hours
• when you train on average 1h/day, 7
days/week:
• with the GPS function ON: up to 11
days
• with the GPS function OFF: up to 4
months
• when only the time view is used: up to 4
months
The operating time varies depending on
operating conditions (e.g. high or low
temperatures) and battery aging. The operating
time is significantly reduced in temperatures
well below freezing. Wearing RC3 GPS under
your overcoat helps to keep it warmer and to
increase the operating time.
To learn when to recharge the battery, see the
full user manual at www.polar.fi/support.
Heart Rate Sensor
The Polar heart rate sensor has a user
changeable battery.
When changing the battery, make sure the
sealing ring is not damaged, in which case you
should replace it with a new one to ensure the
water resistance of the connector.
You can purchase the sealing ring/battery kits at
well-equipped Polar retailers and authorized
Polar Services. In the USA and Canada, the
additional sealing rings are available at
authorized Polar Service Centers. In the USA
the sealing ring/battery kits are also available at
www.shoppolar.com.
When handling a new, fully charged battery,
avoid clasp-like contact, i.e. simultaneous from
both sides, with metal or electrically conducting
tools, like tweezers. This may short-circuit the
battery causing it to discharge more rapidly.
Typically, short circuiting does not damage the
battery, but it may decrease the capacity and
lifetime of the battery.
22 ENGLISH
To change the battery:
1. Lever the battery cover open by using the
bracket on the strap.
2. Remove the old battery from the battery cover
with a suitable sized small ridgid stick or bar,
such as a toothpick. A non-metal tool is
preferable. Be careful not to damage the battery
cover.
3. Insert a new battery (CR 2025) inside the cover
with the negative (-) side outwards.
4. Align the ledge on the battery cover with the
slot on the connector and press the battery
cover back into its place. You should hear a
snap.
Keep the batteries away from children. If
swallowed, contact a doctor immediately. Batteries
should be properly disposed of according to local
regulations.
Danger of explosion if the battery is replaced with
wrong type.
ENGLISH 23
Precautions
The Polar RC3 GPS training computer shows
your performance indicators. The RC3 GPS is
designed to indicate the level of physiological
strain and recovery during and after an exercise
session. It measures heart rate, speed and
distance. It also measures running cadence
when used with s3+ stride sensor and cycling
cadence when used with a CS cadence sensor
W.I.N.D.. No other use is intended or implied.
The RC3 GPS should not be used for obtaining
environmental measurements that require
professional or industrial precision.
Minimizing risks when exercising: Exercise
may include some risk. Before beginning a
regular exercise program, it is recommended
that you answer the following questions
concerning your health status. If you answer yes
to any of these questions, we recommend that
you consult a doctor before starting any training
program.
• Have you been physically inactive for the past
5 years?
• Do you have high blood pressure or high blood
cholesterol?
• Are you taking any blood pressure or heart
medication?
• Do you have a history of breathing problems?
• Do you have symptoms of any disease?
• Are you recovering from a serious illness or
medical treatment?
• Do you use a pacemaker or other implanted
electronic device?
• Do you smoke?
• Are you pregnant?
In addition to exercise intensity, medications for
heart conditions, blood pressure, psychological
conditions, asthma, breathing, etc., as well as
some energy drinks, alcohol, and nicotine may
also affect heart rate.
It is important to be sensitive to your body’s
responses during exercise. If you feel
unexpected pain or excessive fatigue when
exercising, it is recommended that you stop
the exercise or continue at a lighter
intensity.
24 ENGLISH
Note! If you are using a pacemaker, you can
use Polar training computers. In theory
interference to pacemaker caused by Polar
products should not be possible. In practice no
reports exist to suggest anyone ever having
experienced interference. We cannot however
issue an official guarantee on our products'
suitability with all pacemakers or other
implanted devices due to the variety of devices
available. If you have any doubts, or if you
experience any unusual sensations while using
Polar products, please consult your physician or
contact the implanted electronic device
manufacturer to determine safety in your case.
If you are allergic to any substance that
comes into contact with your skin or if you
suspect an allergic reaction due to using the
product, check the listed materials in
Technical Specifications. To avoid any skin
reaction to the heart rate sensor, wear it over a
shirt, but moisten the shirt well under the
electrodes to ensure flawless operation.
The combined impact of moisture and intense
abrasion may cause a black color to come off the
heart rate sensor’s surface, possibly staining
light-colored clothes. If you use perfume or insect
repellent on your skin, you must ensure that it does
not come into contact with the training computer or
the heart rate sensor.
If you train in cold conditions (-20 °C to -10 °C / -4
°F to 14 °F ) we recommend that you wear the
training computer under the sleeve of your jacket,
directly on your skin.
Disturbance may occur near electrical
devices. Also WLAN base stations may cause
interference when training with Polar training
computer. To avoid erratic reading or
misbehaviors, move away from possible sources
of disturbance. For further information, see
www.polar.fi/support.
ENGLISH 25
Technical Specifications
Training computer
Battery type: 250 mAH Li-Pol rechargeable
battery
Operating time: up to 13 hours in continuous use
Operating temperature: -10 °C to +50 °C / 14 °F to 122 °F
Training computer
materials:
PMMA lens with hard coating in
top surface, training computer
body (ABS+GF)+TPU /
(PC+ABS)+GF / (TPU+PC) +TPU /
ABS+PC / Aluminium / Stainless
steel
Wrist strap and buckle
materials:
Polyurethane (TPU) and stainless
steel
Watch accuracy: Better than ± 0.5 seconds / day at
25 °C / 77 °F temperature
GPS accuracy distance +/-2%, speed +/-2km/h
Sample rate 1 sample/sec
Accuracy of heart rate
monitor:
± 1% or 1 bpm, whichever larger.
Definition applies to stable
conditions.
Heart rate measuring
range:
15-240 bpm
Current speed display
range:
0-127 km/h or 0-75 mph
Water resistance: Water proof IPX7
Not suitable for bathing or
swimming. Protected against wash
splashes and raindrops.
Training computer limit values
Maximum number of files: 99
Maximum time recorded to file: 99 h 59 min 59 s
Maximum number of laps
recorded in one training session:
99 (per exercise)
Maximum number of automatic
laps recorded in one training
session:
99 (per exercise)
Total distance: 99999,99 km / 99999,99
mi
Total duration: 9999 h 59 min 59 s
Total calories: 999 999 kcal
Total exercise count: 65535
26 ENGLISH
Heart rate sensor
Battery life: 1600 hours of use
Battery type: CR2025
Battery sealing ring: O-ring 20.0 x 0.90 Material Silicone
Operating temperature: -10 °C to +50 °C / 14 °F to 122 °F
Connector material: ABS
Strap material: 38% Polyamide, 29%
Polyurethane, 20% Elastane, 13%
Polyester
Water resistance: 30 m
Polar heart rate sensor is water
resistant but will not measure
heart rate in water due to its
transmission frequency.
System Requirements for Polar WebSync
Software
Operating system: Microsoft Windows XP/Vista/7 or Mac OS
X 10.5 (Intel) or newer
Internet connection
Patented Technologies
The Polar RC3 GPS training computer applies the following
patented technologies, among others:
OwnIndex®technology for the Fitness Test.
OwnCal®personal calorie calculation.
ENGLISH 27
Limited International Polar Guarantee
• This guarantee does not affect the consumer’s
statutory rights under applicable national or
state laws in force, or the consumer’s rights
against the dealer arising from their
sales/purchase contract.
• This limited Polar international guarantee is
issued by Polar Electro Inc. for consumers
who have purchased this product in the USA
or Canada. This limited Polar international
guarantee is issued by Polar Electro Oy for
consumers who have purchased this product
in other countries.
• Polar Electro Oy/Polar Electro Inc. guarantees
the original consumer/purchaser of this device
that the product will be free from defects in
material or workmanship for two (2) years
from the date of purchase.
•The receipt of the original purchase is your
proof of purchase!
• The guarantee does not cover the battery,
normal wear and tear, damage due to misuse,
abuse, accidents or non-compliance with the
precautions; improper maintenance,
commercial use, cracked, broken or scratched
cases/displays, armband, elastic strap and
Polar apparel.
• The guarantee does not cover any damage/s,
losses, costs or expenses, direct, indirect or
incidental, consequential or special, arising
out of, or related to the product.
• Items purchased second hand are not covered
by the two (2) year warranty, unless otherwise
stipulated by local law.
• During the guarantee period, the product will
be either repaired or replaced at any of the
authorized Polar Service Centers regardless of
the country of purchase.
Guarantee with respect to any product will be
limited to countries where the product has been
initially marketed.
Copyright © 2012 Polar Electro Oy, FI-90440
KEMPELE. All rights reserved. No part of this
manual may be used or reproduced in any form
or by any means without prior written
permission of Polar Electro Oy.
28 ENGLISH
The names and logos in this user manual or in
the package of this product are trademarks of
Polar Electro Oy. The names and logos marked
with a ®symbol in this user manual or in the
package of this product are registered
trademarks of Polar Electro Oy. Windows is a
registered trademark of Microsoft Corporation
and Mac OS is a registered trademark of Apple
Inc.
Polar Electro Oy is a ISO 9001:2008 certified
company.
This product is compliant with Directives
93/42/EEC and 1999/5/EC. The relevant
Declaration of Conformity is available at
www.polar.fi/support.
This crossed out wheeled bin marking shows
that Polar products are electronic devices and
are in the scope of Directive 2002/96/EC of the
European Parliament and of the Council on
waste electrical and electronic equipment
(WEEE) and batteries and accumulators used in
products are in the scope of Directive
2006/66/EC of the European Parliament and of
the Council of 6 September 2006 on batteries
and accumulators and waste batteries and
accumulators. These products and
batteries/accumulators inside Polar products
should thus be disposed of separately in EU
countries.
This marking shows that the product is
protected against electric shocks.
Regulatory information is available at
www.polar.fi/support.
To see the RC3 GPS specific certification and
compliance markings go to MENU >Settings
>General settings and press LIGHT
-button long.
ENGLISH 29
Disclaimer
• The material in this manual is for
informational purposes only. The products it
describes are subject to change without prior
notice, due to the manufacturer’s continuous
development program.
• Polar Electro Inc./Polar Electro Oy makes no
representations or warranties with respect to
this manual or with respect to the products
described herein.
• Polar Electro Inc./Polar Electro Oy shall not be
liable for any damages, losses, costs or
expenses, direct, indirect or incidental,
consequential or special, arising out of, or
related to the use of this material or the
products described herein.
This product is covered by the following patent
documents: FI 111514B, DE19781642T1,
GB2326240, HK1016857, US6277080,
US20070082789, EP1795128,
US20090278734, EP2116862, FI114202,
US6537227, EP1147790, HK1040065,
FI115289, EP1127544, US6540686,
HK1041188, FI 110303, US6104947,
EP0748185, JP3831410, FI20105796,
US20120010478, EP2407217,
EP08879081.1, US13/139541,
WO2010072883, US6584344,
US2011021419, EP2280770. Other patents
pending.
Manufactured by Polar Electro Oy,
Professorintie 5, FIN-90440 KEMPELE.
Tel +358 8 5202 100, Fax +358 8 5202 300,
www.polar.fi
30 ENGLISH
