COVER S510 GBR C.fh8 8.3.2001 12:45 Page 1

• OwnIndex™ to reliably predict your VO2max

• OwnCal™ the most accurate calorie

consumption calculation

• OwnCode™ locks out possible interference

from other heart rate monitors

• Computer communication via audible

SonicLink™ and Uplink™

• Cycling features - speed and optional

cadence

S510™

HEART RATE MONITOR

Quick Guide

GBR

USER’S MANUAL

How to start measuring your heart rate (BasicUse)

1. Place the transmitter around your chest and wet its electrodes. Wear the wrist

receiver on your wrist.

2. Press and hold the OK button to start the measurement. The stopwatch and

the exercise recording start. Your heart rate will appear in max. 15 seconds.

How to stop measuring your heart rate

1. Press the stop button. The stopwatch and other calculations stop. Heart rate

measurement continues but exercise data is not recorded into a file anymore.

2. Press the stop button again. The receiver returns to the Time of day display.

• move onward

• increase the

selected value

Down

• move backward

• reduce the

selected value

Stop

• exit the

displayed mode

• return to the

Time of day display

Signal/Light

179231 GBR C

• start measuring the heart rate

• lock in your selection

The Polar S510 offers you various possibilities on customising exercise sessions

to fit your personal needs.

For example, use the Interval Trainer function to guide you through a complete

interval training session. Or, you can choose the functions that suit you best:

OwnCal calorie calculation, timers, recovery calculation, speed, cadence, etc.

After training, you can review your exercise file and transfer it to your

computer for analysis with PC Coach Light™ software. Monitor your fitness

level, and any long-term changes in it, by performing the quick and easy Polar

Fitness Test™.

Please read this manual carefully to familiarise yourself with the Polar S510.

Here is where you can find the information you need to use and maintain your

equipment. The function road map on the front cover is a quick guide to the

versatile features of the Polar S510; please tear it off.

Please refer to the glossary for special terms, display symbols and text

explanations. The alphabetical index will help you quickly find answers to

any questions that you might encounter while using your Polar S510.

Thank you for choosing Polar!

Manual S510 GBR C.pm6 8.3.2001, 12:441

CONTENTS

A. Getting going ....................... 5

Heart rate monitor parts ......................... 5

Buttons and their functions .................... 6

Easy start ................................................... 8

How to prepare the wrist receiver ..... 8

Installing the Polar Bike Mount ......... 9

Installing the Polar Speed Sensor ...... 9

How to put the transmitter on ........ 11

How to start measuring

your heart rate ................................... 11

How to stop

measuring your heart rate ............... 12

After exercising .................................. 12

Modes and their functions .................... 13

B. How to enter settings ........ 18

User information settings ..................... 20

Exercise settings ..................................... 23

Selecting exercise type .......................... 23

Setting exercise sets .......................... 24

Setting timers ................................ 26

Setting heart rate limits ............... 26

Turning heart rate limits on/off ... 26

Setting interval type ..................... 27

Setting the number of intervals .. 28

Setting recovery calculation ......... 29

Naming exercise sets ......................... 30

Turning functions on/off ....................... 31

OwnCal calorie counter on/off ......... 31

Fitness test on/off .............................. 32

Predicted maximum heart rate

on/off .................................................. 32

Bicycle feature settings ......................... 33

Wheel size .......................................... 34

Cadence on/off .................................. 36

Autostart on/off ................................. 36

Naming bike 1 or 2 ............................ 37

Monitor settings .................................... 38

Turning activity/button

sound on/off ....................................... 38

Selecting measuring units ................ 38

Turning Help on/off ........................... 39

Watch settings ...................................... 40

Setting alarm ..................................... 40

Setting time of day ............................ 41

Setting date ........................................ 41

Setting tips ............................................. 42

Swap time 1 or time 2 ....................... 42

Shortcut to watch settings ............... 42

Swap measuring units ....................... 42

Swap date and user ID ...................... 42

C. Exercise ................................ 43

Measure mode ....................................... 43

Autostart for recording a cycling

exercise ............................................... 46

Exercise recording mode ....................... 47

Illuminating the display .................... 48

Turning heart rate

zone alarm on/off .............................. 48

Swapping the heart rate limits ........ 48

Storing lap and split time ................. 49

Pausing the exercise .......................... 49

Swapping the displayed

exercise information ......................... 50

Resetting the stopwatch to zero ..... 51

Starting an exercise set ......................... 52

Exercising with Interval Training Set ... 52

Warm-up phase.................................. 53

Interval phase .................................... 54

Cool-down phase ............................... 56

Interrupting an interval

training exercise ................................ 57

Exercising with BasicSet ........................ 57

Starting the timers ............................ 57

Starting the recovery calculation ..... 58

Stopping the exercise ............................ 58

Tips during exercise ............................... 59

Checking the heart rate limits ......... 59

Swapping the exercise type .............. 59

Swapping the bike setting ............... 59

Resetting the trip distance ............... 59

Restarting the interval or

recovery calculation .......................... 59

Interrupting an interval or

recovery calculation .......................... 59

Interrupting a phase of an

interval training exercise .................. 59

D. How to recall

training information .......... 60

Exercise time ........................................... 63

Recovery information of BasicSet ........ 63

Exercise distance .................................... 63

Speed information ................................. 63

Manual S510 GBR C.pm6 8.3.2001, 12:442-3

A 5

Heart rate monitor

parts and their

functions

The Polar T61™

transmitter detects your

heart rate and transmits

it to the wrist receiver.

The elastic strap holds

the transmitter

comfortably, yet firmly,

in the correct position.

The Polar wrist receiver

displays your heart rate

and cycling data during

exercise. Enter your

personal settings into the

receiver and analyse the

exercise files after you’re

done.

Cadence information ............................. 64

Heart rate limits ..................................... 64

Exercise time within, above and

below the heart rate zones .................. 64

Calorie expenditure ............................... 64

Cumulative calorie count ...................... 64

Cumulative exercise time count ........... 64

Cumulative riding time ......................... 65

Odometer ............................................... 65

Interval training information ............... 65

Warm-up phase.................................. 65

Interval phase .................................... 66

Cool-down phase ............................... 67

Lap information ..................................... 67

Resetting cumulative counts to zero ... 68

E. Connection to computer .... 69

Downloading

training data to computer .................... 69

Uploading settings from computer ...... 71

F. Polar Fitness Test ................. 73

OwnIndex ............................................... 73

Predicted maximum heart rate ............. 75

Fitness test settings ................................ 76

Carrying out the test ............................. 76

Update OwnIndex and HRmax-p ............. 78

Fitness classes ......................................... 79

G. Care and maintenance ........ 81

H. Precautions ........................... 84

I. Frequently asked questions 88

J. Technical specifications ....... 93

K. Limited Polar Warranty ....... 96

L. Disclaimer ............................. 97

M. Polar glossary ..................... 98

Display symbols ..................................... 100

Display texts .......................................... 101

Index ....................................................... 104

A. GETTING GOING

A 5

Manual S510 GBR C.pm6 8.3.2001, 12:444-5

A 6 A 7

STOP

SIGNAL/

LIGHT

RESET

Signal/ Light Turns the beep on or off.

Turns the backlight on.

Reset Resets the heart rate monitor.

Stop Return -Stops measuring the heart rate.

Exits the displayed mode and returns to

the previous mode level.

Returns to the Time of day display

from any mode by pressing and

holding the stop button.

OK Accept -Starts measuring the heart rate (start).

Enters the displayed mode shown on

the lower level (start). Locks in your

selection (ok). Records lap information

(lap). The Help text (start, ok or lap)

that appears on the display above the

button indicates its use.

Useful tips

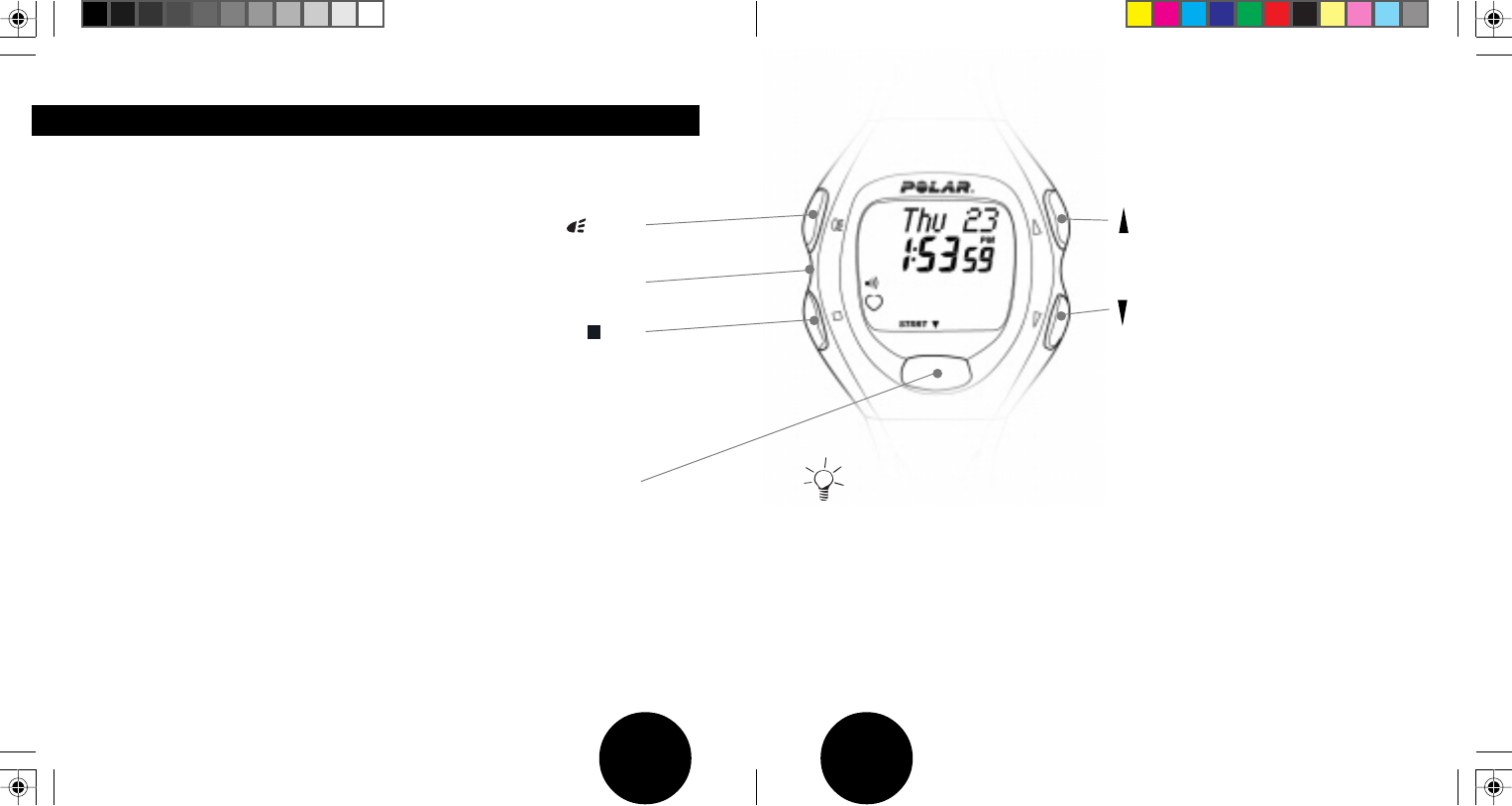

Buttons and their functions

• Briefly pressing a button (approximately 1 second) will do different

things than pressing and holding the button for a longer period of

time (approximately 2 to 5 seconds). If your press the button for a

longer period of time, you can use shortcuts.

• The buttons are slightly stiffer than those of an ordinary watch to

prevent them from being pressed accidentally.

• You can always return to the Time of day display from the Options

setting or File recalling loops by pressing and holding the stop button.

• See the glossary for display symbols and text interpretation.

Up Moves to the following

mode. Increases the

selected value.

Down Returns to the previous

mode. Decreases the

selected value.

Manual S510 GBR C.pm6 8.3.2001, 12:446-7

A 8 A 9

How to prepare the wrist receiver

1. Since the display is blank when the receiver leaves the

factory, you have to activate the wrist receiver by pressing

the OK button twice, after which the Time of day display

appears. This is a one-off procedure; once you have turned

on your receiver you can not turn it off anymore.

2. You may start measuring your heart rate right away

using the default settings. However, the following

settings are ones that it would be useful to change as

soon as possible: Time of day (see section Watch settings)

and personal user settings (see section User information

settings).

3. Polar S510 has various functions that you can use

according to your personal training needs. For more

information, see section Modes and their functions. You

can either manually enter the settings by pressing the

receiver buttons or you can define your settings using PC

Coach Light software, after which the data should be

transferred from your computer to the wrist receiver.

4. Wear the wrist receiver as you would wear an ordinary

watch. If you go biking, we recommend attaching the

wrist receiver to a Polar Bike Mount™.

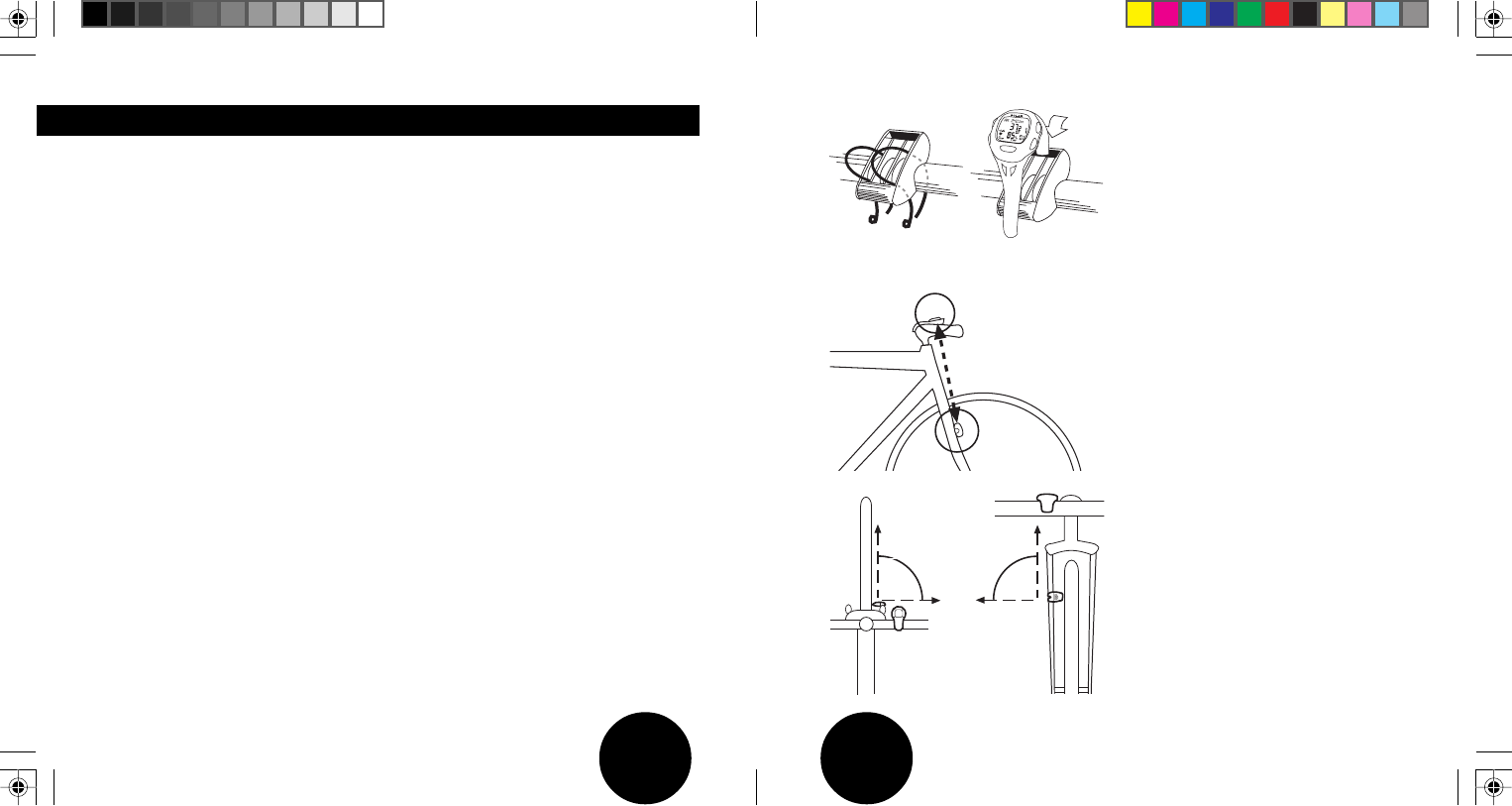

Easy start Installing the Polar Bike Mount

Use cable ties to secure the bike mount

snugly on the rubber pad.

Attach the receiver by securing the

wrist strap.

Installing the Polar Speed Sensor™

The Polar Speed Sensor measures speed

and distance when cycling.

1. Check the front side of the front

fork to find a suitable place for the

speed sensor. The sensor should be

attached 20-50 cm/ 8"-1’8" from the

mounted wrist receiver.

2. Clean and dry the area underneath

the rubber pad before you attach

it to the front fork.

3. Adjust the angle of the sensor at 45-

90 degrees as shown in the

illustrations.

4. Pass the cable ties through the

sensor holes and loosely adjust the

20-50 cm

8´´-1´8´´

45° - 90°

45§§

Manual S510 GBR C.pm6 8.3.2001, 12:448-9

A 10 A 11

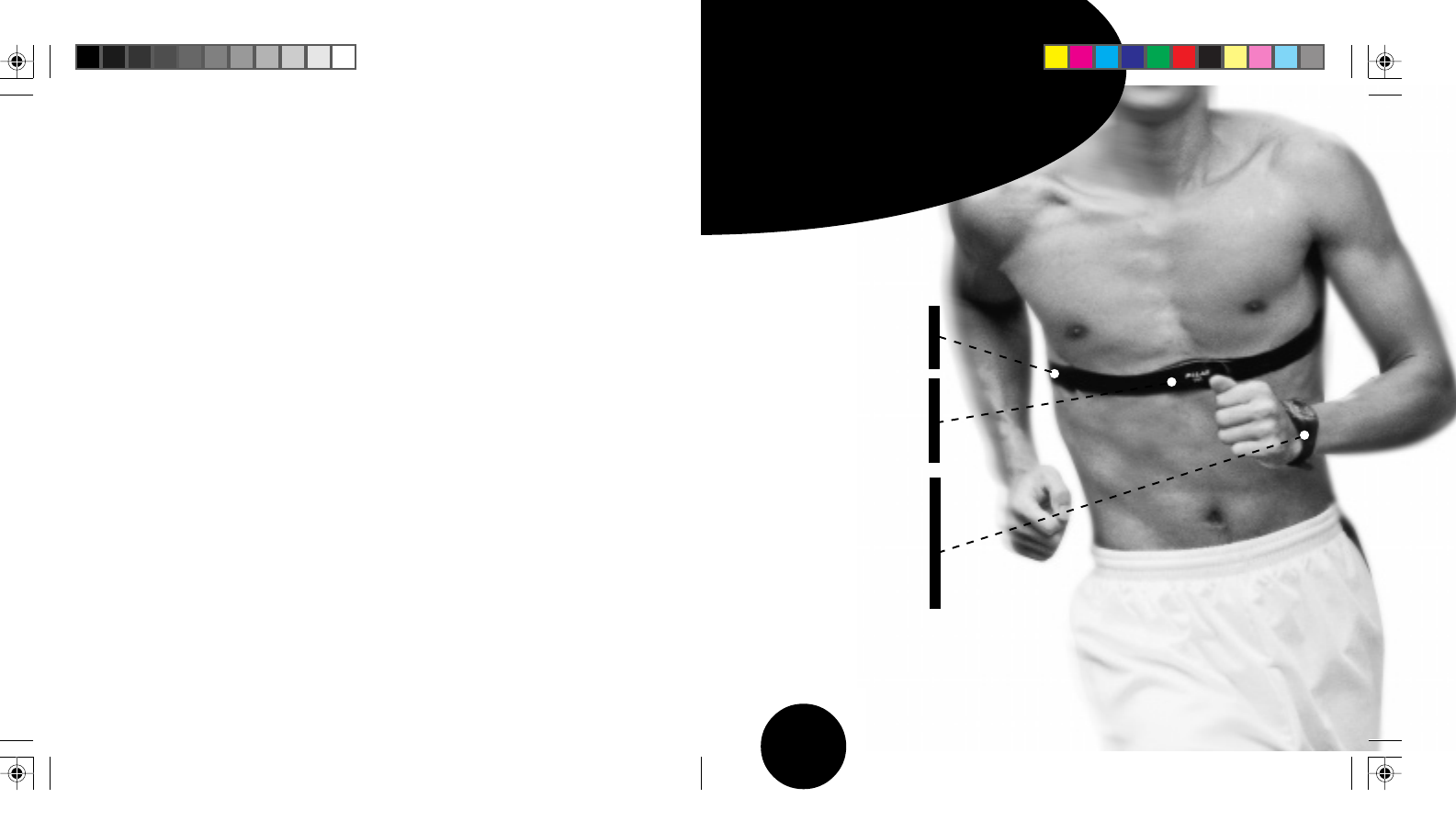

How to put the transmitter on

1. Attach the transmitter to the elastic strap.

2. Adjust the strap length to fit snugly and

comfortably. Secure the strap around your

chest, just below the chest muscles, and

buckle it.

3. Lift the transmitter off your chest and

moisten the grooved electrode areas

on the back.

4. Check that the wet electrode areas are firmly

against your skin and the Polar logo is in a

central, upright position.

How to start measuring your heart rate

1. Begin with the display that shows

the time of day.

2. Keep the wrist receiver within

1 metre/ 3 feet of your transmitter.

3. Check that you are not near other people

that have heart rate monitors, high voltage

power lines, televisions, mobile phones or

other sources of electromagnetic disturbance.

ties. Do not tighten fully yet. If the cable

ties are too short for your bicycle, put two

of them together to make them longer.

5. There are two spoke magnet options. You

only need to install one of them. One is

installed by rotating it around the spoke

before putting the metal cover on,

another by tightening the screw. The

magnet must be facing the speed sensor.

6. Fine-tune the positioning of both the

magnet and the sensor so that the magnet

passes the sensor closely but does not

touch it. The maximum distance between

the speed sensor and the spoke magnet

should be 5 mm/ 0,2". Once positioned

correctly, tighten the cable ties securely

and cut off any excess cable tie ends.

Your safety is important to us. While

riding your bike, please keep your eyes on

the road to prevent possible accidents and

injury. Check that you can turn the handle

bar normally and cable wires for brakes or

gearing donot catch on the sensor. Check

also that the sensor does not disturb

pedalling or the use of brakes or gearing.

Manual S510 GBR C.pm6 8.3.2001, 12:4410-11

A 12 A 13

Modes and their functions

4. Press the OK button to start measuring your heart rate. A heart symbol

will start flashing and your heart rate (beats per minute) will appear in

a maximum of 15 seconds.

5. Press OK again. The stopwatch starts running and you can start

exercising. The exercise data will only be stored in a file if you have

turned the stopwatch on.

How to stop measuring your heart rate

1. Press the stop button. The stopwatch and other calculations stop.

The heart rate measuring continues, although exercise data is no longer

recorded.

2. Press the stop button again. The heart rate measuring stops.

The receiver shows the Time of day display again.

After exercising

1. Carefully wash the transmitter with a mild soap and water solution.

2. Rinse it with pure water.

3. Dry the transmitter carefully with a soft towel.

4. Store the transmitter in a clean and dry place. Dirt impairs the elasticity

and functioning of the transmitter. Sweat and moisture can keep the

electrodes wet and the transmitter activated, which shortens battery life.

Your Polar S510 has six main modes: Time of day, Exercise, File, Options,

Fitness test and Connection.

1. TIME OF DAY

You can use your Polar heart rate monitor as an ordinary watch with date,

weekday indicator and alarm function. You can also change between two

different countries’ time zones.

2. EXERCISE

In the Exercise mode, you measure your heart rate and exercise

information is recorded in the File mode. You can preset up to five

exercise sets for your personal needs. When you start exercising, just

select one of the saved sets. Or, you can select BasicUse (heart rate

measurement without heart rate limits, timers or other exercise

guiding functions).

Manual S510 GBR C.pm6 8.3.2001, 12:4412-13

A 14 A 15

*Optional Polar Cadence Sensor required

3. FILE

Your receiver stores the latest exercise information in one complete file:

• the start date and time of the exercise

• total exercise time

• the average and maximum heart rate readings for the exercise session

• the recovery value (only BasicSet)

• your heart rate limits used during the exercise

• total distance of the exercise

• average and maximum speed

• average and maximum cadence*

• your time spent in, above and below your target zones during exercise

• OwnCal calorie expenditure

• your cumulative calorie expenditure

• your cumulative exercise time

• cumulative riding time

• odometer

• your interval training information: warm-up, interval and cool-down phases

• your lap information: best lap time; lap and split times; and current,

average and maximum heart rate for each lap; and speed at the end of

the lap

In addition to a complete file, your five previous exercise sessions will be

saved in five summary files. These record:

• the start date and time of the exercise

• total exercising time

• the average and maximum heart rate readings for the exercise session

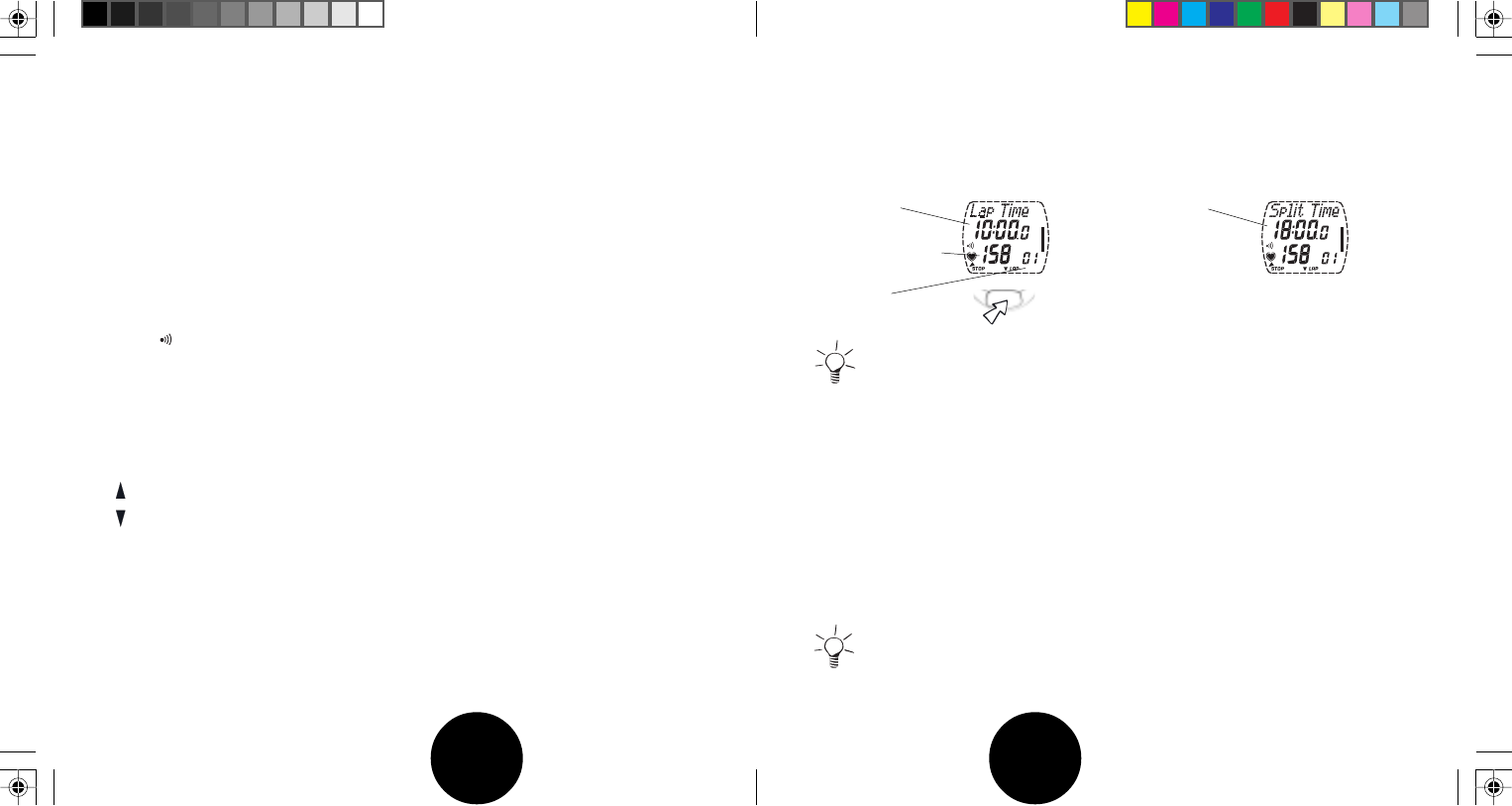

A. During BasicUse, you can save 99 split and lap times with current,

maximum and average heart rates for each lap. You can configure the

display to show information on the following:

• your current heart rate, average heart rate or a reading of your

maximum heart rate in percentages

• the current exercise time (stopwatch)

• time of day

• current lap and split time as well as the lap number

• calorie count for your exercise session

• current, average and maximum speed

• trip distance

• cadence*

B. Freely programmable BasicSet will automatically guide you

through your exercise session with the help of the following functions:

• three adjustable target heart rate limits

• three adjustable, alternating timers

• time-based or heart-rate-based recovery calculation

C. Freely programmable Interval Trainer will automatically guide

you through your interval training session with the help of the

following, preset exercise phases:

• warm-up with a target heart rate zone and a countdown timer

• up to 30 intervals with a target heart rate zone. After each

interval you have a recovery calculation option.

• cool-down with a target zone and a countdown timer

Manual S510 GBR C.pm6 8.3.2001, 12:4414-15

A 16 A 17

4. OPTIONS

In the Options mode, you can enter the following settings:

Exercise settings: you can select BasicUse with no settings or 5 freely

programmable BasicSets or Interval Training Sets

Turning the functions on/off: OwnCal calorie counter, fitness test,

predicted maximum heart rate

Bicycle feature settings: Bike 1 or 2 on/off, wheel size,

cadence* on/off, autostart on/off

User-specific information: weight, height, date of birth, gender,

activity level, maximum heart rate and maximal oxygen uptake

Monitor settings: activity/button sound on/off, measurement units,

Help on/off

Watch settings: alarm, time of day and date

5. FITNESS TEST

In this mode you can:

• perform the Polar Fitness Test

• recall your latest test results; OwnIndex and HRmax-p values

• update your user information to reflect your most recent OwnIndex and

HRmax-p values

6. CONNECTION

In this mode you can:

• upload your receiver settings from your computer with PC Coach Light

version 3.0 or later

• download recorded exercise information to your computer for detailed

analysis with PC Coach Light version 3.0 or later

*Optional Polar Cadence Sensor required

Manual S510 GBR C.pm6 8.3.2001, 12:4416-17

19B 18

Time Of Day File Options Fit. Test Connect

Exercise Set Function Set Bike Set User Set Monitor Set Watch Set

B. HOW TO ENTER SETTINGS

This section describes how to manually enter

settings by pressing the receiver buttons. However,

Polar S510 offers you another way as well: prepare

your settings with PC Coach Light software and

upload them to your receiver from your computer.

See chapter Uploading settings from computer.

1. In the Time of day display, scroll up or down until OPTIONS is displayed.

2. Press OK to enter the Options mode. EXERCISE SET is displayed.

3. Scroll up or down until the desired setting mode is displayed.

4. Press OK to start the settings.

• Move forward and backward by using the up or down buttons.

• Press OK to start adjusting the value.

• Scroll up or down to adjust the value.

• Press OK to lock in your selection.

• Move backward to the previous setting level by pressing the stop button.

• To return to the Time of day display, wherever you are in the Options

settings: Press and hold the stop button.

• The digits run faster if you press and hold the up or down button as you

adjust the value. Release the button when approaching the desired value.

• On the display each function is presented by an abbreviated text.

A flashing block on the display indicates how far you are in the

setting mode.

Manual S510 GBR C.pm6 8.3.2001, 12:4418-19

21B 20

Options

User Set

kg/ lbs cm/ feet inch Birthday Sex Activity HR

max

2max

User information settings

In the User Set loop you can move forward only by pressing OK.

Units 2: setting order

is month - day - year.

Measuring units depend on the settings in Options/ Monitor Set/ Unit 1 or Unit 2.

Units 1 Units 2

Weight kg lbs

Height cm ft/ inch

Date of Birth setting order day - month - year month - day - year

1. In the Time of day display scroll up or down until OPTIONS is displayed.

2. Press OK to enter the Options mode. EXERCISE SET is displayed.

3. Scroll up or down until USER SET is displayed.

4. Press OK to start the user information settings.

Weight (kg or lbs)

5. Scroll up or down to adjust your weight. Press OK.

Height (cm or ft/ inch)

6. Scroll up or down to adjust your height. Press OK.

Date of birth (Birthday)

7. Scroll up or down to adjust your day of birth.

Press OK.

8. Month appears. Scroll up or down to select

your month of birth. Press OK.

9. Year appears. Scroll up or down to adjust the year of birth. Press OK.

Sex

10. Scroll up or down to select your gender. Press OK.

Activity level (Activity)

11. Scroll up or down to select your activity level for Polar Fitness Test.

Press OK.

Assess your long-term physical activity level. Do not change your activity

level description if your regular exercise habits have changed during the

last six months.

Low You do not participate regularly in programmed recreational sport or

heavy physical activity. E.g. you walk only for pleasure or occasionally

exercise sufficiently to cause heavy breathing or perspiration.

Middle You participate regularly in recreational sports. E.g. you cycle 15-30

km per week or spend 1/2–2 hours per week in comparable physical

activity or, your work requires modest physical activity.

High You participate regularly, at least 3 times a week, in heavy physical

exercise. E.g. you cycle 30-60 km per week or spend 2-3 hours per

week in comparable physical activity.

Manual S510 GBR C.pm6 8.3.2001, 12:4420-21

23B 22

When you start setting your exercise preferences your first choice is to select

whether you want to set your personal exercise set or to exercise with

BasicUse option. If you select to start setting the exercise sets, your second

choice is whether you want to select BasicSet or an Interval Training Set.

Selecting exercise type

Exercise settings

Top You participate regularly in heavy physical exercise at least 5 times a week.

E.g. you exercise to improve performance for competitive purposes.

Maximum heart rate value (HRmax)

12. Your age-predicted maximum heart rate value is displayed as a default

setting when you set this value for the first time. If you know your

exact clinically tested current maximum heart rate value, set the

value by scrolling up or down.

13. Press OK.

If you do not know this value, update it in the Fitness Test mode after

having carried out the Polar Fitness Test.

Maximal oxygen uptake value (VO2max)

14. The wrist receiver suggests value 35 for females and value 45 for males

as a default setting when you set this value for the first time. If you

know your exact clinically tested current maximal oxygen uptake

value, set the value by scrolling up or down.

15. Press OK. USER SET appears.

If you do not know this value, update it in the Fitness Test mode after

having carried out the Polar Fitness Test

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

BasicUse (E0)

BasicUse is a simple mode for exercising.

You do not have to do any settings

before exercising with this Exercise

mode. While exercising, you can see

the following optional values on the

display:

• current heart rate or average

heart rate of the exercise

• stopwatch

• time of day

• split- and lap times

Additionally, you can follow calories

of your exercise session, percentage

of your maximum heart rate and

cycling information, if you have set

all the user information and turned

the functions on.

Exercise set (E1-E5)

During exercising with this mode you

can see the same optional values as

in the BasicUse mode. Additionally,

the exercise set will guide you

through your exercise according to

the settings you have made. You can

also name the exercise sets e.g. after

an exercise type.

You can set following exercise

guiding functions:

• 3 heart rate limits

• 3 countdown timers

• interval function

• recovery calculation

Manual S510 GBR C.pm6 8.3.2001, 12:4422-23

25B 24

Setting exercise sets

Preset exercise sets ready for five exercise sets; when you start exercising,

just select one of the sets.

1. In the Time of day display

scroll up or down until

OPTIONS is displayed.

2. Press OK to enter the

Options mode. EXERCISE

SET is displayed.

3. Press OK to start the exercise settings. BasicUse E0 or exercise set E1-E5 is

displayed.

4. Scroll up or down until the desired exercise type is displayed. Press OK.

If you chose BasicUse (E0): to return to the Time of day display, press

and hold the stop button and skip the rest of the exercise settings.

If you chose exercise set (E1-E5) Interval On/OFF is displayed.

5. Scroll up or down to turn the interval function on or off. Press OK.

Timer 1 is displayed.

Interval Training Set

If you choose interval on, you can

set 3 different exercise phases for

each exercise set in following order:

Warm-up phase

• countdown timer 1 On/OFF

• heart rate limits 1 On/OFF

Interval phase

• interval calculation type

• number of repeated interval phases

• heart rate limits 2 On/OFF

• recovery calculation On/OFF

Cool-down phase

• countdown timer 3 On/OFF

• heart rate limits 3 On/OFF

If you set the countdown timers of

the phase off, you have to manually

stop the phase.

BasicSet

If you choose interval off, you can

set the following functions to your

exercise:

• timer 1 On/OFF

• timer 2 On/OFF

• timer 3 On/OFF

• heart rate limits 1 On/OFF

• heart rate limits 2 On/OFF

• heart rate limits 3 On/OFF

• recovery calculation On/OFF

You should select the timers on

sequentially. E.g. you cannot set

timer 3 on if timer 1 is off.

Options

Exercise Set

E0 E1 E2 E3 E4 E5

Exercise Set 1 - 5

Interval On Interval OFF (BasicSet) Recovery Hr

Timer 1 Timer 2 Timer 3 Limits 1 Limits 2 Limits 3 Recovery Timer

Timer 1 Limits 1 Interval Repeat Limits 2 Recovery Timer3 Limits 3

Timer Interval Timer

Recovery Hr Recovery Distance

Manual Interval Interval Hr Interval Distance

Manual S510 GBR C.pm6 8.3.2001, 12:4424-25

27B 26

Setting timers

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until desired timer is displayed. Press OK to start

setting the timer.

7. Scroll up or down to turn the timer on or OFF. Press OK.

Timer OFF: Skip steps 8-9.

8. Scroll up or down to adjust minutes. Press OK.

9. Scroll up or down to adjust seconds. Press OK.

Setting heart rate limits

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until desired Limits is displayed.

7. Press OK to enter the limits loop.

8. Lim High appears. Scroll up or down to adjust your upper limit. Press OK.

9. Lim Low appears. Scroll up or down to adjust your lower limit. Press OK.

Turning heart rate limits on/off

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until Limits is displayed.

7. Press and hold the signal/light button to turn limits on or off. Release.

Setting interval type

You can select 4 optional types of intervals:

A. Time-based interval Ends your interval when you have

used the selected time.

B. Heart-rate-based interval Ends your interval as you reach

the selected heart rate.

When selecting heart-rate-based interval,

recovery calculation must be set on.

C. Distance-based interval Ends your interval as you reach

the selected distance.

D. Manual interval End the interval training session

by pressing OK.

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until Interval TIMER/ Hr/ DIST/ MANUAL is displayed.

Press OK to start setting the interval type. TIMER/ Hr/ DIST/ MANUAL is

flashing.

7. Scroll up or down to select the interval type that will be used to end the

interval. Press OK. If you chose manual interval skip steps 8 - 9.

Manual S510 GBR C.pm6 8.3.2001, 12:4426-27

29B 28

A. Time-based interval

8. Scroll up or down to adjust minutes. Press OK.

9. Scroll up or down to adjust seconds. Press OK. Interval TIMER appears.

B. Heart-rate-based interval

8. Scroll up or down to adjust the heart rate that will end your interval.

Press OK. Interval Hr appears.

C. Distance-based interval

8. Scroll up or down to adjust kilometres.

Press OK.

9. Scroll up or down to adjust hundreds of

metres. Press OK.

Setting the number of intervals

If you start from the Time of day display, repeat steps 1-5.

You can set up to 30 intervals.

6. Scroll up or down until Repeat is displayed.

7. Press OK to start setting the number of intervals.

8. Scroll up or down to adjust the number of intervals. Press OK.

If you do not know in advance the precise amount of the desired intervals

select continuous interval. The intervals will succeed until you manually

stop the interval phase or until 30 intervals have been made.

8. Scroll down until Cont appears. Press OK.

Units 2: Adjustable units

are miles and feet.

Setting recovery calculation

A. Recovery timer Ends your recovery as you reach the

preset time.

B. Recovery heart rate Ends your recovery as you reach the

preset heart rate.

C. Recovery distance Ends your recovery as you reach the

selected distance.

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until Recovery TIMER/ Hr/ DIST is displayed.

7. Press OK to start setting recovery calculation on or off.

On/OFF is flashing.

8. Scroll up or down to turn the recovery calculation on or off. Press OK.

OFF: skip steps 9-11.

On: TIMER/ Hr/ DIST is flashing.

9. Scroll up or down to select recovery timer, heart rate or distance. Press OK.

A. RecoTime is displayed.

10. Scroll up or down to adjust minutes. Press OK.

11. Scroll up or down to adjust seconds. Press OK. Recovery TIMER appears.

Manual S510 GBR C.pm6 8.3.2001, 12:4428-29

31B 30

B. RecoHr is displayed.

10. Scroll up or down to adjust the value. Press OK. Recovery Hr appears.

C. Rec. Dist is displayed.

10. Scroll up or down to adjust kilometres.

Press OK.

11. Scroll up or down to adjust hundreds

of metres. Press OK. Recovery DIST appears.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

Naming exercise sets

You can name the exercises, with seven letters, numbers or punctual marks.

The available digits are: 0-9, space, A-Z, a-z, - % / ( ) * + : ?.

1. In the Time of day display scroll up or down until OPTIONS is displayed.

2. Press OK to enter the Options mode. EXERCISE SET is displayed.

3. Press OK. E0 - E5 is displayed.

4. Scroll up or down until desired exercise set (E1 - E5) is displayed.

5. Press and hold signal/light button. Adjustable letter is flashing.

6. Scroll up or down to select the desired mark. Press OK.

7. Repeat previous step until you have chosen all 7 letters.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

Units 2: Adjustable units

are miles and feet.

Options

Function Set

OwnCal Fit. Test HRmax-p On/OFF

On/OFF On/OFF

Turning functions on/off

1. In the Time of day display scroll up or down until OPTIONS is displayed.

2. Press OK to enter the Options mode. EXERCISE SET is displayed.

3. Scroll up or down until FUNCTION SET is displayed.

4. Press OK to start the function settings. OwnCal is displayed.

To set the following functions on you have to set your user information.

If kg/lbs are displayed as you start setting the function on, the wrist

receiver points out that you have not set your all user information.

OwnCal calorie counter on/off

If you start from the Time of day display, repeat steps 1-4.

5. Press OK to start setting the OwnCal function. On/OFF starts to flash.

6. Scroll up or down to set the OwnCal on or off. Press OK.

For getting the most accurate OwnCal results, update the VO2max setting

and the HRmax setting with clinically measured values (if available). If you do

not know your clinically measured values perform Polar Fitness Test and

update the OwnIndex and HRmax -p settings in Fitness test mode.

Manual S510 GBR C.pm6 8.3.2001, 12:4430-31

33B 32

Bicycle feature settings

1. In the Time of day display scroll up or down until OPTIONS is displayed.

2. Press OK to enter the Options mode. EXERCISE SET is displayed.

3. Scroll up or down until BIKE SET is displayed.

4. Press OK to start the bike settings.

5. Scroll up or down to start setting the Bike 1 or 2 or turn the bike

features off. Press OK. If you selected bike features off skip the rest of

the bike settings.

You can set two bike preferences for the S510. Make the settings ready for

both bikes; when you start exercising, just select bike 1 or 2. As you take

the bike settings 1 or 2 in use your speed and distance measuring functions

are always on. Before you can use the Polar S510 to measure distance,

speed and cadence* information, you should adjust the wheel size

information of your bike.

Options

Bike Set

Bike 1/ Bike 2/ Bike OFF

Wheel Cadence On/OFF AutoStrt On/OFF

Fitness test on/off

If you start from the Time of day display, repeat steps 1-4.

5. Scroll up or down until Fit. Test is displayed.

6. Press OK to start setting the fitness test. On/OFF starts to flash.

7. Scroll up or down to set the fitness test on or off. Press OK.

Predicted maximum heart rate on/off (HRmax-p)

If you start from the Time of day display, repeat steps 1-4.

5. Scroll up or down until HRmax-p is displayed.

6. Press OK to start setting the HRmax-p. On/OFF starts to flash.

7. Scroll up or down to set the HRmax-p on or off. Press OK.

HRmax-p can be turned on only if Polar Fitness Test is on.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

*Optional Polar Cadence Sensor required.

Manual S510 GBR C.pm6 8.3.2001, 12:4432-33

35B 34

METHOD 2.

Mark the tread of the front tire with a line and roll the tire perpendicular

to the ground. You can also use the valve as a mark. Mark a line on the

ground. Move your bike on a flat surface straight ahead for one complete

wheel rotation. Check that the tire is perpendicular to the ground. Draw

another line on the ground exactly where the mark on the front tire

touches the ground.

Measure the distance between the two lines on the ground. _________ mm

Substract 4 mm to account for your weight on the bike to

get your wheel circumference. - 4 mm

This is the value you must set on the meter. _________ mm

The wheel size is always indicated in millimetres as this is more accurate.

Resetting the monitor enters the default values.

Adjusting the wheel size (Wheel)

If you start from the Time of day display, repeat steps 1-5.

6. Start with the display showing Wheel.

7. Press OK to start setting the wheel size.

8. Scroll up or down to adjust the wheel size. Press OK.

You have the following alternatives to find out the wheel size of your bike:

METHOD 1.

Look at the wheel of your bike and find the wheel diameter printed on it.

On the chart below, find your wheel diameter in inches or in ERTRO

reading. Match it to the wheel size in millimetres on the right.

ERTRO Wheel size diameter (inches) Wheel size setting

30-559 26x1.25 1953

35-559 26x1.5 1985

44-559 26x1.75 2030

47-559 26x1.95 2050

26x1 1/8 Tubular 1970

650-20C 1952

622-20 700x20C 2086

622-23 700x23C 2096

622-25 700x25C 2105

700C Tubular 2130

28 (700 B) 2237

Manual S510 GBR C.pm6 8.3.2001, 12:4434-35

37B 36

Cadence* on/off (Cadence)

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until Cadence is displayed.

7. Press OK to start setting the Cadence. On/OFF starts to flash.

8. Scroll up or down to set the Cadence on or off. Press OK.

Autostart on/off (AutoStrt)

If you start from the Time of day display, repeat steps 1-5.

6. Scroll up or down until AutoStrt is displayed.

7. Press OK to start setting the autostart. On/OFF starts to flash.

8. Scroll up or down to set the autostart on or off. Press OK.

Autostart means that the receiver automatically starts or stops the exercise

recording, as you start or stop moving your bicycle.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

Naming Bike 1 and Bike 2

You can name the bikes with four letters, numbers or marks.

The number in the right corner of the display indicates, which bike settings

are in use. (b0=Bike off, b1= Bike 1, b2=Bike 2)

1. In the Time of day display scroll up or down until OPTIONS is displayed.

2. Press OK to enter the Options mode. EXERCISE SET is displayed.

3. Scroll up or down until BIKE SET is displayed.

4. Press OK to start the bike settings.

5. Scroll up or down until Bike 1 or 2 is displayed.

6. Press and hold signal/light button. Adjustable letter is flashing.

7. Scroll up or down to select the desired mark. Press OK.

8. Repeat previous step until you have chosen all four letters.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

*Optional Polar Cadence Sensor required.

Manual S510 GBR C.pm6 8.3.2001, 12:4436-37

39B 38

Options

Monitor Set

Sound Units Help

On/OFF 1/2 On/OFF

Monitor settings

1. In the Time of day display

scroll up or down until

OPTIONS is displayed.

2. Press OK to enter

the Options mode.

EXERCISE SET

is displayed.

3. Scroll up or down until MONITOR SET is displayed.

4. Press OK to start the monitor settings. Sound is displayed.

Turning activity/button sound on/off

If you start from the Time of day display, repeat steps 1-4.

5. Press OK to start setting the sound. On/OFF starts to flash.

6. Scroll up or down to set sound on or off. Press OK.

Activity/button sound consists of the button sound and in the Measure and

Exercise modes the following activity sounds: start, stop and lap recording,

phase start, interval phase end and recovery calculation end sounds. Does

not consist of heart rate zone alarms, watch alarm or fitness test alarm.

Selecting measuring units

If you start from the Time of day display, repeat steps 1-4.

5. Scroll up or down until Units is displayed.

6. Press OK to start setting the units. 1 or 2 starts to flash.

7. Scroll up or down to select the desired unit. Press OK.

The units settings affect the following features:

Units 1: Units 2:

User information kg, cm lbs, feet

Date of birth day-month-year month-day-year

Speed km/h mph

Distance km, hundreds of metres miles, feet

Wheel size mm mm (NOTE!)

Turning Help on/off

If you start from the Time of day display, repeat steps 1-4.

5. Scroll up or down until Help is displayed.

6. Press OK to start setting the Help function. On/OFF starts to flash.

7. Scroll up or down to set the Help on or off. Press OK.

If you turn Help on, the flashing arrows guide you to use the correct

buttons in the Options and File modes. During the exercise, when you are

changing the middle row information, you can see the name of the

function for few seconds.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

Manual S510 GBR C.pm6 8.3.2001, 12:4438-39

41B 40

Options

Watch Set

Alarm Time 1/2 Date

12h Time mode:

month - day - year.

1. In the Time of day display scroll up

or down until OPTIONS is displayed.

2. Press OK to enter the Options mode.

EXERCISE SET is displayed.

3. Scroll up or down until WATCH SET

is displayed.

4. Press OK to start the watch settings. ALARM is displayed.

Setting alarm

If you start from the Time of day display, repeat steps 1-4.

5. Press OK to start alarm settings. On/OFF starts to flash.

6. Scroll up or down to set alarm on or off. Press OK.

24h: skip step 7.

7. 12h: AM/PM starts to flash. Scroll up or down to select

AM or PM. Press OK.

8. The hours start to flash. Scroll up or down to adjust

the hours. Press OK.

9. The minutes start to flash. Scroll up or down to adjust the minutes. Press OK.

When the alarm comes on, it will sound for one minute or you can turn it

off by pressing any of the five buttons.

Setting time of day

If you start from the Time of day display, repeat steps 1-4.

5. Scroll up or down until TIME1/ TIME2 is displayed.

6. Press OK to start setting the Time of day.

7. Time is flashing. Scroll up or down to select time 1 or time 2. Press OK.

8. 12h/ 24h starts to flash. Scroll up or down to select 12h or 24h time

mode. Press OK. 24h: skip step 9.

9. AM/ PM starts to flash. Scroll up or down to select AM or PM. Press OK.

10. The hours start to flash. Scroll up or down to adjust the hours. Press OK.

11. The minutes start to flash. Scroll up or down to adjust the minutes.

Press OK.

Setting date

If you start from the Time of day display, repeat steps 1-4.

5. Scroll up or down until DATE is displayed.

6. Press OK to start adjusting the date.

7. Day appears. Scroll up or down to select the

desired value. Press OK.

8. Month appears. Scroll up or down to select

the desired value. Press OK.

9. Year digits start to flash. Scroll up or down to select the year. Press OK.

To continue your settings, press the stop button or to return to the Time of

day display, press and hold the stop button.

Watch settings

OFF: skip

steps 6- 9.

Manual S510 GBR C.pm6 8.3.2001, 12:4440-41

B 42 C 43

Time of day

Measure mode

Exercise recording mode

Setting tips

Swap time 1 or time 2

In the Time of day display press and hold the down button. Time 1 or Time

2 is displayed in the uppermost row for a couple of seconds. Displayed

time will now be used in all watch and alarm functions. If you chose time 2,

“2” is displayed in the Time of day display.

Shortcut to watch setting loop

Press and hold the signal/light button for a couple of seconds to enter to

watch setting loop. If you want to skip some parts and go directly to set a

particular watch function, scroll up or down button until the desired watch

function is displayed. Set the function as in the “Watch settings” section.

Swap measuring units

- as you set user information on weight and height.

- as you set an Interval Training Set on distance-based interval or recovery.

Press and hold the signal/light button until the units are swapped. Release

the button.

Swap date and user ID

You are able to set a user ID by PC Coach Light software. When set,

the user ID number is shown on the upper row of the Time of day display.

You can swap the user ID and date by pressing and holding the up button.

C. EXERCISE

You can use two modes in your

exercise: Measure or Exercise mode.

In the Measure mode you can see your

heart rate but your exercise is not

recorded. In the Exercise mode your

exercise is recorded and stopwatch

and other calculations are started.

Measure mode

1. Wear the transmitter and the wrist receiver as described in “Easy start” section.

2. To make sure that the code search will be successful:

• Keep the wrist receiver within 1 metre/ 3 feet of your transmitter.

• Check that you are not near to other people with heart rate monitors,

high voltage power lines, televisions, mobile phones, cars, motor driven

exercise equipment or other electromagnetic disturbance.

Manual S510 GBR C.pm6 8.3.2001, 12:4442-43

C 45C 44

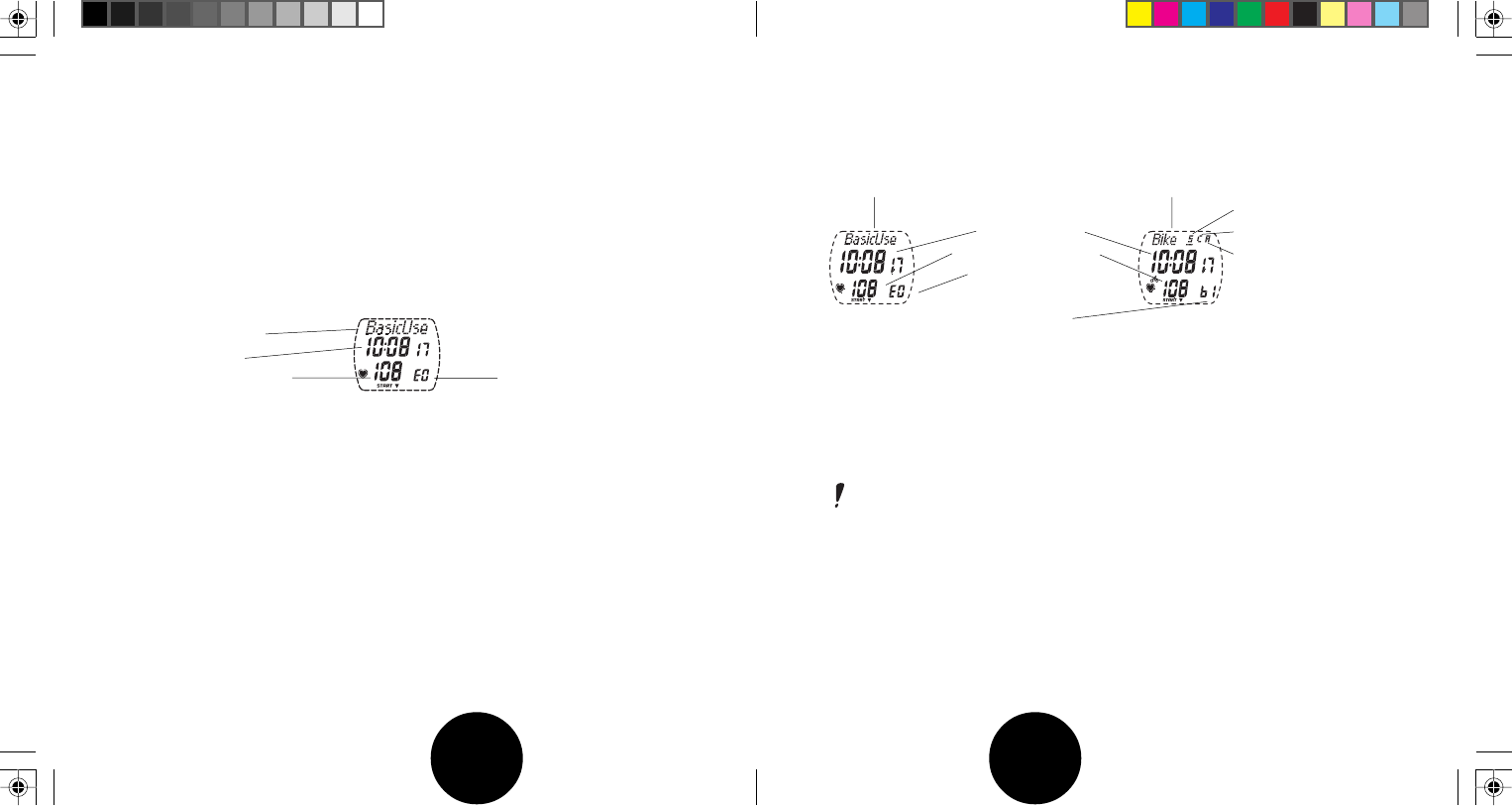

3. Start from the Time of day display by pressing the OK to start measuring

your heart rate. A heart symbol will start flashing and your heart rate in

beats per minute will appear in max. 15 seconds. You have now entered

to the Measure mode. The receiver returns automatically to the Time of

day display within 5 minutes if there is no heart rate reception.

The following display appears as you enter the Measure mode. You can

change this display to Stopwatch display by pressing the up or down button.

Exercise name

Time of day

Current heart rate Exercise set in use or

BasicUse

The following displays start to alternate, if you have bike 1 or 2 on, as you

enter the Measure mode.

Exercise name Bike name

Time of day.

Current heart rate.

Exercise set in

use or BasicUse.

Bike in use.

4. If you want to record cycling information, keep the bike still until your

heart rate appears on the display. Press OK to start recording your exercise.

If you want to record cycling information without heart rate measurement:

after the heart rate reading 00 appears press OK and start cycling.

If your preset exercise requires cycling settings Set bike is displayed for a

few seconds. In order to start the exercise set you need to select bike 1 or 2

by pressing and holding the down button.

Speed,

cadence and

autostart;

underline indicates

that function is set on.

Manual S510 GBR C.pm6 8.3.2001, 12:4444-45

C 47C 46

If you are starting from the Time of day display, press and hold OK.

Exercise information will be stored in an exercise file only when the

stopwatch is running. The ongoing recording is indicated with a graphic

bar that runs continuously on the display.

If your preset exercise requires cycling settings, Set Bike is displayed

for a few seconds. In order to start the exercise set you need to select bike

1 or 2 by pressing and holding the down button until the desired Bike is

displayed.

If there is 00 / - - reading on the display, there is no heart rate reception.

Bring the wrist receiver up to your chest near the transmitter’s Polar logo.

The receiver starts looking for the heart rate signal again.

In the beginning of your exercise, when it has lasted less than 60

minutes, the exercise time is displayed in minutes and seconds. When

you have exercised more than 60 minutes, the exercise time is

displayed in hours and minutes.

You have three optional Exercise modes depending on the selected exercise:

• BasicUse

• Interval Training Set (Int On)

• BasicSet (Int OFF)

Exercise recording mode

Autostart for recording a cycling exercise

If you start from the Time of day display, press OK briefly to enter the

Measure mode. Your exercise recording automatically starts/ pauses as you

start/ stop cycling.

If you want to record cycling information only, start cycling after the heart

rate reading 00 appears on the display. If you want to record both cycling

and heart rate information keep the bike still until your heart rate

appears on the display.

Manual S510 GBR C.pm6 8.3.2001, 12:4446-47

C 49C 48

The following functions can be used during all three optional Exercise modes.

Illuminating the display

Press the signal/light button.

After you use backlight once in the Measure mode, Polar S510 automatically

illuminates the display if you: start or stop the exercise session, store lap

information and at the end of an interval and a recovery calculation.

Turning the heart rate zone alarm on/off

Press and hold the signal/light button.

When appears on the display the zone alarm is on. You will hear a

beeping sound with each heartbeat if your heartbeat is outside the heart

rate limit. If you do not want to use the zone alarm the flashing heart rate

reading indicates if your heartbeat is outside the heart rate limit. This

function can be used if you have set heart rate limits on.

In addition to the alarm you can see:

if you are exercising above heart rate zone.

if you are exercising below heart rate zone.

Swapping the heart rate limits

Press and hold the up button. Repeat until the desired limits are displayed.

In the Interval Training mode the limits are automatically swapped when

the phase changes to the preset limits.

Storing lap and split time

Press OK to store lap and split time.

First Then

Lap time Split time

Average heart

rate of the lap

Number of

the lap

Polar S510 automatically stores a lap time when you stop recording an

exercise. Polar S510 can store 99 laps if you have not used the interval

function. After storing 99 laps FULL appears for a few seconds every

time you take a lap. You can continue taking laps but they will not be

stored. The wrist receiver continues recording all other information of

the exercise, except lap and interval information.

Pausing the exercise

Press the stop button.

The exercise recording, stopwatch and other calculations are paused. To

continue them, press OK. Or, to return to the Time of day display, press and

hold the stop button.

The receiver automatically returns to the Time of day display within

5 minutes if you forget to quit the heart rate measuring after having

stopped the stopwatch and taken the transmitter off your chest.

Manual S510 GBR C.pm6 8.3.2001, 12:4448-49

C 51C 50

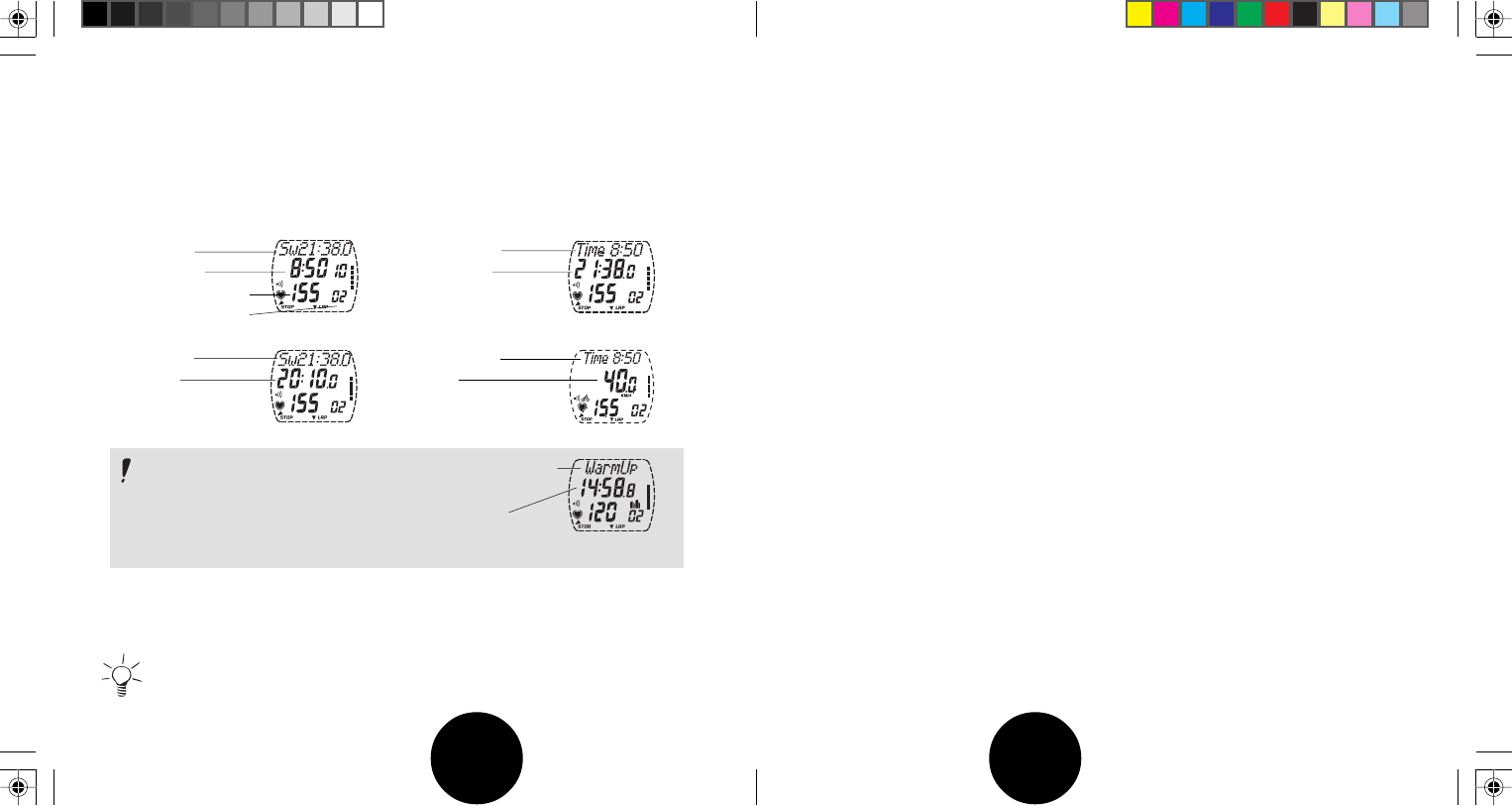

Swapping the displayed exercise information

There are four display options, which you can swap between by pressing

the down button. Once you have configured the display options, Polar S510

saves the settings. If the Help function is on, the name of the selected

function appears for a few seconds.

Stopwatch Time of day

Time of day Stopwatch

Current heart rate

Number of the lap

Stopwatch Time of day

Lap time Speed

Select the middle row information

1. Press the down button to select the desired display alternative. When you

swap the middle row information, the upper and lower rows change also.

Continue selecting the upper and lower rows.

Select the upper row information

2. Press the up button to select from the following: Time of day (Time),

stopwatch (Sw), lap time (Lp), or if you have turned the functions on

select from: calorie expenditure (Cal), trip (Trip), current speed (Spd),

average speed (Avg speed), maximum speed (Max speed) and cadence*

(Cad).

You cannot select the same displayed function to the upper and middle row

i.e. the option on the middle row is no longer available for the upper row.

Select the lower heart rate information row

3. Press and hold the down button to select from the following: Current heart

rate, average heart rate (avg) or the reading in percentage of your

maximum heart rate (% max) if you have set your user information.

You can only change the displayed function of the lower row if the

stopwatch is on.

Resetting the stopwatch to zero

1. Pause your exercise.

2. Press and hold the down button until the stopwatch is reset. Release.

When you have set your Interval

Training Set on, you will have one extra

display in addition to the four displays.

You can only change the middle and

lower rows for this display.

See the alternative phase displays from “Exercising with Interval Training

Set” section. You can also choose which information you want to be on the

three display rows.

You can configure the middle and upper rows either in the Measure

mode or during the exercise.

Phase Name

Countdown

timer

*Optional Polar Cadence Sensor required

Manual S510 GBR C.pm6 8.3.2001, 12:4450-51

C 53C 52

Starting an exercise set

1. Start from the Time of day display. Press OK to enter the Measure mode.

2. If you want to swap the preset exercise set, press and hold the up

button until the exercise set (E1-E5) is swapped. Release. Repeat until

desired exercise set is displayed.

3. To start exercising and recording the preset exercise type press OK.

Exercising with Interval Training Set (Int On, E1-E5)

In this mode you can also use the functions in “Exercise recording mode”

section.

The Interval Trainer automatically guides you through your exercise. In

order to hear the activity sounds when the phase starts and stops make

sure the activity/button sound is on. If you have turned the countdown

timer of the phase off, you have to stop the phase manually by pressing the

OK button. When the stopwatch starts running indicates that Interval

Trainer is on. As the interval training exercise ends the Polar S510

automatically starts a BasicUse exercise, which is recorded to the same file

as your interval training exercise.

01020304050

160

140

120

100

WarmUp phase

Countdown timer 1

Heart rate limits 1

Interval Phase

Repeats 03

CoolDown phase

Countdown timer 3

Heart rate limits 3

Interval

Recovery

Interval

Recovery

Interval

Recovery

Heart

rate

Time

Warm-up phase

1. First

Heart rate limits 1 (if set on).

2. Then

Countdown timer 1.

Heart rate information.

Countdown timer starts running if you have set the timer 1

on. If you have set the timer off, press OK and continue

from the interval phase.

3. At the end of warm-up phase

Warm-up phase duration.

Average heart rate of the warm-up phase.

Structure of an interval training exercise:3. Press OK to restart the stopwatch and recording. Or, to return to the

Time of day display, press and hold the stop button. As a result of

resetting your stopwatch the previous file is deleted.

Manual S510 GBR C.pm6 8.3.2001, 12:4452-53

C 55C 54

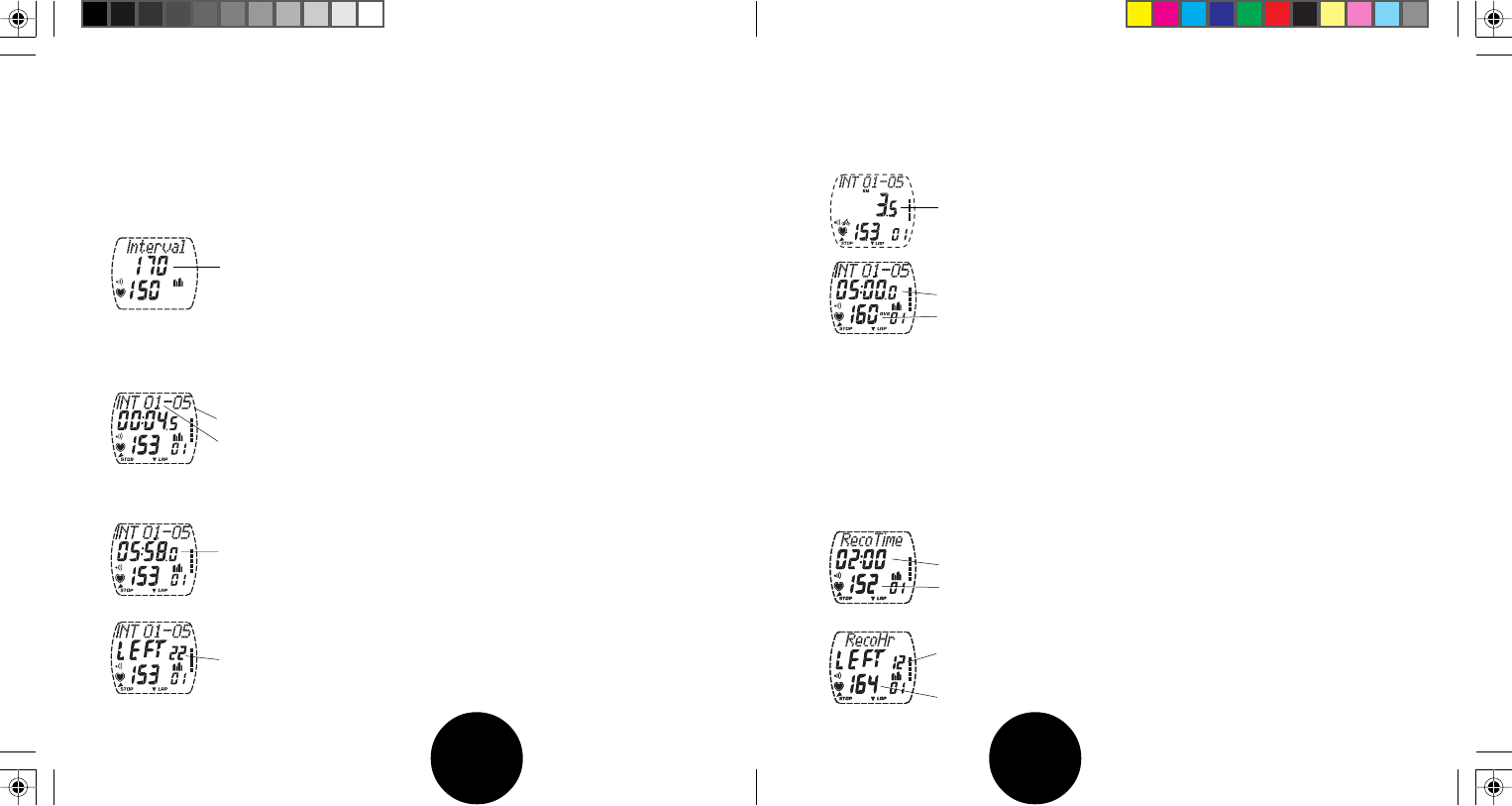

Interval session

1. First

Preset heart rate limits 2 (if set on).

2. Then

One of the following is displayed depending on your settings:

A. manual, B. time-based, C. heart-rate-based interval or

D. distance-based interval.

A. Manual interval

Number of set intervals.

Current interval number.

If you selected manual interval your interval will end as you

press OK.

B. Time-based interval

Countdown timer.

If you selected time-based interval your interval will end as

you reach the preset time.

C. Heart-rate-based Interval

The difference between the preset interval heart rate and

current heart rate.

Interval phase

The Polar S510 records up to 30 repeated interval phases. Your interval

phase is divided into interval and recovery calculation (if set on) sections,

which alternate continuously through your interval phase.

If you selected heart-rate-based interval your interval will

end as you reach the preset heart rate reading.

D. Distance-based interval

Countdown distance.

Your interval will end as you reach the preset distance.

3. At the end of Interval

Interval duration.

Average heart rate of the interval.

When your interval ends the wrist receiver automatically

continues with following preset function: recovery

calculation or cool-down phase.

Recovery calculation

One of the following is displayed depending on your

settings: A. time-based recovery calculation, B. heart-rate-

based or C. distance-based recovery calculation.

A. Time-based recovery.

Recovery countdown timer.

Current heart rate.

B. Heart-rate-based recovery.

The difference between the preset recovery heart

rate and current heart rate.

Current heart rate.

Manual S510 GBR C.pm6 8.3.2001, 12:4454-55

C 57C 56

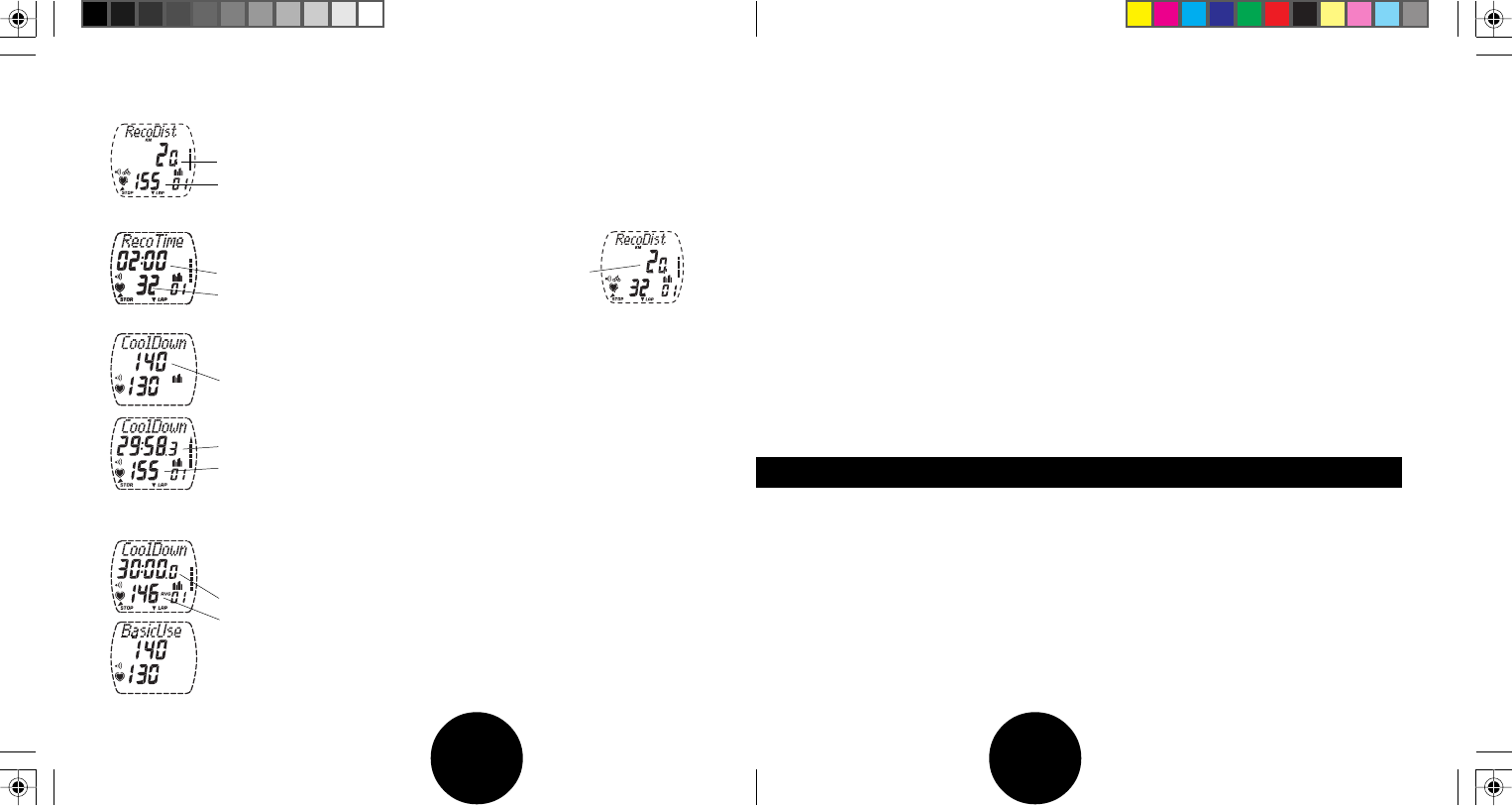

C. Distance-based recovery

Recovery countdown distance.

Current heart rate.

At the end of recovery

A. and B. Or C.

Recovery duration. Recovery distance.

Drop in your heart rate.

Cool-down phase

1. First

Preset heart rate limits 3 (if set on).

2. Then

Countdown timer 3.

Heart rate information.

Countdown timer starts running if you have set the timer 3

on. If you have set the timer off press OK to end a phase.

3. At the end of cool-down phase

Cool-down phase duration.

Average heart rate of the cool-down phase.

After your cool-down phase has ended the receiver

automatically continues exercise recording with BasicUse mode.

You can continue using the heart rate limits of the previous exercise in this

mode too. If you want to do another interval training exercise, press and

hold the OK button.

Interrupting an interval training exercise

1. Press the stop button to pause the exercise.

2. Press and hold the stop button to return to the Time of day display.

Skip step 3.

Press the stop button. BasicUse appears. You can continue measuring your

heart rate in this mode (Measure mode) or continue exercising with

BasicUse and recording your exercise information.

3. Press OK to start recording the BasicUse exercise. Stopwatch is started

and you can continue using and swapping the same heart rate limits of

the previous exercise.

Exercising with BasicSet (Int OFF, E1-E5)

In this mode you can also use the functions in “Exercise recording mode”

section.

Starting the timers

If timers are set on, they automatically start running once you start the

stopwatch. Timers alternate in the following order: timer 1, 2, 3, 1, 2, 3, etc.

At the end of timer 1 you will hear 1 beep, at the end of timer 2 you will

hear 2 beeps and at the end of timer 3 you will hear 3 beeps. Timers stop

running when you stop the stopwatch.

Manual S510 GBR C.pm6 8.3.2001, 12:4456-57

C 59C 58

Stopping the exercise

Tips during the exercise

Checking the heart rate limits and illuminating the display

Bring the wrist receiver near the transmitter’s Polar logo. The backlight is

turned on for a couple of seconds. The current heart rate limits of the

exercise are displayed.

Swapping the exercise type (E0 or E1 - E5)

In the Measure mode press and hold the up button. Release. Repeat until

desired exercise set or BasicUse is displayed.

Starting recovery calculation

To start the recovery calculation, press and hold the OK button.

See “Exercising with Interval Trainer”/ “Recovery calculation” for the

displayed information during the recovery calculation. After the recovery

calculation is done the exercise is paused. You can continue the exercise by

pressing the OK button after the recovery calculation. If you do another

recovery calculation, the recovery information will be deleted in consequence.

1. Press the stop button to pause the exercise.

2. Press and hold the stop button until time of day is displayed.

Your lap and split time are automatically recorded, when you end the

exercise.

Swapping the bike setting (b0, b1 or b2)

Start from the Measure mode. Press and hold the down button until Bike 1

or 2 or Bike OFF is displayed. You can now start exercising with the chosen

settings. For more information about cycling measurement, see the

“Measure mode” and “Swapping the displayed exercise information”

sections.

Resetting the trip distance

Pause the exercise, then scroll up until trip is displayed. Press and hold the

signal light button until the trip reading is zero. Release. To continue your

exercise press OK.

Restarting the interval or recovery calculation

Pause the interval or recovery calculation.

Reset the calculation by pressing and holding the down button. To restart

the same calculation press the OK button or to reset the interval training

exercise, see “Resetting stopwatch to zero” section.

Interrupting an interval or recovery calculation

Press and hold the OK button during your interval training exercise session

to interrupt the calculation. The following section automatically starts. E.g.

if you interrupt an interval your recovery calculation (if set on)

automatically starts.

Interrupting a phase of an interval training exercise

Press the stop button to pause your phase. Press and hold the OK button.

The following phase automatically starts.

Manual S510 GBR C.pm6 8.3.2001, 12:4458-59

D 61D 60

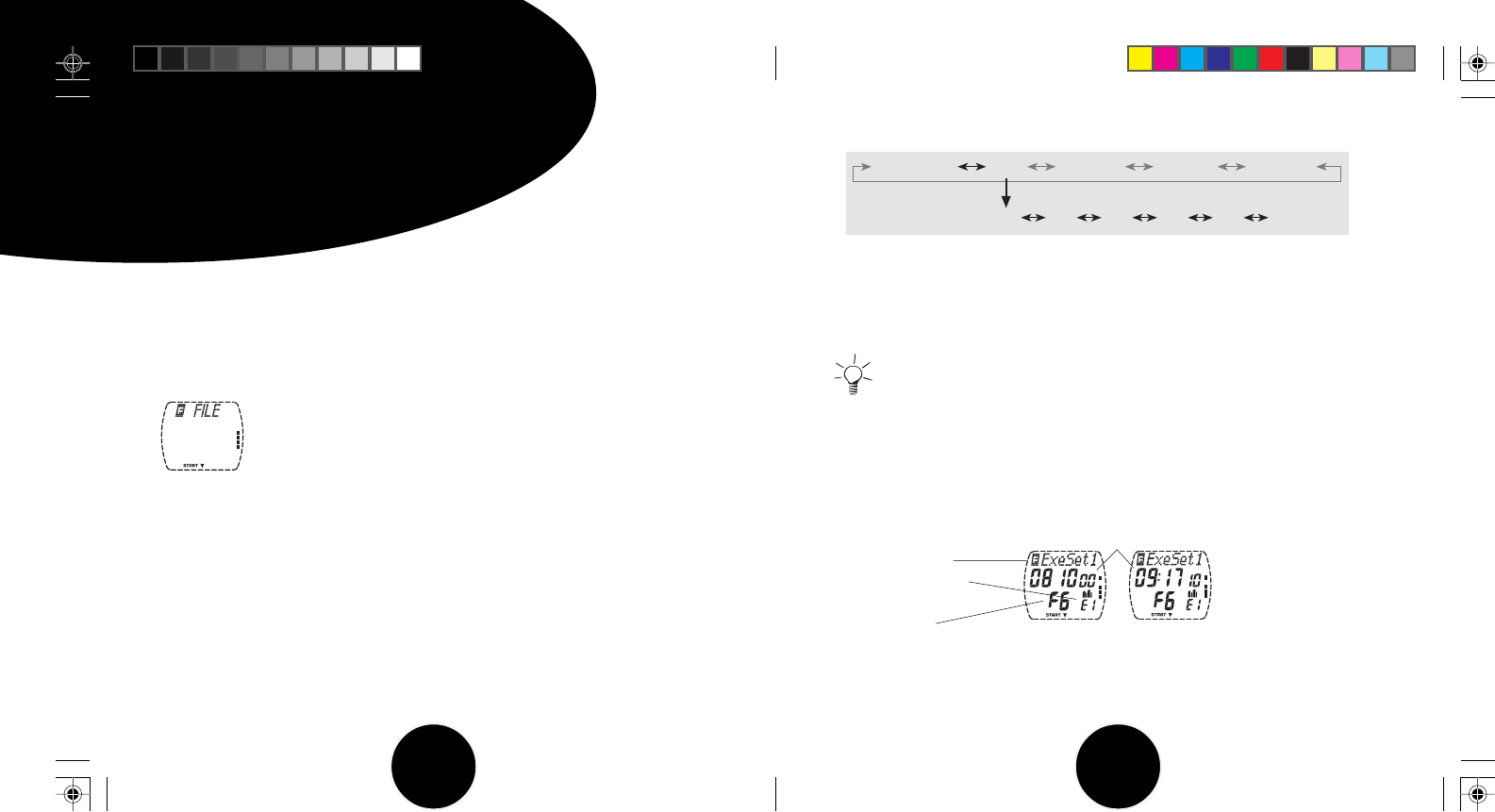

D. HOW TO RECALL TRAINING

INFORMATION

Time of Day File Options Fit. Test Connect

F6 F5 F4 F3 F2 F1

The Polar S510 starts saving your exercising

information as you start the stopwatch in the

Exercise mode. You can recall the information in

the File mode. The Polar S510 stores one complete

training file at a time. Your latest exercise is stored

in a complete file until the next time you start the

stopwatch. Then your previous complete file is

compressed to a summary file. The summary file

includes only the main exercise information

(starting date and timer and exercise duration).

The Polar S510 saves five summary files.

Your complete file is F1 the very first time, then F2 and so on, until you

have recorded 6 complete files. Then F6 always indicates the latest

complete file and F1 to F5 are the summary files. The bigger the file

number the more recent it is.

Some information alternates on the display automatically. You can

fasten alternation by pressing the OK button. E.g. the target zone

information or heart rate information.

1. In the Time of day display scroll up or down until FILE is displayed.

2. Press OK to enter the File mode. The main information of your complete

file is displayed.

Starting date and time alternate on the display.

Exercise name

Used exercise set

or BasicUse

File number

3. If you wish to recall a summary file, scroll up or down until the desired

file is displayed.

4. Press OK to start recalling the file. Exe. Time is displayed.

Manual S510 GBR C.pm6 8.3.2001, 12:4460-61

D 63D 62

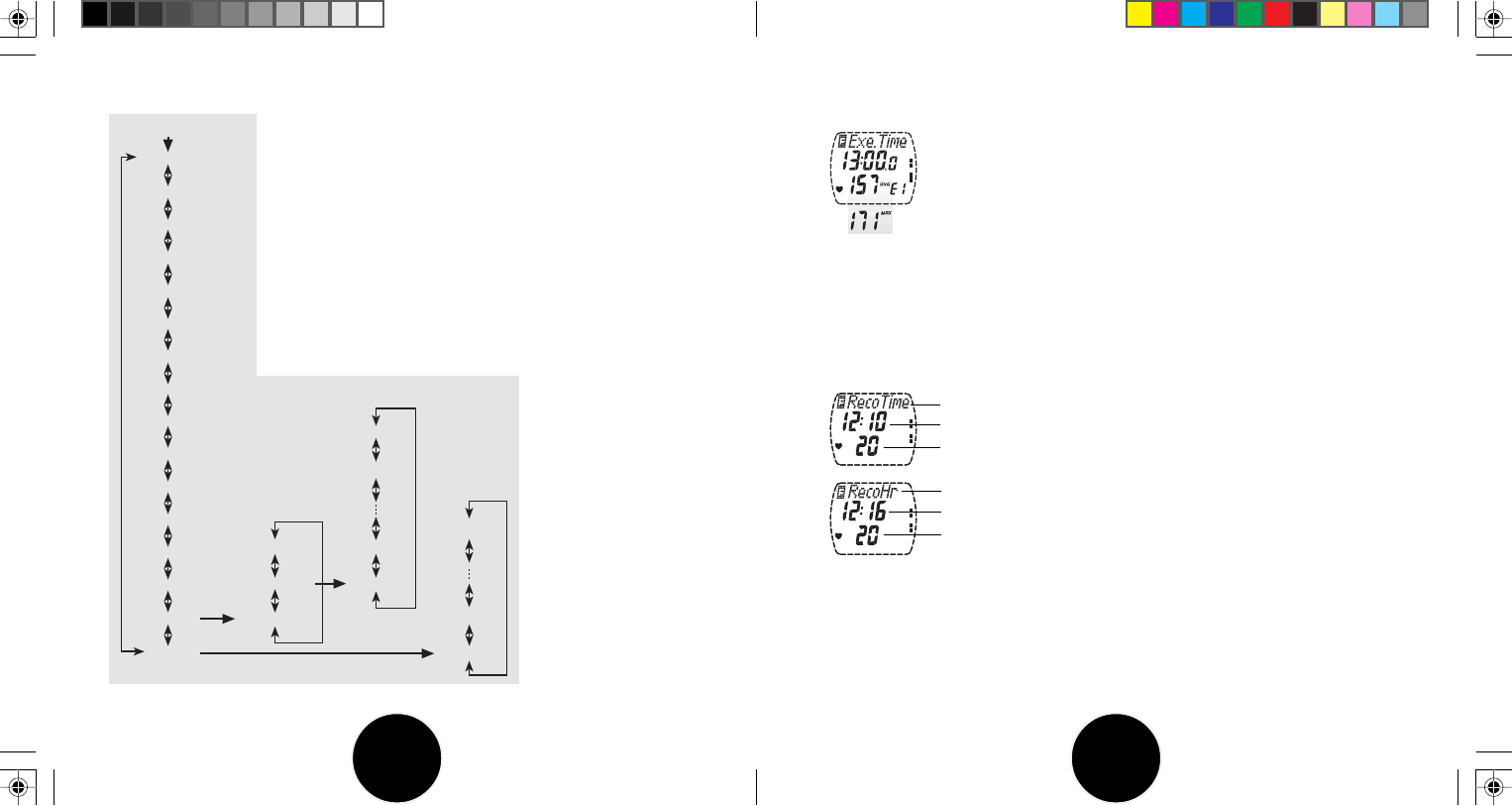

Complete File

Exe. Time

Recovery

Exe. Dist

Speed

Cadence

Limits

InZone1

InZone2

InZone3

KCal

Tot. KCal

Tot. Time

Rid. Time

Odometer

EXE. SET

LAPS

Lap 99

Lap 1

Best Lap

CoolDown

Interval

WarmUp

Reco 30

Int 30

Reco 1

Int 1

• Move forward and backward within file

loops with up or down buttons.

• Press OK to enter a file or to enter a

deeper level in the file loop.

• Press the stop button to move backward to

the previous file level.

• Press and hold the stop button to return

the Time of day display, wherever you are

in the File recalling cycle.

Exercise time (Exe. Time)

The exercise time is the amount of time that you have

exercised with the stopwatch running. Average and

maximum heart rates of your exercise alternate on the

display. To continue recalling the complete file, scroll up

or down button.

This is the first opening display that you will see in both

summary and complete files. The summary file does not

include any more information. To exit the summary file press

the stop button.

Recovery information of BasicSet exercise (Reco)

Recovery time.

Recovery duration.

Drop in your heart rate.

Recovery heart rate.

Time it took reach the preset heart rate reading.

Drop in your heart rate.

Exercise distance (Exe. Dist.)

You can see the exercised distance.

Speed information (Spd. Avg/ Max)

Average and maximum speed of the exercise alternate.

Manual S510 GBR C.pm6 8.3.2001, 12:4462-63

D 65D 64

Cadence information* (Cad. Avg/ Max)

Average and maximum cadence of the exercise alternate.

Heart rate limits 1, 2 and 3 (Limits 1/ Limits 2/ Limits 3)

Settings of the heart rate limits alternate on the display. Limits 1 are used

for target heart rate zone 1, limits 2 for zone 2 and limits 3 for zone 3.

Exercise time within, above and below the target heart rate zones

Indicates the exercise time, which you have spent within (InZone), above

and below each heart rate limits during the entire exercise.

Calorie expenditure (KCal)

You will see how many kilocalories you have expended during the exercise.

Cumulative calorie count (Tot. KCal)

You will have a count for cumulative calories expended during several

exercise sessions starting from the previous resetting. This function allows

you to follow the calorie count as a gauge of effective exercise e.g. during

one week.

Cumulative exercise time count (Tot. Time)

This function counts cumulative exercise time expended during several exercise

sessions starting from the previous resetting. It allows you to follow the

exercise time count as a gauge of amount of exercise e.g. during one week.

Your cumulative total time is displayed in hours and minutes until 99

hours 59 minutes is reached. After this your cumulative exercise time is

displayed in hours 100 h until 9999 hours is reached.

Cumulative riding time (Rid. Time)

You will have a count for cumulative riding time expended during several

exercise sessions starting from the previous resetting.

Odometer (Odometer)

Measures cumulative total distance of several exercise sessions starting

from the previous resetting.

*Optional Polar Cadence Sensor required

Interval Training information (EXE. SET)

Start with the display showing EXE. SET.

1. Press OK to start recalling the interval training information.

2. Scroll up or down to see the information on warm-up, interval and cool-

down phases.

3. To exit this loop press stop button.

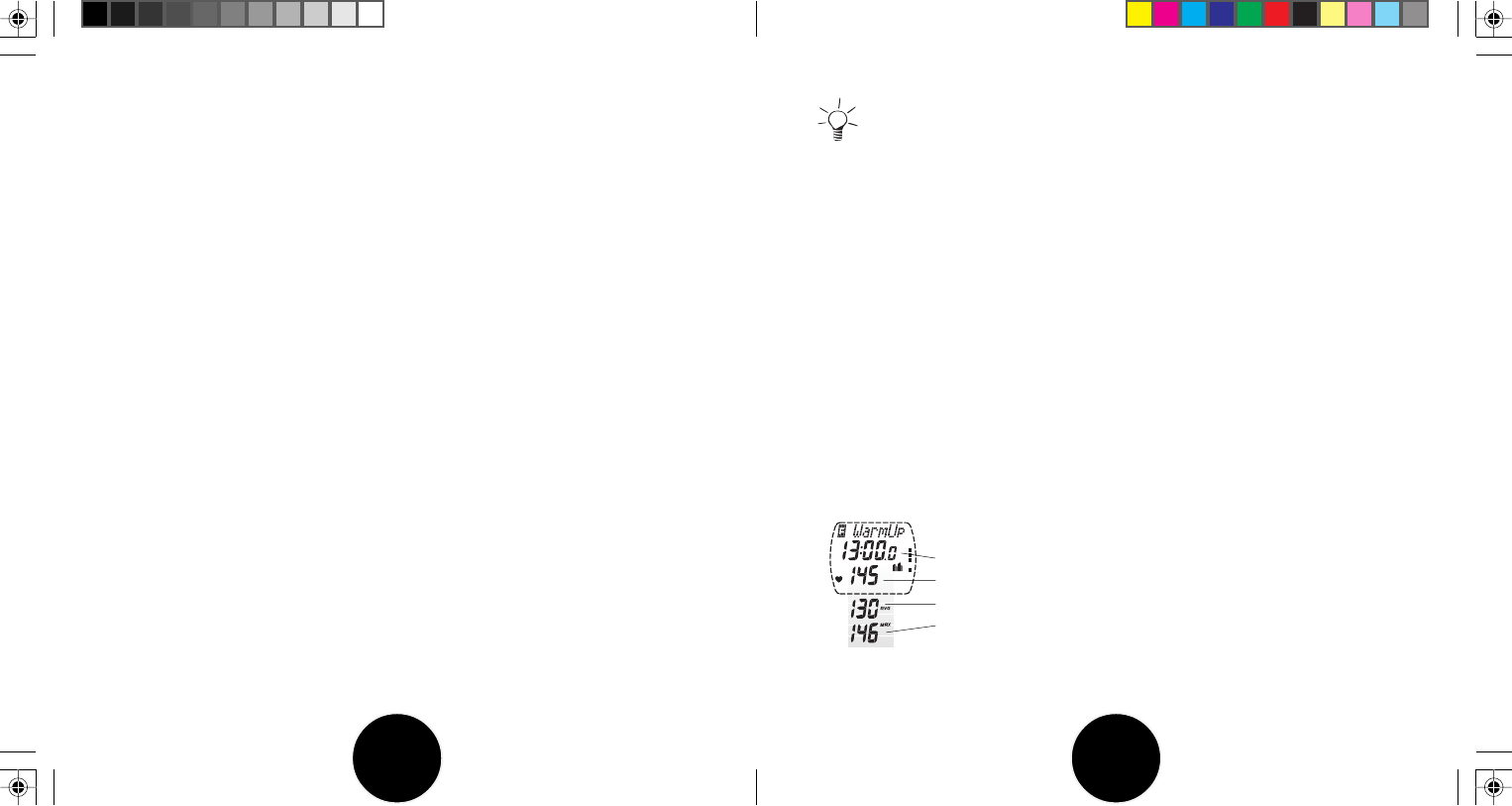

Warm-up phase

Warm-up duration.

The heart rate at the end of the warm-up,

average and

maximum heart rates of your warm-up phase.

Manual S510 GBR C.pm6 8.3.2001, 12:4464-65

D 67D 66

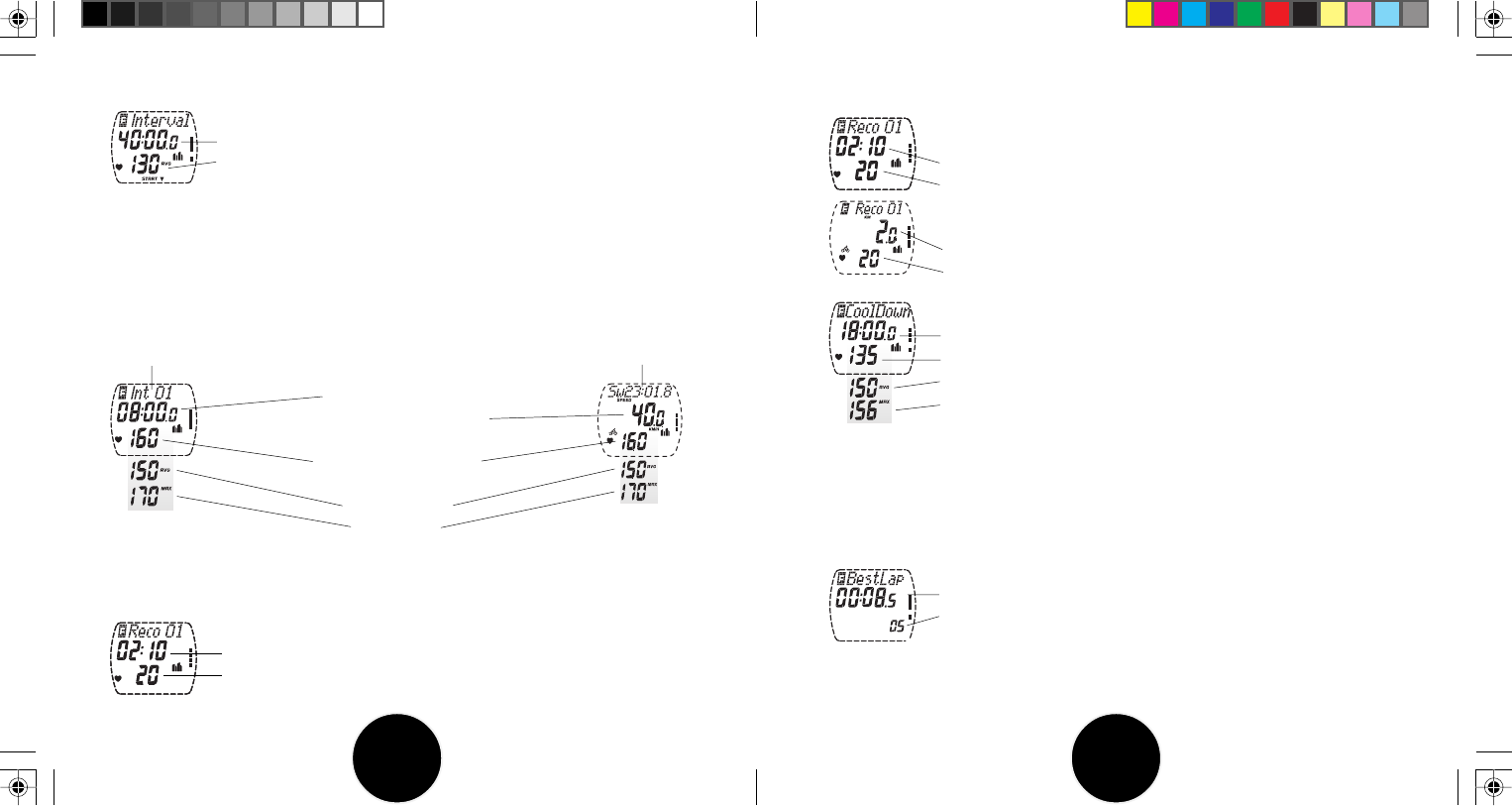

Start with the display showing Interval.

Continue recalling more detailed information on your Interval phase.

1. Press OK to see details of each interval and recovery.

2. Scroll up or down between intervals and recoveries.

3. To return to the interval phase display press the stop button.

Interval phase

Interval phase duration.

Average heart rate of intervals and recoveries.

Best Lap

Shortest lap time.

The number of the best lap.

The best lap information is displayed if you have stored at least

3 laps. The best lap can not be the last lap.

Lap information (LAPS)

Start with the display showing LAPS and number of the recorded laps.

1. Press OK to start recalling the lap information.

2. Scroll up or down to see the following information:

Heart-rate-based recovery

Time it took reach the preset heart rate reading.

Drop in your heart rate.

Distance-based recovery

Recovery distance

Drop in your heart rate.

Cool-down phase

Duration of the cool-down.

The heart rate at the end of the cool-down,

average and

maximum heart rates of the cool-down phase.

Recovery information

Interval information

Interval number Split time of the interval

Interval duration.

Speed at the end of an

interval (If bike 1/2 was on).

The heart rate at the

end of the interval,

average and

maximum

heart rates of the

selected interval.

Time-based recovery

Recovery duration.

Drop in your heart rate.

Manual S510 GBR C.pm6 8.3.2001, 12:4466-67

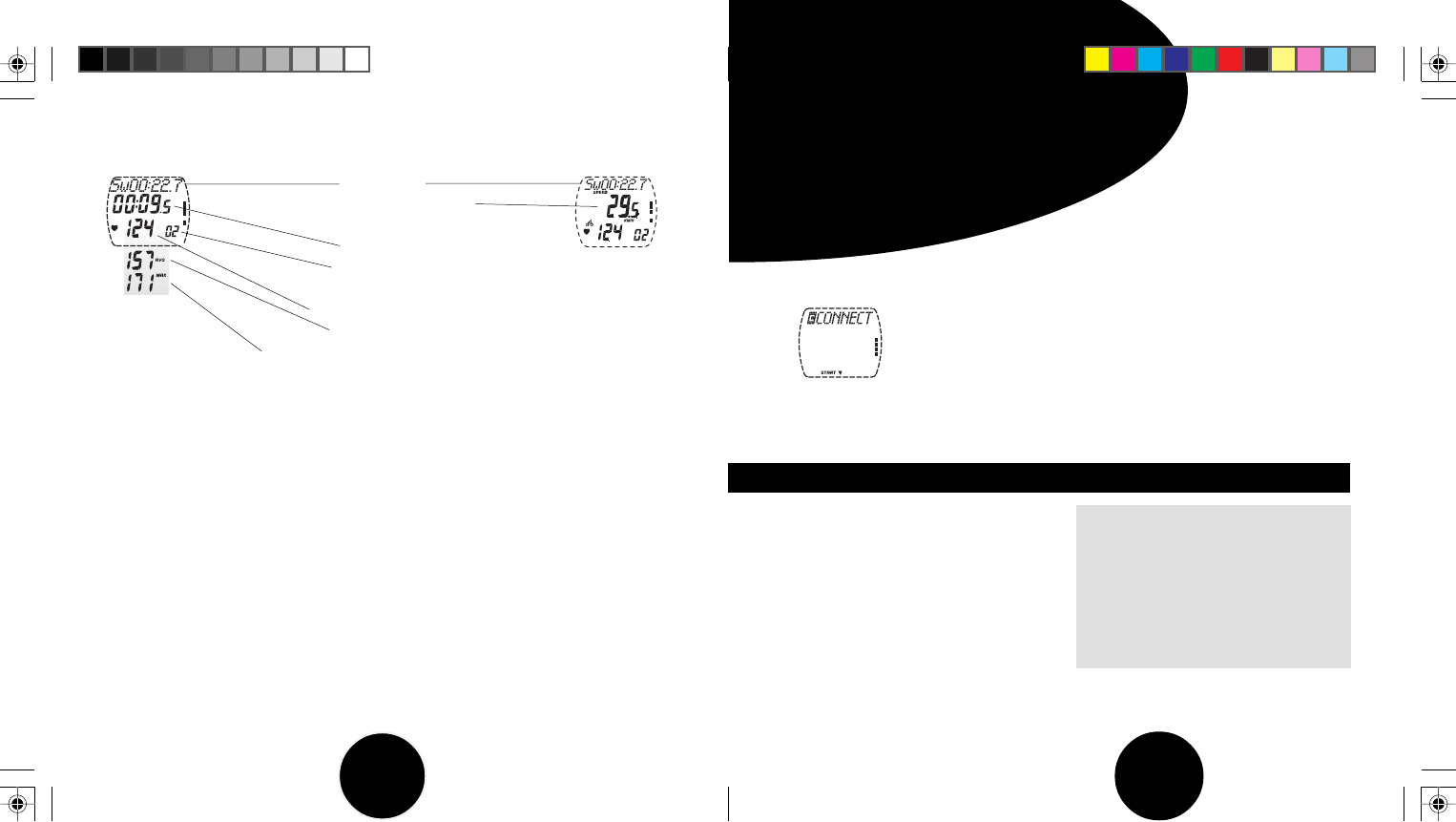

D 68 E 69

E. CONNECTION TO

COMPUTER

Resetting your cumulative counts to zero

Once your have reset the cumulative count you cannot retrieve it.

Start with the display showing Tot. KCal, Tot. Time, Rid. Time or Odometer.

1. Press OK to start resetting the desired total count. Reset appears and

the value starts to flash.

2. Press and hold the down button. Reset starts to flash. You can still

cancel the resetting by releasing the down button before the value is

reset. If you are sure that you want to reset the value keep holding the

down button until value is reset. Release.

3. Press the stop button to exit the reset display. Press and hold the stop

button to return to the Time of day display.

Sampling rate Exercising time

15 s - 30 min

30 s 30 min - 1 h

1 min 1 h - 2 h

2 min 2 h - 4 h

4 min 4 h - 8 h

8 min 8 h – 16 h

Polar S510 offers an easy way to

analyse training data by computer

afterwards. It starts recording at a

sampling rate of 15 seconds up to

120 samples. When the memory is

full, it is compressed and a longer

averaging period is used (30 s,

1 min, 2 min, 4 min or 8 min)

depending on the recording time. Maximum recording time is 16 hours. The

table shows the exercise times for each sampling rate.

Polar S510 wrist receiver records essential data for

your training log. A training log makes it possible

to plan future training and to define the most

suitable interval training for maximising

performance capacity.

Downloading Training Data to Computer

Laps

Split time.

Speed at the end of the

lap (If bike 1 /2 was on).

Lap time.

Lap number.

The heart rate at

the end of the lap,

average and

maximum heart rates of the lap.

Press the stop button to exit the LAPS display.

Press and hold stop to return to the Time of day display.

Manual S510 GBR C.pm6 8.3.2001, 12:4468-69

E 70 E 71

To be able to transfer the recorded training information via SonicLink™

and to analyse it with PC Coach Light software version 3.0 or later, you

need a personal computer with a sound card and microphone. To make

sure that the training information transfer will be successful, check that

there are no interfering sounds near the computer.

1. Start the software.

2. Activate the download function of the software.

3. If the receiver is in the Time of day display scroll up or down until

CONNECT is displayed. Make sure that start is displayed.

4. Bring and hold the back cover of the receiver next to the computer’s

microphone. Keep the back cover of the wrist receiver within 5 cm/ 2"

of the microphone until the SonicLink sound has ceased.

5. Press the OK button to start the data transfer. SonicLink and COM

appear on the display. You will hear a chirping sound (SonicLink) while

the training information is transferred to the computer. You can

monitor the transfer percentage from the receiver’s display. The receiver

returns to the Time of day display after data transfer.

Interrupt the data transfer to the computer by pressing the stop

button during data transfer. CONNECT is displayed.

Uploading Settings from Computer

Polar S510 offers you the option of uploading your settings with PC Coach

Light software version 3.0 or later to the wrist receiver. You are also able to

set a user ID for easier recognition in multi-user situations.

To be able to upload the settings from PC Coach Light software

via Polar Uplink, you need a personal computer with a sound card

(compatible with Sound Blaster™) and dynamic loudspeakers or

earphones.

1. Start the software.

2. If the receiver is in the Time of day display scroll up or down until

CONNECT is displayed.

3. Place the receiver less than 10 cm/ 4" from the loudspeaker.

4. Activate the upload function of the software. Do not move the receiver

during the data transfer.

5. The receiver automatically starts to upload the information as UpLink

and COM appear and you will hear a chirping sound while information

is transferred to the receiver. The receiver returns to the Time of day

display after data transfer.

Manual S510 GBR C.pm6 8.3.2001, 12:4470-71

E 72 F 73

If the data transfer was unsuccessful bring the receiver closer to the

loudspeakers or turn the volume level of the loudspeakers up.

Interrupt the data transfer to the computer by pressing the stop

button during data transfer. CONNECT is displayed.

OwnIndex

OwnIndex is a value which is comparable to maximal oxygen uptake

(VO2max), a commonly used descriptor of aerobic fitness. Cardiovascular

(aerobic) fitness relates to how well your cardiovascular system works to

transport and utilize oxygen in your body. The stronger and more efficient

your heart is, the better the cardiovascular fitness is. VO2max is a good

indicator of performance capability in endurance sports.

F. POLAR FITNESS TEST

Polar Fitness Test is an easy, safe and quick way to

estimate individual maximal aerobic power and to

get predicted maximum heart rate value. Polar

Fitness Test is targeted to healthy adults.

Manual S510 GBR C.pm6 8.3.2001, 12:4472-73

F 74 F 75

If you want to improve your cardiovascular fitness, it takes a minimum of

6 weeks on an average to see a noticeable change in OwnIndex. Less fit

individuals see progress even more rapidly and for more fit individuals

more time is needed. The better the cardiovascular fitness of an individual,

the smaller the improvements in OwnIndex.

Cardiovascular fitness is best improved by exercise types which employ

large muscle groups. Such activities include running, swimming, rowing,

skating, cross-country skiing, cycling and walking.

To monitor your fitness progress start with measuring your OwnIndex

a couple of times during the first two weeks, to get a baseline value.

Thereafter, repeat the test approximately once a month. OwnIndex is

based on resting heart rate, heart rate variability at rest, age, gender,

height, body weight and self-assessed physical activity.

Predicted maximum heart rate (HRmax-p)

The HRmax-p definition is carried out simultaneously with the Polar Fitness Test.

The HRmax-p score predicts your individual maximum heart rate value more

accurately than the age-based formula (220-age). The age-based method

provides a rough estimation and is thus not very accurate, especially for

people who have been fit for many years or for older people. The most

accurate way of determining your individual maximum heart rate is to have

it clinically measured (in maximal treadmill or bicycle stress test) by a

cardiologist or an exercise physiologist.

Your maximum heart rate changes to some extent in relation to your

fitness. Regular endurance exercise tends to decrease HRmax. There may also

be some variation according to the sport you participate in. For example,

running HRmax > cycling HRmax > swimming HRmax.

HRmax-p gives the possibility of defining training intensities as percentages

of maximum heart rate and of following maximum heart rate changes due

to training, without an exhaustive maximal stress test. HRmax-p is based on

resting heart rate, heart rate variability at rest, age, gender, height, body

weight and maximal oxygen uptake, VO2max (measured or predicted). The

most accurate HRmax-p is obtained by entering your clinically measured

VO2max into the wrist receiver.

Manual S510 GBR C.pm6 8.3.2001, 12:4474-75

F 76 F 77

To be able to carry out the Polar Fitness Test you need to do the following

settings in the Options mode:

• Set your personal user information and long-term physical activity level.

• Set the Polar Fitness Test on.

• Set the HRmax-p on if you want to get a prediction of your maximum

heart rate.

1. In the Time of day display scroll up or down until FIT. TEST is displayed.

If you cannot find Fitness Test mode check that you have turned the

function on in the Options mode.

2. Press OK to enter the Fitness Test mode. Your latest OwnIndex and the

testing date are displayed.

3. Scroll up or down to see your latest HRmax-p and the testing date.

4. Lie down and relax yourself for 1-3 minutes before the test.

Start the test

It takes 3-5 minutes to carry out the test.

5. Press OK to start the test. The wrist receiver starts searching for your

heart rate. TEST On and your heart rate are displayed. The test begins.

6. Lie relaxed. Keep your hands beside your body and avoid body

movements. Don’t communicate with other people.

7. Your current OwnIndex and the testing date are displayed.

8. If HRmax-p is on: Scroll up or down to see the HRmax-p result and the

testing date.

Turn the fitness test sound signal on/off

The sound signal will alarm you at the end of the test. If the sound signal is

on appears on the display.

• To turn the sound signal on or off either before or during the test, press

and hold the signal/light button.

Fitness test settings

Carrying out the test

To get reliable test results, the following basic requirements apply:

• You should be relaxed and calm.

• The test can take place anywhere – home, office, health club – as long

as the testing environment is peaceful. No disturbing noises (e.g.

television, radio or telephone), no other people talking to you.

• Keep the testing place, time of day and environment the same every

time the test is repeated.

• Avoid eating a heavy meal or smoking 2-3 hours prior to testing.

• Avoid heavy physical effort, alcoholic beverages or pharmacological

stimulants on the test day and the day before.

Time of Day File Options Fit. Test Connect

Manual S510 GBR C.pm6 8.3.2001, 12:4476-77

F 78 F 79

Interrupt the test

• You can stop the test any time during the test by pressing the stop button.

Failed TEST is displayed for a few seconds.

The latest OwnIndex and HRmax-p are not replaced.

If the wrist receiver does not succeed in receiving your heart rate at the

beginning or during the test, the test will fail. Check that the transmitter

electrodes are wet and the elastic strap is snug enough.

Update OwnIndex and HRmax-p

You can update your OwnIndex and HRmax-p values to the Options mode/

User information. When you update these values regularly, the reading in

percentages of your maximum heart rate and calorie calculation give more

accurate individual information.

1. In the Time of day display scroll up or down until FIT. TEST is displayed.

2. Press OK to enter the Fitness Test mode.

3. Scroll up or down until Update USER SET is displayed. This display

appears if you have not updated your latest test results.

4. Press OK to update the OwnIndex and HRmax-p values.

5. To return to the Time of day display, press and hold the stop button.

Your maximum heart rate value is updated if the HRmax-p is on.

Fitness classes

Age1234567

(years) (very (poor) (fair) (average) (good) (very (excellent)

poor) good)

20-24 < 32 32-37 38-43 44-50 51-56 57-62 >62

25-29 < 31 31-35 36-42 43-48 49-53 54-59 >59

30-34 < 29 29-34 35-40 41-45 46-51 52-56 >56

35-39 < 28 28-32 33-38 39-43 44-48 49-54 >54

40-44 < 26 26-31 32-35 36-41 42-46 47-51 >51

45-49 < 25 25-29 30-34 35-39 40-43 44-48 >48

50-54 < 24 24-27 28-32 33-36 37-41 42-46 >46

55-59 < 22 22-26 27-30 31-34 35-39 40-43 >43

60-65 < 21 21-24 25-28 29-32 33-36 37-40 >40

20-24 < 27 27-31 32-36 37-41 42-46 47-51 >51

25-29 < 26 26-30 31-35 36-40 41-44 45-49 >49

30-34 < 25 25-29 30-33 34-37 38-42 43-46 >46

35-39 < 24 24-27 28-31 32-35 36-40 41-44 >44

40-44 < 22 22-25 26-29 30-33 34-37 38-41 >41

45-49 < 21 21-23 24-27 28-31 32-35 36-38 >38

50-54 < 19 19-22 23-25 26-29 30-32 33-36 >36

55-59 < 18 18-20 21-23 24-27 28-30 31-33 >33

60-65 < 16 16-18 19-21 22-24 25-27 28-30 >30

The classification is based on literature review (Shvartz & Reibold 1990) of 62 studies where VO2max was

measured directly in healthy adult subjects in the USA, Canada and 7 European countries. Reference: Shvartz

E, Reibold RC: Aerobic fitness norms for males and females aged 6 to 75 years: a review. Aviat Space Environ Med;

61:3-11, 1990.

MENWOMEN

The Polar Fitness Test result, your OwnIndex, is most meaningful when

comparing your individual values and changes in them. OwnIndex can also

be interpreted according to your gender and age. Locate your OwnIndex

on the table to find out your current cardiovascular fitness classification,

compared with those who are of the same age and gender.

Manual S510 GBR C.pm6 8.3.2001, 12:4478-79

F 80

G. CARE AND

MAINTENANCE

Your Polar heart rate monitor is a high-tech instrument of

superior design and workmanship and should be treated with

care. The suggestions below will help you fulfill the warranty

obligations and enjoy this product for many years to come.

Taking care of your Polar heart rate monitor

• Wash the transmitter regularly after use with a mild soap and water

solution. Dry it carefully after washing with soft towel.

• Never store the transmitter wet. Sweat and moisture can keep its electrodes

wet and the transmitter activated, which shortens the battery life.

• Store your Polar heart rate monitor in a cool and dry place. Do not store

it in any kind of non-breathing material, such as a plastic bag or a sports

bag if it is wet.

• Do not bend or stretch the transmitter. This may damage the electrodes.

• Do not dry the transmitter in any other way than with a towel. Hard-

handed handling may damage the electrodes.

• Keep your Polar heart rate monitor out of extreme cold and heat. The

operating temperature is -10 ºC to 50 ºC/ 14 ºF to 122 ºF.

• Do not expose the Polar heart rate monitor to direct sunlight for

extended periods, such as by leaving it in a car.

• Do not immerse the speed sensor in water.

• Avoid hard hits to the speed sensor as these may cause damage.

For various fitness classes we recommend the following:

1-3 Increase exercise

for health

benefits and

fitness

improvement.

4 To ensure good health,

maintain current exercise

habits. For fitness

improvement an increase in

exercise is recommended.

5-7 Maintain

current exercise

habits for good

health and

fitness.

Top athletes typically score OwnIndex values above 70 (men) and 60

(women). As high values as 95 can be reached by Olympic level athletes.

OwnIndex is highest in sports that involve large muscle groups such as

cross-country skiing and cycling.

G 81

Manual S510 GBR C.pm6 8.3.2001, 12:4480-81

Batteries

Polar T61 transmitter

The estimated average battery life of the Polar T61 transmitter is 2500

hours of use. Contact your distributor/ dealer for a transmitter

replacement. Polar recycles used transmitters. See your Customer Care

Charter for detailed instructions.

Polar S510 wrist receiver

The estimated average battery life of the Polar S510 wrist receiver is 2

years in normal use (2h/ day, 7 days a week). Note also that excessive use

of the backlight and the alarm signals will use the battery more rapidly.

Do not open the Polar wrist receiver yourself. To ensure the water

resistance properties and the use of qualified components, the wrist

receiver battery should be replaced only by an authorised Polar Service

Centre. At the same time a full periodic check of the Polar heart rate

monitor will be done.

Battery Replacement for Polar Speed Sensor

The estimated average battery life of the Polar Speed Sensor is 2500

hours of use. We highly recommend you send the speed sensor to an

authorised Polar Service Centre for battery replacement, where the unit

is water-resistant tested after the battery has been replaced. However, if

you prefer changing the battery yourself, please follow these

instructions carefully:

G 82

Detach the sensor from your bicycle.

1. Open the sensor by removing the two small screws, counter-clockwise,

with a small screwdriver.

2. Lift the case off carefully. Hold the sensor cover upwards so that the

PCBA (printed circuit board assembled) stays in the case.

3. Remove the PCBA carefully.

4. Press the battery holder gently. Release a hook of the holder from

the opposite side of the PCBA and lift the holder upwards. Remove

the old battery.

5. Insert a new battery with the plus (+) side facing up and press the

battery housing gently so that it is attached to the PCBA at all corners.

6. Put the PCBA back into place.

7. Check that the sealing ring stays in its groove. Replace the cover back.

8. Insert the two screws in their holes and tighten them.

9. Test the sensor by checking that it gives out an orange flash when the

spoke magnet passes the speed sensor.

10. Do not throw the replaced battery away with normal waste; take it to a

place where problem waste is handled.

Service

Should your Polar heart rate monitor need service, see Customer Care

Charter to contact an authorised Polar Service Centre.

Water resistance cannot be guaranteed after unauthorised service.

G 83

Manual S510 GBR C.pm6 8.3.2001, 12:4482-83

Electromagnetic interference

Disturbances may occur near high voltage power lines, traffic lights,

overhead lines of electric railways, electric bus lines or trams, televisions,

car motors, bike computers, some motor driven exercise equipment, cellular

phones or when you walk through electric security gates.

Exercise equipment

Several pieces of exercise equipment with electronic or electrical

components such as LED displays, motors and electrical brakes may cause

interfering stray signals. To try to tackle these problems, relocate the Polar

wrist receiver as follows:

1. Remove the transmitter from your chest and use the exercise equipment

as you would normally.

2. Move the wrist receiver around until you find an area in which it

displays no stray reading or flashing of the heart symbol. Interference is

often worst right in front of the display panel of the equipment, while

the left or right side of the display is relatively free of disturbance.

3. Put the transmitter back on the chest and keep the wrist receiver in this

interference-free area as far as it is possible.

4. If the Polar heart rate monitor still does not work with the exercise

equipment, this piece of equipment may be electrically too noisy for

wireless heart rate measurement.

Polar heart rate monitor and interference

H 85

Using the Polar S510 in a water environment

Your Polar S510 is water resistant to 20 metres/ 60 feet.

Heart rate measurement in a water environment is technically demanding

for the following reasons:

• Pool water with a high chlorine content and seawater may be very

conductive and the electrodes of Polar transmitter may get short

circuited and ECG signals cannot be detected by the transmitter unit.

• Jumping into the water or strenuous muscle movement during

competitive swimming may cause water resistance that shifts the

transmitter on the body to a location where it is not possible to pick up

ECG signal.

• The ECG signal strength varies depending on the individual’s tissue

composition and the percentage of people who have problems in

heart rate measuring is considerably higher in a water environment

than in other use.

H. PRECAUTIONS

H 84 H 85H 84

Manual S510 GBR C.pm6 8.3.2001, 12:4484-85

If you are allergic to any substance that comes into contact

with the skin, check the Polar heart rate monitor materials from the

“Technical specifications” chapter. It is recommended that you wear

the transmitter against your bare skin to ensure flawless operation.

However, if you wish to wear the transmitter over a shirt, moisten the

shirt well under the electrodes.

Notice to persons with pacemakers, defibrillator or other

implanted electronic device. Persons who have a pacemaker use the

Polar heart rate monitor at their own risk. Before starting use, we

always recommend an exercise test under doctor’s supervision. The test

is to ensure the safety and reliability of the simultaneous use of the

pacemaker and the heart rate monitor.

H 87

Minimising possible risks in exercising with a heart rate monitor

Exercise may include some risk, especially for those who have been

sedentary. To minimise possible risks consider the following advice:

Before beginning a regular exercise program consult your doctor

• if you are over 40 years of age and have not been following a regular

exercise program during the past 5 years

• if you smoke

• if you have high blood pressure

• if you have high blood cholesterol

• if you have any signs or symptoms of any disease

• if you are recovering from a serious illness or a medical

treatment e.g. surgery

• if you use a pacemaker or another implanted electronic device.

Note also that in addition to exercise intensity the heart rate can be

affected by, amongst others, heart, circulation (particularly high blood

pressure) and asthma and other breathing medications, as well as some

energy drinks, alcohol and nicotine.

It is important to be sensitive to your body’s reactions during

the exercise. If you feel unexpected pain or tiredness regarding your

exercise intensity level, it is recommended to stop the exercise or

continue at a lighter intensity.

H 86 H 87H 86

Manual S510 GBR C.pm6 8.3.2001, 12:4486-87

...there is no heart rate reading (- -)?

1. Check that the electrodes of the transmitter are moistened and that you

are wearing it as instructed.

2. Check that you have kept the transmitter clean.

3. Check that you are not near other people that have heart rate monitors,

high voltage power lines, televisions, mobile phones or other sources of

electromagnetic disturbance.

4. Have you had a cardiac event which may have altered your ECG

waveform? In this case consult your physician.

...heart symbol flashes irregularly?

1. Check that the wrist receiver is not further than 1 metre/ 3 feet from

the transmitter.

2. Check that the elastic strap has not become loose during exercise.

3. Make sure that the electrodes of the transmitter are moistened.

4. Make sure that there is no other heart rate transmitter within 1 metre/ 3 feet.

5. Cardiac arrhythmia may cause irregular readings. In this case consult

your physician.

I 89

What should I do if...

...I don’t know where I am in the Options or File cycle?

Press and hold the stop button until time of day is displayed.

...I cannot find the previous exercise’s file?

You may have used the Measure mode during your exercise, which means

that your exercise was not stored. To record the exercise you have to turn

the stopwatch on by pressing the OK button in the Measure mode.

...I cannot find the expended calories from my exercise file?

Check that you have set your personal user information and turned the

OwnCal function on. Check that your heart rate has reached over 90 bpm

or above 60 % of your maximum heart rate during your exercise.

...I cannot turn my HRmax-p on?

Check that you have set your personal user information and turned the

fitness test on before turning the HRmax-p on.

I. FREQUENTLY ASKED

QUESTIONS

I 88

I 88 I 89

Manual S510 GBR C.pm6 8.3.2001, 12:4488-89

1. Press the RESET button with a pen tip. Display becomes full of digits.

If you don’t press any button after reset within one minute the wrist

receiver goes to the Time of day display.

2. Press any of the buttons once. The time of day is displayed.

...the battery of the wrist receiver must be replaced?

We recommend having all service done by an authorised Polar Service

Centre. This is especially necessary to ensure the warranty remains valid and

is not affected by incorrect repair procedures done by an unauthorised

agent. Polar Service will test your wrist receiver for water resistance after

battery replacement and make a full periodic check of the complete Polar

heart rate monitor.

…there are irregular speed, distance or heart rate readings?

You may have come within range of strong electromagnetic-signals, which

cause erratic readings. Check your surroundings and move away from the

source of disturbance.

Another cyclist may have caused crosstalk with a Polar Speed Sensor. Keep a

distance of at least 1 metre/ 3 feet between your wrist receiver and the

Polar Speed Sensor of the other cyclist.

I 91

...other person with heart rate monitor is causing interference?

Your training partner may have exactly the same code as you. In this case

proceed as follows: Keep a distance from your training partner and

continue your training session normally.

1. Take the transmitter off your chest for 30 seconds. Keep a distance from

your training partner.

2. Put the transmitter back and bring the receiver up to your chest near

the transmitter’s Polar logo. The receiver starts looking for a heart rate

signal again. Continue your training session normally.

...heart rate reading becomes erratic or extremely high?

You may have come within range of strong electromagnetic signals which

cause erratic readings. Check your surroundings and move further away

from the source of disturbance.

...the display is blank or fading?

If the display is blank, activate the wrist receiver by pressing the OK button

twice, after which the Time of day display appears. The first sign of a

discharged battery is the battery symbol on the display. Also the digits fade

when the backlight is used. Have the batteries checked.

...there are no reactions to any buttons?

Reset the Polar heart rate monitor. Resetting clears watch settings which

will return to the default settings. User information and measuring units

settings will be saved.

I 90

I 90 I 91

Manual S510 GBR C.pm6 8.3.2001, 12:4490-91

Polar heart rate monitor is designed to indicate the level of

physiological strain and intensity in sports and exercise. No

other use is intended or implied. Heart rate is displayed as

number of heartbeats per minute (bpm).

Polar transmitter

Battery type: Built-in Lithium Cell

Battery life: Average 2500 hours of use

Operating temperature: -10 °C to +50 °C/ 14 °F to 122 °F

Material: Polyurethane

Elastic strap

Buckle material: Polyurethane

Fabric material: Nylon, polyester and natural rubber

including a small amount of latex

J. TECHNICAL

SPECIFICATIONS

J 93

…the speed reading is 00 or there is no speed reading on the

display while cycling?

1. Check the correct position and distance of the speed sensor with the

spoke magnet and the wrist receiver.

2. Check that you have set bike 1 or 2 on.

3. If the 00 reading appears irregularly, this may be due to temporary

electromagnetic interference in your current surroundings.

4. If the 00 reading is constant, you may have exceeded 2500 riding hours

and the battery of the speed sensor needs to be replaced.

...I have questions concerning the SonicLink or the

PC Coach Light software?

Contact your local distributor of PC Coach Light Biometrics Inc., 637 S

Broadway, Suite B-156, Boulder, CO 80303, USA. Phone: + 1 (303) 494-9155,

Fax: +1 (303) 494-9722, www.pccoach.com. Contact information is found

also under the help menu of the PC Coach Light software.

I 92

Manual S510 GBR C.pm6 8.3.2001, 12:4492-93

Default Settings

Time of day 24h

Alarm OFF

Date of Birth 0

(adjustable range

for year is 1921 - 2020)

Sex Male

Weight 0 (kg)

Height 0 (cm)

Activity Low

HRmax 220-age

VO2max

male (Male) 45

female (Female) 35

Bike 1/2 OFF

Wheel size for bike 1 2000

Wheel size for bike 2 2100

Cadence, autostart OFF

Activity sound On

Units 1

Help On

OwnCal OFF

Fitness test On

HRmax-p OFF

Interval function OFF/

interval timer

Interval heart rate 160

Interval distance 2 km

Number of intervals 3

Timer 1, 2, 3 OFF/ 2 min

Limits 1, 2, 3 80/ 160

Recovery function OFF/

recovery timer

Recovery heart rate 80

Recovery timer 1 min

Recovery distance 1 km

Limit Values

Exercise time 99 h 59 min 59 s

Heart rate limits 30 - 240

Heart rate zone time 99 h 59 min 59 s

Recovery time 99 min 59 s

Calories 99 999 kcal

Cumulative calories 999 999 kcal

Riding time 9999 h

Odometer 999 999 km/ miles

Cumulative

exercise time 9999 h

Laps recorded

to memory 99

Interval phases

recorded to memory 30

J 95

Wrist receiver

Battery type: CR 2354

Battery life: Average 2 years (2h/ day, 7 days/ week)

Operating temperature: -10 °C to +50 °C / 14 °F to 122 °F

Water resistance: to 20 metres/ 60 feet

Back cover material: Polycarbonate and glass fibre

Wrist strap material: Polyurethane

Wrist strap buckle material: Stainless steel complying with EU Directive

94/27/EU and its amendment 1999/C 205/05 on the release of nickel from

products intended to come into direct and prolonged contact with the skin.

Watch accuracy better than ± 0,5 seconds/ day at 25 °C/ 77 °F temperature.

Accuracy of heart rate measurement: ± 1% or ± 1 bpm, whichever larger,

definition applies to steady state conditions.

Speed sensor

Operating temperature: –10 °C to +50 °C / 14 °F to 122 °F

Battery type: CR 2032

Battery life: average 2500 hours of use

Accuracy: ±1 %

Splash proof

J 94

Manual S510 GBR C.pm6 8.3.2001, 12:4494-95

• The material in this manual is for informational purposes only. The

products it describes are subject to change without prior notice, due to

the manufacturer’s continuous development program.

• Polar Electro Oy makes no representations or warranties with respect to

this manual or with respect to the products described herein. Polar

Electro Oy shall not be liable for any damages, direct or incidental,

consequential or special, arising out of, or related to the use of this

material or the products described herein.

This product is protected by one or several of the following patents:

FI 88223, DE 4215549, FR 92.06120, GB 2257523, HK 113/1996, SG 9591671-4,

US 5491474, FI 88972, FR 92.09150, GB 2258587, HK 306/1996, SG 9592117-7,

US 5486818, FI 96380, US 5611346, EP 665947, DE 69414362, FI 68734,

DE 3439238, GB 2149514, HK 812/1989, US 4625733, FI 100924, FI 100452,

US 5840039, FI 4150, FI 4069, DE 29910633, FI 104463.

Other patents pending.

L. DISCLAIMER

L 97

• Polar Electro Oy warrants to the original consumer/ purchaser of this

heart rate monitor that the product will be free from defects in material

or workmanship for one year from the date of purchase. Please keep

the receipt which is your proof of purchase!

• Warranty does not cover receiver battery, damage due to misuse, abuse,

accidents or non-compliance with the precautions; improper

maintenance, commercial use, cracked or broken cases.

• Warranty does not cover damage or consequential damage caused by

service not authorised by Polar Electro Oy.

• During the warranty period the product will be either repaired or

replaced at an authorised service centre free of charge.

• This warranty does not affect the consumer’s statutory rights under

applicable national or state laws in force, or the consumer’s rights

against the dealer arising from their sales/ purchase contract.

This CE marking shows compliance of

this product with Directive 93/42/EEC.

No part of this manual may be used or reproduced in any form or by any means without

prior written permission of Polar Electro Oy. Polar logotype is a registered trademark and

Polar S510 is a trademark of Polar Electro Oy.

The PC Coach logo is a registered trademark, and SonicLink and PC Coach Light are

trademarks of, Biometrics Inc. U.S. Patents. 5 719 825 and 5 848 027. Sound Blaster is

a trademark of Creative Technology, Ltd.

K. LIMITED POLAR

WARRANTY

K 96

Manual S510 GBR C.pm6 8.3.2001, 12:4496-97

Interval training: Seeks to

improve your race pace with

different periods of work and rest.

Maximal oxygen uptake:

(maximal aerobic power, VO2max)

Is the maximal rate at which oxygen

can be used by the body during

maximal work. VO2max is a good

index of aerobic fitness.

Maximum heart rate: (HRmax)

Is the highest number of heart

beats per minute of a person.

Measure mode: Measuring your

heart rate without recording the

exercise.

M 99

OwnIndex: Result of Polar Fitness

Test and comparable score with

maximal oxygen uptake (VO2max).

Summary file: Presents the main

information of your exercise.

Target heart rate zone: The

area between the upper and lower

heart rate limits. Target zone

selection is based on personal

fitness goals.

Activity level: Your long-term

physical activity level you need to

assess in order to do the Polar

Fitness Test.

BasicSet mode: Exercise set, which

interval is set off.

Coded heart rate transmission:

Polar T61 transmitter automatically

locks in a code to transmit your

heart rate to the wrist receiver. In a

coded transmission the receiver

accepts heart rate data only from

the Polar T61 transmitter. Coding

significantly reduces crosstalk

caused by other users of heart rate

monitors. However, it does not

necessarily reduce all environmental

interference.

M. POLAR GLOSSARY

M 98

Configuring the display: During

the exercise you can modify four

display options by selecting

information to the lower and

upper rows.

Electrodes: The grooved areas of

the transmitter, against the skin.

Pick up the heart rate.

Exercise mode: The stopwatch is on

and your exercise is recorded. You

can select between the BasicUse,

Interval Training Set and BasicSet.

Heart rate: The number of heart

beats per minute (bpm).

Manual S510 GBR C.pm6 8.3.2001, 12:4498-99

Display texts

CONNECT: Communication mode

between wrist receiver and

computer.

Cont: Up to 30 intervals succeed

one another unless the Interval

phase is manually stopped.

CoolDown: Cool-down phase at

the end of an interval training

exercise.

E0: BasicUse settings.

E1-E5: Indicates which exercise set

you have used for the exercise.

ExeSet: Start setting your BasicSet

(Int off) or Interval Training Set (Int

on).

Exe. Time: Exercise duration.

FILE: Indicates the file mode.

FIT. TEST: Indicates fitness test mode.

M 101

ALARM: Indicates the alarm in

watch settings.

AM or PM: Are used in 12h time

mode. E.g. in 24h time mode 13:00

means 1:00 PM.

AVG: Together with a reading

indicates average heart rate.

b0: Indicates that you have no bike

settings on.

b1: Indicates bike 1 setting.

b2: Indicates bike 2 setting.

BasicUse: Exercising without

settings.

BestLap: Indicates the shortest lap

time information.

Cad*: Indicates pedalling speed

measured in rounds per minute

(RPM).

M 100

Display symbols

Indicates an ongoing heart rate measurement and flashes to the beat of

your heart.

Indicates there has not been heart rate reception for less than 5 minutes.

- - Indicates there has not been heart rate reception for at least 5 minutes.

Options mode: indicates that you are setting the bike functions

Exercise mode: indicates that bike 1 or 2 is on.

File mode: indicates speed,cadence or distance information.

In the Time of day display the alarm is on.

Measure mode: beeps if you are exercising outside your target heart rate

zone. Fitness Test mode: sounds an alarm at the end of the fitness test.

Indicates the Interval Trainer.

Indicates continuous interval (Cont).

Exercise mode: indicates the heart rate above the target zone.

File mode: indicates the time spent above the target zone.

Exercise mode: indicates the heart rate below the target zone.

File mode: indicates the time spent below the target zone.

The graphic bar consists of five blocks. A flashing block indicates in

which level you are in the Options settings or File recalling loops.

Continuously running bars indicate that the exercise is recorded.

Indicates low battery.

*Optional Polar Cadence Sensor required

Manual S510 GBR C.pm6 8.3.2001, 12:44100-101

M 103

weight, maximal oxygen uptake

(VO2max) and maximum heart rate

(HRmax). The most accurate OwnCal is

received by entering your clinically

measured (in maximal treadmill or

bicycle stress test) VO2max and HRmax

into the wrist receiver. Energy

expenditure measurement is most

accurate in continuous activities such

as cycling and running.

RecoDist, distance-based

recovery: You set the recovery

distance in the Options mode. In the

File mode you will see the drop in

your heart rate and the recovery

distance.

RecoHr, heart-rate-based

recovery: You set the heart rate,

which will end your recovery

calculation. In the File mode you will

see the drop in your heart rate and

the recovery duration.

RecoTime, time-based recovery:

You set the recovery time in the

Options mode. In the File mode you

will see the drop in your heart rate

and the recovery duration.

FULL: After having stored 99 laps

(the use of intervals reduces the

amount). FULL appears in the

display. You can continue taking lap

times or intervals but they won’t be

recorded into the file.

HRmax-p: Predicted maximum heart

rate value.

Interval, Int: Options mode:

indicates Interval Training Set.

Exercise mode: Indicates interval

exercise session including warm-up,

interval and cool-down phases.

InZone/ Above/ Below: Indicate the

time spent within, above and below

the target zone.

KCal: Indicates the energy

expenditure of your exercise.

Lap time: Lap time.

LAPS: Indicates how many lap times

have been stored.

Lim High: The higher heart rate limit

of the target zone.

Lim Low: The lower heart rate limit

of the target zone.

Limits1, 2, 3: Heart rate limits for

target zones 1, 2 and 3.

M 102

MAX: Indicates the highest

heart rate.

MAX %: Indicates what percentage

your current heart rate is of your

maximum heart rate.

OPTIONS: Indicates the Options

mode

Odometer: Measures cumulative

total distance of several exercise

sessions.

OwnCal: Calculates energy

expenditure during exercise in

kilocalories. 1 kilocalorie (kcal) = 1000

calories (cal). You can follow how

much energy you lose by exercising in

one exercise session or in a day, week

or even a year. The OwnCal can be

used as a dose measure of exercise

e.g. in nutrition planning. OwnCal

calorie calculation starts when your

heart rate reaches 90 bpm or is above

60% of your maximum heart rate,

whichever is smaller. These limits are

set to count only exercise calories. The

higher the heart rate, the faster the

energy expenditure. OwnCal is

individually calibrated by your preset

Split Time: The elapsed time from

the beginning of the exercise until

storing the split time.

Sw: Indicates stopwatch.

Timer1, 2, 3: Interval Training mode:

Countdown timers for the Interval

Training set.

WarmUp: Warm-up phase in the

beginning of an Interval Training

exercise.

Manual S510 GBR C.pm6 8.3.2001, 12:44102-103

M 104

Index

12/ 24h time mode ................................. 41

Activity/button sound On/OFF .............. 38

Alarm settings ........................................ 40

Autostart On/OFF ................................... 36

BasicSet exercise .............................. 24, 57

Bike 1/2/OFF ............................................ 33

Buttons ...................................................... 6

Cadence On/OFF ..................................... 36

Care and maintenance .......................... 81

Code search ............................................ 43

Date settings .......................................... 41

Display configuration ............................ 50

Download training data

to a computer .................................... 69

Easy start ................................................... 8

Exercise set ............................................. 23

File ........................................................... 60

Fitness test .............................................. 73

Fitness test On/OFF ................................ 32

Frequently asked questions .................. 88

Functions during the exercise ............... 47

Heart rate limits settings ....................... 26

Heart rate limits checking .............. 59, 64

Heart rate limits On/OFF ....................... 26

Help On/OFF ........................................... 39

How to enter settings ............................ 18

Illuminate the display ..................... 48, 58

Interval Training Set .............................. 24

Interrupt an interval

exercise phase ................................... 59

Interrupt an interval or

recovery calculation .......................... 59

Lap and split time storing .............. 49, 67

Measuring units settings ....................... 38

Modes and their functions .................... 13

Naming bike 1 or 2 ................................ 37

Naming exercise sets .............................. 30

Odometer ............................................... 65

OwnCal On/OFF ...................................... 31

OwnCal calorie expenditure ............... 102

HRmax-p On/OFF ....................................... 32

OwnIndex ............................................... 73

Pause an exercise ................................... 49

Predicted maximum heart rate ............. 75

Precautions ............................................. 84

Recall training information .................. 60

Recovery during BasicSet ............... 58, 63

Recovery during Interval training .. 55, 66

Recovery settings ................................... 29

Reset cumulative counts to zero .......... 68

Reset the stopwatch .............................. 51

Reset the trip distance ........................... 59

Return to the Time of day display .......... 7

Selecting exercise type .......................... 23

Setting tips ............................................. 42

Start an exercise set ............................... 52

Start cycling measurement ................... 45

Start measuring your heart rate .... 11, 43

Stop an interval training session .......... 57

Stop measuring your heart rate .... 12, 58

Swap the exercise type .......................... 58

Swap the heart rate limits .................... 48

Swap the time zones 1/ 2 ...................... 42

Technical specifications ......................... 93

Time of day settings .............................. 41

Timer settings ......................................... 26

Transmitter ........................................ 5, 11

Update HRmax-p and

OwnIndex to user information ........ 78

Upload settings from computer ........... 71

User information settings ..................... 20

Warranty ................................................. 96

Wheel size ............................................... 34

Zone alarm On/OFF ................................ 48

Manual S510 GBR C.pm6 8.3.2001, 12:44104

COVER S510 GBR C.fh8 8.3.2001 12:45 Page 2

Road Map

Manufactured by:

Polar Electro Oy

Professorintie 5

FIN-90440 KEMPELE

Tel. +358-8-520 2100

Fax +358-8-520 2300

www.polar.fi

Dear Customer

Recyclable material. Printed in Holland. Graphic Design CIS, Finland.

Congratulations on purchasing a Polar Heart Rate

Monitor! We are proud to assist you in achieving

your personal fitness and performance goals.

If you want to get even more out of your Polar

S510 during training, check www.polar.fi for

the best product and training tips in Polar

Personal Trainer.

Scroll Up / Down

STOP - exit the displayed mode

Sound

On/OFF

Units

1/2

Help

On/OFF

Alarm

Time

1/2

Date

BasicUse, E0

ExeSet 1, E1

Interval

On/OFF

OwnCal

On/OFF

Fit. Test

On/OFF

HRmax-p

On/OFF

kg/ lbs

cm/ ft inch

Birthday

Sex

Activity

HRmax

VO2max

Bike

1/2/OFF

Wheel

size

Cadence

On/OFF

AutoStrt

On/OFF

Exercise Set Function Set Bike Set User Set Monitor Set Watch Set

Time Of Day File Options Fit. Test Connect

Polar S510 Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
