WARNING
The engine exhaust from this
product contains chemicals known
to cause cancer, birth defects or
other reproductive harm.
A card containing important ATV safety information should be
attached to the owner’s manual on the next page. If you cannot
locate this card, or if it has been removed, please call
1-800-342-3764 for assistance.
1
We’ve created a web site just for YOU!
STechnical tips
SNew product introductions
SEvent schedules
SParts and Service Manual information
SExciting details about The Way Out
Check it out...
www.polarisindustries.com/owner
2
All information in this manual is based on the latest product data and specifications
available at the time of printing. Polaris Industries Inc. reserves the right to make
product changes and improvements that may affect illustrations or explanations.
No part of this manual shall be reproduced or used without the written permission of
Polaris Industries Inc.
Copyright 2002
Polaris Industries Inc.
All Rights Reserved Printed in the U.S.A.
3
WELCOME
Thank you for purchasing a Polaris vehicle, and welcome to our
world-wide family of Polaris owners. We proudly produce an exciting
line of utility and recreational products.
Polaris Recreational Vehicles
SSnowmobiles
SAll-terrain vehicles (ATVs)
SWatercraft
SRANGER utility vehicles
SVictory motorcycles
Polaris Professional Series Workmobilest
SUtility Task Vehiclest(UTVs)
SPersonal Task Vehiclest(PTVs)
SAll-Surface Loaders (ASLs)
We believe Polaris sets a standard of excellence for all utility and
recreational vehicles manufactured in the world today. Many years of
experience have gone into the engineering, design, and development of
your Polaris vehicle, making it the finest machine we’ve ever
produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your
manual contains instructions for minor maintenance, but information
about major repairs is outlined in the Polaris Service Manual and
should be performed only by a Factory Certified Master Service Dealer
(MSD) Technician.
Your Polaris dealer knows your vehicle best and is interested in your
total satisfaction. Be sure to return to your dealership for all of your
service needs during, and after, the warranty period.
We also take great pride in our Parts Apparel and Accessories (PAA)
products, available through our online store at www.purepolaris.com.
Have your accessories and clothing delivered right to your door!
Polaris, Polaris The Way Out, and Workmobiles are registered
trademarks of Polaris Industries Inc.
4
VEHICLE IDENTIFICATION NUMBERS

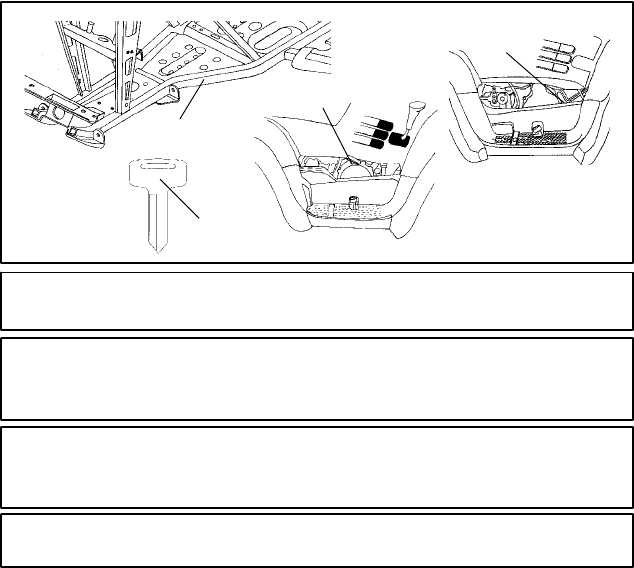

The frame vehicle identification number (VIN)(1) and engine serial
number (2) are important for model identification when registering
your vehicle, when obtaining insurance, and when ordering
replacement parts. In the event your vehicle is stolen, these numbers
are essential to the recovery and identification of your vehicle.
Remove the spare key and store it in a safe place. Your key can be
duplicated only by mating a Polaris key blank with one of your
existing keys. If both keys are lost, the ignition switch must be
replaced. See your Polaris dealer.
NOTE: Record your vehicle’s ID numbers and key number (3) in the
spaces provided.
2
1
31XX
3
2
400/500
600/700
Frame VIN:
Engine Serial Number:
Vehicle Model Number:
Key Number:
5
TABLE OF CONTENTS
WELCOME 3........................................
VEHICLE IDENTIFICATION NUMBERS 4...............
TABLE OF CONTENTS 5.............................
SAFETY 6..........................................
CONTROLS 36......................................
FEATURES 44.......................................
OPERATION 50.....................................
EMISSION CONTROL SYSTEMS 68...................
MAINTENANCE AND LUBRICATION 69................
TROUBLESHOOTING 117............................
POLARIS PRODUCTS 121............................
SPECIFICATIONS 122................................
WARRANTY 130.....................................
INDEX 135..........................................
6
SAFETY

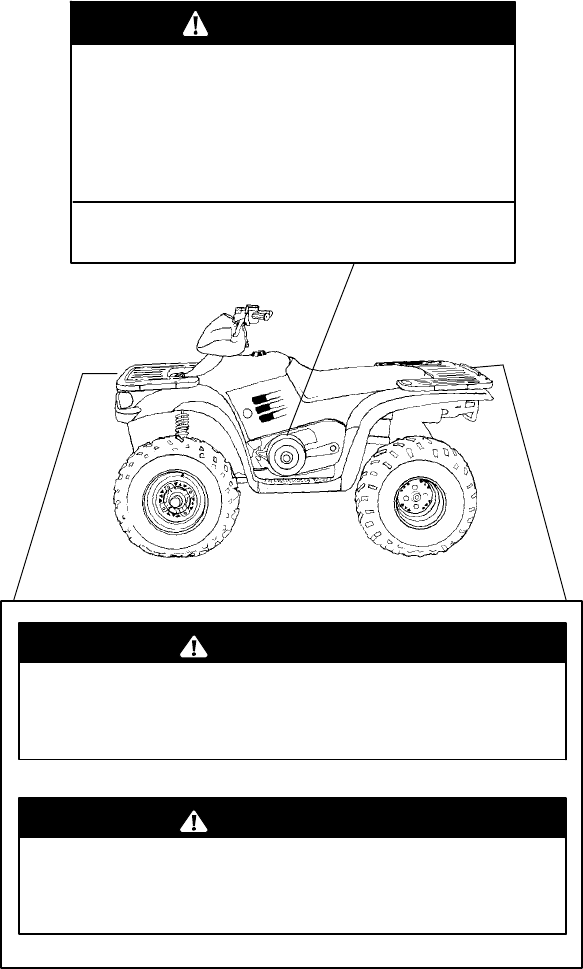

Safety Decals and Locations
Warning decals have been placed on the ATV for your protection.
Read and follow the instructions on each decal carefully. If a decal
becomes illegible or comes off, contact your Polaris dealer to purchase
a replacement. Replacement safety decals are provided by Polaris at no
charge. The part number is printed on the decal.
7079083
E1997, 2000
IF OWNER’S MANUAL IS MISSING, CONTACT
A POLARIS DEALER FOR A REPLACEMENT.
WARNING

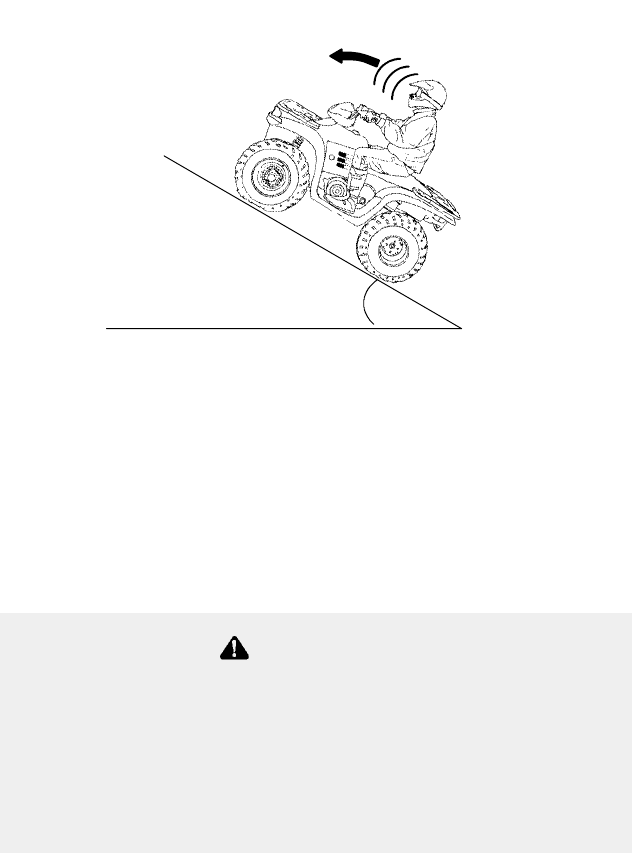

DNever operate this vehicle on HILLS steeper than 25 degrees
25°.To prevent flipover on hilly terrain, when going up or down, use
throttle and brakes gradually.
DREVERSE operation can be dangerous, even at low speeds.
Steering becomes difficult. To prevent flipover, avoid sudden braking
or sharp turns.
DUse OVERRIDE for reverse speed limiter with caution. To prevent loss
of control, never activate override button with open throttle.
DPARKING BRAKE may relax when used for more than 5 minutes.
When parking on grades, leave shift in forward.
WARNING
Operating this vehicle if you are under
the age of 16 increases your chance
of severe injury or death.
NEVER operate this vehicle if you are
under age 16.
WARNING
7079085
7
SAFETY
Safety Decals and Locations
IMPROPER TIRE PRESSURE OR OVERLOADING can cause loss of
control resulting in SEVERE INJURY OR DEATH.
TIRE PRESSURE IN PSI (KPa): FRONT 5 (34,5) REAR 5 (34,5)
MAXIMUM WEIGHT CAPACITY (Gross Vehicle Weight)
INCLUDING MACHINE, DRIVER AND CARGO IS 1200 LBS. (545 kg).
Reduce speed and allow greater distance for braking when carrying
cargo. Overloading or carrying tall, off-center, or unsecured loads
will increase your risk of losing control. Loads should be centered,
carried as low as possible, and firmly secured to the racks. With
dual racks, load distribution 1/3 front 2/3 rear is best. For stability
on rough or hilly terrain, reduce speed and cargo. Do not block
headlight. Be careful if load extends over the side of the rack.
Read Owner’s Manual for more detailed loading information
WARNING
7079084
WARNING
7077920
ATTENTION
SOperation of this vehicle without the air
filter element will severely damage the
engine.
SClean pre-filter element often, more
frequent cleaning required in dusty
conditions. Do not operate vehicle
without pre-filter.
SOperation of this vehicle without engine
breather filter(s) can cause engine
damage. Consult owner’s manual or
dealer for details.
Factory setting:
40_to 80_F. at 0-3000 feet
(5_to 27_C. at 0-900 meters).
7079902
SSpecific carburetor jetting and
adjustments are required depending
on temperature and altitude. See
your Owner’s Manual.
8
SAFETY
Safety Decals and Locations
Moving parts hazard under belt-clutch guard. To
prevent serious injury, do not operate vehicle with
guard removed.
Do not modify engine or clutch. Doing so can cause
part failure, possible imbalance, and excessive engine
RPM which can result in serious injury or death.
NO STEP
7078689
WARNING
SDO NOT TOW FROM RACK OR BUMPER.
Vehicle damage or tipover may result causing severe injury
or death. Tow only from tow hooks or hitch.
SMax Rack Loads: Front 100 lbs. (45 kg) Rear 200 lbs. (91 kg) 7170912
WARNING
SDO NOT TOW FROM RACK OR BUMPER.
Vehicle damage or tipover may result causing severe injury
or death. Tow only from tow hooks or hitch.
SMax Rack Loads: Front 90 lbs. (41 kg) Rear 180 lbs. (82 kg) 7170021
WARNING
Sportsman 400/500
Sportsman 600/700
9
SAFETY
Safety Decals and Locations
ALL WHEEL
DRIVE
SWITCH
Do not push switch to
engage AWD if the rear
wheels are spinning.
This may cause severe
drive shaft and clutch
damage.
See your Owner’s
Manual.
7079780
7079604
7170509
TRAILER MAX WEIGHT:
1500 LBS. (682 KG) ON LEVEL GROUND
850 LBS. (386 KG) UP TO 15°GRADE
HITCH MAX. VERTICAL WEIGHT: 150 LBS. (68KG)
WARNING
Pushing reverse
override button
may cause
sudden in-
creases in pow-
er and traction if
too much
throttle is ap-
plied. Loss of
control or for-
ward flipover
may result, es-
pecially in
AWD. See Own-
er’s Manual.
MANUFACTURED
BY: POLARIS IND INC.
DATE:
VIN:
THIS VEHICLE IS AN ALL TERRAIN VEHICLE AND IS NOT
INTENDED FOR USE ON PUBLIC ROADS.
7078470
CE VÉHICULE EST UN VÉHICULE TOUT TERRAIN
QUI NEST PAS DESTINE A ETRE UTILISE SUR LES
CHEMINS PUBLICS.
Canadian Certification Decal
7170911
TRAILER MAX WEIGHT:
1225 LBS. (557 KG) ON LEVEL GROUND
850 LBS. (386 KG) UP TO 15°GRADE
HITCH MAX. VERTICAL WEIGHT: 120 LBS. (55KG)
Sportsman 600/700
Sportsman 400/500
10
SAFETY

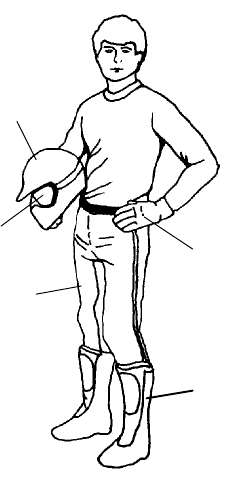

Safe Riding Gear
Always wear clothing suited to the type of riding. ATV riding requires
special protective clothing for comfort and to reduce the chance of
injury.
1. Helmet
Your helmet is the most important piece
of protective gear for safe riding. A
helmet can prevent a severe head injury.
Select an approved helmet that meets
or exceeds your state’s safety standards
and bears either the Department of
Transportation (DOT) label, the
American National Standards
Institute label (ANSI z90.1), or the
Snell Memorial Foundation label.
2. Eye Protection
Do not depend on sunglasses for
proper eye protection. A pair of
goggles or a helmet face shield offer
the best protection for your eyes. They
should be kept clean and be of
shatterproof design (bearing the
markings z2.1 or VESC 8).
3. Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
4. Boots
The best footwear is a pair of strong over-the-calf boots with heels, like
moto-cross boots.
5. Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide
the best protection.
1
23
4
5
11
SAFETY
Operator Safety
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited
for anyone under 16 years of age.
Know Your Vehicle
As the operator of the vehicle, you are responsible for your personal
safety, the safety of others, and the protection of our environment.
Read and understand your owner’s manual, which includes valuable
information about all aspects of your vehicle, including safe operating
procedures.
Safety Training
When you purchased your new ATV, your dealer offered a hands-on
safety training course that covers all aspects of vehicle safety. You
were also provided with printed materials that explain safe operating
procedures. You should review this information on a regular basis.
If you purchased a used Polaris ATV from a party other than a Polaris
dealer, you can request this free safety training from any authorized
Polaris dealer.
A Polaris ATV is an off-road vehicle. Familiarize yourself with all
laws and regulations concerning the operation of this vehicle in your
area.
We strongly advise you to strictly follow the recommended
maintenance program outlined in your owner’s manual. This
preventive maintenance program is designed to ensure that all critical
components on your vehicle are thoroughly inspected at specific
intervals.
WARNING
Failure to follow the warnings contained in this manual can result
in severe injury or death.
A Polaris ATV is not a toy and can be hazardous to operate. This
vehicle handles differently than other vehicles, such as
motorcycles and cars. A collision or rollover can occur quickly,
even during routine maneuvers like turning, or driving on hills or
over obstacles, if you fail to take proper precautions.
Read and understand your owner’s manual and all warnings
before operating a Polaris ATV.
12
SAFETY
Operator Safety
The following two pages identify signal words and symbols that appear
in this manual. Your safety is involved when these words and symbols
are used. Become familiar with their meanings before reading the
manual.
The safety alert symbol, on your vehicle or in this manual, alerts
you to the potential for personal injury.
The safety alert warning indicates a potential hazard that may result
in serious injury or death.
The safety alert caution indicates a potential hazard that may result
in minor personal injury or damage to the vehicle.
CAUTION
NOTE:
Anote will alert you to important information or instructions.
Acaution indicates a situation that may result in damage to the
vehicle.
CAUTION
WARNING
13
SAFETY
Operator Safety
SRead this manual and all labels carefully, and follow the operating
procedures described.
SNever operate an ATV without proper instruction. Take a training
course. Beginners should receive training from a certified instructor.
Contact an authorized Polaris ATV dealer or call Polaris at
1-800-342-3764 to find out about the training courses nearest you.
SNever allow anyone under 16 years of age to operate this ATV.
SNever permit a guest to operate the ATV unless the guest has read
this manual and all product labels and has completed a certified safe-
ty training course.
SAlways avoid operating an ATV on paved surfaces, including side-
walks, driveways, parking lots, and streets.
SNever operate an ATV on a public street, road or highway, including
a dirt or gravel road.
SNever operate an ATV without wearing an approved helmet that fits
properly. Always wear eye protection (goggles or face shield),
gloves, boots, a long-sleeved shirt or jacket, and long pants.
SNever consume alcohol or drugs before or while operating an ATV.
SNever operate at excessive speeds. Travel at speeds appropriate for
the terrain, visibility and operating conditions, and your experience.
SNever attempt wheelies, jumps or other stunts.
SAlways inspect your ATV before each use to make sure it’s in safe
operating condition. Always follow the inspection and maintenance
procedures and schedules outlined in your owner’s manual.
SAlways keep both hands on the handlebars and both feet on the foot-
rests of the ATV during operation.
SAlways travel slowly and use extra caution when operating on unfa-
miliar terrain. Be alert to changing terrain conditions.
SNever operate on excessively rough, slippery, or loose terrain.
SAlways follow proper turning procedures as described in this manu-
al. Practice turning at low speeds before attempting to turn at faster
speeds. Do not turn at excessive speeds.
WARNING
Serious injury or death can result if you do not follow these
instructions and procedures, which are outlined in further detail
within your owner’s manual.
14
SAFETY
Operator Safety
SAlways have the ATV inspected by an authorized Polaris dealer if
it’s been involved in an accident.
SNever operate on hills too steep for the ATV or for your abilities.
Practice on smaller hills before attempting larger hills.
SAlways follow proper procedures for climbing hills. Check the ter-
rain carefully before ascending a hill. Never climb hills with exces-
sively slippery or loose surfaces. Shift your weight forward. Never
open the throttle suddenly or make sudden gear changes. Never go
over the top of a hill at high speed.
SAlways follow proper procedures for going downhill and for braking
on hills. Check the terrain carefully before you start down a hill.
Shift your weight backward. Never go down a hill at high speed.
Avoid going down a hill at an angle, which would cause the vehicle
to lean sharply to one side. Travel straight down the hill when pos-
sible.
SAlways follow proper procedures for crossing the side of a hill.
Avoid hills with excessively slippery or loose surfaces. Shift your
weight to the uphill side of the ATV. Never attempt to turn the ATV
around on any hill until you’ve mastered (on level ground) the turn-
ing technique outlined in this manual. Avoid crossing the side of a
steep hill when possible.
SAlways use proper procedures if you stall or roll backwards while
climbing a hill. To avoid stalling, maintain a steady speed when
climbing a hill. If you stall or roll backwards, follow the special
procedure for braking described in this manual. Always dismount
on the uphill side, or to either side if the ATV is pointed straight
uphill. Turn the ATV around and remount following the procedure
described in this manual.
SAlways check for obstacles before operating in a new area. Never
attempt to operate over large obstacles, such as rocks or fallen trees.
Always follow proper procedures when operating over obstacles as
described in this manual.
SAlways be careful of skidding or sliding. On slippery surfaces like
ice, travel slowly and use extra caution to reduce the chance of skid-
ding or sliding out of control.
SAvoid operating the ATV through deep or fast-flowing water. If it’s
unavoidable, travel slowly, balance your weight carefully, avoid sud-
den movements, and maintain a slow and steady forward motion. Do
not make sudden turns or stops, and do not make sudden throttle
changes.
15
SAFETY
Operator Safety
SWet brakes may have reduced stopping ability. Test the brakes after
leaving water. If necessary, apply them lightly several times to allow
friction to dry out the pads.
SAlways check for obstacles or people behind the ATV before operat-
ing in reverse. When it’s safe to proceed in reverse, move slowly
and avoid turning at sharp angles.
SAlways use the size and type of tires specified for your ATV, and
always maintain proper tire pressure.
SNever modify an ATV through improper installation or use of acces-
sories.
SNever exceed the stated load capacity for your ATV. Cargo must be
properly distributed and securely attached. Reduce speed and follow
the instructions in this manual for carrying cargo or towing. Allow a
greater distance for braking.
FOR MORE INFORMATION ABOUT ATV SAFETY, call the Con-
sumer Product Safety Commission at 1-800-638-2772, or call
Polaris at 1-800-342-3764.
Equipment Modifications
We are concerned for the safety of our customers and for the general
public. Therefore, we strongly recommend that consumers do not
install on a Polaris ATV any equipment that may increase the speed or
power of the vehicle, or make any other modifications to the vehicle
for these purposes. Any modifications to the original equipment of the
vehicle create a substantial safety hazard and increase the risk of bodily
injury.
The warranty on your Polaris ATV is terminated if any equipment has
been added to the vehicle, or if any modifications have been made to
the vehicle, that increase its speed or power.
NOTE: The addition of certain accessories, including (but not limited
to) mowers, blades, tires, sprayers, or large racks, may change the
handling characteristics of the vehicle. Use only Polaris-approved
accessories, and familiarize yourself with their function and effect on
the vehicle.
16
SAFETY
Operator Safety

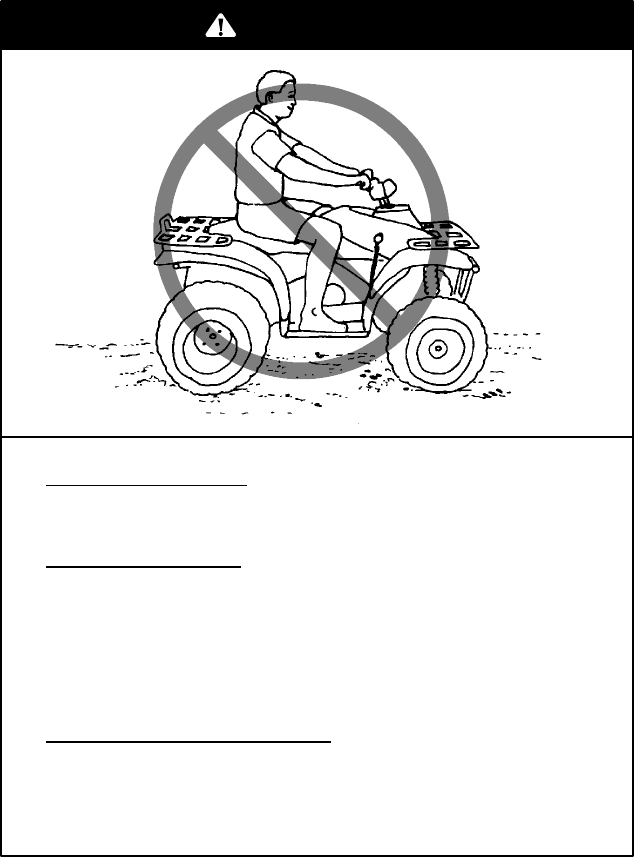

POTENTIAL HAZARD
Operating this ATV without proper instruction.
WHAT CAN HAPPEN
The risk of an accident is greatly increased if the operator
does not know how to operate the ATV properly in different
situations and on different types of terrain.
HOW TO AVOID THE HAZARD
Beginning and inexperienced operators should complete the
certified training course offered by Polaris. Operators should
regularly practice the skills learned in the course and the
operating techniques described in the owner’s manual.
For more information about the training course, contact an
authorized ATV dealer or call Polaris at 1-800-342-3764.
POTENTIAL HAZARD
Failure to follow the age recommendations for this ATV.
WHAT CAN HAPPEN
Severe injury and/or death could occur if a child under the
minimum age recommendation operates an ATV.
Even though a child may be within the recommended age group
for operating some ATVs, he/she may not have the skills,
abilities, or judgment needed to operate an ATV safely and could
be susceptible to accident or injury.
HOW TO AVOID THE HAZARD
No one under the age of 16 should operate a Polaris ATV.
WARNING
WARNING
17
SAFETY
Operator Safety
POTENTIAL HAZARD

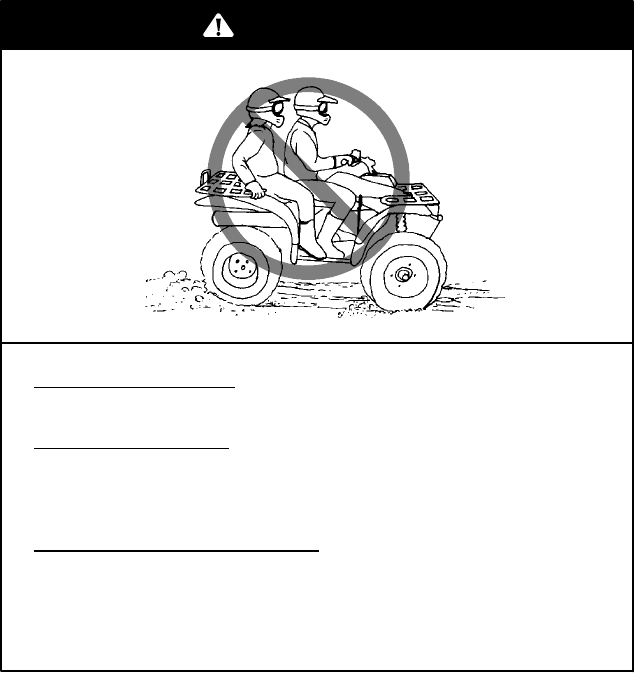

Carrying a passenger on an ATV.
WHAT CAN HAPPEN
Carrying a passenger greatly reduces the operator’s ability to
balance and control the ATV, which could cause an accident
and injury to the operator and/or passenger.
HOW TO AVOID THE HAZARD
Never carry a passenger. The purpose of the long seat is to
allow the operator to shift position as needed during operation.
It is not intended for carrying passengers.
WARNING
18
SAFETY
Operator Safety
POTENTIAL HAZARD
Operating an ATV on paved surfaces, including sidewalks,
paths, parking lots, and driveways.
WHAT CAN HAPPEN
ATV tires are designed for off-road use. Operating on paved
surfaces may adversely affect the handling of the ATV and
could result in loss of control, accident, and/or injury.
HOW TO AVOID THE HAZARD
Avoid operating the ATV on pavement. If it’s unavoidable,
travel slowly and avoid sudden turns or stops.
WARNING
19
SAFETY
Operator Safety

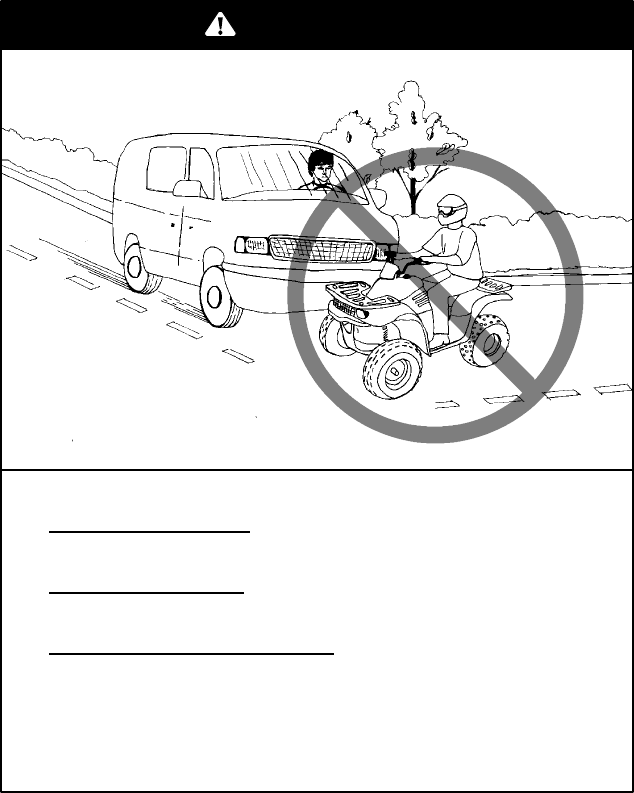

POTENTIAL HAZARD
Operating this ATV on public streets, roads or highways.
WHAT CAN HAPPEN
The ATV could collide with another vehicle.
HOW TO AVOID THE HAZARD
Never operate the ATV on any public street, road or highway,
including dirt and gravel roads. In many states it’s illegal to
operate ATVs on public streets, roads and highways.
WARNING
20
SAFETY
Operator Safety
POTENTIAL HAZARD
Operating this ATV without wearing an approved helmet, eye
protection and protective clothing.
WHAT CAN HAPPEN
Operating an ATV without an approved helmet increases the
risk of a severe head injury or death in the event of an
accident.
Operating without eye protection could result in an accident
and could increase the chance of a severe injury in the event
of an accident.
HOW TO AVOID THE HAZARD
Always wear an approved helmet that fits properly.
Always wear eye protection (goggles or face shield), gloves,
boots, long-sleeved shirt or jacket, and long pants.
WARNING
21
SAFETY
Operator Safety
POTENTIAL HAZARD
Operating the ATV after consuming alcohol or drugs.
WHAT CAN HAPPEN
Consumption of alcohol and/or drugs could seriously affect
operator judgment. Reaction time may be slower and operator
balance and perception could be affected.
Consuming alcohol and/or drugs before or while operating an
ATV could result in an accident causing severe injury or death.
HOW TO AVOID THE HAZARD
Never consume alcohol or drugs before or while operating an
ATV.
POTENTIAL HAZARD
Operating the ATV at excessive speeds.
WHAT CAN HAPPEN
Excessive speed increases the operator’s chance of losing
control of the ATV, which can result in an accident causing
severe injury or death.
HOW TO AVOID THE HAZARD
Always operate the ATV at a speed that’s proper for the terrain,
visibility and operating conditions, and your experience.
WARNING
WARNING
22
SAFETY
Operator Safety
POTENTIAL HAZARD

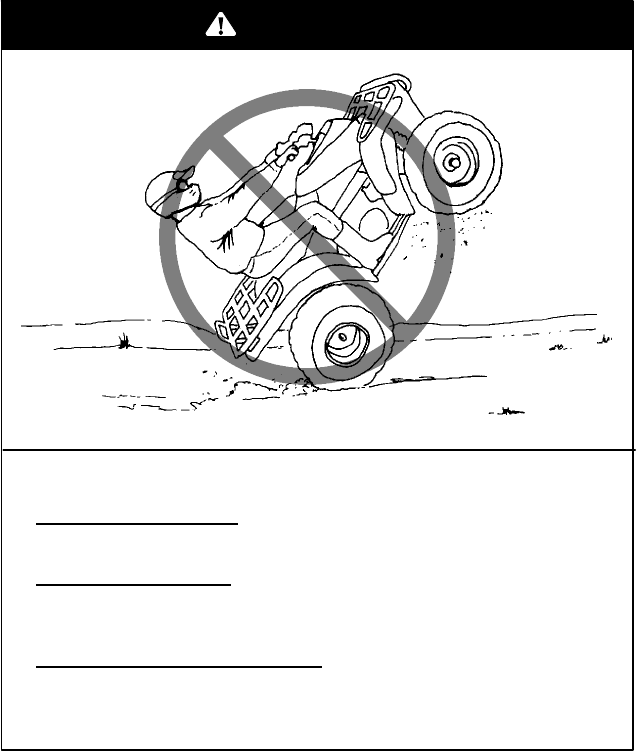

Attempting wheelies, jumps and other stunts.
WHAT CAN HAPPEN
Attempting stunts increases the chance of an accident, including
an overturn.
HOW TO AVOID THE HAZARD
Never attempt wheelies, jumps, or other stunts. Avoid exhibition
driving.
WARNING
23
SAFETY
Operator Safety
POTENTIAL HAZARD
Failure to inspect the ATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
Poor maintenance increases the possibility of an accident or
equipment damage.
HOW TO AVOID THE HAZARD
Always inspect your ATV before each use to make sure it’s in
safe operating condition.
Always follow the inspection and maintenance procedures and
schedules described in the owner’s manual.
POTENTIAL HAZARD
Removing hands from the handlebars or feet from the
footrests during operation.
WHAT CAN HAPPEN
Removing even one hand or foot can reduce ability to
control the vehicle or could cause loss of balance and
ejection from the ATV.
If the operator’s foot is not firmly planted on the footrest, it
could come into contact with the rear wheels and lead to
accident or injury.
HOW TO AVOID THE HAZARD
Always keep both hands on the handlebars and both feet
on the footrests of the ATV during operation.
WARNING
WARNING
24
SAFETY
Operator Safety
POTENTIAL HAZARD
Failure to use extra caution when operating the ATV on unfamiliar
terrain.
WHAT CAN HAPPEN
Unfamiliar terrain may contain hidden rocks, bumps, or holes that
could cause loss of control or overturn.
HOW TO AVOID THE HAZARD
Travel slowly and use extra caution when operating on unfamiliar
terrain. Always be alert to changing terrain conditions.
WARNING
25
SAFETY
Operator Safety
POTENTIAL HAZARD
Failure to use extra caution when operating on excessively
rough, slippery or loose terrain.
WHAT CAN HAPPEN
Operating on excessively rough, slippery or loose terrain could
cause loss of traction or loss of control, which could result in an
accident or overturn.
HOW TO AVOID THE HAZARD
Do not operate on excessively rough, slippery or loose terrain
until you’ve learned and practiced the skills necessary to
control the ATV on such terrain.
Always use extra caution on rough, slippery or loose terrain.
WARNING
26
SAFETY
Operator Safety
POTENTIAL HAZARD
Turning improperly.
WHAT CAN HAPPEN
Improper turns could cause loss of control and lead to a collision
or overturn.
HOW TO AVOID THE HAZARD
Always follow proper procedures for turning as described in the
owner’s manual.
Practice turning at slow speeds before attempting to turn at
faster speeds.
Never turn at excessive speed.
POTENTIAL HAZARD
Operating on excessively steep hills.
WHAT CAN HAPPEN
The vehicle may overturn.
HOW TO AVOID THE HAZARD
Never operate on hills too steep for the ATV or for your
abilities. Never operate the ATV on hills steeper than 25_.
Practice on smaller hills before attempting large hills.
WARNING
WARNING
27
SAFETY
Operator Safety

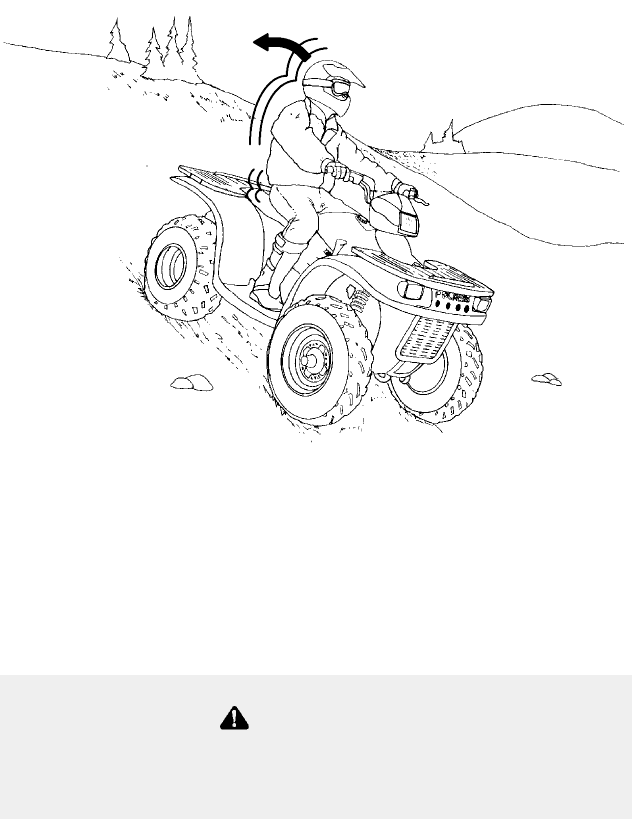

POTENTIAL HAZARD
Climbing hills improperly.
WHAT CAN HAPPEN
Improper hill climbing could cause loss of control or overturn.
HOW TO AVOID THE HAZARD
Always follow proper procedures for climbing hills as described
in the owner’s manual.
Always check the terrain carefully before ascending any hill.
Never operate the ATV on hills steeper than 25_.
Never climb hills with excessively slippery or loose surfaces.
Shift your weight forward.
Never open the throttle suddenly while traveling uphill. The ATV
could flip over backwards.
Never go over the top of any hill at high speed. An obstacle, a
sharp drop, or another vehicle or person could be on the other
side of the hill.
WARNING
28

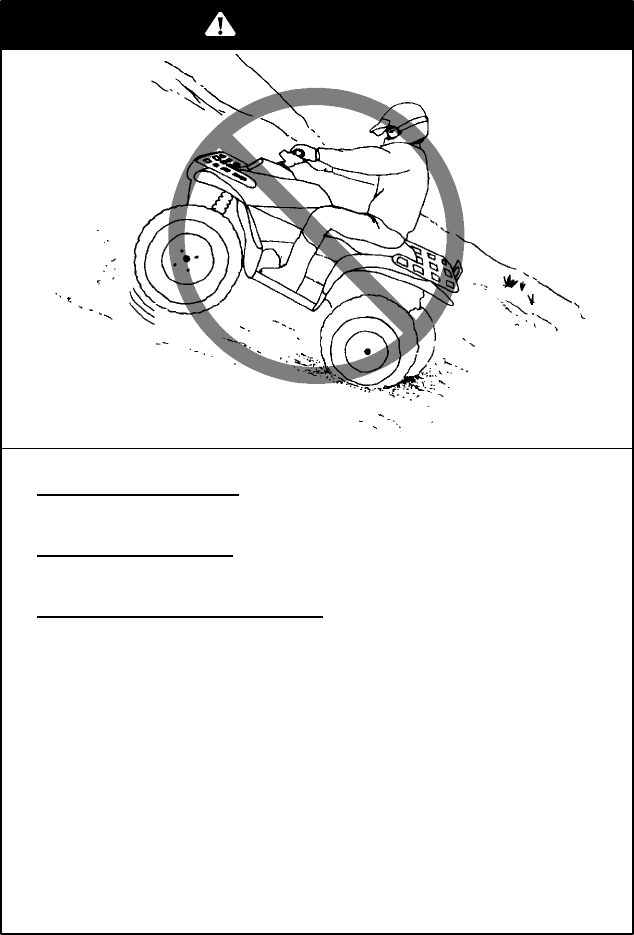

SAFETY
Operator Safety
POTENTIAL HAZARD
Traveling downhill improperly.
WHAT CAN HAPPEN
Improperly descending a hill could cause loss of control or
overturn.
HOW TO AVOID THE HAZARD
Always follow proper procedures for traveling down hills as
described in the owner’s manual. NOTE: A special technique
is required when braking while traveling downhill. See page 62.
Always check the terrain carefully before descending a hill.
Shift your weight backward.
Never travel down a hill at high speed.
Avoid traveling down a hill at an angle, which would cause the
vehicle to lean sharply to one side. Travel straight down the hill
when possible.
WARNING
29
SAFETY
Operator Safety
POTENTIAL HAZARD

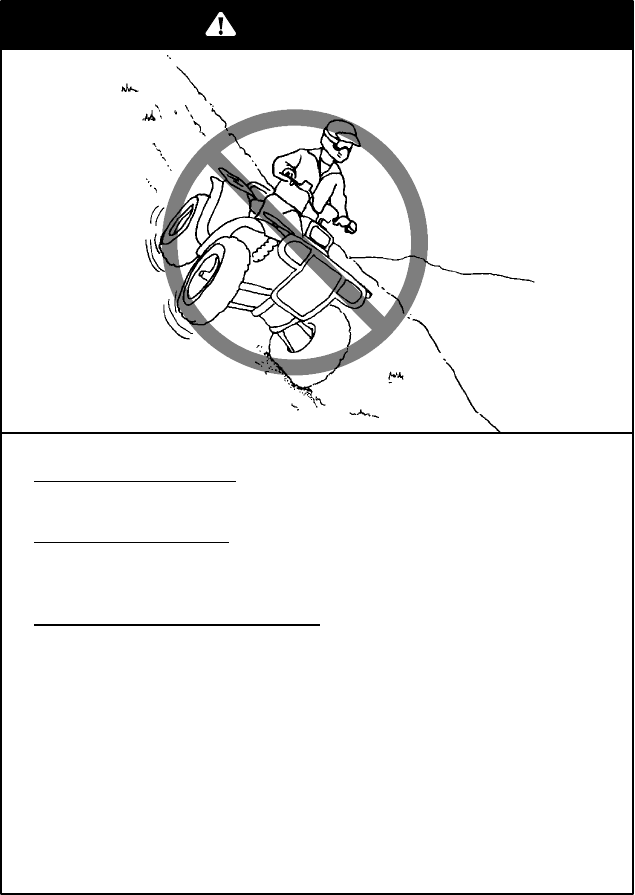

Improperly crossing hills and turning on hills.
WHAT CAN HAPPEN
Improperly crossing or turning as hills could cause loss of control
or overturn.
HOW TO AVOID THE HAZARD
Never attempt to turn the ATV around on any hill until you’ve
mastered the turning technique (on level ground) as described in
the owner’s manual. See page 63. Use extra caution when
turning on any hill.
Avoid crossing the side of a steep hill.
When crossing the side of a hill:
Always follow proper procedures as described in the owner’s
manual.
Avoid hills with excessively slippery or loose surfaces.
Shift your weight to the uphill side of the ATV.
WARNING
30
SAFETY
Operator Safety
POTENTIAL HAZARD
Stalling, rolling backwards or
improperly dismounting while
climbing a hill.
WHAT CAN HAPPEN
The vehicle could overturn.
HOW TO AVOID THE
HAZARD
Maintain steady speed when
climbing a hill.
If all forward speed is lost:
Keep your weight uphill.
Apply the brakes.
Lock the parking brake when fully stopped.
If the ATV begins rolling backwards:
Keep weight uphill.
Never apply engine power.
Never apply the rear brake while rolling backwards.
Apply the single-lever brake gradually.
When fully stopped, apply the rear brake as well, and then lock
the parking brake.
Dismount on uphill side, or to either side if ATV is pointed
straight uphill.
Turn the ATV around and remount, following the procedure
described in the owner’s manual. See page 63.
WARNING
31
SAFETY
Operator Safety
POTENTIAL HAZARD
Improperly operating over obstacles.
WHAT CAN HAPPEN
Operating over obstacles could cause loss of control or overturn.
HOW TO AVOID THE HAZARD

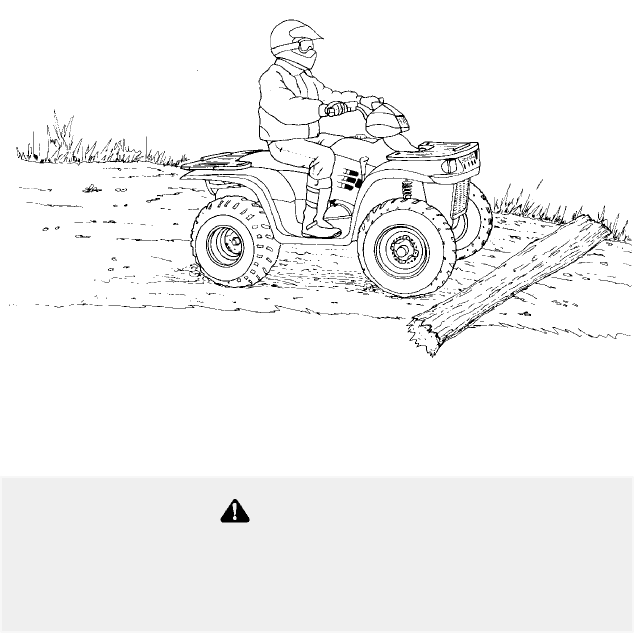

Before operating in a new area, check for obstacles.
Avoid operating over large obstacles such as rocks and fallen
trees when possible. If unavoidable, use extreme caution and
always follow proper procedures as outlined in the owner’s
manual.
POTENTIAL HAZARD
Skidding or sliding.
WHAT CAN HAPPEN
Skidding or sliding can cause loss of control.
If the tires regain traction unexpectedly, the ATV could overturn.
HOW TO AVOID THE HAZARD
On slippery surfaces such as ice, travel slowly and use extra
caution to reduce the chance of skidding or sliding out of control.
WARNING
WARNING
32
SAFETY
Operator Safety
POTENTIAL HAZARD
Operating the ATV through deep or fast-flowing water.
WHAT CAN HAPPEN
Tires may float, causing loss of traction and loss of control,
which could lead to an accident or overturn.
HOW TO AVOID THE HAZARD
Avoid operating the ATV through deep or fast-flowing water.
If it’s unavoidable to enter water that exceeds the
recommended maximum depth (see page 64), travel slowly,
balance your weight carefully, avoid sudden movements, and
maintain a slow and steady forward motion. Do not make
sudden turns or stops, and do not make sudden throttle
changes.
Wet brakes may have reduced stopping ability. Always test
the brakes after leaving water. If necessary, apply them
several times to let friction dry out the pads.
POTENTIAL HAZARD
Improperly operating in reverse.
WHAT CAN HAPPEN
The ATV could collide with an obstacle or person, resulting in
severe injury.
HOW TO AVOID THE HAZARD
Before shifting into reverse gear, always check for obstacles or
people behind the ATV. When it’s safe to proceed, back
slowly.
WARNING
WARNING
33
SAFETY
Operator Safety
POTENTIAL HAZARD
Operating this ATV with improper tires, or with improper or uneven
tire pressure.
WHAT CAN HAPPEN
Use of improper tires, or operation of the ATV with improper or
uneven tire pressure, could cause loss of control or accident.
HOW TO AVOID THE HAZARD
Always use the size and type of tires specified for the ATV in the
owner’s manual.
Always maintain proper tire pressure as described in the owner’s
manual and on safety decals.
POTENTIAL HAZARD
Operating the ATV with improper modifications.
WHAT CAN HAPPEN
Improper installation of accessories or modification of the ATV
may cause changes in handling, which could lead to an
accident.
HOW TO AVOID THE HAZARD
Never modify the ATV through improper installation or use of
accessories. All parts and accessories added to the vehicle
must be genuine Polaris Industries Inc. or equivalent
components designed for use on this ATV and should be
installed and used according to approved instructions. See
your authorized Polaris ATV dealer for more information.
WARNING
WARNING
34
SAFETY
Operator Safety
POTENTIAL HAZARD
Overloading the ATV or carrying/towing cargo improperly.
WHAT CAN HAPPEN
Overloading and towing can cause changes in vehicle handling,
which could lead to loss of control or an accident.
HOW TO AVOID THE HAZARD
Never exceed the stated load capacity for this ATV.
Cargo should be properly distributed and securely attached.
Reduce speed when carrying cargo or pulling a trailer. Allow a
greater distance for braking.
Always follow the instructions in the owner’s manual for carrying
cargo or pulling a trailer.
POTENTIAL HAZARD
Operating on frozen bodies of water.
WHAT CAN HAPPEN
Severe injury or death can result if the ATV and/or the operator
fall through the ice.
HOW TO AVOID THE HAZARD
Never operate the ATV on a frozen body of water. If you’re
confident that the ice is thick enough and sound enough to
support the machine and its operator, as well as the force
created by a moving vehicle, exercise extreme caution.
WARNING
WARNING
35
SAFETY
Operator Safety
Operating a damaged ATV can result in an accident with serious
injury or death. After any overturn or accident, have a qualified
service dealer inspect the entire machine for possible damage,
including (but not limited to) brakes, throttle and steering
systems.
Safe operation of this rider-active vehicle requires good judgement
and physical skills. Persons with cognitive or physical disabilities
who operate this vehicle have an increased risk of overturn and
loss of control, which could result in severe injury or death.
CAUTION
Exposure to the hot components could result in a fire. Always
keep combustible materials away from the exhaust system.
WARNING
WARNING
36
CONTROLS

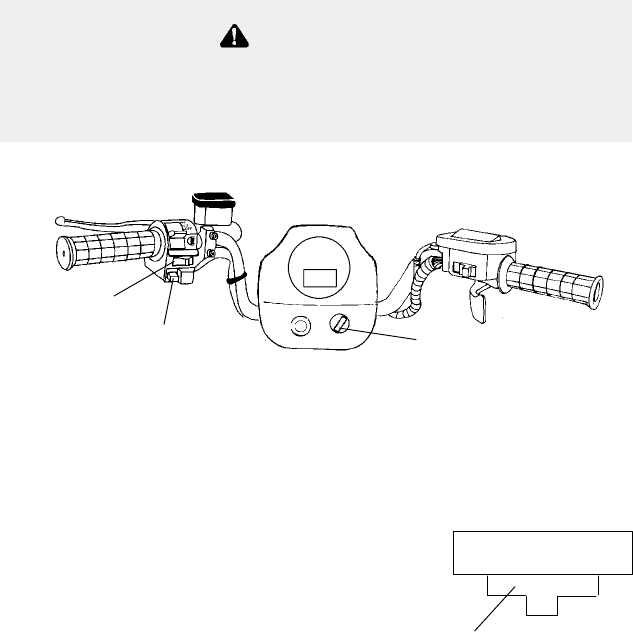

Engine Electrical Switches
Mode/Reverse Override Switch (1) - This vehicle is equipped with a
reverse speed limiter system. To gain additional power while backing,
depress the override switch. NOTE: The override switch also allows
activation of All Wheel Drive (AWD) in reverse, if the AWD switch is
on. This switch is also used to toggle through the different modes of
the rider information center. See page 45.
Engine Stop Switch (2) - The engine will
not start or run when the switch is in the
OFF position. Its purpose is to provide the
operator with a quick means of engine
shutdown in case of an emergency.
Main Switch (3) - To start the engine, slide
the stop switch to the center RUN position and turn the main key
switch clockwise past the ON position. Release the key when the
engine starts.
NOTE: Both the main switch and the emergency engine stop switch
will shut off all electrical power to the vehicle, including lights. To
stop the engine, slide the stop switch either right or left to the OFF
position.
Activating the override switch while the throttle is open can cause
loss of control, resulting in severe injury or death. Do not activate
the override switch while the throttle is open.
WARNING
13
2
RUN OFFOFF
2
37
CONTROLS
Throttle Lever
Engine speed and vehicle
movement are controlled by
pressing the throttle lever (1).
The throttle lever is spring
loaded. Engine speed returns
to idle when the lever is
released.
This ATV is equipped with Polaris Electronic Throttle Control (ETC),
which is designed to reduce the risk of a frozen or stuck throttle. If the
throttle cable should stick in an open position when the operator
releases the throttle lever, the engine will stop, and power to the rear
wheels will cease.
Operating an ATV with sticking or improperly operating throttle
controls could cause an accident and lead to severe injury or
death.
Never start or operate an ATV with a sticking or improperly
operating throttle. Always contact your dealer for service if throttle
problems arise.
Failure to check or maintain proper operation of the throttle
system can result in an accident if the throttle lever sticks during
operation. Always check the lever for free movement and return
before starting the engine. Also check occasionally during
operation.
WARNING
1
The Electronic Throttle Control (ETC) stops the engine in the
event of a throttle system malfunction and is provided for your
safety. Do not attempt to modify the ETC system or replace it
with any after market throttle mechanisms.
WARNING
38
CONTROLS
Light Switches
The light switch is located on the left handlebar. It’s used to turn the
lights on and off and to switch the lights from HI to LO. NOTE: The
lights won’t work unless the key is in the ON position and the shut-off
switchisintheRUN position.
Brake Lever
The front and rear brakes are applied
by squeezing the brake lever (1)
toward the handlebar. The front and
rear brakes are hydraulically
activated disc type brakes that are
activated by only one lever.
Always test brake lever travel and
master cylinder fluid level before riding.
When squeezed, the lever should feel firm. Any sponginess would
indicate a possible fluid leak or low master cylinder fluid level, which
must be corrected before riding. Contact your dealer for proper
diagnosis and repairs.
Operating the ATV on streets or roads, especially in darkness,
could result in an accident and serious injury or death.
Your ATV is not equipped with highway-approved lights. It’s
designed for and must be used for off-road use only. Use caution
and drive at reduced speeds in conditions of reduced visibility such
as fog, rain and darkness.
WARNING
1
Operating the ATV with a spongy brake lever can result in loss
of braking, which could cause an accident.
Never operate the ATV with a spongy-feeling brake lever.
WARNING
39
CONTROLS

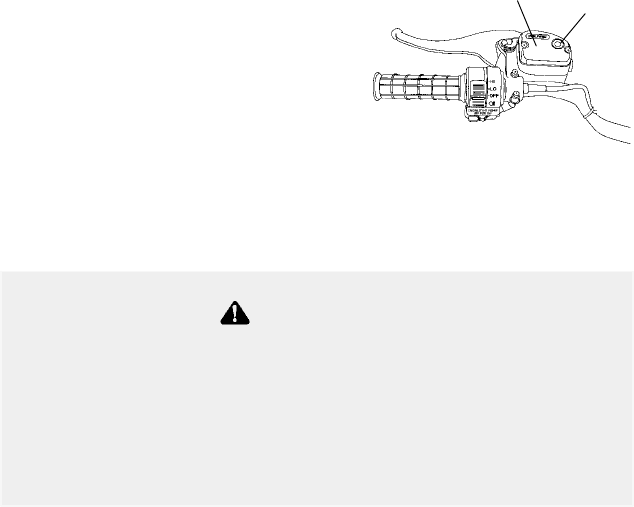

Master Cylinder
The brake fluid in the master
cylinder (1), which is located on the
left handlebar, should be checked
before each ride. The fluid level
can be seen through an indicator
window (2) on the top of the master
cylinder. This eye will appear dark
when the fluid level is full. When
fluid needs to be added, the eye will be clear.
NOTE: When checking the fluid level, the ATV must be on level
ground with the handlebars straight. If the fluid level is low add DOT 3
brake fluid only. See page 121 for the part numbers of Polaris products.
12
After opening a bottle of brake fluid, always discard any
unused portion. Never store or use a partial bottle. Brake
fluid is hygroscopic, meaning it rapidly absorbs moisture from
the air. The moisture causes the boiling temperature of the
brake fluid to drop, which can lead to early brake fade and the
possibility of accident or severe injury.
WARNING
40
CONTROLS
Parking Brake
Setting the Parking Brake
1. Place the transmission in first
gear (or in PARK if equipped).
2. Squeeze and release the brake
lever (1) two or three times, then
squeeze and hold.
3. Push the park brake lock (2)
forward to engage the brake.
Release the brake lever.
4. To release the parking brake
lock, squeeze and release the brake
lever. It will return to its unlocked position.

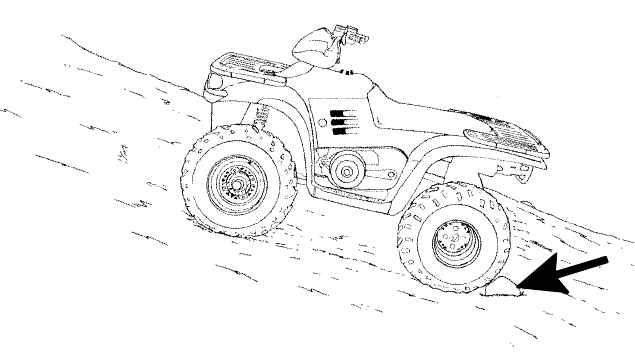

Important Safeguards
SThe parking brake may relax if left on for a long period of time. Al-
ways block the wheels to prevent rolling.
SAlways block the wheels on the downhill side of the ATV if leaving
it parked on a hill. Another option is to park the ATV in a sidehill
position.
SNever depend on the parking brake alone if the ATV is parked on a
hill. Always block the wheels to prevent rolling.
Operating the ATV while the parking brake is engaged could
result in an accident and serious injury or death. Always check
to be sure the parking brake is disengaged before operating.
WARNING
12
41
CONTROLS
Auxiliary Brake
Your Polaris ATV has an
auxiliary brake (1) for added
safety. It’s located on the
inside of the right floor board
and is operated by the right
foot. The auxiliary brake
serves as a backup to the main
brake system if the main
system becomes inoperative.
If the rear wheels slide while
using the auxiliary brake,
reduce brake pedal pressure to brake the rear wheels without skidding.
Brake Fluid Level
Check the brake fluid level frequently for the auxiliary brake system.
The reservoir is located under the seat or near the auxiliary brake.
Maintain the fluid level between the maximum and minimum marks.
Aggressively applying the auxiliary brake when backing down a
hill may cause rear tipover, which could result in serious injury or
death.
Use caution when applying the auxiliary brake. Do not
aggressively apply the auxiliary brake when going forward. The
rear wheels may skid and slide sideways, causing loss of control
and serious injury or death.
WARNING
1
42
CONTROLS
Choke
The choke assists in starting a cold engine. Refer to the engine starting
procedure on page 53 for correct choke and throttle settings during
starting.

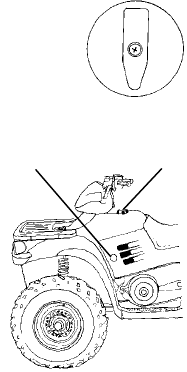

Fuel Valve
The fuel valve (1) is located on the left side
panel. It has three positions:
OFF: For vehicle storage and when transporting.
ON: For normal operation.
RES: For reserve supply if main supply is
exhausted.
NOTE: There’s about a 7 to 10 mile
(11.2 to 16 km) range on reserve gas.
Always refill the gas tank as soon as
possible after using the main supply.
Always return the valve to the on position
after refueling.
Fuel Tank
The fuel tank filler cap (2) is located directly
below the handlebar. Use either leaded or
unleaded gasoline with a minimum pump octane
number of 87=(R+ M/2) octane.
Fuel Filter
The in-line fuel filter should be replaced by your dealer after every 100
hours of operation, or annually. Do not attempt to clean the fuel filter.
RES
ON
OFF
2
1
43
CONTROLS
Automatic Transmission Gear Selector
The transmission gear selector (1) is located on the right side of the
vehicle. Shift patterns vary, depending on your model.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park (Sportsman 600/700 only)
To shift into HIGH or PARK on the Sportsman 600 or 700, you must
first apply the auxiliary brake to activate the high/park lock-out
mechanism. When shifting out of HIGH or PARK, it’s not necessary
to apply the brake.
Whenever the ATV is left unattended, always place the transmission in
first gear (or in PARK if equipped) and lock the parking brake.
Maintaining shift linkage adjustment is important to assure proper
transmission function on the Sportsman 400 and 500. See your dealer
if you experience any shifting problems.
Belt Life
To extend belt life, use low forward gear in heavy pulling situations and
when operating at less than seven miles per hour for extended periods of
time.
HL
N
R
H
N
P
L
R
1
400/500 600/700
Shifting gears with the engine speed above idle or while the
vehicle is moving could cause transmission damage.
To change gears, stop the vehicle, and with the engine idling,
move the lever to the desired gear. Apply the auxiliary brake if
shifting into HIGH or PARK on the Sportsman 600 or 700.
CAUTION
44
FEATURES
All Wheel Drive (AWD) System
Polaris 4-wheel drive ATVs are
equipped with a unique,
Polaris-exclusive, AWD system,
which is activated by a switch (1)
on the right handlebar. When the
switchisoff,theATVisin2wheel
drive at all times. When the switch
is on, the ATV is in AWD and the
AWD indicator light in the
instrument cluster will be on.
When in AWD, the front gearcase will automatically engage any time
the rear wheels lose traction. When the rear wheels regain traction, the
front gearcase will automatically disengage.
NOTE: The override switch allows activation of AWD in reverse if
the AWD switch is on. See page 36.
There is no limit to the length of time the vehicle may remain in AWD.
Engaging Front Gearcase
The AWD switch may be turned on or off while the vehicle is moving.
Initially, the vehicle’s electronic system will not enable the AWD until
the engine RPM is below 3100. Once enabled, the AWD remains
enabled until the AWD switch is turned off. If the switch is turned off
while the front gearcase is moving, it will not disengage until the rear
wheels regain traction.
Engage the AWD switch before getting into conditions where front
wheel drive may be needed. If the rear wheels are spinning, release the
throttle before switching to AWD.
1
Switching to AWD while the rear wheels are spinning may cause
severe drive shaft and gearcase damage. Always switch to AWD
while the rear wheels have traction or are at rest.
CAUTION
45
FEATURES
Instrument Cluster
Your ATV is equipped with an instrument cluster that senses vehicle
speed from the right front wheel. The instrument cluster measures
distance in miles as well as hours of operation. It also includes a
reverse speed limiter function that limits the ATV’s speed to
approximately 7-9 mph. Refer to page 36 for additional information.
1. Rider Information Center
2. Speedometer needle - in addition to showing vehicle speed, the
needle flashes when a warning condition exists.
3. Speedometer
2
3
1
CAUTION
To prevent damage, wash the ATV by hand or with a garden hose
using mild soap. Do not use alcohol to clean the instrument
cluster. Immediately clean off any gasoline that splashes on the
instrument cluster.
46
FEATURES
Instrument Cluster

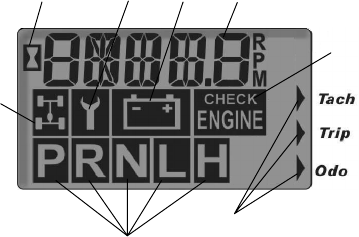

Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery
over-voltage may have occurred and the instrument cluster may have
shut off to protect the electrical system. If this occurs, take the ATV to
your Polaris dealer for proper diagnosis.
1. Gear Indicator - As the shift lever is moved, this indicates the
gear the transmission is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
P = Park (if equipped)
2. AWD Indicator - This
indicator illuminates
when the electrical
portion of the AWD
system is enabled.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode Indicator
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is being operated at an RPM too low to keep the
battery charged. A low battery warning may also occur under normal
operation if the machine is at idle and high electrical load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Check Engine Warning Indicator - The word HOT will display
alphanumerically when the engine is overheating. Do not continue
to operate the ATV if this warning appears or serious engine
damage could result.
8. Mode Indicator
7
5
4
3
1
6
2
8
47
FEATURES
Instrument Cluster
Rider Information Center
The rider information center has 4 standard modes:
Mode 1 - Odometer
Mode 2 - Tripmeter
Mode 3 - Total Service Hours
Mode 4 - Tachometer
The reverse override button on the left handlebar is also the mode
button.NOTE: If using the mode button to program the rider
information center, or to toggle through the options, the machine
cannot be in reverse.
Mode 1 - Odometer
The odometer records the miles traveled by the ATV.
Mode 2 -Trip Meter
The trip meter records the miles traveled by the ATV on each trip if it’s
reset before each trip. To reset the trip meter, select the trip meter
mode. Press and hold the mode button (override button) until the total
changes to 0.NOTE: In the Rider Information Center, the trip meter
display contains a decimal point, but the odometer displays without a
decimal point.
Mode 3 - Hour Meter
This mode logs the total hours the engine has been in operation.
Mode 4 - Tachometer
The engine RPM is displayed digitally. NOTE: Small fluctuations in
the RPM from day to day may be normal because of changes in
humidity, temperature and elevation.
48
FEATURES
Instrument Cluster
Rider Information Center
Diagnostic Mode
The diagnostic mode is for informational purposes only. Please return
your ATV to your dealer for all major repairs.
As long as the gauge is in the diagnostic mode, the wrench icon will
remain lit.
To leave the diagnostic mode, either shift the machine out of neutral or
turn the key switch off and on. NOTE: Any movement of the tires
will also take the machine out of the diagnostic mode.
To enter the diagnostics mode:
1. Turn the key switch off and wait 10 seconds.
2. Set the park brake and shift the transmission to neutral.
3. Hold the mode/reverse override button and turn the key switch on.
4. Release the switch as soon as the display is activated.
The initial screen display refers to the software version installed in
your ATV. This information is displayed briefly.
Use the mode/reverse override button to toggle through the diagnostic
screens.
Screen 1: Battery voltage
Screen 2: Tachometer
Screen 3: AWD diagnostic
This gauge indicates whether or not current is flowing through the
AWD coil (only on models with switchable AWD).
Screen 4: Gear circuit diagnostic
This screen displays the resistance value (in ohms) being read at the
gear switch input of the gauge.
49
FEATURES
Instrument Cluster
Rider Information Center
Diagnostic Mode
Screen 5: Programmable service interval
The purpose of the programmable service interval is to provide the
consumer and dealer with a convenient reminder for routine
maintenance. When your vehicle leaves the factory, this feature is set at
50 hours. You must enable the programmable service interval before it
can be used.
Once the service interval mode is set with the hours when service is
due, the hours of actual engine operation are subtracted from the set
hours until 0is reached. When the counter reaches 0, the wrench icon
will flash quickly for 5 seconds each time the vehicle is started as a
reminder that the periodic maintenance is due.
To set the hours, press and hold the mode/override button until the
wrench icon flashes. When it begins to flash, release the button. The
setting will increase by one hour each time the button is pressed.
Pressing and holding the button will allow the numbers to escalate
much faster. When the desired time increment is displayed, release the
button and wait for the wrench to stop flashing. When the wrench
stops blinking, your service hours are set. NOTE: If you scroll past
the intended number, hold the button down until the count turns over to
0. You can then reset the number.
If the service interval is enabled on your ATV and you wish to turn it
off, toggle to the service interval mode. Press and hold the mode
button for approximately 7 seconds until the word OFF appears in the
Rider Information Center.
Screen 6: Miles/Kilometers toggle
The display in the tripmeter and odometer can be changed to display
either kilometers or miles. The current display mode will be shown as
KM or MP. To change, hold in the mode button until the letters flash,
then press and release the button once. When the display stops
flashing, the mode has been set.
50
OPERATION
Fuel Safety
Gasoline is highly flammable and explosive under certain
conditions.
SAlways exercise extreme caution whenever handling gasoline.
SAlways refuel with the engine stopped, and outdoors or in a
well ventilated area.
SDo not smoke or allow open flames or sparks in or near the
area where refueling is performed or where gasoline is stored.
SDo not overfill the tank. Do not fill the tank neck.
SIf gasoline spills on your skin or clothing, immediately wash it
off with soap and water and change clothing.
SNever start the engine or let it run in an enclosed area. Engine
exhaust fumes are poisonous and can cause loss of con-
sciousness or death in a short time.
STurn the fuel valve off whenever the ATV is stored or parked.
The engine exhaust from this product contains chemicals known
to cause cancer, birth defects or other reproductive harm.
Operate this vehicle only outdoors or in well-ventilated areas.
WARNING
WARNING
51
OPERATION
Break-In Period
The break-in period for your new Polaris ATV is defined as the first ten
hours of operation, or the time it takes to use the first two full tanks of
gasoline. No single action on your part is as important as following
the procedures for a proper break-in. Careful treatment of a new
engine will result in more efficient performance and longer life for the
engine. Perform the following procedures carefully.
1. Fill the fuel tank with gasoline. See page 42.
2. Check the oil reservoir level on the dipstick. See page 79. Add
oil if necessary to maintain the level between the safe and add
marks.
3. Drive slowly at first. Select an open area that allows room to
familiarize yourself with vehicle operation and handling.
4. Vary the throttle positions. Do not operate at sustained idle.
5. Perform regular checks on fluid levels, controls and areas outlined
on the daily pre-ride inspection checklist. See page 52.
6. Pull only light loads.
7. During the break-in period, change both the oil and the filter at 20
hours or 200 miles.
CAUTION
Excessive heat build-up during the first three hours of operation will
damage close-fitted engine parts. Do not operate at full throttle or
high speeds for extended periods during the first three hours of use.
CAUTION
Mixing brands or using a non-recommended oil may cause
serious engine damage. We recommend the use of Polaris
Premium 4 synthetic Oil or another 0W-40 API certified SH oil.
Never substitute or mix oil brands.
52
OPERATION
Pre-Ride Inspection
Use the following checklist to verify that your vehicle is in proper
working condition before each use.
Item/Inspection Procedure
1. Tires - Check condition and pressures.
2. Fuel tank and engine oil level - Fill both to their proper levels.
3. All brakes - Check operation, adjustment and fluid levels (includes
auxiliary brake).
4. Throttle - Check for free operation and closing.
5. Headlight/Taillight/Brakelight - Check operation of all indicator
lights and switches.
6. Engine stop switch - Check for proper function.
7. Wheels - Check for tightness of wheel nuts and axle nuts; check
that axle nuts are secured by cotter pins.
8. Air cleaner element - Check for dirt; clean or replace.
9. Steering - Check for free operation, noting any unusual looseness
in any area.
10. Loose parts - Visually inspect the vehicle for any damaged
components or loose nuts/bolts or fasteners.
11. Riding gear - Wear a helmet, goggles and protective clothing.
12. Engine coolant - Check for proper level at the recovery bottle.
If a proper inspection is not done before each use, severe injury or
death could result. Always inspect the vehicle before each use to
ensure it’s in proper operating condition.
WARNING
53
OPERATION
Starting the Engine
Starting a Cold Engine
1. Place the transmission in neutral
(or PARK if equipped) and lock
the parking brake.
2. Turn the fuel tank valve on.
3. Sit on the vehicle and pull the
choke knob out until it stops (1).
NOTE: The variable choke is fully
on when the knob is pulled
completely out. The choke is off
when the knob is pushed completely in. The choke can be adjusted
gradually, depending on how much choke is needed for starting. Be
sure the choke is off during operation, as excess fuel washing into the
engine oil will increase wear on engine components.
4. Turn the engine stop switch to RUN.
NOTE: Do not press the throttle while starting the engine.
5. Turn the ignition key past the ON position to engage the starter.
Activate the starter for a maximum of five seconds, releasing the
key when the vehicle starts. If the engine does not start, release the
starter and wait five seconds. Activate the starter for another five
seconds if necessary. Repeat this procedure until the engine starts.
6. If the engine slows or stops, position the choke knob half way in to
allow proper engine warm-up.
7. Vary the engine RPM slightly with the throttle to aid in warm-up.
When the engine idles smoothly, push the choke completely in.
Engine exhaust contains poisonous carbon monoxide and can
cause loss of consciousness resulting in severe injury or death.
Never run an engine in an enclosed area.
WARNING
1
Operating the vehicle immediately after starting could cause engine
damage. Allow the engine to warm up for several minutes before
operating the vehicle.
CAUTION
54
OPERATION
Starting the Engine
Starting a Warm Engine
Warm engines do not normally require the use of the choke. Using the
choke can cause the spark plug to become wet fouled.
1. Position the vehicle on a level surface with the transmission in
neutral (or PARK if equipped).
2. Lock the parking brake, turn the fuel tank valve on, sit on the
vehicle, and turn the engine stop switch to RUN.
3. If the engine has cooled to a point where it does not readily start,
intermittent use of the choke button (pulled half way out) may be
necessary.
4. If the engine is over-choked when warm, depress the throttle lever
fully while cranking to aid in starting.
5. Release the throttle lever immediately after the engine starts. If the
engine does not start and all conditions are favorable, change the
sparkplugandtryagain.
Cold Weather Operation
If the ATV is used year-round, check the oil level frequently. A rising
oil level could indicate the accumulation of contaminates such as water
or excess fuel in the bottom of the oil tank. Water in the bottom of the
tank can lead to engine damage and must be drained. Water
accumulation increases as outside temperature decreases.
See your Polaris dealer for engine heater kits, which provide quicker
warm-ups and easier starting in colder weather.
55
OPERATION
Hauling Cargo
Your ATV has been designed to carry or tow a certain amount of load.
Always read and understand the load distribution warning labels on the
vehicle, and never exceed the weight capacities outlined in the
specifications section of the owner’s manual and on the safety decals.
Cargo weight should be evenly distributed (1/3 on the front rack and
2/3 on the rear rack) and mounted as low as possible. When operating
over rough or hilly terrain, reduce speed and cargo weight to maintain
stable driving conditions. Do not obstruct the headlight beam with
cargo.
Belt Life
Use low forward gear when hauling or towing heavy cargo to extend
belt life.
2/3 1/3
56
OPERATION
Hauling Cargo
Hauling cargo improperly can alter vehicle handling and may
cause loss of control or brake instability and result in serious injury
or death. Always follow these precautions when hauling cargo:
SREDUCE SPEED AND ALLOW GREATER DISTANCES FOR
BRAKING WHEN HAULING CARGO.
SCARGO WEIGHT DISTRIBUTION should be 1/3 on the front
rack and 2/3 on the rear rack. When operating over rough or
hilly terrain, reduce speed and cargo to maintain stable driving
conditions. Carrying loads on one rack only increases the
possibility of vehicle overturn.
SCARRY LOADS AS LOW ON THE RACKS AS POSSIBLE.
Carrying loads high on the racks raises the center of gravity of
the vehicle and creates a less stable operating condition.
SSECURE ALL LOADS BEFORE OPERATING. Unsecured
loads can create unstable operating conditions, which could
result in loss of control of the vehicle.
SOPERATE ONLY WITH STABLE AND SAFELY ARRANGED
LOADS. When handling off-centered loads that cannot be
centered, securely fasten the load and operate with extra
caution. Always attach the tow load to the hitch point
designated for your vehicle.
SHEAVY LOADS CAN CAUSE BRAKING AND CONTROL
PROBLEMS. Use extreme caution when applying brakes with
a loaded vehicle. Avoid terrain or situations that may require
backing downhill.
SUSE EXTREME CAUTION when operating with loads that
extend over the rack sides. Stability and maneuverability may
be adversely affected, causing the vehicle to overturn.
SDO NOT BLOCK THE FRONT HEADLIGHT BEAM when
carrying loads on the front rack.
SDO NOT TRAVEL FASTER THAN THE RECOMMENDED
SPEEDS. Vehicle should never exceed 10 mph (16 kph) while
towing a load on a level grass surface. Vehicle speed should
never exceed 5 mph (8 kph) when towing loads in rough terrain,
while cornering, or while ascending or descending a hill.
WARNING
57
OPERATION
Driving Safely

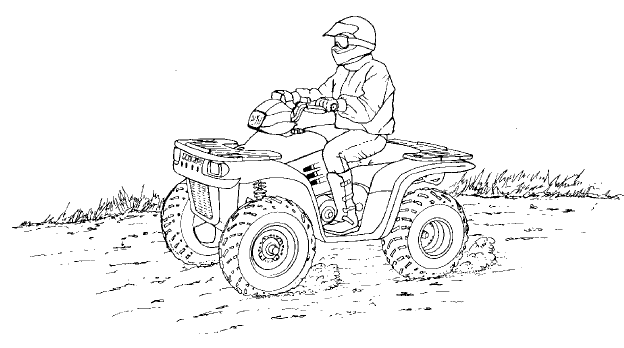

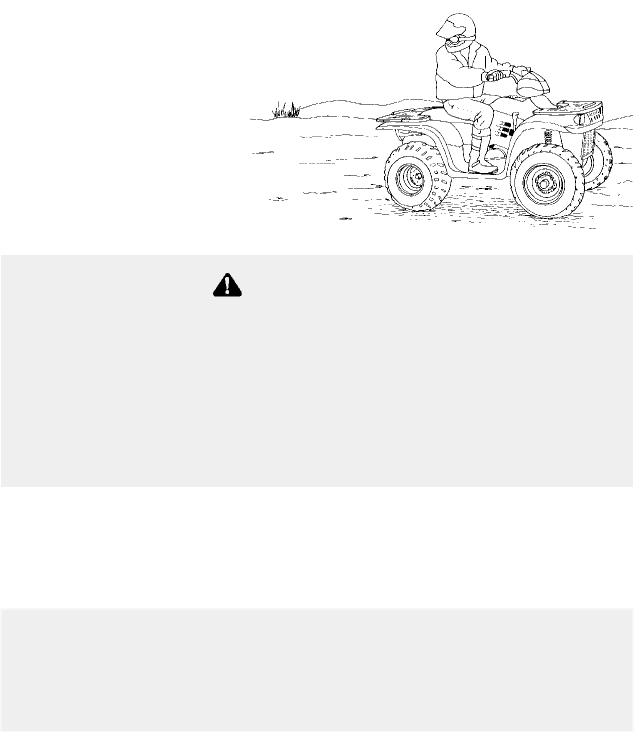

Driving Procedures
1. Sit upright with both feet on the footrests and both hands on the
handlebars.
2. Start the engine and allow it to warm up, then shift the
transmission into gear.
3. Check your surroundings and determine your path of travel.
4. Release the parking brake.
5. Slowly depress the throttle with your right thumb and begin
driving. Vehicle speed is controlled by the amount of throttle
opening.
6. Drive slowly. Practice maneuvering and using the throttle and
brakes on level surfaces.
58
OPERATION
Driving Safely

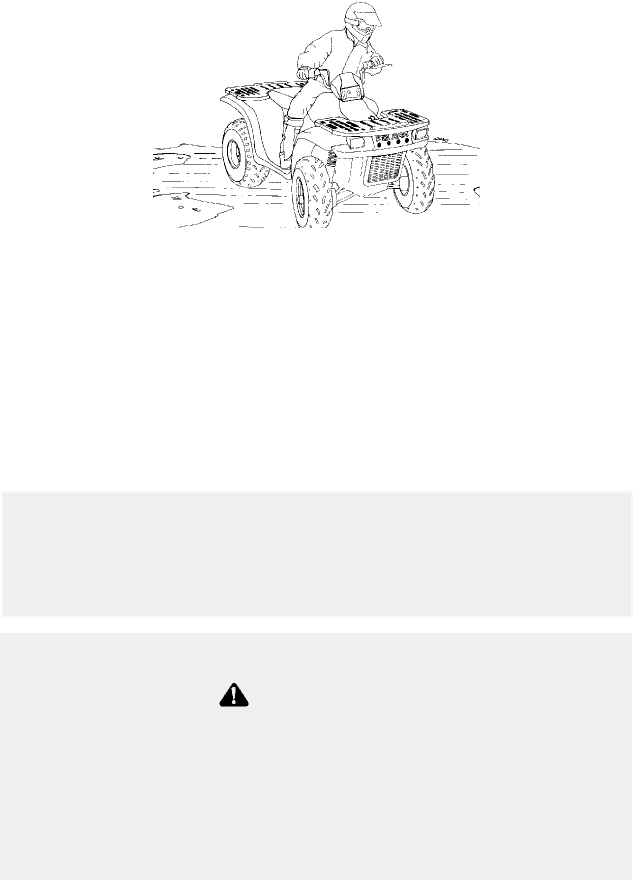

Making Turns
Your ATV is equipped with a solid rear axle, which drives both rear
wheels equally at all times. This means that the wheel on the outside
of the turn must travel a greater distance than the inside wheel when
turning and the inside tire must slip traction slightly. To turn, steer in
the direction of the turn, leaning your upper body to the inside of the
turn while supporting your weight on the outer footrest. This
technique alters the balance of traction between the rear wheels,
allowing the turn to be made smoothly. The same leaning technique
should be used for turning in reverse.
NOTE: Practice making turns at slow speeds before attempting to turn
at faster speeds.
WARNING
Turning at sharp angles or at excessive speeds can result in vehicle
overturn and lead to serious injury. Avoid turning at sharp angles.
Never turn at high speeds.
59
OPERATION
Driving Safely
Driving on Slippery Surfaces
Whenever riding on slippery surfaces such as wet trails or loose gravel,
or during freezing weather, follow these precautions:
1. Slow down when entering slippery areas.
2. Maintain a high level of alertness, reading the trail and avoiding
quick, sharp turns, which can cause skids.
3. Correct a skid by turning the handlebars in the direction of the skid
and shifting your body weight forward.
4. Driving with All Wheel Drive engaged can assist in controlling the
vehicle in slippery areas.
Severe damage to drive train may occur if the AWD is engaged
while the wheels are spinning. Always allow the rear wheels to
stop spinning before engaging the AWD.
CAUTION
WARNING
Failure to exercise care when operating on slippery surfaces can
result in loss of tire traction and cause loss of control, accident,
and serious injury or death.
Never apply the brakes during a skid. Do not operate on
excessively slippery surfaces. Always reduce speed and use
additional caution.
60
OPERATION
Driving Safely
Traveling Uphill
Whenever traveling uphill, follow these precautions:
1. Always travel straight uphill.
2. Avoid steep hills (25_maximum).
3. Keep both feet on the footrests.
4. Transfer your weight forward.
5. Proceed at a steady rate of speed and throttle opening.
6. Remain alert and be prepared to take emergency action. This may
include quick dismounting of the vehicle.
25_Maximum
WARNING
Braking and handling are greatly affected when operating in hilly
terrain. Improper procedure could cause loss of control or
overturn and result in serious injury or death.
Avoid climbing steep hills (25_maximum).
Use extreme caution when operating on hills, and follow proper
operating procedures outlined in the owner’s manual.
61
OPERATION
Driving Safely
Sidehilling
Sidehilling can be a dangerous type of driving and should be avoided if
at all possible. If you do enter into a situation where sidehilling is
necessary, follow these precautions:
1. Slow down.
2. Lean into the hill, transferring your upper body weight toward the
hill while keeping your feet on the footrests.
3. Steer slightly into the hill to maintain vehicle directions.
NOTE: If the vehicle begins to tip, quickly turn the front wheel
downhill, if possible, or dismount on the uphill side immediately!
Improperly crossing hills or turning on hills can result in loss of
control or vehicle overturn, resulting in severe injury or death.
Avoid crossing the side of a hill when possible. Follow proper
procedures as outlined in the owner’s manual.
WARNING
62
OPERATION
Driving Safely
Traveling Downhill
Whenever descending a hill, follow these precautions:
1. Proceed directly downhill.
2. Transfer your weight to the rear of the vehicle.
3. Slow down.
4. Apply the brakes slightly toaidinslowing.
Familiarize yourself with operation of the auxiliary brake in the event
loss of normal service brakes occurs.
Excessive speed can cause loss of control and lead to serious
injury or death. Always operate slowly when traveling downhill.
WARNING
63
OPERATION
Driving Safely

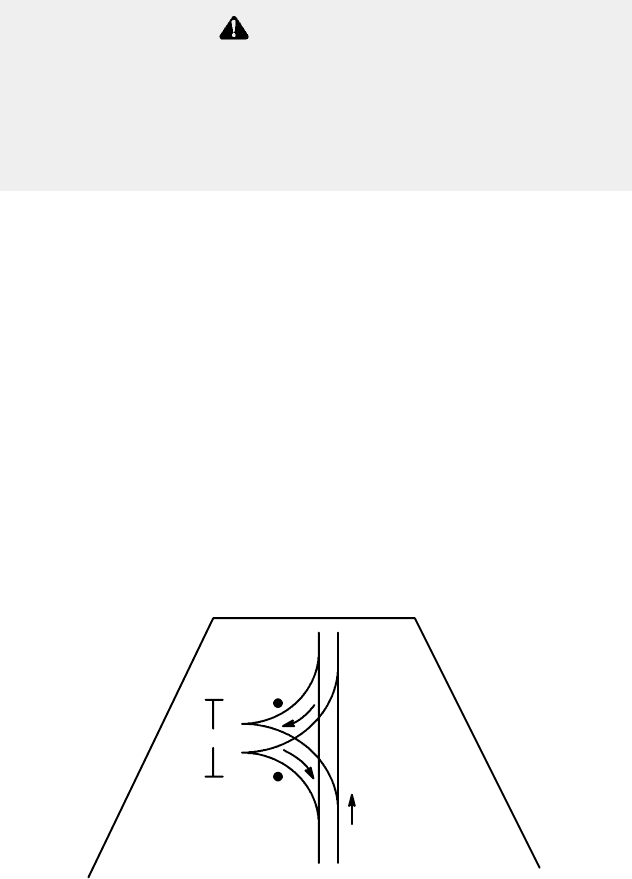

Turning Around on a Hill
If the vehicle stalls while climbing a hill, never back it down the hill!
One maneuver that can be used when you must turn around while
climbing a hill is the K-turn:
1. Stop and lock the parking brake while keeping body weight uphill.
2. Leave the transmission in forward and shut off the engine.
3. Dismount on the uphill side of the vehicle, or on the left if the
vehicle is pointing straight uphill.
4. Staying uphill of the vehicle, turn the handlebars full left.
5. While holding the service brake, release the parking brake lock and
slowly allow the vehicle to roll around to your right until it’s
pointing across the hill or slightly downward.
6. Lock the parking brake and remount the vehicle from the uphill
side, keeping body weight uphill.
7. Restart the engine with the transmission still in forward.
8. Release the parking brake and proceed slowly, controlling speed
with the service brake, until the vehicle is on more level ground.
WARNING
Improper hill climbing procedures could cause loss of control or
overturn and result in serious injury or death.
Avoid climbing steep hills (25_maximum).
Use extreme caution when operating on hills, and follow proper
operating procedures outlined in the owner’s manual.
8’
Uphill
64
OPERATION
Driving Safely

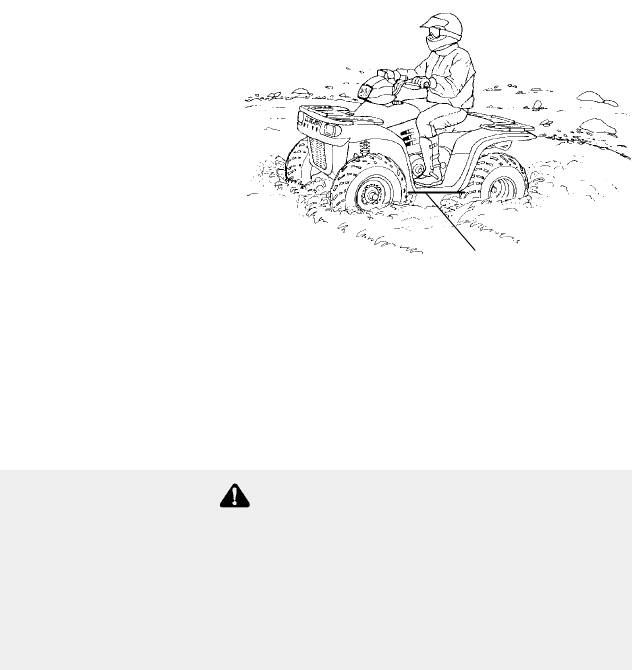

Driving Through Water
Your ATV can operate through water
with a maximum recommended
depth equal to the bottom of
the footrests (1). Follow
these procedures when
operating through
water:
1. Determine water
depths and current
before crossing.
2. Choose a crossing
where both banks have gradual inclines.
3. Proceed slowly, avoiding rocks and obstacles if possible.
4. After crossing, dry the brakes by applying light pressure to the
lever until braking action is normal.
After running the vehicle in water, it’s critical to have it serviced as
outlined in the maintenance chart. See page 69. The following areas
need special attention: engine oil, transmission oil, front and rear
gearcases, and all grease fittings.
NOTE: Avoid operating the vehicle through deep or fast-flowing
water. If you cannot avoid water that exceeds the recommended
maximum depth, go slowly, balance your weight carefully, avoid
sudden movements, and maintain a slow and steady forward motion.
Do not make sudden turns or stops, and do not make sudden throttle
changes.
If your vehicle becomes immersed, and it’s impossible to take it to a
dealer before starting it, follow the steps described on page 102. Have
the vehicle serviced by your dealer at the first opportunity.
1
Major engine damage can result if the vehicle is not thoroughly
inspected after operation in water. Perform the services outlined in
the maintenance chart.
If your vehicle becomes immersed or is operated in water that
exceeds the footrest level, take it to your dealer for service before
starting the engine.
CAUTION
65
OPERATION
Driving Safely
Driving Over Obstacles
Be alert! Look ahead and learn to read the terrain you’re traveling on.
Be constantly alert for hazards such as logs, rocks and low hanging
branches.
Severe injury or death can result if your vehicle comes in contact
with a hidden obstacle. Not all obstacles are immediately visible.
Travel with caution in unfamiliar terrain.
WARNING
66
OPERATION
Driving Safely
Driving in Reverse
Follow these precautions when operating in reverse:
1. Always avoid backing downhill.
2. Back slowly.
3. When in reverse, apply
the brakes lightly for
stopping.
4. Avoid turning at
sharp angles in reverse.
5. Never open the throttle
suddenly while backing.
NOTE: Your Polaris ATV is equipped with a reverse speed limiter.
The override button should be used with caution as rearward vehicle
speed is greatly increased. Do not operate at wide open throttle. Open
the throttle just enough to maintain a desired speed.
WARNING
Failure to use caution when operating in reverse can result in
serious injury or death. Before shifting into reverse, always check
for obstacles or people behind the vehicle. When it’s safe to
proceed, back slowly.
Do not use the override switch unless additional power is required
for vehicle movement. Use with caution.
Avoid backing on inclines, and avoid turning at sharp angles.
Excessive throttle operation while in the speed limit mode may
cause fuel to build in the exhaust, resulting in engine popping
and/or engine damage.
CAUTION
67
OPERATION
Driving Safely
ParkingonanIncline
Avoid parking on an incline if possible. If it’s unavoidable, follow
these precautions:
1. Turn the engine off.
2. Place the transmission in low range (or park if equipped).
3. Set the parking brake.
4. Always block the rear wheels on the downhill side as shown in the
illustration.
5. Shut off the fuel supply.
68
EMISSION CONTROL SYSTEMS
Noise Emission Control System
TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED!
U.S. Federal law prohibits the following acts or the causing thereof:
(1) the removal or rendering inoperative by any person other than for
purposes of maintenance, repair, or replacement of any device or
element of design incorporated into any new vehicle for the purpose of
noise control prior to its sale or delivery to the ultimate purchaser or
while it is in use or
(2) the use of the vehicle after such device or element of design has
been removed or rendered inoperative by any person.
ACTS PRESUMED TO CONSTITUTE TAMPERING INCLUDE
BUT ARE NOT LIMITED TO THE FOLLOWING:
1. Removal, alteration or the puncturing of the muffler or any engine
component that conducts removal of engine exhaust gases.
2. Removal, alteration or the puncturing of any part of the engine air
induction system.
3. Replacement of any vehicle parts with parts not in compliance with
federal regulations.
4. Lack of proper maintenance.
USFS Approved Spark Arrestor
Your Polaris ATV has a muffler that was tested and approved in
accordance with the USFS Forest Service Standard 5100-1A.
Exhaust Emission Control System
The exhaust emission control system is composed of efficient
carburetor settings with an optimum ignition system. Idle speed can be
adjusted with the throttle stop screw. The carburetor must be
maintained at Polaris specifications to achieve optimal performance.
Crankcase Emission Control System
This engine is equipped with a closed crankcase system. It allows
blow-by gases back to the combustion chamber using the intake
system. It does not allow the blow-by gases to enter the atmosphere.
CAUTION
Exhaust system components are very hot during and after use of
the vehicle. Hot components can cause serious burns and fire.
Do not touch hot exhaust system components. Use caution when
traveling through tall grass, especially dry grass.
69
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Careful periodic maintenance will help keep your vehicle in the safest,
most reliable condition. Inspection, adjustment and lubrication of
important components are explained in the periodic maintenance
schedule. Use the instrument cluster’s programmable service interval
mode to help determine when maintenance service is due. See page 49
for instructions.
Maintenance intervals are based upon average riding conditions and an
average vehicle speed of approximately 10 miles per hour. Vehicles
subjected to severe use, such as operation in wet or dusty areas, should
be inspected and serviced more frequently.
Inspect, clean, lubricate, adjust and replace parts as necessary. When
inspection reveals the need for replacement parts, use genuine Polaris
parts available from your Polaris dealer.
NOTE: Service and adjustments are critical. If you’re not familiar
with safe service and adjustment procedures, have a qualified dealer
perform these operations.
Maintenance Chart Key
"Perform these operations more often under severe use, such as in
dirty or wet conditions, to purge water or dirt contamination from
grease fittings and other critical components.
LEmission Control System Service (California - 4-Cycle)
JDealer service item.
70
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Hours of operation are based on a 10 mph average. If service is due at
20 hours, the equivalent odometer reading would be 200 miles.
Perform all services at whichever reading is reached first.
Item Hours/
Miles
Frequency Remarks
Brake System Pre-Ride Pre-Ride Inspect
Auxiliary Brake Pre-Ride Pre-Ride Inspect
Tires Pre-Ride Pre-Ride Inspect
Wheels Pre-Ride Pre-Ride Inspect
Frame nuts, bolts,
fasteners Pre-Ride Pre-Ride Inspect
"
L
Air filter,
Pre-cleaner Pre-Ride Pre-Ride Inspect; clean
Coolant level Pre-Ride Pre-Ride Replace coolant every two
years
Fuel tank and
engine oil Pre-Ride Pre-Ride Fill to proper levels
Throttle Pre-Ride Pre-Ride Check operation
Lights Pre-Ride Pre-Ride Check operation
Engine stop switch Pre-Ride Pre-Ride Check operation
Steering Pre-Ride Pre-Ride Check for free operation
"More often under severe use, such as dirty or wet conditions
LEmission Control System Service (California)
JDealer service item
Improperly performing the procedures marked with a Jcould result
in component failure and lead to serious injury or death. Have an
authorized Polaris dealer perform these services.
WARNING
71
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Item Hours/
Miles
Frequency Remarks
"Air box sediment
tube Pre-Ride Pre-Ride Drain deposits whenever
visible
Headlamp Pre-Ride Pre-Ride Check operation daily; ap-
ply Polaris dielectric grease
to connector when replaced
Tail lamp/brake
lamp Pre-Ride Pre-Ride Check operation daily; ap-
ply Polaris dielectric grease
to socket when replaced
"
L
Air filter,
main element Weekly Weekly Inspect; replace as needed
"Transmission oil
level 20 hrs Monthly Inspect monthly; change
annually
Battery 20 hrs Monthly Check terminals; clean;
check fluid level if applica-
ble
"
L
Engine breather
filter 20 hrs Monthly Inspect; replace annually
and as needed
JBrake pad wear 10 hrs Monthly Inspect periodically
"Front and rear
gearcase oil 100 hrs Monthly Check monthly; change
annually
"General lubrication 50 hrs 3 months Lubricate all fittings, pivots,
cables, etc.
"
L
Engine oil level/oil
change 100 hrs /
1000
miles
6 months Check level daily; break-in
service at one month;
change oil more often in
cold weather
"
L
Oil Filter 100 hrs./
1000 mi. 6 months Replace with oil change
LEngine breather
hose 100 hrs. 6 months Inspect
72
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Item Hours/
Miles
Frequency Remarks
Carburetor float
bowl 50 hrs. 6 months Drain bowl periodically and
prior to storage
JThrottle Cable/ETC
Switch 50 hrs. 6 months Inspect; adjust; lubricate;
replace if necessary
LChoke (enricher)
cable 50 hrs. 6 months Inspect; adjust; lubricate;
replace if necessary
Coolant strength 100 hrs. 6 months Inspect strength seasonal-
ly; pressure test system
annually
JDrive belt 50 hrs. 6 months Inspect; replace as needed
"Steering 50 hrs. 6 months Inspect daily; lubricate
"Front suspension 50 hrs. 6 months Inspect; lubricate; tighten
fasteners
"Rear suspension 50 hrs. 6 months Inspect; tighten fasteners
"Drive chain(s) 50 hrs. 6 months Inspect daily; adjust and lu-
bricate if needed
LSpark plug 100 hrs. 12 months Inspect; replace as needed
"More often under severe use, such as dirty or wet conditions
LEmission Control System Service (California)
JDealer service item
Improperly performing the procedures marked with a Jcould result
in component failure and lead to serious injury or death. Have an
authorized Polaris dealer perform these services.
WARNING
73
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Item Hours/
Miles
Frequency Remarks
"Rear axle 50 hrs. 6 months Inspect bearings; lube
J
L
Ignition Timing 100 hrs. 12 months Inspect; adjust as needed
J
L
Fuel system 100
hours 12 months Check for leaks at tank
cap, lines, fuel valve, filter,
pump and carburetor; re-
place lines every two years
JFuel filter 100 hrs. 12 months Replace annually
Radiator 100 hrs. 12 months Inspect; clean external sur-
face
Cooling system
hoses 100 hrs. 12 months Inspect
Spark arrestor 100 hrs. 12 months Clean out
JClutches (drive and
driven) 100 hrs. 12 months Inspect; clean
Engine mounts 100 hrs. 12 months Inspect
JBrake fluid 200 hrs. 24 months Change every two years
JFront wheel bear-
ings 300 hrs. 36 months Inspect; replace as needed
LIdle speed As required Adjust
JToe adjustment As required Periodic inspection; adjust
when parts are replaced
Headlight aim As required Adjust as needed
74
MAINTENANCE AND LUBRICATION
Periodic Maintenance Record
Use the following chart to record periodic maintenance.
Maintenance
Interval
Performed
Servicing
Date
Servicing
Dealer
or Person
Remarks
10 hrs.
20 hrs.
50 hrs.
100 hrs.
75
-NOTES-
76
MAINTENANCE AND LUBRICATION
Lubrication Guide
NOTE: Hours in the frequency column are based on 10 mph average.
If service is due at 20 hours, the equivalent odometer reading would be
200 miles. Perform all services at whichever reading is reached first.
Lubrication Guide Key
"More often under severe use, such as wet or dusty conditions
LPolaris Premium All Season Grease or grease conforming to NLGI
No. 2, such as Conoco Superlube M or Mobilegrease Special
FUse Polaris Premium U-Joint Lube every 500 miles, before long
periods of storage, or after pressure washing or submerging.
Item Lube Method Frequency
Engine OIl Polaris Premium 4
Synthetic 0W40 Add to proper level on dip-
stick. Check level daily.
Brake Fluid DOT 3 Only Maintain level between fill
lines. See page 39. As required; change
every two years or
200 hours
Transmission
Oil (Fig. 1) Polaris Premium
Synthetic Gear
case Lube
See page 83 (400/500)
or page 85 (600/700). Check every 6
months/1000 miles.
Change annually or
at 100 hours
Front Gear-
case Oil
(Fig. 2)
Premium Drive
Hub Fluid See page 84 (400/500)
or page 86 (600/700). Change annually or
at 100 hours
Rear Gear-
case Oil
(Fig. 3)
Premium Synthet-
ic Gearcase Lube
(or GL5 80-90
weight gear lube)
See page 87 (600/700). Change annually or
at 100 hours
Front Prop
Shaft Yoke
(Fig. 4)
FGrease Grease fittings (3 pumps
maximum) Every 3 months or
50 hours
Front Drive
Axle (U Joint)
(Fig. 5)
FGrease Locate grease fitting and
grease with grease gun. Every 3 months or
50 hours
Ball Joint
(Fig. 6) "LGrease Locate fitting on back side of
struts and grease with
grease gun.
Every 3 months or
50 hours
77
MAINTENANCE AND LUBRICATION
Lubrication Guide

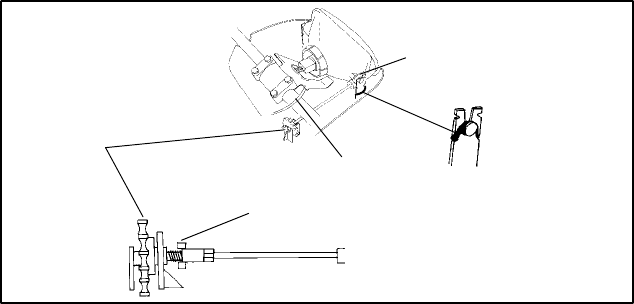

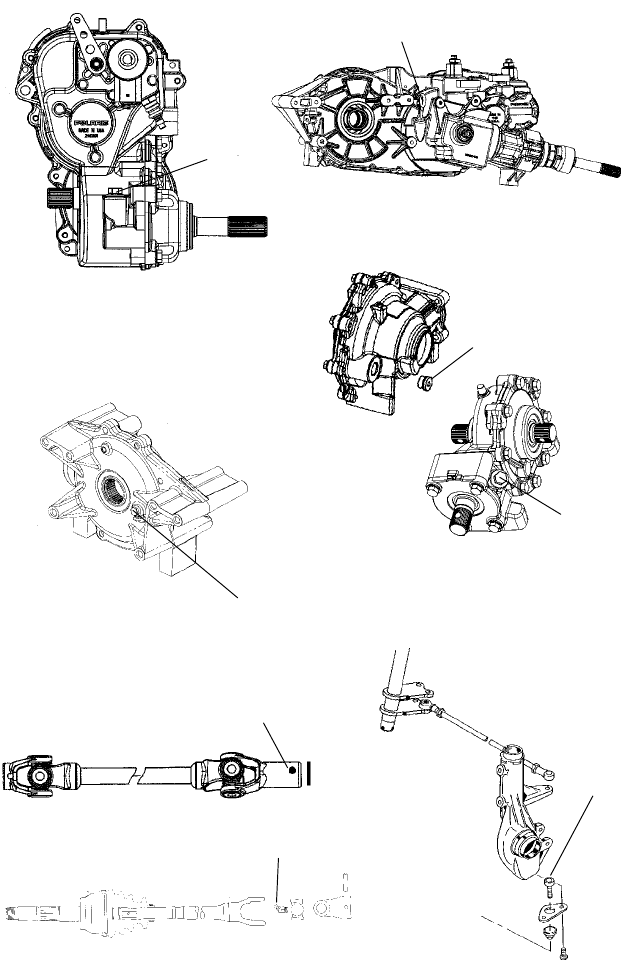

(Fig. 1)
(Fig. 4)
(Fig. 2)
(Fig. 3)
(Fig. 5)
(Fig. 1)
(Fig. 2)
(Fig. 6)
78
MAINTENANCE AND LUBRICATION
Premium 4 Synthetic Lubricant
Polaris Premium 4 All Season synthetic engine oil has been specially
formulated for use in Polaris 4-cycle engines. It’s a fully synthetic,
high performance, multi-viscosity oil designed to provide the ultimate
in lubrication performance and protection. NOTE: See page 121 for the
part numbers of Polaris products.
Premium 4 possesses unsurpassed film strength over the widest
possible temperature range. It resists viscosity and frictional
breakdown in ambient temperatures from -40°F. to 120°F. (-40 to
+49°C.) Its exceptional frictional properties result in more efficient
operation, more power output and lower fuel consumption.
Although Polaris Premium 4 is the only oil recommended for use in
this engine, use of any API certified SH oil is allowable as long as it’s
0W-40. Oil may need to be changed more frequently if Polaris
Premium 4 is not used. Follow the manufacturer’s recommendations
for ambient temperature operation.
CAUTION
Mixing brands or using a non-recommended oil may cause
serious engine damage. We recommend the use of Polaris
Premium 4 synthetic Oil or another 0W-40 API certified SH oil.
Never substitute or mix oil brands.
79
MAINTENANCE AND LUBRICATION
Oil Check
The oil dipstick and fill tube (1) are located on the left side of the
vehicle.
1. Position the ATV on a level surface.
2. Start the engine and let it idle
for 20-30 seconds.
3. Stop the engine. Remove the
dipstick and wipe it dry with a
clean cloth. NOTE: If your
dipstick is equipped with a
lever lock (2), lift the lock to
remove the dipstick.
4. Reinstall the dipstick
completely, but do not lock it
(if equipped). The dipstick must
bescrewedcompletelyintokeep
the angle and depth of the stick
consistent.
5. Remove the dipstick and
check the oil level. Maintain
the oil level in the normal or
safe range (3), depending on
the style of dipstick in your
model. Do not overfill.
6. After reinstalling the
dipstick, be sure to seat
the lever lock (if
equipped).
1
SAFE ADD 8 OZ
2
3
ADD 8 OZ. NORMAL FULL
3
80
MAINTENANCE AND LUBRICATION
Oil and Filter Change
The recommended oil change interval is 100 hours, 1000 miles, or
every six months, whichever comes first. Suggested break-in oil
change is at 20 hours, 200 miles, or one month, whichever comes first.
Severe use operation requires more frequent service. Severe use
includes continuous duty in dusty or wet conditions and cold weather
riding. NOTE: Severe use cold weather riding is all riding below 10°
F., and riding between 10°F and 30°F when most trips are slow speed
and less than five miles. Be sure to change the oil filter whenever
changing the oil.

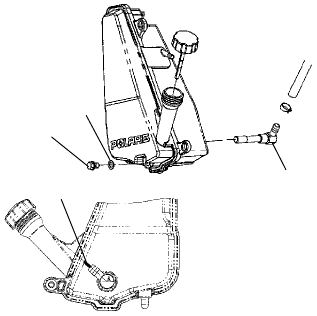

Oil Change (400/500)
1. Position the vehicle on a level surface. Clean the area around the
drain plug at the bottom of the oil tank and the bottom of the
engine.
2. Run the engine for two to three minutes, then turn it off.
3. Place a drain pan beneath the oil tank and remove the drain plug
(1). Allow the oil to drain completely.
4. Install a new sealing washer (2) on the oil drain plug. NOTE:
The sealing surfaces on the drain plug and the oil tank should be
clean and free of burrs, nicks or scratches.
5. Reinstall the drain plug
and torque to 14-17 ft.
lbs. (19-23 Nm)
6. Disconnect the lower oil
delivery hose and remove
the screen fitting (3) from
the oil tank. Clean and
reinstall the fitting,
torquing to 25 ft. lbs.
Reattach the oil line.
NOTE: The fitting
threads must be sealed
with LoctitetPST 505 or
PTFE seal tape. The
fitting must also line up with
the mark (4) on the rear side of the oil tank.
1
2
3
4
81
MAINTENANCE AND LUBRICATION
Oil Change (400/500)
7. Place shop towels beneath the oil filter. Using an oil filter wrench,
turn the filter (1) counterclockwise and remove.
8. Lubricate the gasket on the new filter with a film of new engine
oil. Check to make sure the gasket is in good condition. Also
make sure the gasket from the old filter is not still on the engine.
9. Install the new filter and tighten by hand 1/2 to 3/4 turn after
gasket contacts the engine.
10. Approximately one cup of
engine oil will remain in the
crankcase. To drain, remove
the drain plug on the lower
right side of the crankcase.
NOTE: The sealing
surfaces on the drain plug
and crankcase should be
clean and free of burrs, nicks
or scratches.
11. After draining, reinstall the
drain plug.
12. Remove the dipstick (2) and add two quarts (1.9 l) of the
recommended oil. Reinstall the dipstick. NOTE: If the sump is
not drained, add about 1 3/4 quarts initially.
13. Place the gear selector in neutral and set the parking brake.
14. Start the engine and let it idle for one to two minutes. Stop the
engine and inspect for leaks.
15. Recheck the oil level on the dipstick and add oil as necessary to
bring it to the recommended level on the dipstick.
16. Dispose of used filter and oil properly.
2
1
Loss of oil pump prime could result in engine damage. It’s
extremely important to drain, refill and start the engine in an
expedient manner. Do not allow the engine to sit without oil for
extended periods.
CAUTION
82
MAINTENANCE AND LUBRICATION
Oil Change (600/700)
1. Place the vehicle on a level surface.
2. Run the engine for two to three minutes until warm. Stop the
engine.
3. Clean the area around the drain plug.
4. Place a drain pan beneath engine crankcase and remove the drain
plug.
5. Allow the oil to drain completely.
6. Replace the sealing washer on the drain plug. NOTE: The sealing
surfaces on drain plug and crankcase should be clean and free of
burrs, nicks or scratches.
7. Reinstall the drain plug and torque to 20 ft. lbs. (27 Nm).
8. Place shop towels beneath the oil filter. Using an oil filter wrench,
turn the filter counterclockwise to remove.
9. Using a clean dry cloth, clean the filter sealing surface on the
crankcase.
10. Lubricate the o-ring on the new filter with a film of fresh engine
oil. Check to make sure the o-ring is in good condition.
11. Install the new filter and turn by hand until the filter gasket
contacts the sealing surface, then turn and additional 1/2 turn.
12. Remove the dipstick and fill the sump with two quarts (1.9 l) of
recommended oil.
13. Place the gear selector in PARK and set the parking brake.
14. Start the engine and let it idle for one to two minutes. Stop the
engine and inspect for leaks.
15. Re-check the oil level on the dipstick and add oil as necessary to
bring the level to the upper mark on the dipstick.
16. Dispose of used filter and oil properly.
CAUTION
Hot oil can cause serious burns. Do not allow hot oil to touch skin.
83
MAINTENANCE AND LUBRICATION

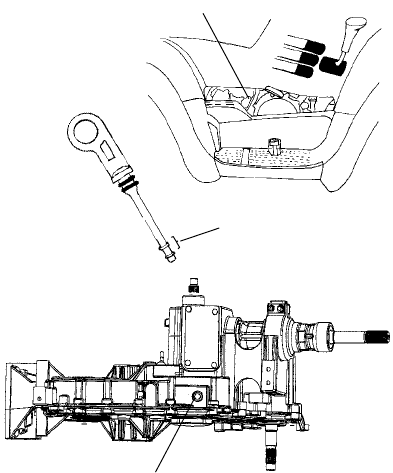

Transmission Oil (400/500)
The transmission oil level should be checked every six months or 1000
miles (1600 km), whichever comes first. Transmission oil should be
changed annually. We recommend the use of Polaris Premium
Synthetic Gearcase Lubricant. See page 121 for the part numbers of
Polaris products.
Oil Check
On the Sportsman 400 and 500, the transmission oil dipstick (1) is
located near the rear brake disc on the right side of the ATV.
1. Position the ATV on a level
surface. Remove the fill plug
dipstick and wipe it clean.
2. Reinstall the dipstick
completely, then
remove it and check the
level. Add the
recommended oil as needed
to bring the level into the
safe operating range (2).
Oil Change
1. Remove the fill plug/dipstick.
2. Remove the transmission
drain plug (3). It’s
located on the
bottom of the
gearcase.
3. Drain the oil into a
drain pan and
dispose of properly.
4. Clean and reinstall the drain plug.
5. Add 32 oz. (948 ml) of the recommended transmission oil to bring
the level to the full mark on the fill plug/dipstick. Maintain the oil
level in the safe range. NOTE: See page 121 for the part numbers
of Polaris products.
6. Reinstall the fill plug/dipstick and check for leaks.
2
1
3
84
MAINTENANCE AND LUBRICATION
Front Gearcase Oil (400/500)
The front gearcase lubricant level should be checked every six months
or 1000 miles (1600 km), whichever comes first. Front gearcase oil
should be changed annually. Use Polaris Premium Synthetic Gearcase
Lube (or GL5 80-90 weight gear lube). See page 121 for the part
numbers of Polaris products.
Oil Check
1. Position the ATV on a level surface.
2. Remove the fill plug (1) and view the
lubricant level. Lubricant should be
kept level with the bottom of the fill
plug threads.
3. Add the recommended lubricant as
needed to bring the oil to the proper
level.
Oil Change
1. Position the vehicle on a level surface and remove the fill plug.
2. Place a drain pan beneath the gearcase, remove the gearcase drain
plug and drain the oil.
3. Clean and reinstall the drain plug. Torque to 14 ft. lbs. (19 Nm).
4. Add 4 ounces (120 ml) of the recommended gearcase oil.
5. Reinstall the fill plug and check for leaks.
1
85
MAINTENANCE AND LUBRICATION

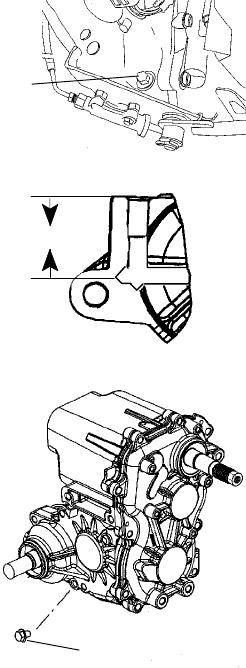

Transmission Oil (600/700)
The transmission oil level should be checked every six months or 1000
miles (1600 km), whichever comes first. Transmission oil should be
changed annually. We recommend the use of Polaris Premium
Synthetic Gearcase Lubricant. See page 121 for the part numbers of
Polaris products.
On the Sportsman 600 and 700, the transmission oil fill plug (1) is
located on the right side of the ATV behind the footwell.
Oil Check
1. To access the fill plug, remove
the four screws on the footwell
and gently pull outward to
remove the footwell.
2. Remove the fill plug and check
the oil level. The oil should be
maintained 1 5/8” from the top
of the fill plug hole.
Oil Change
1. Remove the four screws on the
footwell and gently pull outward to
remove the footwell.
2. Remove the transmission drain plug
(2), which is located on the bottom
left-hand side. Drain the oil into a
drain pan and dispose of properly.
3. Clean and reinstall the drain plug.
Torque to 14 ft. lbs. (19 Nm).
4. Remove the fill plug and add 13.5 oz.
(399 ml) of the recommended
transmission oil to bring the level to
the proper level (1 5/8” from the top
of the fill plug hole).
5. Replace the fill plug and check for
leaks.
6. Reinstall the footwell and screws.
1
15/8”
2
86
MAINTENANCE AND LUBRICATION
Front Gearcase Oil (600/700)
The front gearcase lubricant level should be checked every six months
or 1000 miles (1600 km), whichever comes first. Front gearcase oil
should be changed annually. We recommend the use of Polaris
Premium Hub Drive Fluid. See page 121 for the part numbers of Polaris
products.
Oil Check
1. Position the ATV on a level surface.
2. Remove the fill plug (1) and view the
oil level. Maintain the oil level even
with the bottom of the fill plug hole.
3. Add the recommended gearcase oil as
needed.
Oil Change
1. Position the vehicle on a level surface
and remove the fill plug.
2. Place a drain pan beneath the gearcase, remove the gearcase drain
plug located on the bottom right-hand side, and drain the oil.
3. Clean and reinstall the drain plug. Torque to 14 ft. lbs. (19 Nm).
4. Add 5 ounces (150 ml) of Polaris Premium Hub Drive Fluid.
5. Reinstall the fill plug and check for leaks.
1
87
MAINTENANCE AND LUBRICATION
Rear Gearcase Oil (600/700)
The rear gearcase lubricant level should be checked every six months
or 1000 miles (1600 km), whichever comes first. Rear gearcase oil
should be changed annually. Use Polaris Premium Synthetic Gearcase
Lube (or GL5 80-90 weight gear lube). NOTE: See page 121 for the
part numbers of Polaris products.
Oil Check
1. Position the ATV on a level surface.
2. Remove the fill plug and inspect the oil level through the fill plug
hole (1). Maintain the oil level even with the bottom of the fill plug
hole.
3. Add the recommended gearcase oil as needed.
Oil Change
1. Place a drain pan beneath the drain
and remove the drain plug (2).
Catch and discard used oil properly.
2. Clean and reinstall the drain plug
with a new sealing washer. Torque
to 14 ft. lbs. (19 Nm).
3. Remove the fill plug and add 5
ounces (150 ml) of the recommended
gearcase oil.
4. Inspect the oil level, which should be
maintained level with the bottom of the fill plug hole.
5. Reinstall the fill plug. Torque to 14 ft. lbs. (19 Nm) and check for
leaks.
1
2
88
MAINTENANCE AND LUBRICATION
Engine Cooling System
Coolant Level
The recovery bottle (1) is located on the
left side of the machine. To access the
recovery bottle, remove the left side panel
as outlined on page 93.
The fluid level must be maintained
between the minimum and maximum
marks on the bottle (when the fluid is
cool).
The engine coolant level is controlled or maintained by the recovery
system. The recovery system components are the recovery bottle,
radiator filler neck, radiator pressure cap and connecting hose.
As coolant operating temperature increases, the expanding (heated)
excess coolant is forced out of the radiator, past the pressure cap, and
into the recovery bottle. As engine coolant temperature decreases, the
contracting (cooled) coolant is drawn back up from the tank, past the
pressure cap, and into the radiator.
NOTE: Some coolant level drop on new machines is normal, as the
system is purging itself of trapped air. Observe coolant levels and
maintain as recommended by adding coolant to the recovery bottle.
Polaris recommends the use of Polaris Premium 60/40
anti-freeze/coolant or a 50/50 mixture of high quality aluminum
compatible anti-freeze/coolant and distilled water. See page 121 for the
part numbers of Polaris products.
NOTE: Polaris Premium 60/40 is already premixed and ready to use.
Do not dilute with water.
NOTE: Always follow the manufacturer’s mixing recommendations
for the freeze protection required in your area.
1
89
MAINTENANCE AND LUBRICATION
Engine Cooling System

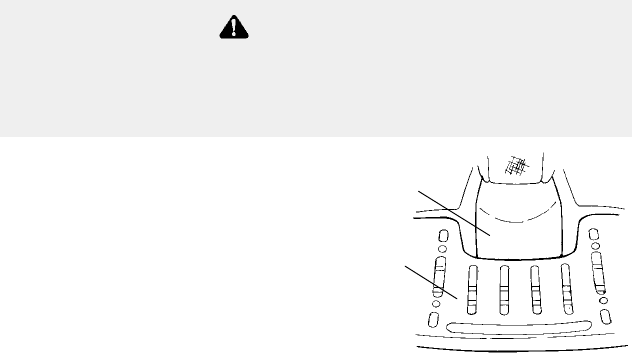

Radiator Coolant Level
NOTE: This procedure is required
only if the cooling system has been
drained for maintenance and/or repair.
However, if the recovery bottle has
run dry, the level in the radiator
should be inspected and coolant
added if necessary.
1. Using the tool provided, remove
the four screws securing the front rack (1). Remove the front cover
(2) by placing your fingers under the front of the cover and pulling
upward.
2. Remove the pressure cap.
3. Using a funnel, slowly add coolant as necessary through the
radiator filler neck.
4. Replace the pressure cap and secure the front cover and rack.
NOTE: Use of a non-standard pressure cap will not allow the
recovery system to function properly. Contact your dealer for the
correct replacement part.
NOTE: To ensure that the coolant maintains its ability to protect the
engine, we recommend that the system be completely drained every
two years and a fresh mixture of antifreeze and water added. Polaris
recommends the use of Polaris Premium 60/40 anti-freeze/coolant or a
50/50 mixture of high quality aluminum compatible anti-freeze/coolant
and distilled water. Polaris Premium 60/40 is already premixed and
ready to use. Do not dilute with water. See page 121 for the part
numbers of Polaris products.
NOTE: Always follow the manufacturer’s mixing recommendations
for the freeze protection required in your area.
WARNING
Escaping steam can cause severe burns. Never remove the
pressure cap while the engine is warm or hot. Always allow the
engine to cool before removing the pressure cap.
2
1
90
MAINTENANCE AND LUBRICATION
Front Brake
The front brakes are hydraulic disc brakes. They’re activated by
moving the brake lever toward the handlebar. These brakes are
self-adjusting.
The following checks are recommended to keep the brake system in
good operating condition. Check more often if brakes are used heavily
under normal operation.
1. Always keep brake fluid at an adequate level (see page 39).
NOTE: Under normal functioning the diaphragm extends into the
reservoir as fluid level drops. If the fluid level is low and the
diaphragm is not extended, a leak is likely and the diaphragm
should be replaced. Always fill the reservoir as needed whenever
the cover is loosened or removed to ensure proper diaphragm
operation. Use Polaris DOT 3 brake fluid (see page 121).
2. Check the brake system for fluid leaks.
3. Check the brakes for excessive
travel or spongy feel.
4. Check the friction pads for wear,
damage and looseness.
5. Check the security and surface
condition of the disc.
NOTE: Pads should be changed when worn
to 3/64″(.1 cm), or about the thickness of a
U.S. dime.
After opening a bottle of brake fluid, always discard any
unused portion. Never store or use a partial bottle. Brake
fluid is hygroscopic, meaning it rapidly absorbs moisture from
the air. The moisture causes the boiling temperature of the
brake fluid to drop, which can lead to early brake fade and the
possibility of accident or severe injury.
WARNING
3/64″(.1 cm)
91
MAINTENANCE AND LUBRICATION
Rear Brake
The rear brake is a hydraulic disc brake and
is activated by the same lever that activates
the front brake system. The rear brake
system is self-adjusting and requires no
maintenance other than periodic checks of
the pads for wear.
Pads should be changed when worn to
3/64″(.1 cm), which is about the thickness
of a U.S. dime.
Inspect the brake disc spline and pad wear
surface for excessive wear.
Auxiliary Brake
Your auxiliary brake is intended to be used as a backup for the main
brake system. Should the main system fail, the rear brake can be
activated by depressing the foot pedal on the inside of the right
footrest. The hydraulic auxiliary brake system will not require
adjustment.
NOTE: Since this is a rear brake only, it will not be as effective as the
all wheel system.
3/64″(.1 cm)
92
MAINTENANCE AND LUBRICATION

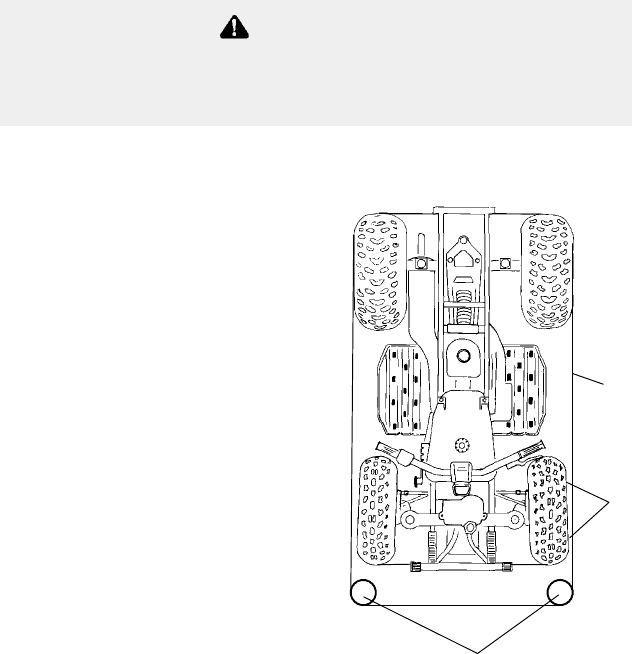

Toe Alignment
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 1/8″to 1/4″toe out.
1. Set the handlebars in a
straight-ahead position.
NOTE: The steering frog
can be used as an indicator
of whether the handlebars are
straight. The frog should
always point straight back
from the steering post.
2. Place stands (1) in front of
the vehicle, perpendicular to
the rear tires. See
illustration.
3. Tie an elastic string around
the stands, making sure the
string just touches the side
surface of the rear tires on
each side of the vehicle and
goes around the stands in
front of the vehicle (2).
4. Measure the distance from
the string to the rim at the
front and rear of the front
rim (3). Rear measurement should be 1/16″-1/8″(.2to.3cm)
more than the front measurement.
NOTE: If you discover improper alignment, see your Polaris dealer
for service.
Steering Assembly
The steering assembly of the ATV should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your Polaris
dealer for service before operating the vehicle.
WARNING
Severe injury or death can result from improper toe alignment and
adjustment. Do not attempt to adjust tie rod alignment. All tie rod
adjustments should be performed by an authorized Polaris dealer.
1
2
3
93
MAINTENANCE AND LUBRICATION

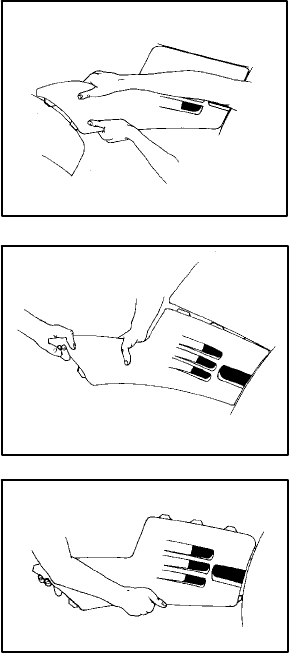

Side Panel Removal
NOTE: Side panel removal may be difficult until the locking tabs and
receivers have been snapped and unsnapped a few times.
1. Remove the seat.
2. Grasp the rear of the side
panel near the rear cab. With
a quick and firm motion, pull
the panel forward and outward
to disengage the two rear tabs.
3. Place your hand on top of the
side panel behind the fuel
tank. With a quick and firm
motion, push down on the side
panel to disengage the top rear
twotabs. Thenpulluponthe
side panel to disengage the
front upper and lower tabs.
4. To reinstall the side panel,
align the panel tabs with the
slots on the front cab. Push
the panel upward and forward
until the tabs lock. Bend the
rear of the side panel and
insert the two tabs into the rear
cab.
Step 2
Step 3
Step 4
94
MAINTENANCE AND LUBRICATION
Tire Tread Depth
Always replace tires when tread
depth is worn to 1/8″(.3 cm) or less.
See illustration.
Wheel Removal
1. Stop the engine, place the transmission in
gear (or in PARK if equipped) and lock
the parking brake.
2. Loosen the wheel nuts slightly.
3. Elevate the side of the vehicle by placing a suitable stand under the
footrest frame.
4. Remove the wheel nuts and remove the wheel.
Operating your ATV with worn tires, improperly inflated tires,
non-standard tires or improperly installed tires will affect vehicle
handling and could cause an accident resulting in serious injury
or death.
Maintain proper tire pressure as described on the decal on your
ATV and in the owner’s manual.
Always use original equipment size and type when replacing
tires.
Make sure the wheels are installed properly.
Always replace tires when the tread depth measures 1/8″(.3 cm)
or less.
WARNING
1/8I(.3 cm)
95
MAINTENANCE AND LUBRICATION

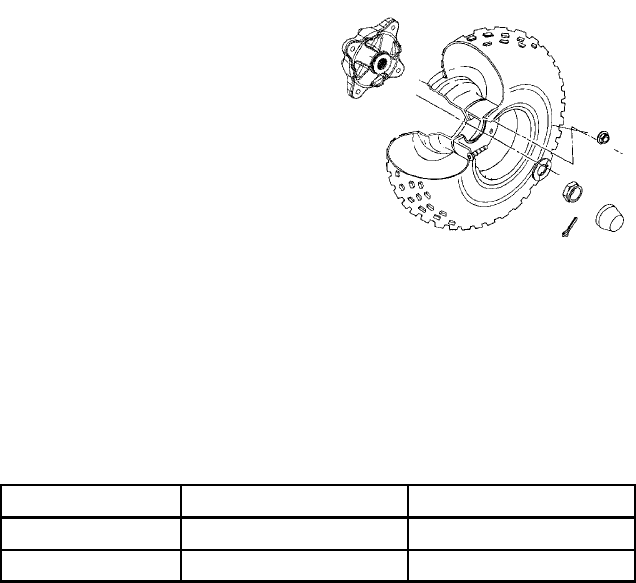

Wheel Installation
1. Place the transmission in gear
(or in PARK if equipped)
and lock the parking brake.
2. Place the wheel on the
wheel hub with the valve stem
toward the outside and
rotation arrows on the tire
pointing toward forward
rotation.
3. Install the wheel nuts and finger
tighten.
4. Lower the vehicle to the ground.
5. Torque the wheel nuts according to the wheel nut torque
specifications chart.
NOTE: All nuts that have a cotter pin installed must be serviced by an
authorized Polaris dealer.
Wheel Nut Torque Specifications
Check the wheel nut torques occasionally and when they’ve been
loosened for maintenance service.
Bolt Size Sportsman 400/500 Sportsman 600/700
Front 3/8″20 ft. lbs. (27 Nm) 30 ft. lbs. (41 Nm)
Rear 3/8″20 ft. lbs. (27 Nm) 30 ft. lbs. (41 Nm)
Front Wheel Hub Tightening
Front wheel bearing tightness and spindle nut retention are critical
component operations. All service must be performed by your
authorized Polaris dealer.
96
MAINTENANCE AND LUBRICATION
Filter Systems

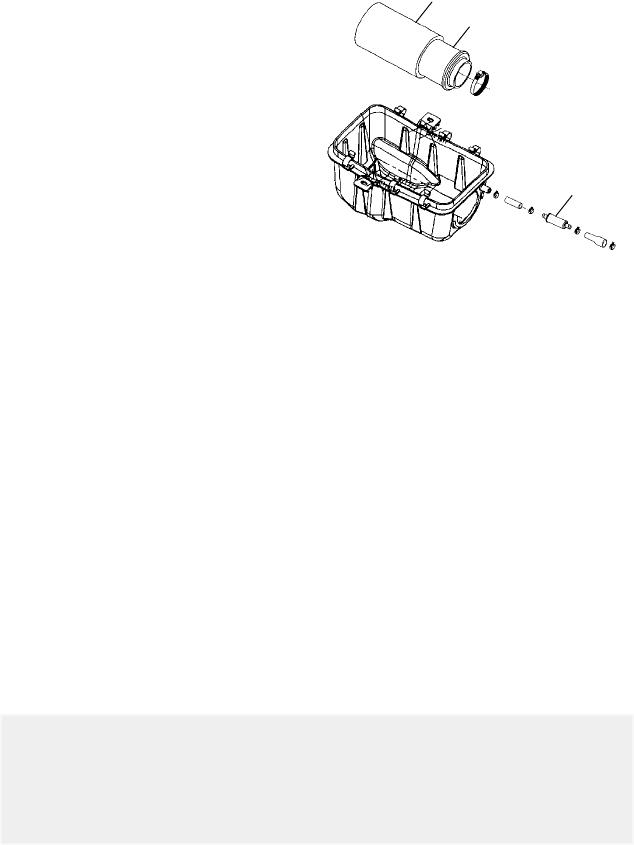

Air Filter Service
1. Remove the seat, release the
air box cover clips, and
remove the air box cover.
2. Loosen the clamp and remove
the filter.
3. Remove the fabric type
pre-filter (1) from the main
filter (2). Wash the pre-filter
in soapy water, then rinse and
let dry.
4. Reinstall the pre-filter over the
main filter. (Replace the main
filter if needed.)
5. Reinstall the filter into the air box and tighten the clamp. Do not
over tighten the clamp, as filter damage could occur.
6. Reinstall the air box cover and the seat.
Breather Filter/Hose
1. To access the breather filter (3), remove the left side panel as
outlined on page 93. The breather filter is on the hose that runs
between the engine and air box.
2. Remove the clamps and pull the filter out of the hoses.
NOTE: It’s not necessary to remove the lower hose from the
engine.
3. Inspect the filter for debris. Blow gently through the filter in the
direction of the arrow to check for clogging. Replace if needed.
4. Check the hoses for cracks, deterioration, abrasion, or leaks.
Replace as needed.
5. Reinstall the filter and secure the clamps. NOTE: The filter is
effective with the arrow pointing in either direction.
2
1
3
Operation of your vehicle without a breather filter can cause
engine damage. Always reinstall the breather filter after
removing for service.
CAUTION
97
MAINTENANCE AND LUBRICATION
Lights
When servicing a halogen lamp, don’t touch the lamp with bare
fingers. Oil from your skin leaves a residue, causing a hot spot that
will shorten the life of the lamp.
Headlight Lamp Replacement
1. Remove the two screws on the lower front corners of the headlight
pod.
2. Using a small flat-blade screwdriver, push in on the lock tab
through the two small openings at the front of the headlight pod.
3. Lift the pod slightly while depressing the tabs.
4. Remove the screw in the back of the headlight pod.
5. Lift the pod cover and disconnect the speedometer harnesses from
the speedometer. Unplug the indicator light harness and remove
the pod cover.
6. Unplug the headlamp from the wiring harness. Be sure to pull on
the connector, not on the wiring.
7. Remove the boot and locking collar from the back of the lamp
housing.
8. Grasp the base of the lamp and lift it out.
9. Reverse the previous steps to replace the lamp and reassemble the
pod. Apply dielectric grease to the light bulb socket before
installing the new bulb. Make sure the tab on the lamp locates
properly in the housing.
WARNING
Poor lighting while driving can result in severe injury or death.
Headlight and taillight lenses become dirty during normal operation.
Wash the headlights frequently to maintain lighting quality.
Hot components can cause serious burns to skin. Do not service
the headlamps until they’ve cooled sufficiently.
98
MAINTENANCE AND LUBRICATION
Lights
High Beam Adjustment
The headlight beam can be adjusted to any position desired by turning
the adjusting knob on the bottom right side of the headlight pod.
1. Position the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
3. Start the engine and turn the headlight switch to high beam.
4. Observe the headlight aim on the wall. The most intense part of
the headlight beam should be aimed two inches (5.1 cm) below the
mark placed on the wall. NOTE: Include rider weight on the seat
when measuring.
5. Adjust the beam to the desired position by turning the adjustment
knob either clockwise or counterclockwise.
Snap pins
into tabs
Position
knob in
slot and
secure in
locking
tabs
Slip o-ring
over pin
Adjustment
Knob Stop
Route plug
over handlebar
99
MAINTENANCE AND LUBRICATION
Lights
Headlight Housing Replacement
1. Remove the two screws on the lower front corners of the headlight
pod.
2. Using a small flat-blade screwdriver, push in on the lock tab
through the two small openings at the front of the headlight pod.
3. Lift the pod slightly while depressing the tabs.
4. Remove the screw in the back of the
headlight pod.
5. Lift the pod cover. Disconnect the
speedometer harnesses from the
speedometer. Unplug the indicator
light harness and remove the pod cover.
6. Unplug the headlamp from the wiring
harness.
7. Remove the o-ring (1) from the
headlight pivot pins.
8. Pull the headlight housing up to
release from the locking tabs.
9. Lift the adjusting knob up to remove
from the locking tabs.
10. Carefully pull the assembly up and
out of pod.
11. Reverse the steps to install the new housing and reassemble the
pod.
NOTE: The distance from the headlamp parting line to the end of the
adjustment knob stop is 5 1/8″(13 cm). See illustration.
12. Adjust the headlight aim by turning the adjusting knob.
1
51/8″
(13 cm)
100
MAINTENANCE AND LUBRICATION
Lights
Lower Headlamp Removal / Installation
1. Turn the back of the headlight harness (1) in a
clockwise direction.
2. Pull the harness assembly out from the headlight
assembly.
3. Remove the headlamp and replace with a
new headlamp.
4. Install the new headlamp and harness assembly
into the headlight assembly. Turn the headlight harness
counterclockwise to secure the headlamp into place.
Taillight/Brakelight Lamp Replacement
If the taillight/brakelight does not work the lamp may need to be
replaced.
1. Remove the taillight lens
cover mounting screws (1).
Remove the lens cover (2) and
gasket and set aside for
reassembly.
2. Remove the lamp (3) and
replace it with a new lamp.
3. Test the taillight/brakelight to
see that it’s working.
4. Reinstall the gasket and lens cover.
1
1
2
3
101
MAINTENANCE AND LUBRICATION
Spark Plugs
SUse BKR5E spark plugs for the Sportsman 400 and 500.
SUse RC7YC spark plugs for the Sportsman 600 and 700.
SProper electrode gap is .035″(.90 mm).
SSpark plug torque is 18 ft. lbs. (24 Nm).
Spark plug condition is indicative of engine operation. The spark plug
firing end condition should be read after the engine has been warmed
up and the vehicle has been driven at higher speeds. Immediately
check the spark plug for correct color.
1. Normal
The normal insulator tip is gray, tan or light brown. There will be few
combustion deposits. The electrodes are not burned or eroded. This
indicates the proper type and heat range for the engine and the service.
NOTE: The tip should not be white. A white insulator tip indicates
overheating, caused by use of an improper spark plug or incorrect
carburetion adjustments.
2. Wet Fouled
The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil,
use of non-recommended oil, improper use of the choke, or incorrect
carburetion adjustments.
Spark Plug Removal and Replacement
1. Remove the spark plug cap.
2. Using the special wrench provided in the tool pouch, rotate the
spark plug counterclockwise to remove.
3. Reverse the procedure for spark plug installation. Torque to 18 ft.
lbs. (24 Nm).
Using non-recommended spark plugs can result in serious engine
damage. Always use Polaris-recommended spark plugs.
CAUTION
WARNING
A hot exhaust system and engine can cause serious burns. Wear
protective gloves when removing a spark plug for inspection.
102
MAINTENANCE AND LUBRICATION

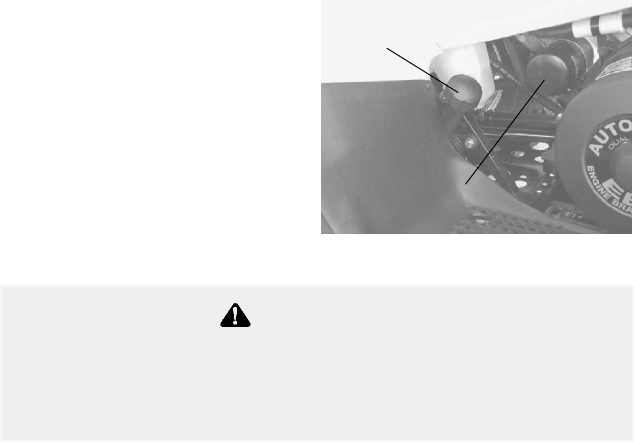

Vehicle Immersion
If it’s impossible to take your ATV to a dealer before starting it, follow
the steps outlined below.
1. Move the ATV to dry land or at the very
least, to water below the footrests.
2. Check the air box for any water and
dry it if water is present. Filter
replacement is required if water
intrusion is evident.
3. Turn the fuel valve off.
4. Remove the spark plug.
5. Loosen the carburetor drain screw (1).
6. Turn the engine over several times
using the electric start.
7. Dry the spark plug and reinstall, or replace it with a new plug.
8. Tighten the carburetor drain screw.
9. Turn the fuel valve on.
10. Attempt to start the engine. If necessary, repeat the drying
procedure.
11. Take the ATV to your dealer for service as soon as possible,
whether you succeed in starting it or not.
NOTE: If water has been ingested into the PVT, follow the procedure
on page 105 for drying out the PVT.
If your vehicle becomes immersed, major engine damage can
result if the machine is not thoroughly inspected. Take the vehicle
to your dealer before starting the engine.
CAUTION
1
103
MAINTENANCE AND LUBRICATION

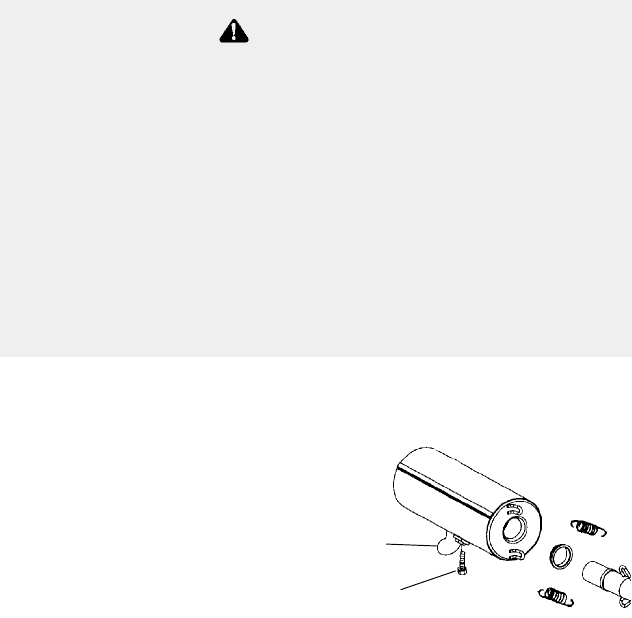

Spark Arrestor
Use the following procedure to periodically purge accumulated carbon
from the exhaust pipe/muffler.
1. Remove the arrestor clean-out
plug (1) from the bottom of the
muffler.
2. Place the transmission in neutral
(or PARK, if equipped) and start
the engine.
3. Purge carbon from the system by
momentarily revving the engine
several times.
4. If carbon is expelled, cover or plug the
exhaust outlet (2) and rap on the pipe around
the cleanout plug while revving the engine several more times.
5. If particles are still suspected to be in the muffler, elevate the rear
of the vehicle one foot higher than the front. Set the parking brake
and block the wheels. Make sure the vehicle is in neutral (or
PARK, if equipped) and repeat steps 3 and 4 until no more
particles are expelled when the engine is revved.
6. Stop the engine and allow the arrestor to cool. Reinstall the
arrestor plug and remove the outlet cover or plug.
WARNING
Failure to heed the following warnings while servicing the spark
arrestor could result in serious injury or death.
Do not perform service on the spark arrestor while the system is
hot. Exhaust system temperatures can reach 1000°F. Allow
components to cool sufficiently before proceeding.
Remove any combustible materials from the area.
Wear eye protection.
Do not stand behind or in front of the vehicle while purging.
Never run the engine in an enclosed area. Exhaust contains
poisonous carbon monoxide gas.
Never go under the vehicle while it’s inclined.
1
2
104
MAINTENANCE AND LUBRICATION
PVT System
The basic operation of the Polaris PVT system is dependent on engine
speed and vehicle torque requirements. As engine speed increases, the
force exerted on the movable drive sheave by the flyweights also
increases. This, in turn, increases the amount of pinch appliedtothe
drive belt. Similarly, if the engine speed decreases, the amount of
centrifugal force decreases, reducing the amount of belt pinch.
On Polaris ATVs, the approximate gear ratio difference between high
and low range is 1:2.25. This difference in gearing affects the operation
of the PVT, especially at speeds less than 7 MPH (11 KPH), due to the
system’s dependence on engine speed.
For example, when operating at a ground speed of 3 MPH (5 KPH) in
low range, the engine speed would be around 3000 RPM. This is well
above the engagement speed of 1200 - 1400 RPM. However, in high
range at 3 MPH (5 KPH), the engine would be running at only 1500
RPM. Whenever operating this close to the engagement speed, the
engine may be running at a speed too low to provide the pinch needed
to prevent belt slip. Belt slip is responsible for creating the excessive
heat that destroys belts and causes outer clutch covers to fail.
By switching to low range while operating at low ground speeds, the
air temperature in the clutch cover is reduced by almost 160 degrees.
Reducing the temperature inside the clutch cover extends the life of the
PVT components (belt, cover, etc.).
When To Use Low Range vs. High Range
Following is a guideline for when to use low range and high range.
Low Range
SWhen basic operation is at speeds less than 7 MPH (11 KPH)
SFor heavy pulling
SWhen operating in rough terrain (swamps, mountains, etc.) at low
ground speeds
High Range
SWhen basic operation is at speeds greater than 7 MPH (11 KPH)
SWhen operating at high ground speeds
105
MAINTENANCE AND LUBRICATION
PVT System
PVT Drying
There may be some instances when water is accidently ingested into
the PVT system. Use the following instructions to dry it out before
operating:
1. Remove the drain plug and allow the water to drain. Replace the
drain plug.
2. Start the engine and shift the transmission into neutral. Apply
varying throttle for 10-15 seconds to expel the moisture and air-dry
the belt and clutches. Do not hold the throttle wide open for more
than 10 seconds.
3. Allow the engine RPM to settle to idle speed, then shift the
transmission to the lowest available range.
4. Test for belt slippage. If the belt slips, repeat the process.
5. Take the vehicle to your dealer for service as soon as possible.
WARNING
Failure to comply with the instructions in this warning can result
in severe injury or death.
Do not modify any component of the PVT system. Doing so may
reduce its strength so that a failure may occur at a high speed.
The PVT system has been precision balanced. Any modification
will cause the system to be out of balance, creating vibration and
additional loads on components.
The PVT system rotates at high speeds, creating large amounts
of force on clutch components. Extensive engineering and
testing has been conducted to ensure the safety of this product.
However, as the owner, you have the following responsibilities to
make sure this system remains safe:
Always follow all recommended maintenance procedures. See
your dealer as outlined in the owner’s manual.
This PVT system is intended for use on Polaris products only. Do
not install it in any other product.
Always make sure the PVT housing is securely in place during
operation.
106
MAINTENANCE AND LUBRICATION
Battery
Your ATV may have either a sealed battery, which requires little
maintenance, or a conventional battery. Keep the conventional battery
terminals and connections free of corrosion. If cleaning is necessary,
remove the corrosion with a stiff wire brush. Wash with a solution of
one tablespoon baking soda and one cup water. Rinse well with tap
water and dry off with clean shop towels. Coat the terminals with
dielectric grease or petroleum jelly. Be careful not to allow cleaning
solution or tap water into the battery.
Battery electrolyte is poisonous. It contains sulfuric acid. Serious
burns can result from contact with skin, eyes or clothing.
Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk
of magnesia, beaten egg, or vegetable oil. Call physician
immediately.
Eyes: Flush with water for 15 minutes and get prompt medical
attention.
Batteries produce explosive gases. Keep sparks, flame,
cigarettes, etc. away. Ventilate when charging or using in an
enclosed space. Always shield eyes when working near batteries.
KEEP OUT OF REACH OF CHILDREN.
WARNING
107
MAINTENANCE AND LUBRICATION
Battery
Battery Removal
1. Disconnect the hold-down strap holding the battery in position, and
remove battery cover.
2. On conventional batteries, remove the battery vent tube.
3. Disconnect the black (negative) battery cable first.
4. Disconnect the red (positive) battery cable next.
5. Lift the battery out of the ATV. Be careful not to tip a conventional
battery sideways, which could spill electrolyte.
Battery Installation
1. Set the battery in the battery holder.
2. With conventional batteries, install the battery vent tube (sealed
batteries do not have a vent tube). NOTE: The vent tube must be
free of obstructions and securely installed. If not, battery gases
could accumulate and cause an explosion. The tube should be
routed away from the frame and body to prevent corrosion. Avoid
skin contact with electrolyte, which can cause severe burns.
3. First connect and tighten the red (positive) cable.
4. Second connect and tighten the black (negative) cable.
5. Reinstall the battery cover and attach the hold-down strap.
6. Verify that cables are properly routed.
NOTE: When installing a new battery, make sure it’s fully charged
prior to its initial use. Using a new battery that has not been fully
charged can damage the battery and result in a shorter life. It can also
hinder vehicle performance.
If electrolyte spills, immediately wash it off with a solution of one
tablespoon baking soda and one cup water to prevent damage to
the vehicle.
CAUTION
108
MAINTENANCE AND LUBRICATION
Battery
Battery Storage
When the vehicle is placed in storage for three months or more, the
battery should be removed, stored out of the sun in a cool, dry place
and tested monthly. Before reusing, take the battery to your dealer for
testing and recharging.
Power plug leads may need to be bent down so that the battery cover
can be installed.

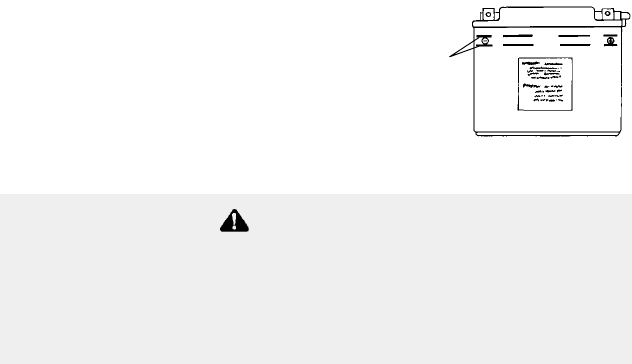

Replenishing Battery Fluid (Conventional Battery)
A poorly maintained battery will
deteriorate rapidly. Check the battery
fluid level often. The fluid level should
be kept between the upper and lower
level marks (1).
To refill use only distilled water. Tap
water contains minerals that are harmful
to a battery.
Battery Charging (Sealed Battery)
The following battery charging instructions apply only to the
installation of a YUASA activated, sealed battery. Read all
instructions before proceeding with the installation of this battery.
The YUASA activated, sealed battery is already filled with electrolyte
and has been sealed and fully charged at the factory. Do not ever pry
the sealing strip off or add any other fluid to this battery.
The single most important thing to maintaining a sealed battery is to
keep it fully charged. Since the battery is sealed and the sealing strip
cannot be removed, you must use a voltmeter or multimeter to measure
DC voltage.
1
Improperly connecting or disconnecting battery cables can result
in an explosion and cause serious injury or death. When removing
the battery, always disconnect the negative (black) cable first.
When reinstalling the battery, always connect the negative (black)
cable last.
WARNING
109
MAINTENANCE AND LUBRICATION
Battery
Battery Charging (Sealed Battery)
For a refresh charge, follow all instructions carefully.
1. Check the battery voltage with a voltmeter or multimeter. A fully
charged battery will register 12.8 V or higher.
2. If the voltage is less than 12.8 volts, recharge the battery.
NOTE: When using an automatic charger, refer to the charger
manufacturer’s instructions for recharging. When using a constant
current charger, use the following guidelines for recharging.
NOTE: Always verify battery condition before and 1-2 hours after the
end of charging.
State of
Charge
Voltage Action Charge Time*
(Using constant current
charger @ standard amps
specified on top of battery)
100% 12.8-13.0 volts None, check at
3 mos. from date of
manufacture
None required
75%-100% 12.5-12.8 volts May need slight
charge, if no
charge given,
check in 3 months
3-6 hours
50%-75% 12.0-12.5 volts Needs Charge 5-11 hours
25%-50% 11.5-12.0 volts Needs Charge At least 13 hours,
verify state of charge
0%-25% 11.5 volts or less Needs Charge At least 20 hours
An overheated battery could explode, causing severe injury or
death. Always watch charging times carefully. Stop charging if
the battery becomes very warm to the touch. Allow it to cool
before resuming charging.
WARNING
110
MAINTENANCE AND LUBRICATION
Accessories
Auxiliary power outlets provide 12V power for operating accessories
such as hand held spot lights. Accessory outlets are available for all
models. Polaris also has a wide range of additional accessories
available for your ATV. See your Polaris dealer.
Cleaning and Storage
See page 121 for the part numbers of Polaris products.
Cleaning the ATV
Keeping your ATV clean will not only improve its appearance but it
can also extend the life of various components. With a few
precautions, your ATV can be cleaned much like an automobile.
Washing the ATV
The best and safest way to clean your ATV is with a garden hose and a
pail of mild soap and water. Use a professional type washing mitten,
cleaning the upper body first and the lower parts last. Rinse with water
frequently and dry with a chamois to prevent water spots. NOTE: If
warning and safety labels are damaged, contact your a Polaris dealer
for free replacement.
Polaris does not recommend the use of a high pressure type car wash
system for washing the ATV. If a high pressure system is used,
exercise extreme care to avoid water damage to the wheel bearings,
transmission seals, body panels, brakes and warning labels. NOTE:
Grease all zerk fittings immediately after washing, and allow the
vehicle to run for a while to evaporate any water that may have entered
the engine or exhaust system.
Waxing the ATV
Your ATV can be waxed with any non-abrasive automotive paste wax.
Avoid the use of harsh cleaners since they can scratch the body finish.
Certain products, including insect repellants and chemicals, will
damage plastic surfaces. Use caution when using these products
near plastic surfaces.
CAUTION
111
MAINTENANCE AND LUBRICATION
Cleaning and Storage
Storage Tips
Clean the Exterior
Make necessary repairs and then clean the ATV thoroughly with mild
soap and warm water to remove all dirt and grime. Don’t use harsh
detergents or high pressure washers. Some detergents deteriorate rubber
parts. Use dish soap type cleaners only. High pressure washers may
force water past seals.
Stabilize the Fuel
Fill the fuel tank. Add Polaris Carbon Clean Fuel Treatment or Polaris
Fuel Stabilizer. Follow the instructions on the container for the
recommended amount. (Carbon clean will also reduce the possibility of
bacterial growth in the fuel system.) Allow 15-20 minutes of operation
for the stabilizer to disperse through the fuel in the tank and carburetor.
Turn the fuel valve off and drain the carburetor bowl.
Oil and Filter
Warm the engine and change the oil and filter.
Air Filter / Air Box
Inspect and clean or replace the pre-cleaner and air filter. Clean the air
box and drain the sediment tube.
Breather Filter
Inspect and clean or replace the breather filter.
Fluid Levels
Inspect the following fluid levels and change if necessary: front and
rear gearcases; transmission and brake fluid (change every two years or
as required if fluid looks dark or contaminated).
Starting the engine during the storage period will disturb the protective
film created by fogging and damage could occur. Never start the
engine during the storage period.
CAUTION
112
MAINTENANCE AND LUBRICATION
Cleaning and Storage
Storage Tips
Fog the Engine
1. Remove the spark plug and add 2-3 tablespoons of Premium 4
Synthetic 0W40 engine oil. To access the plug hole, use a section of
clear 1/4” hose and a small plastic squeeze bottle filled with the
pre-measured amount of oil. NOTE: Do this carefully! If you miss
the plug hole, oil will drain from the spark plug cavity into the hole
at the front of the cylinder head, and appear to be an oil leak.
2. Reinstall the spark plug. Torque to 18 ft. lbs. (24 Nm).
3. Apply dielectric grease to the inside of the spark plug cap and install
the cap onto the plug.
4. Turn the engine over several times. Oil will be forced in and around
the piston rings and ring lands, coating the cylinder with a protective
film of fresh oil.
Alternative to Using Fogging Oil
If you choose not to use Polaris Fogging Oil, perform the following
procedure.
1. Treat the fuel system with Polaris Carbon Clean, following the
instructions on the can. Run the engine for several minutes so the
Carbon Clean reaches the carburetor. Turn the engine off.
2. Support the front end of the machine so the engine is level or tilted
slightly rearward.
3. Remove the spark plug. Rotate the piston to BDC and pour
approximately two ounces of recommended oil into the cylinder.
4. Reinstall the spark plug and torque to 18 ft. lbs. (24 Nm).
5. Apply dielectric grease to the inside of the spark plug cap and install
the cap onto the plug.
6. Turn the engine over several times to ensure coverage of piston
rings, cylinder walls and crankshaft bearings.
7. If Polaris fuel system additive is not used, fuel tank, fuel lines, and
carburetor should be completely drained of gasoline. To eliminate
any fuel remaining in the carburetor, run the engine until it stops.
Inspect and Lubricate
Inspect all cables and lubricate. Follow lubrication guidelines in the
Maintenance Section of the service or owner’s manual to completely
grease and lubricate the entire vehicle with Polaris Premium All
Season Grease.
113
MAINTENANCE AND LUBRICATION
Cleaning and Storage
Storage Tips
Battery Maintenance (Conventional)
Remove the battery and add distilled water to the proper level. Do not
use tap water, which may contain minerals that reduce battery life.
Apply dielectric grease to the terminal bolts and terminals. Charge the
battery at 1.4 amps or less until the specific gravity of each cell is
1.265 or greater. Store the battery in a cool, dry place.
Charge can be maintained easily by using Polaris Battery Tendert
charger (PN 2871076) or by charging about once a month to make up
for normal self-discharge. Battery Tendertcan be left connected
during the storage period, and will automatically charge the battery if
the voltage drops below a pre-determined point. Check the fluid level
monthly.
Battery Maintenance (Sealed)
Remove the battery and recharge it as outlined on page 108. Store the
battery in a cool, dry place.
Engine Anti-Freeze
Test engine coolant strength and change if necessary. Coolant should
be replaced every two years.
Storage Area/Covers
Set the tire pressure and safely support the ATV with the tires 1-2” off
the ground. Be sure the storage area is well ventilated, and cover the
machine with a genuine Polaris ATV cover. NOTE: Do not use plastic
or coated materials. They do not allow enough ventilation to prevent
condensation, and may promote corrosion and oxidation.
Transporting the ATV
Follow these procedures when transporting the vehicle.
1. Turn off the engine and remove the key to prevent loss during
transporting.
2. Turn the fuel valve off and be sure the fuel cap, oil cap and seat are
installed securely.
3. Always tie the frame of the ATV to the transporting unit securely
with suitable straps or rope.
4. Always place the transmission in gear (or in PARK if equipped)
and lock the parking brake.
114
ADJUSTMENTS
Camber and Caster
The camber and caster are non-adjustable.

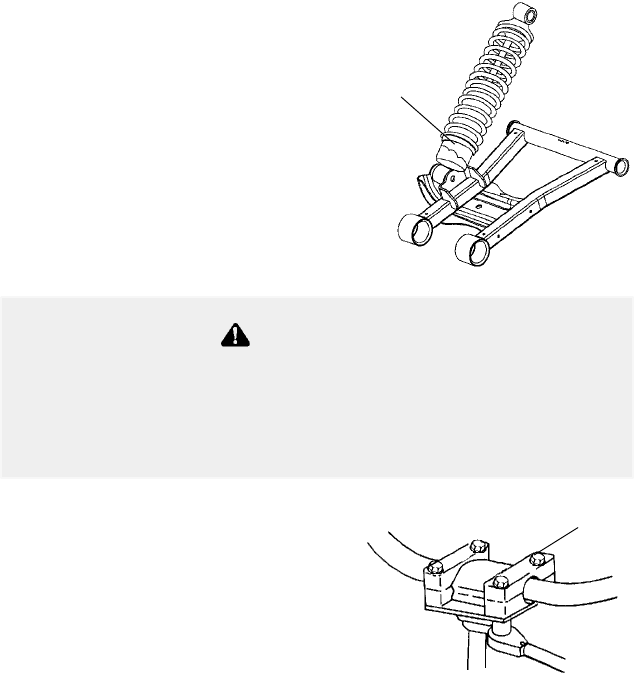

Rear Spring
The rear shock absorber spring is
adjusted by rotating the adjuster (1)
either clockwise or
counterclockwise to increase or
decrease spring tension.
NOTE: Accessory springs are
available through your Polaris
dealer.
Handlebars
The handlebars can be adjusted for
rider preference.
1. Locate handlebar bolts (1) by
removing the upper headlight pod.
2. Loosen the four bolts.
3. Adjust the handlebar to the desired
height. Be sure the handlebars do not
contact the gas tank or any other part of
the machine when turned fully to the left or right.
4. Torque the front two bolts to 10-12 ft. lbs. (14-17 Nm), then torque
the rear two bolts. A gap of up to 1/8” will remain at the rear bolts.
1
Improper adjustment of the handlebars or incorrect torquing of
the adjuster block tightening bolts can cause limited steering or
loosening of the handlebars, resulting in loss of control and
possible serious personal injury or death. Follow the adjustment
procedures exactly, or see your Polaris dealer for service.
WARNING
1
115
ADJUSTMENTS

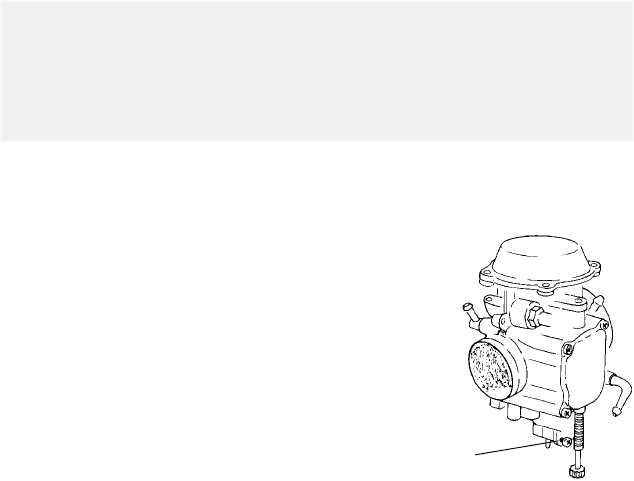

Carburetor/Idle RPM
If the engine idle speed is not satisfactory, and
all other conditions are favorable, the carburetor
can be adjusted.
1. Warm up the engine by running the vehicle
for approximately five minutes.
2. Place the transmission in gear with the
parking brake applied.
3. Adjust the carburetor idle screw (1) either in
or out until the desired idle RPM is reached.
Turning the screw in (clockwise) will raise
RPM. Turning the screw out
(counterclockwise) will lower RPM.
IMPORTANT: Your Polaris ATV is calibrated at the factory for
optimal performance at altitudes ranging from zero to 6,000 feet (1800
m) and temperatures of +40 degrees F. (4 degrees C.) or higher. Above
6000 feet (1800 m) the engine air/fuel mixture becomes overly rich and
the engine loses approximately 3% of its power for each 1000-foot
(304.8 m) increase in elevation. Although this power cannot be
regained, adjustments to the carburetor and drive system can be made
to allow more efficient operation. Optional jets, available from your
Polaris dealer, are required for operation above 6,000 feet and
temperatures below +40 degrees F. (4 degrees C.)
NOTE: Continuous operation of the engine without proper jetting
when required can cause poor performance, overheating or engine
damage. See your Polaris dealer for more information about jetting the
ATV for conditions in your area.
1
116
ADJUSTMENTS

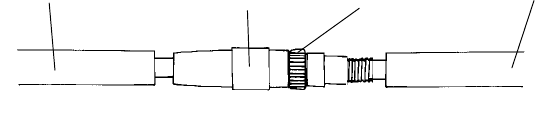

Throttle Cable Freeplay
Throttle cable freeplay is adjusted at the handlebar.
1. Slide the boots (1) off the inline cable adjuster sleeve (2). Loosen
the adjuster locknut (3).
2. Turn the adjuster until 1/16″to 1/8″freeplay is achieved at the
thumb lever. NOTE: While adjusting freeplay, be sure to flip the
throttle lever back and forth.
3. Tighten the locknut and slide the boots over the cable adjuster until
they touch at the midpoint of the adjuster.
1
2
13
117
TROUBLESHOOTING
Drive Belt and Cover Problems
Possible Cause Solution
Driving the ATV onto a
pickup or tall trailer in
high range.
Shift transmission to low range during loading of the ATV
to prevent belt burning.
Starting out going up a
steep incline.
When starting out on an incline, use low range or dis-
mount the ATV (after first applying the park brake) and
perform the K-turn as described on page 63.
Driving at low RPM or
low ground speed (at
approximately 3-7 MPH).
Drive at a higher speed or use low range more frequently.
The use of low range is highly recommended for cooler
PVT operating temperatures and longer component life.
Insufficient warm-up of
ATVs exposed to low am-
bient temperatures.
Warm the engine at least 5 minutes. With the transmission
in neutral, advance the throttle to about 1/8 throttle in
short bursts, 5 to 7 times. The belt will become more flex-
ible and prevent belt burning.
Slow and easy clutch en-
gagement.
Use the throttle quickly and effectively for efficient enga-
gement.
Towing/pushing at low
RPM/low ground speed.
Use low range only.
Utility use/plowing snow,
dirt, etc.
Use low range only.
Stuck in mud or snow. Shift the transmission to low range, and carefully use fast,
aggressive throttle application to engage clutch.
WARNING: Excessive throttle may cause loss of control
and vehicle overturn.
Climbing over large ob-
jects from a stopped posi-
tion.
Shift the transmission to low range, and carefully use fast,
brief, aggressive throttle application to engage clutch.
WARNING: Excessive throttle may cause loss of control
and vehicle overturn.
Belt slippage from water
or snow ingestion into the
PVT system.
Shift the transmission to neutral. Using the throttle, vary
the engine RPM from idle to full throttle. Repeat several
times as required. During this procedure, the throttle
should not be held at the full position for more than 10
seconds. Clutch seals should be inspected for damage if
repeated leaking occurs.
Clutch malfunction. Contact your Polaris dealer for inspection of clutch com-
ponents.
Poor engine performance. Check for fouled plugs or foreign material in gas tank,
fuel lines, or carburetor. Contact your dealer for service.
118
TROUBLESHOOTING
Contact your Polaris dealer for service if you’re unable to identify
solutions using the following charts.
Engine Doesn’t Turn Over
Possible Cause Solution
Tripped circuit breaker Reset the breaker
Low battery voltage Recharge battery to 12.5 VDC
Loose battery connections Check all connections and tighten
Loose solenoid connections Check all connections and tighten
Engine Turns Over, Fails to Start
Possible Cause Solution
Out of fuel Turn fuel valve to reserve, refuel
Clogged fuel valve or filter Inspect and clean or replace
Water is present in fuel Drain the fuel system and refuel
Fuel valve is turned off Turn the fuel valve on
Old or non-recommended fuel Replace with new fuel
Fouled or defective spark plug(s) Inspect plug(s), replace if necessary
No spark to spark plug Inspect plug(s), verify stop switch is on
Crankcase filled with water or fuel Immediately see your Polaris dealer
Overuse of choke Inspect, clean and/or replace spark plugs
Clogged fuel filter Replace the filter
Low battery voltage Recharge battery to 12.5 VDC
Mechanical failure See your Polaris dealer
Engine Pings or Knocks
Possible Cause Solution
Poor quality or low octane fuel Replace with recommended fuel
Incorrect ignition timing See your Polaris dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
119
TROUBLESHOOTING
Engine Backfires
Possible Cause Solution
Weak spark from spark plugs Inspect, clean and/or replace spark plugs
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Old or non-recommended fuel Replace with new fuel
Incorrectly installed spark plug wires See your Polaris dealer
Incorrect ignition timing See your Polaris dealer
Mechanical failure See your Polaris dealer
Engine Runs Irregularly, Stalls or Misfires
Possible Weak Spark Cause Solution
Fouled or defective spark plugs Inspect, clean and/or replace spark plugs
Worn or defective spark plug wires See your Polaris dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with new fuel
Low battery voltage Recharge battery to 12.5 VDC
Kinked or plugged fuel vent line Inspect and replace
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your Polaris dealer
Electronic throttle control malfunction See your Polaris dealer
Other mechanical failure See your Polaris dealer
Possible Lean Fuel Mixture Cause Solution
Low or contaminated fuel Add or change fuel, clean the fuel system
Low octane fuel Replace with recommended fuel
Clogged fuel filter Replace filter
Incorrect jetting See your Polaris dealer
Possible Rich Fuel Mixture Cause Solution
Overuse of choke Inspect, clean and/or replace spark plugs
Fuel is very high octane Replace with lower octane fuel
Incorrect jetting See your Polaris dealer
120
TROUBLESHOOTING
Engine Stops or Loses Power
Possible Cause Solution
Out of fuel Turn fuel valve to reserve, refuel
Kinked or plugged fuel vent line Inspect and replace
Water present in fuel Replace with new fuel
Overuse of choke Inspect, clean and/or replace spark plugs
Fouled or defective spark plugs Inspect, clean and/or replace spark plugs
Worn or defective spark plug wires See your Polaris dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Low battery voltage Recharge battery to 12.5 VDC
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your Polaris dealer
Electronic throttle control malfunction See your Polaris dealer
Other mechanical failure See your Polaris dealer
Overheated engine Clean radiator screen and core
Clean engine exterior
See your Polaris dealer
Engine Overheating
Possible Cause Solution
Debris lodged in screen Remove and clean the screen. Pull on the
top portion of the screen, then remove the
lower portion.
Plugged Radiator Use a garden hose to flush any debris
from the radiator fins. NOTE: High pres-
sure washers can deform the radiator fins
and reduce cooling efficiency.
121
POLARIS PRODUCTS
Part No. Description
Engine Lubricant
2870791 Fogging Oil (12 oz. Aerosol)
2871281 Engine Oil (qt.) Premium 4 Synthetic 0W-40 (4-Cycle)
2871844 Engine Oil (gal.) Premium 4 Synthetic 0W-40 (4-Cycle)
Gearcase / Transmission Lubricants
2871477 Premium Synthetic Gearcase Lubricant (1 gal.)
2871478 Premium Synthetic Gearcase Lubricant (12 oz. bottle)
2871653 Gear Drive Fluid (12 oz.)
2872276 Gear Drive Fluid (2.5 gal.)
2870465 Oil Pump for Gearcase Oil
2871654 Premium Drive Hub Fluid (8 oz.)
2872277 Premium Drive Hub Fluid (2.5 gal.)
Grease / Specialized Lubricants
2871322 Premium All Season Grease (3 oz. cartridge)
2871423 Premium All Season Grease (14 oz. cartridge)
2871460 Starter Drive Grease
2871515 Premium U-Joint Lube (3 oz.)
2871551 Premium U-Joint Lube (14 oz.)
2871312 Grease Gun Kit
2871329 Dielectric Grease (Nyogelt)
Coolant
2871323 60/40 Coolant (Gallon)
2871534 60/40 Coolant (Quart)
Additives / Miscellaneous
2871326 Carbon Clean Plus (12 oz.)
2870652 Fuel Stabilizer (16 oz.)
2870990 DOT3 Brake Fluid
2872893 Engine Degreaser
122
SPECIFICATIONS
SPORTSMAN 400
Gross Vehicle Weight 1200 lbs./544 kg
Towing Capacity 1225 lbs./556 kg
Hitch Tongue Capacity 120 lbs./54 kg (Rear rack weight and tongue
weight not to exceed 180 lbs./81.6 kg)
Front Rack Capacity 90 lbs./40.8 kg
Rear Rack Capacity 180 lbs./81.6 kg
Overall Length 81 in./205.7 cm
Overall Width 46 in./119.3 cm
Overall Height 47 in./119.4 cm
Wheelbase 50.5 in./128.3 cm
Ground Clearance 11 in./27.9 cm
Dry Weight 697 lbs./316 kg
Minimum Turning Radius 65 in./165 cm
Fuel Capacity 4.75 gal./18 l
Engine Oil Capacity 2qts./1.9l
Coolant Capacity 3.2 qts./3.02 l
Engine EH42PLE05
Displacement 425
Bore x Stroke 87.9 x 70
Pilot Jet 40
Main Jet 167.5
Needle Jet Q-0 (829)
Jet Needle 4GAC33-3
Pilot Screw 2 3/4 turn (taper 12.5°)
Alternator Output 250 w
Compression Ratio 9:2 Full Stroke
Carburetor BST 34mm
Ignition System Digital CDI
Ignition Timing 30°+/-- 2°@ 5000 RPM
SparkPlug/Gap NGK BKR5E / 0.9 mm / .036 in
Lubrication System Dry Sump
Driving System Type Dual sensing, automatic PVT (Polaris
Variable Transmission)
123
SPECIFICATIONS
SPORTSMAN 400
Shift Type Side Lever (High, Low, Neutral, Reverse)
Gear Reduction - Low 8.27/1
Gear Reduction - Reverse 5.17/1
Gear Reduction - Forward 3.34/1
Drive Ratio - Front 2:1
Drive Ratio - Final 3.16:1
Tire, Front 25x8-12(5psi)
Tire, Rear 25x11-12(5psi)
Front Brake Hydraulic Disc
Rear Brake Hydraulic, opposed piston caliper, fixed disc
Auxiliary Brake Hydraulic, opposed piston caliper, fixed disc
Parking Brake Hydraulic lock, all wheel
Front Suspension MacPherson Strut, 6.7”
Rear Suspension Full independent with anti-roll bar, 9.5”
Shock Adjustment CAM
Headlight 1 - Single Beam on handlebar (50 w)
2 - Single Beam on grill (27 w)
Taillights 8.26 w
Brakelight 26.9 w
Instrument Cluster LCD
Jetting and Clutching Charts (Sportsman 400)
Altitude AMBIENT
TEMPERATURE
Below 40°F
Below 5°C
+40°F and above
+5°C and above
Meters
(Feet) 0-1800
(0-6000) 172.5 167.5
(
)
1800-3700
(6000-12000) 165 160
Altitude Shift
Weight Drive Clutch
Spring Driven
Clutch
Spring
Helix
and Spring
Setting
Meters
(Feet) 0-1800
(0-6000) 10 BH
PN 5630711 Blue/Green
PN 7041157 Black
PN 7041782 41-37°
PN 5132344
2+2
1800-3700
(6000-12000) 20-40
PN 5631356 Blue/Green
PN 7041157 Black
PN 7041782 41-37°
PN 5132344
2+2
124
SPECIFICATIONS
SPORTSMAN 500
Gross Vehicle Weight 1200 lbs./544 kg
Hitch Towing Rating 1225 lbs./556 kg
Unbraked Trailer Towing Capacity* 1786 lbs./810 kg
Hitch Tongue Capacity 120 lbs./54 kg (Rear rack weight and tongue
weight not to exceed 180 lbs./81.6 kg)
Front Rack Capacity 90 lbs./40.8 kg
Rear Rack Capacity 180 lbs./81.6 kg
Overall Length 81 in./205.7 cm
Overall Width 46 in./116.8 cm
Overall Height 47 in./119.4 cm
Wheelbase 50.5 in./128.3 cm
Ground Clearance 11 in./27.9 cm
Dry Weight 697 lbs./316 kg
Minimum Turning Radius 65 in./165 cm
Fuel Capacity 4.75 gal./18 l
Engine Oil Capacity 2qts./1.9l
Coolant Capacity 3.2 qts./3.02 l
Engine EH50PLE13
Displacement 498
Bore x Stroke 92x75
Pilot Jet 40
Main Jet 152.5
Needle Jet X-6M (896)
Jet Needle 6MGH1-94-3
Pilot Screw 2Turn
Alternator Output 250 w
Compression Ratio 10:2 Full Stroke
Carburetor BST 40mm
Ignition System CDI
Ignition Timing 30 BTDC @ 5000 RPM
SparkPlug/Gap NGK BKR6E / 0.9 mm / .036 in
Lubrication System Dry Sump
* Based on EU Directive 76/432/EC
125
SPECIFICATIONS
SPORTSMAN 500
Driving System Type EBS
Shift Type Side Lever (High, Low, Neutral, Reverse)
Gear Reduction - Low 8.27/1
Gear Reduction - Reverse 5.17/1
Gear Reduction - Forward 3.34/1
Drive Ratio - Front 2:1
Drive Ratio - Final 3.16:1
Tire, Front 25x8-12(5psi)
Tire, Rear 25x11-12(5psi)
Front Brake Hydraulic Disc
Rear Brake Hydraulic, opposed piston caliper, fixed disc
Auxiliary Brake Hydraulic, opposed piston caliper, fixed disc
Parking Brake Hydraulic lock, all wheel
Front Suspension MacPherson Strut, 6.7”
Rear Suspension Progressive rate, full independent with anti-
roll bar, 9.5”
Shock Adjustment CAM
Headlight 1 Single Beam on Handlebar (50 w)
2 Single Beam on Grill (27 w)
Taillights 8.26 w
Brakelight 26.9 w
Instrument Cluster LCD
Jetting and Clutching Charts (Sportsman 500)
Altitude AMBIENT
TEMPERATURE
Below 40°F
Below 5°C
+40°F and above
+5°C and above
Meters
(Feet) 0-1800
(0-6000) 157.5 152.5
(
)
1800-3700
(6000-12000) 150 145
Altitude Shift
Weight Drive Clutch
Spring Driven Clutch
Spring Helix*
Meters
(Feet) 0-1800
(0-6000) 10 WH
PN 5630710 Blue/Green
PN 7041157 White/Yellow
PN 7041635 EBS
PN 5131674
(
)
1800-3700
(6000-12000) 10 RH
PN 5630709 Blue/Green
PN 7041157 White/Yellow
PN 7041635 EBS
PN 5131674
*EBS models require no helix / spring adjustment
126
SPECIFICATIONS
SPORTSMAN 600
Gross Vehicle Weight 1240 lbs./563 kg
Fuel Capacity 4.75 gal./18 l
Towing Capacity 1500 lbs./681 kg
Hitch Tongue Capacity 150 lbs./68.1 kg (Rear rack capacity and
tongue weight not to exceed 200 lbs./90.7 kg)
Front Rack Capacity 100 lbs./45.4 kg
Rear Rack Capacity 200 lbs./90.8 kg
Overall Length 85 in./215.9 cm
Overall Width 46 in./116.8 cm
Overall Height 47 in./119.4 cm
Wheelbase 50.75 in./128.9 cm
Ground Clearance 11 in./27.9 cm
Dry Weight 740 lbs./336 kg
Minimum Turning Radius 76 in./193 cm unloaded
Engine Oil Capacity 2qts./1.9l
Coolant Capacity 3.2qts./3l
Engine EH059OLE021
Displacement 597
Bore x Stroke 76.5 x 65
Pilot Jet 45
Main Jet 155
Needle Jet P-4
Jet Needle J8-4FA01-3
Pilot Screw 1.5
Alternator Output 300 Watts @ 3000 rpm
Compression Ratio 10.3:1
Starting System Electric
Carburetor BST 34mm
Ignition System CDI
Ignition Timing 25°@ 2750 +/-- 250 RPM
SparkPlug/Gap RC7YC/0.9mm/.035in
Lubrication System Pressurized Wet Sump
Driving System Type 4 Wheel Independent Shaft
127
SPECIFICATIONS
SPORTSMAN 600
Shift Type Side Lever
(High, Low, Neutral, Reverse, Park)
Gear Reduction - Low 7.5/1
Gear Reduction - Reverse 5.11/1
Gear Reduction - High 3.09/1
Drive Ratio - Front: 3.82/1
Drive Ratio - Final 3.10/1
Tire Size - Front 25x8-12
Tire Size - Rear 25x11-12
Front Brake Hydraulic Disc
Rear Brake Hydraulic
Parking Brake Hydraulic lock, all wheel
Headlight (watts) 1 - Single Beam on Handlebar (50)
2 - Single Beam on Grill (27)
Taillights (watts) 8.26
Brake Light (watts) 26.9
Instrument Cluster LCD
Jetting and Clutching Charts (Sportsman 600)
Altitude AMBIENT
TEMPERATURE
Below 40°F
Below 5°C
+40°F and above
+5°C and above
Meters
(Feet)
0-1800
(0-6000)
162.5 155
1800-3700
(6000-12000) 150 145
Altitude Shift
Weight Drive Clutch
Spring Driven
Clutch
Spring
Helix*
Meters
(Feet) 0-1800
(0-6000) 10 MH
PN 5630513 Blue/Green
PN 7041157 White/Yellow
PN 7041635 EBS
PN 5132751
1800-3700
(6000-12000) 10 WH
PN 5630710 Blue/Green
PN 7041157 White/Yellow
PN 7041635 EBS
PN 5132751
EBS models require no helix / spring adjustment
128
SPECIFICATIONS
SPORTSMAN 700
Gross Vehicle Weight 1240 lbs./563 kg
Fuel Capacity 4.75 gal./18 l
Towing Rating 1500 lbs./681 kg
Unbraked Trailer Towing Capacity* 1914 lbs./868 kg
Front Rack Capacity 100 lbs./45.4 kg
Rear Rack Capacity 200 lbs./90.7 kg
Hitch Tongue Capacity 150 lbs./68.1 kg (Rear rack capacity and
tongue weight not to exceed 200 lbs./90.8 kg)
Overall Length 81 in./205.7 cm
Overall Width 46 in./116.8 cm
Overall Height 47 in./119.4 cm
Wheelbase 50.75 in./128.9 cm
Ground Clearance 11 in./27.9 cm
Dry Weight 740 lbs./336 kg
Minimum Turning Radius 76 in./193 cm unloaded
Engine Oil Capacity 2qts./1.9l
Coolant Capacity 3.2qts./3l
Engine EH68ALOE11
Displacement 683
Bore x Stroke 80x68
Pilot Jet 47.5
Main Jet 155
Needle Jet P-6(829)
Jet Needle J8-4FA01
Pilot Screw 1.0
Alternator Output 330 Watts @ 3000 rpm
Compression Ratio 9.78:1
Starting System Electric
Carburetor BST 34mm
Ignition System CDI
Ignition Timing 8 BTDC @ 2000 RPM
SparkPlug/Gap RC7YC/0.9mm/.035in
Lubrication System Pressurized Wet Sump
Driving System Type 4 Wheel Independent Shaft
* Based on EU Directive 76/432/EC
129
SPECIFICATIONS
SPORTSMAN 700
Shift Type Side Lever
(High, Low, Neutral, Reverse, Park)
Gear Reduction - Low 7.5/1
Gear Reduction - Reverse 5.11/1
Gear Reduction - High 2.89/1
Drive Ratio - Front: 3.82/1
Drive Ratio - Final 3.10/1
Tire Size - Front 25x8-12
Tire Size - Rear 25x11-12
Front Brake Hydraulic Disc
Rear Brake Hydraulic
Parking Brake Hydraulic lock, all wheel
Headlight (watts) 1 - Single Beam on Handlebar (50)
2 - Single Beam on Grill (27)
Taillights (watts) 8.26
Brake Light (watts) 26.9
Instrument Cluster LCD
Jetting and Clutching Charts (Sportsman 700)
Altitude AMBIENT
TEMPERATURE
Below 40°F
Below 5°C
+40°F and above
+5°C and above
Meters
(Feet)
0-1800
(0-6000)
160 155
1800-3700
(6000-12000) 147.5 142.5
Altitude Shift
Weight Drive Clutch
Spring Driven
Clutch
Spring
Helix*
Meters
(Feet) 0-1800
(0-6000) 20-56
PN 5631315 Blue/Green
PN 7041157 White/Yellow
PN 7041635 EBS
PN 5132751
1800-3700
(6000-12000) 20-54
PN 5631214 Blue/Green
PN 7041157 White/Yellow
PN 7041635 EBS
PN 5132751
EBS models require no helix / spring adjustment
130
WARRANTY
LIMITED WARRANTY
Polaris Sales Inc., 2100 Highway 55, Medina, MN 55340, gives a SIX
MONTH LIMITED WARRANTY on all components of the Polaris All
Terrain Vehicle (ATV) against defects in material or workmanship.
Polaris also gives a one year limited warranty on the final drive chain
for failure due to defects. This warranty covers the parts and labor
charges for repair or replacement of defective parts which are covered
by this warranty. This warranty begins on the date of purchase. This
warranty is transferrable to another consumer during the warranty
period through a Polaris dealer.
REGISTRATION
At the time of sale, the Warranty Registration Form must be completed
by your dealer and submitted to Polaris within ten days. Upon receipt
of this registration, Polaris will record the registration for warranty.
THE PURCHASER MUST COMPLETE AN ATV SAFETY
TRAINING COURSE PROVIDED BY THE DEALER IN ORDER
TO HAVE VALID WARRANTY ON THE ATV. No verification of
registration will be sent to the purchaser as the copy of the Warranty
Registration Form will be the warranty entitlement. If you have not
signed the original registration and received the customer copy, please
contact your dealer immediately. NO WARRANTY COVERAGE
WILL BE ALLOWED UNLESS YOUR ATV IS REGISTERED
WITH POLARIS.
Initial dealer preparation and set-up of your ATV is very important in
ensuring trouble-free operation. Purchasing a machine in the crate or
without proper dealer set-up will void your warranty coverage.
131
WARRANTY
WARRANTY COVERAGE AND EXCLUSIONS:
LIMITATIONS OF WARRANTIES AND REMEDIES
The Polaris limited warranty excludes any failures that are not caused
by a defect in material or workmanship. This warranty does not cover
accidental damage, normal wear and tear, abuse or improper handling.
This warranty also does not cover any ATV that has been altered
structurally, modified, neglected, improperly maintained, used for
racing, or used for purposes other than for which it was manufactured,
or for any damages which occur during trailer transit or as a result of
unauthorized service or the use of unauthorized parts. In addition, this
warranty does not cover physical damage to paint or finish, stress
cracks, tearing or puncturing of upholstery material, corrosion, or
defects in parts, components or the ATV due to fire, explosions or any
other cause beyond Polaris’ control.
This warranty does not cover the use of unauthorized lubricants,
chemicals, or fuels that are not compatible with the ATV. The
exclusive remedy for breach of this warranty shall be, at Polaris’
exclusive option, repair or replacement of any defective materials, or
components or products. THE REMEDIES SET FORTH IN THIS
WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY
PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL
HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY
DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR
IMPLIED WARRANTY OR ANY OTHER CONTRACT,
NEGLIGENCE, OR OTHER TORT OR OTHERWISE. Some states
do not permit the exclusion or limitation of incidental or consequential
damages or implied warranties, so the above limitations or exclusions
may not apply to you if inconsistent with controlling state law.
132
WARRANTY
ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED
TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN
DURATION TO THE ABOVE SIX MONTH WARRANTY PERIOD.
POLARIS FURTHER DISCLAIMS ALL EXPRESS WARRANTIES
NOT STATED IN THIS WARRANTY. Some states do not allow
limitations on how long an implied warranty lasts, so the above
limitation may not apply to you if inconsistent with controlling state
law.
HOW TO OBTAIN WARRANTY SERVICE
If your ATV requires warranty service, you must take it to a Polaris
dealer authorized to repair Polaris ATVs. When requesting warranty
service you must present your copy of the Warranty Registration form
to the dealer. (THE COST OF TRANSPORTATION TO AND FROM
THE DEALER IS YOUR RESPONSIBILITY). Polaris suggests that
you use your original selling dealer; however, you may use any Polaris
Servicing Dealer to perform warranty service.
Please work with your dealer to resolve any warranty issues. Should
your dealer require any additional assistance they will contact the
appropriate person at Polaris.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
If any of the above terms are void because of state or federal law, all
other warranty terms will remain in effect.
Engine Oil
1. Mixing oil brands or using non-recommended oil may cause engine
damage. We recommend the use of Polaris engine oil for your ATV.
2. Damage resulting from the use of non-recommended lubricants may
not be covered by warranty.
133
WARRANTY
Exported Vehicles
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE
IS NO WARRANTY OR SERVICE BULLETIN COVERAGE ON
THIS VEHICLE IF IT IS SOLD OUTSIDE THE COUNTRY OF THE
SELLING DEALER’S AUTHORIZED LOCATION.
This policy does not apply to vehicles that have received authorization
for export from Polaris Industries. Dealers may not give authorization
for export. You should consult an authorized dealer to determine this
vehicle’s warranty or service bulletin coverage if you have any ques-
tions.
This policy does not apply to vehicles registered to government offi-
cials or military personnel on assignment outside the country of the
selling dealer’s authorized location.
This policy does not apply to Safety Recalls.
How to Get Service
In the Country where your vehicle was purchased:
Warranty or Service Bulletin repairs must be done by an authorized
Polaris dealer. If you move or are traveling within the country where
your vehicle was purchased, Warranty or Service Bulletin repairs may
be requested from any authorized Polaris dealer who sells the same line
as your vehicle.
Outside the Country where your vehicle was purchased:
If you are traveling temporarily outside the country where your vehicle
was purchased, you should take your vehicle to an authorized Polaris
dealer. You must show the dealer photo identification from the country
of the selling dealer’s authorized location as proof of residence. Upon
residence verification, the servicing dealer will be authorized to per-
form the warranty repair.
If You Move:
If you move to another country, be sure to contact Polaris Customer
Assistance and the customs department of the destination country be-
fore you move. Vehicles importation rules vary considerably from
country to country. You may be required to present documentation of
your move to Polaris Industries in order to continue your warranty cov-
erage. You may also be required to obtain documentation from Polaris
Industries in order to register your vehicle in your new country.
134
WARRANTY
Exported Vehicles
How to Get Service
If Purchased From A Private Party:
If you purchase a Polaris product from a private citizen outside of the
country in which the vehicle was originally purchased, all warranty
coverage will be denied.
Notice
If your vehicle is registered outside of the country where it was pur-
chased, and you have not followed the procedure set out above, your
vehicle will no longer be eligible for warranty or service bulletin cover-
age of any kind. (Vehicles registered to Government officials or mili-
tary personnel on assignment outside of the country where the vehicle
was purchased will continue to be covered by the basic warranty.)
For questions call Polaris Customer Assistance:
United States: 1-763-417-8650
Canada: 1-204-925-7100
135
INDEX
A
Accessories 110....................
ADJUSTMENTS 114-116...........
Age Restrictions 11.................
Air Filter Service 96................
All Wheel Drive 44.................
Automatic Transmission 43...........
Auxiliary Brake 91.................
AWD 44..........................
B
Battery 107-109...................
Battery (Conventional) 106...........
Battery Charging (Sealed) 108-109....
Battery Fluid (Conventional) 108......
Battery Installation 107..............
Battery Removal 107................
Battery Storage 108.................
Belt Life 43.......................
Brake Fluid 39, 41..................
Brake Lever 38....................
Brake, Auxiliary 41.................
Brake, Front 90....................
Brake, Rear 91.....................
Break-In Period 51.................
Breather Filter 96..................
C
Camber and Caster 114..............
Carburetor/Idle RPM 115............
Choke 42.........................
Cleaning 110-113..................
Clutching Chart (400) 123...........
Clutching Chart (500) 125...........
Clutching Chart (600) 127...........
Clutching Chart (700) 129...........
Cold Weather Operation 54...........
CONTROLS 36-43.................
Coolant Level 88...................
Cooling System 88.................
Crankcase Emission Control System 68.
D
Diagnostic Mode 48-49.............
Driving in Reverse 66...............
Driving on Slippery Surfaces 59.......
Driving Over Obstacles 65...........
Driving Procedures 57...............
Driving Safely 57-67...............
Driving Through Water 64...........
E
Electrical Switches 36...............
EMISSION CONTROL SYSTEMS 68..
Engaging Front Gearcase 44..........
Engine Cooling System 89...........
Engine Stop Switch 36..............
Exhaust Emission Control System 68...
Equipment Modifications 15..........
F
FEATURES 44-49..................
Filter Systems 96...................
Front Gearcase Oil (400/500) 84.......
Front Gearcase Oil (600/700) 86.......
Front Wheel Hub Tightening 95.......
Fuel Filter 42......................
Fuel Safety 50.....................
Fuel Tank 42......................
Fuel Valve 42......................
G
Gear Selector 43...................
H
Handlebars 114....................
Hauling Cargo 55-56...............
Headlamp Removal/Installation 100....
Headlight Housing Replacement 99....
Headlight Lamp Replacement 97......
High Beam Adjustment 98...........
High Range 104....................
Hour Meter 47.....................
I
Instrument Cluster 45-49............
J
Jetting/Clutching (400) 123..........
Jetting/Clutching (500) 125..........
Jetting/Clutching (600) 127..........
Jetting/Clutching (700) 129..........
K
K-turn 63.........................
L
Light Switches 38..................
Lights 97-100.....................
Low Range 104....................
Lubrication Guide 76-77............
136
INDEX
M
Main Switch 36....................
MAINTENANCE
AND LUBRICATION 69-113....
Maintenance Record 74..............
Making Turns 58...................
Master Cylinder 39.................
N
Noise Emission Control System 68.....
O
Odometer 47......................
Oil Change 80.....................
Oil Change (400/500) 80-81..........
Oil Change (600/700) 82.............
Oil Check 79......................
Oil Filter Change 80................
OPERATION 50-67................
Operator Safety 11-35..............
Override Switch 36.................
P
Parking Brake 40...................
ParkingonanIncline 67.............
Periodic Maintenance Schedule 69-73..
POLARIS PRODUCTS 121...........
Pre-Ride Inspection 52..............
Premium 4 Synthetic Lubricant 78.....
PVT Drying 105...................
PVT System 104-105...............
R
Radiator Coolant Level 89...........
Rear Gearcase Oil (600/700) 87.......
Rear Spring 114....................
Rider Information Center 46-49.......
S
Safe Riding Gear 10................
SAFETY 6-35.....................
Safety Decals and Locations 6-9......
Safety Training 11..................
Setting the Parking Brake 40..........
Side Panel Removal 93..............
S
Sidehilling 61.....................
Spark Arrestor 103.................
Spark Plug Replacement 101.........
Spark Plugs 101....................
SPECIFICATIONS 122-129..........
Starting a Cold Engine 53............
Starting a Warm Engine 54...........
Starting the Engine 53-54............
Steering Assembly 92...............
Storage 110-113...................
Storage Tips 111-113...............
T
TABLE OF CONTENTS 5............
Tachometer 47.....................
Taillight/Brakelight
Lamp Replacement 100.........
Throttle Cable Freeplay 116..........
Throttle Lever 37...................
Tires 94..........................
Toe Alignment 92..................
Transmission Oil (400/500) 83........
Transmission Oil (600/700) 85........
Transporting the ATV 113............
Traveling Downhill 62..............
Traveling Uphill 60.................
Trip Meter 47.....................
TROUBLESHOOTING 117-120......
Turning Around on a Hill 63..........
U
USFS Approved Spark Arrestor 68.....
V
VEHICLE IDENTIFICATION
NUMBERS 4..................
Vehicle Immersion 102..............
W
WARRANTY 130-132..............
WELCOME 3.....................
Wheel Installation 95...............
Wheel Nut Torque Specifications 95....
Wheel Removal 94.................
Part No. 9918540 Rev 04
PRINTED IN THE USA
WARNING
Improper vehicle use can result in SEVERE INJURY or DEATH.
READ OWNER'S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
ALWAYS USE
AN APPROVED
HELMET AND
PROTECTIVE
GEAR
NEVER USE
ON PUBLIC
ROADS
NEVER CARRY
PASSENGERS
NEVER USE
WITH DRUGS
OR ALCOHOL
Operate without proper training or instruction.
Operate on public roads. A collision can occur with another vehicle.
Operate at speeds too fast for your skills or the conditions.
Use ALCOHOL or DRUGS before or while operating this vehicle.
Carry Passengers.
ALWAYS:
Avoid paved surfaces, which may adversely affect handling and control.
Use proper RIDING TECHNIQUES to avoid vehicle overturns on hills
and rough terrain, and in turns.
Wear eye protection, helmet and protective apparel.
NEVER:
