www.polaroid.com
User Guide

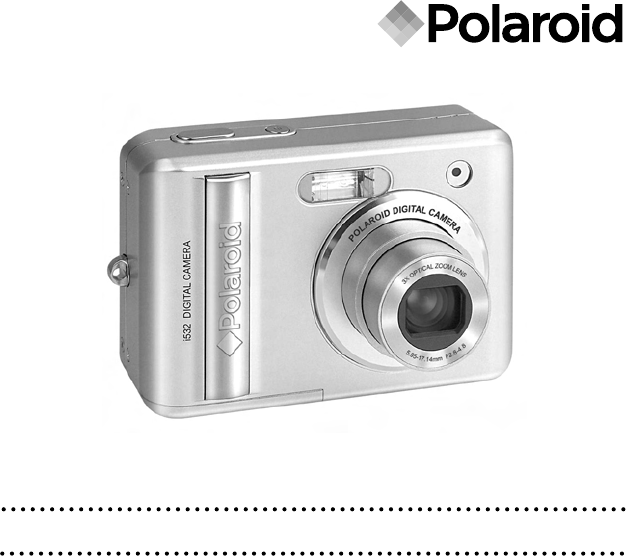

i532 5.0 Megapixels Digital Camera
2Polaroid i532 Digital Camera User Guide
www.polaroid.com
3
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Product Overview
1. Shutter button
2. Flash
3. Lens
4. Power button
5. Self-timer LED
6. DC IN jack
7. USB / AV - OUT port
8. Microphone
8
9. Speaker
10.Zoom out / Thumbnail button
11. LCD Screen
12. Power / Auto Focus LED
13. Zoom in button
14. Playback mode button
15. Menu button
16. Wrist strap holder
17. Mode button
18. Display button
16
17
18
2Polaroid i532 Digital Camera User Guide
www.polaroid.com
3
Polaroid i532 Digital Camera User Guide
www.polaroid.com
19. Macro / Left button
20. Scene mode / Erase / Up button
21. Flash / Right button
22. Self-time / Continuous / Down button
23. Set / Adjust button
23
19
20
21
22
24. Tripod mount
25. Battery / SD card door
25
24
4Polaroid i532 Digital Camera User Guide
www.polaroid.com
5
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Table of Contents
1 Getting Started...........................................................................7
• Camera Package Contents .......................................................8
• Attaching the Wrist Strap ........................................................9
• Installing the Batteries .............................................................9
• Connecting the AC Adapter (Optional).....................................10
• Turning the Camera On and Off..............................................10
• Checking the Battery Power Level ..........................................11
2 Camera Setting.........................................................................12
• Checking Camera Status........................................................12

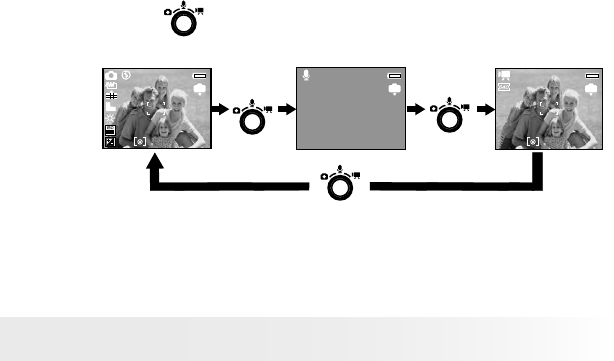

• Camera Modes .....................................................................12
• Capture Modes.....................................................................17
• How to Navigate Menus ........................................................18
• Setup Menu .........................................................................19
• Adjusting the Beep Sound Volume ..........................................20
• Selecting start-up Sound........................................................20
• Selecting Auto Review Period.................................................21
• Power Saving Settings ..........................................................22
• Setting the Date and Time .....................................................23
• Setting the Display Language .................................................24
• File No. Reset Setting............................................................25
• Choosing a Startup Image......................................................26
• Formatting the Internal Memory..............................................28
• Resetting to Default Settings..................................................29

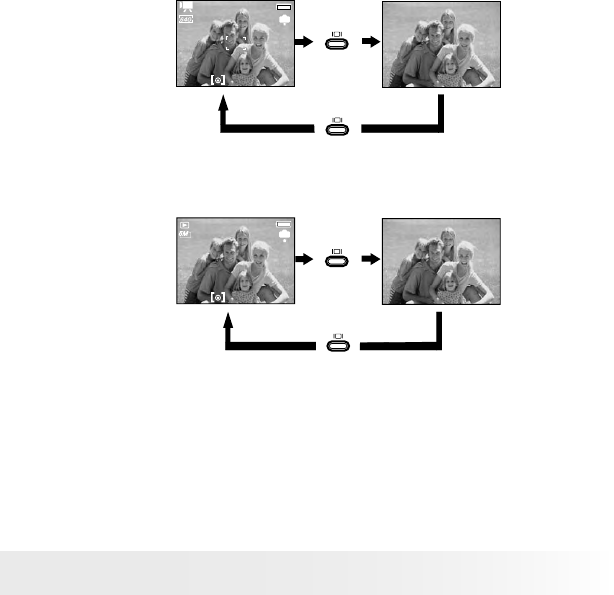

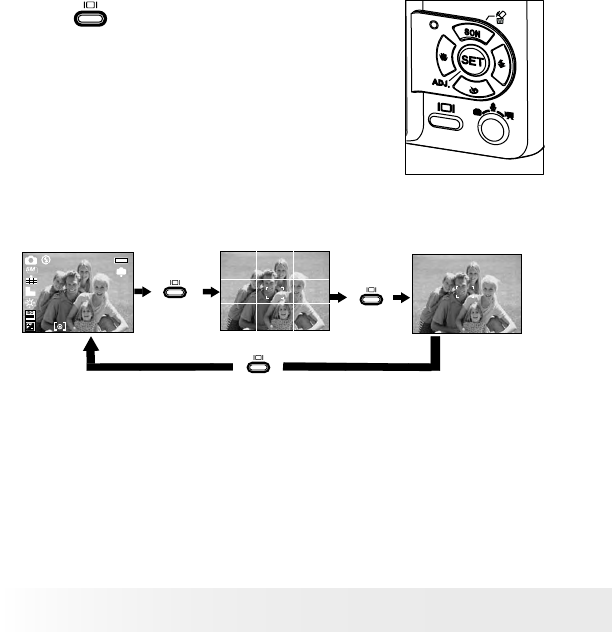

• Turning the Information Display On/Off ...................................30
3 Taking Pictures.........................................................................32
• Taking Pictures in Normal Mode .............................................32
• Taking Pictures in Macro Mode...............................................34
• Taking Pictures in Different Scene Shooting Modes...................35
• Setting Self-timer..................................................................38
• Taking Continuous Pictures....................................................39
4Polaroid i532 Digital Camera User Guide
www.polaroid.com
5
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Zoom Feature.......................................................................40
• Setting the Image Size and Quality..........................................42
• Setting the Sharpness ...........................................................44
• Setting the Photo Effect ........................................................45
• Setting Date/Time, Display On/Off ..........................................46
• Setting White Balance ...........................................................47
• Setting the ISO.....................................................................48
• Setting Exposure Compensation .............................................49
4 Recording Video Clips................................................................50
• Recording Video Clips ...........................................................50
• Setting the Video Size ...........................................................51
5 Recording Audio Clips ...............................................................52
• Recording Audio Clips ...........................................................52
• Recording a Voice Memo for the Desired Image ........................53
6 Managing Pictures and Video clips ..............................................54
• Reviewing Pictures................................................................54
• Rotating the Displayed Picture................................................55
• Changing the Image Size .......................................................56
• Adding Stickers to a Still Image ..............................................57
• Reviewing Picture and Video Clip Files in Thumbnail..................58
• Running a Slide Show on the LCD Screen ................................59
• Playing a Video Clip on the LCD Screen...................................61
• Playing Audio Clips ...............................................................62
• Playing a Voice Memo ...........................................................63
• Protecting/Unprotecting Pictures, Video and Audio Clips............64
• Deleting Pictures, Video and Audio Clips..................................66
• Viewing Pictures and Video Clips on a TV................................67
7 Print Settings ...........................................................................68
• About PictBridge...................................................................68
• About DPOF.........................................................................77
6Polaroid i532 Digital Camera User Guide
www.polaroid.com
7
Polaroid i532 Digital Camera User Guide
www.polaroid.com
8 Using the SD (Secure Digital) Card..............................................79
• Using the SD Card ................................................................79
• Formatting a SD Card............................................................83
• Copying Pictures, Video and Audio Clips to Memory Card..........84
9 Installing the Software onto a Computer ......................................86
• Installing the Software .........................................................86
• Software Included with Your Camera ......................................88
• Computer System Requirements .............................................90
10 Transferring Pictures and Video Clips To a Computer ...................91
• Before Transferring Files .......................................................91
• Connecting to Your Computer ................................................91
• Transferring Pictures and Video Clips to a Computer ................92
11 Troubleshooting Problems.........................................................94
• Troubleshooting....................................................................94
12 Getting Help ...........................................................................97
• Polaroid Online Services ........................................................97
• ArcSoft Software Help ..........................................................97
11 Appendix................................................................................98
• Technical Specifications ........................................................98
• Storage Capacities..............................................................100
• Uninstalling Polaroid i532 Driver (PC only) .............................105
• Camera Default Settings......................................................106
• Using Your Batteries ...........................................................107
• Tips, Your Safety & Maintenance .........................................107
• Regulatory Information ........................................................108
6Polaroid i532 Digital Camera User Guide
www.polaroid.com
7
Polaroid i532 Digital Camera User Guide
www.polaroid.com
1 Getting Started
Thank you for selecting the new Polaroid i532 digital camera for your
imaging needs. The i532 comes equipped with a powerful 5.0 Megapixels
CCD sensor, 2.4-inch bright color TFT LCD, high quality optics and many
manual settings and options.
Outstanding features that your i532 digital camera has:
• A high quality glass lens system for exposures from 2.6 inches to
infinity including 3 times optical and 4 times digital zoom modes.
• Built-in flash with five modes (off, on, red-eye reduction, Slow Sync
and auto).
• Free to edit your images and print your pictures by DPOF.
• Large 2.4 inch LCD screen for easier image preview and review.
• Convenient multiple shooting modes for more accurate reproduction
of pictures.
8Polaroid i532 Digital Camera User Guide
www.polaroid.com
9
Polaroid i532 Digital Camera User Guide
www.polaroid.com

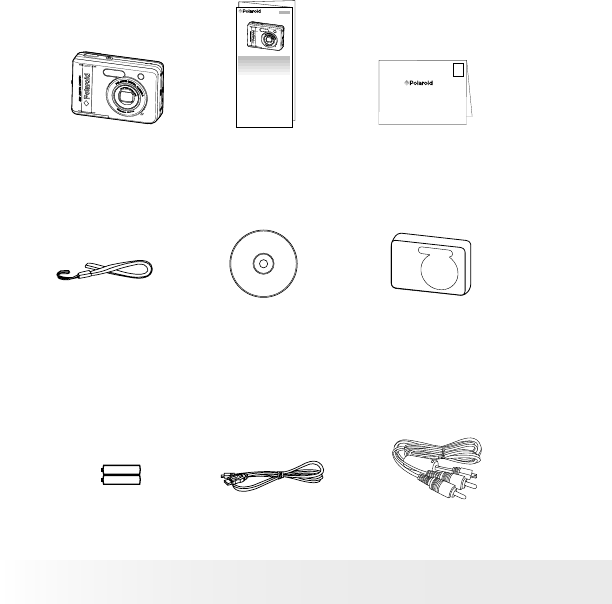

• Camera Package Contents
Registration Card
Digital Imaging Products
201 Burlington Road
Bedford, MA 01730-1434
First Class
Postage
Required
Post Ofce will
not deliver
without proper
postage
i532
The CD-ROM includes
Polaroid i532 Camera Driver (PC)
ArcSoft PhotoStudio™ 5.5 (PC)
ArcSoft PhotoStudio™ 4.3 (Mac)
ArcSoft PhotoPrinter™ 5 (PC)
ArcSoft PhotoPrinter™ 4 (Mac)
DivX (PC) / DivX Doctor II (Mac)
Adobe® Acrobat® Reader™ (PC & Mac)
User Guide (in PDF format)
Skin
Quick Start Guide
I532
Quick Start Guide
Guide de Démarrage rapide
Guida Rapida
Guía Rápida de Inicio
Guia de Início Rápido
ML 0403
Part no.: OM837657 R1
Printed in China
Schnellanleitung
USB Cable
Wrist Strap
AA Batteries Video Cable
8Polaroid i532 Digital Camera User Guide
www.polaroid.com
9
Polaroid i532 Digital Camera User Guide
www.polaroid.com

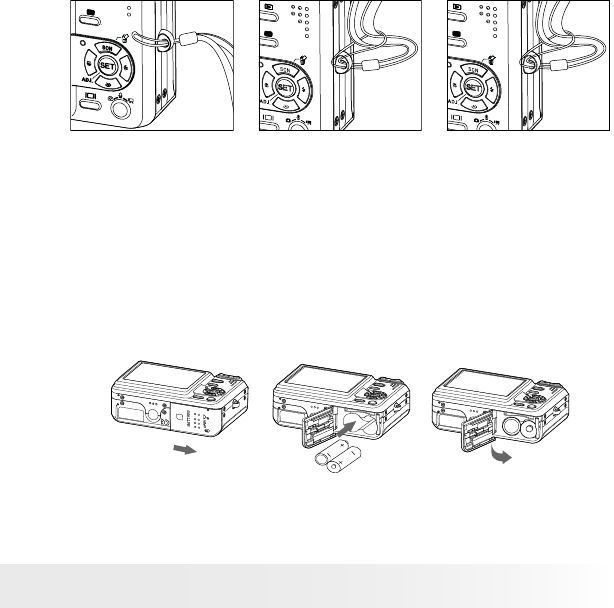

• Attaching the Wrist Strap
• Installing the Batteries
Two AA-size batteries are supplied with the product. For a detailed guideline
on battery usage, please see “Using Your Batteries” on page 107.
1. Open the camera battery door by pushing it outwards as illustrated.
2. Insert the batteries as shown, ensuring you follow the +/- signs
correctly.
3. Close the battery door by pressing it downwards and then sliding it
towards the camera to lock.
10 Polaroid i532 Digital Camera User Guide
www.polaroid.com
11
Polaroid i532 Digital Camera User Guide
www.polaroid.com

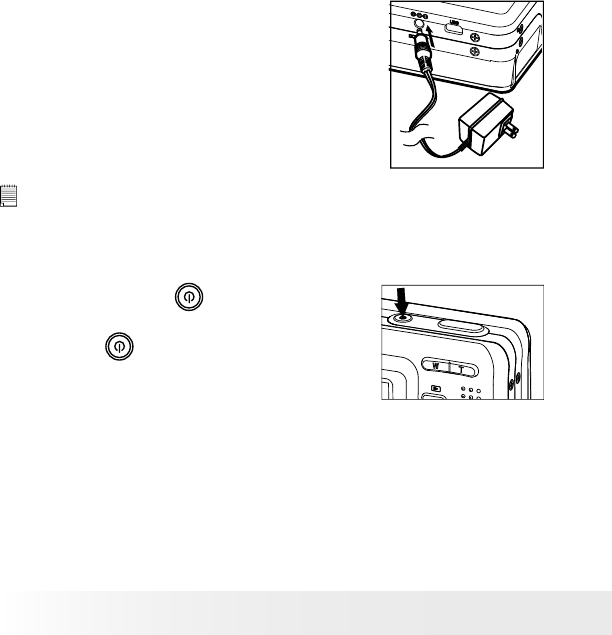

• Connecting the AC Adapter (Optional)
Turn off the camera before connecting or
disconnecting the adapter. Connect the
plug to the camera as shown and connect
the adapter to the household power outlet.
The camera automatically switches over
to AC adapter powered operation. The AC
adapter can be used with or without the
battery in place.
IMPORTANT!
We recommend the user to use the AC adapter (optional, 3.3V/2.0A) to power
the camera whenever connected to a computer.
• Turning the Camera On and Off
1. Press and hold the (POWER) button
until the LCD screen is activated.
2. Press the
(POWER) button again to
turn the power off.
10 Polaroid i532 Digital Camera User Guide
www.polaroid.com
11
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Checking the Battery Level
Check the battery power level before taking pictures.
1. Turn on the camera.
2. Check the battery power level that appears on the LCD screen.
Battery power is full.
Battery power is adequate.
Battery power is exhausted. Please replace
the battery.
12 Polaroid i532 Digital Camera User Guide
www.polaroid.com
13
Polaroid i532 Digital Camera User Guide
www.polaroid.com
2 Camera Settings
• Checking Camera Status
Turn on the camera, view the camera LCD screen to check which
camera settings are active. Those particular features whose icons are not
displayed are not activated.
• Camera Modes
Still Image Mode
+0.7 10
50
2
IN
x2.4
No. Description Icon Ref.
Page

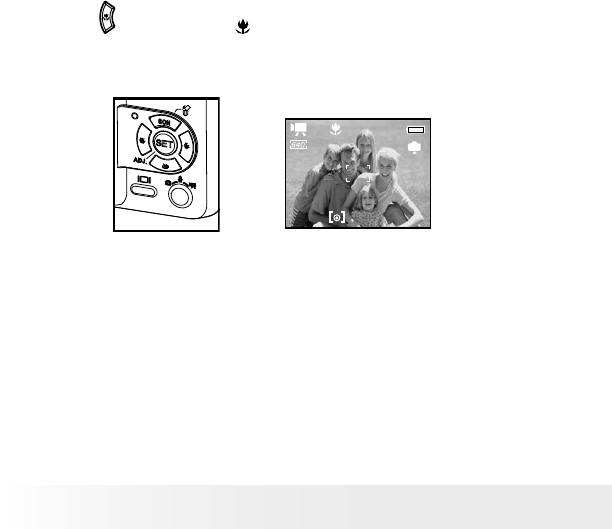

1 Macro Mode
34
2 Flash Mode
, ,
, , 36
12 Polaroid i532 Digital Camera User Guide
www.polaroid.com
13
Polaroid i532 Digital Camera User Guide
www.polaroid.com
No. Description Icon Ref.
Page
3 Shooting Mode , , , , , , ,
, ,
35
4 Image Resolution , , , ,,42
5 Quality , , 43
6 Sharpness , , 44
7 White balance ,
,
, ,
, , AUTO 47
8 ISO Sensitivity 50 , 100 , 200 , AUTO 48
9 Exposure Compensation Value ,-2.........+2 49
10 Self-timer
2,
10 ,
38
Continuous Pictures 39
11 Battery Power Level
,
,
11
12 Internal Memory IN ---
SD Card
---
13 Optical & Digital Zoom Bar
41
Digital Zoom Factor X 1.0 ............ X 4.0 40
14 Focus Mark
---
15 Light Metering , , 43
16 Number of Remaining Pictures ---
14 Polaroid i532 Digital Camera User Guide
www.polaroid.com
15
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Video Mode
00:01:03
IN
No. Description Icon Ref.
Page
1 Video Mode
50
2 Video Size
, , 51
3 Remaining Recording Time 00:01:03 ---
14 Polaroid i532 Digital Camera User Guide
www.polaroid.com
15
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Audio Mode
00:00:13
IN
STANDBY
No. Description Icon Ref. Page
1 Audio mode 52
2 Remaining Recording Time 00:00:13 ---
16 Polaroid i532 Digital Camera User Guide
www.polaroid.com
17
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Playback Mode
IN
4/9
00:01:20
SET:
2005/08/01 18:39
IN
SET:
1/9
00:02:10
IN
2/9
6
5
34
2
2005/08/01 18:39 2005/08/01 18:39
1
No. Description Icon Ref.
Page
1 Playback mode ---54
2 Audio Clip Length 00:02:10 ---
3 Date 2005/08/01 ---
4 Time 18:39 ---
5 File Number 4/9 ---
6 Video Clip Length 00:01:20 ---
• Camera Modes
The camera has two working modes,
Capture mode and Playback mode.
Pressing the PLAYBACK button
switches between the Capture mode and
Playback mode.
16 Polaroid i532 Digital Camera User Guide
www.polaroid.com
17
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Capture Mode
Under this mode, you can record still images, video and audio clips.
This mode allows selecting the image and video settings according to
the shooting environment. For more details, refer to “Taking Pictures”
on page 32, “Recording Video Clips” on page 50 and “Recording Audio
Clips” on page 52.
Playback Mode
This mode allows the review, rotation, protection or deletion of pictures
and video clips from the camera. You also can add your favorite sticker
and a voice memo to a picture. For more details, please refer to “Managing
Pictures and Video Clips” on page 54.
• Capture Modes
The camera has three modes for recording still images, video clips and
audio clips.
Pressing the button cycles through these three modes.
+0.7 5
50
IN
00:09:51
IN
STANDBY
00:01:29
IN
Press
Press
Still lmage Mode Audio Mode Video Mode
18 Polaroid i532 Digital Camera User Guide
www.polaroid.com
19
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• How to Navigate Menus
Menus are used to select capture and play
settings, as well as other camera settings like
the Date/Time and Auto Power Off.
Menu button
1. Press the or button to enter a menu
bar and press it again to exit.
2. Press the
and buttons to scroll left and
right through the menu bar.
RESOLUTION
3. Press the and buttons to scroll up
and down through menu options.
4. Press the button to enter a submenu or
confirm your choice.
18 Polaroid i532 Digital Camera User Guide
www.polaroid.com
19
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setup Menu
You can change the basic settings of the camera in Capture mode and
Playback mode
1. Press the button.
2. Press the or button to choose
(SETUP).
3. Press the button to enter the setup menu.
Menu button
4. Press the button to exit the setup menu.
SETUP
ENTER
SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE ENGLISH
20 Polaroid i532 Digital Camera User Guide
www.polaroid.com
21
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Adjusting the Beep Sound Volume
You can turn the beep sound on and off in Setup mode. When the beep
sound is turned on, the camera will beep when you press the buttons.
1. Access the setup menu.
2. (SOUNDS) is the current selection.
3. Press the button.
4. “VOLUME” is the current selection.
5. Press the or button to select the desired
setting
SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE ENGLISH
SOUNDS
SELECT
VOLUME
START-UP SOUND 1
OK
6. Press the button.
• Selecting start-up Sound
1. Access the setup menu.
2. (SOUNDS) is the current selection.
SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE ENGLISH
3. Press button.
4. Press the button to select “START-UP
SOUND”.
5. Press the or button to select the desired
setting.
SOUNDS
SELECT
VOLUME
START-UP SOUND 1
OK
6. Press the button.
NOTE:
This setting is also available in (Video) and (Playback) modes.
20 Polaroid i532 Digital Camera User Guide
www.polaroid.com
21
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Selecting Auto Review Period
When the auto review feature is activated, the picture just taken will be
shown on the LCD screen for a certain period.
1. Access the setup menu.
SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE English
2. Press the or button to select ( AUTO
REVIEW ).
3. Press the button.
4. Press the or button to select the
desired setting.
SETUP MENU 1/3
SELECT
SOUNDS
AUTO REVIEW
POWER SAVE
DATE & TIME
LANGUAGE
OFF
3 SEC.
5 SEC.
OK
5. Press button.
OFF The auto review feature is not activated.
3 SEC/5 SEC The picture just taken will be shown on the LCD screen
for a certain period.
NOTE:
This setting is also available in (Video) mode.
22 Polaroid i532 Digital Camera User Guide
www.polaroid.com
23
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Power Saving Settings
The camera performs the following power save operation to conserve
battery power. SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE ENGLISH
1. Access the setup menu.
2. Press the or button to select
(POWER SAVE).
3. Press the button.
4. Press or to select the desired
setting.
5. Press the button.
SETUP MENU 1/3
SELECT
SOUNDS
AUTO REVIEW
POWER SAVE
DATE & TIME
LANGUAGE
1 MIN.
3 MIN.
5 MIN.
OK
1/3/5 MIN The camera is designed to switch off automatically to save
battery life after the specified period of inactivity.
NOTE:
This setting is also available in (Video) and
(Playback) modes.
22 Polaroid i532 Digital Camera User Guide
www.polaroid.com
23
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the Date and Time
1. Access the setup menu. SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE ENGLISH
2. Press or button to select
(DATE &
TIME).
3. Press button.
4. Press the or button to select a field,
such year, month, day, hour, minute, and date
format.
5. Press or button to adjust the value in
the field and select the date format.
DATE & TIME
SELECT OK
YY/MM/DD
2005 / 01 / 12 09:38
6. Press the button.
7. Press the button to exit the menu.
NOTE:
• If the batteries are removed for about two days, the TIME setting will be lost.
• This setting is also available in (Video) and
(Playback) modes.
24 Polaroid i532 Digital Camera User Guide
www.polaroid.com
25
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the Display Language
Under this setting, you can select the language you prefer for the LCD
screen.
1. Access the setup menu. SETUP MENU 1/3
SELECT EXIT
SOUNDS
AUTO REVIEW 3 SEC.
POWER SAVE 5 MIN
DATE & TIME
LANGUAGE ENGLISH
2. Press the or button to select
(LANGUAGE).
3. Press the button.
4. Press the or button to select the
desired setting.
5. Press button.
SETUP MENU 1/3
SELECT
SOUNDS
AUTO REVIEW
POWER SAVE
DATE & TIME
LANGUAGE
English
Français
Español
Português
Italiano
OK
6. Press the button to exit the menu.
24 Polaroid i532 Digital Camera User Guide
www.polaroid.com
25
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• File No. Reset Setting
Setting the file numbers in series for all taken picture on the internal
memory or a memory card avoids the file name duplication when images
are downloaded to a computer.
1. Access the setup menu.
2. Press the or to select ICON (FILE NO.).
3. Press the button.
4. Press the or button to select the desired setting.
SETUP MENU 2/3
SELECT EXIT
FILE NO. SERIES
TV OUT NTSC
USB COMPUTER
S. IMAGE
FORMAT
SETUP MENU 2/3
SELECT
FILE NO.
TV OUT
USB
S. IMAGE
FORMAT
SERIES
RESET
OK
SERIES The le number of a newly-captured picture will continue from
the last number used.
RESET The picture le number starts from 0001
5. Press the button.
26 Polaroid i532 Digital Camera User Guide
www.polaroid.com
27
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Choosing a Startup Image
A start-up animation image appears on the LCD screen for a few seconds
when the camera is turned on.
You can choose a recorded image in your camera as your own startup image:
1. Set the camera to Playback mode.
S. IMAGE
USER 1
USER 2
2. Press the or button to select a desired
image.
3. Press the button.
4. Press the or button to select
(S.IMAGE).
5. Press the button.
6. Access the setup menu.
7. Press the or button to select
(S.IMAGE).
SETUP MENU 2/3
SELECT EXIT
FILE NO. SERIES
TV OUT NTSC
USB COMPUTER
S. IMAGE
FORMAT
26 Polaroid i532 Digital Camera User Guide
www.polaroid.com
27
Polaroid i532 Digital Camera User Guide
www.polaroid.com
8. Press the button.
S. IMAGE
SELECT OK
9. Press the or button to select the desired
picture.
10. Press button.
The image that you choose will stored in
directory as a startup image.
11. Press the button to exit the menu.
NOTE:
The startup image will not be deleted even if the original image is deleted or
memory is formatted.
28 Polaroid i532 Digital Camera User Guide
www.polaroid.com
29
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Formatting the Internal Memory
Formatting the internal memory deletes all data stored in it.
1. Access the setup menu. SETUP MENU 2/3
SELECT EXIT
FILE NO. SERIES
TV OUT NTSC
USB COMPUTER
S. IMAGE
FORMAT
2. Press or to select (FORMAT).
3. Press button.
DELETE ALL FILES?
SET: MENU:
NOTE:
• Data deleted by a format operation is not recoverable. Make sure you do not have
any useful data currently stored in the internal memory before you format it.
• Formatting the internal memory destroys all the pictures, even those are
protected.
• With a memory card inserted, the above operation would format the inserted
memory card only. The internal memory will not be formatted .
• This setting is also available in (Video) and (Playback) modes.
28 Polaroid i532 Digital Camera User Guide
www.polaroid.com
29
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Resetting to Default Settings
You can easily change all the settings you made back to the camera
default setting by the following steps.
Please refer to “Camera Default Settings” on page 106 for more details.
1. Access the setup menu. SETUP MENU 3/3
SELECT EXIT
RESET ALL NO
2. Press or to select (RESET ALL).
3. Press the button.
4. Press or to select “YES”.
5. Press the button.
SETUP MENU 3/3
SELECT
RESET ALL
OK
YES
NO
NOTE:
The following settings do not change with this procedure:
• Date & Time setting
• Language setting
• TV out setting
30 Polaroid i532 Digital Camera User Guide
www.polaroid.com
31
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Turning the Information Display On/Off
Press the button each time switches
the LCD screen to the next display mode in
the following mode.
Still Image Mode
+0.7 3
50
IN
Press Press
About Crossing Lines
The crossing lines on the LCD helps check and lock the location of your
subject when you frame it on the LCD screen.
30 Polaroid i532 Digital Camera User Guide
www.polaroid.com
31
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Video Mode
00:00:15
IN
Press
Playback Mode
2005/01/01 12:40
IN
Press
32 Polaroid i532 Digital Camera User Guide
www.polaroid.com
33
Polaroid i532 Digital Camera User Guide
www.polaroid.com
3 Taking Pictures
Before you take pictures, please read this note rst:
NOTE:
Never remove the batteries, disconnect the AC adapter from the camera, or
unplug the adapter while a picture is being saved. Doing so will prevent the
current picture from being saved and may corrupt other pictures already stored
on the camera’s internal memory or a memory card.
• Taking Pictures in Normal Mode
Take a single picture at approximately 2.6 inches to infinity (80 cm to
infinity).
NOTE:
Most settings are saved by the camera when the power is turned off so that the
same setting is automatically available when the power is turned on again. Make
sure you verify your settings when turning the camera on again.
1. Set the camera to the Still Image mode.
2. Frame your subject using the LCD screen.
32 Polaroid i532 Digital Camera User Guide
www.polaroid.com
33
Polaroid i532 Digital Camera User Guide
www.polaroid.com
3. Press the Shutter button halfway to set the exposure and focus. The
camera automatically detects the subject. The camera highlights the
focus mark in green and the Auto Focus LED remains steady on,
indicating the camera focus is locked on the subject.
Auto Focus LED
101
50
+0.7
IN
1/2 F4.9
Focus mark
Shutter speed
Aperture value
5
NOTE:
•
(Still Image) mode is the capture mode by default.
• When the camera highlights the focus mark in red and the Auto Focus LED
remains blinks, there is difficulty in focusing the subject. Release the Shutter
button, recompose the scene and press the Shutter button halfway to reset
the focus.
• The LCD screen will show you the aperture value and shutter speed at which
you take the picture.
4. Hold the camera steadily and slowly press the shutter button down to
take your image.
34 Polaroid i532 Digital Camera User Guide
www.polaroid.com
35
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Taking Pictures in Macro Mode
Use this mode to capture subjects this close to the lens:
Wide End: 0.2 ~ 3.2 ft (5 cm ~ 1 m)
Telephoto: 1.6 ~ 3.2 ft (50 cm ~ 1 m)
1. Set the camera to Still Image mode.
2. Press the button and the icon appears on the LCD screen.
3. Capture procedures are the same as for taking a picture in the normal
capture mode. See page 32.
00:01:05
IN
34 Polaroid i532 Digital Camera User Guide
www.polaroid.com
35
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Taking Pictures in Different Scene Shooting Modes
Select a mode that is suitable to your shooting conditions:
1. Set the camera to Still Image mode.
2. Press the button to show the scene
shooting mode screen.
PROGRAM
SELECT OK
Display Option Description
PROGRAM For taking general pictures
PROTRAIT Blurring the background to focus on the
subject
LANDSCAPE Used for the wide scenic views
NIGHT SCENE Shooting the subject while keeping the
background night scenery
KIDS Take a still image to capture moving kids
BEACH&SNOW Used for the beach or snow scenery
BACKLIGHT Shooting the image of backlight object by
changing metering
SUNSET Enhance the red hue for recording sunset
images
CLOSE-UP Close-up shooting for small subject
TEXT Enhance the black&white contrast
36 Polaroid i532 Digital Camera User Guide
www.polaroid.com
37
Polaroid i532 Digital Camera User Guide
www.polaroid.com
3. Press the , , or button to select the desired setting.
4. Press the button.
5. Capture procedures are the same as for taking a picture in the
normal Capture mode. See page 32.
• Setting Flash Mode
Flash Range:
Wide: 0.2 ~ 8.6 ft (5 cm ~ 2.6 m)
Telephoto: 1.6 ~ 5 ft (50 cm ~ 1.5 m)
1. Set the camera to Still Image mode.
2. Press the button to cycle through the flash settings and select the
one you need. The icon (according to the flash setting you selected)
will appear on the LCD screen.
+0.7 3
50
IN
36 Polaroid i532 Digital Camera User Guide
www.polaroid.com
37
Polaroid i532 Digital Camera User Guide
www.polaroid.com
The camera has five flash modes (default setting is Auto Flash). Use
the flash when you take pictures at night, indoors, or outdoors in heavy
shadows.
Display Option Description
A
Auto ash The ash res automatically as needed. Use this
setting to take most pictures.
Red-eye Reduction The ash res for every picture and the ash
pre-strobes before shooting to reduce red-eye
phenomenon.
Flash Always The ash res for every picture. Use this setting
in high-contrast situations to provide ll-light or
use it indoors in low light.
Sslow sync
The ash res regardless of the surrounding
brightness. In low light conditions, slow shutter
speed provides better lighting of the background
that is out of range of the ash.
Flash Off
The ash does not re. Use this setting for
outdoor pictures or where ash is prohibited
or may be distracting. Also use when shooting
toward a reective surface, such as a window
or mirror. If you do not have enough light
when using this setting, your pictures will be
too dark.
NOTE:
• Flash modes are only used in still image shooting.
• Never touch or block the ash with your ngers.
38 Polaroid i532 Digital Camera User Guide
www.polaroid.com
39
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting Self-timer
Your camera is designed with a self timer function which will allow you to
take pictures with a count down of 2 or 10 seconds.
1. Set the camera to Still Image mode.
2. Press the button repeatedly to cycle
through the self-timer settings and select
the one you need.
Display Option Description
--- Single
shot
Record a single image
2
2-SEC Take a picture after a count down
of 2 seconds.
10
10-SEC Take a picture after a count down
of 10 seconds.
Double Take two pictures in a shot after a
count down of 10 seconds
3. Capture procedures are the same as for taking a picture in the normal
capture mode. See page 32.
NOTE:
• This feature is only available in Still Image mode.
• Place the camera on a at surface or use a tripod when using the self-timer function.
38 Polaroid i532 Digital Camera User Guide
www.polaroid.com
39
Polaroid i532 Digital Camera User Guide
www.polaroid.com
•Taking Continuous Pictures
Continuous pictures mode lets you take up to 4 pictures in quick
succession.
1. Set the camera to Still Image mode.
2. Press button repeatedly until the
icon appears on the LCD
screen.
3. Capture procedures are the same as for taking a picture in the normal
capture mode. See page 32.
NOTE:
• The flash is automatically disabled in the (Continuous) mode.
• This function is not available to resolution 8M.
+0.7 3
50
IN
40 Polaroid i532 Digital Camera User Guide
www.polaroid.com
41
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Zoom Feature
There are two types of zoom in this camera: optical zoom and digital
zoom. Optical zoom alters the focal distance of the lens zoom, and its
factor range is 1X to 3X. Digital zoom is activated after you reach the
maximum optical zoom (3X). It enlarges the part of the image at the centre
of the image screen. Digital zoom factor range is 1X to 4X. These zoom
features let you zoom in the central area of an image and photograph only
the enlarged portion of the picture.
NOTE:
• Using the digital zoom may cause a decrease in image quality.
• Zoom feature is not available during the recording of video clips.
Turn Digital Zoom On/Off
1. Set the camera to Still Image mode.
2. Press the button.
3. Press or button to select ICON
(DIGITAL ZOOM).
4. Press or button to select the
desired setting.
DIGITAL ZOOM
OFF
ON
5. Press the button.
40 Polaroid i532 Digital Camera User Guide
www.polaroid.com
41
Polaroid i532 Digital Camera User Guide
www.polaroid.com
To Zoom In and Out
1. Set the camera to Still Image mode.
2. Press the to zoom in the subject, or press the button to
return to original zoom status. While you press the or
buttons, a red square will show on the zoom status bar as illustrated.
The white square in the bar indicates the zoom status. “T” stands for
“Tele” and “W” stands for “Wide”. Keep the button pressed,
and the camera switches from optical zoom to digital zoom when it
reaches the maximum optical zoom.
3. Now you can takes pictures and review them under the zoom setting
you just made. The zoom setting will remain after pictures are taken. If
you want to take a normal size picture, please use the button.
Digital zoom
status
+0.7 3
50
IN
Optical Zoom Digital Zoom
White Square
42 Polaroid i532 Digital Camera User Guide
www.polaroid.com
43
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the Image Size and Quality
Picture resolution refers to the number of pixels in a digital picture. Picture
quality depends on the JPEG file compression that the camera applies
when the picture is taken. Higher resolution and less compression make
better quality which occupies more memory space. Smaller size pictures
with normal quality are easier to email while larger size with fine quality
are better for printing.
Resolution setting
1. Set the camera to Still Image mode.
2. Press the button.
RESOLUTION
3. Press the or button to select
(RESOLUTION).
4. Press the or button to select the
desired setting.
5. Press the button.
NOTE:
1.The
resolution is interpolated by rmware, while the maximum resolution
of the sensor itself is the .
2.It is recommended to use the resolution for printing pictures.
42 Polaroid i532 Digital Camera User Guide
www.polaroid.com
43
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Quality setting
1. Set the camera to Still Image mode.
2. Press the button.
QUALITY
S. FINE
FINE
NORMAL
3. Press the or button to select
(QUALITY).
4. Press the or button to select the
desired setting.
5. Press the button.
• Setting Light Metering
1. Set the camera to Still Image mode.
2. Press the button.
METERING
CENTER
MULTI
SPOT
3. Press the or button to select
(METERING).
4. Press the or button to select the
desired setting.
5. Press the button.
NOTE:
This setting is also available in (Video) mode.
44 Polaroid i532 Digital Camera User Guide
www.polaroid.com
45
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the Sharpness
Use the sharpness setting to highlight or blend the edges of subjects in
pictures.
1. Set the camera to Still Image mode.
2. Press the button.
3. Press the or button to select
(SHARPNESS).
SHARPNESS
HARD
NORMAL
SOFT
4. Press the or button to select the
desired setting.
5. Press the button.
Option Description
Increases contrast on the edge of the picture. But noise may
occur in the recording image.
The edges of the image are sharp, This is suitable for printing.
Soften the edge of the picture, creating a “soft focus” effect
44 Polaroid i532 Digital Camera User Guide
www.polaroid.com
45
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the Photo effect.
This setting allows control over the color tones and moods of a picture.
1. Set the camera to Still Image mode.
2. Press the button.
3. Press the or button to select
(EFFECT).
EFFECT
OFF
B&W
SEPIA
NEG. ART
4. Press the or button to select the
desired setting.
5. Press the button.
NOTE:
• This setting is available in Still Image and Playback modes.
• The mosaic effect only can be set in Playback mode.
46 Polaroid i532 Digital Camera User Guide
www.polaroid.com
47
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting Date/Time, Display On/Off
Date and time are displayed on the picture by default. You can hide one
or both of them by the following steps.
1. Set the camera to Still Image mode.
2. Press the button.
3. Press or button to select (DATE
STAMP).
DATE STAMP
OFF
DATE
DATE & TIME
4. Press or button to select the
desired setting.
5. Press the button.
46 Polaroid i532 Digital Camera User Guide
www.polaroid.com
47
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting White Balance
Selecting the right type of white balance can help to make the color of a
subject appear more natural under the type of lighting that is available.
1. Set the camera to Still Image mode.
2. Press the button.
3. “WHITE BALANCE” is the current selection.
WHITE BALANCE
DAYLIGHT
AUTO
4. Press the
or button to select the desired setting.
5. Press the
button.
Option Description
AUTO Automatic adjustment
Outdoor daylight
Cloudy
Indoors, illuminated by light bulbs
Adjusts for uorescent lighting. Corrects the green hue of uorescent
lighting. Ideal for indoor photos under uorescent lighting without a ash
For more accurate adjustment or when the light source cannot be
specied
NOTE:
This setting is also available in
(Video) mode.
48 Polaroid i532 Digital Camera User Guide
www.polaroid.com
49
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the ISO
This function enables you to change the camera’s sensitivity to light by
selecting the different ISO values. ISO is a measure of how quickly your
camera reacts to light. The higher the ISO value, the less light the camera
needs to make an exposure, allowing the same exposure to be achieved
with higher shutter speeds or smaller apertures. In a digital camera, higher
ISO value allows higher shutter speed, at the expense of mottled or grain
appearing in the final picture.
ISO
AUTO
50
ISO 50
100 200
1. Set the camera to Still Image mode.
2. Press the button.
3. Press the or button to select “ISO”.
4. Press the or button to select the desired setting.
5. Press the button.
AUTO The camera’s sensitivity is automatically changed by
different lighting value or subject brightness.
50/100/200 In the same lighting condition, the higher the ISO value
is, the faster the shutter speed will be.
48 Polaroid i532 Digital Camera User Guide
www.polaroid.com
49
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting Exposure Compensation
You can adjust the exposure compensation value (EV) within the range
of -2EV to +2EV in order to compensate for current lighting conditions.
This setting can be used to obtain better result when shooting with
backlighting, indirect indoor lighting, a dark background, and so on.
1. Set the camera to Still Image mode.
2. Press the button.
3. Press the or button to select
“EXPOSURE”.
EXPOSURE
-1.0
-2 -1 0 +1 +2
4. Press the or button to select the desired
setting.
5. Press the button.
NOTE:
• A higher EV value is better used for light-colored and backlit subjects. A lower
EV value is better for dark-colored and shooting outdoors on a clear day.
• When shooting under very dark or very bright conditions, you may not be able
to obtain satisfactory results even if performing exposure compensation.
50 Polaroid i532 Digital Camera User Guide
www.polaroid.com
51
Polaroid i532 Digital Camera User Guide
www.polaroid.com
4 Recording Video Clips
• Recording Video Clips
Use the Video mode to record video clips with audio. The Power / Auto
Focus LED button blinks and the remaining time that can be recorded will
decrease in seconds while recording.
1. Set the camera to Video mode.
NOTE:
The icon will appear on the LCD screen,
indicating the Video mode is activated.
00:01:15
IN
2. Frame your subject using the LCD screen.
3. Press the Shutter button half-way and then
completely down to start recording.
4. Press the Shutter button again to stop
recording, or recording stops when the
current memory is full.
NOTE:
Digital zoom feature is not available in
(Video) mode.
50 Polaroid i532 Digital Camera User Guide
www.polaroid.com
51
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Setting the Video size
1. Set the camera to (Video mode).
2. Press the
button.
3. Press the or button to select
(MOVIE SIZE).
4. Press the button.
MOVIE SIZE
5. Press the or button to select the desired setting.
6. Press the button.
NOTE:
is the default value, suitable for viewing on TV.
is suitable for viewing on PC.
is suitable for sending out as an attachment via e-mail.
52 Polaroid i532 Digital Camera User Guide
www.polaroid.com
53
Polaroid i532 Digital Camera User Guide
www.polaroid.com
5 Recording Audio Clips
• Recording a Audio Clip
1. Set the camera to (Audio mode).
2. Press the Shutter button completely down to start recording.
3. Press the Shutter button again to stop recording or recording stops
when the current memory is full.
00:05:15
IN
STANDBY
00:05:15
REC
52 Polaroid i532 Digital Camera User Guide
www.polaroid.com
53
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Recording a Voice Memo for the Desired Image
1. Set the camera to the Playback mode.
2. Press the or button to select the
desired image where you want to add a
voice memo.
VOICE MEMO
ON
3. Press the button.
4. Press the or button to select “VOICE
MEMO”
5. Press button.
IN
2/2
SET: MENU:
2005/01/01 12:40
6. Press the button to start recording.
7. Press the
button again to stop recording.
00:00:02
SET:
REC
NOTE:
• The voice memo cannot be added to a video clip or a protected image.
• You can only delete the voice memo by deleting the image.
• A voice memo may not exceed 30 seconds.
54 Polaroid i532 Digital Camera User Guide
www.polaroid.com
55
Polaroid i532 Digital Camera User Guide
www.polaroid.com
6 Managing Pictures and Video Clips
NOTE:
The camera automatically saves the image as a new le after rotating, resizing
and adding a voice memo to it. Make sure there is sufcient memory before
editing an image.
• Reviewing Pictures
1. Set the camera to Playback mode.
2. Use the and buttons to view the pictures
taken.
IN
2/9
2005/01/01 12:40
• Magnifying the Displayed Picture
1. Set the camera to Playback mode.
2. Use the and buttons to select a picture.
3. Press
to magnify the select picture.
4.`Press the
, , or button to move around the magnified
picture.
5. Press the button to view the picture in the original size.
1.2X
54 Polaroid i532 Digital Camera User Guide
www.polaroid.com
55
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Rotating the Displayed Picture
The currently displayed picture can be rotated for a better review angle
on the LCD screen.
1. Set the camera to PLAYBACK mode.
2. Press the button.
3. Press the or button to select (ROTATE).
4. Press the or button to select the desired setting.
5. Press the button.
IN
2/2
2005/01/01 10:30
ROTATE
RIGHT 90
LEFT 90
HORIZONTAL
VERTICAL
NOTE:
• The rotated image will be saved as a new le name.
• This setting is not available for 8M resolution.
56 Polaroid i532 Digital Camera User Guide
www.polaroid.com
57
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Changing the image size
Resizing a large size image to a smaller one helps to share with families
and friends.
1. Set the camera to PLAYBACK mode.
2. Press the button.
3. Press the or button to select (RESIZE).
RESIZE
4. Press the or button to select the desired setting.
5. Press the button.
NOTE:
• The resized image will be saved as a new le name.
• Only a large size image can be resized to a smaller one.
56 Polaroid i532 Digital Camera User Guide
www.polaroid.com
57
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Adding Stickers to a still image
1. Set the camera to the Playback mode.
2. Use the and buttons to select an image.
STICKER
ENTER
3. Press the button
4. Press the or to select (STICKER).
5. Press the button.
6. Press the or to select a sticker or more.
STICKER
7. Press the button.
8. Press the , , or button to move
the sticker around on the image.
MOVE OK
ROTATE WT
9. Press the button.
58 Polaroid i532 Digital Camera User Guide
www.polaroid.com
59
Polaroid i532 Digital Camera User Guide
www.polaroid.com
10. Press the button.
11. Press the button to save the current image.
12. Press the button to exit.
SET: MENU: X
SAVE IMAGE?
NOTE:
The sticker-added image will be saved as a new le.
• Reviewing Pictures and Video Clip Files in Thumbnail
You can view up to 9 picture and video clip files at a time on the LCD
screen by using the thumbnail function.
1. Set the camera to the Playback mode.
2. Press the button and up to 9 thumbnail files
appear on the LCD screen .
3. Press the , , or button to select
a thumbnail file.
4. Press the button to view the file in full
screen.
IN
2005/01/10 11:12
123
58 Polaroid i532 Digital Camera User Guide
www.polaroid.com
59
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Running a Slide Show on the LCD screen
The slide show function lets you view all the pictures and video clip files
stored in the current memory in sequence on the LCD screen.
1. Set the camera to the Playback mode.
SLIDE SHOW
ENTER
2. Press the button.
3. Press the or button to select “SLIDE
SHOW”.
4. Press the button.
Setting Slide Show Interval Time
5. ICON is the current selection.
SET: MENU:
6 SEC
YES
IN
4/4
2005/01/10 11:12
6. Press the or
button to select the interval
period for each file to display.
60 Polaroid i532 Digital Camera User Guide
www.polaroid.com
61
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Setting Repeat On/Off
7. Press the button to select
ICON.
SET: MENU:
6 SEC
YES
IN
4/4
2005/01/10 11:12
8. Press the or to select the desired setting.
Running a Slide Show
9. Press the button to start a slide show.
10. Pressing the button pauses the slide show.
11. Pressing the stops the slide show.
The slide show will keep running as long as there is power supply. We
recommend the user to use AC power for reviewing slides.
NOTE:
This function is not available for the video clips and voice recording.
60 Polaroid i532 Digital Camera User Guide
www.polaroid.com
61
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Playing a Video Clip on LCD Screen
1. Set the camera to Playback mode.
2. Press the and buttons to select the desired video clip.
3. Press the button to start playing the video clip.
4. Press the button again to pause.
5. Press the button to stop the video clip.
IN
2005/01/01 12:40
2/9
00:00:04
SET:
00:00:04
PLAY
62 Polaroid i532 Digital Camera User Guide
www.polaroid.com
63
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Playing Audio Clips
1. Set the camera to the Playback mode.
2. Press the and buttons to select the desired audio clip .
3. Press the button to start playing the audio clip.
4. Press the button again to pause.
5. Press the button to stop playing.
2005/01/01 12:40
IN
SET:
2/9
00:00:01
00:00:01
PLAY
62 Polaroid i532 Digital Camera User Guide
www.polaroid.com
63
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Playing a Voice Memo
1. Set the camera to the Playback mode.
2. Press the and buttons to select the desired image that has the
voice memo recorded.
3. Press the button to start playing the voice memo.
4. Press the button again to pause.
5. Press the button to stop playing.
00:00:03
SET: MENU:
PLAY
2005/01/01 12:40
SET:
1/9
IN
64 Polaroid i532 Digital Camera User Guide
www.polaroid.com
65
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Protecting/Unprotecting Pictures, Video and Audio Clips
1. Set the camera to the Playback mode.
2. Press button.
3. Press the or button to select the desired
setting.
4. Press the button.
PROTECT
SINGLE
LOCK ALL
UNLOCK ALL
SINGLE Protect the selected picture, video or audio clip.
LOCK ALL Protect all of the pictures, video and audio clips in the
current memory.
UNLOCK ALL Remove protection from all protected pictures, video and
audio clips in the current memory.
Protect Single Picture, Video or Audio Clip
5. Press the or button to select the picture,
video or audio clip you want to protect.
6. Press the button.
2005/01/01 12:40
2/9
SET: MENU:
IN
7. Press the or button to select another one
and protect it .
64 Polaroid i532 Digital Camera User Guide
www.polaroid.com
65
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Protect All pictures, Video and Audio Clips
5. Press the button.
2/9
SET: MENU:
LOCK ALL FILES?
IN
2005/01/01 12:40
6. Press the button.
Remove Protection from All Pictures, Video and Audio Clips
5. Press the
button.
6. Press the button.
2/9
UNLOCK ALL FILES?
SET: MENU:
IN
2005/01/01 12:40
NOTE:
• The icon appears on the LCD screen when you review the protectedles.
• Protected les cannot be deleted. Remove protection before deleting.
• Formatting the internal memory or a SD card deletes all les, including the
protected les.
66 Polaroid i532 Digital Camera User Guide
www.polaroid.com
67
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Deleting Pictures, Video and Audio Clips
1. Set the camera to the Playback mode. DELETE
SINGLE
ALL
2. Press the button.
3. Press the or button to select (DELETE).
4. Press the or button to select the
desired setting.
5. Press the button.
Deleting a Single Picture, Video or Audio Clip
6. Press the or button to select the picture.
video or audio clip you want to delete.
7. Press the button.
2/2
SET: MENU:
IN
NOTE:
You can also press the
button to delete a single le.
Deleting All Pictures, Video and Audio Clips
6. Press the button.
SINGLE Delete a selected unprotected option.
ALL Delete all the unprotected files in the current
memory.
2/2
SET: MENU:
DELETE ALL FILES?
IN
NOTE:
• Protected les cannot be deleted. Remove protection before deleting.
• All deleted pictures and video clips cannot be recovered.
66 Polaroid i532 Digital Camera User Guide
www.polaroid.com
67
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Viewing Pictures and Video Clips on a TV
To set the video output system:
The video output signal (NTSC or PAL) can be switched to accommodate
different signal systems. For example, NTSC for U.S.A., Canada, Taiwan,
Japan, etc. and PAL for Europe, Asia (excluding Taiwan), etc.
You can change the video output system according to the following
steps:
1. Access the setup menu.
2. Press the or button to select (TV
Out).
3. Press the button.
SETUP MENU 2/3
SELECT EXIT
FILE NO. SERIES
TV OUT NTSC
USB COMPUTER
S. IMAGE
FORMAT
4. Press the or button to select the
desired setting.
5. Press the button.
SETUP MENU 2/3
SELECT
FILE NO.
TV OUT
USB
S. IMAGE
FORMAT
OK
NTSC
PAL
6. Press the button to exit the menu.
68 Polaroid i532 Digital Camera User Guide
www.polaroid.com
69
Polaroid i532 Digital Camera User Guide
www.polaroid.com
7 Print Settings
• About PictBridge
PictBridge is a new industry standard that allows you to print images
directly from a PictBridge enable digital still camera to a PictBridge
compatible printer without using a photo editing software or a computer.
Printing Procedures
1. Preparing the camera and the printer.
Printer
Camera Be sure battery level is full before printing.
Refer to the user guide that comes with your
printer and make preparations (paper, ink cassette,
cartridge, etc.) as required.
Turn on the camera and the printer.
2. Selecting PictBridge mode
Access the setup menu to enable the USB port. Refer to page 69 for
details.
3. Connecting the camera to the printer
Refer to "Camera / Printer Connection" on page 70 for details.
4. Select print settings.
Use the camera's function and navigation buttons to select the print
settings. Refer to page 71 for details.
5. Printing
Press the
button to start printing.
68 Polaroid i532 Digital Camera User Guide
www.polaroid.com
69
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Cancelling Printing
Press the
button to cancel printing the
print job. The printer will stop printing and
eject the paper.
CANCELING?
Printing Errors
If for some reason an error occurs during or
before printing, press button to exit and
reconfigure printing settings.
OPERATIONG ERROR
NOTE:
• Please refer to the printer’s user guide for the solutions. Printing may resume
once the problem is solved.
Selecting PictBridge Mode
1. Turn on the camera.
2. Access the setup menu.
3. Press the
or button to select
the desired setting.
4. Press the
button.
5. Press the
or button to select
“PRINTER”.
SETUP MENU 2/3
SELECT
FILE NO.
TV OUT
USB
S. IMAGE
FORMAT
OK
COMPUTER
PRINTER
70 Polaroid i532 Digital Camera User Guide
www.polaroid.com
71
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Camera / Printer Connection
Connecting with the USB Cable.
USB port
To Printer
1. Plug the labelled end of the USB cable into the socket marked
on your printer. Location of USB socket will vary from printer to
printer.
2. Plug the other end of the USB cable into the USB port on your
camera.
SELECT
PICTBRIDGE MENU 1/2
SELECT
PRINT
QUALITY AUTO
LAYOUT AUTO
PAPER SIZE AUTO
CONNECTING......
NOTE:
• “CONNECTING” displays on the LCD screen, indicating a proper connection to
the printer.
• Do not connect the USB cable with the camera and printer until Printer mode
is enabled.
70 Polaroid i532 Digital Camera User Guide
www.polaroid.com
71
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Selecting Print images
1. Access the PictBridge menu.
2. Press the
or button
to select the desired setting.
3. Press the button.
The following options are available.
SETUP MENU 1/2
SELECT OK
PRINT
QUALITY
LAYOUT
PAPER SIZE
SINGLE
ALL
ALL
SINGLE Print the selected image in the camera’s internal
memory or a memory card according to specified
settings.
Print all images in the camera’s internal memory
or a memory card according to the specified
settings.
NOTE:
• Print settings are congured for images only. Make sure there are no video clips
or other le besides images in the memory before printing,
• Not all printers will support all these print options. Please refer to the printer
user guide for options available.
72 Polaroid i532 Digital Camera User Guide
www.polaroid.com
73
Polaroid i532 Digital Camera User Guide
www.polaroid.com
If you choose single image, press the
or
button to select a desired
image, and press the
or
button to set the number of copies.
2005/01/01 12:26
1/9
MENU:
X01
2005/01/01 12:26
1/9
MENU:
X01
2005/01/01 12:26
1/9
MENU:
X04
Press
Press
or
or
NOTE:
The value for number of copies is : 1 to 30.
72 Polaroid i532 Digital Camera User Guide
www.polaroid.com
73
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Selecting Print Quality
1. Access the PictBridge menu.
2. Press the
or button to select the
desired setting.
3. Press the button.
The following quality settings are available:
AUTO, FINE, DRAFT, NORMAL
PICTBRIDGE MENU 1/2
SELECT OK
PRINT
QUALITY
LAYOUT
PAPER SIZE
AUTO
FINE
DRAFT
NORMAL
AUTO Print settings differ according to the printer model.
74 Polaroid i532 Digital Camera User Guide
www.polaroid.com
75
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Selecting Print Layout
1. Access the PictBridge menu.
2. Press the
or button to select the
desired setting.
3. Press the button.
The following layout settings are available:
AUTO, FULL, 1, 2, 4
PICTBRIDGE MENU 1/2
SELECT OK
PRINT
QUALITY
LAYOUT
PAPER SIZE
AUTO
1
FULL
2
4
AUTO Print settings differ according to the printer model.
Full Print a full-size picture on the selected paper.
1/2/4 Specify the number of printed images on a page.
Selecting Paper Size
1. Access the PictBridge menu.
2. Press the
or button to select the
desired setting.
3. Press the
button.
The following paper size are available:
AUTO, 3X5, 4X6, 5X7, 6X8
PICTBRIDGE MENU 1/2
SELECT OK
PRINT
QUALITY
LAYOUT
PAPER SIZE
AUTO
A4
AUTO Print settings differ according to the printer model.
74 Polaroid i532 Digital Camera User Guide
www.polaroid.com
75
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Selecting Paper Type
1. Access the PictBridge menu.
2. Press the
or button to select the
desired setting.
3. Press the button.
PICTBRIDGE MENU 2/2
SELECT OK
PAPER TYPE AUTO
DATE PHOTO
FILE NO PLAIN
RESET
The following paper type are available:
AUTO, PHOTO, PLAIN
AUTO Print settings differ according to the printer model.
Setting the Date Stamp On / Off
1. Access the PictBridge menu.
2. Press the
or button to select the
desired setting.
3. Press the button.
PICTBRIDGE MENU 2/2
SELECT
OK
PAPER TYPE AUTO
DATE OFF
FILE NO ON
RESET
AUTO Print settings differ according to the printer model.
ON Add the date stamp to the printed image.
OFF Print without the date stamp.
76 Polaroid i532 Digital Camera User Guide
www.polaroid.com
77
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Setting the File Name On / Off
1. Access the PictBridge menu.
2. Press the
or button to select the
desired setting.
3 Press the button.
PICTBRIDGE MENU 2/2
SELECT OK
PAPER TYPE AUTO
DATE OFF
FILE NO ON
RESET
AUTO Print settings differ according to the printer model.
ON Add the file name to the printed image.
OFF Print without the file name.
• Resetting to Default Settings
NOTE:
Choosing the “RESET” setting in PictBridge menu returns all print settings to the
default value. More details, refer to “Resetting to Default Setting” on page 29.
Selecting Print format
1. Access the PictBridge menu.
2. Press the
or
button to select the
desired setting.
3. Press the button.
PICTBRIDGE MENU 1/2
SELECT OK
PRINT
QUALITY
LAYOUT
PAPER SIZE
STANDARD
INDEX
DPOF
STANDARD Print settings differ according to the printer model.
INDEX Print pictures as a thumbnail image.
DPOF Print settings by DPOF format.
76 Polaroid i532 Digital Camera User Guide
www.polaroid.com
77
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• About DPOF
DPOF stands for “Digital Print Order Format”, which is a format for
recording on a memory card or other medium which digital camera images
should be printed and how many copies of the image should be printed.
Then you can print on a DPOF-compatible printer or at a professional
print service from the memory card in accordance with the file name and
number of copies settings recorded on the card.
With this camera, you should always select images by viewing them on
the LCD screen. Do not specify images by file name without viewing the
file contents.
IMPORTANT!
DPOF print settings can be congured for images on a memory card only, not for
images in the camera’s built-in memory.
Setting the DPOF:
1. Insert an SD card into the camera.
2. Turn on the camera.
3. Set the camera to the Playback mode.
4. Press the button.
5. Press left or right button to select DPOF
6. Press the or button to select the
desired setting.
DPOF
SINGLE
ALL
RESET
78 Polaroid i532 Digital Camera User Guide
www.polaroid.com
79
Polaroid i532 Digital Camera User Guide
www.polaroid.com
SINGLE The selected picture in a memory card will be printed
out up to 30 copies.
ALL All pictures in a memory card will be printed out up to
30 copies for each picture.
RESET Returns to the normal playback mode.
6. Press the button.
2/9
SET: MENU:
DATE DATE
x02
2005/01/01 12:40
IN
7. Press the or button to select the picture
you want to print out.
8. Press the or button to select the
number of print copies.
9. Pressing the button activates the date stamp
setting.
will appear on the LCD screen.
10. Press the button to complete the setting.
2/9
RESET DPOF?
SET: MENU: X
IN
2005/01/01 12:40
11. Power off the camera.
12. Remove the memory card from the camera and insert it into the
printer’s card slot (as illustrated). Location of the card slot may vary
from printer to printer model.
NOTE:
Make sure you turn off the camera before inserting or
removing a memory card.
13. Press the Print button on the printer to start
printing.
NOW PRINGTING
001/001
78 Polaroid i532 Digital Camera User Guide
www.polaroid.com
79
Polaroid i532 Digital Camera User Guide
www.polaroid.com
8 Using the SD (Secure Digital) Card
• Using the SD Card
Your camera comes with built-in flash memory for storing pictures and
video clips. You can expand the memory using a commercially available
SD card (up to 1GB). The camera senses whether a memory card is
inserted, and automatically saves pictures and video clips accordingly.
Note that you cannot save pictures or video clips to the built-in flash
memory while a memory card is installed in the camera. See pages 100 to
101 for storage capacities.
Memory card precautions:
1. Use only a SD memory card with this camera.
2. Electrostatic charge, electrical noise, and other phenomena can cause
data corruption or even loss. Always make sure that you always back
up important data on other media (MO disc, computer hard drive,
etc.).
3. If a memory card starts to behave abnormally, you can restore normal
operation by formatting it. However, we recommend that you always
take along with more than one memory card whenever using the
camera far away from your home or office.
4. We recommend that you format a memory card when using it for the
first time, or whenever the card you are using seems to be the cause
of abnormal pictures. Remember to format a memory card if it was
used in another digital camera or other devices.
80 Polaroid i532 Digital Camera User Guide
www.polaroid.com
81
Polaroid i532 Digital Camera User Guide
www.polaroid.com
IMPORTANT!
• Make sure you turn off the camera before inserting or removing a memory
card.
• Be sure to orient the card correctly when inserting it. Never try to force a
memory card into the slot when you feel resistance.
• SD memory cards have a write protection switch that you can use to protect
les from accidental deletion. However, you must remove the write protection
whenever you want to record new les onto it, format it, or delete its les.
• Files contained in the SD card recorded by other cameras may conict with
the i532 camera, and valuable data in your existing SD card may be distorted
or lost when the card is inserted in the i532 camera. We strongly recommend
the user to use a NEW or formatted SD card for the i532 camera. The
manufacturer is not liable for losing or corrupting any valuable data or les in
your SD card due to improper operation.
• As tests prove, the i532 works best with popular brands of memory cards
such as SanDisk, Panasonic, Lexar and TOSHIBA. Consider using these cards
for best performance.
80 Polaroid i532 Digital Camera User Guide
www.polaroid.com
81
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Inserting a SD card
1. Turn off the camera.
2. Open the SD card door by pushing it outwards as illustrated.
3. Insert the SD card and ensure the card is inserted the correct position
as illustrated.
4. Close the SD card door by pressing it downwards and then slide it
back to lock.
The icon will appear on the LCD screen when a SD card is inserted into
the camera.
82 Polaroid i532 Digital Camera User Guide
www.polaroid.com
83
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Removing the SD card
To remove the SD card, turn off your camera and open the SD card door.
Gently push the SD card inwards and then release it. The SD card will
eject out of the SD card slot.
IMPORTANT!
• Never insert any other object into the camera’s SD card slot. Doing so creates
the risk of damage to the camera and card.
• Should water or any foreign objects ever get into the card slot, immediately
turn off the camera, remove the battery or disconnect the AC adapter, and
contact your dealer or the nearest service provider.
• Never remove a card from the camera while the camera is powered on. Doing
so can cause the picture or video recording operation to fail, and even damage
the memory card.
82 Polaroid i532 Digital Camera User Guide
www.polaroid.com
83
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Formatting a SD card
Formatting a memory card erases all data stored on it, including the
protected ones. Removing the SD card during formatting may damage
the card.
1. Insert an SD card into the camera.
2. Turn on the camera.
SETUP MENU 2/3
SELECT EXIT
FILE NO. SERIES
TV OUT NTSC
USB COMPUTER
S. IMAGE
FORMAT
3. Access the setup menu.
4. Press the or button to select (FORMAT)
.
5. Press the button.
6. Press the button.
DELETE ALL FILES?
SET: MENU:
IMPORTANT!
• SD cards formatted in another camera, computer or other devices may not
work properly. It is recommended to format SD cards with your i532 camera.
• Note that data deleted by formatting operation cannot be recovered. Make
sure you do not have any useful data currently stored on a memory card before
you format it.
84 Polaroid i532 Digital Camera User Guide
www.polaroid.com
85
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Copying Pictures, Video and Audio Clips to Memory Card
This setting allows you to copy pictures, video and audio clips stored in
the internal memory to a memory card.
1. Insert an SD card into the camera.
2. Turn on the camera.
3. Set the camera to the Playback mode.
COPY TO CARD
SINGLE
ALL
4. Press the button.
5. Press the or button to select ICON (COPY TO CARD).
6. Press the or button to select the desired setting.
7. Press the button.
SINGLE Copy a selected image or video clip
ALL Copy all the files in the current memory.
84 Polaroid i532 Digital Camera User Guide
www.polaroid.com
85
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Copy Single File
8. Press the or button to select a picture, video
or audio file.
2005/01/01 12:40
9/9
SET: MENU:
IN
9. Press the button.
Copy All Files
8. Press the button. COPY ALL CAMERA
FILES TO A CARED?
SET: MENU: X
NOTE:
With a memory card inserted into the camera, the card memory has a higher
priority over the internal memory. The selected picture or video clip can be only
copied from internal memory to the memory card.
86 Polaroid i532 Digital Camera User Guide
www.polaroid.com
87
Polaroid i532 Digital Camera User Guide
www.polaroid.com
9 Installing the Software onto a Computer
• Installing the Software
For Windows® Users: PC
IMPORTANT!
MAKE SURE YOU INSTALL ALL THE SOFTWARE FROM THE CD SUPPLIED
BEFORE YOU CONNECT YOUR CAMERA TO A COMPUTER AND TRANSFER
PICTURES FROM YOUR CAMERA TO THE COMPUTER.
IMPORTANT! (For Windows® 98SE)
On Windows® 98SE Mass Storage function needs to install the i532 Driver.
After the installation, please restart the Windows before connecting the camera
to the PC.
IMPORTANT! (For Windows® Me, 2000, XP)
Directly plug-in the camera to transfer and play the pictures. No need to install
the driver.
IMPORTANT!
To view the video clips it is recommended to install the Windows Media Player.
It has already installed in the operating system or can be downloaded from the
address: www.microsoft.com.
IMPORTANT!
To play the video clips (AVI format), it is necessary to install the DivX from the
CD supplied.
86 Polaroid i532 Digital Camera User Guide
www.polaroid.com
87
Polaroid i532 Digital Camera User Guide
www.polaroid.com
1. Before you begin, close all other
software applications open on
your computer.
2. Insert the CD supplied into the
computer CD-ROM Drive.
3. The CD User Interface Screen
will automatically launch.
4. With the mouse, click on each
software interface button in
turn and follow the on screen
instructions.
Open & Close
NOTE:
If the setup screen does not appear
after loading the CD, then you can
manually start it by double clicking
the “My Computer” icon on your
desktop, then double clicking the icon
for the CD-ROM drive. When the CD-
ROM window opens, double click the
“INSTALL-E.EXE” icon.
For Macintosh Users: Mac
IMPORTANT!
To play the video clips (AVI format), it is necessary to install the DivX Doctor
II from the CD supplied.
IMPORTANT!
To view the video clips it is recommended to install the QuickTime Player.
88 Polaroid i532 Digital Camera User Guide
www.polaroid.com
89
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Software Included with Your Camera
The i532 software CD contains the following software:
Polaroid i532 Camera Driver Plug & Play removable disk
Easy to use, just plug the camera to a computer and use it as a removable
disk. Use the ArcSoft® PhotoStudio to edit and print the Pictures.
ArcSoft® PhotoStudio® Picture Editing Software
ArcSoft® PhotoStudio® is an easy-to-use and powerful image-editing
software loaded with everything you need to fix, print, and get creative
with your digital pictures. This program gives you quick access and all-
at-once enhancement to the pictures on your computer, for example,
removing red-eye and cloning objects to a different picture. Add special
effects or place them in cards, calendars, frames and fantasy templates.
ArcSoft® PhotoStudio® also includes a wide variety of printing options.
ArcSoft PhotoPrinter Picture Editing Software
A quick, easy way to get great-looking photo prints at home. In just a
couple of clicks you can turn your favorite digital snapshots into gorgeous
color photos ready for framing, scrapbooking, or sending to family and
friends.
Adobe® Acrobat® Reader™ .PDF File Reading Software
Adobe® Acrobat® Reader™ lets you view and print Adobe Portable
Document format (PDF) files on all major computer platforms, as well as
fill in and submit Adobe PDF forms online.
88 Polaroid i532 Digital Camera User Guide
www.polaroid.com
89
Polaroid i532 Digital Camera User Guide
www.polaroid.com
DivX®/DivX® Doctor II Advanced Digital Media Format
DivX lets you play, create and share digital video by turning bulky videos
into lean, mean DivX files. The DivX® codec (short for compressor/
decompressor) can compress video to a convenient size without losing
any noticeable quality and play those videos back on almost any device.
QuickTime Player Media Playing Software (Mac Only)
The QuickTime Player is an easy-to-use application for playing, interacting
with or viewing any video, audio, VR, or graphic file that is compatible
with QuickTime.
90 Polaroid i532 Digital Camera User Guide
www.polaroid.com
91
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Computer System Requirements
For acceptable picture transferring and editing performance, we recommend
the following minimum requirements;
For Windows® Users PC
• Compatible with Microsoft® Windows® 98SE, Me, 2000 or XP
• Pentium® III 450MHz or equivalent processor
• USB Port
• 128MB RAM (256 MB recommended)
• 500MB free disk space
• Color monitor with high color (16-bit) graphic capability or higher
• CD-ROM drive
• Standard mouse and keyboard
• Stereo speakers
• DivX
For Macintosh Users Mac
• Mac® OS Version 9.2~X
• PowerMac G3 or higher
• USB Port
• 128 MB RAM (256 MB recommended )
• 500 MB Free disk space
• Color monitor with high color (16-bit) graphic capability or higher
• CD-ROM drive
• Standard mouse and keyboard
• Stereo speakers
• DivX Doctor II
90 Polaroid i532 Digital Camera User Guide
www.polaroid.com
91
Polaroid i532 Digital Camera User Guide
www.polaroid.com
10 Transferring Pictures and Video Clips to a Computer
• Before Transferring Files
IMPORTANT! - FOR PC USERS
BEFORE YOU CONNECT YOUR DIGITAL CAMERA TO THE COMPUTER, MAKE
SURE THAT YOU HAVE INSTALLED THE SOFTWARE FROM THE ENCLOSED
CD. PLEASE REFER TO “8 Installing the Software Onto a Computer”.
• Connecting to Your Computer
Connect the camera directly to your computer
1. Turn the camera Off.
2. Plug the labelled end of the USB cable into the marked
socket on your computer.
3. Plug the other end of the USB cable into the port on your camera.
4. Turn on the camera and an interface “New Hardware Found” will
show on the computer desktop.
5. A removable disk drive will be installed onto your computer
automatically.
92 Polaroid i532 Digital Camera User Guide
www.polaroid.com
93
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Transferring Pictures and Video Clips to a Computer
NOTE:
The Mass Storage mode is the default setting when the docking is connected
with a TV set or a computer.
For Windows® Users PC
NOTE:
You can transfer pictures and video clips in any mode.
1. Turn on the camera
2. Connect the camera to a computer via the USB cable.
3. Double click on “My Computer” on your PC desktop and you will see
a “Removable Disk” drive.
4. Double click “Removable Disk” -> double click “DCIM”-> double click
any directory folder under “DCIM”.
5. All the pictures, video and audio clips are in the directory folder.
Highlight the pictures, video and audio clips and drag them to a folder
of your choice. You can also create sub folders to group them or use
the Arcsoft software to edit and manage the pictures, video or audio
clips.
92 Polaroid i532 Digital Camera User Guide
www.polaroid.com
93
Polaroid i532 Digital Camera User Guide
www.polaroid.com
For Macintosh Users Mac
NOTE:
For Mac user, directly plug-in the camera, no need to install the driver.
1. Turn on the camera
2. Set the camera to Playback mode.
3. Connect the camera to Mac via the USB cable, the systems will
automatically recognize the MASS STORAGE drive. (System
will automatically create a Mass Storage named “INTERNAL” /
“EXTERNAL”)
NOTE:
This Drive name will vary from different version of Mac OS system.
4. Double click the folder “INTERNAL” / “EXTERNAL” to enter sub-folder
“DCIM”.
5. Double click the folder “DCIM” and then any subfolder inside.
6. You can copy the pictures and video clips from this directory folder
and paste to the hard disk.
.
94 Polaroid i532 Digital Camera User Guide
www.polaroid.com
95
Polaroid i532 Digital Camera User Guide
www.polaroid.com
11 Troubleshooting Problems
The troubleshooting guide is designed to help you. If problems continue,
please contact customer support. Details are provided under “Getting
Help”.
Symptom Problem Solution
I receive an error message
when I am installing “Polaroid
i532 Camera Driver”.
“Polaroid i532 Camera Driver”
does not load.
Shut down all other applications and attempt
to reinstall the driver.
Check to see if the USB controller in your BIOS
is activated. If this does not work contact your
national customer support representative,
refer to the instruction manual included with
your PC.
I cannot upload images to my
computer.
Connection failure. Check all cable connections are secured.
I cannot run the “Polaroid
i532 Camera Driver”.
Conict with another camera
driver or capture device.
If you have another camera installed on your
computer, remove it and it’s driver completely
from your system to avoid conicting with it.
Camera Driver is not installed. You need to install the camera driver for
Windows 98SE systems.
Images do not show on TV. Video cable is not connected
correctly.
Make sure the video cable is connected to the
TV “Video In” socket.
My CD Installation wizard
does not work.
The auto installation le is
switched off or The CD-ROM is
disconnected.
Go to the computer desktop. Right click
on “My Computer”. Click “Properties”.
Select “Device Manager”. Double click on
“CD_ROM”, double click on “CD-R (normally
the manufacturer’s name. Click on “Settings”.
Ensure both “Auto insert notication” and the
“disconnect” are ticked. If you change the
settings the computer will ask you to restart
your PC. Click “Yes”.
The video clip (AVI) le
cannot be played.
DivX codec is not installed yet. Download and install the DivX or DivX Doctor
II from CD
The camera is detected by
the Windows and works
properly. But a driver letter
of the Removable disk is not
created.
The removable disk crashes with
the network drives.
Disconnect the crashed network drive and
reserve this drive letter for the camera.
94 Polaroid i532 Digital Camera User Guide
www.polaroid.com
95
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Symptom Problem Solution
I cannot activate my Digital
Camera by pressing the
Power switch.
Insufcient battery power or
batteries are missing
Replace with new batteries
Camera does not turn on. Batteries are not oriented
correctly.
Or
Batteries are dead.
Orient batteries correctly.
Or
Recharge your batteries.
Camera suddenly powers
off.
Auto Power Off function
activated.
Or
Batteries is dead.
Turn the camera on.
Or
Recharge your batteries.
Image is not recorded when
the shutter button is pressed.
Camera is turned off.
Or
Flash unit is charging.
Or
Memory is full.
Turn the camera on.
Or
Wait until ash unit charging nishes.
Or
Delete images you no longer need, or use
another memory card.
Camera powers off during
self-timer countdown. Batteries are dead. Recharge your batteries.
LCD screen image is out
of focus.
Macro mode is being used for
far subjects.
Or
Still image mode is being used
for near subjects.
Set the camera to Still Image mode.
Or
Set the camera to Macro mode for subjects
this close to the lens: 0.2 ft - 2.6 ft (5 cm
- 80 cm)
Recorded pictures are not
saved in memory.
Removing the memory card
before the save operation is
complete.
Do not remove the memory card before the
save operation is complete.
96 Polaroid i532 Digital Camera User Guide
www.polaroid.com
97
Polaroid i532 Digital Camera User Guide
www.polaroid.com
There is no response from the
camera while pressing any
buttons.
The LCD screen is frozen or the
camera is hanged.
Remove and re-install the battery or
batteries to reset the camera. Your
valuable data stored in the camera will
not be lost.
Symptom Problem Solution
Sunlight or light from another source
is shining directly into the lens during
recording.
Position the camera so sunlight does not
shine directly onto the lens.
Color of the playback pictures is
different from the picture on the
LCD screen during recording.
Pictures are not displayed. A memory card with non-DCF
pictures recorded with another
camera is loaded in the camera.
This camera cannot display non-DCF
pictures recorded onto a memory card
used by another digital camera.
I cannot erase pictures. All the pictures in memory are
protected.
Unprotected the pictures you want
to delete.
TV out
Symptom Symptom Solution
LCD screen does not appear
on the screen of the connected
television
There is a problem with the
camera-TV connection
Or
TV setup is wrong
Or
Video system is incompatible.
Use the optional video
cable to connect the
camera to the TV
Or
Consult the documentation
of the TV and put it in its
video mode
Or
Select the proper video
output system.
Images do not dispaly in color
on TV.
Wrong system selection. Change to NTSC or PAL.
The video clip (AVI) le cannot
be played.
DivX codec is not installed yet. Download and install the
DivX or Divx Doctor II
from CD
Please also refer to the help les & User Guides that accompany the
enclosed applications.
For further information and support, please visit our website:
http://www.polaroid.com
96 Polaroid i532 Digital Camera User Guide
www.polaroid.com
97
Polaroid i532 Digital Camera User Guide
www.polaroid.com
12 Getting Help
• Polaroid Online Services
Website: http://www.polaroid.com
• ArcSoft Software Help
For United States For Latin America
ArcSoft HQ Support Center E-mail:latinsupport@arcsoftsupport.com
(Fremont, CA 94538)
Tel.: 1-510-979-5599
Fax: 1-510-440-7978
E-mail: support@arcsoftsupport.com
Web: http://www.arcsoft.com/en/support/
For Europe For China
ArcSoft Europe Support Center ArcSoft China Support Center
(Ireland) (Hangzhou)
Tel.: +353-(0) 61-702087 Tel.: +86-571-88210575
Fax: +353-(0) 61-702001 E-mail: support@arcsoft.com.cn
E-mail: eurosupport@arcsoft.com Web: http://www.arcsoft.com.cn/new/
support
For Japan For Taiwan
ArcSoft Japan Support Center (Tokyo) ArcSoft Taiwan Support Center (Taiwan)
Tel.: +81-3-5795-1392 Tel.: +886-(0) 2-2506-9355
Fax: +81-3-5795-1397 Fax: +886-(0) 2-2506-8922
E-mail: support@arcsoft.jp E-mail: support@arcsoft.com.tw
Web: http://www.arcsoft.jp Web: www.arcsoft.com.tw
Visit http:// www.arcsoft.com for technical support and frequently asked questions (FAQ’s).
“Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
98 Polaroid i532 Digital Camera User Guide
www.polaroid.com
99
Polaroid i532 Digital Camera User Guide
www.polaroid.com
13 Appendix
• Technical specications
Picture Resolution
• Sensor:
- 1/2.5 inch
- 5.0 Megapixels CCD
Lens
• Type: 6 elements
• Aperture: F 2.8/4.8
• Focal Length: 5.95 ~ 17.14 mm
• Focal Distance
- Normal Focus: 2.6 ft to ∞ (80 cm to ∞)
(The focusing range is the distance from the lens
surface to the subject.)
LCD Screen 2.4” TFT color panel
Built-in Flash • Modes
- Auto/OFF/On/Red Eye Reduction/Slow Sync
Exposure Control -/+2.0 EV in 0.3 increments
ISO Speed Auto,50,100,200
98 Polaroid i532 Digital Camera User Guide
www.polaroid.com
99
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Shutter
Speed Mechanical shutter 1/2000 sec ~ 8 sec
White
Balance
Auto, Day light, Cloudy, Tungstem, Fluorescent-H,
Fluorescent-L, Customer
Storage • Internal Memory: 32 MB Nand Flash
• External Memory
- supports SD card up to 1 GB (not included)
File Format • Still Image
- EXIF 2.2 compatible format (JPEG compression)
DCF compatible, Support DPOF
• Video Clip: MPEG 4, AVI
• Audio: WAV
Power
Supply AA alkaline battery x 2
Self-timer 2 sec/ 10 sec/ Double
• Size:
- (W) 89 mm x (D) 60.5 mm x (H) 28.1 mm
• Weight:
Approximately 140g excluding batteries or card
Tripod
Socket Yes
Connectivity With computer via USB cable (included)
With TV via TV cable (included)
Dimension
Operating
System
• For Windows Users: Microsoft Windows 98SE, Me
2000 or XP:
• For Macintosh Users: Mac OS 9.2 ~ X
100 Polaroid i532 Digital Camera User Guide
www.polaroid.com
101
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Storage Capacities
The charts below indicate the approximate numbers of pictures and length
of video clips the camera can hold at each setting based on the internal
memory and different capacities of SD card.
Recordable Images
Units: Images
Resolution Quality 32MB Internal Memory 32MB SD 64MB SD 128MB SD
5 6 13 26
11 13 26 53
16 19 40 80
9 10 21 43
18 21 43 86
27 31 65 129
10 12 24 48
20 24 49 97
30 35 72 144
11 13 27 53
22 26 54 107
33 39 80 160
23 27 55 110
46 54 111 221
69 80 164 326
144 168 344 683
265 308 631 1253
398 463 947 1880
100 Polaroid i532 Digital Camera User Guide
www.polaroid.com
101
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Resolution Quality 256MB SD 512MB SD 1 G SD
55 111 222
110 221 442
165 332 663
89 180 360
178 359 717
268 539 1075
101 203 405
202 406 810
299 601 1200
111 223 445
222 446 891
331 665 1327
228 459 917
457 919 1835
676 1359 2713
1415 2843 5672
2594 5212 10400
3891 7818 15600
NOTE:
3264x2448 (Interpolation) Super ne
2560x1920 Fine
2560x1712 Normal
2304X1728
1600x1200
640x480
102 Polaroid i532 Digital Camera User Guide
www.polaroid.com
103
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Recordable Video Length
Units: Minutes
Resolution Video clips can be taken
32MB Internal Memory 0.8
2
5
32MB SD 1
2
6
64MB SD 2
5
12
128MB SD 4
10
25
256MB SD 8
22
53
512MB SD 17
44
106
1GB SD 34
88
210
102 Polaroid i532 Digital Camera User Guide
www.polaroid.com
103
Polaroid i532 Digital Camera User Guide
www.polaroid.com
NOTE:
• • 640x480
320x240
160x120
• Scene complexity affects a picture’s le size. For example, a picture of trees in
autumn has a larger le size than a picture of blue sky at the same resolution
and quality setting. Therefore, the number of pictures and length of video clips
you can store on a memory card may vary.
104 Polaroid i532 Digital Camera User Guide
www.polaroid.com
105
Polaroid i532 Digital Camera User Guide
www.polaroid.com
Recordable Audio Length
Units: Minutes
Memory Card Capacity Length of Audio Clips
Recording Time
32MB Internal Memory 9
32MB SD 11
64MB SD 23
128MB SD 46
256MB SD 96
512MB SD 193
1GB SD 386
104 Polaroid i532 Digital Camera User Guide
www.polaroid.com
105
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Uninstalling Polaroid i532 Driver (PC only)
For Windows® 98SE Users PC
NOTE:
The following driver uninstall procedure is for Windows 98SE user only because
only Windows 98SE needs to install the i532 driver.
1. Open Add/Remove Program Properties in Control Panel and select
“Polaroid i532” program, then click “Add/Remove”.
2. The following dialogue box appears, please click “Yes” to confirm
removing the camera driver.
3. The un-installation program runs automatically, please restart your
computer when it is finished.
106 Polaroid i532 Digital Camera User Guide
www.polaroid.com
107
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Camera Default Settings
Camera Mode Description Default
Still Image Mode Image Resolution 5 M
Quality Super Fine
Exposure Compensation 0
White Balance for Pictures Auto
ISO Auto
Sharpness Normal
Flash Mode Auto Flash
Date stamp Date
Metering Multi
Digital Zoom ON
Effect OFF
Video Mode Video Resolution 640 X 480
Metering Multi
White Balance for Video Clips Auto
Setup Mode Capture mode Still Image
Start-up Image ON
Date Format YY/MM/DD
Power Save 1 MIN
Auto Review 3 SEC
Beep ON
Lanuage English
File No. Series
TV Out NSTC
USB Computer
NOTE:
The default language for the LCD screen may vary with the different shipment
destinations.
106 Polaroid i532 Digital Camera User Guide
www.polaroid.com
107
Polaroid i532 Digital Camera User Guide
www.polaroid.com
• Using Your Batteries
IMPORTANT NOTE:
For best performance and prolonged battery life, we recommend the use of AA
lithium or rechargeable Ni-MH.
Limit the following activities that reduces battery life:
• Reviewing your pictures on the LCD screen.
• Using the LCD screen to take pictures
• Excessive use of the flash.
WARNING!
• Batteries should be replaced by an adult.
• Do not mix different types of batteries (or new and used batteries).
• Use recommended or equivalent type of batteries only.
• Insert the batteries in the correct orientation.
• Remove exhausted batteries from the camera immediately.
• Do not short the supply terminals.
• Do not dispose the batteries in fire.
• Remove batteries from the camera when not in use.
These instructions should be retained for future reference.
• Tips, Your Safety & Maintenance
Your Camera should only be operated within the following environment.
• 32 - 104º Fahrenheit; 0 - 40º Celsius
• 20% - 85% relative humidity, non condensing
The battery life or image quality may be affected when the camera is
operated outside these conditions.
108 Polaroid i532 Digital Camera User Guide
www.polaroid.com
109
Polaroid i532 Digital Camera User Guide
www.polaroid.com
AC Adapter
The AC Adapter carries voltage which can be dangerous if live parts are
exposed.
We recommend that you regularly examine the AC adapter for any
breakage. NEVER try to repair or open the AC adapter.
Camera Cautions
• NEVER immerse any part of the camera or its accessories into any
fluid or liquid.
• ALWAYS disconnect the camera from your PC or TV before cleaning
it.
• ALWAYS remove dust or stains on the camera with a soft cloth
dampened with water or neutral detergent.
• NEVER place hot items on the surface of the camera.
• NEVER attempt to open or disassemble the camera as this will affect
any warranty claim.
• Regulatory Information
FCC Notice
This device complies with Part 15 of FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
108 Polaroid i532 Digital Camera User Guide
www.polaroid.com
109
Polaroid i532 Digital Camera User Guide
www.polaroid.com
NOTE: This equipment has been tested and found to comply with the
limits for Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded cable must be used with this unit to ensure compliance with the
Class B FCC limits.
Under the environment with electrostatic discharge, the product may
malfunction and require user to reset the product.
US 0606
Part No.: OM3374US005

Navigation menu
