FEATURES
• Adjustable transmit gain and frequency
response
AC/DC converter power supply Separate
receiver for each ear, binaural Single receiver
for one ear, monaural Ultralight cushioned on-
the-ear receiver Quick-disconnect for user
mobility SoundGuard® system for protection
against unexpected loud noises Streamlined,
adjustable headband Adjustable acoustic
voice tube Three-position volume control
switch Adjustable clothing clip Modular plug
connector
APPLICATIONS
For use with telephones equipped with dynamic or
electret handsets. For further details, call your dealer
or the toll-free number below.
COMPLETE HEADSET WEIGHT:
Monaural: Complete headset including cord,
power supply, and amp/plug case, net:
338 grams (11.0 oz.) nominal
Headset only net: 44 grams (1.5 oz.)
nominal
Shipping Weight: 562 grams (19.9 oz.)
nominal
Binaural: Complete headset including cord,
power supply, and amp/plug case, net:
370 grams (13.1 oz.) nominal
Headset only, net: 60 grams (2.1 oz.)
nominal
Shipping Weight: 594 grams (21.0 oz.)
nominal
FCC Number: AL895S-68471-KX-N
Accessories Part Number
Foam Cushions 17596-01
Personal Storage Pouch 17599-01
Instruction Guide 18119-02
Voice Tube 17593-02
AC/DC Power Converter 17800-02
For Additional Information
To obtain additional information, call Plantronics/Santa Cruz
toll-free at 1-800-538-0748 (in California, 1-800-662-3902).
Or contact any major distributor of telecommunications
products.
9 Supra, StarMate and SoundGuard are registered trademarks of
Plantronics, Inc.
* StarMate E-Plus is a trademark of Plantronics, Inc.
Publication No. 21-17-0 September 1985
PRINTED IN U.S.A.

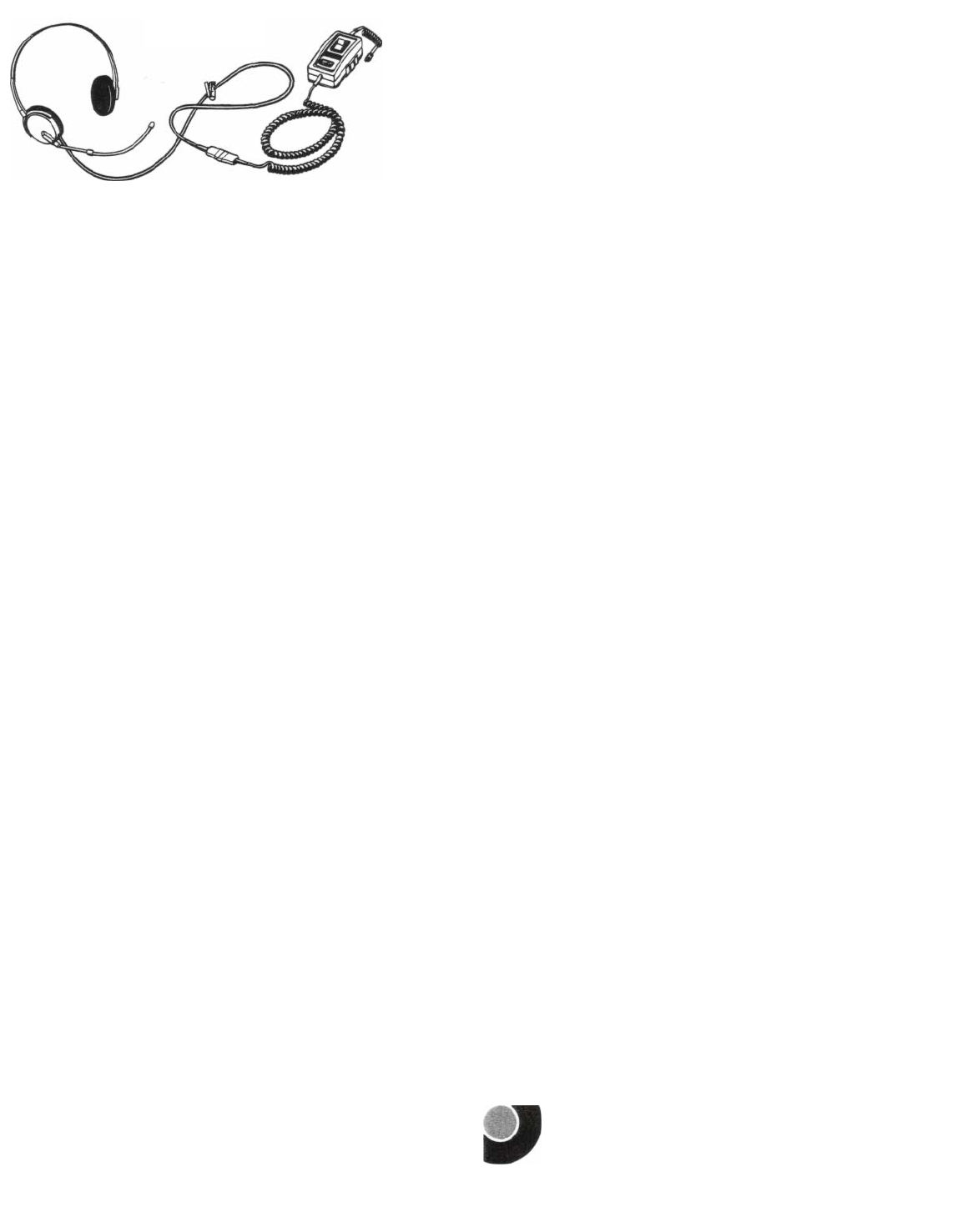

Supra StarMate E-Plus
Communication Headset
Technical Specifications
TRANSMIT1
Output Level1: -58.0 to -26.0 dBV (1.3 to 50 mVrms)
user adjustable
Output Impedance: 75 to 1200 ohms (varies with output
level adjustment)
Frequency Range: 300 to 3300 Hz
Voice Switch Point3: 77.5 dB SPL nominal
Switch Depth4: 130 dB
Switch-Up Time5: 10 ms nominal
Switch-Down Time6: 200 ms nominal
Distortion: Less than 5%, 300-3300 Hz. Typically,
less than 2% at normal speech levels.
Microphone Transducer: Electret
RECEIVE* Output Level2: (Gain
Position I)
77 dB SPL (nominal), monaural
75 dB SPL (nominal), each ear, binaural
Output Level Control: 3-Position Manual Volume
Control
Switch Position I: 0 dB
Switch Position II: +8 dB
Switch Position III: +16 dB
Automatic Gain Control (SoundGuard): Maximum
receive output is 105 dB SPL with a -15 dBV drive
Backup Limiter: Solid-state varistor across receiver
transducer
Frequency Range:
300-3300 Hz
Distortion: Less than 5% at -38 dBV input (from 300 to
3300 Hz). Typically, less than 2% at normal speech
levels.
Input Impedance: 150 ohms nominal
ENVIRONMENTAL
Operating Temperature: 0°Cto +50°C(+32°Fto
+122°F)
Storage Temperature: -40°C to +66°C (-40°F to
+140°F)
NOTES
1. All transmit measurements are made with 94 dB SPL drive at 1000 Hz into a
10K ohm resistive load with the voice tube fully retracted. All values are
nominal.
2. All receive measurements are made with -38 dBV drive at 1000 Hz with foam
cushions using an IEC supraural coupler per ANSI S3.7 and with the volume
control switch in Position I.
3. Voice switch point is the sound pressure level at which the amplifier sensitivity
increases due to detection of spoken sounds.
4. Switch depth is the decrease in amplifier sensitivity when sound pressure
input drops below switch point.
5. Switch-up time is the delay in amplifier sensitivity increase after sound
pressure exceeds the switch point.
6. Switch-down time is the delay in amplifier sensitivity reductions after the
sound pressure falls below the switch point.
PLANTRONICS
Santa Cruz
345 Encinal Street, Santa Cruz 95060
(408) 426-5858 Telex: 35-7419 TWX: 910-598-4415
