Polycom P008 NFC Transmitter User Manual

Polycom Inc. NFC Transmitter Users Manual

Contents

Users Manual

1
USER GUIDE September 2015 | 3725-20781-001D
Polycom® P008 Embedded ISM43341 SIP
Application Module for the Polycom
RealPresence Trio™ Solution
Contents
Features
Specifications
Output Power Levels
Circuit Description
PCB Integration
FCC IC Compliance Statement
Safety Information
Features
The Polycom P008 ISM43341 single-chip quad-radio device provides the highest level of integration for a
mobile or handheld wireless system, with integrated dual band (2.4 GHz/ 5 GHz) IEEE 802.11 a/b/g and
single-stream IEEE 802.11n MAC/baseband/radio, and Bluetooth 4.0. It integrates a low power NFC
controller. The ISM43341 includes integrated power amplifiers, LNAs and T/R switches for the 2.4 GHz and
5 GHz WLAN bands, which greatly reduces the external part count, PCB footprint, and cost of the solution.
The Polycom P008 ISM43341 is a fully approved module that complies with the following standards and
certifications:
ETSI EN 300 328 v1.9.1
ETSI EN 301 893 v1.7.1
ETSI EN 300 330
FCC Part 15 Unintentional emissions
FCC Part 15.247
RSS103 I.C
CISPR 22
ETSI EN 301 489-3
ETSI EN 301 489-17
EN 62311
Polycom, Inc. 2
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide

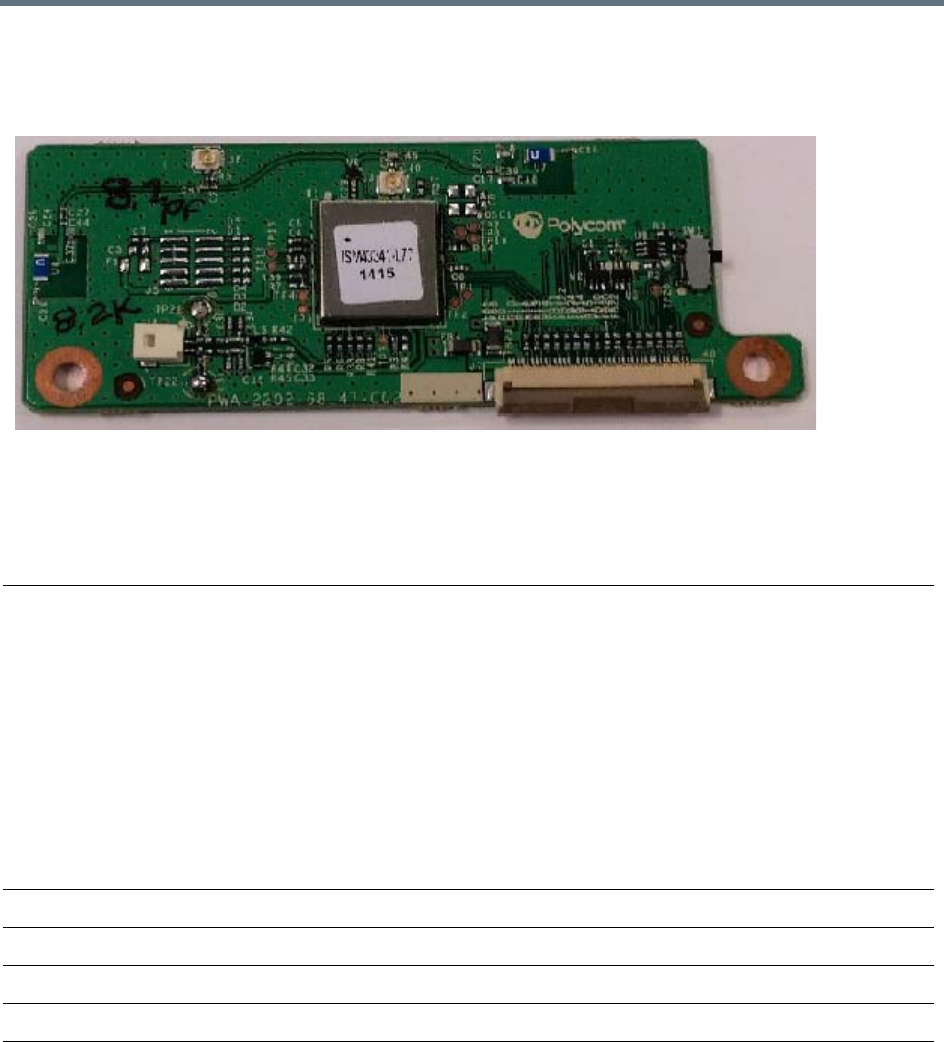

The ISM43341 application module transfers data signals by use of the radio frequency spectrum according
to the WiFi, Bluetooth, and NFC standards. It is connected to the Polycom RealPresence Trio solution by a
40-pin flexible cable and is mounted with two machine screws.
Specifications
For specifications not listed in the following table, refer to the data sheet for the ISM43341 chip device.
Radio Frequency
Range
WiFi
Bluetooth
NFC
2400MHz to 2483.5MHZ
5150MHz to 5250MHz
5250MHz to 5350MHz
5470MHz to 5725MHz
5725MHz to 5825MHz
2400MHz to 2483.5MHz
13.56MHz 1.8MHz bandwidth
Modulation Dynamic Frequency Selection (DFS) OFDM BT FHSS NFC 10% ASK, 100% ASK
Power Power over Ethernet (PoE) – also uses PoE+ with external DC-powered Power Injector
Temperature Range 0 to 40°C
Size 3.3” x 1.1” x 0.25” high
Polycom, Inc. 3
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide

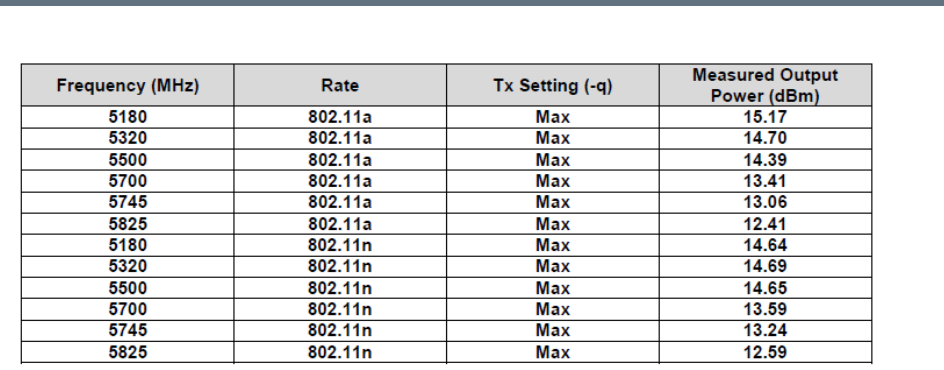

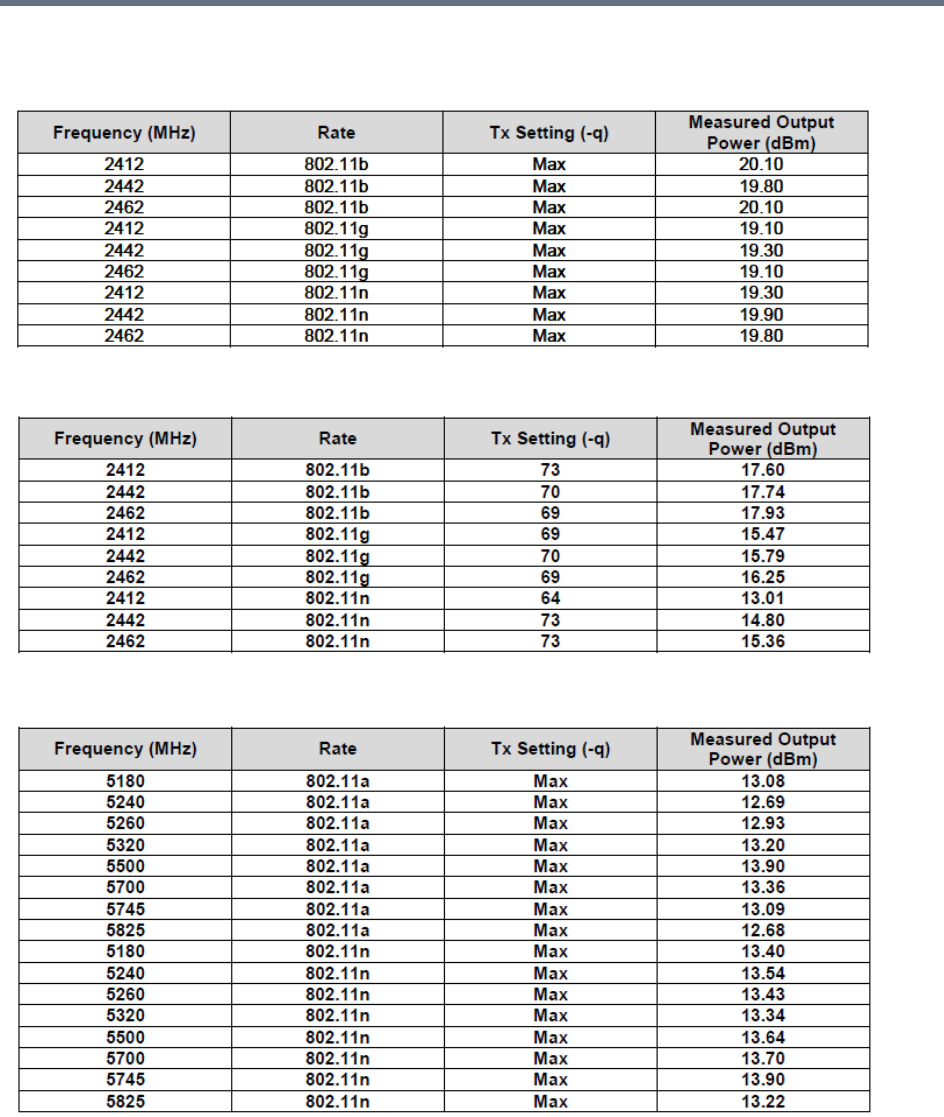

Output Power Levels
Polycom, Inc. 4
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide
Circuit Description
The Polycom P008 ISM43341 single-chip device provides a small form-factor solution with minimal external
components to drive down cost for mass volumes, and allows for handheld device flexibility in size, form,
and function. Comprehensive power management circuitry and software ensure the system can meet the
needs of high mobile devices that require minimal power consumption and reliable operations.
PCB Integration
SDIO/I2S/UART Interface/Connection to Motherboard
The RealPresence Trio radio module PCB employs a 40-pin flex circuit socket to connect to a motherboard
40-pin flex circuit cable. This interface is for the 3.3 VDC and 1.8Vpower sources and all necessary data
lines to communicate with the radio module.
Mounting
The radio module has two mounting holes. The module should be placed down and fastened onto a
motherboard containing two standoffs with metal screws. At the same time, the 40-pin flex cable connector
will be engaged by locking the flex connector.
Antenna
The 2.4GHz/5GHz radio module PCB antennas are mounted permanently for WiFi/BT operation. No
external WiFi/BT antennas are allowed.
The NFC antenna loop is connected via a two-pin locking connector. Only the Polycom NFC antenna loop
or equivalent is allowed.
Polycom, Inc. 5
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide
FCC IC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the users authority to operate the equipment
User Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, can cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This module is limited to OEM installation ONLY.
The OEM integrator is responsible for ensuring that the end user has no manual instructions to remove or
install the module.
The module is limited to installation in mobile or fixed applications according to Part 2.1091(b).
Separate approval is required for all other operating configurations, including portable configurations with
respect to Part 2.1093 and different antenna configurations.
The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user
that changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
LE-LAN devices are restricted to indoor operation only in the band 5150MHz to 5250MHz.
FCC / IC Canada Labeling of host device
The modular transmitter is labeled with its own FCC and IC identification number. If the FCC or IC
identification numbers are not visible when the module is installed inside another device, then the outside
of the device into which the module is installed must also display a label referring to the enclosed module.
This exterior label shall use wording as the following: Contains FCC ID: M72-P008 and Contains IC:
1849C-P008.
Polycom, Inc. 6
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide
FCC RF Exposure requirements
The antenna used with this module must be installed to provide a separation distance of at least 20cm from
all persons, and must not transmit simultaneously with any other antenna or transmitter. OEM integrators
and end users must be provided with transmitter operating conditions for satisfying RF exposure
compliance.
Antennas
The 2.4GHz/5GHz radio module PCB antennas are mounted permanently for WiFi/BT operation. Only the
following, or equivalent, are permitted: Unictron Technologies Corp. Chip antenna with 1.4dBi gain at
2.4GHz and 2.3 dBi gain at 5GHz. No external WiFi/BT antennas are allowed.
The NFC antenna loop is connected via a two-pin locking connector. Only the Polycom NFC magnetic wire
loop antenna with 0db gain or equivalent is allowed
Antenna information
The module has been tested and approved for use with only the permanently mounted chip antennas on
the radio PCB. This radio module is not approved for use with external WiFi/BT antennas.
The radio module is approved for NFC use with the plug-in Polycom NFC antenna 2457-69045-003 or
equivalent, typically 1.85uHy for a peak field of 1.85A/m or less at 5mm.
Antenna types
The onboard WiFi/BT antennas are a dual-band ceramic chip type AA077 from Unictron
Technologies.
The plug-in NFC antenna is a thin multi-turn loop flex circuit.
Antenna gain
The WiFi/BT antenna gain varies from 1.4dBi, typical for the 2.4GHz band, and 2.3dBi, typical for the
5GHz band (WiFi only).
The NFC antenna is a magnetic loop that does not radiate and thus has no gain.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication.
Safety Information
Canada - Industry Canada (IC)
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of this device.
Note: Obtain authorization for use with unlisted antennas
The use of this module in combination with an antenna that is not listed must be authorized with
respective regulatory agencies.
Polycom, Inc. 7
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide
L‘utilisation de ce dispositif est autorisée seulement aux conditions suivantes:
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.
Caution: Exposure to radio frequency radiation
To comply with RSS 102 RF exposure compliance requirements for mobile configurations, a
separation distance of at least 20 cm must be maintained between the antenna of this device and all
persons. This device must not be co-located or operating in conjunction with any other antenna or
transmitter.
Informations sur l'exposition RF
Les antennes internes utilisées pour ce transmetteur mobile doivent offrir une distance de séparation
d'au moins 20 cm de toute personne. Les conditions de fonctionnement d'émetteur offertes aux
intégrateurs OEM et aux utilisateurs finaux doivent satisfaire les normes d'exposition RF.
Polycom, Inc. 8
Polycom P008 Embedded ISM43341 SIP Application Module – User Guide
