Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure

the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for

delivery and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and

electrical requirements.

Remember to carefully read the Owner’s Manual that accompanies your spa, and to complete the warranty card

within 10 days of delivery. These items, along with other valuable information, will be found in the Owner’s Package

which has been placed in the equipment compartment of your spa, where you will also find a serial number.

Watkins Manufacturing Corporation reserves the right to change features, specifications and design without

notification and without incurring any obligation.

DATE PURCHASED: _________________________________________________________________

DATE INSTALLED: ___________________________________________________________________

DEALER: ___________________________________________________________________________

ADDRESS: __________________________________________________________________________

TELEPHONE: _______________________________________________________________________

In most cities and counties, permits will be required for the installation of electrical circuits or the construction of

exterior surfaces (decks and gazebos). In addition, some communities have adopted residential barrier codes which

may require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or spa) by

children under 5 years of age. Your Caldera® spa is equipped with a locking cover that meets the ASTM F1346-91

Standard for Safety Covers and as a result, is usually exempt from most barrier requirements. As a general practice,

your local Building Department will inform you of any applicable barrier requirements at the time a permit is obtained

for the installation of an electrical circuit. Your CALDERA dealer can provide information on which permits may be

required.

Vacanza® Series Pre-Delivery Instructions

SITE SELECTION AND PREPARATION

IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions and consult

your authorized CALDERA dealer if you have any questions.

You probably have a spot picked out for your new spa, whether it’s indoors or outdoors, on a patio or on a deck. Just

make sure you check the following:

• Always put your spa on a structurally sound, level surface. A filled spa can weigh a great deal. Make certain

that the location you choose can support the weight of your filled spa.

• Locate your equipment compartment, which houses all of the electrical components, in a place where water

will drain away from it. Allowing water into the equipment compartment can damage the electronics, or may

result in tripping your house’s circuit breaker.

• Leave yourself easy access to the circuit breakers in the subpanel.

• Never let water get into the subpanel (230 volt models) or into the GFCI by the end of the power cord

(115 volt models).

• Leave access to the entire front of the spa (the removable panel provides access to the spa’s equipment) for

periodic spa care and maintenance.

Indoor/Basement InstallatIon

Be aware of some special requirements if you place your spa indoors. Water will accumulate around the spa, so

flooring materials must provide a good grip when wet. Proper drainage is essential to prevent a build-up of water

around the spa. When building a new room for the spa, it is recommended that a floor drain be installed. The

humidity will naturally increase with the spa installed. Water may get into woodwork and produce dry rot, mildew, or

other problems. Check for the effects of airborne moisture on exposed wood, paper, etc. in the room. To minimize

these effects, it is best to provide plenty of ventilation to the spa area. An architect can help to determine if more

ventilation must be installed.

Your CALDERA dealer can help you with local information such as zoning regulations and building codes.

deck InstallatIon

To be certain your deck can support your spa, you must know the deck’s maximum load capacity. Consult a

qualified building contractor or structural engineer before you place the spa on an elevated deck or indoors.

To find the weight of your spa, its contents and occupants, refer to the Spa Specification chart on back page. This

weight per square foot must not exceed the structure’s rated capacity, or serious structural damage could result.

outdoor and PatIo InstallatIon

No matter where you install your new spa, it’s important that you have a solid foundation to support it. Structural

damage to the spa resulting from incorrect installation or placement on an inadequate foundation is not covered

under the spa’s limited warranty (See next page for specifics).

Page 2

Pre-Delivery Instructions

Page 3

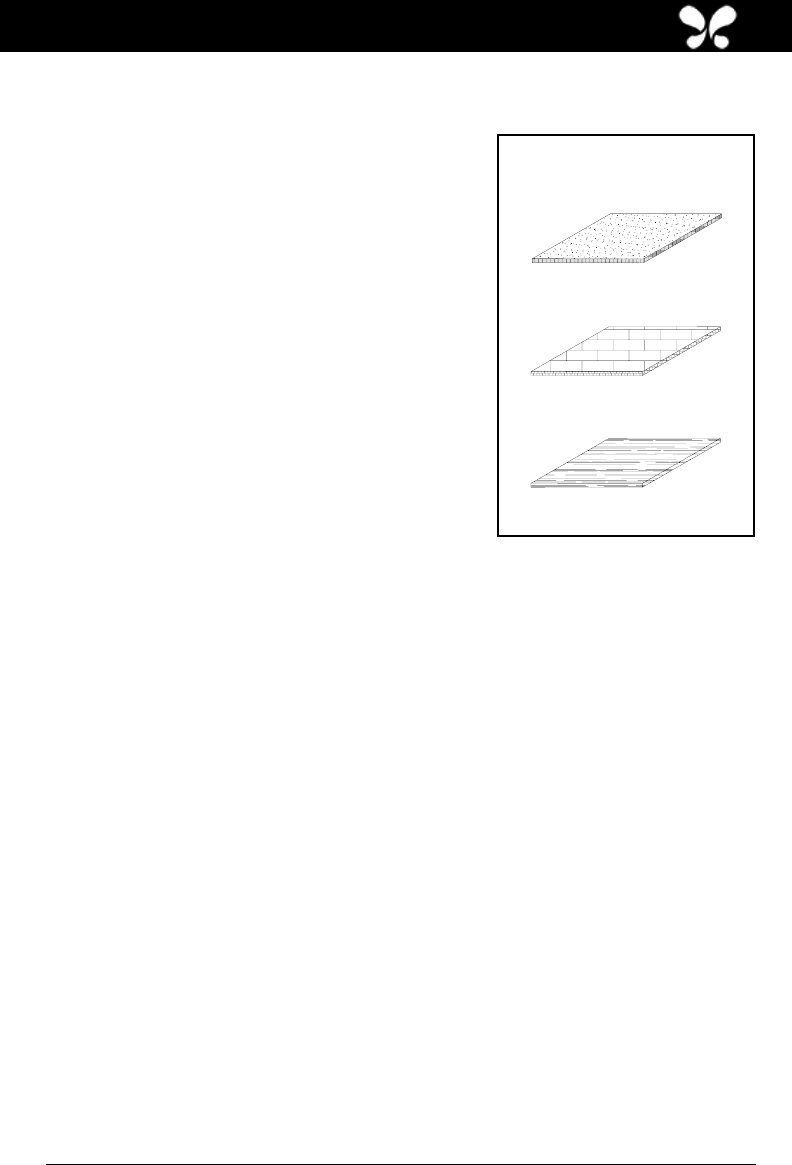

Ground and sPa levelInG PreParatIon

Your CALDERA spa has been engineered to perform on several

types of common yard surfaces. While a concrete slab is best for

long-term use*, other foundations are acceptable so long as a level

base is prepared prior to delivery. Three foundation base pictures,

shown at right, represent examples of alternatives to a concrete slab

for spas installed without gazebos or other accessories.

*NOTE: A reinforced concrete pad at least four inches thick or

structurally sound deck able to support the “dead weight” (found in

the Spa Specification Chart on back page) is recommended for your

CALDERA spa. The reinforcing rod or mesh in the pad should be

attached to a bond wire.

INSTALLATION NOTES:

•

Concrete sloped at 1/2 inch per 10 feet is preferred so that rain

water and water spillover will run off and not puddle underneath

the spa (water under the spa for long periods of time may

cause the wood to deteriorate).

•

If stepping stones or railroad ties are selected for the spa

foundation, they should be placed and leveled below the entire

spa to maintain even distribution of the spa weight.

•

It is important to note that soft surfaces, even when stepping

stones are used to distribute the weight of the spa as evenly as

possible, will still have a tendency to settle unevenly, resulting in an unlevel spa.

•

Remember, placing the spa on grass or dirt may increase the amount of debris which is inadvertently

brought into the spa water on the user’s feet.

If you are purchasing a deck package or gazebo with your spa, a solid foundation becomes mandatory. Placing

them on any surface other than a single level pad could create problems with their installation. Pictured at right are a

few of the recommended surfaces.

As a homeowner, it is your responsibility to provide a suitable, level foundation for your spa. Keep in mind that most

delivery crews are not equipped to level and prepare spa sites.

If you are interested in having a concrete slab, brick surface, or wood deck installed, your CALDERA dealer should

be able to suggest a qualified, licensed contractor.

delIvery access

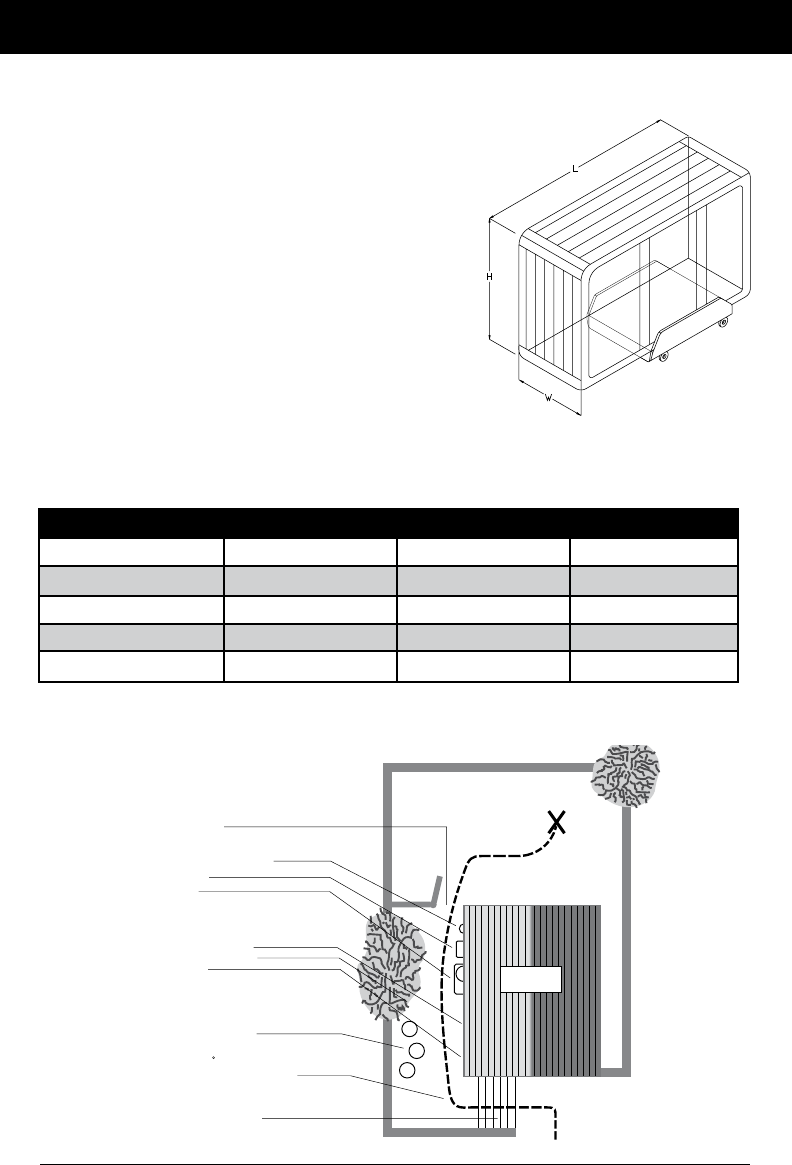

First, locate the dimensions of your spa on the chart on the next page. The dimensions shown are the

measurements of the spa in the vertical position, laid on its side.

Next, contact your dealer to find the height and width added by the delivery cart which the dealer will use to deliver

your new spa. Use the height of the cart plus the dimension shown as H to determine the vertical clearance required

to pass the spa and cart. Use the width of the cart, or dimension W, whichever is greater, to determine the maximum

width of clearance necessary.

CONCRETE PADS

BRICK SURFACES

WOOD DECKING

FOUNDATIONS FOR SPAS

WITH ACCESSORIES

(such as gazebo)

Page 4

Pre-Delivery Instructions

How is your width and height clearance?

Protruding electric meters

A/C units

Do you have sufficient

overhead clearance?

Check low roof eaves,

overhanging branches,

rain gutters

Is the path clear?

Move away branches, dog

houses, firewood, etc.

If there is a 90 turn, can we

clear it? (The spa will not bend)

No more than 6 consecutive

stairs without a landing

to accommodate the spa

Gas meters

Check all gates

HOUSE

BACK YARD

STREET

NOTE: It may be necessary to allow for additional over-head clearance if the spa will be rolled up or down an incline

or moved up or down a short flight of stairs.

Use the information below to determine the requirements for

access to your desired location. It may be necessary to remove a

gate, part of a fence, or other movable obstructions in order to roll

the spa to its installation site. About ten percent of the time, a crane

is the only way to install the spa by lifting it to its final destination.

If the spa has to be taken off of the cart to go over a wall (either

because the entry area is too narrow, the eaves are too low, the

corner is too tight, or the stairway is too steep), a crane will be

required. Don’t be alarmed!

The crane has a truck-mounted boom which can fit right in your

driveway. It is run by a licensed and insured operator. For a

charge, the crane operator will lift your spa over walls, buildings, or

any other obstruction and place it as close to the installation site as

possible. The CALDERA spa delivery personnel will supervise the

crane delivery and complete the spa placement.

NOTE: If your spa delivery requires the use of a crane, you may be required to pay for its services at the completion

of the delivery.

Model Width W Length L Height H

Palatino

®

38.5" 89" 89"

Marino

®

36" 84" 84"

Vanto

®

36" 84" 84"

Tarino™ 33" 82" 82"

Aventine

®

29" 64" 64"

Page 5

81.375” (214.0cm)

88.75” (207.0cm)

88.75”

(226.0cm)

81.375”

(207.0cm)

4.0” (10.0cm)

38.5”

(99.0cm)

36.0”

(91.0cm)

2.5” (6.5cm)

6.5” (16.5cm)

5”

(12.7cm)

18”

(45.5cm)

NOTE: Watkins Manufacturing Corporation recommends that the PALATINO be installed on a minimum 4”

(10 cm) thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa

specification chart.

IMPORTANT: The PALATINO must not be shimmed in any manner.

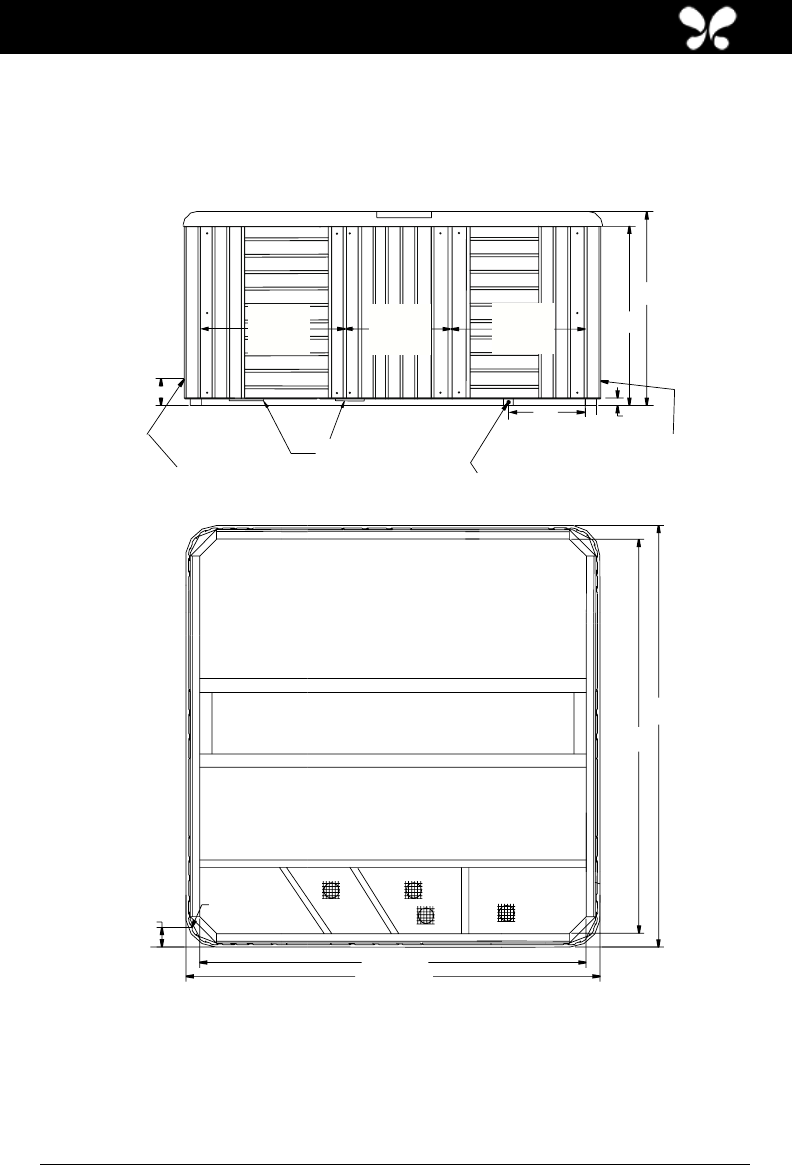

PALATINO

®

NOTE: All dimensions are approximate; measure your spa

before making critical design or pathway decisions.

DOOR SIDE

ELECTRICAL CUTOUT

(BOTH SIDES)

UPSIDE DOWN VIEW OF SPA

ELECTRICAL

CUTOUT

ELECTRICAL

CUTOUT

DRAIN

AIR VENT

DO NOT

BLOCK

DOOR

27.25"

(69.0 cm)

DOOR

20.5"

(52.0 cm)

DOOR

27.25"

(69.0 cm)

FRONT

VIEW

Page 6

Pre-Delivery Instructions

6.5” (16.5cm)

2.5”

(6.5cm)

32.5”

(82.5cm)

36.0”

(91.0cm)

4.0”

(10.0cm)

76.5” (194.0cm)

83.5” (213.0cm)

83.5”

(213.0cm)

76.5”

(194.0cm)

5.0”

(12.5cm)

18”

(45.5cm)

NOTE: Watkins Manufacturing Corporation recommends that the MARINO & VANTO be installed on a minimum 4”

(10 cm) thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa

specification chart.

IMPORTANT: The MARINO & VANTO must not be shimmed in any manner.

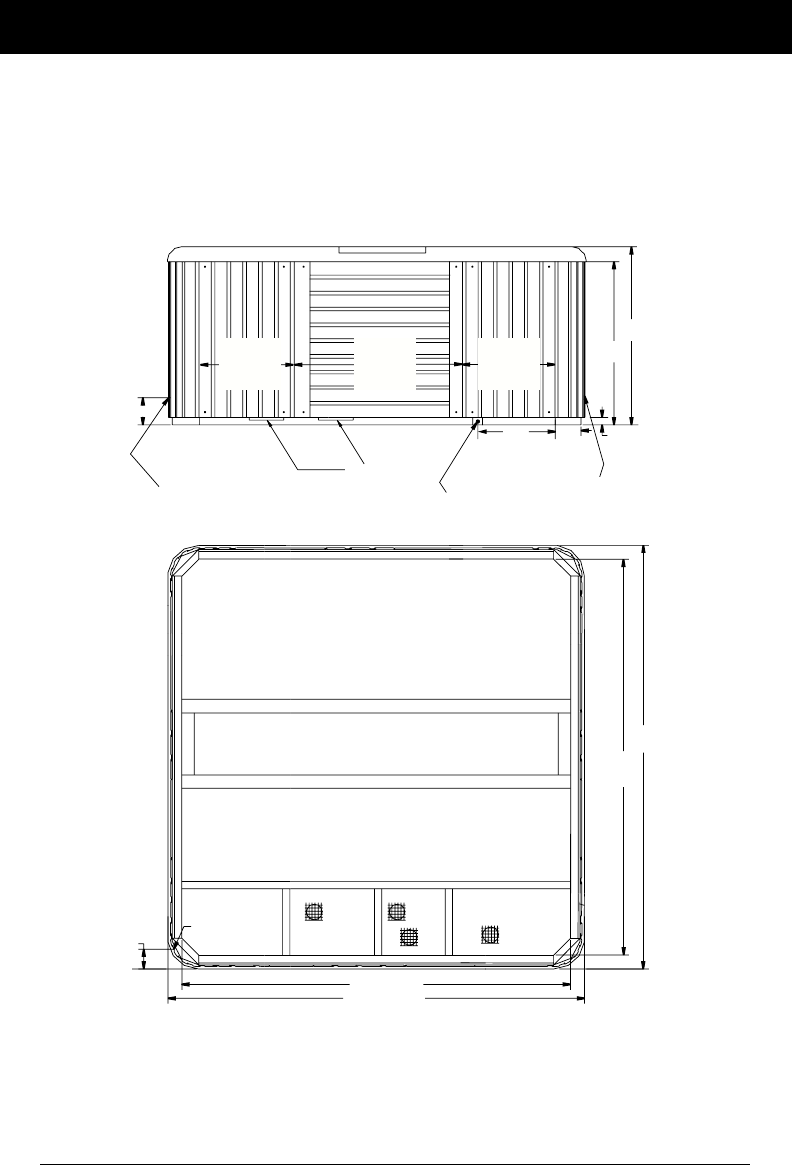

MARINO

® / VANTO

®

NOTE: All dimensions are approximate; measure your

spa before making critical design or pathway decisions

DOOR SIDE

ELECTRICAL CUTOUT

(BOTH SIDES)

UPSIDE DOWN VIEW OF SPA

ELECTRICAL

CUTOUT

ELECTRICAL

CUTOUT

DRAIN

AIR VENT

DO NOT

BLOCK

DOOR

20.5"

(52.0 cm)

DOOR

29"

(74.0 cm)

DOOR

20.5"

(52.0 cm)

6.5” (16.5cm)

5.0”

(12.5cm)

2.5”

(6.5cm)

29.5”

(75.0cm)

33.0”

(84.0cm)

4.0”

(10.0cm)

74.125” (188.0cm)

82.0” (208.0cm)

82.0”

(208.0cm)

74.125”

(188.0cm)

18”

(45.5cm)

NOTE: Watkins Manufacturing Corporation recommends that the TARINO be installed on a minimum 4”

(10 cm) thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa

specification chart.

IMPORTANT: The TARINO must not be shimmed in any manner.

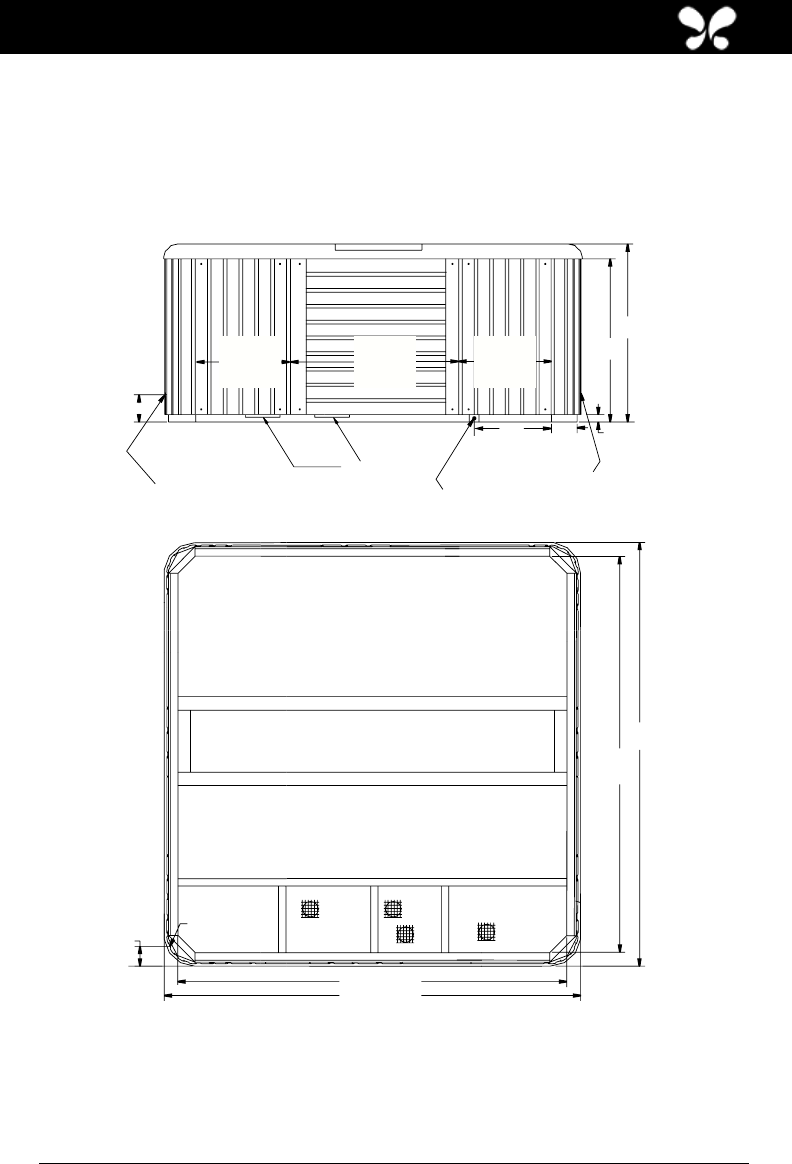

TARINO

™

NOTE: All dimensions are approximate; measure your

spa before making critical design or pathway decisions

DOOR SIDE

ELECTRICAL CUTOUT

(BOTH SIDES)

UPSIDE DOWN VIEW OF SPA

ELECTRICAL

CUTOUT

ELECTRICAL

CUTOUT

DRAIN

AIR VENT

DO NOT

BLOCK

Page 7

DOOR

20.5"

(52.0 cm)

DOOR

29"

(74.0 cm)

DOOR

20.5"

(52.0 cm)

29”

(74cm)

25”

(64cm)

2.5” (6.5cm)

11”

(28cm)

63” (160cm)

59.25” (150cm)

59.25”

(150cm)

63” (160cm)

19.5” (50cm)

42.5” (108cm)

19.5” (50cm)

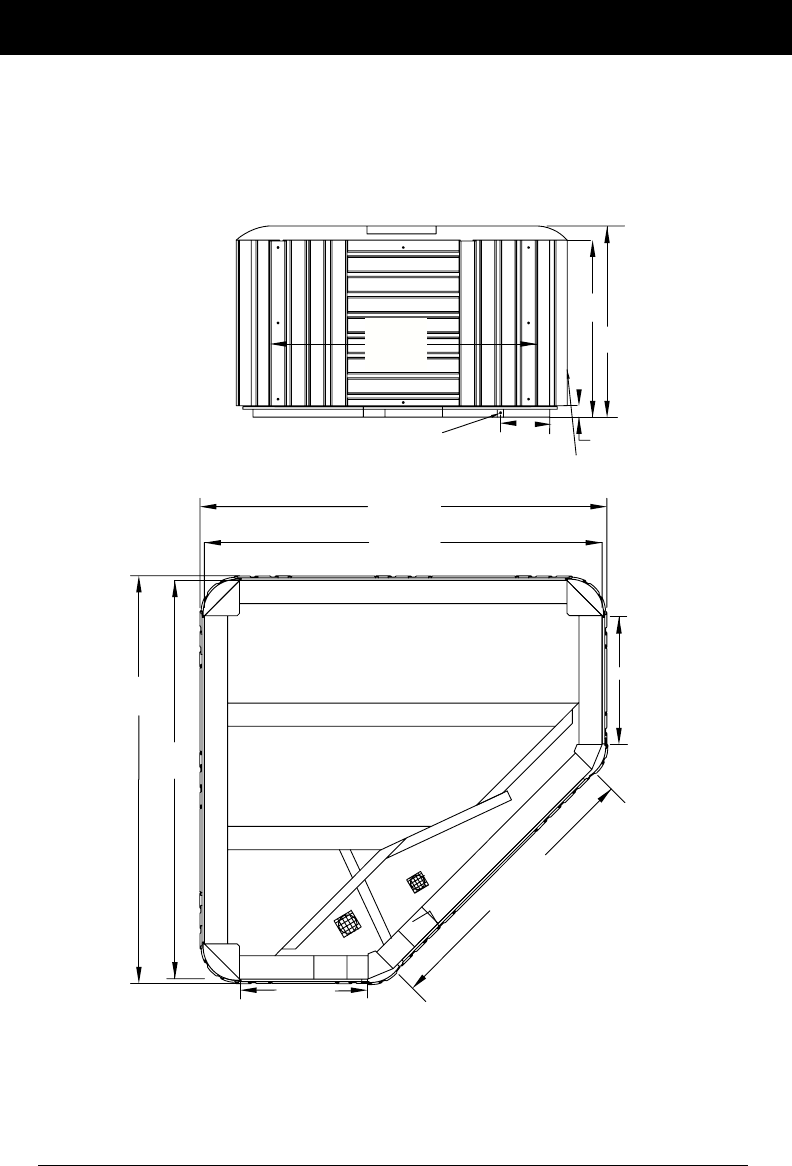

AVENTINE

®

NOTE: All dimensions are approximate; measure your

spa before making critical design or pathway decisions.

NOTE: Watkins Manufacturing Corporation recommends that the AVENTINE be installed on a minimum 4”

(10 cm) thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa

specification chart.

IMPORTANT: The AVENTINE must not be shimmed in any manner.

ELECTRICAL

CUTOUT

DRAIN

BOTTOM

VIEW

FRONT

VIEW

DOOR SIDE

Page 8

Pre-Delivery Instructions

DOOR

40"

(102.0 cm)

ELECTRICAL REQUIREMENTS

selectInG the voltaGe For your sPa

The PALATINO, MARINO and VANTO models require a 230 volt power supply. The TARINO and AVENTINE may

be converted from 115 volts to 230 volts. When the spa is connected to 115 volts, 20 amp, the heater will provide

approximately 1000 watts of heat only when the pump is operating in LOW speed and the thermostat is calling for

heat. When the TARINO or AVENTINE is connected to 230 volts, the heater will provide heat whether the pump is

operating in LOW or HIGH speed and the thermostat is calling for heat.

All electrical connections must be made in accordance with the wiring information contained in the electrical control

box or on the back of the field wiring access panel of the equipment module.

standard, cord-connected 115 volt

20 amP

conFIGuratIon (TARINO & AVENTINE)

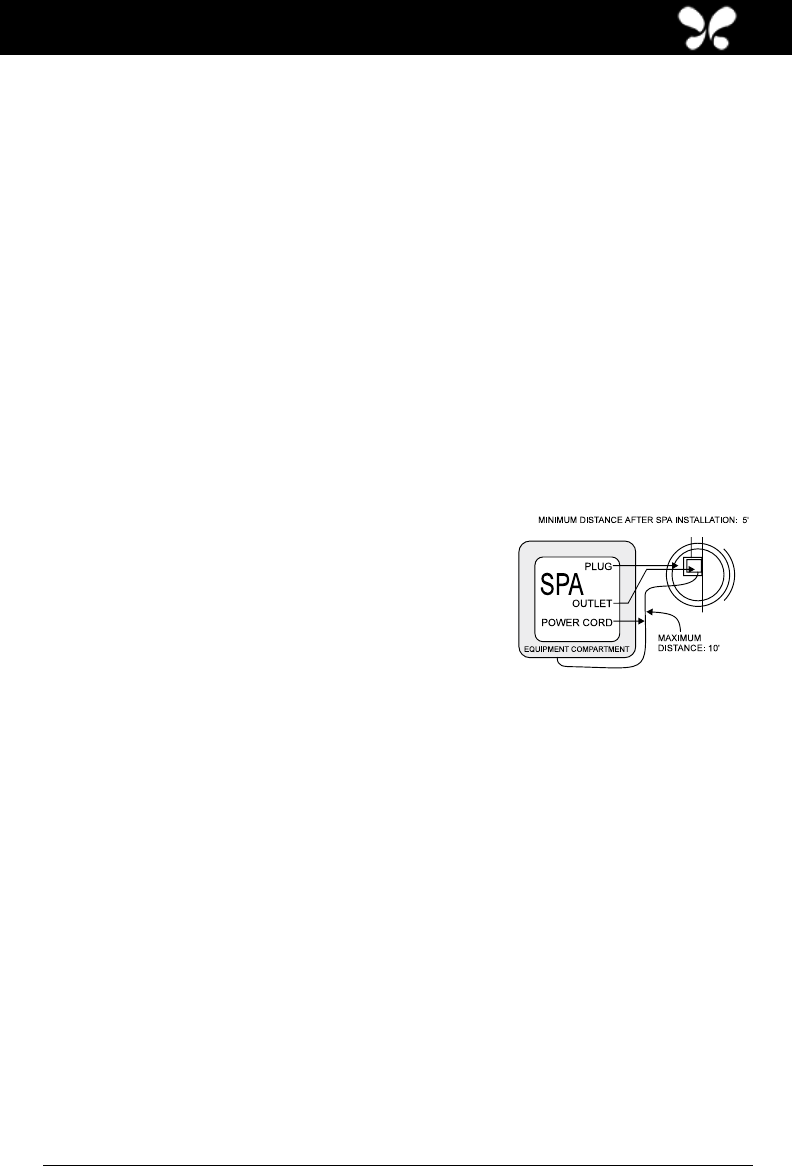

For your safety, if you are having an electrician install an electric outlet for the spa it should be no closer than 5 feet

(152.4cm) and no further than 10 feet (304.8cm) from the spa. [Reference National Electrical Code 680 - 6a(1) and

680 - 41a.]

One GFCI is used in the cord-connected 20 amp configuration. The

GFCI module is located at the end of the power cord. To test the GFCI,

simply press the TEST button. The GFCI should trip to the “off” position,

disconnecting power to the spa. To reset the GFCI, press the RESET

button. The GFCI should reset, and power should be restored to the spa.

If the GFCI does not function in this way, unplug the cord and contact an

authorized CALDERA spa service technician.

NOTE: Consult your local code authority to determine if an electrical outlet

with a cover is required for your installation. If it is, a suitable outlet cover

may be purchased from your authorized CALDERA dealer.

115 volt electrIcal requIrements

The TARINO & AVENTINE spa must be connected to a 115 volt, 20 amp grounded circuit. The equipment pack

requires a MINIMUM of 112 volts under load. A dedicated circuit is required; the term “dedicated” means the

electrical circuit CANNOT be used for any other high-load electrical items (patio lights, appliances, garage circuits,

etc.). If the spa is connected to a non-dedicated circuit, overloading will result in “nuisance tripping” of the internal

fuses or of the breaker switch at the house electrical breaker panel.

The circuit must be properly wired; that is, it must have the following:

• Standard (cord-connected) 115 volt 20 amp – A minimum 20 amp GFCI circuit breaker in the house panel, #12

AWG or larger wire (including the ground wire) and the correct polarity throughout the circuit.

• In addition to the dedicated 20 amp, 115 volt GFCI protected circuit, your spa requires a 20 amp single

receptacle. This receptacle, which contains an outdoor-rated, weather-resistant receptacle cover plate, will be

provided to you. The single receptacle and cover plate should be installed by your electrician prior to the delivery

of your spa.

A pressure wire connector is provided on the exterior surface of the spa’s electrical control box, located inside the

equipment compartment. This is to permit the connection of a bonding ground wire between this point and any metal

equipment, enclosures, pipe or conduit within five (5) feet of the spa (if needed to comply with local building code

requirements). The bonding wire must be at least a #10 AWG solid copper wire.

NEVER CONNECT THE SPA TO AN EXTENSION CORD!

Page 9

The TARINO and AVENTINE

spa comes equipped with approximately 15 feet of usable power cord (this is the

maximum length allowed by regulatory standards and the National Electric Code). The power cord is wrapped in

bubble packaging for shipping and can be found inside the skirt. Remove the bubble wrap and roll the cord out to

the desired length.

230 volt electrIcal requIrements

To ensure you will have an opportunity to use your spa soon after delivery, it is very important that the required

electrical service has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY.

IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician. The equipment pack requires

a MINIMUM of 112 volts per line under load.

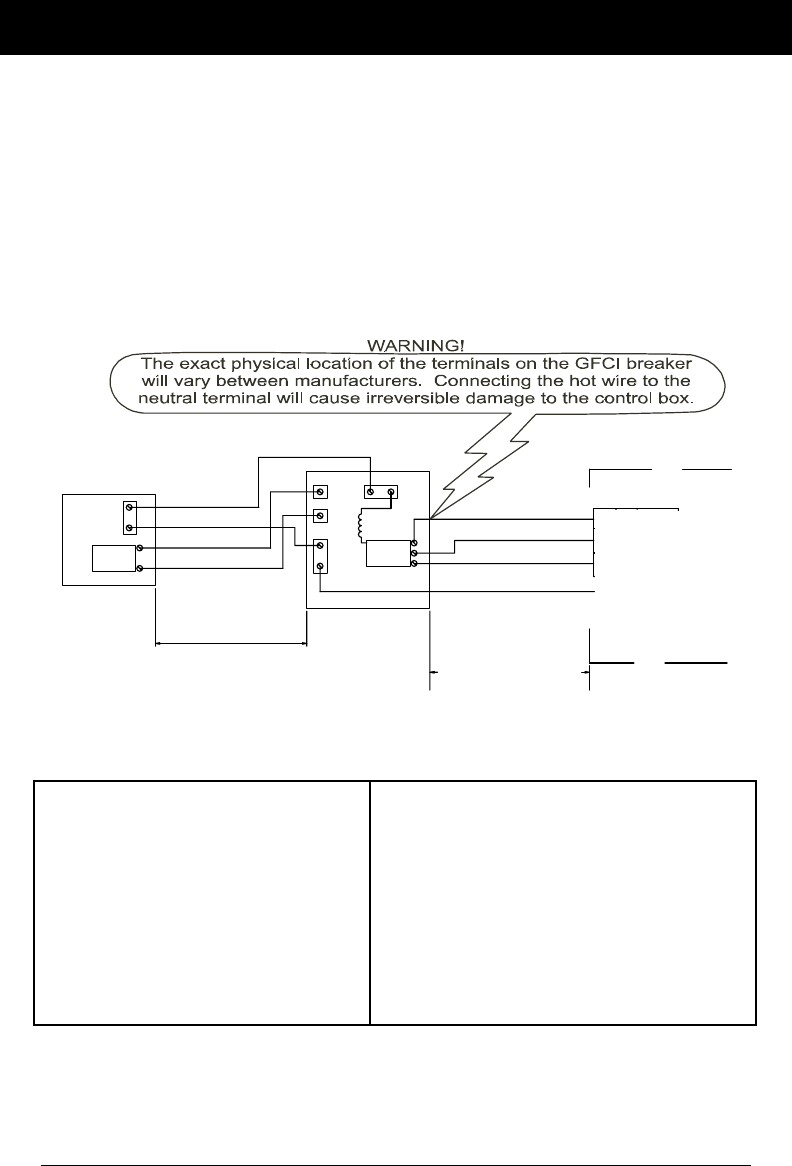

CONTROL BOX

PANEL

ELECTRICAL

MAIN SERVICE

LESS THAN 100 FT.

#8 AWG RED, L2

#8 AWG BLACK, L1

#8 AWG GREEN, GROUND

#8 AWG WHITE, NEUTRAL

50A

WITHIN SIGHT OF THE SPA

THE SUB-PANEL MUST BE

MORE THAN 5 FEET

DO NOT EXCEED 50 FEET

WITH GFCI

BREAKERS

50A

SUB-PANEL

L2

GRD

L2, HOT, #8 AWG RED

L1, HOT, #8 AWG BLACK

GROUND, #8 AWG GREEN*

N, NEUTRAL, #8 AWG WHITE

L1L2

N

PERMANENTLY CONNECTED

230 VAC, 50A, 60Hz, MODELS

230VAC, 50 Amp

2-POLE

CIRCUIT BREAKER

(NON GFCI) N

L1

GND

ILLUSTRATION

SEE WIRING

230 VAC PERMANENTLY CONNECTED SPA

L1L2

N

CONVERTED 230VAC SPA MODELS

JUMPERS REQUIRED

NO POWER

JP1

JP2

JP6

JP3

JP4

JP5

JP8

JP7

See

Owner’s Manual

for Spa Wiring

and Jumper

Configuration

Page 10

Pre-Delivery Instructions

CAUTIONS

USE COPPER CONDUCTORS ONLY

USE SUPPLY WIRES SUITABLE FOR

75°C/167°F.

DISCONNECT ALL SUPPLY CONNECTIONS

BEFORE SERVICING.

CONNECT ONLY TO A CIRCUIT

PROTECTED BY A CLASS A GROUND-

FAULT INTERRUPTER.

THESE SPAS ARE INTENDED FOR USE WITH

GFCI SUBPANEL

ALL CANADIAN SPA MODELS USE #8 AWG

GREEN, GROUND.

INCORRECT WIRING WILL DAMAGE CIRCUIT

BOARDS.

REFER TO THE WIRING INSTRUCTIONS

INCLUDED WITH THE SUB-PANEL FOR

DETAILED WIRING INSTRUCTIONS.

230 volt InstallatIon

Your spa contains a control box designed to operate at 230V, 60Hz. Installation of a 30 or 50 amp dedicated circuit

is required. The control box must be hard wired directly to a subpanel protected by a Ground Fault Circuit Interrupter

(GFCI). The subpanel containing the GFCI breaker is included with the PALATINO, MARINO and VANTO spas.

IMPORTANT NOTE: All electrical connections to the control box must be accomplished by a qualified electrician in

accordance with the National Electrical Code and in accordance with any local electrical codes in effect at the time

and place of installation.

All electrical connections must be made in accordance with the wiring information contained in this manual and on

the back of the control box panel. A licensed electrician should install a four-wire electrical service (two line voltages,

one neutral, one ground) from the main electrical service panel to the subpanel.

The grounding conductor must be at least #8 AWG. Your electrician should mount the subpanel in the vicinity of the

spa but it should not be closer than five (5) feet from the spa water edge (NEC 680-38 to 41-A-3).

INSTALLATION NOTE: After the spa has been installed, your electrician can connect the conduit from the subpanel

to the spa’s control box and then complete the wiring connections in the control box.

NOTE: Complete step-by-step Installation and Wiring Instructions for all models are included in the Owner’s Manual

and with each subpanel, which can be obtained from your dealer.

WARNING: Removing or bypassing the GFCI breakers in the subpanel at any time will result in an unsafe spa and

will void the warranty.

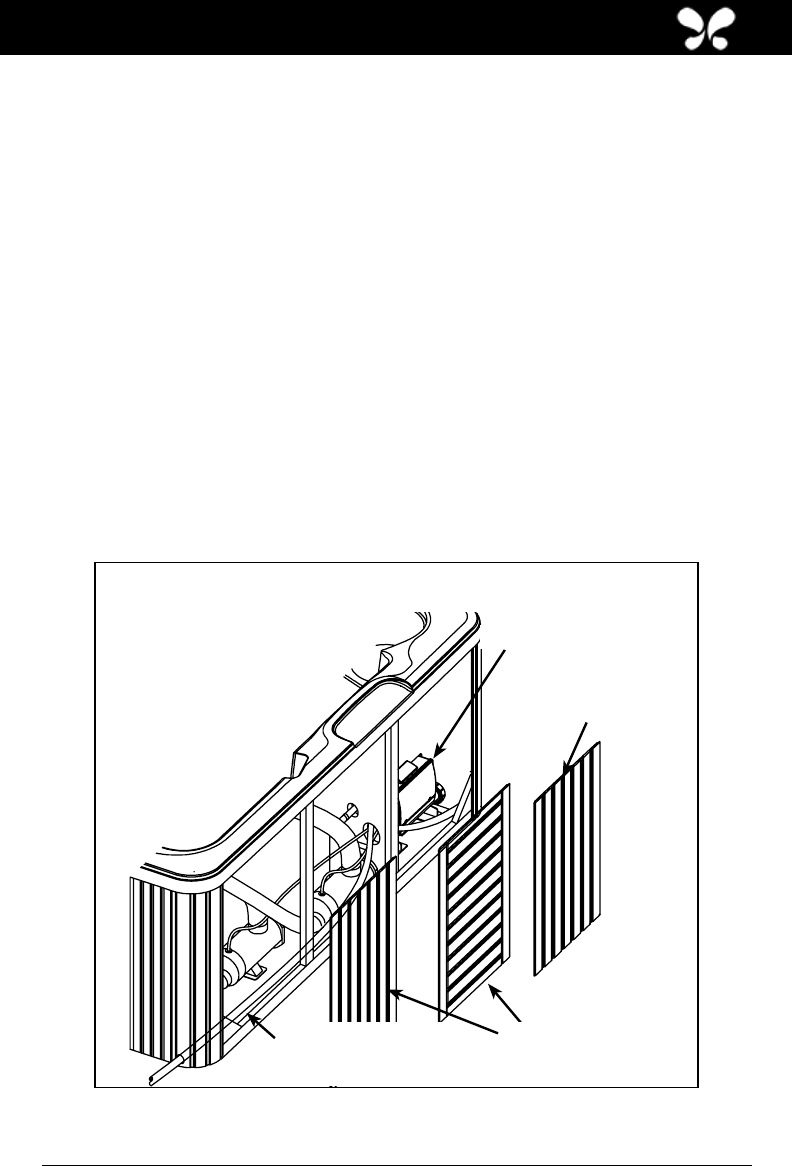

POWER CONNECTION ACCESS FOR PALATINO,

MARINO, VANTO & TARINO

230V WIRING ACCESS

OPENINGS ON LEFT & RIGHT

HAND SIDE

EQUIPMENT

COMPARTMENT DOOR

PUMP DOOR

CONTROL BOX

Page 11

CAUTIONS

USE COPPER CONDUCTORS ONLY

USE SUPPLY WIRES SUITABLE FOR

75°C/167°F.

DISCONNECT ALL SUPPLY CONNECTIONS

BEFORE SERVICING.

CONNECT ONLY TO A CIRCUIT

PROTECTED BY A CLASS A GROUND-

FAULT INTERRUPTER.

THESE SPAS ARE INTENDED FOR USE WITH

GFCI SUBPANEL

ALL CANADIAN SPA MODELS USE #8 AWG

GREEN, GROUND.

INCORRECT WIRING WILL DAMAGE CIRCUIT

BOARDS.

REFER TO THE WIRING INSTRUCTIONS

INCLUDED WITH THE SUB-PANEL FOR

DETAILED WIRING INSTRUCTIONS.

s

ervIces

a

vaIlaBle

F

rom

y

our

CALDERA d

ealer

servIce Cost

Pre-Delivery site inspection _____________

Deliver spa to installation site _____________

Unwrap spa and haul away packaging material _____________

Set up spa _____________

Fill the spa with water and add @ease™ SmartChlor

® and mineral cartridges _____________

Water quality and maintenance orientation _____________

Adjust the water’s pH, Total Alkalinity and Calcium Hardness _____________

Sanitize the water _____________

Explain and test the spa’s operation

• Jet system

• Air controls

• Test lighting

• Set temperature control

• Control panel functions

Explain the safety features

• GFCI

• Heater high limit

General spa operation & maintenance orientation _____________

Inspect the spa cover, place on spa, and install cover locks _____________

Review winterizing instructions _____________

Review Owner’s Manual & Warranty Card _____________

Follow-up call _____________

In-store spa water analysis _____________

TOTAL COST

a

ddItIonal

Products

• MONARCH water and spa care products

• @ease SmartChlor and Mineral cartridges • Vanishing Act

®

Calcium Remover

• Monarch

®

CD ozone generator • Clean Screen

®

Pre-Filter

• Replacement Filter Cartridge • Vinyl covers

• Pillows • CALDERA Entertainment Systems

• Retractable cover system with clearance requirements (PALATINO, MARINO, VANTO & TARINO spas only):

ProLift

® - 14” Clearance Required

PROLIFT II - 24” Clearance Required

PROLIFT III - 24” Clearance Required

PROLIFT IV - 7” Clearance Required

Pre-Delivery Instructions

Page 12

Page 13

notes

Pre-Delivery Instructions

notes

Page 14

notes

Page 15

PALATINO

Seating

(6 Adults)

89"

x

89"

38.5"

65

Square

feet

4,000 400

Gallons

910

lbs.

5295

lbs.

120

lbs. per

square

foot

230 volt, 50 amp

Single phase

GFCI circuit

MARINO

Seating

(6 Adults)

84"

x

84"

36"

65

Square

feet

4,000 360

Gallons

835

lbs.

4885

lbs.

120

lbs. per

square

foot

230 volt, 50 amp

Single phase

GFCI circuit

VANTO

Seating

(7 Adults)

84"

x

84"

36"

65

Square

feet

4,000 375

Gallons

845

lbs.

5200

lbs.

130

lbs. per

square

foot

230 volt, 50 amp

Single phase

GFCI circuit

TARINO

Seating

(5 Adults)

82"

x

82"

33"

30

Square

feet

1,000

or

4,000

310

Gallons

730

lbs.

4190

lbs.

110

lbs. per

square

foot

115 volt, 20 amp

Dedicated GFCI

protected cord or

230 volt, 50 amp

Single phase

GFCI circuit

AVENTINE

Seating

(2 Adults)

64"

x

64"

29" 35

Square

feet

1,000

or

4,000

150

Gallons

500

lbs.

2,100

lbs.

105

lbs. per

square

foot

115 volt, 20 amp

Dedicated GFCI

protected cord or

230 volt, 50 amp

Single phase

GFCI circuit

Footprint

dimensions

Height

Effective

lter area

Heater

(Watts)

Water

capacity

Dry weight

Filled weight*

Dead weight*

Electrical

requirements

WATKINS MANUFACTURING CORPORATION

1280 Park Center Drive

Vista, California 92081

(800) 669-1881 extension 8432

©2016 Watkins Manufacturing Corporation. Vacanza, Palatino, Marino, Vanto, Tarino, Aventine, Caldera, Monarch, Vanishing Act, Clean

Screen, and ProLift are trademarks of Watkins Manufacturing Corporation. FROG and

SmartChlor are

registered trademarks of King

Technology, Inc.

62908.17 A (11/16)

CAUTION: Watkins Manufacturing Corporation suggests a structural engineer or contractor be consulted before

the spa is placed on an elevated deck.

* NOTE: The “Filled weight” and “Dead weight” of the spa includes the weight of the occupants (assuming

an average occupant weight of 175 lbs).

vacanza sPa sPecIFIcatIons
