FULL DUPLEX WIRELESS COMMUNICATION SYSTEM
user manual
Introduction
Thank you for your choice of FULL DUPLEX WIRELESS COMMUNICATION SYSTEM.
This is a DECT (Digital Enhanced Cordless Telecommunications) duplex wireless system. To the quality of
audio and to the safety offered from the digital technology, The offers manifold and useful features including
duplex wireless system, LED In use illumination, multi-headset capabilities and multi-volume select. Please read this
instruction carefully before using your new system for the first time.

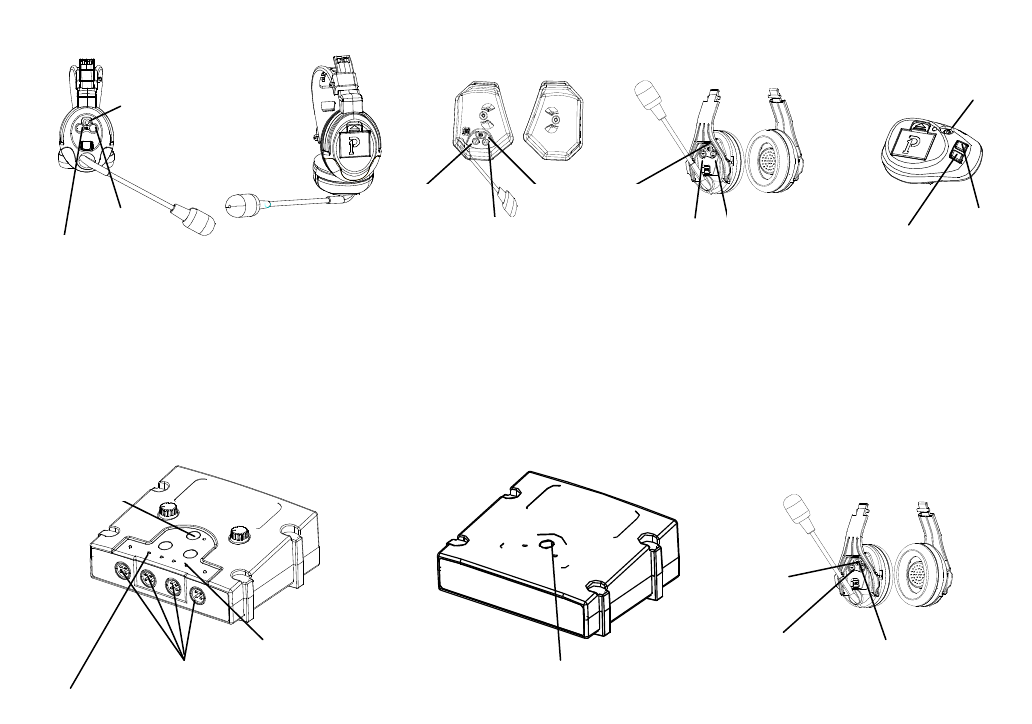

A glance guide for the headset
A glance guide for the base unit
Installation
Please check your package that included the following items:
-Base Unit (Flex Max COM Center(FLX2015)/ COM Center Pro2000(PRO2015)/ ComSTAR XTC Base(XTCB2015))
-Wireless Headset (ComStar-S(HDST1915)/ ComStar-D(HDST1915)/ ComStar Xtreme(HDST1915)/ ComStar XTC(HDST1915); ComPAK(BPK1015))
-Wire Headset (Max 3G-S / Max 3G-D)
-AC / DC adaptor for Base Unit
- Base packing batterie
- Headset packing batterie
Choose a suitable site for the base unit, make sure it is not near to other electrical equipments.
Vol up
A channel indicator (GREEN LED)
Vol down
Power on/off
B channel indicator
(
RED LED
)
Connecto
r
for Cord Headset
All Conference
ComStar-S(HDST1915) ComStar-D(HDST1915) ComStar Xtreme(HDST1915) ComStar XTC(HDST1915) ComPAK(BPK1015)
Vol up
V
ol down Power on/off
Vol up
Vol down
Power on/off
Vol up
Vol down
Vol Down Vol up
All Conference
Flex Max COM Center
(
FLX2015
)
COM Center Pro2000
(
PRO2015
)
ComSTAR XTC Base(XTCB2015)
SUB key
Page 2
Connect the AC adaptor socket to the Base Unit and the power socket. Turn on the power of base.
The pack rechargeable batteries come with your charger.
-Insert the rechargeable battery into the headset as the above figure indicated, matching correct polarity.
-Fit the battery compartment cover by sliding it down so that it clicks firmly into place.
NOTE: Reversing the orientation may damage the headset. Please use the battery type supplied or recommended equivalents. A
different battery could cause an explosion or damage of your headset.
Low battery indicator
Whenever you see the low battery indicator LED flash on the headset, or you have heard the low battery warning
tone during a call conversation, please:
-End the call as soon as possible.
-Change the headset battery.
To charge the battery, put the battery into the charger cradle. The charging LED on charger unit will come on to
indicated that the battery is in charging.
Basic Functions
Make a talk
-Power up the headset to search registered of base, the “In use” LED is ON.
During a talk conversation, you can adjust the talk volume (1 ~ 5 levels) by simply pressing or key.
Mute
-During a call conversation, you can mute your voice by rise up microphone arm.
-Deactivate the mute function, go down the microphone arm again.
Headset Power On / Off
To power Off the headset
- Press and hold “power on/off” key about 3 seconds, the headset will switch off which can prolong the use
time of headset.
To power On the headset
-Press “power on/off” key
The headset will power on with the “In use” LED light, the headset to search registered of base.
Out of range indication
If your headset has registered and is in located range, the “In use” LED will blanking steadily, when your
headset goes out of range, the communication link will be lose temporarily, the “In use” LED will blink.

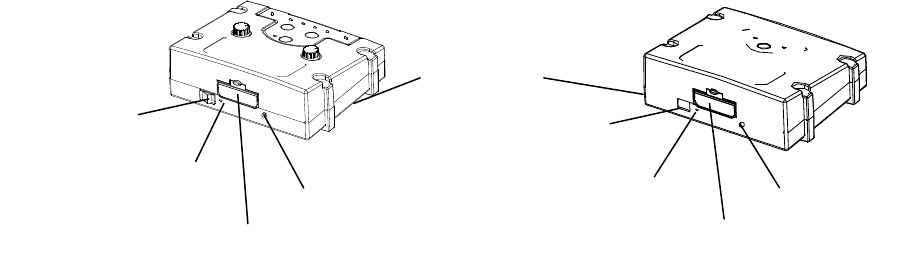

Power on/off
AC Adapter socket
Charging indicator
And low battery indicator
battery pack
SUB key A1-A4, B1-B4
Power on/off
AC Adapter socket
Charging indicator
And low battery indicator battery pack
Under Bottom
Page 3
If you go back to the located range again, the communication link will restore, also the “In use” LED will
blanking steadily.
Note: your talk will be cut without any audible warning tone if you are in a talk and out of the located range.
Registration
The headset and base shall be factory pre-registered with the identification digital security codes, which are
stored into the non-volatile memory, so that your headset shall be ready for working after out-of-box. However,
your headset shall also has a procedure to allow you to re-do the registration operation in case of the link is lost
accidentally.
-press key 3 times, Press and hold key for 3 seconds on the headset “In use” LED is ON, your headset
entered the registration mode
-Press and hold SUB key for 3 seconds on the base until “SUB” LED is flashlight, the base also entered the
registration mode.
Note: SUB key A1-A4 is for channel A station, B1-B4 is for channel B station.
-About 5-10 seconds the headset “In use” LED is OFF and following to ON, that means the headset has located
the base, and the base until “SUB” LED is OFF and following to ON.
-If the headset does not locate the base, the headset “In use” LED will be blink after 15 seconds and it will
return to the non-located mode. Try again and check that you are not in the interference environment
Note: your base can register up to eight headsets. One headset register on the every subscribe key.
Unsubscribe headset registered
-At standby mode
-Press and hold SUB key enter the base’s registration mode with the “SUB” LED is flashlight
-Press SUB key 7 times again the “SUB” LED is quick flash
-All headsets registered to this part are cleared
Note: (1)SUB key A1orA2 to unsubscribe both A1 and A2.
(2)SUB key A3orA4 to unsubscribe both A3 and A4.
(3)SUB key B1orB2 to unsubscribe both B1 and B2.
(4)SUB key B3orB4 to unsubscribe both B3 and B4.
Conference talk
When you are in a talk on the base, you can invite another channel headset to join your conversation.
-Press the “All Conference” key on the base that you want to talk.
-At the all conference mode, either wireless headset and four cord headset can conference.
-Press the “All Conference” key on the base once again, turn off the all conference mode.
LIMITED WARRANTY
This limited warranty only applies to the use of this device with a communications service for which it is designed. This
device alone does not provide the customer with any communications service and requires a separate subscription to a
communications service from a service provider. Altering service provider-specific settings may void the warranty.
This limited warranty does not warrant that the device will be free of any limitations of voice quality or service caused by
(1) the services provided by the customer’s underlying communications service provider; or (2) interference from other
radio frequencies or transmissions, static electricity, and other electronic devices.
