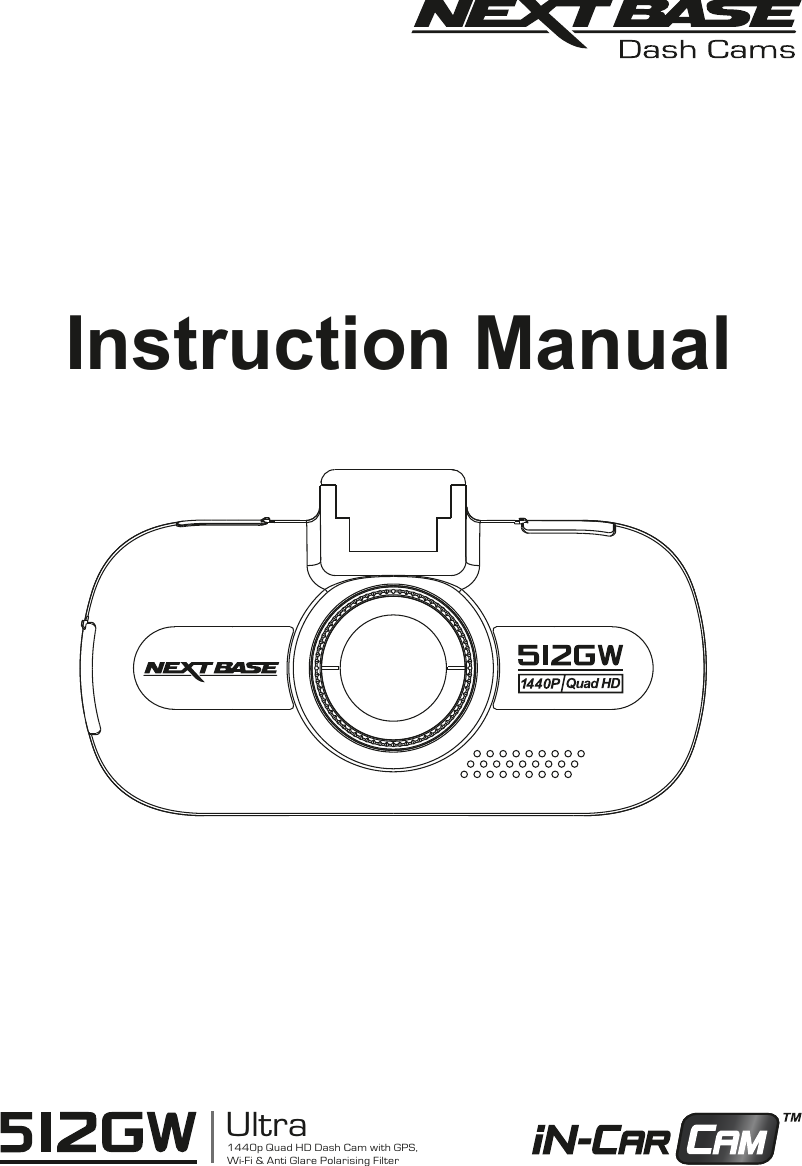

Instruction ManualUltra1440p Quad HD Dash Cam with GPS,Wi-Fi & Anti Glare Polarising Filter

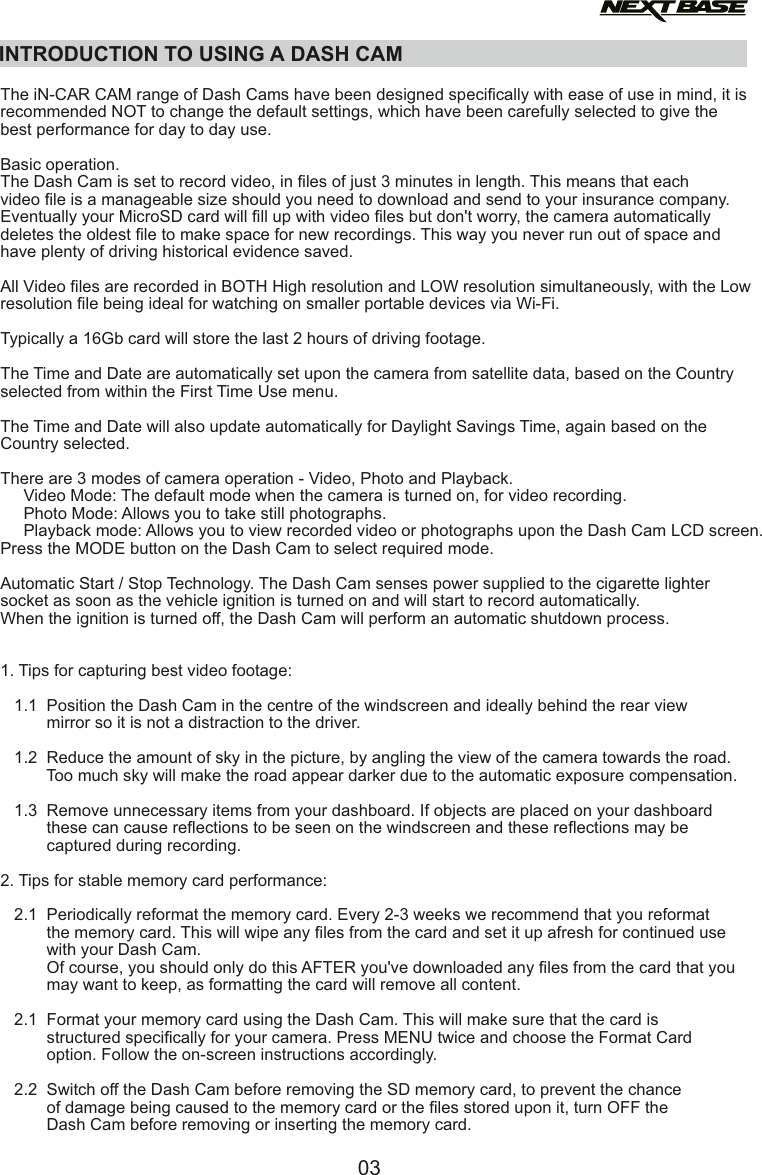

INTRODUCTION TO USING A DASH CAM The iN-CAR CAM range of Dash Cams have been designed speciﬁcally with ease of use in mind, it is recommended NOT to change the default settings, which have been carefully selected to give the best performance for day to day use.Basic operation.The Dash Cam is set to record video, in ﬁles of just 3 minutes in length. This means that each video ﬁle is a manageable size should you need to download and send to your insurance company. Eventually your MicroSD card will ﬁll up with video ﬁles but don't worry, the camera automatically deletes the oldest ﬁle to make space for new recordings. This way you never run out of space and have plenty of driving historical evidence saved. All Video ﬁles are recorded in BOTH High resolution and LOW resolution simultaneously, with the Lowresolution ﬁle being ideal for watching on smaller portable devices via Wi-Fi.Typically a 16Gb card will store the last 2 hours of driving footage.The Time and Date are automatically set upon the camera from satellite data, based on the Countryselected from within the First Time Use menu.The Time and Date will also update automatically for Daylight Savings Time, again based on the Country selected.There are 3 modes of camera operation - Video, Photo and Playback. Video Mode: The default mode when the camera is turned on, for video recording. Photo Mode: Allows you to take still photographs. Playback mode: Allows you to view recorded video or photographs upon the Dash Cam LCD screen.Press the MODE button on the Dash Cam to select required mode.Automatic Start / Stop Technology. The Dash Cam senses power supplied to the cigarette lighter socket as soon as the vehicle ignition is turned on and will start to record automatically.When the ignition is turned oﬀ, the Dash Cam will perform an automatic shutdown process.1. Tips for capturing best video footage: 1.1 Position the Dash Cam in the centre of the windscreen and ideally behind the rear view mirror so it is not a distraction to the driver. 1.2 Reduce the amount of sky in the picture, by angling the view of the camera towards the road. Too much sky will make the road appear darker due to the automatic exposure compensation. 1.3 Remove unnecessary items from your dashboard. If objects are placed on your dashboard these can cause reﬂections to be seen on the windscreen and these reﬂections may be captured during recording.2. Tips for stable memory card performance: 2.1 Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat the memory card. This will wipe any ﬁles from the card and set it up afresh for continued use with your Dash Cam. Of course, you should only do this AFTER you've downloaded any ﬁles from the card that you may want to keep, as formatting the card will remove all content. 2.1 Format your memory card using the Dash Cam. This will make sure that the card is structured speciﬁcally for your camera. Press MENU twice and choose the Format Card option. Follow the on-screen instructions accordingly. 2.2 Switch oﬀ the Dash Cam before removing the SD memory card, to prevent the chance of damage being caused to the memory card or the ﬁles stored upon it, turn OFF the Dash Cam before removing or inserting the memory card.03

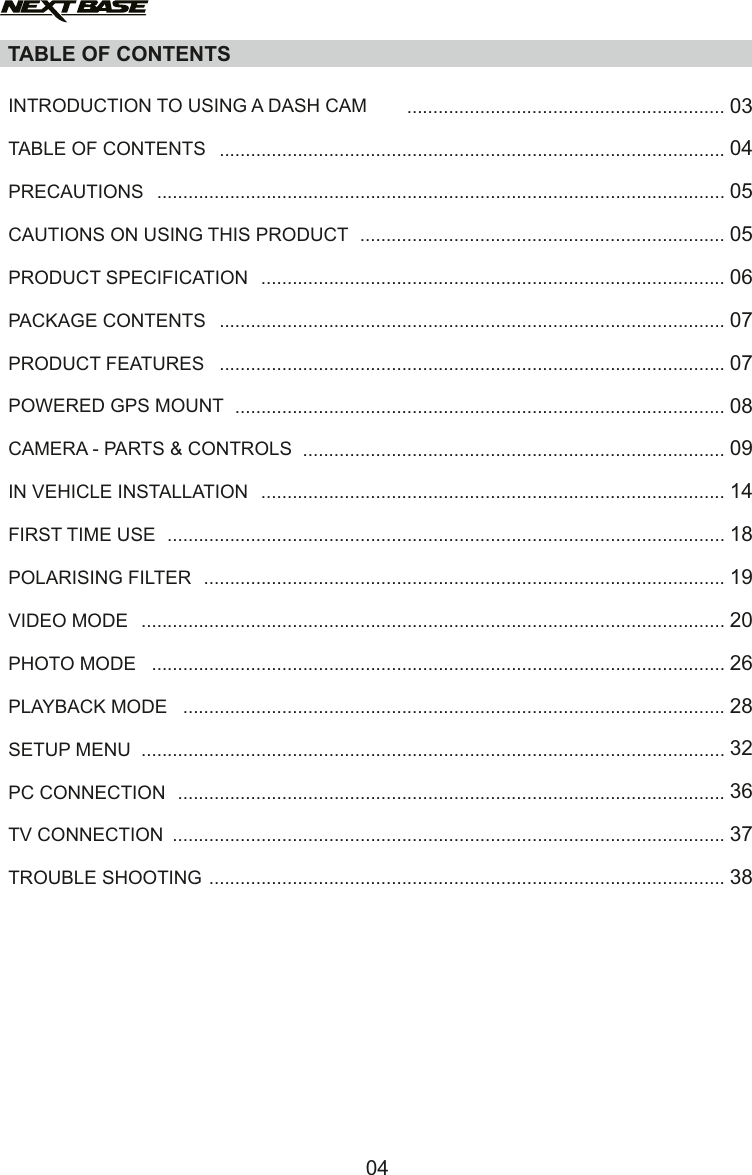

TABLE OF CONTENTSINTRODUCTION TO USING A DASH CAMTABLE OF CONTENTSPRECAUTIONSCAUTIONS ON USING THIS PRODUCTPRODUCT SPECIFICATIONPACKAGE CONTENTSPRODUCT FEATURESPOWERED GPS MOUNTCAMERA - PARTS & CONTROLSIN VEHICLE INSTALLATIONFIRST TIME USEPOLARISING FILTERVIDEO MODEPHOTO MODEPLAYBACK MODESETUP MENUPC CONNECTIONTV CONNECTIONTROUBLE SHOOTING...............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0304050506070708091418192026283236373804

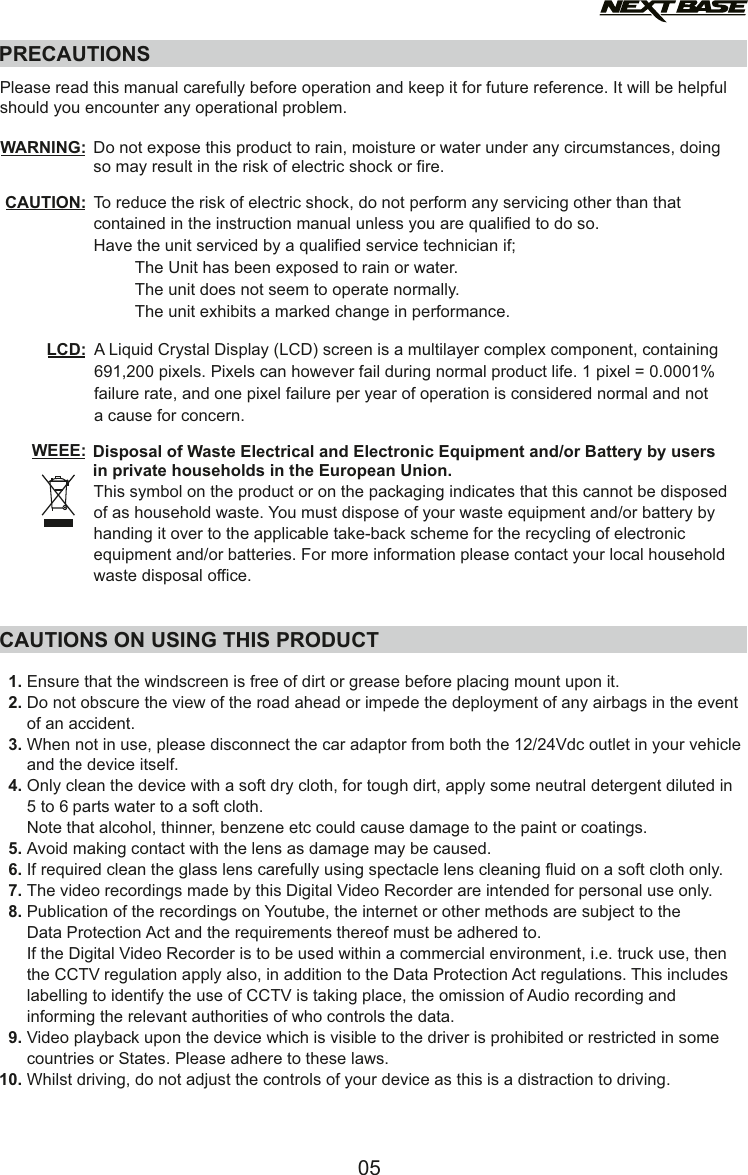

PRECAUTIONSCAUTION:LCD:WEEE: Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.This symbol on the product or on the packaging indicates that this cannot be disposed of as household waste. You must dispose of your waste equipment and/or battery by handing it over to the applicable take-back scheme for the recycling of electronic equipment and/or batteries. For more information please contact your local household waste disposal office.A Liquid Crystal Display (LCD) screen is a multilayer complex component, containing 691,200 pixels. Pixels can however fail during normal product life. 1 pixel = 0.0001% failure rate, and one pixel failure per year of operation is considered normal and not a cause for concern.To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so.Have the unit serviced by a qualified service technician if; The Unit has been exposed to rain or water. The unit does not seem to operate normally. The unit exhibits a marked change in performance.WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire.Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. 1. Ensure that the windscreen is free of dirt or grease before placing mount upon it.Do not obscure the view of the road ahead or impede the deployment of any airbags in the event 2. of an accident.When not in use, please disconnect the car adaptor from both the 12/24Vdc outlet in your vehicle 3. and the device itself. 4. Only clean the device with a soft dry cloth, for tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth. Note that alcohol, thinner, benzene etc could cause damage to the paint or coatings. Avoid making contact with the lens as damage be caused. 5. may If required clean the glass lens carefully using spectacle lens cleaning fluid on a soft cloth only. 6. The video recordings made by this Digital Video Recorder are intended for personal use only. 7. Publication of the recordings on Youtube, the internet or other methods are subject to the 8. Data Protection Act and the requirements thereof must be adhered to.If the Digital Video Recorder is to be used within a commercial environment, i.e. truck use, then the CCTV regulation apply also, in addition to the Data Protection Act regulations. This includes olabelling to identify the use f CCTV is taking place, the omission of Audio recording and he relevant informing t authorities of who controls the data.Video playback upon the device which is visible to the driver is prohibited or restricted in some 9. countries or States. Please adhere to these laws.Whilst driving, do not adjust the controls of your device as this is a distraction to driving. 10. CAUTIONS ON USING THIS PRODUCT05

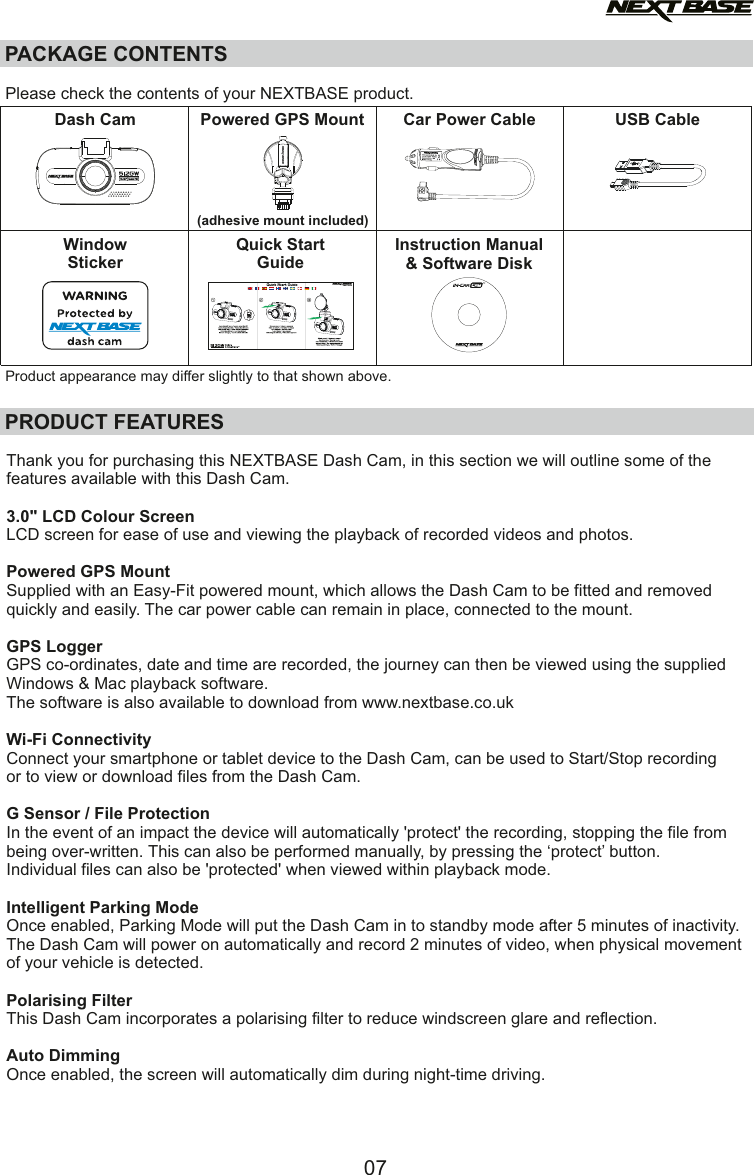

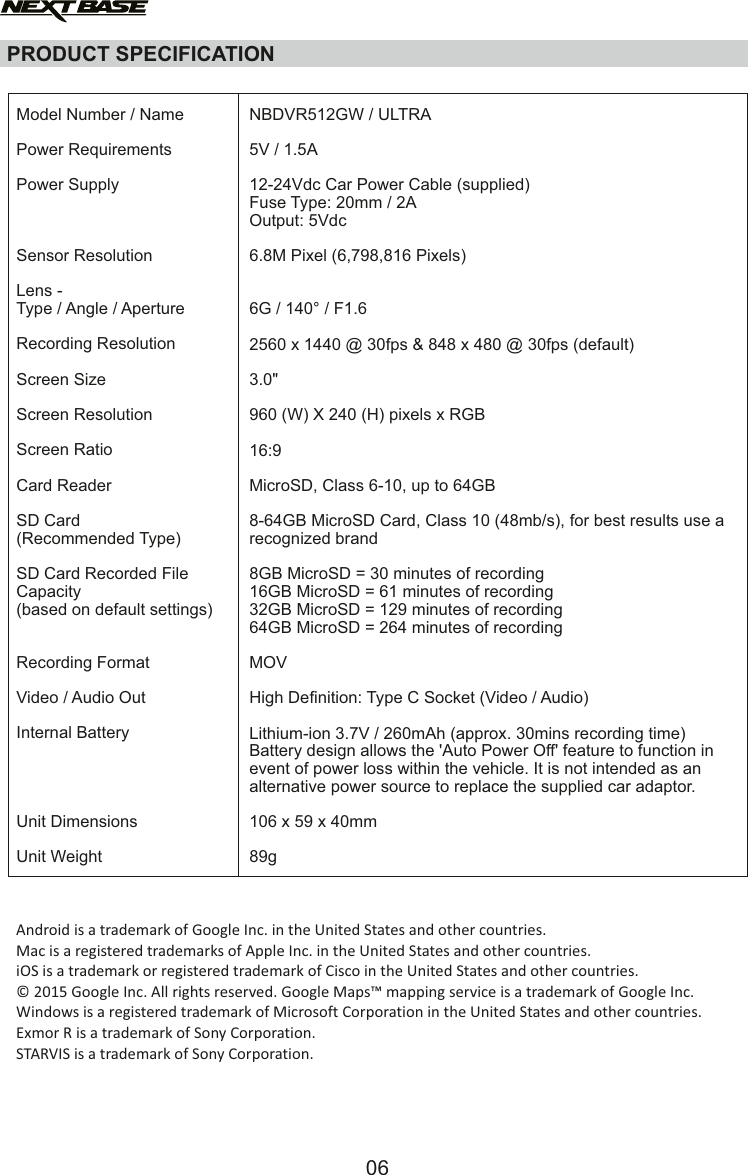

PACKAGE CONTENTSDash Cam Powered GPS Mount Car Power Cable USB CablePRODUCT FEATURESInstruction Manual& Software DiskQuick StartGuidePlease check the contents of your NEXTBASE product.Product appearance may differ slightly to that shown above.WindowStickerThank you for purchasing this NEXTBASE Dash Cam, in this section we will outline some of the features available with this Dash Cam.3.0" LCD Colour ScreenLCD screen for ease of use and viewing the playback of recorded videos and photos.Powered GPS MountSupplied with an Easy-Fit powered mount, which allows the Dash Cam to be fitted and removedquickly and easily. The car power cable can remain in place, connected to the mount.GPS LoggerGPS co-ordinates, date and time are recorded, the journey can then be viewed using the suppliedWindows & Mac playback software. The software is also available to download from www.nextbase.co.ukWi-Fi ConnectivityConnect your smartphone or tablet device to the Dash Cam, can be used to Start/Stop recording or to view or download files from the Dash Cam.G Sensor / File ProtectionIn the event of an impact the device will automatically 'protect' the recording, stopping the file from being over-written. This can also be performed manually, by pressing the ‘protect’ button.Individual files can also be 'protected' when viewed within playback mode.Intelligent Parking ModeOnce enabled, Parking Mode will put the Dash Cam in to standby mode after 5 minutes of inactivity.The Dash Cam will power on automatically and record 2 minutes of video, when physical movement of your vehicle is detected. Polarising FilterThis Dash Cam incorporates a polarising filter to reduce windscreen glare and reflection. Auto DimmingOnce enabled, the screen will automatically dim during night-time driving.07(adhesive mount included)

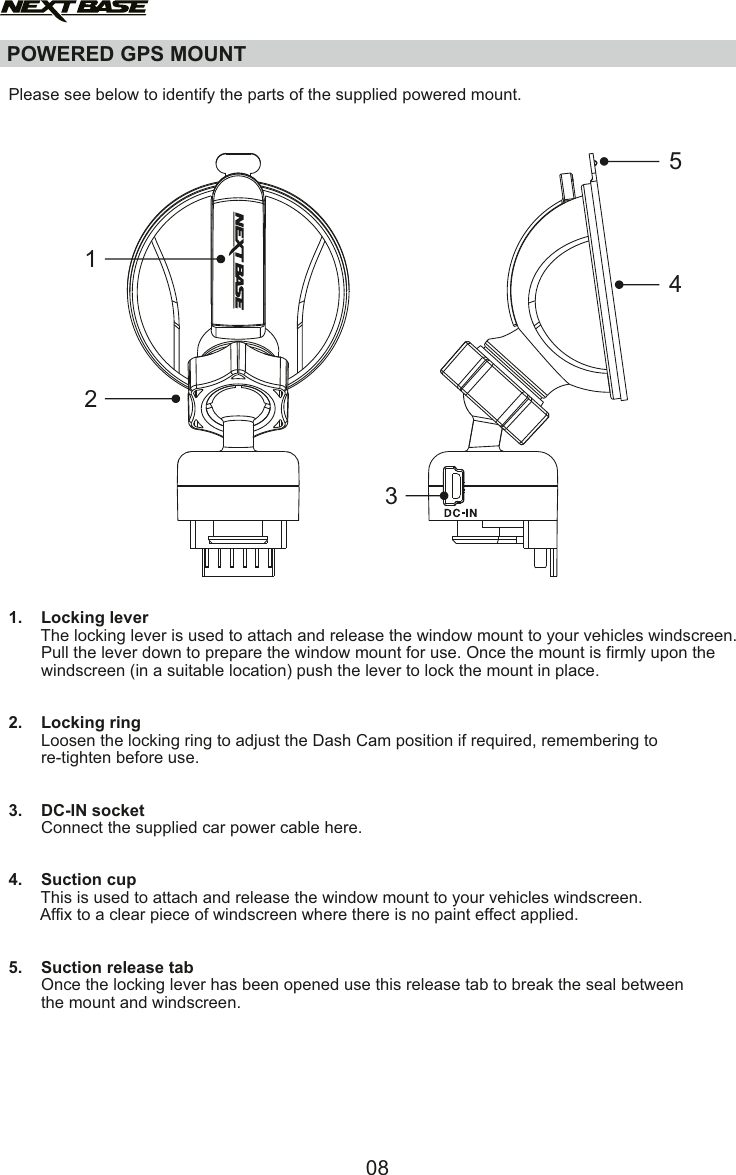

POWERED GPS MOUNT Please see below to identify the parts of the supplied powered mount.1. Locking lever The locking lever is used to attach and release the window mount to your vehicles windscreen. Pull the lever down to prepare the window mount for use. Once the mount is firmly upon the windscreen (in a suitable location) push the lever to lock the mount in place.2. Locking ring Loosen the locking ring to adjust the Dash Cam position if required, remembering to re-tighten before use.3. DC-IN socket Connect the supplied car power cable here. 4. Suction cup This is used to attach and release the window mount to your vehicles windscreen. Affix to a clear piece of windscreen where there is no paint effect applied.5. Suction release tab Once the locking lever has been opened use this release tab to break the seal between the mount and windscreen.4513208

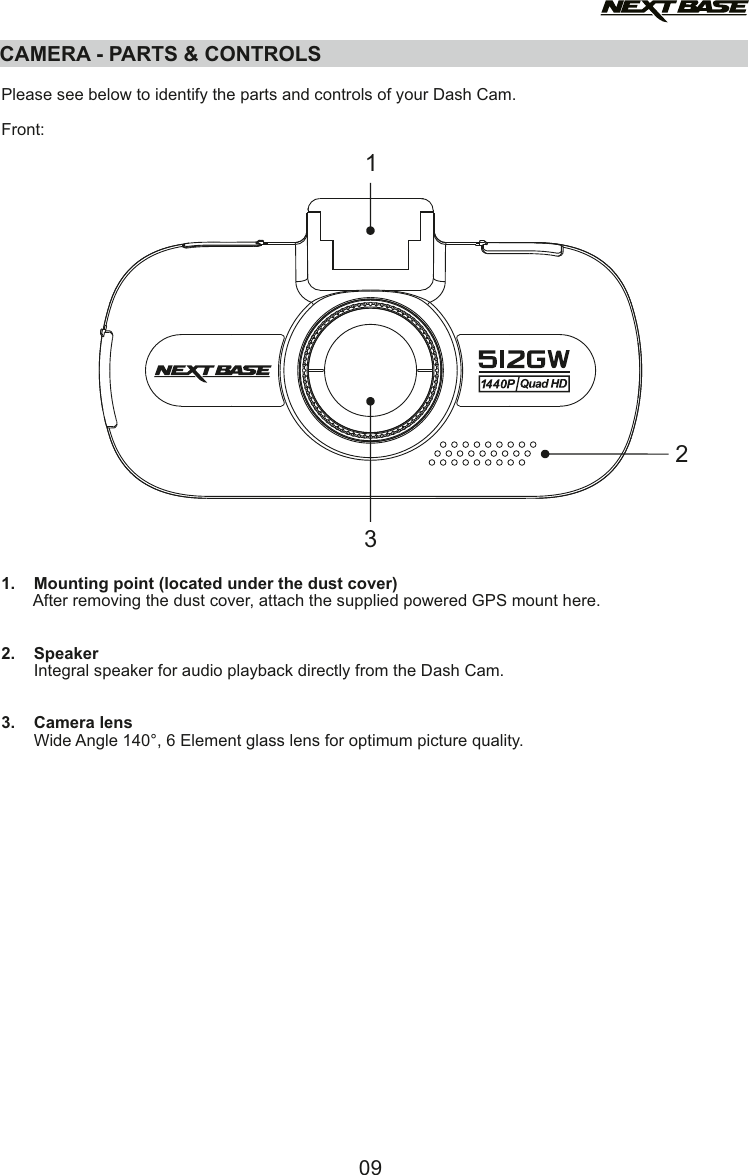

CAMERA - PARTS & CONTROLS Please see below to identify the parts and controls of your Dash Cam.Front:1. Mounting point (located under the dust cover) After removing the dust cover, attach the supplied powered GPS mount here.2. Speaker Integral speaker for audio playback directly from the Dash Cam.3. Camera lens Wide Angle 140°, 6 Element glass lens for optimum picture quality.13209

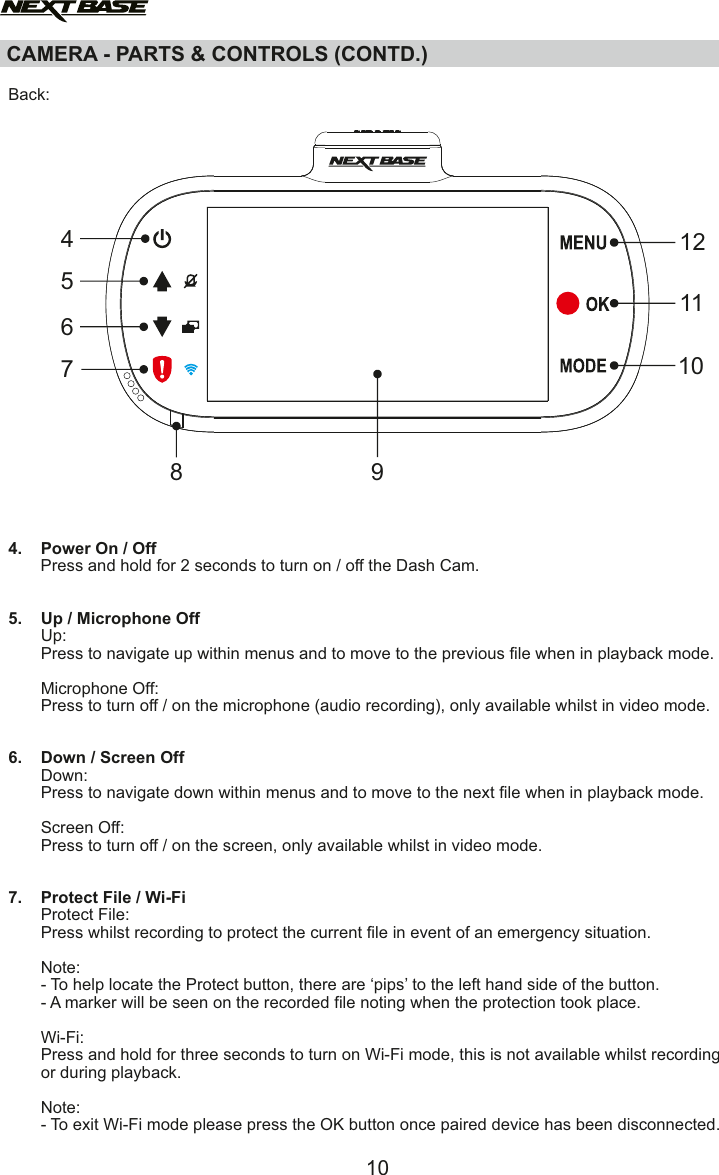

CAMERA - PARTS & CONTROLS (CONTD.) Back:4. Power On / Off Press and hold for 2 seconds to turn on / off the Dash Cam.5. Up / Microphone Off Up: Press to navigate up within menus and to move to the previous file when in playback mode. Microphone Off: Press to turn off / on the microphone (audio recording), only available whilst in video mode.6. Down / Screen Off Down: Press to navigate down within menus and to move to the next file when in playback mode. Screen Off: Press to turn off / on the screen, only available whilst in video mode.7. Protect File / Wi-Fi Protect File: Press whilst recording to protect the current file in event of an emergency situation. Note: - To help locate the Protect button, there are ‘pips’ to the left hand side of the button. - A marker will be seen on the recorded file noting when the protection took place. Wi-Fi: Press and hold for three seconds to turn on Wi-Fi mode, this is not available whilst recording or during playback. Note: - To exit Wi-Fi mode please press the OK button once paired device has been disconnected.1047561210118 9

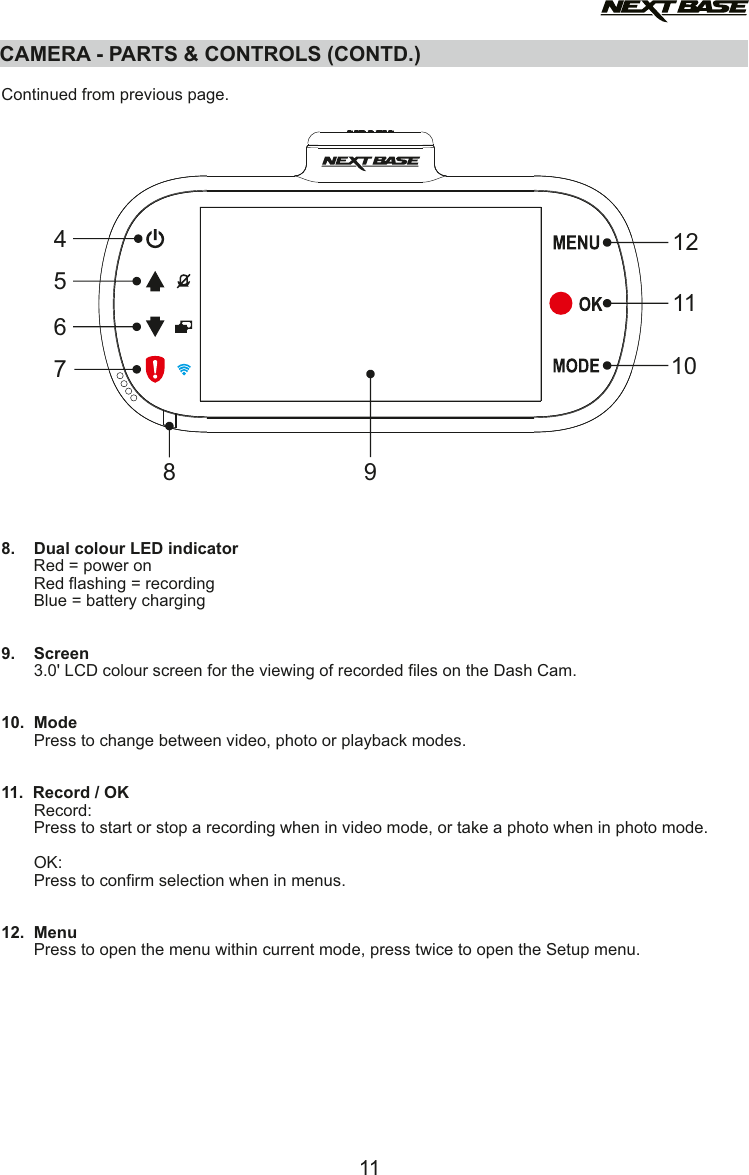

CAMERA - PARTS & CONTROLS (CONTD.)CAMERA - PARTS & CONTROLS (CONTD.) Continued from previous page.8. Dual colour LED indicator Red = power on Red flashing = recording Blue = battery charging9. Screen 3.0' LCD colour screen for the viewing of recorded files on the Dash Cam.10. Mode Press to change between video, photo or playback modes.11. Record / OK Record: Press to start or stop a recording when in video mode, or take a photo when in photo mode. OK: Press to confirm selection when in menus.12. Menu Press to open the menu within current mode, press twice to open the Setup menu.1147561210118 9

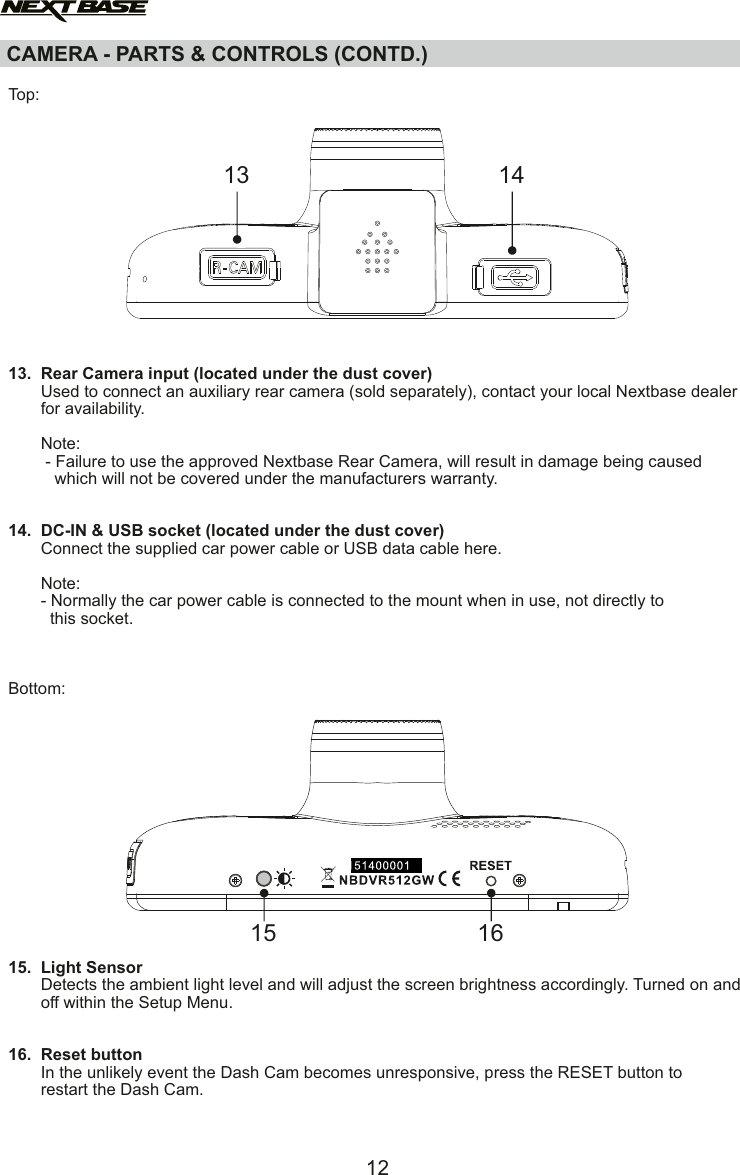

CAMERA - PARTS & CONTROLS (CONTD.) Top:13. Rear Camera input (located under the dust cover) Used to connect an auxiliary rear camera (sold separately), contact your local Nextbase dealer for availability. Note: - Failure to use the approved Nextbase Rear Camera, will result in damage being caused which will not be covered under the manufacturers warranty.14. DC-IN & USB socket (located under the dust cover) Connect the supplied car power cable or USB data cable here. Note: - Normally the car power cable is connected to the mount when in use, not directly to this socket.Bottom:15. Light Sensor Detects the ambient light level and will adjust the screen brightness accordingly. Turned on and off within the Setup Menu.16. Reset button In the unlikely event the Dash Cam becomes unresponsive, press the RESET button to restart the Dash Cam.161213 1415

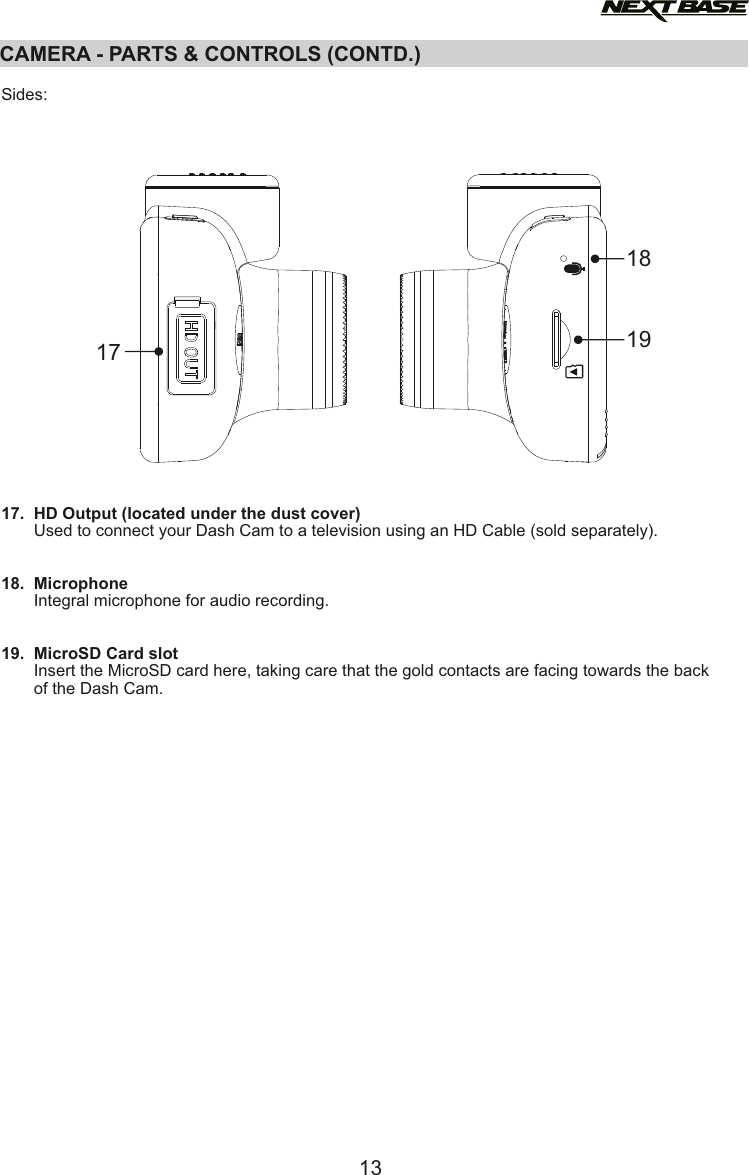

CAMERA - PARTS & CONTROLS (CONTD.) Sides:17. HD Output (located under the dust cover) Used to connect your Dash Cam to a television using an HD Cable (sold separately).18. Microphone Integral microphone for audio recording. 19. MicroSD Card slot Insert the MicroSD card here, taking care that the gold contacts are facing towards the back of the Dash Cam.17 191318

IN VEHICLE INSTALLATION Please follow the instructions below for first-time installation of the Dash Cam. For day to day use simply remove the camera from the mount as required.1. Insert MicroSD Card Insert a suitable MicroSD card (Class 10 48/Mbps) in to the Dash Cam, taking care that the gold contacts are facing towards the LCD screen side of the Dash Cam. Push the memory card until it clicks into place. Note: - Use the edge of a small coin (or similar object) to push the memory card in place if required. Take care that card has 'clicked' into place, a second push inwards will release the memory card. - Do not remove or insert the memory card when the Dash Cam is turned on. This may damage the memory card.2. Remove dust cover from Dash Cam Remove the dust cover that is located on the top of the Dash Cam to gain access to the mounting point. To remove the dust cover, slide it forwards away from the LCD screen of the Dash Cam. Note: - If the Dash Cam is not to be used for a period of time please replace the dust cover to help keep the metal contacts free of dust or other contaminants.14

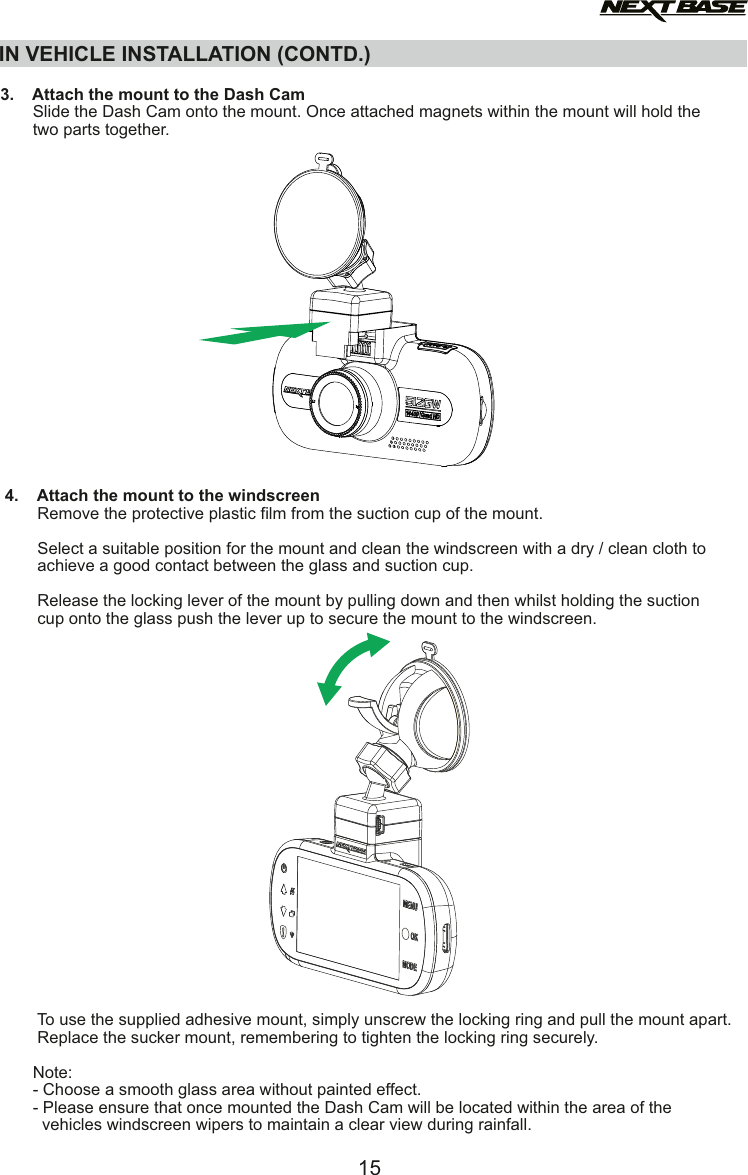

IN VEHICLE INSTALLATION (CONTD.) 3. Attach the mount to the Dash Cam Slide the Dash Cam onto the mount. Once attached magnets within the mount will hold the two parts together. 4. Attach the mount to the windscreen Remove the protective plastic film from the suction cup of the mount. Select a suitable position for the mount and clean the windscreen with a dry / clean cloth to achieve a good contact between the glass and suction cup. Release the locking lever of the mount by pulling down and then whilst holding the suction cup onto the glass push the lever up to secure the mount to the windscreen. To use the supplied adhesive mount, simply unscrew the locking ring and pull the mount apart. Replace the sucker mount, remembering to tighten the locking ring securely. Note: - Choose a smooth glass area without painted effect. - Please ensure that once mounted the Dash Cam will be located within the area of the vehicles windscreen wipers to maintain a clear view during rainfall.15

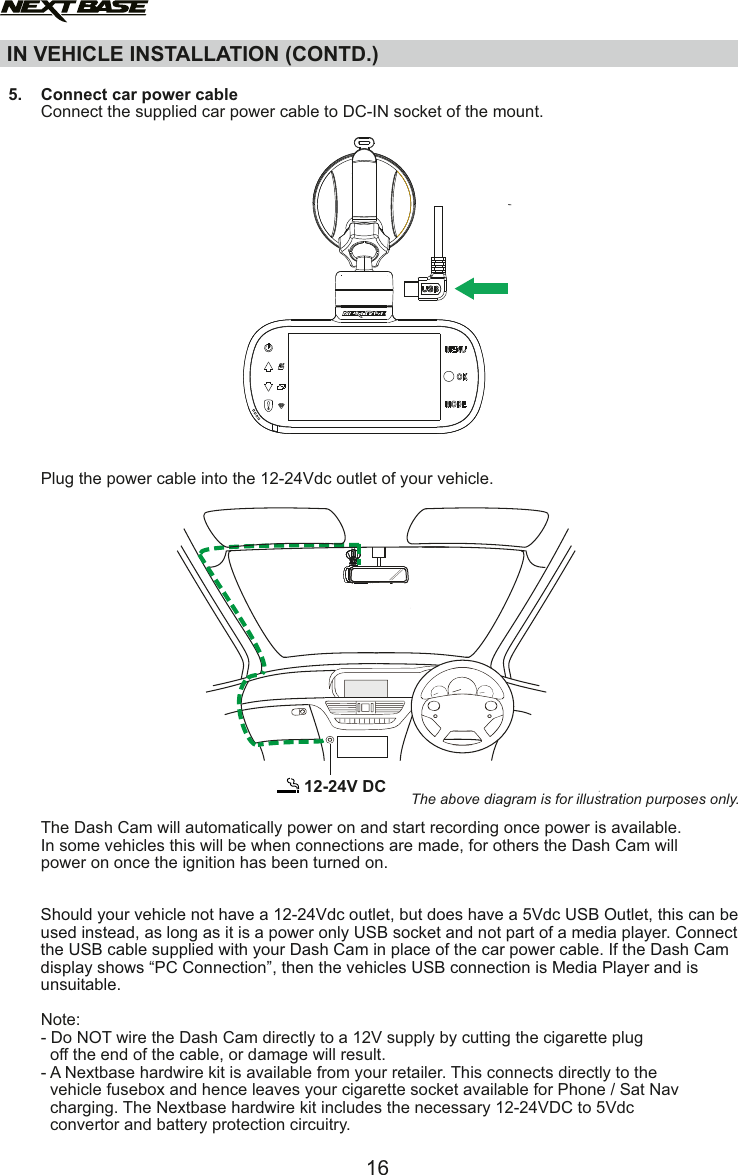

IN VEHICLE INSTALLATION (CONTD.)12-24V DC The above diagram is for illustration purposes only. 5. Connect car power cable Connect the supplied car power cable to DC-IN socket of the mount. Plug the power cable into the 12-24Vdc outlet of your vehicle. The Dash Cam will automatically power on and start recording once power is available. In some vehicles this will be when connections are made, for others the Dash Cam will power on once the ignition has been turned on. Should your vehicle not have a 12-24Vdc outlet, but does have a 5Vdc USB Outlet, this can beused instead, as long as it is a power only USB socket and not part of a media player. Connect the USB cable supplied with your Dash Cam in place of the car power cable. If the Dash Cam display shows “PC Connection”, then the vehicles USB connection is Media Player and is unsuitable. Note: - Do NOT wire the Dash Cam directly to a 12V supply by cutting the cigarette plug off the end of the cable, or damage will result. - A Nextbase hardwire kit is available from your retailer. This connects directly to the vehicle fusebox and hence leaves your cigarette socket available for Phone / Sat Nav charging. The Nextbase hardwire kit includes the necessary 12-24VDC to 5Vdc convertor and battery protection circuitry. 16

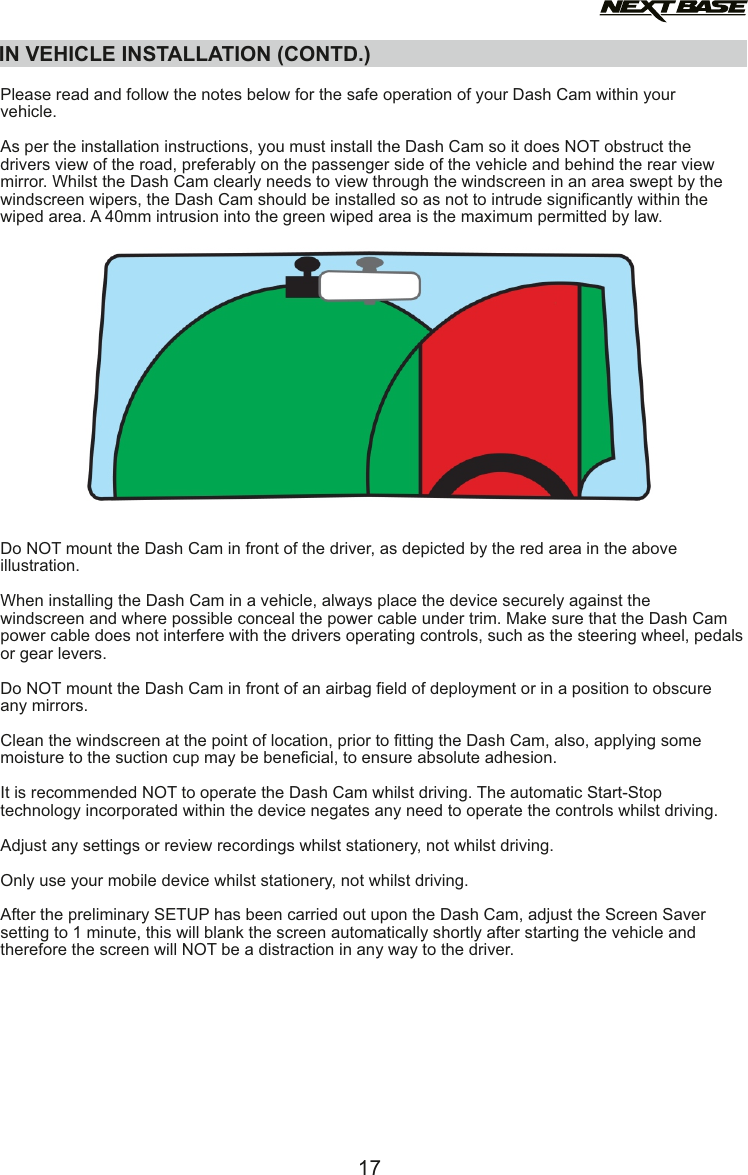

Please read and follow the notes below for the safe operation of your Dash Cam within your vehicle.As per the installation instructions, you must install the Dash Cam so it does NOT obstruct thedrivers view of the road, preferably on the passenger side of the vehicle and behind the rear view mirror. Whilst the Dash Cam clearly needs to view through the windscreen in an area swept by the windscreen wipers, the Dash Cam should be installed so as not to intrude significantly within the wiped area. A 40mm intrusion into the green wiped area is the maximum permitted by law. Do NOT mount the Dash Cam in front of the driver, as depicted by the red area in the above illustration.When installing the Dash Cam in a vehicle, always place the device securely against the windscreen and where possible conceal the power cable under trim. Make sure that the Dash Cam power cable does not interfere with the drivers operating controls, such as the steering wheel, pedals or gear levers. Do NOT mount the Dash Cam in front of an airbag field of deployment or in a position to obscure any mirrors.Clean the windscreen at the point of location, prior to fitting the Dash Cam, also, applying somemoisture to the suction cup may be beneficial, to ensure absolute adhesion.It is recommended NOT to operate the Dash Cam whilst driving. The automatic Start-Stoptechnology incorporated within the device negates any need to operate the controls whilst driving.Adjust any settings or review recordings whilst stationery, not whilst driving.Only use your mobile device whilst stationery, not whilst driving.After the preliminary SETUP has been carried out upon the Dash Cam, adjust the Screen Saver setting to 1 minute, this will blank the screen automatically shortly after starting the vehicle andtherefore the screen will NOT be a distraction in any way to the driver. IN VEHICLE INSTALLATION (CONTD.)17

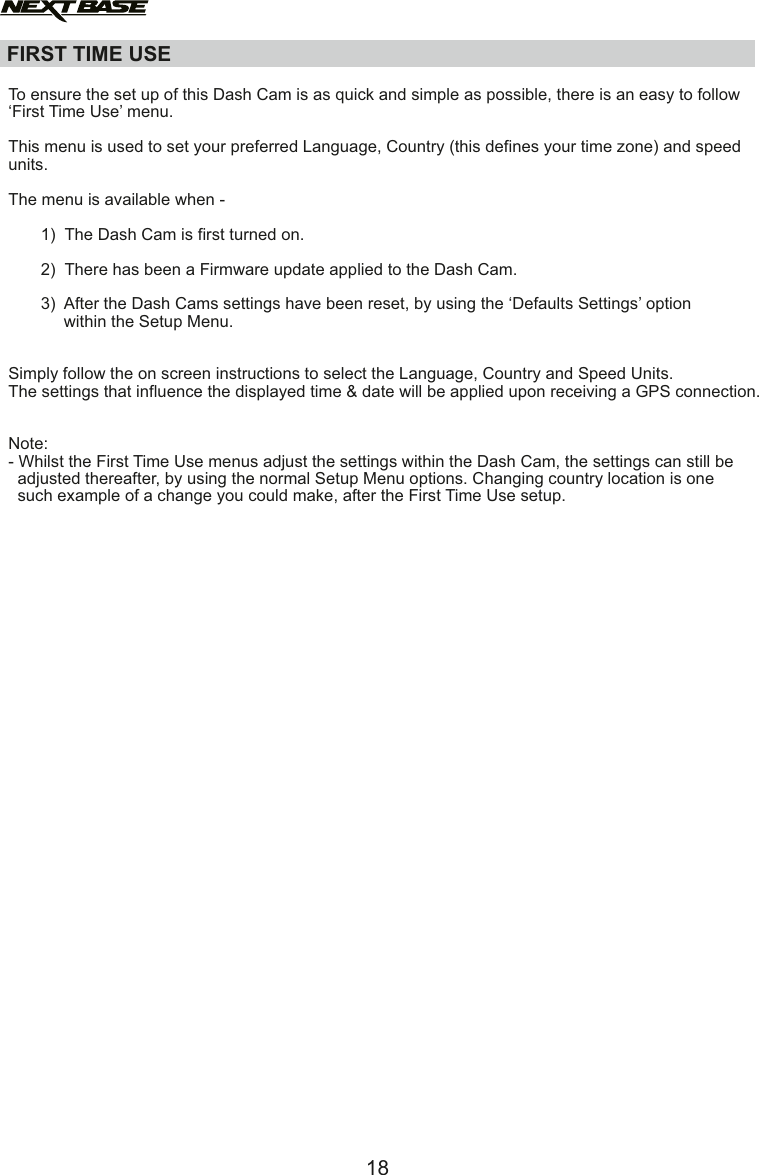

FIRST TIME USE To ensure the set up of this Dash Cam is as quick and simple as possible, there is an easy to follow‘First Time Use’ menu. This menu is used to set your preferred Language, Country (this defines your time zone) and speedunits.The menu is available when - 1) The Dash Cam is first turned on. 2) There has been a Firmware update applied to the Dash Cam. 3) After the Dash Cams settings have been reset, by using the ‘Defaults Settings’ option within the Setup Menu.Simply follow the on screen instructions to select the Language, Country and Speed Units.The settings that influence the displayed time & date will be applied upon receiving a GPS connection.Note:- Whilst the First Time Use menus adjust the settings within the Dash Cam, the settings can still be adjusted thereafter, by using the normal Setup Menu options. Changing country location is one such example of a change you could make, after the First Time Use setup. 18

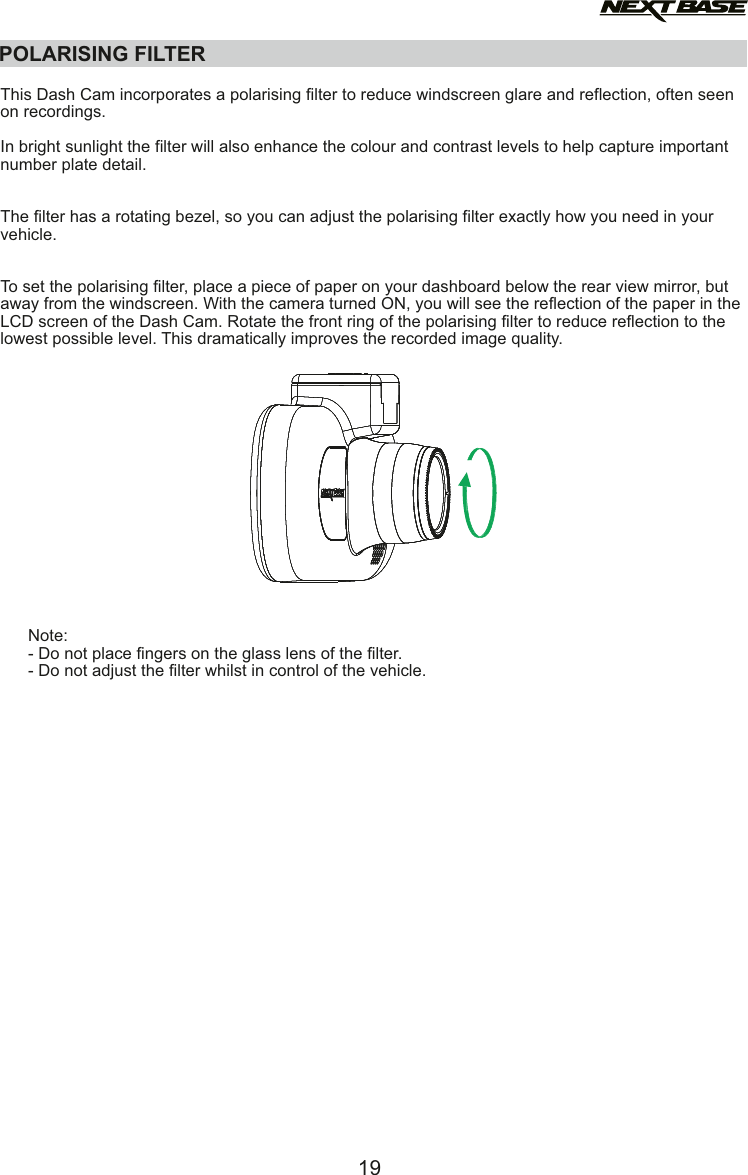

POLARISING FILTER19 This Dash Cam incorporates a polarising filter to reduce windscreen glare and reflection, often seenon recordings. In bright sunlight the filter will also enhance the colour and contrast levels to help capture importantnumber plate detail.The filter has a rotating bezel, so you can adjust the polarising filter exactly how you need in yourvehicle.To set the polarising filter, place a piece of paper on your dashboard below the rear view mirror, butaway from the windscreen. With the camera turned ON, you will see the reflection of the paper in theLCD screen of the Dash Cam. Rotate the front ring of the polarising filter to reduce reflection to the lowest possible level. This dramatically improves the recorded image quality. Note: - Do not place fingers on the glass lens of the filter. - Do not adjust the filter whilst in control of the vehicle.

VIDEO MODEThe key below explains the various information displayed on the screen when your Dash Cam is in Video mode, some icons will only be displayed once the relevant function has been selected within the Video menu, as described below. 1. Mode: indicates the Dash Cam is in Video mode. 2. Recording: appears on screen when recording is in progress. 3. Resolution: displays the current resolution of the high resolution file. 4. Exposure: displays current Exposure level setting. 5. Video Length: displays the length of the individual recordings in minutes. 6. Parking Mode: appears on screen when Parking Mode has been turned on. 7. Microphone: displayed on screen when Audio Recording is active. 8. Time Lapse: appears on screen during Time Lapse recording. 9. GPS: The satellite icon will flash whilst the Dash Cam locates satellites. Once a stable signal is received, the icon will stop flashing and remain on screen. 10. Date: current date. 11. Time: current time. 12. Memory Card: indicates whether a memory card is present. 13. Battery: indicates whether Dash Cam is running on battery or external power. 14. Protected: shown on screen when a video file has been protected by activation of the G Sensor or by the pressing of the file protect button.The default settings within the Dash Cam have been set to allow you to use the Dash Cam without the need to change any settings.See the next page for video menu settings, should you want to make any adjustments however.2014/10/20152:3716:04:3781 2 3 45679111213 1014 3M

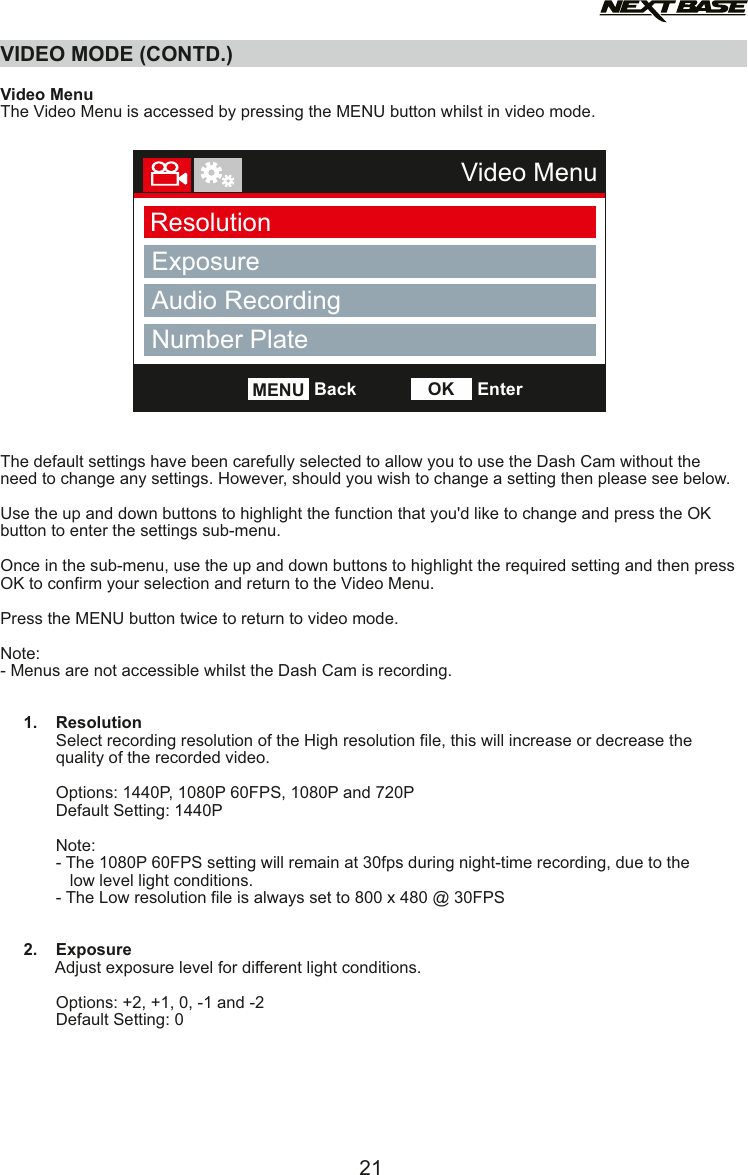

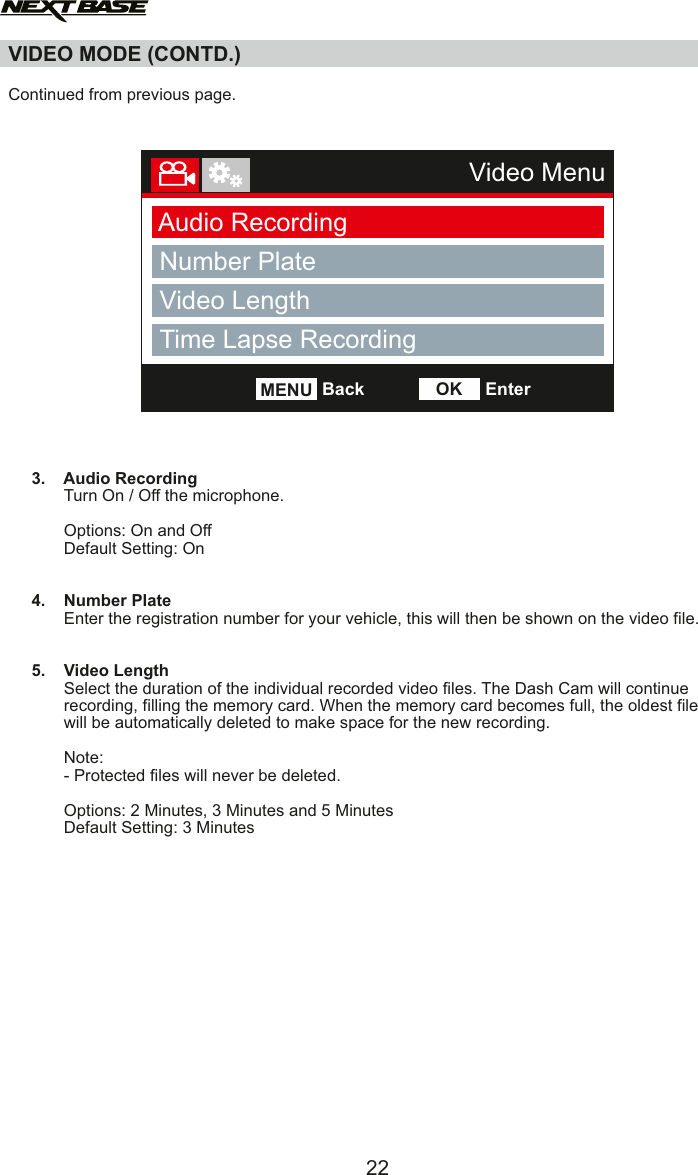

VIDEO MODE (CONTD.) Video MenuThe Video Menu is accessed by pressing the MENU button whilst in video mode. The default settings have been carefully selected to allow you to use the Dash Cam without the need to change any settings. However, should you wish to change a setting then please see below.Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.Once in the sub-menu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Video Menu.Press the MENU button twice to return to video mode. Note:- Menus are not accessible whilst the Dash Cam is recording. 1. Resolution Select recording resolution of the High resolution file, this will increase or decrease the quality of the recorded video. Options: 1440P, 1080P 60FPS, 1080P and 720P Default Setting: 1440P Note: - The 1080P 60FPS setting will remain at 30fps during night-time recording, due to the low level light conditions. - The Low resolution file is always set to 800 x 480 @ 30FPS 2. Exposure Adjust exposure level for different light conditions. Options: +2, +1, 0, -1 and -2 Default Setting: 021Video MenuResolutionExposureAudio RecordingNumber PlateBackMENU EnterOK

VIDEO MODE (CONTD.) Continued from previous page. 3. Audio Recording Turn On / Off the microphone. Options: On and Off Default Setting: On 4. Number Plate Enter the registration number for your vehicle, this will then be shown on the video file. 5. Video Length Select the duration of the individual recorded video files. The Dash Cam will continue recording, filling the memory card. When the memory card becomes full, the oldest file will be automatically deleted to make space for the new recording. Note: - Protected files will never be deleted. Options: 2 Minutes, 3 Minutes and 5 Minutes Default Setting: 3 MinutesVideo MenuAudio RecordingNumber PlateVideo LengthTime Lapse RecordingBackMENU EnterOK22

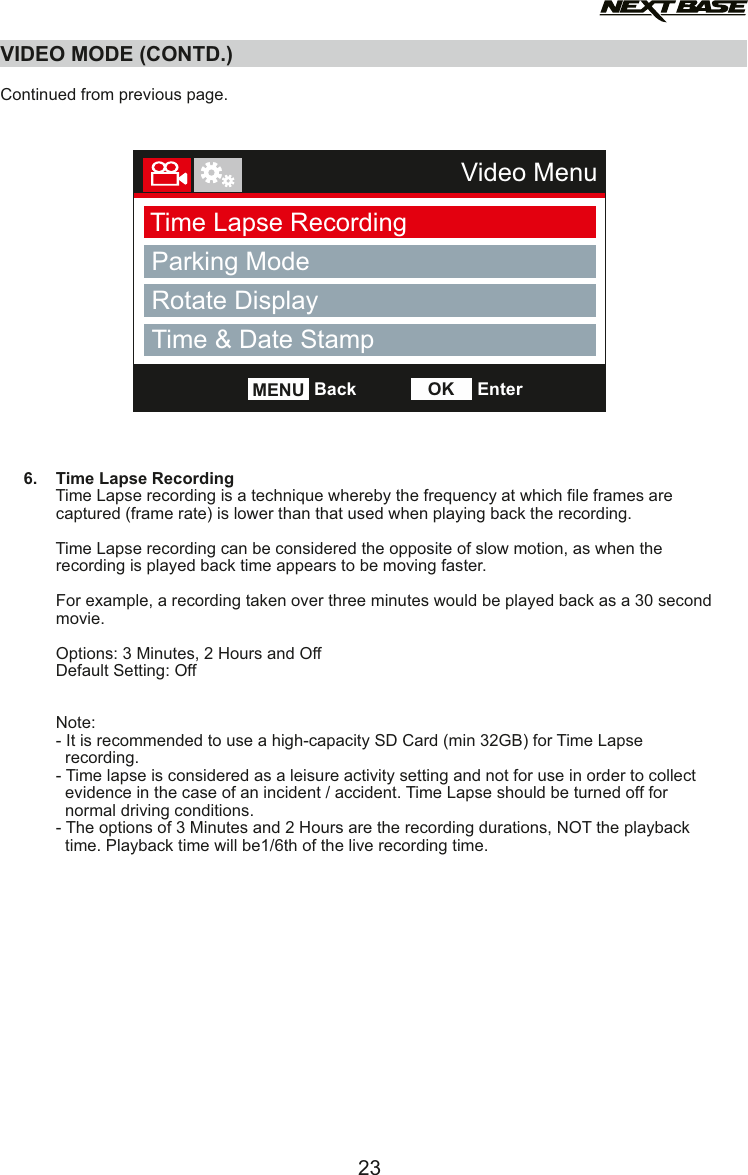

VIDEO MODE (CONTD.) Continued from previous page. 6. Time Lapse Recording Time Lapse recording is a technique whereby the frequency at which file frames are captured (frame rate) is lower than that used when playing back the recording. Time Lapse recording can be considered the opposite of slow motion, as when the recording is played back time appears to be moving faster. For example, a recording taken over three minutes would be played back as a 30 second movie. Options: 3 Minutes, 2 Hours and Off Default Setting: Off Note: - It is recommended to use a high-capacity SD Card (min 32GB) for Time Lapse recording. - Time lapse is considered as a leisure activity setting and not for use in order to collect evidence in the case of an incident / accident. Time Lapse should be turned off for normal driving conditions. - The options of 3 Minutes and 2 Hours are the recording durations, NOT the playback time. Playback time will be1/6th of the live recording time.Video MenuTime Lapse RecordingParking ModeRotate DisplayTime & Date StampBackMENU EnterOK23

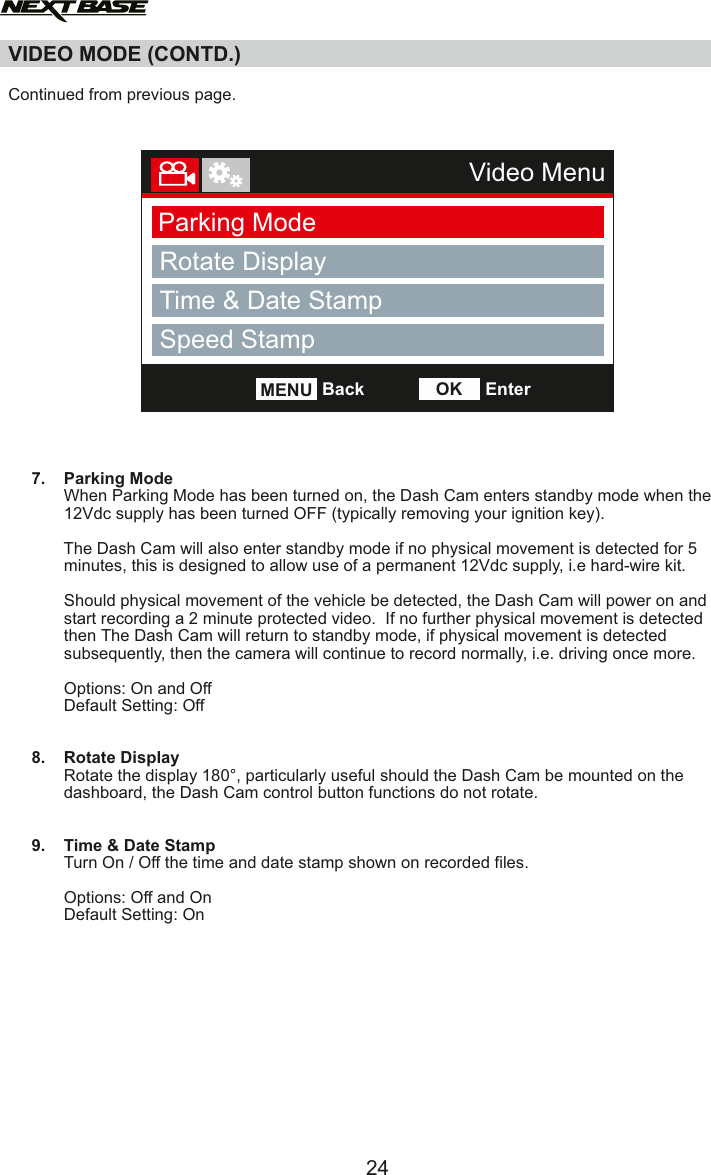

VIDEO MODE (CONTD.) Continued from previous page. 7. Parking Mode When Parking Mode has been turned on, the Dash Cam enters standby mode when the 12Vdc supply has been turned OFF (typically removing your ignition key). The Dash Cam will also enter standby mode if no physical movement is detected for 5 minutes, this is designed to allow use of a permanent 12Vdc supply, i.e hard-wire kit. Should physical movement of the vehicle be detected, the Dash Cam will power on and start recording a 2 minute protected video. If no further physical movement is detected then The Dash Cam will return to standby mode, if physical movement is detected subsequently, then the camera will continue to record normally, i.e. driving once more. Options: On and Off Default Setting: Off 8. Rotate Display Rotate the display 180°, particularly useful should the Dash Cam be mounted on the dashboard, the Dash Cam control button functions do not rotate. 9. Time & Date Stamp Turn On / Off the time and date stamp shown on recorded files. Options: Off and On Default Setting: OnVideo MenuParking ModeRotate DisplayTime & Date StampNumber PlateBackMENU EnterOKSpeed Stamp24

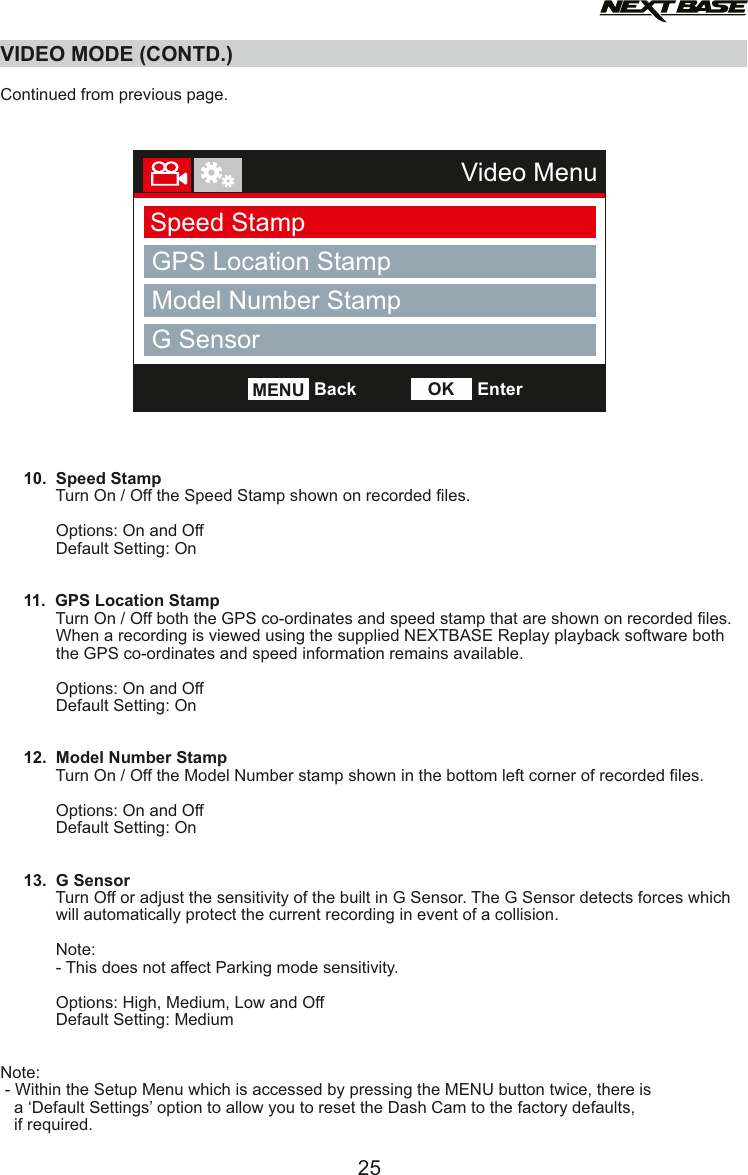

VIDEO MODE (CONTD.) Continued from previous page. 10. Speed Stamp Turn On / Off the Speed Stamp shown on recorded files. Options: On and Off Default Setting: On 11. GPS Location Stamp Turn On / Off both the GPS co-ordinates and speed stamp that are shown on recorded files. When a recording is viewed using the supplied NEXTBASE Replay playback software both the GPS co-ordinates and speed information remains available. Options: On and Off Default Setting: On 12. Model Number Stamp Turn On / Off the Model Number stamp shown in the bottom left corner of recorded files. Options: On and Off Default Setting: On 13. G Sensor Turn Off or adjust the sensitivity of the built in G Sensor. The G Sensor detects forces which will automatically protect the current recording in event of a collision. Note: - This does not affect Parking mode sensitivity. Options: High, Medium, Low and Off Default Setting: MediumNote: - Within the Setup Menu which is accessed by pressing the MENU button twice, there is a ‘Default Settings’ option to allow you to reset the Dash Cam to the factory defaults, if required.Video MenuSpeed StampGPS Location StampModel Number StampNumber PlateBackMENU EnterOKG Sensor25

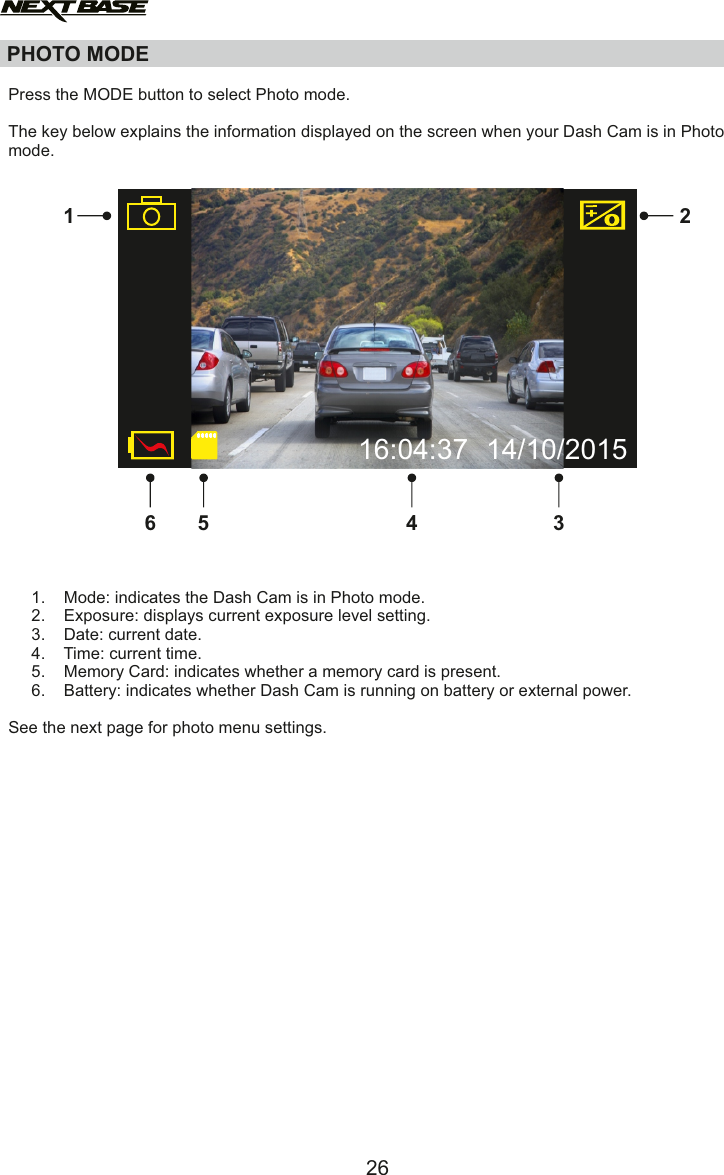

Press the MODE button to select Photo mode.The key below explains the information displayed on the screen when your Dash Cam is in Photo mode. 1. Mode: indicates the Dash Cam is in Photo mode. 2. Exposure: displays current exposure level setting. 3. Date: current date. 4. Time: current time. 5. Memory Card: indicates whether a memory card is present. 6. Battery: indicates whether Dash Cam is running on battery or external power.See the next page for photo menu settings.PHOTO MODE1 2345616:04:37 14/10/201526

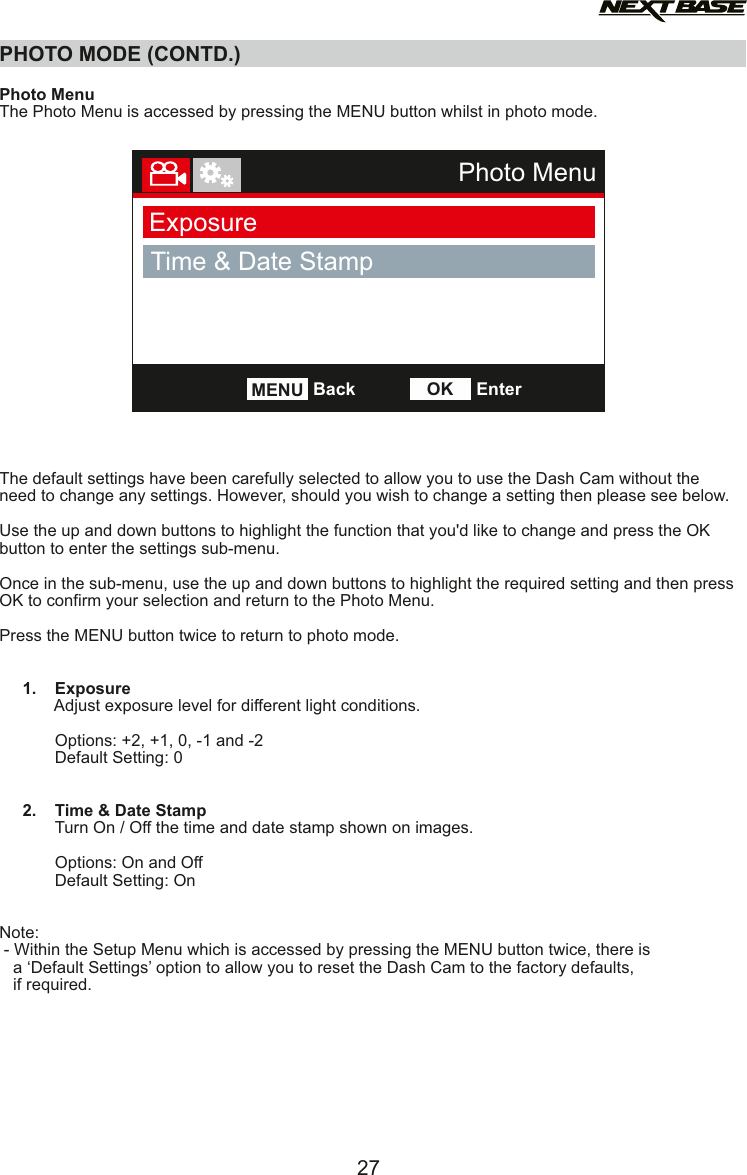

PHOTO MODE (CONTD.) Photo MenuThe Photo Menu is accessed by pressing the MENU button whilst in photo mode. The default settings have been carefully selected to allow you to use the Dash Cam without the need to change any settings. However, should you wish to change a setting then please see below.Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.Once in the sub-menu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.Press the MENU button twice to return to photo mode. 1. Exposure Adjust exposure level for different light conditions. Options: +2, +1, 0, -1 and -2 Default Setting: 0 2. Time & Date Stamp Turn On / Off the time and date stamp shown on images. Options: On and Off Default Setting: OnNote: - Within the Setup Menu which is accessed by pressing the MENU button twice, there is a ‘Default Settings’ option to allow you to reset the Dash Cam to the factory defaults, if required.Photo MenuExposureTime & Date StampBackMENU EnterOK27

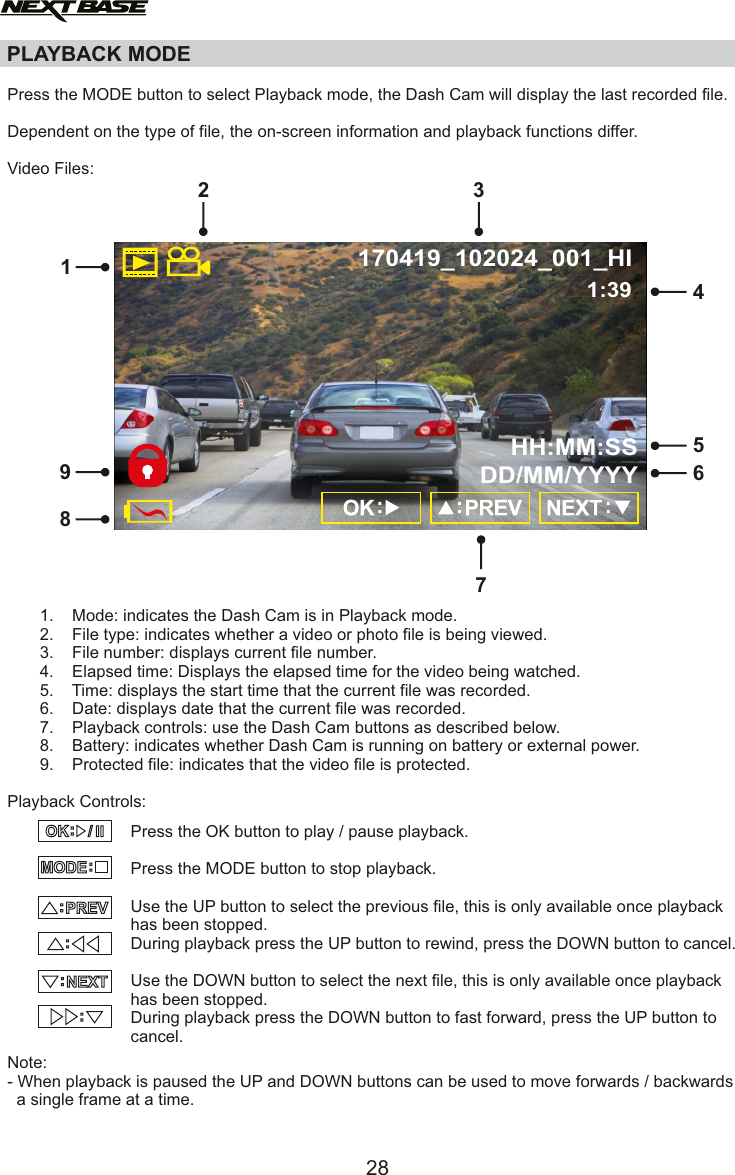

PLAYBACK MODEPress the MODE button to select Playback mode, the Dash Cam will display the last recorded file.Dependent on the type of file, the on-screen information and playback functions differ.Video Files: 1. Mode: indicates the Dash Cam is in Playback mode. 2. File type: indicates whether a video or photo file is being viewed. 3. File number: displays current file number. 4. Elapsed time: Displays the elapsed time for the video being watched. 5. Time: displays the start time that the current file was recorded. 6. Date: displays date that the current file was recorded. 7. Playback controls: use the Dash Cam buttons as described below. 8. Battery: indicates whether Dash Cam is running on battery or external power. 9. Protected file: indicates that the video file is protected.Playback Controls:Note:- When playback is paused the UP and DOWN buttons can be used to move forwards / backwards a single frame at a time.Press the OK button to play / pause playback.Press the MODE button to stop playback.Use the UP button to select the previous file, this is only available once playbackhas been stopped.During playback press the UP button to rewind, press the DOWN button to cancel. Use the DOWN button to select the next file, this is only available once playback has been stopped.During playback press the DOWN button to fast forward, press the UP button to cancel.MODE::PREV/ II OK::NEXT::417256893170419_102024_001_HIHH:MM:SSDD/MM/YYYY1:3928

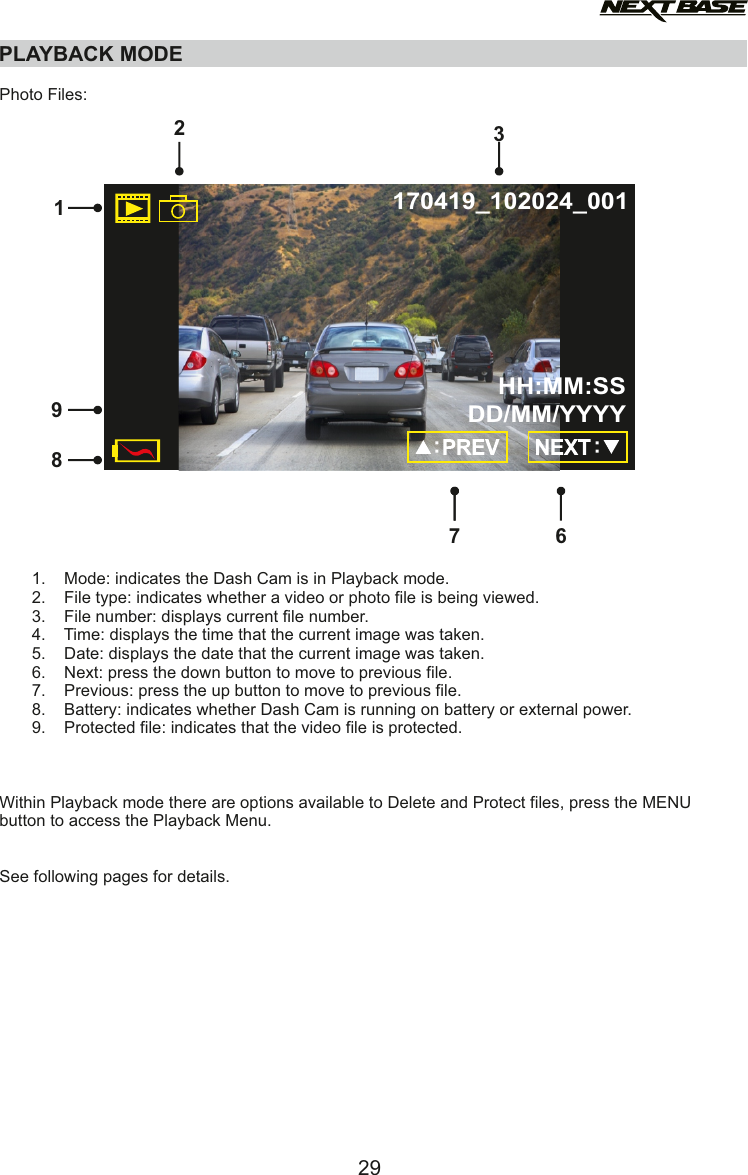

162389PLAYBACK MODEPhoto Files: 1. Mode: indicates the Dash Cam is in Playback mode. 2. File type: indicates whether a video or photo file is being viewed. 3. File number: displays current file number. 4. Time: displays the time that the current image was taken. 5. Date: displays the date that the current image was taken. 6. Next: press the down button to move to previous file. 7. Previous: press the up button to move to previous file. 8. Battery: indicates whether Dash Cam is running on battery or external power. 9. Protected file: indicates that the video file is protected.Within Playback mode there are options available to Delete and Protect files, press the MENU button to access the Playback Menu.See following pages for details.7170419_102024_001HH:MM:SSDD/MM/YYYY29

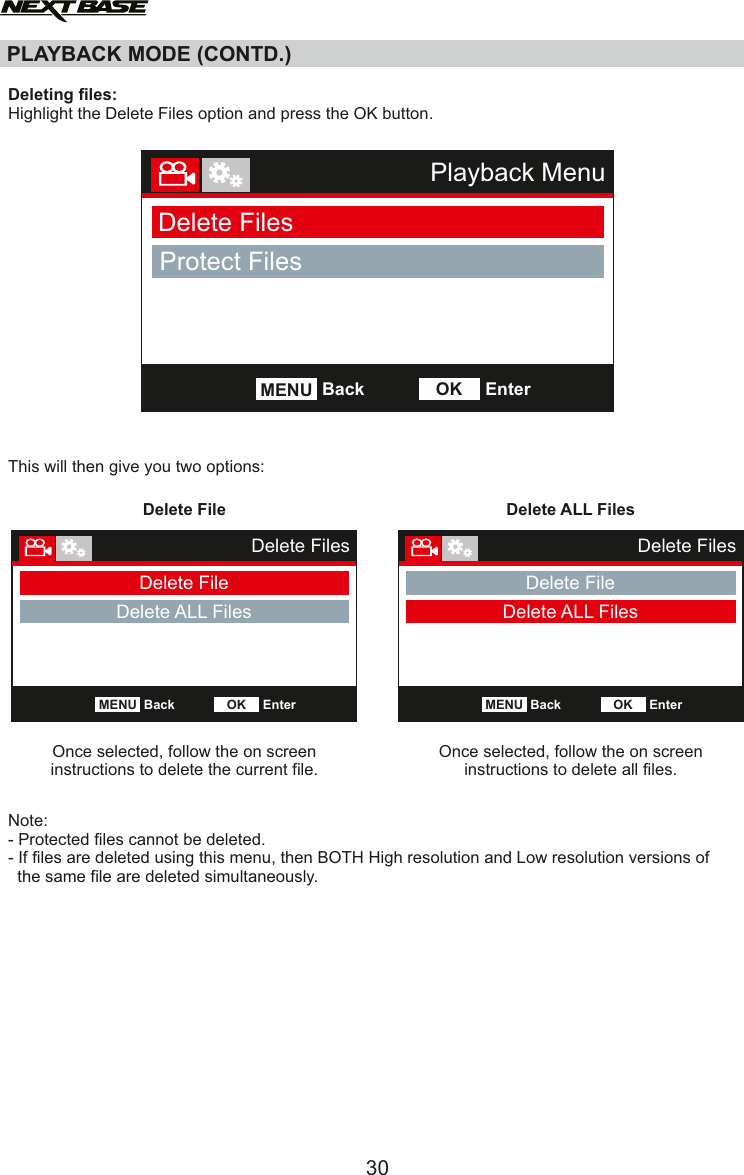

PLAYBACK MODE (CONTD.)Deleting files:Highlight the Delete Files option and press the OK button.This will then give you two options:Note:- Protected files cannot be deleted.- If files are deleted using this menu, then BOTH High resolution and Low resolution versions of the same file are deleted simultaneously.Playback MenuDelete FilesProtect FilesBackMENU EnterOKDelete FileOnce selected, follow the on screen instructions to delete the current file.Delete FilesDelete FileDelete ALL FilesBackMENU EnterOKDelete ALL FilesOnce selected, follow the on screen instructions to delete all files.Delete FilesDelete FileDelete ALL FilesBackMENU EnterOK30

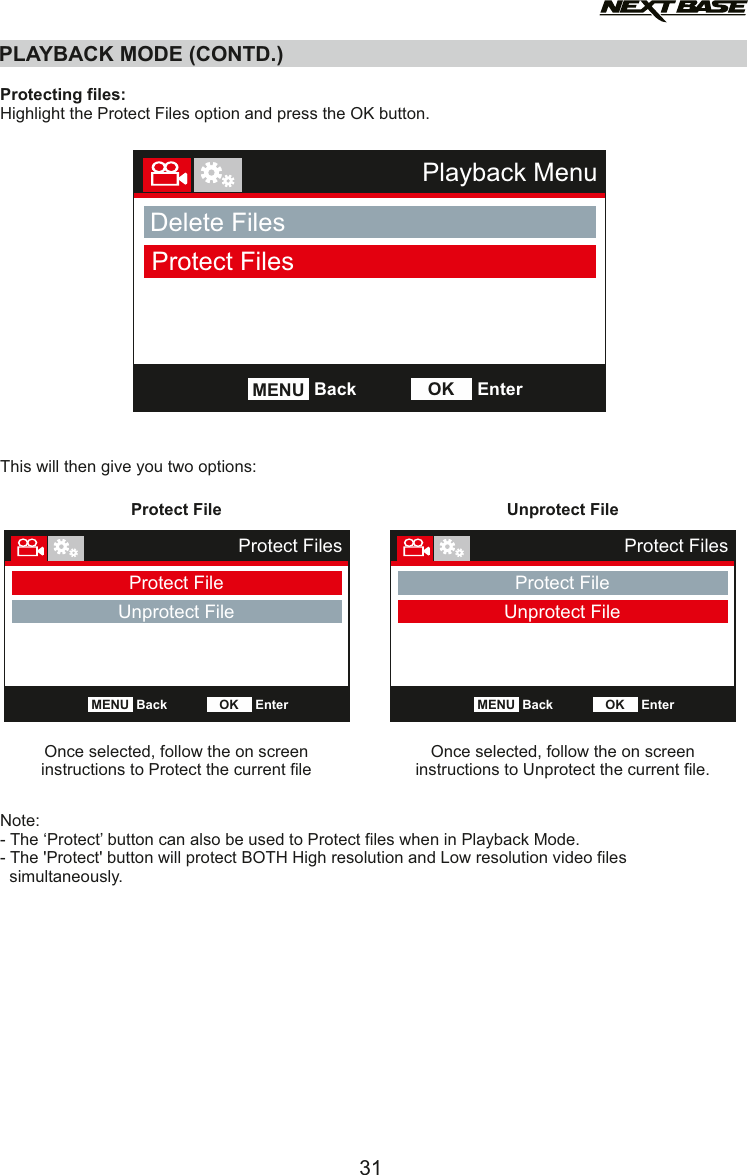

PLAYBACK MODE (CONTD.)Protecting files:Highlight the Protect Files option and press the OK button.This will then give you two options:Note:- The ‘Protect’ button can also be used to Protect files when in Playback Mode.- The 'Protect' button will protect BOTH High resolution and Low resolution video files simultaneously.Playback MenuDelete FilesProtect FilesBackMENU EnterOKProtect FileOnce selected, follow the on screen instructions to Protect the current fileUnprotect FileOnce selected, follow the on screen instructions to Unprotect the current file.Protect FilesProtect FileUnprotect FileBackMENU EnterOKProtect FilesProtect FileUnprotect FileBackMENU EnterOK31

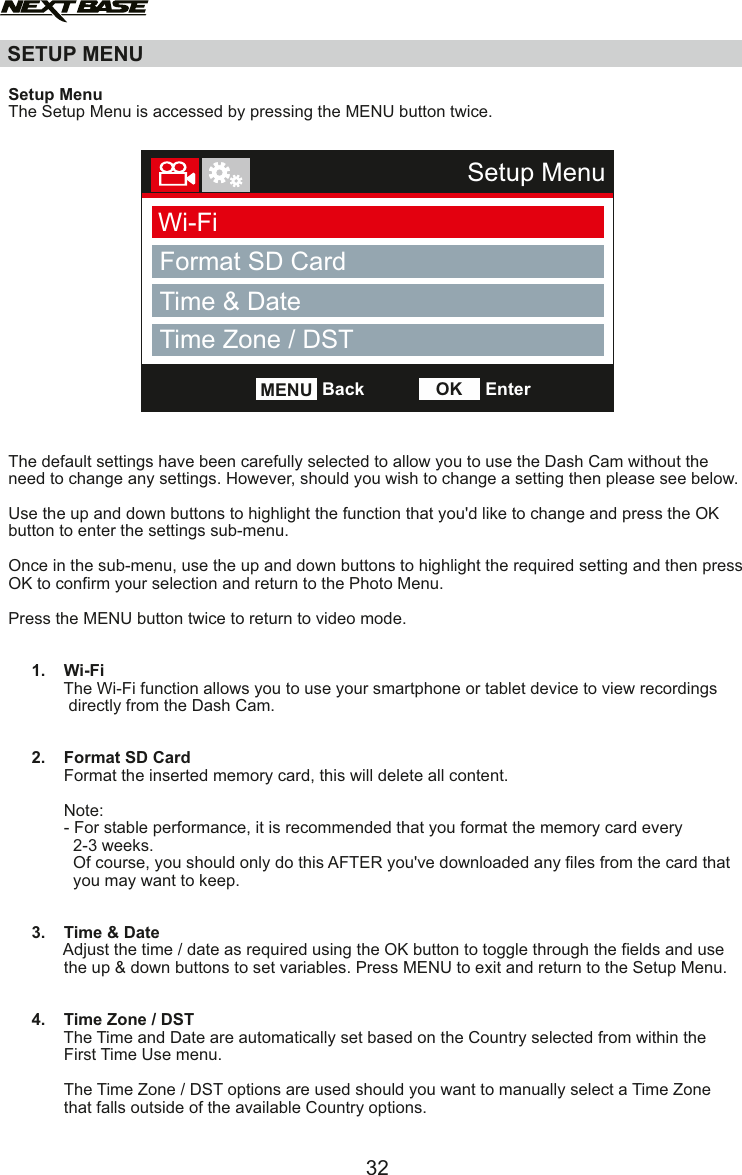

Setup MenuThe Setup Menu is accessed by pressing the MENU button twice. The default settings have been carefully selected to allow you to use the Dash Cam without the need to change any settings. However, should you wish to change a setting then please see below.Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.Once in the sub-menu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.Press the MENU button twice to return to video mode. 1. Wi-Fi The Wi-Fi function allows you to use your smartphone or tablet device to view recordings directly from the Dash Cam. 2. Format SD Card Format the inserted memory card, this will delete all content. Note: - For stable performance, it is recommended that you format the memory card every 2-3 weeks. Of course, you should only do this AFTER you've downloaded any ﬁles from the card that you may want to keep. 3. Time & Date Adjust the time / date as required using the OK button to toggle through the fields and use the up & down buttons to set variables. Press MENU to exit and return to the Setup Menu. 4. Time Zone / DST The Time and Date are automatically set based on the Country selected from within the First Time Use menu. The Time Zone / DST options are used should you want to manually select a Time Zone that falls outside of the available Country options.SETUP MENUSetup MenuWi-FiFormat SD CardBackMENU EnterOKTime Zone / DSTTime & Date32

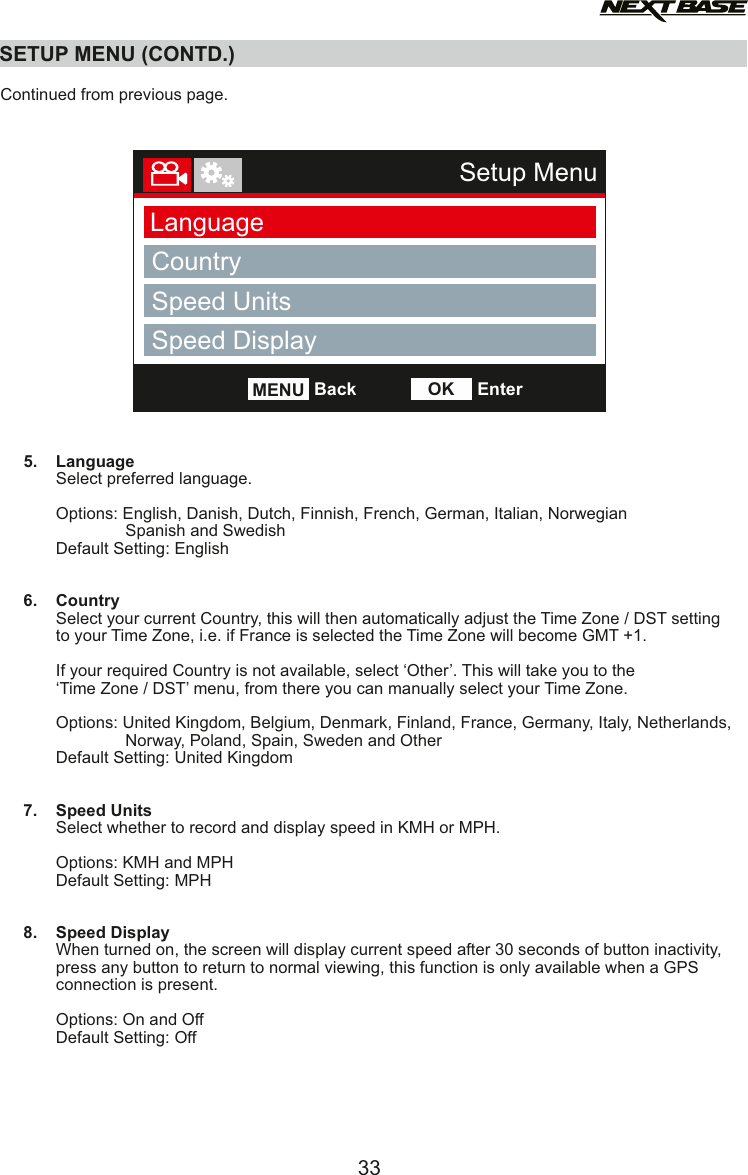

Continued from previous page. 5. Language Select preferred language. Options: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian Spanish and Swedish Default Setting: English 6. Country Select your current Country, this will then automatically adjust the Time Zone / DST setting to your Time Zone, i.e. if France is selected the Time Zone will become GMT +1. If your required Country is not available, select ‘Other’. This will take you to the ‘Time Zone / DST’ menu, from there you can manually select your Time Zone. Options: United Kingdom, Belgium, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Spain, Sweden and Other Default Setting: United Kingdom 7. Speed Units Select whether to record and display speed in KMH or MPH. Options: KMH and MPH Default Setting: MPH 8. Speed Display When turned on, the screen will display current speed after 30 seconds of button inactivity, press any button to return to normal viewing, this function is only available when a GPS connection is present. Options: On and Off Default Setting: OffSETUP MENU (CONTD.)Setup MenuLanguageCountryBackMENU EnterOKSpeed UnitsSpeed Display33

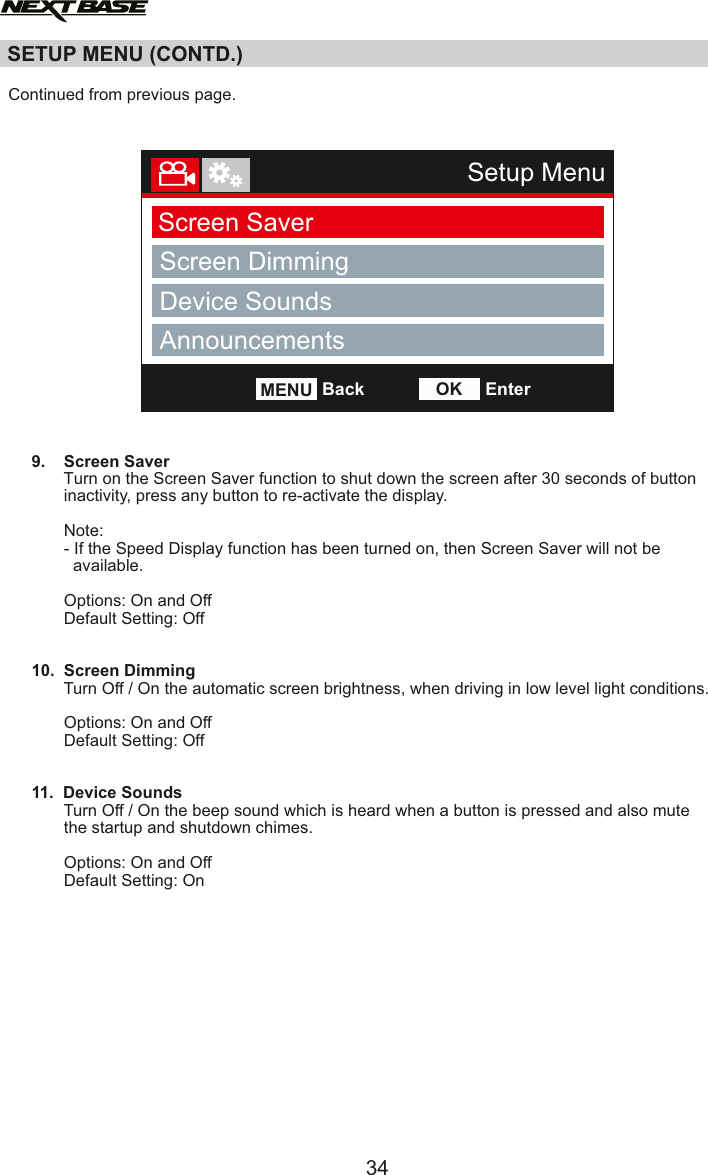

Continued from previous page. 9. Screen Saver Turn on the Screen Saver function to shut down the screen after 30 seconds of button inactivity, press any button to re-activate the display. Note: - If the Speed Display function has been turned on, then Screen Saver will not be available. Options: On and Off Default Setting: Off 10. Screen Dimming Turn Off / On the automatic screen brightness, when driving in low level light conditions. Options: On and Off Default Setting: Off 11. Device Sounds Turn Off / On the beep sound which is heard when a button is pressed and also mute the startup and shutdown chimes. Options: On and Off Default Setting: On SETUP MENU (CONTD.)Setup MenuScreen SaverScreen DimmingBackMENU EnterOKDevice SoundsAnnouncements34

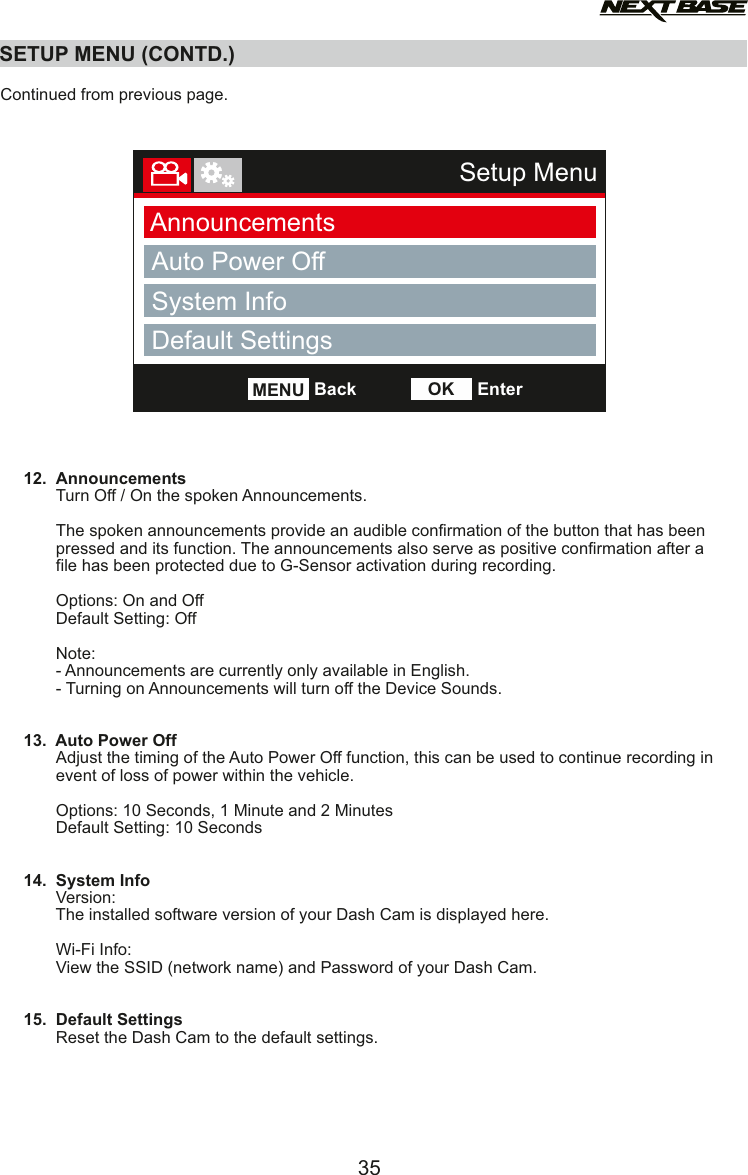

Continued from previous page. 12. Announcements Turn Off / On the spoken Announcements. The spoken announcements provide an audible confirmation of the button that has been pressed and its function. The announcements also serve as positive confirmation after a file has been protected due to G-Sensor activation during recording. Options: On and Off Default Setting: Off Note: - Announcements are currently only available in English. - Turning on Announcements will turn off the Device Sounds. 13. Auto Power Off Adjust the timing of the Auto Power Off function, this can be used to continue recording in event of loss of power within the vehicle. Options: 10 Seconds, 1 Minute and 2 Minutes Default Setting: 10 Seconds 14. System Info Version: The installed software version of your Dash Cam is displayed here. Wi-Fi Info: View the SSID (network name) and Password of your Dash Cam. 15. Default Settings Reset the Dash Cam to the default settings.SETUP MENU (CONTD.)35Setup MenuAnnouncementsAuto Power OﬀBackMENU EnterOKSystem InfoDefault Settings

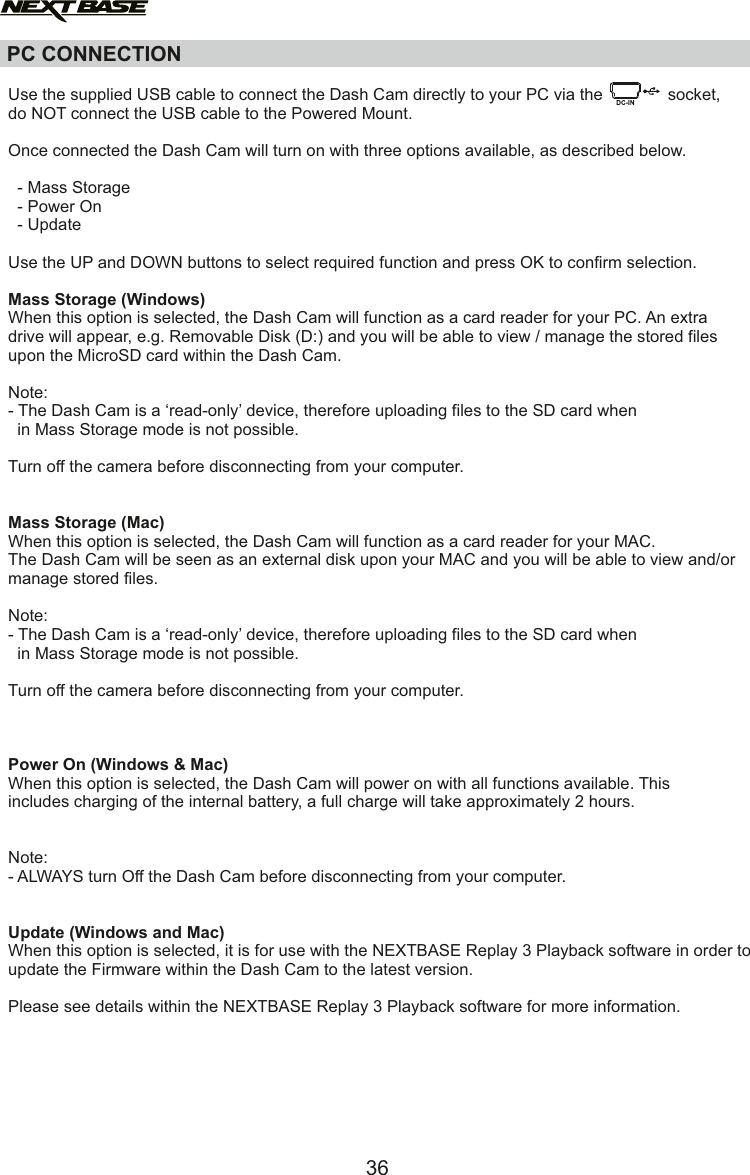

PC CONNECTIONUse the supplied USB cable to connect the Dash Cam directly to your PC via the socket,do NOT connect the USB cable to the Powered Mount. Once connected the Dash Cam will turn on with three options available, as described below. - Mass Storage - Power On - UpdateUse the UP and DOWN buttons to select required function and press OK to confirm selection.Mass Storage (Windows)When this option is selected, the Dash Cam will function as a card reader for your PC. An extra drive will appear, e.g. Removable Disk (D:) and you will be able to view / manage the stored files upon the MicroSD card within the Dash Cam. Note: - The Dash Cam is a ‘read-only’ device, therefore uploading files to the SD card when in Mass Storage mode is not possible. Turn off the camera before disconnecting from your computer.Mass Storage (Mac)When this option is selected, the Dash Cam will function as a card reader for your MAC. The Dash Cam will be seen as an external disk upon your MAC and you will be able to view and/ormanage stored files.Note: - The Dash Cam is a ‘read-only’ device, therefore uploading files to the SD card when in Mass Storage mode is not possible. Turn off the camera before disconnecting from your computer.Power On (Windows & Mac)When this option is selected, the Dash Cam will power on with all functions available. This includes charging of the internal battery, a full charge will take approximately 2 hours.Note:- ALWAYS turn Off the Dash Cam before disconnecting from your computer.Update (Windows and Mac)When this option is selected, it is for use with the NEXTBASE Replay 3 Playback software in order toupdate the Firmware within the Dash Cam to the latest version.Please see details within the NEXTBASE Replay 3 Playback software for more information.36

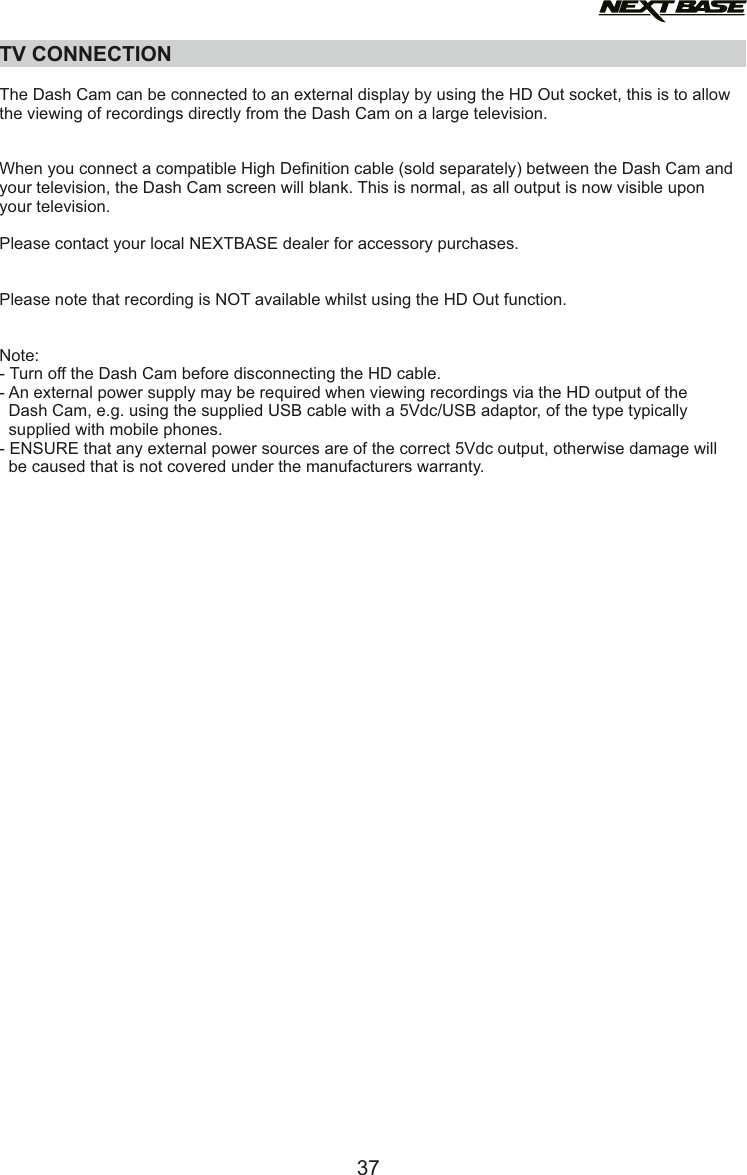

The Dash Cam can be connected to an external display by using the HD Out socket, this is to allowthe viewing of recordings directly from the Dash Cam on a large television.When you connect a compatible High Definition cable (sold separately) between the Dash Cam and your television, the Dash Cam screen will blank. This is normal, as all output is now visible upon your television. Please contact your local NEXTBASE dealer for accessory purchases.Please note that recording is NOT available whilst using the HD Out function.Note:- Turn off the Dash Cam before disconnecting the HD cable.- An external power supply may be required when viewing recordings via the HD output of the Dash Cam, e.g. using the supplied USB cable with a 5Vdc/USB adaptor, of the type typically supplied with mobile phones.- ENSURE that any external power sources are of the correct 5Vdc output, otherwise damage will be caused that is not covered under the manufacturers warranty.TV CONNECTION37

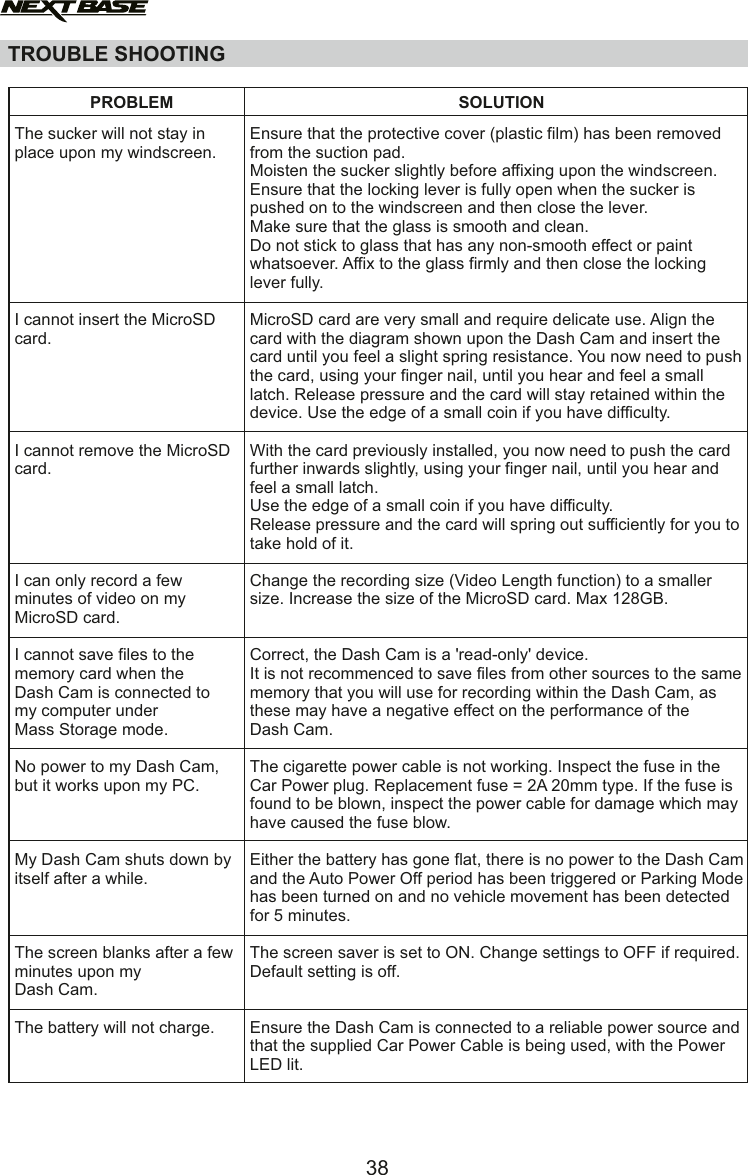

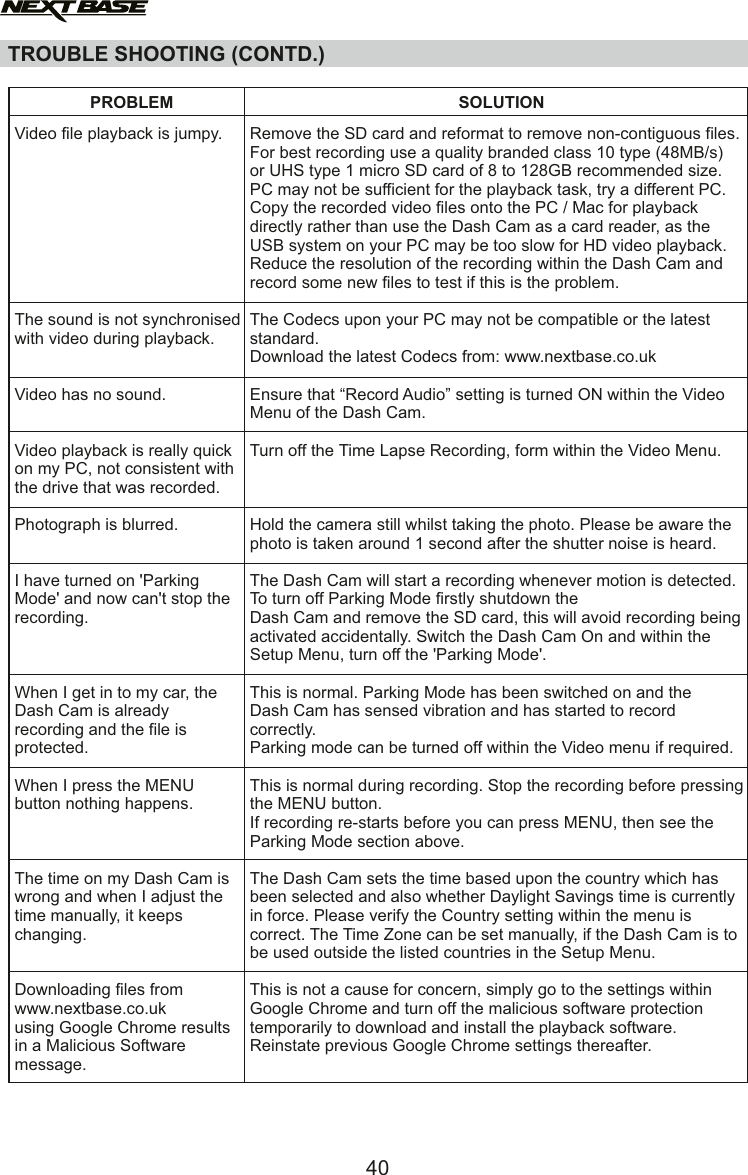

TROUBLE SHOOTINGThe sucker will not stay inplace upon my windscreen.I cannot insert the MicroSDcard.I cannot remove the MicroSDcard.I can only record a fewminutes of video on myMicroSD card.I cannot save files to thememory card when theDash Cam is connected tomy computer underMass Storage mode.No power to my Dash Cam,but it works upon my PC.My Dash Cam shuts down byitself after a while.The screen blanks after a fewminutes upon myDash Cam.The battery will not charge.Ensure that the protective cover (plastic film) has been removedfrom the suction pad.Moisten the sucker slightly before affixing upon the windscreen. Ensure that the locking lever is fully open when the sucker ispushed on to the windscreen and then close the lever.Make sure that the glass is smooth and clean. Do not stick to glass that has any non-smooth effect or paintwhatsoever. Affix to the glass firmly and then close the lockinglever fully.MicroSD card are very small and require delicate use. Align thecard with the diagram shown upon the Dash Cam and insert thecard until you feel a slight spring resistance. You now need to pushthe card, using your finger nail, until you hear and feel a small latch. Release pressure and the card will stay retained within the device. Use the edge of a small coin if you have difficulty.With the card previously installed, you now need to push the cardfurther inwards slightly, using your finger nail, until you hear andfeel a small latch.Use the edge of a small coin if you have difficulty.Release pressure and the card will spring out sufficiently for you totake hold of it.Change the recording size (Video Length function) to a smallersize. Increase the size of the MicroSD card. Max 128GB. Correct, the Dash Cam is a 'read-only' device.It is not recommenced to save files from other sources to the samememory that you will use for recording within the Dash Cam, asthese may have a negative effect on the performance of theDash Cam.The cigarette power cable is not working. Inspect the fuse in theCar Power plug. Replacement fuse = 2A 20mm type. If the fuse isfound to be blown, inspect the power cable for damage which mayhave caused the fuse blow.Either the battery has gone flat, there is no power to the Dash Camand the Auto Power Off period has been triggered or Parking Modehas been turned on and no vehicle movement has been detectedfor 5 minutes.The screen saver is set to ON. Change settings to OFF if required.Default setting is off.Ensure the Dash Cam is connected to a reliable power source andthat the supplied Car Power Cable is being used, with the PowerLED lit.PROBLEM SOLUTION38

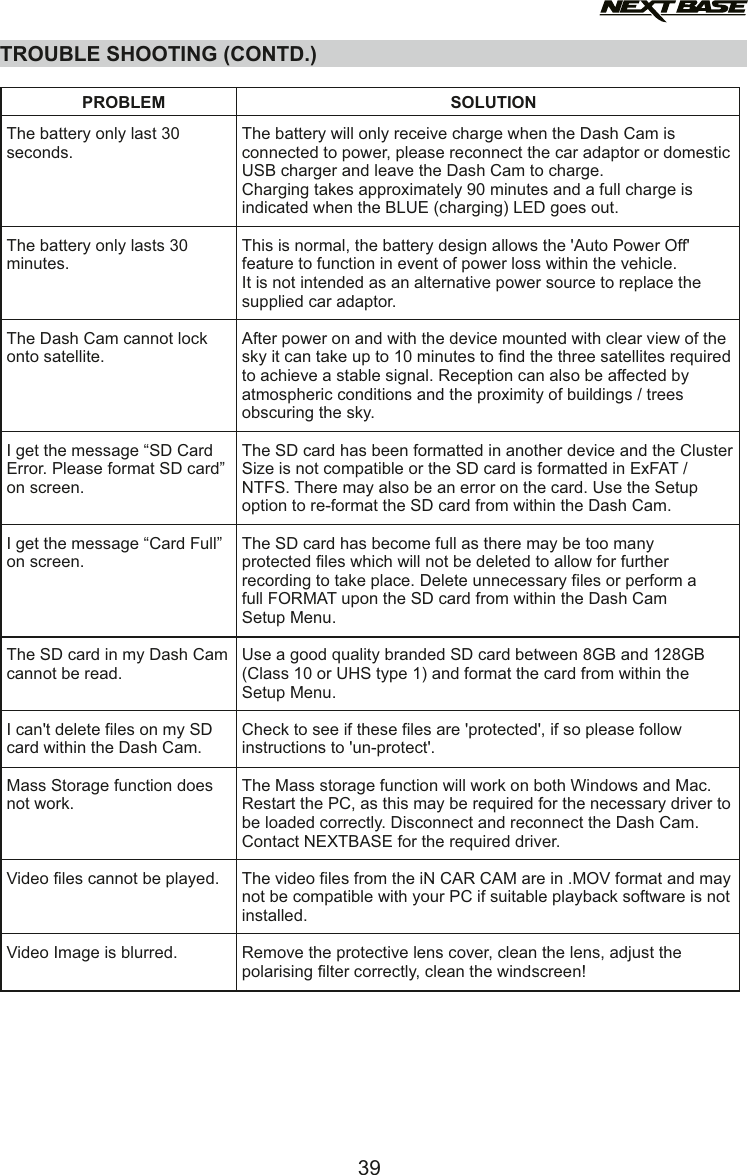

TROUBLE SHOOTING (CONTD.)The battery only last 30seconds.The battery only lasts 30minutes.The Dash Cam cannot lockonto satellite.I get the message “SD Card Error. Please format SD card” on screen.I get the message “Card Full”on screen.The SD card in my Dash Cam cannot be read.I can't delete files on my SDcard within the Dash Cam.Mass Storage function doesnot work.Video files cannot be played.Video Image is blurred.The battery will only receive charge when the Dash Cam isconnected to power, please reconnect the car adaptor or domesticUSB charger and leave the Dash Cam to charge.Charging takes approximately 90 minutes and a full charge isindicated when the BLUE (charging) LED goes out.This is normal, the battery design allows the 'Auto Power Off'feature to function in event of power loss within the vehicle.It is not intended as an alternative power source to replace thesupplied car adaptor.After power on and with the device mounted with clear view of thesky it can take up to 10 minutes to find the three satellites requiredto achieve a stable signal. Reception can also be affected byatmospheric conditions and the proximity of buildings / treesobscuring the sky.The SD card has been formatted in another device and the ClusterSize is not compatible or the SD card is formatted in ExFAT /NTFS. There may also be an error on the card. Use the Setupoption to re-format the SD card from within the Dash Cam.The SD card has become full as there may be too manyprotected files which will not be deleted to allow for furtherrecording to take place. Delete unnecessary files or perform afull FORMAT upon the SD card from within the Dash CamSetup Menu.Use a good quality branded SD card between 8GB and 128GB(Class 10 or UHS type 1) and format the card from within theSetup Menu.Check to see if these files are 'protected', if so please followinstructions to 'un-protect'.The Mass storage function will work on both Windows and Mac. Restart the PC, as this may be required for the necessary driver tobe loaded correctly. Disconnect and reconnect the Dash Cam.Contact NEXTBASE for the required driver.The video files from the iN CAR CAM are in .MOV format and maynot be compatible with your PC if suitable playback software is notinstalled.Remove the protective lens cover, clean the lens, adjust thepolarising filter correctly, clean the windscreen!PROBLEM SOLUTION39

TROUBLE SHOOTING (CONTD.)Video file playback is jumpy.The sound is not synchronisedwith video during playback.Video has no sound.Video playback is really quickon my PC, not consistent withthe drive that was recorded.Photograph is blurred.I have turned on 'ParkingMode' and now can't stop therecording.When I get in to my car, theDash Cam is alreadyrecording and the file is protected. When I press the MENUbutton nothing happens.The time on my Dash Cam iswrong and when I adjust thetime manually, it keepschanging.Downloading files fromwww.nextbase.co.ukusing Google Chrome results in a Malicious Softwaremessage.Remove the SD card and reformat to remove non-contiguous files.For best recording use a quality branded class 10 type (48MB/s)or UHS type 1 micro SD card of 8 to 128GB recommended size.PC may not be sufficient for the playback task, try a different PC.Copy the recorded video files onto the PC / Mac for playbackdirectly rather than use the Dash Cam as a card reader, as theUSB system on your PC may be too slow for HD video playback.Reduce the resolution of the recording within the Dash Cam andrecord some new files to test if this is the problem.The Codecs upon your PC may not be compatible or the lateststandard.Download the latest Codecs from: www.nextbase.co.uk Ensure that “Record Audio” setting is turned ON within the VideoMenu of the Dash Cam.Turn off the Time Lapse Recording, form within the Video Menu.Hold the camera still whilst taking the photo. Please be aware thephoto is taken around 1 second after the shutter noise is heard.The Dash Cam will start a recording whenever motion is detected. To turn off Parking Mode firstly shutdown theDash Cam and remove the SD card, this will avoid recording beingactivated accidentally. Switch the Dash Cam On and within theSetup Menu, turn off the 'Parking Mode'.This is normal. Parking Mode has been switched on and theDash Cam has sensed vibration and has started to recordcorrectly. Parking mode can be turned off within the Video menu if required.This is normal during recording. Stop the recording before pressingthe MENU button.If recording re-starts before you can press MENU, then see theParking Mode section above.The Dash Cam sets the time based upon the country which hasbeen selected and also whether Daylight Savings time is currently in force. Please verify the Country setting within the menu iscorrect. The Time Zone can be set manually, if the Dash Cam is tobe used outside the listed countries in the Setup Menu.This is not a cause for concern, simply go to the settings within Google Chrome and turn off the malicious software protection temporarily to download and install the playback software.Reinstate previous Google Chrome settings thereafter.PROBLEM SOLUTION40

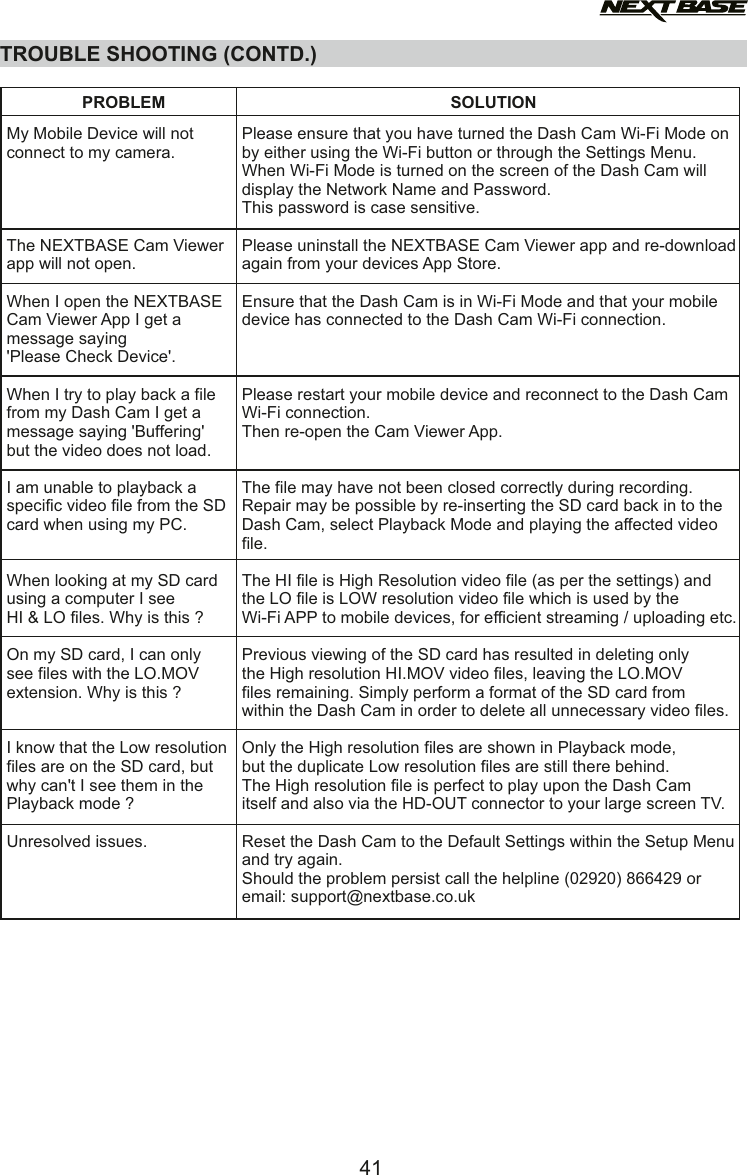

My Mobile Device will notconnect to my camera.The NEXTBASE Cam Viewerapp will not open.When I open the NEXTBASECam Viewer App I get amessage saying'Please Check Device'.When I try to play back a filefrom my Dash Cam I get amessage saying 'Buffering'but the video does not load.I am unable to playback a specific video file from the SD card when using my PC.When looking at my SD cardusing a computer I seeHI & LO files. Why is this ?On my SD card, I can onlysee files with the LO.MOVextension. Why is this ?I know that the Low resolutionfiles are on the SD card, butwhy can't I see them in thePlayback mode ?Unresolved issues.Please ensure that you have turned the Dash Cam Wi-Fi Mode onby either using the Wi-Fi button or through the Settings Menu.When Wi-Fi Mode is turned on the screen of the Dash Cam willdisplay the Network Name and Password.This password is case sensitive.Please uninstall the NEXTBASE Cam Viewer app and re-downloadagain from your devices App Store.Ensure that the Dash Cam is in Wi-Fi Mode and that your mobiledevice has connected to the Dash Cam Wi-Fi connection.Please restart your mobile device and reconnect to the Dash CamWi-Fi connection.Then re-open the Cam Viewer App.The file may have not been closed correctly during recording.Repair may be possible by re-inserting the SD card back in to theDash Cam, select Playback Mode and playing the affected videofile.The HI file is High Resolution video file (as per the settings) andthe LO file is LOW resolution video file which is used by theWi-Fi APP to mobile devices, for efficient streaming / uploading etc.Previous viewing of the SD card has resulted in deleting onlythe High resolution HI.MOV video files, leaving the LO.MOVfiles remaining. Simply perform a format of the SD card fromwithin the Dash Cam in order to delete all unnecessary video files.Only the High resolution files are shown in Playback mode,but the duplicate Low resolution files are still there behind.The High resolution file is perfect to play upon the Dash Camitself and also via the HD-OUT connector to your large screen TV.Reset the Dash Cam to the Default Settings within the Setup Menu and try again.Should the problem persist call the helpline (02920) 866429 or email: support@nextbase.co.uk PROBLEM SOLUTIONTROUBLE SHOOTING (CONTD.)41

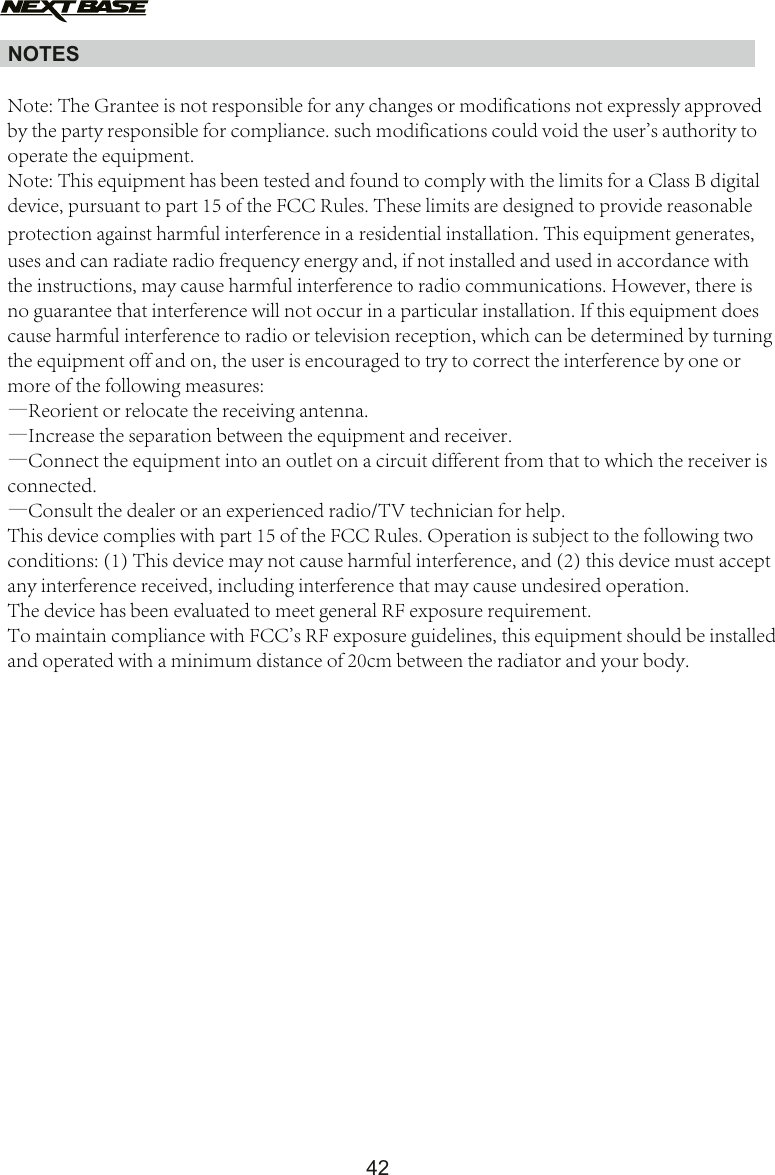

NOTES42Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
